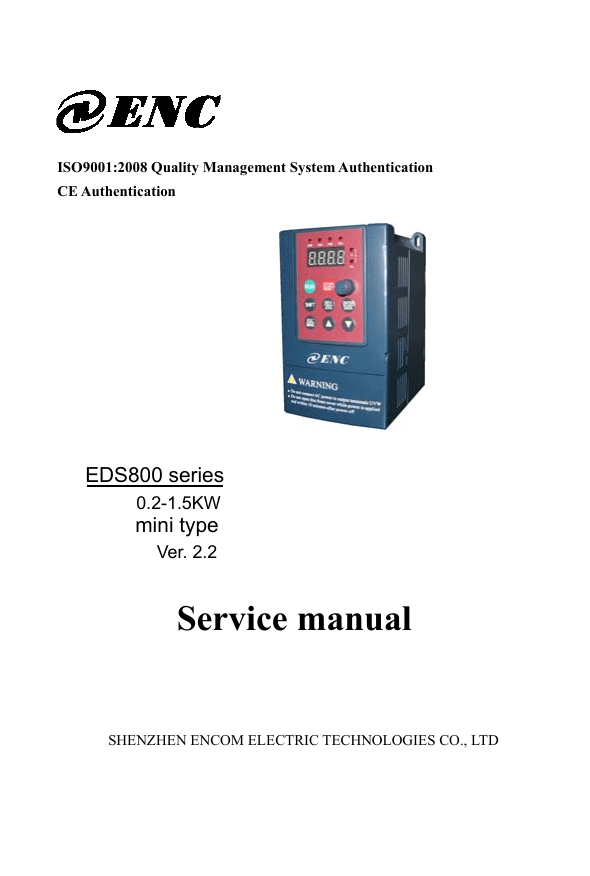

Service manual

ISO9001:2008 Quality Management System Authentication

CE Authentication

EDS800 series

0.2-1.5KW

mini type

Ver. 2.2

Service manual

SHENZHEN ENCOM ELECTRIC TECHNOLOGIES CO., LTD

Print version:V2.2-A9

Foreword

Encom products are designed and produced under ISO9001:2008 quality management system.

Thank you for purchasing EDS800 series mini universal inverter from

Shenzhen Encom Electric Technologies CO., LTD.

EDS800 series can fulfill all kinds of demand for general-purpose inverter by advanced control manner which make high torque, high precision and wide-range speed regulation drive be available. EDS800 is organic combine of customer’s general need and industrial requirement to provide practical PID adjuster, simple PLC, programmable input output terminal control, long-distance synchronous control, impulse frequency provision and other special inverter control with powerful function for customer and to provide highly-integrated incorporative solution of high value for reducing system cost and improving system reliability for device manufacturing and automatization engineering customers.

EDS800’s big torque low noise and low electromagnetic disturbance during operation can fulfill customer’s environmental protection requirement by space voltage vector PWM control technique and electromagnetic compatibility unitary design.

Assembling wiring, parameter setting, troubleshooting and daily maintenance notice are available in this manual. To make sure that you can correctly assemble and operate EDS800 series inverters to exert their excellent performance, please read this user manual detailedly before you assemble the device and conserve the manual appropriately before the end-user get them.

Please contact our office or dealer in all places at any moment if you have any doubts or special demands when using these inverters, and you can also contact our after service center in our headquarters directly. We will serve you with all our heart.

We reserve our right to notice you if we change contents of this manual.

Welcome to choose other inverters of our company:

EDS-V300 series sensorless current vector control inverter

EDS1000 series multi-function universal inverter

EDS2000 series high performance universal inverter

EDS2860 series special integrative inverter for injection

molding machine

EDS3000 series high performance closed loop vector control

inverter

1

Safety information and use notice points

1.1 safety precautions

1.2 use range

1.3 use notice points

1.4 scrap notice points

Contents

2 Type and specification of the inverter

2.2 type explanation

5

2.4 series type explanation

6

1

1

2

2

4

5

2.8 product technic index and spec

7

3.1 installation ambient

10

3.2.2 plastic cover disassembly

11

3.3 wiring notice points

11

3.6.1 location&function of terminal and jump-wire

14

3.6.3 analog input output terminal wiring

18

3.7.3 relation of long-distance wiring and current leak

and the countermeasure

3.7.4 installation demand for electromagnetic on-off electronic device

23

23

4.1 run of inverter

24

4.1.1 running order channels

24

4.1.3 work state

4.1.4 run mode

24

25

4.2.3 LED and indicator light

27

4.3.2 first electrification

5.2 function parameter schedule graph

6.2 start-up, stop, braking function parameter group:F1

6.4 closed-loop run control parameter: F3

33

35

56

67

6.8 frequency provision function parameter group: F7 92

6.12 code and manufacturer function parameter: FF

99

7.3 failure reset

8 Maintenance

8.4 storage

9 Examples

9.2 terminal control running

110

10 Serial port 485 communication protocol

10.1 summarization

10.2 protocol content and description

Appendix 1 Modbus communication protocol

Appendix 2 Braking resistance

114

114

114

125

132

EDS800 series Service Manual

1 Safety information and use notice points

In order to ensure the safety of your personal and equipment, before using the inverter, please read this chapter of contents conscientiously.

1.1 Safety precautions

There are three kinds of safe relevant warnings in this service manual, they are as follows:

!

This symbol explains items that need to be paid attention to when being operated.

!

note

This symbol is briefed on some useful information.

!

This symbol briefs on: If does not operate on request, may cause death, severely injured or serious property loss.

.

(1) Forbid to connect U, V, W output end to AC power supply, otherwise cause the complete damage of the inverter.

(2) Don't make P- and P + short-circuited, otherwise cause the inverter to be damaged.

(3) The inverter is forbidden to install on the flammables, otherwise have danger of fire.

(4) Don't install it in the environment with explosive gas, otherwise have danger of causing explosion.

(5) After connecting main loop, should carry on insulating treatment to bare wiring end, otherwise have danger of getting an electric shock.

(6) If being connected to the power supply, don't operate the inverter with moist hands, otherwise have danger of getting an electric shock.

(7) The ground terminal of the inverter must be grounded well.

(8) Inverter being connected to power supply, please don't open cover and carry on wiring, can connect the wire or check only after closing power for 10 minutes.

(9) Only qualified personnel may carry on wiring and forbid leaving over any conductive thing in machine, otherwise have danger of getting an electric shock or causing damage of the inverter.

(10) Inverter stored for over 2 years, should be stepped up gradually with voltage regulator first while having the electricity, otherwise have danger of getting electric shock and explosion.

1

EDS800 series Service Manual

!

(1) It is prohibited that connect AC220V signal to control ends except TA, TB, TC, otherwise have danger of damaging property.

(2) If the inverter is damaged or without all parts, please don't install and operate it, otherwise have danger of fire or cause personnel to be injured.

(3) When installing, should choose a place where can endure the inverter, otherwise have danger of injuring personnel or damaging property while falling down.

1.2 Use range

(1) This inverter is only suitable for three phases AC asynchronous motor in general industrial field.

(2) While applying inverter to such equipments that relate much to the life, great property, safety devices etc., must handle cautiously, and consult with producer, please.

(3) This inverter belongs to the control device of general industrial motor, if used in dangerous equipment, must consider the security safeguard procedures when the inverter breaks down.

1.3 Use notice points

(1) EDS800 series inverter is voltage-type inverter, so temperature, noise and vibration slightly increasing compared to power source running when using, belongs to normal phenomenon.

(2) If need to run for a long time with constant torque of low-speed, must select motor of frequency conversion for use. Use general asynchronous AC motor when running at a low speed, should control temperature of the motor or carry on heat dissipation measure forcedly, so as not to burn the generator.

(3) Such mechanical device needing lubricating as the gearbox and gear wheel, etc., after running at a low speed for a long time, may be damaged as lubrication result become poor, please take necessary measure in advance.

(4) When the motor running with frequency above specified, besides considering the vibration, noise increase of the motor, must also confirm speed range of the motor bearing and the mechanical device.

(5) For hoist and great inertia load, etc., the inverter would shut off frequently due to over-current or over-voltage failure, in order to guarantee normal work, should consider choosing proper brake package.

2

EDS800 series Service Manual

(6) Should switch on/off the inverter through terminal or other normal order channels. It is prohibited that switch on/off the inverter frequently by using strong electric switch such as magnetic control conductor, otherwise will cause the equipment to be damaged.

(7) If need to install such switch as the magnetic control conductor, etc. between inverter output and the motor, please guarantee the inverter is switched on/off without output, otherwise may damage the inverter.

(8) The inverter may meet with mechanical resonance of the load within certain range of frequency output, can set up jumping frequency to evade.

(9) Before using, should confirm the voltage of the power is within the working voltage range allowed, otherwise should vary voltage or order special inverter.

(10) In the condition of altitude above 1000 meters, should use the inverter in lower volume, reduce output current by 10% of specified current after each 1500 meters height increasing.

(11) Should make insulation check to the motor before using it for the first time or after a long time placement. Please inspect with 500V voltage-type megohm meter according to method shown as graph1-1 and insulation resistance should not be smaller than 5 MΩ, otherwise inverter may be damaged.

(12) To forbid assembling capacitor for improving power factor or lightningproof voltage-sensible resistance etc., otherwise will cause malfunction trip of the inverter or damage of the parts, shown as graph 1-2.

U V

W

EDS800

After wiring, short-circuit U, V, W to measure insulation resistance. motor

EDS800

U

V

W

M

Megohm meter

Grounding part

Fig.1-1 motor insulation measure Fig.1-2 capacitor at output side forbidden

3

EDS800 series Service Manual

1.4 Scrap notice points

When disposing scrap inverter and its parts, please note:

(1) The unit: please discard as industrial useless.

(2) Electrolytic capacitor: when burning the inverter electrolytic capacitor in it may explode.

(3) Plastic: when plastic, rubber parts etc. in the inverter are burning, they may bring bad, poisonous gas, so please be ready to safeguards.

4

EDS800 series Service Manual

2 Type and specification of the inverter

2.1 Incoming inverter inspect

(1) Check if there is damage during transportation and inverter itself has damage or fall-off parts.

(2) Check if parts presented in packing list are all ready.

(3) Please confirm rated data of the inverter is in line with your order requirement.

Our product is guaranteed by strict quality system during manufacturing, packing, transportation etc., please contact our company or local agent rapidly if some careless omission or mistake arise, we’ll deal with it as soon as possible.

2.2 Type explanation

EDS800– 4 T 0015 B

Inverter serial no

Volt. grade code

220V 2

380V 4

Input volt. Code

Single phase S

3 phase

T code

B

Fitting part built-in brake unit

C built-in brake unit

&brake resistance code

0002

0004

0007

0015

Motor power

(KW)

0.2

0.4

0.75

1.5

Fig. 2-1 type description

If the inverter hasn’t relevant content or can be defaulted, code after “/” will be ignored.

note

2.3 Nameplate explanation

Nameplate presented as figure 2-2 with type and rating data at the bottom of inverter right side.

Series No.

Type

Rated input volt. and frequency

Output apparent power

Serial No.

Manufacturer

Fig.2-2 Nameplate

5

EDS800 series Service Manual

2.4 Series type explanation

Table 2-1 series type explanation

Inverter type Rated power

(KVA)

Rated output current(A)

EDS800-2S0002 0.6

EDS800-2S0004 1.1

EDS800-2S0007 1.8

EDS800-2S0015 2.8

1.6

3

4.7

7.5

Adapted motor

(KW)

0.2

0.4

0.75

1.5

EDS800-4T0007 1.5 2.3 0.75

EDS800-4T0015 2.4 3.7 1.5

2.5 Appearance and parts name explanation

LED top cover keypad analog potentiometer terminal cover take this part off to connect brake resistance(options) control cable inlet vent power input and inverter output terminal

Fig. 2-3 Parts name sketch for EDS800

2.6 Outer size and gross weight

Fig.2-4 Outline Image

6

EDS800 series Service Manual

Table 2-2 EDS800-2S0002~EDS800-4T0015 mounting size

Inverter type

W

(mm)

H

(mm)

D

(mm)

D1

(mm)

A

(mm)

B

(mm)

Fixing aperture

(mm)

Gross weight

(kg)

EDS800-2S0002 1

EDS800-2S0004 1

EDS800-2S0007 1.1

85 141.5

112.5

126 74 136 5

EDS800-2S0015 1.2

EDS800-4T0007 1.1

EDS800-4T0015 1.1

2.7 Outer size of keypad and its fixing box (unit: mm)

Fig.2-5 outer size of keypad and outline of its fixing box

2.8 Product technic index and spec.

Input output item

Rating volt.,frequency

Item description

3 phase 380V, 50Hz/60Hz; single phase 220V, 50Hz/60Hz

Allowed work volt. range

3 phase voltage: 320V~460V; single phase voltage: 200V~260V

Voltage 380V grade: 0~380V; 220V grade: 0~220V

Frequency 0Hz-400Hz

Over loading capacity 150% of rating current for1 minute,200% of rating current for 0.5 second;

Control mode

Optimum space voltage vector SVPWM constant volt. Frequency ratio V/F control

Speed regulation range 1:100

Start-up torque 100% of rating torque at low frequency

7

EDS800 series Service Manual

Running speed stable state

≤±0.5% of rating synchronous speed precision

Frequency precision

Digital setting: max. frequency×±0.01%; analog setting: max.frequency×±0.5%

Analog setting 0.1% of max. frequency-+96

Frequency resolution

Digital setting 0.01Hz

Exterior pulse 0.5% of max. frequency

Torque boost

V/F curve (volt. frequency characteristic)

Automatic torque boost,manual torque boost 0.1%~20.0%

Set rating frequency randomly at range of 5~400Hz,can choose constant torque, degressive torque 1, degressive torque 2, degressive torque 3 in total

4 kinds of curve

Accelerating decelerating curve

2 modes: straight line accelerating decelerating and S curve accelerating decelerating; 7 kinds of accelerating decelerating time (unit minute/second can be optioned), max. time 6000 minutes. brake

Powerconsumption exterior brake resistance brake

DC brake

Optional start-up and stop,action frequency 0~15Hz,action volt. 0~15%, action time 0~20.0 s

Jog

Jog frequency range: 0.50Hz~50.00Hz; jog accelerating decelerating time

0.1~60.0s can be set

Multisection speed running Realized by interior PLC or control terminal

Interior PID controller Be convenient to make closed-loop system

Automatic energy save running

Optimize V/F curve automatically based on the load to realize power save running

Automatic volt. regulation

(AVR)

Can keep constant output volt. When power source voltage varies.

Automatic current limiting

Limit running current automatically to avoid frequent over-current which will cause trip

Running order specified channel

Key pad specified, control terminal specified, serial port specified

Running frequency specified channel pulse output channel

Analog output channel

LED display

Digital provision, analog provision, impulse provision, serial port provision, combined provision,can be switched at any time by kinds of method

Impulse square wave signal output of 0~20KHz,can realize output of physical parameter such as setting frequency, output frequency etc.

1 channel of analog signal output,AO channel can be 4~20mA or 0~10V; through it the inverter can realize output of physical parameter such as setting frequency, output frequency etc.

Can display setting frequency, output frequency, output voltage, output current etc. in total 14 kinds of parameter

Lock the button Lock all or part of the buttons(analog potentiometer can’t be locked)

8

Protection function

Fitting parts

Use ambient

EDS800 series Service Manual

Over-current protection, over-voltage protection, lack-voltage protection, over-heat protection, over-load protection, missing phase protection (in option)etc. brake subassembly, remote-control keypad, connecting cable for remote-control keypad etc. indoor,not bare to sunlight,no dust, no corrosive gas, no flammable gas, no oil fog, no vapor, no water drop or salt etc.

Ambient temperature

-10ºC~+40ºC(under ambient temperature 40ºC ~50ºC, please reduce the volume or strengthen heat sink)

Ambient humidity Smaller than 95%RH, no condensation water

Storage temperature

Defending grade

-40ºC~+70ºC

IP20

Configuration

Cooling mode By fan with automatic temperature control

!

Mounting mode Wall hanging

note

To exert excellent performance of this inverter, please choose correct type and check relevant content according to this chapter before wiring for use.

Must choose correct type, otherwise may cause abnormal running of the motor or damage

9

EDS800 series Service Manual

3 Installation and wiring

3.1 Installation ambient

3.1.1 Demand for installation ambient

(1) Installed in drafty indoor place,ambient temperature within -10ºC~40ºC,need external compulsory heat sink or reduce the volume if temperature exceeds40ºC.

(2) Avoid installing in place with direct sunlight, much dust, floating fibre and metal powder.

(3) Forbid to install in place with corrosive, explosible gas.

(4) Humidity should be smaller than 95%RH,without condensation water.

(5) Installed in place of plane fixing vibration smaller than 5.9m/s²(0.6g).

(6) Keep away from electromagnetic disturbance source and other electronic apparatus sensible to electromagnetic disturbance.

3.1.2 Installation direction and space

(1) Normally the inverter should be mounted vertically, horizontal mounting will seriously affect heat dissipation and the inverter must be used in lower volume.

(2) Demand for minimum mounting space and distance,please see Fig.3-1.

(3) When install multiple inverters up and down, must apply leading divider between them, see fig. 3-2.

Fan exhaust

100 mm or more

50mm mm or more

50mm mm or more

Leading divider

100mm or more

Fig. 3-1 mounting space Fig. 3-2 mounting of multiple inverters

3.2 Parts disassembly and installation

3.2.1 Key board disassembly and installation

(1) disassembly

Let the forefinger press finger inlet on the keypad,depress fixing flexible plate on the top lightly, draw it outward, then you can disassemble the keypad.

(2) assembly

10

EDS800 series Service Manual

!

First place the fixing hook at the bottom of keypad onto mounting claw on keypad mounting hole, let forefinger press fixing flexible plate on top of keypad and then push it inside, release it in proper location(after a crisp sound).

!

3.2.2 Plastic cover disassembly

Put the finger into handle hole on the bottom of cover, lift it, then you can disassemble the cover.

3.3 wiring notice points

(1)Assure power cuf off completely for above 10 minutes before wiring, otherwise have danger of getting electric shock.

(2)Forbid connecting power wire to output U, V, W of the inverter.

(3)There is current leakage in the inverter and leak current of middle/high power inverter is bigger than 5mA, for safety reason,inverter and motor must be earthed safely, commonly use 3.5mm² above copper wire as ground wire and ground resistance smaller than 10Ω.

(4)Before shipment compression resistance test of the inverter is passed,so user should not conduct compression resistance test again.

(5)Should not assemble electromagnetic contactor and absorbing capacitance or other absorbing device, see Fig.3-3.

(6)To be convenient to over current protect of input side and power off maintenance inverter should be connected to power supply through relay.

(7)Connecting wire for relay input and output loop(X1~X8, OC1~OC4, FWD, REV), should use above

0.75mm² glued wire or shielding wire,one shielding layer end hung in the air, the other connected to grounding end PE or E, connecting wire shorter than 20m.

(1)Before wiring, assure power supply is cut off completely for 10 minutes and all LED indicator ligh extinguished.

(2)Before internal wiring, confirm that DC volt. Between main loop end P+ and P- fall down to below DC36V.

(3)Wiring can only be done by professional person trained and qualified.

(4)Before electrification, check if voltage grade of the inverter is in line with that of power supply volt., otherwise will cause personnel injured and device damaged.

Inverter

U

V

W

M

Fig.3-3 banned magnetic control conductor and absorbing capacitance between

inverter and motor

11

EDS800 series Service Manual

3.4 Main loop terminal wiring

Power supply

3 phase breaker

EDS800

L1

L2

L3

U

V M

W

PE

Fig.3-4 main loop simple wiring

3.4.1 Connection between inverter and fitting parts

(1) Must assemble disjunction device such as isolation switch etc. between powersource and the inverter to assure personal safety when repairing the inverter and needing compulsory power off.

(2) Power supply loop must have breaker or fuse with over current protection function to

L1

L2

L3

N avoid malfunction expanding caused by failure of after device.

(3) AC input reactor

Isolation switch

Breaker or fuse

If high-order harmonics between inverter and

Power supply is biggish which can’t fulfil system requirement, or need to improve input

AC input reactor(in option) side power factor, AC input reactor is needed.

(4) Magnetic control conductor only be applied to power supply control and don’t apply magnetic control conductor to controlling on/off of the inverter.

(5) Input side EMI filter

Can use EMI filter to inhibit high-frequency

Magnetic control conductor

L1 L2 L3

Input EMI filter(in option) conduction disturbance and emission disturbance from inverter power supply wire.

(6) Output side EMI filter

Can use EMI filter to inhibit emission disturbance

EDS800

PE

U V W

Brake unit

(in option)

Braking resistor

Output EMI filter (in option) noise and wire leakage current from output side.

(7) AC output reactor

Advise assembling AC outputreactor to avoid

AC ouput reactor(in option)

M motor insulation damage, too large over current

Fig.3-5 connection of inverter and fitting parts and inverter frequent protection when connecting wire from inverter to motor

12

EDS800 series Service Manual exceeds 50m.But voltage drop of AC output reactor must be considered. Improve input output voltage of the inverter or let the motor in lower volume to avoid burning off the motor.

(8) Complete ground wire

Inverter and motor must be earthed and grounding resistor smaller than

10Ω.Grounding wire should be shorter enough and wire diameter be bigger enough(not smaller than 3.5mm²):

3.4.2 Main loop terminal wiring

For main loop input output terminal, see table 3-1.

Table 3-1 main loop input output terminal description

Adapted type

EDS800-2S0002 ~

EDS800-2S0015

EDS800-4T0007

EDS800-4T0015

Main loop terminal

L1 L2

E

L1 L2 L3 E

U V W

U V W

End name

L1

L2

E

U,V,W

L1,L2,L3

E

U,V,W

Function description

Zero wire live wire

Grounding terminal

3 phase AC output end

3 phase AC intput end

Grounding terminal

3 phase AC output end

13

EDS800 series Service Manual

3.5 Basic running wiring diagram

breaker power supply

② Notice2 forward run/stop reverse run/stop multi-function 1

multi-function 2

multi-function 3

multi-function 4 multi-function 5

Notice 1 speed command

0~10V

0~10V or 4~20mA

L1

L2

L3

+10V

FWD

REV

P+

H

JP3

L

PB

EDS800

Braking unit (external,fitting part, interface at the right side of inverter )

U

V

W

E

GND

M

X1

X2

X3

X4

X5 multi-function5 canbe used for high speed pulse input

COM

AO

DO

COM

DC amperometer

4-20mA current signal or 0~10v voltage signal

Cymometer

Output 12V impulse signal

OC open circuit collector output

OCG

Maximum 220VAC, 0.5A

+10V

VCI

CCI

GND

485A

485B

TA

TB

TC

Malfunction relay output

Standard RS485 communication port

Fig. 3-6 basic wiring diagram

Notice1:When FWD,RWV,X1~X5 terminal imput signal need low level(or pup joint with COM) is effective. Please put JP3 on “L”.

Notice2:When FWD,REV,X1~X4 terminal imput signal need high level(or pup joint with +10v) is effective. Please put JP3 on “H”.

3.6 Control loop collocation and wiring

3.6.1 Location&function of terminal and jump-wire:

For location of terminal and switch on the CPU board, please see Fig.3-7.

Function description of terminal provided for the user, please see Table 3-2, function and setup description of switch, please see Table 3-3,terminal CN1 is for manufacturer’s use. Should carry on terminal wiring correctly and set switch on the

CPU board before using the inverter,to use at least No.24 conducting wire as terminal connecting wire is recommended.

14

EDS800 series Service Manual

Fig. 3-7 switch on CPU board

Table 3-2 function description of terminal provided for user

symbol function

CON2

Malfunction relay signal output

CON3

External terminal input output control

Description

Always-open connect pin of the relay closed when malfunction in inverter occurs

Use this port when external terminal control inverter running

Table 3-3 function description of switch provided for user

symbol

JP1 function

Analog AO output,0~10v exchange with 4~20mA

When be put on “V”side,for 0~10v output;when be put on”I”,for 4~20mA output

JP2

Analog CCI input,0~10V exchange with 4~20mA.

When be put on “V”side,for 0~10V input;when be put on

“ I”side.for 4~20mA input. factory default

0~10V

0~10V

JP3

Xi terminal iinput effective level exchange:when put on”H”side,Xi input high level effective(the effective voltage is 5~12V);When put on “L”side. Xi input low level effective(the effective voltage is 0~6V)

Low level effective

15

EDS800 series Service Manual

3.6.2 Explanation for control CPU board

(1) control loop terminal CON3 arranged as follows:

485A X1 X2

X3 X4

X5 COM FWD REV

485B +10V VCI CCI

AO

GND DO

OC

OCG

(2) CN2 terminal function description as Table 3-4.

Table 3-4 CPU board CN2 terminal function table

item symbol name Function description Spec.

FWD

REV

X1

X2

X3

X4

Forward run command

Reverse run command

Multi-function input 1

Forward reverse run command, see

Input impedance: R=2KΩ

Max. input frequency: 200Hz

F5.08 group double-wire and three-wire control function description

X5 can be pule input terminal

Max. output Freq.: 50KHz

Input voltage range: 12~15V

Multi-function input 2

Used for multi-function input terminal, for detailed see Chapter 6

Multi-function input 3 Section 6.6 terminal function parameter(F5 group)input end

Multi-function input 4 function description.

Multi-function input 5 X5

+10V +10V power supply

COM

GND

Provide +10V power supply.

(negative pole: GND)

Common end+12V power supply negative pole

12V grounds

+10V power supply negative pole

Reference ground of analog signal and +10V power supply

Max. output current: 10mA

CCI

VCI

Analog value input

CCI

Analog value input

VCI voltage, current optioned by JP2, factory default is voltage.

(reference ground: GND)

Accept analog voltage input

Input voltage range: 0~10V

(input impedance: 70KΩ)

Input current range: 4~20mA

(input impedance: 250Ω)

Resolution: 1/1000

Input voltage range:

0~10V (input impedance: 70KΩ) resolution: 1/1000

16

EDS800 series Service Manual

Provide analog voltage/current output,can express 6 kinds of

AO

OC

DO

Analog value output

Relay output terminal

H-speed impulse output terminal description,output voltage/current optioned by JP1,factory default voltage output range: 0~10V output voltage.

(reference ground: GND)

Used for multi-function switch output terminal, for detailed see

Chapter 6 Section 6.6 terminal function parameter (F5 group)

Work voltage range:0~220V

Max. output current:500mA

For use method please see description of parameter F5.10 output end function description.

(common end: OCG)

Used for multi-function impulse signal output terminal, for detailed see

Chapter 6 Section 6.6 terminal function parameter(F5 group) output end function description. (common end: COM)

Output impulse voltage: 12V

Output frequency range: depending on parameter

F5.24, max.20KHz

(4) RS485 terminal function description as table 3-5

Table 3-5 CPU board RS485 terminal function table

item communication symbol

485A

485B name Function description

485 communication interface

485 difference signal positive end

485 difference signal negative end spec

For standard 485 communication interface please use twisted-pair or

STP

(5) control terminal CON2,arranged as follows:

TA TB

TC

(6) CON2 terminal function description as Table 3-6.

Table 3-6 CPU board CON2 terminal function

Item symbol name Function description

Relay output terminal

TA

TB

TC

Inverter malfunction output relay

Normal: TB-TC closed, TA-TC open

Malfunction: TB-TC open,

TA-TC closed

Spec

TB-TC: always-closed,

TA-TC: always-open contact capacity:

AC250V/2A (COSΦ=1)

AC250V/1A (COSΦ=0.4)

DC30V/1A

17

EDS800 series Service Manual

3.6.3 Analog input output terminal wiring

(1) VCI terminal accepts analog voltage signal input,wiring as follow:

+

0~+10V

Shielded wire close end grounded

+10V

VCI

EDS800

GND

PE

Fig.3-8 VCI terminal wiring diagram

(2) CCI terminal accepts analog signal input, input voltage(0~10V) or input current(4~20mA),wiring mode as follows:

+10V

+

+

0~+10V

CCI

EDS800

GND

PE

Fig.3-9 CCI terminal wiring diagram

(3) wiring of analog output terminals AO

Analog output terminals AO connected to analog meter and kinds of physical data can be indicated, terminal wiring mode as Fig.3-10.

Analog meter

AO

EDS800

GND

Fig.3-10 analog output terminal wiring note

(1) When inputing anglog signal,can connect filter capacitor or common module inductance between VCI and GND or between CCI and GND .

(2) Analog input, output signal is easy to be disturbed,so must use shielded cable when wiring and well grounded, wiring length should be as short as possible.

18

EDS800 series Service Manual

3.6.4 Communication terminal wiring

EDS800 inverter provides 485 serial communication interface for the user.

Following wiring methods make single-main single-sub control system or single-main multi-sub control system possible. Using upper machine(PC or PLC controller)software can realize real time supervision to inverter in the industrial control system so that realize complicated run control such as long-distance control, high automatization etc; you can also take one inverter as mainframe and the others as submachine to form cascade or synchronous control network.

(1) When inverter 485 interface connected to other devices with 485 interface, you can connect wire as below figure.

EDS800

(485A)

(485A)

Device with

485 interface

(485B)

485

(E)PE

(485B)

Fig.3-11 communication terminal wiring

(2) To connect remote control keypad, you can connect plug of remote control keypad to RS485 directly. No need to set any parameter,inverter local keypad and remote control keypad can work at one time.

(3) Connection between inverter RS485 interface and upper machine(with RS232 interface):

RS232/RS485 converter

Shielded cable terminal name power supply +5V sending TXD

PE shell

RXD 2 receiving RXD grounding GND

TXD 3

GND 5

DTR 4 terminal name

Negative end B

Positive end A name terminal

DSR 6

RI 9

CD 1

RTS 7

CTS 8

Fig. 3-12 RS485 communication wiring

(4)Multiple inverters can be connected together per RS485 and 31pcs inverter can be connected together at most. Communication system is more prone to disturbance as

19

EDS800 series Service Manual connected inverters increasing, following wiring is recommended:

EDS800

CPU board

EDS800

CPU board

EDS800

CPU board

Mainframe

Submachine

Submachine

485A 485B

PE

485A 485B

PE

485A 485B

PE

Fig. 3-13 recommended wiring for multiple inverters communication (all inverters and motors well earthed)

Normal communication still not available if using above wiring, can try to take following measure:

1> Provide separate power supply for PLC (or upper machine) or isolate its power supply.

2> Apply magnetic circle on the communication wire.

3> Reduce inverter carrier wave frequency properly.

note

(1) When form the network only by inverters, you must set local address parameter F2.15 of the mainframe EDS800 to 0.

(2) For programming of RS485 interface,please refer to appendix communication protocol.

3.7 Installation guide for anti-jamming

Main circuit of the inverter is composed of high-power semiconductor switch gear, so some electromagnetic noise will arise during work,to reduce or stop disturbance to environment,show you assembling method of inverter disturbance suppressing from many aspects such as disturbance suppressing, spot wiring, system grounding, leak current, usage of power supply filter etc. in this section to be referred to during spot assembling.

3.7.1 Restraining to noise disturbance

Disturbance brought by the working inverter may affect nearby electronic device, effect degree relates to surrounding electromagnetic environment of the inverter and anti-disturbance capacity of this device.

(1) type of disturbance noise

According to work principle of the inverter, there are mainly 3 kinds of noise disturbance source:

1> circuit conduction disturbance;

2> space emission disturbance;

20

EDS800 series Service Manual

3> electromagnetic induction disturbance; disturbance conduction disturbance space emission disturbance

Leak current grounding loop disturbance

Road①

Power supply wire high-order harmonic current disturbance

Road②

Emission disturbance of

Inverter main loop switch

And switching power

Road③

Emission

Input wire induction disturbance from motor wire U, V, W

Road④ electromagnetic induction disturbance

Road⑥ wire R, S, T

Road⑤

Inverter power parts induction from power supply

Road⑦

Emission disturbance

Output wire induction

Road⑧

Fig.3-14 type of noise disturbance

(2) noise spread road

TV

Power supply

⑥ inverter

Wireless set meter sensor

⑦ motor

Fig.3-15 noise disturbance spread road sketch

(3) basic countermeasure for suppressing disturbance

Table 3-7 disturbance suppressing countermeasure table

Noise spread road

Countermeasure of weakening effect

21

EDS800 series Service Manual

③④⑤

⑥⑦⑧

When grounding wire of peripheral device and wiring of the inverter compose closed-loop, inverter grounding wire leakage current would make the device do wrong action. Can reduce wrong action if the device is not earthed here.

High-order harmonic from the inverter would make voltage and current transmit through power supply wire when peripheral device and the inverter electrified by same power supply, would disturb other devices in this same power supply system,can take following suppressing measure: assemble electromagnetic noise filter at inverter input end;isolate other devices by isolation transformer; connect power supply for peripheral device with remote power source; install ferrite filter magnetic circle for L1, L2, L3 three-phase conducting wire of the inverter to suppress conduction of high-frequency harmonic current.

Keep device and signal wire prone to disturbance from the inverter. Should use shielded signal wire, shielding layer single end earthed and try best to keep away from the inverter and its input, output wire. If signal wire must intersect strong power cable, must keep them in real intersection and avoid parallel.

Install high-frequency noise filter(ferrite common module choke, folksay magnetic circle) separately at input, output root,which can effectively suppress emission disturbance from dynamic wire.

Should place motor cable shield of biggish thickness, for instance set it in tube with biggish thickness (above 2mm) or bury it in cement slot. Dynamic wire set into metal tube and use shielding wire to be grounded (use 4-core motor cable, one side is earthed through the inverter, the other side connected to motor shell).

To prevent parallel or bundled power and weak conducting wire;should keep away from inverter mounted device to the best and its wiring should keep away from power wire of the inverter such as

L1, L2, L3, U, V, W etc.. Should pay attention to relative mounting place between device with strong electric field or strong magnetic field and the inverter, should keep distance and vertical intersection.

3.7.2 Local wiring and earthing

(1) Avoid parallel cable from inverter to motor (U, V, W terminal education wire) and power supply wire (L1, L2, L3 terminal input wire). Should keep distance of 30cm above.

(2) Try your best to place motor table from U, V, W terminals in metal tube or metal wiring slot.

Power supply wire or motor cable

(3) Should use shielded cable as common control signal cable,shielding layerclose-to–inverter side

Control signal cable earthed after connected with PE terminal of inverter.

Fig.3-16 system wiring demand

(4) Cable educed from inverter PE terminal must be connected directly to earth-plate and can’t be connected to ground through grounding wire of other devices.

(5) Powerful cable(L1, L2, L3, U, V, W)should not parallel control signal cable closely, say nothing of being bundled together, must keep distance of 20~60cm

22

EDS800 series Service Manual above (related to size of powerful current). Should cross each other vertically if intersection, as Fig.3-16.

(6) Powerful grounding wire must be connected to earth separately from weak grounding cable such as control signal and sensor cable etc.

(7) Forbid to connect other electricity consumption device to inverter power supply input end(L1,

L2, L3).

3.7.3 Relation of long-distance wiring and current leak and the countermeasure

High-order harmonic will form between-line leak current through distributing capacitor and to-earth leak current when long-distance wiring between inverter and motor commence. Can adopt following method to suppress:

(1) install ferrite magnetic circle or output reactor at inverter output side.

!

End voltage of the motor will be reduced markedly when installing reactor of 5% above rated voltage dropn and make long-distance wiring to U, V, W. Fully loaded motor have the danger of burning itself,should work in lower volume or step up its input output voltage.

(2) Reduce carrier wave frequency but motor noise would increase accordingly.

3.7.4 Installation demand for electromagnetic on-off electronic device

Relay,magnetic control conductor and electromagnetic iron and so on, these electromagnetic on-off electronic device would bring lots of noise during work, so you should pay full attention to when installing them beside the inverter or in the same control chamber with the inverter and must install surge absorbing device as shown in Fig. 3-17. diode

+

220V

DC

Voltage-sensible resistor

_

Inverter or other electric apparatus

220V

AC

RC-filter

220V

AC

Fig.3-17 installation demand for electromagnetic on-off device

23

EDS800 series Service Manual

4

Run and operation explanation for inverter

4.1 Run of inverter

4.1.1 Running order channels

There are 3 kinds of order channel for controlling run action of the inverter such as run, stop, jog etc.:

0: keypad

1: control terminal

Use control terminal FWD, REV, COM to make of double-line control,or use one terminal of X1~X5 and FWD or REV to make of three-line control.

2: serial port

Control run and stop of the inverter through upper machine or other device which can communicate with the inverter.

Choose order channel by setting function code F0.02;and also can choose by multi-function input terminal(F5.00~F5.07 choose function 29, 30, 31).

!

Please make switching debugging in advance when switch the order channel to check if it can fulfil system requirement,otherwise have danger of damaging device and injuring personal.

4.1.2 Frequency-provision channel

Under EDS800 common run mode there are 9 kinds of provision channel:

0: keypad analog potentiometer provision

1: direct digital frequency provision

2: terminal UP/DOWN provision(store after power-off or stop)

3: serial port provision

4: analog value VCI provision

5: analog value CCI provision

6: reserved

7: terminal pulse(PULSE) provision

8: combination set;

9: terminal UP/DOWN provision(not store after power-off or stop)

4.1.3 Work state

Work state of EDS800 is classified as waiting state and running state: waiting state: If there is no running command after the inverter electrified or after stop command during running state, the inverter enters into waiting state. running state: the inverter enters into running state after receiving run command.

24

EDS800 series Service Manual

4.1.4 Run mode

EDS800 inverter have 6 kinds of run mode,following is in turn according to their priority: jog run→closed-loop run→PLC run→multisection speed run→ traverse run→common run. Shown as Fig.4-1. electrification waiting state

Y

Any jog command? Jog run high priority

N

N

Run command effective? low priority

Y

Y

Closed-loop effective?

N

Y

Y

PLC effective?

Y

N multisection end effective?

Y closed-loop invalidation end closed?

PLC invalidation end closed?

N

N closed-loop run

PLC run multisection run

N traverse run?

Y traverse

run

N common run

Fig.4-1 logic flow chart of EDS800 inverter run state

0: jog run

during waiting state, the inverter run at jog frequency (see function code F2.06~F2.08).

1: closed-loop run

The inverter will come into closed-loop run mode when closed –loop run control effective parameter is set(F3.00=1). Namely carry on PID adjustment to specified value and feedback value(proportion integral differential calculation, see

F3 group function code) and PID adjustor output is inverter output frequency. Can make closed-loop run mode ineffective and switch to lower level run mode by multi-function terminal (function 20).

25

EDS800 series Service Manual

2: PLC run

The inverter will enter into PLC run mode and run according to run mode preset(see F4 group function code description) through setting PLC function effective parameter(F4.00 last bit≠0). Can make PLC run mode ineffective and switch to lower level run mode by multi-function terminal (function 21).

3: multi-section speed run

By nonzero combination of multi-function terminal(1, 2, 3, 4 function),choose multisection frequency 1~15(F2.30~F2.44) to run at multisection speed.

4: traverse run

The inverter will enter into traverse run mode when traverse function effective parameter(F6.00=1)is set. Set relevant traverse run special parameter according to textile traverse craft to realize traverse run.

5: common run

Common open loop run mode of general inverter.

In above 6 kinds of run mode except “jog run” the inverter can run according to kinds of frequency setting method. In“PID run”“PLC run”“multisection run”“common run”mode the inverter can also carry on pendular frequency adjustment.

4.2 Operation and use of key board

4.2.1 Keypad layout

Keypad is main unit for receiving command, displaying parameter. Outer dimension of EN-KB6 is as Fig.4-2:

Failure alarm indicator light

Mode indicator light

Digital display (LED)

Forward run indicator light

Reverse run indicator light

Current unit(A)

Voltage unit(V)

Frequency unit(Hz)

Stop, reset key

Run key Analog potentiometer supervision key

Function, data key

Rev/Jog key

Program, exit key

Data modification key

Fig.4-2 keypad layout sketch(EN-KB5)

4.2.2 Keypad function description

There are 8 key-presses and one adjusting button for analog potentiometer on inverter Keypad and function definition of each key is as shown in table 4-1.

26

EDS800 series Service Manual

Table

key

ESC

MENU name program/exit key

Function description

Enter into or exit programming state

SHIFT

ENTER

DATA

REV

JOG shift/supervision key function/data key

Can choose modification digit of set data under editor state;can switch display status supervision parameter under other state.

Enter into the next menu or data confirmation

Rev/Jog key

Under keypad mode, to press this key can set reverse run or Jog run according to the 2 nd

bit of parameter F0.03

RUN

Run key Enter into reverse run under keypad mode

STOP

RESET

Stop/reset key

Analog potentiometer

Increasing button

Decreasing button

In common run status the inverter will be stopped according to set mode after pressing this key if run command channel is set as keypad stop effective mode.

The inverter will be reset and resume normal stop status after pressing this key when the inverter is in malfunction status.

Be used to set frequency; when F0.00=0 value set by analog potentiometer is frequency provision

To increase data or function code (to press it continuously can improve increasing speed)

To decrease data or function code (to press it continuously can improve decreasing speed)

4.2.3 LED and indicator light

4 status indicator light: they are MOD(mode), ALM(alarm), FWD(forward run), REV(reverse run)from left to right on the LED, their respective indicating meaning is as shown in table 4-2.

Table 4-2 status indicator light description

item Function description

Digital display

A,Hz,V

MOD

Display current run status parameter and set parameter unit for relevant current digital displayed physical parameter(for current is

A, for voltage is V,for frequency is Hz)

This indicator light is lit in nonsupervision status and extinguished if no key pressed for a minute, then come back to

ALM

FWD

Alarm indicator light, indicate that the inverter is in over current or over voltage suppressing status or failure alarm status

Forward run indicator light,indicate that the inverter output forward phase order and the

The inverter work in DC brake status if FWD, REV indicator light is lit at the same time connected motor rotate in forward direction

27

EDS800 series Service Manual

REV reverse run indicator light, indicate that the inverter output reversephase order and the connected motor rotate in reverse direction

4.2.4 Key board display status

EDS800 keypad display status is classified as waiting status parameter display, function code parameter editing status display, malfunction alarm status display, run status parameter display in total 4 kinds of status. LED indicator light will all be lit after the set frequency display. As shown in Fig.4-3 a.

(1) waiting parameter display status

The inverter is in waiting status and waiting status supervision parameter is displayed on keyboard, normally parameter F3.28 decide which status supervision parameter to be displayed. As shown in Fig.4-3 b,the unit is indicated by rightward unit indicator light. parameter circularly(display 15 kinds of supervision parameter of C group acquiescently,whether the last 7 kinds of supervision parameter are displayed is difined by function code F2.11,F2.12, for detail please see C group status supervision parameter in function parameter schedule graph of chapter 5).

(2) run parameter display status

The inverter enters into run status when receiving effective run command and normally parameter F3.28 decide which status supervision parameter to be displayed on the keypad. As shown in Fig.4-3 c,unit is displayed by rightward unit indicator light. switch to initial supervision parameter decided by F3.28, otherwise will display the last displayed parameter all along.

28

EDS800 series Service Manual electrification, waiting status,

Fig.a display-EN-

Fig.b display waiting status parameter

Fig.c run status, display run status parameter

Fig.4-3 inverter electrification, waiting, run status display

(3) Failure alarm display status

The inverter enters into failure alarm display status upon detecting failure signal and display failure code sparklingly

(as shown in Fig.4-4); over current in

accelerating stopping running;Can press key to enter into

Fig.4-4 failure alarm

program status to see about Fd group parameter if want to search failure information. communication command on the keypad after troubleshooting. Keep displaying failure code if failure exist continuously.

!

For some serious failure,such as inverse module protect,over current, over voltage etc., must not carry on failure reset forcibly to make the inverter run again without failure elimination confirmed. Otherwise have danger of damaging the inverter!

(4) function code editing status

editing status(If user password is set,can enter into editing status after inputting the password,see also FF.00 description and Fig.4-10),and editing status is displayed can enter into one class by one class. Under function parameter display status,to can only come back to upper class menu without stroring modified parameter.

29

EDS800 series Service Manual

MENU first-class menu

ENTER

Second-class menu

ENTER third-class menu

Set frequency

Switch display run parameter

Frequency setting mode

Digital provision

MENU/ESC

MENU

Waiting status parameter

Display or run status

MENU ENTER/DATA store para.

Editing status parameter display or

Fig.4-5 keypad display status switching

(5) Special display function

You can change set frequency under supervision state directly when keypad potentiometer is effective (F0.00=0) or keypad digital setting is effective (F0.00=1).

Here the inverter displays set frequency if it’s stop or displays output frequency if it’s running. After set frequency stops changing for 1 second the inverter will go back to normal display status.

4.2.5 Method for operating keypad

Can carry on various operation to the inverter through keypad,for example:

(1) status parameter display switching:

displaying one supervision parameter code for 1 second, will display this parameter value automatically.

LED displayed content

50.00

Key operation

Set frequency order

C-01

1s para. value

SHIFT

Output frequency

SHIFT

C-02

1s para. value

Output current

1s 1s para. value

C-14 C-03 para. value

Pulse input Output voltage

SHIFT SHIFT ∫…∫ SHIFT

Fig. 4-6 waiting status parameter display operating example

Description:

1> All status parameters C-00~C-14 can be displayed when the inverter leaves factory. You can make a change by modifying function code F2.11, F2.12 if you want to, for detail please refer to F2.11, F2.12function code description. directly when the user see about status supervision parameter.

30

EDS800 series Service Manual

(2) function code parameter setting

Take function code F2.06 modified from 5.00Hz to 6.00Hz as example. Boldface in

Fig.4-7 shows flickering digit.

LED displayed content

Key operation order

50.00

Exit editing status

-F0-F2F2.00 F2.06

ESC

MENU

Enter into editing

Choose

F2 group status Display function

DATA first-class menu code

ENTER

Function group confirmation

Go into second-class menu

Choose function

ENTER

DATA code F2.06

ESC

MENU

-F2-

F2.07 06.00

05.00

05.00

Go back to

ESC

MENU

First-class menu

ENTER

Store modified

DATA value,back to second-class menu

Display next function code

Parameter modification,

5→6

SHIFT

Parameter modification,

Choose parameter digit

Function code confirmation,

Enter into third-class menu

Fig.4-7 example for parameter setting and modification

Description: under third-class menu, if the parameter has no blinking digit,this function code can’t be modified,possible reasons are as follows: a. This function code shouldn’t be modified, for example actual detected status parameter, run record parameter etc.; b. This function code can’t be modified under run status and can be changed after stopping running; c. Parameter protected. All the function code can’t be modified when function code

F2.13=1 or 2,in order to avoid wrong operation. Need to set the function code F2.13 to 0 if you want to edit function code parameter.

(3) specified frequency adjustment for common run

Take example modifying specified frequency from 50.00Hz to 40.00Hz at

F0.00=0 during running for explanation.

LED displayed content

Key operation order

50.00

49.99

Press decreasing button for one time

45.00

Adjust frequency based on requirement

40.00

Stop pressing after set value reached, go back to normal display status after 1 second

Fig. 4-8 set frequency adjustment operation example

(4) jog run operation

For example, keypad as current run command channel, jog run frequency 5Hz, waiting status.

31

EDS800 series Service Manual

LED displayed content

50.00 0.01

Key operation waiting order

Display set frequency waiting

REV

JOG keep

Display run output frequency

REV

JOG

5.00

0.01 50.00 release

REV

JOG

Output frequency

Increased by 5Hz waiting

Output frequency

Fall down to 0Hz

Stop running

Fig.4-9 jog run operating example

(5) operation for entering to function code editing status after setting user

password

“user password”FF.00 is set to“6886”. Boldfaced digit in Fig.4-7 shows blinking bit.

LED displayed content

50.00 0.0.0.0

Key operation order Nonediting

ESC

MENU user password effective, go into status password validation status

0.0.0.6

At first last

Digit flash, increase to

“6”

0.0.0.6

SHIFT move cursor position to first digit

6.0.0.6

Increase to“6”

-F0- 6.8.8.6 6.8.0.6

6.8.0.6

6.0.0.6

ENTER

DATA

Press confirmation

Increase Move to

SHIFT

Increase

Move to

SHIFT

Second

Key, pass validation, to“8” Third digit to“8” digit

Go into editing status

Fig.4-10 inputting password to go into function code operation

(6) See about failure parameter under failure status

LED

1s

1s displayed

E001

Fd.06 50:00 Fd.07

45:00 content

Key operation order

SHIFT

Failure set freq.

SHIFT

Failure output freq.

SHIFT

SHIFT

1500

1s

Fd.14 1111

1s

Fd.13

380

Failure run time

SHIFT

Failure terminal status

SHIFT

Fd.08

1s

1s

Failure current

Fd.09

5.5

Failure output volt.

∫…∫ SHIFT

Fig.4-11 failure status searching operation example

Description: function code parameter, search range Fd.06 ~ Fd.14 , LED first display digit of this function code after 1s.

32

EDS800 series Service Manual switch back to failure alarm display status (E0XX)

(7) keypad key-press locking operation

ESC

MENU detailed operation please refer to 2 nd

bit of F2.13 function code.

(8) keypad key-press unlocking operation

4.3 Inverter electrification

4.3.1 Check before electrification

Please carry on wiring based on operation requirement provided in “inverter wiring” of this Service manual.

4.3.2 First electrification

Close input side AC power supply switch after correct wiring and power supply confirmed, electrify the inverter and keypad LED display “-EN -”, contactor closed normally, LED displayed set frequency shows that electrification is finished. First electrification operation process is shown as Fig. 4-12.

33

EDS800 series Service Manual start wiring based on 3.5 section

N wiring correct?

Y

N input voltage correct?

Y electrify

Y display-EN-?

Y hear contactor closedsound?

Y display set frequency

Y success

N

N

N failure cut off power check reason

Fig. 4-12 first electrification operation flow

34

EDS800 series Service Manual

5 Function parameter schedule graph

5.1 Symbol description

× ---- parameter can’t be changed in process of running

○ ---- parameter can be changed in process of running

* ---- read-only parameter, unmodifiable

5.2 Function parameter schedule graph

F0 –basic run function parameter group

unit

Factory default

Modification

1 1 ○ function code name Set range channel selection

0: keypad analog potentiometer setting

1: keypad digital setting

2: terminal UP/DOWN adjust setting (stored after power off)

3: serial port setting

4: VCI analog setting (VCI-GND)

5: CCI analog setting (CCI-GND)

6: reserved

7: terminal pulse (PULSE) setting

8: combination setting

9: terminal UP/DOWN adjust setting

(not stored after power off)

F0.01 Freq. digit setting Lower limit Freq.~upper limit Freq.

0: keypad run control channel selection

10:provision serial port (stored after power off)

11:terminal PWM pulse setting freq.

1: terminal run command control

(keypad stop command ineffective)

2: terminal run command control

(keypad stop command effective)

3: serial port run command control

(keypad stop command ineffective)

4: serial port run command control

F0.03

Run direction setting

(keypad stop command effective)

1 st

bit: 0, forward run; 1, reverse run

2 nd

bit: 0, reverse run allowed

1, reverse run banned

3 rd

bit: REV/JOG key selection

0: as reverse run key

1: as jog key

F0.04

Acce/Dece mode 0: linear accelerating decelerating mode selection 1: S curve accelerating decelerating mode

F0.05

S curve start section time F0.05+F0.06≤90(%)

35

0.01Hz 50.00Hz

1 0 ○

1 00 ○

1 0 ×

0.1(%) 20.0(%)

EDS800 series Service Manual

F0.06

S curve risetime 10.0(%)-70.0(%)

F0.05+F0.06≤90(%)

F0.07 accelerating decelerating time unit

0: second

1: minute

F0.08

Acce time 1 0.1-6000.0

F0.09

Dece time 1 0.1-6000.0

F0.10

Upper limit freq. Lower limit freq.-400.00Hz

F0.11

Lower limit freq. 0.00-Upper limit freq.

F0.12

Lower limit freq. 0: run at lower limit freq. run mode 1: stop running

F0.13

Torque boost mode

0: manual boost

1: automatic boost

F0.14

Torque boost 0.0-20.0(%)

F0.15

V/F curve setting 0: constant torque curve

1: degressive torque curve 1(the 2.0nd power)

2: degressive torque curve 2(the 1.7th power)

3: degressive torque curve 3(the 1.2th power)

F0.16 reserved

0.1(%) 60.0(%)

1 0 ×

0.1 20.0 ○

0.1 20.0 ○

0.01Hz 50.00Hz

×

0.01Hz 0.00Hz

×

1 0 ×

1 0 ○

0.1(%) 4.0(%)

1 0 ×

F1 –start-up, stop, brake function parameter group

Function code name Set range

F1.00 Start-up run mode

0: start at start-up freq.

1: first brake, then start at start-up freq.

2: reserved

0.0-10.00Hz

F1.01 start-up freq.

F1.02 start-up freq. duration

0.0-20.0S

F1.03 Zero freq. DC braking volt. 0-15(%) unit

Factory default

Modification

1 0 ×

0.01Hz 0.00Hz

0.1s 0.0s

1 0 ○

0.1s 0.0s

1 0 ×

F1.04 Zero freq. DC braking time 0.0-20.0S

F1.05 Stop mode

0: Dec stop

1: free stop

2: Dec+DC brake stop

0.0-15.00Hz

F1.06

DC brake initiative freq. when stop running

F1.07

F1.08

DC brake time when stop running

0.0-20.0s

DC brake voltage when stop 0-15(%) running

0.01Hz 0.00Hz

0.1s 0.0s

1 0 ○

F2 –auxiliary run function parameter group

Function code name Set range unit

Factory default modification

36

EDS800 series Service Manual

F2.00

F2.01

F2.02

F2.03

F2.04

F2.05

Slip frequency compensation

Carrier wave freq.

Jog run frequency

F2.06

F2.07

F2.08

F2.09

F2.10

Analog filter time constant

Forward reverse run dead-section time

Automatic energy save run

AVR function

Jog Acc time

Jog Dec time

0.00-30.00s

0.0-3600.0s

0: no action

1: action

0: no action

1: action all the time

2: no action only during Dec

0~150(%)0-no slip frequency compensation

2-15.0K

0.10-50.00Hz

0.1-60.0s

0.1-60.0s

Frequency input channel combination

Principal subordinate

Machine communication frequency provision proportion

0: VCI+CCI

1: VCI-CCI

2: reserved

3: reserved

4: reserved

5: reserved

6: exterior pulse provision+CCI

7: exterior pulse provision-CCI

8: reserved

9: reserved

10: reserved

11: reserved

12: reserved

13: VCI, CCI any nonzero value effective,

VCI preferred

14: reserved

15: RS485+CCI

16: RS485-CCI

17: RS485+VCI

18: RS485-VCI

19: RS485+keypad potentiometer

20: RS485- keypad potentiometer

21: VCI+ keypad potentiometer

22: VCI- keypad potentiometer

23: CCI+ keypad potentiometer

24: CCI- keypad potentiometer

25: reserved

26: reserved

27: reserved

28: reserved

0(%)-500(%)

0.01s 0.20s ○

0.1s 0.1s ○

0.1K depend on machine type

×

0.01Hz 5.00Hz ○

0.1s 20.0s ○

0.1s 20.0s ○

1(%) 100(%) ○

37

F2.11

LED display control 1

F2.12

LED display control 2

F2.13

Parameter operation control

F2.14

Communication configuration

EDS800 series Service Manual

0000-1111 first bit: running time

0: not display

1: display second bit: accumulative time

0: not display

1: display third bit: input terminal status

0: not display

1: display kilobit(fourth bit): output terminal status

0: not display

1: display

0000-1111 first bit: analog input VCI

0: not display

1: display second bit: reserved third bit: analog input CCI

0: not display

1: display kilobit(fourth bit): exterior pulse input

0: not display

1: display

LED 1st bit:

0: all parameter allowed to be modified

1: except this parameter,all other parameter not allowed to be modified

2: except F0.01 and this parameter,all other parameter not allowed to be modified

LED 2nd bit:

0: no action

1: restore default value

2: clear history failure record

LED 3rd bit:

0: not locked

1: lock all buttons but not STOP key

2: lock all buttons but not ,

STOP key

3: lock all buttons but not RUN, STOP key

4: lock all buttons but not SHIFT, STOP key

LED first bit: baud rate selection

0: 1200BPS

1: 2400BPS

2: 4800BPS

3: 9600BPS

4: 19200BPS

5: 38400BPS

LED second bit: data format

0: 1-8-1format, no checkout

1: 1-8-1 format, even checkout

2: 1-8-1 format, odd checkout

38

EDS800 series Service Manual

F2.40

F2.41

F2.42

F2.43

F2.44

F2.45

F2.46

F2.47

F2.48

F2.49

F2.50

F2.51

F2.52

F2.23

F2.24

F2.25

F2.26

F2.27

F2.28

F2.29

F2.30

F2.31

F2.32

F2.33

F2.34

F2.35

F2.36

F2.37

F2.38

F2.39

F2.16

F2.17

F2.18

F2.19

F2.20

F2.21

F2.22

F2.15

Local address 0 - 127 , 127 is broadcast address. The inverter only receive but not send when it is set to be 127, 0 is address for main device.

Communication overtime 0.0-1000.0s

Local responsion delay

Acce time 2

0-200ms

0.1-6000.0

0.1s 0.0s ×

1ms 5ms ×

Dece time 2 0.1-6000.0

0.1 20.0 ○

0.1 20.0 ○

Acce time 3

Dece time 3

0.1-6000.0

0.1-6000.0

0.1 20.0 ○

0.1 20.0 ○

Acce time 4

Dece time 4

0.1-6000.0

0.1-6000.0

0.1 20.0 ○

Acce time 5

Dece time 5

0.1-6000.0

0.1-6000.0

0.1 20.0 ○

0.1 20.0 ○

Acce time 6 0.1-6000.0

0.1 20.0 ○

0.1 20.0 ○

Dece time 6

Acce time 7

0.1-6000.0

0.1-6000.0

0.1 20.0 ○

0.1 20.0 ○

Dece time 7

Multisection freq. 1

0.1-6000.0

Lower limit freq.-upper limit freq.

0.1 20.0 ○

Multisection freq. 2

Multisection freq. 3

Multisection freq. 4

Multisection freq. 5

Multisection freq. 6

Multisection freq. 7

Multisection freq. 8

Multisection freq. 9

Lower limit freq.-upper limit freq.

Lower limit freq.-upper limit freq.

Lower limit freq.-upper limit freq.

Lower limit freq.-upper limit freq.

Lower limit freq.-upper limit freq.

Lower limit freq.-upper limit freq.

Lower limit freq.-upper limit freq.

Lower limit freq.-upper limit freq.

0.01Hz 5.00Hz ○

0.01Hz 10.00Hz ○

0.01Hz 20.00Hz ○

0.01Hz 30.00Hz ○

0.01Hz 40.00Hz ○

0.01Hz 45.00Hz ○

0.01Hz 50.00Hz ○

0.01Hz 5.00Hz ○

Multisection freq. 10

Multisection freq. 11

Lower limit freq.-upper limit freq.

Lower limit freq.-upper limit freq.

0.01Hz 10.00Hz ○

0.01Hz 20.00Hz ○

Multisection freq. 12 Lower limit freq.-upper limit freq.

0.01Hz 30.00Hz ○

0.01Hz 40.00Hz ○

Multisection freq. 13

Multisection freq. 14

Lower limit freq.-upper limit freq.

Lower limit freq.-upper limit freq.

0.01Hz 45.00Hz ○

0.01Hz 50.00Hz ○

Multisection freq. 15

Jumping freq. 1

Lower limit freq.-upper limit freq.

0.00-400.00Hz

0.01Hz 50.00Hz ○

Jumping freq. 1 range

Jumping freq. 2

0.00-30.00Hz

0.00-400.00Hz

0.01Hz 0.00Hz ×

0.01Hz 0.00Hz ×

Jumping freq. 2 range 0.00-30.00Hz

0.01Hz 0.00Hz ×

0.01Hz 0.00Hz ×

Jumping freq. 3

Jumping freq. 3 range

0.00-400.00Hz

0.00-30.00Hz

0.01Hz 0.00Hz ×

0.01Hz 0.00Hz ×

Setting run time 0-65535 hours

Accumulative run time 0-65535 hours

1 0 *

39

EDS800 series Service Manual

F2.53

RS485communication frame format selection

0: a ASCII frame of 14 byte or 18 byte

1: a hex frame of 8 byte or 10 byte, original response not changed

2: a hex frame of 8 byte or 10 byte, 12 command has no response

3: a hex frame of 8 byte or 10 byte, 14 command has no response

4: a hex frame of 8 byte or 10 byte, both 12 and 14 command have no response

F3 group –closed-loop run function parameter group

Function code

F3.00

F3.01

F3.02

F3.03

F3.04

F3.05

F3.06

F3.07

F3.08

F3.09

F3.10

F3.11

F3.12

F3.13 name

Closed-loop run control selection

Provision channel selection

Feedback channel selection

Set range

0: closed-loop control ineffective

1: PID closed-loop control effective

2: reserved

0: digital provision

1: VCI analog 0-10V voltage provision

2: CCI analog provision

3: keypad potentiometer provision

0: VCI analog input voltage 0-10V

1: CCI analog input

2: VCI+CCI

3: VCI-CCI

4: Min { VCI, CCI }

5: Max { VCI, CCI }

6: pulse feedback

Specified value digital setting

0.00-10.00V

Minimum specified value 0.0-maximum specified value; percentage relative to 10.00V feedback value responding to minimum specified value maximum specified value feedback value responding to maximum specified value proportion gain Kp

0.0-100.0(%)

Minimum specified value-100.0(%)

0.0-100.0(%)

0.000-9.999

Integral gain Ki

0.000-9.999

Differential gain Kd

Sampling cycle T

0.000-9.999

0.01-1.00s

Deviation margin

Integral separation PID adjusting threshold

0.0-20.0(%)percentage relative to 10.00V

0.0-100.0% unit

Factory default modification

1 0 ×

1 1 ○

1 1 ○

0.01 0.00 ○

0.1(%) 0.0(%)

0.1(%) 0.0(%)

0.1(%) 100.0(%)

0.1(%) 100.0(%)

0.001 0.050 ○

0.001 0.050 ○

0.001 0.050 ○

0.01s 0.10s ○

0.1(%) 2.0(%)

0.1(%) 100.0(%)

40

EDS800 series Service Manual

F3.14

F3.15

F3.16

F3.17

F3.18

F3.19

F3.20

F3.21

F3.22

F3.23

F3.24

F3.25

F3.26

F3.27

Closed-lop preset frequency

Closed-loop preset frequency holding time

Sleep frequency threshold

Revival frequency threshold

Sleep delay time

Revival delay time

0-upper limit frequency

0.0-6000s

0.00-400.00Hz

0.00-400.00Hz

0.0-6000.0s

0.0-6000.0s

0.01Hz 0.00Hz ○

0.1s 0.0s ○

0.01Hz 0.01Hz ○

0.01Hz 0.01Hz ○

0.1 0.0 ○

0.1 0.0 ○

Constant pressure water supply mode selection

0: choose inverter OC1-OC4, one-drive-one water supply mode

1: choose constant pressure water supply board , one-drive-one mode

2: choose constant pressure water supply board , one-drive-two mode

3: choose constant pressure water supply board , one-drive-three mode

Long-distance pressure meter range

0.001-9.999Mpa

Allowed offset for upper limit frequency and lower limit frequency when add or reduce pumps

0.0-100.0%

Pump switch judging time

Magnetic control conductor switch delay time

Automatic switch intervel

0.0-999.9s

0.1-10.0s

0000-9999minutes

Water supply supervision parameter display

0: C-11, C-12 denote voltage value of VCI, CCI

1: C-11, C-12 denote PID specified pressure and feedback pressure

Closed-loop adjusting characteristic

0: Forward function

1: Reverse function

1 0 ×

0.001 1.000 ○

0.1 0.0 ○

0.1 300.0 ○

0.1 0.5 ○

1 0000 ×

1 0 ○

F3.28

LED initial supervision parameter selection

0: set frequency

1: output frequency

2: output current

3: output voltage

4: DC bus bar voltage

5: motor speed

6: heat sink temperature

7: run time

8: accumulative run time

9: input terminal status

10: output terminal status

11: analog input VCI/PID provision

12: analog input CCI/PID feedback

41

EDS800 series Service Manual

F3.29

F3.30

13: reserved

14: exterior pulse inputs

Zero freq. braking freq. at starting

Failure relay TA, TB, TC function selection

0.00Hz-15.00Hz

0: inverter running(RUN)

1: frequency arriving signal(FAR)

2: frequency level detect signal (FDT1)

3: reserved

4: overload warning alarm signal (OL)

5: output frequency reach high limit(FHL)

6: output frequency reach low limit(FLL)

7: inverter under voltage blockage stop (LU)

8: external failure stop-running(EXT)

9: inverter zero speed running

10: PLC running

11: simple PLC section running finished

12: PLC finish a cycle running

13: reserved

14: inverter ready to run (RDY)

15: inverter failure

16: traverse high and low limit restriction

17: interior counter reach final value

18: interior counter reach specified value

19: set run time arriving

20: interior timing arriving

21: reserved

22: reserved

23: reserved

24: reserved

F3.31

VCI analog input gain 0-800%

0.01Hz 0.00Hz ○

F4 –simple PLC function parameter group

Function code

F4.00

F4.01 name Set range

Simple PLC running setting

LED first bit:

0: no action

1: stop after single circulation

2: keep final value after single circulation

3: consecutive circulation

LED second bit:

0: start again from first section

1: continue to run at mid-section frequency

LED third bit: PLC run time unit

0: second

1: minute

Section 1 setting 000-621

LED first bit: frequency setting

0: multisection freq. i (i=1~7)

1: freq. determined by F0.00 function code

LED second bit: run direction selection

42 unit

Factory default modification

1 000 ×

1 000 ○

EDS800 series Service Manual

F4.02

F4.03

F4.04

F4.05

F4.06

F4.07

F4.08

F4.09

0: forward run

1: reverse run

2: determined by run command

LED third bit: Acc/Dec time selection

0: Acc/Dec time 1

1: Acc/Dec time 2

2: Acc/Dec time 3

3: Acc/Dec time 4

4: Acc/Dec time 5

5: Acc/Dec time 6

6: Acc/Dec time 7

Section 1 run time 0-6000.0

Section 2 setting

Section 2 run time 0-6000.0

Section 3 setting 000-621

Section 3 run time

Section 4 setting

Section 4 run time

Section 5 setting

000-621

0-6000.0

000-621

0-6000.0

000-621

F4.10

F4.11

F4.12

F4.13

F4.14

Section 5 run time 0-6000.0

Section 6 setting 000-621

Section 6 run time 0-6000.0

Section 7 setting 000-621

Section 7 run time 0-6000.0

F5 –terminal correlative function parameter group

Function code

F5.00 name

Input terminal X1 function selection

Set range

0: leave control terminal unused

1: multisection speed control terminal

2: multisection speed control terminal

3: multisection speed control terminal

4: multisection speed control terminal

5: external forward run jog control

6: external reverse run jog control

7: Acc/Dec time option terminal 1

8: Acc/Dec time option terminal 2

9: Acc/Dec time option terminal 3

10: external device failure input

11: external reset input

12: free stop input

13: external stop-running order

14: stop DC braking input command DB

15: inverter run banned

16: frequency increasing control (UP)

17: frequency degression control (DOWN)

43 unit

0.1 10.0 ○

1 000 ○

0.1 10.0 ○

1 000 ○

0.1 10.0 ○

1 000 ○

0.1 10.0 ○

1 000 ○

0.1 10.0 ○

1 000 ○

0.1 10.0 ○

1 000 ○

0.1 10.0 ○

Factory default modification

F5.01

F5.02

F5.03

F5.04

Input terminal X2 function selection

Input terminal X3 function selection

Input terminal X4 function selection

Input terminal X5 function selection

F5.05 reserved

F5.06 reserved

F5.07 reserved

F5.08

FWD/REV run mode selection

F5.09

F5.10

UP/DOWN velocity

Open circuit collector output terminal OC output setting

EDS800 series Service Manual

18: Acc/Dec ban command

19: three-line run control

20: closed-loop ineffective

21: PLC ineffective

22: simple PLC pause control

23: PLC stop status reset

24: frequency provision channel option 1

25: frequency provision channel option 2

26: frequency provision channel option 3

27: frequency switched to CCI

28: command switched to terminal

29: run command channel option 1

30: run command channel option 2

31: run command channel option 3

32: traverse jump-in

33: external interruption input

34: interior counter reset end

35: interior counter triggering end

36: interior timer reset end

37: interior timer triggering end

38: pulse frequency input

(only effective for X5)

39: reserved

40: reserved

41: reserved

42: reserved

Same as above

Same as above

Same as above

Same as above

0: double-line control mode 1

1: double-line control mode 2

2: three-line control mode 1

3: three-line control mode 2

0.01-99.99Hz/s

0: inverter running(RUN)

1: frequency arriving signal(FAR)

2: frequency level detect signal (FDT1)

3: reserved

4: overload warning alarm signal (OL)

5: output frequency reach high limit(FHL)

6: output frequency reach low limit(FLL)

7: inverter under voltage blockage stop (LU)

44

0.01Hz/s 1.00Hz/s ○

×

×

×

×

EDS800 series Service Manual

F5.11 reserved

F5.12 reserved

F5.13 reserved

Frequency arriving

F5.14

(FAR) checkout scope

F5.15

FDT1 (frequency level) electric level

FDT1 lag

F5.16

F5.17

0.00-50.00Hz

0.00-high limit frequency

0.00-50.00Hz

Analog output (AO1) selection

0: output frequency(0-high limit frequency)

1: set frequency(0-high limit frequency)

2: output current(0-2×rated current)

3: output voltage(0-1.2×load motor rated voltage)

4: bus-bar voltage(0-800V)

5: PID provision (0.00-10.00V)

6: PID feedback (0.00-10.00V)

7: reserved

8: reserved

9: reserved

Analog output (AO) gain 0.00-2.00

F5.18

8: external failure stop-runnin(EXT)

9: inverter zero rotate speed running

10: PLC running

11: simple PLC section running finished

12: PLC finish a cycle running

13: reserved

14: inverter ready to run (RDY)

15: inverter failure

16: traverse high and low limit restriction

17: interior counter reach final value

18: interior counter reach specified value

19: set run time arriving

20: interior timing arriving

21: reserved

22: reserved

23: reserved

24: reserved

F5.19

F5.20

F5.21

F5.22

Analog output (AO) offset 0.00-10.00V reserved reserved reserved

F5.23

F5.24

F5.25

DO terminal output function selection

Same as F5.17

DO maximum pulse output 0.1-20.0(max. 20KHz)Max. DO port output frequency pulse frequency corresponds to Max. value selected by F5.23

Set interior counting value 0--9999 reaches provision

Specified interior counting 0--9999

F5.26

45

0.01Hz 5.00Hz ○

0.01Hz 10.00Hz ○

0.01Hz 1.00Hz ○

0.01 1.00 ○

0.01 0.00 ○

0.1KHz 10.0 ○

EDS800 series Service Manual

F5.27 value reaches provision

Interior timer setting 0.1-6000.0s

0.1 60.0 ○

F6 –traverse special function parameter group

Function code

F6.00

F6.01

F6.02

F6.03

F6.04 name Set range

Traverse function selection 0: traverse function not used

1: traverse function used traverse run mode LED first bit: jump-in mode

0: automatic jump-in mode

1: terminal manual jump-in mode

LED second bit:

0: changing traverse amplitude

1: fixed traverse amplitude notice: traverse center frequency input channel set by F0.00 function parameter

0.0-50.0(%) Traverse amplitude threshold

Sudden jumping frequency traverse cycle

0.0-50.0(%)

0.1-999.9s

F6.05

Triangle wave risetime traverse preset frequency 0.00-400.00Hz

F6.06

F6.07 traverse preset frequency latency time

0.0-6000s unit

Factory default modification

0.1(%) 0.0(%) ○

0.1(%) 0.0(%) ○

0.1s 10.0s ○

0.1(%) 50.0(%) ○

0.01Hz 0.00Hz ○

0.1s 0.0s ○

F7.10

F7.11

F7–frequency provision function parameter group

Function code

F7.00

F7.01 name

VCI min. provision

VCI min. provision corresponding freq.

F7.02

VCI max. provision

VCI max. provision corresponding freq.

F7.03

F7.04

CCI min. provision

CCI min. provision corresponding freq.

F7.05

F7.06

CCI max. provision

F7.07

CCI max. provision corresponding freq.

F7.08 Max. Input pulse width

F7.09

Min. provision pulse width min. provision corresponding freq.

Max. provision pulse width

Set range

0.00-F7.02

0.00-high limit frequency

0.00-10.00V

0.00-high limit frequency

0.00-F7.06

0.00-high limit frequency

0.00-10.00V

0.00-high limit frequency unit

Factory default modification

0.01V 0.00V ○

0.01Hz 0.00Hz ○

0.01V 10.00V ○

0.01 Hz 50.00Hz

0.01V 0.00V ○

0.01 Hz 0.00Hz

0.01V 10.00V ○

0.01 Hz 50.00Hz

0.1ms 100.0ms

0.1-999.9ms(whenF0.00=11)

0.0-F7.11(Max.provision pulse) 0.1ms 0.0ms ○

(whenF0.00=11)

0.00-high limit frequency

0.01Hz

0.00Hz

46

EDS800 series Service Manual

F7.12

F7.13

F7.14

F7.15 max. provision corresponding freq.

PULSE max. input pulse

PULSE min. provision pulse)-F7.08(Max.input pulse)

0.00- high limit frequency

0.1-20.0K

0.0-F7.16(PULSE max. provision)

PULSE min. provision corresponding freq.

0.00-high limit frequency

F7.16

PULSE max. provision

F7.14 (PULSE min. provision)

-F7.13 (max. input pulse)

F7.17

PULSE max. provision corresponding freq. 0.00-high limit frequency

0.01Hz

50.00Hz

0.1K 10.0K ○

0.1K 0.0K ○

0.01 Hz 0.00 Hz

0.1K 10.0K ○

0.01 Hz 50.00Hz

F8–motor and vector control parameter group

Function code

F8.00 reserved name

F8.01 Motor rated voltage

F8.02 Motor rated current

F8.03 Motor rated frequency

F8.04 Motor rated speed

F8.05 Motor pole 2-14

Set range unit

1.00-400.00Hz 0.01Hz

2

Factory default modification

× on

×

F8.06 Motor rated power

F8.07 reserved

F8.08 reserved

F8.09 reserved

F8.10 reserved reserved

F8.11

F8.12 reserved

F8.13 reserved

F8.14 reserved

F8.15 reserved

F8.16

Frequency display offset

0.00Hz-2.00Hz 0.01Hz

F8.17 reserved

Depend on device type

×

Depend

×

0.20Hz

F9 –protection correlative function parameter group

Function code name

F9.00 reserved

F9.00

Instantaneous power off restarting latency time

Set range

0.0-10.0S

0 indicates ineffective power off restarting

Remark: no automatic reset function for overload and overheating

47 unit

Factory default modification

0.1S 0.0S ×

EDS800 series Service Manual

F9.01

F9.02

F9.03

F9.04

F9.05

F9.06

F9.07

F9.08

F9.09

F9.10

F9.11

Failure self-renew times

Failure self-renew interval

Motor overload protection mode selection

Motor overload protection coefficient

0-10

0 shows no automatic reset function

Remark: no automatic reset function for overload and overheating

0.5-20.0S

0: no action

1: inverter close off output

20.0-120.0(%)

Overload warning alarm checkout level

Overload warning alarmDelay time

Overvoltage stall selection

20-200(%)

0.0-20.0s

Overvoltage stall point

0: ban

1: allow

120-150(%)

Automatic current limit level 110-200( %)

Frequency declining rate during current limiting

Automatic current limiting action selection

0.00-99.99Hz/s

0: constant speed ineffective

1: constant speed effective remark: Acc/Dec always effective

0.1S 5.0S ×

0.1(%) 100.0(%)

×

1(%) 130(%) ○

0.1s 5.0s ○

1(%) 140(%) ○

1(%) 150(%) ×

0.01Hz/s 10.00Hz/s ○

Fd –failure record function parameter group

Function code name

Fd.00

Previous one time failure record

Fd.01

Previous two time failure record

Fd.02

Previous three time failure record

Fd.03

Fd.07

Previous four time failure record

Fd.04

Previous five time failure record

Fd.05

Previous six time failure record

Fd.06

Set freq. of previous failure output freq. of previous failure

Set range

Previous one time failure record

Previous two time failure record

Previous three time failure record

Previous four time failure record

Previous five time failure record

Previous six time failure record

Set freq. of previous failure unit

Factory default modification

1 0 *

1 0 *

1 0 *

1 0 *

1 0 *

1 0 *

0.01Hz 0 * output freq. of previous failure

0.01Hz 0 *

Fd.08 output current of previous failure output current of previous failure

0.1A 0 *

Fd.09 output voltage of previous failure output voltage of previous failure

1V 0 *

Fd.10

DC bus-bar voltage of previous failure DC bus-bar voltage of previous failure

Fd.11

Fd.12

Fd.13

Fd.14

Load motor speed of previous failure Load motor speed of previous failure

Module temperature of previous failure Module temperature of previous failure

Input terminal status of previous failure Input terminal status of previous failure

Accumulative run time of previous failure Accumulative run time of previous failure

1V 0 *

1(r/m) 0 *

1℃ 0 *

0 *

0 *

48

EDS800 series Service Manual

FF –password and manufacturer function parameter group

Function code

FF.00

User password name

FF.01

FF.02

FF.0X

Manufacturer password

Manufacturer’s special parameter

Set range unit

C –supervision function parameter group

Function code

C-00

C-01 name

Set frequency

Output freq.

C-02

Output current

Output voltage

C-03

C-04

C-05

C-06

Current set frequency

Current output freq.

Set range

Virtual value of current output current

Virtual value of current output voltage

DC bus-bar voltage Current DC bus-bar voltage

Load motor speed Product of output frequency and load motor speed emendation factor

Module temperature IGBT heat sink temperature

C-07

Run time Inverter electrification run time accumulative run time Inverter accumulative run time

C-08

C-09

Input terminal status Switch value input terminal status

C-10

C-11 output terminal status Switch value output terminal status

Analog input VCI Analog input value of VCI

C-12

Analog input YCI Analog input value of YCI reserved

C-13

C-14

Exterior pulse input Exterior pulse input

Factory modifdefault ication unit

Factory modifdefault ication

0.01HZ

0.01HZ *

0.1A *

1V *

1V *

1(r/m) *

1℃ *

1h *

1h *

―― *

―― *

V *

V *

0.1KHz *

49

EDS800 series Service Manual

(1) input terminal status corresponding relation is as follows:

: shows terminal input ineffective

: shows terminal input effective

X1 terminal status

REV input terminal

X2 terminal status

X3 terminal status

FWD input terminal reserved

X4 terminal status

X5 terminal status

(2) output terminal status corresponding relation is as follows:

OC1 output terminal reserved reserved reserved

: shows that terminal has no output

: shows that terminal has output

50

EDS800 series Service Manual

6 Detailed function description

Listed column content for parameter function code description in this chapter is as follows:

code name

Set range or description

Factory default

6.1 Basic run function parameter group: F0

F0.00 Frequency input channel selection

range0~11

1

0: keypad analog potentiometer. Set running frequency by keypad analog potentiometer.

1: keypad frequency number setting. Initial set frequency value is F0.01,can change set frequency by changing F0.01 parameter through keypad,and you can also modify F0.01 by , key.

2: terminal UP/DOWN adjust set frequency(stored after power off or stop).

Initial set frequency value is the value stored during the last power off time,and you can adjust set running frequency by terminal UP/DOWN.

3: serial port provision. Serial port frequency set initial value is F0.01,change set frequency by setting F0.01 through serial port.

4: VCI analog setting(VCIGND).Frequency setting determined by VCI terminal analog voltage,input voltage range: DC0~10V.

5: CCI analog setting (CCIGND). Frequency setting determined by CCI terminal analog voltage /current,input range: DC0~10(CCI switch choose V side),

DC: 4~20mA (CCI switch choose A side).

6: reserved.

7: terminal pulse (PULSE) setting. Frequency set by terminal pulse( only input through X5,see F5.03, F5.04 definition),input pulse signal spec: voltage range15~24V;frequency ange 0~20.0KHz.

8: combination setting. See function parameter F2.09,set frequency by each channel combination setting.

9: terminal UP/DOWN adjust set frequency( not stored after power off or

stop)Initial set frequency value is F0.01,and adjust set running frequency by terminal UP/DOWN.

10:serial port specified(memory after electric off):when the inverter is disconnected with electic,it will keep the currently running frequency,and next time

51

EDS800 series Service Manual it will keep the former frequency running the electric on .

11: terminal PWM pulse set frequency.

note

Relation between frequency and input information is determined by function code

F7.00~F7.17 when frequency input channel is 4, 5, 6, 7,please see Section 6.8.

F0.01 Freq. digital setting

rangelow limit high limit

50.00Hz

F0.01 parameter is original set frequency of the inverter when frequency setting channel is defined as number setting (F0.00=1, 3).

F0.02

Run command channel selection

range04

0

0: keypad run frequency command channel. Start and stop the inverter

1: terminal run command channel(keypad STOP command ineffective).

Start and stop the inverter by exterior control terminal FWD, REV, X1~X5 etc..

2: terminal run command channel(keypad STOP command effective). Start and stop the inverter by exterior control terminal FWD, REV, X1~X5 etc..

3: serial port run command channel(keypad STOP command ineffective).

Start and stop the inverter by RS485 interface.

4: serial port run command channel(keypad STOP command effective).

Start and stop the inverter by RS485 interface.

!

The inverter can change run command channel by modifying F0.02 during waiting and running,please confirm that modification is allowed during running on the spot.

F0.03

Run direction setting

ineffective for terminal run command channel.

The 1st bit:

Range0, 1

100

This function is only effective for keypad and serial port run command channel

0: inverter forward run

1: inverter reverse run

The 2nd bit:

0: reverse run allowed

1: reverse run banned. The inverter will stop output when there is reverse run command.

The 3rd bit: REV/JOG key selection

0: as REV key

1: as JOG key

52

EDS800 series Service Manual

If the 2nd bit is set to“1”,this function is effective for keypad run command channel, terminal run command channel and serial port run command channel.

note

F0.04 Accelerating decelerating mode selection range0, 1

0

0: linear Acce/Dece mode. Output frequency increases or decreases according to constant slope, just as shown in Fig.6-1.

1: S curve Acce/Dece mode. Output frequency increases or decreases according to S curve, just as shown in Fig.6-2.

50.00Hz

Freq

50.00Hz

Freq.

② time

③ time t

1 t

2

Fig.6-1 linear Acce/Dece

t

1 t

2

Fig.6-2 S curve Acce/Dece

F0.05 S curve starting time

F0.06 S curve rising time

range10.0()50.0() Acc/Dec

timeF0.05F0.0690()

range10.0()80.0() Acc/Dec

timeF0.05F0.0690()

20.0(%)

60.0(%)

F0.05, F0.06 is only effective when S curve Acc/Dec mode( F0.04=1)is selected during Acc/Dec selection, and F0.05F0.06≤90%.

S curve starting time is shown as Fig. 6-2③,slope of output frequency variation increases by degrees from 0.

S curve rising time is shown as Fig.6-2②,slope of output frequency variation is constant.

S curve ending time is shown as Fig.6-2①,slope of output frequency variation steps down to 0.

note

S curve Acc/Dec mode,suitable for starting and stopping elevator, deferent belt, carrier transporter load etc..

F0.07 Acc/Dec time unit

range0, 1

0

This function determines Acc/Dec time unit.

0: second

1: minute

53

EDS800 series Service Manual

note

(1) This function is effective for all Acc/Dec process except for jog run.

(2) To choose second as time unit is recommended.

F0.08 Acc time 1

range0.16000.0

20.0

F0.09 Dec time 1

range0.16000.0

20.0

Accelerating time is defined as time for inverter accelerating from 0Hz to high limit frequency,see t

1

in Fig.6-3,Dec time is defined as time for inverter decelerating from high limit frequency to 0Hz, see t

2 in Fig.6-3.

Output freq.

high limit frequency time t

1 t

2

Fig.6-3 Acc/Dec time definition

note

(1) In EDS800 series inverter 7 kinds of Acc/Dec time are defined in total,here we only define Acc/Dec time 1,Acc/Dec time 2~7 are defined in F2.18~F2.29, please refer to Section 6.3.

(2) Can choose time unit minute or second for Acc/Dec time 1~7 by F0.07, factory default is second.

F0.10 high limit frequency

rangelow limit400.00Hz

50.00Hz

F0.11 low limit frequency

range0.00high limit

0.00Hz

Low limit freq. run

range0:run at low limit freq. 1:stop

F0.12 0 mode running

The inverter will decrease output frequency gradually in set decelerating time when actual set frequency is lower than low limit frequency,after reaching low limit frequency,the inverter will run at low limit frequency if F0.18 is set to 0;The inverter will reduce output frequency sequentially to zero frequency run if F0.12 is set to 1.

F0.13 Torque boost mode

range0manual 1automatic

0

0: manual boost. Torque boost voltage is determined completely by parameter

54

EDS800 series Service Manual

F0.14,its characteristic is boost voltage fixed,but the motor is prone to magnetic saturation when lightly loaded.

1: automatic torque boost. Torque boost voltage varies as stator current of the motor changes,bigger stator current corresponds to bigger boost voltage.

inverter output current

Boost volt.= ×motor rated volt.×

100

inverter rated current

F0.14 Torque boost

Range0.020.0() 4.0()

To improve inverter’s low frequency torque characteristic,can carry on boost compensation for output voltage,degressive torque curve and constant torque curve torque boost are separately shown as Fig.6-4 (a), (b). voltage voltage motor rated volt. motor rated volt.

Volt.

Freq.

Volt.

Boost Boost rated freq.

(a)degressive torque curve torque boost graph

rated freq.

Freq.

(b) constant torque curve torque boost graph

Fig.6-4 torque boost graph

note

(1) improper setting to this parameter can cause motor heating or over current

protection.

(2) advise the user to adopt manual torque boost and to adjust V/F curve according

to motor parameter and usage occasion when driving synchronous motor.

F0.15 V/F curve setting

range0~3

0

This function code defines EDS800 flexible V/F setting mode to satisfy different load characteristic. Can choose 4 kinds of fixed curve according to definition of F0.15.

If F0.15=0,V/F curve bears constant torque characteristic;as curve 0 in

Fig.6-5.

If F0.15=1,V/F curve bears 2.0 order power degressive torque characteristic; as curve 3 in Fig.6-5.

If F0.15=2,V/F curve bears 1.7 order power degressive torque characteristic; as curve 2 in Fig.6-5.

If F0.15=3,V/F curve bears 1.2 order power degressive torque characteristic; as curve 1 in Fig.6-5.

55

EDS800 series Service Manual

The user can choose 1, 2, 3 V/F curve run mode according to load characteristic to reach better energy save result while the inverter is driving degressive torque load such as blower and water pump etc.

Output volt.

Rated volt.

2

3

0

1

Output freq.

0 rated freq.

Fig.6-5 V/F curve

F0.16

Reserved

6.2 Start-up, stop, braking function parameter group: F1

F1.00 Start-up run mode

range0, 1, 2

0

0: start from starting frequency. The inverter start according to F1.01 starting frequency and F1.02 starting frequency holding time.

1: first braking then starting. First brake according to DC braking voltage and time (F1.03, F1.04),then start at starting frequency.

2: reserved.

note

(1) start-up mode 0: Advise the user to adopt start-up mode 0 in common application occasion and when driving synchronous motor.

(2) start-up mode 1: Be applicable to small inertia load with forward run or reverse run phenomena when the moter doesn’t drive any device,for big inertia load,advise not to adopt start-up mode 1.

F1.01 Starting frequency

range0.010.00Hz

0.00 Hz

F1.02 Starting freq. holding time

range0.020.0S

0.0S

Starting frequency means initial frequency at which the inverter start up,as fs shown in Fig.6-6;Starting freq. holding time means consecutive run time during which the inverter run at starting frequency,as t

1 shown in Fig.6-6.

56

EDS800 series Service Manual freq. Hz f max

I

I

B f starting freq. s time

0

BR

F’ t

1 starting time running

1/4 F1.04

F1.04

Fig.6-6 starting freq. and starting time Fig.6-7 Zero freq. DC braking Volt. And Time

Starting frequency is not limited by low limit frequency.

note

F

F1.03

F1.04

Zero freq. DC braking volt.

Zero freq. DC braking time

range015()

range0.020.0S

0()

0.0S

Zero Freq. DC braking is special function for FKM (Flat Knitting Machine).

Specific function is: the inverter enters into braking status automatically during running when running frequency is lower than F3.29 (Zero Freq. Braking frequency), and realizes continuance of current phase intelligently, fast and smooth orientation for motor’s rotor. The inverter will stop braking automatically and switch into running if specified frequency increased or reverse running instruction provided in the braking, Curve figure as Fig6-7:

⑴ . I

B

is zero Freq. braking current, to set according to actual braking torque by setting F1.03.

⑵ . BR is specified zero Freq. braking signal point, inverter enters into zero Freq. braking status automatically after 1/4 F1.04.

⑶ . F’is any time in braking. When specified frequency increased or reverse running instruction provided, the inverter will end zero Freq. braking and enter into running status. But the inverter is still in running status and waits for frequency raising instruction.

. After F1.04, the inverter stops output and the motor is in zero Freq. running status if there is neither frequency raising instruction nor reverse instruction.

57

EDS800 series Service Manual

Output freq. stop braking initiative freq. output volt.

(virtual value)

DC braking value stop braking time run command

Fig.6-8 Dec stop+DC braking

F1.05 Stop mode

Range0, 1, 2

0

0: Dec stop. The inverter reduces output frequency gradually according to set

Dec time upon receival of stop command and stops running after frequency is reduced to 0.

1: free stop. The inverter stop outputting at once when receiving stop command and the load stops freely according to mechanical inertia.

2: Dec plus DC braking stop. The inverter reduces output frequency gradually according to set Dec time upon receival of stop command and start DC braking when F1.06 stop braking initiative frequency is reached.

F1.06 Stop DC braking initiative frequency

range0.015.00Hz

0.00Hz

F1.07 Stop DC braking time

F1.08 Stop DC braking voltage

range0.020.0S

range015(%)

0.0S

0

F1.08 is percentage relative to inverter rated input voltage. Have no DC braking process if stop braking time is 0.0s,as shown in Fig.6-8.

6.3 Auxiliary run function parameter group: F2

F2.00 Analog filtering time constant

Range0.0030.00S

0.20S

The time constant used when the inverter filter sampled value when frequency is set by exterior analog channel. Can improve the situation by increasing this filtering time constant if connecting wire is long or disturbance is serious which cause unstable set frequency.

58

EDS800 series Service Manual

Analog filtering time constant must be bigger than F3.11(sampling cycle), otherwise the system would run unsteadily.

F2.01 FWD REV run dead-section time

range0.03600.0S

0.1S

During process of transiting from forward run to reverse run or from reverse run to forward run, transition time during which the inverter wait at zero output frequency, as t1 shown in Fig.6-9.

Output freq. time t

1

Fig.6-9 FWD REV run dead-section time

F2.02 Automatic energy save run

range0, 1

0

To reach better energy save result, the inverter would detect load current to get the purpose of automatic energy save.

0: no action

1: action

Empty or lightly loaded motor can get the purpose of energy save by detecting load current to adjust output voltage properly. Automatic energy save run is mainly applied to occasion of stable load, speed.

This function commonly applied to load such as blower and water pump etc.

note

F2.03 AVR function

range0, 1, 2

0

AVR namely automatic voltage adjusting function. Indicate that the inverter can output constant voltage by AVR function when the inverter input voltage fluctuates.

0: no action

1: action all the time

2: no action only during Dec

note

1. when input voltage is higher than rated value, under normal situation should set F2.03=1. When F1.05=0 namely inverter in decelerating stop,motor Dec time is short and running current would be bigger. But the motor decrease speed placidly with small run current and long Dec time if choose AVR action all the time.

2. should set F2.03=0, namely AVR function ineffective when the motor system oscillates which caused by choosing AVR function.

59

EDS800 series Service Manual

F2.04 Slip freq. compensation

range0150()

0

This function can adjust output frequency properly as the load varies to compensate slip frequency of the asynchronous motor dynamically, so that control motor speed in constant value. If act with automatic torque boost function, can get better low speed moment characteristic. As shown in Fig.6-10.

100% Slip compensation

Output current

150%

100%

Before slip compensation

After slip compensation

50%

Motor speed

Fig.6-10 slip freq. compensation graph

F2.05 Carrier freq.

range215.0K

Depend on device type

Carrier frequency mainly affects motor noise and heat consumption during running. Relation between carrier frequency and motor noise, current leakage, disturbance is as follows:

Carrier frequency increase(↑),motor noise decrease(↓),motor current leakage increase(↑),disturbance to environment increase(↑);

Carrier frequency decrease (↓),motor noise increase (↑),motor current leakage decrease (↓),disturbance to environment decrease (↓).

Should decrease carrier frequency properly to reduce heat consumption of the inverter when ambient temperature is high and motor load is heavy. Relation of

EDS800 each type and carrier frequency is as shown in Table 6-1.

Table 6-1 relation table of device type and carrier frequency

carrier freq. device type

Max.carrier freq. (KHz)

Min. carrier freq (KHz) factory default (KHz)

0.2KW 15 2.0 2

0.4KW 15 2.0

0.75KW 14 2.0

1.5KW 13 2.0

2

2

2

60

EDS800 series Service Manual

note

(1) To get better control characteristic,suggest that the ratio of carrier frequency to inverter max. run frequency be not smaller than 36.

(2) Error exists in current displayed value when carrier frequency is small.

F2.06 Jog run frequency

range0.1050.00Hz

5.00Hz

F2.07 Jog Acc time

range0.160.0S

20.0S

F2.08 Jog Dec time

range0.160.0S

20.0S

Jog frequency has the highest priority. Under any status, the inverter would transit to run at jog frequency at once according to set jog accelerating, decelerating time as long as jog command is inputted, as shown in Fig.6-11.

Jog accelerating time means time during which the inverter accelerate from 0Hz to high limit frequency,Jog Dec time means time during which the inverter decelerate from high limit frequency to 0Hz.

Jog decelerating time

Jog freq.

Jog accelerating time

Jog freq.

Jog. signal

Jog. signal

Fig.6-11 jog run note

(1) Keypad, control terminal and serial port can do jog control all.

(2) The inverter will stop according to Dec stop mode after jog run command is withdrawn.

F2.09 Freq. input channel combination

0: VCICCI

1: VCICCI

2: reserved

3: reserved

4: reserved

5: reserved

6: external pulse provisionCCI

7: external pulse provisionCCI

8: reserved

9: reserved

61

range028

0

EDS800 series Service Manual

10 : reserved

11 : reserved

12 : reserved

13 : VCI, CCI any nonzero value effective, VCI preferred

14 : reserved

15 : 485+CCI

16 : 485-CCI

17 : 485+VCI

18 : 485-VCI

19 : 485+ keypad analog potentiometer

20 : 485- keypad analog potentiometer

21 : VCI+ keypad analog potentiometer

22 : VCI- keypad analog potentiometer

23 : CCI+ keypad analog potentiometer

24 : CCI- keypad analog potentiometer

25 : reserved

26 : reserved

27 : reserved

28 : reserved

F2.10 host inverter communication freq. provision proportion

range0500() 100()

Host&sub inverter communication freq. provision proportion,this parameter need to be set in sub inverter but not need in host inverter.

F2.11 LED display control 1

range0000-1111

1111

F2.11 make use of 4 bits of the parameter to set if C-07—C-10 is displayed in parameter, thereinto 0 indicates not displayed, 1 indicates displayed. Set parameter of 4 bit is as following figure:

4th bit 3rd bit 2nd bit 1st bit

C-07: run time

C-08: accumulative run time

C-09: input end status

C-10: output end status

62

EDS800 series Service Manual

F2.12 LED display control 2

range0000-1111

1111

F2.12 make use of 4 bit of the parameter to set if C-11—C-14 is displayed in parameter, thereinto 0 indicates not displayed, 1 indicates displayed. Set parameter of 4 bit is as following figure:

4th bit

3rd bit 2nd bit 1st bit

C-11:analog input VCI

C-12:reserved

C-13:analog input CCI

C-14:outer pulse input

Parameter operation

F2.13 control

LED 1 st

bit

rangeLED 1

st

bit: 0~2

LED 2 nd

bit: 0~2

LED 3 rd

bit: 0~4

000

0: all parameter allowed to be modified

1: except this parameter,all other parameter not allowed to be changed

2: except F0.01 and this parameter,all other parameter not allowed to be changed

LED 2 nd

bit

0: no action

1: renew factory default

2: clear history failure record

LED 3 rd

bit

0: Not locked

1: all the buttons locked except STOP key

2: all the buttons locked except , STOP key

3: all the buttons locked except RUN, STOP key

4: all the buttons locked except SHIFT, STOP key

63

EDS800 series Service Manual

note

(1)Factory default of this function parameter is 0,i.e., all the function parameter can be modified.After modifying the parameter, please first set this function code to 0 if you want to modify function code setting.After modifying the parameter you can change this function code setting to expected protection grade if parameter protection is needed.

(2) After clearing memory information or renewing manufacturer parameter, the 1st bit of this function code will resume 0 automatically.

(3) After the 3rd bit of F2.13 is setted, the keypad will be locked after you press ESC for 5 seconds, and then corresponding keys is locked. Please press ESC for 5 seconds again for unlocking the keypad.

F2.14 communication deployment rangeLED 1st bit05 LED 2nd bit: 0, 1, 2 03

F2.14 make use of 1 st

bit, 2 nd

bit to set baud rate and data format of serial communication,thereinto LED 1 st

bit represents communication baud rate, set value as follows:

0: 1200BPS

1: 2400BPS

2: 4800BPS

3: 9600BPS

4: 19200BPS

5: 38400BPS

LED 2 nd

bit: represents data format,set value as follows:

0: 181 format, no checkout. Namely: 1 bit for starting, 8 bits for data, 1 bit for stop, no checkout.

1: 181 format, even checkout. Namely: 1 bit for starting, 8 bits for data, 1 bit for stop, even checkout.

2: 181 format, odd checkout. Namely: 1 bit for starting, 8 bits for data, 1 bit for stop, odd checkout.

F2.15 Local address

range0127, 127 is broadcast address

1

This function code is used to identify address of this inverter during serial port communication.127 is for main inverter during main and sub device communication between inverters.

!

127 is broadcast address,can only receive and execute broadcast command from upper machine but not respond to upper machine when 127 is set to broadcast address.

F2.16 Communication overtime checkout time

range0.01000.0S

0.0S

When serial port communication fails and its continuous time exceed set value of this function code,the inverter judge it as communication failure.

64

EDS800 series Service Manual

The inverter would not detect serial port communication signal, namely this function ineffective when set value is 0.

F2.17 Local response delay time

range0200ms

5ms

Local response delay time represents the time within which the inverter serial port receive and execute command from upper device and then respond to upper device, this function is just used for setting this delay time.

F2.18 Accelerating time 2

F2.19 Decelerating time 2

range0.16000.0

range0.16000.0

20.0

20.0

F2.20 Accelerating time 3

F2.21 Decelerating time 3

F2.22 Accelerating time 4

F2.23 Decelerating time 4

F2.24 Accelerating time 5

F2.25 Decelerating time 5

F2.26 Accelerating time 6

F2.27 Decelerating time 6

F2.28 Accelerating time 7

F2.29 Decelerating time 7

range0.16000.0

range0.16000.0

range0.16000.0

range0.16000.0

range0.16000.0

range0.16000.0

range0.16000.0

range0.16000.0

range0.16000.0

range0.16000.0

20.0

20.0

20.0

20.0

20.0

20.0

20.0

20.0

20.0

20.0

Can define 3 kinds of accelerating decelerating time and can choose accelerating decelerating time 1 ~ 7 during inverter run process by different combination of control terminal,please see definition for function of accelerating decelerating time terminal in F5.00~F5.07.

note

Accelerating decelerating time 1 is defined in F0.08 and F0.09.

65

EDS800 series Service Manual

F2.30 Multi-step freq. 1

F2.31

Multi-step freq. 2

F2.32 Multi-step freq. 3

F2.33 Multi-step freq. 4

F2.34 Multi-step freq. 5

F2.35 Multi-step freq. 6

F2.36 Multi-step freq. 7

F2.37 Multi-step freq. 8

F2.38 Multi-step freq. 9

F2.39 Multi-step freq. 10

F2.40 Multi-step freq. 11

F2.41 Multi-step freq. 12

F2.42 Multi-step freq. 13

F2.43 Multi-step freq. 14

rangelow limit high limit fre

rangelow limit high limit

rangelow limit high limit

rangelow limit high limit

rangelow limit high limit

rangelow limit high limit

rangelow limit high limit

rangelow limit high limit

rangelow limit high limit

rangelow limit high limit

rangelow limit high limit

rangelow limit high limit

rangelow limit high limit

rangelow limit high limit

5.00Hz

10.00Hz

20.00Hz

30.00Hz

40.00Hz

45.00Hz

50.00Hz

5.00Hz

10.00Hz

20.00Hz

30.00Hz

40.00Hz

45.00Hz

50.00Hz

F2.44 Multi-step freq. 15

rangelow limit high limit

50.00Hz

These set frequency will be used in multi-step speed run mode and simple PLC run mode,please refer to multi-step speed run terminal function of F5.00~F5.04 and F4 group simple PLC function.

F2.45 Jumping freq. 1

F2.46 Jumping freq. 1 range

F2.47 Jumping freq. 2

F2.48 Jumping freq. 2 range

F2.49 Jumping freq. 3

range0.00400.00Hz

range0.0030.00Hz

range0.00400.00Hz

range0.0030.00Hz

range0.00400.00Hz

0.00Hz

0.00Hz

0.00Hz

0.00Hz

0.00Hz

F2.50 Jumping freq. 3 range

range0.0030.00Hz

0.00Hz

F2.45~F2.50 function is set for keeping inverter output frequency away from resonance frequency of mechanical load.

Inverter set frequency can jump around some frequency point according to mode

66

EDS800 series Service Manual shown in Fig. 6-12, at most 3 jumping range can be defined.

Set freq. after adjusted

Jumping freq. 3 Jumping range 3

Jumping freq. 2

Jumping freq. 1

Jumping range 2

Jumping range 1

Set freq.

Fig.6-12 jumping frequency and range graph

F2.51 Set run time

F2.52 Run time accumulation

range065535h

range065535h

0

0

After run accumulative time reach set run time (F2.51),the inverter will output indicator signal,please refer to F5.10 function introduction.

F2.52 denotes accumulative run time of the inverter from leaving factory to now.

F2.53 RS485/232 frame format selection

range04

0

0: a frame of 14 bytes or 18 bytes ASCII

1: a frame of 8 bytes or 10 bytes hexprimary response not changed

2: a frame of 8 bytes or 10 bytes hex12 command has no response

3: a frame of 8 bytes or 10 bytes hex14 command has no response

4: a frame of 8 bytes or 10 bytes hexboth 12 and 14 command have no

response

6.4 Closed-loop run control parameter: F3

Analog feedback control system:

Input pressure specified value through VCI port, send 4~20mA feedback value of pressure sensor to inverter CCI input port,make up of analog closed-loop control system by built-in PID adjustor,as shown in Fig.6-13.

67

EDS800 series Service Manual

Power supply provision 1-3K

QF

L1

L2

L3

FWD

COM

+10V

VCI

GND

EDS800

U

V

W

PE

CCI

GND

M

4~20mA send out

P

Fig.6-13 built-in PID analog feedback control system graph note

Specified value can also be provided with option by F0.00 function code.

EDS800 built-in PID adjustor make up of control system and its work principle chart is as follows:

Closed-loop specified value specified value

adjusting

(F3.06,F3.06)

+

_ e error limit

(F3.12) feedback adjusting

(F3.05,F3.07) proportion gain

(F3.08) integral gain

(F3.09) differenti- al gain

(F3.10)

+

+ closed-loop output closed-loop feedback value

Fig.6-14 PID control principle diagram

In above Fig.6-14 ,definition of closed-loop specified value, feedback value, error limit and proportion integral differential parameter is same as that of common

PID adjustor parameter, see respectively (F3.01~F3.12) definition,relation of specified value and expected feedback value is as shown in Fig.6-15. Thereinto specified value take 10V as reference and feedback take 20mA as reference.

Specified value adjusting and feedback value adjusting in Fig.6-14 is for confirming corresponding relation and unitive dimension between specified value and feedback value.

68

EDS800 series Service Manual

20mA

4mA

Expected feedbck value specified value

0 10V

Fig.6-15 specified value and expected feedback value

When the system is determined,basic steps for setting closed-loop parameter are as follows:

(1) determine closed-loop provision and feedback channel(F3.01, F3.02)

(2) need to set relation between closed-loop provision and feedback for analog closed-loop (F3.04~F3.07)

(3) set closed-loop presetting frequency function (F3.14, F3.15)

(4) set closed-loop proportion gain, integral gain, differential gain, sampling cycle, error limit (F3.08~F3.12)

F3.00 Closed-loop run control selection

range0, 1, 2

0

0: closed-loop run control ineffective

1: PID closed-loop run control effective

2: reserved

F3.01 provision channel selection

range0~3

1

0: digital provision.

1: VCI analog 010V voltage provision

2: CCI analog provision. Can choose 0~10V voltage or 4~20mA current provision

3: keypad analog potentiometer provision

F3.02 Feedback channel selection

range0~6

0: VCI analog input voltage 010V

1: CCI analog input

2: VCI+CCI

3: VCI-CCI

4: Min { VCI, CCI }

69

1

EDS800 series Service Manual

5: Max { VCI, CCI }

When CCI analog input is selected to be current input, it will be converted to voltage value in the inverter.

6: pulse feedback

F3.03 Specified value digital setting

range0.0010.00V

0.00V

When F3.01=0, figure provision F3.03 will be as specified value of closed-loop control system directly. Therefore when control closed-loop system through keypad or serial port, can change system specified value by modifying

F3.03.

F3.04 min. specified value

range: 0.0max. specified

F3.05 corresponding feedback value of min. specified value

F3.06 max. specified value

range0.0100.0(%) 0.0()

corresponding feedback value

F3.07

range0.0%100.0()

100.0(%) of max. specified value

F3.04~F3.07 define relation curve of analog closed-loop provision and expected feedback. Their set value is percentage of provision and feedback actual value relative to reference (10V or 20mA). positive adjusting feedback corresponding feedback value of max. specified value corresponding feedback value of min. specified value negative adjusting min. provision max. provision feedback corresponding feedback value of max. specified value corresponding feedback value of min. specified value min. provision max. provision

Fig.6-16 provisionfeedback curve

0.0()

F3.08

F3.09

F3.10

F3.11

Proportion gain Kp

Integral gain Ki

Differential gain Kd

Sampling cycle T

range0.0009.999

range0.0009.999

range0.0009.999

range0.011.00S

0.050

0.050

0.000

0.10S

70

EDS800 series Service Manual

The more big Kp proportion gain is, the more quick the response is,but overbig is prone to bringing surge.

Only applying proportion gain Kp adjustment can’t eliminate offset completely,can apply integral gain Ki and differential gain to make up of PID control in order to eliminate residual offset. The bigger Ki is, the more quickly the system responds to changing offset, but overbig is prone to bringing surge.

Sampling cycle T is sampling cycle for feedback value,during each sampling cycle PID adjustor calculate for one time,the longer the sampling cycle is , the slower the system responds.

F3.12 Offset limit

range0.020.0() 2()

For Max. offset of closed-loop specified value,as shown in Fig.6-17,PID adjustor stops adjusting when feedback value is within this range. To utilize this function reasonably redound to harmonizing the conflict between system output precision and stabilization.

Feedback value

Specified value offset limit

Output Freq. preset freq. time

Output

Freq. time preset freq. holding time time

Fig.6-17 offset limit Fig.6-18 closed-loop preset freq. run

F3.13 integral separation PID adjusting threshold

range0.0100.0%

100.0%

PID integral separation,integral don’t react when specified value and feedback value are bigger than this limit, only when specified value and feedback value are smaller than or equal to this limit,integral react. Can adjust system response speed by adjusting this parameter.

F3.14 closed-loop preset frequency

range0-high limit freq.

0.00Hz

F3.15 closed-loop preset frequencyholding time

range0.0-6000S

0.0S

This function can make closed-loop adjusting enter into stable phase quickly.

After closed-loop run starts, the inverter first accelerates to preset frequency F3.14 in terms of accelerating time, and after running at this frequency for a period of time

71

EDS800 series Service Manual

F3.15, it runs according to closed-loop characteristic. As shown in Fig.6-18.

Set preset freq. and holding time to “0’ if closed-loop preset freq. function is not needed.

note

F3.16 Revival frequency

range0.00400.00Hz

0.00Hz

F3.17 Sleep frequency

range0.00400.00Hz

0.00Hz

Revival frequency define frequency limit from sleep status to work status. If set frequency is bigger than this limit and the situation sustains for a revival delay time, the inverter will enter into work status from sleep status.

Sleep frequency define frequency limit from work status to sleep status. If set frequency is smaller than this limit and the situation sustains for a sleep delay time, the inverter will enter into sleep status from work status.

This function can realize sleep function and make energy save run possible, avoid the inverter staring at threshold frequency frequently.

F3.18 Sleep delay time

range0.06000.0S

0.0

This parameter is to set delay time when entering into sleep function. EDS800 will stop running if the output frequency is lower than sleep frequency and holding time longer than this sleep delay time.

F3.19 Revival delay time

range0.06000.0S

This parameter is to set delay time when entering into revival function.

0.0

F3.20 Constant pressure water supply mode selection

range0~3

0

0: select inverter OC to act in one-drive-one water supply mode

1: select constant pressure water supply board to act in one-drive-one water supply mode

2: select constant pressure water supply board to act in one-drive-two water supply mode

3: select constant pressure water supply board to act in one-drive-three water supply mode

F3.21 Long-distance manometer range

range0.0019.999Mpa

1.000

To set 10V or 20mA by this parameter.

Allowed offset to high limit and lower

F3.22 limit Freq. when add or reduce pumps

range0.0100.0

0.0

By this parameter,we defines that the inverter begins to add or reduce pumps

72

EDS800 series Service Manual when output frequency falls in offset range of high limit frequency or lower limit frequency.The inverter begins to add or reduce pumps at high limit frequency or lower limit frequency if this parameter is set to be 0.0%.

F3.23 Pump switchover judging time

range0.0999.9S

300.0

This parameter defines the judging time from output frequency up to high limit to adding pump and the same from ouput frequency up to lower limit to reducing pump.

F3.24

Magnetic control conductor switchover delay time

range0.110.0S

0.5

This parameter defines the action delay time of magnetic control conductor when it’s from power source to variable frequency or from variable frequency to power source.

F3.25 Automatic switchover interval

range00009999 minutes

0

This parameter defines automatic switchover interval, for more information about automatic switchover please see parameter F3.30.

The inverter will close automatic switchover function if this parameter is set to be 0000min.

! This time only includes EDS800 running time.

F3.26 Water supply supervision Para. display

range0~1

0: C-11, C-12 display voltage value of VCI, CCI.

1: C-11, C-12 display PID specified pressure and feedback pressure.

0

F3.27 Closed-loop adjusting characteristic

range0, 1

0

0: Forward function. motor speed increases as specified value increases.

1: Reverse function. motor speed decreases as specified value increases.

F3.28 LED initial supervision Para. selection

range0~14

1

This parameter defines initial supervision parameter selection during running or stop. For example F3.28=3, LED displays output voltage initially, please press

SHIFT key if you want to see about other supervision parameter.

0: set frequency:It displays set-frequency when standby and displays output frequency when running.

1: output frequency:It displays output frequency while running and standby.

2: output current

73

EDS800 series Service Manual

3: output voltage

4: DC bus bar voltage

5: motor speed

6: heat sink temperature

7: run time

8: accumulative run time

9: input terminal status

10: output terminal status

11: analog input VCI/PID provision

12: analog input CCI/PID feedback

13: reserved

14: exterior pulse input

F3.29 Zero freq. braking freq. at starting Range:0.00-15.00Hz

Same as detailed description for F1.03 and F1.04.

F3.30

range0~24

Same as detailed description for F5.10.

F3.31 VCI analog input gain Range:0-800%

VCI analog input gain,figure as following:

0.00Hz

15

100

f

50Hz

Gain is 150%

Gain is 100%

Gain is 50%

VCI

VCI analog input gain

6.5 Simple PLC run function parameter group: F4

The user can set by himself the output frequency direction and running time of the inverter during a running cycle by simple PLC function according to spot craft demand, as shown in Fig.6-19.

74

EDS800 series Service Manual a

1

f 1 a

2

T

1 f

2 d

3 a

3

Simple PLC run a

6 f

5 a

5 f

6 d

7 f

7 f

3 d

5 a

4

f

4

T

2

T

3

T

4

T

5

T

6

T

7 d

7

PLC step finishing indication f

2

Simple PLC run a

6

500ms

PLC circle finishing indication

Fig.6-19 simple PLC run

EDS800 serial inverter simple PLC run function provide 7 kinds of multi-step speed run mode,see below an example of 7 step speed. In Fig.6-20,a

1

~a

5

, d

1

~d

5

is accelerating or decelerating time of relative step,set by accelerating decelerating time parameter F0.08, F0.09 and F2.18~F2.29 in total 7 kinds of parameter,f

1

~f

T

1

~T

7

indicating set frequency and run time set by function code F4.01~F4.14.

7

, f

6

d

7 f

7 a

1 f

1 a

2 d

3 a

5 f

5 d

7 a

3

f

3 a

4 f

4 d

5

T

1

T

2

T

3

T

4

T

5

T

6

T

7

RUN command

Fig.6-20 stop after PLC single circle

PLC step finishing and circle finishing indication can be realized by outputting

500mS pulse indicator signal through open circuit collector terminal OC,detailed function defined by F5.10.

F4.00

Simple PLC run setting

rangeLED 1

st

bit0~3

LED 2 nd

bit0, 1

LED 3 rd

bit0, 1

000

This function code make use of its 1st bit, 2nd bit, 3rd bit to set PLC run mode,

PLC rerun mode after interruption, set run time unit, detail as follows:

75

EDS800 series Service Manual

LED 1 st

:

0: no action. PLC run mode ineffective.

1: stop after single circle. As shown in Fig.6-20, the inverter stops automatically after finishing a circle, can only start when another run command is available.

2: keep final value after single circle. As shown in Fig.6-21,the inverter keep running according to frequency, direction of final step after finishing a circle,the inverter won’t stop according to set decelerating time until the stop command is available. a

1 f

1 a

2 f

2 d

3 a

5 f

5 a

6

f

6

d

7 f

7 d

7 a

3

f

3 a

4 f d

5

T

1

T

2

T

3

T

4

4

T

5

T

6

T

7

RUN command

STOP command

Fig.6-21 holding mode after PLC single circle

f

6 f

6 f

2 f

7 f

2 f

7 f

1 f

5 f

1 f

5 d

1 f

1 d

1 d

2 f

3 f

3

PLC run f

4 f

4

T1 T2 T3 T4 T5 T6 T7 T1 T2 T3 T4 T5 T6 T7 T1

RUN command

STOP command

Fig.6-22 PLC consecutive circle mode

3: consecutive circle. As shown in Fig.6-22,the inverter start next circle automatically after finishing a circle,until there is stop command.

LED 2 nd bit:

76

EDS800 series Service Manual

0: start from first step. Stop during running caused by stop command, failure or power off,after restarting the inverter will run from first step.

1: continue to run from step frequency of interruption moment. When stop during running caused by stop command or failure,the inverter will record current step used time automatically and enter into this step automatically after restarting, continue to run for residual time according to defined frequency of this step, as shown in Fig.6-23. The inverter will rerun from first step after restarting if power off.

Interruption signal output freq.Hz f

1 a

1 d

2 f

3 a

3 f

2 a

2

Time t

Step 1

Step 2

Used time Step 2 residual time a1:step 1 accelerating time a2:step 2 accelerating time a3:step 3 accelerating time d2:step 2 decelerating time f1:step 1 frequency f2:step 2 frequency f3:step 3 frequency

LED 3 rd

Fig.6-23 PLC starting mode 1

bit : PLC run time unit

0: second; 1: minute

This unit is only effective to PLC run step time,for accelerating decelerating time of PLC run period, their unit selection is determined by F0.07.

note

(1) If run time of PLC segment is set to 0this segment is ineffective.

(2) can make PLC process a pause, ineffective, work etc. through terminal, for detail please refer to terminal correlative function parameter group F5.

F4.01

Step 1 setting

range000621

000

range06000.0

10.0 F4.02 Step 1 runtime

F4.03

Step 2 setting

F4.04

Step 2 runtime

F4.05 Step 3 setting

F4.06 Step 3 runtime

F4.07

Step 4 setting

range000621

range06000.0

range000621

range06000.0

range000621

000

10.0

000

10.0

000

77

F4.08 Step 4 runtime

F4.09 Step 5 setting

F4.10 Step 5 runtime

F4.11 Step 6 setting

EDS800 series Service Manual

range06000.0

range000621

range06000.0

range000621

10.0

000

10.0

000

F4.12 Step 6 runtime

F4.13 Step 7 setting

range06000.0

range000621

10.0

000

F4.14 Step 7 runtime

range06000.0

10.0

F4.01~F4.14 utilize LED 1 detail: st

bit, 2 nd

bit, 3 rd

bit to separately define frequency setting,direction and accelerating decelerating time of PLC Run, see following for

LED1 st

bit: frequency setting

0: multi-step frequency i i=1~7 is defined by F2.30~F2.44.

1: frequency is determined by function code F0.00

LED 2 nd

bit: run direction selection

0: forward run

1: reverse run

2: determined by run command (FWD,REV)

LED3 rd

bit: accelerating decelerating time selection

0: accelerating decelerating time 1

1: accelerating decelerating time 2

2: accelerating decelerating time 3

3: accelerating decelerating time 4

4: accelerating decelerating time 5

5: accelerating decelerating time 6

6: accelerating decelerating time 7

78

EDS800 series Service Manual

6.6 Terminal correlative function parameter group: F5

F5.00 Input terminal X1 function selection

range0~42

F5.01 Input terminal X2 function selection

range0~42

F5.02 Input terminal X3 function selection

range0~42

F5.03 Input terminal X4 function selection

range0~42

0

0

0

0

F5.04 Input terminal X5 function selection

range0~42

0

F5.05 reserved

F5.06

reserved

F5.07

reserved

Multi-function input terminal X1~X5 provides 43 kinds of selection mode for the user,can choose based on spot requirement. For parameter function table please see Table 6-2.

Table 6-2 multifunction input function selection table

item corresponding function

0 Leave control terminal unused item corresponding function

1 Multi-step speed control terminal 1

2 Multi-step speed control terminal 2

4 Multi-step speed control terminal 4

6 External reverse run jog control

8 Accel/Decel time selecting terminal 2

10 External device failure input

12 Free stop input

14 stop DC braking input command DB

16 Frequency increasing command( UP)

18 Accel/Decel prohibited command

20 Closed-loop ineffective

22 Simple PLC pause command

3 Multi-step speed control terminal 3

5 External forward run jog control

7 Accel/Decel time selecting terminal 1

9 Accel/Decel time selecting terminal 3

11 External restoration input

13 External stop command

15 Inverter run prohibition

17 frequency descending command( DOWN)

19 Three-wire run control

21 PLC ineffective

23

PLC stop status restoration (reset variable of PLC interruption moment, make it restart from first

24 Frequency provision channel selection 1

26 Frequency provision channel selection 3

28 Command switched to terminal

25 Frequency provision channel selection 2

27 Frequency switched to CCI

29 Run command channel selection 1

79

EDS800 series Service Manual

30 Run command channel selection 2

32 Traverse runin

34 interior counter clearing end

36 Interior timer clearing end

38 Pulse frequency input( only effective for X5)

31 Run command channel selection 3

33 External interruption input

35 interior counter triggering end

37 interior timer triggering end

39 Reserved

40 Reserved

K

4

K

3

K

2

41 Reserved

42 Reserved

Now explain listed function in Table 6-2 as follows:

1~4: Multi-step speed control terminal. Can set 15 step speed run frequency by choosing ON/OFF combination of these function terminal.

Table 6-3 multi-step speed run selection table

K

1

Frequency setting

OFF

ON

ON

ON

ON

ON

OFF

OFF

OFF

ON

ON

OFF

OFF

OFF

OFF

OFF

OFF

OFF

ON

ON

ON

ON

ON

ON

OFF

OFF

OFF

OFF

OFF

ON

OFF

ON

ON

OFF

OFF

ON

OFF

ON

ON

OFF

OFF

OFF

ON

ON

OFF

OFF

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

ON

OFF

ON

OFF

Common run frequency

Multi-step frequency 1

Multi-step frequency 2

Multi-step frequency 3

Multi-step frequency 4

Multi-step frequency 5

Multi-step frequency 6

Multi-step frequency 7

Multi-step frequency 8

Multi-step frequency 9

Multi-step frequency 10

Multi-step frequency 11

Multi-step frequency 12

Multi-step frequency 13

Multi-step frequency 14

ON ON ON ON Multi-step frequency 15

Above multi-step frequency can be used in multi-step speed run and simple

PLC run, please see below an example of multi-step speed run:

We now define control terminal X1, X2, X3, X4 separately as follows:

After set F5.00=1, F5.01=2, F5.02=3, F5.03=4, X1, X2, X3, X4 are used for realizing multi-step run,as shown in Fig.6-24.

80

EDS800 series Service Manual

Output frequency

Common set freq.

Run command on multisection speed control terminal 1 on multisection speed control terminal 2 multisection speed control terminal 3 on speed 1 speed 2 speed 7 speed 6 speed 11 speed 9 speed 15

K1

K2

K3

K4

K5 time

Fig.6-24 multi-step speed run

In fig.6-25 see an example of terminal run command channel,can make forward, reverse run control by K5, K6. In Fig.6-24, by different logic combination of K1, K2,

K3, K4,the inverter can run according to common set frequency or multi-step frequency based on above table.

3 phase breaker power supply

L1

L2

L3

EDS800

U

V

W

PE

M

KM

K1

K2

K3

K4

EDS800

X5

COM

COM

FWD

REV

COM

K5

K6

Fig.6-25 multi-step speed run Fig.6-26 exterior device failure always-open input

5~6: external jog run control input JOGF/JOGR.When run command channel is set to terminal run command channel F0.02=1,JOGF is jog forward run,JOGR is jog reverse run,jog operation frequency, jog accelerating decelerating time is defined in F2.06~F2.08 (remark: jog run command channel is determined by

F0.02)

7~9: Accel&Decel time terminal selection

81

EDS800 series Service Manual

Table 6-4 Accel&Decel time terminal selection logic mode

Terminal 2 Terminal 2 Terminal 1 Accel/Decel time selection

OFF OFF OFF

Accel time 1/ Decel time 1

OFF OFF ON Accel time 2/ Decel time 2

OFF ON OFF Accel time 3/ Decel time 3

OFF ON ON Accel time 4/ Decel time 4

ON OFF OFF Accel time 5/ Decel time 5

ON OFF ON Accel time 6/ Decel time 6

ON ON OFF Accel time 7/ Decel time 7

Can realize selection for Accel&Decel time1~7 by ON/OFF combination of

Accel&Decel time terminal.

10 : external equipment fault input. Can input fault signal of external equipment by this terminal to be convenient for the inverter to monitor fault of external equipment. The inverter displays “E0.14”, namely external equipment fault alarm after receiving the external equipment fault signal.

11 : exterior restoration input. After the fault alarm takes place in the inverter, can restore the inverter through this terminal. Its function is same as

12 : free stop input. This function is same as free stop during running defined in F1.05,but it’s realized by control terminal to be convenient for long-distance control.

13 : exterior stop command. This command is effective to all run command channel,when this function is effective the inverter stops running in mode set by

F1.05.

14 : DC injection braking input command DB during stop. Implement DC injection braking to the motor during stop by control terminal,in order to realize urgent parking and accurate orientation of the motor. Braking initial frequency, braking time are defined in F1.06, F1.07.

15 : inverter run forbiddance. The inverter during running stops freely when this terminal is effective and forbidden to start in waiting status. Mainly applied to occasion needing safe linkage.

16~17: frequency increasing command UP/descending command DOWN.

82

EDS800 series Service Manual

Realize frequency increasing or descending by control terminal, which substitute for keypad to realize long-distance control. Effective during common run if

F0.00=2.Increasing descending speed is set by F5.09.

18 : Accel&Decel speed forbidden command. Let the motor not effected by any foreign signal(except stop command),keep running at current frequency.

Ineffective during normal decelerating stop.

note

19 : three-wire run control. Please refer to function description of F5.08 run mode (three-wire run mode).

20 : closed-loop ineffective. Realize flexible switch to lower level run mode under closed-loop run status.

(1) can switch between closed-loop and lower level run mode only during closed-loop run(F3.00=1). note

(2) start stop control, direction and Accel&Decel time are subject to setting of corresponding run mode when it’s switched to lower level run mode.

21 : PLC ineffective. Realize flexible switch to lower level run mode under PLC run status.

note

(1) can switch between PLC and lower level run mode only during PLC run(F4.000).

(2) start stop control, direction and Accel&Decel time are subject to setting of corresponding run mode when it’s switched to lower level run mode.

22 : simple PLC pause command. Implement pause control to PLC process during running,run at zero frequency when this terminal is effective,not time for

PLC run .after ineffective implement automatic speed tracking start and continue

PLC run. For application method please refer to function description ofF4.00~F4.14.

23 : PLC stop status restoration. Under stop status of PLC run mode, will clear PLC run step, runtime, run frequency etc. recorded when PLC run stops if this terminal is effective,please see F4 group function description.

24~26 : terminal frequency provision channel selection. Through ON/OFF combination of frequency provision channel selection terminal 24, 25, 26,can realize frequency provision channel switch shown in Table 6-5. For relation of terminal switch and function code F0.00 setting, that is, latter effective.

Table 6-5 terminal frequency provision channel selection logic mode

frequency provision channel selection end 3 frequency provision channel selection end 2 frequency provision channel selection end 1 frequency provision channel selection

83

EDS800 series Service Manual

27: switch frequency to CCI. Frequency provision channel is switched to CCI provision compulsorily when this function terminal is effective, frequency provision channel come back to previous status when this function terminal is ineffective.

28 : command switched to terminal. Run command channel is switched to terminal run command channel compulsorily when this function terminal is effective.

29~31: terminal select run command channel

Table 6-6 run command channel logic mode

Run command

channel selection terminal 3

Run command channel selection terminal 2

Run command channel selection terminal 1

Run command channel

Can realize control command selection shown in Table 6-6 by ON/OFF combination of run command channel selection terminal,For relation of terminal switch and function code F0.00 setting, that is, latter effective.

32 : traverse jump-in. When traverse start mode is manual jump-in,traverse function effective if this terminal effective,see F6 function parameter description.

33 : exterior interruption input. The inverter close off output and run at zero frequency during running upon receiving exterior interruption signal. The inverter implement automatic speed tracking start-up to resume running once external

84

EDS800 series Service Manual interruption signal is relieved.

34 : interior counter clearing end. To clear built-in counter in the inverter with cooperation of counter triggering signal.

35 : interior counter triggering end. Counting pulse input port of built-in counter,pulse max. frequency: 200Hz,see function code F5.24, F5.25.

36 : interior timer clearing end. To clear built-in timer in the inverter with cooperation of timer triggering signal.

37 : interior timer triggering end. Please see function description for parameter

F5.27.

38 : pulse frequency input( only effective to X5). Only effective for multifunction input terminal X5, this function terminal receive pulse signal as frequency provision, for relation between inputted signal pulse frequency and set frequency in detail, please refer to F7 group parameter.

39 : reserved

40 : reserved

41 : reserved

42 : reserved

F5.08 FWD/REV run mode selection

range03

0

This parameter defines 4 kinds of exterior terminal control mode for inverter running.

0: 2-wire control mode 1

K2 K1 run

0 0 stop

K

1

K

2

EDS800

FWD

REV

COM

1 1 stop

Fig.6-27 2-wire run mode 1

0: 2-wire control mode 2

K2 K1 run

0 0 stop

1 0 stop

K

1

K

2

Fig.6-28 2-wire run mode

EDS800

FWD

REV

COM

85

EDS800 series Service Manual

2: 3-wire control mode 1

thereinto:

SB1: stop button

SB2: forward run button

SB3: reverse run button

SB2

SB1

SB3

FWD

EDS800

Xi

REV

COM

Fig.6-29 3-wire run mode 1

Xi is multifunction input terminal of X1~X5, here should define its corresponding terminal function as No. 19 “3-wire run control” function.

3: 3-wire control mode 2

EDS800

SB1: stop button

SB2: run button

SB2

FWD

K2 run direction selection

SB1

K2

Xi

REV

COM

Fig.6-30 3-wire run mode 2

Xi is multifunction input terminal X1~X5, here should define its corresponding terminal function as No. 19 “3-wire run control” function.

The inverter restores after failure and start at once if run command channel selecting terminal and terminal FWD/REV is effective during warning alarm stop.

F5.09 UP/DOWN speed

range0.0199.99Hz/S

1.00Hz/S

This function code defines varying rate of the set frequency when it’s modified by UP/DOWN terminal.

F5.10 Open collector output terminal OC output setting

range0~24

0

F5.11 reserved

F5.12

reserved

F5.13

reserved

OC open collector output terminal,Table 6-7 shows option of above 4 function

86

EDS800 series Service Manual parameter,choosing same output terminal function repeatedly is allowed.

Table 6-7 output terminal function selection table

item corresponding function item corresponding function

12

14

16

18

20

0

2

4

6

8

10

Inverter running signal (RUN)

Frequency level detectingsignal (FDT1)

Overload warning signal( OL)

Output Freq. reach low limit( FLL)

Stop for exterior failure( EXT)

In PLC run process

PLC finish one cycle run

Inverter is ready for run( RDY) traverse high&low limit restriction

Interior counter specified value arrive

Interior timer timing arrive

13

15

17

19

21

1

3

5

7

9

11

Frequency arriving signal (FAR) reserved

Output Freq. reach high limit( FHL)

Inverter stops for under voltage blockage (LU)

Inverter zero speed running

Simple PLC segment run finished reserved

Inverter failure

Interior counter final value arrive

Set runtime arrive reserved

22 reserved 23 reserved

24 reserved

Now introduce function listed in Table 6-7 as follows:

0: inverter during running( RUN). The inverter is in run status,output indicator signal.

1: frequency arriving signal( FAR). Refer to function description of F5.14.

2: Frequency level detecting signal( FDT1). Refer to function description of

F5.15~F5.16.

3: reserved

4: overload warning signal( OL). Inverter output current exceed F9.05 overload detect level and time exceed F9.06 overload detect time,output indicator signal.

5: output frequency reach high limit( FHL). When set frequency≥high limit frequency and run frequency reach high limit frequency,output indicator signal.

6: output frequency reach low limit( FLL). When set frequency≤low limit frequency and run frequency reach low limit frequency,output indicator signal.

7: Inverter stops for under voltage blockage( LU). When the inverter is running, LED displays“P.OFF” and output indicator signal if DC bus-bar voltage is lower than limitative level.

8: stop for exterior failure( EXT). When the inverter give the alarm (E014) and stops for exterior failure, output indicator signal.

87

EDS800 series Service Manual

9 : inverter zero speed running. When the inverter output zero frequency but in run status, output indicator signal.

10 : In PLC run process

11: Simple PLC segment run finished. After simple PLC current segment run is finished,output indicator signal(single pulse signal,width 500ms).

12 : PLC finish one cycle run

13 : reserved

14 : Inverter is ready for run( RDY). If this signal is effective, shows that bus-bar voltage is normal and run prohibition terminal is ineffective, the inverter can receive start-up command.

15 : Inverter fault. If failure takes place when the inverter is running, the inverter output indicator signal.

16 : Traverse high&low limit restriction. After choosing traverse function, if frequency fluctuant range based on center frequency of traverse is above high limit frequency F0.10 or under low limit frequency F0.11, the inverter will output indicator signal, as shown in Fig. 6-31. output

High limit set freq. checkout range

Low limit

OC: traverse

fluctuation

Y time time

Fig.6-31 traverse range restriction Fig.6-32 freq. arriving signal output

17 : Interior counter final value arrive

18 : Interior counter specified value arrive

17~18 please refer to function description of F5.25~F5.26.

19 : Set runtime arrive. When accumulative runtime of the inverter (F2.52) reach set runtime(F2.51),output indicator signal.

20 : Interior timer timing arrive. Refer to function description for F5.27.

21 : Reserved

22 : Reserved

23 : Reserved

24 : Reserved

88

EDS800 series Service Manual

F5.14 Freq. arriving(FAR)detect range

range0.0050.00Hz

5.00Hz

This parameter is supplementary definition to No. 1 function in Table 6-7.As shown in Fig.6-32,when output frequency of the inverter is within high&low detect range of set frequency,output pulse signal.

F5.15

FDT1freq. levelelectric level range0.00high limit frequency

10.00Hz

F5.16 FDT1 lag

range0.0050.00Hz

1.00Hz

Output freq.

F5.15~F5.16 is supplementary definition to No.2 function in

Table 6-7, introduce as follows:When

FDT1electric level output frequency exceed the set frequency

(FDT1 electric level),output indicator signal,

Y till output frequency descend to be some frequency(FDT1 electric level-FDT1 lag) lower than FDT1 electric level,as shown in Fig.6-33. time

FDT1 lag time

Fig.6-33 freq. level detecting

F5.17

Analog outputAOselection range09

0: output frequency( 0high limit frequency)

1: set frequency( 0high limit frequency)

2: output current( 02×rated current)

3: output voltage( 01.2×load motor rated voltage)

4: bus-bar voltage( 0800V)

5: PID provision (0.00-10.00V)

6: PID feedback (0.00-10.00V)

0

F5.18

F5.19

Analog outputAOgain

Analog outputAOoffset

rang0.002.00

rang0.0010.00V

1.00

0.00

For AO analog output, the user can modify display measuring range or emend meter head error by adjusting output gain if necessary.

F5.20 reserved

F5.21 reserved

F5.22 reserved

89

EDS800 series Service Manual

F5.23 DO terminal output function selection

range0~9

Same as F5.17 function parameter description.

0

F5.24 DO max. pulse output freq.

range0.120.0max. 20KHz

10.0

DO port max. output pulse frequency corresponds to maximum value optioned by F5.23,for example 0: output frequency,then max. Output pulse frequency corresponds to high limit frequency.

F5.25 Set interior count number arriving provision

range

0

F5.26 Specified interior count number arriving provision

range

0

F5.25, F5.26 is supplementary definition to No. 17, 18 function in Table 6-7.

Set count number provision,shows that when some number of pulse are inputted to Xi(count triggering signal input function terminal), OC (open collector

Output terminal) output a indicator signal.

As shown in Fig.6-36,OC output an indicator signal when the 8th pulse is inputted to Xi. Here F5.25=8.

Specified count number provision,shows that when some number of pulse are inputted to Xi, Yi output a indicator signal,till set count number is reached.

As shown in Fig.6-34,TA, TB, TC start to output an indicator signal when the

5th pulse is inputted to Xi. Until set count number 8 is reached. Here F5.26=5.

Specified count number is ineffective when it is bigger than set count number.

Xi input

1 2 3 4

5

6

7 8

9

OC

TA, TB, TC

Fig.6-34 set count number and specified count number provision

F5.27 Interior timer timing setting

range0.16000.0s

60.0

This parameter is used to set timing time of interior timer of the inverter.The timer is activated by exterior triggering end(triggering end selected by F5.00~F5.07), the timer begins timing upon receiving exterior triggering signal, after it’s up to timing time one effective pulse signal of 0.5s will be outputted from relative OC end

90

EDS800 series Service Manual

6.7 traverse special function parameter group: F6

F6.00 traverse function selection

0: traverse function ineffective

1: traverse function effective

F6.01 traverse run mode

range0, 1

rangeLED 1st bit: 0, 1

LED 2nd bit: 0, 1

0

00

0: automatic jump-in mode. After start-up run at traverse preset frequency for a period of time, then enter into traverse operation automatically.

1: terminal manual run mode. When set the multifunction terminal Xi

( Xi=X1~X5)to function 32 and it’s effective, enter into traverse state; quit traverse state if ineffective and run frequency is at traverse preset frequency.

LED 2nd bit:

0: changing amplitude. Amplitude AW varies with center frequency, for its changing rate please see F6.02 definition.

1: fixed amplitude. Amplitude AW is determined by high limit frequency and

F6.02.

!

F6.02

Traverse center frequency input setting channel is set by F0.00 function.

traverse amplitude

range0.050.0() changing amplitude: AW=center frequency×F6.02

0.0() fixed amplitude: AW=high limit frequency×F6.02

Traverse run frequency is restricted by high limit, low limit frequency;if set improperly,

note

abnormal traverse operaion arise.

F6.03 Sudden jumping freq.

range0.050.0% 0.0()

As shown in Fig.6-37.If this parameter is set to 0, no jumping frequency.

F6.04 traverse cycle

range0.1999.9S

10.0S

Whole time for a cycle including traverse rising, descending process.

F6.05

Triangle wave rising time

Range: 0.0-98.0()

(traverse cycle)

50.0(%)

Define runtime of traverse rising segment=F6.04×F6.05 (s),runtime of descending segment = F6.04×(1-F6.05) (s). Please refer to description in Fig.6-35.

91

EDS800 series Service Manual

F6.06

F6.07

Traverse preset frequency

Traverse preset frequency latency time

range0.00400.00Hz

range0.06000S

0.00Hz

0.0S

F6.06 is used for defining inverter run frequency before entering into traverse operation.

When automatic start-up mode is optioned,F6.07 is used for setting holding time running at traverse preset frequency before enter into traverse operation;When manual start-up mode is optioned,F6.07 setting is ineffective. Please see description in

Fig.6-35. traverse amplitude

Run freq. Hz

AW=Fset*F6.02

traverse high limit F h center freq.Fset traverse low limit F

L traverse preset freq. run command stop command a1

+AW

-AW

Weaving sudden jumping freq.

=AW*F6.03

Accel per accel time weaving start-up latency time F6.07 triangle wave rising time

=F6.04*F6.05 traverse cycle time t

Decel per

Decel time

Fig. 6-35 traverse

6.8 Frequency provision function parameter group: F7

F7.00 VCI minimum provision

F7.01

Corresponding freq. to VCI minimum provision

F7.02 VCI max. provision

F7.03

Corresponding freq. to VCI maximum provision

range0.00F7.02

range0.00high limit

frequency

0.0V

range0.00high limit frequency 0.00Hz

range0.0010.00V

10.0V

50.00Hz

F7.04 CCI minimum provision

F7.05

Corresponding freq. to CCI minimum provision

F7.06 CCI max. provision

range0.00F7.06

range0.00high limit frequency 0.00Hz

range0.0010.00V

0.00V

10.00V

92

EDS800 series Service Manual

F7.07

Corresponding freq. to CCI max. provision

range0.00high limit frequency

F7.08 Max. Input pulse width

F7.09 Min. Input pulse width

F7.10 min. provision corresponding freq.

F7.11

Max. provision pulse width

F7.12 max. provision corresponding freq.

F7.13 PULSE max. pulse input

0.1-999.9ms(whenF0.00=11)

0.0-F7.11(Max.provision pulse)

(whenF0.00=11)

0.00high limit frequency

Rang:F7.09(Min.provision pulse)-F7.08(Max.provision pulse)

Range: 0.00high limit frequency

range0.120.0K

50.00Hz

100.0ms

0.0ms

0.00Hz

100.0ms

50.00Hz

10.0K

F7.14

F7.15

PULSE minimum provision

Corresponding freq. to

PULSE min. provision

range0.0F7.16

range0.00high limit frequency

0.0K

0.00Hz

F7.16 PULSE max. provision

rangeF7.14(PULSE min.

provision)F7.13(max.

input pulse)

10.0K

F7.17

Corresponding freq. to

PULSE max. provision

range0.00high limit

frequency

50.00Hz

When choose F0.00=11(terminal pulse setting freq.).the function of above parameter effective.

Pulse width in milliseconds ,the freq. of input pulse width can effect the precision of output freq., to assure the precision of output freq.,customer advised use the freq. of pulse width between 1Hz to 100Hz.

Please don’t use these function for the application where there use close freq control.

F2.00 sets the analog channel filtering time constant,to filter input signal,the more long filtering time is, the more great anti-jamming ability is, but response speed descend; the more short filtering time is, the more fast the inverter respond, but anti-jamming ability is weakened.

93

EDS800 series Service Manual fmax fmin

Set freq.

A fmax fmin

Set freq.

A

Amin

Amax

(1)

plus characteristic

A:VCI provision

Amin Amax

(2)

minus characteristic

Amin:min. provision fmin:corresponding freq. of min. provision

Amax:max. provision fmax:corresponding freq. of max. provision

See below relation curve of CCI and set frequency:

Set freq.

Set freq. fmax fmax fmin

A fmin

A

(1)

Amin Amax

plus characteristic

Amin Amax

(2)

minus characteristic

A: CCI provision

Amin:min. provision fmin:corresponding freq. of min. provision

Amax:max. provision fmax:corresponding freq. of max. provision

See below relation curve of PULSE and set frequency: fmax

Set freq. fmax

Set freq. fmin fmin

P

Pmin

Pmax

(1)

plus characteristic

P: PULSE provision

(2)

Pmin

Pmax

minus characteristic

P

Pmin: min. provision fmin: corresponding freq. to min. provision

Pmax: max. provision fmax: corresponding freq. to max. provision

94

EDS800 series Service Manual

6.9 Motor and vector control function parameter group: F8

F8.00 reserved

F8.01 Motor rated voltage

F8.02 Motor rated current

F8.03 Motor rated frequency

F8.04 Motor rated speed

F8.05 Motor pole

F8.06 Motor rated power

F8.07 reserved

F8.08 reserved

F8.09 reserved

F8.10 reserved

Range: 1480V

Range: 0.1999.9A

Depend on device type

Depend on device type

Range: 1.00400.00Hz

Depend on device type

Range: 19999r/min

Range: 2-14

Range: 0.1999.9KW

Depend on device type

Depend on device type

Depend on device type

F8.11 reserved

F8.12 reserved

F8.13 reserved

F8.14 reserved

F8.15 reserved

F8.16 Frequency display offset Range:0.00-2.00Hz

F8.17 Reserved

0.20Hz

Please set F8.01~F8.06 according to rated data of drived motor for safety.

6.10 Protection function parameter: F9

F9.00 reserved

F9.01 failure self-restoration times

range010

0

F9.02 failure self-restoration interval

range0.520.0S

5.0S

During run process, failure will take place accidently due to load fluctuation and the inverter will cut off output, here failure self-restoration function can be

95

EDS800 series Service Manual applied in order to let the device continue to run. During self-restoration, the inverter will try to resume running in speed checking restart mode but stop outputting and failure protected if the inverter can’t resume running successfully within set times.

Self-restoration function will be shut down if failure self-restoration times is set to 0.

!

(

1) To use failure self-restoration function must take device allowance and no essential failure in the inverter as preconditions.

(2) Self-restoration function is ineffective to failure protection caused by overload and over heat.

F9.03

Motor overload protection mode selection

range0, 1

1

This parameter defines protecting action mode when overload, overheat take place in the inverter.

0: no action. No motor overload protection characteristic(apply with caution), here the inverter have no overload protection for load motor;

1: inverter cut off output at once. The inverter cut off output and motor stop freely when overload, overheat take place.

F9.04 motor overload protection coefficient

range20.0-120.0(%)

100.0(%)

This parameter sets sensibility of the inverter implementing thermal relay protection to load motor, can implement correct heat protection to the motor by setting this value when output current value of load motor don’t match rated current of the inverter, as shown in Fig.6-36.

Value of this parameter can be determined by following formula:

F9.04

motor rated current

=

×100

inverter rated output current

note

The inverter will lose thermal relay protection function when a piece of inverter drive multiple motors in parallel. Please assemble heat protection relay at input side of each motor to protect them effectively. time

Alarm level

[F9.05]

Output current

[F9.04]=50% [F9.04]=100%

Yn

1 minute current

55%

110%

105% high

[F9.06] high

150% (G)

120% (P)

[F9.06] time

Fig.6-36 electronic thermal relay protection Fig.6-37 overload alarm

96

EDS800 series Service Manual

F9.05 overload alarm checkout level

F9.06 overload alarm delay time

range20200()

130(%)

range0.020.0S

5.0S

If output current exceeds electric level set by parameter F9.05 continuously, open collector outputs effective signal(refer to Fig.6-37 and interrelated description of parameter F5.10 ) after delay time set by F9.06 passed.

F9.07 Overvoltage stall selection

range0, 1

1

F9.08 Stall overvoltage point

range120-150(%)

140(%)

0: banned

1: allowed

Actual descending rate of motor speed may be lower than that of output frequency due to effect from load inertia when the inverter is in decelerating run process, here the motor will feed electric energy back to inverter which will make

DC bus-bar voltage of the inverter increase, overvoltage protection will takes place if not take steps. Overvoltage stall protection function, indicates that output frequency of the inverter stops descending if bus-bar voltage detected during run process exceed stall voltage point defined by F9.08 (relative to standard bus-bar voltage) and the inverter continue to implement decelerating run when bus-bar voltage detected again is lower than stall overvoltage point. As shown in Fig. 6-38. stall overvoltage point output frequency time time

Fig.6-38 overvoltage stall function

97

EDS800 series Service Manual

F9.09 automatic current limiting level

range110200()

150(%)

F9.10

F9.11 frequency descending rate during current limiting automatic current limiting action selection

range0.0099.99HzS

range0, 1

10.00Hz/S

0

By automatic current limiting function the inverter can limit load current not to exceed automatic current limiting level set by F9.09 to avoid tripping out for failure caused by rushing current. This function is especially suitable for some biggish inertia or acutely changing load occasion.

Automatic current limiting (F9.09) defines current threshold value of automatic current limiting action, its value is the percentage relative to inverter rated current.

Frequency descending rate during current limiting (F9.10) defines adjusting rate to output frequency during automatic current limiting action.

If frequency descending rate during automatic current limiting F9.10 is too small,inverter isn’t easy to get rid of automatic current limiting state which may cause overload failure finally;If descending rate F9.10 is too big, the inverter may be in generating state for long time which will cause overvoltage protection.

Automatic current limiting function is effective in accelerating decelerating state and whether it’s effective in constant speed run state is determined by automatic current limiting action selection (F9.11).

F9.11=0 indicates that automatic current limiting is ineffective during constant speed running;

F9.11=1 indicates that automatic current limiting is effective during constant speed running;

Output frequency may varies during automatic current limiting action,so automatic current limiting function is not suitable for occasion demanding stable output frequency during constant speed run.

98

EDS800 series Service Manual

6.11 Failure record function parameter: Fd

Fd.00 previous one failure record

range 0~23

0

Fd.01 previous two failure record

range 0~23

0

Fd.02 previous three failure record

Fd.03 previous four failure record

Fd.04 previous five failure record

Fd.05 previous six failure record

range 0~23

range 0~23

range 0~23

0

0

0

range 0~23

0

0: no failure

1―23: failure E0.01-E0.23,please see chapter 7 for specified failure type.

Fd.06

Set freq. at previous failure

Fd.07 Output freq. at previous failure

Fd.08 output current at previous failure

Fd.09 output volt. at previous failure

range 0-high limit

range 0-high limit

range 0-999.9A

range0-999V

0

0

0

0

Fd.10 DC bus-bar vlot. at previous failure

range0~800V

0

Fd.11 Load motor speed at previous failure

range0~9999

0

Fd.12

Module temp. at previous failure

range0~100

0

Fd.13

Input end state at previous failure

0

Fd.14 Accu. runtime at previous failure

range0~65535h

6.12 Code and manufacturer function parameter: FF

0

FF.00 user password

range 00009999

0000

User password setting function is used for prohibiting unauthorized personnel from consulting and modifying function parameter.

Set this function code to 0000 when user password function isn’t wanted. the password will come into effect at once.

Password modification:

99

EDS800 series Service Manual primary 4 bits password parameter editing state is available,choose FF.00(here password come into effect at once.

note

Please keep the password you set without fail, in case the password is missing please consult the manufacturer.

0000 FF.01 manufacturer password

range 00009999

Setting function for the manufacturer, user need not modify it.

100

EDS800 series Service Manual

7 Troubleshooting

7.1 Failure and countermeasure

Possible failure types in EDS800 are shown in Table 7-1 and failure code is from E001 to E023. Some failure code is reserved for intelligent automatic diagnosis function which will be executed continuously in future. When failure takes place in the inverter, the user should check according to note of this table first and record failure phenomena detailedly. Please contact our after-sale service and technical support

Department or agent in your local place when technical service is needed.

Table 7-1 failure type and the countermeasure

failure code failure type possible reason countermeasure

E001

E002

E003 short overcurrent during accelerating process

Improper V/F curve

Restart rotating motor

Adjust V/F curve setting,adjust manual torque boost or change to automatic torque boost

Set speed checking restart function

Low power source voltage

Too small power of the inverter

Check input power supply

Choose inverter with high-power overcurrent during decelerating process

Decelerating time is too short

Have potential energy load or big inertia load

Prolong decelerating time

Increase braking power of external energy consumption braking subassembly

Power of inverter is a bit small

Load change suddenly or

Have unwonted phenomena

Choose inverter with high-power

Check or reduce break of the load overcurrent during constant to too short speed process

Accel/Decel time is set low power source

Prolong accelerating decelerating time properly voltage

Check input power supply

Power of inverter is a bit small

Choose inverter with high-power

Unwonted input voltage Check input power supply

E004 overvoltage during accelerating process

Accel time is set to too short

Restart rotating motor

Prolong accelerating time properly

Set speed checking restart function

101

EDS800 series Service Manual

E005 overvoltage during decelerating process short

Have potential energy load or big inertia load

E006

Unwonted input voltage

Overvoltage during constant speed process

Accel/Decel time is set to too short

Input voltage change abnormally

Load inertia is a bit big

E007 controlpower supply overvoltage

Unwonted input voltage

E008

E010

Inverter overload heating

Increase braking power of external energy consumption braking subassembly

Check input power supply

Prolong accelerating decelerating time properly

Assemble reactor

Use energy consumption subassembly

Check input power supply or look for service

Accel time is set to too short

DC injection braking is too big improper V/F curve

Prolong accelerating time

Reduce DC injection braking current,prolong braking time

Adjust V/F curve and torque boost

Set speed checking restart function

Restart rotating motor power source voltage is too low

Load is too big check power source voltage

Choose inverter with high-power improper V/F curve

Adjust V/F curve and torque boost power source voltage is too low check power source voltage

General motor run at low speed with big load

Can choose frequency conversion motor for long time low speed run motor overload protection factor set incorrectly to set motor overload protection factor correctly motor blocked up or load change too suddenly and Check the load quickly

Air-path blocked

To clear air-path or improve ventilation condition

Ambient temperature is too Improve ventilation condition, high lower carrier frequency

Fan damaged Replace the fan

E011 reserved

E012 reserved reserved reserved reserved reserved

102

E013

E014

Inverting module protection failure

EDS800 series Service Manual

Transient overcurrent of the Refer to countermeasure for inverter phase to phase short overcurrent circuit or earthing short circuit of output 3 phase wiring again damaged fan

Ambient temperature is too high

Lower ambient temperature

Connecting wire or insert on control board loose

Check and connect the wire again

Unwonted current wave caused by missing Check wiring output phase etc.

Assistant power supply damaged and drive voltage lacking

Unwonted control board

Look for service from manufacturer or agent

Look for service from manufacturer or agent use sudden stop

STOP key in non-keypad run mode

Look up operation mode

STOP key under condition of stall

Set running parameter correctly external failure closed

E015

E016

Connecting wire or insert on control board loose current

Assistant power supply detecting circuit damaged failure

Hall component damaged

Unwonted amplifying circuit

Baud rate set improperly

Serial port communication error

RS485 communication failure

E017 reserved

Failure warning parameter set improperly

Upper device doesn’t work reserved

E018 reserved reserved

103 external failure is settled

Check and connect the wire again

Look for service from manufacturer or agent

Look for service from manufacturer or agent

Look for service from manufacturer or agent set Baud rate properly for service

Modify F2.16, F2.17

Check if upper device work and wiring is correct reserved reserved

EDS800 series Service Manual

E019 Under voltage Under voltage check spot input voltage

E020

System disturbance

Serious disturbance

E021 reserved

E022 reserved

E023

Main control DSP read and write wrongly reserved reserved

E

2

PROM read and write wrongly

Mistake take place when read or write control parameter

P.OFF Under voltage Under voltage

7.2 Failure record lookup

or add mains filter at power supply input side

Reset by the key-press, look for service reserved reserved

Reset by pressing

STOP

RESET

Look for service from manufacturer or agent check spot input voltage

This series inverter can record latest 6 failure code and inverter run parameter of the last failure, to search these informations can redound to finding out reason of the failure.

Failure information is all stored in Fd group parameter,please enter into Fd group parameter to see about information by referring to keypad operation method. code

Fd.00

Fd.01

Fd.02

Fd.03

Fd.04

Fd.05 content previous one failure record previous two failure record previous three failure record previous four failure record previous five failure record previous six failure record code Content

Fd.08 output current at previous failure

Fd.09 output volt. at previous failure

Fd.10 DC bus-bar vlot. at previous failure

Fd.11 load motor speed at previous failure

Fd.12 module temp. at previous failure

Fd.13 input end state at previous failure

Fd.06

Fd.07 set freq. at previous failure output freq. at previous failure

Fd.14 Accu. runtime at previous failure

— —

!

7.3 Failure reset

(1) Before reset you must find out reason of failure downright and eliminate it, otherwise may cause permanent damage to the inverter.

(2) If can’t reset or failure takes place again after resetting, should look for reason and continuous resetting will damage the inverter.

(3) Reset should take place 5 minutes after overload, overheat protection action.

104

EDS800 series Service Manual

To resume normal running when failure takes place in the inverter, you can choose following any kind of operation:

⑴Set any one terminal of X1~X5 to external RESET input (F5.00~F5.04=11), open it after connected to COM.

⑶Cut off power supply.

105

EDS800 series Service Manual

8 Maintenance

8.1 Routine maintenance

When you use EDS800 series you must assemble and operate it according to demand listed in this《service manual》strictly. During run state, temperature, humidity, vibration and aging parts may affect it. To avoid this, it is recommended to perform routine inspections.

Table 8-1 Daily inspection items

period daily periodic

Inspection item

Inspection content Criterion

Run state parameter

(1)output current

(2)output voltage

(3)inside temp.

(1)within range of rated value

(2)within range of rated value

(3)temp. increment < 35℃

Cooling system

(1)installing ambient

(2)local fan

(1)good ventilation, unblocked air-path

(2)rotate normally without abnormal noise

(1)heating (1)no

√ Motor abnormality

(2)noise (2)even

√ Inverter

(1) vibration, heating

(2)noise

(1)vibration balanced, proper wind temp.

(2) without abnormal sound

Run ambient

(3)fixation of lead, terminal (3)fixed screw don’t loose

(1)temperature, humidity

(1)-10 ~+40 ℃

40 ~50 us ed in lower volume or execute compulsory heat dissipating

(2)dust, water and leakage (2)no water leakage imprint, no dust

(3)gas (3)no peculiar smell

Recommend to inspect with following instrument:

Input voltage: electric voltmeter;output voltage: rectifying voltmeter;input output current: pincers ammeter.

106

EDS800 series Service Manual

8.2 Inspection and replacement of damageable parts

Some component parts in the inverter will be abraded or bear descending performance for long-term usage,to assure that the inverter can run stably and reliably, it is recommended to perform defending maintenance and replace corresponding parts if necessary.

(1) cooling fan

Abnormal noise, even oscillation may take place if the fan have wearing bearing, aging blade, here replacement of the fan should be considered.

(2) filter electrolyte capacitance

When frequent-changing load causes increasing pulsant current and aging electrolyte under high ambient temperature, the electrolyte capacitance may be damaged and here should replace it.

8.3 Repair guarantee

(1) Within 18 months from purchasing date, if failure caused by inverter itself takes place under normal conservation and usage, we will provide free repair service.

(2) We will take some upkeep if one of following situations takes place within period of repair guarantee. a. If did not use the inverter according to《service manual》strictly or did not use it under ambient demanded in《service manual》, which cause failure. b. Failure caused by applying the inverter to non-normal function; c. Failure caused by self-repair, refit which is not already allowed; d. Damage caused by bad keeping, falling down from high place or other extrinsic factor after purchasing the inverter; e. Failure caused by natural disaster or its reason such as unwonted voltage, thunderbolt, water fog, fire, salt corroding, gas corroding, earthquake and storm etc.; f. Make bold to tear up product logo (such as: nameplate etc.); Body serial number don’t accord with that in repair guarantee card.

(3) We calculate service fee based on actual cost, which is subject to contract if any.

(4) You can contact the agent and also our company directly if you have questions.

After repair guarantee period, we shall also provide lifetime charged repair service for our products.

note

Our company will also provide lifetime repair service with fee for inverter which is not within period of repair guarantee.

107

EDS800 series Service Manual

8.4 Storage

The user must pay attention to following points for temporary storage and long-term storage after purchasing the inverter:

(1) Avoid storing the inverter in high temperature, moist place and place of dust, metal powder and assure good ventilation.

(2) Longtime storage will cause electrolyte capacitance of low quality, so must assure that it’s electrified for one time within 2 years and electrification time is not shorter than 5 hours and input voltage must be increased to rated value gradually by voltage adjustor.

108

EDS800 series Service Manual

9 Examples

9.1 Common speed regulation running

9.1.1 Basic wiring diagram

3 phase breaker

L1 power supply L2

L3

EDS800

U

V

W

E motor

M

TA failure waring light

L1

L2

Fig. 9-1

9.1.2 Set following basic parameter:

AO

GND cymometer

(1) set parameter F8.01-F8.06 according to rated value of the inverter.

(2) set F0.00 parameter to 0,choose keypad analog potentiometer to set frequency.

(3) set F0.02 parameter to 0,choose keypad to control start-up, stop.

(4) use F0.03 parameter to set run direction.

note

(1) Press key to set frequency.

STOP

(2) To press key,the inverter will stop.

ENTER

(3) To press key,inverter enter into next menu or confirm data.

(4) Press key to increase or decrease the data.

9.1.3 Realized function

(1) realize stepless speed regulation to the motor, use keypad to control start/stop and keypad analog potentiometer to adjust frequency.

(2) bear failure warning function.

(3) connect with cymometer,which indicates output frequency of the inverter.

9.1.4 Application field

Used for common speed regulation field,such as: transportation machine, china machine, baccy machine, metallurgy machine etc.

109

EDS800 series Service Manual

9.2 Terminal control running

9.2.1 Basic wiring diagram

3 phase breaker power supply

L1

L2

L3

EDS800

U

V

W

E motor

M forward run reverse run

FWD

REV

COM

TA

TB

TC failure waring light

L1

L2

+10V specified signal

10K

AO

VCI ammeter

GND

GND

Fig. 9-2

9.2.2 Parameter setting

(1) set parameter F8.01-F8.06 according to rated value of the inverter.

(2) set F0.00 parameter to 4, 5 to choose VCI, CCIaccordingly, can accept frequency set signal within 0~10V.

(3) set F0.02 parameter to 1,to choose terminal run command channel.

note

(1) if F5.08=0,namely 2 wire control mode 1:FWD and COM are closed,moter is in forward run;REV and COM are closed,motor is in reverse run FWD, REV and

COM are closed or opened together,the inverter stop.

(2) set frequency is specified through VCI analog channel.

9.2.3 Realized function

(1) control forward run/reverse run of the motor by external on-off quantum.

(2) control speed of the motor by 0~10V signal.

(3) bear failure warning and output current indication function.

9.2.4 Application field

Used in field where need long-distance control to start/stop of the motor such as blower, food, chemical machine, packing machine, transportation machine etc.

9.3 Multi-step speed control running

9.3.1 Parameter setting

(1) set parameter F8.01-F8.06 according to rated value of the inverter. set F0.02

110

EDS800 series Service Manual parameter to 1,to choose terminal run command channel.

(2) F2.30-F2.44: multi-step speed frequency setting.

(3) F5.00-F5.04 set multi-step speed terminal control function.

!

(1) If F5.08=0,namely 2 wire control mode 1:FWD and COM are closed,moter is in forward run;REV and COM are closed,motor is in reverse run;FWD, REV and

COM are closed or opened together,the inverter stop.

(2)If any one or more terminal of X1, X2, X3 and COM are closed together, the inverter will run according to multi-step speed frequency determined by X1, X2,

X3 (multi-step speed frequency set value are determined by F2.30-F2.44).Can realize manual control and automatic control for multiple frequency, and also control for forward run, reverse run, free stop, reset, warning protection.

9.3.2 Basic wiring diagram

power supply

三相断路器

L1

L2

L3

EDS800

U

V

W

E

电动机

M forward run reverse run multi-step speed control 1 multi-step speed control 2 multi-step speed control 3 free stop reset

FWD

REV

COM

X1

X2

X3

X4

X5

TA

TB failure waring light

L1

TC

L2

OC

OCG

PLC run indicator light

24V/220VAC

Fig.9-3

9.3.3 Realized function

(1) make use of external on-off quantum signal to control start/stop of the motor.

(2) make use of external on-off quantum signal to make the motor run at set frequency.

(3) bear free stop and reset function by utilizing external on-off quantum signal.

(4) bear warning alarm and PLC run indication function.

9.3.4 Application field:

Applied in field where need frequent multi-speed adjustment to motor speed such as toughened glass, weaving, paper making, chemical etc..

111

EDS800 series Service Manual

9.4 Closed-loop control system

9.4.1 Parameter setting

(1) set parameter F8.01~F8.06 according to rated value of the inverter.

(2) F3.00=1: setting channel selection,here PID closed loop run control is effective.

(3) F3.01=1: setting channel selection,here choose VCI as provision channel of

PID adjustor.

(4) F3.02=1: feedback channel selection,here choose CCI as feedback channel,

4-20mA/0-10V feedback signal.

(5) F3.08-F3.10, set according to spot requirement.

9.4.2 Basic wiring diagram

3 phase breaker power supply

L1

L2

L3

EDS800

U

V

W

E motor

M forward run reverse run provision signal 10K

0-10V feedback signal

FWD

REV

COM

+10V

VCI

GND

CCI

Fig.9-4

TA

TB failure waring light

L1

TC

L2

AO

GND ammeter

9.4.3 Realized function

(1) The inverter can adjust output automatically according to feedback signal to make constant voltage, constant temperature, constant current etc. available.

(2) can control start/stop of the motor from long distance.

(3) bear failure alarm and current indicator function.

9.4.4 Application field

Applied in field where need stable system, pressure, flux such as blower pump, constant pressure water supply, air compressor, air conditioner, freezer cooling tower, music fountain, heat supply etc..

112

EDS800 series Service Manual

9.5 Consecutive action running

9.5.1 Basic wiring diagram

power supply

FWD run command

10KΩ

QF

L1

L2

L3

1#

EDS800

FWD

COM

U

V

W

E

M

TA

TB

TC failure waring light

L1

L2

10V

VCI

GND

485+

485-

Fig.9-5

9.5.2 Parameter setting

set 1# inverter as follows:

(1) F0.02=1: terminal run command control.

QF

L1

L2

2#

L3

EDS800

U

V

W

E

M

TA failure waring light

L1

TB

TC

L2

485+

485-

(2) F5.23=0: DO terminal output pulse signal for 1# inverter output frequency.

(3) F5.10=0: 1# inverter running signal is outputted by digital output terminal OC. set 2# inverter as follows:

(5) F0.00=7: terminal pulse setting is frequency provision for 2# inverter.

(6) F0.02=1: terminal run command control.

(7) F5.04=38:X5 is for pulse frequency input.

After above setting, can use digital/pulse output quantum of 1# inverter to realize consecutive action of 2# inverter.

9.5.3 Operation description

After receive forward run command from external switch(closed) and frequency specified value( 0~10V)from analog input terminal VCI, 1# inverter run at this frequency value. At the same time, already running state of 1# inverter,make

2# inverter get forward run command through open circuit collector output end OC, here,run frequency value from high-speed pulse output terminal of 1# inverter is passed to 2# inverter through X5 terminal.

9.5.4 Application field

Applied in field such as conveyer belt, coiler, factory production line, food chemistry, piece drawer etc.

113

EDS800 series Service Manual

10 Serial port 485 communication protocol

10.1 Summarization

We provide general RS485/RS232 communication interface in our

Through this communication interface upper device (such as PC, PLC controller etc.) can perform centralized monitor to the inverter (such as to set inverter parameter, control run of inverter, read work state of the inverter) and also long-distance control keypad can be connected to realize various usage requirement of the user.

This communication protocol is interface criterion file designed for realizing above-mentioned function, please read it earnestly and program according to it so that realize long-distance and network control to the inverter.

10.2 Protocol content and description

10.2.1 Communication net buildup mode

mainframe is PC or mainframe is PLC or EDS800 mainframe

RS232

232-485 conversion module

RS485

EDS800 EDS800 EDS1000 EDS1000

Fig.10-1 net buildup graph

10.2.2 Communication mode

At present, EDS800 inverter can be used only as auxiliary device in 485 net. Can realize communication between inverters through PC or PLC if it’s needed. Specific communication mode is as mentioned below:

(1) PC or PLC as mainframe,inverter as auxiliary device,point-to-point communication between mainframe and auxiliary device.

(2) Auxiliary device don’t response when mainframe send out command by broadcast address.

114

EDS800 series Service Manual

(3) User can set local address, baud rate and data format of the inverter through auxiliary device keypad or serial communication mode.

(4) Auxiliary device report current failure information to mainframe in the last response frame.

(5) EDS800 provides 485 interface.

10.2.3 Transport mode

Asynchronous serial,semiduplex transport mode. Default format and transport rate: 8-N-1,9600bps.For specific parameter setting please see description for F2.14~F2.17 group function code.

10.2.4 Data command frame format

main device command frame format sending order

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

Defi- nition sending byte

1 address command area

2 2

Index area setting data area

4 4

115 checkout area end

4 1

EDS800 series Service Manual

auxiliary device response frame format sending order

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

Definition address reponse area

Index area Run data area Checkout area end sending byte

1 2 2 4 4 4 1

Fig.10-2 command/response frame format

Remark:

(1) “Setting data area” and “run data area” may not be existent in some command/data frame format, so in protocol command list it’s marked with

“nothing”.

(2) In protocol effective character set is: ~, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, F and hex data 0DH,ASCII lowercase a, b, c, d, e, f are invalid.

(3) Effective command frame length is 14 or 18 byte.

10.2.5 Explanation and description for format

(1) frame head

It’s character“~”( namely hex 7E),single byte.

(2) auxiliary device address

Data meanings: local address of auxiliary device, double byte. ASCII format.

Inverter factory default is 01.

(3) mainframe command/auxiliary device respond

Data meanings: mainframe send out command and auxiliary device respond to the command. Double byte, ASCII format.

Response code function classification: current preparation state and control situation.

116

EDS800 series Service Manual response code

ASCII

Table 10-1 response code meanings for command code10” meanings preparation state of auxiliary device

Control from mainframe is allowed

To set frequency is allowed

13

14 get ready get ready don’t allow don’t allow allow allow don’t allow don’t allow

Species 2>: command code=“11”~“15 ”, 5 kinds of function command which mainframe send to auxiliary device, for detail please see protocol command list.

Table 10-2 response code meanings for command code “11~15”

response code

ASCII

Meanings of response code description

00

20

30

Auxiliary device communication and control is normal ; function code modification is effective; password is correct.

(1) frame checkout error;

(2)“command area”data overrun;

(3)“index area”data overrun;

(4) frame length error/non

ASCII byte exist in area except frame head, frame end.

(1) control to auxiliary device is ineffective;

(2)ineffective function code parameter modification;

(3)“setting/running data”area data overrun.

(4) password error.

When this response code is reported, data of “command area”, “index area” and “running data area” are not reported.

Whether report this response code relate to current set state of auxiliary device. When report data of area”,

“index area” and

“run data area”are reported according to protocol requirement.

(4) auxiliary index/command index/failure index

Data meanings: include auxiliary index byte and command index byte.

117

EDS800 series Service Manual

For mainframe, auxiliary index, command index are used for cooperating mainframe command in realizing specific function.

For auxiliary device, auxiliary index, command index are used for reporting failure state code, command index are reported without modification.

Data type: hex,4 byte, ASCII format.

Command index occupy 2 low byte, data range: “00”~“FF”.

Auxiliary index occupy 2 high byte, data range: “00”~“FF”.

Auxiliary device failure state occupy“auxiliary index”byte,see Appendix table 10-3. failure code

1

Table 10-3 failure type description

description failure code

Accelerating run over current 13 description

Converting module protection

2 14

3

4

5 decelerating run over current constant speed run over current accelerating run over voltage

15

16

17

External device failure current detecting circuit failure

RS485 communication failure reserved

6

7

8 decelerating run over voltage constant speed run over voltage controller power supply over voltage

Inverter overload

18 reserved

20 System disturbance

21 Reserved

10 Inverter over heat

11 reserved

22 Reserved

23

E

2

PROM read and write error

12 reserved

(5) checkout sum

Data meanings: frame checkout,4 byte, ASCII.

Calculation method: accumulative sum of ASCII code value of all byte from“auxiliary device address”to“run data”.

118

EDS800 series Service Manual

(6) frame end

Hex 0D,single byte.

10.2.7 Protocol command list

Frame 7E and frame end 0D, address, checkout sum,ASCII character format are omitted in following description.

Name look up auxiliary motor state current set freq. current run freq.

Output voltage

Table 10-4 protocol command table

mainframe sending example,such as PC mainauxiorder frame liary order index index run data control operation of setting range inverter(C language cluster format, auxiliary deviceaddress is set to 01) run data precision

Description

10 00 00 no ~010A00000192\r 1 no

11 00 00 ~010B00000193\r 0.01Hz

11 00 01 no

11 00 02 no

~010B00010194\r 0.01Hz

~010B00020195\r 1V

Output current

11 00 03 no ~010B00030196\r 0.1A

Bus-bar voltage

~010B00040197\r 1V

Load motor speed

Module temp.

11 00 04 no

11 00 05 no

11 00 06 no

~010B00050198\r 1rpm

~010B00060199\r 1

0

C

Runtime

~010B0007019A\r 1h accumulative time

Input terminal

11 00 07 no

11 00 08 no

11 00 09 no

~010B0008019B\r 1h

~010B0009019C\r no output terminal

11 00 0A no ~010B000A01A4\r no analog input

VCI analog input

CCI reserved

11 00 0B no ~010B000B01A5\r 0.01V

11 00 0C no ~010B000C01A6\r 0.01V

11 00 0D no ~010B000D01A7\r 0.01V exterior pulse input read inverter state

11 00 0E no ~010B000E01A8\r 0.01Hz

11 00 0F no ~010B000F01A9\r no

119

EDS800 series Service Manual auxiliary device run command set current run frequency provision of auxiliary device auxiliary device run with run freq. provision auxiliary device forward run auxiliary device reverse run

12 00 00 no ~010C00000194\r no

0Hz~ high

12 00 01 limit freq.

~010C00010FA0027C\r 0.01Hz

Set freq.

=40.00Hz

0Hz~ high

12 00 02 limit freq.

~010C00020FA0027D\r 0.01Hz

12 00 03 no ~010C00030197\r no auxiliary device run set freq.

=40.00Hz

12 00 04 no ~010C00040198\r no auxiliary device forward run with run freq. provision auxiliary device reverse run with run freq. provision auxiliary device stop

12 00 05

0Hz~ high limit freq.

forward run

~010C00050FA00280\r 0.01Hz boot-strap set freq.

=40.00Hz

reverse

12 00 06

0Hz~ high limit freq.

run

~010C00060FA00281\r 0.01Hz boot-strap set freq.

=40.00Hz

12 00 07 no ~010C0007019B\r no auxiliary device jog run

12 00 08 no ~010C0008019C\r no auxiliary device forward jog run

12 00 09 no ~010C0009019D\r no auxiliary device reverse jog run 12 0A no ~010C000A01A5\r no auxiliary device stop jog run

12 00 0B no ~010C000B01A6\r no auxiliary device failure restoration

12 00 0C no ~010C000C01A7\r no auxiliary device urgent stop

12 00 0D no ~010C000E01A8\r no

120

EDS800 series Service Manual

Run freq. digital setting F0.01

13 00 01 no ~010D00010196\r 0.01Hz

Run direction setting F0.03 accelerating time1

F0.08 decelerating time1

F0.09

13

13

13

00 03 no

00 0A no

00 0B no

~010D00030198\r

~010D000E01AA\r

~010D000F01AB\r

1

0.1S

0.1S

Run freq. digital setting F0.01

Run direction setting

F0.03 accelerating time1 F0.08 decelerating time1 F0.09

14

0Hz~ high

14 00 01 limit freq.

00 03 0,

Set function

~010E00011388026B\r 0.01Hz code

F0.01=

50.00Hz

Set function code

F0.03 to reverse run

Set function

14 00 09 code

F0.08 to

10.0s

Set function

14 00 0A code

F0.09 to

10.0s

Query auxiliary device software version

15 00 00 no ~010F00000197\r 1

121

EDS800 series Service Manual

Table 10-5 response state word meanings of reading inverter state command

bit description

Bit1

Bit2

Bit3

Bit4

Bit5

Bit6

Bit7

Bit8

Logo for under voltage

FWD/REV run logo traverse run mode logo

Common run mode logo jog run mode logo

PLC run mode logo multi-step freq. run mode logo

PI closed loop run mode logo

Bit9

Bit10

Set counting value arriving logo specified counting value arriving logo

Bit11~15 reserved signification

0 1 stop normal run

Under voltage

Forward run Reverse run ineffective effective ineffective no effective

Jog no no no no no

Yes

Yes

Yes

Yes

Yes

Table 10-6 read auxiliary device function code parameter function definition

Read auxiliary device function code parameter: all function code parameter except user password and manufacturer password meanings frame head address order order index run data checkout sum frame end mainframe order none BCC 0DH auxiliary device respond

Function code para.

BCC 0DH

122

remark

EDS800 series Service Manual

Command index=combinated by function code group number and hex code of function code number. For instance:

If want to read parameter of F0.05 function code, order index=000B;

If want to read parameter of F2.11 function code, order index =020B;

If want to read parameter of F2.15 function code, order index =0212;

If want to read parameter of F2.13 function code, order index =0210;

Corresponding relation between decimal and hex value of function code group No.

function group decimal hex function group decimal hex virtual data 0~FFFF (namely 0~65535)

Please input correct “user password” before you set user function code parameter.

Table 10-7 set auxiliary device function code parameter

function definition meanings

Set auxiliary device function code parameter: all function code parameter except user password and manufacturer password frame head address order order index run data checkout sum frame end mainframe order

7EH ADDR 14 see remark

No BCC 0DH byte quantity auxiliary device respond byte quantity

1 2 2 4 0 4 1

7EH ADDR 06 see remark

Function code para.

BCC 0DH

1 2 2 4 4 4 1

123

remark

Command index=combinated by function code group number and hex code of function code number. For instance:

If want to set parameter of F0.05 function code, order index=000B;

If want to set parameter of F2.11 function code, order index =020B;

If want to set parameter of F2.15 function code, order index =0212;

If want to set parameter of F2.13 function code, order index =0210;

Corresponding relation between decimal and hex value of function

Code group No. function group

EDS800 series Service Manual decimal hex function group decimal hex

Virtual data 0~FFFF (namely 0~65535)

124

EDS800 series Service Manual

Appendix 1 Modbus communication protocol

1.1 Summarization

We provide general RS485 communication interface in our inverters (such as

EDS800 series, EDS1000 series and etc.) for the user. Through this communication interface upper device (such as HMI, PC, PLC controller and etc.) can perform centralized monitor to the inverter (such as to set inverter parameter, control run of inverter, read work state of the inverter).

This communication protocol is interface criterion file designed for realizing above-mentioned function, please read it earnestly and program according to it so that realize long-distance and network control to the inverter.

1.2 Communication net buildup mode

mainframe is PC or mainframe is PLC

RS232

232-485 conversion module

RS485

EDS800 EDS800 EDS1000

Fig.1 net buildup graph

EDS1000

1.3 Communication mode

At present, EDS800 inverter can be used only as auxiliary device in RS485 net.

Can realize communication between inverters through PC, PLC or HMI if it’s needed. Specific communication mode is as mentioned below:

(1) PC or PLC as mainframe , inverter as auxiliary device, point-to-point communication between mainframe and auxiliary device.

(2) Auxiliary device don’t response when mainframe send out command by broadcast address.

(3) User can set local address, baud rate and data format of the inverter through auxiliary device keypad or serial communication mode.

(4) EDS800 provides optional RS485 interface.

(5) Default mode: Asynchronous serial,semiduplex transport mode. RTU mode.

Default format and transport rate: 8-N-1, 9600bps.

125

EDS800 series Service Manual

For specific parameter setting please see description for function code

F2.14~F2.17 as follows:

(remark:Below definition for F2.14~F2.17 is only effective under Modbus communication mode, and definition for other parameters are the same as original)

F2.14 Communication configuration

1 003 × LED first bit:baud rate selection

0:1200BPS

1:2400BPS

2:4800BPS

3:9600BPS

4:19200BPS

5:38400BPS

LED second bit:data format

0:1-8-1 format,no checkout

1:1-8-1 format,even checkout

2:1-8-1 format,odd checkout

LED third bit:response selection

0 : Respond to host command and reply to data packet

1:Respond to host command, but not reply

1 1

×

F2.16

Communication timeout detection time

0-127,0 is broadcast address

0.0-1000.0s,

0 means communication timeout detection invalid

0.1s 0.0s ×

1.4 RTU Communication Mode

1.4.1 Data frame format

Using RTU mode, messages are sent at least 3.5 character time interval pause. The first transmitted field is device address, the character you can transfer is hexadecimal

0x00 ~ 0xFF. Network equipment Continuously monitor the bus, including pauses.

When the address field is received, all equipment determine whether it is sent to their own. when the last character of the packet transfer is complete, at least a 3.5 character times pause mean the end of the message. A new message can begin after this pause.

The entire message frame must be transmitted as a continuous flow. If a new message start transmitting in less than 3.5 character times after a message and then receiving device will consider it a continuation of the previous message. This will cause an error, because in the final CRC field value can not be right.

RTU frame format as the talbe below:

Frame Header 3.5 characters time pause

Slave address

Communication command code

Data content DATA

Slave value:1~127

03H:read slave parameter

06H:write slave parameter

The contents of packet:

Parameter address(16bit);

Data content DATA

126

EDS800 series Service Manual

……

……

Number of parameter or bytes of parameter value;

Parameter value(16bit)

16bit Unsigned check value CRC check value low byte

CRC check value high byte

Closing Flag 3.5 characters time pause

Regarding generation method of CRC check value, please refer to this Appendix check way paragraph.

1.4.2 Host read slave parameter

Command code 03H. Host can read or one or more parameter( up to ten) by initiating a communication transaction .

E.g., read 2 contiguous inverter parameter values from the address 0000H of inverter whoes address is 01, the contents of host command:

ADR 01H

CMD 03H

Parameters initial address high byte

Parameters initial address low byte

00H

00H

Number of parameter high byte

Number of parameter low byte

CRC check value low byte

CRC check value high byte

00H

02H

Be calculated

Be calculated

The contents of slave reply:

ADR 01H

CMD 03H

Parameter value bytes

Address 0000H content high byte

04H

00H

Address 0000H content low byte

Address 0001H content high byte

Address 0001H content low byte

CRC check value low byte

CRC check value high byte

01H

13H

88H

Be calculated

Be calculated

1.4.3 Host write slave parameter

Command code 06H. Host can write an parameter by initiating a communication transaction .

E.g.,The decimal system 5000 (1388H) written to the inverter 0001H address whose slave address is 02,host command including:

ADR 02H

CMD 06H

Parameter address high byte 00H

Parameter address low byte

Parameter value high byte

Parameter value low byte

CRC check value low byte

01H

13H

88H

Be calculated

127

EDS800 series Service Manual

CRC check value high byte Be calculated

The contents of slave reply:

ADR 02H

CMD 06H

Parameter address high byte 00H

Parameter address low byte

Address 0903H content high byte

01H

13H

Address 0903H content low byte

CRC check value low byte

CRC check value high byte

88H

Be calculated

Be calculated

1.5 Data communication address allocation

1.5.1 Function code Fd-F0 group communication address

Inverter function parameter’s MODBUS communication address addressing process follows PPnn way: PP means high byte of the address, corresponding to function parameter’s group number; nn means low byte of the address, corresponding to function code parameter’s group internal code. For example: F3.21 function code’s communication address is 0315H, 03H is the hex form of group number 3, 15H is the hex form of grop internal code 21.

F0.00~F9.11 communication address is 0000H~090BH, Fd group fault record parameter start address is 0D00H.

1.5.2 control command and status word communication address

Variable Name Communication address

Reading-writing attribute

Command data or response value meaning run command word

Serial port frequency provision

Inverter status

Alarm code

2000H

Writing only

1: inching run

2: inching stop

3: forward inching run

4: reversal inching run

5: run

6: stop

7: forward run

8: reversal run

9: fault reset

10: emergency stop and

Lower frequency ~ upper frequency writing

2100H

2180H

Reading only

Reading only

1: forwarder running

2: reversal running

3: stop

4: alarm status

0: without alarm

1~23:mean E001~E023 alarm

128

EDS800 series Service Manual

1.5.3 Monitor parameter communication address

Monitor parameter

Name Communication address (Reading only)

C-00

Set frequency

1000H

C-01

C-02

Output frequency

Output current

1001H

1002H

Output voltage

C-03

C-04

C-05

DC bus-bar vlotage

Load motor speed

1003H

1004H

1005H

C-06

C-07 module temperature.

Power on running time

1006H

1007H

C-08

C-09

Accumulative running time

Input terminal status

1008H

1009H

Output terminal status

C-10

C-11

C-12

Analog input VCI value

Analog input CCI value

100AH

100BH

100CH

C-13 reserved

100EH

1.6 Communication error processing

Inverter receiving data packet detection error, it finds reading&writing parameter address or parameter value invalid, so reply to the host with communication error response packet. Communication error response packet (host command code +80H) as command code, with 1 byte error code.

Format for communication error response packet as follows:

ADR 01H

CMD 83H/86H communication error code 01H~06H (for details, please check below table)

Low byte of CRC checksum

High byte of CRC checksum

Obtain by calculating

Obtain by calculating

Meaning for each communication error code value as follows:

Communication error code value Type of communication error

0x01

0x02

0x03

0x04

0x05

0x06

CRC checksum error

Command code illegal

Register address visited illegal

Value to register illegal

Not allow to modify parameters

Register number read illegal

129

EDS800 series Service Manual

1.7 Data frames examples

1.7.1 start 1# inverter running

host command frames

Auxiliary respond frames

01 06 20 00 00 05 42 09

01 06 20 00 00 05 42 09

1.7.2 Stop 1# inverter running

host command frames

Auxiliary respond frames

01 06 20 00 00 06 02 08

01 06 20 00 00 06 02 08

1.7.3 Set 1# inverter given value to 50Hz

host command frames

Auxiliary respond frames

01 06 20 01 13 88 DE 9C

01 06 20 01 13 88 DE 9C

1.7.4 Read 1# inverter running state

host command frames

Auxiliary respond frames

01 03 21 00 00 01 8E 36

01 03

(Respond value bytecount ) 20

00 00 B8 44

130

EDS800 series Service Manual

1.8 CRC checksum mode

CRC checksum value calculating function written by C language is as follows: unsigned int cal_crc_value (unsigned char *pval, unsigned char len)

{

unsigned int crc_value=0xFFFF;

unsigned int i;

while(len--)

{

{

{

} else

{

}

}

}

return(crc_value);

}

131

EDS800 series Service Manual

Appendix 2 Braking resistance

1.1 Braking resistance

The motor’s electric potential energy will charge inverter’s capacitance up reversely if speed of the motor decends too quickly or load of the motor wobbles too quickly while the inverter is running, which will increase the voltage upon power modules suddenly and is easy to make the inverter damaged. The inverter will control it according to load size and performance. You have to connect external resistance to realize timely energy discharge when the braking is not enough. To connect external resistance is a kind of energy consumption braking mode, as all the energy is consumed by the braking resistance.

EDS800-2S0002~EDS800-2S0015 have built-in braking unit,you can add external braking resistance ,but the external resistance need booking.

External braking resistance configuration table

Type Braking Qty.

Power of braking resistance

Remark

132

Shenzhen Encom Electric Technologies CO., LTD.

Address: Floor5-6, building4, Pingshan Minqi Science Park,

Taoyuan Str., Nanshan Area, Shenzhen, China 518055

Web: www.enc.net.cn/en

E-mail: [email protected]

[email protected]

Tel : 86-755-26984485

Fax: 86-755-26985120

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
