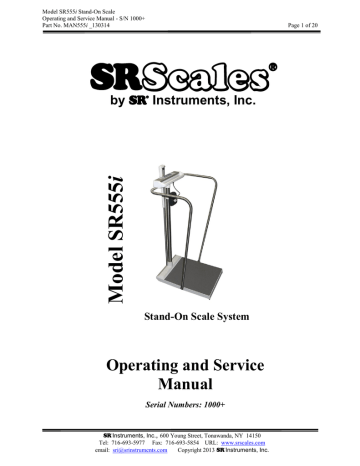

Model SR555i Stand-On Scale
Operating and Service Manual - S/N 1000+
Part No. MAN555i _130314
Page 1 of 20
S
Model SR555i
by S Instruments, Inc.
Stand-On Scale System
Operating and Service
Manual
Serial Numbers: 1000+
SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com
email: [email protected]
Copyright 2013 SInstruments, Inc.
Model SR555i Stand-On Scale
Operating and Service Manual - S/N 1000+
Part No. MAN555i _130314
Page 2 of 20
TABLE OF CONTENTS
TABLE OF FIGURES ......................................................................................................................2
PACKING CHECKLIST .................................................................................................................3
ASSEMBLY.......................................................................................................................................4
REPLACEMENT PARTS AND ACCESSORIES ........................................................................7
SYSTEM DESCRIPTION AND INTENDED USE .......................................................................7
MAINTENANCE AND CLEANING ..............................................................................................8
STORAGE AND TRANSPORTATION ........................................................................................8
SPECIFICATIONS...........................................................................................................................9
BUTTON FUNCTIONS .................................................................................................................10
BASIC SYSTEM OPERATION....................................................................................................11
BATTERY REPLACEMENT .......................................................................................................13
THEORY OF OPERATION .........................................................................................................14
CALIBRATION ..............................................................................................................................15
CONFIGURING SEND BUTTON................................................................................................17
TROUBLESHOOTING .................................................................................................................18
WARRANTY...................................................................................................................................19
TABLE OF FIGURES
Figure 1:
Figure 2:
Figure 3:
Figure 4:
Figure 5:
Figure 6:
Figure 7:
Figure 8:
Figure 9:
Figure 10:
Assembly Diagram ....................................................................................................... 4
Cable Clamp and Display Cable Connector .............................................................. 5
Battery Compartment Cover ...................................................................................... 5
Handrail/Height Bar Diagram .................................................................................... 6
Printer Mounting Collar.............................................................................................. 6
Printer Mounting Bracket ........................................................................................... 6
Button Display ............................................................................................................ 10
Bottom of Scale Base .................................................................................................. 13
Calibration Tolerance Table ..................................................................................... 15
Calibration Switch Diagram ..................................................................................... 15
SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com
email: [email protected]
Copyright 2013 SInstruments, Inc.
Model SR555i Stand-On Scale
Operating and Service Manual - S/N 1000+
Part No. MAN555i _130314
Page 3 of 20
PACKING CHECKLIST
SR555i Stand-On Scale

DESCRIPTION
Box 1
QUANTITY
BASE ASSEMBLY (FIVE (5) SET SCREWS IN PLACE)
1 ea
MAST
1 ea
DISPLAY UNIT WITH CABLE (FIVE (5) SET SCREWS IN PLACE)
1 ea
PACKAGE OF SIX (6) “C” CELL BATTERIES
1 ea
LOCTITE
1 ea
1/8” ALLEN WRENCH
1 ea
QC INSPECTION SHEET
1 ea
CALIBRATION CERTIFICATE
1 ea
WARRANTY CARD
1 ea
MANUAL
1 ea
Box 2 Optional Handrail and/or Optional Height Bar
OPTIONAL HANDRAIL SET WITH HARDWARE
1 ea
OPTIONAL HEIGHT BAR
1 ea
Box 3 Optional Printer Kit
PRINTER
1 ea
PRINTER BATTERY CHARGER
1 ea
PRINTER CABLE
1 ea
PRINTER MOUNTING COLLAR& HARDWARE
1 ea
PRINTER MOUNTING BRACKET & HARDWARE
1 ea
PRINTER PAPER
1 ea
LOCTITE
1 ea
SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com
email: [email protected]
Copyright 2013 SInstruments, Inc.
Model SR555i Stand-On Scale
Operating and Service Manual - S/N 1000+
Part No. MAN555i _130314
Page 4 of 20
ASSEMBLY
#
1
2
3
4
5
6
7
8
9
10
11
7
PART NAME
Display Unit
Base Assembly
Mast
Cable Clamp
Display Cable Connector
Handrails (optional)
Height Bar (optional)
Battery Compartment
Printer (optional)
Printer Cable (optional)
Printer Mounting Collar (optional)
STEP 1: Unpack the scale system and check
parts against the PACKING CHECKLIST. If
there are any missing or damaged parts, please
call the service hotline at 1-800-654-6360.
1
STEP 2: (Figure 1) Verify that the serial
number on the Display Unit (1) matches that on
the Base Assembly (2).
9
6
3
STEP 3: Remove the four (4) set screws from
Base Assembly collar and apply a small
amount of Loctite to each. Insert Mast (3)
into Base Assembly collar and seat firmly. Reinstall set screws in Base Assembly collar and
tighten securely.
NOTE:
If an optional printer has been
ordered, go to Page 6 “INSTALLING
OPTIONAL PRINTER” before proceeding.
STEP 4: Feed the display cable down through
the Mast and pull out through the Base
Assembly.
2
STEP 5: Remove the set screws from the
Display Unit collar. Set the Display Unit
squarely on top of the Mast with the display
label facing the scale platform. Apply a small
amount of Loctite to the four (4) set screws
and reinstall the set screws, tightening securely.
8
Figure 1:
Assembly Diagram
Continued next page
SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com
email: [email protected]
Copyright 2013 SInstruments, Inc.
Model SR555i Stand-On Scale
Operating and Service Manual - S/N 1000+
Part No. MAN555i _130314
Page 5 of 20
ASSEMBLY cont’d
4
STEP 6: (Figure 2) Lay the system on its side
and remove the Cable Clamp (4) from the Base
Assembly. Attach the Display Cable Connector
(5) to its mate in the Base Assembly.
STEP 7: (Figure 2) IMPORTANT: Reinstall
the Cable Clamp! Set the display cable into the
groove under the Cable Clamp and reinstall the
Cable Clamp, leaving just enough slack to
alleviate any tension on the Display Cable
Figure 2:
Connector. Securely tighten the Cable Clamp
screw. Slide the extra cable back up into the
Mast. Excess cable MUST NOT contact the
floor.
5
Cable Clamp and Display Cable
Connector
STEP 8: (Figure 3) Open the Battery Compartment cover
and install the six (6) supplied “C” cell batteries as
indicated on the cover diagram. Close the cover and
tighten thumb screw.
STEP 9: Return the scale to the upright position.
Figure 3:
Battery Compartment
Cover
Continued next page
SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com
email: [email protected]
Copyright 2013 SInstruments, Inc.
Model SR555i Stand-On Scale
Operating and Service Manual - S/N 1000+
Part No. MAN555i _130314
Page 6 of 20
ASSEMBLY cont’d
INSTALLING OPTIONAL HANDRAILS
STEP 1: (Figure 4) Attach top of each of the Handrails (6) to the bottom right and left of the
Display Unit (1). Use two (2) screws and two (2) split-lock washers on each side; slightly tighten.
(Do not tighten all of the way.)
STEP 2: Attach the bottom of the Handrails to the right and left side of the Base Assembly (2)
using one (1) screw and one (1) split-lock washer for each handrail. Tighten all six (6) screws
securely.
INSTALLING OPTIONAL HEIGHT BAR
STEP 1: (Figure 4) Remove the set screw on the back
of the Display Unit (1) and in the Base Assembly (2).
STEP 2: Slide the Height Bar (7) down through the
hole in the Display Unit and seat firmly into the Base
Assembly. Apply a small amount of Loctite to the two
(2) set screws and reinstall, tightening securely.
7
1
10
INSTALLING OPTIONAL PRINTER
11
9
3
6
STEP 1: (Figure 4) Slide the Printer Mounting Collar
(11) over the Mast (3). Position the Printer Mounting
Collar approximately 5 inches from the top of the mast.
Tighten the two (2) set screws to secure the Printer
Mounting Collar to the Mast. NOTE: The three (3)
holes on the Printer Mounting Collar should be towards
the top of the Mast (Figure 5).
2
Figure 6: Handrail/Height
Bar Diagram
Figure 4:
Printer Mounting
Collar
Figure 5:
Printer Mounting
Bracket
Continued next page
SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com
email: [email protected]
Copyright 2013 SInstruments, Inc.
Model SR555i Stand-On Scale
Operating and Service Manual - S/N 1000+
Part No. MAN555i _130314
Page 7 of 20
ASSEMBLY cont’d
STEP 2: Apply a small amount of Loctite to the two small screws and attached the Printer
Mounting Bracket to the Printer Mounting Collar. (Figure 6).
STEP 3: Attach the Printer to the Printer Mounting Bracket.
STEP 4: After the Display Unit (1) is installed, refer to page 4, plug the Printer Cable (10) into
the Printer and into the connector on the bottom of the Display Unit; tighten Printer Cable screws.
REPLACEMENT PARTS and ACCESSORIES
Part #
FRAP1300
FRAP1300BR-01
FRAP1300-D9
FRAP1300PCC
FRAP1300BP01
FRTP130012C
FRBC1300
MF8209
SR3070
SR3086
Description
Printer
Printer Mounting Bracket
Printer Cable
AAA Battery Holder
Rechargeable Battery Pack
Paper, thermal printer 58mm (10 rolls)
Printer Battery Charger
Printer Mounting Collar
Handrail Set with assembly hardware
Height Bar: Extends from 43 in to 79 in (109 cm to 201 cm)
SYSTEM DESCRIPTION and INTENDED USE
SYSTEM DESCRIPTION
The SR555i Stand-On Scale System employs the latest in microprocessor and load cell technology
to provide accurate and repeatable weight data. Four (4) identically matched transducers are
strategically placed to ensure an accurate representation of the patient’s weight.
The low power microprocessor circuitry allows the SR555i to derive its power from six (6)
common “C” cell batteries that will provide up to 10,000 weight readings before needing
replacement. This eliminates the need for an external battery charger or the danger of an AC
power supply cord on a portable scale.
The patient’s weight is displayed on a 16-character dot matrix LCD. The weight data may be
viewed, in either pounds or kilograms, with a displayed resolution of 0.1 for each.
Continued next page
SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com
email: [email protected]
Copyright 2013 SInstruments, Inc.
Model SR555i Stand-On Scale
Operating and Service Manual - S/N 1000+
Part No. MAN555i _130314
Page 8 of 20
SYSTEM DESCRIPTION and INTENDED USE cont’d
INTENDED USE
The SR555i Stand-On Scale System is specifically
designed for use as a stand-on scale for weighing
ambulatory patients. Optional equipment includes a
Handrail Set, Height Bar, and Printer. SR555i StandOn Scale System is a preferred means of gathering
patient weight data of ambulatory patients weighing up
to 1000 pounds or 454 kilograms.
WARNING
DO NOT EXCEED
MAXIMUM WEIGHT LIMIT OF
1000 LB / 454 KG
MAINTENANCE and CLEANING
SR555i Stand-On Scale System is made of a
powder-coated aluminum casting with a
stainless steel riser post. Exercise caution
when cleaning the display window as it is
made of clear polyester and can be scratched
by abrasive cleaners. Mild soap and water is
recommended for general cleaning and
disinfecting.
WARNING
DO NOT use pressurized water or steam.
The scale system contains microprocessor
circuitry and strain gauge sensors that may
be adversely affected by exposure to such an
environment.
STORAGE and TRANSPORTATION
STORAGE
If storing this equipment for periods longer than three (3) months, remove the batteries. To
maintain proper operation of this instrumentation, storage and transport conditions should not vary
outside the following conditions: Relative Humidity 0% to 85%, Ambient Temperature 14F to
122F (-10C to +50C).
TRANSPORTATION
To transport the SR555i, lower the Height Bar, if included, tilt the scale back and wheel to the new
location. Lower the platform back down to the floor being careful not to shock the scale.
SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com
email: [email protected]
Copyright 2013 SInstruments, Inc.
Model SR555i Stand-On Scale
Operating and Service Manual - S/N 1000+
Part No. MAN555i _130314
Page 9 of 20
SPECIFICATIONS
MAXIMUM WEIGHT CAPACITY
PLATFORM SIZE
DISPLAY TYPE
DISPLAY RESOLUTION
1000 lb or 454 kg
15 3/4 in x 18 1/2 in (40 cm x 47 cm)
16-Character Dot-Matrix LCD
0.1 lb / 0.1 kg
ACCURACY
0.1% +/- 1 digit of displayed resolution for calibrated
range
AUTO ZERO
One button operation
AUTO POWER DOWN
ENTER
RECALL
AVERAGING
POWER SUPPLY
CALIBRATION
Approximately 30 seconds (adjustable to 300 seconds)
Stores displayed reading in memory
Recalls last stored stable weight, height, and BMI
Automatic digital filter
Six (6) “C” cell batteries
Low battery indicator on Display
Calibration is traceable to NIST standards.
OPERATING CONDITIONS
Normal operating conditions for this product:
Ambient Temperature Range: 68F to 85F (20C to
30C) Relative Humidity Range: 0%-85%
Avoid exposure to high-pressure water or steam.
TRANSPORTATION and
STORAGE
Storage and transportation conditions should not vary
outside the following conditions: Relative Humidity
0% to 85%, Ambient Temperature 14F to 122F
(-10C to +50C). Remove batteries if storing longer
than three (3) months.
SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com
email: [email protected]
Copyright 2013 SInstruments, Inc.
Model SR555i Stand-On Scale
Operating and Service Manual - S/N 1000+
Part No. MAN555i _130314
Page 10 of 20
BUTTON FUNCTIONS
Figure 7: Button Display
ZERO / WEIGH
Press and hold to zero. The display will read “WT = 0.0 Lb”. This is used to zero the
system before placing the patient on the scale system. This action also resets previously
stored weight, height and BMI values to zero. Ensure that nothing is in contact with the
weighing surface during this procedure.
Press to weigh. Weight stable indicator “” flashes then remains solid when stable. Auto
stores stable weight in memory.
SEND (PRINTER / EHR)
Press to send stored values to EHR or to printer. Output values include time, date, weight,
height, and BMI. Also, indicated on display when paper is out, “PAPER OUT” and when
door is open, “PAPER DOOR OPEN”.
RECALL
Press to recall the last stable weight. Display will scroll thru “WT”, “HT”, and “BMI”
stored values in approximately two second intervals.
ENTER
Press to save height data and display BMI calculation. Stable weight, height and BMI
values are stored in memory until next stable weight is stored or until system is zeroed.
BMI
Press to calculate the BMI. When the “BMI” is pressed, the default starting value “HT =
65 in” or “HT = 165 cm” is displayed. If there is no stored stable weight, the display will
indicate “NO WEIGHT DATA” and then go back to the weigh screen “WT = 0.0 Lb”.
Continued next page
SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com
email: [email protected]
Copyright 2013 SInstruments, Inc.
Model SR555i Stand-On Scale
Operating and Service Manual - S/N 1000+
Part No. MAN555i _130314
Page 11 of 20
BUTTON FUNCTIONS cont’d
MENU
Press Menu to edit setup.
Setting the UNITS: Use UP or DOWN arrow buttons to select “Lb” or “Kg”. Press
ENTER to save changes.
Setting ON TIME: Use UP or DOWN arrow buttons to adjust the “ON TIME”. The
“ON TIME” may be set from 30 to 300 seconds in 30 second increments. Press ENTER
to save changes.
Setting TIME and DATE: Use the UP arrow button to select digit. To change digit use
the DOWN arrow button. Press ENTER to save changes.
NOTE: When selected, the year position defaults to “00”
Configuring scale output: Use the UP or DOWN arrow buttons to select between PRINT
and EHR. Press ENTER to save changes.
Setting printout orientation: Use the UP or DOWN arrow buttons to select between
“PRINT INVERTED” and “PRINT NORMAL”. Press ENTER to save changes.
UP
Press UP to adjust height up from the default, to increase the scale’s “on time”, or to
select a digit when setting time and date.
DOWN
Press DOWN to adjust the height down from the default, to decrease the scale’s “on
time”, or to change the value of a selected digit when setting time and date.
BASIC SYSTEM OPERATION
SETTING SYSTEM ZERO
Make sure the scale is free and clear of any obstructions and press and hold the ZERO /
WEIGH button. The displayed message will indicate “HOLD TO ZERO” and count
down to zero. Make sure that nothing is in contact with the scale while zeroing the system.
In a few seconds, the display will read “WT = 0.0 Lb” (or Kg). This action also resets
previously stored weight, height, and BMI values to zero.
Continued next page
SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com
email: [email protected]
Copyright 2013 SInstruments, Inc.
Model SR555i Stand-On Scale
Operating and Service Manual - S/N 1000+
Part No. MAN555i _130314
Page 12 of 20
BASIC SYSTEM OPERATION cont’d
WEIGHING
Position the patient on the scale. Press the ZERO/WEIGH button. The weight stable
indicator “” flashes on the display. When the weight is stable, the weight stable
indicator remains solid. The display will indicate the patient’s weight in either pounds or
kilograms; example: “WT = 123.5 Lb”. The stable weight is auto stored in memory.
NOTE: If patient will be using a cane for support on the scale, place the cane on the scale
while zeroing the system. This will ensure that the patient’s NET weight will be displayed.
It is recommended that the system be zeroed prior to each new patient.
CALCULATING BMI
Press to calculate BMI.
When the BMI button is pressed, the default starting value is set either to 65 in or to 165
cm; example: “HT = 65 in”. Use the UP or DOWN arrows to adjust the default height to
the value of the patient’s height.
NOTE: To calculate the BMI, a patient’s stable weight needs be stored as indicated in
“WEIGHING” above, if no stable weight has not been stored “NO WEIGHT DATA”
will be displayed and the display will then go back to the weigh screen “WT = 0.0 Lb”.
Press ENTER to save height data and display BMI calculation.
displayed; example: “BMI = 20.5”.
The BMI will be
RECALLING LAST STABLE WEIGHT
Press to recall last stable weight.
The display will scroll thru “WT”, “HT”, and “BMI” stored values in approximately two
second intervals; example: “RCL WT = 123.5 Lb”, “RCL HT = 65 in” and “RCL BMI
= 20.5”.
SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com
email: [email protected]
Copyright 2013 SInstruments, Inc.
Model SR555i Stand-On Scale
Operating and Service Manual - S/N 1000+
Part No. MAN555i _130314
Page 13 of 20
BATTERY REPLACEMENT
WARNING
DO NOT remove batteries while scale is on.
Allow scale to shut down naturally thru
timing out. This prevents possible voltage
drain on the printed circuit board coin
battery.
STEP 1: The display will read “CHANGE BATTERIES”.
STEP 2: (Figure 8) Place the scale on its side and open the battery compartment cover located in
the bottom of the scale base.
STEP 3: Remove and replace ALL six (6) “C” cell batteries. Refer to diagram on the battery
compartment cover for placement.
STEP 4: Press the “WEIGH” button to confirm display is working.
STEP 5: Tightly close the cover.
STEP 6: Zero the system.
Figure 8:
Bottom of Scale Base
SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com
email: [email protected]
Copyright 2013 SInstruments, Inc.
Model SR555i Stand-On Scale
Operating and Service Manual - S/N 1000+
Part No. MAN555i _130314
Page 14 of 20
THEORY OF OPERATION
SR Instruments patient weighing systems are digital scales. Strain-gauge force cells convert the
force of an applied weight into an analog signal. This signal is amplified by an operational
amplifier and converted to a digital signal by an on-chip analog to digital converter. The digital
signal is filtered, converted to appropriate units, and displayed on the liquid crystal display.
Strain-gauge force cells each contain four strain gauges mounted in a full Wheatstone-bridge
configuration. These bridges convert the physical movement of the force cell, due to the applied
mass on the system, into minute changes in electrical resistance. These changes in resistance
produce a voltage difference across the Wheatstone-bridge, which is amplified by the operational
amplifier. The amplifier is configured to current sum the output of each cell, with potentiometers
serving to normalize the sensitivity (voltage out per unit of weight applied) of each bridge. The
offset potentiometer produces a small current, which nulls the output of the amplifier for an
unloaded system.
The output of the operational amplifier is digitized by the analog to digital converter. The sigmadelta converter sums a rapid sequence of 0's (0 volts) and 1's(reference voltage) to achieve balance
with the input signal from the amplifier.
The micro-controller filters the digital output of the analog to digital converter, subtracts the value
saved during the system zero operation and scales the filtered output, and then displays the result
on the liquid crystal display. The micro-controller performs a moving-median filter of data for
continuous weigh and, for AutoHold; the micro-controller performs checks for signal stability
before locking in on the reading. If the data variance is greater than 0.1% in the AutoHold mode,
the micro-controller will reset the filter and start a new filtering period.
The micro-controller can be placed in a calibration mode, where the system can be re-calibrated.
In the calibration mode, the system slope is calculated from two points (zero and full scale) in the
2-point calibration mode or the slope and change in slope is calculated from three points (zero,
half, and full scale) in the 3-point calibration mode.
SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com
email: [email protected]
Copyright 2013 SInstruments, Inc.
Model SR555i Stand-On Scale
Operating and Service Manual - S/N 1000+
Part No. MAN555i _130314
Page 15 of 20
CALIBRATION
NOTE: Ensure that nothing is in contact with the scale system during this procedure. Remove
hands from the system when noting the displayed calibration results.
CALIBRATION
TOLERANCE TABLE
CHECKING CALIBRATION
LOW
LIMIT
STEP 1: Select two (2) known calibrated weights, traceable to NIST.
APPLIED
LOAD
HIGH
LIMIT
99.9
100.0
100.1
STEP 4: Place second calibrated weight on scale. Wait for scale to
stabilize; note scale reading. Remove weight.
199.8
299.7
399.6
499.5
599.4
699.3
799.2
899.1
999.0
200.0
300.0
400.0
500.0
600.0
700.0
800.0
900.0
1000.0
200.2
300.3
400.4
500.5
600.6
700.7
800.8
900.9
1001.0
STEP 5: The scale readings for both weights should be within the
Calibration Tolerance Table (Figure 9).
Figure 9: Calibration
Tolerance Table
NOTE: The first weight should be at least 500 pounds (half of the
maximum scale capacity). The second weight should be less than half
of the first weight. DO NOT USE barbells or uncalibrated weights.
STEP 2: Zero the scale by pressing and holding ZERO / WEIGH
button.
STEP 3: Place the first calibrated weight on the scale. Wait for scale to
stabilize; note scale reading. Remove weight.
IMPORTANT
CALIBRATION Qualified service personnel only should perform this procedure. The
SR555i load cells have no user serviceable components and should not be tampered with
for any reason. Re-calibration is generally not required, but should be verified
periodically to ensure accuracy. The recommendation for calibration check is at least
once every 12 months, or as individual maintenance policy requires.
CALIBRATION SWITCH
Figure 10: Calibration Switch Diagram
Continued next page
SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com
email: [email protected]
Copyright 2013 SInstruments, Inc.
Model SR555i Stand-On Scale
Operating and Service Manual - S/N 1000+
Part No. MAN555i _130314
Page 16 of 20
CALIBRATION cont’d
CAUTION
The integrated circuits and semiconductors on
the printed circuit boards may be damaged
by electrostatic discharge (ESD). Be sure to
use proper handling precautions at all times.
SETTING CALIBRATION
NOTE: Ensure that nothing is in contact with the scale system during this procedure. Remove
hands from the system when noting the displayed calibration results.
STEP 1: Remove the four (4) screws on the bottom of the display housing. Lift the display
panel. Put the scale system into the Calibration Mode by switching the calibration switch on the
display board (Figure 10). “CALIBRATION” will flash on the display.
STEP 2: Select two (2) known calibrated weights, traceable to NIST.
NOTE: The first weight should be at least 500 pounds (half of the maximum scale capacity). The
second weight should be less than half of the first weight. DO NOT USE barbells or uncalibrated
weights.
STEP 3: Press the MENU button until “FULL = 1000.00 Lb” is displayed. Set the FULL value of the
first selected calibrated weight. Use the UP arrow button to select the digit and the DOWN arrow button
to change digit. Press ENTER to save changes.
STEP 4: Press the MENU button until “HALF = 500.00 Lb” is displayed. Set the HALF value
of the second selected calibrated weight. Use the UP arrow button to select the digit and the
DOWN arrow button to change the digit. Press ENTER to save changes.
STEP 5: Press MENU button until “3 Pt Calibration” is displayed. Press the UP arrow button.
STEP 6: Zero the scale by removing all weight from the platform. Press the UP arrow button.
STEP 7: Place the HALF weight from Step 4 on platform. Allow weight to stabilize. Press UP
arrow to save change. Remove weight.
STEP 8: Place the FULL weight from Step 3 on platform. Allow weight to stabilize. Press UP
arrow to save change. Remove weight.
STEP 9: Press ENTER to save the calibration, or WEIGH to exit without saving.
STEP 10: Switch the scale system out of the Calibration Mode on the display board (Figure 10).
STEP 11: Place the display panel into the display housing. Align the display panel with the four
holes in the display housing. Secure display panel with the four (4) mounting screws.
SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com
email: [email protected]
Copyright 2013 SInstruments, Inc.
Model SR555i Stand-On Scale
Operating and Service Manual - S/N 1000+
Part No. MAN555i _130314
Page 17 of 20
CONFIGURING SEND BUTTON
STEP 1: Press the “MENU” key until “DATA OUT = PRINT” is displayed
STEP 2: Press “UP” or “DOWN” key to select between “EHR” and “PRINT”
STEP 3: Press the “ENTER” key to save
EHR OUTPUT
Electronic Medical Records (EMR) / Electronic Health Records (EHR) technology is supported by
the i-series scales from SR Instruments. The EMR/ EHR software is not included with scale.
There are many different EMR/ EHR software available and the connectivity of the scale to the
software requires the services of a professional.
A null modem cable is required to communicate with the scale.
Scale output when send button is configured to Electronic Health Records is as follows:
<esc>R<esc>Wnnn.n<esc>Hmmm.m<esc>Bkk.k<esc>Uuu<esc>E
Where: R is read
W is weight
nnn.n is the weight in Lb or kg
H is height
mmm.m is the height in inches or cm.
B is BMI
kk.k is the BMI
U is units (lb or kg; in or cm)
uu is LB or KG
E is end of packet.
SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com
email: [email protected]
Copyright 2013 SInstruments, Inc.
Model SR555i Stand-On Scale
Operating and Service Manual - S/N 1000+
Part No. MAN555i _130314
Page 18 of 20
TROUBLESHOOTING
SYMPTOM
The characters only appear on half of the
display.
The display lights appear to work, but do
not respond to button activation.
REASON/CORRECTIVE ACTION
Press the “WEIGH” button or remove one battery.
Wait five seconds, then re-install the battery and try
the “WEIGH” button again.
Check to ensure the membrane switch label is correctly
plugged into display board.
Check to ensure the calibration switch is not in the
Calibration Mode (Figure 10).
The display shows no reading at all.
Check to ensure batteries are installed correctly (see
directions for BATTERY REPLACEMENT).
Check display cable to make sure it is connected
securely.
For additional information or assistance, telephone our Service Hotline: 1-800-654-6360
or e-mail: [email protected]
SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com
email: [email protected]
Copyright 2013 SInstruments, Inc.
Model SR555i Stand-On Scale
Operating and Service Manual - S/N 1000+
Part No. MAN555i _130314
Page 19 of 20
WARRANTY
FOUR YEAR LIMITED WARRANTY
Each S system is manufactured with high quality components. SR Instruments, Inc.
warrants that all new equipment will be free from defects in material or workmanship, under
normal use and service, for a period of four (4) years from the date of purchase by the original
purchaser. Normal wear and tear, injury by natural forces, user neglect, and purposeful
destruction are not covered by this warranty. Warranty service must be performed by the factory
or an authorized repair station. Service provided on equipment returned to the factory or
authorized repair station includes labor to replace defective parts. Goods returned must be shipped
with transportation and/or broker charges prepaid. SR Instruments, Inc.’s obligation is limited to
replacement of parts that have been so returned and are disclosed to SR Instruments, Inc.’s
satisfaction to be defective. The provisions of this warranty clause are in lieu of all other
warranties, expressed or implied, and of all other obligations or liabilities on SR Instruments,
Inc.’s part, and it neither assumes nor authorizes any other person to assume for SR Instruments,
Inc. any other liabilities in connection with the sale of said articles. In no event shall SR
Instruments, Inc. be liable for any subsequent or special damages. Any misuse, improper
installation, or tampering, shall void this warranty.
DAMAGED SHIPMENTS
Title passes to purchaser upon delivery to Transportation Company. Any claims for shortage or
damage should be filed with the delivery carrier by purchaser.
RETURN POLICY
All products being returned to SR Instruments, Inc. require a Return Goods Authorization number
(RGA). To receive an RGA, call our Technical Service Team at 716-693-5977 or toll-free in the
USA and Canada at 800-654-6360.
When inquiry is made, please supply model and serial numbers, purchase order, if the scale was
bought on contract, and reason for return.
Generally, deleted, damaged, and outdated merchandise will not be accepted for credit.
minimum restocking charge of 15% will be assessed on return of current merchandise.
A
All returns are to be shipped FREIGHT PREPAID to: SR Instruments, Inc., 600 Young Street,
Tonawanda, NY 14150.
RESTOCKING FEE

15% fee for any scale that has been opened and used

10% fee for any scale returned that has been ordered incorrectly or refused delivery with
no model change

5% fee if an error in ordering has been made and a different model exchanged

No fees will be charged if the scale is returned because of an error on the part of SR
Instruments, Inc.

No returns accepted after 60 days.
SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com
email: [email protected]
Copyright 2013 SInstruments, Inc.
Model SR555i Stand-On Scale
Operating and Service Manual - S/N 1000+
Part No. MAN555i _130314
S
by SInstruments, Inc.
Precision & Technology in
Perfect Balance ®
SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com
email: [email protected]
Copyright 2013 SInstruments, Inc.
Page 20 of 20
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
