Go To Table Of Contents

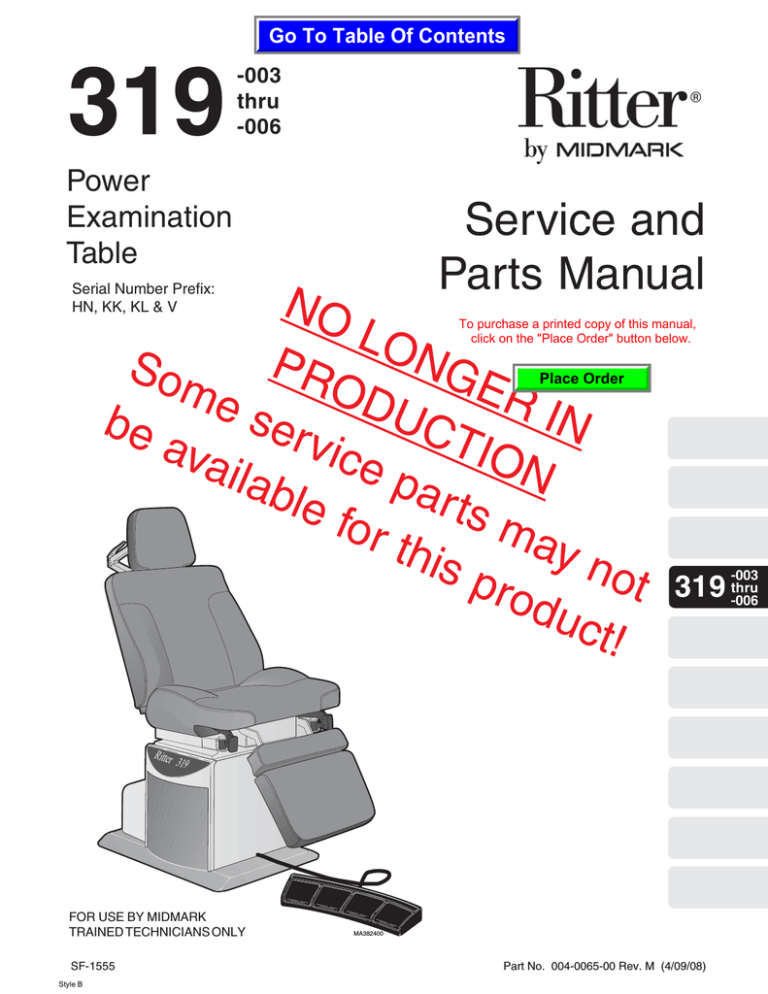

319

-003 thru

-006

Power

Examination

Service and

Table

Serial Number Prefix:

HN, KK, KL & V

Parts Manual

NO LONGER IN

To purchase a printed copy of this manual,

click on the "Place Order" button below.

Some ser

ODUCTION

Place Order

be a vailab vice par le f y not

319

-003 thru

-006

Ritter 319

FOR USE BY MIDMARK

TRAINED TECHNICIANS ONLY

SF-1555

Style B

MA382400

Part No. 004-0065-00 Rev. M (4/09/08)

Go To Table Of Contents

TABLE OF CONTENTS

Page Section/Paragraph Section/Paragraph

IMPORTANT INSTRUCTIONS

General Safety Instructions .......................................... iii

Warnings ..................................................................... iii

Warranty Instructions .................................................. iii

SECTION I GENERAL INFORMATION

1.1 Scope of Manual ......................................... 1-1

1.2 How to Use Manual ..................................... 1-1

1.3 Description of 319 Power Examination

Table ....................................................... 1-1

1.4 Standard Torque Specifications .................... 1-4

1.5 Specifications ............................................. 1-4

1.6 Parts Replacement Ordering ....................... 1-5

1.7 Special Tools .............................................. 1-6

SECTION II TESTING AND TROUBLESHOOTING

2.1 Operational Test .......................................... 2-1

2.2 Troubleshooting Procedures ........................ 2-1

Page

4.16 Time Delay Relay Removal /

Installation ............................................. 4-19

4.17 Capacitors Removal / Installation .............. 4-20

4.18 Pan Safety Limit Switch Removal /

Installation ............................................. 4-21

4.19 Chain Assembly Adjustment ..................... 4-23

4.20 Base Slide Assembly Removal /

Installation ............................................. 4-23

4.21 Headrest Adjustment ................................. 4-27

4.22 Headrest Handles Handle Stops

Adjustment ............................................ 4-28

4.23 Stirrup Assembly And Components

Removal / Installation ............................ 4-28

4.24 Typical Foot Switch Removal /

Installation ............................................. 4-29

4.25 Upholstery Removal / Installation .............. 4-30

4.26 Hydraulic System Flushing Procedure ....... 4-33

SECTION III SCHEDULED MAINTENANCE

3.1 Scheduled Maintenance .............................. 3-1

SECTION V SCHEMATICS AND DIAGRAMS

5.1 Electrical Schematics / Wiring Diagrams ..... 5-1

5.2 Hydraulic Flow Diagrams ............................. 5-5

SECTION IV MAINTENANCE/SERVICE

INSTRUCTIONS

4.1 Introduction ................................................. 4-1

4.2 Motor Cover Assembly Removal /

Installation ............................................... 4-1

4.3 Checking / Adding Oil To Motor Pump ........ 4-1

4.4 Up Functions Shuttle Valve Removal /

Installation ............................................... 4-2

4.5 Down Functions Shuttle Valve Removal /

Installation ............................................... 4-3

4.6 Anti-cavitation Solenoid Valve Removal /

Installation ............................................... 4-4

4.7 Up Functions Relief Valve Removal /

Installation ............................................... 4-5

4.8 Down Functions Relief Valve Removal /

Installation ............................................... 4-6

4.9 Motor Pump Assembly - Complete

Removal / Installation .............................. 4-7

4.10 Motor Pump Removal / Installation ............. 4-8

4.11 Motor Shaft Seal Removal / Installation ...... 4-9

4.12 Back Cylinder Removal / Installation ......... 4-11

4.13 Tilt Cylinder Removal / Installation ............ 4-13

4.14 Base Cylinder Removal / Installation ......... 4-15

4.15 Foot Cylinder Removal / Installation .......... 4-17

SECTION VI PARTS LIST

6.1 Introduction ................................................. 6-1

6.2 Description of Columns ............................... 6-1

6.3 Torque Specifications and Important

Assembly Notes ....................................... 6-1

Pictorial Index ............................................. 6-2

Pictorial Index ............................................. 6-3

Back Components ...................................... 6-4.*

Back Components ...................................... 6-5.*

Upholstery Set - Standard ............................ 6-6

Upholstery Set - Narrow ............................... 6-7

Upholstery Set - Styled ................................ 6-8

Upholstery Set - Thermoform ....................... 6-9

Hydraulic System ....................................... 6-10

Headrest Assembly .................................. 6-11.*

Seat Components .................................... 6-12.*

Seat Components .................................... 6-13.*

Stirrup Assembly ..................................... 6-14.*

Footboard Components ............................ 6-15.*

Base Covers And Enclosures .................... 6-16

Base Mechanical Components ................. 6-17.*

Base Slide Assembly ................................. 6-18

Base Electrical Components - Domestic .... 6-19

Base Electrical Components - Export ........ 6-20*

(*) Indicates that there has been a serial number break for the illustration and that there are additional point page(s) following the original page.

© Midmark Corporation 1997 SF-1555 Rev. 11/02

Page i

Printed in U.S.A.

Return To Table Of Contents

TABLE OF CONTENTS - CONTINUED

Page Section/Paragraph Section/Paragraph

Motor / Pump Components ........................ 6-21

Foot Control Assembly ............................... 6-22

Page

COMMENTS ............................................................ 7-1

FAX ORDERING FORM .......................................... 7-2

(*) Indicates that there has been a serial number break for the illustration and that there are additional point page(s) following the original page.

© Midmark Corporation 1997 SF-1555 Rev. 3/99

Page ii

Printed in U.S.A.

Return To Table Of Contents

IMPORTANT INSTRUCTIONS

General Safety Instructions

Safety First: The primary concern of Midmark

Corporation is that this table is maintained with the safety of the patient and staff in mind. To assure that services and repairs are completed safely and correctly, proceed as follows:

(1) Read this entire manual before performing any services or repairs on this table.

(2) Be sure you understand the instructions contained in this manual before attempting to service or repair this table.

Safety Alert Symbols

Throughout this manual are safety alert symbols that call attention to particular procedures. These items are used as follows:

DANGER

A DANGER is used for an imminently hazardous operating procedure, practice, or condition which, if not correctly followed, will result in loss of life or serious personal injury.

WARNING

A WARNING is used for a potentially hazardous operating procedure, practice, or condition which, if not correctly followed, could result in loss of life or serious personal injury.

CAUTION

A CAUTION is used for a potentially hazardous operating procedure, practice, or condition which, if not correctly followed, could result in minor or moderate injury. It may also be used to alert against unsafe practices.

EQUIPMENT ALERT

An EQUIPMENT ALERT is used for an imminently or potentially hazardous operating procedure, practice, or condition which, if not correctly followed, will or could result in serious, moderate, or minor damage to unit.

NOTE

A NOTE is used to amplify an operating procedure, practice or condition.

Warranty Instructions

Refer to the Midmark “Limited Warranty” printed in the

Installation and Operation Manual for warranty information. Failure to follow the guidelines listed below will void the warranty and/or render the 319 Power Examination Table unsafe for operation.

• In the event of a malfunction, do not attempt to operate the table until necessary repairs have been made.

• Do not attempt to disassemble table, replace malfunctioning or damaged components, or perform adjustments unless you are one of Midmark’s authorized service technicians.

• Do not substitute parts of another manufacturer when replacing inoperative or damaged components.

Use only Midmark replacement parts.

© Midmark Corporation 1997 SF-1555

Page iii

Printed in U.S.A.

Return To Table Of Contents

© Midmark Corporation 1997 SF-1555

Page iv

Printed in U.S.A.

Return To Table Of Contents

SECTION I

GENERAL INFORMATION

1.1 Scope of Manual

1.2 How to Use Manual

SECTION I

GENERAL INFORMATION

This manual contains detailed troubleshooting, scheduled maintenance, maintenance, and service instructions for 319 Power Examination Table. This manual is intended to be used by Midmark’s authorized service technicians.

The major serviceable components of the table are the motor pump, up functions relief valve (600 PSI), down functions relief valve (400 PSI), up functions shuttle valve, down functions shuttle valve, anti-cavitation solenoid valve, capacitors, control panel with terminal block, back cylinder, foot cylinder, tilt cylinder, base cylinder, base slide assembly, chain assembly, pan safety limit switch (optional on some tables), time delay relay, foot switches, and isolation transformer (export units only).

A. Manual Use When Performing Scheduled Maintenance.

The Model 319 Power Examination Table series is available in two different configurations which are distinguished as follows:

(1) Perform inspections and services listed in

Scheduled Maintenance Chart (Refer to para 3.1).

(2) If a component is discovered to be faulty or out of adjustment, replace or adjust component in accordance with maintenance/service instructions (Refer to para 4.1).

Model

319-003 115 VAC , w/o siderails and w/o treatment pan.

Model

319-004 220 VAC , w/o siderails and w/o treatment pan.

B. Manual Use When Table Is Malfunctioning And

Cause Is Unknown.

B. Theory of Operation (See Section IV, Figures 5-1 thru 5-4 for wiring diagrams and electrical schematics, and Figures 5-5 and 5-6 for hydraulic flow diagrams.)

(1) Perform an operational test on table (Refer to para 2.1).

(2) Perform troubleshooting procedures listed in

Troubleshooting Guide (Refer to para 2.2).

On domestic units, 115 VAC is supplied directly to the circuitry of the table. On export units, 220 VAC is supplied to isolation transformer. The isolation transformer then supplies 115 VAC to the circuitry of the table.

(3) If a component is discovered to be faulty or out of adjustment, replace or adjust component in accordance with maintenance/service instructions (Refer to para 4.1).

C. Manual Use When Damaged Component Is Known.

(1) Replace or adjust component in accordance with maintenance/service instructions (Refer to para 4.1).

1.3 Description Of 319 Power Examination

Table

A. General Description (See Figure 1-1).

The 319 Power Examination Table is an examination table designed specifically for performing general medical examinations and procedures.

When no functions are selected, 115 VAC is supplied to terminals 1 and 2 of all foot switches. There is no path to neutral, however, so no current flows and nothing happens. When the operator selects one of the four up functions (BACK UP, TABLE UP, FOOT UP, or TILT

UP) with the foot control, three paths to neutral are created. Current flows from terminal 2 to terminal 4 of switch and then across the motor pump winding T2 to neutral, starting the motor pump pumping. Current also flows from terminal 2 to terminal 4 of switch and then across the coil of the anti-cavitation solenoid valve, energizing the valve and causing it to open. Current also flows from terminal 2 to terminal 3 of switch and then across the coil of the cylinder solenoid valve and the time delay relay, energizing the valve and causing it to open. The time delay relay delays current flow across the coil of the cylinder solenoid valve for 1/10 of a second, causing it to energize 1/10 of a second after

© Midmark Corporation 1997 SF-1555

Page 1-1

Printed in U.S.A.

SECTION I

GENERAL INFORMATION

Return To Table Of Contents

BACK

CYLINDER

BASE

CYLINDER

ANTI-CAVITATION

SOLENOID VALVE

MOTOR

PUMP

DOWN FUNCTION

SHUTTLE VALVE

UP FUNCTION

SHUTTLE VALVE

TERMINAL

BLOCK

TIME DELAY

RELAY

DOWN FUNCTION

RELIEF VALVE

UP FUNCTION

RELIEF VALVE

PAN SAFETY

LIMIT SWITCH

CAPACITORS

FOOT

SWITCH

TILT

CYLINDER

CYLINDER

BASE SLIDE

ASSEMBLY

FOOT

CHAIN

ASSEMBLY

FOOT

CONTROL

ISOLATION

TRANSFORMER

(EXPORT UNITS ONLY)

Figure 1-1. Major Components

MA398400

© Midmark Corporation 1997 SF-1555

Page 1-2

Printed in U.S.A.

the motor pump and anti-cavitation solenoid valve have energized. This allows the motor pump to run and oil pressure to build first, so table top will not drift downward slightly before starting to rise. On tables that have an optional treatment pan assembly, the foot function also has a pan safety limit switch in its circuit. If the treatment pan assembly is not pushed into its fully stowed position, the pan safety limit switch will not be tripped. If the pan safety limit switch is not tripped, current flow is interrupted, keeping the cylinder solenoid valve from energizing. This safety feature prevents the table operator from accidentally colliding the foot section into the treatment pan assembly.

When the motor pump starts pumping, suction is created by the rotating pump gears, which allows oil to defeat the reservoir check valve and flow into the pump gears. The pump gears pressurize the oil which flows to the up function shuttle valve. The check ball and shuttle in the up function shuttle valve are pushed to the open position by the oil, allowing oil to flow through the shuttle valve by flowing around the check ball (with the shuttle in the open position, oil is prevented from flowing through the reservoir ports and returning to the reservoir). The oil then flows through the open cylinder solenoid valve at the base of the selected cylinder, extending the cylinder rod. When the cylinder rod extends, oil is forced out of the rod end of the cylinder, through the open anti-cavitation solenoid valve and to the down function shuttle valve. The check ball and the shuttle in the down function shuttle valve are pushed to the closed position by the oil, which prevents oil from flowing through the shuttle valve and into the motor pump, but allows the oil to flow through the newly uncovered reservoir ports into the reservoir. When the cylinder rod reaches the end of its travel, the up function relief valve opens when the pressure reaches 525 - 600

PSI (36.2 - 41.4 BARS) and allows the oil to return to the reservoir. This prevents the motor pump from developing too high of pressures and damaging the hydraulic system components, hoses, or the motor pump itself.

When the operator releases the pedal on the foot control, the path to neutral is opened, causing the motor pump to shut down and the anti-cavitation solenoid valve and the cylinder solenoid valve to de-energize, causing the valves to close.

When no functions are selected, 115 VAC is supplied to terminals 1 and 2 of all foot switches. There is no path

Return To Table Of Contents

SECTION I

GENERAL INFORMATION to neutral, however, so no current flows and nothing happens. When the operator selects one of the four down functions (BACK DOWN, TABLE DOWN, FOOT

DOWN, or TILT DOWN) with the foot control, two paths to neutral are created. Current flows from terminal 2 to terminal 4 of switch and then across the motor pump winding T3 to neutral, starting the motor pump pumping.

Current also flows from terminal 2 to terminal 3 of switch and then across the coil of the cylinder solenoid valve and the time delay relay, energizing the valve and causing it to open. The time delay relay delays current flow across the coil of the cylinder solenoid valve for 1/

10 of a second, causing it to energize 1/10 of a second after the motor pump and anti-cavitation solenoid valve have energized. This allows the motor pump to run and oil pressure to build before table is operated, so table top will not cavitate. The foot function also has a pan safety limit switch in its circuit. If the treatment pan assembly is not pushed into its fully stowed position, the pan safety limit switch will not be tripped. If the pan safety limit switch is not tripped, current flow is interrupted, keeping the cylinder solenoid valve from energizing. This safety feature prevents the table operator from accidentally colliding the foot section into the treatment pan assembly.

When the motor pump starts pumping, suction is created by the rotating pump gears, which allows oil to defeat the reservoir check valve and flow into the pump gears. The pump gears pressurize the oil which flows to the down function shuttle valve. The check ball and shuttle in the down function shuttle valve are pushed to the open position by the oil, allowing oil to flow through the shuttle valve by flowing around the check ball (with the shuttle in the open position, oil is prevented from flowing through the reservoir ports and returning to the reservoir). The oil then flows through the open anticavitation solenoid valve and into the rod end of the cylinder, causing the cylinder rod to retract. When the cylinder rod retracts, oil is forced out of the base of the cylinder, through the open cylinder solenoid valve to the up function shuttle valve. The check ball and the shuttle in the up function shuttle valve are pushed to the closed position by the oil, which prevents oil from flowing through the shuttle valve and into the motor pump, but allows the oil to flow through the newly uncovered reservoir ports into the reservoir. When the cylinder rod reaches the end of its travel, the down functions relief valve opens when the pressure reaches

250 - 325 PSI (17.2 - 22.4 BARS) and allows the oil to

© Midmark Corporation 1997 SF-1555

Page 1-3

Printed in U.S.A.

SECTION I

GENERAL INFORMATION

Return To Table Of Contents

return to the reservoir. This prevents the motor pump from developing too high of pressures and damaging the hydraulic system components, hoses, or the motor pump itself.

When the operator releases the pedal on the foot control, the path to neutral is opened, causing the motor pump to shut down and the cylinder solenoid valve to de-energize, causing the valve to close.

The anti-cavitation solenoid valve is in the hydraulic system to prevent oil from escaping out of the rod end of a cylinder while the table is not being moved. Otherwise, a cylinder rod would be able to extend on its own if upward pressure was placed on that function of the table top by the doctor or patient.

The cylinder solenoid valves are in the hydraulic system to prevent oil from escaping out of the base of the cylinder assemblies. Otherwise, a cylinder assembly could retract on its own, allowing the table top to drift.

1.4 Standard Torque Specifications

The following standard torque specifications in Table

1-1 apply to the various hardware used on the units unless otherwise listed elsewhere in service procedures or parts illustrations:

Table 1-1. Torque Specifications

Hardware Size Torque Values

#6 ........................... 11 to 21 inch / lbs. (1.2 to 2.3 N•M)

#8 ........................... 20 to 30 inch / lbs. (2.2 to 3.3 N•M)

#10 .......................... 32 to 42 inch / lbs. (3.6 to 4.8 N•M)

1/4" ......................... 75 to 85 inch / lbs. (8.5 to 9.6 N•M)

5/16" .................... 18 to 22 foot / lbs. (24.4 to 29.8 N•M)

3/8" ...................... 31 to 35 foot / lbs. (42.0 to 47.5 N•M)

1/2" ...................... 50 to 60 foot / lbs. (67.8 to 81.4 N•M)

1.5 SPECIFICATIONS

Factual data for the 319 Power Examination Table is provided in Table 1-2. Also, see Figure 1-2.

Table 1-2. Specifications

Description Data

Weight:

Fixed Base

Without Shipping Carton ................. 390 lb (176.8 kg)

With Shipping Carton ...................... 455 lb (206.7 kg)

Shipping Carton ...... 58 in. "L" x 31 in. "W" x 42 in. "H"

(147 cm x 79 cm x 107 cm)

Dimensions (See Figure 1-2):

Table Top Length .............................. 70 in. (177.8 cm)

Table Top Length (headrest extended) ............... 80 in.

(203.2 cm)

Table Top Width .................................. 27 in. (68.6 cm)

Overall Width ...................................... 27 in. (68.6 cm)

Table Positioning (Adjustable):

Standard Base Table Top Height .......... 26 in. to 42 in.

(66 cm to 107 cm)

Weight Capacity .................................. 325 lb (147.3 kg)

Oil Used In Hydraulic System ....................... light grade medicinal mineral oil

Hydraulic System

Oil Capacity ..................... Approx. 2.5 quarts (2.4 liters)

Motor Pump Reservoir Capacity ......... 1 quart (.946 liter)

Electrical Requirements:

115 VAC Unit ............................ 110 - 120 VAC, 60 HZ,

12 amp, single phase

230 VAC Unit ..................... 220 - 240 VAC, 50 - 60 HZ,

12 amp, single phase

Power Consumption:

115 VAC Unit ........................................... 960 WATTS,

8 amps @ 120 VAC

230 VAC Unit ........................................... 960 WATTS,

4 amps @ 240 VAC

Recommended Circuit:

A separate (dedicated) circuit is recommended for this table. The table should not be connected to an electrical circuit with other appliances or equipment unless the circuit is rated for the additional load.

Up Function Relief Valve Setting ............ Valve opens at

525 to 600 PSI

(36.2 to 41.4 BARS)

Down Function Relief Valve Setting ....... Valve opens at

250 to 325 PSI

(17.2 to 22.4 BARS)

© Midmark Corporation 1997 SF-1555

Page 1-4

Printed in U.S.A.

Return To Table Of Contents

SECTION I

GENERAL INFORMATION

70" LONG (MIN.)

80" LONG (MAX.)

23"

WIDE

BASE

27"

WIDE

SEAT

A

21"

(MIN.)

B

45

°

87

°

90

°

26"

(Min.)

42"

(MAX.)

MA398600

6'

CORD

31"

BASE

4'

CORD

Figure 1-3. Model Number / Serial

Number Location

MA398500

Figure 1-2. Table Dimensions

1.6 Parts Replacement Ordering

(2) Refer to the Parts List to determine the item numbers of the parts, part numbers of the parts, descriptions of the parts, and quantities of parts needed and record this data (Refer to para 6.1).

If a part replacement is required, order the part directly from the factory as follows:

NOTE

It is

important that the entire Model and Serial

Number be presented when ordering parts, scheduling a service call, or seeking technical advice.

NOTE

Ask the Purchasing Department of the company that owns the table for this information. Otherwise, this information may be obtained from the dealer that sold the table.

(3) Determine the installation date of the table and record this data.

(1) Refer to Figure 1-3 to determine the location of the model number (A) and serial number (B) of the table and record this data.

Table 1-3. Special Tool List

Description of Special Tool

Multimeter

Torque Wrench

Manufacturer's

Name / Address / Phone

Commercially Available

Commercially Available

Manufacturer's

Part Number

Any Type

Any Type

Purpose of Special Tool

Used to perform continuity and voltage checks.

Used to tighten all hardware to torque values specified.

© Midmark Corporation 1997 SF-1555

Page 1-5

Printed in U.S.A.

SECTION I

GENERAL INFORMATION

Return To Table Of Contents

(4) Call Midmark with the recorded information and ask for the Medical Products Technical Services Department. See back cover of this manual for the phone number or use the Fax

Order Form (See page 7-2 for Fax Order Form).

1.7 Special Tools

Table 1-3 lists all of the special tools needed to repair the table, how to obtain the special tools, and the purpose of each special tool.

© Midmark Corporation 1997 SF-1555

Page 1-6

Printed in U.S.A.

Return To Table Of Contents

SECTION II

TESTING AND TROUBLESHOOTING

SECTION II

TESTING AND TROUBLESHOOTING

2.1 Operational Test (See Figure 2-1)

In order to effectively diagnose the malfunction of the table, it may be necessary to perform an operational test as follows:

WARNING

Refer to the Operator Manual for complete instructions on operating the table. Failure to do so could result in personal injury.

NOTE

The Operational Test, for the most part, only describes what should happen when the table is operated. If the table does something other than described, a problem has been discovered. Refer to the Troubleshooting Guide to determine the cause of the problem and its correction.

(1) Plug the table into a grounded, non-isolated, correctly polarized outlet that has the proper voltage output for the table. See Figure 2-1.

(2) Depress TABLE UP, TABLE DOWN, BACK

UP, BACK DOWN, TILT UP, TILT DOWN,

FOOT UP, and FOOT DOWN pedals on foot control.

(3) Observe. The table top should move in the direction corresponding to the pedal which is being depressed. Movement should be steady and should not be too slow or too fast.

NOTE

Steps 4 thru 7 apply only to units which have a pan slide assembly / treatment pan (it is an option on some units).

(4) Lower FOOT DOWN function all the way. Pull the pan slide assembly outward until pan safety limit switch is no longer tripped. Depress either

FOOT UP or FOOT DOWN pedal on foot control.

(5) Observe. The foot section of table top should not move when either FOOT UP or FOOT

DOWN pedal is depressed.

TABLE

TOP

BACK

SECTION

SEAT

SECTION

FOOT

SECTION

PAN SLIDE

ASSEMBLY

(OPTIONAL

ON SOME

UNITS)

FOOT

CONTROL

MA403400

Figure 2-1. Operational Test

(6) Push pan slide assembly inward until pan safety limit switch is tripped. Depress either

FOOT UP or FOOT DOWN pedal on foot control.

(7) Observe. The foot section of table top should move when FOOT UP or FOOT DOWN pedal is depressed.

2.2 Troubleshooting Procedures

Table 2-1 is a Troubleshooting Guide which is used to determine the cause of the malfunction.

© Midmark Corporation 1997 SF-1555

Page 2-1

Printed in U.S.A.

Return To Table Of Contents

SECTION II

TESTING AND TROUBLESHOOTING

Table 2-1. Troubleshooting Guide

P r o b l e m

T a b l e w i ll n o t o p e r a t e w h e n u p o r a n y d o w n o f t h e e i g h f u n c t i o n s t a r e s e l e c t e d .

S y m p t o m

W h e n a f o o t p e d a l i s d e p r e s s e d , d o e s n o t r u m n o t o a n d r p u m p s o l e n o i d c a n n o t b e h e a

( a u d r d i b l b e i n g e c il c k e

) .

n e r g i z e d

W h e n a f o o t p e d a l i s d e d o p r e s e s n s e o t r d , u m o t o r n , b u t s o l e n o i d e n e r g i z e s p u m p

( a u d i b l e c il c k ) .

P r o b a b l e C a u s e

P o w e r c o r d i s n o t p l u g g e d i n t o o n e f a c i il t y x p o r t w a m o d ll e l o u s , t l e t o r , p o w e r c o r d i s n ' t c o n n e c t o r p l u g g e d i n t r e c e p t a c l e o o n t a b l e .

C h e c k c o r d i s t o

C h

s e e

e c

i f p l u g g e d

k

p o w e r i n .

F a c i il t y c i r c u i t b r e a p r o v i d i n g t r i p p e d .

p o w e r t o k e r t a b l e i s

C c i r h c e u c i t k t o b r e s e e a k e r i f i f a s t c i il r i p t y p e d .

F u s e ( s ) u n i t s o n l i y n r e c e p t a c l e

) .

A C i s c o n n b l o w n e

( c t o r e x p o r t

P e r f o r m c o n t i n u i t y c h e c k o n f u s e s .

W i r e c o n n e c t i o n s l o o s e .

I s o l a t m a u n i t l f s i o n u n o t r a n c t i o n l y ) .

s f o r n i n g ( m e x e r p o i r t s

C h e c k a ll w i r i n g c o n n e c t i o n s f r o m p o w e r c o r d a n d t o t f r o m e r m i f o o t n a l c b o n l o c t r o l k t o t e r m i n a l b l o c k .

C h e c k i n p u t a n d o u t p u t t v o r a l t a g e n s f o o r m f e i s o l a t i o n r o r r e p l a c e s u s p e c t i s o l a t i o n t r a n s f o r m e r w o r k i n g t r a n w i t h k n o s f o r m e r .

w n

C a p a c i

( m o t o r t o p u r ( h u m m i n g ) .

s ) m p i s m b l o w n a y b e

R e p l a c e s u s p e c t c a p a c i t o r ( s ) w o r k i n g c a p w i t a c i t h k n o o r ( s ) .

w n

M o t o r t h e r m a l o v e r l o a d s w i t c h i s b e c a u s e a c t i v a t e d m o t o r p u m p o v e r h e a t e d .

W a i t 1 5 t o 2 0 m i n u t e s .

W h e n a f o o t p e d a l i s r d e u n p r e s s a n s e d d , m o t o r s o l e n o i d p u m p c a n b e h e a r d e n e r g i z i n g .

M o t o r p u m p i s

W i r e c o n n e c t i o b u r n e d o u t .

n s l o o s e .

R e p l a c e s u s p e c t p u m p .

m o t o r

C h e c k a ll w i r i n g t c o n e r n e c t m i n a l i o b n s l o c f r o m k t o m o t o r p u m p .

H y d r a u il c m i n e r a l o li .

s y s t e m i s l o w o n C h e c k o r e s e r v o i r .

li l e v e l i n I

C o r r e c t i o n

P l u g p o w e r c o r d i n t o f a c i il t y w a ll o u t l e t r e c e p t a c l e a n d / o r o n t a b l c e .

o n n e c t o r

I f c i r c u i t b r e a k e r i s t r i p p e c o r r e c t r e s e t c i r t h e c u i t p r o b l e m , b r e a k e r .

t h e n d ,

R e p l a c e f u s e ( s ) .

C l e a n d i r t y c o

R e p a i r l o o s e c o n n e c t i o n s .

/ n n e c t i o n s .

d a m a g e d

I f i s o l a t i o n t r a n s f o r m e r i s r e c e i v o l t a v i g n e g b p r u t i o p s e r n o t i n p u t s u p p l y i n g i

1 1 5 V A C s o l a t i o n o u t p u t , r e p l a c e t r a n s f o r m e r .

R e p l a c e c a p a c i t o r ( s ) .

t o p a r a 4 .

1 8 .

R e f e r

A ll o w m o t o r p u m p t o c o o l t a a n d b l e t h e n

.

I f t r y t o m o t o r o p e r a p u m p t e d o e s n p o t u m r u n , p .

R r e p e f e l a r c e t o m o t o r p a r a 4 .

9

4 .

1 0 .

o r

R e p l a c e m o t o r p u m p .

t o p a r a 4 .

9 o r 4 .

1 0 .

R e f e r

C l e a n d i r t y c o n n e c t i o n s .

R e p a i r l o o s e c o n n e c t i o n s .

/ d a m a g e d f n e c e s s r e s e r v o i r .

a r y ,

R e f a d d e r t o o li t o p a r a 4 .

3 .

© Midmark Corporation 1997 SF-1555 Rev. 12/02

Page 2-2

Printed in U.S.A.

Return To Table Of Contents

SECTION II

TESTING AND TROUBLESHOOTING

Table 2-1. Troubleshooting Guide - Continued

T a b l e w h e n u p a r e o r s e d o l e w n c t e d

C o n t i n w

P

i ll

r

a n y

o

n o t o f o p t h e e r a t e i g e h t u e d .

b l

-

e m

f u n c t i o n s

W d e h e n p r e s s

S

e

y

d

m

a f o o t

,

p

r u n s , n o t b u t m o v e .

t a b l e

t o m

p e d a l m o t o r i s p u m p t o p d o e s

W h e n a f o o t p e d a l i s d e p r e s s e d , h u m s , b u t m o t o r p d o e s n o t u r m p u n .

T m a l f u n c t i o n i n g .

C i m e a p a

P

d e l a y c i

r o

t o r

b

(

a b

s ) r e l a y i

l e

s

C

b l

a

i s

u

o w

s

n .

e C h e c k

U s e a b y p a s s j u t i m p m e e r w i r e d e l a y t o r e l a y .

I t i f t m a b e l e d e t o p l a y r m o v e s e l a y i s n o w , m a l f u n c t i o n i n g .

P u t a m u l t i m e t e r i n il n e r w / u t i n m e e a c d e l a y h c y il r e l a y n d e r o a n d n e a t a t i m e .

R e p l a c e s u s p e c t c a p a c i t o r ( s ) w o r k i n g c a p w a c i t h k n o i t o r ( s ) .

w n

A m u a m p s l t i i m e t n d i c e r a t r e e s a a d i n g f a u l

> t y

1 .

2 t o f c y a li il

.

n d e r h a s

R e p l a c e c a u s e d c y il n d e r r e l a y

a n d

t h e t i m e d e l a y r e l a y .

I f r e a d i n g i s < 1 .

2 a m p s , r e p l a c e

o n l y

.

t i m e

R e f e r t d e l a y o p a r a r e l a y

4 .

1 6 .

R e p t o l a c e p a r a 4

C o r r e

c a p a c

.

1 7 .

c t i o n

i t o r ( s ) .

R e f e r

T h e T A B L E U P , B A C K

U P

F O n o t

, T I

O T w

L o r

T k ,

U P ,

U P b f u t a n d u n c t i o n s

T A B L E d o

D O W N ,

T I L T

B A C

D O W N ,

K a

D O W N , n d f

F O O u n c t

T i o

D O W N n s d o .

M o t o r p u m p r u n s w h e n i a n s u d e p p r f u n c t i o n e s s e d , b f o o t u t p e d a l t a b l e t o p d o e s n o t m o v e .

M o t o r b o r u r p u m n e d p o u

A n t i c a v i t a t i o n s o l e n o i d v a

W i l v e r e i s m a l f u n c t i o n i n g .

c o n n e c t i s t .

l o c k e d i o n s l o u p o s e .

R e p p u m l a p c e w i t s u s p e c t h k n o w n m o t o r w o r k i n g m o t o r p u m p .

C h e c k a ll w i r i n g t c o n e r n e c t m i n a l i o b n s l o c f r o m k t o a n t i c a v i t a t i o n s o l e n o i d v a l v e

U s e f o r p m r u l t i o p e r m v e t o l e r t a t o g e c h e c k l e v e l s .

.

R e p t o p l a c e a r a 4 m o t o r

.

9 o r p u m

4 .

1 0 .

p .

R

C h e c k f o r s il g h t m a g n e t i s m o n b o t t o m s i d e o f a s o l e n o i d n t i c a v a l v e , v i t a t i o n i n d i c a t i n g s o l e n o i d o u t o r r e i p s n o l a c e t b u r n e d s u s p e c t a n t v a a n t l v i i c e

c a v w i t h a v i i t t a a t t k i i o n o o n n s o l e n o i d w n w o r k i n g s o l e n o i d v a l v e .

R e p l a c e a n t i c a v i t a t i o n s o l e n o i d v a l v e .

p a r a 4 .

6 .

R e f e r t o e f e r

C l e a n a n y d i r t y c o n n e c t i o n s .

T i g h t e n a n y c o n n e c t i o n s .

l o o s e

R e p l a c e a n y d a m a g e d c o n n e c t i o n s .

M o t o r p u m p d o e s n o t r u n w h e n a n u p f u n c t i o n f o o t b u t p e d d o e s a l w i s h d e n e p r e s a d o s e d , w n f u n c t i o n f o o t d e p r e s s e d .

p e d a l i s

U p f u n c t i o n s h m a l f u n c t i o n i n g .

u t t l e v a l v e i s C h e c k t o s e e i f c h e c k b a i s s h l o o s e u t t l e i n u v a l v e p f u o r n c a d t i o n j a c e n t e l b o w ( c h e c k b a ll s h o u l d ll b e b y h e l d m e t a l i n s h u t t l e r i n g ) .

v a l v e

R e p v a l v l a e .

c e u p

R e f e r f u n c t i o n s h u t t l e t o p a r a 4 .

4 .

M o t o r p u m p i s d e f e c t i v e .

R e p l a c e t o p a r a m o t o

4 .

9 o r r p u m

4 .

1 0 .

p .

R e f e r

M o t o r p u m p i s d e f e c t i v e .

R e p p u m l a p c e w i t s h u s p e c t k n o w n m o t o r w o r k i n g m o t o r p u m p .

R e p l a c e s u s p e c t m o t o r p u m p w w o r k i n g i t h k n o m o t o r w n p u m p .

R e p l a c e t o p a r a 4 m o t o r

.

9 o r p u m p .

4 .

1 0 .

R e f e r

W i r e c o n t r c o n n e c t i o n o l i s l o o s e .

i n f o o t C h e c k a ll w c o n n e c t i o n s i r i i n g n f o o t c o n t r o l .

C l e a

T i g h t n e a n y n d a n y i r t y c o l o o s e n n e c t i o n s .

c o n n e c t i o n s .

d a m a g e d c o n

R e p n e c t l a c e i o n s .

a n y

© Midmark Corporation 1997 SF-1555 Rev. 12/02

Page 2-3

Printed in U.S.A.

Return To Table Of Contents

SECTION II

TESTING AND TROUBLESHOOTING

Table 2-1. Troubleshooting Guide - Continued

Problem

The TABLE DOWN,

BACK DOWN, TILT

DOWN, and FOOT

DOWN functions do not work, but TABLE UP,

BACK UP, TILT UP, and

FOOT UP functions do.

Symptom

Motor pump runs when a down function foot pedal is depressed, but table top does not move.

Probable Cause

Down function shuttle valve is malfunctioning.

Motor pump is defective.

Check

Check to see if check ball is loose in down function shuttle valve or adjacent elbow (check ball should be held in shuttle valve by metal ring).

Motor pump does not run when a down function foot pedal is depressed, but runs when an up function is pressed.

Motor pump is defective.

Wire connection in foot control is loose.

Replace suspect motor pump with known working motor pump.

Replace suspect motor pump with known working motor pump.

TABLE UP function works, but TABLE

DOWN function does not or TABLE DOWN function works but

TABLE UP function does not. All other functions work.

BACK UP function works, but BACK DOWN function does not or

BACK DOWN function works but BACK UP function does not. All other functions work.

Motor pump does not run and base cylinder solenoid valve does not energize.

Motor pump runs but base cylinder solenoid valve does not energize or vice versa.

Motor pump does not run and back cylinder solenoid valve does not energize.

Motor pump runs but back cylinder solenoid valve does not energize or vice versa.

TABLE UP or TABLE

DOWN foot switch is malfunctioning.

Wire connection to foot switch is loose.

TABLE UP or TABLE

DOWN foot switch is malfunctioning.

BACK UP or BACK DOWN foot switch is malfunctioning.

Wire connection to foot switch is loose.

BACK UP or BACK DOWN foot switch is malfunctioning.

Correction

Replace down function shuttle valve. Refer to para 4.5.

Replace motor pump. Refer to para 4.9 or 4.10.

Replace motor pump. Refer to para 4.9 or 4.10.

Check all wiring connections in foot control.

Perform a continuity check on suspect foot switch in

ON and OFF positions or replace suspect foot switch with known working foot switch.

Clean any dirty connections.

Tighten any loose connections. Replace any damaged connections.

Replace foot switch. Refer to para 4.24.

Check all wiring connections on suspect foot switch.

Perform a continuity check on suspect foot switch in

ON and OFF positions or replace suspect foot switch with known working foot switch.

Perform a continuity check on suspect foot switch in

ON and OFF positions or replace suspect foot switch with known working foot switch.

Check all wiring connections on suspect foot switch.

Perform a continuity check on suspect foot switch in

ON and OFF positions or replace suspect foot switch with known working foot switch.

Clean any dirty connections.

Tighten any loose connections. Replace any damaged connections.

Replace foot switch. Refer to para 4.24.

Replace foot switch. Refer to para 4.24.

Clean any dirty connections.

Tighten any loose connections. Replace any damaged connections.

Replace foot switch. Refer to para 4.24.

© Midmark Corporation 1997 SF-1555

Page 2-4

Printed in U.S.A.

Return To Table Of Contents

SECTION II

TESTING AND TROUBLESHOOTING

Table 2-1. Troubleshooting Guide - Continued

Problem

TILT UP function works, but TILT DOWN function does not or TILT DOWN function works but TILT

UP function does not.

All other functions work.

cylinder solenoid valve does not energize or vice versa.

Symptom

Motor pump does not run and tilt cylinder solenoid valve does not energize.

Motor pump runs but tilt

FOOT UP function works, but FOOT DOWN function does not or

FOOT DOWN function works but FOOT UP function does not. All other functions work.

Motor pump does not run and foot cylinder solenoid valve does not energize.

Motor pump runs but foot cylinder solenoid valve does not energize or vice versa.

Probable Cause

TILT UP or TILT DOWN foot switch is malfunctioning.

Check

Perform a continuity check on suspect foot switch in

ON and OFF positions or replace suspect foot switch with known working foot switch.

Check all wiring connections on suspect foot switch.

Replace foot switch. Refer to para 4.24.

Correction

Wire connection to foot switch is loose.

TILT UP or TILT DOWN foot switch is malfunctioning.

FOOT UP or FOOT DOWN foot switch is malfunctioning.

Perform a continuity check on suspect foot switch in

ON and OFF positions or replace suspect foot switch with known working foot switch.

Perform a continuity check on suspect foot switch in

ON and OFF positions or replace suspect foot switch with known working foot switch.

Clean any dirty connections.

Tighten any loose connections. Replace any damaged connections.

Replace foot switch. Refer to para 4.24.

Replace foot switch. Refer to para 4.24.

TABLE UP and TABLE

DOWN functions do not work. All other functions work.

Motor pump runs when

TABLE UP or TABLE

DOWN foot pedal is depressed, but table top does not move.

Wire connection to foot switch is loose.

FOOT UP or FOOT DOWN foot switch is malfunctioning.

Base cylinder solenoid valve is malfunctioning.

White wire running from terminal 3 of foot switch to terminal block is broken or disconnected.

Wire running from terminal block to base cylinder solenoid valve is broken or disconnected.

Check all wiring connections on suspect foot switch.

Perform a continuity check on suspect foot switch in

ON and OFF positions or replace suspect foot switch with known working foot switch.

Check to see if base cylinder solenoid valve energizes (audible click) when foot pedal is depressed.

Check continuity of wire and connections.

Check continuity of wire and connections.

Clean any dirty connections.

Tighten any loose connections. Replace any damaged connections.

Replace foot switch. Refer to para 4.24.

Replace base cylinder. Refer to para 4.14.

Clean any dirty connections.

Tighten any loose connections. Replace any damaged connections.

Clean any dirty connections.

Tighten any loose connections. Replace any damaged connections.

© Midmark Corporation 1997 SF-1555

Page 2-5

Printed in U.S.A.

Return To Table Of Contents

SECTION II

TESTING AND TROUBLESHOOTING

Table 2-1. Troubleshooting Guide - Continued

Problem

BACK UP and BACK

DOWN functions do not work. All other functions work.

Symptom

Motor pump runs when

BACK UP or BACK

DOWN foot pedal is depressed, but table does not move.

Probable Cause

Back cylinder solenoid valve is malfunctioning.

Check

Check to see if back cylinder solenoid valve energizes (audible click) when foot pedal is depressed.

Correction

Replace back cylinder. Refer to para 4.12.

TILT UP and TILT

DOWN functions do not work. All other functions work.

Motor pump runs when

TILT UP or TILT DOWN foot pedal is depressed, but table does not move.

FOOT UP and FOOT

DOWN functions do not work. All other functions work.

Motor pump runs when

FOOT UP or FOOT

DOWN foot pedal is depressed, but foot section does not move.

White/black wire running from terminal 3 of foot switch to terminal block is broken or disconnected.

Wire running from terminal block to back cylinder solenoid valve is broken or disconnected.

Tilt cylinder solenoid valve is malfunctioning.

Check continuity of wire and connections.

Check continuity of wire and connections.

Check to see if tilt cylinder solenoid valve energizes

(audible click) when foot pedal is depressed.

Check continuity of wire and connections.

Orange wire running from terminal 3 of foot switch to terminal block is broken or disconnected.

Wire running from terminal block to tilt cylinder solenoid valve is broken or disconnected.

Foot cylinder solenoid valve is malfunctioning.

Check continuity of wire and connections.

Check to see if foot cylinder solenoid valve energizes (audible click) when foot pedal is depressed.

Check continuity of wire and connections.

Red/black wire running from terminal 3 of foot switch to terminal block is broken or disconnected.

Wires running from terminal block to pan safety limit switch and foot cylinder solenoid valve are broken or disconnected.

Treatment pan assembly is not pushed in all the way

(applies only to units with an optional treatment plan).

Check continuity of wire and connections.

Check that the treatment pan assembly is pushed in all the way.

Clean any dirty connections.

Tighten any loose connections. Replace any damaged connections.

Clean any dirty connections.

Tighten any loose connections. Replace any damaged connections.

Replace tilt cylinder. Refer to para 4.13.

Clean any dirty connections.

Tighten any loose connections. Replace any damaged connections.

Clean any dirty connections.

Tighten any loose connections. Replace any damaged connections.

Replace foot cylinder. Refer to para 4.15.

Clean any dirty connections.

Tighten any loose connections. Replace any damaged connections.

Clean any dirty connections.

Tighten any loose connections. Replace any damaged connections.

Push treatment pan assembly in all the way.

© Midmark Corporation 1997 SF-1555

Page 2-6

Printed in U.S.A.

Return To Table Of Contents

SECTION II

TESTING AND TROUBLESHOOTING

Table 2-1. Troubleshooting Guide - Continued

Problem

FOOT UP and FOOT

DOWN functions do not work. All other functions work - Continued.

Symptom

Motor pump runs when

FOOT UP or FOOT

DOWN foot pedal is depressed, but foot section does not move -

Continued (applies only to units with an optional treatment pan).

Probable Cause

Pan safety limit switch is out of adjustment.

Check

Check to see if pan safety limit switch is being tripped by treatment pan assembly.

Correction

Adjust pan safety limit switch so it is tripped when treatment pan assembly is pushed in all the way.

Any of the four functions drift by themselves.

Table functions properly otherwise.

Pan safety limit switch is malfunctioning.

A cylinder solenoid valve is stuck in open position or is malfunctioning.

A foot switch is malfunctioning and holding cylinder solenoid valve in the open position.

Perform continuity check on pan safety limit switch

(pan in = closed).

Try to flush foreign objects out of cylinder solenoid valve by running oil through cylinder in both directions ten times.

Use multimeter to check for voltage at terminal 3 of suspect foot switch (no voltage should be present when foot switch is in OFF position).

Replace pan safety limit switch. Refer to para 4.18.

Replace malfunctioning cylinder assembly.

Replace foot switch. Refer to para 4.24

Back section of table top may be lifted by hand or tilt function may drift by itself.

Table functions properly otherwise.

Anti-cavitation solenoid valve is malfunctioning.

Replace suspect anti-cavitation solenoid valve with known working anti-cavitation solenoid valve.

Replace anti-cavitation solenoid valve. Refer to para

4.6.

Check oil level in reservoir.

If necessary, add oil to reservoir. Refer to para 4.3.

Table moves fine for light patient, but will not move or moves slowly for very heavy patient.

Occurs for both the up and down functions.

Hydraulic system is low on mineral oil.

Occurs for up functions only.

Up functions and down functions relief valves are malfunctioning.

Up functions relief valve is malfunctioning.

Replace suspect relief valves with known working relief valves.

Replace suspect up functions relief valve with known working relief valve.

Excessive sideways play of table top.

Occurs for down functions only.

Table is not stable and can be moved from side to side.

Down function relief valve is malfunctioning.

Replace suspect down functions relief valve with known working relief valve.

Chain assemblies are loose.

Check tension of chain assemblies.

Base slide assembly is worn or deformed.

Check condition of base slide assembly.

Replace up functions and down functions relief valves.

Refer to paras 4.7 and 4.8.

Replace up functions relief valve. Refer to para 4.7.

Replace down functions relief valve. Refer to para 4.8.

Adjust tension of chain assemblies. Refer to para

4.19.

Replace base slide assembly.

Refer to para 4.20.

© Midmark Corporation 1997 SF-1555

Page 2-7

Printed in U.S.A.

Return To Table Of Contents

SECTION II

TESTING AND TROUBLESHOOTING

© Midmark Corporation 1997 SF-1555

Page 2-8

Printed in U.S.A.

Return To Table Of Contents

SECTION III

SCHEDULED MAINTENANCE

SECTION III

SCHEDULED MAINTENANCE

3.1 Scheduled Maintenance

periodically on the table. These inspections and services should be performed as often as indicated in the chart.

Table 3-1 is a Scheduled Maintenance Chart which lists the inspections and services that should be performed

Table 3-1. Scheduled Maintenance Chart

Interval

Semi-annually

Inspection or Service

Obvious damage

Fasteners/hardware

What to Do

Visually check condition of table for obvious damage such as: cracks in components, missing components, dents in components, leaking oil, or any other visible damage which would cause table to be unsafe to operate or would compromise its performance. Repair table as necessary.

Check table for missing or loose fasteners/hardware. Replace any missing hardware and tighten any loose hardware as necessary.

Check for missing or illegible decals. Replace decals as necessary.

Warning and instructional decals

Pivot points/moving parts/accessories

Hydraulic hoses and fittings

Foot control

Hydraulic functions

Lubricate all exposed pivot points, moving parts, and accessories with silicone based lubricant.

Cylinders

Drift in table

Oil level

Stirrup Assemblies

Headrest Assembly

Pan safety limit switch

Check all hydraulic hoses and fittings for leaks. Replace any components causing leaks. Replace any hoses which have kinks, cuts, holes, or other damage.

Check that foot control works correctly. Make sure foot pedals contact switch properly.

Check that all four functions operate properly. If not, refer to the Troubleshooting Guide to determine the cause of the problem. Clean or replace components as necessary.

Inspect all cylinders for signs of internal leaking or for weak operation. Replace cylinders as necessary.

Check each cylinder to see if it drifts. Replace cylinder if necessary.

Check oil level in motor pump. Add oil to motor pump if necessary. Refer to para 4.3.

Check that stirrup assemblies lock into one of three positions. Check for wear. Replace components as necessary. Refer to para 4.23.

Check headrest for proper adjustment. If headrest does not have enough holding power, adjust headrest handles. Refer to para 4.21.

Check that pan safety limit switch prevents foot function from moving when limit switch is not tripped.

Check that table top does not have excessive side play. Adjust chain assembly if necessary.

Refer to para 4.19.

Excessive sideways play of table top

Anti-cavitation solenoid valve

Upholstery

Accessories

Operational Test

Check to see if back section may be lifted by hand or if the tilt function drifts by itself. If so, replace anti-cavitation solenoid valve. Refer to para 4.6.

Check all upholstery for rips, tears, or excessive wear. Replace cushions as necessary. Refer to para 4.25.

Check that all accessories have all of their components and that they function properly. If necessary, repair or replace the accessory.

Perform an Operational Test to determine if the table is operating within its specifications (Refer to para 2.1). Replace or adjust any malfunctioning components.

© Midmark Corporation 1997 SF-1555

Page 3-1

Printed in U.S.A.

Return To Table Of Contents

SECTION III

SCHEDULED MAINTENANCE

© Midmark Corporation 1997 SF-1555

Page 3-2

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

SECTION IV

MAINTENANCE / SERVICE INSTRUCTIONS

4.1 Introduction

WARNING

Refer to the Operator Manual for complete instructions on operating the table. Failure to do so could result in personal injury.

2

A

3

NOTE

Perform an operational test on the table after the repair is completed to confirm the repair was properly made and that all malfunctions were repaired.

1

The following paragraphs contain removal, installation, repair, and adjustment procedures for the table.

4.2 Motor Cover Assembly Removal /

Installation

MA394900

Figure 4-1. Motor Cover Assembly

Removal / Installation

4.3 Checking / Adding Oil To Motor Pump

A. Removal

WARNING

Always disconnect the power cord from the outlet before removing any of the table's covers/shrouds or making any repairs to prevent the possibility of electrical shock. Failure to comply with these instructions could result in severe personal injury or death.

(1) Unplug table power cord from outlet.

NOTE

220 VAC (export units) contain an additional strap on each side of the back outer shroud which helps secure the back outer shroud.

(2) Remove six screws (1, Figure 4-1) and motor cover assembly (2) from back outer shroud (3).

B. Installation

(1) Install motor cover assembly (2) against back outer shroud (3) and secure with six screws (1), making sure top edge of motor cover assembly is inserted behind lip (A) of back outer shroud.

(2) Plug table power cord into outlet.

A. Checking / Adding Oil

(1) Move the BASE DOWN, BACK DOWN, TILT

DOWN, and FOOT DOWN functions all the way down.

(2) Remove motor cover assembly (Refer to para

4.2).

(3) Remove filler cap (1, Figure 4-2) from motor pump (2).

NOTE

Newer models do not have screw (3) or oil level check hole. Check oil level thru the fill port.

(4) Remove screw (3) and gasket (4) from motor pump (2).

(5) Check oil level. If oil level in reservoir is not even with oil level check hole, oil must be added.

(6) Place a rag under oil level check hole (A).

© Midmark Corporation 1997 SF-1555 Rev. 6/02

Page 4-1

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

3

4

2

A

1

B

MA395000

Figure 4-2. Checking / Adding Oil To Motor Pump

EQUIPMENT ALERT

Hydraulic system is designed for use with light grade mineral oil only. Failure to comply could result in hydraulic system failure.

(7) Add oil to fill hole (B) until oil starts to run out of oil level check hole (A).

(8) Install gasket (4) and screw (3) on motor pump (2).

(9) Install filler cap (1) on motor pump (2).

(10) Move each function to its up and down limit several times. Then repeat steps 1 thru 9.

(11) Install motor cover assembly (Refer to para 4.2).

(12) Dispose of used oil in accordance with local regulations.

4.4 Up Functions Shuttle Valve Removal /

Installation

A. Removal

WARNING

Always disconnect the power cord from the outlet before removing any of the table's covers/shrouds or making any repairs to prevent the possibility of electrical shock. Failure to comply with these instructions could result in severe personal injury or death.

(1) Unplug table power cord from outlet.

(2) Remove motor cover (Refer to para 4.2).

NOTE

The up functions shuttle valve is lower than the oil level in the motor pump reservoir and oil will flow out of the up functions shuttle valve once the hose assembly is disconnected.

(3) Place drain pan (A) under up functions shuttle valve (1, Figure 4-3).

(4) Disconnect hose assembly (2) from elbow (B) of up functions shuttle valve (1).

(5) Remove up functions shuttle valve (1) from motor pump (3).

B. Installation

(1) Coat two o-rings (C) on up functions shuttle valve (1) with mineral oil or vaseline.

(2) Install up functions shuttle valve (1) in motor pump (3).

(3) Connect hose assembly (2) to elbow (B) of up functions shuttle valve (1).

(4) If necessary, add oil to motor pump (Refer to para 4.3).

(5) Install motor cover assembly (Refer to para 4.2).

(6) Plug table power cord into outlet.

(7) Dispose of used oil in accordance with local regulations.

© Midmark Corporation 1997 SF-1555 Rev. 6/02

Page 4-2

Printed in U.S.A.

B

C

1

2

A

Figure 4-3. Up Functions Shuttle Valve

Removal / Installation

4.5

Down Functions Shuttle Valve

Removal / Installation

MA395100

A. Removal

WARNING

Always disconnect the power cord from the outlet before removing any of the table's covers/shrouds or making any repairs to prevent the possibility of electrical shock.

Failure to comply with these instructions could result in severe personal injury or death.

(1) Unplug table power cord from outlet.

(2) Remove motor cover assembly (Refer to para 4.2).

3

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

NOTE

The down functions shuttle valve is slightly lower than the oil level in the motor pump reservoir and oil will flow out of the down functions shuttle valve once the hose assembly is disconnected.

(3) Place rags or drain pan (A) under down functions shuttle valve (1, Figure 4-4).

C

4

2

3

1

B

A

MA395200

Figure 4-4. Down Functions Shuttle Valve

Removal / Installation

(4) Using a wrench to hold male connector (2) stationary, loosen jam nut (B) of elbow (3).

Disconnect elbow from male connector.

(5) Remove elbow (3) from down function shuttle valve (1).

(6) Remove down functions shuttle valve (1) from motor pump (4).

© Midmark Corporation 1997 SF-1555

Page 4-3

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

B. Installation

NOTE

The down functions shuttle valve is sent from factory with an elbow installed on it. Remove it per step 1.

(1) Remove elbow from down function shuttle valve (1). Discard elbow.

(2) Coat two o-rings on down functions shuttle valve (1) with mineral oil or vaseline.

(3) Install down functions shuttle valve (1) in motor pump (4).

(4) Coat threads of male connector (2) and elbow

(3) with pipe thread tape or sealant.

(5) Install elbow (3) on down functions shuttle valve (1).

(6) Connect elbow (3) to male connector (2) and secure by tightening jam nut.

(7) If necessary, add oil to motor pump (Refer to para 4.3).

(8) Install motor cover assembly (Refer to para 4.2).

(9) Plug table power cord into outlet.

(10) Dispose of used oil in accordance with local regulations.

4.6

Anti-Cavitation Solenoid Valve

Removal / Installation

A. Removal

(1) Unplug table power cord from outlet.

(2) Remove motor cover assembly (Refer to para 4.2).

(3) Remove two screws (1, Figure 4-5) and control cover (2) from control panel (3).

(4) Loosen two terminal screws (A); then tag and disconnect anti-cavitation solenoid valve wires

(4) from terminal block (5).

6

(5) Pull anti-cavitation solenoid valve wires (4) out thru wire hole (B).

(6) Disconnect hose assembly (6) from elbow (7).

(7) Using a wrench to hold male connector (8) stationary, loosen jam nut (C) of elbow (9).

Disconnect male connector (8) from elbow (9).

(8) Remove elbow (7) and male connector (8) from anti-cavitation solenoid valve (10).

7

10

4

8

9

C

2

B

3

5

1

A

MA395300

Figure 4-5. Anti-cavitation Solenoid Valve

Removal / Installation

B. Installation

EQUIPMENT ALERT

Do not coat last two threads of elbow and male connector with teflon tape or sealant. Otherwise, little particles of the tape / sealant can break loose and can contaminate hydraulic system.

(1) Coat threads of elbow (7) and male connector

(8) with pipe thread tape or sealant.

© Midmark Corporation 1997 SF-1555

Page 4-4

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

(2) Install elbow (7) and male connector (8) on anticavitation solenoid valve (10).

(3) Connect hose assembly (6) to elbow (7).

(4) Coat threads of male connector (8) with pipe thread tape or sealant.

(5) Connect elbow (9) to male connector (8) and secure by tightening jam nut (C).

(6) Feed two anti-cavitation solenoid valve wires

(4) thru wire hole (B).

(7) Connect two anti-cavitation solenoid valve wires (4) to terminal block (5) and secure by tightening two terminal screws (A).

(8) Install control cover (2) on control panel (3) and secure with two screws (1).

(9) Install motor cover assembly (Refer to para 4.2).

(10) Plug table power cord into outlet.

4.7 Up Functions Relief Valve Removal /

Installation

A. Removal

(1) If possible, raise TABLE UP function all the way up.

(2) Unplug table power cord from outlet.

(3) Remove motor cover assembly (Refer to para 4.2).

(4) Remove four screws (1, Figure 4-6) and back outer shroud (2) from left and right hand outer shrouds (3).

NOTE

The back inner shroud must be removed if it will obstruct removal of up functions relief valve.

(5) If necessary, remove eight screws (4) and back inner shroud (5) from left and right hand inner shrouds (6).

2

1

4

5

6

3

8

A

7

B

MA395400

Figure 4-6. Up Functions Relief Valve

Removal / Installation

NOTE

Oil will flow out of relief valve port when up functions relief valve is removed. Either have the new up functions relief valve ready to install or place a drain pan under relief valve port to catch oil.

(6) Remove up functions relief valve (7) from motor pump (8).

© Midmark Corporation 1997 SF-1555

Page 4-5

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

B. Installation

(1) Coat two o-rings (A) on up functions relief valve

(7) with mineral oil or vaseline.

EQUIPMENT ALERT

Make sure relief valve (7) has "600" stamped on its hex head (B); it must not be stamped "L2". Failure to install proper relief valve will result in faulty table performance.

(2) Install up functions relief valve (7) in motor pump (8).

(3) If removed, install back inner shroud (5) on left and right inner shrouds (6) and secure with eight screws (4).

(4) Install back outer shroud (2) on left and right hand outer shrouds (3) and secure with four screws (1).

(5) If necessary, add oil to motor pump (Refer to para 4.3).

(6) Install motor cover assembly (Refer to para 4.2).

(7) Plug table power cord into receptacle.

(8) Dispose of used oil in accordance with local regulations.

4.8 Down Functions Relief Valve Removal

/ Installation

A. Removal

(1) Unplug table power cord from outlet.

(2) Remove motor cover assembly (Refer to para 4.2).

(3) Remove four screws (1, Figure 4-7) and back outer shroud (2) from left and right hand outer shrouds (3).

NOTE

The back inner shroud must be removed if it will obstruct removal of up functions relief valve.

2

1

4

5

6

3

8

B

A

7

MA395500

Figure 4-7. Down Functions Relief Valve

Removal / Installation

(4) If necessary, remove eight screws (4) and back inner shroud (5) from left and right hand inner shrouds (6).

NOTE

Oil will flow out of relief valve port when down functions relief valve is removed. Either have the new down functions relief valve ready to install or place a drain pan under relief valve port to catch oil.

© Midmark Corporation 1997 SF-1555

Page 4-6

Printed in U.S.A.

(5) Remove down functions relief valve (7) from motor pump (8).

B. Installation

(1) Coat two o-rings (A) on down functions relief valve (7) with mineral oil or vaseline.

EQUIPMENT ALERT

Make sure relief valve (7) has "L2" stamped on its hex head (B); it must not be stamped "600". Failure to install proper relief valve will result in faulty table performance.

(2) Install down functions relief valve (7) in motor pump (8).

(3) If removed, install back inner shroud (5) on left and right inner shrouds (6) and secure with eight screws (4).

(4) Install back outer shroud (2) on left and right hand outer shrouds (3) and secure with four screws (1).

3

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

(5) If necessary, add oil to motor pump (Refer to para 4.3).

(6) Install motor cover assembly (Refer to para 4.2).

(7) Plug table power cord into receptacle.

(8) Dispose of used oil in accordance with local regulations.

4.9 Motor Pump Assembly - Complete

Removal / Installation

A. Removal

(1) Unplug table power cord from outlet.

(2) Remove motor cover assembly (Refer to para 4.2).

(3) Remove four screws (1, Figure 4-8) and back outer shroud (2) from left and right hand outer shrouds (3).

2

1

10

5

16

4

13

11

8

12

14

15

B

7 9

Figure 4-8. Motor Pump Assembly - Complete Removal / Installation

6

A

MA395600

© Midmark Corporation 1997 SF-1555

Page 4-7

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

(4) Remove two screws (4) and control cover (5) from control panel (6).

(5) Loosen three terminal screws; then tag and disconnect three motor pump wires (7) from terminal block (8).

(6) Pull motor pump wires (7) out thru wire hole.

(7) Loosen two terminal screws; then tag and disconnect anti-cavitation solenoid valve wires

(9) from terminal block (8).

(8) Pull anti-cavitation solenoid valve wires (9) out thru wire hole.

(9) Remove four nuts (10) from four motor mounts (11).

(10) Disconnect hose assembly (12) from male elbow (13).

(11) Place a drain pan under elbow (14).

(12) Disconnect hose assembly (15) from elbow

(14). Allow oil to drain into drain pan.

(13) Remove motor pump assembly (16) from four motor mounts (11).

B. Installation

(1) Install motor pump assembly (16) on four motor mounts (11) and secure with four nuts (10).

(2) Connect hose assembly (15) to elbow (14).

(3) Connect hose assembly (12) to male elbow (13).

(4) Feed two anti-cavitation solenoid valve wires

(9) thru wire hole.

(5) Connect two anti-cavitation solenoid valve wires (9) to terminal block (8) and secure by tightening two terminal screws.

(6) Feed three motor pump wires (7) thru wire hole.

(7) Connect three motor pump wires (7) to terminal block (8) and secure by tightening three terminal screws.

(8) Install control cover (5) on control panel (6) and secure with two screws (4).

(9) Install back outer shroud (2) on left and right hand outer shrouds (3) and secure with four screws (1).

(10) Add oil to motor pump (Refer to para 4.3).

(11) Install motor cover assembly (Refer to para 4.2).

(12) Plug table power cord into outlet.

(13) Dispose of used oil in accordance with local regulations.

4.10 Motor Pump Removal / Installation

A. Removal

(1) Unplug table power cord from outlet.

(2) Remove motor pump assembly - Complete

(Refer to para 4.9).

(3) Remove filler cap (A) and drain any remaining oil into drain pan (See Figure 4-9).

(4) Using a wrench to hold male connector (1,

Figure 4-9) stationary, loosen jam nut (B) of elbow (2). Disconnect male connector/anticavitation solenoid valve (C) from elbow.

(5) Remove down functions shuttle valve (3) and up functions shuttle valve (4) from motor pump (5).

(6) Remove two screws (6), lockwashers (7), and motor base (8) from motor pump (5).

B. Installation

(1) Install motor base (8) on motor pump (5) and secure with two lockwashers (7) and screws (6).

(2) Install up functions shuttle valve (4) and down functions shuttle valve (3) on motor pump (5).

(3) Coat threads of male connector (1) with pipe thread tape or sealant.

© Midmark Corporation 1997 SF-1555

Page 4-8

Printed in U.S.A.

1

B

C

2

4

3

A

7

6

MA395700

Figure 4-9. Motor Pump Removal / Installation

(4) Connect male connector (1)/anti-cavitation solenoid valve (C) to elbow (2) and secure by tightening jam nut (B).

(5) Install motor pump assembly (Refer to para 4.9).

(6) Plug table power cord into outlet.

4.11 Motor Shaft Seal Removal /

Installation

A. Removal

(1) Unplug table power cord from outlet.

(2) Remove motor pump (Refer to para 4.10).

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

5

8

NOTE

Reservoir will come off hard. Use a screwdriver to pry reservoir off of manifold block, but make sure not to damage o-ring.

(3) Remove four screws (1, Figure 4-10) and reservoir (2) from manifold block (3).

(4) Remove magnet (4) from strainer (5).

(5) Remove four screws (6) and pump housing (7) from manifold block (3).

(6) Remove pump gear (8) and woodruff key (9) from shaft of rotor assembly (10).

(7) Remove four screws (11) and motor housing

(12) from manifold block (3).

(8) Push rotor assembly (10) inward toward manifold block (3); then remove retaining ring

(13) from end of rotor assembly shaft (A).

(9) Remove rotor assembly (10) from manifold block (3).

(10) Using a screwdriver, pry motor shaft seal (14) out of manifold block (3).

B. Installation

(1) Clean all metal shavings off of all components.

(2) Coat motor shaft seal (14) with vaseline or mineral oil.

EQUIPMENT ALERT

Do not allow motor shaft seal to become cocked during installation or it will become impossible to install without damaging it.

(3) Using a hammer and 3/4 inch socket, install motor shaft seal (14) in manifold block (3).

(4) Slide shaft of rotor assembly (10) thru manifold block (3) and secure in place by installing retaining ring (13) on end of rotor assembly shaft.

© Midmark Corporation 1997 SF-1555

Page 4-9

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

12

10

11

3

B

14

6

A

2

4

13

7

9

8

5

1

MA395800

Figure 4-10. Motor Shaft Seal

Removal / Installation

(5) Install motor housing (12) on manifold block (3) and secure with four screws (11).

NOTE

Strainer may get in way when reservoir is being installed. If so, rotate strainer out of the way.

(6) Install woodruff key (9) and pump gear (8) on shaft of rotor assembly (10).

(10) Install reservoir (2) on manifold block (3) and secure with four screws (1).

(7) Install pump housing (7) on manifold block (3) and secure with four screws (6).

(8) Install magnet (4) on strainer (5).

(11) Install motor pump (Refer to para 4.10).

(12) Plug table power cord into outlet.

(9) Make sure o-ring (B) on manifold block is present and clean. Coat o-ring with mineral oil.

© Midmark Corporation 1997 SF-1555

Page 4-10

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

4.12 Back Cylinder Removal / Installation

A. Removal

(1) Unplug table power cord from outlet.

(2) Remove upholstered seat section (Refer to steps 6 thru 8 of para 4.25).

(3) Remove four screws (1, Figure 4-11) and front outer shroud (2) from left and right hand outer shrouds (3).

(6) Remove motor cover assembly (Refer to para 4.2).

(7) Remove two screws (1, Figure 4-12) and control cover (2) from control panel (3).

(8) Loosen two terminal screws (a); then tag and disconnect back cylinder wires (4) from terminal block (5).

2

1

6

5

3

3

5

4

B

A

1

2

8

7

9

MA395900

Figure 4-11. Table Access

(4) Remove eight screws (4) and front inner shroud

(5) from left and right hand inner shrouds (6).

(5) Remove screw (7) and wire clip (8) securing wires and hoses to base weldment (9).

4

Figure 4-12. Back Cylinder Wires

Disconnection / Connection

(9) Pull back cylinder wires (4) out thru wire hole (B).

MA396000

(10) Remove four screws (1, Figure 4-13) and back cover (2) from back weldment (3).

(11) Cut two cable ties which are securing hose assemblies (4 and 5) to back cylinder (6).

(12) While supporting back weldment (3), remove four E-rings (7), two clevis pins (8), and partially separate back cylinder (6) from cylinder brackets (9). Fold back section over onto seat section.

(13) Tag hose assemblies (4 and 5).

(14) Disconnect hose assembly (4) from back cylinder (6).

© Midmark Corporation 1997 SF-1555

Page 4-11

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

(15) Disconnect hose assembly (5) from back cylinder (6).

(16) Cut necessary cable ties and remove back cylinder (6) from table.

2

1

7

3

A

6

8

7

8

4

9

5

B

7

C

MA396100

Figure 4-13. Back Cylinder Removal / Installation

B. Installation

NOTE

No sealant is required when connecting hose assemblies. The back cylinder has an o-ring in each port which seals the hose assemblies.

(1) Connect hose assembly (5, Figure 4-13) to back cylinder (6).

(2) Connect hose assembly (4) to back cylinder (6).

(3) Install back cylinder (6) on cylinder brackets (9) and secure with two clevis pins (8) through clevis (A) with four E-rings (7).

(4) Secure hose assemblies (4 and 5) to back cylinder (6) with two cable ties.

(5) Route back cylinder wires (4, Figure 4-12) thru table.

(6) Feed back cylinder wires (4) thru wire hole (B).

(7) Connect two back cylinder wires (4) to terminal block (5) and secure by tightening two terminal screws (A).

(8) Install control cover (2) on control panel (3) and secure with two screws (1).

(9) Secure wires and hoses to base weldment (9,

Figure 4-11) with wire clip (8) and screw (7).

Install any cable ties removed during removal.

(10) Install front inner shroud (5) on left and right hand outer shrouds (6) and secure with eight screws (4).

(11) Install front outer shroud (2) on left and right hand inner shrouds (3) and secure with four screws (1).

(12) Install upholstered seat section (Refer to step 6 of para 4.25).

(13) Plug table power cord into outlet.

(14) Lower BACK DOWN function all the way down.

EQUIPMENT ALERT

Tilt down function must be completely lowered for following step. Failure to do so will result in incorrect adjustment.

(15) If back section is not level with floor when the

BACK DOWN function is completely lowered, perform steps 16 thru 18. If back section is level when the BACK DOWN function is completely lowered, go to step 19.

EQUIPMENT ALERT

The cylinder rod must be partially ex tended before performing step 17. If the cylinder rod is fully extended or retracted when step

17 is being performed, damage to seals will occurr.

(16) Raise BACK UP

function up until cylinder rod is extended halfway.

© Midmark Corporation 1997 SF-1555

Page 4-12

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

(17) Place a wrench on adjusting seats (B) of cylinder rod (C) and use it to rotate cylinder rod to adjust clevis up or down as necessary.

(18) Repeat steps 14 thru 17 until back section is level when BACK DOWN function is completely lowered.

(19) Install back cover (2) on back weldment (3) and secure with four screws (1).

(20) If necessary, add oil to motor pump (Refer to para 4.3).

(21) Install motor cover assembly (Refer to para 4.2).

4.13 Tilt Cylinder Removal / Installation

A. Removal

(1) If possible, lower TILT DOWN function all the way down.

(2) Raise FOOT UP function all the way up.

(3) Unplug table power cord from outlet.

(4) Remove motor cover assembly (Refer to para 4.2).

(5) Remove two screws (1, Figure 4-14) and control cover (2) from control panel (3).

(6) Loosen two terminal screws; then tag and disconnect two tilt cylinder wires (4) from terminal block (5).

(7) Pull tilt cylinder wires (4) out thru wire hole.

(8) Remove four screws (1, Figure 4-15) and front outer shroud (2) from left and right hand outer shrouds (3).

(9) Remove eight screws (4) and front inner shroud

(5) from left and right hand inner shrouds (6).

(10) Disconnect return manifold (7) from rod end of tilt cylinder (8).

(11) Disconnect power manifold (9) from base of tilt cylinder (8).

1

5

B

A

3

2

4

MA396200

Figure 4-14. Tilt Cylinder Wire

Disconnection / Connection

(12) Cut cable tie (A) which secures hose assemblies and wire harnesses to tilt cylinder (8).

WARNING

The foot end of table top must be supported while removing tilt cylinder.

Failure to do will allow table top to fall which could result in serious personal injury.

NOTE

Cut cable ties as necessary to remove tilt cylinder.

(13) While supporting foot end of table top, remove four E-rings (10), two clevis pins (11), and tilt cylinder (8) from brackets (12).

B. Installation

(1) Install tilt cylinder (8, Figure 4-15) on brackets

(12) and secure with two clevis pins (11) and four E-rings (10).

WARNING power manifolds. Failure to do so could result in serious personal injury to patient or table operator.

Make sure the safety cable (B) is properly installed on the return and

© Midmark Corporation 1997 SF-1555

Page 4-13

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

7

6

3

10

12

E

D

B

10

6

3

2

11

8

10

C

A

5

4

1

9

11

10

12

MA393600

Figure 4-15. Tilt Cylinder Removal / Installation

(2) Connect power manifold (9) to base of tilt cylinder (8), making sure safety cable (B) is properly installed.

(3) Connect return manifold (7) to rod end of tilt cylinder (8).

(4) Secure wire harnesses and hose assemblies to tilt cylinder (8) with a cable tie.

(5) Route tilt cylinder wires (4, Figure 4-14) thru table.

(6) Feed tilt cylinder wires (4) thru wire hole (B) in control panel (3).

(7) Connect two tilt cylinder wires (4) to terminal block (5) and secure by tightening two terminal screws (A).

(8) Install control cover (2) on control panel (3) and secure with two screws (1).

(9) Install any cable ties which were removed.

(10) Plug table power cord into outlet.

(11) Lower TILT DOWN function all the way down.

(12) If seat section is not level with floor when the

TILT DOWN function is completely lowered, perform steps 13 thru 15. If seat section is level when the TILT DOWN function is completely lowered, go to step 16.

EQUIPMENT ALERT

the cylinder rod is fully extended or retracted when step 14 is being performed, damage to seals will occurr.

The cylinder rod (C) must be partially extended before performing step 14. If

(13) Raise TILT UP

function up until cylinder rod is extended halfway.

(14) Place a wrench on adjusting seats D, Figure 4-

15) of cylinder rod (C) and use it to rotate cylinder rod to adjust clevis (E) up or down as necessary.

(15) Repeat steps 11 thru 15 until seat section is level when TILT DOWN function is completely lowered.

(16) Install front inner shroud (5) on left and right hand inner shrouds (6) and secure with eight screws (4).

(17) Install front outer shroud (2) on left and right hand outer shrouds (3) and secure with four screws (1).

(18) If necessary, add oil to motor pump (Refer to para 4.3).

(19) Install motor cover assembly (Refer to para 4.2).

© Midmark Corporation 1997 SF-1555

Page 4-14

Printed in U.S.A.

5

6

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

4.14 Base Cylinder Removal / Installation

A. Removal

(1) Unplug table power cord from outlet.

(2) Remove motor cover assembly (Refer to para 4.2).

(3) Remove four screws (1, Figure 4-16) and back outer shroud (2) from left and right hand outer shrouds (3).

(5) Remove four screws (7) and brace (8) from base slide assembly (9).

(6) Plug table power cord into outlet.

(7) If BASE DOWN function is operable, place a block (A) under middle slide of base slide assembly (9). Then lower the BASE DOWN function until the middle slide of the base slide assembly is resting on block and pressure is off clevis pin (10). If BASE DOWN function is not operable, move table top to a horizontal position and place supports under each end of table.

(8) Remove two screws (1, Figure 4-17) and control cover (2) from control panel (3).

3

10

2

4

1

8

7

9

3

5

B

A

A

2

1

MA396400

Figure 4-16. Base Cylinder Access

(4) Remove eight screws (4) and back inner shroud (5) from left and right hand inner shrouds (6).

NOTE

The motor pump and control panel can be carefully pushed out of the way to allow a socket and ratchet to be used on the bottom two screws (7).

4

MA396500

Figure 4-17. Base Cylinder Wires

Disconnection / Connection

(9) Loosen two terminal screws (A); then tag and disconnect base cylinder wires (4) from terminal block (5).

(10) Pull base cylinder wires (4) out thru wire hole (B).

© Midmark Corporation 1997 SF-1555

Page 4-15

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

DANGER

Make sure table top is properly secured from lowering or tipping over when base cylinder is disconnected from table top. Clevis pin (2, Figure 4-18) should not have any weight on it if table top is supported properly. Failure to have table top properly secured could result in serious personal injury or death.

(11) Remove hitch pin clip (1, Figure 4-18) and clevis pin (2) from rod end (A) of base cylinder (3).

7

A

2

8

5

1

3

6

B

4

6

MA396600

Figure 4-18. Base Cylinder Removal / Installation

(12) Remove hitch pin clip (4), clevis pin (5), and partially separate base cylinder (3) from brackets (6).

(13) Cut two cable ties (B) securing hose assembly

(7) to base cylinder (3).

(14) Disconnect hose assembly (7) from base cylinder (3).

(15) Place rags under base tee (8).

NOTE

When base tee is disconnected from base cylinder, oil will be free to flow out of the motor pump thru the base tee. Either be ready to install the new base cylinder or have drain pan and rags ready to catch the oil.

(16) Disconnect base tee (8) from base cylinder (3).

Remove base cylinder from table.

B. Installation

(1) Position base cylinder (3, Figure 4-18) on table.

(2) Connect base tee (8) to base cylinder (3).

(3) Connect hose assembly (7) to base cylinder (3).

(4) Secure hose assembly (7) to base cylinder (3) with two cable ties (B).

(5) Install base cylinder (3) on brackets (6) and secure with clevis pins (2 and 5) and hitch pin clips (1 and 4).

(6) Feed base cylinder wires (4, Figure 4-17) thru wire hole (B).

(7) Connect two base cylinder wires (4) to terminal block (5) and secure by tightening two terminal screws (A).

(8) Install control cover (2) on control panel (3) and secure with two screws (1).

(9) Plug table power cord into outlet.

(10) See Figure 4-16. Raise BASE UP function slightly and remove block from under middle slide of base slide assembly (9) or remove supports from under table top.

(11) Lower BASE DOWN function all the way down.

© Midmark Corporation 1997 SF-1555

Page 4-16

Printed in U.S.A.

1

A

C

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

(12) See Figure 4-19. If there is not a 1/16 to 1/8 inch (1.6 to 3.2 mm) gap (A) between inner member weldment (B) and top of middle slide

(C) when the BASE DOWN function is completely lowered (it is especially important that the inner member weldment does not come into contact with top of middle slide), perform steps

13 thru 15. If gap is correct when the BASE

DOWN function is completely lowered, go to step 16.

E

D

B

F

MA396700

Figure 4-19. Base Cylinder Clevis Adjustment

EQUIPMENT ALERT

The cylinder rod (E) must be partially ex

-tended before performing step 14. If the cylinder rod is fully extended or retracted when step

14 is being performed, damage to seals will occurr.

(13) Raise BASE UP

function up until cylinder rod is extended halfway.

(14) Place a wrench on adjusting seats (D) of cylinder rod (E) and use it to rotate cylinder rod to adjust clevis (F) up or down as necessary.

(15) Repeat steps 11 thru 15 until there is a 1/16 to

1/8 inch (1.6 to 3.2 mm) gap (A) between inner member weldment (B) and middle slide (C) of base slide assembly when the BASE DOWN function is completely lowered.

(16) Install brace (8, Figure 4-16) on base slide assembly (9) and secure with four screws (7).

(17) Install any cable ties (B) removed during removal.

(18) Install back inner shroud (5) on left and right hand inner shrouds (6) and secure with eight screws (4).

(19) Install back outer shroud (2) on left and right hand outer shrouds (3) and secure with four screws (1).

(20) If necessary, add oil to motor pump (Refer to para 4.3).

(21) Install motor cover assembly (Refer to para 4.2).

4.15 Foot Cylinder Removal / Installation

A. Removal

(1) If possible, raise FOOT UP function all the way up.

(2) Unplug table power cord from outlet.

(3) Remove motor cover assembly (Refer to para 4.2).

(4) Remove two screws (1, Figure 4-20) and control cover (2) from control panel (3).

(5) Loosen two terminal screws (A); then tag and disconnect two foot cylinder wires (4) from terminal block (5).

© Midmark Corporation 1997 SF-1555

Page 4-17

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

2

6

5

1

3

3

4

5

B

A

4

MA396800

Figure 4-20. Foot Cylinder Wire

Disconnection / Connection

(6) Pull foot cylinder wires (4) out thru wire hole (B).

(7) Remove four screws (1, Figure 4-21) and front outer shroud (2) from left and right hand outer shrouds (3).

(8) Remove eight screws (4) and front inner shroud

(5) from left and right hand inner shrouds (6).

(9) Cut cable ties (D) securing foot cylinder wire harness (1, Figure 4-22).

(10) Remove screw (2) and wire clip (3) securing foot cylinder wire harness (1) to seat weldment (4).

(11) Cut cable ties securing hose assemblies to foot cylinder (5).

(12) Disconnect hose assembly (6) from foot cylinder (5).

(13) Disconnect hose assembly (7) from foot cylinder (5).

(14) Support foot section of table top and then remove hitch pin clip (8), clevis pin (9), two Erings (10), clevis pin (11), and foot cylinder (5) from brackets (12).

1

2

MA396900

Figure 4-21. Shrouds Removal / Installation

B. Installation

(1) Install foot cylinder (5, Figure 4-22) on brackets

(12) and secure with clevis pin (11), two E-rings

(10), clevis pin (9), and hitch pin clip (8).

(2) Connect hose assembly (7) to foot cylinder (5).

(3) Connect hose assembly (6) to foot cylinder (5).

(4) Secure hose assemblies (6 and 7) to foot cylinder (5) with cable ties.

(5) Secure foot cylinder wire harness (1) to seat weldment (4) with wire clip (3) and screw (2).

(6) Feed foot cylinder wires (4, Figure 4-20) thru wire hole (B) in control panel (3).

(7) Connect two foot cylinder wires (4) to terminal block (5) and secure with two terminal screws (A).

(8) Install control cover (2) on control panel (3) and secure with two screws (1).

(9) Plug table power cord into outlet.

(10) Raise FOOT UP function all the way up.

© Midmark Corporation 1997 SF-1555 Rev. 9/00

Page 4-18

Printed in U.S.A.

12

8

4

6

12

9

5

3

C

B

2

A

10

D

11

7

10

1

MA397000

Figure 4-22. Foot Cylinder Removal / Installation

(11) If foot section is not level with seat section when FOOT UP function is completely raised, perform steps 12 thru 14. See Figure 4-22. If foot section is level when the FOOT UP function is completely raised, go to step 15.

EQUIPMENT ALERT

The cylinder rod (A) must be partially ex

-tended before performing step 13. If the cylinder rod is fully extended or retracted when step

13 is being performed, damage to seals will occurr.

(12) Lower FOOT DOWN

function down until cylinder rod is extended halfway.

(13) Place a wrench on adjusting seats (B) of cylinder rod and use it to rotate cylinder rod to adjust clevis (C) up or down as necessary.

(14) Repeat steps 10 thru 14 until foot section is level with seat section when FOOT UP function is completely raised.

(15) Install any cable ties (D) removed during removal.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

(16) Install front inner shroud (5, Figure 4-22) on left and right hand inner shrouds (6) and secure with eight screws (4).

(17) Install front outer shroud (2) on left and right hand outer shrouds (3) and secure with four screws (1).

(18) If necessary, add oil to motor pump (Refer to para 4.3).

(19) Install motor cover assembly (Refer to para 4.2).

(20) Plug table power cord into outlet.

4.16 Time Delay Relay Removal /

Installation

A. Removal

EQUIPMENT ALERT

Put a multimeter in line w/time delay relay and run each cylinder one at a time. A reading >1.2 amps indicates a faulty cylinder.

Replace cylinder before replacing the relay. Failure to do so will result in damage to new relay.

(1) Unplug table power cord from outlet.

(2) Remove motor cover assembly (Refer to para

4.2).

(3) Remove two screws (1, Figure 4-23) and control cover (2) from control panel (3).

(4) Tag and disconnect two wires (4) from terminals of time delay relay (5).

(5) Remove nut (6), screw (7), washer (8), and time delay relay (5) from control panel (3).

B. Installation

(1) Install time delay relay (5) on control panel (3) and secure with washer (8), screw (7), and nut

(6).

(2) Connect two wires (4) to terminals of time delay relay (5).

(3) Install control cover (2) on control panel (3) and secure with two screws (1).

© Midmark Corporation 1997 SF-1555 Rev. 12/02

Page 4-19

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

2

6

1

3

3

6

5

5

4

4

1

2

Figure 4-23. Time Delay Relay

Removal / Installation

(4) Install motor cover assembly (Refer to para 4.2).

8

7

MA397100

(5) Plug table power cord into outlet.

4.17 Capacitors Removal / Installation

A. Removal

(1) If possible, raise FOOT UP function all the way up.

(2) Unplug table power cord from outlet.

(3) Remove four screws (1, Figure 4-24) and front outer shroud (2) from left and right hand outer shrouds (3).

(4) If necessary to gain access to capacitors, remove eight screws (4) and front inner shroud

(5) from left and right hand inner shrouds (6).

(5) Cut cable tie (A) securing wires to capacitor (7).

(6) Using a screwdriver, pry tab (B) of capacitor mounting bracket (8) upward and remove capacitor (7) from capacitor mounting bracket.

(7) Remove capacitor cap (9) from capacitor (7).

B

C

12

13

8

B

9

14

11

15

10

A

7

CA397200

Figure 4-24. Capacitors Removal / Installation

WARNING

A capacitor contains stored electricity.

Never touch terminals of a capacitor, even if power has been shut off or disconnected.

Always discharge capacitor before touching capacitor terminals or wires. Failure to comply with these instruction could result in serious personal injury or death.

© Midmark Corporation 1997 SF-1555

Page 4-20

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

(8) Discharge capacitor (7).

(9) Disconnect wires (10 and 11) from terminals of capacitor (7).

(10) Using a screwdriver, pry tab of capacitor mounting bracket (12) upward and remove capacitor (13) from capacitor mounting bracket.

(11) Remove capacitor cap (14) from capacitor (13).

WARNING

A capacitor contains stored electricity.

Never touch terminals of a capacitor, even if power has been shut off or disconnected.

Always discharge capacitor before touching capacitor terminals or wires. Failure to comply with these instruction could result in serious personal injury or death.

(12) Discharge capacitor (13).

(13) Disconnect wires (11 and 15) from terminals of capacitor (13).

B. Installation

(1) Connect capacitor wires (11 and 15) to terminals of capacitor (13).

(2) Install capacitor cap (14) on capacitor (13).

(3) Position bottom of capacitor (13) on capacitor mounting bracket (12) and then push the top of the capacitor in. Using a screwdriver, force tab

(B) of capacitor mounting bracket (12) down over catch (C).

(4) Connect capacitor wires (10 and 11) to terminals of capacitor (7).

(5) Install capacitor cap (9) on capacitor (7).

(6) Position bottom of capacitor (7) on capacitor mounting bracket (8) and then push the top of the capacitor in. Using a screwdriver, force tab of capacitor mounting bracket (8) down over catch.

(7) Install cable tie (A) to secure wire to capacitor (7).

(8) If removed, install front inner shroud (5) on left and right hand inner shrouds (6) and secure with eight screws (4).

(9) Install front outer shroud (2) on left and right hand outer shrouds (3) and secure with four screws (1).

(10) Plug table power cord into outlet.

4.18 Pan Safety Limit Switch Removal /

Installation (Optional On Some

Units)

A. Removal

NOTE

In most cases, if the pan safety limit switch is malfunctioning, the foot section cannot be moved.

However, the foot section must be able to be moved in order to remove upholstered seat section so access to the pan safety limit switch can be gained.

Steps 1 thru 3 must be performed if the foot function will not move and is prohibiting the upholstered seat section from being removed.

(1) Remove motor cover assembly (Refer to para 4.2).

(2) Remove two screws (1, Figure 4-25) and control cover (2) from control panel (3).

(3) Use a jumper wire (A) to connect between terminals of terminal block (4) so pan safety limit switch is bypassed by jumper wire. See

Section IV (Figures 5-1 thru 5-2) to determine which terminals to connect the jumper wire to.

(4) Remove upholstered seat and back section

(Refer to steps 4 thru 8 of para 4.25).

(5) Disconnect wire harness (1, Figure 4-26) from pan safety limit switch (2).

(6) Remove two screws (3), lockwashers (4), washers (5), and pan safety limit switch (2)/ bracket (6) as an assembly from seat weldment (7).

(7) Remove two nuts (8), lockwashers (9), screws

(10), and pan safety limit switch (2) from bracket (6).

© Midmark Corporation 1997 SF-1555

Page 4-21

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

2

C

B

10

2

1

3

4

8

A

MA397300

Figure 4-25. Jumper Wire

Connection / Disconnection

B. Installation

(1) Install pan safety limit switch (2, Figure 4-26) on bracket (6) and secure with two screws (10), lockwashers (9), and two nuts (8).

(2) Install bracket (6) and pan safety limit switch (2) as an assembly on seat weldment (7) and secure with two washers (5), lockwashers (4), and screws (3). Do not tighten screws fully.

(3) Push pan slide assembly (A) inward until it

"locks" into its fully stowed position.

(4) Slide bracket (6) toward rear panel of pan slide assembly until trip arm (B) of pan safety limit switch (2) is firmly tripped by pan slide assembly. Tighten two screws (3).

(5) Connect wire harness (1) to pan safety limit switch (2).

3

5

4

1

9

6

7

MA397400

Figure 4-26. Pan Safety Limit Switch

Removal / Installation

(6) If installed, remove jumper wire (See Figure 4-

25) from terminals of terminal block (4).

(7) If removed, install control cover (2) on control panel (3) and secure with two screws (1).

(8) If removed, install motor cover assembly (Refer to para 4.2).

(9) Install upholstered seat and back section (Refer to steps 6 and 7 of para 4.25).

© Midmark Corporation 1997 SF-1555

Page 4-22

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

4.19 Chain Assembly Adjustment

A. Adjustment

(1) Raise TABLE UP function all the way up.

(2) Unplug table power cord from outlet.

(3) Remove four screws (1, Figure 4-27) and front outer shroud (2) from left and right hand outer shrouds (3).

9

8

7

3

6

2

5

4

9

1

A

MA397500

Figure 4-27. Chain Assembly Adjustment

(4) Remove eight screws (4) and front inner shroud

(5) from left and right hand inner shrouds (6).

(5) Loosen four screws (7).

EQUIPMENT ALERT

Adjust chains so they are tight, yet have a slight spring back. Also, adjust chains so there is an equal amount of tension on each chain. Failure to do so will result in chains loosening earlier and uneven wear.

(6) Insert a pry bar or large screwdriver into adjustment gap (A) and pry downward on idler adjustment weldment (8) until chains (9) are tight, but not drum tight. Tighten four screws (7).

(7) Install front inner shroud (5) on left and right hand inner shrouds (6) and secure with eight screws (4).

(8) Install front outer shroud (2) on left and right hand outer shrouds (3) and secure with four screws (1).

(9) Plug table power cord into outlet.

4.20 Base Slide Assembly Removal /

Installation

A. Removal

(1) If possible, raise TABLE UP function all the way up.

(2) Move the back, seat, and foot sections of the table top to a horizontal position.

(3) Unplug table power cord from outlet.

(4) Remove motor cover assembly (Refer to para 4.2).

(5) Remove four screws (1, Figure 4-28) and back outer shroud (2) from left and right hand outer shrouds (3).

© Midmark Corporation 1997 SF-1555

Page 4-23

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

4

5

6

13

6

10

9

7

3

12

11

14

3

8

2

1

15

MA397600

(6) Remove eight screws (4) and back inner shroud (5) from left and right hand inner shrouds (6).

Figure 4-28. Shrouds Removal / Installation

(10) Remove six screws (14) and left and right hand outer shrouds (3) from base weldment (15).

(7) Remove four screws (7) and front outer shroud

(8) from left and right hand outer shrouds (3).

(8) Remove eight screws (9) and front inner shroud

(10) from left and right hand inner shrouds (6).

(9) Remove six screws (11), washers (12), and left and right hand inner shrouds (6) from base slide assembly (13).

WARNING

The supports must be capable of holding up table top after table top is disconnected from base slide assembly and the base slide assembly is removed. Failure to support table top properly could result in table top falling out-of-control which could result in serious personal injury or death.

© Midmark Corporation 1997 SF-1555

Page 4-24

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

(11) Place supports (A, Figure 4-29) under foot section (B) and head section (C) of table top, making sure weight of table top (D) is being supported by supports. If necessary, plug table power cord into outlet and lower table top onto supports. Unplug table power cord from outlet.

(12) Remove two E-rings (1, Figure 4-29), clevis pin

(2), and separate tilt cylinder (3) from bracket (4).

(13) Loosen four setscrews (5). Remove two tilt pivot pins (6) from base slide assembly (7).

DANGER

Make sure table top (D) is properly supported for the following step.

Table top will rest only on supports after this step. Also do not touch any wires inside of table when power cord is plugged in. This could result in electrical shock. Failure to comply with this warning could result in serious personal injury or death.

(14) Plug table power cord into outlet. Lower

TABLE DOWN function all the way down.

Unplug table power cord from outlet.

WARNING

Make sure base slide assembly is fully retracted (collapsed) before disconnecting base cylinder. Failure to do so will result in base slide assembly collapsing after base cylinder is disconnected which could result in serious personal injury.

(15) Remove hitch pin clip (8), clevis pin (9), and separate rod of base cylinder (10) from bracket (11).

(16) Remove capacitors (E, [Refer to para 4.17]).

(17) Remove four nuts (12), four screws (13), and two capacitor mounting brackets (14) from base slide assembly (7).

(18) Disconnect spring (15) from base slide assembly (7).

(19) Remove eight screws (16) from base slide assembly (7).

NOTE

If necessary, remove four screws and brace (F) to allow base slide assembly to be pulled over base cylinder.

(20) With the help of an assistant, remove base slide assembly (7) from base weldment (17).

B. Installation

(1) With the help of an assistant, install base slide assembly (7, Figure 4-29) on base weldment

(17), making sure base cylinder (10) gets inserted between brace (F) and base slide assembly.

(2) Secure base slide assembly (7) on base weldment (17) with eight screws (16).

(3) Connect spring (15) to base slide assembly (7).

(4) Install two capacitor mounting brackets (14) on base slide assembly (7) and secure with four screws (13) and nuts (12).

(5) Install capacitors (F, [Refer to para 4.17]).

(6) Install rod end (G) of base cylinder (10) on bracket (11) and secure with clevis pin (9) and hitch pin clip (8).

NOTE

Install beveled edge of tilt pivot pins first. The beveled edge allows the tilt pivot pins to be started more easily.

(7) Raise BASE UP function until base slide assembly (7) is aligned with seat weldment

(18). Secure base slide assembly to seat weldment with two tilt pivot pins (6).

(8) Secure tilt pivot pins (6) in place by tightening four setscrews (5).

(9) Install base of tilt cylinder (3) on bracket (4) and secure with clevis pin (2) and two E-rings (1).

(10) Remove supports (A) from under head section

(C) and foot section (B) of table top (D).

© Midmark Corporation 1997 SF-1555

Page 4-25

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

5

D

C

6

9

7

11

18

G

B

F

10

8

A

© Midmark Corporation 1997 SF-1555

4

7

1

12

14

13

Figure 4-29. Base Slide Assembly Removal / Installation

3

2

15

16

17

1

E

MA397700

Page 4-26

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

(11) Install left and right hand outer shrouds (3,

Figure 4-28) on base weldment (15) and secure with six screws (14).

(12) Install left and right hand inner shrouds (6) on base slide assembly (13) and secure with six washers (12) and screws (11).

(13) Install front inner shroud (10) on left and right hand inner shrouds (6) and secure with eight screws (9).

(14) Install front outer shroud (8) on left and right hand outer shrouds (3) and secure with four screws (7).

(15) Install back inner shroud (5) on left and right hand inner shrouds (6) and secure with eight screws (4).

(16) Install back outer shroud (2) on left and right hand outer shrouds (3) and secure with four screws (1).

(17) Install motor cover assembly (Refer to para 4.2).

(18) Plug table power cord into outlet.

4.21 Headrest Adjustment

A. Adjustment

(1) Unlock upper lock handle (A, Figure 4-30).

(2) Loosen setscrew (1, Figure 4-30).

(3) Tighten adjusting screw (2) slightly; then lock upper lock handle (A). Repeat this step until axis 1 (B) and axis 2 (C) have the strongest possible holding power, but operation of upper lock handle is not too difficult.

(4) Tighten setscrew (1).

2

1

B

A

C

D

E

Figure 4-30. Headrest Adjustment

3

4

MA397800

(5) Unlock lower lock handle (D).

(6) Loosen setscrew (3).

(7) Tighten adjusting screw (4) slightly; then lock lower lock handle (D). Repeat this step until axis 3 (E) has the strongest possible holding power, but operation of lower lock handle is not too difficult.

(8) Tighten setscrew (3).

© Midmark Corporation 1997 SF-1555

Page 4-27

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

4.22 Headrest Handles Handle Stops

Adjustment

A. Adjustment

(1) Loosen nut (1, Figure 4-31).

(2) Push on upper lock handle until it reaches a point where the upper lock handle wants to lock itself by going over center; then allow upper lock handle to go over center a few degrees.

Hold the upper lock handle in this position and adjust stop screw (2) so the upper lock handle will be forced to stop in this position each time it is locked.

(3) Tighten nut (1).

(4) Loosen nut (3).

(5) Push on lower lock handle until it reaches a point where the lower lock handle wants to lock itself by going over center; then allow lower lock handle to go over center a few degrees.

Hold the lower lock handle in this position and adjust stop screw (4) so the lower lock handle will be forced to stop in this position each time it is locked.

(6) Tighten nut (3).

4.23 Stirrup Assembly And Components

Removal / Installation

A. Removal

(1) Remove hole plug (1, Figure 4-32) from access hole (A) in seat weldment (2).

B

1

A

2

4

5

3

1

A

3

4

6

7

2

8

MA398000

Figure 4-32. Stirrup Assembly And Components

Removal / Installation

B

Figure 4-31. Headrest Handles

Handle Stops Adjustment

MA397900

(2) Insert screwdriver in access hole and remove screw (3) from stirrup assembly (4).

(3) Pull stirrup assembly (4) out of pivot boss (5).

(4) Remove pivot boss (5) and stirrup guide bracket (6) from stirrup mount weldment (7).

(5) If damaged, remove stirrup index spring (8) from stirrup guide bracket (6).

© Midmark Corporation 1997 SF-1555

Page 4-28

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

B. Installation

(1) If removed, install stirrup index spring (8) on stirrup guide bracket (6).

(2) Install stirrup guide bracket (6) in stirrup mount weldment (7) and secure with pivot boss (5).

(3) Slide stirrup assembly (4) thru slot in pivot boss

(5) and thru slot (B) in stirrup guide bracket (6).

(4) Install screw (3) on stirrup assembly (4).

(5) Install hole plug (1) in access hole of seat weldment (2).

4.24 Typical Foot Switch Removal /

Installation

A. Removal

WARNING

The foot control contains high voltage

(115 VAC) when the table power cord is plugged in. Unplug table power cord before disassembling foot control to prevent electrical shock. Failure to do so could result in serious personal injury or death.

(1) Unplug table power cord from outlet.

(2) Remove two screws (1, Figure 4-33) and partially separate foot switch bracket (2) from foot control casting (3).

(3) Remove screw (4), spacer (5), and pedal (6) from foot switch bracket (2).

(4) Tag and disconnect four wires (7) from terminals of foot switch (8).

(5) Remove two nuts (9), washers (10), screws

(11), and foot switch (8) from foot switch bracket (2).

B. Installation

(1) Install foot switch (8) on foot switch bracket (2) and secure with two screws (11), washers (10), and nuts (9).

8

10

9

7

6

5

7

11

2

3

B

4

A

C

1

MA398100

Figure 4-33. Typical Foot Switch

Removal / Installation

(2) Connect four wires (7) to terminals of foot switch (8).

(3) Ensure springs (A) and spacers (C) are in position and have not fallen off.

(4) Install pedal (6) on foot switch bracket (2) and secure with spacer (5) and screw (4), making sure pedal is mounted on pivot spacer (B)).

(5) Install foot switch bracket (2) on foot control casting (3) and secure with two screws (1).

(6) Plug table power cord into outlet.

© Midmark Corporation 1997 SF-1555

Page 4-29

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

4.25

Upholstery Removal / Installation

A. Removal

(1) Move table top to flat position.

Upholstered Headrest Assembly Removal

(2) Unlock (A) three locking tabs (1, Figure 4-34) by pulling on locking tabs until locking tabs are free of three studs (2).

(3) Remove upholstered headrest assembly (3) from headboard pivot mount (4) by pulling upholstered headrest assembly straight off.

Upholstered Back Section Removal

NOTE

Locking tabs are in paper roll holder cavity.

(4) Unlock (A) two locking tabs (5) by pulling on locking tabs until locking tabs are free of studs (6).

(5) On a two piece seat & back upholstery set, raise upward on head end of upholstered back section (7), approximately 1" (2.54 cm), until two studs (6) are free of back weldment (8); then slide upholstered back section approximately 1 in. (2.5 cm) toward head end of table until stud (9) is in rounded part of locking slot

(C). Lift upholstered back section (7) straight up and remove from back weldment (8).

NOTE

The upholstery may be difficult to raise up because there is a velcro strip holding the upholstered back down.

On a one piece seat & back upholstery set, raise upward on upholstered back section (7) until two studs (6) are free of back weldment

(8); then swing upholstered back section (7) upward so that it rests against upholstered seat section (12).

Upholstered Seat Section Removal

(6) Lower FOOT DOWN function all the way down.

(7) Unlock (A) two locking tabs (10) by pulling on locking tabs until locking tabs are free of studs (11).

(8) Raise upward on foot end of upholstered seat section (12), approximately 1" (2.54 cm), until two studs (11) are free of seat weldment (13); then slide upholstered seat section approximately 1 in. (2.5 cm) toward foot end of table until two studs (14) are in rounded part of locking slots (D). Lift upholstered seat section

(12) straight up and remove from seat weldment (13).

Upholstered Leg Rest Removal

(9) Raise FOOT UP function all the way up.

(10) Unlock (A) two locking tabs (15) by pulling on locking tabs until locking tabs are free of studs (16).

(11) Remove upholstered leg rest (17) from foot extension weldment (18) by pulling straight up.

Upholstered Foot Rest Removal

(12) Squeeze release latches (E) and remove foot board assembly (19) from foot extension weldment (18).

(13) Unlock (A) three locking tabs (20) by pulling on locking tabs until locking tabs are free of three studs (21).

(14) Remove upholstered foot rest (22) from foot board assembly (19) by pulling straight up.

Side Panel Insert Removal

(15) Using an index finger, reach thru access hole

(F) and push outward on side panel insert (23) until bottom edge of side panel insert can be grasped by the other hand. Pull outward on bottom of side panel insert until it "pops" off of side panel (24).

© Midmark Corporation 1997 SF-1555

Page 4-30

Printed in U.S.A.

23

2

3

1

G

24

4

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

6

9

A

B

*

7

5

1"

1"

C

8

11

14

12

16

D

13

10

F

20

18

21

17

18

15

19

22

E

MA398200

Figure 4-34. Upholstery Removal / Installation

Page 4-31

© Midmark Corporation 1997 SF-1555 Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

B. Installation

Side Panel Insert Installation

(1) Insert one end of side panel insert (23) into one of the panel slots (G) on side panel (24). Flex side panel insert in the middle and then insert free end of side panel insert into remaining panel slot (G) on other end of side panel. Work side panel insert into proper position.

Upholstered Foot Rest Installation

(2) Install upholstered foot rest (22) on foot board assembly (19) and secure by locking three locking tabs (20) onto three studs (21).

(3) Install foot board assembly (19) on foot extension weldment (18), making sure it locks into place.

Upholstered Leg Rest Installation

(4) Install upholstered leg rest (17) on foot extension weldment (18) and secure by locking (B) two locking tabs (15) onto two studs (16).

(5) Lower FOOT DOWN function all the way down.

Upholstered Seat Section Installation

DANGER

lifting up on its edges. Failure to secure upholstered seat section properly could result in serious injury to patient.

At completion of following step, ensure that upholstered seat section is secure by

(6) Install head end of upholstered seat section

(12) on seat weldment (13), making sure two studs (14) are inserted in rounded part of locking slots (D); then slide upholstered seat section (12) toward head end of table until two studs (11) fit thru stud holes in seat weldment

(13). Secure upholstered seat section (12) in place by locking two locking tabs (10) onto two studs (11).

Upholstered Back Section Installation

DANGER

lifting up on its edges. Failure to secure upholstered back section properly could result in serious injury to patient.

At completion of following step, ensure that upholstered back section is secure by

NOTE

Locking tabs are in paper roll holder cavity.

(7) On a two piece seat & back upholstery set, install foot end of upholstered back section (7) on back weldment (8), making sure stud (9) is inserted in rounded part of locking slot (C); then slide upholstered back section (7) toward foot end of table until two studs (6) fit thru stud holes in back weldment (8). Secure upholstered back section (7) in place by locking (B) two locking tabs (5) onto two studs (6).

NOTE

On a one piece seat & back upholstery set, a strip of velcro is used instead of a stud (9) and locking slot

(C). If installing upholstered seat section for the first time, the backing from the velcro strip must be removed and it must be firmly applied to the back weldment (8).

On a one piece seat & back upholstery set, lower upholstered back section (7) down onto back weldment (8), making sure two studs (6) are inserted in two stud holes in back weldment. Secure upholstered back section

(C) in place by locking two locking tabs (5) onto two studs (6).

Upholstered Headrest Assembly Installation

(8) Install upholstered headrest assembly (3) on headboard pivot mount (4) and secure by locking three locking tabs (1) onto three studs (2). (5)

Lower FOOT DOWN function all the way down.

© Midmark Corporation 1997 SF-1555

Page 4-32

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

4.26 Hydraulic System Flushing Procedure

NOTE

The following procedure is recommended for the following reasons:

The hydraulic system is excessively contaminated with dirt particles or water, causing repeated malfunctions of hydraulic components.

An oil other than light weight mineral oil has been added to the hydraulic system, causing the table to malfunction or perform erratically.

A. Flushing Procedure

(1) Lower TABLE DOWN

, , , , ,

BACK DOWN

, , , , ,

TILT

DOWN

, , , , , and FOOT DOWN

functions all the way down.

(2) Remove motor cover assembly (Refer to para 4.2).

1

2

(3) Remove filler cap (1, Figure 4-35) from reservoir (2).

(4) Get a suitable drain pan with a capacity of approximately 2 quarts (1.9 liters).

(5) Using a syringe or suction device, remove all oil from the reservoir (2).

(6) Refill reservoir (2) with light grade mineral oil.

(7) Disconnect hose (A) from down functions shuttle valve (3) and place end of hose in drain pan.

(8) Raise TABLE UP

, , , , ,

BACK UP

, , , , ,

TILT UP

, , , , , and

FOOT UP

functions all the way up, while making sure to keep refilling reservoir (2) with light grade mineral oil as necessary.

(9) Connect hose (A) to down functions shuttle valve (3).

3

2

A

C

4

B

C

Figure 4-35. Hydraulic System Flushing Procedure

© Midmark Corporation 1997 SF-1555

Page 4-33

MA398300

Printed in U.S.A.

Return To Table Of Contents

SECTION IV

MAINTENANCE / SERVICE

(10) Disconnect hose (B) from up functions shuttle valve (4) and place end of hose in drain pan.

(11) Lower TABLE DOWN

, , , , ,

BACK DOWN

, , , , ,

TILT

DOWN

, , , , , and FOOT DOWN

functions all the way down, while making sure to keep refilling reservoir (2) with light grade mineral oil as necessary.

(12) Connect hose (B) to up functions shuttle valve (4).

(13) Repeat steps 7 thru 12 until oil being removed is clear and contains no dirt particles.

(14) Run all the functions up and down until all air is purged from the hydraulic system.

(15) Lower all functions; then check oil level and add or remove oil as necessary (Refer to para 4.3).

(16) Install motor cover assembly (Refer to para 4.2).

(17) Dispose of used oil in accordance with local regulations.

© Midmark Corporation 1997 SF-1555

Page 4-34

Printed in U.S.A.

Return To Table Of Contents

SECTION V

SCHEMATICS AND DIAGRAMS

SECTION V

SCHEMATICS AND DIAGRAMS

5.1 Electrical Schematics / Wiring

Diagrams

Figures 5-1 thru 5-8 illustrate the logic/current flow and wiring connections between the electrical components in the table. Record serial number of table being worked on in order to determine which electrical schematic or wiring diagram to use.

WHITE / BLACK

WHITE / BLACK

ANTI-CAVITATION

SOLENOID VALVE

BLACK

WHITE / BLACK

CAPACITORS

(124 - 149 MFD 250 VAC)

BLACK

TIME DELAY RELAY

INTERNAL VIEW OF FOOT SWITCHES

3

2

4

1

FOOT SWITCH

IN OFF

POSITION

3

2

FOOT SWITCH

IN ON

POSITION

4

1

BLACK (115 VAC)

GREEN / YELLOW

WHITE (NEUTRAL)

120 V.A.C. 12 AMPS

60 HZ.

2 1 WHITE

WHITE

TERMINAL

BLOCK

1 2 3 4 5 6 7 8 9 10 11

RED / BLACK

ORANGE

WHITE / BLACK

WHITE

RED

BLUE

BLACK

GREEN (GROUND)

FOOTSWITCH ASSEMBLY

(NOTE: IF AN UP FOOT SWITCH & DOWN

FOOT SWITCH ARE ENERGIZED AT THE SAME

TIME, THE CIRCUIT BECOMES INOPERATIVE)

2

4

1

3

4

FOOT DOWN

FOOT UP

TILT DOWN

1

3

2

4

1

3

2

2

4

3 4

TILT UP

BACK DOWN

1

3

2 1

3 4

BACK UP

2 1

4

1

TABLE DOWN

3

2

3 4

TABLE UP

2 1

BLACK

MOTOR

PUMP

T1

T2

T3

YELLOW

BLUE

RED

WHITE

FOOT CYLINDER

BLACK

WHITE

TILT CYLINDER

BLACK

WHITE

BACK CYLINDER

BLACK

WHITE

BASE CYLINDER

Figure 5-1. Wiring Diagram - Used on Units with Serial Number HH1000 thru Present

MA437800

© Midmark Corporation 1997 SF-1555

Page 5-1

Printed in U.S.A.

Return To Table Of Contents

SECTION V

SCHEMATICS AND DIAGRAMS

120 V.A.C. 12 AMPS

60 HZ.

WHITE

ANTI-CAVITATION

SOLENOID VALVE

T2

FOOT SWITCHES

BLACK

RED

FOOT DOWN

4

3

BLACK

1

2

BLACK

BLACK

2

FOOT UP

RED / BLACK

BLUE

3 4

1

CAPACITORS

M

T1

T3

MOTOR

PUMP

FOOT

CYLINDER

SOLENOID

VALVE

TILT

CYLINDER

SOLENOID

VALVE

RED

TILT DOWN

4 3

1 2

ORANGE

3

TILT UP

4

BLACK

2

BLACK

1

BLACK

BLUE

TIME

DELAY

RELAY

BACK

CYLINDER

SOLENOID

VALVE

RED

BACK DOWN

4 3

1 2

BLACK

BLACK

2

3

WHITE / BLACK

BACK UP

4

1

BLACK

BLUE

BASE

CYLINDER

SOLENOID

VALVE

RED

TABLE DOWN

4 3

1

2

WHITE

BLACK

BLACK

2

3

TABLE UP

4

1

WHITE

BLUE

MA437900

Figure 5-2. Electrical Schematic -

Used on Units with Serial Number HH1000 thru Present

© Midmark Corporation 1997 SF-1555

Page 5-2

Printed in U.S.A.

ANTI-CAVITATION

SOLENOID VALVE

BLACK

Return To Table Of Contents

SECTION V

SCHEMATICS AND DIAGRAMS

WHITE / BLACK

WHITE / BLACK

WHITE / BLACK

CAPACITORS

(124 - 149 MFD 250 VAC)

BLACK

TIME DELAY RELAY

2

1

WHITE

WHITE

CONNECTION TO PRIMARY

OF TRANSFORMER DEPENDS

ON TABLE DESTINATION

ISOLATION

TRANSFORMER

TERMINAL

BLOCK

240

220

115 115

BLACK

1 2 3 4 5 6 7 8 9 10 11

0 115

WHITE

BLACK

RED / BLACK

ORANGE

WHITE / BLACK

WHITE

RED

BLUE

BROWN

GREEN / YELLOW

BLUE

GREEN (GROUND)

220 V.A.C. 4 AMPS

50 HZ.

B5 X 20 MM, 6.3 AMP

SLO BLO FUSES

(015-0346-01)

FOOTSWITCH ASSEMBLY

(NOTE: IF AN UP FOOT SWITCH & DOWN

FOOT SWITCH ARE ENERGIZED AT THE SAME

TIME, THE CIRCUIT BECOMES INOPERATIVE)

4

FOOT DOWN

1

3

2

3 4

FOOT UP

2

4

TILT DOWN

1

3

TILT UP

2 1

4

1

BACK DOWN

3

2

2

4

1

3

3

4

BACK UP

2 1

4

1

TABLE DOWN

3

2

3

4

TABLE UP

2 1

MOTOR

PUMP

T1

T2

T3

YELLOW

BLUE

RED

BLACK

WHITE

FOOT CYLINDER

BLACK

TILT CYLINDER

INTERNAL VIEW OF FOOT SWITCHES

BLACK

WHITE

BACK CYLINDER

3

2

FOOT SWITCH

IN OFF

POSITION

4

1

3

2

FOOT SWITCH

IN ON

POSITION

4

1

WHITE

BASE CYLINDER

BLACK

MA438000

Figure 5-3. Wiring Diagram

- Used on Units with Serial Number HN1000 thru Present

© Midmark Corporation 1997 SF-1555 Rev. 5/99

Page 5-3

Printed in U.S.A.

Return To Table Of Contents

SECTION V

SCHEMATICS AND DIAGRAMS

CONNECTION TO PRIMARY

OF TRANSFORMER DEPENDS

ON TABLE DESTINATION

ISOLATION

TRANSFORMER

240

220

115 115

220 V.A.C.

4 AMPS

50 HZ.

0

115

WHITE

ANTI-CAVITATION

SOLENOID VALVE

BLACK

T2

BLACK

FOOT SWITCHES

CAPACITORS

M

T1

T3

MOTOR

PUMP

RED

FOOT DOWN

4 3

BLACK

1

2

BLACK

BLACK

2

FOOT UP

RED / BLACK

BLUE

3 4

1

FOOT

CYLINDER

SOLENOID

VALVE

TILT

CYLINDER

SOLENOID

VALVE

RED

TILT DOWN

4

3

1 2

ORANGE

BLACK

2

BLACK

3

TILT UP

4

1

BLACK

BLUE

TIME

DELAY

RELAY

BACK

CYLINDER

SOLENOID

VALVE

RED

BACK DOWN

4 3

1 2

3

BLACK

2

BLACK

WHITE / BLACK

BACK UP

4

1

BLACK

BLUE

BASE

CYLINDER

SOLENOID

VALVE

RED

TABLE DOWN

4 3

1 2

WHITE

WHITE

BLACK

2

BLACK

3

TABLE UP

4

1

BLUE

MA438100

Figure 5-4. Electrical Schematic - Used on Units with Serial Number HN1000 thru Present

© Midmark Corporation 1997 SF-1555

Page 5-4

Printed in U.S.A.

Return To Table Of Contents

SECTION V

SCHEMATICS AND DIAGRAMS

ANTI-CAVITATION

SOLENOID VALVE

BLACK

WHITE / BLACK

WHITE / BLACK

WHITE / BLACK

CAPACITORS

(124 - 149 MFD 250 VAC)

BLACK

TIME DELAY RELAY

BLACK

COM.

WHITE

N.O.

PAN SAFETY

LIMIT SWITCH

(OPTIONAL ON SOME UNITS)

(

Wire harness: #015-0470-00)

INTERNAL VIEW OF FOOT SWITCHES

3

2

FOOT SWITCH

IN OFF

POSITION

4

1

BLACK (115 VAC)

GREEN / YELLOW

WHITE (NEUTRAL)

120 V.A.C. 12 AMPS

60 HZ.

2 1

WHITE

WHITE

TERMINAL

BLOCK

1 2 3 4 5 6 7 8 9 10 11

3

2

FOOT SWITCH

IN ON

POSITION

4

1

BLACK

RED / BLACK

ORANGE

WHITE / BLACK

WHITE

RED

BLUE

GREEN (GROUND)

FOOTSWITCH ASSEMBLY

(NOTE: IF AN UP FOOT SWITCH & DOWN

FOOT SWITCH ARE ENERGIZED AT THE SAME

TIME, THE CIRCUIT BECOMES INOPERATIVE)

4

1

FOOT DOWN

3

2

3

FOOT UP

2

4

TILT DOWN

1

3

TILT UP

2

4

1

3

BACK DOWN

BACK UP

2

4

2

4

2

4

1

1

3

1

3

4

1

TABLE DOWN

3

2

3

4

TABLE UP

2 1

BLACK

MOTOR

PUMP

T1

T2

T3

YELLOW

BLUE

RED

FOOT CYLINDER

BLACK

WHITE

TILT CYLINDER

BLACK

WHITE

BACK CYLINDER

BLACK

WHITE

BASE CYLINDER

Figure 5-5. Wiring Diagram - Used on Units with Serial Number KK1000 thru Present

MA406100

© Midmark Corporation 1997 SF-1555 Rev. 11/05

Page 5-5

Printed in U.S.A.

Return To Table Of Contents

SECTION V

SCHEMATICS AND DIAGRAMS

120 V.A.C. 12 AMPS

60 HZ.

WHITE

ANTI-CAVITATION

SOLENOID VALVE

T2

BLACK

RED

FOOT SWITCHES

FOOT DOWN

4

3

BLACK

CAPACITORS

PAN SAFETY

LIMIT SWITCH

COM.

N.O.

M

T1

T3

MOTOR

PUMP

1 2

BLACK

BLACK

2

FOOT UP

RED / BLACK

BLUE

3

4

1

FOOT

CYLINDER

SOLENOID

VALVE

TILT

CYLINDER

SOLENOID

VALVE

RED

TILT DOWN

4

3

1

2

BLACK

2

BLACK

ORANGE

3

TILT UP

4

1

BLACK

BLUE

TIME

DELAY

RELAY

BACK

CYLINDER

SOLENOID

VALVE

RED

BACK DOWN

4 3

1

2

3

BLACK

BLACK

2

WHITE / BLACK

BACK UP

4

1

BLACK

BLUE

BASE

CYLINDER

SOLENOID

VALVE

RED

TABLE DOWN

4 3

1 2

WHITE

WHITE

BLACK

BLACK

2

3

TABLE UP

4

1

BLUE

MA406200

Figure 5-6. Electrical Schematic -

Used on Units with Serial Number KK1000 thru Present

© Midmark Corporation 1997 SF-1555

Page 5-6

Printed in U.S.A.

Return To Table Of Contents

SECTION V

SCHEMATICS AND DIAGRAMS

ANTI-CAVITATION

SOLENOID VALVE

BLACK

WHITE / BLACK

WHITE / BLACK

WHITE / BLACK

CAPACITORS

(124 - 149 MFD 250 VAC)

220 V.A.C. 4 AMPS

50 HZ.

BLACK

TIME DELAY RELAY

2

1

WHITE

WHITE

CONNECTION TO PRIMARY

OF TRANSFORMER DEPENDS

ON TABLE DESTINATION

ISOLATION

TRANSFORMER

TERMINAL

BLOCK

240

220

115 115

BLACK

1 2 3 4 5 6 7 8 9 10 11

0 115

WHITE

BLACK

RED / BLACK

ORANGE

WHITE / BLACK

WHITE

RED

BLUE

BROWN

GREEN / YELLOW

BLUE

B5 X 20 MM, 6.3 AMP

SLO BLO FUSES

(015-0346-01)

GREEN (GROUND)

WHITE

N.O.

BLACK

COM.

PAN SAFETY

LIMIT SWITCH

(OPTIONAL ON SOME UNITS)

(

Wire harness: #015-0470-00)

FOOTSWITCH ASSEMBLY

(NOTE: IF AN UP FOOT SWITCH & DOWN

FOOT SWITCH ARE ENERGIZED AT THE SAME

TIME, THE CIRCUIT BECOMES INOPERATIVE)

4

1

FOOT DOWN

3

2

3

FOOT UP

2

4

TILT DOWN

1

3

TILT UP

2

4

1

3

BACK DOWN

BACK UP

2

4

1

3

1

3

2

4

2

4

1

4

1

TABLE DOWN

3

2

3

4

TABLE UP

2 1

MOTOR

PUMP

T1

T2

T3

YELLOW

BLUE

RED

BLACK

FOOT CYLINDER

BLACK

WHITE

TILT CYLINDER

INTERNAL VIEW OF FOOT SWITCHES

BLACK

WHITE

BACK CYLINDER

3

2

FOOT SWITCH

IN OFF

POSITION

4

1

3

2

FOOT SWITCH

IN ON

POSITION

4

1

WHITE

BASE CYLINDER

BLACK

MA406300

Figure 5-7. Wiring Diagram

- Used on Units with Serial Number KL1000 thru Present

© Midmark Corporation 1997 SF-1555 Rev. 11/05

Page 5-7

Printed in U.S.A.

Return To Table Of Contents

SECTION V

SCHEMATICS AND DIAGRAMS

CONNECTION TO PRIMARY

OF TRANSFORMER DEPENDS

ON TABLE DESTINATION

ISOLATION

TRANSFORMER

240

220

115 115

220 V.A.C.

4 AMPS

50 HZ.

0

115

WHITE

ANTI-CAVITATION

SOLENOID VALVE

BLACK

T2

BLACK

FOOT SWITCHES

CAPACITORS

PAN SAFETY

LIMIT SWITCH

COM.

N.O.

M

T1

T3

MOTOR

PUMP

RED

FOOT DOWN

4

3

BLACK

1

2

BLACK

BLACK

2

FOOT UP

RED / BLACK

BLUE

3 4

1

FOOT

CYLINDER

SOLENOID

VALVE

TILT

CYLINDER

SOLENOID

VALVE

RED

TILT DOWN

4

3

1 2

ORANGE

BLACK

2

BLACK

3

TILT UP

4

1

BLACK

BLUE

TIME

DELAY

RELAY

BACK

CYLINDER

SOLENOID

VALVE

RED

BACK DOWN

4 3

1

2

3

BLACK

2

BLACK

WHITE / BLACK

BACK UP

4

1

BLACK

BLUE

BASE

CYLINDER

SOLENOID

VALVE

RED

TABLE DOWN

4

3

1 2

WHITE

WHITE

3

BLACK

2

BLACK

TABLE UP

4

1

BLUE

MA406400

Figure 5-8. Electrical Schematic - Used on Units with Serial Number KL1000 thru Present

© Midmark Corporation 1997 SF-1555

Page 5-8

Printed in U.S.A.

Return To Table Of Contents

SECTION V

SCHEMATICS AND DIAGRAMS

5.2 Hydraulic Flow Diagrams

Figure 5-9 illustrates the hydraulic oil flow through the table when an up function is selected. Figure 5-10 illustrates the hydraulic oil flow through the table when a down function is selected.

CYLINDER

ROD

UP FUNCTIONS HYDRAULIC OIL FLOW

CYLINDER

ROD

CYLINDER

ROD

CYLINDER

ROD

BASE

CYLINDER

SOLENOID

VALVE

(OPEN)

TILT

CYLINDER

SOLENOID

VALVE

(CLOSED)

BACK

CYLINDER

SOLENOID

VALVE

(CLOSED)

FOOT

CYLINDER

SOLENOID

VALVE

(CLOSED)

ANTI-CAVITATION

SOLENOID VALVE

(OPEN)

RESERVOIR

PORT

(OPEN)

RESERVOIR

CHECK VALVE

(OPEN)

DOWN FUNCTIONS

SHUTTLE VALVE

(CLOSED)

CHECK

BALL

SHUTTLE

PUMP

GEARS

UP FUNCTIONS

SHUTTLE VALVE

(OPEN)

CHECK

BALL

RESERVOIR

PORT

(CLOSED)

RESERVOIR

CHECK VALVE

(CLOSED)

SUCTION

PRESSURE

RETURN

© Midmark Corporation 1997 SF-1555

DOWN FUNCTIONS

RELIEF VALVE

(CLOSED)

FILTER

UP FUNCTIONS

RELIEF VALVE

(CLOSED)

Figure 5-9. Up Functions Hydraulic Flow Diagram

RESERVOIR

Page 5-9

MA225300

Printed in U.S.A.

Return To Table Of Contents

SECTION V

SCHEMATICS AND DIAGRAMS

DOWN FUNCTIONS HYDRAULIC OIL FLOW

CYLINDER

ROD

CYLINDER

ROD

CYLINDER

ROD

CYLINDER

ROD

BASE

CYLINDER

SOLENOID

VALVE

(OPEN)

TILT

CYLINDER

SOLENOID

VALVE

(CLOSED)

BACK

CYLINDER

SOLENOID

VALVE

(CLOSED)

FOOT

CYLINDER

SOLENOID

VALVE

(CLOSED)

ANTI-CAVITATION

SOLENOID VALVE

(OPEN)

RESERVOIR

PORT

(CLOSED)

RESERVOIR

CHECK VALVE

(CLOSED)

DOWN FUNCTIONS

SHUTTLE VALVE

(OPEN)

CHECK

BALL

SHUTTLE

PUMP

GEARS

UP FUNCTIONS

SHUTTLE VALVE

(CLOSED)

CHECK

BALL

RESERVOIR

PORT

(OPEN)

RESERVOIR

CHECK VALVE

(OPEN)

SUCTION

PRESSURE

RETURN

© Midmark Corporation 1997 SF-1555

DOWN FUNCTIONS

RELIEF VALVE

(CLOSED)

FILTER

UP FUNCTIONS

RELIEF VALVE

(CLOSED)

Figure 5-10. Down Functions Hydraulic Flow Diagram

RESERVOIR

MA225200

Page 5-10

Printed in U.S.A.

Return To Table Of Contents

SECTION VI

PARTS LIST

SECTION VI

PARTS LIST

6.1 Introduction

The illustrated parts list provides information for identifying and ordering the parts necessary to maintain the unit in peak operating condition. Refer to paragraph 1.5 for parts ordering information.

The parts list also illustrates disassembly and assembly relationships of parts.

6.2 Description of Columns

The Item column of the parts list gives a component its own unique number. The same number is given to the component in the parts illustration. This allows a part number of a component to be found if the technician can visually spot the part on the illustration. The technician simply finds the component in question on the illustration and notes the item number of that component.

Then, he finds that item number in the parts list. The row corresponding to the item number gives the technician the part number, a description of the component, and quantity of parts per subassembly. Also, if a part number is known, the location of that component can be determined by looking for the item number of the component on the illustration.

The Part No. column lists the MIDMARK part number for that component.

The Description column provides a physical description of the component.

The Qty. column lists the number of units of a particular component that is required for the subassembly. The letters “AR” denote “as required” when quantities of a particular component cannot be determined, such as: adhesive.

Bullets { • } in the Part No. column and the Description column show the indenture level of a component. If a component does not have a bullet, it is a main component of that illustration. If a component has a bullet, it is a subcomponent of the next component listed higher in the parts list than itself that does not have a bullet.

Likewise, if a component has two bullets, it is a subcomponent of the next component listed higher in the parts list than itself that has only one bullet.

6.3 Torque Specifications and Important

Assembly Notes

When specific assembly torque specifications, measurements, or procedures have been identified, by our engineering department, as required to assure proper function of the unit, those torque specifications measurements, and procedures will be noted on the parts illustrations. Adherence to these requirements is essential.

© Midmark Corporation 1997 SF-1555

Page 6-1

Printed in U.S.A.

Pictorial Index

4

Return To Table Of Contents

"Styled"

Upholstery

Shown

2

1

5

SECTION VI

PARTS LIST

6

7

12

3

11

6

13

8

9

10

Used on units with Serial Number HH-1000 and HN-1000 thru Present

Used on units with Serial Number V2200 thru Present

Item Part No.

Description Page Item Part No.

14

319-003

319-004

1 •

2 •

3 •

4 •

5 •

6 •

7 •

8 •

9 •

10 • •

11

12

13 •

• •

Power Examination Table 115 V.

(Serial Number Prefix HH-****) .......... Ref

Power Examination Table 220 V.

(Serial Number Prefix HN-****) .......... Ref

• Back Components ............................ 6-4

• Upholstery Set - Standard ................ 6-6

• Upholstery Set - Narrow ................... 6-7

• Upholstery Set - Styled .................... 6-8

• Upholstery Set - Thermoform ........... 6-9

• Hydraulic System ........................... 6-10

• Headrest Assembly ........................ 6-11

• Seat Components .......................... 6-12

• Stirrup Assembly ............................ 6-14

• Footboard Components .................. 6-15

• Base Covers And Enclosures ........ 6-16

• Base Mechanical Components ....... 6-17

• • Base Slide Assembly .................... 6-18

• Base Electrical Comp.-Domestic .... 6-19

• Base Electrical Comp.-Export ......... 6-20

• • Motor / Pump Assembly ............... 6-21

• Foot Control Assembly ................... 6-22

OPTIONAL ACCESSORIES

Refer to MEDICAL ACCESSORY BOOK {004-0096-00}

• 9A4300X • Chair Arm ...................................... 9A43

25

26

27

28

20

21

22

23

24

15

16

17

18

19

29

30

31

32

33

34

35

36

37

38

39

Always Specify Model & Serial Number

• 9A5100X

• 9A6000X

• 9A6700X

• 9A6800X

• 9A7500X

• 9A7700X

• 9A7800X

• 9A8100X

• 9A8200X

• 9A8300X

• 9A14700X

• 9A15700X

• 9A17900X

• 9A18200X

• 9A18400X

• 9A19700X

• 9A19800X

• 9A19900X

• 9A20000X

• 9A20900X

• 9A22100X

• 9A22200X

• 9A22800X

• 9A26700X

• 9A26800X

MA374300

Description Page

• Facial Pad ..................................... 9A51

• Restraint Belts ............................... 9A60

• Table Rail Kit .................................. 9A67

• Treatment Pan Assembly ............... 9A68

• Caster Base Assy. ........................ 9A75

• I.V. Pole ........................................ 9A77

• Vision Block Screen ...................... 9A78

• Articulating Armboard .................... 9A81

• Special Procedures Armboard ....... 9A82

• Instrument Tray ............................ 9A83

• Knee Crutch Assy. ...................... 9A147

• Side Rail Assy. ............................ 9A157

• Fixed Armboard .......................... 9A179

• Welch Allen Hanger Accessory ... 9A182

• Base Rail / Welch Allen Brkt. ........ 9A184

• Swivel Wheel Caster Accessory . 9A197

• Round Headrest .......................... 9A198

• Special Procedures Headrest ...... 9A199

• Color Panels (Not Shown) ........ 6-4 / 6-7

• Knee Crutch Assembly ............... 9A209

• Wrist Support Single ..................... 9A221

• Wrist Support Double ................... 9A222

• Seat Rail ....................................... 9A228

• Instrument Tray Assembly .......... 9A267

• Instrument Tray ........................... 9A268

© Midmark Corporation 1997 SF-1555 Rev. 2/04

Page 6-2

Printed in U.S.A.

Pictorial Index

4

Return To Table Of Contents

"Styled"

Upholstery

Shown

2

1

5

SECTION VI

PARTS LIST

6

7

12

3

11

6

13

Item Part No.

319-005

319-006

1 •

2 •

3 •

4 •

5 •

6 •

10

11

7 •

8 •

9 •

12

13 •

• •

• •

8

9

10

MA437700

Used on units with Serial Number KK-1000 and KL-1000

Used on units with Serial Number V2200 thru Present

Description Page Item Part No.

Description Page

Power Examination Table 115 V.

(Serial Number Prefix KK-****) ........... Ref

Power Examination Table 220 V.

(Serial Number Prefix KL-****) ........... Ref

• Back Components ............................ 6-5

• Upholstery Set - Standard ................ 6-6

• Upholstery Set - Narrow ................... 6-7

• Upholstery Set - Styled .................... 6-8

• Upholstery Set - Thermoform ........... 6-9

• Hydraulic System ........................... 6-10

• Headrest Assembly ........................ 6-11

• Seat Components .......................... 6-13

• Stirrup Assembly ............................ 6-14

• Footboard Components .................. 6-15

• Base Covers And Enclosures ........ 6-16

• Base Mechanical Components ....... 6-17

• • Base Slide Assembly .................... 6-18

• Base Electrical Comp.-Domestic .... 6-19

• Base Electrical Comp.-Export ......... 6-20

• • Motor / Pump Assembly ............... 6-21

• Foot Control Assembly ................... 6-22

27

28

29

30

31

32

33

34

35

36

20

21

22

23

24

25

26

26

14

15

16

17

18

19

Always Specify Model & Serial Number

OPTIONAL ACCESSORIES

Refer to MEDICAL ACCESSORY BOOK {004-0096-00}

• 9A4300X • Chair Arm ...................................... 9A43

• 9A5100X

• 9A6000X

• 9A7500X

• 9A7700X

• 9A7800X

• Facial Pad ..................................... 9A51

• Restraint Belts ............................... 9A60

• Caster Base Assy. ........................ 9A75

• I.V. Pole ........................................ 9A77

• Vision Block Screen ...................... 9A78

• 9A8100X

• 9A8200X

• 9A8300X

• 9A14700X

• 9A15700X

• 9A17900X

• 9A18200X

• 9A18400X

• Articulating Armboard .................... 9A81

• Special Procedures Armboard ....... 9A82

• Instrument Tray ............................ 9A83

• Knee Crutch Assy. ...................... 9A147

• Side Rail Assy. ............................ 9A157

• Fixed Armboard .......................... 9A179

• Welch Allen Hanger Accessory ... 9A182

• Base Rail / Welch Allen Brkt. ........ 9A184

• 9A19700X

• 9A19800X

• 9A19900X

• 9A20000X

• 9A20900X

• 9A22100X

• 9A22200X

• 9A22800X

• 9A26700X

• 9A26800X

• Swivel Wheel Caster Accessory . 9A197

• Round Headrest .......................... 9A198

• Special Procedures Headrest ...... 9A199

• Color Panels (Not Shown) ........ 6-4 / 6-7

• Knee Crutch Assembly ............... 9A209

• Wrist Support Single ..................... 9A221

• Wrist Support Double ................... 9A222

• Seat Rail ....................................... 9A228

• Instrument Tray Assembly .......... 9A267

• Instrument Tray ........................... 9A268

© Midmark Corporation 1997 SF-1555 Rev. 2/04

Page 6-3

Printed in U.S.A.

Return To Table Of Contents

Back Components

2

3

1

20

9

22

25

21

SECTION VI

PARTS LIST

23

24

6

4

16

7

5

19

18

17

16

11

8

10

9

14

13

15

12

MA266901

Used on units with Serial Number HH-1000 and HN-1000 thru HH-1253 and HN-1028

Item Part No.

1 050-0472-40

2 045-0001-12

3 042-0010-03

4 030-0912-40

5 042-0010-11

6 002-0146-00

7 016-0022-00

8

9 040-0250-88

10 045-0001-31

11 015-0082-02

12 040-0010-04

13 040-0250-10

Description Qty.

Item Part No.

Paper Cover ......................................... 1

Curved Washer .................................... 2

Pop Rivet .............................................. 2

Back Weldment .................................... 1

Pop Rivet .............................................. 4

Paper Tear Strip Set (24") .................... 1

Stud ...................................................... 2

Upholstered Back Section (Refer to

"Upholstery Set" Elsewhere) ................ 1

Screw ................................................... 6

Lockwasher .......................................... 1

Grounding Braid ................................... 1

Screw ................................................... 1

Screw ................................................... 1

14

15

16

17

18

19

20

21

22

23

24

25

045-0001-05

040-0375-46

042-0007-00

042-0006-01

042-0006-00

016-0542-00

061-0117-00

050-0872-40

040-0006-06

Always Specify Model & Serial Number

Description Qty.

Lockwasher .......................................... 1

Screw Plug ........................................... 4

E-Ring .................................................. 4

Clevis Pin ............................................. 1

Back Cylinder (Refer to "Hydraulic

System" Elsewhere) ............................. 1

Clevis Pin ............................................. 1

Slide Latch Assembly ........................... 2

Two Arm Headlock Assembly (Refer to

"Headrest Assembly" Elsewhere) ........ 1

Standards Label ................................... 1

Back Cover ........................................... 1

Screw ................................................... 4

Serial Number ....................................... 1

© Midmark Corporation 1997 SF-1555 Rev. 1/01

Page 6-4

Printed in U.S.A.

Return To Table Of Contents

Back Components

SECTION VI

PARTS LIST

MA266901

Used on units with Serial Number HH-1254 thru HH-1392 and HN-1029 thru HN-1069

Item Part No.

1 050-0472-40

2 045-0001-12

3 042-0010-03

4 030-1289-40

5 042-0010-11

6 002-0146-00

7 016-0022-00

8

9 040-0250-88

10

11

12

045-0001-31

015-0082-02

040-0010-04

13

14

15

040-0250-39

045-0001-05

040-0375-46

Description Qty.

Item Part No.

Paper Cover .......................................... 1

Curved Washer ..................................... 2

Pop Rivet .............................................. 2

Back Weldment ..................................... 1

Pop Rivet .............................................. 4

Paper Tear Strip Set (24") ..................... 1

Stud ...................................................... 2

Upholstered Back Section (Refer to

"Upholstery Set" Elsewhere) ................. 1

Screw ................................................... 4

Lockwasher .......................................... 1

Grounding Braid .................................... 1

Screw ................................................... 1

Screw ................................................... 2

Lockwasher .......................................... 1

Screw Plug ............................................ 4

16

17

18

19

20

21

22

23

24

25

26

27

28

042-0007-00

042-0006-01

042-0006-00

016-0542-00

061-0117-00

050-0872-40

040-0006-06

045-0001-29

040-0312-08

050-4924-40

Always Specify Model & Serial Number

Description Qty.

E-Ring ................................................... 4

Clevis Pin .............................................. 1

Back Cylinder (Refer to "Hydraulic

System" Elsewhere) .............................. 1

Clevis Pin .............................................. 1

Slide Latch Assembly ............................ 2

Two Arm Headlock Assembly (Refer to

"Headrest Assembly" Elsewhere) .......... 1

Standards Label .................................... 1

Back Cover ........................................... 1

Screw ................................................... 4

Serial Number ........................................ 1

Washer, Flat ........................................... 1

Screw .................................................... 4

Support Plate .......................................... 2

© Midmark Corporation 1997 SF-1555 Rev. 1/02

Page 6-4.1

Printed in U.S.A.

Return To Table Of Contents

Back Components

SECTION VI

PARTS LIST

MA266901

Item Part No.

Used on units with Serial Number HH-1393 and HN-1070 thru Present

Used on units with Serial Number V2200 thru Present

Description Qty.

Item Part No.

Description

1 050-0472-40

2 045-0001-12

3 042-0010-03

4 030-1332-40

5 042-0010-11

6 002-0146-00

7 016-0022-00

8

9 040-0250-88

10 045-0001-31

11

12

13

14

15

015-0082-02

040-0010-04

040-0250-39

045-0001-05

040-0375-46

Paper Cover .......................................... 1

Curved Washer ..................................... 2

Pop Rivet .............................................. 2

Back Weldment ..................................... 1

Pop Rivet .............................................. 4

Paper Tear Strip Set (24") ..................... 1

Stud ...................................................... 2

Upholstered Back Section (Refer to

"Upholstery Set" Elsewhere) ................. 1

Screw ................................................... 4

Lockwasher .......................................... 1

Grounding Braid .................................... 1

Screw ................................................... 1

Screw ................................................... 2

Lockwasher .......................................... 1

Screw Plug ............................................ 4

16

17

18

19

20

21

22

23

24

25

26

27

28

042-0007-00

042-0006-01

042-0006-02

016-0542-00

061-0117-00

050-0872-40

040-0006-06

045-0001-29

040-0312-08

050-4924-40

Always Specify Model & Serial Number

Qty.

E-Ring ................................................... 4

Clevis Pin .............................................. 1

Back Cylinder (Refer to "Hydraulic

System" Elsewhere) .............................. 1

Clevis Pin .............................................. 1

Slide Latch Assembly ............................ 2

Two Arm Headlock Assembly (Refer to

"Headrest Assembly" Elsewhere) .......... 1

Standards Label .................................... 1

Back Cover ........................................... 1

Screw ................................................... 4

Serial Number ........................................ 1

Washer, Flat ........................................... 1

Screw .................................................... 4

Support Plate .......................................... 2

© Midmark Corporation 1997 SF-1555 Rev. 2/04

Page 6-4.2

Printed in U.S.A.

Return To Table Of Contents

Back Components

1

2

24

9

26

19

3

25

SECTION VI

PARTS LIST

27

28

6

4

20

7

5

23

22

21

20

17

11

18

8

10

9

14

13

15

16

12

Used on units with Serial Number KK-1000 and KL-1000 thru KK-4983 and KL-1014

MA437600

Item Part No.

1 050-0472-40

2 045-0001-12

3 042-0010-03

4 030-0912-40

5 042-0010-11

6 002-0146-00

7 016-0022-00

8

9 040-0250-88

10 045-0001-31

11 015-0082-02

12 040-0010-04

13 040-0250-10

14

15

045-0001-05

042-0001-02

Description Qty.

Item Part No.

Paper Cover .......................................... 1

Curved Washer ..................................... 2

Pop Rivet .............................................. 2

Back Weldment ..................................... 1

Pop Rivet .............................................. 4

Paper Tear Strip Set (24") ..................... 1

Stud ...................................................... 2

Upholstered Back Section (Refer to

"Upholstery Set" Elsewhere) ................ 1

Screw ................................................... 6

Lockwasher .......................................... 1

Grounding Braid ................................... 1

Screw ................................................... 1

Screw ................................................... 1

Lockwasher .......................................... 1

Roll Pin .................................................. 2

16

17

18

19

20

21

22

23

24

25

26

27

28

040-0375-15

051-0112-00

057-0057-42

042-0007-00

042-0006-01

042-0006-00

016-0542-00

061-0117-00

050-0872-40

040-0006-06

Always Specify Model & Serial Number

Description Qty.

Screw Plug ............................................ 4

Plated Side Rail ..................................... 2

Side Rail Mount ..................................... 4

Serial Number Label ............................... 1

E-Ring ................................................... 4

Clevis Pin .............................................. 1

Back Cylinder (Refer to "Hydraulic

System" Elsewhere) .............................. 1

Clevis Pin .............................................. 1

Slide Latch Assembly ............................ 2

Two Arm Headlock Assembly (Refer to

"Headrest Assembly" Elsewhere) .......... 1

Standards Label .................................... 1

Back Cover ........................................... 1

Screw ................................................... 4

© Midmark Corporation 1997 SF-1555 Rev. 1/01

Page 6-5

Printed in U.S.A.

Return To Table Of Contents

Back Components

SECTION VI

PARTS LIST

Used on units with Serial Number KK-4984 thru KK-6665 and KL-1015 thru KL-1016

Item Part No.

Description Qty.

Item Part No.

Description

MA437600

Qty.

1 050-0472-40

2 045-0001-12

3 042-0010-03

4 030-1289-40

5 042-0010-11

6 002-0146-00

7 016-0022-00

8

9 040-0250-88

10

11

12

13

045-0001-31

015-0082-02

040-0010-04

040-0250-39

14

15

16

045-0001-05

042-0001-02

040-0375-15

Paper Cover .......................................... 1

Curved Washer ..................................... 2

Pop Rivet .............................................. 2

Back Weldment ..................................... 1

Pop Rivet .............................................. 4

Paper Tear Strip Set (24") ..................... 1

Stud ...................................................... 2

Upholstered Back Section (Refer to

"Upholstery Set" Elsewhere) ................. 1

Screw ................................................... 4

Lockwasher .......................................... 1

Grounding Braid .................................... 1

Screw ................................................... 1

Screw ................................................... 2

Lockwasher .......................................... 1

Roll Pin .................................................. 2

Screw Plug ............................................ 4

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

051-0112-00

057-0057-42

042-0007-00

042-0006-01

042-0006-00

016-0542-00

061-0117-00

050-0872-40

040-0006-06

045-0001-29

040-0312-08

050-4924-40

Always Specify Model & Serial Number

Plated Side Rail ..................................... 2

Side Rail Mount ..................................... 4

Serial Number Label ............................... 1

E-Ring ................................................... 4

Clevis Pin .............................................. 1

Back Cylinder (Refer to "Hydraulic

System" Elsewhere) .............................. 1

Clevis Pin .............................................. 1

Slide Latch Assembly ............................ 2

Two Arm Headlock Assembly (Refer to

"Headrest Assembly" Elsewhere) .......... 1

Standards Label .................................... 1

Back Cover ........................................... 1

Screw ................................................... 4

Washer, Flat ........................................... 1

Screw .................................................... 4

Support Plate .......................................... 2

© Midmark Corporation 1997 SF-1555 Rev. 1/02

Page 6-5.1

Printed in U.S.A.

Return To Table Of Contents

Back Components

SECTION VI

PARTS LIST

MA437600

Item Part No.

Used on units with Serial Number KK-6666 and KL-1017 thru Present

Used on units with Serial Number V2200 thru Present

Description Qty.

Item Part No.

Description

1 050-0472-40

2 045-0001-12

3 042-0010-03

4 030-1332-40

5 042-0010-11

6 002-0146-00

7 016-0022-00

8

9 040-0250-88

10

11

12

13

045-0001-31

015-0082-02

040-0010-04

040-0250-39

14

15

16

045-0001-05

042-0001-02

040-0375-15

Paper Cover .......................................... 1

Curved Washer ..................................... 2

Pop Rivet .............................................. 2

Back Weldment ..................................... 1

Pop Rivet .............................................. 4

Paper Tear Strip Set (24") ..................... 1

Stud ...................................................... 2

Upholstered Back Section (Refer to

"Upholstery Set" Elsewhere) ................. 1

Screw ................................................... 4

Lockwasher .......................................... 1

Grounding Braid .................................... 1

Screw ................................................... 1

Screw ................................................... 2

Lockwasher .......................................... 1

Roll Pin .................................................. 2

Screw Plug ............................................ 4

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

051-0112-00

057-0057-42

042-0007-00

042-0006-01

042-0006-02

016-0542-00

061-0117-00

050-0872-40

040-0006-06

045-0001-29

040-0312-08

050-4924-40

Always Specify Model & Serial Number

Qty.

Plated Side Rail ..................................... 2

Side Rail Mount ..................................... 4

Serial Number Label ............................... 1

E-Ring ................................................... 4

Clevis Pin .............................................. 1

Back Cylinder (Refer to "Hydraulic

System" Elsewhere) .............................. 1

Clevis Pin .............................................. 1

Slide Latch Assembly ............................ 2

Two Arm Headlock Assembly (Refer to

"Headrest Assembly" Elsewhere) .......... 1

Standards Label .................................... 1

Back Cover ........................................... 1

Screw ................................................... 4

Washer, Flat ........................................... 1

Screw .................................................... 4

Support Plate .......................................... 2

© Midmark Corporation 1997 SF-1555 Rev. 2/04

Page 6-5.2

Printed in U.S.A.

Return To Table Of Contents

Upholstery Set - Standard

SECTION VI

PARTS LIST

19

18

20

17

1

2

3

4

5

7

6

7

8

9

10

7

8

11

12

7

8

7

16

15

14

13

Color Selector......www.midmark.com

Item Part No.

Description Qty.

002-0558-***-*** Upholstery Set-Standard Width (Incl.

Items 1 thru 20) {*Specify Color} ........... 1

1 • 053-0628-01 • Headrest Cover .................................. 1

2 • 040-0006-20 • Screw ................................................. 6

3 • 058-0001-03 • Bag Clip .............................................. 2

4 • 040-0006-00 • Screw ................................................. 2

5 • 040-0010-78 • Screw (Apply Loctite #042-0024-00) ... 3

6 • 053-0582-01 • Headboard Pillow Mount ...................... 1

7 • 042-0137-00 • Upholstery Latch Stud ....................... 12

8 • 040-0010-104 • Screw ................................................. 9

9 • 042-0120-00 • Upholstery Mount Stud (Apply

Loctite # 042-0024-00) ........................ 3

MA246800

Item Part No.

10

11

12

13

14

15

16

17

18

19

20

Description Qty.

• 050-3102-40 • Seat Cover .......................................... 1

• 040-0006-00 • Screw ............................................... 10

• 057-0379-00 • Spacer ................................................ 2

• 028-0389-*** • Footrest {*Specify Color} ...................... 1

• 028-0123-*** • Legrest {*Specify Color} ...................... 1

• 002-0146-00 • Paper Tear Strip Set ............................ 1

• 016-0022-00 • Stud .................................................... 4

• 028-0388-*** • Seat Section-Std. {*Specify Color} ...... 1

• 028-0387-*** • Back Section-Std. {*Specify Color} ..... 1

• 028-0395-*** • Headrest {*Specify Color} ................... 1

• 050-2483-XX • Panel Insert

{See

(XX= )

beside Panel Color} ...... 2

* Click on the Color Selector link above to see available colors.

Always Specify Model & Serial Number

© Midmark Corporation 1997 SF-1555 Rev. 4/08

Page 6-6

Printed in U.S.A.

Return To Table Of Contents

Upholstery Set - Narrow

19

18

20

17

1

SECTION VI

PARTS LIST

16

15

14

13

2

3

4

5

7

6

7

8

9

10

7

8

11

12

7

8

7

Color Selector......www.midmark.com

MA246800

Item Part No.

Description Qty.

002-0559-***-*** Upholstery Set-Narrow Width (Incl. Items

1 thru 20) {*Specific Color} ................... 1

1 • 053-0628-01 • Headrest Cover .................................. 1

2 • 040-0006-20 • Screw ................................................. 6

3 • 058-0001-03 • Bag Clip .............................................. 2

4 • 040-0006-00 • Screw ................................................. 2

5 • 040-0010-78 • Screw (Apply Loctite # 042-0024-00) .. 3

6 • 053-0582-01 • Headboard Pillow Mount ...................... 1

7 • 042-0137-00 • Upholstery Latch Stud ....................... 12

8 • 040-0010-104 • Screw ................................................. 9

9 • 042-0120-00 • Upholstery Mount Stud (Apply

Loctite # 042-0024-00) ........................ 3

17

18

19

20

11

12

13

14

15

16

Item Part No.

10

Description Qty.

• 050-3103-40 • Seat Cover - R.H. (Shown) ................. 1

• 050-3103-41 • Seat Cover - L.H. ................................ 1

• 040-0006-00 • Screw ............................................... 10

• 057-0379-00 • Spacer ................................................ 2

• 028-0389-*** • Footrest {*Specify Color} ...................... 1

• 028-0123-*** • Legrest {*Specify Color} ...................... 1

• 029-0017-02 • Paper Tear Strip Set (24") ................... 1

• 016-0022-00 • Stud .................................................... 4

• 028-0391-*** • Seat Section-Narrow {*Specify Color} . 1

• 028-0390-*** • Back Section-Narrow {*Specify Color} . 1

• 028-0395-*** • Headrest {*Specify Color} ................... 1

• 050-2483-XX • Panel Insert

{See

(XX= )

beside Panel Color} ........ 2

* Click on the Color Selector link above to see available colors.

Always Specify Model & Serial Number

© Midmark Corporation 1997 SF-1555 Rev. 4/08

Page 6-7

Printed in U.S.A.

Return To Table Of Contents

Upholstery Set - Styled

1

2

3

4

7

6

5

SECTION VI

PARTS LIST

8

12

18

9

10

6

7

11

16

6

7

6

13

14

15

17

Color Selector......www.midmark.com

Item Part No.

Description Qty.

002-0560-***-*** Upholstery Set-Styled (Includes

Items 1 thru 19) {Specify Color} ............. 1

1 • 028-0406-*** • Headrest-Styled {Specify Color} .......... 1

2 • 058-0001-03 • Bag Clip .............................................. 2

3 • 040-0006-52 • Screw ................................................. 2

4 • 050-2690-40 • Headboard Cover ............................... 1

5 • 053-0582-01 • Headboard Pillow Mount ...................... 1

6 • 042-0137-00 • Upholstery Latch Stud ....................... 12

7 • 040-0010-104 • Screw ................................................. 9

8 • 028-0392-*** • Back Section-Styled {Specify Color} .... 1

9 • 042-0120-00 • Upholstery Mount Stud ........................ 3

10 • 050-3102-40 • Seat Cover .......................................... 2

MA246600

Item Part No.

11

12

13

14

15

16

17

18

19

Description Qty.

• 040-0006-00 • Screw ............................................... 10

• 028-0393-*** • Seat Section-Styled {Specify Color} .... 1

• 016-0022-00 • Stud .................................................... 4

• 002-0146-00 • Paper Tear Strip Set ............................ 1

• 028-0287-*** • Legrest-Styled {Specify Color} ............ 1

• 057-0379-00 • Spacer ................................................ 2

• 028-0394-*** • Footrest-Styled {Specify Color} ............ 1

• 050-2483-XX • Panel Insert

{See

(XX= )

beside Panel Color} .......... 2

• 040-0010-13 • Screw ................................................. 3

* Click on the Color Selector link above to see available colors.

Always Specify Model & Serial Number

© Midmark Corporation 1997 SF-1555 Rev. 4/08

Page 6-8

Printed in U.S.A.

Return To Table Of Contents

Upholstery Set - Thermo

1

18

SECTION VI

PARTS LIST

2

3

6

12

OBSOLETE

13

14

5

15

4

17

7

8

6

7

16

This upholstery is no longer available.

Authorized upholstery substitution on units with this type of upholstery is 002-

0560-XXX found on previous page (6-8)

.

9

10

11

6

7

6

Item Part No.

Description Qty.

13

14

15

16

17

18

002-0557-***-*** Upholstery Set-Thermo (Includes

Items 1 thru 18) {Specify Color} ............. 1

1 • 028-0458-*** • Headrest {Specify Color} ..................... 1

2 • 058-0001-03 • Bag Clip .............................................. 2

3 • 040-0006-27 • Screw ................................................. 2

4 • 040-0010-13 • Screw (Apply Loctite #042-0024-02) ... 3

5 • 053-0582-01 • Headboard Pillow Mount ...................... 1

6 • 042-0137-00 • Upholstery Latch Stud ....................... 12

7 • 040-0010-104 • Screw ................................................. 9

8 • 053-0105-26 • Velcro Tape ........................................ 1

10

11

9 • 042-0120-00 • Upholstery Mount Stud

(Apply Loctite #042-0024-02) .............. 3

12

• 050-3102-40

• 040-0006-00

• 028-0471-***

• Seat Cover .......................................... 2

• Screw ............................................... 10

• Back/Seat Section {Specify Color} ...... 1

• 016-0022-00 • Stud .................................................... 4

• 002-0146-00 • Paper Tear Strip Set ............................ 1

• 028-0461-*** • Legrest-Styled {Specify Color} ............ 1

• 057-0379-00 • Spacer ................................................ 2

• 028-0457-*** • Footrest-Styled {Specify Color} ............ 1

• 050-2483-

XX

• Panel Insert

{See

(XX= )

beside Panel Color} ........ 2

Part No.

***- ****-103-***

***- ****-095-***

***- ****-096-***

***- ****-100-***

***- ****-101-***

***- ****-102-***

Part No.

***- ****-***-014

***- ****-***-031

***- ****-***-033

***-**** -***-034

***- ****-***-035

***- ****-***-036

Always Specify Model & Serial Number

MA403500

The following are the current colors for upholstery / panel kits.

Upholstery Color Qty.

Slate Grey ................................... AR

Sand Grey ................................... AR

Iris Blue ........................................ AR

Nile Green ................................... AR

Royal Lavander ........................... AR

Terra Rosa .................................. AR

Panel Color Qty.

Slate Grey

(XX = 02) ........................

AR

Sand Grey

(XX = 06)

........................ AR

Nile Green

(XX = 08) .........................

AR

Royal Lavander

Terra Rosa

(XX = 09) .................

AR

(XX = 10) ........................

AR

Iris Blue

(XX = 07) .............................

AR

Page 6-9

© Midmark Corporation 1997 SF1555 Rev. 5/05 Printed in U.S.A.

Return To Table Of Contents

Hydraulic System

SECTION VI

PARTS LIST

NOTE

Cut cable ties as necessary to remove cylinders or replace hoses. Before disassembly, take special notice of hose positioning and the cable tie locations securing hoses. Also, note the length and radius of all hose return loops. Duplicating these hose positions, cable tie locations, and loop sizes when re-installing hoses and / or cylinders will ensure the minimum bend-radius of the hose will not be reduced, risking collapse and / or premature failure of the hose.

22

20

24

21

23 16

17

19

TYPICAL ON

ALL CYLINDERS

18

14

15

13

12

11

5

8

1

6

4

10

2

9

3

7

Item Part No.

1 002-0444-00

11

12

13

14

8

9

6

7

10

4

5

2

3

002-0001-00

014-0135-00

014-0098-00

002-0120-00

002-0117-00

002-0119-00

002-0122-00

002-0121-00

014-0136-00

002-0123-00

061-0113-00

016-0161-00

014-0137-00

Description Qty.

Item Part No.

Motor / Pump Components (See

Breakdown Elsewhere) ..................... Ref

Base Cylinder Kit .................................. 1

Base Tee .............................................. 1

Union Tee ............................................. 1

Hose Assembly Kit ............................... 1

Hose Assembly Kit ............................... 1

Hose Assembly Kit ............................... 1

Hose Assembly Kit ............................... 1

Hose Assembly Kit ............................... 1

Tilt Power Manifold ............................... 1

Hose Assembly Kit ............................... 1

Safety Cable Label ............................... 1

Safety Cable ......................................... 1

Return Manifold .................................... 1

15

16

17

18

19

20

21

22

23

24

25

26

27

28

002-0125-00

002-0126-00

002-0002-00

002-0124-00

002-0003-00

002-0346-00

025-0032-00

054-0109-00

054-0108-00

053-0226-03

015-0013-00

015-0013-02

015-0016-00

015-0017-00

Always Specify Model & Serial Number

MA241500

Description Qty.

Hose Assembly Kit ............................... 1

Hose Assembly Kit ............................... 1

Tilt Cylinder Kit ..................................... 1

Hose Assembly Kit ............................... 1

Foot Cylinder Kit ................................... 1

Back Cylinder KIt .................................. 1

Rod Wiper Bracket ............................ AR

Felt Wiper (1") ................................... AR

Felt Wiper (11/16") ............................ AR

Snap-in Nyliner Bearing .................... AR

Cable Tie (Not Shown) ......................... 6

Cable Tie (Not Shown) ......................... 4

Cable Tie (Not Shown) ......................... 9

Cable Tie (Not Shown) ......................... 1

© Midmark Corporation 1997 SF-1555 Rev. 9/01

Page 6-10

Printed in U.S.A.

Return To Table Of Contents

Headrest Assembly

SECTION VI

PARTS LIST

1

5

6

2

9

7

10

14

11

13

17

12

15

16

11

18

9

19

20

15

14

8

21

3

4

16

22

MA247000

17

11

Used on units with Serial Number HH1000 thru HH1151, HN1000 thru HN1014,

KK1000 thru KK3673, and KL1000 thru KL1011

Item Part No.

Description Qty.

Item Part No.

Description

1

2 002-0715-01

3 040-0250-26

4 057-0375-00

5 040-0250-79

6 016-0542-01

7 029-1100-07

8 •

9 •

10

(N.S.P.)

(N.S.P.)

(N.S.P.)

Upholstered Headrest {Specify Color}

(Refer to "Upholstery Set" Elsewhere) ... 1

Headboard Pivot Mount ......................... 1

Set Screw (Apply Loctite

Loctite #042-0024-00) ........................... 1

Headboard Pivot Pin .............................. 1

Screw ................................................... 1

Slide Latch ............................................ 3

Two Arm Headlock Assembly

(Includes Items 8 thru 22) ..................... 1

• Screw ................................................. 1

• Set Screw ........................................... 2

• Headlock Head ................................... 1

11

12

13

14

15

16

17

18

19

20

21

22

(N.S.P.)

(N.S.P.)

• (N.S.P.)

• (N.S.P.)

(N.S.P.)

(N.S.P.)

• (N.S.P.)

• (N.S.P.)

• (N.S.P.)

• (N.S.P.)

• (N.S.P.)

• (N.S.P.)

(N.S.P.) Denotes "Non Servicable Part"

Always Specify Model & Serial Number

Qty.

• Dowel Pin ............................................ 4

• Pivot Bar ............................................. 1

• Draw Bar ............................................. 1

• Head Pivot Handle Weldment .............. 2

• Dowel Pin ............................................ 2

• Jam Nut .............................................. 2

• Set Screw ........................................... 2

• Screw ................................................. 1

• Screw ................................................. 4

• Headlock Base .................................... 1

• Pivot Bar ............................................. 1

• Draw Bar ............................................. 1

© Midmark Corporation 1997 SF-1555 Rev. 10/07

Page 6-11

Printed in U.S.A10

1

5

6

2

3

4

Return To Table Of Contents

Headrest Assembly

8

9

7

10

SECTION VI

PARTS LIST

14

11

13

17

12

15

18

9

19

20

16

11

15

14

21

16

22

17

11

MA247001

Used on units with Serial Number HH1152 thru HH1593, HN1015 thru HN1088,

KK3674 thru KK8838 and KL1012 thru KL1018

Item Part No.

Description Qty.

Item Part No.

Description

1

2 002-0715-01

3 040-0008-35

4 057-0528-00

5 040-0250-79

6 016-0542-01

7 029-1100-07

8 • (N.S.P.)

9 •

10

(N.S.P.)

• (N.S.P.)

Upholstered Headrest {Specify Color}

(Refer to "Upholstery Set" Elsewhere) ... 1

Headboard Pivot Mount ......................... 1

Screw (Apply Loctite

Loctite #042-0024-00) ........................... 1

Headboard Pivot Pin .............................. 1

Screw ................................................... 1

Slide Latch ............................................ 3

Two Arm Headlock Assembly

(Includes Items 8 thru 22) ..................... 1

• Screw ................................................. 1

• Set Screw ........................................... 2

• Headlock Head ................................... 1

11

12

13

14

15

16

17

18

19

20

21

22

(N.S.P.)

(N.S.P.)

• (N.S.P.)

• (N.S.P.)

• (N.S.P.)

• (N.S.P.)

(N.S.P.)

• (N.S.P.)

• (N.S.P.)

• (N.S.P.)

• (N.S.P.)

• (N.S.P.)

(N.S.P.) Denotes "Non Servicable Part"

Always Specify Model & Serial Number

Qty.

• Dowel Pin ............................................ 4

• Pivot Bar ............................................. 1

• Draw Bar ............................................. 1

• Head Pivot Handle Weldment .............. 2

• Dowel Pin ............................................ 2

• Jam Nut .............................................. 2

• Set Screw ........................................... 2

• Screw ................................................. 1

• Screw ................................................. 4

• Headlock Base .................................... 1

• Pivot Bar ............................................. 1

• Draw Bar ............................................. 1

© Midmark Corporation 1997 SF-1555 Rev. 10/07

Page 6-11.1

Printed in U.S.A.

Return To Table Of Contents

Headrest Assembly SECTION VI

PARTS LIST

1

5

6

2

9

7

10

14

11

13

12

15

16

17

18

9

15

11

8

14

19

3

4

20

21

11

MA629800i

Used on units with Serial Number HH1594, HN1089, KK8839 and KL1019 thru Present

Used on units with Serial Number V2200 thru Present

Item Part No.

Description Qty.

Item Part No.

Description Qty.

1

2 002-0715-01

3 040-0008-35

4 057-0528-00

5 040-0250-79

6 016-0542-01

7 029-3063-01

8 •

9 •

(N.S.P.)

(N.S.P.)

Upholstered Headrest {Specify Color}

(Refer to "Upholstery Set" Elsewhere) ... 1

Headboard Pivot Mount ......................... 1

Screw (Apply Loctite

Loctite #042-0024-00) ........................... 1

Headboard Pivot Pin .............................. 1

Screw ................................................... 1

Slide Latch ............................................ 3

Two Arm Headlock Assembly

(Includes Items 8 thru 20) ..................... 1

• Screw ................................................. 1

• Set Screw ........................................... 2

10

11

12

13

14

15

16

17

18

19

20

21

• (N.S.P.)

• (N.S.P.)

• (N.S.P.)

• (N.S.P.)

• (N.S.P.)

(N.S.P.)

• (N.S.P.)

• (N.S.P.)

• (N.S.P.)

• (N.S.P.)

• (N.S.P.)

002-1007-01

(N.S.P.) Denotes "Non Servicable Part"

Always Specify Model & Serial Number

• Headlock Head ................................... 1

• Dowel Pin ............................................ 4

• Pivot Bar ............................................. 1

• Draw Bar ............................................. 1

• Over Center Handle ............................ 2

• Dowel Pin ............................................ 2

• Screw ................................................. 1

• Screw ................................................. 4

• Headlock Base .................................... 1

• Pivot Bar ............................................. 1

• Draw Bar ............................................. 1

Single Arm Headlock .............................. 1

© Midmark Corporation 1997 SF-1555 Rev. 10/07

Page 6-11.2

Printed in U.S.A.

Return To Table Of Contents

Seat Components

2

SECTION VI

PARTS LIST

1

3

5

4

6

7

18

19

14

13

12

11

8

17

16

9

15

10

20

11

Used on units with Serial Number HH-1000 and HN-1000 thru HH-1253 and HN-1028

MA374600

Item Part No.

1

2

3 016-0140-00

4 042-0010-11

5 016-0140-00

6 053-0068-06

7 030-1042-40

8 053-0050-00

9 016-0162-00

Description Qty.

Item Part No.

Stirrup Assembly {Includes Items 18 &

19} (Refer to Breakdown Elsewhere) ..... 2

Upholstered Seat Section (Refer to

"Uphholstery Set" Elsewhere) ............... 1

Trim Lock (Specify Length - 2") ............. 2

Pop Rivet .............................................. 4

Trim Lock (Specify Length - 1 1/2") ....... 2

Snap Bushing ........................................ 2

Seat Weldment ...................................... 1

Hole Plug ............................................... 2

Trim Lock (Specify Length - 11") ........... 1

10

11

12

13

14

15

16

17

18

19

20

015-0014-00

040-0010-04

015-0082-01

040-0001-31

040-0010-23

015-0001-00

042-0045-01

050-3911-40

040-0375-00

040-0010-47

016-0542-00

Always Specify Model & Serial Number

Description Qty.

Wire Clip ................................................ 1

Screw .................................................... 3

Ground Braid .......................................... 1

Lockwasher ........................................... 1

Screw .................................................... 2

Wire Clip ................................................. 1

Nutsert ................................................... 2

Filler Hut ................................................. 1

Screw .................................................... 4

Screw .................................................... 2

Slide Latch Assembly ............................ 2

© Midmark Corporation 1997 SF-1555 Rev. 1/01

Page 6-12

Printed in U.S.A.

Return To Table Of Contents

Seat Components

2

SECTION VI

PARTS LIST

1

3

5

4

6

7

18

19

14

13

12

11

8

17

16

9

15

10

20

11

Item Part No.

1

2

Used on units with Serial Number HH-1254 thru HH-1392 and HN-1029 thru HN-1069

MA374600

3 016-0140-00

4 042-0010-11

5 016-0140-00

6 053-0068-06

7 030-1288-40

8 053-0050-00

9 016-0162-00

Description Qty.

Item Part No.

Stirrup Assembly {Includes Items 18 &

19} (Refer to Breakdown Elsewhere) ..... 2

Upholstered Seat Section (Refer to

"Uphholstery Set" Elsewhere) ............... 1

Trim Lock (Specify Length - 2") ............. 2

Pop Rivet .............................................. 4

Trim Lock (Specify Length - 1 1/2") ....... 2

Snap Bushing ........................................ 2

Seat Weldment ...................................... 1

Hole Plug ............................................... 2

Trim Lock (Specify Length - 11") ........... 1

10

11

12

13

14

15

16

17

18

19

20

015-0014-00

040-0010-04

015-0082-01

040-0001-31

040-0010-23

015-0001-00

042-0045-01

050-3911-40

040-0375-00

040-0010-47

016-0542-00

Always Specify Model & Serial Number

Description Qty.

Wire Clip ................................................ 1

Screw .................................................... 3

Ground Braid .......................................... 1

Lockwasher ........................................... 1

Screw .................................................... 2

Wire Clip ................................................. 1

Nutsert ................................................... 2

Filler Hut ................................................. 1

Screw .................................................... 4

Screw .................................................... 2

Slide Latch Assembly ............................ 2

© Midmark Corporation 1997 SF-1555 Rev. 1/02

Page 6-12.1

Printed in U.S.A.

Return To Table Of Contents

Seat Components

2

SECTION VI

PARTS LIST

1

3

5

4

6

7

18

19

14

13

12

11

8

17

16

9

15

10

20

11

MA374600

Item Part No.

1

2

Used on units with Serial Number HH-1393 and HN-1070 thru Present

3 016-0140-00

4 042-0010-11

5 016-0140-00

6 053-0068-06

7 030-1331-40

8 053-0050-00

9 016-0162-00

Description Qty.

Item Part No.

Stirrup Assembly {Includes Items 18 &

19} (Refer to Breakdown Elsewhere) ..... 2

Upholstered Seat Section (Refer to

"Uphholstery Set" Elsewhere) ............... 1

Trim Lock (Specify Length - 2") ............. 2

Pop Rivet .............................................. 4

Trim Lock (Specify Length - 1 1/2") ....... 2

Snap Bushing ........................................ 2

Seat Weldment ...................................... 1

Hole Plug ............................................... 2

Trim Lock (Specify Length - 11") ........... 1

10

11

12

13

14

15

16

17

18

19

20

015-0014-00

040-0010-04

015-0082-01

040-0001-31

040-0010-23

015-0001-00

042-0045-01

050-3911-40

040-0375-00

040-0010-47

016-0542-00

Always Specify Model & Serial Number

Description Qty.

Wire Clip ................................................ 1

Screw .................................................... 3

Ground Braid .......................................... 1

Lockwasher ........................................... 1

Screw .................................................... 2

Wire Clip ................................................. 1

Nutsert ................................................... 2

Filler Hut ................................................. 1

Screw .................................................... 4

Screw .................................................... 2

Slide Latch Assembly ............................ 2

© Midmark Corporation 1997 SF-1555

Page 6-12.2

Printed in U.S.A.

Return To Table Of Contents

Seat Components

4

SECTION VI

PARTS LIST

1

7

5

28

25

26

27

24

20

23

22

21

19

2

8

9

18

17

11

10

12

3

13

16

6

14

15

12

Used on units with Serial Number KK-1000 and KL-1000 thru KK-4983 and KL-1014

MA437500

Item Part No.

1

2 016-0373-00

3 029-1276-01

4

10

11

12

13

5 042-0010-11

6 016-0542-00

7 016-0140-00

8 040-0010-47

9 040-0375-00

015-0082-01

040-0001-31

040-0010-04

041-0008-02

Description Qty.

Item Part No.

Stirrup Assembly (Includes Items 8 & 9

{Refer to "Stirrup Assembly" Elsewhere}) 2

Treatment Pan ...................................... 1

Pan Slide Assembly ............................... 1

Upholstered Seat Section (Refer to

"Uphholstery Set" Elsewhere) ............... 1

Pop Rivet .............................................. 4

Slide Latch Assembly ............................ 2

Trim Lock (Specify Length - 1 1/2") ....... 2

Screw ................................................... 2

Screw ................................................... 4

Ground Braid ......................................... 1

Lockwasher .......................................... 1

Screw ................................................... 3

Nut ....................................................... 4

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

Always Specify Model & Serial Number

015-0001-00

015-0014-00

016-0162-00

053-0050-00

030-1042-40

053-0068-06

050-1127-40

045-0001-15

045-0001-04

040-0010-35

040-0004-09

015-0425-00

045-0001-38

041-0004-01

016-0140-00

Description Qty.

Wire Clip ................................................ 1

Wire Clip ................................................ 1

Trim Lock (Specify Length - 11") ........... 1

Hole Plug ............................................... 2

Seat Weldment ...................................... 1

Snap Bushing ........................................ 2

Switch Bracket ...................................... 1

Washer ................................................. 2

Lockwasher .......................................... 2

Screw ................................................... 2

Screw ................................................... 2

Limit Switch ........................................... 1

Lockwasher .......................................... 2

Nut ....................................................... 2

Trim Lock (Specify Length - 2") ............. 2

© Midmark Corporation 1997 SF-1555 Rev. 1/01

Page 6-13

Printed in U.S.A.

Return To Table Of Contents

Seat Components

4

SECTION VI

PARTS LIST

1

7

5

28

25

26

27

24

20

23

22

21

19

2

8

9

18

17

11

10

12

3

13

16

6

14

15

12

Used on units with Serial Number KK-4984 thru KK-6665 and KL-1015 thru KL-1016

MA437500

Item Part No.

1

2 016-0373-00

3 029-1276-01

4

10

11

12

13

5 042-0010-11

6 016-0542-00

7 016-0140-00

8 040-0010-47

9 040-0375-00

015-0082-01

040-0001-31

040-0010-04

041-0008-02

Description Qty.

Item Part No.

Stirrup Assembly (Includes Items 8 & 9

{Refer to "Stirrup Assembly" Elsewhere}) 2

Treatment Pan ...................................... 1

Pan Slide Assembly ............................... 1

Upholstered Seat Section (Refer to

"Uphholstery Set" Elsewhere) ............... 1

Pop Rivet .............................................. 4

Slide Latch Assembly ............................ 2

Trim Lock (Specify Length - 1 1/2") ....... 2

Screw ................................................... 2

Screw ................................................... 4

Ground Braid ......................................... 1

Lockwasher .......................................... 1

Screw ................................................... 3

Nut ....................................................... 4

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

015-0001-00

015-0014-00

016-0162-00

053-0050-00

030-1288-40

053-0068-06

050-1127-40

045-0001-15

045-0001-04

040-0010-35

040-0004-09

015-0425-00

045-0001-38

041-0004-01

016-0140-00

Always Specify Model & Serial Number

Description Qty.

Wire Clip ................................................ 1

Wire Clip ................................................ 1

Trim Lock (Specify Length - 11") ........... 1

Hole Plug ............................................... 2

Seat Weldment ...................................... 1

Snap Bushing ........................................ 2

Switch Bracket ...................................... 1

Washer ................................................. 2

Lockwasher .......................................... 2

Screw ................................................... 2

Screw ................................................... 2

Limit Switch ........................................... 1

Lockwasher .......................................... 2

Nut ....................................................... 2

Trim Lock (Specify Length - 2") ............. 2

© Midmark Corporation 1997 SF-1555 Rev. 1/02

Page 6-13.1

Printed in U.S.A.

Return To Table Of Contents

Seat Components

4

SECTION VI

PARTS LIST

1

7

5

28

25

26

27

24

20

23

22

21

19

2

8

9

18

17

11

10

12

3

13

16

6

14

15

12

MA437500

Item Part No.

1

Used on units with Serial Number KK-6666 and KL-1017 thru Present

Used on units with Serial Number V2200 thru Present

2 016-0373-00

3 029-1276-01

4

5 042-0010-11

10

11

6 016-0542-00

7 016-0140-00

8 040-0010-47

9 040-0375-00

015-0082-01

040-0001-31

12

13

040-0010-04

041-0008-02

Description Qty.

Item Part No.

Stirrup Assembly (Includes Items 8 & 9

{Refer to "Stirrup Assembly" Elsewhere}) 2

Treatment Pan ...................................... 1

Pan Slide Assembly ............................... 1

Upholstered Seat Section (Refer to

"Uphholstery Set" Elsewhere) ............... 1

Pop Rivet .............................................. 4

Slide Latch Assembly ............................ 2

Trim Lock (Specify Length - 1 1/2") ....... 2

Screw ................................................... 2

Screw ................................................... 4

Ground Braid ......................................... 1

Lockwasher .......................................... 1

Screw ................................................... 3

Nut ....................................................... 4

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

015-0001-00

015-0014-00

016-0162-00

053-0050-00

030-1331-40

053-0068-06

050-1127-40

045-0001-15

045-0001-04

040-0010-35

040-0004-09

015-0425-00

045-0001-38

041-0004-01

016-0140-00

Always Specify Model & Serial Number

Description Qty.

Wire Clip ................................................ 1

Wire Clip ................................................ 1

Trim Lock (Specify Length - 11") ........... 1

Hole Plug ............................................... 2

Seat Weldment ...................................... 1

Snap Bushing ........................................ 2

Switch Bracket ...................................... 1

Washer ................................................. 2

Lockwasher .......................................... 2

Screw ................................................... 2

Screw ................................................... 2

Limit Switch ........................................... 1

Lockwasher .......................................... 2

Nut ....................................................... 2

Trim Lock (Specify Length - 2") ............. 2

© Midmark Corporation 1997 SF-1555 Rev. 2/04

Page 6-13.2

Printed in U.S.A.

Stirrup Assembly

Return To Table Of Contents

9

SECTION VI

PARTS LIST

10

7

1

8

11

2

13

10

12

3

6

14

4

5

This assembly is no longer available.

It has been replaced by 002-0719-04.

Note: This kit contains only one stirrup.

MA223700

Used on units with Serial Numbers HH1000, HN1000, KK1000 and KL1000

thru HH1499, HN1082, KK7800 and KL1018

Item Part No.

Description Qty.

Item Part No.

Description Qty.

029-1394-02

029-1394-03

R.H. Stirrup Assembly {Shown}

(Includes Items 1 thru 11) ..................... 1

L.H. Stirrup Assembly {Not Shown}

(Includes Items 1 thru 11) ..................... 1

1 • 029-1397-03 • Stirrup Assembly (Includes

Items 2 thru 4) ..................................... 1

2 • • 020-0181-30 • • Coated Stirrup ................................... 1

3 • • 020-0182-30 • • Pivot Block ........................................ 1

4 • • 042-0001-00 • • Roll Pin .............................................. 2

5 • • 040-0250-15 • • Set Screw ......................................... 1

6 • • 051-0668-00 • • Horizontal Stirrup Bar (Black) ........... 1

7 • 053-0387-00 • Pivot Boss ........................................... 1

8

9

10

11

12

13

14

• 030-0736-40 • R.H. Stirrup Mount Weldment

(Shown) .............................................. 1

• 030-0737-40 • L.H. Stirrup Mount Weldment

(Not Shown) ...........................................

• 050-5027-00 • Stirrup Guide Bracket .......................... 1

• 040-0010-47 • Screw ................................................. 2

• 016-0400-00 • Stirrup Index Spring ............................. 1

• 040-0375-00 • Screw ................................................. 2

• 053-0050-05 Hole Plug ( [1] Used on R.H. Stirrup

061-0279-00

Mount Weldment, [2] Used on R.H.

Stirrup Mount Weldment ...................... 3

Stirrup Instruction Label (Used on L.H.

Stirrup Mount Weldments Only) ............. 1

Always Specify Model & Serial Number

© Midmark Corporation 1997 SF-1555 Rev. 1/06

Page 6-14

Printed in U.S.A.

Stirrup Assembly

Return To Table Of Contents

SECTION VI

PARTS LIST

5

7

8

9

1

2

6

3

4

12

11

8

10

MA613200i

Used on units with Serial Numbers HH1499, HN1082, KK7800 and KL1018 thru Present

Used on units with Serial Number V2200 thru Present

Item Part No.

Description Qty.

Item Part No.

Description Qty.

029-1394-02 R.H. Stirrup Assembly {Shown}

(Includes Items 1 thru 11) ..................... 1

029-1394-03 L.H. Stirrup Assembly {Not Shown}

(Includes Items 1 thru 11) ..................... 1

1 • 029-2951-02 • Stirrup Assembly (Includes

Items 2 thru 4) ..................................... 1

2 • • 020-0239-30 • • Coated Stirrup ................................... 1

3 • • 042-0001-00 • • Roll Pin .............................................. 1

4 • • 051-1003-01 • • Stirrup Bar ......................................... 1

5 • 053-0387-00 • Pivot Boss ........................................... 1

6 • 030-0736-40 • R.H. Stirrup Mount Weldment

(Shown) .............................................. 1

• 030-0737-40 • L.H. Stirrup Mount Weldment

(Not Shown) ...........................................

7 • 050-5027-00 • Stirrup Guide Bracket .......................... 1

10

11

8 • 040-0010-47 • Screw ................................................. 2

9 • 016-0400-00 • Stirrup Index Spring ............................. 1

• 040-0375-00

• 053-0050-05

• Screw ................................................. 2

Hole Plug ( [1] Used on R.H. Stirrup

12 061-0279-00

Always Specify Model & Serial Number

Mount Weldment, [2] Used on R.H.

Stirrup Mount Weldment ...................... 3

Stirrup Instruction Label (Used on L.H.

Stirrup Mount Weldments Only) ............. 1

© Midmark Corporation 1997 SF-1555 Rev. 2/04

Page 6-14.1

Printed in U.S.A.

Return To Table Of Contents

Footboard Components

SECTION VI

PARTS LIST

1

3

5

4

13

6 8

7

9

10

11

12

2

14

15

27

21

23

24

25

19

22

16

17

20

18

26

MA247200

Used on units with Serial Numbers HH1000 thru HH1009, HL1000 thru HL1006 and KK1000, thru KK1162

Item Part No.

Description Qty.

1

2

Upholstered Foot Rest (Refer to

"Upholstery Set " Elsewhere) ............ Ref

Upholstered Leg Rest (Refer to

"Upholstery Set " Elsewhere) ............ Ref

3 029-1646-01 Footrest Assembly (Includes

Items 4 thru 9) ...................................... 1

4 • 030-1113-40 • Footboard Weldment ........................... 1

10

11

12

5 • 050-0868-00 • Catch Channel .................................... 1

6 • 042-0010-02 • Pop Rivet ............................................ 4

7 • 025-0045-01 • L.H. Spring (Shown) ............................ 1

• 025-0045-00 • R.H. Spring (Not Shown) ..................... 1

8 • 042-0010-11 • Pop Rivet ............................................ 6

9 • 016-0542-00 • Slide Latch Assembly .......................... 5

042-0010-04

042-0010-13

041-0375-05

Pop Rivet .............................................. 8

Pop Rivet .............................................. 4

Jam Nut ................................................ 2

Item Part No.

13

14

15

16

17

18

19

20

21

22

23

24

25

26

016-0092-00

050-0871-00

030-0886-40

042-0005-03

042-0004-00

045-0001-31

040-0010-04

016-0076-00

015-0082-01

045-0004-00

042-0014-00

042-0007-00

042-0006-01

Always Specify Model & Serial Number

Description Qty.

Magnet ................................................. 2

Foot Trim .............................................. 1

Foot Extension Weldment .................... 1

Clevis Pin ............................................. 1

Pin Clip ................................................. 1

Foot Cylinder (Refer to "Hydraulic

System" Elsewhere) .......................... Ref

Lockwasher .......................................... 1

Screw ................................................... 1

Bushing ................................................ 2

Ground Braid ........................................ 1

Washer ................................................. 2

Shoulder Screw .................................... 2

E-Ring .................................................. 2

Clevis Pin ............................................. 1

© Midmark Corporation 1997 SF-1555

Page 6-15

Printed in U.S.A.

Return To Table Of Contents

Footboard Components

SECTION VI

PARTS LIST

1

3

5

4 6 8

7

9

10

11

12

2

13

14

15

9

21

23

24

22

25

19

16

17

20

18

26

MA247201

Used on units with Serial Numbers HH1010 thru HH1392, HN1000 thru HN1069, KK1163 thru

KK6665 and KL1000 thru KL1016

Item Part No.

Description Qty.

Item Part No.

1 Upholstered Foot Rest (Refer to

"Upholstery Set " Elsewhere) ............ Ref

2

3 029-1646-01

Upholstered Leg Rest (Refer to

"Upholstery Set " Elsewhere) ............ Ref

Footrest Assembly (Includes

Items 4 thru 9) ...................................... 1

4 • 030-1113-40 • Footboard Weldment ........................... 1

5 • 050-0868-00 • Catch Channel .................................... 1

6 • 042-0010-02 • Pop Rivet ............................................ 4

7 • 025-0045-01 • L.H. Spring (Shown) ............................ 1

• 025-0045-00 • R.H. Spring (Not Shown) ..................... 1

8 • 042-0010-11 • Pop Rivet ............................................ 6

9 • 016-0542-00 • Slide Latch Assembly .......................... 5

10 042-0010-04 Pop Rivet .............................................. 8

11

12

042-0010-13

041-0375-05

Pop Rivet .............................................. 4

Jam Nut ................................................ 2

13

14

15

16

17

18

19

20

25

26

016-0604-01

050-4127-00

030-0886-40

042-0005-03

042-0004-00

045-0001-31

040-0010-04

21 016-0076-00

22 015-0082-01

23 045-0004-00

24 042-0014-00

042-0007-00

042-0006-01

Always Specify Model & Serial Number

Description Qty.

Magnet .................................................. 2

Foot Trim .............................................. 1

Foot Extension Weldment ...................... 1

Clevis Pin .............................................. 1

Pin Clip .................................................. 1

Foot Cylinder (Refer to "Hydraulic

System" Elsewhere) .......................... Ref

Lockwasher .......................................... 1

Screw ................................................... 1

Bushing ................................................ 2

Ground Braid ........................................ 1

Washer ................................................. 2

Shoulder Screw .................................... 2

E-Ring .................................................. 2

Clevis Pin ............................................. 1

© Midmark Corporation 1997 SF-1555 Rev. 1/02

Page 6-15.1

Printed in U.S.A.

Return To Table Of Contents

Footboard Components

SECTION VI

PARTS LIST

1

3

5

4 6 8

7

9

10

11

12

2

13

14

15

9

21

23

24

22

25

19

16

17

20

18

26

Used on units with Serial Numbers HH1393, HN1070, KK6666, KL1017, thru Present

Used on units with Serial Number V2200 thru Present

MA247201

Item Part No.

Description Qty.

1

2

Upholstered Foot Rest (Refer to

"Upholstery Set " Elsewhere) ............. Ref

Upholstered Leg Rest (Refer to

"Upholstery Set " Elsewhere) ............. Ref

3 029-1646-01 Footrest Assembly (Includes

Items 4 thru 9) ....................................... 1

4 • 030-1113-40 • Footboard Weldment ........................... 1

10

11

12

5 • 050-0868-00 • Catch Channel .................................... 1

6 • 042-0010-02 • Pop Rivet ............................................ 4

7 • 025-0045-01 • L.H. Spring (Shown) ............................ 1

• 025-0045-00 • R.H. Spring (Not Shown) ..................... 1

8 • 042-0010-11 • Pop Rivet ............................................ 6

9 • 016-0542-00 • Slide Latch Assembly .......................... 5

042-0010-04

042-0010-13

041-0375-05

Pop Rivet .............................................. 8

Pop Rivet .............................................. 4

Jam Nut ................................................ 2

Item Part No.

13

14

15

16

17

18

19

20

21

22

23

24

25

26

053-0018-00

050-4127-00

030-1333-40

042-0005-03

042-0004-00

045-0001-31

040-0010-04

016-0076-00

015-0082-01

045-0004-00

042-0014-00

042-0007-00

042-0006-01

Always Specify Model & Serial Number

Description Qty.

Nyl-o-tape .............................................. 1

Foot Trim .............................................. 1

Foot Extension Weldment ...................... 1

Clevis Pin .............................................. 1

Pin Clip .................................................. 1

Foot Cylinder (Refer to "Hydraulic

System" Elsewhere) ........................... Ref

Lockwasher .......................................... 1

Screw ................................................... 1

Bushing ................................................. 2

Ground Braid ......................................... 1

Washer ................................................. 2

Shoulder Screw ..................................... 2

E-Ring ................................................... 2

Clevis Pin .............................................. 1

© Midmark Corporation 1997 SF-1555 Rev 2/04

Page 6-15.2

Printed in U.S.A.

Return To Table Of Contents

Base Covers And Enclosures

3

1

2

5

4

14

17

13

SECTION VI

PARTS LIST

1

16

15

1

6

11

12

319

9

10

18

7

1

8

19

MA374400

Item Part No.

Description Qty.

Item Part No.

Description Qty.

1 040-0008-29

2 050-2677-40

Screw ................................................. 24

Back Inner Shroud ................................ 1

3 050-0947-41 L.H. Inner Shroud (Less Nutserts) ........ 1

• 042-0045-02 • Nutsert ................................................ 8

4 029-1585-01

5 050-2639-41

Back Outer Shroud Assembly ............... 1

L.H. Outer Shroud (Less Nutserts) ....... 1

• 042-0045-01 • Nutsert ................................................ 7

• 042-0045-02 • Nutsert ................................................. 4

6 029-1586-01

029-1608-01

Motor Cover Assembly (Domestic

Units Only) ........................................... 1

Motor Cover Assembly (Export Units

Only) ..................................................... 1

7

8

061-0033-00

040-0010-34

Caution Label (Domestic Units Only) ... 1

Screw (Domestic Units Only) ............... 6

040-0010-129 Screw (Export Units Only) .................... 6

9 050-2639-40 R.H. Outer Shroud (Less Nutserts) ....... 1

• 042-0045-01 • Nutsert ................................................ 7

10

11

12

13

14

15

16

17

18

19

Always Specify Model & Serial Number

• 042-0045-02 • Nutsert ................................................. 4

053-0516-01 Side Panel ............................................. 2

050-2483-01 Side Panel Insert (Refer to "Upholstery and Panels" Elsewhere) .................... Ref.

061-0640-01 Nameplate Label - 319 (Used on

061-0640-04

050-0947-40

319-003/004) ......................................... 2

Nameplate Label - 75 Evolution

(Used on 319-005/006) ......................... 2

R.H. Inner Shroud (Less Nutsert) ......... 1

• 042-0045-02 • Nutsert ................................................ 8

045-0001-15 Washer ................................................. 6

050-2617-40 Front Outer Shroud ............................... 1

050-0463-40

040-0010-47

040-0010-23

051-0796-40

Front Inner Shroud ................................ 1

Screw ................................................. 12

Screw ................................................... 8

Motor Cover Strap (Export Units Only) .. 2

© Midmark Corporation 1997 SF-1555

Page 6-16

Printed in U.S.A.

Base Mechanical

Components

Return To Table Of Contents

1

20

21

19

2

22

6

3

BASE REPAIR KIT

COMPONENTS

4

14

5

13

8

7

11

10

17

14

18

SECTION VI

PARTS LIST

16

15

6

8

12

9

MA224201

Used on units with Serial Numbers HH1000 thru HH1392, HN1000 thru HN1069, KK1000 thru

KK6665 and KL1000 thru KL1016

Item Part No.

Description Qty.

Item Part No.

Description Qty.

1

2

3

4

040-0250-04

057-0027-00

042-0005-03

5 042-0005-01

6 042-0004-00

7 050-1475-40

8 040-0375-00

9 016-0001-00

10 015-0001-00

11 040-0010-04

12

Set Screw ............................................. 4

Tilt Pivot Pin ........................................... 2

Clevis Pin .............................................. 1

Base Cylinder (Refer to "Hydraulic

System" Elsewhere) ........................... Ref

Clevis Pin .............................................. 1

Hitch Pin Clip .......................................... 2

Brace .................................................... 1

Screw ................................................. 12

Leveling Screw ...................................... 4

Wire Clip ................................................ 2

Screw ................................................... 2

030-1057-00 Stationary Base Weldment ..................... 1

• 042-0045-01 • Nutsert ................................................ 2

13

14

15

16

17

18

19

20

21

22

042-0007-00

042-0006-01

Base Slide Assembly (Refer to

Breakdown Elsewhere) ...................... Ref

E-Ring ................................................... 4

Clevis Pin .............................................. 1

Tilt Cylinder Assembly (Refer to

042-0006-00

002-0514-00

"Hydraulic System" Elsewhere) .......... Ref

Clevis Pin .............................................. 1

Seat Weldment (Refer to "Seat

Components" Elsewhere) ................... Ref

Base Repair Kit (Includes Items 20 thru 22

{Not used with Rotational Bases}) ......... 1

• 040-0250-89 • Screw ................................................. 4

• 030-1010-00 • Base Cylinder Mount Weldment ........... 1

• 041-0250-13 • Nut ...................................................... 4

Always Specify Model & Serial Number

© Midmark Corporation 1997 SF-1555 Rev. 9/02

Page 6-17

Printed in U.S.A.

Base Mechanical

Return To Table Of Contents

Components

1

20

21

19

2

22

6

3

BASE REPAIR KIT

COMPONENTS

4

14

5

13

8

7

11

10

14

18

17

16

15

SECTION VI

PARTS LIST

6

8

12

9

Used on units with Serial Numbers HH1393, HN1070, KK6666, KL1017, thru Present

Used on units with Serial Number V2200 thru Present

MA224201

Item Part No.

Description Qty.

Item Part No.

Description Qty.

1

2

3

4

040-0250-04

057-0027-00

042-0005-03

5 042-0005-01

6 042-0004-00

7 050-1475-40

8 040-0375-00

9 016-0001-00

10 015-0001-00

11

12

040-0010-04

030-1057-00

Set Screw ............................................. 4

Tilt Pivot Pin ........................................... 2

Clevis Pin .............................................. 1

Base Cylinder (Refer to "Hydraulic

System" Elsewhere) ........................... Ref

Clevis Pin .............................................. 1

Hitch Pin Clip .......................................... 2

Brace .................................................... 1

Screw ................................................. 12

Leveling Screw ...................................... 4

Wire Clip ................................................ 2

Screw ................................................... 2

Stationary Base Weldment ..................... 1

• 042-0045-01 • Nutsert ................................................ 2

13

14

15

16

17

18

19

20

21

22

042-0007-00

042-0006-01

Base Slide Assembly (Refer to

Breakdown Elsewhere) ...................... Ref

E-Ring ................................................... 4

Clevis Pin .............................................. 1

Tilt Cylinder Assembly (Refer to

"Hydraulic System" Elsewhere) .......... Ref

042-0006-02

002-0514-00

Clevis Pin .............................................. 1

Seat Weldment (Refer to "Seat

Components" Elsewhere) ................... Ref

Base Repair Kit (Includes Items 20 thru 22

{Not used with Rotational Bases}) ......... 1

• 040-0250-89 • Screw ................................................. 4

• 030-1010-00 • Base Cylinder Mount Weldment ........... 1

• 041-0250-13 • Nut ...................................................... 4

Always Specify Model & Serial Number

© Midmark Corporation 1997 SF-1555 Rev. 2/04

Page 6-17.1

Printed in U.S.A.

Return To Table Of Contents

Base Slide Assembly

1

2

3

4

5

7

21

8

6

10

23

9

11

7

12

12

SECTION VI

PARTS LIST

22

12

21

14

15

20

16

17

18

13

19

MA224100

Item Part No.

Description Qty.

029-0069-03 Base Slide Assembly (Includes

Items 1 thru 22) ..................................... 1

1 • 029-0072-05 • Middle Member Assembly (Includes

Items 2 thru 6) ..................................... 1

2 • • 016-0151-00 • • Sprocket (Includes Set Screw) .......... 2

3 • • 042-0008-00 • • Machine Key ..................................... 2

4 • • 057-0105-00 • • Axle .................................................. 1

5 • • 016-0149-00 • • Bearing ............................................. 2

6 • • 030-0094-40 • • Middle Member Weldment ................. 1

7 • 029-0070-00 • Chain Assembly .................................. 2

10

11

8 • 040-0008-30 • Screw ............................................... 10

9 • 045-0001-10 • Lockwasher ...................................... 10

• 052-0015-00

• 030-0092-41

• Spacer .............................................. 10

• L.H. Support Channel Weldment .......... 1

Item

12

13

14

15

16

17

18

19

20

21

22

23

Part No.

• 040-0375-00

• 029-0071-03

Description Qty.

• Screw ............................................... 12

• Idler Adjuster Assembly (Includes

Items 14 thru 18) ................................. 1

• • 030-0274-00 • • Journal Weldment ............................. 1

• • 029-3036-00 • • Sprocket (Includes Item 17) .............. 2

• • 040-0250-04 • • Set Screw ......................................... 4

• • • 016-0149-00 • • • Bearing ........................................... 2

• • 030-0273-40 • • Idler Adjuster Weldment .................... 1

• 016-0234-01 • L.H. Base Slide (Opposite) .................. 1

• 016-0234-00 • R.H. Base Slide (Shown) ..................... 1

• 030-0092-40 • R.H. Support Channel Weldment ......... 1

• 040-0250-88 • Screw ............................................... 20

• 030-0917.-42 • Inner Member Weldment ..................... 1

061-0045-00 Cover Caution Label .............................. 2

Always Specify Model & Serial Number

© Midmark Corporation 1997 SF-1555 Rev. 12/02

Page 6-18

Printed in U.S.A.

Return To Table Of Contents

Base Electrical Components

(Domestic)

2

1

4

22

30

5

14

11

8

6

7

3

24

10

23

15

16

22

12

13

11

9

18

16

21

19

32

31

26

25

25

27

SECTION VI

PARTS LIST

27

28

29

28

29

20

17

2

Item Part No.

1

11

12

13

14

8

9

6

7

10

15

16

2

3

4

5

041-0250-13

053-0051-00

050-1533-40

040-0010-34

050-1532-40

053-0068-09

002-0041-00

045-0001-21

040-0006-00

041-0006-01

015-0009-01

015-0022-01

040-0006-33

053-0068-06

040-0010-47

Description Qty.

Item Part No.

Motor / Pump Assembly (Refer to

Breakdown Elsewhere) ........................ 1

Nut ....................................................... 8

Motor Mount ......................................... 4

Control Cover ....................................... 1

Screw ................................................... 2

Control Panel ....................................... 1

Snap Bushing ....................................... 2

Time Delay Relay Kit ............................ 1

Washer ................................................. 1

Screw ................................................... 1

Nut ....................................................... 3

Terminal Block ..................................... 1

Jumper (Not Shown) ............................ 1

Screw ................................................... 2

Snap Bushing ....................................... 1

Screw ................................................... 3

17 002-0040-00

18 061-0034-00

19

23

015-0002-01

20 045-0001-31

21 015-0014-00

22 040-0010-04

24 025-0025-00

25 041-0010-02

26 015-0412-02

27 040-0010-28

28 002-0044-00

29 015-0413-01

30 050-0957-00

31 015-0008-00

32 053-0068-10

Always Specify Model & Serial Number

MA225900

Description Qty.

Power Cord Set Kit ............................... 1

Cord Tag .............................................. 1

Strain Relief Bushing ............................ 2

Lockwasher .......................................... 5

Wire Clip ............................................... 1

Screw ................................................... 3

Wire Assembly (Refer to "Wiring

Diagram" Elsewhere {Section 5}) ...... Ref

Spring ................................................... 1

Nut ....................................................... 4

Capacitor Mounting Bracket ................. 2

Screw ................................................... 4

Capacitor Kit (124/149 MFD {250V}) ... 2

Capacitor Cap ...................................... 2

Strain Relief Bracket ............................ 1

Strain Relief Bushing ............................ 1

Snap Bushing ....................................... 1

© Midmark Corporation 1997 SF-1555

Page 6-19

Printed in U.S.A.

Return To Table Of Contents

Base Electrical Components

(Export)

27

28

26

33

29

28

29

34

27

35

36

37

SECTION VI

PARTS LIST

38

39

22

25

32

22

30

17

13

16

31

20

21

23

40

41

19

18

22

24

20

2

MA226000

Used on units with Serial Number HH-1000 & HN-1000 thru Present

Used on units with Serial Number V2200 thru V50301

Item Part No.

Description Qty.

Item Part No.

1

15

16

17

18

2 041-0250-13

3 053-0051-00

4 050-1533-20

5 040-0010-34

6 050-1532-20

10

11

12

13

14

7 053-0068-09

8 002-0041-00

9 045-0001-21

040-0006-00

041-0006-01

015-0009-01

015-0022-01

040-0006-33

19

20

053-0068-06

040-0010-47

050-2489-40

002-0869-00

Motor / Pump Assembly (Refer to

Breakdown Elsewhere) ......................... 1

Nut ....................................................... 8

Motor Mount .......................................... 4

Control Cover ........................................ 1

Screw ................................................... 2

Control Panel ......................................... 1

Snap Bushing ........................................ 2

Time Delay Relay .................................. 1

Washer ................................................. 1

Screw ................................................... 1

Nut ....................................................... 3

Terminal Block ...................................... 1

Jumper (Not Shown) ............................. 1

Screw ................................................... 2

Snap Bushing ........................................ 1

Screw ................................................... 4

Receptacle Bracket ............................... 1

Appliance Inlet Replacement Kit ............. 1

• 015-0346-20 • Fuse ................................................... 2

040-0004-11 Screw ................................................... 2

053-0071-00 Caplug ................................................... 2

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

Always Specify Model & Serial Number

061-0528-00

040-0010-04

061-0071-00

045-0001-31

041-0010-02

015-0412-02

040-0010-28

015-0437-07

015-0413-01

050-0957-00

015-0008-00

053-0068-10

025-0025-00

030-0810-40

040-0010-12

053-0068-00

015-0118-00

045-0001-71

041-0250-01

015-0014-00

Description Qty.

Fuse Rating Tag .................................... 1

Screw ................................................... 5

Eartyh Symbol Label ............................. 1

Lockwasher .......................................... 2

Nut ....................................................... 4

Capacitor Mounting Bracket .................. 2

Screw ................................................... 4

Capacitor .............................................. 2

Capacitor Cap ....................................... 2

Strain Relief Bracket .............................. 1

Strain Relief Bushing ............................. 1

Snap Bushing ........................................ 1

Spring ................................................... 1

Transformer Bracket Weldment ............. 1

Screw ................................................... 3

Snap Bushing ........................................ 1

Isolation Transformer ............................ 1

Washer ................................................. 4

Nut ....................................................... 4

Wire Clip ................................................. 1

Wire Assembly (Refer to "Wiring

Diagram" Elsewhere {Section 5}) ........ Ref

© Midmark Corporation 1997 SF-1555 Rev. 11/04

Page 6-20

Printed in U.S.A.

Base Electrical Components

(Export)

27

1

1

1

1

26

33

SECTION VI

PARTS LIST

27

28

29

28

29

34

35

36

37

38

39

22

25

32

22

11

30

43

19

17

18

42

Item Part No.

1

16

17

18

19

2 041-0250-13

3 053-0051-00

4 050-1533-20

5 040-0010-34

6 050-1532-20

7 053-0068-09

8 002-0041-00

9 045-0001-21

10 040-0006-00

11

12

13

14

15

041-0006-01

015-0009-01

015-0022-01

040-0006-33

053-0068-06

20

21

040-0010-47

050-2489-40

015-1248-00

015-1249-00

015-0346-20

053-0071-00

061-0528-00

13

31

16

20

21

40

41

23

22

24

20

2

MA226001i

Used on units with Serial Number V50302 thru Present

Description Qty.

Item Part No.

Motor / Pump Assembly (Refer to

Breakdown Elsewhere) ......................... 1

Nut ....................................................... 8

Motor Mount .......................................... 4

Control Cover ........................................ 1

Screw ................................................... 2

Control Panel ......................................... 1

Snap Bushing ........................................ 2

Time Delay Relay .................................. 1

Washer ................................................. 1

Screw ................................................... 1

Nut ....................................................... 3

Terminal Block ...................................... 1

Jumper (Not Shown) ............................. 1

Screw ................................................... 2

Snap Bushing ........................................ 1

Screw ................................................... 4

Receptacle Bracket ............................... 1

Appliance Inlet ....................................... 1

Fuse Drawer ......................................... 2

Fuses (

not included) ..........................

2

Caplug ................................................... 2

Fuse Rating Tag .................................... 1

30

31

32

33

34

35

36

37

38

39

40

41

26

27

28

29

22

23

24

25

42

43

040-0004-00

050-6064-40

Always Specify Model & Serial Number

040-0010-04

061-0071-00

045-0001-31

041-0010-02

015-0412-02

040-0010-28

015-0437-07

015-0413-01

050-0957-00

015-0008-00

053-0068-10

025-0025-00

030-0810-40

040-0010-12

053-0068-00

015-0118-00

045-0001-71

041-0250-01

015-0014-00

Description Qty.

Screw ................................................... 5

Eartyh Symbol Label ............................. 1

Lockwasher .......................................... 2

Nut ....................................................... 4

Capacitor Mounting Bracket .................. 2

Screw ................................................... 4

Capacitor .............................................. 2

Capacitor Cap ....................................... 2

Strain Relief Bracket .............................. 1

Strain Relief Bushing ............................. 1

Snap Bushing ........................................ 1

Spring ................................................... 1

Transformer Bracket Weldment ............. 1

Screw ................................................... 3

Snap Bushing ........................................ 1

Isolation Transformer ............................ 1

Washer ................................................. 4

Nut ....................................................... 4

Wire Clip ................................................. 1

Wire Assembly (Refer to "Wiring

Diagram" {Section 5}) ........................ Ref

Screw .................................................... 2

Cord Bracket Adapter ............................. 1

© Midmark Corporation 1997 SF-1555 Rev. 6/04

Page 6-20.1

Printed in U.S.A.

Return To Table Of Contents

Motor / Pump Components

11

9

8

6

14

SECTION VI

PARTS LIST

4

5

1

2

3

12 13

10

11

7

15

16

19

18

17

MA531100

Item Part No.

Description Qty.

Item Part No.

Description Qty.

1 002-0444-00 Motor / Pump Assembly (Includes

Items 2 thru 13) ..................................... 1

2 • 014-0169-00 • Motor Shaft Seal (Not Shown) ............. 1

3 • 014-0262-02 • Reservoir O-Ring Seal (Not Shown) .... 1

4 • 014-0248-00 • Relief Valve (Low Pressure) ................ 1

5 • 014-0249-00 • Relief Valve (High Pressure) ............... 1

6 • 014-0262-01 • Filler Cap ............................................. 1

7 • 014-0168-00 • Shuttle Valve ....................................... 2

8 • 014-0260-00 • Elbow .................................................. 1

9 • 014-0045-00 • Connector ........................................... 1

10

11

12

13

14

15

16

17

18

19

• 002-0038-00

015-0018-03

050-2662-40

040-0500-02

045-0001-33

016-0360-00

Always Specify Model & Serial Number

• Anticavitation Solenoid Valve ............... 1

• 014-0096-00 • Elbow .................................................. 2

• 014-0020-00 • Mineral Oil ........................................ AR

• 014-0007-00 • Pipe Sealant ..................................... AR

061-0135-00 Motor Caution Label .............................. 1

Spring Spade Terminal .......................... 5

Motor Base ............................................ 1

Screw ................................................... 2

Lockwasher .......................................... 2

Trim Lock (Specify Length - 2") ............. 2

© Midmark Corporation 1997 SF1555 Rev. 8/99

Page 6-21

Printed in U.S.A.

Return To Table Of Contents

Foot Control Assembly

13

SECTION VI

PARTS LIST

1

2

3

6

7

5

9

4

14

10

8

28

11

17

16

12

15

5

18

19

20

22

21

25

27

23

24

26

Item Part No.

Description Qty.

Item Part No.

Description

MA226600

Qty.

12

13

14

15

015-0606-03 Foot Control Assembly (Includes

Items 1 thru 22) ..................................... 1

1 • 002-0045-00 • Switch ................................................. 8

2 • 045-0001-07 • Washer ............................................. 16

3 • 041-0003-00 • Nut .................................................... 16

4 • 052-0076-00 • Spacer ................................................ 4

5 • 040-0010-04 • Screw .................................................. 6

6 • 025-0009-00 • Spring ................................................. 8

7 • 052-0010-00 • Spacer ................................................ 8

10

11

8 • 020-0144-03 • Foot Control Casting ........................... 1

9 • 052-0075-00 • Spacer ................................................ 4

• 053-0155-00

• 040-0003-00

• Split Bushing (Early Units Only) ........... 4

• Screw ............................................... 16

• 050-3258-00 • Step Mount .......................................... 4

• 053-0154-00 • Foot Tread .......................................... 4

• 050-0941-03 • Pedal ................................................... 4

• 061-0465-00 • Decal .................................................. 1

16

17

18

19

20

21

22

23

24

25

26

27

28

29

• 045-0001-08 • Washer ............................................... 4

• 040-0010-36 • Screw ................................................. 4

• 053-0156-00 • Glide ................................................... 6

• 040-0010-35 • Screw ................................................. 4

• 040-0010-52 • Screw ................................................. 8

• 015-0008-00 • Strain Relief Bushing ........................... 1

• 050-0957-00 • Strain Relief Bracket ............................ 1

040-0010-04 Screw ................................................... 2

040-0010-47 Screw ................................................... 7

045-0001-08

050-0942-00

002-0048-00

Lockwasher .......................................... 2

Wire Channel Cover .............................. 1

Ground Wire (Refer to "Wiring

Diagram" {Section 5}) ......................... Ref

Foot Control Cord (Refer to "Wiring

Diagram" {Section 5}) ......................... Ref

002-0491-00 Footswitch Cover Kit (Not Shown) ......... 1

Always Specify Model & Serial Number

© Midmark Corporation 1997 SF-1555 Rev. 3/05

Page 6-22

Printed in U.S.A.

Return To Table Of Contents

COMMENTS

The Technical Publications Department of Midmark

Corporation takes pride in its publications. We are sure that our manuals will fill all of your needs when you are performing scheduled maintenance, servicing, or repairs on a Midmark product.

However, if you find any errors or feel that there should be a change, addition, or deletion to a manual, please let us know!

Page(s) and Paragraph(s) Needing Changed:

Description of Error or Desired Change:

Please fax or mail a copy of this completed comment sheet to:

Midmark Corporation

ATTN: Technical Publications Department

60 Vista Drive

Versailles, Ohio 45380

Fax: (937) 526-5542

© Midmark Corporation 2000 SF-1621

Page 7-1

Printed in U.S.A.

Return To Table Of Contents

FAX ORDERING FORM

(SERVICE PARTS ONLY)

NOTES:

• ALL BLOCKED AREAS MUST BE COMPLETED.

• USE FOR NON-WARRANTY FAX ORDERS ONLY. WARRANTY ORDERS MUST BE TELEPHONED IN (1-800-MIDMARK).

ATTENTION: SERVICE DEPARTMENT FAX#: 877-249-1793

ACCT #:

NAME:

ADDRESS:

CITY, ST.:

CONTACT:

P.O. #:

SHIP TO:

DATE:

PHONE:

NON-EMERGENCY ORDER - TO SHIP WITHIN 72 HOURS IF

PART(S) IN STOCK.

EMERGENCY ORDER - TO SHIP WITHIN 24 HOURS IF PART(S)

IN STOCK (IF ORDER IS RECEIVED BEFORE 1:00 P.M. E.S.T).

SEND NOTIFICATION IF PARTS ARE NOT AVAILABLE TO SHIP

WITHIN 24 HOURS VIA

E-MAIL OR FAX TO:

METHOD OF SHIPMENT

OTHER

UPS

NEXT DAY A.M.

FED EX

NEXT DAY A.M.

NEXT DAY P.M.

2ND DAY

GROUND

NEXT DAY P.M.

2ND DAY

ECONOMY

QTY.

PART # DESCRIPTION

(SPECIFY COLOR OF ITEM IF APPLICABLE)

COLOR CODE PRICE/PER

© Midmark Corporation 2000 Rev. 1/0

7

Page 7-2

TOTAL COST: $

Printed in U.S.A.

Return To Table Of Contents

Midmark Corporation

60 Vista Drive

P.O. Box 286

Versailles, Ohio 45380-0286

937-526-3662

Fax 937-526-5542 midmark.com

Return To Table Of Contents

© Midmark Corporation - 2005

Subject to change without notice.

Refer to www.Documark.com for latest revision.

Printed in U.S.A.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
