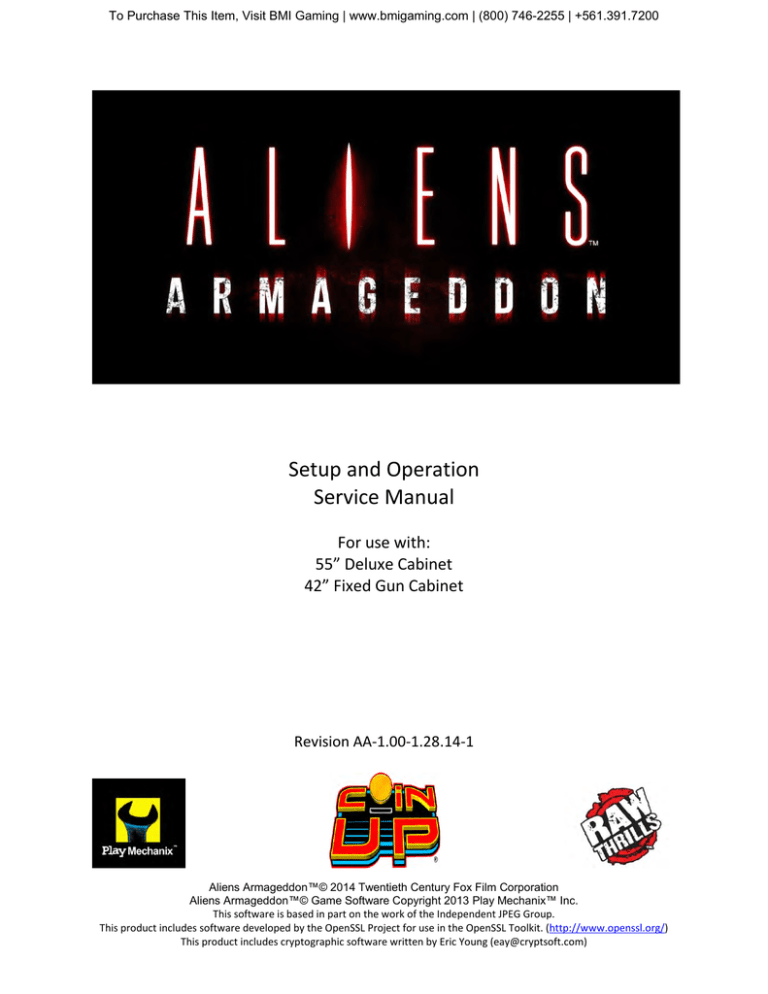

Aliens Armageddon Service Manual

Aliens Armageddon Service Manual

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Setup and Operation

Service Manual

For use with:

55” Deluxe Cabinet

42” Fixed Gun Cabinet

Revision AA-1.00-1.28.14-1

Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation

Aliens Armageddon™© Game Software Copyright 2013 Play Mechanix™ Inc.

This software is based in part on the work of the Independent JPEG Group.

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. ( http://www.openssl.org/ )

This product includes cryptographic software written by Eric Young ([email protected])

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Product Specifications

Product Specifications................................................................................................................................... 3

Safety ............................................................................................................................................................ 5

Deluxe Cabinet Setup .................................................................................................................................... 7

Fixed Gun Cabinet Setup ............................................................................................................................. 11

Cabinet Functionality Check ....................................................................................................................... 13

Maintenance ............................................................................................................................................... 15

Regular Gun Maintenance Procedure..................................................................................................... 15

Fixed Gun Maintenance .......................................................................................................................... 16

Hard Drive Recovery ............................................................................................................................... 20

Diagnostic Menu System............................................................................................................................. 21

Diagnostic Menu Interface ...................................................................................................................... 21

Menu Screens and Descriptions ............................................................................................................. 22

Troubleshooting .......................................................................................................................................... 41

Parts ............................................................................................................................................................ 43

55” Deluxe Cabinet ................................................................................................................................. 43

Fixed Gun ................................................................................................................................................ 51

Fixed Gun Cabinet Assembly ................................................................................................................... 53

Deluxe Gun Assembly ............................................................................................................................. 55

Electrical Wiring .......................................................................................................................................... 57

Deluxe Cabinet Wiring Diagram .............................................................................................................. 57

Fixed Gun Cabinet Wiring Diagram ......................................................................................................... 58

Contact Information .................................................................................................................................... 59

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 2

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Electrical Power

Domestic 120 VAC @ 60 Hz, 5 amps

International 240 VAC @ 50 Hz, 2.5 amps

Japan 100 VAC @ 50 Hz, 5 amps

DC Power Fuse Guide

+5 VDC - 2 amp Slow Blow

+12 VDC - 7 amp Slow Blow

Temperature

32° to 100° Fahrenheit (0° to 38° Celsius)

Humidity

Must not exceed 95% relative humidity

Cabinet and Carton Specifications

Component

Assembled 55”

Deluxe Cabinet

Assembled 42”

Fixed Gun Cabinet

Height

106.31”

(2.7 meters)

100.50”

(2.55 meters)

Width

52.02”

(1.32 meters)

41.385”

(1.05 meters)

Depth

58.63”

(1.49 meters)

51.48”

(1.31 meters)

Page 3 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Product Specifications

Figure 1: 55" Deluxe Cabinet Figure 2: 42" Fixed Gun Cabinet

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 4

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

O

PERATION

Before operating game, read this manual. Failure to properly install and operate this game could result in malfunction or accident. Operate the game in accordance with the manual.

T

RANSPORTING

Cabinet is very heavy and contains fragile components. Use appropriate care when moving or transporting cabinet.

Avoid rough handling.

H

ANDLING

C

OMPONENTS

Many components are extremely sensitive to handling, environmental and Electrostatic Discharge (ESD) events— especially the computer. Do not handle it roughly. Before servicing, call your distributor and inquire about the PC warranty. Use proper ESD procedures when servicing. Protect components from harmful environmental conditions, such as extreme temperatures, excessive moisture or other damaging effects.

D

ISCONNECT POWER

Always turn off power and unplug the unit before servicing or making adjustments, unless otherwise instructed.

Installing or repairing components while power is on can damage the components and void the warranty.

G

ROUNDING

Avoid electrical shock. Do not plug in AC power until you have inspected and properly grounded the unit. Only plug into a grounded, three-wire outlet. Do not use a “cheater” plug or cut off the ground pin on the line cord.

E

LECTRICAL

S

HOCKS

There is no isolation transformer in the cabinet. Disconnect AC power before servicing. However, be aware that lethal voltages can remain in the electronic components even when AC power is disconnected. Use extreme caution when servicing. Verify that there is a working ground connection. If the unit sustains water damage, cease using it immediately and unplug AC power.

M

ONITOR

Extremely high voltages exist in the monitor at all times. These high voltages exist even when the monitor is off and the AC line cord is disconnected. These voltages are extremely lethal and will cause death. The monitor contains no user serviceable parts. Do not attempt to service the monitor.

P

OWER

S

ELECTOR

Before installing game, ensure the voltage on the PC is set properly. There is a 115/230 VAC selector switch that must be set for the correct voltage for your site. Verify the fluorescent lamp rating. The rating must match the line voltage at the installation site.

C

ONNECTORS

Ensure all connectors mate properly. If connectors do not slip in easily, do not force them. Connectors are often keyed and only connect one way. Check for correct orientation.

Page 5 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Safety

C

OMPUTER

The computer contains sensitive components, including a hard drive. Do not handle it roughly. Call your distributor before servicing its internal components. Ask about warranty information as it relates to the PC.

Do not turn the PC power switch on or off. It should remain permanently in the ON position.

Cycle AC power on or off with the cabinet power switch.

A dongle has been inserted into one of the USB ports. This is required for game play.

Do not remove the dongle except for troubleshooting purposes.

P

OWER

C

ORD

If the power cord is damaged or lost, replace it with an identical cord as supplied by the manufacturer or an authorized service agent.

W

ATER

J

ETS

Do not install or operate game within operating perimeter of a water jet. Do not clean equipment using water jet.

H

AZARD TO

E

PILEPTICS

A small portion of the population has an epileptic condition that may cause seizures. Affected persons experience seizure while watching some television pictures or playing certain video games. People who have not had seizures may still have an undetected epileptic condition. If anyone in your family has experienced epilepsy symptoms

(seizures or loss of awareness), consult your physical before using video games. While children play video games, a parent should observe. Be alert to the following symptoms: dizziness, altered vision, eye or muscle twitching, involuntary movements, loss of awareness, disorientation or convulsions. If you or your child experiences these symptoms, discontinue use immediately and consult your physician.

M

ANUAL

Keep this manual available and ready for use. If the game fails to function properly, turn off the machine and unplug the AC line cord. Contact your local distributor. Your warrantee, when applicable, lasts 60 days from your purchase date. You may not reproduce this document or any of its contents without written authorization from

Raw Thrills™, Inc. or PlayMechanix™ Inc.

S

PECIFICATIONS

For reasons such as performance, this product’s specifications may change without notice. Federal patent, copyright and other intellectual property laws protect the content, devices and design of the game and its equipment.

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 6

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Unpack Cartons

1.

Place the shipping crates on a flat stable surface.

2.

Cut the banding straps and remove the cardboard lids.

3.

Lift off the large cardboard container surrounding the cabinet and any shipping cleats.

4.

Remove both guns from the carton situated on top of cabinet pedestal.

5.

Place the guns in holsters on cabinet bezel.

6.

With at least two people and a dolly, remove the cabinet from the shipping pallet.

7.

Remove the coin door key from the coin return chute.

8.

Open the top coin door.

9.

Locate the key for the back door and the cash box.

10.

Remove the items inside cash box: AC power cable, a bag of screws and tools, marquee power cable, this manual, registration packet, and cell antenna mount

Setup Cabinet Pedestal

1.

Using a wheeled cart and at least one assistant, transport the cabinet to a suitable playing area.

Proximity to Neon Lights

Neon lights may reduce the ability of the IR sensors to accurately track the guns.

Place the cabinet far away from neon lights or turn off any nearby neon lights.

2.

Ensure the game cabinet is level and stable.

With at least one assistant, adjust the leg levelers.

3.

Check the AC line cord for visible signs of damage.

Pay particular attention to the plug and line cord insulation.

4.

Check for shipping damage to the following:

Gun assembly: Left and right guns, gun holders, and cables

Cabinet Marquee

Cabinet back door

Cabinet coin door

Cabinet and gun decals

Attach Marquee to Deluxe Cabinet

1.

With an assistant and two ladders, lift marquee on top of cabinet.

2.

Affix four hex bolts with washers to secure marquee to top of cabinet.

Caution: Avoid pinching cables.

3.

Connect four cables from marquee to cabinet.

4.

Affix six ¼-20 TORX screws with washers to secure mounting bracket to back of cabinet.

Caution: Avoid pinching cables.

5.

Affix four ¼-20 TORX screws with washers to secure mounting bracket to back of marquee.

Page 7 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Deluxe Cabinet Setup

Deluxe Marquee Installation

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 8

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Deluxe Cabinet Setup

Page 9 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Deluxe Cabinet Setup

Attach Front Pedestal to Monitor Assembly

1.

Move front pedestal assembly a few inches away from the monitor assembly.

Connectors

Ensure all connectors mate properly. If connectors do not slip in easily, do not force them.

Connectors are often keyed and only connect one way. Check for correct orientation.

2.

Gently pull all connectors through the round holes in the front pedestal and monitor assembly.

3.

Connect single-pin ground cable from monitor assembly to front pedestal.

4.

Connect two USB cables from monitor assembly to two USB cables from front pedestal.

Note: the USB gun cables are interchangeable. The PC will decide which is the right and left gun.

5.

Connect the 10-pin and 16-pin data/power connectors from the monitor assembly to their mates from the front assembly

6.

Move front pedestal so that it is flush with monitor assembly.

Caution

: make sure cables are not pinched. Tuck them back through openings into either cabinet.

7.

Align holes in monitor assembly brackets with holes in rear of front pedestal assembly.

Adjust leg levelers on front pedestal assembly as needed.

8.

Insert three ¼-20 TORX screws with flat washers through each of the three holes at the front of the bracket into the three holes of the front pedestal.

Do not tighten screws.

9.

Repeat with other bracket.

10.

Tighten all screws with supplied TORX wrench.

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 10

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Unpack Carton

1.

Place the crate on a flat stable surface, and cut the banding straps to remove cardboard.

2.

Lift off the large cardboard container surrounding the cabinet and any shipping cleats.

3.

With at least two people and a dolly, remove the cabinet from the shipping pallet.

4.

Remove the coin door key from the coin return chute, and open the top coin door.

5.

Locate the key for the back door and the cash box.

6.

Remove the items inside cash box: AC line cord, a bag of screws and tools, and a warranty card.

7.

Using a wheeled cart and at least one assistant, transport the cabinet to a suitable playing area.

8.

With at least one assistant, adjust the leg levelers. Ensure the game cabinet is level and stable.

9.

Check for shipping damage to the following: AC line cord, Left and right guns,

Marquee/monitor glass, Cabinet back/coin doors, Cabinet and gun decals

Attach Marquee Assembly to Fixed Gun Cabinet

1.

Position back support on top of cabinet routing cables from cabinet through back support.

Caution: Do not pinch cables in mounting bracket.

Step 1 - Position Mounting Plate Step 2 - Secure Mounting Plate to Cabinet

2.

Affix four ¼-20 torx screws with washers to secure back support to top of cabinet.

3.

With two assistants and two ladders, lift marquee on top of cabinet and connect the four cables from marquee to cabinet. Caution: Do not pinch cables in mounting bracket.

Page 11

Step 3 - Connect Cables

Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Fixed Gun Cabinet Setup

4.

Affix two ¼-20 torx screws with washers through back support into metal bottom of marquee.

Do not fully tighten.

5.

Affix two ¼-20 bolts with washers to secure marquee to top of cabinet. Do not fully tighten.

6.

Affix four ¼-20 torx screws with washers to secure back support to back of marquee.

7.

Tighten all screws.

Fixed Gun Marquee Assembly

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 12

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Verify Cabinet Functionality

1.

Verify the voltage in the nearest AC outlet.

2.

Verify the AC outlet ground connection is present and working.

3.

Inside back of cabinet, verify the voltage selector switch is set for correct AC voltage.

4.

Plug the line cord into the AC outlet, and turn the power switch to ON.

5.

Verify that the cooling fans on the cabinet are working.

6.

Check that no component is excessively hot or emitting foul odors.

7.

If there are any problems with cabinet functionality, contact the distributor.

Verify USB Connections

If USB connections are incorrect, an error screen will appear on start up. Reconnect devices to appropriate USB ports. *Wi-Fi adapter, card reader, and cell modem available in the Online Kit.

HP 6005

Page 13 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Cabinet Functionality Check

HP 6305

Gun Calibration

1.

Pull the trigger on the left gun to indicate that it is Player 1.

2.

Aim and shoot as instructed.

3.

The targeting reticle indicates the spot where the gun is aimed.

Verify accuracy by pointing at different areas of the screen.

4.

Accept calibration by pressing start button.

5.

Repeat steps 2-5 for right gun.

6.

Press Start button when finished.

Verify Input and Output Functionality

See the Diagnostic Section for further information.

1.

Enter the SWITCH TEST menu and verify all switches function.

2.

Enter the SCREEN TEST menu and verify that video is acceptable.

3.

Enter the SOUND TEST menu and verify the audio works and is not distorted.

4.

Enter the COIN METER TEST and verify the operation of the coin meter.

5.

Enter the START BUTTON LAMPS menu and verify that the lamps of the buttons work correctly.

6.

Enter the WATCHDOG TEST menu, which re-boots the game.

7.

Upon a successful re-boot, you are ready to make adjustments to pricing, volume and other functions found in the Diagnostic Section.

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 14

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Regular Gun Maintenance Procedure

In order to maximize income potential, keep the guns in optimal working order by performing the following five-step procedure every time you empty the cash box.

1.

Check the camera lens

Observe the tinted lens to ensure it has no cracks, scratches or dirt.

Clean or replace the lens, if necessary.

2.

Visually and manually inspect gun cable connections

Open the coin door to see them. Reach in and ensure the cables are fully connected and are not pinched by any components.

3.

Verify switch functionality

Press the Test button on the service panel, select Tests, select Input Tests, and then select

Switch Test (described earlier in this manual) to ensure all the gun switches are functioning properly. Switches in the gun include

Trigger

Reload

Grenade

4.

Calibrate, calibrate, calibrate

Return to the Main Menu screen and select Gun Calibration. Follow the instructions earlier in this manual or on screen to recalibrate both guns.

5.

Check IR sensors

*Deluxe model only

The IR sensors are directly below and above the printed marquee on the monitor assembly.

From the Main Menu, select Tests, select Input Tests, and select IR Gun Sensor Test. See pg 22

Recalibrate the guns any time the game is moved or the guns are repaired, replaced or swapped.

Note: It is not advisable to replace or swap guns while power is on. Shut AC power off before connecting or disconnecting any components. If, for some reason, guns are changed while power is on, shut off AC power and reboot after the guns are connected again. Failure to do so may result in incorrect gun functionality.

Following these procedures is critical to maintaining guns and maximizing revenue.

Perform regular gun maintenance to keep your game in top working order.

Page 15 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Maintenance

Fixed Gun Maintenance

Opening the Gun Case

Open the gun case to service the trigger, buttons, and coil assembly. You do not need to open the case to service the pots that aim the gun.

1.

To open the gun case, first remove the 12 Torx security screws, shown by the single arrows in the picture below. Remove the corresponding nuts from the other side of the gun.

2.

Remove the four screws, shown by double arrows in the picture below. These screw into the frame, so there are no nuts to remove.

3.

Carefully, remove the left side cover from the gun, being careful not to pull the wires from the grenade button. The wires are long enough that you can set the cover on the control panel near the gun without disconnecting the wires.

Closing the Gun Case

1.

To close the gun case, align the slots that fit around the gun PCD, and then carefully put the two halves together. Make sure no wires or components get caught or pinched. Pay special attention to the area around the trigger and spring, the wires coming out of the frame shaft, and the wires attached to the coil and barrel light.

2.

Insert the four screws shown with the double arrows. Partially tighten all four. Verify the case is mating properly, before tightening the screws fully.

3.

Check the trigger to make sure it works properly. The trigger or spring could shift while assembling the case.

4.

Replace the remaining 8 Torx screws and nuts, shown by the single arrows above.

5.

Tighten all screws fully. Be carefully not to over tighten and crack plastic.

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 16

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Gun Trigger Service

1.

Install the plastic trigger pressing against the spring. The bottom part of the trigger will press the switch actuator when a player pulls the trigger.

2.

To replace the micro switch, remove the two screws that secure it. Remove the two wires and install them on the same terminals on the replacement switch.

3.

Connect the signal wire to the NO connector (middle connector) and the black ground wire to the C connector.

Gun Button LED Service

1.

If you replace a button micro switch, connect the signal wire to the NO (middle) connector and the black ground wire to the C connector. Failure to do so will cause the buttons to not work.

2.

To replace the LED bulb, pull the lamp assembly straight out of the button housing. Then, pull the bulb straight out of the lamp housing. The two lamp wires are interchangeable and can connect to either terminal on the lamp housing.

Page 17 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Maintenance

Gun Coil Assembly Service

The coil assembly provides the force-feedback recoil when the gun is fired.

1.

Open the gun case as described earlier.

2.

Remove the two screws shown below from the right side of the gun.

3.

Remove the nut that secures the ground wire to the ground lug on the side of the coil assembly mounting plate.

4.

Remove the two screws that secure the coil assembly mounting plate to the gun shaft.

5.

Reverse the steps to install the coil assembly. Be sure to secure the ground wire to the ground lug of the coil assembly mounting plate.

Gun Pot and Gear Service

Each gun has two pots that measure the movement of the gun on the x-axis (left/right) and y-axis

(up/down). The x-axis pot is located under the gun base below the trigger. The y-axis pot is located on the side of the gun base below the reload button.

Use the Gun Test & Calibration screen in the diagnostic menu to test gun motion. To test a pot, swivel gun along an axis paying attention to the resistance. There should be a steady linear increase or decrease in resistance with no jumps. Replace the gears, if they are worn or cracked.

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 18

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Replacing a pot or gear shaft

1.

Remove the six Torx security screws that secure the front and rear covers over the gun base.

2.

Remove both covers.

3.

Remove the two mounting nuts and remove the mounting plate from the pot to be replaced.

4.

Using an Allen wrench to loosen the set screw from the gear shaft, and remove the gear shaft.

5.

Using a ½” wrench, remove the nut and lock washer that secure the pot to the frame.

6.

De-solder the wires and solder them on the same terminals on the replacement pot.

7.

Install the new 5k ohm pot with the same orientation. Make sure that the plastic keys on the pot mate properly with the metal.

8.

Re-install the lock washer and nut, being careful not to over tighten.

9.

Re-install the gear shaft and tighten the set screw.

10.

Calibrate the gun using the diagnostic menu option after replacing a pot.

Gun PCB

The gun driver board is mounted remotely in the cabinet and controls the voltage to the gun coil. There is one for each gun. Disconnect the cabinet from AC power before making any connections to the gun

PCB. Hot-plugging any connector will damage the PCB.

Page 19 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Maintenance

Hard Drive Recovery

Hard Drive Recovery is used to update your game with new software or return the game to factory

Symptoms requiring hard drive recovery include:

File Test reports bad or missing files

Game fails to finish loading during startup

After resetting the AC power, an error is reported

You are prompted to insert a boot DVD

Erratic Game or Attract Mode

The following screen:

WARNING!

DATA Files Corrupted.

(Game Operation May Become Unstable.)

Use “Test” Switch to Enter Test Mode and Run “File Test”

Press Start to Continue

C

OMPUTER

The computer contains sensitive components, including a hard drive. Do not handle roughly. Call your distributor before servicing its internal components. Ask about warranty information as it relates to the PC.

Do not use the PC on/off switch. Turn AC power on or off with the cabinet power switch.

1.

With game and PC on, insert recovery DVD, marked as Disc 1, into DVD-ROM drive tray.

2.

Close tray and Turn cabinet AC power switch to OFF.

3.

Wait 30 seconds, then turn AC power switch to ON. Recovery begins automatically.

If recovery fails to begin, check that disc is seated properly in DVD-ROM drive tray.

4.

Initial software loading may take several minutes. Check progress periodically.

Do not interrupt power or reset the game during recovery.

5.

At some point, the game will eject Disc 1 and prompt you to insert Disc 2.

6.

Swap discs and close the tray. Do not interrupt power or reset the game.

7.

At some point, the game will eject Disc 2 and prompt you to insert Disc 3.

8.

Swap discs and close the tray. Do not interrupt power or reset the game.

9.

When software has finished loading, a message indicates that restore is complete.

When instructed to remove Disc 3, open DVD-ROM drive tray and remove disk.

10.

Turn cabinet power switch off.

11.

After 30 seconds, turn cabinet power switch on.

12.

After game restarts, it will enter calibration mode. Re-calibrate guns.

13.

Settings will now be factory defaults – make changes as desired.

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 20

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Diagnostic Menu Interface

The Service Panel should have four buttons. Pressing the TEST button at any point while the game is running will enter the diagnostic menu. This menu can be navigated with the service panel or the gun.

An on-screen message acknowledges changes or when you exit a selection without making a change.

At the bottom of each screen, there is a brief description of the highlighted menu option.

For clarity, all menu screens in this manual omit the header, background image, and control instructions.

Navigating with Service Panel Switches

TEST

SERVICE

Volume

UP

Volume

DOWN

TEST

SERVICE

VOLUME DOWN moves down through menu or setting choices

VOLUME UP enters diagnostic system or select highlighted menu option exit current menu moves up through menu or setting choices

Navigating with Gun

The menu interface can be navigated with the gun by aiming and shooting.

Shooting the right side options will perform the indicated action.

Shoot scroll up or scroll down to highlight menu options.

Shoot select to enter the highlighted menu or perform the highlighted option.

Shoot exit to return to the prior menu or exit the diagnostic system.

Page 21 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Diagnostic Menu System

Menu Screens and Descriptions

Main Menu

MAIN MENU

Adjustments

Audits

Online

Resets

System Information

Tests

Utilities

Adjustments pg 22 - modify various game settings

Audits

pg 26 - view various tracking statistics

Online

Resets

pg 27 - setup and manage online functionality

pg 31 - used to restore game to factory defaults

Information pg 31 - view various hardware and software information

Tests

pg 34 - execute various diagnostic and maintenance tests

Utilities

pg 38 - contains tools for managing game performance

Main Menu

Adjustments

These menus control gameplay, coinage and sound adjustments.

Adjustments

Game Adjustments

Online System Adjustments

Player Cost Adjustments

Sound Adjustments

Alternative Payment Adjustments

Hardware Adjustments

Coin Adjustments

You can improve earnings by customizing performance with game adjustments. Each variable on an adjustment menu changes an aspect of game play or appearance. Optimizing these settings can maintain or increase player interest. Monitor the effects of adjustments by comparing audit information and earnings before and after changes.

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 22

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Main Menu

Adjustments

Game Adjustments

Game Adjustments

Minimum Game Time

Off-Screen Reload

03:00

Off

Setting

Minimum

Game Time

Off-Screen

Reload

Main Menu

Description

Set the minimum play time.

Allow the use of off-screen reload.

Adjustments

Online System Adjustments

Setting

Online

Maintenance

Hour

Use Slow

Network

Wait Times

DB Server

Port

File Serve

Port

Extends duration before time out to accommodate slow network speeds.

Default

2:30 minutes

Off

ONLINE SYSTEM ADJUSTMENTS

Online Maintenance Hour

Use Slow Network Wait Times

DB Server Port

File Server Port

4:00 am-5:00 am

Off

Automatic

Automatic

Description Default

The 60-minute period during which online-enabled games contact the server to check for software updates and synchronize with the game database.

4:00 am

-

5:00 am

Adjusts the ports used to connect to the DB server.

Off

Automatic

Adjusts the ports used to connect to the File server. Automatic

Choices

Positive amount of time.

Off/On

Choices

24 hours in one hour increments

Off/On

Automatic, 21, 80,

443, 7686

Automatic, 21, 80,

443, 8080, 8686

Page 23 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Diagnostic Menu System

Main Menu

Adjustments

Player Cost Adjustments

Player Cost Adjustments

Freeplay

Player Cost

OFF

$1.00

Setting Description

Freeplay

Player Cost

Allows play without money

Game start/continue cost

Default

OFF

$1.00

Choices

OFF / ON

$0.00 - $63.75 incrementing by coin base unit setting

Main Menu

Adjustments

Sound Adjustments

Sound Adjustments

Game Volume

Attract Volume

Attract Sound Frequency

Setting Description

20

15

Frequently

Default

Game Volume

Attract Volume

Attract Sound

Frequency

Main Menu

Adjustments

Modifies volume during game play

Modifies volume during attract mode

Determines how often attract mode music will be played

Alternative Payment Adjustments

Alternative Payment Adjustments

Coin Meter on Credit Card On

Setting

Coin Meter on

Credit Card

Description

Determine if coin meter pulses when credit cards are used

Default

On

20

15

Frequently

Choices

0-100

0-100

Off, Occasionally,

Frequently, or Always

Choices

On/Off

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 24

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Main Menu

Adjustments

Hardware Adjustments

Hardware Adjustments

Force Feedback On

Setting

Force Feedback

Main Menu

Adjustments

Coin Adjustments

Description

Turn gun recoil on or off

Default

On

Choices

On/Off

Coin Adjustments

Currency Type

Coin Base Unit

Coin 1 Value

Coin 2 Value

DBV Pulse Value

Service Credit Value

Dollar

$0.25

$0.25

$0.25

$0.25

$0.25

Setting

Currency

Type

Coin Base

Unit

Description

Changing currency type resets coin door values. The denomination symbol changes on screen with each currency

Changes the amount by which monetary values increment

Coin 1 Value Sets the coin slot pricing

Coin 2 Value Sets the coin slot pricing

Default

Dollar

$0.25

$0.25

$0.25

Choices

Yen, Won, Ruble, Real, Peso,

Krona, Guilder, Franc, Can.

Dollar, Coins, Euro, NZ Dollar,

Rand, Pound, Aus. Dollar

$0.25 - $63.75 in $0.01 increments

$0.25 - $63.75 incrementing by coin base unit setting

$0.25 - $63.75 incrementing by coin base unit setting

DBV Pulse

Value

This setting determines how much game credit is awarded per pulse. With default setting of $0.25, every $1 bill will award $1 in game credit. Set to $0.50, every $1 bill will award

$2 in game credit.

Service

Credit Value

Set the amount of credit given by the service button

DBV P

ULSE VALUE

$0.25

$0.25

$0.25 - $63.75 incrementing by coin base unit setting

$0.25 - $63.75 incrementing by coin base unit setting

DBV must be set to award four pulses per dollar. Consult DBV for dipswitch settings or programming instructions.

Page 25 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Diagnostic Menu System

Main Menu

Audits

Audit screens help assess game performance, find intermittent problems, decide whether to adjust game difficulty and free game award and help maximize game earnings.

Audits

Coin Audits

System Audits

Gameplay Audits

Main Menu

Audits

Coin Audits

Main Menu

Audits

System Audits

Coin Audits

Total Money In

Coins in Left Coin Slot

Money in Left Coin Slot

Coins in Right Coin Slot

Money in Right Coin Slot

Number of DBV Pulses

Money in DBV

Number of Credit Card Swipes

Credit Card Money

Service Switch Presses

Service Credit Money

$0.00

0

$0.00

0

$0.00

0

$0.00

0

$0.00

0

$0.00

System Audits

Watchdogs

Exceptions

Bad Traps

Up Time:

0

0

0

0 days, 00:00:00

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 26

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Main Menu

Audits

Gameplay Audits

Gameplay Audits

Player Starts

Continues

Continues Offered

Games Started

Games Ended (not won)

Games Ended (won)

Average Game Time (playing)

Total Game Time (playing)

Average Game Time (total)

Total Game Time (total)

Main Menu

Online

These menus cover all online interaction with CoinUp®.

Online

Connection Details and Test

Cellular Information

Wi-Fi Information

Online Synchronization

Connection Wizard

Cabinet Location/Registration

Software Update

Online Debug

0

0

0

0

0

0

00:00:00

0 days, 00:00:00

00:00:00

0 days, 00:00:00

Page 27 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Diagnostic Menu System

Main Menu

Online

Connection Details and Test

Use the Test Connection button to refresh the ping results.

Connection Details and Test

Connection Interface Wired (Ethernet) eth0 00:18:d3:ff:c2:d6

Connection IP Info 10.0.1.2 255.255.255.0 10.0.1.1

Server Info

File Server Info

Test Results games.playmechanix.net files.playmechanix.net

67.217.33.153

67.217.33.153

Server Ping

Database Ping

0 ms

295 ms

Success

Success

80

443

File Server Ping

Queued Messages 0

840 ms

Last Successful DB Query 04.05.2012 10:57:13

Success

Last Successful FS Transfer 04.05.2012 10:57:13

Last Successful DB Query 04.05.2012 10:58:13 Last Successful FS Connection 04.05.2012 10:57:13

Last Failed DB Query Never Last Failed FS Connection Never

Main Menu

Online

Cellular Information

Cellular Information provides all relevant information if a cell modem is being used.

Cellular Information

Device Model

Service Provider

ESN

Mobile Number

Mobile Line

Connection Status

Roaming

Signal Strength

Not Found

N/A

N/A

N/A

Unknown

Not Connected

No

Bar Graph (0.0dBm)

Main Menu

Online

WI-FI Information

Wi-Fi Information provides all relevant information if a wireless device is being used.

Wi-Fi Information

Adapter Model

Adapter MAC Address

SSID

Connection Status

Access Point MAC Address

Signal Strength

Not Found

N/A

N/A

Not Connected

N/A

Bar Graph

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 28

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Main Menu

Online

Online Synchronization

This option executes synchronization with the online database. It will try to update the system clock, game registration, and other online features. This synchronization is also executed when the game is rebooted. Use this option to force any changes that have been made via coinup.com.

Main Menu

Online

Connection Wizard

The Connection Wizard is a step by step setup process for selecting and configuring the game’s internet connection.

Main Menu

Online

Cabinet Location/Registration

This option displays current registration status for the machine. It allows the operator to register the machine to a location or change the registered location of the game. Game registration allows a variety of helpful interactions with coinup.com and online gameplay.

Main Menu

Online

Software Update

This option contacts database and file servers to check for new software updates.

Main Menu

Online

Online Debug

Online Debug

View Online Permissions

Server Details

Certificate Details

Activate Cell Modem

Accept Cell Contract

Purge Query Cache

Page 29 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Diagnostic Menu System

Main Menu

Online

Online Debug

View Online Permissions

Main Menu

This page displays information regarding permitted online activity.

View Online Permissions

Online:

Registered:

Full Connection:

Active Connection:

Credit Cards:

Quick Switch:

ENABLED

ENABLED

ENABLED

ENABLED

ENABLED

DISABLED

Online

Online Debug

Server Details

Main Menu

Displays server name, IP, and port for both database and file servers.

Online

Online Debug

Certificate Details

Main Menu

This screen displays the client’s authorization certificate.

Online

Online Debug

Activate Cell Modem

Main Menu

This option activates the cell modem line for use.

Online

Online Debug

Accept Cell Contract

This option accepts the cellular contract.

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 30

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Main Menu

Online

Online Debug

Purge Query Cache

Main Menu

Purging the query cache will clear any online information stored locally forcing the game to pull down the most current information.

Resets

This menu allows for clearing of various settings and information.

Factory Reset clears everything and restores the machine to factory defaults.

Reset

Reset Credits

Reset Coin Audits

Reset Adjustments

Reset Gameplay Audits

Reset High Scores

Reset Hardware Monitoring Data

Factory Reset

Main Menu

System Information

System Information

System Details

Hardware Monitoring

View Game Log

Switch Status Monitoring

Cellular Information

Wi-Fi Information

Page 31 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Diagnostic Menu System

Main Menu

Information

System Details

System Details

BIOS

Kernel

Processor

Memory

Vendor: Hewlett-Packard Version: 786G6 Date: 03/27/12

2.6.39-jl2

Intel® Celeron® CPU G530 @ 2.40GHz

4147244 kb

G5 Rev

Library Rev

14639

2269

Engine version 01.31.00

I/O lib

IR Track

SDL

Sound Lib

RIO

Card Reader

Game Version

01.02.02

03.04.00

1.2.14

1.2.11

HW: FFFC SW: 0.15

1.6.3

2.00

Main Menu

Information

Hardware Monitoring

Hardware Monitoring

System Uptime:

Connection Audits Since:

IO Board Connection:

IO Board Disconnects:

IO Board Last Disconnect:

Main Menu

Information

View Game Log

Card Reader Connection:

Card Reader Disconnects:

Card Reader Last Disconnect:

0 days, 00 hours, 00 minutes

01.01.2014 12:00:00

Pass

0

Never

Pass

0

Never

This page displays any logged events or errors that occur during the game.

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 32

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Main Menu

Information

Switch Status Monitoring

Switch Status Monitoring

Left Start Button Status

Right Start Button Status

Left Gun Trigger Status

Right Gun Trigger Status

Left Gun Reload Status

Right Gun Reload Status

Left Gun Grenade Status

Right Gun Grenade Status

Main Menu

Information

Cellular Information

See pg 28 – same screen as in Online Menu

OK

OK

OK

OK

OK

OK

OK

OK

Main Menu

Information

Wi-Fi Information

See pg 28 – same screen as in Online Menu

Page 33 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Diagnostic Menu System

Main Menu

Tests

These various tests check cabinet and game functionality.

They are divided into submenus for input and output tests.

Tests

Input Tests

Video Tests

Coin Meter Test

Lamp Tests

Sound Tests

File Test

Watchdog Test

Main Menu

Tests

Input Tests

Input Tests

Gun Force Feedback Tests

Switch Tests

Card Reader Test

Gun Camera Test

Main Menu

Tests

Input Tests

Gun Force Feedback Tests

Test the various recoil settings for each gun.

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 34

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Main Menu

Tests

Input Tests

Switch Tests

This checks input switch performance. By default, all switches should indicate inactive.

When a switch is pressed, it should indicate active and be highlighted on screen.

Switch Tests

Coin Slot 1

Coin Slot 2

DBV

Player 1 Start

Player 2 Start

Vol +

Vol -

Inactive

Inactive

Inactive

Inactive

Inactive

Inactive

Inactive

Service

Test

Gun 1 Trigger

Gun 1 Pump

Gun 1 Grenade

Gun 2 Trigger

Gun 2 Pump

Gun 2 Grenade

Inactive

Inactive

Inactive

Inactive

Inactive

Inactive

Inactive

Inactive

The Switch Test menu has a unique exit procedure, because it checks the switches normally used for navigation. To exit the switch test menu, press the test button five times.

Main Menu

Tests

Input Tests

Card Reader Test

On swipe, card reader should read the card type and indicate success/failure for track 1 & 2.

If results indicate failure, that card might be worn. If results indicate failure across several cards, card reader might be faulty.

Card Reader Test

Card Type: Player Card

Track 1 Data: Success

Track 2 Data: Success

Total # of Swipes: 0

# of Successful Swipes: 0

# of Failed Swipes: 0

Swipe Card At Any Time.

Page 35 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Diagnostic Menu System

Main Menu

Tests

Input Tests

Gun Camera Test

Main Menu

*Only Present on DELUXE unit* This test displays the IR array information as interpreted by the gun’s camera. This will be displayed onscreen as two rows of dots. If these dots do not display, there may be a problem with the camera or IR array boards. If any grouping of dots is not present or flickers, IR board should be replaced.

Tests

Video Tests

Video Tests

Screen Color Test

Screen Color Calibration

Main Menu

Tests

Video Tests

Screen Color Test

Main Menu

Screen Color test provides a full screen of a solid color. Press start button to cycle colors.

Tests

Video Tests

Screen Color Calibration

Main Menu

Screen test provides a static picture and color bars to assist in adjusting monitor settings.

Tests

Coin Meter Test

Press a start button to increment the coin meter.

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 36

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Main Menu

Tests

Lamp Tests

This test checks for burned-out cabinet lamps. Use volume +/- to cycle through all the lamps.

Main Menu

Tests

Sound Tests

This checks sound volume and quality. Missing sounds indicated digital flaws. Distorted sounds suggest analog flaws. Lack of sound suggests disconnected or bad cables or speakers.

100 and 1000 Hz tests generate specific frequency sounds on the indicated channel.

Cancel these sounds by selecting another test or exiting the menu.

Main Menu

Tests

File Test

This tests the integrity of the contents of the hard drive, searching for corrupt or missing game files. Damaged or missing files register as failed and are listed. The only solution to this problem is to restore the system from the DVD-ROM, as described in the Restore the Hard Drive section.

Main Menu

Tests

Watchdog Test

This tests the Watchdog circuit, which protects the game against screen freezes (infinite loops).

After a countdown, the game resets. To exit before the reset, press either Start or Volume button, squeeze a trigger or pump a gun. If the test succeeds, the game resets normally. If the test fails, the reset process loops or ends abnormally. See the Troubleshooting Chapter to diagnose and correct this problem.

Page 37 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Diagnostic Menu System

Main Menu

Utilities

Utilities

Gun Calibration

Cabinet Suspend

Collection

Main Menu

Utilities

Gun Calibration

This is the same procedure described earlier on pg13.

Main Menu

Utilities

Cabinet Suspend

This option toggles a suspended state for maintenance to avoid online service changes.

Main Menu

Utilities

Collection

Collection

Take Collection

View Credit Card Fee Details

View Coinup Service Details

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 38

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Main Menu

Utilities

Collection

Take Collection

Take Collection

Date of Last Collection:

Gross Collection

Cash

Cash Card

01.10.2012 (0.0 days)

$0.00

$0.00

$0.00

Credit Card

Player Account

$0.00

$0.00

Service Credits

Balance (Cash Card not included)

$0.00

Credit Card Fees

CoinUp Fees

Net Collection

Operator Split

Location Split

(50.0%)

(50.0%)

$0.00

- $0.00

- $0.00

$0.00

$0.00

$0.00

Main Menu

Utilities

Collections

View Credit Card Details

View Credit Card Details

Attempted Credit Transactions 0

Successful Credit Transaction

Total Charged

Transaction Fees

0

$0.00

$0.00

Page 39 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Diagnostic Menu System

Main Menu

Utilities

Collections

View Coinup Service Details

View Coinup Service Details

Online Subscription Service

Cell Modem Charge

Operations Charge

Credit Card Fees

Total Coinup Service

(0.0 days) $0.00

(0.0 days) $0.00

(0.0 days) $0.00

$0.00

$0.00

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 40

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Warning: Review safety chapter before making any adjustments to game.

General Troubleshooting

Problem

Game will not power up

Possible Cause

Game not plugged in.

Game not turned on.

Game fuse is blown.

No power to receptacle.

Solution

Plug game into outlet.

Turn on main power switch.

Check and replace fuse.

PC not turned on.

PC BIOS set incorrectly.

Screen not powering on with game TV Auto On not set

NO VIDEO message

Consult TV manual for details.

Video cables not plugged in properly Reattach and/or tighten video cable to monitor.

Reattach and/or tighten video cable to PC.

Faulty video cable

PC not turned on.

Replace video cable

Turn PC power switch on.

No sound

Game does not load

Hard drive test reports “bad” or

“missing” files.

Game fails to finish loading.

Bad Connection

Hard drive failure

Test outlet and plug game into powered outlet.

Turn PC power switch on. Ensure

IEC cable tightly plugged in. Trace cable back to source to ensure continuity.

See BIOS Settings chapter.

Check connection to speakers.

Recover hard drive.

See procedure on pg 16.

After resetting, game still reports an error.

Game suggests inserting a boot

DVD.

Erratic game mode or attract mode.

WARNING!

Data Files Corrupted.

(Game Operation May Become

Unstable.)

Use “Test” Switch to Enter Test

Mode and Run “File Test.”

Press Start To Continue.

Game resets Bad file. Run File Test. Restore hard drive.

Page 41 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Troubleshooting

Problem

Guns won’t register or function poorly

Coin meter does not click during

Test

Exits Test Mode every 3 seconds

Dongle Not Present

Connect I/O Board or

I/O Board Missing

Possible Cause

Bad calibration

Dirty/damaged lens

Gun disconnected

No pulse to meter

Faulty meter

Test button stuck in ON position

Dongle missing or disconnected

Faulty USB port

USB cable disconnected

Blown fuse

No power to RIO board

Bad RIO Board

Solution

Calibrate guns.

Clean gun lens.

Check USB connections.

Check all wiring from meter to I/O board

Replace coin meter

Slide or toggle button off after Test

Menu appears

Find dongle USB connection and reseat in USB port

Connect dongle to another USB port

Check USB connection from PC to

I/O board

Try connecting to a different USB port

Verify 5V and 12V fuses are not blown

Check for proper voltage

(+5V, +12V) at RIO P2 connector

Replace RIO board with known functional board

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 42

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

55” Deluxe Cabinet

Deluxe Rear Pedestal

Item

5

6

7

1

2

3

4

8

9

10

11

Part No.

601-00646-01

601-00649-01-ALIENS-DOOR-MAINCAB

OutriggerAssem-RED

2-1-02-00-00-017

820-00001-00

800-00001-00

Main cab Side molding

HP6005

600-00171-01

RIO_Aliens_ASSY

600-01354-01

Description

55” wood cabinet – rear pedestal

Wood rear door 55” cabinet

Outrigger assembly 55” cabinet

APS Power Supply (Bracket #90-AP 188)

Fan 120mm – 120V AC 15/19w

Fan wire guard

Side molding

Computer

Cabinet brace – T4/Aliens

Rio board assembly

Dongle Holder Bracket

QTY

1

1

2

1

1

1

1

1

2

1

1

Page 43 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Parts

Deluxe Marquee Assembly

Item

1

2

3

4

5

6

Part No.

600-01128-01

600-01129-01

603-00674-01

606-00844-01

ASSY-55-U-CHANNEL-TOP

ASSY-55-U-CHANNEL-BOTTOM

Description

55” Cabinet IR U-channel mounting bracket

55” cabinet marquee top retainer

Petg Aliens Marquee

Translite Aliens Marquee

55” cabinet top U-channel

55” cabinet bottom U-channel

QTY

2

1

1

1

1

1

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 44

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Deluxe Cabinet Monitor Assembly

Item

1

2

3

4

5

6

7

8

9

Part No.

601-00647-01

55-ALIEN-MARQ-ASSY

ASSY-MARQUEE-LED-LIGHTS

ALIENS-55-LCD-ASSY

820-00001-00

800-00001-00

ALIENS 55 SPEAKER ASSY (L)

ALIENS 55 SPEAKER ASSY (R)

600-01207-01-STRUT-55LCD

Description

55” wood cabinet – monitor enclosure

55” cabinet – marquee assembly

55” cabinet LED lights

55” LCD monitor

Fan 120mm 120v ac 15/19w

120mm wire fan guard

Left speaker

Right speaker

55” LCD mounting struts

QTY

1

1

1

1

2

2

1

1

2

Page 45 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Parts

Deluxe Front Pedestal Assembly

Item

1

2

3

4

5*

6

7

Part No.

601-00648-01

ASSY-CONTROL-PANEL-ALIENS

ASSY-LEFT-HOLSTER-ALIENS

ASSY-RIGHT-HOLSTER-ALIENS

ASSY-CARDSWIPE-ALIENS

600-01134-01

603-00718-01

Description

55” wood cabinet – front pedestal

Aliens control panel assembly

Aliens left holster assembly

Aliens right holster assembly

Aliens card swipe with blanking plate assembly

LED T-molding clip

LED T-molding approximately 60”

8

9

10

11

12

13

14

800-00005-00 (RED)

601-00685-01

2-1-18-00-00-000

Triangle Gun Plate

820-00022-00

820-00023-00

600-00172-01

Red coin door

8” woofer plate

8” woofer 4 ohm

Gun plate (included with gun assembly)

Aliens left dark grey gun with green butt

Aliens right dark grey gun with orange butt

Gun bracket

15 810-00053-01 Service Button Assembly

*See pg 50 for more info on card swipe assembly and blanking plate

QTY

1

1

1

1

1

4

2

2

1

1

2

1

1

1

1

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 46

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Deluxe Control Panel Assembly

Item

1

2

3

4

5

6

7

8

9

Part No.

603-00669-01

603-00668-01

606-00853-01

603-00670-01

606-00854-01

702-0007-01

702-00008-01

500-00158-01

500-00157-01

Description

Aliens 55” cabinet control panel vacform

Aliens 55” cabinet control panel decal

Aliens 55” cabinet control panel translate instructions

Aliens 55” cabinet control panel polycarb oval

Aliens 55” cabinet control panel translite oval

Aliens left player start button

Aliens right player start button

5.91” (15cm) LED Strip (white)

9.84” (25cm) LED Strip (White)

QTY

1

1

1

1

1

1

1

2

3

Page 47 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Parts

Deluxe Alien Topper Assembly

Item

1

2

3

4

5

6

7

8

9

Part No.

600-01135-01

606-00860-01

603-00679-01

ALIENS 55-Header Marquee Backlight Assy

Header-LED Shroud-ASSY

ALIENS-Marquee-Pan-Assy

606-00859-01

601-00655-01

600-01136-01

Description

Aliens 55” cabinet header bracket

Aliens 55” cabinet topper front decal

Aliens 55” cabinet formed topper

Aliens 55” cabinet marquee backlight assembly

Aliens 55” Header LED shroud assembly

Aliens 55” marquee pan assembly

Aliens 55” topper back panel decal

Aliens 55” topper back panel

Aliens 55” topper bracket support

QTY

1

1

1

1

1

1

1

1

1

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 48

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Deluxe Holster Assembly

Page 49 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Parts

Card Swipe Assembly with Blanking Plate

Item

4

5

6

7

1

2

3

Item

1

2

3

4

5

Part No.

600-01133-01

600-00758-01

RHBOLT 0.19-24X0.75X0.75-C

MSHXNUT 0.190-24-S-N

500-00035-01

Card Swipe Assembly with Card Swipe*

Part No.

600-01133-01

600-00758-01

813-00012-01

RHBOLT 0.19-24X0.75X0.75-C

MSHXNUT 0.190-24-S-N

90272A108

500-00035-01

Description

Bracket Control Panel

Blanking plate

Bolt

Nut

White LED Spotlight

Description

Bracket Control Panel

Blanking plate

Card Swipe

Bolt

Nut

4-40 x 3/8 Panhead Phillips #1

White LED Spotlight

QTY

1

1

2

2

2

QTY

2

2

2

2

1

1

1

Figure 3: Card Swipe with Blanking Plate

Figure 4: Card Swipe Assembly

*Note: Card Swipe is part of Online Kit. Contact distributor for information regarding Online Kit.

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 50

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Fixed Gun

Fixed Gun Assembly

Page 51 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Item

30

31

-

-

-

26

27

28

29

-

-

22

23

24

25

17

18

19

20

21

13

14

15

16

9

10

11

12

5

6

7

8

1

2

3

4

Fixed Gun Assembly Part Numbers

Part No.

75V-L012-20

96-2515-06

96-0005-00

77-2NL0-577

43-0280-00

43-2327-00

96-2516-00

43-0264-00

4008-01100-12

43-0099-00

43-0172-00

96-0831-10

96-4917-01

43-0011-00

96-1080-10

96-1081-00

90-1013-00

43-0127-00

96-0703-01

96-0078-01

96-0853-30

96-0854-30

96-4923-00

96-4907-00

96-4960-00

42-0082-00

43-0003-00

43-0092-00

43-0037-00

43-0253-00

96-4904-00

96-4913-00

96-4916-00

96-1084-00

96-1083-00

95-4142-00

Description

Bottom and base bracket sub assembly with bumper

Bracket sub assembly with handle & mounting bracket coil pads

Shaft 5/8” diameter

Gear segment with hub

Spacer segment gear

Nut Keps 8-32

3/8 SAE flat washer zinc plated

Nut 3/8-16 nylock

Lock washer ext #10

Nut hex 10-32 jam nylock zinc plated

Bracket pot mounting horizontal

Bracket pot mounting vertical

Long life pot with nut & washer

Left gun half

Right gun half

Switch assembly ball detect

IPB with sub min sw sm cir red rd cap db ms 12v wht led lamp

Trigger black new style

Spring trigger return

Vlt button rec amber no led

Hex head cap screw 10-32 x 1-1/4

Screw 8-32 x 1-1/14” button head machine screw torx

Screw 10-32 x 3/8” button head torx

Nut 8-32 hex nylock black

Screw 8-32 x ¾ button head machine screw torx

Screw 8-32 x 1” button head machine screw torx

Screw #2 x ½ type B. PPH

Cover

Gear 32DP 16T .25 bore .5 long

Set Screw 6-32” x 3/16 cup point

LED light tube

Main harness

Tie wrap 4”

Tie plate

Shrink tubing

Tubing Heat Shrink 3/16 x 3/4

Parts

QTY

2

1

1

10

1

2

2

1

2

6

2

11

8

14

1

1

1

1

1

1

2

1

1

1

2

1

1

1

1

5

1

1

1

1

1

1

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 52

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Fixed Gun Cabinet Assembly

Fixed Gun Cabinet Parts and Assembly

Page 53 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Parts

Fixed Gun Cabinet Parts List

Item

30

31

32

33

34

26

27

28

29

22

23

24

25

17

18

19

20

21

13

14

15

16

9

10

11

12

5

6

7

8

1

2

3

4

39

40

41

42

43

35

36

37

38

44

45

46

47

Part No.

601-00686-01

AP -480

Rear Door w-lock

600-00585-01

606-00910-01

26093-00

2-1-10-00-00-000

600-00586-01

800-00047-00

702-00027-00

AP-486

AP-487

23-410

600-00803-01

606-00915-01

603-00563-01

01-1826

601-00676-01

Aliens 42-T-Molding

Aliens 42 Control Panel Assembly

2-1-02-00-00-017

820-00023-00(R)

820-00023-00(L)

600-00758-01

2-1-18-00-00-000

600-01136-01

600-01304-01

850-00017-01

Alien-header-assy-42fixed-md

42-LCD-ASSY

Torx 2 INCH

Torx 3_4

93827A211

Torx 1-1_4

601-00690-01

601-00580-01

606-00909-01

606-00908-01

606-00920-01

600-01354-01

810-00053-01

606-00918-01

Aliens_42 RIO Assembly

600-01361-01

500-00054-01

603-00603-01

93275k12

Description

Aliens 42” Fixed Gun Cabinet

Base Assembly with casters & levelers

Rear door with lock

Woofer Grill

Aliens-42 Woofer panel decal

Kick panel

5.25 Speaker

Side Speaker Grill

Aliens-coin door mid width – red with black bezels

CCFL Red Kit 2 bulbs and 1 in- verter

42” LCD Strut – right side

42” LCD Strut – left side

Wood spacer – 42” strut

Top Plate – Main cabinet

Aliens 42” top plate decal

1.5 x 2.5 rect tube cap/alliance plastic rcr25151216a

Mounting bracket – t 600

Alien 42” marquee adapter panel

Header Support Panel

Control Panel Bezel & Assembly

APS Power Supply (90-AP-188)

Aliens 42 Fixed Gun / Happ 96-7751-00

Aliens 42 Fixed Gun / Happ 96-7751-00

Card Swipe Bracket

8” woofer, 4 ohm, poly-mica cone

Aliens Topper Support Bracket

42” Monitor Back Door

HP 6005 PC

Aliens 42” Fixed Gun Header Assembly

42” Monitor Assembly

2” Torx screw, lock and flat washer

¾” Torx screw, lock and flat washer

¼-20 nut

1-1/4” Torx screw, lock and flat washer

Wood clamp

PC Wood Cleat

Aliens 42” Fixed Gun Left side cabinet decal

Aliens 42” Fixed Gun Right side cabinet decal

Kick Panel Decal

01-1668, dongle holder

Test Service Button Assembly

Aliens 42” Fixed Gun Center Angle panel decal

Rio board assembly

Kick Board Mounting Plate/01-1696

Kickboard PCB (24V/5A)

1-1/2” Sheet metal cap plug

Foam Tape, 1/8” thick x ½” wide, 39” length

QTY

1

2

10

2

2

1

1

1

1

1

1

1

1

2

1

1

1

1

2

1

2

2

1

2

1

1

1

1

2

2

1

2

1

1

1

1

1

1

1

1

1

1

1

1

2

2

1

Copyright © 2014 Play Mechanix™ Inc. All rights reserved. Page 54

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Deluxe Gun Assembly

Deluxe Gun Parts List

Item No. Qty. Part No.

31

32

33

34

27

28

29

30

23

24

25

26

19

20

21

22

39

40

41

42

35

36

37

38

15

16

17

18

9

10

11

12

13

14

5

6

7

8

1

2

3

4

8

1

1

1

2

1

13

5

4

1

2

1

2

2

2

1

1

1

1

1

1

7

1

1

1

1

1

1

1

2

1

1

12

7

1

1

1

1

1

1

1

1

2

1

96-0974-00

96-0973-00

95-4142-10

77-2L12-300SPCL

96-0985-00

96-0988-00

96-0981-00

96-0983-00

96-1045-00

77-2014-00

43-0095-00

43-1247-00

96-1047-20

820-00010-01

500-00038-01

96-1106-00

96-1041-00

43-2365-00

96-1049-00

43-0995-00

43-0740-00

96-1044-00

43-0172-00

43-0067-00

43-0436-00

96-1051-00

96-1109-00

95-4372-00

43-0429-00

43-0492-00

43-1061-00

95-4466-00

96-0987-00

96-0986-00

96-1040-00

43-0375-00

96-0985-10

43-2927-00

43-2350-00

90272A112

43-1322-10

500-00083-01

96-0019-00

96-0019-10

Description

Rifle Half Left F/Raw Thrills

Rifle Half Right F/Raw Thrills

Switch Assy Ball Detect

IPB SM Cir Red Vlt Red Cap 6V Lamp DA3 MS No Printing

Barrel Cap

Trigger Raw Thrills Rifle

Plastic Butt Cap

Plastic Reload Cap

Trigger Spring

Nut F/Vlt PB

Screw 6-32 x 3/8 BHMS T-10 TORX

Screw 6-32 x 5/8 BH TORX Black

Hose and Harness Assembly USB 12 Cond

Camera Assembly (Complete)

Kick Board

Urethane Bumper 5/16 ID x 5/8 OD x ¾ L

Recoil Rod for Raw Thrills Rifle

Bushing Flange JFI-0506-06

Miner General Bumper Ref. # GBA-098S

#10 Flat Washer

Screw 10-32 x ½ BHCS

Recoil Rod Spring for Raw Thrills Rifle

Screw, #2 x ½ Type B. PPH

Screw, 8 x 3/8 Phil Hi-Low PH

Screw #4 x ¼ PH Pan Head

Reload Spring F/Raw Thrills Rifle

Urethane Stop F/Raw Thrills Reload

Grommet for ¼ Dia. Hole .44 OD x .44 LG

Washer, M3 Split Ring Lock Washer

Screw, 4-40 x .25 PH Pan Head

Screw, M3 x 6 mm

Grommet Bumper F/.25 dia. Hole .50 OD x .15 LG

Brass Knocker

Solenoid Housing Bracket F/Raw Thrills Rifle

Solenoid F/Raw Thrills Rifle

Nut 6-32 Hex Nylock Black

Front Cap Upper F/T4 Rifle

Threaded Snap 10-32 F/T4 Rifle

Nut Hex 10-32 Jam Nylock Black Oxide

Screw 4-40 x 11/16 Torx Black Oxide

Nut Nylock, 4-40 Hex Black Oxide

LED PCB F/T4 Rifle

Right Side Decal

Left Side Decal

Page 55 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Parts

Deluxe Gun Parts and Assembly

Copyright © 2013 Play Mechanix™ Inc. All rights reserved. Page 56

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Deluxe Cabinet Wiring Diagram

Page 57 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

Electrical Wiring

Fixed Gun Cabinet Wiring Diagram

Copyright © 2013 Play Mechanix™ Inc. All rights reserved. Page 58

To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +561.391.7200

For an authorized distributor near you, check the Raw Thrills website at www.rawthrills.com

Contact Betson Enterprise Headquarters or your local Betson office for sales, technical information, warranty or repair. Betson can be reached at (800) 524-2343 Fax (201) 438-4837 www.betson.com

CoinUp® Service

PlayMechanix™ www.playmechanix.com

800 Roosevelt Road, Suite D-103

Glen Ellyn, IL 60137

(866) 646-1975 fax (630) 942-1073

Betson Enterprises Headquarters

303 Paterson Plank Rd.

Carlstadt, NJ 07072

(800) 524-2343 or (201) 438-1300 fax (201) 438-4837

Page 59 Aliens Armageddon™© 2014 Twentieth Century Fox Film Corporation.

Aliens Armageddon™© Game Software copyright 2013 PlayMechanix™ Inc. All rights reserved.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
