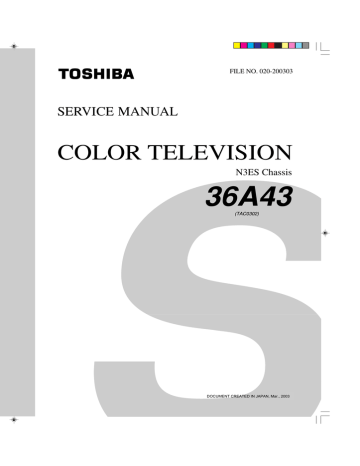

FILE NO. 02

0-200303

SERVICE MANUAL

COLOR TELEVISION

N3ES Chassis

36A43

(TAC0302)

DOCUMENT CREATED IN JAPAN, Mar., 2003

TABLE OF CONTENTS

CHAPTER 1 GENERAL ADJUSTMENTS

SAFETY INSTRUCTIONS ........................................................................................................................................ 3

SET-UP ADJUSTMENT ............................................................................................................................................ 4

SERVICE MODE ...................................................................................................................................................... 6

DESIGN MODE ........................................................................................................................................................ 9

ELECTRICAL ADJUSTMENT ................................................................................................................................ 10

CIRCUIT CHECKS ................................................................................................................................................. 12

CHAPTER 2 SPECIFIC INFORMATIONS

SETTING & ADJUSTING DATA .............................................................................................................................. 13

LOCATION OF CONTROLS ................................................................................................................................... 14

PROGRAMMING CHANNELS INTO THE TV'S MEMORY .................................................................................... 15

CHASSIS AND CABINET REPLACEMENT PARTS LIST ...................................................................................... 16

PC BOARDS BOTTOM VIEW ................................................................................................................................. 25

TERMINAL VIEW OF TRANSISTORS ................................................................................................................... 28

CIRCUIT BLOCK DIAGRAM .................................................................................................................................. 30

SPECIFICATIONS .............................................................................................................................................. END

APPENDIX:

CIRCUIT DIAGRAM

– 2 –

CHAPTER 1 GENERAL ADJUSTMENTS

SAFETY INSTRUCTIONS

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-

TION” AND “PRODUCT SAFETY NOTICE” INSTRUCTIONS BELOW.

X-RAY RADIATION PRECAUTION

1. Excessive high voltage can produce potentially hazardous

X-RAY RADIATION. To avoid such hazards, the high voltage must not be above the specified limit. The nominal value of the high voltage of this receiver is (A) kV at zero beam current (minimum brightness) under a 120V AC power source. The high voltage must not, under any circumstances, exceed (B) kV.

2. This receiver is equipped with a Fail Safe (FS) circuit which prevents the receiver from producing an excessively high voltage even if the B+ voltage increases abnormally. Each time the receiver is serviced, the FS circuit must be checked to determine that the circuit is properly functioning, following the FS CIRCUIT CHECK procedure in this manual.

3. The only source of X-RAY RADIATION in this TV receiver

Refer to table-1 for high voltage (A), (B).

(See SETTING & ADJUSTING DATA on page 13) is the picture tube. For continued X-RAY RADIATION protection, the replacement tube must be exactly the same type tube as specified in the parts list.

Each time a receiver requires servicing, the high voltage should be checked following the HIGH VOLTAGE CHECK

4. Some part in this receiver have special safety-related characteristics for X-RAY RADIATION protection. For continprocedure in this manual. It is recommended that the reading of the high voltage be recorded as a part of the service ued safety, parts replacement should be undertaken only after referring to the PRODUCT SAFETY NOTICE below.

record. It is important to use an accurate and reliable high voltage meter.

SAFETY PRECAUTION

WARNING : Service should not be attempted by anyone unfamiliar with the necessary precautions on this receiver. The following are the necessary precautions to be observed before servicing this chassis.

1. An isolation Transformer should be connected in the power line between the receiver and the AC line before any service is performed on the receiver.

2. Always discharge the picture tube anode to the CRT conductive coating before handling the picture tube. The picture tube is highly evacuated and if broken, glass fragments will be violently expelled. Use shatter proof goggles and keep picture tube away from the unprotected body while handling.

3. When replacing a chassis in the cabinet, always be certain that all the protective devices are put back in place, such as; non-metallic control knobs, insulating covers, shields, isolation resistor-capacitor network etc.

4. Before returning the set to the customer, always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, screwheads, metal overlays, control shafts etc. to be sure the set is safe to operate without danger of electrical shock. Plug the AC line cord directly into a 120V AC outlet (do not use a line isolation transformer during this check). Use an AC voltmeter having 5000 ohms per volt or more sensitivity in the following manner:

Connect a 1500 ohm 10 watt resistor, paralleled by a 0.15

µF, AC type capacitor, between a known good earth ground

(water pipe, conduit, etc.) and the exposed metallic parts, one at a time. Measure the AC voltage across the combination of 1500 ohm resistor and 0.15

µF capacitor. Reverse the AC plug at the AC outlet and repeat AC voltage measurements for each exposed metallic part. Voltage measured must not exceed 0.3 volts rms. This corresponds to 0.2 milliamp. AC. Any value exceeding this limit constitutes a potential shock hazard and must be corrected immediately.

AC VOLTMETER

Good earth ground such as a water pipe, conduit, etc.

0.15

µF

1500 ohm

10 watt

Place this probe on each exposed metallic part.

PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These characteristics are often passed unnoticed by a visual inspection and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the international hazard symbols on the schematic diagram and the parts list.

Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts which do not have the same safety characteristics as specified in the parts list may create shock, fire, X-ray radiation or other hazards.

– 3 –

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-

TION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF SERVICE MANUAL.

SET-UP ADJUSTMENT

■ The following adjustments should be made when a complete realignment is required or a new picture tube is installed.

Perform the adjustments in order as follows :

1. Color Purity

2. Convergence

3. White Balance

Note: The PURITY/CONVERGENCE MAGNET assembly and rubber wedges need mechanical positioning.

Refer to figure 1.

COLOR PURITY ADUSTMENT

(1)Let the screen face in the installing direction or toward the east (when it is to be moved), bring up the service mode screen after demagnetizing (front, left, right, and top) with the degaussing coil, receive white signals by pressing the

[TV/VIDEO] button, and then the receiver should be operated for more than 40 minutes.

(2)Perform rough adjustment of the central convergence with the P/C magnet according to the adjustment item.

(3)Receive built-in green signals, loosen set screws on the deflection yoke, remove rubber wedges, and shift the deflection yoke to toward front.

(4)Move alternately the two 2-pole magnets of the P/C magnets so that the green raster can come to the center of the screen.

Figure 1.

2-pole purity magnet

(27": Magnet is fixed with deflection yoke.)

Green Belt

Main 4-pole convergence magnet (30" : 32")

6-pole convergence magnet (34")

6-pole convergence magnet (30" : 32")

Main 4-pole convergence magnet (34")

P/C magnet installing position A

• 30"=26.5 mm

• 32"=30.5 mm or 32.5 mm

A

• 34"=37 mm

• 34"=39 mm

Sub-4-pole convergence magnet (32" : 34")

Sub-4-pole convergence magnet (to be installed on deflection yoke for 30", 32”)

(5)Receive built-in red and blue signals, check that there is no inclination of the single color raster toward one side, and if each color tilts to a great extent, make adjustment with the 2-pole magnet so that the 3 colors will come to the center evenly.

Shift deflection yoke

(6)

(7) Perform marking of each point

(6)Receive the green raster, shift the deflection yoke from a foremost position (hitting against the picture tube) to a backward position horizontally, stop the deflection yoke at a position where it begins to become a green raster,

(8) on the tape of picture tube and perform accurate marking on the picture tube.

Picture tube

CRT-D board

(7)Shift the deflection yoke further backward, and perform accurate marking at a position where the green raster begins to being luck.

(8)Fix the deflection yoke at a position 60% forward within the range marked in items (6) and (7) above.

100 60 0%

P/C Mag

Fix the deflection yoke at a position 60% forward from a

CONVERGENCE ADJUSTMENTS

point between (6) and (7)

* Adjust the convergence magnet to get vest convergence in the the order to (1) ~ (5).

CENTER CONVERGENCE:

(1)Receive the white crosshatch or dot pattern from the service signal generator.

(2)Use the 2 pieces of main 4-pole magnets of P/C magnets, change the open angle, and align the red and blue vertical lines on the screen center.

(3)Freeze the open angle of the main 4-pole magnets, turn them simultaneously, and align the horizontal lines.

(4)Take the same steps for items (2) and (3) above and align red/blue with green on the screen center using two 6-pole magnets.

– 4 –

(5)Adjust the sub-4-pole magnets only in case there is any deviation of Xv bow-shaped convergence. (To be usually set at the initial position)

Align both sides with the sub-4-pole magnets and minimize the deviation of blue and red with the main 4-pole magnets.

blue blue red red

Main 4-pole magnet

CIRCUMFERENCE CONVERGENCE:

*

Perform correction in the following manner.

red/blue red/blue green

6-pole magnet

green

Xv bow-shaped deviation of convergence blue red

Sub-4-pole magnet

• Adjust coils and minimize deviation

(The 27” unit has coils underneath it) blue green red

A

B blue green red

D

E

(Insertion position of correction piece)

D A

E B

F C

A

B blue green red

D

E

C F

(Parts code:23 948 274) TC-S

S

N

*Insert the correction piece between the picture tube and the deflection yoke.

Bonded surface

Blue color or blue mark

C F

(Parts code:23 948 464)

N

S

Bonded surface

Adjust VR 1 and minimize the deviation of YH. *Only 27", 30" and 32".

Red green blue blue green

Red

■ 30", 27", 32"

VR3 VR2 VR1

Red green blue blue green

Red

Adjust VR 2 (YHC) and minimize the deviation of YH.

Red green blue blue green

Red

■ 34" blue green

Red

Red green blue

Adjust VR 3 (YV) and minimize the deviation of YV.

Red green blue blue green

Red blue green

Red

Red green blue

G H

G

YV YHC

H

27" (Part No. 23 947 371)

32", 30" (Part No. 23 947 121)

34" (Part No. 23 993 080)

Perform correction by inserting the correction piece into the clearance of terminal board coils of the deflection yoke.

Note:

Perform insertion by turning the metal side to the terminal board side of the deflection yoke.

– 5 –

1. ENTERING TO SERVICE MODE

1) Press MUTE button once on Remote Control.

SERVICE MODE

2) Press MUTE button again to keep pressing.

3) While pressing the MUTE button, press MENU button on TV set.

S

MUTE

2. DISPLAYING THE ADJUSTMENT MENU

1) Press MENU button on TV.

Service mode

S

Press

Press

Adjustment mode

Item

Data

(Service mode display)

3. KEY FUNCTION IN THE SERVICE MODE

The following key entry during display of adjustment menu provides special functions.

A single horizontal line ON/OFF:

Test signal selection :

Selection of the adjustment items :

Change of the data value :

Adjustment menu mode ON/OFF :

TV (ANT)/VIDEO button (on TV)

TV (ANT)/VIDEO button (on Remote)

Channel s/t (on TV or Remote)

Volume T / S (on TV or Remote)

MENU button (on TV)

Initialization of the memory (QA02) : RECALL+Channel (s) button on TV

Initialization of the self diagnostic data: RECALL+Channel (t) button on TV

“RCUT” selection :

“GCUT” selection :

“BCUT” selection :

“CNTX” selection :

“COLC” selection :

“TNTC” selection :

Test audio signal ON/OFF (1kHz):

Self diagnostic display ON/OFF :

1 button

2 button

3 button

4 button

5 button

6 button

8 button

9 button

– 6 –

4. SELECTING THE ADJUSTING ITEMS

1) Every pressing of CHANNEL s button in the service mode changes the adjustment items in the order of table-2.

(t button for reverse order)

Refer to table-2 for preset data of adjustment mode.

(See SETTING & ADJUSTING DATA on page 13)

5. ADJUSTING THE DATA

1) Pressing of VOLUME T / S button will change the value of data in the range from 00H to FFH. The variable range depends on the adjusting item.

6. EXIT FROM SERVICE MODE

1) Pressing POWER button to turn off the TV once.

INITIALIZATION OF MEMORY DATA OF QA02

After replacing QA02, the following initialization is required.

1. Enter the service mode, then select any register item.

2. Press and hold the CALL button on the Remote, then press the CHANNEL s button on the TV. The initialization of QA02 has been complated.

3. Check the picture carefully. If necessary, adjust any adjustment item above.

Perform “Auto search Memory” on the owner’s manual.

CAUTION: Never attempt to initialize the data unless QA02 has been replaced.

7. TEST SIGNAL SELECTION

1) Every pressing of TV/VIDEO button on the Remote Control in the Service mode changes the built-in test patterns on screen in the following order.


Normal picture

Red raster

Green raster

Blue raster

Black cross-bar on green raster

H signal (black)

H signal (white)

Signals

• Red raster

• Green raster

• Blue raster

• All Black

• All White

• Black & White

White cross-dot

All black

Black cross-dot

All white

White cross-hatch

White and black

Black cross-bar

Black cross-hatch

• Black cross-bar

• White cross-bar

• Black cross-bar on green raster

White cross-bar

• Black cross-hatch

• White cross-hatch

2) Press "8" button while any built-in test pattern to on the screen to output the 1 kHz sound. Press the button again to cut off the sound.

Note: If the video cable is connected to the VIDEO1 INPUT jack, the built-in pattern signals are not displayed.

• Black cross-dot

• White cross-dot

• H signal (white)

• H signal (black)

*

The signals marked with are not usable to display in the Test signal for some model.

– 7 –

8. SELF DIAGNOSTIC FUNCTION

1) Press “9” button on Remote Control during display of adjustment menu in the service mode.

The diagnosis will begin to check if interface among IC’s are executed properly.

2) During diagnosis, the following displays are shown.

SELF CHECK

NO. 23

******

POWER : 000

BUS LINE : OK

BUS CONT : OK

BLOCK : MAIN

SET ID : 03

E2P VER : 02

OPT0 : 20H OPT1 : 84H OPT2 :01H

� Part number of microprocessor (QA01)

� Operation number of protection circuit (current limiter) . . . . “000” is normal.

� BUS line check

“OK” ................... Normal

“SCL-GND” or “NG” .............. SCL-GND short circuit

“SDA-GND” or “NG” ............. SDA-GND short circuit

“SCL-SDA” or “NG” .............. SCL-SDA short circuit

� BUS line ACK (acknowledge) check

“OK” ..................... Normal

Display of Location Number . . . . NG

(Display example)

“QA02 NG”, “H001 NG”, “Q501 NG” etc.

Note: The indication of failure place is only one place though failure places are plural. When repair of a failure place finishes, the next failure place is indicated. (The order of priority of indication is left side.)

� SYNC signal available/not available (available: green, not available: red)

� SET ID

� Version of E2P

� OPT data

*

The item marked with are not usable to display in the SELF DIAGNOSTIC FUNCTION for some model.

– 8 –

DESIGN MODE

1. ENTERING TO DESIGN MODE

1) Select the Service mode.

2) While pressing RECALL button on

Remote and press MENU button on TV.

3) Press MENU button on TV.

S D

Press

ITEM

DATA

Press

(Design mode) (Adjustment mode)

When QA02 is initialized, items “OPT0” and “OPT1” of DESIGN MODE are set to the data of the representative model of this chassis family.

Therefore, because ON-SCREEN specification remains in the state of the representative of model. This model is required to reset the data of items “OPT0” and “OPT1”.

2. SELECTING THE ADJUSTING ITEMS

Every pressing of CHANNEL t button in the design mode changes the adjustment items in the order of table-3.

(s button for reverse order)

Refer to table-3 for data of design mode.

(See SETTING & ADJUSTING DATA on page 13)

3. ADJUSTING THE DATA

Pressing of VOLUME s or t button will change the value of data.

– 9 –

ITEM

FOCUS VR ADJ

SUB-BRIGHTNESS

(BRTC)

SUB-COLOR

(SCOL)

SUB-TINT

(TNTC)

WIDTH

(WID)

E-W PARABOLA (DPC)

(PARA)

ELECTRICAL ADJUSTMENT

ADJUSTMENT PROCEDURE

1. Enter the service mode, then select any register item.

2. Press the TV/VIDEO button on the Remote until the black cross-bar pattern appears on the screen.

3. Adjust the FOCUS control (on T461) for well defined scanning lines on the picture screen.

1. Constrict the picture height until the vertical retrace line appears adjusting the item

HIT (HEIGHT).

2. Adjust the CONTRAST control to the minimum.

3. Call up the adjustment mode display, then select the item BRTC.

4. Press the VOLUME s or t button so the belt of vertical retrace line just disappear.

5. Adjust the CONTRAST control for the desired contrast.

6. Perform the HEIGHT adjustment.

Vertical retrace line

1. Receive color-bar signal from color-bar generator.

2. Press the RESET button.

3. Connect oscilloscope to TP501 on SIG-

NAL board.

4. Adjust the CONTRAST control to the minimum.

0

Magenta

Blue

2

3 (1.6V

0-P

)

5. Call up the adjustment mode display, then select the item TNTC.

6. Adjust the SUB-TINT by pressing the

VOLUME s or t button to obtain a blue bar to magenta bar ratio of 3:2 as shown.

7. Press the RESET button.

8. Select the item SCOL.

9. Adjust the SUB-COLOR by pressing the VOLUME s or t button to achieve

1.6V

0-p

of a blue bar on scope.

10. Check the picture with off-air signal.

1. Call up the adjustment mode display, then select the item WID.

2. Press the VOLUME s or t button to get the picture so the left and right edges of raster begins to lack.

3. Press the VOLUME s or t button to advance the data by 7 steps.

Note : Check the horizontal picture position is correct.

1. Call up the adjustment mode display, then select the item PARA.

2. Press the TV/VIDEO button on Remote until the cross-hatch pattern appears on the screen.

3. Press the VOLUME s or t button to make vertical lines straight as shown below.

– 10 –

ITEM

HORIZONTAL POSITION

(HPOS)

VERTICAL POSITION

(VPOS)

HEIGHT

(HIT)

WHITE BALANCE

(RCUT)

(GCUT)

(BCUT)

(GDRV)

(BDRV)

ADJUSTMENT PROCEDURE

1. Call up the adjustment mode display, then select the item HPOS or VPOS.

2. Press the TV/VIDEO button on Remote until the white cross-bar or black cross-bar pattern appears on the screen.

3. Adjust the HORIZONTAL and VERTICAL position alternately by pressing the VOLUME s or t button for proper picture position.

4. Check the picture with off-air signal.

1. Call up the adjustment mode display, then select the item HIT.

2. Press the VOLUME s or t button to get the picture so the top of raster begins to lack.

3. Press the VOLUME s button to advance the data by 9 steps.

Note : Check the vertical picture position is correct.

1. Adjust the CONTRAST control to the center, and BRIGHTNESS control to the maximum.

2. Call up the adjustment mode display, and press the TV/VIDEO button on Remote until the white and black pattern appears on the screen.

3. Adjust the following items with the CHANNEL s/t and VOLUME s/t buttons.

Item :

Item :

Item :

RCUT

GCUT

BCUT

Data : 40H

Data : 40H

Data : 40H

Data : 40H

Data : 40H

4. Press the TV/VIDEO button on TV to display a single horizontal line on the screen.

5. Turn the SCREEN control (FBT) fully counterclockwise and gradually rotate clockwise until the first horizontal line appears slightly on the screen.

6. Press the TV/VIDEO button to display the normal picture.

7. Adjust the remaining two “?CUT” items (CHANNEL s/t → TV/VIDEO → VOL-

UME s/t in order) to obtain the slightly lighted horizontal line in the same levels of three (red, green, blue) colors. The line should be white if the adjustments are proper.

Bright area

Adjust "GDRV" or "BDRV" to be white.

Dark area

Fine adjust "RCUT", "GCUT" or "BCUT" to be black.

MTS ADJUSTMENT

No.

1

ITEM

ATTENUATOR

(ATT)

2

STEREO SEPARATION

(WBAN)

(SPEC)

INPUT SIGNAL

• 1kHz 30% mod.

→ ANT terminal

• STEREO 300Hz (30% mod.)

R-channel only

→ ANT

• STEREO 3kHz (30% mod.)

R-channel only

→ ANT

ADJUSTMENT PROCEDURE

1. Display item ATT on screen.

2. Connect a millivolt meter to TV OUT L of

Monitor output terminal to observe the voltage.

3. Change data by VOLUME s/t buttons so that the reading of meter becomes value as close as 150mVrms.

1. Display item WBAN on screen.

2. Observe the waveform of TV OUT L of

Monitor output terminal by an oscilloscope.

3. Change data by VOLUME s/t buttons so that 300Hz element on scope becomes minimum.

1. Display item SPEC on screen.

2. Observe the waveform of TV OUT L of

Monitor output terminal by an oscilloscope.

3. Change data by VOLUME s/t buttons so that 3KHz element on scope becomes minimum.

Make the above adjustments so that the separation becomes optimum.

– 11 –

CIRCUIT CHECKS

HIGH VOLTAGE CHECK

CAUTION: There is no HIGH VOLTAGE ADJUSTMENT on this chassis. Checking should be done following the steps below.

1. Connect an accurate high voltage meter to the second anode of the picture tube.

2. Turn on the receiver. Set the BRIGHTNESS and CON-

TRAST controls to minimum (zero beam current).

3. High voltage must be measured below (B) kV.

Refer to table-1 for high voltage (B).

(See SETTING & ADJUSTING DATA on page 13)

4. Vary the BRIGHTNESS control to both extremes to be sure the high voltage does not exceed the limit under any conditions.

FS CIRCUIT CHECK

The Fail Safe (FS) circuit check is indispensable for the final check in servicing. Checking should be done following the steps below.

1. Turn the receiver on and press the RESET button.

2. Temporarily short TP-(R) and TP-(X) with a jumper wire.

Raster and sound will disappear.

3. The receiver must remain in this state even after removing the jumper wire. This is the evidence that the FS circuit is functioning properly.

4. To obtain a picture again, temporarily turn the receiver off and allow the FS circuit more than 5 seconds to reset. Then turn the power switch on to produce a normal picture.

Troubleshooting Guide for Fail Safe Circuit

Check that the set returns to normal operation when pin 12 of Z801(or emitter of Q472) is grounded with jumper wire.

YES NO

Check the voltage across

Capacitor C471 is approximately (C) volts.

Refer to table – 4 for

FBT detection voltage (C).

YES

Faulty power circuit or horizontal circuit.

(See SETTING & ADJUSTING

DATA on page13)

Defective Fail Safe Circuit

NO

– 12 –

CHAPTER 2 SPECIFIC INFORMATIONS

SETTING & ADJUSTING DATA

SAFETY INSTRUCTIONS

HIGH VOLTAGE AT ZERO BEAM:

MAX HIGH VOLTAGE:

Table-1

SERVICE MODE

ADJUSTING ITEMS AND DATAS IN THE SERVICE MODE:

Item

RCUT

GCUT

BCUT

GDRV

BDRV

SCNT

BRTC

COLC

TNTC

SAVC

ATT

STVC

STRF

SPEC

Name of adjustment

R CUTOFF

G CUTOFF

B CUTOFF

G DRIVE

B DRIVE

SUB-CONTRAST

SUB-BRIGHT

SUB-COLOR

SUB-TINT

SAP VCO

ATTENUATOR

STEREO VCO

STEREO FILTER

SPECTRAL

Preset

44H

20H

20H

20H

20H

20H

40H

40H

40H

40H

40H

0AH

40H

3AH

Data

09H

43H

3DH

48H

25H

0FH

21H

21H

1DH

(A)

(B)

36"

32.0kV

34.0kV

Item

WBAN

HPOS

VPOS

HIT

LIN

VSC

WID

DPC

CNR

TRAP

VPS

VCP

HCP

VFC

Name of adjustment

STEREO SEPARATION

HORIZ. POSITION

VERT. POSITION

HEIGHT

V-LINEARITY

V-S CORRECTION

PICTURE WIDTH

E-W PARABOLA (DPC)

E-W CORNER

TRAPEZIUM

V-SHIFT

V-COMPENSATION

H-COMPENSATION

V-F CORRECTION

DESIGN MODE

ADJUSTING ITEMS AND DATAS IN THE DESIGN MODE:

Table-2

Item

OPT0

OPT1

OPT2

Name of adjustment

OPTION0

OPTION1

OPTION2

Preset Data

20H

84H

01H

Table-3

Data

20H

84H

01H

Remarks

Preset

09H

08H

01H

03H

00H

0FH

20H

16H

03H

26H

07H

02H

35H

17H

CIRCUIT CHECKS

FBT DETECTION VOLTAGE

(C)

22.3 V

Table-4

Data

25H

13H

03H

07H

16H

19H

1CH

03H

– 13 –

Front Control

LOCATION OF CONTROLS

Back Term.

TV/VIDEO

VOLUME T/S

CHANNEL s/t

MENU TV/VIDEO VOLUME CHANNEL POWER

VIDEO

L/

MONO

S-VIDEO

AUDIO

IN

VIDEO

Y

L

COLOR

STREAM

INPUT

AUDIO CB

R

VIDEO-1 VIDEO-2

R

CR

OUT

VIDEO

ANT

L/

MONO

AUDIO

R

MENU

T/S/s/t

POWER

Remote sensor

POWER indicator

Remote Control

TV/VIDEO

RECALL

SLEEP

MENU

FAV ts (favorite channels)

Accesses channels programmed into the

Favorite Channel memory only.

CHANNEL st

Accesses channels programmed into the TV's memory only.

Device Switch

Set to "TV" to control the TV.

VCR or DVD functions

POWER

Channel numbers

CH RTN (channel return) st T S

EXIT

VOLUME st

MUTE

– 14 –

PROGRAMMING CHANNELS INTO THE TV'S MEMORY

When you press CHANNEL s t on the TV or remote control, the TV stops only on the channels stored in the TV's memory.

Note: To tune the TV to a channel not programmed into the meomory, use the CHANNEL NUMBERS on the remote control.

Follow the steps below to program channels into the TV's memory.

Programming channels automatically

Your TV can automatically detect all active channels in your area and store them in the TV's memory. After the channels are stored automatically, you can manually add or erase individual channels.

To program channels automatically:

1

Press MENU.

2

Press T or S to highlight the SET UP menu.

3

Press s or t to highlight TV/CABLE.

4

Press T or S to highlight TV (if you use an antenna) or

CABLE (if you use cable).

5

Press t to highlight CH PROGRAM.

6

Press T or S to start automatic channel programming ("CH

PROGRAM" displays on-screen). The TV automatically cycles through every TV or cable channel (depending on which you selected), and stores all active channels in the

TV's memory.

7

When automatic channel programming is complete, the message "CH Programming Completed" appears.

8

Press CHANNEL s t to view the programmed channels.

Adding and erasing channels manually

After you have automatically programmed the channels into the TV's memory, you can manually add and erase individual channels.

To add a channel to or erase a channels from the TV's memory:

1

Tune the TV to the channel you want to add or erase. If you are adding a channel, you will need to use the CHANNEL

NUMBERS to select the channel.

2

Press MENU.

3

Press T or S to highlight the SET UP menu.

4

Press s or t to highlight ADD/ERASE.

5

Press T or S to highlight ADD or ERASE, whichever function you want to perform.

6

Press MENU.

7

Repeat steps 1-6 for other channels you want to add or erase, or press EXIT to return to normal TV viewing.

Changing channels:

To change to the next programmed channel:

Press CHANNEL s t.

To change to a specific channel (programmed or unprogrammed):

Press the CHANNEL NUMBERS (0-9 and 100).

Note: For channels 100 and higher, press the 100 button, and then the next two channel numbers (for examle, to select channel 100, press 100, 0, 0; to select channel 125, press 100, 2,

5).

– 15 –

CHASSIS AND CABINET REPLACEMENT PARTS LIST

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRE-

CAUTION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF THIS MANUAL.

CAUTION: The international hazard symbols “ ” in the schematic diagram and the parts list designate com-ponents which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals.

Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE. Do not degrade the safety of the receiver through improper servicing.

NOTICE:

• The part number must be used when ordering parts, in order to assist in processing, be sure to include the Model number and Description.

• The PC board assembly with

*

mark is no longer available after the end of the production.

Capacitors ............. CD : Ceramic Disk

Resistors ............... CF : Carbon Film

Model : 36A43

PF : Plastic Film

CC : Carbon Composition

EL

MF

:

:

Electrolytic

Metal Film

OMF : Oxide Metal Film VR : Variable Resistor FR : Fusible Resistor

(All CD and PF capacitors are

±5%, 50V and all resistors, ±5%, 1/6W unless otherwise noted.)

Location

No.

Parts No.

CAPACITORS

C102 24792471

C105 24212102

C106 24797479

C107 24763221

C201 24539104

C204 24797010

C205 24794100

C216 24794100

C220 24539474

C221 24109103

C222 24109103

C223 24109103

C224 24539104

C225 24539104

C226 24539104

C245 24206108

C261 24539104

C262 24539104

C263 24539104

C271 24109561

C305 24617912

C306 24764222

C307 24082272

C308 24668221

C309 24109102

C310 24766102

C311 24214102

C313 24082057

C314 24591222

C317 24214471

C318 24109102

C319 24109102

C320 24797101

C323 24539474

C325 24539683

C326 24539104

C327 24617915

C337 24797229

Description

ELECTROLYTIC, 6.3V 470UF M

CERAMIC DISC, 50V B 1000PF K

ELECTROLYTIC, 50V 4.7UF M

ELECTROLYTIC, 16V 220UF M

PLASTIC FILM, 50V 0.1UF J

ELECTROLYTIC, 50V 1UF M

ELECTROLYTIC, 16V 10UF M

ELECTROLYTIC, 16V 10UF M

PLASTIC FILM, 50V 0.47UF J

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 50V B 0.01UF K

PLASTIC FILM, 50V 0.1UF J

PLASTIC FILM, 50V 0.1UF J

PLASTIC FILM, 50V 0.1UF J

ELECTROLYTIC, 50V 0.1UF M 7L 3A

PLASTIC FILM, 50V 0.1UF J

PLASTIC FILM, 50V 0.1UF J

PLASTIC FILM, 50V 0.1UF J

CERAMIC CHIP, 50V B 560PF K

ELECTROLYTIC, 50V 2.2UF K 3A LI

ELECTROLYTIC, 25V 2200UF M

PLASTIC FILM, 100V 0.047UF J

ELECTROLYTIC, 35V 220UF M 3A

CERAMIC CHIP, 50V B 1000PF K

ELECTROLYTIC, 50V 1000UF M

CERAMIC DISC, 500V B 1000PF K

PLASTIC FILM, 100V 0.22UF J

PLASTIC FILM, 50V 2200PF J

CERAMIC DISC, 500V B 470PF K

CERAMIC CHIP, 50V B 1000PF K

CERAMIC CHIP, 50V B 1000PF K

ELECTROLYTIC, 50V 100UF M

PLASTIC FILM, 50V 0.47UF J

PLASTIC FILM, 50V 0.068UF J

PLASTIC FILM, 50V 0.1UF J

ELECTROLYTIC, 50V 1UF K 3A LI

ELECTROLYTIC, 50V 2.2UF M

Location

No.

Parts No.

C471

C474

C477

C478

C480

C481

C453

C457

C463

C464

C466

C467

C482

C483

C499

C501

C504

C443

C444

C445

C446

C448

C449

C421

C430

C431

C438

C439

C442

C370

C371

C403

C404

C407

C412

C413

C415

C416

C417

24539334

24591222

24212152

24640872

24567104

24503160

24797479

24794100

24539104

24539563

24747220

24539474

24797478

24206108

24212102

24109102

24591222

24794101

24794100

24539103

24797010

24539104

24214472

24214821

24539224

24678010

24214331

24539334

24109103

24794101

24092344

24503125

24503305

24503272

24503194

24082050

24679100

24073118

24794102

Description

ELECTROLYTIC, 16V 100UF M

ELECTROLYTIC, 16V 10UF M

PLASTIC FILM, 50V 0.01UF J

ELECTROLYTIC, 50V 1UF M

PLASTIC FILM, 50V 0.1UF J

CERAMIC DISC, 500V B 4700PF K

CERAMIC DISC, 500V B 820PF K

PLASTIC FILM, 50V 0.22UF J

ELECTROLYTIC, 200V 1UF M 3A

CERAMIC DISC, 500V B 330PF K

PLASTIC FILM, 50V 0.33UF J

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 16V 100UF M

CERAMIC DISC, 2KV 820PF K

PLASTIC FILM, 400V 0.075UF J

PLASTIC FILM CF92 T 315V R62UF J

PLASTIC FILM, 1500VH 7200PF H

PLASTIC FILM, 1500VH 0.01UF H

PLASTIC FILM, 100V 0.056UF J

ELECTROLYTIC, 250V 10UF M 3A

ELECTROLYTIC, 160V 33UF M

ELECTROLYTIC, 16V 1000UF M

PLASTIC FILM, 50V 0.33UF J

PLASTIC FILM, 50V 2200PF J

CERAMIC DISC, 50V B 1500PF K

ELECTROLYTIC, 100V 10UF M 3A

PLASTIC FILM, 50V 0.1UF J

PLASTIC FILM, 630V 0.043UF J

ELECTROLYTIC, 50V 4.7UF M

ELECTROLYTIC, 16V 10UF M

PLASTIC FILM, 50V 0.1UF J

PLASTIC FILM, 50V 0.056UF J

ELECTROLYTIC, 50V 22UF M 7L 3A

PLASTIC FILM, 50V 0.47UF J

ELECTROLYTIC, 50V 0.47UF M

ELECTROLYTIC, 50V 0.1UF M 7L 3A

CERAMIC DISC, 50V B 1000PF K

CERAMIC CHIP, 50V B 1000PF K

PLASTIC FILM, 50V 2200PF J

– 16 –

Location

No.

Parts No.

C821 24214471

* C822 24092583

* C823 24092583

C825 24212471

C829 24590182

C832 24539334

C840 24797010

C842 24792101

C884 24640018

C885 24214471

C889 24796222

C893 24092339

C898 24539474

C902 24092345

C904 24436391

C905 24436391

C906 24436391

C909 24679220

C910 24797478

C911 24794100

C912 24763471

C913 24794100

C914 24232103

C920 24214101

CA32 24100104

CA37 24105101

CA38 24105101

CA42 24794100

CA43 24109103

CA44 24109103

CA68 24794100

CA69 24109103

CB01 24794470

CB48 24105101

C505 24105130

C510 24109103

C511 24794101

C512 24206228

C582 24109103

C583 24762471

C612 24794470

C613 24109103

C661 24212102

C662 24212102

C663 24794100

C664 24796101

C671 24667470

C672 24667470

C673 24797229

C676 24503041

C677 24503041

C678 24797229

C679 24667470

C681 24795102

C683 24795102

* C801 24503002

* C802

24503001

C805 24092623

C806 24092623

C808 24797470

C810 24086061

* C815 24092583

C817 24092339

C818 24082402

C819 24795221

Description

CERAMIC CHIP, 50V CH 13PF J

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 16V 100UF M

ELECTROLYTIC, 50V 0.22UF M 7L 3A

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 10V 470UF M

ELECTORLYTIC, 16V 47UF M

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC DISC, 50V B 1000PF K

CERAMIC DISC, 50V B 1000PF K

ELECTROLYTIC, 16V 10UF M

ELECTROLYTIC, 35V 100UF M

ELECTROLYTIC, 25V 47UF M 3A

ELECTROLYTIC, 25V 47UF M 3A

ELECTROLYTIC, 50V 2.2UF M

PLASTIC FILM , 63V 0.1UF J

PLASTIC FILM , 63V 0.1UF J

ELECTROLYTIC, 50V 2.2UF M

ELECTROLYTIC, 25V 47UF M 3A

ELECTROLYTIC, 25V 1000UF M

ELECTROLYTIC, 25V 1000UF M

PLASTIC FILM, AC275V 0.22UF M

PLASTIC FILM, AC275V 0.1UF M

CERAMIC DISC, 250V F 0.01UF Z

CERAMIC DISC, 250V F 0.01UF Z

ELECTROLYTIC, 50V 47UF M

ELECTROLYTIC, 200V 470UF M 3F

CERAMIC DISC, AC250V E 2200PF M

CERAMIC DISC, 2KV 330PF K

PLASTIC FILM, 1250VH 2200PF H

ELECTROLYTIC, 25V 220UF M

CERAMIC DISC, 500V B 470PF K

CERAMIC DISC, AC250V E 2200PF M

CERAMIC DISC, AC250V E 2200PF M

CERAMIC DISC, 50V B 470PF K

PLASTIC FILM, 50V 1800PF J

PLASTIC FILM, 50V 0.33UF J

ELECTROLYTIC, 50V 1UF M

ELECTROLYTIC, 6.3V 100UF M

ELECTROLYTIC, 160V 220UF

CERAMIC DISC, 500V B 470PF K

ELECTROLYTIC, 35V 2200UF M

CERAMIC DISC, 2KV 330PF K

PLASTIC FILM, 50V 0.47UF J

CERAMIC DISC, 2KV 1000PF K

CERAMIC DISC, 50V SL 390PF J

CERAMIC DISC, 50V SL 390PF J

CERAMIC DISC, 50V SL 390PF J

ELECTROLYTIC, 250V 22UF M 3A

ELECTROLYTIC, 50V 0.47UF M

ELECTROLYTIC, 16V 10UF M

ELECTROLYTIC, 16V 470UF M

ELECTROLYTIC, 16V 10UF M

CERAMIC DISC, 50V F 0.01UF Z

CERAMIC DISC, 500V B 100PF K

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 50V CH 100PF J

CERAMIC CHIP, 50V CH 100PF J

ELECTROLYTIC, 16V 10UF M

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 16V 10UF M

CERAMIC CHIP, 50V B 0.01UF K

ELECTORLYTIC, 16V 47UF M

CERAMIC CHIP, 50V CH 100PF J

– 17 –

Location

No.

Parts No.

CB60 24085944

CI07

CI08

CI09

CI10

CI11

CI12

CI13

CI14

CG35 24797229

CG42 24797010

CG44 24794100

CI01 24109103

CI02

CI03

CI04

CI05

24109103

24109103

24109103

24109103

24109103

24797010

24105470

24105180

24105270

24797478

24109102

24105470

CI15

CI16

CI17

CI18

CI21

CI23

CI25

CI51

24105390

24109103

24092726

24105181

24109103

24109103

24105240

24797220

CI52

CI53

24794101

24797339

CM51 24539104

CM52 24105331

CM58 24539104

CR01 24100104

CR02 24100104

CB61 24591102

CB62 24109561

CB63 24109122

CB64 24763471

CB65 24100104

CG01 24794101

CG02 24794220

CG03 24539104

CG04 24109103

CG06 24797479

CG07 24797229

CG08 24109473

CG09 24797478

CG10 24539104

CG12 24206108

CG13 24088907

CG14 24797010

CG16 24088098

CG17 24797010

CG18 24797010

CG19 24797479

CG20 24797010

CG25 24797479

CG26 24797479

CG27 24109223

CG28 24797229

CG29 24591102

CG30 24206108

CG31 24797229

CG32 24591102

CG33 24206108

CG34 24797229

Description

ELECTROLYTIC, NONPOLAR, 50V

2.2UF M 11L

PLASTIC FILM, 50V 1000PF J

CERAMIC CHIP, 50V B 560PF K

CERAMIC CHIP, 50V B 1200PF K

ELECTROLYTIC, 16V 470UF M

CERAMIC CHIP, 25V F 0.1UF Z

ELECTROLYTIC, 16V 100UF M

ELECTROLYTIC, 16V 22UF M

PLASTIC FILM, 50V 0.1UF J

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 50V 4.7UF M

ELECTROLYTIC, 50V 2.2UF M

CERAMIC CHIP, 25V B 0.047UF K

ELECTROLYTIC, 50V 0.47UF M

PLASTIC FILM, 50V 0.1UF J

ELECTROLYTIC, 50V 0.1UF M 7L 3A

TA SOLID ELEC. CHIP, 16V 3.3UF M A-CAE

ELECTROLYTIC, 50V 1UF M

TA SOLID ELEC., 16V 10UF M B2-CA

ELECTROLYTIC, 50V 1UF M

ELECTROLYTIC, 50V 1UF M

ELECTROLYTIC, 50V 4.7UF M

ELECTROLYTIC, 50V 1UF M

ELECTROLYTIC, 50V 4.7UF M

ELECTROLYTIC, 50V 4.7UF M

CERAMIC CHIP, 25V B 0.022UF K

ELECTROLYTIC, 50V 2.2UF M

PLASTIC FILM, 50V 1000PF J

ELECTROLYTIC, 50V 0.1UF M 7L 3A

ELECTROLYTIC, 50V 2.2UF M

PLASTIC FILM, 50V 1000PF J

ELECTROLYTIC, 50V 0.1UF M 7L 3A

ELECTROLYTIC, 50V 2.2UF M

ELECTROLYTIC, 50V 2.2UF M

ELECTROLYTIC, 50V 1UF M

ELECTROLYTIC, 16V 10UF M

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 50V 1UF M

CERAMIC CHIP, 50V CH 47PF J

CERAMIC CHIP, 50V CH 18PF J

CERAMIC CHIP, 50V CH 27PF J

ELECTROLYTIC, 50V 0.47UF M

CERAMIC CHIP, 50V B 1000PF K

CERAMIC CHIP, 50V CH 47PF J

CERAMIC CHIP, 50V CH 39PF J

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP CK733B 16V 2,200,000PFK

CERAMIC CHIP, 50V CH 180PF J

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 50V CH 24PF J

ELECTROLYTIC, 50V 22UF M

ELECTROLYTIC, 16V 100UF M

ELECTROLYTIO, 50V 3.3UF M

PLASTIC FILM, 50V 0.1UF J

CERAMIC CHIP, 50V CH 330PF J

PLASTIC FILM, 50V 0.1UF J

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

Description

CERAMIC CHIP, 25V F 0.1UF Z

ELECTROLYTIC, 50V 2.2UF M

ELECTROLYTIC, 50V 2.2UF M

ELECTROLYTIC, 50V 2.2UF M

ELECTROLYTIC, 50V 2.2UF M

ELECTROLYTIC, 50V 2.2UF K 3A LI

ELECTROLYTIC, 50V 2.2UF K 3A LI

ELECTROLYTIC, 50V 1UF M

ELECTROLYTIC, 50V 1UF M

CERAMIC CHIP, 50V B 330PF K

CERAMIC CHIP, 50V B 330PF K

CERAMIC CHIP, 50V B 330PF K

CERAMIC CHIP, 50V B 330PF K

CERAMIC CHIP, 50V B 330PF K

CERAMIC CHIP, 50V B 330PF K

CERAMIC CHIP, 50V B 1000PF K

CERAMIC CHIP, 50V B 1000PF K

ELECTROLYTIC, 16V 22UF M

ELECTROLYTIC, 16V 22UF M

ELECTROLYTIC, 50V 2.2UF M

ELECTROLYTIC, 50V 0.1UF M 7L 3A

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 50V 2.2UF M

PLASTIC FILM, 50V 0.1UF J

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 50V B 0.01UF K

PLASTIC FILM, 50V 0.1UF J

ELECTROLYTIC, 50V 2.2UF K 3A LI

ELECTROLYTIC, 16V 22UF M

ELECTROLYTIC, 16V 470UF M

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 50V 2.2UF M

ELECTROLYTIC, 16V 470UF M

ELECTROLYTIC, 16V 470UF M

ELECTROLYTIC, 16V 100UF M

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 16V 10UF M

CERAMIC CHIP, 50V CH 180PF J

CERAMIC CHIP, 50V CH 68PF J

CERAMIC CHIP, 50V CH 33PF J

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 16V 100UF M

CERAMIC CHIP, 50V CH 100PF J

CERAMIC CHIP, 50V CH 120PF J

CERAMIC CHIP, 50V CH 150PF J

CERAMIC CHIP, 50V CH 33PF J

CERAMIC DISC, 50V B 1200PF K

ELECTROLYTIC, 6.3V 100UF M

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 50V CH 10PF D

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

ELECTROLYTIC, 16V 100UF M

ELECTROLYTIC, 6.3V 100UF M

ELECTROLYTIC, 6.3V 100UF M

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 6.3V 100UF M

CERAMIC CHIP, 50V CH 180PF J

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

Location

No.

Parts No.

CV60 24763471

CV61 24763471

CZ01 24794101

CZ02 24109103

CZ03 24794100

CZ04 24105181

CZ05 24105680

CZ06 24105330

CZ08 24100104

CZ09 24109103

CZ10 24794101

CZ12 24105101

CZ13 24105121

CZ14 24105151

CZ16 24105330

CZ28 24212122

CZ29 24792101

CZ30 24100104

CZ31 24105100

CZ32 24100104

CZ33 24100104

CZ34 24794101

CZ35 24792101

CZ36 24792101

CZ37 24109103

CZ39 24100104

CZ41 24109103

CZ42 24792101

CZ43 24105181

CZ44 24100104

CZ45 24100104

CZ46 24100104

CZ47 24100104

CR03 24100104

CS02 24797229

CS04 24797229

CS08 24797229

CS10 24797229

CS25 24617912

CS26 24617912

CS40 24797010

CS42 24797010

CS43 24109331

CS44 24109331

CS45 24109331

CS46 24109331

CS49 24109331

CS50 24109331

CS51 24109102

CS52 24109102

CS70 24794220

CS71 24794220

CV01 24797229

CV03 24206108

CV05 24109103

CV07 24797229

CV09 24539104

CV10 24109103

CV11 24109103

CV12 24539104

CV27 24617912

CV36 24794220

CV38 24763471

CV39 24109103

CV41 24797229

– 18 –

Location

No.

Parts No.

CZ48 24109103

CZ49 24105330

CZ50 24797229

CZ57 24105181

CZ58 24105560

CZ60 24105100

RESISTORS

R372

R373

R374

R401

R403

R405

R406

R408

R317

R327

R328

R336

R360

R361

R370

R371

R410

R411

R415

R416

R418

R429

R430

R431

R432

R306

R307

R308

R310

R311

R313

R314

R315

R265

R266

R271

R272

R301

R303

R304

R305

R239

R240

R241

R245

R261

R262

R263

R264

R101

R203

R207

R208

R209

R216

R228

R238

24011102

24339569

24011824

24383391

24011104

24011473

24321109

24011103

24011392

24011102

24366183

24011391

24011562

24382682

24366473

24011472

24011271

24366561

24553272

24510392

24383181

24366104

24366102

24366103

24011222

24011472

24011102

24366471

24011222

24011102

24321109

24011393

24322688

24366563

24011474

24382821

24011153

24011392

24011104

24011105

24011824

24553223

24011474

24011101

24011101

24011101

24011223

24553683

24011473

24011224

24011562

24011682

24366104

24011472

24011102

24011472

24011102

Description

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 50V CH 33PF J

ELECTROLYTIC, 50V 2.2UF M

CERAMIC CHIP, 50V CH 180PF J

CERAMIC CHIP, 50V CH 56PF J

CERAMIC CHIP, 50V CH 10PF D

OXIDE METAL FILM, 1W 22K OHM J

CHIP, METAL FILM, 1/20W 470K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 22K OHM J

OXIDE METAL FILM, 1W 68K OHM J

CHIP, METAL FILM, 1/20W 47K OHM J

CHIP, METAL FILM, 1/20W 220K OHM J

CHIP, METAL FILM, 1/20W 5.6K OHM J

CHIP, METAL FILM, 1/20W 6.8K OHM J

CARBON FILM, 1/6W 100K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CARBON FILM, 1/6W 470 OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

OXIDE METAL FILM, 1/2W 1 OHM J

CHIP, METAL FILM, 1/20W 39K OHM J

OXIDE METAL FILM, 1W 0.68 OHM J

CARBON FILM, 1/6W 56K OHM J

CHIP, METAL FILM, 1/20W 470K OHM J

OXIDE METAL FILM, 1W 82 OHM J

CHIP, METAL FILM, 1/2OW 15K OHM J

CHIP, METAL FILM, 1/20W 3.9K OHM J

CHIP, METAL FILM, 1/20W 100K OHM J

CHIP, METAL FILM, 1/20W 1M OHM J

CHIP, METAL FILM, 1/20W 820K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

OXIDE METAL FILM, 2W 5.6 OHM J

CHIP, METAL FILM, 1/20W 820K OHM J

OXIDE METAL FILM, 2W 390 OHM J

CHIP, METAL FILM, 1/20W 100K OHM J

CHIP, METAL FILM, 1/20W 47K OHM J

OXIDE METAL FILM, 1/2W 1 OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 3.9K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CARBON FILM, 1/6W 18K OHM J

CHIP, METAL FILM, 1/20W 390 OHM J

CHIP, METAL FILM, 1/20W 5.6K OHM J

OXIDE METAL FILM, 1W 6.8K OHM J

CARBON FILM, 1/6W 47K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 270 OHM J

CARBON FILM, 1/6W 560 OHM J

OXIDE METAL FILM, 1W 2.7K OHM J

CERAMIC COVERED, 5W 3.9K OHM J

OXIDE METAL FILM, 2W 180 OHM J

CARBON FILM, 1/6W 100K OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 10K OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

Location

No.

Parts No.

R441 24532102

R448 24338478

R455 24011103

R457 24011104

R460 24366562

R461 24011102

R463 24322479

R464 24366102

R465 24011332

R466 24366103

R467 24011474

R472 24381270

R473 24366473

R474 24366184

R475 24011391

R476 24366823

R477 24011273

R478 24327133

R481 24011333

R482 24327472

R485 24338568

R486 24552820

R487 24552301

R488 24327183

R489 24327183

R490 24011102

R493 24366102

R494 24366471

R495 24366561

R501 24011153

R502 24366101

R503 24366101

R511 24366391

R512 24011391

R612 24011103

R613 24011222

R614 24366102

R663 24011103

R664 24011103

R667 24011223

R668 24366103

R669 24011103

R674 24011153

R676 24366229

R677 24366229

R678 24011153

R808 24019474

R810 24568828

R814 24366182

R818 24510150

R820 24322208

R821 24321109

R822 24366152

R823 24366182

R829 24004945

R831 24011103

R835 24552681

R861 24366104

R862 24366104

* R898 24010001

R901 24552102

R902 24552102

R903 24552102

R904 24366103

Description

FUSIBLE, 1W 1K OHM J

OXIDE METAL FILM, 1W 0.47 OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 100K OHM J

CARBON FILM, 1/6W 5.6K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

OXIDE METAL FILM, 1W 4.7 OHM J

CARBON FILM, 1/6W 1K OHM J

CHIP, METAL FILM, 1/20W 3.3K OHM J

CARBON FILM, 1/6W 10K OHM J

CHIP, METAL FILM, 1/20W 470K OHM J

OXIDE METAL FILM, 1/2W 27 OHM J

CARBON FILM, 1/6W 47K OHM J

CARBON FILM, 1/6W 18OK OHM J

CHIP, METAL FILM, 1/20W 390 OHM J

CARBON FILM, 1/6W 82K OHM J

CHIP, METAL FILM, 1/20W 27K OHM J

METAL FILM, 1/4W 13K OHM F

CHIP, METAL FILM, 1/20W 33K OHM J

METAL FILM, 1/4W 4R7K F

OXIDE METAL FILM, 1W 0.56 OHM J

OXIDE METAL FILM, 1/2W 82 OHM J

OXIDE METAL FILM, 1/2W 300 OHM J

METAL FILM, 1/4W 18K OHM F

METAL FILM, 1/4W 18K OHM F

CHIP, METAL FILM, 1/20W 1K OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 470 OHM J

CARBON FILM, 1/6W 560 OHM J

CHIP, METAL FILM, 1/2OW 15K OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 390 OHM J

CHIP, METAL FILM, 1/20W 390 OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CARBON FILM, 1/6W 1K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 22K OHM J

CARBON FILM, 1/6W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/2OW 15K OHM J

CARBON FILM, 1/6W 2.2 OHM J

CARBON FILM, 1/6W 2.2 OHM J

CHIP, METAL FILM, 1/2OW 15K OHM J

THERMISTOR, PTC THERMISTOR

AC125V 1R5 M

CERAMIC COVERED, 7W 0.82 OHM K

CARBON FILM, 1/6W 1.8K OHM J

CERAMIC COVERED, 5W 15 OHM J

OXIDE METAL FILM, 1W 0.2 OHM J

OXIDE METAL FILM, 1/2W 1 OHM J

CARBON FILM, 1/6W 1.5K OHM J

CARBON FILM, 1/6W 1.8K OHM J

METAL FILM, 1W 0.18 OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

OXIDE METAL FILM, 1/2W 680 OHM J

CARBON FILM, 1/6W 100K OHM J

CARBON FILM, 1/6W 100K OHM J

CARBON FILM, 1/2W 3.9M OHM J

OXIDE METAL FILM, 1/2W 1K OHM J

OXIDE METAL FILM, 1/2W 1K OHM J

OXIDE METAL FILM, 1/2W 1K OHM J

CARBON FILM, 1/6W 10K OHM J

– 19 –

Location

No.

Parts No.

RA10 24366102

RA15 24366102

RA16 24366102

RA17 24366102

RA18 24366102

RA21 24366472

RA22 24011331

RA23 24011331

RA24 24011331

RA25 24011331

RA26 24366102

RA27 24366102

RA33 24011102

RA35 24366102

RA36 24011102

RA37 24011331

RA38 24011331

RA40 24011101

RA41 24011101

RA61 24011103

RA62 24366103

RA67 24011472

RA68 24011472

RA71 24011683

RA72 24011223

RA73 24366103

RA74 24366333

RB01 24366271

RB03 24366101

RB09 24327470

RB11 24011103

RB24 24366472

RB25 24011472

R905 24366101

R914 24366561

R915 24366301

R916 24366820

R917 24366102

R918 24366102

R920 24000880

R921 24366561

R922 24366301

R924 24366820

R927 24366102

R928 24366561

R929 24366301

R930 24366820

R932 24366272

R934 24366271

R935 24366102

R936 24366750

R942 24366562

R943 24366562

R944 24366562

R960 24383153

R961 24383153

R962 24383153

R968 24366150

R977 24366122

RA03 24366102

RA04 24011102

RA06 24011102

RA07 24011102

RA08 24366102

RA09 24366102

Description

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 560 OHM J

CARBON FILM, 1/6W 300 OHM J

CARBON FILM, 1/6W 82 OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 1K OHM J

FUSIBLE, 1W 5.1 OHM J

CARBON FILM, 1/6W 560 OHM J

CARBON FILM, 1/6W 300 OHM J

CARBON FILM, 1/6W 82 OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 560 OHM J

CARBON FILM, 1/6W 300 OHM J

CARBON FILM, 1/6W 82 OHM J

CARBON FILM, 1/6W 2.7K OHM J

CARBON FILM, 1/6W 270 OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 75 OHM J

CARBON FILM, 1/6W 5.6K OHM J

CARBON FILM, 1/6W 5.6K OHM J

CARBON FILM, 1/6W 5.6K OHM J

OXIDE METAL FILM, 2W 15K OHM J

OXIDE METAL FILM, 2W 15K OHM J

OXIDE METAL FILM, 2W 15K OHM J

CARBON FILM, 1/6W 15 OHM J

CARBON FILM, 1/6W 1.2K OHM J

CARBON FILM, 1/6W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 4.7K OHM J

CHIP, METAL FILM, 1/20W 330 OHM J

CHIP, METAL FILM, 1/20W 330 OHM J

CHIP, METAL FILM, 1/20W 330 OHM J

CHIP, METAL FILM, 1/20W 330 OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CARBON FILM, 1/6W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 330 OHM J

CHIP, METAL FILM, 1/20W 330 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CARBON FILM, 1/6W 10K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 68K OHM J

CHIP, METAL FILM, 1/20W 22K OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 33K OHM J

CARBON FILM, 1/6W 270 OHM J

CARBON FILM, 1/6W 100 OHM J

METAL FILM, 1/4W 47 OHM F

CHIP, METAL FILM, 1/20W 10K OHM J

CARBON FILM, 1/6W 4.7K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

Location

No.

Parts No.

RI16

RI17

RI18

RI19

RI20

RI21

RI22

RI23

RI06

RI07

RI08

RI09

RI11

RI13

RI14

RI15

RI27

RI28

RI30

RI32

RI33

RI35

RI36

RI51

24011103

24011123

24011102

24366750

24011124

24011563

24011683

24066046

RI52 24011101

RJ41 24000445

RJ42 24000445

RJ43 24000445

RJ44 24000445

RJ45 24000445

RJ46 24000445

RJ47 24000445

RR07 24011102

24011519

24011360

24011332

24011123

24011113

24011112

24011102

24011182

24011122

24011101

24011132

24011391

24011821

24011271

24011475

24011221

RB40 24011103

RB42 24366102

RB43 24011103

RB44 24011103

RB45 24366181

RB46 24011101

RB47 24011332

RB49 24011332

RB60 24011101

RB61 24011224

RB62 24011123

RB63 24011392

RB64 24011103

RB65 24366221

RB66 24011103

RB67 24011102

RG05 24011102

RG08 24011394

RG09 24011473

RG14 24011332

RG15 24011152

RG16 24327153

RG17 24011472

RG22 24366101

RG23 24366101

RG43 24011472

RG44 24011222

RI01 24011270

RI02

RI03

RI04

RI05

24011512

24011102

24011470

24011361

Description

CHIP, METAL FILM, 1/20W 10K OHM J

CARBON FILM, 1/6W 1K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CARBON FILM, 1/6W 180 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 3.3K OHM J

CHIP, METAL FILM, 1/20W 3.3K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 220K OHM J

CHIP, METAL FILM, 1/20W 12K OHM J

CHIP, METAL FILM, 1/20W 3.9K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CARBON FILM, 1/6W 220 OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 390K OHM J

CHIP, METAL FILM, 1/20W 47K OHM J

CHIP, METAL FILM, 1/20W 3.3K OHM J

CHIP, METAL FILM, 1/20W 1.5K OHM J

METAL FILM, 1/4W 15K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 100 OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 27 OHM J

CHIP, METAL FILM, 1/20W 5.1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 47 OHM J

CHIP, METAL FILM, 1/20W 360 OHM J

METAL FILM CHIP, 1/16W 5.1 J

METAL FILM CHIP, 1/20W 36 J

CHIP, METAL FILM, 1/20W 3.3K OHM J

CHIP, METAL FILM, 1/20W 12K OHM J

CHIP, METAL FILM, 1/20W 11K OHM J

CHIP, METAL FILM, 1/20W 1.1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1.8K OHM J

CHIP, METAL FILM, 1/20W 1.2K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 1.3K OHM J

CHIP, METAL FILM, 1/20W 390 OHM J

CHIP, METAL FILM, 1/20W 820 OHM J

CHIP, METAL FILM, 1/20W 270 OHM J

METAL FILM CHIP, 1/16W 4R7M K

CHIP, METAL FILM, 1/20W 220 OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 12K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CARBON FILM, 1/6W 75 OHM J

CHIP, METAL FILM, 1/20W 120K OHM J

CHIP, METAL FILM, 1/20W 56K OHM J

CHIP, METAL FILM, 1/20W 68K OHM J

VARIABLE. CARBON, 0.1W 20K N

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP, METAL FILM, 1/20W 1K OHM J

– 20 –

Location

No.

Parts No.

RV14 24011102

RV15 24366102

RV16 24366471

RV19 24011101

RV20 24011101

RV60 24552101

RV61 24011101

RV62 24366750

RV63 24366221

RW02 24011750

RW03 24011750

RZ05 24366101

RZ06 24366101

RZ07 24366221

RZ08 24011151

RZ10 24011102

RZ11 24011102

RZ12 24011182

RZ13 24011392

RZ14 24011123

RZ15 24011151

RZ16 24366101

RZ17 24366181

RZ18 24011121

RZ21 24011471

RZ22 24011101

RZ28 24011102

RZ34 24011474

RZ35 24011821

RZ36 24011123

RZ43 24011220

RZ44 24011102

RZ45 24366220

RR93 24011472

RS02 24011682

RS04 24011682

RS08 24011682

RS10 24011682

RS25 24011682

RS26 24011682

RS28 24366472

RS40 24366101

RS41 24011152

RS42 24366101

RS60 24011101

RS61 24011222

RS62 24011101

RS63 24011222

RS64 24011102

RS65 24011102

RS66 24011102

RS68 24011223

RS69 24011223

RS70 24011104

RS71 24011104

RV01 24011750

RV02 24011750

RV03 24011750

RV04 24011750

RV05 24366750

RV07 24366103

RV08 24366102

RV09 24366103

RV10 24000445

RV12 24366101

Description

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 6.8K OHM J

CHIP, METAL FILM, 1/20W 6.8K OHM J

CHIP, METAL FILM, 1/20W 6.8K OHM J

CHIP, METAL FILM, 1/20W 6.8K OHM J

CHIP, METAL FILM, 1/20W 6.8K OHM J

CHIP, METAL FILM, 1/20W 6.8K OHM J

CARBON FILM, 1/6W 4.7K OHM J

CARBON FILM, 1/6W 100 OHM J

CHIP, METAL FILM, 1/20W 1.5K OHM J

CARBON FILM, 1/6W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 22K OHM J

CHIP, METAL FILM, 1/20W 22K OHM J

CHIP, METAL FILM, 1/20W 100K OHM J

CHIP, METAL FILM, 1/20W 100K OHM J

CHIP, METAL FILM, 1/20W 75 OHM J

CHIP, METAL FILM, 1/20W 75 OHM J

CHIP, METAL FILM, 1/20W 75 OHM J

CHIP, METAL FILM, 1/20W 75 OHM J

CARBON FILM, 1/6W 75 OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 10K OHM J

CHIP JUMPER, 1608TYPE

CARBON FILM, 1/6W 100 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 470 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

OXIDE METAL FILM, 1/2W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CARBON FILM, 1/6W 75 OHM J

CARBON FILM, 1/6W 220 OHM J

CHIP, METAL FILM, 1/20W 75 OHM J

CHIP, METAL FILM, 1/20W 75 OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 220 OHM J

CHIP, METAL FILM, 1/20W 150 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1.8K OHM J

CHIP, METAL FILM, 1/20W 3.9K OHM J

CHIP, METAL FILM, 1/20W 12K OHM J

CHIP, METAL FILM, 1/20W 150 OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 180 OHM J

CHIP, METAL FILM, 1/20W 120 OHM J

CHIP, METAL FILM, 1/20W 470 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 470K OHM J

CHIP, METAL FILM, 1/20W 820 OHM J

CHIP, METAL FILM, 1/20W 12K OHM J

CHIP, METAL FILM, 1/20W 22 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CARBON FILM, 1/6W 22 OHM J

Location

No.

Parts No.

RZ46 24011102

RZ49 24011102

RZ60 24366102

RZ61 24011822

RZ62 24011103

RZ63 24011103

RZ65 24011102

RZ66 24011102

RZ68 24011102

RZ71 24011103

Description

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CARBON FILM, 1/6W 1K OHM J

CHIP, METAL FILM, 1/20W 8.2K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

LV98 23103159

LV99 23103159

LZ01

LZ02

LZ03

LZ10

LZ20

LZ21

LZ22

T401

* T461

COILS & TRANSFORMERS

L461

L501

L502

L805

L806

L815

L824

L883

L101

L201

L301

L302

L303

L401

L441

L442

L885

L886

* L901

L902

23248073

23103145

23200481

23280024

L903

L904

23280024

23280024

LA01 23289840

LG01 23289220

LI01 23246051

23289846

23238703

23103145

23103145

23103248

23280016

23233092

23248121

23248173

23238711

23289844

23248213

23248213

23103145

23103145

23103145

LI02

LI51

LI52

LI53

LI54

LI55

LI56

LI57

23246104

23289470

23289120

23289180

23232050

23289129

23289180

23289228

LV01 23289840

LV02 23103159

* T801

* T840

23289840

23103145

23103145

23238707

23238718

23238711

23238506

23224367

23236733

23211739

23217572

COIL, PEAKING, TRF4101AT

COIL, PEAKING, TRF4820AJ

FERRITE CHOKE, TEM2011AA

FERRITE CHOKE, TEM2011AA

FERRITR CHOKE, TEM2014AA

COIL, PEAKING, TRF4100AZ

COIL, TLN2138G

COIL, CHOKE, TLN3383D

COIL, CHOKE, TLN3333AD

COIL, PEAKING, TRF4180AJ

COIL, PEAKING, TRF4470AT

COIL, CHOKE, TLN3481AH

COIL, CHOKE, TLN3481AH

FERRITE CHOKE, TEM2011AA

FERRITE CHOKE, TEM2011AA

FERRITE CHOKE, TEM2011AA

COIL, CHOKE, TLN3299D

FERRITE CHOKE, TEM2011AA

COIL, DG 0.71CU 40T-2LOOP, TSB-2415AH

COIL, PEAKING, TRF4221AZ

COIL, PEAKING, TRF4221AZ

COIL, PEAKING, TRF4221AZ

COIL, PEAKING, TRF4100AT

COIL, PEAKING, TRF4220AF

COIL, CHIP-INDUCTOR-0.22MMH K,

COLTRF4R22CE

CHIP INDUCTOR, TRFR5C

COIL, PEAKING, TRF4470AF

COIL, PEAKING, TRF4120AF

COIL, PEAKING, TRF4180AF

COIL, VARIABLE, TRF3554D

COIL, PEAKING 1.0MMH J 0405, TRF41R2AF

COIL, PEAKING, TRF4180AF

COIL, PEAKING, TRF4R22AF

COIL, PEAKING, TRF4100AT

FILTER, EMI, TEM2028AA, 7.5X6.4X8

60MMH 0.5A

FILTER, EMI, TEM2028AA, 7.5X6.4X8

60MMH 0.5A

FILTER, EMI, TEM2028AA, 7.5X6.4X8

60MMH 0.5A

COIL, PEAKING, TRF4100AT

FERRITE CHOKE, TEM2011AA

FERRITE CHOKE, TEM2011AA

COIL, PEAKING, TRF4390AJ

COIL, PEAKING, TRF4479AJ

COIL, PEAKING, TRF4180AJ

COIL, PEAKING, TRF4229AJ

TRANSFORMER, HORIZ DRIVER, TLN1098AH

TRANSFORMER, FLYBACK, TFB4192AS

COIL, LINE FILTER, TRF3229AL

TRANSFORMER, POWER EI28 11.5V,

TPW1571AT

Location

No.

Parts No.

T862 23217583

Description

TRANSFORMER, CONV TRS EER40,

TPW3498AB

SEMICONDUCTORS

Q831 23314965

Q840 23000140

Q843 23114459

Q901 23314780

Q902 23314965

Q903 23314780

Q904 23314965

Q905 23314780

Q906 23314965

Q907 23314962

Q908 23314965

QA01 23009196

QA02 23009326

QB01 23314965

QB03 23114459

QB23 23314965

QB40 23314965

QB41 23314965

QB60 23314962

QB61 23314965

QB62 23314965

QG01 23906499

QI01

QI02

23114611

23314994

QI03

QI05

23314993

23009240

QS60 23314965

QS61 23314965

QS62 23114466

Q203 23314965

Q204 23114460

Q205 23114460

Q301 23319787

Q301B 72471082

Q370 23314962

Q402 23114755

Q403 23314444

Q404 23314955

Q404B 72471082

Q421 23009187

Q421B 23035308

Q460 23314938

Q460B 72471082

Q461 23314962

Q471 23314961

Q472 23314965

Q480 23114759

Q481 23314965

Q482 23314965

Q483 23114469

Q501 23906843

Q610 23000249

Q610B 70391356

Q611 23114623

Q612 23314962

Q613 23114623

Q801 23135032

Q801B 72471082

Q805 23114459

Q830 23009188

Q830B 23035308

TRANSISTOR, KTC3198 Y

TRANSISTOR, RN1204

TRANSISTOR, RN1204

IC, LA7833S

SCREW, 3X10MM

TRANSISTOR, KTA1266 Y

TRANSISTOR, 2SC2482FA-1

TRANSISTOR, 2SC4721, P

TRANSISTOR, 2SD2553(FA)

SCREW, 3X10MM

IC, REGULATOR +9V 4%, KIA7809API

SCREW, 3X8MM, TAPPING

TRANSISTOR, 2SD2493(P)

SCREW, 3X10MM

TRANSISTOR, KTA1266 Y

TRANSISTOR, KTA1266 O

TRANSISTOR, KTC3198 Y

TRANSISTOR, 2SA949-Y

TRANSISTOR, KTC3198 Y

TRANSISTOR, KTC3198 Y

TRANSISTOR, RN2201

IC, TA1310N

IC, TA8265K

SCREW, BITTB3X10 SZN

TRANSISTOR, 2SC2878-A(TEM

TRANSISTOR, KTA1266 Y

TRANSISTOR, 2SC2878-A(TEM

IC, STR-G5624A

SCREW, 3X10MM

TRANSISTOR, RN1205

IC, KIA7805API

SCREW, 3X8MM, TAPPING

TRANSISTOR, KTC3198 Y

IC, MM1437AS

TRANSISTOR, RN1205

TRANSISTOR, 2SC4544

TRANSISTOR, KTC3198 Y

TRANSISTOR, 2SC4544

TRANSISTOR, KTC3198 Y

TRANSISTOR, 2SC4544

TRANSISTOR, KTC3198 Y

TRANSISTOR, KTA1266 Y

TRANSISTOR, KTC3198 Y

IC, TMP88CP38AN-3PV2

IC, AT24C04-10PI-

TRANSISTOR, KTC3198 Y

TRANSISTOR, RN1205

TRANSISTOR, KTC3198 Y

TRANSISTOR, KTC3198 Y

TRANSISTOR, KTC3198 Y

TRANSISTOR, KTA1266 Y

TRANSISTOR, KTC3198 Y

TRANSISTOR, KTC3198 Y

IC, UPC1851BCU

TRANSISTOR, 2SC3357

TRANSISTOR, 2SA1576A106

TRANSISTOR, 2SC4081 Q

IC, VIF/SIF SSOP24PIN, TA1274F(FA03A5,EL)

TRANSISTOR, KTC3198 Y

TRANSISTOR, KTC3198 Y

TRANSISTOR, RN2204

– 21 –

Location

No.

Parts No.

D444 23316254

D461 23118338

D462 23118859

D466 23357248

D467 23357366

D471 23357366

D472 23115774

D473 23118859

D480 23357299

D611 23118859

D612 23118859

D801 23316391

D805 23118859

D806 23357366

D807 23118859

D810 23316269

D830 23118859

D840 23316962

D841 23357267

D845 23118859

D846 23118859

D883 23357344

D885 23118094

* D899

24019485

D901 23118859

D902 23118859

D904 23118859

D905 23118859

D906 23118859

D911 23118095

DA42 23357267

DB03 23358522

DB45 23118859

QS63 23114623

QS64 23114623

QV01 23000686

QV02 23314965

QV60 23314965

QZ01 23009176

QZ04 23314965

QZ05 23314962

QZ06 23314965

QZ08 23314962

QZ14 23314962

QZ20 23314965

QZ21 23314962

QZ23 23314962

D101 23316755

D201 23118859

D221 23118859

D222 23118859

D225 23357281

D226 23357281

D301 23357366

D302 23357366

D310 23118859

D313 23118859

D370 23357267

D371 23118859

D406 23357366

D408 23316414

D409 23118622

D411 23357279

D430 23357283

D441 23357282

Description

TRANSISTOR, 2SC2878-A(TEM

TRANSISTOR, 2SC2878-A(TEM

IC, MM1311BD

TRANSISTOR, KTC3198 Y

TRANSISTOR, KTC3198 Y

IC, 3LINE-DIGITAL Y/C SEPA, TC90A53N

TRANSISTOR, KTC3198 Y

TRANSISTOR, KTA1266 Y

TRANSISTOR, KTC3198 Y

TRANSISTOR, KTA1266 Y

TRANSISTOR, KTA1266 Y

TRANSISTOR, KTC3198 Y

TRANSISTOR, KTA1266 Y

TRANSISTOR, KTA1266 Y

DIODE, ZENER, MTZJ33C

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS133

DIODE, DZ9.1 BS A

DIODE, DZ9.1 BS A

DIODE, FR105-B5

DIODE, FR105-B5

DIODE, 1SS133

DIODE, 1SS133

DIODE, DZ5.6 BS B

DIODE, 1SS133

DIODE, FR105-B5

DIODE, 3JH41(FALC3)

DIODE, ZENER, RD10ES B2

DIODE, DZ8.2 BS B

DIODE, DZ9.1 BS C

DIODE, DZ9.1 BS B

DIODE, ERC06-15

DIODE, RU4AM LF-K2

DIODE, 1SS133

DIODE, DZ2.7 BS B

DIODE, FR105-B5

DIODE, FR105-B5

DIODE, ZENER, RD6.2E(FA-1)

DIODE, 1SS133

DIODE, DZ16 BS A

DIODE, 1SS133

DIODE, 1SS133

DIODE, D3SB60(4103)

DIODE, 1SS133

DIODE, FR105-B5

DIODE, 1SS133

DIODE, AK04

DIODE, 1SS133

DIODE, S1WBA20

DIODE, DZ5.6 BS B

DIODE, 1SS133

DIODE, 1SS133

DIODE, RU3AM

DIODE, EU2A

VARISTOR, TNR10V431K

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS133

DIODE, ERB44-06

DIODE, DZ5.6 BS B

DIODE, LED, SIR-56SB3F

DIODE, 1SS133

– 22 –

* P801 23372115

* P910

23164725

PV01 23365575

PV02 23365990

PV03 23365991

PV04 23365763

SA01 23344443

SA02 23344443

SA03 23344443

SA04 23344443

SA05 23344443

SA06 23344443

SA07 23344443

* SR81

23146564

* SR83 23146564

* V901A 23902068

W661 23351191

W662 23351191

X401

X501

23153721

23153961

XA01 23153504

ZI51 23303197

ZI52 23303271

Location

No.

Parts No.

DE50 23358571

DV01 23357281

DV03 23357281

DV05 23357281

DV09 23357281

DV27 23357281

MISCELLANEOUS

B205

B230

B231

B232

23974994

23037312

23035412

23035312

* F470 23144906

F470A 23165433

* F801 23144518

F801A 23165433

* F802

23144893

F802A 23165433

* F803 23144897

F803A 23165433

G217 24366153

G402 23103145

G403 23103145

G404 23238714

G500 23280016

G816 23103145

G890 23280016

G891 23280016

G908 23280016

G933 24366750

GJ01 24000445

GJ02 24000445

GR01 24366470

GR02 24011101

GR03 24011101

KB01 23906805

* M461A 23192957

* M461B 23504203

M461C 23504204

N726 23969041

Description

DIODE, LED, BT-H254N-31-SH

DIODE, DZ9.1 BS A

DIODE, DZ9.1 BS A

DIODE, DZ9.1 BS A

DIODE, DZ9.1 BS A

DIODE, DZ9.1 BS A

BAND, KESSOKU

SCREW, BTBW3X12SZN

SCREW, BTB4X12SZN

SCREW, BTB3X12SZN

FUSE, CARTRIDGE, F1.25U1

FUSE HOLDER, 5.2 SOC

FUSE, CARTRIDGE, 125V 10A

FUSE HOLDER, 5.2 SOC

FUSE, 3.15A

FUSE HOLDER, 5.2 SOC

FUSE, 2A 125V

FUSE HOLDER, 5.2 SOC

CARBON FILM, 1/6W 15K OHM J

FERRITE CHOKE, TEM2011AA

FERRITE CHOKE, TEM2011AA

COIL, PEAKING, TRF4100AJ

COIL, PEAKING, TRF4100AZ

FERRITE CHOKE, TEM2011AA

COIL, PEAKING, TRF4100AZ

COIL, PEAKING, TRF4100AZ

COIL, PEAKING, TRF4100AZ

CARBON FILM, 1/6W 75 OHM J

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CARBON FILM, 1/6W 47 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

IC, REMOTE PHOTO RECIEVER, PIC-TB17

ANODE CAP ASSY, TCC5602AT

CABLE, FOCUS

CABLE, SCREEN

TAPE WHITE 3M #1, W=1 INCH TNP

COMMON

POWER CORD, U/C 125V10A HSV 4,

CMC-02P 3

CONNECTOR, PLUG 2P

JACK, Y/C JLC, YKF51-5575

JACK, PIN 6P INCHAN, JACK 6P

CONNECTOR, JACK

PHONO JACK, 3P

SWITCH, TACTING SWITCH TSV TYP TSVB-1

SWITCH, TACTING SWITCH TSV TYP TSVB-1

SWITCH, TACTING SWITCH TSV TYP TSVB-1

SWITCH, TACTING SWITCH TSV TYP TSVB-1

SWITCH, TACTING SWITCH TSV TYP TSVB-1

SWITCH, TACTING SWITCH TSV TYP TSVB-1

SWITCH, TACTING SWITCH TSV TYP TSVB-1

RELAY, DC12V, TV5, DG-3

RELAY, DC12V, TV5, DG-3

SOCKET CRT, 10P HOSIDEN, HPS0360

SPEAKER, 60X120 8-OHM 5W, SPK-1360AE

SPEAKER, 60X120 8-OHM 5W , SPK-1360AE

CERAMIC RESONATOR, 503KHZ

CRYSTAL, 3.58MHZ

CERAMIC RESONATOR, 8.00MHZ 25OHM

PIF SAW FILTER, TSF1248P

FILTER, TRAP 4.5MHZ, TCF1138AM

Location

No.

Parts No.

ZI53

ZI55

23303289

23303244

Description

FILTER, TCF1141AM

FILTER, CERAMIC TRAP, TCF1121AM

PC BOARD ASSEMBLIES

*

U001 23788269 IF BOARD, PD1022A

*

U901 23787662 CRT DRIVE BOARD, PD0629B

*

U902 23788423 MAIN BOARD, PD1050B

*

U903 23787663 F.AV BOARD, PD0715A

PICTURE TUBE

* V901

23312989 PICTURE TUBE, TDD36FSAK/2,

A90AKB50X05(V)

TUNER

H001 23321456

ACCESSORIES

K912 23306495

TUNER, US181CH IIC F 5V, ELA51LX7

Y101 23565888

REMOCON HAND UNIT IR, CTVUSA,

CT-90157

OWNER’S MANUAL, ENGLISH/

FRENCH, 36A43

CABINET PARTS

* A201 23540611

A213 23427939

A223 23445475

A431 23540477

A701 23064520

A703 23946145

A708 23946146

COVER, FRONT COVER ASSY 36A61 36A61

DOOR, DOOR 36AX61 36AX61

BUTTON, CONTROL BUTTON 36AX61 36AX60

COVER, BACK COVER PROP 36AX61 36AX61

CARTON, CARTON BOX 36A61 36A61

PACKING, TOP PACKING 36AX61 36AX61

PACKING, BOTTOM PACKING 36AX61 36AX61

Location

No.

Parts No.

Description

– 23 –

THIS PAGE IS

INTENTIONALLY LEFT

BLANK.

– 24 –

MAIN BOARD PD1050B

BOTTOM (FOIL) SIDE

– 25 –

– 26 –

CRT DRIVE BOARD PD0629B

BOTTOM (FOIL) SIDE

FRONT. AV BOARD PD0715A

BOTTOM (FOIL) SIDE

IF BOARD PD1022A

BOTTOM (FOIL) SIDE

2SD2253

(old)

2SC5243

E

C

B

TERMINAL VIEW OF TRANSISTORS

2SC3852

2SD1763A

2SC1569

2SC4544

2SA1788

2SA1306

2SA1186A

E

C

B

2SC752GTM

2SC2482

2SC2655

2SC4721P

2SC752

2SA562TM

2SA1015

2SC1815

2SC2878

2SC1740S

2SC2120

2SA9335

B

CE

B

CE

2SA1788

E

C

B

RN2203

RN2201

RN2004

RN1203

RN1204

RN2204

RN1205

RN1202

RN1201

E

C B

2SD1554

2SD2253

2SD1556

2SC5143

2SD2553

E

C

B

ON4409

E

C

B

– 27 – – 2 8 –

SCHEMATIC DIAGRAM

MODEL : 36A43

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY

PRECAUTION" AND "PRODUCT SAFETY NOTICE" ON THE MANUAL FOR THIS MODEL.

CAUTION: The international hazard symbols "*" in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals.

Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE on the MANUAL for this model. Do not degrade the safety of the receiver through improper servicing.

NOTE:

1. RESISTOR Resistance is shown in ohm [K = 1.000, M = 1.000.000]. All resistors are 1/6W and 5% tolerance carbon resistor, unless otherwise noted as the following marks.

1/2R = Metal or Metal oxide of 1/2 watt 1/2S = Carbon compsistion of 1/2 watt

1RF = Fuse resistor of 1 watt

K =

±

10% G =

±

2% F =

±

1%

10W = Cement of 10 watt

2. CAPACITOR Unless otherwise noted in schematic, all capacitor values less than 1 are expressed in

?F, and the values more than 1 in pF.

All capacitors are ceramic 50V, unless otherwise noted as the following marks.

Electolytic capacitor Mylar capacitor

3. The parts indicated with " * " have special characteristics, and should be replaced with identical parts only.

4. Voltages read with DIGITAL MULTI-METER from point indicated to chassing ground, using a color bar signal with all

controls at normal, line voltage 120 volts.

5. Waveforms are taken receiving color bar signal with enough sensitivity.

6. Voltage reading shown are nominal values and may vary

±

20% except H.V.

SCHEMATIC DIAGRAM STRUCTURE:

CRT-D / FRONT. AV Circuit ............................................................................... 1/3

IF Circuit ............................................................................................................... 2/3

MAIN Circuit ......................................................................................................... 3/3

– 29 –

– 30 –

TELEVISION SYSTEM

CHANNEL COVERAGE

POWER SOURCE

AUDIO POWER

SPEAKER TYPE

VIDEO/AUDIO TERMINALS

DIMENSIONS

SPECIFICATIONS

NTSC standard

VHF: 2 through 13

UHF: 14 through 69

Cable TV: mid band (A-8 through A-1, A through I) super band (J through W) hyper band (AA through ZZ, AAA, BBB) ultra band (65 through 94, 100 through 125)

120V AC, 60Hz, 94W

5W + 5W

2-3/8 x 4-3/4 inches (60 x 120 mm)

S-VIDEO INPUT

Y-INPUT: 1V (p-p), 75 ohm, negative sync.

C-INPUT: 0.286V (p-p) (burst signal), 75 ohm

VIDEO/AUDIO INPUT (VIDEO1/VIDEO2)

VIDEO: 1V(p-p), 75 ohm, negative sync.

AUDIO: 150mV(rms) (30% modulation equivalent, 47k ohm)

ColorStream™ (component video) INPUT

Y: 1V (p-p), 75 ohm

C

R

: 0.7V (p-p), 75 ohm

C

B

: 0.7V (p-p), 75 ohm

VIDEO/AUDIO OUTPUT

VIDEO: 1V(p-p), 75 ohm, negative sync.

AUDIO: 150mV(rms) (30% modulation equivalent, 4.7k ohm)

Width 970 mm

Height 765.5 mm

Depth 640 mm

MASS 69.9 kg (Approx.)

*

Please refer to owner's manual in detail.

TOSHIBA CORPORATION

1-1, SHIBAURA 1- CHOME, MINATO-KU, TOKYO 105-8001, JAPAN

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
