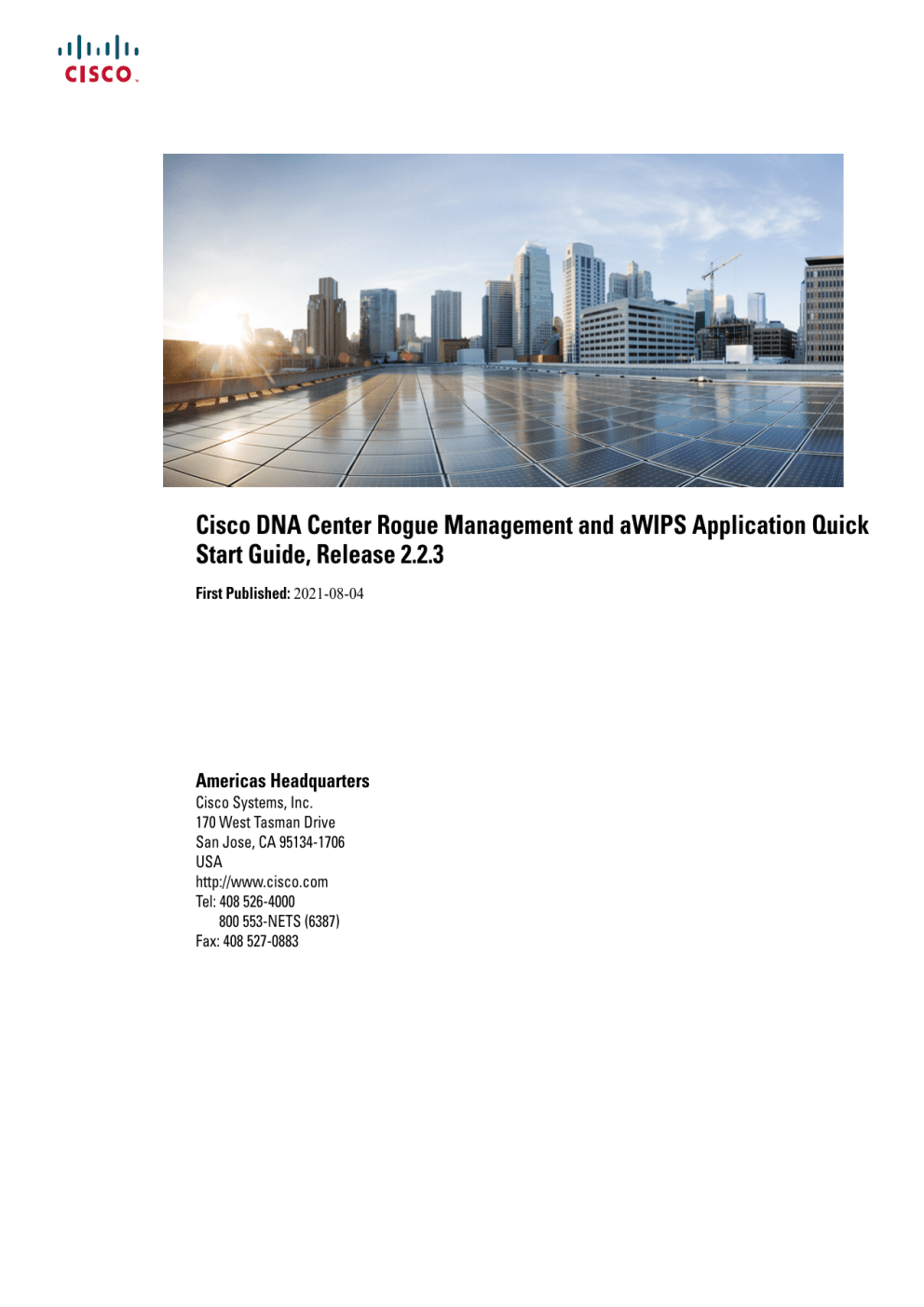

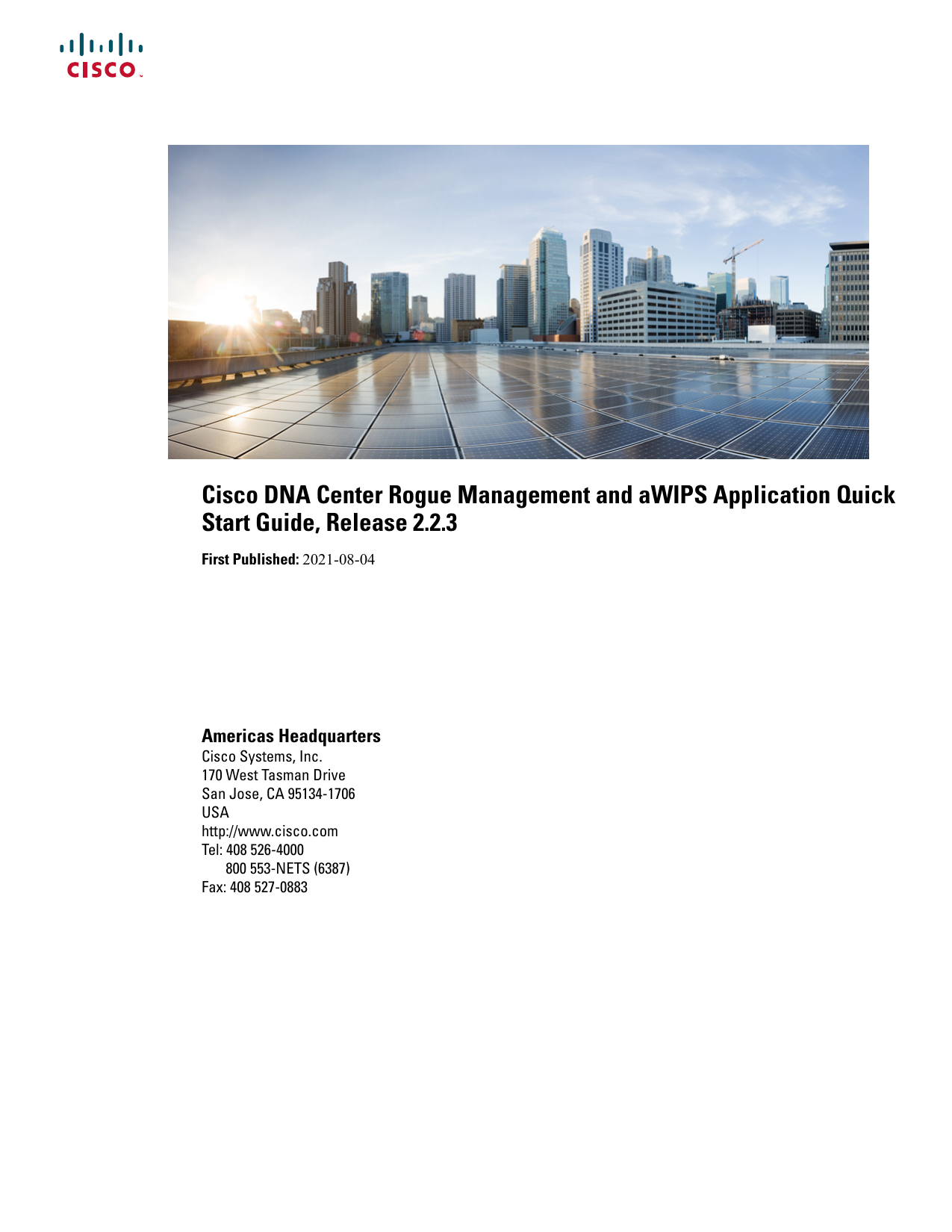

Cisco DNA Center Quick Start Guide

Cisco DNA Center Rogue Management and aWIPS Application Quick
Start Guide, Release 2.2.3
First Published: 2021-08-04
Americas Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: 408 526-4000
800 553-NETS (6387)
Fax: 408 527-0883
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS,
INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH
THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY,
CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB's public domain version of
the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS" WITH ALL FAULTS.
CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT
LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS
HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network
topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional
and coincidental.
All printed copies and duplicate soft copies of this document are considered uncontrolled. See the current online version for the latest version.
Cisco has more than 200 offices worldwide. Addresses and phone numbers are listed on the Cisco website at www.cisco.com/go/offices.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL:
https://www.cisco.com/c/en/us/about/legal/trademarks.html. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a
partnership relationship between Cisco and any other company. (1721R)
© 2021
Cisco Systems, Inc. All rights reserved.
CONTENTS
CHAPTER 1
Cisco DNA Center Rogue Management and aWIPS Application
1
Introduction to Rogue Management and aWIPS Application 1
About Rogue Management 2
About Advanced Wireless Intrusion Prevention System 4
Scale Information 7
Basic Setup Workflow 7
Related Documentation 8
CHAPTER 2
Install Cisco DNA Center Rogue Management Application Package 11
Application Management 11
Download and Install the Rogue and aWIPS Application Package on Cisco DNA Center 11
CHAPTER 3
Monitor the Rogue and aWIPS Dashboard
13
Access the Rogue Management and aWIPS Application 13
Monitor the Rogue Management and aWIPS Dashboard 13
Obtain Rogue AP and Rogue Client Details from the Threat 360° View 17
Download aWIPS Profile Forensic Capture from the Threat 360° View 20
CHAPTER 4
aWIPS Profiles
21
About aWIPS Profiles 21
Prerequisites 22
Create an aWIPS Profile Configuration Workflow 22
View aWIPS Profiles 24
Assign an aWIPS Profile to the Network Device 25
Edit an aWIPS Profile 26
Delete an aWIPS Profile 26
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
iii
Contents
Enable or Disable aWIPS in Network Settings 27
CHAPTER 5
Rogue AP Containment on Wired and Wireless Network
29
Rogue AP Containment Overview 29
Wired Rogue AP Containment 30
Wireless Rogue AP Containment 31
Cisco Rogue AP Containment Actions Compatibility Matrix 33
View Tasks and Audit Logs of Rogue AP Containment 34
CHAPTER 6
Custom Classification of Rogue Access Points
35
About Allowed List Workflow 35
Set Up the Allowed List Workflow 36
About Custom Rogue Rule Creation 37
Edit a Rogue Rule 37
Delete a Rogue Rule 38
Create a Custom Rogue Rule 38
About Rogue Rule Profile 39
Edit a Rogue Rule Profile 40
Delete a Rogue Rule Profile 40
Create a Rogue Rule Profile 40
About Allowed Vendor List 41
View Vendor Rule List Information 42
Edit a Vendor Rule 42
Delete a Vendor Rule 42
Create a List of Allowed Vendors 43
CHAPTER 7
Rogue and aWIPS Event Notifications
45
Rogue and aWIPS Event Notifications 45
Rogue Events 45
aWIPS Events 47
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
iv
CHAPTER
1
Cisco DNA Center Rogue Management and
aWIPS Application
• Introduction to Rogue Management and aWIPS Application, on page 1
• About Rogue Management, on page 2
• About Advanced Wireless Intrusion Prevention System, on page 4
• Scale Information, on page 7
• Basic Setup Workflow, on page 7
• Related Documentation, on page 8
Introduction to Rogue Management and aWIPS Application
Note
In earlier versions of Cisco DNA Center, Rogue Management capabilities were provisioned as a part of Device
Controllability. After a Cisco DNA Center upgrade, the provisioned Rogue Management subscriptions are
not automatically removed from previously discovered Cisco Wireless Controller. Rogue Management
detection might be reported inconsistently on newly discovered wireless controller.
The Rogue Management application is an optional package that you can install on Cisco Digital Network
Architecture (DNA) Center. Operating within Cisco DNA Center, the Rogue Management application helps
you monitor threats from unauthorized access points (APs). You can access the Rogue Management
functionality as a dashboard within Cisco DNA Assurance in the Cisco DNA Center GUI.
Because the Cisco Advanced Wireless Intrusion Prevention System (aWIPS) is integrated with Cisco DNA
Center, you can monitor the aWIPS signatures within the Rogue and aWIPS dashboard.
This guide describes how to activate the Rogue and aWIPS application package on Cisco DNA Center. This
guide also explains prerequisites and configurations, describes how to monitor the Rogue and aWIPS dashboard,
and offers important notes and limitations.
The Rogue Management application supports the following Cisco AireOS Controller models running Cisco
AireOS Release 8.8.111.0 or later.
• Cisco 3504 Wireless Controller
• Cisco 5520 Wireless Controller
• Cisco 8540 Wireless Controller
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
1
Cisco DNA Center Rogue Management and aWIPS Application
About Rogue Management
• Cisco Mobility Express
The following Cisco Catalyst 9800 Series Wireless Controller models support the Rogue Management
application:
• Cisco Catalyst 9800 Embedded Wireless Controller for Catalyst 9300 Series Switches
• Cisco Catalyst 9800-40 Wireless Controller
• Cisco Catalyst 9800-80 Wireless Controller
• Cisco Catalyst 9800-CL Cloud Wireless Controller
• Cisco Catalyst 9800-L Wireless Controller
• Cisco Embedded Wireless Controller on Catalyst Access Points
The aWIPS supports Cisco Catalyst 9800 Series Wireless Controller Release 17.1.x, 17.2.x, and 17.3.x Cisco
Catalyst 9100 Series Access Points, and Cisco 802.11ac Wave 2 Aironet Access Points.
The following Cisco Catalyst 9800 Series Wireless Controller models support the aWIPS application:
• Cisco Catalyst 9800 Embedded Wireless Controller for Catalyst 9300 Series Switches
• Cisco Catalyst 9800-40 Wireless Controller
• Cisco Catalyst 9800-80 Wireless Controller
• Cisco Catalyst 9800-CL Cloud Wireless Controller
• Cisco Catalyst 9800-L Wireless Controller
• Cisco Embedded Wireless Controller on Catalyst Access Points
About Rogue Management
The Rogue Management application in Cisco DNA Center detects and classifies threats and enables network
administrators, network operators, and security operators to monitor network threats. Cisco DNA Center helps
in quickly identifying the highest-priority threats and allows you to monitor these threats in the Rogue and
aWIPS dashboard within Cisco DNA Assurance.
A rogue device is an unknown AP or client that is detected by the managed APs in your network. A rogue
AP can disrupt wireless LAN operations by hijacking legitimate clients. A hacker can use a rogue AP to
capture sensitive information, such as usernames and passwords. The hacker can then transmit a series of
clear-to-send (CTS) frames. This action mimics an AP informing a particular client to transmit, while instructing
all the others to wait. This results in legitimate clients not being able to access network resources. Therefore,
wireless LAN service providers have a strong interest in banning rogue APs from air space.
Because rogue APs are inexpensive and readily available, employees sometimes plug unauthorized rogue
APs into the existing LANs and build ad hoc wireless networks without the knowledge or consent of the IT
department. These rogue APs can be a serious breach of network security when they are plugged into a network
port behind the corporate firewall. Because employees generally do not enable any security settings on a rogue
AP, it is easy for unauthorized users to use the AP to intercept network traffic and hijack client sessions. Even
more alarming is that wireless users frequently publish insecure AP locations, which increases the odds of
having enterprise security breaches.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
2
Cisco DNA Center Rogue Management and aWIPS Application
About Rogue Management
Cisco DNA Center constantly monitors all the nearby APs and automatically discovers and collects information
about rogue APs.
When Cisco DNA Center receives a rogue event from a managed AP, it responds as follows:
• If the unknown AP is not managed by Cisco DNA Center, Cisco DNA Center applies the rogue
classification rules.
• If the unknown AP is not using the same SSID as your network, Cisco DNA Center verifies whether the
AP is connected to the corporate wired network and extends to the wired network. If the rogue AP is
physically connected to the switch port of the corporate network, Cisco DNA Center classifies the AP
as Rogue on wire.
Cisco switches managed by Cisco DNA Center are required for rogue on wire to work.
Note
There is a scenario in which an AP that is not rogue on wire may incorrectly get
classified as rogue on wire by Cisco DNA Center. This incorrect classification
happens when a rogue client roams from a rogue-on-wire AP to a
nonrogue-on-wire AP. A new rogue client report with the new rogue AP
information is received and a host entry for the client is available on Cisco DNA
Center before the deletion of the rogue client information. This happens because
it takes some time for the rogue client switch port details to get deleted on the
switch and synchronized with Cisco DNA Center. Therefore, the new rogue AP
that the client roamed to is classified as rogue on wire before the synchronization
happens.
• If the AP is unknown to Cisco DNA Center, and is using the same SSID as your network, Cisco DNA
Center classifies the AP as Honeypot.
Note
• The detected SSID that was earlier classified as Honeypot is not retained in
the backup. Therefore, after a restore operation, the SSID is not classified
as Honeypot.
• Even if the SSID is deleted from the wireless controller, the SSID is still
classified as Honeypot on Cisco DNA Center. The Honeypot classification
does not happen when the detected SSID is not restored back on Cisco DNA
Center when the Cisco DNA Center backup is restored.
• If the unknown AP is not using the same SSID as your network and is not connected to the corporate
network, Cisco DNA Center verifies whether it is causing any interference. If it is, Cisco DNA Center
classifies the AP as Interferer and marks the rogue state as Potential Threat. The threshold level for
classifying the interferers on the network is greater than -75 dBm.
• If the unknown AP is not using the same SSID as your network, and is not connected to the corporate
network, Cisco DNA Center verifies whether it is a neighbor. If it is a neighbor, Cisco DNA Center
classifies the AP as Neighbor and marks the rogue state as Informational. The threshold level for
classifying the rogue AP as a neighbor AP is less than or equal to -75 dBm.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
3
Cisco DNA Center Rogue Management and aWIPS Application
About Advanced Wireless Intrusion Prevention System
About Advanced Wireless Intrusion Prevention System
The Cisco Advanced Wireless Intrusion Prevention System (aWIPS) is a wireless intrusion threat detection
and mitigation mechanism. aWIPS uses an advanced approach to wireless threat detection and performance
management. An AP detects threats and generates alarms. It combines network traffic analysis, network device
and topology information, signature-based techniques, and anomaly detection to deliver highly accurate and
complete wireless threat prevention.
With a fully infrastructure-integrated solution, you can continually monitor wireless traffic on both wired and
wireless networks and use that network intelligence to analyze attacks from many sources to pinpoint accurately,
and proactively prevent attacks, rather than wait until damage or exposure has occurred.
As the aWIPS functionality is integrated into Cisco DNA Center, the aWIPS can configure and monitor WIPS
policies and alarms and report threats.
aWIPS supports the following capabilities:
• Static signatures
• Standalone signature detection
• Alarms
• Static signature file packaged with controller and AP image
Cisco DNA Center supports the following signatures that detect various denial of service (DoS) attacks:
• Authentication flood: A form of denial of service (DoS) attack that floods an APs client-state table
(association table) by imitating many client stations (MAC address spoofing), and sending authentication
requests to the AP. Upon reception of each individual authentication request, the target AP creates a
client entry in State 1 of the association table. If open system authentication is used for the AP, the AP
returns an authentication success frame and moves the client to State 2. If Shared Key Authentication
(SHA) is used for the AP, the AP sends an authentication challenge to the attacker's imitated client, which
does not respond, and the AP keeps the client in State 1. In either of these scenarios, the AP contains
multiple clients hanging in either State 1 or State 2, which fills up the AP association table. When the
table reaches its limit, legitimate clients are not able to authenticate and associate with this AP.
• Association flood: A form of DoS attack that aims to exhaust an AP's resources, particularly the client
association table, by flooding the AP with many spoofed client associations. An attacker using such a
vulnerability can emulate many clients to flood a target AP's client association table by creating many
clients. When the client association table overflows, legitimate clients cannot get associated.
• CTS Flood: A form of DoS attack when a specific device sends a bulk CTS control packet to wireless
devices sharing same RF medium and it blocks wireless devices from using RF medium until CTS flood
stops.
• RTS Flood: A form of DoS attack when a specific device sends a bulk RTS control packet to AP for
blocking wireless bandwidth that leads to performance disturbance for clients on that AP.
• Broadcast Probe: A form of DoS attack when a specific device tries to flood a managed AP with
broadcast probe requests.
• Disassociation Flood: A form of DoS attack that aims to send an AP to the unassociated or unauthenticated
State 2 by spoofing disassociation frames from the AP to a client. With client adapter implementations,
this form of attack is effective and immediate for disrupting wireless services against this client. Typically,
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
4
Cisco DNA Center Rogue Management and aWIPS Application
About Advanced Wireless Intrusion Prevention System
client stations reassociate to regain service until the attacker sends another disassociation frame. An
attacker repeatedly spoofs the disassociation frames to keep the client out of service.
• Disassociation Broadcast: A form of DoS attack when a specific device triggers disassociation broadcast
to disconnect all clients.
This attack aims to send an AP's client to the unassociated or unauthenticated State 2 by spoofing
disassociation frames from the AP to the broadcast address of all the clients. With current client adapter
implementations, this form of attack immediately disrupts wireless services against multiple clients.
Typically, client stations reassociate to regain service until the attacker sends another disassociation
frame. An attacker repeatedly spoofs the disassociation frames to keep all the clients out of service.
• Deauthentication flood: A form of DoS attack that aims to send an AP's client to the unassociated or
unauthenticated State 1 by spoofing deauthentication frames from the AP to the client unicast address.
With the current client-adapter implementations, this form of attack immediately disrupts wireless services
against the client. Typically, client stations reassociate and reauthenticate to regain service until the
attacker sends another deauthentication frame. An attacker repeatedly spoofs the deauthentication frames
to keep all the clients out of service.
• Deauthentication broadcast: A form of DoS attack that sends all the clients of an AP to the unassociated
or unauthenticated State 1 by spoofing deauthentication frames from the AP to the broadcast address.
With client adapter implementation, this form of attack immediately disrupts wireless services against
multiple clients. Typically, client stations reassociate and reauthenticate to regain service until the attacker
sends another deauthentication frame.
• EAPOL logoff flood: A form of DoS attack when a specific device tries to send Extensible Authentication
Protocol over LAN (EAPOL) logoff packets, which are used in the WPA and WPA2 authentication for
(DoS).
Because the EAPOL logoff frame is not authenticated, an attacker can potentially spoof this frame and
log out a user from an AP, thus committing a DoS attack. The fact that the client is logged out from the
AP is not obvious until the client attempts communication through the WLAN. Typically, the disruption
is discovered and the client reassociates and authenticates automatically to regain the wireless connection.
The attacker can continuously transmit the spoofed EAPOL-logoff frames.
• Airdrop Session: Airdrop session attack happens when an AirDrop, which is an Apple feature is used
to set up a peer-to-peer link for file sharing. This potentially creates a security risk due to the unauthorized
peer-to-peer network being dynamically created in your WLAN environment.
• Authentication Failure Flood: Authentication failure flood attack happens when a specific device tries
to flood the AP with invalid authentication requests spoofed from a valid client leading to the
disconnection.
• Beacon Flood: A form of DoS attack that allows an attacker to inhibit wireless activity for the entire
enterprise infrastructure by preventing new associations between valid APs and stations. During a beacon
flood attack, stations that are actively seeking a network are bombarded with beacons from
networks-generated using different MAC addresses and SSIDs. This flood can prevent a valid client
from detecting the beacons sent by the corporate APs, and hence a denial of service attack is initiated.
• Block Ack Flood: A form of DoS attack that allows an attacker to prevent an 802.11n AP from receiving
frames from a specific valid corporate client. With the introduction of the 802.11n standard, a transaction
mechanism was introduced which allows a client to transmit a large block of frames at once, rather than
dividing them up into segments. In order to initiate this exchange, the client sends an Add Block
Acknowledgment (ADDBA) to the AP, which contains sequence numbers to inform the AP of the size
of the block being transmitted. The AP then accepts all frames that fall within the specified sequence
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
5
Cisco DNA Center Rogue Management and aWIPS Application
About Advanced Wireless Intrusion Prevention System
(consequently dropping any frames that fall outside of the range) and transmits a BlockACK message
back to the client when the transaction has been completed.
• EAPOL-Start V1 Flood: EAPOL start flood is when an attacker attempts to bring down an AP by
flooding it with EAPOL-Start frames to exhaust the internal resources of an AP.
• Fuzzed Beacon: Fuzzed Beacon is when an invalid, unexpected, or random data is introduced in the
beacon and then replaying those modified frames into the air. This can cause unexpected behavior to the
destination device including driver crashes, operating system crashes and stack based overflows which
would allow execution of arbitrary code on the affected system.
• Fuzzed Probe Request: Fuzzed probe request is when an invalid, unexpected, or random data is introduced
in the probe request and then replaying those modified frames into the air.
• Fuzzed Probe Response: Fuzzed probe response is when an invalid, unexpected, or random data is
introduced in the probe response and then replaying those modified frames into the air.
• Invalid MAC OUI Frame: Invalid MAC OUI is when a spoofed MAC address is used which does not
have a valid OUI.
• Malformed Association Request: Malformed association request is when an attacker sends a malformed
association request which can trigger bug in AP leading to Denial of Service.
• Malformed Authentication: Malformed authentication is when an attacker sends malformed
authentication frames which can expose vulnerabilities in some drivers.
• Probe Response Flood: A form of DoS that allows the attacker to prevent a station from associating to
a valid corporate AP. In a typical wireless transaction, when a station wishes to associate to an AP, it
transmits a probe request from to obtain information about the AP's network. The station will then wait
for the resulting probe response frame from the AP. An attacker can take advantage of this process by
flooding the environment with invalid probe responses, thus preventing the station from receiving the
response from the valid AP. As a result, the station is rendered unable to connect to the wireless network,
and a denial of service attack is initiated.
• PS Poll Flood: PS-Poll flood is when a potential hacker spoofs the MAC address of the wireless client
and sends out a flood of PS-Poll frames. The AP then sends out the buffered data frames to the wireless
client, which leads to client missing the data frames since it could be in the power save mode.
• Reassociation Request Flood: A form of DoS attack that exhausts AP's resources, particularly the client
association table by flooding AP with a large number of emulated and spoofed client reassociations.
Once the client association table overflows, legitimate clients are not able to get associated causing a
DoS attack.
• Targeted Deauthentication: There is visibility into both source and destination of attacks for enhanced
context of the threat.
• CTS Virtual Carrier Sense Attack: A form of DoS attack when MAC address of an 802.11n AP is
modified that allows large duration values for CTS frame types by preventing channel access to legitimate
users.
• RTS Virtual Carrier Sense Attack: A form of DoS attack when MAC address of an 802.11n AP is
modified that allows large duration values for RTS frame types by preventing channel access to legitimate
users.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
6
Cisco DNA Center Rogue Management and aWIPS Application
Scale Information
Scale Information
This table shows the number of rogue APs and rogue clients supported on different versions of Cisco DNA
Center appliance.
Table 1: Number of Rogue APs and Rogue Clients Supported
Cisco DNA Center Appliance
No. of Rogue APs Supported
No. of Rogue Clients Supported
44-core Cisco DNA Center
appliance
24,000
32,000
56-core Cisco DNA Center
appliance
24,000
32,000
112-core Cisco DNA Center
appliance
96,000
128,000
This table shows the scale information for aWIPS in Cisco DNA Center.
Table 2: Scale Information for aWIPS
Cisco DNA Center
Appliance
No. of APs
Supported
No. of Clients
Supported
No. of Devices
Supported
No. of Events per
Day
44-core Cisco DNA 4000
Center appliance
25,000
1000
20,000
56-core Cisco DNA 6000
Center appliance
40,000
2000
30,000
112-core Cisco
DNA Center
appliance
100,000
6000
65,000
13,000
Basic Setup Workflow
Step 1
Install Cisco DNA Center.
For more information, see the Cisco Digital Network Architecture Center Installation Guide.
Step 2
Download and install the Rogue and aWIPS application package.
For more information, see Download and Install the Rogue and aWIPS Application Package on Cisco DNA Center,
on page 11.
Step 3
Verify that the Rogue and aWIPS application is in Deployed state.
To verify, from the Cisco DNA Center home page, click the Gear icon
Apps.
, and then choose System > Setting > Installed
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
7
Cisco DNA Center Rogue Management and aWIPS Application
Related Documentation
Step 4
From this release onwards, you must enable Rogue and aWIPS application in the Assurance > Rogue and aWIPS
window.
This enables rogue detection on the Cisco Wireless Controller and Cisco Catalyst 9800 Series Wireless Controllers.
To access the Rogue and aWIPS application, log in to Cisco DNA Center. In the Cisco DNA Center GUI, click the
Menu icon ( ) and choose Assurance > Rogue and aWIPS.
Step 5
Discover devices such as Cisco Wireless Controller and APs using the Discovery feature.
Discover Cisco Wireless Controllers using the management IP address instead of the service port IP address.
Step 6
Make sure that the discovered devices are listed in the Device Inventory window.
The devices should be reachable and in Managed state in the Device Inventory window.
Step 7
Design your network hierarchy by adding sites, buildings, and floors so that later you can easily identify where to apply
design settings or configurations later.
You can either create a new network hierarchy, or, if you have an existing network hierarchy in Cisco Prime Infrastructure,
import it into Cisco DNA Center.
Step 8
Add the location information of APs and position the APs on the floor map to get a coverage heatmap visualization.
Step 9
(Optional) If your network uses Cisco Identity Services Engine (ISE) for user authentication, you can configure Cisco
DNA Assurance for Cisco Identity Services Engine integration. This enables you to see more information about wired
clients, such as the username and operating system, in Cisco DNA Assurance.
Step 10
(Optional) Configure syslog, SNMP traps, and NetFlow Collector servers using Telemetry.
Step 11
Start using the Cisco DNA Assurance application.
Step 12
(Optional) Integrate and synchronize Cisco Connected Mobile Experiences (CMX) with Cisco DNA Center.
You can get the precise location details for a specific rogue AP on the floor map, depending on the detecting AP's
strongest signal strength, or x and y coordinate information from Cisco CMX.
Note
If you do not have Cisco CMX integrated with Cisco DNA Center, the rogue AP will be displayed in the
sitemap around the detecting AP with the strongest RSSI.
Related Documentation
Document
Information
Cisco DNA Center Installation Guide
Installation and configuration of Cisco DNA Center, including postinstallation
tasks.
Cisco DNA Center Administrator Guide
Configuration of user accounts, Role-Based Access Control (RBAC) scope,
security certificates, authentication and password policies, and global discovery
settings.
Monitoring and managing Cisco DNA Center services.
Backup and restore procedures.
Cisco DNA Center User Guide
Use of the Cisco DNA Center GUI and its applications.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
8
Cisco DNA Center Rogue Management and aWIPS Application
Related Documentation
Document
Information
Cisco DNA Assurance User Guide
Use of the Cisco DNA Assurance GUI.
Release Notes for Cisco DNA Center
Release information, including new features and open and resolved bugs.
Cisco DNA Center Platform User Guide
Reports for Rogue and aWIPS.
Cisco DNA Center Platform Release Notes
Enablement of Rogue and aWIPS package in Cisco DNA Center platform.
Note
The documentation set for this product strives to use bias-free language. For purposes of this documentation
set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial
identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be
present in the documentation due to language that is hardcoded in the user interfaces of the product software,
language used based on standards documentation, or language that is used by a referenced third-party product.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
9
Cisco DNA Center Rogue Management and aWIPS Application
Related Documentation
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
10
CHAPTER
2
Install Cisco DNA Center Rogue Management
Application Package
• Application Management, on page 11
• Download and Install the Rogue and aWIPS Application Package on Cisco DNA Center, on page 11
Application Management
Cisco DNA Center provides many of its functions as individual applications, that are packaged separately
from the Cisco DNA Center core infrastructure. You can install and run the applications that you want and
uninstall those that you are not using, depending on your preferences.
In the Cisco DNA Center GUI, click the Menu icon ( ) and choose System > Software Updates. The
number and type of application packages shown in the Software Updates window vary depending on your
Cisco DNA Center version and licensing level. All available application packages are shown, whether or not
they are currently installed.
For a description of a package and whether it is required, hover your cursor that package's name in the Updates
tab in the Software Updates window.
Download and Install the Rogue and aWIPS Application
Package on Cisco DNA Center
Before you begin
The Rogue Management and aWIPS application is not installed on Cisco DNA Center by default. You must
manually download and install the Rogue and aWIPS application package separately.
Rogue Management requires a Cisco DNA Essentials license and aWIPS requires a Cisco DNA Advantage
license.
You can perform the application management procedure from the Software Updates window.
1. Install Cisco DNA Center. For information, see the Cisco DNA Center Installation Guide.
2. Review the software requirements described in the release notes. For more information, see Related
Documentation, on page 8.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
11
Install Cisco DNA Center Rogue Management Application Package
Download and Install the Rogue and aWIPS Application Package on Cisco DNA Center
Note
Step 1
Only a user with SUPER-ADMIN-ROLE permissions can perform this procedure.
In the Cisco DNA Center GUI, click the Menu icon (
) and choose System > Software Updates.
The Software Updates window consists of the following tabs:
• Updates: Shows the system and application updates. System Update shows the installed system version, available
system updates, and the system updates that you have downloaded from Cisco cloud. Application Update shows
the available applications that can be downloaded and installed from Cisco cloud, the size of the application, and
the appropriate action (Download, Install, or Update). Hover your cursor over the package to view the available
version and a basic description.
• Installed Apps: Shows the installed application packages.
Note
Step 2
After you navigate to the Software Updates window, a connectivity check is performed and the status is
displayed. If there is a connectivity issue, the Software Updates window does not show new updates.
To download the Rogue and aWIPS application, click Install next to the application name in Software Updates >
Updates > Application Updates.
To update the Rogue and aWIPS application, click Update next to the application name in Software Updates > Updates >
Application Updates.
Note
Step 3
Ensure that the application is updated by reviewing the version in the Installed Apps window.
After installing the package, you must enable the Rogue Management application.
a) In the Cisco DNA Center GUI, click the Menu icon ( ) and choose Assurance > Rogue and aWIPS to enable the
Rogue and aWIPS application.
b) From the Rogue drop-down list that is located at the top-right corner of the Rogue Management window, choose
Enable.
This enables rogue detection on the Cisco Wireless Controller and Cisco Catalyst 9800 Series Wireless Controllers.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
12
CHAPTER
3
Monitor the Rogue and aWIPS Dashboard
• Access the Rogue Management and aWIPS Application, on page 13
• Monitor the Rogue Management and aWIPS Dashboard, on page 13
• Obtain Rogue AP and Rogue Client Details from the Threat 360° View, on page 17
• Download aWIPS Profile Forensic Capture from the Threat 360° View, on page 20
Access the Rogue Management and aWIPS Application
Step 1
To access the Rogue Management and aWIPS application, log in to Cisco DNA Center.
Step 2
In the Cisco DNA Center GUI, click the Menu icon (
) and choose Assurance > Rogue and aWIPS.
The Rogue and aWIPS dashboard is displayed.
Note
Before using the Cisco DNA Assurance application, you must configure it. For more information, see Basic
Setup Workflow, on page 7.
Monitor the Rogue Management and aWIPS Dashboard
Use the Rogue and aWIPS dashboard to get a detailed threat analysis and a global view of all the rogue APs
and aWIPS signatures detected in the network. The Rogue and aWIPS dashboard also provides insight into
the highest-priority threats so that you can quickly identify them. The Rogue Management application uses
streaming telemetry to retrieve data on rogue APs.
Step 1
In the Cisco DNA Center GUI, click the Menu icon (
) and choose Assurance > Rogue and aWIPS.
The Rogue and aWIPS window is displayed. By default, Cisco DNA Center displays the Overview tab.
Note
Step 2
If a Cisco AireOS Controller does not meet the minimum software version, a notification appears at the top
of the dashboard. Click Go To Devices in the notification to upgrade to the supported version.
From the Actions drop-down list, you can perform the following functions:
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
13
Monitor the Rogue and aWIPS Dashboard
Monitor the Rogue Management and aWIPS Dashboard
Choose Rogue > Enable to enable rogue detection on the Cisco Wireless Controller and Cisco Catalyst 9800 Series
Wireless Controller.
The rogue management functionality is enabled by default if it is already enabled while migrating from Cisco DNA
Center Release 1.3.3.x to Cisco DNA Center Release 2.2.1.0 or later.
Step 3
Choose Rogue > Disable to disable the rogue actions temporarily.
Step 4
Click Yes in the Warning dialog box that appears.
After disabling the rogue management functionality, data from the wireless controller will not be pushed to Cisco DNA
Center until the rogue management functionality is enabled.
Step 5
Choose Status to view the rogue configuration job status.
Step 6
Filter the rogue configuration status by All, Failure, Success, or In Progress by clicking the respective tabs.
The Operation column shows Enable if the rogue-detection operation is enabled successfully on the wireless controller.
The Status column shows Success if the configuration changes are successfully pushed to the wireless controller.
Step 7
Choose aWIPS > Enable to enable aWIPS data collection on Cisco DNA Center.
If you are migrating from Cisco DNA Center Release 1.3.3.x to Cisco DNA Center Release 2.2.1.0 or later, you must
enable the aWIPS functionality in Cisco DNA Center Release 2.2.1.0 or later.
Step 8
Choose aWIPS > Disable to disable aWIPS actions temporarily.
Step 9
Click Yes in the Warning dialog box that appears.
Step 10
Choose aWIPS > Status to view the aWIPS subscription status.
Step 11
Filter the aWIPS configuration status by All, Failure, Success, or In Progress by clicking the respective tabs.
The Operation column shows Enable if the aWIPS detection operation is enabled successfully on the wireless controller.
The Status column shows Success if the configuration changes are successfully pushed to the wireless controller.
Step 12
Move the timeline slider to view data about a threat that occurred at a specific time.
The Active High Threats and High Threats Over Time graphs below the timeline slider display the threat details
accordingly.
Step 13
Click the
Show Map icon to get a global map view of sites in your network.
• The Active High Threats and High Threats Over Time graphs display information about rogue APs detected
in the last 3 hours by default. The graph information is based on the time interval that you choose from the hours
drop-down list.
The options are Last 3 hours, Last 24 hours, and Last 7 days.
• The Active High Threats widget presents information about threat levels in the form of a donut graph. Hover
your cursor over the graph to see the number of rogue APs found in each threat level.
• The High Threats Over Time graph presents information about high threats over, time based on the time interval
that you choose from the time interval drop-down list. Hover your cursor over the graph to view the number of
high threats that occurred at a particular time.
• The Threats table displays a list of rogue APs found on the network.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
14
Monitor the Rogue and aWIPS Dashboard
Monitor the Rogue Management and aWIPS Dashboard
Step 14
Some columns are hidden in the default column view setting. To customize the columns, click the three dots
right-end of the column heading.
Step 15
Click
Step 16
Click the Filter
icon at the left end of the Threats table to narrow down the rogue AP list based on the following
criteria: ID, Threat Level, Threat MAC Address, Type, State, Connection, Detecting AP, Detecting AP Site, RSSI
(dBM), SSID, Clients, Containment Status, Last Reported, and Vendor.
at the
and choose a layout preset: Basic or All.
RSSI, SSID, and Clients are not displayed for aWIPS.
The following information is displayed for each rogue AP found on the network:
• ID: Rogue AP identifier.
• Threat Level: Color-coded classified threat level. Cisco DNA Center classifies threats into these categories:
• High Threat
• Potential Threat
• Informational
• Threat Mac Address: MAC address of the rogue AP.
• Type: Threat types for rogue AP and aWIPS.
The available classification types for Rogue AP are:
• Beacon Wrong Channel
• Beacon DS Attack
• AP Impersonation
• Allowed List
• Rogue on wire
• Honeypot
• Interferer
• Allowed Vendor
• Friendly
• Neighbor
• Custom Rule Name
• The available signature types for aWIPS are:
• EAPOL logoff flood
• Deauthentication broadcast
• CTS Flood
• RTS Flood
• Deauthentication flood
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
15
Monitor the Rogue and aWIPS Dashboard
Monitor the Rogue Management and aWIPS Dashboard
• Disassociation broadcast
• Disassociation flood
• Broadcast probe
• Association flood
• Authentication flood
• Deauthenticatioon Flood
• Fuzzed Beacon
• Fuzzed Probe Request
• Fuzzed Probe Response
• PS Poll Flood
• EAPOL Start V1 Flood
• Reassociation Request Flood
• Beacon Flood
• Probe Response Flood
• Block Ack Flood
• Airdrop Session
• Malformed Association Request
• Authentication Failure Flood
• Invalid MAC OUI Frame
• Malformed Authentication
• CTS Virtual Carrier Sense Attack
• RTS Virtual Carrier Sense Attack
• State: Shows the state of the rogue AP/aWIPS attacks.
• Source/Target: Shows whether the displayed MAC address is the source of an aWIPS attack or target of an aWIPS
attack. This column is not applicable for rogue data.
• Connection: Whether the rogue AP is located on the wired network or wireless network. This column shows the
aWIPS attacks always on the wireless network.
• Detecting AP: Name of the AP that is currently detecting the rogue AP. If multiple APs detect the rogue, the
detecting AP with the highest signal strength is displayed. This column is applicable for rogue AP and aWIPS
attacks.
• Detecting AP Site: Site location of the detecting AP. This column is applicable for rogue AP and aWIPS attacks.
• RSSI (dBm): RSSI value reported by the detecting AP. RSSI (dBm) is only applicable for rogue AP.
• SSID: Service Set Identifier that the rogue AP is broadcasting. SSID is only applicable for rogue AP.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
16
Monitor the Rogue and aWIPS Dashboard
Obtain Rogue AP and Rogue Client Details from the Threat 360° View
• Clients: Number of rogue clients associated to this access point. This column is only applicable for rogue AP.
• Wireless Containment Status: Show the possible values (Contained, Pending, Open, & Partial) of a rogue AP.
Wireless containment status is only applicable for rogue AP.
• Last Reported: Date, month, year, and time when the rogue AP/aWIPS attack was last reported.
• Vendor: Rogue AP vendor information. This column is not applicable for aWIPS attacks.
Obtain Rogue AP and Rogue Client Details from the Threat 360°
View
You can quickly view the location details of a specific rogue AP or rogue client on a floor map within the
Threat 360° view.
You can get precise location details for a specific rogue AP or rogue client on the floor map depending on
the detecting AP's strongest signal strength, or x and y coordinate information from Cisco Connected Mobile
Experiences (CMX), when x and y coordinates are available.
Step 1
In the Cisco DNA Center GUI, click the Menu icon (
Step 2
To launch the Threat 360° view for a particular rogue AP or rogue client, click the corresponding row in the Threats
table.
) and choose Assurance > Rogue and aWIPS.
The Threat 360° pane appears.
The upper part of the pane displays the following information:
• MAC address of the rogue AP
• Threat level
• Threat type
• Status
• Vendor
• Containment
• Count
• Last reported
The middle part of the pane shows the estimated location of a rogue AP or a threat on the floor map:
• Site details and floor number.
• Floor map shows the names of the managed APs.
Step 3
Perform the following tasks, as required:
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
17
Monitor the Rogue and aWIPS Dashboard
Obtain Rogue AP and Rogue Client Details from the Threat 360° View
• Click the
icon at the right-hand corner of the floor map to see the IP address of the wireless controller that
manages APs along with the reachability status.
• Click the
icon at the right-hand corner of the floor map to zoom in on a location. The zoom levels depend on
the resolution of an image. A high-resolution image provides more zoom levels. Each zoom level comprises a
different style map that is shown at different scales, each one showing the corresponding details. Some maps are of
the same style, but at a smaller or larger scale.
• Click the
icon to see a map with fewer details.
• Click the
icon to view the map icon legend.
The following table provides descriptions of the floor map icons.
Table 3: Map Icons and Descriptions
Floor Map Icon
Description
Devices
Access Point
Sensor
Rogue AP
Marker
Planned AP
Switch
Interferer
Client
Rogue Client
Reporting AP
Detecting AP
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
18
Monitor the Rogue and aWIPS Dashboard
Obtain Rogue AP and Rogue Client Details from the Threat 360° View
Floor Map Icon
Description
Average Health Score
Health score: 8-10
Health score: 4-7
Health score:1-3
Health score: Unknown
AP Status
Covered by sensor
Not covered by sensor
Step 4
The bottom area of the pane enables you to perform these tasks:
• Click the Switch Port Detail tab to get details about rogue on wire, including information such as Host Mac, Device
Name, Device IP, Interface Name, Last Updated, Port Mode, and Admin Status.
Note
• Admin Status column shows interface status either as UP or as DOWN.
• Port Mode column shows the interface mode either as ACCESS or as TRUNK.
Note
Cisco switches are required for rogue-on-wire detections.
• Click the Detections tab to view information such as Detecting AP, Detecting AP Site, Adhoc, Rogue SSID, RSSI
(dBM), Channels, Radio Type, SNR, State, and Last Updated.
• Click the Filter ( ) icon at the left end of the table to narrow down the search results based on Rogue SSID, RSSI,
Radio Type, Security, and SNR.
• Click the Export icon and save it to your system.
• Click the Clients tab to view details such as MAC Address, Gateway Mac, Rogue AP Mac, IP Address, and Last
Heardabout the clients that are associated with the rogue AP.
• Click the Filter (
) icon at the left end of the table to narrow down the results based on your search criteria.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
19
Monitor the Rogue and aWIPS Dashboard
Download aWIPS Profile Forensic Capture from the Threat 360° View
Download aWIPS Profile Forensic Capture from the Threat 360°
View
This procedure describes how to download the forensic capture of various denial of service (DoS) attacks
from the Threat 360 view.
Note
Cisco DNA Center enables or disables forensic capture only on default-ap profile. You must enable or disable
forensic capture in case of brownfield deployments where you have created Custom AP Join Profiles.
Before you begin
You must verify the network connectivity between the access points and Cisco DNA Center.
Step 1
In the Cisco DNA Center GUI, click the Menu icon (
Step 2
In the Rogue and aWIPS dashboard, scroll down to view the Threat table.
Step 3
In the Threat MAC address column, click the aWIPS attack link.
) and choose Workflows > Rogue and aWIPS.
Threat 360 window appears.
Step 4
Click Forensic Capture tab to view the information such as Detecting AP, Alarm ID, CaptureFilename, and Last
Updated.
Step 5
In the Capture Filename column, click the pcap file to download the aWIPS profile forensic capture.
Step 6
Click Download All to download all the pcap files.
Step 7
Click the Filter icon to narrow down the search results based on Detecting AP.
Step 8
Click the Export icon to save the CSV file it to your workspace.
Note
Cisco DNA Center shows a maximum of 50 forensic captures at a time.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
20
CHAPTER
4
aWIPS Profiles
• About aWIPS Profiles, on page 21
• Create an aWIPS Profile Configuration Workflow, on page 22
• View aWIPS Profiles, on page 24
• Assign an aWIPS Profile to the Network Device, on page 25
• Edit an aWIPS Profile, on page 26
• Delete an aWIPS Profile, on page 26
• Enable or Disable aWIPS in Network Settings, on page 27
About aWIPS Profiles
The aWIPS profile configuration allows you to select required signatures, configure threshold values used in
detection of a WIPS denial of service (DoS) attacks, and enable forensic capture at signature level. Threshold
configuration helps to adjust the number of alarms which are generated for a specific duration for each aWIPS
signature.
The aWIPS profile configuration support is available for the following devices with software version 17.4
and later:
• Cisco Catalyst 9800 Series Wireless Controller
• Cisco Catalyst 9800-CL Cloud Wireless Controller
• Cisco Embedded Wireless Controller on Catalyst Access Points
• Cisco Catalyst 9800 Embedded Wireless Controller for Catalyst 9300 Series Switches
• Cisco Catalyst 9400 Series Switches
• Cisco Catalyst 9500 Series Switches
Note
You must enable wireless module on Cisco Catalyst 9300 Series Switches, Cisco Catalyst 9400 Series Switches,
and Cisco Catalyst 9500 Series Switches for aWIPS profiles to work.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
21
aWIPS Profiles
Prerequisites
Prerequisites
• Verify the network connectivity between the Cisco Wireless Controller and Cisco DNA Center.
• Make sure that the network device is reachable from Cisco DNA Center and has downloaded the aWIPS
profile configuration from Cisco DNA Center.
• For forensic capture, make sure that there is network connectivity between APs and Cisco DNA Center.
• For forensic capture, make sure that the Google Protocol RPC (gRPC) tunnel interface has been established
between APs and Cisco DNA Center. Use the show ap icap connection command to make sure that the
status is READY.
• For forensic capture, the required ports must be opened between Cisco DNA Center and network device
links.
• For forensic capture, there should not be a time lag between Cisco DNA Center and access points.
• If you have upgraded Cisco DNA Center from an earlier release, you must disable and enable aWIPS
from the Rogue and aWIPS dashboard to subscribe an additional subscription. For more information,
see Monitor the Rogue Management and aWIPS Dashboard.
Note
For a new installation of Cisco DNA Center, you do not have to disable and
enable aWIPS from the Rogue and aWIPS dashboard to subscribe an additional
subscription.
Create an aWIPS Profile Configuration Workflow
This section provides information about how to create an aWIPS profile.
Step 1
In the Cisco DNA Center GUI, click the Menu icon (
) and choose Workflows > Create an aWIPS Profile.
You can also create an aWIPS profile by navigating to Assurance > Rogue and aWIPS > aWIPS Profile > Add
Profile.
The Create an aWIPS Profile window appears.
Step 2
Click Let's Do it.
The aWIPS Profile Creation window appears.
Step 3
In the Profile Name field, enter a name for the aWIPS profile.
Step 4
The Signatures table lists the following aWIPS profile parameters:
• Signature: Shows the standard aWIPS signatures that detect the various denial of service (DoS) attacks.
• Default Threshold: Shows the predefined threshold value for the respective aWIPS signature.
• Configure Threshold: Shows the manually configured threshold value for the respective aWIPS signature.
• Time Interval (In Seconds): Shows the time interval of packets.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
22
aWIPS Profiles
Create an aWIPS Profile Configuration Workflow
• Forensic Capture: Captures the aWIPS DoS attack packets in real time for the given signature.
Step 5
In the Signature column, check the check box next to the aWIPS signature that you want to select or deselect for an
aWIPS profile.
If an aWIPS signature is not selected for an aWIPS profile, Cisco DNA Center does not detect the DoS attack for that
particular aWIPS signature.
Step 6
In the Configure Threshold column, for the chosen aWIPS signature, enter the threshold value within the specified
range that is displayed on top of the respective Configure Threshold field.
For some signatures, the configuration threshold is not applicable. The threshold configuration value for those signatures
is displayed as NA on top of the respective Configure Threshold field.
The Configure Threshold value cannot contain alphanumeric characters.
Step 7
In the Forensic Capture column, click the toggle button to enable or disable the forensic capture for a particular aWIPS
signature.
• Cisco DNA Center does not allow you to edit the Default Threshold value and Time Interval (In
Seconds) value for the aWIPS profile.
Note
• If you enable forensic capture for an aWIPS signature, Cisco DNA Center allows you to download
packets from the Threat 360 window.
• If you disable forensic capture for an aWIPS signature, Cisco DNA Center does not capture the aWIPS
DoS attack for the given signature.
• Enabling Forensic Capture for RTS Flood and CTS Flood signatures might impact the performance
of Cisco DNA Center.
Step 8
(Optional) Click Reset to Default to get the default aWIPS profile configuration.
Step 9
Click Next.
Note
In the Configure Threshold column, for the chosen aWIPS signature, if you enter the threshold value out
of the specified range, an error message appears on top of the Create an aWIPS Profile window to enter
the correct value within the specified range.
Step 10
In the Profile Summary window, the Profile Summary table displays the summary of the profile that was configured
in the previous window.
Step 11
Click Next.
Step 12
In the Profile Creation Done page, click Assign Profile to Device(s) to assign this aWIPS profile to a device.
The Assign aWIPS Profile window appears.
You can also assign an aWIPS profile to a device on the Assurance > Rogue and aWIPS > aWIPS Profile page by
checking the check box next to the aWIPS profile name and choosing More Actions > Assign.
Note
Step 13
You cannot assign more than one aWIPS profile to the device at a time.
In the Assigned WLCs column, click the number link to view the number of wireless controllers assigned to an aWIPS
profile.
The Profile Assigned to WLC window shows the following attributes of the network device:
• Device Name: Shows the name of the network device.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
23
aWIPS Profiles
View aWIPS Profiles
• IP Address: Shows the IP address of the network device.
• Profile Config URL Push Status: Shows the status of profile configuration URL push to the network device.
The possible values are Success, Failure, and In Progress.
In case of Failure status, hover your mouse over the i icon next to the Failure to see the failure reason.
• Profile Config Download Status (On Device): Shows the profile configuration download status on the device.
The possible values are Success, Failure, and In Progress.
In case of Failure status, hover your mouse over the i icon next to the Failure to see the failure reason.
Note
• If the aWIPS subscription is disabled on Cisco DNA Center, an error message appears on the top
of the aWIPS Profile dashboard. You must have an aWIPS subscription to see the value of Profile
Config Download Status (On Device). To subscribe the aWIPS data collection, enable aWIPS
from the Rogue and aWIPS overview dashboard. See Monitor the Rogue Management and aWIPS
Dashboard.
• The HTTP protocol reachability must be present between the device and Cisco DNA Center for
the device to download the profile configuration from the profile config URL.
• Forensic capture config Status: Shows the forensic capture config status on the default-ap-profile AP Join
Profile on the device. The possible values are Success, Failure, and In Progress.
In case of Failure status, hover your mouse over the i icon next to the Failure to see the failure reason.
• Forensic Capture: Shows whether the forensic capture is enabled/disabled on the default-ap-join AP Join Profile
on the device. Forensic capture on custom AP join profile is not supported.
Hover your mouse over the i icon next to the Forensic capture. A tooltip saying Shows the current Forensic
Capture status on default-ap-profile AP Join Profile on the device appears.
Note
• In the Profile Assigned to WLC window, you cannot enable or disable the Forensic Capture.
• Assigned On: Shows the date and time the aWIPS profile is assigned to the wireless controller.
Step 14
Click Next.
The Profile Creation Done window appears.
View aWIPS Profiles
In the Cisco DNA Center GUI, click the Menu icon (
) and choose Assurance > Rogue and aWIPS > aWIPS Profile.
The aWIPS Profile(s) dashboard appears.
Note
When you navigate to the aWIPS Profile tab for the first time, an error message appears on top of the aWIPS
Profile dashboard to subscribe the upgraded subscription even if aWIPS is enabled in Cisco DNA Center. To
subscribe the upgraded subscription, you must disable and enable aWIPS from the Rogue and aWIPS overview
dashboard. See Monitor the Rogue Management and aWIPS Dashboard.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
24
aWIPS Profiles
Assign an aWIPS Profile to the Network Device
The aWIPS Profile dashboard displays the following information:
• Profile Name: Shows the list of aWIPS profiles names.
• Assigned WLCs: Shows the number of assigned wireless controllers to an aWIPS profile.
• Last Changed: Shows the last created or updated date and time of an aWIPS profile.
Assign an aWIPS Profile to the Network Device
Before you begin
If you upgrade Cisco DNA Center from an earlier release, you must disable and enable aWIPS from the
Rogue and aWIPS overview dashboard to subscribe the additional subscription. See Monitor the Rogue
Management and aWIPS Dashboard.
Note
Step 1
For a new installation of Cisco DNA Center, you do not need to disable and enable aWIPS from the Rogue
and aWIPS overview dashboard to subscribe the additional subscription.
In the Cisco DNA Center GUI, click the Menu icon (
) and choose Workflows > Assign an aWIPS Profile.
The Assign an aWIPS Profile window appears.
To skip this screen in the future, check the Don't show this to me again check box.
Step 2
Click Let's Do it.
The Assign aWIPS Profile window appears.
Step 3
From the Profile Name drop-down list, choose the aWIPS profile name that you want to assign to a device.
Step 4
In the left pane, you can either search for a site by entering its name in the Find Hierarchy field, or expand Global to
choose the sites.
You can also search for a network device by entering its name in the Search Table field.
The Network Devices table shows the Device Name, IP Address, Software Version, Reachability, and Forensic
Capture of the device and lists the network devices in the following sections:
• Reachable & Supported: Shows the list of reachable and supported network devices with software version 17.4,
and reachability status with a green check mark.
• Not Reachable/Not Supported: Shows the list of unreachable or unsupported network devices with software
version 17.4. You cannot assign an aWIPS profile to unreachable or unsupported network devices.
Step 5
In the Reachable & Supported tab, check the check box next to the device that you want to assign to the selected
aWIPS profile. You can either select all devices or an individual device.
You can assign an aWIPS profile to a maximum of 100 devices at a time.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
25
aWIPS Profiles
Edit an aWIPS Profile
Step 6
In the Forensic Capture column, click the toggle button to enable or disable the forensic capture for the chosen network
device at the device level.
This configures forensic capture at the default-ap-profile AP join profile. Forensic capture configuration at the custom
AP join profile is not supported.
Step 7
Click Next.
Step 8
In the Profile and devices Mapped Summary window, expand aWIPS Profile Details to view the configuration
summary of the selected aWIPS profile, and Device Map to view the configuration summary of assigned devices.
Step 9
Click Next.
The Profile Assignment to Devices initiated successfully window appears.
Note
Step 10
The profile assignment to the devices takes some time to complete. You must wait before retrying the
assignment process.
To view the status of the assigned aWIPS profile to the device, click the Go to Rogue and aWIPS Home Page link.
For more information, see View aWIPS Profiles.
Edit an aWIPS Profile
This procedure describes how to edit an aWIPS profile.
Before you begin
To subscribe the additional subscription, you must disable and enable aWIPS from the Rogue and aWIPS
overview dashboard. See Monitor the Rogue Management and aWIPS Dashboard.
Step 1
In the Cisco DNA Center GUI, click the Menu icon (
Step 2
In the aWIPS Profile(s) table, click the profile name that you want to edit.
Step 3
In the Edit aWIPS Profile window that appears, make the necessary changes and click Save.
) and choose Assurance > Rogue and aWIPS > aWIPS Profile.
You cannot edit the default aWIPS profile.
The profile is saved and pushed to all the devices that are assigned to the given aWIPS profile.
Note
In the Configure Threshold column, for the chosen aWIPS signature, if you enter a threshold value that is out
of the specified range, an error message appears on the top of the Edit aWIPs Profile window to enter the
correct value within the specified range.
Delete an aWIPS Profile
This procedure describes how to delete an aWIPS profile from Cisco DNA Center.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
26
aWIPS Profiles
Enable or Disable aWIPS in Network Settings
Before you begin
To subscribe the additional subscription, you must disable and enable aWIPS from the Rogue and aWIPS
overview dashboard. See Monitor the Rogue Management and aWIPS Dashboard.
Step 1
In the Cisco DNA Center GUI, click the Menu icon (
) and choose Assurance > Rogue and aWIPS > aWIPS Profile.
The aWIPS Profile dashboard appears.
Step 2
In the aWIPS Profile(s) table, check the check box next to the aWIPS profile name that you want to delete.
• You cannot delete a default aWIPS profile.
Note
• You cannot delete an aWIPS profile that is assigned to the network device. Instead, you must reassign the
device to the default aWIPS profile and then delete it.
Step 3
From the More Actions drop-down list, choose Delete.
Step 4
In the warning window, click Delete.
Enable or Disable aWIPS in Network Settings
Cisco DNA Center allows you to enable or disable aWIPS settings for all signatures. You can enable or disable
aWIPS for all Cisco Catalyst 9800 Wireless Controllers in a network.
Step 1
In the Cisco DNA Center GUI, click the Menu icon (
Step 2
Click the Wireless tab.
Step 3
In the left pane, ensure that Global is selected.
Note
) and choose Design > Network Settings.
The sites, buildings, and floors inherit settings from the global level. The settings saved at the site, building,
or floor level overrides the global network settings.
Step 4
Scroll down to the aWIPS and Forensic Capture Enablement area.
Step 5
To enable aWIPS for all signatures, check the Enable aWIPS check box.
By default, aWIPS is enabled at the global level.
Step 6
To disable aWIPS, uncheck the Enable aWIPS check box.
Step 7
To enable forensic capture, check the Enable Forensic Capture check box.
Note
To enable forensic capture, aWIPS must be enabled. If you disable aWIPS when forensic capture is enabled,
forensic capture will also be disabled.
Step 8
Click Save.
Step 9
To reset the aWIPS and Forensic Capture Enablement settings, click Reset.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
27
aWIPS Profiles
Enable or Disable aWIPS in Network Settings
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
28
CHAPTER
5
Rogue AP Containment on Wired and Wireless
Network
• Rogue AP Containment Overview, on page 29
• Wired Rogue AP Containment, on page 30
• Wireless Rogue AP Containment, on page 31
• Cisco Rogue AP Containment Actions Compatibility Matrix, on page 33
• View Tasks and Audit Logs of Rogue AP Containment, on page 34
Rogue AP Containment Overview
The Cisco DNA Center Rogue AP Containment feature contains the wired and wireless Rogue AP. In case
of Wired Rogue AP Containment, Cisco DNA Center brings the ACCESS mode switchport interface to the
DOWN state on which the rogue AP is attached. In case of Wireless Rogue AP Containment, Cisco DNA
Center instructs the strongest detecting wireless controller to initiate the containment on wireless rogue BSSIDs.
The wireless controller in turn instructs the strongest detecting AP for those BSSIDs to stream the
deauthentication packets to disrupt the communication between the rogue AP and the wireless clients of the
corresponding rogue AP.
Rogue AP containment is classified as:
• Wired Rogue AP Containment: The rogue AP MAC addresses classified as Rogue on Wire on the
Cisco DNA Center rogue threat dashboard.
• Wireless Rogue AP Containment: The rogue AP MAC addresses classified as Honeypot, Interferer,
or Neighbor on the Cisco DNA Center rogue threat dashboard.
Rogue AP Containment is supported on Cisco AireOS Controllers and Cisco Catalyst 9800 Series Wireless
Controllers.
Note
Containment is not supported on aWIPS threats.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
29
Rogue AP Containment on Wired and Wireless Network
Wired Rogue AP Containment
Wired Rogue AP Containment
The Wired Rogue AP Containment feature allows Cisco DNA Center to shut down the ACCESS mode
interface on the switch to which the Rogue AP is physically attached. Cisco DNA Center performs wired
rogue AP containment only on ACCESS mode interfaces, because shutting down any other mode might bring
the network down.
If the rogue AP is attached to non-ACCESS mode interfaces, the network admin must contain the interface
either manually or through a CLI command.
This procedure describes how to perform wired rogue AP containment on an ACCESS mode interface classified
as Rogue on Wire in Cisco DNA Center.
Before you begin
Download and install the Rogue and aWIPS application package. For more information, see Download and
Install the Rogue and aWIPS Application Package on Cisco DNA Center.
Ensure that you have G write permission from the provision API, scheduler API, and rogue side to perform
this procedure.
Step 1
In the Cisco DNA Center GUI, click the Menu icon (
Step 2
In the Rogue and aWIPS dashboard, scroll down to view the Threat table.
Step 3
Click the rogue AP MAC address in the Threat MAC address column, classified as Rogue on Wire.
) and choose Assurance > Rogue and aWIPS.
The Threat 360 window appears.
Step 4
Click the Action drop-down list and choose Shutdown Switchport.
A warning pop-up window shows the list of ACCESS mode interfaces to be shut down on the corresponding device.
Note
The Shutdown Switchport option appears in the Action drop-down list only when the rogue AP MAC address
is marked as Rogue on Wire. For more information, see the Cisco Rogue AP Containment Actions Compatibility
Matrix, on page 33.
The Shutdown Switchport action is irreversible. You must manually bring the switchport back up.
Step 5
In the warning pop-up window, click Yes.
The Threat 360 window shows the wired rogue AP containment status:
• A banner with a blue check mark indicates that the wired rogue AP containment request is in progress.
• A banner with a green check mark indicates that the wired rogue AP containment is initiated successfully on the
corresponding interface.
• A banner with a red check mark indicates that the wired rogue AP containment request failed.
Note
• After containment is initiated, it takes some time for the interface state to update from Rogue on Wire to
another threat classification type.
• The Rogue on Wire classification type changes to another classification type upon the arrival of the next
wireless rogue message for the same rogue AP.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
30
Rogue AP Containment on Wired and Wireless Network
Wireless Rogue AP Containment
If a rogue AP MAC address is classified as Rogue on Wire, but there are no ACCESS mode interfaces up to initiate the
containment, Cisco DNA Center disables the Shutdown Switchport option in the Action drop-down list.
Note
You cannot initiate Wireless Rogue AP Containment unless the rogue AP to which it corresponds is as long
as in the Rogue on Wire classification type. For more information, see Wireless Rogue AP Containment.
Wireless Rogue AP Containment
The Wireless Rogue AP Containment feature allows Cisco DNA Center to contain the wireless clients connected
to a rogue AP.
Containment is illegal in some countries because it disrupts the communication between the clients attached
to a rogue AP. Cisco DNA Center warns you about the legal consequences while initiating wireless rogue AP
containment.
This procedure describes how to start and stop wireless rogue AP containment on wireless clients connected
to a rogue AP.
Before you begin
Download and install the Rogue and aWIPS application package. For more information, see Download and
Install the Rogue and aWIPS Application Package on Cisco DNA Center.
Ensure that you have G write permission from the provision API and scheduler API to perform this procedure.
Step 1
In the Cisco DNA Center GUI, click the Menu icon (
Step 2
In the Rogue and aWIPS dashboard, scroll down to view the Threat table.
Step 3
To perform wireless rogue AP containment, click the rogue AP MAC address listed under the Threat MAC address
column, marked as either Honeypot, Interferer, or Neighbor classification types.
) and choose Assurance > Rogue and aWIPS.
Threat 360 window appears.
Note
Step 4
A rogue AP MAC address comprises multiple rogue BSSIDs.
Click the Action drop-down list and choose Start Containment.
A Warning pop-up window appears that shows the warning of legal consequences and a list of rogue BSSIDs to be
contained on wireless controller.
Note
Step 5
The Start Containment option appears in the Action drop-down list only when the rogues AP MAC address
is marked as either Honeypot, Interferer, or Neighbor classification type. For more information, see the Cisco
Rogue AP Containment Actions Compatibility Matrix.
Click Yes in the warning pop-up window.
The Threat 360 window shows the wired rogue AP containment status as follows:
• Banner with a blue check mark indicates that the wireless rogue AP containment request is in progress.
• Banner with a green check mark indicates that the wireless rogue AP containment request is submitted successfully
to the strongest detecting AP. A red vertical line appears next to the strongest detecting AP based on the RSSI value.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
31
Rogue AP Containment on Wired and Wireless Network
Wireless Rogue AP Containment
• Banner with a red check mark indicates that the wireless rogue AP containment request has failed.
Once containment is initiated, it takes some time for the Containment Status column to update with another
wireless containment status
Note
In the Threat 360 window, hover your curser over the i icon next to the Containment column. A tooltip saying This
always shows current Wireless Containment Status appears.
Step 6
Cisco DNA Center allows you to monitor the Containment Status of a wireless rogue AP in the Rogue and aWIPS
dashboard threat table within Cisco DNA Assurance.
Hover your curser over the i icon adjacent to Containment Status column to view the following possible values.
Table 4: Wireless Containment Status Possible Values
Wireless Containment
Status
Meaning
Contained
Rogue AP actively contained by Wireless Controller
Pending
Wireless Controller has kept this Rogue in Containment Pending state
Open
Rogue AP is not contained
Partial
Some of the Rogue BSSID's are Open and rest of them are either in
Contained/Containment Pending state.
Note
For a rogue AP with the wireless containment status as Partial, an i icon appears adjacent to Partial state under
the Containment column in the Threat 360 window. Hover your curser over the i icon to view the current
wireless containment status of Rogue SSIDs.
The wireless controller can keep the wireless rogue AP containment in pending state because of the following reasons:
• Resource outage: Once the rogue BSSID containment request is submitted, wireless controller puts the rogue BSSID
containment either in Containment or Containment Pending state because of 3 rogue BSSIDs per radio limitation
for client serving radios and 6 rogue BSSIDs per radio limitation for monitor mode. Once the radio exceeds specified
limitation, next submitted rogue BSSID for containment goes to the pending state by the wireless controller until
one of the rogue BSSIDs goes out of containment state.
• Protected Management Frames (PMF): The wireless controller does not initiate the containment as long as the
Protected Management Frames (PMF) is enabled on rogue BSSID and keeps the containment status in pending state.
Once the PMF is disabled, wireless controller initiates the containment.
• Dynamic Frequency Selection (DFS): The wireless controller keeps the containment status in pending state and
does not attempt to contain the rogue BSSID if it broadcasts on the Dynamic Frequency Selection (DFS) channels.
Once the rogue BSSID moves out of the DFS channel, wireless controller initiates the containment.
Step 7
To bring back all the rogue BSSIDs of wireless rogue AP marked as either Contained, Pending or Partial state to Open
state, click the rogue AP MAC address listed under the Threat MAC address column.
The Threat 360 window appears.
Step 8
Click the Action dropdown and choose Stop Containment.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
32
Rogue AP Containment on Wired and Wireless Network
Cisco Rogue AP Containment Actions Compatibility Matrix
Note
The Stop Containment option appears in the Action dropdown menu only when wireless rogue AP is either
in Contained, Pending or Partial state. For more information, see the Cisco Rogue AP Containment Actions
Compatibility Matrix.
• A blue check mark notification is displayed as a banner on the Threat 360 window, that shows the Stop Containment
process is in progress on wireless rogue AP.
• A green check mark notification is displayed as a banner on the Threat 360 window, that shows the Stop Containment
process is initiated successfully on wireless rogue AP.
Cisco Rogue AP Containment Actions Compatibility Matrix
This table shows the behavior of rogue AP containment actions for the current state of rogue APs on the
Threat 360 window.
Table 5: Rogue AP Containment Actions Compatibility Matrix
Rogue AP
Threat Type
Wireless Rogue AP Current
Containment State
Start Containment option Stop Containment option
in "Actions" Drop-Down in "Actions" Drop-Down
List
List
Beacon Wrong
Channel
Open
Disabled
Disabled
Contained/Pending/Partial
Disabled
Enabled
Open
Disabled
Disabled
Contained/Pending/Partial
Disabled
Enabled
Open
Disabled
Disabled
Contained/Pending/Partial
Disabled
Enabled
Beacon DS
Attack
AP
Impersonation
Rogue on Wire
Allowed List
Honeypot
Interferer
Open/Contained/Pending/Partial Not Visible
Not Visible
Shutdown Switchport is
shown
Shutdown Switchport is
shown
Open
Disabled
Disabled
Contained/Pending/Partial
Disabled
Enabled
Open
Enabled
Disabled
Contained/Pending/Partial
Disabled
Enabled
Open
Enabled
Disabled
Contained/Pending/Partial
Disabled
Enabled
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
33
Rogue AP Containment on Wired and Wireless Network
View Tasks and Audit Logs of Rogue AP Containment
Friendly
Neighbor
Open
Disabled
Disabled
Contained/Pending/Partial
Disabled
Enabled
Open
Enabled
Disabled
Contained/Pending/Partial
Disabled
Enabled
View Tasks and Audit Logs of Rogue AP Containment
In case of containment failure, Cisco DNA Center allows you to view the tasks and audit logs of submitted
requests of wired and wireless rogue AP containment.
Step 1
In the Cisco DNA Center GUI, click the Menu icon (
Step 2
In the Activity window, click the Tasks tab.
Step 3
In the FILTERS drop-down list, enter ROGUE in the Search field, or choose ROGUE.
) and choose Activity.
A list of submitted requests of wired and wireless rogue AP containment appears.
Step 4
Click the containment request.
The ROGUE window appears, showing the rogue AP containment operation details, status, date, and time.
Step 5
Click the Audit Logs tab to view the rogue AP containment type and corresponding device IP address.
Note
• For Cisco AireOS, the containment request audit logs show the CLI commands.
• For Cisco Catalyst 9800 Series Wireless Controllers, the containment request audit logs show the
NETCONF requests.
• For Wired Rogue AP containment, the audit logs show the CLI commands executed on the switch to
bring the switchport down.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
34
CHAPTER
6
Custom Classification of Rogue Access Points
• About Allowed List Workflow, on page 35
• Set Up the Allowed List Workflow, on page 36
• About Custom Rogue Rule Creation, on page 37
• Edit a Rogue Rule, on page 37
• Delete a Rogue Rule, on page 38
• Create a Custom Rogue Rule, on page 38
• About Rogue Rule Profile, on page 39
• Edit a Rogue Rule Profile, on page 40
• Delete a Rogue Rule Profile, on page 40
• Create a Rogue Rule Profile, on page 40
• About Allowed Vendor List, on page 41
• View Vendor Rule List Information, on page 42
• Edit a Vendor Rule, on page 42
• Delete a Vendor Rule, on page 42
• Create a List of Allowed Vendors, on page 43
About Allowed List Workflow
The Cisco DNA Center Rogue Management and aWIPS workflow allows you to review and mark the MAC
Address of rogue access points, that you want to move to the allowed list in a bulk, and process bulk allowed
list of selected Access Point MAC addresses.
Rogue Management and aWIPS workflow supports APs that are associated with Cisco AireOS Controllers
and Cisco Catalyst 9800 Series Wireless Controllers.
You can move the following rogue AP types to the allowed list using this workflow:
• Rogue on Wire
• Honeypot
• Interferer
• Neighbor
You cannot move the following rogue AP types to the allowed list using this workflow:
• Beacon Wrong Channel
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
35
Custom Classification of Rogue Access Points
Set Up the Allowed List Workflow
• Beacon DS Attack
• AP Impersonation
• Friendly
Set Up the Allowed List Workflow
This procedure shows how to move rogue AP MAC addresses to the allowed list in bulk. These addresses are
ones that you do not want to report as high threat in Cisco DNA Center.
Before you begin
To perform the following task, you must have SUPER-ADMIN-ROLE or NETWORK-ADMIN-ROLE
permissions.
Step 1
In the Cisco DNA Center GUI, click the Menu icon (
aWIPS.
) and choose Workflows > Set up Rogue Management and
The Set up Rogue Management and aWIPS window appears.
Step 2
Click Let's Do it.
To skip this screen in the future, check the Don't show this to me again check box.
The Bulk upload allowed access points window appears.
Step 3
In the Search field, you can search for the MAC addresses that were already added in the previous workflow.
Click Export to export the allowed list.
Step 4
You can download the sample CSV template file and manually add the MAC address, operation, and category to create
the bulk allowed list template. Click the Download the sample CSV template from here link.
You can hover your cursor over the notification symbol to view the format of allowed MAC addresses, operations, and
categories.
Step 5
You can either drag and drop the CSV file into the boxed area or click Choose a file and browse to the CSV file on
your system. The maximum size of the CSV file is 1.2 MB.
Note
Cisco DNA Center performs a validation check. An error message appears if the uploaded CSV file does not
meet the following requirements:
• The MAC address is not a valid rogue point MAC address.
• All the rogue access point MAC addresses exist in the system already, or no rogue access point MAC
addresses are eligible for the delete operation.
A green check mark indicates that the uploaded CSV file content is valid.
Step 6
Click Next.
Step 7
In the Summary window, the Uploaded bulk allowed list MAC addresses table displays the list of allowed MAC
addresses in bulk, and the respective operation and action.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
36
Custom Classification of Rogue Access Points
About Custom Rogue Rule Creation
• All: Shows the list of all the MAC addresses in bulk, and their respective operation and action.
• Create: Shows the list of created MAC addresses in bulk, and their respective operation and action.
• Delete: Shows the list of deleted MAC addresses in bulk, and their respective operation and action.
• No Action: Shows the list of MAC addresses that are already deleted, and their respective operation and action.
Step 8
Click Continue to allowed list, and in the warning pop-up window, click Yes.
The Done! Allowed List Updated window appears.
Step 9
Click the Go to Rogue and aWIPS Home Page link.
The Rogue and aWIPS dashboard appears.
In the Threat table, Cisco DNA Center now categorizes the specified rogue AP MAC addresses as Allowed List under
the Type column.
Step 10
To add or delete a rogue AP MAC address individually, click the rogue MAC address listed under the Threat MAC
address column.
The Threat 360 window appears.
Step 11
Click the Action drop-down list and choose Add to Allowed list.
To remove the rogue AP MAC address from the allowed list individually, in the Action drop-down list, choose Remove
from Allowed list.
About Custom Rogue Rule Creation
Rogue rules are an easy way to segregate and manage rogues with different risk profiles. Rogue rules are easy
to configure and they are applied in order of priority. They reduce false positives, noise for sites with interferers,
number of alerts, and provide the ability to adjust organizational risk profiles on global and site basis.
You can move the following rogue AP types to the custom classification type:
• Interferer
• Neighbor
Edit a Rogue Rule
Step 1
In the Cisco DNA Center GUI, click the Menu icon (
Step 2
In the Rogue Rules table, click the rule name that you want to edit.
Step 3
In the Edit Rogue Rule window that appears, make the necessary changes and click Save.
) and choose Assurance > Rogue and aWIPS > Rules tab.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
37
Custom Classification of Rogue Access Points
Delete a Rogue Rule
The previous classification based on old rules is not modified even if the rule condions are modified. The change affects
only the new data classification.
Delete a Rogue Rule
Step 1
In the Cisco DNA Center GUI, click the Menu icon (
) and choose Assurance > Rogue and aWIPS > Rules tab.
By default, the Rogue Rules tab is opened.
Step 2
In the Rogue Rules table, click the Rule Name that you want to delete and click Delete.
Note
If the rogue rule which you are deleting is the only rule available in a rule profile, then the rule profile is also
deleted.
Step 3
Click Delete in the confirmation dialog box that appears.
Step 4
To view the deleted rules, click the Inactive tab in the Rogue Rules table.
Create a Custom Rogue Rule
You can create a rule with specific conditions and then associate the rule to a rule profile.
Step 1
In the Cisco DNA Center GUI, click the Menu icon (
Step 2
In the Create a Rogue Rule screen, click Get Started.
Step 3
In the Rule Name field, enter a unique name for the rule.
) and choose Workflows > Create a Rogue Rule.
While creating new rogue rules, you cannot enter those rogue rule names that were deleted before.
Step 4
In the Description field, enter a description for the rule.
Step 5
Click Next.
Step 6
In the Create Rogue Rule screen, choose the threat level and add conditions for your rule.
Step 7
Select one of the Threat Level radio buttons to add a threat level to the rule. The available threat levels are: High,
Potential, or Informational.
Step 8
From the Match drop-down list, you can either choose All to match all the conditions or Any to match any of the
conditions.
Step 9
From the Add Condition drop-down list, choose the rule conditions.
You can add multiple conditions to a rule. The various rule conditions available are: SSID, RSSI, Encryption Condition,
and Minimum Rogue Client Count.
Step 10
Click Next.
Step 11
To assign this rule to an existing rule profile, click Yes in the Do you want to assign this rule to a rule profile? screen.
Creating only rogue rules will not work as an entity. Rogue rules should always be assigned to a rule profile.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
38
Custom Classification of Rogue Access Points
About Rogue Rule Profile
Step 12
In the Available rule profiles table, check the check box next to the profile name, and click Next.
You can select one or more rule profiles. You cannot assign more than five rules to a rule profile.
Step 13
In the confirmation dialog box that appears, click Proceed.
The created new rule is set to the lowest priority. You can edit the rule profile to change the priority.
Note
Step 14
Once the rogue rule is created, you cannot use the same rogue rule name to create another rogue rule.
Review the rogue rule configuration in the Summary page.
Note
Previous classification based on old rules is not modified even if the new rule conditions match. The change
affects only the new data classification.
Step 15
To create another rogue rule, click the Create Another Rogue Rule button and follow Step 3 through Step 13 in this
procedure.
Step 16
To view the created rogue rules, click the View all Rogue Rules and Profiles button.
The Rogue Rules tab lists all the rogue rules created.
You can also view the created rogue rules by navigating to this path: In the Cisco DNA Center GUI, click the Menu
icon ( ) and choose Assurance > Rogue and aWIPS > Rules > Rogue Rules.
About Rogue Rule Profile
You can create a rogue rule with specific conditions and then associate it to a rule profile. You can prioritize
rogue rules after associating them to a rogue rule profile.
When a rogue rule profile is assigned to a site, the rogues which are being reported from that site will be
verified against the rules which are defined in the rule profile.
You can assign only one rogue rule profile to a site.
Because of the site inheritance, all floors under a particular site inherit the rogue rule profile that is mapped
at the area, site, or building level. For example as shown in the below image, Floor1 and Floor2 will inherit
the rogue rule profile which is mapped at the SanJose level.
A rogue rule profile mapped to a floor gets precedence over a rogue rule inherited from a parent site. For
example as shown in the below image, if the Rogue Rule Profile A is directly mapped to Floor1, then the
Rogue Rule Profile A takes precedence over the Rule Profile B which is assigned to the parent site which is
SJC2.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
39
Custom Classification of Rogue Access Points
Edit a Rogue Rule Profile
Edit a Rogue Rule Profile
Step 1
In the Cisco DNA Center GUI, click the Menu icon (
Step 2
Click the Rogue Rule Profiles tab.
Step 3
In the Rogue Rule Profiles table, click the profile name that you want to edit.
Step 4
In the Edit Rule Profile window that appears, make the necessary changes and click Save.
) and choose Assurance > Rogue and aWIPS > Rules tab.
Edited rule profiles will not modify any previously classified data. It is applied only on the new data which is processed
after changes are made.
Delete a Rogue Rule Profile
Step 1
In the Cisco DNA Center GUI, click the Menu icon (
Step 2
Click the Rogue Rule Profiles tab.
Step 3
In the Rogue Rules table, click the profile name that you want to delete and click Delete.
Step 4
Click Delete in the confirmation dialog box that appears.
) and choose Assurance > Rogue and aWIPS > Rules tab.
Create a Rogue Rule Profile
You can create a rule with specific conditions and then associate it to a rule profile.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
40
Custom Classification of Rogue Access Points
About Allowed Vendor List
Step 1
In the Cisco DNA Center GUI, click the Menu icon (
Step 2
In the Create Rogue Rule Profile screen, click Get Started.
Step 3
In the Profile Name field, enter a unique name for the rule profile.
Step 4
Click Next.
Step 5
In the Rule List table, check the check box next to the rule name, and click Next.
) and choose Workflows > Create a Rogue Rule Profile.
You can add up to five rogue rules in a profile.
Step 6
In the Sort rules in order of priority screen, drag and drop a rule into the desired priority with the highest priority on
top to reorder rules based on your priority.
Step 7
Click Next to associate a rogue rule profile to a desired location.
Step 8
Check the check box next to the site to associate this rule profile, and click Next.
Rule profile can exist without being assigned to any site. Rules are not checked unless the rule profile is assigned to a
site.
Note
If a vendor rule and rule profile are mapped to a same site, then the vendor rule takes precedence.
Step 9
Review the rogue rule profile configuration in the Summary screen.
Step 10
In the Summary screen, click the Back button to make any changes to the values entered in the previous screens.
Step 11
Click Create Rule Profile.
A message appears, stating that the rule profile is created successfully.
Step 12
To view all rogues and profiles, click the View all Rogue Rules and Profiles button.
The Rogue Rule Profiles tab lists all the rogue rules and rule profiles created.
You can also view the created rule profiles by navigating to this path: In the Cisco DNA Center GUI, click the Menu
icon ( ) and choose Assurance > Rogue and aWIPS > Rules > Rogue Rule Profiles.
About Allowed Vendor List
With the allowed vendor list feature, you can define whether APs from specific vendors will trigger a specific
threat level. You can create a list of allowed vendors, so that threats from these vendors are not marked as
High Threats. You can decide whether they need to be marked as Potential or Informational threats. In a given
workflow, you can add upto five vendors to the allowed list.
Allowed vendor rule which is mapped at any level takes precedence over the inherited rule. For example, if
the allowed vendor rule A is mapped to a floor level, then the vendor rule A takes precedence over the allowed
vendor rule B which is present at the site, area, or building level.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
41
Custom Classification of Rogue Access Points
View Vendor Rule List Information
View Vendor Rule List Information
Step 1
In the Cisco DNA Center GUI, click the Menu icon (
tab.
Step 2
The Allowed Vendor List table shows the list of allowed vendors with the following details. Each vendor rule is displayed
as an entity.
) and choose Assurance > Rogue and aWIPS.Allowed List
• Vendor Name
• Match Criteria
• Threat Level
• Associated Site(s)
• Last Changed
Edit a Vendor Rule
This procedure shows how to edit a vendor list.
Step 1
In the Cisco DNA Center GUI, click the Menu icon (
tab.
Step 2
In the Allowed Vendor List table, click the Vendor Name that you want to edit.
Step 3
In the Edit Allowed Vendor List window that appears which allows you to edit the following parameters:
) and choose Assurance > Rogue and aWIPS.Allowed List
• Threat Level
• Match Criteria
• Vendor Name
• Associated Sites
Step 4
After making the necessary changes, click Save.
Delete a Vendor Rule
This procedure shows how to delete a vendor.
Step 1
In the Cisco DNA Center GUI, click the Menu icon (
tab.
) and choose Assurance > Rogue and aWIPS.Allowed List
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
42
Custom Classification of Rogue Access Points
Create a List of Allowed Vendors
Step 2
In the Allowed Vendor List table, check the check box of the Vendor Name which you want to delete, and click Delete.
A message saying Deleting the selected allowed vendor(s) will impact all sites
associated with it.There is 1 site associated with this allowed vendor(s) is displayed.
Step 3
Click Delete.
A message saying Selected Allowed vendor(s) deleted successfully is displayed.
Create a List of Allowed Vendors
Use this procedure to create a list of vendors to be on the allowed list, so that threats from these vendors are
not marked as high threats.
You can add five vendors in a single workflow for a set of sites.
Step 1
In the Cisco DNA Center GUI, click the Menu icon (
) and choose Workflows > Create Allowed Vendor List.
You can also create a list of allowed vendors by clicking the Menu icon and choose Assurance > Rogue and aWIPS >
Allowed List tab.
Step 2
In the Create Allowed Vendor List screen, click Let's Do it.
To skip this screen in the future, check the Don't show this to me again check box.
The Create Allowed Vendor List screen appears.
Step 3
Select a threat level to apply when the Vendor name with threat matches with the Vendor rule name from the Threat
Level radio button.
The available threat levels are: Potential or Informational.
Step 4
From the Selection Criteria drop-down list, choose a selection criteria for the vendor name. The available selection
criterias are: Exactly Matches or Contains.
Step 5
In the Vendor Name field, enter the vendor name.
The Vendor Name match is case-sensitive.
Step 6
Click
to add more vendor to the allowed.
In a given workflow, you can add a maximum of five vendors to allowed list.
Step 7
In the Site Selection screen, check the check box next to the site where you want to apply your allowed vendor list.
Because of the site inheritance, all floors under a particular site inherit the vendor rule that is mapped at the area, site,
or building level.
Step 8
Click Next.
Step 9
In the Summary page, you can view details about the allowed vendor and site selection details.
Step 10
Click Done.
The Allowed Vendor List Created window appears.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
43
Custom Classification of Rogue Access Points
Create a List of Allowed Vendors
Step 11
To create another allowed vendor list, click the Create New Allowed Vendor Listbutton and follow Step 3 through
Step 8 in this procedure.
Step 12
To view the created vendor list, click View all allowed Lists.
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
44
CHAPTER
7
Rogue and aWIPS Event Notifications
• Rogue and aWIPS Event Notifications, on page 45
Rogue and aWIPS Event Notifications
You can configure Cisco DNA Center to send a notification whenever a rogue or aWIPS attack takes place.
These events will not be logged in Cisco DNA Center Notification Center. If an event occurs after you have
subscribed to “Rogue Threats” or “aWIPS threats”, you can receive notifications by REST APIs (Webhook,
PagerDuty, and Webex) or syslog server.
• See the “Work with Events” topic in Cisco DNA Center Platform User Guide to configure the Webhook
and syslog destinations.
• See the “Cisco DNA Center to PagerDuty Integration” topic in Cisco DNA Center ITSM Integration
Guide to configure the PagerDuty destination.
• See the “Cisco DNA Center to Cisco WebEx Integration” topic in Cisco DNA Center ITSM Integration
Guide to configure the Webex destination.
When completing this procedure, ensure that you select and subscribe to a rogue or aWIPS event.
To subscribe to a rogue or aWIPS event in the Cisco DNA Center GUI, click the Menu icon ( ) and choose
Platform > Developer Toolkit > Events.
Note
You will receive event notifications only after subscription. For threats that occurred before subscription, in
the Cisco DNA Center GUI, click the Menu icon ( ) and choose Reports > Report Templates > Rogue
and aWIPS.
Webex and PagerDuty destinations have limits of 100 event notifications per 5 minutes. If you will receive
more than 100 events in 5 minutes, configure Webhook or syslog destination.
Rogue Events
Rogue events are triggered only for the following “High” threat level rogues:
• Beacon Wrong Channel
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
45
Rogue and aWIPS Event Notifications
Rogue Events
• Beacon DS Attack
• AP Impersonation
• Rogue on Wire
• Honeypot
• Custom Rules created with Threat Level as High
Rogue events are triggered when:
• High threat level rogue is discovered in network for the first time
(ROGUE_NEW_THREAT_DETECTED)
• High threat level rogue is deleted in network (ROGUE_THREAT_DELETED)
• Threat level is changed from High to Potential or Informational (ROGUE_THREAT_LEVEL_CHANGED)
• Threat level is changed from Potential or Informational to High (ROGUE_THREAT_LEVEL_CHANGED)
• Threat level remains High but threat type changes (ROGUE_THREAT_TYPE_CHANGED)
Rogue Events Payload Details:
{
"detectingApLocation": "string",
"rssi": "int",
"threatMacAddress": "string",
"threatType": "string",
"detectingApMacAddress": "string",
"threatState": "string",
"wlcIp": "string",
"detectingApName": "string",
"containmentState": "string",
"vendorName": "string",
"ssid": "string",
"threatLevel": "string"
}
Commands in Payload:
• threatMacAddress - Mac Address of the Rogue Ap
• threatType - Type of Rogue threat (Beacon DS Attack, AP Impersonation, Rogue on Wire, Honeypot,
or Custom Rules created with Threat Level as High)
• threatState - State of the Rogue threat (ROGUE_NEW_THREAT_DETECTED,
ROGUE_THREAT_DELETED, ROGUE_THREAT_LEVEL_CHANGED),
ROGUE_THREAT_LEVEL_CHANGED, or ROGUE_THREAT_TYPE_CHANGED
• threatLevel - State of the rogue (High, Potential, or Informational)
• detectingApName - Name of the strongest detecting AP
• detectingApMacAddress - MAC Address of the strongest detecting AP
• detectingApLocation - Location of strongest detecting AP
• rssi - RSSI value of the detecting AP that detects the Rogue AP
• containmentState - Containment state of the Rogue AP (PENDING, NOTCONTAINED, or CONTAINED)
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
46
Rogue and aWIPS Event Notifications
aWIPS Events
• threatVendorName - Vendor Name of the Rogue AP
• ssid - Latest SSID or Honeypot SSID
• wlcIp - IP Address of the Wireless Controller
aWIPS Events
aWIPS events are triggered for all aWIPS threats in network.
Notification is sent for each Detecting AP. If multiple APs detect the same threat, you will receive multiple
event notifications.
For source based aWIPS threats, source information will be sent. Destination information will be sent as “Not
Applicable”.
For destination based aWIPS threats, destination information will be sent. Source information will be sent as
“Not Applicable”.
For pair based aWIPS threats, both source and destination information will be sent.
aWIPS Events Payload Details:
{
"sourceVendorName": "string",
"detectingApLocation": "string",
"attackType": "string",
"sourceMacAddress": "string",
"detectingApMacAddress": "string",
"wlcIp": "string",
"detectingApName": "string",
"targetMacAddress": "string"
}
Commands in Payload:
• attackType - Type of the aWIPS attack
• sourceMacAddress - MAC Address of the attacker
• sourceVendorName - Vendor name of the attacker
• targetMacAddress - MAC Address of the target
• detectingApLocation - Location of the detecting AP detecting
• detectingApMacAddress - MAC Address of the detecting AP
• detectingApName - Name of the detecting AP
• wlcIp - IP Address of the Wireless Controller
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
47
Rogue and aWIPS Event Notifications
aWIPS Events
Cisco DNA Center Rogue Management and aWIPS Application Quick Start Guide, Release 2.2.3
48

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
