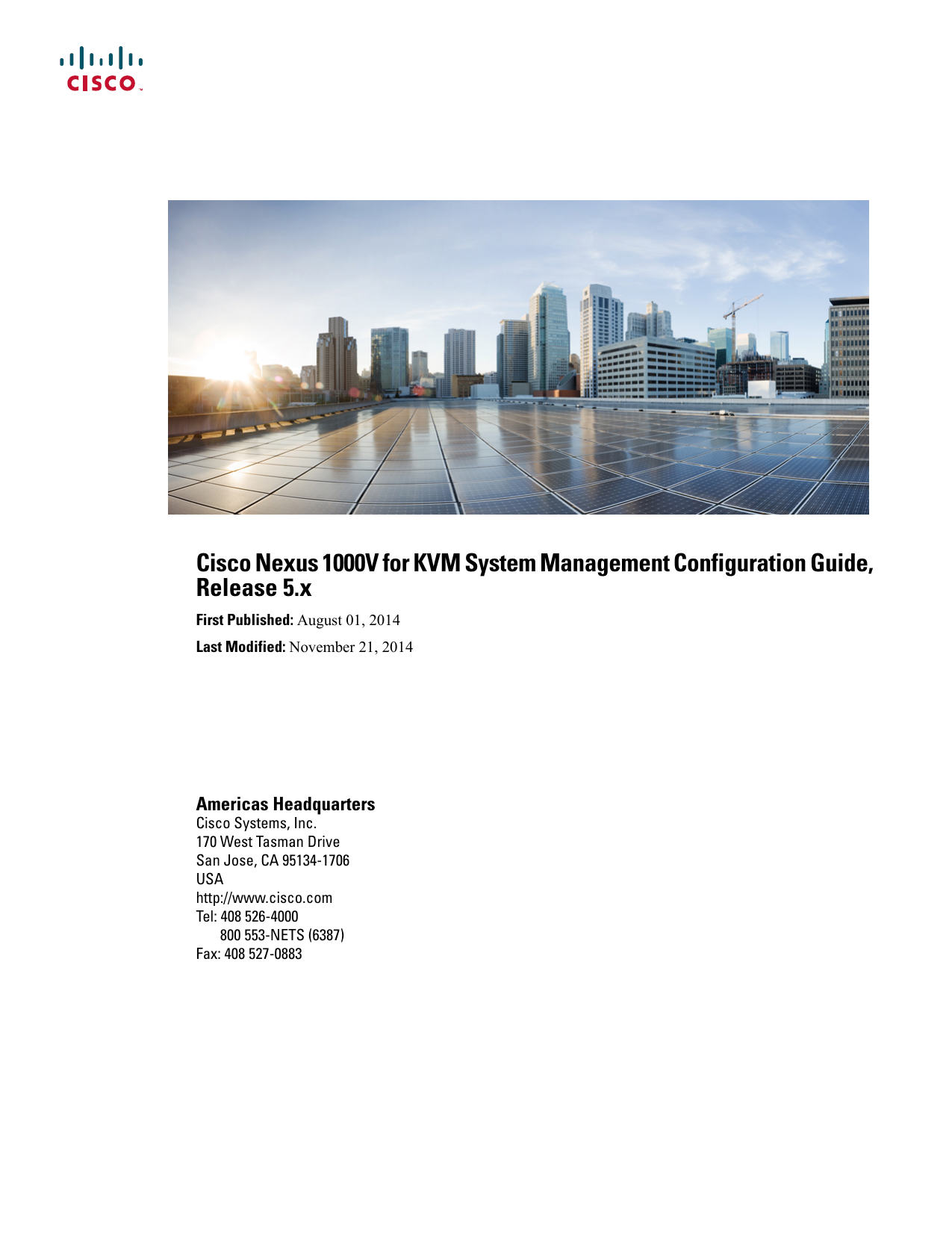

Cisco Nexus 1000V Switch for KVM Configuration Guide

Cisco Nexus 1000V for KVM System Management Configuration Guide,
Release 5.x
First Published: August 01, 2014
Last Modified: November 21, 2014
Americas Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: 408 526-4000
800 553-NETS (6387)
Fax: 408 527-0883
© 2014
Cisco Systems, Inc. All rights reserved.
CONTENTS
CHAPTER 1
New and Changed Information 1
New and Changed Information 1
CHAPTER 2
Overview 3
Cisco Nexus 1000V for KVM and OpenStack 3
CDP 4
Domains 4
Configuration Management 4
File Management 5
User Management 5
NTP 5
SNMP 5
NetFlow 5
System Messages 5
Troubleshooting 6
CHAPTER 3
Configuring CDP 7
Information About CDP 7
High Availability 8
Guidelines and Limitations 8
Default Settings 8
Configuring CDP 9
Enabling or Disabling CDP Globally 9
Enabling or Disabling CDP on an Interface 9
Configuring CDP Options 10
Advertising a CDP Version 12
Verifying the CDP Configuration 12
Monitoring CDP 13
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
iii
Contents
Monitoring CDP Statistics 13
Clearing CDP Statistics 13
Configuration Example for CDP 13
Feature History for CDP 14
CHAPTER 4
Configuring the Domain 15
Information About Domains 15
Layer 3 Control 15
Configuring a Domain 16
Verifying the Domain 17
Feature History for the VSM Domain 18
CHAPTER 5
Managing Host Server Connections 19
Information about Host Server Connections 19
Configuring Host Server Connections 19
Mapping a VEM to a New Host 19
Removing Host Mapping from a Virtual Ethernet Module 20
Viewing Host Mapping 21
Verifying the Configuration 21
Feature History for Host Server Connections 24
CHAPTER 6
Managing the Configuration 25
Information About Configuration Management 25
Changing the Switch Name 25
Configuring a Message of the Day 26
Saving a Configuration 27
Erasing a Configuration 27
Verifying the Configuration 28
Feature History for Configuration Management 28
CHAPTER 7
Working with Files 29
Information About Files 29
Navigating the File System 30
Specifying File Systems 30
Identifying the Directory You are Working From 30
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
iv
Contents
Changing Your Directory 31
Listing the Files in a File System 32
Identifying Available File Systems for Copying Files 32
Using Tab Completion 33
Copying and Backing Up Files 33
Creating a Directory 35
Removing an Existing Directory 35
Moving Files 36
Deleting Files or Directories 36
Compressing Files 37
Uncompressing Files 38
Directing Command Output to a File 39
Verifying a Bootable Image 39
Loading a File into the Running Configuration 40
Rolling Back to a Previous Configuration 40
Displaying Files 41
Displaying File Contents 41
Displaying Directory Contents 41
Displaying File Checksums 42
Displaying the Last Lines in a File 42
Feature History for File Management 43
CHAPTER 8
Managing Users 45
Information About User Management 45
Displaying Current User Access 45
Sending a Message to Users 46
Feature History for User Management 46
CHAPTER 9
Configuring NTP 47
Information about NTP 47
NTP Peers 48
High Availability 48
Prerequisites for NTP 48
Guidelines and Limitations for NTP 49
Default Settings for NTP 49
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
v
Contents
Configuring an NTP Server and Peer 49
Clearing NTP Sessions 50
Clearing NTP Statistics 50
Verifying the NTP Configuration 50
Feature History for NTP 51
CHAPTER 10
Configuring Local SPAN and ERSPAN 53
Information About SPAN and ERSPAN 53
SPAN Sources 53
Characteristics of SPAN Sources 54
SPAN Destinations 54
Characteristics of Local SPAN Destinations 54
Characteristics of ERSPAN Destinations 54
Local SPAN 55
Encapsulated Remote SPAN 55
Network Analysis Module 56
SPAN Sessions 56
Guidelines and Limitations for SPAN 57
Default Settings for SPAN 58
Configuring SPAN 58
Configuring a Local SPAN Session 58
Configuring an ERSPAN Port Profile 61
Configuring an ERSPAN Session 63
Shutting Down a SPAN Session from Monitor Configuration Mode 66
Shutting Down a SPAN Session from Monitor Configuration Mode 67
Resuming a SPAN Session from Global Configuration Mode 68
Resuming a SPAN Session from Monitor Configuration Mode 69
Configuring the Allowable ERSPAN Flow IDs 70
Verifying the SPAN Configuration 71
Configuration Example for an ERSPAN Session 71
Example of Configuring a SPAN Session 72
Example of a Configuration to Enable SPAN Monitoring 73
Feature History for SPAN and ERSPAN 73
CHAPTER 11
Configuring SNMP 75
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
vi
Contents
Information About SNMP 75
SNMP Functional Overview 75
SNMP Notifications 76
SNMPv3 76
Security Models and Levels for SNMPv1, v2, v3 76
User-Based Security Model 77
CLI and SNMP User Synchronization 78
Group-Based SNMP Access 78
High Availability 79
Guidelines and Limitations for SNMP 79
Default Settings for SNMP 79
Configuring SNMP 79
Configuring SNMP Users 79
Enforcing SNMP Message Encryption for All Users 81
Creating SNMP Communities 81
Filtering SNMP Requests 81
Configuring SNMP Notification Receivers 83
Configuring a Host Receiver for SNMPv1 Traps 83
Configuring a Host Receiver for SNMPv2c Traps or Informs 83
Configuring a Host Receiver for SNMPv3 Traps or Informs 83
Configuring the Notification Target User 84
Enabling SNMP Notifications 85
Disabling LinkUp/LinkDown Notifications on an Interface 86
Enabling a One-time Authentication for SNMP over TCP 86
Assigning the SNMP Switch Contact and Location Information 87
Disabling SNMP 87
Modifying the AAA Synchronization Time 88
Verifying the SNMP Configuration 88
MIBs 89
Feature History for SNMP 90
CHAPTER 12
Configuring NetFlow 91
Information About NetFlow 91
What is a Flow 91
Flow Record Definition 92
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
vii
Contents
Predefined Flow Records 94
Accessing NetFlow Data 96
Command-line Interface for NetFlow 96
Flow Monitor 96
Flow Exporter 96
NetFlow Collector 97
Exporting Flows to the NetFlow Collector Server 97
What NetFlow Data Looks Like 99
Network Analysis Module 99
High Availability for NetFlow 99
Guidelines and Limitations for NetFlow 99
Default Settings for NetFlow 100
Enabling the NetFlow Feature 101
Configuring Netflow 101
Defining a Flow Record 101
Defining a Flow Exporter 104
Defining a Flow Monitor 105
Assigning a Flow Monitor to an Interface 107
Adding a Flow Monitor to a Port Profile 108
Verifying the NetFlow Configuration 109
Netflow Example Configuration 111
Related Documents for NetFlow 112
Feature History for NetFlow 112
CHAPTER 13
Configuring System Message Logging 113
Information About System Message Logging 113
System Message Logging Facilities 114
Guidelines and Limitations for System Message Logging 118
Default System Message Logging Settings 118
Configuring System Message Logging 119
Configuring System Message Logging to Terminal Sessions 119
Restoring System Message Logging Defaults for Terminal Sessions 120
Configuring System Message Logging for Modules 120
Restoring System Message Logging Defaults for Modules 121
Configuring System Message Logging for Facilities 121
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
viii
Contents
Restoring System Message Logging Defaults for Facilities 122
Configuring syslog Servers 122
Restoring System Message Logging Defaults for Servers 123
Using a UNIX or Linux System to Configure Logging 123
Displaying Log Files 124
Verifying the System Message Logging Configuration 124
Feature History for System Message Logging 127
CHAPTER 14
Enabling vTracker 129
Information About vTracker 130
Guidelines and Limitations 130
Default Settings for vTracker Parameters 131
Enabling vTracker Globally 131
Upstream View 133
Upstream View Overview 133
Displaying Upstream View 134
Upstream View Field Description 134
Virtual Machine (VM) View 136
Virtual Machine (VM) View Overview 136
Displaying the VM vNIC View 136
VM vNIC View Field Description 137
Module pNIC View 138
Module pNIC View Overview 138
Displaying the Module pNIC View 138
Module pNIC View Field Description 139
VLAN View 140
VLAN View Overview 140
Displaying the VLAN View 140
VLAN View Field Description 141
Feature History for vTracker 141
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
ix
Contents
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
x
CHAPTER
1
New and Changed Information
This chapter contains the following sections:
• New and Changed Information, page 1
New and Changed Information
Table 1: New and Changed Features
Content
Description
Changed in Release Where Documented
vTracker
This feature is introduced.
5.2(1)SK3(2.1)
Enabling vTracker, on page 129
Local SPAN and ERSPAN
This feature is introduced.
5.2(1)SK31(2.1)
Configuring Local SPAN and
ERSPAN, on page 53
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
1
New and Changed Information
New and Changed Information
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
2
CHAPTER
2
Overview
This chapter contains the following sections:
• Cisco Nexus 1000V for KVM and OpenStack, page 3
• CDP, page 4
• Domains, page 4
• Configuration Management, page 4
• File Management, page 5
• User Management, page 5
• NTP, page 5
• SNMP, page 5
• NetFlow, page 5
• System Messages, page 5
• Troubleshooting, page 6
Cisco Nexus 1000V for KVM and OpenStack
The Cisco Nexus 1000V for KVM consists of two main components:
• Virtual Ethernet Module (VEM)—A software component that is deployed on each kernel-based virtual
machine (VM) host. Each VM on the host is connected to the VEM through virtual Ethernet (vEth)
ports.
• Virtual Supervisor Module (VSM)—The Management component that controls multiple VEMs and
helps in the definition of VM-focused network policies. It is deployed either as a virtual appliance on
any KVM host or on the Cisco Cloud Services Platform appliance.
Each of these components is tightly integrated with the OpenStack environment:
• The VEM is a hypervisor-resident component and is tightly integrated with the KVM architecture.
• The VSM is integrated with OpenStack using the OpenStack Neutron Plug-in.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
3
Overview
CDP
• The OpenStack Neutron API has been extended to include two additional user-defined resources:
◦Network profiles are logical groupings of network segments.
◦Policy profiles group port policy information, including security.
Using OpenStack, you create VMs, networks, and subnets on the Cisco Nexus 1000V for KVM, by defining
components such as the following:
• Tenants
• Network segments, such as VLANs, VLAN trunks, and VXLANs
• IP address pools (subnets)
Using the Cisco Nexus 1000V for KVM VSM, you create port profiles (called policy profiles in OpenStack),
which define the port policy information, including security settings.
When a VM is deployed, a port profile is dynamically created on the Cisco Nexus 1000V for KVM for each
unique combination of policy port profile and network segment. All other VMs deployed with the same policy
to this network reuse this dynamic port profile.
Note
You must consistently use OpenStack for all VM network and subnet configuration. If you use both
OpenStack and the VSM to configure VM networks and subnets, the OpenStack and the VSM configurations
can become out-of-sync and result in faulty or inoperable network deployments.
CDP
The Cisco Discovery Protocol (CDP) runs over the data link layer and is used to advertise information to all
attached Cisco devices and to discover and view information about attached Cisco devices. CDP runs on all
Cisco-manufactured equipment.
Domains
You must create a domain ID for Cisco Nexus 1000V. This process is part of the initial setup of the Cisco
Nexus 1000V when you are installing the software. If you need to create a domain ID later, use the
saves-domain command.
You can establish Layer 3 Control in your VSM domain, which means that your VSM is Layer 3 accessible
and able to control hosts that reside in a separate Layer 2 network.
Configuration Management
The Cisco Nexus 1000V enables you to change the switch name, configure messages of the day, and display,
save, and erase configuration files.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
4
Overview
File Management
File Management
Using a single interface, you can manage the file system including:
• Flash memory file systems
• Network file systems (TFTP and FTP)
• Any other endpoint for reading or writing data (such as the running configuration)
User Management
You can identify the users who are currently connected to the device and send a message to either a single
user or all users.
NTP
The Network Time Protocol (NTP) synchronizes timekeeping among a set of distributed time servers and
clients. This synchronization allows you to correlate events when you receive system logs and other
time-specific events from multiple network devices.
SNMP
The Simple Network Management Protocol (SNMP) is an application-layer protocol that provides a message
format for communication between SNMP managers and agents. SNMP provides a standardized framework
and a common language that you can use to use to monitor and manage devices in a network.
NetFlow
NetFlow gives visibility into traffic that transits the virtual switch by characterizing IP traffic based on its
source, destination, timing, and application information. You can use this information to assess network
availability and performance, assist in meeting regulatory requirements (compliance), and help with
troubleshooting.
You can also use the Cisco Network Analysis Module (NAM) to monitor NetFlow data sources.
System Messages
You can use system message logging to control the destination and to filter the severity level of messages that
system processes generate. You can configure logging to a terminal session, a log file, and syslog servers on
remote systems. System message logging is based on RFC 3164.
For more information about the system message format and the messages that the device generates, see the
Cisco Nexus 1000V Series NX-OS System Messages Reference.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
5
Overview
Troubleshooting
Troubleshooting
Ping and trace route are among the available troubleshooting tools. For more information, see the Cisco Nexus
1000V for KVM Troubleshooting Guide.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
6
CHAPTER
3
Configuring CDP
This chapter contains the following sections:
• Information About CDP, page 7
• Guidelines and Limitations, page 8
• Default Settings, page 8
• Configuring CDP, page 9
• Verifying the CDP Configuration, page 12
• Monitoring CDP, page 13
• Configuration Example for CDP, page 13
• Feature History for CDP, page 14
Information About CDP
The Cisco Discovery Protocol (CDP), which runs over the data link layer, is used to advertise information to
all attached Cisco devices and to discover and view information about attached Cisco devices. CDP runs on
all Cisco-manufactured equipment.
Each device that you configure for CDP sends periodic advertisements to a multicast address. Each device
advertises at least one address at which it can receive SNMP messages. The advertisements also contain hold
time information, which indicates the length of time that a receiving device should hold CDP information
before discarding it. You can configure the advertisement or refresh timer and the hold timer.
CDP Version 2 (CDPv2) allows you to track instances where the native VLAN ID or port duplex states do
not match between connecting devices.
CDP advertises the following type-length-value fields (TLVs):
• Device ID
• Address
• Port ID
• Capabilities
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
7
Configuring CDP
High Availability
• Version
• Platform
• Native VLAN
• Full/half duplex
• Maximum Transmission Unit (MTU)
• Sysname
• SysObjectID
• Management address
• Physical location
All CDP packets include a VLAN ID. The CDP packet is untagged, so it goes over the native/access VLAN,
which is then also added to the packet.
High Availability
Stateless restarts are supported for CDP. After a reboot or a supervisor switchover, the running configuration
is applied.
Guidelines and Limitations
• CDP gathers protocol addresses of neighboring devices and discovers the platform of those devices.
CDP runs over the data link layer only. With CDP, two systems that support different Layer 3 protocols
can learn about each other.
• CDP can discover up to 256 neighbors per port if the port is connected to a hub with 256 connections.
• CDP must be enabled globally before you can configure CDP on an interface. CDP is enabled globally
by default.
• You can configure CDP on physical interfaces and port channels only.
Default Settings
Parameters
Default
CDP
Enabled globally and on all interfaces
CDP version
Version 2
CDP device ID
System name
CDP timer
60 seconds
CDP hold timer
180 seconds
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
8
Configuring CDP
Configuring CDP
Configuring CDP
This section includes the following topics:
• CDP Global Configuration
• Enabling CDP on an Interface
• Disabling CDP on an Interface
Enabling or Disabling CDP Globally
Be sure you understand that when you globally disable the CDP feature, all CDP configurations are removed.
Before You Begin
Before beginning this procedure, you must be logged in to the CLI in EXEC mode.
Procedure
Command or Action
Purpose
Step 1
switch# config t
Places you in global configuration mode.
Step 2
switch(config)# [no] cdp enable
Enables or disables the CDP feature globally.
switch# config t
switch(config)# no cdp enable
Enabling or Disabling CDP on an Interface
You can enable or disable CDP on an interface.
Note
Although CDP is enabled by default on all interfaces, should it become disabled, you can use this procedure
to enable it again.
Procedure
Step 1
Command or Action
Purpose
switch# configure terminal
Enters global configuration mode.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
9
Configuring CDP
Configuring CDP Options
Command or Action
Purpose
Step 2
switch(config)# interface interface-type Places you in interface configuration mode for the
specific interface.
number
Step 3
switch(config-if)# [no] cdp enable
Disables or enables CDP on this interface.
Step 4
switch(config-if)# show cdp interface
interface-type number
(Optional)
Displays CDP information for the specified
interface.
Step 5
switch(config-if)# copy running-config (Optional)
Saves the change persistently through reboots and
startup-config
restarts by copying the running configuration to
the startup configuration.
switch# config terminal
switch(config)# interface ethernet 3/1
switch(config-if)# no cdp enable
switch(config-if)# show cdp interface mgmt0
mgmt0 is up
CDP disabled on interface
Sending CDP packets every 60 seconds
Holdtime is 180 seconds
switch(config)# copy running-config startup-config
Configuring CDP Options
You can configure the following for CDP:
• The device ID format to use
Note
Only the system-name device ID format is supported
• The maximum hold time for neighbor information
• The refresh time for sending advertisements
Note
You can view output from the upstream Catalyst 6500 Series switch by using the show cdp neighbor
command.
Before You Begin
Before beginning this procedure, be sure you know the following information:
• How long you want CDP to retain neighbor information if you are setting the holdtime.
• How often you want CDP to advertise if you are setting the CDP timer.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
10
Configuring CDP
Configuring CDP Options
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Enters global configuration mode.
Step 2
switch(config)# cdp format
device-id system-name
(Optional)
Specifies that CDP uses the system name for the device
ID format.
Step 3
switch(config)# show cdp
neighbors
Displays the upstream device from your device.
Step 4
switch(config)# cdp holdtime
seconds
(Optional)
Sets the maximum amount of time that CDP holds onto
neighbor information before discarding it.
• The range for the seconds argument is from 10 to
255 seconds.
• The default is 180 seconds.
Step 5
switch(config)# cdp timer seconds Sets the refresh time for CDP to send advertisements to
neighbors.
• The range for the seconds argument is from 5 to 254
seconds.
Step 6
switch(config)# show cdp global
(Optional)
Displays the CDP version that is being advertised or sent
to other devices.
Step 7
switch(config)# copy
running-config startup-config
(Optional)
Saves the change persistently through reboots and restarts
by copying the running configuration to the startup
configuration.
switch# config terminal
switch(config)# cdp format device-id system-name
switch(config)# show cdp neighbors
Capability Codes: R - Router, T - Trans-Bridge, B - Source-Route-Bridge
S - Switch, H - Host, I - IGMP, r - Repeater,
V - VoIP-Phone, D - Remotely-Managed-Device,
s - Supports-STP-Dispute
Device ID
Local Intrfce
swordfish-6k-2
Eth2/2
swordfish-6k-2
Eth2/3
swordfish-6k-2
Eth2/4
swordfish-6k-2
Eth2/5
swordfish-6k-2
Eth2/6
switch(config)# cdp holdtime 10
switch(config)# cdp timer 5
switch(config)# show cdp global
Global CDP information:
CDP enabled globally
Hldtme
Capability
169
139
135
177
141
R
R
R
R
R
S
S
S
S
S
I
I
I
I
I
Platform
WS-C6503-E
WS-C6503-E
WS-C6503-E
WS-C6503-E
WS-C6503-E
Port ID
Gig1/14
Gig1/15
Gig1/16
Gig1/17
Gig1/18
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
11
Configuring CDP
Advertising a CDP Version
Sending CDP packets every 5 seconds
Sending a holdtime value of 10 seconds
Sending CDPv2 advertisements is disabled
Sending DeviceID TLV in Mac Address Format
switch(config-if)# copy running-config startup-config
Advertising a CDP Version
Before beginning this procedure, be sure you have know the following information:
• The version of CDP currently supported on the device.
• Only one version of CDP (version 1 or version 2) is advertised at a time for all uplinks and port channels
on the switch.
Before You Begin
Before beginning this procedure, you must be logged in to the CLI in EXEC mode.
Procedure
Command or Action
Purpose
Step 1
switch# config t
Places you in global configuration mode.
Step 2
switch(config)# cdp advertise {v1 | v2} Assigns the CDP version to advertise:
• CDP Version 1
• CDP Version 2
Step 3
switch(config)# show cdp global
Step 4
switch(config)# copy running-config (Optional)
Copies the running configuration to the startup
startup-config
configuration.
(Optional)
Displays the CDP version that is being advertised or
sent to other devices.
switch# config t
switch(config)# cdp advertise v1
switch(config)# show cdp global
Global CDP information:
CDP enabled globally
Sending CDP packets every 60 seconds
Sending a holdtime value of 180 seconds
Sending CDPv2 advertisements is disabled
Sending DeviceID TLV in Default Format
switch(config)# copy running-config startup-config
Verifying the CDP Configuration
Use one of the following commands to verify the configuration:
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
12
Configuring CDP
Monitoring CDP
Command
Purpose
show cdp all
Displays all interfaces that have CDP enabled.
show cdp entry {all | name entry-name}
Displays the CDP database entries.
show cdp global
Displays the CDP global parameters.
show cdp interface interface-type slot/port
Displays the CDP interface status.
show cdp neighbors {detail | interface interface-type Displays the CDP neighbor status.
slot/port}
Monitoring CDP
Monitoring CDP Statistics
Command
Purpose
show cdp traffic interface interface-type slot/port
Displays the CDP traffic statistics on an interface.
Clearing CDP Statistics
Use one of the following commands to clear CDP statistics:
Command
Purpose
clear cdp counters
Clears CDP statistics on all interfaces.
clear cdp counters interface number
Clears CDP statistics on the specified interface.
clear cdp table
Clears the CDP cache for one or all interfaces.
Configuration Example for CDP
This example shows how to enable the CDP feature and configures the refresh and hold timers:
switch# config t
switch(config)# cdp enable
switch(config)# cdp timer 50
switch(config)# cdp holdtime 100
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
13
Configuring CDP
Feature History for CDP
Feature History for CDP
Feature
Releases
Feature Information
CDP
Release 5.2(1)SK1(2.1)
This feature was introduced.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
14
CHAPTER
4
Configuring the Domain
This chapter contains the following sections:
• Information About Domains, page 15
• Configuring a Domain, page 16
• Verifying the Domain, page 17
• Feature History for the VSM Domain, page 18
Information About Domains
You must create a domain for the Cisco Nexus 1000V. This process is part of the initial setup of the Cisco
Nexus 1000V when you install the software. If you need to create a domain later, you can do so by using the
setup command or the procedures described in this chapter.
Layer 3 Control
The Cisco Nexus 1000V for KVM supports Layer 3 control by default, and this setting cannot be changed.
Layer 3 control, or IP connectivity, is supported between the Virtual Supervisor Module (VSM) and the Virtual
Ethernet Module (VEM) for control and packet traffic. With Layer 3 control, a VSM can be Layer 3 accessible
and can control hosts that reside in a separate Layer 2 network. In the Layer 3 mode, all the VEMs hosts that
are managed by VSM and the VSM can be in different networks.
To implement Layer 3 control, you must configure the VSM in Layer 3 mode.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
15
Configuring the Domain
Configuring a Domain
In this figure, VSM 1 controls VEMs in Layer 2 Network A and VSM 2 controls VEMs in Layer 2 Network
B.
Figure 1: Example of Layer 3 Control IP Connectivity
Configuring a Domain
You can create a domain for the Cisco Nexus 1000V that identifies the VSM and VEMs that reside in the
domain. This process is part of the initial setup of the Cisco Nexus 1000V when installing the software. If
you need to create a domain after initial setup, you can do so by using this procedure.
Before You Begin
Before beginning this procedure, you must be logged in to the CLI in EXEC mode.
You must know the following information:
• A unique domain ID for this Cisco Nexus 1000V instance.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
16
Configuring the Domain
Verifying the Domain
Procedure
Command or Action
Purpose
Step 1
switch# config terminal
Places you in global configuration mode.
Step 2
switch(config)# svs-domain
Places you in SVS domain configuration mode.
Step 3
switch(config-svs-domain)# svs mode L3 Designates which interface to use, mgm0 or
control0.
interface {mgmt0 | control0}
Note
The interface must already have an IP
address configured.
Step 4
switch(config-svs-domain)# domain id
number
Creates the domain ID for this Cisco Nexus
1000V instance.
Step 5
switch(config--svs-domain)# show svs
domain
(Optional)
Displays the domain configuration.
Step 6
switch(config-svs-domain)# exit
Returns you to global configuration mode.
Step 7
switch(config)# copy running-config
startup-config
(Optional)
Copies the running configuration to the startup
configuration.
switch# configuration terminal
switch(config)# svs-domain
switch(config-svs-domain)# svs mode L3 interface mgmt0
switch(config-svs-domain)# domain id 1
switch(config-vlan)# exit
switch(config)# show svs domain
SVS domain config:
Domain id:
1
Control vlan: NA
Packet vlan:
NA
Control mode: L3
Switch guid: 07da7e1a-2bff-6833-b416-f5d83204a55c
L3 control interface: mgmt0
Status: Config push to VC successful.
Control type multicast: No
Note: Control VLAN and Packet VLAN are not used in L3 mode
switch(config)# copy running-config startup-config
[########################################] 100%
switch(config)#
Verifying the Domain
Use this procedure to view and verify the configured domain.
Before You Begin
• You are logged in to the CLI in any command mode.
• You have configured a domain using the Creating a Domain procedure.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
17
Configuring the Domain
Feature History for the VSM Domain
Procedure
show svs domain
Example:
switch# show svs domain
SVS domain config:
Domain id:
1
Control vlan: NA
Packet vlan:
NA
Control mode: L3
Switch guid: 07da7e1a-2bff-6833-b416-f5d83204a55c
L3 control interface: mgmt0
Status: Config push to VC successful.
Control type multicast: No
Note: Control VLAN and Packet VLAN are not used in L3 mode
Display the domain configured on the Cisco Nexus 1000V.
Feature History for the VSM Domain
This table only includes updates for those releases that have resulted in additions to the feature.
Feature Name
Releases
Feature Information
VSM Domain
Release 5.2(1)SK1(2.1) This feature was introduced.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
18
CHAPTER
5
Managing Host Server Connections
This chapter contains the following sections:
• Information about Host Server Connections, page 19
• Configuring Host Server Connections, page 19
• Verifying the Configuration , page 21
• Feature History for Host Server Connections, page 24
Information about Host Server Connections
When a VSM detects a new Virtual Ethernet Module (VEM), it automatically assigns a free module number
to the VEM and then maintains the mapping between the module number and the universally unique identifier
(UUID) of a host server. This mapping is used to assign the same module number to a given host server.
Configuring Host Server Connections
Mapping a VEM to a New Host
Before You Begin
Before beginning this procedure, be sure you have done the following:
• Logged in to the CLI in EXEC mode
• Removed the host from the Cisco Nexus 1000V DVS on the OpenStack controller
Procedure
Step 1
Command or Action
Purpose
switch# configure terminal
Places you in global configuration mode.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
19
Managing Host Server Connections
Removing Host Mapping from a Virtual Ethernet Module
Step 2
Command or Action
Purpose
switch(config)# no vem module
number
(Optional)
Removes the existing module-to-host mapping
Note
If you are changing the mapping on a module,
you must remove the existing host mapping first.
If you do not remove the existing host mapping
first, the new host is assigned a different module
number.
Step 3
switch(config)# vem module number Places you in configuration mode for the specified
module.
Step 4
switch(config-vem-slot)# host id
server-bios-uuid
Assigns a different host server UUID to the specified
module. The host ID must match the host UUID in the
/etc/n1kv/n1kv.conf file. The valid range is from 0 to 64
characters.
Step 5
switch(config-vem-slot)# show
module vem mapping
(Optional)
Displays the mapping of modules to hosts.
Step 6
switch(config-vem-slot)# copy
running-config startup-config
Copies the running configuration to the startup
configuration.
switch# configure terminal
switch(config)# no vem 3
switch(config)# vem 3
switch(config-vem-slot)# host id 93312881-309e-11db-afa1-0015170f51a8
switch(config-vem-slot)# show module vem mapping
Mod
Status
UUID
License Status
------------------------------------------------------------3
powered-up
93312881-309e-11db-afa1-0015170f51a8
licensed
4
absent
6dd6c3e3-7379-11db-abcd-000bab086eb6
licensed
switch(config-vem-slot)# copy running-config startup-config
Removing Host Mapping from a Virtual Ethernet Module
You can remove the host mapping from a module.
Before You Begin
Before beginning this procedure, be sure you have done the following:
• Logged in to theCisco Nexus 1000V in EXEC mode.
• Removed the host from the Cisco Nexus 1000V DVS on the OpenStack controller.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
20
Managing Host Server Connections
Viewing Host Mapping
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Places you in global configuration mode.
Step 2
switch(config)# no vem module-number Removes the specified module from the software.
Note
If the module is still present in the slot, the
command is rejected, as shown in the
example.
Step 3
switch(config)# show module vem
mapping
(Optional)
Displays the mapping of modules to hosts.
Step 4
switch(config)# copy running-config
startup-config
Copies the running configuration to the startup
configuration.
switch# configure terminal
switch(config)# no vem 4
switch(config)# no vem 3
cannot modify slot 3: host module is inserted
switch(config)# show module vem mapping
Mod
Status
UUID
-----------------------------------------------3
powered-up
93312881-309e-11db-afa1-0015170f51a8
switch(config-vem-slot)# copy running-config startup-config
License Status
-------------licensed
Viewing Host Mapping
• Use this procedure in EXEC mode to view the mapping of modules to host servers.
Procedure
Display the mapping on modules to host servers by entering the following command: show module vem
mapping
Mod Status
UUID
License Status
--- ----------- ------------------------------------ -------------3
powered-up 93312881-309e-11db-afa1-0015170f51a8 licensed
n1000v(config)#
Verifying the Configuration
Use one of the following commands to verify the configuration:
show running-config
Displays the current configuration.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
21
Managing Host Server Connections
Verifying the Configuration
If the Cisco Nexus 1000V is not connected to a OpenStack controller or KVM server, the output is limited to
connection-related information.
switch(config)# show running-config
!Command: show running-config
!Time: Fri Jul 26 01:59:50 2013
version 5.2(1)SK1(1.1)
switchname n1000v-VSM-Primary
no feature telnet
username adminbackup password 5 ! role network-operator
username admin password 5 $1$uaNy2mFT$Sy6fo2j8Q/uxc0fWMpBLz1
n
username admin keypair rsa
role network-admi
banner motd #Nexus 1000v Switch
#
ip domain-lookup
ip host n1000v-VSM-Primary 10.106.202.182
errdisable recovery cause failed-port-state
vem 3
host id 10
vem 4
host id 64
snmp-server user admin network-admin auth md5 0xb64ad6879970f0e57600c443287a79f
0 priv 0xb64ad6879970f0e57600c443287a79f0 localizedkey
vrf context management
ip route 0.0.0.0/0 10.106.202.161
vlan 1,2166-2170
cdp advertise v1
cdp holdtime 10
cdp timer 5
port-channel load-balance ethernet source-mac
port-profile default max-ports 32
port-profile default port-binding static
port-profile type vethernet N1K_Cloud_Default_Trunk
switchport mode trunk
no shutdown
guid 51e1095a-61ea-50b5-9f3c-19842dcff6e7
max-ports 64
description Port Profile created for Nexus 1000V internal usage. Do not use.
state enabled
port-profile type ethernet uplink_sys
switchport mode trunk
switchport trunk allowed vlan 2167-2170
no shutdown
guid 53502d18-9ffb-411a-b665-d830081136e5
max-ports 512
state enabled
port-profile type ethernet uplink_sys_pc
switchport mode trunk
switchport trunk allowed vlan 2167
channel-group auto mode active
no shutdown
guid 7aa26801-1e00-2684-97ec-a7cc1a4615af
max-ports 512
state enabled
port-profile type vethernet vm_access_sys
switchport mode access
guid 78dc356e-1fe5-7c72-8c2c-6286065720a8
port-profile type vethernet DEFAULT_DATA_VNIC1
switchport mode access
switchport access vlan 2170
no shutdown
guid 5cb014fe-3d4f-014a-b673-869700f70425
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
22
Managing Host Server Connections
Verifying the Configuration
state enabled
port-profile type vethernet DEFAULT_DATA_VNIC2
switchport mode access
switchport access vlan 2167
no shutdown
guid 42dbc174-30ec-2ab7-8796-c92e15ea4167
state enabled
port-profile type vethernet DEFAULT_DATA_VNIC3
switchport mode access
switchport access vlan 2169
no shutdown
guid 090dc703-caca-102c-869a-86e433531d77
state enabled
port-profile type vethernet mx-nlb
guid 2505614c-2107-5f97-9f21-45d70b57aa3e
port-profile type vethernet hsrp-1
switchport mode trunk
disable-loop-detection hsrp
no shutdown
guid 6d2b8903-94c5-2e9a-923d-182408301feb
state enabled
port-profile type vethernet vrrp-1
disable-loop-detection vrrp
switchport mode trunk
no shutdown
guid 3262b6ec-1333-2665-bc78-37a31ea6a71e
state enabled
port-profile type vethernet LynnTest
guid 5a5e3644-8cf9-1f4a-bf63-97912048f20e
port-profile type vethernet LynnPP
switchport mode access
switchport access vlan 10
no shutdown
capability l3control
guid 754ab04a-6979-3f5f-a0ec-aef11dd83ff0
state enabled
interface port-channel2
interface mgmt0
ip address 10.106.202.182/27
interface control0
no snmp trap link-status
line console
line vty
boot kickstart bootflash:/n1000v-dk9-kickstart.5.2.1.SK1.1.0.345.gbin sup-1
boot system bootflash:/n1000v-dk9.5.2.1.SK1.1.0.345.gbin sup-1
boot kickstart bootflash:/n1000v-dk9-kickstart.5.2.1.SK1.1.0.345.gbin sup-2
boot system bootflash:/n1000v-dk9.5.2.1.SK1.1.0.345.gbin sup-2
svs-domain
domain id 1
control vlan 1
packet vlan 1
svs mode L3 interface mgmt0
switch-guid 07da7e1a-2bff-6833-b416-f5d83204a55c
svs connection svs_system
max-ports 8192
vservice global type vsg
tcp state-checks invalid-ack
tcp state-checks seq-past-window
no tcp state-checks window-variation
no bypass asa-traffic
vnm-policy-agent
registration-ip 0.0.0.0
shared-secret **********
log-level info
show svs connections
Displays the current connections to the Cisco Nexus 1000V.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
23
Managing Host Server Connections
Feature History for Host Server Connections
Note
Network connectivity issues may shut down your connection to theOpenStack controller. When network
connectivity is restored, the Cisco Nexus 1000V will not automatically restore the connection. In this case,
you must restore the connection manually using the following command sequence:
no connect
connect
switch(config)# show svs connections
connection svs_system:
hostname: ip address: remote port: 80
protocol: certificate: default
datacenter name: admin:
max-ports: 8192
DVS uuid: config status: Disabled
operational status: Disconnected
sync status: version: vc-uuid: switch(config)#
show module
Displays the module information.
swtich# show module
Mod Ports Module-Type
--- ----- -------------------------------1
0
Virtual Supervisor Module
2
0
Virtual Supervisor Module
Mod
--1
2
Sw
-----------------5.2(1)SK1(1)
5.2(1)SK1(1)
Mod
--1
2
MAC-Address(es)
-------------------------------------00-19-07-6c-5a-a8 to 00-19-07-6c-62-a8
00-19-07-6c-5a-a8 to 00-19-07-6c-62-a8
Mod
--1
2
Server-IP
--------------10.105.225.180
10.105.225.180
Model
-----------------Nexus1000V
Nexus1000V
Status
-----------active *
ha-standby
Hw
-----------------------------------------------0.0
0.0
Serial-Num
---------NA
NA
Server-UUID
-----------------------------------NA
NA
Server-Name
-------------------NA
NA
* this terminal session
Feature History for Host Server Connections
Feature Name
Releases
Feature Information
Host Mapping
Release 5.2(1)SK1(2.1)
This feature was introduced.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
24
CHAPTER
6
Managing the Configuration
This chapter contains the following sections:
• Information About Configuration Management, page 25
• Changing the Switch Name, page 25
• Configuring a Message of the Day, page 26
• Saving a Configuration, page 27
• Erasing a Configuration, page 27
• Verifying the Configuration, page 28
• Feature History for Configuration Management, page 28
Information About Configuration Management
The Cisco Nexus 1000V enables you to change the switch name, configure messages of the day, and display,
save, and erase configuration files.
Changing the Switch Name
Use this procedure to change the switch name or prompt from the default (switch#) to another character string.
If the VSM is connected to the OpenStack controller, then this procedure also changes the Dynamic Vectoring
and Streaming (DVS) engine that the VSM is managing. If you make an error when renaming the DVS, a
syslog is generated and the DVS on the OpenStack controller continues to use the old DVS name.
Before You Begin
Before beginning this procedure, you must be logged in to the CLI in configuration mode.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
25
Managing the Configuration
Configuring a Message of the Day
Procedure
Step 1
Command or Action
Purpose
switch(config)# switchname
Changes the switch prompt.
switch(config)# switchname metro
metro(config)# exit
metro#
Configuring a Message of the Day
Use this procedure to configure a message of the day (MOTD) to display before the login prompt on the
terminal when a user logs in.
• The banner message can be up to 40 lines with up to 80 characters per line.
• Use the following guidelines when choosing your delimiting character:
◦Do not use the delimiting-character in the message string.
◦Do not use " and % as delimiters.
• The following tokens can be used in the the message of the day:
◦$(hostname) displays the host name for the switch.
◦$(line) displays the vty or tty line or name.
Before You Begin
Before beginning this procedure, you must be logged in to the CLI in configuration mode.
Procedure
Step 1
Command or Action
Purpose
switch(config)# banner motd
[delimiting-character message
delimiting-character]
Configures a banner message of the day with the
following features:
• Up to 40 lines
• Up to 80 characters per line
• Enclosed in delimiting character, such as #
• Can span multiple lines
• Can use tokens
Step 2
switch(config)# show banner motd
Displays the configured banner message.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
26
Managing the Configuration
Saving a Configuration
switch(config)# banner motd #April 16, 2011 Welcome to the svs#
switch(config)# show banner motd
April 16, 2011 Welcome to the Switch
Saving a Configuration
Use this procedure to save the running configuration to the startup configuration so that your changes are
retained in the configuration file the next time you start the system.
Before You Begin
Before beginning this procedure, you must be logged in to the CLI in any command mode.
Procedure
Step 1
Command or Action
Purpose
switch# copy running-config
startup-config
(Optional)
Saves the change persistently through reboots and restarts
by copying the running configuration to the startup
configuration.
switch# copy run start
[########################################] 100%
switch#
Erasing a Configuration
Use this procedure to erase a startup configuration.
Caution
The write erase command erases the entire startup configuration with the exception of loader functions,
the license configuration, and the certificate extension configuration
Before You Begin
Before beginning this procedure, you must be logged in to the CLI in any command mode.
Procedure
Command or Action
Step 1
Purpose
switch# write erase [boot | The existing startup configuration is completely erased and all settings
revert to their factory defaults.
debug]
The running configuration is not affected.
The following parameters are used with this command:
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
27
Managing the Configuration
Verifying the Configuration
Command or Action
Purpose
• boot: Erases the boot variables and the mgmt0 IP configuration.
• debug: Erases the debug configuration.
switch# write erase debug
Verifying the Configuration
Use the following commands to verify the configuration of interfaces, system settings, and hardware and
software versions. For detailed information, including sample output, see the Cisco Nexus 1000V for KVM
Command Reference.
Command
Description
show version
Displays the versions of system software and
hardware that are currently running on the switch.
show running-config
Displays the versions of system software and
hardware that are currently running on the switch.
show running-config diff
Displays the difference between the startup
configuration and the running configuration currently
on the switch.
show interface {type} {name} brief
Displays a brief version of information about the
specified interface configuration.
show interface {type} {name}
Displays details about the specified interface
configuration.
show interface brief
Displays a brief version of all interface configurations
on your system.
show running-config interface
Displays the running configuration for all interfaces
on your system.
Feature History for Configuration Management
Feature Name
Releases
Feature Information
Configuration Management
Release 5.2(1)SK1(2.1)
This feature was introduced.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
28
CHAPTER
7
Working with Files
This chapter contains the following sections:
• Information About Files, page 29
• Navigating the File System, page 30
• Copying and Backing Up Files, page 33
• Creating a Directory, page 35
• Removing an Existing Directory, page 35
• Moving Files, page 36
• Deleting Files or Directories, page 36
• Compressing Files, page 37
• Uncompressing Files, page 38
• Directing Command Output to a File, page 39
• Verifying a Bootable Image, page 39
• Loading a File into the Running Configuration, page 40
• Rolling Back to a Previous Configuration , page 40
• Displaying Files, page 41
• Feature History for File Management, page 43
Information About Files
The Cisco Nexus 1000V file system provides a single interface to all the file systems that the Cisco Nexus
1000V switch uses, including:
• Flash memory file systems
• Network file systems (TFTP and FTP)
• Any other endpoint for reading or writing data (such as the running configuration)
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
29
Working with Files
Navigating the File System
Navigating the File System
Specifying File Systems
The syntax for specifying a file system is <file system name>:[//server/]. The following table describes file
system syntax.
File System Name
Server
Description
bootflash
sup-active
Internal memory located on the
active supervisor used for storing
system images, configuration files,
and other miscellaneous files.
Cisco Nexus 1000V CLI defaults
to the bootflash: file system
sup-local
sup-1
module-1
sup-standby
Internal memory located on the
standby supervisor used for storing
system images, configuration files,
and other miscellaneous files.
sup-remote
sup-2
module-2
—
volatile
Volatile random-access memory
(VRAM) located on a supervisor
module used for temporary or
pending changes.
Identifying the Directory You are Working From
You can display the directory name of your current CLI location.
Before You Begin
Before beginning this procedure, you must be logged in to the CLI in any command mode.
Procedure
Step 1
Command or Action
Purpose
switch# pwd
Displays the present working directory.
switch# pwd
bootflash:
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
30
Working with Files
Changing Your Directory
Changing Your Directory
You can change your location in the CLI, from one directory or file system to another.
Cisco Nexus 1000V CLI defaults to the bootflash: file system.
Note
Any file saved in the volatile: file system is erased when the switch reboots.
Before You Begin
Before beginning this procedure, you must be logged in to the CLI in any command mode.
Procedure
Command or Action
Purpose
Step 1
switch# pwd
Displays the directory name of
your current CLI location.
Step 2
switch# cd directory name
Changes your CLI location to the
root directory on the bootflash:
file system.
• switch# cd bootflash:
Changes your CLI location to the root directory on the
bootflash: file system.
• switch# cd bootflash:mydir
Changes your CLI location to the mydir directory that
resides in the bootflash: file system.
• switch# cd mystorage
Changes your CLI location to the mystorage directory that
resides within the current directory.
If the current directory is bootflash: mydir, this command
changes the current directory to bootflash:
mydir/mystorage.
switch# pwd
volatile:
switch# cd bootflash:
switch# pwd
volatile:
switch# cd bootflash:mydir
switch# pwd
volatile:
switch# cd mystorage
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
31
Working with Files
Listing the Files in a File System
Listing the Files in a File System
Procedure
Step 1
Command or Action
Purpose
switch# dir [directory | filename]
Displays the contents of a directory or file.
switch(config)# dir
77824
Jul 26
4096
Jun 24
4096
Jun 24
16384
Jun 24
875
Jun 28
1955033
Jun 24
31329792
Jun 24
98044335
Jun 24
4096
Jun 24
4096
Jun 24
4096
Jun 24
8401501
Jun 24
01:48:13
21:08:18
21:08:18
21:07:59
04:19:00
21:08:11
21:08:11
21:08:15
21:08:43
21:08:43
21:08:43
21:08:17
2013
2013
2013
2013
2013
2013
2013
2013
2013
2013
2013
2013
accounting.log
core/
log/
lost+found/
mts.log
n1000v-dk9-dplug.5.2.1.SK1.1.0.345.gbin
n1000v-dk9-kickstart.5.2.1.SK1.1.0.345.gbin
n1000v-dk9.5.2.1.SK1.1.0.345.gbin
vdc_2/
vdc_3/
vdc_4/
vsmcpa.3.0.0.112.bin
Usage for bootflash://
498884608 bytes used
5905084416 bytes free
6403969024 bytes total
switch(config)#
Identifying Available File Systems for Copying Files
Before You Begin
Before beginning this procedure, you must be logged in to the CLI in EXEC mode.
Procedure
Command or Action
Purpose
Step 1
switch# copy ?
Displays the source file systems available to the copy
command.
Step 2
switch# copy filename ?
Displays the destination file systems available to the copy
command for a specific file.
switch# copy ?
bootflash: Select source filesystem
core: Select source filesystem
debug: Select source filesystem
ftp: Select source filesystem
licenses Backup license files
log: Select source filesystem
nvram: Select source filesystem
running-config Copy running configuration to destination
scp: Select source filesystem
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
32
Working with Files
Using Tab Completion
sftp: Select source filesystem
startup-config Copy startup configuration to destination
system: Select source filesystem
tftp: Select source filesystem
volatile: Select source filesystem
Using Tab Completion
You can have the CLI complete a partial file name in a command.
Procedure
Command or Action
Step 1
Purpose
switch# show file filesystem name: Completes the filename when you type a partial filename and
then press Tab and if the characters you typed are unique to
partial filename <Tab>
a single file.
If not, the CLI lists a selection of file names that match the
characters that you typed.
You can then retype enough characters to make the file name
unique; and CLI completes the filename for you.
Step 2
switch# show file
bootflash:nexus-1000v- <Tab>
Completes the file name for you
switch# show file bootflash:nexus-1000vbootflash:nexus-n1000v-dk9-dplug.5.2.1.SK1.1.0.345.gbin
bootflash:nexus-1000v-mzg.5.2.1.SK1.1.0.345.gbin
bootflash:nexus-1000v-kickstart-mzg.5.2.1.SK1.1.0.345.gbin
n1000v# show file bootflash:c<Tab>
-----BEGIN RSA PRIVATE KEY----MIICXgIBAAKBgQDSq93BrlHcg3bX1jXDMY5c9+yZSST3VhuQBqogvCPDGeLecA+j
...
...
switch#
Copying and Backing Up Files
You can copy a file, such as a configuration file, to save it or reuse it at another location. If your internal file
systems are corrupted, you could potentially lose your configuration. Save and back up your configuration
files periodically. Also, before installing or migrating to a new software configuration, back up the existing
configuration files.
Note
Use the dir command to ensure that enough space is available in the destination file system. If enough
space is not available, use the delete command to remove unneeded files.
Before You Begin
Before beginning this procedure, you must be of the following:
• You are logged in to the CLI through a Telnet, or SSH connection.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
33
Working with Files
Copying and Backing Up Files
• Your device has a route to the destination if you are copying to a remote location. Your device and the
remote destination must be in the same subnetwork if you do not have a router or default gateway to
route traffic between subnets.
• Your device has connectivity to the destination. Use the ping command to be sure.
• The source configuration file is in the correct directory on the remote server.
• The permissions on the source file are set correctly. Permissions on the file should be set to world-read.
Procedure
Command or Action
Step 1 switch# copy [source filesystem:] filename [destination filesystem:] filename
• switch# copy system:running-config system run.cfg
Saves a copy of the running configuration to a remote switch.
• switch# copy bootflash: system_image
bootflash://sup-standby/system_image
Copies a file from bootflash in the active supervisor module to bootflash
in the standby supervisor module.
• switch# copy system:running-config bootflash:config
Copies a running configuration to the bootflash: file system.
• switch# copy scp:[//[username@]server][/path]/filename
Copies a source or destination URL for a network server that supports Secure
Shell (SSH) and accepts copies of files using the secure copy protocol (scp).
• switch# copy sftp:[//[username@]server][/path]/filename///
Copies a source or destination URL for an SSH FTP (SFTP) network server.
• switch# copy system:running-config bootflash:my-config
Places a back up copy of the running configuration on the bootflash: file
system (ASCII file).
• switch# copy bootflash: filename bootflash:directory/filename
Copies the specified file from the root directory of the bootflash: file system
to the specified directory.
• switch# copy filename directory/filename
Copies a file within the current file system.
• switch# copy tftp:[//server[:port]][/path]/filenamesystem:/filename
Copies the source file to the running configuration on the switch, and
configures the switch as the file is parsed line by line.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
34
Purpose
Copies a file from
the specified source
location to the
specified destination
location.
Working with Files
Creating a Directory
switch#
switch#
switch#
switch#
switch#
switch#
switch#
copy
copy
copy
copy
copy
copy
copy
system:running-config tftp://10.10.1.1/home/configs/switch3-run.cfg
bootflash:system_image bootflash://sup-2/system_image
system:running-config bootflash:my-config
scp://[email protected]/system-image bootflash:system-image
sftp://172.16.10.100/myscript.txt volatile:myscript.txt
system:running-config bootflash:my-config
bootflash:samplefile bootflash:mystorage/samplefile
switch# copy samplefile mystorage/samplefile
switch# copy tftp://10.10.1.1/home/configs/switch3-run.cfg system:running-config
Creating a Directory
Procedure
Step 1
Command or Action
Purpose
switch# mkdir directory name
Creates a directory at the
current directory level.
• mkdir {bootflash: | debug: | volatile:}
Specifies the directory name you choose:
◦bootflash:
◦debug:
◦volatile:
• switch# mkdir bootflash:directory name
Creates a directory that you name in the bootflash: directory.
switch# mkdir test
switch# mkdir bootflash:test
Removing an Existing Directory
This command is valid only on Flash file systems.
Before You Begin
Before beginning this procedure, be sure of the following:
• You are logged in to the CLI.
• The directory you want to remove is empty.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
35
Working with Files
Moving Files
Procedure
Step 1
Command or Action
Purpose
switch# rmdir [filesystem:[//module/]]directory
Removes a directory.
• switch# rmdir directory
Removes the specified directory at the current directory
level.
The directory name is case
sensitive.
• switch# rmdir {bootflash: | debug: | volatile:} directory
Removes a directory from the file system.
switch# rmdir test
switch# rmdir bootflash:test
Moving Files
Caution
If a file with the same name already exists in the destination directory, that file is overwritten by the moved
file.
The move will not complete if there is not enough space in the destination directory.
Before You Begin
Before beginning this procedure, you must be logged in to the CLI.
Procedure
Step 1
Command or Action
Purpose
switch# move {source path and filename} {destination
path and filename}
Moves the file from one directory to
another in the same file system
(bootflash:).
• switch# move filename path/filename
Moves the file from one directory to another in the
current file system.
switch# move bootflash:samplefile bootflash:mystorage/samplefile
switch# move samplefile mystorage/samplefile
Deleting Files or Directories
You can delete files or directories on a Flash Memory device.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
36
Working with Files
Compressing Files
Caution
When deleting, if you specify a directory name instead of a file name, the entire directory and its contents
are deleted.
Before You Begin
You must understand the following information:
• When you delete a file, the software erases the file.
• If you attempt to delete the configuration file or image specified by the CONFIG_FILE or BOOTLDR
environment variable, the system prompts you to confirm the deletion.
• If you attempt to delete the last valid system image specified in the BOOT environment variable, the
system prompts you to confirm the deletion.
Procedure
Step 1
Command or Action
Purpose
switch# delete [bootflash: | debug: | log: | volatile:] filename or
directory name
Deletes a specified file or
directory.
• switch# delete filename
Deletes the named file from the current working directory.
• switch# delete bootflash:directory name
Deletes the named directory and its contents.
switch# delete bootflash:dns_config.cfg
switch# delete dns_config.cfg
Compressing Files
Before You Begin
Before beginning this procedure, you must be logged in to the CLI.
Procedure
Command or Action
Purpose
Step 1
switch# gzip [path] filename Compresses the specified file.
Step 2
switch# dir
Displays the contents of the specified directory, including the
newly-compressed file. The compressed filename suffix becomes
.gz indicating that it is a compressed gzip file. Shows the file
size of the newly-compressed file.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
37
Working with Files
Uncompressing Files
switch# gzip csafile
switch# dir
77824
Aug 21
4096
Jun 24
14278
Aug 21
4096
Jul 26
16384
Jun 24
875
Jun 28
1955033
Jun 24
31329792
Jun 24
n
98044335
Jun 24
4096
Jun 24
4096
Jun 24
4096
Jun 24
8401501
Jun 24
13:37:25
21:08:18
13:36:54
02:47:21
21:07:59
04:19:00
21:08:11
21:08:11
2013
2013
2013
2013
2013
2013
2013
2013
accounting.log
core/
csafile.gz
log/
lost+found/
mts.log
n1000v-dk9-dplug.5.2.1.SK1.1.0.345.gbin
n1000v-dk9-kickstart.5.2.1.SK1.1.0.345.gbi
21:08:15
21:08:43
21:08:43
21:08:43
21:08:17
2013
2013
2013
2013
2013
n1000v-dk9.5.2.1.SK1.1.0.345.gbin
vdc_2/
vdc_3/
vdc_4/
vsmcpa.3.0.0.112.bin
Usage for bootflash://
499183616 bytes used
5904785408 bytes free
6403969024 bytes total
Uncompressing Files
You can uncompress (unzip) a specified file that is compressed using LZ77 coding.
Before You Begin
Before beginning this procedure, you must be logged in to the CLI.
Procedure
Step 1
Command or Action
Purpose
switch# gunzip [path] filename
Uncompresses the specified file.
The filename is case sensitive .
Step 2
switch# dir
Displays the contents of a directory, including the newly
uncompressed file.
switch# gunzip bootflash:errorsfile.gz
switch# dir bootflash:
2687
Jul 01 18:17:20 2013 errorsfile
16384
Jun 30 05:17:51 2013 lost+found/
4096
Jun 30 05:18:29 2013 routing-sw/
49
Jul 01 17:09:18 2013 sample_test.txt
1322843
Jun 30 05:17:56 2013 nexus-1000v-dplug-mzg.5.2.1.SK1.1.0.345.gbin
21629952
Jun 30 05:18:02 2013 nexus-1000v-kickstart-mzg.5.2.1.SK1.1.0.345.gbin
39289400
Jun 30 05:18:14 2013 nexus-1000v-mzg.5.2.1.SK1.1.0.345.gbin
Usage for bootflash://sup-local
258408448 bytes used
2939531264 bytes free
3197939712 bytes total
DCOS-112-R5#
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
38
Working with Files
Directing Command Output to a File
Directing Command Output to a File
Procedure
Command or Action
Purpose
Step 1 switch# show running-config > [path | filename]
• switch# show running-config > volatile:filename
Directs the output of the command, show running-config, to the
specified filename on the volatile file system.
Directs the output of the
command, show
running-config, to a path
and filename.
• switch# show running-config > bootflash:filename
Directs the output of the command, show running-config, to the
specified file in bootflash.
• switch# show running-config > tftp:// ipaddress/filename
Directs the output of the command, show running-config, to the
specified file on a TFTP server.
• switch# show interface > filename
Directs the output of the command, show interface, to the specified
file at the same directory level, for example, in bootflash.
switch# show running-config > volatile:switch1-run.cfg
switch# show running-config > bootflash:switch2-run.cfg
switch# show running-config > tftp://10.10.1.1/home/configs/switch3-run.cfg
switch# show interface > samplefile
Verifying a Bootable Image
You can verify the integrity of an image before loading it. This command can be used for both the system
and kickstart images.
Procedure
Step 1
Command or Action
Purpose
switch# show version image
[bootflash: | modflash: |volatile:]
Validates the specified image.
bootflash:—specifies bootflash as the directory name.
volatile:—Specifies volatile as the directory name.
modflash:—Specifies modflash as the directory name.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
39
Working with Files
Loading a File into the Running Configuration
switch# show version image bootflash:n1000v-dk9-dplug.5.2.1.SK1.1.0.345.gbin
MD5 Verification Passed
image name: n1000v-dk9-dplug.5.2.1.SK1.1.0.345.gbin
plugin:
version 5.2(1)SK1(1.1) [build 5.2(1)SK1(1.0.345)] [gdb]
compiled:
6/17/2013 0:00:00 [06/17/2013 12:16:57]
switch#
Loading a File into the Running Configuration
You can load an image into the running configuration
Procedure
Command or Action
Purpose
Step 1
switch# copy source path and file
system:running-config
Copies the source file to the running configuration on the
switch, and configures the switch as the file is parsed line
by line.
Step 2
switch# copy running-config
startup-config
(Optional)
Saves the change persistently through reboots and restarts
by copying the running configuration to the startup
configuration.
switch# copy tftp://10.10.1.1/home/configs/switch3-run.cfg system:running-config
switch# copy running-config startup-config
Rolling Back to a Previous Configuration
You can recover your configuration from a previously saved version.
Note
Each time you use a copy running-config startup-config command, a binary file is created and the ASCII
file is updated. A valid binary configuration file reduces the overall boot time significantly. A binary file
cannot be uploaded, but its contents can be used to overwrite the existing startup configuration. The write
erase command clears the binary file.
Procedure
Step 1
Command or Action
Purpose
switch# copy bootflash: {filename}
startup-config
Copies the configuration file (ASCII file) that was
previously saved in the bootflash: file system to the
startup configuration file.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
40
Working with Files
Displaying Files
switch# copy bootflash:June13 startup-config
Displaying Files
Displaying File Contents
Before You Begin
Before beginning this procedure, you must be logged in to the CLI.
Procedure
Command or Action
Step 1
Purpose
switch# show file [bootflash: | debug: | volatile:] Displays the contents of the specified file.
filename
switch# show file bootflash:sample_test.txt
config t
Int veth1/1
no shut
end
show int veth1/1
switch#
Displaying Directory Contents
You can display the contents of a directory or file system.
Before You Begin
Before beginning this procedure, you must be logged in to the CLI.
Procedure
Command or Action
Purpose
Step 1
switch# pwd
Displays the present working directory.
Step 2
switch# dir
Displays the contents of the directory.
switch# pwd
bootflash:
switch# dir
Usage for volatile://
0 bytes used
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
41
Working with Files
Displaying File Checksums
20971520 bytes free
20971520 bytes total
switch#
Displaying File Checksums
You can display checksums for checking file integrity.
Procedure
Command or Action
Step 1
Purpose
Provides the checksum or MD5 checksum of the file
switch# show file filename [cksum |
md5sum]show file {bootflash: | volatile: for comparison with the original file.
| debug:} filename [cksum | md5sum]
Provides the Message-Digest Algorithm 5 (MD5)
checksum of the file. MD5 is an electronic fingerprint
for the file.
switch# show file bootflash:cisco_svs_certificate.pem cksum
266988670
switch# show file bootflash:cisco_svs_certificate.pem md5sum
d3013f73aea3fda329f7ea5851ae81ff
Displaying the Last Lines in a File
Before You Begin
Before beginning this procedure, you must be logged in to the CLI in EXEC mode.
Procedure
Command or Action
Step 1
Purpose
switch# tail {path}[filename] {Number Displays the requested number of lines from the end of
the specified file.
of lines}
The range for the number of lines is from 0 to 80.
switch# tail mts.log 5
AT 60000 usecs after 6/24/2013 21:8:37: MTS node 4: state changed from 'offline' to
'supervisor'
AT 820000 usecs after 6/24/2013 21:8:41: MTS node 4: state changed from 'supervisor' to
'active alone'
AT 310000 usecs after 6/24/2013 21:29:57: MTS state 'offline': last_sync_msg opc=0,
seq_no=0x0, next_seqno=0x0
AT 310000 usecs after 6/24/2013 21:29:57: MTS node 4: state changed from 'offline' to
'supervisor'
AT 740000 usecs after 6/24/2013 21:30:7: MTS node 4: state changed from 'supervisor' to
'active alone'
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
42
Working with Files
Feature History for File Management
Feature History for File Management
Feature Name
Releases
Feature Information
File Management
Release 5.2(1)SK1(2.1)
This feature was introduced.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
43
Working with Files
Feature History for File Management
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
44
CHAPTER
8
Managing Users
This chapter contains the following sections:
• Information About User Management, page 45
• Displaying Current User Access , page 45
• Sending a Message to Users, page 46
• Feature History for User Management, page 46
Information About User Management
You can identify the users currently connected to the device and send a message to either a single user or all
users.
For information about creating user accounts and assigning user roles, see the Cisco Nexus 1000V for KVM
Security Configuration Guide.
Displaying Current User Access
You can display all users currently accessing the switch.
Before You Begin
Before beginning this procedure, you must be logged in to the CLI.
Procedure
Step 1
Command or Action
Purpose
switch# show users
Displays a list of users who are currently accessing
the system.
switch# show users
NAME
LINE
TIME
IDLE
PID COMMENT
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
45
Managing Users
Sending a Message to Users
admin
admin
admin
switch#
pts/0
pts/2
pts/3
Jul
Jul
Jul
1 04:40 03:29
1 10:06 03:37
1 13:49
.
2915 (::ffff:64.103.145.136)
6413 (::ffff:64.103.145.136)
8835 (171.71.55.196)*
Sending a Message to Users
You can send a message to all active CLI users currently using the system.
Before You Begin
Before beginning this procedure, you must be logged in to the CLI.
Procedure
Command or Action
Step 1
Purpose
switch# send {session device} Sends a message to users currently logged in to the system.
line
• The sessionargument sends the message to a specified pts/tty
device type.
• The device argument specifies the device type.
• The line argument is a message of up to 80 alphanumeric
characters in length.
switch# send Hello. Shutting down the system in 10 minutes.
Broadcast Message from admin@switch
(/dev/pts/34) at 8:58 ...
Hello. Shutting down the system in 10 minutes.
switch#
Feature History for User Management
Feature Name
Releases
Feature Information
User Management
Release 5.2(1)SK1(2.1)
This feature was introduced.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
46
CHAPTER
9
Configuring NTP
This chapter contains the following sections:
• Information about NTP, page 47
• Prerequisites for NTP, page 48
• Guidelines and Limitations for NTP, page 49
• Default Settings for NTP, page 49
• Configuring an NTP Server and Peer, page 49
• Verifying the NTP Configuration, page 50
• Feature History for NTP, page 51
Information about NTP
The Network Time Protocol (NTP) synchronizes timekeeping among a set of distributed time servers and
clients. This synchronization allows you to correlate events when you receive system logs and other
time-specific events from multiple network devices.
NTP uses the User Datagram Protocol (UDP) as its transport protocol. All NTP communication uses the
Universal Time Coordinated (UTC) standard. An NTP server usually receives its time from an authoritative
time source, such as a radio clock or an atomic clock attached to a time server. NTP distributes this time across
the network. NTP is extremely efficient; no more than one packet per minute is necessary to synchronize two
machines to within a millisecond of each other.
NTP uses a stratum to describe how many NTP hops away that a network device is from an authoritative time
source. A stratum 1 time server has an authoritative time source (such as an atomic clock) directly attached
to the server. A stratum 2 NTP server receives its time through NTP from a stratum 1 NTP server, which in
turn connects to the authoritative time source.
NTP avoids synchronizing to a network device that may keep accurate time. NTP never synchronizes to a
system that is not synchronized itself. NTP compares the time reported by several network devices and does
not synchronize to a network device that has a time that is significantly different than the others, even if its
stratum is lower.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
47
Configuring NTP
NTP Peers
Cisco NX-OS cannot act as a stratum 1 server. You cannot connect to a radio or atomic clock. We recommend
that the time service that you use for your network is derived from the public NTP servers available on the
Internet.
If the network is isolated from the Internet, Cisco NX-OS allows you to configure a network device so that
the device acts as though it is synchronized through NTP, when it has determined the time by using other
means. Other network devices can then synchronize to that network device through NTP.
NTP Peers
NTP allows you to create a peer relationship between two networking devices. A peer can provide time on
its own or connect to an NTP server. If both the local device and the remote peer point to different NTP
servers, your NTP service is more reliable. The local device maintains the right time even if its NTP server
fails by using the time from the peer.
The following figure shows a network with two NTP stratum 2 servers and two switches.
Figure 2: NTP Peer and Server Association
In this configuration, switch 1 and switch 2 are NTP peers. switch 1 uses stratum-2 server 1, while switch 2
uses stratum-2 server 2. If stratum-2 server-1 fails, switch 1 maintains the correct time through its peer
association with switch 2.
High Availability
Stateless restarts are supported for NTP. After a reboot or a supervisor switchover, the running configuration
is applied.
You can configure NTP peers to provide redundancy in case an NTP server fails.
Prerequisites for NTP
You must have connectivity to at least one server that is running NTP.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
48
Configuring NTP
Guidelines and Limitations for NTP
Guidelines and Limitations for NTP
• You should have a peer association with another device only when you are sure that your clock is reliable
(which means that you are a client of a reliable NTP server).
• A peer configured alone takes on the role of a server and should be used as a backup. If you have two
servers, you can configure several devices to point to one server and the remaining devices point to the
other server. You can then configure a peer association between these two servers to create a more
reliable NTP configuration.
• If you only have one server, you should configure all the devices as clients to that server.
• You can configure up to 64 NTP entities (servers and peers).
Default Settings for NTP
Parameter
Default
NTP
Enabled
Configuring an NTP Server and Peer
You can configure NTP using IPv4 addresses or domain name server (DNS) names.
Before You Begin
Before beginning this procedure, you must be logged in to the CLI in EXEC mode.
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Places you in global configuration mode.
Step 2
switch(config)# ntp server {ip-address Forms an association with a server.
| dns-name}
Step 3
switch(config)# ntp peer {ip-address Forms an association with a peer. You can specify
multiple peer associations.
| dns-name}
Step 4
switch(config)# show ntp peers
(Optional)
Displays the configured server and peers.
Note
A domain name is resolved only when you
have a DNS server configured.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
49
Configuring NTP
Clearing NTP Sessions
Command or Action
Step 5
Purpose
switch(config)# copy running-config (Optional)
Saves the running configuration persistently through
startup-config
reboots and restarts by copying it to the startup
configuration.
switch# configure terminal
switch(config)# ntp server 192.0.2.10
switch(config# ntp peer 2001:0db8::4101
Clearing NTP Sessions
Command
Purpose
clear ntp session
Clears the NTP sessions.
Clearing NTP Statistics
Command
Purpose
clear ntp statistics
Clears the NTP sessions.
Verifying the NTP Configuration
Use one of the following commands to verify the configuration:
Command
Purpose
show ntp peer-status
Displays the status for all NTP servers and peers.
show ntp peers
Displays all the NTP peers.
show ntp statistics {io | local | memory | peer
{ip-address | dns-name}
Displays the NTP statistics.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
50
Configuring NTP
Feature History for NTP
Feature History for NTP
Feature Name
Releases
Feature Information
NTP
Release 5.2(1)SK1(2.1)
This feature was introduced.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
51
Configuring NTP
Feature History for NTP
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
52
CHAPTER
10
Configuring Local SPAN and ERSPAN
This chapter contains the following sections:
• Information About SPAN and ERSPAN, page 53
• Guidelines and Limitations for SPAN, page 57
• Default Settings for SPAN, page 58
• Configuring SPAN, page 58
• Verifying the SPAN Configuration, page 71
• Configuration Example for an ERSPAN Session, page 71
• Feature History for SPAN and ERSPAN, page 73
Information About SPAN and ERSPAN
The Switched Port Analyzer (SPAN) feature (sometimes called port mirroring or port monitoring) allows
network traffic to be analyzed by a network analyzer such as a Cisco SwitchProbe or other Remote Monitoring
(RMON) probes.
SPAN allows you to monitor traffic on one or more ports, or one or more VLANs, and send the monitored
traffic to one or more destination ports where the network analyzer is attached.
SPAN Sources
The interfaces from which traffic can be monitored are called SPAN sources. These sources include Ethernet,
virtual Ethernet, port-channel, port profile, and VLAN. When a VLAN is specified as a SPAN source, all
supported interfaces in the VLAN are SPAN sources. When a port profile is specified as a SPAN source, all
ports that inherit the port profile are SPAN sources. Traffic can be monitored in the receive direction, the
transmit direction, or both directions for Ethernet and virtual Ethernet source interfaces as described by the
following:
• Receive source (Rx)—Traffic that enters the switch through this source port is copied to the SPAN
destination port.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
53
Configuring Local SPAN and ERSPAN
SPAN Destinations
• Transmit source (Tx)—Traffic that exits the switch through this source port is copied to the SPAN
destination port
Characteristics of SPAN Sources
A local SPAN source has these characteristics:
• Can be port type Ethernet, virtual Ethernet, port channel, port profile, or VLAN.
• Cannot be a destination port or port profile
• Can be configured to monitor the direction of traffic —receive, transmit, or both.
• Can be in the same or different VLANs.
• For VLAN SPAN sources, all active ports in the source VLAN are included as source ports.
• Must be on the same host Virtual Ethernet Module (VEM) as the destination port.
• For port profile sources, all active interfaces attached to the port profile are included as source ports.
SPAN Destinations
SPAN destinations refer to the interfaces that monitor source ports.
Characteristics of Local SPAN Destinations
Each local SPAN session must have at least one destination port (also called a monitoring port) that receives
a copy of traffic from the source ports or VLANs. A destination port has these characteristics:
• Can be any physical or virtual Ethernet port, a port channel, or a port profile.
• Cannot be a source port or port profile.
• Is excluded from the source list and is not monitored if it belongs to a source VLAN of any SPAN session
or a source port profile.
• Receives copies of transmitted and received traffic for all monitored source ports in the same VEM. If
a destination port is oversubscribed, it can become congested. This congestion can affect traffic forwarding
on one or more of the source ports.
• Must not be private VLAN mode.
• Can only monitor sources on the same host (VEM)
• In access mode, can receive monitored traffic on all the VLANs.
• In trunk mode, can receive monitored traffic only on the allowed VLANs in the trunk configuration.
Characteristics of ERSPAN Destinations
• An ERSPAN destination is specified by an IP address.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
54
Configuring Local SPAN and ERSPAN
SPAN Destinations
• In ERSPAN, the source SPAN interface and destination SPAN interface may be on different devices
interconnected by an IP network. ERSPAN traffic is Generic Routing Encapsulation (GRE-encapsulated).
Local SPAN
In Local SPAN, the source interface and destination interface are on the same VEM. The network analyzer
is attached directly to the SPAN destination port. The SPAN source can be a port, a VLAN interface, or a
port profile.The destination can be a port or port profile.
The diagram shows that traffic transmitted by host A is received on the SPAN source interface. Traffic (ACLs,
QoS, and so forth) is processed as usual. Traffic is then replicated. The original packet is forwarded on toward
host B. The replicated packet is then sent to the destination SPAN interface where the monitor is attached.
Local SPAN can replicate to one or more destination ports. Traffic can be filtered so that only traffic of interest
is sent out the destination SPAN interface.
Local SPAN can monitor all traffic received on the source interface including Bridge Protocol Data Unit
(BPDU).
Figure 3: Local SPAN
Encapsulated Remote SPAN
Encapsulated remote SPAN (ERSPAN) monitors traffic in multiple network devices across an IP network
and sends that traffic in an encapsulated envelope to destination analyzers. In contrast, Local SPAN cannot
forward traffic through the IP network. ERSPAN can be used to monitor traffic remotely. ERSPAN sources
can be ports, VLANs, or port profiles.
In the following figure, the ingress and egress traffic for Host A are monitored using ERSPAN. Encapsulated
ERSPAN packets are routed from Host A through the routed network to the destination device where they
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
55
Configuring Local SPAN and ERSPAN
SPAN Sessions
are decapsulated and forwarded to the attached network analyzer. The destination may also be on the same
Layer 2 network as the source.
Figure 4: ERSPAN Example
Network Analysis Module
You can also use the Cisco Network Analysis Module (NAM) to monitor ERSPAN data sources for application
performance, traffic analysis, and packet header analysis.
To use NAM for monitoring the Cisco Nexus 1000V ERSPAN data sources, see the Cisco Nexus 1010 Network
Analysis Module Installation and Configuration Note.
SPAN Sessions
You can create up to 64 total SPAN sessions (Local SPAN plus ERSPAN) on the VEM.
You must configure an ERSPAN session ID that is added to the ERSPAN header of the encapsulated frame
to differentiate between ERSPAN streams of traffic at the termination box. You can also configure the range
of flow ID numbers.
When trunk ports are configured as SPAN sources and destinations, you can filter VLANs to send to the
destination ports from among those allowed. Both sources and destinations must be configured to allow the
VLANs.
The following figure shows one example of a VLAN-based SPAN configuration in which traffic is copied
from three VLANs to three specified destination ports. You can choose which VLANs to allow on each
destination port to limit the traffic transmitted. In the figure, the device transmits packets from one VLAN at
each destination port. The destinations in this example are trunks on which allowed VLANs are configured.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
56
Configuring Local SPAN and ERSPAN
Guidelines and Limitations for SPAN
Note
VLAN-based SPAN sessions cause all source packets to be copied to all destinations, whether the packets
are required at the destination or not. VLAN traffic filtering occurs at transmit destination ports.
Figure 5: VLAN-based SPAN Configuration Example
Guidelines and Limitations for SPAN
• A maximum of 64 SPAN sessions (Local SPAN plus ERSPAN) can be configured on the Virtual
Supervisor Module (VSM).
• A maximum of 32 source VLANs are allowed in a session.
• A maximum of 32 destination interfaces are allowed for a Local SPAN session.
• A maximum of 8 destination port-profiles are allowed for a Local SPAN session.
• A maximum of 16 source port-profiles are allowed in a session.
• A maximum of 128 source interfaces are allowed in a session.
Caution
Overload Potential
To avoid an overload on uplink ports, use caution when configuring ERSPAN, especially when sourcing
VLANs.
• A port can be configured in a maximum of four SPAN sessions.
• A port can be a source in a maximum of four SPAN sessions.
• The destination port used in one SPAN session cannot also be used as the destination port for another
SPAN session.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
57
Configuring Local SPAN and ERSPAN
Default Settings for SPAN
• Dynamic port profiles such as a source or destination cannot be added to the SPAN/ERSPAN session.
To add these port profiles, create a static port profile and then add it to the SPAN/ERSPAN session.
• You cannot configure a port as both a source and destination port.
• In a SPAN session, packets that source ports receive may be replicated even though they are not
transmitted on the ports. The following are examples of this behavior:
◦Traffic that results from flooding
◦Broadcast and multicast traffic
• For VLAN SPAN sessions switched on the same VLAN with both receive and transmit configured, two
packets (one from receive and one from transmit) are forwarded from the destination port.
Default Settings for SPAN
Parameters
Default
State
SPAN sessions are created in the shut state.
Description
blank
Traffic direction for source interface or port profile
both
Traffic direction for source VLAN
receive (ingress or RX)
Configuring SPAN
This section describes how to configure SPAN and includes the following procedures:
• Configuring a Local SPAN Session
• Configuring an ERSPAN Port Profile
• Configuring an ERSPAN Session
• Shutting Down a SPAN Session
• Resuming a SPAN Session
• Verifying the SPAN Configuration
Configuring a Local SPAN Session
This procedure involves creating the SPAN session in monitor configuration mode, and then, optionally,
configuring allowed VLANs in interface configuration mode.
It is important to know the following information about SPAN:
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
58
Configuring Local SPAN and ERSPAN
Configuring a Local SPAN Session
• SPAN sessions are created in the shut state by default.
• When you create a SPAN session that already exists, any additional configuration is added to that session.
To make sure the session is cleared of any previous configuration, you can delete the session first. This
procedure includes how to do this.
• The source and destination ports are already configured in either access or trunk mode. For more
information, see the Cisco Nexus 1000V Interface Configuration Guide.
Before You Begin
• Log into the CLI in EXEC mode
• Determine the number of the SPAN session you want to configure
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Enters global configuration mode.
Step 2
switch(config)# no monitor session Clears the specified session.
session-number
Step 3
switch(config)# monitor session
session-number
Step 4
switch(config-monitor)# description Adds a description for the specified SPAN session.
description
The description can be up to 32 alphanumeric characters.
Creates a session with the given session number and places
you in monitor configuration mode to further configure the
session.
The default is blank (no description)
Step 5
switch(config-monitor)# source
For the specified session, configures the sources and the
{interface {type} {id} | vlan {id | direction of traffic to monitor.
range} | port-profile {name}} [rx
• For the type argument, specify the interface
| tx | both]
type—Ethernet or vEthernet.
• For the id argument, specify the vEthernet number,
the Ethernet slot/port, or the VLAN ID to monitor.
• For the range argument, specify the VLAN range to
monitor.
• For the name argument, specify the name of the
existing port profile. This port profile is different from
the port profile created to carry ERSPAN packets
through the IP network as defined in the “Configuring
an ERSPAN Port Profile” section on page 9-9
• For the traffic direction keywords, specify as
follows:
◦rx which is the VLAN default indicates receive.
◦tx indicates transmit.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
59
Configuring Local SPAN and ERSPAN
Configuring a Local SPAN Session
Command or Action
Purpose
◦bothis the default keyword
Step 6
Repeat Step 5 to configure
additional SPAN sources.
Step 7
switch(config-monitor)# filter vlan (Optional)
For the specified SPAN session, configures the filter from
{id | range}
among the source VLANs.
Step 8
Repeat Step 7 to configure all source (Optional)
VLANs to filter.
Step 9
switch(config-monitor)# destination For the specified SPAN session, configures the
destination(s) for copied source packets.
{interface {type} {id | range} |
port-profile {name}}
• For the type argument, specify the interface
type—Ethernet or vEthernet.
(Optional)
• For the id argument, specify the vEthernet number
or the Ethernet slot/port to monitor.
• For the name argument specify the name of the port
profile to monitor.
Step 10
Repeat Step 9 to configure all SPAN (Optional)
destination ports.
Step 11
switch(config-monitor)# no shut
Enables the SPAN session. By default, the session is created
in the shut state.
Step 12
switch(config-monitor)# exit
(Optional)
Exits monitor configuration mode and places you in
interface configuration mode.
Step 13
switch(config-if)# show monitor
session session-number
(Optional)
Displays the configured monitor session.
Step 14
switch(config-if)# show interface Displays the configured port including allowed VLANs.
{type} {id} switchport
• For the type argument, specify the interface
type—Ethernet or vEthernet.
• For the id argument, specify the vEthernet number
or the Ethernet slot/port to monitor.
Step 15
switch(config-if)# copy
running-config startup-config
(Optional)
Saves the change persistently through reboots and restarts
by copying the running configuration to the startup
configuration.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
60
Configuring Local SPAN and ERSPAN
Configuring an ERSPAN Port Profile
switch# configure terminal
switch(config)# no monitor session 3
switch(config)# monitor session 3
switch(config-monitor)# description my_span_session_3
switch(config-monitor)# source interface ethernet 2/1-3, ethernet 3/1 rx
switch(config-monitor)# filter vlan 3-5, 7
switch(config-monitor)# destination interface ethernet 2/5, ethernet 3/7
switch(config-monitor)# no shut
switch(config-monitor)# exit
switch(config-if)# show monitor session 3
switch(config-if)# show interface ethernet 2/5 switchport
switch(config-if)# copy running-config startup-config
Configuring an ERSPAN Port Profile
You can configure a port profile on the VSM to carry ERSPAN packets through the IP network to a remote
destination analyzer.
You must complete this configuration for all hosts in the OpenStack Horizon server.
This procedure includes steps to configure the port profile for the following requirements:
• ERSPAN for Layer 3 control.
• An access port profile. It cannot be a trunk port profile.
Only one ERSPAN local Layer 3 interface can be assigned to this Layer 3 control port profile per host as
follows:
• If more than one ERSPAN local Layer 3 interface is assigned to a host, the first one assigned takes
effect. The second one is not considered a Layer 3 interface.
• If more than one ERSPAN local Layer 3 interface is assigned to a host, and you remove the second
assigned one, the VEM does not use the first assigned one. Instead, you must remove both the ERSPAN
local Layer 3 interfaces and then add one back.
Before You Begin
• Log into the CLI in EXEC mode
• Ensure that a name has been established for this port profile
Note
The port profile name is used to configure the ERSPAN local Layer 3 interface. An
ERSPAN local Layer 3 interface is required on each KVM host to send
ERSPAN-encapsulated IP packets; and must have IP connectivity to the ERSPAN
destination IP address.
• Ensure that a name has been established for the OpenStack policy profile to which this profile maps.
For information, see the Cisco Nexus 1000V for KVM Virtual Network Configuration Guide.
• Created the system VLAN that sends IP traffic to the ERSPAN destination; and you know the VLAN
ID that will be used in this configuration.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
61
Configuring Local SPAN and ERSPAN
Configuring an ERSPAN Port Profile
• Obtained the documentation for adding a new virtual adapter.
For more information about system port profiles, see the Cisco Nexus 1000V Port Profile Configuration Guide.
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Enters global configuration mode.
Step 2
switch(config)# port-profile
port_profile_name
Creates the port profile and places you in global
configuration mode for the specified port profile. This
command saves the port profile in the running
configuration.
The port profile name can be up to 80 characters and must
be unique for each port profile on the Cisco Nexus 1000V.
Step 3
switch(config-prot-prof)# capability Configures the port profile to carry ERSPAN traffic and
saves the port profile in the running configuration.
l3control
Step 4
switch(config-prot-prof)# publish
port-profilename
Designates the port profile as an OpenStack policy profile
and adds the name of the OpenStack policy profile to
which this profile maps. This command saves the settings
in the running configuration.
The port profile is mapped to a OpenStack policy profile
of the same name. When an OpenStack Horizon server
connection is established, the port group created in Cisco
Nexus 1000V is then distributed to the virtual switch on
the OpenStack Horizon server.
The name argument is the same as the port profile name
if you do not specify a port group name. If you want to
map the port profile to a different port group name, use
the name option followed by the alternate name.
Step 5
switch(config-prot-prof)# switchport Designates the interfaces as switch access ports (the
default).
mode access
Step 6
switch(config-prot-prof)# switchport Assigns a VLAN ID to the access port for this port profile
and saves the setting in the running configuration.
access vlan id
This VLAN is used to send IP traffic to the ERSPAN
destination.
Step 7
switch(config-prot-prof)# no
shutdown
Enables the interface in the running configuration.
Step 8
switch(config-prot-prof)# state
enabled
Enables the port profile in the running configuration.
This port profile is now ready to send out ERSPAN
packets on all KVM hosts with ERSPAN sources.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
62
Configuring Local SPAN and ERSPAN
Configuring an ERSPAN Session
Command or Action
Purpose
Step 9
switch(config-prot-prof)# show
(Optional)
port-profile name port_profile_name Displays the configuration for the specified port profile
as it exists in the running configuration.
Step 10
switch(config-port-prof)# copy
running-config startup-config
Step 11
To configure the ERSPAN local Layer
3 interface, navigate to the
/etc/n1kv/n1kv.conf file and
enter the details such as, the portname,
port profile, IP address, subnet, and the
MAC address. For example, virt
erspan0 profile erspan-pp mode static
address 30.30.30.20 netmask
255.255.255.0 mac 00:22:44:34:ab:cd.
(Optional)
Saves the change persistently through reboots and restarts
by copying the running configuration to the startup
configuration.
switch# configure terminal
switch(config)# port-profile erspan_profile
switch(config-port-prof)# capability l3control
switch(config-port-prof)# publish port-profile
switch(config-port-prof)# switchport mode access
switch(config-port-prof)# switchport access vlan 2
switch(config-port-prof)# no shutdown
switch(config-port-prof)# state enabled
switch(config-port-prof)# show port-profile name erspan
port-profile erspan
description:
status: enabled
capability uplink: no
capability l3control: yes
system vlans: 2
port-group: access
max-ports: 32
inherit:
config attributes:
switchport access vlan 2
no shutdown
evaluated config attributes:
switchport access vlan 2
no shutdown
assigned interfaces:
n1000v(config-port-prof)# copy running-config startup-config
Configuring an ERSPAN Session
This procedure involves creating the SPAN session in ERSPAN source configuration mode
(config-erspan-source).
SPAN sessions are created in the shut state by default.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
63
Configuring Local SPAN and ERSPAN
Configuring an ERSPAN Session
When you create a SPAN session that already exists, any additional configuration is added to that session.
To make sure the session is cleared of any previous configuration, you can delete the session first. The step
to do this is included in the procedure.
Before You Begin
• Log into the CLI in EXEC mode
• Obtain the number of the SPAN session that you are going to configure
• Configure an ERSPAN-capable port profile on the VSM
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Enters global configuration mode.
Step 2
switch(config)# no monitor
session session-number
Clears the specified session.
Step 3
switch(config)# monitor session Creates a session with the given session number and places
you in ERSPAN source configuration mode. This configuration
session-number type
is saved in the running configuration.
erspan-source
Step 4
switch(config-erspan-src)#
description description
For the specified ERSPAN session, adds a description and
saves it in the running configuration.
The description can be up to 32 alphanumeric characters
The default is blank (no description)
Step 5
switch(config-erspan-src)#source For the specified session, configures the sources and the
{interface type {number| range} direction of traffic to monitor and saves them in the running
configuration.
| vlan {number | range} |
port-profile {name}} [rx | tx |
• For the type argument, specify the interface
both]
type—ethernet, port-channel, vethernet.
• For the number argument, specify the interface slot/port
or range; or the VLAN number or range to monitor.
• For the name argument, specify the name of the existing
port profile.
• For the traffic direction keywords, specify as follows:
◦rx which is the VLAN default indicates receive.
◦tx indicates transmit.
◦bothis the default keyword
Step 6
Repeat Step 5 to configure
additional ERSPAN sources.
(Optional)
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
64
Configuring Local SPAN and ERSPAN
Configuring an ERSPAN Session
Command or Action
Step 7
Purpose
switch(config-erspan-src)# filter (Optional)
For the specified ERSPAN session, configures the VLANs,
vlan {number | range}
VLAN lists, or VLAN ranges to be monitored; and saves the
VLAN arguments to the running configuration.
On the monitor port, only the traffic from the VLANs that
match the VLAN filter list are replicated to the destination.
Step 8
Repeat Step 7 to configure all
source VLANs to filter.
(Optional)
Step 9
switch(config-erspan-src)#
destination ip ip_address
Configures the IP address of the host to which the encapsulated
traffic is sent in this monitor session and saves it in the running
configuration.
Step 10
switch(config-erspan-src)# ip ttl (Optional)
Specifies the IP time-to-live value, from 1 to 255, for ERSPAN
ttl_value
packets in this monitor session and saves it in the running
configuration.
Step 11
switch(config-erspan-src)# mtu (Optional)
Specifies an MTU size (from 50 to 1500) for ERSPAN packets
mtu_value
in this monitor session and saves it in the running configuration.
The 1500 MTU size limit includes a 50 byte overhead added
to monitored packets by ERSPAN. Packets larger than this
size are truncated.
The default is 1500.
Note
Step 12
switch(config-erspan-src)#
header-type value
If the ERSPAN destination is a Cisco 6500 switch,
truncated ERSPAN packets are dropped unless the
no mls verify ip length consistent command is
configured on the Cisco 6500.
Specifies the ERSPAN header type (2 or 3) used for ERSPAN
encapsulation for this monitor session as follows:
• 2 is the ERPSPANv2 header type (the default)
• 3 is the ERSPANv3 header type (Used with NAM setups.
Any other type of destination works only with the default
v2 headers.)
Step 13
switch(config-erspan-src)#
erspan-id flow_id
Adds an ERSPAN ID from 1 to 1023) to the session
configuration and saves it in the running configuration.
The session ERSPAN ID is added to the ERSPAN header of
the encapsulated frame and can be used at the termination box
to differentiate between various ERSPAN streams of traffic.
Step 14
switch(config-erspan-src)# no
shut
Enables the ERSPAN session and saves it in the running
configuration.
By default, the session is created in the shut state.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
65
Configuring Local SPAN and ERSPAN
Shutting Down a SPAN Session from Monitor Configuration Mode
Command or Action
Purpose
Step 15
switch(config-erspan-src)# show (Optional)
Displays the ERSPAN session configuration as it exists in the
monitor session session_id
running configuration
Step 16
switch(config-erspan-src)# copy (Optional)
running-config startup-config Saves the running configuration persistently through reboots
and restarts by copying it to the startup configuration.
switch# configure terminal
switch(config)# no monitor session 3
switch(config)# monitor session 3 type erspan
switch(config-erspan-src)# description my_erspan_session_3
switch(config-erspan-src)# source interface ethernet 2/1-3, ethernet 3/1 rx
switch(config-erspan-src)# filter vlan 3-5, 7
switch(config-erspan-src)# destination ip 10.54.54.1
switch(config-erspan-src)# ip ttl 64
switch(config-erspan-src)# mtu 1000
switch(config-erspan-src)# header-type 2
switch(config-erspan-src)# erspan-id 51
switch(config-erspan-src)# no shut
switch(config-erspan-src)# show monitor session 3
switch(config-erspan-src)# copy running-config startup-config
Shutting Down a SPAN Session from Monitor Configuration Mode
Before You Begin
• Log into the CLI in EXEC mode.
• Determine which session you want to shutdown
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Enters global configuration mode.
Step 2
switch(config)# monitor session
{session-number | session-range |
all} [type erspan-source]
Specifies the SPAN monitor session(s) ) you want to shut
down from monitor-configuration mode.
• The session-number argument specifies a particular
SPAN session number.
• The session-range argument specifies a range of
SPAN sessions from 1 to 64.
• The all keyword specifies all SPAN monitor
sessions.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
66
Configuring Local SPAN and ERSPAN
Shutting Down a SPAN Session from Monitor Configuration Mode
Command or Action
Purpose
Step 3
switch(config)# shut
Shuts down the specified SPAN monitor session(s) from
monitor configuration mode.
Step 4
switch(config-monitor)# show
monitor
(Optional)
Displays the status of the SPAN sessions.
Step 5
switch(config-monitor)# copy
running-config startup-config
(Optional)
Saves the running configuration persistently through
reboots and restarts by copying it to the startup
configuration.
switch# configure terminal
switch(config)# monitor session 3
switch(config-monitor)# shut
switch(config-monitor)# show monitor
switch(config-monitor)# copy running-config startup-config
Shutting Down a SPAN Session from Monitor Configuration Mode
Before You Begin
Before beginning this procedure, be sure you have done the following:
• Logged in to the CLI in EXEC mode.
• Determined which session you want to shutdown
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Enters global configuration mode.
Step 2
switch(config)# monitor session
{session-number | session-range |
all} [type erspan-source]
Specifies the SPAN monitor session(s) ) you want to shut
down from monitor-configuration mode.
• The session-number argument specifies a particular
SPAN session number.
• The session-range argument specifies a range of
SPAN sessions from 1 to 64.
• The all keyword specifies all SPAN monitor
sessions.
Step 3
switch(config)# shut
Shuts down the specified SPAN monitor session(s) from
monitor configuration mode.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
67
Configuring Local SPAN and ERSPAN
Resuming a SPAN Session from Global Configuration Mode
Command or Action
Purpose
Step 4
switch(config-monitor)# show
monitor
(Optional)
Displays the status of the SPAN sessions.
Step 5
switch(config-monitor)# copy
running-config startup-config
(Optional)
Saves the running configuration persistently through
reboots and restarts by copying it to the startup
configuration.
switch# configure terminal
switch(config)# monitor session 3
switch(config-monitor)# shut
switch(config-monitor)# show monitor
switch(config-monitor)# copy running-config startup-config
Resuming a SPAN Session from Global Configuration Mode
You can discontinue copying packets from one source and destination and then resume from another source
and destination in global configuration mode.
Before You Begin
• Log into the CLI in EXEC mode.
• Determine which SPAN session that you want to configure.
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Enters global configuration mode.
Step 2
switch(config)# [no]monitor session Shuts down the specified SPAN monitor session(s) from
{session-number | session-range | global configuration mode.
all} shut
• The session-number argument specifies a particular
SPAN session number.
• The session-range argument specifies a range of
SPAN sessions from 1 to 64.
• The all keyword specifies all SPAN monitor sessions.
Step 3
switch(config)# show monitor
(Optional)
Displays the status of the SPAN sessions.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
68
Configuring Local SPAN and ERSPAN
Resuming a SPAN Session from Monitor Configuration Mode
Step 4
Command or Action
Purpose
switch(config)# copy
running-config startup-config
(Optional)
Saves the running configuration persistently through
reboots and restarts by copying it to the startup
configuration.
switch# configure terminal
switch(config)# no monitor session 3 shut
switch(config)# show monitor
switch(config)# copy running-config startup-config
Resuming a SPAN Session from Monitor Configuration Mode
You can discontinue copying packets from one source and destination and then resume from another source
and destination in monitor configuration mode.
Before You Begin
• Log into the CLI in EXEC mode.
• Determine which SPAN session that you want to configure.
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Enters global configuration mode.
Step 2
switch(config)# [no] monitor session Shuts down the specified SPAN monitor session(s) from
{session-number | session-range | all} monitor configuration mode.
shut
• The session-number argument specifies a particular
SPAN session number.
• The session-range argument specifies a range of
SPAN sessions from 1 to 64.
• The all keyword specifies all SPAN monitor
sessions.
Step 3
switch(config-monitor)# show
monitor
(Optional)
Displays the status of the SPAN sessions.
Step 4
switch(config-monitor)# show
monitor session session-id
(Optional)
Displays detailed configuration and status of a specific
SPAN session for verification.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
69
Configuring Local SPAN and ERSPAN
Configuring the Allowable ERSPAN Flow IDs
Step 5
Command or Action
Purpose
switch(config-monitor)# copy
running-config startup-config
(Optional)
Saves the running configuration persistently through
reboots and restarts by copying it to the startup
configuration.
switch# configure terminal
switch(config)# monitor session 3
switch(config-monitor)# no shut
switch(config-monitor)# show monitor
switch(config-monitor)# show monitor session 3
switch(config-monitor)# copy running-config startup-config
Configuring the Allowable ERSPAN Flow IDs
Use this procedure to restrict the allowable range of available flow IDs that can be assigned to ERSPAN
sessions
The available ERSPAN flow IDs are from 1 to 1023.
Before You Begin
• Log into the CLI in EXEC mode.
• Determine the restricted range of ERSPAN flow IDs that you want to designate.
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Enters global configuration mode.
Step 2
switch(config)# [no] limit-resource Restricts the allowable range of ERSPAN flow IDs that
erspan-flow-id minimum min_val can be assigned.
maximum max_val
The allowable range is from 1 to 1023.
The defaults are as follows:
The minimum value = 1
The maximum value = 1023
The no form of this command removes any configured
values and restores default values.
Step 3
switch(config)# show running
monitor
(Optional)
Displays changes to the default limit-resource
erspan-flow-id values for verification
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
70
Configuring Local SPAN and ERSPAN
Verifying the SPAN Configuration
Step 4
Command or Action
Purpose
switch(config)# copy
running-config startup-config
(Optional)
Saves the change persistently through reboots and restarts
by copying the running configuration to the startup
configuration.
switch# configure terminal
switch(config)# limit-resource erspan-flow-id minimum 20 maximum 40
switch(config)# show monitor
switch(config)# show running monitor
switch(config)# copy running-config startup-config
Verifying the SPAN Configuration
Use one of the following commands to verify the configuration:
Command
Purpose
show monitor session {all | session-number | range Displays the SPAN session configuration.
session-range} [brief]
Displays Ethernet SPAN information.
show monitor
module vem module-number execute vemcmd show Displays the configured SPAN sessions on a VEM
module.
span
show port-profile name port_profile_name
Displays a port profile.
Configuration Example for an ERSPAN Session
The following example shows how to create an ERSPAN session for a source Ethernet interface and destination
IP address on the Cisco Nexus 1000V.CSCtn56340 Packets arriving at the destination IP are identified by the
ID 999 in their header.
switch# monitor session 2 type erspan-source
switch(config-erspan-src)# source interface ethernet 3/3
switch(config-erspan-src)# source port-profile my_profile_src
switch(config-erspan-src)# destination ip 10.54.54.1
switch(config-erspan-src)# erspan-id 999
switch(config-erspan-src)# mtu 1000
switch(config-erspan-src)# no shut
switch(config-erspan-src)# show monitor session 2
session 2
--------------type
: erspan-source
state
: up
source intf
:
rx
: Eth3/3
tx
: Eth3/3
both
: Eth3/3
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
71
Configuring Local SPAN and ERSPAN
Example of Configuring a SPAN Session
source VLANs
:
rx
:
tx
:
both
:
source port-profile
rx
:
tx
:
both
:
filter VLANs
:
destination IP
:
ERSPAN ID
:
ERSPAN TTL
:
ERSPAN IP Prec.
:
ERSPAN DSCP
:
ERSPAN MTU
:
ERSPAN Header Type:
:
my_profile_src
my_profile_src
my_profile_src
filter not specified
10.54.54.1
999
64
0
0
1000
2
switch(config-erspan-src)# module vem 3 execute vemcmd show span
VEM SOURCE IP: 10.54.54.10
HW SSN ID
1
2
ERSPAN ID
999
HDR VER
local
2
DST LTL/IP
49,51,52,55,56
10.54.54.1
Example of Configuring a SPAN Session
switch(config)# no monitor session 1
switch(config)# monitor session 1
switch(config-monitor)# source interface ethernet 2/1-3
switch(config-monitor)# source interface port-channel 2
switch(config-monitor)# source port-profile my_profile_src
switch(config-monitor)# source vlan 3, 6-8 tx
switch(config-monitor)# filter vlan 3-5, 7
switch(config-monitor)# destination interface ethernet 2/5
switch(config-monitor)# destination port-profile my_profile_dst
switch(config-monitor)# no shut
switch(config-monitor)# exit
switch(config)# show monitor session 1
switch(config)# copy running-config startup-config
switch(config)# show monitor session 1
session 1
--------------type
: local
state
: up
source intf
:
rx
: Eth2/1 Eth2/2 Eth2/3
tx
: Eth2/1 Eth2/2 Eth2/3
both
: Eth2/1 Eth2/2 Eth2/3
source VLANs
:
rx
:
tx
: 3,6,7,8
both
:
source port-profile :
rx
: my_profile_src
tx
: my_profile_src
both
: my_profile_src
filter VLANs
: 3,4,5,7
destination ports : Eth2/5
destination port-profile : my_profile_dst
switch# module vem 3 execute vemcmd show span
VEM SOURCE IP NOT CONFIGURED.
HW SSN ID
1
ERSPAN ID
HDR VER
local
DST LTL/IP
49,51,52,55,56
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
72
Configuring Local SPAN and ERSPAN
Example of a Configuration to Enable SPAN Monitoring
Example of a Configuration to Enable SPAN Monitoring
This example shows how to configure destination ports in access or trunk mode, and enable SPAN monitoring.
switch# configure terminal
switch(config)# interface ethernet 2/5
switch(config-if)# switchport
switch(config-if)# switchport mode trunk
switch(config-if)# no shut
switch(config-if)# exit
switch(config)#
Feature History for SPAN and ERSPAN
Feature Name
Releases
Feature Information
SPAN and ERSPAN
5.2(1)SK3(2.1)
SPAN and ERSPAN were
introduced.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
73
Configuring Local SPAN and ERSPAN
Feature History for SPAN and ERSPAN
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
74
CHAPTER
11
Configuring SNMP
This chapter contains the following sections:
• Information About SNMP, page 75
• Guidelines and Limitations for SNMP, page 79
• Default Settings for SNMP, page 79
• Configuring SNMP, page 79
• Verifying the SNMP Configuration, page 88
• MIBs, page 89
• Feature History for SNMP, page 90
Information About SNMP
The Simple Network Management Protocol (SNMP) is an application-layer protocol that provides a message
format for communication between SNMP managers and agents. SNMP provides a standardized framework
and a common language used for the monitoring and management of devices in a network.
SNMP Functional Overview
The SNMP framework consists of three parts:
• An SNMP manager—The system used to control and monitor the activities of network devices using
SNMP.
• An SNMP agent—The software component within the managed device that maintains the data for the
device and reports these data, as needed, to managing systems. Cisco NX-OS supports the agent and
MIB. To enable the SNMP agent, you must define the relationship between the manager and the agent.
• A managed information base (MIB)—The collection of managed objects on the SNMP agent.
SNMP is defined in RFCs 3411 to 3418.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
75
Configuring SNMP
SNMP Notifications
Note
SNMP Role Based Access Control (RBAC) is not supported.
Cisco NX-OS supports SNMPv1, SNMPv2c, and SNMPv3. Both SNMPv1 and SNMPv2c use a
community-based form of security.
SNMP Notifications
A key feature of SNMP is the ability to generate notifications from an SNMP agent. These notifications do
not require that requests be sent from the SNMP manager. Notifications can indicate improper user
authentication, restarts, the closing of a connection, loss of a connection to a neighbor router, or other significant
events.
Cisco NX-OS generates SNMP notifications as either traps or informs. A trap is an asynchronous,
unacknowledged message sent from the agent to the SNMP managers listed in the host receiver table. Informs
are asynchronous messages sent from the SNMP agent to the SNMP manager which the manager must
acknowledge receipt of.
Traps are less reliable than informs because the SNMP manager does not send any acknowledgment when it
receives a trap. The Cisco NX-OS cannot determine if the trap was received. An SNMP manager that receives
an inform request acknowledges the message with an SNMP response protocol data unit (PDU). If the Cisco
NX-OS never receives a response, it can send the inform request again.
You can configure Cisco Nexus NX-OS to send notifications to multiple host receivers.
SNMPv3
SNMPv3 provides secure access to devices by a combination of authenticating and encrypting frames over
the network. The security features provided in SNMPv3 are as follows:
• Message integrity—Ensures that a packet has not been tampered with while it was in-transit.
• Authentication—Determines the message is from a valid source.
• Encryption—Scrambles the packet contents to prevent it from being seen by unauthorized sources.
SNMPv3 provides for both security models and security levels. A security model is an authentication strategy
that is set up for a user and the role in which the user resides. A security level is the permitted level of security
within a security model. A combination of a security model and a security level determines which security
mechanism is employed when handling an SNMP packet.
Security Models and Levels for SNMPv1, v2, v3
The security level determines if an SNMP message needs to be protected from disclosure and if the message
needs to be authenticated. The various security levels that exist within a security model are as follows:
• noAuthNoPriv—Security level that does not provide authentication or encryption.
• authNoPriv—Security level that provides authentication but does not provide encryption.
• authPriv—Security level that provides both authentication and encryption.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
76
Configuring SNMP
SNMPv3
Three security models are available: SNMPv1, SNMPv2c, and SNMPv3. The security model combined with
the security level determine the security mechanism applied when the SNMP message is processed.
The following table identifies what the combinations of security models and levels mean.
Model Level
Authentication
Encryption What Happens
v1
noAuthNoPriv Community string
No
Uses a community string match for
authentication.
v2c
noAuthNoPriv Community string
No
Uses a community string match for
authentication.
v3
authNoPriv
HMAC-MD5 or
HMAC-SHA
No
Provides authentication based on the
Hash-Based Message Authentication Code
(HMAC) Message Digest 5 (MD5) algorithm
or the HMAC Secure Hash Algorithm
(SHA).
v3
authPriv
HMAC-MD5 or
HMAC-SHA
DES
Provides authentication based on the
HMAC-MD5 or HMAC-SHA algorithms.
Provides Data Encryption Standard (DES)
56-bit encryption in addition to
authentication based on the Cipher Block
Chaining (CBC) DES (DES-56) standard.
User-Based Security Model
SNMPv3 User-Based Security Model (USM) refers to SNMP message-level security and offers the following
services:
• Message integrity—Ensures that messages have not been altered or destroyed in an unauthorized manner
and that data sequences have not been altered to an extent greater than can occur nonmaliciously.
• Message origin authentication—Ensures that the claimed identity of the user on whose behalf received
data was originated is confirmed.
• Message confidentiality—Ensures that information is not made available or disclosed to unauthorized
individuals, entities, or processes.
SNMPv3 authorizes management operations only by configured users and encrypts SNMP messages.
Cisco NX-OS uses two authentication protocols for SNMPv3:
• HMAC-MD5-96 authentication protocol
• HMAC-SHA-96 authentication protocol
The Cisco NX-OS uses Advanced Encryption Standard (AES) as one of the privacy protocols for SNMPv3
message encryption and conforms with RFC 3826.
The priv option offers a choice of DES or 128-bit AES encryption for SNMP security encryption. The priv
option with the aes-128 token indicates that this privacy password is for generating a 128-bit AES key.The
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
77
Configuring SNMP
SNMPv3
AES priv password can have a minimum of eight characters. If the passphrases are specified in cleartext, you
can specify a maximum of 64 case-sensitive, alphanumeric characters. If you use the localized key, you can
specify a maximum of 130 characters.
Note
For an SNMPv3 operation that uses the external AAA server, you must use AES for the privacy protocol
in the user configuration on the external AAA server.
CLI and SNMP User Synchronization
SNMPv3 user management can be centralized at the Access Authentication and Accounting (AAA) server
level. This centralized user management allows the SNMP agent in Cisco NX-OS to leverage the user
authentication service of the AAA server. After user authentication is verified, the SNMP PDUs are processed.
Additionally, the AAA server is also used to store user group names. SNMP uses the group names to apply
the access/role policy that is locally available in the switch.
Any configuration changes made to the user group, role, or password results in database synchronization for
both SNMP and AAA.
Cisco NX-OS synchronizes a user configuration in the following ways:
• The authentication passphrase specified in the snmp-server user command becomes the password for
the CLI user.
• The password specified in the username command becomes the authentication and privacy passphrases
for the SNMP user.
• If you delete a user using either SNMP or the CLI, the user is deleted for both SNMP and the CLI.
• User-role mapping changes are synchronized in SNMP and the CLI.
• Role changes (deletions or modifications) from the CLI are synchronized to SNMP.
Note
When you configure passphrase/password in localized key/encrypted format, Cisco NX-OS does not
synchronize the user information (password, roles, and so on).
Cisco NX-OS holds the synchronized user configuration for 60 minutes by default. See for information on
how to modify this default value.
Group-Based SNMP Access
Note
Because group is a standard SNMP term used industry-wide, roles are referred as groups in this SNMP
section.
SNMP access rights are organized by groups. Each group in SNMP is similar to a role through the CLI. Each
group is defined with read access or read-write access.
You can begin communicating with the agent once your username is created, your roles are set up by your
administrator, and you are added to the roles.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
78
Configuring SNMP
High Availability
High Availability
Stateless restarts for SNMP are supported. After a reboot or supervisor switchover, the running configuration
is applied.
Guidelines and Limitations for SNMP
• Read-only access to some SNMP MIBs is supported. See the Cisco NX-OS MIB support list at the
following URL for more information:
http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml
• SNMP role based access control (RBAC) is not supported.
• The SNMP set command is supported by the following Cisco MIBs:
◦CISCO-IMAGE-UPGRADE-MIB
◦CISCO-CONFIG-COPY-MIB
• The recommended SNMP polling interval time is 5 minutes.
Default Settings for SNMP
Parameters
Default
license notifications
enabled
Configuring SNMP
Configuring SNMP Users
Before You Begin
Log in to the CLI in EXEC mode.
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Places you in global configuration mode.
Step 2
switch(config)# snmp-server Configures an SNMP user with authentication and privacy
user name [auth {md5 | sha} parameters. The passphrase can be any case-sensitive,
alphanumeric string up to 64 characters. If you use the localizekey
passphrase [auto] [priv
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
79
Configuring SNMP
Configuring SNMP Users
Command or Action
Purpose
keyword, the passphrase can be any case-sensitive, alphanumeric
[aes-128] passphrase]
[engineID id] [localizedkey]] string up to 130 characters.
The name argument is the name of a user who can access the
SNMP engine.
The auth keyword enables one-time authentication for SNMP over
a TCP session. It is optional.
The md5 keyword specifies HMAC MD5 algorithm for
authentication. It is optional.
The sha keyword specifies HMAC SHA algorithm for
authentication. It is optional.
The priv keyword specifies encryption parameters for the user. It
is optional.
The aes-128 keyword specifies a 128-byte AES algorithm for
privacy. It is optional.
The engineID keyword specifies the engineID for configuring the
notification target user (for V3 informs). It is optional.
The id is a 12-digit colon-separated decimal number.
Step 3
switch(config-callhome)# show (Optional)
Displays information about one or more SNMP users.
snmp user
Step 4
switch(config-callhome)# copy (Optional)
running-config startup-config Saves the running configuration persistently through reboots and
restarts by copying it to the startup configuration.
switch(config)#configure terminal
switch(config)# snmp-server user Admin auth sha Axlm1234# priv Axlm1234#
switch(config)# show snmp user
______________________________________________________________
SNMP USERS
______________________________________________________________
User Auth Priv(enforce) Groups
____ ____ _____________ ______
Admin sha des(no) network-operator
admin md5 des(no) network-admin
______________________________________________________________
NOTIFICATION TARGET USERS (configured for sending V3 Inform)
______________________________________________________________
User Auth Priv
____ ____ ____
switch(config)#
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
80
Configuring SNMP
Enforcing SNMP Message Encryption for All Users
Enforcing SNMP Message Encryption for All Users
Procedure
Step 1
Command or Action
Purpose
switch(config)# snmp-server
globalEnforcePriv
Enforces SNMP message encryption for all
users.
Creating SNMP Communities
You can create SNMP communities for SNMPv1 or SNMPv2c.
Before You Begin
You must be in global configuration mode.
Procedure
Command or Action
Step 1
Purpose
switch(config)# snmp-server community name {ro Creates an SNMP community string.
| rw}
Filtering SNMP Requests
You can assign an access list (ACL) to a community to filter incoming SNMP requests. If the assigned ACL
allows the incoming request packet, SNMP processes the request. If the ACL denies the request, SNMP drops
the request and sends a system message. The ACL applies to IPv4 over UDP and TCP. After creating the
ACL, assign the ACL to the SNMP community. For more information on creating ACLs, see the Nexus 1000V
for Microsoft Hyper-V Security Configuration Guide.
Use the following commands in global configuration mode to assign an ACL to a community to filter SNMP
requests:
Before You Begin
Create an ACL to assign to the SNMP community. Assign the ACL to the SNMP community. Create the ACL
with the following parameters:
• Source IP address
• Destination IP address
• Source Port
• Destination Port
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
81
Configuring SNMP
Filtering SNMP Requests
• Protocol (UDP or TCP)
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Enters global configuration mode.
Step 2
switch(config)# ip access-list
acl_for_community
Creates the named access list or places you
in configuration mode for the specified access
list.
Step 3
switch(config-acl)# statistics per-entry
Configures statistics.
Step 4
switch(config-acl)# permit udp any any
Permits UDP protocol.
Step 5
switch(config-acl)# show ip access-lists
(Optional)
Displays show command output.
Step 6
switch(config-acl)# exit
Exits the current configuration mode.
Step 7
switch(config)# snmp community
community-name
Configures SNMP community.
Step 8
switch(config)# snmp community
community-name use-acl acl-name
Assigns an ACL to an SNMP community to
filter SNMP requests.
Step 9
switch(config)# show snmp community
(Optional)
Displays show command output.
switch# config t
Enter configuration commands, one per line. End with CNTL/Z.
switch(config)# ip access-list acl_for_community
switch(config-acl)# statistics per-entry
switch(config-acl)# permit udp any any
switch(config-acl)# show ip access-lists
IPV4 ACL acl_for_community
statistics per-entry
10 permit udp any any [match=0]
switch(config-acl)# exit
switch(config)# snmp community public
switch(config)# snmp community public use-acl acl_for_community
switch(config)# show snmp community
SNMP_svr1
network-operator
public
network-operator
acl_for_community
switch(config)#
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
82
Configuring SNMP
Configuring SNMP Notification Receivers
Configuring SNMP Notification Receivers
Configuring a Host Receiver for SNMPv1 Traps
Before You Begin
You must be in global configuration mode.
Procedure
Step 1
Command or Action
Purpose
switch(config)# snmp-server host
ip-address traps version 1 community
[udp_port number]
Configures a host receiver for SNMPv1 traps. The
community can be any alphanumeric string up to 255
characters. The UDP port number range is from 0 to
65535.
Configuring a Host Receiver for SNMPv2c Traps or Informs
Before You Begin
You must be in global configuration mode.
Procedure
Step 1
Command or Action
Purpose
switch(config)# snmp-server host
ip-address {traps | informs} version 2c
community [udp_port number]
Configures a host receiver for SNMPv2c traps or
informs. The community can be any alphanumeric
string up to 255 characters. The UDP port number
range is from 0 to 65535.
Configuring a Host Receiver for SNMPv3 Traps or Informs
Note
The SNMP manager must know the user credentials (authKey/PrivKey) based on the SNMP engine ID
of the Cisco device to authenticate and decrypt the SNMPv3 messages
Before You Begin
You must be in global configuration mode.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
83
Configuring SNMP
Configuring the Notification Target User
Procedure
Command or Action
Step 1
Purpose
switch(config)# snmp-server host ip-address Configures a host receiver for SNMPv2c traps or
{traps | informs} version 3 {auth | noauth | informs. The username can be any alphanumeric
string up to 255 characters. The UDP port number
priv} username [udp_port number]
range is from 0 to 65535.
switch(config)# snmp-server host 192.0.2.1 informs version 3 auth NMS
switch# configure terminal
switch(config)# snmp-server host 192.0.2.1 informs version 3 auth Admin
switch(config)# show snmp host
------------------------------------------------------------------Host Port Version Level Type SecName
------------------------------------------------------------------192.0.2.1 162 v3 auth inform Admin
------------------------------------------------------------------switch(config)#
Configuring the Notification Target User
You must configure a notification target user on the device to send SNMPv3 inform notifications to a
notification host receiver
The Cisco uses the credentials of the notification target user to encrypt the SNMPv3 inform notification
messages to the configured notification host receiver.
Note
For authenticating and decrypting the received INFORM PDU, the notification host receiver should have
the same user credentials as configured in Cisco NX-OS to authenticate and decrypt the inform s
Before You Begin
You must be in global configuration mode to configure the notification target user.
Procedure
Command or Action
Step 1
switch(config)# snmp-server user name [auth Configures the notification target user with the
{md5 | sha} passphrase [auto] [priv [aes-128] specified engine ID for notification host receiver.
The id is a 12-digit colon-separated decimal
passphrase] [engineID id]
number.
Example:
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
84
Purpose
Configuring SNMP
Enabling SNMP Notifications
Enabling SNMP Notifications
You can enable or disable notifications. If you do not specify a notification name, Cisco enables all notifications.
The following table lists the commands that enable the notifications for Cisco MIBs.
Note
The snmp-server enable traps command enables both traps and informs, depending on the configured
notification host receivers.
MIB
Related Commands
All notifications
snmp-server enable traps
CISCO-AAA-SERVER-MIB
snmp-server enable traps aaa
ENITY-MIB
snmp-server enable traps entity
CISCO-ENTITY-FRU-CONTROL-MIB
snmp-server enable traps entity fru
CISCO-LICENSE-MGR-MIB
snmp-server enable traps license
IF-MIB
snmp-server enable traps link
SNMPv2-MIB
snmp-server enable traps snmp
snmp-server enable traps snmp authentication
The license notifications are enabled by default. All other notifications are disabled by default.
Before You Begin
You must be in global configuration mode.
Procedure
Command or Action
Purpose
Step 1
switch(config)# snmp-server enable traps
Enables all SNMP notifications.
Step 2
switch(config)# snmp-server enable traps aaa Enables the AAA SNMP notifications.
[server-state-change]
Step 3
switch(config)# snmp-server enable traps entity Enables the ENTITY-MIB SNMP
notifications.
[fru]
Step 4
switch(config)# snmp-server enable traps
license
Step 5
switch(config)# snmp-server enable traps link Enables the link SNMP notifications.
Enables the license SNMP notification.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
85
Configuring SNMP
Disabling LinkUp/LinkDown Notifications on an Interface
Command or Action
Step 6
Purpose
switch(config)# snmp-server enable traps snmp Enables the SNMP agent notifications.
[authentication]
switch(config)# snmp-server enable traps
switch(config)#
switch(config)#
switch(config)#
switch(config)#
switch(config)#
snmp-server
snmp-server
snmp-server
snmp-server
snmp-server
enable
enable
enable
enable
enable
traps
traps
traps
traps
traps
aaa
entity
license
link
snmp
Disabling LinkUp/LinkDown Notifications on an Interface
You can disable linkUp and linkDown notifications on an individual interface. You can use this limit
notifications on flapping interface (an interface that transitions between up and down repeatedly).
Before You Begin
You must be in interface configuration mode.
Procedure
Step 1
Command or Action
Purpose
switch(config-if)# no snmp trap
link-status
Disables SNMP link-state traps for the interface.
This command is enabled by default.
Enabling a One-time Authentication for SNMP over TCP
Before You Begin
You must be in global configuration mode.
Procedure
Command or Action
Step 1
Purpose
switch(config)# snmp-server tcp-session Enables a one-time authentication for SNMP over
a TCP session. The default is disabled.
[auth]
switch# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
switch(config)# snmp-server tcp-session
switch(config)# show snmp | grep "Tcp"
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
86
Configuring SNMP
Assigning the SNMP Switch Contact and Location Information
SNMP Tcp Authentication Flag : Enabled.
switch(config)#
Assigning the SNMP Switch Contact and Location Information
You can assign the switch contact information, which is limited to 32 characters (without spaces) and the
switch location.
Before You Begin
Log in to the CLI in EXEC mode.
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Enters global configuration mode.
Step 2
switch(config)# snmp-server contact Configures sysContact, which is the SNMP contact
name.
name
Step 3
switch(config)# snmp-server location Configures sysLocation, which is the SNMP location.
name
Step 4
switch(config)# show snmp
Step 5
switch(config)# copy running-config (Optional)
Saves the change persistently through reboots and
startup-config
restarts by copying the running configuration to the
startup configuration.
(Optional)
Displays information about one or more destination
profiles.
HPV-VSM# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
HPV-VSM(config)# snmp-server contact Admin
HPV-VSM(config)# snmp-server location Lab
HPV-VSM(config)# show snmp | grep sys
sys contact: Admin
sys location: Lab
HPV-VSM(config)#copy running-config startup-config
Disabling SNMP
Before You Begin
You must be in global configuration mode.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
87
Configuring SNMP
Modifying the AAA Synchronization Time
Procedure
Step 1
Command or Action
Purpose
switch(config)# no snmp-server protocol
enable
Disables the SNMP protocol. This command is
enabled by default.
Modifying the AAA Synchronization Time
You can modify how long Cisco NX-OS holds the synchronized user configuration.
Before You Begin
You must be in global configuration mode.
Procedure
Command or Action
Step 1
Purpose
switch(config)# snmp-server aaa-user Configures how long the AAA synchronized user
configuration stays in the local cache. The range is from
cache-timeout seconds
1 to 86400 seconds. The default is 3600.
switch(config)# snmp-server aaa-user cache-timeout 1200
Verifying the SNMP Configuration
Use one of the following commands to verify the configuration:
Command
Purpose
show interface snmp-ifindex
Displays the SNMP ifIndex value for all interfaces
(from IF-MIB).
show running-config snmp [all]
Displays the SNMP running configuration.
show snmp
Displays the SNMP status.
show snmp community
Displays the SNMP community strings.
show snmp context
Displays the SNMP context mapping.
show snmp engineID
Displays the SNMP engineID.
show snmp group
Displays SNMP roles.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
88
Configuring SNMP
MIBs
Command
Purpose
show snmp session
Displays SNMP sessions.
show snmp trap
Displays the SNMP notifications enabled or disabled.
show snmp user
Displays SNMPv3 users.
MIBs
Following is information about the supported SNMP MIBs.
To locate and download the MIBs, go to the following URL:
http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml.
• IF-MIB
• ENTITY-MIB
• CISCO-ENTITY-EXT-MIB-V1SMI
• CISCO-ENTITY-FRU-CONTROL-MIB
• BRIDGE-MIB
• CISCO-FLASH-MIB
• CISCO-SYSTEM-MIB
• CISCO-SYSTEM-EXT-MIB
• CISCO-FEATURE-CONTROL-MIB
• CISCO-CDP-MIB
• CISCO-VIRTUAL-NIC-MIB
• CISCO-PROCESS-MIB
• CISCO-SYSLOG-EXT-MIB
• CISCO-VLAN-MEMBERSHIP-MIB
• TCP-MIB
• UDP-MIB
• CISCO-PRIVATE-VLAN-MIB
• CISCO-SECURE-SHELL-MIB
• CISCO-IMAGE-UPGRADE-MIB
• CISCO-LICENSE-MGR-MIB
• CISCO-AAA-SERVER-MIB
• CISCO-AAA-SERVER-EXT-MIB
• CISCO-COMMON-MGMT-MIB
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
89
Configuring SNMP
Feature History for SNMP
• CISCO-COMMON-ROLES-MIB
• CISCO-CONFIG-MAN-MIB
• CISCO-FTP-CLIENT-MIB
• CISCO-IMAGE-MIB
• CISCO-LAG-MIB
• CISCO-NOTIFICATION-CONTROL-MIB
• CISCO-NTP-MIB
• CISCO-RF-MIB
• CISCO-SMI
• CISCO-SNMP-TARGET-EXT-MIB
• NOTIFICATION-LOG-MIB
• IP-MIB
• SNMP-COMMUNITY-MIB
• SNMP-FRAMEWORK-MIB
• SNMP-MPD-MIB
• SNMP-NOTIFICATION-MIB
• SNMP-TARGET-MIB
• SNMP-USM-MIB
• SNMPv2-MIB
Feature History for SNMP
Feature Name
Releases
Feature Information
SNMP
Release 5.2(1)SK1(2.1)
This feature was introduced.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
90
CHAPTER
12
Configuring NetFlow
This chapter contains the following sections:
• Information About NetFlow, page 91
• Guidelines and Limitations for NetFlow, page 99
• Default Settings for NetFlow, page 100
• Enabling the NetFlow Feature, page 101
• Configuring Netflow, page 101
• Verifying the NetFlow Configuration, page 109
• Netflow Example Configuration, page 111
• Related Documents for NetFlow, page 112
• Feature History for NetFlow, page 112
Information About NetFlow
NetFlow allows you to evaluate IP and Ethernet traffic and understand how and where it flows. NetFlow gives
you visibility into traffic that transits the virtual switch by characterizing traffic based on its source, destination,
timing, and application information. You can use this information to assess network availability and
performance, assist in meeting regulatory requirements (compliance), and help with troubleshooting. NetFlow
gathers data that you can use for accounting, network monitoring, and network planning.
What is a Flow
You create a flow using a flow record to define the criteria for your flow. All criteria must match for the packet
to count in the given flow. Flows are stored in the NetFlow cache. Flow information tells you the following:
• Source address tells you who is originating the traffic.
• Destination address tells who is receiving the traffic
• Ports characterize the application that uses the traffic
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
91
Configuring NetFlow
Flow Record Definition
• Class of service examines the priority of the traffic
• The device interface tells how traffic is being used by the network device
• Tallied packets and bytes show the amount of traffic
Flow Record Definition
A flow record defines the information that NetFlow gathers, such as the packets in the flow and the types of
counters gathered per flow. You can define new flow records or use the predefined Cisco Nexus 1000V flow
record.
Predefined Flow records use 32-bit counters and are not recommended for data rates above 1 Gbps. For data
rates that are higher than 1 Gbps, Cisco recommends that you manually configure the records to use 64-bit
counters.
The following table describes the criteria defined in a flow record.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
92
Configuring NetFlow
Flow Record Definition
Table 2: Flow Record Criteria
Flow Record Description
Criteria
Match
Defines the information that is matched for collection in the flow record.
• ip—Data collected in the flow record matches one of the following IP options:
◦Protocol
◦tos (type of service)
• iIPv4—Data collected in the flow record matches one of the following IPv4 address
options:
◦Source address
◦Destination address
• Transport—Data collected in the flow record that matches one of the following transport
options:
◦Destination port
◦Source port
• datalink—Data collected in the flow record matches one of the following datalink
options:
◦mac source-address
◦mac destination-address
◦ethertype
◦vlan
◦vxlan
Note
Layer 2 fields can be matched only then IP fields are not present in the record.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
93
Configuring NetFlow
Flow Record Definition
Flow Record Description
Criteria
Collect
Defines how the flow record collects information.
• Counter—Collects flow record information in one of the following formats:
◦Bytes—32-bit counter. (default)
◦Bytes long—64-bit counter (recommended for data rates that are higher than 1
Gbps).
◦Packets—32-bit counter (default)
◦Packets long—64-bit counters (recommended for data rates that are higher than
1 Gbps)
• timestamp sys-uptime—Collects the system up time for the first or last packet in the
flow.
• transport tcp flags—Collects the TCP transport layer flags for the packets in the flow.
Note
64-bit counters are
recommended.
Predefined Flow Records
Cisco Nexus 1000V Predefined Flow Record: Netflow-Original
switch# show flow record netflow-original
Flow record netflow-original:
Description: Traditional IPv4 input NetFlow with origin ASs
No. of users: 0
Template ID: 0
Fields:
match ipv4 source address
match ipv4 destination address
match ip protocol
match ip tos
match transport source-port
match transport destination-port
match interface input
match interface output
match flow direction
collect routing source as
collect routing destination as
collect routing next-hop address ipv4
collect transport tcp flags
collect counter bytes
collect counter packets
collect timestamp sys-uptime first
collect timestamp sys-uptime last
switch#
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
94
Configuring NetFlow
Flow Record Definition
Note
Although the following lines appear in the output of the show flow record command, the commands they
are based on are not currently supported in Cisco Nexus 1000V. The use of these commands has no affect
on the configuration.
collect routing source as
collect routing destination as
collect routing next-hop address ipv4
Cisco Nexus 1000V Predefined Flow Record: Netflow IPv4 Original-Input
switch# show flow record netflow ipv4 original-input
Flow record ipv4 original-input:
Description: Traditional IPv4 input NetFlow
No. of users: 0
Template ID: 0
Fields:
match ipv4 source address
match ipv4 destination address
match ip protocol
match ip tos
match transport source-port
match transport destination-port
match interface input
match interface output
match flow direction
collect routing source as
collect routing destination as
collect routing next-hop address ipv4
collect transport tcp flags
collect counter bytes
collect counter packets
collect timestamp sys-uptime first
collect timestamp sys-uptime last
switch#
Cisco Nexus 1000V Predefined Flow Record: Netflow IPv4 Original-Output
switch# show flow record netflow ipv4 original-output
Flow record ipv4 original-output:
Description: Traditional IPv4 output NetFlow
No. of users: 0
Template ID: 0
Fields:
match ipv4 source address
match ipv4 destination address
match ip protocol
match ip tos
match transport source-port
match transport destination-port
match interface input
match interface output
match flow direction
collect routing source as
collect routing destination as
collect routing next-hop address ipv4
collect transport tcp flags
collect counter bytes
collect counter packets
collect timestamp sys-uptime first
collect timestamp sys-uptime last
switch#
Cisco Nexus 1000V Predefined Flow Record: Netflow Protocol-Port
switch# show flow record netflow protocol-port
Flow record ipv4 protocol-port:
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
95
Configuring NetFlow
Accessing NetFlow Data
Description: Protocol and Ports aggregation scheme
No. of users: 0
Template ID: 0
Fields:
match ip protocol
match transport source-port
match transport destination-port
match interface input
match interface output
match flow direction
collect counter bytes
collect counter packets
collect timestamp sys-uptime first
collect timestamp sys-uptime last
switch#
Accessing NetFlow Data
You can use two methods to access NetFlow data:
• Command-line interface (CLI)
• NetFlow collector (a separate product from the Cisco Nexus 1000V for KVM)
Command-line Interface for NetFlow
You can use the CLI to access NetFlow data and to view what is happening in your network now.
The CLI uses a flow monitor and a flow exporter to capture and export flow records to the Netflow collector.
Cisco Nexus 1000V supports the NetFlow Version 9 export format.
Note
The Cisco Nexus 1000V supports UDP as the transport protocol for exporting data to up to two exporters
per monitor.
Flow Monitor
A flow monitor creates an association between the following NetFlow components:
• flow record—Consists of matching and collection criteria
• flow exporter—Consists of the export criteria
This flow monitor enables a set, which consists of a record and an exporter. You can define this set once and
reuse it multiple times. You can create multiple flow monitors for different needs. A flow monitor is applied
to a specific interface or port-profile in a specific direction.
Flow Exporter
The flow exporter is used to define the source and destination of the flow records. The source is from the
VEM module and the destination is the reporting server, called the Netflow Collector. An IP packet is sent
from the source to the destination with the collected information. The packet will originate from the VEM,
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
96
Configuring NetFlow
Exporting Flows to the NetFlow Collector Server
but the user can configure which IP address is placed in the source field of the IP packet. The destination
requires an IP address as well as a UDP port number for which the Netflow Collector will listen for packets.
An exporter definition includes the following:
• Destination IP address
• UDP port number (where the collector is listening)
• Source IP Address to spoof (not the actual source location, but the address placed in in the IP packet
sent to the collector)
• Export format version
NetFlow Collector
NetFlow data reporting process is as follows:
1 You configure NetFlow records to define the information that NetFlow gathers.
2 You configure Netflow monitor to capture flow records to the NetFlow cache.
3 You configure NetFlow export to send flows to the collector.
4 The Cisco Nexus 1000V searches the NetFlow cache for flows that have expired and exports them to the
NetFlow collector server.
5 Flows are bundled together based on space availability in the UDP export packet and based on an export
timer.
6 The NetFlow collector software creates real-time or historical reports from the data.
Exporting Flows to the NetFlow Collector Server
Timers determine when a flow is exported to the NetFlow collector server. See the followling figure where
a flow is ready for export when one of the following occurs:
• The flow is inactive for a certain time amount of time, inactive timer, during which no new packets are
received for the flow.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
97
Configuring NetFlow
Exporting Flows to the NetFlow Collector Server
• The flow has lived longer than the active timer, such as, a long FTP download.
Figure 6: Exporting Flows to the NetFlow Collector Server
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
98
Configuring NetFlow
What NetFlow Data Looks Like
What NetFlow Data Looks Like
The following figure shows an example of NetFlow data.
Figure 7: NetFlow Cache Example
Network Analysis Module
You can also use the Cisco Network Analysis Module (NAM) to monitor NetFlow data sources. NAM enables
traffic analysis views and reports such as hosts, applications, conversations, VLAN, and QoS.
High Availability for NetFlow
The Cisco Nexus 1000V supports stateful restarts for NetFlow. After a reboot or supervisor switchover, the
Cisco Nexus 1000V applies the running configuration.
Guidelines and Limitations for NetFlow
• In Cisco Nexus 1000V, the mgmt0 interface IP address of the VSM is configured by default as the source
IP address for an exporter.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
99
Configuring NetFlow
Default Settings for NetFlow
• Predefined Flow records use 32-bit counters are recommended for data rates above 1 Gbps. For data
rates that are higher than 1 Gbps, Cisco recommends that you manually configure the records to use
64-bit counters.
• The Cisco Nexus 1000V includes the following predefined flow records:
◦netflow-original—The Cisco Nexus 1000V predefined traditional IPv4 input NetFlow with origin
ASs
Note
The routing-related fields in this predefined flow record are ignored.
◦netflow ipv4 original-input—The Cisco Nexus 1000V predefined traditional IPv4 input NetFlow
◦netflow ipv4 original-output—The Cisco Nexus 1000V predefined traditional IPv4 output NetFlow
◦netflow protocol-port—The Cisco Nexus 1000V predefined protocol and ports aggregation scheme
• Up to 8,000 NetFlow instances are allowed per Distributed Virtual Switch (DVS).
• Up to 300 NetFlow instances are allowed per host.
• A maximum of one flow monitor per interface per direction is allowed.
• Up to two flow exporters are permitted per monitor.
• Up to 64 NetFlow monitors, exporters, or records are allowed per DVS.
• NetFlow is not supported on on port channels or interfaces in a portchannel.
Default Settings for NetFlow
Table 3: Default NetFlow Parameters
Parameters
Default
NetFlow version
9
source
line card export with spoofed mgmt0 IP address of
the VSM
match
direction and interface (incoming/outgoing)
flow monitor active timeout1
1800
flow monitor inactive timeout 2
45
DSCP
default/best-effort (0)
VRF
management (1)
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
100
Configuring NetFlow
Enabling the NetFlow Feature
1 Cisco recommends that the difference between the flow active timeout and the flow inactive timeout be a minimum of 1600 seconds.
2 Cisco recommends that the difference between the flow active timeout and the flow inactive timeout be a minimum of 1600 seconds.
Enabling the NetFlow Feature
Before You Begin
You are logged in to the CLI in EXEC mode.
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Enters global configuration mode.
Step 2
switch(config)# feature netflow
Enables the NetFlow feature.
Step 3
switch(config)# show feature
(Optional) Displays the available features and
whether or not they are enabled.
Step 4
switch(config)# copy running-config (Optional)
Saves the change persistently through reboots and
startup-config
restarts by copying the running configuration to the
startup configuration.
This example shows how to enable the NetFlow feature:
switch# configure terminal
switch(config)# feature netflow
switch(config)#
Configuring Netflow
Defining a Flow Record
Before You Begin
• You know which of the options you want this flow record to match.
• You know which options you want this flow record to collect.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
101
Configuring NetFlow
Defining a Flow Record
Note
Although the following lines appear in the output of the show flow record command, the commands they
are based on are not currently supported in Cisco Nexus 1000V. The use of these commands has no effect
on the configuration.
collect routing source as
collect routing destination as
collect routing next-hop address ipv4
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Enters global configuration mode.
Step 2
switch(config)# flow record name Creates a Flow Record by name, and places you in the CLI
Flow Record Configuration mode for that specific record.
Step 3
switch(config-flow-record)#
description string
Step 4
switch(config-flow-record)# match Defines the Flow Record to match one of the following and
saves it in the running configuration.
{ip {protocol | tos} | ipv4
{destination | source} | transport
• ip—Matches one of the following IP options:
{destination-port | source-port} |
datalink {{mac {source-address |
◦protocol
destination-address}} | ethertype |
◦tos (type of service)
vlan | vxlan }}
(Optional) Adds a description of up to 63 characters to the
Flow Record and saves it to the running configuration.
• ipv4—Matches one of the following ipv4 address options:
◦source address
◦destination address
• transport—Matches one of the following transport
options:
◦destination port
◦source port
• datalink— Data collected in the flow record matches one
of the following datalink options:
◦mac source-address
◦mac destination-address
◦ethertype
◦vlan
◦vxlan
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
102
Configuring NetFlow
Defining a Flow Record
Command or Action
Purpose
Note
Step 5
Netflow does not support mixing datalink fields with
other field types in the same record.
switch(config-flow-record)# collect Specifies a collection option to define the information to collect
{counter {bytes [long] | packets in the Flow Record and saves it in the running configuration.
[long]} | timestamp
• counter—Collects Flow Record information in one of
sys-uptime{first | last} | transport
the following formats:
tcp flags}
◦bytes: collected in 32-bit counters unless the long
64-bit counter is specified.
◦packets: collected in 32-bit counters unless the long
64-bit counter is specified.
Cisco recommends that the 64-bit counters be
used for systems with data rates in excess of 1
Gbps.
• timestamp sys-uptime—Collects the system up time for
the first or last packet in the flow.
Note
• transport tcp flags—Collects the TCP transport layer
flags for the packets in the flow.
Step 6
switch(config-flow-record)# show (Optional)
Displays information about Flow Records.
flow record [name]
Step 7
switch(config-flow-record)# copy (Optional)
Saves the change persistently through reboots and restarts by
running-config startup-config
copying the running configuration to the startup configuration.
The following example shows how to create a flow record:
switch# configure terminal
switch(config)# flow record RecordTest
switch(config-flow-record)# description Ipv4flow
switch(config-flow-record)# match ipv4 destination address
switch(config-flow-record)# collect counter packets
switch(config-flow-record)# show flow record RecordTest
Flow record RecordTest:
Description: Ipv4flow
No. of users: 0
Template ID: 0
Fields:
match ipv4 destination address
match interface input
match interface output
match flow direction
collect counter packets
switch(config-flow-record)#
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
103
Configuring NetFlow
Defining a Flow Exporter
Defining a Flow Exporter
A Flow Exporter defines where and how Flow Records are exported to the NetFlow Collector Server.
• Export format version 9 is supported.
• A maximum of two flow exporters per monitor are permitted.
Before You Begin
• You know the destination IP address of the NetFlow Collector Server.
• You know the transport UDP port that the Collector is listening on.
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Enters global configuration mode.
Step 2
switch(config)#flow exporter name
Creates a Flow Exporter, saves it in the running
configuration, and then places you in CLI Flow
Exporter Configuration mode.
Step 3
switch(config-flow-exporter)#
description string
Adds a description of up to 63 characters to this Flow
Exporter and saves it in the running configuration.
Step 4
switch(config-flow-exporter)#
destination ipv4-address
Specifies the IP address of the destination interface for
this Flow Exporter and saves it in the running
configuration.
Step 5
switch(config-flow-exporter)# dscp
value
Specifies the differentiated services codepoint value
for this Flow Exporter, between 0 and 63, and saves it
in the running configuration.
Step 6
switch(config-flow-exporter)# source
lc-exp ipv4-address/subnet-mask
(Optional)
Specifies the IP address to spoof, from which the Flow
Records are sent to the NetFlow Collector Server, and
saves it in the running configuration.
Step 7
switch(config-flow-exporter)# transport Specifies the destination UDP port, between 1 and
65535, used to reach the NetFlow collecton, and saves
udp port-number
it in the running configuration.
Step 8
switch(config-flow-exporter)# version Specifies NetFlow export version 9, saves it in the
running configuration, and places you into the export
{9}
version 9 configuration mode.
Step 9
switch(config-flow-exporter-version-9)# Specifies one of the following version 9 exporter resend
option {exporter-stats |
timers and its value, between 1 and 86400 seconds,
and saves it in the running configuration.
interface-table} timeout value
• exporter-stats
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
104
Configuring NetFlow
Defining a Flow Monitor
Command or Action
Purpose
• interface-table
Step 10
switch(config-flow-exporter-version-9)# Sets the template data resend timer and its value,
between 1 and 86400 seconds, and saves it in the
template data timeout seconds
running configuration.
Step 11
switch(config-flow-exporter-version-9)# (Optional) Displays information about the Flow
Exporter.
show flow exporter [name]
Step 12
switch(config-flow-exporter-version-9)# Saves the change persistently through reboots and
copy running-config startup-config restarts by copying the running configuration to the
startup configuration.
The following example shows how to create a flow exporter:
switch# configure terminal
switch(config)# flow exporter ExportTest
switch(config-flow-exporter)# description ExportHamilton
switch(config-flow-exporter)# destination 192.0.2.1
switch(config-flow-exporter)# dscp 2
switch(config-flow-exporter)# source lc-exp 192.0.2.2/24
switch(config-flow-exporter)# transport udp 200
switch(config-flow-exporter)# version 9
switch(config-flow-exporter-version-9)# option exporter-stats timeout 1200
switch(config-flow-exporter-version-9)# template data timeout 1200
switch(config-flow-exporter-version-9)# show flow exporter ExportTest
Flow exporter ExportTest:
Description: ExportHamilton
Destination: 192.0.2.1
VRF: management (1)
Destination UDP Port 200
Source IP Address 192.0.2.2
Export from Line Card
DSCP 2
Export Version 9
Exporter-stats timeout 1200 seconds
Data template timeout 1200 seconds
Exporter Statistics
Number of Flow Records Exported 0
Number of Templates Exported 0
Number of Export Packets Sent 0
Number of Export Bytes Sent 0
Number of Destination Unreachable Events 0
Number of No Buffer Events 0
Number of Packets Dropped (No Route to Host) 0
Number of Packets Dropped (other) 0
Number of Packets Dropped (LC to RP Error) 0
Number of Packets Dropped (Output Drops) 1
Time statistics were last cleared: Never
switch(config-flow-exporter-version-9)# copy running-config startup-config
switch(config-flow-exporter-version-9)#
Defining a Flow Monitor
A Flow Monitor is associated with a Flow Record and a Flow Exporter.
A maximum of one flow monitor per interface or port profile per direction is permitted.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
105
Configuring NetFlow
Defining a Flow Monitor
Before You Begin
• You know the name of an existing Flow Exporter to associate with this flow monitor.
• You know the name of an existing Flow Record to associate with this flow monitor. You can use either
a flow record you previously created, or one of the following Cisco Nexus 1000V predefined flow
records:
• netflow-original
• netflow ipv4 original-input
• netflow ipv4 original-output
• netflow protocol-port
Note
Cisco recommends that you use the predefined flow records for systems with a lower data rate. For systems
operating at a higher data rate of more than 1 Gbps, Cisco recommends that you manually configure the
flow record and use the 64-bit long counters.
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Enters global configuration mode.
Step 2
switch(config)# flow monitor name Creates a flow monitor by name, saves it in the running
configuration, and then places you in the CLI Flow
Monitor Configuration mode.
Step 3
switch(config-flow-monitor)#
description string
(Optional) For the specified flow monitor, adds a
descriptive string of up to 63 alphanumeric characters,
and saves it in the running configuration.
Step 4
switch(config-flow-monitor)#
exporter name
For the specified flow monitor, adds an existing flow
exporter and saves it in the running configuration.
Step 5
switch(config-flow-monitor)# record For the specified flow monitor, adds an existing flow
record and saves it in the running configuration.
{ [name | netflow {ipv4}] |
netflow-original | original-input
• name: The name of a flow record you have
|original-output |protocol-port}
previously created, or the name of a Cisco provided
pre-defined flow record.
• netflow: Traditional NetFlow collection schemes
ipv4: Traditional IPv4 NetFlow collection schemes
Step 6
switch(config-flow-monitor)# show
flow monitor [name]
(Optional) Displays information about existing flow
monitors.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
106
Configuring NetFlow
Assigning a Flow Monitor to an Interface
Step 7
Command or Action
Purpose
switch(config-flow-monitor)# copy
running-config startup-config
Saves the change persistently through reboots and restarts
by copying the running configuration to the startup
configuration.
The following example shows how to create a flow exporter:
switch# configure terminal
switch(config)# flow monitor MonitorTest
switch(config-flow-monitor)# description Ipv4Monitor
switch(config-flow-monitor)# exporter ExportTest
switch(config-flow-monitor)# record RecordTest
switch(config-flow-monitor)# show flow monitor MonitorTest
Flow Monitor MonitorTest:
Use count: 0
Flow Record: RecordTest
Flow Exporter: ExportTest
switch(config-flow-monitor)#
Assigning a Flow Monitor to an Interface
Before You Begin
• You know the name of the flow monitor you want to use for the interface.
• You know the interface type and its number.
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Enters global configuration mode.
Step 2
switch(config)# interface interface-type Places you in the CLI Interface Configuration mode
for the specified interface.
interface-number
Step 3
switch(config-if)# ip flow monitor name For the specified interface, assigns a flow monitor
for input or output packets and saves it in the running
{input | output}
configuration.
Step 4
switch(config-if)# show flow interface (Optional)
For the specified interface, displays the NetFlow
interface-type interface-number
configuration.
Step 5
switch(config-if)# copy running-config (Optional)
Saves the change persistently through reboots and
startup-config
restarts by copying the running configuration to the
startup configuration.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
107
Configuring NetFlow
Adding a Flow Monitor to a Port Profile
The following example shows how to assign a flow monitor to an interface:
switch# configure terminal
switch(config)# interface veth 2
switch(config-if)# ip flow monitor MonitorTest output
switch(config-if)# show flow interface veth 2
Interface Vethernet2:
Monitor: MonitorTest
Direction: Output
switch(config-if)#
Adding a Flow Monitor to a Port Profile
Before You Begin
• You are logged in to the CLI in EXEC mode.
• You have already created the flow monitor.
• If using an existing port profile, you have already created the port profile and you know its name.
• If creating a new port profile, you know the type of interface (Ethernet or vEthernet), and you know the
name you want to give it.
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Enters global configuration mode.
Step 2
switch(config)# port-profile [type
{ethernet | vethernet}] name
Enters port profile configuration mode for the
named port profile.
Step 3
switch(config-port-prof)# ip flow monitor Applies a named flow monitor to the port profile
for either incoming (input) or outgoing (output)
name {input | output}
traffic.
Step 4
switch(config-port-prof)# show port-profile (Optional)
[expand-interface] [name profile-name] Displays the configuration for verification.
Step 5
switch(config-port-prof)# copy
running-config startup-config
(Optional)
Saves the change persistently through reboots and
restarts by copying the running configuration to
the startup configuration.
This example shows how to add a flow monitor to a port profile:
switch# configure terminal
switch(config)# port-profile AccessProf
switch(config-port-prof)# ip flow monitor access4 output
switch(config-port-prof)# show port-profile name AccessProf
port-profile AccessProf
type: vethernet
status: disabled
capability l3control: no
pinning control-vlan: pinning packet-vlan: -
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
108
Configuring NetFlow
Verifying the NetFlow Configuration
system vlans: none
port-group:
max ports: 32
inherit:
config attributes:
ip flow monitor access4 output
evaluated config attributes:
ip flow monitor access4 output
assigned interfaces:
switch(config-port-prof)#
Verifying the NetFlow Configuration
Use one of the following commands to verify the configuration:
Command
Purpose
show flow cache
Displays information about NetFlow flow cache.
show flow exporter [name]
Displays information about NetFlow flow exporter.
show flow interface [interface-type number]
Displays information about NetFlow interfaces.
show flow monitor [name [cache module number | Displays information about NetFlow flow monitors.
statistics module number] ]
Note
The show flow monitor cache module
command differs from the show flow
monitor statistics module command in that
the cache command also displays cache
entries.
show flow record [name]
Displays information about NetFlow flow records.
show flow timeout
Displays the NetFlow flow timeout setting.
Example: show flow exporter
switch(config-flow-exporter-version-9)# show flow exporter ExportTest
Flow exporter ExportTest:
Description: ExportHamilton
Destination: 192.0.2.1
VRF: management (1)
Destination UDP Port 200
Source IP address 192.0.2.2
Export from Line Card
DSCP 2
Export Version 9
Exporter-stats timeout 1200 seconds
Data template timeout 1200 seconds
Exporter Statistics
Number of Flow Records Exported 0
Number of Templates Exported 0
Number of Export Packets Sent 0
Number of Export Bytes Sent 0
Number of Destination Unreachable Events 0
Number of No Buffer Events 0
Number of Packets Dropped (No Route to Host) 0
Number of Packets Dropped (other) 0
Number of Packets Dropped (LC to RP Error) 0
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
109
Configuring NetFlow
Verifying the NetFlow Configuration
Number of Packets Dropped (Output Drops) 1
Time statistics were last cleared: Never
switch(config-flow-exporter-version-9)#
Example: show flow interface
switch(config-if)# show flow interface veth2
Interface Vethernet2:
Monitor: MonitorTest
Direction: Output
switch(config-if)#
Example: show flow monitor
switch(config-flow-monitor)# show flow monitor
Flow Monitor MonitorTest:
Use count: 1
Flow Record: test
Flow Exporter: ExportTest
Flow Monitor MonitorIpv4:
Use count: 70
Flow Record: RecordTest
Flow Exporter: ExportTest
switch(config-flow-monitor)#
Example: show flow monitor cache module
switch(config-port-prof)# show flow monitor mDocs cache module 5
Cache type:
Normal
Cache size (Bytes):
224
Active Flows:
8
Flows added:
8
Packets added:
228
Flows aged:
0
- Watermark aged
0
- Inactive timeout
0
- Active timeout
0
- Event aged
0
- Emergency aged
0
- Permanent
0
- Immediate aged
0
- Session aged
0
- Fast aged
0
- Counters Overflow
0
*
Denotes interface no longer exists, so just the IF Handle is displayed
IPV4 SRC ADDR
IPV4 DST ADDR
bytes
pkts
=============== ===============
========== ==========
192.168.0.15
192.168.0.11
5390
55
192.168.0.11
192.168.0.15
5390
55
192.168.0.14
192.168.0.10
5292
54
192.168.0.10
192.168.0.14
5292
54
INTF INPUT
INTF OUTPUT
FLOW DIRN
====================
====================
=========
Veth4
Veth6
Input
Veth6
Veth4
Input
Veth1
Veth5
Input
Veth5
Veth1
Input
Example: show flow monitor statistics module
switch(config)# show flow monitor m1 statistics module 3
Cache type:
Normal
Cache size:
0
Active Flows:
1
Flows added:
149
Packets added:
350
Flows aged:
148
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
110
Configuring NetFlow
Netflow Example Configuration
- Watermark aged
- Active timeout
- Inactive timeout
- Event aged
- Emergency aged
- Permanent
- Immediate aged
- Session aged
- Fast aged
- Counters Overflow
switch(config)#
0
0
148
0
0
0
0
0
0
0
Example: show flow record
switch(config-flow-record)# show flow record RecordTest
Flow record RecordTest:
Description: Ipv4flow
No. of users: 0
Template ID: 0
Fields:
match ipv4 destination address
match interface input
match interface output
match flow direction
collect counter packets
switch(config-flow-record)#
Netflow Example Configuration
The following example shows how to configure flow monitor using a new flow record and apply it to an
interface:
switch# configure terminal
switch(config)# flow record RecordTest
switch(config-flow-record)# description Ipv4flow
switch(config-flow-record)# match ipv4 destination address
switch(config-flow-record)# collect counter packets
switch(config-flow-record)# exit
switch(config)# flow exporter ExportTest
switch(config-flow-exporter)# description ExportHamilton
switch(config-flow-exporter)# destination 192.0.2.1
switch(config-flow-exporter)# dscp 2
switch(config-flow-exporter)# source lc-exp 192.0.2.2/24
switch(config-flow-exporter)# transport udp 200
switch(config-flow-exporter)# version 9
switch(config-flow-exporter-version-9)# option exporter-stats timeout 1200
switch(config-flow-exporter-version-9)# template data timeout 1200
switch(config-flow-exporter-version-9)# exit
switch(config-flow-exporter)# exit
switch(config)# flow monitor MonitorTest
switch(config-flow-monitor)# description Ipv4Monitor
switch(config-flow-monitor)# exporter ExportTest
switch(config-flow-monitor)# record RecordTest
switch(config-flow-monitor)# exit
switch(config)# interface veth 2
switch(config-if)# ip flow monitor MonitorTest output
switch(config-if)# show flow interface veth 2
Interface Vethernet2:
Monitor: MonitorTest
Direction: Output
switch(config-if)#
The following example shows how to configure flow monitor using a pre-defined record and apply it to an
interface:
switch# configure terminal
switch(config)# flow exporter ExportTest
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
111
Configuring NetFlow
Related Documents for NetFlow
switch(config-flow-exporter)# description ExportHamilton
switch(config-flow-exporter)# destination 192.0.2.1
switch(config-flow-exporter)# dscp 2
switch(config-flow-exporter)# source lc-exp 192.0.2.2/24
switch(config-flow-exporter)# transport udp 200
switch(config-flow-exporter)# version 9
switch(config-flow-exporter-version-9)# option exporter-stats timeout 1200
switch(config-flow-exporter-version-9)# template data timeout 1200
switch(config-flow-exporter-version-9)# exit
switch(config-flow-exporter)# exit
switch(config)# flow monitor MonitorTest
switch(config-flow-monitor)# description Ipv4Monitor
switch(config-flow-monitor)# exporter ExportTest
switch(config-flow-monitor)# record netflow-original
switch(config-flow-monitor)# exit
switch(config)# interface veth 2
switch(config-if)# ip flow monitor MonitorTest output
switch(config-if)# show flow interface veth 2
Interface Vethernet2:
Monitor: MonitorTest
Direction: Output
switch(config-if)#
Related Documents for NetFlow
Related Topic
Document Title
Cisco NetFlow Overview
http://cisco.com/en/US/products/ps6601/products_
ios_protocol_group_home.html
Feature History for NetFlow
This table includes only the updates for those releases that have resulted in additions or changes to the feature.
Feature Name
Releases
Feature Information
NetFlow
Release 5.2(1)SK1(2.1)
Distributed NetFlow was
introduced.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
112
CHAPTER
13
Configuring System Message Logging
This chapter contains the following sections:
• Information About System Message Logging, page 113
• System Message Logging Facilities, page 114
• Guidelines and Limitations for System Message Logging, page 118
• Default System Message Logging Settings, page 118
• Configuring System Message Logging, page 119
• Verifying the System Message Logging Configuration, page 124
• Feature History for System Message Logging, page 127
Information About System Message Logging
You can use system message logging to control the destination and to filter the severity level of messages that
system processes generate. You can configure logging to terminal sessions, a log file, and syslog servers on
remote systems.
System message logging is based on RFC 3164. For more information about the system message format and
the messages that the device generates, see the Cisco NX-OS System Messages Reference.
By default, the device outputs messages to terminal sessions.
The following table describes the severity levels used in system messages. When you configure the severity
level, the system outputs messages at that level and lower.
Level
Description
0 – emergency
System unusable
1 – alert
Immediate action needed
2 – critical
Critical condition
3 – error
Error condition
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
113
Configuring System Message Logging
System Message Logging Facilities
Level
Description
4 – warning
Warning condition
5 – notification
Normal but significant condition
6 – informational
Informational message only
7 – debugging
Appears during debugging only
The device logs the most recent 100 messages of severity 0, 1, or 2.
You can configure which system messages should be logged based on the facility that generated the message
and its severity level.
Syslog servers run on remote systems that are configured to log system messages based on the syslog protocol.
You can configure up to three syslog servers.
Note
When the device first initializes, messages are sent to syslog servers only after the network is initialized.
System Message Logging Facilities
The following table lists the facilities that you can use in system message logging configuration
Facility
Description
aaa
AAA manager
aclmgr
ACL manager
adjmgr
Adjacency Manager
all
Keyword that represents all facilities
arbiter
Arbiter manager
arp
ARP manager
auth
Authorization system
authpriv
Private authorization system
bootvar
Bootvar
callhome
Call home manager
capability
MIG utilities daemon
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
114
Configuring System Message Logging
System Message Logging Facilities
Facility
Description
cdp
CDP manager
cert-enroll
Certificate enroll daemon
cfs
CFS manager
clis
CLIS manager
cmpproxy
CMP proxy manager
copp
CoPP manager
core
Core daemon
cron
Cron and at scheduling service
daemon
System daemons
dhcp
DHCP manager
diagclient
GOLD diagnostic client manager
diagmgr
GOLD diagnostic manager
eltm
ELTM manager
ethpm
Ethernet PM manager
evmc
EVMC manager
evms
EVMS manager
feature-mgr
Feature manager
fs-daemon
Fs daemon
ftp
File transfer system
glbp
GLBP manager
hsrp
HSRP manager
im
IM manager
ipconf
IP configuration manager
ipfib
IP FIB manager
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
115
Configuring System Message Logging
System Message Logging Facilities
Facility
Description
kernel
OS kernel
l2fm
L2 FM manager
l2nac
L2 NAC manager
l3vm
L3 VM manager
license
Licensing manager
local0
Local use daemon
local1
Local use daemon
local2
Local use daemon
local3
Local use daemon
local4
Local use daemon
local5
Local use daemon
local6
Local use daemon
local7
Local use daemon
lpr
Line printer system
m6rib
M6RIB manager
mail
Mail system
mfdm
MFDM manager
module
Module manager
monitor
Ethernet SPAN manager
mrib
MRIB manager
mvsh
MVSH manager
news
USENET news
nf
NF manager
ntp
NTP manag
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
116
Configuring System Message Logging
System Message Logging Facilities
Facility
Description
otm
GLBP manager
pblr
PBLR manager
pfstat
PFSTAT manager
pixm
PIXM manager
pixmc
PIXMC manager
pktmgr
Packet manager
platform
Platform manager
pltfm_config
PLTFM configuration manager
plugin
Plug-in manager
port-channel
Port channel manager
port_client
Port client manager
port_lb
Diagnostic port loopback test manager
qengine
Q engine manager
radius
RADIUS manager
res_mgr
Resource manager
rpm
RPM manager
security
Security manager
session
Session manager
spanning-tree
Spanning tree manager
syslog
Internal syslog manager
sysmgr
System manager
tcpudp
TCP and UDP manager
u2
U2 manager
u6rib
U6RIB manager
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
117
Configuring System Message Logging
Guidelines and Limitations for System Message Logging
Facility
Description
ufdm
UFDM manager
urib
URIB manager
user
User process
uucp
Unix-to-Unix copy system
vdc_mgr
VDC manager
vlan_mgr
VLAN manager
vmm
VMM manager
vshd
VSHD manager
xbar
XBAR manager
xbar_client
XBAR client manager
xbar_driver
XBAR driver manager
xml
XML agent
Guidelines and Limitations for System Message Logging
System messages are logged to the console and the logfile by default.
Default System Message Logging Settings
Parameter
Default
Console logging
Enabled at severity level 2
Monitor logging
Enabled at severity level 5
Log file logging
Enabled to log messages at severity level 5
Module logging
Enabled at severity level 5
Facility logging
Enabled
Time-stamp units
Seconds
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
118
Configuring System Message Logging
Configuring System Message Logging
Parameter
Default
syslog server logging
Disabled
syslog server configuration distribution
Disabled
Configuring System Message Logging
Configuring System Message Logging to Terminal Sessions
You can log messages by severity level to console, telnet, and SSH sessions. By default, logging is enabled
for terminal sessions.
Procedure
Command or Action
Purpose
Step 1
switch# terminal monitor
Enables the device to log messages to the console.
Step 2
switch# configure terminal
Enters global configuration mode.
Step 3
switch(config)# logging console
[severity-level]
Configures the device to log messages to the console
session based on a specified severity level or higher.
The default severity level is 2.
Step 4
switch(config)# show logging
console
(Optional) Displays the console logging configuration.
Step 5
switch(config)# logging monitor
[severity-level]
Enables the device to log messages to the monitor based
on a specified severity level or higher. The configuration
applies to telnet and SSH sessions. The default severity
level is 2.
Step 6
switch(config)# show logging
monitor
(Optional) Displays the monitor logging configuration.
Step 7
switch(config)# copy running-config (Optional)
Saves the change persistently through reboots and
startup-config
restarts by copying the running configuration to the
startup configuration.
switch# terminal monitor
switch# configure terminal
switch(config)# logging console 2
switch(config)# show logging console
Logging console: enabled (Severity: critical)
switch(config)# logging monitor 3
switch(config)# show logging monitor
Logging monitor: enabled (Severity: errors)
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
119
Configuring System Message Logging
Restoring System Message Logging Defaults for Terminal Sessions
switch(config)# copy running-config startup-config
switch(config)#
Restoring System Message Logging Defaults for Terminal Sessions
You can use the following commands in the CLI Global Configuration mode to restore default settings for
system message logging for terminal sessions.
Command
Description
no logging console [severity-level]
Disables the device from logging messages to the console.
no logging monitor [severity-level]
Disables logging messages to telnet and SSH sessions.
Configuring System Message Logging for Modules
You can configure the severity level and time-stamp units of messages logged by modules.
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Enters global configuration mode.
Step 2
switch(config)# logging module
[severity-level]
Enables module log messages that have the
specified severity level or higher. If the severity
level is not specified, the default of 5 is used.
Step 3
switch(config)# show logging module
Step 4
switch(config)# logging timestamp
Sets the logging time-stamp units. The default unit
{microseconds | milliseconds | seconds} is seconds.
Step 5
switch(config)# show logging timestamp (Optional) Displays the logging time-stamp units
configured.
Step 6
switch(config)# copy running-config
startup-config
(Optional)
Saves the change persistently through reboots and
restarts by copying the running configuration to
the startup configuration.
The following example shows how to configure system message logging for modules.
switch# configure terminal
switch(config)# logging module 3
switch(config)# show logging module
Logging linecard: enabled (Severity: errors)
switch(config)# logging timestamp microseconds
switch(config)# show logging timestamp
Logging timestamp: Microseconds
switch(config)# copy running-config startup-config
switch(config)#
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
120
Configuring System Message Logging
Restoring System Message Logging Defaults for Modules
Restoring System Message Logging Defaults for Modules
You can use the following commands in the CLI Global Configuration mode to restore default settings for
system message logging for modules.
Command
Description
no logging module [severity-level]
Restores the default severity level for logging module
system messages.
no logging timestamp {microseconds | milliseconds Resets the logging time-stamp unit to the default
(seconds).
| seconds}
Configuring System Message Logging for Facilities
Use this procedure to configure the severity level and time-stamp units of messages logged by facilities.
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Enters global configuration mode.
Step 2
switch(config)# logging module
[severity-level]
Enables module log messages that have the specified
severity level or higher. If the severity level is not
specified, the default of 5 is used.
Step 3
switch(config)# show logging module (Optional) Displays the module logging
configuration.
Step 4
switch(config)# logging timestamp
{microseconds | milliseconds |
seconds}
Sets the logging time-stamp units. The default unit
is seconds.
Step 5
switch(config)# show logging
timestamp
(Optional) Copies the running configuration to the
startup configuration.
Step 6
switch(config)# copy running-config
startup-config
(Optional)
Saves the change persistently through reboots and
restarts by copying the running configuration to the
startup configuration.
The following example shows how to configure system message logging for modules.
switch# configure terminal
switch(config)# logging module 3
switch(config)# show logging module
Logging linecard: enabled (Severity: errors)
switch(config)# logging timestamp microseconds
switch(config)# show logging timestamp
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
121
Configuring System Message Logging
Restoring System Message Logging Defaults for Facilities
Logging timestamp: Microseconds
switch(config)# copy running-config startup-config
switch(config)#
Restoring System Message Logging Defaults for Facilities
You can use the following commands to restore system message logging defaults for facilities.
Command
Description
no logging level [facility severity-level]
Restores the default logging severity level for the
specified facility. If you do not specify a facility and
severity level, the device resets all facilities to their
default levels.
no logging timestamp {microseconds | milliseconds Resets the logging time-stamp unit to the default
(seconds).
| seconds}
Configuring syslog Servers
Use this procedure to configure syslog servers for system message logging.
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Enters global configuration mode.
Step 2
switch(config)# logging server host Configures a syslog server at the specified host name or
[severity-level [use-vrf vrf-name]] IPv4 or IPv6 address. You can limit logging of messages
to a particular VRF by using the use_vrf keyword.
Severity levels range from 0 to 7. The default outgoing
facility is local7.
Step 3
switch(config)# show logging server (Optional) Displays the syslog server configuration.
Step 4
switch(config)# copy running-config (Optional)
Saves the change persistently through reboots and restarts
startup-config
by copying the running configuration to the startup
configuration.
The following example shows how to forward all messages on facility local7.
switch# configure terminal
switch(config)# logging server 10.10.2.2 7
switch(config)# show logging server
Logging server: enabled {10.10.2.2}
server severity: debugging
server facility: local7
switch(config)# copy running-config startup-config
switch(config)#
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
122
Configuring System Message Logging
Restoring System Message Logging Defaults for Servers
Restoring System Message Logging Defaults for Servers
You can use the following command to restore server system message logging default.
Command
Description
no logging server host
Removes the logging server for the specified host.
Using a UNIX or Linux System to Configure Logging
Before You Begin
The following UNIX or Linux fields must be configured for syslog.
Field
Description
Facility
Creator of the message, which can be auth, authpriv,
cron, daemon, kern, lpr, mail, mark, news, syslog,
user, local0 through local7, or an asterisk (*) for all.
These facility designators allow you to control the
destination of messages based on their origin.
Note
Check your configuration before using a
local facility.
Level
Minimum severity level at which messages are
logged, which can be debug, info, notice, warning,
err, crit, alert, emerg, or an asterisk (*) for all. You
can use none to disable a facility.
Action
Destination for messages, which can be a filename,
a host name preceded by the at sign (@), or a
comma-separated list of users or an asterisk (*) for
all logged-in users.
Procedure
Step 1
On the UNIX or Linux system, add the following line to the file, /var/log/myfile.log:
facility.level <five tab characters> action
Step 2
Create the log file by entering these commands at the shell prompt:
$ touch /var/log/myfile.log
$ chmod 666 /var/log/myfile.log
Step 3
Make sure the system message logging daemon reads the new changes by checking myfile.log after entering
this command:
$ kill -HUP ~cat /etc/syslog.pid~
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
123
Configuring System Message Logging
Displaying Log Files
Displaying Log Files
Use this procedure to display messages in the log file.
Procedure
Step 1
Command or Action
Purpose
show logging last number-lines
Displays the last number of lines in the logging file. You
can specify from 1 to 9999 for the last number of lines.
The following example shows the last five lines in the logging file.
switch# show logging last 5
2013 Jun 30 09:37:04 CP-beta2 %KERN-3-SYSTEM_MSG: packet_recvms
g: truncated packet (size=1514 left=1500) - kernel
2013 Jun 30 09:37:04 CP-beta2 %KERN-3-SYSTEM_MSG: packet_recvms
g: truncated packet (size=1514 left=1500) - kernel
2013 Jun 30 09:37:05 CP-beta2 %KERN-3-SYSTEM_MSG: packet_recvms
g: truncated packet (size=1514 left=1500) - kernel
2013 Jun 30 09:37:05 CP-beta2 %KERN-3-SYSTEM_MSG: packet_recvms
g: truncated packet (size=1514 left=1500) - kernel
2013 Jun 30 09:37:05 CP-beta2 %KERN-3-SYSTEM_MSG: packet_recvms
g: truncated packet (size=1514 left=1500) - kernel
switch#
Verifying the System Message Logging Configuration
Use one of the following commands to verify the configuration:
Command
Purpose
show logging console
Displays the console logging configuration.
show logging info
Displays the logging configuration.
show logging last number-lines
Displays the last number of lines of the log file.
show logging level [facility]
show logging level [facility]
show logging module
Displays the module logging configuration.
show logging monitor
Displays the monitor logging configuration.
show logging server
Displays the syslog server configuration.
show logging session
Displays the logging session status.
show logging status
Displays the logging status.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
124
Configuring System Message Logging
Verifying the System Message Logging Configuration
Command
Purpose
show logging timestamp
Displays the logging time-stamp units configuration.
Example: show logging console
switch# show logging console
Logging console:
switch#
disabled
Example: show logging info
switch# show logging info
Logging
Logging
Logging
Logging
Logging
Logging
Logging
console:
enabled (Severity: critical)
monitor:
enabled (Severity: notifications)
linecard:
enabled (Severity: notifications)
fex:
enabled (Severity: notifications)
timestamp:
Seconds
server:
disabled
logfile:
enabled
Name - messages: Severity - notifications Size - 10485760
Facility
Default Severity
----------------------aaa
3
aclcomp
2
acllog
2
aclmgr
3
auth
0
authpriv
3
bootvar
5
capability
2
capability
2
cdm
5
cdp
2
cert_enroll
2
clis
7
confcheck
2
cron
3
daemon
3
eth-port-sec
2
eth_port_channel
5
ethpm
5
evmc
5
evms
2
feature-mgr
2
fs-daemon
2
ftp
3
fwm
6
ifmgr
5
igmp_1
5
ip
3
ipv6
3
kern
3
l3vm
5
licmgr
6
local0
3
local1
3
local2
3
local3
3
local4
3
local5
3
local6
3
local7
3
lpr
3
m2rib
2
mail
3
Current Session Severity
-----------------------3
2
2
3
0
3
5
2
2
5
2
2
7
2
3
3
2
5
5
5
2
2
2
3
6
5
5
3
3
3
5
6
3
3
3
3
3
3
3
3
3
2
3
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
125
Configuring System Message Logging
Verifying the System Message Logging Configuration
module
monitor
msp
mvsh
news
ntp
platform
plugin
port-profile
radius
redun_mgr
res_mgr
rpm
sal
securityd
sksd
smm
snmpd
span
stp
syslog
sysmgr
u6rib
ufdm
urib
user
uucp
vdc_mgr
vem_mgr
vim
vlan_mgr
vmm
vms
vns_agent
vntag_mgr
vshd
xmlma
5
3
5
2
3
2
5
2
2
3
4
5
5
2
3
3
4
2
3
3
3
3
5
2
5
3
3
6
5
5
2
5
5
6
6
5
3
0(emergencies)
3(errors)
6(information)
switch#
1(alerts)
4(warnings)
7(debugging)
5
3
5
2
3
2
5
2
2
3
4
5
5
2
3
3
4
2
3
3
3
3
5
2
5
3
3
6
5
5
2
5
5
6
6
5
3
2(critical)
5(notifications)
Example: show logging last
switch# show logging last 5
2013 Jun 29 17:52:42 S22-DCOS %ETHPORT-5-IF_UP: Interface Ethernet2/5 is up in mode access
2013 Jun 29 17:52:43 S22-DCOS %ETHPORT-5-IF_UP: Interface Ethernet2/2 is up in mode trunk
2013 Jun 29 17:52:43 S22-DCOS %ETHPORT-5-IF_UP: Interface Ethernet2/4 is up in mode access
2013 Jun 29 17:53:04 S22-DCOS %SYSMGR-3-BASIC_TRACE: process_cfg_write: PID 1858 with message
rcvd cfg_action from
sap 0x545 for vdc 1 at time 1217353984 .
2013 Jun 29 17:53:04 S22-DCOS clis[2558]: CLI-3-NVDB: Batched send failed for component:
clic
switch#
Example: show logging level aaa
switch# show logging level aaa
Facility
Default Severity
----------------------aaa
2
0(emergencies)
3(errors)
6(information)
switch#
1(alerts)
4(warnings)
7(debugging)
Current Session Severity
-----------------------2
2(critical)
5(notifications)
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
126
Configuring System Message Logging
Feature History for System Message Logging
Example: show logging module
switch# show logging module
Logging linecard:
switch#
enabled (Severity: notifications)
Example: show logging monitor
switch# show logging monitor
Logging monitor:
switch#
enabled (Severity: errors)
Example: show logging server
switch# show logging server
Logging server:
{10.10.2.2}
server severity:
server facility:
switch#
enabled
debugging
local7
Example: show logging session status
switch# show logging session
Last Action Time Stamp
:
Last Action
:
Last Action Result
:
Last Action Failure Reason :
switch#
status
Fri Jul 26 11:28:55 2013
Distribution Enable
Success
none
Example: show logging status
switch# show logging status
Fabric Distribute
: Enabled
Session State
: IDLE
switch#
Example: show logging timestamp
switch# show logging timestamp
Logging timestamp:
switch#
Seconds
Feature History for System Message Logging
Feature Name
Releases
Feature Information
System Message Logging
Release 5.2(1)SK1(2.1)
This feature was introduced.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
127
Configuring System Message Logging
Feature History for System Message Logging
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
128
CHAPTER
14
Enabling vTracker
This chapter contains the following sections:
• Information About vTracker, page 130
• Guidelines and Limitations, page 130
• Default Settings for vTracker Parameters, page 131
• Enabling vTracker Globally, page 131
• Upstream View, page 133
• Virtual Machine (VM) View, page 136
• Module pNIC View, page 138
• VLAN View, page 140
• Feature History for vTracker, page 141
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
129
Enabling vTracker
Information About vTracker
Information About vTracker
The following illustration displays the vTracker setup diagram:
Figure 8: vTracker Setup Diagram in the KVM Cisco Nexus 1000V Environment
The vTracker feature on the Cisco Nexus 1000V switch provides information about the virtual network
environment. Once you enable vTracker, it becomes aware of all the modules and interfaces that are connected
with the switch. vTracker provides various views that are based on the data sourced from the RedHat OSP,
the Cisco Discovery Protocol (CDP), and other related systems connected with the virtual switch. You can
use vTracker to troubleshoot, monitor, and maintain the systems. Using vTracker show commands, you can
access consolidated network information across the following views:
• Upstream View—Provides information on all the virtual ports connected to an upstream physical switch.
The view is from top of the network to the bottom.
• VM View—Supports the following data:
VM vNIC View—Provides information about the virtual machines (VMs) that are managed by the Cisco
Nexus 1000V switch. The vNIC view is from the bottom to the top of the network.
• Module pNIC View—Provides information about the physical network interface cards (pNIC) that are
connected to each Virtual Ethernet Module (VEM).
• VLAN View—Provides information about all the VMs that are connected to specific VLANs.
Note
vTracker is available with both Essential and Advanced edition of Cisco Nexus 1000V.
Guidelines and Limitations
vTracker has the following configuration guidelines and limitations:
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
130
Enabling vTracker
Default Settings for vTracker Parameters
• For VM views, you should connect the Virtual Supervisor Module (VSM) with the OpenStack Horizon
for the vTracker show commands to work.
• vTracker is disabled by default.
• While the Cisco Nexus 1000V switch information is validated, the information sourced by vTracker
from the OpenStack Horizon is not verifiable.
• All vTracker views are valid for a given time only, because the virtual environment is dynamic and
constantly changing.
• In a scaled-up environment, vTracker can experience delays in retrieving real-time information, which
is distributed across VEMs and OpenStack Horizon, among other components.
Default Settings for vTracker Parameters
Parameters
Default
feature vtracker
Disabled globally
Enabling vTracker Globally
• vTracker can be configured only globally, not on individual interfaces.
• By default, vTracker is disabled.
Before You Begin
• You are logged in to the VSM CLI in EXEC mode or the configuration mode of any node.
• vTracker does not change any VSM configuration settings or behavior. Rather, it only tracks and displays
the current configuration views.
Procedure
Command or Action
Purpose
Step 1
switch# configure terminal
Enters global configuration mode.
Step 2
switch(config)# [no] feature vtracker Enables the vTracker feature.
Use the no form of this command to disable this
feature.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
131
Enabling vTracker
Enabling vTracker Globally
Command or Action
Step 3
Purpose
switch(config)# copy running-config (Optional)
Saves the change persistently through reboots and
startup-config
restarts by copying the running configuration to the
startup configuration.
The following example enables vTracker:
switch# configure terminal
switch(config)# feature vtracker
switch(config)# copy running-config startup-config
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
132
Enabling vTracker
Upstream View
Upstream View
Upstream View Overview
The upstream view provides end-to-end network information from the VM to the physical switch. The following
is the upstream view set-up diagram:
Figure 9: Upstream View Setup Diagram in the Cisco Nexus 1000V Environment
Note
Cisco Discovery Protocol (CDP) neighbor information must be accessible to generate the required upstream
view output. CDP must be enabled on the hosts as well as on the VSM or the Cisco Cloud Services Platform
(CSP) in order for the show vtracker upstream-view command to work.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
133
Enabling vTracker
Displaying Upstream View
Displaying Upstream View
To display the upstream view, follow the given step.
Procedure
show vtracker upstream-view [device-id name | device-ip IP address]
The following examples show the vTracker upstream view in a VSM:
Example:
switch(config)# show vtracker upstream-view
-------------------------------------------------------------------------------Device-Name
Device-Port
Server-Name
PC-Type
Veth-interfaces
Device-IP
Local-Port
Adapter Status
PO-Intf
-------------------------------------------------------------------------------JWALA-N5K-1(SSI153307R9) Eth103/1/24
biju-1-237
MacPinn
None
10.197.128.14
Eth3/1
enp133s up
Po3
JWALA-N5K-2(SSI15330LPA)
10.197.128.15
Eth103/1/23
Eth3/4
biju-1-237
enp133s up
MacPinn
Po3
None
Eth105/1/11
Eth3/8
Eth104/1/22
Eth3/2
biju-1-237
enp3s0f up
biju-1-237
enp132s up
MacPinn
Po1
MacPinn
Po3
1-3,5-6,35-36
Eth104/1/23
Eth3/3
biju-1-237
enp1s0f up
LACP-A
Po2
17,65,70,110
114
LACP-A
Po2
17,65,70,110
114
Eth104/1/24
Eth3/6
biju-1-237
enp1s0f up
None
--------------------------------------------------------------------------------
Example:
switch(config)# show vtracker upstream-view device-id JWALA-N5K-1(SSI153307R9)
-------------------------------------------------------------------------------Device-Name
Device-Port
Server-Name
PC-Type
Veth-interfaces
Device-IP
Local-Port
Adapter Status
PO-Intf
-------------------------------------------------------------------------------JWALA-N5K-1(SSI153307R9) Eth103/1/24
biju-1-237
MacPinn
None
10.197.128.14
Eth3/1
enp133s up
Po3
Eth103/1/23
Eth3/4
biju-1-237
enp133s up
MacPinn
Po3
None
Eth105/1/11
biju-1-237
MacPinn
1-3,5-6,35-36
Eth3/8
enp3s0f up
Po1
--------------------------------------------------------------------------------
Upstream View Field Description
The column headings in the upstream view examples above is described in the following table:
Column
Description
Device-Name
Name of the neighboring device.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
134
Enabling vTracker
Upstream View Field Description
Column
Description
Device-IP
IP address of the device.
Device-Port
Port interface of the device that is connected to the
Cisco Nexus 1000V Ethernet (local) port.
Local-Port
Local port interface, which is connected to the
neighboring device port.
Server-Name
Name or IP address of the server module to which
the local port is connected.
Adapter
Local port name as known by the hypervisor. For
KVM, it is known as VTEP.
Status
Local port’s operational status.
PC-Type
Port-channel type of the local port. Each PC-Type
has a corresponding channel-group configuration in
the port profile or the interface. Supported values are
as follows:
• Default—channel-group auto or channel-group
auto mode on
• MacPinn—channel-group auto mode on
mac-pinning
• MacPinnRel—channel-group auto mode on
mac-pinning relative
• SubGrpCdp—channel-group auto mode on
sub-group cdp
• SubGrpMan—channel-group auto mode on
sub-group manual
• LACP-A—channel-group auto mode active
• LACP-P—channel-group auto mode passive
PO-Intf
Port channel interface of the local port.
veth-interfaces
Available virtual Ethernet interfaces for which traffic
can flow through the upstream switch.
Note
You can get similar information by entering
the show int virtual pinning command at
the VSM prompt.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
135
Enabling vTracker
Virtual Machine (VM) View
Virtual Machine (VM) View
Virtual Machine (VM) View Overview
The VM view provides you with comprehensive information about the VMs that are connected with the Cisco
Nexus 1000V switch. The VM perspective is divided into two views:
• VM vNIC View—Provides information about all the vNICs (virtual network interface cards) adapters
that are managed by the Cisco Nexus 1000V switch.
• VM Info View—Provides information about all the VMs that run on each server module. The data is
fetched from the attributes of each VM via the OpenStack Horizon.
Note
The VSM must be connected with the OpenStack Horizon in order to generate the required VM view
output. You can enter the show svs connections command on the VSM to verify the connection.
Displaying the VM vNIC View
To display the VM vNIC view, follow the given step.
Procedure
show vtracker vm-view vnic [module number | vm name]
Note
The timeout for this command is 180
seconds.
The following examples show the vTracker VM vNIC view in a VSM:
Example:
switch(config)# show vtracker vm-view vnic
* Network: For Access interface - Access vlan, Trunk interface - Native vlan,
VXLAN interface - Segment Id.
-------------------------------------------------------------------------------------------------------------Mod VM-Name
VethPort
Drv Type
Mac-Addr
State
Network
Pinning
Port-UUID
Adapter
Mode
IP-Addr
---------------------------------------------------------------------------------------------------------------3
Veth65
n/a
0000.3737.4437
up
1280
Po2
52cf5c78-8c2f-40d5-9107-2347a525fc59 vtep137-ovs access
n/a
3
1280
Po2
07eceb05-f31d-479a-9ee8-4a1750e067de
Veth70
n/a
6663.d067.5d23
vtep37-ovs
access
n/a
4
1280
Po2
b4732e9b-3d6a-473b-b154-76c729fc3a7b
Veth110
n/a
0011.2233.4437
vtep237-ovs
access
n/a
4
1280
Po2
fad17ad5-b8c0-48e1-99fb-023bf662a166
Veth114
n/a
0000.3737.a737
vtep7-ovs
access n/a
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
136
up
up
up
Enabling vTracker
VM vNIC View Field Description
5
TVM-TVM-1-013
1251
Eth3/8
7e822cef-0902-4ae4-b357-be54c916bcb8
Veth35
n/a
0050.5600.000d
vnet438
access
n/a
5
TVM-TVM-1-013
Veth36
n/a
5254.004b.77e6
1251
Eth3/8
4c9437d3-a413-4545-8b2e-181dfa4a3a3d vnet440
access
n/a
--------------------------------------------------------------------------------
up
up
Example:
switch(config)# show vtracker vm-view vnic module 4
* Network: For Access interface - Access vlan, Trunk interface - Native vlan,
VXLAN interface - Segment Id.
-------------------------------------------------------------------------------Mod VM-Name
VethPort
Drv Type Mac-Addr
State Network Pinning
Port-UUID
Adapter
Mode
IP-Addr
-------------------------------------------------------------------------------4
Veth114
n/a
0000.3737.a737 up
1280
Po2
fad17ad5-b8c0-48e1-99fb-023bf662a166
vtep7-ovs
access
n/a
--------------------------------------------------------------------------------
VM vNIC View Field Description
The column headings in the VM vNIC view examples above are described in the following table:
Column
Description
Mod
Module number on which the VM resides.
VM-Name
VM name.
Port-uuid
Port uuid generated by OpenStack.
VethPort
vEthernet interface number in the Cisco Nexus 1000V
switch.
Adapter
Network adapter number of the vEthernet interface.
Drv Type
Driver type of the network adapter.
Mode
Interface modes. Supported values are as follows:
• access—Access port/Virtual Extensible Local
Area Network (VXLAN) port
• trunk—Trunk port
• pvlan—Private VLAN (PVLAN) host mode or
pvlan promiscuous mode
Mac-Addr
MAC address of the network adapter.
IP-Addr
IPv4 address of the network adapter.
State
Operational status of the network adapter.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
137
Enabling vTracker
Module pNIC View
Column
Description
Network
Network interface ID. Supported values are as
follows:
• access interface—Access VLAN
• trunk interface—Native VLAN
• vxlan interface—Segment ID
• pvlan interface—Promiscous - primary VLAN;
Isolated - secondary VLAN; Communitysecondary VLAN
Note
Pinning
To know the interface type, refer the Mode
value.
• For LACP or static port-channels, pinning
columns only display the port-channel number.
The link the VM traffic travels depends upon
the hashing algorithm the port-channel is using.
• For a vPC CDP/Manual/MAC Pinning
port-channel, each vEthernet port is pinned to
a sub-group of the port-channel. The sub-group
corresponds to an Ethernet or its uplink
interface. This column shows the Ethernet port
members of the sub-group.
• If the Ethernet ports are not part of the port
channel in any module, this column is blank.
Module pNIC View
Module pNIC View Overview
The Module pNIC View provides information about the physical network interface cards (pNICs) that are
connected to each of the VEM server module in the network.
Displaying the Module pNIC View
To display the Module pNIC view, follow the given step.
Procedure
show vtracker module-view pnic [module number]
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
138
Enabling vTracker
Module pNIC View Field Description
The following examples show the vTracker Module pNIC view in a VSM:
Example:
switch(config)# show vtracker module-view pnic
------------------------------------------------------------------------------Mod EthIf
Adapter
Mac-Address
Driver
DriverVer
FwVer
Description
------------------------------------------------------------------------------4
Eth4/4
vmnic3
0050.565e.df75 e1000
8.0.3.2-1vmw-NAPI
N/A
Intel Corporation 82546GB Gigabit Ethernet Controller
3
Eth3/1
enp133s0f0000a.f701.06bc bnx2 2.2.5 bc 7.4.0
Broadcom Corporation NetXtreme II BCM5709 Gigabit Ethernet (rev 20)
3
Eth3/2
4
Eth4/1
4
Eth4/2
5
Eth5/1
5
Eth5/2
enp132s0f0000a.f701.06b8 bnx2 2.2.5 bc 7.4.0
Broadcom Corporation NetXtreme II BCM5709 Gigabit Ethernet (rev 20)
enp1s0f1 b0fa.eb97.9bfb igb 5.0.5-k 1.61, 0x800009c
Intel Corporation I350 Gigabit Network Connection (rev 01)
enp130s0f10000.c9b0.149e be2net 10.0.600.0r 2.702.200.1702
Emulex Corporation OneConnect 10Gb NIC (rev 02)
enp133s0f1000a.f71b.d3be bnx2 2.2.5 bc 7.4.0
Broadcom Corporation NetXtreme II BCM5709 Gigabit Ethernet (rev 20)
enp1s0f1 c067.af03.d3bb igb 5.0.5-k 1.61, 0x800009c
Intel Corporation I350 Gigabit Network Connection (rev 01)
--------------------------------------------------------------------------------
Example:
switch(config)# show vtracker module-view pnic module 3
-------------------------------------------------------------------------------Mod EthIf
Adapter
Mac-Address
Driver
DriverVer
FwVer
Description
-------------------------------------------------------------------------------3
Eth3/8
vmnic7
0050.5652.f935 igb
2.1.11.1
1.4-3
Intel Corporation 82576 Gigabit Network Connection
4
Eth4/3
4
Eth4/4
vmnic2
0050.565e.df74 e1000
8.0.3.2-1vmw-NAPI
Intel Corporation 82546GB Gigabit Ethernet Controller
N/A
vmnic3
0050.565e.df75 e1000
8.0.3.2-1vmw-NAPI
N/A
Intel Corporation 82546GB Gigabit Ethernet Controller
--------------------------------------------------------------------------------
Module pNIC View Field Description
The column headings in the Module pNIC view examples above is described in the following table:
Column
Description
Mod
Module ID of the server on the VSM.
EthIf
Ethernet interface ID of the server module.
Adapter
Ethernet adapter name as seen by the Hypervisor.
Description
Manufacturer name of the above adapter.
Mac-Address
MAC address of the Ethernet interface.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
139
Enabling vTracker
VLAN View
Column
Description
Driver
Driver type of the interface.
DriverVer
Driver version of the interface.
FwVer
Firmware version of the interface.
VLAN View
VLAN View Overview
The VLAN view provides information about all the VMs that are connected to a specific VLAN or a range
of VLANs. It is a view from the VLAN perspective.
Displaying the VLAN View
To display the VLAN view, follow the given step.
Procedure
show vtracker vlan-view vnic [vlan number/range]
The following examples show the vTracker VLAN view in a VSM:
Example:
switch(config)# show vtracker vlan-view
* R = Regular Vlan, P = Primary Vlan, C = Community Vlan
I = Isolated Vlan, U = Invalid
-------------------------------------------------------------------------------VLAN
Type VethPort VM Name
Adapter Name
Mod
-------------------------------------------------------------------------------1
R
233
R
335
R
336
R
337
R
338
R
339
R
Veth3
gentoo-2
Net Adapter 3
3
Veth4
gentoo-2
Net Adapter 4
3
Veth5
gentoo-2
Net Adapter 2
3
340
R
341
R
400
R
Veth1
Fedora-VM2
Net Adapter 1
5
401
R
Veth1
Fedora-VM2
Net Adapter 1
5
402
R
Veth1
Fedora-VM2
Net Adapter 1
5
403
R
404
P
Veth6
Fedora-VM1
Net Adapter 1
4
405
C
Veth2
Fedora-VM2
Net Adapter 3
5
406
I
Veth7
Fedora-VM1
Net Adapter 2
4
--------------------------------------------------------------------------------
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
140
Enabling vTracker
VLAN View Field Description
Example:
switch(config)# show vtracker vlan-view vlan 233-340
* R = Regular Vlan, P = Primary Vlan, C = Community Vlan
I = Isolated Vlan, U = Invalid
-------------------------------------------------------------------------------VLAN
Type VethPort VM Name
Adapter Name
Mod
-------------------------------------------------------------------------------233
R
335
R
336
R
337
R
338
R
339
R
Veth3
gentoo-2
Net Adapter 3
3
Veth4
gentoo-2
Net Adapter 4
3
Veth5
gentoo-2
Net Adapter 2
3
340
R
--------------------------------------------------------------------------------
VLAN View Field Description
The column headings in the VLAN view examples above are described in the following table:
Column
Description
VLAN
VLAN ID of the Veth interface.
Type
VLAN type. Supported types are as follows:
• R—Regular VLAN
• P—Primary VLAN
• C—Community VLAN
• I—Isolated VLAN
• U—Invalid VLAN
VethPort
vEthernet interface port number used by the VLAN.
VM Name
VM name of the interface.
Adapter Name
Adapter name of the interface.
Mod
Module number on which the interface resides.
Feature History for vTracker
Feature Name
Releases
Feature Information
vTracker
5.2(1)SK3(2.1)
This feature was introduced.
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
141
Enabling vTracker
Feature History for vTracker
Cisco Nexus 1000V for KVM System Management Configuration Guide, Release 5.x
142
