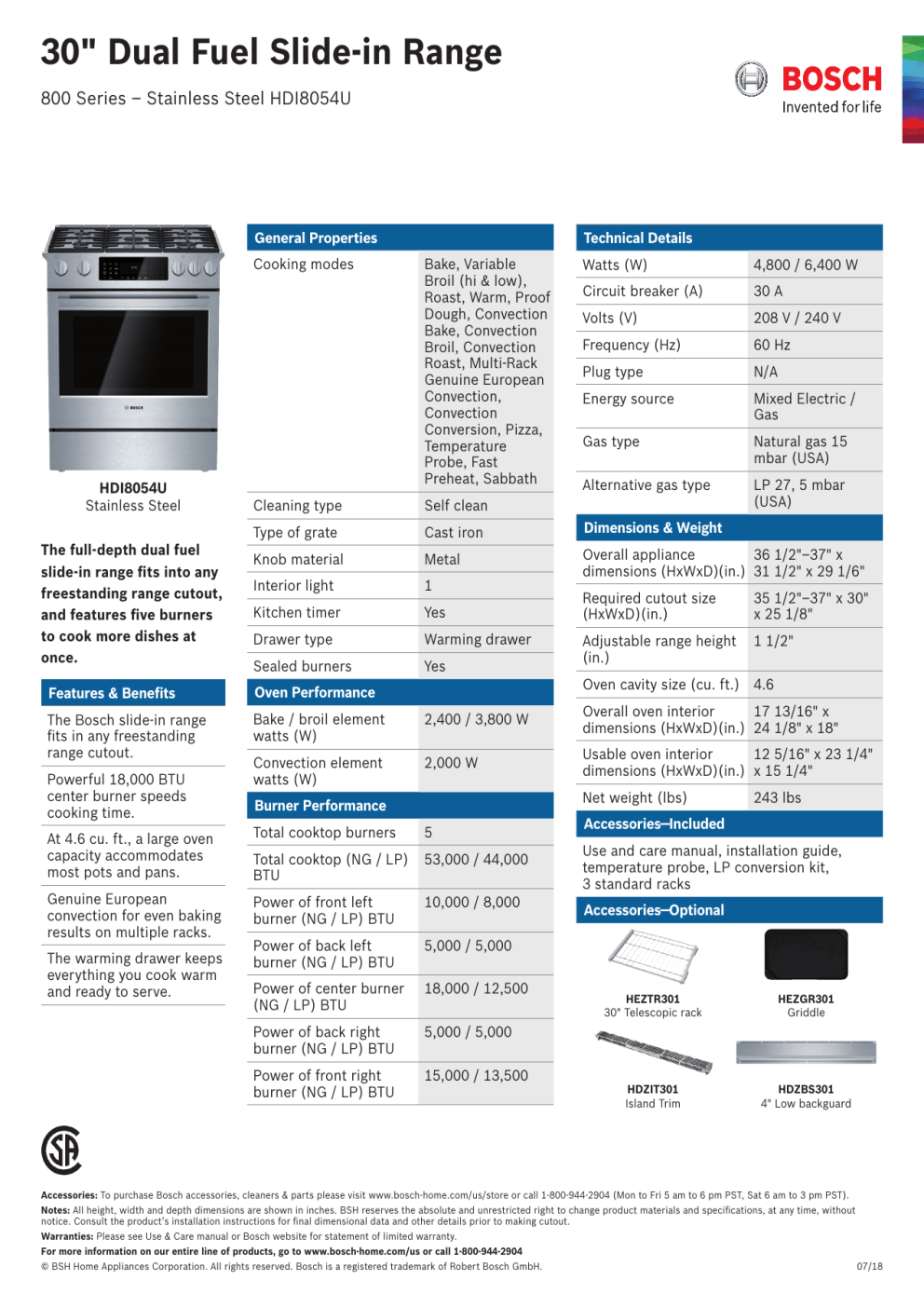

Bosch HDI8054U/08 Dual Fuel Slide-in Range Spec Sheet

30" Dual Fuel Slide-in Range
800 Series – Stainless Steel HDI8054U
General Properties
Cooking modes
HDI8054U
Stainless Steel
The full-depth dual fuel
slide-in range fits into any
freestanding range cutout,
and features five burners
to cook more dishes at
once.
Technical Details
Bake, Variable
Broil (hi & low),
Roast, Warm, Proof
Dough, Convection
Bake, Convection
Broil, Convection
Roast, Multi-Rack
Genuine European
Convection,
Convection
Conversion, Pizza,
Temperature
Probe, Fast
Preheat, Sabbath
Watts (W)
4,800 / 6,400 W
Circuit breaker (A)
30 A
Volts (V)
208 V / 240 V
Frequency (Hz)
60 Hz
Plug type
N/A
Energy source
Mixed Electric /
Gas
Gas type
Natural gas 15
mbar (USA)
Alternative gas type
LP 27, 5 mbar
(USA)
Cleaning type
Self clean
Type of grate
Cast iron
Dimensions & Weight
Knob material
Metal
Interior light
1
Overall appliance
36 1/2"–37" x
dimensions (HxWxD)(in.) 31 1/2" x 29 1/6"
Kitchen timer
Yes
Drawer type
Warming drawer
Sealed burners
Yes
Required cutout size
(HxWxD)(in.)
35 1/2"–37" x 30"
x 25 1/8"
Adjustable range height
(in.)
1 1/2"
Oven cavity size (cu. ft.)
4.6
Features & Benefits
Oven Performance
The Bosch slide-in range
fits in any freestanding
range cutout.
Bake / broil element
watts (W)
2,400 / 3,800 W
Overall oven interior
17 13/16" x
dimensions (HxWxD)(in.) 24 1/8" x 18"
Convection element
watts (W)
2,000 W
Usable oven interior
12 5/16" x 23 1/4"
dimensions (HxWxD)(in.) x 15 1/4"
Powerful 18,000 BTU
center burner speeds
cooking time.
Net weight (lbs)
Burner Performance
At 4.6 cu. ft., a large oven
capacity accommodates
most pots and pans.
Total cooktop burners
5
Total cooktop (NG / LP)
BTU
53,000 / 44,000
Genuine European
convection for even baking
results on multiple racks.
Power of front left
burner (NG / LP) BTU
10,000 / 8,000
Power of back left
burner (NG / LP) BTU
5,000 / 5,000
Power of center burner
(NG / LP) BTU
18,000 / 12,500
Power of back right
burner (NG / LP) BTU
5,000 / 5,000
Power of front right
burner (NG / LP) BTU
15,000 / 13,500
The warming drawer keeps
everything you cook warm
and ready to serve.
243 lbs
Accessories—Included
Use and care manual, installation guide,
temperature probe, LP conversion kit,
3 standard racks
Accessories—Optional
HEZTR301
30" Telescopic rack
HEZGR301
Griddle
HDZIT301
Island Trim
HDZBS301
4" Low backguard
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
07/18
30" Dual Fuel Slide-in Range
800 Series – Stainless Steel HDI8054U
Installation Details
291/6"
(738)
311/2"
(800)
297/8"
(759)
2911/16"
(754)
/ 8"
(16)
311/4"
(794)
251/8"
(638)
357/8"-373/8"
(912-950)
223/8"
*251/8"
(638)
5
30"
(762)
351/2"-37"
(902-940)
2615/16"
(684)
(568)
measurements in inches (mm)
measurements in inches (mm)
Island Trim Installation
3011/16"
(780 mm)
11/8"
(28 mm)
21/2"
(63 mm)
21/2"
(63 mm)
11/8"
(28 mm)
5/8"
(16 mm)
Measurements in inches
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
07/18
