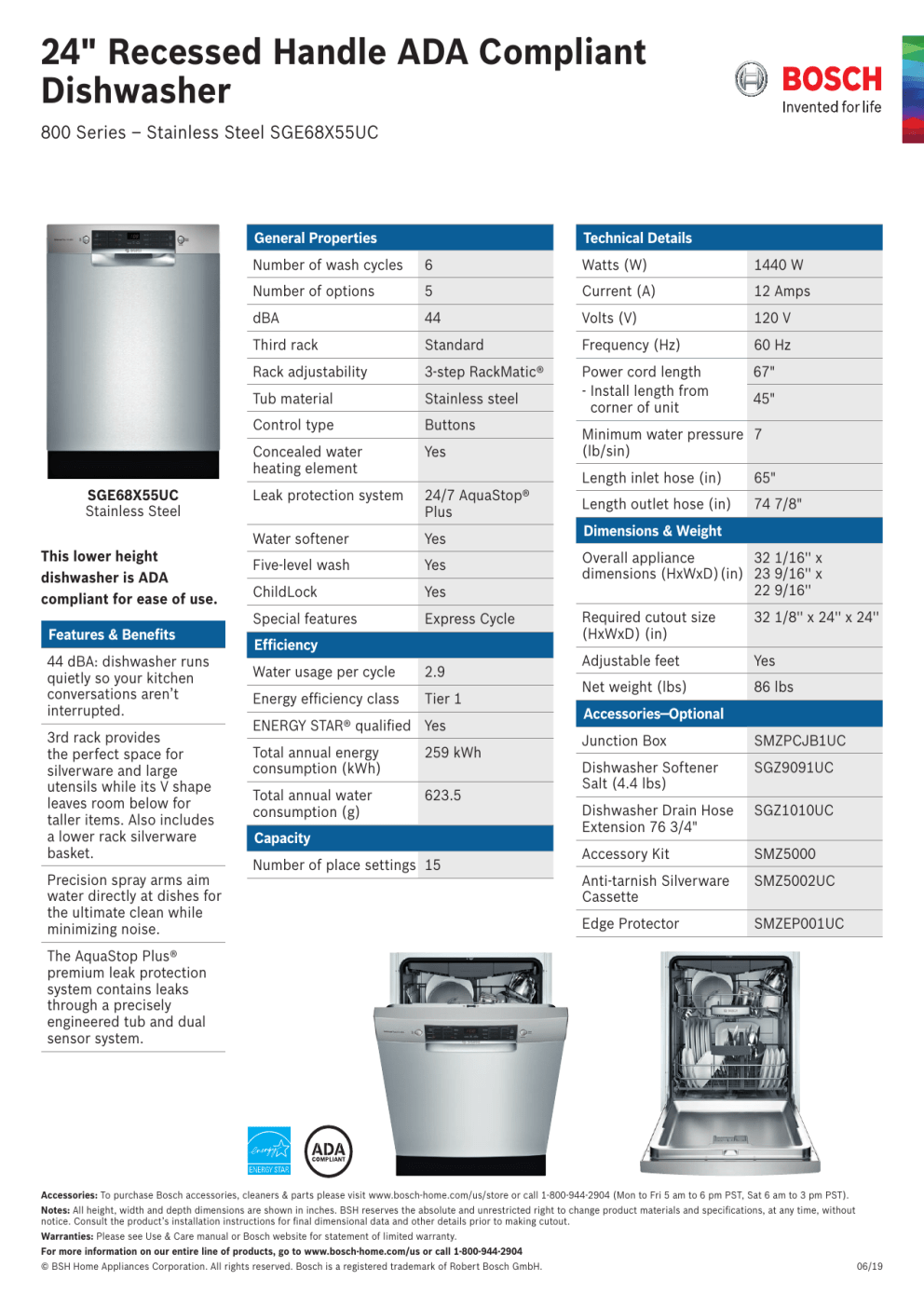

Bosch SGE68X55UC/63 Dishwasher Spec Sheet

24" Recessed Handle ADA Compliant
Dishwasher
800 Series – Stainless Steel SGE68X55UC
General Properties
SGE68X55UC
Stainless Steel
This lower height
dishwasher is ADA
compliant for ease of use.
Features & Benefits
44 dBA: dishwasher runs
quietly so your kitchen
conversations aren’t
interrupted.
3rd rack provides
the perfect space for
silverware and large
utensils while its V shape
leaves room below for
taller items. Also includes
a lower rack silverware
basket.
Precision spray arms aim
water directly at dishes for
the ultimate clean while
minimizing noise.
Technical Details
Number of wash cycles
6
Watts (W)
1440 W
Number of options
5
Current (A)
12 Amps
dBA
44
Volts (V)
120 V
Third rack
Standard
Frequency (Hz)
60 Hz
Rack adjustability
3-step RackMatic®
67"
Tub material
Stainless steel
Control type
Buttons
Power cord length
- Install length from
corner of unit
Concealed water
heating element
Yes
Leak protection system
24/7 AquaStop®
Plus
Water softener
Yes
Five-level wash
Yes
ChildLock
Yes
Special features
Express Cycle
Efficiency
Water usage per cycle
2.9
Energy efficiency class
Tier 1
ENERGY STAR® qualified Yes
Total annual energy
consumption (kWh)
259 kWh
Total annual water
consumption (g)
623.5
Capacity
Number of place settings 15
45"
Minimum water pressure 7
(lb/sin)
Length inlet hose (in)
65"
Length outlet hose (in)
74 7/8"
Dimensions & Weight
Overall appliance
32 1/16'' x
dimensions (HxWxD)(in) 23 9/16'' x
22 9/16''
Required cutout size
(HxWxD) (in)
32 1/8'' x 24'' x 24''
Adjustable feet
Yes
Net weight (lbs)
86 lbs
Accessories—Optional
Junction Box
SMZPCJB1UC
Dishwasher Softener
Salt (4.4 lbs)
SGZ9091UC
Dishwasher Drain Hose
Extension 76 3/4"
SGZ1010UC
Accessory Kit
SMZ5000
Anti-tarnish Silverware
Cassette
SMZ5002UC
Edge Protector
SMZEP001UC
The AquaStop Plus®
premium leak protection
system contains leaks
through a precisely
engineered tub and dual
sensor system.
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
06/19
24" Recessed Handle ADA Compliant
Dishwasher
800 Series – Stainless Steel SGE68X55UC
Installation Details
Image 2: 2013 New Dish EU and ADA - Revised 2019 MCG
Included:
Pre-connected
drain hose
Pre-connected
AquaStop® Plus
inlet hose
Toe-kick
Power cord (3-prong plug)
(placed in the upper rack)
a: New Dish EU, ADA and 18 inch - Rev 2019 MCG
Image 3b: New Dish EU, ADA and 18 inch_Rev_2019_MCG
Ø 2 1/2"
(63.5 mm)
Ø 2 1/2"
(63.5 mm)
7"
(178 mm)
7"
(178 mm)
2 1/2"
(63.5 mm)
Note: Cutout
required on left or right
cabinet wall, depending on
location of water inlet, drain
and electrical connection
Junction box accessory
available for purchase
SMZPCJB1UC
(not included)
Example of Hardwire Installation
Note: Cutout
required on left or right
cabinet wall, depending on
location of water inlet, drain
and electrical connection
2 1/2"
(63.5 mm)
3-prong
power cord
included
Example of an Electrical Receptacle Installation
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
06/19
24" Recessed Handle ADA Compliant
Dishwasher
800 Series – Stainless Steel SGE68X55UC
Installation
Details
Image 5: New Dish 2019 with min 33" (84 cm)
Non-metallic tie
Non-metallic tie
Remove
plug
min 33" (84 cm)
max 43" (110 mm)
min 33" (84 cm)
max 43" (110 mm)
Note: Plumbing installations will vary - refer to local codes.
Drain hose included is 79" (201 cm) and can be extended
to a maximum of 155 3/4" (396 cm).
Always use the approved drain hose extension kit
(SGZ1010UC).
Ensure a portion of the drain hose is raised between min.
33" (84 cm) and max. 43" (110 cm) above the cabinet floor.
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
06/19
