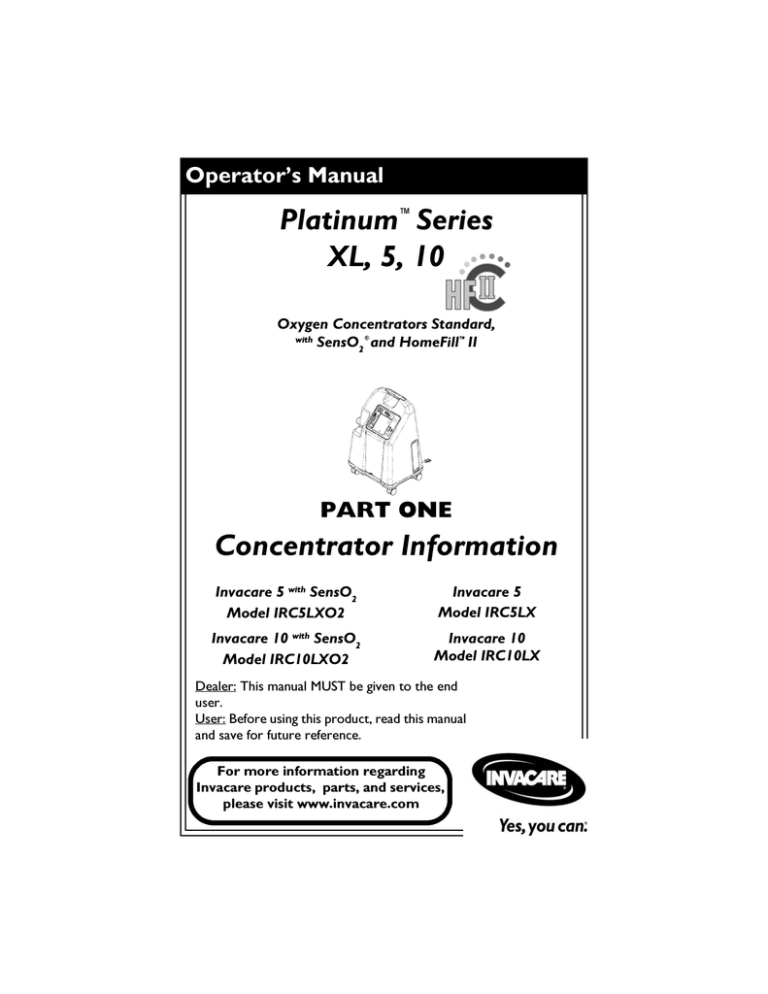

Operator’s Manual
Platinum™Series
XL, 5, 10
Oxygen Concentrators Standard,
with SensO ®and HomeFill™II
2
PART ONE
Concentrator Information
Invacare 5 with SensO2
Model IRC5LXO2
Invacare 5
Model IRC5LX
Invacare 10 with SensO2
Model IRC10LXO2
Invacare 10
Model IRC10LX
Dealer: This manual MUST be given to the end
user.
User: Before using this product, read this manual
and save for future reference.
For more information regarding
Invacare products, parts, and services,
please visit www.invacare.com
WARNING
WARNING
DO NOT OPERATE THIS EQUIPMENT WITHOUT
FIRST READING AND UNDERSTANDING THIS
MANUAL. IF YOU ARE UNABLE TO UNDERSTAND
THE WARNINGS, CAUTIONS, AND INSTRUCTIONS,
CONTACT INVACARE TECHNICAL SERVICES
BEFORE ATTEMPTING TO USE THIS EQUIPMENT OTHERWISE SERIOUS INJURY OR PROPERTY
DAMAGE MAY RESULT.
ACCESSORIES
There are many different types of humidifiers, oxygen tubing,
cannulas and masks that can be used with this device. You
should contact your local home care provider for
recommendations on which of these devices will be best for
you. They should also give you advice on the proper usage,
maintenance, and cleaning.
WARNING
Invacare products are specifically designed and
manufactured for use in conjunction with Invacare
accessories. Accessories designed by other manufacturers
have not been tested by Invacare and are not
recommended for use with Invacare products.
Platinum™Series
2
Part No 1118353
TABLE OF CONTENTS
ACCESSORIES .................................................. 2
SPECIAL NOTES ............................................... 4
SECTION 1—GENERAL GUIDELINES .................. 5
SECTION 2—FEATURES .................................... 9
SECTION 3—HANDLING ................................. 10
Unpacking............................................................................................ 10
Inspection ............................................................................................ 10
Storage................................................................................................. 10
SECTION 4—SPECIFICATIONS ......................... 11
SECTION 5—OPERATING INSTRUCTIONS ....... 21
Introduction........................................................................................ 21
Select a Location ............................................................................... 21
Recommended Guidelines for Optimum Performance............22
Plug in Power Cord .......................................................................... 22
Connect Humidifier (If So Prescribed)......................................... 22
Power Switch ..................................................................................... 25
Flowrate............................................................................................... 26
SensO2 Oxygen Purity Indicator (If Your Unit Features
the O2 Sensor Feature).................................................................... 27
Initial Startup of the Concentrator ............................................... 27
Explanation of Oxygen Purity Indicator Lights........................... 27
Indicators (If Your Unit Does Not Feature the O2 Sensor) ...28
SECTION 6—MAINTENANCE .......................... 29
Routine Maintenance........................................................................ 29
SECTION 7—TROUBLESHOOTING GUIDE ......... 32
LIMITED WARRANTY .................................... 35
Part No 1118353
3
Platinum™Series
SPECIAL NOTES
SPECIAL NOTES
SIGNAL WORD
MEANING
DANGER
Danger indicates an imminently hazardous situation
which, if not avoided, will result in death or serious
injury.
WARNING
Warning indicates a potentially hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION
Caution indicates a potentially hazardous situation
which, if not avoided, may result in property damage.
NOTICE
The information contained in this document is subject to
change without notice.
DANGER
Users MUST not smoke while using this device. Keep all
matches, lighted cigarettes or other sources of ignition
out of the room in which this product is located. No
smoking signs should be prominently displayed. Textiles
and other materials that normally would not burn are
easily ignited and burn with great intensity in oxygen
enriched air. Failure to observe this warning can result in
severe fire, property damage and cause physical injury or
death.
Platinum™Series
4
Part No 1118353
SECTION 1—GENERAL GUIDELINES
SECTION 1—GENERAL GUIDELINES
In order to ensure the safe installation, assembly and
operation of the Platinum concentrator these instructions
MUST be followed.
CAUTION
“Caution: Federal law restricts this device to sale or rental by
or on order of a physician, or any other practitioner licensed
by the law of the State in which he/she practices to use or
order the use of this device.”
WARNING
SECTION 1 - GENERAL GUIDELINES contains
important information for the safe operation and use of
this product. DO NOT use this product or any available
optional equipment without first completely reading and
understanding these instructions and any additional
instructional material such as Owner’s Manuals, Service
Manuals or Instruction Sheets supplied with this product
or optional equipment. If you are unable to understand
the Warnings, Cautions or Instructions, contact a
healthcare professional, dealer or technical personnel
before attempting to use this equipment - otherwise,
injury or damage may occur.
Risk of electric shock. DO NOT disassemble. Refer servicing
to qualified service personnel.
The use of oxygen therapy requires that special care be taken
to reduce the risk of fire. Any materials that will burn in air,
and some that will not, are easily ignited and burn rapidly in
high concentrations of oxygen. For safety concerns, it is
necessary that all sources of ignition be kept away from the
product and preferably out of the room in which it is being
used. NO SMOKING signs should be prominently displayed.
Part No 1118353
5
Platinum™Series
SECTION 1—GENERAL GUIDELINES
A spontaneous and violent ignition may occur if oil, grease or
greasy substances come in contact with oxygen under
pressure. These substances MUST be kept away from the
oxygen concentrator, tubing and connections, and all other
oxygen equipment. DO NOT use any lubricants unless
recommended by Invacare.
For optimum performance, Invacare recommends that each
concentrator be on and running for a minimum of 30 minutes
at a time. Shorter periods of operation may reduce maximum
product life.
If the concentrator has a damaged cord or plug, if it is not
working properly, if it has been dropped or damaged, or
dropped into water, call qualified technician for examination
and repair.
Keep the cord away from heated or hot surfaces.
DO NOT move or relocate concentrator by pulling on the
cord.
NEVER drop or insert any object into any opening.
NEVER block the air openings of the product or place it on a
soft surface, such as a bed or couch, where the air opening
may be blocked. Keep the openings free from lint, hair and the
like. Fill humidifier with water to the level shown by the
manufacturer. DO NOT overfill.
Keep unit at least three (3) inches away from walls, draperies,
furniture, and the like.
Invacare recommends that Crush-Proof oxygen tubing be
used with this product and not exceed 50 ft. (15.2m) in length.
Recommended use for Platinum 10 is up to 25 ft. in length of
high flow tubing.
Platinum™Series
6
Part No 1118353
SECTION 1—GENERAL GUIDELINES
MAINTENANCE
The Invacare Oxygen Concentrator was specifically designed
to minimize routine preventive maintenance. Only
professionals of the healthcare field or persons fully
conversant with this process such as factory trained personnel
should perform preventive maintenance or performance
adjustments on the oxygen concentrator.
RADIO FREQUENCY INTERFERENCE
Most electronic equipment is influenced by Radio Frequency
Interference (RFI). Caution should be exercised with regard to
the use of portable communications equipment in the area
around such equipment.
TO REDUCE THE RISK OF BURNS, ELECTROCUTION,
FIRE OR INJURY TO PERSONS.
Avoid using while bathing. If continuous usage is required by
the physician’s prescription:
The concentrator MUST be located in another room at
least seven (7) feet from the bath.
DO NOT come in contact with the concentrator while wet.
DO NOT place or store product where it can drop into water
or other liquid.
DO NOT reach for product that has fallen into water. Unplug
IMMEDIATELY.
A product should NEVER be left unattended when plugged
in.
This device is to be used only in accordance with the
prescription of a physician and this Owner’s Manual. If at any
time the patient or attendant conclude that the patient is
receiving an insufficient amount of oxygen, the supplier
and/or physician should be contacted immediately.
DO NOT change the L/min. setting on the flowmeter unless a
change has been prescribed by your physician or therapist.
Part No 1118353
7
Platinum™Series
SECTION 1—GENERAL GUIDELINES
Close supervision is necessary when this product is used near
children or physically-challenged individuals.
Use this product for only intended use as described in this
manual.
DO NOT connect the concentrator in parallel or series with
other oxygen concentrators or oxygen therapy devices.
Use of some administration accessories or certain humidifiers
not specified for use with oxygen concentrator may impair the
performance.
In certain circumstances oxygen therapy can be hazardous.
Invacare recommends that you seek medical advice before
using this machine.
This equipment is to be used as an oxygen supplement and is
not considered life supporting or life sustaining.
Avoid creation of any spark near medical oxygen equipment.
This includes sparks from static electricity created by any type
of friction.
POLARIZED PLUG INSTRUCTION
As a safety feature, this appliance has a polarized plug (one
blade is wider than the other). This plug will fit in a polarized
outlet only one way. If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact a qualified
electrician. DO NOT attempt to defeat this safety feature.
Platinum™Series
8
Part No 1118353
SECTION 2—FEATURES
SECTION 2—FEATURES
Oxygen Purity Indicator Lights
(SensO2 model only)/ Fault
and Power Indicator Lights
(LX model only)
Oxygen Outlet
Flowmeter
Power Switch
Circuit Breaker
Elapsed Time Meter
Cabinet Filter
(one of two shown)
ACCESSORIES (NOT SHOWN):
Remote Humidifier/Flowmeter Accessory IRCRF5
REAR VIEW
PreciseRX™ Pediatric Humidifier/Flowmeter
Accessory - IRCPF16
Venture® HomeFill II home oxygen
compressor - IOH200
Power
Cord
Part No 1118353
Outlet
Fitting
NOTE: This outlet fitting is to be used only
for filling oxygen cylinders with the Venture
HomeFill II home oxygen compressor. The
outlet fitting does not affect concentrator
performance. Refer to the HomeFill II
owner's manual, part number 1100873, for
connection and operating instructions.
When not in use, the plug provided with the
concentrator should be inserted into the
outlet fitting. For more information about the
HomeFill II, contact your Invacare dealer.
9
Platinum™Series
SECTION 3—HANDLING
SECTION 3—HANDLING
The concentrator should always be kept in the upright
position to prevent cabinet damage while being transported.
The shipping container has been designed to assure
maximum protection of the concentrator.
If the concentrator is to be reshipped by common carrier,
additional cartons are available from Invacare.
Unpacking
NOTE: For this procedure, refer to FIGURE 3.1.
1. Check for any obvious
damage to the carton or
its contents. If damage is
evident, notify the
carrier, or your local
dealer.
2. Remove all loose packing
from the carton.
3. Carefully remove all the
components from the
carton.
FIGURE 3.1 Unpacking
NOTE: Unless the oxygen concentrator is to be used immediately,
retain containers and packing materials for storage until use of the
concentrator is required.
Inspection
1. Inspect/examine exterior of the oxygen concentrator for
nicks, dents, scratches or other damages. Inspect all
components.
Storage
1. Store the repackaged oxygen concentrator in a dry area.
2. DO NOT place objects on top of repackaged concentrator.
Platinum™Series
10
Part No 1118353
SECTION 4—SPECIFICATIONS
SECTION 4—SPECIFICATIONS
Electrical Requirements:
120 VAC ± 10% (132 VAC/108 VAC), 60
Hz
Rated Current Input:
Platinum 5 and XL: 4.3 A
Platinum 10: 4.7 A
Sound Level:
Platinum 5 and XL: 50 dB Average
Platinum 10: 58 dB Average
Altitude:
Platinum 5 and XL - Up to 6,000 ft. (1828
meters) above sea level without degradation
of concentration levels. From 6,000 ft. (1828
meters) to 13,129 ft. (4000 meters) below
90% efficiency
Platinum 10 - Up to 4,000 ft. (1230 meters)
above sea level without degradation of concentration levels. From 4,000 ft. (1230
meters) to 13,129 ft. (4000 meters) below
90% efficiency
*Oxygen Output
Concentration Levels:
All 5LXO2/5LX models 95.6% to 87% at 0.5
to 5 L/min. and all 10LXO2/10LX models
95.6% to 87% at 2 L to 10 L/min.
Maximum Outlet Pressure:
5 ± 0.5 psi. (34.5 ± 3.45 kPa.)
*NOTE: Stated concentration levels achieved after initial warm-up
period (approximately 30 minutes).
Part No 1118353
11
Platinum™Series
SECTION 4—SPECIFICATIONS
5LXO2 INDICATORS:
Label
Symbol
O2
O2 Purity
Indicator Lights
SYSTEM FAILURE
Below 73%
RED - Continuous Audible
Alarm Sieve-GARD™
Compressor Shutdown
73% to 85%
YELLOW
SYSTEM OKAY
Over 85%
GREEN
5LX INDICATORS:
Label
Symbol
I/O
Status
Indicator Lights
SYSTEM FAILURE
RED
SYSTEM OKAY
GREEN
Flow Range:
Platinum 5 and XL - 0.5 to 5 L/min. For
flowrates less than 1 L/min., we recommend
the use of the Invacare Pediatric Flowmeter
IRCPF16 Accessory.
Platinum 10 - 2 L/min. to 10 L/min
Low Flow Alarm:
Platinum 5 - 0 L/min. to 0.5 L/min.,
Platinum 10 - 0 L/min. to 1 L/min.
Rapid Audible Alarm Beeping (No
Accessories Connected)
Average Power
Consumption:
Platinum 5 and XL: 400W
Platinum 10: 585W
Pressure Relief Mechanism
Operational at:
35 psi ± 3.5 psi (241 kPa ± 24.1 kPa)
Change in maximum recommended flow when back pressure of 7kPa is applied:
0.7 L/min.
Platinum™Series
12
Part No 1118353
SECTION 4—SPECIFICATIONS
Filters:
Cabinet (2), Outlet HEPA and Compressor
Inlet.
Safety System:
Current overload or line surge shutdown.
High temperature compressor shutdown.
High Pressure Alarm w/compressor shutdown. Low Pressure Alarm w/compressor
shutdown. Battery Free Power Loss Alarm.
SensO2 Oxygen System (SensO2 Model)
Low Flow Alarm.
Width:
18 3/8 in. ± 3/8 in. (46.7 cm ± 1 cm)
Height:
26 3/8 in. ± 3/8 in. (67.0 cm ± 1 cm)
Depth:
14 3/8 in. ± 3/8 in. (36.5 cm ± 1 cm)
Weight:
Platinum 5 and XL: 52 lbs ± 2 lbs (23.6 kg ±
1 kg)
Platinum 10: 53 lbs ± 2 lbs (24.0 kg ± 1 kg)
Shipping Weight:
Platinum 5 and XL: 58 lbs ± 2 lbs (26.3 kg ±
1 kg)
Platinum 10: 60 lbs ± 2 lbs (27.2 kg ± 1 kg)
Operating Ambient
Temperature:
50°F - 95°F (10°C - 35°C) at 20-60% relative
humidity
Exhaust:
Platinum 5 and XL: Less than Ambient
+ 35°F (+19°C).
Platinum 10: Less than Ambient + 45°F
(+25°C).
Oxygen Output:
Platinum 5 and XL: Less than Ambient + 4°F
(+2°C).
Platinum 10: Less than Ambient + 8°F
(+4.4°C).
Cabinet:
Impact Resistant flame-retardant plastic cabinet that conforms to UL 94-V0.
Regulatory Listing:
Double Insulated Product ETL certified
complying with UL 1097 ETL certified to
CSA C22.2 No. 68
Electrical:
No extension cords.
Part No 1118353
13
Platinum™Series
SECTION 4—SPECIFICATIONS
Placement:
No closer than three (3) inches from any
wall, furniture, draperies, or similar surfaces.
Tubing:
7 ft cannula with a maximum 50 ft of
Crush-Proof Tubing (DO NOT pinch).
Platinum 10: Recommended use up to 25 ft
high flow tubing with high flow cannula at all
flow rates.
Relative Humidity:
20 to 60%
Time of Operation:
Up to 24 hours per day.
Recommended Storage and
Shipping Temperature:
-20°F to 150°F (-29°C to 65°C), at 15-95%
relative humidity
Platinum™Series
14
Part No 1118353
NOTES
NOTES
Part No 1118353
15
Platinum™Series
NOTES
NOTES
Platinum™Series
16
Part No 1118353
Please Seal with
Tape Before Mailing
REGISTER YOUR PRODUCT!
The benefits of registering:
1.
2.
3.
4.
5.
Safeguard your investment.
Ensure long term maintenance and servicing of your purchase.
Receive updates with product information, maintenance tips, and industry
news.
Invacare can contact you or your provider, if servicing is needed on your
product.
It will enable Invacare to improve product designs based on your input
and needs.
Register ONLINE at www.invacare.com
- or Complete form and mail.
Any registration information you submit will be used by Invacare Corporation
only, and protected as required by applicable laws and regulations.
PRODUCT REGISTRATION FORM
NAME _____________________________________________________
ADDRESS __________________________________________________
CITY _______________________ STATE/PROVINCE _____________
ZIP/POSTAL CODE ________________
EMAIL ___________________________
PHONE NO. ____________
INVACARE MODEL NO. _____________________________________
SERIAL NO. ______________________
PURCHASED FROM _______________
DATE OF PURCHASE: _____________
1. Method of purchase: (check all that apply)
❏ Medicare
❏ Insurance
❏ Medicaid
❏ Other
2. This product was purchased for use by: (check one)
❏ Self
❏ Parent
❏ Spouse
❏ Other
3. Product was purchased for use at:
❏ Home
❏ Facility
❏ Other
4. I purchased an Invacare product because:
❏ Price
❏ Features (list features)
5. Who referred you to Invacare products? (check all that apply)
❏ Doctor ❏ Therapist ❏ Friend ❏ Relative ❏ Dealer/Provider ❏ Other
❏ Advertisement (circle one): TV, Radio, Magazine, Newspaper
❏ No Referral
6.
What additional features, if any, would you like to see on this product?
_________________________________________________________________
7.
Would you like information sent to you about Invacare products that may be
available for a particular medical condition? ❏ Yes ❏ No
If yes, please list any condition(s) here and we will send you information by email and/or
mail about any available Invacare products that may help treat, care for or manage such
condition(s):
_________________________________________________________________
8.
Would you like to receive updated information via email or regular mail about the
Invacare home medical products sold by Invacare's dealers? ❏ Yes ❏ No
_________________________________________________________________
9.
What would you like to see on the Invacare website?
_________________________________________________________________
10. Would you like to be part of future online surveys for Invacare products? ❏ Yes
❏ No
11. User's Year of birth: _________________
If at any time you wish not to receive future mailings from us, please contact us at Invacare
Corporation, CRM Department, 39400 Taylor Parkway, Elyria, OH 44035, or fax to
877-619-7996 and we will remove you from our mailing list.
TO FIND MORE INFORMATION ABOUT OUR PRODUCTS, VISIT
WWW.INVACARE.COM
SECTION 5—OPERATING INSTRUCTIONS
SECTION 5—OPERATING
INSTRUCTIONS
Introduction
Your oxygen concentrator is intended for individual use in the
home. It is an electronically operated device that separates
oxygen from room air. It provides high concentration of
oxygen directly to you through a nasal cannula. Clinical
studies have documented that oxygen concentrators are
therapeutically equivalent to other types of oxygen delivery
systems.
Your provider will show you how to use your oxygen
concentrator. He/She should be contacted with any questions
or problems regarding your oxygen concentrator. This
owner’s manual will tell you about your concentrator and will
serve as a reference as you use your concentrator.
Select a Location
You may select a room in your house where using your
oxygen concentrator would be most convenient. Your
concentrator can be easily rolled from room to room on its
casters.
Your oxygen concentrator will perform best when operated
under the following conditions. Usage in environments other
than those described may result in the need for increased
equipment maintenance. The air intake of the unit should be
located in a well ventilated area to avoid airborne pollutants
and/or fumes.
Part No 1118353
21
Platinum™Series
SECTION 5—OPERATING INSTRUCTIONS
Recommended Guidelines for Optimum
Performance
Temperature:
50°F - 95°F (10°C - 35°C)
Electrical:
No extension cords.
Placement:
No closer than three (3) inches from the
wall, furniture, draperies, or similar surfaces.
Tubing and Cannula:
7 ft cannula with a maximum 50 ft of
Crush-Proof Tubing (DO NOT pinch).
Platinum 10: Recommended use up to 25 ft
high flow tubing with high flow cannula at all
flow rates.
Environment:
Smoke and soot-free. No confined spaces
(Example: No closets).
Relative Humidity:
20 to 60%
Time of Operation:
Up to 24 hours per day.
Flow Rate
Platinum 5 and XL: From 0.5 L/min. to 5
L/min. For flow rates less than 1 L/min., use
the Pediatric Flowmeter Accessory.
Platinum 10: From 2 L/min. to 10 L/min
Minimum Operating Time:
30 Minutes
NOTE: Ensure that your concentrator is at least three (3) inches
away from walls, draperies or furniture to assure sufficient air flow.
Avoid deep pile carpets and heaters, radiators or hot air registers.
Plug in Power Cord
1. Plug in power cord to an electrical outlet.
Connect Humidifier (If So Prescribed)
NOTE: For this procedure, refer to FIGURE 5.1 - FIGURE 5.4.
Platinum™Series
22
Part No 1118353
SECTION 5—OPERATING INSTRUCTIONS
1. Fill humidifier with distilled water to the level indicated
by the manufacturer. (For Platinum 5,XL - recommended
humidifiers are: Invacare 3260, 003-40, or 006-40).
WARNING
DO NOT overfill humidifier.
Replace the humidifier cap and securely tighten.
DO NOT reverse the oxygen input and output
connections. Water from the humidifier bottle will travel
through the cannula back to the patient.
Humidifier Bottle
FIGURE 5.1
Filling the Humidifier
2. Place the humidifier bottle in the humidifier
compartment.
Humidifier Bottle
FIGURE 5.2
Humidifier Compartment
3. Remove the filter access door located on the side of the
concentrator. Insert a flathead screwdriver in the plate
groove on the top edge of the filter access door and gently
pry the filter access door open. Refer to Detail “A” in
FIGURE 5.3.
Part No 1118353
23
Platinum™Series
SECTION 5—OPERATING INSTRUCTIONS
4. The humidifier adapter is next to the inlet filter. Pull up
and remove the humidifier bottle adapter. Refer to Detail
“B” in FIGURE 5.3.
5. Attach it to the humidifier by turning the wing nut on the
humidifier bottle counterclockwise until it is securely
fastened. Refer to Detail “C” in FIGURE 5.3.
DETAIL “A”
Plate Groove (Insert Flat
Head Screwdriver Here)
Filter Access Door
DETAIL “B”
Humidifier Bottle
Adapter
DETAIL “C”
Filter
Access
Door
FIGURE 5.3
Humidifier Bottle
Adapter
Attaching the Humidifier Bottle Adapter
6. Attach oxygen tubing from the humidifier bottle to
oxygen outlet connector on the oxygen concentrator.
Platinum™Series
24
Part No 1118353
SECTION 5—OPERATING INSTRUCTIONS
7. Attach the cannula/patient supply tubing to the
humidifier bottle outlet.
8. After assembly, ensure that oxygen is flowing through the
cannula.
Oxygen Outlet
Connector
Oxygen
Tubing
Humidifier Outlet
FIGURE 5.4
Attaching the Oxygen Tubing
WARNING
For optimum performance, Invacare recommends that
each concentrator be on and running for a minimum of 30
minutes at a time. Shorter periods of operation may
reduce maximum product life.
Power Switch
NOTE: For this procedure, refer to FIGURE 5.5.
1. Press power switch to on
position. All the panel
lights and the audible
alarm will come on for
one second, indicating
that the unit is
functioning properly.
After one second, only
the GREEN system
ok/power light will stay
on.
Part No 1118353
On/Off (I/O)
Power Switch
FIGURE 5.5 Power Switch
25
Platinum™Series
SECTION 5—OPERATING INSTRUCTIONS
Flowrate
NOTE: For this procedure, refer to FIGURE 5.6.
1. Turn the flowrate knob to the setting prescribed by your
physician or therapist.
WARNING
DO NOT change the L/min. setting on the flowmeter
unless a change has been prescribed by your physician or
therapist.
NOTE: To properly read the flowmeter, locate the prescribed flowrate
line on the flowmeter. Next, turn the flow knob until the ball rises to
the line. Now, center the ball on the L/min. line prescribed.
2. If the flowrate on the flowmeter ever falls below 0.5 L/min.
for Platinum 5 (1 L/min. for Platinum 10) for more than
about one minute, the LOW FLOW alarm will be
triggered. This is a rapid beeping of the audible alarm.
Check your tubing or accessories for blocked or kinked
tubing or a defective humidifier bottle. After rated flow is
restored, more than 0.5 L/min. for Platinum 5 (1 L/min. for
Platinum 10), the LOW FLOW audible alarm will go off.
NOTE: The use of some accessories such as the pediatric flowstand
and the HomeFill II compressor will deactivate the Low Flow Alarm.
Flow Knob
Ball
FIGURE 5.6
Platinum™Series
26
Flowrate
Part No 1118353
SECTION 5—OPERATING INSTRUCTIONS
SensO2 Oxygen Purity Indicator (If Your
Unit Features the O2 Sensor Feature)
This feature monitors the purity of oxygen generated by the
oxygen concentrator. If purity falls below factory preset
standards, indicator lights on the control panel will
illuminate.
Initial Startup of the Concentrator
NOTE: Concentrator may be used during the initial start warm-up
time (approximately 30 min.) while waiting for the O2 purity to
reach maximum.
When the unit is turned on, the GREEN light will come on
(SYSTEM OK/O2 greater than 85%). After five (5) minutes, the
oxygen sensor will be operating normally and will control the
indicator lights depending on oxygen concentration values.
Explanation of Oxygen Purity Indicator
Lights
NOTE: For this procedure, refer to FIGURE 5.7.
GREEN light (O2) - Normal Operation.
YELLOW light ( ) - Call supplier IMMEDIATELY. You may
continue to use the concentrator unless instructed otherwise
by your supplier. Be certain that backup oxygen is nearby.
RED light ( )- Total unit shutdown. Switch IMMEDIATELY
to backup oxygen supply. Call supplier IMMEDIATELY.
GREEN light - with YELLOW light flashing - Call supplier
IMMEDIATELY. Oxygen sensor malfunctioning; you may
continue to use the concentrator.
Part No 1118353
27
Platinum™Series
SECTION 5—OPERATING INSTRUCTIONS
OXYGEN PURITY
Auto Shut - Down
RED
Use Backup
Call Supplier
Below Normal
Normal
FIGURE 5.7
YELLOW
O2
GREEN
SensO2 Oxygen Purity Indicator (If Your Unit
Features the O2 Sensor Feature)
Indicators (If Your Unit Does Not
Feature the O2 Sensor)
NOTE: For this procedure, refer to FIGURE 5.8.
LX models indicator Light Explanation
RED light ( ) - Total Unit Shut-Down. Switch immediately to
a back-up oxygen supply. Call supplier IMMEDIATELY.
GREEN light (I/O) - On/Off. System okay.
Auto Shut - Down
Use Backup
RED
Call Supplier
Normal
FIGURE 5.8
Platinum™Series
I/O
GREEN
Indicators (If Your Unit Does Not Feature the O2
Sensor)
28
Part No 1118353
SECTION 6—MAINTENANCE
SECTION 6—MAINTENANCE
NOTE: The Invacare concentrators are specifically designed to
minimize routine preventive maintenance. In places with high dust
or soot levels, maintenance may need to be performed more often.
Only authorized or factory-trained personnel should perform
preventive maintenance on the concentrator. Power should be
disconnected before beginning preventive maintenance on the
Invacare concentrator.
NOTE: At a minimum, preventive maintenance MUST be
performed according to the maintenance record guidelines. Refer to
Preventive Maintenance Record on page 31.
Routine Maintenance
NOTE: The following routine maintenance should be performed
more frequently. See recommended intervals in each section and
preventive maintenance record.
Cleaning the Cabinet Filter
NOTE: For this procedure, refer to FIGURE 6.1.
NOTE: There are two (2) cabinet filters one (1) located on each side
of the cabinet.
1. Remove each filter and clean at least once a week
depending on environmental conditions.
NOTE: Environmental conditions that may require more frequent
cleaning of the filters include but are not limited to: high dust,
smoking, air pollutants, etc.
2. Clean the cabinet filters with a vacuum cleaner or wash in
warm soapy water and rinse thoroughly.
3. Dry the filters thoroughly before reinstallation.
Part No 1118353
29
Platinum™Series
SECTION 6—MAINTENANCE
CAUTION
DO NOT operate the concentrator without the filters
installed.
Cabinet Filter
(located on both
sides of
concentrator)
FIGURE 6.1 Cleaning the Cabinet Filter
Cabinet
WARNING
UNPLUG the concentrator when cleaning. To avoid
electrical shock, DO NOT remove cabinet.
1. Clean the cabinet with a mild household cleaner and
non-abrasive cloth or sponge.
Humidifier
NOTE: To clean the oxygen humidifier, follow the instructions
provided by the manufacturer. If none are provided, follow these
steps:
1. Clean the humidifier every day.
2. Wash it in soapy water and rinse it with a solution of ten
(10) parts water and one (1) part vinegar.
3. Rinse thoroughly with hot water and refill with distilled
water to the level shown on the humidifier.
Platinum™Series
30
Part No 1118353
Part No 1118353
31
*Refer to Preventive Maintenance section of Service Manual.
Rebuild Top End of Compressor
Replace Exhaust Muffler
Clean Heat Exchanger
AS REQUIRED
Check Power Loss Alarm
Check Oxygen Concentration
(SensO2 MODELS)
Check Compressor Inlet Filter*
I RC
Check Outlet HEPA Filter*
Clean/Replace Cabinet Filter(s)
ANNUALLY, DURING PREVENTIVE MAINTENANCE SCHEDULE, OR BETWEEN PATIENTS
Check Oxygen Concentration
(UNITS WITHOUT SensO2)
MODEL NO.
EVERY 180 DAYS FOR IRC5LX (EVERY 90 DAYS FOR IRC10LX)
Check Prescribed L/min. Flow Rate
Clean Cabinet Filter(s)
Record Elapsed Hours On Hour Meter
Record Date of Service
ON EACH INSPECTION
PREVENTIVE MAINTENANCE RECORD
INVACARE PLATINUM OXYGEN CONCENTRATOR
SECTION 6—MAINTENANCE
WARNING
DO NOT overfill humidifier bottle.
SERIAL NO.
FIGURE 6.2 Preventive Maintenance Record
Platinum™Series
SECTION 7—TROUBLESHOOTING GUIDE
SECTION 7—TROUBLESHOOTING
GUIDE
SYMPTOM:
PROBABLE CAUSE:
SOLUTION:
Alarm:
Main Power Loss:
1. Insert plug into outlet.
SHORT BEEPS,
LONG PAUSE
1. Power cord NOT
plugged in.
2. Inspect house circuit
breakers or fuses. If problem
recurs, use a different outlet.
Concentrator
NOT operating,
power switch
ON.
2. No power at outlet.
3. Call Service Provider.
Beep......Beep......
3. Tripped circuit
breaker.
Alarm:
CONTINUOUS
System Failure:
1. Unit overheating due
to blocked air intake.
Concentrator
NOT operating,
Power Switch
ON.
Beeeeeeeep....
2. Insufficient power at
outlet.
3. Internal repairs
required
1a. Remove and clean cabinet
filters.
1b. Move oxygen concentrator at least three (3) inches
away from walls, draperies or
furniture.
2. Do not use extension
cords. Move to another electrical outlet or circuit.
3. Call Service Provider.
Platinum™Series
32
Part No 1118353
SECTION 7—TROUBLESHOOTING GUIDE
SYMPTOM:
YELLOW or RED
LIGHT Illuminated.
Alarm:
CONTINUOUS
On red light only.
* Only applies to
5LXO2 and
10LXO2 SensO2
models.
PROBABLE CAUSE:
1. Low oxygen purity.*
SOLUTION:
1. Clean or Replace filters.
2. Kinked or blocked tub- 2. Inspect for kinks or blockages. Correct, clean or
ing, cannula or humidireplace item. Once corfier.*
rected, turn power OFF for
60 seconds and then turn
3. Flowmeter set at 0.5
L/min. for Platinum 5 and power back ON.
1 L/min. for Platinum 10
3. Check flowmeter is set to
or less.*
1.0 L/min. or more. (Refer to
Recommended Guidelines for
4. Unit overheating due
to blocked air intake.
Optimum Performance on
page 22.
5. Insufficient power at
outlet.
4.a. Remove and clean cabinet
filters.
6. Internal repairs
required.
4b. Move concentrator at
least three (3) inches from
walls, draperies, and furniture.
5. Do not use extension
cords. Move to another electrical outlet or circuit.
6. Call Service Provider.
GREEN LIGHT
with YELLOW
Light Flashing.
Part No 1118353
1. Internal repairs
required.
33
1. Call Service Provider.
Platinum™Series
SECTION 7—TROUBLESHOOTING GUIDE
SYMPTOM:
Alarm:
RAPID
Beep....Beep...
Beep...Beep
Platinum™Series
PROBABLE CAUSE:
SOLUTION:
LOW FLOW ALARM
1a. Kinked or blocked
tubing, cannula or humidifier.
1a. Inspect for kinks or
blockages. Correct, clean or
replace item. Once
corrected, turn power OFF
for 60 seconds and then turn
power back ON.
1b. Flowmeter set at 0.5
L/min. for Platinum 5 and
1 L/min. for Platinum 10
or less.
34
1b. Reset flowmeter to prescribed flowrate. If prescribed
flowrate is below 0.5 L/min.,
use the Pediatric Flowmeter
IRCPF16.
Part No 1118353
LIMITED WARRANTY
LIMITED WARRANTY
NOTE: THE WARRANTY BELOW HAS BEEN DRAFTED TO
COMPLY WITH FEDERAL LAW APPLICABLE TO PRODUCTS
MANUFACTURED AFTER JULY 4, 1975.
This warranty is extended only to original purchaser of our
products.This warranty gives you specific legal rights and you may also
have other legal rights which may vary from state to state.
Invacare Corporation warrants its Platinum Oxygen Concentrator to
be free from defects in materials and workmanship from date of
purchase: Platinum 5 and XL for a period of five (5) years, Platinum 10
for a period of three (3) years.The 4-way valve body carries a lifetime
warranty from date of purchase. DO NOT open or ATTEMPT TO
service valve body. This will void any and all warranty applicable to the
valve body. If within such warranty period any such product shall be
proven to Invacare Corporation's satisfaction to be defective, such
product shall be repaired or replaced, at Invacare Corporation's option.
This warranty only applies to the labor for repairs performed by the
Invacare Service Department or Invacare Service Centers. It does not
apply to the labor performed by the purchaser or user. This warranty
does not include normal wear and tear or shipping charges. Invacare
Corporation's sole obligation and your exclusive remedy under this
warranty shall be limited to such repair or replacement. Routine
maintenance items, such as filters, are excluded from this warranty.
For warranty service, please contact Invacare Corporation's service
department at the toll free number on the back cover.
Upon receiving notice of an alleged defect in a product, Invacare
Corporation will issue a serialized return authorization. It shall then be
the responsibility of the purchaser to return the entire unit or remove,
at purchaser's cost, the defective component part(s) identified, pack the
component part(s) in a manner to avoid shipping damage and to ship
the component part(s) to either Invacare Corporation's plant or service
center as specified by Invacare Corporation in advance. Defective
component part(s) must be returned for warranty inspection using the
serial number as identification within thirty (30) days of return
authorization date. Do not return products to our factory without prior
consent. C.O.D. shipments will be refused; please prepay shipping
charges.
LIMITATIONS AND EXCLUSIONS: THE FOREGOING WARRANTY
SHALL NOT APPLY TO PRODUCTS SUBJECTED TO
NEGLIGENCE, ACCIDENT, IMPROPER OPERATION,
MAINTENANCE OR STORAGE, SOOT OR SMOKE-FILLED
ENVIRONMENTS, OR OTHER THAN NORMAL APPLICATION, USE
OR SERVICE, OR TO PRODUCTS MODIFIED WITHOUT INVACARE
CORPORATION'S EXPRESS WRITTEN CONSENT (INCLUDING,
BUT NOT LIMITED TO, MODIFICATION THROUGH THE USE OF
UNAUTHORIZED PARTS OR ATTACHMENTS) OR TO PRODUCTS
Part No 1118353
35
Platinum™Series
DAMAGED BY REASON OF REPAIRS MADE TO ANY COMPONENT
WITHOUT THE SPECIFIC CONSENT OF INVACARE
CORPORATION OR TO PRODUCTS DAMAGED BY
CIRCUMSTANCES BEYOND INVACARE CORPORATION'S
CONTROL. THE FOREGOING EXPRESS WARRANTY IS
EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES
WHATSOEVER, WHETHER EXPRESS OR IMPLIED, INCLUDING
THE IMPLIED WARRANTIES OF MERCHANTIBILITY AND FITNESS
FOR A PARTICULAR PURPOSE, AND THE SOLE REMEDY FOR
VIOLATIONS OF ANY WARRANTY WHATSOEVER, SHALL BE
LIMITED TO REPAIR OR REPLACEMENT OF THE DEFECTIVE
PRODUCT PERSUANT TO THE TERMS CONTAINED HEREIN. THE
APPLICATION OF ANY IMPLIED WARRANTY WHATSOEVER
SHALL NOT EXTEND BEYOND THE DURATION OF THE EXPRESS
WARRANTY PROVIDED HEREIN. INVACARE SHALL NOT BE
LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES
WHATSOEVER.
SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGE,
OR LIMITATION OF HOW LONG AN IMPLIED WARRANTY LASTS,
SO THE ABOVE EXCLUSION AND LIMITATION MAY NOT APPLY
TO YOU.
THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH
STATE/PROVINCIAL LAWS AND REQUIREMENTS.
This product may be manufactured under one or more of
the following patents: US 5,906,672 and US 5,917,135. Other
patents pending.
Invacare Corporation
www.invacare.com
USA
One Invacare Way
Elyria, Ohio USA
44036-2125
800-333-6900
Technical Services
800-832-4707
Invacare, Yes, you can., SensO2,
Venture and the Medallion Design are
registered trademarks of Invacare
Corporation.
Platinum, HomeFill and Precise RX are
trademarks of Invacare Corporation.
© 2005 Invacare Corporation
Part No 1118353
Asm. No. 1106664
Rev E - 09/05
Operator’s Manual
Platinum™Series
XL, 5, 10
Oxygen Concentrators Standard, with/SensO2® and
HomeFill™ II
PART TWO
HomeFill II Connection and Use with the
Concentrator
Invacare 5
Model IRC5LX
Invacare 5with/SensO2
Model IRC5LX02
Invacare 10
Model IRC10LX
Invacare 10 with/SensO2
Model IRC10LX02
User: Before using the product, read this manual and
save for future reference.
Dealer: This manual MUST be given to the end user.
For more information regarding
Invacare products, parts, and services,
please visit www.invacare.com
WARNING
WARNING
DO NOT OPERATE THIS EQUIPMENT WITHOUT
FIRST READING AND UNDERSTANDING THIS
MANUAL. IF YOU ARE UNABLE TO UNDERSTAND
THE WARNINGS, CAUTIONS, AND INSTRUCTIONS,
CONTACT INVACARE TECHNICAL SERVICES
BEFORE ATTEMPTING TO USE THIS EQUIPMENT OTHERWISE, SERIOUS INJURY OR PROPERTY
DAMAGE MAY RESULT.
ACCESSORIES
There are many different types of humidifiers, oxygen tubing,
cannulas and masks that can be used with this device. You
should contact your local home care provider for
recommendations on which of these devices will be best for
you. They should also give you advice on the proper usage,
maintenance, and cleaning.
WARNING
Invacare products are specifically designed and
manufactured for use in conjunction with Invacare
accessories. Accessories designed by other manufacturers
have not been tested by Invacare and are not
recommended for use with Invacare products.
NOTICE
The information contained in this document is subject to
change without notice.
NOTE: Updated versions of this manual are available on
www.invacare.com.
Platinum™Series
2
Part No 1118354
TABLE OF CONTENTS
ACCESSORIES .................................................. 2
SPECIAL NOTES ............................................... 4
HOMEFILL II INFORMATION ............................. 5
SECTION 1—GENERAL GUIDELINES .................. 7
Handling................................................................................................. 9
SECTION 2—INITIAL SETUP ............................ 10
Compressor Initial Setup Checklist .............................................. 10
Choosing a Location......................................................................... 10
Transporting the Compressor ....................................................... 10
Installing the Power Cord ............................................................... 11
Connecting the Compressor to the Concentrator .................. 12
SECTION 3—COMPRESSOR OPERATION .......... 19
Compressor Operation Checklist................................................. 19
Cylinder Prefill Inspection ............................................................... 19
Connecting/Disconnecting the Cylinder to the
Compressor........................................................................................ 22
Turning the Compressor On .........................................................26
Setting the Flow Knob to the Prescribed Setting ...................... 28
CONCENTRATOR WARRANTY ...................... 30
Part No 1118354
3
Platinum™Series
SPECIAL NOTES
SPECIAL NOTES
Signal words are used in this manual and apply to hazards or
unsafe practices which could result in personal injury or
property damage. Refer to the following table for definitions
of the signal words.
SIGNAL WORD
MEANING
DANGER
Danger indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
WARNING
Warning indicates a potentially hazardous
situation which, if not avoided, could result
in death or serious injury.
CAUTION
Caution indicates a potentially hazardous
situation which, if not avoided, may result in
property damage.
DANGER
Users MUST NOT SMOKE while using this device. Keep
all matches, lighted cigarettes or other sources of ignition
out of the room in which this product is located. NO
SMOKING signs should be prominently displayed.
Textiles and other materials that normally would not
burn are easily ignited and burn with great intensity in
oxygen enriched air. Failure to observe this warning can
result in severe fire, property damage and cause physical
injury or death.
Platinum™Series
4
Part No 1118354
HOMEFILL II INFORMATION
HOMEFILL II INFORMATION
HomeFill II is an accessory device to the oxygen concentrator
that enables the patient to refill custom portable oxygen
cylinders for personal use.
WARNING
DO NOT install, assemble or operate the HomeFill II
compressor without first reading and understanding the
compressor owner’s manual, the concentrator owner’s
manual, and the oxygen cylinder warning label. If you are
unable to understand the warnings, cautions and
instructions, contact a dealer or technical personnel if
applicable before attempting to install this equipment otherwise, injury or damage may occur.
Check all parts for shipping damage. In case of damage,
DO NOT use. Contact Invacare for further instruction.
NOTICE
The HomeFill II compressor is for use with specially
designed Invacare Platinum 5, 10 and XL HomeFill II
compatible concentrators.
The concentrator can be set to the following maximum
flowrates when operating with HomeFill II compressor:
Platinum 5 and XL: 3 L/min. or less. Platinum 10: 5 L/min.
or less. To determine if your concentrator is HomeFill II
compatible, examine the lower right corner of the rear of
the concentrator for an outlet fitting, refer to illustration
on next page.
Part No 1118354
5
Platinum™Series
HOMEFILL II INFORMATION
Outlet Fitting
TOP VIEW
Power Cord
Concentrator
Platinum™Series
6
Part No 1118354
SECTION 1—GENERAL GUIDELINES
SECTION 1—GENERAL GUIDELINES
WARNING
SECTION 1 - IMPORTANT SAFEGUARDS contains
important information for the safe operation and use of
this product. DO NOT use this product or any available
optional equipment without first completely reading and
understanding these instructions and any additional
instructional material such as Owner’s Manuals, Service
Manuals or Instruction Sheets supplied with this product
or optional equipment. If you are unable to understand
the Warnings, Cautions or Instructions, contact a health
care professional, dealer or technical personnel before
attempting to use this equipment - otherwise, injury or
damage may occur.
NOTICE
Refer to HomeFill II Compressor Owner’s Manual,
1100873, for detailed information on all warnings, use,
care and maintenance of the HomeFill II compressor.
In order to ensure the safe installation, assembly and
operation of the HomeFill II Compressor these instructions
must be followed.
“Caution: Federal law restricts this device to sale by or on
order of a physician, or any other practitioner licensed by the
law of the State in which he/she practices to use or order the
use of this device.”
WARNING
The use of this device is limited to the oxygen patient.
Cylinders MUST be used ONLY by the oxygen patient and are
not to be distributed to any other individual for any purpose.
Part No 1118354
7
Platinum™Series
SECTION 1—GENERAL GUIDELINES
WARNING
The maximum patient flow while filling cylinders with the
IOH200 is 3 L/min for Platinum 5 and XL, 5 L/min. for
Platinum 10. Patients with a higher prescribed flow should
not transfill while receiving supplemental oxygen treatment
from the Platinum Concentrator.
NEVER block the air openings of the product or place it on a
soft surface, such as a bed or couch, where the air opening
may be blocked. Keep the openings free from lint, hair and the
like.
DO NOT disassemble. There are minimal serviceable parts on
the HomeFill II Compressor. If any service is required, contact
Invacare Technical Service.
DO NOT allow oil from your hands or other source to come
into contact with the regulator or cylinder valve connection.
These solutions may be flammable and cause injury.
The HomeFill II is equipped with a high pressure relief valve
to ensure the user’s safety. When activated, this safety feature
will make an extremely loud noise. If this noise occurs, turn
the unit off and contact your Home Health Care Provider or
Service Representative.
Before moving or repositioning either the compressor or
concentrator, always disconnect the AC power cords and the
interconnect hose between the compressor and concentrator.
Failure to do so may result in damage to the unit or personal
injury.
Children should always be supervised around the HomeFill II
unit. When used with the HomeFill table or similar elevated
support surfaces, a child could pull over any such table
causing the unit to fall. Failure to observe this warning may
result in personal injury or product damage.
Platinum™Series
8
Part No 1118354
SECTION 1—GENERAL GUIDELINES
WARNING
Handling
Use extreme care when handling and filling an oxygen
cylinder. Full oxygen cylinders are under pressure and can
become a projectile if dropped or mishandled.
NEVER transport a compressor with a cylinder connected to
or stored on the compressor, otherwise injury or damage can
occur.
DO NOT store filled oxygen bottles near a furnace, hot water
tank, in the trunk of a car or other high temperature area.
Storage in areas such as this can result in bursting of the bottle
or fire.
Part No 1118354
9
Platinum™Series
SECTION 2—INITIAL SETUP
SECTION 2—INITIAL SETUP
NOTE: Dealers Only - Refer to Dealer Information in Owner’s
Manual, part number 1100873, before performing this procedure.
Compressor Initial Setup Checklist
Before operating the HomeFill II Compressor for the first
time, complete the following checklist:
❑ Choose a location for the compressor.
❑ Transport the compressor to the desired location.
❑ Connect the power cord to the compressor.
❑ Connect the compressor to the concentrator.
Choosing a Location
The compressor should be at least three (3) inches away from
walls, draperies or furniture to ensure sufficient air flow.
Avoid placing the compressor next to heaters, radiators or hot
air registers.
Do not use in a closet.
The compressor should sit on a hard flat stable surface, such
as a table.
Transporting the Compressor
WARNING
NEVER transport a compressor with a cylinder connected
to or stored on the compressor, otherwise injury or
damage can occur.
Platinum™Series
10
Part No 1118354
SECTION 2—INITIAL SETUP
CAUTION
When transporting the compressor, be careful not to
bump the compressor or the connectors into obstacles.
Otherwise, damage to the compressor may occur.
NOTE: For this procedure, refer to FIGURE 2.1.
1. There are two (2)
methods to safely
transport the compressor:
Hand Grip
Hand Grip
A. One hand - Grasp the
hand grip at the
bottom rear of the
compressor.
B. Two hands - Grasp
the hand grips on the
sides of the
compressor.
Hand Grip
FIGURE 2.1 Transporting
the Compressor
Installing the Power Cord
NOTE: For this procedure, refer to FIGURE 2.2.
1. Ensure the compressor is on a hard flat stable surface, such
as a table.
2. Plug the power cord into the electric connector in the back
of the compressor.
3. Plug the opposite end of the power cord into the wall
outlet.
Part No 1118354
11
Platinum™Series
SECTION 2—INITIAL SETUP
Compressor
(REAR)
Wall
Outlet
Power
Cord
Electrical Connection
NOTE: This product has a polarized plug (one blade is wider than
the other). As a safety feature, this plug will fit in a polarized outlet
only one way. If the plug does not fit fully in the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician. DO NOT
attempt to defeat this safety feature.
FIGURE 2.2 Installing the Power Cord
Connecting the Compressor to the
Concentrator
NOTE: For this procedure, refer to FIGURE 2.3.
1. Insert one (1) end of the interconnect hose into the outlet
fitting on the back of the concentrator (Detail “A”).
2. Insert the opposite end of the interconnect hose into the
inlet fitting on the side of the compressor (Detail “B”).
NOTE: The metal tabs on the concentrator outlet fitting and the
compressor inlet fitting will pop out with an audible “click” when
the end of the interconnect hose is properly installed (Detail “C”).
3. Loop any excess interconnect hose and secure to the back
of the concentrator with the fastening straps (not shown).
Platinum™Series
12
Part No 1118354
SECTION 2—INITIAL SETUP
DETAIL “A”
Interconnect
Hose
Insert End of
Interconnect Hose into
Inlet/Outlet Fitting
CONCENTRATOR
TOP VIEW
Outlet Fitting
Power
Cord
DETAIL “B”
Compressor
Inlet Fitting
DETAIL “C”
Inlet/Outlet Fitting
Metal
Tab
FIGURE 2.3 Connecting the Compressor to the Concentrator
Part No 1118354
13
Platinum™Series
NOTES
NOTES
Platinum™Series
14
Part No 1118354
Please Seal with
Tape Before Mailing
REGISTER YOUR PRODUCT!
The benefits of registering:
1.
2.
3.
4.
5.
Safeguard your investment.
Ensure long term maintenance and servicing of your purchase.
Receive updates with product information, maintenance tips, and industry
news.
Invacare can contact you or your provider, if servicing is needed on your
product.
It will enable Invacare to improve product designs based on your input
and needs.
Register ONLINE at www.invacare.com
- or Complete form and mail.
Any registration information you submit will be used by Invacare Corporation
only, and protected as required by applicable laws and regulations.
PRODUCT REGISTRATION FORM
NAME _____________________________________________________
ADDRESS __________________________________________________
CITY _______________________ STATE/PROVINCE _____________
ZIP/POSTAL CODE ________________
EMAIL ___________________________
PHONE NO. ____________
INVACARE MODEL NO. _____________________________________
SERIAL NO. ______________________
PURCHASED FROM _______________
DATE OF PURCHASE: _____________
1. Method of purchase: (check all that apply)
❏ Medicare
❏ Insurance
❏ Medicaid
❏ Other
2. This product was purchased for use by: (check one)
❏ Self
❏ Parent
❏ Spouse
❏ Other
3. Product was purchased for use at:
❏ Home
❏ Facility
❏ Other
4. I purchased an Invacare product because:
❏ Price
❏ Features (list features)
5. Who referred you to Invacare products? (check all that apply)
❏ Doctor ❏ Therapist ❏ Friend ❏ Relative ❏ Dealer/Provider ❏ Other
❏ Advertisement (circle one): TV, Radio, Magazine, Newspaper
❏ No Referral
6.
What additional features, if any, would you like to see on this product?
_________________________________________________________________
7.
Would you like information sent to you about Invacare products that may be
available for a particular medical condition? ❏ Yes ❏ No
If yes, please list any condition(s) here and we will send you information by email and/or
mail about any available Invacare products that may help treat, care for or manage such
condition(s):
_________________________________________________________________
8.
Would you like to receive updated information via email or regular mail about the
Invacare home medical products sold by Invacare's dealers? ❏ Yes ❏ No
_________________________________________________________________
9.
What would you like to see on the Invacare website?
_________________________________________________________________
10. Would you like to be part of future online surveys for Invacare products? ❏ Yes
❏ No
11. User's Year of birth: _________________
If at any time you wish not to receive future mailings from us, please contact us at Invacare
Corporation, CRM Department, 39400 Taylor Parkway, Elyria, OH 44035, or fax to
877-619-7996 and we will remove you from our mailing list.
TO FIND MORE INFORMATION ABOUT OUR PRODUCTS, VISIT
WWW.INVACARE.COM
SECTION 3—COMPRESSOR OPERATION
SECTION 3—COMPRESSOR
OPERATION
Compressor Operation Checklist
NOTE: For this procedure, refer to FIGURE 3.1.
Each time the HomeFill II Compressor is used to fill a
cylinder, complete the following checklist:
❑ Ensure the concentrator has been on for at least thirty (30)
minutes. Refer to the concentrator Owner’s Manual, Part
One.
❑ Perform the prefill inspection on the cylinder.
❑ Connect the cylinder to the compressor.
❑ Turn the compressor on.
❑ Examine the indicator lights on the control panel.
❑ Disconnect and remove the full cylinder.
❑ Turn the compressor off.
❑ If filling another cylinder, repeat this checklist.
Cylinder Prefill Inspection
WARNING
ONLY use cylinders that have the Invacare HomeFill II
connection and the label shown in FIGURE 3.1.
All cylinders MUST be inspected before attempting to fill.
Otherwise, injury or damage may occur.
Part No 1118354
19
Platinum™Series
SECTION 3—COMPRESSOR OPERATION
The Hydrostatic Testing Date
Aluminum cylinders MUST undergo testing every five (5)
years.
WARNING
DO NOT fill cylinders that have not been tested in the
past five (5) years. Otherwise, serious personal may
result. Contact your dealer for replacement.
External Examination
1. Examine the outside of the cylinder for the following
conditions, and replace the cylinder if they exist:
• Dents or dings
• Arc burns
• Oil or grease
• Any other signs of damage that might cause a cylinder
to be unacceptable or unsafe for use.
2. Examine the cylinder for evidence of fire or thermal
damage. Evidence includes charring or blistering of the
paint, or other protective coating or heat sensitive
indicator. If fire or thermal damage is found, replace the
cylinder.
3. Inspect the regulator assembly for the following, and
replace if found:
• Debris, oil or grease
• Noticeable signs of damage
• Signs of corrosion inside the valve
• Signs of excessive heat or fire damage
Platinum™Series
20
Part No 1118354
SECTION 3—COMPRESSOR OPERATION
! DANGER
Improper filling or abuse of this cylinder, or failure to follow
these safety instructions may cause serious bodily injury or
death. High pressure oxidizing gas vigorously accelerates
combustion.
DO NOT alter or modify cylinder or related components.
DO NOT use Oil or Grease. Keep cylinder, cylinder valve, all
equipment and connections free of oil and grease to avoid
violent ignition resulting in serious bodily injury or death.
! WARNING
For medical applications. Use only as directed by a licensed
practitioner. Uninterrupted use of high concentrations of oxygen
over a long duration, without monitoring its effect on oxygen
content of arterial blood, may be harmful.
Oxygen Cylinders filled by the Venture HomeFill
shall be used for personal use only. "Not to be
filled for resale or use by professional users".
OXYGEN
2
This cylinder is to be used with the Invacare Venture
HomeFill system. This cylinder contains 93 ++ 3%
oxygen produced by an oxygen concentrator using
the pressure swing adsorption process.
DO NOT handle cylinder or use contents until you are
professionally trained, including emergency procedures.
Use in accordance with Venture HomeFill Operator’s Manual.
Open valve slowly. Close valve after each use and when empty.
Secure cylinder during storage and use. No smoking in cylinder
area. Keep away from heat, flame and spark. Keep out of
reach of children. DO NOT drop.
Transfilling of this gas is performed by Venture HomeFill Only.
Cylinders that have been refinished and/or exposed to
elevated temperatures must be hydrostatically tested before
filling. Cylinder temperature should not exceed 125°F (52°C).
Aluminum cylinders subject to the action of fire or heated to
temperatures in excess of 350°F must be withdrawn from
service and condemned by trained personnel. DO NOT use
caustic paint strippers. Valve and safety relief devices must be
removed and replaced by trained and authorized
personnel. DO NOT alter or change valve assembly.
Invacare Corporation
2101 E. Lake Mary Blvd.
Sanford, FL 32773
1-800-832-4707
DO NOT REMOVE THIS PRODUCT LABEL
Not for Commercial Resale
Part Number 1125090 Rev B - 11/04
FIGURE 3.1 Cylinder Prefill Inspection
Part No 1118354
21
Platinum™Series
SECTION 3—COMPRESSOR OPERATION
Connecting/Disconnecting the Cylinder
to the Compressor
Connecting the Cylinder to the Compressor
WARNING
DO NOT modify ANY connections on the HomeFill II
compressor. NEVER use tools of any kind to
connect/disconnect the cylinder and the compressor.
Otherwise, severe injury and/or damage may occur.
DO NOT drop oxygen cylinders. Use both hands when
handling/transporting oxygen cylinders. Otherwise, injury
or damage may occur.
DO NOT use a liquid leak detector to test for leaks.
NOTE: For this procedure, refer to FIGURE 3.2 and FIGURE 3.3.
1. Examine the cylinder gauge. If the cylinder pressure is less
than 1500 psig., proceed to STEP 2 (FIGURE 3.3).
NOTE: If the cylinder pressure is greater than 1500 psig., DO
NOT attempt to top off this cylinder. It may not fill.
2. Set the regulator flow dial on the cylinder to Off (FIGURE
3.3).
3. Remove the cylinder and connector fillport covers (if
present).
CAUTION
DO NOT connect the outlet (cannula) connection to the
HomeFill II unit, otherwise the conserving cylinder will
not work properly.
4. Momentarily push DOWN on the outer ring (sleeve) of the
connector fillport to reset the connector as shown in
FIGURE 3.2.
Platinum™Series
22
Part No 1118354
SECTION 3—COMPRESSOR OPERATION
NOTE: If the outer ring (sleeve) is in the UP position
(GREEN dots not visible), the connector fillport will not
be able to accept the cylinder fillport. Pushing DOWN
momentarily will reset the connector fillport (GREEN
dots visible) to accept the cylinder fillport.
PUSH
DOWN
Outer Ring (Sleeve)
Connector Fillport
GREEN Dots
BEFORE
COUPLING
CYLINDER,
PUSH DOWN
ON SLEEVE
UNTIL
GREEN DOTS
ARE VISIBLE.
FIGURE 3.2 Resetting Connector Fillport
5. Grasp the cylinder/regulator assembly in the area behind
the cylinder gauge (FIGURE 3.3).
6. Position the cylinder in the compressor cradle (FIGURE
3.3).
7. Align the cylinder fillport with the connector fillport
(FIGURE 3.3).
8. Pull UP on the outer ring (sleeve) of the connector fillport
while pushing DOWN on the cylinder/regulator assembly
to couple the cylinder fillport into the connector fillport
(FIGURE 3.3).
NOTE: The cylinder is properly connected when an audible “click”
is heard.
Part No 1118354
23
Platinum™Series
SECTION 3—COMPRESSOR OPERATION
Compressor
Cylinder/Regulator
Assembly
Cylinder
Fillport
Connector
Fillport
Outer Ring
(Sleeve)
Cylinder
Gauge
PULL UP
Regulator
Cylinder
Cylinder
Gauge
Regulator
Flow Dial
Outlet (Cannula)
Connection
Cylinder Fillport
Compressor
Cradle
Power
Switch
Connector
Fillport
Outer Ring
(Sleeve)
NOTE: Fillport covers not shown for clarity.
FIGURE 3.3 Connecting the Cylinder to the Compressor
Platinum™Series
24
Part No 1118354
SECTION 3—COMPRESSOR OPERATION
Disconnecting the Cylinder from the Compressor
WARNING
NEVER use tools of any kind to connect/disconnect the
cylinder and the compressor. Otherwise, severe injury
and/or damage may occur.
NOTE: For this procedure, refer to FIGURE 3.4.
1. Press the compressor power switch to the Off (O) position.
2. Grasp the cylinder/regulator assembly in the area behind
the cylinder gauge.
3. With the other hand, grasp the outer ring (sleeve) of the
connector fillport and push DOWN.
4. Lift up on the cylinder/regulator assembly to remove from
the connector fillport.
Cylinder/Regulator
Assembly
Cylinder
Gauge
Compressor
Cylinder
Fillport
PUSH DOWN
Outer Ring
(Sleeve)
Connector
Fillport
FIGURE 3.4 Disconnecting the Cylinder from the Compressor
Part No 1118354
25
Platinum™Series
SECTION 3—COMPRESSOR OPERATION
5. When the cylinder fillport is disconnected from the
connector fillport, release the outer ring (sleeve) of the
connector fillport and use two hands to remove the
cylinder from the compressor cradle.
6. Place the fillport covers onto the connector and cylinder
fillports.
NOTE: The fillport covers should be used whenever cylinders are
not being filled.
Turning the Compressor On
NOTE: For this procedure, refer to FIGURE 3.5.
1. Make sure the concentrator is On. Refer to the
concentrator Owner’s Manual.
CAUTION
The concentrator flow rate to the patient MUST be set at
maximum: 3 L/min. or less for Platinum 5, XL and 5
L/min. for Platinum 10. Otherwise, the oxygen level to the
compressor will be <90% and the compressor will not fill
the cylinder.
2. Set the concentrator flow rate to the patient to 3 L/min. or
less for Platinum 5, XL and 5 L/min. for Platinum 10. Refer
to the concentrator Owner’s Manual, Part One.
3. Make sure the cylinder is connected to the compressor.
Refer to Connecting the Cylinder to the Compressor on
page 22.
4. Push the power switch on the control panel to the On
position.
5. Examine the control panel. The following sequence of
events should occur:
A. 0-3 minutes - The WAIT (YELLOW) light will be lit
while the compressor warms up.
Platinum™Series
26
Part No 1118354
SECTION 3—COMPRESSOR OPERATION
B. After three (3) minutes - The FILLING (GREEN) light
will be on while the cylinder is filling.
C. The FULL (GREEN) light will be on when the cylinder
is finished filling. Proceed to STEP 6.
NOTE: The O2 BELOW NORMAL (YELLOW) light may come on
if the oxygen level from the concentrator has not yet reached or drops
below 90%. The compressor will begin or resume filling when the
oxygen level reaches 90%. If light does not go Off within ten (10)
minutes, refer to the troubleshooting section on page.
NOTE: If the ATTENTION (RED) light and audible alarm are on.
Refer to Troubleshooting/ Cylinder Fill times on page 31 of the
HomeFill operator’s manual, part number 1100873.
6. Remove the full cylinder. Refer to Disconnecting the
Cylinder from the Compressor on page 25.
Part No 1118354
27
Platinum™Series
SECTION 3—COMPRESSOR OPERATION
ATTENTION
(RED Light and
Audible Alarm)
O2 BELOW
NORMAL
(YELLOW Light)
FULL
(GREEN Light)
Control
Panel
O2 BELOW NORMAL
USE NO OIL
I
O
WAIT
(YELLOW Light)
FILLING
(GREEN Light)
Power Switch
FIGURE 3.5 Turning the Compressor On
Setting the Flow Knob to the Prescribed
Setting
NOTE: For this procedure, refer to FIGURE 3.6.
1. Attach the nasal cannula to the outlet fitting of the
cylinder.
2. Turn the flow knob to the L/min. setting prescribed by
your physician or therapist.
Platinum™Series
28
Part No 1118354
SECTION 3—COMPRESSOR OPERATION
WARNING
As changing the L/min. setting on the flow knob will affect
the dose of oxygen delivered, DO NOT readjust the
L/min. setting unless directed by your physician or
therapist.
3. To turn the flow of oxygen Off, turn the flow knob
counter-clockwise to the Off position.
Outlet Fitting
Flow Knob
Prescribed Setting
FIGURE 3.6 Setting the Flow Knob to the Prescribed Setting
NOTICE
Refer to HomeFill II Compressor Owner’s Manual,
1100873, for detailed information on all warnings, use,
care and maintenance of the HomeFill II compressor.
Part No 1118354
29
Platinum™Series
CONCENTRATOR WARRANTY
CONCENTRATOR WARRANTY
NOTE: THE WARRANTY BELOW HAS BEEN DRAFTED TO
COMPLY WITH FEDERAL LAW APPLICABLE TO
PRODUCTS MANUFACTURED AFTER JULY 4, 1975.
This warranty is extended only to original purchaser of our
products.This warranty gives you specific legal rights and you
may also have other legal rights which may vary from state to
state.
Invacare Corporation warrants its Platinum Oxygen
Concentrator to be free from defects in materials and
workmanship from date of purchase: Platinum 5 and XL for a
period of five (5) years, Platinum 10 for a period of three (3)
years.The 4-way valve body carries a lifetime warranty from
date of purchase. DO NOT OPEN OR ATTEMPT TO SERVICE
VALVE BODY. This will void any and all warranty applicable to
the valve body. If within such warranty period any such product
shall be proven to Invacare Corporation's satisfaction to be
defective, such product shall be repaired or replaced, at Invacare
Corporation's option. This warranty only applies to the labor for
repairs performed by the Invacare Service Department or
Invacare Service Centers. It does not apply to the labor
performed by the purchaser or user. This warranty does not
include normal wear and tear or shipping charges. Invacare
Corporation's sole obligation and your exclusive remedy under
this warranty shall be limited to such repair or replacement.
Routine maintenance items, such as filters, are excluded from
this warranty.
For warranty service, please contact Invacare Corporation's
Service Department at the toll free number on the back cover.
Upon receiving notice of an alleged defect in a product, Invacare
Corporation will issue a serialized return authorization. It shall
then be the responsibility of the purchaser to return the entire
unit or remove, at purchaser's cost, the defective component
part(s) identified, pack the component part(s) in a manner to
avoid shipping damage and to ship the component part(s) to
either Invacare Corporation's plant or service center as specified
by Invacare Corporation in advance. Defective component
part(s) must be returned for warranty inspection using the serial
number as identification within thirty (30) days of return
authorization date. Do not return products to our factory
without prior consent. C.O.D. shipments will be refused; please
prepay shipping charges.
Platinum™Series
30
Part No 1118354
CONCENTRATOR WARRANTY
LIMITATIONS AND EXCLUSIONS: THE FOREGOING
WARRANTY SHALL NOT APPLY TO PRODUCTS
SUBJECTED TO NEGLIGENCE, ACCIDENT, IMPROPER
OPERATION, MAINTENANCE OR STORAGE, SOOT OR
SMOKE-FILLED ENVIRONMENTS, OR OTHER THAN
NORMAL APPLICATION, USE OR SERVICE, OR TO
PRODUCTS MODIFIED WITHOUT INVACARE
CORPORATION'S EXPRESS WRITTEN CONSENT
(INCLUDING, BUT NOT LIMITED TO, MODIFICATION
THROUGH THE USE OF UNAUTHORIZED PARTS OR
ATTACHMENTS) OR TO PRODUCTS DAMAGED BY
REASON OF REPAIRS MADE TO ANY COMPONENT
WITHOUT THE SPECIFIC CONSENT OF INVACARE
CORPORATION OR TO PRODUCTS DAMAGED BY
CIRCUMSTANCES BEYOND INVACARE CORPORATION'S
CONTROL.
THE FOREGOING EXPRESS WARRANTY IS EXCLUSIVE
AND IN LIEU OF ANY OTHER WARRANTIES
WHATSOEVER, WHETHER EXPRESS OR IMPLIED,
INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTIBILITY AND FITNESS FOR A PARTICULAR
PURPOSE, AND THE SOLE REMEDY FOR VIOLATIONS OF
ANY WARRANTY WHATSOEVER, SHALL BE LIMITED TO
REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT
PERSUANT TO THE TERMS CONTAINED HEREIN. THE
APPLICATION OF ANY IMPLIED WARRANTY
WHATSOEVER SHALL NOT EXTEND BEYOND THE
DURATION OF THE EXPRESS WARRANTY PROVIDED
HEREIN. INVACARE SHALL NOT BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL DAMAGES
WHATSOEVER.
SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGE, OR LIMITATION OF HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE EXCLUSION AND
LIMITATION MAY NOT APPLY TO YOU.
THIS WARRANTY SHALL BE EXTENDED TO COMPLY
WITH STATE/PROVINCIAL LAWS AND REQUIREMENTS.
Part No 1118354
31
Platinum™Series
Invacare Corporation
www.invacare.com
USA
One Invacare Way
Elyria, Ohio USA
44036-2125
800-333-6900
Technical Services
800-832-4707
Invacare, Yes, you can, the Medallion
Design and SensO2 are registered
trademarks of Invacare Corporation.
Platinum and HomeFill are trademarks
of Invacare Corporation.
© 2005 Invacare Corporation
Part No 1118354
Rev D - 09/05
Asm. No. 1106444
Was this manual useful for you? yes no
Thank you for your participation!
