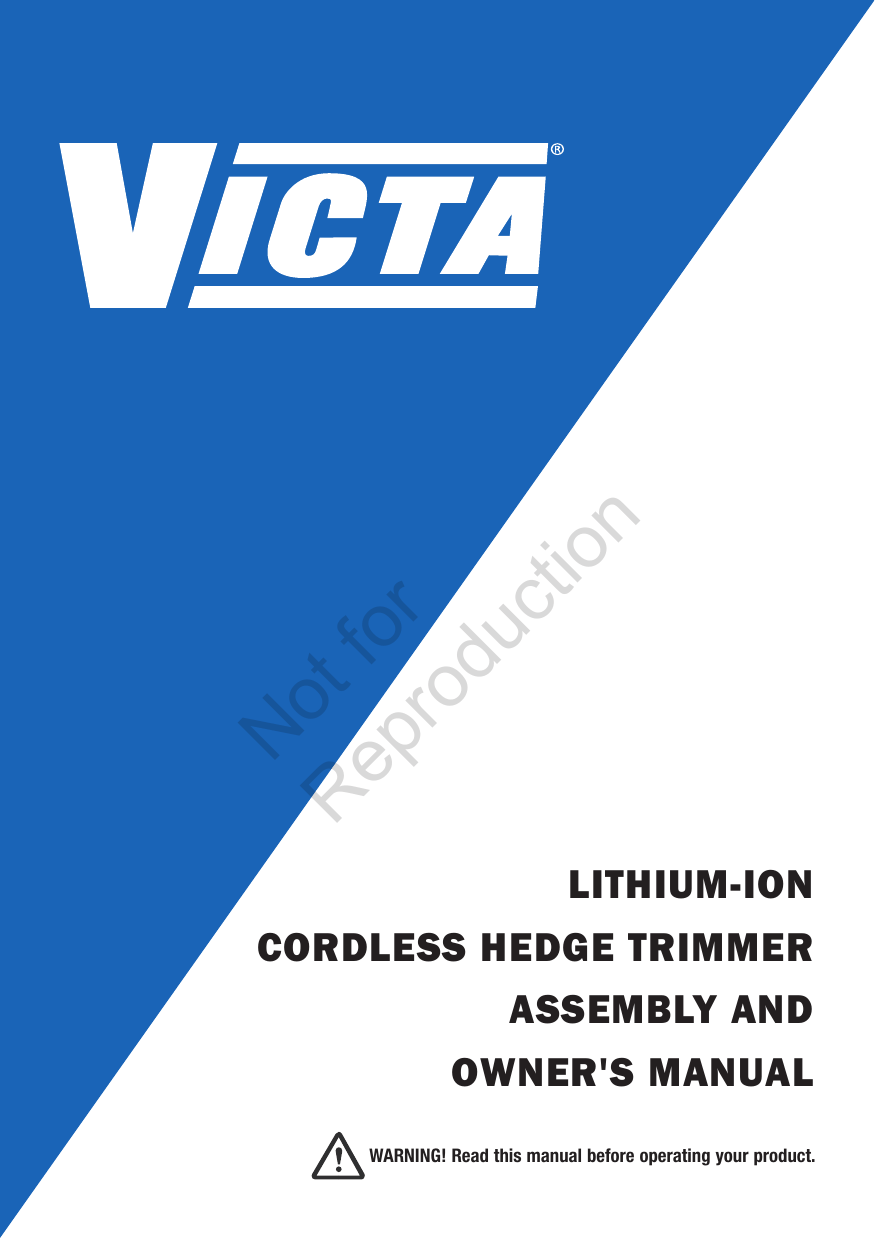

LITHIUM-ION
CORDLESS HEDGE TRIMMER
ASSEMBLY AND
OWNER'S MANUAL
WARNING! Read this manual before operating your product.
IMPORTANT NOTES
Details
Thank you for purchasing your Victa product. Victa prides itself in the quality and performance
of all its products.
This instruction manual will aid in the assembly, safe operation and maintenance of your
product.
Please read the following warnings to ensure safety and the long life of your product.
WARNING
Do not attempt to operate this product until you have read thoroughly and understood
completely all instructions, safety rules, etc, contained in this manual. Failure to comply may
result in accidents involving electric shock, fire, and/or serious personal injury.
INTENDED USE
This hedge trimmer is intended for cutting and trimming hedges, shrubs and bushes in
domestic use. It is not intended to be used for cutting above shoulder level.
General safety
Beware of electric shock
hazard when charging.
N
R ot f
ep o
ro r
du
ct
Warning!
io
n
Do not use the product for any task, except for that which it is intended.
Read the directions
for use before
operating the machine.
Read the directions before
carrying out any maintenance
work.
Wear safety goggles and ear
protection that meet safety
standards.
Wait for all components
of the machine to completely
stop & remove the battery.
Wear sturdy, non-slip
footwear.
Should NOT be disposed of
with house hold items.
Wear safety gloves.
max.40°C
Do not use machine in wet
conditions, protect the
machine from rain and damp.
Be careful of objects
being thrown out! Ensure
bystanders are kept at least
50' (15m) away & stop the
machine if approached.
12
Li-Ion
Batteries contain Li-ion. Do
not dispose of waste batteries
in domestic waste. Contact
local authority to find out
how to dispose of batteries
appropriately.
Ambient temperature
40°C Max.
Do not throw into water.
Keep away from heat and/or
open flame.
Be careful when operating to
avoid any injury.
Table of Contents
Features & Definitions
Features & supplied Items
3
General safety
Product disposal
4
7
Unpacking
8
Installing the battery
Removing the battery
Starting the hedge trimmer
Stopping the hedge trimmer
Operating tips
8
8
9
9
9
Safety & Handling
Assembly Procedures
io
n
Operating Instructions
Maintenance & Care
10
10
10
11
Troubleshooting
11
Specifications
12
N
R ot f
ep o
ro r
du
ct
Cleaning
Storing
Maintenance chart
Service
Troubleshooting
Technical Specifications
NOTE: WARRANTY DETAILS ARE NOT WRITTEN WITHIN THIS OPERATOR’S MANUAL.
REFER TO OTHER DOCUMENTS SUPPLIED WITH THIS MACHINE FOR WARRANTY
DETAILS.
THE WARRANTY DOCUMENTS MAY INCLUDE TECHNICAL SPECIFICATIONS THAT
ARE SPECIFIC TO EACH MODEL THAT ARE NOT WRITTEN WITHIN THIS OPERATOR’S
MANUAL.
23
FEATURES DEFINITIONS
Features & Supplied Items
1
Blade Spine
2
Blades
3
Hand Guard
4
Handle
5
Presence Switch
6
Motor Housing
7
Trigger
8
Ventilation Grill
9
Blade Guard
10
Battery Charger (not included with all product)
11
Lithium-ion Battery (not included with all product)
io
n
- Hedge Trimmer Instruction/Safety Manual (not shown)
7
- Battery & Charger Instruction/Safety Manual (not shown)
N
R ot f
ep o
ro r
du
ct
5
6
4
2
1
3
8
10
11
9
WARNING
43
Do not operate the product if any component is missing or damaged. Have any missing or
damaged components repaired or replaced.
General Safety
N
R ot f
ep o
ro r
du
ct
io
n
• Carefully read all instructions on the machine and in the manual before attempting to
assemble and operate the machine. Keep this manual in a safe place for future reference,
and consult it regularly. Ensure other users read this manual and are aware of the product
safety risks
• The machine should be operated only with a genuine Briggs and Stratton battery. When
using battery operated machine basic safety precaution should always be followed to reduce
the risk of leaking batteries and personal injury.
• Become familiar with all controls and their proper operation before using the machine. Know
how to stop the machine and how to disengage the power in an emergency.
• Thoroughly inspect the area where the machine is to be used. Remove all stones, sticks,
wire, bones, toys, and other objects that could be tripped over or thrown by the cutting
mechanism. Thrown objects can cause serious personal injury.
• Always wear a face mask or a dust mask when operating the machine in a dusty
environment.
• Always wear appropriate clothing & do not wear loose clothing (or jewellery etc) that can get
caught in moving parts.
• Do not operate this machine in bare feet, or while wearing sandals or lightweight (e.g.
canvas shoes) Wear long trousers & heavy shoes.
• Do not operate the machine while under the influence of alcohol or drugs.
• Stay alert & do not operate the machine when you are tired. Pay attention to what you are
doing and ensure others are aware of your task intentions before commencing.
• Avoid using the machine in dangerous environments. Only use the machine in daylight or in
good artificial light.
• Do not use the machine in a rush. Always walk & never run with the machine.
• Before inspecting, adjusting, servicing or cleaning the machine, always stop & remove both
the battery & key.
• If the machine starts to vibrate excessively, discontinue use until the machine has been
inspected and assessed. Having a machine assessed for vibration problems generally
reduces the risk for injury or product failure.
• Don’t force the machine beyond its cutting capacity. The machine will perform better and
safer if allowed to cut at the pace for which it is rated for.
• Do not use the machine indoors. Only store the machine indoors in a dry & secure location.
Keep the machine out of reach of children.
• Always maintain the machine according to the maintenance section of this manual
• If machine strikes a foreign objects, always inspect for damage.
• Do not allow children or impaired persons to operate the machine.
• Use extreme care when approaching blind corners, doorways, shrubs, trees, or other
objects that may obscure your view & the path of the machine.
• Do not use the machine near hot ash, combustible materials or immerse in liquids. This may
cause fire hazard, serious injury or product damage.
• Do not put any object into ventilation grills. Do not use with any openings blocked, keep
openings free from anything that may reduce air flow.
• Do not point the machine in the direction of people or pets.
• Carry the hedge trimmer by the handle only with the cutting blades stopped. Ensure the
switches are off. Never carry the hedge trimmer with your finger on the trigger.
• Do not over-reach. Keep proper footing and balance at all times. This enables better control
of the machine in unexpected situations.
4
5
General Safety
N
R ot f
ep o
ro r
du
ct
io
n
• Keep all parts of the body away from the blades when the hedge trimmer is operating.
Before you start the hedge trimmer, make sure the blades are not in contact with anything.
• A moment of inattention while operating the hedge trimmer may cause entanglement of
your clothing or body with the blade.
• Always hold the hedge trimmer with your one hand at the rear handle and your other hand
at the front handle. Keep handles dry, clean, and free from oil and grease.
• Always keep proper footing and operate the hedge trimmer only when standing on fixed,
secure and level surface. Slippery or unstable surfaces such as ladders may cause loss of
balance or control of the hedge trimmer.
• Do not remove cut material or hold material to be cut when cutting blades are moving.
• Make sure the unit is off and battery is removed when clearing jammed material. A moment
of inattention while operating the hedge trimmer may result in serious personal injury.
• If the machine strikes or becomes entangled with foreign objects, stop the unit immediately,
remove the battery and check for damage. Do not operate before repairing damage. Do
not operate the unit with loose or damaged parts.
• Maintain hedge trimmer with care. Keep cutting edge sharp and clean for best performance
and to reduce the risk of injury.
• Blades continue to move for a short time after unit is turned off. Keep hands, face, and feet
at a safe distance from moving parts. Do not touch or try to stop the cutting blades when
they are moving.
General Power Tool Safety Warnings
WARNING Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
• Save all warnings and instructions for future reference.
• The term "power tool" in the warnings refers to battery-operated (cordless) power tool.
Work area safety
• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or
fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause
you to lose control.
Electrical safety
• Power tool plugs must match the outlet. Never modify the plug in any way.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
Personal safety
• Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol
or medication. A moment of inattention while operating power tools may result in serious
personal injury.
6
5
General Safety
• Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting
to power source and/or battery pack, picking up or carrying the tool.
• Carrying power tools with your finger on the switch or energising power tools that have
the switch on could lead to accidents.
• Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in
moving parts.
Power tool use and care
N
R ot f
ep o
ro r
du
ct
io
n
• Do not force the power tool. Use the correct power tool for your application. The
correct power tool will do the job better and safer at the rate for which it was
designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
• Remove the battery pack from the power tool before making any adjustments,
changing accessories, or storing power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly
maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from those intended could result in a
hazardous situation.
Service
• Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
Hedge trimmer safety warnings:
• Keep all parts of the body away from the cutter blade. Do not remove cut material
or hold material to be cut when blades are moving. Make sure the switch is off when
clearing jammed material. A moment of inattention while operating the hedge trimmer
may result in serious personal injury.
• Carry the hedge trimmer by the handle with the cutter blade stopped. When
transporting or storing the hedge trimmer always fit the cutting device cover. Proper
handling of the hedge trimmer will reduce possible personal injury from the cutter
blades.
67
General Safety
• Hold the power tool by insulated gripping surfaces only, because the cutter blade may
contact hidden wiring. Cutter blades contacting a "live" wire may make exposed metal
parts of the power tool "live" and could give the operator an electric shock.
• Advice to check the hedge for foreign objects, e.g. wire fences
• Instruction to hold the hedge trimmer properly, e.g. with both hands if two handles are
provided
Product Disposal
CORRECT DISPOSAL OF THE PRODUCT
io
n
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your local authority or retailer for recycling
advice. The battery contains material which is hazardous to you and the environment.
It must be removed and disposed of separately at a facility that accepts lithium-ion
batteries.
N
R ot f
ep o
ro r
du
ct
Refer to Briggs & Stratton 18V Battery & Charger manual for further information
relating to battery and charger disposal.
CORRECT DISPOSAL OF THE PACKAGING
The packaging consists of cardboard and correspondingly marked plastics that
can be recycled. Make these materials available for recycling.
Information
about the residual risks that remain despite the inherit safe design measures,
3.
safeguarding and complementary protective measures adopted.
Emergency Contact
In the rare case a battery is damaged & any of the contents leaks or comes into contact
with a persons skin, eyes, or is ingested, follow the first aid instructions inside the battery &
charger manual. Seek further medical attention immediately.
7
8
ASSEMBLY PROCEDURES
Unpacking
This product requires assembly.
• Carefully remove the product and any accessories from the box. Make sure that all items
listed in the packing list are included. Refer to page 3.
• Do not discard the packing material until you have carefully inspected and ensured
product is incorrect operating condition.
WARNING
Do not attempt to modify this product or create accessories not recommended for use with
this product. Any such alteration or modification is misuse and could result in a hazardous
condition leading to possible serious personal injury.
OPERATING INSTRUCTIONS
io
n
Installing the Battery
NOTE: Refer to figure 1.
N
R ot f
ep o
ro r
du
ct
To avoid serious personal injury, always remove the battery and keep hands clear of the
trigger when carrying or transporting the machine.
If any parts are missing or damaged do not operate the machine until the parts are
replaced. Failure to do so could result in possible serious personal injury.
Make sure the cutting blade is properly installed and securely fastened. Failure to do so can
result in personal injury to the operator and bystanders, as well as damage to the unit.
• Place the battery in the
hedge trimmer. Align raised
rib on battery pack with
groove in hedge trimmer.
Battery
release latch
Fig 1
• Make sure the battery
release latch on the battery
snaps in place and that
battery is secured in hedge
trimmer before beginning
operation.
Removing the Battery
• Locate the battery release latch on the battery and depress to release from the hedge
trimmer.
• Remove battery by pulling away from the from the hedge trimmer.
WARNING
When placing battery in your hedge trimmer, be sure raised rib on battery aligns with
groove in hedge trimmer and latch snaps in place properly. Improper assembly of battery
can cause damage to internal components.
89
OPERATING INSTRUCTIONS
Starting The Hedge Trimmer
NOTE: Refer to figure 2.
• Remove the blade cover.
• For added safety, the hedge trimmer is dualaction controlled. Use both hands to operate
this product.
• To operate, pull the trigger on the rear handle
from one hand and squeeze the front handle
trigger from the other hand.
Fig 2
Stopping The Hedge Trimmer
N
R ot f
ep o
ro r
du
ct
io
n
• Release the trigger to stop the hedge trimmer. In an emergency either the front presence
switch or the trigger can be released to stop the blades.
• Upon release of the trigger, the trigger lock button will be automatically reset to the lock
position.
• Remove battery from the hedge trimmer.
Operating Tips
• Do not force the hedge trimmer through heavy shrubbery. This can cause the blades to
bind and slow down. If the blades slow down, reduce your pace of hedge trimming.
• Do not try to cut stems or twigs that are larger than 18mm thick (recommend less than
10mm), or those obviously too large to feed into the cutting blade. Use a non-powered
hand saw or pruning saw to trim large stems.
• If desired, you can use a string to help cut your hedge level. Decide how high you want
the hedge. Then, stretch a piece of string along the hedge at this height. Trim the hedge
just above this guide line of string. Trim the side of a hedge so that it will be slightly
narrower at the top. More of the hedge will be exposed when shaped this way, and it will
be more uniform.
Fig 3
• If blades do become jammed, stop the motor, allow the blades to stop and remove
the battery before attempting to remove the obstruction. Always wear gloves when
removing debris from the blade. Inspect the blades after any such jam or after striking an
obstruction.
• Wear gloves when trimming thorny or prickly growth. When trimming new growth, use
a wide sweeping action, so that the stems are fed directly into the cutting blade. Older
growth will have thicker stems and will be trimmed easiest by using a sawing movement.
9
10
• If you strike an obstruction stop the hedge trimmer and check the blade for damage.
Replace the blades if damage has occurred.
Cleaning
To prevent serious personal injury remove the battery from the machine before servicing,
cleaning, or removing debris.
• Clean the unit using a damp cloth with a mild detergent.
• Do not immerse the machine or any part of it in water.
• Moisture can cause a shock hazard. Wipe off any moisture with a soft dry cloth & ensure the machine is dry before replacing the battery & key.
• Use a small brush or vacuum cleaner to clean the air vents on the product
• Keep the air vents free of obstructions.
• Do not use solvents, strong detergents, certain aromatic oils such as pine and lemon
when cleaning plastic parts. Chemicals can damage, weaken or destroy plastic
component which may result in serious personal injury.
• Lubricate the cutting blades after each use. Use a suitable oil for the environment the machine is operated in e.g. silicone based oil or spray. During extended periods of
operation lubrication should be applied to the blades.
io
n
Storing
•
•
Hedge Trimmer
Visual inspection (damaged parts)
Trigger
Check operation
Trigger interlock
Check
•
Stop switch
Check
Cutting Blades
Check & clean
•
• •
Replace
Lubricate
Ventilation Grills
Clean
All accessible fasteners
Retighten
• •
•
•
As required
If damaged
Yearly
Monthly
Requirements
Charging
Features
After use
Refer to the following table for routine maintenance.
Before use
Maintenance Chart
N
R ot f
ep o
ro r
du
ct
The following steps should be taken in order to prepare the machine for storage.
• Clean the machine as described in the previous section.
• Store the machine in a dry, clean location. Do not store it next to corrosive materials,
such as fertilizer or fuel.
• Store the machine indoors, in a cool, dry place, out of the reach of children.
• Ensure battery is removed before storage.
•
•
• •
•
•
•
10
11
Service
Servicing requires extreme care and knowledge and should be performed only by a qualified
service technician. For service we suggest you return the product to your nearest Authorized
service centre for repair. When servicing, use only genuine replacement parts.
• Keep the handles dry, clean, and free of oil and grease.
• In order to reduce the risk of fire, keep the motor free of grass, leaves, and debris buildup.
• Check the blade and motor mounting bolts for proper tightness frequently. Visually
inspect blade for damage (e.g., bent, cracked, or worn).
• For best and safest performance, lubricate the blades after use.
• Keep all nuts, bolts, and screws tight in order to be sure that the equipment is in safe
working condition.
• Never tamper with safety devices. Check them regularly for proper operation.
N
R ot f
ep o
ro r
du
ct
TROUBLESHOOTING
io
n
NOTE: Refer to warranty card supplied with this product for service contact details.
Troubleshooting
PROBLEM
Motor fails to start
when switch trigger
is depressed.
Motor runs,but cutting
blades do not move.
POSSIBLE CAUSE
SOLUTION
Battery is not secure.
To secure the battery pack, make sure
the latches on the top of the battery pack
snap into place.
Battery is not charged.
Charge the battery pack according to the
instructions included with your model.
Hedger damaged.
Call for technical service.
Do not use hedge trimmer.
Hedge trimmer smokes Hedger damaged.
Call for technical service.
during operation.
Do not use hedge trimmer.
Motor hums, blades
do not move.
11
12
Debris or other may be
jamming the blades
Remove battery, clear debris blockage
from blades.
TECHNICAL SPECIFICATIONS
Specifications
PRODUCT SPECIFICATION
18V Hedge Trimmer
Function
Hedge Trimming
Motor Type
Brushed
Motor Specification
18V DC
Max Motor Speed
19,000RPM
Blade Articulation Rate
1,200 Strokes/min
Effective Cutting Length
510MM
Recommended Cutting Diameter
10MM
Max Cutting Diameter
16MM
Product Weight (No Battery)
2.2Kg
Sound Pressure Level
Lpa: 74dB (A), K: 3dB (A)
Sound Power Level (Measured)
Lwa: 83dB (A)
Sound Power Level (Guaranteed)
Lwa: 87dB (A)
Vibration Total Value (Max)
ah: 2.65 m/s², K: 1.5 m/s²
N
R ot f
ep o
ro r
du
ct
A warning:
io
n
Description
• That the declared vibration total value has been measured in accordance with a standard
test method and may be used for comparing one tool with another.
• That the declared vibration total value may also be used in a preliminary assessment of
exposure.
• That the vibration emission during actual use of the power tool can differ from the declared
total value depending on the ways in which the tool is used; and
• Of the need to identify safety measures to protect the operator that are based on an
estimation of exposure in the actual conditions of use (taking account of all parts of the
operating cycle such as the times when the tool is switched off and when it is running idle
in addition to the trigger time).
12
13
io
n
N
R ot f
ep o
ro r
du
ct
©2018 Briggs & Stratton
Victa is a trademark of Briggs & Stratton Australia Pty. Ltd.
ABN 13 006 576 856
All rights reserved. No part of this booklet may be reproduced by any means
without prior written permission. All information herein is subject to change without notice.
LR02677A-B

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
