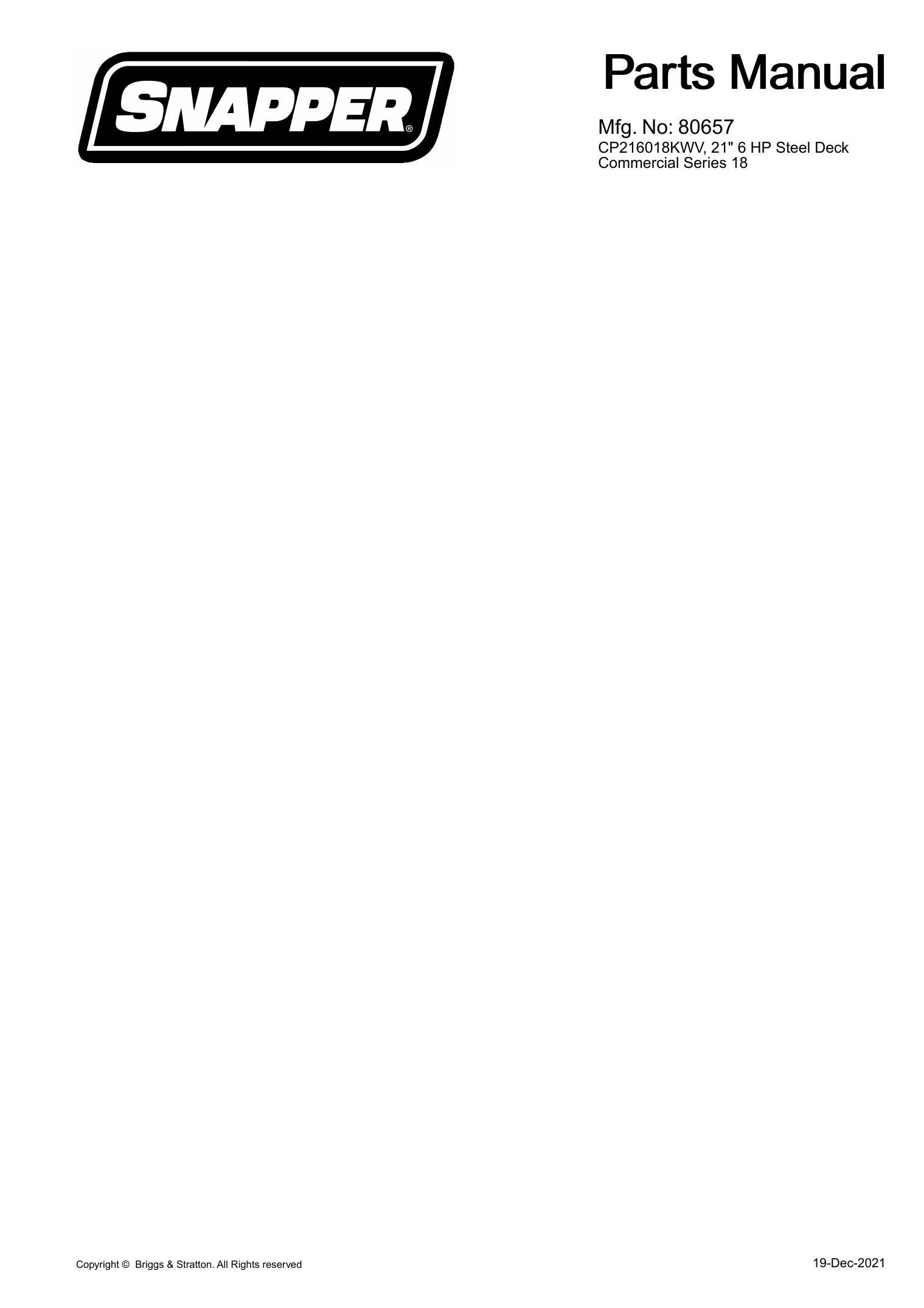

Simplicity CP216018KWV, 21" 6 HP Steel Deck Commercial Series 18 Manual

Parts Manual
Mfg. No: 80657
CP216018KWV, 21" 6 HP Steel Deck
Commercial Series 18
Copyright © Briggs & Stratton. All Rights reserved
19-Dec-2021
Table Of Contents
Model Components
Page
ACCESSORY GRASS BAG. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ACCESSORY THATCHERIZER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CUTTING DECK, BLADE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DECALS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DRIVE SYSTEM SELF-PROPELLED. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FRONT AND REAR WHEELS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FRONT WHEEL BRACKET, LATCHES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HANDLES & CONTROLS (Lower End). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HANDLES & CONTROLS (Upper End). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REAR WHEEL BRACKETS, LATCHES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RECYCLING KITS ACCESSORY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SIDE CHUTE ADAPTER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SNAPPERIZER ACCESSORY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
THROTTLE CONTROLS/ENGINE SPECS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TRANSMISSION (DIFFERENTIAL). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Torque Specification Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
3
n
o
4
6
8
12
14
18
20
22
24
28
30
32
34
36
38
40
19-Dec-2021
ACCESSORY GRASS BAG
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
4
Mfg. No: 80657
n
o
19-Dec-2021
ACCESSORY GRASS BAG
REF NO
PART NO
QTY
DESCRIPTION
7060936
--
1
2
7075766
7050711
1
1
3
4
4A
5
6
7
8
9
10
11
7042489
7019247
7016050
7058037
7047081
7047082
7091984
7012306
7024228
7091601
1
1
1
1
1
1
1
1
1
1
12
13
14
15
16
17
18
19
7072107
7013860
7024340
7024085
7011791
7091076
7090951
7043327
3
3
1
2
4
1
1
1
7078102
1
7078101
1
7075306
1
KIT, Grass Catcher
-(Incl. Items 1, 2, 3 & 4)
* GRASS BAG, Slider Type (Black w/Gray Letters)
ASSEMBLY, Slider
-Includes Slider (18164) & Cord (16124)
CONNECTOR, Grass Bag
WIRE, Bag Connector (12" Wide)
ADAPTER, Grass Bag
ASSEMBLY, Grass Bag Adapter (Incl. items 11 thru 18)
ADAPTER, Grass Bag
BRACKET, Rope Pulley
SCREW, 5/16-18 x 1-1/4" Pan Head Machine
BUSHING, Flange
PULLEY, Plastic
NUT, 5/16-18 Hex Flange Lock GR5
-Was 91070
WASHER, 15/32" Flat
RIVET, 3/16 x .344
SPACER, .316 I.D. x .375 O.D. x .310 thick
NUT, 5/16-18 Wing (Nylon Patch)
RETAINER, 5/16" Bolt
WASHER, 5/16" Flat
NUT, 5/16-18 Hex Large Flange Center Lock
BRACE, Bag Adapter, KWV
-CP216018KWV, CRP216018KWV
SCREW, M6 x 1.0 x 30MM Hex Head Cap
-CP216018KWV, CRP216018KWV
SLEEVE, .237/.242 I.D. x .3135/.3185 O.D. x .748 (not shown)
-CP216018KWV, CRP216018KWV
STANDOFF
-CP215518HV
20
21
22
r
o
u
F
d
t
o
o
r
N ep
R
i
t
c
n
o
Footnotes:
Note* Bag Assembly (58572) is made of items 1 thru 4.
Copyright © Briggs & Stratton. All Rights reserved
5
19-Dec-2021
ACCESSORY THATCHERIZER
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
6
Mfg. No: 80657
n
o
19-Dec-2021
ACCESSORY THATCHERIZER
REF NO
PART NO
QTY
DESCRIPTION
1
2A
2B
3
4
5
6
7061256
7032891
7026572
7026573
7018499
7018700
7019948
7018496
-2
1
1
2
1
1
6
7
8
9
10
7014100
7018493
7018189
7091705
1
1
1
10
11
7091294
4
12
13
14
7022425
7090825
7091576
2
2
2
15
16
7022424
7090015
2
2
KIT, Thatcherizer (Incl. items 1 thru 27)
LATCH, Frame Attachment
BAR, Mount (Right Hand)
BAR, Mount (Left Hand)
ROD, Tine
SUPPORT, Wheel
TRAY, Tine
KIT, Tine Thatching Spring
-Was 60574
BUSHING, Wheel Adjuster
AXLE, Wheel
WHEEL, 7.00 x 1.50 Gage
NUT, 1/4-20 Hex Top Lock
-Was 90761 (only 9 shown)
WASHER, 1/4" Flat
-Was 90055
SPRING, Compression
BOLT, 1/4-20 x 1-1/4" Hex, GR 5
NUT, 1/4-20 Hex, GR5
-Was 90063
CAP, Vinyl
BOLT, 1/4-20 x 2-1/2" Square Neck Carriage
-only 1 shown
BOLT, 5/16-18 x 1" Square Neck Carriage, GR5
-Was 90383 (only 1 shown)
BOLT, 1/4-20 x 3/4" Square Neck Carriage, GR5
-Was 90074
WASHER, Reinforcing
-only 1 shown
WASHER, 5/16" Split Lock
-only 1 shown
NUT, 5/16-18 Hex, GR5
-Was 90196 (only 1 shown)
NUT, 1/2" Push
BEARING, Nyliner
SCREW, 5/16-18 x 1/4" Set
WASHER, 1/2" Flat
DECAL, Adjustment
DECAL, Thatcherizer
17
F
t
o
N
7091303
6
7091530
2
7014098
6
7090187
6
21
7091511
6
22
23
24
25
26
27
7014101
7014342
7014103
7090250
7014115
7014062
2
4
1
2
1
1
18
19
20
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
7
u
d
i
t
c
n
o
19-Dec-2021
CUTTING DECK, BLADE
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
8
Mfg. No: 80657
n
o
19-Dec-2021
CUTTING DECK, BLADE
REF NO
PART NO
QTY
DESCRIPTION
1
7057663
1
1
7057884
1
2
7091601
10
3
7090731
2
4
5A
7091169
7090324
1
3
5B
7090238
2
6
7090700
1
7
8
7031961
7091315
1
2
9
7090167
1
10
11
7090228
7091297
4
4
7044770
3
7012063
7026691
2
1
7026407
1
7015626
1
7012927
1
7010783
2
16
7091214
1
17
18
7090201
7015780
1
1
18
7021822
1
19
20
21
7090391
7032558
7091508
4
2
2
22
23
7011791
7011762
2
1
60785
7060785
--
24
25
7074568
7045264
1
2
* DECK, Mower (incl. painted “HV" Deck w/Wheel Brackets & Decals)
-CP215518HV & CP216018KWV
* ASSEMBLY, Non-Adjustable Air, 21" Deck
-Was 57667 for CRP216018KWV
NUT, 5/16-18 Hex Flange Lock, GR 5
-Was 90585
BOLT, 5/16-18 x 1/2", Short Neck Carriage, GR 5
-or 92061
BOLT, 5/16-18 x 1-1/8" Short Neck Carriage, GR 5
SCREW, 3/8-16 x 1" Self-Tapping
-engine mount bolts (Kawasaki)
SCREW, 5/16-24 x 1" Hex Head Cap GR5
-engine mount bolts (Honda)
BOLT, 5/16-18 x 1-1/2" Hex Flange Lock, GR5
-engine mount bolts (Honda)
WASHER, 7/16" Flat
WASHER, .32 x .58 x .08 Split Lock
-on engine mount bolts (Honda)
SCREW, 3/8-24 x 2" Hex Head Cap, GR 5
-CP215518HV
SCREW, 5/16-24 x 21/32" Oval Head Machine
NUT, 5/16-24 Hex, GR5
-Was 90223
1/16" THICK SPACER, Blade Hub
-CRP216018KWV
WASHER, Cone
BLADE, Cutter (Standard Lift)
-CP215518HV & CP216018KWV
BLADE, 21" Ninja (Quad Edge)
-CRP216018KWV
HUB, Blade Drive 25mm I.D.
-CP216018KWV, CRP216018KWV
HUB, Blade Drive 7/8"
-CP215518HV
KEY, #505 Hi-Pro
-CP215518HV
KEY, #HP-506 Hi-Pro
-CP216018KWV & CRP216018KWV
SCREW, 5/16-18 Hex Socket Head
PULLEY-Engine (25mm I.D. x 2-1/8 O.D.)
-CP216018KWV & CRP216018KWV
PULLEY, Engine (1" I.D. x 2.275" O.D.)
-CP215518HV
WASHER, 5/16" Internal Tooth Lock
AIR LIFT
BOLT, 5/16-18 x 3/4" Short Neck Carriage GR5
-Was 90001
RETAINER, 5/16" Bolt
COVER, Spark Plug
-not shown
KIT, Air Lift
-(Incl. items 10, 11, 19 & 20)
COVER, Belt (Baffle)
PLUG, 5/16" Hole
12
13
14A
14B
15
15
16
r
o
u
F
d
t
o
o
r
N ep
R
i
t
c
n
o
Footnotes:
Note* Purchase engine parts from engine manufacturer dealer.
Note* includes painted deck and wheel brackets
Copyright © Briggs & Stratton. All Rights reserved
9
19-Dec-2021
CUTTING DECK, BLADE
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
10
Mfg. No: 80657
n
o
19-Dec-2021
CUTTING DECK, BLADE
REF NO
PART NO
QTY
DESCRIPTION
26
7091601
1
27
7046780
-----
2
1
-----
1
NUT, 5/16-18 Hex Flange Lock GR5
-Was 91070
PLUG, Hole, Polyethylene
* ENGINE, 5.5HP Honda Mod. GXV160-KA12
-used on CP215518HV
* ENGINE, 6HP Kawasaki Mod. Fj180V-AS13-R
-used on CP216018KWV & CRP21601/8KWV
r
o
u
F
d
t
o
o
r
N ep
R
i
t
c
n
o
Footnotes:
Note* Purchase engine parts from engine manufacturer dealer.
Note* includes painted deck and wheel brackets
Copyright © Briggs & Stratton. All Rights reserved
11
19-Dec-2021
DECALS
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
12
Mfg. No: 80657
n
o
19-Dec-2021
DECALS
REF NO
PART NO
QTY
DESCRIPTION
1
2
3
4
5
6
7
8
7029366
7046357
7046720
7078022
7013010
7075524
7075750
7075619
1
1
1
1
1
1
1
1
9
10
11
12
13
7075618
7072921
7029782
7075471
7029470
1
1
1
1
1
DECAL, Commercial, WBM
DECAL, Warning
DECAL, Chute/Deflector
DECAL, OPEI Walk/Ride
DECAL, Danger, Cut Finger
DECAL, Throttle Control, KWV
DECAL, Hi Vac
DECAL, Ninja
-CRP216018KWV
DECAL, Snapper
DECAL, Warning (Deck)
DECAL, OPC Bail (International Symbol)
DECAL, Speed Shift
DECAL, Patent Numbers
-not shown
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
13
u
d
i
t
c
n
o
19-Dec-2021
DRIVE SYSTEM SELF-PROPELLED
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
14
Mfg. No: 80657
n
o
19-Dec-2021
DRIVE SYSTEM SELF-PROPELLED
REF NO
PART NO
QTY
DESCRIPTION
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
7012354
7034179
7051921
7032832
7012124
7091025
7090303
7012117
7072284
7019383
7012316
7012126
7012111
7031873
7028014
7011025
7090289
7031809
7090534
7090391
7046784
7300977A
1
1
7010746
7029027
7090981
7501000
7061276
1
1
4
7023364
1
27
28
29
30
31
32
33
34
7031013
7090913
7012125
7090390
7090122
7091630
7011724
7091597
1
2
1
1
1
1
1
1
35
7091122
2
36
37
7074145
7090799
1
1
38
39
40
7017696
7029025
7091601
1
1
2
41
7013847
1
BELT, Poly-V
LINK, Differential
ASSEMBLY, Clutch Idler (Incl. items 3 thru 7)
ARM, Clutch Idler
PULLEY, Idler
SCREW, 1/4-28 x 1-3/8" Hex Head Cap, GR 5
NUT, 1/4-28 Hex Top Lock
BUSHING, 3/8" I.D. Nylon
* SHAFT, Hex Drive
PULLEY, Poly-V (2.00" O. D.)
WASHER, 3/8" Flat
SPRING, Idler- Torsion
STUD, Idler (3/8-24 thread)
HOLDER, Bearing (Inner Half)
BALL BEARING, Spherical O.D., .38 I.D.
O-RING
NUT, 3/8-24 Hex Center Lock, GR 5
HOLDER, Bearing (Outer Half)
SCREW, 5/16-18 x 1/2" Hex Head Cap, GR 5
WASHER, 5/16" Internal Tooth Lock
BELT, Engine Drive (Stretch)
THRUST PLATE, Short
-was 7034281
RETAINING RING, .625 External
BALL BEARING, 3/4" Bore- Commercial
SCREW, #10-32 x 1/4" Self-Tap Machine
ASSEMBLY, DRIVEN DISC (includes items 21 thru 32 & 47)
ASSEMBLY, Hub (Includes 11108 Bushing & 90913 Screws)
-Was 53217
RING, Driven (Rubber Disc)
-Was 10927
PLATE, Ring Retaining
SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
GUIDE, Thrust Plate (3/8-24 thread)
WASHER, 3/8" Internal Tooth Lock
WASHER, 3/8" Flat
NUT, 3/8-24 Hex
WASHER, 44 x .78 x .025 Curved
COTTER PIN, 3/32 x 1/2"
-Was 90555
SCREW, 1/4-20 x 1/2" Hex Flange Self-Tap
-Was 90539
LINK, Transfer (1/4-28 thread)
BOLT, 5/16-18 x 5/8" Short Neck Carriage GR 5
-Was 91026
BUSHING, Powdered Metal
SPRING, Wheel Drive
NUT, 5/16-18 Hex Flange Lock GR 5
-Was 91070
RETAINER, 5/16" Bolt
22
23
24
-25
26
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
r
o
u
F
d
t
o
o
r
N ep
R
1
i
t
c
n
o
Footnotes:
NOTE: Drive Disc and Bushing Assembly (53263) is composed of items 38 & 49.
Note** Hex Shaft Assembly (53376) is made of items 3-14, 16, 30, 32, 34 & 43.
Copyright © Briggs & Stratton. All Rights reserved
15
19-Dec-2021
DRIVE SYSTEM SELF-PROPELLED
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
16
Mfg. No: 80657
n
o
19-Dec-2021
DRIVE SYSTEM SELF-PROPELLED
REF NO
PART NO
QTY
DESCRIPTION
42
43
7090731
7012122
1
1
44
44
45
46
47
48
7052987
7033774
7012306
7021758
7091294
7090673
1
2
1
1
1
49
7073528
1
BOLT, 5/16-18 x 1/2", Short Neck Carriage, GR 5
SPRING, Clutch- 21S
-also shown on Upper Handle Page
ASSEMBLY, Deck Bracket (Incl. items 44 thru 46)
BRACKET, Deck, P21S
BUSHING, Flange
SPACER, .500 x .65 x 1.75
WASHER, .28 x .63 x .06 Flat
COTTER PIN, .06 x .50
-Was 91629
ASSEMBLY, Steel Drive Disc
r
o
u
F
d
t
o
o
r
N ep
R
i
t
c
n
o
Footnotes:
NOTE: Drive Disc and Bushing Assembly (53263) is composed of items 38 & 49.
Note** Hex Shaft Assembly (53376) is made of items 3-14, 16, 30, 32, 34 & 43.
Copyright © Briggs & Stratton. All Rights reserved
17
19-Dec-2021
FRONT AND REAR WHEELS
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
18
Mfg. No: 80657
n
o
19-Dec-2021
FRONT AND REAR WHEELS
REF NO
PART NO
QTY
DESCRIPTION
1
2
3
3
4
5
7035726
7035727
7031121
7031960
7090377
7031961
2
2
4
2
4
6
WHEEL, Rear 10.0 x 1.75 Diamond Grey
WHEEL, Front 8.0 x 1.75 Diamond Black
HUB-CAP (Front Wheels)
HUB-CAP (Rear Wheels)
NUT, 7/16-20 Hex Center Lock Jam
WASHER, 7/16" Flat
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
19
u
d
i
t
c
n
o
19-Dec-2021
FRONT WHEEL BRACKET, LATCHES
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
20
Mfg. No: 80657
n
o
19-Dec-2021
FRONT WHEEL BRACKET, LATCHES
REF NO
PART NO
QTY
DESCRIPTION
1
7051885
1
1
7051886
1
2
7015761
1
3
7012325
1
4
7027702
1
5A
7031016
1
5B
6
7
7031017
7011791
7091601
1
1
2
8
7074702
1
8
7074702
1
9
7021119
1
ASSEMBLY, Left Wheel Arm (Not shown)
-(Consists of items 2, 3, 4 5A & 6)
ASSEMBLY, Right Wheel Arm
-(Consists of items 2, 3, 4 5B & 6)
BOLT, 5/16-18 Hex Washer Face Shoulder
-per wheel arm assembly
LATCH, Height
-per wheel arm assembly
GRIP, Height Latch
-per wheel arm assembly
WHEEL ARM, L.H. Front (Square Hole)
-not shown
WHEEL ARM, R.H. Front (Round Hole)
RETAINER, 5/16" Bolt
NUT, 5/16-18 Hex Flange Lock, GR 5
-Was 91070
WELDMENT, Front Wheel Bracket
-Was 41770, CP215518HV & CP216018KWV
WELDMENT, Front Wheel Bracket
-CRP216018KWV
AXLE, 21"
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
21
u
d
i
t
c
n
o
19-Dec-2021
HANDLES & CONTROLS (Lower End)
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
22
Mfg. No: 80657
n
o
19-Dec-2021
HANDLES & CONTROLS (Lower End)
REF NO
PART NO
QTY
DESCRIPTION
1
2
3
7033985
7033986
7090799
1
1
2
4
7091601
2
5
6
7
8
9
10
7046707
7090095
7015753
7090053
7090595
7091601
2
4
2
4
5
10
11
12
13
14
15
16
17
7073822
7013849
7073913
7091130
7091904
7091190
7091575
1
1
1
1
1
4
1
18
19
20
21
22
7090238
7012114
7090895
7032408
7091606
1
1
1
1
1
7090391
7091511
4
4
HANDLE, Lower LH (Adjustable)
HANDLE, Lower RH (Adjustable)
BOLT, 5/16-18 x 5/8" Short Neck Carriage GR 5
-Was 91026
NUT, 5/16-18 Hex Flange Lock GR 5
-Was 91070
STRAP, Handle
NUT, 1/4-28 Hex, GR 5
BALL JOINT, 1/4-28
WASHER, 1/4" Internal Tooth Lock
BOLT, 5/16-18 x 3/4" Hex Flange Lock GR 5
NUT, 5/16-18 Hex Flange Lock, GR 5
-Was 90585
BRACKET, Bell Crank
SPACER, .33 x .63 x .156
BELL CRANK
WASHER, .33 x .88 x .09 Flat
SCREW, 5/16-18 x 7/8" Hex Head Cap, GR 5
BOLT, 5/16-18 x 1-1/2" Curved Head
NUT, 5/16-18 Hex Center Lock
-Was 91067
SCREW, 5/16-24 x 1" Hex Head Cap GR5
BUSHING, Differential
NUT, 5/16-18 Tee
GUIDE, Lower V-Belt
NUT, 5/16-18 Hex, GR 5
-Was 91074
WASHER, 5/16" Internal Tooth Lock
NUT, 5/16-18 Hex, GR 5
-Was 91069
29
31
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
23
u
d
i
t
c
n
o
19-Dec-2021
HANDLES & CONTROLS (Upper End)
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
24
Mfg. No: 80657
n
o
19-Dec-2021
HANDLES & CONTROLS (Upper End)
REF NO
PART NO
QTY
DESCRIPTION
1
2
3
4
5
7074411
7074156
7074418
7034872
7074141
1
1
1
1
1
5
7029344
1
6
7
8
9
9
7074473
7028407
7034604
7012121
7075305
1
1
1
1
1
10
11
12
13
14
15
16
17
7012122
7074003
7074133
7091305
7031961
7028465
7091190
7091576
1
1
1
1
2
2
2
2
HANDLE, Upper
HANDLE, Middle
BAIL, OPC Control (16.6" Wide)
CLIP, Zone Control
CABLE, Zone Control (56-5/16" Long)
-CP216018KWV & CRP216018KWV
CABLE, Zone Control (49.98" Long)
-CP215518HV
HANDLE, Clutch
GRIP, International Symbol
CABLE, Clutch Control (41-1/4" Long)
COVER, Vinyl
COVER, Grip
-CP215518HV
SPRING, Clutch- 21S
BRACKET, Shift
ROD, Speed Control (1/4-28 thread)
SCREW, 3/8-16 x 2" Hex Head Cap, GR 5
WASHER, 7/16" Flat
WASHER, Nylon
BOLT, 5/16-18 x 1-1/2" Curved Head
NUT, 1/4-20 Hex
-Was 91100
CLIP, Wiring Harness
SCREW, 1/4-20 x 1-1/2 Hex Head Cap GR5
CLAMP, 7/8" Double Cable
SCREW, 1/4-20 x 2" Hex Head Cap, GR 5
WASHER, 1/4" Internal Tooth Lock
-Was 91023
CONTROL PANEL (w/o Electrical Switch Hole)
SCREW, 1/4-20 x 1/2" Pan Head Self-Tap (Torx)
BUSHING, .27 x .35 x .4 Flange
PIN, 1/4 x 1-1/2"
PUSH-NUT, 1/4"
FOAM GRIP, 18.75" long
WASHER, 5/16" Internal Tooth Lock
DECAL, Commercial, WBM
NUT, 5/16-18 Hex, GR 5
-Was 91069
DECAL, OPC Bail (International Symbol)
GUIDE, Rope (1/4-20 thread)
WASHER, Belleville
NUT, 3/8-16 Hex Center Lock
LEVER, Shift
KNOB, Shift
SCREW, #8-32 x 1/2" Cross Recess Filister Head Machine
NUT, #8-32 Hex
WASHER, 3/8" Flat
COTTER PIN, 5/16 Self Lock
TIE, Wire, 1.29 long, black
NUT, 1/4-28 Hex Nyloc
CABLE-TIE, 7"
THROTTLE CONTROL, 50.81", Honda
-CP215518HV
18
19
20
21
22
F
t
o
N
7023813
7079577
7026219
7090505
7090053
3
2
1
2
2
23
24
25
26
27
28
29
30
31
7074140
7091200
7014343
7023792
7091020
7023810
7090391
7029366
7091511
1
4
2
1
1
1
3
1
2
32
33
34
35
36
37
38
39
40
41
42
43
44
45
7029782
7028488
7028568
7091585
7074113
7075182
7091167
7091018
7090188
7034162
7024641
7076978
7012080
7078026
1
1
1
1
1
1
1
1
3
1
1
2
2
1
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
25
u
d
i
t
c
n
o
19-Dec-2021
HANDLES & CONTROLS (Upper End)
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
26
Mfg. No: 80657
n
o
19-Dec-2021
HANDLES & CONTROLS (Upper End)
REF NO
PART NO
QTY
DESCRIPTION
45
7074138
1
46
7075308
1
THROTTLE CONTROL, 6.0 KWV
-CP216018KWV & CRP216018KWV
THROTTLE KNOB
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
27
u
d
i
t
c
n
o
19-Dec-2021
REAR WHEEL BRACKETS, LATCHES
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
28
Mfg. No: 80657
n
o
19-Dec-2021
REAR WHEEL BRACKETS, LATCHES
REF NO
PART NO
QTY
DESCRIPTION
1
7012312
1
2
7091012
3
3
7035717
1
4
7091576
1
5
7091601
6
6
7054230
1
7
7054247
1
8
9
10
7032722
7032723
7011078
1
1
1
11
7011791
2
12
7027702
1
13
14
15
16
17
18
7033494
7033495
7029008
7023791
7012616
7091604
1
1
1
1
1
1
7090053
1
7090731
1
BEARING, 9/16" I.D.
-per Rear Wheel Arm
SCREW, #10-32 x 3/8" Hex Washer Self-Tap
-per Rear Wheel Arm
LATCH, Height Adjusting (long)
-per Rear Wheel Arm
NUT, 1/4-20 Hex
-Was 90063 or 91100
NUT, 5/16-18 Hex Flange Lock, GR 5
-Was 90585
ASSEMBLY, Wheel Arm (Right Rear)
-Was 54230 (Incl. 1, 2, 3, 12, 14, 15 & 16)
ASSEMBLY, Wheel Arm (Left Rear)
-Was 54231 (Incl. 1, 2, 3, 13, 14, 15 & 16)
ARM, Wheel, Right Rear
ARM, Wheel, Left Rear
BOLT, 5/16-18 x 1" Shoulder
-per wheel arm assembly
RETAINER, 5/16" Bolt
-per wheel arm assembly
GRIP, Height Latch
-per wheel arm assembly
BRACKET, Right Rear Wheel
BRACKET, Left Rear Wheel
FOOT GUARD, Rear
RING, Split (Black)
SUPPORT, Foot Guard
BOLT, 1/4-20 x 1/2" Short Neck Carriage GR5
-Was 90005
WASHER, 1/4" Internal Tooth Lock
-Was 91023
BOLT, 5/16-18 x 1/2", Short Neck Carriage, GR 5
19
20
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
29
u
d
i
t
c
n
o
19-Dec-2021
RECYCLING KITS ACCESSORY
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
30
Mfg. No: 80657
n
o
19-Dec-2021
RECYCLING KITS ACCESSORY
REF NO
PART NO
QTY
DESCRIPTION
1
1
1
KIT, Recycling Cover (Includes the 2 items below)
-for 4HP & above engines
KIT, Recycling Plug (Quad Blade) (Incl. items 1 & 2 below)
-for 4HP & above engines
COVER, 21" Deck
PLUG, Chute Adapter
BLADE, 21" Quad Edge Ninja
7061200
7061201
1
2
3
7029149
7016814
7026407
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
31
u
d
i
t
c
n
o
19-Dec-2021
SIDE CHUTE ADAPTER
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
32
Mfg. No: 80657
n
o
19-Dec-2021
SIDE CHUTE ADAPTER
REF NO
PART NO
QTY
1
7016050
2
3
4
5
7024340
7024085
7011791
7091508
1
2
4
2
6
7029149
1
7
8
9
7091076
7090951
7058037
1
1
1
10
11
12
13
14
15
7047081
7047082
7091984
7012306
7024228
7091601
1
1
1
1
1
1
16
17
7072107
7013860
3
3
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
DESCRIPTION
ADAPTER, Grass Bag
-Ref: Grass Bag Accessory Page
SPACER, .316 I.D. x .375 O.D. x .310 thick
NUT, 5/16-18 Wing (Nylon Patch)
RETAINER, 5/16" Bolt
BOLT, 5/16-18 x 3/4" Short Neck Carriage GR5
-Was 90001
COVER, 21" Deck
-CRP216018KWV
WASHER, 5/16" Flat
NUT, 5/16-18 Hex Large Flange Center Lock
ASSY, Grass Bag Adapter (Incl. items 11 thru 18)
-Ref: Grass Bag Accessory Page; CP215518HV & CP216018KWV
ADAPTER, Grass Bag
BRACKET, Rope Pulley
SCREW, 5/16-18 x 1-1/4" Pan Head Machine
BUSHING, Flange
PULLEY, Plastic
NUT, 5/16-18 Hex Flange Lock GR5
-Was 91070
WASHER, 15/32" Flat
RIVET, 3/16 x .344
r
o
e
R
o
r
p
33
u
d
i
t
c
n
o
19-Dec-2021
SNAPPERIZER ACCESSORY
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
34
Mfg. No: 80657
n
o
19-Dec-2021
SNAPPERIZER ACCESSORY
REF NO
PART NO
QTY
DESCRIPTION
KIT, Snapperizer (Incl. items 1 & 2 thru 5)
-(for Hi-Vac Rolled Under Lip type decks)
KIT, Snapperizer (Incl. items 1& 2A thru 5)
-(for “FR” type decks)
SCREEN, Fastener Assembly
RING, Bottom (21.77" Inside Diameter)
RING, Bottom (22.60" Inside Diameter)
NUT, 5/16-24 Hex, GR5
-Was 90223, only 1 shown
WASHER, 5/16" Split Lock
-only 1 shown
SPRING
-only 1 shown
7060440
7063041
1
2
2A
3
7051243
7039759
7072002
7091297
1
1
1
3
4
7090187
3
5
7012587
3
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
35
u
d
i
t
c
n
o
19-Dec-2021
THROTTLE CONTROLS/ENGINE SPECS
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
36
Mfg. No: 80657
n
o
19-Dec-2021
THROTTLE CONTROLS/ENGINE SPECS
REF NO
PART NO
QTY
DESCRIPTION
Honda
7078026
1
Kawasaki
7074138
1
THROTTLE CONTROL, 50.81", Honda
-CP215518HV
THROTTLE CONTROL, 6.0 Kawasaki
-CP216018KWV & CRP216018KWV
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
37
u
d
i
t
c
n
o
19-Dec-2021
TRANSMISSION (DIFFERENTIAL)
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
38
Mfg. No: 80657
n
o
19-Dec-2021
TRANSMISSION (DIFFERENTIAL)
REF NO
PART NO
QTY
DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
7053943
7092062
7092063
7019213
7091720
7053941
7029034
7014155
7012314
7029035
7073963
7016544
7050767
7051932
1
4
1
1
1
1
1
3
1
1
1
1
1
1
14
15
16
17
18
19
20
21
7012495
7031970
7031965
7090557
7011774
7090189
7051903
7091825
1
2
2
4
1
3
1
4
7012543
7051933
7021115
7012500
7011110
7090376
7053938
7029033
7024442
7061017
1
1
4
4
4
4
1
1
3
32oz.
* ASSEMBLY, Transmission (Incl. items 1 thru 30)
NUT, 5/16-18 Hex Lock
WASHER, Cone
PULLEY, Poly-V Belt (3.5 O.D.)
WASHER, Spring
ASSEMBLY, Right Housing (Incl. items 6, 7, 8, 9, 10 & 30)
HOUSING, Right Side
SCREW, 5/16-24 x 1-1/8" Rib Neck, GR 5
SEAL, 5/8" Internal Diameter
BEARING, Tapered- (Differential Housing)
BALL BEARING, 7/16 I.D., 1/1/8" O.D.
PLUG, Transmission Housing
GEAR, Input
AXLE, Short
-Axle Assembly 52830 is composed of items 13, 22 & 23.
** GEAR, Differential (46 Tooth)
PLATE, 46T Gear
WASHER, Thrust, 3/4" I.D.
SCREW, #10-32 x 1-1/2" Hex Head Cap GR5
GASKET, Housing
WASHER, 5/16" Internal/External Tooth Lock
BRACKET, Differential
SCREW, 1/4-20 x 1" Hex Washer Self-Tap
-Was 92064
SPACER, Axle Gear
ASSEMBLY, Long Axle
GEAR, Pinion (12 tooth)
SPACER, Pinion Gear
SHAFT, Pinion
NUT, #10-32 Hex Nyloc
ASSY, Left Housing (Phantom)
HOUSING, Left
GASKET, 5/8" O. D.
“00" Grease
-not shown
22
23
24
25
26
27
28
29
30
r
o
u
F
d
t
o
o
r
N ep
R
i
t
c
n
o
Footnotes:
Note** 60337 KIT, Transmission Gear (Includes Items 14 thru 17 & 22 & 24 thru 27)
Note* Complete transmission assembly number is 59070.
Copyright © Briggs & Stratton. All Rights reserved
39
19-Dec-2021
Hardware Identification & Torque Specifications
Torque Specification Chart
Torque Specification Chart
FOR STANDARD METRIC MACHINE HARDWARE (Tolerance ± 20%)
Property
Class
5.6
8.8
Class 5.6
Class 8.8
in/lbs
Size Of
Hardware ft/lbs
M3
M4
M5
M6
M7
M8
M10
M12
M14
M16
M18
M20
M22
M24
M27
M30
M33
M36
M39
5.88
13.44
26.4
44.64
5.2
7.7
15
26
42
64
89
126
169
217
320
435
590
759
988
10.9
Nm.
Nm.
in/lbs
ft/lbs
.56
1.28
2.50
4.3
7.1
10.5
21
36
58
88
121
171
230
295
435
590
800
1030
1340
13.44
30.72
60.96
7.3
12.1
17.7
35
61
101
147
202
290
390
497
733
995
1349
1740
2249
1.28 19.2
2.90 43.44
5.75 5.97
9.9 10.3
16.5 16.9
25
24
50
48
83 86.2
136
132
210
200
287
275
405
390
559
530
708
375
995 1032
1350 1401
1830 1902
2360 2441
3050 3163
SAE Grade 2
Class 12.9
Size Of
Hardware
Nm.
in/lbs
ft/lbs
Nm.
1.80
4.10
8.10
14
23
34
67
117
185
285
390
550
745
960
1400
1900
2580
3310
4290
22.92
52.56
7.15
12.1
19.9
29
59
103
162
250
346
486
656
840
1239
1681
2278
2935
3798
2.15
4.95
9.7
16.5
27
40
81
140
220
340
470
660
890
1140
1680
2280
3090
3980
5150
20
10
30
40
50
60
80
70
Body Length
Screw, M8- 1.25 x 25
Thread
Diameter (mm)
Threads
Inside
Diameter (in) per inch
1/4
1/2
3/4
1
2.1
2.3
3.1
3.5
7.6
8.6
15.0
16.3
27.2
31.3
40.8
47.6
68.0
74.8
88.4
102.0
122.4
136
217.6
244.8
190.4
210.8
299.2
326.4
Body
Length (mm)
Body
Length (in)
in/lbs
ft/lbs
30
31
43
49
8
10
17
19
30
35
50
55
75
90
110
120
150
180
260
300
400
440
580
640
SAE Grade 8
Nm.
in/lbs
ft/lbs
Nm.
3.4
3.5
4.9
5.5
10.9
13.6
23.1
25.8
40.8
47.6
68.0
74.8
102.0
122.4
149.6
163.2
204.0
244.8
353.6
408.0
544.0
598.4
788.8
870.4
41
43
60
68
12
14
25
29
45
50
70
80
110
120
150
170
220
240
386
420
600
660
900
1,000
4.6
4.9
6.8
7.7
16.3
19.0
34.0
34.0
61.2
68.0
95.2
108.8
149.6
163.2
204.0
231.2
299.2
326.4
525.0
571.2
816.0
897.6
1,244.0
1,360.0
NOTES
1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. for prevailing torque locknuts - use 65% of grade 5
torques.
b. for flange whizlock nuts and screws - use 135% of
grade 5 torques.
3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.
Screw, 1/2- 16 x 2
Nut, 1/2-16
0
Distance between
threads (mm)
Threads
per inch
Thread
Diameter (mm)
Body
Diameter
19
20
27
31
66
76
11
12
20
23
30
35
50
55
65
75
90
100
160
180
140
155
220
240
SAE Grade 5
Nm.
100
90
Body
Diameter
Nut, M8
in/lbs
ft/lbs
8-32
8-36
10-24
10-32
1/4-20
1/4-28
5/16-18
5/16-24
3/8-16
3/8-24
7/16-14
7/16-20
1/2-13
1/2-20
9/16-12
9/16-18
5/8-11
5/8-18
3/4-10
3/4-16
7/8-9
7/8-14
1-8
1-12
The guides and ruler furnished below are designed to
help you select the appropriate hardware.
0
No
Marks
Hardware
Grade
12.9
Class 10.9
in/lbs
ft/lbs
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
1/4
1/2
3/4
2
1/4
1/2
3/4
3
1/4
1/2
3/4
4
Common Hardware Types
Hex Head Capscrew
Washer
Standard Hardware Sizing
When a washer or nut is identified as 1/2” (M8), this is
the Nominal size, meaning the inside diameter is 1/2 inch
(8mm metric thread diameter); if a second number is present
it represents the threads per inch (distance between threads).
When bolt or capscrew is identified as 1/2 - 16 x 2” (M8 - 1.25 x 50),
this means the Nominal size, or body diameter is 1/2 inch (8mm
metric thread diameter), the second number,16, represents the
threads per inch, (distance between threads). The final number
is the body length of the bolt or screw, 2 inches (50mm).
Lockwasher
Carriage Bolt
Hex Nut
Wrench & Fastener Size Guide
1/4” Bolt or Nut
Wrench—7/16”
5/16” Bolt or Nut
Wrench—1/2”
3/8” Bolt or Nut
Wrench—9/16”
M6 Bolt or Nut
Wrench—10mm
M8 Bolt or Nut
Wrench—13mm
M10 Bolt or Nut
Wrench—17mm
7/16” Bolt or Nut
1/2” Bolt or Nut
Wrench (Bolt)—5/8”
Wrench—3/4”
Wrench (Nut)—11/16”
M12 Bolt or Nut
Wrench—19mm
M14 Bolt or Nut
Wrench—22 mm
Copyright © Briggs & Stratton. All Rights reserved
19-Dec-2021

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
