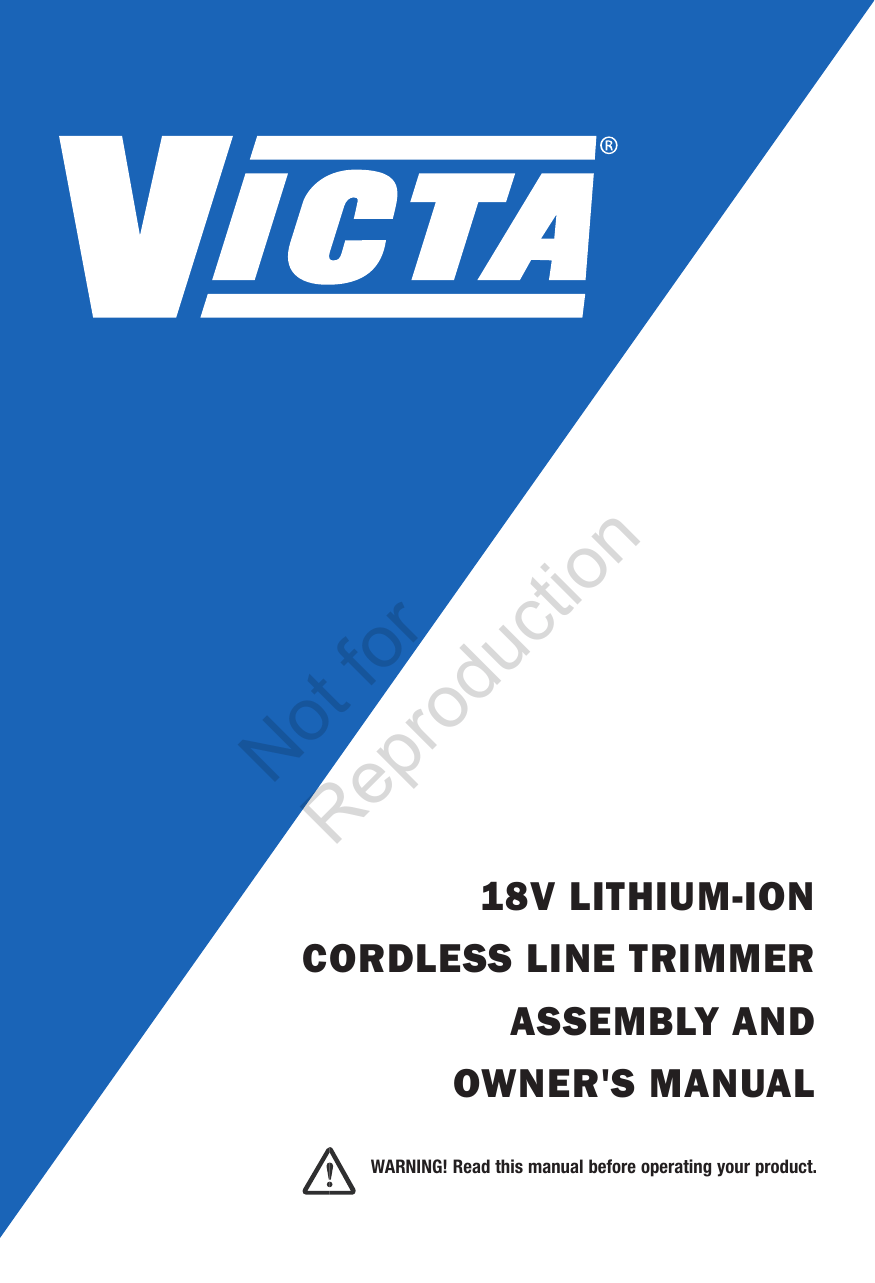

18V LITHIUM-ION
CORDLESS LINE TRIMMER
ASSEMBLY AND
OWNER'S MANUAL
WARNING! Read this manual before operating your product.
IMPORTANT NOTES
Details
Thank you for purchasing your Victa product. Victa prides itself in the quality and performance
of all its products.
This instruction manual will aid in the assembly, safe operation and maintenance of your
product.
Please read the following warnings to ensure safety and the long life of your product.
WARNING
Do not attempt to operate this product until you have read thoroughly and understood
completely all instructions, safety rules, etc, contained in this manual. Failure to comply may
result in accidents involving electric shock, fire, and/or serious personal injury.
INTENDED USE
This product is intended for domestic grass trimming only. This product is not intended for
brushcutting or commerical use.
Do not use the product for any task, except for that which it is intended.
General safety
Beware of electric shock
n
Warning!
N
R ot f
ep o
ro r
du
ct
io
hazard when charging.
Read the directions for
use before operating the
machine.
Read the directions before
carrying out any adjustment &
maintenance work.
Wear safety goggles and
ear protection that meet
safety standards.
Wait for all components
of the machine to completely
stop & remove the battery.
Wear sturdy, non-slip
footwear.
Do not use rigid cutting disk.
Wear safety gloves.
Should NOT be disposed of
with house hold items.
Do not use machine in
wet conditions, protect
the machine from rain
and damp.
Keep away from heat and/or
open flame.
Be careful of objects
being thrown out!
Ensure bystanders
are kept at least 50'
(15m) away & stop the
machine if approached.
Li-Ion
21
Batteries contain Li-ion.
Do not dispose of waste
batteries in domestic
waste. Contact local
authority to find out how
to dispose of batteries
appropriately.
Do not throw into water.
max.40°C
Ambient temperature
40˚C Max.
Keep bystanders away.
Keep hands away from
cutting area while
operating.
Table of Contents
Features & Definitions
Features & supplied items
3
General safety
Product disposal
4
5
Unpacking
Fitting the trimmer guard
Fitting the front handle
Fitting the bump guard
5
6
6
6
Safety & Handling
Assembly Procedures
Operating Instructions
7
7
7
8
9
9
10
10
11
Cleaning
Storing
Trimmer line replacement
Maintenance chart
Service
12
12
13
14
14
Troubleshooting
15
Product specification
16
N
R ot f
ep o
ro r
du
ct
io
n
Cut off blade
Operating the trimmer
Installing & removing battery
Start & stopping
Height adjustment
Trimming head angle adjustment
Trimmer line length adjustment
Cutting tips
Trimming edges
Maintenance & Care
Troubleshooting
Technical Specification
NOTE: WARRANTY DETAILS ARE NOT WRITTEN WITHIN THIS OPERATOR’S MANUAL.
REFER TO OTHER DOCUMENTS SUPPLIED WITH THIS MACHINE FOR WARRANTY
DETAILS.
THE WARRANTY DOCUMENTS MAY INCLUDE TECHNICAL SPECIFICATIONS THAT
ARE SPECIFIC TO EACH MODEL THAT ARE NOT WRITTEN WITHIN THIS OPERATOR’S
MANUAL.
3
2
FEATURES DEFINITIONS
Features & Supplied Items
NOTE: Refer to figure 1.
Operating Handle
2
On/Off Switch
3
Throttle Trigger
4
Battery Housing
5
Front Handle
6
Front Handle Lock Knob
7
Upper Shaft (Telescope)
8
Lower Shaft (Fixed)
9
Height Adjustment Knob
10
Shaft Rotation Button
11
Angle Adjust Pedal
12
Trimmer Guard
13
Guide Wheel
14
Bump Guard
15
Autofeed Head
16
Refill Spool
17
Motor Housing
18
Battery (not included with all products)
19
Battery Charger (not included with all products)
N
R ot f
ep o
ro r
du
ct
io
n
1
- Grass Trimmer Instruction/Safety Manual (not shown)
- Battery & Charger Instruction/Safety Manual (not shown)
1
2
5
3
4
7
16
18
6
8
9
19
10
17
13
11
14
12
Fig 1
WARNING
4
3
15
Do not operate the product if any component is missing or damaged. Have any missing or
damaged components repaired or replaced.
General Safety
N
R ot f
ep o
ro r
du
ct
io
n
• Carefully read all instructions on the machine and in the manual before attempting to assemble
and operate the machine. Keep this manual in a safe place for future reference, and consult it
regularly. Ensure other users read this manual and are aware of the product safety risks
• The machine should be operated only with a genuine Briggs & Stratton 18V Lithium-ion
battery. When using battery operated machine basic safety precaution should always be
followed to reduce the risk of leaking batteries and personal injury.
• Become familiar with all controls and their proper operation before using the machine. Know
how to stop the machine and how to disengage the power in an emergency.
• Thoroughly inspect the area where the machine is to be used. Remove all stones, sticks, wire,
bones, toys, and other objects that could be tripped over or thrown by the cutting mechanism.
Thrown objects can cause serious personal injury.
• Always wear a face mask or a dust mask when operating the machine in a dusty environment.
• Always wear appropriate clothing & do not wear loose clothing (or jewellery etc) that can get
caught in moving parts.
• Do not operate this machine in bare feet, or while wearing sandals or lightweight (e.g. canvas
shoes) Wear long trousers & heavy shoes.
• Do not operate the machine while under the influence of alcohol or drugs.
• Stay alert & do not operate the machine when you are tired. Pay attention to what you are
doing and ensure others are aware of your task intentions before commencing.
• Avoid using the machine in dangerous environments. Only use the machine in daylight or in
good artificial light.
• Do not use the machine in a rush. Always walk & never run with the machine.
• Before inspecting, adjusting, servicing or cleaning the machine, always stop & remove the
battery.
• If the machine starts to vibrate excessively, discontinue use until the machine has been
inspected and assessed. Having a machine assessed for vibration problems generally reduces
the risk for injury or product failure.
• Don’t force the machine beyond its cutting capacity. The machine will perform better and safer
if allowed to cut at the pace for which it is rated for.
• Do not use the machine indoors. Only store the machine indoors in a dry & secure location.
Keep the machine out of reach of children.
• Always maintain the machine according to the maintenance section of this manual
• If machine strikes a foreign objects, always inspect for damage.
• Do not allow children or impaired persons to operate the machine.
• Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects
that may obscure your view & the path of the machine.
• Do not use the machine near hot ash, combustible materials or immerse in liquids. This may
cause fire hazard, serious injury or product damage.
• Do not put any object into ventilation grills. Do not use with any openings blocked, keep
openings free from anything that may reduce air flow to the motor.
• Do not point the machine in the direction of people or pets.
• Avoid trees and shrubs. Tree bark, wood moldings, siding, and fence posts can easily be
damaged by the line.
• Product must be completely assembled before attempting to start the machine.
4
5
Product Disposal
CORRECT DISPOSAL OF THE PRODUCT
3.
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your local authority or retailer
for recycling advice.
The battery contains material which is hazardous to you and the environment. It
must be removed and disposed of separately at a facility that accepts lithium-ion batteries.
Refer to Briggs & Stratton 18V Battery & Charger manual for further information
relating to battery and charger disposal.
CORRECT DISPOSAL OF THE PACKAGING
The packaging consists of cardboard and correspondingly marked plastics that
can be recycled. Make these materials available for recycling.
n
Emergency Contact
N
R ot f
ep o
ro r
du
ct
io
In the rare case a battery is damaged & any of the contents leaks or comes into contact
with a persons skin, eyes, or is ingested, follow the first aid instructions inside the battery &
charger manual. Seek further medical attention immediately.
ASSEMBLY PROCEDURES
Unpacking
This product requires assembly.
• Carefully remove the product and any accessories from the box. Make sure that all items
listed in the packing list are included. Refer to pages 3.
• Do not discard the packing material until you have carefully inspected and ensured
product is in correct operating condition.
WARNING
Do not attempt to modify this product or create accessories not recommended for use with
this product. Any such alteration or modification is misuse and could result in a hazardous
condition leading to possible serious personal injury.
Do not operate the machine unless assembly is complete including guards, handles &
harness.
Do not install the battery in the product before finishing the complete assembly.
6
5
ASSEMBLY PROCEDURES
Fitting the Trimmer Guard
NOTE: Refer to figure 2.
• Remove the mounting screws from the
motor housing. These are pre-mounted
on the motor housing to help end user
locate them easily.
• Align the trimmer guard as shown and
push on the motor housing. The guard
will slide on and rests securely on the
motor housing.
Fig 2
• Tighten all the four mounting screws and
fix the trimmer guard.
WARNING
Do not attempt to run the product without installing trimmer guard. Thrown objects may
cause serious personal injury to the operator if the trimmer guard is not used.
n
Do not operate or fit battery before the trimmer guard is completely installed or loose.
N
R ot f
ep o
ro r
du
ct
io
Fitting the Front Handle
NOTE: Refer to figure 3 & 4.
Fig 3
Front Handle
The Front Handle may be supplied loose and needs
adjustment. Front handle can be adjusted at different
angles to suit the desired angle of operation.
• Press
the front handle onto shaft so that the handle is
angled towards the operating handle.
• Place the front handle along the shaft to a position that Front Handle Lock Knob
allows for comfortable operation.
Fig 4
Adjust until you are comfortable.
• Slide the lock knob through the hole in front handle
and tighten it completely.
• Check handle position is correct and secured
sufficiently.
Fitting the Bump Guard
NOTE: Refer to figure 5.
The Bump Guard is designed to protect flowers, trees and
garden furniture during operation.
Fig 5
• Align
the bump guard with the slot provided on the
motor head as shown in figure.
• Push the guard in the slot. If installed correctly, the ring
will snap fit in place securely.
7
68
OPERATING INSTRUCTIONS
Cut-off Blade
NOTE: Refer to figure 6.
Fig 6
Bump Guard
The trimmer is equipped with a line trimming
cut-off blade on the trimmer guard.
Replace the cutting blade when trimming
efficiency diminishes.
This will maintain best performance.
WARNING
Cut-Off Blade
Autofeed Head
Trimmer Guard
Cut off blade is sharp.
Operating The Trimmer
N
R ot f
ep o
ro r
du
ct
io
n
Hold the trimmer with your right hand on the rear handle and your left hand on the front
handle. Keep a firm grip with both hands while in operation. The trimmer should be held at
a comfortable position with the rear handle about hip height. Always operate the trimmer at
full throttle. If debris becomes wrapped around the cutting head, release the trigger, remove
battery and then remove the debris.
WARNING
• Motor housing may become hot during operation. Do not rest or place your arm,
hand, or any body part against the motor housing during operation.
• Position the unit on the operator’s right side & never operate unit with the bottom of the
motor above waist level.
• Reverse hand orientation if left hand use is desired.
Installing & removing the Battery
NOTE: Refer to figure 7.
• Align the guide ribs on battery with grooves in the
product's battery port.
Fig 7
• Push the battery in the line trimmer battery housing.
• Make sure the latch on bottom of the battery snaps in
place and that the battery is fully seated (will "click" into
place) and secure in the line trimmer before beginning
operation.
• If the machine is not going to be used immediately,
remove the battery.
• To remove the battery, press the release trigger on the battery and pull it out from line
trimmer. Refer battery manual to locate the release trigger.
87
OPERATING INSTRUCTIONS
Starting & Stopping
NOTE: Refer to figure 8.
PRESENCE SWITCH
The presence switch reduces the possibility of accidental starting. The presence switch is
located on the handle above the trigger. The presence switch must be slide forward before
you pull the trigger. The lock resets each time the trigger is released.
STARTING the Trimmer:
• Push the presence switch forward and hold it in place.
• Squeeze the throttle trigger. This will start the line trimmer.
• Release the presence switch while keeping the throttle trigger squeezed.
• Allow few seconds for the cutting head to reach max RPM.
STOPPING the trimmer:
N
R ot f
ep o
ro r
du
ct
io
• Allow cutting head to come to a complete stop.
•3.Remove battery from product.
n
• Release the throttle trigger.
Presence Switch
Throttle Trigger
Fig 8
89
OPERATING INSTRUCTIONS
Height Adjustment
NOTE: Refer to figure 9.
• Turn the height adjustment knob in
anti-clockwise direction to release
the lock.
• Adjust the length of the upper shaft
to a suitable height for operation.
• Turn the height adjustment knob in
clockwise direction to lock the shaft.
3
1
2
WARNING
Ensure shaft position is secure
before operating.
Fig 9
n
Trimming Head Angle Adjustment
N
R ot f
ep o
ro r
du
ct
io
NOTE: Refer to figure 10.
The trimming head of the line trimmer can be easily adjusted at 5 different angles for ease
of operation.
• Stop the line trimmer.
• Position the cutting head of the line trimmer on the ground and depress the angle adjust
pedal with your foot.
• Tilt the operating bar at the desired angle and release the angle adjust pedal.
• Before starting, make sure the shaft is locked in the new position. If done properly, the
shaft will fall into new position with a snap.
9
90o
60o
45o
Fig 10
30o
0o
OPERATING INSTRUCTIONS
Trimmer Line Length Adjustment
Auto Feed
• This line trimmer comes with Auto Feed type trimming Head. The length of the line will
automatically be increased by the centrifugal force, when the device reaches maximum
rpm.
• Switch off and switch on the device again, to increase the line to right cutting length. The
trimmer line will be cut to the right length by the cut-off blade.
WARNING
Repetitive starting and stopping may cause the trimming line to feed quickly.
Manual Feed
NOTE: Refer to figure 11.
N
R ot f
ep o
ro r
du
ct
io
• Press the release button with one hand and pull
out the trimmer line with the other hand.
Trimmer Line
n
Manual feed of the trimmer line may be required
in the beginning of work, if the cutting line is too
short and cannot be pulled out by centrifugal
force.
Release Button
• Keep pressing and pulling the line, until the
desired length of line is out.
Cutting Tips
Fig 11
NOTE: Refer to figure 12 & 13.
• Always hold the trimmer at a safe distance from body and adopt a safe stance.
• Keep the trimmer tilted at an angle of about 20°C toward the area being cut; this is the
best cutting area. Use the outer end of the line for best cut and longer life
• The trimmer cuts best when operated in a semi-circular motion around your standing
position.
Fig 12
Fig 13
20°
10
OPERATING INSTRUCTIONS
Trimming Edges
NOTE: Refer to figure 14 & 15.
The line trimmer can be used for cutting the lawn edges. To operate the trimmer in edge
cutting mode.
• Press the convert button on the trimmer and hold as shown in the figure 14.
• Turn the shaft to approximately 90° in clockwise direction.
• Now release the convert button to lock the shaft in new position. If done properly, the
convert button will get locked in a new position with a click sound.
• The trimmer can be moved along the edge of the lawn with the help of guide wheels on
the trimmer guard. Adjust the trimmer head angle for the best position
• Make sure, there is no play in the shaft before starting the trimmer.
Fig 15
Wall
n
Fig 14
N
R ot f
ep o
ro r
du
ct
io
2
1
3
12
11
Cleaning
WARNING
To prevent serious personal injury remove the battery from the machine before servicing,
cleaning, or removing debris.
• Clean the unit using a damp cloth with a mild detergent.
• Do not immerse the machine or any part of it in water.
• Moisture can cause a shock hazard. Wipe off any moisture with a soft dry cloth & ensure the
machine is dry before replacing the battery.
• Use a small brush or vacuum cleaner to clean the air vents on the product.
• Keep the air vents free of obstructions.
Do not use solvents, strong detergents, certain aromatic oils such as pine and lemon when
cleaning plastic parts. Chemicals can damage, weaken or destroy plastic component which
may result in serious personal injury.
n
Storing
N
R ot f
ep o
ro r
du
ct
io
The following steps should be taken in order to prepare the machine for storage.
• Clean the machine as described in the previous section.
• Store the machine in a dry, clean location. Do not store it next to corrosive materials,
such as fertilizer or fuel.
• Store the machine indoors, in a cool, dry place, out of the reach of children.
• Ensure battery is removed before storage.
13
12
Trimmer Line Replacement
NOTE: Refer to figure 16.
Spool Cover
Spool
Fig 16 (b)
N
R ot f
ep o
ro r
du
ct
io
n
Fig 16 (a)
Fig 16 (c)
Fig 16 (d)
1. Press two cover clips inwards on the spool cover & remove the cover slowly.
2. Take the old used spool out and replace it with a new / refilled spool.
NOTE: Ensure inside of autofeed head and spool are clean and free of grass & soil
before refilling.
3. Remove one end of the line from the spool notch & push it into an eyelet slot on the
head.
4. Push the spool cover back onto the head so that the cover clips align with the head
and clicks back into place.
WARNING
• Trimmer line will deteriorate over time and may require replacement if line breakages and
cut performance is not satisfactory.
• Before assembly or any adjustment, make sure the battery has been removed.
• Do not operate the trimmer if the spool cover is not secured by the cover clips.
• Do not operate the trimmer if components are damaged or excessively worn.
• Do not use rigid cutting disk, brush cutter blade, steel wire, rope or any other attachment
on this product.
14
13
Maintenance Chart
Check operation
Presence trigger
Check
•
Battery locking latch
Check
•
Cutting Head Assy
Check & clean
Ventilation Grills
Clean
•
• •
Trimmer Line
Stock replacement
Clean
Replacement
All accessible fasteners
Service
•
•
•
N
R ot f
ep o
ro r
du
ct
io
Autofeed Head
Retighten
As required
Throttle trigger
•
•
If damaged
Visual inspection
Yearly
Trimmer
Monthly
Requirements
n
Features
Recharging
After use
Before use
Refer to the following table for routine maintenance.
• • •
•
•
• •
•
Servicing requires extreme care and knowledge and should be performed only by a qualified
service technician. For service we suggest you return the product to your nearest authorized
service centre for repair. When servicing, use only genuine replacement parts.
• Keep the machine dry, clean, and free of oil and grease.
• In order to reduce the risk of fire, keep the motor free of grass, leaves, and debris buildup.
• Keep all nuts, bolts, and screws tight in order to be sure that the equipment is in safe
working condition.
• Never tamper with safety devices. Check them regularly for proper operation.
• Improper repairs may result in product malfunction. This endangers you and your
environment.
NOTE: Refer to warranty card supplied with this product for service contact details.
14
15
TROUBLESHOOTING
Troubleshooting
PROBLEM
Trimmer fails to start when
trigger depressed
Not cutting grass
Excessive Vibration
CAUSE
SOLUTION
Flat battery
Recharge battery
Battery disengaged
Refit battery
Faulty battery
Replace battery
No trimmer line in autofeed head
Replace line in autofeed head
Grass clippings accumulated in the line
Clean the line spool and trimmer guard
spool and underside of the trimmer
of grass clipings
guard
Refit autofeed head
N
R ot f
ep o
ro r
du
ct
io
n
Autofeed head and line spool not fitted
correctly
15
16
TECHNICAL SPECIFICATIONS
Product Specifications
PRODUCT SPECIFICATION
18V, Line Trimmer
Cut Diameter
300mm
Head Type
Auto feed, centrifugal
Line Length (Spool)
4m
Nylon Line Diameter
1.6mm
Motor Type
Brushed
Motor Specification
18V DC
Motor Speed Range
7200~8800rpm
Run Motor Speed
8000rpm
Head Articulation
0~90, 5 position
Shaft Telescopic Range
215mm
Shaft Diameter
25mm
N
R ot f
ep o
ro r
du
ct
io
n
Description
Front Handle Articulation Range
0/180
Edging Funtion
Yes
Product Weight (No battery)
2.1 Kgs
Sound Pressure Level
Lpa: 76.7dB (A), K: 3dB (A)
Sound Power Level (Measured)
Lwa: 88dB (A)
Sound Power Level (Guaranteed)
Lwa: 93dB (A)
Vibration Total Value (Max)
ah: 3.36m/S², K: 1.5m/S²
A warning:
• That the declared vibration total value has been measured in accordance with a standard
test method and may be used for comparing one tool with another;
• That the declared vibration total value may also be used in a preliminary assessment of
exposure.
• That the vibration emission during actual use of the power tool can differ from the
declared total value depending on the ways in which the tool is used; and
• Of the need to identify safety measures to protect the operator that are based on an
estimation of exposure in the actual conditions of use (taking account of all parts of the
operating cycle such as the times when the tool is switched off and when it is running idle
in addition to the trigger time).
16
17
NOTES
N
R ot f
ep o
ro r
du
ct
io
n
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
17
NOTES
N
R ot f
ep o
ro r
du
ct
io
n
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
18
n
N
R ot f
ep o
ro r
du
ct
io
©2018 Briggs & Stratton
Victa is a trademark of Briggs & Stratton Australia Pty. Ltd.
ABN 13 006 576 856
All rights reserved. No part of this booklet may be reproduced by any means
CHO
KE
without prior written permission. All information herein is subject to change without notice.
LR02675A-C

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
