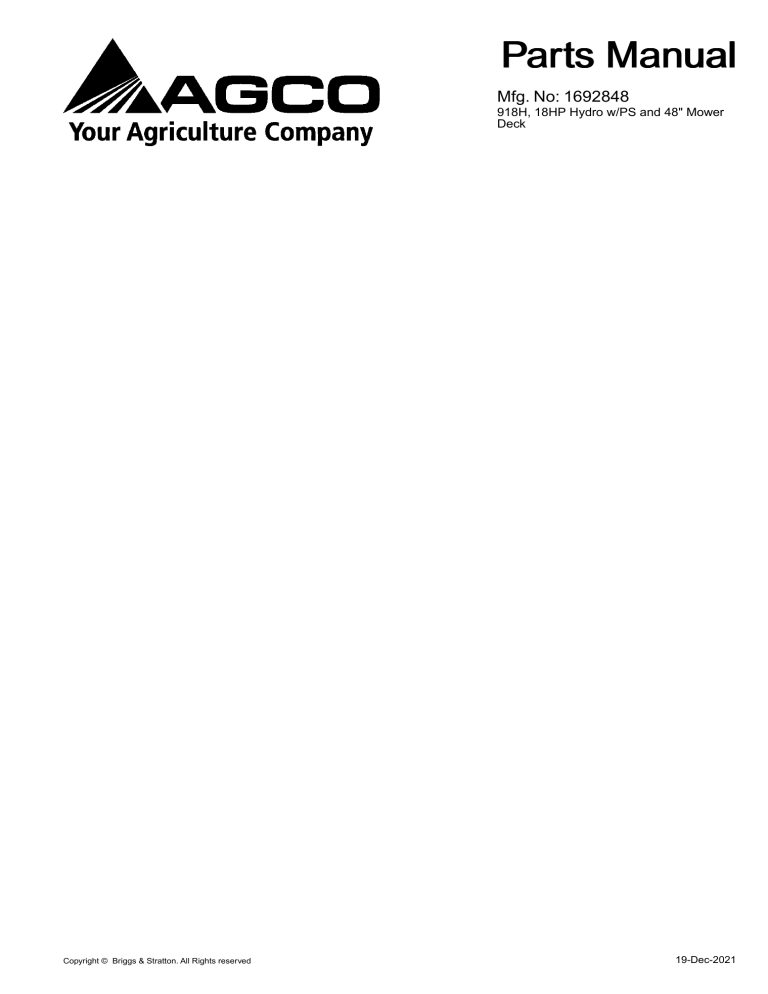

Simplicity 918H, 18HP Hydro w/PS and 48" Mower Deck Manual

Parts Manual
Mfg. No: 1692848
918H, 18HP Hydro w/PS and 48" Mower
Deck
Copyright © Briggs & Stratton. All Rights reserved
19-Dec-2021
Attachments and Accessories
1691221 - 48" Mower Deck. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1692847 - 918H, 18HP Hydro w/PS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
2
n
o
19-Dec-2021
Table Of Contents
Model Components
Page
48" Mower - Cover, Drive & Bail Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
48" Mower Deck - Deflector, Stone Guard & Arm Assembly Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
48" Mower Deck - Height Adjusting & Roller Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
48" Mower Deck - Housing & Arbor Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bevel Gear & Side Plate Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clutch & Brake Control Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clutch & Brake Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control Valve Service Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dash, Hood & Grille Group - Power Steering Models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Decals - Brand & Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Decals - Safety & Common. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Draw Bar Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Group - Early Models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine, Exhaust & Drive Shaft Group - Kohler 18HP OHV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Frame & Footrest Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Axle Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hydrostatic Pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hydrostatic Pump Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lift Group - Hydraulic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Steering Valve Service Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PTO Control & Cone Clutch Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Axle & Differential Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat & Deck Group - Early Models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering Group - Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire & Wheel Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transmission Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Torque Specification Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
3
n
o
4
6
8
10
12
14
16
18
20
22
24
26
28
32
34
36
38
42
44
46
48
50
52
54
56
58
60
19-Dec-2021
48" Mower - Cover, Drive & Bail Group
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
4
Mfg. No: 1692848
n
o
19-Dec-2021
48" Mower - Cover, Drive & Bail Group
REF NO
PART NO
QTY
DESCRIPTION
1
2
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1929000SM
1679957ASM
1679957ASM
1709067SM
1676067ASM
1676067ASM
2154304SM
1919262SM
1704277SM
1921176SM
1725601SM
1924361SM
1916966SM
1916951SM
2172473ASM
1657044SM
1960268SM
1704276SM
1700230SM
1700229SM
1655777SM
1928352SM
1679916ASM
1679711SM
1656916SM
2823471SM
14
1
1
1
1
1
2
2
1
2
2
2
2
2
1
1
1
1
3
3
3
1
3
3
3
3
1917421SM
1916965SM
1924940SM
2812808SM
2171815SM
1704926SM
1674669SM
1676148SM
----1656936SM
1718561SM
1
1
5
1
1
1
1
2
1
1
1
1722793SM
1
CAPSCREW, Hex Hd, Taptite, 1/4-20 x 3/8
COVER, R.H. (Orange)
COVER, R.H. (Black)
DECAL, Belt Installation, Adjustment
COVER. L.H. (Orange)
COVER. L.H. (Black)
YOKE
NUT, Hex, Jam, 1/2-20
DECAL, Danger, Deflector in place
CAPSCREW, Hex Hd, 1/2-13 x 1-1/4
SPACER
WASHER, Plain, 7/16
LOCKWASHER, Spring, 1/2
NUT, Hex, Full, 1/2-13
BAIL ASSEMBLY
BELT, "V", Arbor Drive
CARRIAGE BOLT, 3/8-16 x 1-1/4
DECAL, Danger, Rotating Blade
WASHER, Shim
SHIELD, Grass
ADAPTOR, Blade
NUT, Hex Flange, Whiz Lock, 3/8-16
BLADE, 48" Mower
WASHER, Spline
WASHER, Spring
CAPSCREW, Hex Hd., 7/16-14 x 1-1/4
-Torque to 50-70 ft. lbs. (3 places)
NUT, Hex, Jam, 3/8-16
LOCKWASHER, 3/8
WASHER, Plain, 13/32
FITTING, Lube, 1/4 - 28
EYE BOLT
PULLEY ASSEMBLY, Idler
SPACER, .39 X 5/8 X 1.15
BUSHING
LEVER ASSEMBLY, Idler (Order Ref. No. 35)
SPRING
LEVER ASSEMBLY, Idler
-(Incl. Ref. Nos. 28 & 32)
DECAL, Cutting Width, 48"
25
26
27
28
29
30
31
32
33
34
35
36
r
o
u
F
d
t
o
o
r
N ep
R
i
t
c
n
o
Footnotes:
Note:* Not a servicable part.
Copyright © Briggs & Stratton. All Rights reserved
5
19-Dec-2021
48" Mower Deck - Deflector, Stone Guard & Arm Assembly Group
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
6
Mfg. No: 1692848
n
o
19-Dec-2021
48" Mower Deck - Deflector, Stone Guard & Arm Assembly Group
REF NO
PART NO
QTY
DESCRIPTION
1
2
3
4
1713515SM
1916950SM
1916965SM
1924356SM
1
4
4
3
5
5
6
7
1651184SM
1729543SM
----1960268SM
1
1
1
4
8
2174127SM
1
9
10
11
12
13
14
15
16
2156306SM
2176012SM
2172468A
2105051
1921176SM
1916966SM
1913744SM
1677261ASM
2
2
1
2
2
2
2
1
1918452SM
1960116SM
1931350SM
2
2
2
BELT, "V", PTO to Mower
NUT, Hex, Full, 3/8-16
LOCKWASHER, 3/8
WASHER
-Special
DEFLECTOR - (Orange)
DEFLECTOR - (Black)
DECAL, OPEI
CARRIAGE BOLT, 3/8-16 x 1-1/4
-(All Except 1693418 & 1693419)
GUARD ASSEMBLY, Stone
-(All Except 1693418 & 1693419)
PIN
PIN, Clip
ROCKER ARM ASSEMBLY
SPACER
CAPSCREW, Hex Hd, 1/2-13 x 1-1/4
LOCKWASHER, Spring, 1/2
NUT, Hex Jam, 1/2-13
STONE GUARD ASSEMBLY
-(1693418 & 1693419 Only)
PIN, Cotter, 1/8 x 1
PIN, Yoke
CARRIAGE BOLT, 3/8-16 x 1
-(1693418 & 1693419 Only)
17
18
19
r
o
u
F
d
t
o
o
r
N ep
R
i
t
c
n
o
Footnotes:
Note:* Not a servicable part.
Copyright © Briggs & Stratton. All Rights reserved
7
19-Dec-2021
48" Mower Deck - Height Adjusting & Roller Group
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
8
Mfg. No: 1692848
n
o
19-Dec-2021
48" Mower Deck - Height Adjusting & Roller Group
REF NO
PART NO
QTY
DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
2172046ASM
1960020SM
1918458SM
1668513SM
2172015ASM
2172047SM
1668541ASM
1931350SM
1650394SM
1651820SM
2108241SM
1657891ASM
2108360SM
1917421SM
1916950SM
1916965SM
1924940SM
1918447SM
1921210SM
1930645SM
1920415SM
2108512SM
1
6
4
9
1
1
1
4
2
2
2
1
2
2
8
4
8
2
2
2
2
2
BRACKET, Roller, L.H.
WASHER, Plain, 21/32
PIN, Cotter, 3/16 x 1
ROLLER, .652 ID, 2.50 OD, 4.10 LG
ROCKER ARM ASSEMBLY
BRACKET, Roller, R.H.
SHAFT ASSEMBLY, Roller
CARRIAGE BOLT, 3/8-16 x 1
HANDLE, Adjusting
GRIP
SOCKET ASSEMBLY
BAR, Roller
SPRING
NUT, Hex, Jam, 3/8-16
NUT, Hex, Full, 3/8-16
LOCKWASHER, 3/8
WASHER, 3/8
PIN, Cotter, 3/32 x 3/4
CAPSCREW, Hex Hd, 3/8-16 x 1
LOCKNUT, Hex, Full, 3/8-16
CAPSCREW, Hex Hd, 3/8-16 x 1-1/4
PIVOT
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
9
u
d
i
t
c
n
o
19-Dec-2021
48" Mower Deck - Housing & Arbor Group
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
10
Mfg. No: 1692848
n
o
19-Dec-2021
48" Mower Deck - Housing & Arbor Group
REF NO
PART NO
QTY
DESCRIPTION
1
2823471SM
3
2
3
4
5
6
7
8
9
10
11
12
13
1918199SM
1933263SM
1679157ASM
1657969SM
1655729ASM
2108202SM
1679194SM
1703273ASM
1916964SM
1916622SM
1679161ASM
1676277SM
3
3
1
3
3
6
1
3
4
4
2
2
14
1664847SM
18
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
35
35
35
35
36
1657528SM
1931333SM
2108454ASM
1668513SM
1960020SM
1918458SM
2108224ASM
1916950SM
1916965SM
1931350SM
1917372SM
1917356SM
1674774ASM
1675587SM
1921959SM
1925592SM
2108186SM
1921319SM
1960268SM
2108366SM
2108219SM
1685281SM
1685282SM
1687125SM
1687126SM
1679195SM
3
4
1
2
2
2
1
6
6
2
4
4
1
1
2
2
2
2
4
1
2
1
1
1
1
1
37
1676278A
2
38
39
40
1924940SM
1707335SM
1704314SM
4
3
3
CAPSCREW, Hex Hd., 7/16-14 x 1-1/4
-Torque to 50 to 70 ft. lbs. (3 places)
LOCKWASHER, 7/16
WASHER, 29/64 x 1-1/4 x 1/4
PULLEY ASSEMBLY
SHIELD, Bearing Upper, Arbor
HOUSING, Arbor, Top
BEARING
SHAFT.Arbor, Center
HOUSING, Arbor Bottom
LOCKWASHER, 1/4
NUT, Hex, Full, 1/4-20
PULLEY ASSEMBLY, Deck Drive
SHAFT, Arbor, Side
-(Incl. Ref. No. 15, Qty. 1)
CAPSCREW, Hex Washer Hd, Taptite, 5/16-18 x 3/4
-Torque to 15-19 ft. lbs.(18 places)
RING, Self-Locking
CARRIAGE BOLT, 5/16-18 x 3/4
BRACKET & SHAFT ASSEMBLY
ROLLER, .652 ID, 2.50 OD, 4.10 LG
WASHER, Plain, 21/32
PIN, Cotter
BRACKET, Roller, L.H.
NUT, Hex, Full, 3/8-16
LOCKWASHER 3/8
CARRIAGE BOLT, 3/8-16 x 1
NUT, Hex, Full, 5/16-18
LOCKWASHER, 5/16
BAFFLE, 48" Mower
BAFFLE, 42" Mower
CAPSCREW, Hex Hd, 1/4-20 x 5/8
CAPSCREW, Thread Forming, 1/4-20 x 3/4
CLIP,. Baffle
WASHER, Plain, 9/32
CARRIAGE BOLT, 3/8-16 x 1-1/4
BAR, Reinforcement
BRACKET ASSEMBLY, Front
HOUSING, 42 Mower (Orange)
HOUSING, 48 Mower (Orange)
HOUSING, 42 Mower (Black)
HOUSING, 48 Mower (Black)
SHAFT & BEARING ASSEMBLY, Center
-(Incl. Ref. Nos. 7 & 8).
SHAFT & BEARING ASSEMBLY, Side
-(Incl. Ref. Nos. 7 & 13)
WASHER, 13/32 I.D.
GASKET, Foam
FITTING, Grease
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
11
u
d
i
t
c
n
o
19-Dec-2021
Bevel Gear & Side Plate Group
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
12
Mfg. No: 1692848
n
o
19-Dec-2021
Bevel Gear & Side Plate Group
REF NO
PART NO
QTY
DESCRIPTION
1
2
3
4
1920677SM
1918199SM
1650414SM
1922133SM
6
12
1
1
5
6
7
8
9
10
2171792SM
2171790SM
2171791SM
1685088SM
1663111SM
1685088SM
1
5
1
1
1
1
11
12
13
14
15
16
17
18
2172256SM
2154282SM
2178104
1922133SM
1921959SM
1671667SM
2805123SM
1685054SM
2
1
1
3
6
1
2
1
19
20
21
22
23
24
25
26
27
2172206SM
2171796SM
2118117SM
2154279SM
2172750SM
2154040SM
1917356SM
1925205SM
1961022
2
1
2
2
1
1
1
1
1
2177649SM
2172752SM
2172753SM
2178105SM
1656877SM
1920676SM
1916964SM
2176111SM
2
1
1
1
1
6
6
1
CAPSCREW, Hex Hd, 7/16-14 x 1-1/4
LOCKWASHER, 7/16
PLATE, Side, R.H.
LOCKNUT, Hex, Jam, 3/4-16
-Torque to 45-55 ft. lbs.
SPACER
SHIM
SHIM
REPAIR KIT, Seal
SPACER, Seal, Oil
REPAIR KIT, Seal
-(Incl. Ref. Nos. 8 & 9)
BEARING, Ball
GASKET
COVER
NUT, Hex, 7/16-14 x 1
CAPSCREW, Hex Hd, 1/4-20 x 5/8
PLATE ASSEMBLY, Side, L.H.
KEY, Woodruff, #9
SHAFT, Driven
-(Incl. Ref. Nos. 4 & 17)
RING, Retaining
GEAR, Bevel, Driven
SEAL, Oil
BEARING, Needle
SHAFT, Driver
PLATE, Bearing, Clamp
LOCKWASHER, 5/16
CAPSCREW, Hex Hd, 5/16-18 x 5/8
CAPSCREW, Hex Hd, 5/16-18 x 3/4
-Torque to 27-33 ft. lbs.
WASHER
GEAR, Bevel, Driver
WASHER
PLUG ASSEMBLY
HOUSING, Bevel Gear
CAPSCREW, Hex Head, 7/16-14 X 1
LOCKWASHER, 1/4, I.D.
"O" RING
28
29
30
31
32
33
34
35
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
13
u
d
i
t
c
n
o
19-Dec-2021
Clutch & Brake Control Group
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
14
Mfg. No: 1692848
n
o
19-Dec-2021
Clutch & Brake Control Group
REF NO
PART NO
QTY
DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1917372SM
1928721SM
2166173SM
1650502SM
2166122SM
1650531SM
2121037SM
1923362SM
1923358SM
2171994SM
2172108SM
1926771SM
1668419SM
1919381SM
2157127SM
1919326SM
1668737SM
3
1
1
1
1
1
2
2
1
1
1
1
1
1
1
1
1
NUT, Hex, Full, 5/16-18
SETSCREW, 5/16-18 x 1/2
PULLEY, Drive, Transmission
V-BELT, Drive, Transmission
GUARD ASSEMBLY
ROD, Clutch
SPRING
LOCKNUT, Hex, 5/16-18
LOCKNUT, Hex, 1/4-20
END, Rod
LEVER, Parking Brake
CAPSCREW, Hex Hd, 1/4-20 x 1
ROD ASSEMBLY
WASHER, 5/16
SPRING, Cone
WASHER, 5/16
WASHER, Curved, Spring
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
15
u
d
i
t
c
n
o
19-Dec-2021
Clutch & Brake Group
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
16
Mfg. No: 1692848
n
o
19-Dec-2021
Clutch & Brake Group
REF NO
PART NO
QTY
DESCRIPTION
1
2
3
4
5
6
7
1919439SM
1916950SM
2166119SM
1650651SM
1921971SM
1916965SM
1930650SM
1
1
1
1
1
1
1
8
1679354SM
1
9
10
11
12
13
--------1668737SM
1960251SM
2158196SM
1
1
1
3
2
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
2166176SM
2166157SM
1928295SM
1918199SM
1924940SM
1667812SM
1923362SM
2166130SM
1918213SM
2166156
1926035SM
1922130SM
1704926SM
1925125SM
2166126SM
1657323SM
2805123SM
2154369SM
2157127SM
1922611SM
1
1
1
1
2
1
2
1
1
1
2
1
1
1
1
1
1
1
1
1
LOCKNUT, Hex, Esna, 3/8-16
NUT, Hex, Full, 3/8-16
GUIDE ASSEMBLY, Rod
ROD, Brake
CAPSCREW, Hex Hd, 3/8-16 x 1-3/4
LOCKWASHER, 3/8
LOCKNUT, Hex, Flange, 7/16-14
-Torque to 25-33 ft. lbs.
BAND ASSEMBLY, Brake
-(Incl. Ref. Nos. 9 & 10)
BAND, Brake (See Ref. No. 8)
LINING, Brake (See Ref. No. 8)
WASHER, Curved Spring
LOCKNUT, Hex, 3/8-16
WASHER
-Special
DRUM, Brake
GUIDE ASSEMBLY, Rod
CAPSCREW, Hex Hd, 7/16-14 x 3-3/4
LOCKWASHER, 7/16
WASHER, Plain, 3/8 std.
SPACER
LOCKNUT, Hex, 5/16-18
SPACER
NUT, Hex, Full, 7/16-14
BRACKET
CAPSCREW, Self-Tapping, 3/8 x 3/4
CAPSCREW, Hex Hd, 3/8-16 x 2-1/4
PULLEY ASSEMBLY, Idler (Plastic)
WASHER, 3/8
LEVER ASSEMBLY, Idler
PULLEY
KEY
SPRING
SPRING, Cone
WASHER
r
o
u
F
d
t
o
o
r
N ep
R
i
t
c
n
o
Footnotes:
Note:* Not a servicable part.
Note:* Not serviced separately.
Copyright © Briggs & Stratton. All Rights reserved
17
19-Dec-2021
Control Valve Service Parts
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
18
Mfg. No: 1692848
n
o
19-Dec-2021
Control Valve Service Parts
REF NO
PART NO
QTY
DESCRIPTION
1
2174131SM
1
2
2174133SM
1
3
4
5
2174134SM
1714130A
1679138SM
1
1
1
6
1679142SM
1
7
2821349SM
2
8
9
10
11
12
2823905SM
174137
1673836SM
1673835SM
1673833SM
2
1
1
1
1
13
14
15
1673837SM
1673854
1667825SM
1
1
2
PLUG ASSEMBLY
-(Includes O-Ring, Ref. No. 2)
O-RING
-Included in Seal Repair Kit P/N 1667826
SPRING
PLUNGER
WIPER PLUG
-Included in Seal Repair Kit P/N 1667826
O-RING
-Included in Seal Repair Kit P/N 1667826
O-RING
-Included in Seal Repair Kit P/N 1667826
FITTING, 90°.
BUSHING
WASHER
SPRING
SPACER
-Included in Seal Repair Kit P/N 1667826
RETAINING RING
CAP ASSEMBLY
O-RING
-Included in Seal Repair Kit P/N 1667826
Seal Repair Kit
1667826
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
19
u
d
i
t
c
n
o
19-Dec-2021
Dash, Hood & Grille Group - Power Steering Models
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
20
Mfg. No: 1692848
n
o
19-Dec-2021
Dash, Hood & Grille Group - Power Steering Models
REF NO
PART NO
QTY
DESCRIPTION
1
1926025SM
4
2
1675932SM
4
3
4
1930645SM
1715547SM
2
1
5
6
7
1917867SM
1713844SM
1713848SM
4
1
1
8
9
10
11
12
13
14
2101025SM
2860171SM
1930531SM
1685408SM
1930561SM
1928703
2158475SM
1
1
1
1
9
6
1
14
1709060SM
1
15
16
17
18
19
20
21
1930645SM
1928919SM
1666703SM
2103280SM
2159107SM
1930665SM
1921210SM
1
1
1
2
1
1
2
1933988SM
1931333SM
1708749SM
1666163SM
1930531SM
1930627SM
1960096SM
2
2
1
1
2
2
2
2171600SM
1666148SM
1960517SM
1686629SM
2
1
10
CAPSCREW, Machine, Round Hd, 1/4-20 x 1/2
-(Manual Steering Models Only)
CLIP, Headlight Mounting
-(All Except 1692889 & 1693148)
LOCKNUT, Hex, 3/8-16
PANEL, Instrument
-(Power Steering Models)
SPEED NUT, Tinnerman
KNOB
HANDLE, Throttle Control
-Order Handle Kit, Part Number 1686629
WASHER
WASHER
CAPSCREW, Truss Hd, #10-32 x 1/2
DASH ASSEMBLY
CAPSCREW, Hex, Self-Tapping, #14AB x 3/4
NUT, Speed
CLIP, Control Cable
-(All Except 1692798, 1692847, & 1692852)
CLIP, Control Cable
-(1692798, 1692847, & 1692852 Only)
LOCKNUT, Hex, 3/8-16
NUT, Hex, Washer, #10-32
ARM, Throttle
STOP, Throttle
WASHER
LOCKWASHER, Dished Type, 3/8
CAPSCREW, Hex Hd, 3/8-16 x 1
-(All Except 1692889 & 1693148)
PUSH NUT
CARRIAGE BOLT, 5/16-18 x 3/4
HOOD & GRILLE ASSEMBLY
MOULDING, Hood
CAPSCREW, Truss Hd, #10-32 x 1/2
LOCKNUT, Hex, #10-32
WASHER
-Special
STRAP, Hood
SCREEN
LOCKNUT, Pal
Handle Kit
22
23
24
25
26
27
28
29
30
31
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
21
u
d
i
t
c
n
o
19-Dec-2021
Decals - Brand & Model
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
22
Mfg. No: 1692848
n
o
19-Dec-2021
Decals - Brand & Model
REF NO
PART NO
QTY
DESCRIPTION
1
1722779SM
1
2
1717313SM
1
2
1718025SM
1
3
1722551SM
1
3
1722551SM
1
4
1717709
1
5
1717692SM
1
6
1708807
1
6
1708808
1
6
1713980SM
1
6
1713981SM
1
6
1714378
2
6
1714379
2
1713980SM
1
1713981SM
1
1708926SM
2
1714363SM
2
8
1722779SM
2
8
1716516
2
8
1716518SM
2
DECAL, 18 V-Twin
-(1692943, 1692945, 1693407, & 1693409 Only)
DECAL, Automatic Controlled Traction
-(1692943, 1692945, 1693407, & 1693409 Only)
DECAL, Automatic Controlled Traction
-(1692951, 1692955, 1692949, & 1692953 Only)
DECAL, Simplicity
-(1692796 & 1692798 Only)
DECAL, Logo, Simplicity
-(1692943, 1692945, 1693407, & 1693409 Only)
DECAL, Sovereign
-(1692943, 1692945, 1693407, & 1693409 Only)
DECAL, Icon
-(1692943, 1692945, 1693407, & 1693409 Only)
DECAL, Hood, LH
-(All AGCO-Allis Models)
DECAL, Hood, RH
-(All AGCO-Allis Models)
DECAL, Hood, RH Simplicity
-(1692796 & 1692798 Only)
DECAL, Hood, LH Simplicity
-(1692796 & 1692798 Only)
DECAL, Hood, LH
-(All Massey Ferguson Models)
DECAL, Hood, RH
-(All Massey Ferguson Models)
DECAL, Hood, RH Simplicity
-(1692943, 1692945, 1693407, & 1693409 Only)
DECAL, Hood, LH Simplicity
-(1692943, 1692945, 1693407, & 1693409 Only)
DECAL, Logo
-(All AGCO-Allis Models)
DECAL, Massey Ferguson
-(All Massey Ferguson Models)
DECAL, Model
-(1692796 Only)
DECAL, Model with P/S
-(1692798 Only)
DECAL, Power Steering
-(All P/S Models Except 1692798)
6
6
7
7
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
23
u
d
i
t
c
n
o
19-Dec-2021
Decals - Safety & Common
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
24
Mfg. No: 1692848
n
o
19-Dec-2021
Decals - Safety & Common
REF NO
PART NO
QTY
DESCRIPTION
1
2
1708927
1716108
1
1
2
1716537SM
1
3
1668328SM
1
3
1715549SM
1
4
4
4
1720454SM
1717449
1717729
1
1
1
5
6
1713543SM
1708810
1
1
7
8
9
10
1716534SM
1716535SM
1667175
1722793SM
1
1
1
1
DECAL, USA
DECAL, Console
-(All Power Steering Models)
DECAL, Console
-(All Manual Steering Models)
DECAL, Dashboard
-(All Manual Steering Models)
DECAL, Dashboard
-(All Power Steering Models)
DECAL, Touch-Up Paint (Orange)
DECAL, Touch-Up Paint (Red)
DECAL, Touch-Up Paint
-(75th Anniversary)
DECAL, Belts & Blades
DECAL, Grill
-(All Models Except 1692889 & 1693148)
DECAL, Warning
DECAL, Caution
DECAL, Belt Adjustment
DECAL, Cutting Width
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
25
u
d
i
t
c
n
o
19-Dec-2021
Draw Bar Group
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
26
Mfg. No: 1692848
n
o
19-Dec-2021
Draw Bar Group
REF NO
PART NO
QTY
DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
1923027SM
1918199SM
2166072SM
2166110SM
2166206SM
1920677SM
1926110SM
2166074SM
1608759SM
2166075SM
1918213SM
1
6
1
1
1
3
2
1
2
1
4
CAPSCREW, Hex Hd, 7/16-14 x 1-3/4
LOCKWASHER, 7/16
BAR ASSEMBLY, Upright
SPACER
BAR ASSEMBLY, Upright
CAPSCREW, Hex Hd, 7/16-14 x 1-1/4
CAPSCREW, Hex Hd, 7/16-14 x 2-3/4
BAR ASSEMBLY, Draw
SPACER
PLATE
NUT, Hex, Full, 7/16-14
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
27
u
d
i
t
c
n
o
19-Dec-2021
Electrical Group - Early Models
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
28
Mfg. No: 1692848
n
o
19-Dec-2021
Electrical Group - Early Models
REF NO
PART NO
QTY
DESCRIPTION
1
1685058SM
1
2
3
4
5
6
7
8
9
1713534SM
1708730SM
1917356SM
2820263SM
1916622SM
1916964SM
1603189SM
1686734SM
1
1
2
2
3
4
1
1
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
1714054SM
1714055SM
1960547SM
----2122184SM
2171225SM
1714647SM
1708734SM
1925125SM
2177522SM
2830647SM
1926192SM
1932771SM
1717970SM
2172434SM
2172436SM
1674358SM
1713535SM
1674363SM
1707755SM
----1960433SM
1677368SM
1665238SM
1923341SM
1732004SM
1677370SM
1686981SM
1919438SM
1918199SM
2832747SM
1921319SM
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
3
1
1
2
1
2
1
2
1
2
1
1
1
2
1
3
3
2834683SM
2165073SM
1677371SM
1917415SM
4
1
1
1
BATTERY,
-Incl. decal
INSULATOR, Battery Terminal
CABLE, Battery to Solenoid
LOCKWASHER, 5/16
NUT, Hex, 5/16-24
NUT, Hex, Full, 1/4-20
LOCKWASHER, 1/4
AMMETER
IGNITION SWITCH KIT
-(Incl. Ref. Nos. 10, 11, 12 & 13)
KEY
NUT, Adapter
LOCKWASHER, Int., 5/8
SWITCH, Ignition
SWITCH, Toggle
CLAMP
CABLE (Battery to Ground)
HARNESS ASSEMBLY
WASHER, 15/32
SWITCH, Interlock, Ball
NUT, Pal
WASHER, 9/16
CLIP, Cable
GROMMET, Rubber
CLIP, Tinnerman
CLIP, Tinnerman
WIRE ASSEMBLY
INSULATOR, Terminal Boot
HEADLIGHT ASSEMBLY
MODULE, Interlock
REFLECTOR, Housing
NUT, Hex Flange, M8 - 125
LENS, Clear
BREAKER, Circuit
CAPSCREW, Hex Hd, 1/4-20 x 3/4
SWITCH, Interlock, Seat
SOCKET, Bulb
SOLENOID, Starter
NUT, Elastic, 5/16-18
LOCKWASHER, 7/16
TIE
WASHER, 1/4
-Special
CLIP, Wire
CLIP, Speed Cable
BULB
NUT, Hex, #10-32
42
43
44
45
r
o
u
F
d
t
o
o
r
N ep
R
i
t
c
n
o
Footnotes:
Note:* Not a servicable part.
Note:* Not a serviceable part.
Copyright © Briggs & Stratton. All Rights reserved
29
19-Dec-2021
Electrical Group - Early Models
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
30
Mfg. No: 1692848
n
o
19-Dec-2021
Electrical Group - Early Models
REF NO
PART NO
QTY
DESCRIPTION
46
47
48
1922711
1920676SM
1701229SM
1
1
1
LOCKWASHER, Ext. Tooth
CAPSCREW, Hex Head, 7/16-14 X 1
BUSHING, Snap
r
o
u
F
d
t
o
o
r
N ep
R
i
t
c
n
o
Footnotes:
Note:* Not a servicable part.
Note:* Not a serviceable part.
Copyright © Briggs & Stratton. All Rights reserved
31
19-Dec-2021
Engine, Exhaust & Drive Shaft Group - Kohler 18HP OHV
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
32
Mfg. No: 1692848
n
o
19-Dec-2021
Engine, Exhaust & Drive Shaft Group - Kohler 18HP OHV
REF NO
PART NO
QTY
DESCRIPTION
1
2
3
4
5
6
1708405SM
1708873ASM
2171252SM
2172744SM
2171330SM
1687040SM
1
1
1
2
2
1
7
8
9
10
11
12
13
14
15
1654930SM
1664460SM
2860112SM
1717557SM
----1925125SM
1708764SM
1708763SM
1960475SM
1
1
2
1
1
1
1
1
1
16
17
18
19
20
2157427SM
2172264SM
1916950SM
1916965SM
2157424SM
1
1
8
12
8
1920415SM
1708729SM
2827794SM
1668637
1921972SM
2176440SM
1920676SM
1918199SM
2860477SM
2801489
1708761SM
2820426SM
1921971SM
1924856SM
1920415SM
1679588SM
1686656SM
1712286SM
2173026SM
4
1
1
1
4
1
1
1
1
1
1
1
4
2
2
1
1
1
1
SHUT OFF VALVE
HEAT SHIELD ASSEMBLY
CAP, Fuel Tank
STRAP, Fuel Tank
STRAP, Tank
TANK ASSEMBLY, Fuel
-(Includes Ref. 6, 7, 8, 9, 10)
BUSHING
FITTING
CLAMP, Hose
HOSE, Fuel, 15"
ENGINE, Kohler, 18 HP
WASHER, 15/32
CHOKE CONTROL
THROTTLE CONTROL
SETSCREW, 3/8-24 x 3/8
-Tighten setscrew (Ref. No. 15) after drive shaft assy. has been secured to
engine flywheel adaptor, to 200 - 300 in. lbs.
KEY, Drive Shaft, 3/16 x 1-1/4
FLANGE, Drive Shaft
NUT, Hex, Full, 3/8-16
LOCKWASHER, 3/8
WASHER
-Special
CAPSCREW, Hex Hd, 3/8-16 x 1-1/4
SHAFT ASSEMBLY, Drive
KLIPRING, .75 Dia Shaft
COUPLING, Compression
CAPSCREW, Hex Hd, 3/8-16 x 2-1/2
BUSHING
CAPSCREW, Hex Head, 7/16-14 X 1
LOCKWASHER, 7/16
COUPLING, Pipe, Straight
NIPPLE, Pipe, 3/8 x 1
PIPE, Exhaust,Elbow
WASHER, External Tooth, 3/8
CAPSCREW, Hex Hd, 3/8-16 x 1-3/4
CAPSCREW, Hex Hd, Taptite, 5/16-18 x 1/2
CAPSCREW, Hex Hd, 3/8-16 x 1-1/4
CAPSCREW, Hex Head, M8-1-1/4 20mm
MUFFLER, Exhaust
CLAMP, Exhaust
COUPLING
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
r
o
u
F
d
t
o
o
r
N ep
R
i
t
c
n
o
Footnotes:
Note:* See your local Kohler Distributor for engine parts and service.
Copyright © Briggs & Stratton. All Rights reserved
33
19-Dec-2021
Frame & Footrest Group
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
34
Mfg. No: 1692848
n
o
19-Dec-2021
Frame & Footrest Group
REF NO
PART NO
QTY
DESCRIPTION
1
1708757
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1921212SM
1918199SM
1917356SM
1921332SM
2174662SM
1931333SM
1920470SM
1928734SM
1928721SM
1665908SM
1665909SM
1917372SM
2170975SM
2154096SM
1667271SM
2157624
1928727SM
1653876SM
1928352SM
4
4
8
2
1
4
2
2
1
1
1
6
2
2
1
1
2
1
2
FRAME ASSEMBLY, w/Bushings
-Includes Ref. Nos. 6, 27 & 30.
CAPSCREW, Hex Head, 7/16-14 X 1 1/2
LOCKWASHER, 7/16
LOCKWASHER, 5/16
CAPSCREW, Hex Hd, 5/16-18 x 3/4
BUSHING
CARRIAGE BOLT, 5/16-18 x 3/4
NUT, Speed, 5/16-18
SETSCREW, 5/16-18 x 1/4
SETSCREW, 5/16-18 x 1/2
FOOTREST, L.H.
FOOTREST, R.H.
NUT, Hex, Full, 5/16-18
BEARING, Lift Lever
KEY
SHAFT ASSEMBLY, Lift (Hydro Lift)
COLLAR, Set
CAPSCREW, Hex Flange Hd, Whiz Lock, 3/8-16 x 1-1/4
BEARING, Pivot
LOCKNUT, Hex, Flange, 3/8-16
-Torque to 40 - 50 ft. lbs.
CAPSCREW, Hex Head, 5/16-18 x 1 1/4
NUT, Hex, Full, 3/8-16
LOCKWASHER, 3/8
WASHER, Plain, 3/8
ARM, Foot Pedal
BUSHING
FITTING, Grease
PEDAL ASSEMBLY, Foot
LEVER ASSEMBLY, Front Lift
BEARING, Interim Pinion
21
22
23
24
25
26
27
28
29
30
F
t
o
N
1921977SM
1916950SM
1916965SM
1924940SM
2157300SM
1663114SM
2821133SM
1674137SM
2157625SM
2158544SM
2
1
1
1
1
2
1
1
1
1
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
35
u
d
i
t
c
n
o
19-Dec-2021
Front Axle Group
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
36
Mfg. No: 1692848
n
o
19-Dec-2021
Front Axle Group
REF NO
PART NO
QTY
DESCRIPTION
1
2
3
4
5
6
7
8
9
10
2157499SM
1921210SM
1924940SM
2154177SM
2157427SM
2170998SM
1960114SM
2154289SM
2821133SM
1930645SM
1
2
2
2
2
1
3
4
2
2
11
12
13
14
15
2171774ASM
2171375SM
2170168SM
2154486SM
1960619SM
1
4
2
4
2
16
17
18
1729254SM
2154487SM
1650553SM
2
2
1
19
1960620SM
2
ROD ASSEMBLY, Tie
CAPSCREW, Hex Hd, 3/8-16 x 1
WASHER, Plain, 3/8
SPACER
KEY, Square, 3/16 x 1-1/4
ARM ASSEMBLY, Steering
WASHER
BUSHING
FITTING, Grease
LOCKNUT, Hex, 3/8-16
-Torque to 13-20 ft. lbs. (2 places)
SPINDLE ASSEMBLY, LH
SPACER
SEAL
CONE, Bearing
SETSCREW, 5/16-18 x 5/16
-Torque setscrews to 10-15 ft. lbs. min. (2 places)
COLLAR, Set
CAP, Hub
AXLE ASSEMBLY, Front
-(Incl. Ref. No. 9)
SETSCREW, Hex Socket Hd, 3/8-16 x 1/2
-Torque to 16-24 ft. lbs. min. (2 places)
SPACER
WASHER, Plain, 1/2
CAPSCREW, Hex Hd, 1/2-13 x 2-1/4
SPINDLE ASSEMBLY, RH
WASHER
KLIPRING, .75 Dia Shaft
LOCKNUT, Hex, 1/2-13
-Torque nut (Ref 26) to 80-120 ft. lbs. Lock nut in place after torquing by holding
nut (Ref 26) and tightening jam nut (Ref 27) to 33-50 ft. lbs.
NUT, Hex Jam, 1/2-13
-Torque nut (Ref 26) to 80-120 ft. lbs. Lock nut in place after torquing by holding
nut (Ref 26) and tightening jam nut (Ref 27) to 33-50 ft. lbs.
20
21
22
23
24
25
26
27
F
t
o
N
2157618SM
1918431SM
1927469SM
2157494SM
1729259SM
2827794SM
1930648SM
1
2
1
1
1
1
1
1913744SM
1
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
37
u
d
i
t
c
n
o
19-Dec-2021
Hydrostatic Pump
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
38
Mfg. No: 1692848
n
o
19-Dec-2021
Hydrostatic Pump
REF NO
PART NO
QTY
DESCRIPTION
1
2
3
4
5
1652181SM
1673534SM
1652192SM
1652194SM
1652235SM
1
1
2
1
2
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1652234SM
1652251SM
1652185SM
1612093SM
1652231SM
2805123SM
1652229SM
1652228SM
1673533SM
1673532SM
1652226SM
1652186SM
1652184SM
1652183SM
1673535SM
1652223SM
1652224SM
1652189SM
1652222SM
1652221SM
1652220SM
1652219SM
1652217SM
2821884SM
1652216SM
2
2
2
2
1
1
1
1
1
2
3
1
1
1
2
1
2
1
2
2
2
2
2
2
4
31
32
33
1652214SM
1667773SM
1667774SM
2
1
1
34
1685128SM
1
35
36
37
38
39
40
41
42
43
44
45
1652212SM
1652207SM
--------1652204SM
1652203SM
1927531SM
1918199SM
1671665SM
1652196SM
1671699SM
2
1
1
1
1
1
2
2
1
2
1
BEARING, Ball
HOUSING
RING, Retainer
TRUNNION
WASHER
-Special
SEAL, Lip
BEARING, Needle
PIN, Headless, Straight
SEAL, Lip
BEARING, Ball
KEY, Woodruff
SHAFT, Pump
PIN, Headless
PLATE, Swash
PLATE, Thrust
PIN, Spring, Coiled
SHAFT, Motor
GASKET
TRUNNION
CYLINDER BLOCK KIT
PLATE, Valve, Pump
PIN, Straight
PLATE, Valve, Motor
BEARING, Needle
O-RING
RING, Backup
O-RING
PLUG, Hex Hd.
O-RING
SHIM
-(Shim as required)
CONE, Relief Valve
SPRING, Relief Valve
RELIEF VALVE KIT
-(Incl. Ref. Nos. 28-32)
CHARGE PUMP KIT
-(Incl. Ref. Nos. 36-40)
CAPSCREW, 12 pt.
O-RING
GEROTER (See Ref. No. 34)
HOUSING, Charge Pump (See Ref. No. 34)
BEARING, Needle
SEAL, Lip
CAPSCREW, Hex Head, 7/16-14 x 2, G8, Black
WASHER
PLUG
O-RING
UNION, Filter
r
o
u
F
d
t
o
o
r
N ep
R
i
t
c
n
o
Footnotes:
Note:* Not a serviceable part.
Copyright © Briggs & Stratton. All Rights reserved
39
19-Dec-2021
Hydrostatic Pump
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
40
Mfg. No: 1692848
n
o
19-Dec-2021
Hydrostatic Pump
REF NO
PART NO
QTY
DESCRIPTION
46
47
48
49
50
1652197SM
1923701SM
1652254SM
1709322SM
1673537SM
2
4
1
1
2
51
52
53
54
2817673
1920415SM
1652253SM
1673538SM
4
2
1
1
55
56
57
58
59
60
2172584SM
1656005SM
1656006SM
1656007SM
1656009SM
1673534SM
2
2
2
2
2
1
61
-----
2
PLUG, Hex Hd.
CAPSCREW, Hex Hd, 3/8-16 x 2
SECTION, Center
FILTER, 25 Micron
CHECK VALVE & O-RING ASSEMBLY
-(Incl. Ref. Nos. 25, 26, 27, & 61)
PLUG, Pipe
CAPSCREW, Hex Hd, 3/8-16 x 1-1/4
SPRING, Relief
RELIEF VALVE KIT
-(Incl. Ref. Nos. 28-31 & 53)
RING, Retaining
WASHER,Rear
SPRING
WASHER, Front
RETAINER, Hub
HOUSING ASSEMBLY
-(Incl. Ref. Nos. 1, 2, 6, 7 & 9)
CHECK VALVE
r
o
u
F
d
t
o
o
r
N ep
R
i
t
c
n
o
Footnotes:
Note:* Not a serviceable part.
Copyright © Briggs & Stratton. All Rights reserved
41
19-Dec-2021
Hydrostatic Pump Group
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
42
Mfg. No: 1692848
n
o
19-Dec-2021
Hydrostatic Pump Group
REF NO
PART NO
QTY
DESCRIPTION
1
2
3
4
5
6
7
8
1923735SM
2178779SM
1921332SM
1919326SM
1917356SM
1917372SM
2166022SM
1671582SM
4
1
1
4
2
1
1
1
9
10
11
1650633SM
1916965SM
1925695SM
1
3
3
12
13
14
1650524
703570
1651089SM
1
2
1
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1651090SM
2153010SM
1923362SM
1960103SM
1671229SM
2830709
1671228SM
1666415SM
1664847SM
1651703SM
2166003SM
1933468SM
1709322SM
1929000SM
1
1
1
2
1
2
2
1
1
1
1
1
1
3
CAPSCREW, Self-Tapping, #10-3/8
DEFLECTOR, Shroud
CAPSCREW, Hex Hd, 5/16-18 x 3/4
WASHER, 5/16
LOCKWASHER, 5/16
NUT, Hex, Full, 5/16-18
FAN, Pulley
HYDRO PUMP
-(See "Hydrostatic Pump Group & Hydrostatic Pump (Service Parts For
1671582 - Hydro Lift)" illustrations and parts lists for service parts).
PLATE, Spacer
LOCKWASHER, 3/8
CAPSCREW, Hex Hd, 3/8-16 x 5
-Torque to 24-36 ft. lbs. (2 places)
SPACER
CAPSCREW, Hex Head, 5/16-18 x 1 1/4
BRACKET
-After installing bracket (Ref. No. 14) torque mounting screws to 20-25 ft. lbs.
LATCH, Release
SPRING, Tension
LOCKNUT, Hex, 5/16-18
WASHER, 3/8"
HOSE, Inlet
CLAMP, Hose
ELBOW, Hose Fitting 45°.
SHROUD ASSEMBLY, w/Screen
CAPSCREW, Hex Washer Hd, Taptite, 5/16-18 x 3/4
O-RING
PINION, Motor Shaft
WASHER
FILTER ASSEMBLY
CAPSCREW, Hex Hd, Taptite, 1/4-20 x 3/8
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
43
u
d
i
t
c
n
o
19-Dec-2021
Lift Group - Hydraulic
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
44
Mfg. No: 1692848
n
o
19-Dec-2021
Lift Group - Hydraulic
REF NO
PART NO
QTY
DESCRIPTION
1
2
3
4
5
6
1667408SM
2172320SM
1960033SM
2819766SM
1722819SM
1685347SM
2
1
2
1
2
1
7
8
9
10
11
12
13
14
15
16
17
18
19
2828812SM
1928731SM
2174723SM
2157081SM
2172725SM
1708298SM
1918196SM
1960106SM
1713847SM
1923683SM
1667270ASM
1921963SM
1667437SM
2
1
2
1
1
2
1
1
1
4
1
2
1
HOSE, Hydraulic
FITTING, Elbow, 45°.
CLIP, Hair Pin
CONNECTOR, 37° Male
PIN
CYLINDER
-(Includes Fitting, Ref. No. 2)
ELBOW, Adjustable, 37°.
LOCKNUT, Hex, Jam, 3/8-16
GUARD, Cable
SPACER
PULLEY
PIN
CLIP, Spring
CAPSCREW, Hex Washer Hd, Plastite, 1/4-20 x 1
KNOB
CAPSCREW, Hex. Washer Hd, Taptite 3/8-16 x 3/4
LEVER ASSEMBLY
CAPSCREW, Hex Hd, 1/4-20 x 2
TUBE ASSEMBLY (Manual Steer Models Only)
-To install tubes, first align threaded fitting with tube nut. Then thread nut onto
fitting and tighten. Hold fitting and turn nut with wrench to seal joint.
FITTING, Hydraulic
-To install swivel fittings (Ref. No. 20), first lubricate the O-ring with light oil. Then
turn swivel nut until O-ring is seated. Turn fitting by hand to align with tube nut.
TUBE ASSEMBLY
-(Manual Steer Models Only)
TUBE ASSEMBLY
-(Manual Steer Models Only)
LOCKWASHER, 1/4
CLAMP
CAPSCREW, Hex Hd, 1/4-20 x 1-1/4
CLIP
WASHER, Plain, 1/4
NUT, Hex, Full, 1/4-20
CONTROL VALVE ASSEMBLY
-(See "Bevel Gear & Side Plate Group" illustration and parts list for service
parts)
LINK, Connecting, #50
NUT, Hex Nylon Lock, 3/8-16
NUT, Hex Flange, Whiz Lock, 1/4-20
WASHER, Plain, 3/8
SUPPORT ASSEMBLY
SCREW, Hex Head, 3/8-16 x 1 1/4
CABLE ASSEMBLY
BELLCRANK
TUBE ASSEMBLY (Manual Steer Models Only)
-To install tubes, first align threaded fitting with tube nut. Then thread nut onto
fitting and tighten. Hold fitting and turn nut with wrench to seal joint.
PIN, Cotter, 3/32 x 3/4
FITTING, Hydraulic
-(Manual Steer Models Only)
20
F
t
o
N
1675789SM
2
1668883SM
1
1668882SM
1
1916964SM
1708007SM
1921961SM
2108186SM
1921319SM
1916622SM
1708009SM
2
2
1
1
7
2
1
30
31
32
33
34
35
36
37
38
1718681SM
1919439SM
1960294SM
1924940SM
1667269SM
1960032SM
1673700SM
1667261SM
1667435SM
1
1
2
1
1
1
1
1
1
39
40
1918447SM
2823905SM
1
2
21
22
23
24
25
26
27
28
29
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
45
u
d
i
t
c
n
o
19-Dec-2021
Power Steering Valve Service Parts
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
46
Mfg. No: 1692848
n
o
19-Dec-2021
Power Steering Valve Service Parts
REF NO
PART NO
QTY
DESCRIPTION
1
2
1679024SM
1679025SM
1
4
3
4
5
6
7
8
9
10
11
12
13
?14
15
16
17
18
19
20
?21
22
23
A
B
C
D
E
F
G
H
I
J
K
1679026SM
1679027SM
1679028SM
1679029SM
1679031SM
1679032SM
1679033
1679036SM
1679037SM
1679038SM
1679040SM
1679043SM
2820263SM
1679046SM
1679054SM
1679144SM
1679145SM
1679363SM
1679364SM
1707394SM
1707395SM
1679023SM
1679030SM
1679034SM
1679035SM
1679039SM
1679041SM
1679042SM
1679045SM
1679047SM
1679048SM
1685448SM
1
1
1
1
1
11
1
1
1
1
1
1
4
1
1
1
1
1
1
5
2
RING, Retaining
BOLT
-Special
PLATE, Upper Cover
SPACER, Seal
SPACER
BEARING, Thrust
PLATE, Drive
CAPSCREW, Hex Head
COVER, Commutator
RING, Metering
MANIFOLD, Isolation
LINK, Drive
DRIVE ASSEMBLY, Hex
O-RING
LOCKNUT, Hex, 5/16-24
NUT, Hex, 5/8-18
BEARING
MANIFOLD, Port
SPACER
SEAL, Dust
PLUG
SEAL, (1 Each in Kit "K")
SEAL, (1 Each in Kit "K")
UPPER COVER ASSEMBLY KIT
METERING ASSEMBLY KIT
COMMUTATOR & RING ASSEMBLY KIT
ROTOR ASSEMBLY KIT
VALVE & RING KIT
SPRING KIT
PORT COVER ASSEMBLY
INPUT SHAFT ASSEMBLY KIT
NEEDLE ROLLER KIT
SEAL KIT
SEAL KIT
-(Contains Qty. 1 of Ref. No. 22 & Qty. 1 of Ref. No. 23).Seal Kit (Ref. Letter "K")
is for top seal replacement in power steering unit - DO NOT disassemble the
complete unit for this repair.
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
47
u
d
i
t
c
n
o
19-Dec-2021
PTO Control & Cone Clutch Group
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
48
Mfg. No: 1692848
n
o
19-Dec-2021
PTO Control & Cone Clutch Group
REF NO
PART NO
QTY
DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
1715435SM
1923701SM
1671424SM
2164155SM
1923362SM
1924058SM
1931353SM
1667811SM
1666294SM
1665440SM
1924940SM
1667812SM
2830647SM
2177522SM
1713843SM
1713854SM
2173991SM
1930645SM
1671323SM
1960072SM
2157127SM
1917372SM
1916950SM
1916965SM
1606554SM
1703805SM
1704505SM
2157273SM
2820036SM
2173957SM
1960086SM
1917356SM
2171371SM
1650906SM
2172206SM
1671339SM
2171772SM
1650254SM
1650304SM
2174862SM
2805123SM
1922133SM
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
2
2
2
1
1
1
1
4
1
2
2
2
1
2
2
1
1
1
1
1
1
1666781SM
1918459SM
1960020SM
1
1
1
SPRING, Tension
CAPSCREW, Hex Hd, 3/8-16 x 2
ROD, Tension
HANDLE ASSEMBLY
LOCKNUT, Hex, 5/16-18
LOCKNUT, Hex, 7/16-14
CARRIAGE BOLT, 3/8-16 x 1-3/4
SPACER
SPACER
PULLEY ASSEMBLY, w/ Bearings
WASHER, Plain, 3/8
SPACER
NUT, Pal
SWITCH, Interlock
KNOB
HANDLE, PTO, Clutch
LEVER
LOCKNUT, Hex, 3/8-16
ROD ASSEMBLY, Control
CAPSCREW, Hex Hd, 5/16-18 x 7/8
SPRING
NUT, Hex, Full, 5/16-18
NUT, Hex, Full, 3/8-16
LOCKWASHER, 3/8
PULLEY, Idler
KLIPRING, 1/2
BUSHING
STUD
CAPSCREW, Socket Hd., 1/4-20 x 5/8
DISC, Brake
CAPSCREW, Thread Forming
LOCKWASHER, 5/16
SPACER
PIVOT ASSEMBLY
RING, Retaining
GUIDE, Spring
SPRING
BEARING ASSEMBLY
PULLEY
PLATE ASSEMBLY, Clutch
KEY
LOCKNUT, Hex, 3/4-16
-Torque to 45-55 ft. lbs.
ARM ASSEMBLY, Pivot
PIN, Cotter, 3/16 x 1-1/2
WASHER, Plain, 21/32
43
44
45
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
49
u
d
i
t
c
n
o
19-Dec-2021
Rear Axle & Differential Group
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
50
Mfg. No: 1692848
n
o
19-Dec-2021
Rear Axle & Differential Group
REF NO
PART NO
QTY
DESCRIPTION
1
2162085SM
8
2
2158579SM
8
3
2121083SM
8
4
2121190SM
1
5
1921972SM
8
6
2171517SM
2
7
8
9
10
11
12
2860169SM
2154291SM
2157120SM
2177041SM
2860190SM
2171853SM
1
1
2
1
2
1
13
2164217SM
1
14
1930645SM
8
15
1916622SM
6
1916964SM
6
2177900ASM
2154065SM
1928721SM
1
2
4
1960155SM
2830671SM
2153068SM
2176945SM
2815019SM
2103189SM
1
2
2
1
1
1
26
1921959SM
6
?27
1650519SM
1
SPRING
-Differential Sub-Assembly P/N 1650519 includes these parts.
PINION, Differential
-Differential Sub-Assembly P/N 1650519 includes these parts.
SPINDLE, Differential
-Differential Sub-Assembly P/N 1650519 includes these parts.
SEAL, Cover
-Differential Sub-Assembly P/N 1650519 includes these parts.
CAPSCREW, Hex Hd, 3/8-16 x 2-1/2
-Differential Sub-Assembly P/N 1650519 includes these parts.
RING, Spacer
-Differential Sub-Assembly P/N 1650519 includes these parts.
WASHER
RING, Retaining
KEY, Drive
GEAR, Differential
WASHER
COVER, Differential
-Differential Sub-Assembly P/N 1650519 includes these parts.
CARRIER, Differential
-Differential Sub-Assembly P/N 1650519 includes these parts.
LOCKNUT, Hex, 3/8-16 Torque to 23-27 ft. lbs.
-Differential Sub-Assembly P/N 1650519 includes these parts.
NUT, Hex, Full, 1/4-20
-Differential Sub-Assembly P/N 1650519 includes these parts.
LOCKWASHER, 1/4
-Differential Sub-Assembly P/N 1650519 includes these parts.
AXLE ASSEMBLY, Rear
COLLAR, Set
SETSCREW, 5/16-18 x 1/2
-Torque to 17-25 ft. lbs.
WASHER
KEY, Hi-Pro
BEARING
HUB ASSEMBLY, Wheel, R.H.
FITTING, Grease
COVER, Differential
-Differential Sub-Assembly 1650519 includes these parts.
CAPSCREW, Hex Hd, 1/4-20 x 5/8
-Differential Sub-Assembly 1650519 includes these parts.
DIFFERENTIAL SUB-ASSY.
-Differential Sub-Assembly 1650519 includes Ref Nos. 1-6, 12-16 & 25, 26.
16
17
18
19
20
21
22
23
24
25
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
51
u
d
i
t
c
n
o
19-Dec-2021
Seat & Deck Group - Early Models
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
52
Mfg. No: 1692848
n
o
19-Dec-2021
Seat & Deck Group - Early Models
REF NO
PART NO
QTY
DESCRIPTION
1
1687020SM
1
2
1714483SM
1
3
4
5
6
7
8
9
10
11
12
1931339SM
2172434SM
1663752SM
1924940SM
1919439SM
1931350SM
1928352SM
1718858SM
1704299SM
1709308SM
2
1
2
2
2
2
2
1
2
2
12
1719363
2
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
1719809SM
1704728SM
1709256SM
1919438SM
1704724SM
1701229SM
1930645SM
1607870SM
1920415SM
1715769SM
1729524SM
1917372SM
1917356SM
2164029SM
1708361SM
1960459SM
1919326SM
1666744SM
1606823SM
1925205SM
1931648SM
1707137SM
1714441SM
1704723SM
1719712SM
1960020SM
1709307SM
1
2
2
2
2
1
2
1
2
1
1
6
6
1
1
2
4
2
2
2
4
1
1
1
1
2
1
SEAT
-(All Except 1692889 & 1693148)
COVER, Seat
-(Used with Seat 1713840 Only)
CARRIAGE BOLT, 5/16 -16 x 2 Lg
CLIP, Speed
SPACER, 25/64 x 5/8 x 3/16
WASHER, Plain
NUT, Hex Nylon Lock, 3/8-16
CARRIAGE BOLT, 3/8-16 x 1
NUT, Hex Flange, Whiz Lock, 3/8-16
BRACKET, Seat Pivot
SPACER
SPRING, Compression
-(All Except 1692889 & 1693148)
SPRING, Compression
-(1692889 & 1693148 Only)
PLATE, Switch
SPRING, Compression (2" OD)
WASHER, Spring, 5/16 x 1 1/4
NUT, Hex Nylon Lock, 5/16-18
COVER, Spring
BUSHING, Snap
NUT, Hex Lock, 3/8-16
STOP, Seat Deck
CAPSCREW, Hex Hd, 3/8-16 x 1-1/4
DECK ASSEMBLY, Seat (Orange)
DECK ASSEMBLY, Seat (Red)
NUT, Hex, Full, 5/16-18
LOCKWASHER, 5/16
BRACKET, Front Seat Deck
PLATE, Reinforcement
CAPSCREW, Truss Head, Torx Drive, 3/8-16 x 1
WASHER, 5/16
CONNECTOR, Cushion
CLIP, Latch
CAPSCREW, Hex Hd, 5/16-18 x 5/8
CAPSCREW, Hex Flange Hd, Whiz Lock, 5/16-18 x 1/2
SPRING, Extension
SLIDE, Seat
GRIP, Lever
LEVER, Seat Release
WASHER, Plain, 21/32
SUPPORT, Seat Pivot
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
53
u
d
i
t
c
n
o
19-Dec-2021
Steering Group - Power
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
54
Mfg. No: 1692848
n
o
19-Dec-2021
Steering Group - Power
REF NO
PART NO
QTY
DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1657017SM
1679046SM
1676468SM
1676418SM
1716863SM
1960558SM
1909589SM
1716502SM
1673686SM
1917356SM
2820263SM
2827103SM
1960020SM
1686926SM
1715513SM
1923683SM
2157427SM
1716859ASM
1960620SM
1
1
1
1
1
1
1
1
1
4
4
1
1
1
1
3
2
1
2
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1960114SM
1679556SM
1679538ASM
2827732SM
1922015SM
2822523SM
1701011SM
2172434SM
1715497SM
1715498SM
1715496SM
1715499SM
1719244SM
1715500SM
1715523SM
1923358SM
1676527SM
1921960SM
1921210SM
1930645SM
1685444SM
2
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
CAP, Steering Wheel
NUT, Hex, 5/8-18
WHEEL ASSEMBLY, Steering
BOOT, Steering Stem
UP STOP, Axle
CAPSCREW, Hex Hd, M12 x 1.75 x 20mm
LOCKWASHER, Int. Tooth, 1/2
MOUNTING PLATE ASSEMBLY
STEERING UNIT, Hydrostatic
LOCKWASHER, 5/16
NUT, Hex, 5/16-24
RING, Retaining, 5/8
WASHER, Plain, 21/32
CYLINDER, Power Steering
BRACKET ASSEMBLY, Cylinder
CAPSCREW, Hex. Washer Hd, Taptite 3/8-16 x 3/4
KEY, Square, 3/16 x 1-1/4
ARM ASSEMBLY, Steering
SETSCREW, Hex Socket Hd, 3/8-16 x 1/2
-Torque to 16-24 ft. lbs.
WASHER
SPACER
BALL JOINT ASSEMBLY
RING, Retaining, 3/4
NUT, Hex Jam, 3/4-16
FITTING, Hydraulic, .562 x 8 x .562-18-90
TIE, Self Locking .184 x 7.31 LG.
CLIP, Wire
HOSE ASSEMBLY, Hydraulic (Steering RT to Cyl.)
HOSE ASSEMBLY, Hydraulic (Steering LT to Cyl.)
HOSE ASSEMBLY, Hydraulic (Pump to Steering)
HOSE ASSEMBLY, Hydraulic (Steering Aux to Lift)
HOSE ASSEMBLY, Hydraulic (Steering Out to "T")
HOSE ASSEMBLY, Hydraulic (Return "T" to Pump)
FITTING, Hydraulic "T"
NUT, Hex, Center-Lock, 1/4-20
CLAMP, Hose
CAPSCREW, Hex Hd, 1/4-20 x 1.00
CAPSCREW, Hex Hd, 3/8-16 x 1
NUT, Hex Flange, Whiz Lock, 3/8-16
CYLINDER SEAL REPAIR KIT
F
t
o
N
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
55
u
d
i
t
c
n
o
19-Dec-2021
Tire & Wheel Group
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
56
Mfg. No: 1692848
n
o
19-Dec-2021
Tire & Wheel Group
REF NO
PART NO
QTY
DESCRIPTION
1
1713060
2
2
3
4
5
6
7
1709959SM
2154393SM
----1713177SM
2172353SM
2164247SM
2
4
2
2
2
8
1709970
2
9
10
11
12
1709969SM
1709971SM
2172353SM
2157638SM
2
2
2
13
14
1729280SM
1657694SM
10
WHEEL & TIRE ASSEMBLY, 16x6.50-8, Turf Tread
-(Includes Ref. Nos. 2-6)
TIRE, Turf Tread, 16x6.50-8
CUP, Bearing
WHEEL, Metallic Gray
WHEEL & BEARING CUP ASSEMBLY, Front, Metallic Gray
VALVE STEM & CAP ASSEMBLY, Front Wheel
INNER TUBE, 16x6.50-8
-Not serviced separately
WHEEL & TIRE ASSEMBLY, 23x10.50-12, Turf Tread
-(Includes Ref Nos. 9-11)
TIRE, Turf Tread, 23x10.50-12
WHEEL ASSEMBLY, Rear, Metallic Gray
VALVE STEM & CAP ASSEMBLY, Rear Wheel
INNER TUBE, 23x10.50-12
-Optional
BOLT, Hub
TIRE, Ag-Tread, 23x10.50-12
-(Optional)
r
o
u
F
d
t
o
o
r
N ep
R
i
t
c
n
o
Footnotes:
Note:* Not a serviceable part.
Copyright © Briggs & Stratton. All Rights reserved
57
19-Dec-2021
Transmission Group
Note: Unless noted otherwise, use the standard torque specifications
r
o
u
F
d
t
o
o
r
N ep
R
Copyright © Briggs & Stratton. All Rights reserved
i
t
c
58
Mfg. No: 1692848
n
o
19-Dec-2021
Transmission Group
REF NO
PART NO
QTY
DESCRIPTION
1
2
3
4
5
6
7
1917372SM
1917356SM
1667171SM
703570
2801652SM
2154269SM
1650429SM
2
11
1
7
1
2
1
8
9
10
11
12
13
14
15
16
17
18
19
20
1932849SM
1927609SM
1652469SM
2154097SM
2166041SM
1670857SM
2166017SM
1960184SM
2176236SM
2166012SM
2166043SM
1653120SM
1670864SM
1
2
2
4
1
1
1
2
1
1
1
2
1
NUT, Hex, Full, 5/16-18
LOCKWASHER, 5/16
SUPPORT, Spring
CAPSCREW, Hex Head, 5/16-18 x 1 1/4
PLUG, Pipe
SEAL
GEAR CASE ASSEMBLY,
-(Incl. Ref. Nos. 10, Qty 1; 28, Qty 1 & 37)
LOCKNUT, 3/8, Rigid Conduit
PIN, Roll, 3/8 x 1
BEARING
WASHER
SPACER, Axle, L.H.
GEAR, Drive
RING, Retaining
WASHER
PINION & SHAFT ASSEMBLY
SHAFT, Intermediate
GASKET
BUSHING
TUBE ASSEMBLY, Axle
-(Incl. Ref. No. 19)
KEY
FITTING, Grease
COVER ASSEMBLY, Grease Case
-(Incl. Ref. Nos. 10, Qty 1; 27 & 28, Qty 1)
PLUG, Pipe
RING, Retaining
SEAL
BEARING
BEARING, Needle
WASHER
SHAFT, Brake
KEY
WASHER
WASHER
PINION
RING, Retaining
GEAR
BEARING, Needle
ELBOW, Street
NIPPLE, Pipe
CAP, Pipe
VALVE, Relief
BUSHING, Pipe
ELBOW, Pipe
NIPPLE, Pipe
CAPSCREW, Hex Head 5/16-18 x 2 G5
SPACER, Axle, R.H.
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
F
t
o
N
2154096SM
2812808SM
1650427SM
2
1
1
1673452SM
2154268SM
2166021SM
2166019SM
2166018SM
2860187SM
1650775SM
2166014SM
1651078ASM
2860183SM
2176243SM
2176980SM
2166004SM
2154271SM
1673453SM
2801493
1667346SM
2172899SM
2801825SM
2801677
2801480SM
1921978SM
2166040SM
1
2
1
1
2
1
1
1
1
2
1
2
1
1
1
1
1
1
1
1
1
4
1
Copyright © Briggs & Stratton. All Rights reserved
r
o
e
R
o
r
p
59
u
d
i
t
c
n
o
19-Dec-2021
Hardware Identification & Torque Specifications
Torque Specification Chart
Torque Specification Chart
FOR STANDARD METRIC MACHINE HARDWARE (Tolerance ± 20%)
Property
Class
5.6
8.8
Class 5.6
Class 8.8
in/lbs
Size Of
Hardware ft/lbs
M3
M4
M5
M6
M7
M8
M10
M12
M14
M16
M18
M20
M22
M24
M27
M30
M33
M36
M39
5.88
13.44
26.4
44.64
5.2
7.7
15
26
42
64
89
126
169
217
320
435
590
759
988
10.9
Nm.
Nm.
in/lbs
ft/lbs
.56
1.28
2.50
4.3
7.1
10.5
21
36
58
88
121
171
230
295
435
590
800
1030
1340
13.44
30.72
60.96
7.3
12.1
17.7
35
61
101
147
202
290
390
497
733
995
1349
1740
2249
1.28 19.2
2.90 43.44
5.75 5.97
9.9 10.3
16.5 16.9
25
24
50
48
83 86.2
136
132
210
200
287
275
405
390
559
530
708
375
995 1032
1350 1401
1830 1902
2360 2441
3050 3163
SAE Grade 2
Class 12.9
Size Of
Hardware
Nm.
in/lbs
ft/lbs
Nm.
1.80
4.10
8.10
14
23
34
67
117
185
285
390
550
745
960
1400
1900
2580
3310
4290
22.92
52.56
7.15
12.1
19.9
29
59
103
162
250
346
486
656
840
1239
1681
2278
2935
3798
2.15
4.95
9.7
16.5
27
40
81
140
220
340
470
660
890
1140
1680
2280
3090
3980
5150
20
10
30
40
50
60
80
70
Body Length
Screw, M8- 1.25 x 25
Thread
Diameter (mm)
Threads
Inside
Diameter (in) per inch
1/4
1/2
3/4
1
2.1
2.3
3.1
3.5
7.6
8.6
15.0
16.3
27.2
31.3
40.8
47.6
68.0
74.8
88.4
102.0
122.4
136
217.6
244.8
190.4
210.8
299.2
326.4
Body
Length (mm)
Body
Length (in)
in/lbs
ft/lbs
30
31
43
49
8
10
17
19
30
35
50
55
75
90
110
120
150
180
260
300
400
440
580
640
SAE Grade 8
Nm.
in/lbs
ft/lbs
Nm.
3.4
3.5
4.9
5.5
10.9
13.6
23.1
25.8
40.8
47.6
68.0
74.8
102.0
122.4
149.6
163.2
204.0
244.8
353.6
408.0
544.0
598.4
788.8
870.4
41
43
60
68
12
14
25
29
45
50
70
80
110
120
150
170
220
240
386
420
600
660
900
1,000
4.6
4.9
6.8
7.7
16.3
19.0
34.0
34.0
61.2
68.0
95.2
108.8
149.6
163.2
204.0
231.2
299.2
326.4
525.0
571.2
816.0
897.6
1,244.0
1,360.0
NOTES
1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. for prevailing torque locknuts - use 65% of grade 5
torques.
b. for flange whizlock nuts and screws - use 135% of
grade 5 torques.
3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.
Screw, 1/2- 16 x 2
Nut, 1/2-16
0
Distance between
threads (mm)
Threads
per inch
Thread
Diameter (mm)
Body
Diameter
19
20
27
31
66
76
11
12
20
23
30
35
50
55
65
75
90
100
160
180
140
155
220
240
SAE Grade 5
Nm.
100
90
Body
Diameter
Nut, M8
in/lbs
ft/lbs
8-32
8-36
10-24
10-32
1/4-20
1/4-28
5/16-18
5/16-24
3/8-16
3/8-24
7/16-14
7/16-20
1/2-13
1/2-20
9/16-12
9/16-18
5/8-11
5/8-18
3/4-10
3/4-16
7/8-9
7/8-14
1-8
1-12
The guides and ruler furnished below are designed to
help you select the appropriate hardware.
0
No
Marks
Hardware
Grade
12.9
Class 10.9
in/lbs
ft/lbs
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
1/4
1/2
3/4
2
1/4
1/2
3/4
3
1/4
1/2
3/4
4
Common Hardware Types
Hex Head Capscrew
Washer
Standard Hardware Sizing
When a washer or nut is identified as 1/2” (M8), this is
the Nominal size, meaning the inside diameter is 1/2 inch
(8mm metric thread diameter); if a second number is present
it represents the threads per inch (distance between threads).
When bolt or capscrew is identified as 1/2 - 16 x 2” (M8 - 1.25 x 50),
this means the Nominal size, or body diameter is 1/2 inch (8mm
metric thread diameter), the second number,16, represents the
threads per inch, (distance between threads). The final number
is the body length of the bolt or screw, 2 inches (50mm).
Lockwasher
Carriage Bolt
Hex Nut
Wrench & Fastener Size Guide
1/4” Bolt or Nut
Wrench—7/16”
5/16” Bolt or Nut
Wrench—1/2”
3/8” Bolt or Nut
Wrench—9/16”
M6 Bolt or Nut
Wrench—10mm
M8 Bolt or Nut
Wrench—13mm
M10 Bolt or Nut
Wrench—17mm
7/16” Bolt or Nut
1/2” Bolt or Nut
Wrench (Bolt)—5/8”
Wrench—3/4”
Wrench (Nut)—11/16”
M12 Bolt or Nut
Wrench—19mm
M14 Bolt or Nut
Wrench—22 mm
Copyright © Briggs & Stratton. All Rights reserved
19-Dec-2021

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
