Micro Star International I4LSTARTYPEES500W WIRELESSKEYBOARD User Manual

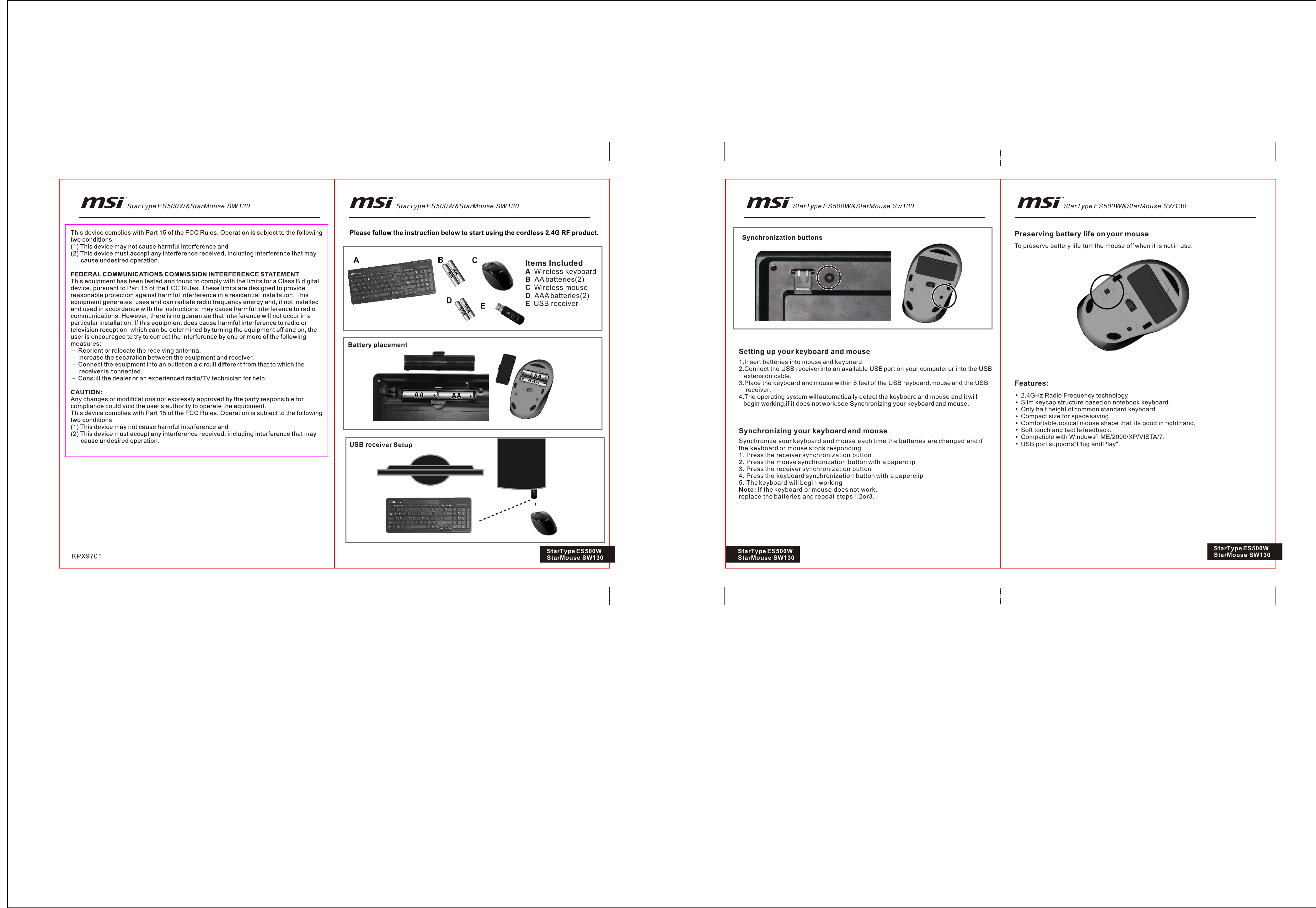

StarType ES500W&StarMouse SW130 StarType ES500W&StarMouse SW130 StarType ES500W&StarMouse Sw130 Synchronization buttons StarType ES500W&StarMouse SW130 Preserving battery life on your mouse To preserve battery life,tum the mouse off when it is not in use. Items Included A B C D E Wireless keyboard AA batteries(2) Wireless mouse AAA batteries(2) USB receiver Battery placement Setting up your keyboard and mouse 1.Insert batteries into mouse and keyboard. 2.Connect the USB receiver into an available USB port on your computer or into the USB extension cable. 3.Place the keyboard and mouse within 6 feet of the USB reyboard,mouse and the USB receiver. 4.The operating system will automatically detect the keyboard and mouse and it will begin working,if it does not work.see Synchronizing your keyboard and mouse. Synchronizing your keyboard and mouse Synchronize your keyboard and mouse each time the batteries are changed and if the keyboard or mouse stops responding. 1. Press the receiver synchronization button 2. Press the mouse synchronization button with a paperclip 3. Press the receiver synchronization button 4. Press the keyboard synchronization button with a paperclip 5. The keyboard will begin working Note: If the keyboard or mouse does not work, replace the batteries and repeat steps1.2or3. USB receiver Setup KPX9701 StarType ES500W StarMouse SW130 StarType ES500W StarMouse SW130 Features: 2.4GHz Radio Frequency technology. Slim keycap structure based on notebook keyboard. Only half height of common standard keyboard. Compact size for space saving. Comfortable,optical mouse shape that fits good in right hand, Soft touch and tactile feedback. Compatible with Windows ME/2000/XP/VISTA/7. USB port supports"Plug and Play". StarType ES500W StarMouse SW130 RF exposure warning · This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
