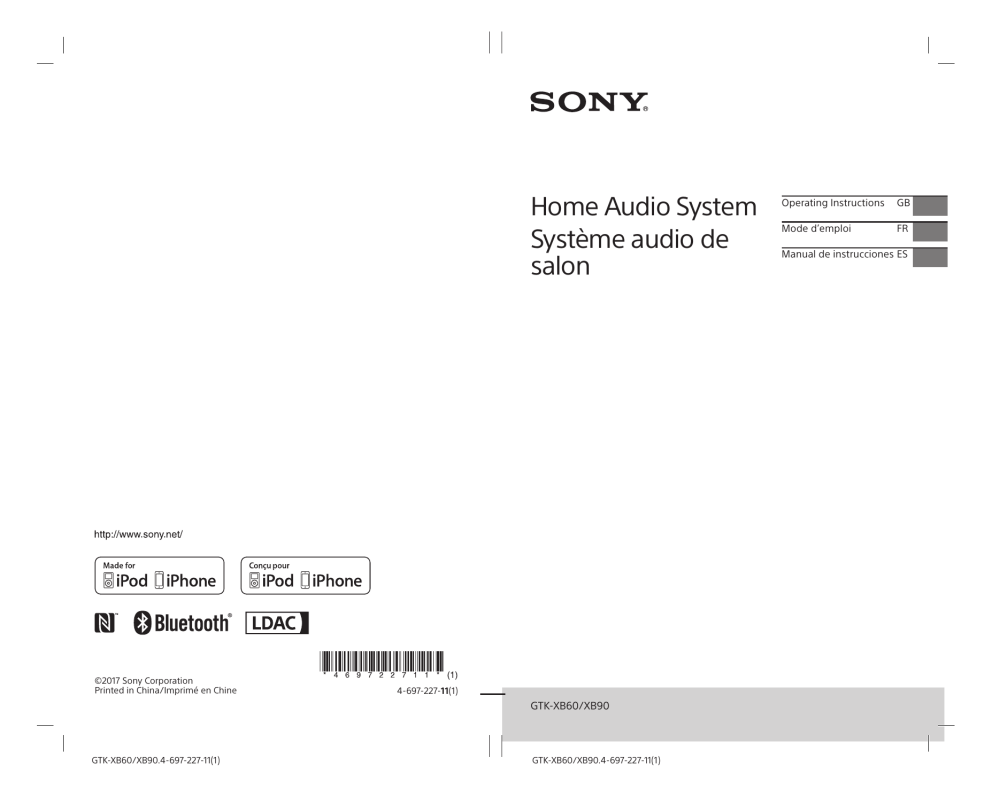

Home Audio System
Système audio de salon
Operating Instructions GB
Mode d’emploi FR
Manual de instrucciones ES
©2017 Sony Corporation
Printed in China/Imprimé en Chine
GTK-XB60/XB90.4-697-227-11(1)
4-697-22711(1)
GTK-XB60/XB90
GTK-XB60/XB90.4-697-227-11(1)
2 GB
WARNING
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
To reduce the risk of fire, do not cover the ventilation opening of the appliance with newspapers, tablecloths, curtains, etc.
Do not expose the appliance to naked flame sources (for example, lighted candles).
To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing, and do not place objects filled with liquids, such as vases, on the appliance.
As the main plug is used to disconnect the unit from the mains, connect the unit to an easily accessible AC outlet. Should you notice an abnormality in the unit, disconnect the main plug from the AC outlet immediately.
Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
Do not expose batteries or appliances with battery-installed to excessive heat, such as sunshine and fire.
The unit is not disconnected from the mains as long as it is connected to the
AC outlet, even if the unit itself has been turned off.
Indoor use only.
Notice for the customers in the USA
Owner’s Record
The model and serial numbers are located on the rear of the unit. Record these numbers in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.
Model No.
Serial No.
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tipover.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
GTK-XB60/XB90.4-697-227-11(1)
This symbol is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
GTK-XB60/XB90.4-697-227-11(1)
GTK-XB60/XB90.4-697-227-11(1)
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tipover.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
This symbol is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CAUTION
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
This equipment must not be co-located or operated in conjunction with any other antenna or transmitter.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure
Guidelines. This equipment has very low levels of RF energy that is deemed to comply without maximum permissive exposure evaluation (MPE).
For customers in Canada
This device complies with Industry
Canada’s licence-exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets
RSS-102 of the IC radio frequency (RF)
Exposure rules. This equipment has very low levels of RF energy that is deemed to comply without maximum permissive exposure evaluation (MPE).
GB
3 GB
GTK-XB60/XB90.4-697-227-11(1)
This system is designed to be used for the following purposes:
• Playing back music sources on USB devices or BLUETOOTH devices
• Enjoying social gatherings with the “Party Chain” or speaker add function
About this manual
• Some illustrations are presented as conceptual drawings, and may be different from the actual products.
• The instructions in this manual are for models GTK-XB60 and GTK-XB90.
The GTK-XB60 is used for illustrative purposes unless otherwise noted.
4 GB
GTK-XB60/XB90.4-697-227-11(1)
Table of Contents
About this manual .....................4
Guide to parts and controls ......6
Getting Started
Turning on the system ............ 10
Carrying the system ................ 10
Placing the system horizontally ............................... 11
About the power management ............................ 11
Charging the battery ................ 11
USB Device
Before using the USB device ....13
Playing a file .............................13
BLUETOOTH connection
Pairing this system with a
BLUETOOTH device ...................15
One Touch BLUETOOTH
Connection by NFC ...................17
Listening to music on a
BLUETOOTH device .................. 18
About the BLUETOOTH wireless technology .................20
Playing back with high quality sound codec (AAC/LDAC™) ....20
Setting the BLUETOOTH standby mode ..........................21
Turning on or off the
BLUETOOTH signal ....................21
Using “Sony | Music Center” and “Fiestable” via
BLUETOOTH connection .......... 22
Sound Adjustment
Adjusting the sound ................ 23
Other Operations
Enjoying wired playback using multiple systems (Wired Party
Chain function) ........................ 24
Enjoying wireless playback using multiple systems
(Wireless Party Chain function) .................................. 27
Listening to music wirelessly with two systems (Speaker add function) ........................... 28
Enjoying music with the
Speaker Lights .........................30
Enjoying hands-free calls ........30
Using an optional equipment ................................31
Using an optional microphone ............................. 32
Setting the automatic standby function ..................... 32
Saving the battery power ........ 32
Additional Information
Information about compatible devices ................. 33
Troubleshooting ...................... 33
Precautions .............................. 37
Specifications ........................... 39
License and Trademark
Notice ....................................... 41
5 GB
GTK-XB60/XB90.4-697-227-11(1)
Guide to parts and controls
GTK-XB60
Top
GTK-XB90
Top
Speaker Lights*
(page 30)
Speaker Lights*
(page 30)
Rear
6 GB
* Do not look directly at the light-emitting parts when the Speaker Lights are turned on.
GTK-XB60/XB90.4-697-227-11(1)
Rear
* Do not look directly at the light-emitting parts when the Speaker Lights are turned on.
GTK-XB60/XB90.4-697-227-11(1)
Guide to parts and controls
GTK-XB60
Top
GTK-XB90
Top
Speaker Lights*
(page 30)
Rear
* Do not look directly at the light-emitting parts when the Speaker Lights are turned on.
GTK-XB60/XB90.4-697-227-11(1)
Rear
* Do not look directly at the light-emitting parts when the Speaker Lights are turned on.
7 GB
GTK-XB60/XB90.4-697-227-11(1)
8 GB
(power) button
Press to turn on or off the system.
(power) indicator
— Lights up in green while the system is turned on.
— Lights up in amber while the system is turned off, and when the BLUETOOTH standby mode is turned on.
CHARGE indicator (page 11)
Lights up in amber while the battery is charging.
(play/pause)/ (call)* button
— Press to play/pause music.
— Press to receive/end a call when using the handsfree call function with your
BLUETOOTH-connected mobile phone (page 30).
Built-in microphone
STAMINA BATTERY button
— Press to turn on the powersaving mode (STAMINA mode) when using the built-in battery
(page 32).
— Hold down to check the remaining battery level
(page 12).
STAMINA BATTERY indicator
Lights up while STAMINA mode is active (page 32).
FUNCTION PAIRING button
— Press repeatedly to select the
BLUETOOTH, USB or Audio In function.
— When the BLUETOOTH function is selected, hold down to activate BLUETOOTH pairing.
— Press to stop the built-in sound demonstration.
(BLUETOOTH) indicator
(page 20)
USB indicator (page 13)
AUDIO IN indicator (page 31)
(N-Mark) (page 17)
ADD button (page 28)
ADD L/R indicators (page 28)
W.PARTY CHAIN LIGHT button
— Press to turn the Wireless Party
Chain function on (page 27).
— Hold down for more than
3 seconds to turn the speaker lights on/off (page 30).
W.PARTY CHAIN LIGHT indicator
Lights up when the Wireless
Party Chain function is in use
(page 27).
EXTRA BASS button
— Press to generate more dynamic sound (page 23).
— Hold down for more than
3 seconds while AC power cord is connected to play back the built-in sound demonstration.
EXTRA BASS indicator
Lights up when the EXTRA BASS function is turned on (page 23).
Volume +*/– buttons
Press to adjust the volume.
(USB) port
Use to connect a USB device.
AC IN jack (page 10)
PARTY CHAIN button (page 26)
PARTY CHAIN indicator
(page 26)
MIC jack (page 32)
MIC LEVEL (MIN/MAX) knob
(page 32)
GTK-XB60/XB90.4-697-227-11(1)
Audio output and input jacks
Use an audio cord (not supplied) to make either connection as follows:
• AUDIO/PARTY CHAIN OUT L/R jacks
— Connect to the audio input jacks of an optional equipment.
— Connect to another audio system to enjoy the Wired
Party Chain function
(page 24).
• AUDIO/PARTY CHAIN IN L/R jacks
— Connect to the audio output jacks of a TV or an audio/ video equipment. The sound is output through this system.
— Connect to another audio system to enjoy the Wired
Party Chain function
(page 24).
RESET button
* The / button and the volume + button have a tactile dot. Use the tactile dot as a reference when operating the system.
Indicator statuses
The statuses of the indicators on the unit are shown in the illustrations as follows.
Indicator status Illustration
Flashing
Lit up
Turned off
GTK-XB60/XB90.4-697-227-11(1)
GTK-XB60/XB90.4-697-227-11(1)
(N-Mark) (page 17)
ADD button (page 28)
ADD L/R indicators (page 28)
W.PARTY CHAIN LIGHT button
— Press to turn the Wireless Party
Chain function on (page 27).
— Hold down for more than
3 seconds to turn the speaker lights on/off (page 30).
W.PARTY CHAIN LIGHT indicator
Lights up when the Wireless
Party Chain function is in use
(page 27).
EXTRA BASS button
— Press to generate more dynamic sound (page 23).
— Hold down for more than
3 seconds while AC power cord is connected to play back the built-in sound demonstration.
EXTRA BASS indicator
Lights up when the EXTRA BASS function is turned on (page 23).
Volume +*/– buttons
Press to adjust the volume.
(USB) port
Use to connect a USB device.
AC IN jack (page 10)
PARTY CHAIN button (page 26)
PARTY CHAIN indicator
(page 26)
MIC jack (page 32)
MIC LEVEL (MIN/MAX) knob
(page 32)
Audio output and input jacks
Use an audio cord (not supplied) to make either connection as follows:
• AUDIO/PARTY CHAIN OUT L/R jacks
— Connect to the audio input jacks of an optional equipment.
— Connect to another audio system to enjoy the Wired
Party Chain function
(page 24).
• AUDIO/PARTY CHAIN IN L/R jacks
— Connect to the audio output jacks of a TV or an audio/ video equipment. The sound is output through this system.
— Connect to another audio system to enjoy the Wired
Party Chain function
(page 24).
RESET button
* The / button and the volume + button have a tactile dot. Use the tactile dot as a reference when operating the system.
Indicator statuses
The statuses of the indicators on the unit are shown in the illustrations as follows.
Indicator status Illustration
Flashing
Lit up
Turned off
GTK-XB60/XB90.4-697-227-11(1)
9 GB
Getting Started
Turning on the system
1
Connect the AC power cord
(supplied) to the AC IN jack on the rear of the unit, and then to the wall outlet.
GTK-XB60
Deactivating the demonstration
Hold down W.PARTY CHAIN
LIGHT for more than 3 seconds while the demonstration is performed.
The demonstration ends and the system enters the standby mode.
When you hold down W.PARTY CHAIN
LIGHT during the standby mode, or when you disconnect and reconnect the AC power cord, the system enters the demonstration mode.
GTK-XB90
Carrying the system
Before carrying the system, disconnect all the cords.
AC power cord (supplied)
To wall outlet
The system is turned on in the demonstration mode and the demonstration starts automatically.
2
Press to turn on the system.
The indicator lights up in green.
Hint
The system can be used with the built-in battery instead of connecting the AC power cord (supplied) to a wall outlet if you have charged the battery before use. For details, see “Charging the battery” (page 11).
Note
Correct hand placement while carrying the system is very important to avoid personal injury and/or property damage.
Placing the system horizontally
You can also place the system horizontally as illustrated below. (Place the rubber feet side down.)
Hint
When you change the orientation of the system, the tweeters that output sound for the left and right channels are switched to the upper two units automatically (for
GTK-XB90 only).
About the power management
• By default, this system is set to turn off automatically in about 15 minutes when there is no operation, and no audio signal is detected. For details, see “Setting the automatic standby function” (page 32).
• You can reduce the power consumption using STAMINA mode.
For details, see “Saving the battery power” (page 32).
10 GB
GTK-XB60/XB90.4-697-227-11(1) GTK-XB60/XB90.4-697-227-11(1)
GTK-XB60/XB90.4-697-227-11(1)
Deactivating the demonstration
Hold down W.PARTY CHAIN
LIGHT for more than 3 seconds while the demonstration is performed.
The demonstration ends and the system enters the standby mode.
When you hold down W.PARTY CHAIN
LIGHT during the standby mode, or when you disconnect and reconnect the AC power cord, the system enters the demonstration mode.
Carrying the system
Before carrying the system, disconnect all the cords.
Note
Correct hand placement while carrying the system is very important to avoid personal injury and/or property damage.
Placing the system horizontally
You can also place the system horizontally as illustrated below. (Place the rubber feet side down.)
Charging the battery
The system can be used with the built-in battery (rechargeable) instead of connecting the AC power cord to a wall outlet if the battery has been sufficiently charged.
Connect the AC power cord
(supplied) to the AC IN jack on the rear of the unit, and then to the wall outlet.
GTK-XB60
Hint
When you change the orientation of the system, the tweeters that output sound for the left and right channels are switched to the upper two units automatically (for
GTK-XB90 only).
GTK-XB90
About the power management
• By default, this system is set to turn off automatically in about 15 minutes when there is no operation, and no audio signal is detected. For details, see “Setting the automatic standby function” (page 32).
• You can reduce the power consumption using STAMINA mode.
For details, see “Saving the battery power” (page 32).
AC power cord (supplied)
To wall outlet
The CHARGE indicator will light up in amber. Charging will be completed in about 3.5 hours and the indicator will turn off.
11 GB
GTK-XB60/XB90.4-697-227-11(1)
Notes
• It may take longer to charge the battery depending on the conditions of use.
• Even if you do not intend to use the system for a long time, charge the battery to its full capacity once every six months to maintain its performance.
Hint
You can operate the system while it is charging.
Checking the battery level of the rechargeable battery
You can check the remaining battery level via voice guidance when using the system with the built-in battery.
You can also check the battery level using “Sony | Music Center”
(page 22).
1
Press to turn on the system.
Make sure that the AC power cord is not connected to a wall outlet.
You can only check the battery level when using the built-in battery.
2
Hold down STAMINA
BATTERY.
3
The voice guidance message is heard and the CHARGE indicator flashes as follows according to the remaining battery level.
Message
(battery level)
“Fully charged”
(80% – 100%)
“About 70%”
(60% – 79%)
“About 50%”
(30% – 59%)
“About 20%”
(11% – 29%)
“Please charge”
(less than 10%)
Indicator flashes
4 times
3 times
2 times
Once
Continuously
Hint
“Please charge” is output automatically when the remaining battery level is less than 10%.
USB Device
Before using the USB device
For compatible USB devices, see
“Information about compatible devices” (page 33).
When using Apple devices with this system, connect them via a
BLUETOOTH connection (page 15).
Using Apple devices via a USB connection is not supported.
Notes
• When USB cable connection is necessary, use the USB cable supplied with the USB device. See the operating instructions supplied with the USB device for details on the operation method.
• Do not connect the system and the USB device through a USB hub.
• When the USB device is connected, the system reads all the files on the USB device. If there are many folders or files on the USB device, it may take a long time to finish reading the USB device.
• With some connected USB devices, there may be a delay before an operation is performed by this system.
• Compatibility with all encoding/writing software cannot be guaranteed. If audio files on the USB device were originally encoded with incompatible software, those files may produce noise or interrupted audio, or may not play at all.
• This system does not necessarily support all the functions provided in a connected
USB device.
12 GB
GTK-XB60/XB90.4-697-227-11(1) GTK-XB60/XB90.4-697-227-11(1)
GTK-XB60/XB90.4-697-227-11(1)
3
The voice guidance message is heard and the CHARGE indicator flashes as follows according to the remaining battery level.
Message
(battery level)
“Fully charged”
(80% – 100%)
“About 70%”
(60% – 79%)
“About 50%”
(30% – 59%)
“About 20%”
(11% – 29%)
“Please charge”
(less than 10%)
Indicator flashes
4 times
3 times
2 times
Once
Continuously
Hint
“Please charge” is output automatically when the remaining battery level is less than 10%.
USB Device
Before using the USB device
For compatible USB devices, see
“Information about compatible devices” (page 33).
When using Apple devices with this system, connect them via a
BLUETOOTH connection (page 15).
Using Apple devices via a USB connection is not supported.
Notes
• When USB cable connection is necessary, use the USB cable supplied with the USB device. See the operating instructions supplied with the USB device for details on the operation method.
• Do not connect the system and the USB device through a USB hub.
• When the USB device is connected, the system reads all the files on the USB device. If there are many folders or files on the USB device, it may take a long time to finish reading the USB device.
• With some connected USB devices, there may be a delay before an operation is performed by this system.
• Compatibility with all encoding/writing software cannot be guaranteed. If audio files on the USB device were originally encoded with incompatible software, those files may produce noise or interrupted audio, or may not play at all.
• This system does not necessarily support all the functions provided in a connected
USB device.
To use the system as a battery charger
You can use the system as a battery charger for USB devices that have a rechargeable function.
Connect the USB device to the (USB) port.
The charging begins when the USB device is connected to the (USB) port. For details, refer to the operating instructions of your USB device.
Playing a file
The following audio file formats are supported:
—MP3: file extension “.mp3”
—WMA: file extension “.wma”
1
Press FUNCTION PAIRING repeatedly until the USB indicator on the unit lights up.
2
Connect the USB device to the
(USB) port.
3
Press / to start playback.
You can control playback operations and select music easily from a list of music on the USB device using “Sony | Music Center”
(page 22).
4
Press the volume +/– buttons to adjust the volume.
13 GB
GTK-XB60/XB90.4-697-227-11(1)
Other operations
To
Pause playback
Do this
Press / . To resume play, press
/ again.
Press / twice.
Play back the next song
Play back the previous song
Press / for three times.
Notes
• This system cannot play audio files on the
USB device in the following cases;
— when the total number of audio files on a USB device exceeds 999.
— when the number of folders on a USB device exceeds 256 (including the
“ROOT” folder and empty folders).
These numbers may vary depending on the file and folder structure. Do not save other types of files or unnecessary folders on a USB device that has audio files.
• The system can play back to a depth of 8 folders only.
• Folders that have no audio files are skipped.
• Note that even when the file name has the correct file extension, if the actual file differs, the system may emit noise or malfunction.
14 GB
GTK-XB60/XB90.4-697-227-11(1)
BLUETOOTH connection
Pairing this system with a BLUETOOTH device
Pairing is an operation in which
BLUETOOTH devices register each other beforehand. Once the pairing operation has been performed, it does not need to be performed again for those devices.
If your device is an NFC-compatible smartphone, the manual pairing procedure is not necessary. (See “One
Touch BLUETOOTH Connection by NFC”
(page 17).)
1
Place the BLUETOOTH device within 1 meter (3 feet) from the system.
2
Select the BLUETOOTH function.
Press to turn on the system.
Press FUNCTION PAIRING repeatedly until the
(BLUETOOTH) indicator on the unit flashes slowly.
3
Hold down FUNCTION
PAIRING for more than
3 seconds.
Voice guidance (“Bluetooth pairing”) will be output and the
(BLUETOOTH) indicator will flash quickly.
Bluetooth pairing
4
Turn on the BLUETOOTH function on the BLUETOOTH device.
For details, refer to the operating instructions of your BLUETOOTH device.
5
Select “GTK-XB60” or
“GTK-XB90” on the display of the BLUETOOTH device.
Hint
When there is no pairing information on the system (for example, when you use the BLUETOOTH function for the first time after purchase), the
(BLUETOOTH) indicator flashes quickly and the system enters the pairing mode automatically. In this case, proceed to step 4.
Note
If passkey is required on the BLUETOOTH device, enter “0000.” “Passkey” may be called “Passcode,” “PIN code,” “PIN number,” or “Password.”
15 GB
GTK-XB60/XB90.4-697-227-11(1)
6
Make sure that a BLUETOOTH connection has been established.
Once a BLUETOOTH connection is established, the system will emit a notification sound, and the
(BLUETOOTH) indicator on the unit will stop flashing and remain lit up.
To cancel the pairing operation
Press FUNCTION PAIRING.
To terminate the BLUETOOTH connection
Turn off the BLUETOOTH function on the connected device.
Note
Depending on the BLUETOOTH device, the
BLUETOOTH connection may be terminated automatically when you stop playback.
Depending on the BLUETOOTH device, connection may start automatically after pairing is completed.
Notes
• You can pair up to 8 BLUETOOTH devices.
If the 9th BLUETOOTH device is paired, the oldest paired device will be deleted.
• If you want to pair with another
BLUETOOTH device, repeat steps 1 to 6.
• If the last connected BLUETOOTH device is nearby, a BLUETOOTH connection will be established automatically and the
BLUETOOTH indicator will light up. If you want to connect another BLUETOOTH device, turn off the BLUETOOTH function on the connected device or turn off the power on the connected device.
Erasing all the pairing registration information
To erase all of the pairing registration information, the system needs to be restored to the factory default settings. See “Restoring the system to the factory default settings”
(page 37).
Note
Once all the pairing information on the system has been erased, iPhone/iPod touch may not be able to connect to the system.
In this case, delete the pairing information for the system from iPhone/iPod touch, and then perform the pairing procedure again.
One Touch BLUETOOTH
Connection by NFC
NFC (Near Field Communication) is a technology enabling short-range wireless communication between various devices, such as smartphones and IC tags.
When you touch the system with an
NFC-compatible smartphone, the system automatically:
—turns on in the BLUETOOTH function.
—completes the pairing and
BLUETOOTH connection.
Compatible smartphones
Smartphones with a built-in NFC function (OS: Android™ 2.3.3 or later, excluding Android 3.x)
Notes
• The system can only recognize and connect to one NFC-compatible smartphone at a time. If you try to connect another NFC-compatible smartphone to the system, the currently connected
NFC-compatible smartphone will be disconnected.
• Depending on your NFC-compatible smartphone, you may need to perform the following steps on your NFC-compatible smartphone in advance.
— Turn on the NFC function. For details, refer to the operating instructions of the NFC-compatible smartphone.
— If your NFC-compatible smartphone has an OS version that is older than
Android 4.1.x, download and start the “NFC Easy Connect” application.
“NFC Easy Connect” is a free application for Android smartphones that can be obtained from Google Play™. (The application may not be available in some countries/regions.)
1
Turn on the NFC function of a
BLUETOOTH device, such as a smartphone or tablet.
16 GB
GTK-XB60/XB90.4-697-227-11(1) GTK-XB60/XB90.4-697-227-11(1)
GTK-XB60/XB90.4-697-227-11(1)
To cancel the pairing operation
Press FUNCTION PAIRING.
To terminate the BLUETOOTH connection
Turn off the BLUETOOTH function on the connected device.
Note
Depending on the BLUETOOTH device, the
BLUETOOTH connection may be terminated automatically when you stop playback.
Erasing all the pairing registration information
To erase all of the pairing registration information, the system needs to be restored to the factory default settings. See “Restoring the system to the factory default settings”
(page 37).
Note
Once all the pairing information on the system has been erased, iPhone/iPod touch may not be able to connect to the system.
In this case, delete the pairing information for the system from iPhone/iPod touch, and then perform the pairing procedure again.
One Touch BLUETOOTH
Connection by NFC
NFC (Near Field Communication) is a technology enabling short-range wireless communication between various devices, such as smartphones and IC tags.
When you touch the system with an
NFC-compatible smartphone, the system automatically:
—turns on in the BLUETOOTH function.
—completes the pairing and
BLUETOOTH connection.
Compatible smartphones
Smartphones with a built-in NFC function (OS: Android™ 2.3.3 or later, excluding Android 3.x)
2
Touch the BLUETOOTH device to the N-Mark on the unit until the BLUETOOTH device responds to the system.
Complete the connection by following the instructions displayed on the BLUETOOTH device.
When the BLUETOOTH connection is established, the (BLUETOOTH) indicator on the unit stops flashing and remains lit.
Notes
• The system can only recognize and connect to one NFC-compatible smartphone at a time. If you try to connect another NFC-compatible smartphone to the system, the currently connected
NFC-compatible smartphone will be disconnected.
• Depending on your NFC-compatible smartphone, you may need to perform the following steps on your NFC-compatible smartphone in advance.
— Turn on the NFC function. For details, refer to the operating instructions of the NFC-compatible smartphone.
— If your NFC-compatible smartphone has an OS version that is older than
Android 4.1.x, download and start the “NFC Easy Connect” application.
“NFC Easy Connect” is a free application for Android smartphones that can be obtained from Google Play™. (The application may not be available in some countries/regions.)
1
Turn on the NFC function of a
BLUETOOTH device, such as a smartphone or tablet.
Hint
If pairing and the BLUETOOTH connection fail, perform the following.
— Remove the case from the smartphone if using a commercially available smartphone case.
— Touch the smartphone to the N-Mark on the unit again.
— Relaunch the “NFC Easy Connect” application.
— Unlock the screen of the BLUETOOTH device.
17 GB
GTK-XB60/XB90.4-697-227-11(1)
To terminate the BLUETOOTH connection
Touch the BLUETOOTH device to the
N-Mark on the unit again.
Erasing all the pairing registration information
To erase all of the pairing registration information, the system needs to be restored to the factory default settings. See “Restoring the system to the factory default settings”
(page 37).
Note
Once all the pairing information on the system has been erased, iPhone/iPod touch may not be able to connect to the system.
In this case, delete the pairing information for the system from iPhone/iPod touch, and then perform the pairing procedure again.
Listening to music on a
BLUETOOTH device
You can enjoy listening to music on a connected BLUETOOTH device via the system using AVRCP.
Check the following before playing music:
—The BLUETOOTH function of the
BLUETOOTH device is turned on.
—Pairing has been completed
(page 15).
1
Press FUNCTION PAIRING repeatedly until the
(BLUETOOTH) indicator on the unit lights up.
The last connected BLUETOOTH device will be connected automatically.
2
Start playback of an audio source on the BLUETOOTH device.
For details, refer to the operating instructions of your BLUETOOTH device.
You can also use / on the system to play back/pause the music.
3
Adjust the volume.
Adjust the volume of the
BLUETOOTH device first. If the volume level is still too low, adjust the volume level on the system using the volume +/– buttons.
BLUETOOTH device
Note
If the (BLUETOOTH) indicator flashes, the BLUETOOTH connection hasn’t been established. In this case, complete the pairing procedure and establish a
BLUETOOTH connection.
18 GB
GTK-XB60/XB90.4-697-227-11(1) GTK-XB60/XB90.4-697-227-11(1)
GTK-XB60/XB90.4-697-227-11(1)
Listening to music on a
BLUETOOTH device
You can enjoy listening to music on a connected BLUETOOTH device via the system using AVRCP.
Check the following before playing music:
—The BLUETOOTH function of the
BLUETOOTH device is turned on.
—Pairing has been completed
(page 15).
1
Press FUNCTION PAIRING repeatedly until the
(BLUETOOTH) indicator on the unit lights up.
The last connected BLUETOOTH device will be connected automatically.
2
Start playback of an audio source on the BLUETOOTH device.
For details, refer to the operating instructions of your BLUETOOTH device.
You can also use / on the system to play back/pause the music.
3
Adjust the volume.
Adjust the volume of the
BLUETOOTH device first. If the volume level is still too low, adjust the volume level on the system using the volume +/– buttons.
Switching between BLUETOOTH devices connected to the system at the same time (Multipoint connection)
Up to 3 BLUETOOTH devices can be connected to the system at the same time.
While playing back an audio source from one of the connected devices, you can switch the BLUETOOTH input device by operating another connected device to start playback.
Notes
• You cannot use this function when using the hands-free call function, speaker add function, or Wireless Party Chain function.
• Depending on the BLUETOOTH devices, you may not be able to make 3
BLUETOOTH connections at the same time.
BLUETOOTH device
Note
If the (BLUETOOTH) indicator flashes, the BLUETOOTH connection hasn’t been established. In this case, complete the pairing procedure and establish a
BLUETOOTH connection.
19 GB
GTK-XB60/XB90.4-697-227-11(1)
About the BLUETOOTH wireless technology
BLUETOOTH wireless technology is a short-range wireless technology that enables wireless data communication between digital devices. BLUETOOTH wireless technology operates within a range of about 10 meters (33 feet).
Supported BLUETOOTH version, profiles and codecs
For details, see “BLUETOOTH section”
(page 39).
(BLUETOOTH) indicator
The (BLUETOOTH) indicator on the unit lights up or flashes in blue to show the BLUETOOTH status.
System status Indicator status
BLUETOOTH standby
Flashing slowly
Flashing quickly BLUETOOTH pairing
BLUETOOTH connection is established
Lit up
Playing back with high quality sound codec
(AAC/LDAC™)
This system can receive data in the
AAC or LDAC codec format from a
BLUETOOTH device. It provides a playback with higher sound quality.
You can select an audio codec option from the following two settings by using “Sony | Music Center”
(page 22). The default setting of this system is “AUTO.”
• AUTO: The system detects the codec used on the source device and automatically selects the optimal codec from “SBC,” “AAC*” or “LDAC*.”
• SBC: “SBC” is always applied regardless of the codec used on the source device.
* Available only when the codec is supported by your BLUETOOTH device.
To apply the changes of the setting, you need to terminate the BLUETOOTH connection (page 16), and then perform the BLUETOOTH connection again.
Note
You can enjoy higher sound quality when the source device is compatible with AAC/LDAC and this function is set to “AUTO.” However, the sound may be interrupted depending on the conditions of the BLUETOOTH communication. If this happens, set the function to “SBC.”
LDAC is an audio coding technology developed by Sony, that enables the transmission of High-Resolution (Hi-Res)
Audio content, even over a
BLUETOOTH connection. Unlike other BLUETOOTH compatible coding technologies, such as
SBC, it operates without any down-conversion of the Hi-Res
Audio content 1) . It also allows approximately three times more data 2) than the other technologies, for transmitting over a
BLUETOOTH wireless network with unprecedented sound quality using efficient coding and optimized data bundling.
1) Excluding DSD format contents.
2) In comparison with SBC (Sub Band
Codec), when the bit rate of 990 kbps
(96/48 kHz) or 909 kbps (88.2/44.1 kHz) is selected.
20 GB
GTK-XB60/XB90.4-697-227-11(1) GTK-XB60/XB90.4-697-227-11(1)
GTK-XB60/XB90.4-697-227-11(1)
Playing back with high quality sound codec
(AAC/LDAC™)
This system can receive data in the
AAC or LDAC codec format from a
BLUETOOTH device. It provides a playback with higher sound quality.
You can select an audio codec option from the following two settings by using “Sony | Music Center”
(page 22). The default setting of this system is “AUTO.”
• AUTO: The system detects the codec used on the source device and automatically selects the optimal codec from “SBC,” “AAC*” or “LDAC*.”
• SBC: “SBC” is always applied regardless of the codec used on the source device.
* Available only when the codec is supported by your BLUETOOTH device.
To apply the changes of the setting, you need to terminate the BLUETOOTH connection (page 16), and then perform the BLUETOOTH connection again.
Note
You can enjoy higher sound quality when the source device is compatible with AAC/LDAC and this function is set to “AUTO.” However, the sound may be interrupted depending on the conditions of the BLUETOOTH communication. If this happens, set the function to “SBC.”
LDAC is an audio coding technology developed by Sony, that enables the transmission of High-Resolution (Hi-Res)
Audio content, even over a
BLUETOOTH connection. Unlike other BLUETOOTH compatible coding technologies, such as
SBC, it operates without any down-conversion of the Hi-Res
Audio content 1) . It also allows approximately three times more data 2) than the other technologies, for transmitting over a
BLUETOOTH wireless network with unprecedented sound quality using efficient coding and optimized data bundling.
1) Excluding DSD format contents.
2) In comparison with SBC (Sub Band
Codec), when the bit rate of 990 kbps
(96/48 kHz) or 909 kbps (88.2/44.1 kHz) is selected.
Setting the BLUETOOTH standby mode
The BLUETOOTH standby mode enables the system to turn on automatically when you establish the BLUETOOTH connection with a
BLUETOOTH device. This setting is turned off by default.
This setting can only be configured by using “Sony | Music Center.” For details on “Sony | Music Center,” see “Using
“Sony | Music Center” and “Fiestable” via BLUETOOTH connection”
(page 22).
Note
The BLUETOOTH function can only be set to on while the AC power cord is connected.
Hint
Disable the BLUETOOTH standby mode to reduce the power consumption in standby mode (eco mode).
Turning on or off the
BLUETOOTH signal
You can connect to the system from a paired BLUETOOTH device in all functions when the system’s
BLUETOOTH signal is set to on. This setting is turned on by default.
Hold down STAMINA BATTERY and W.PARTY CHAIN LIGHT for more than 5 seconds to turn off the BLUETOOTH signal.
AUDIO IN indicator will flash once.
Notes
• You cannot perform the following operations when you turn off the
BLUETOOTH signal:
— Pairing and/or connecting with
BLUETOOTH device
— Using “Sony | Music Center” via
BLUETOOTH connection
• To turn on the BLUETOOTH signal, repeat the procedure shown above. When the
BLUETOOTH signal turns on, the AUDIO IN indicator flashes 3 times.
21 GB
GTK-XB60/XB90.4-697-227-11(1)
Using “Sony | Music
Center” and “Fiestable” via BLUETOOTH connection
About App
3
Launch “Sony | Music Center” and download “Fiestable.”
22 GB
You can control the system more flexibly and enjoy it in new ways using the free Apps “Sony | Music Center” and “Fiestable” on your smartphone/ iPhone. “Sony | Music Center” and
“Fiestable” are available in both
Google Play and the App Store.
1
Search for
“Sony | Music Center” and download the App to your smartphone/iPhone.
You can also download the App by scanning the two-dimensional code below. dummy
You can also download “Fiestable” from the App Store or Google Play.
What you can do with
“Sony | Music Center”:
• Play back music on a USB device and set play modes
• Balance the sound using preset EQs or custom EQs
• Change the sound effect using
DJ EFFECT
• Control multiple systems when using the Wireless Party Chain or speaker add function
• Check the battery level
• Configure the various settings for the system
What you can do with “Fiestable”:
• DJ Control
• Illumination
• Motion Control
Refer to “Sony | Music Center” Help for more details.
http://xxxxxxxxxxxxxxxxxxxxxx
2
Establish a BLUETOOTH connection between the system and your smartphone/iPhone.
For details on BLUETOOTH connection, see “Pairing this system with a BLUETOOTH device”
(page 15) or “One Touch
BLUETOOTH Connection by NFC”
(page 17).
dummy
Notes
• If the “Sony | Music Center” application does not work properly, terminate the
BLUETOOTH connection (page 16), then perform the BLUETOOTH connection again so that the BLUETOOTH connection functions normally.
• What you can control with
“Sony | Music Center” varies depending on the connected device.
• The specification and design of the application may change without notice.
GTK-XB60/XB90.4-697-227-11(1)
Sound Adjustment
Adjusting the sound
To
Adjust the volume
Generate a more dynamic sound
Do this
Press the volume +/– buttons.
Press EXTRA BASS.
The EXTRA BASS indicator lights up in red while the
EXTRA BASS function is turned on.
GTK-XB60/XB90.4-697-227-11(1)
GTK-XB60/XB90.4-697-227-11(1)
3
Launch “Sony | Music Center” and download “Fiestable.”
You can also download “Fiestable” from the App Store or Google Play.
What you can do with
“Sony | Music Center”:
• Play back music on a USB device and set play modes
• Balance the sound using preset EQs or custom EQs
• Change the sound effect using
DJ EFFECT
• Control multiple systems when using the Wireless Party Chain or speaker add function
• Check the battery level
• Configure the various settings for the system
What you can do with “Fiestable”:
• DJ Control
• Illumination
• Motion Control
Refer to “Sony | Music Center” Help for more details.
http://xxxxxxxxxxxxxxxxxxxxxx
Notes
• If the “Sony | Music Center” application does not work properly, terminate the
BLUETOOTH connection (page 16), then perform the BLUETOOTH connection again so that the BLUETOOTH connection functions normally.
• What you can control with
“Sony | Music Center” varies depending on the connected device.
• The specification and design of the application may change without notice.
Sound Adjustment
Adjusting the sound
To
Adjust the volume
Generate a more dynamic sound
Do this
Press the volume +/– buttons.
Press EXTRA BASS.
The EXTRA BASS indicator lights up in red while the
EXTRA BASS function is turned on.
GTK-XB60/XB90.4-697-227-11(1)
23 GB
Other Operations
Enjoying wired playback using multiple systems
(Wired Party Chain function)
You can connect multiple audio systems in a chain to create a more interesting party environment and to produce higher sound output.
An activated system in the chain will be the “Party Host” and share the music.
Other systems will become “Party Guests” and play the same music as that being played by the “Party Host.”
Setting up the Wired Party Chain
Set up a Wired Party Chain by connecting all the systems using audio cords (not supplied).
Before connecting the cords, be sure to turn off the system and disconnect the AC power cord.
If all the systems are equipped with the Wired Party Chain function
Example: When connecting using this system as the first system
Last system
Continue the connection until the last system.
24 GB
First system
Second system
• Any system can become a Party Host. You can change the Party Host to another system in the chain. For details, see “To select a new Party Host” (page 26).
• Make sure that the (BLUETOOTH) function or USB function is selected. When the Audio In function is selected, this feature cannot be used.
Note
You do not need to connect the last system to the first system. In this case, only the first system can become a Party Host.
GTK-XB60/XB90.4-697-227-11(1)
If one of the systems is not equipped with the Wired Party Chain function
Connect the system that is not equipped with the Wired Party Chain function as the last system. Be sure to select the Audio In function on the last system. In this configuration, the sound from the last system may lag behind others.
Example: When connecting using this system as the first system
Last system
Continue the connection until the last system.
First system
Second system
• The last system is not connected to the first system.
• You must select the first system as Party Host so that all systems are playing the same music when Wired Party Chain function is activated.
GTK-XB60/XB90.4-697-227-11(1)
Other Operations
Enjoying wired playback using multiple systems
(Wired Party Chain function)
You can connect multiple audio systems in a chain to create a more interesting party environment and to produce higher sound output.
An activated system in the chain will be the “Party Host” and share the music.
Other systems will become “Party Guests” and play the same music as that being played by the “Party Host.”
Setting up the Wired Party Chain
Set up a Wired Party Chain by connecting all the systems using audio cords (not supplied).
Before connecting the cords, be sure to turn off the system and disconnect the AC power cord.
If all the systems are equipped with the Wired Party Chain function
Example: When connecting using this system as the first system
Last system
Continue the connection until the last system.
First system
Second system
• Any system can become a Party Host. You can change the Party Host to another system in the chain. For details, see “To select a new Party Host” (page 26).
• Make sure that the (BLUETOOTH) function or USB function is selected. When the Audio In function is selected, this feature cannot be used.
Note
You do not need to connect the last system to the first system. In this case, only the first system can become a Party Host.
If one of the systems is not equipped with the Wired Party Chain function
Connect the system that is not equipped with the Wired Party Chain function as the last system. Be sure to select the Audio In function on the last system. In this configuration, the sound from the last system may lag behind others.
Example: When connecting using this system as the first system
Last system
Continue the connection until the last system.
First system
Second system
• The last system is not connected to the first system.
• You must select the first system as Party Host so that all systems are playing the same music when Wired Party Chain function is activated.
25 GB
GTK-XB60/XB90.4-697-227-11(1) GTK-XB60/XB90.4-697-227-11(1)
Enjoying the Wired Party Chain
1
Turn on all the systems.
2
Adjust the volume on each system.
3
Activate the Wired Party
Chain function on the system to be used as the Party Host.
Example: When using this system as the Party Host
Press FUNCTION PAIRING repeatedly to select the function you want.
When you connect using
(page 24), do not select the
Audio In function. If you select this function, sound cannot be output.
Start playback and then press
PARTY CHAIN on the rear of the unit.
The PARTY CHAIN indicator lights up. The Party Host starts the Wired Party Chain, and other systems become Party Guests automatically. All systems play the same music as that being played by the Party Host.
Notes
• Depending on the total unit of systems you have connected, Party Guests may take some time to start playing the music.
• Changing the volume level and sound effect on the Party Host will not affect the output on the Party Guests.
• For detailed operation on other systems, refer to the operating instructions of the systems.
To select a new Party Host
Only when you connect using
(page 24), you can select a new
Party Host. Repeat step 3 of “Enjoying the Wired Party Chain” on the system to be used as a new Party Host. The current Party Host becomes Party
Guest automatically. All systems play the same music as that being played by the new Party Host.
Notes
• You can select another system as the new
Party Host only after the Wired Party Chain function of all the systems in the chain has been activated.
• If the selected system does not become a new Party Host after a few seconds, repeat step 3 of “Enjoying the Wired Party Chain.”
To deactivate the Wired Party Chain
Press PARTY CHAIN on the Party Host.
Note
If the Wired Party Chain function is not deactivated after a few seconds, press
PARTY CHAIN on the Party Host again.
Party Chain indicator
The PARTY CHAIN indicator on the unit lights up or flashes to show the system status.
System status Indicator status
Party Host Lit up
Party Guest Flashing
Enjoying wireless playback using multiple systems (Wireless Party
Chain function)
You can connect multiple audio systems in a chain via BLUETOOTH connection if all the systems are equipped with the Wireless Party
Chain function. This function allows you to create a more exciting party environment and to produce higher sound output without a cable connection.
The first system in the chain to be activated becomes the “Party Host” and shares the music. Other systems become “Party Guests” and play the same music as that being played by the “Party Host.”
Setting up and enjoying the
Wireless Party Chain
Example: setting the GTK-XB60 or
GTK-XB90 as the first system (Party
Host)
1
Set the first system as the
Party Host.
Press FUNCTION PAIRING repeatedly until the
(BLUETOOTH) indicator lights up.
Connect the BLUETOOTH device to the system via BLUETOOTH connection.
Press W.PARTY CHAIN LIGHT on the unit.
The W.PARTY CHAIN LIGHT indicator will start flashing and the system will enter the
Wireless Party Chain mode.
26 GB
GTK-XB60/XB90.4-697-227-11(1) GTK-XB60/XB90.4-697-227-11(1)
GTK-XB60/XB90.4-697-227-11(1)
To select a new Party Host
Only when you connect using
(page 24), you can select a new
Party Host. Repeat step 3 of “Enjoying the Wired Party Chain” on the system to be used as a new Party Host. The current Party Host becomes Party
Guest automatically. All systems play the same music as that being played by the new Party Host.
Notes
• You can select another system as the new
Party Host only after the Wired Party Chain function of all the systems in the chain has been activated.
• If the selected system does not become a new Party Host after a few seconds, repeat step 3 of “Enjoying the Wired Party Chain.”
To deactivate the Wired Party Chain
Press PARTY CHAIN on the Party Host.
Note
If the Wired Party Chain function is not deactivated after a few seconds, press
PARTY CHAIN on the Party Host again.
Party Chain indicator
The PARTY CHAIN indicator on the unit lights up or flashes to show the system status.
System status Indicator status
Party Host Lit up
Party Guest Flashing
Enjoying wireless playback using multiple systems (Wireless Party
Chain function)
You can connect multiple audio systems in a chain via BLUETOOTH connection if all the systems are equipped with the Wireless Party
Chain function. This function allows you to create a more exciting party environment and to produce higher sound output without a cable connection.
The first system in the chain to be activated becomes the “Party Host” and shares the music. Other systems become “Party Guests” and play the same music as that being played by the “Party Host.”
Setting up and enjoying the
Wireless Party Chain
Example: setting the GTK-XB60 or
GTK-XB90 as the first system (Party
Host)
1
Set the first system as the
Party Host.
Press FUNCTION PAIRING repeatedly until the
(BLUETOOTH) indicator lights up.
Connect the BLUETOOTH device to the system via BLUETOOTH connection.
Press W.PARTY CHAIN LIGHT on the unit.
The W.PARTY CHAIN LIGHT indicator will start flashing and the system will enter the
Wireless Party Chain mode.
2
Set the second system as a
Party Guest.
Press FUNCTION PAIRING on the second system repeatedly until the (BLUETOOTH) indicator lights up.
Press W.PARTY CHAIN LIGHT on the second system.
The second system will be set as a Party Guest.
Make sure that the
W.PARTY CHAIN LIGHT indicators on both the Party
Host and Party Guest stop flashing and remain lit up.
Note
The Wireless Party Chain function is canceled in the following situations.
— There is no operation within 1 minute after the Party Host is set in step 1.
— W.PARTY CHAIN LIGHT is pressed on the Party Host before step 2 is completed.
3
Set the third or more systems as Party Guests.
Repeat step 2.
4
Start playing back an audio source on the Party Host.
To deactivate the Wireless Party
Chain
Press W.PARTY CHAIN LIGHT on the
Party Host.
Hint
To deactivate only one of the Party Guests and keep the rest of the Wireless Party
Chain, press W.PARTY CHAIN LIGHT on the
Party Guest you want to deactivate.
Wireless Party Chain indicator
The W.PARTY CHAIN LIGHT indicator on the unit lights up or flashes to show the system status.
System status Indicator status
Party Host Lit up
Party Guest Flashing
27 GB
GTK-XB60/XB90.4-697-227-11(1)
Listening to music wirelessly with two systems (Speaker add function)
To use this function, two
GTK-XB60/XB90 systems are required.
By connecting two GTK-XB60/XB90 systems via BLUETOOTH wireless technology, you can enjoy music in a more powerful way. You can also select an audio output between double mode (in which the two systems play the same sound) and stereo mode (stereo sound).
In the following steps, the two systems are described as “system ”
(or master system) and “system .”
4
Press FUNCTION PAIRING on system repeatedly until the (BLUETOOTH) indicator on the unit lights up.
5
Press ADD on system .
The
ADD L/R indicators on the unit will flash.
Then the L/R indicators on both systems change their status from flashing to lit while the
(BLUETOOTH) indicator on system is turned off.
Activating the speaker add function
1
Bring two GTK-XB60/XB90 systems within 1 meter (3 feet) of each other.
2
Press FUNCTION PAIRING on system repeatedly until the (BLUETOOTH) indicator on the unit lights up.
3
Press ADD on system .
The ADD L/R indicators will flash and the system will enter the speaker add mode.
Hint
When the connection by the speaker add function is established very quickly, the L/R indicators on system may light up directly without flashing.
6
Hold down ADD on system
repeatedly to select the output mode.
The ADD L/R indicators on both systems show the current output mode.
Each time you hold down ADD, the output mode changes as follows.
: Double mode
(stereo/stereo)
: Stereo mode (L ch/R ch)
: Stereo mode (R ch/L ch)
Hint
To change the output mode, operate system (master system), on which you have activated the speaker add mode.
28 GB
GTK-XB60/XB90.4-697-227-11(1) GTK-XB60/XB90.4-697-227-11(1)
GTK-XB60/XB90.4-697-227-11(1)
4
Press FUNCTION PAIRING on system repeatedly until the (BLUETOOTH) indicator on the unit lights up.
5
Press ADD on system .
The
ADD L/R indicators on the unit will flash.
Then the L/R indicators on both systems change their status from flashing to lit while the
(BLUETOOTH) indicator on system is turned off.
Hint
When the connection by the speaker add function is established very quickly, the L/R indicators on system may light up directly without flashing.
6
Hold down ADD on system
repeatedly to select the output mode.
The ADD L/R indicators on both systems show the current output mode.
Each time you hold down ADD, the output mode changes as follows.
: Double mode
(stereo/stereo)
: Stereo mode (L ch/R ch)
: Stereo mode (R ch/L ch)
Hint
To change the output mode, operate system (master system), on which you have activated the speaker add mode.
Playing music with two systems
1
Activate the pairing mode on system , and then perform the BLUETOOTH connection with a BLUETOOTH device.
For details on the pairing, see
“Pairing this system with a
BLUETOOTH device” (page 15) or “One Touch BLUETOOTH
Connection by NFC” (page 17).
Make sure to pair the BLUETOOTH device with system (master system).
2
Start playback on the
BLUETOOTH device, and adjust the volume.
For details, see “Listening to music on a BLUETOOTH device”
(page 18).
Volume adjustments made on either one of the systems are also reflected on the other system.
Notes
• If any other BLUETOOTH device(s), such as a BLUETOOTH mouse or BLUETOOTH keyboard, is connected to the BLUETOOTH device that is connecting with the system, there may be distorted sound or noise in the system output. In this case, terminate the BLUETOOTH connection between the
BLUETOOTH device and other BLUETOOTH device(s).
• If you reset one of the two systems while using the speaker add function, make sure to turn off the other system. If you do not turn off the other system before restarting the speaker add function, there may be problems in making a BLUETOOTH connection and outputting sound.
To deactivate the speaker add function
Press ADD until the ADD L/R indicators are turned off.
Hint
Unless you deactivate the function, the system will try to establish the last made connection next time you turn on the system.
29 GB
GTK-XB60/XB90.4-697-227-11(1)
Enjoying music with the
Speaker Lights
The Speaker Lights are turned on by default.
You can also select various light modes such as the following by using
“Sony | Music Center” (page 22).
• RAVE: a light mode suitable for dance music with a lot of flashing
• CHILL: a light mode suitable for relaxing music
• RANDOM FLASH OFF: a light mode without flash suitable for all music, including dance music
• HOT: a light mode of warm color
• COOL: a light mode of cool color
• STROBE: a light mode with an electronic flash of white color
To turn off the Speaker Lights
Hold down W.PARTY CHAIN LIGHT.
To turn on the Speaker Lights, hold down W.PARTY CHAIN LIGHT again.
Note
If the illumination brightness is glaring, switch on the room lights or turn off the illumination.
Enjoying hands-free calls
You can enjoy hands-free calls with a BLUETOOTH mobile phone that supports HFP (Hands-free Profile) or
HSP (Headset Profile).
Only normal calls are supported. Calls via LINE, Skype, and other apps are not supported.
To use this function, make sure that a BLUETOOTH connection has been established.
Receiving a call
1
Press / when a call is incoming.
When an incoming call arrives, playback pauses and the system emits a ring tone.
GTK-XB60 GTK-XB90
Built-in microphone
Note
If you hold down / when a call is incoming, the call will be rejected.
2
Talk into the system’s built-in microphone.
3
Press / to end the call.
Making a call
1
Make a call by operating the connected BLUETOOTH mobile phone.
When you make a call, playback will pause and the system will emit a dial tone.
2
Talk into the system’s built-in microphone when the other party answers the call.
3
Press / to end the call.
Note
If you hold down / while talking, the phone call output will be switched from the system to the speaker on your mobile phone.
Hints
• If your BLUETOOTH mobile phone supports both HFP and HSP, set it to HFP.
• If you were listening to music before the call, playback will resume when the call ends.
• Operations may vary depending on the
BLUETOOTH mobile phone. Refer to the operating instructions for your mobile phone.
30 GB
GTK-XB60/XB90.4-697-227-11(1) GTK-XB60/XB90.4-697-227-11(1)
GTK-XB60/XB90.4-697-227-11(1)
Enjoying hands-free calls
You can enjoy hands-free calls with a BLUETOOTH mobile phone that supports HFP (Hands-free Profile) or
HSP (Headset Profile).
Only normal calls are supported. Calls via LINE, Skype, and other apps are not supported.
To use this function, make sure that a BLUETOOTH connection has been established.
Receiving a call
1
Press / when a call is incoming.
When an incoming call arrives, playback pauses and the system emits a ring tone.
GTK-XB60 GTK-XB90
Built-in microphone
Making a call
1
Make a call by operating the connected BLUETOOTH mobile phone.
When you make a call, playback will pause and the system will emit a dial tone.
2
Talk into the system’s built-in microphone when the other party answers the call.
3
Press / to end the call.
Note
If you hold down / while talking, the phone call output will be switched from the system to the speaker on your mobile phone.
Hints
• If your BLUETOOTH mobile phone supports both HFP and HSP, set it to HFP.
• If you were listening to music before the call, playback will resume when the call ends.
• Operations may vary depending on the
BLUETOOTH mobile phone. Refer to the operating instructions for your mobile phone.
Using an optional equipment
1
Connect an optional equipment (i.e. WALKMAN®, smartphone, TV, DVD player,
IC recorder, etc.) to the
AUDIO/PARTY CHAIN IN L/R jacks on the unit using an audio cord (not supplied).
2
Press FUNCTION PAIRING repeatedly until the AUDIO IN indicator on the unit lights up.
3
Start playback on the connected equipment.
4
Adjust the volume.
Adjust the volume of the connected equipment first. If the volume level is still too low, adjust the volume level on the system using the volume +/– buttons.
Note
The system may enter standby mode automatically if the volume level of the connected equipment is too low. In this case, increase the volume level of the equipment. To turn off the automatic standby function, see “Setting the automatic standby function” (page 32).
Note
If you hold down / when a call is incoming, the call will be rejected.
2
Talk into the system’s built-in microphone.
3
Press / to end the call.
31 GB
GTK-XB60/XB90.4-697-227-11(1)
Using an optional microphone
You can output your voice from the system by connecting a dynamic microphone with a normal plug (not supplied).
1
Turn the MIC LEVEL knob to MIN to reduce the microphone volume level.
Setting the automatic standby function
By default, this system is set to turn off automatically in about 15 minutes when there is no operation or audio signal output.
To turn off the function, hold down for more than 3 seconds while the system is turned on.
To turn on the function, repeat the procedure.
You can also configure this setting and make sure whether this function is turned on or off by using
“Sony | Music Center.” For details on
“Sony | Music Center,” see “Using
“Sony | Music Center” and “Fiestable” via BLUETOOTH connection”
(page 22).
Notes
• The system may enter standby mode automatically if the volume level of the connected equipment is too low. In this case, increase the volume level of the equipment.
• The system doesn’t enter standby mode when the MIC jack is in use.
2
Connect an optional microphone to the MIC jack on the unit.
3
Adjust the volume using the
MIC LEVEL knob.
4
Speak or sing into the connected microphone.
Note
When using the Wireless Party Chain or speaker add function, sound from the microphone is only output from the system to which the microphone is connected.
Saving the battery power
You can save power and use the system for longer periods of time by turning on the STAMINA mode when using the system with the built-in battery (rechargeable).
Press STAMINA BATTERY to turn on the STAMINA mode.
The STAMINA BATTERY indicator will light up.
To deactivate the function, press
STAMINA BATTERY again.
32 GB
GTK-XB60/XB90.4-697-227-11(1)
Additional Information
Information about compatible devices
About supported USB devices
• This system supports USB Mass
Storage Class only.
• This system supports FAT formatted
USB devices only (except exFAT).
• Some USB devices may not work with this system.
About BLUETOOTH communication for iPhone and iPod touch
Made for
• iPhone 7 Plus
• iPhone 7
• iPhone SE
• iPhone 6s Plus
• iPhone 6s
• iPhone 6 Plus
• iPhone 6
• iPhone 5s
• iPhone 5c
• iPhone 5
• iPhone 4s
• iPod touch (6th generation)
• iPod touch (5th generation)
Websites for compatible devices
Check the websites below for the latest information about compatible
BLUETOOTH devices.
For customers in the USA: http://esupport.sony.com/
For customers in Canada: http://esupport.sony.com/CA
For customers in Europe: http://www.sony.eu/support
For customers in Latin America: http://esupport.sony.com/LA
For customers in other countries/ regions: http://www.sony-asia.com/support
Troubleshooting
If a problem occurs while operating the system, follow the steps described below before consulting your nearest
Sony dealer. If an error message appears, be sure to make a note of the contents for reference.
1
Check to see if the problem is listed in this
“Troubleshooting” section.
2
Check the following customer support websites.
For customers in the USA: http://esupport.sony.com/
For customers in Canada: http://esupport.sony.com/CA
For customers in Europe: http://www.sony.eu/support
For customers in Latin America: http://esupport.sony.com/LA
For customers in other countries/ regions: http://www.sony-asia.com/ support
You will find the latest support information and a FAQ at these websites.
Note that if the service personnel changes some parts during repair, these parts may be retained.
General
The system does not turn on.
• Check that the AC power cord is connected securely.
The system has entered standby mode.
• This is not a malfunction. The system enters standby mode automatically in about 15 minutes when there is no operation or audio signal output
(page 32).
33 GB
GTK-XB60/XB90.4-697-227-11(1)
There is no sound.
• Adjust the volume.
• Check the connection of the optional equipment, if any.
• Turn on the connected equipment.
• Disconnect the AC power cord, then reconnect the AC power cord and turn on the system.
There is severe hum or noise.
• Move the system away from sources of noise.
• Connect the system to a different wall outlet.
• Install a noise filter (commercially available) to the AC power cord.
• Turn off surrounding electrical equipment.
There is acoustic feedback.
• Reduce the volume.
USB device
The connected USB device cannot be charged.
• Make sure the USB device is connected securely.
The USB device does not work properly.
• If you connect an unsupported
USB device, the following problems may occur. See “Information about compatible devices” (page 33).
—The USB device is not recognized.
—Playback is not possible.
—The sound skips.
—There is noise.
—A distorted sound is output.
There is no sound.
• The USB device is not connected correctly. Turn off the system, then reconnect the USB device.
There is noise, skipping, or distorted sound.
• You are using an unsupported USB device. See “Information about compatible devices” (page 33).
• Turn off the system and reconnect the USB device, then turn on the system.
• The music data itself contains noise, or the sound is distorted. Noise may have been entered during music creation process using the computer.
Create the music data again.
• The bit rate used when encoding an audio file was low. Send an audio file with higher bit rates to the USB device.
The USB device is not recognized.
• Turn off the system and reconnect the USB device, then turn on the system.
• You are using an unsupported USB device. See “Information about compatible devices” (page 33).
• The USB device is not working properly. Refer to the operating instructions of the USB device on how to deal with this problem.
Playback does not start.
• Turn off the system and reconnect the USB device, then turn on the system.
• You are using an unsupported USB device. See “Information about compatible devices” (page 33).
Playback does not start from the first file.
• Set the play mode to normal play mode using “Sony | Music Center”
(page 22).
Files cannot be played back.
• USB devices formatted with file systems other than FAT16 or FAT32 are unsupported.*
• If you use a partitioned USB device, only files on the first partition can be played back.
• Files that are encrypted or protected by passwords cannot be played back.
• Files with DRM (Digital Rights
Management) copyright protection cannot be played back by this system.
* This system supports FAT16 and FAT32, but some USB storage devices may not support all of these FAT. For details, refer to the operating instructions of each USB storage device or contact the manufacturer.
BLUETOOTH device
Pairing cannot be performed.
• Move the BLUETOOTH device closer to the system.
• Pairing may not be possible if other
BLUETOOTH devices are present around the system. In this case, turn off the other BLUETOOTH devices.
• Make sure to enter the correct passkey when selecting the system’s name (this system) on the
BLUETOOTH device.
The BLUETOOTH device cannot detect the system.
• Set the BLUETOOTH signal to on
(page 21).
34 GB
GTK-XB60/XB90.4-697-227-11(1) GTK-XB60/XB90.4-697-227-11(1)
GTK-XB60/XB90.4-697-227-11(1)
There is noise, skipping, or distorted sound.
• You are using an unsupported USB device. See “Information about compatible devices” (page 33).
• Turn off the system and reconnect the USB device, then turn on the system.
• The music data itself contains noise, or the sound is distorted. Noise may have been entered during music creation process using the computer.
Create the music data again.
• The bit rate used when encoding an audio file was low. Send an audio file with higher bit rates to the USB device.
The USB device is not recognized.
• Turn off the system and reconnect the USB device, then turn on the system.
• You are using an unsupported USB device. See “Information about compatible devices” (page 33).
• The USB device is not working properly. Refer to the operating instructions of the USB device on how to deal with this problem.
Playback does not start.
• Turn off the system and reconnect the USB device, then turn on the system.
• You are using an unsupported USB device. See “Information about compatible devices” (page 33).
Playback does not start from the first file.
• Set the play mode to normal play mode using “Sony | Music Center”
(page 22).
Files cannot be played back.
• USB devices formatted with file systems other than FAT16 or FAT32 are unsupported.*
• If you use a partitioned USB device, only files on the first partition can be played back.
• Files that are encrypted or protected by passwords cannot be played back.
• Files with DRM (Digital Rights
Management) copyright protection cannot be played back by this system.
* This system supports FAT16 and FAT32, but some USB storage devices may not support all of these FAT. For details, refer to the operating instructions of each USB storage device or contact the manufacturer.
BLUETOOTH device
Pairing cannot be performed.
• Move the BLUETOOTH device closer to the system.
• Pairing may not be possible if other
BLUETOOTH devices are present around the system. In this case, turn off the other BLUETOOTH devices.
• Make sure to enter the correct passkey when selecting the system’s name (this system) on the
BLUETOOTH device.
The BLUETOOTH device cannot detect the system.
• Set the BLUETOOTH signal to on
(page 21).
Connection is not possible.
• The BLUETOOTH device you attempted to connect does not support the A2DP profile, and cannot be connected with the system.
• Enable the BLUETOOTH function of the BLUETOOTH device.
• Establish a connection from the
BLUETOOTH device.
• The pairing registration information has been erased. Perform the pairing operation again.
• Erase the pairing registration information of the BLUETOOTH device by restoring the system to factory default settings (page 37) and perform the pairing operation again (page 15).
• Once all the pairing information on the system has been erased, iPhone/iPod touch may not be able to connect to the system. In this case, delete pairing information of the system on iPhone/iPod touch, and then perform the pairing procedure again.
The sound skips or fluctuates, or the connection is lost.
• The system and the BLUETOOTH device are too far apart.
• If there are obstacles between the system and your BLUETOOTH device, remove or avoid the obstacles.
• If there is equipment that generates electromagnetic radiation, such as a wireless LAN, other BLUETOOTH device, or a microwave oven nearby, move them away.
The sound of your BLUETOOTH device cannot be heard on this system.
• Increase the volume on your
BLUETOOTH device first, then adjust the volume using the volume +/– buttons.
35 GB
GTK-XB60/XB90.4-697-227-11(1)
There is severe hum, noise, or distorted sound.
• If there are obstacles between the system and your BLUETOOTH device, remove or avoid the obstacles.
• If there is equipment that generates electromagnetic radiation, such as a wireless LAN, other BLUETOOTH device, or a microwave oven nearby, move them away.
• Turn down the volume of the connected BLUETOOTH device.
Party Chain and speaker add function
Wired Party Chain function cannot be activated.
• Check the connections (page 24).
• Make sure the audio cords are connected correctly.
• Select the function other than the
Audio In function (page 26).
Wired Party Chain function does not work properly.
• Turn off the system. Then, turn it back on again to activate the Wired
Party Chain function.
Unable to connect a BLUETOOTH device with the system in the speaker add function.
• After connecting two
GTK-XB60/XB90 systems, perform the pairing procedure between a
BLUETOOTH device and the system where the (BLUETOOTH) indicator is flashing. Then perform the
BLUETOOTH connection.
Resetting the system
If the system doesn’t respond and cannot be operated despite the power being on, turn off and reset the system using the RESET button.
1
Press RESET on the rear of the unit with a pin or other pointed object.
The system will turn off.
2
Press to turn the system back on.
Notes
• If the system doesn’t turn back on, consult your Sony dealer.
• Pairing information is not deleted when you press RESET.
Restoring the system to the factory default settings
If the system still does not operate properly, restore it to the factory default settings.
1
Disconnect and reconnect the
AC power cord, and then turn on the system.
2
Hold down FUNCTION
PAIRING and the volume
– button for more than
5 seconds.
After the , (BLUETOOTH),
USB, and AUDIO IN indicators on the unit flash 2 times, all userconfigured settings, such as the pairing registration information, are restored to factory default settings.
36 GB
GTK-XB60/XB90.4-697-227-11(1) GTK-XB60/XB90.4-697-227-11(1)
GTK-XB60/XB90.4-697-227-11(1)
Resetting the system
If the system doesn’t respond and cannot be operated despite the power being on, turn off and reset the system using the RESET button.
1
Press RESET on the rear of the unit with a pin or other pointed object.
The system will turn off.
2
Press to turn the system back on.
Notes
• If the system doesn’t turn back on, consult your Sony dealer.
• Pairing information is not deleted when you press RESET.
Restoring the system to the factory default settings
If the system still does not operate properly, restore it to the factory default settings.
1
Disconnect and reconnect the
AC power cord, and then turn on the system.
2
Hold down FUNCTION
PAIRING and the volume
– button for more than
5 seconds.
After the , (BLUETOOTH),
USB, and AUDIO IN indicators on the unit flash 2 times, all userconfigured settings, such as the pairing registration information, are restored to factory default settings.
Precautions
On safety
• Completely disconnect the AC power cord
(mains lead) from the wall outlet (mains) if it is not going to be used for an extended period of time. When unplugging the unit, always grip the plug. Never pull the cord itself.
• Should any solid object or liquid get into the system, unplug the system, and have it checked by qualified personnel before operating it again.
• AC power cord must be changed only at the qualified service shop.
On placement
• Do not place the system in an inclined position or in locations that are extremely hot, cold, dusty, dirty, or humid or lacking adequate ventilation, or subject to vibration, direct sunlight or a bright light.
• Be careful when placing the system on surfaces that have been specially treated
(for example, wax, oil, polish) as staining or discoloration of the surface may result.
• Make sure not to splash water on the unit.
This unit is not waterproof.
On heat buildup
• Heat buildup on the system during operation is normal and is not a cause for alarm.
• Do not touch the cabinet if it has been used continuously at a high volume because the cabinet may have become hot.
• Do not obstruct the ventilation holes.
On the speaker system
The built-in speaker system is not magnetically shielded, and the picture on nearby TV sets may become magnetically distorted. In this situation, turn off the TV, wait 15 to 30 minutes, and turn it back on.
If there is no improvement, move the system far away from the TV.
Cleaning the cabinet
Clean this system with a soft cloth slightly moistened with a mild detergent solution.
Do not use any type of abrasive pad, scouring powder, or solvent, such as thinner, benzine, or alcohol.
37 GB
GTK-XB60/XB90.4-697-227-11(1)
On BLUETOOTH Communication
• BLUETOOTH devices should be used within approximately 10 meters (33 feet)
(unobstructed distance) of each other.
The effective communication range may become shorter under the following conditions.
— When a person, metal object, wall or other obstruction is between the devices with a BLUETOOTH connection
— Locations where a wireless LAN is installed
— Around microwave ovens that are in use
— Locations where other electromagnetic waves are generated
• BLUETOOTH devices and wireless LAN
(IEEE 802.11b/g) equipment use the same frequency band (2.4 GHz). When using your BLUETOOTH device near a device with wireless LAN capability, electromagnetic interference may occur.
This could result in lower data transfer rates, noise, or inability to connect. If this happens, try the following remedies:
— Use this system at least 10 meters
(33 feet) away from the wireless LAN equipment.
— Turn off the power to the wireless
LAN equipment when using your
BLUETOOTH device within 10 meters
(33 feet).
— Use this system and BLUETOOTH device as closer to each other as possible.
• The radio waves broadcast by this system may interfere with the operation of some medical devices. Since this interference may result in malfunction, always turn off the power on this system and BLUETOOTH device in the following locations:
— In hospitals, on trains, in airplanes, at gas stations, and any place where flammable gases may be present
— Near automatic doors or fire alarms
• This system supports security functions that comply with BLUETOOTH specifications to ensure secure connections during communication using
BLUETOOTH technology. However, this security may be insufficient depending on the setting contents and other factors, so always be careful when performing communication using BLUETOOTH technology.
• Sony cannot be held liable in any way for damages or other loss resulting from information leaks during communication using BLUETOOTH technology.
• BLUETOOTH communication is not necessarily guaranteed with all
BLUETOOTH devices that have the same profile as this system.
• BLUETOOTH devices connected with this system must comply with the BLUETOOTH specification prescribed by the Bluetooth
SIG, Inc., and must be certified to comply.
However, even when a device complies with the BLUETOOTH specification, there may be cases where the characteristics or specifications of the BLUETOOTH device make it impossible to connect, or may result in different control methods, display or operation.
• Noise may occur or the audio may cut off depending on the BLUETOOTH device connected with this system, the communications environment, or surrounding conditions.
Specifications
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
(The United States model only)
Left/Right Channel:
With 3 ohms loads, both channels driven, from 120 10,000 Hz; rated
30 watts per channel minimum
RMS power, with no more than
0.7% total harmonic distortion from
250 milliwatts to rated output.
Speaker section
GTK-XB60:
Tweeter: 50 mm (2 in) × 2, cone type
Woofer: 130 mm (5 1/8 in) × 2, cone type
GTK-XB90:
Tweeter: 60 mm (2 1/2 in) × 3, cone type
Woofer: 180 mm (7 in) × 2, cone type
Inputs
AUDIO/PARTY CHAIN IN L/R:
Voltage xx V, impedance xx kilohms
MIC:
Sensitivity: xx mV, impedance xx kilohms
Outputs
AUDIO/PARTY CHAIN OUT L/R:
Voltage xx V, impedance xx ohms
USB section and supported audio formats
(USB) port:
Type A, maximum current 2.1 A
Supported bit rate:
MP3 (MPEG1 Audio Layer-3):
32 kbps 320 kbps, VBR
WMA: 32 kbps 192 kbps, VBR
Sampling frequencies:
MP3 (MPEG1 Audio Layer-3):
32/44.1/48 kHz
WMA: 44.1 kHz
38 GB
GTK-XB60/XB90.4-697-227-11(1) GTK-XB60/XB90.4-697-227-11(1)
GTK-XB60/XB90.4-697-227-11(1)
• Sony cannot be held liable in any way for damages or other loss resulting from information leaks during communication using BLUETOOTH technology.
• BLUETOOTH communication is not necessarily guaranteed with all
BLUETOOTH devices that have the same profile as this system.
• BLUETOOTH devices connected with this system must comply with the BLUETOOTH specification prescribed by the Bluetooth
SIG, Inc., and must be certified to comply.
However, even when a device complies with the BLUETOOTH specification, there may be cases where the characteristics or specifications of the BLUETOOTH device make it impossible to connect, or may result in different control methods, display or operation.
• Noise may occur or the audio may cut off depending on the BLUETOOTH device connected with this system, the communications environment, or surrounding conditions.
Specifications
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
(The United States model only)
Left/Right Channel:
With 3 ohms loads, both channels driven, from 120 10,000 Hz; rated
30 watts per channel minimum
RMS power, with no more than
0.7% total harmonic distortion from
250 milliwatts to rated output.
Speaker section
GTK-XB60:
Tweeter: 50 mm (2 in) × 2, cone type
Woofer: 130 mm (5 1/8 in) × 2, cone type
GTK-XB90:
Tweeter: 60 mm (2 1/2 in) × 3, cone type
Woofer: 180 mm (7 in) × 2, cone type
Inputs
AUDIO/PARTY CHAIN IN L/R:
Voltage xx V, impedance xx kilohms
MIC:
Sensitivity: xx mV, impedance xx kilohms
Outputs
AUDIO/PARTY CHAIN OUT L/R:
Voltage xx V, impedance xx ohms
USB section and supported audio formats
(USB) port:
Type A, maximum current 2.1 A
Supported bit rate:
MP3 (MPEG1 Audio Layer-3):
32 kbps 320 kbps, VBR
WMA: 32 kbps 192 kbps, VBR
Sampling frequencies:
MP3 (MPEG1 Audio Layer-3):
32/44.1/48 kHz
WMA: 44.1 kHz
BLUETOOTH section
Communication system:
BLUETOOTH Standard version 4.2
Output:
BLUETOOTH Standard Power Class 2
Maximum communication range:
Line of sight approx. 10 m (33 feet) 1)
Frequency band:
2.4 GHz band (2.4000 GHz –
2.4835 GHz)
Modulation method:
FHSS (Freq Hopping Spread
Spectrum)
Compatible BLUETOOTH profiles 2) :
A2DP (Advanced Audio Distribution
Profile)
AVRCP (Audio Video Remote Control
Profile)
BLE (Bluetooth Low Energy)
HFP (Hands-free Profile)
HSP (Headset Profile)
SPP (Serial Port Profile)
Supported codecs:
SBC (Sub Band Codec)
AAC (Advanced Audio Coding)
LDAC
1) The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, antenna’s performance, operating system, software application, etc.
2) BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communication between devices.
39 GB
GTK-XB60/XB90.4-697-227-11(1)
Usage life of the lithium-ion battery
The times given below will be shorter if you charge and discharge the battery repeatedly.
When STAMINA mode is turned off:
Speaker Lights
On Off
GTK-XB60 12 hours 1) /
3 hours 2)
14 hours 1) /
3.5 hours 2)
GTK-XB90 12 hours 1) /
3 hours 2)
21 hours 1) /
3.5 hours 2)
When STAMINA mode is turned on 3) :
Speaker Lights
On Off
GTK-XB60 13 hours 1) /
5 hours 2)
14 hours 1) /
5.5 hours 2)
GTK-XB90 15 hours 1) /
5 hours 2)
21 hours 1) /
5.5 hours 2)
1) Measured using a predetermined music source with the volume level of the system set to 70 dB. The stated time may vary depending on the ambient temperature and conditions of use.
2) Measured using a predetermined music source with the volume level of the system set to the maximum.
3) The given times may vary depending on the playback content.
General
Power requirements:
GTK-XB60/GTK-XB90:
AC 120 V, 60 Hz
Power consumption:
GTK-XB60: 35 W
GTK-XB90: 40 W
Standby power consumption:
GTK-XB60:
When BLUETOOTH standby mode is set to off: xx W (eco mode)
When BLUETOOTH standby mode is set to on: xx W (all wireless network ports on)
GTK-XB90:
When BLUETOOTH standby mode is set to off: xx W (eco mode)
When BLUETOOTH standby mode is set to on: xx W (all wireless network ports on)
Dimensions (W/H/D) (Approx.):
GTK-XB60:
265 mm × 549 mm × 276 mm
(10 1/2 in × 21 5/8 in × 10 7/8 in)
GTK-XB90:
336 mm × 670 mm × 330 mm
(13 1/4 in × 26 1/2 in × 13 in)
Mass (Approx.):
GTK-XB60: 8 kg (30 lb 14 oz)
GTK-XB90: 14 kg (17 lb 11 oz)
Quantity of the system:
1 piece
Supplied accessories:
AC power cord (1)
Design and specifications are subject to change without notice.
License and Trademark
Notice
• MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.
• Windows Media is either a registered trademark or trademark of Microsoft
Corporation in the United States and/or other countries.
• This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.
• The BLUETOOTH® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sony
Corporation is under license. Other trademarks and trade names are those of their respective owners.
• The N-Mark is a trademark or registered trademark of NFC Forum,
Inc. in the United States and in other countries.
• Google Play and Android are trademarks of Google Inc.
• LDAC™ and LDAC logo are trademarks of Sony Corporation.
40 GB
GTK-XB60/XB90.4-697-227-11(1) GTK-XB60/XB90.4-697-227-11(1)
GTK-XB60/XB90.4-697-227-11(1)
General
Power requirements:
GTK-XB60/GTK-XB90:
AC 120 V, 60 Hz
Power consumption:
GTK-XB60: 35 W
GTK-XB90: 40 W
Standby power consumption:
GTK-XB60:
When BLUETOOTH standby mode is set to off: xx W (eco mode)
When BLUETOOTH standby mode is set to on: xx W (all wireless network ports on)
GTK-XB90:
When BLUETOOTH standby mode is set to off: xx W (eco mode)
When BLUETOOTH standby mode is set to on: xx W (all wireless network ports on)
Dimensions (W/H/D) (Approx.):
GTK-XB60:
265 mm × 549 mm × 276 mm
(10 1/2 in × 21 5/8 in × 10 7/8 in)
GTK-XB90:
336 mm × 670 mm × 330 mm
(13 1/4 in × 26 1/2 in × 13 in)
Mass (Approx.):
GTK-XB60: 8 kg (30 lb 14 oz)
GTK-XB90: 14 kg (17 lb 11 oz)
Quantity of the system:
1 piece
Supplied accessories:
AC power cord (1)
Design and specifications are subject to change without notice.
License and Trademark
Notice
• MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.
• Windows Media is either a registered trademark or trademark of Microsoft
Corporation in the United States and/or other countries.
• This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.
• The BLUETOOTH® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sony
Corporation is under license. Other trademarks and trade names are those of their respective owners.
• The N-Mark is a trademark or registered trademark of NFC Forum,
Inc. in the United States and in other countries.
• Google Play and Android are trademarks of Google Inc.
• LDAC™ and LDAC logo are trademarks of Sony Corporation.
• Apple, the Apple logo, iPhone, and iPod touch are trademarks of Apple
Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
• “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet
Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
• WALKMAN and WALKMAN logo are registered trademarks of Sony
Corporation.
• All other trademarks and registered trademarks are of their respective holders. In this manual, TM and marks are not specified.
®
41 GB
GTK-XB60/XB90.4-697-227-11(1)

Public link updated
The public link to your chat has been updated.
Advertisement
Key features
- Built-in battery
- Wired and Wireless Party Chain function
- BLUETOOTH connection
- Speaker add function
- Hands-free calling
- Speaker Lights
- STAMINA mode
