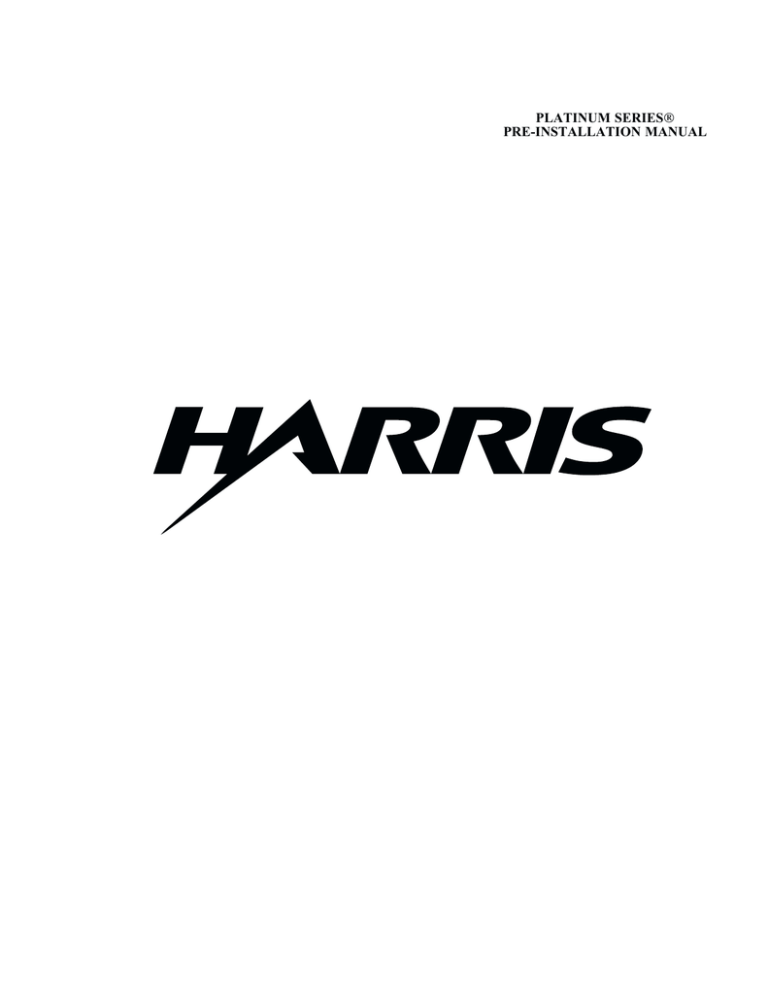

platinum series® pre-installation manual

platinum series® pre-installation manual
PLATINUM SERIES
PRE-INSTALLATION MANUAL
Table Of Contents
INTRODUCTION
2
GENERAL DESCRIPTION
Platinum Z Series Features and Benefits
DIGIT CD Digital FM Exciter
Superciter Analog FM Exciter
Redundant Exciters
PA / IPA Modules
RF Power Combining
Power Supplies
Control System
Low Pass Filter / Directional Coupler
RF Output Termination
Performance Specifications
2
2
3
3
3
3
3
4
4
5
5
INSTALLATION CONSIDERATIONS
Transmitter Cooling Requirements
Transmitter Placement
Single Phase Transmitters
Power Supply Installation
Transmitter AC Input Wiring
Transmitter Grounding
Surge Protection
Remote Control Interface
5
7
7
7
7
8
9
9
EXCITER INTERFACE INFORMATION
Interface Wiring
DIGIT CD Specifications
DIGIT CD Analog Interface Module
DIGIT CD Digital Interface Module
Superciter Specifications
10
10
10
11
11
SERVICE & PARTS
Field Services
Telephone Support Service
Parts
Returns and Exchanges
11
11
12
12
TRAINING SERVICES
12
INSTALLATION ACCESSORIES
13
OUTLINE DRAWINGS
Single Phase
Three Phase
ZD20 with Hybrid Combiner
ZD20 with Switchless Combiner
ELECTRICAL / COOLING / MECHANICAL DATA SHEETS
INTRODUCTION
•
Microprocessor based controller for advanced
control, diagnostics and display capability.
Includes built-in control logic and hardware for
switching between main and alternate exciters
and IPA amplifiers.
•
Broadband design to eliminate tuning
adjustments from 87 MHz to 108 MHz (N+1
capable). Frequency change can be done
manually in less than five minutes using simple
switch settings in the DIGIT CD exciter, and in
less than 0.5 seconds using an optional, external
controller.
•
Quick start design provides full output power
meeting all specifications within five seconds of
an “ON” Command.
•
Versatile air cooling design uses either an
internal blower or an optional external air system.
•
Dual output power settings along with a third
available power setting for use with an UPS or
generator backup system.
•
Directional RF sample port provided for customer
use.
•
Available for single or three phase mains power,
50/60Hz. Single phase Z7.5, and Z10
transmitters require a second cabinet for the
single phase power supplies. The upper two
thirds of the second cabinet is standard 19” EIA
rack space.
This Pre-Installation manual provides information
needed to assist in preparing for the installation of the
Harris Platinum Z Series solid-state FM transmitters.
The Pre-Installation manual also outlines general
information regarding the features, benefits and
specifications of the Platinum Z transmitter, DIGIT
CD and SuperCiter FM exciters.
GENERAL DESCRIPTION
Platinum Z Series Features and Benefits
The Harris Platinum Z Series transmitters are a
highly functional, cost-effective, FM radio transmitter,
designed using a concept called Z-Axis 3D electronic
design. The Z-axis approach arranges the system RF
components such as dividers, combiners and
amplifiers in three dimensions, to permit the most
efficient possible signal paths between them. This
method allows the transmitter amplifying group to be
broken down economically into the smallest possible
blocks for servicing and replacement. The ZCD
series transmitters utilize the Harris Digit CD, Digital
FM exciter, while the ZFM series transmitters are
equipped with the Harris SuperCiter, an analog FM
exciter.
All Harris Platinum Z Series transmitters include the
following features and benefits:
•
Power output range: 2 kW to 40 kW. Standard
power levels are 2 kW, 3.5 kW, 5 kW, 7.5 kW,
and 10 kW as well as combined power levels of
20 kW, 30 kW and 40 kW.
•
All ZCD transmitters include the field-proven
Harris DIGIT CD Digital FM Exciter. DIGIT CD
accepts AES3 digital audio and generates a fully
modulated RF carrier totally in the digital domain
for the lowest noise and distortion available in
any FM exciter (16 bit digital audio quality).
•
Redundant, auto switching, IPA amplifiers to
eliminate a single point of failure.
•
Redundant RF amplifier modules that allow
maintenance while the transmitter remains on the
air at reduced power (“Hot-Pluggable” modules).
•
Redundant power supplies to keep the
transmitter on the air in the event of supply failure
(optional in Z2 transmitters).
DIGIT CD Digital FM Exciter
The Harris DIGIT CD FM exciter is supplied as
standard equipment with all Platinum Z transmitters.
The DIGIT CD with its digital input module, generates
the complete stereo FM waveform in the digital
domain, using a digital signal processor (DSP) as a
stereo generator and composite limiter. A 32-bit
numerically controlled oscillator (NCO) is used as a
digital modulator. These digital techniques allow
direct connection of standard AES3 digital stereo
audio data to the FM exciter eliminating the distortion
and alignment problems of analog signal paths and
analog FM exciters. The DIGIT CD is also available
with an analog interface module for stations with
analog program paths and is easily interchangeable
with the digital input module.
1
SuperCiter Analog FM Exciter
The optional Harris SuperCiter is a high quality 55
watt analog FM exciter designed for broadcasters
needing state-of-the-art analog performance at a
value price. The SuperCiter combines time-proven
PLL technology with modern RF amplifier circuits to
provide driving power for an FM transmitter.
Redundant Exciters
Each Z series transmitter includes one exciter.
Space is available for a second optional exciter. If the
transmitter is not ordered with the optional exciter, all
required exciter RF switching hardware, AC power
and control wiring are included in the Z transmitter. If
in the future an alternate exciter is desired, simply
install the second exciter, connect three cables and
configure the transmitter controller for two exciters via
the front panel interface. The controller will monitor
the exciters for proper operation. If a fault occurs the
controller will switch to the alternate exciter
automatically. It is also possible to manually switch
exciters.
Figure 1
850 Watt PA / IPA Amplifier Module
Size: 9”D x 7”W x 4”H
Weight: 10 pounds
RF Power Combining
The RF amplifiers (one half of a PA module) are first
combined in groups of six or eight (depending on
power level) in a compact Z-Plane isolated combiner.
True isolation means that in the event an amplifier
fails the active modules will continue to work into a
nominal 50Ω load, for almost zero stress to the active
amplifiers. The outputs of the Z-Plane combiners are
then combined further in 3dB hybrid combiners to
produce the final output power. The Z2 transmitter
uses one Z-Plane combiner and its output is the final
output stage of the transmitter.
PA / IPA Modules
The PA and IPA modules are identical and
interchangeable in the Z series transmitters. The
modules consist of two independent RF amplifiers.
Each RF amplifier uses two MOSFET devices
mounted on a compact heat sink assembly and is
capable of providing up to 425 watts of RF output
power. Typically, the amplifiers operate between 320
and 340 watts. The PA module amplifiers plug
directly into an isolated combiner without using
channel sensitive RF cables. The PA modules can be
removed without removing plugs and cables and are
“hot-pluggable”. Each PA module (2 RF amplifiers) is
rated to produce 850 watts of output power into a
system VSWR of 1.5:1 from 0°C to 50°C ambient
temperature at sea level.
Power Supplies
Z series transmitters can be configured with single
phase or three phase power supplies. The power
supplies are step-regulated by reliable tap-selecting
techniques (non-switching design). This approach
provides high conversion efficiency, excellent power
factor and very low line harmonics. The power
supplies are mounted on a front rollout drawer for
complete accessibility and ease of maintenance. The
multiple supply concept protects against total loss of
service due to loss of a single supply. The Z2 is
provided with one supply with an optional second
supply. The Z7.5 and Z10 single phase transmitters
use a second cabinet to house the larger power
supplies. The upper two thirds of the second cabinet
is configured as standard 19” EIA rack space.
The IPA module uses one amplifier to provide the
required drive for its associated PA amplifiers. This
leaves one amplifier as a back-up in the event the
primary IPA amplifier should fail. The transmitter has
built in RF sensing, control logic and switching
hardware which will automatically switch from the
primary IPA amplifier to the back-up in the event an
IPA should fail. The IPA amplifiers can also be
selected manually from the front panel. Figure 1
shows an 850 watt PA module.
Figure 2 shows four three phase power supplies that
have been rolled out the front of the transmitter. The
power supplies are installed in the transmitter for
shipment. Refer to the Electrical/Mechanical/Cooling
2
or Technical Data sheets for power consumption and
fuse sizing for the transmitter of interest.
A second LCD display permits viewing detailed
parameters such as, individual voltages, currents and
temperatures of the PA amps and Power Supplies. A
fault Log displays detailed fault information to assist
in easily pinpointing a problem area and stores up to
32 faults. LED’s are used to flag the fault log content
and other basic status information. Reliable
membrane switches provide a means for browsing
through the diagnostic system. Figure 3 below shows
a top view of the controller, which may be removed
with the transmitter operating.
Figure 2
Four Three Phase Power Supplies
Control System
The Z series transmitters use a microprocessor
based controller which monitors up to 100 operating
parameters and functions of the transmitter. The
controller makes intelligent operating decisions based
on operating conditions. Detailed system information
is available using the front panel diagnostic display
and the controller is designed for direct connection to
standard parallel remote control systems. The
Controller provides VSWR overload protection,
automatic power control, automatic VSWR foldback,
RF power soft start, AC restart and other advanced
functions. The controller includes built-in logic control
for automatically switching to the reserve IPA
amplifier, and an optional backup exciter. The Master
controller is at the heart of the control system. In the
event Master Control communication fails, a backup
Life Support Controller keeps the transmitter on the
air with basic control functions. Individual control
boards for the Power Amplifiers and Power Supplies
are used to control these subsystems. Redundancy
is inherent in the PA and Power Supply control
section as multiple PA and Power Supply boards are
used. The control system front panel includes an
output metering LCD display which is used to view
the following parameters:
•
•
•
•
•
Figure 3
Controller Top View
Low Pass Filter / Directional Coupler
All Z series transmitters use an efficient internal low
pass filter for RF harmonic attenuation. Directional
coupler ports provide highly accurate forward and
reflected power samples to the controller and are
located just after the low pass filter. An RF sample
with 30 dB of nominal directivity is provided just after
the internal low pass filter as well. This directional RF
sample provides more accurate performance
measurements by supplying a nearly reflection free
RF sample source for external test equipment and
AM noise monitors. Figure 4 shows the low pass
filter line section and the directional coupler/RF
sample ports.
Forward power in watts or percent
Reflected power in watts or VSWR ratio
Automatic Power Control (APC) voltage
PA voltage
PA current
3
INSTALLATION CONSIDERATIONS
The following sections provide useful information to
assist in planning and installing the Z transmitter.
Prior to installation, the exciter and transmitter
technical manuals should be studied carefully to
obtain a thorough understanding of the principles of
operation, circuitry and nomenclature. This will
facilitate proper installation and initial checkout.
Transmitter Cooling Requirements
The Z series transmitters are designed to operate in
an environment with an intake air temperature
between 0°C and +50°C. Dirt is the number one
enemy of solid-state transmitters and a properly
designed cooling system with adequate filtering is
very important. The Z transmitter air system is
designed to supply sufficient air at the required static
pressure to cool the transmitter only. Additional
pressure losses introduced by exhaust systems and
air supply duct work must be offset by means other
than the transmitter blowers. These inlet and exhaust
system ducts generally need to be installed with
helper fans to offset these losses. Refer to the
Outline Drawings included for detailed information on
intake and exhaust air flow specifications. It is
recommended that the station consult with an HVAC
specialist to determine the requirements of intake and
exhaust ducts in order to meet the flow volumes
required by the transmitter. Outside air which
contains salt or pollution must have those items
removed by an adequate filtration system or a closed
system must be used.
'LUHFWLRQDO
&RXSOHUV
5) 6DPSOH
Figure 4
Directional Coupler & RF Sample Ports
RF Output Termination
The RF output connector of all Z series transmitters
is a standard 3-1/8” EIA Flange. The Z2, 3.5, and 5
transmitters include a 3-1/8” to 1-5/8” Reducer. If 31/8” EIA is desired you can simply remove the
adapter supplied with the transmitter. If you require
1-5/8” EIA output on your Z7.5 or Z10 transmitter,
please specify this when ordering.
Figure 6 is an example of an air system that should
be avoided. The system shown here would starve
the transmitter for fresh air and proper cooling would
not be expected in this situation.
Performance Specifications
Please refer to the appropriate Technical Data Sheet
for detailed performance specifications of the
Platinum Z transmitter.
AIR DUCT
STAGNANT
AIR
EXHAUST
AIR
TRANSMITTER
VACUUM CREATED WHEN
THERE IS INADEQUATE
BUILDING AIR INTAKE
AIR INTAKE
STARVED FOR AIR
Figure 6
This air system is NOT recommended
4
Harris recommends the next two examples of air
systems and the closed system will provide the
cleanest air for the transmitter. In harsh
environments a closed air system is recommended;
that is, an air-conditioned room that re-circulates and
properly filters the room air. In a closed air system
there is normally no venting to the outside. The heat
in the room is removed by the air conditioning unit.
This is the ideal system in terms of room cleanliness.
The operating cost of a closed system will depend on
the amount of heat generated by the equipment, as
well as environmental factors. The closed system
may be your best choice if the outside air is salty,
dirty, hot, or humid. However, if you choose to
implement this system, you should include back-up
ventilation to protect the facility in the event of an air
conditioning unit failure.
HEATED AIR
EXHAUST AIR
TRANSMITTER
CONDITIONED
AIR
AIR INTAKE
AIR
CONDITIONER
Figure 7
Closed Air System
Another configuration that keeps the transmitter
adequately clean and properly ventilated is a positive
pressure system. In this system outside filtered air is
brought into the room using an air intake fan.
Transmitter exhaust air is removed from the room
using a duct hood over the transmitter with an assist
fan. The exhaust assist fan should be sized about
5% larger than the transmitter CFM specifications.
The building air intake fan should be sized 10-15%
larger than the exhaust helper fan. The slight
positive pressure in the room will ensure proper
transmitter ventilation and will keep dust and dirt from
entering the room through small leaks in the building.
With a closed system, the amount of air conditioning
needed would be at least equal to the equipment’s
dissipated heat over and above the amount of cooling
needed without the transmission equipment. The
amount of heat that the equipment generates
depends on the amount of power dissipated in heat
into the transmitter room. Therefore, if you expect to
be able to operate the transmitter into an air cooled
test load without raising the room temperature, the air
conditioning will have to be large enough to handle
the full wattage consumed by the transmitter.
The exhaust duct is best left detached from the
transmitter by about six inches, similar to a range
hood. This will allow a path for the exhaust air in the
event the assist fan fails or the exhaust duct
becomes blocked. The positive pressure system is
only adequate in environments where the maximum
outside air temperature does not exceed 50° C.
While the transmitter is specified to operate up to 50°
C it is best to try and keep the transmitter air inlet
temperature to no more than 30° C.
Figure 8 is an example of a positive pressure system.
The conversion from watts dissipated in heat to
BTU/hour is:
BTU/hour = Dissipated Power (kilowatts) X 3415
TONS = BTU/hour ÷ 12,000
At reduced power, any FM transmitter will generate
less heat, but not proportionately less. For example,
a transmitter operating at half of its rated power will
produce more than half of its dissipation at full power.
This is because some circuitry consumes the same
amount of power and other circuits become less
efficient at reduced power levels. The total power
consumption of your transmitter can be calculated by
using the current and voltage values on the factory
test data sheet. You may also contact the Harris Field
Service Department. They can assist in determining
the power consumption and efficiency of the
transmitter especially at powers other than
nameplate. Figure 7 is an example of a closed air
system.
INTAKE FAN
AND FILTER
ASSIST FAN
IF PRESSURE
EXCEEDS 0.5"
FILTERED AIR
EXTRANEOUS AIR
EXTRANEOUS AIR
TRANSMITTER
AIR INTAKE
Figure 8
Positive Pressure System
5
Drawings provided at the end of the manual for
complete dimensions and weights for the transmitter
of interest.
A hybrid air system includes both air conditioning and
ventilation of the transmitter exhaust to the outside.
Typically, the air intake of the transmitter (rear) is
located near the filtered air intake of the building.
The exhaust air of the transmitter (top) is removed as
described in the positive pressure system. The front
portion of the transmitter room is cooled with air
conditioning. A second hybrid method is to build a
wall along the front of the transmitter isolating the
front of the transmitter from the rear. The rear portion
of the building is set up as a positive pressure system
while the front is air conditioned. Figure 9 shows an
example of a hybrid system.
The single phase Z7.5 and Z10 transmitters require
two cabinets, for the larger single phase power
supply components. The left hand cabinet holds the
controller, power amplifiers, and two power supplies.
The right hand cabinet will house the two remaining
power supplies. One advantage of the second
cabinet is that the upper two thirds of the cabinet is
empty and configured as standard 19” EIA rack
space for mounting auxiliary equipment. Refer to the
Outline Drawing included for detailed dimensions.
Power Supply Installation
ASSIST FAN
IF PRESSURE
EXCEEDS 0.5"
AIR CONDITIONER
CONDITIONED AIR
Single Phase Transmitters
W
A
L
L
Harris recommends consulting with your HVAC
specialist to determine the requirements for your
particular site.
All Z series transmitters can be configured with either
a single phase or three phase power supply. The
transmitter is shipped with the power supplies in
place. The power transformers will be tapped at the
factory for the primary AC voltage that is specified at
the time the order is taken. This voltage will be
documented in the factory test data accompanying
the transmitter and tagged at the main contactor input
at the rear of the transmitter. The line voltage at the
site should be measured to ensure it matches the
tagged voltage. If a change is required the input
voltage strapping chart is shown on the Overall
System Block Diagram in the drawing package
included with the transmitter.
Transmitter Placement
Transmitter AC Input Wiring
The transmitter will require a fairly level surface to
rest on. If the transmitter is not on a level surface a
level and shims should be used in order to ensure the
unit is level and stable before continuing the
installation. The transmitter should be placed with
AC power and signal connections in mind. The
sidewalls of the FM transmitter may be placed
against a wall or other equipment, access to the
sides of the transmitter is not required. Complete
access is through the front and rear of the
transmitter. The floor must be capable of supporting a
load of 250 pounds per-square-foot
(1221 kg per-square-meter). The power supplies roll
out the front of the transmitter for system
maintenance. Therefore, the transmitter should not
be set up on 4X4 blocks or similar supports. Be sure
to have a smooth flat surface in front of the
transmitter of at least 36 inches for power supply
maintenance. For Dual transmitter installations be
sure transmitter A is positioned on the left and
transmitter B is positioned on the right, as you view
the system from the front. Refer to the Outline
The Z series transmitters can be configured for the
following AC line configurations:
EXTRANEOUS AIR
FRONT
TRANSMITTER
INTAKE FAN
AND FILTER
AIR INTAKE
Figure 9
Hybrid System
•
•
•
190-250 VAC, 3-phase, 50/60 Hz, 3-wire plus ground
360-415 VAC, 3-phase, 50/60 Hz, 4-wire
190-250 VAC, 1-phase, 50/60 Hz, 2-wire plus ground
The AC input wiring should be in agreement with
local electrical codes. The AC mains wiring,
disconnect and fuses should be sized for the
transmitters full rated output power to accommodate
future TPO changes. An AC primary disconnect or
means to completely de-energize the transmitter
primary circuit for servicing is required. Harris
recommends a fused disconnect for the transmitter
primary AC power feed(s). Fuses will provide
improved long term reliability and nuisance free
service over a circuit breaker with an equal rating.
The recommended fuse type is a class RK5, a dual
element time delay fuse. Examples of an RK5 fuse
are the Bussmann FRN-R (250V), FRS-R (600V),
Littelfuse FLNR (250V), FLSR (600V), and Ferraz gG
6
fuses. If you prefer to use a circuit breaker in your
installation, select one with a motor-starting trip curve
similar to that of the RK5 curve for fuses. This type of
delayed response is needed in order to
accommodate the momentary in-rush current when
the transmitter is turned on.
this configuration. The system load is not perfectly
balanced, requiring neutral current to maintain proper
phase to neutral voltages. A poor neutral connection
could cause damage to elements in the transmitter.
The AC power source for the transmitter should be a
low impedance, 50/60Hz, three phase or dual feed
single phase depending on the type of power supply,
with sufficient capacity to operate the transmitter at
its maximum rated output power. The current ratings,
nominal fuse sizes and wire gauges for typical AC
line configurations are listed in the Electrical,
Mechanical and Cooling data sheets included. The
single phase Z7.5 and Z10 require a dual single
phase feed to each transmitter cabinet. The fuse
ratings in the Electrical, Mechanical and Cooling data
sheets are rated for each feed, not both. Each
cabinet is fused separately.
The importance of a good grounding system and
lightning protection can hardly be overemphasized for
reasons of personnel safety, protection of the
equipment, and equipment performance. Lightning
and transient energy via the power line or tower
connections can impose serious threats to your
personal safety as well as damage to the equipment.
A ground system that has been in place for a long
period of time can deteriorate and should be
inspected periodically. This is especially true at the
point where the ground strap enters or exits the
building. All ground connections should be bolted
and brazed together. This low impedance path will
help carry lightning or transient current directly into
the ground instead of into your equipment.
Transmitter Grounding
The AC input wiring terminates at the top of the AC
mains contactor K1. K1 is located at the top right
side in the rear of the cabinet as shown in figure 10.
There are knockouts for AC power and control cables
at the top, bottom and sides of the transmitter. See
the outline drawings included for detailed dimensions
and locations of these knockouts.
$& ,QSXW
&RQWDFWRU
.
The basic elements of a ground system should
include substantial grounding of tower guy wires (at
each anchor point) and each tower leg using 8-10
foot copper ground rods. Ensure the power company
has provided proper grounding of the AC mains
power at the site as well. While there are different
schools of thought on grounding techniques the star
point grounding system is commonly used in
broadcasting. In a star point ground system there is
one common or star point where all grounds join
together at a single point. This point is often a
selected point along a ground system that encircles
the building using copper strap and multiple ground
rods. The number of ground rods will depend on soil
conductivity and the size of the building. The interior
of the building should have a common ground system
made up of 2 or 4 inch copper ground strap, this
ground should be tied to the outside star point and
the AC mains ground should be connected to the star
point. All coaxial cables should enter and exit the
building at a single entry point and their shield(s)
should be connected to a ground plate, which is then
connected to the star point. Harris can provide
copper ground strap, copper screen and bulkhead
entrance ports for your site.
All Z series transmitters come with a 3-foot length of
2-inch copper ground strap, which can be connected
to your site ground system. Figure 11 shows this
strap which is located at the left rear side of the
transmitter as viewed from the back and is connect to
the transmitter chassis.
Figure 10
AC Mains Input at K1
In 4-wire WYE systems a large standoff is located
near the main AC contactor K1 for the NEUTRAL
connection. The neutral connection is important in
7
transmitter site is also recommended. A screw
terminal strip is used to terminate all remote control
connections. The terminal strip converts to a Dconnector which interfaces with the transmitter
controller. The terminal strip is located on the upper
left side wall as viewed from the rear of the. Figure
12 shows the location of the terminal strip.
*URXQG
6WUDS
Figure 11
Ground Strap Connection
Surge Protection
Surge protection is an important component of any
transmission system. The Z series transmitters are
designed with built-in MOV surge protection,
providing an added level of protection for the
transmitter. However, the transmitter and other site
equipment are best protected by a transient voltage
surge suppressor (TVSS). The TVSS should be
connected at the sites AC mains entrance and
connected to ground using a copper ground strap in
addition to the standard ground wire provided by your
electrician. There are many levels of TVSS
protection that can be employed depending on the
condition of the source power. Harris recommends a
parallel shunt surge protector as a minimum level of
protection at all sites. A few recommended TVSS
units which provide adequate protection in most
cases are listed in the accessory section of this
manual. More sophisticated series/parallel devices
are available from Harris if needed. You may contact
your Sales Representative for more information
regarding products and pricing.
Figure 12
TB1 Terminal Strip
1
XMTR ON (HI)
2
XMTR ON (LO)
3
XMTR OFF
4
XMTR RAISE
5
XMTR LOWER
6
GND
7
EXT INTERLOCK
8
FAILSAFE
9
CONFIGURABLE IN
10
GND
11
XMTR ON HI IND
12
XMTR ON LO IND
13
XMTR PWR LO IND
14
LOC REM IND
15
MUTE IND
16
GND
17
AFC FAULT
18
PA FAULT
19
PS FAULT
Remote Control Interface
The Z series transmitters include a standard parallel
remote control interface, allowing the transmitter to
be operated and monitored with a standard remote
control system. If the transmitter is to be remotely
controlled, it is important to initiate regular, thorough
inspection and maintenance procedures at the
transmitter location. Installation of equipment to
monitor the room temperature at the remote
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
20
SUMMARY FAULT
21
VSWR FAULT
22
VSWR FOLDBACK
23
AMB TEMP FAULT
24
ISO LOAD FAULT
25
GND
26
INTERLOCK IND
27
FAILSAFE IND
28
IPA_FAULT
29
GND
30
FWD PWR SAMPLE
31
RFL PWR SAMPLE
32
PAV SAMPLE
33
PAI SAMPLE
34
APC REF SAMPLE
35
GND
36
SPARE OUT
37
SPARE 1
Figure 13
Remote Terminal Block Layout
8
isolated shields, unlike double shielded coax where
the two shields are touching each other. The outer
shield is used as an RFI shield and the inner shield is
used in the normal fashion. Triaxial cables of specific
lengths terminated with BNC connectors and ground
lugs on the outer shield can be ordered from the
Harris Parts Department.
The layout of the terminal block and the commands,
status and metering outputs are shown in figure 13.
Always use shielded cable for the remote control
cabling and if possible this wiring should be run
through grounded metal conduit for added RFI
protection.
The following table provides lengths and associated
part numbers:
Remote input control lines are standard ground
switching inputs. Relay contact or open collector
transistor switching can operate the inputs. Figure 14
shows two examples of typical switching circuits used
for command inputs.
Triaxial Cables for Composite and SCA Interface
Triaxial Cable Length
3 Ft.
5 Ft.
10 Ft.
15 Ft.
25 Ft.
40 Ft.
Harris Part Number
922-0014-001
922-0014-002
922-0014-003
922-0014-004
922-0014-005
922-0014-006
If the transmitter is fitted with a DIGIT CD exciter
using the Digital Interface Module, 110Ω AES3
standard cable should be used to eliminate high
frequency roll-off of the digital signal. The AES3
cable can be run in lengths up to 500 feet.
This cable and XLR connectors can be purchased
from Harris using the following parts numbers:
Belden AES3 Twisted Pair Cable / XLR connectors
Harris Part Number
BLD1800B
Figure 14
Control Input Circuits
BLD1802A
The transmitter status output lines are transistor open
collector outputs. A series 1.3 kΩ resistor and LED
can also be used for extended status indications.
Maximum external supply voltage should not exceed
+28VDC. It should be noted the maximum status line
current is 25mA. If the output is used to drive a small
printed circuit board type relay, check the current
requirements for the relay coil and be sure to install a
reverse biased protection diode across the coil. A
1N4004 or equivalent will work.
Description
Single Twisted Pair Cable
Dual Twisted Pair Cable
NUTNC3MX
3 Pin XLR plug (for digital I/O input)
NUTNC3FX
3 Pin XLR jack
DIGIT CD Specifications
The following is a list of DIGIT CD exciter interface
specifications that can be used to plan the integration
of processing, STL and SCA equipment for your
installation. More detailed specifications are
available in the Technical Data Sheet for the exciter
being used.
General
EXCITER INTERFACE INFORMATION
Power Output: 1-55 watts, user adjustable
RF Output Connector: BNC jack
RF Output Impedance: 50Ω
Frequency Range: 87 to 108MHz
AC Input Power: 90 to 132VAC or 180 to 246VAC, 50/60Hz
Interface Wiring
The exciters are mounted in the Z transmitter with all
AC power, control and RF connections made at the
factory. RF interference may be an issue at some
sites especially those co-located with an AM
transmission systems. To help reduce the possibility
of RF interference at the exciter’s audio input, triaxial
cable can be used for the analog composite run.
Triaxial cable includes a center conductor and two
Analog Interface Module
Composite Input
Input Connectors: (2) BNC jack
Impedance: 10kΩ; selectable balanced/unbalanced
Input Level: 3.5vp-p for ± 75kHz deviation
9
Field Services
Mono Audio Input
Input Connector: (1) 3 terminal XLR jack
Impedance: 600Ω; balanced
Input level: +10dBm nominal for ± 75kHz deviation (adjustable)
Routine service includes installation, installation
check-outs, proof of performance measurements and
transmitter updates. To schedule a visit, you may
phone the Service Department at (217) 221-7528
Monday through Friday from 8:00a.m. to 5p.m. U.S.
Central Standard Time. Non-emergency Field
Service visits should be planned at least two weeks
in advance to allow proper planning and preparation
for the service visit.
SCA Inputs
Input Connectors: (3) BNC jack
Input Impedance: 10kΩ, unbalanced
Input level: 1.5vp-p for ± 7.5kHz deviation
DIGIT CD Digital Interface Module
Digital Input
Input Connector: (1) 3 terminal XLR jack
Input Impedance: 110Ω, balanced
Input Format: AES3-1992
Input sample rate: Any in range of 32kHz to 56kHz
Input level: 0 to –18dBfs
Input pre-emphasis: 0, 25, 50, or 75µs, user selectable
RDS Sychronization Output: 19kHz pilot sample
•
Installation: Service Engineers are available to
perform complete on site installation of your
transmitter. When ordering installation the
Service Department will need detailed
information about your facility; is the new
transmitter replacing an older transmitter, will a
remote control be installed, is there a back-up
transmitter, etc. An equipment list and building
mechanical layout drawings showing the location
of all equipment is very helpful.
•
Check-Outs: If the transmitter is installed by
station staff or representatives you may still have
a Harris Service Engineer perform an operational
check-out and/or proof of performance of the
transmitter. A detailed equipment list of what will
be tested is always important to ensure the
service engineer is properly prepared.
SCA Inputs
Input Connectors: (3) BNC jack
Input Impedance: 10kΩ, unbalanced
Input level: 1.5vp-p for ± 7.5kHz deviation
SuperCiter Specifications
General
Power Output: 1-55 watts, user adjustable
RF Output Connector: BNC jack
RF Output Impedance: 50Ω
Frequency Range: 87.5 to 108MHz
AC Input Power: 90 to 132VAC or 180 to 246VAC, 50/60Hz
Composite Audio Inputs
Telephone Support Service
Input Connectors: (1) BNC jack
Impedance: 10kΩ or 50Ω selectable; balanced/unbalanced
Input Level: 3.5vp-p for ± 75kHz deviation
The Radio Field Service Department provides
telephone support service of Harris radio
transmitters. During normal business hours the
Radio Field Service Department can be reached at
(217) 221-7528. Emergency service after normal
business hours is available through the parts
department if your station is off the air, operating at
reduced power or if have urgent questions during a
new installation. The parts department can be
reached at (217) 221-7500. A representative will
gather pertinent information, contact a Field Service
Engineer and the Engineer on duty will call you to
assist. To ensure that you get the best assistance as
fast as possible you should have the following items
before calling Harris:
Mono Audio Input
Input Connector: (1) 3 terminal XLR jack
Impedance: 600Ω; balanced
Input level: +10dBm nominal for ± 75kHz deviation (adjustable)
SCA Inputs
Input Connectors: (3) BNC jack
Input Impedance: 10kΩ, unbalanced
Input level: 1.5vp-p for ± 7.5kHz deviation
SERVICE & PARTS
Harris offers complete service support of the
transmitter including pre-installation assistance by
Harris Applications Engineering, installation and
check-out services and complete transmitter training
courses. Harris also provides 24 hour per day 365
day per year parts and technical support.
•
•
•
10
Transmitter factory test data sheet
Technical manual and drawing package
A list of all transmitter current meter readings and
fault log information
Parts
The general RF training programs combine theory
with hands-on practice, class size is limited and early
enrollment is necessary. Regular classes are offered
at the Quincy, Illinois Broadcast Technology Training
Center. Specific product training focuses in detail on
specific families of Harris transmitters and Control
products. The Z series product training course is
offered twice per year.
The Service/Parts department can be reached at
(217) 221-7500 24 hours a day 365 days a year.
Harris stocks a large inventory of parts for your
transmitter and in most cases will have parts to you
overnight or parts can also be flown counter to
counter. Normal business hours are 8:00am to
5:00pm Monday through Friday (U.S. Central
standard time). It is important to have the Harris ten
digit part numbers and shipping information in hand
when calling the parts department. This will ensure
fast and accurate orders.
For complete information and training schedules
please call (217) 222-8200 between 8:00a.m. to
5:00p.m., Monday through Friday, U.S. Central
Standard Time.
INSTALLATION ACCESORIES
Returns and Exchanges
The following page is a list of installation accessories
and part numbers that are typically used when
installing and maintaining the Harris Z series
transmitters. Your Harris District Sales Manager can
provide you with information regarding detailed
transmitter options and any additional equipment
needed to complete your installation.
Damaged or undamaged equipment should not be
returned unless written approval and a Return
Authorization is received from Harris. You may
receive a return authorization by contacting the parts
department at (217) 221-7500. The parts
representative will give you a return authorization
number and shipping instructions. Complete details
regarding circumstances and reasons for return
should be included in the request for return. All
returns will be sent freight prepaid and properly
insured by the customer. When communicating with
Harris, specify the order number, invoice number or
return authorization number.
TRAINING SERVICES
How your transmission equipment is operated and
maintained is as important to its long-term reliability
as how it was designed and manufactured.
Each year the Harris training center offers a wide
variety of scheduled programs for engineers with all
levels of experience. Our goal is to give stations the
skills and knowledge needed to ensure long life and
top performance of Harris RF transmission
equipment.
Harris offers general RF training as well as courses
on specific Harris product lines. General training
programs are ideal for personnel who recently have
been given responsibility for testing, maintaining and
servicing the station’s transmission equipment. You
will find our general RF training programs very
helpful. The general training programs are offered
fours times per year. There are six classes offered:
•
•
•
•
AM transmitter workshop
FM transmitter workshop
TV transmitter workshop
RF Circuits I and II and Digital Control Logic.
11
Transmitter Installation Accessories
Z SERIES TRANSMITTER SPARE PARTS
GROUNDING MATERIAL & TRANSMISSION LINE COMPONENTS
Harris Part
Number
003-4010-045
003-4010-050
Harris Part
Number
Description
Copper Ground Strap; 0.02” x 2.0”
Copper Ground Strap; 0.02 x 4.0”
359-1053-000
2.0” Plastic coated hangers (for internal line)
359-1054-000
3.5” Plastic coated hangers (for internal line)
359-1055-000
618-0368-000
Myatt 20’ 1-5/8” flanged line section
618-0305-000
Myatt 20’ 1-5/8” un-flanged line section
992-9521-002
1
850 watt PA module assembly
992-9261-002
1
425 watt PA amplifier assembly
992-9767-001
2
Semiconductor & Fuse Kit for 1-phase supply
992-9767-003
4.0” Plastic coated hangers (for internal line)
Description
Semiconductor & Fuse Kit for 3-phase supply
992-9766-001
2
Service parts kit
992-9768-002
2
Spare boards kit
992-9516-002
Life Support control board
DIGIT CD SPARE PARTS
Myatt 1-5/8” flange adapter, un-pressurized,
clamp type
Myatt 1-5/8” coupling sleeve, un-pressurized,
clamp type
990-1130-001
Semiconductor kit for Analog Input Module
990-1133-001
Semiconductor kit for Digital Input Module
620-1903-000
Myatt 1-5/8” 90° flanged elbow, reinforced inner
994-9515-001
Service parts kit
620-0631-000
Myatt 1-5/8” 90° un-flanged elbow, reinforced
inner
994-9516-001
Spare boards kit
620-0573-000
Myatt 1-5/8” anchor insulator connector
620-0233-000
Myatt 1-5/8” hardware set, stainless steel
618-0387-000
Myatt 20’ 3-1/8” flanged line section
618-0228-000
Myatt 20’ 3-1/8” un-flanged line section
620-0276-000
620-0662-000
620-0498-000
620-0581-000
SuperCiter SPARE PARTS
Myatt 3-1/8” flange adapter, un-pressurized,
clamp type
Myatt 1-5/8” coupling sleeve, un-pressurized,
clamp type
620-1893-000
Myatt 3-1/8” 90° flanged elbow, reinforced inner
620-2275-000
Myatt 3-1/8” 90° un-flanged elbow, reinforced
inner
620-0544-000
Myatt 3-1/8” anchor insulator connector
620-0908-000
Myatt 3-1/8” hardware set, stainless steel
992-9790-001
Semiconductor kit
992-9792-001
Service parts kit
992-9791-001
Spare boards kit
Notes:
1
If you currently own a Z series transmitter refer to the
transmitter service manual for the correct part number for the
amplifier in your transmitter. Two versions are available, an
001 and an 002.
2
If you currently own a Z series transmitter please specify the
model and power supply configuration when ordering control
boards. This will ensure proper firmware configuration.
SURGE PROTECTION
Harris Part Number
LEA Model Number
740-1175-000
LEA DS1G-120/208-3Y
740-1176-000
LEA DS1G-225-3D
740-1177-000
LEA DS1G-220/380-3Y
DS1G240/4153Y
LEA DS1G-240/415-3Y
740-1101-000
LEA DS1G-120/240-SP
740-1102-000
LEA DS1G-240-1
Line
Configuration
208V 4-WIRE
WYE
200-240V 3WIRE DELTA
380V 4-WIRE
WYE
415V 4-WIRE
WYE
1-PH FROM
SPLIT 230V
1-PH LEG-LEG
200-240V
Harris Corporation, Broadcast Communications Division
Quincy Manufacturing Facility
3200 Wismann Lane
Quincy, IL 62301
Phone: (217) 222-8200
Fax: (217) 222-9443
12
ELECTRICAL / COOLING / MECHANICAL DATA
HARRIS Z2CD 2kW FM TRANSMITTER
All table values referenced to 2kW output power. Values are typical.
PARAMETER NAME
ELECTRICAL
Nominal Output Power
FCC Type-notified Output
Power Range
Power Consumption
AC Power Factor
Overall Efficiency, AC Input to
RF Output
AC Mains Configuration
(one configuration, as ordered)
AC Input Voltage
AC Fuse Size (Notes 1,2)
Possible AC Conductor Size,
#THHW wire (Note 3)
Line Amps at Nominal Output
AC Entrances
Grounding/earthing
VALUE
2kW
0.4kW - 2.2kW
4.0kW
3-phase: 0.95; 1-phase: 0.8.
50%
3-phase, 3-wire closed
delta or WYE plus safety
ground
208
220
240
20
20
20
12
12
12
3-phase, 4-wire WYE
360
20
380
20
415
20
12
12
12
1-phase, 2-wire plus safety
ground
208
220
240
40
40
40
8
8
8
11.7
11.1
10.1
6.8
6.4
5.9
24
22.7
20.8
Through top or bottom surface of cabinet.
2” minimum width copper strap between the transmitter cabinet and station RF
earth ground. All connections to be bolted together and then soldered or brazed for
low resistance connections and long-term reliability. The AC mains earth
connection should be connected to the same earth ground.
COOLING
Cooling Air Volume, ft 3/min
Air Outlet Size
Heat Dissipation
Air Conditioning Load
MECHANICAL (Note 4)
Cabinet Size with fan and air
filter assembly attached
Weight
Harmonic Filter
RF Output Connector
Remote Control Connections
60Hz Mains
50Hz Mains
Normal Speed
Maximum
Normal Speed
Maximum
300
550
270
495
Approx. 23.6” x 3.6” near left and right sidewalls on cabinet top, two total per
cabinet.
2.0kW (6,830 BTU/h)
0.56 tons
28.6” (72.6cm) W x 49.72” ( 126.3cm) D x 72” (183cm) H.
3-phase: 1,130 lbs (514kg); 1-phase: 1,225 lbs. (557kg).
Internal.
1-5/8” EIA flange, female.
Barrier strip inside upper left sidewall (facing rear of transmitter).
NOTES:
1. At full output power. Fuse/breaker size should be reduced for significantly lower operating powers, maintaining about a 2X
factor above the normal operating current. Contact Harris salesman or factory for the expected value.
2. Wall-mounted fused disconnect or breaker is customer-supplied item. An RK5 class fuse such as the Bussman FRNR(250V), FRS-R(600V) or LittleFuse FLNR(250V), FLSR(600V) is recommended. If a circuit breaker is used it should have
a trip curve similar to that of the RK5 fuse trip curve.
3. All transmitter wiring should be done in conformance with local electrical codes.
4. See Harris drawing 852-9199-015 for complete dimensional information.
DWA 12/99
ELECTRICAL / COOLING / MECHANICAL DATA
HARRIS Z3.5CD 3.5kW FM TRANSMITTER
All table values referenced to 3.5kW output power. Values are typical.
PARAMETER NAME
ELECTRICAL
Nominal Output Power
FCC Type-notified Output
Power Range
Power Consumption
AC Power Factor
Overall Efficiency, AC Input to
RF Output
AC Mains Configuration
(one configuration, as ordered)
AC Input Voltage
AC Fuse Size (Notes 1,2)
Possible AC Conductor Size,
#THHW wire (Note 3)
Line Amps at Nominal Output
AC Entrances
Grounding/earthing
VALUE
3.5kW
0.875kW - 4.125kW
5.8kW
3-phase: 0.95; 1-phase: 0.8.
60%
3-phase, 3-wire closed
delta or WYE plus safety
ground
208
220
240
40
40
40
8
8
8
3-phase, 4-wire WYE
360
20
10
380
20
10
415
20
10
1-phase, 2-wire plus
safety ground
208
220
240
70
70
70
6
6
6
17
16
15
10
9
8
35
33
30
Through top or bottom surface of cabinet.
2” minimum width copper strap between the transmitter cabinet and station RF
earth ground. All connections to be bolted together and then soldered or
brazed for low resistance connections and long-term reliability. The AC mains
earth connection should be connected to the same earth ground.
COOLING
Cooling Air Volume, ft 3/min
RF Cabinet Air Outlet Size
Heat Dissipation
Air Conditioning Load
MECHANICAL (Note 4)
RF Cabinet Size with fan and
air filter assembly attached
Weight
Harmonic Filter
RF Output Connector
Remote Control Connections
60Hz Mains
50Hz Mains
Normal Speed
Maximum
Normal Speed
Maximum
300
550
270
495
Approx. 23.6” x 3.6” near left and right sidewalls on cabinet top, two total.
2.3kW (7,850 BTU/h)
0.65 tons
28.6” (72.6cm) W x 49.72” ( 126.3cm) D x 72” (183cm) H
3-phase: 1,280 lbs (581kg); 1-phase: 1,375 lbs. (624kg).
Internal.
1-5/8” EIA flange (female).
Barrier strip inside upper left sidewall (facing rear of transmitter).
NOTES:
1. At full output power. Fuse/breaker size should be reduced for significantly lower operating powers, maintaining about a 2X
factor above the normal operating current. Contact Harris salesman or factory for the expected value.
2. Wall-mounted fused disconnect or breaker is customer-supplied item. An RK5 class fuse such as the Bussman FRNR(250V), FRS-R(600V) or LittleFuse FLNR(250V), FLSR(600V) is recommended. If a circuit breaker is used it should have
a trip curve similar to that of the RK5 fuse trip curve.
3. All transmitter wiring should be done in conformance with local electrical codes.
4. See Harris drawing 852-9199-023 for complete dimensional information.
DWA 12/99
ELECTRICAL / COOLING / MECHANICAL DATA
HARRIS Z5CD 5kW FM TRANSMITTER
All table values referenced to 5kW output power. Values are typical.
PARAMETER NAME
ELECTRICAL
Nominal Output Power
FCC Type-notified Output
Power Range
Power Consumption
AC Power Factor
Overall Efficiency, AC Input to
RF Output
AC Mains Configuration
(one configuration, as ordered)
AC Input Voltage
AC Fuse Size (Notes 1,2)
Possible AC Conductor Size,
#THHW wire (Note 3)
Line Amps at Nominal Output
AC Entrances
Grounding/earthing
VALUE
5kW
1kW - 5.5kW
8.1kW
3-phase: 0.95; 1-phase: 0.8.
62%
3-phase, 3-wire closed
delta or WYE plus safety
ground
208
220
240
40
40
40
8
8
8
3-phase, 4-wire WYE
360
20
380
20
415
20
10
10
10
1-phase, 2-wire plus
safety ground
208
220
240
70
70
70
6
6
6
24
23
21
14
13
12
47
45
41
Through top or bottom surface of cabinet.
2” minimum width copper strap between the transmitter cabinet and station RF
earth ground. All connections to be bolted together and then soldered or
brazed for low resistance connections and long-term reliability. The AC mains
earth connection should be connected to the same earth ground.
COOLING
Cooling Air Volume, ft 3/min
RF Cabinet Air Outlet Size
Heat Dissipation
Air Conditioning Load
MECHANICAL (Note 4)
RF Cabinet Size with fan and
air filter assembly attached
Weight
Harmonic Filter
RF Output Connector
Remote Control Connections
60Hz Mains
50Hz Mains
Normal Speed
Maximum
Normal Speed
Maximum
300
550
270
495
Approx. 23.6” x 3.6” near left and right sidewalls on cabinet top, two total.
3.1kW (10,590 BTU/h)
0.88 tons
28.6” (72.6cm) W x 49.72” ( 126.3cm) D x 72” (183cm) H
3-phase: 1,300 lbs (590kg); 1-phase: 1,395 lbs. (633kg).
Internal.
1-5/8” EIA flange (female).
Barrier strip inside upper left sidewall (facing rear of transmitter).
NOTES:
1. At full output power. Fuse/breaker size should be reduced for significantly lower operating powers, maintaining about a 2X
factor above the normal operating current. Contact Harris salesman or factory for the expected value.
2. Wall-mounted fused disconnect or breaker is customer-supplied item. An RK5 class fuse such as the Bussman FRNR(250V), FRS-R(600V) or LittleFuse FLNR(250V), FLSR(600V) is recommended. If a circuit breaker is used it should have
a trip curve similar to that of the RK5 fuse trip curve.
3. All transmitter wiring should be done in conformance with local electrical codes.
4. See Harris drawing 852-9199-003 for complete dimensional information.
DWA 12/99
ELECTRICAL / COOLING / MECHANICAL DATA
HARRIS Z7.5CD 7.5kW FM TRANSMITTER
All table values referenced to 7.5kW output power. Values are typical.
PARAMETER NAME
VALUE
ELECTRICAL
Nominal Output Power
7.5kW
FCC Type-notified Output
1.88kW - 8.25kW
Power Range
Power Consumption
11.7kW
AC Power Factor
3-phase: 0.95; 1-phase: 0.8.
Overall Efficiency, AC Input to
64%
RF Output
AC Mains Configuration
3-phase, 3-wire closed
(one configuration, as ordered)
delta or WYE plus safety
3-phase, 4-wire WYE
1-phase, 2-wire plus safety
ground
ground
AC Input Voltage
208
220
240
360
380
415
208
220
240
AC Fuse Size (Notes 1,2,4)
80
80
80
45
45
45
75
75
75
Possible AC Conductor Size,
4
4
4
8
8
8
6
6
6
#THHW wire (Notes 3,4)
Total Line Amps at Nominal
34
32
30
20
19
17
70
67
61
Output (Note 4)
AC Entrances
Through top or bottom surface of cabinet(s).
Grounding/earthing
2” minimum width copper strap between the transmitter cabinet(s) and station RF
earth ground. All connections to be bolted together and then soldered or brazed for
low resistance connections and long-term reliability. The AC mains earth
connection should be connected to the same earth ground.
COOLING
60Hz Mains
50Hz Mains
Normal Speed
Maximum
Normal Speed
Maximum
3
Cooling Air Volume, ft /min
600
1110
540
1000
Air Outlet Size
Approx. 23.6” x 3.6” near left and right sidewalls on cabinet top, two total per
cabinet.
Heat Dissipation
4.2kW (14,330 BTU/hr)
Air Conditioning Load
1.2 tons
MECHANICAL (Note 5)
Number of Cabinets
3-phase: 1; 1-phase: 2.
Cabinet Size with fan and air
1- and 3-phase units: RF Cabinet: 28.6” (72.6cm) W x 49.72” ( 126.3cm) D x 72”
filter assembly attached
(183cm) H. 1-phase units: additional cabinet of height and width equal to the RF
cabinet, depth = 38” ( 96.5cm), with 38” (22 R.U.) of 19” EIA panel mounting space
available for customer-supplied components.
Weight
3-phase: 1,710 lbs (776kg); 1-phase: 2,260 lbs. ( 1,026kg).
Harmonic Filter
Internal.
RF Output Connector
1-5/8” EIA flange, female.
Remote Control Connections
Barrier strip inside upper left sidewall of main cabinet (facing rear of transmitter).
NOTES:
1. At full output power. Fuse/breaker size should be reduced for significantly lower operating powers, maintaining about a 2X factor above
the normal operating current. Contact Harris salesman or factory for the expected value.
2. Wall-mounted fused disconnect(s) or breaker(s) are customer-supplied item(s). An RK5 class fuse such as the Bussman FRN-R(250V),
FRS-R(600V) or LittleFuse FLNR(250V), FLSR(600V) is recommended. If a circuit breaker is used it should have a trip curve similar to that
of the RK5 fuse trip curve.
3. All transmitter wiring should be done in conformance with local electrical codes.
4. For 1-phase units, breakers and wire sizes are given per feed to each cabinet (two cabinets, total).
ELECTRICAL / COOLING / MECHANICAL DATA
HARRIS Z10CD 10kW FM TRANSMITTER
All table values referenced to 10kW output power. Values are typical.
PARAMETER NAME
VALUE
ELECTRICAL
Nominal Output Power
10kW
FCC Type-notified Output
2kW - 11kW
Power Range
Power Consumption
16.1kW
AC Power Factor
3-phase: 0.95; 1-phase: 0.8.
Overall Efficiency, AC Input to
62%
RF Output
AC Mains Configuration
3-phase, 3-wire closed
(one configuration, as ordered)
delta or WYE plus safety
3-phase, 4-wire WYE
ground
AC Input Voltage
208
220
240
360
380
415
AC Fuse Size (Notes 1,2,4)
80
80
80
45
45
45
Possible AC Conductor Size,
#THHW wire (Notes 3,4)
Total Line Amps at Nominal
Output (Note 4)
AC Entrances
Grounding/earthing
1-phase, 2-wire plus safety
ground
208
220
240
75
75
75
4
4
4
8
8
8
6
6
6
48
46
42
28
26
24
93
88
81
Through top or bottom surface of cabinet(s).
2” minimum width copper strap between the transmitter cabinet(s) and station RF
earth ground. All connections to be bolted together and then soldered or brazed for
low resistance connections and long-term reliability. The AC mains earth
connection should be connected to the same earth ground.
COOLING
Cooling Air Volume, ft 3/min
Air Outlet Size
Heat Dissipation
Air Conditioning Load
MECHANICAL (Note 5)
Number of Cabinets
Cabinet Size with fan and air
filter assembly attached
Weight
Harmonic Filter
RF Output Connector
Remote Control Connections
60Hz Mains
50Hz Mains
Normal Speed
Maximum
Normal Speed
Maximum
600
1110
540
1000
Approx. 23.6” x 3.6” near left and right sidewalls on cabinet top, two total per
cabinet.
6.1kW (20,813 BTU/hr)
1.75 tons
3-phase: 1; 1-phase: 2.
1- and 3-phase units: RF Cabinet: 28.6” (72.6cm) W x 49.72” ( 126.3cm) D x 72”
(183cm) H. 1-phase units: additional cabinet of height and width equal to the RF
cabinet, depth = 38” ( 96.5cm), with 38” (22 R.U.) of 19” EIA panel mounting space
available for customer-supplied components.
3-phase: 1,750 lbs (795kg); 1-phase: 2,300 lbs. (1,045kg).
Internal.
3-1/8” EIA flange, female.
Barrier strip inside upper left sidewall of main cabinet (facing rear of transmitter).
NOTES:
1. At full output power. Fuse/breaker size should be reduced for significantly lower operating powers, maintaining about a 2X factor above
the normal operating current. Contact Harris salesman or factory for the expected value.
2. Wall-mounted fused disconnect(s) or breaker(s) are customer-supplied item(s). An RK5 class fuse such as the Bussman FRN-R(250V),
FRS-R(600V) or LittleFuse FLNR(250V), FLSR(600V) is recommended. If a circuit breaker is used it should have a trip curve similar to that
of the RK5 fuse trip curve.
3. All transmitter wiring should be done in conformance with local electrical codes.
4. For 1-phase units, breakers and wire sizes are given per feed to each cabinet (two cabinets, total).
5. See Harris drawing 852-9199-011 for complete dimensional information.
DWA 12/99
ELECTRICAL / COOLING / MECHANICAL DATA
HARRIS ZD15CD 15kW FM TRANSMITTER
All table values referenced to 15kW output power. Values are typical.
PARAMETER NAME
VALUE
ELECTRICAL
Nominal Output Power
15kW
FCC Type-notified Output
3.76kW - 16.5kW
Power Range
Power Consumption
23.4kW
AC Power Factor
3-phase: 0.95; 1-phase: 0.8.
Overall Efficiency, AC Input to
64%
RF Output
AC Mains Configuration
3-phase, 3-wire closed
(one configuration, as ordered)
delta or WYE plus safety
3-phase, 4-wire WYE
ground
AC Input Voltage
208
220
240
360
380
415
AC Fuse Size (Notes 1,2,4)
80
80
80
45
45
45
Possible AC Conductor Size,
#THHW wire (Notes 3,4)
Total Line Amps at Nominal
Output
AC Entrances
Grounding/earthing
1-phase, 2-wire plus safety
ground
208
220
240
75
75
75
4
4
4
8
8
8
6
6
6
68
64
60
40
38
34
140
134
122
Through top or bottom surface of cabinets.
2” minimum width copper strap between the transmitter cabinet(s) and station RF
earth ground. All connections to be bolted together and then soldered or brazed for
low resistance connections and long-term reliability. The AC mains earth
connection should be connected to the same earth ground.
COOLING
Cooling Air Volume, ft 3/min
Air Outlet Sizes
Heat Dissipation
Air Conditioning Load
MECHANICAL (Note 5)
Number of Cabinets
Cabinet Size with fan and air
filter assembly attached
Weight (less output combiner)
Harmonic Filtering
RF Output Connector
Remote Control Connections
60Hz Mains
50Hz Mains
Normal Speed
Maximum
Normal Speed
Maximum
1,200
2,220
1,080
2,000
Approx. 23.6” x 3.6” near left and right sidewalls on cabinet top, two total per
cabinet.
8.4kW (28,660 BTU/hr)
2.4 tons
3-phase: two; 1-phase: four.
1- and 3-phase units: RF Cabinets: 28.6” (72.6cm) W x 49.72” ( 126.3cm) D x 72”
(183cm) H. 1-phase units: two additional cabinets of height and width equal to the
RF cabinet, depth = 38” ( 96.5cm), each with 38.5” (22 R.U.) of 19” EIA panel
mounting space available for customer-supplied components.
3-phase: 3,420 lbs (1,552kg); 1-phase: 4,520 lbs. (2,052kg).
Internal.
3-1/8” EIA flange, female.
Barrier strip inside upper left sidewall of RF cabinets (facing rear of transmitter).
NOTES:
1. At full output power. Breaker/fuse size should be reduced for significantly lower operating powers, maintaining about a 2X factor above
the normal operating current. Contact Harris salesman or factory for the expected value.
2. Wall-mounted fused disconnect(s) or breaker(s) are customer-supplied item(s). An RK5 class fuse such as the Bussman FRN-R(250V),
FRS-R(600V) or LittleFuse FLNR(250V), FLSR(600V) is recommended. If a circuit breaker is used it should have a trip curve similar to that
of the RK5 fuse trip curve.
3. All transmitter wiring should be done in conformance with local electrical codes.
4. Breakers and wire sizes are given per feed to each cabinet.
ELECTRICAL / COOLING / MECHANICAL DATA
HARRIS ZD20CD 20kW FM TRANSMITTER
All table values referenced to 20kW output power. Values are typical.
PARAMETER NAME
VALUE
ELECTRICAL
Nominal Output Power
20kW
FCC Type-notified Output
5kW - 22kW
Power Range
Power Consumption
32.2kW
AC Power Factor
3-phase: 0.95; 1-phase: 0.8.
Overall Efficiency, AC Input to
62%
RF Output
AC Mains Configuration
3-phase, 3-wire closed
(one configuration, as ordered)
delta or WYE plus safety
3-phase, 4-wire WYE
ground
AC Input Voltage
208
220
240
360
380
415
AC Fuse Size (Notes 1,2,4)
80
80
80
45
45
45
Possible AC Conductor Size,
#THHW wire (Notes 3,4)
Total Line Amps at Nominal
Output
AC Entrances
Grounding/earthing
1-phase, 2-wire plus safety
ground
208
220
240
75
75
75
4
4
4
8
8
8
6
6
6
96
92
84
56
52
48
186
176
162
Through top or bottom surface of cabinets.
2” minimum width copper strap between the transmitter cabinet(s) and station RF
earth ground. All connections to be bolted together and then soldered or brazed for
low resistance connections and long-term reliability. The AC mains earth
connection should be connected to the same earth ground.
COOLING
Cooling Air Volume, ft 3/min
Air Outlet Sizes
Heat Dissipation
Air Conditioning Load
MECHANICAL (Note 5)
Number of Cabinets
Cabinet Size with fan and air
filter assembly attached
Weight (less output combiner)
Harmonic Filtering
RF Output Connector
Remote Control Connections
60Hz Mains
50Hz Mains
Normal Speed
Maximum
Normal Speed
Maximum
1,200
2,220
1,080
2,000
Approx. 23.6” x 3.6” near left and right sidewalls on cabinet top, two total per
cabinet.
12.2kW (41,625 BTU/hr)
3.5 tons
3-phase: two; 1-phase: four.
1- and 3-phase units: RF Cabinets: 28.6” (72.6cm) W x 49.72” (126.3cm) D x 72”
(183cm) H. 1-phase units: two additional cabinets of height and width equal to the
RF cabinet, depth = 38” ( 96.5cm), each with 38.5” (22 R.U.) of 19” EIA panel
mounting space available for customer-supplied components.
3-phase: 3,500 lbs (1,590kg); 1-phase: 4,600 lbs. (2,090kg).
Internal.
3-1/8” EIA flange, female.
Barrier strip inside upper left sidewall of RF cabinets (facing rear of transmitter).
NOTES:
1. At full output power. Breaker/fuse size should be reduced for significantly lower operating powers, maintaining about a 2X factor above
the normal operating current. Contact Harris salesman or factory for the expected value.
2. Wall-mounted fused disconnect(s) or breaker(s) are customer-supplied item(s). An RK5 class fuse such as the Bussman FRN-R(250V),
FRS-R(600V) or LittleFuse FLNR(250V), FLSR(600V) is recommended. If a circuit breaker is used it should have a trip curve similar to that
of the RK5 fuse trip curve.
3. All transmitter wiring should be done in conformance with local electrical codes.
4. Breakers and wire sizes are given per feed to each cabinet.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
