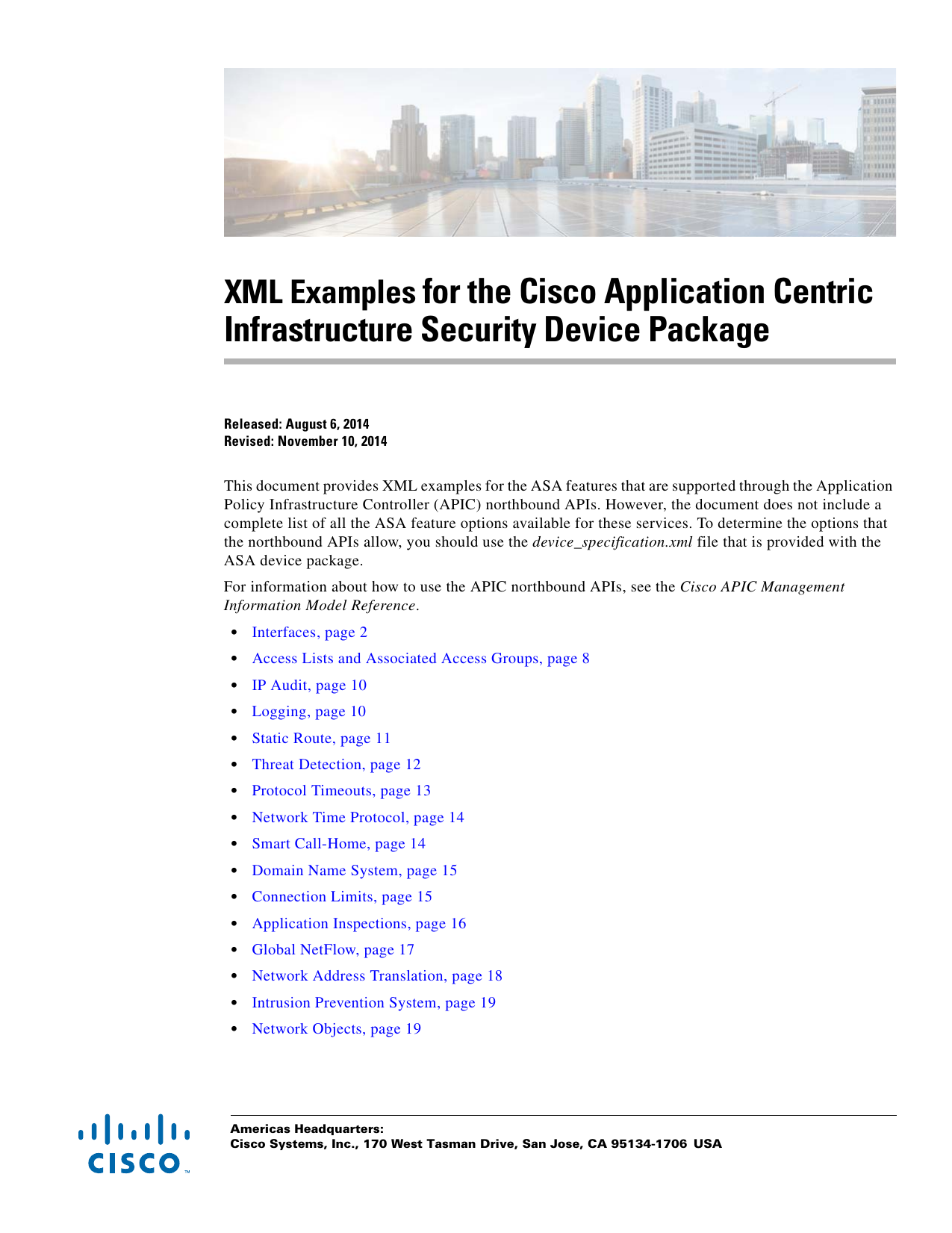

XML Examples for the Cisco Application Centric
Infrastructure Security Device Package
Released: August 6, 2014
Revised: November 10, 2014
This document provides XML examples for the ASA features that are supported through the Application
Policy Infrastructure Controller (APIC) northbound APIs. However, the document does not include a
complete list of all the ASA feature options available for these services. To determine the options that
the northbound APIs allow, you should use the device_specification.xml file that is provided with the
ASA device package.
For information about how to use the APIC northbound APIs, see the Cisco APIC Management
Information Model Reference.
•
Interfaces, page 2
•
Access Lists and Associated Access Groups, page 8
•
IP Audit, page 10
•
Logging, page 10
•
Static Route, page 11
•
Threat Detection, page 12
•
Protocol Timeouts, page 13
•
Network Time Protocol, page 14
•
Smart Call-Home, page 14
•
Domain Name System, page 15
•
Connection Limits, page 15
•
Application Inspections, page 16
•
Global NetFlow, page 17
•
Network Address Translation, page 18
•
Intrusion Prevention System, page 19
•
Network Objects, page 19
Americas Headquarters:
Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA
Interfaces
•
Network Object Groups, page 20
•
High Availability (Failover), page 21
Interfaces
Interfaces are typically set up as part of the overall infrastructure on the APIC using a service graph. The
graphs are associated with contracts, concrete devices, logical devices, and logical interfaces. The graphs
also require the interface IP addresses to be in an appropriate range previously defined for the associated
tenant. The graph setups show the various interface types. For an ASAv, interfaces are defined on the
ASA itself using the physical interfaces; for the hardware ASAs, interfaces are defined using VLANs.
The XML files to define the interfaces are the same, and the device package uses the “devtype” field
(PHYSICAL or VIRTUAL) to determine the correct CLIs to send to the ASA for configuration. The
“funcType” field (GoTo or GoThrough) determines whether the interfaces are for a transparent or routed
firewall.
Transparent Bridge Group Virtual Interfaces
This XML example creates the following bridge group and adds bridge group members. The example is
for a hardware ASA; VLANs are dynamically assigned.
ASA Configuration
interface GigabitEthernet0/0
no nameif
no security-level
interface GigabitEthernet0/0.987
vlan 987
nameif externalIf
bridge-group 1
security-level 50
interface GigabitEthernet0/1
no nameif
no security-level
interface GigabitEthernet0/1.986
vlan 986
nameif internalIf
bridge-group 1
security-level 100
interface BVI1
ip address 10.10.10.2 255.255.255.0
XML Example
Define a graph and interfaces, then attach them to the tenant.
<polUni>
<fvTenant name="tenant1">
<vnsAbsGraph name = "WebGraph">
<vnsAbsTermNodeCon name = "Input1">
XML Examples for the Cisco Application Centric Infrastructure Security Device Package
2
Interfaces
<vnsAbsTermConn name = "C1"/>
</vnsAbsTermNodeCon>
<!-- FW1 Provides FW functionality -->
<vnsAbsNode name = "FW1" funcType="GoThrough">
<vnsRsDefaultScopeToTerm
tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsTermNodeProv-Output1/outtmnl"/>
<vnsAbsFuncConn name = "external">
<vnsRsMConnAtt tDn="uni/infra/mDev-CISCO-ASA-1.0.1.43/mFunc-Firewall/mConn-external" />
</vnsAbsFuncConn>
<vnsAbsFuncConn name = "internal">
<vnsRsMConnAtt tDn="uni/infra/mDev-CISCO-ASA-1.0.1.43/mFunc-Firewall/mConn-internal" />
</vnsAbsFuncConn>
<vnsAbsDevCfg>
<vnsAbsFolder key="BridgeGroupIntf" name="1">
<vnsAbsParam key="ipv4_address" name="ipv4" value="10.10.10.2/255.255.255.0"/>
</vnsAbsFolder>
<vnsAbsFolder key="Interface" name="internalIf">
<vnsAbsFolder key="InterfaceConfig" name="internalIfCfg">
<vnsAbsCfgRel key="bridge_group" name="extbridge" targetName="1"/>
<vnsAbsParam key="security_level" name="internal_security_level" value="100"/>
</vnsAbsFolder>
</vnsAbsFolder>
<vnsAbsFolder key="Interface" name="externalIf">
<vnsAbsFolder key="InterfaceConfig" name="externalIfCfg">
<vnsAbsCfgRel key="bridge_group" name="extbridge" targetName="1"/>
<vnsAbsParam key="security_level" name="external_security_level" value="50"/>
</vnsAbsFolder>
</vnsAbsFolder>
</vnsAbsDevCfg>
<vnsAbsFuncCfg>
<vnsAbsFolder key="ExIntfConfigRelFolder" name="ExtConfigA">
<vnsAbsCfgRel key="ExIntfConfigRel" name="ExtConfigrel" targetName="externalIf"/>
<vnsRsScopeToTerm tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsTermNodeProv-Output1/outtmnl"/>
<vnsRsCfgToConn tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsNode-FW1/AbsFConn-external" />
</vnsAbsFolder>
<vnsAbsFolder key="InIntfConfigRelFolder" name="IntConfigA">
<vnsAbsCfgRel key="InIntfConfigRel" name="InConfigrel" targetName="internalIf"/>
<vnsRsScopeToTerm tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsTermNodeProv-Output1/outtmnl"/>
<vnsRsCfgToConn tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsNode-FW1/AbsFConn-internal" />
</vnsAbsFolder>
</vnsAbsFuncCfg>
<vnsRsNodeToMFunc tDn="uni/infra/mDev-CISCO-ASA-1.0.1.43/mFunc-Firewall"/>
</vnsAbsNode>
<vnsAbsTermNodeProv name = "Output1">
<vnsAbsTermConn name = "C6"/>
</vnsAbsTermNodeProv>
<vnsAbsConnection name = "CON1">
<vnsRsAbsConnectionConns
tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsTermNodeCon-Input1/AbsTConn"/>
<vnsRsAbsConnectionConns
tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsNode-FW1/AbsFConn-external"/>
</vnsAbsConnection>
<vnsAbsConnection name = "CON2" unicastRoute="no">
<vnsRsAbsConnectionConns
tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsNode-FW1/AbsFConn-internal"/>
XML Examples for the Cisco Application Centric Infrastructure Security Device Package
3
Interfaces
<vnsRsAbsConnectionConns
tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsTermNodeProv-Output1/AbsTConn"/>
</vnsAbsConnection>
</vnsAbsGraph>
</fvTenant>
</polUni>
Routed Firewall Interfaces
This XML example creates the following routed interfaces. The example is for a hardware ASA; VLANs
are dynamically assigned.
ASA Configuration
interface GigabitEthernet0/0
no nameif
no security-level
no ip address
interface GigabitEthernet0/0.655
vlan 655
nameif externalIf
security-level 50
ip address 10.10.10.10 255.255.255.0
interface GigabitEthernet0/1
no nameif
no security-level
no ip address
interface GigabitEthernet0/1.968
vlan 968
nameif internalIf
security-level 100
ip address 10.10.10.10 255.255.255.0
XML Example
Define a graph, then attach it to the tenant.
<polUni>
<fvTenant name="tenant1">
<vnsAbsGraph name = "WebGraph">
<vnsAbsTermNodeCon name = "Input1">
<vnsAbsTermConn name = "C1">
</vnsAbsTermConn>
</vnsAbsTermNodeCon>
<!-- FW1 Provides FW functionality -->
<vnsAbsNode name = "FW1">
<vnsRsDefaultScopeToTerm tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsTermNodeProv-Output1/outtmnl"/>
<vnsAbsFuncConn name = "external">
<vnsRsMConnAtt tDn="uni/infra/mDev-CISCO-ASA-1.0.1.43/mFunc-Firewall/mConn-external" />
</vnsAbsFuncConn>
XML Examples for the Cisco Application Centric Infrastructure Security Device Package
4
Interfaces
<vnsAbsFuncConn name = "internal">
<vnsRsMConnAtt tDn="uni/infra/mDev-CISCO-ASA-1.0.1.43/mFunc-Firewall/mConn-internal" />
</vnsAbsFuncConn>
<vnsAbsDevCfg>
<vnsAbsFolder key="Interface" name="internalIf">
<vnsAbsFolder key="InterfaceConfig" name="internalIfCfg">
<vnsAbsParam key="ipv4_address" name="ipv4_internal" value="10.10.10.10/255.255.255.0"/>
<vnsAbsParam key="security_level" name="internal_security_level" value="100"/>
</vnsAbsFolder>
</vnsAbsFolder>
<vnsAbsFolder key="Interface" name="externalIf">
<vnsAbsFolder key="InterfaceConfig" name="externalIfCfg">
<vnsAbsParam key="ipv4_address" name="ipv4_external" value="10.10.10.10/255.255.255.0"/>
<vnsAbsParam key="security_level" name="external_security_level" value="50"/>
</vnsAbsFolder>
</vnsAbsFolder>
</vnsAbsDevCfg>
<vnsAbsFuncCfg>
<vnsAbsFolder key="ExIntfConfigRelFolder" name="ExtConfig">
<vnsAbsCfgRel key="ExIntfConfigRel" name="ExtConfigrel" targetName="externalIf"/>
<vnsRsScopeToTerm tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsTermNodeProv-Output1/outtmnl"/>
<vnsRsCfgToConn tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsNode-FW1/AbsFConn-external" />
</vnsAbsFolder>
<vnsAbsFolder key="InIntfConfigRelFolder" name="IntConfig">
<vnsAbsCfgRel key="InIntfConfigRel" name="InConfigrel" targetName="internalIf"/>
<vnsRsScopeToTerm tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsTermNodeProv-Output1/outtmnl"/>
<vnsRsCfgToConn tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsNode-FW1/AbsFConn-internal" />
</vnsAbsFolder>
</vnsAbsFuncCfg>
<vnsRsNodeToMFunc tDn="uni/infra/mDev-CISCO-ASA-1.0.1.43/mFunc-Firewall"/>
</vnsAbsNode>
<vnsAbsTermNodeProv name = "Output1">
<vnsAbsTermConn name = "C6">
</vnsAbsTermConn>
</vnsAbsTermNodeProv>
<vnsAbsConnection name = "CON1">
<vnsRsAbsConnectionConns tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsTermNodeCon-Input1/AbsTConn" />
<vnsRsAbsConnectionConns tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsNode-FW1/AbsFConn-external" />
</vnsAbsConnection>
<vnsAbsConnection name = "CON2">
<vnsRsAbsConnectionConns tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsNode-FW1/AbsFConn-internal" />
<vnsRsAbsConnectionConns tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsTermNodeProv-Output1/AbsTConn" />
</vnsAbsConnection>
</vnsAbsGraph>
</fvTenant>
</polUni>
XML Examples for the Cisco Application Centric Infrastructure Security Device Package
5
Interfaces
Port Channel Interfaces
This XML example creates the following port channel members and port channel interfaces (supported
only on physical ASAs at this time).
ASA Configuration
interface GigabitEthernet0/0
channel-group 2 mode active
no nameif
no security-level
no ip address
interface GigabitEthernet0/1
channel-group 1 mode active
no nameif
no security-level
no ip address'''
interface Port-channel1.100
vlan 100
nameif externalIf
security-level 50
ip address 10.10.10.10 255.255.255.0
interface Port-channel2.200
vlan 200
nameif internalIf
security-level 100
ip address 10.10.10.10 255.255.255.0
XML Example
Define the port channel members, graph, then attach them to the tenant.
<polUni>
<fvTenant
dn="uni/tn-tenant1"
name="tenant1">
<vnsLDevVip name="Firewall">
<vnsCDev name="ASA">
<vnsCIf name="port-channel1">
<vnsRsCIfPathAtt tDn="topology/pod-1/paths-101/pathep-[eth1/20]"/>
</vnsCIf>
<vnsCIf name="port-channel2">
<vnsRsCIfPathAtt tDn="topology/pod-1/paths-101/pathep-[eth1/21]"/>
</vnsCIf>
<vnsCMgmt name="devMgmt" host="10.122.202.34" port="443" />
<vnsCCred name="username" value="management-user" />
<vnsCCredSecret name="password" value="cisco" />
<vnsDevFolder key="PortChannelMember" name="PC1a">
<vnsDevParam key="port_channel_id" name="PC1a" value="1"/>
<vnsDevParam key="interface" name="PC1a" value="Gig0/1"/>
</vnsDevFolder>
<vnsDevFolder key="PortChannelMember" name="PC2a">
<vnsDevParam key="port_channel_id" name="PC2a" value="2"/>
<vnsDevParam key="interface" name="PC2a" value="Gig0/0"/>
XML Examples for the Cisco Application Centric Infrastructure Security Device Package
6
Interfaces
</vnsDevFolder>
</vnsCDev>
</vnsLDevVip>
</fvTenant>
</polUni>
<polUni>
<fvTenant name="tenant1">
<!-- Graph info -->
<vnsAbsGraph name = "WebGraph">
<vnsAbsTermNodeCon name = "Input1">
<vnsAbsTermConn name = "C1">
</vnsAbsTermConn>
</vnsAbsTermNodeCon>
<!-- FW1 Provides FW functionality -->
<vnsAbsNode name = "FW1">
<vnsRsDefaultScopeToTerm tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsTermNodeProv-Output1/outtmnl"/>
<vnsAbsFuncConn name = "external">
<vnsRsMConnAtt tDn="uni/infra/mDev-CISCO-ASA-1.0.1.43/mFunc-Firewall/mConn-external" />
</vnsAbsFuncConn>
<vnsAbsFuncConn name = "internal">
<vnsRsMConnAtt tDn="uni/infra/mDev-CISCO-ASA-1.0.1.43/mFunc-Firewall/mConn-internal" />
</vnsAbsFuncConn>
<vnsAbsDevCfg>
<vnsAbsFolder key="Interface" name="internalIf">
<vnsAbsFolder key="InterfaceConfig" name="internalIfCfg">
<vnsAbsParam key="ipv4_address" name="ipv4_internal" value="10.10.10.10/255.255.255.0"/>
<vnsAbsParam key="security_level" name="internal_security_level" value="100"/>
</vnsAbsFolder>
</vnsAbsFolder>
<vnsAbsFolder key="Interface" name="externalIf">
<vnsAbsFolder key="InterfaceConfig" name="externalIfCfg">
<vnsAbsParam key="ipv4_address" name="ipv4_external" value="10.10.10.10/255.255.255.0"/>
<vnsAbsParam key="security_level" name="external_security_level" value="50"/>
</vnsAbsFolder>
</vnsAbsFolder>
</vnsAbsDevCfg>
<vnsAbsFuncCfg>
<vnsAbsFolder key="ExIntfConfigRelFolder" name="ExtConfig">
<vnsAbsCfgRel key="ExIntfConfigRel" name="ExtConfigrel" targetName="externalIf"/>
<vnsRsScopeToTerm tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsTermNodeProv-Output1/outtmnl"/>
<vnsRsCfgToConn tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsNode-FW1/AbsFConn-external" />
</vnsAbsFolder>
<vnsAbsFolder key="InIntfConfigRelFolder" name="IntConfig">
<vnsAbsCfgRel key="InIntfConfigRel" name="InConfigrel" targetName="internalIf"/>
<vnsRsScopeToTerm tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsTermNodeProv-Output1/outtmnl"/>
<vnsRsCfgToConn tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsNode-FW1/AbsFConn-internal" />
</vnsAbsFolder>
</vnsAbsFuncCfg>
XML Examples for the Cisco Application Centric Infrastructure Security Device Package
7
Access Lists and Associated Access Groups
<vnsRsNodeToMFunc tDn="uni/infra/mDev-CISCO-ASA-1.0.1.43/mFunc-Firewall"/>
</vnsAbsNode>
<vnsAbsTermNodeProv name = "Output1">
<vnsAbsTermConn name = "C6">
</vnsAbsTermConn>
</vnsAbsTermNodeProv>
<vnsAbsConnection name = "CON1">
<vnsRsAbsConnectionConns tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsTermNodeCon-Input1/AbsTConn" />
<vnsRsAbsConnectionConns tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsNode-FW1/AbsFConn-external" />
</vnsAbsConnection>
<vnsAbsConnection name = "CON2">
<vnsRsAbsConnectionConns tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsNode-FW1/AbsFConn-internal" />
<vnsRsAbsConnectionConns tDn="uni/tn-tenant1/AbsGraph-WebGraph/AbsTermNodeProv-Output1/AbsTConn" />
</vnsAbsConnection>
</vnsAbsGraph>
</fvTenant>
</polUni>
<polUni>
<fvTenant name="tenant1">
<vzBrCP name="webCtrct">
<vzSubj name="http">
<vzRsSubjGraphAtt tnVnsAbsGraphName="WebGraph"/>
</vzSubj>
</vzBrCP>
</fvTenant>
</polUni>
Access Lists and Associated Access Groups
This XML example creates an access list and assigns it to an access group associated with an existing
interface.
ASA Configuration
access-list
access-list
access-list
access-list
ACL2
ACL2
ACL1
ACL1
extended
extended
extended
extended
deny ip any any
permit icmp any any
permit tcp any any eq ssh
permit tcp any any eq https
access-group ACL2 in interface externalIf
access-group ACL1 out interface internalIf
XML Example
<polUni>
<fvTenant name="tenant1">
<vnsAbsGraph name = "WebGraph">
<vnsAbsNode name = "FW1">
XML Examples for the Cisco Application Centric Infrastructure Security Device Package
8
Access Lists and Associated Access Groups
<vnsAbsDevCfg>
<vnsAbsFolder key="AccessList" name="ACL1">
<vnsAbsFolder key="AccessControlEntry" name="ACE1">
<vnsAbsParam key="action" name="action1" value="permit"/>
<vnsAbsParam key="order" name="order1" value="1"/>
<vnsAbsFolder key="protocol" name="protocol1">
<vnsAbsParam key="name_number" name="pNN1" value="tcp"/>
</vnsAbsFolder>
<vnsAbsFolder key="destination_service" name="d1">
<vnsAbsParam key="operator" name="dop1" value="eq"/>
<vnsAbsParam key="low_port" name="dlp1" value="ssh"/>
</vnsAbsFolder>
</vnsAbsFolder>
<vnsAbsFolder key="AccessControlEntry" name="ACE2">
<vnsAbsParam key="action" name="action2" value="permit"/>
<vnsAbsParam key="order" name="order2" value="2"/>
<vnsAbsFolder key="protocol" name="protocol2">
<vnsAbsParam key="name_number" name="pNN2" value="tcp"/>
</vnsAbsFolder>
<vnsAbsFolder key="destination_service" name="d2">
<vnsAbsParam key="operator" name="dop2" value="eq"/>
<vnsAbsParam key="low_port" name="dlp2" value="https"/>
</vnsAbsFolder>
</vnsAbsFolder>
</vnsAbsFolder>
<vnsAbsFolder key="AccessList" name="ACL2">
<vnsAbsFolder key="AccessControlEntry" name="ACE1">
<vnsAbsParam key="action" name="action1" value="deny"/>
<vnsAbsParam key="order" name="order1" value="1"/>
</vnsAbsFolder>
<vnsAbsFolder key="AccessControlEntry" name="ACE2">
<vnsAbsParam key="action" name="action2" value="permit"/>
<vnsAbsParam key="order" name="order2" value="2"/>
<vnsAbsFolder key="protocol" name="protocol2">
<vnsAbsParam key="name_number" name="pNN2" value="icmp"/>
</vnsAbsFolder>
</vnsAbsFolder>
</vnsAbsFolder>
<vnsAbsFolder key="Interface" name="internalIf">
<vnsAbsFolder name="IntAccessGroup" key="AccessGroup">
<vnsAbsCfgRel key="outbound_access_list_name" name="iACG"
targetName="ACL1"/>
</vnsAbsFolder>
</vnsAbsFolder>
<vnsAbsFolder key="Interface" name="externalIf">
<vnsAbsFolder name="ExtAccessGroup" key="AccessGroup">
<vnsAbsCfgRel key="inbound_access_list_name" name="oACG"
targetName="ACL2"/>
</vnsAbsFolder>
</vnsAbsFolder>
</vnsAbsDevCfg>
</vnsAbsNode>
</vnsAbsGraph>
</fvTenant>
</polUni>
XML Examples for the Cisco Application Centric Infrastructure Security Device Package
9
IP Audit
IP Audit
This XML example sets up the IP audit attack configuration.
ASA Configuration
ip audit attack action drop
XML Example (Attack)
<polUni>
<fvTenant name="tenant1">
<vnsLDevVip name="Firewall">
<vnsDevFolder key="IPAudit" name="A">
<vnsDevParam key="IPAuditAttack" name="IPattack" value="drop"/>
</vnsDevFolder>
</vnsLDevVip>
</fvTenant>
</polUni>
XML Example (Info)
This XML example also sets up the IP audit attack configuration.
ip audit attack action reset
<polUni>
<fvTenant name="tenant1">
<vnsLDevVip name="Firewall">
<vnsDevFolder key="IPAudit" name="A">
<vnsDevParam key="IPAuditInfo" name="IPinfo" value="reset"/>
</vnsDevFolder>
</vnsLDevVip>
</fvTenant>
</polUni>
Logging
This XML example sets up the logging configuration.
ASA Configuration
logging
logging
logging
logging
enable
buffer-size 8192
buffered critical
trap alerts
XML Examples for the Cisco Application Centric Infrastructure Security Device Package
10
Static Route
XML Example
<polUni>
<fvTenant name="tenant1">
<vnsLDevVip name="Firewall">
<vnsDevFolder key="LoggingConfig" name="Log">
<vnsDevParam key="enable_logging" name="enlog" value="enable"/>
<vnsDevParam key="buffered_level" name="bufflev" value="critical"/>
<vnsDevParam key="buffer_size" name="buffsize" value="8192"/>
<vnsDevParam key="trap_level" name="trap" value="1"/>
</vnsDevFolder>
</vnsLDevVip>
</fvTenant>
</polUni>
Static Route
This XML example sets up the static route configuration that is associated with an existing interface.
ASA Configuration
route internalIf 10.100.0.0 255.255.0.0 10.6.55.1 1
XML Example
<polUni>
<fvTenant name="tenant1">
<vnsAbsGraph name = "WebGraph">
<vnsAbsNode name = "FW1">
<vnsAbsDevCfg>
<vnsAbsFolder key="Interface" name="internalIf">
<vnsAbsFolder key="StaticRoute" name="InsideRTE1">
<vnsAbsFolder key="route" name="RouteIN1">
<vnsAbsParam key="network" name="network1" value="10.100.0.0"/>
<vnsAbsParam key="netmask" name="netmask1" value="255.255.0.0"/>
<vnsAbsParam key="gateway" name="gateway1" value="10.6.55.1"/>
<vnsAbsParam key="metric" name="metric1" value="1"/>
</vnsAbsFolder>
</vnsAbsFolder>
</vnsAbsFolder>
</vnsAbsDevCfg>
</vnsAbsNode>
</vnsAbsGraph>
</fvTenant>
</polUni>
XML Examples for the Cisco Application Centric Infrastructure Security Device Package
11
Threat Detection
Threat Detection
This XML example sets up a basic threat detection rate for an ACL drop.
ASA Configuration
threat-detection rate acl-drop rate-interval 600 average-rate 0 burst-rate 0
XML Example (Basic Threat Detection)
<polUni>
<fvTenant name="tenant1">
<vnsLDevVip name="Firewall">
<vnsDevFolder key="BasicThreatDetection" name="BasicTD">
<vnsDevParam key="basic_threat" name="Basic1" value="enable"/>
<vnsDevFolder key="BasicThreatDetectionRateAclDrop" name="BasicTDACL">
<vnsDevParam key="rate_status" name="rs1" value="enable"/>
<vnsDevParam key="rate_interval" name="ri1" value="600"/>
<vnsDevParam key="average_rate" name="ar1" value="0"/>
<vnsDevParam key="burst_rate" name="br1" value="0"/>
</vnsDevFolder>
</vnsDevFolder>
</vnsLDevVip>
</fvTenant>
</polUni>
XML Example (Scanning Threat Detection)
This XML example sets up the scanning threat detection rate.
ASA Configuration
threat-detection rate scanning-threat rate-interval 600 average-rate 100 burst-rate 40
threat-detection scanning-threat shun
<polUni>
<fvTenant name="tenant1">
<vnsLDevVip name="Firewall">
<vnsDevFolder key="ScanningThreatDetection" name="ScanTD1">
<vnsDevParam key="scanning_threat" name="Scan1" value="enable"/>
<vnsDevParam key="shun_status" name="Shun1" value="enable"/>
<vnsDevFolder key="ScanningThreatRate" name="ScanTDrate">
<vnsDevParam key="status" name="r1" value="enable"/>
<vnsDevParam key="average_rate" name="ar1" value="100"/>
<vnsDevParam key="rate_interval" name="ri1" value="600"/>
<vnsDevParam key="burst_rate" name="br1" value="40"/>
</vnsDevFolder>
</vnsDevFolder>
</vnsLDevVip>
</fvTenant>
</polUni>
XML Examples for the Cisco Application Centric Infrastructure Security Device Package
12
Protocol Timeouts
XML Example (Advanced Threat Detection)
This XML example sets up advanced threat detection statistics.
ASA Configuration
threat-detection statistics protocol number-of-rate 3
threat-detection statistics access-list
threat-detection statistics tcp-intercept rate-interval 50 burst-rate 200 average-rate 100
<polUni>
<fvTenant name="tenant1">
<vnsLDevVip name="Firewall">
<vnsDevFolder key="AdvancedThreatDetection" name="AdvScan" >
<vnsDevParam key="statistics" name="statistics" value="enable"/>
<vnsDevParam key="access_list" name="status5" value="enable"/>
<vnsDevFolder key="AdvancedThreatDetectionTcpIntercept" name="AdvScanTCPInt" >
<vnsDevParam key="status" name="AdvRateStatus" value="enable"/>
<vnsDevParam key="average_rate" name="AdvRate" value="100"/>
<vnsDevParam key="rate_interval" name="AdvRI" value="50"/>
<vnsDevParam key="burst_rate" name="AdvBR" value="200"/>
</vnsDevFolder>
<vnsDevFolder key="AdvancedThreatDetectionProtocol" name="AdvScanProtocol" >
<vnsDevParam key="status" name="ProtocolStatus" value="enable"/>
<vnsDevParam key="number_of_rate" name="ProtocolRate" value="3"/>
</vnsDevFolder>
</vnsDevFolder>
</vnsLDevVip>
</fvTenant>
</polUni>
Protocol Timeouts
This XML example sets up the protocol timeout value for the connection timer.
ASA Configuration
timeout conn 2:00:59
XML Example
<polUni>
<fvTenant name="tenant1">
<vnsLDevVip name="Firewall">
<vnsDevFolder key="Timeouts" name="TO">
<vnsDevParam key="Connection" name="conn1" value="2:0:59"/>
</vnsDevFolder>
</vnsLDevVip>
</fvTenant>
</polUni>
XML Examples for the Cisco Application Centric Infrastructure Security Device Package
13
Network Time Protocol
Network Time Protocol
This XML example turns on the Network Time Protocol (NTP) feature that defines the server to use.
ASA Configuration
ntp server 192.168.100.100 prefer
XML Example
<polUni>
<fvTenant name="tenant1">
<vnsLDevVip name="Firewall">
<vnsDevFolder key="NTP" name="NTP">
<vnsDevFolder key="NTPServer" name="NTPServer">
<vnsDevParam key="server" name="server" value="192.168.100.100"/>
<vnsDevParam key="prefer" name="prefer" value="enable"/>
</vnsDevFolder>
</vnsDevFolder>
</vnsLDevVip>
</fvTenant>
</polUni>
Smart Call-Home
This XML example turns on the Smart Call-Home feature with anonymous reporting.
ASA Configuration
call-home reporting anonymous
XML Example
<polUni>
<fvTenant name="tenant1">
<vnsLDevVip name="Firewall">
<vnsDevFolder key="SmartCallHome" name="SmartCallHome">
<vnsDevParam key="anonymous_reporting" name="anonymous_reporting" value="enable"/>
</vnsDevFolder>
</vnsLDevVip>
</fvTenant>
</polUni>
XML Examples for the Cisco Application Centric Infrastructure Security Device Package
14
Domain Name System
Domain Name System
This XML example turns on the Domain Name System (DNS) feature, links it to the utility interface,
and specifies which domain name and server IP to use.
ASA Configuration
Note
You must preconfigure the utility interface on the ASA using the nameif management-utility
command.
dns domain-lookup management-utility
dns server-group DefaultDNS
name-server 1.1.1.1
domain-name testDomain
XML Example
<polUni>
<fvTenant name="tenant1">
<vnsLDevVip name="Firewall">
<vnsDevFolder key="DNS" name="DNS">
<vnsDevParam key="domain_name" name="domain_name" value="testDomain"/>
<vnsDevParam key="name_server" name="name_server" value="1.1.1.1"/>
</vnsDevFolder>
</vnsLDevVip>
</fvTenant>
</polUni>
Connection Limits
This XML example shows connection limits associated with interfaces (global connection limits are not
supported), matches any traffic, and sets up the maximum number of connections that are allowed. Also
included are connection limits on internal and external interfaces.
ASA Configuration
class-map connlimits_internalIf
match any
policy-map internalIf
class connlimits_internalIf
set connection conn-max 654 embryonic-conn-max 456
service-policy internalIf interface internalIf
XML Examples for the Cisco Application Centric Infrastructure Security Device Package
15
Application Inspections
XML Example
<polUni>
<fvTenant name="tenant1">
<vnsAbsGraph name = "WebGraph">
<vnsAbsNode name = "FW1">
<vnsAbsDevCfg>
<vnsAbsFolder key="Interface" name="internalIf">
<vnsAbsFolder key="ServicePolicy" name="ConLim-Policy">
<vnsAbsParam key="ServicePolicyState" name="PolicyState" value="enable"/>
<vnsAbsFolder key="ConnectionLimits" name="ConnLim">
<vnsAbsFolder key="ConnectionSettings" name="ConnectionSettingsA">
<vnsAbsParam key="conn_max" name="conn_max" value="654"/>
<vnsAbsParam key="conn_max_embryonic" name="conn_max_embryonic"
value="456"/>
</vnsAbsFolder>
</vnsAbsFolder>
</vnsAbsFolder>
</vnsAbsFolder>
</vnsAbsDevCfg>
</vnsAbsNode>
</vnsAbsGraph>
</fvTenant>
</polUni>
Application Inspections
This XML example shows application inspections associated with interfaces (global application
inspection is not supported), matches default inspection traffic, and enables HTTP inspection. Also
included is application inspection on internal and external interfaces.
ASA Configuration
class-map inspection_internalIf
match default-inspection-traffic
policy-map internalIf
class inspection_internalIf
inspect http
service-policy internalIf interface internalIf
XML Example
<polUni>
<fvTenant name="tenant1">
<vnsAbsGraph name = "WebGraph">
<vnsAbsNode name = "FW1">
<vnsAbsDevCfg>
<vnsAbsFolder key="Interface" name="internalIf">
<vnsAbsFolder key="ServicePolicy" name="Inspection-Policy">
<vnsAbsParam key="ServicePolicyState" name="PolicyState" value="enable"/>
<vnsAbsFolder key="ApplicationInspection" name="ApplicationInspection">
XML Examples for the Cisco Application Centric Infrastructure Security Device Package
16
Global NetFlow
<vnsAbsFolder key="InspectionSettings" name="InspectionSettingsA">
<vnsAbsParam key="http" name="http" value="enable"/>
</vnsAbsFolder>
</vnsAbsFolder>
</vnsAbsFolder>
</vnsAbsFolder>
</vnsAbsDevCfg>
</vnsAbsNode>
</vnsAbsGraph>
</fvTenant>
</polUni>
Global NetFlow
This XML example sets up the NetFlow feature. The example shows how to create a simple access list
to which traffic is matched, creates a NetFlow object, and enables NetFlow globally for the NetFlow
objects. Also included is NetFlow on internal and external interfaces.
ASA Configuration
class-map netflow_default
match any
flow-export
flow-export
flow-export
flow-export
destination management-utility 1.2.3.4 1024
template timeout-rate 120
delay flow-create 60
active refresh-interval 30
class netflow_default
flow-export event-type all destination 1.2.3.4
XML Example
<polUni>
<fvTenant name="tenant1">
<vnsLDevVip name="Firewall">
<vnsDevFolder key="NetFlowObjects" name="ObjectA">
<vnsDevFolder key="TemplateAndCollectors" name="TemplateA">
<vnsDevParam key="template_timeout_rate" name="timeout" value="120"/>
<vnsDevParam key="delay_flow_create" name="delay" value="60"/>
<vnsDevParam key="active_refresh_interval" name="refresh" value="30"/>
<vnsDevFolder key="NetFlowCollectors" name="CollectorA">
<vnsDevParam key="status" name="status" value="enable"/>
<vnsDevParam key="host" name="host" value="1.2.3.4"/>
<vnsDevParam key="port" name="port" value="1024"/>
</vnsDevFolder>
</vnsDevFolder>
</vnsDevFolder>
<vnsDevFolder key="GlobalServicePolicy" name="GlobalPolicyA">
<vnsDevParam key="ServicePolicyState" name="PolicyState" value="enable"/>
<vnsDevFolder key="NetFlow" name="NetFlowPolicyA">
<vnsDevFolder key="NetFlowSettings" name="SettingA">
<vnsDevFolder key="ExportAllEvent" name="ExportAll">
<vnsDevParam key="status" name="status" value="enable"/>
XML Examples for the Cisco Application Centric Infrastructure Security Device Package
17
Network Address Translation
<vnsDevParam key="event_destination" name="dest" value="1.2.3.4"/>
</vnsDevFolder>
</vnsDevFolder>
</vnsDevFolder>
</vnsDevFolder>
</vnsLDevVip>
</fvTenant>
</polUni>
Network Address Translation
This XML example sets up the Network Address Translation (NAT) feature on the external interface,
based on the previously created network objects, ilinux1 and olinux1.
ASA Configuration
nat (externalIf,internalIf) source static ilinux1 olinux1
XML Example
<polUni>
<fvTenant name="tenant1">
<vnsAbsGraph name = "WebGraph">
<vnsAbsNode name = "FW1">
<vnsAbsDevCfg>
<vnsAbsFolder key="NATList" name="ListA">
<vnsAbsFolder key="NATRule" name="RuleA">
<vnsAbsParam key="order" name="order" value="3"/>
<vnsAbsFolder key="source_translation" name="source_trans">
<vnsAbsFolder key="mapped_object" name="mapped_object">
<vnsAbsCfgRel key="object_name" name="map_name" targetName="olinux1"/>
</vnsAbsFolder>
<vnsAbsFolder key="real_object" name="real_object">
<vnsAbsCfgRel key="object_name" name="real_name" targetName="ilinux1"/>
</vnsAbsFolder>
<vnsAbsParam key="nat_type" name="nat_type" value="static"/>
</vnsAbsFolder>
</vnsAbsFolder>
</vnsAbsFolder>
</vnsAbsDevCfg>
<vnsAbsFuncCfg>
<vnsAbsFolder key="NATPolicy" name="PolicyA">
<vnsAbsCfgRel key="nat_list_name" name="nat_listA" targetName="ListA"/>
</vnsAbsFolder>
</vnsAbsFuncCfg>
</vnsAbsNode>
</vnsAbsGraph>
</fvTenant>
</polUni>
XML Examples for the Cisco Application Centric Infrastructure Security Device Package
18
Intrusion Prevention System
Intrusion Prevention System
This XML example sets up the Intrusion Prevention System (IPS) feature. The example shows how to
match traffic to a previously created access list, ACL1, and enables IPS as inline and fail-open. Also
included is IPS on internal and global interfaces.
ASA Configuration
class-map ips_internalIf
match access-list ACL1
policy-map internalIf
class ips_internalIf
ips inline fail-open
service-policy internalIf interface internalIf
XML Example
<polUni>
<fvTenant name="tenant1">
<vnsAbsGraph name = "WebGraph">
<vnsAbsNode name = "FW1">
<vnsAbsDevCfg>
<vnsAbsFolder key="Interface" name="internalIf">
<vnsAbsFolder key="ServicePolicy" name="IPS-Policy">
<vnsAbsParam key="ServicePolicyState" name="PolicyState" value="enable"/>
<vnsAbsFolder key="IPS" name="IPS">
<vnsAbsCfgRel key="TrafficSelection" name="TrafficSelect" targetName="ACL1"/>
<vnsAbsFolder key="IPSSettings" name="IPSSettingsA">
<vnsAbsParam key="operate_mode" name="operate_mode" value="inline"/>
<vnsAbsParam key="fail_mode" name="fail_mode" value="fail-open"/>
</vnsAbsFolder>
</vnsAbsFolder>
</vnsAbsFolder>
</vnsAbsFolder>
</vnsAbsDevCfg>
</vnsAbsNode>
</vnsAbsGraph>
</fvTenant>
</polUni>
Network Objects
This XML example sets up a network object with a host IP address and description.
ASA Configuration
object network ilinux1
host 192.168.1.48
description User1 laptop
XML Examples for the Cisco Application Centric Infrastructure Security Device Package
19
Network Object Groups
XML Example
<polUni>
<fvTenant name="tenant1">
<vnsAbsGraph name = "WebGraph">
<vnsAbsNode name = "FW1">
<vnsAbsDevCfg>
<vnsAbsFolder key="NetworkObject" name="ilinux1">
<vnsAbsParam key="host_ip_address" name="host_ip_address" value="192.168.1.48"/>
<vnsAbsParam key="description" name="description" value="User1 laptop"/>
</vnsAbsFolder>
</vnsAbsDevCfg>
</vnsAbsNode>
</vnsAbsGraph>
</fvTenant>
</polUni>
Network Object Groups
This XML example sets up a network object group with a group name and group objects.
ASA Configuration
object-group network Cisco-Network-Object-GroupA
description Cisco inside network
network-object host 192.168.1.51
XML Example
<polUni>
<fvTenant name="tenant1">
<vnsAbsGraph name = "WebGraph">
<vnsAbsNode name = "FW1">
<vnsAbsDevCfg>
<vnsAbsFolder key="NetworkObjectGroup" name="Cisco-Network-Object-GroupA">
<vnsAbsParam key="description" name="description" value="Cisco inside network"/>
<vnsAbsParam key="host_ip_address" name="host_ip_address" value="192.168.1.51"/>
</vnsAbsFolder>
</vnsAbsDevCfg>
</vnsAbsNode>
</vnsAbsGraph>
</fvTenant>
</polUni>
XML Examples for the Cisco Application Centric Infrastructure Security Device Package
20
High Availability (Failover)
High Availability (Failover)
This XML example enables failover and specifies the failover interface and IP addresses.
ASA Configuration
failover
failover lan unit primary
failover lan interface fover GigabitEthernet0/0
failover interface ip fover 192.168.17.1 255.255.255.0 standby 192.168.17.2
XML Example
<polUni>
<fvTenant name="tenant1">
<vnsLDevVip name="Firewall²>
<vnsLIf name="failover_lan">
<vnsRsMetaIf
tDn="uni/infra/mDev-CISCO-ASA-1.0.1/mIfLbl-failover_lan"/>
<vnsRsCIfAtt
tDn="uni/tn-tenant1/lDevVip-Firewall/cDev-ASAP/cIf-[Gig0/0]"/>
</vnsLIf>
<vnsCDev name="ASAP">
<vnsDevFolder key="FailoverConfig" name="failover_config">
<vnsDevParam key="failover" name="failover" value="enable"/>
<vnsDevParam key="lan_unit" name="lan_unit" value="primary"/>
<vnsDevFolder key="failover_lan_interface" name="failover_lan">
<vnsDevParam key="interface_name" name="interface_name"
value="fover"/>
</vnsDevFolder>
<vnsDevFolder key="failover_ip" name="failover_ip">
<vnsDevParam key="interface_name" name="interface_name"
value="fover"/>
<vnsDevParam key="active_ip" name="primary_ip"
value="192.168.17.1"/>
<vnsDevParam key="netmask" name="netmask" value="255.255.255.0"/>
<vnsDevParam key="standby_ip" name="secondary_ip"
value="192.168.17.2"/>
</vnsDevFolder>
</vnsDevFolder>
</vnsCDev>
</vnsLDevVip>
</fvTenant>
</polUni>
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of
Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The
use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R)
Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and
figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and
coincidental.
©2014 Cisco Systems, Inc. All rights reserved.
XML Examples for the Cisco Application Centric Infrastructure Security Device Package
21
High Availability (Failover)
XML Examples for the Cisco Application Centric Infrastructure Security Device Package
22

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
