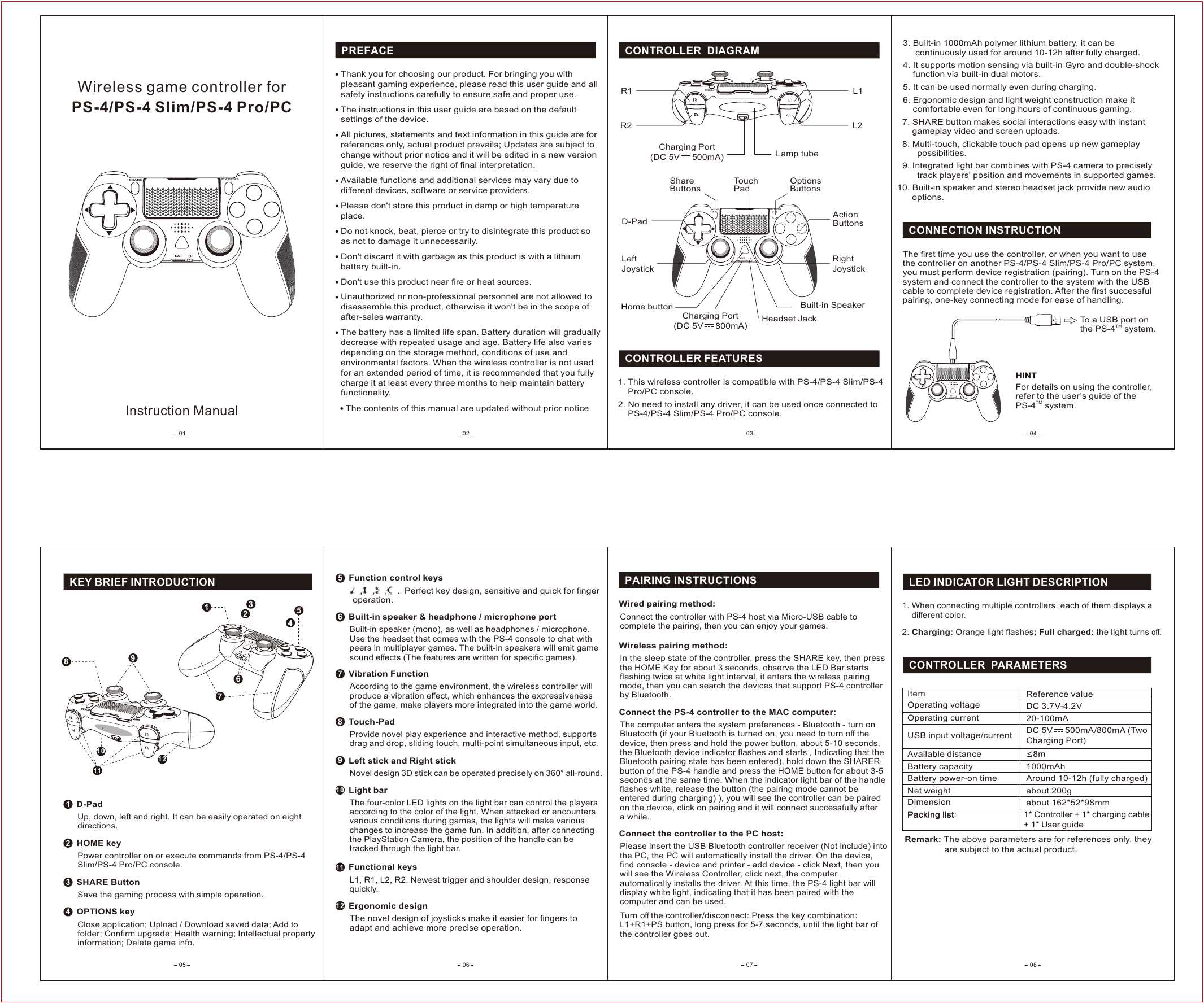

Y-Team Wireless Controller User Manual

PREFACE
R1
OPTIONS
R1
R2
Available functions and additional services may vary due to
different devices, software or service providers.
OPTIONS
Please don't store this product in damp or high temperature
place.
L2
L2
Charging Port
(DC 5V 500mA)
Share
Buttons
9. Integrated light bar combines with PS-4 camera to precisely
track players' position and movements in supported games.
Options
Buttons
10. Built-in speaker and stereo headset jack provide new audio
options.
OPTIONS
SHARE
Action
Buttons
D-Pad
Do not knock, beat, pierce or try to disintegrate this product so
as not to damage it unnecessarily.
Don't discard it with garbage as this product is with a lithium
battery built-in.
EXT
Left
Joystick
Right
Joystick
EXT
Don't use this product near fire or heat sources.
Unauthorized or non-professional personnel are not allowed to
disassemble this product, otherwise it won't be in the scope of
after-sales warranty.
The battery has a limited life span. Battery duration will gradually
decrease with repeated usage and age. Battery life also varies
depending on the storage method, conditions of use and
environmental factors. When the wireless controller is not used
for an extended period of time, it is recommended that you fully
charge it at least every three months to help maintain battery
functionality.
The contents of this manual are updated without prior notice.
Instruction Manual
01
5 Function control keys
5
2
4
9
6
7
6 Built-in speaker & headphone / microphone port
Built-in speaker (mono), as well as headphones / microphone.
Use the headset that comes with the PS-4 console to chat with
peers in multiplayer games. The built-in speakers will emit game
sound effects (The features are written for specific games).
7 Vibration Function
According to the game environment, the wireless controller will
produce a vibration effect, which enhances the expressiveness
of the game, make players more integrated into the game world.
8 Touch-Pad
Provide novel play experience and interactive method, supports
drag and drop, sliding touch, multi-point simultaneous input, etc.
10
12
9 Left stick and Right stick
11
Novel design 3D stick can be operated precisely on 360° all-round.
10 Light bar
1 D-Pad
Up, down, left and right. It can be easily operated on eight
directions.
2 HOME key
Power controller on or execute commands from PS-4/PS-4
Slim/PS-4 Pro/PC console.
3 SHARE Button
Save the gaming process with simple operation.
The four-color LED lights on the light bar can control the players
according to the color of the light. When attacked or encounters
various conditions during games, the lights will make various
changes to increase the game fun. In addition, after connecting
the PlayStation Camera, the position of the handle can be
tracked through the light bar.
11 Functional keys
L1, R1, L2, R2. Newest trigger and shoulder design, response
quickly.
12 Ergonomic design
4 OPTIONS key
Close application; Upload / Download saved data; Add to
folder; Confirm upgrade; Health warning; Intellectual property
information; Delete game info.
05
Charging Port
(DC 5V 800mA)
The novel design of joysticks make it easier for fingers to
adapt and achieve more precise operation.
06
CONNECTION INSTRUCTION
The first time you use the controller, or when you want to use
the controller on another PS-4/PS-4 Slim/PS-4 Pro/PC system,
you must perform device registration (pairing). Turn on the PS-4
system and connect the controller to the system with the USB
cable to complete device registration. After the first successful
pairing, one-key connecting mode for ease of handling.
Headset Jack
CONTROLLER FEATURES
1. This wireless controller is compatible with PS-4/PS-4 Slim/PS-4
Pro/PC console.
To a USB port on
the PS-4TM system.
OPTIONS
SHARE
EXT
2. No need to install any driver, it can be used once connected to
PS-4/PS-4 Slim/PS-4 Pro/PC console.
03
PAIRING INSTRUCTIONS
, , , . Perfect key design, sensitive and quick for finger
operation.
3
1
8
Built-in Speaker
Home button
02
KEY BRIEF INTRODUCTION
7. SHARE button makes social interactions easy with instant
gameplay video and screen uploads.
8. Multi-touch, clickable touch pad opens up new gameplay
possibilities.
Lamp tube
Touch
Pad
5. It can be used normally even during charging.
6. Ergonomic design and light weight construction make it
comfortable even for long hours of continuous gaming.
R2
All pictures, statements and text information in this guide are for
references only, actual product prevails; Updates are subject to
change without prior notice and it will be edited in a new version
guide, we reserve the right of final interpretation.
SHARE
L1
SHARE
The instructions in this user guide are based on the default
settings of the device.
4. It supports motion sensing via built-in Gyro and double-shock
function via built-in dual motors.
L1
Thank you for choosing our product. For bringing you with
pleasant gaming experience, please read this user guide and all
safety instructions carefully to ensure safe and proper use.
Wireless game controller for
PS-4/PS-4 Slim/PS-4 Pro/PC
3. Built-in 1000mAh polymer lithium battery, it can be
continuously used for around 10-12h after fully charged.
CONTROLLER DIAGRAM
Wired pairing method:
Connect the controller with PS-4 host via Micro-USB cable to
complete the pairing, then you can enjoy your games.
HINT
For details on using the controller,
refer to the user’s guide of the
PS-4TM system.
04
LED INDICATOR LIGHT DESCRIPTION
1. When connecting multiple controllers, each of them displays a
different color.
2. Charging: Orange light flashes; Full charged: the light turns off.
Wireless pairing method:
In the sleep state of the controller, press the SHARE key, then press
the HOME Key for about 3 seconds, observe the LED Bar starts
flashing twice at white light interval, it enters the wireless pairing
mode, then you can search the devices that support PS-4 controller
by Bluetooth.
Connect
the PS-4 controller to the MAC computer:
-The computer enters the system preferences - Bluetooth - turn on
Bluetooth (if your Bluetooth is turned on, you need to turn off the
device, then press and hold the power button, about 5-10 seconds,
the Bluetooth device indicator flashes and starts , Indicating that the
Bluetooth pairing state has been entered), hold down the SHARER
button of the PS-4 handle and press the HOME button for about 3-5
seconds at the same time. When the indicator light bar of the handle
flashes white, release the button (the pairing mode cannot be
entered during charging) ), you will see the controller can be paired
on the device, click on pairing and it will connect successfully after
a while.
Connect the controller to the PC host:
Please insert the USB Bluetooth controller receiver (Not include) into
the PC, the PC will automatically install the driver. On the device,
find console - device and printer - add device - click Next, then you
will see the Wireless Controller, click next, the computer
automatically installs the driver. At this time, the PS-4 light bar will
display white light, indicating that it has been paired with the
computer and can be used.
CONTROLLER PARAMETERS
Item
Operating voltage
Reference value
DC 3.7V-4.2V
Operating current
20-100mA
DC 5V 500mA/800mA (Two
Charging Port)
USB input voltage/current
Available distance
Battery capacity
Battery power-on time
Net weight
Dimension
Packing list:
list
≤8m
1000mAh
Around 10-12h (fully charged)
about 200g
about 162*52*98mm
1* Controller + 1* charging cable
+ 1* User guide
Remark: The above parameters are for references only, they
are subject to the actual product.
Turn off the controller/disconnect: Press the key combination:
L1+R1+PS button, long press for 5-7 seconds, until the light bar of
the controller goes out.
07
08
