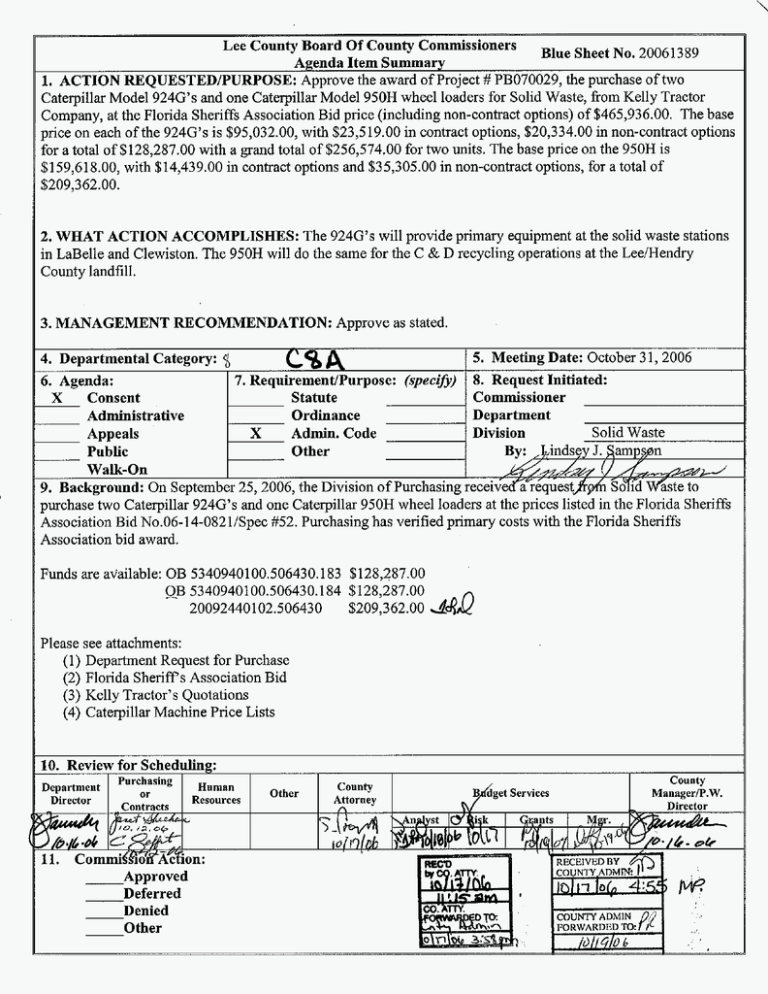

Lee County Board Of County Commissioners
Blue Sheet No. 2o061389
Agenda Item Summary
1. ACTION REQUESTED/PURPOSE: Approve the award of Project # PB070029, the purchase of two
Caterpillar Model 924G’s and one Caterpillar Model 950H wheel loaders for Solid Waste, from Kelly Tractor
Company, at the Florida Sheriffs Association Bid price (including non-contract options) of $465,936.00. The base
price on each of the 924G’s is $95,032.00, with $23,519.00 in contract options, $20,334.00 in non-contract options
for a total of $128,287.00 with a grand total of $256,574.00 for two units. The base price on the 950H is
$159,618.00, with $14,439.00 in contract options and $35,305.00 in non-contract options, for a total of
$209,362.00.
2. WHAT ACTION ACCOMPLISHES: The 924G’s will provide primary equipment at the solid waste stations
in LaBelle and Clewiston. The 950H will do the same for the C & D recycling operations at the Lee/Hendry
County landfill.
3. MANAGEMENT RECOMMENDATION: Approve as stated.
Administrative
~
Admin. Code
~
Public
purchase two Caterpillar 924G’s and one Caterpillar 950H wheel loaders at the prices listed in the Florida Sheriffs
Association Bid No.06-14-0821/Spec #52. Purchasing has verified primary costs with the Florida Sheriffs
Association bid award.
Funds are available: OB 5340940100.506430.183 $128,287.00
0.B 5340940100.506430.184 $128,287.00
20092440102.506430
$209,362.00
Please see attachments:
(1) Department Request for Purchase
(2) Florida Sheriffs Association Bid
(3) Kelly Tractor’s Quotations
(4) Caterpillar Machine Price Lists
&a
ATTACHMENT /
INTEROFFICE MEMORANDUM
FROM
SOLfD WASTE DIVISION
Phone: (239) 338-3302 Fax: (239) 338-3304
Dntc: Scptc1,hui 25, 2006
Janet Sheehan or
TO: Bob Franceschini
Purchasing
-
From: Lindsey J. Sampson
Director
SUBJECT: Purchase of Caterpillar Wheel Loaders
Please prepare a bluesheet to approve the award of the following projects:
a,) The purchase of (2) new Caterpillar wheel loaders, model 9246, from Kelly Tractor
Corporation, at the Florida Sheriffs Contract base price of $95,032.00, with $23,519.00 in
contract options and $20,334.00 in non-contract options, for a total of $128,287.00 each.
These loaders will serve as the primary equipment at our solid waste transfer stations located in
LaBelle and Clewiston. The increased tonnage through these facilities requires additional
equipment to process the material.
b.) The purchase of (1) new Caterpillar wheel loader, model 950H, from Kelly Tractor
Corporation, at the Florida Sheriffs Contract base price of $159,618.00, with $14,439.00 in
contract options and $35,305.00 in non-contract options, for a total of $209,362.00.
This loader will be utilized as the primary equipment for the C&D recycling operations at the
Leemendry County landfill.
Attached are the written quotes from Kelly Tractor, the FL Sheriffs and LCSW build
specification sheets.
Please use the account strings listed below:
OB 5340940100.506430.183 $128,287.00
OB 5340940100.506430.184 $128,287.00
OB 20092440102.506430
$209,362.00
Grand total for both projects: $465,936.00
Please contact me if you have any questions.
C:WOCUMEhTS AND SETTINGSVEFFCOCR.OOOU0CALSETTINGSITEMPOMRYINTERNETFILESlOLKZDiCATLOADERSBLUESHEET
REQ 9-06.DOC
FLORIDA SHERIFFS ASSOCIATION,
FLORIDA ASSOCIATION OF COUNTIES &
FLORIDA FIRE CHIEFS' ASSOCIATION
SPECIFICATION #052 - 3.0 CU. YD. WHEEL LOADER (Z-BAR LINKAGE
BUCKET - PARALLEL ARM OPTION)
2007 Case 621D ; 2007 Caterpillar 9 2 8 6
2007 John Deere 544J ; 2007 Volvo L70E
ALL ITEMS FACTORY INSTALLED UNLESS OTHERWISE INDICATED
INSTRUCTIONS: Listed above, you will fin$ the model numbers of the vehicles that will be included in this year's
contract.
1 , ENGINEICAB:
a. Diesel engine, six cylinder, four cycle, liquid cooled, minimum 130 SAE Net HP.
b. Cab with A/C
2. TRANSMISSION:
a. Power shift transmission with torque converter, minimum of four forward and three reverse speeds.
3. DRIVETRAIN:
a. Four wheel drive.
b. Manufacturer's standard axle.
c. Inboard or outboard mounted wet disc braking system
d. Inboard or outhoardmounted plantetary final drives.
e. 20.5 - 25 Bias ply tires mounted on multi piece rims.
4. LOADER:
a. 3.0 cu. yd. general purpose bucket with bolt on cutting edge.
b. Bucket position indicator.
c. Automatic return to dig.
d. Rear drawbar.
e. Gauges and indicators: visual hydraulic oil level indicator, electronic monitor display of all fluid levels and
temperatures.
f. Deluxe suspension seat with foam padding and backrest.
g. Articulated steering, 40 degrees minimum each direction.
h. Wheelbase of 9 feet 4 inches minimum.
i. Minimum operating weight of 26,000 Ibs.
5. ELECTRICAL:
a. 24 volt electrical system.
b. Neutral safety start device.
c. Manual battery disconnect switch.
d. Driving lights, front and rear work lights, stop lights, warning lights and tail lights
6. CONDITIONS
In addition to equipment specified, vehicle shall be equipped with all standard equipment as specified by the
manufacturer for this model and shall comply with all EPA Emission Standards and all Motor Vehicle Safety
Standards as established by the U.S. Department of Transportation regarding the manufacture of motor vehicles,
The successful bidder shall be responsible for delivering vehicles that are properly serviced, clean and in first class
06-14-0821
6
operating condition. Pre-delivery service, at a minimum, shall include the following:
a. Complete lubrication.
b. Check all fluid levels to assure proper fill.
c. Adjustment of engine to proper operating condition.
d. Inflate tires to proper pressure.
e. Check to assure proper operation of all accessories, gauges, lights, and mechanical features.
f. Focusing of headlights.
g. Cleaning of vehicles, if necessary, and removal of all unnecessary tags, stickers, papers, etc. DO NOT
remove window price sticker or supplied line sheet.
An official listing of all add/delete options and their prices
should be obtained from the awarded vendor. Customers may select
from any published optional items within this bid contract, or
from any unpublished options submitted to the purchaser by the
manufacturer.
06-14-0821
7
BID NO. 06-14-0821
PROPOSAL PRICE
Snecification #52 3.0 CU. YD. WHEEL LOADER (Z-Bar Linkaee Bucket - Parallel Arm Ontion]
Unit Price Per Base
Western District $95,032.00 /ea.
Northern District $95,032.00 /ea.
Central District $95,032.00 /ea.
Southern District $95,032.00 /ea.
Brand Name:
Caterpillar 928G
SUBMIT SEPARATE SHEETS FOR EACH BRAND AND MODEL OFFERED
I
~~~~~~~~~~
~
~~
~
~
~~
Bid exceptions: NOTE: SOUTHERN COUNTIES OF MIAMI-DADE, BROWARD, PALM BEACH, MARTIN, ST.
LUCIE, INDIAN RIVER, OKEECHOBEE, HENDRY, GLADES, CHARLOTTE, LEE, COLLIER, AND MONROE;
CALL KELLY TRACTOR, CONTACT: GREG BENNETT (305) 592-5360.
Delivery should occur within 30 - 60 calendar days after receipt of Purchase Order.
Agent's Signature:
06-14-0821
Date:
8
SDecification #52 3.0 CU. YD. WHEEL LOADER fZ-Bar Linkase
Rucket Parallel Arm Ontion)
-
DELETEIADD OPTIONS
Every line will require a DOLLAR VALUE or one of
the following abbreviations:
SPECIFICATIONS THAT MAY BE DELETEDIADDED, ORDER
CODE, DESCRIPTION AND PRICE
NC = no additional charge
SUBMIT SEPARATE SHEETS FOR EACH BRAND AND MODEL OFFERED
Order code
999-9999
CAT 9246
Order code
230-9678
202-0423
Delete options
Delete cab and A/C
Delete to minimum 110 hp 2.7 cu. yd. wheel loader
Add options
20.8R25 Radial L3 tires
Credit
$3,472.00
$11,241.00
Price
$4,703.00
Third spool valveicontrol lever
$2,106.00
Manual quick hitch coupler system
Not Applicable
223-3378
Hydraulic quick hitch coupler system
$3,13 1.00
140-1790
2.8 cu. yd. multi-purpose (4 in 1) bucket
$14,929.00
239-88 14
Air ride seat
$454.00
248-4152
A M E M weather band cassette radio
$890.00
CAT 930G
Parallel arm "Tool Carrier" system
$8,3 17.00
No spin
Not Applicable
203-5950
Limited slip
$1,394.00
-
Multi-purpose attachments
Not Applicable
Multi-purpose attachments
Not Applicable
Multi-purpose attachments
Not Applicable
Upgrade to minimum 180 hp 4.0 cu. yd. wheel loader
withi23.5R25 LD radial tires
$70,024.00
5 year/7500 hour extended warranty
$3,080.00
CAT 950H
38.6%
Discount percentage off manufacturer's current
published retail prices for non-specified options and
any optional models bid. (The discount is applied to
the manufacturer's current published retail prices.)
_
I
Agent's Signature:
06-14-0821
Date:
9
Snecification #52 3.0 CU. YD. WHEEL LOADER (Z-Bar Linkage
Bucket - Parallel Arm ODtionl
LEGEND FOR
DELETE/ADD OPTIONS
Every line will require a DOLLAR VALUE or one of
the following abbreviations
SPECIFICATIONS THAT MAY BE DELETEDIADDED, ORDER
Inel. = included with base specs
CODE, DESCRIPTION AND PRICE
NC =no additional charge
SUBMIT SEPARATE SHEETS FOR EACH BRAND AND MODEL OFFERED
Manufacturer will list the amount of the discount percentage AND
the date of current published price book in the comment section.
Click the NA button to set the price to Not Applicable.
Agent's Signature:
06-14-0821
Date:
IO
KELLY TRACTOR
Kclly Trasloi Co.
, ,,..,:et i,J. .?"!,k<
'?!I
,WC't<
*:,wL,o..~n:,~
~;~..;,~,~,,:~~,~,:~,,,,
Lee County
ATTN: Jason Fournija
September 21, 2006
( 1) CATERPILLAR 950H WHEEL LOADER
RevlOlO
TOT,\L COST CO.1IR'IODITY CODE - 760-480.200
STANDARD EQUIPMENT
+
ELECTRICAL
Alarm, back-up
Altciiiator (80-amp brushless)
Batteries, maintenance free (2-950CCA)
Ignition key; s t d s t o p switch
Lighting system, halogen (6 total)
Main disconnect switch
Starter, electric (heavy duty)
Starting and charging system (24-volt)
OPERATOR ENVIRONMENT
BucketiWork tool function lockout
Cab, pressurized and sound suppressed,
(ROPSFOPS) Radio ready(entertainment)
includes antenna, speakers, and
converter (12-volt IO-amp)
Cigar lighter and ashtray (12-volt)
Coat hook (2) with straps
EH Controls, lift and tilt function
Computerized Monitoring System
Instrumentation, Gauges:
Digital gear range indicator
Engine coolant temperatures
Fuel level
Hydraulic oil temperature
SpeedometerITachometer
Transmission oil temperature
Instrumentation, Warning Indicators:
Air inlet heater
Axle oil temperature
Electrical, alternator output
Engine inlet manifold temperature
Engine oil pressure
Fuel level
Fuel pressure Hinow
Hydraulic oil level
Parking brake
Primary steering oil pressure
Service brake oil pressure
Transmission filter bypass
Heater and Defroster
Horn, electric (steering wheellconsole)
Lunchbox, bev holders and personal tray
Mirrors, rearview (internally mounted)
Seat, Cat Comfort (cloth) air suspension
Seat belt, retractable, 51mm (2") wide
Steering column, adjustable, (angle) SW
(angle and length) CC
Wet-Ann WipersIWashers (front and rear),
Intermittent front wioer
Wi&$zy, sliding (
POWERTRAIN
Brakes, full hydraulic enclosed wet-disc
with Integrated Braking System (IBS)
Engine CAT C7 wlACERT Technology and
ATAAC
Fan, radiator, electronically
controlled, hydraulically driven,
temperature sensing, on demand
Filter, fuel primary/secondary
Filters, engine air, primarylsecondary
Fuel priming pump, (electric)
FuelMrater separator
Muffler, sound suppressed
Radiator, unit core (6fpi) with ATTAC
Starting aid, air inlet heater
Switch, transmission neutralizer lockout
Torque converter (free wheel stator)
Transmission, automatic planetary power
shift (4F/4R)
Variable Shift Control (VSC)
OTHER STANDARD EQUIPMENT
Automatic bucket positioner
Couplings, Caterpillar O-ring face seal
Doors, sewice access (locking)
Ecology drains for eng., trans., & hyd.
Fenders (front & rear) steel
Guard, airborne debris
Hitch, drawbar with pin
Hood, non-metallic power tilting
Hoses, Caterpillar XT
Hydraulic oil cooler
Kickout, lift & tilt automatic
Linkage, ZBar,cast crosstubeltilt lever
Oil sampling valves
Product Link Ready
Remote, diagnostic pressure taps
Service Center (electrical & hydraulic)
Sight gages: Engine coolant, hydraulic
oil and transmission oil level
Steering, load sensing
Vandalism protection caplocks
TIRES, RWIS,& WHEELS
A tire must be selected from the
mandatory attachments section. Base
machine price includes an allowance
based on a premium radial tire
ANTIFREEZE
Premixed 50% concentration of extended
life coolant with freeze protection
2
Description
95OG 11 WHEEL LOADER
LIGHTS, DIRECTIONAL SW
AIR CONDiTIONER
MIRIWRS.E r r E i w x
FAN, AUTO REVERSING
BUCKET-GP, 3.25 CYD
ADAPTERS, TIP, BOLT-ON
TIP, GENERAL DUTY
23.5R325 TIRES VUT BS L2
KcC No.
186-3329 -
7 q 02q
SO30
230-3123130-82S5-9,f7!,
257-1766
- 1,677
229-6969-
231-4159-
d8
/,32j
QUOTE TOTAL
BEFORE OPTIONS
OPTIONS
DELETE LESS OFF .wro w v t w w FAN
DELETE LESS OFF STANDARD BUCKET
DELETE LESS OFF ADAPTERS
DELETE LESS OFF TIPS
8ZPJ
DELETE LE s OFF LIGHTS, DIRECTIONAL
ADD 2 4 d 5 8 5
PRESSURE TAPS
ADD 23'7-1033
RADIO, CB (READY)
ADD 284-4739
RADIO, AM/FM CD PLAYER
ADD 237-1012
LIGHT, WARNING BEACON
ADD 240-4542
GUARD, FNT WINDOW (WIDE MESH)
ADD 237-0269
HYDRAULICS, 3 VALVE
ADD 243.1946
JOYSTICK, 3 VALVE
ADD 260-5786
COOLING, HIGH AMBIENT
ADD 244-6603
PRECLEANER,TURBINERRASH
ADD 244-6607
WASTE HANDLER PACKAGE
INCLUDES: axle seal guards, front driveshaft guard, headlight guards,
hinged and electrically actuated powertrain and crankcase guards,
narrow steel front fenders, hydraulic tank guard, fuel tank guarding,
steering cylinder guards, rear hitch area baffle, implement valve
over baffle, and "Waste Handler" machine decal.
ADD 214-9402
DIFFERENTIAL,LIMITED SLIP, FRNT
ADD 126-7845
DIFFERENTIAL,LIMITED SLIP, REAR
~
$
580
4,040
5,460 p
'
2 , 2 9 5 p
1,035
770
$19,340
$
$
$
$
$
TOTAL OPTIONS
BID DISCOUNT 38.6%
TOTAL OPTION PRICE
NON CONTRACT OPTIONS
23.5-25 YOKOHAMA Y-524 L-5 20 PLY (FOAM FILLED)
3.5 CYD GRAPPLE BUCKET w/BOLT ON CUTTING EDGE
LINES, CONNECTOR
SERVICE MANUAL
NON CONTRACT OPTIONS PRICE
0
QUOTE GRAND TOTAL
F.O.B./TERMS
DELIVERED TO JOBSITE I NET DUE 30 DAYS
GUARANTEED BUY BACK AFTER 5 YEARS OR 5000 HOURS: $99,000.
MAXIMUM COST OF REPAIRS 5 YEARS OR 5000 HOURS: $2,500.
Thank you for your consideration of our product. Quote is valid for thirty days
$11,450
$22,400
$ 805
$ 650
$35,305
$209,362
/
/
3
;(fllY IRACJOR
Kelly Tractor Co.
c , 2 . ? < : v l /, -i,rs,,il
3::
ii /: ,<, ',l.,.U;*/,
.,,*;,
,.
l,.(.,,
Greg Bennett 305-592-5371 exl 1121
Fax 305-477-2024
Cell 786-229-7037
KollyTra"or Ca.
s*[email protected],blld"w*,mI~
m
,u
i>~laie,baa,om
n"A"lllr(iuiorC0n
Lee County
ATTN Jason Foumja
239-461-3024
[email protected]
September 25,2006
Rev 925
( 1) CATERPILLAR 9246 WHEEL LOADER
Quoted as per Florida Sheriffs Association Contract # 06-14-0821
STANDARDMACHINE
ELECTRICAL
80-ampere alternator
Thermal starting aid
Switch, battery d h m e c t
Backup alarm
Two 950 CCA maintenance free batteries
Halogen work lights (fmnt & rear)
Directional Signals (front & rea)
Ignition key start/stop switch
24 volt direct electric starting
OPERATOR ENVIR0NMF.NT
ROPS cab, pressurized & sound suppressed
Gauges
- Toque converter temperature
- Speedometer
- Hydraulic oil ternpemme
- Engine coolant temperame
- Fuel level
- Digital tachometer
- Digital hour meterlcdometer
Operator wamiog system indicators:
Primary steering malfunction
-Brake charge pressure low
-Engine oil pressure low
Transmission oil filter bypass
Parking brake engaged
- Elecaical system voltage low
- Hydraulic oil filterbypass
Interior light
Door. fixed glass
Seat Fabric or vinyl
-Adjustable height, backwst, m e s t
- Seat belt,3 inch (75mm) retractable
Tinted front glass
J3em-i~Horn, steering wheel mounted
Adjustable tilt steering column
Rear view mirrors, (inside cab, qty.2)
Cigar lighter
Lunch box storage wlcup holder
Gmund level door release
Interior & exterior power sockets
Wiper/washer, intermittent, front & rear
Hydraulic control lever lockout
Pilot hydraulic couhols
~
~
-
POWERTRAIN
Caterpillar 3056E DITAAC
- Low Emission Diesel Engine
Turbocharged
Aftemled
SOS port, engine oil
SOS port, transmission oil
Autoshift transmission (4FWD/3REV)
Single lever transmission coutrol
Switch, transmission neutralizer lockout
Transmission oil level gauge
Torque converter
Radiator, serviceable core
Lubed for life drive shaft
Standard differentials
Enclosed, wet&, hydraulic brakes
Axle seal guards
~
~
OTHER STANDARD EQUIPMEWC
2-bar lift linkage wlsealed pins
Fenders, fmnt
S w i n g a t hydraulic drive demand fan
Engine enclosure, lockable
Recovery hitch
Secondary and parking brake
Standard counterweight
Remote grease lines
Vandalism protection
-locked Service points
Automatic hucketlfork positioner
Automatic lift kickouts
HYDRAULIC SYSTEMS
Hydraulic oil cooler
Load sensing steering
Hydraulic controls, 2 valve, 1 lever FNR
Hydraulic diagnostic connectors
SOS port, hydraulic oil
MACHINE SPECIFICATIONS
As per Florida Sheriffs Association Contract # 06-14-0821
Description
Ref. No.
9240 WHEEL LOADER
m A G E , STANDARD
FEMIERS. STANDARLl
STEFXING, STANDARD
N.TPRNAmR. STANDARD, 8OAMF'
RADIATOR. STANDARD
FAN, STANDARD
CAB, FIXED GLASS
SEAT, FABRIC SUSPENSION
AIR CONDITIONER
MIRRORS. REARVIEW,Ui'lERNAL.
ENGINE,TIER COMPLIANT
TRANSMISSION, STANDARD
DEFERJ3TML, STANDARD, FRONT
DlFFERENTIAl STANDARD,REAR
PRECLEANER, STANDARD
HYDRAULICS.2 VALVE 1LEVERFNR
LINES, SECOND, FRONT
OIL.COOLER, HYDRAULIC
INSTRUCTIONS, ANSI
MANUAL, OPER. MAIIUT. ENGLISH
TIRES, 205-25 12PR L2
BUCKET. 2.2 CYD, GP PO
C u T l w c EDGE,BOLT ON(4 PIECE)
WMFSTIC TRUCK
rnANDFREIGHT
176.5180
132-2350
1409295
212-9979
254-1543
239-1396
203-3884
190-4632
251-5103
1904402
107-4643
223-5495
18CL7503
13S-1615
203-5943
QUOTE TOTAL
BEFORE OPTIONS
186-2341
203-3889
OPa955
239-1394
262-8352
237-8899
282-3882
167-3963
8E-4566
OP-0210
OP-0411
$95,032
,/'
QUOTE TOTAL
BEFORE OPTIONS
BID OPTIONS
DELETE TO MINIMUM 110 HP 2.7 CYD WHEEL LOADER (924G)
ADD THIRD SPOOL VALVWCONTROL LEVER
ADD AM/FM WEATHER BAND CASSETTE RADIO
ADD AIR RIDE SEAT
ADD LIMITED SLIP (REAR)
ADD 5 YEAR I75W EXTENDED WARRANTY(POWERTRAIN)
DELETE STANDARD 2.2 CYD BUCKET
DELETE CUTTING EDGE, BOLT ON (4 PECE)
DELETE 20.5-25 12PR LZ TIRES
TOTAL BID OPTIONS PRICE
$ 95,032
1,394
$3,080
$
-
($10,598)
OPTIONAL EQUIPMENT
ADD ~O.S-RZ soLm FLEXPORT TIRES
ADD FAN REVERSING
ADD DIFFERENTIAL, LIMITED SLIP, FRONT
ADD LIGHT, WARNING BEACON
ADD MIRRORS, OUTSIDE MOUNTED
ADD COUNTERWEIGHT, EXTRA
ADD WASTE HANDLER
Includes:
213-9036 CRANKCASE GUARD
167-3912 POWERTRAIN GUARD
160-6320 DRIVESHAFTGUARD
219-5959 WINSHIELD GUARD
209-8712 RADIATOR GUARD
193-8106 LIGHT GUARD
$38.305
BID DISCO
NON CONTRACT OPTIONS
DOUBLE TOP CLAMP 2.75 CYD BUCKET W/BO EDGE(standard side plate)
SERVICE MANUAL
UPGRADE WARRANTY TO TOTAL PLUS (60 M0/75GU HRS)
NON CONTRACT OPTIONS PRICE
QUOTE
GRAND TOTAL
F.O.BJTERMS
DELNERED TO JOBSITE I NET DUE 30 DAYS
/
fl
1$14*786/($23319
$17,744
$2034
$t?aa7
J
MAC-
SPECIFICATIONS
As per this quote: (Highlighted item indicate changes fromstandard machine)
Desetiption
924G WHEEL LOADER
Ref. No.
CAB, tWED GIASS
176-5180
132-2350
1409295
212-9979
254-1543
239-7396
203-3885
1904632
SEAT,COMFORT, AIR SUSPENSION
739-5814
AlR CONDITIONER
190.4402
LIM(AGE STANDARD
FEVERS; STANDARD
STEERKC. STANDARD
ALTERNATOR, STANDARD, 80AMP
RADIAlOR. SI'APiDARD
FAN, REVERSNG
MIRRORS. REARVEW.LNTERNAL
EXGINE. TIER U COVPLIAVT
TRAVSMISSION, STAhDARD
DIFFEREmLAL, LIMITED SLIP, FRONT
DIFFERP,WLAI., LIMITED S1.P. REAR
PRFLLEAhXQ STANDARD
HYDRAULICS,3 VALVE 2 LEVER FNR
LINFS, 3RD. FR0.W COUPLER READY
OIL COOLER HYDRAULIC
INSTRUCTIONS,ANSI
MsQXIAL, OPER. MAINT. ENGLISH
TIRFS, 20.5-2s SOLID
LIGHT, WARNING BEACON
WASTE HANDLER
MIRRORS, OUTSIDE MOUNTUD
INSTALLATIONGROUP, RADIO 12V
RADIO, AM/pM CD PLAYER
COUNTERWEIGHT, EXTRA
WMHSTIC TRUCK
I?JLAsD FREIGHT
DBL TOP CLAMP 2.75 CYD BUCKET wlBOCE
60 MOfl5M)HRS TOTAL PLUS WARRANTY
SERVICE MAVUAL
1074613
223-5495
1807503
138.2726
2055944
1862341
203-3891
146-7970
239-1394
262-8352
237-8899
266-9269
218-8836
213-7247
107-4642
2254329
248-4152
146-W9
OP-0210
OP-04 1I
ET0
Thank you for your consideration of our product. Quote is valid for
Greg Bennett
Governmental Sales Representative
Fax 305-477-2024
Cell 786-229-7037
305-592-5374 ext 1121
days.
Lee County
A m . Jason Fournija
239-461-3024
[email protected]
September 25,2006
Rev 925
( 1) CATERPILLAR 9246 WHEEL LOADER
Quoted as per Florida SheriffsAssociation Contract # 06-14-0821
STANDARD MACKINE
ELECTRICAL
80-ampere alternator
Thermal s W g aid
Switch. battery diswnncct
Backup alarm
Two 950 CCA maintenance free batteries
Halogen work lights (fmnt & rear)
Directional Signals (front & rear)
Ignition key s W s t o p switch
24 volt direct electric starting
OPERATOR ENVIRONMENT
ROPS cab, pressurized & sound suppressed
Gauges
- Torque converter temperature
- Speedometer
- Hydraulic oil temperature
- Engine wolant temperame
- Fuel level
- Digital tachometer
Digital hour metedodometer
Operator warning system indicators:
Primary steering malfunction
- Brake charge pressure low
-Engine oil pressure low
- Transmission oil filterbypass
- Parking brake engaged
- Electrical system voltage low
Hydraulic oil filter bypass
Interior light
Door, fixed glass
Seat - Fabric or vinyl
- Adjustable height, backrest, armrest
Seat belt,3 inch (75mm) retractable
Tinted front glass
Elechic Horn, steering wkel mounted
Adjustable tilt steering column
Rear view mirrors, (imide cab, qty.2)
Cigar lighter
Lunch box storage w/cup holder
Gmund level door release
Interior & exterior power sockets
Wiperlwher, intermittent, front & rear
Hydraulic w n m l lever lockout
Pilot hydraulic coutrols
~
~
-
~
Mimi
POWERTRAIN
CaterpiUar 3056E DITAAC
- Low Emission Diesel Engine
-Turbocharged
- Aftercooled
SOS port, engine oil
SOS pors transmission oil
Autoshift transmission (4FWD/3REV)
Single lever urnmission control
Switch, transmission neutralizer lockout
Transmission oil level gauge
Torque wnverter
Radiator, serviceable wre
Lubed for life drive shaft
Standard differentials
Enclosed, wet-disc, hydraulic brakes
Axle seal guards
OTHER STANDARD EQUIPMENT
Z-bar lift linkage w/scaled pins
Fenders, h n t
Swing-out hydraulic drive demand fan
Engine enclosure, lockable
Recovery hitch
Secondary and packing brake
Standard wunterweight
Remote grease lines
Vandalism protection
-locked service points
Automatic huckevfork positioner
Automatic lift kickouts
HYDRAULIC SYSTEMS
Hydraulic oil cooler
Load sensing steering
Hydraulic centrals, 2 valve, 1 lever FNR
Hydranlic diagnostic w ~ e ~ t o r ~
SOS pat, hydraulic oil
MACHINE SPECIFICATIONS
As per Florida Sheriffs Association Contract # 06-14-0821
Description
924G WHEEL LOADER
LINKAGE. S T W A R D
WXDEKS; STANDARD
S E E R N C , STAWARD
ALTERYATOR. STANDARD. 8OAVP
RADIATOR STANDARD
FAN, STANDARD
CAB. FIXEDGLASS
SEAT,FABRK! SUSPENSION
AIR CONDITIONER
MIRRORS, REARVIEW.~,TLRNAL
EXCINE, TIER U COMPLIANT
TRANSMISSION. STANDARD
HYDRAULICS.2 VALVE I LEVERkNR
LINES, SECOhD, FRONT
OIL COOIER HYDRAUUC
INSTRUCTIONS, ANSI
MANUAL,OPER. MMNT. ENGLISH
TIRES. 20.5-2512PR L2
BUCKET, 2 2 CUD. GP Po
CUTTNC.EDGE BOLT ON(4 PIECE)
Ref. No.
176-5180
132-2350
140-99295
212-9979
254-1543
239-7396
203-3884
190-4632
257-5103
190-4402
107-4643
223-5495
180-7503
138-1615
203-5943
186-2341
203-3889
OP-0995
239-7394
262-8352
237-8899
282-3882
167-3963
8E-4566
OP-0210
OP-0411
QUOTE TOTAL
BEFORE OPTIONS
$95,032
QUOTE TOTAL
BEFORE OPTIONS
BID OPTIONS
DELETE TO MINIMUM 110 HP 2.7 CYD WHEEL LOADER (92.46)
ADD THIRD SPOOL VALWCONTROL LEVER
ADD AMlpM WEATHER BAND CASSETTE RADIO
ADD AIR RIDE SEAT
ADD LLMITED SLIP (REAR)
ADD 5 YEAR f 7500 EXTENDED WARRANTYC'OWERTRAIM
DELETE STANDARD 2.2 CYD BUCKET
DELETE C W G EDGE, BOLT ON (4 PIECE)
DELETE 20.5-25 12PR L2 TIRES
TOTAL BID OPTIONS PRICE
,
'
/
($11,241)
$2,106 J
$ 590
$ 454
$ 1,394
$3,080
($3,659)
($ 393)
f$2,9291 //
61039s)
//
//
,
/
#
OPTIONAL EQUIPMENT
ADD ZOS-RZ~ s o L m FLEXPORT TIRES
ADD FAN REVERSING
ADD DIFFEFGNTIAL, LIMITED SLIP, FRONT
ADD LIGHT, WARNING BEACON
ADD MIRRORS,OUTSIDE MOUNTED
ADD COUNTERWEIGHT,EXTRA
ADD WASTE HANDLER
Includes:
213-9036 CRANKCASE GUARD
167-3912 POWERTRAIN GUARD
160-6320 DRIVESHAFT GUARD
219-5959 WINSHELD GUARD
209-8712 RADIATOR GUARD
193-8106 LIGHT GUARD
TOTAL OPTIONAL EQUIPMENT
BID DISCOUNT 38.6%
TOTAL OPTIONAL EQUIPMENT PRICE
$29,300
$ 1545 ,
,
,
/
$ 1.980 //
$ 352 /,
$ 428
5/
$ 3,675
I;
J
"[
Cj"" y Z ? x : .c
NON CONTRACT OPTIONS
DOUBLE TOP CLAMP 2.75 CYD BUCKET'W/BO FDGE(standard side plate)
SERVICE MANUAL
UPGRADE WARRANTY TO TOTAL PLUS (60 ~on500
HRS)
NON CONTRACT OPTIONS PRICE
QUOTE GRAND TOTAL
F.0.BflERMS
DELIVERED TO JOBSITE f NET DUE 30 DAYS
:".%!I
2/!
$ 1.94Q
$20334
$ 1 2 8 2 ~ i~
MACHIKE SPECIFICATIONS
As per this quote: (Highlighted items indicate changes from standard machine)
Deserlptinn
924G WHEEL LOADER
LLVKACE,SrANUARD
FEXVERS. STANDARD
STEERING.STANDARD
ALTERNATOR,STANDARD,8OAMP
RADIATOR, STANDARD
FAN,REVERSING
CAB, FIXEDGLASS
SEAT, COMFORT, AIR SUSPENSION
AIR CONDITIONER
TRANSMISSION, STANDARD
DIFFERENTIAL, LIMITED SLIP, FRONT
DIFFERENTIAL, LIMITED SLIP, REAR
PRECLEANEQ STANDARD
EYDRAULICSJ VALVE 2 LEVER FNR
LINES. 3RD. FRONT COUPLER READY
OIL COOLEk HYDRAULIC
INSTRUCTIONS, ANSI
MANUAL.OPER.MAINT. ENGLISH
TIRES, 20.5-25SOLID
LIGHT, WARNING BEACON
WASTE HANDLER
MktORS, OUTSIDE MOUNTED
INSTALLATIONGROUP, RADIO 12V
RADIO, AM/FM CD PLAYER
COUNTERWEIGHT, EXTRA
DOMESTICTRUCK
INLANDFREIGKC
DBL TOP CLAMP2.75 CYD BUCKET w/BOCE
60 M0nJM)HRS TOTAL PLUS WARRANTY
SERVICE MANUAL
Ref. No.
176-5180
132-2350
14&9295
212-9979
254-1543
239-7396
203-3885
19M632
239-5814
190.4402
107-4643
223-5495
18&7503
133-2126
203-5944
186-2341
203-3891
146-7970
239-7394
262-8352
237-8899
266.9269
2188836
213-7247
107-4642
2254329
248-4152
146-0059
OP-0210
OP-0411
ET0
Thank you for your consideration of our product. Quote is valid for m i i days.
Greg Bennett
Governmental Sales Representative
Fax 305477-2024
Cell 786-229-7037
305-592-5374ext 1121
4
CATERPILLAR MACHINE PRICE LIST
924G-00
9246 WHEEL LOADER
Ship Weight
Ibs
CLAYTON, NORTH CAROLINA
LIST PRICE
AT DEALER
Stnnclard Equipment:
ELECTRlCAL
80-ampere alternator
Thermal starting aid
Switch. battery disconnect
Backup alarm
Two 950 CCA maintenance free batteries
Halogen work lights (front & rear)
Directional Signals (front & rear)
Ignition key startlstop switch
24 volt direct electric starting
OPERATOR ENVIRONMENT
ROPS cab, pressurized & sound suppressed
Gauoes
.Torque converter temperature
.Speedometer
- Hydraulic oil temperature
- Engine coolant temperature
Fuel level
- Digital tachometer
- Digital hour meterlodometer
Operator warning system indicators:
Primary steering malfunction
Brake charge pressure low
Engine oil pressure low
.Transmission oil filter bypass
Parking brake engaged
Electrical system voltage low
. Hydraulic oil filter bypass
Interior light
Door, fixed glass
Seat
- Fabric or vinyl
.Adjustable height, backrest, armrest
- Seat belt. 3 inch (75mm) retractable
Tinted front glass
Heaterldefroster
Electric Horn, steering wheel mounted
Adjustable tilt steering column
Rear window defrost
Cigar lighter
Lunch box storage wlcup holder
Ground level door release
Interior & exterior power sockets
Wiperlwasher
.front intermittent
.rear wiperlwasher
Hydraulic control lever lockout
Pilot hydraulic controls
-
Supersedes
US-A D
Caterpillar: Confidential Green
POWERTRAIN
Caterpillar 3056E DITAAC
- Low Emission Diesel Engine
.Turbocharged
.Aftercooled
SOS port. engine oil
SOS port. transmission oil
Autoshift transmission (4FWD13REV)
Single lever transmission control
Switch, transmission neutralizer lockout
Transmission oil level gauge
Torque converter
Radiator, serviceable core
Lubed for life drive shaft
Standard differentials
Enclosed, wet-disc. hydraulic brakes
Axle seal guards
OTHER STANDARD EQUIPMENT
Parallel lift linkage wlsealed pins
Fenders, front
Swing-out hydraulic drive demand fan
Engine enclosure, lockable
Recovery hitch
Secondary and parking brake
Standard counterweight
Remote grease lines
Vandalism protection
-locked service points
Automatic bucketlfork positioner
Automatic lift kickouts
HYDRAULIC SYSTEMS
Hydraulic oil cooler
Load sensing steering
Hydraulic controls, 2 valve. 1 lever FNR
Hydraulic diagnostic connectors
SOS port, hydraulic oil
Subject to change without notice
Printed rn USA
U. S . DOLLAR CURRENCY
Effenive 12SEP2006
924G-00-001
CATERPILLAR MACHINE PRICE LIST
924G-00
___
924G WHEEL LOADER
Ship Weight
Ibs
CLAYTON, NORTH CAROLINA
~~
LIST PRICE
AT DEALER
Tb? 3 o v e listing (Standard Equipment) is a general description of
a 924G Wheel Loader with VersaLink equipped with all no charge items
HOW TO ORDER:
To build your machine order, you have three options. You can choose:
Base Machine (176-5180)
If ou choose the base machine, ou MUST make selections from each
carergory In the MANDATORY AhACHMENTS section.
Re-Configured machines, which used to be referred to as MA's, can
now be ordered two different ways: as Easy Order Configurations or as
Quick Ship Packages.
Easy Order Configuration:
Easy Order Confi urations make ordering simpler. This method
$arries no s ecia?availability commitment. Any attachment from the
Optional Aftachment" catergory can be added to this type of order.
Quick Shipment Configuration:
Quick Ship Packages simplify ordering and provide shipment
availability of 17 calendar da s or less at a net char e of $900.
To order as a Quick ShiD PacYtase, add OP-0527 to he order.
Only attachments designated with a "P" in the "Optional Attachment"
category can be added to this type of order.
If the machine is not shipped within 17 calendar days, the factory
will remove the OP number and it's associated charge from the order.
F
.................................
178-5180
9 2 4 G WHEELLOADW
Base Machine
OP-5872
9 2 4 G MlSC MATL
CLAYTON
Use this top level reference when ordering miscellaneous
material without ordering a machine.
Supersedes
USA D
19,450
.............................
Caterpillar: Confidential Green
Subject to change without notice
Printed in USA
U. S . DOLLAR CURRENCY
0
$116,460
NC
Effective 12SEP2006
924G-00-002
CATERPILLAR MACHINE PRICE LIS1
924 G-0 0
9 2 4 6 WHEEL LOADER
CLAYTON, NORTH CAROLINA
Ship Weight
ibs
LIST PRiCE
AT DEALER
PRE-CONFIGURED MACHINES:
263-9516
924G CONFIGURATION 1
. . . . . . . . . . . . . . , . , . , . . , , , . . , . . . . 19,765
$128,300
Available as Quick Ship Package. Apply OP-0527 to order.
Nan-Standard selections are indicated with two asterisks ( * *)
176-5180
132-2350
140.9295
21 2-9979
254-1543
239-7396
203-3884
190-4638
239-5814
190-4402
223-5495
180-7503
138-1615
203-5943
204-4329
203-3891
270-7056
239-7395
924G Base Machine
Linkage, Standard
Fenders, Standard
Steering, Standard
Alternator. Standard
Radiator, Standard
Fan. Standard
**Cab, Sliding Glass
**Seat. Comfort, Air Suspension
**Heater and Air Conditioner
**Engine, Tier II Compliant
Transmission. Standard
Differential, Front, Standard
Differential, Rear, Standard
**Precleaner, Dust Bowl
**Hydraulics, 3V.2L. FNR
"Lines, 3rd. Front, Standard Coupler
**Oil Cooler, Hydraulic, Heavy Duty
IMPORTANT NOTE FOR BOTH QUICK SHIPEASY ORDER CONFIGURATIONS
NOTE Order must include selections from:
TIRES, RIMS &WHEELS ARRANGEMENTS
SERVICE INSTRUCTIONS
MIRRORSICAMERA ARRANGEMENT
For Easy Order Configurations, additional items may be selected
from OPTIONAL ATTACHMENTS.
For Quick Ship ConRgLratons. additional Items may he sclcctca
from OPTIONAL ATTACHMENTS, "P" OESiGNATlOlu ONLY
Supersedes
US-A 0
Caterpillar: Confidential Green
Subject to chanpe without notice
Printed in USA
U. S. DOLLAR CURRENCY
Effective 1ZSEP2006
9246-00-003
CATERPILLAR MACHINE PRICE LIST
924G-00
9 2 4 G WHEEL LOADER
CLAYTON, NORTH CAROLINA
263-9517
9 2 4 6 CONFIGUfWTION2
Ship Weight
Ibs
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19,644
Available as Quick Ship Package. Apply OP-0527 to order.
Non-Standard Selections are indicated with two asterisks (* *)
176-5180
132-2350
140-9295
212-9979
254-1543
239-7396
203-3884
190-4638
239-5814
190.4401
223-5495
180-7503
138-1615
203-5943
204-4329
203-3891
270-7056
239-7395
924G Base Machine
Linkage, Standard
Fenders, Standard
Steering, Standard
Alternator, Standard
Radiator, Standard
Fan, Standard
**Cab, Sliding Glass
**Seat, Comfort, Air Suspension
Heater
**Engine, Tier I1 Compliant
Transmission, Standard
Differential, Front, Standard
Differential, Rear, Standard
**Precleaner. Dust Bowl
**Hydraulics, 3V.ZL. FNR
**Lines. 3rd. Front. Standard Coupler
**Oil Cooler, Hydraulic, Heavy Duty
IMPORTANT NOTE FOR BOTH QUICK SHIPEASY ORDER CONFIGURATIONS
NOTE: Order must include selections from:
TIRES, RIMS & WHEELS ARRANGEMENTS
SERVICE INSTRUCTIONS
MIRRORSKAMERA ARRANGEMENT
For Easy Order Configurations, additional items may be selected
from OPTIONAL ATTACHMENTS.
For Quick Ship Configurations, additional items may be selected
from OPTIONAL ATTACHMENTS, "P" DESIGNATION ONLY
LIST PRICE
AT DEALER
$124,360
CATERPILLAR MACHINE PRICE LIST
924G-00
Ship Weight
9246 WHEEL LOADER
lbs
CLAYTON, NORTH CAROLINA
. .
.
. . 20,651
924GCONFlGURATlON 3 . . . . . . . . , . . . . . . . . . . . . . . . . .
This arrangement is suitable far use with the endorsed Little and
Company Brushcutter. Not for use with Special Tire (AR 266-9269)
or Custom Tire Arrangements.
271-2125
LIST PRICE
AT DEALER
$140,760
Ordering and Pricing Information available in the Approved Equipment
Manufacturers Section.
176-5180
132-2350
140-9295
254-1543
239-7396
203-3884
190-4632
203-3891
203-5945
190-4402
223-5495
146-7970
204-4329
180-7500
239-7395
218-8836
107-4643
146-0059
21 8-51 1 3
924G Base Machine
Linkage, Standard
Fenders, Standard
Alternator, Standard
Radiator, Standard
Fan, Standard
**Cab, Fixed Glass
**Hydraulics, 3V.2L. FNR
**Differential, Standard. Rear, HD
**Heater and Air Conditioner
Engine, Tier II Compliant
**Lines. 3rd. Front
**Precleaner. Dust Bowl
**Transmission, Slow Speed
**Oil Cooler, Hydraulic, Heavy Duty
**Light, Warning Beacon
Mirrors, Rearview, Internal
Counterweight, Extra
Quick Coupler, Standard
NOTE Order must include selections from:
STEERING (Stanoard or Secondary)
FRONT AXLE OIFFFRENT AL (Standard or Iimited Slip)
SEAT
TIRES, RIMS & WHEEL ARRANGEMENTS (Cannot be Custom or Specialty)
SERVICE iNSTRUCTlONS
Additional items may be selected from: OPTIONAL ATTACHMENTS
Supersedes
US-A D
Caterpillar: Confidential Green
SuLject to change without notice
Printed in USA
U. S. DOLLAR CURRENCY
Effective 12SEP2006
9246-00-005
REF
NO.
USE
MANDATORY ATTACHMENTS
Ship We'ght
lbs
LIST PRICE
AT DEALER
NOTE
MUST S€LECT ONE ITEM FROM EACH SUBCATEGORY (Italicized)
LIFT ARRANGEMENTS
LINK4GE
Select One
...................................
L
132-2350
LINKAGE STANDARD
L
148-7680
LINKAGE, HIGH LIFT
Provides increased dump clearance with a reduction in
static tipping load.
..................................
0
300
NC
$5,720
BODY
FBVDmS
Select one
L
140-9295
L
208-0310
L
226-1186
L
2354955
...................................
..................................
FB\IDWS, STANDARD
Provides standard non-metallic front fenders.
FENDR. WADING..
Provides non-metallic front and rear fender coverage.
FENDWS, FRONT, HEAVYDUTY .........................
Provides steel front fenders for use in heavy duty applications.
F h l D R . WADING, HEAVY DUTY
Provides heavy duty steel front fenders and nonmetallic
rear fenders.
......................
0
0
.11
NC
$1,920
$615
,135
$2,450
0
NC
CONTROLS
STwlNG
Select one
..................................
L
212-9979
STEERING, STANDARD
L
203-3888
STEERING, SECONDARY.. .............................
Provides limited steering cnntrol in the event of a loss of power
or hydraulic flow. Includes operator warning system indicator.
119
$3,205
ELECTNCAL
A L TRNA TOR
Select one
L
254-1543
L
2564715
.........................
......................
ALTERNATOR, STANDARD, 8OAMP
80 Amp output.
ALTERNATOR HIGH OUTWT, 95AMP
95 Amp output.
~~
Supersedes
US-A D
Caterpillar: Confidential Green
0
NC
.6
$346
~~~
Subject to change without notice
Printorl
an IICA.
.....
.__
...
u. s. DOLLAR CURRENCY
Effective 12SEP2006
924G.00-006
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
924G-00
MANDATORY ATTACHMENTS
LIST PRICE
Ship Weight
Ibs
AT DEALER
ELECTRICAL (CONT.)
R4 DIA TOR
Select One
L
239-7396
L
239-7397
RADIATOR, STANDARD .................................
Provides a standard 9 fins per inch radiator.
RADiATOR WIDEFIN SPACING
Provides a 5.5 fins per inch radiator arrangement
suitable for applications with high airborne debris
such as compost, woodchips. peatmoss, etc.
NOTE: Max ambient capability is reduced approximately
6 degrees Celsius (IO degrees Farenheit)
.ti
NC
0
$115
0
NC
.28
$1,545
...............................
0
NC
............................
ti
NC
.............................
0
NC
...........................
0
NC
268
$-1,635
0
NC
............................
RADIATORFAN
Select one
L
2033884
L
2033885
......................................
...................................
FAN, STANDARD
Provides a hydraulically operated demand fan.
FAN, REVERSING..
Provides a hydraulically operated demand fan with reversing
option. Includes automatic and manual controls for fan reversal.
Recommended for applications with a high content of airborne
debris.
GUARDS
HYDRAULIC HOSE GUARDS
REQUIRED when ordering a Canopy.
CANNOT BE USED WITH: 190-4632 CAB or 190-4638 CAB
NOTE When ordering Fourth Valve. the Third and Fourth Hose Guards
MUST be selected.
L
176-7585
L
163-4384
L
156-4556
L
1564557
GUARD, HOSE, TILT LINES
Provides hose guards that protect the hydraulic tilt lines.
REQUIRED ON CANOPY MACHINES.
GUARD, HOSE COUPLE3 LINES
Provides hose guards that protect the hydraulic coupler lines.
REQUIRED ON CANOPY MACHINES.
GUARD. HOSE THIRD VALVE
Provides hose guards that protect third valve hydraulic lines
REQUIRED ON CANOPY MACHINES.
GUARD. HOSE, FOURTH VALVE
Provides hose guards that protect fourth valve hydraulic lines
REQUIRED ON CANOPY MACHINES.
REQUIRES: 156-4556 Guard Hose, Third Valve
OPERATOR ENVIRONMENT
CANOPWCAB
Select one
L
1904644
L
190-4632
Supersedes
USA D
CANOW
ROPS. Requires 176-7585 and 156-4556 if equipped.
CAB, FIXED GLASS
ROPS. Cab doors have fixed glass.
Caterpillar: Confidential Green
.....................................
Subject to change Without notice
Printed in USA
U. S. DOLLAR CURRENCY
Effective 12SEP2006
924G-00-007
REF
NO.
USE
MANDATORY ATTACHMENTS
Sh'pWe'ght
IbS
LIST PRICE
AT DEALER
OPERATOR B\IVIRONMENT (CONT.)
CANOPY/CAB (Cont.)
1
1904638
...................................
CAB, SLIDING GLASS
ROPS. Cab doors have vertical half drop sliding glass.
9
$520
..............................
0
NC
...............................
0
NC
.....................................
37
$429
.......................
24
$740
0
NC
121
$3,935
SE4 T
Select one
257-5103
257-5104
107-5978
239-5814
SEAT, FABRJC SUSPBUSION
Fully adjustable with retractable 3 in./ 75mm seatbelt
and armrests.
SEAT, VINYL SUSPBUSION
Fully adjustable with retractable 3 in./ 75mm seatbelt
and armrests
RECOMMENDED WHEN ORDERING A CANOPY.
SEAT,CONTOUR
Fully adjustable with retractable 3 in./ 75mm seatbelt
and armrests.
SEAT, COMFORT. AIRSUSPBUSION
Fully adjustable CAT contour fabric seat with air susoension.
retractable 3 in. seatbelt and armrests. Includes
self-contained compressor.
HE4 T H A I R CONDITIONR
Select one if ordering a cab
L
190-4401
L
1904402
.............................................
..................................
HEATW
HeaterIDefroster
AIRCONDITIONER..
MIH?ORS/CAMR34 ARR4 NGEMQVT
Select One
L
107-4643
L
256-7264
........................ . l o
................................. 6
MIRRORS, REARVIEW,INTE%VAL..
Provides two inside rear view mirrors.
CAMERA, REARVIRN..
Provides a rear view camera system consisting of a wide angle
(115 degree) camera, a 7 inch LCD color monitodcontrol panel
with adjustable mounting bracket, video cables and power harness.
The display incorporates a distance marker line that can be setup
and configured at machine delivery by the dealer. A camera
system Operation and Maintenance Manual supplement is included.
REQUIRES: 107-4642 MIRRORS, OUTSIDE MOUNTED
CAN BE USED WITH: 209-8712 GUARD, RADIATOR
NC
$2,120
POWERTRAIN
HMISSIONS
Must Select
L
223-5495
........................
EMISSIONS PKG, TIER2 COMPLIANT
Provides components and controls necessary t o meet Tier II
emissions requirements.
.~.'DGL~ARcKRENcY
0
$2,000
9246-00.008
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
924G-00
MANDATORY ATTACHMENTS
Ship Weight
Ibs
LIST PRICE
AT DEALER
POWERTRAIN (CONT.)
TR4NSMISSION
Select one
L
180-7503
C
180-7500
TRANSMISSION, STANDARD ..............................
Automatic upshifting & downshifting capability. Transmission
downshift can be controlled by a switch mounted on the bucket
lift control lever. In active mode, the transmission will
downshift one gear each time the switch is depressed.
TRANSMISSION, SLOW SPEED
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Provides reduced travel speed for a better match with
hydraulically driven work tools.
Max Speeds: (mph) 1F=1.69. 2F=3.48, 3F=9.53, 4F=21.1
Automatic upshifting & downshifting capability,
Transmission downshift can be controlled by a switch
mounted on the bucket lift control lever. In active
mode, the transmission will downshift one gear each
time the switch is depressed.
0
NC
............................
0
$1,155
.........................
0
NC
.........................
10
$1,980
..........................
0
NC
FRONT A X L f f D I F m T I A L
Select one
L
138-1615
DIFF-TIAL,
L
138-2726
DIFFWENTIAL,LIMITED SLIP,FRNT
Provides limited slip differential for improved traction
in poor underfoot conditions.
STANDARD. FRONT
RE4R AXLHDIFFFWBVTIAL
Select one
L
203-5943
DIFFEQEVTIAL, STANDARD, REAR
L
203-5944
C
203-5946
D I F m T I A L . L I M I T E D SLIP,REAR
Provides Limited Slip Differential on rear axle for imoroved
traction in poor underfoot conditions.
DI-TIAL,
LS, HD BRAKES
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Provides rear Heavy Duty braking capabilities for machines
in high energy or severe braking applications. Includes rear
axle oil cooler and operator warning system dash indicator.
Also, Provides Limited Slip Differential for increased traction
in poor underfoot conditions.
RECOMMENDED: 21 3.9036 Crankcase Guard
.........................
.......................
11
.... 7 7
$2,145
$3,085
FRECLCIINB?S
Select one
..............................
..............................
L
186-2341
PFECLBN&
L
2044329
PRECLEAN& DUSTBOWL..
Provides a precleaner for use in medium t o heavy dust
environments.
Supersedes
Caterpillar: Confidential Green
US-A D
STANDARD..
Subject to change Without notice
Printed in USA
U. S. DOLLAR CURRENCY
0
NC
0
$77
Effective 12SEP2006
924G.00.009
CATERPILLAR MACHINE PRICE LIST
REF
USE
924G-00
MANDATORY ATTACHMENTS
NO.
Ship Weight
IbS
LIST PRICE
AT DEALER
HYDFWULICS
HYDRAULIC SYSTEMS AND CONTROLS
Select one
203-3889
2033891
2033893
263-7463
L
263-7464
HYDRAULICS,2 VALVE 1 LEVER FNR ........................
2
Provides standard lift and tilt hydraulic valves and a joystick
lever control which includes a remote FWD-NEU-REVcontrol switch,
The lever operates both lift and tilt functions.
HYDRAULICS,3 VALVE 2 LEVER FNR
90
Provides third valve and a second control lever for the third
function. Joystick lever operates both lift and tilt functions.
and includes a remote FWD-NEU-REV control switch,
HYDRAULICS4 VALVE 3 LEVER M R
1 94
Provides third and fourth valve. Joystick lever operates both
lift and tilt functions, and includes a remote
FWD-NEU-REV control switch,
HYD,3VILINTR;RATED3RDFNR
74
Provide third valve function auxiliary hydraulics with proportional
control roller switch integrated into joystick. Joystick controls
lift and tilt functions, third valve auxiliary hydraulics, FWD-NEU-REV
and transmission kickdown. Two modes of auxiliary hydraulics,
Standard Work Tool mode for Top Clamps and Side Dump, Rollout and
Multipurpose buckets and Continous Flow mode for Brooms enabling
variable flow. Recommended for applications using Log and Lumber
forks, Side Dump, Top Clamp, High Dump or Rollout and Multipurpose
buckets and most other hydromechanical work tools.
HYD,4VZLINTK;RATED3RDFNR ........................
81
Provides third valve function auxiliary hydraulics with proportional
control roller switch integrated into joystick and separate lever for
fourth valve auxiliary function. Joystick controls lift and tilt
functions, third valve auxiliary hydraulics, FWD-NEU-REV and
transmission kickdown. Two modes of auxiliary hydraulics, Standard
Work Tool mode for Top Clamps and Side Dump, Rollout and Multipurpose
buckets and Continous Flow mode for Brooms enabling variable flow.
Recommended for applications using Log and Lumber forks, Side Dump,
Top Clamp, High Dump or Rollout and Multipurpose buckets, Snow Plows
and Power Angle Brooms.
NC
.......................
$2,810
......................
$4,450
........................
$3,805
$5,450
HYDM ULIC LINES
Select one or t w o
FOR USE WITH 2033889, HYDRAULICS, 2 VALVE, 1 LEVER FNR ONLY.
OP-0955
.................................
LINES, SECOND, FRONT
Reference number only for 2 valve hydraulics.
NOTE: When ordering Third or Fourth Valve, you MUST order the
corresponding Hydraulics Lines to match your choice of
Standard or High Lift Linkage.
FOR USE WITH 132-2350 STANDARD LINKAGE ONLY.
0
NC
REF
NO.
USE
MANDATORY ATTACHMENTS
LiST PRICE
AT DEALER
Ship Ibs
HYDRAULICS (CONT.)
HYDR4 ULlC LINES (Cont.)
L
270-7056
L
270-7055
L
146-7970
L
2230522
.........................
54
$605
........................
54
$605
.......................
39
$205
................................
39
$205
56
$655
LINES, 3RD. FRONT, STD COUPL.
For use with 132-2350 Standard Linkage and Third Valve.
These lines are necessary when hydraulic flow is needed to
power auxilary work tools and attachments and includes third
function lines and quick disconnects for Standard Linkage to the
Standard Coupler option. The hydraulic lines are provided down
the side of the boom to the top of the Standard Coupler.
REQUIRES: 132-2350 Standard Linkage and
218-5113 Quick Coupler. Standard
LINES, 3RD, FRONT, WIDE COUR.
For use with 132-2350 Standard Linkage and Third Valve.
these lines are necessary when hydraulic flow is needed to
power auxilary work tools and attachments and includes third
function lines and quick disconnects for Standard Linakge to
the Wide Coupler option. The hydraulic lines are provided down
the side of the boom to the top of the Wide Coupler.
REQUIRES: 132-2350 Standard Linkage and
21 8-511 5 Quick Coupler. Wide, Standard
LINES, 3RD, FRONT, COUPLREADY
For use with: 132-2350 Standard Linkage and Third valve.
These lines are necesary when hydraulic flow is needed t o power
auxilary work tools and attachments and includes third function
lines and quick disconnects for Standard Linkage. This option
provides third function lines to quick disconnects near the end
of the boom. This option should be used when non-factory couplers
ilri"tC."rld for ,,co
_._...._..___.I.
REQUIRES: 132-2350 Standard Linkage
LINES, FOURTH, FRONT
For use with: 132-2350 Standard Linkaae and Fourth Valve.
These lines are necessary when hydraulic flow is needed
to power auxiliary work tools and attachments.
REQUIRES: 132-2350 Standard Linkage and
270-7055 Lines, 3rd. Front, Wide Coupl. or
270-7056 Lines, 3rd. Front, Std Coupl. or
146-7970 Lines, 3rd. Front, Coupl ready
FOR USE WITH 148-7680 HIGH LIFT LINKAGE ONLY
L
270-7058
Supersedes
US-A D
.........................
LINES, 3RD, FRONT, STD COUPL.
For use with 148-7680 High Lift Linkage and Third Valve.
These lines are necessary when hydraulic flow is needed to
power auxiliary work tools and attachments and include third
function lines and quick disconnects for High Lift Linkage
t o the Standard Coupler option. The hydraulic lines are
provide down the side of the boom t o the top of the Standard
Coupler.
REQUIRES: 148-7680 High Lift Linkage and
218-51 14 Quick Coupler, High Lift
Caterpillar: Confidential Green
Sugject to change without notice
Printed in USA
U. S. DOLLAR CURRENCY
Effective 12SEP2006
924G-00-011
CATERPILLAR MACHINE PRICE LIST
REF
USE
924G-00
MANDATORY ATTACHMENTS
NO.
Ship Weight
Ibs
LIST PRICE
AT DEALER
HYDRAULICS (CONT.)
HYDRAULIC LINES ( a n t . )
270-7057
1544920
fnr
223-0523
........................
56
$655
.......................
41
$256
42
$256
0
NC
LINES, 3RD. FRONT, WIDECOUPL.
For use with 148-7680 High Lift Linkage and Third Valve,
These lines are necessary when hydraulic flow is needed to
power auxiliary work tools and attachments and include third
valve lines and quick disconnects for High Lift Linkage to
the Wide Coupler option. The hydraulic lines are provided
down the side of the boom to the top of the Wide Coupler.
REQUIRES: 148-7680 High Lift Linkage and
218-5116 Quick Coupler, Wide, High Lift
LINES, 3RD, FRONT, COUFLREADY
For use with 148.7680 High Lift Linkage and Third Valve,
These lines are necessary when hydraulic flow is needed
to power auxiliary work tools and attachments and include
third function lines and quick disconnects for High Lift
Linkage. This option provides third function lines to
quick disconnects near the end o f the boom. This option
should be used when non-factory couplers are intended
,,GO
REQUIRES: 148-7680 High Lift Linkage
LINES, FOURTH. FRONT HIGH LIFT
For use with: 148-7680 Hiah Lift Linkaae and Fourth
Valve. These lines are necessary wheniydraulic flow
is needed to power auxiliary work tools and attachments.
REQUIRES: 148-7680 High Lift Linkage and
270-7057 Lines, 3rd. Front. Wide Coupl. or
270-7058 Lines, 3rd. Front, Std Coupl. or
154-4920 Lines, 3rd. Front, Coupl Ready
........................
HYDMULIC COOLW
Select one
239-7394
239-7395
................................
.........................
OIL COOLER, HYDRAULIC
Standard hydraulic oil cooler.
OILCWLER, HYD.,HEAVY DUTY
Recommended for use when working in high ambient
temperatures, or when operating work tools that
require continuous hydraulic flow such as brooms,
brushcutters and snow blowers.
17
$1,155
SERVICE INSTRUCTIONS
D K X L PACKAGES
Select one
L
262-8352
...................................
INSTRUCTIONS, ANSI
This package includes picto decals as required for
North America except for Quebec,
0
NC
0
NC
OpER4 TION AND MAINTENANCEMANUAL
Select one
L
237-8899
MANUAL, O W MAINT. ENGLISH
..........................
CATERPILLAR MACHINE PRICE LIST
REF
USE
924 G-0 0
MANDATORY ATTACHMENTS
NO.
Ship Weight
lbs
LIST PRiCE
AT DEALER
SERVICE INSTRUCTIONS (CONT.)
OR334 TION AND MAINTmANCEMANUAL (Cont.)
L
237-8900
MANUAL, OPER MAINT. FRO\ICH
..........................
.O
NC
L
237-8901
MANUAL, OPER MAINT. SPANISH
.........................
.O
NC
.............................
1,709
$2,250
...........................
.1,958
TIRES, RIMS, &WHEELS
TIRES WITH ONE PIECE RIMS (Qty. of 4)
Select one item only from the next five sections,
NOTE
* * * 2 0 . 5 tires are NOT compatible with one piece rims.
P
2294962
C
230-9666
229-4953
2294955
TIRES. 17.5-25 12FRL2
Goodyear Product Code #123-897-458
SGL D/L-2A (Sure Grip Loader)
Nylon Bias, directional tread and self-cleaning for traction
in soft soil.
TIRES. 17.5-25 1 2 F R W . .
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Goodyear Product Code #123-897-175
HRL D/L-3A (Hard Rock Loader)
Nylon bias, non-directional lug tread for cut and impact
resistance.
TIRES, 17.5-R25 XTLA * L2
Michelin Product Code #04118
Radial, non-directional tread for traction. Cut and impact
resistant.
TIRES, 17.5-R25 GF2B' L2/L3
Goodyear Product Code #I 52-524-070
Radial. non-directional tread and solid center rib for lateral
traction and mobility.
$3,085
...........................
1,810
$3,750
........................
2,015
$3,605
TIRES WITH T H E PIECE RIMS (Qty. of 4)
P
230-9667
P
229-4956
P
229-4958
P
229-4964
Supersedes
US-A D
TIRES,17.5-2512PRL2,3FCFdM
......................
.1,989
$2,250
...........................
2,085
$4,950
.............................
2,290
$4,950
..............................
2,611
$9,140
Goodyear Product Code #123-697.458
SGL D/L-2A (Sure Grip Loader)
Nylon Bias. directional tread and self-cleaning for traction
in soft soil.
TIRES, 17.5-R25 XTLA' L2
Michelin Product Code #04116
Radial. non-directional tread for traction in general applications,
TIRES, 17.5-F.25 ' D / L 3
Goodyear Product Code #152-524-070
Radial. non-directional tread and solid center rib for lateral
traction and mobility.
TIRES, 550/65-R25 L3
Michelin Product Code #E6785
Radial, non-directional, low profile thread. Wide contact
area for improved floatation, stability and reduced
ground pressure. Includes axle oscillation stops.
Caterpillar: Confidential Green
Subject to change without notice
Printed in USA
U. S. DOLLAR CURRENCY
Effective 12SEP2006
924G.00-013
CATERPILLAR MACHINE PRICE LIST
REF
USE
924 G-00
MANDATORY ATTACHMENTS
NO.
~
Sh'p Weight
Ibs
LIST PRICE
AT DEALER
~~
TIRES,RIMS, & W H m S (CONT.)
TIRES WITH THREEPIECERIMS (Qty. of 4) (Cont.)
P
2294965
P
230-9670
P
282-3882
.............................
2,666
$5,710
.............................
2,991
$7,210
0
$4,770
7,880
$29,300
TIRES, 20.5-25 12FRL2
Goodyear Product Code #125-901-560
SGL DIL-2A (Sure Grip Loader)
Nylon Bias, directional tread and self-cleaning for traction
in soft soil. Includes axle oscillation stops.
TIRES, 20.5-25 1 2 R L 3
Goodyear Product Code #125-901-563
HRL D/L-3A (hard Rock Loader)
Nylon bias, non-directional lug tread for cut and impact
resistance. Includes axle oscillation stops.
TIRES, 20.5-25 12FRL2
General Bias Product Code #0287555
Nylon Bias, directional self cleaning design, excellent traction.
Includes axle oscillation stops.
.................................
SPECIALTY TIRES
C
266-9269
..............................
TIRES, 20.5-25. SOLID
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Provides a set o f solid Fiexport tires. Includes mounting disc.
20.5 NON-BRAND SPE3FIC RADIALS WITH 3 Fy: HMS (Qty of 4 )
IMPORTANT NOTE FOR 20.5 RADIALS WITH 3 PC RIMS (Qty of 4)
Effective for machines shipped 01 Sep 2004 in response to a worldwide
shortage of 20.5 radial tires, the factory is offering non-brand
specific 20.5 radial tire selection. Use of non-brand specific tires
will improve the velocity of machine shipments by allowing the
factory to provide Goodyear, Michelin or Bridgestone based on tire
availability.
If tire brand is critical, include the OP number designating the
manufacturer of your choice. Brand specific OP numbers will
severly impact availability.
For better machine availabilty consider substituting 20.5 Bias Ply
tires in place o f 20.5 radial tires.
P
2553618
P
2553619
..............................
2.900
$7,490
..............................
3,100
$8,830
TIRES, 20.5 R A D I A L U
Radial, non-directional tread for traction, Cut and impact
resistant. Includes axle oscillation stops.
TI=,
20.5 RADlALL3
Radial, wide-lug, non-directional tread for lateral traction.
Heavy shoulder and protected sidewall. Includes axle
oscillation stops.
Brand specific OP numbers will severely impact availability.
Supersedes
Caterpillar: Confidential Green
US-A D
Subject Printed
to change
in without
USA notice
U. S. DOLLAR CURRENCY
Effective 12SEP2006
9246-00-014
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
924 G-0 0
MANDATORY ATTACHMENTS
LIST PRICE
Ship Weight
lbs
AT DEALER
TIRES, RIMS, &WHEELS (CONT.)
20.5 NON-BMND SPECIFIC R4DIALS WITH 3 PC RIMS (Qty of 4) (Cont.)
OP-0855
OP-0856
OP-0857
Supersedes
US-A D
............................
..
0
NC
...........................
...0
NC
..
NC
CHARGE GOODYEARTIRE
Designates Goodyear as required brand on non-brand specific
tire selections.
CHARGE MlCHalN TIRE..
Designates Michelin as required brand on non-brand specific
tire selections.
CHARGE BRJDGGSTONETIRE
Designates Bridgestone as required brand on non-brand specific
tire selections.
Caterpillar: Confidential Green
..........................
Subect to change without notice
Printed m USA
U. S.DOLLAR CURRENCY
0
Effective 12SEP2006
924G1-00.015
CATERPILLAR MACHINE PRICE LIST
USE
924 G-00
REF
Ship Weight
NO.
IbS
LIST PRICE
AT DEALER
TIES, RIMS, &WHEELS (CONT.)
BRAND SPECIFIC20.5 RADIALS WITH 3 PC RIMS (Qty of 4)
The followin brand specific radial tire numbers are for
REFERENCE%NLY and will be used in place of the non-brand
specific radial tire numbers when the machine is shipped
from the factory.
..........................
TIFES, 20.5-F25 XTLA * L2
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Michelin Product Code #09122
TIRES, 20.5-1125XHA. L3 ...........................
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Michelin Product Code #31836
C
229-4966
C
229-4967
C
229-4968
$7,450
C
2414716
$8,520
C
2553622
C
286-9095
Bridgestone/Firestone Product Code #418110
TIRES, 20.5R25 VUT, BFOR
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
BridgestonelF rcstonc Product Code $420344
TIRES, 20.5-R25 RE31 ' L 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CON'lACT CLSTOM PRODIJCTS FOR AVAILABIILITY
Yokohama Radial Product Code #03151
..................
. 2 , 8 67
$7,570
3,179
$8,500
3.100
$8,470
3.1:C
$8,970
NO TIRES
P
OP-0214
C
92-8589
C
92-8590
C
92-8588
C
92-8591
..............................
OMISSION, TIRES AND RIMS
Provides a machine less tires and rims. Important to note
that the machine controller is calibrated for standard tires.
May require resetting with ET to show correct speed and
odometer readings depending on tire size installed.
RIMS. THREEFIECE..
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Rims only (Qty = 4). no tires included.
Provides a machine with three piece rims only.
FOR USE WITH: 17.5-25 Tires
RIMS. ONEPIECE..
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Rims only (Qty = 4). no tires included.
Provides a machine with one piece rims only.
FOR USE WITH: 17.5-25Tires
RIMS,THEPIECE..
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Rims only (Qty = 4). no tires included.
Provides a machine with three piece rims only.
FOR USE WITH: 20.5-25 Tires
RIMS,THR€EPlECE..
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Rims only (Qty = 4). no tires included.
Provides a machine with three piece rims only.
FOR USE WITH: 550/65 R25 Tires
Supersedes
Caterpillar: Confidential Green
US-A D
...............................
..................................
0
1,020
5-2,140
$313
742
$4330
...............................
1,130
$775
...............................
1.130
$775
Subject to change without notice
Printed in USA
U. S.OOLLAR CURRENCY
Effenive 12SEP2006
924G-00-016
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
924 G-00
MANDATORY ATTACHMENTS
Sh'pWc'ght
Ibs
LIST PRICE
AT DEALER
PACKING
D H L W ORDER TYPE
NOTE: REQUIRED BY LACD
Supersedes
US-A D
Caterpillar: Confidential Green
Subject to change without notice
Printed in USA
U. 5. DOLLAR CURRENCY
Effective 12SEP2006
924G-00-017
REF
NO.
USE
OPTIONAL ATTACHMENTS
Ship Weight
lbs
LIST PRICE
AT DEALER
ELECTRICAL
LIGHTS
P
11 5-1 558
P
218-8836
.......................................
LIGHTS, FLOOD
Includes two additional halogen front work lights, cab roof
mounted.
LIGHT, WARNING BEACON
Includes magnetic rotating beacon with connector, onloff
switch, wiring, and mounting.
7
$319
7
$352
SECURITYSYSTEM, MACHINE
.I2
Provides a programmable system t o manage access to machine.
Requires special MSS keys. Machine shipped with system inactive.
but with t w o of the keys already programmed into system. Requires
Caterpillar Service Tool Electronic Technician (ET) to activate and
program system for additional keys. Additional 206-5162 keys
are available through Parts Distribution.
...........................
$775
..................................
$740
...............................
MACHINE SECURITY SYSTEMS
L
243-0516
GUARDS
P
213-9036
P
1673912
P
160-6320
P
209-6712
P
219-5959
P
193-8106
P
215-1132
GUARD.CRANKCASE
103
Mounts underneath machine to provide protection to the
engine components.
GUARD, POWEFTRAIN..
.164
Mounts underneath machine to provide protection for the
transmission components.
GUARD, DRJVESHAFT
.39
Mounts underneath machine to provide front drive shaft
protection.
GUARD, RADIATOR..
26
Mounts t o the rear structure and provides protection to the
cooling fan and radiator.
GUARD. WINDSHIED
. . . . . . . . . .4.f i.
Mounts to the front cab structure offering protection to the
windshield. Allows good visibility t o the ground and work tools.
CANNOT BE USED WITH: Canopy
GUARD, LIGHT..
17
Mounts to the front working
.lights
. an provides protection
from debris.
GUARD, VANDALISM PROTECTION
5
Provides vandalism protection for open canopy control panels.
Protection is orovided for the left and rioht conso1es and
.the
steering column gauge ConsoIe. Includes necessary hardware
CANNOT BE USED WITH: Enclosed Cab
..............................
.................................
$476
..................................
$670
..................................
$945
.....................................
$428
.........................
~
Supersedes
Caterpillar: Confidential Green
US-A D
$825
~
~
~
I
~
~~
~~
~~
$1,055
~~
Subject to change without notice
Printed in USA
U. S. DOLLAR CURRENCY
Effective 12SEP2006
924G-00.018
CATERPILLAR MACHINE PRICE LIST
REF
USE
924G-00
OPTIONAL ATTACHMENTS
NO.
Ship Wcight
LIST PRICE
AT DEALER
Ibs
GUARDS (CONT.)
WASTEHANDLW
P
213-7247
....................................
WASTEHANDLW
Waste Handler provides additional guarding needed for machines
in applications such as waste transfer stations. waste to energy
plants and recycling centers. This package offers savings on
value added features that protect components. Included in this
package is a "Waste Handler" decal and the following:
21 3-9036
167-3912
160-6320
219-5959
209-871 2
193-8106
396
$3,675
Crankcase Guard
Powertrain Guard
Drive Shaft Guard
Windshield Guard
Radiator Guard
Light Guard
This package represents a savings compared to ordering guards
individually.
OPERATOR ENVIRONMENT
MIRRORS
P
1074642
...........................
11
$428 NI
18
$510
.................................
6
$214
..............................
.3
$451
.......................................
.3
$314
....................................
2
$61
MIRRORS. OUTSIDE MOUNTED
RH and LH exterior, side-mounted.
REQUIRED WITH: 256-7264 CAMERA, REAR VIEW
R4DIO -PACKAGE
P
2254329
P
207-5947
........................
INSTALLATION GROUP, RADIO 12V
Includes speakers. cable, mounting bracket, hardware,
24Vl12V converter (7.5 Amps165 Watts), 12V accessory plug
outlet, and wiring. Does not include radio.
FOR USE WITH: 12V radio, cellular phone, andlor two-way radios.
ACCESSORIES, 12 VOLT
Includes 24Vl12V converter, 12V accessory plug outlet. and
wiring, Allows use of 12V cellular phones, two-way radios, etc.
RADlOS
P
2484152
P
241-4941
RADIO, AMIFM CD PLAYER
Provides a factory installed AMIFM radio with weatherband
and CD player designed for use in off-road equipment and
is satellite ready.
REQUIRES: 225-4329 Installation Group, Radio 12V.
RADIO, AMIFM
Provides a factory installed AMIFM radio with weatherband
designed for use in off-road equipment.
REQUIRES: 225-4329 Installation Group. Radio 12V.
ACCESSORY MUIPMENT
P
107-I641
Supersedes
US-A 0
SUN VISOR FRONT
Provides a front sun visor.
CANNOT BE USED WITH: CANOPY
Caterpillar: Confidential Green
Subject to change without notice
Printed in USA
U. S. DOLLAR CURRENCY
Effective 1ZSEP2006
924G-00-019
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
924G-00
Ship Weight
OPTIONAL ATTACHMENTS
Ibs
LiST PRICE
AT DEALER
OPERATOR ENVIRONMENT (CONT.)
ACCESSORY MUIWENT (Cont.)
P
118-7250
..........................
........ 3
$114
............ 3
$199
SUNSCREEN
Provides a pull down sun screen in rear window.
CANNOT BE USED WITH: CANOPY
STARTEFS AND BATTERIES
STARTING AIDS
P
107-1 852
HEATE3 WGINE COOLANT.120V . . . . . . . . . . . . . .
FOR USE WITH: 12OV Grounded Power Source.
OTHER ATTACHMBdTS
PARTS BOOK
P
OP-0423
........................
P A N S BOOK. PAFFR
Provides Parts Book manual in addition to the Standard
CD-ROM version.
...........
0
$ 4 1 NET
COUNTH?WEIGHTS
P
146-0059
....................
COUNTERWBGHT, EXTRA
Includes 385lb (175kg) of additional counterweight.
.......... 385
$1,025
....... . 1 , 3 0 1
$4,838 NI
BUCKETS
NOTE Recommend Bolt-on Adapterslleeth. AdaptersiTeeth &
Segments, or Bolt-on-Cutting Edges.
FOR USE WITH STANDAtU7 WIDTH COUPLW ONLY
P
1673966
P
241-0935
.......................
BUCKET, 2.2 CYD HO
Maxium Material Density:
3000 Iblcyd w1Standard Linkage
2500 Iblcyd w1High Lift Linkage
CAPACITIES:
2.2 CYD with bolt-on adapters (Requires bucket teeth)
2.3 CYD with bolt-on adapters and segments
2.3 CYD with bolt-on cutting edges
REQUIRES: Coupler, Standard or Coupler, High Lift
BUCKET, 2.6 CYD. HI D W S
Maximum Material Density:
3200 LBICYD wlstandard Linkage
2600 LB/CYD w1High Lift Linkage
Capacities:
2.6 CYD wlbolt-on adapters (Requires bucket tips)
2 . 1 CYD wlbolt-on adapters and segments
2.7 CYD wlbolt-on cutting edges
REQUIRES: Coupler, Standard or Coupler, High Lift
...................
1,646
$5,343 NI
CATERPILLAR MACHINE PRICE LIST
USE
REF
NO.
924G-00
OPTIONAL ATTACHMENTS
Ship Weight
Ibs
LIST PRICE
AT DEALER
BUCKETS (CONT.)
FOR USE WITH STANDARD WIDTH COUFiW ONLY (Cont.
P
251-5412
.......................
BUCKET. 3.5 CYD, LM HO
Maximum Material Density:
2200 L8lCYD w1Standard Linkage
1700 LBICYD w1High Lift Linkage
Capacities:
3.5 CYD wlbolt-on adapters (Requires bucket tips)
3.6 CYD wlbolt-on adapters and segments
3.6 CYD wlbolt-on cutting edges
REQUIRES: Coupler, Standard or Coupler, High Lift
. . 1,885
$6,616 NI
PIN ON BUCKETS ONLY
P
1673963
P
252-6909
P
252-6903
BUCKET.2.2 CYDPO
.............................
Maximum Material Density:
3200 Iblcyd w1Standard Linkage
2600 Iblcyd w1High LiR Linkage
CAPACITIES:
2.2 CYD with bolt-on adapters (Requires bucket teeth)
2.3 CYD with bolt-on adapters and segments
2.3 CYD with bolt-on cutting edges
BUCKET. 2.6 CYD. HI DENS Po
Recommended for most applications.
Maximum Material Density:
3400 L81CYD w1Standard Linkage
2800 LBICYD w1High Lift Linkage
Capacities:
3.2 CYD wlbolt-on adapters (Requires bucket tips)
2.7 CYD wlbolt-on adapters and segments
2.1 cyd wlbolt-on cutting edges
BUCKET, 3.5 CYD, LM PO . . . . . . . . . . . . . . . . . . .
Maximum Material Density:
2500 LBICYD w1Standard Linkage
2000 LBICYD w1High Lift Linkage
Capacities:
3.5 CYD wlbolt-on adapters (Requires bucket tips)
3.6 CYD wlbolt-on adapters and segments
3.6 CYD wlbolt-on cutting edges
.....................
1,451
$5,960
1,811
$6,318
2,079
$6,713
.
$3,250
QUICK COUPLERS
NOTE. Coupler cylinder Controls are independent of th'rd valve which allows
for operat'on of quick couplcr systcm on machines equlppcd wlih or
without third valve
COUPLms
L
218-51 13
QUICK COUPLEFt. STANDARD .......................
. . . ,300
RECOMMENDED for use with: 146.0059 Counterweight. Extra
CANNOT BE USED WITH: High Lift Linkage (148-7680)
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
924G-00
OPTIONAL AITACHMENTS
Ship Weight
ibs
LIST PRICE
AT DEALER
QUICK COUPLERS (CONT.)
COUPLERS (Cont.)
C
2185115
L
2185114
C
218-5116
L
178-0470
......................
360
............................
.300
$3,510
.......................
360
$4,050
0
NC
0
$870
30
$965
346
$1,085
55
$493
40
$493
,205
$440
,365
$640
QUiCKCOUPLER WIDE STANDARD
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Compatible with Volvo-type worktools.
RECOMMENDED for use with: 146-0059 Counterweight, Extra.
CANNOT BE USED WITH: High Lift Linkage (148-7680) or
CAT Work Tools
QUICKCOUPLER HIGH LIFT
CANNOT BE USED WITH: Standard Linkage (132-2350)
QUICKCOUPLER WIDE HIGHLIFT
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Compatible with Volvo-type worktools.
RECOMMENDEDfor use with: 146-0059 Countemeight. Extra
CANNOT BE USED WITH: 132-2350 Standard Linkage or
CAT Work Tools
TRANSPORT GROUP.
Required when machine is ordered without pin on bucket
or coupler.
...................................
$4,250
LINWNO COUPLER
For use when machine is to be used with a non-factory coupler.
L
219-1390
L
219-1391
.............................
LINES. COUPLER STANDARD
Provides coupler lines to front frame.
Can be used with non-factory couplers.
REQUIRES: 132-2350 Standard Linkage
CANNOT BE USED WITH: 218-5113 Quick Coupler, Standard or
218-5116 Quick Coupler, Wide, High Lift
LINES, COUPLW HIGH LIFT
Provides coupler lines to front frame.
For use with non-factory couplers.
REQUIRES: 146-7680 High Lift Linkage
CANNOT BE USED WITH: 218-5114 Quick Coupler, High Lift or
218-5116 Quick Coupler, Wide, High Lift
.............................
BUCKET AlTACHMENTS
P
116-9713
P
9W-8142
P
9W-8143
P
8E-4568
P
8E-4566
........................
.................................
................................
................................
......................
ADAPTWS,BOLTON,SETOF8
REQUIRES: Bucket tips.
TIPS, LONG, SETOF8
REQUIRES: Adapters.
TIPS, SHORT, SETOF8
REQUIRES: Adapters.
SEGMBJTS. BOLTON
REQUIRES: 116-9713 adapter group.
CUTTING EOGE BOLT ON(4 PIECE)
FORK CARRIA GE
P
132-2443
Supersedes
US-A D
.....................................
CARRIAGE FORK
Standard carriage. Does not include tines.
REQUIRES: Coupler, Standard. or Coupler, High Lift
Caterpillar: Confidential Green
Subject to change without notice
Printed in USA
U. S. DOLLAR CURRENCY
681
$1,911 NI
Effective 12SEP2006
924G-00-022
CATERPILLAR MACHINE PRICE LIST
924G-00
REF
USE
OFTIONAL ATTACHMENTS
NO.
Ship Weight
lb5
LiST PRICE
AT DEALER
BUCKET ATTACHMENTS (CONT.)
F O M TINES
Price is for quantity of one (1). Must Order quantity of two (2)
NOTE: FOR APPLICATIONS THAT REQUIRE PRYING OR LIFTING HEAVY
LOADS, CWTS CONSTRUCTION FORKS ARE RECOMMENDED.
CONTACT CWTS FOR PRICE, AVAILABILITY AND ORDER PLACEMENT
P
195-6935
P
195-6938
P
1723228
.............................
FORK TINE 2" X 5" X 48"
REQUIRES: Fork Carriage (132-2443)
FORKTINE 2.5" X 5" X 5 3
REQUIRES: Fork Carriage (132-2443)
FORKTINE 2" X 5" X 60"
REQUIRES: Fork Carnage (1322443)
............................
.............................
21 6
$602 NI
300
$797 NI
265
$720 NI
207
$ 1 , 2 6 0 NI
.207
$ 1 , 2 6 0 NI
990
$ 3 , 6 0 7 NI
NOTE: MUST ORDER BOTH RiGHT AND LEFT FORK TINE FOR A COMPLETE SET.
P
241-0921
P
241-0922
......................
......................
FORKTINE 2X5X48 OFFSET,RIGHT
REQUIRES: Fork Carriage (132-2443)
FORKTINE 2X5X48 OFFSET, LBT
REQUIRES: Fork Carriage (132-2443)
MATmAL HANDLING A m
P
229-9714
............................
ARM, MATERJAL HANDLING
Three positions. Manually adjustable.
REQUIRES: Coupler, Standard or Coupler, High Lift
HYDRAULICS
RIDE CONTROL
P
203-8554
.......................................
RlDECONTROL
Reduces machine bounce when traveling in "Automatic"
mode, Ride Control is set to activate above 6 mph.
System is programmable between 3 and 9 mph.
Includes system active indicator on dash.
70
$3,055
ANTI FREEZE
0-2407
..........................
0
$208 NET
............................
0
$1,005 NET
....................................
0
NC
CCOWNT, M T . LIFE, -5OC(-58F)
PACKING
OP-0527
CHARGE, QUICK SHIP WEMIUM
OP-0210
DOMESTICTRUCK..
Supersedes
US-A 0
Caterpillar: Confidential Green
Subject to change Without notice
Printed m USA
U. S. DOLLAR CURRENCY
Effective 12SEP2006
9246.00.023
USE
REF
NO.
OFTIONAL ATTACHMENTS
Ship Weight
Ibs
LIST PRICE
AT DEALER
PACKING (CONT.)
OP-0410
INLAND FRRGHT
FOR USE WITH: "1 5.5" or "17.5" tires,
For "20.5" and " 5 5 0 tires, or no tires, use OP-0411.
$482 net - Greg Poole
$572 net - Carter, Carolina, Slanchard
$678 net - Alban, CI Walker
$876 net - Cleveland. G & R, Stowers. Yancey
$966 net - Ring Power
$1.074 net - Beckwith, Carlton. Foley Inc. Holt of Ohio
$1,074 net Thomp Mchy. Thomp Tr
$1.164 net H.O. Penn, Ohio Machy. Whayne
$1,260 net MacAllister, Syracuse, Ringhaver
$1.368 net - Michigan Cat, Southworth-Milton
$1.424 net Toromont (main store only)
$1,560 net Patten. Puckett, Capitol, Fabick
$1,674 net. Kelly, Fabco. JA Riggs, Louisiana
$1.782 net Hewitt (main store only)
$1,956 net Altorfer. E.A.Martin, Dean
$2,046 net Martin Tr, Darr, Mustang, Foley Tr
$2.1 36 net Ziegler. Nebraska
$2,430 net Holt of TX
$2.538 net - West Texas, Butler
$2.675 net -Atlantic (Halifax, NS or Fredericton, NB)
$2.958 net - Wagner, Rust, Wyoming
$3,029 net - Kramer (main store only)
$3.660 net - Empire, Wheeler, T&E (US.)
$3.918 net - Cashman, West. States, Long
$4.008 net - Johnson, Shepherd, Hawthorne, Quinn
$4.266 net Peterson, Tenco, Holt Bros, NC Mchy (Washington only)
$4,266 net - Haiton. Pape
$4.980 net - Pacific (to San Francisco)
$5.344 net - Finning (Vancouver, BC or Edmonton, Alb)
-
-
OW2160
OP-2161
.........................
...................................
PACK, MISCELLANEOUS MATERlAL
Exfactory Kits, Freight Collect
PACKING, KIT (RUSH)
Exfactory Kits, Freight Collect, Expedite Shipment
Charge effective June 16. 2003.
0
0
NC
$116 NET
CATERPILLAR MACHINE PRICE LIST
REF
USE
924G-00
OPTIONAL ATTACHMENTS
NO.
Ship Weight
Ibs
LiST PRICE
AT DEALER
PACKING (CONT.)
OP-0411
INLAND W G H T
FOR USE WITH:'' 20.5"and "550" tires or no tires.
$535 net - Greg Pooie
$624 net - Carter, Carolina. Bianchard
$804 net - Alban. CI Walker
$918 net - Cleveland, G & R, Stowers, Yancey
$1,074 net - Ring Power
$1.164 net - Beckwith. Carlton, Foley Inc, Holt of Ohio
$1.1 64 net - Thomp Mchy. Thomp Tr
$1.392 net - H.O. Penn, Ohio Machy. Whayne
$1,530net . MacAllister, Syracuse. Ringhaver
$1.698 net. Michigan Cat, Southworth-Milton
$1.782 net - Toromont (main store only)
$1,860net - Patten, Puckett, Capitol, Fabick
$2,136 net - Kelly, Fabco, JA Riggs, Louisiana
$2,316 net - Hewitt (main store only)
$2,412net - Altorfer, E.A.Martin, Dean
$2.760 net - Martin Tr, Darr, Mustang, Foley Tr
$2,940net - Ziegler. Nebraska
$3.210net - Holt of TX
$3.552 net - West Texas, Butler
$3.563net - Atlantic (Halifax. NS or Fredericton, NE)
$4.151 net. Kramer (main store only)
$4.266 net - Wagner, Rust, Wyoming
$5.160 net - Empire, Wheeler, T&E (U.S.)
$5.346 net - Cashman. West. States, Long
$5,526 net - Johnson, Shepherd, Hawthorne, Quinn
$5.688 net - Peterson. Tenco. Holt Bros. NC Mchy Washington only)
$5,688 net - Halton, Pape
$6,324net - Pacific (to San Francisco)
$6.772 net - Finning (Vancouver, BC or Edmonton. Alb)
FIELD INSTALLED ATTACHMENTS
APPROVED EQUIPMENT MANUFACTURERS
144-4674
114-9342
142-8463
1634330
1014744
Supersedes
USA D
TOOL KIT, FIELD
Hand tools for daily maintenance on the 9246.
CHOCKS, WHEi3
Quantity of t w o recommended.
GUARD, TOOTH TIP
LOCK, IMPLB4BdT POSITION
Maintains linkage in roading position,
TRIANGLE, WARNING
Caterpillar: Confidential Green
Subject to change Without notice
Printed in USA
U. S . DOLLAR CURRENCY
Effective 12SEP2006
924G-00-025
CATERPILLAR MACHINE PRICE LIST
REF
USE
NO.
924G-00
OPTIONAL ATTACHMENTS
Ship Weight
lbs
LIST PRICE
AT DEALER
FIELD INSTALLED ATTACHMENTS (CONT.)
9246 RETROFIT KITS A VAILABLEEY-FACTORY
Order kits using top level reference number for miscellaneous
material. The order must, include, kit packin instructions See
(See Packing.) All kits will be shi ped freiglt collect. Dea ers
should s ecify preferred carriers to meet individual needs.
Packing !or ocean freight not available.
I
NO RETURNS will be accepted for kit components not used or parts
removed from machines during kit installation.
NOTE All kits are compatible with serial numbers DDA 1 and up.
P
175-6750
P
227-5317
P
223-9065
P
223-9067
P
223-9066
P
228-5276
P
227-9400
P
227-5050
...............................
KIT, GUARD WINDSHIED
46
Provides a front cab windshield guard that mounts to the front
cab Structure offering protection t o the windshield. Allows
good visibility t o the ground and work tooi.
CANNOT BE USED WITH: Canopy
KIT, AIRCONDITIONER
175
Provides air conditioner to the climate control system.
KIT,RlDECONTROL
130
Provides a kit to reduce machine bounce when traveling. In
"Automatic" mode, Ride Control is set t o activate above 6 mph.
System is programmable between 3 and 9 mph. Includes system
active indicator on dash.
KIT, PMERSING FAN
.90
Provides a hydraulically operated demand fan with reversing
option. Includes automatic and manual controls for fan reversal.
Recommended for applications with high content o f airborne debris.
KIT, SECONDARYSTEEMNG
120
Provides limited steering controi in the event of a
loss of power or hydraulic flow. Includes operator
warning system dash indicator.
KIT, HIGH LIFT
1,535
Provides a kit that converts standard linkage into a
High Lift Boom and linkage.
KIT, OIL COOLER HYDRAULICS HD
.24
Provides a kit t o install the Heavy Duty Oil Cooler,
Recommended for use when working in high ambient
temperatures, or operating work tools that requjre
continuous hydraulic flow such as brooms,
brushcutters or snow blowers,
KIT, C O U F L R STANDARD
320
Provides a kit to add a standard coupler.
Includes coupler lines.
................................
..................................
..................................
............................
....................................
$1,115 NI
$4,170 NI
$3,565 NI
$1,765 NI
$3,365 NI
$6,870 NI
.......................
$1,330 NI
.............................
$3,740 NI
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
924G-00
OmlONAL ATTACHMENTS
Ship Weight
lbs
LIST PRICE
AT DEALER
FIELD INSTALLED ATTACHMENTS (CONT.)
9246 RETROFIT KITS AVAILABLE D(-FACTORY ( a n t . )
P
227-5049
P
2275076
P
241-1050
P
277-6957
Supersedes
Caterpillar: Confidential Green
US-A D
........................
KIT, COUPLW, HIGH LIFT BOOM
,365
Provides a kit to add a high lift coupler.
Includes coupler lines.
KIT, BRAKES, HD, FEAR
66
Provides a kit to install rear Heavy Duty braking capabilities
for machines in high energy or severe braking applications.
Includes axle oil cooler and operator warning system dash
indicator.
KIT, 9 2 4 6 CONVWSION, 3V, 2L
80
Provides a kit which converts a 924G Joystick FNR machine with
2V. 1L to a Joystick FNR machine with 3V. 2L.
KIT, E A R , CAMEFA
6
Provides a rear view camera system consisting of a wide angle
(1 15 degree) camera. a 7 inch LCD color monitorlcontrol panel
with adjustable mounting bracket, video cables and power harness.
Requires 107-4642. MIRRORS, OUTSIDE MOUNTED.
$4,030 NI
................................
$3,135 NI
.........................
$3,450 NI
....................................
Subject t o change Without notice
Printed tn USA
U. S.DOLLAR CURRENCY
$2.440 NI
Effective 12SEP2006
924G-00.027
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
924G-00
OFTIONAL ATTACHMENTS
Ship Weight
lbs
LIST PRICE
AT DEALER
APPROVED EQUIiWGVT MANUFACTURE3S
Available for NACO only.
Caterpillar does not warrant. service or assume responsibilty for AEM
Work Tools.
All orders, pricing confirmation and other communication for AEM work
tools must be directed to the manufacturer (Little and Company).
Contact information is below.
The following AEM work tool is offered for use on the 924G
Configuration 3 machine. The 924G Configuration 3 is specifically
equipped to best match &optimize performance with the Little and Co.
T-121D Brushcutter. Refer t o Configuration 3 for ordering instruction.
Little and Company T-121D Brushcutter
Caterpillar 9246 Quick Attach Boom Brushcutter
T-121D Brushcutter (includes Frame, Hydraulics, Boom, Lexan Frame
weights and controls)
000420-KT24 Dynamx T121 D 20' to 22' reach
$34,795
000422-KT24 Dynamx T121D 22' to 24' reach
$35,850
PowerAxe Head for Articulated Booms - Includes Standard Mower
.Attirhmont
.._I"
000048-CTFL 4' Flail Head
$ 9,750
000060-CTFL 5' Flail Head
$10,250
000072-CTFL 6' Flail Head (Cannot use with 4th Axis Rotator) $1 1.990
Flail Mower Blades - Includes Flail Shaft and Blades.
Price is included in Head.
0005x0-NW1F NW1 Heavy Duty Blades - 1.5 Ib (18/24/36 stations) N/C
0005xl-NWZF NW2 Severe Duty Blades - 1.8 Ib (18/24/36 stations) N/C
0005x2-NW85 NW8-5 Heavy Duty Grass Blades (18/24/36 stations) N/C
OPTIONS
DO1 200-CTWW Left Front Wheel Weight - 1100 Ibs
(14 quick-release discs whounting hubs)
$1,595
NOTE Weight Package is recommended for all Brushcutter
installations and is required when configuring
with 4th Axis Rotator or a 24ft or greater reach.
039xx-KRQC 4th Axis Hydraulics Rotator and Controls.
Flail Head
$5,380
700xx Spare Set of Flail Blades and Bolts
REQUIRED OPTIONS
035064-CTRT CAT approved 924G Lift-arm Restraint Kit (required) $1,950
035924-CTHK CAT approved 924G HydlElec Kit for Supplement Steering.
'PR CES SUBJECT TO CHANGE WITHOUT NOTIFICATION CONTACT LITTLE
AND COMPANY FOR PRICING CONFlRMATiON AND TERMS.
Little and Company
2686 Three Lake Road
Albany, Oregon 97322
Supersedes
US-A D
Caterpillar: Confidential Green
-
(800)928-3441 Office
(541)928-6078 -Fax
www.littleandco.com
Subject to change without notice
Printed in USA
U. S. DOLLAR CURRENCY
Effective 12SEP2006
9246-00-028
CATERPILLAR MACHINE PRICE LIST
USE
REF
NO.
924G-00
OPTIONAL ATTACHMENTS
Ship Weight
Ibs
LIST PRICE
AT DEALER
FIELD INSTALLED ATTACHMENTS (CONT.)
APPROVD M U I M E N T MANUFACTURB?S (Cont.)
Supersedes
US-A D
Caterpillar: Confidential Green
Subject t o change without notice
Printed m USA
U. S. DOLLAR CURRENCY
Effective 12SEP2006
9246-00.029
CATERPILLAR MACHINE PRICE LIST
950G II
950G II WHEEL LOADER
AURORA, ILLINOIS
Ship Wcight
lbs
Stiindiird Equipment:
UECTRICA L
Alarm, back-up
Alternator (70-amp)
Batteries. maintenance free (2) 950CCA
Ignition key: stadstop Switch
Lighting system, halogen (6 total)
Main disconnect switch
Starter, electric (heavy duty)
Starting and charging system (24-volt)
OPERATOR ENVIRONMENT
BucketNVork tool function lockout
Cab. pressurized and sound suppressed,
(ROPSIFOPS) Radio ready(entertainment)
includes antenna, speakers, and
converter (12-volt 10-amp)
Cigar lighter and ashtray
Coat hook (2) with straps
Controls. lift and tilt function
Computerized Monitoring System
Instrumentation, Gauges:
Digital gear range indicator
Engine coolant temperatures
Fuel level
Hydraulic oil temperature
SpeedometerITachometer
Transmission oil temperature
Instrumentation, Warning Indicators:
Air inlet heater
Axle oil temperature
Electrical, alternator output
Engine inlet manifold temperature
Engine oil pressure
Fuel level
Fuel pressure HiILow
Hydraulic oil level
Parking brake
Primary steering oil pressure
Service brake oil pressure
Transmission filter bypass
Heater and Defroster
Horn, electric (steering wheellconsole)
Lunchbox, bev holders and personal tray
Mirrors, rearview (internally mounted)
Seat, Cat Comfort (cloth) air suspension
on CC version
Seat, KAB (cloth) mechanical suspension
on SW version
Seat beit. retractable, 51mm (2") wide
Steering column, adjustable. (angle) SW
(angle and length) CC
Wet-Arm WipersiWashers (front and rear),
Intermittent front wiper
Window, sliding (left and right side)
POW FXTPA IN
Brakes, full hydraulic enclosed wet-disc
with Integrated Braking System (16s)
Engine CAT 31268 Diesel with ATAAC.
electronically controlled
Fan, radiator, electronically
controlled, hydraulically driven.
temperature sensing, on demand
Filter, fuel primarylsecondary
Filters, engine air, primarylsecondary
Fuel priming pump, (electric)
FueiiWater separator
Muffler, sound suppressed
Precleaner, engine air intake
Radiator, unit core (6fpi) with ATAAC,
Starting aid, (air inlet heater)
Switch, transmission neutralizer lockout
Torque converter (free wheel stator)
Transmission, automatic planetary power
shift (4Fl4R)
Variable Shift Control (VSC)
OTHER STANDARD EQUIPMENT
Automatic bucket positioner
Counteweight
Couplings, Caterpillar O-ring face seal
Doors, service access (locking)
Ecology drains for engine. transmission,
and hydraulics
Fenders (front 8, rear) steel
Guard, crankcase
Hitch, drawbar with pin
Hood, non-metallic power tilting
Hoses, Caterpillar XT
Hydraulic oil cooler
Kickout, lift & tilt (CC only) automatic
Linkage, Z-Bar,cast crosstubeltilt lever
Oil sampling valves
Product Link Ready
Sight gages: Engine coolant, hydraulic
oil and transmission oil level
Steering, load sensing
Vandalism protection caplocks
TIRES, RIMS, &WHEELS
A tire must be selected from the
mandatory attachments section. Base
machine price includes an allowance
based on a premium radial tire
ANTIFREEZE
Premixed 50% concentration of extended
life coolant with freeze protection
to -34C (-29F)
List Price
A t Factorv
CATERPILLAR MACHINE PRICE LIST
950G II
950G II WHEEL LOADER
AURORA, ILLINOIS
Ship Weight
Ibs
186-3529
950G I! WHEEL LOADERSW . . . . . . . . . . . . . . . . . . . . . . . . . . . .
S i iERiik.'G W i i E L L coniigumtion (SIN)
Standard Equipment:
- CONVENTiONAL STEERING WHEEL, hand metering pump.
Electric FWDIREV and gear selection shifter, steering
column mounted.
Cloth KAB Seat with adjustable backrest, armrest
and lumbar support. Mechanical Suspension.
- HYDRAULIC PiLOT operated Bucketlwork tool controis,
low effort, short stroke, floor mounted.
BucketiWork tool lockout lever
Quick gear kickdown button
Mechanically adjustable liftarm upper kickout.
224-9357
950G II W H E E LOADERSW MA 01
186-3529 Standard Machine
21 7-0926 Air Conditioner
188-9672 Seat, Air Suspension
209-2151 Pressure Taps, Remote
224-9358
List Price
At Factory
.34,246
$219,090
......................
34,414
$221,730
950G II WHEEL LOADERSW M A 0 2
186-3529 Standard Machine
21 7-0926 Air Conditioner
188-9672 Seat, Air Suspension
209-21 51 Pressure Taps, Remote
201-0319 Ride Control. 2-Valve SW
......................
34,610
$225,830
224-9360
950G II WHE!+L LOADERSW M A 03
186-3529 Standard Machine
217-0926 Air Conditioner
188-9672 Seat, Air Suspension
209-2151 Pressure Taps, Remote
192-4676 Hydraulics, 3-Valve SW
201-0320 Ride Control, 3-Valve SW
......................
34,877
$230,920
224-9359
950G IIW H B LOADERSW M A 04 ......................
186-3529 Standard Machine
217-0926 Air Conditioner
188-9672 Seat, Air Suspension
209-2151 Pressure Taps, Remote
201-0319 Ride Control. 2-Valve SW
214-9402 Differential. LTD. Slip, Front
126-7845 Differential, LTD. Slip, Rear
34,624
$230,730
265-8913
950G II WHEEL LOADERSW M A 30
***Sewer & Water Arrangement***
186-3529 Standard Machine
21 7-0926 Air Conditioner
188-9672 Seat, Air Suspension
209-2151 Pressure Taps, Remote
192-4676 Hydraulics, 3-Valve SW
201-0320 Ride Control, 3-Valve SW
126-7845 Differential, Limited Slip, Rear
21 4-9402 Differential, Limited Slip, Front
224-6532 Counterweight-I000 Ibs
239-5816 Quick Coupler, Hyd. Horiz. Pin
37,000
$245,630
......................
CATERPILLAR MACHINE PRICE LIST
950G II
950G II WHEEL LOADER
AURORA, ILLINOIS
Ship Weight
Ibs
186-3539
950G II WHESL LOADERCC . . . . . . . . . . . . .
COMlilANO CONTROL CONFlGURATiON ICCI
Standard Equipment:
-COMMAND CONTROL STEERING; half circle steering wheel
with ergonomic stick integrating FWDlREV and gear
selection controls. 72-degrees steering wheel angle,
left or right, from center, provides full machine
articulation.
Cloth CAT Comfort Seat with adiustable backrest, armrest,
and lumbar support Air Suspension.
Tray for personal items.
- ELECTRO-HYDRAULIC(EH) buckeffwork tool controls, fingertip,
seat-mounted.
BucketMlork tool lockout switch,
Switch-programmable liftarm and tilt kickouts. high and low,
with movement cushioning.
Implement fine modulation mode and adjustable dump rate control
OF5322
950 MISCRLANMUS MATERJAL
Use this as the top level reference number
34,026
...............................
List Price
A t Factory
0
$224,400
NC
when ordering miscellaneous material without
ordering a machine.
Supersedes
Caterpillar: Confidential Green
US-A-05-05C
Subject to change Without notice
Printed tn USA
U. S. DOLLAR CURRENCY
Effective 02MAY2005
950G 11-003
CATERPILLAR MACHINE PRICE LIST
950G Ii WHEEL LOADER
AURORA, ILLINOIS
NOTE: When ordering the following attachments pay spccial attention
to the proper air;ingcn,cnt type (SWIPilot or CCiElectro-Hydraulic)
- Directional Lights
. High Lift
Ride Control
3rd Valve Hydraulics
Payload Control System
Value Packages
-
NOTE:
PIN-ON" (Denoted with a 'P" in the left-hand
ColLmn next to the reference number) Attachments
may bc ordered in conjunction with all MA'S.
LINE INSTALLED (Denoted with a ' L " in the
left-hand column next to the reference number) or
CUSTOM (Denoted with a "C') may not be ordercd in
conjunction with MA's. with the exception of "CUSTOM
buckets.
Spccially priced "VALUE PACKAGES', which arc
bundlcd PIN-ON Attachmenst. may be ordered with
all MA's Valuc packages may be found under the
"OTHER ATTAChMENTS" Section.
MERChANDlSlhG ARRANGEMENTS (MA s) are spec'ally
priced popular sales contigLrat,ons and wcrc devcloped
to adaress specific market scgmcnts and applications
hOTE: For availablity of listed CUSTOM buckets call (630-859.5320)
or contact your MARKETING subsidary machinc coordinator
Plcase refer to the W - W L Price List (Work Tool Wheel I oaders)
for any loose work t w l s that you may want to ordcr on a
Misc. (CMOPS) ordcr. Plcase use the misc. work tool OP0672
number listed in the WT-WL Price list for any loose m'sc.
ordcrs. Pack code rcqu'red is OPOZlO for these orders.
NOTE: CONTACT CUSTOM PRODUCTS AT (630-859-5301)
Contact Aurora Custom Products for availability
and additional information concerning Custom offerings.
NOTE: Custom Kits must be ordered as NOT-INSTALLED
with a MACHINE ORDER or on a MISCELLANEOUS ORDER
REQUIRES OP5322. OP5203, AND OP4670 if ordered
on a MISCELLANEOUS ORDER.
950G II
Ship Weight
lbs
List price
A t Factow
CATERPILLAR MACHINE PRICE LIST
REF
USE
950G II
MANDATORY ATTACHMENTS
NO.
List Price
Ship We'ght
ibs
A t Factor"
............................
-824
$167
..........................
.-532
$1,680
............................
-740
$1,820
TIRES, RIMS, & WHEELS
NOTE All tires are tubeless, include rims, and come in a set of 4.
23.5-25 16PRL3 Bias Tires
P
138-2637
TIRES, 23.5-25 pR16 FSL3
Firestone Bias. Product Code #400556.
SRG (Super Rock Grip) loader tire with a 1 6 ply rating
and heavy duty non-directional tread design which features
exceptional traction and resistance t o cutting and chipping
in loading applications.
23.5-25 R V O L3 Bias Tires
P
139-6146
P
139-6144
TIRES, 23.5-252OpRGmL3
General Bias, Product Code #271288.
Non-directional tread design with center riding rib provides
exceilant traction, lateral stability, and resistance to
rock damage with long tread life.
TIRES, 23.5-25 FfQO FSL3
Firestone Bias. Product Code #400610.
SRG (Super Rock Grip) loader tire with 2 0 ply rating and
heavy duty non-directional tread design which features
exceptional traction and resistance to cutting and chipping
in load applications.
23.5R25 * L2 mdial Tires
P
231-4159
P
138-2796
.............................
TIRES, 23.5 R25 * VUT BS L2
Bridgestone Radial, Product Code #422-703.
Non-directional traction tires.
TIRES. 23.5 F25 ' GPZBGY L2
Goodyear Radial, Product Code #7 53-082-276.
Non-directional rock tread, solid center rib,
100 level tire for high TMPH applications.
........................
0
.-I59
0
$1,325
23.5R25 * L3 kdial Tires
P
165-6179
P
2314157
P
138-2795
Supersedes
..........................
268
$1,890
............................
0
$3,115
............................
0
$2,645
TIRES;23.5 F25' VMTBSL3
Bridgestone Steel Radial, Product Code #418137.
VMT (V-Steel M-Traction). non-directional tread,
traction in varied conditions.
TIRES,23.5F25'RT3BGYW
Goodyear Radial, Product Code #I 55-903-090.
Nan-directional traction tire.
TIRES, 23.5 F25 * XHA MX L3
Micheiin Radial, Product Code #30826.
Steel cord construction, non-directional tread: for
construction, stockpile and truck-loading applications
truck-loading applications.
Caterpillar: Confidential Green
US-A-05-05C
Subject to change without notice
Printed in USA
U. S. DOLLAR CURRENCY
Effective02MAY2005
950G 11.005
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
950G I I
MANDATORY ATTACHMENTS
Sh'pWe'ght
Ibs
List Price
At Factory
TIRES, M M S , & W H E R S (CONT.)
Special Tires Available
P
246-1584
TIRES,750/65 R25' MXL3
............................
*"Contact Account Coordinator for Availability* * *
Michelin Radial. Product Code 890278.
Low profile. wider version of 23.5 R25, with the same
overall diameter. Non-directional tread. increased ground
contact for better traction and flotation.
691
$7,180
Tires, Allowance for Omission
P
138-2373
RIMS, 23.5-25
................
Less tires
.......
-2,023
$-6,740
-8,492
$-8,960
Tires and Rims, Allowance for Omission
P
132-9336
OMISSION. TlRESANDFdMS
.........................
Less tires and rims
Suprsedes
Caterpillar: Confidential Green
US-A-05-05 C
Sugject to change Without notice
Printed tn USA
U. S. DOLLAR CURRENCY
Effective 02MAY2005
950G 11-006
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
950G II
OFTIONAL ATTACHMENTS
Ship Weight
List Price
Ibs
At Factory
LIFT ARRANGEMENTS
L
2343080
L
234-3082
L
234-3081
L
234-3083
C
2Q-8250
............................
$8,920
.......................
$9,600
HIGH LIFT, 2 VALVESW
.4,690
Provides increased dump clearance of 19" (498mm) over standard
lift arms. Additional countermeight included.
All 950G II buckets fit both standard & high lift arrangements.
Reference the 950G II specalog for bucket selection guidelines.
CANNOT BE USED WITH: 192-4676 Hydraulics. 3rd Valve SW or,
192-4677 Hydraulics, 3rd Valve CC.
HIGH LIFT, THIRD VALVE (SW)
.4,7 4 7
Same as 234-3080 High Lift, 2-Valve SW with extended
hydraulics 3rd Valve.
REQUIRES: 192-4676 Hydraulics, Third Valve, SW
HIGH LIFT, 2 VALVECC
4,690
Same as 234-3080 but for use with 186-3539 Command Control.
CANNOT BE USED WITH: 192-4676 Hydraulics, 3rd Valve SW or,
192-4677 Hydraulics, 3rd Valve CC.
4,747
HIGH LIFT. THlRDVALVE(CC)
Same as 234-3081 High Lift, 2 Valve CC, with extended
hydraulics 3rd Valve.
REQUIRES: 192-4677 Hydraulic 3rd valve CC
OMISSION, LINKAGEW/3V SW
.-3,300
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Modification that lesses off the lift arms, tilt-lever,
bucket-link, lift and tilt cylinders. and lines group.
Provides additional counterweight 605Kg (1340ibs).
and 3rd Valve hydraulics but no lines group.
FOR USE WITH: 186-3529 Steering Wheel Configuration (Sw)
.............................
........................
......................
$8,920
$9,600
$-6,560
ELECTRCAL
P
190-1111
P
1903508
P
194-4204
P
2 12-1537
Supersedes
...............................
LIGHTS, DIRECTIONAL SW
Provides directional turn signals.
FOR USE WITH: Cab or Canopy
INCLUDED IN: 239-7420 Value Package SW
LIGHTS, DIRECTIONAL (CC)
Provides directional turn signals.
FOR USE WITH: Cab or Canopy
INCLUDED IN: 239-7417 Value Package CC
LIGHTS,CAB
Provides (2 front, 2 rear) additional cab mounted halogen
work lights.
INCLUDED IN: 239-7420 Value Package SW and,
239-7417 Value Package CC
LIGHT, ROADING (SW)
Provides high beamllow beam head lamps, front and rear turn
signals, side marker lights, and reflective side markers for
roading applications.
FOR USE WITH: 186-3529 Steering Wheel Configuration (SW)
CANNOT BE USED WITH: 239-7420 Value Package SW
239-7417 Value Package CC
Caterpillar: Confidential Green
US-A-05-05C
..............................
.........................................
.................................
Subject to change without notice
Printed ~n USA
U. S. DOLLAR CURRENCY
9
7
$840
7
$110
45
$1,015
Effective 02MAY2005
950G 11.007
CATERPILLAR MACHINE PRICE LIST
REF
OMIONAL ATTACHMENTS
NO.
USE
950G II
Ship Weight
Ibs
List Price
A t Factory
ELECTRICAL (CONT.)
P
212-1539
L
191-0454
LIGHT, ROADlNG(CC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Provides high beamllow beam head lamps, front and rear turn
signals. side marker lights, and reflective side markers for
roading applications.
FOR USE WITH: 186-3539Command Control Configuration (CC)
CANNOT BE USED WITH: 239-7417Value Packaae CC
239-7420Value Package SW
R E C m A C L E STARTING..
Hookup for emergency starting from other 24V power source.
...............................
45
$1,015
6
$365
.10
$949
MACHINE SECURITY SYSTEMS
P
213-1151
...........................
SECURlTYSYSTLM, MACHINE
Protects from vandalism and theft by preventing unathorized
personnel from starting a machine. Machines start only after a
unique MSS key is inserted into the ignition. MSS keys can be
programmed to start machines only certain days or hours.
GUARDS
P
126-7710
L
2274094
P
2404542
P
241-8650
bq
$
Q
'
...............................
$1,425
................................
$2,300
GUARD. POWERTRAIN..
141
Protects the bottom of the transmission.
CANNOT BE USED WITH: 191-3314COOLER, AXLE OIL
214-3320Waste Handier
230-3122Waste HandiedAuto Rev. Fan
GUARD.AXLESE4L..
200
Protects the outer axle seals from wire and debris that can
wrap around the axles, causing seal damage or failure.
INCLUDED IN: 214-3320Waste Handler Ar.
230-3122Waste HandlerIAuto Rev. Fan
GUARD, FNT WINDOW (WIDEMESH) .....................
295
Provides a wide mesh guard for the front cab window.
GUARD, FNT WNDOW (SMALL MESH)
247
Provides a mesh guard for the front cab window.
....................
OPERATOR ENVIRONMENT
L
217-0926
..................................
AIRCONDITIONW..
CANNOT BE USED WITH:
203-9780Canopy, ROPS, SW or,
204-4487Canopy, ROPS, CC
MA# 01,02, 03, 04. 30
L
203-9780
L
2044487
146
INCLUDED IN:
CANOW, RoPS,SW .................................
-408
OMITS CAB. Includes Open ROPS
Includes Vinyl seat and lockable vandalism guards for
dashboard and control console.
FOR USE WITH: 186-3529Steerina Wheel confiauration (SMn
CANOW,ROPS,CC
-408
OMITS CAB. Includes Open ROPS
Includes Vinyl seat and lockable vandalism guards for
dashboard and control console.
FOR USE WITH: 186-3539Command Control configuration (CC)
- . ,
.................................
Q
$3,885
0
$5,710
$-3,145
~
Supersedes
Caterpillar: Confidential Green
US-A-05-05C
Subject to change without notice
Printed in USA
U. S . DOLLAR CURRENCY
$4,555
Effective OZMAY2005
950G 11-008
CATERPILLAR MACHINE PRICE LIST
REF
USE
NO.
950G II
OPTIONAL ATTACHMENTS
Ship Weight
lbs
List Price
At Factorv
OPERATOR ENVIRONMENT (CONT.)
C
2Q-8600
C
20-8467
C
20-8466
L
188-9672
P
246-1058
P
247-0682
P
131-2633
P
197-6474
L
191-0154
P
227-9981
Supersedes
.........................
CAB. RUBBERMOUNTEDGLASS
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Provides a cab with glass mounted in rubber seals, facilitates
quick window replacement and a steel overhanging roof cap.
CAB, ROOF MOUNTED A/C, SW
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Provides modification to A/C. condenser is mounted
on the cab roof and cooled using electric fan.
FOR USE WITH: 186-3529 Steering Wheel Configuration SW
CANNOT BE USED WITH: 203-9780 Canopy, Rops, SW or.
204-4487 Canopy, Rops, CC
CAB, ROOF MOUNTED A/C CC
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Provides modification to A/C. condenser is mounted
on the cab roof and cooled using electric fan.
FOR USE WITH: 186-3539 Command Control Configuration CC
CANNOT BE USED WITH: 203-9780 Canopy, Rops, SW or,
204-4487 Canopy, Rops. CC
SEAT, COMFORT, AIRSUSFEVSION
Fully adjustable. Cat Comfort (cloth) type seat with air suspension,
retractable (2") seatbelt. and armrests. Includes self-contained
compressor.
FOR USE WITH: 186-3529 Steering Wheel configuration (Sw)
CANNOT BE USED WITH: 203-9780 Canopy, ROPSSW
INCLUDED IN: 186-3539 Command Control configuration (CC)
MA# 01, 02. 03 04, 3 0 (Sw)
SEAT BET, 3" WIDE
For use in California where regulations require 3 inch seat belts.
SEAT BELT, 3" WIDE (KAB)
For use in California where regulations require 3 inch seat belts.
CANNOT BE USED WITH: 188-9672 Cat Comfort Seat.
SUNVISOR FRONT
INCLUDED IN: 239-7420 Value Package SW and,
239-7417 Value Package CC
MIRROFS,MTERNAL
INCLUDED IN: 239-7420 Value Package SW and,
239-7417 Value Package CC
RADIO, CB (READY)
DOES NOT INCLUDE AM/FM RADIO or CB RADIO
Provides adjustable mounting brackets for two radios,
a 20 amp 24V to 12V converter, a CB antenna, CB cable
converter, and t w o separate four wire connectors that
contain a ground, 12V. and 24V circuits.
RADIO, AMlFM WB (CASSEiTE)
INCLUDES: 173-6532 Radio AM/FM Deluxe
AMIFM Radio with Cassette (12V-DC) with weatherband
installed at the factory.
CANNOT BE USED WITH: 203-9780 Canopy, Rops. SW
204-4487 Canopy, Rops. CC
INCLUDED IN: 239-7420 Value Package SW
239-7417 Value Package CC
Caterpillar: Confidential Green
US-A-05-05C
..........................
..........................
........................
...................................
..............................
...................................
100
$4,340
80
$2,840
.80
$2,840
2
$900
0
NC
0
NC
10
SllO
...................................
36
...................................
12
$820
4
$550
..........................
Subject to change without notice
Printed rn USA
U. S. DOLLAR CURRENCY
Effective 02MAY2005
950G 11-009
CATERPILLAR MACHINE PRICE LIST
REF
USE
NO.
950G II
Ship Weight
lbs
OPTIONAL ATTACHMENTS
List Price
At Factam
POWERTRAIN
P
198-7248
L
21 4-9402
L
126-7845
L
126-7846
L
191-3314
L
2425971
c
2Q-8178
c
2Q-8176
c
2Q-8496
c
20-8497
......
....
DRAIN. AXLE ECOLOGY . .
1
Allows axle oil to be easily drained into a container without
spillage.
DIFFERENTIAL.LIMITED SLIP,FRNT
.. 7
Replaces the standard front differe
differential. Less aggressive tractive effort than NO-SPIN.
RECOMMENDED: For continuous or intermittent use in traction
limited applications.
INCLUDED IN: MA# 04, 30
DIFFE3ElTIAL.LIMITB) SLIP,REAR
........
.. 7
Replaces the standard rear differe
differential. Less aggressive tractive effort than NO-SPIN.
RECOMMENDED: For intermittent use in uphill load and carry.
applications where increased weight is transferred t o the rear
axle. or when intermittent underfoot conditions result in
uneven weight distribution within the rear axle.
INCLUDED IN: MA# 04, 3 0
DIFFE&VTIAL, NO SPIN, REAR
-10
Replaces the standard rear differential with a NO-SPIN differential,
Provides aggressive tractive effort for continuous use in traction
limited applications.
COOLER, AXLE OIL
616
INCLUDES: Powertrain guard.
CANNOT BE USED WITH: 223-2121 Counterweight
214-3320 Waste Handler
230-3122 Waste HandlerIAuto Rev. Fan
COOLER AXLEOIL, N W WASTEAR
616
FOR USE WITH: 214-3320 Waste Handler
230-3122 Waste HandlerIAuto Rev. Fan
AXLE SEAL, M T . TEMP. FRONT
..o
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Installs high and low, extreme temperature duo-cone axle seals
for ambients from -45C to + 15OC (-50F to +3OOF).
REQUIRES: 2981 7 6 Axle Seal, Ext. Temp, Rear or,
298497 Axle Seal, Ext. Temp, LSD, Rear.
AXLE SEAL, MT. TEMP. REAR
0
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Installs high and low, extreme temperatures duo-cone axle seals
for ambients from -45C t o +15OC (-50F to +3OOF).
REQUIRES: 298178 Axle Seal, Ext. Temp. Front or,
298496 Axle Seal, Ext. Temp, LSD, Front
AXLE SEAL,MT TEMP, LSD FONT
..o
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Installs high and low, extreme temperature duo-cone axle seals
for ambients from -45C to +15OC (-50F to +3OOF).
REQUIRES 298497 Axle Seal, Ext. Temp LSD Rear or,
298176 Axle Seal, Ext. Temp, Rear
AXLE SEAL. M T . TEMP LSD REAR
0
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Installs high and low, extreme temperatures duo-cone axle seals
for ambients from -45C to + 150C (-50F t o + 300F).
REQUIRES: 298496 Axle, Ext. Temp, LSD Front or,
2Q8178 Axle Seal, Ext. Temp, Front
Supersedes
Caterpillar: Confidential Green
US-A-05-05C
$500
..
$2,500
.....
$2,500
..........................
............................
.....................
..........................
...........................
..
$1,850
$5,590
$5,480
$473
$413
.......................
$2,980
..........................
$2,980
Subject to change without notice
Printed ~n USA
U. S . DOLLAR CURRENCY
Effective 02MAY2005
950G 11-010
CATERPILLAR MACHINE PRICE LIST
REF
OPTIONAL ATTACHMENTS
NO.
USE
950G II
Ship Weight
lbs
List Price
A t Factory
FUDE CONTROL
NOTE:
A
nitrogen charged oil accumulator in the hydraulic lift
circuit acts as a shock absorber for the bucket or work tool.
During loaded or unloaded travel, the nitrogen in the accumulator
is compressed, reducing machine bounce and pitch. Recommended for
most applications, Ride Control greatly improves load retention,
operator confidence, and ride. The system can be placed in three
operating modes; manual on, manual off, and automatic. In
automatic, the system engages above 916 kph16.0 mph. Custom
retro-fit kits are available for current and non-current machines.
L
2014319
L
2014321
L
2014320
L
201-0322
L
202-8124
L
202-8125
.........................
RIDECONTROL. 2-VALVE(SW)
.196
FOR USE WITH: 186-3529 Steering Wheel configuration (SW)
INCLUDED IN: MA# 0 2 , 0 4
RIDECONTROL Z-VALVE(CC)
196
FOR USE WITH: 186-3539 Command Control configuration (CC)
RIDECONTROL. THREEVALVE SW
196
REQUIRES 192-4676 Hydraulics, Third Valve SW
FOR USE WITH: 186-3529 Steering Wheel configuration (SW)
INCLUDED IN: MA# 03, 30
RIDECONTROL. THREEVALVE CC
196
REQUIRES: 192-4677 Hydraulics. Third Valve CC
FOR USE WITH: 186-3539 Command Control configuration (CC)
RIDECONTROL, FORESTMACH (SW) ......................
196
REQUIRES: 217-0954 Forest Machine, SW
RIDECONTROL, FORESTMACH (CC) .....................
.196
REQUIRES: 217-0955 Forest Machine, CC
...........................
......................
.......................
$4,180
$4,180
$4,180
$4,180
$4,180
$4,180
PAYLOAD CONTROL
NOTE: Allows on-the-go weighting of the bucket payload during the
lift cycle with an accuracy of -/-1.5% ( . = I . 1% for a stationary
machine). PCS records date. time. weight. number of passes. LP
to 21 diffecront materials. truck ID#. and up to 2639 truckloads.
The system has download capability, an optional printer (from
parts). and Custom retro-fit kits are available for cLrrent
and nona.rrcnt machines.
INCLUDES: Sensors. numeric keypad. display and mounting brackets
DOES NOT INCLUDE THE PRINTER.
P
224-9882
P
224-9884
P
224-9883
Supersedes
........................
PAYLOAD CONTROL SYSTEM, SW
Provides PCS for machines NOT equipped with Rioe Control.
FOR USE WITH, 186.3529 Steering Wheel configLration (SW
CANNOT BE USED WITH: R DE COhTROL
PAYLOAD CONTROL SYSTEM. CC
Provides PCS for mach nes NOT cqLippcd witn Riac Control.
FOR USE WITH: 186-3539 Command Control configuration (CC)
CANNOT BE USED WITH: RIDE CONTROL
PAYLOAD CONTROL SYSTEM (SW) Rc
Provides PCS for mach nes equipped with Ride Control.
REQLIRES RIDE CONTROL
FOR USE WITH: 186-3529 Steering Wheel configdration (SW
Caterpillar: Confidential Green
US-A-05-05C
........................
.....................
Subject to change without notice
Printed in USA
U. S. DOLLAR CURRENCY
35
$9,670
.35
$9,570
35
$9,670
Effective 02MAY2005
950G 11-011
CATERPILLAR MACHINE PRICE LIST
REF
OWIONAL ATTACHMENTS
NO.
USE
950G II
Ship Weight
Ibs
List Price
At Factory
PAYLOAD CONTROL (CONT.)
P
224-9885
P
228-2772
P
227-8370
P
227-8357
...................
PAYLOAD CONTROL SYSTB.4 (CC) FC
35
Provides PCS for machines equipped with Ride Control.
REQUIRES: RIDE CONTROL
FOR USE WITH: 186-3539 Command Control configuration (CC)
PRINTER. PAYLOAD CNTL SYSTGV
6
Provides onboard ticket printing capability for the Payload
Control System.
AUTODIG, PCS VALUE PACKAGE
40
This attachment is for machines equipped with Ride Control.
INCLUDES:
189-4829 Control, Aggregate Autodig and
224-9885 Payload Control System (CC) RC
REOUIRES: 201-0321 Ride Control 2-Valve (CC)
201-0322
1CCI
. . . . . . . . . .Ride
. . . .Control
. . . . . . .3-Valve
...
202-8125 Ride Control, Forest M i c i n e (CC)
FOR USE WITH: 186-3539 Command Control Configuration (CC)
AUTODIG, PCS VALUE PACKAGE
40
INCLUDES:
189-4829 Control, Aggregate Autodig and
224-9884 Payload Control System (CC)
FOR USE WITH: 186-3539 Command Control Configuration (CC)
CANNOT BE USED WITH: 201-0319 Ride Control, 2-Valve (SW)
201-0321 Ride Control. 2-Valve (CC)
201-0320 Ride Control, 3-Valve (SW)
201-0322 Ride Control, 3-Valve (CC)
202-8124 Ride Control. Forest Machine (SW)
202-8125 Ride Control, Forest Machine (CC)
$9,570
.....................
____
$2,740
.......................
...
$12,965
..........................
$12,965
LOGGING ARRANGEMENT
L
2170954
L
2176955
Supersedes
Caterpillar: Confidential Green
US-A-05-05 C
..............................
$9,960
.............................
$9,960
FOREST MACHINE SW
1,348
Without fork or clamp. Includes 3rd valve hydraulics,
heavy duty tilt cylinder, and additional counterweight.
FOR USE WITH: 186-3529 Steering Wheel configuration (SW)
CANNOT BE USED WITH: Buckets, High Lift Arrangement or
3rd Valve
FORESTMACHINECC..
1,948
Without fork or clamp. Includes 3rd valve hydraulics,
heavy duty tilt cylinder, and additional counterweight.
FOR USE WITH: 186-3539 Command Control configuration (CC)
CANNOT BE USED WITH: Buckets, High Lift Arrangement or,
3rd Valve
Subject to change without notice
Printed cn USA
U. S. DOLLAR CURRENCY
Effective 02MAY2005
950G 11-012
CATERPILLAR MACHINE PRICE LIST
REF
USE
NO.
950G II
OPTIONAL ATTACHMENTS
Ship Weight
List Price
A t Factory
Ibs
SPECIAL ARRANGEMENTS
AGGREGR4 TE YARD LOADER
L
267-2094
PACKAGE VALUE, YARD LOADWCC .......................
This aggregate yard loader package offers ergonomic advantages
beyond the standard machine in a premium attachment package
at an exceptional value.
INCLUDED IN PACKAGE:
2q8116 Autolube, Lincoln (Std lft)
131-2633 Sun Visor, Front
21 7-0926 Air Conditioner
227-9981 Radio, AMIFM WE (Cassette)
188-9672 Seat, Comfort, Air Suspension
190-3508 Lights, Directional (CC)
194.4204 Lights, Cab
197-6474 Mirrors, External
151-0171 Fenders,Front + Rear Extension
189-4829 Control, Aggregate Autodig
209-2151 Pressure Taps, Remote
201-0321 Ride Control 2-Valve (CC)
FOR USE WITH: 186-3539 Command Control Configureation CC
0
$24,190
WASTEHANDLW
1,057
This arrangement provides additional guarding and features needed
for machines in applications in waste transfer stations, waste to
energy plants, and recycling centers.
INCLUDES: axle seal guards, front driveshaft guard, headlight guards,
hinged and electrically actuated powertrain and crankcase guards,
narrow steel front fenders, hydraulic tank guard, fuel tank guarding,
steering cylinder guards, rear hitch area baffle, implement valve
cover baffle, airborne debris grill, and "Waste Handler" machine
decal.
INCLUDES: 227-4094 Guards, Axle Seals,
201-6779 Fenders, Narrow
221-7000 Grill, Airborne Debris
CANNOT BE USED WITH: 21 7-0954 Forest Machine SW
21 7-0955 Forest Machine CC
239-7420 Package, Value SW
239-7417 Package, Value CC
W A S T E H A N D L W / A U T O W . FAN
1.160
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
This arrangement provides the compatibility for the
Waste Handler and Auto Reversing Fan.
INCLUDES: 21 4-3320 Waste Handler
230-3123 Fan, Auto Reversing
$18,410
WASTE HANDLWARR4NGEMENT
L
2143320
C
2303122
Supersedes
Caterpillar: Confidential Green
US-A-05-05 C
..................................
....................
Subject to change Without notice
Printed in USA
U. S. DOLLAR CURRENCY
$23,170
Effective 02MAY2005
950G 11-013
CATERPILLAR MACHINE PRICE LIST
REF
USE
950G II
OFTIONAL ATTACHMENTS
NO.
Ship Weight
Ibs
List Price
At Factow
SPECIAL ARRANGEMENTS (CONT.)
WASTE HANDLWARR4NGBvfBJT ( a n t . )
L
265-8906
C
265-8914
C
2303123
C
2Q-1658
...........................
$18,410
................... .
$23,170
SCFAP HANDLWARRANGEMENT
0
This arrangement provides additional guarding and features needed
for machines in applications in waste transfer stations, waste to
energy plants, and recycling centers,
INCLUDES: axle seal guards, front driveshaft guard, headlight guards.
hinged and electrically actuated powenrain and crankcase guards,
narrow steel front fenders, hydraulic tank guard, fuel tank guarding,
steering cylinder guards, rear hitch area baffle, implement valve
cover baffle, airborne debris grill, and "Scrap Handler" machine
decal.
INCLUDES 227-4094 Guards, Axle Seals,
201-6779 Fenders, Narrow
221-7000 Grill, Airborne Debris
CANNOT BE USED WITH: 217-0954 Forest Machine SW
217-0955 Forest Machine CC
239-7420 Package, Value SW
239-7417 Package, Value CC
SCRAP HANDLW AUTO REV. FAN
1,160
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
This arrangement provides the compatibility for the
Scrap Handler and Auto Reversing Fan.
INCLUDES: 265-8906 Waste Handler
230-3123 Fan. Auto Reversino
FAN, AUTO R E V M I N G
,100
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY
This auto reversing fan is controlled to change direction
automatically to purge debris from the radiator and screens.
A switch in the cab provides manual override control. The
engine setvice wall is removed and included is the airborne
debris screen, heat blocker material to wrap the hot components
of the engine and exhaust system.
INCLUDES: 221-7000 Grill. Airborne Debris.
PAINT, COIWOSION RESISTANT
o
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
This modification provides a triple coat paint process.
Two coats of primer and a final finish coat applied.
Silicon sealant will be applied t o ail exposed electrical
wire terminals and connections to help protect them from
corrosive atmospheres.
-
...............................
~~~
~
~~~~~
...........................
~
m
~~~~~~
$5,370
OTHER ATTACHMENTS
VALUE PACK4 GES
P
239-7420
...............................
PACKAGE VALUE(SW)
194-4204 Lights, Cab
190-1111 Lights, Signal, Directional SW
197-6474 Mirrors. External
131-2633 Sun Visor, Front
151-0171 Fenders, Front & Rear Extension
227-9981 Radio, AM/FM WB (Cassette)
159
$3,160
CATERPILLAR MACHINE PRICE LIST
REF
USE
950G II
OPTIONAL ATTACHMENTS
NO.
Ship Weight
List Price
A t Factor"
Ibs
OTHER ATTACHMENTS (CONT.)
VALUEPACKAGES (Cont.)
P
................................
239-7417
159
$3,160
290
$5,200
.........................
476
$5,200
..........................
.23
$450
.......................
32
$450
...........................
3
$589
....................................
2
$1,910
....................................
2
$2,185
............................
2
$2,020
PACKAGE VALUE(CC)
194-4204 Lights, Cab
190-3508 Lights, Signal, Directional. CC
197-6474 Mirrors, External
131-2633 Sun Visor, Front
151-0171 Fenders, Front 8, Rear Extension
227-9981 Radio, AM/FM WB (Cassette)
HYDR4 ULlCS
L
192-4676
L
1924677
P
212-8234
P
210-6781
P
211-3118
P
213-6015
P
218-3833
P
233-0208
........................
HYDRAULICS, THIRDVALVE SW
3rd Valve with three control levers.
FOR USE WITH: 186-3529 Steering Wheel configuration SW
INCLUDED IN: MA# 0 3 , 3 0
HYDRAULICS, THIRDVALVECC
3rd Valve with three control levers.
FOR USE WITH: 186-3539 Command Control configuration CC
CONTROL JOYSTICK, 2 VALVE
Provides single lever bucket lift and tilt control (Joystick)
FOR USE WITH: 186-3529 Steering Wheel Configuration SW
CONTROL, JOYSTICK, 3-VALVESW
Provides single lever control and an additional lever for third
valve attachment.
REQUIRES: 192-4676 3rd Valve, SW
FOR USE WITH: 186-3529 Steering Wheel Configuration SW
SWITCH, L I F T L W W F N - R S W
Adds a remote forward-neutral-reverse control switch t o
lift lever. Available with all valvellever combinations.
FOR USE WITH: 186-3529 Steering Wheel Configuration
JOYSTICK, M, 2-V
Provides ergonomic, single-lever control for lift and tilt
functions for CC/EH machine configuration with 2-valve hydraulic
functions. Includes soft detents (electronically conrolled).
and integrated horn activation button,
FOR USE WITH: 186-3539 Command Control configuration CC
JOYSTICK, EH, 3 4
Provides ergonomic, single-lever control for lift and tilt
functions for CC/EH machine configuration with 3-valve hydraulic
functions. Integrated swivel knob on the joystick is provided for
optional 3rd valve function. Includes soft detents (electronically
controlled), and integrated horn activation button.
REQUIRES: 192-4677 Hydraulics, 3-Valve CC or,
234-3083 High Lift, 3 Valve, CC or,
217-0955 Forest Machine CC
FOR USE WITH: 186-3539 Command Control Configuration CC
JOYSTICK, M, 2-V. AUTODIG
Provides ergonomic, single-lever control for lift and tilt
functions for CCIEH machine configuration with 2-valve hydraulic
functions. Includes soft detents (electronically controlled),
integrated horn activation button, and integrated Aggregate
Autodig trigger button.
REQUIRES: 189-4829 Control, Aggregate Autodig.
FOR USE WITH: 186-3539 Command Control Configuration CC
__
Supersedes
Caterpillar: Confidential Green
US-A-05-05C
Subject to change without notice
Printed in USA
U. S.DOLLAR CURRENCY
Cffenv(. 02MAY2005
950G 11-015
CATERPILLAR MACHINE PRICE LIST
USE
REF
NO.
950G II
OPTIONAL ATTACHMENTS
Ship Weight
Ibs
List Price
A t Factory
OTHER ATTACHMENTS (CONT.)
HYDRAULICS (Cont.)
P
233-0209
P
189-4829
L
209-2151
............................
2
$2,295
..........................
0
$6,912
JOYSTICK, M. 3-V. AUTODIG
Provides ergonomic. single-lever control for l i n and tilt
functions for CCIEH machine configuration with 3-valve hydraulic
functions. Integrated swivel knob on the joystick is provided for
optional 3rd valve function. Includes soft detents (electronically
controlled), integrated horn activation button, and integrated
Aggregate Autodig trigger button.
REQUIRES: 192-4677 Hydraulics. 3-Valve CC or,
234-3083 High Lift, 3 Valve, CC or,
217-0955 Forest Machine, CC and
189-4829 Control, Aggregate Autodig
FOR USE WITH: 186-3539 Command Control Configuration CC
CONTROL, AGGREGATEAUTODIG
Software enabled attachment that controls the implement system
during the bucket loading portion of a cycle to automatically
load aggregate material. Operating modes include:
-Automatic Pile Detection (automatically starts loading when
material is detected)
-Operator Triggered (switch activated)
-Record (operator records a personal loading cycle)
Dig mode selector adjusts for material density.
Not recommended for hardbank or large rock loading.
FOR USE WITH: 186-3539 Command Control Configuration CC
PFlESSURETAFS, REMOTE..
Provides 4 pressure taps at ground level in the hitch
area for easy transmission diagnostics.
INCLUDED IN: MA# 3 0
.............................
22
$555
A UTOLUBEARRANGBWWTS
C
2Q-8116
~~
C
2Q-8117
.........................
$10,490
........................
$10,690
AUTOLUBE LINCOLN (STD LFT)
150
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Provides Lincoln Autolube system "Quicklube", for greasing
pin joints requiring daily lubrication: linkage pin joints,
including bucket pins, articulation hitch, steering cylinders,
and rear axle trunion.
CANNOT BE USED WITH: 234-3080 High Lift 2 Valve SW
234-3082 High Lift 3 Valve SW
234-3081 High Lift 2 Valve CC
234-3083 High Lift 3 Valve CC
298250 Omission, Linkage Wl3V
214.3320 Waste Handler
230-3122 Waste HandlerIAuto Rev. Fan
AUTOLUBE LINCOLN (HIGH LIFT)
150
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Provides Lincoln Autolube system "Quicklube" for greasing
pin joints requiring daily lubrication: linkage pins joints.
including bucket pins, articulation hitch, steering cylinders,
and rear axle trunions.
REQUIRES 234-3080 High Lift, 2 Valve SW
234-3082 High Lift, 3 Valve SW
234-3081 High Lift, 2 Valve CC
234-3083 High Lift, 3 Valve CC
~
~~~
Supersedes
Caterpillar: Confidential Green
US-A-05-05 C
~
Subject to change without notice
Printed in USA
U. S . DOLLAR CURRENCY
Effective 02MAY2005
950G 11.016
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
950G II
OPTIONAL ATTACHMENTS
Ship Weight
Ibs
List Price
At Factow
OTHER ATTACHMENTS (CONT.)
FHVDRS
P
231-6597
P
2016779
P
151-0171
................................
FB\IDEFS, ROADING..
Roading fenders arrangement includes fender extensions
on front fenders and full wrap fenders for rear wheels.
Rear fenders swing out for ease of access to engine area.
FWDERS, NARROW
Installs narrow steel fenders on the front in place of
the standard full width steel fenders.
FBrlDERS,FRONT+ REAREXTENSION..
Includes an extension on front and rear fenders t o
help keep machine (and especially ladders and window
surfaces) free of spray from tires.
INCLUDED IN: 239-7417 Value Package CC
239-7420 Value Package SW
420
$4,045
...................................
78
$1,290
.....................
93
$750
0
$422
1
$207
1
$210
STARTING AIDS
P
253-7360
P
9x3294
P
3T-8724
ST-NG
L
..................................
.........................
.........................
STARTING AID, ETHW
Ether starting aid to assist in cold starting applications.
HEATW ENGINE COOLANT, 120V
REQUIRES: 1101120-volt external power source.
HEATW ENGINE COOLANT. 240V
REQUIRES: 22Ol240-volt external power source.
SYSTBCIS
191-6803
.............................
STEERING, SECONDARY..
Electric supplemental steering, cab includes warning indicator
for steering oil pressure.
154
$3,645
MlSCRL4 NEOUS A TZACHMaJTS
P
200-7137
P
217-5269
P
221-7000
P
211-6947
Supersedes
Caterpillar: Confidential Green
US-A-05-05 C
................................
............................
7
$378
.4
$660
................................
.O
$665
26
$635
Pf7ECLEANW TURBINE..
Installs a Sy-Klone air intake precleaner.
PRECLEANW TURBlNElTRASH
Provides a precleaner for airborne debris applications.
A wire mesh screen prevents airborne debris from being drawn in.
Recommended for Waste Handling applications.
GRILL, AIRBORNE DEBRIS
Replaces the standard rear grill with a vertically corrugated
steel screen with 4mm perforations to restrict the entry of
airborne debris. The grill is hinged to allow access to cooler
cores for cleaning. Also included is a screen material between
the bottom of the grill and the countenveight.
BAFFLE, FRONTFRAMELIFTCYL
Provides a flexible baffle between the lift cylinders and
loader tower plates to keep debris from packing beneath the
cylinders. For use with standard lift arms and the high lift
arrangement.
.........................
Subject to change without notice
Printed cn USA
U. S. DOLLAR CURRENCY
Effective 02MAY2005
950G 11-017
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
950G II
OPTIONAL ATTACHMENTS
Ship Weight
List Price
Ibs
A t Factow
OTHER ATTACHMENTS (CONT.)
MISCELLANEOUS A TTACHMENTS ( a n t . )
P
223-2121
. . . . . . .. . .. . . . . . . . .
. . . . . . ..
COUNTERWHGHT..
... . .
.. 582
Replaces standard crankcase guard with a heavier guard to
provide 582 Ibs (264 kg) additional counterweight for added
stability.
CANNOT BE USED WITH: 217-0954Forest Machine SW
217-0955Forest Machine CC
191-3314Axle Oil Cooler
214-3320Waste Handler
230-3122Waste Handler / Auto Rev. Fan
230-3123Auto Reversing Fan
234-3080High Lift, 2 Valve SW
234-3082High Lift, Third Valve SW
234-3081High Lift, 2 Valve CC
265-8913 MA #30
$2,060
BUCKETS
NOTE Recommend use of bolt-on adapter option. adapter and
segment option, or bolt-on cutting edge option for
general purpose and material handling buckets.
Bucket capacities in bold type are listed without GET.
A VAILABILITY FOR BUCKETS
NOTE For availability of listed CUSTOM buckets call (630-8595320)
or contact your MARKETING subsidary machine coordinator.
NOTE "GET" is NOT automaticall included on the bucket orders. "GET"
must be entered on the orckr with vour
bucket selection.
,~~~
unless text for bucket states otherwise. Please make the
'GET" selection from "GET listed,immediatel following the
bucket listing. Rock bucket selections list "G& for
spade or straight edge.
~~~~
~~~
NOTE Please refer to the WT-WL Price List (Work Tool Wheel Loaders)
for an loose work tools that you may want to order on a
Misc &MOPS) order. Please use the misc. work tool OW672
number listed in the WT-WL Price list for any loose misc.
orders. Pack code required is OW210 for these orders.
NOTE (P) Standard (C) Custom (NI) Not-Installed
Supersedes
Caterpillar: Confidential Green
US-A-05-05 C
Subject to change without notice
Printed ~n USA
U. S.DOLLAR CURRENCY
Effective OZMAY2005
950G 11-018
CATERPILLAR MACHINE PRICE LIST
USE
REF
NO.
___
950G I I
OPTIONAL ATTACHMENTS
Ship Woight
IbS
List Price
At Factory
~
BUCKETS (CONT.)
GBVER.4 L PURPOSE BUCKETS
Use for excavating and bank loading material requiring breakout
force as well as stockpilelrehandling applications. Base edge
drilled for Corner Guard System GET.
Use K80 GET for general purpose buckets.
C
..................
130-8285
BUCKET-GP, 3.25 CYD
130-8286
FOR AVAILABILITY CONTACT (630-859-5320)
CAPACITIES:
3.25 cu.yd. with bolt-on adapters, 118" wide.
3.50 cu.yd. with bolt-on adapters & segments, 118" wide.
3.50 cu.yd. with bolt-on cutting edges, 115" wide.
BUCKET-GP, 3.5 CYD
130-8287
FOR AVAILABILITY CONTACT (630-859-5320)
CAPACITIES:
3.50 cu.yd. with bolt-on adapters, 118" wide.
3.75 cu.yd. with bolt-on adapters & segments. 118" wide.
3.75 cu.yd. with bolt-on cutting edges, 115" wide.
BUCKET-GP, 3.75 CYD
148-7242
CAPACITIES:
3.75 cu.yd. with bolt-on adapters. 118" wide.
4.00 cu.yd. with bolt-on adapters & segments. 118" wide.
4.00 cu.yd. with bolt-on cutting edges, 115" wide.
BUCKET-GP, 4.0 CYD
1473677
CAPACITIES:
4.00 cu.yd. with bolt-on adapters, 118" wide.
4.25 cu.yd. with bolt-on adapters & segments. 118" wide.
4.25 cu.yd. with bolt-on cutting edges, 115" wide.
BUCKET-GP, 4.25 CYD
O
C
P
P
P
...............................
..............................
...............................
..............................
3,08 9
3,089
N
1
$9,562
$9,562 N I
3,269
3,269
$10,004
$10,004 N I
3,346
3,346
$10,417
$10,417 N I
3,490
3.490
$10,699
$10,699 N I
2,957
2,957
$9,893
$9,893 N I
CAPACITIES:
4.25 cu. yd with bolt-on adapters, 118" wide.
4.50 cu. yd with bolt-on adapters & segments, 118 wide.
4.50 cu. yd with bolt-on cutting edge, 115" wide.
MATBUAL HANDLING BUCKETS
Use for stockpilinglrehandlingmaterial. Flat bottom bucket.
Base edge drilled for Corner Guard System GET.
Use K80 GET for material handling buckets
P
P
............
1303069
BUCKET-MH, 3.75 CYD
1303070
CAPACITIES:
3.15 cu.yd. with bolt-on adapters, 118" wide.
4.00 cu.yd. with bolt-on adapters & segments, 118" wide.
4.00 cu.yd. with bolt-on cutting edges, 115" wide.
BUCKET-MH, 4.0 CYD
....................
....3,047
3,047
CAPACITIES:
4.00 cu.yd. with bolt-on adapters, 118" wide.
4.25 cu.yd. with bolt-on adapters & segments. 118" wide.
4.25 cu.yd. with bolt-on cutting edges. 115" wide.
$10,286
$10,286 N I
CATERPILLAR MACHINE PRICE LIST
REF
USE
950G II
OPTIONAL ATTACHMENTS
NO.
Ship Weight
List Price
A t Factory
lbs
BUCKETS (CONT.)
M A T H A L HANDLING BUCKETS (Cont.)
P
130-3071
.............................
BUCKET-MH. 4.25 CYD
,3,139
3,139
$10,699
$10,699 NI
3.26C
3,260
$10,004
$10,004 NI
CAPACITIES:
4.25 cu.yd. with bolt-on adapters. 118" wide.
4.50 cu.yd. with bolt-on adapters & segments, 118" wide.
4.50 cu.yd. with bolt-on cutting edges, 115" wide.
QUICK COUPLER GHVB.4 L PURFOSE BUCKETS
Buckets listed below are FOR USE WITH Quick Couplcr
attachments.
P
209-6667
BUCKET-GP. 3.75 CYD (QC)-CWTS
.....................
CAPACITIES
3 7 5 cu. yd with bolt-on adapters, 118" wide.
4.00 cu. yd with bolt-on adapters & segments. 118" wide
4.00 cu. yd w:th bolt-on cutting edge. 115" wide.
GET K80 for GBVB.4L UJRPOSHMA TBUAL HANDLINGYQUICK COUUER BUCKETS
(inclLdes mounting hardware)
P
139-9229
P
257-1766
P
1073394
P
229-6969
P
229-6965
P
229-6964
..............................
........................
CUTTING EDGE BOLT-ON
30mm Thick (1 req'd)
ADAPTERS, TIP, BOLT-ON, KO80
(1 req'd)
FOR USE WITH: K 8 0 tips
SEGMENTS, BOLTON
35mm Thick. (1 req'd)
FOR USE WITH: K80 Adapters and tips
TIP, GENEWLDUTY ...................................
FOR USE WITH: K80 Adapters (8 req'd)
TIP, FWETRATION
FOR USE WITH: K80 Adaoters 18 rea'dl
TIP, EXTRA DUTY
FOR USE WITH. K80 Adapters (8 req'd)
................................
....................................
.
.....................................
500
298
,352
26
0
@
20
29
$54
WASTE HANDLER BUCKETS
P
1344734
BUCKET-WH, 6.75 CYD
.............................
.5,235
5,235
$19,640
$19,640 NI
1,260
1,260
$6,009
$6,009 NI
2,375
2,375
INCLUDES: 9 6 (2438mm) carriage and 6 0 (1524mm) swinging tines,
$8,905
$8,905 NI
INCLUDES: Bolt-on cutting edge 120.4 inches width.
QUICK COUPLW WOW TOOLS
Attachments listed below are FOR USE WITH Quick Coupler
attachments.
..................
P
1364499
A R M . M A T W L HANDLING(ClC)-CWTS
P
136-0495
Extendable Length 123" (3124mm) t o 183" (4648mm)
FORK, PALLET(QC)-CWTS ..........................
Superseder
Caterpillar: Confidential Green
US-A-05-05C
Subject to change without notice
Printed m USA
U. S. DOLLAR CURRENCY
Effective 02MAY2005
950G 11-020
CATERPILLAR MACHINE PRICE LIST
USE
REF
NO.
950G II
OmlONAL ATTACHMENTS
Ship Weight
lbs
List Price
A t Factory
BUCKETS (CONT.)
QUICK COUPLER WORK TOOLS (Cont.)
P
136-0496
.
FORK. PALLET (QC) CWTS
..........................
2,570
2,570
$9,687
$9,687 NI
INCLUDES: 96" (2438mm)carriage and 72" (1829mm) swinging tines.
WORK TOOLS (PIN-ON)
P
P
256-7361
257-1959
FORK, MILLYARD..
................................
INCLUDES: 88" (2235mm) carriage and 64" (1626mm)tines.
REQUIRES 3rd Valve
FOFX, LOGGING..
.................................
INCLUDES: 8 8 (2235mm) carriage and 64" (1626mm)tines.
INSIDE HEIGHT 53.8" (1367mm).
REQUIRES: 3rd Valve
ADDITIONAL
5,160
5,160
$23,113
$23,113 NI
4,586
4.5Rfi
$26,818
$26,818 NI
~.
WORK TOOLS
Additional work tools are available for the 950G II including:
Special ap lication buckets such as Coal, Woodchip,
Sand an8Gravel. Light Material and Side Dump
Reversible plows
Millyard, Log and Core forks (with various top clamp options)
Loader rakes
Hydraulic angling broom
Contact Cater illar Work Tools (CWTS) at 1-800-255-2372 for
additional w o r i tools.
QUICK COUPLERS
P
239-5816
.......................
QUICKCOUPLER HYD. HORIZ. FIN
Factory installed Caterpillar Work Tools & Services (CWrS)
style coupler. Includes all hydraulic lines, locking pin
activation switch in the cab, and quick coupler frame.
CANNOT BE USED WITH: 234-3080High Lift, 2 Valve SW or,
234-3082High Lift, 3 Valve SW or,
234-3081 High Lift, 2 Valve CC or,
234-3083High Lift, 3 Valve CC.
INCLUDED IN: MA# 30
Supersedes
Caterpillar: Confidential Green
US-A-05-05C
Subject to change without notice
Printed in USA
U. S. DOLLAR CURRENCY
,787
$8,016
Effective 02MAY2005
950G
11.021
CATERPILLAR MACHINE PRICE LIST
REF
USE
950G II
OPTIONAL ATTACHMENTS
NO.
Ship Weight
IbS
List Price
A t Factory
QUICK COUPLERS (CONT.)
P
239-5817
P
239-5823
P
2395824
...............................
QUICK COUPLER, RU\DY.
52
Same as 239-5816. QUICK COUPLER-HYO. HORIZ. PIN but excludes
the quick coupler frame,
Hydraulic lines terminate in a junction block on the left-hand
lift arm. This arrangement facilitates the field installation of
CWTS hydraulic horizontal pin or wedge style quick coupler frames
as well as many competitive quick coupler frames. Contact CWTS or
the appropriate Auxiliary Equipment Manufacturer for compatibility,
jumper lines, and other required installation materials,
CANNOT BE USED WITH: 234-3080 High Lift, 2 Valve SW or,
234-3082 High Lift, 3 Valve SW or
234-3081 High Lift, 2 Valve CC or
234-3083 High Lift, 3 Valve CC.
INCLUDED IN: 239-5816 Quick Coupler, Hyd. High Lift
QUICK COUPLER, HYD. HIGH LIFT
730
Provides standard coupler, longer hydraulic lines and tubes to
accomodate the High Lift Linkage that is ordered separately.
REQUIRES: 234-3080 High Lift, 2 Valve SW or
234-3082 High Lift, 3 Valve SW or,
234-3081 Hiah Lift, 2 Valve CC or.
234-3083 H i i h Lift; 3 Valve CC.
QUICK COUPLER, READY, HI-LIFT
0
Same as 239-5823 QUICK COUPLER. HYD. HIGH LIFT but excludes
the quick coupler frame. Hydraulic lines terminate in a
junction block on the left lift arm. Facilitates field
installation of various quick coupler frames on high lift arms,
REQUIRES: 234-3080 High Lift, 2 Valve SW or,
234-3082 High Lift, 3 Valve SW or,
234-3081 High Lift, 2 Valve CC or,
234-3083 High Lift, 3 Valve CC.
$2,414
........................
$8,263
...........................
$2,665
ANTIFREEZE
NOTE: Standard machine includes antifreeze protection to -34C (-29F)
Different lubricants are also required for extreme temperatures.
Please reference operation and maintenance manual.
P
OP-6722
COOLANT, M T . LIFE. -42C(-44F)
..........................
0
$ 1 3 1 NET
P
OP-2407
COOLANT, M T . LIFE -50C(-58F~
..........................
0
$202 NET
......................................
........................
0
PACKING
DOMESTIC PACKING
OP-0309
OP-0311
OP0312
OM313
Supersedes
DOMESTICTRUCK
Complete machine loaded on truck at factory.
PACK, DOMESTIC TRUCK LESS TIRE
Machine loaded on truck with tires removed.
PACK,STANDARD TRUCK UBUCKET
Machine loaded on truck with bucket removed.
PACK, DOMESTIC FAIL
Complete machine loaded on rail car at factory.
Caterpillar: Confidential Green
US-A-05-05C
NC
0
$ 1 2 1 NET
........................
0
$44 NET
..................................
0
$ 1 2 1 NET
Subject to change Without notice
Printed in USA
U. S. DOLLAR CURRENCY
EffeRive 02MAY2005
950G 11.022
950G II
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
OPTIONAL ATTACHMENTS
Ship Weight
List Price
A t Factory
lb5
PACKING (CONT.)
DOMESTIC PACKING (Cont.)
OP-0314
.........................
0
............................
0
PACK, DOMESTIC RAIL LESSTIRES
Machine loaded on rail car with tires removed.
$399 NET
MISC PACKING
OM670
PACK, MlSC MWL SHIPMENTS
NC
FIELD INSTALLED ATTACHMENTS
AVAILABLEONLY FROM PARTS DISTRIBUTION
1734530
135-9666
173-5424
RADIO 12V AMlFM
12V AMlFM Stereo
INCLUDES: Individual bassltreble contro1s. loudness
adjustment, auto reverse, and station pre-set capability
Pre-set memory maintained by internal battery.
CUTTING EDGE, H.D.,BOLT-ON
35mm thick. (2 req'd)
REQUIRES: 132-1033 EDGE-END H.D. (2 req'd)
21.3507 NUT (12 req'd)
4F-4042 BOLT (12 req'd)
GUARD, CORNW
(1 req'd) (RH)
REQUIRES: 1735425 Guard-Corner (LH) (1 req'd)
8t9079 Bolt (4 req'd)
3k9770 Nut (4 req'd)
FOR USE WITH: General Purpose and Material Handling Buckets
bolt-on cutting edges to protect the corners
from wear.
CUSTOM M K A - F I T KITS for CU-T
.
r,
95OGli. order on MACHINEor MlSC MSO
NOTE: Kits must bc ordcrcd NOT-INSTALLED.
REQUIRES: OP5322. OP5203 and OP4670 on all CLstorn Kit orders
No returns for K i t componets or parts removed.
C
2Q-8048
C
20-8050
C
2Q-8044
Supersedes
.......................
65
$8,767 NI
........................
.65
$8,767 NI
........................
320
$5,354 NI
KIT, PAYLOAD CONTROL, SW IGll
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II SW, Ser# AXXOOOOI & up.
Provides components t o install PCS on Steering Wheel model.
KIT, PAYLOAD CONTROL CC I Gll
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II CC. Ser# AXROOOOI & up.
Provides components t o install PCS on Command Control model.
KIT, ROECONTROL, SW 2/3 lGll
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II SW, Ser# AXXOOOOI & up.
Provides components t o field install Ride Control on Steering
Wheel model 2 or 3 Valve.
Caterpillar: Confidential Green
US-A-05-05C
Subject to change without notice
Printed in USA
U. S.DOLLAR CURRENCY
Effective 02MAY2005
950G 11-023
CATERPILLAR MACHINE PRICE LIST
REF
USE
NO.
950G II
OPTIONAL ATTACHMENTS
Ship Weight
lbs
List Price
At Factory
FIELD INSTALLED ATTACHMENTS (CONT.)
CUSTOM RETRO-FIT KITS for CURRBJT 950Gll,order on MACHINE or MISC MSO ( a n t . )
C
20-7877
C
C
z~--7a3a
C
2Q-8051
C
2Q-8052
C
20-8055
C
C
C
................................
KIT, 3-VALVESW / GI1
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY,
950G II SW, Ser# AXXOOOOl & up.
Provides 3rd Valve Hydraulics for Steering Wheel model.
Includes additional valve section and lines group for lift
arms and %ever handle control to convert from 2 handles.
KIT, 3-VALVE C C / GI1
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II CC. Ser# AXROOOOl & up.
Provides 3rd Valve Hydraulics for Command Control model.
Includes additional valve section and lines group for lift
arms and 3-lever handle control to convert from 2 handles.
KIT. SECONDARY STEERING / GI1
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II SW. Ser# AXXOOOOI & up.
950G II CC. Ser# AXROOOOI & up.
Provides components to retro-fit secondary steering.
KIT. AXLEOILCOOLW/Gll
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II SW. Ser# AXXOOOOI & up.
950G II CC, Ser# AXROOOOI & up.
Provides components to retro-fit Axle Oil Cooler.
KIT. JOYSTICK, 2-V SW / Gll ...........................
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G Ii SW, AXXOOOOl & up
Provides components to field install a 2 valve joystick.
KIT, JOYSTICK, 3-V SW / GI1
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II SW, AXXOOOOl & up
Provides components t o field install a 3 valve joystick.
KIT, JOYSTICK, 2 8 3 V M CC Gll
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II CC Ser# AXROOOOI & UP.
Provides components t o field intall an Electro-Hydraulic
Joystick for use with any: 2 or 3 Valve, or Autodig
configuration.
KIT, AUTO REVWSlNG FAN / GI1 ........................
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II SW, Ser# AXXOOOOI & up
950G I1 CC, Ser# AXR00001 & up
Provides components t o field install Auto Reversing Fan.
KIT, AIRCONDITIONW
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II SW, Ser# AXXOOOOI & up
950G II CC, Ser# AXROOOOI & up
Provides components t o field install A/C.
350
$ 5 , 7 8 1 NI
................................
,350
$5.781 NI
........................
160
$3,633 NI
............................
830
$8,636 NI
,50
$1,840 NI
.50
$2,069 NI
0
$2,718 NI
,380
$5,789 NI
240
$3,677 NI
...........................
...........................
................................
......
DOLLAR CURRENCY
950G 11-024
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
950G II
OFTIONAL ATTACHMENTS
Ship Weight
L15t Price
A t Factory
lbs
FIELD INSTALLED ATTACHMmTS (CONT.)
CUSTOM RETRGFIT KITS for CURRGVT 950Gl1, order on MACHINE or MISC MSO (Cont.)
C
2Q-8058
C
2Q-7788
.........................
100
$1,169 NI
..........................
20
$520 NI
KIT, GRILL AIRBORNE DEBRIS,GII
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II SW.Ser# AXXOOOOI & up.
950G II CC, Ser# AXROOOOl & up.
Provides rear grill steel screen with 4mm perforations
to restrict the entry of airborne debris.
KIT, AUTODIG WITH PCS CC/GII
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II CC, Ser# AXROOOOl & up.
Provides components to field install the Aggregates Autodig
attachment to machines already equipped with PCS.
Does not include the software to operate the Autodig system.
Dealer needs to access the Factory Password System web site
to obtain the code, a fee will be charged at that time.
CUSTOM RETROFIT KITS for NON-CUERHVT 95OWFlUG. order on MISC MSO.
NOTE: Kits must be ordered NOT-INSTALLED.
REQUIRES: OP5322, OP5203 and OP4670 on all Custom Kit orders.
No returns for Kit components or parts removed.
C
40-1 790
C
2Q-1326
C
2Q-2961
C
20-2982
C
2Q-1748
Supersedes
.....................
KIT. PAYLOAD CONTROL SYSTEM,SW
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY
950G SW. 3JW00001 & u p
Provides components to field install PCS on SW.
KIT, PAYLOAD CONTROL SYSTEM,CC .....................
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY
950G CC, Ser# 4BS00001 & up
Provide components t o field install PCS on CC.
KIT, WDECONTROL, SW
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY
950G SW, S e d 3JW00001 & u p
Provides components to field install Ride Control on
Steering Wheel 2 or 3 Valve.
KIT, WDECONTROL, CC
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY
950G CC, Ser# 4BS00001 & up
Provides components to field install Ride Control on
Command Control 2 or 3 Valve.
KIT, 3RD VALVECC
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G CC, Ser# 4BS00001 & up
Provides components to convert a 2-Valve system
to a 3-Valve system.
Includes additional valve section and lines group for lift
arms and %ever handle control to convert from 2 handles.
Caterpillar: Confidential Green
US-A-05-05C
35
$8,767 NI
.28
$8,767 NI
..............................
320
$5,354 NI
...............................
320
$5,354 NI
..................................
3 60
$5,781 NI
Subject to change without notice
Printed ~n USA
U. S. DOLLAR CURRENCY
Effective 02MAY2005
950G 11.025
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
950G II
OmlONAL ATTACHMENTS
Ship Weight
Ibs
LNst Price
A t Factory
FIELD INSTALLED ATTACHMENTS (CONT.)
CUSTOM RETROFIT KITS for NON-CURRGVT95OHFll/G, order on MlSC MSO. (Cont.)
20-1 749
4Q-I799
4Q-1791
2Q-8426
22-9936
.................................
KIT, 3RDVALVESW
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G SW. Ser# 3JW00001 & up
Provides components to convert a 2-Valve system
to a 3-Valve system.
Includes additional valve section and lines group for lift
arms and 3-lever handle control t o convert from 2 handles.
KIT, CONTROL JOYSTICK, 2 V(SW)
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G SW, Ser# 3JW00001 & up
Provides components t o field install a 2 valve joystick.
KIT, CONTROL JOYSTICK, 3 V(SW)
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G SW. Ser# 3JW00001 & up
Provides components to field install a 3-Valvejoystick.
KIT, AUTC-EVERSING FAN
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G SW, Ser# 3JW00001 & up
950G CC. Ser# 4BS00001 & up
Provides control, valve, motor and lines to hydraulically
reverse the cooling fan to purge debris from radiator cores.
RECOMMENDED: In high air borne debris applications.
KIT, PAYLOAD CONTROL SYSTEV .......................
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
95OF Ser# 7ZF00001 & up.
95OFll Ser# 5SK00001 & up
960F Ser# 92JOOOO1 & up.
Provides necessary components t o field install PCS on
95OF/95OFll and 960F.
KIT, PAYLOAD CONTROL SYSTEV
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950E 22203189 & up.
Provides necessary components to field install PCS an 950E.
Supersedes
$ 5 , 7 8 1 NI
.50
$1,840 NI
.......................
50
$2,069 NI
.............................
140
$3,458 NI
100
$9,932 NI
80
$10,028 NI
......................
~~~
22-9974
,340
~~~
Caterpillar: Confidential Green
US-A-05-05C
~
~
~~~
........................
Subject to change without notice
Printed in USA
U. S.DOLLAR CURRENCY
Effective 02MAY2005
950G 11-026
CATERPILLAR MACHINE PRICE LIST
950H
950H WHEEL LOADER
AURORA, ILLINOIS
Ship Weight
ibs
List Price
A t Factory
Standard Equipment:
ELECTRlCA L
Alarm, back-up
Alternator (80-amp brushless)
Batteries, maintenance free (2-950CCA)
Ignition key; stadstop switch
Lighting system, halogen (6 total)
Main disconnect switch
Starter, electric (heavy duty)
Starting and charging system (24-volt)
OPERATOR ENVIRONMENT
BuckeWork tool function lockout
Cab, pressurized and sound suppressed,
(ROPSIFOPS) Radio ready(entertainment)
includes antenna, speakers, and
converter (12-volt 10-amp)
Cigar lighter and ashtray (12-volt)
Coat hook (2) with straps
EH Controls, lift and tilt function
Computerized Monitoring System
Instrumentation, Gauges:
Digital gear range indicator
Engine coolant temperatures
Fuel level
Hydraulic oil temperature
SpeedometerlTachometer
Transmission oil temperature
Instrumentation. Warning Indicators:
Air inlet heater
Axle oil temperature
Electrical, alternator output
Engine inlet manifold temperature
Engine oil pressure
Fuel level
Fuel pressure HiILow
Hydraulic oil level
Parking brake
Primary steering oil pressure
Service brake oil pressure
Transmission filter bypass
Heater and Defroster
Horn, electric (steering wheellconsole)
Lunchbox. bev holders and personal tray
Mirrors, rearview (internally mounted)
Seat, Cat Comfort (cloth) air suspension
Seat belt, retractable, 51mm (2") wide
Steering column, adjustable, (angle) SW
(angle and length) CC
Wet-Arm WipersANashen (front and rear).
Intermittent front wiper
Window, sliding (left and right side)
Supersedes
USA D
Caterpillar: Confidential Green
POWERTRAIN
Brakes. full hydraulic enclosed wet-disc
with Integrated Braking System (IBS)
Engine CAT C7 w/ACERT Technology and
ATAAC
Fan, radiator, electronically
controlled, hydraulically driven.
temperature sensing, on demand
Filter, fuel primarylsecondary
Filters, engine air, primarylsecondary
Fuel priming pump, (electric)
FuelANater separator
Muffler, sound suppressed
Radiator, unit core (6fpi) with ATTAC
Starting aid, air inlet heater
Switch, transmission neutralizer lockout
Torque converter (free wheel stator)
Transmission, automatic planetary power
shift (4Fl4R)
Variable Shift Control (VSC)
OTHER STANDARD EQUIPMENT
Automatic bucket positioner
Couplings, Caterpillar O-ring face seal
Doors. service access (locking)
Ecology drains for eng.. trans., & hyd.
Fenders (front & rear) steel
Guard, airborne debris
Hitch, drawbar with pin
Hood, non-metallic power tilting
Hoses, Caterpillar XT
Hydraulic oil cooler
Kickout. lift & tilt automatic
Linkage, Z-Bar,cast crosstubeltilt lever
Oil sampling valves
Product Link Ready
Remote, diagnostic pressure taps
Service Center (electrical & hydraulic)
Sight gages: Engine coolant, hydraulic
oil and transmission oil level
Steering, load sensing
Vandalism protection caplocks
TIRES, RIMS, & WHEELS
A tire must be selected from the
mandatory attachments section. Base
machine price includes an allowance
based on a premium radial tire
ANTIFREEZE
Premixed 50% concentration o f extended
life coolant with freeze protection
to -34C (-29F)
Subject to change without notice
Printed ~n USA
U. S. DOLLAR CURRENCY
Effective 26AUG2006
950H-001
CATERPILLAR MACHINE PRICE LIS1
950H
- - -~~
9S0H WHEEL LOADER
Ship Weight
Ibs
AURORA, ILLINOIS
237-0230
950H W H m LOADW . . . . . . . . . . . . .
STEERiNG WHEEL configuration (SW)
Standard Equipment:
. CONVENTIONAL STEERING WHEEL, hand metering pump
Electric FWDIREV and gear selection shifter, steering
column mounted.
. Electro-Hydraulic operated BuckeUwork tool controls,
seat mounted
Electronic BucketMfork tool lockout switch
Quick gear kickdown button
in cab adjustable lift and tilt arm upper kickout.
Cloth Cat Comfort Seat with adjustable backrest, armrest
and lumbar support, air suspension
List Price
At Factory
0
$230,140
........................
34,422
$232,370
........................
34,618
$236,680
34,632
$241,820
34,908
$242,030
NOTE: Command Control machine can be ordered by selecting the top
level 237-0230 Standard Machine and 244-3922 Steering CCS
attachment. Other attachment options are available with the
Command Control machine and will be listed as CC versions.
Contact your dealer t o determine the correct length of cables
to utilize the receptacle group called out in the M A S below.
293-5849
950H W H B LOADER(SW) MA I
237-0230 Standard Machine
241-0645 Receptacle Gp
243-6623 Air Conditioner
244-5585 Pressure Taps, Remote
293-5850
950H WHEELLOADER(SW)MAZ
237-0230 Standard Machine
241-0645 Receptacle Gp
243-6623 Air Conditioner
244-3442 Ride Control 2 Valve
244-5585 Pressure Taps, Remote
-
293-5853
950H WHQ LOADE?(SW) M A 3 ........................
237-0230 Standard Machine
241-0645 Receptacle Gp
243-6623 Air Conditioner
244-3442 Ride Control 2 Valve
244-5585 Pressure Taps, Remote
126-7845 Differential, Limited Slip. Rear
214-9402 Differential, Limited Slip. Frnt
-
293-5852
950H W H B LOADW(SW) M A 4
237-0230 Standard Machine
241-0645 Receptacle Gp
243-6623 Air Conditioner
244-5585 Pressure Taps, Remote
244-3443 Ride Control 3 Valve
237-0269 Hydraulics, 3-Valve SW
-
........................
CATERPILLAR MACHINE PRICE LIST
950H
950H WHEEL LOADER
AURORA,
Ship Weight
ILLINOIS
Ibs
290-8107
950H SEWER& WATER(SW) MA1 . . . . . .
237-0230 Standard Machine
241-0645 Receptacle Gp
243-6623 Air Conditioner
244-5585 Pressure Taps. Remote
244-3443 Ride Control - 3 Valve
237-0269 Hydraulics, 3-Valve SW
214-9402 Differential, Limited Slip. Frn
244-2661 Quick Coupler, Hyd Horizontal Pin
276-5414 Counterweight Gp.
290-8108
950H SEWW & W A T W (SW) MA 2
237-0230 Standard Machine
241-0645 Receptacle Gp
243-6623 Air Conditioner
244-5585 Pressure Taps. Remote
244-3442 Ride Control - 2 Valve
291 -0040 Differential, Limited Slip, Front
276-5414 Counterweight Gp.
244-2661 Quick Coupler, HYD. HORIZONTAL PIN
290-8110 Conversion Ar. Power
290-8109
950H SNVER 8 W A T W (SW) M A 3
237-0230 Standard Machine
241-0645 Receptacle Gp
243-6623 Air Conditioner
244-5585 Pressure Taps, Remote
237-0269 Hydraulics. 3-Valve SW
244-3443 Ride Control. 3 Valve
126-7845 Differential, Limited Slip, Rear
291-0040 Differential. Limited Slip, Front
276-5414 Counterweight Gp.
244-2661 Quick Coupler, Hyd Horizontal Pin
290-8110 Conversion Ar. Power
OP-I 124
950H MlSC MATEFdAL AURORA
Use this as the top level reference number
when ordering miscellaneous material without
ordering a machine.
Supersedes
US-A D
Caterpillar: ConfidentialGreen
List Price
A t Factory
0
$254,200
............................
0
$248,850
............................
0
$256,780
..............................
0
Subject to change without notice
Printed ~n USA
U. S. DOLLAR CURRENCY
NC
Effective 26AUG2006
950H-003
CATERPILLAR MACHINE PRICE LIST
950H
9 5 0 H WHEEL LOADER
Ship Weight
lbs
AURORA, ILLINOIS
- Autodig Attachments
- Directional Lights
- Value Packages
- Yard Loader Packages
NOTE
Dealers mould Contdct Caterplllar Account Coordmator If thcy
plan to use a tire not offered on the price list Some [(res
may reqLire axle oscillation stops or other machine modlfcattons
NOTE: "PIN-ON" (Denoted with a "P" in the left-hand column next t o the
reference number) Attachments may be ordered in conjunction with
all MA's.
LINE INSTALLED (Denoted with a "L" in the left-hand column next
to the reference number) or CUSTOM (Denoted with a "C") may
not be ordered in conjunction with MA's with the exception
of "CUSTOM" buckets and rear vision camera. The 281-8875 Camera,
Rear Vision, Custom Attachment may be ordered with Merchandising
Arrangements on downline build only.
Specially priced "VALUE PACKAGES". which are bundled PIN-ON
Attachmenst. may be ordered with all MA's. Value Packages may
may be found under the "OTHER ATTACHMENTS" section.
MERCHANDISING ARRANGEMENTS (MA's) are specially priced popular
sales configurations and were developed to address specific
market segments and applications.
NOTE For availability of listed CUSTOM buckets call (630-859-5320)
or contact your MARKETING subsidary machine coordinator.
Please refer to the WT-WL Price List (Work Tool Wheel Loaders)
for any loose work tools that you may want t o order on a
Misc. (CMOPS) order. Please use the misc. work tool OP0672
number listed in the WT-WL Price list for any loose misc.
orders. Pack code required is OP0210 for these orders.
NOTE CONTACT CUSTOM PRODUCTS AT (630-859-5301)
Contact Aurora Custom Products for availability and additional
information concerning Custom offerings.
NOTE: Custom Kits must be ordered as NOT-INSTALLED
with a MACHINE ORDER or on a MISCELLANEOUS ORDER.
REQUIRES: OP1124. OP.5203, AND OP4670 if ordered
on a MISCELLANEOUS ORDER.
No returns for Kit components or parts removed.
auu,rcr
Caterpillar: Confidential Green
E"
""any
Printed ir
List Price
At Factory
CATERPILLAR MACHINE PRICE LIST
REF
USE
950H
MANDATORY ATTACHMENTS
NO.
Ship Weight
lbs
List Price
A t Factory
SERVICE INSTRUCTIONS
DECAL PACKAGES (picto)
NOTE: The word "WARNING" is on picto decals for ANSI.
Symbols only are on picto decals for ISO.
Select only one
P
247-9876
O
.......................
INSTRUCTION.NORTH AMERICA ANSI
This package includes picto decals as requ red for North America
except for Quebec.
?
NC
................................
C
NC
...............................
................................
M TION AND MAINTENANCE MANUAL
NOTE: Operation and Maintenance Manbal will be included in
language requested below.
Select only one
P
OP-3380
INSTRUCTIONS, ENGLISH
P
OP-3389
INSTRUCTIONS, F R B C H . .
0
NC
P
ow404
INSTRUCTIONS. SPANISH
r
NC
-824
$2,055
..........................
.-532
$3,150
............................
-740
$3,280
TIRES, RIMS, &WHEELS
NOTE All tires are tubeless, include rims, and come in a set of 4.
23.5-25 16177L3 Bias Tires
P
138-2637
............................
TIRES, 23.5-25 PR16 FSL3
Firestone Bias, Product Code #400556.
SRG (Super Rock Grip) loader tire with a 16 ply rating
and heavy duty non-directional tread design which features
exceptional traction and resistance to cutting and chipping
in loading applications.
23.5-25 R 2 0 L3 Bias Tires
P
139-6146
P
139-6144
TIRES, 23.5-25 20FRGEN L3
General Bias, Product Code #271288.
Non-directional tread design with center riding rib provides
excellant traction, lateral stability, and resistance to rock
damage with long tread life.
TIRES, 23.5-25 PR20 FSL3
Firestone Bias, Product Code #400610.
SRG (Super Rock Grip) loader tire with 20 ply rating and
heavy duty non-directional tread design which features
exceptional traction and resistance to cutting and chipping
in load applications.
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
950H
MANDATORY ATTACHMENTS
List Price
Sh'p We'ght
IbS
A t Factory
TIRES, RIMS, & WHEELS (CONT.)
23.5-25 PRZO L3 Bias Tires ( a n t . )
P
139-6148
TIRES. 23.5-2520PRHFLGYL3 ........................
*'*Contact Account Coordinator for Availability** *
Goodyear Bias, Product Code
HRL (Super Hard Rock Loader) EL 3A.
-380
$5,590
23.5M5 * L2 Radial Tires
P
2314159
P
138-2796
.............................
TIRES, 23.5 R25 ' VUT ES L2
Bridgestone Radial, Product Code #422-703.
Non-directional traction tires,
TIRES.23.5FZ5* GPLBGYL2
Goodyear Radial, Product Code # I 53-082-276.
Non-directional rock tread, solid center rib,
100 level tire for high TMPH applications.
0
$4,310
.........................
-159
..........................
268
$4,810
............................
0
$5,260
............................
0
$5,700
$4,740
23.5R25 * L3 Radial Tires
P
165-6179
P
2314157
P
138-2795
TlRES,23.5F25'VMTBSL3
Bridgestone Steel Radial, Product Code #418137.
VMT W-Steel M-Traction). non-directional tread,
traction in varied conditions.
TIRES, 23.5 R25' RT3BGY L3
Goodyear Radial, Product Code #155-903.090.
Non-directional traction tire.
TIRES, 23.5 R25 * XHA MX L3
Michelin Radial, Product Code #30826.
Steel cord construction, non-directional tread; for
construction, stockpile and truck-loading applications
truck-loading applications
Special Tires A vailable
P
246-1584
TIRES, 750165 R25' MX L3
............................
***Contact Account Coordinator for Availability; * *
Michelin Radial, Product Code #90278.
Low profile. wider version of 23.5 R25. with the same
overall diameter. Non-directional tread, increased ground
contact for better traction and flotation.
691
$11,310
Tires/Rims, Allowance for Omission
NOTE: Dealers should contact Caterpillar Account Coordinator
if they plan to use a tire not offered on the price list,
Some tires may require axle oscillation stops or other
machine modifications.
P
138-2373
P
132-9336
Supersedes
US-A D
...................................
.........................
RIMS. 23.5-25
Less tires
OMISSION, TIRESANDFUMS
Less tires and rims
Caterpillar: Confidential Green
Subject to change without notice
Printed in USA
U. S. DOLLAR CURRENCY
-2,023
$-6,740
-8,492
$-8,960
Effective 26AUGZ006
950H-006
CATERPILLAR MACHINE PRICE LIS1
REF
USE
950H
OPTIONAL ATTACHMENTS
NO.
Ship Weight
List Price
A t Factory
lbs
LIFT ARRANGEMENTS
L
244-3375
L
244-3396
C
291-4609
....................................
0
$9,370
....................................
0
$10,080
HIGH LIFT. 2 VALVE
Provides increased dump clearance of 19" (498mm) over standard
lift arms. Additional countemeight included.
All 950H buckets fit both standard & high lift arrangements.
Reference the 950H specalog for bucket selection guidelines.
CANNOT BE USED WITH: 244-5421 Forest Machine Arrangement
HIGH LIFT, 3 VALVE
Same as 244-3375 High Lift, 2-Valve with extended
hvdraulics 3rd Valve.
ChNNOT BE USED WITH 244.5421 Forest Machinc Arrangement
REQUIRES 237 0269 Hydraulics. 3-Valvc
.....................
OMISSION, LINKAGEW/3 VALVE
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
-3,300
$-4,990
NOTE Modification lesses off the lift arms. tilt-lever, bucket-link
lift and tilt cylinders, and lines group. Provides additional
countemeight 1570 Kg (3461 lbs), and 3rd valve hydraulics
but no lines group.
ELECTWCAL
P
244-3599
...............................
LIGHTS, DIRECTIONAL SW
Provides directional turn signals.
INCLUDED IN: 297-4849 Value Package SW
278-0491 Package, Value, Yard Loader SW
0
$885
0
$885
0
$935
NOTE: CANNOT BE USED WITH:
244-6607 Waste Handler
276-7489 Scrap Handler
244-3922 Steering, CCS
276-5452 Package, Value Yard Loader CC
260-7765 Lights, Roading WISignals CC
254-5525 Lights, Roading WISignals SW
P
235-5279
................................
LIGHTS, DIRECTIONAL CC
Provides directional turn signals.
REQUIRES: 244-3922 Steering, CC
INCLUDED IN: 297-4851 Value Package CC
276-5452 Package, Value, Yard Loader CC
NOTE CANNOT BE USED WITH:
244-6607 Waste Handler
276-7489 Scrap Handler
260-7765 Lights, Roading WISignals CC
254-5525 Lights, Roading WISignals SW
P
254-5525
Supersedes
US-A 0
.........................
LIGHTS, ROADlNG W/SIGNALS SW
Provides roading lights and directional signals for SW
Caterpillar: Confidential Green
Subject to change without notice
Printed cn USA
U. S. DOLLAR CURRENCY
Effective 26AUG2006
%OH-007
REF
USE
OPTIONAL ATTACHMENTS
NO.
Ship Weight
Ibs
List Price
At Factory
ELECTFUCAL (CONT.)
NOTE CANNOT BE USED WITH:
297-4851 Value Package, CC
276-5452 Package, Value Yard Loader CC
235-5279 Lights, Directional CC
244-3599 Lights, Directional SW
244-3922 Steering, CCS
P
260-7765
...............
LIGHTS, ROADING WlSlGNALS CC
Provides roading lights and directional signals for CC
REQUIRES: 244-3922 Steering, CC
.
49
$935
NOTE CANNOT BE USED WITH: 276-5456 Package, Value SW
278-0491 Package, Value, Yard Loader SW
235-5279 Lights, Directional CC
244-3599 Lights, Directional SW
244-5421 Forest Machine Arrangement
244-6607 Waste Handler
276-7489 Scrap Handler Arrangement
P
280-1456
P
235-8560
P
237-1 012
L
241-0645
....................................
LIGHTS.CAB
Provides additional cab mounted halogen work lights.
(2 front, 2 rear).
CANNOT BE USED WITH: 235-8560 Lights, HID
297-4849 Value Package SW
297-4851 Value Package CC
278-0491 Package, Value, Yard Loader SW
276-5452 Package, Value, Yard Loader CC
LIGHTS,HID
Provides (4 X 35W HID) 2 facing forward and 2 facing rear
on top of cab for improved visibility.
INCLUDED IN: 297-4849 Value Package SW
297-4851 Value Package CC
276-5452 Package, Value, Yard Loader CC
278-0491 Package, Value, Yard Loader SW
LIGHT, WARNING BEACON
Provides a rotating warning beacon.
RECEPTACLE STARTING..
Hookup for emergency starting from other 24V power source.
INCLUDED IN: 293-5849 M A 1
293-5850 M A 2
293-5853 M A 3
293-5852 M A 4
290-8107 Sewer & Water M A 1
290-810 8 Sewer & Water M A 2
290-8109 Sewer & Water M A 3
....................................
..........................
.........................
NOTE Jumper cables not included with this attachment. Contact your
dealer to determine correct length of cables for your machine.
$1,265
25
$3,380
..... 9
$467
...... 0
$394
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
950H
OPTIONAL ATTACHMENTS
Ship Weight
List Price
A t Factory
Ibs
MACHINE SECURITY SYSTEMS
P
243-1945
.............................
SECUNTY SYSTLV, MACHINE
Protects from vandalism and theft by preventing unathorired
personnel from starting a machine. Machines start only after a
unique MSS key is inserted into the ignition. MSS keys can be
programmed to start machines only certain days or hours.
0
$890
0
$2,818
PRODUCT LINK COMMUNICATIONS
Product Link is the on-board machine hardware consisting of an
antenna, electronic radio, and wiring harness that gathers and
transmits data such as machine location, hours, and health. Data
from the Product Link is displayed in EquipmentManager on the
Dealer Storefront internet website. Contact your dealership's
EquipmentManager Administrator for EquipmentManager subscription
prices.
P
2613037
PRODUCTLINK
........................................
GUARDS
126-7710
289-0027
2404542
241-8650
245-61 85
Supersedes
US-A D
GUARD, POWERTWIN.. ..............................
.I41
Protects the bottom of the transmission.
CANNOT BE USED WITH: 241-0073 COOLER, AXLE OIL
244-6607 Waste Handler
276-7489 Scrap Handler
PLATFORM, WINDOW CLEANING PKG
0
Provides walk around platform, and handrails to allow access
for cleaning.
NOT FOR USE WITH: 240-4542 Guard, fnt window (wide mesh)
241-8650 Guard, fnt window (small mesh)
GUARD, FNT WINDOW (WIDEMESH)
295
Provides a heavy duty steel wide-mesh guard for the front cab
windows. The mesh bars are 19mm (0.75 inches) in diameter
with 180mm (7 inch) spacing. This heavier duty guarding is
typically used for protection in forestry and heavy duty
material handling applications. This guard is in compliance
with the front guarding requirements of IS0 10262:1998 LEVEL II,
SAE J1356:2002 and EEC 98/37/EC.
GUARD, FNT WINDOW (SMALL MESH)
247
Provides a steel-mesh guard for the front cab windows. The mesh
bars are 6.35mm (0.25 inches) in diameter with 50.8mm (2 inches)
spacing. Typically used for protection in waste and ligher duty
material handling applications. This guard is in compliance with
the front guarding requirements of IS0 8084:2003, SAE J1084:2002
and EEC 98/37/EC.
PLATFORM, WINDOW CLEANING PKG
0
Provides walk around platform to allow access
for cleaning on machines with front window guards.
For use with: 240-4542 Guard, front window (wide mesh)
241-8650 Guard, front window (small mesh)
Caterpillar: Confidential Green
.......................
$1,440
$970
.....................
$4,040
....................
$6,500
.......................
Subject to change Without notice
Printed in USA
U. S. DOLLAR CURRENCY
$450
Effective 26AUG2006
950H-009
CATERPILLAR MACHINE PRICE LIST
REF
USE
950H
OPTIONAL ATTACHMENTS
NO.
Ship Weight
Ibs
List Price
A t Factorv
GUARDS (CONT.)
P
274-0055
.........................
26
$665
AIRCONDITIONW
0
INCLUDED IN: 278-0491 Package, Value, Yard loader SW
276-5452 Package, V i u e . Yard Loader CC
293-5849 M A 1
293-5850 M A 2
293-5853 M A 3
293-5852 M A 4
290-8107 Sewer & Water MA 1
290-8108 Sewer & Water MA 2
290-8109 Sewer & Water MA 3
AIR CONDITIONR ROOF MOUNTED
80
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
The air conditioning system is modified by mounting an electric
fan cooled AIC condenser on the cab roof,
REQUIRES: 243-6623 Air Conditioner
CANNOT BE USED WITH: 258-1548 Canopy, ROPS. SW
CAB, RUBBERMOUNTEDGLASS
100
Provides a cab with glass mounted in rubber seais. Facilitates
quick window replacement.
CANOW,ROFS,SW
0
OMITS CAB. Includes Open ROPS
Includes Vinyl seat and lockable vandalism guards for
dashboard and control console.
CANNOT BE USED WITH: 244-3922 Steering, CC
SEAT,HEATED
41
Provides heated cushions, ride firmness adjuster, high back seat,
and ride zone indicator for added comfort
SEAT BELT. 3" WIDE
0
For use in California where regulations require 3 inch seat belts.
SEAT BELT, 3" WIDE (KAB)
0
For use in California where regulations require 3 inch seat belts.
FOR USE WITH: 258.1548 Canopy, ROPS, SW
SUNVISOR FRONT
10
INCLUDED IN: 297-4849 Value Package SW
297-4851 Value Package CC
276-0491 Package Value, Yard Loader SW
276-5452 Package Value, Yard Loader CC
MIRRORSEXTEWAL
36
CANNOT BE USED WITH: 245-6185 Platform, Window Cleaning Pkg.
289-0027 Platform, Window Cleaning Pkg.
MIRRORS, HEATED S T E R N A L . .
0
Provides heated external rear view mirrors.
CANNOT BE USED WITH: 245-61 85 Platform, Window Cleaning Pkg
289-0027 Platform, Window Cleaning Pkg
$6,000
BAFFLE, FRONT FFAMELIFTCYL
Provides a flexible baffle between the lift cylinders and
loader tower plates to keep debris from packing beneath the
cylinders. For use with standard lift arms and the high lift
arrangement.
OPERATOR ENVIRONMENT
L
2435623
C
285-6238
L
269-0270
L
258-1548
......................................
.......................
.........................
...................................
~
L
237-2069
P
246-1058
P
2476682
P
131-2633
P
197-6474
P
259-1998
~
~
~~~
~~
$2,985
$4,600
$-2,915
~
$590
...................................
NC
..............................
NC
...................................
$111
...................................
$493
...........................
$520
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
950H
Ship Weight
OFTIONAL ATTACHMENTS
List Price
A t Factory
lbs
OPERATOR ENVIRONMENT (CONT.)
P
259-1999
L
237-1 013
P
2844739
C
2886496
...............
.....
$515
.............................
.......
$830
.......................
........
$555
MIRRORS, HEATED MT., FOLD-UP
0
Provides fold-up heated external mirrors to allow access
to the front of the machine for window cleaning.
FOR USE WITH: 245-6185 Platform, Window Cleaning Pkg.
289-0027 Platform, Window Cleaning Pkg.
240-4542 Guard, Fnt Window (Wide Mesh)
241-8650 Guard, Fnt Window (Small Mesh)
INCLUDED IN: 278-0491 Package, Value, Yard Loader SW
276-5452 Package, Value, Yard Loader CC
RADIO, CB (WnDY)
0
DOES NOT INCLUDE AM/FM RADIO or CB RADIO
Provides adjustable mounting brackets for two radios,
a 2 0 amp 24V to 12V converter, a CB antenna, CB cable
convener. and t w o separate four wire connectors that
contain a ground, 12V. and 24V circuits,
RADIO, AMlFM CD PLAYER
4
Includes 241-4936 Radio AMIFM with CD player
installed at factory.
INCLUDED IN: 297-4849 Value Packaqe SW
297-4851 Value Package CC278-0491 Value Package, Enhanced SW
276-5452 Value Package, Enhanced CC
CAMERA, REARVISION
0
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Provides a 115 degree color camera mounted on the rear of the hood
that is connected to a 7 inch (178mm) LCD color display mounted in
cab which shows the view behind the machine. THE REAR VISION
CAMERA MAY BE ORDERED WITH MA# 1.2.3.4.5 FOR DOWN LINE BUILD ONLY.
..................................
$2,670
POWEFTTRAIN
..................................
P
198-7248
DRAIN. AXLE ECOLOGY
Allows axle oil to be easily drained into a container without
spillage.
L
214-9402
L
126-7845
DIFER€NTIAL,LIMITEI SLIP,FWUT
Replaces the standard front differential with a Limited-Slip
differential. Less aggressive tractive effort than NO-SPIN,
RECOMMENDED: For continuous or intermittent use in traction
limited applications.
INCLUDED IN: 293-5853 MA 3
290-8107 Sewer & Water MA 1
DIFFE33TIAL,LIMITEI SLIP,R€AR
Replaces the standard rear differential with a Limited-Slip
differential. Less aggressive tractive effort than NO-SPIN.
RECOMMENDED: For intermittent use in uphill load and carry.
applications where increased weight is transferred to the rear
axle, or when intermittent underfoot conditions result in
uneven weight distribution within the rear axle.
INCLUDED IN: 293-5853 M A 3
290-8109 Sewer & Water MA 3
Supersedes
US-A 0
Caterpillar: Confidential Green
1
..........................
.....................
Subject to change Without notice
Printed in USA
U. S. DOLLAR CURRENCY
..
$510
7
$2,625
7
$2,625
Effective 26AUG2006
950H-011
CATERPILLAR MACHINE PRICE LIST
REF
OPTIONAL ATTACHMENTS
NO.
USE
950H
Ship Weight
List Price
A t Factorv
Ibs
POWERTRAIN (CONT.)
L
126-7846
L
241-0073
C
2Q-8178
C
2Q-8176
C
2Q-8496
C
2Q-8497
..........................
DIFFERENTIAL, NO SPIN, REAR
-10
Replaces the standard rear differential with a NO-SPIN differential.
Provides aggressive tractive effort for continuous use in traction
limited applications.
COOLEA, AXLEOIL .....................................
0
CANNOT BE USED WITH: 244-6607 WASTE HANDLER
276-7489 SCRAP HANDLER ARRANGEMENT
$ 5 , 880
............................
0
$478
...........................
0
$478
.........................
0
$3,010
0
$3,010
0
$4,395
AXLESEAL, M T . TEMP. FRONT
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Installs high and low, extreme temperature duo-cone axle seals
for ambients from -45C to + 150C (-5OF t o + 30DF).
REQUIRES 298176 Axle Seal, Ext. Temp. Rear or,
Ext. Temo.
208497 Axle Seal.
~~~~.
,. LSD.. Rear
AXLESEAL, MT. TEMP, REAR..
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Installs high and low, extreme temperatures duo-cone axle seals
for ambients from -45C to +15OC (-5OF t o +3OOF).
REQUIRES: 248178 Axle Seal, Ext. Temp. Front or,
298496 Axle Seal, Ext. Temp. LSD. Front
AXLESEAL,MTTEMP, LSD FFXJNT
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Installs high and low, extreme temperature duo-cone axle seals
for ambients from -45C to + 15OC (-5OF to +3OOF).
REQUIRES: 2Q8497 Axle Seal, Ext. Temp LSD Rear or,
2Q8176 Axle Seal, Ext. Temp, Rear
AXLE SEAL, M T . TEMP LSD REAR
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Installs high and low. extreme temperatures duo-cone axle seals
for ambients from -4% to + 150C (-50F t o +3OOF).
REQUIRES: 298496 Axle, Ext. Temp, LSD Front or.
248178 Axle Seal, E x t Temp, Front
~~
$1,945
~~~
~~~
........................
RlDE CONTROL
NOTE Provides a suspension system by placing an accumulator in the lift
circuit which acts as a shock absorber for the work tool. Functions
during loaded or unloaded travel, reducing machine bounce and pitch.
RECOMMENDEDfor most applications. Ride control greatly improves
load retention, operator confidence. and ride. Custom retrofit
kits are available for current and non-current machines.
L
2443442
Supersedes
US-A D
................................
RIDE CONTROL, 2 VALVE
CANNOT BE USED WITH: 244-6607 Waste Handler Ar
276-7489 Scrap Handler Ar.
INCLUDED IN: 278-0491 Package, Value, Yard Loader SW
276-5452 Package, Value, Yard Loader CC
293-5850 MA 2
293-5853 MA 3
290.8108 Sewer & Water MA 2
Caterpillar: Confidential Green
Subject to change without notice
Printed in USA
U. S . DOLLAR CURRENCY
Effemive 26AUG2006
950H-012
CATERPILLAR MACHINE PRICE LIST
REF
OPTIONAL ATTACHMENTS
NO.
USE
950H
Ship Weight
Ibs
List Price
A t Factow
RDE CONTROL (CONT.)
L
244-3443
................................
RJDE CONTROL 3-VALVE.
CANNOT BE USED WITH: 244-6607 Waste Handler Ar.
276-7489 Scrap Handier Ar.
INCLUDED IN: 244-5421 Forest Machine Arrangement
293-5852 MA 4
REQUIRES
0
$4,395
237-0269 Hydraulics, 3 Valve
PAYLOAD CONTROL
NOTE Allows on-the-go weighting of the bucket payload during the
lift cycle with an accuracy of +1-1.5% ( + I - 1% for a stationary
machine). PCS records date, time, weight, number of passes. up
t o 21 different materials, truck ID#, and up to 2639 truckloads.
The system has download capability, an optional printer (from
parts). and Custom retro-fit kits are available for current
and non-current machines.
NCLUDES. Sensors. numeric keypad. aisplay and mounting brackets.
DOES hOT INCLUDE THE PRINTER,
~~
~
~
~~
~~
P
244-4478
PAYLOAD CONTROL SYSTEM
.............................
0
$10,160
P
228-2772
PRINTW, PAYLOAD CNTL SYSTW .........................
Provides onboard ticket printing capability for PCS
6
$2,768
0
$22,540
SPECIAL AIUANGEMENTS
AGGREGRA TE YAlW LOADW
L
278-0491
Supersedes
US-A D
......................
PACKAGE VALUE YAWD LOADWSW
The premium yard loader package offers ergonomic advantages
with select attachmens. a t an exceptional value.
iNCLUDED IN PACKAGE:
250-0337 Autolube. Caterpillar
244-3253 Control, Aggregate Autodig SW
243-6623 Air Conditioner
244-3442 Ride Control, 2V
235-8560 Lights, HID
244-3599 lights, Directional (SW)
244-5585 Remote, Pressure Taps
248-7613 Fenders,Front + Rear Extension
259-1 999 Mirrors, Heated Ext.. Fold-up
284-4739 Radio, AMIFM CD Player
131-2633 Sun Visor, Front
CANNOT BE USED WITH: 244-3375 High Lift, 2 Valve,
244-3396 High Lift, 3 Valve,
237-0269 Hydraulics, 3 Valve
244-5421 Forest Machine Arrangement
297-4849 Package, Value SW
297-4851 Package, Value CC
Caterpillar: Confidential Green
Subject to change without notice
Printed in USA
U. S. DOLLAR CURRENCY
Effective 26AUG2006
950H-013
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
950H
OPTIONAL ATTACHMENTS
Ship Weight
ibs
List Price
A t Factow
SPECIAL ARFANGEMENTS (CONT.)
AGGREGRA TE YARD LOADH (Cont.)
L
276-5452
..................
PACKAGE VALUE YARD LOADBiCC
The premium yard loader package offers ergonomic advantages
with select attachments. at an exceptional value
INCLUDED IN PACKAGE:
250-0337 Autolube. Caterpillar
263-5255 Control, Aggregate Autodig CC
243-6623 Air Conditioner
244-3442 Ride Control, 2V
244-3922 Steering Ar. CC
235-8560 Lights, HID
235-5279 Lights, Directional CC
244-5585 Remote, Pressure Taps
248-7613 FendemFront + Rear Extension
259-1999 Mirrors, Heated Ext., Fold-Up
284-4739 Radio, AMIFM CD Player
131-2633 Sun Visor. Front
CANNOT BE USED WITH:' 244-3375 High Lin, 2 Valve
244-3396 High Lift, 3 Valve
237-0269 Hydraulics, 3 Valve
244-5421 Forest Machine Arrangement
297-4849 Package, Value SW
297-4851 Package, Value CC
0
$25,640
0
$19,340
WASTHSCRAPHANDLE? AtWA NGEMBVTS
L
244-6607
WASTE HANDLER.
.....................................
This arrangement provides additional guarding and features needed
for machines in applications in waste transfer stations, waste to
energy plants. and recycling centers.
INCLUDES axle seal guards. front driveshan guard. headlight guards,
hinged and electrically actuated powertrain and crankcase guards,
narrow steel front fenders, hydraulic tank guard, fuel tank guarding,
steering cylinder guards, rear hitch area baffle, implement valve
cover baffle, and "Waste Handler" machine decal.
INCLUDES: 227-4094 Guards, Axle Seals,
201 -6779 Fenders, Narrow
Supersedes
USA D
Caterpillar: Confidential Green
Subject to change Without notice
Printed in USA
U. S. DOLLAR CURRENCY
Effective 26AUG2006
950H-014
CATERPILLAR MACHINE PRICE LIST
REF
USE
NO.
950H
OPTIONAL ATTACHMENTS
Ship Weight
List Price
lbs
At Factory
SPECIAL ARRANGEMENTS (CONT.)
WASTIYSCR~P
HANDLWARR4NGEMENTS (Cont.)
NOTE: CANNOT BE USED WITH: 244-5421 Forest Machine Arrangement
297-4849 Package, Value SW
297-4851 Package, Value CC
278-0491 Package, Value. Yard Loader SW
276-5452 Package, Value, Yard Loader CC
235-3599 Lights. Directional CC
244-3599 Lights, Directional SW
276-5351 950H WHEEL LOADER (SW) MA1
276-5352 950H WHEEL LOADER (SW) MA2
276-5354 950H WHEEL LOADER (SW) MA3
276-5353 950H WHEEL LOADER (SW) MA4
276-5355 950H SEWER + WATER (SW) MA5
254-5525 Lights, Roading WlSignals SW
260-7765 Lights, Roading WlSignals CC
248-7613 FENDERS, FRONT & REAR EXTENSION
241-0073 COOLER, AXLE OIL
L
276-7489
. . . . . . . . . .. . . . . . ..
....0
SCRAP HANDLER ARRANG€MOVT
. . ...
This arrangement provides additional guarding and features needed
for machines in applications in waste transfer stations, waste to
energy plants, and recycling centers.
INCLUDES: axle seal guards, front driveshaft guard. headlight guards,
hinged and electrically actuated powerwain and crankcase guards,
narrow steel front fenders, hydraulic tank guard, fuel tank guarding.
steering cylinder guards, rear hitch area baffle, implement valve
cover baffle, and "Scrap Handler" machine decal.
INCLUDES: 227-4094 Guards, Axle Seals,
201.6779 Fenders, Narrow
NOTE CANNOIT BE USED WITH: 244-5421 Forest Machine Arrangemer?t
297-4849 Package. Value SW
297-4851 Package, Value CC
278-0491 Package, Value, Yard Loader SW
276-5452 Package, Value, Yard Loader CC
235-5279 Lights, Directional CC
244-3599 Lights, Directional SW
276-5351 950H WHEEL LOADER (SW) MA1
276-5352 950H WHEEL LOADER (SW) MA2
276-5354 950H WHEEL LOADER (SW) MA3
276-5353 950H WHEEL LOADER (SW) MA4
276-5355 950H SEWER + WATER (SW) MA5
241-0073 COOLER, AXLE OIL
$19,340
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
950H
OPTIONAL ATTACHMENTS
Ship Weight
lbs
List Price
At Factory
SPECIAL ARRANGEMENTS (CONT.)
LOGGING ARR4 NGETdHVT
L
244-5421
..........................
FOREST MACHINEARRANGEMENT
***Does not include Fork or Clamp***
INCLUDES: Hydraulic 3 Valve, Ride Control 3 Valve, heavy
duty tiit cylinder, enhanced transmission, and additional
counterweight.
RECOMMENDED USE: 240-4542 Guard, Fnt. Window (Wide Mesh) 01
250-3012 Guard, WlPlatform W i d e Mesh)
0
$10,460
NOTE: CANNOT BE USED WITH: 278-0491 PACKAGE, VALUE YARD LOADER sw
237-0269 HYDRAULICS, 3 VALVE
276-7489 SCRAP HANDLER ARRANGEMENT
244-6607 WASTE HABNDLER
276-5452 PACKAGE, VALUE YARD LOADER CC
244-3375 HIGH LIFT, 2 VALVE
244-3396 HIGH LIFT, 3 VALVE
276-5351 950H WHEEL LOADER (Sw) MA1
276-5352 950H WHEEL LOADER (Sw) MA2
276-5354 950H WHEEL LOADER (Sw) MA3
276-5353 950H WHEEL LOADER (Sw) MA4
276-5355 950H SEWER + WATER(SW) MA5
OTHER ASTACHMENTS
VALUE PACKAGES
.................................
P
297-4849
PACKAGE, VALUE (SW)
131-2633 Sun Visor, Front
235-8560 Lights, HID
244-3599 Lights, Signal, Directional SW
248-7613 Fenders, Front & Rear Extension
284-4739 Radio, AMIFM CD Player
0
$5,340
P
2974851
PACKAGE VALUE (CC) ..................................
131-2633 Sun Visor, Front
235-5279 Lights, Signal, Directional, CC
235-8560 Lights, HID
248-7613 Fenders, Front & Rear Extension
284-4739 Radio, AMlFM CD Player
0
$5,340
Supersedes
US-A D
Caterpillar: Confidential Green
SuLject to change Without notice
Printed in USA
U. S. DOLLAR CURRENCY
Effective 26AUG2006
950H-016
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
950H
OPTIONAL ATTACHMENTS
Ship Weight
lbs
List Price
At Factory
OTHER ATTACHMENTS (CONT.)
HYDR4 ULICS
................................
L
237-0269
HYDRAULICS, 3 VALVE..
3rd Valve with three control levers.
CANNOT BE USED WITH: 244-5421 Forest Machine Arrangement
278-0491 Package, Value, Yard Loader SW
276-5452 Package, Value, Yard Loader CC
INCLUDED IN: 293-5852 MA 4
290-8107 Sewer &Water MA 1
290-8109 Sewer &Water MA 3
REQUIRED BY: 244-3396 High Lift, 3 Valve
244-3443 Ride Conuol, 3 Valve
243-1946 Joystick, 3 Valve
256-7361 Fork, Millyard (PO)
257-1959 Fork, Logging
0
$5,460
P
243-1941
$1,970
P
243-1946
P
243-1938
L
244-5585
JOYSTICK, 2 VALVE
0
Provides single lever bucket lift and tilt control (Joystick)
JOYSTICK, 3 VALVE
0
Provides single lever control and an additional lever for third
valve attachment.
REQUIRES: 237-0269 Hydraulics, 3 Valve
SWITCH, F-N-RSW
.O
Adds a remote forward-neutral-reverse control switch.
Available with all valvellever combinations.
CANNOT BE USED WITH: 244-3922 Steering, CC
276-5452 Package, Value, Yard Loader CC
PflEsSURETAPs, REMOTE..
0
Provides 4 pressure taps at ground level in the hitch
area for easy transmission diagnostics.
INCLUDED IN: 278-0491 Package, Value, Yard Loader SW
276-5452 Package, Value, Yard Loader CC
293-5849 M A 1
293-5850 M A 2
293-5853 M A 3
293-5852 M A 4
290-8107 Sewer & Water MA 1
290-810 8 Sewer & Water MA 2
290-8109 Sewer & Water MA 3
...................................
....................................
$2,295
....................................
$585
..............................
$580
AUTODIG AMNGGWBiTS
P
2443253
Supersedes
US-A D
......................
CONTROL. AGGREGATEAUTODIG SW
Software enabled attachment that controls the implement system
during the bucket loading portion of a cycle to automatically
load aggregate material. Operating modes include:
-Automatic Pile Detection (automatically starts loading when
material is detected)
-Operator Triggered (switch activated)
-Record (operator records a personal loading cycle)
Dig mode selector adjusts for material density.
Not recommended for hardbank or large rock loading.
INCLUDED IN: 278-0491 Package, Value, Yard Loader SW
Caterpillar: Confidential Green
Subject to change Without notice
Printed tn USA
U. S. DOLLAR CURRENCY
0
$7,260
Effective 26AUG2006
950H-017
CATERPILLAR MACHINE PRICE LIST
REF
OPTIONAL ATTACHMENTS
NO.
USE
950H
Ship Weight
Ibs
List Price
A t Factory
OTHER ATTACHMENTS (CONT.)
AUTODIG ARRANGBMENTS (Cont.)
P
263-5255
.......................
0
$7,260
..............................
0
$5.310
.........................
0
$4,720
........................
0
$3,635
78
$1,355
CONTROL, AGGREGATE AUTODIG CC
Same as 244-3253 Control, Aggregrate Autodig, but for use with CC.
REQUIRES: 244-3922 Steering, CC
INCLUDED IN: 276-5452 Package, Value, Yard Loader CC
A UTOLUBE A m NGBMDVTS
L
2500337
L
2641082
AUTOLUBE CATEWLIAR..
Provides Caterpillar Autolube System for standard lift.
Greases pin joints requiring daily lubrication: linkage pins
joints, including bucket pins, articulation hitch, steering
cylinders, and rear axle trunions.
CANNOT BE USED WITH: High lift
AUTOLUBECATWLLAR HIGH-LIFT
Same as 250-0337 except for use with High Lift Ar.
CANNOT BE USED WITH: Std or Mid lift ar.
FrmDERS
P
2630056
FENDERS, ROADING W / M D M T F/R
Roading fenders arrangement includes fender extensions
on front fenders and full wrap fenders for rear wheels.
Rear fenders swing out for ease of access t o engine area.
INCLUDES: 248-7613 Extensions, Fender Front & Rear.
P
201-6779
P
248-7613
FENDERS. NARROW.
..................................
Installs narrow steel fenders on the front in place o f
the standard full width steel fenders.
INCLUDED IN: 244-6607 Waste Handler
276-7489 Scrap Handler
FEVDERS,FRONT 8 REARMTENSION..
Includes an extension on front and rear fenders to
help keep machine (and especially ladders and window
surfaces) free of spray from tires.
INCLUDED IN: 276-5457 Value Package CC
278-0491 Package, Value, Yard Loader SW
276-5452 Package, Value, Yard Loader CC
263-0056 Fenders, Roading W/FND Ext FIR
CANNOT BE USED WITH 244-6607 WASTE HANDLER
......................
0
$1,000
0
$447
1
$258
STARTING AIDS
P
263-6353
P
9X-3294
..................................
STARTING AID, mHER
Ether starting aid to assist in cold starting applications.
HEATW. ENGINECOOLANT, 12OV
REQUIRES: 1101120-volt external power source.
.........................
S T H N G SYSTRMS
L
244-5424
Supersedes
US-A D
STEERING, SECONDARY
Caterpillar: Confidential Green
.................................
Subject to change without notice
Printed ~n USA
U. S. DOLLAR CURRENCY
0
$3,830
Effemive 26AUG2006
950H.018
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
950H
OPTIONAL ATTACHMENTS
Ship Weight
lbs
List Price
A t Factory
OTHER ATTACHMENTS (CONT.)
STEBVNG SYSTEMS (Cont.)
L
2443922
.....................................
STEWNG. CCS..
Provides a steering system for the Command Control.
Half Circle Steering Wheel with ergonomic stick integrating
FWDIREV and gear selection controls. 70-degrees steering
wheel angle. left or right, from center, provides full
machine articulation.
INCLUDED IN: 276-5452 Package, Value, Yard Loader CC
,O
$4,140
0
$1,035
0
$1,035
0
$455
0
$110
0
$111
MlSCELLANHluS A TTACHML3VTS
L
2605786
L
272-0181
P
244-6601
P
244-6603
P
247-1 909
................................
COOLING, HIGH AMBIBIT
Provides cooling capabiity up to (50 deg C) 122F ambient.
REQUIRES: 243-6623 Air Conditioner
CANNOT BE USED WITH: 258.1548 Canapy. ROPS
COOLING, HIGH-AMBIBIT W/O AIC
Provides cooling capabiity up t o (50 deg C) 122F ambient.
CANNOT BE USED WITH: 243-6623 Air Conditioner
FR€UEANW,TURBINE
Installs a Sy-Klone air intake precteaner.
PRECLEANW, TURBlNElTRASH
Provides a precleaner for airborne debris applications.
A wire mesh screen prevents airborne debris from being drawn in,
Recommended for Waste Handling applications.
TOOLBOX
Provides a 17.5" high by 19.5" wide by 11.5" deep lockable
storage compartment located under the battery service center
on the left side o f machine. Door opening is 8.5" high by 11" wide.
........................
..................................
.............................
...........................................
BUCKETS
NOTE: Recommend use of bolt-on adapter option, adapter and
segment option, or bolt-on cutting edge option for
general purpose and material handling buckets,
Bucket capacities in bold type are listed without GET.
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
950H
OPTIONAL ATTACHMENTS
Ship Weight
Ibs
List Price
At Factory
BUCKETS (CONT.)
A VAILABILITY FOR BUCKETS
NOTE For availability of listed CUSTOM buckets call (630-85.9-5320)
or contact your MARKETING subsidary machine coordinator.
NOTE "GET" is NOT automaticall included on the bucket orders. "GET"
must be entered on the or& with your bucket selection,
unless text for bucket states otherwise. Rease make the
"GET" selection from "GET" listed immediate1 following the
bucket listing. Rack bucket selections list " G h for
spade or straight edge.
NOTE Rease refer to the WT-WL Rice List (Work Tool Wheel Loaders)
for an loose work tools that you may want to order on a
Misc &MOPS) order. Please use the misc. work tool OW672
number listed in the WT-WL Price list for any loose misc.
orders. Pack code required is OW210 for these orders.
NOTE (P) Standard (C) Custom (NI) Not-Installed
GmB3.4L W W O S EBUCKETS
Use for excavating and bank loading material requiring breakout
force as well as stockpilelrehandling applications. Base edge
drilled for Corner Guard System GET.
Use K80 GET for general purpose buckets.
C
C
P
P
130-8285
BUCKET-GP, 3.25 CYD
..............................
130-8286
FOR AVAILABILITY CONTACT (630-859-5320)
CAPACITIES:
3.25 cu.yd. with bolt-on adapters. 118" wide.
3.50 cu.yd. with bolt-on adapters & segments, 118" wide,
3.50 cu.yd. with bolt-on cutting edges, 115" wide.
BUCKET-GP, 3.5 CYD
130-8287
FOR AVAILABILITY CONTACT (630-859-5320)
CAPACITIES:
3.50 cu.yd. with bolt-on adapters, 118" wide.
3.75 cu.yd. with bolt-on adapters & segments. 118" wide.
3.75 cu.yd. with bolt-on cutting edges. 115" wide.
BUCKET-GP, 3.75 CYD
148-7242
CAPACITIES:
3.75 cu.yd. with bolt-on adapters, 118" wide.
4.00 cu.yd. with bolt-on adapters Ei segments, 118" wide.
4.00 cu.yd. with bolt-on cutting edges, 115" wide.
BUCKET-GP, 4.3 CYD
...............................
..............................
...............................
2.970
2,970
$9,451
$9,451 NI
3,089
3,089
$9,849
$9,849 NI
3,269
3,269
$10,304
$10,304 NI
3,346
3,346
$10,730
$10,730 NI
CAPACITIES:
4.00 cu.yd. with bolt-on adapters. 118" wide.
4.25 cu.yd. with bolt-on adapters & segments. 118" wide,
4.25 cu.yd. with bolt-on cutting edges, 115" wide,
Supersedes
US-A D
Caterpillar: Confidential Green
Subject to change without notice
Printed in USA
U. S.DOLLAR CURRENCY
Effective 26AUG2006
%OH-020
CATERPILLAR MACHINE PRICE LIST
REF
OPTIONAL ATTACHMENTS
NO.
USE
950H
Ship Weight
Ib5
List Price
A t Factory
BUCKETS (CONT.)
GDEEAL PURFOSE BUCKETS (Cont.)
1479677
BUCKET-GP, 4.25 CYD
..............................
3,490
3,490
$11,021
$ 1 1 , 0 2 1 NI
3,087
3,087
$10,189
$10,189 NI
.3,186
3,186
$10,595
$10,595 NI
.3,285
3,285
$11,021
$11,021 NI
3,260
3,260
$10,304
$10,304 NI
CAPACITIES:
4.25 cu. yd with bolt-on adapters, 118" wide.
4.50 cu. yd with bolt-on adapters & segments, 118" wide.
4.50 cu. yd with bolt-on cutting edge, 115" wide.
MA TBUAL HANDLING BUCKETS
Use for stockpilinghehandlingmaterial. Flat bottom bucket
Base edge drilled for Corner Guard System GET.
Use K80 GET for material handling buckets.
..............................
130-3069
BUCKET-MH, 3.75 CYD
130-3070
CAPACITIES:
3.75 cu.yd. with bolt-on adapters. 118" wide.
4.00 cu.yd. with bolt-on adapters & segments, 118" wide.
4.00 cu.yd. with bolt-on cutting edges, 115" wide.
BUCKET-MH,4.0 CYD
1303071
CAPACITIES:
4.00 cu.yd. with
4.25 cu.yd. with
4.25 cu.yd. with
BUCKET-MH, 4.25
..............................
bolt-on adapters, 118" wide.
bolt-on adapters & segments, 118" wide.
bolt-on cutting edges, 115" wide.
CYD
.............................
CAPACITIES:
4.25 cu.yd. with bolt-on adapters, 118" wide.
4.50 cu.yd. with bolt-on adapters & segments, 118" wide.
4.50 cu.yd. with bolt-on cutting edges, 115" wide.
QUICK C0UU.W GmBAL PURiWSE BUCKETS
Buckets listed below are FOR USE WITH Quick Coupler
attachments.
209-6667
BUCKET-GP, 3.75 CYD (OC)
..........................
CAPACITIES:
3.75 cu. yd with bolt-on adapters, 1 1 8 wide.
4.00 cu. yd with bolt-on adapters & segments, 118" wide.
4.00 cu. yd with bolt-on cutting edge, 115" wide.
GET K80 for G€NBAL FURFOSffMA TBUAL HANDLINWQUICK COUPLER BUCKETS
(includes mounting hardware)
139-9229
257-1766
107-3394
Supersedes
US-A D
..............................
........................
CUTTING EDGk BOLT-ON
30mm Thick (1 req'd)
ADAPTERS, TIP, BOLT-ON, KO80
I1
> . ren'dl
- - 7 -,
FOR USE WITH: K80 tips
SEGMOVTS. BOLT ON
35mm Thick. (1 req'd)
FOR USE WITH: K80 Adapters and tips
Caterpillar: Confidential Green
................................
Subject to change Without notice
Printed m USA
U. 5.DOLLAR CURRENCY
600
$1,232
298
$1,727
,352
$758
Effective 26AUGZ006
950H-021
CATERPILLAR MACHINE PRICE LIST
REF
OPTIONAL ATACHMENTS
NO.
USE
950H
Ship Weight
Ibs
List Price
At Factory
BUCKETS (CONT.)
GET K80 for GENER4L WWOSHMA TRVAL HANDLINWQUICK COUPLW BUCKETS (Cont.)
P
229-6969
P
229-6965
P
229-6964
...................................
26
$50
..................................
20
$44
.....................................
29
$56
TIP, GENERAL DUTY
FOR USE WITH: K80 Adapters (8 req'd)
TIP, POVETRATION..
FOR USE WITH: K80 Adapters (8 req'd)
TIP, M T R A DUTY
FOR USE WITH: K80 Adapters (8 req'd)
WASTEHANDLW BUCKETS
P
1340734
BUCKET-WH, 6.75 CYD
.............................
.5,235
5,235
$20,229
$20,229 NI
INCLUDES: Bolt-on cutting edge 120.4 inches width.
QUICK COUPLW WORK TOOLS
Attachments listed below are FOR USE WITH Quick Coupler
attachments.
P
.......................
1360499
ARM,MATEHAL HANDLING(QC)
P
1364495
Extendable Length 123" (3124mm) to 183" (4648mm)
FORK, PALLET(QC)
. .
P
1360496
1,260
1,260
................................
2.375
2 ; 375
INCLUDES: 9 6 (2438mm) carriage and 6 0 (1524mm) swinging tines.
FORK, PALLET(QC)
2,570
2,570
INCLUDES: 9 6 (2438mm) carriage and 72" (1829mm) swinging tines,
................................
$6,189
$6,189
NI
$9,172
$9,172 NI
$9,978
$9,978 NI
WORK TOOLS (PIN-ON)
P
P
..............................
256-7361
FORK, MILLYARD (PO)
257-1959
INCLUDES: 88" (2235mm) carriage and 64" (1626mm) tines.
REQUIRES 237-0269 Hydraulics, 3 Valve
FORK, LOGGING
...................................
5,160
5,160
$23,806
$23,806 NI
4,586
4,586
$27,623
$27,623 NI
INCLUDES: 88" (2235mm) carriage and 64" (1626mm) tines.
INSIDE HEIGHT 53.8" (1367mm).
REQUIRES: 237-0269 Hydraulics, 3 Valve
ADDITIONAL WORK TOOLS
Additional work tools are available for the 950H including:
S ecial ap lication buckets such as Coal, Woodchip.
!and ancfGravel, Light Material and Side Dump
Reversible plows
Millyard, Log and Core forks (with various top clamp options)
Loader rakes
Hydraulic angling broom
Contact Cater illar Work Tools (CWTS) at 1-800-255-2372 for
additional wor! tools.
Supersedes
US-A 0
Caterpillar: Confidential Green
Subject to change without notice
Printed tn USA
U. S. DOLLAR CURRENCY
Effective 26AUG2006
950H-022
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
950H
OmlONAL ATTACHMENTS
Ship Weight
lbs
List Price
At Factorv
QUICK COUPLERS
P
244-2661
QUICK COUPLER HYD. HORIZ. PIN . . . . . . . . . . . . . . . . . . . . . . . . . .
Factory installed Caterpillar Work Tools & Services (CWTS)
style coupler. Includes all hydraulic lines. locking pin
activation switch in the cab, and quick coupler frame.
INCLUDED IN: 290-8107 Sewer & Water M A 1
290-8108 Sewer & Water M A 2
290-81 09 Sewer & Water MA 3
P
244-2666
QUICK COUPLER HYD. HIGH LIFT
Provides standard coupler. longer hydraulic lines and tubes to
accornodate the High Lift Linkage that is ordered separately.
..........................
0
$8,586
0
$8,859
ANTIFREEZE
NOTE
Standard rnach ne includes antifreeze protection to 3 4 2 ( 29F)
Different lubricants are also required for extreme temperatues
Please reference operation and maintenance manual
P
OP-6722
COOLANT, M T . LIFE -42C+44F)
..........................
0
$135 NET
P
OP-2407
COOLANT. EXT. LIFE -5OC(-58F)
..........................
0
$208 NET
.....................................
0
PACKING
DOMESTIC PACKING
OP-0309
O W 3 11
OP-0312
OP-0313
OP-0314
DOMESTIC TRUCK.
Complete machine loaded on truck at factory.
PACK, DOMESTIC TRUCK LESS TIRE ........................
Machine loaded on truck with tires removed.
PACK,STANDAIID TRUCK UBUCKET
Machine loaded on truck with bucket removed.
PACK, DOMESTIC RAIL
Complete machine loaded on rail car a t factory.
PACK, DOMESTIC RAlLLESSTiRES
Machine loaded on rail car with tires removed.
........................
..................................
.........................
NC
0
$216 NET
0
$45 NET
0
$125 NET
0
$411 NET
MISC PACKING
OP-4670
PACK, MlSC MWL SHIPMENTS
............................
0
NC
FIELD INSTALLED ATTACHMENTS
AVAILABLE ONLY FFKlM PARTS DISTRIBUTION
173-6530
RADIO 12V AM/FM
12V AMIFM Stereo
INCLUDES: Individual bassltreble controls, loudness
adjustment, auto reverse, and station pre-set capability
Pre-set memoly maintained by internal battery.
Supersedes
US-A 0
Caterpillar: Confidential Green
Subject to change without notice
Printed in USA
U. S. DOLLAR CURRENCY
Effective 26AUG2006
950H-023
CATERPILLAR MACHINE PRICE LIST
USE
REF
NO.
950H
OPTIONAL ATTACHMENTS
Ship Weight
LEt Prce
At Factory
IbS
FIELD INSTALLED ATTACHMENTS (CONT.)
AVAILABLE ONLY FROM PARTS DISTHBUTION (Cant.)
135-9666
173-5424
228-9613
CUTTING EDGE H.D.,BOLT-ON
35mm thick. (2 req'd)
REQUIRES: 132-1033 EDGE-EN0 H.D (2 req'd)
2J-3507 NUT (12 req'd)
4F-4042 BOLT (12 req'd)
GUARD, CORNER
( I req'd) (RH)
REQUIRES: 1735425 Guard-Corner (LH) (1 req'd)
8t9079 Bolt (4 req'd)
3k9770 Nut (4 req'd)
FOR USE WITH: General Purpose and Material Handling Buckets
bolt-on cutting edges to protect the corners
from wear.
KIT, PAYLOAD CONTROL PFUNTER
Provides on board ticket printing capability for the Payload
Control Svstem.
INCLUDES: Printer, mounting bracket, printer cable, battery
eliminator, and paper.
REQUIRES: Payload Control System
CUSTOM MRO-FIT KITS FOR CURENT 950H ODER ON MISC MSO
NOTE: Kits must be ordered NOT-INSTALLED.
REQUIRES: OP1124. OP5203 and OP4670 on all Custom Kit orders
No returns for Kit componets or pans removed.
C
284-9603
.......................
KIT, PAYLOAD CONTROL SYSTEM, H
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
0
$9,295 NI
0
$2,974 NI
NOTE: This kit will provide the required components and installation
instructions to field install a payload control system on the 950H.
Literature: SEBC1442. which includes REHS 2332. Special instructions
will be shipped with each kit.
C
267-6573
...............................
KIT, EARVISION CAME34
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
Provides required components and installation instructions
to field retrofit a camera on the rear of the hood and a display
in the cab showing the view behind the machine. The kit includes
a 115 degree color camera, a 7 inch (178mm) LCD color screen
display monitor, mounting brackets, video coax cables and a
harness to power the system. Literature: SEBC1453, which includes
REHS2508 Special Instructions, will be shipped with each kit.
CATERPILLAR MACHINE PRICE LIST
REF
USE
NO.
950H
OPTIONAL ATTACHMENTS
Ship Weight
Ibs
List Price
A t Factory
FIELD INSTALLED ATTACHMENTS (CONT.)
CUSTOM RETRO-FIT KITS FOR CU-T
950H ODER ON MISC MSO (Cont.)
..................................
C
288-6536
KIT,VALVEGP3RD
300
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
This kit will provide the required components and installation
instructions to field install a 3rd Valve Hydraulic system on
950H. and 962H models. This modification is not compatible with the
High Lift attachment. Additional (longer) Tube Assemblies are
required for the longer lift arms.
Literature: SEBC1466. which includes REHS 2866.
Special Instructions will be shipped with each kit,
C
291-1180
KIT, NDECONTROLH
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
This kit will provide the required components and
installation instructions t o field install
a Ride Control system on the 950H.
Literature: SEBC1467. which includes REHS 2867.
Special Instructions will be shipped with each kit.
C
2903533
KIT, JOYSTICK, 2 VALVE
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
This kit will provide the required components and installation
instructions t o field install a 2 Valve Joystick system on the 950H.
Literature: SEBC1494 which includes REHS 3203.
Special instructions will be shipped with each kit.
C
2903534
KIT, JOYSTICK, 3 VALVE
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
This kit will provide the required components and installation
instructions t o 6eld install a 3 Valve Joystick system on the 950H.
Literature: SEBCl494 which includes REHS 3203.
Special instructions will be shipped with each kit
C
C
................................
$6,960 NI
,320
$5,611 NI
................................
0
$1,850 NI
................................
0
$2,082 NI
2903535
KIT, FRONT ACCESS PLATFORM /H
0
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
This kit will provide the required components and installation
instructions to field install a Front Access Platform system
on the 950H model. Literature: SEBC1497, which includes REHS 3243.
Special Instructions will be shipped with each kit.
$1,468 NI
291-1185
KIT,AXLEOILCOOLW/H
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
This kit will provide the required components and installation
instructions to field install an Axle Oil Cooler system on the 950H
Literature: SEBC1495, which includes REHS 3204.
Special Instructions will be shipped with each kit.
CANNOT BE USED WITH: 126-7710 Guard, Powertrain
244-6607 Waste Handler
276-7489 Scrap Handler
.........................
.............................
830
$9.160 NI
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
950H
OFTIONAL ATTACHMENTS
Ship Weight
List Price
Ibs
A t Factory
FIELD INSTALLED ATTACHMENTS (CONT.)
CUSTOM RETROFIT KITS FOR C U m T 950H ODER ON MISC MSO (Cont.)
................................
240
$3,899 NI
..........................
160
$3,850 NI
NET
C
295-6544
KIT. AIRCONDITIONER
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
This kit will provide the required components and installation
instructions to install an air conditioner on the 950H wheel loader.
Literature: SEBCl498. which includes REHS 3246.
Special Instructions will be shipped with each kit.
C
291-1184
KIT. SECONDAFXSTEERINGH
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
This kit will provide the required components and installation
instructions to field install a Secondary Steering
system on the 950H model.
Literature: SEBCl468, which includes REHS 2868.
Special Instructions will be shipped with each kit.
CUSTOM RETRGFIT KITS FOR NON-CURKWVT 950ffF/G order on MISC MSO
NOTE: Kits must be ordered NOT-INSTALLED.
REQUIRES: OP1124. OP5203 and OP4670 on all Custom Kit orders.
No returns for Kit componets or parts removed.
2Q-8048
2Q-8050
4Q-1790
C
2Q-1328
C
22-9936
C
22-9974
Supersedes
US-A D
KIT, PAYLOAD CONTROL, SW I Gll .......................
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II SW. Ser# AXXOOOOI & up.
Provides components to install PCS on Steering Wheel model,
KIT, PAYLOAD CONTROL CC / GI1
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II CC, Ser# AXROOOOl & up.
Provides components to install PCS on Command Control model,
KIT, PAYLOAD CONTROLSYSTEM,SW
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G SW. 3JW00001 & u p
Provides components to field install PCS on SW.
KIT, PAYLOAD CONTROL SYSTEM,CC
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G CC, Ser# 48S00001 & up
Provide components t o field install PCS on CC.
KIT, PAYLOAD CONTROL SYSTEM
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950F Ser# 7ZF00001 & up.
95OFll Ser# 5SK00001 & up
960F Ser# 9ZJOOOO1 & up.
Provides necessary components to field install PCS on
95OF195OFll and 960F.
KIT, PAYLOAD CONTROL SYSTEM
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950E 22203189 & up.
Provides necessary components to field install PCS on 950E.
Caterpillar: Confidential Green
65
$8,855 NI
.........................
65
$8,855 NI
.....................
35
$8,855 NI
.28
$8,855 NI
100
$ 1 0 , 2 3 1 NI
.....................
.......................
..................
Subject to change Without notice
Printed in USA
U. S. DOLLAR CURRENCY
. 80
$10,329
NI
Effective 26AUG2006
950H-026
CATERPILLAR MACHINE PRICE LIST
REF
USE
NO.
950H
OPTIONAL ATTACHMENTS
Ship Weight
L,*t Price
A t Factory
Ibs
FIELD INSTALLED ATTACHMENTS (CONT.)
CUSTOM RETROFIT KITS FOR NON-CURRENT 950UF/G order on MISC MSO
C
2Q-8044
C
2Q-2961
C
2Q-2982
C
20-7877
C
2Q-7897
C
2Q-I749
C
2G1748
C
2Q-7838
........................
KIT, RIDE CONTROL, SW 2/3 /GI1
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II SW. Ser# AXXOOOOI & UD.
Provides components t o field instail Ride Control on Steering
Wheel model 2 or 3 Valve.
KIT, RIDECONTROL, SW
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G SW, S e d 3JW00001 & up
Provides components to fieid install Ride Control on
Steering Wheel 2 or 3 Valve,
KIT, RIDECONTROL. CC
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G CC. Ser# 4BS00001 & up
Provides components to field install Ride Control on
Command Control 2 or 3 Valve.
KIT, 3-VALVE SW / GI1
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II SW, Ser# AXXOOOOI & up.
Provides 3rd Valve Hydraulics for Steering Wheel model
Includes additional valve section and lines group for lift
arms and 3-lever handle control to convert from 2 handles,
KIT. 3-VALVE C C / GI1
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II CC, Ser# AXROOOOI & up.
Provides 3rd Valve Hydraulics for Command Control model.
includes additional valve section and lines group for lift
arms and 3-lever handle control to convert from 2 handles.
KIT, 3 R D V A L V W W
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G SW. Ser# 3JW00001 & up
Provides components to convert a 2-Valve system
to a 3-Valve system.
Includes additional valve section and lines group for lift
arms and 3-lever handle control to convert from 2 handles.
KIT, 3RD VALVECC
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G CC, Ser# 4BS00001 & up
Provides components t o convert a 2-Valve system
to a 3-Valve system.
Includes additional valve section and lines group for lift
arms and Never handle control to convert from 2 handles.
KIT, SECONDARY STEERING/ GI1
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
95DG II SW, Ser# AXXOOOOI & up.
950G II CC. Ser# AXROOOOI & up.
Provides components t o retro-fit secondary steering.
~
Supersedes
US-A D
Caterpillar: Confidential Green
~~~~~~~
(Gnt.)
320
$5,407 NI
..............................
320
$5,407 NI
...............................
320
$5,407 NI
................................
350
$5,838 NI
................................
.350
$5,838 NI
.................................
,340
$5,838 NI
..................................
360
$5,838 NI
........................
160
$3,670 NI
Subject to change Without notice
Printed an USA
U. S. DOLLAR CURRENCY
Effective 26AUG2006
950H-027
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
950H
OPTIONAL ATTACHMENTS
Ship Weight
lbs
List Price
A t Factorv
~~
FIELD INSTALLED ATTACHMENTS (CONT.)
CUSTOM RETROFIT KITS FOR NON-CURRENT 95OUFlG order on MlSC MSO ( a n t . )
C
2Q-8051
C
20-8052
C
4Q-1799
C
2Q-8055
C
4Q-1791
C
2Q-8374
C
20-8245
C
2Q-8426
C
2Q-7856
830
$8,722 NI
...........................
.50
$1,896 NI
.......................
50
$1,896 NI
............................
50
$ 2 , 1 3 1 NI
.......................
50
$2,131 NI
0
$2,800 NI
,380
$5,846 NI
.............................
140
$3,493 NI
................................
240
$3,714 NI
...........................
..
- ..
,-""fin,
.=-.lllti""
........................
KIT. AUTO RRIFSING FAN / GI1
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II SW, Ser# AXXOOOOl & UD
950G II CC, Ser# AXROOOOl & up
Provides components to field install Auto Reversing Fan.
KIT, AUTO-REVERSING FAN
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY,
950G SW, Ser# 3JW00001 & up
950G CC. Ser# 4BS00001 & up
Provides control, valve, motor and lines to hydraulically
reverse the cooling fan to purge debris from radiator cores.
RECOMMENDED: In high air borne debris applications,
KIT, AIRCONDITIONER
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II SW. Ser# AXXOOOOl & up
950G II CC, Ser# AXROOOOl & up
Provides components t o field install A/C.
Supersedes
Caterpillar: Confidential Green
US-A D
............................
KIT, AXLEOILCOOLW/ GI1
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II SW. Ser# AXX00001 & up.
950G II CC, Ser# AXROOOOl & UD.
Provides components to retro-fit Axle Oil Cooler.
KIT, JOYSTICK, 2 4 SW / GI1
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II SW. AXXOOOOl & up
Provides components t o field install a 2 valve joystick.
KIT, CONTROL JOYSTICK, 2 V(SW)
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G SW. Ser# 3JW00001 & up
Provides components to field install a 2 valve joystick.
KIT, JOYSTICK, 3-V SW / GI1
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II SW. AXXOOOOl & up
Provides components to field install a 3 valve joystick.
KIT, CONTROL JOYSTICK, 3 V(SW)
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G SW. Ser# 3JW00001 & up
Provides components to field install a 3-Valvejoystick.
KIT, JOYSTICK, 283V EH CC GI1
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II CC Ser# AXROOOOl & UP.
Provides components t o field intall an Electro-Hydraulic
Joystick for use with any: 2 or 3 Valve, or Autodig
Subject to change without notice
Printed tn USA
U. S.DOLLAR CURRENCY
EffeCtive 26AUG2006
950H-028
CATERPILLAR MACHINE PRICE LIST
REF
NO.
USE
950H
OPTIONAL ATTACHMENTS
Ship Weight
Ibs
List Price
A t Factory
FIELD INSTALLED ATTACHMENTS (CONT.)
CUSTOM RETBFIT KITS FOR NON-CU-T
C
2Q-8058
C
2Q-7788
C
277-6345
Supersedes
US-A D
KIT. GNLL AIRBORNE DEBRIS,GII
95OHF/G order on MISC MSO ( a n t . )
.........................
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II SW. Ser# AXXOOOOI & up.
950G ii CC, Ser# AXROOOOI & up.
Provides rear grill steel screen with 4mm perforations
to restrict the entry of airborne debris.
KIT, AUTODIG WITH FCS CC/GII
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II CC. Ser# AXROOOOI & up.
Provides components to field install the Aggregates Autodig
attachment to machines already equipped with PCS.
Does not include the software to operate the Autodig system.
Dealer needs to access the Factory Password System web site
to obtain the code, a fee will be charged at that time.
KIT, FRONTACCESS
CONTACT CUSTOM PRODUCTS FOR AVAILABILITY.
950G II SW,Ser# AXXOOOOI & up.
950G II CC, Ser# AXROOOOI & up.
This field kit will provide the required components and
installation instructions to install access platforms and
handrails on cabs and the related hardware needed. Literature:
SEBCI 456 which includes REHS2729 Special Instructions will be
shipped with each kit.
Caterpillar: Confidential Green
..........................
....................................
Sugject to change Without notice
Printed tn USA
U. S. DOLLAR CURRENCY
100
$1,181 NI
20
$540 NI
0
$3,445 NI
Effective 26AUGZ006
950H-029
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
