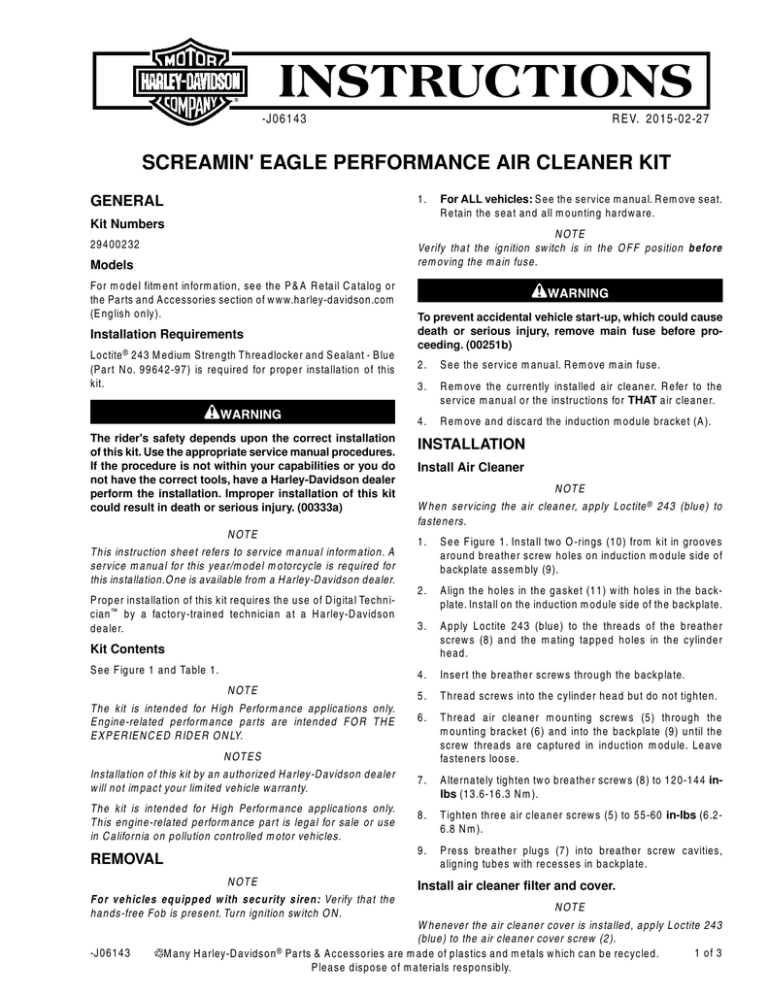

SCREAMIN' EAGLE PERFORMANCE AIR CLEANER KIT

GENERAL

Kit Numbers

29400232

Models

For model fitment information, see the P&A Retail Catalog or the Parts and Accessories section of www.harley-davidson.com

(English only).

Installation Requirements

Loctite ® 243 Medium Strength Threadlocker and Sealant - Blue

(Part No. 99642-97) is required for proper installation of this kit.

1.

For ALL vehicles: See the service manual. Remove seat.

Retain the seat and all mounting hardware.

NOTE

Verify that the ignition switch is in the OFF position before removing the main fuse.

To prevent accidental vehicle start-up, which could cause death or serious injury, remove main fuse before proceeding. (00251b)

2.

See the service manual. Remove main fuse.

3.

Remove the currently installed air cleaner. Refer to the service manual or the instructions for THAT air cleaner.

4.

Remove and discard the induction module bracket (A).

The rider's safety depends upon the correct installation of this kit. Use the appropriate service manual procedures.

If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333a)

INSTALLATION

Install Air Cleaner

NOTE

When servicing the air cleaner, apply Loctite ® 243 (blue) to fasteners.

NOTE

This instruction sheet refers to service manual information. A service manual for this year/model motorcycle is required for this installation.One is available from a Harley-Davidson dealer.

1.

See Figure 1. Install two O-rings (10) from kit in grooves

around breather screw holes on induction module side of backplate assembly (9).

Proper installation of this kit requires the use of Digital Technician ™ by a factory-trained technician at a Harley-Davidson dealer.

Kit Contents

2.

Align the holes in the gasket (11) with holes in the backplate. Install on the induction module side of the backplate.

3.

Apply Loctite 243 (blue) to the threads of the breather screws (8) and the mating tapped holes in the cylinder head.

See Figure 1 and Table 1.

4.

Insert the breather screws through the backplate.

NOTE

The kit is intended for High Performance applications only.

Engine-related performance parts are intended FOR THE

EXPERIENCED RIDER ONLY.

5.

Thread screws into the cylinder head but do not tighten.

6.

Thread air cleaner mounting screws (5) through the mounting bracket (6) and into the backplate (9) until the screw threads are captured in induction module. Leave fasteners loose.

NOTES

Installation of this kit by an authorized Harley-Davidson dealer will not impact your limited vehicle warranty.

7.

Alternately tighten two breather screws (8) to 120-144 in-

lbs (13.6-16.3 Nm).

The kit is intended for High Performance applications only.

This engine-related performance part is legal for sale or use in California on pollution controlled motor vehicles.

8.

Tighten three air cleaner screws (5) to 55-60 in-lbs (6.2-

6.8 Nm).

REMOVAL

9.

Press breather plugs (7) into breather screw cavities, aligning tubes with recesses in backplate.

NOTE

Install air cleaner filter and cover.

For vehicles equipped with security siren: Verify that the hands-free Fob is present. Turn ignition switch ON.

-J06143

NOTE

Whenever the air cleaner cover is installed, apply Loctite 243

(blue) to the air cleaner cover screw (2).

Many Harley-Davidson ® Parts & Accessories are made of plastics and metals which can be recycled.

Please dispose of materials responsibly.

1 of 3

1.

See Figure 1. Install the air cleaner element (4) and cover

(3). Before tightening the center screw, align the cover for best appearance. Tighten center screw to 36-60 in-lbs

(4.1-6.8 Nm).

Completion

NOTE

Verify that the ignition switch is in the OFF position before installing the main fuse.

1.

See the service manual. Install main fuse.

NOTES

Install the rain sock over the air filter element in wet or rainy conditions to prevent water intrusion.

Install the pre-charger (1) over the air filter element under these circumstances.

Recalibrate ECM

You must recalibrate the ECM when installing this kit.

Failure to properly recalibrate the ECM can result in severe engine damage. (00399b)

Download the new ECM calibration using the Digital Technician™ at a Harley-Davidson dealer.

Air Filter Element Maintenance

1.

Inspect the air filter element every 5000 miles (8000 km), or more often under dusty conditions.

NOTES

• The use of cleaning, drying or oiling methods or products other than those shown damages the filter and void the manufacturer's warranty

• K&N ® Air filter Cleaner is available from a Harley-Davidson dealer. 1 qt/0.95 L sprayer bottle, (Part No. 99883-88T) or a 12 fl oz/0.35 L sprayer bottle as part of the Filter Care

Service Kit (Part No. 99850-92T).

• K&N Air Filter Oil is also available from a Harley-Davidson dealer. (12.25 oz/347 gram aerosol can, Part No. 99882-

88T) or a 6.5 oz/184 gram aerosol can as part of the Filter

Care Service Kit.

• DO NOT OVER-OIL THE AIR FILTER. Over-oiling may interfere with the proper performance of the engine and/or certain engine components. If oil is still draining or dripping from the filter media 20 minutes after oiling, clean and oil the filter element again.

2.

To clean the element: a.

Remove the air cleaner cover center screw.

b.

Tap the element to dislodge any loose dirt. Gently brush with a soft bristle brush.

c.

Spray air filter cleaner liberally onto the cotton filter media. Let soak for ten minutes OR roll and soak the cotton filter media in a shallow pan of air filter cleaner.

Remove immediately, and let soak for ten minutes.

d.

Rinse off the filter media (flowing from the clean side to the dirty side), with low-pressure tap water.

e.

After rinsing, shake off all excess water, and let the filter media air dry. DO NOT use compressed air or a heat gun to speed drying.

f.

After the filter media is completely dry. EITHER spray air filter oil along each pleat, once only, holding the spray nozzle approximately 3 in (76 mm) away from the media, OR carefully use a squeeze bottle to deposit oil along each pleat, once only.

Let the oil absorb into the filter media for 20 minutes before proceeding.

After 20 minutes, inspect the filter media. Carefully apply oil to any remaining visible white spots on the filter media. Allow to absorb.

-J06143 2 of 3

SERVICE PARTS

is08559

1

2

3

4

5

6

7

8

9

10

11

A

Figure 1. Service Parts, Screamin' Eagle Performance Air Cleaner Kit

Table 1. Service Parts

Item

1

2

3

4

5

6

Description (Quantity)

Pre-charger

Screw, hex socket, button head, 5/16-18 x 1.75 in (44.5 mm) long

Cover, air cleaner

Element, air cleaner

Screw, socket head, 1/4-20 x 2.0 in (51 mm) long (3)

Bracket, mounting

7

8

9

10

Plug, breather (2)

Breather screw (2)

Backplate, black

O-ring, #2-113 (2)

11 Gasket, throttle body

Items mentioned in text, but not included in kit:

A Induction module bracket

Part Number

29400121

10200401

61300539

29400118

Not sold separately

29400119

29557-05

29400001

Not sold separately

11292

29059-88A
