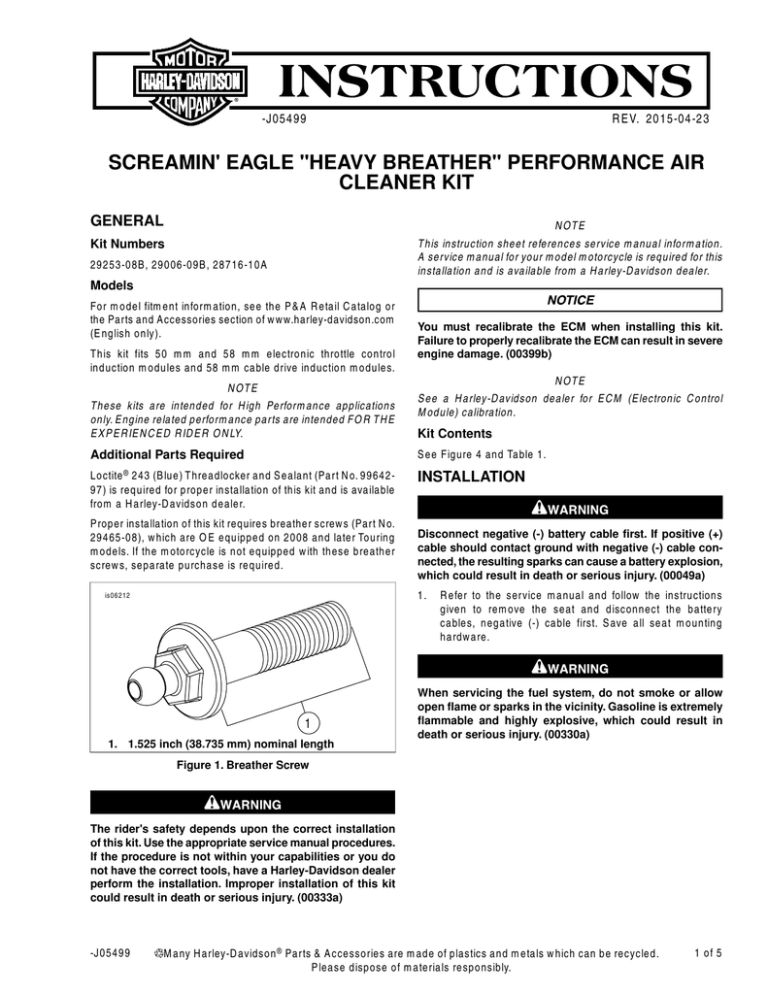

SCREAMIN' EAGLE "HEAVY BREATHER" PERFORMANCE AIR
CLEANER KIT
GENERAL
NOTE
Kit Numbers
This instruction sheet references service manual information.
A service manual for your model motorcycle is required for this
installation and is available from a Harley-Davidson dealer.
29253-08B, 29006-09B, 28716-10A
Models
For model fitment information, see the P&A Retail Catalog or
the Parts and Accessories section of www.harley-davidson.com
(English only).
This kit fits 50 mm and 58 mm electronic throttle control
induction modules and 58 mm cable drive induction modules.
You must recalibrate the ECM when installing this kit.
Failure to properly recalibrate the ECM can result in severe
engine damage. (00399b)
NOTE
NOTE
These kits are intended for High Performance applications
only. Engine related performance parts are intended FOR THE
EXPERIENCED RIDER ONLY.
See a Harley-Davidson dealer for ECM (Electronic Control
Module) calibration.
Kit Contents
Additional Parts Required
See Figure 4 and Table 1.
Loctite® 243 (Blue) Threadlocker and Sealant (Part No. 99642-
INSTALLATION
97) is required for proper installation of this kit and is available
from a Harley-Davidson dealer.
Proper installation of this kit requires breather screws (Part No.
29465-08), which are OE equipped on 2008 and later Touring
models. If the motorcycle is not equipped with these breather
screws, separate purchase is required.
Disconnect negative (-) battery cable first. If positive (+)
cable should contact ground with negative (-) cable connected, the resulting sparks can cause a battery explosion,
which could result in death or serious injury. (00049a)
1.
is06212
1
1. 1.525 inch (38.735 mm) nominal length
Refer to the service manual and follow the instructions
given to remove the seat and disconnect the battery
cables, negative (-) cable first. Save all seat mounting
hardware.
When servicing the fuel system, do not smoke or allow
open flame or sparks in the vicinity. Gasoline is extremely
flammable and highly explosive, which could result in
death or serious injury. (00330a)
Figure 1. Breather Screw
The rider's safety depends upon the correct installation
of this kit. Use the appropriate service manual procedures.
If the procedure is not within your capabilities or you do
not have the correct tools, have a Harley-Davidson dealer
perform the installation. Improper installation of this kit
could result in death or serious injury. (00333a)
-J05499
Many Harley-Davidson® Parts & Accessories are made of plastics and metals which can be recycled.
Please dispose of materials responsibly.
1 of 5
Original Equipment (OE) Air Cleaner Removal
5.
Install the new O-rings (1) in the counterbore around the
breather screw holes on the induction module side of the
backplate (2).
6.
Align the holes in the induction module cover with the
holes in the backplate.
7.
Apply a small amount of Loctite to the backplate mounting
screw (5) threads. Insert the screws through the backplate
and induction module cover then install the screws into
the induction module until the screw threads are engaged.
DO NOT tighten completely at this time.
8.
Insert the breather screws (removed in Step 2 or purchased separately) through the backplate. Apply a liberal
amount of Loctite to the breather screw threads and the
mating tapped holes in the cylinder head, then install the
screws into the cylinder head. DO NOT tighten completely
at this time.
9.
Alternately tighten the two breather screws to 120-144 inlbs (13.6-16.3 Nm).
is04662
3
1
2
3
1. Ridge
2. Tab (3)
3. Flow hole (2)
Figure 2. 50 mm Adapter
10. Lubricate the O-rings (3) with clean engine oil or white
lithium grease.
Install the O-rings onto the breather plugs (4). Press the
breather plugs into the breather screw cavities.
is04663
11. Tighten the three backplate mounting screws to 55-60 inlbs (6.2-6.8 Nm).
12. For models equipped with 50 mm induction module:
See Figure 2. The outside of the outer half of the plastic
adapter (item 6 in Figure 4) is marked "This side out - 50
mm only." The inner half is indexed with three tabs (2) and
two breather flow holes (3). Insert the indexed side into
the backplate, aligning the tabs and flow holes with the
flow holes in the backplate.
1
Check that the adapter is fully seated and oriented correctly with the markings visible.
See Figure 3. When installed correctly, the adapter is flush
on the induction module side of the backplate.
For models equipped with 58 mm induction module:
Discard adapter.
1. Adapter
Figure 3. Adapter Positioned Correctly in Backplate
Air Filter Element and Air Tube Installation
NOTE
Have a Harley-Davidson dealer recalibrate the ECM prior to
air cleaner installation.
2.
3.
Remove the air cleaner backplate following the instructions
in the service manual. Retain the two breather screws (A)
removed from the backplate (see Figure 4). The remaining
parts can be discarded.
See Figure 4. Remove and discard support induction
module bracket (B).
"Heavy Breather" Air Cleaner Installation
NOTES
When servicing the air cleaner, apply Loctite 243 (blue) to all
threaded fasteners (both male and female threads).
4.
Remove the backing from the adhesive side of the induction module backplate gasket (16). Align the holes and
install the gasket on the backplate (2).
-J05499
This air filter is PRE-OILED and ready to install.
13. With the countersunk holes facing outward, slide the
mounting ring (9) all the way onto the intake tube, up to
the flange.
14. Place the gasket (7) against the opposite side of the
flange.
15. Line up the holes in the gasket with the mounting ring
holes and notches in the intake tube (8) flange.
16. Apply a small amount of Loctite to the threads of the three
flat head screws (10).
17. Secure the intake tube, mounting ring and gasket to the
air cleaner backplate, and tighten the screws to 55-60 inlbs (6.2-6.8 Nm).
18. Obtain the chrome band clamp cover (13), adhesive ring
(14), and air filter element package (12) from the kit.
2 of 5
19. Remove the backing from one side of the adhesive ring
(14), center the ring on the inner surface of the band clamp
cover and press the ring evenly and firmly into place.
20. Remove the air filter element and band clamp from the
package (12). Loosen the band clamp as needed to allow
removal or repositioning.
NOTES
For proper adhesion, degrease the area on the backside of
the filter element where the adhesive ring will be mounted.
Check the Screamin' Eagle® logo on the chrome filter element
end cap. For best appearance, place the band clamp and
chrome band clamp cover onto the filter element flange so the
screw slot will be accessible but the screw mechanism hidden
from view when the filter is installed to the intake tube with the
logo upright.
21. Remove the backing from the remaining side of the
adhesive ring, and press the chrome band clamp cover
onto the large end of the air filter element.
NOTES
The use of cleaning, drying or oiling methods or products other
than those shown will damage the filter and void the manufacturer's warranty.
K&N® Air Filter Cleaner is available from a Harley-Davidson
dealer, either alone (1 qt/0.95 L sprayer bottle, Part No. 9988388T) or a 12 fl oz/0.35 L sprayer bottle as part of the Filter Care
Service Kit (99850-92T).
K&N Air Filter Oil is also available from a Harley-Davidson
dealer, either alone (12.25 oz/347 gram aerosol can, Part No.
99882-88T) or a 6.5 oz/184 gram aerosol can as part of the
Filter Care Service Kit.
DO NOT OVER-OIL THE AIR FILTER. Over-oiling may interfere with the proper performance of the engine and/or certain
engine components. If oil is still draining or dripping from the
filter media twenty minutes after oiling, clean and oil the filter
element again.
2.
To clean the element:
Position the band clamp onto the filter element flange,
inside the chrome cover flange with the band clamp screw
mechanism in the cover flange cutout.
a.
Loosen the hose clamp retaining the air filter element
assembly to the air tube. Separate the element from
the air tube.
22. Install the air filter element onto the intake tube approximately 5/8 inch (16 mm). Check that the filter element end
cap logo is upright, and the band clamp screw mechanism
is hidden from view, yet the screw slot is accessible for
tightening.
b.
Tap the element to dislodge any loose dirt, then gently
brush with a soft bristle brush.
c.
Spray air filter cleaner liberally onto the cotton filter
media and let soak for ten minutes, OR
roll or soak the cotton filter media in a shallow pan of
air filter cleaner. Remove immediately, and let soak
for ten minutes.
Tighten the clamp around the filter element flange to 30-40
in-lbs (3.4-4.5 Nm).
NOTE
Riding a motorcycle equipped with an exposed oiled air filter
under rainy conditions IS NOT RECOMMENDED.
23. Install the rain sock (15) over the air filter element.
Connect positive (+) battery cable first. If positive (+) cable
should contact ground with negative (-) cable connected,
the resulting sparks can cause a battery explosion, which
could result in death or serious injury. (00068a)
AIR FILTER ELEMENT MAINTENANCE
1.
Inspect the air filter element every 5000 miles (8000 km),
or more often under dusty conditions.
-J05499
Rinse off the filter media (flowing from the clean side
to the dirty side), with low-pressure tap water.
e.
After rinsing, shake off all excess water, and let the
filter media air dry. DO NOT use compressed air or
a heat gun to speed drying.
f.
After the filter media is completely dry, EITHER
spray air filter oil along each pleat, once only, holding
the spray nozzle approximately 3 inches (76 mm)
away from the media, OR
carefully use a squeeze bottle to deposit oil along
each pleat, once only.
24. Refer to the service manual and follow the instructions
given to connect the battery cables, positive (+) cable first,
and install the seat.
After installing seat, pull upward on seat to be sure it is
locked in position. While riding, a loose seat can shift
causing loss of control, which could result in death or
serious injury. (00070b)
d.
Let the oil absorb into the filter media for twenty
minutes before proceeding.
After twenty minutes, inspect the filter media, and
carefully apply oil to any remaining visible white spots
on the filter media, and allow to absorb.
3.
Install the air filter element onto the intake tube approximately 5/8 inch (16 mm). Check that the filter element end
cap logo is upright.
Tighten the clamp around the filter element flange to 30-40
in-lbs (3.4-4.5 Nm).
3 of 5
SERVICE PARTS
is08597
B
A
16
4
1
3
2
7
5
8
6
15
12
11
9
13
10
14
Figure 4. Service Parts: Screamin' Eagle "Heavy Breather - Elite" Performance Air Cleaner Kit
Table 1. Service Parts Table
Item
Description (Quantity)
Part Number
1
O-ring (2)
11292
2
Backplate, machined, chrome
29896-08
Backplate, machined, black
28887-09
3
O-ring, breather plug (4)
10925
4
Plug (2)
29830-05A
5
Screw, button head (3)
926
6
Adapter, 58 mm to 50 mm
29395-08A
7
Gasket
29780-08A
8
Intake tube, chrome
29739-08
Intake tube, black
28818-09
Mounting ring, chrome
29826-08A
9
Mounting ring, black
29069-09
10
Screw, flat head (3)
2986
11
Air cleaner filter kit, includes items 12 through 14
Air cleaner filter kit, compact (Kit 28716-10A), includes items 12 through 14
29702-08A
28714-10
-J05499
4 of 5
Table 1. Service Parts Table
Item
12
Description (Quantity)
Part Number
•
Filter element
Not sold separately
•
Band clamp
Not sold separately
13
•
Cover, band clamp (chrome)
Not sold separately
14
•
Adhesive ring
Not sold separately
15
Rain sock, air filter
Rain sock, compact air filter (Kit 28716-10A)
29493-05
28715-10
16
Gasket, backplate
29241-08
Items mentioned in text, but not included in kit:
A
Original equipment breather screw (2) (purchase separately if missing)
B
Induction module bracket (remove and discard)
-J05499
29465-08
5 of 5
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
