FUEL SYSTEM (PUMP, CARBURETOR, TANK)

FUEL SYSTEM (PUMP, CARBURETOR, TANK)

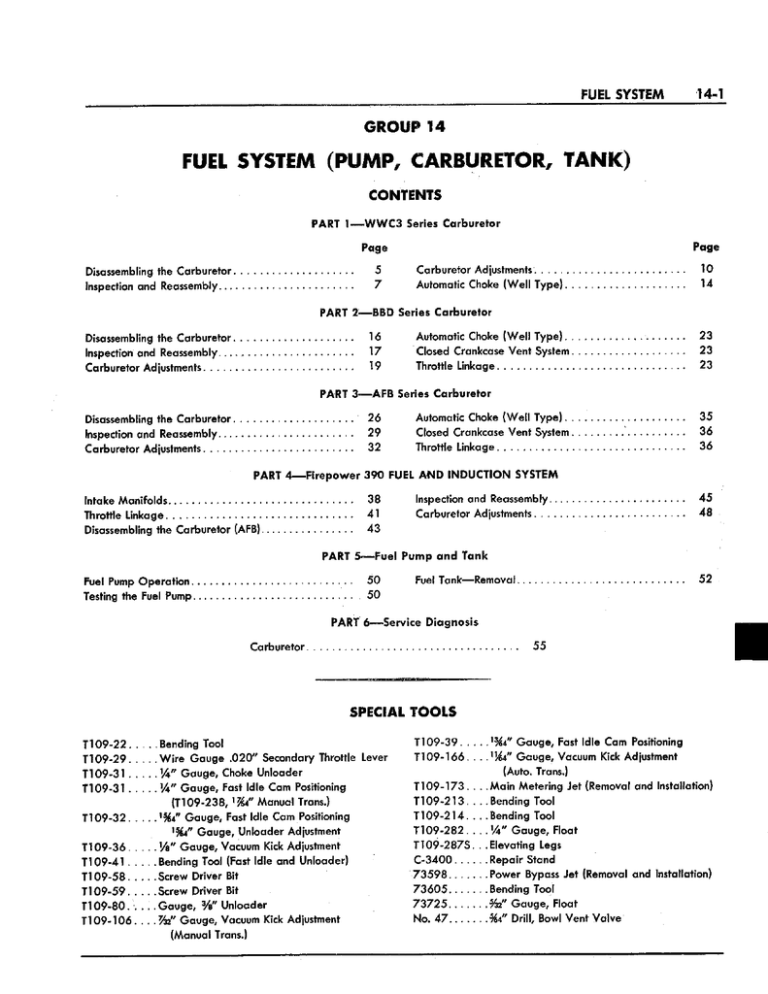

FUEL SYSTEM 14-1

GROUP 14

FUEL SYSTEM (PUMP, CARBURETOR, TANK)

CONTENTS

PART 1

W W C 3 Series Carbureter

Page Page

PART 2—BBD Series Carburetor

PART 3—AFB Series Carburetor

Disassembling the C a r b u r e t o r . . . . . . . . . . . . . . . . . . . . - 26

Automatic Choke (Well Type) 35

PART 4—Firepower 390 FUEL AND INDUCTION SYSTEM

Intake Manifolds 38 Inspection and Reassembly 45

Throttle Linkage 41 Carburetor Adjustments. 48

Disassembling the Carburetor (AFB). 43

PART 5—Fuel Pump and Tank

Fuel Pump Operation 50 Fuel Tank—Removal 52

Testing the Fuel Pump , . 50

PART 6—Service Diagnosis

Carburetor 55

T109-22

Tl 09-29

Tl 09-31

Tl 09-31

Tl 09-32

. Bending Tool

Wire Gauge .020" Secondary Throttle Lever

14" Gauge, Choke Unloader

14" Gauge, Fast Idle Cam Positioning

(Tl09-238,

W Manual Trans.)

^ 4 " Gauge, Fast Idle Cam Positioning

Y

%A

,F

Gauge, Unloader Adjustment

VB" Gauge, Vacuum Kick Adjustment

Bending Tool (Fast Idle and Unloader)

T109-36

Tl 09-41

Tl09-58. , . . .Screw Driver Bit

Tl 09-59

Screw Driver Bit

Tl 09-80.^ . ..Gauge, % " Unloader

T109-106. . ,. % 2 " Gauge, Vacuum Kick Adjustment

(Manual Trans.)

SPECIAL TOOLS

Tl 09-39

1

% 4 " Gauge, Fast Idle Cam Positioning

T109-166. . . .

1 ]

AA" Gauge, Vacuum Kick Adjustment

(Auto. Trans.)

T109-173. . . .Main Metering Jet (Removal and Installation)

T l 0 9 - 2 1 3 . . . .Bending Tool

T109-214. , . . Bending Tool

T109-282. .

. . 14" Gauge, Float

T109-287S. . .Elevating Legs

C-3400

, Repair Stand

73598

Power Bypass Jet (Removal and Installation)

73605

73725

No. 47

. . Bending Tool

. . % 2 " Gauge, Float

. I 4 " Drill, Bowl Vent Valve

SPECIFICATIONS

Carter

Carter Carter

TYPE Dual Downdraft

Dual Downdraft

4 Barrel

Downdraft

AFB-3614S

CARBURETOR MODEL WWC3-244 WWC3-242

Manual Trans. Auto. Trans.

BBD-3685S

ENGINE DISPLACEMENT

(Cu.ln.) 361 361

383

413

2-4 Barrel

Downdraft

AFB-3505S

413

4 Barrel

Downdraft

AFB-3615S

AFB-3644S

413

CAR MODEL ENGINE APPLICATION VC-1

with

Firebolt 265

VC-2 with

Firepower 305

VC-1 Police

VC-2 Hi-Perf. with

Firepower 360

VC-2 with VC-3 with

Firepower 390 Firepower 340

VY-1 with

Imperial V-8

BORE

Primary ' \W 1 W

Secondary —

l"yk"

AAAIN VENTURI

Secondary ., —

MAIN METERING JET Part No. 388186

.089"

l

3

/fc"

.089"

1516"

.089"

MAIN JET (Secondary)...... — —

POWER JET . . . 028" x .055" .028" x .055"

.067"

LOW SPEED JET (Primary) — —

STEP UP ROD (2 Stages)

Standard. • —

(1 Size Lean). • —

(2 Sizes Lean). . . . . . . . . . . . . . —

#65-.035"

STEP UP WIRE DIAMETER

(Standard). —

(2 Stage).. — —

16-217

16-165

16-159

.082

w

#65-.035" #65-.035"

16-118

16-119

16-50

.067"

16-165

16-160

16-173

ADJUSTMENTS

Accelerator Pump Travel

Accelerator Pump Travel (Blades Fully Closed).

Accelerator Pump (Top of Plunger to Air horn)

Float Setting

Bowl Vent Valve (Curb Idle)

Vacuum Kick (Drill Size)

Choke Unloader

Idle Mixture Screws (Turns Open)

Idle Speed RPM (Curb Idle)

(Air Conditioning on) RPM

Fast idle Speed R P M . . . . . .

Fast Idle Cam Position Adjustment. . . . . . . . . .

Secondary Throttle Lever Adjustment

Secondary Throttle Lockout Adjustment

Velocity Valve

CHOKE

Type...

Control.

Setting.

S P E C I F I C A T I O N S — ( C o n t i n u e d )

VA

500

500

600

w

"AA"

'HA"

l

' / 2

500

500

700

VA"

W

Mi."

VA"

VA"

500

500

700

Weil

Thermostatic

Coil Spring

1 Notch Rich

——

Well

Thermostatic

Coil Spring

2 Notches Rich

Well

Thermostatic

Coil Spring

On Index

w w w

w w

1-2

500

500

700

.020"

Vi"

1-2

700

500

1400

.020"

Free

Hand

Well

Thermostatic

Coil Spring

2 Notches Rich

3

/ 4 "

V*"

%"

1-2

500

500

700

.020"

FUEL PUMP

V C - 1 , V C - 2 , V C - 3 ,

VY-1

M a k e . . . . •

C a r t e

<

Model • • • W-3672S

—I

2

Number of Valves

Driven by Camshaft

Pump Pressure • 3 Vi to 5 psi

i

14-4 WWC3 CARBURETOR

B O W L V E N T V A L V E ,

L O N G S T R O K E S L O T N O R M A L S T R O K E SLOT SHORT STROKE S L O T

A C C E L E R A T O R PUMP LEVER

A C C E L E R A T O R PUMP R O D

THROTTLE LEVER

C H O K E V A C U U M

D I A P H R A G M

D I A P H R A G M PLUNGER (STEM!

V A C U U M H O S E

FAST IDLE R O D

FAST IDLE C A M

CURB IDLE SPEED A D J U S T I N G

S C R E W

FAST IDLE SPEED A D J U S T I N G

S C R E W

E L E V A T I N G L E G S

(SET O P

4)

FAST IDLE A D J U S T I N G S C R E W

C H O K E V A C U U M

D I A P H R A G M

C L O S E D C R A N K C A S E

V E N T FITTING

THROTTLE B O D Y

Fig. Carburetor Assembly (WWC3 Series)

C H O K E O P E R A T I N G LINK

C H O K E LEVER

FUEL INLET FITTING

MAIN B O D Y

IDLE MIXTURE S C R E W (2)

DISTRIBUTOR V A C U U M

A D V A N C E TUBE FITTING

6 4 x 2 2 r

WWC3 CARBURETOR 14-5

FUEL SYSTEM

PART 1

MODEL WWC3 STROMBERG CARBURETORS

The WWC3 Series Stremberg carburetor (Pig. 1) is a dual throat downdraft type, with each throat having its own idle system, main metering system and throttle valve. The idle and main metering system are supplemented by the float system, the accelerating system and the power system.

The carburetor incorporates an idle system vent, operated from the throttle linkage, a double venturi cluster which in addition to the small venturi, also includes the discharge nozzles, the main discharge tubes and the idle tubes in a single assembly. Dirt, dust, water and gummy deposits are some of the main causes for improper carburetor operation.

Proper cleaning, however, and the installation of new parts, where required, will return the carburetor to its originally designed performance.

When overhauling the carburetor, several items of importance should be observed to assure a good job.

(1) All parts (except the diaphragm assembly) should be carefully cleaned in a suitable solvent, then inspected for damage or wear.

(2) Use air pressure only, to clean the various orifices and channels.

(3) Replace questionable parts with NEW ones.

Always use a complete kit when overhauling the carburetor. Using the code number stamped on the air horn, adjacent to the fuel inlet, refer to the parts catalog and order the correct repair kit for the carburetor being worked on.

SERVICE PROCEDURES

1. DISASSEMBLING THE CARBURETOR

( F i g s . 1 and 2 )

(1) Install four elevating legs, Tool T109-287S, in the mounting flange holes in the throttle body. These legs are used to protect the throttle valves from damage and to provide a suitable base for working.

(2) Remove the hairpin clip that holds the pump rod in the center slot of the pump arm. Remove rod from slot and disengage from the throttle lever.

(3) Remove the hairpin clip that hold the fast idle rod in the fast idle cam. Disengage rod from cam, then rotate rod to disengage from choke lever.

(4) Remove the three short air horn attaching screws, then remove the two long air horn attaching screws. Install two short screws through the main body into the throttle body to hold the bodies together (Fig. 3).

(5) Remove the vacuum hose between the carburetor air horn and the vacuum diaphragm.

(6) Remove the clip from the choke operating link and disengage the link from the diaphragm plunger

(stem) and the choke lever. (Refer to Fig. 1.)

(7) Remove the vacuum diaphragm and bracket assembly and place to one side to be cleaned as a

special item. A liquid cleaner other than mineral

Fig. 2—-Carburetor Assembly (Disassembled View)

14-6 WWC3 CARBURETOR

Fig. 5—Removing the Vacuum Power Piston

Fig. 3—Removing the Air Horn

spirits, may damage the diaphragm

material.

(8) Remove the remaining air horn attaching

screws, then lift air horn straight up and away from

main body, as shown in Figure 3.

(9) Disengage the accelerator pump-plunger from the pump arm hook by tilting down and out from under hook, as shown in Figure 4. Remove the compression spring.

Place the accelerator pump plunger in a jar of

clean gasoline or kerosene to prevent the leather from drying out

(10) Remove the vacuum power piston from the air horn, using an open end wrench and wood block, as shown in Figure 5. (Exert sufficient pressure on end of wrench to force piston out of its well in air horn.

This assembly is staked in the air horn and care should be used at removal.) Discard air horn gasket.

(11) Test the freeness of the choke mechanism in the air horn. The choke shaft must float free to operate correctly. If the choke shaft sticks in the bearings, or appears to be gummed from deposits in the air horn, a thorough cleaning will be required.

2. M A I N B O D Y R E M O V A L

(1) Remove the venturi cluster attaching screws, the venturi cluster and gasket, as shown in Figure 6.

Discard the gasket.

(2) Remove the float fulcrum pin spring, the fuel

inlet needle valve, seat and gasket.

(3) Slide the float baffle up and out of its grooves,

and remove the float and fulcrum pin.

(4) Invert the carburetor main body and drop out the discharge check ball from the discharge passage

(Fig. 6), and the accelerator pump inlet check ball from the pump well.

(5) Using Tool 73598, remove the power by-pass jet and gaskets, as shown in Figure 7.

Fig. 4—-Removing the Accelerator Pump Plunger

Fig. 6—Removing the Venturi Cluster

WWC3 CARBURETOR 14-7

f j g . 7 — R e m o v i n g the Power B y - P a s s Jet

(6) Using Tool T109-173, remove the two main

metering jets, as shown in Figure 8.

(7) Remove the two air horn screws used to hold the main and throttle bodies together. Separate the throttle and main bodies.

3 . THROTTLE B O D Y R E M O V A L

(1) Unscrew and remove the two idle mixture adjusting screws and springs from the throttle body.

(2) The carburetor now has been disassembled into three units; namely, the air horn, main body and throttle body and the component parts of each disassembled as far as necessary for cleaning and inspection.

NOTE: It is usually not advisable to remove the throttle shaft or valves unless wear or damage necessitates installation of new parts.

Cleaning Carburetor Parts

The recommended solvent for gum deposits is denatured alcohol which is easily obtainable. There are other commercial solvents, however, such as

Metalclene, which may be used with satisfactory results.

Check the throttle shaft for excessive wear in the throttle body. If wear is extreme, it is recommended that the throttle body be replaced rather than installing a new throttle shaft in the old body.

The choke diaphragm can be damaged by solvents.

Avoid placing the diaphragm assembly in ANY liquid. Clean the external surfaces with a clean cloth or soft wire brush. Shake dirt or other foreign material from the stem side of the diaphragm. Depressing the diaphragm stem to the retracted position, will provide an additional hole for the removal of dirt.

Compressed air can be used to remove loose dirt but should not be connected to the vacuum inlet fitting.

IMPORTANT: If the commercial solvent or cleaner recommends the use of water as a rinse, i t should be "HOT." After rinsing, all trace of water must be blown from the passages with air pressure.

It is further advisable to rinse all parts in clean gasoline or kerosene to be certain no trace of moisture remains. Never clean jets with a wire, drill or other mechanical means because the orifices may become enlarged, making the fuel mixture too rich for proper performance.

4 INSPECTION A N D REASSEMBLY

(1) During manufacture, the location of the idle transfer ports and the spark advance control ports to the valves are carefully established for one particular assembly (Fig. 9).

(2) If a new shaft should be installed in an old worn throttle body, it would be very unlikely that the original relationship of these ports to the valves would be obtained. Changing the port relationship

Fig. 8—Removing the Main Metering Jets

Fig. 9 — P o r t s in Relation to the Throttle V a l v e s

1

4-8 WWC3 CARBURETOR

THROTTLE

BODY

THROTTLE VALVES

IDLE SPEED ADJUSTING

SCREW

FAST IDLE SPEED

SCREW

THROTTLE LEVER A N D

SHAFT

DRIVE PLUGS

POWER BY-PASS JET

G A S K E T .

FULCRUM PIN

SPRING -

FUEL INLET NEEDLE

VALVE SEAT AND GASKET

FLOAT BAFFLEv. ^

FULCRUM PIN

ATTACHING S C R E W S

VENTURI CLUSTER

GASKET

DISCHARGE

CHECK BALL

INLET CHECK BALL

(PUMP)

MAIN BODY

IDLE MIXTURE

SCREWS

SPRING

FLOAT

THROTTLE VALVE SCREWS

63x492

MAIN METERING JETS

PASSAGE PLUGS 6 0 x 3 4 3

Fig. 10—Throttle Body (Disassembled View)

Fig. 11—Main Body (Disassembled View)

would adversely affect normal car operation between the speeds of 15 and 30 miles per hour. If it has been determined, however, that a new shaft or valves are to be installed, adhere closely to the following instructions:

(3) Mark the valves to be sure each is replaced in the same bore from where removed (if replacing throttle shaft only. Fig. 10.)

(4) Remove the screws that hold the throttle valves to the shaft. Slide the valves out of shaft and bore.

CAUTION; These screws are staked on the op-

posite side and care should be used at removal so as

not to break the screws in the shaft. Remove the

staking with a file.

(5) Slide the throttle shaft and lever out of the throttle body.

(6) Install the new throttle shaft and lever in the throttle body.

NOTE: The idle speed adjusting screw must be

backed off when seating the valves in the following

operation.

(7) Slide the valves down into position with the notches in the valves at the ports. Install new screws but do not tighten. Hold the valves in place with the fingers pressing on the high side of valves.

(8) Tap the valves lightly with a screwdriver to seat in the thrdttle bores. Holding the valves in this position, tighten the screws securely and stake by squeezing with pliers.

(9) Install the two idle mixture adjusting screws and spring in the throttle body. (The tapered portion must be straight and smooth.) If the tapered portion is grooved or ridged, a new idle mixture adjusting screw should be installed to insure having correct idle mixture control.

DO NOT USE A SCREWDRIVER. The idle mixture screw adjustment should be made with the fingers.

Turn the screws lightly against their seats, then back off one full turn for an approximate setting.

5 . M A I N B O D Y A S S E M B L Y ( F i g . 1 1 1

(1) Place a new gasket on the throttle body, then install main body. Install two short screws to secure,

(2) Install the main metering jets in the main body.

Tighten securely, using Tool T109-173 (Fig. 8).

(3) Install the power by-pass jet and new gasket.

Tighten securely, using Tool 73598 (Big. 7).

(4) Install the accelerator pump inlet check ball

(%

6

inch) in the pump well, as shown in Figure 12.

(5) Install the accelerator pump discharge check ball (Va inch) in the discharge passage, as shown in

Figure 13.

I 1 PUMP INLET

x

- ~ ^ ~ - - < .

\ i ,

jCHECK BALL

ACCELERATOR

< PUMP WELL

63x493

Fig. 12—Installing Accelerator Pump Inlet Check Ball

WWC3 CARBURETOR 14

-9

Fig.l3<—-Installing the Discharge Check Ball

6. ACCELERATOR PUMP TEST

(1) Pour clean gasoline into the carburetor bowl approximately

V2 inch deep. Remove the accelerator pump plunger from the jar of gasoline and slide down in its well. Raise the plunger and press lightly on the plunger shaft to expel the air from the pump passage.

(2) Using a small clean brass rod, hold the discharge check ball firmly down on its seat. Raise the pump plunger and press downward. No fuel should be emitted from either intake or discharge passage, as shown in Figure 14.

(3) If any fuel does emit from either the intake or discharge passages, it indicates the presence of dirt or an imperfect seat. The passages should be recleaned and then thoroughly blown out with compressed air. Examine the ball seat for signs of damage that would not allow the ball to seat properly.

(4) Reinstall the check ball and test again. If still leaking, place a piece of drill rod down on the check ball and rap sharply with a hammer. Remove the old check ball and install a new one. Then retest.

(This operation forms a new ball seat in the carburetor casting.)

(5) Install the venturi cluster gasket and slide the venturi cluster down into position (Fig. 6). Install attaching screws and tighten securely.

Again depress the accelerator plunger. A clear straight stream should emit from each jet orifice. If streams are not identical (if either one is restricted or diverted), remove venturi cluster and reclean.

After test, pour gasoline from the bowl and remove the pump plunger.

(6) Check the float for leaks or damage. If satisfactory for further service, install in position in the bowl.

(7) Assemble the fuel inlet needle valve, seat and gasket, then insert in the main body. Tighten securely. (If the needle valve is ridged or grooved, or badly worn, a new synthetic rubber-tipped fuel inlet needle valve assembly should be installed.)

Setting the Fiomi Height

The carburetor is equipped with a synthetic rubbertipped fuel inlet needle.

(1) Invert the main body so that the weight of the floats only is forcing the needle against the seat.

Be sure hinge pin does not drop out of the float hinge.

Hold down with the fulcrum pin spring.

(2) Using Tool 73725 or a "T" scale, measure the float level, as shown in Figure 15. There should be

%

2

inch from the surface of the fuel bowl to the crown of the float at the center.

Fig. 14—Testing Accelerator Pump Discharge and

Inlet Check Balls Fig. 15—Measuring the Float Setting

14-10

WWC3 CARBURETOR

If an adjustment is necessary, remove the needle valve and seat, the fulcrum pin retainer spring, the floats and fulcrum pin. Bend the lip of the float lever either in or out until correct setting has been obtained.

CAUTION; Do not attempt to change the setting without removing the float, as the synthetic rubber tip can be compressed sufficiently to cause a false setting, which will affect correct level of fuel In the bowl.

NOTE: It is important that the float lip is per- pendicular to the needle or slanted not more than 10 degrees away from the needle when the float is set correctly. Do not bend the float lip by forcing the

float, use Tool 73605.

(3) Install float, needle and seat and tighten seat securely. Slide the float baffle down into position and install the fulcrum pin spring. Remeasure as described in Step 2 above.

A i r H o r n

Assembly (Fig. 161

(1) Slide the choke shaft and lever into the air horn with the choke lever pointing down and away from the air horn. Slide the choke valve down into the slot in the shaft.

(2) Hold the choke valve closed and install new screws. DO NOT TIGHTEN. While holding the valve in the closed position, tap gently with a screwdriver, to center and locate the valve.

(3) Tighten attaching screws securely, then stake by squeezing with pliers. Reinstall the fast idlfe lever and secure with lockwasher and nut.

(4) Soak the accelerator pump plunger in a jar of clean gasoline. Test the leather. If the leather is hard, cracked, or worn, install a new pump plunger. Be

CHOKE VALVE SCREWS sure and flex the leather several times before installing plunger in air horn.)

(5) Slide the compression spring over plunger shaft, then slide plunger over hook and into position (Fig. 4).

(6) Install a new air horn gasket, then install the vacuum power piston in air horn. Lock the piston in position by prick punching on the retaining rim.

Compress the piston plunger to be sure no binding exists. If the piston sticks or binds enough to hinder smooth operation, install a new piston assembly.

(7) Install the air horn assembly on the main body, guiding the pump plunger into its well (Fig. 2). (Be sure the leather does not curl or fold back.) Install retaining screws and tighten securely.

NOTE: The choke valve must be held partially closed while installing the air horn.

(8) Remove the two short screws holding the main body and throttle body together (Fig. 2), and install in air horn. Reinstall the two long screws and tighten securely.

(9) Install the fast idle rod and secure with the hairpin clip.

(10) Install the pump rod and secure with hairpin clip. (Be sure rod is in the center slot of arm, refer to Figure 1.) Work the accelerator pump plunger several times to be sure it operates smoothly.

Installing the Vacuum Diaphragm

(1) Install the diaphragm assembly on the air horn and tighten the attaching screws securely.

(2) Install the choke operating link in position between the diaphragm stem (plunger) and the choke lever. Install the clip to secure.

(3) Inspect the vacuum diaphragm fitting and remove any dirt or foreign material which could plug the passage. Inspect the rubber vacuum hose for cracks before placing it on the correct vacuum fitting. (Refer to Fig. 1.)

Do not connect the vacuum hose to the diaphragm fitting until after the vacuum kick adjustment has been made. (See Carburetor Adjustments.)

AIR HORN

FAST IDLE LEVER

BOWL VENT

VALYE SPRING

BOWL VENT

VALVE ~ x

G U A R D d

^VACUUM P O W E !

PISTON

Fig. 16—Air Horn (Disassembled View)

NUT

OCKWASHER

63 x 496A

7. CARBURETOR ADJUSTMENTS

It is very important that the following adjustments be made on a reconditioned carburetor and in the sequence listed:

(a) Fast Idle Speed and Cam Position Setting.

(b) Vacuum Kick Adjustment.

(c) Unloader Adjustment (Wide Open Kick).

WWC3 CARBURETOR 14-11

LIGHT CLOSING PRESSURE

APPLIED T O CHOKE SHAFT

G A U G E OR DRILL

AT WIDEST

CHOKE OPENING

(d) Accelerator Pump Travel.

(e) Bowl Vent Valve Setting.

i fast Idle Speed and Cam Posit ion

Adjustment

The fast idle engine speed adjustment should be made on the vehicle, as described in the "Fast Idle

Speed Adjustment" (On the vehicle) paragraph of this group, however, the Fast Idle Cam Position Adjustment can be made on the bench, as follows:

(1) With the fast idle speed adjusting screw contacting the lowest step on the fast idle cam, as shown in Figure 17, move the choke valve toward the closed position with light pressure. Insert a VA inch drill or gauge (Auto. Trans.)

1

%

4

inch (Manual Trans.) between the choke valve and the wall of the air horn.

(2) An adjustment will be necessary if a slight drag is not obtained as the drill or gauge is being removed.

(3) If an adjustment is necessary, bend the fast idle rod at the upper angle, using Tool T109-213, until the correct valve opening has been obtained.

Vacuum Kick Adjustment

—(This test can be made

ON or OFF the vehicle.

To make the vacuum kick adjustment, the vacuum diaphragm must be energized (either a distributor testing machine with a vacuum source, or vacuum supplied by another vehicle.) To make this adjustment, proceed as follows:

(1) With the engine Not running, open the throttle

valves far enough to allow the choke valve to be moved to the closed position.

(2) Disconnect the vacuum hose from the diaphragm and connect the hose from the vacuum supply, as shown in Figure 18. (A minimum of 10

FAST IDLE

ADJUSTING

SCREW O N

LOWEST STEP

AND AGAINST

FACE O F NEXT

CAM STEP

SCREW

G A U G E OR DRILL AT

WIDEST CHOKE OPENING

LIGHT C L O S I N G

PRESSURE

AGAINST

CHOKE

VALVE

FAST IDLE ROD

(BEND AT

THIS POINT)

FAST IDLE

ADJUSTING

SCREW

Fig.

1 7 F a s t

Idle Speed a n d

Cam Position

Adjustment

64x233

TO VACUUM

SOURCE

MINIMUM

OF 10 INCHES

OF VACUUM

REQUIRED O N

DIAPHRAGM

DIAPHRAGM STEM

C H O K E

OPERATING LINK

(PLUNGER) RETRACTED * 64x234

Fig.

18Measuring

the Choice

V a c u u m

Kick Setting

inches of mercury (HG) will be required).

(3) Insert a %

2

inch drill or gauge (Manual Transmission) or an inch (Automatic Transmission) between the choke valve and the wall of the air horn.

(Refer to Fig. 18.) Apply a slight closing pressure to the choke shaft to hold the drill or gauge in position.

(4) An adjustment will be necessary if a slight drag is not obtained as the drill or gauge is being removed.

The adjustment of this opening will require the removal of the choke operating link.

CAUTION: D A M A G E TO T H E DIAPHRAGM A N D

THE CHOKE L E V E R SLOT CAN R E S U L T , IF THE

LINK IS NOT REMOVED FOR THE BENDING OP-

ERATION.

(5) Remove the clip and disengage the choke operating link from the choke lever, then disengage the link from the diaphragm stem. (The best bending results will be obtained by using a vise and a pair of pliers.)

(6) Bend the choke operating link at the angle to provide the correct choke valve opening.

CAUTION: A correction in the length el the link of

.010 inch, will result in a change of .010 inch in the choke valve opening.

As an example, if the choke valve opening is .010 inch in error, the correction in the link length would be .010 inch.

A 2" micrometer will be helpful in establishing the original length of the link, as shown in Figure 19, before completing the adjustment.

(7) Install the choke operating link and remeasure the choke valve opening, using a gauge or drill. (Refer to Fig. 18.)

14-12

WWC3 CARBURETOR

F i g . 1 9 — C h o k e Operating

Link Measurements

Reinstall the vacuum hose to the diaphragm and

make the following test:

(8) With no vacuum applied to the diaphragm, some

clearance should exist between the choke operating

link and the choke lever slot, i n both the open and

closed choke valve positions, as shown in Figure 20.

This clearance is necessary to allow the choke valve

to close for starting as well as.fully open after the

.engine reaches the normal operating temperature.

If a clearance does not exist i n both of these posi-

tions, a retest of the operating link adjustment should be made.

FREE movement of the choke valve between the

closed and open positions is very necessary.

This free movement should also exist between the

lrick and the open choke valve positions with the en-

gine running. I f binding does exist, the choke opera-

Fig. 2 1 — U n l o a d e r Adjustment (Wide O p e n Kick) ting link has been improperly bent and should be

corrected.

Unloader Adjustment (Wide Open Kick)

(Wig® 21) \ • "

(1) Lightly hold the choke valve closed, then open

the throttle valves to the wide open position. The choke valve should be open sufficiently to allow a

x

%

4

inch drill to be inserted between the choke valve and the wall of the air horn as shown.

(2) To adjust, bend the tang on the throttle lever, using Tool T109-214, until correct opening has been obtained.

CHOKE VALVE WIDE OPEN CLEARANCE

(3) Hold the choke valve open and then open and

close the throttle valves. Failure to obtain full throttle operation indicates improper assembly.

(4) With the throttle valves held in an open posi-

f i g . 20—Choke Opening Link Clearances

F i g . 2 2 — A c c e l e r a t o r Pump Travel

VVWC3 CARBURETOR 14-13 tion, the choke valve should fall open freely. There should be no bind throughout the entire travel of the choke mechanism.

A c c e l e r a t o r Pump Travel (Fig. 22)

(1) With the throttle valves fully closed, measure the pump travel from the fully closed to the fully open throttle.

(2) This travel should be %

6

inch as shown.

(3) If an adjustment is necessary, bend the pump rod at the point shown, using Tool T109-213, until correct travel has been obtained.

FAST IDLE CAM *

CHOKE VALVE

IN WIDE OPEN

POSITION

FAST IDLE SPEED

ADJUSTING SCREW

O N LOWEST

STEP O F C A M

CURB IDLE SPEED

ADJUSTING SCREW

Bowl Vent Valve Setting (Fig. 23)

This setting is made after the pump travel setting.

(1) With the throttle valves at curb idle, there should be »%

6

inch clearance between the bowl vent valve and the air horn, when measured (at the center of the vent valve and the seat) with a gauge or drill shank.

(2) If an adjustment is necessary, bend the bowl vent lever, using Tool T109-214, until the correct opening has been obtained.

Fast Idle Speed Adjustment ( On the

Engine)

-THROTTLE

64x240

Fig. 24—Fast Idle Speed Adjustment (On the Carl

(4) Repeat the idle mixture screw adjustment.

Idle Speed Adjustment

For the best results, it is recommended that a tachometer be used in this adjustment.

(1) Turn the idle speed screw in or out to obtain

500 rpm. (On vehicles with air conditioning, set the idle speed at 500 rpm, with air conditioning ON). Be sure the choke valve is fully open and that the fast idle adjusting screw is not contacting the fast idle cam (engine off fast idle).

To set the fast idle speed on the engine connect a tachometer to the vehicle, then set the curb idle speed and proceed as follows:

(1) With the engine running and the transmission in the neutral position, open the throttle slightly.

(2) Close the choke valve about 20 degrees then allow the throttle to close. Return the choke valve to the open position.

(2) Turn each idle mixture screw in or out until smooth idle is obtained.

(3) The fast idle speed adjusting screw should be contacting the lowest step on the fast idle cam, as shown in Figure 24.

(3) Readjust to 500 rpm with the idle speed screw.

G A U G E INSERTED

BETWEEN VALVE

AND SEAT

(4) With the engine warmed-up to the normal operating temperature, turn the fast idle speed ad-

CHOKE VALVE

WIDE OPEN

justing screw in or out to secure 700 r.p.m. (Automatic

Transmission) or 600 r.p.m. (Manual Transmission).

Reposition the cam and throttle after each adjustment.

THROTTLE

CLOSED

Measuring the Float Setting or Fuel Level

THROTTLE

y 7 ,

J " VALVES

AT CURB

IDLE

POSITION

(On the Vehicle)

Remove the three short air horn to main body attaching screws. Then remove one long air horn to throttle body screw next to fuel bowl and assemble short screw through main body flange and thread into the throttle body. Remove long screw from side away from fuel bowl and on opposite side and as-

BOWL VENT LEVER

(BEND A S REQUIRED

AT THIS POINT) semble short screw through main body flange. Securely tighten. Remove the air horn as follows:

64x239

Fig. 23—Measuring Bowl Vent Valve Opening

(1) Remove the spring clip and disconnect the choke operating rod.

14-14 WWC3 CARBURETOR

(2) Remove the hairpin clip and disconnect the fast idle rod.

(3) Remove the hairpin clip that holds the pump rod in the center slot of the pump arm. Disconnect the pump rod.

(4) Remove the remaining two long screws and lift off the air horn.

Check the float setting as follows:

(1) Seat the float fulcrum pin by pressing finger against the fulcrum pin spring.

There should be enough fuel in the bowl to raise the float so that the lip bears firmly against the needle. Additional fuel may be admitted by slightly depressing the float. If the fuel pressure in the line is insufficient to force additional fuel into the bowl, add the necessary fuel from a clean container.

C A U T I O N : S i n c e the m a n i f o l d s may be hot, it is d a n g e r o u s

to

s p i l l f u e l

onto

t h e s e s u r f a c e s . T h e r e f o r e , t a k e the n e c e s s a r y p r e c a u t i o n s to avoid spillage.

(2) With only the pressure from the buoyant float holding the lip against the inlet needle, check the float setting, using Tool 73725 or "T" scale. There should be %

2

inch from the surface of the bowl (gasket removed) to the top of the float at the center.

If an adjustment is necessary, hold the float on the bottom of the bowl, then bend the float lip toward or away from the needle, using Tool 73605. Recheck the %

2

inch setting again, then repeat the lip bending operation as required.

CAUTION:

W h e n b e n d i n g t h e float l i p , do not a l l o w the lip to p u s h against the n e e d l e a s the r u b b e r tip c a n be c o m p r e s s e d sufficiently to cause a f a l s e setting w h i c h w i l l affect c o r r e c t level of f u e l in t h e bowl. A f t e r being c o m p r e s s e d , the r u b b e r tip is v e r y slow to recover its o r i g i n a l s h a p e .

It is very important that the float lip be perpendicular to the needle or slanted not more than 10 degrees away from the needle when the float is set correctly.

(3) Reassemble the air horn.

8 . A U T O M A T I C C H O K E £ W e i ! T y p e )

To function properly, it is important that all parts be clean and move freely. Other than an occasional cleaning, the automatic choke control requires no servicing. It is very important, however, that the choke control unit works freely at the thermostatic coil spring housing and at the choke shaft.

Move the choke rod up and down to test for free movement of the coil housing on the pivot. If the unit binds, a new unit should be installed.

NOTE:

T h e w e l l type c h o k e u n i t is s e r v i c e d o n l y a s a c o m p l e t e u n i t . D o not a t t e m p t to r e p a i r .

When installing the well type choke unit,

m a k e

certain that the coil housing does not contact the sides of the well. Any contact at this point will affect choke operation.

Do not lubricate any of the choke parts or the control unit, since this causes dirt to accumulate which would result in a binding condition of the choke mechanism.

Do not attempt to change the calibration setting.

This is pre-determined and should it be changed, improper choke action would result.

The choke control unit is accurately adjusted when originally assembled. Under normal service operation, it is recommended not to change the setting, or to disassemble the components for servicing. If, however, the setting has been disturbed, reset as follows:

Loosen locknut and turn part with screwdriver until index mark on disc coincides with the first mark to the right of center mark on the bracket. Hold in this position with screwdriver while tightening nut.

N O T E : A f t e r a d j u s t m e n t is m a d e a n d t h e c h o k e

u n i t i n s t a l l e d o n the e n g i n e , lift t h e c o v e r d i s c a n d c h e c k to s e e that the rod h a s c l e a r a n c e w h e n t h e

c h o k e is o p e n e d a n d closed. T h e rod s h o u l d h a v e

c l e a r a n c e at hole i n cover plate.

S h o u l d It b e c o m e n e c e s s a r y to a d j u s t t h e t h r o t t l e

l i n k a g e , r e f e r to F i g u r e IS f o r t h e complete i n s t r u c -

tions.

BSD CARBURETOR 14-15

BOWL VENT

VALVE

UNLOADER

T A N G

FAST IDLE

C A M

ACCELERATOR

PUMP ROD

FAST IDLE

SPEED ADJUSTING

SCREW

THROTTLE LEVER

VENT HOLE

CURB IDLE

SPEED ADJUSTING

SCREW

FAST IDLE

SPEED ADJUSTING

SCREW

FAST IDLE

CONNECTOR ROD

CURB IDLE

SPEED ADJUSTING

SCREW

CLOSED CRANKCASE

VENT TUBE FITTING

ELEVATOR LEGS

(SET OF

4 )

CHOKE VALVE

AIR HORN

CHOKE LEVER

CHOKE OPERATING

LINK

CARBURETOR

IDENTIFICATION

T A G

M A I N BODY .

DISTRIBUTOR V A C U U M

ADVANCE TUBE FITTING

CHOKE V A C U U M

DIAPHRAGM

V A C U U M

DIAPHRAGM

HOSE

THROTTLE BODY

64 x 328

Fig. 1—Carburetor Assembly (BBD-3685IS)

14-16 BBD CARBURETOR

PART 2

MODEL BBD 3685S CARBURETORS

Dirt, dust, water and gummy deposits are some of job. All parts (except the diaphragm assembly) should the main causes for poor carburetor operation. Proper be carefully cleaned in a suitable solvent and incleaning, however, and installation of new parts, spected for damage and wear. Replace questionable where required, will return the carburetor to its parts with new ones. originally designed performance.

When overhauling the carburetor, several items Use air pressure only, to clear the various orifices of importance should be observed to assure a good and passages.

SERVICE PROCEDURES

1 CARBURETOR DISASSEMBLY ( F i g . 1 )

(1) Insert three Tool T109-287S and one Tool T109-

288S elevating legs through the carburetor throttle body stud holes. (These tools are used to protect the throttle valves from damage and to provide a suitable base for working.)

(2) Remove the hairpin clip and disengage the fast idle connector rod from the throttle and fast idle levers.

(3) Remove the hairpin clip and disengage the accelerator pump rod from the throttle lever and the pump rocker arm.

(4) Remove the vacuum hose between the carburetor throttle body fitting and the vacuum diaphragm.

(5) Remove the clip from the choke operating link and disengage the link from the diaphragm plunger and the choke lever. (Refer to Fig. 1.)

(6) Remove the vacuum diaphragm and bracket assembly and place to one side, to be cleaned as a

special item. A liquid cleaner other than mineral spirits, may damage the diaphragm material.

(7) Remove the air horn retaining screws and lift air horn straight up and away from the main body.

Discard the gasket.

(8) Disengage the accelerator pump plunger from the accelerator pump arm by pushing up on the bottom of the plunger and sliding the plunger shaft off the hook. Slide the plunger out of the air horn and remove the compression spring and seat.

If the old plunger can be used again or if a new plunger is to be installed, place the plunger in a jar of clean gasoline or kerosene to prevent the leather from drying out.

(9) Remove the fuel inlet needle valve, seat and gasket from the main body.

(10) Lift out the float fulcrum pin retainer, and lift out the floats and fulcrum pin.

(11) Remove the step-up piston and retaining screw and slide the step-up piston and rods out of well, as shown in Figure 2. lift out the step-up piston

SPECIAL

T O O L

64 x 329

STEP-UP PISTON

STEP-UP PISTON

SPRING

STEP-UP RODS

MAIN

METERING

JETS

-RETAINING SCREW

60x102

Fig. %— Removing the Step-up Piston

MAIN

METERING

JETS

Fig. 3—Removing the Main Metering Jet

BBD CARBURETOR 14-17

GASKETS

VENTURI

CLUSTER

ACCELERATOR PUMP

DISCHARGE HOLES if

=5

ACCELERATOR PUMP

DISCHARGE PASSAGE provide an additional hole for the removal of dirt.

Compressed air can be used to remove loose dirt

but should not be connected to the vacuum inlet fitting.

IMPORTANT:

If the commercial solvent or cleaner recommends the use of water as a rinse, it should be " H O T . " After rinsing, all trace of water must be blown from the passages with air pressure. It is further advisable to rinse all parts in clean kerosene or gasoline to be certain no trace of moisture remains.

Never clean jets with a wire, drill or other mechanical means, because the orifices may become enlarged, making the mixture too

rich for proper performance.

VENTURI CLUSTER

SCREWS

Fjg. 4—Removing the Venturi Cluster

6 4 x 3 3 0

spring. Remove the step-up piston gasket from the bottom of the well.

(12) Remove the main metering jets and gaskets, as shown in Figure 3.

(13) Remove the venturi cluster screws, then lift the venturi cluster and gaskets up and away from the main body, as shown in Figure 4. Discard the gaskets.

Do not remove the idle orifice tubes or the main vent tubes from the cluster. They can be cleaned in a solvent arid dried with compressed air.

(14) Invert the carburetor and drop out the accelerator pump discharge check ball.

(15) Remove the idle mixture adjusting screws and springs from the throttle body.

(16) Remove the screws that attach the throttle body to the main body. Separate the bodies and discard the gasket.

The carburetor now has been disassembled into three sub-assemblies, the air horn, main body and throttle body and the components of each disassembled as far as necessary for cleaning and inspection.

It is usually not advisable to remove the throttle shaft or valves from the throttle body, unless wear or damage necessitates the installation of new parts.

3 .

INSPECTION AND REASSEMBLY

Throttle Body

(1) Inspect the throttle shaft and throttle body for excessive wear. If either or both are worn to the point where the carburetor operation will be affected, replace as required.

During manufacture, the location of the idle transfer port and the spark advance control ports to the throttle valve, is carefully established for one particular assembly (Fig. 5).

If a new shaft should be installed in an old, worn throttle body, it would be very unlikely that the original relationship of the ports to the valves would be obtained. Changing the relationship of the valves to the ports would adversely affect normal car operation between the speeds of 15 and 30 miles per hour.

If it has been determined, however, that a new shaft or valves is to be installed, adhere to the following instructions.

(2) Mark the position of the throttle valves in the bores. Be sure the idle speed screw is backed off.

(3) Remove the screws that hold the throttle valves to the shaft and slide the valves out of the bores.

I D L

7 o R T S

S F E R

SPARK ADVANCE

PORT

2.

CLEANING CARBURETOR

The recommended solvent for gum deposits is denatured alcohol which is easily obtainable. There are other commercial solvents, however, which may be used with satisfactory results.

The choke diaphragm can be damaged by solvents.

Avoid placing the diaphragm assembly in

A N Y liquid.

Clean the external surfaces with a clean cloth or soft wire brush. Shake dirt or other foreign material from the stem side of the diaphragm. Depressing the diaphragm plunger (stem) to the retracted position, will

VENT HOLE

VENT HOLE

6 4 x 3 3 1

Fig. 5 — P o r t s in R e l a t i o n to Throttle V a l v e s

14-18 BBD CARBURETOR

CAUTION: These screws are staked on the op- posite side and care should he

used at removal so as

not to break off in the shaft. Remove the staked end

of the screws with a file.

(4) Slide the throttle shaft and lever out of the body.

(5) Install new throttle shaft and lever.

(6) Install throttle valves in their respective bores

(with the valve number toward the manifold). Install new screws but do not tighten. Hold the valves in place, with the fingers pressing on the high sides of the valves. Tap the valves lightly with a screwdriver to seat in the throttle bores. Tighten the screws securely and stake by squeezing with pliers.

(7) Install the idle mixture screws and springs in the throttle body. (The tapered portion must be straight and smooth. If the tapered portion is grooved or ridged, new idle mixture screws should be installed to insure having correct idle mixture control.) DO

NOT U S E A S C R E W D R I V E R . Turn the screws lightly against their seats with the fingers. Back off one full turn for approximate adjustment.

Main Body

(1) Invert the main body and place a new gasket in position and place the throttle body on the main body and align. Install screws and tighten securely.

(2) Install the accelerator pump discharge check ball in the discharge passage and check the accelerator pump system; fuel inlet and discharge check balls as follows:

(3) Pour clean gasoline into the carburetor bowl, approximately Vi inch deep. Remove the pump plunger from the jar of gasoline, flex the leather several times, then slide down into the pump cylinder.

Raise the plunger and press lightly on the plunger shaft to expel all air from the pump passage.

(4) Using a small clean brass rod, hold the discharge check ball down firmly on its seat. Again raise the plunger and press downward. No fuel should be emitted from either the intake or discharge passage, as shown in Figure 6.

If any fuel does emit from either passage it indicates the presence of dirt or a damaged check ball seat. Check the passage again and repeat test. If leakage is still evident, install a new check ball.

The fuel inlet check ball is located at the bottom of the plunger well.

(5) Install new gaskets on the venturi cluster, and install in position in the main body (Fig. 4). Install the idle bleed screws and tighten securely. Test pump discharge by pressing pump plunger down. Two fine streams of fuel should be forced from the cluster.

If either stream is restricted or diverted, remove cluster and reclean. After test, pour the fuel from the bowl and remove pump plunger.

(6) Install the main metering jets and gaskets.

Tighten securely (Fig. 3).

(7) Before installing the step-up piston, be sure the step-up rods are able to move freely, each side of the vertical position, as shown in Figure 7. The step-up rods must be straight and smooth.

(8) Slide the step-up piston gasket down into position in the piston well, then install the step-up piston springs, step-up piston and rods. Carefully guide the step-up rods into the main metering jets (Fig. 2).

Install the retaining screw and tighten securely. Check piston for free operation in the well.

A step-up piston stuck in the Up position will cause a rich mixture at part throttle, whereas a piston stuck

in the Down position will cause a lean mixture at

wide open throttle and poor acceleration.

Fig. 6—Testing the Accelerator Pump Intake a n d

Discharge Check Balls

STEP-UP R O D S MUST M O V E FREELY

Fig. 7 — S t e p Up Rods Free Play

BBD CARBURETOR 14-19 bowl.

Fig. 8—Measuring the Float Setting

Measuring the Float Setting

(Off

the Vehicle)

The carburetors are equipped with a rubber-tipped fuel inlet needle. The rubber tip is flexible enough to make a good seal on the needle seat, and to give increased resistance to flooding.

The use of the rubber-tipped needle requires a new procedure in adjusting the float setting. Care should be taken to perform this operation accurately in order to secure the best performance and fuel economy.

(1) To correctly set the float height when the carburetor is being overhauled, install the floats with the fulcrum pin and pin retainer in the main body.

(2) Install the rubber-tipped needle, seat and gasket in the body and tighten securely.

(3) Invert the main body so that the weight of the float only is forcing the needle against the seat. Hold finger against the retainer to fully seat the fulcrum pin.

(4) Using Tool T109-282, or a "T" scale, measure the float, as shown in Figure 8. There should be VA inch from the surface of the fuel bowl to the crown of each float at the center.

If an adjustment is necessary, hold the floats on the bottom of the bowl and bend the float lip toward or away from the needle. Recheck the VA inch setting again and repeat the lip bending operation as required.

CAUTION: When bending the float lip, da not

allow the lip to push against the needle as the rubber tip can be compressed sufficiently to cause a false setting which will affect correct level of fuel in the

NOTE: After being compressed, the rubber tip

is very slow to recover its original shape* It is very important that the float lip be perpendicular to the

needle or slanted not more than 10 degrees away

from the needle when the float height is correct.

Air Horn

(1) Test the freeness of the choke mechanism in the air horn. The choke shaft must float free to operate correctly. If the choke shaft sticks in the bearings, or appears to be gummed from deposits in the air horn, a thorough cleaning will be required.

(2) Remove the accelerator pump plunger from the gasoline, slide the compression spring and spring seat over the shaft. Install the assembly in the air horn and engage with the accelerator pump arm.

(3) Place a new gasket on the main body, and install the air horn. Install attaching screws and tighten securely. (When installing air horn, be sure the leather on the plunger does not wrinkle or fold back.)

(4) Engage the accelerator pump rod with the pump rocker arm and install loose end in the center hole of throttle lever. Install hairpin clip to secure.

(5) Engage the fast idle connector rod in the fast idle lever and throttle lever. Install hairpin clip to secure.

Installing the Vacuum Diaphragm

(1) Install the diaphragm assembly on the air horn and tighten the attaching screws securely.

(2) Install the choke operating link in position between the diaphragm plunger (stem) and the choke lever. Install the clip to secure.

(3) Inspect the vacuum diaphragm fitting and remove any dirt or foreign material which could plug the passage. Inspect the rubber hose for cracks, before placing it on the correct fitting. (Refer to Fig. 1.)

Do not connect the vacuum hose to the diaphragm fitting until after the vacuum kick adjustment has been made. (See Carburetor Adjustments.)

4 . CARBURETOR ADJUSTMENTS

It is very important that the following adjustments are made on a reconditioned carburetor and in the sequence listed:

A c c e l e r a t o r

Pump

(1) Back off the idle speed adjusting screw. Open the choke valve so that the fast idle cam allows the throttle valves to be completely seated in the bores.

Be sure that the pump connector rod is installed in the center hole of the throttle lever.

(2) Close the throttle valves tightly. Measure the

14-20 BBD CARBURETOR

Fig. 9—Measuring the Accelerator Pump Travel

distance between the top of the air horn and the end of plunger shaft, as shown in Figure 9. This measurement should be 1" + or —

x

£

4

inch.

(3) To adjust the pump setting, bend the pump connector rod, using Tool T109-213, at the lower angle of rod, until the correct travel has been obtained.

Fast Idle Speed and Cam Position

Adjustment

The fast idle engine speed adjustment should be made on the engine, as described in the Fast Idle

Speed Adjustment (On the engine) paragraph of this group, however, the Fast Idle Cam Position Adjustment can be made on the bench, as follows:

(1) With the fast idle speed adjusting screw contacting the lowest step on the fast idle cam, as shown in Figure 10, move the choke valve toward the closed position with light pressure. Insert a *%

4

inch drill or gauge between the choke valve and the wall of the air horn.

Fig. 10—-Fast Idle Cam Position Adjustment

Fig. 11—Measuring the Choke Vacuum Kick Setting

(2) An adjustment will be necessary if a slight drag is not obtained as the drill or gauge is being removed.

(3) If an adjustment is necessary, bend the stop on the choke shaft, using Tool T109-22 until the correct valve opening has been obtained. (Refer to Fig. 10.)

Vacuum Kick Adjustment—(This test can be made

On or Off the vehicle.)

To make the vacuum kick adjustment, the vacuum diaphragm must be energized (either a distributor testing machine with a vacuum source, or vacuum supplied by another vehicle). To make this adjustment, proceed as follows:

(1) With the engine Not running, open the throttle

valves far enough to allow the choke valve to be moved to the closed position.

(2) Disconnect the vacuum hose from the diaphragm and connect the hose from the Vacuum supply, as shown in Figure 11. (A minimum of 10 inches of mercury (HG) will be required.)

(3) Insert a

1

%

4

inch drill or gauge between the choke valve and the wall of the air horn (Refer to

Fig. 11). Apply a slight closing pressure to the choke shaft to hold the drill or gauge in position.

(4) An adjustment will be necessary if a slight drag is not obtained as the drill or gauge is being removed.

The adjustment of this opening will require the removal of the choke operating link.

C A U T I O N : D A M A G E T O T H E D I A P H R A G M A N D

T H E C H O K E L E V E R S L O T C A N R E S U L T , IF T H E

L I N K IS NOT R E M O V E D F O R THE BENDING OP-

E R A T I O N .

(5) Remove the clip and disengage the choke operating link from the diaphragm stem (plunger), then disengage the link from the choke lever. (The

BBD CARBURETOR 14-21

Fig. 12—Choke Operating Link Measurements Fig. 14Measuring the Choke Unloader Setting

best bending results will be obtained by using a vise and a pair of pliers.)

(6) Bend the choke operating link to provide the correct choke valve opening.

C A U T I O N : A c o r r e c t i o n in t h e length of t h e l i n k

of .010 i n c h , w i l l r e s u l t i n a c h a n g e of .010 i n c h in t h e

c h o k e v a l v e o p e n i n g .

As an example, if the choke valve opening is .010 inch in error, the correction in the link length would be .010 inch.

A 2" micrometer will be helpful in establishing the original length of the link, as shown in Figure 12, before completing the adjustment.

(7) Install the choke operating link and retest the choke valve opening, using a gauge or drill. (Refer

to Fig. 11.)

Reinstall the vacuum hose to the diaphragm and make the following test:

(8) With no vacuum applied to the diaphragm, some clearance should exist between the choke operating link and the choke lever slot, in both the open and closed choke valve positions, as shown in

Figure 13.

N O T E : T h i s c l e a r a n c e i s n e c e s s a r y to a l l o w t h e c h o k e v a l v e to close f o r s t a r t i n g a s w e l l a s f u l l y o p e n position a f t e r t h e e n g i n e r e a c h e s t h e n o r m a l o p e r a t i n g t e m p e r a t u r e .

If a clearance does not exist in both of these positions, a retest of the operating link adjustment should be made.

N O T E : F r e e m o v e m e n t of t h e c h o k e v a l v e b e t w e e n the closed a n d open positions is v e r y n e c e s s a r y .

This free movement should also exist between the kick and the open choke valve positions with the engine running. If binding does exist, the choke operating link has been improperly bent and should be corrected.

Fig. 13Choke Operating Link Clearances

Fig. ISBending the Unloader Tang

14-22 BBD CARBURETOR

Choke Unloader (Wide O p e n JOcJcJ

(1) Hold the throttle valves in the wide open position. Insert Tool T109-31 or a W drill shank) between the speed screw, the speed obtained after finding the leanest smooth idle will probably be too fast. the upper edge of the choke valve and the inner wall of the air horn, as shown in Figure 14.

(2) With a finger lightly pressing against the valve, a slight drag should be felt as the gauge is being

(5) Readjust the speed screw to obtain correct idle speed. Repeat steps 2 and 4 above if necessary.

After the proper idle speed has been obtained, move the sliding link to the rear against the stop and tighten the nut securely. withdrawn. If an adjustment is necessary, bend the

5 . M E A S U R I N G THE FLOAT SETTING

OR

tang on the fast idle lever, ^ as

FUEL LEVEL ( O n t h e V e h i c l e ) shown in Figure 15, until the correct clearance has

To measure the float setting with the carburetor been obtained. mounted on the engine, proceed as follows:

Bowl Vent Volve Adjustment

(1) Remove the hairpin clip and disengage the

(1) With the throttle valves at curb idle, there accelerator pump rod from the throttle lever and should be y

1 6

inch clearance between the bowl vent the pump rocker arm. Disconnect the automatic valve and the air horn, when measured (at the center choke rod by unsnapping clip. of the vent valve and the seat) with a drill shank.

(2) Remove the air horn attaching screws and lift

(2) If an adjustment is necessary, bend the short the air horn straight up and away from the main tang on the vent valve operating lever, using Tool body. Remove the gasket.

T109-22 until the correct opening has been obtained.

(3) Set the float fulcrum pin by pressing a finger

Idle S p e e d Adjustment (Curb Idlei against the fulcrum pin retainer.

To make the idle speed adjustment, the engine

There should be enough fuel in the bowl to raise must be thoroughly warmed up. A more reliable idle the floats so that the lip bears firmly against the adjustment can usually be obtained if the car has needle. Additional fuel may be admitted by slightly been driven a minimum of five miles. For best results, depressing the float. If the fuel pressure in the line it is recommended that a tachometer be used in this is insufficient to force the additional fuel into the adjustment. bowl, add the necessary fuel from a clean container.

On vehicles equipped with automatic transmission,

WARNING: Since the manifolds may be hot, it

loosen the nut in the sliding link of the carburetor

is dangerous to spill fuel onto these surfaces. Take

to bellcrank rod so that the stop in the transmission

the necessary precautions to avoid spillage.

will not interfere with the free movement of the carburetor throttle lever.

(4) With only the pressure from the buoyant float

(1) To make the idle speed adjustment, turn the holding the lip against the inlet needle, check the idle speed screw in or out to obtain 500 rpm. (6n float setting, using Tool T109-282, or a " T " scale. cars with air conditioning, set the idle speed at 500

There should be VA inch from the surface of the

rpm.) With air conditioning ON be sure the choke bowl (gasket removed) to the crown of the floats at valve is fully open and that the fast idle adjusting the center. screw is not contacting the fast idle cam.

If an adjustment is necessary, hold the floats on

(2) Turn each idle mixture screw in or out to obtain the bottom of the bowl, then bend the float lip toward the highest rpm. While making the adjustment, careor away from the needle. Recheck the VA inch setting fully watch the tachometer and notice that the speed again, then repeat the lip bending operation as required. can be decreased by turning the screws in either direction from the setting that gave the highest rpm

CAUTION: When bending the float lip, do not

reading.

allow the lip to push against the needle as the rubber

(3) Readjust to 500 rpm with the idle speed screw.

tip can be compressed sufficiently to cause a false

(With air conditioning ON).

setting which will affect correct level of fuel in the

(4) Turn each idle mixture adjusting screw in the

bowl.

clockwise direction (leaner) until there is a slight

NOTE: After being compressed, the rubber tip

drop in rpm. Turn each screw out, counterclockwise

is very slow to recover its original shape. I t is very

(richer) just enough to regain the lost rpm.

important that the float lip be perpendicular to the

This procedure will assure that the idle has been

needle or slanted not more than 10 degrees away

set to the leanest mixture possible for smooth idle.

from the needle when the float is set correctly.

This setting is very important.

Since the correct speed was originally set, using

(5) After the float has been correctly set, reassemble the air horn.

BBD CARBURETOR 14-23

Fig. 17Closed Crankcase Vent System

Fig. 16Fast Idle Speed Adjustment (On the Engine)

Fast Idle Speed Adjustment (On the

Engine)

To set the fast idle speed on the engine, connect a tachometer to the vehicle, then set the curb idle speed and proceed as follows:

(1) With the engine running and the transmission in the neutral position, open the throttle slightly.

(2) Close the choke valve about 20 degrees then allow the throttle to close. Return the choke valve to the open position.

(3) The fast idle adjusting screw should be contacting the lowest step on the fast idle cam, as shown in Figure 16.

(4) With the engine warmed-up to the normal operating temperature, turn the fast idle adjusting

screw in or out to secure 700 rpm. Reposition the

earn and throttle after each adjustment.

6 . A U T O M A T I C C H O K E — W E L L TYPE

To function properly, it is important that all parts be clean and move freely. Other than an occasional cleaning, the choke requires no servicing. It is very important, however, that the choke control unit work freely in the well and at the choke shaft.

Move the choke rod up and down to check for free movement on the pivot. If the unit binds, a new choke unit should be installed. THE W E L L T Y P E

CHOKE UNIT is serviced as an assembly. Do not attempt to repair or change the index setting.

When installing the well type choke unit, be certain that the coil housing does not contact the sides of the well in the intake manifold. Any contact at this point will affect choke operation.

Do not lubricate any parts of the choke or the con-

trol unit. This causes an accumulation of dirt which will result in binding of the choke mechanism.

9. CLOSED C R A N K C A S E VENT SYSTEM

The closed crankcase ventilator valve is located in the crankcase vent tube cap and is connected to the carburetor throttle body with a rubber tube. (See

Fig. 17.)

The function of the valve is to regulate the flow of unburned hydrocarbons from the crankcase and return them to the intake manifold. From here they enter the combustion chamber and then exit with the exhaust system as completely burned exhaust products. For servicing procedures of this system, refer to "Engine," Group 9.

1 0 . THROTTLE -LINKAGE

To adjust the throttle linkage refer to Figure 18 for the complete instructions.

4*

i

WITH MANUAL TRANSMISSION

1.

ASSEMBLE ACCELERATOR SHAFT ASSEMBLY AND PEDAL ASSEMBLY TO

BODY, WITH A 3/16" DIAMETER R O D ® A P P R O X I M A T E L Y TO" LONG

IN THE HOLES PROVIDED IN THE ACCELERATOR SHAFT BRACKET AND

L E V E R , ADJUST THE PEDAL R O D ® L E N G T H TO PROVIDE A PEDAL

ANGLE OF 113° TO 115°INSTALL PEDAL R O D . ®

1

APPLY A THIN FILM OF MS 3608 LUBRICANT TO THE ACCELERATOR

S H A F T S ? ) WHERE IT TURNS IN THE FIREWALL BRACKET.

3. ASSEMBLE CARBURETOR ROD PARTS BUT DO NOT TIGHTEN ADJUSTMENT

LOCK NUT. ®

"DISCONNECT C H O K E @ A T CARBURETOR OR BLOCK CHOKE VALVE IN

F U L L OPEN POSITION. OPEN THROTTLE SLIGHTLY TO RELEASE FAST

I D L E CAM, THEN RETURN CARBURETOR TO CURB IDLE.

WITH THE 3/16" DIAMETER BY 10" LONG R O D ® t N P L A C E IN THE

ACCELERATOR SHAFT BRACKET AND L E V E R ASSEMBLY, TIGHTEN CARBU-

RETOR ROD ADJUSTMENT LOCK N U T . ®

CONNECT CHOKE R O D ® O R REMOVE BLOCKING FIXTURE.

i

• p "

m

•r-

"2

>-

O

WITH AUTOMATIC TRANSMISSION

ASSEMBLE ACCELERATOR SHAFT ASSEMBLY AND PEDAL ASSEMBLY TO

BODY. WITH A 3/16" DIAMETER R O D ® A P P R O X I M A T E L Y 10" LONG

IN THE HOLES PROVIDED IN THE ACCELERATOR SHAFT BRACKET AND

LEVER, ADJUST T H E PEDAL R O D ® L E N G T H TO PROVIDE A PEDAL ANGLE

OF 113°TO 115°INSTALL PEDAL R O D . ®

1

APPLY A THIN FILM OF MS 3608 LUBRICANT TO THE ACCELERATOR

S H A F T ® W H E R E IT TURNS IN THE FIREWALL BRACKET.

3. ASSEMBLE CARBURETOR ROD PARTS BUT DO NOT TIGHTEN ADJUSTMENT

LOCK N U T . ®

4. DISCONNECT C H O K E ® ) A T CARBURETOR OR BLOCK CHOKE VALVE IN

F U L L OPEN POSITION. OPEN THROTTLE SLIGHTLY TO RELEASE FAST

IDLE CAM, THEN RETURN CARBURETOR TO CURB IDLE.

5. WITH THE TRANSMISSION ROD ASSEMBLY AND TRANSMISSION THROTTLE

L E V E R IN P L A C E , MOVE THE TRANSMISSION THROTTLE L E V E R ® FOR-

WARD AGAINST THE STOP AND TIGHTEN TRANSMISSION ROD ADJUSTMENT

LOCK N U T . ® R E M O V E 3/16" DIAMETER R O D ® F R O M ACCELERATOR

SHAFT BRACKET.

6. MOVE REAR PORTION OF CARBURETOR ROD ASSEMBLY © R E A R W A R D

UNTIL TRANSMISSION THROTTLE L E V E R ® STOP IS CONTACTED.

TIGHTEN CARBURETOR ROD ADJUSTMENT LOCK N U T . ®

7. CONNECT CHOKE R O D @ O R REMOVE BLOCKING FIXTURE.

Fig. 18—Throttle Linkage Adjustments

6 3 x 3 6 7

>TEP UP PISTON COVER PLATE

CHOKE OPERATING LINK

AFB CARBURETOR 14-25

ACCELERATOR

PUMP PLUNGER STEM

FUEL INLET FITTING

CHOKE VACUUM DIAPHRAGM

J 3 l f e ^ ^ " ' ^ '

PLUNGER (STEM)

\ \ ^ f ^ ^ ^ ^ y . <#^f /-V « r -

SECONDARY THROTTLE

OPERATING LEVER

THROTTLE A N D M A I N BODY

PRIMARY THROTTLE

SHAFT ARM (OUTER)

PRIMARY THROTTLE

SHAFT D O G

VACUUM DIAPHRAGM HOSE

CHOKE OPERATING LINK

CHOKE VACUUM

DIAPHRAGM-

CHOKE LEVER CHOKE VALVE

Y

\

/>"*^~'

Sy

/ HUT >~.

3

STEP UP PISTON

COVER PLATE

CHOKE VACUUM DIAPHRAGM BRACKET

ACCELERATOR PUMP ARM

AIRHORN

DIAPHRAGM

VACUUM HOSE

DISTRIBUTOR

VACUUM ADVANCE

TUBE FITTING

IDLE MIXTURE

ADJUSTING SCREWS

• M i

FAST IDLE

CONNECTOR ROD

FAST IDLE C A M

CURB IDLE SPEED

ADJUSTING SCREW

• THROTTLE LEVER

CLOSED

CRANKCASE VENT

TUBE FITTING

ELEVATING LEGS

(SET OF

4)

ACCELERATOR PUMP

CONNECTOR ROD

Fig. 1—Carburetor Assembly (AFB Series)

FAST IDLE SPEED

ADJUSTING SCREW

64x340

14-26 AFB CARBURETOR

PART 3

AFB CARBURETORS

The AFB (aluminum four barrel) carburetor contains many features, some of which are the location for the step-up rods and pistons. The step-up rods, pistons and springs are accessible for service without removing the air horn, or the carburetor from the engine.

The venturi assemblies (primary and secondary) are replaceable and contain many of the calibration points for both the high and low speed system. One fuel bowl feeds both the primary and secondary nozzles on the right side while the other fuel bowl takes care of the primary and secondary nozzles on the left side. This provides improved performance in cornering, quick stops and acceleration.

All the major castings of the carburetor are aluminum, with the throttle body cast integral with the main body. This allows an overall height reduction in the carburetor. The section containing the accelerator pump is termed the primary side of the carburetor. The rear section is the secondary.

The five conventional systems are two float systems, two low speed systems (primary side only), two high speed systems, one accelerator pump system and one automatic choke control system.

SERVICE PROCEDURES

1. S E R V I C I N G THE CARBURETOR

Dirt, dust, water and gummy deposits are some of the main causes for poor carburetor operation. However, proper cleaning and the installation of new parts, where required, will return the carburetor to its originally designed performance.

When overhauling the AFB carburetor, several items of importance should be observed to assure a good job.

The carburetor should be carefully disassembled and all parts (except the choke diaphragm assembly) should be cleaned in a suitable solvent and inspected for wear or damage.

Air pressure only should be used to clean the various orifices and channels. Replace questionable parts with new ones.

(4) Remove the vacuum hose between the carburetor body and the vacuum diaphragm.

(5) Remove the clip from the choke operating link and disengage the link from the diaphragm plunger

(stem) and the choke lever. (Refer to Fig. 1.)

(6) Remove the vacuum diaphragm and bracket as-

sembly and place to one side to be cleaned as a

separate item. A liquid cleaner may damage the diaphragm material.

(7) Remove the screws attaching the step-up piston and rod cover plates.

NOTE: Hold cover down with a finger to prevent the piston and rods from flying out.

STEP UP PISTON

2 , DISASSEMBLING THE CARBURETOR

(Fig* 1 )

(1) Place the carburetor assembly on repair stand

Tool C-3400 or T-109-287S elevating legs.

(2) Remove the hairpin clip that attaches the fast idle connector rod to the choke lever. Disengage rod from lever, then swing rod at an arc until it can be disengaged from the fast idle cam.

(3) Remove the retainer and spring that holds the throttle connector rod in the center hole of the accelerator pump arm. Remove the hairpin clip that attaches the lower end of rod in the primary throttle shaft lever. Disengage rod from arm and lever, then remove from carburetor.

STEP UP

PISTON ROD

STEP UP

PISTON SPRING

SCREW

COVER PLATE

SPRING

Fig. 2—Hemoving Step-up Pistons and Rods

AFB CARBURETOR 14-27

(8) Lift off the plates and slide the step-up pistons and rods out of the air horn, as shown in Figure 2.

Remove the step-up piston springs.

(9) Remove the ten screws that attach the air horn to the main body (1 screw in hole in air horn). lift air horn straight up and away from the main body.

NOTE: When removing air horn, use care so as not to bend or damage the floats.

(10) Remove the accelerator pump plunger lower spring from the pump cylinder.

Disassembling the Air Horn

Place the air horn in an inverted position on the bench (to protect the floats).

(1) Using a suitable tool, remove the float fulcrum pins (left and right) and lift the floats up and out of bosses on air horn.

NOTE: It is suggested that the float on the pump side be marked so that the floats can be re-installed in their respective positions.

(2) Remove the two needle valves from their respective seats, after .marking the one on the pump side for identification. Using a wide blade screw driver, remove the needle valve seats. Be sure each needle valve is returned to its original seat at reassembly.

(3) Remove the hairpin clip that holds the accelerator pump connector link in the pump arm and plunger ihaft. Disengage link from pump arm and shaft. Slide the accelerator pump pluhger and spring out of the air horn. Remove the air horn to main body gasket and discard.

(4) Place the accelerator pump plunger in a jar of clean gasoline or kerosene,, to prevent the leather from drying out. ,

Fig. 4—Removing .Main Metering Jets

(5) Remove the fuel inlet fitting and filter screen from the air horn.

(6) Test the freeness of the choke mechanism in the air horn. The choke shaft must float free to operate correctly. If the choke shaft sticks in the bearings, or appears to be gummed from deposits in the air horn, a thorough cleaning will be required.

Main Body Disassembly

(1) Remove the screws that attach the accelerator pump jet housing to the main body. Lift out the jet housing and gasket, as shown in Figure 3. Discard the gasket. Invert the main bpdy and drop out the discharge check needle from the discharge passage.

(2) Using Tool T109-58 remove the main metering jets (secondary side), as shown in Figure 4.

NOTE: The primary and secondary main metering jets are not interchangeable. It is very important that these gets be installed in their respective locations in the main body at reassembly.

A T T A C H I N G S C R E W S I

63x50i|A

Fig. 3—Removing Accelerator Pump Jet Housing Fig. 5*—Removing Primary, Venturi

14-28 AFB CARBURETOR

(3) Using Tool T-109-58, remove the main metering jets (primary side).

(4) Remove the screws that attach the primary venturi (choke and pump side) to the main body, lift the venturi straight up and away from the main body, as shown in Figure 5. Discard the gaskets.

NOTE: The venturi assemblies are not interchangeable, side for side and must be re-installed in their original location at reassembly.

IDLE DISCHARGE

PORTS PRIMARY THROTTLE

J V A L V E S

(5) Remove the screws that attach the secondary venturi (choke and pump side) to the main body. lift the secondary venturi assemblies straight up and away from the body, as shown in Figure 6.

(6) Using Tool T-109-59, screw driver bit, remove the accelerator pump intake check ball assembly. (The check ball assembly is located at the front of the bowl at the base of the accelerator pump cylinder. Be sure that the check ball is thoroughly cleaned before installation.

(7) Remove the two idle mixture adjusting screws and springs from the throttle body portion of the mlin casting.

The carburetor now has been disassembled into two units, the air horn and main and throttle body casting. The component parts of each have been disassembled as far as necessary for cleaning and inspection.

It is usually not advisable to remove the throttle shafts or valves, unless wear or damage necessitates

SECONDARY

VENTURI

(PUMP SIDC

GASKET

SECONDARY

VENTURI

(CHOKE SIDE)

IDLE TRANSFER PORTS

6 3 x 5 0 5 A

Fig. 7_Porfrs in Relation to Throttle Valves

the installation of new parts. During the manufacture of the carburetor, the location of the idle transfer ports arid the idle discharge ports to the valve is papfully established for one particular assembly, as shown in Figure 7. The valves are milled to give the proper port relation.

If new throttle shafts should be installed in an old, worn body, it would be very unlikely that the original relationship of these ports to the valves would be obtained. A very slight change in the port relationship to the valves would adversely affect normal carburetor operation, between the speeds of 15 and 30 miles per hour.

It is recommended that if the throttle shafts are excessively worn, that a new carburetor be installed.

If the throttle valves, however, have become nicked, burred or damaged, new valves may be installed, providing the following instructions are carefully followed:

• SECONDARY VALVE

y (BRASS)

SECONDARY VENTURI

NOZZLE BLEEDER TUBE

PRIMARY VENTURI

M A I N BLEED TUBE

NOZZLE BLEEDER TUBE

IDLE TUBE

D O N O T REMOVE TUBES FROM VENTURI

6 3 x 5 0 4 A

Fig. 6—Removing Secondary Venturi

PRIMARY VALVE „

O A A A

(ALUMINUM) W X V 4 6 A

Fig. 8—Throttle Valve Identification

AFB CARBURETOR 14-29

NOTE: The screws that attach the throttle valves are staked on the opposite side and care should be used in removal so as not to break the screws in the throttle shaft. Remove the staked portion of the screws with a file.

Remove the screws that attach the primary throttle valves to the throttle shaft and slide valve (or valves) out of the bores.

Remove the screws that attach the secondary throttle valves to the throttle shaft and slide valve (or valves) out of the bores.

The primary valves and secondary valves are not interchangeable and should be kept separate in order that each may be returned to its respective bore.

(See Fig. 8.)

The tapered portion must be smooth and straight.

If the tapered portion is grooved or ridged, a new idle mixture adjusting screw should be installed to insure having correct idle mixture control.

NOTE: Do not use a screw driver.

The adjustment should be made with the fingers.

Turn the idle mixture adjusting screws lightly against their seats and back off one full turn for an approximate adjustment.

(4) Place the new secondary venturi gaskets in position (bleed hole in top, toward the center of the carburetor), install the secondary venturi (pump and choke side) by lowering straight down on the gaskets.

Install the attaching screws and tighten securely.

NOTE: Be sure all the metering holes and vent tubes are clean, in both the primary and secondary venturi.

3 . C L E A N I N G THE CARBURETOR PARTS

The recommended solvent for gum deposits is denatured alcohol. There are other commercial solvents, however, which may be used with satisfactory results.

The choke diaphragm can be damaged by solvents.

Avoid placing the diaphragm assembly in any liquid.

Clean the external surfaces with a clean cloth or soft wire brush. Shake dirt or other foreign material from the stem side of the diaphragm. Depressing the diaphragm stem to the retracted position, will provide an additional hole for the removal of dirt. Compressed air can be used to remove loose dirt, but should not be connected to the vacuum inlet fitting.

(5) Place new primary venturi gaskets in position, then install the primary venturi (pump and choke side) by lowering straight down on the gaskets. (See Fig.

5.) Install attaching screws and tighten securely.

(6) Install the primary and secondary main metering jets, using Tool T109-58. (See Fig. 4.) Tighten jets securely.

(7) Install the accelerator pump intake check ball assembly in position in the carburetor bowl. Tighten securely, using Tool T109-59.

IMPORTANT: If the commercial solvent or cleaner recommends the use of a water rinse, it should be "HOT/' After rinsing, all trace of water must be blown from the passages with air pressure. It is further advisable to rinse all parts in clean kerosene or gasoline to be certain no trace of moisture remains.

Never clean jets with a wire, drill, or other mechanical means, because the orifices may become enlarged, making the mixture too rich for proper performance.

3 . INSPECTION A N D REASSEMBLY

Main and Throttle Body Casting

(1) Slide the primary throttle valve (or valves) into their respective bores, install new screws, but do not tighten. Be sure the idle speed adjusting screw is backed out. Hold the valves in place with fingers

(fingers pressing on the high side of the valves).

(2) Tap the valves lightly with a screw driver to seat in the bores. Holding the valves in this position, tighten the screws securely. Stake screws by squeezing with pliers.

(3) Install the two idle mixture adjusting screws and springs in the throttle body portion of the casting.

Accelerator Pump Test

(1) Pour clean gasoline into the carburetor bowl

(approximately V% inch deep). Remove the accelerator

pump plunger from the jar of gasoline. Flex the leather several times, then slide it on the pump cylinder.

(2) Install the accelerator pump discharge check needle in the discharge passage. Raise the pump plunger and press lightly on the plunger shaft to expel air from the pump passages. Using a small clean brass rod, hold the discharge check needle firmly on its seat. Again raise the plunger and press downward.

No fuel should be emitted from either the intake or discharge passage.

(3) If fuel does emit from the intake passage, disassemble the intake check ball and reclean the passage. Fuel leakage at the discharge check needle indicates the presence of dirt or a damaged check needle. Clean again and then install a new check needle. Retest for leakage.

(4) If either the intake check ball or discharge check needle leaks after above test and service fix, attempt to reseat as follows:

14-30 AFB CARBURETOR

Intake Cheek Ball

Remove the accelerator pump check ball assembly and install a new check ball assembly.

Discharge Cheek Needle

(1) With the discharge check needle installed, insert a piece of drill rod down on the needle. lightly tap the drill rod with a hammer to form a new seat.

Remove and discard old needle and install a new one. Retest as described previously. If the service fix does not correct the condition, a new carburetor must be installed.

(2) Install the accelerator pump discharge check needle, jet housing and gasket. Install housing and attaching screws. Tighten screws securely.

(3) Press down on the accelerator pump plunger shaft and as the plunger is being depressed, a clear straight stream should emit from each jet. If the streams are identical (if either one is diverted or restricted) a new accelerator pump jet housing should be installed. After test, pour the gasoline from the carburetor bowl and remove pump plunger.

Fig. 9—Measuring the Float Alignment

NOTE: Be sure the marked float is installed on the pump side of the air horn.

(6) After the floats have been installed, test the float alignment, level and drop settings as follows:

Air Horn Assembly

(1) Slide the fuel inlet screen into the fuel line fitting, then install fitting in air horn. Tighten securely.

(2) Inspect to see if the leather on the accelerator pump plunger is hard, cracked or worn. If any sign of wear or deterioration is evident, install a new plunger assembly.

(3) When reassembling, make sure the large diameter of the pivot screw enters the hole in the pump arm and that the shoulder of the screw has not pinched the pump arm.

(4) Place a new air horn to main body gasket in position on the air horn and install the float needle valve seats. (Be sure each needle seat and needle is reinstalled in its original position.)

The carburetors are equipped with synthetic rubber-tipped fuel inlet needle. The rubber tip is flexible enough to make a good seal on the needle seat, and to give increased resistance to flooding.

NOTE: The use of the rubber-tipped needles require that care be used when making float adjust-

ments. Avoid applying any pressure on the floats which might compress the tip of the fuel inlet needles.

The rubber t i p can be compressed sufficiently to cause a false setting which will affect correct level of fuel in the bowl.

(5) Slide the right and left floats into position in the air horn and install the float fulcrum pins.

Float Alignment Setting

(1) Sight down the side of each float shell to determine if the side of the float is parallel to the outer edge of the air horn casting, as shown in Figure 9.

(2) If the sides of the float are not in alignment with the edge of casting, bend the float lever by applying pressure to the end of the float shell with the fingers while supporting the float lever with the thumb.

NOTE: To avoid damage to the float, apply only enough pressure to bend the float lever.

(3) The arms of the float lever should be parallel to the inner surfaces of the lugs or the casting.

Float Level Setting

(1) With the air horn inverted, the air horn gasket

GASKET IN PLACE FLOAT

Fig. 10—Measuring the Float Height

AFB CARBURETOR 14-31

Fig. 12—Step-up Piston, Rod and Jet

Fig. 11—Measuring the Float Drop

in place and the float needle seated, slide the float gauge Tool T109-106 (%

2

") between the top of the float (at outer end) and the air horn gasket, as shown in Figure 10.

(2) Measure the other float in the same manner.

If an adjustment is necessary, bend the float arm using Tool T109-22, until correct clearance has been obtained. After bending arm, recheck the float alignment.

Float D r o p Smiting

(1) Holding the air horn in an upright position, measure the distance from the top of the floats (outer end) to the air horn gasket, as shown in Figure 11.

This measurement should be % inch. If an adjustment is necessary, bend the stop tabs on the float levers until the correct drop setting has been obtained. Bend the tab towards the needle seat to lessen the drop, or away from the seat to increase the drop.

(2) After the floats have been inspected and adjusted, continue to assemble the carburetor as follows:

(3) Place the accelerator pump plunger lower spring in the pump cylinder, then lower the air horn carefully down on the main body.

CAUTION: Be sure the fuel baffles on the air horn, slide down in front (bowl side) of the float chamber baffles, or the air horn will not index correctly with the main body and can cause the floats to hang up. Be sure the leather on the plunger does not curl or wrinkle. Accelerator pump operation will be affected if this precaution is not observed.

(4) Install the (10) air horn attaching screws and tighten securely. (The two long screws should be installed in the holes that are located at the air cleaner mounting surface. The 1 inch screw at the front and the

IV2 inch at the rear.)

The change from the low speed, best fuel economy, road load mixtures to the richer wide open throttle pull mixtures is accomplished in two steps. This has made it possible to secure best low speed fuel economy without sacrificing performance in the intermediate speed range. To do this, there is a new step-up piston and spring assembly, new metering rods with three diameters, and new style primary metering jets, as shown in Figure 12.

(5) Slide the step-up piston springs into the piston cylinders, followed by the step-up pistons and step-up rods. Install the cover plates and attaching screws while holding the step-up pistons down in position.

Tighten screws securely.

(6) Slide the choke piston into its cylinder in the air horn, guiding the link into the slot in the choke valve lever. Align hole, then install attaching cotter pin. Place a new welch plug over the cylinder opening and secure by rapping with a hammer. (Be sure the sealing surface is clean.) Check the fit of the choke valve in air horn. The valve should be evenly spaced on all sides. Loosen screws and reposition, if necessary.

(7) Engage the throttle connector rod with- the primary throttle shaft lever and install hairpin clip.

Install the other end of the connector rod in the pump arm and secure with clevis clip.

(8) Engage the lower end of the fast idle connector rod with the fast idle cam, then swing in an arc to lock in cam. Slide other end of rod into the choke shaft lever and secure with hairpin clip.

Installing the Vacuum Diaphragm

(1) Install the vacuum diaphragm assembly on the main body and tighten the attaching screws securely.

(2) Install the choke operating link in position between the diaphragm plunger (stem) and the choke lever. Install the clip to secure.

14-32 AFB CARBURETOR

(3) Inspect the vacuum diaphragm fitting and remove any dirt or foreign material which could clog the passage. Inspect the rubber hose for cracks, before placing it on the correct throttle body fitting. (Refer to Fig. 1.)

r

* v

Do not connect the vacuum hose to the diaphragm fitting until after the vacuum Mck adjustment has been made. (See Carburetor Adjustments.)

G A U G E O R DRILL

LIGHT C L O S I N G

PRESSURE AGAINST VALVE

C H O K E

OPERATING LINK

4 . CARBURETOR ADJUSTMENTS

The adjustments are made with the carburetor on the bench for ease of working, and should be made in the following order:

Fast Idle Speed and Cam Position

Adjustment

The fast idle engine speed adjustment should be made on the engine, as described in the Fast Idle

Speed Adjustment (On the engine) paragraph of this group, however, the Fast Idle Cam Position Adjustment can be made on the bench.

(1) Open the throttle valves far enough to allow the fast idle speed adjusting screw to clear the fast idle cam.

(2) Insert a %

2

inch drill or gauge between the choke valve and the air horn wall, as shown in Figure

13.

(3) Close the throttle valves until the fast idle speed adjusting screw contacts the fast idle cam.

(4) Adjust the fast idle connector rod, using Tool

T109-213 by bending at the angle until the fast idle

speed adjusting screw lightly contacts the middle step

on the fast idle cam, but slides onto the bottom step

of the cam. The fast idle speed adjusting screw must

DRILL OR G A U G E —

LIGHT C L O S I N G PRESSURE

AGAINST CHOKE VALVE

BEND FAST IDLE CONNECTOR ROD

AT THIS A N G L E

FAST

IDLE ADJUSTING

SCREW O N

LOWEST STEP O F

C A M AND RIDING

AGAINST SHOULDER

O F MIDDLE STEP

CAM

SCREW

Fig. 13—Fast Idle Cam Position Adjustment

64x346

DIAPHRAGM

STEM

VACUUM

CHOKE

TUBE FITTING

touch or ride against the shoulder of the middle step

on the cam.

(This special procedure is required because the fast idle speed cam is spring loaded to follow the choke valve.)

Vacuum Kick Adjustment—(This test can be made

ON or Off the vehicle.)

MINIMUM

10 INCHES

O F VACUUM

O N DIAPHRAGM

REQUIRED

64x348

Fig. 14—Measuring the Choke Vacuum Kick Setting

To make the vacuum kick adjustment, the vacuum diaphragm must be energized (either a distributor testing machine with a vacuum source, or vacuum supplied by another vehicle.) To make this adjustment, proceed as follows:

(1) With the engine Not running, open the throttle

valves far enough to allow the choke valve to be moved to the closed position.

(2) Disconnect the vacuum hose from the diaphragm and connect the hose from the vacuum supply, as shown in Figure 14. (A minimum of 10 inches of mercury (HG) will be required.)

(3) Insert a Vs inch drill or gauge between the choke valve and the wall of the air horn. (Refer to

Fig. 14.) Apply a slight closing pressure to the choke shaft to hold the drill or gauge in position.

(4) An adjustment will be necessary if a slight drag is not obtained as the drill or gauge is being removed.

The adjustment of this opening will require the removal of the choke operating link.

CAUTION: DAMAGE TO THE DIAPHRAGM AND

THE CHOICE LEVER SLOT CAN RESULT, IF THE

LINK IS NOT REMOVED FOR THE BENDING OP-

ERATION.

(5) Remove the clip and disengage the choke operating link from the choke lever, then disengage the link from the diaphragm stem. (The best bending

AFB CARBURETOR 14-33

64x349

Fig. 15Choke Operating Link Measurement

results will be obtained by using a vise arid a pair of pliers.) . . «.

(6) Bend the choke operating link to provide the correct choke valve opening.

CAUTION: A correction in the length of the link of .015 inch, will result in a change of .010 inch in the choke valve opening.

As an example, if the choke valve opening is .010 inch in error, the correction in the link length would be .015.

A 2" micrometer will be helpful in establishing the original length of the link, as shown in Figure 15, before completing the adjustment.

(7) Install the choke operating link and retest the choke valve opening, using a drill or gauge. (Refer to Fig. 14.)

Reinstall the vacuum hose to the diaphragm and make the following test:

(8) With no vacuum applied to the diaphragm, some clearance should exist between the choke operating link and the choke lever slot, in both the open and closed choke valve positions, as shown in Figure 16.

Fig. 17—Testing Choke Unloader (Wide Open Kick)

NOTE: This clearance is necessary to allow the choke valve to close for starting as well as fully open after the engine reaches the normal operating temperature.

If a clearance does not exist in both of tliese positions^-av-gej&st of the operating link adjustment should be made."

NOTE: Free movement of the choke valve between the closed and open positions is very necessary.

This free movement should also exist between the kick and the open choke valve positions with the engine running. If binding does exist, the choke operating link has been improperly bent and should be corrected.

C h o i c e Unloader Adjustment

(1) With the throttle valves in the wide open position, it should be possible to insert Tool T109-80

(% inch) gauge between the upper edge of the choke valve and the inner wall of the air horn, as shown in

Figure 17.

(2) If an adjustment is necessary, bend the unloader lip on the throttle shaft lever, using Tool

T109-41, until correct opening has been obtained.

Fig. 16—Choke Operating Link Clearances

Accelerator Pump Adjustment

(1) Move the choke valve to wide open position, to release the fast idle cam. Back off the idle speed adjusting screw, (curb idle) until the throttle valves are seated in the bores.

(2) Measure the distance from the top of the air horn to the top of the plunger shaft, using a "T" scale as shown in Figure 18. This distance should be

%e inch.

(3) If an adjustment is necessary, bend the throttle connector rod at the lower angle, using Tool T-109-

213, until correct travel has been obtained.

14-34 AFB CARBURETOR

ACCELERATOR PUMP

PLUNGER STEM

BEND ROD AT THIS ANGLE

SECONDARY THROTTLE VALVES

SHOULD JUST START T O OPEN

CURB IDLE

SPEED SCREW

6ACKED O F F

THROTTLE

FULLY

CLOSED

BEND THROTTLE

CONNECTOR ROD

AT THIS ANGLE

64x353

F j g

. i & — T e s t i n g the Accelerator Pump Adjustment

ly

^ N O T C H O F

LOCK-OUT

D O G

TANG O N

SECONDARY

THROTTLE LEVER

PRIMARY

THROTTLE

VALVES

CHOKE VALVE

WIDE OPEN

SLOWLY OPEN

THROTTLE VALVES

64x355

Fig. 1 9 — T e s t i n g the Secondary Throttle Adjustment

S e c o n d a r y Throttle Lever Adjustment

(1) To measure the secondary throttle lever adjustment, block the choke valve in the wide open position and invert the carburetor.

(2) Slowly open the primary throttle valves until it is possible to measure

2

%

4

inch between the lower edge of the primary valve and the bore (opposite idle port) as;shown in Figure 19. At this measurement, the secondary valves should just start to open.

(3) If an adjustment is necessary, bend the secondary throttle operating rod at the angle, using

Tool T109-213, until correct adjustment has been obtained.

(4) With the primary and secondary throttle valves in the tightly closed position, it should be possible to insert Tool T109-29 {.020 inch) wire gauge, between the positive closing shoes on the secondary throttle levers, as shown in Figure 20.

(5) If an adjustment is necessary, bend the shoe on the secondary throttle lever, using Tool T109-22, until correct clearance has been obtained. lodged by the free flow of fuel, as the carburetor is primed.

Idle Speed Adjustment (Curb I d l e l

To make the idle speed adjustment, the engine must be thoroughly warmed up. A much more reliable idle adjustment can usually be obtained if the car has been driven a minimum of five miles. For the best results, it is recommended that a tachometer be uped in this adjustment. (Before making the idle speed adjustment, observe the following precautions:)

On cars equipped with the automatic transmission loosen the nut in the sliding link of the carburetor to bellcrank rod so that the stop in the transmission will not interfere with the free movement of the carburetor throttle lever.

(1) To make the idle speed adjustment, turn the idle speed screw in or out to obtain 500 rpm. (On cars with air conditioning, set the idle speed at 500

SECONDARY

S H O E -

Secondary Throttle Lock-out Adjustment

(1) Open the throttle valves slightly, then manually open and close the choke valve. The tang on the secondary throttle lever should freely engage in the notch of the lock-out dog. (Refer to Fig. 19.)

(2) If an adjustment is necessary, bend the tang on the secondary throttle lever, until engagement has been made. Use Tool T109-22 for this operation.

(3) After adjustments have been made, reinstall carburetor on engine, using a new gasket.

(4) It is suggested that the carburetor bowl be filled with clean gasoline. This will help prevent dirt that is trapped in the fuel system from being dis-

WIRE G A U G E

PRIMARY SHOE

(BEND TO ADJUST)

64x356 f

Fig. 2 0 — M e a s u r i n g C l e a r a n c e Between Closing

Shoes

AFB CARBURETOR 14-35

Fig. 21—Fast Idle Speed Adjustment (On the Engine!

Fig. 22—Closed Crankcase Vent System rpm.) Be sure the choke valve is fully open and that the fast idle adjusting screw is not contacting the fast idle cam.

(2) Turn each idle mixture screw to obtain the highest rpm. While making the adjustment, carefully watch the tachometer and notice that the speed can be decreased by turning the screws in either direction from the setting that gave the highest rpm. reading.

(3) Readjust to 500 rpm. with the idle speed screw.

(Air conditioning ON).

(4) Turn each idle mixture adjusting screw in the clockwise direction (leaner) until there is a slight drop in rpm. Turn each screw out, counter-clockwise

(richer) just enough to regain the lost rpm.

This procedure will assure that the idle has been set to the leanest possible mixture for smooth idle.

This setting is very Important.

NOTE; Since the correct speed was originally set using the speed screw, the speed obtained after finding the leanest smooth idle setting will probably be too fast.

(5) Readjust the speed screw to obtain correct idle

speed. Repeat steps 2 and 4 above if necessary.

After the proper idle speed has been obtained, move the sliding link to the rear, against the stop, and tighten the nut securely.

Fctsf idle Speed Adjustment ( O n f f i e

Engine)

To set the fast idle speed on the engine, connect a tachometer to the vehicle, then set the curb idle speed and proceed as follows:

(1) With the engine running and the transmission in the neutral position, open the throttle slightly.

(2) Close the choke valve about 20 degrees, then

allow the throttle to close. Return the choke valve to the wide open position.

(3) The fast idle speed adjusting screw should be contacting the lowest step on the fast idle cam, as shown in Figure 21.

(4) With the engine warmed-up to the normal operating temperature, turn the fast idle speed adjusting screw in or out to secure 700 rpm. Reposition the cam and throttle after every fast idle speed screw adjustment.

5 . A U T O M A T I C C H O K E { W e l l T y p e )

To function properly, it is important that all parts be clean and move freely. Other than the occasional cleaning, the automatic choke control requires no servicing. It is very important, however, that the choke control unit moves freely at the thermostatic coil spring housing and at the choke shaft. Move the choke rod up and down to check for free movement of the coil housing on the pivot. If unit binds, a new unit should be installed. The Well Type Choke Control

Unit is serviced only as a complete unit. Do not attempt to repair.

Do not lubricate any parts of the choke or control unit since this causes dirt accumulation which would result in binding of the choke mechanism.

Do not attempt to change the calibration setting.

(Refer to specifications.) This is pre-determined and should it be changed, improper action would result.

Clean all choke parts using a suitable solvent and then blow dry with compressed air. Examine all choke parts for wear or damage. Worn or damaged parts must be replaced with new in order to insure proper choke operation.

When installing the well type choke unit, make certain that the coil housing does not contact the

14-36 AFB CARBURETOR sides of the wall in the intake manifold. Any contact at this point will affect operation.

6. CLOSED C R A N K C A S E VENT SYSTEM

The closed crankcase ventilator valve is located in the crankcase vent tube cap and is connected to the carburetor throttle body via a rubber tube. (See Fig.

22.) The function of the valve is to regulate the flow of unburned hydrocarbons from the crankcase and return them to the intake manifold. From here they enter the combustion chamber and then exit via the exhaust system as completely burned exhaust products.

For servicing procedures of this system, refer to the "Engine section" Group 9.

7 . THROTTLE L I N K A G E

To adjust the throttle linkage, refer to Figure 23 for the complete instructions.

1. ASSEMBLE TRANSMISSION CONTROL LINKAGE PARTS IN PLACE BUT DO

NOT ASSEMBLE TRANSMISSION ROD BALL SOCKET @ TO BALL END.

2. APPLY A THIN FILM OF MS 3701 LUBRICANT TO THE ACCELERATOR

SHAFT 0 WHERE IT TURNS IN THE BRACKET.

7. ASSEMBLE REMAINDER OF THE LINKAGE PARTS IN PLACE.

WITH THE CABLE CLAMP NUT

(J) LOOSE, ADJUST THE

POSITION OF THE CABLE HOUSING FERRULE ® IN THE

CLAMP SO THAT ALL SLACK IS REMOVED FROM THE CABLE

WITH THE CARBURETOR AT CURB IDLE. TO REMOVE SLACK

FROM THE CABLE, MOVE THE FERRULE ® IN THE CLAMP

IN THE DIRECTION AWAY FROM THE CARBURETOR LEVER.

3. DISCONNECT CHOKE (?) AT CARBURETOR OR BLOCK CHOKE VALVE IN

FULL OPEN POSITION, OPEN THROTTLE SLIGHTLY TO RELEASE FAST

IDLE CAM, THEN RETURN CARBURETOR TO CURB IDLE,

4. HOLD THE TRANSMISSION LEVER © FORWARD AGAINST ITS STOP AND

ADJUST THE LENGTH OF THE TRANSMISSION ROD BY MEANS OF THE

THREADED ADJUSTMENT @ AT THE UPPER END. THE BALL SOCKET

MUST LINE UP DIRECTLY WITH THE BALL END WITHOUT EXERTING ANY

8. BACK OFF FERRULE (J) 1/2" . THIS PROVIDES 1/2" FREE

PLAY BETWEEN THE REAR SURFACE OF THE ACCELERATOR

BRKT. AND THE FRONT EDGE OF ACCELERATOR SHAFT

LEVER. TIGHTEN CLAMP NUT ©

FORWARD FORCE ON THE ROD. THE BALL SOCKET MUST BE AT THE SAME

HEIGHT AS THE BALL END WHEN CHECKING ROD LENGTH.

10. CONNECT CHOKE ROD © OR REMOVE BLOCKING FIXTURE.

5. LENGTHEN ROD BY ONE TURN OF THE ADJUSTMENT. ®

9. ROUTE CABLE SO THAT IT DOES NOT INTERFERE WITH THE

TRANSMISSION ROD THROUGHOUT ITS FULL TRAVEL.

6. ASSEMBLE BALL SOCKET @ TO BALL END. WHEN THE CARBURETOR

THROTTLE IS OPENED, THE TRANSMISSION SHOULD BEGIN ITS TRAVEL

AT THE SAME TIME WITH NO VERTICAL MOVEMENT OF THE LEVER OR

VERTICAL MOVEMENT OF THE ROD IN THE LEVER.

Fig. 23Throttle Linkage Adjustments (Imperial)

64 x 422

!

7® o m

z

7s

>

4 * i

CO

N

14-38 FUEL AND INDUCTION SYSTEM

P A R T 4

FIRE POWER 3 9 0 FUEL AND INDUCTION SYSTEM

The Chrysler Fire Power 390 engine, as shown in

Figure 1, is equipped with twin air cleaners, twin

AFB carburetors, hand type chokes and two aluminum manifolds, containing eight sweeping passages (four in each manifold), all of which ekiploys a new method of fuel induction. : .

SERVICE PROCEDURES

1. INTAKE MANIFOLDS

Removal (Fig.

21

(1) Drain the cooling system.

(2) Remove the carburetor air cleaners.

(3) Disconnect the fuel line between the fuel pump and the left hand carburetor.

(4) Disconnect the fuel line between the left and right hand carburetor. Disconnect the choke control.

(5) Disconnect the vacuum line between the right hand carburetor and the distributor.

(6) Remove the high tension coil wire.

(7) Disconnect the throttle linkage at both carburetors and the bell crank, to the accelerator shaft.

(8) Loosen the clamps that attach the equalizer tube couplings to the manifolds, and to the equalizer tube.

Slide either coupling inward on the tube far enough to clear the manifold tube opening. Lift the equalizer tube, couplings and clamps up and away from engine.

(9) Disconnect the power steering hoses (if so equipped) at the pump and secure against the fire wall.

Fig. 1<—Fire Power Manifold

(10) Remove the air conditioning cqnipressor and brackets, (if so equipped). Refer to Air Conditioning

Section. vS

8

-?%

(11) Remove the eight attaching bolts that hold the left fender shield access plate to fender shield, then slide plate out of the engine compartment.

(12) Remove the two bolts that attach the left hand by-pass pipe to the lower chamber,

v ^ ^ ;

(13) Remove the two bolts that attach the left hand exhaust manifold elbow to the lower chamber. Discard the gaskets.

(14) Remove the four bolts that attach the intake manifold to the right bank cylinder head. Remove the exhaust passage crossover cover.

(15) Lift the intake manifold and carburetor from the engine as an assembly.

(16) Remove the nuts that attach the carburetor to the intake manifold. Remove the carburetor.

(17) Remove the eight attaching bolts that hold the right fender shield access plate to the fender shield, then slide plate out of engine compartment.

(18) Remove the two bolts that attach the right hand exhaust by-pass pipe to the lower chamber.

(19) Remove the two bolts that attach the right hand exhaust manifold elbow to the lower chamber.

Discard the gaskets.

(20) Remove the four bolts that attach the intake manifold to the left bank cylinder head. Remove the exhaust passage crossover cover.

(21) Lift the manifold and carburetor from the engine as an assembly.

(22) Remove the nuts that attach the carburetor to the intake manifold, then disconnect the automatic choke rod from the lever. Remove the carburetor.

FUEL AND INDUCTION SYSTEM

14-39

Installation

When installing the intake manifolds be sure and

use new gaskets and be sure all mating surfaces are

smooth and clean.

To install the left hand intake manifold, refer to

Figure 2, then proceed as follows:

(1) Place the carburetor in position on the mounting pad of the intake manifold and engage the choke control. Install the carburetor mounting nuts and tighten.

(2) Place the intake manifold assembly in position on the right hand bank cylinder head. Place the exhaust crossover passage cover over the passage, then install the manifold attaching bolts finger tight.

(3) Slide a new gasket between the left hand exhaust manifold elbow and the lower chamber of the intake manifold. Install attaching bolts finger tight.

(4) Slide a new gasket between the left hand exhaust by-pass pipe and the manifold lower chamber.

Install the attaching bolts and tighten to 10 footpounds. Tighten the elbow attaching bolts to 10 foot-pounds and the intake manifolds bolts to 50 footpounds.

(5) Slide the left hand fender shield access plate into position against fender shield. Install bolts and tighten.

If both intake manifolds were removed, continue to install the right hand manifold as follows:

(6) Place the carburetor in position on the mounting pad of the intake manifold and connect the choke control. Install the carburetor mounting nuts and tighten.

(7) Place the intake manifold assembly in position on the left hand bank cylinder head. Place the exhaust crossover passage cover over the passage, then install the manifold attaching bolts finger tight.

(8) Slide a new gasket between the right hand exhaust manifold elbow and the lower chamber of the intake manifold. Install attaching bolts finger tight.

(9) Slide a new gasket between the right hand exhaust by-pass pipe and the lower chamber. Install attaching bolts and tighten to 10 foot-pounds. Tighten the elbow attaching bolts to 10 foot-pounds and the intake manifold bolts to 50 foot-pounds.

(10) Slide the right hand fender shield access plate into position against fender shield. Install bolts and tighten.

CLAMP W I N G NUT

AIR CLEANER STUD

CARBURETOR

ASSEMBLY

INTAKE MANIFOLD-RIGHT

INTAKE MANIFOLD-LEFT

GASKET REINFORCEMENT

EXHAUST CROSSOVER

COVER

GASKET

GASKET SEALER AS REQUIRED

HEAT INLET ELBOW

Fig. 2—Fire Power Manifold (Disassembled)

- G A S K E T

60x166

14-40 FUEL AND INDUCTION SYSTEM

(11) Place the air conditioning compressor arid far enough to firmly engage the manifold. Tighten brackets in position (if so equipped) and install attachclamps securely. ing bolts. Tighten securely. (Refer to the Air Condi-

(14) Reconnect the throttle linkage at both carbutioning Group 24 for method of recharging the system.) retor and bell-crank to accelerator shaft.

1

(15) Reinstall the high tension coil wire.

(12) Reconnect the Power Steering hoses to the pump (if so equipped). (Refer to Power Steering Group

(16) Reconnect the vacuum line between the car-

19 for method of bleeding air out of the system.) buretor and distributor.

(13) Slide the equalizer tube, clamps and couplings over the manifold tubes. Slide either coupling outward

(17) Reconnect the fuel line between the left and right hand carburetors.

CHOKE CABLE

- RIGHT BANK CARBURETOR ROD

/ADJUSTING LINK

IT) LOCKING BOLT AND NUT

.ACCELERATOR SHAFT TO THROTTLE SHAFT LEVER ROD

(t) LOCKING BOLT

^ AND NUT

ADJUSTING LINK

LEFT BANK

CARBURETOR ROD

SPRING (2)

/ADJUSTING LINK

TOP VIEW

/ L O C K I N G NUT ( ? ) f

ACCELERATOR SHAFT AND BRACKET

/BELLCRANK T O TRANSMISSION ROD

- TRANSMISSION THROTTLE CONTROL LEVER

-KICK D O W N POSITION

• WIDE O P E N THROTTLE POSITION

- 5 1 ° 15'

IDLE POSITION n LOCKIN G NUT

ACCELERATOR PEDAL TO SHAFT ROD

INSTRUMENT PANEL

ACCELERATOR SHAFT T O THROTTLE

SHAFT LEVER ROD

ACCELERATOR SHAFT T O BELLCRANK ROD

(T) LOCKING NUT

ADJUSTING LINK

ACCELERATOR SHAFT BRACKET

ACCELERATOR PEDAL T O SHAFT ROD

ACCELERATOR PEDAL

INSTRUMENT

PANEL

SIDE VIEW

63x569

Fig. 3-—Throttle Linkage (Schematic)

FUEL AND INDUCTION SYSTEM 14-41

(18) Reconnect the fuel line between the fuel pump and the left hand carburetor.

(19) Reinstall the right and left carburetor air cleaners.

(20) Refill the cooling system to required capacity.

(Refer to specifications.)

After the intake manifolds have been installed it is very important that the next procedure of setting the throttle linkage be done in order to obtain peak engine performance.

Setting the Bellcrank

(1) Loosen locking nuts "C" and "D" (left and right bank carburetor rods).

(2) Pivot the ballcrank until a %

6

inch piece of welding rod 3 inches long can be inserted through the bellcrank hole and down into the locating hole in the intake manifold.

(3) Test each carburetor to be sure the choke valves are open; that the fast idle cams are released and that the throttle valves are closed.

(4) Tighten locking nuts "C" and "D" securely.

Remove pin from bellcrank.

(5) Push rearward on the accelerator shaft to throttle shaft lever rod adjusting link, until stop is obtained. Tighten locking nut securely.

2 . SETTING THE THROTTLE L I N K A G E

As mentioned previously, setting the throttle linkage is a very important step. Various conditions affecting car performance can be encountered, such as loss of performance, no wide open throttle response, delayed shifting of the transmission, no kickdown, delayed up shifts and etc.

Setting the throttle linkage is divided into three parts, namely: Positioning the accelerator shaft, positioning the accelerator pedal, setting the bellcrank and synchronizing each carburetor. It is very important that the throttle linkage be set in this order.

Positioning the Accelerator Shaft

To position the accelerator shaft, (if equipped with automatic transmission) refer to Figure 3 then proceed as follows:

(1) Loosen the adjusting nuts "A" and "B" (accelerator shaft to transmission rod and accelerator shaft to throttle shaft lever rod).

(2) Insert a piece of %

6

inch welding rod, 10 inches long into the accelerator shaft bracket and through hole in lever.

(3) Now move the transmission throttle lever forward until it stops. Tighten the locknut "A" securely.

This positions the accelerator shaft.

Positioning the Accelerator Pedal

(1) Unsnap the accelerator pedal from shaft rod.

(2) Turn the threaded end of rod either in or out until a measurement of 114 degrees is obtained between the floor of car and the flat face of the accelerator pedal.

(3) This measurement can be made with a spirit protractor.

(4) After correct measurement has been obtained, reconnect rod. Remove pin from accelerator shaft bracket.

Idle Speed and Mixture Adjustment

Connect a tachometer and warm-up the engine to normal operating temperature. Be sure the choke is fully off and that the engine is at curb idle, (transmission in Neutral). Proceed as follows:

(1) Turn the idle mixture screws from 1 to 2 turns open.

(2) Set the idle bypass air screws 2 turns open and adjust the idle speed to 700 rpm. or if equipped with air conditioning, 500 rpm. with the compressor ON.

The idle bypass air screw is located at the front of each carburetor body flange, between the two idle mixture screws. Adjust the idle mixture screws on each carburetor for maximum rpm. Repeat on each carburetor.

Before attaching the rod at each carburetor, check the transmission to throttle linkage adjustments, so that the idle position is not disturbed.

NOTE: Accurate carburetor synchronization or balance is exteremely important and when performed

should be rechecked and rebalanced in the outside

ambient temperature after a five mile or more road test. This readjustment will prevent rough engine idle performance and possible engine stalling when the vehicle is returned to the owner.

Fast Idle Adjustment (On Vehicle)

When making fast idle adjustment on the vehicle, each AFB carburetor should be adjusted individually.

(1) The engine should be at normal operating temperature and have a curb idle speed of 700 rpm. or if equipped with air conditioning, 500 rpm. with the compressor ON.

14-42 FUEL AND INDUCTION SYSTEM

CHOKE VALVE

FUEL INLET FITTING \ %

CHOKE CABLE fc I 1

}

M 1 J - .«

CLAMP

IDLE MIXTURE

&

ADJUSTING SCREWS

CARBURETOR

IDENTIFICATION

STAMPED O N BOSS

IDLE BY-PASS

ADJUSTING SCREW

M A I N A N D

THROTTLE BODY

STEP-UP PISTON

COVER PLATE ( 2 )

CHOKE LEVER

CHOKE CABLE

BRACKET

SECONDARY THROTTLE

OPERATING LEVER

STEP-UP PISTON

COVER PLATE ( 2 )

AIR HORN

FAST IDLE ROD

FAST IDLE C A M

ELEVATING LEGS (SET OF 4 )

THROTTLE LEVER

ACCELERATOR PUMP

CONNECTOR LINK

ACCELERATOR

PUMP SHAFT

ACCELERATOR

PUMP A R M

ACCELERATOR PUMP

CONNECTOR ROD

V A C U U M A D V A N C E

FITTING OPENING

PRIMARY THROTTLE

SHAFT A R M (OUTER)

Fig. 4—Carburetor Assembly (AFB-3505S)

CARBURETOR IDENTIFICATION

STAMPED O N BOSS

63x607

FUEL AND INDUCTION SYSTEM 14-43

(2) Turn air conditioning compressor "OFF" (if so equipped) before proceeding with following adjustments.

(3) Remove each air cleaner.

(4) Disconnect each throttle rod at the belcrank on the intake manifold.

(5) Open the throttle valves of the left carburetor far enough to allow positioning of the fast idle cam to the fast idle index mark. The right carburetor should remain at the curb idle position.

(6) Adjust fast idle screw until a fast idle speed of 1400 rpm. is obtained.

(7) After the desired engine speed has been obtained, open the throttle slightly to allow the fast idle cam to return to the open choke (or off fast idle) position.

(8) Repeat steps 5, 6 and 7 in setting right carburetor fast idle speed as it is very important at the completion of this step (8), that each carburetor has

identical fast idle speeds. There is no specification for engine rpm. with both carburetors simultaneously set

at the fast idle position.

(9) Connect both carburetor throttle rods to the bejl crank.

Carburetor Air Cleaner'—Do Not Wash or Oil

Every 5,000 miles, remove filter element and blow out dirt gently with air hose. Direct air from inside out, and keep nozzle 1 inch away from element to avoid damaging. Clean the metal housing and replace the element. Every 15,000 miles, install a new factory recommended filter element. Service the unit more frequently when driving under severe conditions, such as in dusty areas.

Twin 4-barrel A F B series 3505S carburetors are used on the Chrysler 300K (Fig. 4). These carburetors are basically the same as previous AFB carburetors.

The service procedures for disassembly, cleaning, inspection, reassembly and adjustments are different and will be covered in detail.

The carburetor is equipped with a pair of velocity valves, which are controlled by the secondary valve operation. The throttle valves in the secondary half of the carburetor are mechanically connected to the primary valves and open with the primary after an approximate 60 degree lag; and continue to open until both primary and secondary throttle valves reach the wide open position at the same time. As engine speed increases, the forces exerted by the velocity of intake air down through the venturi, permits the off set velocity valves to position themselves according to engine requirements.

The four conventional systems used in this carburetor are two float systems, two low speed systems

(primary side only), two high speed systems and the accelerator pump system. ,

Dirt, dust, water and gummy deposits are some of the main causes for poor carburetor operation., However, proper cleaning and the installation of new parts, where required, will return the carburetor to its originally designed performance.

When overhauling the AFB carburetor, several items of importance should be observed to assure a good job; namely, the carburetor should be carefully disassembled. All parts thoroughly cleaned in a suitable solvent, then inspected for damage or wear. Only air pressure should be used to clear the various orifices and channels. Questionable parts should be replaced with new ones. (When inspecting parts removed from the carburetor, it is at times rather difficult to determine if they are satisfactory for further service. It is recommended, therefore, that in such case, that NEW parts be installed.)

3 . CARBURETOR

Disassembly

(1) Place the carburetor on repair stand C-3400 or elevating legs (4) T109-287S. (These tools are used to protect the throttle valves from damage and to provide a suitable base for working.)

(2) Remove the clip that holds the accelerator pump rod in the center hole in the pump arm, and the hairpin clip that holds the rod in the throttle lever. Remove the rod.

(3) Remove the hairpin clip that attaches the fast idle connector rod to the choke lever. Disengage rod from lever, then swing rod at an arc until it can be disengaged from the fast idle cam.

Fig. 5—'Removing the Step Up Pistons

14-44 FUEL AND INDUCTION SYSTEM

(4) Remove the step-up piston cover plate screws and plates. (Hold a finger over plate when removing screws to prevent the piston and metering rods from flying out.) Remove the step-up pistons and metering rods, as shown in Figure 5. Remove the step-up piston springs.

(5) Remove the choke cable bracket, then remove the ten air horn attaching screws (1 screw recessed).

Then lift the air horn straight up and away from main body. Be careful not to bend or damage the floats.

Remove the pump plunger spring from the pump well.

Disassembling the Air Horn

Place the air horn in an inverted position on the bench (mainly to protect the floats), then disassemble as follows:

(f) Remove the float fulcrum pins, then remove

each float. (Before removing floats, it is suggested

that "the float on the pump side be marked so that the floats can be installed in their original locations.)

(2) Remove the two needle valves, after marking the pump side for identification.

(3) Using a wide blade screwdriver, or Tool T109-

37, remove the needle valve seats. (Mark the side seat for identification.)

(4) Remove the pump arm pivot screw, then disengage the pump link, by removing pump arm. Slide pump plunger out of the air horn, then remove spring seat and compression spring from pump shaft. Discard the air horn to main body gasket.

Place the accelerator pump plunger in a jar of clean gasoline or kerosene to prevent the leather from drying out.

(5) Remove the fuel inlet fitting nut and gasket, then remove filter screen.

Disassembling the Main Body

(1) Remove the accelerator pump jet housing screws, then remove jet housing and gasket, as shown in Figure 6. Invert the carburetor and drop out the discharge check needle.

(2) Using Tool T-109-58, remove the main metering jets from the primary and secondary side, as shown in Figure 7. These jets are not interchangeable. (No.

120-159 primary; and No. 120-158 secondary.)

(3) Remove the screws that attach the primary

venturi to the main body. (These venturi are net interchangeable side for side, and it is suggested that

the pump side venturi be marked for identification).

Remove the venturi, as shown in Figure 8. Discard the gaskets. (The pump side venturi is numbered 687.

The opposite one, numbered 686.)

(4) Remove the screws that attach the secondary

63x610

Fig. ©—Removing the Pump

Jet Housing

Fig. 7—Removing the Main Metering Jets

Fig. 8—Removing the Primary Venturi

FUEL AND INDUCTION SYSTEM 14-45

Fig. 9—Removing the Secondary Venturi

Fig. 11—Removing the Pump Inlet Check Ball Cage

venturi to the main body. (These venturi are not i n t e r c h a n g e a b l e s i d e f o r s i d e ,

and

it i s suggested

that t h e p u m p s i d e v e n t u r i be m a r k e d f o r identification.)

Remove the venturi, as shown in Figure 9. Discard the g|skets. (The pump side venturi is numbered 678.

The opposite one, numbered 679.)

(5) lift out the velocity valves and counterweights, as shown in Figure 10.

(6) Using Tool T109-58, remove the accelerator pump inlet check ball and cage, as shown in Figure 11.

(7) Remove the idle mixture adjusting screws and springs from the throttle body casting.

The carburetor now has been disassembled into two units, namely the air horn and the main throttle body casting. The component parts of each unit have been disassembled as far as necessary for cleaning and inspection.

Cleaning the Carburetor Parts

natured alcohol, which is easily obtainable. However, there are other commercial solvents (such as Metalclene) which may be used with satisfactory results.

I M P O R T A N T : If t h e c o m m e r c i a l solvent or

c l e a n e r r e c o m m e n d s t h e u s e of w a t e r a s a r i n s e , it s h o u l d be

"HOT".

A f t e r r i n s i n g , a l l t r a c e

of

w a t e r m u s t be b l o w n f r o m t h e v a r i o u s p a s s a g e s w i t h a i r p r e s s u r e . It is f u r t h e r a d v i s a b l e to r i n s e a l l parts i n c l e a n k e r o s e n e o r g a s o l i n e to b e c e r t a i n n o t r a c e of m o i s t u r e r e m a i n s . N e v e r c l e a n j e t s w i t h a w i r e , d r i l l o r o t h e r m e c h a n i c a l m e a n s , b e c a u s e t h e orifices m a y b e c o m e e n l a r g e d , m a k i n g t h e m i x t u r e too r i c h f o r p r o p e r p e r f o r m a n c e .

Inspection and Reassembly

Throttle Body

It is usually not advisable to remove the throttle shafts or valves unless the wear or damage is sufficient to affect idle or operation of the carburetor. If

PRIMARY

, D L E

™ * y

S F E R

SPARK ADVANCE

Fig**-10;—Removing the Velocity Valves

63x614

Fig. 12—Ports in Relation to Throttle Valves

T4-46 FUEL AND INDUCTION SYSTEM such is the case, install a new main and throttle body assembly. However, damaged valves can be replaced providing the instructions for installation are followed closely.

During manufacture, the location of the idle transfer port and the spark advance control ports to the valves is carefully established for one particular assembly (See Fig. 12). Changing the port relationship would affect vehicle operation between the speeds of

15 and 30 miles per hour. If it is necessary to install new valves, proceed as follows:

(1) Remove the screws that hold the throttle valve

(or valves) to be replaced to the throttle shaft, then slide valve (or valves) out of the bore.

CAUTION: These screws are staked on the op-

posite side and care should be used so as not to break off in the shaft. Remove staking with a file.

(2) Slide the new valve (or valves) down into the bore and through the slot in the shaft. Install new screws but do not tighten.

(3) Hold the valves in place with the fingers pressing on the high side of valves. Tap the valves lightly with a screwdriver to seat in the throttle bores.

(4) Holding the valves in this position, tighten the screws securely and stake by squeezing with pliers.

(5) Install the two idle mixture adjusting screws and springs in the throttle body. The tapered portion of the screws must be straight and smooth. If the tapered portion is grooved or ridged, new idle mixture screws should be installed to insure having correct idle mixture control. DO NOT USE A SCREW

DRIVER. The adjustment should be made with the fingers. Turn the screws lightly against their seats then back off one full turn for approximate setting.

(6) Install the velocity valves and counterweights

(Refer to Fig. 10).

Fig. 13—Installing the Pump Discharge Check Needle

SHOULD EMIT

I FROM INLET PASSAGE j 63x618

Fig. 14—Testing the Accelerator Pump Check Ball and Discharge Needle

(7) Place new secondary venturi gaskets in position, then install the secondary venturi. (Refer to Fig. 9.)

Install screws and tighten securely. Be sure each is located in its original place.

Be sure all the metering holes and vent tubes are clean and clear in both the primary and secondary venturi.

(8) Place new primary venturi gaskets in position, then install the primary venturi. (Refer to Fig. 8.)

Install screws and tighten securely. Be sure each is located in its original place.

(9) Install the primary and secondary main metering jets in the main body. Tighten securely, using

Tool T109-58. (Refer to Fig. 7.) Tighten securely.

A c c e l e r a t o r Pump Test

(1) Pour clean gasoline into the float bowl (pump side) approximately

V2 inch deep. Remove the pump plunger from the jar of gasoline and flex the leather several times, then slide down into the pump well.

(2) Install the accelerator pump discharge check needle in the discharge passage, as shown in Figure

13. Raise the pump plunger and press lightly on the plunger shaft to expel air from the pump passage.

(3) Using a small clean brass rod, hold the discharge check needle firmly down on its seat. Again raise the plunger and press downward. No fuel should be emitted from the discharge or the intake sage, as shown in Figure 14.

If fuel does emit from the intake passage, remove the intake check ball and cage and reclean. Fuel leakage at the discharge check needle indicates the presence of dirt or a damaged check needle. Clean again and install a new needle. Retest as described above.

If either the intake check ball or discharge check

FUEL AND INDUCTION SYSTEM 14-47 needle leaks after the above test, attempt to reseat needle or install a new check ball.

Discharge Check Needle

(1) With the discharge check needle installed, insert a piece of drill rod down on the needle. Lightly tap with a hammer on the end of the drill rod. This will form a new seat for the needle.

(2) Remove and discard old needle and install a new one. Retest as described above.

(3) If the service fix does not correct the condition, a new carburetor will have to be installed.

(4) Install the accelerator pump discharge check needle, jet housing and gasket. Install attaching screws and tighten securely.

(5) Press down on accelerator pump plunger; a clear straight stream should flow from each jet. If the streams are not identical (if either one is diverted or restricted) a new accelerator pump jet housing should be installed.

After test, pour the gasoline from the bowl and remove plunger.

Fig. 15—Measuring the Float Alignment

Install the fuel inlet needles in their respective seats, then install each float and fulcrum pin. (Be \ sure the marked float is installed on the pump side.)

After the floats have been installed, test the float alignment, level and drop settings as follows:

Assembling the Air Horn

(1) Slide the fuel inlet screen into the fuel line inlet fitting and install in air horn. Tighten securely.

Check to see if the leather on the pump plunger is hard, cracked, or worn. If any sign of wear or deterioration is evident, install a new plunger assembly.

(2) Slide the compression spring over plunger shaft, followed by the spring seat. Now slide the pump assembly into the air horn. Install "S" link to hold in position.

(3) Install a new air horn to main body gasket, then install the float needle valve seats. (Be sure each is returned to its original location.) Tighten securely, using Tool T109-57.

Float Alignment Setting

(1) Sight down the side of each float shell to determine if the side of the float is parallel to the outer edge of the air horn casting, as shown in Figure 15.

(2) If the sides of the floats are not in alignment with the edge of the casting, bend the float lever by applying pressure on the end of the float shell with the fingers, while supporting the float lever with the thumb. To avoid damage to the float, apply only enough pressure to bend the float lever.

(3) After aligning the floats, remove as much clearance as possible between the arms of the float lever and the lugs on the air horn. To do this bend

GASKET IN PLACE FLOAT

Synthetic Rubber-Tipped Fuel Inlet Needle

The AFB carburetors are equipped with two synthetic rubber-tipped fuel inlet needles. The needle tip is a rubber-like material which is not affected by gasoline and is stable over a wide range of temperatures. The tip is flexible enough to make a good seal on the needle seat, and to give increased resistance to flooding.

The use of the needles require that care be used when making float adjustments. Avoid any pressure on the floats which might compress the tip of the

needles. The tip can be compressed sufficiently to

cause a false setting which will affect correct level of the fuel in the bowl.

Fig. T6—~Measuring the Float Height

64x344

14-48 FUEL AND INDUCTION SYSTEM

Fig. 17—Measuring the Float Drop pump plunger does not curl or wrinkle. Accelerator pump operation will be affected if this precaution is not observed.

(4) Install the air horn attaching screws and tighten securely. Install the choke cable bracket and attaching screws. Tighten securely. (The two long screws should be installed in the holes that are located at the air cleaner mounting surface. The 1 inch screw at the front and the

IV2 inch at the rear.)

(5) Slide the step-up piston springs into the piston wells, followed by the step-up pistons and metering rods. Install the cover plates and attaching screws while holding the step-up pistons down in position.

Tighten screws securely. (Refer to Fig. 5.)

(6) Engage the accelerator pump rod with the throttle lever and in the center hole of the pump arm. Install clips to secure. the float lever. The arms of the float lever should be parallel as possible to the inner surfaces of the lugs or the casting.

Float L e v e l Setting

(1) With the air horn inverted, the air horn gasket in place and the float needles seated, slide float gauge

Tool T109-126 between the top of the float (at outer end) and the air horn gasket, as shown in Figure 16.

The float should just touch the gauge.

(2) Check the other float in the same manner. If an adjustment is necessary, bend the float arm, using

Tool T109-22, until correct clearance has been obtained. After bending the arm, test the float alignment.

Float Drop Setting

(1) Holding the air horn in an upright position, measure the distance from the top of floats (outer end) and the air horn gasket, as-shown in Figure 17.

This measurement should be

V2 inch. If an adjustment is necessary, bend the stop tabs on the float levers until correct drop setting has been obtained.

Bend the tab toward the needle seat to decrease the drop, or away from the float to increase the drop.

After the floats have been checked and adjusted, continue to assemble the carburetor as follows:

(2) Engage the accelerator pump arm with the plunger "S" link and install the pivot screw. Tighten securely.

(3) Place the accelerator pump plunger spring in the pump well, then lower the air horn carefully

down on the main body. Be sure the fuel baffles on the air horn slide down in front (bowl side) of the float chamber baffles, or the air horn will not index correctly with the main body. This can cause the floats to "hang up". Also, be sure the leather on the

4 . CARBURETOR ADJUSTMENTS

The following adjustments should be made on a reconditioned carburetor, before installation on the vehicle:

A c c e l e r a t o r Pump Adjustment

Measure the distance from the top of the air horn to the top of the plunger shaft, using a "T" scale, as shown in Figure 18. This distance should be %

6

inch.

If an adjustment is necessary, bend the pump rod at the lower angle, using Tool T109-213, until, the correct travel has been obtained.

Secondary Throttle Lever Adjustment

(1) Invert the carburetor and slowly open the primary throttle valves, until it is possible to measure

Fig. IB—Measuring the Accelerator Pump Travel

FUEL AND INDUCTION SYSTEM

14-49

Fig. 1 9 M e a s u r i n g the Secondary Throttle O p e n i n g

Fig. 2 0 — M e a s u r i n g the Clearance Between

Closing Shoes

2

%

4

inch between the lower edge of the primary valve and the bore (opposite the idle port), as shown in Figure 19.

(2) At this measurement, the secondary throttle valves should just start to open. The stop lugs on both the primary and secondary throttle levers should contact the bosses on the flange at the same time.

If an adjustment is necessary, bend the secondary throttle operating rod at the angle, using Tool T109-

213, until correct adjustment has been obtained. At wide open throttle, the primary throttle valves should be from 6 to 8 degrees past vertical. The secondary throttle valves should be from 6 to 8 degrees before vertical position.

(3) With the primary and secondary valves tightly closed, it should be possible to insert Tool T109-29

(.020 inch) wire gauge between the positive closing shoes on the primary and secondary throttle levers, as shown in Figure 20.

If an adjustment is necessary, bend the shoe on the primary throttle lever, using Tool T109-22, until correct clearance has been obtained.

It is suggested that the carburetor bowls be filled with clean gasoline. This will help prevent dirt that is trapped in the fuel system from being dislodged by the free flow of fuel as the carburetor is primed.

After all adjustments have been made, reinstall the carburetor on the engine, using a new gasket. Tighten mounting stud nuts to 100 inch pounds.

Fctsf

Idle Cum Indexing

(1) Open the throttle valves to wide open position.

Close the choke valve tightly and then close the throttle valves. This will position the fast idle cam to fast idle. The index mark on the cam should split the center of the fast idle adjusting screw, as shown in Figure 21.

(2) If an adjustment is necessary, bend the fast idle connector rod at the angle, using Tool T109-213, until the index mark on the cam indexes the fast idle adjusting screw.

Fig. 2 1 — F a s t Idle C a m Indexing

14-50 FUEL PUMP

PART 5

FUEL PUMP-MNIC

FUEL PUMP

Fuel pump Model M-3672S is used on all Chrysler and Imperial engines. The fuel pump is of the pressed steel type and cannot be disassembled for service. If a pump malfunction occurs, remove the old pump and install a new one.

1. O P E R A T I O N — F U E L PUMP

The fuel pump (Fig. 1) is driven by an eccentric cam (cast integral with the camshaft) through the medium of a short push rod.

As the camshaft rotates, the eccentric cam presses against the push rod, forcing the pump rocker arm down. This action lifts the pull rod and diaphragm upwards against the fuel pump main spring, thus creating a vacuum in the valve housing, which opens the inlet valves, forcing fuel into the valve housing chamber. On the return stroke, the main spring forces the diaphragm to the down position which closes the inlet valves and expels the fuel in the valve housing chamber, through the outlet valve to the fuel filter and the carburetor.

It is recommended that the fuel filter be replaced when performing an engine tuneup or at least every

16,000 miles. DO NOT ATTEMPT TO CLEAN.

2. TESTING THE FUEL PUMP

( O n t h e V e h i c l e )

If the fuel pump fails to supply fuel properly to the carburetor, the following tests should be made before removing the fuel pump from the vehicle.

P r e s s u r e Test ;' '

If leakage is not apparent, test pump for pressure, as follows:

(1) Insert a "T? fitting in the fuel line at the carburetor, as shown in Figure 2.

(2) Connect a 6 Inch piece, bf hose between the

"T" fitting and gauge Tool C-3411. (The hose should not exceed 6 iriches. A longer hose may collect fuel and the additional Weight would be added to the pressure of the pump and result in an inaccurate reading;)

(3) Vent the pump for a few seconds (this relieves any air trapped in the fuel chamber). If this is not done, the pump will hot operate at full capacity and a low pressure reading will result.

(4) Connect a tachometer/ then start the engine and run at SOQ rpm. The reading should be from

3 x

/2 to 5 psi. The pressure Should remain constant or return to zero very, very slowly when the engine is stopped. Ah irtgtant drop to zero indicates a leaky outlet valve. If the pressure is too low, a weak main spring or improper assembly of the diaphragm may be the cause. If the pressure is too high, the main spring is too strong.

V a c u u m Te$f

The vacuum test should be made with the fuel line disconnected from the carburetor. (This will allow the pump to operate at full capacity, Which it must do to prime a dry carburetor.)

Fig. 1—Fuel Pump Assembly

6 4 x 4 1 5

CARBURETOR

Fig. 2—Pressure Testing the Fuel Pump

FUEL TANK 14-51

The vacuum reading should be at least 10" of vacuum at 500 rpm. with the fuel line disconnected at the carburetor.

Volume test

The fuel pump should supply 1 quart of fuel in 1 minute or less at 500 rpm.

Inlet Valve Te$t

To test the inlet valve, connect a vacuum gauge on the inlet fitting while the line is disconnected.

(1) Start the engine or turn over with the starting motor.

(2) There should be a noticeable vacuum present, not alternated by blowback.

(3) If blowback is present, the inlet valves are not seating properly and should be cleaned, or a new valve body installed.

If the fuel pump does not perform to the above test requirements, the fuel pump should be removed from the vehicle and reconditioned as follows:

FUEL TANK

The fuel tank on all models except the Town and

Country Models is located at the rear of the body, under the trunk compartment floor, as shown in

Figure 1. In the Town aild Country models, the fuel tank is mounted in the left rear quarter panel beyond the wheel house, as shown in Figure 2.

If the vehicle is to be stored for any appreciable

length of time, the gasoline should be drained from the entire system, in order to prevent gum formation.

If

the vehicle has been undercoated, be sure the fuel

tank vent tube (under kickup in floor pan) is open.

If

this is not done, a collapsed fuel tank will result.

FILLER TUBE ASSY

INSULATOR

CAP ASSY

STRAP

NUT

Fig. l*-r-Fuel Tank Mounting (Chrysler) (Except Town and Country)

60 x 96A

14-52 FUEL TANK

The fuel tank on all models except the Town and

Country has a 23 gallon capacity. The Town and

Country capacity is 21 gallons. The filler tube on the conventional models is accessible through the center of the deck opening lower panel, while the

Town and Country fills at the left rear upper quarter panel between the quarter post and the fin. The fuel tank is fitted with a gauge unit, including the suction pipe, as shown in Figure 2. The filter on the end of the suction pipe is replaceable unit and prevents the entry of water and dirt. When installing a tank unit, be sure the filter is pushed on the end of the tube until seated.

(3) Remove the nuts that hold the ends of the fuel tank hold down straps to the frame. Lower the front end of the tank far enough to disengage the filler tube from the rear panel and slide out from under the vehicle.

(4) Remove the tank gauge unit, using spanner wrench Tool C-3582 (Fig. 3). Check the rubber grommet around the filler tube. If cracked or deteriorated, install a new grommet at reassembly.

1. R E M O V I N G THE FUEL T A N K ( E x c e p t

T o w n and! C o u n t r y a n d I m p e r i a l )

C A U T I O N : B e s u r e t h e ignition s w i t c h is t u r n e d off before d i s c o n n e c t i n g o r c o n n e c t i n g t h e g a u g e w i r e .

Removal

(1) Drain the tank into a safety can, then disconnect the fuel line and the wire lead to the gauge unit.

(2) Disconnect the vent tube at the nose connection at the leading edge of the tank.

Installation

Before installing the tank gauge unit, check the condition of the filter on the end of suction tube.

If the filter is plugged, plastic will not corrode, install a new filter.

(1) Position the fuel tank gauge unit in the tank, using a new gasket. Tighten securely, using Tool

C-3582.

(2) Slide the fuel tank under the vehicle. Raise the tank far enough to engage the filler spout with the opening in the rear panel, and the locator embossments on the floor pan.

(3) Push the tank toward the rear to fully engage the filler spout in the opening.

Fig. 2.—Fuel Tank Mounting (Town and Country)

FUEL TANK 14-53

- S U C T I O N TUBE FITTING

-TERMINAL

- G A U G E UNIT

FLOAT

57x275

Fig. 3—Fuel Gauge Tank Unit

FILTER

(4) Hold the fuel tank in this position, and place the hold down straps in position, feeding the attaching studs through holes in the end of the straps. Install the nuts but do not tighten.

(5) Guide the button head of. the studs into the slots in the frame and down into position. Tighten the hold down strap attaching nuts securely.

(6) Connect the lead wire to the tank gauge unit and reconnect the fuel line.

(7) Refill the tank and check for leaks.

CAP ASSY.

2 . FUEL T A N K A N D FILLER TUBE ( I m p e r i a l )

R e m o v a l

CAUTION: Disconnect the battery cable at the battery post before disconnecting or connecting the fuel gauge wire.

(1) Drain the tank, then disconnect the fuel line and the lead wire to the fuel gauge unit.

(2) Remove the screw that attaches the filler tube bracket to the trunk panel.

(3) Push the tube into the tank far enough for the tube bracket to clear the trunk panel. Push the tube downward slightly so that the mounting bracket clears the opening in the panel. Pull the tube out of the tank, using a suitable tool.

(4) Loosen the nuts that hold the ends of the fuel tank tie down straps until the button heads can be disengaged from the floor pan brackets. Disengage the studs from the brackets, then lower the tank to the floor.

(5) Remove the tube seal and inspect. If the seal is cracked or deteriorated, install a new seal at reassembly.

(6) Remove the gauge tank unit, using spanner wrench Tool C-3582. Discard the gasket. %

FILLER TUBE ASSY.

TANK ASSEMBLY

VIEW IN DIRECTION O F A R R O W

TANK A S S Y

Fig.

4—Fuel Tank Mounting (Imperial)

60 x 98A

14-54 FUEL TANK

Installation

N O T E : W h e n i n s t a l l i n g a n e w t u b e s e a l , b e s u r e

t h e d i a m e t e r of t h e s e a l l i p is placed in t h e t a n k openi n g . D o not u s e a n y l u b r i c a n t on t h e seal at t h e t a n k contact s u r f a c e .

N O T E : B e f o r e i n s t a l l i n g t h e t a n k g a u g e u n i t , i n -

spect t h e condition of t h e filter o n t h e e n d of t h e s u c -

tion tube. If the filter is c o r r o d e d , install a n e w filter u n i t .

(1) Position the fuel tank gauge unit in the tank, using a new gasket. Using Tool C-3582, tighten the unit securely.

(2) Install a new filler tube seal in the tank opening, as described above. Lightly coat the inner side of the seal with lubriplate.

(3) Slide the tank up into position, against the locator embossments on the floor pan. Install the button head studs in the slots in the floor pan brackets.

Snug down the nuts, but do not tighten.

(4) Check and be sure the fuel tank is in the correct position, then tighten the nuts securely.

(5) Connect the fuel line to the tank fitting and the lead wire to the gauge unit.

(6) Insert the filler tube through the trunk panel and insert into the seal. Push the tube into the tank far enough for the tube mounting bracket to clear the trunk panel opening. Slightly pull the tube out of the tank until the bracket aligns with the mounting screw hole. Install the screw and tighten securely.

(7) Refill the tank and inspect for leaks.

3 . FUEL T A N K ( T o w n a n d C o u n t r y )

( F i g . 2 )

R e m o v a l

C A U T I O N : B e s u r e t h e Ignition S w i t c h is t u r n e d

OFF before d i s c o n n e c t i n g or c o n n e c t i n g the g a u g e

w i r e .

(1) Drain the tank, and disconnect the fuel line and the lead to the gauge unit under the rear fender, behind the wheel house.

(2) Remove the screws that attach the stone shield to the lower edge of the wheel house at the rear.

Remove the shield.

(3) Remove the button plug at the rear of wheel house (front of gauge unit).

(4) Remove the bolt and washer that attaches the tank hold down strap to the lower support.

(5) Remove the filler cap and the filler tube sleeve attaching screws. Using a suitable tool, or Tool C-

3584, pull out the filler tube. Slide the sleeve out of the body opening. Remove the gasket from sleeve and "0" ring from the filler tube.

(6) Slide the tank down and out from under the quarter panel. Reach up under the quarter panel and disengage the hold down strap from the bracket. If strap is to be replaced, refer to Figure 2.

(7) Loosen the tank gauge unit, using a spanner wrench Tool C-3582. Slide the unit up and out of the tank.

Check the condition of the rubber "0" ring. If cracked or deteriorated, install a new "0" ring at reassembly.

Installation

Before installing the tank gauge unit, check the condition of the filter on the end of suction tube. If the filter is corroded, install a new filter.

(1) Position the fuel tank gauge unit in tank, using a new gasket. Tighten securely, using Tool C-3582.

(2) Slide the hold down strap under this quarter panel, inserting the end of strap into slot. Allow the strap to hang.

(3) Install a new "0" ring in the neck of the tank.

(4) Slide the tank up under the quarter panel with the gauge unit facing front of the vehicle. Push the tank up into position. Make sure the filler neck is aligned with the opening in top of the quarter panel.

Attach with the strap and bolt. Do not tighten.

(5) Place a new gasket over the filler tube and down against the flange. Insert the filler tube down into neck of tank. Drive the tube into "0" ring until the dimples in the tube contact the seal retainer. Be sure the anchor tab on the tube is aligned with a screw hole. Install the screws and tighten securely.

(6) Tighten the fuel tank hold down strap bolt securely.

(7) Install the stone shield. Connect fuel line and lead to gauge unit. Reinstall the button plugs. Refill the tank and check for leaks.

For testing the fuel gauge, refer to the "Electrical"

Group 8 "Gauges."

Condition

Poor I d l i n g

Poor acceleration

Carburetor floods

or leaks

DIAGNOSIS—FUEL SYSTEM 14-55

PART 6

SERVICE DIAGNOSIS

Possible Cause

Correction or of incorrect size.

plugged or gummed.

or worn throttle shaft.

mixture needle.

incorrect float level. throttle body screws.

pass seat corroded or bad.

(or plunger) leather too hard, worn, or loose on

stem. discharge ball. inlet check ball. level. valve and seat. and throttle linkage. operating properly. air to clear idle bleed after soaking it in a suitable solvent. air to clear idle discharge holes after soaking the main and throttle bodies in a suitable solvent. valve shaft for wear. If excessive wear is apparent, replace the throttle body assembly. the air mixture. necessary to obtain the correct float level. curely to prevent air leaks and cracked housings. accelerator pump by-pass jet. Replace by-pass if it is in questionable condition. pump assembly if leather is hard, cracked or worn.

Test follow-up spring for compression. clear the discharge nozzle and channels after soaking the main body in a suitable solvent. Test the fuel pump capacity. pump inlet check ball for poor seat or release. If part is faulty, replace. just as necessary to obtain the correct float level. found to be in questionable condition, replace assembly. Then, test fuel pump pressure. Refer to

Specifications for correct fuel pump pressure. celerator pump and throttle linkage and measure for the correct position.

If necessary, replace the choke. body. Make sure main to throttle body screws are tight. gaskets and test for leakage. Be sure the screws are tightened securely.

14-56 DIAGNOSIS—FUEL SYSTEM

SERVICE D I A G N O S I S — ( C o n t i n u e d )

C o n d i t i o n

Possible Cause

C o r r e c t i o n

Poor performance—

Mixture too rich

(c) High float level.

(d) Excessive fuel pump pressure.

(a) Restricted air cleaner.

(b) Leaking float.

(c) High float level.

(d) Excessive fuel pump pressure.

(e) Worn metering jet.

(e)

(d)

(e)

(a)

( b )

(c)

(d)

(e)

Test the fuel level in the carburetor. Make the necessary adjustment to obtain float level.

Clean and inspect the needle valve and seat. If found to be in a questionable condition, replace the complete assembly and test the fuel puni^ pressure. Refer to Specifications for correct fuel pump pressure.

Test the fuel pump pressure. If the pressure is in excess of recommended pressure (refer to Specifications), replace fuel pump.

Remove and dlean the air cleaner.

Disassemble the carburetor. Replace leaking float.

Test the float level and correct as necessary to the proper level.

Adjust the float level as necessary to secure the proper level.

Test the fuel pump pressure. Refer to Specifications for recommended pressure. If pressure Is in excess of recommended pressure, replace the fuel pump assembly.

Disassemble the carburetor. Replace the worn metering jet, using a new jet of the correct size and type.

POOR C O L D E N G I N E S T A R T I N G

Incorrect Procedure (a) Throttle must be opened

to free choke system.

Best position for all temperatures and all conditions is % open.

Choke Valve Fails t o

Close

(a) Choke* thermostat adjustment leaner than specified.

(b) Choke thermostat corroded such that it has cracked and distorted lean.

(c) Choke linkage, shaft or related parts corroded, bent or dirty such that the system is not entirely free to move from the open to the closed position.

(d) Choke valve improperly seated.

(e) Air cleaner interferes with choke shaft or linkage.

(a) Instruct owner.

(a) Adjust.

(b) Replace assembly.

(c) Repair, clean or replace.

(d) Reseat valve.

(e) Rotate cleaner to correct position.

DIAGNOSIS—FUEL SYSTEM 14-57

SERVICE D I A G N O S I S - — ( C o n t i n u e d )

Condition Possible Cause

Correction

(f) Air cleaner gasket interferes with choke valve or linkage.

(f) Reinstall gasket properly.

Low Engine O u t p u t (a) Engine lubricating oil of (a) Recommend 5W-20.

(10°F

or lower) incorrect viscosity.

(b) Valve Lash incorrect.

(c) Choke thermostat adjustment incorrect, rich.

(b) Readjust.

(c) Adjust to correct setting.

E N G I N E R U N S L E A N , F I R S T H A L F M I L E

Choke Lean (a) Check items under (Poor

Starting),

(b) Diaphragm adjustment lean.

E N G I N E R U N S L E A N A F T E R H A L F M I L E

Engine Heat

Insufficient

(a) Heat valve stuck open.

(b) Heat valve thermostat distorted.

(c) Heat valve failed within exhaust. See engine section for proper diagnosis.

(d) Water temperature subnormal.

Carburetor Mixtures (a) Air leak bypassing the

Lean carburetor,

(b) Carburetor has economy metering system.

(a) See "Choke Valve Fails to Close".

(b) Readjust to specification.

(a) Free with solvent.

(b) Replace thermostat.

(c) Replace heat valve.

(d) Test the thermostat.

(a) Repair.

(b) Inform customer.

E N G I N E R U N S E X C E S S I V E L Y R I C H A F T E R C O L D S T A R T

Choke System R i c h

(a) Choke thermostat adjustment richer than specified.

(b) Choke thermostat distorted rich sby overheating.

(c) Choke vacuum diaphragm inoperative or misad justed.

(d) Choke Vacuum passage blocked or leaking.

(a) Correct.

(b) Replace, since this problem can be corrected by use of proper choke assembly.

(c) Correct or replace.

(d) Correct.

Carburetor R i c h

(a) Replace or correct. (a) Incorrect gasket or gasket installation between carburetor and intake manifold.

14-58 DIAGNOSIS—FUEL SYSTEM

Condition ^ Possible Cause Correction

E X C E S S I V E S T A L L S A F T E R C O L D S T A R T

Choke System Lean (a) Check items under "Poor

Starting-Choke Valve

Fails to Close",

(b) Choke vacuum diaphragm adjustment lean.

Engine Output Low (a) Fast idle speed low.

(b) Fast idle cam position adjustment incorrect.

(c) Engine lubrication oil of incorrect viscosity.

Carburetor Lean (a) Curb idle set very lean.

(b) Air leak bypassing the carburetor.

(a) Refer to page 56 for correction.

(b) Adjust to Specification.

(a) Adjust to specification.

(b) Adjust to specification.

(c) Recommend 5W-20.

(a) Adjust.

(b) Repair.
