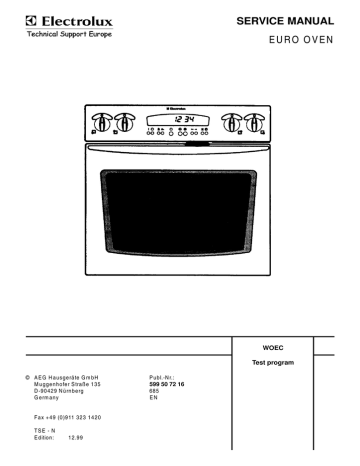

SERVICE MANUAL EURO OVEN

SERVICE MANUAL EURO OVEN

SERVICE MANUAL

EURO OVEN

© AEG Hausgeräte GmbH

Muggenhofer Straße 135

D-90429 Nürnberg

Germany

Fax +49 (0)911 323 1420

TSE - N

Edition: 12.99

Publ.-Nr.:

599 50 72 16

685

EN

WOEC

Test program

Contents

Safety instructions

1.

1.1

1.2

1.3

1.4

2.

General technical information

User technical data

Dimensions

Hot plate controls

Circuit diagram of energy regulator 1

Circuit diagram of energy regulator 2

Oven control

Circuit diagram of oven thermostat

Thermotronic (electronic oven control, WOEC)

WOEC test programmes and their application

Descriptions of programme 1 - 6

Fault-finding

Service instructions

Dismantling front glass oven door and door handle

Rubber gasket between air duct and switch panel

5

5

5

5

5

4

5

4

4

6

7

12

13

13

14

Page

2

3

11

TSE-N 12.99 A. B.

- 2 599 50 72 16 EN

Safety instructions

m m m

Attention

m

Please observe the applicable safety requirements according to DIN/VDE 0701

(concerning repairs) and VDE 0700/ICE 355 respectively VDE 0860/IEC 65 (concerning type of product)!

Components to IEC or VDE guidelines! Only use components with the same specification for replacement!

Controls with MOS components use only components with the same specification.

Observe MOS components handling instructions when servicing!

m m m m m m m

Recommendation for service repairs

m

Use only original spare parts.

With components or assemblies accompanied with the Safety Symbol only original-spare parts are strictly to be used.

Use only original fuse value.

Pay attention to ratings and power data of components and protective devices.

Safety compliance, parts of the product must not be visually damaged or unsuitable.

This is valid especially for insulators and insulating parts.

Mains leads and connecting leads should be checked for external damage before connection. Check the insulation!

The functional safety of the tension relief and bending protection bushes are to be checked.

Thermally loaded solder pads are to be suck off and re-soldered.

Ensure that the ventilation slots are not obstructed.

TSE-N 12.99 A. B.

- 3 599 50 72 16 EN

1.

1.1

General technical information

User technical data

Oven heater (heating element)

Heating element bottom

Heating element top

Heating element grill

Heating element circulating air

Fan

Motor circulating air

Querstromlüfter

Lighting

Oven lamp rear

Oven lamp lateral

Dimensions appliances dimensions

Height

Width

Depth

Built in dimensions

Built in hight

Built in width

Built in depth

Capacity / Voltage

1000 W

1000 W

1900 W

2400 W

/

/

/

/ 230 V

230 V

230 V

230 V

35 W

16 W

25 W

25 W

/

/

/

/ 230 V

230 V

230 V

230 V mm mm mm mm mm mm

579

592

566

579

540

546

TSE-N 12.99 A. B.

- 4 599 50 72 16 EN

1.2

Hot plate controls

Circuit diagram of energy regulator 1

Circuit diagram for “OFF” position

Circuit diagram of energy regulator 2

Circuit diagram for “OFF” position

1.3

Oven control

Circuit diagram of oven thermostat

Circuit diagram for “OFF” position

Can also be closed at left stop

Some appliances are equipped with an electronic oven control (Thermotronic). See

Chapter 1.4 for further details.

TSE-N 12.99 A. B.

- 5 599 50 72 16 EN

1.4

WOEC test programmes and their application

The control is provided with various test programmes, some of which can be switched on manually or run automatically in the background.

Safety cut-out

The appliance is equipped with a safety circuit which switches it off automatically if the allocated time intervals are exceeded at various temperature settings without the functions or temperature setting being changed. This time interval is smaller the higher the selected temperature.

Examples: up to 250 °C 3 h up to 230 °C 6 h up to 120 °C 12 h

Self-test

The automatic test programme which runs permanently in the background carries out a self-test at regular intervals to monitor for correct operation of the appliance. If any deviation from the specified parameters is detected during this test, the service symbol

and a 3-digit service code are shown in the display.

In addition, the appliance is switched on via safety relay K60 and the cooling fan via

K61.

The cooling fan cannot be switched off on the appliance as long as the abovementioned self-test detects the fault. The only possibility of switching off the cooling fan is to remove the fuse in the house electrical installation.

Service test

The manual test system for the control comprises 6 test programmes. Access to these

6 test programmes is only possible if the control is in a fault mode and displaying the current fault or the time is flashing.

This is achieved directly after connecting a voltage. If the test programmes are to be accessed during operation, the appliance must be disconnected from the mains for at least 10 s.

TSE-N 12.99 A. B.

- 6 599 50 72 16 EN

Descriptions of programme 1 - 6

Basic setting

1

2

3

4

5

Time flashes or current fault is displayed.

Press quick timer button and button I simultaneously and keep pressed for 5 s.

The programme number appears in the right of the display and can be set to

1-6 using the quick timer button.

If the programme number has been preselected and no entry made for 5 s, the control switches to the preselected test programme.

Once a test programme has been executed, this programme can be quit by pressing the Off button.

See 1 for switching on the test programme.

Programme 1

in red

048

1 white

Programme number

1 Block 048

2 Block 900

3 Block 210

The 9-digit code which appears in 3 successive blocks of 3 digits each is the version number of the appliance. This code indicates the E number of the appliance.

Example: Version 048 900 210 Replace the first digit 0 with 9

948 900 210 Thermotronic JUNO JEH 5690 B

TSE-N 12.99 A. B.

- 7 599 50 72 16 EN

Programme 2

Relay number

1 in red

2 white

Programme number

In this programme, the individual relays in the relay unit can be switched on and off by pressing the quick timer button. The relevant relay can be selected by pressing the

Cooking time and End of cooking time buttons at the same time. Max. 10 or fewer relays can be selected, depending on the assignment.

Attention!

If the load is switched on, the switch-on time should be kept short as neither the cooling fan nor the hot air ventilator are running and excessively long switch-on times can cause damage.

1 Cooling fan K 61

2 Ring heater element K 62

3 Not equipped

4 Grill

5 Not equipped

K 64

6 Not equipped

7 Not equipped

8 Circulation fan motor K 68

9 Bottom heat K 69

10 Top heat K 70

16 W

2400 W

1900 W

35 W

1000 W

1000 W

0.07 A

10.43 A

8.26 A

0.15 A

4.35 A

4.35 A

TSE-N 12.99 A. B.

- 8 599 50 72 16 EN

Programme 3 - see basic setting 1 - 5

Oven sensor red

33

30

3 white

Programme number

2 white

Food thermometer white

Programme 3 shows the temperature of the oven sensor and the food thermometer (if inserted).

Note!

The two temperatures normally differ because different measuring points are used.

Programme 4 - see basic setting 1 - 5

Fault code red

000

4 white

Programme number

If the power supply is disconnected after detecting the fault, the information is deleted and fault code 000 appears on executing test programme 4.

If a fault has been detected but the cause of the fault no longer exists (temporary fault) because the temperature has dropped or the cooking thermometer has been disconnected from the socket, the relevant fault code is stored in the memory and can be read out via test programme 4 as long as the power supply is not disconnected.

TSE-N 12.99 A. B.

- 9 599 50 72 16 EN

Fault reports for programme 4

Functional description:

When this module is activated, it handles all the faults present and carries out an

EEPROM check. As soon as a fault occurs, a fault register has access to the main processor control loop. This causes the control to switch from the current status to the fault mode (except when in the test mode): If a new fault occurs which has a higher priority than the preceding fault, only this higher fault code is displayed. The last fault occurring with the highest priority is stored and can be displayed by Service Test Mode

4 at any time. The fault with the highest priority is the EEPROM control fault »F«.

Fault code Type of fault

000

001

No fault

Food thermometer open-circuit

002

003

Fodd thermometer short-circuit

Appers when an attempt is made to switch on the appliance again in spite of fault code display

002 odr 003.

∝ Ω

004

005

006

Fault in safety circuit.

Appers when the child safety system is to be switched on but the circuit is faulty

Not used

The temperature measured by the oven sensor exceeds the temperature set by the programming unit

007

008

009

00 A

00 B

00 C

00 D

00 E

00 F

Other tests of the oven probe and display board probe, excluding disconnection and short-circuit

(test fault)

Thermostat on the board has operated

Thermostat on the board is short-circuit

Thermostat on the board is open-circuit

Not used

Not used

Oven sensor is short-circuit

Oven sensor is disconnected

EEPROM fault (microprocessor)

TSE-N 12.99 A. B.

- 10 599 50 72 16 EN

Programme 5 - see basic setting 1 - 5

This programme starts a display test in which all the symbols and the individual bars of the 7-segment displays are tested.

Programme 6 - see basic setting 1 - 5

Temperature code

012 red

6 white

Programme number

This programme displays the temperature measured by the thermostat on the control unit in hexadecimal code (see tables).

HEX Control unit thermostat

001

002

003

004

006

007

009

00B

00E

012

016

01A

020

026

02C

-30

-25

-15

-10

-5

0

5

10

15

20

25

30

35

38

45

HEX Control unit thermostat

034

03C

045

04 E

058

062

06C

076

080

08A

093

09C

0A4

0AC

0B3

52

55

60

65

70

75

80

85

90

95

100

105

110

115

120

TSE-N 12.99 A. B.

- 11 599 50 72 16 EN

Fault-finding

Fault-finding is simplified by fault code test programmes. Faults which do not constitute a direct danger to the user are not detected by the control, e.g. disconnected heaters.

The test programmes still provide help in fault-finding, even if the faults are not detected.

Fault-finding using fault codes

Fault code Description

000 No fault detected

001

002

003

004

Replace food thermometer

Check food thermometer cable connection

Replace food thermometer

Check food thermometer cable connection· Disconnect mains and run test programme 4 for fault-finding· Replace

005

006

007

008 power board

• Disconnect mains and run test programme 4 for faultfinding

• Replace power board

Code not used

• Switch on test programme 2 for testing the relays as the overtemperature can be caused by the relay contacts of a heater supply relay sticking· Possibly replace power board

• Possibly replace power board

• Replace oven sensor· Replace display board

• Switch on test programme 2 for testing the circulation fan relay as the overtemperature can be caused by a fault in the circulation fan Check for proper operation of the relay concerned; replace the power board if the relay is faulty·

Check the wiring

• Check for proper operation of the relay concerned; replace the power board if the relay is faulty

• Check the wiring

Replace control unit board and display 009

00A

00B

00C

00D

00E

00F

Code not used

• Check wiring of oven sensor

• Replace oven sensor

Replace control unit board and display

Note!

Fault code 003 can also appear for an incorrect switching sequence. To switch back to normal operation, first press the O button and then the I button.

TSE-N 12.99 A. B.

- 12 599 50 72 16 EN

2.

Service instructions

Dismantling front glass oven door and door handle

Remove the screws (1), one each on left and right, withdraw the door glass to the front

(2) and then downwards (3).

When dismantling the oven door handle of an appliance with a plastic door handle, note that this is fixed with two special Torx screws (see diagram).

TSE-N 12.99 A. B.

- 13 599 50 72 16 EN

Important!

When refitting the switch panel after dismantling it, ensure that the rubber gasket between the air duct and switch panel is properly mounted.

TSE-N 12.99 A. B.

- 14 599 50 72 16 EN
