A 100-MHz Analog Oscilloscope for

Digital Measurements

A n e w g e n e r a l - p u r p o s e o s c i l l o s c o p e h a s f e a t u r e s s u c h a s d u a l - c h a n n e l m a g n i f i c a t i o n a n d t h i r d - c h a n n e l trigger display that enhance its versatility, particularly with respect to measurements in digital systems.

by Allan I. Best

DESPITE CONTINUING ADVANCES in circuit speeds, a great amount of digital design work continues to be carried on at clock rates below

100 MHz.

This is particularly true for digital designs involv ing TTL and CMOS devices where clock rates below 50 MHz predominate. Hence, the growing need in digital test instrumentation is not so much for the ability to work at the highest possible speed as it is for means of coping with the complexity of digital circuit operation, a need that is becoming more and more acute as the applications of microprocessors continue to expand.

In assessing the oscilloscope needs of digital designers, it became clear that the requirements of a large segment of users could be met by a general- purpose, dual-channel scope that had a bandwidth of 100 MHz, a wide range of vertical deflection fac tors, a bright CRT capable of finely-drawn traces, a precision time base, sensitive, stable triggering and a delaying sweep with low inherent jitter that would enable timing measurements with less than

1% error.

In particular, for the debugging and field mainte nance of digital systems — especially those based on microprocessors — it was expected that users would want to team such a scope with a logic state analyzer,1 the logic state analyzer to locate problems in the data domain and the oscilloscope to work in the time domain finding the electrical malfunctions that cause the data-domain problems (see box, page 5).

A Well Fitted Oscilloscope

It was with this background in mind that a new oscilloscope was developed. The primary goal was to provide lab-quality performance and versatility in an easily-maintained instrument at an economical price.

The result is shown in Fig. 1.

Although this instrument, the HP Model 1740A, has the compactness, ruggedness, and ease of main tenance required of an instrument for the field, it has all the attributes of a high-quality, dual-channel,

100-MHz laboratory oscilloscope. It is well suited for digital work with its bright CRT display, precision time bases, stable triggering, and a third channel that enables the timing of an external sweep trigger signal

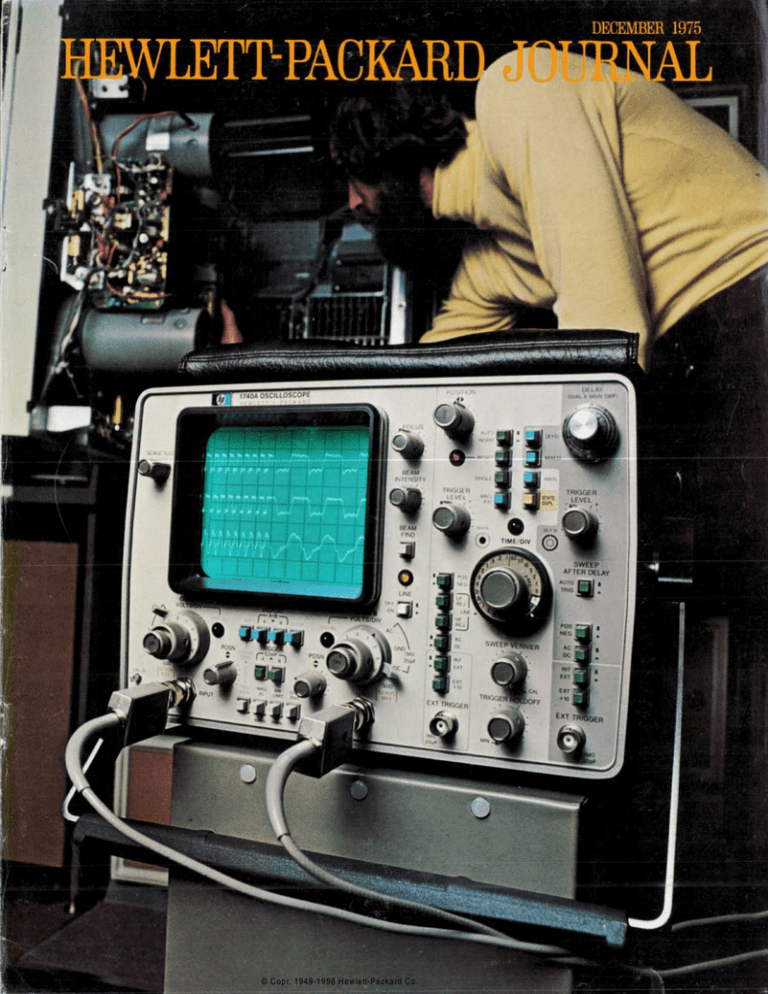

I C o v e r : D i s p l a y o f w a v e f o r m s f u l f i l l s a n i m p o r t a n t f u n c t i o n i n t h e w o r l d o f 1 ' s and O's just as it always has i n t h e w o r l d o f a n a l o g s i g n a l s . T h e o s c i l l o s c o p e p i c t u r e d h e r e d i s p l a y s w a v e f o r m s i n t h e t r a d i t i o n a l m a n ner but it can also be adapted t o d i s p l a y 1 ' s a n d O ' s i n a d a t a f o r m a t , a s e x p l a i n e d i n t h e a r t i c l e b e g i n n i n g o n t h i s p a g e .

In this Issue:

A 1 0 0 - M H z A n a l o g O s c i l l o s c o p e f o r

Digital Measurements, by Allan I. Best page 2

A n O s c i l l o s c o p e V e r t i c a l - C h a n n e l

A m p l i f i e r t h a t C o m b i n e s M o n o l i t h i c ,

T h i c k - F i l m H y b r i d , a n d D i s c r e t e

Technologies, by Joe K. Millard .... page 8

A R e a l - T i m e O p e r a t i n g S y s t e m w i t h

Multi-Terminal and Batch /Spool Capa b i l i t i e s , b y G e o r g e A . A n z i n g e r a n d

A d e l e M . G a d o l p a g e 1 2

Real-Time Executive System Manages

Large Memories, by Linda W. Averett page 18

Printed in US. A. c H e w l e t t - P a c k a r d C o m p a n y . 1 9 7 5

© Copr. 1949-1998 Hewlett-Packard Co.

»- V Ei ^

F i g . 1 . M o d e l 1 7 4 0 A O s c i l l o s c o p e c a n d i s p l a y t h e s w e e p t r i g g e r w a v e f o r m a s a t h i r d t r a c e s i m u l t a n e o u s l y w i t h t h e w a v e f o r m s i n c h a n n e l s A a n d B . T h e n e w o s c i l l o s c o p e h a s d c - t o -

1 0 0 - M H z b a n d w i d t h , s e l e c t a b l e i n p u t i m p e d a n c e ( h i g h i m p e d a n c e o r a w e l l - m a t c h e d 5 0 à œ ) , p r e c i s i o n d e l a y e d s w e e p , a b r i g h t , f i n e l y - f o c u s s e d t r a c e , a n d a l l t h e o t h e r c h a r a c t e r i s t i c s o f a h i g h - q u a l i t y l a b o r a t o r y oscilloscope.

to be compared to the signals in both vertical chan nels. Of particular interest to digital designers is an option that enables the new scope to serve as the digital display for a logic state analyzer, with instant pushbutton restoration of the analog display when ever desired (Fig. 2).

x5 Vertical Magnifier

In earlier high-frequency oscilloscopes, increased sensitivity at reduced bandwidth in the vertical chan nel was obtained by cascading the two vertical chan nels into one channel, thus sacrificing the dual- channel display. In the new Model 1740A Oscil loscope, the X5 magnifier operates on both vertical channels, increasing the sensitivity from a vertical deflection factor of 5mV/cm to 1 mV/cm, at a band width of 40 MHz, while retaining dual-channel oper ation. In this mode the two channels may display sig nals separately in either the alternate or chopped dis play mode, or they may be combined (A — B) for single- channel display of differential signals.

Trigger Display

When two signals are being displayed on the Model

1740A in either the alternate or chopped modes, pressing the TRIG VIEW pushbutton adds a third trace, giving a three-channel display (Fig. 2b). The third trace displays the sweep trigger signal, thus enabling the user to make timing measurements between an external trigger signal and the signals in channels A and B. The propagation delay through the trigger- view channel matches those of the vertical channels within 2.5 ns ± 1 ns, thus assuring integrity in timing comparisons between the external trigger signal and the signals in channels A and B.

In effect, the trigger-view mode provides a third,

80-MHz channel for viewing a signal applied at the trigger input. The deflection factor is nominally 100 mV/div, compatible with ECL logic levels, or 1 V/div with the xio attenuator, compatible with TTL and

CMOS levels. These are changed to 20 mV/div and

200 mV/div when the x 5 magnifier is used.

When the sweep is triggered by the signal in chan nel A or B, the trigger-view channel displays the same signal with approximately the same deflection factor and, as with an external trigger, it may be posi tioned by the TRIGGER LEVEL control to show the trig gering point. The dc levels of the trigger amplifier are set so the sweep trigger level corresponds to the center horizontal graticule line on the CRT, thus the operator can see which point on the waveform ini tiates the sweep.

The displayed waveform is also processed through the trigger input filtering (HF REJECT, LF REJECT) so the operator sees the waveform exactly as the trigger- recognition circuit sees it. The trigger-level control functions like a positioning control, displacing the waveform vertically so the operator can choose a trig ger level that avoids the likelihood of triggering on noise or other waveform anomalies

© Copr. 1949-1998 Hewlett-Packard Co.

F i g . 2 . W h e n e q u i p p e d w i t h t h e l o g i c - s t a t e o p t i o n M o d e l 1 7 4 0 A can display either the data domain o u t p u t s o f a l o g i c s t a t e a n a l y z e r

(a) or time-domain waveforms ap p l i e d t h r o u g h i t s o w n i n p u t s ( b ) .

The upper trace in (b) is the digital w a v e f o r m c o r r e s p o n d i n g t o t h e right-hand column of the table dis p l a y i n ( a ) , d e l a y e d o n e c l o c k p e r i o d . T h e s c o p e i s i n t h e T R I G

V I E W m o d e , d i s p l a y i n g t h e l o g i c state analyzer's trigger output on the middle trace.

Design Approach

Although the design of the new oscilloscope covered ground already traversed by other HP oscil loscopes with respect to performance, it was decided not to retain elements of earlier designs if advancing technology made it possible to improve the design with respect to maintainability, reliability, and man ufacturing cost.

One element of earlier designs that was retained, however, was the cathode-ray tube. This is the same tube used in the 180-series oscilloscopes.2 Noted for its small spot size and bright traces, it has the writing speed needed for displaying low rep-rate, fast tran sitions at the 5-ns/cm sweep speed. An advanced design to begin with, it has been improved over the years and in the course of building 40,000 or so, HP production engineers have refined the manufactur ing process such that a long, trouble-free life can be expected from these CRT's.

The highly-integrated vertical amplifier, on the other hand, is entirely new and contributes to the stable performance and manufacturability of the new oscilloscope. It is discussed in detail in the article beginning on page 8.

Horizontal System

Another technique retained from earlier designs is the trigger recognition circuits. For both the main and delayed sweeps, the new scope uses the same HP monolithic integrated circuits as the 275-MHz Model

1720A Oscilloscope.3 They provide stable triggering on signals above 100 MHz but require an amplitude equivalent to only 1 cm of deflection at 100 MHz to do so.

A variety of trigger modes gives the flexibility needed for lab applications. The new scope triggers repetitively or singly on externally supplied or in ternal signals. Trigger slope and amplitude are selec table. The trigger input coupling can be dc or ac and it can be filtered to remove noise above 4 kHz (HF REJECT) or remove powerline and other interference below

4 kHz (LF REJECT).

The main sweep circuit has controllable trigger holdoff time, as used for the past eight years on HP high-performance scopes. This inhibits triggering for a selected time interval after a sweep terminates and is useful when examining complicated waveforms that have more than one trigger point.

The sweep circuits use the familiar Miller integra tor. The well-regulated supply voltages and high- gain amplifiers for the integrators assure sweep ac curacy well within 2% on the fast sweeps (3% with the horizontal x 10 magnifier). A full complement of sweep modes is provided, including main sweep, main intensified, calibrated delayed sweep, and calibrated mixed sweep.

The comparator that selects the point on the main sweep where the delayed sweep is to start has a stable trigger level such that delay jitter is less than 0.002% of the maximum delay on each range. This plus the precision 10-turn delay control and the sweep accur acy enables time intervals to be measured by the dif ferential time measurement technique over most of the range with an accuracy of ±(0.5% + 0.1% of full scale).

The new scope also has an A versus B mode for high-speed X-Y plotting. In this mode, the A channel signal drives the CRT in the vertical direction and the signal in the B channel drives it in the horizontal direction. The bandwidth of the horizontal channel in this case is 5 MHz. The A versus B capability is re placed by the logic-state option, however, when that option is installed.

The Logic-State Option

When equipped with the logic-state option, the

Model 1740A can work with the Model 1607A Logic

State Analyzer1 to provide a measurement tool of sin gular usefulness for the digital designer and trouble- shooter (Fig. 3). This option equips the 1740A with internal switching and rear-panel inputs for the logic state analyzer outputs. A front-panel pushbutton en ables the user to switch back and forth between the

â € ¢ T o m a k e t h i s m e a s u r e m e n t , t h e d e l a y e d s w e e p i s u s e d a n d ( t i e s t a r t 1 p o i n t i s p o s i t i o n e d a t c e n t e r s c r e e n t h e n t h e d e l a y c o n t r o l . T h e d e l a y s e t t i n g i s n o t e d a n d t h e s t o p " p o i n t i s t h e n p o s i t i o n e d a t c e n t e r s c r e e n , a n d w i t h t h e d e l a y c o n t r o l . T h e d i f f e r e n c e b e t w e e n t h e n e w d e l a y - c o n t r o l s e t t i n g a n d t h e p r e v i o u s o n e i s t h e t i m e i n t e r v a l b e t w e e n s t a r t a n d s t o p p o i n t s .

© Copr. 1949-1998 Hewlett-Packard Co.

Working in the Data Domain — Logic State

Analyzers and Oscilloscopes

The on-going diffusion of digital techniques into all branches o f e l e c t r o n i c d e s i g n h a s r a d i c a l l y c h a n g e d t h e n a t u r e o f many — if not most — design, production test, and field mainten ance tasks. Electronic engineers, who have all learned to use the underlying mathematics and analytical instrumentation for d e s i g n i n g i n t h e f r e q u e n c y a n d t i m e d o m a i n s , m u s t n o w b e come familiar with the data domain.

A simple example will illustrate what one faces when dealing w i t h t h e d a t a d o m a i n . T h e d r a w i n g s h o w s f o u r w a v e f o r m s .

Whether we think of these as being generated in a series of com binatorial logic gates or from instructions in a microprocessor or a computer is irrelevant — simultaneous waveforms like these o c c u r o n a o n e - s h o t b a s i s t h r o u g h o u t a l l d i g i t a l e q u i p m e n t , usually on a much grander scale, from 16 to 128 simultaneous signals.

Time

T h e q u e s t i o n i s , i f y o u a r e t r a c k i n g d o w n a s y s t e m m a l f u n c tion where these waveforms are involved, what do you measure and how? If the clock rate is too fast for a chopped oscilloscope display, you can't capture the four waveforms on a storage os cilloscope for analysis. Electronic counters could tell you how many logic highs occurred on each channel, but would not give timing relationships. You could also derive the number of logic highs from voltmeter measurements of the average value of the w a v e f o r m s b u t w h a t w o u l d t h i s t e l l y o u ? O s c i l l o s c o p e s , v o l t meters, and counters are familiar to all, but none of these clas s i c i n s t r u m e n t s d o e s a v e r y g o o d j o b o n d i g i t a l p r o b l e m s b e c a u s e n o n e w a s d e s i g n e d t o s o l v e t h e m .

Such a set of signals can be examined meaningfully with the aid of a logic state analyzer. These instruments sample all chan nels on every clock edge, detect the logic levels on all channels simultaneously, and store them for display and study.

The more important aspect of the problem, however, is what do we need to know about these signals once they have been c a p t u r e d ? H e r e i s w h e r e t h e c o n c e p t o f t h e d a t a d o m a i n comes in. These waveforms can be control signals or they can b e i n s t r u c t i o n s , m e m o r y a d d r e s s e s , o r d a t a . W h a t e v e r t h e y are, they can have varied meanings. If, for example, they repre sent bit-serial ASCII symbols with even parity, as may be found on an I/O bus, then the 8-bit frames here represent the letters D,

B , F , a n d J . I t m i g h t n o t b e o b v i o u s f r o m e x a m i n i n g t h e w a v e f o r m s t h a t a p a r i t y e r r o r o c c u r r e d w i t h t h e l e t t e r J n o r w h a t caused the error, yet in terms of the data being transmitted, an error ex certainly did occur. Before it can be corrected, its ex istence must be recognized.

T h e s e w a v e f o r m s c o u l d a l s o b e b i t - s e r i a l , l e a s t - s i g n i f i c a n t bit and least significant digit first, hexadecimal code (essential ly the data format of HP's pocket calculators). They would then be interpreted as 44, 42, 46, and 4A. Or, if they were word-serial h e x a d e c i m a l , a s i n H P ' s 2 1 M X C o m p u t e r s , t h e y w o u l d m e a n something else.

Obviously, there are a host of choices in terms of data format, d a t a c o d e , a n d l o g i c c o n v e n t i o n s t h a t m u s t b e t a k e n i n t o a c count when dealing with the data domain. For the first genera tion of logic state analyzers, the choice was made to use single- l e v e l t h r e s h o l d ( h i o r l o , u p o r d o w n , o n o r o f f ) , i n d e x i n g b y r e c o g n i z i n g b i n a r y s t a t e m e n t s ( B o o l e a n t r i g g e r i n g ) , a n d p o r trayal of the data as 1 's and O's. This machine-language presen tation does not restrict the data format but leaves it to the user to interpret the display in terms of the code used.

When considering where and for what tasks a logic state ana lyzer may be used, the question invariably arises, "don't you ulti mately have to see the waveforms to fix the problem?" It is worth trying to put this into perspective.

What logic state analyzers can do is to aid in the debugging of complex digital systems, particularly between the time that the computer simulation of the design is complete and the work ing hardware is operational. Because of the long data stream s e q u e n c e s t y p i c a l l y u s e d i n m o s t a l g o r i t h m i c d e s i g n , p a r t i c u larly when looping or nested sub-routines are involved, locating the problem is more critical than analyzing why the problem oc c u r r e d . I t m a y s i m p l y b e a s o f t w a r e p r o b l e m , s u c h a s a c c e s s ing the wrong instruction in memory. This can be readily identi fied by a logic state analyzer.

However, when an electrical malfunction is the culprit, an os c i l l o s c o p e  ¡ s n e e d e d b u t i t c a n ' t f i n d w h i c h e l e c t r i c a l p a r a meters are at fault unless it gets a trigger from the vicinity of the b a d d a t a . T h i s c a n b e l o c a t e d a n d p r o v i d e d b y a l o g i c s t a t e analyzer.

The logic state analyzer is not about to displace the oscillo scope as a troubleshooting tool for digital systems, but it does add a dimension to test instrumentation that until now had not b e e n a d e q u a t e l y p r o v i d e d . T h e l o g i c s t a t e a n a l y z e r c a n c a p t u r e a s e g m e n t o f a r a p i d l y e x e c u t i n g d i g i t a l s e q u e n c e f o r a n a l y s i s j u s t a s t h e o s c i l l o s c o p e c a n c a p t u r e a w a v e f o r m for examination.

Charles H. House

logic state display, as generated by the analyzer, and the analog display of signals detected by the scope's own probes (Fig. 2). There is no need to reconnect cables or reset controls when switching displays.

The logic state analyzer monitors data flow clocked in on up to 16 lines simultaneously. It generates the deflection voltages necessary for the oscilloscope so the clocked-in data can be displayed as a machine- language table of 1's and O's, enabling the user to see the data flow on the monitored lines. A front-panel switch register can be set to any digital word up to 16 bits wide and when that word occurs, a pulse is gener ated that can be used to trigger the scope.

The user can page through an executing program with the logic state analyzer and once a problem area has been identified, the trigger word can be reset to a

5

© Copr. 1949-1998 Hewlett-Packard Co.

A "Visible" Mechanical Design

T h e p h o t o b e l o w , s h o w i n g t h e M o d e l 1 7 4 0 A O s c i l l o s c o p e w i t h b o t h c o v e r s r e m o v e d , i l l u s t r a t e s t h e o p e n n e s s o f t h e m e c h a n i c a l d e s i g n . T h e b y w o r d d u r i n g t h e d e s i g n p h a s e w a s

"visibility" — visibility in this case meaning a high degree of order in the internal layout and ready accessibility to all test points and components. are mounted on one of the power-supply circuit boards rather t h a n t h e r e a r p a n e l . T h i s e n a b l e d e f f e c t i v e i s o l a t i o n o f t h e p o w e r l i n e p r i m a r y c i r c u i t f r o m t h e r e s t o f t h e i n s t r u m e n t , a n d it further simplified wiring.

A new approach to attenuator design eliminated much of the p r o d u c t i o n t i m e f o r m e r l y r e q u i r e d f o r a s s e m b l i n g a c o m p l e x a t t e n u a t o r . N o e l e c t r o n i c s a r e c o n t a i n e d w i t h i n t h e s w i t c h mechanism itself. Instead, actuating cams press spring-finger shorting contacts down on pads in the printed-circuit board to s w i t c h g a i n a n d / o r s e l e c t i n p u t c o u p l i n g m o d e s , a s s h o w n b y the wide-angle photo below where the switch has been raised o f f t h e b o a r d t o d i s c l o s e d e t a i l s . A l l t h e s w i t c h e d c i r c u i t s c a n thus be incorporated on the printed-circuit board. This arrange m e n t r e d u c e d a s s e m b l y c o s t s s i g n i f i c a n t l y .

1

The primary element in the "visible" design was the reduction in wiring and cabling. The circuits are grouped functionally on eleven plug-together boards: three for the power supply, three for the vertical section, and five for the horizontal section. The three sections are interconnected by the interconnect board, a twelfth circuit board that satisfies the requirements of a cable t h a t w o u l d h a v e h a d p e r h a p s s o m e 2 6 w i r e s . T h u s , 5 2 c a b l e s o l d e r a n d / o r c r i m p e d c o n n e c t i o n s w e r e e l i m i n a t e d . A f u r t h e r b e n e f i t o f t h e a r r a n g e m e n t i s t h a t t h e v e r t i c a l a n d h o r i z o n t a l s e c t i o n s c a n b e d i s c o n n e c t e d f r o m t h e p o w e r s u p p l i e s a n d from each other to aid in troubleshooting.

F r o n t - p a n e l w i r i n g w a s r e d u c e d s u b s t a n t i a l l y b y m o u n t i n g controls on the circuit boards wherever possible and using ex tension shafts from the front-panel. In many cases this also ob tained an electrical advantage by placing the controls close to the circuits they control.

The powerline switch, fuse, and line-voltage-select switches

Besides contributing to a more visible mechanical layout, the p l u g - t o g e t h e r d e s i g n a l s o s i m p l i f i e d s o m e o f t h e c i r c u i t s . B y e l i m i n a t i n g t h e c a b l e - t o - c a b l e v a r i a t i o n s i n a d j a c e n t l e a d c a p a c i t a n c e , t h e p l u g - t o g e t h e r c o n s t r u c t i o n p e r m i t t e d a r e d u c t i o n i n t h e n u m b e r o f a d j u s t m e n t s t h a t w o u l d o t h e r w i s e b e r e q u i r e d t o n o r m a l i z e p e r f o r m a n c e . T h e p l u g - t o g e t h e r - b y - f u n c tion design also permits thorough testing of the individual circuit functions before final assembly.

I n t h e i n t e r e s t o f r e d u c i n g a s s e m b l y c o s t s , t h e m e c h a n i c a l parts, such as brackets, were standardized or eliminated as far a s p o s s i b l e . F o r e x a m p l e , t h e u s u a l p r a c t i c e o f s e l e c t i n g t h e length of a screw to be just long enough to protrude 1/32 inch beyond its fastener was abandoned in the interest of reducing the number of different screws. This reduction in the number of s c r e w t y p e s w i l l b e e s p e c i a l l y a p p r e c i a t e d b y s e r v i c e p e r s o n nel who may have an occasion to disassemble and reassemble the instrument.

Circuits were designed not only for performance but also for m i n i m u m p o w e r c o n s u m p t i o n . A s a r e s u l t , t h e o s c i l l o s c o p e ' s total power consumption is less than 1 00 VA. Thus, no fan is re quired nor are vent holes required, thereby obtaining an extra degree of protection against dust and other contaminants.

J o h n W . C a m p b e l l

word near the problem area. Then by switching the scope to the analog display, bus and control lines can be monitored to locate glitches, race problems, insuf ficient amplitude and other electrical problems that may be the cause of the digital problems.

Acknowledgments

The 1 740A design group was led by Stan Lang until the start of pilot production when he transferred to another project. In addition to those mentioned else where in these articles, the design team included Jim

Garner, mechanical design including the vertical attenuator switch, Eldon Cornish, who designed the horizontal section, and Van Harrison who designed the CRT circuits, power supplies, and gate ampli fier. Special thanks are due John Riggen and John

6

© Copr. 1949-1998 Hewlett-Packard Co.

Cardón who provided valuable suggestions and support as section managers, and to Dick Stone who as product manager provided inputs anticipating customer requirements.

References

1. C.T. Small and J.S. Morrill, Jr., "The Logic State Ana lyzer, a Viewing Port for the Data Domain," Hewlett-

Packard Journal, August 1975.

2. F.G. Siegel, "A New DC-50+ MHz Transistorized

Oscilloscope of Basic Instrumentation Character," Hew lett-Packard Journal, August 1966.

3. P.K. Hardage, S.R. Kushnir, and T.J. Zamborelli,

"Optimizing the Design of a High-Performance Oscil loscope," Hewlett-Packard Journal, September 1974.

F i g . 3 . M o d e l 1 7 4 0 A O s c i l l o s c o p e e q u i p p e d w i t h t h e l o g i c - s t a t e o p t i o n ( o p t 1 0 1 ) i s a v a i l a b l e w i t h M o d e l 1 6 0 7 A L o g i c

S t a t e A n a l y z e r ( l o w e r u n i t ) i n a p a c k a g e k n o w n a s

Model 1740S.

Allan I. Best

A San Franciscan by birth, Al

Best joined Hewlett-Packard's

Oscilloscope Division in Palo

Alto upon getting his BSEE degree from the University of California at

Berkeley (1960), and moved with the division to Colorado Springs in 1964. Over the years he has c o n t r i b u t e d t o a w i d e r a n g e o f oscilloscope products as a circuit d e s i g n e r ( 1 8 5 B S a m p l i n g O s c i l loscope), project leader (1410A and related sampling plug-ins) a n d g r o u p m a n a g e r ( 1 7 4 0 A ) . I n f e w * . h i s s p a r e t i m e , A l e n j o y s s k i i n g i n the winter and high-country trout fishing, back-packing, and

4-wheel driving during the rest of the year. He is married and has four children.

Vertical Display Modes
