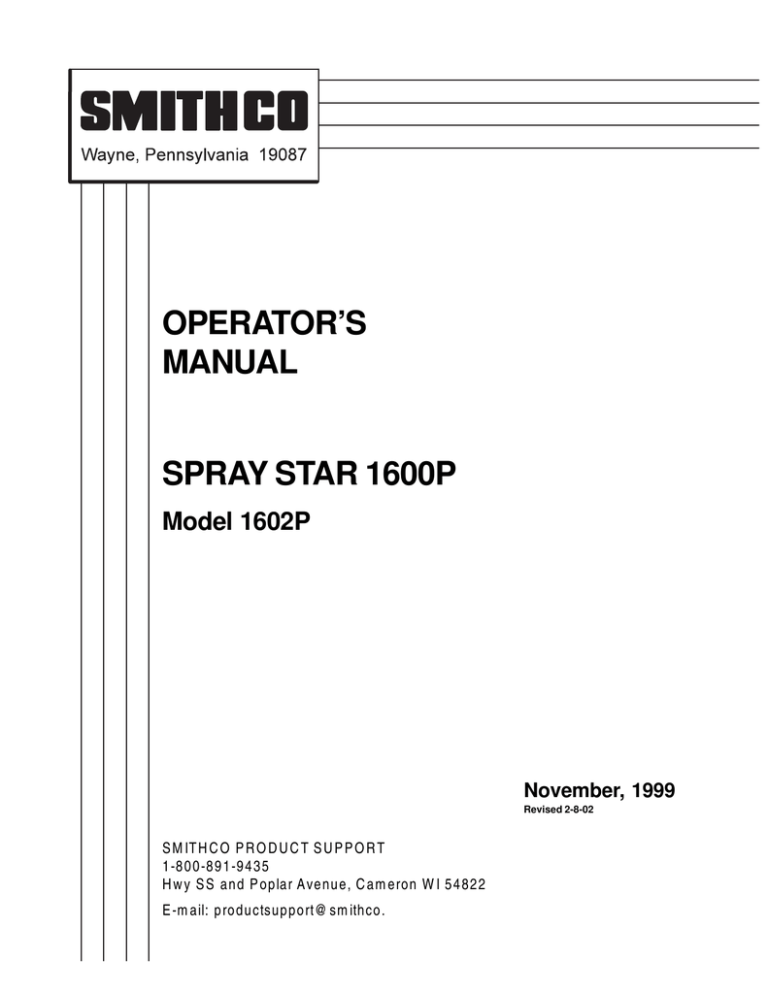

OPERATOR’S

MANUAL

SPRAY STAR 1600P

Model 1602P

SMITHCO PRODUCT SUPPORT

1-800-891-9435

Hwy SS and Poplar Avenue, Cameron WI 54822

E-mail: [email protected]

November, 1999

Revised 2-8-02

CONTENTS

Introduction .............................................................................................. 1-10

Introduction ................................................................................................1

Symbols ................................................................................................. 2-3

General Safe Practices ..............................................................................4

Safe Spraying Practices .............................................................................5

Specifications .............................................................................................6

Optional Spray Equipment .........................................................................6

Set Up .................................................................................................... 7-8

Controls & Instruments ......................................................................... 9-10

Operation ................................................................................................11-23

Machine Operation Instructions .......................................................... 11-13

Console Features .....................................................................................14

Console Programming .............................................................................15

Console Calibration ........................................................................... 15-16

Initial Programming ............................................................................ 17-21

Initial Console Setup ................................................................................21

Console Field Test ...................................................................................22

Spray Operation ................................................................................. 22-23

Schematics ............................................................................................. 24-25

Hydraulic Schematic ................................................................................24

Wiring Schematic .....................................................................................25

Spraying Procedure ............................................................................... 26-32

Spraying Introduction ...............................................................................26

Turf Management .....................................................................................26

Hose & Handgun Spraying .......................................................................27

Nozzles .............................................................................................. 27-28

Calibration Introduction ............................................................................29

The Nozzle Chart Method of Calibration ............................................ 30-31

The “128” Method of Boom Sprayer Calibration ................................ 31-32

Nozzle Charts ......................................................................................... 33-38

Nozzle Performance Chart #1 ..................................................................33

Nozzle Performance Chart #2 ..................................................................34

Nozzle Performance Chart #3 ..................................................................35

Nozzle Performance Chart #4 ..................................................................36

Nozzle Performance Chart #5 ..................................................................37

Nozzle Performance Chart #6 ..................................................................38

Reference ............................................................................................... 39-40

Abbreviations and Conversions ...............................................................39

Declaration of Conformity ........................................................................40

Limited Warranty ............................................................ Inside Back Cover

INTRODUCTION

Thank you for purchasing a product.

Read this manual and all other manuals pertaining to the Spray Star carefully as they have safety, operating, assembly and maintenance instructions. Failure to do so could result in personal injury or equipment damage.

Keep manuals in a safe place after operator and maintenance personnel have read them. Right and left sides are from the operator’s seat, facing forward.

All machines have a Serial Number and Model Number. Both numbers are needed when ordering parts. The serial number plate on the Spray Star is located on the front left side of the main frame. Refer to engine manual for placement of engine serial number.

For easy access record your Serial and Model numbers here.

Information needed when ordering replacement parts:

1. Model number of machine.

2. Serial number of machine.

3. Name and part number of part.

4. Quantity of parts.

1

2

SYMBOLS

Read

Operator’s

Manual

Engine - Stop

Engine Oil

RPM

Glow Plug - On

Hour Meter

Hand Throttle

Park Brake

Electrical

Power

Engine - Start

Temperature

Light

Gasoline

Glow Plug - Off

Hour Meter

Choke - Closed

Park Brake

Release

No Electrical

Power

Engine - Run

Water

Temperature

Diesel

Glow Plug

Fuse

Choke - Open

Hydraulic Oil

Level

Up/Down Arrow

No Smoking

Down/Lower

Moving Parts

SYMBOLS

Up/Raise

Manual

Operation

Step Hot Surface

Pinch Point

Hydraulic Fluid

Penetration

Engage

Lift Arm

Disengage

Tractor

PTO

Ground Speed Fast Slow

H

High

L

Low

F

Forward

R

Reverse

N

Neutral

Warning

Danger

Caution

3

GENERAL SAFE PRACTICES

1. It is your responsibility to read this manual and all publications associated with this machine.

2. Never allow anyone to operate or service the machine or its optional equipment without proper training and instructions. Never allow minors to operate any equipment.

3. Learn the proper use of the machine, the location and purpose of all the controls and gauges before you operate the equipment. Working with unfamiliar equipment can lead to accidents.

4. Wear all the necessary protective clothing and personal safety devises to protect your head, eyes, ears, hands and feet. Operate the machine only in daylight or in good artificial light.

5. Inspect the area where the equipment will be used. Pick up all debris you can find before operating.

Beware of overhead obstructions and underground obstacles. Stay alert for hidden hazards.

6. Never operate equipment that is not in perfect working order or without decals, guards, shields, or other protective devices in place.

7. Never disconnect or bypass any switch.

8. Carbon monoxide in the exhaust fumes can be fatal when inhaled, never operate a machine without proper ventilation.

9. Fuel is highly flammable, handle with care.

10. Keep engine clean. Allow the engine to cool before storing and always remove the ignition key.

11. Disengage all drives and set park brake before starting the engine.

12. Never use your hands to search for oil leaks. Hydraulic fluid under pressure can penetrate the skin and cause serious injury.

13. This machine demands your attention. To prevent loss of control or tipping of the vehicle:

A. Use extra caution in backing up the vehicle. Ensure area is clear.

B. Do not stop or start suddenly on any slope.

C. Reduce speed on slopes and in sharp turns. Use caution when changing directions on slopes.

D. Stay alert for holes in the terrain and other hidden hazards.

14. Before leaving operator’s position:

A. Disengage all drives.

B. Set park brake.

C. Shut engine off and remove the ignition key.

D. If engine has to run to perform any maintenance keep hands, feet, clothing and all other parts of body away from moving parts.

15. Keep hands, feet and clothing away from moving parts. Wait for all movement to stop before you clean, adjust or service the machine.

16. Keep the area of operation clear of all bystanders.

17. Never carry passengers.

18. Stop engine before making repairs/adjustments or checking/adding oil to the crankcase.

19. Use parts and materials supplied by only. Do not modify any function or part.

20. Use caution when booms are down as they extend out beyond the center line of the machine approximately 10 ft. (3 m).

21. The tank is a confined space, take precaution.

These machines are intended for professional maintenance on golf courses, sports turf, and any other area maintained turf and related trails, paths and lots. No guaranty as to the suitability for any task is expressed or implied.

4

SAFE SPRAYING PRACTICES

Persons engaged in the handling, preparation or application of chemicals must follow accepted practices to insure the safety of themselves and others,

1. WEAR protective clothing including: gloves, hat, respirator, eye protection and skin covering suitable for protection from chemicals being used.

2. BATHE thoroughly after any exposure to chemicals, giving particular attention to eyes, nose, ears and mouth.

3. CLEAN equipment and materials in accordance with employer, municipal and state regulations. Use only approved areas and drains.

4. DISPOSE of chemicals and rinse solutions by approved and legal means.

5. PROVIDE methods and materials for operators to wash eyes and hands immediately during the spraying process.

6. PROVIDE methods and materials for control, safe dilution and neutralization of chemical spills during preparation, spraying, transporting and cleanup.

7. Always check and follow the directions and safety warnings of the chemicals to be used.

8. Secure the discharge lines before starting the pump. An unsecured discharge line may whip.

9. Periodically inspect the pump and the system components.

10. Check hoses for weak or worn condition before each use. Make certain that all connections are tight and secure.

11. Do not operate unit with leaks, frayed, kinked hoses or tubing. Repair or replace immediately.

12. Use only pipe, hose and fittings rated for maximum pressure or pressure at which pressure relief valve is set at. When replacing pipe, hose or fittings, use new product.

13. Do not operate a gasoline engine in an enclosed area. Be sure the area is well ventilated.

14. Do not use these pumps for pumping water or other liquids for human or animal consumption.

15.

Do not pump flammable or explosive fluids such as gasoline, fuel oil, kerosene, etc.

Do not use in explosive atmospheres. The pump should be used only with liquids compatible with the pump component materials.

16. Be sure all exposed moving parts are guarded and that all coupling devices are securely attached before applying power.

17. Before servicing, disconnect all power, make sure all pressure in the system is relieved, drain all liquids from the system and flush.

18. Protect pump from freezing conditions by draining liquid and pumping rust inhibiting antifreeze solution through the system, coating the pump interior.

5

6

SPECIFICATIONS

WEIGHTS AND DIMENSIONS

Length

Width

Height

Wheel Base

Weight Empty

SOUND LEVEL AT 3400 RPM

At ear level

At 3 ft. (0.914 m)

At 30 ft (9.14 m)

At 23 ft (7 m) pass by

ENGINE

Make

Model#

Type / Spec#

Horsepower

Fuel

Cooling System

Lubrication System

Alternator

WHEELS & TIRE

112" (285 cm)

61" (155 cm)

50" (127 cm)

60" (152 cm)

1200 lb (544 kg)

84 dB

82 dB

68 dB

70 dB

Width With Booms Down 230" (584 cm)

Height With Booms Up 126" (320 cm)

Weight Loaded 2500 lb (1134 kg)

Kohler

Command CH20S

64558

20 hp (15 kW)

Unleaded 87 Octane Gasoline Minimum

Air cooled

Full pressure

25 Amp

Front (2) 20 x 1000 x 10 Multi-rib 20 psi (1.4 bar)

Rear (2) 24 x 1300 x 12 Super Soft 18 psi (1.3 bar)

Ground Pressure: 8.2 psi with 160 gallons

SPEED

Working Speed

Transport Speed

Reverse Speed

BATTERY

BCI Group

Cold Cranking Amps

Ground Terminal Polarity

Maximum Length

Maximum Width

Maximum Height

FLUID CAPACITY

Crankcase Oil

Fuel

Hydraulic Fluid

Grade of Fluid

14-100

15-363

15-425

15-571

15-572

15-573

16-856

16-129

16-906

1st gear 0-3 m.p.h. (0-5 kph)

2nd gear 2-6 m.p.h. (3-10 kph)

3rd gear 4-10 m.p.h. (6-16 kph)

0-3 m.p.h. (0-5 kph)

Automotive type 24F-12 volt

Size 24

575 minimum

Negative (-)

10.25" (26 cm)

6.88" (17 cm)

10" (25 cm)

2.1 quart (2 liters) with filter

8 gallon (30.25 liters)

1 gallon (3.785 liters)

SAE 10W-40 API Service SJ or higher motor oil

OPTIONAL SPRAY EQUIPMENT

Super Boom 20' (6 meter) Long

Fresh Water Wash Tank

Hose Reel Mounting Frame

15' Tri-Section Electric Lift Star Shield Boom

15' Dual Section Electric Lift Star Shield Boom

15' Manual Lift Star Shield Boom

10-300 18' Terrain Following Boom

10-301 15' Terrain Following Boom

15-493 Auto-Boom 18' (5.5 m) Long

14-301 440 Spray System (1602P)

14-302 203 Spray System (1604P)

14-303 Manual Spray System (1610P)

Tank Rinsing System 14-304 844 Spray System (1607P)

Hose Reel 200' (61 m) capacity

(to be used with 15-425)

15-499 Foam Marker System (Dealer

Installed)

Hose Reel 12 volt electric rewind 200' (61 m) capacity

(to be used with 15-425)

15-501 Foam Marker System

(Factory Installed)

SET UP

The Model 1600P Prime Mover arrives from setup and ready for service. Depending on freight conditions the tires, wheels and steering wheel may need to be installed.

The spray system is normally shipped attached to the 1600P Prime Mover. If a spray system is to be retrofitted to a 1600P Prime Mover by a dealer or owner, assemble and attach the components in accordance with the parts drawings in the Spray Star 1600P Parts/Service Manual.

1. Remove the top and sides from the shipping crate then remove the banding from the Spray Star.

Banding is under tension.

2. Lift front end using a hydraulic jack, taking care that the jack is not placed in a location that would damage any steering system components, install front wheels and torque nuts to 64-74 ft/lb (87-100 Nm). Then raise rear axle using a hydraulic jack and install rear wheels and tires, torque lug nuts to 64-

74 ft/lb (87-100 Nm). Torque again after the first 10 hours and every

200 hours thereafter.

3. Set park brake.

4. Check the tire pressure. The front tires are 20 psi (1.4 bar) and the rear tires are 18 psi (1.3 bar).

5. Remove the tape holding woodruff key (Ref B) to the shaft. Put steering wheel (Ref A) on the shaft of the steering mechanism (Ref C).

Tighten nut to 30-40 ft/lb (41 - 54 Nm). Do not over tighten.

6. Install the seat with the stud going through the engine cover and the flat washers, lock washers and nuts.

Use the front set of holes for shorter drivers and use the back set of holes for taller drivers.

7. Be sure battery (automotive type 24F-12 volt; 575 cold cranking

AMPS minimum; 10.25" (260 mm) long x 6.88" (175 mm) wide x 10" (254 mm) high maximum case) is installed in proper position in the battery box, which is located on the left side of the engine compartment. Battery posts should be to the rear.

This is a negative grounding system.

Connecting battery cables to the wrong post could result in personal injury and/or damage to the electrical system. Make sure battery and cables do not interfere or rub on any moving part. Connect red positive (+) cable (A) to battery first. When disconnecting remove black negative (-) cable (B) first.

8. Check the engine oil and add as necessary. The dip stick is located in cutout hole behind the seat on the left side. Oil fill is located on top of valve cover, use SAE 10W-40 API Service SJ or higher motor oil. DO

NOT OVERFILL.

9. Fill fuel tank, located on right side, with Unleaded 87 Octane gasoline (minimum).

Gasoline is flammable, caution must be used when storing or handling it. Do not fill fuel tank while engine is running or an enclosed area, fumes are explosive and dangerous to inhale. DO

NOT SMOKE while filling the fuel tank. DO NOT OVERFILL.

7

8

SET UP

(CONTINUED)

10. Check brake fluid in master cylinder by removing round plug on floorboard. Add brake fluid if necessary.

DOT 3.

11. Check hydraulic fluid. The hydraulic power unit is located between the engine and the spray tank on the left hand side. Remove breather plug and add SAE 10W-40 API Service SJ or higher motor oil if necessary. Fluid level should be about 1.5" (38 mm) below top of tank when cold.

12. Check the transmission fill plug on the right hand side of the transmission and check the rear axle fill plug located on the back side. They should be filled with SAE 80W-90 Gear Lube API Service GL-5, GL-

4 so that the level is even or a little below the bottom of the fill hole.

13. Machine should be greased before starting, refer to Spray Star 1600P Parts/Service Manual for location.

14. Attach the Spray Boom and any other Optional Equipment to the Prime Mover, in accordance with instructions in the Spray Star 1600P Parts/Service Manual. The nozzles must be the correct distance above the turf as described in Spraying Procedure of this manual. The spray boom must operate properly and the outer sections must break away safely if an object is struck by them, they must then return to normal operation position.

15. Be sure to double check boom heights, nozzle spacing and displacement before spraying.

16. Fill tank with water and retighten the four bolts used to hold the tank in place.

17. Read operating instructions before starting.

Never allow pump to run dry! The valve on the suction side of the pump (between the pump and tank) must be fully open whenever the pump is operated.

DAILY CHECKLIST

1. Check park brake adjustment. Adjust as required.

2. Check engine oil level. Add as needed. DO NOT OVERFILL.

3. Tire pressure should be 20 psi (1.4 bar) front and 18 psi (1.3 bar) rear maximum.

4. Inspect electrical system for loose connections or frayed wiring, including battery cables. Replace any faulty equipment or tighten if loose.

5. Check hardware for loose or missing nuts, bolts, screws, etc., and tighten or replace as needed.

6. Inspect hydraulic lines for damage or leaks. Never use hands to inspect leaks.

7. Check brake fluid in master cylinder by removing round plug on floorboard. Add DOT 3 brake fluid if necessary.

8. Check hydraulic fluid. The hydraulic power unit is located between the engine and the spray tank on the left side. Remove breather plug and add SAE 10W-40 API Service SJ or higher motor oil if necessary.

Fluid level should be about 1.5" (4 cm) below top of tank when cold.

9. Check the transmission fill plug on the right side of the transmission and check the rear axle fill plug located on the back side. They should be filled with SAE 80W-90 Gear Lube API Service GL-5, GL-4 so that the level is even or a little below the bottom of the fill hole.

10. Inspect steering, throttle and shift linkages for good hookups and clear travel.

11. Check anti-vibration mounts on engine frame.

12. Check controls for smooth, proper working operation. Lubricate as needed.

CONTROLS & INSTRUMENTS

A. Oil Light: The Oil Light should come on when the ignition is on, without the engine running and should go out when the engine is running. The Oil Light will light when the oil pressure is low. If it does come on, shut off the engine and find the cause immediately.

B. Circuit Breaker: The circuit breaker is a resetable fuse. To reset push down.

C. Ignition Switch: The ignition switch has three positions: Off-Run-Start.

D. Speedometer: The speedometer indicates ground speed of vehicle in miles per hour and kilometer per hour.

E. Hour/Volt Meter: The hour meter indicates the hours of machine operation. The hour meter operates when the ignition switch is on. The volt meter indicates battery voltage. When starting, the battery voltage should not drop below 9 volts. With key on, engine running, the voltage should be 12 volts.

With engine running at 3600 rpm the voltage should read about 14 volts.

F.

Buzzer: The buzzer sounds if the pump is running dry.

G. Pump On/Off Switch: Turns pump on and off.

H. Clutch Pedal: Located to the left side on the floorboard. Must be pressed down to disengage the clutch and activate the interlock switch.

I. Brake Pedal: Located in the middle of the floorboard. Operates the hydraulic brakes on the rear axle.

J. Accelerator Pedal: Located on the right side of floor board. This pedal controls ground speed. Press pedal to increase engine RPM, varying the amount of movement of the pedal will vary the ground speed.

SEAT ADJUSTMENT

Adjustment lever is located under the front of the seat on the right side. It allows the seat to be adjusted forward or backwards for the operator’s comfort. For further adjustment unbolt seat from seat panel, move to other set of holes and re-bolt.

STEERING

Hydraulic steering. Before operating acquaint yourself with the steering.

Avoid sharp turns at high speeds, on slopes or unsafe terrain.

9

CONTROLS & INSTRUMENTS

(CONTINUED)

CONTROL PANEL

Located on right side of seat. The following are located on or near the control panel.

A. Choke: Pull out choke when starting cold engine, push in when engine starts.

B. Ground Speed: The Ground speed control is a device that limits the accelerator movement at the engine. Its purpose is to provide the operator with the ability to maintain a constant ground speed

(predetermined) by the full depression of the accelerator pedal.

C. Shift Lever: Gear selection, with the shift pattern on the shift knob.

D. Hand Throttle: This hand throttle is used for hose/handgun spraying, boom spraying and sprayer calibration. It controls engine

RPM, forward for fast, opposite direction for slow. (Not to be used when in motion).

E. Right and Left Boom Switches: These toggle switches are used to raise and lower the right and left electric actuated booms.

FOAM MARKER CONTROLS

F. Park Brake: Push to the front and down to set park brake and pull back to release. Some adjustments can be made to park brake by turning knob on the of the lever. To tighten, turn knob clockwise. To loosen turn counter clockwise.

G. Foamer ON/OFF Switch: Located to the right of the control panel. Used to turn on and off the foam marker. Also, used to designate which boom is to be used to dispense foam. With lever pointing toward the seat foam will dispense from right boom, and with lever pointing forward foam will dispense from the left boom.

H. Foamer Adjustment Knob: Located behind the seat on the right side on top of the foamer. Use this knob to adjust pressure of the foam that will be dispensed.

ELECTRONIC SPRAY CONTROL SYSTEM

Pressure must be set with sprayer in operation (booms on). Increase pressure by pushing the pressure adjustment handle upwards. Once the console reaches maximum pressure, the motorized control valve in the sprayer then begins to open and pressure begins to decrease. Push switch in either direction until desired pressure is reached. The system provides operation of one, two or three booms and it controls sprayer pressure indicated by a wet pressure gauge on the vehicle. The pressure gauge reads the pressure in psi. The control system is operated by the 12 volt electrical system of the vehicle. The master switch controls all boom switches. Boom switch #1 controls left boom, boom switch #2 controls center boom, and boom switch #3 controls right boom. Pressure switch increases or decreases spraying pressure through the motorized control valve.

10

OPERATING INSTRUCTIONS

Before operating the Spray Star 1600P, become familiar with all controls and functions. Also complete all maintenance requirements and read all safety warnings. Knowing the Spray Star 1600P thoroughly, how it operates, and by doing the prescribed maintenance steps, you can expect trouble free operation for years to come.

SAFETY

Safety needs to always be the concern of an operator of a moving vehicle or any machine with moving parts.

1. Keep all shields and guards in place.

2. Keep the parking brake engaged any time the operator is away from the vehicle or whenever service is performed.

3. Always wear the necessary protective clothing and equipment.

4. Turn engine off when refueling or performing maintenance not specifically requiring engine power.

STARTING THE ENGINE

1. Make sure the fuel flow valve is ‘On’. It is located on the fuel tank.

2. Make sure the spray pump is disengaged.

3. Depress the clutch pedal to activate the interlock switch.

4. Place shift lever in neutral.

5. The ignition switch is located to the right of the steering column. Insert the key (A) and turn clockwise until the engine starts (C). Release the key and it will return to the run position (B). Use the choke and hand throttle as necessary.

6. Allow engine to idle and warm up before selecting direction of travel.

7. Make sure the park brake is disengaged.

STOPPING THE ENGINE

If the engine has been running under high power, let it run at slow idle speed a few minutes to cool the engine down, before turning the ignition switch to the OFF position.

1. Disengage spray pump.

2. Move the throttle lever to “slow” and turn ignition key to the “off” position.

3. Remove the ignition key and engage the park brake.

Never leave the vehicle unattended with the engine running. Always bring the vehicle to a complete stop, engage park brake, turn key off and remove key.

11

OPERATING INSTRUCTIONS

(CONTINUED)

Before using the Spray Star, the operator or spray technician must familiarize themselves with all of the information on chemical spraying contained in Spraying Procedure of this manual.

All testing and calibration of sprayers is to be done with water, not chemicals. This insures the safety to all involved in performing the calibration operation. Only after all calibration procedures are completed should chemical be added to the sprayer.

OPERATION OF THE 3-SPEED TRANSMISSION

The transmission provides 3 forward speeds and reverse. The operator selects the speed (gear) in which he or she wishes to operate depending on the ground speed desired. The Spray Star can be started and operated in any speed. It is not necessary to start in low gear.

GEAR

1st

2nd

3rd

Reverse

RATIO

2.60:1

1.63:1

1.00:1

3.54:1

USE

Spraying

Spraying

Transporting

Reverse

SPEED RANGE

0-3 m.p.h. (0-5 kph)

2-6 m.p.h. (3-10 kph)

4-10 m.p.h. (6-16 kph)

0-3 m.p.h. (0-5 kph)

Select the gear desired by moving the shift lever located at the operator’s right side to the point indicated by the shift pattern found on the shift knob.

Spraying should be done in the lowest gear possible that will provide the desired ground speed. This will maximize pump performance and minimize ground speed variance due to uneven terrain.

GROUND SPEED CONTROL

1. Select the gear to be used.

2. Place the Ground Speed Control lever to fast.

3. Start the vehicle and engage the clutch to begin moving.

4. Push the foot accelerator fully to the floor.

5. While the foot accelerator is fully depressed, begin moving the Ground Speed Control lever towards slow until the correct operating speed is attained.

6. The desired speed will be maintained as long as the foot accelerator is fully depressed.

7. Vehicle will return to the established ground speed whenever the foot accelerator is fully depressed unless the Ground Speed Control lever has been moved to a different setting.

8. To operate the Spray Star at higher speed for transport, the Ground Speed Control lever should be returned to the fast position.

HAND THROTTLE CONTROL LEVER

Transmission must be in neutral and park brake set when engine throttle control is used.

To increase the engine speed without holding your foot pedal down, use the engine throttle control lever on the right hand control panel. Push the lever forward until the desired rpm is attained.

This procedure will set the RPM allowing the operator to use the remote hose and handgun. It will also permit the operator to check the operation of the spray boom by observing it from the rear of the vehicle.

To release throttle control, pull back on the Lever allowing the engine to return to idle.

Transmission must be in neutral and parking brake set when engine throttle control is in use.

Never drive vehicle with engine speed increased by engine throttle lever. Loss of vehicle control may result.

TOWING UNIT

While towing the Spray Star 1600P place shift lever in neutral and disengage park brake.

HILLSIDE OPERATION

Do NOT stop or start suddenly on any slope. Be especially cautious when changing direction. Do NOT operate vehicle on slopes greater than 20°.

12

OPERATING INSTRUCTIONS

(CONTINUED)

SPRAYER VALVE SETTINGS AND SPRAY TANK AGITATION

The gate valve on the suction side of the pump, between the tank and the pump must be open before pump is engaged. Close this valve only when necessary to clean the filter with spray material in the spray tank.

There is one manual flow control valves on the discharge side of the spray system. This valve controls the agitator. This valve may be opened as much as necessary to provide hydraulic agitation through the quadrajet agitator in the tank bottom. This valve may be partially closed to prevent or reduce foam buildup from the spray materials inside the tank. When the liquid level in the spray tank reaches a certain level (usually 1-25 gallons

(3.8-95 Liters) depending on terrain and other conditions) it may be necessary to close the valve in the agitator line in order to prevent loss of suction prime.

If your Spray Star is fitted with a hose reel, there is a second ball valve on the discharge system to supply material to the hose reel.

The Quadrajet agitation system operates with four venturi jets in the tank bottom. These jets have replaceable orifice discs which discharge the following amounts of spay material.

Input to Input to Agitator Agitator Agitator Agitator

Nozzle Agitator Agitator Pressure Pressure Output

Diameter in gpm in L/min in psi in bar in gpm

Output in L/min

1

/

8

" 1.9

7.2

25 1.7

6.3

23.8

1

1

/

8

"

/

8

"

2.7

3.8

2.8

10.2

14.4

10.6

50

100

25

3.4

6.9

1.7

10.0

15.0

7.6

37.9

56.8

28.8

5 /

32

"

5

/

32

"

5

/

32

"

4.2

5.5

15.9

20.8

50

100

3.4

6.9

12.2

17.5

46.2

66.2

3

3

3

/

16

"

/

16

"

/

16

"

3.6

5.6

7.9

13.6

21.2

29.9

25

50

100

1.7

33.4

6.9

9.1

14.3

18.7

34.4

54.1

70.8

You can change orifice disc sizes to enhance spray system performance. Smaller discs reduce amount of agitation (desirable in some foaming materials) and make more dischargeable liquid available for nozzles. Larger

(or none) discs increase amount of agitation and make less dischargeable liquid available for nozzles.

13

CONSOLE FEATURES

This Console (PGM F) requires selection of US (acres); SI (hectares) or TU (1,000 sq ft) area and SP1 (wheel drive, etc).

A. POWER - Turns Console power OFF or ON. Turning Console OFF does not affect the data stored in the computer.

B. Select manual or fully automatic control. This can automatically control two rates.

C. Manual override control provides capability for spot spraying.

D. Booms can be controlled individually, or all at once with MASTER ON/OFF Switch

E. Displays operating rate of application and flashing Tip Fault.

F. Displays function and calibration data.

G. CE - Use like you do CE (clear entry) key on a calculator. This key is also used to select an area base measurement of US (acres), SI (Hectares) or TU (1,000 sq ft).

H. ENTER - Used only to enter the data into the Console.

14

Calibration Keys: (Top Row) Used to enter data into console to calibrate the system.

BOOM 1 CAL

Length of Boom 1

BOOM 2 CAL

Length of Boom 2

BOOM 3 CAL

Length of Boom 3

SPEED CAL

Measured Off Drive Line (114)

METER CAL

Flow Meter Calibration Number

VALVE CAL

Control Valve Response Time

RATE 1 CAL

Target Application Rate

RATE 2 CAL

Target Application Rate

SELF TEST

Simulates Vehicle Speed

Function Keys: (Bottom Row) Used to display data.

TOTAL AREA

Total Area Sprayed

FIELD AREA

Field Area Sprayed

FIELD VOLUME

Volume Applied to Field

DISTANCE

SPEED

Distance Traveled

Speed of Vehicle

VOLUME/TANK

Volume Remaining in Carrier Tank

TIME

TIP MONITOR

24 hour clock (military time)

Use to Display Tip Faults

CONSOLE PROGRAMMING

When entering data into the Console computer, the entry sequence is always the same. Data must be entered into the first eight keys.

1. Depress the key which you wish to enter data.

2. Depress the “Enter” key. An “E” will illuminate in the DATA display.

3. Depress the keys corresponding to the 4. Complete the entry by again depressing the number you wish to enter (i.e. “5”, “7”, “2”). “ENTER” key. The numbers will be displayed

in the DATA display as they are entered.

CONSOLE CALIBRATION

CALCULATING “BOOM CAL” (BOOM 1, BOOM 2, BOOM 3)

Calculate the width of each boom in inches (centimeters) by multiplying the number of tips times the spacing.

Write these boom widths down for future reference when programming the Console computer. The Console is capable of controlling up to three (3) booms.

CALCULATING “SPEED CAL"

1. Enter Speed Cal in key of 114.

2. Place Master and Boom 1 switches to on.

3. Enter “0” in key .

4. Drive 1 mile. Do not use vehicle odometer to determine distance, use section lines or highway markers.

5. It should read a value of approximately 5280. If it reads between 5200-5350, the Speed Cal for this vehicle is 114.

If the Distance display reads any other value, divide Speed Cal by the value observed in Distance, then multiply by 5280. This will give you the correct value to enter for Speed Cal. You must round off to the nearest 3 digit number (use 120 not 120.3).

15

6. Recheck the new Speed Cal numbers. Zero out Distance display as in step 3. Enter the new Speed Cal number as in step 1. Repeat steps 4 and 5.

MEASURE CAREFULLY. Be sure tire is properly inflated before measuring. Measure tire in type of soil in which you will be spraying. Circumference of tire will vary when measured in soft soil versus hard packed soil. For best results, measure several times and average the results. Remeasure periodically.

CALCULATING “METER CAL”

The Flow Meter calibration number is stamped on the label attached to each Flow Meter; this number is to be used for gallon per area applications. To convert original METER CAL from gallons to desired units of measure

(oz., lbs or liters per area) see Abbreviations and Conversions section of this manual. Write down this calibration number for future reference when programming the console.

CALCULATING "VALVE CAL”

The initial Control Valve calibration number is 2123. After operating the system, you may desire to refine this number. See definitions below.

Valve Backlash Controls the time of the first correction pulse after a change in correction direction is detected.

Incr to Decr or Decr to Incr Range: 1 to 9, 1-Short Pulse, 9-Long Pulse

Valve Speed Digit Controls the Speed of the Control Valve motor.

Running the Control Valve too fast will cause the system to oscillate.

Range: 1 to 9, 1-slow, 9-Fast

Brake Point Digit Percent Sets the point at which the Control Valve motor begins braking, so as not to over shoot the desired rate. Digit is percent away from target rate. Range: 0 to 9, 0=5%, 1=10%, 9=90%,

Deadband Digit Allowable difference between target and actual application rate, where rate correction is not performed. Range: 1 to 9, 1 = 1%, 9 = 9%

CALCULATING "RATE 1 AND RATE 2 CAL"

(See Spraying Procedure section)

Determine the application rate at which your chemical should be sprayed. Consult with your Dealer to insure your spray nozzles are capable of applying at this target rate.

Using CAPACITY = .35 GPM (1.67 lit/min) and pressure = 30 PSI (20 bar) you would select tip number

XR8004 from the Nozzle Charts Section, since it comes closest to providing the desired output.

VERIFYING FLOW RATE LIMITS

The flow rate of the sprayer must be within the range of 1 to 55 GPM (4 to 210 lit/min).

16

INITIAL PROGRAMMING OF CONSOLE COMPUTER

When you first turn on Console power, after all installation procedures have been completed, the Console will flash “CAL” in the RATE display and “US” in the DATA display. This means you must “calibrate” or program the

Console before it can be operated.

(This is a one time operation which does not have to be repeated unless you disconnect your battery wires.

Turning OFF the POWER ON/OFF switch does not affect the Console memory. All data is retained). The following steps must now be followed.

If an entry selection error is made during steps 1, 2, 3, or 4, the Console can be reset by depressing

20 seconds (Data displays US and RATE displays CAL.).

1. Displaying US, SI or TU

for a. Depressing momentarily Steps the DATA display from US (acres) to SI.

b. Depressing momentarily Steps the DATA display from SI (Hectares) to TU.

c. Depressing momentarily

2. Selecting US, SI or TU a. To select US, SI, or TU, step

Steps the DATA display from TU (1000 sq ft) to US.

until the desired code is displayed in DATA display.

b. Momentarily depress

3. Displaying SP1 or SP2 a. Depressing momentarily

the DATA display will now display SP1.

steps the DATA display from SP1 (wheel drives, etc.) to SP2.

b. Depressing momentarily

4. Selecting SP1 OR SP2 a. To select SP1 or SP2, step with

steps the DATA display from SP2 (radar sensor) to SP1.

until desired code is displayed in DATA display.

b. Momentarily depress the DATA display will now display 0.

5. Enter width in inches (cm) of BOOM 1 in the key labeled:

6. Enter width in inches (cm) of BOOM 2 in the key labeled: width of BOOM 2.

7. Enter width in inches (cm) of BOOM 3 in the key labeled:

“0” for width of BOOM 3.

If there is only one boom, enter "0" for

If there is only one or two boom, enter

17

INITIAL PROGRAMMING OF CONSOLE COMPUTER

(CONTINUED)

8. Enter SPEED CAL of 114 in key labeled:

9. Enter METER CAL calibration number in key labeled:

10. Enter VALVE CAL calibration number (2123) in key labeled:

11. Enter the target RATE 1 (GPA) (lit/ha) (GPK) you want to spray in the key labeled:

12. Enter the target RATE 2 (GPA) (lit/ha) (GPK) you want to spray in the key labeled: (If you do not use a second rate, enter same rate as RATE 1 CAL). RATE 2 should not be more than 20% different from RATE 1 or else spray pattern may suffer.

YOU HAVE NOW COMPLETED PROGRAMMING THE CONSOLE.

The flashing “CAL” will now extinguish. If not, repeat procedure starting at step 5. You may also wish to enter data in the keys labeled: and although it is not required for the operation of the system.

13. Enter the estimated total Volume-in-Tank when you start spraying in key labeled: tank is refilled, this number must be reentered.

Each time the

14. Enter the TIME of day in the key labeled: . This is a 24 hour clock. Therefore, all time after 12:59 pm, add 12 hours. Thus, 8:30 am is entered as 8:30, but 1:30 pm is entered as 13:30 in the keyboard.

OTHER DISPLAY FEATURES

1. To display TOTAL AREA covered, momentarily depress key labeled: time, enter a “0” in this key.

To “zero out” this total, at any

2. To display TOTAL VOLUME sprayed, momentarily depress key labeled: any time, enter a “0” in this key.

3. To display FIELD AREA covered, momentarily depress key labeled: time, enter a “0” in this key.

To “zero out” this total, at

To “zero out” this total, at any

4. To display FIELD VOLUME sprayed, momentarily depress key labeled: any time enter a “0” in this key.

To “zero out” this total, at

5. To display DISTANCE (feet (meters) traveled) momentarily depress key labeled: total, at any time, enter a “0” in this key.

To “zero out” this

18

INITIAL PROGRAMMING OF CONSOLE COMPUTER

(CONTINUED)

6. To display SPEED, momentarily depress the key labeled:

7. To display VOL/MIN., momentarily depress the key labeled:

8. To display AREA/HOUR, momentarily depress key labeled: This is an actual calculation of AREA/

HOUR at the present speed you are going. It is not an average over time.

9. To display TIP MONITOR fault, momentarily depress the key labeled: See TIP MONITOR manual for more detailed discussion. (Purchase the TIP MONITOR option if this function is desired.)

10. To display US, SI or TU and SPI or SP2 after being selected depress: These selections will be alternately displayed.

SELF TEST FEATURE

SELF-TEST allows speed simulation for testing the system while the vehicle is not moving. Enter the simulated operating speed in the key labeled: If 6 MPH (10km/h) is desired, enter 6.0 (10.0). Verify speed by depressing key labeled: SPEED

The SELF-TEST speed will clear itself when motion of vehicle is detected by the Speed Sensor. A SPEED CAL

Value of 900 (230) or greater is recommended when operating in this mode.

SEQUENCE TO ACTIVATE DATA-LOCK*

1. Depress for 5 seconds, NEW CODE message will appear.

2. Enter 4 digit code within 15 seconds.

EXAMPLE: For 1085, depress

SEQUENCE TO CHANGE DATA-LOCK

and

1. Depress for 5 seconds, OLD CODE message will appear.

2. Enter 4 digit OLD CODE within 15 seconds.

EXAMPLE: depress and

NEW CODE message will appear. Enter 4 digit code within 15 seconds.

EXAMPLE: For 1285, depress and

19

INITIAL PROGRAMMING OF CONSOLE COMPUTER

(CONTINUED)

ENTER MODE SEQUENCE WITH ACTIVATED DATA-LOCK

1. Depress the key into which you wish to enter data.

2. Depress CODE message will appear. Enter your DATA-LOCK CODE. If code is correct, “E” will appear. Now enter data normally.

The DATA-LOCK feature prohibits the entry of data without first entering the DATA-LOCK CODE. The DATA-

LOCK CODE may be cleared by entering a code of “0” or by removing Console power.

POWER DOWN DELAY TIME FEATURE

If the console is not used for 10 days, it will go into a power down (low power) mode of operation. In this mode, all data will be retained, but the time of day clock will reset to 1:00. The delay time is initially set at 10 days, but can be changed by the user.

for 5 seconds, the current delay time (in days) will appear.

1. DISPLAYING DELAY TIME. Depress

2. CHANGING DELAY TIME.

a. Depress FOR 5 seconds, the current delay time will appear.

b. Enter new delay time (0 to 200 days) using the same procedure as that for entering other data.

In the event of console power loss, the power down delay time will default to 10 days.

CONSOLE ALARM FEATURE

Console alarm sounds if application rate is 30% or more away from target application rate for 5 seconds.

ALARM MENU

Depress for 5 seconds until DATA display shows “A on”. Depressing momentarily key steps the

DATA display between “A on” and “AoFF”. “A on” means alarm is enabled, “AoFF” means alarm is disabled.

DISPLAY MENU

Depress for 7 seconds until DATA display shows "d on”. Depress momentarily key steps the DATA display between “d on” and “doFF”. “d on” means RATE displays target rate when actual rate is within a percentage of target rate. This percentage is determined by third digit of Valve CAL value as shown.

Brake point digit

(3rd digit) of Valve CAL 2 1 2 3

0 = 1% + Deadband

1 = 3% + Deadband

2 = 7% + Deadband

3 = 10% + Deadband

4 = 20% + Deadband

5 = 25% + Deadband

6 = 30% + Deadband

7 = 35% + Deadband

8 = 40% + Deadband

9 = 45% + Deadband

Actual rate is displayed if unit does not reach deadband with in 10 seconds. “doFF” means RATE displays actual rate at all times.

20

INITIAL PROGRAMMING OF CONSOLE COMPUTER

(CONTINUED)

LOW LIMIT FLOW SET POINT AND LOW LIMIT ALARM

Depress until DATA display flashes. A low limit flow rate may now be entered.

If actual volume Per minute falls below this limit, the Control Valve stops closing, the Alarm sounds and the rate display flashes “LL”. The low limit value should be determined with all Booms “on”. This value is automatically proportional to the percentage of Booms that are “on”. (i.e. If the entered low limit is 4 CAL/ MIN and half the

Total Boom length is shut off, the Console automatically reduces the low limit to 2 GAL/MIN)

CONTROL VALVE DELAY

Depress until DATA display flashes. The first digit (XOOO), is the Control Valve delay digit. This feature allows the user to set a delay between the time the Booms are turned on and when the Console begins to control the flow rate. A value of 1-9 means a delay of 1-9 seconds test respectively. A value of 0 means no delay.

This delay is active if the time between turning off and turning on the Booms is less than 30 seconds.

INITIAL CONSOLE SETUP

1. Fill tank with water only. (If positive displacement type pump is used, fully open pressure relief valve,

PRV.) Open gate valve between the tank and pump.

2. Place MASTER On/Off to On and Boom On/Off switches to Off.

3. Place MAN/RATE 1/RATE 2 switch to MAN.

4. Place POWER On/Off switch to On.

5. Verify correct boom widths, speed calibration, meter calibration, valve calibration (2123), RATE 1 calibration and RATE 2 calibration have been entered in console. Enter into SELF TEST the normal sprayer operating speed.

6. Run pump at normal operating RPM.

7. Verify that each boom solenoid valve operates and that no nozzles are plugged by operating Boom On/

Off switches.

8. Place all Boom On/Off switches to On.

9. Hold the MAN ADJ switch in INCR position for approximately 12 seconds. This assures motorized control valve is fully open. Verify maximum pressure and RATE.

10. Adjust agitator line hand valve for desired agitation. Use the pressure gage on the rear of the machine to verify maximum pressure is still present.

11. Hold the MAN ADJ switch in DECR position for approximately 12 seconds. This assures motorized control valve is fully closed. Verify minimum pressure and RATE can be achieved. If not, consider bypass plumbing system in Appendix 3.

21

CONSOLE FIELD TEST

1. Drive down field or road at target speed with sprayer booms off, to verify SPEED readout on Console.

2. Turn on sprayer and booms and place the RATE 1/RATE 2/MAN switch to RATE 1. Increase or decrease speed by one MPH (2 kph). The system should automatically correct to the target application rate.

3. If for any reason, the system is unable to correct to the desired RATE, check for an empty tank, a plugged line, a malfunctioning pump, improper vehicle speed or a defect in the system.

4. If the system does not appear to be correcting properly, first review Initial Console Setup, then refer to

Troubleshooting in the Parts/Service Manual.

5. At the end of each row, shut off flow with the Master On/Off switch. This also shuts off area totalizer.

6. Verify area covered and volume used.

SPRAY OPERATION

(AFTER PROPER SETUP AND CALIBRATION)

1. Add

1

/

2

the amount of water required for the spray operation to tank using air gap filler.

2. Start engine, set engine speed below 2000 RPM, and engage pump after taking all previously described safety and operation precautions.

3. Open agitator valve.

4. Add chemicals (taking all precautions described in this manual and by the chemical manufacturer).

a. Liquids may be poured directly into tank.

b. Wettable powder chemicals must be pre-mixed with water in a container to form a slurry. The mixture is then added to the tank through the fillwell strainer.

c. Chemical in soluble packs are place into the fillwell strainer basket and dissolved by adding water through the basket.

The balance of the water required for the spray operation is added to the tank through the fillwell strainer, using the air gap filler. This will wash any undissolved chemical into the tank.

5. Transport to sprayer site with and agitator operating.

6. Set Engine speed between 2000-3600 RPM.

7. (Optional) Engage ground speed control.

8. Obtain desired spraying speed before activating spray with switches on spray control console.

In some extreme situations, it may be necessary to decrease or completely close the flow of material to the agitator system in order to maintain desired pressure. If agitation is absolutely essential, a change may have to be made in some combination of ground speed, nozzle size or system pressure to maintain the necessary application rate.

Review the capacity of nozzles being used. Total capacity of all nozzles plus agitation system must not exceed pumping system capabilities refer to Spraying Procedure section of this manual. FLUSH PUMP AFTER USE

Pump Pressure

Engine Shaft GPM at GPM at GPM at GPM at Max

RPM RPM 20psi 30psi 40psi 60psi HP

2300 3200

2750 3800

3200 4400

70

75

80

55

71

78

5

60

72

-

10

60

1.4

1.8

3.0

Pump RPM = Engine RPM x 1.38

One of the most common causes for faulty-pump performance is corrosion inside the pump. Flush pump and entire system with a solution that will chemically neutralize the liquid pumped. Mix according to the manufacturer’s directions. This will dissolve most residue remaining in the pump, leaving the inside of the pump clean for the next use.

22

SPRAY OPERATION

(CONTINUED)

TO PREVENT CORROSION

After cleaning the pump as directed, flush it with a permanent type automobile antifreeze (Prestone, Zerex, etc.) containing a rust inhibitor. Use a 50% solution that is, half antifreeze and half water. Then coat the interior of the pump with a substance which will prevent corrosion such as Fluid Film or WD40. If unit will not be used for an extended period of time, disconnect hoses into and out of the pump, seal openings to the pump with caps or tape. Dispose of fluids according to all federal, state and local regulations.

All chemicals and chemical residue must be removed after each use. Dispose of fluids and residue according to all federal, state and local regulations.

SPRAYER CLEANING

Empty tank and clean unit thoroughly after each use following these instructions:

1. Remove coupling and rinse inside of tank thoroughly with clean water, replace coupling.

2. Fill tank ten percent full with clean water, start pump and discharge water through spray hose or spray boom (with nozzles removed), until empty.

3. Remove drain coupling again and rinse tank interior thoroughly.

4. Rinse exterior of sprayer thoroughly with clean water.

5. Remove bowl from sprayer filter (on operators left hand side of the spray tank). Remove stainless steel screen. Wash bowl and screen thoroughly. Apply thin layer of petroleum jelly to O-ring or gasket. Replace screen and bowl, taking care to position o-ring or gasket properly. Hand tighten.

6. Remove and clean Flow Meter turbine and inlet hub. Clean off all metal filings and wettable powders which have hardened on the plastic and metal parts. Check the inlet hub and turbine assembly for worn or damaged turbine blades and bearings. Flush Flow Meter with clear water and drain.

MANUAL HOSE REEL

Located at the back of the Spray Star behind the tank. Open the ball valve located near the pump to allow fluid to flow into the hose reel. Place the lockout pin in the unlocked position by pulling and turning it half a turn, this will allow you to pull out additional hose or to use the handle and wind up the hose. To prevent movement during transport or storage place the lockout pin in the locked position.

ELECTRIC HOSE REEL

Located at the back of the Spray Star behind the tank. Open the ball valve located near the pump to allow fluid to flow into the hose reel. To unwind hose just pull on the hose to get the desired amount. To wind up the hose make sure the toggle switch is in the ON position, push the momentary push button switch until you have reeled in the amount of hose desire. Turn off the safety switch when not in use.

FOAM MARKER

Located to the right of the control panel. Use lever

(A) to designate which boom is to be used to dispense foam. With lever pointing toward the seat foam will dispense from right boom, and with lever pointing forward foam will dispense from the left boom. Use dial (B) located on top of foamer to adjust pressure for the amount of foam that will be dispensed. Switch (A) also turns foamer on or off.

23

HYDRAULIC SCHEMATIC

24

WIRING SCHEMATIC

25

SPRAYING INTRODUCTION

This section is intended to offer practical guidelines for the distribution of liquid chemicals over an area of turf grass such as golf courses, park land, school grounds and lawns. SMITHCO makes no representation as to the suitability of any technique or product for any particular situation. This section is suitable for self-propelled spray vehicles or sprayers mounted onto vehicles.

Boom Spraying is the most effective, accurate and efficient method of applying chemicals to large turf areas. It may be done by means of:

• A dedicated spray vehicle

• A sprayer mounted upon a utility vehicle

Sprayers are typically equipped with wide spray booms. Generally these booms are between 15 feet (4.5 m) and 20 feet (6 m) in width. They are divided into three sections, with hinges that permit the long outer sections to automatically move out of the way and reset if an obstacle such as a tree or fence is in you path.

To minimize the chance for missed areas or double application use a device to mark the outside boundaries of each spray swath. Foam markers and dye markers are advisable.

TURF MANAGEMENT

Turf management chemicals are made for four general purposes:

1. Fungicides: Prevent or cure fungus on turf grass. They are made in 2 general types:

• Systemic - Chemicals enter the plant system and protect or cure it of, fungus.

• Contact - Kills fungus with which it comes into contact.

2. Insecticides: Eliminate damaging insects and worms (such as grubs, beetles, ants, etc.)

3. Herbicides: Control and eliminate undesirable weeds and grass from turf areas and non-turf areas such as bunkers, trails, fences, etc.

4. Nutrients & Fertilizer: Promote growth, beauty and color in turf grass.

Some materials have to be applied so that they get into the soil below the plant leaves, This is called “soil appli-

cation”. In order to do this, they are best applied with a large volume of water. They are often then watered-in using the irrigation system. This type of chemical material includes systemic chemicals and chemicals designed to destroy pests which live in the thatch and the soil.

Other materials must be applied to reach a problem that is present on the plant leaves. This is called “Foliar

Application” and requires a lower volume of water. Instead of irrigation water, these materials are further activated by dry air and sunshine. They include contact fungicide and many herbicides.

The user of sprayers and chemicals must follow the directions provided with the spray material. It is the only way to insure safe and effective results. It provides information on how much chemical and how much water is to be applied to the area to be sprayed.

Though there are many types and sizes of nozzles, two specific types have proven most successful in turf grass management.

• The first type is target-directed. It sprays material in a direct line downwards to the target turf grass.

These are flat fan nozzles, commonly referred to as TeeJet nozzles. They are available in a wide variety of sizes for any required discharge volume rate. They are the best for many contact or foliar applied pesticides. They are spaced either 10" (25 m) or 20" (51 cm) apart and overlap one another by about

1

/

3

.

• The second type useful in turf management are broadcast type nozzles. They are commonly referred to as raindrop or floodjet nozzles. They spray a hollow-cone shaped pattern of much larger droplets which fall quickly to the turf under their own weight. They are best for systemic pesticides or any material requiring a large volume of water for soil application. The larger droplets are not as subject to drift from wind and are a safer, more environmentally friendly choice in many situations.

26

HOSE & HANDGUN SPRAYING

A handgun (hand-nozzle or hand-lance) is used to control and direct the spray pattern to the ground, shrub or tree. They must be constructed of long lasting and noncorrosive materials such as brass, stainless or aluminum. The handgun fits to a hose of any length from the sprayer allowing operator mobility. The hose should be as short as possible while still permitting operator mobility.

Liquid looses pressure due to friction as it travels through the hose, 1-3 psi (0.07-0.21 bar) for each foot (30 cm) of hose. For most operations

1

/

2

" (1.25 cm) inside diameter hose is adequate. Trees over 40 ft (12 m) high require

3

/

4

" (2 cm) inside diameter hose and a sprayer pump capable of delivering a volume of at least 20 gpm

(75 lpm) and a pressure of at least 400 psi (28 bar).

NOZZLES

Always be alert to the possibility of a plugged or damaged nozzles. Serious misapplications may result. Check nozzle output periodically.

Modern nozzles use spring and diaphragm check valves to insure positive cutoff of chemicals without drip.

Snap-on caps make replacing and cleaning nozzles, quick, easy and fool proof with proper reinstallation.

An operator can see at a glance if all nozzles are the same size by the color code.

3 FUNCTIONS FOR A SPRAY BOOM NOZZLE

1. Regulating the flow is done through size of the orifice (opening) within the nozzle. All nozzles, regardless of type, have some point within them that regulates the flow of liquid. Obviously, the larger the opening the greater the rate of flow volume. Volume is expressed in Gallons Per Minute (gpm) or Liters Per

Minute (lpm). Do not confuse the term volume with application rate, which will be covered later.

As pressure increases, the flow volume in a given nozzle also increases. For example, an average size nozzle which discharges 0.52 gpm (1.4 lpm) at 30 psi (2 bar), will discharge 0.73 gpm (2 lpm) at 60 psi (4 bar). In this example, an increase in pressure of 100% has caused an increase in discharge of 40%.

Some nozzles deliver a small volume (for example: 0.2 gpm (0.75 lpm)). Some nozzles deliver a relatively large volume (for example: 1.5 gpm (5.7 lpm)), or 7 1 /

2

times as much as the smaller nozzle in this example.

The amount of material (volume) to be applied is determined by the effect the chemical has on the turf.

2. The nozzle on a sprayer is to form the liquid into droplets. The size of the droplet is determined by two factors design and system pressure (psi/bar).

Particular applications are done best by big droplets such as systemic fungicides, insecticides and some herbicides in order to reduce drift. Other applications require small droplets like contact fungicides and some herbicides. Again, this is determined by whether the chemical is foliar applied or soil applied. Large droplets for soil applied material, small droplets for foliar applied materials that evenly cover the plant better.

Pressure also affects droplet size. More pressure at the same nozzle produces smaller droplets, more subject to drift. The general rule on pressure is to use the lowest pressure possible with just enough to form adequate spray nozzle patterns.

27

NOZZLES (

CONTINUED)

3. Disperse the material in a specific pattern that will insure even distribution of chemical across the swath covered by the boom.

As shown (to the right) the pattern formed by flat fan (TeeJet) nozzles would show most liquid concentrated at the center, then tapering off where it begins to overlap with the next nozzle-approximately

1

/

3

. The pattern of liquid dispersed by the hollow-cone is more even across its width. Each nozzle overlaps the adjoining nozzle by 100%.

That is to say the area covered by each nozzle extends to the center of the two nozzles on either side.

In order to properly develop their spray pattern, each nozzle must be the proper distance from the next nozzle (spacing) and the proper height above the ground.

NOZZLE SCREENS (STRAINERS)

Smaller nozzles require nozzle screens or strainers to prevent clogging.

• Teejet type nozzles size 8001 and 80015 require 100 mesh screens.

• Teejet type nozzles from size 8002 through 8008 require 50 mesh screens.

• Turbo TurfJet Nozzles Size 1/4 TTJ02-VS and larger do not require strainers.

• Turbo Floodjet Nozzles TF-VS2 through TF-VS3 require 50 mesh screens.

• Turbo Floodjet Nozzles TF-VS4 and larger do not require screens.

SPACING

Turf spray nozzles are normally 20" (51 cm) apart. Some cases 40" (101 cm), depending on the type of spray boom and type of area to be sprayed.

Very fine, level areas (golf greens and tees, bowling lawns, tennis courts, etc.) may be sprayed with nozzles spaced every 10" (25 cm).

BOOM HEIGHT

Height is very important in permitting spray nozzles to develop their proper spray pattern. If nozzles are too high, excessive overlap develops. If nozzles are too low, there is not enough overlapping of nozzle spray patterns.

NOZZLE

TYPE

80° Flat Fan

65° Flat Fan

Turbo TurfJet

Turbo TurfJet

Turbo Floodjet

Turbo Floodjet

NOZZLE

SPACING

20" (51 cm)

20" (51 cm)

20" (51 cm)

40" (101 cm)

20" (51 cm)

40" (100 cm)

HEIGHT ABOVE

THE GROUND

18" (45 cm)

12" (30 cm)

15" (38 cm)

19" (48 cm)

16" (41 cm)

18" (45 cm)

Improper nozzle height or spacing prevents proper application of chemical. Some areas are under treated and chemicals are ineffective. Some areas are overtreated with wasted chemical and possible turf damage.

Operating your sprayer at a desired speed and pressure on a hard, dry surface is a good method of checking spraying consistency. Observe nozzles in operation, observe if the area dries evenly. If there are alternating wet and dry streaks, raise or lower the spray boom. If the wet streaks are directly under the nozzle, the boom is too low. If the wet streaks are between the nozzles, the boom is too high.

28

CALIBRATION INTRODUCTION

Calibrating simply means to adjust a set of variables on the sprayer in order to deliver the desired amount of chemical to a known area of turf.

The job of calibrating the sprayer consists of balancing these variables so that your sprayer delivers the desired application rate. That is, an amount of chemical on a given area. It is expressed as:

Gallons Per Acre (gpa) (1 US gpa = 0.83 UK gpa) or Gallons Per 1,000 Square Feet (gpt) or Liters Per Hectare (lph) (1 US gpa = 9.35 lph)

A number of acceptable methods for calibrating a turf sprayer are widely available. The calibration method chosen must take these variables into account. They must include known ground speed (by measurement or from an accurate speedometer) and nozzle output (gpm or lpm) from a nozzle chart or from actual measurement. The variables are:

PRESSURE

Just as pressure increases the volume discharge rate, it also increases the application rate. Pressure must increase by 4 times in order to double the application rate. Small pressure changes of 10 psi (1.4 bar) or less do not greatly affect performance.

Pressure is established and maintained by a pressure control valve or by a flow control valve located on the sprayer.

NOZZLE CAPACITY (VOLUME)

We have covered the different types of spray patterns of various nozzles and made our selection of type accordingly. We now have to choose a size which will provide the correct application rate.

Sizes are available for all requirements. Consult the nozzle chart in this manual for your nozzle type in order to select the correct size.

TRAVEL SPEED

Increased travel speed decreases the application rate (gpa, gpt or lph). Travel speed must be safe and appropriate for the area to be sprayed.

Unlike pressure changes which have only a minor effect on application rate, ground speed changes have a more major and direct effect. For example: 50% decrease in ground speed means a 100% increase in application rate. If the vehicle does not have an accurate speedometer, correct speed must be determined by timing the sprayer travel over a measured distance. (Refer to the page in this manual titled, “Abbreviations and Conversions”.

To calibrate a sprayer, the user must:

1. Understand the Variables

2. Set those variables using one of the proven methods available.

3. Make a trial run and measure the output (use water, not chemical).

4. Determine the output.

5. Make adjustments to the 3 variables until the output is at the desired level.

This covers the principles of what must be known to prepare a sprayer for operation.

There are other acceptable and proven methods of calibrating a turf sprayer for application.

Other techniques may be more suitable depending on operational needs and technical competence of the operator.

29

THE NOZZLE CHART METHOD OF CALIBRATION

The Nozzle Chart Method is useful when the sprayer nozzles are new or nearly new. It is also the most useful method to employ when the sprayer is equipped with an Electronic Spray Control System. The Electronic Spray

Control System does most of the calibration work, it is up to the operator to select the proper combination of nozzle size and ground speed which will deliver the desired application rate.

The nozzle chart method requires the use of the appropriate nozzle charts which are found in the back of this manual (Nozzle Charts 1 through 8). Nozzle charts for other nozzles are available from the manufacturer.

CALIBRATION STEPS

1. Determine “HOW” your sprayer is to be calibrated from the list of variables below.

a. Nozzle Type (Teejet, Turbo Turf, Turbo Flood) b. Spacing (10" (25 cm) or 20" (51 cm) or 30" (76 cm)) c. Expression of Application Rate (gpa or gpt or lph)

The answers to these three questions will direct you to the appropriate nozzle chart for your application.

The correct nozzle chart MUST be used.

2. Determine the Desired Application Rate.

This is determined from the information on chemical labels or other technical information available from a variety of sources.

3. Determine an Acceptable Ground Speed.

Conditions over which the sprayer will operate generally dictate the appropriate ground speed. Within the limits of practicality and efficiency, spraying should generally be done at lowest possible speed. This increases operator safety and contributes to more precise application of chemicals. For example, golf greens and tees and hill areas would generally be sprayed in the range of 2

1

/

2

to 3

1

/

2

mph (4-6 kph).

Larger, open and more level areas such as golf fairways and park or school grounds would be sprayed at

4

1

/

2

to 6 mph (7-10 kph).

The vehicle which carries or tows the sprayer should be equipped with a precise low-speed speedometer. If it is not, exact ground speed at a given engine speed must be determined by timing the travel of the sprayer over a measured distance.

4. Determine Nozzle Size.

Refer to the appropriate nozzle chart in the back of this manual for your nozzle TYPE (the type of nozzle you have or type you wish to use), nozzle SPACING and CALIBRATION TYPE (gpm, gpt or lph).

You will note from the chart, that application rates from any given nozzle decrease as the ground speed increases. In other words, the faster you drive, the less material you are applying.

Application rates are shown in the columns to the right of the charts. Once the desired application rate is decided upon, it should be located, as nearly as possible in one of these columns on the appropriate chart for your operation. It could well be that the approximate rate desired would be obtained from the nozzles already installed in the boom. If this is not possible, then nozzles will need to be changed.

When selecting a new nozzle size refer to the “Discharge Rate Column” on the nozzle charts.

The Discharge Rate (gpm or lpm) multiplied by the number of nozzles should not exceed 75% of the actual discharge volume of the sprayer pump. [i.e., if you need to use nozzles which discharge 0.8 gpm (3.0 lpm), and the spray boom is equipped with 12 nozzles, the sprayer pump would have to produce an actual discharge volume of 13 gpm (49 lpm) in order to properly supply these nozzles.] If the collective volume of the spray boom nozzles exceeds the actual discharge volume of the pump, inadequate pressure and poor nozzle distribution patterns may result.

Once nozzle type and size have been determined, those nozzles are installed in the sprayer boom.

Nozzles should be expected to be replaced after 15-20 hours of actual sprayer operation. After nozzles are installed, make trial application of water over a known area to check application rate.

30

THE NOZZLE CHART METHOD OF CALIBRATION

(CONTINUED)

5. For Sprayer with Electronic Spray Control Systems.

On sprayers equipped with Electronic Spray Control Systems such as those manufactured by Raven

Ind., Micro-Trak Co. and Dickey-John Co., it is still important to select the right type and size of nozzle for the required operation. Electronic Spray Control Systems cannot function properly if the nozzles are not capable of delivering the programmed (desired) application rate. Nozzles which are too large will not develop adequate pressure or satisfactory spray patterns. Nozzles which are too small will not allow the discharge of spray material at the programmed application rate.

Further, when calibrating sprayers which are equipped with Electronic Spray Control Systems, care must be taken to use the mode of operation on the Spray Control System (Gallons per acre “US” Mode);

Gallons per 1,000 Square Feet (“Turf” Mode); or Liters per Hectare (Standard International Model), which corresponds with the nozzle calibration charts (gpa, gpt or lph).

6. Using the Nozzle Charts.

Select the correct chart based on your nozzle type, nozzle spacing and desired expression of application rate (gpa, gpt or lph). If the desired operating speed is not found on the nozzle chart, it is simple to determine application rate at different speeds by estimating from the known facts.

Example 1: If the desired speed is 2

1

/

2

MPH (4 kph) on a sprayer using TurfJet nozzles (Chart 5). The average between the application rates for 2 MPH and 3 MPH may be assumed to be the application rate for 2

1

/

2

MPH.

Example 2: The desired speed is 6 MPH. Use the application rate column for 3 MPH a divide by 2.

7. Converting Nozzle Chart Method to British Gallons.

To convert any of the Gallon Per Acre rates to Imperial Gallons per acre, (Imp gpa) multiply by 0.83. To convert any of the Liter Per Hectare rates to Imperial Gallons Per Hectare (Imp GPH), multiply by 0.22.

8. Checking the Actual Application Rate.

After the combination of ground speed, nozzle size and operating pressure has been selected, the sprayer should be operated with water only to determine if the target application rate is achieved.

THE “128” METHOD OF BOOM SPRAYER CALIBRATION

The “128” Method is useful for calibrating sprayers and also for checking the calibration of sprayer calibrated by the Nozzle Chart Method and sprayers using Electronic Spray Control Systems. The “128” is based on a convenient mathematical relationship that exists between US Gallons, liquid ounces and acres.

An ounce is 1/128th of a (US) gallon. If an area which was “1/128th of an acre” could be found, the number of ounces applied to that small area would be equal to the number of gallons applied to the acre Thus, no mathematical computations would be required.

To determine an area which is 1/128 of an acre:

• On nozzles with 20 inch (51 cm) spacing, measure off a distance of 204 ft (62 meters). Mark a “START” and a “STOP” line. The rectangle formed by this distance and the spraying width of one nozzle 20" (51 cm) is equal to 340 square feet which is equal to 1/128 acre. Therefore, the amount of material applied to this area by one nozzle in OUNCES is the same amount of material applied to an acre in GALLONS

(gpa).

• On nozzles with 10 inch (25 cm) spacing, the measure distance is 408 feet (124 meters).

• On nozzles with 30 inch (76 cm) spacing the measured distance is 136 feet (41 meters).

CALIBRATING FOR APPLICATION

1. Fill the sprayer tank with water. Run the sprayer, inspect it for leaks and make sure all systems function properly.

2. Drive the sprayer through the measured distance discussed above at normal spraying speed, record the travel time required to cover the measured distance in seconds with a stopwatch.

31

THE “128” METHOD OF BOOM SPRAYER CALIBRATION

The carrying or towing vehicle is to be traveling at the desired speed when it crosses the start line of the measured course.

Repeat this procedure and determine the average of the two times.

3. With the sprayer parked, run the sprayer at the required pressure level. Catch the output of each nozzle in a container which is marked or graduated in Ounces for the exact same period of time which it took the sprayer to cover the measured course in step #2. It is necessary to operate the vehicle engine at spraying speed using a hand throttle.

4. Observe the volume of water in the collection bottle. The number of OUNCES collected in the time it takes to cover the marked course. Take the average nozzle output by adding the outputs of each nozzle and then dividing that sum by the number of nozzles.

The NUMBER OF OUNCES collected in the time required to cover the SMALL AREA is equal to the

NUMBER OF GALLONS applied per ACRE. For example: if an average of 40 ounces of water is collected in the time required to cover the 1/128 acre area, the application rate is 40 gallons per acre (gpa).

As a practical matter, if high application rates are desired (above 75 gpa), the measured course length should be reduced by half (i.e. 102 ft (31 m) for 20 inch (52 cm) spaced nozzles). The volume collected (above) is then doubled (multiplied by 2).

AVERAGE OUTPUT (Ounces) = APPLICATION RATE (gpa)

5. Observe individual nozzle output volumes. If an individual nozzle is 10% above or below the average output, check for blockages in the nozzle or in the nozzle strainer. If the nozzle is worn or damaged, replace it.

6. Compare this actual application rate with the recommended rate. If the actual rate is more than 5% higher or lower than the intended rate, adjustments must be made.

7. Minor adjustments in application rate may be made by increasing or decreasing the spraying pressure.

Lowering spraying pressure decreases application rate. Increasing spraying pressure increases application rate. This procedure normally does not apply to spray systems controlled by an Electronic Spray

Control System, which governs flow rate.

8. Adjustments in application rate may be made by increasing or decreasing the travel speed of the sprayer if conditions permit. Slower speeds increase application rate. Faster speeds decrease application rate.

9. Nozzle sizes can be changed to provide the correct application rate. Refer to the nozzle charts in this book for the desired nozzle type.

10. Re-calibrate the sprayer (steps 2-6) after any adjustments are made.

As previously discussed, there are other acceptable methods of Turf Sprayer Calibration. Chemical suppliers, Agricultural Extension Agents, Universities and consultants of various types offer helpful advice on this subject. Technical catalogues are available from nozzle manufacturers.

TRANSFERRING THE “128” METHOD INTO METRIC (LITERS PER HECTARE)

The same steps are used that are used when calibrating in gallons per acre. First a relationship between a measurable amount (milliliters) and the calibration amount (liter) is determined. That ratio is 1:1000.

Now an area which is 1/1000th of a hectare must be measured.

On spray booms with 51 cm (20 inch) spacing, mark off an area which is 20 meters (65.6 feet) long . The area formed by that length and the width of one spray nozzle (20 meters by 0.5 meters) is 10 square meters which is

1/1000 of a hectare. Therefore, the amount of spray material applied to this small area in milliliters is equal to the amount applied to one hectare in liters.

Then, follow the remaining steps 2-10, substituting milliliters for ounces, liters for gallons, square meters for square feet and hectares for acres.

AVERAGE OUTPUT (Milliliters) = APPLICATION RATE (LITERS/HECTARE)

32

NOZZLE PERFORMANCE CHART #1

Nozzle Type:

Spacing:

XR TeeJet & DG TeeJet

20 inch (51cm)

Calibration: US Gal/Acre (GPA) & US Gal/1,000 Square Feet (GPT)

Color Size

Pressure psi

Nozzle

Capacity

Application Rate GPA

Speed MPH

Orange

Green

XR8001

XR80015

20

30

40

60

(Gal/Min)

0.071

0.087

0.10

0.12

0.11

0.13

4

5.3

6.5

7.4

5

4.2

5.2

5.9

6

3.5

4.3

5.0

7

3.0

3.7

4.2

Yellow

DG80015

XR8002

DG8002

20

30

40

60

20

30

0.15

0.18

0.14

0.17

8.9

8.2

9.7

11.1

12.6

10.4

12.6

7.1

6.5

7.7

8.9

10.7

8.3

10.1

5.9

5.4

6.4

7.4

8.9

6.9

8.4

5.1

4.7

5.5

6.4

7.6

5.9

7.2

Blue

XR8003

40

60

20

30

0.20

0.24

0.21

0.26

14.96

17.8

15.6

19.3

11.9

13.1

12.5

15.4

9.9

11.9

10.4

12.9

8.5

10.2

8.9

11.0

Red

DG8003

XR8004

DG8004

40

60

20

30

0.30

0.37

0.28

0.35

22.0

27.0

21.0

26.0

17.8

22.0

16.6

21.0

14.9

18.3

13.9

17.3

12.7

15.7

11.9

14.9

Brown

XR8005

40

60

20

30

0.40

0.49

0.35

0.43

30.0

36.0

26.0

32.0

24.0

29.0

21.0

26.0

19.8

24.0

17.3

21.0

17.0

21.0

14.9

18.2

Gray

DG8005

XR8006

40

60

20

30

0.50

0.61

0.42

0.52

37.0

45.0

31.0

39.0

30.0

36.0

25.0

31.0

25.0

30.0

21.0

26.0

21.0

26.0

17.8

22.0

White XR8008

40

60

20

30

0.60

0.73

0.57

0.69

45.0

54.0

42.0

51.0

36.0

43.0

34.0

41.0

30.0

36.0

28.0

34.0

25.0

31.0

24.0

29.0

Steel SS8010

40

60

40

60

0.80

0.98

1.00

1.20

59.0

73.0

128

156

48.0

58.0

74.0

91.0

40.0

49.0

59.0

72.0

34.0

42.0

50.0

60.0

Application Rate GPT

2

0.24

0.31

0.34

0.41

0.38

0.44

0.51

0.61

0.48

0.58

0.68

0.82

0.72

0.89

1.02

1.26

0.98

1.20

1.40

1.70

1.20

1.50

1.70

2.10

1.40

1.80

2.00

2.50

1.90

2.40

2.70

3.30

3.40

4.10

Speed MPH

3

0.16

0.21

0.23

0.28

0.25

0.30

0.34

0.41

0.32

0.39

0.45

0.54

0.48

0.59

0.68

0.84

0.64

0.80

0.91

1.10

0.80

0.98

1.10

1.40

0.95

1.20

1.40

1.70

1.30

1.60

1.80

2.20

2.30

2.80

4

0.12

0.16

0.17

0.21

0.19

0.22

0.26

0.31

0.24

0.29

0.34

0.41

0.36

0.44

0.51

0.63

0.48

0.60

0.68

0.84

0.60

0.73

0.85

1.00

0.72

0.89

1.00

1.20

0.97

1.20

1.40

1.70

1.70

2.10

5

0.10

0.11

0.14

0.16

0.15

0.18

0.20

0.25

0.19

0.23

0.27

0.33

0.29

0.35

0.41

0.50

0.38

0.48

0.55

0.67

0.48

0.59

0.68

0.83

0.57

0.57

0.82

0.99

0.78

0.94

1.10

1.30

1.40

1.70

33

34

NOZZLE PERFORMANCE CHART #2

Nozzle Type:

Spacing:

XR TeeJet & DG TeeJet

20 inch (51cm)

Calibration: Liters Per hectare

Nozzle

Pressure Capacity

Color

Orange

Size

XR8001

bar

1.5

2.0

(l/min)

0.28

0.32

4

84

96

117

Application Rate l/ha

Speed km/h

5 6

67.2

76.8

93.6

56.0

64.0

78.0

7

48.0

54.9

66.9

3.0

4.0

1.5

2.0

0.39

0.45

0.42

0.48

Green

XR80015

DG80015

135

126

144

108

101

115

90.0

84.0

96.0

77.1

72.0

82.3

Yellow

XR8002

DG8002

3.0

4.0

1.5

2.0

3.0

0.59

0.68

0.56

0.65

0.79

177

204

168

195

237

142

163

134

156

190

118

136

112

130

158

101

117

96.0

111

135

Blue

Red

XR8003

DG8003

XR8004

DG8004

4.0

1.5

2.0

3.0

4.0

1.5

2.0

3.0

0.91

0.83

0.96

1.18

1.36

1.12

1.29

1.58

273

249

288

354

408

336

387

474

218

199

230

283

326

269

310

379

182

166

192

236

272

224

258

316

156

142

165

202

233

192

221

271

Brown

Gray

White

Steel

XR8005

DG8005

XR8006

XR8008

SS8010

3.0

4.0

3.0

4.0

2.0

3.0

4.0

1.5

2.0

4.0

1.5

2.0

3.0

4.0

1.5

1.82

1.39

1.61

1.97

2.27

1.68

1.94

2.37

2.74

2.23

2.58

3.16

3.65

3.95

4.56

546

417

483

591

681

504

582

711

822

669

774

948

1095

1185

1368

437

334

386

473

545

403

466

569

658

535

619

758

876

948

1094

388

474

548

446

516

632

730

790

912

364

278

322

394

454

336

333

406

470

382

442

542

626

677

782

312

238

276

338

389

288

NOZZLE PERFORMANCE CHART #3

Nozzle Type:

Color

Red

Brown

Gray

Size

TF-VS2

TF-VS2.5

TF-VS3

Turbo FloodJet

Spacing: 40 inch (100cm)

Calibration: US Gal/Acre (GPA) & US Gal/1,000 Square Feet (GPT)

Nozzle Application Rate GPA Application Rate GPT

Pressure psi

20

30

20

30

20

Capacity

(Gal/Min)

0.28

0.35

0.35

0.43

0.42

4

10.4

13.0

13.0

Speed MPH

5

8.3

6

6.9

10.4

10.4

12.8

12.5

8.7

8.7

10.6

10.4

7

5.9

7.4

7.4

4

.24

.30

.30

Speed MPH

5 6 7

White

Blue

TF-VS4

TF-VS5

30

20

30

20

0.52

0.57

0.69

0.71

16.0

15.6

19.3

21.0

26.0

26.0

15.4

16.9

20.0

21.0

12.9

14.1

17.1

17.6

9.1

8.9

11.0

12.1

14.6

15.1

.37

.36

.44

.48

.59

.60

Green

Black

TF-VS7.5

TF-VS10

30

20

30

20

30

0.87

1.06

1.30

1.41

1.73

32.0

39.0

48.0

52.0

64.0

26.0

31.0

39.0

42.0

51.0

22.0

26.0

32.0

35.0

43.0

18.5

22.0

28.0

30.0

37.0

.74

.90

1.11

1.20

1.47

35

NOZZLE PERFORMANCE CHART #4

Nozzle Type:

Spacing:

Turbo FloodJet

40 inch (100cm)

Calibration: Liters Per Hectare

Color Size

Pressure bar

Nozzle

Capacity

Red

Brown

Gray

TF-VS2

TF-VS2.5

TF-VS3

1.5

2.0

1.5

2.0

1.5

2.0

(l/min)

1.11

1.29

1.40

1.61

1.68

1.94

White

Blue

Green

Black

TF-VS4

TF-VS5

TF-VS7.5

TF-VS10

1.5

2.0

1.5

2.0

1.5

2.0

1.5

2.0

2.23

2.57

2.79

3.22

4.19

4.83

5.58

6.45

335

386

419

483

629

726

837

968

4

167

194

210

Application Rate l/ha

Speed km/h

6

111

129

140

8

83.3

96.8

105

10

66.6

77.4

84.0

242

252

291

161

168

194

121

126

146

96.6

101

116

223

257

279

322

419

484

558

645

167

193

209

242

314

363

419

484

112

129

167

193

251

290

335

387

Application Rate GPT

Speed MPH

36

NOZZLE PERFORMANCE CHART #5

Nozzle Type: Turbo TurfJet

Spacing: 20 inch (51cm)

Calibration: US Gal/Acre (GPA) & US Gal/1,000 Square Feet (GPT)

Color Size

Yellow

1/4 TTJ02-VS

Pressure psi

25

30

Nozzle

Capacity

(Gal/Min)

.16

.17

Application Rate GPA

Speed MPH (KPH)

3 (5) 4 (6) 5 (8) 6 (10)

15.8

16.8

11.9

12.6

9.5

10.1

7.9

8.4

Application Rate GPT

Speed MPH (KPH)

3 (5) 4 (6) 5 (8) 6 (10)

.36

.39

.27

.29

.22

.23

.18

.19

Red

1/4 TTJ04-VS

40

50

25

30

40

.20

.22

.32

.35

.40

19.8

22

32

35

40

14.9

16.3

24

26

30

11.9

13.1

19.0

21

24

9.9

10.9

15.8

17.3

19.8

.45

.50

.73

.79

.91

.34

.37

.54

.60

.68

.27

.30

.44

.48

.54

.23

.25

.36

.40

.45

Brown

Gray

White

L. Blue

L. Green

1/4 TTJ05-VS

1/4 TTJ06-VS

1/4 TTJ08-VS

1/4 TTJ10-VS

1/4 TTJ15-VS

50

25

30

40

50

25

50

25

30

40

30

40

50

25

30

40

50

25

30

40

50

.45

.40

.43

.50

.56

.47

.52

.60

.67

.63

.69

.80

.89

.79

.87

1.00

1.12

1.19

1.30

1.50

1.68

45

40

43

50

55

47

51

59

66

62

68

79

88

78

86

99

111

118

129

149

166

33

30

32

37

42

35

39

45

50

47

41

59

66

59

65

74

83

88

97

111

125

27

24

26

30

33

28

31

36

40

37

41

48

53

47

52

59

67

71

77

89

100

22

19.8

21

25

28

23

26

30

33

31

34

40

44

39

43

50

55

59

64

74

83

1.0

.91

.97

1.1

1.3

1.1

1.2

1.4

1.5

1.4

1.6

1.8

2.0

1.8

2.0

2.3

2.5

2.7

2.9

3.4

3.8

.77

.68

.73

.85

.95

.80

.88

1.0

1.1

1.1

1.2

1.4

1.5

1.3

1.5

1.7

1.9

2.0

2.2

2.6

2.9

1.5

1.6

1.8

2.0

2.3

1.3

1.3

1.5

1.7

1.9

.76

.64

.71

.82

.91

.86

.61

.54

.58

.68

.94

1.1

1.2

1.1

1.2

1.4

.63

.53

.59

.68

.76

.71

.51

.45

.49

.57

.78

.91

1.0

.90

.99

1.1

37

NOZZLE PERFORMANCE CHART #6

Nozzle Type:

Spacing:

Turbo TurfJet

20 inch (51cm)

Calibration: Liters Per Hectare

Nozzle

Color Size

Yellow

1/4 TTJ02-VS

Pressure bar

1.0

1.5

Capacity

(l/min)

0.46

0.56

Red

1/4 TTJ04-VS

2.0

3.0

1.0

1.5

2.0

3.0

0.65

0.80

.091

1.11

1.29

1.58

Brown

Gray

White

1/4 TTJ05-VS

1/4 TTJ06-VS

1/4 TTJ08-VS

1.5

2.0

3.0

1.0

1.5

2.0

1.0

1.5

2.0

3.0

1.0

1.14

1.40

1.61

1.97

1.37

1.68

1.94

2.37

1.82

2.23

2.57

L. Blue

L. Green

1/4 TTJ10-VS

1/4 TTJ15-VS

3.0

1.0

1.5

2.0

3.0

1.0

1.5

2.0

3.0

3.15

2.28

2.79

3.22

3.95

3.42

4.19

4.84

5.92

473

342

419

483

593

513

629

252

291

356

273

335

385

726

888

315

228

279

322

395

342

419

168

194

237

182

223

257

484

592

Application Rate l/ha

Speed KPH (MPH)

4 (2.5) 6 (4) 8 (5) 10 (6)

69.0

84.0

46.0

56.0

34.5

42.0

27.6

33.6

97.5

120.0

137

167

194

237

171

210

242

296

206

65.0

80.0

91.0

111

129

158

114

140

161

197

137

48.8

60.0

68.3

83.3

95.8

119

85.5

105

121

148

103

32.5

48.0

54.6

66.6

77.4

94.8

68.4

84.0

96.6

118

82.2

236

171

209

242

295

257

314

126

146

178

137

167

193

363

444

189

137

167

193

237

205

251

101

116

142

109

134

154

290

355

38

d

ABBREVIATIONS AND CONVERSIONS

gpm lit/min dl/min psi km

Gallons per minute

Liters per minute

Deciliter per minute

Pounds per square inch

Kilometers cm dm m mm mph

Centimeters

Decimeters

Meter

Millimeters

Miles per hour gpa lit/ha ml/ha

Gallon per acre

Liters per hectare

Milliliter per hectare km/h us

Si

Kilometers per hour

Volume per ACRE

Volume per Hectare gpk Gallons per 1,000 sq ft TU Volume per 1,000 sq ft

AREA & SPEED

Distance (feet) x 0.68 = Travel Speed (MPH) Travel Time (seconds)

Speed (MPH)

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

LIQUID/VOLUME

1 US Gallon x 128 = Fluid Ounces

Time Required in Seconds to Travel a Distance of:

100 Ft 200 Ft 300 Ft

68

46

34

27

136

92

68

54

205

136

103

82

23

20

17

15

13

46

40

34

30

28

68

58

52

46

41

1 US Gallon x 3.785 = Liters

1 US Gallon x 0.83267 = Imperial Gallons

1 US Gallon x 8.34 = Pounds (Water)

1 Gallon Per Acre = 2.9 Fluid Ounces per 1,000 Square Feet = 9.35 Liters Per Hectare

1 Gallon Per 1,000 Square Feet = 43.56 Gallons Per Acre

1 Gallon = 128 Fluid Ounces = 8 Pints = 4 Quarts = 3.79 Liters = 0.83 Imperial Gallons gpa =

5940

×

MPH

×

(

)

)

MPH x Nozzle Spacing Width (inches)

GAL. 1,000 Square Feet =

136

×

GPM per nozzle

)

( )

LENGTH/DISTANCE

1 millimeter (mm) = 0.039 inch

AREA

1 square meter = 10.764 sq feet

1 centimeter (cm) = 0.393 inch

1 meter (m) = 3.281 feet

1 hectare (ha) = 2.471 acres = 10,000 sq meters

1 acre = 0.405 hectare = 43,560 Square Feet

1 kilometer (km) = 0.621 mile

1 inch = 25.4 millimeters; 2.54 centimeters

1 sq mile = 640 acres = 258.9 hectares

1 mile = 5280 Feet = 1610 Meters = 1.609 Kilometers

PRESSURE

1 Pound Per Square Inch = 0.069 Bar

39

EC De c larat io n o f Co n fo rm it y

a ccor d in g t o Dir ect ive 8 9 / 3 9 2 / E E C

We

S MITHCO INC.

(Na m e of s u p p lie r)

3 4 We s t Av e . Way n e , PA 1 9 0 8 7 US A

(Fu ll a d d re s s of th e m a n u fa ctu re - a u th oriz e d re p re s e n ta tiv e e s ta b lis h e d in th e Com m u n ity m u s t a ls o giv e th e b u s in e s s n a m e a n d a d d re s s of th e m a n u fa ctu re )

d ecla r e u n d er ou r s ole r es p on s ib ilit y, t h a t t h e p r od u ct

Spray Star 1600P / 14-300-A

40

(Ma k e , Mod e l)

t o wh ich t h is d ecla r a t ion r ela t es cor r es p on d s t o t h e r eleva n t b a s ic s a fet y a n d h ea lt h r equ ir em en t s of t h e Dir ect ive 8 9 / 3 9 2 / E E C,

(if a p p lica b le )

a n d t o t h e r equ ir em en t s of t h e ot h er Dir ect ives :

E N2 9 2 -1

E N2 9 2 -2

E N2 9 4

E N3 4 9

9 2 / 5 9

8 9 / 3 9 2

(Title a n d / or n u m b e r a n d d a te of is s u e of th e oth e r Dire ctiv e s )

(if a p p lica b le )

For t h e r eleva n t im p lem en t a t ion of t h e s a fet y a n d h ea lt h r equ ir em en t s m en t ion ed in t h e

Dir ect ives , t h e followin g s t a n d a r d (s ) a n d / or t ech n ica l s p ecifica t ion (s ) h a s (h a ve) b een r es p ect ed :

IS O 3 7 -1 9 8 3

PRE N 8 3 6

IS O 1 2 1 9 -1 9 7 6

S AE HS -2 8 0 0

S AE J 1 3 6 2

(Title a n d / or n u m b e r a n d d a te of is s u e of s ta n d a rd (s ) a n d / or te ch n ica l s p e cifica tion (s ))

Cam e ro n , Wis c o n s in US A

March 19, 1995

(Pla ce a n d d a te of is s u e ) (Na m e, fu n ction a n d s ign a tu re of th e a u th oriz e d p ers on )

LIMITED WARRANTY

SMITHCO warrants this product to be free from defects in material and workmanship under normal use for one year from the date of purchase by the original user. (60 days if product is used for rental purposes.) All warranty claims must be handled through a SMITHCO authorized dealer or by

SMITHCO, INC. All transportation charges must be paid by the purchaser.

There is no further express warranty. All implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one year, (60 days if product is used for rental purposes) from the date of purchase by the original user, and to the extent permitted by law any and all implied warranties are excluded and disclaimed after the expiration of such period.

All incidental and consequential damages, including pickup and delivery of the unit, communication, mileage charges and/or rental of a replacement unit during repair, are not covered under this warranty, nor is any loss of income and/or other loss resulting from the failure of the product to function due to a warranty defect.

The following items are not covered under the SMITHCO warranty, and are warranted by their respective manufacturer.

(a) Engine and engine parts, including starters, generators, alternators and filters.

(b) Transaxle, differentials, gear boxes and mechanical pumps.

(c) Hydrostatic transmissions, hydraulic pumps and motors.

(d) Batteries.

(e) Wheels and tires.

A copy of the warranty for the above items is furnished if necessary with each SMITHCO product.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitations of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which may vary from state to state.

Federal law now requires disclosure of the warranty which applies to this product prior to the sale to a customer. Please leave this statement attached to the product and allow the buyer to remove it after purchase.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
