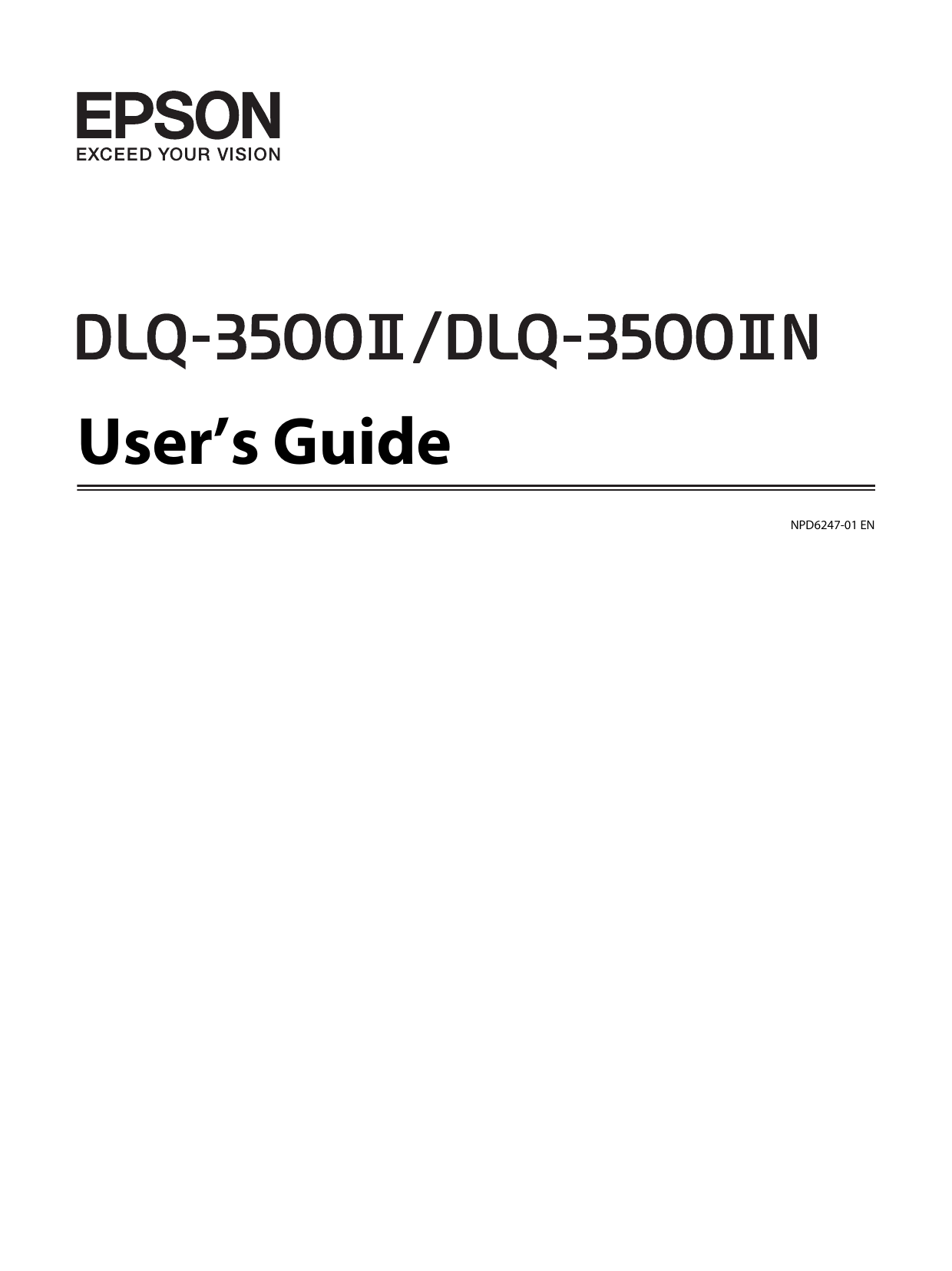

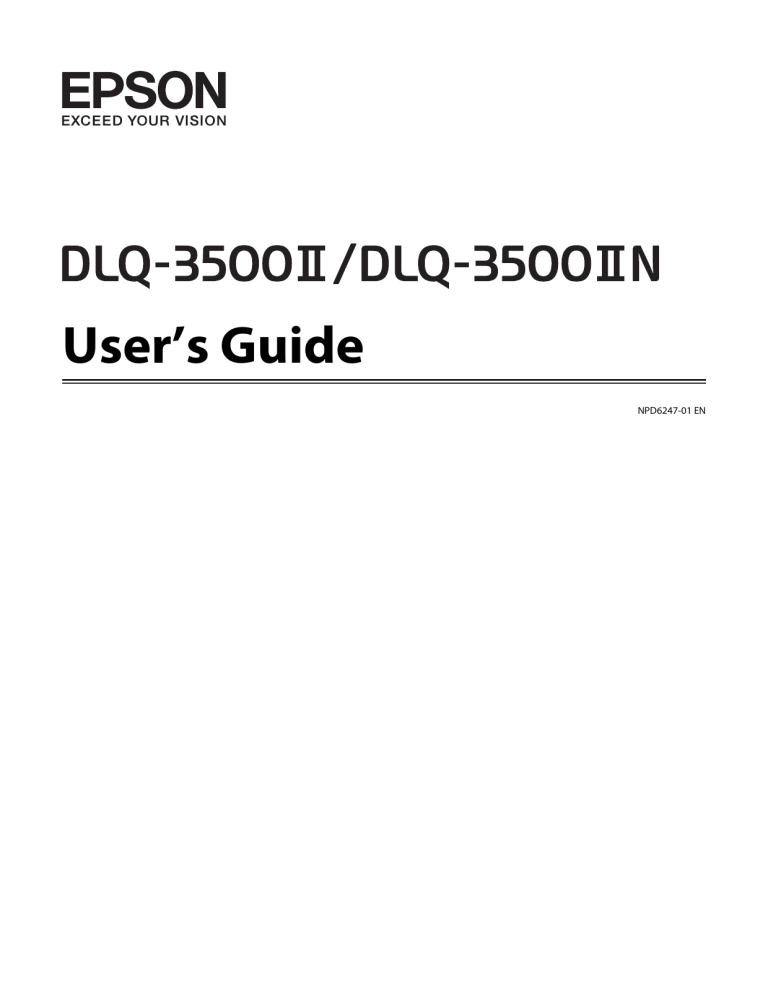

Epson DLQ-3500IIN User's Guide

User’s Guide
NPD6247-01 EN
DLQ-3500II/DLQ-3500IIN
User’s Guide
Copyrights and Trademarks
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means,
electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson
Corporation. The information contained herein is designed only for use with this Epson printer. Epson is not responsible for any
use of this information as applied to other printers.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages,
losses, costs, or expenses incurred by the purchaser or third parties as a result of accident, misuse, or abuse of this product or
unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko
Epson Corporation’s operating and maintenance instructions.
Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or any consumable
products other than those designated as Original Epson Products or Epson Approved Products by Seiko Epson Corporation.
EPSON is a registered trademark, EPSON EXCEED YOUR VISION, EXCEED YOUR VISION, ESC/P, and ESC/P2 are
trademarks of Seiko Epson Corporation.
®
®
®
®
Microsoft , Windows , Windows Server , and Windows Vista are registered trademarks of Microsoft Corporation.
IBM is a registered trademark of International Business Machines Corporation.
QR Code is a trademark of DENSO WAVE INCORPORATED in Japan and in other countries.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective
owners. Epson disclaims any and all rights in those marks.
The contents of this manual and the specifications of this product are subject to change without notice.
© 2019 Seiko Epson Corporation
Copyrights and Trademarks
2
DLQ-3500II/DLQ-3500IIN
User’s Guide
Contents
About This Manual
Where to Find Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Descriptions Used in this Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operating System Versions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety Instructions
Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Warnings, Cautions, and Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Hot Parts Caution Symbol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Important Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
For United Kingdom users. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
For Singapore users. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
For German users. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
For Turkish users. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Chapter 1 Printer Basics
Printer Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Buttons and Lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Guide to the LCD Screens. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Chapter 2 Menu Options for Settings
Menu Options for Basic Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Basic Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Menu Options for Printer Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Print All Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Print Area Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Character/Line Space Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Print Control Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Interface Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Menu Options for Network Settings (Available only on Network compatible models.). . . . . . . . . . . . . 30
Contents
3
DLQ-3500II/DLQ-3500IIN
User’s Guide
Print Status Sheet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Advanced Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Restore Default Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Panel Lock Out Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Changing the Panel Lock Out Mode setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Chapter 3 Paper Handling
Selecting a Paper Source. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Paper source and paper types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Adjusting the Head Gap. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Loading Continuous Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Positioning the continuous paper supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Loading continuous paper with the tractor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Loading Single Sheets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Loading single sheets from the front. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Loading single sheets from the rear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Loading Special Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Multipart forms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Envelopes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Postcards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Switching Between Continuous Paper and Single Sheets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Switching to single sheets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Switching to continuous paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Using the Micro Adjust Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Adjusting the tear off position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Chapter 4 Printer Software
About Your Printer Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Using the Printer Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Accessing the printer driver from Windows applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Accessing the printer driver from the Start menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Changing the printer driver settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Printer Driver Settings Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Printer settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Monitoring settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Contents
4
DLQ-3500II/DLQ-3500IIN
User’s Guide
Setting Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Using EPSON Status Monitor 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Installing EPSON Status Monitor 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Setting up EPSON Status Monitor 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Accessing EPSON Status Monitor 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Using Bi-D Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Making adjustment with Bi-D Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Using Printer Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Changing printer setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Setting Up Your Printer on a Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Sharing the printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Setting up your printer as a shared printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Setting for the clients. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Cancelling Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Uninstalling the Printer Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Uninstalling the printer driver and EPSON Status Monitor 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Chapter 5 Troubleshooting
Checking the Printer Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Checking Messages on the LCD Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Problems and Solutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Power supply problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Paper Handling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Network problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Correcting USB Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Clearing a Paper Jam. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Aligning Vertical Lines in Your Printout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Cancelling Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Using the printer driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Using the printer’s control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Printing a Self Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Printing Hex Dump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Chapter 6 Where To Get Help
Technical Support Web Site. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Contents
5
DLQ-3500II/DLQ-3500IIN
User’s Guide
Contacting Customer Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Before Contacting Epson. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Help for Users in Europe. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Help for Users in Australia. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Help for Users in Singapore. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Help for Users in Vietnam. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Help for Users in Indonesia. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Help for Users in Hong Kong. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Help for Users in Malaysia. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Help for Users in the Philippines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Chapter 7 Options and Consumables
Replacing the Ribbon Cartridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Genuine Epson ribbon cartridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Replacing the ribbon cartridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Cut Sheet Feeder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Installing the cut sheet feeder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Loading paper to the cut sheet feeder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Loading paper manually using the sheet guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Switching between the tractor and the cut sheet feeder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Automatic Sheet Alignment Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Installing the automatic sheet alignment unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Loading paper using the automatic sheet alignment unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Adjusting the printing position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Chapter 8 Product Information
Printer Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Mechanical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Electronic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Electrical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Environmental. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Printable area. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Command Lists. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Epson ESC/P control codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Contents
6
DLQ-3500II/DLQ-3500IIN
User’s Guide
IBM PPDS emulation control codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Standards and Approvals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Safety approvals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Cleaning the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Transporting the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Glossary
Index
Contents
7
DLQ-3500II/DLQ-3500IIN
User’s Guide
About This Manual
Where to Find Information
The following manuals are supplied with your Epson printer.
Start Here (paper manual)
Provides information on setting up the printer and installing the software.
User's Guide (this manual)
Provides overall information and instructions on using the printer.
Network Guide ( DLQ-3500IIN only)
Provides network information on management and printer settings.
Descriptions Used in this Manual
❏ Screenshots of the printer software screens are from Windows 10 unless otherwise specified. The
content displayed on the screens varies depending on the model and situation.
❏ Screenshots of the printer LCD screens are subject to change without notice. The contents may
vary depending on the product.
❏ Illustrations of the printer used in this manual are examples only. Although there may be slight
differences depending on the model, the method of operation is the same.
Operating System Versions
Regarding the operating systems, the explanations in this manual are mainly for Windows users and
terms such as "Windows 10", "Windows 8.1", "Windows 8", "Windows 7", "Windows Vista",
"Windows XP", "Windows Server 2019", "Windows Server 2016", "Windows Server 2012 R2",
"Windows Server 2012", "Windows Server 2008 R2", "Windows Server 2008", "Windows Server 2003
R2", and "Windows Server 2003" refer to the following operating system. Additionally, "Windows" is
used to refer to all versions.
❏ Microsoft Windows 10 operating system
❏
®
®
Microsoft Windows 8.1 operating system
®
®
About This Manual
8
DLQ-3500II/DLQ-3500IIN
User’s Guide
❏ Microsoft Windows 8 operating system
❏
❏
❏
❏
❏
❏
❏
❏
❏
❏
❏
❏
®
®
Microsoft Windows 7 operating system
®
®
Microsoft Windows Vista operating system
®
®
Microsoft Windows XP operating system
®
®
Microsoft Windows XP Professional x64 Edition operating system
®
®
Microsoft Windows Server 2019 operating system
®
®
Microsoft Windows Server 2016 operating system
®
®
Microsoft Windows Server 2012 R2 operating system
®
®
Microsoft Windows Server 2012 operating system
®
®
Microsoft Windows Server 2008 R2 operating system
®
®
Microsoft Windows Server 2008 operating system
®
®
Microsoft Windows Server 2003 R2 operating system
®
®
Microsoft Windows Server 2003 operating system
®
®
About This Manual
9
DLQ-3500II/DLQ-3500IIN
User’s Guide
Safety Instructions
Safety Instructions
Warnings, Cautions, and Notes
! Warnings
must be followed carefully to avoid bodily injury.
! Cautions
must be observed to avoid damage to your equipment.
Notes
contain important information and useful tips on the operation of your printer.
Hot Parts Caution Symbol
This symbol is placed on the print head and other parts to indicate that they may be hot.
Never touch those parts just after the printer has been used. Let them cool for a few
minutes before touching them.
Important Safety Instructions
Read all of these safety instructions before using the printer. In addition, follow all warnings and
instructions marked on the printer itself.
Some of the symbols used on your printer are to ensure safety and proper use of the printer. Visit the
following Web site to learn the meaning of the symbols.
http://support.epson.net/symbols
When setting up the printer
❏ Do not place the printer on an unstable surface or near a radiator or heat source.
❏ Place the printer on a flat, stable surface. The printer will not operate properly if it is tilted or placed
at an angle.
Safety Instructions
10
DLQ-3500II/DLQ-3500IIN
User’s Guide
❏ Do not place this product on a soft, unstable surface like a bed or a sofa, or a small, enclosed area, as
this restricts ventilation.
❏ Do not block or cover the slots and openings in the printer’s cabinet, and do not insert objects
through the slots.
❏ Leave adequate room around the printer for easy operation and maintenance.
❏ Place the printer where you can easily connect it to a network interface cable, if necessary
(DLQ-3500IIN only).
❏ Use only the type of power source indicated on the printer’s label. If you are not sure of the power
supply specifications in your area, contact your local power company or consult your dealer.
❏ Connect all equipment to properly grounded electrical outlets. Avoid using outlets on the same
circuit as photocopiers or air control systems that regularly switch on and off.
❏ Do not use a damaged or frayed power cord.
❏ The power cord should be placed to avoid abrasions, cuts, fraying, crimping, kinking, and other
damage.
❏ If you use an extension cord with the printer, make sure the total ampere rating of all devices
plugged into the extension cord does not exceed the cord’s ampere rating. Also, make sure the total
ampere of all devices plugged into the electrical outlet does not exceed the electrical outlet’s
ampere rating.
❏ Use only the power cord that comes with this product. Use of another cord may result in fire or
electric shock.
❏ This product’s power cord is for use with this product only. Use with other equipment may result
in fire or electric shock.
❏ Be sure the AC power cord meets the relevant local safety standards.
❏ Avoid using or storing the printer in places subject to rapid changes in temperature and humidity.
Also keep it away from direct sunlight, strong light, heat sources, or excessive moisture or dust.
❏ Avoid places subject to shocks and vibrations.
❏ Place the printer near a wall outlet where you can easily unplug the power cord.
❏ Keep the entire computer system away from potential sources of electromagnetic interference,
such as loudspeakers or the base units of cordless telephones.
Safety Instructions
11
DLQ-3500II/DLQ-3500IIN
User’s Guide
❏ Avoid electrical outlets controlled by wall switches or automatic timers. An interruption in power
can erase information in the memory of your printer or computer. Also avoid outlets on the same
circuit as large motors or other appliances that can cause voltage fluctuations.
❏ Use a grounded power outlet; do not use an adapter plug.
❏ If you plan to use a printer stand, follow these guidelines:
- Use a stand that can support at least twice the weight of the printer.
- Never use a stand that tilts the printer. The printer should always be kept level.
- Position your printer’s power cord and interface cable so they do not interfere with paper
feeding. If possible, secure the cables to a leg of the printer stand.
When maintaining the printer
❏ Unplug the printer before cleaning it, and always clean it with a piece of damp cloth only.
❏ Do not spill liquid onto the printer.
❏ Do not attempt to service the printer yourself except as specifically explained in this guide.
❏ Unplug the printer and refer servicing to qualified service personnel under the following
conditions:
i. If the power cord or plug is damaged.
ii. If liquid has entered the printer.
iii. If the printer has been dropped or the cabinet damaged.
iv. If the printer does not operate normally or exhibits a distinct change in performance.
❏ Do not use aerosol blowers which contain flammable gas inside or around this product. Doing so
may cause fire.
❏ Adjust only those controls that are covered by the operating instructions.
❏ If you plan to use the printer in Germany, observe the following:
To provide adequate short-circuit protection and over-current protection for this printer, the
building installation must be protected by a 10- or 16-amp circuit breaker.
Bei Anschluss des Druckers an die Stromversorgung muss sichergestellt werden, dass die
Gebaudeinstallation mit einer 10A- oder 16 A-Sicherung abgesichert ist.
When handling the paper
❏ Do not leave labels loaded in the printer between jobs; they may curl around the platen and jam
when you resume printing.
❏ Do not load paper that is curled or has been folded.
Safety Instructions
12
DLQ-3500II/DLQ-3500IIN
User’s Guide
When operating the printer
❏ Adjust only those controls that are covered in the user documentation. Improper adjustment of
other controls may result in damage requiring extensive repair by a qualified technician.
❏ Whenever you turn off the printer, wait at least five seconds before turning it back on; otherwise,
you may damage the printer.
❏ Do not turn off the printer while it is printing the self test. Always press the Pause button to stop
printing and then turn off the printer.
❏ Do not reconnect the power cord to an electrical outlet that has the wrong voltage for your printer.
❏ Never replace the print head yourself; you may damage the printer. Also, other parts of the printer
must be checked when the print head is replaced.
❏ You need to move the print head by hand to replace the ribbon cartridge. If you have just used the
printer, the print head may be hot; let it cool for a few minutes before touching it.
Restriction of use
When this product is used for applications requiring high reliability/safety such as transportation
devices related to aviation, rail, marine, automotive etc.; disaster prevention devices; various safety
devices etc.; or functional/precision devices etc., you should use this product only after giving
consideration to including fail-safes and redundancies into your design to maintain safety and total
system reliability. Because this product was not intended for use in applications requiring extremely
high reliability/safety such as aerospace equipment, main communication equipment, nuclear power
control equipment, or medical equipment related to direct medical care etc., please make your own
judgment on this product's suitability after a full evaluation.
For United Kingdom users
Use of options
Epson (UK) Limited shall not be liable against any damages or problems arising from the use of any
options or consumable products other than those designated as Original Epson Products or Epson
Approved Products by Epson (UK) Limited.
Safety information
! Warning:
This appliance must be earthed. Refer to the rating plate for voltage and check that the appliance
voltage corresponds to the supply voltage.
Safety Instructions
13
DLQ-3500II/DLQ-3500IIN
User’s Guide
Important:
The wires in the mains lead fitted to this appliance are coloured in accordance to the following code:
Green and yellow — Earth
Blue — Neutral
Brown — Live
If you have to fit a plug:
As the colours of the mains lead of this appliance may not match coloured markings used to identify
the terminals in a plug, please proceed as follows:
The green and yellow wire must be connected to the terminal in the plug which is marked with the
letter E or the Earth symbol (G).
The blue wire must be connected to the terminal in the plug marked with the letter N.
The brown wire must be connected to the terminal in the plug marked with the letter L.
If damage occurs to the plug, replace the cord set or consult a qualified electrician.
Replace fuses only with a fuse of the correct size and rating.
For Singapore users
Replace fuses only with fuses of the correct size and rating.
For German users
Importeur
EPSON EUROPE. B.V.
AMSTERDAM. THE NETHERLANDS
For Turkish users
Safety Instructions
14
DLQ-3500II/DLQ-3500IIN
User’s Guide
Chapter 1
Printer Basics
Printer Parts
1
printer cover
Open this when replacing the ribbon cartridge or removing jammed
paper.
2
tear off edge
Use this to cut paper for continuous paper.
3
edge guide
Guides the paper straight into the printer.
4
paper support
Keeps paper flat while feeding.
5
automatic sheet alignment unit
connector
Connects the cable from the optional automatic sheet alignment
unit.
6
sheet guide
Allows you to manually feed sheets one-by-one into the printer.
7
paper feed knob
Use this to feed paper manually when paper gets stuck inside the
printer.
Printer Basics
15
DLQ-3500II/DLQ-3500IIN
User’s Guide
8
control panel
The printer's operation panel.
1
tractor unit
Use this to feed continuous paper.
2
cut sheet feeder connector
Connects the cable from the optional cut sheet feeder.
3
USB port
Connects a USB cable.
4
parallel interface connector
Connects the parallel interface cable.
5
LAN port
Connects a LAN cable.
6
center paper support
Place this in the middle of the sprockets to maintain the center of the
continuous paper.
7
AC inlet
Connects the power cable.
8
sprocket
When feeding continuous paper, adjust the sprockets to the width
of the paper and use them to secure the paper.
1
ribbon cartridge
Contains ink ribbon.
Printer Basics
16
DLQ-3500II/DLQ-3500IIN
User’s Guide
2
print head
Prints on paper.
3
paper bail
Plate or bar that uses rollers to apply pressure to the paper.
Control Panel
Buttons and Lights
1
Power button/light
Turns the printer on or off.
Unplug the power cord after checking that the power light is off.
2
3
button
Paper Out light
Displays the home screen.
On when no paper is loaded in the selected paper source or paper is not loaded
correctly.
Flashes when paper has not been fully ejected or a paper jam has occurred.
4
LCD screen
Displays menus and messages. Use buttons on the control panel to select a menu or
to make settings.
5
Paper Source button
Selects a paper source.
Tractor
Print on continuous paper fed from tractor.
Manual/CSF
Print on single sheets fed from sheet guide, automatic
alignment unit (option), or Cut-sheet feeder (option).
Printer Basics
17
DLQ-3500II/DLQ-3500IIN
6
u, d, r, l, OK buttons
User’s Guide
Use the u d r l buttons to select a menu, and then press the OK button to enter the
selected menu.
In Micro Adjust mode, you can press the u or d buttons to adjust the tear off
position.
7
Cancel button
Stop printing and clear the input data buffer.
8
Pause button/light
The printer is ready when the light is on. Press this button briefly to pause the
printer when it is in ready status.
The printer is paused when the light is off. Press this button briefly to enter ready
status when the printer is paused.
Press this button while printing to temporarily stop printing.
Press again to resume printing.
The light flashes when the printer is receiving data.
9
LF/FF button
Feeds paper line by line when pressing shortly.
Ejects a single sheet or advances continuous paper to the next top of form position
when held down.
10
Load/Eject button
Loads a single sheet of paper.
Ejects a single sheet of paper if a sheet is loaded.
Loads continuous paper from the standby position.
Feeds continuous paper backward to the standby position if a sheet is loaded.
11
button
Returns to the previous screen.
Guide to the LCD Screens
This section provides an overview of menus and controls for the LCD screens.
Printer Basics
18
DLQ-3500II/DLQ-3500IIN
User’s Guide
Home Screen
You can check current settings or change settings.
1
The home screen
2
The top three lines on the home screen are shortcut menus that display some setting items and current settings.
You can focus on this area by pressing the u or d buttons and then pressing OK to access the settings menu.
Paper Source
Select a paper source. See “Paper Source” on page 23.
Font
Selects one of the available fonts. To select a font, see “Font” on
page 23.
Pitch
Selects one of the pitch settings. To select a pitch, see “Pitch” on
page 23.
3
Indicates the part of the menu currently displayed on the screen. You can scroll the screen by using the u or d
buttons.
4
Displays available buttons and controls.
5
Displays the menu items.
You can focus on a setting by pressing the u or d buttons and then pressing OK to access the settings menu.
Menu
Allows you to make printer settings. See also “Menu Options for Settings” on
page 23.
Tear off
Allows you to feed continuous paper to the tear off position. See also
“Adjusting the tear off position” on page 53.
Replace Ribbon
Displays instructions for replacing the ribbon. See also “Replacing the
Ribbon Cartridge” on page 108.
Printer Basics
19
DLQ-3500II/DLQ-3500IIN
User’s Guide
Job Information Screen
Your printer can display job information when it receives print jobs in Windows. You can enter a
short note in the printer driver as a Driver Note which allows you to identify the print job. See “Printer
Driver Settings Overview” on page 62.
The information or message displayed may differ depending on the print data sent from the Windows
application.
1
The information icon indicates that information is available.
2
Printer driver settings such as the following are displayed.
User Name
Driver Note*
Paper Size
Paper Source
3
Displays available buttons and controls.
* If the Driver Note check box has been cleared in the printer driver, the document name is displayed instead.
Note:
The job information screen is useful if you want to pause the printer before you start printing by selecting
a Paper Source setting that ends with (check paper). This allows you to check the paper or pre-printed
form that will be used for your print job. See “Printer Driver Settings Overview” on page 62.
Printer Basics
20
DLQ-3500II/DLQ-3500IIN
User’s Guide
Printing Finish Screen on Continuous Paper
1
Information icon shows information is displayed.
2
A print job has finished printing.
3
Displays available buttons and controls.
OK
Feeds continuous paper forward to the tear off position.
u, d
Feeds continuous paper forward or backward little by little.
Returns to the home screen.
Error Display Screen
1
An error has occurred.
Printer Basics
21
DLQ-3500II/DLQ-3500IIN
2
Displays error information.
3
Displays available buttons and instructions.
User’s Guide
Note:
Follow the onscreen instructions to recover from the error.
Entering Characters
To enter characters and symbols for network settings for DLQ-3500IIN from the control panel, use
the u, d, l, and r buttons and the software keyboard on the LCD screen. Press the u, d, l, or r
button to select a character or function button on the keyboard, and then press the OK button. When
you have finished entering characters, select OK, and then press the OK button.
Function button
Descriptions
Moves the cursor to the left or right.
Switches the character type. You can enter alphanumeric or symbols.
Enters a space.
Deletes a character to the left (backspace).
Enters the selected characters.
Printer Basics
22
DLQ-3500II/DLQ-3500IIN
User’s Guide
Chapter 2
Menu Options for Settings
Select Menu on the home screen of the printer to make various settings.
Menu Options for Basic Settings
Select the menus on the control panel as described below.
Menu > Basic Settings
Basic Settings
Paper Source
Select the paper source you want to use. Select Tractor when printing on continuous paper, or select
Manual/CSF when printing on single sheets.
Font
Select the font you want to use. You can select from the following fonts.
HSD (High Speed Draft), Draft, Roman, Sans Serif, Courier, Prestige, Script, OCR-B, Orator,
Orator-S, Script C, Roman T, Sans serif H
Pitch
Select desired pitch to use. Choices are shown below.
10cpi, 12 cpi, 15 cpi, 17 cpi, 20 cpi, Proportional
Language
Select the language used on the LCD screen.
Menu Options for Settings
23
DLQ-3500II/DLQ-3500IIN
User’s Guide
Menu Options for Printer Settings
Select the menus on the control panel as described below.
Menu > Printer Settings
Print All Settings
Select this menu to print the current settings.
To print out, you need A4 or letter size single sheet paper or continuous paper that is at least 210 mm
(8.3 inches) wide. See “Loading Continuous Paper” on page 38 and “Loading Single Sheets” on
page 45 for instructions on loading continuous paper and single sheets.
Print Area Settings
Top of Form
Allows you to set the top margin of the paper. You can set the values for continuous paper, single sheets
loaded into the front manually, and single sheets loaded from the cut sheet feeder.
Page Length
Allows you to set each page length (in lines, 1 line = 1/6 inches) for continuous paper loaded in the
tractor and single sheets loaded from the cut sheet feeder.
Right Offset
Allows you to set the offset value from the base point for the print start position.
Left Offset
Allows you to set the offset value from the base point for the print finish position.
Menu Options for Settings
24
DLQ-3500II/DLQ-3500IIN
User’s Guide
Skip Over Perforation
This feature is available only when continuous paper is selected as the paper source. When you turn on
this feature, the printer provides a one-inch (25.4 mm) margin between the last line printed on one
page and the first line printed on the next page. Because most application program margin settings
override margin settings from the control panel, you should use this setting only if you cannot set your
top and bottom margins using your application.
Print Start Position
Allows you to set the base point for the print start position.
Character/Line Space Settings
Font
Select the font you want to use. You can select from the following fonts.
HSD (High Speed Draft), Draft, Roman, Sans Serif, Courier, Prestige, Script, OCR-B, Orator,
Orator-S, Script C, Roman T, Sans serif H
You can also access this setting from the Basic Settings menu.
Pitch
Select desired pitch to use. Choices are shown below.
10cpi, 12 cpi, 15 cpi, 17 cpi, 20 cpi, Proportional
You can also access this setting on the Basic Settings menu.
Character Table
You can select among various character table. The character tables available vary according to the
models available in the region. Make sure that you select same character table as the print system if
necessary.
When using a print system, change the settings on the print system.
Menu Options for Settings
25
DLQ-3500II/DLQ-3500IIN
User’s Guide
International Character Set for Italic Table
You can select among several international character sets for the Italic character table. Each character
set contains eight characters that vary depending on the country or language, so you can customize the
Italic table to suit your printing needs.
Choices are shown below.
Italic U.S.A., Italic France, Italic Germany, Italic U.K., Italic Denmark 1, Italic Sweden, Italic
Italy, Italic Spain 1
0 slash
The zero character has a slash ( ) when this feature is turned on. It has no slash (0) when this feature is
turned off. The slash allows you to easily distinguish between the uppercase letter O and a zero.
Line Spacing
Space between the lines.
Auto Line Feed
When Auto Line Feed is on, the printer accompanies each carriage return (CR) code received with a
line feed code. Set this to On if printing might continue without line feeding depending on the OS or
the applications used.
Note:
Set to Off when printing from Windows, otherwise a blank line is inserted between the lines.
Auto CR (IBM PPDS)
This setting automatically adds a line feed (LF) code to the carriage return (CR) code.
The default setting for this feature is Off. Change this to On for systems that do not have CR code
control.
Note:
This feature is available only in IBM PPDS emulation mode.
A.G.M. (IBM PPDS)
Turn on the alternate graphic mode (A.G.M.) to make the ESC 3, ESC A, ESC J, ESC K, ESC L, ESC Y,
ESC Z, and ESC commands in IBM PPDS emulation mode work the same way as in ESC/P2 mode.
Menu Options for Settings
26
DLQ-3500II/DLQ-3500IIN
User’s Guide
Note:
This feature is available only in IBM PPDS emulation mode.
Print Control Settings
Software
When you select ESC/P2 the printer operates in the Epson ESC/P mode. When you select IBMPPDS,
the printer emulates an IBM printer.
®
Auto Tear Off
When Auto Tear Off is on and you are using continuous paper with the tractor, the printer
automatically advances the paper perforation to the tear off position, where you can easily tear off the
printed pages. When the printer receives the next print job, it automatically moves the unused paper
back to the top of form position and starts printing, so you can use all of the next page.
When Auto Tear Off is off and you are using continuous paper with the tractor, you need to move the
perforation to the tear off position manually by pressing the OK button when the screen telling
printing has finished displayed.
See “Using the tear off function” on page 42 for more information.
Auto Tear Off Wait Time
You can select the time from the point printing finished until the paper moves to the tear off position
for continuous printing. This setting is available when the auto tear off function is set to on.
Print Direction
You can select auto print direction (Auto), bidirectional printing (Bi-D), or unidirectional printing
(Uni-D). Printing is normally bidirectional for faster printing; however, unidirectional printing
allows for precise vertical printing alignment.
When print direction is set to Auto, the printer analyzes the data, and then switches automatically
whether to use Bi-D or Uni-D.
Note:
Set to Bi-D when printing from Windows to enable the printer driver's print direction setting. When
Uni-D or Auto is selected, the printer ignores the command from the Windows driver.
Menu Options for Settings
27
DLQ-3500II/DLQ-3500IIN
User’s Guide
Head Gap
Adjust the head gap according to the type of paper you are using. Usually, this should be left at the
default setting, Auto. See “Adjusting the Head Gap” on page 35.
Paper Type
Select the type of paper on which you want to print.
Manual Feed Wait Time
The length of wait time between the time paper is inserted into the sheet guide and when it is fed. If the
paper feeds before its position has been adjusted correctly, you can increase the wait time.
Buzzer
The printer beeps when an error occurs. (See “Checking Messages on the LCD Screen” on page 86
for more information on printer errors.) If you do not want the printer to beep when an error occurs,
turn this setting off.
Display QR Code
Set to On to display QR codes on the LCD display that allow you to access further information on the
Internet.
Low-Noise Mode
Set to On to reduce the printing speed and thereby lower the noise produced during printing.
Sleep Timer
Adjust the time period to enter a sleep mode (energy saving mode) when the printer has not
performed any operations. The LCD screen turns black when the setting time passes.
Menu Options for Settings
28
DLQ-3500II/DLQ-3500IIN
User’s Guide
Interface Settings
I/F Mode
The printer provides built-in slots for three interfaces; Parallel, USB, and Network. You can choose
Auto (automatic), Parallel, USB or Network for the interface mode. When you select Auto, the
printer automatically selects the interface that is receiving data, and uses that interface until the end of
the print job. The Auto setting allows you to share the printer among multiple computers without
changing the interface mode.
If only one computer is connected to the printer, you can select Parallel, USB, and Network,
depending on which interface your computer uses.
Note:
Network is available only on Network compatible models.
Auto I/F Wait Time
This setting is effective only when I/F mode is set to Auto. This setting specifies how long the printer
waits when no longer the printer receives data. You can specify 10 seconds or 30 seconds for the
auto interface wait time.
Parallel I/F Bidirectional Mode
The Parallel Interface bidirectional transfer mode is used when this feature is on. If bidirectional
transfer mode is unnecessary, turn this off.
Note:
To use EPSON Status Monitor 3 or the Printer Setting utility, always turn this feature on.
Packet Mode
Make sure to select Auto to print from Windows applications using the printer driver included in the
software disc that comes with the printer. Turn off this mode if you encounter connection problems
when you are printing from applications based on other operating systems such as DOS.
Note:
Make sure that the printer and the printer driver settings are the same, otherwise, you cannot print or
printing may be corrupted.
Menu Options for Settings
29
DLQ-3500II/DLQ-3500IIN
User’s Guide
Menu Options for Network Settings (Available only on Network
compatible models.)
Select the menus on the control panel as described below.
Menu > Network Settings
Note:
Regarding the network settings, see the Network Guide for details.
Print Status Sheet
Prints the current network settings.
Advanced Setup
Device Name
Enter the device name within 2 to 15 characters.
TCP/IP
Enter the addresses for the IP address, Subnet Mask, and Default Gateway automatically or manually.
DNS Server
Enter the Primary DNS Server and Secondary DNS Server addresses automatically or manually.
IPv6 Address
Select Enable when you use IPv6 address.
Link Speed & Duplex
You can select an appropriate Ethernet speed and duplex setting. If you select a setting other than
Auto, make sure the setting corresponds to the settings on the hub you are using.
Menu Options for Settings
30
DLQ-3500II/DLQ-3500IIN
User’s Guide
Disable IPsec/IP Filtering
You can disable IPsec/IP Filtering.
Restore Default Settings
Restore network related settings to their initial status.
Panel Lock Out Mode
You can restrict the use of buttons on the control panel by using the Panel Lock Out Mode.
Changing the Panel Lock Out Mode setting
You can turn lock out mode on, off, or change locked functions from lock out setting mode.
You can select the printer functions to be locked while the Panel Lock Out Mode is on according to
your needs.
Note:
❏ You can also change lock out mode settings from the Printer Settings utility in the printer driver. See
“Changing printer setting” on page 72.
Follow these steps to change the lock out mode setting:
1. Make sure the printer is turned off.
! Caution:
Whenever you turn off the printer, wait at least five seconds before turning it back on;
otherwise, you may damage the printer.
2. Turn on the printer while holding down both the LF/FF and Pause buttons.
The printer enters the lock out setting mode and you can access the lock out setting menu.
3. If you want to print the current settings, select Print All Settings. To print out, you need A4 or
letter size single sheet paper or continuous paper that is at least 210 mm (8.3 inches) wide. See
“Loading Continuous Paper” on page 38 and “Loading Single Sheets” on page 45 for
instructions on loading continuous paper and single sheets.
Menu Options for Settings
31
DLQ-3500II/DLQ-3500IIN
User’s Guide
4. Select Lock Out Functions, select menu options, and make necessary settings.
You can lock the following buttons and functions.
Load
Paper Source
Cancel
Eject
Tear Off
Menu
LF
Micro Adjust
Shortcut Menu
FF
Pause
5. Select Panel Lock Out Mode and make sure to select On to enable the settings in effect.
6. Turn off the printer and exit the lock out setting mode.
Menu Options for Settings
32
DLQ-3500II/DLQ-3500IIN
User’s Guide
Chapter 3
Paper Handling
Selecting a Paper Source
Your printer can print on a wide variety of paper types, including single sheets, continuous paper,
multipart forms, labels, envelopes, postcards, and continuous forms with labels.
! Caution:
Do not use paper that is folded (except envelope flaps), creased, curled, torn, stained, or stamped.
Always use new, clean paper that meets the paper specifications. See “Paper” on page 126 for more
detailed information.
Your printer can accommodate various paper types through four paper sources: sheet guide, tractor,
optional cut sheet feeder, or optional automatic sheet alignment unit. You should select the paper
source depending on the type of paper you are using. You can select the paper source by pressing the
Paper Source button on the control panel. See “Buttons and Lights” on page 17 for more
information. You can also select the paper source from the printer driver.
Depending on the paper source, the printer prints on the paper and then ejects it differently as shown
below.
Paper source: Tractor
Paper Handling
33
DLQ-3500II/DLQ-3500IIN
User’s Guide
Paper source: Sheet guide, automatic sheet alignment unit (option)
Paper source: Cut-sheet feeder (option)
Note:
Be sure to load paper with the printable side up.
Paper source and paper types
Basically, there are two paper types and four paper sources. The table below shows the relationship
between paper sources and paper types, as well as paper loading and ejecting orientation.
Paper Handling
34
DLQ-3500II/DLQ-3500IIN
User’s Guide
Paper path
Paper Source selection
Continuous paper *1
Tractor
Tractor
Single sheets *2
Sheet guide or optional automatic sheet alignment
unit
Manual/CSF
Optional cut-sheet feeder
Manual/CSF
* 1 Continuous paper includes labels, multipart forms, and continuous forms with labels.
*2 Single sheets include envelopes, postcards, and single sheet multipart forms. You can use only single sheet multipart
forms that are glued at the top of the forms in the optional cut sheet feeder.
Adjusting the Head Gap
You can obtain the best printing quality by adjusting the head gap according to the type of paper you
are using.
You can display the Head Gap setting screen by selecting the following settings on the home screen.
Paper Handling
35
DLQ-3500II/DLQ-3500IIN
User’s Guide
Menu > Printer Settings > Printer Control Settings > Head Gap
The head gap is normally set to AUTO. The printer automatically measures the thickness of the paper
loaded in the printer and adjusts the print head before printing starts.
If you always use the same paper you can set the head gap value to a fixed value.
You can also apply an appropriate head gap setting for a specific print job in the printer driver. See
“Printer Driver Settings Overview” on page 62.
The higher the number you set for the head gap, the wider the space between the platen and the print
head. If your printout appears faint or characters seem skipped or missing, this setting may be too
high. On the other hand, if the setting is too low, your printout may appear smudged, the paper may
not feed correctly, or the ribbon may become damaged.
The following table provides guidelines for selecting the appropriate head gap value for the type of
paper you are using.
For information on the thickness of the paper you can use by paper type, see “Paper” on page 126.
Paper type
Head Gap value
Paper Handling
36
DLQ-3500II/DLQ-3500IIN
Ordinary paper (single sheets or continuous paper)
-1 to 1
Multipart forms
(carbonless)
2 parts (original + 1 copy)
0 or 1
3 parts (original + 2 copies)
1 or 2
4 parts (original + 3 copies)
2 to 4
5 parts (original + 4 copies)
3 to 5
6 parts (original + 5 copies)
4 to 6
7 parts (original + 6 copies)
5 to 8
8 parts (original + 7 copies)
6 to 9
Labels
1 or 2
Envelopes
2 to 7
Postcards
2
Continuous forms with labels
Auto
User’s Guide
Auto
! Caution:
❏ Do not set the head gap to AUTO when using labels with backing sheets that are exposed, as the
measurement of the thickness may not work properly because of the difference in thickness. Set
it to the appropriate position according to the table above.
❏ If the setting is not appropriate, printing speed may decrease, printing may become faint, or
paper may be jammed. We recommend using AUTO to avoid situations such as these unless
you are using labels with backing sheets that are exposed.
Note:
❏ It is recommended to set the head gap to AUTO when printing on multipart forms, because the total
thickness of multipart forms may vary depending on the kind of paper even if the number of parts is
the same.
However, if your printout appears faint, set the head gap to a lower position within the range
specified in the table above. Similarly, if your printout appears smudged, set the value to a bigger
number.
❏ If your printout appears faint or characters seem skipped or missing, this setting may be too high. On
the other hand, if the setting is too low, your printout may appear smudged.
Paper Handling
37
DLQ-3500II/DLQ-3500IIN
User’s Guide
Loading Continuous Paper
You can load continuous paper from the built-in tractor unit.
Note:
See “Continuous paper” on page 127 for detailed specifications on continuous paper.
Positioning the continuous paper supply
When you load continuous paper, make sure to line up the paper supply with the tractor so the paper
feeds smoothly into the printer as shown below.
Loading continuous paper with the tractor
1. Make sure that Tractor is selected as the paper source on the home screen. If not, select it by
pressing the Paper Source button.
Paper Handling
38
DLQ-3500II/DLQ-3500IIN
User’s Guide
2. Slide the edge guides all the way out.
3. Facing the back of the printer, release the sprocket lock levers by pushing them up.
4. Position the left sprocket so that the sprocket pins are to the left of the arrow mark on the back of
the printer. Then push down the lock lever to lock the sprocket in place.
Note:
Printing starts at the arrow mark on the back of the printer.The unprintable area is to the left of the
arrow mark.
Paper Handling
39
DLQ-3500II/DLQ-3500IIN
User’s Guide
5. Slide the right sprocket to roughly match the width of your paper, but do not lock it.
6. Slide the center paper support to the middle of the two sprockets.
7. Open the sprocket covers.
8. Fit the first three holes of the continuous paper over the sprocket pins on both sides. Be sure to
position your paper supply so that the printable side faces up.
Paper Handling
40
DLQ-3500II/DLQ-3500IIN
User’s Guide
! Caution:
Make sure the first sheet of your continuous paper has a clean, straight edge so that it can feed
smoothly into the printer.
9. Close the sprocket covers.
10. Slide the right sprocket to remove any slack in the paper. Then push down the sprocket lock lever
to lock the sprocket in place.
11. The printer is ready to start printing.
When using continuous paper, you can use the tear off function to tear off printed pages and save the
blank pages that are usually wasted between print jobs. For more information, see “Using the tear off
function” on page 42.
Note:
Always make sure there is at least one more sheet than required; continuous paper may not feed properly
if it is not fed through the sprockets.
Paper Handling
41
DLQ-3500II/DLQ-3500IIN
User’s Guide
! Caution:
❏ Use the knob on the right side of the printer only to clear paper jams when the printer is off.
Otherwise, you may damage the printer or cause it to lose the top of form position.
❏ Do not open the printer cover while paper is being fed; otherwise you cannot load the paper
correctly.
❏ The sprockets on the tractor may start moving if a print job is sent to the printer while you are
loading paper. To avoid this, turn the printer off before you start loading paper.
Note:
If the first line on your page appears too high or low, you can change its position by changing the Top of
Form position in the Printer Settings. See “Menu Options for Printer Settings” on page 24.
Using the tear off function
You can use the tear off function to advance your continuous paper to the printer’s tear off edge. When
you finish printing. You can then easily tear off the printed sheets. When you resume printing, the
printer automatically feeds the paper back to the top of form position so that you can save the paper
normally lost between documents.
You can use the tear off function in two ways: manually by pressing the printer’s OK button when
finish printing on the continuous paper or automatically by turning on auto tear off mode.
If the perforation between pages is not aligned with the tear off edge, you can adjust the position of the
perforation using the u d buttons. See “Adjusting the tear off position” on page 53.
! Caution:
Never use the tear off function to feed continuous paper with labels backward; they may come off
their backing sheet and jam the printer.
Using the OK button
Follow these steps to advance continuous paper to the tear off position:
Paper Handling
42
DLQ-3500II/DLQ-3500IIN
User’s Guide
1. After the printer finishes printing your document, check that the printing finish screen is
displayed. See “Printing Finish Screen on Continuous Paper” on page 21.
2. Press the OK button. The printer advances the paper to the tear off edge.
Note:
If your paper’s perforation is not properly aligned with the tear off edge, you can adjust the tear off
position using u d buttons as described in “Adjusting the tear off position” on page 53.
! Caution:
Never use the knob to adjust the tear off position; this may damage the printer or cause it to lose
the top of form position.
3. Tear off all printed pages using the tear off edge of the printer cover.
* tear off edge
When you resume printing, the printer feeds the paper back to the top of form position and begins
printing. (You can also manually feed the paper back to the top of form position by pressing the Pause
button.)
Paper Handling
43
DLQ-3500II/DLQ-3500IIN
User’s Guide
Advancing paper to the tear off position automatically
To automatically advance your printed documents to the tear off position, turn on the auto tear off
mode and select the appropriate page length for continuous paper in the printer settings. See “Menu
Options for Printer Settings” on page 24 for instructions on how to change the default settings.
When auto tear off is on, the printer automatically advances the paper to the tear off position whenever
it receives a full page of data or a form feed command followed by no more data.
The steps below describe how to use auto tear off.
1. When printing is finished, the printer advances the perforation of the final printed page to the tear
off position.
2. Tear off all printed pages using the tear off edge of the printer cover.
Note:
If your paper’s perforation is not properly aligned with the tear off edge, you can adjust the tear off
position using the u d buttons. See “Adjusting the tear off position” on page 53.
3. When you resume printing, the printer feeds the paper back to the top of form position and begins
printing. (You can also manually feed the paper back to the top of form position by pressing the
Pause button.)
Removing continuous paper
Follow these steps to remove continuous paper from the printer:
1. Press the OK button after the printer finishes printing your document. The printer advances the
paper to the tear off position.
Note:
When the auto tear off function is on, the printer advances the paper perforation to the tear off
position automatically. You can turn on the auto tear off function by changing the default settings.
See “Menu Options for Printer Settings” on page 24 for instructions.
2. Tear off the printed pages.
3. Press the Load/Eject button to feed the continuous paper backward out of the printer and into the
standby position.
4. To completely remove continuous paper from the printer, open the sprocket covers. Remove the
paper from the tractor unit, and then close the sprocket covers.
Paper Handling
44
DLQ-3500II/DLQ-3500IIN
User’s Guide
Loading Single Sheets
Your printer can print on single sheets of paper from 90 to 420 mm (3.5 to 16.5 inches) wide. See
“Single sheets” on page 127 for detailed single sheet paper specifications.
You can load one sheet of paper at a time using the sheet guide or optional automatic sheet alignment
unit. See “Automatic Sheet Alignment Unit” on page 118 for more information on the optional
automatic sheet alignment unit. Also you can load a stack of paper in the optional cut sheet feeder. See
“Cut Sheet Feeder” on page 112 for more information on the optional cut sheet feeder.
Note:
If you load long paper (for example, legal size paper), leave enough space at the back of the printer so that
the paper is not obstructed.
Loading single sheets from the front
Follow these steps to load single sheets from the sheet guide.
1. Make sure the sheet guide is attached as described in the Start Here. Then close the tractor unit
sprocket covers located on the back of your printer and push down the sprocket lock levers to lock
the sprockets in place.
2. Turn on the printer.
3. Make sure that Manual/CSF is selected as the paper source on the home screen. If not, select it by
pressing the Paper Source button.
Paper Handling
45
DLQ-3500II/DLQ-3500IIN
User’s Guide
4. Slide the left edge guide until it rests against the guide mark.
* guide mark
5. While aligning the left side of a sheet of paper with the edge guide and adjusting the right edge
guide to match the width of the paper, insert it into the printer until it meets resistance. Be sure to
load paper printable side up.
After a few seconds, the printer automatically advances the paper to the loading position. The printer
is ready to start printing.
! Caution:
❏ Use the knob on the right side of the printer only to clear paper jams when the printer is off.
Otherwise, you may damage the printer or cause it to lose the top of form position.
❏ Do not open the printer cover while paper is being fed; otherwise the printer cannot load the
paper correctly.
Note:
❏ If the platen rotates but the printer does not load the paper, completely remove the paper and then
insert it all the way into the printer again.
❏ If the paper feeds before you can adjust its position properly, increase the Manual feed wait time in
the printer settings. See “Menu Options for Printer Settings” on page 24 for more information.
Paper Handling
46
DLQ-3500II/DLQ-3500IIN
User’s Guide
After printing a sheet, the printer ejects it onto the paper guide. If you are printing a multiple-page
document, remove the printed sheet and insert a new sheet into the paper guide. The printer
automatically advances the paper and resumes printing.
Note:
If the printer does not eject the printed sheet, press the Load/Eject button.
Loading single sheets from the rear
You can load a stack of paper from the rear of the printer using the optional cut sheet feeder. See “Cut
Sheet Feeder” on page 112 for more information.
Loading Special Paper
Multipart forms
Your printer can print on both single sheet and continuous multipart forms. It can use multipart
forms with up to eight parts including the original.
! Caution:
Use only carbonless multipart forms.
Before printing, set the head gap to the appropriate value for your multipart forms referring to the
table in “Adjusting the Head Gap” on page 35.
You can load single sheet multipart forms from the sheet guide, or with the optional cut sheet feeder or
optional automatic sheet alignment unit. For instructions, see “Loading Single Sheets” on page 45,
“Loading paper to the cut sheet feeder” on page 114, or “Loading paper using the automatic sheet
alignment unit” on page 120. You can load continuous multipart forms in the same way as you load
ordinary continuous paper. For instructions, see “Loading Continuous Paper” on page 38.
! Caution:
❏ When printing on multipart forms, make sure that your software settings keep the printing
entirely within the printable area of the forms. Printing on the edge of a multipart form can
damage the print head. For information about the printable area, see “Printable area” on
page 134.
❏ Single sheet multipart forms that are glued at the side of the form should be loaded only from
the sheet guide, not from the optional cut sheet feeder.
Paper Handling
47
DLQ-3500II/DLQ-3500IIN
User’s Guide
Labels
When selecting labels for printing, always choose labels mounted on continuous backing sheets with
sprocket holes for use with a tractor. Do not use labels on shiny single sheet backing, because the
backing sheet tends to slip and may not feed properly.
Follow these steps to load labels:
! Caution:
Use labels only under normal operating conditions because labels are especially sensitive to
temperature and humidity.
1. Make sure of the following:
❏ Your software settings keep the printing entirely within the printable area. For information
about the printable area, see “Printable area” on page 134.
! Caution:
Printing on the edge of a label can damage the print head.
❏ The auto tear off function is turned off in the printer settings.
❏ If you use labels whose backing sheet is exposed, make sure the head gap is not set to AUTO.
Set it to the appropriate position. See “Adjusting the Head Gap” on page 35 for more
information.
2. Load labels as described in “Loading continuous paper with the tractor” on page 38.
To tear off and eject labels
Always tear off and eject labels as described below.
! Caution:
Never feed labels backward using the Load/Eject button, OK button, or knob on the right side of
the printer. Labels can easily peel off their backing and jam the printer.
Paper Handling
48
DLQ-3500II/DLQ-3500IIN
User’s Guide
1. At the back of your printer, tear off the last label form that has entered the printer, but do not press
the OK button. See the illustration below.
2. Press the LF/FF button to eject the last label form forward.
! Caution:
Do not leave labels loaded in the printer between print jobs; they tend to curl and may come off
their backing sheet and jam the printer when you resume printing.
Envelopes
You can print on a variety of envelopes by loading them the same way you load single sheets—from the
sheet guide or with the optional cut sheet feeder or optional automatic sheet alignment unit.
Follow these steps to load envelopes:
! Caution:
Use envelopes only under normal operating conditions.
1. Make sure that your software settings keep the printing entirely within the printable area. See
“Printable area” on page 134 for more information.
! Caution:
Printing on the edge of an envelope can damage the print head.
2. Make sure that Manual/CSF is selected as the paper source on the home screen. If not, select it by
pressing the Paper Source button.
3. Select Envelope from the home screen as described below.
Paper Handling
49
DLQ-3500II/DLQ-3500IIN
User’s Guide
Menu > Printer Settings > Print Control Settings > Paper Type
4. Load envelopes following the instructions in “Loading single sheets from the front” on page 45,
“Loading paper to the cut sheet feeder” on page 114, or “Loading paper using the automatic sheet
alignment unit” on page 120. Be sure to fold the flap and be careful of the flap’s orientation.
from the sheet guide
* guide mark
** top edge first and flap side down
Postcards
You can print on a variety of postcards by loading them the same way you load single sheets from the
sheet guide or with the optional cut sheet feeder or optional automatic sheet alignment unit.
Follow these steps to load envelopes:
! Caution:
Use envelopes only under normal operating conditions.
1. Make sure that your software settings keep the printing entirely within the printable area. See
“Printable area” on page 134 for more information.
! Caution:
Printing on the edge of an envelope can damage the print head.
2. Make sure that Manual/CSF is selected as the paper source on the home screen. If not, select it by
pressing the Paper Source button.
Paper Handling
50
DLQ-3500II/DLQ-3500IIN
User’s Guide
3. Select Card from the home screen as described below.
Menu > Printer Settings > Print Control Settings > Paper Type
4. Load cards following the instructions in Loading single sheets from the front, Loading paper to the
cut sheet feeder, or Loading paper using the automatic sheet alignment unit.
from the sheet guide
* guide mark
Switching Between Continuous Paper and Single Sheets
When using the tractor, you can easily switch between continuous paper and single sheets (including
envelopes or postcards) without removing the continuous paper from the tractor.
Switching to single sheets
Follow these steps to switch from continuous paper to single sheets:
1. When you have finished printing on continuous paper, press the OK button to advance the paper
to the tear off position.
Paper Handling
51
DLQ-3500II/DLQ-3500IIN
User’s Guide
Note:
If the auto tear off mode is turned on, the printer advances the paper perforation to the tear off
position automatically.
2. Tear off the printed pages.
! ❏Caution:
Always tear off paper before feeding it backwards; feeding too many sheets backwards can
cause a paper jam.
❏ Never feed labels backward using the Load/Eject button, OK button, or knob on the right
side of the printer. Labels can easily peel off their backing and jam the printer. For
information on removing labels from the paper path, see “To tear off and eject labels” on
page 48.
3. Press the Load/Eject button to feed the continuous paper back to the standby position. The paper
is still attached to the tractor, but is no longer in the paper path.
4. Select Manual/CSF as the paper source on the home screen by pressing the Paper Source button.
Now you can load single sheets from the sheet guide. See “Loading Single Sheets” on page 45 for more
information.
Switching to continuous paper
Follow these steps to switch from single sheets to continuous paper:
1. If necessary, press the Load/Eject button to eject the last printed single sheet.
2. Make sure continuous paper is loaded in the printer as described in “Loading continuous paper
with the tractor” on page 38.
Paper Handling
52
DLQ-3500II/DLQ-3500IIN
User’s Guide
3. Select Tractor as the paper source on the home screen by pressing the Paper Source button.
The printer automatically advances the continuous paper from the standby position to the loading
position when it receives data.
Using the Micro Adjust Function
The Micro Adjust function allows you to move the paper forward or backward in 0.141 mm (1/180
inch) increments so that you can make precise adjustments to the top-of-form and tear off positions.
Adjusting the tear off position
If your paper perforation is not aligned with the tear off edge, you can use the Micro Adjust function to
move the perforation to the tear off position.
Follow these steps to adjust the tear off position:
! Caution:
Never use the knob to adjust the tear off position; this may damage the printer or cause it to lose the
tear off position.
Note:
Your tear off position setting remains in effect until you change it, even if you turn off the printer.
1. Press the OK button when the finish printing screen is displayed after printing is complete or when
a screen is displayed after Tear off is selected on the home screen. The printer enters Micro Adjust
mode.
Paper Handling
53
DLQ-3500II/DLQ-3500IIN
User’s Guide
2. Press the d button to feed paper forward, or press the u button to feed paper backward, until the
paper perforation is aligned with the tear off edge of the printer cover.
Note:
The printer has a minimum and a maximum tear off position. If you try to adjust the tear off position
beyond these limits, the printer beeps and stops moving the paper.
3. Tear off the printed pages.
4. Press the
button to exit the Micro Adjust mode.
When you resume printing, the printer automatically feeds the paper back to the top of form position
and begins printing.
Paper Handling
54
DLQ-3500II/DLQ-3500IIN
User’s Guide
Chapter 4
Printer Software
About Your Printer Software
The Epson software includes the printer driver software and EPSON Status Monitor 3.
The printer driver is software that allows your computer to control the printer. You need to install the
printer driver so your Windows software applications can take full advantage of the printer’s
capabilities.
You can install EPSON Status Monitor 3, Bi-D Adjustment, and the Printer Setting Utility from the
software disc when you install the printer driver unless you choose not to install EPSON Status
Monitor 3.
EPSON Status Monitor 3 allows you to monitor the status of your printer, alerts you when errors
occur, and provides you with troubleshooting tips. The Bi-D Adjustment utility program allows you
to make adjustments when you find a misalignment in vertical lines. See “Using Bi-D Adjustment” on
page 70. The Printer Setting Utility allows you to display current settings stored in the printer,
change settings for the printer, and load settings stored on a file or save settings to a file. See “Using
Printer Setting” on page 71. If you want to install EPSON Status Monitor 3 later, see “Installing
EPSON Status Monitor 3” on page 67 for instructions.
Note:
❏ Before proceeding, make sure you have installed the printer driver on your computer described in the
supplied setup sheet.
❏ On-screen displays on the following pages may differ depending on the version of the printer driver.
❏ When you wish to reinstall or upgrade the printer driver, uninstall the printer driver that has been
installed already.
Using the Printer Driver
You can access the printer driver from your Windows applications or from the Start menu.
Screens and procedures that appear in this manual are mostly from Windows 10 unless otherwise
specified.
Printer Software
55
DLQ-3500II/DLQ-3500IIN
User’s Guide
❏ When you access the printer driver from a Windows application, any settings you make apply only
to the application you are using. See “Accessing the printer driver from Windows applications” on
page 56 for more information.
❏ When you access the printer driver from the Start menu, the printer driver settings you make apply
to all your applications. See “Accessing the printer driver from the Start menu” on page 59 for
more information.
See “Changing the printer driver settings” on page 61 to check and change printer driver settings.
Note:
❏ The examples in the following section are from the DLQ-3500IIN. If you have the DLQ-3500II,
substitute the model that has been used. The instructions are the same all models.
❏ While many Windows applications override the settings made with the printer driver, some do not,
so you must verify that the printer driver settings match your requirements.
Accessing the printer driver from Windows applications
Follow these steps to access the printer driver from a Windows application:
Note:
The screen shots used in this procedure are from the Windows 10 operating system. The content on the
screen may vary depending on your computer's environment.
Printer Software
56
DLQ-3500II/DLQ-3500IIN
User’s Guide
1. Select Print from the File menu of your application software. Make sure that your printer is
selected in the Select Printer of Print dialog box.
Printer Software
57
DLQ-3500II/DLQ-3500IIN
User’s Guide
2. Click Preferences. The Printing Preferences window appears, and you see the Paper/Quality,
Layout, User Defined Paper, and Extension Settings menus. These menus contain the printer
driver settings.
Printer Software
58
DLQ-3500II/DLQ-3500IIN
User’s Guide
3. To view a menu, click the corresponding tab at the top of the window. See “Changing the printer
driver settings” on page 61 to change the settings.
Accessing the printer driver from the Start menu
Follow these steps to access the printer driver from the Start menu:
Note:
The screen shots used in this procedure are from the Windows 10 operating system. The content on the
screen may vary depending on your computer's environment.
1. For Windows 10/Windows Server 2019/Windows Server 2016:
Click on the Start button, and then select Windows System > Control Panel > View devices
and printers in Hardware and Sound.
Printer Software
59
DLQ-3500II/DLQ-3500IIN
User’s Guide
For Windows 8.1/Windows 8/Windows Server 2012 R2/Windows Server 2012:
Click Desktop on the Start screen, move the cursor to the top-right corner of the screen, click
Settings, and then click Control Panel. Next, click View devices and printers from the
Hardware and Sound category.
For Windows 7/Windows Server 2008 R2:
Click Start, and click Devices and Printers.
For Windows Vista/Windows Server 2008:
Click Start, click Control Panel, click Hardware and Sound, and then click Printers.
For Windows XP/Windows Server 2003 R2/Windows Server 2003:
Click Start, and click Printers and Faxes.
2. Right-click your printer icon, and click Printing Preferences. The screen displays the Paper/
Quality, Layout, User Defined Paper and Extension menus. These menus display the printer
driver settings.
Printer Software
60
DLQ-3500II/DLQ-3500IIN
User’s Guide
When you click Printer properties in the menu displayed by right-clicking the printer icon, the
Properties window appears, which includes menus used to make the printer driver settings.
3. To view a menu, click the corresponding tab at the top of the window. See “Printer Driver Settings
Overview” on page 62 for more information.
Changing the printer driver settings
Your printer driver has two menus from which you can change the printer driver settings; Layout,
Paper/Quality. You can also change settings on the Utility menu in the printer software. For an
overview of the available settings, see “Printer Driver Settings Overview” on page 62.
Note:
For Windows XP/Windows Server 2003 R2/Windows Server 2003, you can also view online help by
right-clicking items in the driver and selecting What’s this?.
Printer Software
61
DLQ-3500II/DLQ-3500IIN
User’s Guide
Click the Help button on the Printer Driver screen.
When you finish making your printer driver settings, click OK to apply the settings, or click Cancel to
cancel your changes.
Once you have checked your printer driver settings and changed them if necessary, you are ready to
print.
Printer Driver Settings Overview
The following tables show the Windows printer driver settings. Note that not every setting is available
in all versions of Windows. For more details, see Help for the printer driver.
Printer Software
62
DLQ-3500II/DLQ-3500IIN
User’s Guide
Printer settings
Settings
Explanations
Orientation
Select Portrait or Landscape.
Page Order*
Select whether to print from front to back or back to front.
Pages per Sheet*
Select the number of pages that you want to print onto a single page.
Draw Borders*
Select to print a border around the pages.
Paper Source
Select the paper source you want to use.
When you select a paper source setting that ends with (check paper), the printer is
paused and displays the job information screen for you to check. To start printing, load
paper when loading paper from the front, or press the Pause button on the control
panel when loading paper from the push tractor or the cut sheet feeder.
Use this feature when you want to check the paper every time you print.
Color
Select whether to print graphics in monochrome or color.
User Defined Paper
If your paper is not included in the Paper Size drop-down list, you can add the size to the
list. For more details, see Help for the printer driver.
Offset
This setting allows you to offset the image on the page. That is, you can adjust the
position of the printed image. If the offset you specify moves a portion of the image out
of the printer’s printable area, that portion will not be printed.
Driver Note
You can add short notes to the printing data to help you identify the print job.
Paper Size
Select the size of the paper you want to use. If you do not see your paper size, use the
scroll bar to scroll through the list. If your paper size is not included in the list, see
“Definition of Custom Paper Size” on page 65 for instructions.
Copy Count*
Select the number of copies you want to print. When you select more than one, this
check box is displayed and you can select whether to collate the copies.
Graphic - Print Quality
Select the printing resolution you want. The higher the resolution you select, the more
detailed your printout will be; however, increasing the resolution slows printing.
Advanced Printing Features*
Select Enable or Disable for the metafile Spooling.
Pages per Sheet Layout*
Select the layout direction for the pages you want to print.
Color Printing Mode
Select Monochrome or 8 Colors (halftoned). 8 Colors (halftoned) is available when
Color is selected on the Paper/Quality tab.
Halftoning
Select the type of halftoning to use when printing graphics. To let the printer determine the best halftone quality, use Auto Select.
Printer Software
63
DLQ-3500II/DLQ-3500IIN
User’s Guide
Settings
Explanations
Print Optimizations*
Select Disable when the printer does not use the device fonts and select Enable when
the printer uses the device fonts.
Head Gap
Make sure you select the appropriate setting according to the thickness of the paper
you are using or the total thickness of the multipart form.
Printer Setting
Uses the settings stored in the printer.
Auto
The printer automatically measures the thickness of the paper
and selects the appropriate settings.
9, 8, 7, 6, 5, 4, 3, 2, 1,
0, -1
Select the appropriate setting according to the thickness of the
paper you are using. When printing on continuous paper, the
printer automatically selects Auto.
Print Speed
This setting allows you to select print speed. Select Printer Setting when you want to
print using the settings stored in the printer. When Standard is selected, prints in
standard printing mode. When High Speed is selected, prints in high speed printing
mode.
Print Direction
This setting allows you to select bidirectional printing. Selecting the Printer Setting
will use the setting stored in the printer. Selecting Bidirectional will print in bidirectional printing mode. Selecting Unidirectional will print in unidirectional printing
mode.
Make sure that Bi-d is selected as the Print direction setting stored in the printer.
Otherwise this setting is ignored by the printer.
Printable Area
If Standard is selected, the normal printable area for Epson impact printers is used. If
Maximum is selected, the printer’s maximum printable area is used.
Top Margin Priority
Select which setting for the print start position is to be used; driver setting or printer
setting. For more details, see Help for the printer driver.
Printer Font Setting
Select a character table group to use. You can select one of three character table
groups, Standard, Expanded, and None (Bit Image printing).
When Standard or Expanded is selected, the printer uses the device fonts. Expanded
includes more fonts than Standard.
When None is selected, the printer uses bit map images instead of the device fonts.
For details on the fonts which are included in each table, see “Electronic” on
page 124.
Packet mode
Ordinarily, there is no need to change this setting. If you change the printer’s Packet
mode settings, change this setting to match. If the printer and printer driver settings
are different, you may not be able to print correctly. For more details, see Help for the
printer driver.
* For details, see Windows help.
Printer Software
64
DLQ-3500II/DLQ-3500IIN
User’s Guide
Definition of Custom Paper Size
If your paper is not included in the Paper Size drop-down list, you can add the size to the list.
1. For Windows 10/Windows Server 2019/Windows Server 2016:
Click on the Start button, and then select Windows System > Control Panel > View devices
and printers in Hardware and Sound.
For Windows 8.1/Windows 8/Windows Server 2012 R2/Windows Server 2012:
Click Desktop on the Start screen, move the cursor to the top-right corner of the screen, click
Settings, and then click Control Panel. Next, click View devices and printers from the
Hardware and Sound category.
For Windows 7/Windows Server 2008 R2:
Click Start, and click Devices and Printers.
For Windows Vista/Windows Server 2008:
Click Start, click Control Panel, click Hardware and Sound, and then click Printers.
For Windows XP/Windows Server 2003 R2/Windows Server 2003:
Click Start, and click Printers and Faxes.
2. Right click your printer icon, and click Printing Preferences.
3. Select the User Defined Paper menu.
4. Enter the paper size in the Paper Size fields.
5. Click Apply and then click OK.
Note:
For more details, see Help for the printer driver.
Monitoring settings
Settings
Explanations
EPSON Status Monitor 3
You can access EPSON Status Monitor 3 when you click this button. To
monitor the printer, make sure the Monitor the printing status check box is
selected.
Printer Software
65
DLQ-3500II/DLQ-3500IIN
User’s Guide
Settings
Explanations
Monitoring Preferences
Click this button to open the Monitoring Preferences dialog box where you
can make settings for EPSON Status Monitor 3. See “Setting up EPSON Status
Monitor 3” on page 67 for more information.
Setting Utility
Settings
Explanations
Bi-D Adjustment
Click this button to open the Bi-D Adjustment dialog box where you can
adjust misalignment in vertical lines.
Printer Setting
Click this button to open the Printer Settings utility dialog box where you can
change the printer settings.
Using EPSON Status Monitor 3
EPSON Status Monitor 3 allows you to monitor your printer’s status, alerts you when printer errors
occur, and provides troubleshooting instructions when needed.
EPSON Status Monitor 3 is available when:
❏ The printer is connected directly to the host computer via the parallel port [LPT1] or the USB port
or connected to an Ethernet network.
❏ Your system is configured to support bidirectional communication.
You can install EPSON Status Monitor 3 by selecting it when you set up the printer. If you need to
install it, see “Installing EPSON Status Monitor 3” on page 67. When sharing the printer, be sure to
set EPSON Status Monitor 3 so that the shared printer can be monitored on the printer server and
clients. See “Setting up EPSON Status Monitor 3” on page 67 and “Setting Up Your Printer on a
Network” on page 74.
Note:
❏ If you are using a computer running with different OS by multiple users are logged on, a
communication error message may be displayed when monitoring printers at the same time.
❏ Although you can print to the printer directly connected to the computer in a remote location by
using Remote Desktop function, communication error may occur.
Printer Software
66
DLQ-3500II/DLQ-3500IIN
User’s Guide
❏ If EPSON Status Monitor 3 is installed with the Windows Firewall feature turned on
(recommended), the shared printer may not be able to be monitored. This problem can be resolved by
adding ENAGENT.EXE to Exceptions of the firewall function.
Installing EPSON Status Monitor 3
If you have not installed EPSON Status Monitor 3 yet, follow the steps below to install EPSON Status
Monitor 3.
1. Make sure that the printer is off and that Windows is running on your computer.
2. Insert the Software Disc in the CD-ROM drive.
Note:
Before proceeding, make sure you have installed the printer driver on your computer.
3. Follow the on-screen instructions to install the software.
You can also run the executable file that locates in the following.
Client’s OS
Folder Name
Windows XP/Vista/7/8/8.1/10 (x64)
\Apps\StatusMonitor\STM3x64
Windows XP/Vista/7/8/8.1/10 (x86)
\Apps\StatusMonitor\STM3
Setting up EPSON Status Monitor 3
Follow these steps to set up EPSON Status Monitor 3:
1. For Windows 10/Windows Server 2019/Windows Server 2016:
Click on the Start button, and then select Windows System > Control Panel > View devices
and printers in Hardware and Sound.
For Windows 8.1/Windows 8/Windows Server 2012 R2/Windows Server 2012:
Click Desktop on the Start screen, move the cursor to the top-right corner of the screen, click
Settings, and then click Control Panel. Next, click View devices and printers from the
Hardware and Sound category.
For Windows 7/Windows Server 2008 R2:
Click Start, and click Devices and Printers.
Printer Software
67
DLQ-3500II/DLQ-3500IIN
User’s Guide
For Windows Vista/Windows Server 2008:
Click Start, click Control Panel, click Hardware and Sound, and then click Printers.
For Windows XP/Windows Server 2003 R2/Windows Server 2003:
Click Start, and click Printers and Faxes.
2. For Windows 10/Windows 8.1/Windows 8/Windows 7/Windows Server 2019/Windows Server
2016/Windows Server 2012 R2/Windows Server 2012/Windows Server 2008 R2:
Right-click your printer icon, then click Printer properties, and then click the Utility tab.
For Windows Vista/Windows XP/Windows Server 2008/Windows Server 2003 R2/Windows
Server 2003:
Click Properties, then click the Utility tab.
3. Click the Monitoring Preferences button. The Monitoring Preferences dialog box appears.
4. The following settings are available:
Printer Software
68
DLQ-3500II/DLQ-3500IIN
Select Notification
User’s Guide
Displays the error item check box On/Off status.
Turn on this check box to display the selected error notification.
Select Shortcut Icon
The selected icon is displayed on the taskbar. The setting’s example is shown on
the right window. By clicking the shortcut icon, you can access the Monitoring
Preferences dialog box easily.
Allow monitoring of shared
printers
When this check box is selected, a shared printer can be monitored by other
PCs.
Note:
If the server’s OS is Windows Vista, select Run as Administrator when opening
the printer properties before checking.
Note:
Click the Default button to revert all items to the default settings.
Accessing EPSON Status Monitor 3
Do one of the following to access EPSON Status Monitor 3;
❏ Double-click the printer-shaped shortcut icon on the taskbar. To add a shortcut icon to the
taskbar, go to the Utility menu and follow the instructions.
❏ Open the Utility menu, then click the EPSON Status Monitor 3 icon. To find out how to open the
Utility menu, See “Using the Printer Driver” on page 55.
When you access EPSON Status Monitor 3 as described above, the following printer status window
appears.
You can view printer status information in this window.
Printer Software
69
DLQ-3500II/DLQ-3500IIN
User’s Guide
Note:
It might not be possible to retrieve the printer status during printing. In this situation, click the EPSON
Status Monitor 3 button in the Utility tab, and use the printer with the status window left open.
Using Bi-D Adjustment
This utility tool allows you to make adjustment when you find a misalignment in vertical line.
Making adjustment with Bi-D Adjustment
To make Bi-D Adjustment, follow the steps below.
! Caution:
❏ Do not turn off the printer while the printer is printing adjustment pattern. Doing so may
cause the printer to store incorrect settings. If you turned off the printer during the adjustment
process, restart Bi-D Adjustment again.
❏ Serial connection is not supported.
❏ Make sure that the printer’s status is ready before making Bi-D Adjustment.
❏ If Bi-D Adjustment is not printed properly, set the printer’s font setting to default and try
again.
1. Open the Utility menu, then click the Bi-D Adjustment icon. To find out how to open the Utility
menu, see “Using the Printer Driver” on page 55. The Bi-D Adjustment window appears.
2. Click Next.
Printer Software
70
DLQ-3500II/DLQ-3500IIN
User’s Guide
3. Click Print. The printer prints three sets of adjustment pattern. To see the adjustment pattern, you
need four sheets of A3 size single sheet paper or 15 inch (recommended) continuous paper.
Note:
The image on the right above is an example of good and bad patterns in the print results.
4. Look at the adjustment patterns and find the vertical line that is aligned the best. Then, select the
corresponding line number in the Bi-D Adjustment window.
5. Click Set. The adjustment value will be stored in the printer.
Using Printer Setting
This utility tool allows you to display current settings stored in the printer, change settings of the
printer, and read settings stored in the file or save settings to the file.
Printer Software
71
DLQ-3500II/DLQ-3500IIN
User’s Guide
You can also change some of the printer's default settings stored in the printer from this utility. For
details on the setting items, see “Menu Options for Printer Settings” on page 24.
! Caution:
Make sure that the printer status is ready before getting setting from the printer or updating the
printer settings.
Note:
❏ You do not need to change the default printer settings stored in the printer if you only print from
Windows. Changing these settings may cause undesirable effects in your printouts when printing
from Windows.
❏ Some settings are not supported on the Utility menu.
Changing printer setting
To change printer settings, follow the steps below.
Printer Software
72
DLQ-3500II/DLQ-3500IIN
User’s Guide
1. Open the Utility menu, then click the Printer Setting icon. To find out how to open the Utility
menu, see “Using the Printer Driver” on page 55. The Printer Setting windows appears.
2. Change the necessary printer settings. For details on how to use this tool, refer to the printer driver
Help.
Note:
To display additional printer default settings, select Setting from the menu at the top of the Printer
Setting window, and then select Show Expansion Setting.... However, the Expansion Setting may
cause unwanted effects and normally these settings should not be changed. We recommend contacting a
technical expert if you need to change these settings.
Printer Software
73
DLQ-3500II/DLQ-3500IIN
User’s Guide
Setting Up Your Printer on a Network
Sharing the printer
This section describes how to share the printer on a standard Windows network.
The computers on a network can share a printer that is directly connected to one of them. The
computer that is directly connected to the printer is the printer server, and the other computers are the
clients which need permission to share the printer with the printer server. The clients share the printer
via the printer server.
According to the versions of Windows OS and your access rights on the network, perform the
appropriate settings of the printer server and clients.
❏ See “Setting up your printer as a shared printer” on page 74.
❏ See “Setting for the clients” on page 78.
Note:
❏ When sharing the printer, be sure to set EPSON Status Monitor 3 so that the shared printer can be
monitored on the printer server and clients. See “Setting up EPSON Status Monitor 3” on page 67.
❏ When connecting to a shared printer beyond a router, error and warning notification for shared
printers during printing is not available in some cases because of the router’s settings.
❏ The printer server and clients should be set on the same network system, and they should be under the
same network management beforehand.
Setting up your printer as a shared printer
Follow these steps to set the printer server.
Note:
You must access as the Administrators of the local machine.
1. For Windows 10/Windows Server 2019/Windows Server 2016:
Click on the Start button, and then select Windows System > Control Panel > View devices
and printers in Hardware and Sound.
Printer Software
74
DLQ-3500II/DLQ-3500IIN
User’s Guide
For Windows 8.1/Windows 8/Windows Server 2012 R2/Windows Server 2012:
Click Desktop on the Start screen, move the cursor to the top-right corner of the screen. Click
Settings, and then click Control Panel. Next, click View devices and printers from the
Hardware and Sound category.
For Windows 7/Windows Server 2008 R2:
Click Start, and then click View devices and printers.
For Windows Vista/Windows Server 2008:
Click Start, click Control Panel, click Hardware and Sound, and then click Printers.
For Windows XP/Windows Server 2003 R2/Windows Server 2003:
Click Start, and click Printers and Faxes.
2. For Windows 10/Windows 8.1/Windows 8/Windows 7/Windows Server 2019/Windows Server
2016/Windows Server 2012 R2/Windows Server 2012/Windows Server 2008 R2:
Right-click your printer icon, click Printer properties, and then click the Sharing tab in the
appearing screen.
For Windows Vista/Windows XP/Windows Server 2008/Windows Server 2003 R2/Windows
Server 2003:
Right-click your printer icon, and click Sharing in the menu that appears.
For Windows XP/Windows Server 2003 R2/Windows Server 2003, if the following menu appears,
click either Network Setup Wizard or If you understand the security risks but want to share
printers without running the wizard, click here.
In either case, follow the on-screen instructions.
Printer Software
75
DLQ-3500II/DLQ-3500IIN
User’s Guide
Select Share this printer, then type the name in the Share name box and click OK.
Note:
❏ Do not use spaces or hyphens for the share name, or an error may occur.
❏ In Windows 8.1/Windows 8/Windows 7/Windows Vista/Windows Server 2012 R2/Windows
Server 2012/Windows Server 2008 R2/Windows Server 2008, you cannot select Share this
printer until you click the Change sharing options button.
You need to set the client computers so that they can use the printer on a network. See the following
pages for details:
❏ See “Setting for the clients” on page 78.
Sharing the printer when the firewall is on
Note:
To share files and printers when Windows Firewall is on, perform the following procedure.
Windows 10/Windows Server 2019/Windows Server 2016
1. Click on the Start button, and then select Windows System > Control Panel, click System and
Security, and then click Windows Firewall.
2. Click Turn Windows Firewall on or off in the window on the left. Make sure that Block all
incoming connections, including those in the list of allowed apps is not selected, and then
click OK.
3. Click Allow an app or feature through Windows Firewall in the window on the left.
Printer Software
76
DLQ-3500II/DLQ-3500IIN
User’s Guide
4. Select File and Printer Sharing, and then click OK.
Windows 8.1/Windows 8/Windows Server 2012 R2/Windows Server 2012
1. Click Desktop on the Start screen, move the cursor to the top-right corner of the screen, click
Settings, and then click Control Panel. Next, click System and Security, and then click
Windows Firewall.
2. Click Turn Windows Firewall on or off in the window on the left. Make sure that Block all
incoming connections, including those in the list of allowed apps is not selected, and then
click OK.
3. Click Allow an app or feature through Windows Firewall in the window on the left.
4. Select File and Printer Sharing, and then click OK.
Windows 7/Windows Server 2008 R2
1. Click Start, click Control Panel, click System and Security, and then click Windows
Firewall.
2. Click Turn Windows Firewall on or off in the window on the left. Make sure that Block all
incoming connections, including those in the list of allowed programs is not selected, and
then click OK.
3. Click Allow a program or feature through Windows Firewall in the window on the left.
4. Select Share file and printer, and then click OK.
Windows Vista/Windows Server 2008
1. Click Start, and then click Control Panel.
2. Click Security, and then click Windows Firewall to open the Windows Firewall window.
3. Click Turn Windows Firewall on or off in the window on the left. When the User Account
Control screen is displayed, click Continue.
4. Make sure that Block all incoming connections is not selected from the General tab.
5. Open the Exceptions tab, select File and Printer Sharing, and then click OK.
Printer Software
77
DLQ-3500II/DLQ-3500IIN
User’s Guide
Windows XP/Windows Server 2003 R2/Windows Server 2003
1. Click Start, and then click Control Panel.
2. Click Security Center.
3. Click Windows Firewall to open the Windows Firewall window.
4. Make sure that Don’t allow exceptions is not selected from the General tab.
5. Open the Exceptions tab, select File and Printer Sharing, and then click OK.
Setting for the clients
This section describes how to install the printer driver by accessing the shared printer on a network.
Note:
❏ To share the printer on a Windows network, you need to set the printer server. For details, see
“Setting up your printer as a shared printer” on page 74.
❏ This section describes how to access the shared printer on a standard network system using the server
(Microsoft workgroup). If you cannot access the shared printer due to the network system, ask the
administrator of the network for assistance.
❏ This section describes how to install the printer driver by accessing the shared printer from the
Printers folder. You can also access the shared printer from Network Neighborhood or My Network
on the Windows desktop.
❏ When you want to use the EPSON Status Monitor 3 at clients, you have to install both of the printer
driver and the EPSON Status Monitor 3 in each client.
❏ If the printer drivers are not already installed on the client, please install them before performing
these settings.
1. For Windows 10/Windows Server 2019/Windows Server 2016:
Click on the Start button, and then select Windows System > Control Panel > View devices
and printers in Hardware and Sound.
For Windows 8.1/Windows 8/Windows Server 2012 R2/Windows Server 2012:
Click Desktop on the Start screen, move the cursor to the top-right corner of the screen, click
Settings, and then click Control Panel. Next, click View devices and printers from the
Hardware and Sound category.
Printer Software
78
DLQ-3500II/DLQ-3500IIN
User’s Guide
For Windows 7/Windows Server 2008 R2:
Click Start, and click Devices and Printers.
For Windows Vista/Windows Server 2008:
Click Start, click Control Panel, click Hardware and Sound, and then click Printers.
For Windows XP/Windows Server 2003 R2/Windows Server 2003:
Click Start, and click Printers and Faxes.
2. Right-click the icon for the printer you wish to change the settings for, and then click Printer
properties.
Printer Software
79
DLQ-3500II/DLQ-3500IIN
User’s Guide
3. Click the Ports tab and then click Add Port.
4. When the Printer Ports window appears, select Local Port, and then click New Port.
Printer Software
80
DLQ-3500II/DLQ-3500IIN
User’s Guide
5. Enter the following information for the port name and then click OK.
\\Name of computer connected to the target printer\name of shared printer
6. After returning to the Printer Ports window, click Cancel.
7. Check that the name you entered for the port has been added and selected, and then click
Close.
Installing the printer driver from the CD-ROM
This section describes how to install the printer driver in the clients when the computers of the server
and clients use different OS.
The on-screen displays on the following pages may differ depending on the version of Windows OS.
Note:
❏ When installing the printer driver in the clients, you must access with the Administrator.
❏ If the computers of the server and clients have the same OS and the same architecture, you do not
have to install the printer drivers from the CD-ROM.
1. Access the shared printer and a prompt may appear. Click OK, and then follow the on-screen
instructions to install the printer driver from the CD-ROM.
Printer Software
81
DLQ-3500II/DLQ-3500IIN
User’s Guide
2. Insert the CD-ROM, then the Install Navi dialog box appears. Cancel the dialog box by clicking
Cancel, then type the appropriate drive and folder names in which the printer driver for clients is
located, then click OK.
When installing drivers in Windows Vista, XP, “Digital Signature is not found.” may appear. Click
Continue Anyway (for Windows XP) or Install this driver software anyway (for Windows
Vista) and continue installing.
The folder name differs depending on the OS being used.
Client’s OS
Folder Name
Windows XP/Vista/7/8/8.1/10 (x64)
\Driver\Printer\Driver\WINX64
Windows XP/Vista/7/8/8.1/10 (x86)
\Driver\Printer\Driver\WINX86
3. Select the name of the printer, then click OK. Then follow the on-screen instructions.
Note:
❏ If you also want to install EPSON Status Monitor 3, see “Installing EPSON Status Monitor 3” on
page 67 for instructions.
❏ If you want to use EPSON Status Monitor 3 for the shared printer, reinstall the printer driver as
instructed in “Setting for the clients” on page 78 after installing the printer driver and EPSON Status
Monitor 3 from the CD-ROM. Before printing, be sure to select the printer driver installed in “Setting
for the clients” on page 78.
❏ If EPSON Status Monitor 3 is installed with the Windows Firewall feature turned on
(recommended), the shared printer may not be able to be monitored. This problem can be resolved by
adding ENAGENT.EXE to Exceptions of the firewall function.
Printer Software
82
DLQ-3500II/DLQ-3500IIN
User’s Guide
Cancelling Printing
If the printouts are not what you expected and display incorrect or garbled characters or images, you
may need to cancel printing. When the printer icon is displayed on the taskbar, follow the instructions
below to cancel printing.
1. Double-click the printer icon on the task bar.
2. When cancelling all printing documents, select Cancel All Documents on the Printer menu.
When cancelling a specified document, select a document you want to cancel and select Cancel on
the Document menu.
The printing job is canceled.
Uninstalling the Printer Software
When you wish to reinstall or upgrade the printer driver, uninstall the printer driver that has been
installed already.
Printer Software
83
DLQ-3500II/DLQ-3500IIN
User’s Guide
Note:
When uninstalling EPSON Status Monitor 3 from a multi-user Windows XP/Windows Server 2003
R2/Windows Server 2003 environment, remove the shortcut icon from all clients before uninstalling.
You can remove the icon by clearing the Shortcut Icon check box in the Monitoring Preferences dialog
box.
Uninstalling the printer driver and EPSON Status Monitor 3
1. Turn off the printer.
2. Quit all running applications.
3. Open Control Panel:
❏ Windows 10/Windows Server 2019/Windows Server 2016
Click on the Start button, and then select Windows System > Control Panel.
❏ Windows 8.1/Windows 8/Windows Server 2012 R2/Windows Server 2012
Select Desktop > Settings > Control Panel.
❏ Windows 7/Windows Vista/Windows XP/Windows Server 2008 R2/Windows Server 2008/
Windows Server 2003 R2/Windows Server 2003
Click the start button and select Control Panel.
4. Open Uninstall a program (or Add or Remove Programs):
❏ Windows 10/Windows 8.1/Windows 8/Windows 7/Windows Vista/Windows Server 2019/
Windows Server 2016/Windows Server 2012 R2/Windows Server 2012/Windows Server 2008
R2/Windows Server 2008
Select Uninstall a program in Programs.
❏ Windows XP/Windows Server 2003 R2/Windows Server 2003
Click Add or Remove Programs.
5. Select the software you want to uninstall.
6. Uninstall the software:
Printer Software
84
DLQ-3500II/DLQ-3500IIN
User’s Guide
❏ Windows 10/Windows 8.1/Windows 8/Windows 7/Windows Vista/Windows Server 2019/
Windows Server 2016/Windows Server 2012 R2/Windows Server 2012/Windows Server 2008
R2/Windows Server 2008
Click Uninstall/Change or Uninstall.
❏ Windows XP/Windows Server 2003 R2/Windows Server 2003
Click Change/Remove or Remove.
Note:
If the User Account Control window is displayed, click Continue.
7. Click the Printer Model tab, select the icon of the printer you want to uninstall, then click OK.
Note:
Make sure that nothing is selected in the Printer Model tab. Open Utility tab and select EPSON
Status Monitor 3 (for EPSON XXXXXX ESC/P) and click OK. You can uninstall only the EPSON
Status Monitor 3.
8. Follow the on-screen instructions.
Printer Software
85
DLQ-3500II/DLQ-3500IIN
User’s Guide
Chapter 5
Troubleshooting
Checking the Printer Status
Checking Messages on the LCD Screen
If an error message or guidance information is displayed on the LCD screen, follow the on-screen
instructions or the solutions below to solve the problem. When the printer is paused after solving the
problem, press the Pause button to restart operation.
Messages
Solutions
XX paper is jammed.
To clear the paper jam, see “Clearing a Paper Jam” on page 94
Remove it.
Printer error.
An unknown printer error has occurred.
Contact Epson Support.
Turn off the printer and leave it off for several minutes; then turn it on again. If the error
occurs again, contact your dealer.
Problems and Solutions
Most problems you may encounter while operating your printer have simple solutions. Use the
information in this section to find the source of and solution to printer problems that occur.
Determine the type of problem that occurred, and see the appropriate section below:
“Power supply problems” on page 87
“Paper Handling” on page 91
“Printing position problems” on page 90
“Printing or printout quality problems” on page 87
Troubleshooting
86
DLQ-3500II/DLQ-3500IIN
User’s Guide
You can also use the self test to determine whether the printer or the computer is causing the problem.
See “Printing a Self Test” on page 97 for instructions on printing a self test. To pinpoint
communication problems, experienced users may want to use the printer’s hex dump mode,
described in “Printing Hex Dump” on page 98.
To clear a paper jam, see “Clearing a Paper Jam” on page 94.
Power supply problems
The lights on the control panel do not go on.
Cause
What to do
The power cord may be unplugged.
Check that the power cord is properly plugged into the electrical
outlet.
The outlet may not be operating.
If the electrical outlet is controlled by an outside switch or
automatic timer, use a different outlet. Plug another electrical
device, such as a lamp, into the outlet to determine whether the
outlet is operating properly.
The printer does not work and the control panel lights are off.
Cause
What to do
The printer is turned off.
Turn on the printer.
The power cord is not properly plugged into the
electrical outlet; or if your power cord is not
permanently attached to your printer, the power
cord is not properly plugged into the printer.
Turn off the printer and make sure the power cord is firmly
plugged into the electrical outlet and the printer. Then turn on the
power switch.
The electrical outlet does not work.
Use a different outlet.
Printing
Printing or printout quality problems
The printer is on but it doesn’t print.
Cause
What to do
The interface cable is broken or twisted.
Check that the interface cable is not broken or twisted. If you have
another interface cable, replace the cable and check whether the
printer works correctly.
Troubleshooting
87
DLQ-3500II/DLQ-3500IIN
User’s Guide
The printer is not connected directly to your
computer.
When you use a printer changer, printer buffer, or a extension
cable, the printer does not print correctly due to the combination
of these devices. Make sure that the printer works correctly when it
is connected to your computer without these devices.
The printer driver is not installed correctly.
Check that the printer driver is installed properly. If necessary,
reinstall the printer driver.
Paper is jammed or the ribbon or guard
mechanism is stuck.
Turn the printer off, open the printer cover and remove the
jammed paper or things that are stuck.
The USB setting is incorrect.
Confirm the USB setting is correct. See “Correcting USB Problems”
on page 94 for details.
The Network setting is incorrect.
Confirm the Network setting is correct. See "Solving Problems" in
the Network Guide.
The printer is hung up (stopping in abnormal
situations).
Turn the printer off and wait for a while. Then, turn the printer on
again, and start printing.
The printer does not print when the computer sends data.
Cause
What to do
The printer is paused.
Press the Pause button to turn off the Pause light.
The interface cable is not plugged in securely.
Check that both ends of the cable between the printer and the
computer are plugged in securely. If the cable is connected
correctly, run a self test as described in “Printing a Self Test” on
page 97.
Your interface cable does not meet the printer
and/or computer specifications.
Use an interface cable that meets the requirements of both the
printer and computer. See “Electronic” on page 124 and your
computer documentation.
Your software is not properly set up for your
printer.
Select your printer from the Windows desktop or in your
application. If necessary, install or reinstall the printer driver
software as described in the supplied setup sheet.
The printer makes noise, but nothing prints or printing stops abruptly.
Cause
What to do
The head gap is set incorrectly.
Set the head gap to match the thickness of your paper. See
“Adjusting the Head Gap” on page 35 for instructions.
The ribbon has too much slack, the ribbon has
come loose, or the ribbon cartridge is not installed
properly.
Remove any slack in the ribbon by turning the ribbon-tightening
knob, or reinstall the ribbon cartridge as described in “Replacing
the Ribbon Cartridge” on page 108.
The printer does not feed paper properly. (Two or more sheets of paper are fed at the same time.)
Cause
What to do
Troubleshooting
88
DLQ-3500II/DLQ-3500IIN
The paper is stuck together with static electricity.
User’s Guide
Fan the paper well before you use it.
The printout is pale.
Cause
What to do
The ribbon is worn out.
Replace the ribbon cartridge as described in “Replacing the
Ribbon Cartridge” on page 108.
The printout is faint.
Cause
What to do
The head gap is set incorrectly for your paper.
Make sure the Head Gap setting is set to AUTO or an appropriate
value for your paper. See “Adjusting the Head Gap” on page 35 for
instructions.
The ribbon is worn out.
Replace the ribbon cartridge as described in “Replacing the
Ribbon Cartridge” on page 108.
Part of the printout is missing, or dots are missing in random positions.
Cause
What to do
The ribbon has too much slack, the ribbon has
come loose, or the ribbon cartridge is not installed
properly.
Remove any slack in the ribbon by turning the ribbon-tightening
knob, or reinstall the ribbon cartridge as described in “Replacing
the Ribbon Cartridge” on page 108.
The ribbon is worn out.
Replace the ribbon cartridge as described in “Replacing the
Ribbon Cartridge” on page 108.
Lines of dots are missing in the printout.
Cause
What to do
The print head is damaged.
Stop printing and contact your dealer to have the print head
replaced.
Caution:
Never replace the print head yourself; you may damage the printer. Also, other parts of the printer must be checked when
the print head is replaced.
All the text is printed on the same line.
Cause
What to do
No line feed command is sent at the end of each
line of text.
Turn on the auto line feed setting in the printer settings. So that
the printer automatically adds a line feed code to each carriage
return. See “Character/Line Space Settings” on page 25.
The printout has extra blank lines between lines of text.
Cause
What to do
Troubleshooting
89
DLQ-3500II/DLQ-3500IIN
User’s Guide
Two line feed commands are being sent at the end
of each line of text, because the printer’s auto line
feed setting is on.
Turn off the auto line feed setting in the printer settings. See
“Character/Line Space Settings” on page 25.
The line space setting in your application software
is incorrect.
Adjust the line space setting in your application software.
The printer prints strange symbols, incorrect fonts, or other inappropriate characters.
Cause
What to do
Your printer and computer are not
communicating correctly.
Make sure that you use the correct interface cable and that the
communications protocol is correct. See “Electronic” on page 124
and your computer documentation.
The wrong character table is selected in your
software.
Select the correct character table using your software or the
printer settings. The character table setting made in your software
takes priority over the settings made on the printer.
The printer you want to use is not selected in your
software
Choose the correct printer in your application before printing.
Your application software is not configured
correctly for your printer.
Make sure that your application software is configured correctly
for your printer. See your application documentation. If necessary,
install or reinstall the printer driver software as described in the
supplied setup sheet.
Software settings override settings you make in
the printer settings.
Use your application software to select the font.
Vertical printed lines are not aligned.
Cause
What to do
Bidirectional printing, which is the printer’s
standard printing mode, is out of alignment.
Use the printer’s bidirectional adjustment mode to correct this
problem. See “Aligning Vertical Lines in Your Printout” on
page 96.
Printing position problems
Your printing appears too high or low on the page.
Cause
What to do
The paper size setting in your application software
or printer driver does not match the size of the
paper you are using.
Check the paper size setting in your application or printer driver.
The printer’s page length setting for the front or
rear tractor does not match the size of the
continuous paper you are using.
Change page length settings for the front or rear tractor in the
printer settings. See “Character/Line Space Settings” on page 25
for more information.
Troubleshooting
90
DLQ-3500II/DLQ-3500IIN
The top margin or top of form position setting is
incorrect.
User’s Guide
Check and adjust the margin or top of form position settings in
your application software. See “Printable area” on page 134 for
more information.
You can change the Top of Form position in the printer settings.
See “Menu Options for Printer Settings” on page 24. However,
settings made in Windows applications override settings made in
the Printer Settings.
The printer driver settings you want to use are not
selected in your software.
Choose the correct printer driver setting from the Windows
desktop or in your application before printing.
You moved the paper using the knob while the
printer was on.
Adjust the top of form position in the Printer Settings. See “Menu
Options for Printer Settings” on page 24.
Caution:
Never use the knob to adjust the top of form position; this may damage the printer or cause it to lose the top of form
position.
The printer prints on (or too far away from) the perforation of your continuous paper.
Cause
What to do
The tear off position setting is incorrect.
Adjust the tear off position using the Micro Adjust function. See
“Adjusting the tear off position” on page 53 for more information.
Caution:
Never use the knob to adjust the tear off position; this may damage the printer or cause it to lose the tear off position.
You moved the paper using the knob while the
printer was on.
Adjust the tear off position using the Micro Adjust function. See
“Adjusting the tear off position” on page 53 for more information.
The printer you want to use is not selected in your
software.
Choose the correct printer from the Windows desktop or in your
application before printing.
The paper size setting in your application or
printer driver does not match the size of the paper
you are using.
Check the paper size setting in your application or printer driver.
The printer’s page length setting for the front or
rear tractor does not match the size of the paper
you are using.
Change the page length settings for the tractor in the printer
settings. See “Character/Line Space Settings” on page 25 for more
information.
Paper Handling
Single sheets do not feed properly
Paper does not feed.
Cause
What to do
Troubleshooting
91
DLQ-3500II/DLQ-3500IIN
User’s Guide
Continuous paper is in the paper path.
Press the Load/Eject button to remove the continuous paper.
Select Manual/CSF as the paper source on the control panel and
insert a new sheet. (See “Switching to single sheets” on page 51 for
more information.)
The paper source is set to tractor feeding.
Select Manual/CSF as the paper source on the control panel. (See
“Buttons and Lights” on page 17.)
The paper is not loaded properly.
See “Loading Single Sheets” on page 45 for instructions on loading
single sheet paper.
The head gap is set incorrectly.
Make sure the Head Gap setting is set to AUTO or appropriate
value to match the thickness of your paper. See “Adjusting the
Head Gap” on page 35.
Paper is creased, old, too thin, or too thick.
See “Paper” on page 126 for information on paper specifications
and use new, clean sheets of paper.
Paper does not eject completely.
Cause
What to do
The paper may be too long.
Press the LF/FF button to eject the page. Use paper that is within
the specified range. See the paper specifications in “Paper” on
page 126.
The paper does not feed properly with the optional cut sheet feeder.
Cause
What to do
The cut sheet feeder is not installed properly.
Reinstall it as described in “Installing the cut sheet feeder” on
page 112.
The cut sheet feeder cable is not connected to the
printer.
Make sure the cable is connected to the printer properly. See
“Installing the cut sheet feeder” on page 112.
Too many sheets are loaded in the cut sheet
feeder.
Load less than the loading capacity according to the paper type.
See “Cut Sheet Feeder” on page 112 for more information.
The edge guides of the cut sheet feeder are not
positioned correctly.
Align the left edge guide with the arrow mark, then move the right
edge guide to match your paper’s width.
There is only one sheet left in the bin.
Add more paper to the cut sheet feeder.
Continuous paper does not feed properly
The tractor does not feed the paper.
Cause
What to do
Troubleshooting
92
DLQ-3500II/DLQ-3500IIN
User’s Guide
Manual/CSF is selected as the paper source on
the control panel.
Select Tractor as the paper source on the control panel. (See
“Buttons and Lights” on page 17.)
Continuous paper is not loaded properly.
See “Loading Continuous Paper” on page 38 for instructions on
loading continuous paper with the tractor you want to use.
The center paper support is not located at the
center of the paper width.
Set the center paper support to the center of the paper width.
The head gap is set incorrectly.
Make sure the Head Gap setting is set to AUTO or an appropriate
value to match the thickness of your paper. See “Adjusting the
Head Gap” on page 35.
Your paper may be the wrong size or thickness for
the printer.
Make sure that the paper size and thickness are within the
specified ranges. See “Paper” on page 126 for information on the
continuous paper specifications.
The paper supply is not aligned with the printer.
Make sure you align your paper supply with the paper loaded in
the tractor so the paper feeds smoothly into the printer. See
“Positioning the continuous paper supply” on page 38.
The sprocket units are positioned incorrectly for
the width of paper you are using.
Adjust the position of the sprockets to remove any slack along the
width of the paper.
Note:
If paper is jammed in the paper path, see “Clearing a Paper Jam” on
page 94 for instructions.
The paper does not eject properly.
Cause
What to do
Your paper may be too long or too short.
Make sure the page length of your paper is within the specified
range. See “Paper” on page 126 for information on the continuous
paper specification.
You may be trying to feed too much paper
backward.
If you are using normal continuous paper, tear off the last printed
page and press the Load/Eject button to feed the paper
backward. If you are using labels, tear off the paper entering the
printer, and then press the LF/FF button to feed the labels forward.
The paper size setting in your application or the
printer driver may not match the size of the paper
you are using.
Check the paper size setting in your application or the printer
driver.
Paper is jammed inside the printer.
Clear the paper jam as described in “Clearing a Paper Jam” on
page 94.
The printer does not feed continuous paper to the standby position.
Cause
What to do
Troubleshooting
93
DLQ-3500II/DLQ-3500IIN
You have not torn off the printed pages before
pressing the Load/Eject button.
User’s Guide
Tear off the printed pages at the perforation. Then press the Load/
Eject button to feed the paper backward to the standby position.
Network problems
The printer does not print when using a network.
Cause
What to do
The network setting is wrong.
Check whether or not print jobs from other computers are being
printed through the network.
When the print job is executed, the printer or your computer may
have a problem. Check the connection between the printer and
your computer, settings on the printer driver, and settings of your
computer.
When the print job is not executed, network settings may be
incorrect. Ask your network administrator for help.
Correcting USB Problems
If you are having difficulty using your printer with a USB connection, read the information in this
section.
If your printer does not work correctly with the USB cable, try following solutions:
❏ Make sure that the cable you are using is a standard, shielded USB cable.
❏ If you are using a USB hub, connect the printer to the first tier of the hub, or connect the printer
directly to the computer’s USB port.
Clearing a Paper Jam
Follow these steps to clear a paper jam:
! Caution:
Do not pull the jammed paper when the printer is on.
1. Turn off the printer.
Troubleshooting
94
DLQ-3500II/DLQ-3500IIN
User’s Guide
2. If a cut sheet feeder or an automatic sheet alignment unit is installed, remove it from the printer.
3. If continuous paper is jammed in the printer, tear off the fresh supply and the printed pages at the
perforation nearest the printer, and then open the sprocket cover to release the paper.
4. Turn the knob on the right side of the printer to remove the paper and gently pull the paper out of
the printer. When turning the knob, pay attention to the direction you are turning the paper so
that it is not being rolled back inside the printer.
! Caution:
Use the knob on the right side of the printer to clear paper jams only when the printer is off.
Otherwise, you may damage the printer or change the top-of-form or tear off position.
5. If paper is stuck in front, open the paper bail and remove the paper by rotating the knob counter
clockwise and gently pull the paper out of the printer.
If paper is stuck where the printer loads it and it is difficult to remove by turning the knob counter
clockwise, turn the knob clockwise to remove the paper and gently pull the paper out of the
printer.
Remove any remaining pieces of paper.
6. Make sure you close the paper bail and the printer cover, and then turn on the printer.
Make sure no error or warning messages are displayed on the LCD screen.
Troubleshooting
95
DLQ-3500II/DLQ-3500IIN
User’s Guide
Aligning Vertical Lines in Your Printout
If you notice that the vertical lines in your printout are not properly aligned, you can use the printer’s
bidirectional adjustment mode to correct this problem.
During bidirectional adjustment, the printer prints three sheets of alignment patterns, labeled Draft,
Bit Image, and LQ (letter quality). As described below, you select the best alignment pattern from each
sheet.
Note:
❏ To print the alignment patterns, you need three sheets of A3 size single sheet paper or 15 inch
(recommended) continuous paper.
❏ If you use single sheets, you need to load a new sheet of paper each time the printer ejects a printed
sheet from the sheet guide.
Follow the steps below to perform bidirectional adjustment.
1. Make sure paper is loaded and the printer is turned off.
! Caution:
Whenever you turn off the printer, wait at least five seconds before turning it back on;
otherwise you may damage the printer.
2. While holding down the Pause button, turn on the printer. The printer enters bidirectional
adjustment mode.
3. Press OK button. The printer prints three sets of adjustment patterns. Look at the adjustment
patterns and find the vertical lines with the best alignments. Use the u or d buttons to select the
corresponding line number on the screen, and then press OK button.
Troubleshooting
96
DLQ-3500II/DLQ-3500IIN
User’s Guide
4. After selecting the best pattern in the final set of alignment patterns, turn off the printer and exit
bidirectional adjustment mode.
Cancelling Printing
If you encounter problems while printing, you may need to cancel printing.
You can cancel printing from your computer by using the printer driver, or from the printer’s control
panel.
Using the printer driver
To cancel a print job before it is sent from your computer, see “Cancelling Printing” on page 83.
Using the printer’s control panel
Pressing Cancel button stops printing, clears the print job being received from the active interface,
and clears errors that may have occurred at the interface.
Printing a Self Test
Running the printer’s self test helps you determine whether the printer or the computer is causing the
problem:
❏ If the self test results are satisfactory, the printer is working properly and the problem is probably
caused by your printer driver settings, application settings, computer, or interface cable. (Be sure
to use a shielded interface cable.)
❏ If the self test does not print properly, there is a problem with the printer. See “Problems and
Solutions” on page 86 for possible causes and solutions to the problem.
You can print the self test using either single sheets or continuous paper. See “Loading Continuous
Paper” on page 38 or “Loading Single Sheets” on page 45 for paper loading instructions.
Note:
Use paper of at least the following width:
Troubleshooting
97
DLQ-3500II/DLQ-3500IIN
Continuous paper
376 mm (14.8 inches)
Single sheet
A3 landscape
User’s Guide
Follow these steps to perform a self test:
1. Make sure paper is loaded and the printer is turned off.
! Caution:
Whenever you turn off the printer, wait at least five seconds before turning it back on;
otherwise you may damage the printer.
2. To run the test using the Draft font, turn on the printer while holding down the LF/FF button. To
run the test using the printer’s letter quality fonts, turn on the printer while holding down the
Load/Eject button. Either self test can help you determine the source of your printing problem;
however, the draft self test prints faster than the letter quality test.
3. When using single sheet paper, load paper in the printer.
After a few seconds, the printer loads the paper automatically and begins printing the self test. A
series of characters is printed.
Note:
To temporarily stop the self test, press the Pause button. To resume the test, press the Pause button
again.
4. To end the self test, press the Pause button to stop printing. If paper remains in the printer, press
the Load/Eject button to eject the printed page. Then turn off the printer.
! Caution:
Do not turn off the printer while it is printing the self test. Always press the Pause button to stop
printing and the Load/Eject button to eject the printed page before you turn off the printer.
Printing Hex Dump
If you are an experienced user or a programmer, print a hexadecimal dump to isolate communication
problems between the printer and your software program. In hex dump mode, the printer prints all
data it receives from the computer as hexadecimal values.
You can print a hex dump using either single sheets or continuous paper. See “Loading Continuous
Paper” on page 38 or “Loading Single Sheets” on page 45 for instructions on how to load paper.
Troubleshooting
98
DLQ-3500II/DLQ-3500IIN
User’s Guide
Note:
❏ The hex dump feature is designed for a connection with DOS-based PC.
❏ Use paper that is at least 210 mm (8.3 inches) wide, such as A4 or letter size paper.
Follow these steps to print a hex dump:
1. Make sure paper is loaded and the printer is turned off.
! Caution:
Whenever you turn off the printer, wait at least five seconds before turning it back on;
otherwise you may damage the printer.
2. To enter hex dump mode, turn on the printer while holding down both the LF/FF and Load/Eject
buttons.
3. Open a software program and send a print job to the printer. Your printer prints all the codes it
receives in hexadecimal format.
By comparing the characters printed in the right column with the printout of the hexadecimal
codes, you can check the codes being received by the printer. If characters are printable, they
appear in the right column as ASCII characters. Nonprintable codes, such as control codes, are
represented by dots.
4. To exit the hex dump mode, press the Pause button and eject the printed page(s), and turn off the
printer.
! Caution:
Do not turn off the printer while it is printing the hex dump. Always press the Pause button to stop
printing and the Load/Eject button to eject the printed page before you turn off the printer.
Troubleshooting
99
DLQ-3500II/DLQ-3500IIN
User’s Guide
Chapter 6
Where To Get Help
Technical Support Web Site
If you need further help, visit the Epson support website shown below. Select your country or region
and go to the support section of your local Epson website. The latest drivers, FAQs, manuals, or other
downloadables are also available from the site.
http://support.epson.net/
http://www.epson.eu/Support (Europe)
If your Epson product is not operating properly and you cannot solve the problem, contact Epson
support services for assistance.
Contacting Customer Support
Before Contacting Epson
If your Epson product is not operating properly and you cannot solve the problem using the
troubleshooting information in your product manuals, contact Epson support services for assistance.
If Epson support for your area is not listed below, contact the dealer where you purchased your
product.
Epson support will be able to help you much more quickly if you give them the following information:
❏ Product serial number
(The serial number label is usually on the back of the product.)
❏ Product model
❏ Product software version
(Click About, Version Info, or similar button in the product software.)
❏ Brand and model of your computer
❏ Your computer operating system name and version
Where To Get Help
100
DLQ-3500II/DLQ-3500IIN
User’s Guide
❏ Names and versions of the software applications you normally use with your product
Note:
Depending on the product, the dial list data for fax and/or network settings may be stored in the product’s
memory. Due to breakdown or repair of a product, data and/or settings may be lost. Epson shall not be
responsible for the loss of any data, for backing up or recovering data and/or settings even during a
warranty period. We recommend that you make your own backup data or take notes.
Help for Users in Europe
Check your Pan-European Warranty Document for information on how to contact Epson support.
Help for Users in Australia
Epson Australia wishes to provide you with a high level of customer service. In addition to your
product manuals, we provide the following sources for obtaining information:
Internet URL
http://www.epson.com.au
Access the Epson Australia World Wide Web pages. Worth taking your modem here for the
occasional surf! The site provides a download area for drivers, Epson contact points, new product
information and technical support (email).
Epson Helpdesk
Phone: 1300-361-054
Epson Helpdesk is provided as a final backup to make sure our clients have access to advice. Operators
on the Helpdesk can aid you in installing, configuring and operating your Epson product. Our
Pre-sales Helpdesk staff can provide literature on new Epson products and advise where the nearest
dealer or service agent is located. Many types of queries are answered here.
We encourage you to have all the relevant information on hand when you ring. The more information
you prepare, the faster we can help solve the problem. This information includes your Epson product
manuals, type of computer, operating system, application programs, and any information you feel is
required.
Where To Get Help
101
DLQ-3500II/DLQ-3500IIN
User’s Guide
Transportation of Product
Epson recommends retaining product packaging for future transportation.
Help for Users in Singapore
Sources of information, support, and services available from Epson Singapore are:
World Wide Web
http://www.epson.com.sg
Information on product specifications, drivers for download, Frequently Asked Questions (FAQ),
Sales Enquiries, and Technical Support via e-mail are available.
Epson Helpdesk
Toll Free: 800-120-5564
Our HelpDesk team can help you with the following over the phone:
❏ Sales enquiries and product information
❏ Product usage questions or problem troubleshooting
❏ Enquiries on repair service and warranty
Help for Users in Vietnam
Contacts for information, support, and services are:
Epson Service Center
65 Truong Dinh Street, District 1, Hochiminh City, Vietnam.
Phone(Ho Chi Minh City): 84-8-3823-9239, 84-8-3825-6234
29 Tue Tinh, Quan Hai Ba Trung, Hanoi City, Vietnam
Phone(Hanoi City): 84-4-3978-4785, 84-4-3978-4775
Where To Get Help
102
DLQ-3500II/DLQ-3500IIN
User’s Guide
Help for Users in Indonesia
Contacts for information, support, and services are:
World Wide Web
http://www.epson.co.id
❏ Information on product specifications, drivers for download
❏ Frequently Asked Questions (FAQ), Sales Enquiries, questions through e-mail
Epson Hotline
Phone: +62-1500-766
Fax: +62-21-808-66-799
Our Hotline team can help you with the following over the phone or fax:
❏ Sales enquiries and product information
❏ Technical support
Epson Service Center
Province
Company Name
Address
Phone
E-mail
DKI JAKARTA
ESS JAKARTA
MANGGADUA
Ruko Mall Mangga Dua No. 48 Jl. Arteri
Mangga Dua, Jakarta Utara - DKI
JAKARTA
(+6221) 62301104
NORTH
SUMATERA
ESC MEDAN
Jl. Bambu 2 Komplek Graha Niaga
Nomor A-4, Medan - North Sumatera
(+6222) 4207033
DI
YOGYAKARTA
ESC
YOGYAKARTA
YAP Square, Block A No. 6 Jl. C
Simanjutak Yogyakarta - DIY
(+62274) 581065
[email protected]
.id
EAST JAWA
ESC SURABAYA
Hitech Mall Lt. 2 Block A No. 24 Jl.
Kusuma Bangsa No. 116 - 118 Surabaya
- JATIM
(+6231) 5355035
[email protected]
d
[email protected]
o.id
[email protected]
.id
Where To Get Help
103
DLQ-3500II/DLQ-3500IIN
SOUTH
SULAWESI
ESC MAKASSAR
WEST
KALIMANTAN
ESC PONTIANAK
RIAU
ESC PEKANBARU
DKI JAKARTA
EAST JAWA
BANTEN
Jl. Cendrawasih NO. 3A, kunjung mae,
mariso, MAKASSAR - SULSEL 90125
(+62411) 8911071
Komp. A yani Sentra Bisnis G33, Jl.
Ahmad Yani - Pontianak Kalimantan
Barat
(+62561) 735507 / 767049
Jl. Tuanku Tambusai No.459A
Pekanbaru Riau
(+62761) 8524695
ESS JAKARTA
SUDIRMAN
Wisma Keiai Lt. 1 Jl. Jenderal Sudirman
Kav.3 Jakarta Pusat - DKI JAKARTA
10220
(+6221) 5724335
ESS SURABAYA
Ruko Surya Inti Jl. Jawa No 2-4 Kav. 29
Surabaya - Jawa Timur
(+6231) 5014949
Ruko Mall WTC Matahari No. 953,
Serpong-Banten
(+6221) 53167051 / 53167052
Komplek Ruko Metro Plaza Block C20 Jl.
MT Haryono No 970 Semarang - JAWA
TENGAH
(+6224) 8313807 / 8417935
Jl. KH. Wahid Hasyim (M. Yamin)
Kelurahan Sempaja Selatan
Kecamatan Samarinda UTARA SAMARINDA - KALTIM
(+62541) 7272904
Jl. H.M Rasyid Nawawi No. 249
Kelurahan 9 Ilir Palembang Sumatera
Selatan
(+62711) 311330
JL. Panglima Besar Sudirman Ruko no.
1D Jember-Jawa Timur (Depan Balai
Penelitian & Pengolahan Kakao)
(+62331) 488373 / 486468
Tekno Megamall Lt LG 11 TK 21,
Kawasan Megamas Boulevard, Jl Piere
Tendean, Manado - SULUT 95111
(+62431) 8890996
ESS SERPONG
CENTRAL
JAWA
ESS SEMARANG
EAST
KALIMANTAN
ESC SAMARINDA
SOUTH
SUMATERA
ESC PALEMBANG
EAST JAVA
ESC JEMBER
NORTH
SULAWESI
User’s Guide
ESC MANADO
[email protected]
o.id
pontianak-admin@epson-indon
esia.co.id
[email protected]
o.id
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
.id
MND-ADMIN@EPSON-INDONES
IA.CO.ID
For other cities not listed here, call the Hot Line: 08071137766.
Where To Get Help
104
DLQ-3500II/DLQ-3500IIN
User’s Guide
Help for Users in Hong Kong
To obtain technical support as well as other after-sales services, users are welcome to contact Epson
Hong Kong Limited.
Internet Home Page
http://www.epson.com.hk
Epson Hong Kong has established a local home page in both Chinese and English on the Internet to
provide users with the following information:
❏ Product information
❏ Answers to Frequently Asked Questions (FAQs)
❏ Latest versions of Epson product drivers
Technical Support Hotline
You can also contact our technical staff at the following telephone and fax numbers:
Phone: 852-2827-8911
Fax: 852-2827-4383
Help for Users in Malaysia
Contacts for information, support, and services are:
World Wide Web
http://www.epson.com.my
❏ Information on product specifications, drivers for download
❏ Frequently Asked Questions (FAQ), Sales Enquiries, questions through e-mail
Epson Call Centre
Phone: +60 1800-8-17349
Where To Get Help
105
DLQ-3500II/DLQ-3500IIN
User’s Guide
❏ Sales enquiries and product information
❏ Product usage questions or problems
❏ Enquiries on repair services and warranty
Head Office
Phone: 603-56288288
Fax: 603-5628 8388/603-5621 2088
Help for Users in the Philippines
To obtain technical support as well as other after sales services, users are welcome to contact the Epson
Philippines Corporation at the telephone, fax numbers and e-mail address below:
World Wide Web
http://www.epson.com.ph
Information on product specifications, drivers for download, Frequently Asked Questions (FAQ),
and E-mail Enquiries are available.
Epson Philippines Customer Care
Toll Free: (PLDT) 1-800-1069-37766
Toll Free: (Digital) 1-800-3-0037766
Metro Manila: (+632)441-9030
Web Site: https://www.epson.com.ph/contact
E-mail: [email protected]
Accessible 9am to 6pm, Monday through Saturday (Except public holidays)
Our Customer Care team can help you with the following over the phone:
❏ Sales enquiries and product information
❏ Product usage questions or problems
Where To Get Help
106
DLQ-3500II/DLQ-3500IIN
User’s Guide
❏ Enquiries on repair service and warranty
Epson Philippines Corporation
Trunk Line: +632-706-2609
Fax: +632-706-2663
Where To Get Help
107
DLQ-3500II/DLQ-3500IIN
User’s Guide
Chapter 7
Options and Consumables
Replacing the Ribbon Cartridge
Genuine Epson ribbon cartridge
When printing becomes faint, you need to replace the ribbon cartridge. Genuine Epson ribbon
cartridges are designed and manufactured to work properly with your Epson printer. They ensure
proper operation and long life of the print head and other printer parts. Other products not
manufactured by Epson may cause damage to your printer, which is not covered by Epson’s
warranties.
Your printer uses the following ribbon cartridges:
Epson black ribbon cartridge:
S015139 (long-life cartridge)
S015066 (normal cartridge)
Epson color ribbon cartridge:
S015067
Replacing the ribbon cartridge
Follow these steps to replace a used ribbon cartridge:
1. Select Replace Ribbon on the home screen.
2. Turn off the printer.
Options and Consumables
108
DLQ-3500II/DLQ-3500IIN
User’s Guide
3. Open the printer cover.
4. Open the paper bail.
! Warning:
If you have just used the printer, the print head may be hot; let it cool for a few minutes before
replacing the ribbon cartridge.
5. The print head should be in the replacement position shown in the illustration below.
! Caution:
Following the steps below while the printer is turned on can damage the printer.
Options and Consumables
109
DLQ-3500II/DLQ-3500IIN
User’s Guide
6. Press the tab at the upper right of the cartridge holder and pull the cartridge out of the printer.
7. Remove the new ribbon cartridge from its package. If you are replacing it with a black ribbon
cartridge, remove the plastic separator from the ribbon cartridge as shown below.
Note:
Color ribbon cartridges do not have a separator.
8. Turn the ribbon-tightening knob in the direction of the arrow to remove any slack in the ribbon.
Options and Consumables
110
DLQ-3500II/DLQ-3500IIN
User’s Guide
9. Hold the ribbon cartridge with the part where the ribbon is exposed facing down and the
ribbon-tightening knob facing to the front of the printer. Then guide the ribbon under the print
head, and snap the cartridge into place so that the tabs on both sides of the cartridge fit into the
notches in the cartridge holder.
10. Turn the ribbon-tightening knob again to remove any slack in the ribbon so that the ribbon moves
freely.
11. Close the paper bail and the printer cover.
Options and Consumables
111
DLQ-3500II/DLQ-3500IIN
User’s Guide
Cut Sheet Feeder
The optional cut sheet feeder C80683* gives you easier and more efficient handling of single sheet
paper, single sheet multipart forms, envelopes, and postcards. You can use the cut sheet feeder without
removing continuous paper.
You can load the following quantities of paper to the cut sheet feeder:
Single sheets
A3 size paper
Up to 130 sheets of 82 g/m² (22 lb) paper
Up to 170 sheets of 64 g/m² (17 lb) paper
Other paper
Up to 200 sheets of 82 g/m² (22 lb) paper
Up to 250 sheets of 64 g/m² (17 lb) paper
Single sheet multipart forms
Up to 40 sheets of 47 g/m² (12.5 lb) paper
Envelopes
Up to 20 plain or bond envelopes
Up to 30 airmail envelopes
Postcards
Up to 50 plain paper cards
Note:
❏ You cannot install the cut sheet feeder and optional automatic sheet alignment unit at the same
time.
❏ This option may not be available in some countries.
Installing the cut sheet feeder
Follow these steps to install the cut sheet feeder:
1. Make sure that the printer is turned off.
2. Assemble the cut sheet feeder by following the instructions provided in the documentation that
comes with the feeder.
3. Close the sprocket covers if they are open, and lock the sprockets by pushing down the lock levers if
necessary.
Options and Consumables
112
DLQ-3500II/DLQ-3500IIN
User’s Guide
Note:
You do not need to remove your continuous paper from the tractor to use the cut sheet feeder. See
“Switching between the tractor and the cut sheet feeder” on page 117 for information on switching
between the cut sheet feeder and continuous paper.
4. Hold the cut sheet feeder horizontally with both hands. Fit the notches on each side of the feeder
over the mounting posts on the printer. Lower the cut sheet feeder until it is seated securely on the
printer.
5. Plug the cable connector of the cut sheet feeder in the printer.
Options and Consumables
113
DLQ-3500II/DLQ-3500IIN
6.
User’s Guide
Slide the edge guides all the way out. Then pull out the sheet guide and the paper support
completely.
7. Turn the printer on and make sure that Manual/CSF is selected as the paper source on the control
panel. If not, select it by pressing the Paper Source button.
8. Adjust the paper size in your software, if necessary.
You are now ready to load paper to your cut sheet feeder. To remove the cut sheet feeder, reverse the
steps described above.
Loading paper to the cut sheet feeder
For single sheet multipart forms, use only the type of forms that are glued at the top.
To avoid paper jams, do not allow too many printed sheets to be stacked on the paper guide at one
time. Remove the stack when it is half as thick as the paper loading limit marked on the cut sheet
feeder.
Follow these steps to load paper to the cut sheet feeder:
1. Pull the paper set lever forward until the paper guides retract to allow paper loading.
Options and Consumables
114
DLQ-3500II/DLQ-3500IIN
User’s Guide
2. Release the paper guide lock levers by pulling them forward.
3. Slide the right paper guide so that its edge is even with the guide mark on the cut sheet feeder and
push back the lever to lock the paper guide in place. Next, slide the left paper guide to roughly
match the width of the paper.
4. Slide the center support midway between the paper guides.
5. Fan a stack of paper, and tap the sides and bottom of the stack on a flat surface to even it up.
! Caution:
Do not load labels to the cut sheet feeder.
Options and Consumables
115
DLQ-3500II/DLQ-3500IIN
User’s Guide
6. Insert the paper along the right paper guide and adjust the position of the left paper guide so that it
matches your paper’s width. Make sure the position of the guide allows the paper to move up and
down freely. Then lock the left guide in place.
Note:
Load paper with the printable side up. If you are using pre-printed forms, load the forms top down.
7. Push back the paper set levers to clamp the paper against the guide rollers.
8. Before printing, make sure that Manual/CSF is selected as the paper source on the home screen. If
not, select it by pressing the Paper Source button.
The cut sheet feeder feeds paper when you send data to the printer. You can also feed paper by
pressing the Load/Eject button.
Note:
If the platen turns without loading the paper, completely remove the paper and then insert it all the way
into the printer again.
Loading paper manually using the sheet guide
The cut sheet feeder’s single sheet loading feature allows you to switch to a different type or size of
paper without replacing the paper already loaded in the cut sheet feeder or removing the feeder.
Options and Consumables
116
DLQ-3500II/DLQ-3500IIN
User’s Guide
Follow these steps to load paper manually using the sheet guide:
1. Make sure that Manual/CSF is selected as the paper source on the home screen. If not, select it by
pressing the Paper Source button.
2. Push the sheet guide and the paper support all the way in.
3. Adjust the left edge guide so that it is aligned with the guide mark on the sheet guide.
4. While aligning the left side of paper with the edge guide and adjusting the right edge guide to
match the width of the paper, insert it until it meets resistance. Be sure to load paper printable side
up. After a few seconds, the printer automatically advances the paper to the loading position. The
printer is ready to accept data from your computer and print.
After printing a page of your document, the printer ejects it onto the sheet guide and the Paper Out
and Pause lights come on. If you are printing a multiple-page document, remove the printed sheet
and insert a new sheet into the sheet guide. The printer automatically advances the paper and resumes
printing.
Switching between the tractor and the cut sheet feeder
You can easily switch between continuous paper loaded from the tractor and single sheets loaded from
the cut sheet feeder without removing your continuous paper.
Switching to continuous paper
Follow these steps to switch to continuous paper loaded from the tractor:
1. If any single sheets are in the paper path, press the Load/Eject button to eject them.
2. Select Tractor as the paper source on the home screen by pressing the Paper Source button.
Switching to single sheets
Follow these steps to switch back to single sheets loaded to the cut sheet feeder:
1. If there is any continuous paper remaining in the printer, select Tear Off on the home screen and
press the OK button to advance the paper to the tear off position.
2. Tear off the printed pages.
Options and Consumables
117
DLQ-3500II/DLQ-3500IIN
User’s Guide
3. Press the Load/Eject button. The printer feeds the paper backward to the standby position. The
paper is still attached to the tractor but is no longer in the paper path.
4. Select Manual/CSF as the paper source on the home screen by pressing the Paper Source button.
Note:
To load another type of continuous paper, you need to remove the cut sheet feeder.
Automatic Sheet Alignment Unit
You can load single sheet paper more easily by using the optional automatic sheet alignment unit
C935741. It automatically positions the paper straight and feeds into the printer.
You can use single sheet paper, single sheet multipart forms, envelopes, and postcards with the
automatic sheet alignment unit. See “Paper” on page 126 for information on the paper specifications.
Note:
❏ A warning message is displayed on the LCD screen if you try to feed continuous paper while the
automatic sheet alignment unit is installed. Remove the automatic alignment unit. Also, you cannot
install the automatic sheet alignment unit and optional cut sheet feeder at the same time.
❏ This option may not be available in some countries.
Installing the automatic sheet alignment unit
Follow these steps to install the automatic sheet alignment unit.
1. Turn off the printer.
! Warning:
If you have just used the printer, the print head may be hot. Be careful not to touch it until it
cools down.
2. Remove the sheet guide.
3. Hold the automatic sheet alignment unit horizontally with both hands, and slide the slots on both
sides of it onto the mounting pegs in the printer as shown below. Then lower the unit until it locks
into place.
Options and Consumables
118
DLQ-3500II/DLQ-3500IIN
User’s Guide
Paper longer than A4 (297 mm) may slip off from the automatic sheet alignment unit. If this
occurs, attach the guides supplied with the printer as shown in the illustration.
1. slots
2. mounting pegs
3. guide
4. Open the cover of the printer’s connecting port and plug the cable connector into the port. Make
sure the cable is connected firmly into the port.
5. Secure the cable to the port by tightening the two screws attached to the connector.
Options and Consumables
119
DLQ-3500II/DLQ-3500IIN
User’s Guide
! Caution:
Make sure the printer is turned off before connecting the cable.
Note:
To remove the automatic sheet alignment unit, turn off the printer and follow the installing procedure in
reverse from the last step.
Loading paper using the automatic sheet alignment unit
Follow these steps to load paper using the automatic sheet alignment unit:
1. Make sure that Manual/CSF is selected as the paper source on the home screen. If not, select it by
pressing the Paper Source button.
2. Set the head gap to the appropriate position for the type of single sheet you are using referring to
the table in “Adjusting the Head Gap” on page 35. Normally set it to AUTO.
3. Insert paper into the automatic sheet alignment unit so that the tip of the paper goes behind the
rollers of the unit. The printer automatically aligns the paper, recognizes the right and left edges
(the width) of the paper and starts feeding.
1. inserted position
2. aligned position
3. arrow marks
Note:
❏ Make sure to insert paper between the two arrow marks on the unit.
❏ The paper may not be fed or ejected correctly if it is loaded at too large an angle. Reload the paper
at a smaller angle.
Options and Consumables
120
DLQ-3500II/DLQ-3500IIN
User’s Guide
! Caution:
Use the knob on the right side of the printer only to clear paper jams when the printer is off.
4. The printer starts printing when it receives data. The printing position (the position of the first
letter of the first line) is set to 3 mm (0.12 inch) from the left edge of the paper by default. See
“Adjusting the printing position” on page 121 for more information on the printing position.
A. 3 mm
* the printing position
5. The printer automatically ejects paper when it finishes printing. If the printed sheet remains in the
printer, press the Load/Eject button to eject it.
Adjusting the printing position
You can adjust the initial printing position for the automatic sheet alignment unit.
Follow these steps to adjust the initial printing position.
Note:
❏ The range of print stat position is from 2.0 mm to 29.0 mm from the left edge of the paper. The default
is 3 mm.
❏ The automatic sheet alignment unit must be installed prior to adjusting the print start position.
1. Select the Print Start Position setting from the home screen as described below.
Menu > Printer Settings > Print Start Position
2. Follow the on screen instructions and set the value.
Options and Consumables
121
DLQ-3500II/DLQ-3500IIN
User’s Guide
Chapter 8
Product Information
Printer Specifications
Mechanical
Printing method:
24-pin impact dot matrix
Printing speed:
High speed draft
550 cps at 10 cpi
Draft
550 cps at 10 cpi
(825 cps at 15 cpi maximum)
Letter quality
195 cps at 10 cpi
Printing direction:
Bidirectional logic seeking for text and graphics printing. Unidirec‐
tional text or graphics printing can be selected using software com‐
mands.
Line spacing:
1/6 inch or programmable in 1/360 inch increments
Printable columns:
136 columns (at 10 cpi)
Resolution:
Maximum 360 × 180 dpi (letter quality mode)
Paper feed methods:
Friction (front)
Push tractor (rear)
Cut-sheet feeder (optional*)
Automatic sheet alignment unit (optional*)
* These options may not be available in some countries.
Paper capacity:
optional cut sheet feeder
up to 200 sheets of 82 g/m² (22 lb) paper
(A3 size: up to 130 sheets of 82 g/m² (22 lb) paper)
Product Information
122
DLQ-3500II/DLQ-3500IIN
Reliability:
User’s Guide
Total print volume
25 million lines
(except print head)
Print head life
approx. 200 million strokes/wire × 2
(monochrome)
approx. 100 million strokes/wire × 2
(color)
Dimensions and weight:
Ribbon:
Height
276 mm (10.8 inches)
Width
660 mm (25.8 inches)
Depth
432 mm (17.0 inches)
Weight
approx. 18.9 kg (41.2 lb)
Black ribbon cartridge
S015139 (long-life cartridge)
S015066 (normal cartridge)
Color ribbon cartridge
S015067
Ribbon life
(at 10 cpi in the letter
quality mode with 48 dots/
character)
black ribbon
approx. 9 million characters
(long-life cartridge)
approx. 6 million characters
(normal cartridge)
color ribbon
approx. 1.5 million characters
(Black)
approx. 1.1 million characters
(Magenta)
approx. 1.1 million characters
(Cyan)
approx. 0.8 million characters
(Yellow)
Acoustic noise:
Approx. 59 dB (A) (ISO 7779 pattern)
Note:
The head gap setting or an overheated print head may affect the print speed.
Product Information
123
DLQ-3500II/DLQ-3500IIN
User’s Guide
Electronic
Interfaces:
DLQ-3500II:
One standard bidirectional, 8-bit, parallel interface with IEEE 1284
nibble mode support
One USB 2.0 (Full Speed) interface
DLQ-3500IIN:
One standard bidirectional, 8-bit, parallel interface with IEEE 1284
nibble mode support
One USB 2.0 (Full Speed) interface
One 100 Base-TX Network interface
Buffer:
128KB
Fonts:
Bitmap fonts:
Epson Draft 10, 12, 15 cpi
Epson Roman 10, 12, 15 cpi, proportional
Epson Sans Serif 10, 12, 15 cpi, proportional
Epson Courier 10, 12, 15 cpi
Epson Prestige 10, 12 cpi
Epson Script 10 cpi
Epson OCR-B 10 cpi
Epson Orator 10 cpi
Epson Orator-S 10 cpi
Epson Script C proportional
Scalable fonts:
Epson Roman 10.5 pt., 8 pt. - 32 pt. (every 2 pt.)
Epson Sans Serif 10.5 pt., 8 pt. - 32 pt. (every 2 pt.)
Epson Roman T 10.5 pt., 8 pt. - 32 pt. (every 2 pt.)
Epson Sans Serif H 10.5 pt., 8 pt. - 32 pt. (every 2 pt.)
Bar code fonts:
EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code
128, POSTNET
Product Information
124
DLQ-3500II/DLQ-3500IIN
Character tables:
User’s Guide
Standard model:
Italic table,
PC 437 (US, Standard Europe), PC 850 (Multilingual), PC 860
(Portuguese), PC 861 (Icelandic), PC 865 (Nordic), PC 863
(Canadian-French), BRASCII, Abicomp, ISO Latin 1, Roman 8,
PC 858, ISO 8859-15
Expanded model:
Italic table,
PC 437 (US, Standard Europe), PC 850 (Multilingual), PC 860
(Portuguese), PC 861 (Icelandic), PC 865 (Nordic), PC 863
(Canadian-French), BRASCII, Abicomp, ISO Latin 1, Roman 8,
PC 858, ISO 8859-15, PC 437 Greek, PC 852 (Eastern Europe), PC
853 (Turkish), PC 855 (Cyrillic), PC 857 (Turkish), PC 866 (Russian),
PC 869 (Greek), MAZOWIA (Poland), Code MJK (CSFR),ISO
8859-7 (Latin/Greek), ISO Latin 1T (Turkish),
Bulgaria (Bulgarian), PC 774 (LST 1283: 1993), Estonia (Estonian),
PC 771 (Lithuanian), ISO 8859-2, PC 866 LAT. (Latvian), PC 866
UKR (Ukranian), PC APTEC (Arabic), PC 708 (Arabic), PC 720
(Arabic), PC AR 864 (Arabic), PC437 Slovenia, PC MC, PC1250,
PC1251, KZ1048 (Kazakhstan)
Character sets:
15 international character sets:
USA, France, Germany, UK, Denmark I, Sweden, Italy, Spain I,
Japan, Norway, Denmark II, Spain II, Latin America, Korea, Legal
Electrical
Rated voltage range
100 to 240 V
Input voltage range
90 to 264 V
Rated frequency range
50 to 60 Hz
Input frequency range
49.5 to 60.5 Hz
Rated current
3.4 A - 1.6 A (maximum 5.7 A - 2.6 A depending on the character type)
Product Information
125
DLQ-3500II/DLQ-3500IIN
Power consumption (with
USB connection)
User’s Guide
100 to 120 V:
Approx. 80 W (ISO/IEC 10561 Letter pattern)
DLQ-3500II:
Approx. 0.6 W in sleep mode*
DLQ-3500IIN:
Approx. 0.9 W in sleep mode*
220 to 240 V:
Approx. 78 W (ISO/IEC 10561 Letter pattern)
DLQ-3500II:
Approx. 0.8 W in sleep mode*
DLQ-3500IIN:
Approx. 1.0 W in sleep mode*
* When the configured time passes in the following condition, the printer enters sleep mode.
- not error.
- There is no data in input buffer.
Note:
Check the label on the back of the printer for the voltage of your printer.
Environmental
Temperature
Humidity
(without condensation)
Operation (plain paper)
5 to 35 ˚C (41 to 95 ˚F)
10 to 80 % RH
Operation (recycled
paper, envelope, label,
or roll paper)
15 to 25 ˚C (59 to 77 ˚F)
30 to 60 % RH
Storage
-30 to 60 ˚C (-22 to 140 ˚F)
0 to 85 %
Paper
Note:
❏ Use recycled paper, multipart paper, labels, envelopes, and postcards only under normal
temperature and humidity conditions described below.
Temperature: 15 to 25 ˚C (59 to 77 ˚F)
Humidity: 30 to 60 % RH
❏ Do not load paper that is curled, folded, or crumpled.
Product Information
126
DLQ-3500II/DLQ-3500IIN
User’s Guide
Single sheets
See also “Multipart forms” on page 130 for detailed information on the specification for single sheet
multipart forms.
Width
90 to 420 mm (3.5 to 16.5 inches)/100 to 420 mm (3.9 to 16.5
inches)*
* When loading single sheets and single sheet multipart
forms that are glued at the top of the form from the
cut-sheet feeder or automatic sheet alignment unit
Length
80 to 420 mm (3.15 to 16.5 inches)/92 to 420 mm (3.6 to 16.5
inches)*
* When loading single sheets and single sheet multipart
forms that are glued at the top of the form from the
cut-sheet feeder
Thickness
single sheets
multipart forms
0.065 to 0.19 mm (0.0025 to 0.0074 inch)
0.12 to 0.62 mm (0.0047 to 0.024 inch)
Weight
single sheets
multipart forms
52.3 to 157 g/m² (14 to 42 lb)
40 to 58 g/m² (10 to 15 lb)
Quality
single sheets
Plain paper and recycled paper
multipart forms
Carbonless multipart forms with a line of glue at the top or
the side of the form
Copies
1 original + 7 copies
Continuous paper
See also “Multipart forms” on page 130 for detailed information on the specifications for continuous
multipart forms.
Product Information
127
DLQ-3500II/DLQ-3500IIN
User’s Guide
❏ The sprocket hole must be a circle or notched circle.
❏ The holes must be cleanly cut.
❏ If the horizontal and vertical perforations are crossed, the shaded area below should not be printed
on. Uncrossed perforations do not have this restricted area.
A:
B:
28 mm (1.1 inches)
3 mm (0.12 inch)
1. vertical perforation
2. horizontal perforation
1. crossed perforation
2. uncrossed perforation
❏ The ratio of the cut/uncut length at the perforation should be between 3:1 and 5:1. And expansion
at the perforation (when the paper is kept flat) should be less than 1 mm (0.04 inch) as follows.
1. 3 mm cut
2. 1 mm uncut
3. 1 mm or more
Product Information
128
DLQ-3500II/DLQ-3500IIN
User’s Guide
❏ If you use continuous paper whose page length (A in the next illustration) is under 101.6 mm (4.0
inches), make sure that the length between folds (B) is over 101.6 mm (4.0 inches.)
Width
101.6 to 406.4 mm (4.0 to 16.0 inches)
Length/page
76.2 to 558.8 mm (3.0 to 22.0 inches)
Copies
1 original + 7 copies
Total thickness
single sheets
0.065 to 0.19 mm (0.0025 to 0.0074 inch)
multipart forms
0.12 to 0.62 mm (0.0047 to 0.024 inch)
Weight
single sheets
52.0 to 157 g/m² (14 to 42 lb)
multipart forms
40 to 58 g/m² (11 to 15 lb) (weight/part)
Quality
single sheets
Plain paper, recycled paper, and carbonless
multipart forms
multipart forms with spot gluing or paper stapling on
both sides
Product Information
129
DLQ-3500II/DLQ-3500IIN
User’s Guide
Multipart forms
The specifications for the dimensions of multipart forms are the same as those for single sheets and
continuous paper. See “Single sheets” on page 127 and “Continuous paper” on page 127 for detailed
information.
❏ The form sheets of continuous multipart forms should be securely joined together along the left
and right edges by crimping or, spot-gluing. For the best printing quality, use multipart forms
joined with spot-gluing.
spot-gluing
crimping
spot-gluing and crimping on
each side
1. 1 inch or less
2. 3 inches or less
3. printing side
4. 1 inch or less
5. 3 inches or less
! Caution:
Never use continuous multipart forms that are joined with metal staples or bar-gluing.
1. bar-gluing
2. metal stapling
❏ The thickness of the folded part when extended should be 2 mm or less.
Product Information
130
DLQ-3500II/DLQ-3500IIN
User’s Guide
* 2 mm or less
❏ The binding area should be flat and have no creases.
❏ The sprocket holes of all sheets in the form should be aligned properly.
❏ The binding position should be outside the printable area. See “Printable area” on page 134 for
more information.
Labels
❏ Labels should be securely attached to the backing sheet and the label surface must be flat.
❏ The labels should not peel off their backing sheet under the conditions below.
wrapping drum radius:
27 mm
wrapping angle:
180 ˚
wrapping time:
24 hours
ambient temperature:
40 ˚C
ambient humidity:
30%
1. label
2. 27 mm
❏ When using labels whose backing sheet is entirely covered, make sure the cuts around the edges of
the labels are perforated.
Product Information
131
DLQ-3500II/DLQ-3500IIN
User’s Guide
1. backing sheet
2. label sheet
3. several uncut areas on each side
4. label
❏ When using labels whose backing sheet is not covered with the label material, see the illustration
below and do not set the paper-thickness lever to the AUTO position, set it manually.
1. label
2. backing sheet
3. corner radius is more than 2.5 mm
4. label
Backing sheet
single sheets
101.6 to 406.4 mm (4.0 to 16.0 inches)
multipart forms
76.2 to 558.8 mm (3.0 to 22.0 inches)
Labels
Width
63.5 mm (2.5 inches), minimum
Height
23.8 mm (0.94 inch), minimum
Corner radius
2.5 mm (0.1 inch), minimum
Weight
64 g/m² (17 lb)
Thickness
Product Information
132
DLQ-3500II/DLQ-3500IIN
Backing sheet
0.07 to 0.09 mm (0.0028 to 0.0035 inch)
Total
0.16 to 0.19 mm (0.0063 to 0.0075 inch)
Quality
User’s Guide
Plain paper or the same quality labels with continuous
backing sheet
Envelopes
Size
No. 6
165 × 92 mm (6.5 × 3.6 inches)
No. 10
241 × 105 mm (9.5 × 4.1 inches)
Thickness
0.16 to 0.52 mm (0.0063 to 0.021 inch)
Any differences in thickness within the printable area must be less
than 0.25 mm (0.0098 inch).
Weight
45 to 90 g/m² (12 to 24 lb)
Quality
Bond envelopes, plain envelopes, and airmail envelopes not glued
on the flap
Postcards
Width
100 to 200 mm (3.9 to 7.8 inches)
Length
100 to 200 mm (3.9 to 7.8 inches)
Thickness
0.22 mm (0.0087 inch)
Weight
192 g/m² (51 lb)
Quality
Plain paper and recycled paper
Pre printed Paper
Pre printed paper is paper with white space in the middle and ruled lines, letters, or figures printed in
the top and bottom margins. The margins are printed the first time the paper is loaded in the printer,
and a document is printed in the white space the second time the paper is loaded in the printer. The
margin areas are often used for letterheads, borders, and so on. You can make your own pre printed
paper or you can purchase it.
Product Information
133
DLQ-3500II/DLQ-3500IIN
User’s Guide
You cannot preprint in the area with the diagonal shading in the illustrations below, and can preprint
only with colors whose reflectivity is under 60% (for instance black). Avoid punching holes in the
restricted area below because punctures are also recognized as colors whose reflectivity is under 60%.
Before printing on pre printed sheets, verify that the area your document will print on does not overlap
with the pre printed area by printing separate sample sheets and comparing their printed areas.
Area measurements
A:
5 mm (0.20 inch)
B:
12 mm (0.47 inch)
Printable area
Single sheets (including single sheet multipart forms)
A:
0 mm (0 inch) or more
B:
The minimum left and right margins
are 3.0 mm (0.12 inch) each.
The maximum printable width is 345.44 mm
(13.6 inches). For single sheets wider than
351.44 mm (13.8 inches), the side margins
increase proportionally to match the width of
the paper.
Product Information
134
DLQ-3500II/DLQ-3500IIN
User’s Guide
* printable area
Continuous paper (including continuous multipart forms)
A:
The minimum top and bottom margins
(above and below the perforation) are
4.2 mm (0.165 inch).
B:
The minimum left or right margin is 9
mm (0.354 inch).
18 mm for the paper whose page width
is 406.4 mm (16 inches).
A:
13 mm (0.51 inch) or more
B:
1.2 mm (0.0472 inch) or more
C:
3 mm (0.118 inch) or more
A:
0 mm (0 inch) or more
The minimum top margin for feeder
from the cut-sheet feeder is 4.2 mm
(0.165 inch)
B:
3 mm (0.118 inch) or more
* printable area
Labels
Envelopes and postcards
Product Information
135
DLQ-3500II/DLQ-3500IIN
User’s Guide
System Requirements
Windows 10 (32-bit, 64-bit)/Windows 8.1 (32-bit, 64-bit)/Windows 8 (32-bit, 64-bit)/Windows 7
(32-bit, 64-bit)/Windows Vista (32-bit, 64-bit)/Windows XP SP3 or later (32-bit)/Windows XP
Professional x64 Edition SP2 or later/Windows Server 2019/Windows Server 2016/Windows Server
2012 R2/Windows Server 2012/Windows Server 2008 R2/Windows Server 2008/Windows Server
2003 R2/Windows Server 2003 SP2 or later
Command Lists
Your printer supports the following Epson ESC/P2 control codes and IBM PPDS emulation control
codes.
For more information about the commands, contact Epson Customer Services. See “Contacting
Customer Support” on page 100 for details.
Epson ESC/P control codes
Selecting an Epson ESC/P printer in your software allows you to use advanced fonts and graphics.
General operation:
ESC @, ESC U, ESC EM
Paper feeding:
FF, LF, ESC 0, ESC 2, ESC 3, ESC+, CR
Page format:
ESC (C, ESC C, ESC C 0, ESC Q, ESC l, ESC (c, ESC N, ESC O
Print position motion:
ESC $, ESC \, ESC (V, ESC (v, ESC D, HT, ESC B, VT, ESC J
Font selection:
ESC k, ESC x, ESC y, ESC X, ESC P, ESC M, ESC g, ESC p, ESC 4, ESC 5, ESC E, ESC F, ESC !
Font enhancement:
ESC W, DC4, SO, DC2, SI, ESC w, ESC G, ESC H, ESC T, ESC S, ESC -, ESC (-, ESC q
Spacing:
ESC Space, ESC c, ESC (U
Product Information
136
DLQ-3500II/DLQ-3500IIN
User’s Guide
Character handling:
ESC t, ESC ( t, ESC R, ESC %, ESC &, ESC :, ESC 6, ESC 7, ESC (^
Bit image:
ESC *
Bar code:
ESC ( B
Color:
ESC r
IBM PPDS emulation control codes
This printer emulates the IBM Proprinter using the commands below.
General operation:
NUL, DC3, ESC j, BEL, CAN, DC1, ESC Q, ESC [ K, ESC U
Paper feeding:
FF, LF, ESC 5, ESC A, ESC 0, ESC 1, ESC 2, ESC 3, ESC 3 (AGM*1), CR, ESC ]
Page format:
ESC C, ESC C0, ESC X, ESC N, ESC O, ESC 4
Print position motion:
ESC d, ESC R, ESC D, HT, ESC B, VT, ESC J, ESC 3 (AGM*1)
Font selection:
DC2, ESC P, ESC :, ESC E, ESC F, ESC I, ESC [d, ESC [I
Font enhancement:
DC4, SO, ESC SO, ESC W, ESC [ @, SI, ESC SI, ESC G, ESC H, ESC T, ESC S, ESC -, ESC _, ESC [Spacing:
BS, SP
Character handling:
ESC 6, ESC 7, ESC [ T, ESC ^, ESC \
Product Information
137
DLQ-3500II/DLQ-3500IIN
User’s Guide
Bit image:
ESC K, ESC L, ESC Y, ESC Z, ESC [g, ESC * (AGM*1)
Bar code:
ESC [f, ESC [p
Download:
ESC = (command is not provided)
*1 Alternate Graphic Mode
Standards and Approvals
! Warning:
❏ This is a Class A product. In a domestic environment this product may cause radio interference
in which case the user may be required to take adequate measures.
❏ The connection of a non-shielded printer interface cable to this printer will invalidate the EMC
standards of this device.
❏ You are cautioned that changes or modifications not expressly approved by Seiko Epson
Corporation could void your authority to operate the equipment.
Safety approvals
Safety
IEC60950-1
IEC62368-1
EMC
AS/NZS CISPR32 Class A
For users in Europe
The following models are CE marked and in compliance with all the applicable EU Directives. For
further details, visit the following website to access the full declaration of conformities containing
reference to the Directives and harmonized standards used to declare conformity.
https://www.epson.eu/conformity
DLQ-3500II: PB41A
Product Information
138
DLQ-3500II/DLQ-3500IIN
User’s Guide
DLQ-3500IIN: PB41B
Cleaning the Printer
To keep your printer operating at its best, you should clean it thoroughly several times a year.
Follow these steps to clean your printer:
1. Remove any paper loaded in the printer, and turn off the printer.
2. Remove the sheet guide. If an optional cut sheet feeder is installed, remove it.
3. Use a soft brush to carefully brush away all dust and dirt from the outer case and sheet guide.
4. If the outer case and the sheet guide are still dirty or dusty, clean them with a soft, clean cloth
dampened with mild detergent dissolved in water. Keep the printer cover and front cover closed to
prevent water from getting inside the printer.
! Caution:
❏ Never use alcohol or thinners to clean the printer; these chemicals can damage the printer
components as well as the case.
❏ Be careful not to get water on the printer mechanism or electronic components.
❏ Do not use a hard or abrasive brush.
❏ Do not spray the inside of the printer with lubricants; unsuitable oils can damage the printer
mechanism. Contact your Epson dealer if you think lubrication is needed.
Transporting the Printer
If you need to transport your printer for some distance, carefully repack it using the original box and
packing materials.
Follow these steps to repack the printer in its original packing materials:
! Warning:
You need to remove the ribbon cartridge. If you have just used the printer, the print head may be
hot; let it cool for a few minutes before touching it.
Product Information
139
DLQ-3500II/DLQ-3500IIN
User’s Guide
1. Remove any paper loaded in the printer.
2. Select Replace Ribbon on the home screen.
Print head moves to the ribbon cartridge replacement position.
3. Turn the printer off.
4. Unplug the power cord from the electrical outlet; then disconnect the interface cable from the
printer. If an optional cut sheet feeder is installed, remove it.
5. Remove the sheet guide. If any options are installed, remove them and pack them in their original
boxes.
6. Make sure the print head is not hot. Then remove the ribbon cartridge as described in “Replacing
the ribbon cartridge” on page 108.
Product Information
140
DLQ-3500II/DLQ-3500IIN
User’s Guide
7. Attach the metal protective materials to the left and right inside the printer, and then attach the
plastic packing material to prevent the head from moving.
8. Make sure that the printer cover is closed.
9. Repack the printer, sheet guide, ribbon cartridge, and power cord (if necessary) in their original
packing materials and place them in the printer’s original box.
Product Information
141
DLQ-3500II/DLQ-3500IIN
User’s Guide
Glossary
ASCII
American Standard Code for Information Interchange. A standardized coding system for assigning numerical codes to letters
and symbols.
auto line feed
When this setting is turned on in the printer settings, each carriage return (CR) code is automatically followed by a line feed (LF)
code.
bidirectional printing
Printing in which the print head prints in both directions (bidirectionally). This increases the print speed but may reduce precise
vertical alignment. Bidirectional printing is this printer’s standard printing mode.
buffer
The portion of the printer’s memory used to store data before it is printed.
character table
A collection of letters, numbers, and symbols that constitute the set of characters used in a particular language.
characters per inch (cpi)
A measurement of the size of text characters.
continuous paper
Paper that has sprocket feed holes on both sides, is perforated between pages, and is supplied in a folded stack. Also called fanfold
paper.
control code
A special code used to control a printer function such as performing a carriage return or line feed.
cpi
Abbreviation of characters per inch. A measurement of the size of text characters.
cut sheet feeder
An optional, detachable device that automatically feeds single sheets of paper into the printer.
data dump
A troubleshooting method that helps identify the cause of communication problems between the printer and the computer.
When the printer is in hex dump mode, it prints each code that it receives in hexadecimal notation and ASCII characters. Also
called hex dump.
default
A value that takes effect when the equipment is turned on, reset, or initialized.
dot matrix
A method of printing in which each letter or symbol is formed by a pattern (matrix) of individual dots.
Glossary
142
DLQ-3500II/DLQ-3500IIN
User’s Guide
draft
The print mode used by your printer when you select Draft as the font. The Draft font uses less dots per character for faster
printing.
ESC/P
Abbreviation for EPSON Standard Code for Printers. This is the system of commands your computer uses to control your
printer. It is standard for all Epson printers and supported by most application software for personal computers.
ESC/P 2
The enhanced version of the ESC/P printer command language. Commands in this language produce laser like results, such as
scalable fonts and enhanced graphics.
fanfold paper
Paper that has sprocket feed holes on both sides, is perforated between pages, and is supplied in a folded stack. Also called
continuous paper.
font
A style of type designated by a name such as Roman or Sans Serif.
form feed (FF)
A control code and control panel button that advances the paper to the next top of form position.
halftoning
A method of using dot patterns to represent an image. Halftoning makes it possible to produce varying shades of gray using only
black dots, or a nearly infinite array of colors using only a few colors of dots.
hex dump
A troubleshooting method that helps identify the cause of communication problems between the printer and the computer.
When the printer is in hex dump mode, it prints each code that it receives in hexadecimal notation and ASCII characters. Also
called data dump.
high speed draft
A mode of draft printing you can select in the printer settings. High speed draft uses a minimum number of dots per character to
produce extremely high speed printing.
interface
The connection between the computer and the printer over which print data is transmitted to the printer.
landscape
Printing that is oriented sideways on the page. This orientation gives you a page that is wider than it is high and is useful for
printing spreadsheets.
letter quality (LQ)
The print mode used by your printer when a font other than Draft is selected. Printing with letter quality fonts provides better
readability and appearance at a reduced print speed.
line feed (LF)
A control code and control panel button that advances the paper one line space.
Glossary
143
DLQ-3500II/DLQ-3500IIN
User’s Guide
loading position
The position to which the paper is automatically loaded.
micro adjust
A printer feature that allows you to precisely adjust the tear off position.
paper positions
There are three paper positions for continuous paper printing: standby, tear off, and top-of-form. For single sheet printing, there
is only the top of form position.
pitch
The size of the font, which is measured in the number of characters per inch (cpi). The standard is 10 cpi.
platen
The black flat part or a roller that provides a backing for the paper during printing.
portrait
Printing that is oriented upright on the page (as opposed to landscape, in which printing is sideways on the page). This is the
standard orientation for printing letters or documents.
printer driver
A software program that sends commands from the computer for using the functions of a particular printer. EPSON provide
windows driver, though, other system drivers are provided from the application vendors.
printing start position
The horizontal position on the paper that the printer recognizes as the first printable column. You can adjust the printing start
position in the printer settings.
proportional font
A font whose characters take up varying amounts of horizontal space depending on the width of the character. Thus the
uppercase M takes up more horizontal space than the lowercase l.
recommended printable area
The area of a page on which the printer can print. It is smaller than the physical size of the page due to margins.
reset
To return a printer to its default settings.
resolution
A measure of the amount of detail that can be represented. Resolution of printed images is measured in number of dots per inch
(dpi).
self test
A method for checking the operation of the printer. When you run the self test, the printer prints the characters stored in its ROM
(Read Only Memory).
standby position
The position of your continuous paper when it is attached to the tractor but not loaded in the printer.
Glossary
144
DLQ-3500II/DLQ-3500IIN
User’s Guide
tear off
A control panel button that feeds the perforation of continuous paper to the tear off position and then feeds the paper back to the
top of form position.
tear off position
The position the printer feeds the paper to in the tear off operation. Using the Micro Adjust function, you can adjust the position
so that the paper’s perforation meets the printer’s tear off edge.
top of form position
The position on the paper that the printer recognizes as the first printable line. This is the default top-margin position.
unidirectional printing
Printing in which the print head prints in one direction only. Unidirectional printing is useful for printing graphics because it
provides precise vertical alignment. You can select unidirectional printing in the printer settings or from the printer driver
settings.
Glossary
145
DLQ-3500II/DLQ-3500IIN
User’s Guide
Index
0
0 slash....................................................................................26
EPSON Status Monitor 3.............................................55, 66
accessing............................................................................69
installing............................................................................67
setting up...........................................................................67
A
A.G.M. (IBM PPDS)...........................................................26
Aligning vertical lines.........................................................96
Auto CR (IBM PPDS).........................................................26
Auto I/F (interface) wait time............................................29
Auto Line Feed.....................................................................26
Auto tear off.........................................................................27
Auto Tear Off Wait Time...................................................27
Automatic Sheet Alignment Unit...................................118
B
Bi-D Adjustment.................................................................70
Built-in font........................................................................124
list.....................................................................................124
Buzzer (beeper) setting.......................................................28
C
Cancelling printing.......................................................83, 97
Character Table...................................................................25
Cleaning the printer..........................................................139
Clients...................................................................................78
Continuous paper
switching from.................................................................51
switching to.......................................................................52
Control Panel.......................................................................17
D
Disable IPsec/IP Filtering...................................................31
Display QR Code.................................................................28
Driver (printer driver)........................................................55
E
F
Font.......................................................................................25
H
Head Gap..............................................................................28
Hex dump.............................................................................98
I
I/F (interface) mode............................................................29
International Character Set for Italic Table.....................26
IPv6 Address........................................................................30
L
Labels
loading...............................................................................48
Left Offset.............................................................................24
Line Spacing.........................................................................26
Link Speed & Duplex..........................................................30
Lock out mode.....................................................................31
Low-noise mode..................................................................28
M
Manual feed wait time........................................................28
Micro adjust function
tear off position................................................................53
Multipart forms...................................................................47
N
Network interface................................................................29
Envelopes..............................................................................49
Index
146
DLQ-3500II/DLQ-3500IIN
O
Option
cut sheet feeder...............................................................112
P
Packet mode.........................................................................29
Page Length..........................................................................24
Paper source
selecting.............................................................................33
Paper Type............................................................................28
Parallel I/F Bidirectional Mode.........................................29
Parallel interface..................................................................29
Pitch.......................................................................................25
Print direction......................................................................27
Auto print direction (Auto)...........................................27
Bidirectional (Bi-d) printing..........................................27
Unidirectional (Uni-d) printing....................................27
Print Start Position..............................................................25
Printer
sharing...............................................................................74
Printer driver
accessing............................................................................55
settings.........................................................................61, 62
uninstalling.......................................................................83
Printer Setting......................................................................71
R
User’s Guide
Skip Over Perforation.........................................................25
Sleep Timer...........................................................................28
Software................................................................................27
Special paper
loading...............................................................................47
Specifications
built-in font....................................................................124
command lists:ESC/P....................................................136
command lists:IBM PPDS emulation.........................136
electrical..........................................................................125
electronic.........................................................................124
environmental................................................................126
mechanical......................................................................122
safety approvals..............................................................138
Status Monitor 3............................................................55, 66
T
Top of Form.........................................................................24
Transporting the printer..................................................139
Troubleshooting
USB problems...................................................................94
U
Uninstalling
printer software................................................................83
USB interface.......................................................................29
problems............................................................................94
Ribbon cartridge
replacing..........................................................................108
Right Offset..........................................................................24
S
Screen
Error Display....................................................................21
Home.................................................................................19
Job Information................................................................20
Self test..................................................................................97
Server.....................................................................................74
Single sheets
switching from.................................................................52
switching to.......................................................................51
Index
147
