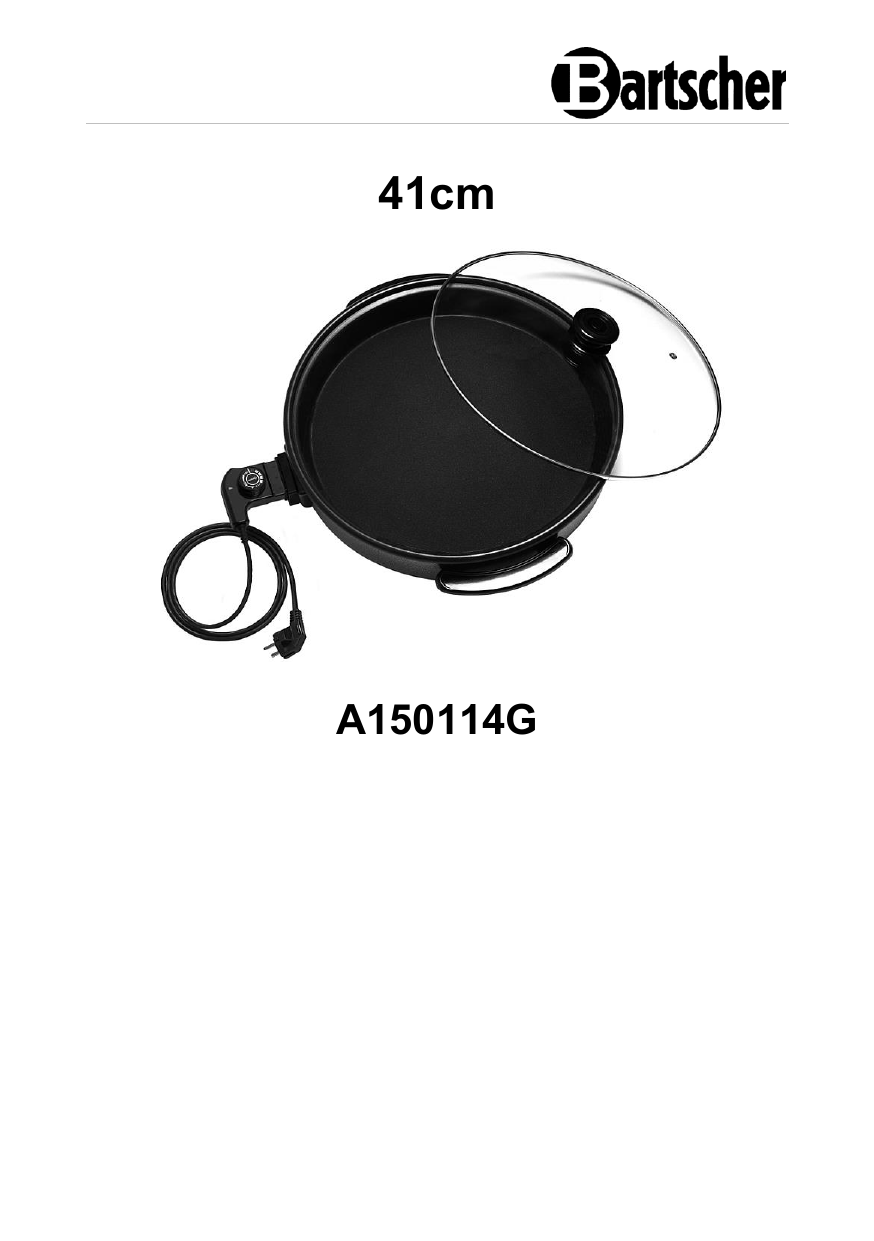

Bartscher A150114G Multi pan 41cm Operating instructions

41cm
A150114G
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: +49 5258 971-0
Fax: +49 5258 971-120
Technical Support Hotline: +49 5258 971-197
www.bartscher.com
Version: 10.0
Date of preparation: 2019-09-19
EN
Original instruction manual
1
2
3
4
5
6
7
Safety ............................................................................................................ 2
1.1
Explanation of signal words ..................................................................... 2
1.2
Safety instructions.................................................................................... 3
1.3
Intended use ............................................................................................ 6
1.4
Unintended use ........................................................................................ 6
General information ....................................................................................... 7
2.1
Liability and warranty ............................................................................... 7
2.2
Copyright protection ................................................................................. 7
2.3
Declaration of conformity ......................................................................... 7
Transport, packaging and storage ................................................................. 8
3.1
Delivery Check ......................................................................................... 8
3.2
Packaging ................................................................................................ 8
3.3
Storage .................................................................................................... 8
Technical data ............................................................................................... 9
4.1
Technical specifications ........................................................................... 9
4.2
List of components of the appliance....................................................... 10
4.3
Functions of the appliance ..................................................................... 10
Installation and operation ............................................................................ 11
5.1
Installation.............................................................................................. 11
5.2
Operation ............................................................................................... 12
Cleaning ...................................................................................................... 15
6.1
Safety Instructions for cleaning .............................................................. 15
6.2
Cleaning................................................................................................. 15
Disposal ....................................................................................................... 16
A150114G
1 / 18
Safety
Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on
weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1
EN
Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1
Explanation of signal words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.
2 / 18
A150114G
Safety
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
, di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2
EN
Safety instructions
Electrical current
•
•
•
•
•
•
•
•
•
•
Too high a mains voltage or incorrect installation may cause electric shock.
The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
To avoid short-circuit, the appliance should be kept dry.
If there are malfunctions during operation, disconnect the appliance from the
power supply.
Do not touch the appliance’s plug with wet hands.
Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
Do not transport the appliance, holding it by the power cord.
Do not allow the power cord to come into contact with heat sources or sharp
edges.
Do not bend, pinch nor knot the power cord.
A150114G
3 / 18
Safety
•
•
•
Always completely unwind the power cord.
Never place the appliance or other objects on the power cord.
Always take hold of the plug to disconnect the appliance from the power supply.
Flammable materials
•
•
•
•
•
•
EN
•
Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
To avoid fire hazard, clean the appliance regularly.
Do not cover the appliance with, e.g., aluminium foil or cloths.
Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
Hot surfaces
•
•
•
•
Surfaces of the appliance become hot during operation. Burning hazard! High
temperature remains for some time after switching the appliance off.
Do not touch any hot surfaces of the appliance. Use the provided handling
elements and holders.
You may transport and clean the appliance after it cools down entirely.
It is prohibited to sprinkle hot surfaces with cold water or flammable liquids.
Supervised usage only
•
•
Only supervised appliance may be used.
Always remain in an immediate vicinity of the appliance.
Halten Sie Verpac kungsmateriali en und Styropor teile von Ki ndern fern. Si e können sich darin verfangen und erstic ken.
Operating personnel
•
The device can be used by children of 8 years old and older, as well as by
people with reduced physical, sensory or mental abilities and those with limited
experience/knowledge as long as they are under supervision or have been
4 / 18
A150114G
Safety
•
instructed on safe use of the device and possible risks. Children should not play
with the device.
Do not leave the device unattended in the presence of children.
Improper use
•
•
•
•
•
•
Unintended or prohibited use may cause damage to the appliance.
The appliance may only be used in a technically flawless condition, providing for
safe use.
The appliance may only be used with connections in a technically flawless
condition, providing for safe use.
The appliance may only be used clean.
Use only original spare parts. Never attempt to repair the appliance on your
own.
Do not attempt to modify nor alter the appliance.
EN
A150114G
5 / 18
Safety
1.3
Intended use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–
Preparing and keeping food warm.
The appliance is not designed for continuous operation in industrial
applications.
This appliance is intended for use in households and similar places, e.g.:
– in employee canteens in shops, offices, and similar areas;
– on farms;
– by customers in hotels, motels, and other typical accommodation
establishments;
– in lodging-houses.
EN
1.4
Unintended use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–
6 / 18
Heating up products that are not food.
A150114G
General information
2
2.1
General information
Liability and warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
– failure to observe instructions,
– unintended use,
– technical alterations introduced by the user,
– usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2
Copyright protection
EN
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3
Declaration of conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.
A150114G
7 / 18
Transport, packaging and storage
3
Transport, packaging and storage
3.1
Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2
EN
Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3
Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
– in closed rooms;
– in dry and dust-free surrounding;
– away from aggressive agents;
– in a location protected against sunlight;
– in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.
8 / 18
A150114G
Technical data
4
Technical data
4.1
Technical specifications
Name:
Multi pan, 41cm
Item No.:
A150114G
Material:
Aluminium
Inner height, in mm:
40
Inner diameter, in mm:
38
Volume, in l:
4
Power supply:
1,5 kW / 230 V / 50 Hz
Dimensions (W x D x H) in mm:
510 x 495 x 165
Weight in kg:
3,3
We reserve the right to implement technical modifications!
EN
Version / Characteristics
•
•
•
•
•
Version: round
Control: electronic
Temperature control: stepless
Inner non-stick coating
The set includes: 1 glass lid
<Endergebnis>
A150114G
9 / 18
Technical data
4.2
List of components of the appliance
EN
1. Glass lid
3. Steam outlet
5. Pan (frying surface)
7. Plug
9. Indicator light
11. Temperature controller socket
4.3
2. Glass lid handle
4. Frame handle
6. Temperature controller,
detachable
8. Power cord
10. Rotary control knob
Functions of the appliance
With proper temperature setting, the multi pan enables preparation of various
dishes and keeping them warm.
10 / 18
A150114G
Installation and operation
5
Installation and operation
5.1
Installation
Unpacking / Positioning
•
Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•
•
•
•
•
•
•
If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
Be careful not to damage the rating plate and warning labels fixed on the
appliance.
Never place the appliance in humid or wet environment.
Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
The appliance should be placed on surfaces that are:
– even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
– sufficiently large, and thus enabling usage of the appliance with no
problems;
– easily accessible;
– well ventilated.
Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
Leave at least 20 cm clearance from flammable walls and items.
A150114G
11 / 18
EN
Installation and operation
Power supply connection
•
•
•
•
Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
Do not use the appliance with an external timer or remote control.
5.2
Operation
Instructions for detachable temperature controller
CAUTION!
Use only the temperature controller delivered with this multi pan. Never
use any other temperature controllers.
Make sure the temperature controller is firmly fit in the socket. If the
temperature controller is connected incorrectly, improper heating may
occur, leading to operational malfunctions and damages due to
overheating of the appliance.
If any operational malfunctions occur, pull the plug out and stop using the
appliance. Contact the retailer or the supplier.
EN
•
•
•
•
Temperature controller is a very sensitive component. Always make sure it is
not dropped, subject to hits nor strong shocks.
Temperature sensor and socket contacts should always be kept dry and clean.
Do not place the temperature controller on the pan’s bottom. It may not come in
contact with the heating plate.
When removing the temperature controller from the socket pull the plug, not the
cord. Do not use excessive force when inserting or removing the temperature
controller.
Operation of multi pans with non-stick coating
The pan’s surface is covered with a non-stick coating. Observe the following
indications:
– do not use any sharp or pointed metal implements;
– use paddles that are either wooden or made of plastic resistant to high
temperatures;
12 / 18
A150114G
Installation and operation
–
never use sharp knives to cut dishes directly in the pan. Arrange the dish
on a plate and proceed to cutting it.
Before the first use
1. Clean the appliance and detachable components before the first use according
to instructions included in section 6 “Cleaning”.
2. Screw the delivered handle to the glass lid.
Usage of multi pan
WARNING!
Risk of burns!
The appliance becomes very hot during the operation!
Do not touch surfaces of the appliance. To handle the appliance, use only
handles of the pan and the lid designed to this end.
Risk of burns!
When preparing dishes with a lid placed atop, a hot steam is running
through a steam outlet of the lid.
Avoid contact with the lid’s surface. Carefully remove the lid. Use kitchen
towels or protective gloves.
1. Before connecting the temperature controller, set the rotary control knob in
“OFF” position.
2. Connect the delivered detachable
temperature controller to the pan’s socket.
3. Plug the appliance into a single grounded
socket.
4. Set the rotary control knob according to a
dish that is being prepared; select from
amongst positions 1 – 5.
A150114G
13 / 18
EN
Installation and operation
We recommend the following temperature settings:
Degree
Temperature (°C)
MIN. – 1
up to 100
Keeping warm
2
over 100
3–4
150 – 200
Fried dishes, hamburgers, etc.
Pancakes, scrambled eggs,
fried ham, bacon, etc.
Grilled food, pizza
5
240
Dishes
Immediately following the setting of the rotary control knob to one of the
temperature levels, the indicator light lights up, confirming the process of heating up
the pan is in progress.
During operation the indicator light is lit and off in cycles, indicating that the set
temperature is maintained.
5. Wait with preparation of dishes until the appliance reaches the set temperature
and the indicator light goes off.
6. Prepare food.
EN
Time of thermal processing depends on the type of dishes, their size and amount,
individual taste and processing condition, and it should be selected on the basis of
own experiences.
When a dish is ready, the multi pan may be used for maintaining the temperature of
a dish.
7. In order to keep dishes warm, set the rotary control knob to a lower temperature
level.
8. If needed, cover the multi pan with the lid.
Switching the appliance off
1. If an appliance is not used, rotate the temperature rotary control knob to “OFF”
position.
2. Unplug the appliance.
3. After cooling down, disconnect the temperature controller from the appliance.
14 / 18
A150114G
Cleaning
6
Cleaning
6.1
•
•
•
•
•
Safety Instructions for cleaning
Before cleaning, disconnect the appliance from the power supply.
Leave the appliance to cool down completely.
Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
6.2
Cleaning
Multi pan
1. Clean the multi pan thoroughly after each use.
2. When cleaning the pan, the temperature controller socket should be covered
with your palm, to protect it against water or moisture penetration.
3. Remove dish leftovers with the use of soft, moistened cloth, soft sponge, or
paper towel. Use mild cleaning agent if required.
ATTENTION: Never you nylon or metal brushes to clean the pan, as they
may damage the non-stick coating.
4. With stubborn soiling, pour a bit of water into the pan and boil the water.
Dissolved leftovers will be easy to remove with a cloth.
5. Wipe the pan and the frame with a cloth moistened with clean water.
6. Finally, dry the appliance thoroughly.
A150114G
15 / 18
EN
Disposal
Temperature controller
HAZARD! Electric shock!
If water or moisture penetrates the temperature controller, there may be a
hazard of electric shock or fire during operation.
Never immerse the temperature rotary control knob, power cord nor plug in
water or other liquids.
WARNING! Risk of burns!
During operation and over a certain period of time after the operation, the
temperature controller sensor is very hot.
Remove the temperature controller from the appliance after it has cooled down.
1. Never wash the temperature controller using under running water, never
immerse it in water nor in other liquids.
1. Clean the temperature controller regularly, using only dry, soft cloth.
Glass lid
EN
1. Clean the glass lid with warm water and soft cloth or sponge. Use mild cleaning
agent if required.
2. Rinse the lid with clean water.
3. Then dry the lid with a soft cloth.
7
Disposal
Electrical appliance
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
Electrical appliances should be returned to designated collection points.
16 / 18
A150114G

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
