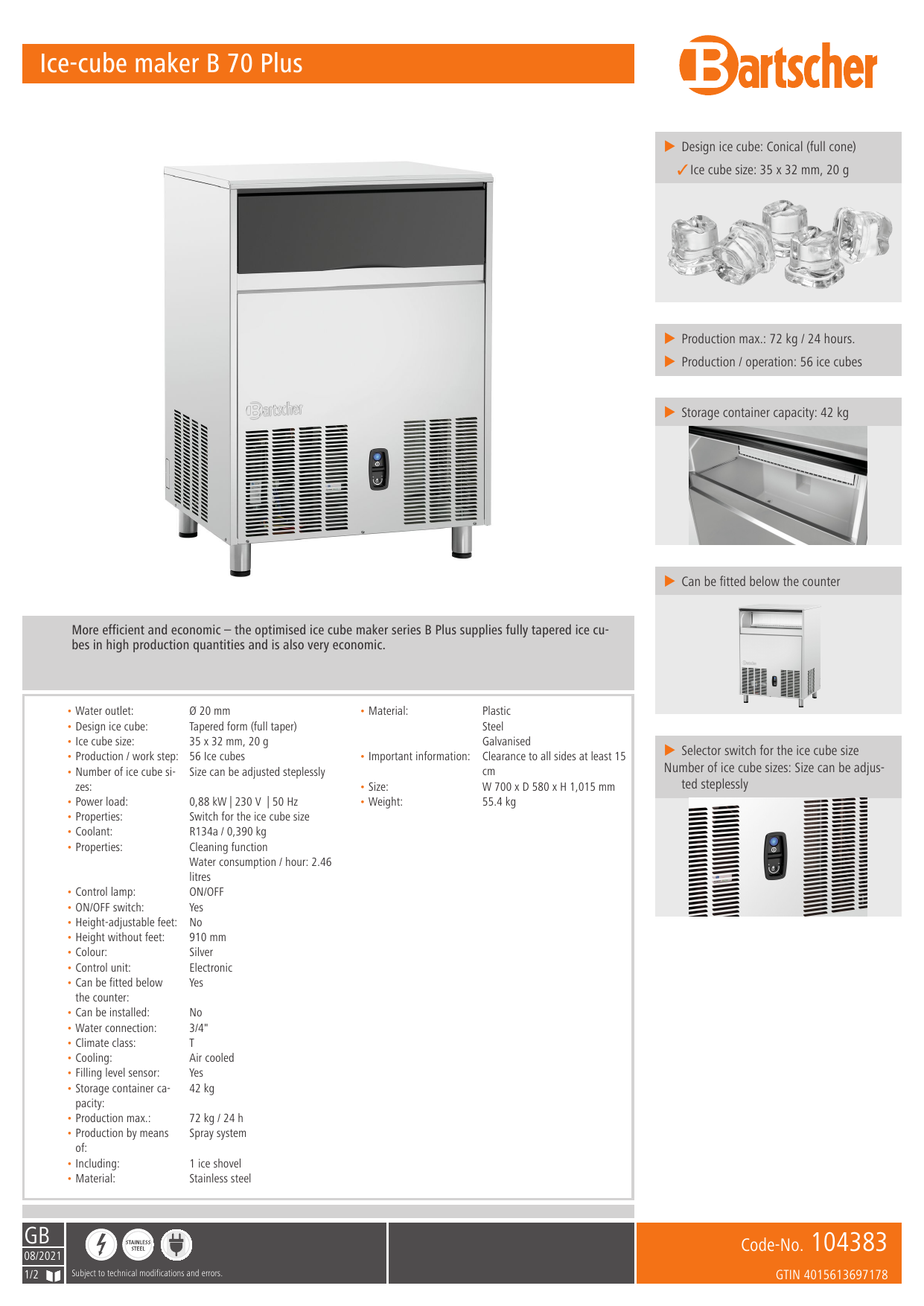

Bartscher 104383 Ice-cube maker B 70 Plus Data sheet

Ice-cube maker B 70 Plus
� Design ice cube: Conical (full cone)
✓ Ice cube size: 35 x 32 mm, 20 g
� Production max.: 72 kg / 24 hours.
� Production / operation: 56 ice cubes
� Storage container capacity: 42 kg
� Can be fitted below the counter
More efficient and economic – the optimised ice cube maker series B Plus supplies fully tapered ice cu­
bes in high production quantities and is also very economic.
• Water outlet:
• Design ice cube:
• Ice cube size:
• Production / work step:
• Number of ice cube si­
zes:
• Power load:
• Properties:
• Coolant:
• Properties:
Ø 20 mm
Tapered form (full taper)
35 x 32 mm, 20 g
56 Ice cubes
Size can be adjusted steplessly
0,88 kW | 230 V | 50 Hz
Switch for the ice cube size
R134a / 0,390 kg
Cleaning function
Water consumption / hour: 2.46
litres
• Control lamp:
ON/OFF
• ON/OFF switch:
Yes
• Height-adjustable feet: No
• Height without feet:
910 mm
• Colour:
Silver
• Control unit:
Electronic
• Can be fitted below
Yes
the counter:
• Can be installed:
No
• Water connection:
3/4"
• Climate class:
T
• Cooling:
Air cooled
• Filling level sensor:
Yes
• Storage container ca­
42 kg
pacity:
• Production max.:
72 kg / 24 h
• Production by means
Spray system
of:
• Including:
1 ice shovel
• Material:
Stainless steel
GB
08/2021
1/2
• Material:
Plastic
Steel
Galvanised
• Important information: Clearance to all sides at least 15
cm
• Size:
W 700 x D 580 x H 1,015 mm
• Weight:
55.4 kg
� Selector switch for the ice cube size
Number of ice cube sizes: Size can be adjus­
ted steplessly
.
Code-No.
Subject to technical modifications and errors.
104383
GTIN 4015613697178
Ice-cube maker B 70 Plus
Stainl.steel polish.spray 500ml can
Ice Crusher, stainless steel
• Content / can:
• Order quantity unit:
• Application:
• Colour:
• Power load:
• Production max.:
• Material:
• Important information:
• ON/OFF switch:
• Safety switch:
• Storage capacity collection tray:
• Model:
• Properties ice tray:
• Properties:
• allow them to cool down first:
• Application:
500 ml
1 box (12 cans)
Remove heavy soiling such as grease residue
first
Do not spray onto hot surfaces
Before use, bring the can to room temperature
and shake well
Spray sparingly onto the surfaces to be cleaned
Rub evenly over the entire surface
Polish with a dry cloth
Code-No. 173031
Code-No. 135012
GTIN 4015613479118
Ice crusher 2000
• Desalination type:
• Sampling tap:
• Water connection:
• Colour:
• Connection capacity:
• Output capacity:
• Colour:
• Important information:
• Deposit per cartridge:
08/2021
2/2
Silver
0,06 kW | 230 V | 50 Hz
60 kg / h
Stainless steel
No
2
1 kg
With collection tray
With lid
Collection tray can be removed
GTIN 4015613360195
Partial desalination system TKD 13400 FB
• Material:
GB
Add on Products
Partial desalination
Yes
3/4"
Blue
1 unit
13,400 litres / cartridge at 10° d (carbonate
hardness)
Plastic
Glass-fibre reinforced
290 €
• Model:
• Content of ice container:
• Properties ice tray:
• Production max.:
• Max. height of collection tray:
• Protection class:
• Safety switch:
• ON/OFF switch:
Silver
Black
With ice chute
3 litre(s)
With lid
Detachable
120 kg / h
165 mm
IP23
Magnetic contact switch on lid
Yes
Code-No. 109878
Code-No. 135026
GTIN 4015613681597
GTIN 4015613738123
Subject to technical modifications and errors.
