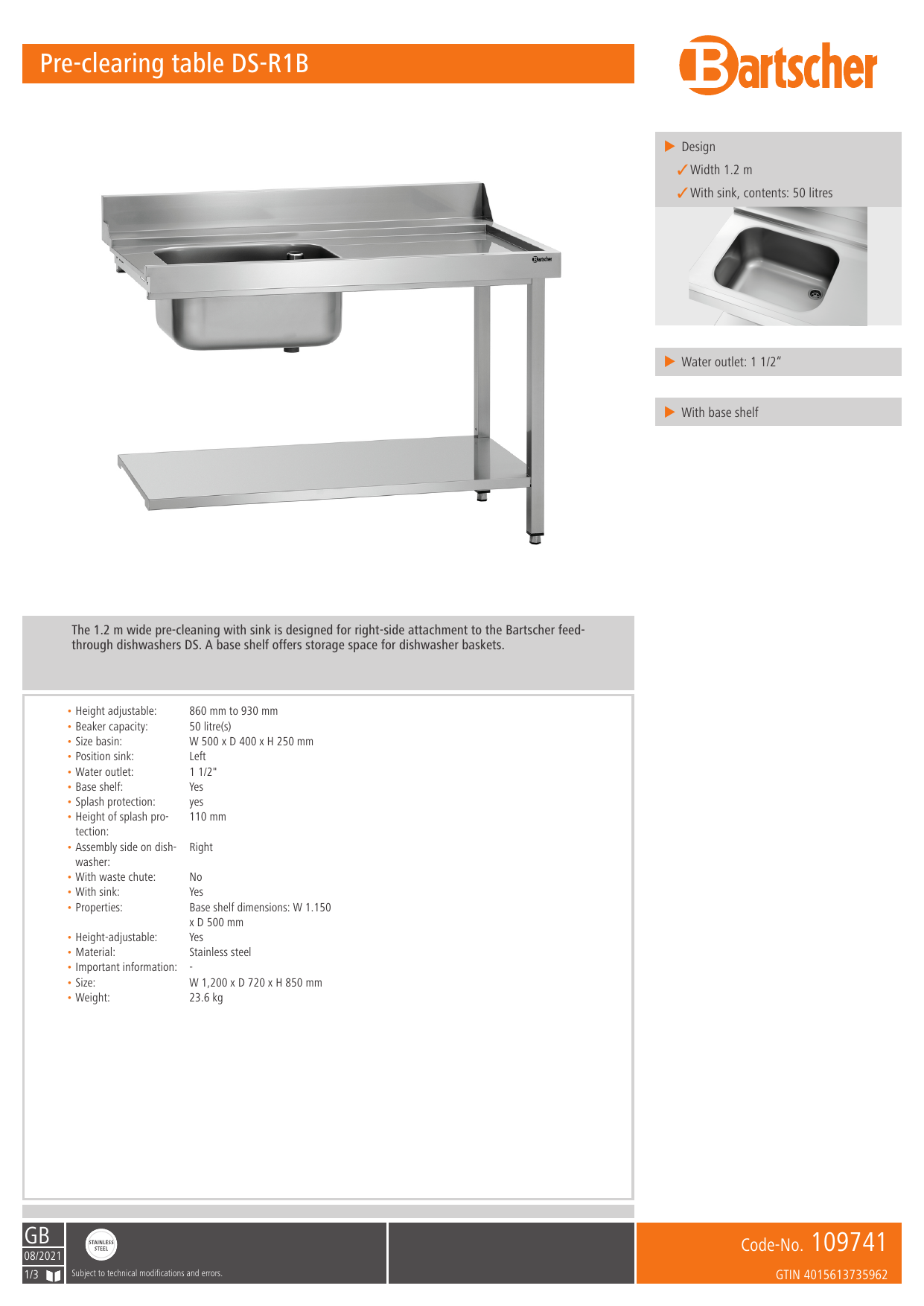

Bartscher 109741 Pre-clearing table DS-R1B Data sheet

Pre-clearing table DS-R1B
� Design
✓ Width 1.2 m
✓ With sink, contents: 50 litres
� Water outlet: 1 1/2“
� With base shelf
The 1.2 m wide pre-cleaning with sink is designed for right-side attachment to the Bartscher feedthrough dishwashers DS. A base shelf offers storage space for dishwasher baskets.
• Height adjustable:
• Beaker capacity:
• Size basin:
• Position sink:
• Water outlet:
• Base shelf:
• Splash protection:
• Height of splash pro­
tection:
• Assembly side on dish­
washer:
• With waste chute:
• With sink:
• Properties:
860 mm to 930 mm
50 litre(s)
W 500 x D 400 x H 250 mm
Left
1 1/2"
Yes
yes
110 mm
Right
No
Yes
Base shelf dimensions: W 1.150
x D 500 mm
• Height-adjustable:
Yes
• Material:
Stainless steel
• Important information: • Size:
W 1,200 x D 720 x H 850 mm
• Weight:
23.6 kg
.
GB
08/2021
1/3
Code-No.
Subject to technical modifications and errors.
109741
GTIN 4015613735962
Pre-clearing table DS-R1B
Power cleaner F1L, set of 2
Stainl.steel polish.spray 500ml can
• Designed for:
• Content / can:
• Order quantity unit:
• Application:
• Content:
• Model:
• Ph level:
• HACCP compliant:
• Chlorine-free:
• Phosphate-free:
Stubborn dirt, especially in kitchens
Grill and combi steamer cleaning (without
cleaning system)
2 x 1 litre
Liquid
High concentrate
13,5
Yes
Yes
Yes
• allow them to cool down first:
• Application:
500 ml
1 box (12 cans)
Remove heavy soiling such as grease residue
first
Do not spray onto hot surfaces
Before use, bring the can to room temperature
and shake well
Spray sparingly onto the surfaces to be cleaned
Rub evenly over the entire surface
Polish with a dry cloth
Code-No. 173078
Code-No. 173031
GTIN 4015613731926
GTIN 4015613360195
Single handle mixer 40L-3601B
Two handle mixer 26L-1801B
• Fitting type:
• Design:
• Flow at 3 bar:
• Properties:
• Handles:
• Installation:
• Valve type:
• Important information:
• Swivelling outlet:
• Fitting type:
• Design:
• Assembly type:
• Valve type:
• Diameter table borehole:
• Flow at 3 bar:
• Material:
• Jet regulator mouthpiece:
• Swivelling outlet:
GB
Add on Products
08/2021
2/3
Single lever mixer
Mixer tap
40 L / Min.
Stuffing box can be retightened
Chrome
Copper pipe connection 15 mm
High-performance cartridge with ceramic was­
her equipment
Chrome-plated
3/4 " inner thread
360°
• Handles:
• Jet regulator mouthpiece:
180°
Two-handle mixer
Mixer tap with dishwashing shower arm
Single-hole borehole
Stainless steel valve seats
30 - 35 mm
Outlet quantity: 16 L / min.
Jet regulator: 26 L / min.
Metal (EUR)
55 mm
Code-No. 400126
Code-No. 400136
GTIN 4015613584034
GTIN 4015613674575
Subject to technical modifications and errors.
Pre-clearing table DS-R1B
Two handle mixer 40L-1802B
Single handle mixer 40L-1801B
• Important information:
• Fitting type:
• Design:
• Diameter table borehole:
• Water connection:
• Flow at 3 bar:
• Fitting type:
• Design:
• Flow at 3 bar:
• Handles:
• Valve type:
• Jet regulator mouthpiece:
• Swivelling outlet:
GB
Add on Products
08/2021
3/3
Two-handle mixer
Mixer tap with dishwashing shower arm
21 - 25 mm
1/2"
Outlet quantity: 16 L / min.
Jet regulator: 40 L / min.
Metal (EUR)
Stainless steel valve seats
55 mm
180°
• Properties:
Single lever mixer
Mixer tap with dishwashing shower arm
Shower arm: 18 L / min.
Jet regulator: 40 L / min.
Replaceable sieve
Spring mechanism
Rubber stopper ring
No chrome-damage by additional hard-nickel
coating
Check valve
Code-No. 400137
Code-No. 400123
GTIN 4015613674582
GTIN 4015613438955
Subject to technical modifications and errors.
