Carter ThermoQuad Information Page

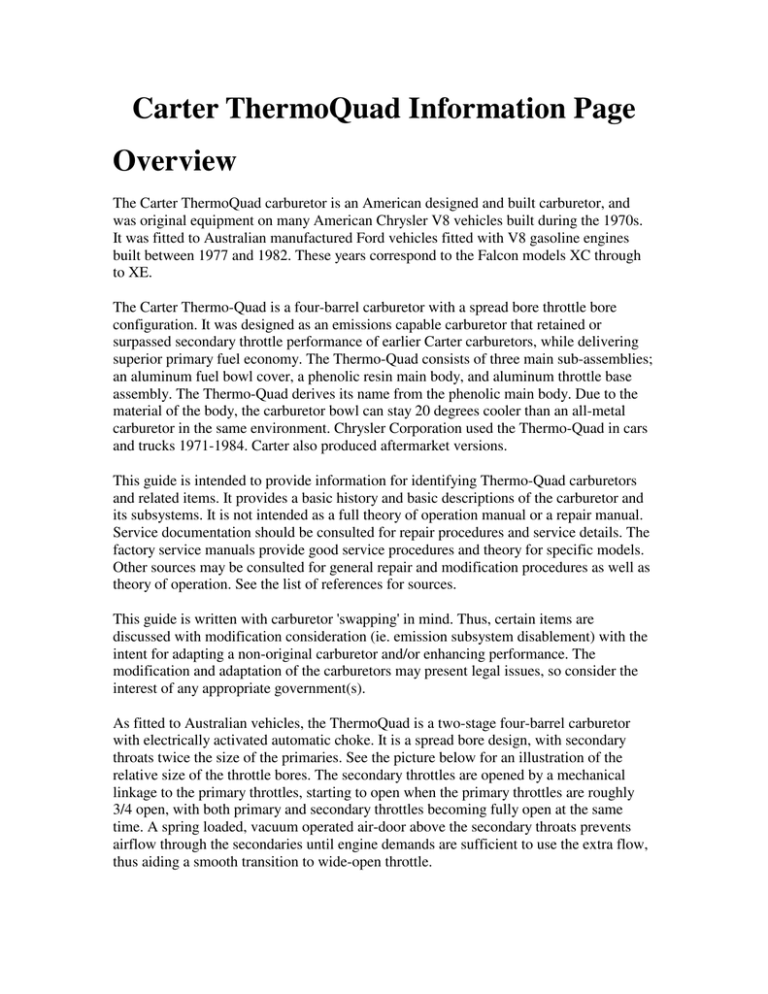

Overview

The Carter ThermoQuad carburetor is an American designed and built carburetor, and was original equipment on many American Chrysler V8 vehicles built during the 1970s.

It was fitted to Australian manufactured Ford vehicles fitted with V8 gasoline engines built between 1977 and 1982. These years correspond to the Falcon models XC through to XE.

The Carter Thermo-Quad is a four-barrel carburetor with a spread bore throttle bore configuration. It was designed as an emissions capable carburetor that retained or surpassed secondary throttle performance of earlier Carter carburetors, while delivering superior primary fuel economy. The Thermo-Quad consists of three main sub-assemblies; an aluminum fuel bowl cover, a phenolic resin main body, and aluminum throttle base assembly. The Thermo-Quad derives its name from the phenolic main body. Due to the material of the body, the carburetor bowl can stay 20 degrees cooler than an all-metal carburetor in the same environment. Chrysler Corporation used the Thermo-Quad in cars and trucks 1971-1984. Carter also produced aftermarket versions.

This guide is intended to provide information for identifying Thermo-Quad carburetors and related items. It provides a basic history and basic descriptions of the carburetor and its subsystems. It is not intended as a full theory of operation manual or a repair manual.

Service documentation should be consulted for repair procedures and service details. The factory service manuals provide good service procedures and theory for specific models.

Other sources may be consulted for general repair and modification procedures as well as theory of operation. See the list of references for sources.

This guide is written with carburetor 'swapping' in mind. Thus, certain items are discussed with modification consideration (ie. emission subsystem disablement) with the intent for adapting a non-original carburetor and/or enhancing performance. The modification and adaptation of the carburetors may present legal issues, so consider the interest of any appropriate government(s).

As fitted to Australian vehicles, the ThermoQuad is a two-stage four-barrel carburetor with electrically activated automatic choke. It is a spread bore design, with secondary throats twice the size of the primaries. See the picture below for an illustration of the relative size of the throttle bores. The secondary throttles are opened by a mechanical linkage to the primary throttles, starting to open when the primary throttles are roughly

3/4 open, with both primary and secondary throttles becoming fully open at the same time. A spring loaded, vacuum operated air-door above the secondary throats prevents airflow through the secondaries until engine demands are sufficient to use the extra flow, thus aiding a smooth transition to wide-open throttle.

Features

The Carter ThermoQuad features a plastic (phenolic resin, actually) main body (visible as the dark center section in the above photographs). The main body contains the fuel reservoir, and the plastic construction is claimed to keep the fuel cooler than a metal body would, thus enabling more accurate fuel metering.

The primary fuel metering system features mechanical and vacuum controlled metering rods, which eliminate the need for a power valve circuit within the carburetor. Opening the throttle mechanically raises the metering rods proportionally, thus richening the mixture according to throttle position. Rod position, and hence mixture richness, is further controlled by engine vacuum, resulting in a fuel mixture that is always tailored to instantaneous engine load.

The carburetor is fully tunable. External idle mixture screws enable precise adjustment of the idle mixture. The primary circuit metering rods are adjustable and replaceable without disassembly of the carb. The primary metering circuit also includes replaceable jets, and replaceable metering rod step-up springs. Variation of step-up spring strength and preload enables adjustment of the rate at which the mixture richens in relation to engine vacuum and hence load. The secondary metering circuit features replaceable jets. It is also possible to adjust the rate at which the secondary air-door opens, enabling activation of the secondary throats at higher or lower engine loads, depending on the needs of a particular engine.

The automatic choke mechanism features automatic choke activation, automatic choke pull-off, an initial throttle setting for starting, an automatically reducing throttle setting as the engine warms up, and disabling of the carburetor secondary throats whilst the engine is cold. The choke activation temperature, pull-off rate, and cold-engine fast idle speed are all fully adjustable.

Two timed-vacuum ports are provided on the front of the carburetor base.

PERFORMANCE CONSIDERATIONS

:

Although not having a reputation locally as a performance carburetor, the Carter

ThermoQuad is nonetheless a sizeable four-barrel carburetor. The fully adjustable nature and spreadbore configuration enables tuning for maximum power at wide-open throttle, with excellent economy and emissions under cruise and idle conditions. American

ThermoQuads are rated at between 800cfm and 1000cfm, which is more than enough for almost any street driven engine, and these carburetors have been popular aftermarket fitments in that country. Hearsay has it that Australian ThermoQuads are rated at 600cfm, although I have not been able to confirm this. Even at 600cfm, this represents air-flow the equivalent of the most popular performance Holley four-barrel.

History and Description...

General:

The Thermo-Quad (TQ) was initially released for competition in 1969. Chrysler introduced the TQ on the 1971 340. The first series of TQs including the 71 340 version and the Competition Series TQs were air metered units unlike like the 72 and later TQs which were solid (liquid) fuel metered. The Competition Series (CS) was available in 850 cfm and 1000 cfm ratings. CS units use a manual choke and have a minimal amount of external attachments compared to OEM production units. The CS was discontinued in the mid-70s. Carter released the 9000 series in the latter 70s as replacement carburetors for

Chrysler and GM Quadrajet applications. The 9000 series was very similar to the production Chrysler Thermo-Quads.

In 1972, the OEM Chrysler TQs changed to the solid fuel metering type. The TQ coverage was expanded to include the 400 engine. By 1973, all Chrysler 4-bbl applications were TQs (except some 413 truck models which continued to use a Holley carburetor). As the years progressed, the TQ evolved to meet the continually tightening emissions requirements. The changes were numerous. Many features were added or modified externally and internally. The late 70s contained many variations for the various geographic regions, the various features included/excluded, and the range of applications and engines produced. Into the 80s, the TQ became more complex, but year-to-year major variation lessened somewhat. In 1973, TQs received a port on the base for canister purge and a port on the main body to provide a venturi vacuum signal for EGR applications. 1975 saw the introduction of the Idle Enrichment system, Altitude

Compensator on some models, and the Throttle Position Solenoid for the new catalytic converter equipped cars.

In 1976, Chrysler introduced Lean Burn ignition and the TQ was modified to produce and run on a very lean air/fuel mixture. An external idle stop switch and throttle position transducer were added. In 1978, the TQ bowl vent was modified with the addition of an electric Bowl Vent solenoid. An additional rear base port for the vent hose replaced the bowl vent port. The fuel inlet moved to the rear center of the carburetor from the previous rear side location. Lean Burn became Electronic Spark Advance (ESA) in 1979. The very lean mixture idea was abandoned, but the electronic control of the ignition advance was retained. Hidden mixture screws were a feature starting with some 1980 model TQs.

1981 introduced a riveted cover for the choke pull-off linkage to prevent tampering and the oxygen feedback solenoid on some models. Idle Enrichment and Altitude

Compensator was not used on feedback models. 82-84 did not change much more in a major way. The canister purge was eliminated by 1984 in some applications and a power brake port was added to the rear base.

After 1984, Chrysler stopped using Thermo-Quads. Instead, the Rochester Quadrajet was used through 1989 on cars and until 1988 in trucks when Electronic Fuel Injection replaced them. Carter continued to supply the fuel pumps for the Quadrajet equipped vehicles. Although Chrysler was the primary manufacturer to use the TQ, International

Harvester (IHC) used them in the late 70s and Ford used them in 1974.

The Thermo-Quad was available with two primary throttle bore sizes, 1-3/8" and 1-1/2".

Flow ratings (CFM) vary depending on the source, but the TQs with the 1-3/8" bores are listed as 750-800 CFM and those with the 1-1/2" primary throttle bores are rated at 800-

850 CFM. All TQs have the 2-1/4" diameter secondary throttle plates. The primary bore size depended on application. In general, all 78 and later 318s and 360s and all 340s had the smaller bore. Earlier 360s varied depending on application, most 400s and all 440s had the large bore. The 9000 series have the small primary bore and were rated by Carter at 800 cfm. Later TQs (ie, Lean Burn and ESA applications, feedback systems) are quoted with less flow ratings, but this is due to the control of the carburetion system, not the inherent flow capability of the basic carburetor. The internal metering is set for leaner running conditions for Lean Burn. Either bore size can be tuned to run well on most engine combinations. The smaller bore offers a slight increase throttle response but less overall flow. The different bore sizing, ie. spreadbore, is an aspect that can lead to increased fuel economy while delivering similar wide open throttle (WOT) performance to an equivalent standard bore configuration. The adjustability of the TQ and the spreadbore configuration allows the use of a large CFM carburetor on a small displacement engine.

The TQ gets its name from the phenolic resin main body. This is "sandwiched" between the aluminum bowl cover assembly and the lower throttle flange assembly. The plastic body keeps the fuel ~20 degrees cooler than an all metal carb in the same environment, leading to less percolation problems and increased performance due to a denser charge.

The TQ is a metering rod based carburetor like other Carters (AFB, AVS, BBD). The primary jets are housed in the plastic body; the primary metering rods are suspended from the cover mounted step-up piston assembly into the jets (in the 71 TQ and the CS, the primary jets are also housed in the cover). Engine vacuum (related to load) controls the position of the metering rod in the jet, metering the fuel flow. The secondary jets are suspended from the cover. Secondary flow is controlled by variable venturi effect in the secondary bores. The TQ secondary throttle plates are controlled by direct mechanical linkage, airflow is controlled by a secondary, spring tension resisted, air valve. The valve is further controlled and damped by the choke pull-off diaphragm.

The OEM TQs have a divorced choke (73-up with electric assist in most applications), the 9000 series have an integral electric choke, and the CS was equipped with a manual choke. All OEM TQs and later CS have screw-in jets. Early CS retained the jets via Orings.

Identification:

To identify TQs, the model number is stamped on the lower left rear bolt flange. Earlier

TQs also had a tag under one of the front bowl cover screws, later ones have a bar code sticker on the bowl cover with the Carter model and/or a Chrysler part number.

International Harvester TQs also have a tag under a front bowl cover screw.

Additional numbers will be found on the carburetor sections. These numbers are not used for TQ identification, but some can be used to relate one casting to the other (note that parts with the same casting number may be machined differently). The upper bowl cover has the casting number on the top, right of center rear: 6-XXXX (example: 6-2141, 6-

2080, 6-2024). The bowl has the casting number molded on the bottom of the right bowl near the front, it is difficult to see with the throttle base on the carb: 0-XXXX (example:

0-2511A, 0-1823, 0-2709A). The throttle base has the casting number on the right upper side in a small recess: 1-XXXX (example: 1-2357, 1-2294, 1-2967. More numbers will be found ink stamped, cast or stamped in various areas. Moreover, numbers are usually stamped below the model number on the lower left rear bolt flange. The model number consists of four digits, usually followed by an 'S' (ie. 6318S). The model number is the primary and documented identifier.

The 71 OEM units can be identified externally by the mixture screws, which protrude at an angle from the base, in the same plane as the base, later units protrude perpendicular to the base plane, but angle upwards from it. Note: some 1980 and later units have hidden mixture screws. The Competition Series have raised pads on the upper bowl cover for a label. Also, the CS have minimal external attachments, such as the lack of a PCV port.

The mixture screws are similar to the 71 OEM TQs.

The fuel inlet on the CS and the 78-84 OEM units was located in the rear center and the

71-77 OEM and 9000 series have the fuel inlet on the right rear side. The aftermarket

9000 series were available in 4 models: 9801, 9811, 9800, 9810. The 9801, 9811 have

Chrysler linkage (9801/9811 is EGR capable). Note: later OEM TQs model number started with a 9 as well, but are not to be confused with the aftermarket 9000 series.

TQs with 1-3/8" primary throttle bore will have '2-315' stamped on the throttle plates. 1-

1/2" units will have '2-314' stamped on the plates. All secondary plates are stamped with

'2-312'.

Subsystems...

This section briefly describes the primary Thermo-Quad subsystems that are readily accessible and the various attachments for emissions. For detailed theory of operation of the subsystems or general operating functions such as the low and high speed metering circuits, refer to the references listed in the References section, specifically the Carter

Thermo-Quad service manual. See the Service Parts Information section for details on parts and part numbers.

Jets: jets are contained in the primary and secondary circuits, one for each barrel. Early

CS units had press-in jets retained by o-rings. CS and 71 TQs have the primary jets in the upper bowl cover. All other TQs have screw-in primary jets in the main body. All TQs have the secondary jets mounted in the upper bowl cover. All jets have a part number prefix of 120-. 72 and later TQs usually have the part suffix stamped on the jet, primaries: 4XXX, secondaries: 5XXX (or 120-5XXX). The

XXX denotes the size, example: 4098 = 0.098", 5137 = 0.137". CS and 71 TQs have part number suffixes of 3XX or 3XXX.

Metering rods and step-up: metering rods meter the fuel through the primary jets. They are essentially controlled by engine vacuum and a mechanical link, step-up cam/lever, connected to the primary throttle shaft. Many variations of metering rods were available through the years. The depth of pre-76 models could be adjusted to tune, ( primarily ), cruising condition flow via a screw adjustment. Some later models retained this feature, but starting in 1980 may have the adjustment locked via a collar. Metering rods have three steps for metering, economy, midrange, power.

Floats:

They are usually stamped with a part number, 75-XXXX or XXXX where the

XXXX defines the step sizes. The CS and 71 TQs have numbers 16-XXX.

TQs are a single fed, dual inlet, dual bowl carburetor. One bowl feeds each carb half, ie. one primary and one secondary. The dual bowl arrangement is contained in the phenolic main body. Dual floats and dual inlet valves are employed. Early

TQs used brass floats. Later models (73-74 and later) use nitrophyl floats. All

OEM TQs are equipped with needle & seat number 25-1086 (0.0935" orifice).

Accelerator pump:

The accelerator pump is located on the left front and feeds from the left fuel bowl.

The left side throttle bracket activates the pump. There is some stroke adjustability at the upper lever. The fuel is transferred via a plastic tube internally to the squirter, which resides above the primary venturi. Later models have two adjustment holes instead of three, and perform a two-stage pump that adds additional fuel as the secondaries open. Three accelerator pump clusters

(squirters) were available.

Secondary air valve:

TQ secondary throttle plates are mechanically linked to the primary on the left side. As the plates begin to open, the secondary air valve senses the opening and begins to open to provide airflow, which starts fuel flow from the secondary jets.

The initial opening and rate is determined by a counteracting tension spring inside the cover. The opening is additionally regulated and dampened by the choke pulloff assembly. The air valve is contoured and the movement provides a variable venturi effect. A secondary fixed baffle is mounted below the air valve. A protruding tab limits total air valve movement. The counteracting spring tension is adjustable via a slot/lock screw on the left side to tune the rate. Carter designed a special tool to facilitate this adjustment. Some of the CS TQs used an adjustment and lock screw arrangement similar to the AVS.

Choke:

OEM TQs use a divorced, manifold mounted choke. Exhaust crossover heat operates the thermostatic spring contained in the choke well. Most 73-84 TQs were electrically assist heated. The electric control is via a small module mounted to the intake or right head. This unit times the assist based on temperature and time and receives power from the ignition run circuit. 9000 series have an integral choke assembly identified by the black, circular plastic thermostat housing. This unit is electrically controlled. CS units have a manual choke. Choke action is accomplished via the choke plate in the top of the primary side.

Mixture screws:

Screws used through 11976 had a 20 degree taper at the seat. In 1977, this was changed to 12 degrees to reduce adjustment sensitivity. Some ~77-79 TQs also contained internal restrictors to limit adjustment. Plastic caps with tabs to limit adjustment were also installed on several models. Many 1980 and later TQs had the base redesigned to enclose the mixture screws so they could be 'capped' via plugs after factory setting.

Choke pull-off:

On all TQ models. This performs the vacuum kick pull-off function for the choke at initial cold engine start. It is also used to regulate and dampen secondary air valve opening. Mounted on the right rear base under a mounting bolt and screw.

Connects to the rear vacuum port, right, color code gold. The CS has the diaphragm for secondary air valve control only.

Hot Idle Compensator:

Some models are equipped with a compensator to allow extra air into the mixture during high heat conditions. If equipped, it is located on the bowl cover over the secondary air valve. High temperatures can create an over-rich idle condition, and this compensates for it, by allow extra airflow when it opens.

Idle Stop Solenoid (ISS):

71-76. Used to set the idle higher than the basic curb idle screw for emissions reduction and to allow further closure of the throttle blades at engine shutdown to prevent 'dieseling' or 'run-on'. Mounts on a bracket retained by base mounting bolt and screw on the right side for 72-76. 71 mounted to the left side of the intake under the carb linkage.

Exhaust Gas Recirculation (EGR) port:

73-84, not used in some 76~81. Some located on the main phenolic body as a tap into the venturi for vacuum signal. Venturi port is connected to a vacuum amplifier if used. Some models use a ported signal via a base port on the right front. Base ports color-coded black. Venturi ports are brass.

Evaporative Control System (ECS) port:

73-84. Used to purge the ECS charcoal canister of collected gas fumes from the bowl vent and fuel tank vent. Color-coded red.

Idle Enrichment (IE) system:

75-81. This is a drivability enhancement. It supplements the choke function by allowing an even richer mixture during the warm up period to improve drivability.

This will appear as a small attachment on the front bowl cover that has a vacuum port that connects to a coolant temperature sensor (CCIE), then to manifold vacuum with bleed. It will also be plumbed into the EGR delay timing system.

Altitude Compensator or Alcomp (Alc):

75-81. This is another drivability enhancement. It appeared on most California and Federal high altitude cars. It appears as a small cylinder attached to the front of the Idle Enrichment system at the front of the bowl cover. A small bellows inside reacts to altitude changes and alters the airflow in the high speed metering circuit. This improves drivability and reduces emissions by maintaining a correct fuel/air mixture. Note: later vehicles may be equipped with a remote Alcomp sensor (fender well) to signal the feedback solenoid controller to compensate.

Bowl Vent (BV) solenoid:

78-84. In an effort to completely capture all fuel bowl evaporative emissions, the standard bowl vent was redesigned with a two way valve and holding solenoid at the rear of the carburetor. When the engine starts, manifold vacuum pulls the valve rubber 'puck' down, opening the bowl to the canister port. The solenoid is connected to the ignition run circuit and holds the valve open during low vacuum periods while running. When the engine is shutdown, the valve releases and reseals the float bowl. Connects to rear base port, color code gold.

Ground Switch:

76-84. This appeared with Lean Burn (LB). It signals the computer that the throttle plates are at idle position. Later models with solenoid idle stop combined the functions. It is located on the bracket on the right front. A throttle shaft attachment contacts it.

Throttle Position Transducer (TPT):

776-81. This appeared with Lean Burn. It signals the position and movement rate of the throttle to the computer. It is attached via the same bracket as the Ground

Switch.

Solenoid Idle Stop (SIS):

81-84. Used to set the idle higher than the basic curb idle when additional heavy accessory load (ie. rear window defogger, air conditioning) is placed on the engine. This mounts on a bracket on the right front.

Dashpot:

Some models, primarily trucks, may have a dashpot to slow throttle closing rate to reduce stalling. Mounted on a bracket on the left front.

Vacuum Pull-Off Choke:

A few models may have an additional pull-off mounted on the left rear. This connects to manifold vacuum via a control switch in the vacuum plumbing. It prevents choke operation after engine warm up.

Throttle Position Solenoid (TPS):

75--later, some models. Mounts in the same place as the idle solenoids and is used to delay full throttle closure at deceleration to prevent a momentary rich condition thus protecting the catalytic converter(s).

Vacuum Throttle Positioner (VTP):

75--later, some models. Mounts in the same place and performs the same function as the Throttle Position Solenoid. Also serves as a speed sensor.

Pulse Solenoid, Oxygen Feedback Control (O2):

81-84. Mounts on the front of the bowl cover (where the IE module mounted earlier). This solenoid is used to control the air/fuel mixture via varying duty cycle pulsing from the control computer based on feedback from exhaust, engine, and ambient sensors.

Fuel bowl inserts:

Some later models had an insert in the fuel bowls to reduce the bowl fuel volume.

Choke pull-off cover:

Many 81-84 models have a cover to prevent field adjustment of the pull-off.

Port Diagram

This section contains a diagram and notes to identify the various hose port connections on the Thermo-Quad. Different port configurations were used throughout the years. The diagram is a representation of the throttle base, top view. It is drawn with all possible ports. The label notes identify the ports and their general usage. Some ports are contained in the bowl or bowl cover. These are also identified. The ports are labeled by

(x)...descriptions follow the diagram.

FRONT

-----

___ _

(B) | | | |

|| || | | | | || //(F)

|| || | | | | || //

-------||-------|---|---|-|----||------

| O (A) (C)* (D) (E) O | /|

| | / |(G)

| | / |

| ----- ----- |--- /

| / \ / \ | /

| | | | | |---

=| |=O===O=| |=O===O=| |=

| | | | | |

| \ / \ / |

| ----- ----- |

| ----------- ----------- |

| / \ / \ |

| | | | | |

| | | | | |

=| |===O=====O===| |===O=====O===| |

| | | | | |

| | | | | |

| \ / \ / |

| ----------- ----------- |

| |

| |

| |

| O (H) (I) (J) (K) (L) O |

---||--|---|-||--|---|---||------------ -------

|| | | || | | || \ /

|| | | || | | || -----

/ / | | //

/ / | | (M)

/ / | |

--- | |

---

REAR

----





























(A) Distributor Vacuum Advance (black, 71-75, some 76-84), 5/32".

(B) Idle Enrichment (IE) (gold, 75-81 some models), 5/32".

(C) PCV (gold, 71-84), 11/32". * Note:: angled on 80-84 models.

(D) Canister Purge (ECS) (red, 73-82),, 1/4".

(E) EGR (gold) or Air Pump (blue), 5/332".

(F) EGR venturi port (brass), 1/8", {located on phenolic float bowl}.

(G) Bowl Vent (gold, 71-77), 11/32", (located on the upper bowl cover}.

(H) Air Cleaner Heated Air Temp Sensor (black, 78-84), 5/32".

(I) Power Brake Tube (gold, 81-84), 111/32".

(J) Air Cleaner Heated Air Temp Sensor (black 71-77), 5/32", Bowl Vent

Solenoid Vacuum Tube (gold 78-84), 5/32".

(K) Canister Bowl Vent Tube (gold, 78--84), 11/32".

(L) Choke Pull-off (gold, 71-84), 5/322".

(M) Choke Pull-off Diaphragm (natural,, 71-84), 5/32", {bolts to TQ base}

Some other vacuum attachments were used, ie. Secondary pull-off and vacuum throttle positioner...these (like item M) were external to the TQ.

Choices and Adaptations:

Choices:

Chrysler used the TQ from 1971-1984. Ford used it in 1974 on some 460s and

International Harvester used it in 74, 75, 79, 80 on 345/392 engines. The CS series was available from 69-~73. The aftermarket 9000 series was available from ~76-~late 80s.

The best OEM years to locate are 72-75. TQs from this period have the least emission control add-ons. The 71 OEM TQ performs well and have minimal emission considerations. Due to its air-metered design, it is unlike the later TQs and few parts are still available for it. The CS TQ was not intended for street use, thus it lacks provisions for many street engine items. Carter released the 9000 series in the latter 70s. It is a good unit for most applications. It is the same design as the OEM TQ with minimal emissions devices. In 76, Chrysler introduced Lean Burn (ELB), which evolved into Electronic

Spark Advance (ESA). The 76-80 carburetors can be adapted for use in earlier vehicles.

Many need idle screws and vacuum ports added. Most 78 and later TQs use a more complex bowl venting arrangement. The IHC carburetors are fairly simple like pre-76

Chrysler TQs. 1980 TQs began receiving a pulsing solenoid as part of an oxygen sensor feedback system to allow more computer control of the mixture. The TQs from this period are the most complex and least desirable units.

There were several internal metering and passage changes that occurred over the years for emissions. Most TQs can be tuned to match most applications. The later carburetors, however, will need extra adaptation for earlier vehicles.

The Competition Series carbs should generally be avoided except for racing. The aftermarket 9000 series were available in 4 models: 9801, 9811, 9800, and 9810. The

9801, 9811 have Chrysler linkage (9811 is EGR capable). Note: later OEM TQs model number started with 9 as well, not to be confused with the 9000 series. The 9801/9811 is the preferred aftermarket TQ.

Because TQs are out of production (since 1985), new parts are scarce except for common service items. Kits are available through Carter, Hygrade, KEM, etc. Floats, choke pulloffs, choke assemblies are also available. Tuning parts, ie. jets, rods, are no longer available new. Carter did make rod/jet kits ( Strip Kit ), but they are discontinued.

Because replacement jets and rods are no longer available, tuning can be limited, unless a supply of used rods and jets is obtained. Many variations were used in the various applications over the years. Jets and rods can be modified. The carburetors are easy to rebuild. TQs usually work well with just normal service adjustments.

Adaptations:

Note: for tuning basics and repair procedures see the References section for possible information sources. This section considers basic and emission subsystem adaptation possibilities.

TQ on 'squarebore' intake:

The TQ requires a spreadbore intake manifold. It can be adapted to a squarebore type via the use of an adaptor. Several companies make these (see Service Parts section). Some performance can be lost compared to a comparable spreadbore intake depending on the quality of the adaptor and the transition area. Vacuum leaks can be an issue too.

1-3/8" vs. 1-1/2":

The TQs have two different primary bore sizes. These units can be interchanged.

The smaller bore will yield slightly better throttle response, but less overall flow.

Jets/rods:

The jets and metering rod

’s can be changed on the TQ to tune its performance.

Many sizes were available. See the Service Parts section for sizing information.

Many later model TQs were lean on the primary side. Increasing primary jet size and/or reducing metering rod size will richen the primary side. Secondary jets can be changed as well. If replacement units are not available, jets may be drilled to

Floats: increase size. Rods may be filed to reduce size. Solder and drilling/filing can be used to reverse this to some extent.

Early TQs had brass floats. By 1975, all TQs used nitrophyl floats. Over time, the nitrophyl floats can absorb gas and sink, allowing fuel levels to be too high. The floats should weigh 7.4-8.0 grams. Carter no longer services brass floats, but several sources are available (see the Service Parts Information section).

Accelerator pump clusters (squirters):

The accelerator pump clusters were available in various sizes. Drilling may be used to increase the orifices to tune pump fuel delivery.

Mixture screws:

The screws are readily accessible on 71-79 TQs. Some of these had plastic caps to limit travel. The caps can be removed. Some ~77-79 contained internal restrictors to mixture adjustment. These restrictions are in the base mixture path from the idle circuits and could be opened if needed. Note: mixture screws prior to 1976 had a 20 degree taper at the seat and cannot be interchanged with 77 and later 12 degree screws. 1980 and later TQs may have hidden screws. The base enclosed the screws in cast protrusions under press-in caps. The caps may be removed for mixture adjustment.

Interchanging bases, fuel bowls, upper bowl covers:

The three main TQ sections are matched for each application. Most will interchange mechanically, but flow and metering characteristics may not match.

The sections have casting numbers that will allow some interchange identity, but the casting machine work for applications may vary.

Evaporative Control System (ECS):

73 and later will have an extra base port for the charcoal canister purge. This is not a parasitic device and may be retained without decreasing performance. The bowl vent is plumbed to the canister to vent fumes. The purge pulls these fumes and those collected from the tank. The purge port can be capped to disable it.

Exhaust Gas Recirculation (EGR):

EGR occurs outside of the carburetor, but tuning and vacuum source provisions are incorporated into the various TQs used on EGR equipped vehicles. The tuning is usually not a major issue. TQs may provide a venturi or a front base port for

EGR vacuum signals. If EGR is not used, these ports can be capped.

Idle Enrichment system (IE):

This system is a drivability enhancement. It allows a richer mixture during the warm up period to improve drivability. It supplements the choke function by blocking part of the air bleed to richen it. The TQ with IE will have a small attachment on the front bowl cover that has a vacuum port that connects to a coolant temperature sensor (CCIE), then to manifold vacuum. It is also integrated into the EGR delay circuit. The IE port can be retained or capped (if capped, the carb behaves normally).

Altitude Compensator (Alcomp...Alc):

This device alters the high speed metering circuit by sensing atmospheric pressure. It mounts to the same area as the IE system at the front of the bowl cover. This system is also a drivability enhancement, which also reduces emissions, by allowing the TQ to compensate for elevation. This can be disabled by blocking the air passage ports (or the front vent pipe) to allow a normal full rich condition for the high-speed circuit.

Solenoid Bowl Vent (BV):

Most 1978 and later TQs have an electric bowl vent solenoid that replaces the earlier mechanical vent. 72-77 TQs used a linkage actuated bowl mounted vent that fed to the ECS charcoal canister. 71 TQs actuated the same way, but vented to the oil breather or the atmosphere. The later units vented through the rear base.

The vent mechanism closes to vent to the ECS canister with the engine off. When started, engine vacuum opens the vent and the electric solenoid is powered to hold the vent open during low vacuum conditions. The electric power is supplied by the ignition run circuit. While running, or off-idle for earlier TQs, the bowls vent inside the air cleaner. Vents should be retained for all types. The solenoid bowl vent could be redesigned to eliminate the solenoid by adapting earlier parts, but the remachining effort is not worth the result. The solenoid bowl vent system can be retained by wiring into the ignition run circuit if adding to an earlier vehicle. If the ECS canister is not used the port can be vented to the atmosphere like 70 and earlier carburetors were done. A protective screen over the port can be used.

Oxygen Feedback Pulsing Solenoid (O2):

Most 1980 and later TQs will contain an oxygen feedback controlled, pulsed solenoid in place of an IE module. The solenoid is variably pulsed by the control computer based on the signal it receives from the exhaust-mounted sensor. The solenoid alters the variable air bleeds by inputting more or less air based on computer signal duty cycle. If the solenoid is disconnected, the air bleeds will allow a full rich condition. Tuning with this in mind, this TQ could potentially be used in a non-control/feedback vehicle.

Idle Stop Solenoid (ISS):

The idle stop is external to the TQ and is used to prevent engine run-on. It can be retained, disconnected, or reused for other functions such as compensating for engine loading (ie. air conditioning) like a SIS unit.

Solenoid Idle Stop (SIS):

The idle stop is external to the TQ and is used to compensate for engine loading

(ie. air conditioning). It can be removed if not needed.

Throttle Position Solenoid (TPS):

The solenoid is external to the TQ and is used for catalytic converter protection. It can be removed if not needed.

Vacuum Throttle Positioner (VTP):

The positioner is external to the TQ and is used for catalytic converter protection and/or a speed sensor. It can be removed if not needed.

Throttle Position Transducer (TPT):

The positioner is external to the TQ and is used to signal throttle position and movement rate to the computer. It can be removed if not needed.

Ground Switch:

The switch is externally to the TQ and is used to signal throttle closed to the computer. It can be removed if not needed for a computer or for idle adjustment.

Idle screw adjustment on ELB and ESA TTQs:

Lean Burn carburetor idle speed is controlled with the curb idle adjustment screw that contacts the "throttle closed switch contact". This contact signals the Spark

Control Computer that the engine is at idle, or not. The contact is mounted on a bracket on the passenger side of the carburetor. There is also a transducer, but it is to sense throttle position and opening rate. Some had the conventional idle screw based on application. There are two approaches to the idle adjustment... 1) retain the "throttle closed switch contact" bracket (on the passenger side) and adjust the idle there...this was the factory curb idle adjustment. 2) Drill and tap the boss for the conventional idle screw. Drill the boss perpendicular and near the center, but align the hole with the throttle bracket extension. The factory screw size is 10-32.

This approach yields an idle adjustment screw like earlier TQs had.

Adding vacuum advance port to ELB and ESA TQs:

Many Lean Burn carburetors lack a vacuum advance port because the ELB computer controlled advance. The port may be added to provide a vacuum advance signal for a conventional non-ELB/ESA distributor system. The vacuum advance port is somewhat tricky and is best performed by comparison to an earlier throttle base that has the factory port. Using ~5/32" drill bit, drill the throttle base where the vacuum port existed on previous units.... drill into the open

(roughly square) opening between the outside and the throttle bore. This will accommodate the vacuum fitting. Then, using ~1/16" drill bit, drill two holes just above the throttle plate into the same square opening from the throttle bore side one hole adjacent to the other parallel to the throttle plate. Then, using a knife or small screwdriver, blend the holes together into a slot. This serves as the off-idle transfer slot to feed the vacuum port. Press a short length of 5/32" pipe or an old fitting into the outside hole. Vacuum advance is now available. Using another base with the port as a guide will ensure proper placement of the transfer slot.

Misplacing the vacuum idle transfer slot can cause an off-idle stumble and will necessitate additional tuning or replacement.

Tamper-proof choke pull-off:

TQs with this feature have a pull-off with the enclosure attached. These can be replaced with an earlier standard pull-off to allow choke tuning.

Fuel bowl inserts:

These may be removed to allow full bowl volume.

Other Considerations:

The TQ can possess the same problems as other carburetors. Some of the features of the

TQ can create problems specific to its design. Common problems can usually be remedied with standard repair and tuning practices. Some specific considerations are discussed in this section.

Main jet wells:

The primary jets in 772 and later TQs are screwed into a threaded insert in the fuel bowl bottom. This area is connected via a small plastic channel to the internal fuel pickup area. There is one channel for each jet. These channels are attached to the main body with an epoxy adhesive. The epoxy can weaken and begin leaking with age. Correction can be made by reattaching the wells with new epoxy (J-B

Weld has been found to work). Remove the wells and the old epoxy. Clean the area and reattach the wells with a small bead of epoxy. Remove any surplus epoxy that may interfere with reassembly.

Bowl warpage:

Due to the phenolic material construction, the fuel bowl can warp. The area most prone to warpage is the upper edge corner of the bowl at the rear. Resurfacing the upper surface can make this correction. A large flat file can be used to resurface for corner warpage or other irregularities. Warpage of the bottom (unlikely) may require replacement due to its configuration.

Bowl breakage:

Severe breakage may require replacement of the fuel bowl. Small breaks and cracks may be repaired with a fuel-resistant epoxy. The bottom surface has tabs for gasket location. If these break, repair is not required if the break does not extend into the bowl. Small breaks around the screw holes do not require repair if the break does not extend into other areas.

Idle transfer slot:

If the primary throttle plates are opened too far in an attempt to set the idle speed, the idle transfer slot may be exposed to the airflow. This can result in an off-idle hesitation. Correction can be made by drilling a 1/16"-1/8" hole in the forward half of each primary throttle plate. The holes allow sufficient airflow for speed setting without exposing the idle transfer slot.

Step-up piston spring:

The step-up piston spring resists vacuum pull on the piston. In cases where idle vacuum is too low to allow stable holding of the step-up piston, the spring may be trimmed to reduce its force.

Commercial rebuilders:

Carburetors that are mass rebuilt by commercial rebuilders have their useful service life shortened or ended. This usually stems from mixing parts; bad service procedures, and cleaning by tumbling or blasting. Tumbling and blasting removes the factory finishes.

This leads to accelerated wear and corrosion problems. In the case of the TQ, the factory linkage was cadmium or iridite finished. The throttle shafts were Teflon coated.

Tumbling or blasting removes these finishes and will lead to corroded or sticking linkages and binding or leaky shafts. Tumbling or blasting can damage the TQ phenolic fuel bowl. These processes further damage jets, rods and internal orifices. Mixed parts without proper analysis can result in a poorly performing or useless unit. A carburetor from a rebuilder of this nature requires careful examination to determine its future usefulness.

Model Codes

Abbreviations:

AT Automatic Transmission

MT Manual Transmission ( No reference means both transmissions )

Pri. Primary Jet

Sec. Secondary Jet

Rod Primary metering rod

Bore Primary throttle plate diameter in inches, All secondaries are 2-1/4"

HP High Performance

CA California application; generic for CA, N95

F Federal application ( No reference means both Federal and California.)

Can Canada application. Typically, Canada used Federal carbs except noted.

LD Light Duty

MD Medium Duty

HD Heavy Duty

LB Lean Burn, ESA. Noted on 76's. After 76, most F cars were LB (N92, N94).

IE Idle Enrichment

Alc Altitude Compensator. Few noted, most CA and last years had Alc (N96).

HA High Altitude

BV Bowl Vent valve

O2 Oxygen feedback solenoid

Thermo-Quad Listing:

Model Application

4846S Competition Series

4846SA Competition Series

4847S Competition Series

4847SA Competition Series

4972 71 340 MT (3512820)

4973 71 340 AT (3512821)

6090 72 400 AT F (3614139)

6138 72 340 MT F (3614122)

6139 72 340 AT F (3614123)

6140 72 400 MT F (3614138)

6144 72 340 AT Export

6165 72 400 MT CA (3614172)

6166 72 400 AT CA (3614173)

6318 73 340 MT F (3698327)

6319 73 340 AT F (3698328)

Pri. Sec. Rod Bore Kit

331 341 615 1-1/2 8

3080 3116 615 1-1/2 8

331 341 616

3089 3116 616

3074 3125 655

3074 3125 655

1-1/2 8

1-1/2 8

1-3/8 6

1-3/8 6

4095 5137 1937 1-1/2 1

4095 5137 1940 1-3/8 1

4095 5137 1940 1-3/8 1

4095 5137 1939 1-1/2 1

4095 5137 1950 1-3/8 1

4095 5137 1938 1-1/2 1

4095 5137 1938 1-1/2 1

4098 5137 1962 1-3/8 1

4098 5137 1966 1-3/8 1

6320 73 400 HP MT F (3698332)

6321 73 400 HP AT F (3698333)

6322 73 440 & Truck AT F (3698334)

6324 73 440 HP AT F (3698336)

6339 73 340 MT CA (3698339)

6340 73 340 AT CA (3698340)

6341 73 400 MT CA (3698342)

4098 5137 1965 1-1/2 1

4098 5137 1966 1-1/2 1

4098 5125 1966 1-1/2 1

4098 5125 1966 1-1/2 1

4098 5137 1962 1-1/2 1

4098 5137 1966 1-1/2 1

4098 5137 1965 1-3/8 1

6342 73 400 AT CA (3698343)

6394 72-73 340 AT Export

4098 5137 1966 1-3/8 1

- - - 1-3/8 1

6410 73 440 & Truck AT CA (3698319) 4098 5125 1966 1-1/2 1

6411 73 440 HP AT CA (3698329) 4098 5125 1966 1-1/2 1

6446 M-440 Chrysler Marine (3698397) - - -

6452 74 360 HP MT F (3751433)

1-1/2 1

4098 5143 1962 1-1/2 1

6453 74 360 HP AT F (3751434)

6454 74 360 HP MT CA (3751435)

4098 5143 2005 1-1/2 1

4098 5143 1962 1-1/2 1

6455 74 360 HP AT CA (3751436)

6456 74 400 HP MT F (3751439)

4098 5143 2005 1-1/2 1

4098 5143 1966 1-1/2 1

6457 74 400 HP AT F (3751440)

6459 74 400 HP AT CA

6460 74 440 AT F early (3751443)

4098 5143 1966 1-1/2 1

4098 5143 1966 1-1/2 1

4098 5137 1966 1-1/2 1

6461 74 440 AT CA early (3751444)

6462 74 440 HP AT F early (3751445)

4098 5137 2005 1-1/2 1

- - - 1-1/2 1

6463 74 440 HP AT CA early (3751446) - - -

6488 74 360 AT CA early (3751451)

1-1/2 1

4098 5143 1966 1-1/2 1

6489 74 400 AT F early (3751452)

6496 74 400 AT CA

- - - 1-1/2 1

4098 5143 2005 1-1/2 1

6503 74 400 AT Export

6518 H-440-3 Chrysler Industrial

-

-

-

-

-

-

1-1/2 1

1-1/2 1

6545 74-77 440-1,-3 Truck F (3751472) 4098 5137 2024 1-1/2 1

6550 74 345, 392 AT IHC (448582C91) - - -

6551 75 345, 392 AT IHC CA (459642C91) - - -

6568 74 460 AT Ford CA (D4AE-BC)

6590 74 392 IHC (451872C91)

-

-

-

-

-

-

1-3/8 1

1-3/8 1

1-3/8 7

1-3/8 1

6592 74 345, 392 MT IHC (451916C91) - - -

6614 74 ???

1-3/8 1

4098 5143 1966 1-3/8 -

6615 74 440-1 Truck AT

6616 74 440-1 Truck AT CA

9000 74 318 Export (3751474)

4098 5137 2024 1-1/2 1

4098 5137 1966 1-1/2 1

- - - 1-3/8 1

9002 75-76 360 HP AT F IE (3830529) 4095 5143 1998 1-1/2 2

9004 75 360 AT CA IE early (3830531) 4095 5125 2086 1-1/2 2

9008 75 400 AT CA IE early (3830535) 4098 5143 1965 1-1/2 2

9009 75 440 AT F IE (3830536) 4098 5137 2109 1-1/2 2

9010 75 440 AT CA IE (3830537)

9011 75 440 HP AT F IE (3830538)

4098 5137 1965 1-1/2 2

4099 5137 2103 1-1/2 2

9012 75 440 HP AT CA IE early (3830539) 4098 5143 1965 1-1/2 2

9013 74 360 AT CA late (3751420)

9014 74 400 AT CA late (3751419)

4098 5143 1966 1-3/8 1

4098 5143 2005 1-1/2 1

9015 74 440 HP AT late (3830415) 4098 5137 2005 1-1/2 1

9016 74 440 HP AT CA late (3830416) 4098 5137 1966 1-1/2 1

9017 74 440-1 Truck AT CA (3830417) 4098 5137 1966 1-1/2 1

9019 72-74 ??? - - - 1-3/8 1

9020 72-74 ??? - - - 1-3/8 1

9022 74 360 Truck AT CA (3830401)

9023 74 440 AT F late (3830403)

9024 74 440 AT CA late (3830404)

9025 74 440-1 Truck AT F (3830405)

9027 75 392 IHC F (461280C91)

9028 75 392 IHC CA (461281C91)

9034 75 440-1 Truck MT F (3870944)

4098 5143 1966 1-3/8 1

4098 5137 1966 1-1/2 1

4098 5137 2005 1-1/2 1

4098 5137 1966 1-1/2 1

- - - 1-3/8 1

- - - 1-3/8 1

4099 5143 1965 1-1/2 1

9035 75 440-1 Truck MT CA (3870945) 4100 5125 2110 1-1/2 1

9036 75-76 440-1 Truck AT CA (3870946) 4100 5125 2110 1-1/2 1

9046 75 400 AT F IE early (3830554)

9047 76 360 AT F CA IE

9049 74 440 HP AT CA late (3830864)

4099 5143 1965 1-1/2 2

- - - 1-1/2 2

4099 5143 1965 1-1/2 2

9050 75 400 AT Can IE (3830561)

9051 75 440 AT Can IE (3839562)

4099 5143 1965 1-1/2 1

4095 5125 2144 1-1/2 2

9052 75-76 440 HP AT Can IE(3830568) 4095 5137 2024 1-1/2 2

9053 75 400 AT CA IE PDC-SW(3830570) 4100 5143 1965 1-1/2 2

9054 75-76 400 HP AT F IE (3830569)

9055 76 360 AT CA IE (4006624)

9056 75 400 SW AT CA IE

9057 76 400 AT Can IE

9058 76 440 AT F IE (4006631)

9059 76 440 AT CA IE (4006632)

9062 76 440 HP AT CA IE

9063 75 440 AT CA early

9064 76 400 AT LB

9065 75-76 ???

9066 76 440 HP AT F IE

9068 75 400 AT CA late

9069 75 440 AT CA late

9072 75 360 AT CA late

9073 75 440 AT CA late

9074 76 400 AT CA (4006642)

9076 77 360 HP AT CA IE (4027735)

9077 77 400 HP AT F (4027736)

9078 77 440 AT F IE (4027737)

4098 5137 2005 1-1/2 2

4096 5125 1962 1-3/8 2

4099 5143 2145 1-1/2 2

4099 5143 1965 1-1/2 2

4099 5137 2109 1-1/2 2

4099 5137 2145 1-1/2 2

4098 5137 2153 1-1/2 2

4099 5143 1965 1-1/2 2

4099 5143 1965 1-1/2 2

4098 5137 2109 1-1/2 2

4099 5137 2103 1-1/2 2

4099 5143 2145 1-1/2 2

4099 5143 2145 1-1/2 2

4099 5143 1965 1-1/2 2

4098 5137 2145 1-1/2 2

4099 5143 2145 1-1/2 2

4092 5137 1938 1-3/8 2

4098 5143 2159 1-1/2 2

4098 5137 2159 1-1/2 2

9080 77 440 HP AT F IE (4027739) 4098 5137 2179 1-1/2 2

9081 77 440 HP AT CA IE 4098 5137 1950 1-1/2 2

9093 77 360 HP AT F CA IE (4027742) 4092 5143 2195 1-3/8 2

9094 76 440 HP AT F (4006648)

9095 76 440 HP AT CA (4006649)

9096 77 440 Truck AT CA (4041553)

9097 76 400 AT LB (4006654)

4099 5137 2103 1-1/2 2

4098 5137 2153 1-1/2 2

4099 5125 2110 1-1/2 1

4099 5143 2086 1-1/2 2

9099 76 400 AT CA late

9100 76 400 AT Can late

9101 77 440 AT CA IE (4027750)

9102 77 400 HP AT F

9103 77 400 HP AT F (4027761)

4099 5143 2145 1-1/2 2

4099 5143 2144 1-1/2 2

4098 5137 2210 1-1/2 2

- - - 1-1/2 2

4098 5143 2211 1-1/2 2

9104 78 360 AT F IE BV (4041826)

9108 78 400 AT Can Exp (4041836)

4092 5110 1940 1-3/8 3

4098 5143 2159 1-1/2 3

9109 78 440 AT F IE early (4041830) - - -

9110 78 440 AT F HA CA IE (4041831) - - -

1-1/2 3

1-1/2 3

9111 78 440 AT Can Exp IE (4041837)

9112 78 440 HP AT IE (4041832)

- - - 1-1/2 3

4098 5125 2179 1-1/2 3

9114 77 440 AT Can

9115 77 360 AT Alc (4027727)

4098 5137 2159 1-1/2 2

4092 5137 1938 1-3/8 2

9116 78 440 Truck MD IE CA (4095406) 4098 5137 1950 1-1/2 3

9117 78 440 Truck HD CA (4095407)

9118 78 440 Truck HD (4095423)

9119 77 440 HP AT CA (4027770)

9123 78 318 Truck MT CA (4095427)

9124 78 318 Truck AT CA (4095428)

9125 78 360 Truck MT CA (4095429)

9126 78 360 Truck AT CA (4095430)

4099 5125 2110 1-1/2 3

4098 5125 2110 1-1/2 3

4098 5125 1950 1-1/2 2

4092 5110 1997 1-3/8 3

4092 5110 1997 1-3/8 3

4092 5110 1938 1-3/8 3

4092 5110 1938 1-3/8 3

9127 77 440 AT

9128 79-80 345 AT IHC

4098 5125 2179 1-1/2 2

- - - 1-3/8 4

9134 78 360 AT F HA CA IE (4041856) 4092 5110 1996 1-3/8 3

9136 78 360 Mexico - - - 1-3/8 3

9137 78 318 AT Can Exp (4041858)

9140 78 400 AT F (4041861)

9147 78 318 AT CA (4041865)

4092 5110 1998 1-3/8 3

4092 5137 1997 1-1/2 3

4092 5110 1996 1-3/8 3

9148 78 440 HP AT CA IE - - - 1-1/2 3

9149 78 440 Truck MD AT CA (4095440) - - - 1-1/2 3

9150 78 440 Truck HD AT CA (4095441) 4099 5125 2110 1-1/2 3

9151 78 440 Truck HD AT (4095442)

9152 78 318 Truck AT LD Can

9153 78 440 HP AT CA (4041874)

9161 78 440 AT Can Exp (4041879)

4098 5125 1998 1-1/2 3

4092 5110 1997 1-3/8 3

- - -

- - -

1-1/2 3

1-1/2 3

9172 79 360 Truck LD MD BV IE

9173 78-79 360 Truck HD BV

9180 78 440 AT F (4041881)

9182 78 400 AT F (4041882)

9183 78-79 318 Truck BV

9185 78-79 318 Truck BV

9187 78-79 318 Truck BV

9188 78 400 AT Can Exp (4041892)

9190 78 440 Truck MD AT CA

-

-

-

-

-

-

-

-

-

-

-

-

-

-

- - -

- - -

- - -

-

-

-

-

1-3/8 3

1-3/8 3

1-1/2 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-1/2 3

9193 78-79 360 Truck HD BV

9194 78-79 360 Truck HD BV

9195 79 318 AT CA IE BV (4095934)

9196 79 360 AT F IE BV (4095935)

9197 79 360 AT Can IE BV (4095936)

- - -

- - -

1-3/8 3

1-3/8 3

- - - 1-3/8 3

4095 5110 2210? 1-3/8 3

- - - 1-3/8 3

9198 79 360 HP AT CA IE BV (4095937) - - -

9202 79 360 AT CA IE BV (4095939) - - -

1-3/8 3

1-3/8 3

9203 79-80 345 AT IHC (1700004C91) 4095 5110 2144 1-3/8 4

9205 79-80 345 AT IHC - - - 1-3/8 3

9207 79 360 Truck HD

9208 78-79 360 Truck HD BV

9209 79 360 Truck HD

- - -

- - -

- - -

1-3/8 3

1-3/8 3

1-3/8 3

9210 78-79 360 Truck HD BV

9211 79 440 Truck HD

9212 79 440 Truck HD AT CA

9213 78 440 Truck HD

9214 78-79 440 Truck BV

9215 78-79 ??? Truck

9216 78-79 318 Truck BV

- - -

- - -

- - -

- - -

- - -

- - -

- - -

1-3/8 3

1-1/2 3

1-1/2 3

1-1/2 3

1-1/2 3

1-3/8 3

1-3/8 3

9217 78-79 360 Truck HD BV

9218 78-79 360 Truck HD BV

9219 78-83 ??? Truck

9221 78 440 Truck HD AT

9223 78-79 318 Truck BV

9224 79 360 Truck LD MD BV IE

9225 79 360 Truck LD MD BV IE

- - -

- - -

- - -

- - -

- - -

- - -

- - -

9226 79 360 Truck LD MD BV IE

9227 78-79 318 Truck BV

- - -

- - -

9228 78-79 318 Truck BV

9229 78-79 318 Truck BV

-

-

-

-

-

-

9230 80 318 AT Can Exp BV (4179033) - - -

9232 80 318 AT Can BV (4179035)

9234 80 318 AT F BV (4179037)

9236 80 360 AT Can BV (4179039)

9238 79-81 ??? Mexico

- - -

- - -

- - -

- - -

9240 79 446 Motor Home AT * - - -

9241 79 446 Motor Home AT CA BV * - - -

9243 80 318 AT Can Exp BV (4179043) - - -

9244 80 360 AT F BV Alc (4179044) - - -

9245 79 318 AT CA BV (4095495) - - -

9246 79 360 AT CA BV IE (4095496)

9247 79 440 Truck AT

9248 79 440 Truck AT CA

9250 79 360 AT CA BV (4095978)

9251 80 360 Truck MD CA

9252 80 360 Truck MD CA

9254 80 318 Truck BV

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

9255 80-85 360 Truck LD MD F

9256 79 318 AT F Alc (4095979)

9265 80 360 Truck LD MD F

9266 80 360 Truck LD MD F

9268 79 360 Truck LD MD BV IE

9269 78-79 318 Truck BV

9270 78-79 318 Truck BV

- - -

- - -

- - -

- - -

- - -

- - -

- - -

1-1/2 3

1-1/2 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-1/2 3

1-1/2 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-1/2 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

9271 78-79 318 Truck BV

9272 79 360 Truck LD MD BV IE

9273 79 360 Truck LD MD BV IE

9275 78-79 360 Truck HD BV

9276 78-79 360 Truck HD BV

9277 79 360 Truck HD

9278 78 360 Truck HD

- - -

- - -

- - -

- - -

- - -

- - -

- - -

9279 80 318 Truck

9280 80-85 360 Truck LD MD F

- - -

- - -

9281 80 360 Truck HD

9283 81 318 AT BV F (4179132)

-

-

-

-

-

-

9284 81 318 AT BV Can Exp (4179133) - - -

9288 80 318 Truck LD Can

9289 80 446 Motor Home AT BV *

9291 80 446 Motor Home AT BV *

9292 80 360 Truck

- - -

- - -

- - -

- - -

9293 81 318 AT BV F (4179145)

9295 80 318 AT BV F Alc (4179051)

9296 80 318 Truck MD HD

9298 80 360 Truck LD MD F

9299 80 360 Truck LD MD F

9304 81-83 ??? Mexico

9305 80 360 AT F

9306 80 318 O2 BV

9311 81 318 Truck LD

9314 81 360 Truck LD MD F

9320 80 318 O2 BV

9325 81 360 Truck LD Can

9326 82 360 Truck LD MD F

9327 83 360 Truck LD MD F

9329 82 318 Truck LD

9330 83 318 Truck LD

9331 82 360 Truck LD MD CA Alc

9332 83 360 Truck LD MD CA Alc

9340 83-84 ??? Mexico

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 -

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-1/2 3

1-1/2 3

1-3/8 3

9341 83 318 Truck LD

9342 82 318 Truck BV (4287013)

9357 83 318 Truck MD HD

- - -

- - -

- - -

9358 82 360 Truck HD

9359 83 360 Truck HD

- - -

- - -

9364 81-84 318 AT Can BV O2 (4179177) - - -

9365 83 318 Truck LD - - -

9366 84 360 Truck LD MD F

9367 83 318 Truck LD

9368 83 318 Truck LD

9369 84 360 Truck LD MD CA Alc

9370 84 360 Truck HD

-

-

-

-

-

-

- - -

- - -

- - -

9371 84 318 Truck MD HD - - -

9372 81-82 318 AT F BV O2 (4179179) - - -

9373 81 318 AT CA BV O2 (4179180)

9374 82-83 318 BV O2

-

-

-

-

-

-

9375 82 318 Truck BV (4241752)

9376 82 360 Truck BV CA (4241753)

9379 83 360 Truck BV F (4287016)

9380 79-84 ??? Mexico

9385 82-83 318 BV O2

9386 84 360 Truck BV Alc

9387 84 360 Truck BV

9388 83 318 AT BV O2

9389 84 318 AT BV O2 (4300012)

9391 84 318 AT BV O2 HA (4300019)

9800 9000 series, GM

9801 9000 series, Chrysler

9810 9000 series, GM, EGR

9811 9000 series, Chrysler, EGR

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - - 1-3/8 3

4095 5137 2110 1-3/8 5

4095 5125 2110 1-3/8 5

4095 5137 2110 1-3/8 5

4097 5125 2385 1-3/8 5

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 -

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

1-3/8 3

Australian

XC 4.9 Manual: TQ-9091 S

XC 4.9 Auto: TQ-9092 S

XC 5.8 Manual: TQ-9071 S

XC 5.8 Auto: TQ-9085 S

XE 4.9 Auto: TQ-9333 S

Metering Rod Info (dimensions in inches):

16-XXX is for 71 OEM and CS TQs. 75-XXXX is for 72 OEM and 9000 series. Step sizes listed, Econ = economy, Mid = midrange, Power = power steps.

Rod # Econ Mid Power Notes

16-615 .059 -- .040 For CS only.

16-616 .064 -- .030 For CS only.

16-632 .057 -- .040 For CS only.

16-633 .055 -- .040 For CS only.

16-634 .062 -- .030 For CS only.

16-635 .060 -- .030 For CS only.

16-655 .062 -- .040 For 71 OEM TQ only.

16-683 .060 -- .035 For 71 OEM TQ only.

16-683 .058 -- .035 For 71 OEM TQ only.

75-1937 .070 .046 .040

75-1938 .071 .051 .040

75-1939 .070 .058 .040

75-1940 .072 .060 .045

75-1962 .067 .055 .045

75-1965 .069 .061 .045

75-1966 .067 .052 .045

75-1994 .068 .043 .035

75-1995 .066 .040 .035

75-1996 .069 .048 .035 *

75-1997 .067 .045 .035 *

75-1998 .070 .057 .040

75-1999 .068 .054 .040

75-2000 .066 .054 .035

75-2001 .064 .051 .035

75-2002 .065 .052 .040 *

75-2003 .063 .049 .040 *

75-2004 .067 .058 .040 *

75-2005 .065 .055 .040 *

75-2024 .066 .054 .040

75-2086 .069 .061 .040

75-2103 .069 -- .045

75-2109 .069 .061 .045

75-2110 .069 .053 .040

75-2144 .069 .061 .050

75-2145 .069 .061 .055

75-2153 .067 -- .055

75-2159 .070 .062 .040

75-2179 .074 .066 .042

75-2210 .069 -- .045

75-2211 .0715 .064 .040

75-2385 .069 -- .053

Primary Jet Info (dimensions in inches):

120-3XXX is for 71 OEM and CS with screw-in jets. 120-3XX is for CS with press-in jets. 120-4XXX is for 72 and later solid fuel OEM & 9000 series.

Jet # Size

120-330 .077

120-331 .080

120-332 .083

120-333 .086

120-334 .089

120-335 .092

120-3074 .074

120-3077 .077

120-3080 .080

120-3083 .083

120-3086 .086

120-3089 .089

120-3092 .092

120-4092 .092 *

120-4095 .095 *

120-4097 .097

120-4098 .098 *

120-4099 .099

120-4100 .100 *

120-4101 .101 *

120-4104 .104 *

* denotes part of 10-203 Strip kit.

Secondary Jet Info (dimensions in inches):

120-3XXX is for 71 OEM and CS with screw-in jets. 120-3XX is for CS with press-in jets. 120-5XXX is for 72 and later solid fuel OEM & 9000 series.

Jet # Size

120-339 .110

120-340 .113

120-341 .116

120-342 .119

120-343 .122

120-344 .125

120-3113 .113

120-3116 .116

120-3119 .119

120-3122 .122

120-3125 .125

120-3128 .128

120-3131 .131

120-5110 .110

120-5125 .125

120-5131 .131 *

120-5137 .137 *

120-5143 .143 *

120-5149 .149 *

* denotes part of 10-203 Strip kit.

Needle and Seat Info (dimensions in inches):

Needle/Seat #

25-1068

Size

.111 For CS only.

25-1069 .120 For CS only.

25-1070

25-1086

.125 For CS only.

.0935 * (stock OEM)

25-1091

25-1103

.125

.111 *

* denotes part of 10-203 Strip kit.

Accelerator Pump Cluster (squirter) Info (dimensions in inches):

Cluster # Size

48-365s .0

48-369s .031 *

48-370s .035 *

48-374s .075 *

121-662 gasket *

* denotes part of 48-380U package.

Carb Kits (Zip Kits):

Ref Carter Hygrade Kem B-W Ilk Echlin Chrysler

1 902-299B 657C 15543A 10416A 24-2262A 15543A 3837521

2 902-310A 657C 15605 10478 24-2268 15605 4131180

3 902-329C 1574 15711C 10634C 24-2276 15711C 4271945

4 902-330A 1423 15711C ---

5 902-318A ---* --- ---

6 902-292 551 ---

---

---

10373 ---

15711C ---

--- ---

--- 3621225

7 902-309 676

8 5153x ---

15554A ---

--- ---

---

---

15554A CT-1062 **

--- ---

* 902-318A is for the 9000 series, Hygrade 657C is known to work in a 9811.

** CT-1062 is the Motorcraft number for the Ford application.

Carter Strip Kit:

Carter 10-104 Strip Kit (Competition Series)

Carter 10-105 Strip Kit (Competition Series...SA)

Carter 10-110 Strip Kit (71 and Competition Series)

Carter 10-203 Strip Kit (72-up) (see Strip Kit section for early versions)

Floats:

Carter 21-252 (nitrophyl), 21-249 (brass)

Chrysler 3780155

IHC 501288-C1

Ford D4AZ-9550-B, CM2028

KEM F104 (brass)

Borg Warner CF252B (brass), CF252 (nitrophyl)

Echlin Fuel Systems 2-483 (brass), 2-427 (nitrophyl)

FILKO 19-105 (brass)

Motorcraft CM-4384 (brass)

Hygrade FL4 (nitrophyl)

Chokes:

Note: Most of the Chrysler TQ chokes were of the same basic design. In 1973, electric assist was added. Following is a summary of most of the chokes with model applications.

Various versions were available due to operating environments and emissions. The listing is per Carter choke numbers from their catalog. Some manufacturer cross-indexing differs. Chrysler and Hygrade listed for reference....

Carter 170-148. Chrysler 3512875:

4972,4973,6138,6139,6144

Carter 170-245:

6090,6140,6165,6166

Carter 170-1371. Chrysler 4287004. Hygrade CV400 (non-electric assist):

9379 (Canada)

Carter 170-1408. Chrysler 3698355,3751484,4027715,4027793,4095328. Hygrade

CV164:

6318,6319,6320,6321,6322,6324,6339,6340,6341,6342,6410,6411,6456,6457,645

9,

6460,6461,6462,6463,6503,9008,9009,9010,9011.9012,9014,9015,9016,9023,902

4,

9046,9049,9050,9051,9052,9053,9054,9056,9057,9058,9059,9062,9063,9064,906

5,

9066,9068,9069,9072,9073,9074,9077,9078,9080,9081,9094,9095,9097,9099,910

0,

9101,9102,9103,9108,9112,9114,9116,9119,9127,9140,9149,9153,9182,9188,919

0,

9221,9243,9251,9252,9254,9275,9279,9281,9288,9292,9296,9359,9370,9375,937

6, 9379

Carter 170-1409 (non-electric assist):

6518,9000,9117,9118,9150,9151,9212,9214,9357,9358,9371

Carter 170-1490. Chrysler 4027792,4095984,3830548,4027714,4095341. Hygrade

CV172,CV174:

6452,6453,6454,6455,6488,9002,9004,9055,9076,9093,9104,9115,9123,9124,912

5,

9126,9134,9136,9137,9147,9152,9173,9183,9185,9187,9193,9194,9195,9196,919

7,

9198,9202,9207,9208,9209,9210,9211,9215,9216,9217,9218,9223,9224,9225,922

6,

9227,9228,9229,9245,9246,9250,9255,9256,9265,9266,9268,9269,9270,9271,927

2, 9273,9276,9277,9278,9298,9299,9311,9314,9329,9330,9331,9332

Carter 170-1598 (non-electric assist):

9234,9236,9244,9305,9306,9320

Carter 170-1621. Chrysler 4095331. Hygrade CV241:

9325,9341,9342,9364,9365,9366,9367,9368,9369,9386,9389

Carter 170-1675:

9283,9284,9293,9364,9372,9374,9385,9388

Carter 170P-1322A:

9800,9801,9810,9811 (integral choke, 9000 series)

Also note: 73-up without electric assist: Chrysler 4027795, Hygrade CV370.

Choke Pull-offs:

Note: Most of the TQs used the same choke pull-off. Many 81-84 units used the same diaphragm with a different bracket for the tamper-resistant housing. Some 81-84 Dodge trucks, IHC units and Ford used a secondary pull-off. The listed pull-offs cover most applications...

Carter 202-742, 202-664 (71-up)

Chrysler 3621210, 4049239, 4049240, 4049275, 4131250 (71-up)

Hygrade CPA77 (71-up)

IHC 460369C1 (74-80)

Ford D4AZ-9J549a (74)

KEM CP146 (71-up)

Carter 202-818 (81-84 tamper-resistant)

Chrysler 4267133 (81-84 tamper-resistant)

Hygrade CPA276 (81-84 tamper-resistant)

KEM CP319 (81-84 tamper-resistant)

Carter 202-821 (81-84 secondary pull-off)

Chrysler 4267137 (81-84 secondary pull-off)

Hygrade CPA269 (81-84 secondary pull-off)

KEM CP320 (81-84 secondary pull-off)

Carter 202-981 (84 secondary pull-off, vacuum controlled)

Miscellaneous Parts:

O-ring, main well cavity:

Carter 163-90, Chrysler 3685655 (or 3549406)

Needle & Seat:

Chrysler 3621161, Carter 25-1086 (OEM size), Hygrade VN87C

Accelerator pump:

Chrysler 4094867, Carter 64-465

Spreadbore/squarebore adaptor:

MP P4007522, Edelbrock # 2691.

Air horn gasket:

Chrysler 53030600

1/4" spacer base gasket:

Chrysler 3698365

Set of four, 1/4" spacer base gasket (3698365):

MP P4007902

Solenoid Bowl Vent:

Carter: 213-93 (78), 213-145 (79-84 Truck, 79-80 CA), 213-211 (81 CA MT,

Can, 81-84 Export), 213-111 (80-84 Mexico), 213-229 (CA AT Truck), 213-240

(81 CA late Truck) Pulsing Solenoid (O2):

213-193 (81-84 318 car)

Tools:

Air Valve Tool:

Carter 109P-397, Miller Special Tools # C-4152B

Strip Kits...

Carter produced Strip Kits in the 70s through the mid-80s for the Thermo- Quad. These are tuning kits for modifying the performance of the TQ. They consist of various metering rods, primary and secondary jets and needle/seats. There were kits for the

Competition Series and specific kits for the early OEM/9000 TQs. Later, Carter consolidated the kits for the 72-later OEM and 9000 series into a single kit. Carter also offered kits for the WCFB, AFB, and AVS four barrels. A current version of the AFB kit is still available. All the TQ kits and others have been discontinued. Following is a listing of the early and late TQ kit contents. The other kits are also listed as a reference.

Early Kits, CS and other carbs:

Kit #

10-

101

Carb Type and Models Covered

AFB 3783, 4758, 4759, 4761, 9500, 9625

10-

102

AFB 4760, 4762

10-

103

10-

104

AFB 3361, 3720, 3721, 3804

TQ CS4846S, CS4847S (press-in jets)

10-

105

10-

106

TQ CS4846SA, CS4847SA (screw-in jets)

AVS all

10-

107

AFB 4139, 4324, 4325, 4343, 4402, 4430, 4431, 4432, 4619, 4620, 4621, 4742,

4745, 4746, 4969, 4970, 4971

10WCFB 2669, 2816, 2817, 2818, 3059, 3060, 3061, 3190, 3191, 3500, 3501, 3696,

108 3697

10-

109

WCFB 2214, 2218, 2219, 2330, 2351, 2361, 2366, 2419, 2505, 2574, 2575, 2626,

2627, 2656, 2657, 2829, 2830, 3181, 3769

Early Kits, OEM and 9000 TQ:

Kit

#

Carb Type and Models Covered, with contents

TQ 4972, 4973 ('71 340)

10-

110







 primaries: .074, .077, .080, .083 secondaries: .119, .122, .125, .128, .131 needle/seats: .0935", .111" rods: 655, 682, 683

10-

111

TQ 6138, 6139, 9002, 9011







 primaries: .092, .095, .098, .101, .104 secondaries: .131, .143, .149 needle/seats: .0935", .111" rods: 1998, 1999

10-

112

TQ 6140, 6615, 9034







 primaries: .092, .095, .098, .101, .104 secondaries: .131, .143, .149 needle/seats: .0935", .111" rods: 2000, 2001

10-

113

TQ 6090







 primaries: .092, .095, .098, .101, .104 secondaries: .131, .143, .149 needle/seats: .0935", .111" rods: 1995, 2005

10-

114

TQ 6165, 6166, 9800







 primaries: .092, .095, .098, .101, .104 secondaries: .131, .143, .149 needle/seats: .0935", .111" rods: 1996, 1997

10-

115

TQ 6318, 6319, 6321, 6322, 6324, 6339, 3640, 6342, 6410, 6411, 6452, 6454,

6456, 6457, 6459, 6460, 6488, 6616, 9013, 9016, 9017, 9022, 9023, 9025







 primaries: .092, .095, .098, .101, .104 secondaries: .131, .143, .149 needle/seats: .0935", .111" rods: 2002, ??

10-

116

TQ 6320, 6341, 6453, 6455, 6461, 6496, 9004, 9008, 9009, 9012, 9014, 9015,

9024, 9046, 9049, 9050, 9051, 9052, 9053, 9054, 9063, 9072







 primaries: .092, .095, .098, .101, .104 secondaries: .131, .143, .149 needle/seats: .0935", .111" rods: 2003, 2004

Later Kits, OEM and 9000 TQ:

Kit # Carb Type and Models Covered, with contents

TQ All 1972 and later solid fuel type carburetors.

10-203







 primaries: .092, .095, .098, .100, .101, .104 secondaries: .131, .137, .143, .149 needle/seats: .0935", .111" rods: 1996, 1997, 2002, 2003, 2004, 2005

Later Kits, AFB, AVS:

Kit # Carb Type and Models Covered

10-201 AFB All 9000 series, all Competition Series, All OEM w/2 step rod.

10-202 AVS All, All OEM AFB w/3 step rod, high step primary jet.

Specifications

Primary Bore Diameter: 34.92mm

Secondary Bore Diameter: 78.58mm

Primary Venturi Diameter: 26.97mm

Float setting: 0.75mm

Australian Primary metering-rod id numbers (stamped on the rod itself):

XC 4.9 Auto: 2174

XC 5.8 Manual: 2173

XE 4.9 Auto: 2354

Common Problems

Cracked/Warped Main Bodies - The plastic construction of the ThermoQuad mainbody means older ThermoQuads are prone to cracking or warping of the main-body, resulting in major fuel leaks. The best solution to this problem is to simply replace the main-body, although repair may be possible in some cases. This problem, and the associated cost of rectification, is no doubt one explanation for the proliferation of Holley carburetors now fitted to vehicles, which were originally fitted with ThermoQuads.

Purchasing and rebuilding a good second-hand ThermoQuad will cost roughly the same as fitting a new or rebuilt Holley carburetor.

Flooding/Sunken-floats - Most floats fitted to ThermoQuads are made of a lightweight porous resin. With time (many years) the floats can become saturated with fuel and sink, causing the needle and seat to remain open, resulting in severe flooding of the carburetor.

The only solution is to replace the floats, which are readily available and cost something around $50.

Stuck Choke - The ThermoQuad choke is activated by a bi-metallic spring enclosed in the black Bakelite housing on the side of the carburetor. When the engine is cold, the spring contracts, closing the choke. When the engine is running, the spring is heated by a

7-volt electric current, usually taken directly from a terminal on the vehicle's alternator.

As the spring is heated, it releases and allows the choke to open. Incorporated into the top of the spring housing is a thermatic switch, which controls the flow of current to the spring. This switch is comprised of a bi-metallic disc which is heated by a flow of air from the exhaust manifold, which is drawn via a pipe between the spring housing and exhaust manifold, past the switch, and into the carburetor. Once the switch is heated, it closes and initiates the flow of current to the spring.

This thermatic switch often becomes inoperative with age, resulting in the choke remaining permanently closed. This results in extremely rich mixtures, fast idle speed, and excessive fuel consumption.

One solution to this problem is to bypass the switch as follows. The electrical connection to the spring housing is an extension of a metal cover plate riveted to the top of the spring housing. Drill out these rivets and remove the cover. The bi-metallic disc and it's own small retracting spring is located in a recess under the cover. Remove the disc and it's spring. In the bottom of the recess is a small terminal which supplies current via the switch to the main choke spring. Drill out the bottom of the recess, including this small terminal, to reveal the heavy metal base, which the spring is mounted on. Solder a copper strap of at least 1amp rating between this base and the cover plate. Replace the cover plate and screw in place. The air-pipe to the exhaust manifold can now also be removed, as it is not needed any longer. Block the fitting to the spring housing with a suitable nut or bolt to prevent the ingress of dirt. This procedure is simpler with the spring housing removed from the carburetor.

Be sure replace the housing in its original orientation as rotation in either direction affects the choke adjustment. With the thermatic switch bypassed, the choke will begin to disengage as soon as the engine has started, becoming fully disengaged maybe five minutes after the engine is running. This won't be problematic in most cases. See the choke adjustment section below should poor cold running become apparent after this modification and compensatory adjustment required.

Another solution is to install a manual-choke conversion kit, widely available from autoparts stores and carburetor specialists for around $50. This converts the choke to fully manual operation. This can be a very effective solution; however when working correctly the automatic choke function is very nice, giving trouble free starting and running under all engine temperatures.

Tuning and Adjustment

Assumptions The instructions below assume a carburetor, which is clean, and in fundamentally sound condition, with no major leaks and no major modifications. If the overall condition of the carburetor is suspect, it should be fully stripped, cleaned, and rebuilt before tuning is attempted. Rebuild kits are widely available for around $50, however given the time and effort (and skill!) required, it is often much more effective to have the carburetor rebuilt by a professional, usually for less than $200. It is particularly important that the main-body is not cracked and the floats have not sunk (see above). It is also important that the two vacuum pots on the rear of the carburetor are working - with the engine running they should both be fully retracted.

It is also assumed that the engine the carburetor is mounted on is in fundamentally good condition, with an ignition system in good working order with clean spark plugs of the correct type, clean air and fuel filters, and a fuel-pump in good order delivering fuel pressure within specifications. If any of these points are suspect, rectify them before attempting to tune the carburetor. Note also: It will be harder to tune the carburetor for modified engines - for example, a radical camshaft profile will make tuning for good idle quality quite difficult.

Finally - it's also assumed that you've got some sort of clue about mechanical things. If the instructions below really don't make any sense, you're probably best leaving these jobs to a professional. By all means contact me if you think some clarification would be useful though.

Float Level Adjustment

Adjustment of the float level requires the removal of the carburetor top cover. Since this operation results in almost complete disassembly of the carburetor, it's a good time to consider fully rebuilding the carb. Usually float level adjustment is only part of a full carb overhaul. If the carburetor is old enough, and worn enough to have developed float level problems, it's probably time for a full rebuild anyway.

The ThermoQuad has two separate fuel bowls within each side of the carburetor body.

There is an individual check-valve (needle and seat) for each bowl, and each valve has it's own float by which it is activated. The check-valves are located within the top-cover, and the floats also hinge from the top-cover. (The majority of hardware in a ThermoQuad is mounted to the top cover.) Before attempting to adjust the float level, it's a good idea to fit new check-valves, as the float level is meaningless if the check-valves aren't sealing.

To set the float level, hold the top-cover, with floats installed, upside down and measure the clearance between the top-cover gasket surface, and the underside of each float. (By

"underside", I mean the surface that would be the top of the float when the carb is assembled and sitting right side up, but is now the underside since you are holding it

upside-down.) This clearance should be about 0.75mm, or 0.030". The idea is that the check-valve is fully closed JUST BEFORE the float contacts the top-cover.

If this check indicates the float level requires adjustment, it's necessary to remove the float and bend the float arm about 1/3rd of the way along it's length from the pivot end.

Bend the arm enough to obtain the required clearance.

Choke Adjustment

Adjusting the automatic choke on a ThermoQuad is probably the most complex procedure a ThermoQuad requires, however once correctly adjusted it will ensure easy starting and smooth running under all operating conditions.

Idle Mixture and Speed

The ThermoQuad idle mixture is controlled by two idle screws in the front of the throttle flange - one for each primary throat. These regulate the flow of fuel through the idle ports in the primary throats, thus screwing them in reduces fuel flow, for a leaner idle mixture; screwing them out increases fuel flow, for a richer idle mixture.

Australian ThermoQuads have two idle speed adjustments. A conventional idle speed screw on the side of the carburetor top cover assembly controls the BASE IDLE speed.

CURB IDLE speed is controlled by a solenoid mounted on the throttle cable bracket.

This solenoid activates when the ignition is powered on, and determines the primary throttle plate position when the engine is idling. The base idle screw determines primary throttle plate position when the ignition is powered off. The base idle screw is usually set so that the primary throttle plates are almost fully closed, but not able to bind in the bores. The curb idle solenoid is adjusted to provide a smooth idle at normal engine running temperatures. Shutting the ignition off will cause the solenoid to retract, allowing the primary throttle plates to revert to the base idle (almost closed) position, reducing the likelihood of engine run-on - a necessary consideration given the low-octane fuels of today, and the high inlet air temperatures of the pollution controlled cars the

ThermoQuad is fitted to.

Note: The idle solenoid is not strong enough to open the throttle plates by itself, so it will usually be necessary to apply a slight pressure to the accelerator pedal when starting the engine. Once the engine starts, the throttle solenoid will snap into position, and will hold the throttle in the correct position once the accelerator is released.

Note: If the idle solenoid becomes faulty, it is possible to replace it with a bolt of the same thread as the solenoid body. This bolt can then be used to set the curb idle (simply by screwing it in or out to obtain the desired idle setting). Doing this will mean the throttle will no longer close down fully when the engine is shut off, so the engine may run-on when the ignition is switched off. If this happens, consider spending the money on a new solenoid.

BASE SETTINGS:

These settings will ensure the engine will at least start and idle. If you've just done a carb rebuild, or you're of the opinion that your idle settings are just way off, use these settings to begin with. They'll enable you to get the engine running, then you can proceed to the fine-tuning of idle settings below. Make these adjustments in the specified order.

Base idle mixture setting: screw both idle mixture screws in (clockwise) until they seat

*lightly* in their holes. Back both screws out (counter-clockwise) 1.5 turns each.

Base base-idle screw setting: screw the base idle screw out (counter-clockwise) until it no longer touches the throttle position lever. Screw it in (clockwise) until it *just* touches this lever, and then screw it in exactly 1 additional turn.

Base curb-idle screw setting: with the solenoid activated (ie: ignition on, but engine not running - you might want to disconnect the power wire to your coil at this point, so as not to damage the ignition system whilst making this adjustment) loosen the solenoid lock nut and screw the solenoid out until it no longer touches the throttle lever. Screw it in until it just touches this lever, and then screw it in an additional 2 to 3 turns. You'll need to readjust this with the engine running, so don't tighten the locknut yet. Turn the ignition off, and check that the solenoid retracts and the base-idle throttle lever seats on the baseidle screw.

Note: if the idle solenoid does not extend when the ignition is turned on, or does not retract when the ignition is turned off, check that there is 12-volts at the solenoid wire when the ignition is on (and 0-volts with the ignition off). If the voltage is OK, then the solenoid will need to be replaced (about $120 from Ford last time I checked!).

FINE TUNING:

Note: A tachometer, or engine-tuning multimeter with tachometer will be useful here.

(1) Start the engine and allow it to warm up to normal operating temperature. Adjust the idle solenoid (by screwing it in or out) until a smooth idle of about 700rpm to 900rpm is obtained.

(2) Screw both idle mixture screws out (counter-clockwise) 1/4 turn. The engine speed should increase slightly. If engine speed does not increase, go straight to step (3).

Continue to screw both idle mixture screws out 1/8 turn at a time each until engine speed no longer increases.

Note: if step 2 initially causes engine speed to drop, screw both mixture screws in by equal amounts (1/8 turn at a time) until engine speed slightly increases, then go to step

(3).

(3) Screw both idle mixture screws in (clockwise) 1/8 turn each. Repeat this until engine

speed begins to drop slightly. When engine speed drops, screw both mixture screws out

(counter-clockwise) 1/16 turn.

(4) Adjust idle solenoid, by screwing it in or out, until desired idle speed is reached.

Something around 700rpm to 800rpm is appropriate for most standard or mildly modified engines with transmission in neutral. Tighten the solenoid locknut.

Alternative method:

If you have a vacuum gauge, attach it to a manifold vacuum source on the manifold

(NOT a ported vacuum source, such as the two fittings on the base of the ThermoQuad).

With the engine fully warmed up and idling, adjust the idle mixture screws by even amounts each so as to obtain the highest reading on the vacuum gauge. Adjust the idle solenoid to obtain the required idle speed. Readjust the idle mixture screws to obtain the highest vacuum reading, and then recheck the idle speed.

VERY FINE TUNING:

Take the car to a workshop/garage with an exhaust gas analyzer - and let them do it.

Primary Circuit Mixture Adjustment

The primary circuit controls the mixture supplied by the carburetor's small primary throats. This mixture is used under light acceleration and cruise conditions. The primary mixture is controlled by fixed jets located in the carburetor main body at the bottom of the fuel bowls, plus tapered metering rods which hang from the carburetor top cover and limit the fuel flow through the fixed jets. The metering rod position, and thus the fuel flow through the jets, is controlled both by throttle position and engine vacuum, thus the mixture is constantly tailored to instantaneous engine demands.

The primary circuit mixture can be varied first by adjusting the base position of the metering rods. A higher position where the rods are further out of the jets will result in a richer mixture across their operating range, and conversely a lower position will reduce the fuel flow through the jets across the range, resulting in an overall leaner mixture.

Secondly, the rods can be exchanged for different rods (without disassembling the carb), such as rods with a different profile or diameter, allowing the mixture curve to be widely varied to suit the needs of a specific engine. Lastly, the fixed jets themselves can be changed for jets with a different flow rate (removing the top of the carb is required to change these jets) resulting in an overall richening or leaning of the mixture.

A small amount of "seat of the pants" tuning of the primary mixture can be done - but given the multiple adjustments possible, and the major effects on drivability and fuel consumption that can result, a gas-analyzer at a minimum, and preferably a dynamometer, is really needed to ensure the mixture is correct across the range.

In practice, there are only a few jets and rods available for ThermoQuads - basically only

those which Ford used in Australian cars, so a wrecking yard or other cars is really the only source for alternative jets and rods - short of manually modifying your existing parts via drilling etc: which is not recommended. There used to be a wide range of replacement rods and jets available on the US market, but I've never seen any of these here in

Australia.

Secondary Circuit Mixture Adjustment

The secondary circuit controls the fuel mixture throught the secondary throats, thus is only used under full throttle conditions. This mixture is controlled by two fixed jets which are screwed into the underside of the top cover. These jets look like two long brass cylinders.

Thus the only adjustment of the secondary mixture possible is replacement of these jets.

Seat of the pants tuning is possible here - if it feels faster, the jets are probably closer to correct. Again, a run on a dynamometer will enable a more accurate result.

However, availability of alternative jets is limited: see my notes above regarding primary jets.

Secondary Throats Air-door Adjustment

The ThermoQuads secondary throttles are opened via a mechanical linkage to the primary throttles, beginning to open once the primary throttles are approximately 3/4 open, and becoming fully open at the same time as the primary throttles become fully open. There is also an air-door (similar to a choke butterfly in appearance) mounted at the top of the secondary throats, and clearly visible with the air-cleaner removed. This airdoor is held closed via a spring, and will only open when the vacuum beneath it (created by the secondary throttles having opened) is sufficient to overcome the tension in the closing spring. This air-door enables a smooth transition to wide-open throttle in the following manner: because of the spring-loading of this door, it will be sucked open a short time after the secondary throttle plates are open; the secondary discharge tubes

(visibly as two long tubes protruding into the upper sections of the secondary throats) are located above the secondary throttle plates, but below the air-door, thus are exposed to full manifold vacuum in the time between the throttle plates opening and the air-door opening: this ensures fuel flow through the secondary jets will be provoked by the vacuum effect just before the air-door opens and air starts to flow through the secondaries. In circumstances where manifold vacuum is too low to begin drawing fuel through the secondary jets (eg: full throttle at low engine speed), the air-door will not open either, preventing any flow through the secondary throats, and preventing the engine bogging down through over-carburetion.

In practice, there are two ways in which the air-door can be out of adjustment. The airdoor spring can be under tensioned, allowing the door to open before fuel flow has started in the secondary jets; or it can be over tensioned, preventing the door from opening until sometime after fuel flow has started in the secondary jets. The first situation will result in

a period of too-lean mixture; the second will result in a period of too-rich mixture. Both cases will cause a bog or stumble in the engine as the secondaries are opened.

Before attempting to adjust the air-door, ensure it is not jammed in any way. With the engine off, it should be possible to manually push the air-door fully open. It should move smoothly to its full open position, and spring back to a closed position immediately when released. With the air-door held open, it is also possible to check the secondary throttles are working correctly. With the choke fully disengaged (push the fast idle screw to it's lowest position and hold there if necessary) look into the secondary throats whilst moving the throttle lever through it's full range. The secondary throttle plates should begin to open when the throttle lever is about 3/4 through it's range, and should become fully open once the lever is moved to it's limit. They should close smoothly as the lever is returned to it's base position.

SPRING ADJUSTMENT:

The air-door spring is located inside the carburetor, and is wrapped around the air-door shaft. Looking at the left side of the carburetor, the end of the air-door shaft is visible almost flush with the surface of the carb top cover. The shaft appears to ride in a slotted sleeve, and the end of the shaft itself is slotted. Spring tension is adjusted by turning the shaft itself. The slotted sleeve is actually the shaft lock. To adjust the spring tension, the lock is released by rotating it counter-clockwise, spring tension is then increased by rotating the shaft Counter-clockwise, or decreased by rotating the shaft CLOCKWISE.

When the desired tension is achieved, tightening the lock in a clockwise direction locks the shaft. Being spring loaded, of course, the shaft will attempt to spin itself fully clockwise whenever the lock is released. It is therefore necessary to hold the shaft in its current position whenever the lock is released, or in the process of being locked or released. It's easiest to make these adjustments by using a screwdriver on the shaft, and the factory tool (or a copy of it) to release and tighten the lock whilst the screwdriver holds the shaft in place. It's difficult, but not impossible to just use two screwdrivers.

SPRING BASE SETTING:

Because the shaft will invariably slip out of your grip and spin down to the loosest position, a base setting for the spring tension is achieved as follows. Loosen the lock and allow the shaft to spin out (the air door will flop fully open). Wind the shaft in an

COUNTER-CLOCKWISE position until the air-door GENTLY closes. Wind the shaft an additional 1.5 turns counter-clockwise. Hold it in this position and tighten the lock.

FURTHER SPRING ADJUSTMENT:

It's easiest to adjust the spring from an under-tensioned starting point. If you feel (on the basis of symptoms described above) that the spring is over tensioned, reduce the tension

(by winding the shaft CLOCKWISE) until symptoms of under-tension (ie: mixture leaning out) become evident when flooring the accelerator pedal whilst driving. Once it is obvious that the air-door is opening too soon due to spring under-tension, the object of

the adjustment process will be to increase spring tension gradually until the symptoms are just removed. This way, the secondaries will begin flowing air at the soonest possible opportunity, but not an instant too soon, thus maximizing acceleration.

So: starting from a situation where the air-door spring is clearly under-tensioned, wind the shaft in 1/4 Counter-clockwise turn increments, test driving the car in-between adjustments. As soon as the acceleration when the accelerator pedal is floored becomes smooth and forceful, without any bogging or hesitation, stop - don

’t, make any further adjustments.

Note: In practice, it is difficult to make a ThermoQuad transition totally smoothly to fullthrottle. Due to the extremely large size of the secondary throats relative to the primary throats, opening the secondary throats will always result in a dramatic slowing of airflow through the carburetor, resulting in at least a minor hesitation. Air-door adjustment is thus a matter of trial and error: starting from the base setting described above, first try reducing the tension on the air-door spring, if this makes the hesitation worse, try increasing the tension on the spring. Only add a 1/4 turn to the adjuster each time.

Eventually you will find the position which results in the smoothest transition to fullthrottle for your case - but it still may not be all that smooth. In my own experience, a fairly light tension on the spring gives the best result, but your case may be different.

Also, as always, it is assumed the carburetor is otherwise in good condition and correctly adjusted. Other factors can mask or worsen a hesitation on transition to full throttle. Eg:

A carburetor that is running over rich may be smoother on opening the secondaries as the rich mixture will mask a momentary leaning out as the secondaries open.

Reference sources:

 Carburetor Doctor http://www.carbkitsource.com/

 XC Falcon Workshop Manual - published by Ford Australia.

 XC V8 Falcon Service and Repair Manual - published by Gregory's.

 Carter Carburetors - by Dave Emmanuel - published by S.A. Books.

 Brian Stroud’s Carb Tuning Page - general advice and ThermoQuad rod size specs

 Carter Service Manual # 3623A "Thermo--Quad"

 Carter Service Manual # 3630A "Basic FF acts and Principles"

 Carter Carburetors catalog, # 3878, April 1975

 Carter Floats catalog 1980

 Carter Carburetor95 catalog, # 3788, August 1977

 Carter Zip Kits & Carburetor Components catalog, # 3880, 1991

 Carter Carburetor Emission Components catalog, # 3881, 1989

 Carter Performance Products catalogs 11979, 1980, 1982, 1984

 Carter Strip Kit Specifications & Instructions, # 3270, 1-73, revised 11-75

 Carter Strip Kit label, # 3272, 7-75

 "Carter Carburetors", SA-Designs, Dave Emanuel, 1983

 Chrysler Technical Guide, Thermo-Quad Carburetor, 1982, # 81-699-2009

 Chrysler Student Reference Book, Quadrajet Carburetor, 1984, # 81-699-5003

 Chrysler factory service manuals, various, 1971-1984

 Chrysler parts catalogs, various, 19711-1984

 Chrysler Technical Service Bulletin # 14-01-72C, Dec. 15 1971.

 Direct Connection & Mopar Performance catalogs

 Mopar Performance Engine Manual, # P52249010, 8th Edition

 Hot Rod magazine, June 1970

 Car Craft magazine, March 1972

 The Hot-Rodders Manual for Street & Strip, '79-'80 & '81-'82 Annual (Hot Cars)

 Popular Hot Prodding, October 1973, October 1981

 High Performance Mopar magazine, Summer 1988.

 Mopar Action magazine, February 1991, October 1991.

 Mopar Muscle magazine, August/September 1995.

 Chrysler Power magazine, January, March, May 1988.

 KEM Air & Fuel Management Systems Parts, # AF-114, 1993

 KEM All Line Buyers' Guide, # BG-116, 1995

 Hygrade Carburetor Kit & Component Parts Guide, # FC-91, 1991

 Hygrade Carburetor & Fuel System Parts Guide, # CM-88, 1988

 Hygrade Carburetion Component Guide, ## FT-91, 1991

 Holley Replacement Carburetors catalog, # L-30033-4, Spring 1985

 Borg Warner Carburetor Kits catalog, ## CK-79, Sept 1979

 Motorcraft Carburetor, Emission Parts & Tune-up Kits, # F200W, 1985

 AC-Delco Carburetors & TBI, Carb Kits & Parts, # 9A-100, 1986

 Tomco Remanufactured Carburetors & TBII catalog, # D.I. 1991, 1991

 Kimco Carburetors, # 30-9, 3-1-83

 Kimco Carburetor Numerical Listing & OEM Section, # 30-9, 3-1-83

Mopar Mailing List (MML) postings

Disclaimer

The information presented on these pages is the product of Internet research only.

No help or approval was granted from Carter, Chrysler, Ford, Carburetor Doctor or others. Reference sources are credited above.

Zip kits are available from http://www.carbkitsource.com/

A portion of the information included is intended for Australian ThermoQuad vehicles however also applies to North American Carter ThermoQuads.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
