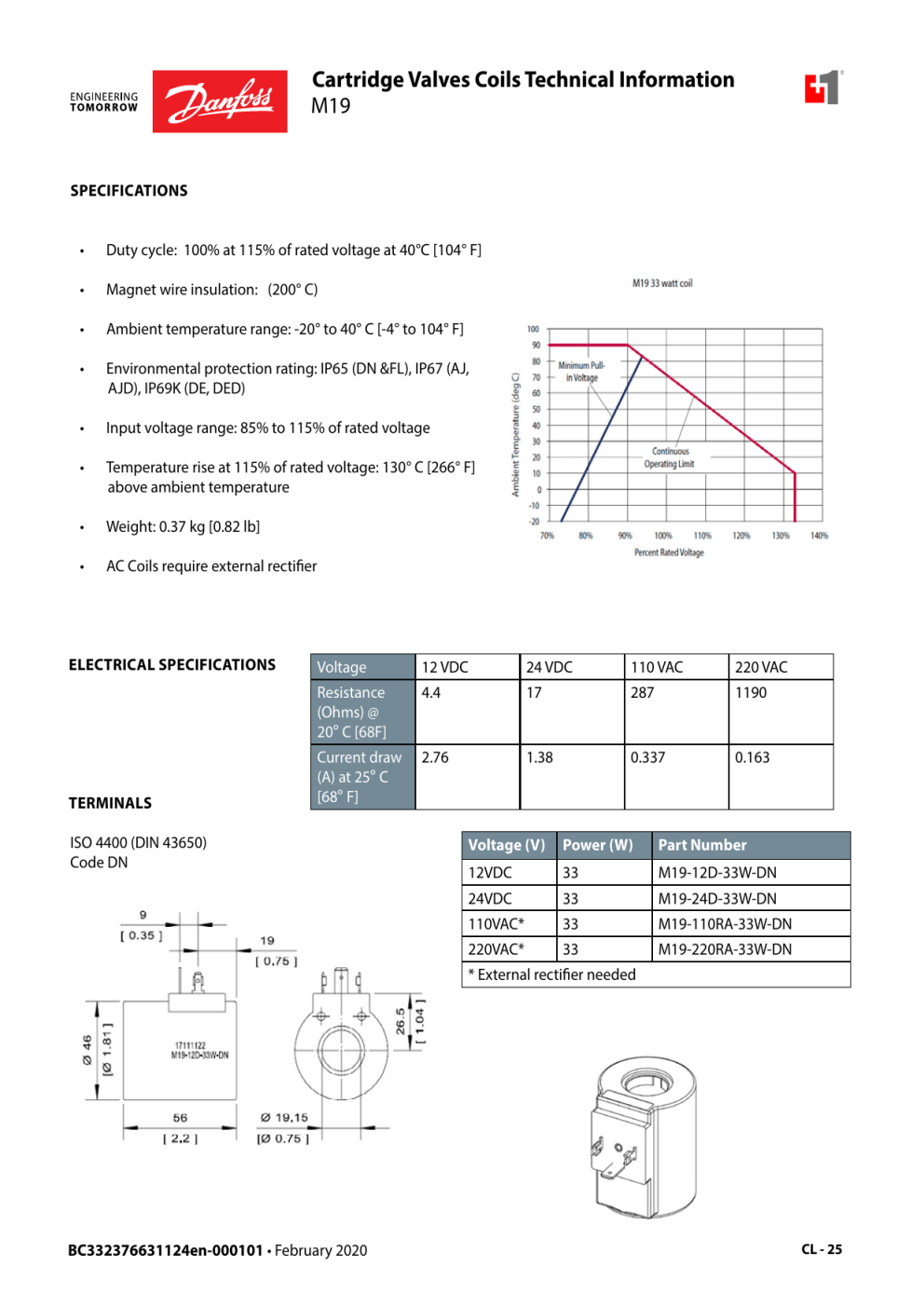

Danfoss Cartridge Valve Coils ICS M19 User Guide

Cartridge Valves Coils Technical Information
M19
SPECIFICATIONS
•
Duty cycle: 100% at 115% of rated voltage at 40°C [104° F]
•
Magnet wire insulation: (200° C)
•
Ambient temperature range: -20° to 40° C [-4° to 104° F]
•
Environmental protection rating: IP65 (DN &FL), IP67 (AJ,
AJD), IP69K (DE, DED)
•
Input voltage range: 85% to 115% of rated voltage
•
Temperature rise at 115% of rated voltage: 130° C [266° F]
above ambient temperature
•
Weight: 0.37 kg [0.82 lb]
•
AC Coils require external rectifier
ELECTRICAL SPECIFICATIONS
TERMINALS
Voltage
12 VDC
24 VDC
110 VAC
220 VAC
Resistance
(Ohms) @
20° C [68F]
4.4
17
287
1190
Current draw
(A) at 25° C
[68° F]
2.76
1.38
0.337
0.163
ISO 4400 (DIN 43650)
Code DN
Voltage (V)
Power (W)
Part Number
12VDC
33
M19-12D-33W-DN
24VDC
33
M19-24D-33W-DN
110VAC*
33
M19-110RA-33W-DN
220VAC*
33
M19-220RA-33W-DN
* External rectifier needed
BC332376631124en-000101 • February 2020
CL - 25
Cartridge Valves Coils Technical Information
M19
LEAD WIRES
CODE FL
Voltage (V) Power (W)
Part Number
12VDC
33
M19-12D-33W-AJ
24VDC
33
M19-24D-33W-AJ
Voltage (V) Power (W)
DEUTSCH
CODE DE
DEUTSCH WITH DIODE
CODE DED
Pin 1
Part Number
12VDC
33
M19-12D-33W-DE
24VDC
33
M19-24D-33W-DE
Voltage (V) Power (W)
Part Number
12VDC
33
M19-12D-33W-DED
24VDC
33
M19-24D-33W-DED
Pin 2
BC332376631124en-000101 • February 2020
CL - 26
Cartridge Valves Coils Technical Information
M19
AMP JR.
CODE AJ
AMP JR. WITH DIODE
CODE AJD
Voltage (V)
Power (W)
Part Number
12VDC
33
M19-12D-33W-AJ
24VDC
33
M19-24D-33W-AJ
Voltage (V)
Power (W)
Part Number
12VDC
33
M19-12D-33W-AJD
24VDC
33
M19-24D-33W-AJD
Pin 2
Pin 1
BC332376631124en-000101 • February 2020
CL - 27
