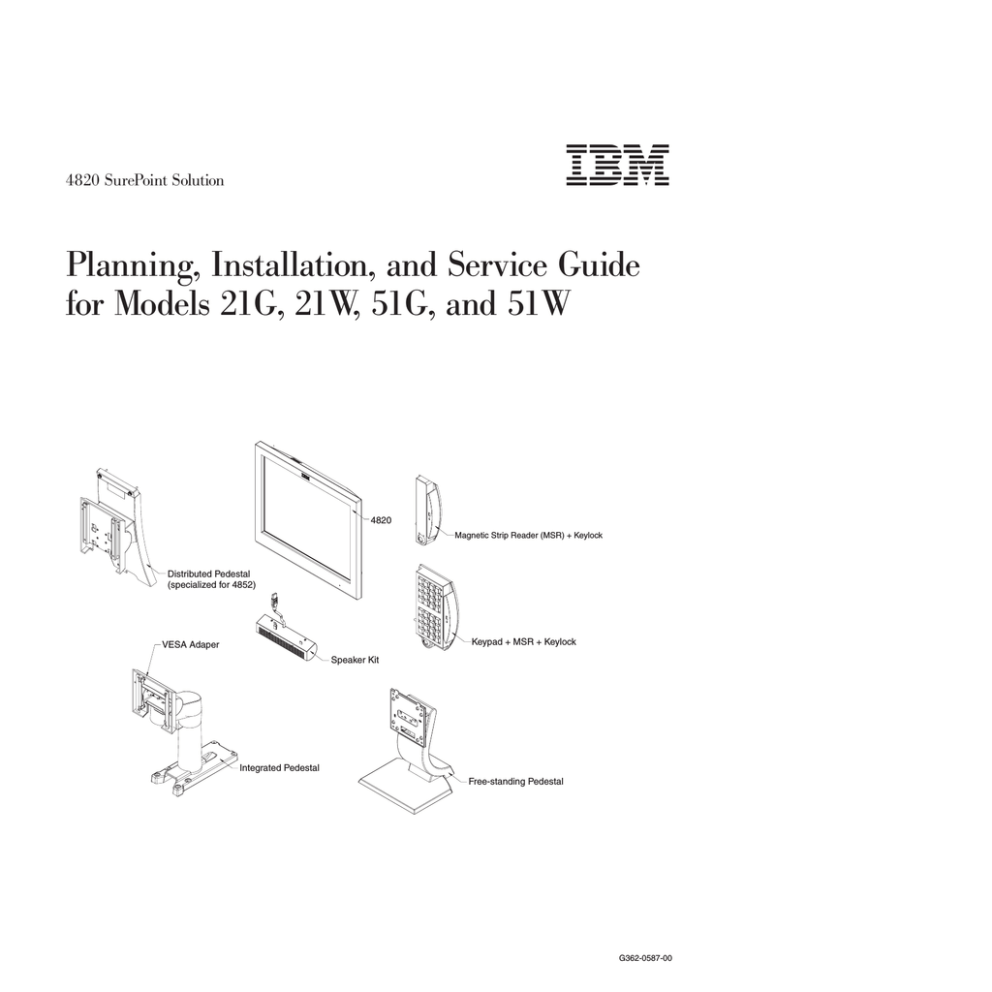

4820 Models 21G, 21W, 51G, and 51W Guide

4820 SurePoint Solution
Planning, Installation, and Service Guide
for Models 21G, 21W, 51G, and 51W
4820
Magnetic Strip Reader (MSR) + Keylock
Distributed Pedestal
(specialized for 4852)
Keypad + MSR + Keylock
VESA Adaper
Speaker Kit
Integrated Pedestal
Free-standing Pedestal
G362-0587-00
4820 SurePoint Solution
Planning, Installation, and Service Guide
for Models 21G, 21W, 51G, and 51W
G362-0587-00
Note
Before using this information and the product it supports, be sure to read the general information under Appendix C,
“Safety information,” on page 59, Appendix D, “Notices,” on page 65, and Appendix E, “Additional notices,” on page 75.
October 2010
This edition applies to the IBM 4820 SurePoint Solution Models 4820-21G, 4820-21W, 4820-51G, and 4820-51W and
associated features only.
Current versions of Retail Store Solutions documentation are available on the IBM Retail Store Solutions website at
http://www.ibm.com/solutions/retail/store/support. Click Publications.
A form for reader's comments is also provided at the back of this publication. If the form has been removed,
address your comments to:
IBM Corporation
Retail Store Solutions Information Development
Department ZBDA
PO Box 12195
Research Triangle Park, North Carolina 27709 USA
When you send information to IBM, you grant IBM a nonexclusive right to use or distribute whatever information
you supply in any way it believes appropriate without incurring any obligation to you.
© Copyright IBM Corporation 2010.
US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract
with IBM Corp.
Contents
About this guide . . . . . . . . . . . v
Publications accessibility . . . . . . . .
Who should read this guide . . . . . . .
Related publications . . . . . . . . .
Drivers, firmware and diagnostics information .
Notice statements . . . . . . . . . .
Providing feedback. . . . . . . . . .
.
.
. v
. v
. . vi
. . vi
. . vi
. . vii
Chapter 1. Introducing the IBM 4820
SurePoint Solution . . . . . . . . . . 1
Hardware options . . . . . . . . .
Pedestal options . . . . . . . . . .
Supported operating systems . . . . . .
Views of the 4820 infrared touch monitors .
12.1 inch and 15.0 inch models . . . .
System software, firmware, touch drivers, and
diagnostics . . . . . . . . . . . .
Environmental requirements . . . . . .
Power usage . . . . . . . . . . .
Spill resistance. . . . . . . . . . .
Customer replaceable parts . . . . . .
Using existing pedestal stands . . . . .
Calling for service . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
3
3
3
4
4
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
6
7
7
8
8
8
8
Chapter 2. Installing the IBM 4820 . . . 9
Tailoring your installation . . . . . .
Identifying the pedestal type . . . .
Integrated models as features . . . .
Identifying the 4820 cables . . . . .
Identifying the 4820 I/O ports . . . .
Input/output ports . . . . . . .
Identifying the icons . . . . . .
Identifying the label . . . . . .
Installing the pedestal . . . . . . .
Free-standing pedestal . . . . . .
Integrated pedestal for all models . .
Specialized integrated pedestals . .
Integrated touch pedestal . . . . .
Installing options . . . . . . . .
Attaching the MSR/keypad . . . .
Attaching the MSR without the keypad
Attaching/detaching the speaker kit .
Powering on . . . . . . . . . .
Using the OSD menu . . . . . . .
Windows only: Elo Touchscreen Properties
Unintentional Touch Rejection . . . .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
page
. .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. 9
10
10
11
11
11
12
12
13
13
18
20
20
24
24
25
26
28
28
32
38
Chapter 3. Maintaining the IBM 4820 . . 39
Maximizing your comfort .
Cleaning the touch screen .
Using the brightness controls
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. 39
. 39
. 39
Chapter 4. Troubleshooting common
problems. . . . . . . . . . . . . . 41
© Copyright IBM Corp. 2010
Troubleshooting the 4820 infrared touch screen
using the IBM Diagnostics for POS Systems and
Peripherals . . . . . . . . . . . .
Obtaining diagnostic and service information .
Troubleshooting the 4820 infrared touch screen
using the Elo Touchscreen Properties page . .
All models . . . . . . . . . . . .
LED states . . . . . . . . . . . .
Testing the power supply. . . . . . .
.
.
. 41
. 41
.
.
.
.
.
.
.
.
42
44
46
46
Appendix A. Field-replaceable units . . 49
Assembly 1: 4820 Assembly . . . .
Assembly 2: 4820 mounting hardware
.
.
.
.
.
.
.
.
. 50
. 52
Appendix B. Mounting surface template 55
Appendix C. Safety information . . . . 59
Appendix D. Notices . . . . . . . . . 65
Electronic emission notices . . . . . . . . .
Federal Communications Commission (FCC)
statement . . . . . . . . . . . . . .
European Union EMC Directive conformance
statement . . . . . . . . . . . . . .
Industry Canada Class A Emission Compliance
statement . . . . . . . . . . . . . .
Avis de conformité aux normes d'Industrie
Canada . . . . . . . . . . . . . . .
Germany . . . . . . . . . . . . . .
Australia and New Zealand . . . . . . . .
Chinese Class A warning statement . . . . .
Japanese Electrical Appliance and Material Safety
Law statement . . . . . . . . . . . .
Japanese power line harmonics compliance
statement . . . . . . . . . . . . . .
Japanese VCCI Council Class A statement . . .
Japan Electronics and Information Technology
Industries Association (JEITA) statement. . . .
Korean communications statement. . . . . .
Taiwanese Class A warning statement . . . .
Taiwan contact information . . . . . . . . .
Cable ferrite requirement . . . . . . . . . .
Electrostatic Discharge (ESD) . . . . . . . .
Product Recycling and disposal. . . . . . . .
Battery return program . . . . . . . . . .
For Taiwan: . . . . . . . . . . . . .
For the European Union: . . . . . . . . .
For California: . . . . . . . . . . . .
Flat panel displays . . . . . . . . . . . .
Monitors and workstations . . . . . . . . .
Trademarks . . . . . . . . . . . . . .
67
67
67
68
68
68
68
69
69
69
69
69
69
70
70
70
70
71
72
72
72
73
73
73
74
Appendix E. Additional notices . . . . 75
iii
Index . . . . . . . . . . . . . . . 77
iv
4820 Models 21G, 21W, 51G, and 51W Guide
Part number index. . . . . . . . . . 79
About this guide
Publications accessibility
The softcopy version of this guide and other related publications are accessibility enabled.
This guide provides information about installing and servicing the IBM® 4820 SurePoint™ Solution and is
organized as follows:
v Chapter 1, “Introducing the IBM 4820 SurePoint Solution,” describes IBM 4820 SurePoint Solution
Models 4820-21G, 4820-21W, 4820-51G, and 4820-51W, along with any available features designed to
work with these models.
v Chapter 2, “Installing the IBM 4820” provides the installation steps for the infrared touch screen
monitor display and for its features.
v Chapter 3, “Maintaining the IBM 4820” describes common maintenance procedures for IBM 4820
SurePoint Solution Models 4820-21G, 4820-21W, 4820-51G, and 4820-51W.
v Chapter 4, “Troubleshooting common problems,” provides information about resolving common
problems relating to the use of the IBM 4820 SurePoint Solution Models 4820-21G, 4820-21W, 4820-51G,
and 4820-51W.
v Appendix A, “Field-replaceable units” provides the field replaceable unit (FRU) part numbers for the
IBM 4820 SurePoint Solution Models 4820-21G, 4820-21W, 4820-51G, and 4820-51W and the
corresponding features.
v Appendix B, “Mounting surface template” are necessary when installing the distributed pedestal and
the free-standing pedestal.
v Appendix C contains Safety Information.
v Appendixes D and E contain Notices.
Throughout this guide, the following numeric terms refer to the IBM product name:
4820
SurePoint Solutions
4694
Point of Sale Terminal
4840
SurePOS 500 series (including the SurePOS 500 4852-x6x)
4800
SurePOS 700 series
Who should read this guide
This guide is for personnel who are responsible for installing, maintaining, and using the IBM 4820
SurePoint Solution which includes 12.1" and 15" liquid crystal display (LCD) infrared touch screen
monitors, along with the I/O devices designed to work with these monitors. The following SurePoint
display models are included in this book:
v 4820-21G
v 4820-21W
v 4820-51G
v 4820-51W
You can find information about previously marketed IBM 4820 SurePoint Solution models in the IBM
4820 SurePoint Solution Planning, Installation, and Service Guide, GA27-4231.
© Copyright IBM Corp. 2010
v
Related publications
The following IBM publications are available from the IBM Retail Store Solutions website at
http://www.ibm.com/solutions/retail/store/support. From that page, click Publications in the upper
right.
v
v
v
v
v
v
v
IBM
IBM
IBM
IBM
IBM
IBM
IBM
4820 SurePoint Solution: System Reference, SA27-4249
4694 Point-of-Sale Terminals: Installation and Operation Manual, SA27-4005
4694 Point-of-Sale Terminals: Hardware Service Manual, SY27-0364
SurePOS 700 Series Installation and Operations Guide, GA27-4223
SurePOS 500 Series Installation and Operations Guide, GA27-4254
SurePOS 300 Series Installation and Service Guide, GA27-4309
SurePOS 720, 740, and 780 Planning, Installation and Operation Guide, GA27-4328
v IBM SurePOS 720, 740, and 780 Hardware Service Guide, SA27-4329
v IBM SurePOS 700 Series: Options and I/O Devices Service Guide, SY27-0392
Drivers, firmware and diagnostics information
For the 4820 SurePoint Solution, the following are available on the IBM Retail Store Solutions support
website at http://www.ibm.com/solutions/retail/store/support:
v Touch drivers, firmware (video, touch, and I/O), and the IBM POS Monitor Inventory Driver
v IBM Diagnostics for POS Systems and Peripherals, which provides diagnostics tools for the 4820
SurePoint Solution
v IBM UPOS drivers, which provide support for the I/O and devices (keypad, MSR, keylock, and tone)
that are attached to the 4820 SurePoint Solution
Notice statements
Notices in this guide are defined as follows:
Notes
These notices provide important tips, guidance, or advice.
Important
These notices provide information or advice that might help you avoid inconvenient or
problem situations.
Attention
These notices indicate potential damage to programs, devices, or data. An attention notice
is placed just before the instruction or situation in which damage could occur.
Caution
These statements indicate situations that can be potentially hazardous to you. A caution
statement is placed just before the description of a potentially hazardous procedure step
or situation.
Danger
These statements indicate situations that can be potentially lethal or extremely hazardous
to you. A danger statement is placed just before the description of a potentially lethal or
extremely hazardous procedure step or situation.
vi
4820 Models 21G, 21W, 51G, and 51W Guide
Providing feedback
Your feedback is important in helping IBM provide accurate and high-quality information.
To provide feedback:
v Go to http://www.ibm.com/solutions/retail/store. Click Support, then click Publications. Click the
publication comments within the introductory text. Provide the requested information and your
comments. Be sure to include the name and form number of the document in the [Publication ID] field.
v You can mail your comments to:
IBM Corporation Retail Store Solutions
Information Development Department ZBDA
P.O. Box 12195 Research Triangle Park,
North Carolina 27709 USA
Be sure to include the name and form number of the document.
If applicable, include a reference to the specific location of the text (for example, the page or table
number) on which you are commenting.
Between major revisions of this document, there might be minor technical updates. The latest version of
this document is available on the Retail Store Solutions Web site at www.ibm.com/solutions/retail/store/
support/publications/.
About this guide
vii
viii
4820 Models 21G, 21W, 51G, and 51W Guide
Chapter 1. Introducing the IBM 4820 SurePoint Solution
The IBM 4820 SurePoint Solution (see Figure 1 on page 2) offers a selection of infrared touch screen
monitors that are optimized for use in retail point-of-sale (POS) environment. These monitors, along with
their associated features, are retail-hardened and designed to provide years of service in a worldwide
marketplace.
The IBM 4820 SurePoint infrared touch monitors use a liquid crystal display (LCD) technology to provide
high-brightness and picture contrast. An auto-adjust feature ensures a quality image automatically and a
glare-proof finish is provided on the monitor glass. The sealed design on the front glass of the monitor
protects the display area and internal components from environmental hazards such as liquids, dust, and
cleansers, and an electrostatic discharge (ESD) immunity system provides heightened safety for users.
Because of the lower power usage of the display, the monitors are economical to operate (18W maximum
power usage) and include an additional cost-saving "hibernate" mode to save energy during low-usage
times.
Various optional features can be attached to the monitor for great flexibility in the POS environment. A
speaker kit, magnetic stripe reader (MSR), keypads, and keylocks can be installed or uninstalled in less
than five minutes with a minimum use of tools and without opening the display.
Appropriate adapters are available so that some previously purchased monitor display stands can be
reused with the new infrared touch screen monitors.
Table 1 on page 2 summarizes the models and features of the 4820 SurePoint Solution.
© Copyright IBM Corp. 2010
1
Table 1. 4820 SurePoint Solution infrared LCD touch screen monitors
Model
Screen size
Color
Keypad, MSR &
keylock
12.1 in.
Iron gray
Touch driver
Host system
Infrared LCD touch screen monitors
IBM SurePoint
4820-21G
IBM SurePoint
4820-21W
IBM SurePoint
4820-51G
Pearl white
15.0 in.
IBM SurePoint
4820-51W
Iron gray
USB
Elo TouchSystems Universal
Supports all
Pearl white
Notes:
1. Options are selected by feature code.
2. Obtain touch drivers from the IBM website (http://www.ibm.com/solutions/retail/store/support). Drivers from other sources
are not supported.
4820
Magnetic Strip Reader (MSR) + Keylock
Distributed Pedestal
(specialized for 4852)
Keypad + MSR + Keylock
VESA Adaper
Speaker Kit
Integrated Pedestal
Free-standing Pedestal
Figure 1. 4820 SurePoint Solution with features and available pedestals
2
4820 Models 21G, 21W, 51G, and 51W Guide
Hardware options
The following input/output (I/O) devices attach to the infrared LCD monitors and operate as integrated
parts.
Note: Some of the devices can be attached using a #2 Phillips screwdriver and security screws.
Table 2. 4820 SurePoint Solution hardware options
Optional hardware
Description
12.1-in. and 15-in. infrared touch screen models
Front-facing magnetic stripe reader (MSR)/keylock
assembly
A right-side attached, USB interface, MSR 3-track with 2
keylock positions. A security screw is required.
Front-facing MSR/keylock/keypad assembly
A right-side attached, USB interface, MSR 3-track with 2
keylock positions, 32 keys on the keypad. A security
screw is required.
Stereo speaker kit (front-facing)
A stereo speaker option that is mounted on the bottom.
A security screw is required.
Table top stand
A 100x100 mm VESA stand that uses 4 screws to attach
to the monitor.
Integrated monitor stand
An integrated monitor stand is available to accommodate
both wide and narrow size filler panels which are placed
on the bottom of the stand when mounting on the
SurePOS 700 integration tray.
Cables
Analog video cables, standard USB and powered USB
touch cables, and power cables (with power brick) are
available.
Distributed pedestal
A distributed pedestal to support attachment to the
SurePOS 500 4852-x6x is available.
Pedestal options
Different types of monitor pedestals are suited for certain work areas so consider where the monitor is
expected to be used before you order a particular type of pedestal stand. Integrated monitor stands are
typically screwed into the POS equipment and operate as a permanent part of the POS system.
Free-standing monitor pedestals can be easily shifted from place to place; they can be used without
attaching them directly to the POS system or by attaching them using screws. Some specialized monitor
pedestals are designed to be attached to a particular type of computer; an example would be the pedestal
designed to attach to the SurePOS 500 4852-x6x.
Supported operating systems
In addition to the IBM Self Checkout environment, the following operating systems are supported by the
4820 infrared touch solution:
v
v
v
v
v
v
Windows Embedded for POS (WEPOS)
Windows POSReady
Windows XP Professional SP2, SP3
Windows 7
Linux (Novell SLED/SLES/SLEPOS11)
IBM 4690 OS Enhanced (V6R2)
Note: Microsoft DOS and Vista operating systems are not supported.
Chapter 1. Introducing the IBM 4820 SurePoint Solution
3
Views of the 4820 infrared touch monitors
This section shows examples of the various models of the 4820 SurePoint Solution for infrared touch
monitors.
12.1 inch and 15.0 inch models
Figure 2 is a frontal view (measured diagonally) of the 12.1 inch and 15.0 inch touch monitors of the 4820
SurePoint Solution. The touch technology is Elo infrared.
12.1 inch
15 inch
Figure 2. Front view of 4820 infrared touch monitors
The following physical dimensions apply to the 4820 SurePoint Solution infrared touch monitors.
Table 3. Physical dimensions of the 4820 infrared touch monitors
Monitor Size
Height
Width
Thickness
12.1 inch measured
diagonally
307.55 mm
265.5 mm
56 mm
15.0 inch measured
diagonally
359 mm
301.5 mm
56 mm
The maximum resolution for the 12.1 inch monitor is 800x600 pixels. The maximum resolution for the 15
inch monitor is 1024x768 pixels.
4
4820 Models 21G, 21W, 51G, and 51W Guide
There are three buttons located along the bottom-edge of the infrared touch monitor as shown in
Figure 3. The two left-most buttons (indicated by a plus sign and a minus sign) can be used to control the
brightness of the monitor. (Refer to “Using the brightness controls” on page 39.)
For information about how to alter other visual aspects of the image, refer to “Using the OSD menu” on
page 28. The button on the right is used to turn the monitor power On and Off.
- Brightness
+ Brightness
Power
Suspend/Resume
Figure 3. OSD and power buttons
Chapter 1. Introducing the IBM 4820 SurePoint Solution
5
Figure 4 is a rear view of the 12.1 inch and 15.0 inch infrared touch monitors.
A
B
C
Figure 4. Rear view of 4820 infrared touch monitors
A cable cover A is used to cover the wires in the monitor display. The tabs B are used for attaching
the keypad/MSR. The speaker tabs C are located at the bottom of the monitor.
System software, firmware, touch drivers, and diagnostics
You can obtain the appropriate software for your 4820 SurePoint Solution from the IBM Retail Store
Solutions support website at http://www.ibm.com/solutions/retail/store/support.
The 4820 SurePoint Solution models 21G, 21W, 15G, and 15W are supported by the IBM POS Monitor
Inventory Driver. This driver obtains information such as the video firmware revision, the serial number
of the display, the horizontal and vertical resolution, the powered-on hours count and the
backlight-powered-on hours count. It then provides that information to the IBM RMA system
management solution for collection and display in IBM Director. This driver is supported on Windows
and Linux and it is installed on the system unit with the 4820 SurePoint display attached.
Note: This driver requires the display to be attached with a USB cable (the USB cable enables the display
to be used as a touch display and allows the driver to collect the information from the display).
6
4820 Models 21G, 21W, 51G, and 51W Guide
Environmental requirements
Table 4 shows the humidity and temperature limits for the 4820 SurePoint Solution.
Table 4. Environmental requirements
Condition
Operating limits
Storage limits
Temperature (dry bulb)
0 - 40° C
(32° - 104° F)
0 - 60° C
Maximum temperature (wet bulb)
27° C
(81° F)
29° C
(84° F)
Relative humidity
8 - 80%
5% - 95%
Ensure that the cooling vents are not blocked by papers, signs, or other items.
Power usage
Table 5 lists the power consumption for the 4820 SurePoint Solution infrared touch screen.
The 4820 SurePoint Solution consumes less power and dissipates less heat than a similar-size CRT.
Table 5. Power usage for infrared touch monitors
Computer State
Brightness
Adaptor A/C Input
Power Maximum
Limits
Host System
12 V DC Power
Usage Limits
Host system USB 5 V
DC Output Maximum
Limits
On
Max
20 W (Based on the
90% efficient power
brick.)
18 W (Maximum
power available
from the system
unit 12 V USB
port )
2.5 W
On
Default
Suspend
Min
ESv5
0.5 W
Energy Star Sleep
Min
ESv5
0.5 W
Off
*The infrared touch screen monitor meets the international Energy Star Version 5.0 standards.
All 4820 SurePoint models can be powered from a power adapter which accepts 100 V to 240 V ac input.
Some models offering USB communications interfaces can be powered from the POS terminal and do not
require a power adapter. A powered USB port only supports 18 watts and might limit the USB
capabilities.
Models with the USB interface can be powered from the POS terminal with the following exceptions:
v 15 inch models require a power supply when attached to 4694 POS terminals
v 12 inch models require a power supply when attached to 4694 POS terminals if more than 2.5 watts of
power is needed for devices attached to the auxiliary USB ports.
Chapter 1. Introducing the IBM 4820 SurePoint Solution
7
Spill resistance
The 4820 SurePoint Solution is designed to meet the following standards:
v National Electrical Manufacturers Association (NEMA) Type 5 rating per NEMA Standards Publication
number 250-1997 Enclosures for Electrical Equipment
v IP 52 rating per IEC 60529
Customer replaceable parts
The infrared touch screen monitors, along with their optional hardware, have been designed so that most
customers can make changes (additions/removal, etc.) in a very short time (5 minutes or less), with a
minimum of tools and without an assistant. This is a list of items that you can reasonably expect to
quickly change by yourself:
v Display monitor
v Magnetic Stripe Reader (MSR), keylock and keypad
v Speaker kit
v Table top stand
v
v
v
v
Integrated stand
Distributed stand
All cables
Adapter bracket for existing table top stands
v Adapter bracket for existing SurePOS 500 stands
v Adapter bracket for existing SurePOS 700 stands
Using existing pedestal stands
Retailers might already own pedestal stands that can be used to mount the new infrared touch screen
monitors. In some cases (for example, when going from a non-VESA design to a VESA design), a bracket
or an adapter might be required. There are also bracket kits, hinge covers, cable covers, and adapter kits
that have been designed to allow for migration to some of the most common existing pedestal mounts.
For more information, contact your marketing representative.
Calling for service
When you call IBM for warranty information or service, be sure to have the following information
available:
v Machine type/model
v Serial number
Find this information on the monitor label shown in Figure 9 on page 12. Locate this information either
on the lower-right edge at the rear, or on the side of the monitor.
8
4820 Models 21G, 21W, 51G, and 51W Guide
Chapter 2. Installing the IBM 4820
This section describes procedures for setting up the 4820 SurePoint Solution infrared touch screen
monitors and attachments.
Tailoring your installation
Because of the variety of installation sites, retailers often want to tailor their installation using various
pedestal types and options to better use space and to allow for smooth operation.
This section provides instructions on how to install the infrared touch monitor with various pedestal
types. This is a summary of the recommended installation steps:
1. Select the pedestal type that best suits the environment by referring to “Identifying the pedestal type”
on page 10. You can use pedestals that have been designed especially for use with these new infrared
monitors or use a currently owned pedestal with an adapter for attaching to the new infrared
monitor.
2. See “Installing options” on page 24 and install your optional hardware to the display in this order:
a. Keypad/MSR or MSR
b. Keylock barrel
c. Stereo speaker kit
3. Connect the monitor cables to the 4820 SurePoint Solution infrared (IR) monitor display.
Note: Cable routing is unique for each pedestal and system unit.
4. Attach the 4820 SurePoint Solution infrared monitor display to the pedestal.
5. Connect the monitor cables to your system unit.
6. Power On the system and the 4820 monitor display. See “Powering on” on page 28.
7. Perform an Auto Adjust to obtain the optimal image. See “Using the OSD menu” on page 28.
8. Install the appropriate touch driver for your 4820 Model number (see Table 1 on page 2). Touch
drivers are available from the IBM Retail Store Solutions support website at http://www.ibm.com/
solutions/retail/store/support.
Note: If a host system has multiple video support, the same number of infrared touch screen displays
can be supported as those that are supported by the host multiple video support.
9. If you are running on a Windows operating system, run the Elo Touchscreen Properties tool to
configure the touchscreen properties for the multiple monitors.
© Copyright IBM Corp. 2010
9
Identifying the pedestal type
When ordering your infrared touch monitor displays, decide what type of pedestal type would be
appropriate for your retail space. Some pedestals such as integrated pedestals are screwed into place
within a system, while others are free standing and are the easiest to move quickly. Some pedestals are
specialized for use in a particular environment and can be ordered as a kit using a feature number.
The pedestal options for the 4820 SurePoint Solution are shown in Figure 5.
Specialized for 4852
Free standing
Integrated
Figure 5. Pedestal types
Some existing monitor stands can be also be used with the new infrared touch screen monitor, but they
require the proper adaptor. Discuss this option with your marketing representative.
Integrated models as features
Table 6 shows the pedestal kits or features that can be ordered to match your retail environment. One
main difference between the kits is whether an I/O tray is expected to be used. Particular parts of a kit
can be ordered separately. See Appendix A, “Field-replaceable units,” on page 49 for a list of individual
part numbers for each part found within the kits.
Table 6. Available kits sold as features
Feature Number
Part Number
Specification
4307
84Y2900
Integrated mount, for wide SurePOS
700, pearl white/storm gray
4308
84Y2910
Integrated mount for wide SurePOS
700, iron gray
4309
84Y2920
Integrated mount without I/O tray,
pearl white/storm gray
4310
84Y2930
Integrated mount without I/O tray,
iron gray
Note: Features are ordered with or without an integration tray.
10
4820 Models 21G, 21W, 51G, and 51W Guide
Identifying the 4820 cables
These are examples of cables used with the monitors:
Figure 6. Analog cables
Figure 7. USB cables
Identifying the 4820 I/O ports
The input/output ports for the 4820 models are located toward the bottom at the back of the monitor.
Input/output ports
A
B
C
D
E
Figure 8. Input/output ports
A USB 2.0 connection
B USB keypad/MSR/keylock or a USB MSR/keylock
C Powered USB 2.0 connection to the Host
D Power cord connection
E VGA (video) connection
Chapter 2. Installing the IBM 4820
11
Identifying the icons
Icons located near the 4820 SurePoint Solution ports also identify the connection type. Table 7 lists the
icons that appear on the label.
Table 7. Connector icons
Power
Video
Standard USB port (does not support USB keypad/MSR/keylock or USB MSR/keylock)
Standard USB device, USB keypad/MSR/keylock, or USB MSR/keylock
Identifying the label
The following is an example of the monitor information label for the infrared monitors:
A
???
B
C
D
E
F
Made in Taiwan
(Manufacturer):IBM Corporation
Figure 9. Monitor information label
A Type of monitor display (LCD - liquid crystal display)
B The two types of electrical power used in this monitor - direct (a solid line) and alternating current (a
broken line)
C Powered USB 2.0 connection to the Host
D Standard USB device, USB keypad/MSR/keylock, or USB MSR/keylock
E Standard USB Port
F Standard USB Port
The FRU P/N label can be found on the left side of the front bezel, and it shows the FRU P/N for the
monitor.
12
4820 Models 21G, 21W, 51G, and 51W Guide
Installing the pedestal
The following section describes how to install the free-standing and the integrated pedestals. Cable
routing steps are included.
Free-standing pedestal
Display monitors with free-standing pedestals are advantageous in a retail environment because they can
easily be moved from place to place. The free-standing (or table-top) pedestals can be very stable on their
own or they may be attached to a counter or other flat surface using screws.
This is a diagram of a free-standing pedestal for a 4820 infrared touch screen monitor with the back
removed:
A
B
Figure 10. Free-standing pedestal parts drawing
A VESA mount
B Rear cover of pedestal stand
Chapter 2. Installing the IBM 4820
13
Attaching the free-standing pedestal to the counter
Note: Attaching the free-standing pedestal to the counter is optional. Your pedestal may not require
mounting.
Follow these steps to mount the IR touch monitor to your counter, if wanted:
1. Using the free-standing pedestal mounting template (Figure 36 on page 56 and Figure 37 on page 57)
as a guide, mark the screw hole locations for drilling through the counter. Use an 8 mm (5/16 in.) bit
to drill the four screw holes.
2. Place the pedestal so that the mounting bolts on the pedestal align with the counter screw holes.
3. Use the enclosed M6 screws to screw into the holes located beneath the bottom of the stand to secure
the pedestal to the counter.
4. See “Tailoring your installation” on page 9 and continue with your installation.
Mounting the 4820 to the free-standing pedestal
Review the parts diagram in Figure 10 on page 13, and then follow the steps to attach the IR touch
display monitor to the free-standing pedestal:
1. If attaching the free-standing pedestal to the counter, ensure that the pedestal is secure.
2. Place the 4820 display on the free-standing pedestal. Ensure that the metal tabs A on Figure 11 on
page 15 slide into the appropriate slots on the back of the 4820 display.
14
4820 Models 21G, 21W, 51G, and 51W Guide
A
Figure 11. Mounting the free-standing pedestal
3. Secure the 4820 to the mounting bracket by using the four screws that are shipped with the stand.
4. Connect and route the cables to the 4820 by referring to Figure 12 on page 16, if necessary:
v Using the notch at the bottom of the back of the pedestal, pull up and remove the back of the
pedestal A from the pedestal mount.
v Route the cables (the power cable and the video cable) into the pedestal mount as shown in the
following figure:
Chapter 2. Installing the IBM 4820
15
A
Figure 12. Cable routing for free-standing pedestal
v When routing the cables, route the cables through the hook A on Figure 13 on page 17 and then
connect them into the proper ports located in the back of the display monitor. Refer to Figure 8 on
page 11 for the available ports.
16
4820 Models 21G, 21W, 51G, and 51W Guide
A
Figure 13. Route cables through the hook
v When done routing the cables, snap the back of the pedestal back onto the pedestal to cover the
cables.
5. Power On the system unit.
6. Auto adjust your screen for maximum viewing. See “Using the OSD menu” on page 28.
Chapter 2. Installing the IBM 4820
17
Integrated pedestal for all models
Figure 14 shows the parts of the integrated pedestal for all models.
E
A
B
C
D
Figure 14. Integrated pedestal parts
A Mounting bracket cover
B Hinge cover
C Arm cover
D Integrated mount stand
E Recess cover
See “Tailoring your installation” on page 9 for installing optional I/O devices.
18
4820 Models 21G, 21W, 51G, and 51W Guide
Routing the cables for the integrated pedestal
To route the cables for the integrated pedestal, do the following:
1. Attach the video cables and touch cable to the appropriate port on the system unit. See “Input/output
ports” on page 11.
2. Route the video cables and touch cable for the 4820 display through the opening of the system unit.
3. Unsnap and remove the monitor connections cover and the arm cover as shown in Figure 15 by lifting
them out of the system.
4. Separately route these cables up through the base of the integrated pedestal as shown in Figure 15
and through the trough in the arm of the integrated pedestal.
Note: You might need to rotate the pedestal arm for the video cable connector to fit through the opening.
Figure 15. Routing the cables
Mounting the 4820 SurePoint Solution to the integrated pedestal
Perform the following steps to attach the 4820 to the integrated pedestal.
1. Ensure that you have routed the cables.
2. Secure the pedestal to the system unit.
a. Align the holes of the integrated base plate with the holes in the unit.
b. Tighten the thumbscrews securely.
Note: See “Integrated touch pedestal” on page 20.
3. Mount the 4820 onto the pedestal.
a. Place the display on the pedestal mounting bracket. Make sure that the metal tabs on the pedestal
slide into the appropriate slots on the back of the 4820 display.
b. Secure the 4820 to the pedestal by using four screws.
c. Attach the power and video cables to the 4820 display.
Note: Ensure that you have attached the power and video cables to the appropriate ports in the back
of the display.
4. Plug the power cord into an outlet and power on the system unit.
5. Go to “Using the OSD menu” on page 28 and auto adjust your screen for maximum viewing.
Chapter 2. Installing the IBM 4820
19
Specialized integrated pedestals
Figure 16 is a picture of a specialized integrated pedestal that is designed so it can easily be attached to
the back of a SurePOS 500 4852-x6x.
A
B
C
D
Figure 16. 4852-attached pedestal
A Adapter
B Plastic cover
C Hinge cover
D Base
Integrated touch pedestal
This section describes how to install the integrated touch pedestal to the wide 4694 and 4800 (wide and
narrow) POS terminals.
Mounting the 4820 to your system unit
Wide 4800 and Wide 4690 Point of Sale models: Follow these steps when installing the integrated touch
pedestal onto the wide 4800 models:
1. If applicable, remove the blank filler panel and printer.
2. Route the cables as described for your 4820 model.
3. Secure the arm assembly.
20
4820 Models 21G, 21W, 51G, and 51W Guide
Figure 17. Securing the arm assembly to the 4800 or to the 4694
Note: The left or right placement of the arm assembly depends upon your configuration.
4. Attach the 4820 to the pedestal.
5. Install the options. (See “Installing options” on page 24).
SurePOS 720, 740, or 780 with integration tray: Follow these steps when installing the integrated touch
pedestal onto a SurePOS 720, 740, or 780 with an integration tray:
1. Remove the rubber plugs in the top cover of the system unit (if not already removed).
a. Refer to the SurePOS 720, 740, and 780 Hardware Service Guide to remove the integration tray and
top cover.
b. From the inside of the top cover, push the rubber plugs out of the plastic.
c. Reinstall the top cover and the integration tray.
2. Route the cables as described for your 4820 model.
3. Place the arm assembly on the slant tray as shown in Figure 18 on page 22. Insert and tighten the four
thumbscrews as shown.
Note: The left or right placement of the arm assembly depends upon your configuration.
Chapter 2. Installing the IBM 4820
21
Figure 18. Securing the arm assembly to SurePOS 720, 740, 780.
4. Attach the 4820 to the pedestal.
5. Place the filler panel covers on the arm assembly as shown in Figure 19.
Figure 19. Attaching the filler panel covers for the SurePOS 720, 740, 780
22
4820 Models 21G, 21W, 51G, and 51W Guide
6. See “Tailoring your installation” on page 9 and continue with your installation.
SurePOS 720, 740, or 780 directly on system unit: Follow these steps when installing the integrated
touch pedestal onto a SurePOS 720, 740, or 780 without an integration tray:
1. Remove the rubber plugs in the top cover of the system unit (if not already removed).
a. Refer to the SurePOS 720, 740, and 780 Hardware Service Guide to remove the top cover.
b. From the inside of the top cover, push the rubber plugs out of the plastic.
c. Reinstall the top cover.
2. Install the arm assembly in the box filler panel.
3. Route the cables as described for your 4820 model.
4. Place the arm assembly on the system unit as shown in Figure 20. Insert and tighten the four
thumbscrews as shown.
Note: The left or right placement of the arm assembly depends upon your configuration.
Figure 20. Securing the arm assembly to the SurePOS 720, 740, 780
5. Install your options. See “Installing options” on page 24.
6. Attach the 4820 to the pedestal.
7. Place the filler panel covers on the arm assembly as shown in Figure 21 on page 24.
Chapter 2. Installing the IBM 4820
23
Figure 21. Securing the arm assembly to the SurePOS 720, 740, 780
8. See “Tailoring your installation” on page 9 and continue with your installation.
Installing options
This section describes how to install all available options and the routing order. Some options are not
available for your 4820 model. You must determine whether your model accepts the described option. For
model information and options, see Table 1 on page 2.
Depending on your selected options, IBM recommends that you follow this order when installing them:
1. Manager's keylock (this feature must be factory-installed).
2. Keypad or MSR: Attaches either the MSR or the keypad with MSR to the 4820 SurePoint Solution
3. Stereo speaker kit: Install the stereo speaker kit when you install the covers.
Attaching the MSR/keypad
Follow these steps to attach the MSR/keypad to the 4820 SurePoint Solution:
1. Open the monitor connections cover on the rear of the display.
2. Align the MSR/keypad (A in Figure 22 on page 25) so that the two metal knob connectors on the
side of the keypad are positioned slightly above their matching slots B on the 4820.
3. Push the MSR/keypad downward so that the two metal knob connectors engage their matching slots
B.
24
4820 Models 21G, 21W, 51G, and 51W Guide
A
C
B
Figure 22. 4820 SurePoint Solution with attached keypad/MSR
4. Be sure to apply the retention thumbscrew into the opening marked C and tighten the screw.
5. Route the keypad cable along the cable grove located on the lower back of monitor and attach the
USB connector into one of the USB ports located on the back on the display monitor.
6. Close the monitor connections cover and continue with the installation of your next option.
To detach the MSR/keypad, do the following:
1. Open the monitor connections cover on the rear of the display.
2. Detach the keypad cable from the USB port located beneath the recess cover on the back of the
display monitor.
3. Remove the cable from the cable groove located on the back of the display monitor.
4. Loosen and remove the retention thumbscrew from the opening marked C.
5. Pull the two MS/keypad metal knob connectors out of the two slots B to remove the MSR/keypad
A.
6. Close the monitor connections cover.
Attaching the MSR without the keypad
Follow these steps to attach the magnetic stripe reader (MSR) to the display monitor:
1. Open the monitor connections cover on the rear of the display.
2. Align the MSR (A in Figure 23 on page 26) so that the metal knob connectors are slightly above their
matching slots B on the 4820.
Chapter 2. Installing the IBM 4820
25
3. Push the MSR/keypad downward so that the two metal knob connectors engage their matching slots
B
4. Apply and tighten the retention thumbscrew into the opening marked C.
A
C
B
Figure 23. Attaching the magnetic stripe reader
5. Route the keypad cable along the cable grove D located on the back of monitor and attach the USB
connector into one of the USB ports located on the back on the display monitor.
6. Close the monitor connections cover and continue with the installation of your next option.
To detach the MSR without the keypad, do the following:
1. Loosen and remove the retention thumbscrew C.
2. Detach the keypad cable from the USB port located on the back of the display monitor and remove
the cable from the cable guide groove.
3. Pull the two MSR A metal knob connectors out of the provided attachment slots B.
4. Close the monitor connections cover.
Attaching/detaching the speaker kit
The speaker kit mounts to the bottom of the rear side of the infrared monitor. The stereo speakers receive
power and signals from the USB ports located in the monitor. Do the following to attach the speaker kit:
1. Turn the infrared monitor display to its backside.
2. Pull upwards on the monitor connections cover B to remove it from the monitor.
26
4820 Models 21G, 21W, 51G, and 51W Guide
3. Insert the USB connector C into a USB port on the monitor. Refer to Figure 8 on page 11 for the
location of the USB connector ports.
B
C
A
Figure 24. Attaching the speaker kit
4. Insert the metal knob connectors on the speaker kit A into the matching slots provided on the
bottom of the rear side of the infrared monitor.
5. Apply and tighten the security screw that shipped with the speaker kit. There is an icon near the
bottom of the monitor showing where to apply the screw.
6. Replace the monitor connections cover B and snap it back into place.
To remove the speaker kit, do the following:
1. Turn the monitor display to its backside.
2. Pull upwards on the monitor connections cover B to remove it from the monitor.
Chapter 2. Installing the IBM 4820
27
3. Unplug the USB connector C from the monitor.
4. Unscrew the security screw for the speaker kit A from the monitor.
5. Pull the metal connector knobs out of their matching slots located at the bottom of the rear side of the
infrared monitor and remove the speaker kit.
6. Replace the monitor connections cover B and snap it into place.
Powering on
4820 SurePoint Solution displays do not require a power adapter if you use a powered USB connection to
the system unit. If you use a standard USB connection or are using the display for video only (no touch)
then a power adapter is required.
1. If a power adapter is required, connect it to the 4820 and an electrical outlet. The 4820 power
light-emitting diode (LED) glows green.
2. Power on the system
3. Power on the 4820.
Note: If the 4820 is powered on before the system, the message No Video/Low Power Mode is displayed.
Using the OSD menu
The on-screen display (OSD) menu allows you to auto-adjust the image on your touch screen to the
optimum settings. This menu also allows you to manually adjust the brightness, contrast and to fine tune
the timings (in the rare event that the auto-adjust doesn't result in the best settings).
There are three buttons located along the bottom edge of the touch screen monitor. The farthest right
button is the power button that turns the monitor ON and OFF. The other two buttons are the (-) and the
(+) buttons that are used to operate the OSD menu.
To access the OSD menu, press and hold both the minus (−) and plus (+) buttons at the same time and
the main menu is displayed. To exit the OSD menu, again hold the minus (−) and plus (+) buttons at the
same time.
As shown in Figure 25 on page 29, there are eight icons on the bottom of the OSD screen that correspond
to the various adjustments that you can make. The eight menu icons are named:
v
v
v
v
v
v
v
Auto Adjust
Brightness,
Contrast
Fine Tune
OSD Setting
Color Setting
Information
v Exit
28
4820 Models 21G, 21W, 51G, and 51W Guide
Figure 25. On-screen display menu
These instructions are for navigating within one of the eight different menu choices:
v Use the minus (−) button to scroll through the main menu and any submenus (for example, to go from
the submenu H-Position to the submenu V-Position).
v Use the plus (+) button to select a submenu or item in a submenu (for example, to choose to change
the clock on your screen).
v Use the plus (+) and minus (−) buttons to choose your desired tuning adjustments from among those
listed in a submenu.
v Press the minus (−) and plus (+) buttons together to save a setting and exit the item, submenu, or OSD
(or select Exit).
Following are the descriptions of each menu item:
Auto Adjust
Automatically adjusts the video settings. Use this option when the display is first attached to a
host or when a new video mode is used. Auto adjust can also be used at other times when the
image quality degrades.
Adjust Type Native
When used with a new video mode, this setting resets to the default values (x, y position,
phase, clock) if the data is less than 3 lines; otherwise, the first character is set to the
top-left of the screen.
Adjust Type Legacy
The first character is adjusted to the left-top of the screen.
Brightness
Allows you to modify the brightness setting (0-32).
Contrast
Allows you to modify the contrast setting (0-100).
Chapter 2. Installing the IBM 4820
29
Fine Tune
Used to make fine adjustments
H-Position
Use this option when the horizontal lines on the screen are not straight.
V-Position
Use this option when the vertical lines on the screen are not straight.
Clock Allows adjustments to the clock
Phase Allows adjustment of display timings (rarely required and not recommended)
Memory Recall
Restores the factory default settings and performs an Auto Adjust
Auto Color
Use this option when the color image quality degrades.
DOS Mode
Allows optimization for either Text (default) or Graphic display modes. Allows you to
select mode type in 720x400@70HZ and 640x400@70Hz.
OSD Setting
OSD H-Position
Allows adjustment of the horizontal location of the OSD menu.
OSD V-Position
Allows adjustment of the vertical location of the OSD menu
OSD Timeout
Allows you to regulate the OSD timeout. The time varies from 0 to 120 seconds until the
OSD image is automatically removed (without saving any manual settings). The default is
10.
Language
Allows changing of the OSD language from English (default) to French, German, and
Spanish.
Transparency
Allows changing the OSD image from opaque (default) to transparent (range of 0-6).
Remote Power Control
Allows the display to be powered on and off remotely by the system unit. Disable is the
default. When enabled, this feature disables the power button and uses the USB 5 V line
to determine the monitor power state. Table 8 describes the operation:
Table 8. Remote Power Control settings operation
OSD Menu Selection
Power Button Operation
USB 5 V Level
Monitor Power State
Remote Power Control
disabled
Toggles power on and off
N/A
Normal on or off
Remote Power Control
enabled
No effect
0V
Powered off
Remote Power Control
enabled
No effect
5V
Powered on
v Powered on state is similar to normal on state when you use the power button.
Monitor operates normally and responds to the system unit video and USB
communications. Includes USB suspend mode when system unit is in S3 suspend
mode.
v Powered off state is the same as a normal off state when you use the power button.
30
4820 Models 21G, 21W, 51G, and 51W Guide
Extended Backlight Life (Enable/Disable)
The intention behind the Extended Backlight Life mode is to limit the backlight current
and power consumption early in the LCD panel lifetime but then to allow full backlight
current and brightness output late in the panel lifetime. Enable is the default.
Attention: Disabling this feature reduces the operating life of the monitor, and enabling
this feature extends the operating life of the monitor.
Color Setting
Color Setting
Allows for the changing the color 'temperature' of the white color from 6500 K (default)
to 9600 K or to User setting.
Red
Allows changing of the Red color setting
Green Allows changing of the Green color setting
Blue
Allows changing of the Blue color setting
Information
Provides the current horizontal and vertical refresh frequencies and the date this FirmWare (FW)
information was updated.
Resolution
Allows you to see the resolution of the input signal
H-Frequency
Allows you to see the H-frequency of the input signal
V-Frequency
Allows you to see the V-frequency of the input signal
Firmware Revision
Provides the current FirmWare (FW) revision level
Date
Allows you to see the date of the FirmWare issue
Power on Hours
Allows you to determine the number of hours that power was on the video board.
Backlight Power on Hours
Allows you to determine the number of hours that backlight power was used on the
touch screen panel.
Exit
Saves the current settings and exits the OSD
Note: The only functions usually needed are Auto Adjust, Brightness, and Information. It is not necessary
to modify the other settings in the course of normal operation.
Chapter 2. Installing the IBM 4820
31
Windows only: Elo Touchscreen Properties page
This section describes how to use the Elo Touchscreen Properties page installed with the Elo touch driver
to configure and troubleshoot the 4820 SurePoint Solution.
To access the Elo Touchscreen Properties page:
1. Click Start > Control Panel.
2. Click Elo Touchscreen. The following screen appears:
Figure 26. Touch Screen Utility installation dialog
Click Align and follow the instructions to calibrate the touch.
32
4820 Models 21G, 21W, 51G, and 51W Guide
Figure 27. Mode tab
Use this tab to configure the mouse attributes associated with the touch panel.
Chapter 2. Installing the IBM 4820
33
Figure 28. Sound tab
Use this tab to configure the sound attributes related to the touch panel.
34
4820 Models 21G, 21W, 51G, and 51W Guide
Figure 29. Properties 1 tab
Use this tab to see details of the touch hardware, to calibrate the touch, and to change the advanced
settings. Click on Advanced to go to the Advanced settings screen.
Chapter 2. Installing the IBM 4820
35
Figure 30. Advanced settings, Touch tab
Use this tab to show the right mouse button tool and to make use of the edge acceleration tool.
36
4820 Models 21G, 21W, 51G, and 51W Guide
Figure 31. Advanced settings, Beam tab
Use this tab to change attributes of the beams used by the hardware that controls the touch function.
Chapter 2. Installing the IBM 4820
37
Figure 32. Advanced settings, Sound tab
Use this tab to configure the sound that is associated with a touch event.
Unintentional Touch Rejection
The IBM 4820 SurePoint Solution Models 4820-21G, 4820-21W, 4820-51G, and 4820-51W contain support
for Unintentional Touch Rejection (UTR) which is not enabled by default. UTR prevents unintended
touches on the display screen from registering as mouse events. UTR can be enabled or disabled, and you
can configure a touch sensitivity level. The touch sensitivity levels range from low to high. The sensitivity
level determines the strength of unintentional touches that will be rejected: low for light touches, up to
high for heavier touches. The actual hardware settings for each of these sensitivity levels have been
optimized and preset in the hardware, and they are not configurable.
You can use the IBM Diagnostics for POS Systems and Peripherals for the following:
v Enable or disable UTR
v Set the UTR sensitivity level (low to high)
v Configure beep on touch and its settings (duration and frequency)
The version of IBM Diagnostics for POS Systems and Peripherals which supports UTR may be
downloaded from the IBM Retail Store Solutions support Web site.
38
4820 Models 21G, 21W, 51G, and 51W Guide
Chapter 3. Maintaining the IBM 4820
Note: Information in this chapter is for all models of the 4820 SurePoint Solution.
Maximizing your comfort
Before you begin using your display, follow these tips to ensure that you are comfortable:
v Keep your head in a comfortable viewing position.
v Maintain a comfortable viewing distance.
v Position the display to avoid glare or reflection from overhead lighting or outside sources of light.
v Keep the screen free of dust and dirt by regularly cleaning the surface with a soft, dry cloth (see
“Cleaning the touch screen”).
v Set the brightness levels that allow you to see clearly.
v With your finger, press the touch screen only as hard as necessary for use. Do not pound on the touch
screen.
v Do not use a pen to press the touch screen.
Cleaning the touch screen
Keeping the touch screen free from dirt and dust allows the touch sensor to operate efficiently. Follow
these guidelines:
Note: Before cleaning the touch screen, power off the 4820 SurePoint Solution.
v Use a soft, dry cloth with isopropyl alcohol (or any non abrasive cleaner that does not contain
ammonia or chlorine).
Attention: Do not apply cleaning solution directly to the screen. Always spray the cleaner on a clean
cloth and then wipe the screen.
v Wipe gently across the surface.
v Allow a few minutes for the surface to dry before using.
Using the brightness controls
Pressing the plus (+) or the minus (-) button adjusts the screen brightness.
As you press the (+) button or the (-) button, the panel displays the level of brightness. When you reach
the desired level, stop pressing the keys. After approximately 5 seconds, your values are saved and the
brightness adjustment panel closes. (Press the plus and minus buttons simultaneously to save your values
and exit.)
© Copyright IBM Corp. 2010
39
40
4820 Models 21G, 21W, 51G, and 51W Guide
Chapter 4. Troubleshooting common problems
This section describes several troubleshooting methods and explains what to do for several common
problems.
The following are the simplest steps to take when a problem is encountered:
1. Ensure that all cables are connected and working properly (including power cables).
2. Ensure that you are using the latest levels of the firmware (video, touch, and I/O) and drivers (touch,
IBM POS Monitor Inventory Driver, UPOS). If not, then upgrade to the latest level and attempt to
recreate your problem. Use IBM Diagnostics for POS Systems and Peripherals to perform firmware
upgrades.
Note: Firmware upgrades require a USB connection between the display and the system unit.
Some 4820 image problems can be caused by problems in the system unit to which the display is
attached. One way to determine if the system unit is causing a problem is to attach a display known to
be good to the same video port on the system unit to see if the problem reappears.
Troubleshooting the 4820 infrared touch screen using the IBM
Diagnostics for POS Systems and Peripherals
Download the IBM Diagnostics for POS Systems and Peripherals information from the IBM RSS Support
website at www.ibm.com/solutions/retail/store
v Click on Support on the left-hand side of the page
v Click on Diagnostics on the right-hand side of the page.
This diagnostic package provides test and utilities for all of the IBM RSS-provided POS I/O devices and
system units. Follow the installation instructions for this package.
Boot the system unit with the memory key containing the diagnostics. After accepting the usage license,
select Point of Sale Devices.
The touch screen is a point of sale device and the following applies:
v If Touch is not identified in any of the device buttons, the touch hardware is not working at all.
v If Touch is available, select Touch. Follow the instructions on the screen to perform a test.
v On the main Diagnostics screen, select Utilities to apply new touch firmware for the device.
Obtaining diagnostic and service information
Obtain service manuals, installation guides, touch drivers, and the diagnostic package for all 4820
displays from the IBM Retail Store Solutions web site: http://www.ibm.com/solutions/retail/store/
support. From the web page:
1. Click on Support.
2. Click on SurePoint Solution.
3. Select the appropriate download for your specific 4820 model.
An abstract, download description, system prerequisites, and installation instructions are provided on
each download page to assist you.
© Copyright IBM Corp. 2010
41
Also, use the website to access the POS Knowledgebase Tips & FAQs search utility. Within this utility,
find articles which will assist you in troubleshooting your specific 4820 problem. All touch drivers for
IBM 4820 displays must be obtained from this IBM website and not from any other vendor or site (except
Linux).
Troubleshooting the 4820 infrared touch screen using the Elo
Touchscreen Properties page
Windows Only: To access the Elo Touchscreen Properties page:
1. Click Start.
2. Click Control Panel.
3. Click
.
From the properties page, you can determine the status of your touch display and troubleshoot touch
problems.
Using the tabs on the main panel, make your selections.
Figure 33. ELO Touchscreen Properties page
Mode Tab:
v If touch is activating too easily, ensure that the Mouse button emulation mode is set to "Click
on Release."
42
4820 Models 21G, 21W, 51G, and 51W Guide
v If touches are resulting in right button actions, ensure that the options are not set to
left-handed operation.
v If double clicks are not working well, enlarge the double click area to at least 15 mm on a side.
Sound Tab:
If beep on touch is not working as desired, use this tab to modify the settings.
Properties Tabs:
USB
v If the USB drivers have been installed, a properties tab will be present only if a USB
touch screen is attached.
v If a touchscreen is attached, but there is no properties page, the likely cause is that the
Elo drivers were not installed for USB. (The touch function may be working, even
without Elo drivers since there are native Windows drivers. However, using the native
Windows drivers is not recommended. Using the native drivers will result in video
alignment that is not optimum).
About Tab
Use this tab to ensure that the latest driver that is available on the IBM website is
installed. (http://www.ibm.com/solutions/retail/store/support)
Chapter 4. Troubleshooting common problems
43
All models
This section provides information pertinent to all 4820 models.
Table 9. Troubleshooting all models
Condition description
The power indicator on the display is off
Resolution
Ensure that the 4820 is powered on by pressing the power button on
the display.
All Models powered by an AC adapter
1. Check the voltage of the power supply output (see “Testing the
power supply” on page 46.) If the voltage is incorrect:
a. Verify that the power cord is plugged into a working ac
outlet.
b. Verify that the power cord is properly plugged into the power
brick.
c. If the voltage remains incorrect, replace the power supply.
2. Verify that the power brick is properly plugged into the power
port of the display.
3. Replace the unit.
All Models powered by a USB Plus Power cable
1. Check the voltage output of the powered USB cable (see “USB
power” on page 47).
v If the voltages are correct, replace the unit.
v If the voltages are incorrect, remove the cable from the system
unit, and verify that the voltage are correct at the system port.
v If the voltage at the port is not correct, the system unit requires
servicing.
2. If the voltages are correct at the system unit port and wrong at
the cable, replace the cable.
3. Verify that the powered USB cable is properly connected to the
4820 SurePoint Solution.
4. Replace the unit.
Power LED amber
All Models:
Low power mode. Communication is not yet established between
host and 4820
1. Check the video cable connections and replace the cables, if
necessary.
2. Verify that the system unit is powered on.
3. Check the standby or suspend mode of power management.
4. Replace the unit, if necessary.
44
4820 Models 21G, 21W, 51G, and 51W Guide
Table 9. Troubleshooting all models (continued)
Condition description
Touch display not responding to touch
Resolution
All Models:
1. Check whether touch screen or protective screen is dirty. If
necessary, clean the screen (see “Cleaning the touch screen” on
page 39).
2. Verify that the touch cable is correctly attached to the 4820
display and to the system.
3. Use IBM Diagnostics for POS Systems and Peripherals to run a
diagnostic test on the touch display.
4. Check the cable connections and replace the cables, if necessary.
5. Replace the 4820 display.
Totally blank display
1. Verify that the power indicator for the display is ON. If not, go to
the first condition listed in this table.
2. Verify that the system unit is ON.
3. Check the brightness controls.
4. If LED is orange (amber), go to the second condition listed in this
table.
5. Check the cable connections, and replace the cables, if necessary.
6. Replace the 4820 display, if necessary.
Unsupported video mode message
Use operating system tools to change to a supported mode (see
Table 10 on page 46).
No Video/low power mode message
Communication is not yet established between the host unit and the
4820.
1. Verify that the system unit is powered on.
2. Check the video cabling between the 4820 display and the system
unit.
Unacceptable image quality
All models:
1. Verify that the video mode is set to 800x600 (except model 5xx,
which should be set to 1024x768).
2. Press the (+) and (-) buttons on the bottom of the display
simultaneously to get a menu of options. Activate the
Auto-Adjust option by pressing the (+) button.
3. Check the video cable connections, and replace the cables, if
necessary.
4. Check whether touch screen or protective screen is dirty. If
necessary, clean the screen (see “Cleaning the touch screen” on
page 39).
Pixel defects
Displays occasionally have bright (always on) dots or dark (always
off) dots. All TFT suppliers consider a small number of these pixel
defects to be acceptable. The exact number depends on the supplier
and the size of the LCD.
Magnetic stripe reader (MSR) malfunctioning 1. Check that the cable is securely connected.
2. Make sure the MSR is securely attached to the display.
3. Use IBM Diagnostics for POS Systems and Peripherals to run a
diagnostic test on the MSR.
4. Replace the MSR.
Chapter 4. Troubleshooting common problems
45
Table 9. Troubleshooting all models (continued)
Condition description
Resolution
Keypad malfunctioning
1. Check that the cable is securely connected.
2. Make sure the keypad is securely attached to the display.
3. Use IBM Diagnostics for POS Systems and Peripherals to run a
diagnostic test on the keypad.
4. Replace the keypad.
IR Touch Problems
Display beep does not sound.
If you are using Windows, use the Elo Touchscreen Properties page
set the beep configuration.
Touch area does not work.
1. Windows only: Verify that touch has not been disabled in the Elo
Touchscreen Properties page.
2. Windows only: Enable blocked beam monitoring from the Elo
Touchscreen Properties page.
Table 10. Supported video modes
Resolution
Vertical frequency (Hz)
640x350
70
640x400
70
720x350
70
720x400
70
640x480
60, 72, 75
800x600
56, 60, 72, 75
1024x768 (15 inch models only)
60, 70, 75
LED states
The 4820 SurePoint Solution has a dual-color LED: green or amber. The monitor's power management
state determines the lighting of the LED. Green indicates full power usage, and amber indicates low
power mode or no detected video signal.
Testing the power supply
If you experience power supply problems, test the pin voltages to verify that your power adapter is
working properly.
Power adapter
If your 4820 SurePoint Solution uses a power adapter (also known as a power brick), test the voltages of
the adapter's power cable.
v All other models can use a +15 V adapter (part number 10N0951).
46
4820 Models 21G, 21W, 51G, and 51W Guide
Table 11 lists the acceptable voltages for each power adapter. If your voltage is outside the listed range,
replace your adapter.
Table 11. Power adapter pin voltages
Pin (see Figure 34)
Voltage (DC)
+12 V power adapter
+15 V power adapter
1
+11.4 to +12.6
+14.5 to +17.0
2
Ground
Ground
Pin 2
Pin 1
Figure 34. Power adapter pinouts
USB power
Some 4820 SurePoint Solution models offering USB connections can be powered from the POS terminal
(see “Power usage” on page 7). The powered USB cable provides approximately 12 V DC. If your 4820
SurePoint Solution is powered by a USB cable, test the pin voltages to verify that they are correct.
Table 12 lists the pinouts for the USB connector and the acceptable voltages for the power provided by
the cable.
Table 12. Powered USB connector pinouts
Pin (see Figure 35)
Voltage (DC)
1
+4.75 to +5.25
2, 3
Data
4, 5
Ground
6
+10.8 to +12.6
Figure 35. Powered USB connector and pin numbers
Chapter 4. Troubleshooting common problems
47
48
4820 Models 21G, 21W, 51G, and 51W Guide
Appendix A. Field-replaceable units
© Copyright IBM Corp. 2010
49
Assembly 1: 4820 Assembly
5
6
7
2
8
3
4
9
50
4820 Models 21G, 21W, 51G, and 51W Guide
Assembly 1: (continued)
Asm–
Index
Part
Number
1–1
–1
–1
–1
–2
–7
–7
–3
–3
–4
–5
–5
–6
–6
–8
–8
–9
84Y2801
84Y2811
84Y2821
84Y2831
51J1410
51J1414
51J1412
84Y2841
84Y2851
40N5397
84Y2861
84Y2871
84Y2881
84Y2891
42M5671
42M5673
39M4955
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
84Y2805
84Y2815
84Y2825
84Y2835
42M5630
42M5670
42M5632
42M5668
4783922
41J8077
41J8078
41J8079
41J8080
41J8081
41J8082
41J8083
41J8084
41J8085
41J8086
41J8087
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Units Description
12 inch pearl white monitor - USB Touch
12 inch iron gray monitor - USB Touch
15 inch pearl white monitor - USB Touch
15 inch iron gray monitor - USB Touch
Cable, Video, 0.8 m Analog
Cable, Video, 1.8 m Analog
Cable, Video, 3.8 m Analog
Speaker kit, pearl white
Speaker kit, iron gray
Power brick, universal, +15V (all models except 10D and 1FR)
MSR/Keylock, 3-track, pearl white
MSR/Keylock, 3-track, iron gray
Keypad/MSR/Keylock, 3-track, pearl white
Keypad/MSR/Keylock, 3-track, iron gray
Cable, standard USB, 1.8 m
Cable, standard USB, 3.8 m
Cable, power
Parts not shown:
Cable cover, 12 inch, pearl white
Cable cover, 12 inch, iron gray
Cable cover, 15 inch, pearl white
Cable cover, 15 inch, iron gray
Cable, USB, 0.8 m
Cable, USB, 1.8 m
Cable, USB, 3.8 m
Cable, analog VGA to DVI, 0.3 m
Lock installation kit
Non-operating lock insert (plug)
Tumbler, lock combination 1
Tumbler, lock combination 2
Tumbler, lock combination 3
Tumbler, lock combination 4
Tumbler, lock combination 5
Tumbler, lock combination 6
Tumbler, lock combination 7
Tumbler, lock combination 8
Tumbler, lock combination 9
Tumbler, lock combination 10
Appendix A. Field-replaceable units
51
Assembly 2: 4820 mounting hardware
1
2
3
4
6
5
7
9
10
11
8
12
52
4820 Models 21G, 21W, 51G, and 51W Guide
Assembly 2: (continued)
Asm–
Index
Part
Number
2–1
–1
–2
–2
–2
–2
–3
–3
–4
–4
–5
–5
–6
–6
–8
–9
–10
–11
–12
–12
84Y2906
84Y2916
43P8624
10N1206
84Y2907
84Y2917
43P8586
10N1205
84Y2903
84Y2913
57P4336
10N1309
57P4337
10N1317
84Y2984
84Y2984
84Y2984
84Y2985
84Y2951
84Y2941
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
–
–
–
84Y2853
84Y2843
41J7817
1
1
1
–
41J7959
1
–
–
–
–
–
–
–
–
–
–
–
40N6197
10N0950
9992901
41J6838
41J1051
41J1053
41J6836
08L2144
14J0930
14J0624
08L2143
10
Units Description
Hinge cover, pearl white
Hinge cover, iron gray
Monitor connections cover, pearl white
Monitor connections cover, iron gray
Recess cover, pearl white
Recess cover, iron gray
Arm cover, pearl white
Arm cover, iron gray
15 inch integrated stand pedestal, pearl white
15 inch integrated stand pedestal, iron gray
Filler panel kit, wide 4800, pearl white
Filler panel kit, wide 4800, iron gray
Filler panel kit, narrow 4800, pearl white/storm gray
Filler panel kit, narrow 4800, iron gray
VESA adapter bracket
VESA cover
Hinge cover
Integrated mount
Free-standing pedestal (distributed), pearl white
Free-standing pedestal (distributed), iron gray
Parts not shown:
Rear cover, free-standing pedestal (distributed), pearl white
Rear cover, free-standing pedestal (distributed), iron gray
Hold down screws, 4800 models 720, 740, 780 with slant tray (M5x40 mm
thumbscrew)
Hold down screws, 4800 models 720, 740, 780 without slant tray (M5x35 mm
thumbscrew)
Screw kit (M4x10 mm)
Brick, universal
No brick, powered USB
Medium analog video cable, 2.08m
Analog video cable, short, 0.8m
Analog video cable, long, 3.8m
Medium powered USB cable, 2.08m
Powered USB display cable, distributed, long length, 3.8m
Standard USB display cable, distributed, long length, 1.8m
Standard USB display cable, distributed, 3.8m
Powered USB display cable, integrated, .8m
Appendix A. Field-replaceable units
53
Assembly 2: (continued)
54
4820 Models 21G, 21W, 51G, and 51W Guide
Appendix B. Mounting surface template
Figure 36 on page 56 and Figure 37 on page 57 are the two halves of a template which you can use as a
guide for mounting the free-standing pedestal (done as two halves because it would be too large for this
book format as a single image). Print or photocopy both halves and tape or staple them together.
© Copyright IBM Corp. 2010
55
4.44 in
2.30 in
5.45 in
Figure 36. Left half of free-standing pedestal mounting template
56
4820 Models 21G, 21W, 51G, and 51W Guide
Figure 37. Right half of free-standing pedestal mounting template
Note: The metal base and the surrounding arm cover are both shown, to allow for precise positioning of
the entire assembly (not just the base plate) during installation.
Appendix B. Mounting surface template
57
58
4820 Models 21G, 21W, 51G, and 51W Guide
Appendix C. Safety information
Danger:
Before you begin to install this product, read the safety information in IBM Safety Information —
Read This First, GA27-4004. This booklet describes safe procedures for cabling and plugging in
electrical equipment.
Gevaar:
Voordat u begint met de installatie van dit produkt, moet u eerst de veiligheidsinstructies lezen in
de brochure Veiligheidsinstructies—Lees dit eerst, GA27-4004. Hierin wordt beschreven hoe u
electrische apparatuur op een veilige manier moet bekabelen en aansluiten.
Perigo:
Antes de começar a instalar este produto, leia as informações de segurança contidas em Informações
Sobre Seguranaça—Leia Isto Primeiro, GA27-4004. Esse folheto descreve procedimentos de segurança
para a instalação de cabos e conexões em equipamentos elétricos.
Fare!
Før du installerer dette produkt, skal du læse sikkerhedsforskrifterne i Sikkerhedsforskrifter—Lœs dette
først GA27-4004. Vejledningen beskriver den fremgangsmåde, du skal bruge ved tilslutning af kabler
og udstyr.
© Copyright IBM Corp. 2010
59
Gevaar
Voordat u begint met het installeren van dit produkt, dient u eerst de veiligheidsrichtlijnen te lezen
die zijn vermeld in de publikatie IBM Safety Information — Read This First, GA27-4004. In dit boekje
vindt u veilige procedures voor het aansluiten van elektrische appratuur.
VAARA
