Invacare Adjustable ASBA Seats Power Wheelchair Base

Invacare Adjustable ASBA Seats Power Wheelchair Base

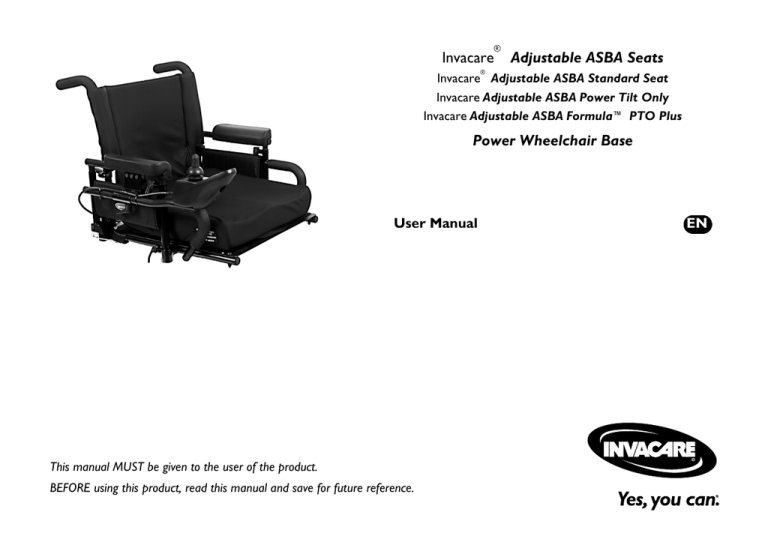

Invacare® Adjustable ASBA Seats
Invacare® Adjustable ASBA Standard Seat
Invacare Adjustable ASBA Power Tilt Only
Invacare Adjustable ASBA Formula™ PTO Plus
Power Wheelchair Base
User Manual
This manual MUST be given to the user of the product.
BEFORE using this product, read this manual and save for future reference.
EN
© 2011 Invacare Corporation. All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from
Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
Invacare® Adjustable ASBA Seats
2
Part No 1143192
1
GENERAL
8
2
Symbols .................................................................................................................................................................................................................................................... 8
Warnings............................................................................................................................................................................................................................................ 8
Reference Documents .......................................................................................................................................................................................................................... 9
Global Limited Warranty (Excluding Canada)............................................................................................................................................................................... 10
Canada Limited Warranty.................................................................................................................................................................................................................. 11
LABEL LOCATIONS
12
3
All Wheelchairs .................................................................................................................................................................................................................................... 12
Wheelchairs with TRRO.................................................................................................................................................................................................................... 13
Wheelchairs without TRRO ............................................................................................................................................................................................................. 13
Pronto® M91™ with Formula PTO Plus Seating System........................................................................................................................................................... 14
SAFETY
15
General Guidelines .............................................................................................................................................................................................................................. 15
Operation Information ....................................................................................................................................................................................................................... 16
Setup ................................................................................................................................................................................................................................................. 16
Transport......................................................................................................................................................................................................................................... 17
Powered Seating............................................................................................................................................................................................................................. 18
Repair or Service Information .................................................................................................................................................................................................... 19
Safety/Handling ..................................................................................................................................................................................................................................... 20
Pinch Points..................................................................................................................................................................................................................................... 21
Stability and Balance ...................................................................................................................................................................................................................... 22
Footplates and Front Rigging....................................................................................................................................................................................................... 22
Part No 1143192
3
Invacare® Adjustable ASBA Seats
4
Reaching, Leaning and Bending - Forward................................................................................................................................................................................22
Reaching, Bending - Backward.....................................................................................................................................................................................................22
Transferring To and From Other Seats ....................................................................................................................................................................................23
Storage ..............................................................................................................................................................................................................................................23
Weight Training ..............................................................................................................................................................................................................................23
Weight Limitation...........................................................................................................................................................................................................................23
Electromagnetic Interference (EMI) From Radio Wave Sources ..............................................................................................................................................24
Powered Wheelchair Electromagnetic Interference (EMI) ..................................................................................................................................................25
TECHNICAL DATA
26
5
Typical Product Parameters...............................................................................................................................................................................................................26
Seat ....................................................................................................................................................................................................................................................26
Weight ..............................................................................................................................................................................................................................................28
USAGE
29
Preparing the Joystick for Use...........................................................................................................................................................................................................29
A Note About Drive Lock-Out ........................................................................................................................................................................................................30
Operating Powered Seating Systems ...............................................................................................................................................................................................31
Using the Powered Seating Switch.............................................................................................................................................................................................32
Using the MK6i SPJ+ w/ACC Joystick .......................................................................................................................................................................................32
Using the CMPJ+ Joystick .............................................................................................................................................................................................................34
Programmable Mono Ports 1 and 2 with External Mode Switch........................................................................................................................................36
Remote On/Off Switch .................................................................................................................................................................................................................36
Mode Switch ....................................................................................................................................................................................................................................37
Memory Card Slot .........................................................................................................................................................................................................................37
About Front Riggings ...........................................................................................................................................................................................................................38
Installing/Removing Footrests............................................................................................................................................................................................................38
PH904A, PHAL4A, 70° and PW93.............................................................................................................................................................................................38
70° Taper .........................................................................................................................................................................................................................................39
Raising/Lowering Elevating Front Riggings ......................................................................................................................................................................................39
Invacare® Adjustable ASBA Seats
4
Part No 1143192
6
Installing/Removing Elevating Legrests ............................................................................................................................................................................................ 40
Installing............................................................................................................................................................................................................................................ 40
Removing ......................................................................................................................................................................................................................................... 40
Raising/Lowering Elevating Legrests and/or Adjusting Calfpads ............................................................................................................................................... 41
Raising/Lowering Elevating Legrests .......................................................................................................................................................................................... 41
Adjusting Calfpads ......................................................................................................................................................................................................................... 41
Removing/Installing the Manual Center Mount Footrest............................................................................................................................................................ 42
Removing ......................................................................................................................................................................................................................................... 42
Installing............................................................................................................................................................................................................................................ 42
Installing/Removing the Power Elevating Legrests ....................................................................................................................................................................... 43
Installing the Power Elevating Legrests..................................................................................................................................................................................... 43
Removing the Power Elevating Legrests................................................................................................................................................................................... 44
Installing/Removing Flip Back Armrests.......................................................................................................................................................................................... 45
Installing............................................................................................................................................................................................................................................ 45
Removing ......................................................................................................................................................................................................................................... 45
Adjusting Flip Back Armrests ............................................................................................................................................................................................................ 46
Positioning Flip Back Armrests for User Transfer ................................................................................................................................................................. 46
Positioning Flip Back Armrests for Use.................................................................................................................................................................................... 46
Adjusting .......................................................................................................................................................................................................................................... 46
Using Non-Locking Cantilever Arms .............................................................................................................................................................................................. 47
Operating the Manual Recliner Option .......................................................................................................................................................................................... 48
Operating the Manual Tilt Option (TDX Spree Only) ............................................................................................................................................................... 49
ADJUSTMENT
51
Footrest Height Adjustment ............................................................................................................................................................................................................. 51
PH904A and PHAL4A Front Riggings ....................................................................................................................................................................................... 51
70° and PW93 ................................................................................................................................................................................................................................ 52
70° Taper......................................................................................................................................................................................................................................... 53
Part No 1143192
5
Invacare® Adjustable ASBA Seats
7
Adjusting Adjustable Angle Flip-Up Footplates .............................................................................................................................................................................54
Depth Adjustment..........................................................................................................................................................................................................................54
Angle Adjustment...........................................................................................................................................................................................................................55
Perpendicular and/or Inversion/Eversion Adjustment ...........................................................................................................................................................55
Adjusting the Height of the Manual Center Mount Footrest.....................................................................................................................................................56
Adjusting the Angle of the Manual Center Mount Footrest ......................................................................................................................................................57
Adjusting the Footplate Angle ...........................................................................................................................................................................................................58
Adjusting the Tension of the Flip Up Footplate ............................................................................................................................................................................59
Adjusting the Angle of the Cantilever Arm....................................................................................................................................................................................59
Adjusting the Back Angle ....................................................................................................................................................................................................................60
Adjusting the Manual Tilt Cable Assembly .....................................................................................................................................................................................61
Adjusting Back or Headrest Upholstery .........................................................................................................................................................................................61
SETUP/MAINTENANCE
62
Setup/Delivery Inspection...................................................................................................................................................................................................................62
User/Attendant Inspection Checklists.............................................................................................................................................................................................63
Inspect/Adjust Weekly ..................................................................................................................................................................................................................63
Inspect/Adjust Monthly .................................................................................................................................................................................................................63
Inspect/Adjust Periodically ...........................................................................................................................................................................................................64
Service Inspection.................................................................................................................................................................................................................................64
Six Month Inspection .....................................................................................................................................................................................................................65
Replacing Heel Loops ..........................................................................................................................................................................................................................66
Adjusting/Replacing Telescoping Front Rigging Support .............................................................................................................................................................67
Installing Adjustable Angle Flip-up Footplate Hinge .....................................................................................................................................................................68
Installing Adjustable Angle Flip-up Footplates................................................................................................................................................................................69
Composite/Articulating Footplate Heel Loop Replacement ......................................................................................................................................................70
Disassembly .....................................................................................................................................................................................................................................70
Assembly...........................................................................................................................................................................................................................................70
Invacare® Adjustable ASBA Seats
6
Part No 1143192
Repositioning Joystick ......................................................................................................................................................................................................................... 71
Disconnecting/Connecting the Joysticks ........................................................................................................................................................................................ 72
SPJ+ Joysticks .................................................................................................................................................................................................................................. 72
CMPJ+ Joysticks ............................................................................................................................................................................................................................. 73
Replacing Seat Positioning Strap....................................................................................................................................................................................................... 74
Wheelchairs with TRRO Option ............................................................................................................................................................................................... 74
Wheelchairs without TRRO Option......................................................................................................................................................................................... 74
Removing/Installing/Adjusting Headrest ......................................................................................................................................................................................... 75
Removing ......................................................................................................................................................................................................................................... 75
Installing............................................................................................................................................................................................................................................ 75
Adjusting Headrest Height .......................................................................................................................................................................................................... 75
Adjusting Headrest Depth/Direction ........................................................................................................................................................................................ 76
Replacing Headrest.............................................................................................................................................................................................................................. 76
Replacing Back or Headrest Upholstery ........................................................................................................................................................................................ 77
Replacing Back Upholstery .......................................................................................................................................................................................................... 77
Replacing Headrest Upholstery.................................................................................................................................................................................................. 77
Removing/Installing the Manual Tilt Release Lever from the Stroller Handle ....................................................................................................................... 78
Part No 1143192
7
Invacare® Adjustable ASBA Seats
1 GENERAL
1 General
1.1
Symbols
Warnings
Signal words are used in this manual and apply to hazards or unsafe practices which could result in personal injury or property damage.
See the information below for definitions of the signal words.

DANGER

WARNING

CAUTION
!

Danger indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Warning indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Caution indicates a potentially hazardous situation which, if not avoided, may result in property damage or minor injury or
both.
IMPORTANT
Indicates a hazardous situation that could result in damage to property if it is not avoided.
Gives useful tips, recommendations and information for efficient, trouble-free use.
Invacare® Adjustable ASBA Seats
8
Part No 1143192
1 GENERAL
1.2
Reference Documents

WARNING
Refer to wheelchair base user manual for additional safety and operation information.
Refer to the table below for part numbers of additional documents which are referenced in this manual.
MANUAL
PART NUMBER
MK6i™ Electronics Programming Guide
1141471
Adjustable ASBA Service Manual
1143238
PTO Plus Service Manual
1125031
Part No 1143192
9
Invacare® Adjustable ASBA Seats
1 GENERAL
1.3
Global Limited Warranty (Excluding Canada)
PLEASE NOTE: THE WARRANTY BELOW HAS BEEN DRAFTED TO COMPLY WITH FEDERAL LAW APPLICABLE TO PRODUCTS MANUFACTURED
AFTER JULY 4, 1975.
This warranty is extended only to the original purchaser who purchases this product within any country excluding CANADA when new and unused from Invacare
or a dealer. This warranty is not extended to any other person or entity and is not transferable or assignable to any subsequent purchaser or owner. Coverage
under this warranty will end upon any such subsequent sale or other transfer of title to any other person. For product purchased in Canada, please refer to the
Canada Limited Warranty.
This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
Invacare warrants the seat frame to be free from defects in materials and workmanship for a period of three (3) years from the date of purchase from Invacare or
a dealer, with a copy of the seller’s invoice required for coverage under this warranty. Invacare warrants all electronics and electrical components (excluding
batteries) and powered seating actuators to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase from
Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. Invacare warrants all remaining components (excluding all
upholstered materials and padded materials) to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase from
Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. If within such warranty periods any such product component
shall be proven to be defective, the product component shall be repaired or replaced, at Invacare's option. This warranty does not include any labor or shipping
charges incurred in replacement part installation or repair of any such product. Invacare's sole obligation and your exclusive remedy under this warranty shall be
limited to such repair and/or replacement.
For warranty service, please contact the dealer from whom you purchased your Invacare product. In the event you do not receive satisfactory warranty service,
please write directly to Invacare at the address on the bottom of the back cover. Provide dealer's name address, date of purchase, indicate nature of the defect
and, if the product is serialized, indicate the serial number. Do not return products to our factory without our prior consent.
LIMITATIONS AND EXCLUSIONS: THE FOREGOING WARRANTY SHALL NOT APPLY TO SERIAL NUMBERED PRODUCTS IF THE SERIAL NUMBER
HAS BEEN REMOVED OR DEFACED, PRODUCTS SUBJECT TO NEGLIGENCE, ACCIDENT, IMPROPER OPERATION, MAINTENANCE OR STORAGE,
COMMERCIAL OR INSTITUTIONAL USE, PRODUCTS MODIFIED WITHOUT INVACARE'S EXPRESS WRITTEN CONSENT (INCLUDING, BUT NOT
LIMITED TO, MODIFICATION THROUGH THE USE OF UNAUTHORIZED PARTS OR ATTACHMENTS); PRODUCTS DAMAGED BY REASON OF
REPAIRS MADE TO ANY COMPONENT WITHOUT THE SPECIFIC CONSENT OF INVACARE, OR TO A PRODUCT DAMAGED BY CIRCUMSTANCES
BEYOND INVACARE'S CONTROL, AND SUCH EVALUATION WILL BE SOLELY DETERMINED BY INVACARE. THE WARRANTY SHALL NOT APPLY
TO PROBLEMS ARISING FROM NORMAL WEAR AND TEAR OR FAILURE TO ADHERE TO THE PRODUCT INSTRUCTIONS. A CHANGE IN
OPERATING NOISE, PARTICULARLY RELATIVE TO MOTORS AND GEARBOXES DOES NOT CONSTITUTE A FAILURE OR DEFECT AND WILL NOT
BE REPAIRED; ALL DEVICES WILL EXHIBIT CHANGES IN OPERATING NOISE DUE TO AGING.
THE FOREGOING EXPRESS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES WHATSOEVER, WHETHER EXPRESS OR
IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND THE SOLE REMEDY
FOR VIOLATIONS OF ANY WARRANTY WHATSOEVER, SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT
PURSUANT TO THE TERMS CONTAINED HEREIN. THE APPLICATION OF ANY IMPLIED WARRANTY WHATSOEVER SHALL NOT EXTEND
BEYOND THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN AND INVACARE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGES WHATSOEVER; SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGE, OR LIMITATION OF HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSION AND LIMITATION
MAY NOT BE APPLICABLE.
THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL LAWS AND REQUIREMENTS.
Invacare® Adjustable ASBA Seats
10
Part No 1143192
1 GENERAL
1.4
Canada Limited Warranty
This warranty is extended only to the original purchaser who purchases this product within Canada when new and unused from Invacare or a dealer. This
warranty is not extended to any other person or entity and is not transferable or assignable to any subsequent purchaser or owner. Coverage under this warranty
will end upon any such subsequent sale or other transfer of title to any other person.
This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
Invacare warrants the seat frame to be free from defects in materials and workmanship for a period of three (3) years from the date of purchase from Invacare or
a dealer, with a copy of the seller’s invoice required for coverage under this warranty. Invacare warrants all electronics and electrical components (excluding
batteries) and powered seating actuators to be free from defects in materials and workmanship for a period of two (2) years from the date of purchase from
Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. Invacare warrants all remaining components (excluding all
upholstered materials and padded materials) to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase from
Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. If within such warranty periods any such product component
shall be proven to be defective, the product component shall be repaired or replaced, at Invacare's option. This warranty does not include any labor or shipping
charges incurred in replacement part installation or repair of any such product. Invacare's sole obligation and your exclusive remedy under this warranty shall be
limited to such repair and/or replacement.
For warranty service, please contact the dealer from whom you purchased your Invacare product. In the event you do not receive satisfactory warranty service,
please write directly to Invacare at the address on the bottom of the back cover. Provide dealer's name address, date of purchase, indicate nature of the defect
and, if the product is serialized, indicate the serial number. Do not return products to our factory without our prior consent.
LIMITATIONS AND EXCLUSIONS: THE FOREGOING WARRANTY SHALL NOT APPLY TO SERIAL NUMBERED PRODUCTS IF THE SERIAL NUMBER
HAS BEEN REMOVED OR DEFACED, PRODUCTS SUBJECT TO NEGLIGENCE, ACCIDENT, IMPROPER OPERATION, MAINTENANCE OR STORAGE,
COMMERCIAL OR INSTITUTIONAL USE, PRODUCTS MODIFIED WITHOUT INVACARE'S EXPRESS WRITTEN CONSENT (INCLUDING, BUT NOT
LIMITED TO, MODIFICATION THROUGH THE USE OF UNAUTHORIZED PARTS OR ATTACHMENTS); PRODUCTS DAMAGED BY REASON OF
REPAIRS MADE TO ANY COMPONENT WITHOUT THE SPECIFIC CONSENT OF INVACARE, OR TO A PRODUCT DAMAGED BY CIRCUMSTANCES
BEYOND INVACARE'S CONTROL, AND SUCH EVALUATION WILL BE SOLELY DETERMINED BY INVACARE. THE WARRANTY SHALL NOT APPLY
TO PROBLEMS ARISING FROM NORMAL WEAR AND TEAR OR FAILURE TO ADHERE TO THE PRODUCT INSTRUCTIONS. A CHANGE IN
OPERATING NOISE, PARTICULARLY RELATIVE TO MOTORS AND GEARBOXES DOES NOT CONSTITUTE A FAILURE OR DEFECT AND WILL NOT
BE REPAIRED; ALL DEVICES WILL EXHIBIT CHANGES IN OPERATING NOISE DUE TO AGING.
THE FOREGOING EXPRESS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES WHATSOEVER, WHETHER EXPRESS OR
IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND THE SOLE REMEDY
FOR VIOLATIONS OF ANY WARRANTY WHATSOEVER, SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT
PURSUANT TO THE TERMS CONTAINED HEREIN. THE APPLICATION OF ANY IMPLIED WARRANTY WHATSOEVER SHALL NOT EXTEND
BEYOND THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN AND INVACARE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGES WHATSOEVER; SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGE, OR LIMITATION OF HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSION AND LIMITATION
MAY NOT BE APPLICABLE.
THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL LAWS AND REQUIREMENTS.
Part No 1143192
11
Invacare® Adjustable ASBA Seats
2 LABEL LOCATIONS
2 Label Locations

2.1
Refer to the user manual shipped with wheelchair base for additional label located on the wheelchair base.
All Wheelchairs
Weight Capacity
Label located here
Serial Number
Located HERE
WA R N I N G Refer to Service Manual to
reposition the seat - otherwise serious personal injury
and damage will result.
P/N 1114823 Rev B - 5/10/06
Invacare® Adjustable ASBA Seats
12
Part No 1143192
2 LABEL LOCATIONS
2.2
Wheelchairs with TRRO
2.3
Wheelchairs without TRRO

Part No 1143192
Auto style seat positioning strap
shown. This label is also on the
airline style seat positioning
strap.
13
Invacare® Adjustable ASBA Seats
2 LABEL LOCATIONS
2.4
Pronto® M91™ with Formula PTO Plus Seating System
Rear View of Actuator
Invacare® Adjustable ASBA Seats
14
Part No 1143192
3 SAFETY
3 Safety
The safety section contains important information for the safe operation and use of this product.
3.1
General Guidelines


!
WARNING
DO NOT use this product or any available optional equipment without first completely reading and understanding these
instructions and any additional instructional material such as user manuals, service manuals or instruction sheets supplied
with this product or optional equipment. If you are unable to understand the warnings, cautions or instructions, contact a
healthcare professional, dealer or technical personnel before attempting to use this equipment - otherwise, injury or
damage may occur.
Procedures other than those described in this manual must be performed by a qualified technician.
ACCESSORIES WARNINGS
Invacare products are specifically designed and manufactured for use in conjunction with Invacare accessories. Accessories
designed by other manufacturers have not been tested by Invacare and are not recommended for use with Invacare
products.
DO NOT connect any medical devices such as ventilators, life support machines, etc., directly to the batteries used to
power the wheelchair. This could cause unexpected failure of the device and the wheelchair.
NOTICE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.
Check all parts for shipping damage and test before using. In case of damage, DO NOT use. Contact Invacare/Carrier for
further instruction.
As a manufacturer of wheelchairs, Invacare endeavors to supply a wide variety of wheelchairs to meet many needs of the
end user. However, final selection of the type of wheelchair to be used by an individual rests solely with the user and his/
her healthcare professional capable of making such a selection. Invacare highly recommends working with a certified rehab
technology supplier and/or a member of NRRTS or RESNA.
Part No 1143192
15
Invacare® Adjustable ASBA Seats
3 SAFETY
3.1
Operation Information
Setup

WARNING
A qualified technician must perform the initial set up of this wheelchair. Also, a qualified technician must perform all
procedures in the service manual.
Performance adjustments should only be made by professionals of the healthcare field or persons fully conversant with this
process and the driver's capabilities. Incorrect settings could cause injury to the driver, bystanders, damage to the
wheelchair and to surrounding property.
After the wheelchair has been set-up/adjusted, check to make sure that the wheelchair performs to the specifications
entered during the set-up procedure. If the wheelchair does not perform to specifications, turn the wheelchair Off
immediately and reenter set-up specifications. Repeat this procedure until the wheelchair performs to specifications.
Invacare® Adjustable ASBA Seats
16
Part No 1143192
3 SAFETY
Transport

WARNING
DO NOT operate on roads, streets or highways.
WHEELCHAIR TIE-DOWN RESTRAINTS AND SEAT RESTRAINTS (TRRO OR TRBKTS)
Only use the transport brackets included with TRRO or TRBKTS for the purposes described in this manual.
TRRO (Transport Ready Option) - TRRO includes four factory-installed transport brackets and a wheelchair anchored
pelvic strap. TRRO has been crash-tested in accordance with ANSI/RESNA WC Vol 1 Section 19 Frontal Impact Test
requirements for wheelchairs with a 130 lb crash test dummy, which corresponds to a person with a weight of 125 to 165
lbs for junior seat sizes or a 168 lb crash dummy, which corresponds to a person with a weight of 165 to 300 lbs for adult
seat sizes.
TRBKTS (Wheelchair Transport Brackets) - TRBKTS includes four factory-installed wheelchair transport brackets.
TRBKTS has not been crash-tested in accordance with WC 19. Use these transport brackets only to secure an unoccupied
wheelchair during transport.
As of this date, the Department of Transportation has not approved any tie-down systems for transportation of a user
while in a wheelchair, in a moving vehicle of any type. It is Invacare’s position that users of wheelchairs should be transferred
into appropriate seating in vehicles for transportation and use be made of the restraints made available by the auto industry.
Invacare cannot and does not recommend any wheelchair transportation systems.
Refer to the transport ready section of the wheelchair base user manual for more information about transporting the
wheelchair.
STAIRWAYS AND ESCALATORS
DO NOT use an escalator to move a wheelchair between floors. Serious bodily injury may occur.
DO NOT attempt to lift the wheelchair by any removable (detachable) parts. Lifting by means of any removable
(detachable) parts of a wheelchair may result in injury to the user or damage to the wheelchair.
Part No 1143192
17
Invacare® Adjustable ASBA Seats
3 SAFETY
Powered Seating

WARNING
This seating system has been custom designed and will be assembled to the wheelchair base before delivery to the user.
The information contained in this manual is for maintaining and adjusting the seating system. There are very few
adjustments that can safely be made by the user. If there is a procedure or adjustment that needs to be performed on the
seating system that is not in this manual, DO NOT perform that procedure. Have the seating system serviced by a qualified
technician.
Use caution when driving in a tilted position.
DO NOT operate the seating system while on an incline.
DO NOT operate the seating system while the wheelchair is moving.
NEVER operate the wheelchair while in any tilted position over 20° relative to the vertical position. If the drive lock-out
does not stop the wheelchair from operating in a tilted position over 20° relative to vertical, DO NOT operate the
wheelchair. DO NOT attempt to adjust the drive lock-out. Have the wheelchair serviced by a qualified technician.
Use only the controls listed in Using the Powered Seating Switch on page 32 to activate the tilt functions. DO NOT USE
any other actuator controls. Such devices may result in excess heating and cause damage to the actuator and associated
wiring and could cause a fire, death, physical injury or property damage. If such devices are used, Invacare shall not be liable
and the limited warranty is void.
Specific actuator controls are noted for each function or combination throughout this manual.
DO NOT operate tilt seat around children.
ALWAYS keep hands and feet out from underneath tilt seat - otherwise serious injury may result.
DO NOT tip the seating system/wheelchair without assistance.
DO NOT store items under seat.
Cables must be routed and secured properly to ensure that cables DO NOT become entangled and damaged during
normal operation of seating system.
Systems equipped with power legrests only - NEVER allow items to become trapped between the legrest assemblies.
Otherwise, damage to the power legrest could occur.
Invacare® Adjustable ASBA Seats
18
Part No 1143192
3 SAFETY
Repair or Service Information

WARNING
Except for programming, DO NOT service or adjust the wheelchair while occupied, unless otherwise noted.
Before adjusting, repairing or servicing the wheelchair, ALWAYS turn the wheelchair power Off, otherwise, injury or
damage may occur.
Wheelchairs should be examined during maintenance for signs of corrosion (water exposure, incontinence, etc.). Electrical
components damaged by corrosion should be replaced immediately.
Wheelchairs that are used by incontinent users and/or are frequently exposed to water may require replacement of
electrical components more frequently.
DO NOT overtighten hardware attaching to the frame. This could cause damage to the frame tubing.
Transport ready packages are not retrofittable to existing models and are not field serviceable.
TDX® OR TDX SP, SR, SI, SC and SPREE WHEELCHAIR BASES ONLY
A pinch point exists between walking beam/head tube cap and telescoping tube when at the lowest seat to floor height.
POWERED SEATING SYSTEMS ONLY
Pinch point may occur when returning the tilted seat to the full upright position. Make sure the hands and body of the
occupant, attendants and bystanders are clear of all pinch points before returning the tilted seat to the full upright position.
PTO PLUS ONLY
If tilt function is not operating and is in the down (seated) position, PRIOR to servicing the device, refer to the seating
system service manual, part number 1125031, or contact Invacare Technical Services for instructions on how to safely
service the tilt system, actuator or spring assist module. Call 800-832-4707.
ALWAYS reinstall the spring safety bracket AND tether when servicing the PTO Plus seating system is complete. These
safety devices MUST be in place at all times, otherwise, injury or damage may occur.
Part No 1143192
19
Invacare® Adjustable ASBA Seats
3 SAFETY
3.2
Safety/Handling

WARNING
Refer to wheelchair base user manual for additional safety and operation information.
The seat positioning strap is a positioning strap ONLY. It is not designed for use as a safety device withstanding high stress
loads such as auto or aircraft safety straps. If signs of wear appear, strap MUST be replaced IMMEDIATELY.
DO NOT leave the power button On when entering or exiting your wheelchair.
DO NOT go UP or DOWN ramps or traverse slopes greater than 9°.
NEVER leave an unoccupied wheelchair unattended on an incline.
DO NOT attempt to move up or down an incline with water, ice or oil film.
DO determine and establish your particular safety limits by practicing bending, reaching and transferring activities in the
presence of a qualified healthcare professional before attempting active use of the wheelchair.
DO NOT attempt to reach objects if you have to move forward in your seat.
ALWAYS shift your weight in the direction you are turning. DO NOT shift your weight in the opposite direction of the
turn. Shifting your weight in the opposite direction of the turn may cause the inside drive wheel to lose traction and the
wheelchair to tip over.
DO NOT shift your weight or sitting position toward the direction you are reaching as the wheelchair and/or seating
system (if any) may tip over.
ALWAYS keep hands and fingers clear of moving parts to avoid injury.
DO NOT use with a broken or missing joystick knob.
DO NOT use if joystick does not spring back to the neutral position or becomes sticky or sluggish.
DO NOT use if joystick boot is torn or damaged.
ALWAYS check foam grips for looseness before using the wheelchair. If loose, contact a qualified technician for
instructions.
Invacare® Adjustable ASBA Seats
20
Part No 1143192
3 SAFETY
Pinch Points

WARNING
TDX and TDX SP, SR, SI, SC and Spree Wheelchairs Only - A pinch point exists between head tube cap and walking beam.
TDX and TDX SP, SR, SI, SC and Spree Wheelchairs Only - A pinch point exists between walking beam/head tube cap and
telescoping tube when the seat is in the lowest seat to floor height.
POWERED SEATING SYSTEMS ONLY - Pinch point may occur when returning the tilted seat to the full upright position.
Make sure the hands and body of the occupant, attendants and bystanders are clear of all pinch points before lowering seat
or returning the tilted seat to the full upright position.
Telescoping Tube
Walking Beam
Walking
Beam
Pinch Point
Headtube Cap
Front
Caster
Part No 1143192
Full Tilt
Position
Full
Upright
Position
Headtube Cap
(Not Shown)
Front Caster
21
Invacare® Adjustable ASBA Seats
3 SAFETY
Stability and Balance

WARNING
ALWAYS wear your seat positioning strap. The seat positioning strap is a positioning strap ONLY. It is not designed for use
as a safety device withstanding high stress loads such as auto or aircraft safety straps. If signs of wear appear, strap MUST be
replaced IMMEDIATELY.
To determine and establish your particular safety limits, practice use of this product on various sloping surfaces in the
presence of a qualified healthcare provider before attempting active use of this wheelchair. Other general warnings listed
within this document also apply.
DO NOT stand on the frame of the wheelchair.
Footplates and Front Rigging

WARNING
DO NOT use the footplates as a platform. When getting in or out of the wheelchair, make sure that the footplates are in
the upward position or swing footrests towards the outside of the wheelchair.
Reaching, Leaning and Bending - Forward
.

WARNING
DO NOT attempt to reach objects if you have to move forward in the seat or pick them up from the floor by reaching
down between your knees.
Reaching, Bending - Backward

WARNING
DO NOT lean over the top of the back upholstery. This will change your center of gravity and may cause you to tip over.
Invacare® Adjustable ASBA Seats
22
Part No 1143192
3 SAFETY
Transferring To and From Other Seats

WARNING
ALWAYS turn the wheelchair power OFF and engage the motor locks/clutches to prevent the wheels from moving before
attempting to transfer in or out of the wheelchair. Also make sure every precaution is taken to reduce the gap distance.
Align both casters parallel with the object you are transferring onto.
Storage

WARNING
Avoid storing or using the wheelchair near open flame or combustible products. Serious injury or damage to property may
result.
DO NOT use if the joystick boot is torn or cracked. If the joystick boot becomes torn or cracked, replace
IMMEDIATELY.
Weight Training

WARNING
Invacare DOES NOT recommend the use of its wheelchairs as a weight training apparatus. Invacare wheelchairs have
NOT been designed or tested as a seat for any kind of weight training. If occupant uses said wheelchair as a weight training
apparatus, INVACARE SHALL NOT BE LIABLE FOR BODILY INJURY AND THE WARRANTY IS VOID.
Weight Limitation

WARNING
Refer to Typical Product Parameters on page 26 and Typical Product Parameters in the manual shipped with the wheelchair
base to determine the weight limit (total combined weight of user and any attachments) of your wheelchair model. DO
NOT exceed the limit - otherwise, injury or damage may result.
Part No 1143192
23
Invacare® Adjustable ASBA Seats
3 SAFETY
3.3
Electromagnetic Interference (EMI) From Radio Wave Sources
Powered wheelchairs and motorized scooters (in this text, both will be referred to as powered wheelchairs) may be susceptible to electromagnetic
interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM)
transmitters, two way radios, and cellular phones. The interference (from radio wave sources) can cause the powered wheelchair to release its brakes,
move by itself, or move in unintended directions. It can also permanently damage the powered wheelchair's control system. The intensity of the
interfering EM energy can be measured in volts per meter (V/m). Each powered wheelchair can resist EMI up to a certain intensity. This is called its
"immunity level." The higher the immunity level, the greater the protection. At this time, current technology is capable of achieving at least a 20 V/m
immunity level, which would provide useful protection from the more common sources of radiated EMI.
There are a number of sources of relatively intense electromagnetic fields in the everyday environment. Some of these sources are obvious and easy
to avoid. Others are not apparent and exposure is unavoidable. However, we believe that by following the warnings listed below, your risk to EMI
will be minimized.
The sources of radiated EMI can be broadly classified into three types:
1. Hand-held Portable transceivers (transmitters-receivers with the antenna mounted directly on the transmitting unit. Examples include: citizens
band (CB) radios, “walkie talkie”, security, fire and police transceivers, cellular telephones, and other personal communication devices).

Some cellular telephones and similar devices transmit signals while they are ON, even when not being used.
2.
Medium-range mobile transceivers, such as those used in police cars, fire trucks, ambulances and taxis. These usually have the antenna mounted
on the outside of the vehicle; and
3.
Long-range transmitters and transceivers, such as commercial broadcast transmitters (radio and TV broadcast antenna towers) and amateur
(HAM) radios.

Other types of hand-held devices, such as cordless phones, laptop computers, AM/FM radios, TV sets, CD players, cassette
players, and small appliances, such as electric shavers and hair dryers, so far as we know, are not likely to cause EMI
problems to your powered wheelchair.
Invacare® Adjustable ASBA Seats
24
Part No 1143192
3 SAFETY
Powered Wheelchair Electromagnetic Interference (EMI)
Because EM energy rapidly becomes more intense as one moves closer to the transmitting antenna (source), the EM fields from hand-held radio wave
sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the powered wheelchair's
control system while using these devices. This can affect powered wheelchair movement and braking. Therefore, the warnings listed below are
recommended to prevent possible interference with the control system of the powered wheelchair.
Electromagnetic interference (EMI) from sources such as radio and TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular
phones can affect powered wheelchairs and motorized scooters.
FOLLOWING THE WARNINGS LISTED BELOW SHOULD REDUCE THE CHANCE OF UNINTENDED BRAKE RELEASE OR POWERED
WHEELCHAIR MOVEMENT WHICH COULD RESULT IN SERIOUS INJURY.

WARNING
1) DO NOT operate hand-held transceivers (transmitters receivers), such as citizens band (CB) radios, or turn ON
personal communication devices, such as cellular phones, while the powered wheelchair is turned ON;
2) Be aware of nearby transmitters, such as radio or TV stations, and try to avoid coming close to them;
3) If unintended movement or brake release occurs, turn the powered wheelchair OFF as soon as it is safe;
4) Be aware that adding accessories or components, or modifying the powered wheelchair, may make it more
susceptible to EMI (NOTE: There is no easy way to evaluate their effect on the overall immunity of the powered
wheelchair); and
5) Report all incidents of unintended movement or brake release to the powered wheelchair manufacturer, and
note whether there is a source of EMI nearby.
Important Information
1) 20 volts per meter (V/m) is a generally achievable and useful immunity level against EMI (as of May 1994) (the
higher the level, the greater the protection);
2) This device has been tested to a radiated immunity level of 20 volts per meter.
3) The immunity level of the product is unknown.
Modification of any kind to the electronics of this scooter as manufactured by Invacare may adversely affect the EMI
immunity levels.
Part No 1143192
25
Invacare® Adjustable ASBA Seats
4 TECHNICAL DATA
4 Technical Data
4.1
Typical Product Parameters

All dimensions are ± .50 inches unless otherwise indicated.
Seat
ADJUSTABLE
ASBA ADULT
ADJUSTABLE
ASBA JUNIOR
FORMULA PTO
PLUS
POWER TILT
ONLY
Seat Width Range:
16 to 20 inches
or
20 to 24 inchers
12 to 16 inches
16 to 22 inches
16 to 22 inches in
1-inch increments
(Curved Back)
12 to 22 inches in
1-inch increments
(Back Post Only)
Seat Depth Range (1 inch increments):
16 to 22 inches
12 to 18 inches
16 to 22 inches
16 to 22 inches in
1-inch increments
(Curved Back)
12 to 22 inches in
1-inch increments
(Back Post Only)
18 to 20 inches ± ¼
inch
0° Seat Angle: 18.25 ±
.25 inches
5° Seat Angle: 19.25 ±
.25 inches
Seat-to-Floor Height
*16-inch deep frame with AT5544 Legrests
Invacare® Adjustable ASBA Seats
26
Part No 1143192
4 TECHNICAL DATA
ADJUSTABLE
ASBA ADULT
ADJUSTABLE
ASBA JUNIOR
Overall Width
With Joystick:
Without Joystick
Overall Height:
Overall Length with Front Riggings
Turning Radius with Front Riggings
FORMULA PTO
PLUS
POWER TILT
ONLY
27 inches (with TRSS)
22.5 to 26.2 inches
22.25 to 26.25 inches
37 to 45 inches
38.75 inches
43¼ inches
*41 inches
28 inches
Back Height Range:
12 to 24 inches
12 to 22 inches
16 to 24 inches
12 to 24 inches in
1-inch increments
Back Angle Range:
85° to 105° in 5°
increments
85° to 105° in 5°
increments
85° to 105° in 5°
increments
85° to 105° in 5°
increments
Seat Pan Angle:
Adjustable Seat Angle (0° to 10°)
Tilt Range
0° Seat Pan Angle:
5° Seat Pan Angle:
Armrests:
Flip Back, Fixed or Adjustable Height (Desk and
Full Length)
Upholstery Options:
Seat Cushion:
0° or 5°
0° to 55°
5° to 60°
0° to 45° ± 3°
5° to 50° ± 3°
Adjustable Angle,
Height and Depth
Adjustable Height (10.5
to 14.5 inches) - Desk
or Full Length
Nylon
Cushion (Optional)
Front Riggings:
Center mount, Swingaway, Manually Elevating,
Power Elevating
Footrests:
Telescoping Front Rigging Supports, 2-inch and
4-inch long Pivot Slide Tube
*16-inch deep frame with AT5544 Legrests
Part No 1143192
27
Invacare® Adjustable ASBA Seats
4 TECHNICAL DATA
Weight

WARNING
If the seating system is mounted onto a power wheelchair that has a weight limitation greater than 275 lbs, the weight
limitation of the power wheelchair is 275 lbs. Example: The power wheelchair has a 300 lb weight limitation, the seating
system still has a weight limitation of 275 lbs, so the power wheelchair now has a 275 lb weight limitation.
**Seat Weight:
Maximum Weight Limitation

ADJUSTABLE
ASBA ADULT
ADJUSTABLE
ASBA JUNIOR
FORMULA PTO PLUS
POWER TILT
ONLY
43 lbs
36 lbs
25 lbs
65 lbs
Up to 400 lbs
Up to 150 lbs
Up to 275 lbs
Up to 375 lbs (with Spring
Assist)
On Torque™ SP
systems: 200 lbs
On all other systems:
250 lbs
**Adult seat weight based on 18 x 18 inch seat frame. Junior seat weight based on 12 x 12 inch seat frame.
Weight limitation is total weight (user weight plus any additional items that the user may require [back pack, etc.]).
Example: If weight limitation of the wheelchair is 300 lbs and additional items equal 25 lbs, subtract 25 lbs from 300 lbs this
means the maximum weight limitation of the user is 275 lbs.
Invacare® Adjustable ASBA Seats
28
Part No 1143192
5 USAGE
5 Usage

5.1
2.
3.
After ANY adjustments, repair or service and before use, make sure that all attaching hardware is tightened securely otherwise injury or damage may result.
Set-up of the Electronic Control Unit is to be performed only by a qualified technician. The final adjustments of the
controller may affect other activities of the wheelchair. Damage to the equipment could occur under these circumstances.
Preparing the Joystick for Use

1.
WARNING
For this procedure, refer to FIGURE 1.
The joystick is factory installed on the right side of
the wheelchair. To reposition the joystick onto the
left side of the wheelchair, refer to Repositioning
Joystick on page 71.

Turn the adjustment lock lever to release the adjustment lock from
joystick mounting tube.
Slide joystick mounting tube to the desired position.
Turn the adjustment lock lever to secure the adjustment lock to the
joystick mounting tube.
Joystick Mounting
Tube
Adjustment Lock
Lever
FIGURE 1
Part No 1143192
Joystick not shown.
29
Preparing the Joystick for Use
Invacare® Adjustable ASBA Seats
5 USAGE
5.2
A Note About Drive Lock-Out

WARNING
NEVER operate the wheelchair while the back is in any tilted/back angle position over 20° relative to the vertical position. If
the drive lock-out does not stop the wheelchair from operating in a tilt/back angle position over 20° relative to the vertical
position, DO NOT operate the wheelchair. DO NOT attempt to adjust the drive lock-out. Have the wheelchair serviced
by a qualified technician.
The wheelchair user MUST have a clear line of sight to drive safely. On initial chair delivery and after adjusting the back
angle, drive lock-out switch or tilt system, tilt the seat back to the farthest driving position immediately before drive lockout engages and ensure there is a clear line of sight present in which to drive the wheelchair. If a clear line of sight is not
present, have the back angle repositioned or readjust the lockout angle such that safe driving with a clear line of sight is
achieved. Otherwise injury or damage may occur.
One of the following will occur when the drive lock-out feature has been activated:
•
CMPJ+ Joysticks Only -  TILT WARNING or  SPM Controller Inhibited displays on the joystick or display unit.
•
SPJ+ Joysticks Only - Left to right chase alternating with a steady display.
Drive lock-out is a feature designed to prevent the wheelchair from being driven after the seating system has been tilted beyond 20°* relative to the
vertical position. The back can be positioned at a 10° relative offset to the seat base, thereby resulting in a back angle potential of 30° before which
the drive lock-out is activated. This may affect the wheelchair user’s line of sight while driving. Make sure the wheelchair user can see properly to
ensure safe driving.

*20° back angle can be any combination of tilt, back angle and/or surface angle.
Refer to Typical Product Parameters on page 26 for tilt angle ranges.
Invacare® Adjustable ASBA Seats
30
Part No 1143192
5 USAGE
5.3
Operating Powered Seating Systems

GENERAL WARNINGS
Refer to A Note About Drive Lock-Out on page 30 before performing this procedure.
Pinch points may occur when returning the seat from any tilted position to the full upright position or when lowering the
elevating seat. Make sure the hands and body of both the occupant and attendants/bystanders are clear of all pinch points
before returning the seat to the full upright position or lowering the elevating seat.
NEVER operate the wheelchair while the back is in any tilted/back angle position over 20° relative to the vertical position. If
the drive lock-out does not stop the wheelchair from operating in a tilt/back angle position over 20° relative to the vertical
position, DO NOT operate the wheelchair. DO NOT attempt to adjust the drive lock-out. Have the wheelchair serviced
by a qualified technician.
Use caution when driving in a tilted position.
DO NOT operate the seating system while on an incline.
DO NOT operate seating system while the wheelchair is moving.
DO NOT operate the tilt function near or under a fixed object such as a table or desk.
ACTUATOR CONTROL WARNING
Use only the actuator controls listed in the following chart to activate the tilt/recline/elevate functions. DO NOT USE any
other actuator controls. Such devices may result in excess heating and cause damage to the actuator and associated wiring
and could cause a fire, death, physical injury or property damage. If such devices are used, Invacare shall not be liable and the
limited warranty is void.
SYSTEM TYPE
Single Actuator (Tilt Only)
Part No 1143192
JOYSTICK
POWERED SEATING CONTROL
4 POLE MOTOR
SWITCH OPTION
THROUGH THE JOYSTICK (TTJ)
MK6i SPJ+ w/PSS
MK6i SPJ+ w/ACC
CMPJ+
Powered Seating Switch
31
No
Yes
Yes with SANODE
Invacare® Adjustable ASBA Seats
5 USAGE

This procedure only applies to wheelchairs with Formula PTO Plus or Power Tilt Only seating systems.
Using the Powered Seating Switch

1.
2.
3.
The powered seating switch can be used with all joysticks.
The powered seating switch will alternate functions (increase tilt angle, decrease tilt angle) after it has been released for a
minimum of three seconds.
Make sure the wheelchair is on a level surface.
Press the powered seating switch once to activate the actuator.
Press the powered seating switch again (after at least 3 seconds) to activate the actuator in the opposite direction.
Using the MK6i SPJ+ w/ACC Joystick

1.
2.
Make sure the wheelchair is on a level surface.
Press the mode button to switch from driving mode to tilt mode.

3.
For this procedure, refer to FIGURE 2 on page 33.
The LED will light up with a circle around it.
Move the joystick:
•
Forward - Tilts the seat back.
•
Backward - Tilts the seat upright.
Invacare® Adjustable ASBA Seats
32
Part No 1143192
5 USAGE
Joystick
Information
Gauge Display
On/Off Button
Decrease Speed Button
(Tortoise)
GREEN LED
Mode Button*
Speedometer
Increase Speed Button
(Hare)
Service Indicator
Additional Input for
Powered Seating
Switch
Charger/
Programming
Input

Active
(If Programed)
*The mode button is only present on SPJ+ w/ACC joystick.
FIGURE 2 Using the MK6i SPJ+ w/ACC Joystick
Part No 1143192
33
Invacare® Adjustable ASBA Seats
5 USAGE
Using the CMPJ+ Joystick

1.
Make sure the wheelchair is on a level surface.

2.
3.
4.
For this procedure, refer to FIGURE 3 on page 35.
ICON
The drive select toggle switch is located on the left
side, below the LCD. The drive select position is
momentary, meaning that it will return to the
neutral position after a selection is made.
Tilt Operations
Combined Power Leg Operations
Select a drive that has the Actuator Control Switch Mode icon
displayed.
Select the Actuator Control Switch Mode icon (Detail “A”).
Four of the following icons will display when Actuator Control
Switch Mode is selected:

Right Leg Operations
Left Leg Operations
The location of the icons indicates the joystick
direction or quadrant (Detail “B”).
The three icons indicate up/down, up or down,
respectively.
No powered seating operation has been
programmed for this quadrant.
5.
Select the desired operation using the joystick or an equivalent
switch.

Invacare® Adjustable ASBA Seats
DESCRIPTION
34
While operating the powered seating system, the
selected icon will display on the screen along with
text indicating the current operation (Detail “C”).
Part No 1143192
5 USAGE
CMPJ+ Joystick Switches
and Indicators
Charger/
Programming Input
(Front of Joystick)
Drive Select
Toggle
Switch
Joystick
Programmable Mono
Port 1/2 or External
Mode Switch
Memory Card Slot
LCD
Display
Mode
Switch
DETAIL “A” - SELECTING
THE ACTUATOR CONTROL
SWITCH MODE
DETAIL “B” - ACTUATOR
CONTROL SWITCH MODE
EXAMPLE SCREEN
Operation
Icons
Actuator
Control
Switch Mode
Icon
Tilt Down Icon
(Move the joystick
down to use this
function)
Mode
Icons
DETAIL “C” - EXAMPLE SCREEN DURING POWERED
SEATING OPERATION
Speed
Control
Knob
Icon
Icon
Text
Remote On/
Off Input
To Controller
Text
FIGURE 3 Using the CMPJ+ Joystick
Part No 1143192
35
Invacare® Adjustable ASBA Seats
5 USAGE
Programmable Mono Ports 1 and 2 with External Mode Switch
The programmable mono port with external mode switch input is located at the rear of the joystick on the left side. The programmable mono port
input offers the choice of three options:
•
Remote drive select
•
Remote stop/mode (reset) input
•
Single actuator input
The single switch functions operate through mono port 1. An optional y-cable allows a second programmable function through mono port 2.
Remote Stop Switch
The remote reset switch may be used to stop the wheelchair if the wheelchair is in motion.
The remote reset switch also functions in the same way as the joystick mode switch when the wheelchair is not in motion. Refer to Mode Switch on
page 37.
Remote On/Off Switch
The remote On/Off switch input is located at the rear of the joystick on the right side and allows the power switch to be operated by an ability switch
(normally open momentary switch with mono plug). To use the remote On/Off feature, the Drive Select/On/Off switch must be in the On position.
Each activation of the ability switch will alternately turn the joystick On or Off.
Invacare® Adjustable ASBA Seats
36
Part No 1143192
5 USAGE
Mode Switch
The mode switch is used to select the operating mode for the wheelchair. The mode switch is located on the joystick. A mode switch is needed
whenever any of the following operating modes are programmed:
•
Environmental Controls (ECU 1, ECU 2, ECU 3, ECU 4)*
•
3 Speed Mode in Digital 3 Speed (Slow, Medium, Full)
•
Sleep Mode
•
RIM Mode*
•
Remote Drive Selection Mode*
•
Tilt/Recline Mode*
•
Information Center Display Selection (does not require Reset activation at power up)
If any of the above modes are selected, the control will require activation of the switch immediately after the power switch is turned On in order to
enter the drive mode. The second line of the LCD will display - PRESS RESET.

*In these modes, Standby Select allows the reset switch to be bypassed for users unable to activate the switch.
Memory Card Slot
The memory card slot is used with the basic or professional memory card for saving or reading wheelchair parameters.
Part No 1143192
37
Invacare® Adjustable ASBA Seats
5 USAGE
5.4
About Front Riggings

WARNING
While the wheelchair is moving, minimum ground clearance for the front rigging is three inches. If the wheelchair is not
moving, the front rigging MUST maintain a minimum of one inch ground clearance - otherwise personal injury and damage
may result.
DO NOT stand on the flip-up footboard. When getting in or out of the wheelchair, make sure that the flip-up footboard is
in the upward position.
PINCH POINT EXISTS BETWEEN CENTER MOUNT FOOTREST AND CASTERS - There is limited clearance between
center mount footrest and casters. The user’s feet MUST remain on the center mount footrest while operating the
wheelchair. If the user’s feet are allowed to rest off the side of the center mount footrest they may come in contact with
the caster possibly resulting in injury.
Installing/Removing Footrests
Footrest Release Lever
PH904A, PHAL4A, 70° and PW93
1.
2.
3.
Turn the footrest to the side (open footplate is perpendicular to
wheelchair).
Install the hinge plates on the footrest onto the hinge pins on the
wheelchair frame.
Push the footrest towards the inside of the wheelchair until it locks
into place.

4.
5.
6.
Hinge
Pins
Hinge Plate
The footplate will be on the inside of the
wheelchair when locked in place.
Footrest
Repeat STEPS 1-3 for other footrest assembly.
To remove the footrest, push the footrest release lever inward,
rotate footrest outward.
Adjust footrest height, if desired. Refer to Footrest Height
Adjustment on page 51.
Invacare® Adjustable ASBA Seats
FIGURE 4
38
Installing/Removing Footrests - Ph904A, Phal4A, 70° and
pw93
Part No 1143192
5 USAGE
70° Taper
1.
2.
3.
Turn the footrest to the side (open footplate is perpendicular to
wheelchair).
Insert footrest mounting pin into mounting tube.
Push the footrest towards the inside of the wheelchair until it locks
into place.

4.
5.
6.
The footplate will be on the inside of the
wheelchair when locked in place.
Footrest
Release
Lever
Mounting Tube
Repeat STEPS 1- 3 for the other footrest assembly.
To remove the footrest, push the footrest release lever inward,
rotate footrest outward.
Adjust footrest height, if desired. Refer to Footrest Height
Adjustment on page 51.
5.5
1.
Footrest Mounting
Pin
Footplate
FIGURE 5
Installing/Removing Footrests - 70° Taper
Raising/Lowering Elevating Front Riggings
Perform one of the following:
•
Raising - Pull back on the release lever and raise front rigging
to the desired height.
•
Release
Lever
Lowering - Support front rigging with one hand away from the
release lever. Push release lever downward with other hand.
FIGURE 6
Part No 1143192
39
Raising/Lowering Elevating Front Riggings
Invacare® Adjustable ASBA Seats
5 USAGE
5.6
Installing/Removing Elevating Legrests
Installing
1.
Turn legrest to side (open footplate is perpendicular to wheelchair).
2.
Install the legrest hinge plates onto the hinge pins on the wheelchair
frame.
Rotate legrest toward the inside of the wheelchair until it locks in
place.
3.

4.
5.
Calfpad
Hinge Pins
Legrest
Hinge Plates
The footplate will be on the inside of the
wheelchair when locked in place.
Legrest Release Handle
Repeat STEPS 1-3 for the opposite legrest.
After the user is seated in wheelchair, adjust footplate to correct
height by loosening nut and sliding the lower footrest assembly UP
or down until desired height is achieved.
Removing
1.
2.
3.
Push the legrest release handle toward the inside of the wheelchair
(facing the front of the wheelchair) and swing the legrest to the
outside of the wheelchair.
Lift UP on the legrest and remove from the wheelchair.
Repeat STEPS 1- 2 for opposite side of wheelchair.
Invacare® Adjustable ASBA Seats
Bolt/Nut
FIGURE 7
40
Installing/Removing Elevating Legrests
Part No 1143192
5 USAGE
5.7
Raising/Lowering Elevating Legrests and/or Adjusting Calfpads
Raising/Lowering Elevating Legrests
1.
Legrest to Normal Position
Perform one of the following:
•
Raising - Pull back on the release lever until the leg is at the
desired height.
•
Lowering - Support leg with one hand and push release lever
downward with other hand.
Adjusting Calfpads
1.
2.
Turn the calfpad towards the outside of the wheelchair.
Slide the calfpad UP or down until the desired position is obtained.

3.
If one of the top two calfpad adjustment positions
is being used, the legrest will need to be raised to
avoid interference with the front stabilizers while
going over obstacles or going UP and down ramps.
Refer to Raising/Lowering Elevating Legrests on
page 41.
Adjust Calfpad
Secure Calfpad
Turn the calfpad towards the inside of the wheelchair.
FIGURE 8
Part No 1143192
41
Raising/Lowering Elevating Legrests and/or Adjusting
Calfpads
Invacare® Adjustable ASBA Seats
5 USAGE
5.8
Removing/Installing the Manual Center Mount Footrest
Removing
1.
2.

Remove the rigging pivot pin that secures the footrest to the
mounting bracket of the seat frame.
Hold the footrest with one hand and engage the release lever with
the other while simultaneously pulling the center mount footrest
out of the mounting bracket of the seat frame.
Release lever located towards the front
or center of seat frame.
Installing
1.
2.
Engage the release lever with one hand, hold the center mount
footrest with the other, and insert the center mount footrest into
the mounting bracket of the seat frame.
Reinstall the rigging pivot pin to secure the center mount footrest
to the mounting bracket of the seat frame.
Rigging Pivot
Pin
Seat Frame Mounting Bracket
Center Mount Footrest
FIGURE 9
Invacare® Adjustable ASBA Seats
42
Removing/Installing the Manual Center Mount Footrest
Part No 1143192
5 USAGE
5.9
Installing/Removing the Power Elevating Legrests

WARNING
To prevent personal injury, always verify proper positioning of legs and feet prior to use. Individual user weight may impact
the rate of travel for each legrest assembly. If simultaneous operation is desired, select a speed which allows for the most
uniform travel.
DO NOT insert fingers between legrest components, otherwise personal injury may occur.
CAUTION
Never allow items to become trapped between the legrest assemblies, otherwise damage to the power legrests may occur.
Ensure that all parts of both power legrests are clear of any obstructions before raising and lowering, otherwise damage to
the power legrests may occur.

Refer to FIGURE 10 on page 44.
Installing the Power Elevating Legrests
1.
2.
Turn power legrest to side (open footplate is perpendicular to wheelchair) (Detail “A” of FIGURE 10).
Insert the mounting pin of power legrest into the mounting hole of the seat frame (Detail “A” of FIGURE 10).

3.
Rotate the power legs toward the INSIDE of the wheelchair until it locks in place.

4.
5.
Make sure the legrest sits flush on the seat frame.
The footplate will be on the INSIDE of the
wheelchair when locked in place.
Repeat STEPS 1-3 for the opposite legrest.
Connect power legrest connector to jumper cable (Detail “B” of FIGURE 10).
Part No 1143192
43
Invacare® Adjustable ASBA Seats
5 USAGE
Removing the Power Elevating Legrests
1.
2.
3.
4.
Disconnect power legrest connector from jumper cable.
Push legrest release handle and swing legrest to the outside of the wheelchair.
Lift up on powered legrest and remove from wheelchair.
Repeat STEPS 1-3 for opposite power legrest.
DETAIL “A”
Mounting
Hole
Mounting Pin
DETAIL “B”
Calf Pad
Footplate
Jumper
Cable
Power Legrest
Connector
Legrest Release
Handle
FIGURE 10 Installing/Removing the Power Elevating Legrests
Invacare® Adjustable ASBA Seats
44
Part No 1143192
5 USAGE
5.10 Installing/Removing Flip Back Armrests


WARNING
Make sure the flip back armrest release and height adjustment levers are in the locked position before using the wheelchair.
Flip back armrest release lever must be in the unlocked (up-horizontal) position when placing the armrest into the arm
sockets.
Installing
1.
2.
3.
4.
5.
Flip Back Armrest
Visually inspect to ensure flip back armrest release lever is in the
unlocked (up-horizontal) position.
Slide the flip back armrest into the arm sockets on the seat frame.
Install the quick-release pin through the rear arm socket and flip
back armrest.
Lock the flip back armrest by pressing the flip back armrest release
lever into the down (vertical) position.
Repeat STEPS 1-4 for the opposite flip back armrest.
Flip Back
Armrest
Release
Lever
Locked
(Down - Vertical)
Removing
1.
2.
3.
4.
Unlock the flip back armrest by positioning the flip back armrest
release lever into the up (horizontal) position.
Remove the quick-release pin that secures the flip back armrest to
the rear arm socket.
Pull up on the flip back armrest and remove the armrest from the
arm sockets.
Repeat STEPS 1-3 for the opposite flip back armrest, if necessary.
Unlocked
(Up - Horizontal)
Rear Arm
Socket
Seat Frame
Quick-Release Pin
FIGURE 11
Part No 1143192
45
Front Arm Socket
Installing/Removing Footrests
Invacare® Adjustable ASBA Seats
5 USAGE
5.11 Adjusting Flip Back Armrests

Locked
(Down - Vertical)
WARNING
Make sure the flip back armrest release and height
adjustment levers are in the locked position before
using the wheelchair.
Height
Adjustment
Lever
Positioning Flip Back Armrests for User Transfer
1.
Unlock the flip back armrest by pulling the armrest release lever
into the up (horizontal) position.

2.
3.
4.
2.
3.
4.
5.
Unlocked
(Up - Horizontal)
WARNING
Armrest release lever MUST remain in the
horizontal position during transfer, otherwise
injury may result.
Flip Back
Armrest
Pull up on the flip back armrest and remove the armrest from the
front arm socket.
Continue to pull up on the flip back armrest until the armrest is out
of the way.
Repeat STEPS 1-3 for opposite flip back armrest, if necessary
Front Arm Socket
FIGURE 12
Positioning Flip Back Armrests for Use
1.
Flip Back
Armrest
Release Lever
Adjusting
Make sure the flip back armrest release lever is in the up
(horizontal) position.
Install the flip back armrest into the front arm socket.
Lock flip back armrest by pressing flip back armrest release lever
into the down (vertical) position.
Lift up on flip back armrest to make sure the armrest is locked in
place.
Repeat STEPS 1-4 for opposite flip back armrest, if necessary.
Invacare® Adjustable ASBA Seats
Adjusting Flip Back Armrests
1.
2.
3.
46
Unlock flip back armrest by pulling height adjustment lever into the
up (horizontal) position.
Adjust the flip back armrest to the desired height.
Lock flip back armrest by pushing height adjustment lever into the
down (vertical) position.
Part No 1143192
5 USAGE
5.12 Using Non-Locking Cantilever Arms

1.
2.
WARNING
DO NOT use lap trays with non-locking cantilever
arms.
Pull the end of the cantilever arm down to lower the cantilever arm.
Pull the end of the cantilever arm up to move it out of the way.
Cantilever Arm
FIGURE 13
Part No 1143192
47
Using Non-Locking Cantilever Arms
Invacare® Adjustable ASBA Seats
5 USAGE
5.13 Operating the Manual Recliner Option

1.
2.
3.
4.
5.
6.
7.
WARNING
NEVER operate the wheelchair while in any recline position over 105° relative to the seat frame. If the limit switch does not
stop the wheelchair from operating in a recline position greater than 105° relative to the seat frame, DO NOT operate the
wheelchair. Have the limit switch adjusted by a qualified technician.
Both gas cylinders MUST be operational and adjusted properly BEFORE using the recliner. DO NOT operate the recliner
option if only one of the gas cylinders is operational or adjusted properly.
TO HEALTHCARE PROFESSIONALS/ASSISTANTS:
Make sure the occupant of the wheelchair is properly positioned.
When returning the occupant of the wheelchair to the full upright position, more body strength will be required for
approximately the last twenty degrees of incline (reverse recline). Make sure to use proper body mechanics (use your legs)
or seek assistance if necessary to avoid injury.
Make sure the wheelchair is on a level surface.
Inform the occupant of the wheelchair that the wheelchair is about
to be reclined.
Stand behind the wheelchair and grasp both back canes firmly.
Pull up on the handles of the recliner cable assemblies to release the
gas cylinders.
Slowly, push down on the back canes while squeezing the handles
of the recliner cable assemblies in a continuous motion.
When the back reaches the desired angle, slowly let go of the
handles of the recliner cable assemblies.
To return the back to the full upright position, reverse the above
steps keeping in mind proper body mechanics.
Handle
FIGURE 14
Invacare® Adjustable ASBA Seats
48
Operating the Manual Recliner Option
Part No 1143192
5 USAGE
5.14 Operating the Manual Tilt Option (TDX Spree Only)

WARNING
NEVER operate the wheelchair while the back is in any tilted/back angle position over 20° relative to the vertical position. If
the drive lock-out does not stop the wheelchair from operating in a tilt/back angle position over 20° relative to the vertical
position, DO NOT operate the wheelchair. DO NOT attempt to adjust the drive lock-out. Have the wheelchair serviced
by a qualified technician.
The wheelchair user MUST have a clear line of sight to drive safely. On initial chair delivery and after adjusting the back
angle, drive lock-out switch or tilt system, tilt the seat back to the farthest driving position immediately before drive lockout engages and ensure there is a clear line of sight present in which to drive the wheelchair. If a clear line of sight is not
present, have the back angle repositioned or readjust the lockout angle such that safe driving with a clear line of sight is
achieved. Otherwise injury or damage may occur.
Make sure the occupant of the wheelchair is properly positioned in the wheelchair BEFORE using the tilt-in-space to
maintain maximum stability and safety.
The wheelchair MUST be operated by an assistant when in any tilt position.
Always engage both wheel locks while using the manual tilt option.
Always wear your positioning strap. If signs of wear appear, strap must be replaced immediately.
ALWAYS make sure that the wheelchair is stable before using the manual tilt option. Rear wheels may have to be
repositioned rearward depending on the degree of tilt required. ALWAYS ensure stability before using maximum amount
of tilt. test wheelchair before it is occupied by the end user to ensure safety.
DO NOT operate the manual tilt mechanism if the release levers and cables are not properly adjusted to ensure that the
wheelchair holds the tilted position. For adjustments on the manual tilt mechanism, refer to Adjusting the Manual Tilt Cable
Assembly on page 61.
A pinch point may occur when returning the tilted seat to the full upright position. Make sure the hands and body of the
occupant, attendants and bystanders are clear of all pinch points before returning the tilted seat to the full upright position.
Part No 1143192
49
Invacare® Adjustable ASBA Seats
5 USAGE

One of the following will occur when the drive lock-out feature has been activated:
•
CMPJ+ Joysticks Only -  TILT WARNING or  SPM Inhibited displays on the joystick or display unit.
•
SPJ+ Joysticks Only - Left to right chase alternating with a steady display.
Drive lock-out is a feature designed to prevent the wheelchair from being driven after the seating system has been tilted
beyond 20°* relative to the vertical position. This may affect the wheelchair user’s line of sight while driving. Make sure the
wheelchair user can see properly to ensure safe driving.
*20° back angle can be any combination of tilt, back angle and/or surface angle.
Tilt is a term used to define the angle between the seat rails and the ground/floor.
To tilt the seat parallel back to the upright position, reverse the following procedure.
1.
2.
3.
4.
5.
6.
7.
Place the wheelchair on a level surface.
Inform the occupant of the wheelchair that the wheelchair is about
to be tilted and remind them to lean back.
Make sure the occupant's hands and body are clear of all pinch
points.
Stand behind the wheelchair and grasp both release levers on the
stroller handle.
Pull up on the two tilt release levers to disengage the manual tilt
system.
Slowly, push down on the stroller handle while holding on the
release levers in a continuous motion.
When the seat reaches the desired angle, slowly let go of the two
release levers to engage the manual tilt system.
Seat Assembly in
Tilted Position
Tilt (Right) Release
Lever
Wheelchair
Base
FIGURE 15
Invacare® Adjustable ASBA Seats
50
Seat Lock (Left)
Release Lever
Stroller
Handle
Operating the Manual Tilt Option (TDX Spree Only)
Part No 1143192
6 ADJUSTMENT
6 Adjustment

WARNING
After ANY adjustments, repair or service and before use, make sure that all attaching hardware is tightened securely - otherwise
injury or damage may result.
While the wheelchair is moving, minimum ground clearance for the front rigging is three inches. If the wheelchair is not moving,
the front rigging MUST maintain a minimum of one inch ground clearance - otherwise personal injury and damage may result.
CAUTION
As with any vehicle, the wheels and tires should be checked periodically for cracks and wear, and should be replaced.
6.1
Footrest Height Adjustment


WARNING
While the wheelchair is moving, minimum ground
clearance for the front rigging is three inches. If the
wheelchair is not moving, the front rigging MUST
maintain a minimum of one inch ground clearance otherwise personal injury and damage may result.
PH904A style front rigging shown. PHAL4A front
rigging adjusts the same way.
Footrest
Support
Locknut
Lower Footrest
PH904A and PHAL4A Front Riggings
1.
2.
3.
4.
Loosen, but DO NOT remove, the lug bolt and locknut that secure
the lower footrest to the footrest support.
Reposition the lower footrest to the desired height.
Securely tighten the lug bolt and locknut that secure the lower
footrest to the footrest support.
Repeat STEPS 1-3 for the opposite side of the wheelchair footrest,
if necessary.
Part No 1143192
Lug Bolt
FIGURE 1
51
Footrest Height Adjustment
Invacare® Adjustable ASBA Seats
6 ADJUSTMENT
70° and PW93
1.
Remove any accessory from the footrest(s).

2.
3.
4.
5.
6.
7.
8.
Lay the footrest on a flat surface to simplify this
procedure.
Remove the footrest from the wheelchair. Refer to Installing/
Removing Footrests on page 38.
Remove the mounting screw, washers and locknut that secure the
lower footrest assembly to the upper footrest support (FIGURE 2).
Reposition the lower footrest to the desired height.
Reinstall the mounting screw, washers and locknut that secure the
lower footrest to the footrest support and tighten securely.
Repeat STEPS 1-5 for the opposite wheelchair footrest, if
necessary.
Reinstall the footrest(s) onto the wheelchair. Refer to Installing/
Removing Footrests on page 38.
Reinstall any accessory onto the footrest(s).
Invacare® Adjustable ASBA Seats
Footrest Support
Coved
Washer
Locknut
Coved
Washer
Hex Bolt
Lower
Footrest
FIGURE 2
52
Footrest Height Adjustment - 70° and PW93
Part No 1143192
6 ADJUSTMENT
70° Taper
1.
Remove any accessory from the footrest(s).
2.
Remove the footrest from the wheelchair. Refer to Installing/Removing Footrests on page 38.

3.
4.
5.
Remove the mounting screw and coved spacer that secures the
lower footrest assembly.
Position the footrest assembly to the desired height.
Secure lower footrest assembly with existing mounting screw and
coved spacer. Securely tighten.

6.
7.
Lay the assembly on a flat surface to improve access to the hardware.
Note the position of the spacers before disassembly.
Coved Spacer
Mounting Screw
Make sure spacers are positioned properly when
reassembling to prevent damage to the frame
mounting tubes.
Heel Loop
Footrest
Reinstall the footrest(s) onto the wheelchair. Refer to Installing/
Removing Footrests on page 38.
Reinstall any accessory onto the footrest(s).
Part No 1143192
FIGURE 3
53
Footrest Height Adjustment - 70° Taper
Invacare® Adjustable ASBA Seats
6 ADJUSTMENT
6.2
Adjusting Adjustable Angle Flip-Up Footplates
Depth Adjustment

1.
2.
90° Footrest Support
Flat Screw
Remove the two flat screws, washers and locknuts that secure
footplate to the half clamp.
Move footplate to one of four mounting positions.

3.
For this procedure, refer to FIGURE 4 on page 54.
Observe the angle of the footplate for reinstallation.
The settings for positioning the footplates on the halfclamps may vary for each footplate.
Footplate
Footplate
Hinge
Half Clamp
If desired depth is still not obtained, rotate the half
clamp on the footplate hinge 180°.
Washer
Retighten the two flat screws, washers and locknuts.
Locknut
Nylon
Adjustment
Screw
Half Clamp
Footplate Hinge
FIGURE 4
Invacare® Adjustable ASBA Seats
54
Adjusting Adjustable Angle Flip-Up Footplates
Part No 1143192
6 ADJUSTMENT
Angle Adjustment

1.
2.
3.
For this procedure, refer to FIGURE 4 on page 54
and FIGURE 5.
Observe the angle of the footplate for reinstallation.
The settings for positioning the footplates on the
half-clamps may vary for each footplate.
Side View of
Footplate and
Footrest
Support
Footrest Support
Footplate
Loosen, but DO NOT remove, the two flat screws, washer and
locknuts that secure the footplate to the footplate hinge
(FIGURE 4).
Position the footplate to the necessary angle to accommodate the
user (FIGURE 5).
Retighten the two flat screws, washers and locknuts.
FIGURE 5
Angle Adjustment
Perpendicular and/or Inversion/Eversion Adjustment

1.
2.
Front View of Footplate
and Footrest Support
For this procedure, refer to FIGURE 4 on page 54
and FIGURE 6.
It is not necessary to remove the footplate to
perform this adjustment.
Footrest Support
Insert a flathead screwdriver through the half clamp on the
footplate (FIGURE 4).
Slowly turn nylon adjustment screw in or out until footplate is
perpendicular to the footrest assembly or the desired inversion or
eversion is obtained (FIGURE 6).
Footplate
FIGURE 6
Part No 1143192
55
Perpendicular and/or Inversion/Eversion Adjustment
Invacare® Adjustable ASBA Seats
6 ADJUSTMENT
6.3
Adjusting the Height of the Manual Center Mount Footrest

1.
2.
3.
4.
WARNING
While the wheelchair is moving, minimum ground clearance for the front rigging is three inches. If the wheelchair is not moving,
the front rigging MUST maintain a minimum of one inch ground clearance - otherwise personal injury and damage may result.
PINCH POINT EXISTS BETWEEN CENTER MOUNT FOOTREST AND CASTERS - There is limited clearance between
center mount footrest and casters. The user’s feet MUST remain on the center mount footrest while operating the wheelchair. If
the user’s feet are allowed to rest off the side of the center mount footrest they may come in contact with the caster possibly
resulting in injury.
Remove the two mounting screws that secure the button head cleat
to the extension housing.
Adjust the footrest extension tube to the desired height.
Secure the extension tube to the desired height with the button
head cleat and mounting screws. Securely tighten.
Repeat STEPS 1-3 for the other extension tube.
Button Head
Cleat
Mounting
Screws
Extension Housing
Extension Tube Mounting
Holes
Extension
FIGURE 7
Invacare® Adjustable ASBA Seats
56
Adjusting the Height of the Manual Center Mount
Footrest
Part No 1143192
6 ADJUSTMENT
6.4
Adjusting the Angle of the Manual Center Mount Footrest


1.
2.
WARNING
While the wheelchair is moving, minimum ground clearance for the front rigging is three inches. If the wheelchair is not moving,
the front rigging MUST maintain a minimum of one inch ground clearance - otherwise personal injury and damage may result.
PINCH POINT EXISTS BETWEEN CENTER MOUNT FOOTREST AND CASTERS - There is limited clearance between
center mount footrest and casters. The user’s feet MUST remain on the center mount footrest while operating the wheelchair. If
the user’s feet are allowed to rest off the side of the center mount footrest they may come in contact with the caster possibly
resulting in injury.
Release lever located towards the front or center
of seat frame.
Footplate
Engage the release lever with one hand (not shown) and move the
center mount footrest to the desired angle with the other hand.
Disengage the release lever (not shown) to lock the center mount
footrest in the new position.
Center Mount
Footrest
FIGURE 8
Part No 1143192
57
Adjusting the Angle of the Manual Center Mount
Footrest
Invacare® Adjustable ASBA Seats
6 ADJUSTMENT
6.5
1.
2.
3.
Adjusting the Footplate Angle
Flip footplate up.
Screw the adjustment screw in or out until the desired angle is
achieved.
Repeat STEPS 1 and 2 for the other footplate.
Manual Center
Mount Footrest
Footplate
(shown away from Extension Tube)
Adjustment
Screw
FIGURE 9
Invacare® Adjustable ASBA Seats
58
Adjusting the Footplate Angle
Part No 1143192
6 ADJUSTMENT
6.6
Adjusting the Tension of the Flip Up Footplate

1.
3.
DO NOT remove the footplate mounting screw.
Mounting Screw
FIGURE 10
Adjusting the Tension of the Flip Up Footplate
Adjusting the Angle of the Cantilever Arm

Access to the adjustment screw is on the bottom of
the arm tube.
Back Cane
Adjust the cantilever arm angle as necessary to accommodate the
user.
•
To adjust the arm angle down, turn the adjustment screw
clockwise.
•
2.
Center Mount
Front Rigging
Tighten the front rigging angle hinge mounting screw to increase the
rotation effort.
Repeat STEPS 1 and 2 for the other footplate.
6.7
1.
Footplate
Loosen the mounting screw on the front rigging angle hinge to
decrease the rotation effort.

2.
The tension can be adjusted to increase or decrease
the rotation effort of the flip up footplates.
Arm Pad
To adjust the arm angle up, turn the adjustment screw
counterclockwise.
Arm Tube
Repeat STEP 1 to adjust the other cantilever arm (as necessary).
Adjustment Screw
FIGURE 11
Part No 1143192
59
Adjusting the Angle of the Cantilever Arm
Invacare® Adjustable ASBA Seats
6 ADJUSTMENT
6.8
Adjusting the Back Angle
1.
Loosen, but DO NOT remove, the two lower hex screws securing the cane brackets to the back canes.
2.
Remove the two upper hex screws, washers and locknuts securing the cane brackets to the back canes.
3.
Align the upper mounting holes in the back canes with the desired mounting holes in the cane brackets (Detail “A”).
4.
Install the two upper hex screws, washers and locknuts to secure the cane brackets to the back canes.
5.
Torque the locknuts to 13 ft-lbs.
DETAIL “A” - CANE
BRACKET MOUNTING
HOLES
95°
85°
90°
Back Cane
Locknut
Cane Bracket
105°
Washer
100°
Upper Hex
Screw
Lower Hex
Screw
FIGURE 12 Adjusting the Back Angle
Invacare® Adjustable ASBA Seats
60
Part No 1143192
6 ADJUSTMENT
6.9
Adjusting the Manual Tilt Cable Assembly

1.
2.
3.
4.
Tilt
Cylinders
For this procedure, refer to FIGURE 13.
For operating the manual tilt option, refer to
Operating the Manual Tilt Option (TDX Spree
Only) on page 49.
Loosen the jam nut (counterclockwise) on the cable.
Turn the cable adjuster until the right release lever engages the tilt
mechanism properly.
Retighten the jam nut (clockwise) on the cable.
Tilt the wheelchair to any tilt position. Refer to Operating the
Manual Tilt Option (TDX Spree Only) on page 49. Make sure the
wheelchair holds the position.

Jam Nut
Cable
Adjuster
If the wheelchair does not hold the position,
repeat STEPS 1-4 until the wheelchair is able to
hold the tilted position.
FIGURE 13
6.10 Adjusting Back or Headrest Upholstery
1.
Spreader Bar
Clockwise (towards back upholstery) to tighten back/headrest
upholstery.
FIGURE 14
Part No 1143192
Cable
Adjuster
Adjusting the Manual Tilt Cable Assembly
Headrest Upholstery
Rotate the spreader bar either:
•
Counterclockwise (away from back upholstery) to loosen
back/headrest upholstery.
•
Jam Nut
61
Back
Upholstery
Adjusting Back or Headrest Upholstery
Invacare® Adjustable ASBA Seats
7 SETUP/MAINTENANCE
7 Setup/Maintenance
7.1
Setup/Delivery Inspection









Setup/delivery inspection should be performed by dealer at time of delivery/set up.
Initial adjustments should be made to suit your personal body structure needs and preference. Thereafter weekly, monthly
and periodic inspections should be performed by user/attendant between the six month service inspections. Refer to User/
Attendant Inspection Checklists on page 63
Every six months, and as necessary, take your wheelchair to a qualified technician for a thorough inspection and servicing.
Refer to Service Inspection on page 64.
Refer to wheelchair base user manual for additional safety inspection and troubleshooting information.
Check all parts for shipping damage. In case of damage, DO NOT use.
Ensure clothing guards are secure
Ensure arms are secure but easy to release and adjustment levers engage properly.
Adjustable height arms operate and lock securely.
Powered Seating Systems - Make sure all electrical connections are secure.
Powered Seating Systems - Make sure drive lock-out operates properly.
Check that cables are routed and secured properly to ensure that cables DO NOT become entangled and damaged during normal operation of
seating system.
Ensure proper operation of powered functions (Example: seating and legrests).
Invacare® Adjustable ASBA Seats
62
Part No 1143192
7 SETUP/MAINTENANCE
7.2
User/Attendant Inspection Checklists


Every six months, and as necessary, take your wheelchair to a qualified technician for a thorough inspection and servicing.
Service Inspection on page 64.
Weekly, monthly and periodic inspections should be performed by user/attendant between the six month service
inspections.
Regular cleaning will reveal loose or worn parts and enhance the smooth operation of your wheelchair. To operate
properly and safely, your wheelchair must be cared for just like any other vehicle. Routine maintenance will extend the life
and efficiency of your wheelchair.
Refer to wheelchair base user manual for additional safety inspection and troubleshooting information.
CAUTION
As with any vehicle, the wheels and tires should be checked periodically for cracks and wear, and should be replaced.
Inspect/Adjust Weekly



Inspect all fasteners.
Inspect TRRO/TRBKTS fasteners and hardware.
Ensure proper operation of powered functions (Example: seating and legrests).
Inspect/Adjust Monthly


Clean upholstery and armrests.
Inspect seat positioning strap for any signs of wear. Ensure buckle latches. Verify hardware that attaches strap to frame is secure and undamaged.
Replace if necessary.
Part No 1143192
63
Invacare® Adjustable ASBA Seats
7 SETUP/MAINTENANCE
Inspect/Adjust Periodically













7.3
Inspect all fasteners.
Inspect TRRO/TRBKTS fasteners and hardware.
Ensure clothing guards are secure.
Ensure arms are secure but easy to release and adjustment levers engage properly.
Adjustable height arms operate and lock securely.
Ensure upholstery does not have any rips or tears.
Armrest pad sits flush against arm tube.
Inspect foam handgrips for damage. If damaged, have them replaced by a qualified technician.
Check center mount front riggings for loose fasteners. Replace /tighten if necessary.
Check that all labels are present and legible. Replace if necessary.
Powered Seating Systems - Make sure all electrical connections are secure.
Powered Seating Systems - Make sure drive lock-out operates properly.
Powered Seating Systems - Make sure tilt mechanism and tilt tracks are clean.
Service Inspection


Every six months take your wheelchair to a qualified technician for a thorough inspection and servicing.
Service inspections MUST be performed by a qualified technician.
Refer to wheelchair base user manual for additional safety inspection and troubleshooting information.
WARNING
After ANY adjustments, repair or service and before use, make sure that all attaching hardware is tightened securely otherwise injury or damage may result.
CAUTION
As with any vehicle, the wheels and tires should be checked periodically for cracks and wear, and should be replaced.
Invacare® Adjustable ASBA Seats
64
Part No 1143192
7 SETUP/MAINTENANCE
The following are recommended items to inspect during regular service inspections performed by a qualified technician. Actual items to be inspected
during the service inspection may vary according to the specific wheelchair:
Six Month Inspection



















Clean upholstery and armrests.
Check that all labels are present and legible. Replace if necessary.
Ensure clothing guards are secure.
Ensure adjustable height arms operate and lock securely.
Ensure upholstery does not have any rips or tears.
Ensure armrest pad sits flush against arm tube.
Ensure arms are secure but easy to release and adjustment levers engage properly.
Inspect seat positioning strap for any signs of wear. Ensure buckle latches. Verify hardware that attaches strap to frame is secure and undamaged.
Replace if necessary.
Check center mount front riggings for loose fasteners. Replace /tighten if necessary.
Check that cables are routed and secured properly to ensure that cables DO NOT become entangled and damaged during normal operation of
seating system.
Ensure proper operation of powered functions (seating, legrests, etc...).
Inspect electrical components for signs of corrosion. Replace if corroded or damaged.
Inspect all fasteners.
Inspect TRRO/TRBKTS fasteners and hardware.
Inspect foam handgrips for damage. If damaged, have them replaced by a qualified technician.
Check power center mount front riggings for worn/frayed straps and/or loose fasteners. If found, replace these items.
Powered Seating Systems - Make sure all electrical connections are secure.
Powered Seating Systems - Make sure drive lock-out operates properly.
Check limit switch position.
Part No 1143192
65
Invacare® Adjustable ASBA Seats
7 SETUP/MAINTENANCE
7.4
1.
2.
3.
4.
5.
6.
7.
Replacing Heel Loops
Note the position of hex bolt, coved washers and locknut for
reinstallation.
Remove the hex bolt, coved washers and locknut that secure the
lower footrest to the footrest support.
Remove the lower footrest.
Remove the phillips bolt, spacer and locknut that secure the existing
heel loop to the lower footrest.
Slide the existing heel loop off the lower footrest.
Replace heel loop.
Reverse STEPS 1-6 to reassemble.

Footrest Support
Hex Bolt
Locknut
Phillips Bolt
Coved
Washer
Lower
Footrest
When securing heel loop to lower footrest,
tighten the phillips screw and locknut until the
spacer is secure.
Heel Loop
Locknut
FIGURE 1
Invacare® Adjustable ASBA Seats
Spacer
66
Replacing Heel Loops
Part No 1143192
7 SETUP/MAINTENANCE
7.5
Adjusting/Replacing Telescoping Front Rigging Support

1.
2.
3.
4.
WARNING
If the telescoping tubes need to be extended greater than two inches, then the seat must be repositioned rearward to
ensure stability - otherwise personal injury and/or damage to the wheelchair and surrounding property may result.
Remove the two cap screws, spacers and threaded blocks securing the telescoping front tube to the side rail.
Perform one of the following:
•
Slide existing telescoping front rigging support to one of six depth positions.
•
Remove existing telescoping front rigging.
Secure the telescoping front tube to the side rail at the desired depth with the existing two cap screws, spacers and threaded blocks.
Repeat STEPS 1 to 3 on the opposite side, if desired.
Side Rail
Spacers
Cap Screws
Side Rail
Cap Screws
Threaded
Blocks
Telescoping
Front Tube
Spacers
FIGURE 2 Adjusting/Replacing Telescoping Front Rigging Support
Part No 1143192
67
Invacare® Adjustable ASBA Seats
7 SETUP/MAINTENANCE
7.6
1.
2.
3.
Installing Adjustable Angle Flip-up Footplate Hinge
Position footplate hinge on the footrest support tube at the desired height.
Position mounting screw, washers, spacer, and locknut on the footrest support as shown.
Flip the footplate hinge to the up position.

4.
5.
Tighten the mounting screw, washer, and locknut that secure the footplate hinge to the footrest support until the footplate hinge remains in the
up position.
Check the up and down motion of the footplate hinge to make sure the user of the wheelchair can operate the footplates easily.

6.
The footplate hinge will fall to the down position.
If footplate's motion is too tight, loosen the mounting screw and locknut approximately ¼-turn counterclockwise.
If the footplate's motion is too loose, tighten mounting screw and locknut approximately ¼-turn clockwise.
Adjust footplate. Refer to Installing Adjustable Angle Flip-up Footplates on page 69.
Footplate
Hinge
Mounting Screw
Locknut
Washers
Footrest Support
Spacer
FIGURE 3 Installing Adjustable Angle Flip-up Footplate Hinge
Invacare® Adjustable ASBA Seats
68
Part No 1143192
7 SETUP/MAINTENANCE
7.7
1.
2.
3.
Installing Adjustable Angle Flip-up Footplates
Slide the half clamp over the footplate hinge.
Hand tighten the two flat screws that secure the footplate to the
half clamp.
Adjust the footplates to the necessary angle and depth for the user.
Refer to Adjusting Adjustable Angle Flip-Up Footplates on page 54.
90° Footrest Support
Flat Screw
Footplate
Footplate
Hinge
Half Clamp
Washer
Locknut
Nylon
Adjustment
Screw
Half Clamp
Footplate Hinge
FIGURE 4
Part No 1143192
69
Installing Adjustable Angle Flip-up Footplates
Invacare® Adjustable ASBA Seats
7 SETUP/MAINTENANCE
7.8
Composite/Articulating Footplate Heel Loop Replacement
Disassembly
Composite
Composite
1.
Remove the mounting screw and coved washer that secures the
lower half of the footrest to the swingaway footrest assembly.
2. Remove the lower footrest assembly.
3. Remove the mounting screw and locknut that secure the heel loop
to the footrest.
4. Slide heel strap over cane of footrest assembly.
Articulating
1.
Cane of Footrest Assembly
Mounting Screw
Spacer
Composite
Footplate
Remove the two mounting screws that secure the heel loop to the
articulating footplate.
Locknut
Assembly
1.
2.
Replace heel strap/loop.
Reverse steps in Disassembly to assemble.

Articulating
Mounting Screw
When securing heel loop to the footrest assembly,
tighten mounting screw until the spacer is secure.
Heel Loop
Articulating
Footplate
FIGURE 5
Invacare® Adjustable ASBA Seats
70
Composite/Articulating Footplate Heel Loop
Replacement
Part No 1143192
7 SETUP/MAINTENANCE
7.9
Repositioning Joystick

1.
2.
3.
4.
5.
6.
7.
This procedure must be performed by a qualified technician.
Turn the adjustment lock lever to release the joystick mounting tube from the mounting bracket.
Remove the joystick from the wheelchair.
Remove the three hex screws that secure both halves of the mounting bracket to the arm tube.
Reposition mounting bracket on opposite arm tube ensuring the threaded plate of the mounting bracket is on the inside of the arm tube as shown
in FIGURE 6.
Using the three hex mounting screws and washers, secure both halves of the mounting bracket to the arm tube.
Slide the joystick mounting tube through the mounting bracket to the desired position.
Turn the adjustment lock lever to secure the joystick mounting tube into the mounting bracket.
Mounting Bracket
Mounting
Bracket
(Threaded
Plate)
Hex Mounting
Screws
Arm Tube
Washers

Adjustment Lock
Lever
Joystick
Mounting
Tube
Joystick not shown.
FIGURE 6 Repositioning Joystick
Part No 1143192
71
Invacare® Adjustable ASBA Seats
7 SETUP/MAINTENANCE
7.10 Disconnecting/Connecting the Joysticks

The joystick connector is located at the rear of the seat frame.
SPJ+ Joysticks
Disconnecting
1. Hold the light GREY collar portion of the joystick connector with one hand and the controller connector on the wheelchair in the other and
disconnect them by pulling them apart.
Connecting

1.
2.
WARNING
The joystick connector and controller connector
fit together in one way only. DO NOT force them
together.
Light Grey
Collar
Joystick Connector
Hold the light GREY collar portion of the joystick connector with
one hand and the controller connector on the wheelchair in the
other and align them.
Lightly push to engage the joystick connector and the controller
connector.
Invacare® Adjustable ASBA Seats
Controller
Connector
FIGURE 7
72
Disconnecting/Connecting the Joysticks - SPJ+ Joysticks
Part No 1143192
7 SETUP/MAINTENANCE
CMPJ+ Joysticks
Disconnecting
1.
2.
Top Connector
Cap
Pull the latch away from the joystick connector.
Disconnect the joystick connector from the remaining connectors
Latch
Connecting

1.
2.
3.
4.
5.
Ensure the gaskets are installed in the top
connector cap and between network connectors.
Network
Connectors
Ensure the latch is pulled away from the network connector.
Connect the network connector to the other connectors.
Top and Bottom Connectors - Install connector caps onto the
network connector.
Push the latch in to secure the network connectors and caps.
If necessary secure excess cable using tie-wraps.
Gasket
Controller
Cable
Bottom
Connector
Cap
FIGURE 8
Part No 1143192
73
Gasket
Gasket
Disconnecting/Connecting the Joysticks - CMPJ+
Joysticks
Invacare® Adjustable ASBA Seats
7 SETUP/MAINTENANCE
7.11 Replacing Seat Positioning Strap

WARNING
ALWAYS wear your seat positioning strap. The seat positioning strap is a positioning strap only. It is not designed for use
as a safety device withstanding high stress loads such as auto or aircraft safety straps. If signs of wear appear, strap MUST be
replaced immediately.
Wheelchairs with TRRO Option
Mounting
Holes
To replace the seat positioning strap, refer to wheelchair base user
manual supplied with wheelchair.
Mounting Screw
Wheelchairs without TRRO Option
1.
2.
3.
4.
5.
6.
7.
Seat Frame
Seat
Frame
Remove the seat cushion from the seat pan.
Move the flip back armrests out of the way. Refer to Adjusting Flip
Back Armrests on page 46.
Remove the two mounting screws, locknuts, washers and quickrelease pin tabs that secure the seat positioning straps to the seat
frame.
Remove the two halves of the seat positioning strap from the rear
seat frame.
Reposition the two new seat positioning strap inside of the seat
frame as shown.
Reinstall the two mounting screws and quick-release pin tabs that
secure the seat positioning straps to the seat frame and torque to
75 in-lbs.
Reinstall the seat cushion onto the seat pan.
Locknuts
Mounting
Screw
Washers
Quick-Release Pin Tab
FIGURE 9
Invacare® Adjustable ASBA Seats
Quick-Release
Pin Tab
74
Seat Positioning
Strap Halves
Replacing Seat Positioning Strap - Wheelchairs without
TRRO Option
Part No 1143192
7 SETUP/MAINTENANCE
7.12 Removing/Installing/Adjusting Headrest

CAUTION
If using a ventilator, verify headrest support does not interfere at all angles. Otherwise, injury or damage may occur.
Removing
1.
2.
Loosen, but DO NOT remove, the thumb screw that secures the
headrest to the headrest mounting bracket.
Remove the headrest from the headrest mounting bracket.
Offset Fixture
Slide Tube
Depth
Adjustment
Installing
1.
2.
3.
Make sure thumb screw is loose.
Install the headrest until the headrest stop sits on the headrest
mounting bracket.
If necessary, adjust the height, depth or direction of the headrest.
Refer to Adjusting Headrest Height on page 75 or Adjusting
Headrest Depth/Direction on page 76.
Socket
Screws
Height
Adjustment
Set Screw
Adjusting Headrest Height
1.
2.
3.
4.
5.
6.
Loosen the set screw on the headrest stop.
Loosen, but DO NOT remove, the thumb screw that secures the
headrest to the headrest mounting bracket.
Position the headrest to the desired height.
Tighten the thumb screw that secures the headrest to the headrest
mounting bracket.
Tighten the set screw on the headrest stop.
If necessary, adjust the depth or direction of the headrest. Refer to
Adjusting Headrest Depth/Direction on page 76.
Part No 1143192
Thumb
Screw
Headrest Mounting
Bracket
Headrest Stop
FIGURE 10
75
Removing/Installing/Adjusting Headrest
Invacare® Adjustable ASBA Seats
7 SETUP/MAINTENANCE
Adjusting Headrest Depth/Direction

1.
2.
3.
4.
5.
For this procedure, refer to FIGURE 10 on page 75.
Loosen, but DO NOT remove, the three socket screws that secure the offset fixture to the slide tube.
If necessary, reposition the headrest to the desired depth by sliding the headrest towards the front of the wheelchair or towards the rear of the
wheelchair.
If necessary, reposition the headrest to the desired position (headrest will move in any direction).
While holding the headrest in the desired position, securely tighten the three socket screws.
If necessary, adjust the height of the headrest. Refer to Adjusting Headrest Height on page 75.
7.13 Replacing Headrest
1.
2.
3.
Remove the three socket screws that secure the headrest to the headrest mounting bracket.
Position the new headrest on the headrest mounting bracket and secure with the existing three socket screws.
If necessary, adjust the height, depth or direction of the headrest. Refer to Adjusting Headrest Height or Adjusting Headrest Depth/Direction
on page 76.

Headrest Mounting Bracket
One style of headrest shown for
clarity. Both styles of headrest attach
the same way.
Socket Screw
Headrest
FIGURE 11 Replacing Headrest
Invacare® Adjustable ASBA Seats
76
Part No 1143192
7 SETUP/MAINTENANCE
7.14 Replacing Back or Headrest Upholstery
Replacing Back Upholstery
1.
2.
3.
4.
5.
Remove the ten or twelve mounting screws (depending on back
height) that secure the back upholstery to the back canes.
Remove existing back upholstery from back canes.
Install the new back upholstery onto the back canes.
Install the ten or twelve mounting screws (depending on back
height) that secure the back upholstery to the recliner back canes.
Adjust the back upholstery to the desired tautness. Refer to
Adjusting Back or Headrest Upholstery on page 61.

Headrest Upholstery
Headrest
Extension
Mounting
Screw
Changing the back upholstery height must be
performed by a dealer or qualified technician.
Replacing Headrest Upholstery
1.
2.
3.
4.
5.
Back
Cane
Remove the six mounting screws that secure the headrest
upholstery to the headrest extensions.
Remove the existing headrest upholstery from the headrest
extensions.
Install the new headrest upholstery onto the headrest extensions.
Install the six mounting screws that secure the headrest upholstery
to the headrest extensions.
Adjust the headrest upholstery to the desired tautness. Refer to
Adjusting Back or Headrest Upholstery on page 61.
Part No 1143192
Back
Upholstery
FIGURE 12
77
Replacing Headrest Upholstery
Invacare® Adjustable ASBA Seats
7 SETUP/MAINTENANCE
7.15 Removing/Installing the Manual Tilt Release Lever from the Stroller Handle

WARNING
After ANY adjustments, repair or service and BEFORE use, make sure all attaching hardware is tightened securely otherwise injury or damage may occur.
Removing

1.
2.
Stroller Handle
Cable
Cut tie-wrap that secures the cable to the back cane (Detail “A” of
FIGURE 13).
Remove the mounting screw and square nut that secures the tilt
release lever to the stroller handle.

Mounting Screw
For this procedure, refer to FIGURE 13.
DETAIL “A”
The tilt release cable is still connected to the tilt
cylinder.
Tilt
Release
Lever
Installing
Back
Cane
1.
Tie-Wrap
2.
3.
Secure the tilt release lever to the stroller handle with the existing
mounting screw and square nut.
Secure the cable to the wheelchair frame with tie wrap (Detail “A”
of FIGURE 13).
Adjust the tilt release cable, if necessary. Refer to Adjusting the
Manual Tilt Cable Assembly on page 61.
Tilt Release
Lever
FIGURE 13
Invacare® Adjustable ASBA Seats
Square Nut
78
Tie-Wrap
Removing/Installing the Manual Tilt Release Lever from
the Stroller Handle
Part No 1143192
7 SETUP/MAINTENANCE
Notes
Invacare® Adjustable ASBA Seats
79
Part No 1143192
Invacare Corporation
USA
One Invacare Way
Elyria, Ohio USA
44036-2125
800-333-6900
www.invacare.com
Part No 1143192
Rev H - 5/11
Canada
570 Matheson Blvd E Unit 8
Mississauga Ontario
L4Z 4G4 Canada
800-668-5324
Was this manual useful for you? yes no
Thank you for your participation!
