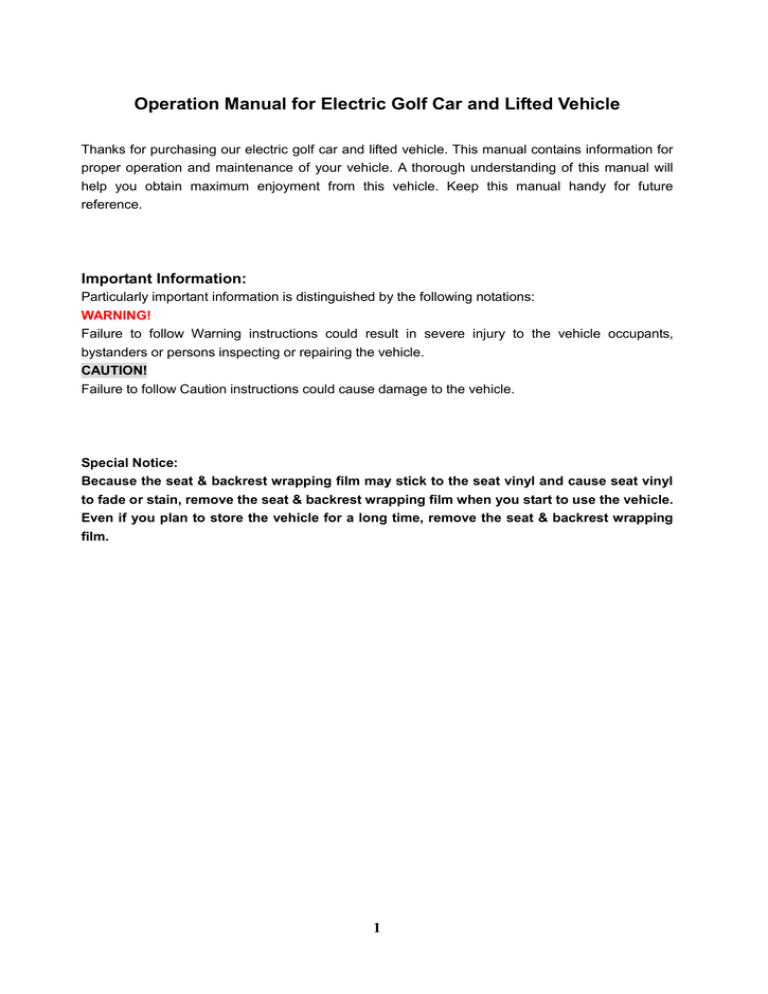

Operation Manual for Electric Golf Car and Lifted Vehicle

Thanks for purchasing our electric golf car and lifted vehicle. This manual contains information for proper operation and maintenance of your vehicle. A thorough understanding of this manual will help you obtain maximum enjoyment from this vehicle. Keep this manual handy for future reference.

Important Information:

Particularly important information is distinguished by the following notations:

WARNING!

Failure to follow Warning instructions could result in severe injury to the vehicle occupants, bystanders or persons inspecting or repairing the vehicle.

CAUTION!

Failure to follow Caution instructions could cause damage to the vehicle.

Special Notice:

Because the seat & backrest wrapping film may stick to the seat vinyl and cause seat vinyl to fade or stain, remove the seat & backrest wrapping film when you start to use the vehicle.

Even if you plan to store the vehicle for a long time, remove the seat & backrest wrapping film.

1

Pictures for reference

Standard Golf Car

2-passenger Golf Car 4-passenger Golf Car

Utility car based on 2-passenger golf car

6-passenger Golf Car

2+2, Jumper Seat 2+2, Flip Seat

Utility car based on 4-passenger golf car

2 seats, Cargo Box

4+2, Jumper Seat 4+2, Flip Seat 4 seats, Cargo Box 2 seats, Dumping Cargo

Box

2

Utility car based on 6-passenger golf car

Lifted Vehicle

6+2, Jumper Seat 6+2, Flip seat

2+2 Lifted Car

3

4+2 Lifted Car

TABLE OF CONTENTS

1. Overview ...................................................................................................................................................... 5

2. Safe Operation Instructions ...................................................................................................................... 6

3. Technical Data ............................................................................................................................................ 7

4. Controls ..................................................................................................................................................... 15

5. Operation ................................................................................................................................................... 21

6. Maintenance ............................................................................................................................................. 22

7. Troubleshooting ........................................................................................................................................ 31

8. Lubrication ................................................................................................................................................. 33

9. Running-in of New Vehicle ...................................................................................................................... 33

10. Periodic Maintenance Charts ............................................................................................................... 33

11. Storage ..................................................................................................................................................... 35

12. Wiring Diagram ....................................................................................................................................... 35

4

1. Overview

Our vehicle is environmentally friendly, and it can be used as people mover or utility car.

WARNING!

Always confirm whether there are restrictions in the area where you intend to use the vehicle. It is recommended that only people who possess a valid motor vehicle driver’s license be allowed to operate golf cars.

IMPORTANT LABELS

SAFETY LABEL

Read carefully and understand the contents on the safety label.

The label above is attached on the dash panel as below:

Vehicle Information (Name Plate)

The name plate is either on the back of the seat pod (Fig. 1) or below the dashboard (Fig. 2).

5

Fig.1 Fig.2

Chassis number of the vehicle

2. Safe Operation Instructions

Our vehicle is designed for simple operation; however, make sure you observe the following safe operation instructions.

6

BEFORE OPERATING:

 Read the user manual thoroughly before operating the vehicle.

 Allow only authorized people to operate the vehicle, and only from the driver’s side.

 Drive the vehicle only in areas where it is allowed by law or local regulations.

 DO NOT allow more people than is permitted on the vehicle.

DO NOT overload the vehicle, otherwise the motor may be damaged. The vehicle may also lose control and/or the driver and passengers will be in danger if overloaded.

DO NOT operate the vehicle under the influence of alcohol or drugs.

DO NOT climb any slope steeper than the vehicle’s climbing ability.

DO NOT overtake other vehicles at crossroads, in blind spots or in any dangerous areas.

WHILE OPERATING THE VEHICLE:

Keep your entire body inside the vehicle, keep seated and hold on while the vehicle is moving.

Do not start the vehicle until all occupants are securely seated.

Keep your hands on the steering wheel and your eyes on the path ahead.

Always back up slowly, and watch carefully.

Avoid starting or stopping suddenly.

Avoid turning the steering wheel sharply at high speed.

Always drive slowly up or down on a slope.

Do not make any modification or addition which may affect the safety of the vehicle.

3. Technical Specifications

The data below has been confirmed by an independent authority lab.

7

Standard Golf Car

ITEMS

Voltage (V)

Battery

Setup

36V

6pcs x 6V

Dimensions

(mm)

(L x W x H)

Range

(km/h) based on flat road at a speed of

20km/h

> 55

Maximum

Speed

(km/h) for

Gear Ratio of 12.49:1

Maximum

Speed

(km/h) for

Gear Ratio of 10.25:1

Minimum

Turning

Diameter

(m)

21

25

7

2-Passenger

6pcs x 8V

48V

2350*1180*1800

> 55

32 for 4KW motor

40 for 4KW motor

7

8pcs x 6V

7

> 80

>100(AC system)

32 for 3KW AC motor

40 for 5KW AC motor

36V

6pcs x 6V

4-Passenger

48V

8pcs x 6V

6pcs x 8V

>50

21

25

9

3110*1180*1890

> 55

32 for 4KW motor

6-Passenger

48V

8pcs x 6V

3860*1180*1940

> 70

>90(AC system)

---

11

32 for 4KW DC motor

32 for 3KW AC motor 40 for 4KW AC motor

40 for 5KW AC motor 40 for 5KW AC motor

27 for 3KW motor

40 for 4KW DC motor 40 for 4KW DC motor

9

> 80

>100(AC system)

9

8

Maximum

Loading

Capacity

(Kg)

270 370

Maximum

Gradeability

20% 25%

25%

20%(3KW AC system)

Noise (dB) ≤70

Maximum

Brake

Distance

(V=20km/h)

< 4

Utility car based on 2- passenger golf car

ITEMS

Voltage (V)

2+2 with Jumper seat

36V 48V

Battery

6pcs x 6V 8pcs x 6V

Setup

Dimensions

(mm)

(L x W x H)

Range (km) based on flat road at a speed of

20km/h

> 60

2670*1180*1890

>

70 >100(AC system)

36V

> 60

20% 25%

≤70

< 4

2+2 with Flip Seat

48V

6pcs x 6V 8pcs x 6V

2870*1180*1890

>

70 >100(AC system)

25% 20%

≤70

< 4

2 seats with Cargo Box

36V 48V

6pcs x 6V 8pcs x 6V

> 55

530

2680*1180*1800

>

70 >90(AC system)

9

Maximum

Speed

(km/h) for

Gear Ratio of 12.49:1

Minimum

Turning

Diameter

(m)

Maximum

Loading

Capacity

(Kg)

Loading

Capacity of the rear cargo bed(kg)

Maximum

Gradeability

Noise (dB)

Maximum

Brake

Distance

(V=20km/h)

21

7

32 for 4KW DC motor

40 for 5KW AC motor

320

--

20%

≤70

< 4

7 7

32 for 4KW DC motor

32 for 3KW AC motor

21

40 for 5KW AC motor

32 for 4KW DC motor

32 for 3KW AC motor

40 for 5KW AC motor

7 7 7

320 370

--

20%

≤70

< 4

210

20%

≤70

< 4

10

Maximum

Speed

(km/h) for

Gear Ratio of 12.49:1

Minimum

Turning

Diameter

(m)

Maximum

Loading

Capacity

(Kg)

Loading

Capacity of

Utility car based on 4-passenger golf car

ITEMS

Voltage (V)

4+2 with Jumper

Seat

48V

4+2 with Flip Seat

48V

Battery

8pcs x 6V 8pcs x 6V

Setup

Dimensions

(mm) 3420*1180*1940

(L x W x H)

3620*1180*1940

Range (km) based on flat road at a speed of

20km/h

>

70 >80(AC system)

>

70 >80(AC system)

40 for 4KW AC motor

9

480

--

40 for 4KW AC motor

9

480

--

4 seat with Cargo

Box

48V

8pcs x 6V

3430*1180*1890

2 seat with Cargo Box

48V

8pcs x 6V

3180*1180*1890

>

70 >80(AC system)

>

70 >80(AC system)

40 for 4KW AC motor

9

480

160

40 for 4KW AC motor

9

440

280

11

the rear cargo bed

Maximum

Gradeability

Noise (dB)

Maximum

Brake

Distance

(V=20km/h)

20%

70

< 4

Utility car based on 6-passenger golf car

ITEMS

Voltage (V)

Battery Setup

Dimensions (mm) (L x W x H)

20%

70

< 4

Range (km) based on flat road at a speed of 20km/h

Maximum Speed (km/h) for Gear Ratio of 12.49:1

Minimum Turning Diameter (m)

Maximum Loading Capacity (Kg)

Maximum Gradeability

Noise (dB)

Maximum Brake Distance (V=20km/h)

Lifted Vehicle

20%

70

< 4

20%

70

< 4

6+2 with Jumper Seat

48V

8pcs x 6V

N/A

> 60

>75(AC system)

25 for 5KW DC motor

32 for 5KW AC motor

11

640

15%

70

< 4

6+2 with Flip seat

48V

8pcs x 6V

N/A

> 60

>75(AC system)

25 for 5KW DC motor

32 for 5KW AC motor

11

640

15%

70

< 4

12

Items

Voltage(v)

Battery Setup

Dimension(mm) (LxWxH)

Lifted Vehicle 2+2

48V

8pcx 6V

2950x1340x1990

Range(km) based on flat road at a speed of >70

20km/h with 22’ flat teeth tire

Maximum Speed (km/h) for Gear Ratio of 32 for 4kw and 5.3kw motor

12.49:1 35 for 4KW AC motor

40 for 5KW AC motor

Minimum Turing Diameter (m)

Maximum Loading Capacity (kg)

Maximum Gradeability

6

300

Noise (dB)

Maximum Brake Distance (V=20km/h)

20%

≤70

<4

Lifted Vehicle 4+2

48V

8pcx 6V

3500x1340x2100

>55

32 for 4kw and 5.3kw motor

35 for 4KW AC motor

40 for 5KW AC motor

9

450

20%

≤70

<4

13

4. Controls

1) Schematic Figure of Controls (Note: There are two types of dashboard on the vehicles. The cup holder on the 08 & 09 Style Dashboard is on top of the instrument panel and the cup holder on the 06 Style Dashboard is below the instrument panel.)

15

16

17

2) Functions of Controls

Power Key

The power key is used to switch on the electrical system of the vehicle.

To engage the motor and start the vehicle, insert the key and turn it clockwise to the ON position. At this time the 12V accessory system (headlights, turn signals, taillights, brake lights and horn) will be engaged too.

To switch the power off, turn the key counterclockwise to the OFF position.

CAUTION!

When the key is in the ON position, it cannot be pulled out. DO NOT try to remove the key when it is in the ON position.

Forward/Reverse Switch

This is a three-position switch. The switch is used to shift the golf car into forward or reverse. Press the switch up to move forward, down for reverse, or in the middle for neutral.

WARNING! This switch must be fully pressed into the proper position or the electric system and motor will be damaged.

NOTE: The buzzer will beep when the lower part of this switch is pressed to warning people around your vehicle.

Accelerator Pedal

The accelerator pedal is used to control speed while driving. Press it down slowly to increase speed. The vehicle will speed up with the gradual depression of the accelerator pedal, eventually reaching top speed when the pedal is completely pressed down. The vehicle slows

18

down with the lifting of the pedal. When the pedal is fully lifted, the electric brake will engage and the vehicle will come to a stop.

Service Brake Pedal

The service brake pedal is used for braking. The shape of the pedal of the mechanical brake system and the hydraulic brake system is different: refer to the figures below.

NOTE: On the mechanical brake system, the service brake pedal is combined with the parking brake pedal.

Parking Brake Pedal

The parking brake pedal is used in braking for parking. The parking brake of the mechanical brake system is different from hydraulic brake system. The parking brake of mechanical brake system is engaged by foot as shown in above picture (refer to ‘Mechanical Brake’). The parking brake of the hydraulic brake system is engaged by hand as shown in the figure below. The parking brake should be engaged into parking position whenever the vehicle is left unattended.

How to engage and disengage the parking brake a. Mechanical brake system

To engage the parking brake, press down the service brake pedal completely, then press down the parking brake pedal until it locks.

To disengage the parking brake, press down the service brake pedal until the parking brake pedal is unlocked.

WARNING!

19

The foot park brake will automatically release when the accelerator pedal is stepped down. If the power key is in ON position, stepping down the accelerator pedal may suddenly cause

the vehicle to move. b. Hydraulic brake system

To engage the parking brake, pull up the hand brake lever to the end;

To disengage the parking brake, pull the hand brake lever up completely and press the button on the top of the brake lever. Return the brake lever to the down position.

WARNING!

Always release the brake handle completely before driving the vehicle.

WARNING!

Do not press both the brake pedal and the accelerator together; this will damage the motor.

Steering Wheel

The steering wheel is used to control the driving direction. Avoid sudden and sharp turns.

Battery Power Meter

There are 10 calibration marks on the meter. The meter will decline from the top to the bottom as the battery discharges. When the battery is too low, the red indicator light will flash, reminding you to recharge the battery.

20

NOTE: Refer to your Battery Charger’s Owners Manual for how to recharge the batteries.

TOW/RUN SWITCH (available for Curtis 1266 and 1268 controller)

Before operating the vehicle, make sure the TOW/RUN switch is on ‘RUN’ position.

Make sure the TOW/RUN switch is on the “TOW’ position if towing the vehicle.

The TOW/RUN switch is located under the seat on the passenger side either on the controller cover or just under the rear body as showed below picture.

WARNING!

Whenever the TOW/RUN switch is moved from the RUN position to the TOW position, move it back to the RUN position, there is a delay of approximately 30 seconds before the vehicle will run.

TURN SIGNAL/HORN SWITCH

This switch is used to operate the turn signals and horn.

1) Lift up the handle lever to activate the horn.

2) Push the handle lever up to activate the right turn signal.

3) Pull the handle lever down to activate the left turn signal.

Headlight Switch

Pull out the button to switch on the headlight.

5. Operation

STARTING:

a) With the Forward/Reverse switch on the Neutral position, turn the power key to ON position.

CAUTION!

The car will not run if the F/R switch is set to Forward or Reverse position before turning the key to

21

the ON position.

WARNING!

Do not step down the accelerator pedal when turning the power key. Otherwise, the vehicle may suddenly start moving.

b) With the parking brake applied, press the Forward/Reverse switch and lock it in the desired position.

CAUTION!

Do not shift from Forward to Reverse while the vehicle is moving. c) Make sure that your path is clear. If the vehicle is equipped with the mechanic braking system, press the lower section of the brake pedal to release the park brake, and slowly press down the accelerator pedal. If the vehicle is equipped with the hydraulic brake system, release the hand brake first before you press the accelerator pedal.

CAUTION!

If the vehicle is equipped with mechanical brake system, pressing the accelerator pedal will release the parking brake if it is engaged. Pressing the accelerator pedal is not the preferred method of releasing the parking brake. Pressing the lower section of the brake pedal is the preferred method of releasing the parking brake to assure the longest service life of brake components. If the key switch is ‘ON’ and parking brake is set, pressing the accelerator inadvertently will release the parking brake and will cause the vehicle to move which could cause severe injury or death.

CAUTION:

If the accelerator pedal is stepped down before the power key is on, the vehicle will not run.

In this case, you should release the accelerator pedal first, and then turn the power key ON.

Then, press down the accelerator pedal again, and the vehicle will start to move.

STOPPING:

To stop the vehicle, gradually press down the brake pedal. When the vehicle has come to a stop, apply the parking brake pedal and turn the power key to OFF and press the F/R switch on Neutral position.

CAUTION:

Do not hold the vehicle on an incline with the accelerator: use the brake.

6. Maintenance

Users should perform regular maintenance to ensure the vehicle is in good condition.

MAINTENANCE OF BATTERY

NOTE: Our standard vehicles are equipped with deep-cycle flooded lead-acid batteries. If your vehicle is equipped with other types of batteries, follow the maintenance instructions provided by the battery manufacturer. Below maintenance instruction is especially for deep-cycle flooded lead-acid battery.

22

WARNING!

Battery electrolyte is poisonous and dangerous, and may cause severe burns or injury. Always wear protective clothing, gloves, and goggles when handling batteries, electrolyte, and charging your battery.

KEEP OUT OF REACH OF CHILDREN.

1) Cleaning

a. The exterior of the battery, the connection wires and bolts should always be kept clean and dry. When cleaning, make sure all vent caps are tightly in place. Clean the battery top with a cloth or brush and solution of baking soda and water. When cleaning, do not allow any cleaning solution or other foreign matter to get inside of the battery. This should be done

every week. b. Clean battery terminals and the inside of cable clamps using a post and clamp cleaner.

Clean terminals will have a bright metallic shine. This should be done as needed. c. Reconnect the clamps to the terminals and thinly coat them with petroleum jelly (Vaseline) to prevent corrosion.

WARNING!

Before you disconnect any battery cable from any terminal on the battery, always remove the power by disconnecting the main battery cable from the controller.

2) Checking the terminals and nuts

The connection of the batteries should be kept in good condition. Check the battery cable terminals and nuts weekly in order to prevent sparking or damage to terminals. A damaged battery cable should be replaced immediately.

3) Battery compartment

Do not place any objects on the battery and do not connect the positive pole to the negative pole.

This may cause a short circuit or dangerous sparking. This can cause damage to the battery or injury to the user.

4) Recharging

a. Regardless of how long you have used the vehicle, the battery should be recharged fully on the same day. Any delay on the re-charging will reduce the life of the battery. Note: the lead-acid battery does not develop a memory, so it need not be fully discharged before recharging. b. If the vehicle is going to be kept unused for a long time, the battery should be fully recharged first. After that, the battery should be fully recharged every 2 weeks. c. When driving, the driver should be aware of the drop level of the battery power from the battery power meter. The driver should estimate the distance needed to be taken, and recharge the battery at a proper time to ensure that the vehicle can get back to the charging location in time for recharging.

WARNING!

Make sure the battery is recharged before the battery power meter shows 20% is left. An over-discharged battery will have a very short service life.

WARNING!

During recharging, the vehicle should be parked in a well-ventilated area with

23

filling caps tightly secured. Keep far away from any flame and sparks to avoid any explosion or fire that could cause physical injury or damage to property.

5) Battery water maintenance

Flooded batteries need water. Watering must be done at the right time and in the right amount or else the battery’s performance and longevity suffers.

Water should always be added after fully charging. Prior to charging, there should be enough water to cover the plates. If the battery has been discharged (partially or fully), the water level should also be above the plates. Keeping the water at the correct level after a full charge ensure that you will not have to worry about the water level at a different state of charge.

Depending on the local climate, charging methods, and application, Trojan recommends that batteries be checked once a month until you get a feel for how “thirsty” your batteries are.

Important things to remember:

1. Do not let the plates become exposed to air. This will damage (corrode) the plates.

2. Do not fill the water to the cap. This most likely will cause the battery to overflow acid, consequently losing capacity and causing a corrosive mess.

3. Do not use water with a high mineral content. Use distilled water only.

CAUTION:

The electrolyte is a solution of acid and water so skin contact should be avoided.

Step by step watering procedure:

1. Open the vent caps and look inside the filling wells.

2. Check electrolyte level; the minimum level is at the top of the plates.

3. If necessary add just enough water to cover the plates.

4. Put batteries on a complete charge before adding water (refer to the Charging section).

5. Once charging is completed, open the vent caps and look inside the fill wells.

6. Add water until the electrolyte level is 1/8" below the bottom of the fill well.

7. A piece of rubber can be used safely as a dipstick to help determine this level.

8. Clean, replace, and tighten all vent caps.

WARNING!

Never add acid to the battery.

6) Testing

Visual inspection alone is not sufficient to determine the overall health of the battery. Both open-circuit voltage and specific gravity readings can give a good indication of the battery's charge level, life span, and health. Routine voltage and gravity checks will not only show the state of charge but also help spot signs of improper care, such as undercharging and over-watering, and possibly even locate a bad or weak battery. The following steps outline how to properly perform routine voltage and specific gravity testing on batteries.

I. Specific Gravity Test

(Flooded batteries only)

1. Do not add water.

2. Fill and drain the hydrometer 2 to 4 times before pulling out a sample.

3. There should be enough sample electrolyte in the hydrometer to completely support the float.

24

4. Take a reading, record, and return the electrolyte back to the cell.

5. To check another cell, repeat the 3 steps above.

6. Check all cells in the battery.

7. Replace the vent caps and wipe off any electrolyte that might have been spilled.

8. Correct the readings to 80

˚ F: Add .004 to readings for every 10˚ above 80˚ F, Subtract .004 for every 10

˚ below 80˚ F.

9. Compare the readings.

10. Check the state of charge using Table 1.

The readings should be at or above the factory specification of 1.277 +/- .007. If any specific gravity readings register low, then follow the steps below.

1. Check and record voltage level(s).

2. Put battery(s) on a complete charge.

3. Take specific gravity readings again.

If any specific gravity readings still register low then follow the steps below.

1. Check voltage level(s).

2. Perform equalization charge. Refer to the Equalizing section for the proper procedure.

3. Take specific gravity readings again.

If any specific gravity reading still registers lower than the factory specification of 1.277+/- .007 then one or more of the following conditions may exist:

1. The battery is old and approaching the end of its life.

2. The battery was left in a state of discharge too long.

3. Electrolyte was lost due to spillage or overflow.

4. A weak or bad cell is developing.

5. Battery was watered excessively previous to testing.

Batteries in conditions 1 - 4 should be taken to a specialist for further evaluation or retired from service.

II. Open-Circuit Voltage Test

For accurate voltage readings, batteries must remain idle (no charging, no discharging) for at least

6 hours, preferably 24 hours.

25

1. Remove all connections from the batteries.

2. Measure the voltage with a DC voltmeter.

3. Check the state of charge with Table 1.

4. Charge the battery if it registers 0% to 70% charged.

If the battery value is lower than that in Table 1, the following conditions may exist:

1. The battery was left in a state of discharge too long.

2. The battery has a bad cell.

Batteries in these conditions should be taken to a specialist for further evaluation or retired from service.

TABLE 1. State of charge as related to specific gravity and open circuit voltage

Percentage of

Charge

100

90

80

70

60

50

40

30

Specific Gravity

Corrected to

80

˚ F

1.277

6V

6.37

1.258

1.238

1.217

1.195

1.172

1.148

1.124

6.05

5.98

5.91

6.31

6.25

6.19

6.12

8V

8.49

8.41

8.33

8.25

8.16

8.07

7.97

7.88

Open-Circuit Voltage

12V

12.73

12.62

12.50

12.37

12.24

12.10

11.96

11.81

24V

25.46

25.24

25.00

24.74

24.48

24.20

23.92

23.63

36V

38.20

37.85

37.49

37.12

36.72

36.31

35.87

35.44

48V

20 1.098 5.83 7.77 11.66 23.32 34.97 46.63

10 1.073 5.75 7.67 11.51 23.02 34.52 46.03

7) Battery installation

WARNING!

When working with batteries, DO NOT put wrenches or any other metal objects across the battery terminals. Otherwise, an arc can occur, and this can cause an explosion of the battery and physical injury.

Only a qualified electrician should install or replace batteries.

8) BATTERY CHARGING

NOTE: The standard charger on the vehicle is an onboard charger. It is either installed in the

50.93

50.47

49.99

49.49

48.96

48.41

47.83

47.26

26

rear bag well, under the seat, or under the front body. Sometimes the charger is not installed on the vehicle. For an onboard charger, a separate charging cord will be provided with the vehicle for connecting the charger and AC electricity.

WARNING!

Before you use the charger, read the operation manual provided with the charger.

WARNING!

Explosive hydrogen gas is produced while the battery is charged. Only charge the battery in well-ventilated areas.

WARNING!

Before using the charger, check if the battery charger you are using is correctly rated as per your local AC electricity network.

WARNING!

When using a new battery, make sure the new battery has the same specifications as the original and is appropriate in application.

The following is the charging steps:

1) Turn the power key to OFF.

2) Connect the plug to the vehicle receptacle first; then connect it to your local AC power outlet.

WARNING!

Do not disconnect the cord from the battery receptacle when the charger is ON, otherwise an arc could occur which may cause an explosion. Always disconnect the battery receptacle first, then disconnect from the AC power outlet.

3) The charger will turn off automatically when the battery is fully charged.

WARNING!

The battery receptacle is combined with a security switch which will cut off power to the vehicle when the battery is being charged. The vehicle cannot be started with the battery

receptacle in use.

4) After the charger turns off, disconnect the plug on the AC charging cable from the AC power outlet first, then disconnect the cord from the vehicle receptacle.

5) Do not open the housing of the charger.

6) Only a qualified electrician should open the housing of the charger.

7) The charger should be stored in safe and dry room with good ventilation.

8) The charger should be packed properly if not in use for an extended time.

9) Carefully read the operation manual for the charger for detailed operation instructions.

Equalizing charge

Equalizing is an overcharge performed on flooded lead acid batteries after they have been fully charged. It reverses the buildup of negative chemical effects like stratification, a condition where acid concentration is greater at the bottom of the battery than at the top. Equalizing also helps to remove sulfate crystals that might have built up on the plates. If left unchecked this build-up, which

27

is called sulfation, will reduce the overall capacity of the battery.

The charge will automatically start equalizing after 30 charge cycles.

Equalizing is recommended when low or wide ranging specific gravity (+/- .015) is detected after fully charging a battery.

The Operation and Maintenance of the Charger

Note: As standard configuration, the charger is built onboard the vehicle; in some cases, it may not be built onboard the vehicle.

Using the onboard charger:

1. Connect the cord to the receptacle on the vehicle.

2. Connect the cord from the receptacle to an outlet of the household grid.

3. After the charger cord is connected, the red indicator on the charger will flash. The charger will start the procedure of self-inspection. After self-inspection, a green indicator flashes, and the charger will begin to charge the batteries.

4. When battery capacity is less than 80%, the green indicator flashes slowly. When battery capacity is more than 80%, the green indicator flashes fast. When the battery is fully charged, the green indicator will stop flashing, and the charger will stop charging automatically.

Note: This charger has the function of over-discharging protection to keep the battery from over-discharging. When the battery is close to the charging point, it will reduce the discharging current from the battery to reduce the speed of the vehicle. If it fails to charge the battery, it will cut the current from the battery and stop the vehicle to force the user to charge the battery.

Note: When the grid voltage is out of range of 90-260V, the charger will stop charging. At the same time, the failure code light will come on. When the voltage returns to the correct voltage range of

90-260V, it will automatically start to charge.

Note: The charger will automatically start equalizing charge after 30 charging cycles.

CAUTION

Do not use charger if water has entered the charger case.

CAUTION

Use the charger at temperatures between -10

˚C to 45˚C (14˚F to 113˚F)

WARNING!

Only a qualified electrician should open the housing of the charger.

WARNING!

When charging the batteries, hydrogen is generated, so it is important to charge in a safe and dry area with good ventilation to avoid fire and/or sparks.

Maintenance of the Traction DC Motor

WARNING! Before operating the vehicle, make sure that no explosive gases are present in the area as a spark from the motor could ignite the gas and cause serious injury and damage to the surrounding area.

1) For a DC motor, the carbon brush should be checked for wear every 3 month as it is an easily worn part. If it is not replaced in time before it wears out, it will damage the motor.

2) Do not keep the motor running idly for long periods of time. Any idle running of the motor should be avoided.

28

3) Removal of mud, sand and other debris should be done frequently.

4) Periodically use low pressure air to remove dust from the carbon brush and the commutator.

Periodically check the connection of the carbon brush and the commutator.

Main malfunction and possible reason of DC motor

Item Symptoms Possible Causes

1

2

3

4

5

6

All copper plates turn black. The pressure of brush is incorrect.

The commutating copper Short circuit between the commutating copper and the armature turns black in a certain order coil; poor welding or disconnection between the commutating and in groups. copper and the armature coil.

The commutating copper The central line of the commutator deviates or its surface is not turns black randomly. round and smooth.

The brush wears out, The motor vibrates; the clearance between the brush and its holder changes colors and breaks. is too big; the clearance between the brush and commutator is too big; the mica between different commutator extrudes; the brush is made with wrong materials; the brush is wrong in type.

Sparks. The motor is over-loaded; the commutator is not clean, round or smooth; mica or some commutator extrude; the brush is not ground properly; the brush is the wrong type; the brush is jammed; the brush holder is loose or vibrating; the polarity and sequence of magnetic poles is wrong.

The brush and its wires get Sparks from the brush; poor contact between brush and soft wires; hot. small section area of soft wires.

The brush is noisy. The surface of the commutator is not smooth. 7

Maintenance of the Traction AC Motor

If your vehicle is equipped with AC motor, then the motor is maintenance free!

Maintenance of the Controller:

CAUTION

Only qualified electrician is allowed to perform maintenance for the controller.

WARNING!

There are no spare parts available inside the controller. No attempt should be made to open, repair, or otherwise modify the controller. Doing so may damage the controller and will void the warranty.

29

CLEANING

It is recommended that the controller be kept clean and dry and that its fault history file be checked and cleared periodically.

Periodically cleaning the controller exterior will help protect it against corrosion and possible electrical control problems created by dirt, grime, and chemicals that are part of the operating environment and that normally exist in battery-powered systems.

Use the following cleaning procedure for routine maintenance:

1) Turn the power key to the OFF position.

2) Remove power by disconnecting the battery.

3) Discharge the capacitors in the controller by connecting a load (such as a contactor coil) across the controller’s B+ and B- terminals.

4) Remove any dirt or corrosion from the connector areas. The controller should be wiped clean with moist rag. Dry it before reconnecting the battery. The controller should not be cleaned with pressured water flow from either a standard hose or a power washer.

5) Make sure the connections are tight, but do not over-tighten them.

Fault History File

The handheld programmer (to be ordered separately) can be used to access the controller’s fault history file. The programmer will read out all the faults the controller has experienced since the last time the history file was cleared. Faults such as contactor faults may be the result of loose wires; contractor wiring should be carefully checked. Faults such as overheating may be caused by operator habits or by overloading.

After a problem has been diagnosed and corrected, it is a good idea to clear the fault history file.

This allows the controller to accumulate a new file of faults. By checking the new history file at a later date, you can readily determine whether the problem was indeed fixed.

When checking problems according the flashing of the STATUS light on the top of the controller, refer to the details mentioned in our service manual which is available separately.

Contact your local dealer or a qualified electrician to work on the problems related to the motor, controller or electrical system of the vehicle when you are not able to fix them.

Maintenance of Rear Axle:

While using your vehicle, the rear axle should be maintained daily, periodically and randomly.

1. Periodic maintenance means the driver should do some daily maintenance before, during or after driving. The maintenance is focused on clearance and examine as followed:

1) Clean the dust and mud on the cover to keep the axle clean

2) Make sure all connections are in good condition. Rotate rear tire to see if the gears connecting the motor are rear differential are operating smoothly.

3) Make sure the gear is sufficiently oiled.

4) Check if there is any gap in the connection and transmission units or any unusual sound inside the axle.

5) Check the exterior temperature of the brake drum.

6) Check the breather valve if oil has leaked on the floor below the rear differential.

7) Check if the there is any section in the parking brake cable broken or loose, and replace if

30

necessary.

2. Periodic maintenance: The axle should be maintained every month, two months, and six months.

Monthly maintenance focuses on lubricate, fixation and gear oil replacement. Maintenance every two months focuses on check adjustment and gear oil replacement. Semiannual maintenance focuses on the cleaning, assembly and gear oil replacement.

7. Troubleshooting

Symptom(s) Possible cause(s) Troubleshooting

1. The gear oil is insufficient or used improperly.

Oil gear or replace.

2. The bearing is assembled incorrectly. Assemble correctly.

3. Adjust the brake shoe pin shim or the interval.

The axle housing

4. The gear between axle 1 and 2 is not gear and bearing are tightly connected damaged and noisy.

5. The final drive is too noisy: 1)Check if there is any impurity 2.check the if the gear is damaged

Adjust or replace

Adjust correctly.

Remove the impurity, replace the gear

Lack of breaking force

6. Axle 1 grinding gears Adjust or replace.

7. The rear axle is bent (check if it is over-loaded)

1. There is space between the brake shoes and drum.

2. There is oily dirt on the brake shoes or drum.

Replace the rear axle.

Adjust.

Remove dirt.

3. There is air in the brake pipe.

4. The brake pipe leaks.

5. The brake shoes worn.

Dispel the air.

Repair the leakage or replace.

Replace.

6. The brake cable is too long or is blocked.

The brake is difficult to release completely

1. The brake pedal cannot bounce back smoothly.

2. The brake shoe is warped or broken.

3. There is blockage on the transmission

Adjust the brake cable.

Replace a new one

Refit or replace.

Refit or replace.

31

1. The oil seal is damaged. Replace.

The oil leaks

2. Too much oil. Adjust the oil level.

Wheel Replacement

WARNING!

Before doing anything to the wheel and tire, make sure the power key is positioned in the

OFF position.

Read the tire manufacturer’s instructions and never exceed their recommendation.

Protect face and eyes from escaping air when removing the valve core.

Be sure the mounting/demounting machine is anchored to floor.

Wear safety equipment when mounting/demounting the wheel and tire.

To remove a wheel on the vehicle:

1) Block the wheel, then loosen the wheel nuts.

2) Use a jack to lift the vehicle, then remove the wheel nuts and the wheel.

To install a wheel on the vehicle:

1) Use a jack to lift the vehicle, then put the wheel onto the wheel hub.

2) Finger tighten the lug nuts, then tighten lug nuts to 50-85 ft.lbs.(70-115 Nm) in 20 ft.lbs.(30 Nm) increments following the ‘cross sequence’ pattern

3) Remove the jack.

If the tire is flat, remove the wheel and inflate the tire to the maximum recommended pressure for the tire. Immerse the tire in water to locate the leak and mark with chalk. Place tire plug according to the manufacturer’s specifications.

Brake Adjustment

WARNING!

If you have any problem with the brakes, consult with a dealer. Brake failure can result in serious accident or physical danger.

The brakes on the vehicle are self-adjusting.

Before you operate the vehicle, press down on the brake pedal several times to make sure the brakes are functioning properly.

32

8. Lubrication

1) Use 1 liter of 90GL hypoid gear oil for the rear end.

2) Lubrication points: a. Spindle assembly (driver side and passenger side); b. Middle shaft; c. Rear end.

Spindle (Passenger Side) Spindle (Driver Side)

Rear End Middle Shaft

9. Running-in of New Vehicle

In order to guarantee the performance of the vehicle and enhance its reliability and working life, its parts should experience a certain period of running-in before it works under peak load. Each new vehicle is required to give one month of running-in time or 1,000 kms (620 mi) running-in distance. i. Before running-in, check the capacity of oil, electrolyte and brake oil. If there is an insufficient amount of any of these, refill accordingly. ii. The tire pressure should comply with the rated pressure marked on the tire. iii. Limit the speed of the vehicle to control the current of the vehicle under 40A during driving. iv. Often check and tighten regularly the fixing parts of each connecting point.

10. Periodic Maintenance Charts

Regular maintenance is required for the best performance and safe operation of the vehicle.

WARNING!

Make sure to turn off the power key and apply the parking brake when you do maintenance unless otherwise specified. If the owner is not familiar with the maintenance of this vehicle, this work should be done by a dealer.

1D – per day 1W – per week 1M – per month 1Q – per quarter 1Y – per year

33

item

Battery

Charger

Descriptions

1. Check the liquid level. Add distilled water if

1D 1W 1M 1Q 1Y

Y necessary.

2. Charge the battery. Y

3. Tighten the nut on the battery cable.

4. Check if the battery is over-discharged (the Y battery power meter is flashing).

Y

Y 5. Check the liquid density of the battery, standard density should be 1.277±0.007g/ cm

3

(80

˚F or 25

˚C) when the battery is fully charged.

6. Check if the battery is charged fully by a) using the hydrometer, or b) checking the battery power

Y meter.

7. Clean the surface of battery. Y

8. Observe the charging status; check if the charger plug becomes hot.

9. Clean the surface of the charger. Do not get any water inside the charger.

Y

Y

Y

Controller

Motor

10. Check that all terminals are tightened properly.

Do this after the power is off.

11. Clean the surface of the controller.

12. Check that the solenoid is in order by checking its touching point.

13. Ensure that no water gets in and that it does not become too hot.

14. Check if the carbon brush should be replaced.

Y

Chassis and

16. Check if the brake drum and the brake shoe

body

15. Check that the accelerator pedal works well and that it can be released freely and automatically. should be replaced.

17. Check that the hand brake functions (applicable for vehicle with hand brake).

18. Check if the hose and tube for the brake liquid leak (applicable for vehicle with hydraulic brake).

19. Check if the brake liquid inside the brake liquid tank is sufficient (applicable for vehicle with hydraulic brake).

20. Check the air pressure inside the tire, check if the tire surface is worn, and check that the nuts are tightened properly.

21. Check if the shock absorber has any oil leaking, or emits an abnormal noise.

22. Check if there is oil leaking on the gear box and the rear end.

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

34

23. Add lubricant inside the wheel hub and steering system.

24. Adjust the toe-in of the front end.

25. Clean the body and seat.

After above maintenance, drive the vehicle to check that the vehicle works properly.

Y

Y

Y

11. Storage

Follow the steps as below when the vehicle is stored.

1. Check the liquid level inside the battery; recharge it fully before storing the vehicle.

WARNING!

Charge the battery once a month if your vehicle will be stored more than one month.

2. Turn the power key to OFF, remove the key, and store the key in a safe place.

3. Move the tow switch into TOW position on the controller cover.

4. Check the tire pressure to make sure its pressure is set to the recommended amount.

5. Clean the exterior of the vehicle and apply rust inhibitor.

6. Cover the vehicle with a breathable cover and store it in a dry, safe and well-ventilated place.

7. If the vehicle is planned to store for a long time, check the liquid level inside the battery once a month, and recharge the battery.

12. Wiring Diagram

1) Wiring diagram for vehicle 36V with Curtis Controller 1243 (FIG. 1)

2) Wiring diagram for vehicle 48V with Curtis Controller 1266 (FIG. 2)

3) Wiring diagram for vehicle 48V with Curtis Controller 1268 (FIG. 3)

4) Wiring diagram for vehicle 48V with Curtis Controller 1234 & 1236 (FIG. 4)

This manual tries to be as sound and elaborate as possible in literal and figurative description as well as technical description on the basis of existent data. At the same time, our company reserves the right to alter the content of this manual and this manual is subject to change without prior notice; in addition, our company has the final interpretation right of this manual.

All rights reserved.

35

36

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
