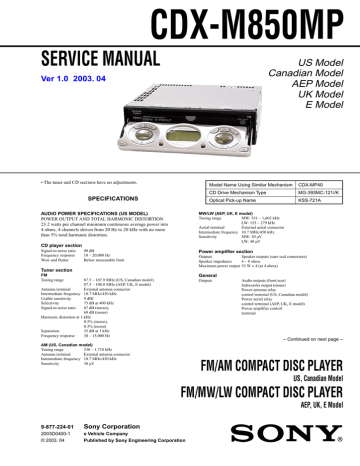

SERVICE MANUAL - Wiki Karat
CDX-M850MP
SERVICE MANUAL
US Model
Canadian Model
AEP Model
UK Model
E Model
Ver 1.0 2003. 04
• The tuner and CD sections have no adjustments.
SPECIFICATIONS
Model Name Using Similar Mechanism
CDX-MP40
CD Drive Mechanism Type
MG-393MC-121//K
Optical Pick-up Name
KSS-721A
MW/LW (AEP, UK, E model)
Tuning range
MW: 531 – 1,602 kHz
LW: 153 – 279 kHz
Aerial terminal
External aerial connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity
MW: 30 µV
LW: 40 µV
AUDIO POWER SPECIFICATIONS (US MODEL)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23.2 watts per channel minimum continuous average power into
4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more
than 5% total harmonic distortion.
CD player section
Signal-to-noise ratio
Frequency response
Wow and flutter
90 dB
10 – 20,000 Hz
Below measurable limit
Power amplifier section
Outputs
Speaker outputs (sure seal connectors)
Speaker impedance
4 – 8 ohms
Maximum power output 52 W × 4 (at 4 ohms)
Tuner section
FM
Tuning range
General
87.5 – 107.9 MHz (US, Canadian model)
87.5 – 108.0 MHz (AEP, UK, E model)
Antenna terminal
External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Usable sensitivity
9 dBf
Selectivity
75 dB at 400 kHz
Signal-to-noise ratio
67 dB (stereo),
69 dB (mono)
Harmonic distortion at 1 kHz
0.5% (stereo),
0.3% (mono)
Separation
35 dB at 1 kHz
Frequency response
30 – 15,000 Hz
Outputs
Audio outputs (front/rear)
Subwoofer output (mono)
Power antenna relay
control terminal (US, Canadian model)
Power aerial relay
control terminal (AEP, UK, E model)
Power amplifier control
terminal
– Continued on next page –
AM (US, Canadian model)
Tuning range
530 – 1,710 kHz
Antenna terminal
External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity
30 µV
FM/AM COMPACT DISC PLAYER
US, Canadian Model
FM/MW/LW COMPACT DISC PLAYER
AEP, UK, E Model
9-877-224-01
Sony Corporation
2003D0400-1
© 2003. 04
e Vehicle Company
Published by Sony Engineering Corporation
1
CDX-M850MP
Inputs
Tone controls
Loudness
Power requirements
Dimensions
Mounting dimensions
Mass
Supplied accessories
Telephone ATT control
terminal
Illumination control terminal
BUS control input terminal
BUS audio input or AUX IN terminal
Remote controller input terminal
Antenna input terminal (US, Canadian model)
Aerial input terminal (AEP, UK, E model)
US, Canadian model:
Bass ±10 dB at 62 Hz
Treble ±10 dB at 16 kHz
AEP, UK, E model:
Bass ±8 dB at 100 Hz
Treble ±8 dB at 10 kHz
+8 dB at 100 Hz
+2 dB at 10 kHz
12 V DC car battery
(negative ground)
Approx. 178 × 50 × 186 mm
(7 1/8 × 2 × 7 3/8 in.)
(w/h/d)
Approx. 182 × 53 × 163 mm
(7 1/4 × 2 1/8 × 6 1/2 in.)
(w/h/d)
Approx. 1.5 kg (2 lb. 10 oz.)
Parts for installation and
connections (1 set)
Front panel cover (1) (US, Canadian model)
Card remote commander
RM-X110 (US, Canadian model)
RM-X111 (AEP, UK, E model)
SERVICE NOTES
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pickup block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens.
Notes on Chip Component Replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be damaged by heat.
Note
This unit cannot be connected to a digital preamplifier or an equalizer.
Design and specifications are subject to change without
notice.
US, Canadian model:
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
If the optical pick-up block is defective, please replace the whole
optical pick-up block.
Never turn the semi-fixed resistor located at the side of optical
pick-up block.
optical pick-up block
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES
SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES
SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL
OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
2
semi-fixed resistor
CDX-M850MP
Notes on CD-Rs (recordable CDs)/CD-RWs (rewritable
CDs)
This unit can play the following discs:
AEP, UK, E model:
Type of discs
Label on the disc
Audio CD
This label is located on the bottom of the chassis.
MP3 files
This label is located on the drive unit’s internal chassis.
When replacing the chassis (T) of mechanism deck which have
the “CAUTION LABEL” attached, please be sure to put a new
CAUTION LABEL (3-223-913-11) to the chassis (T).
NOTE FOR THE OPENING OF THE FRONT PANEL
In this set, the front panel is lowered to below the bottom face when
it is opened.
When servicing the set, place it on a stand having a height of about
2 cm.
• Some CD-Rs/CD-RWs (depending on the equipment used for
its recording or the condition of the disc) may not play on this
unit.
• You cannot play a CD-R/CD-RW that is not finalized∗.
• You can play MP3 files recorded on CD-ROMs, CD-Rs, and
CD-RWs.
• A CD-R/CD-RW to which a session can be added can be played.
∗ A process necessary for a recorded CD-R/CD-RW disc to be
played on the audio CD player.
stand
TEST DISCS
This set can playback CD-R and CD-ROM discs. The following
test discs should be used to check the capability:
CD-R test disc TCD-R082LMT (Part No. J-2502-063-1)
CD-RW test disc TCD-W082L (Part No. J-2502-063-2)
3
CDX-M850MP
EXTENSION CABLE AND SERVICE POSITION
When repairing or servicing this set, connect the jig (extension cable)
as shown below.
• Connect the MAIN board (CNP301) and the SERVO board (CN1)
with the extension cable (Part No. J-2502-062-1).
MAIN BOARD CNP301
SERVO BOARD CN1
4
CDX-M850MP
TABLE OF CONTENTS
1. GENERAL
Location of Controls ................................................................ 6
Connection example (US, Canadian Model) ........................... 6
Connections (US, Canadian Model) ........................................ 7
2. DISASSEMBLY
2-1. Front Panel Assy ................................................................. 8
2-2. CD Mechanism Block, Front Panel Assy ............................ 9
2-3. Sub Panel (CD) Sub Assy ................................................... 9
2-4. Motor Block Assy, Cam (R) Assy ..................................... 10
2-5. Main Board ....................................................................... 10
2-6. Heat Sink ........................................................................... 11
2-7. Chassis (T) Sub Assy ........................................................ 11
2-8. Lever Section ..................................................................... 12
2-9. Servo Board ....................................................................... 12
2-10. Shaft Roller Assy, Load SW Board ................................... 13
2-11. Floating Block Assy .......................................................... 13
2-12. Optical Pick-up Block ....................................................... 14
3. PHASE ALIGNMENT
3-1.
3-2.
3-3.
3-4.
Arm (A-L) Assy, Arm (B-L) Assy ..................................... 15
Cam (L) ............................................................................. 15
Motor Block ...................................................................... 16
Alignment between Arm (A-L) Assy
and Arm (B-L) Assy .......................................................... 16
3-5. Arm (A-R) Assy, Arm (B-R) Assy .................................... 17
3-6. Cam (R) ............................................................................. 17
4. DIAGRAMS
4-1. IC Pin Descriptions ........................................................... 18
4-2. Block Diagram –CD Section– ........................................... 24
4-3. Block Diagram –Tuner Section– ....................................... 25
4-4. Block Diagram –Display Section– .................................... 26
4-5. Circuit Boards Location .................................................... 27
4-6. Printed Wiring Boards –CD Mechanism Section– ............ 28
4-7. Schematic Diagram –CD Mechanism Section (1/2)– ....... 30
4-8. Schematic Diagram –CD Mechanism Section (2/2)– ....... 31
4-9. Printed Wiring Boards –Main Section– ............................ 32
4-10. Schematic Diagram –Main Section (1/2)– ........................ 34
4-11. Schematic Diagram –Main Section (2/2)– ........................ 35
4-12. Printed Wiring Board –Sub Section– ................................ 36
4-13. Schematic Diagram –Sub Section– ................................... 37
4-14. Printed Wiring Board –Display Section– .......................... 38
4-15. Schematic Diagram –Display Section– ............................. 39
4-16. IC Block Diagrams ............................................................ 40
5. EXPLODED VIEWS
5-1.
5-2.
5-3.
5-4.
5-5.
5-6.
5-7.
Chassis Section ................................................................. 43
Cam Section ...................................................................... 44
Main Board Section .......................................................... 45
Front Panel Section ........................................................... 46
CD Mechanism Section (1) ............................................... 47
CD Mechanism Section (2) ............................................... 48
CD Mechanism Section (3) ............................................... 49
6. ELECTRICAL PARTS LIST ......................................... 50
5
CDX-M850MP
SECTION 1
GENERAL
This section is extracted
from instruction manual.
Main display side
Location of controls (US, Canadian Model)
Card remote commander RM-X110
(DISC) (M):
to select upwards
OPEN/CLOSE
SCRL
DSPL
REP
SHUF
1
2
4
DISC +
(SEEK) (<):
to select
leftwards
3
5
6
EQ7
MODE
DSO
MENU
DISC +
LIST
SEEK–
SOUN
D
OFF
SOURCE
DISC –
+
SEEK+
(SEEK) (,):
to select
rightwards
DISC –
(DISC) (m):
to select downwards
SEEK+
ENTE
SEEK–
SOURCE
In menu mode, the currently selectable button(s) of
these four are indicated with a “ v” in the display.
Operation side
R
ATT
VOL
–
Note
If the display disappears by pressing (OFF), it cannot
be operated with the card remote commander unless
(SOURCE) on the unit is pressed, or a disc is inserted
to activate the unit first.
Tip
Refer to “Replacing the lithium battery” for details on
how to replace the batteries (page 25).
Refer to the pages listed for details.
a SCRL (scroll) button 12
b DSPL (display mode change) button
12, 14
c Number buttons
(1) REP 13
(2) SHUF 13
To store stations/receive stored stations.
d EQ7 button 22
e MENU button
To display the menus.
f SOURCE (Power on/Radio/CD/MD*1/
AUX*2) button
To select the source.
g SEEK/AMS (</,) buttons
To skip tracks/fast-forward, reverse a track/
tune in stations automatically, find a station
manually/select a setting.
h SOUND button 20
i OFF (Stop/Power off) button 11, 21,
24
j VOL (+/–) buttons
To turn up or down the volume.
k OPEN/CLOSE button 10, 11
l MODE button
To change the operation.
m DSO button 23
n LIST button 15, 18
o DISC/ALBUM (M/m) buttons
To receive preset stations/change the disc*3,
skip albums*4/select a menu.
p ENTER button
To enter a setting.
q ATT button 20
*1 When an optional MD unit is connected.
*2 Available only when an optional Sony portable
device is connected to AUX IN terminal of the unit.
You cannot connect any optional CD/MD units at
the same time.
*3 When an optional CD/MD unit is connected.
*4 Available only when an MP3 file is played.
4
CDX-M850MP
The buttons on the unit share the same
functions as those on the card remote
commander.
a
b
c
d
e
f
g
h
i
j
k
m
o
OPEN button 10, 11
Main display window
IMAGE button 23
qf Receptor for the card remote
commander
qs RESET button 9
OFF (Stop/Power off) button*1
SCRL (scroll) button
DSPL (display mode change) button
Sub display window
SEEK/AMS (.m/M>) button
MENU button
LIST/CAT*2 button
CLOSE (front panel close) button 10
p
q
r
s
t
u
v
w
x
SOURCE button
MODE button
VOL (–/+) button
DSO button
EQ7 button
SOUND button
DISC/ALBUM (+/–) buttons
ENTER button
Z (eject) button 11
continue to next page t
5
Connection example (US, Canadian Model)
Connection example (2)
Notes (2-A)
• Be sure to connect the ground cord before connecting
the amplifier.
• If you connect an optional power amplifier and do not
use the built-in amplifier, the beep sound will be
deactivated.
Tip (2-B-
2
A
AUDIO OUT
FRONT
)
SUB OUT (MONO)
For connecting two or more CD/MD changers, the source
selector XA-C30 (optional) is necessary.
Exemple de raccordement (2)
Remarques (2-A)
• Raccordez d’abord le fil de masse avant de raccorder
l’amplificateur.
• Si vous raccordez un amplificateur de puissance en
option et que vous n’utilisez pas l’amplificateur intégré,
le bip sonore est désactivé.
Conseil (2-B-
AUDIO OUT
REAR
)
Dans le cas du raccordement de deux changeurs de
CD/MD ou plus, le sélecteur de source XA-C30 (en option)
est requis.
Ejemplo de conexiones (2)
Notas (2-A)
• Asegúrese de conectar primero el cable de toma a tierra
antes de realizar la conexión al amplificador.
• Si conecta un amplificador de potencia opcional y no utiliza
el incorporado, los pitidos se desactivarán.
Consejo (2-B-
B
BUS AUDIO IN
)
Cuando desee conectar dos o más cambiadores de CD/MD,
necesitará un selector de fuente XA-C30 (opcional).
BUS CONTROL IN
BUS AUDIO IN
Source selector*
Sélecteur de source*
Selector de fuente*
XA-C30
BUS CONTROL IN
6
* not supplied
non fourni
no suministrado
CDX-M850MP
Connections (US, Canadian Model)
3
*1
Source selector
(not supplied)
Sélecteur de source
(non fourni)
Selector de fuente
(no suministrado)
*4
*3
XA-C30
*2
BUS AUDIO IN
/AUX IN*5
from car antenna
à partir de l’antenne de la voiture
desde la antena del automóvil
Supplied with the CD/MD changer
Fourni avec le changeur de CD/MD
Suministrado con el cambiador de CD/MD
AUDIO OUT
FRONT
*1 RCA pin cord (not supplied)
Cordon à broche RCA (non fourni)
Cable con terminales RCA (no
suministrado)
L
*1
SUB OUT (MONO)
AMP REM
Fuse (10 A)
Blue/white striped
Fusible (10 A)
Rayé bleu/blanc
Fusible (10 A)
Con rayas azules y blancas
Max. supply current 0.3 A
Courant max. fourni 0,3 A
Corriente máx. de alimentación de 0,3 A
Left
Gauche
Izquierdo
Right
Droit
Derecho
Left
Gauche
Izquierdo
Right
Droit
Derecho
REAR
FRONT
AUDIO OUT
White
Blanc
Blanco
White/black striped
Rayé blanc/noir
Con rayas blancas y negras
Gray
Gris
Gris
Gray/black striped
Rayé gris/noir
Con rayas grises y negras
Green
Vert
Verde
Green/black striped
Rayé vert/noir
Con rayas verdes y negras
Purple
Mauve
Morado
*3 Auxiliary optional equipment such as
portable DVD player (not supplied)
Appareil auxiliaire en option, par
exemple un lecteur de DVD portable
(non fourni)
Equipo opcional auxiliar como un
reproductor de DVD portátil (no
suministrado)
BUS
CONTROL IN
AUDIO OUT
REAR
*6
3
*2 Supplied with XA-C30
Fourni avec le XA-C30
Suministrado con el XA-C30
R
BUS
AUDIO IN
AUX IN
4
Black
Noir
Negro
1
Blue
Bleu
Azul
ANT REM
Light blue
Bleu ciel
Azul celeste
Max. supply current 0.1 A
Courant d’alimentation max. 0,1 A
Corriente máx. de alimentación de 0,1 A
Orange/white striped
Rayé orange/blanc
Con rayas naranjas y blancas
ATT
Red
Rouge
Rojo
Yellow
Jaune
Amarillo
Schéma de raccordement (3)
Diagrama de conexión (3)
1 À un point métallique de la voiture
1 A una superficie metálica del automóvil
2 To the power antenna control lead or power
supply lead of antenna booster amplifier
Notes
• It is not necessary to connect this lead if there is no
power antenna or antenna booster, or with a
manually-operated telescopic antenna.
• When your car has a built-in FM/AM antenna in
the rear/side glass, see “Notes on the control and
power supply leads.”
3 To AMP REMOTE IN of an optional power
amplifier
This connection is only for amplifiers. Connecting
any other system may damage the unit.
4 To the interface cable of a car telephone
5 To a car’s illumination signal
Be sure to connect the black ground lead to a metal
surface of the car first.
6 To the +12 V power terminal which is energized
in the accessory position of the ignition key
switch
Notes
• If there is no accessoryposition, connect to the +12
V power (battery) terminal which is energized at
all times.
Be sure to connect the black ground lead to a
metal surface of the car first.
• When your car has a built-in FM/AM antenna in
the rear/side glass, see “Notes on the control and
power supply leads.”
7 To the +12 V power terminal which is energized
at all times
Be sure to connect the black ground lead to a metal
surface of the car first.
Notes on the control and power supply leads
• The power antenna control lead (blue) supplies +12 V
DC when you turn on the tuner.
• When your car has built-in FM/AM antenna in the rear/
side glass, connect the power antenna control lead
(blue) or the accessorypower input lead (red) to the
power terminal of the existing antenna booster. For
details, consult your dealer.
• A power antenna without relay box cannot be used
with this unit.
Memory hold connection
When the yellow power input lead is connected, power
will always be supplied to the memory circuit even when
the ignition key is turned off.
Notes on speaker connection
• Before connecting the speakers, turn the unit off.
• Use speakers with an impedance of 4 to 8 ohms, and
with adequate power handling capacities to avoid its
damage.
• Do not connect the speaker terminals to the car
chassis,or connect the terminals of the right speakers
with those of the left speaker.
• Do not connect the ground lead of this unit to the
negative (–) terminal of the speaker.
• Do not attempt to connect the speakers in parallel.
• Connect only passive speakers. Connecting active
speakers (with built-in amplifiers) to the speaker
terminals may damage the unit.
• To avoid a malfunction, do not use the built-in speaker
wires installed in your car if the unit shares a common
negative (–) lead for the right and left speakers.
• Do not connect the unit’s speaker cords to each other.
Note on connection
If speaker and amplifier are not connected correctly,
“Failure” appears in the display. In this case, make sure
the speaker and amplifier are connected correctly.
d‘alimentation de l‘amplificateur d‘antenne
Remarques
• Il n'est pas nécessaire de raccorder ce fil s'il n'y a pas
d'antenne électrique ni d'amplificateur d'antenne, ou avec
une antenne télescopique manuelle.
• Si votre voiture est équipée d'une antenne FM/AM intégrée
dans la vitre arrière/latérale, voir « Remarques sur les fils de
commande et d'alimentation ».
3 Au niveau du AMP REMOTE IN de l’amplificateur de
puissance en option
Ce raccordement s’applique uniquement aux amplificateurs. Le
branchement de tout autre système risque d’endommager
l’appareil.
4 Vers le câble d’interface d’un téléphone de voiture
5 Vers le connecteur du signal d’éclairage de la voiture
Raccordez d’abord le fil de masse noir à un point
métallique du véhicule.
6 À la borne +12 V qui est alimentée quand la clé de contact
est sur la position accessoires
Remarques
• S'il n'y a pas de position accessoires,raccordez la borne
d'alimentation (batterie) +12 V qui est alimentée en
permanence.
Raccordez d’abord le fil de masse noir à un point
métallique du véhicule.
• Si votre voiture est équipée d'une antenne FM/AM intégrée
dans la vitre arrière/latérale, voir « Remarques sur les fils de
commande et d'alimentation ».
7 À la borne +12 V qui est alimentée en permanence
Raccordez d’abord le fil de masse noir à un point
métallique du véhicule.
Remarques sur les fils de commande et d'alimentation
• Le fil de commande de l’antenne électrique (bleu) fournit une
alimentation de + 12 V CC lorsque vous mettez la radio sous
tension.
• Lorsque votre voiture est équipée d’une antenne FM/AM intégrée
dans la vitre arrière/latérale, raccordez le fil de commande de
l’antenne (bleu) ou l’entrée d’alimentation des accessoires(rouge)
à la borne d’alimentation de l’amplificateur d’antenne existant.
Pour plus de détails, consultez votre détaillant.
• Une antenne électrique sans boîtier de relais ne peut pas être
utilisée avec cet appareil.
Raccordementpour la conservation de la mémoire
Lorsque le fil d’entrée d’alimentation jaune est raccordé, le circuit
de la mémoire est alimenté en permanence même si la clé de
contact est sur la position d’arrêt.
Remarques sur le raccordement des haut-parleurs
• Avant de raccorder les haut-parleurs, mettez l’appareil hors
tension.
• Utilisez des haut-parleurs ayant une impédance de 4 à 8 ohms
avec une capacité électrique adéquate pour éviter de les
endommager.
• Ne raccordez pas les bornes du système de haut-parleurs au châssis
de la voiture et ne raccordez pas les bornes des haut-parleurs droit
à celles du haut-parleur gauche.
• Ne raccordez pas le câble de masse de cet appareil à la borne
négative (–) de l’enceinte.
• N’essayez pas de raccorder les haut-parleurs en parallèle.
• Raccordez uniquement des haut-parleurs passifs. Le raccordement
de haut-parleurs actifs (avec amplificateurs intégrés) aux bornes
des haut-parleurs peut endommager l’appareil.
• Pour éviter tout dysfonctionnement, n’utilisez pas les fils des hautparleurs intégrés installés dans votre voiture si l’appareil partage
un fil négatif commun (–) pour les haut-parleurs droit et gauche.
• Ne raccordez pas entre eux les cordons des haut-parleurs de
l’appareil.
Remarque sur le raccordement
Si les haut-parleurs et l’amplificateur ne sont pas raccordés
correctement, le message « Failure » s’affiche. Dans ce cas, assurezvous que les haut-parleurs et l’amplificateur sont bien raccordés.
*5 Be sure to match the color-coded code
for audio to the appropriate jacks from
the unit. If you connect an optional CD/
MD unit, you cannot use AUX IN
terminal.
Veillez à faire correspondre le code
couleur audio aux fiches de l’appareil.
Si vous raccordez un appareil CD ou
MD en option, vous ne pouvez pas
utiliser la borne AUX IN.
Asegúrese de hacer coincidir el código
codificado con colores para audio con
las tomas apropiadas de la unidad. Si
conecta una unidad de CD/MD
opcional, no podrá utilizar el terminal
AUX IN.
*6 Insert with the cord upwards.
Insérez avec le câble vers le bas.
Insertar con el cable hacia arriba.
7
1 To a metal surface of the car
2 Vers le fil de commande de l‘antenne électrique ou le fil
5
6
Purple/black striped
Rayé mauve/noir
Con rayas violetas y negras
Branchez d‘abord le fil de masse noir et, ensuite, les fils d‘entrée
d‘alimentation rayé orange/blanc, jaune, et rouge.
4
ILLUMINATION
Connection diagram (3)
First connect the black ground lead, then connect
the orange/white striped, yellow, and red power
input leads.
2
*4 Supplied with the auxiliary equipment
Fourni avec l’appareil auxiliaire
Suministrado con el equipo auxiliar
Conecte primero el cable de toma a tierra negro, y después los
cables con raya naranja/blanca, amarillo, y rojo de entrada de
alimentación.
2 Al cable de control de la antena motorizada o al cable de
fuente de alimentación del amplificador de antena
Notas
• Si no se dispone de antena motorizada ni de amplificador de
antena, o se utiliza una antena telescópica accionada
manualmente, no será necesario conectar este cable.
• Si el automóvil incorpora una antena de FM/AM en el cristal
trasero o lateral, consulte “Notas sobre los cables de control y
de fuente de alimentación”.
3 Para conectar a AMP REMOTE IN del amplificador de
potencia opcional
Esta conexión es sólo para amplificadores.
La conexión de cualquier otro sistema puede dañar la unidad.
4 Al cable de interfaz de un teléfono para automóvil
5 A una señal de iluminación del automóvil
Asegúrese de conectar primero el cable de toma a tierra neg ro a
una superficie metálica del automóvil.
6 Al terminal de alimentación de +12 V que recibe energía en
la posición de accesorio del interruptor de la llave de
encendido
Notas
• Si no hay posición de accesorio, conéctelo al terminal de
alimentación (batería) de +12 V que recibe energía sin
interrupción.
Asegúrese de conectar primero el cable de toma a tierra negro
a una superficie metálica del automóvil.
• Si el automóvil incorpora una antena de FM/AM en el cristal
trasero/lateral, consulte “Notas sobre los cables de control y de
fuente de alimentación”.
7 Al terminal de alimentación de +12 V que recibe energía sin
interrupción
Asegúrese de conectar primero el cable de toma a tierra negro a
una superficie metálica del automóvil.
Notas sobre los cables de control y de fuente de alimentación
• El cable de control de la antena motorizada (azul) suministrará + cc
cc de + 12V cuando conecte la alimentación del sintonizador.
• Si el automóvil dispone de una antena de FM/AM incorporada en el
cristal trasero o lateral, conecte el cable de control de antena
motorizada (azul) o el cable de entrada de alimentación auxiliar
(rojo) al terminal de alimentación del amplificador de antena
existente. Para obtener más información, consulte a su proveedor.
• Con esta unidad no es posible utilizar una antena motorizada sin
caja de relé.
Conexión para protección de la memoria
Si conecta el conductor de entrada amarillo, el circuito de la memoria
recibirá siempre alimentación, aunque ponga la llave de encendido
en la posición OFF.
Notas sobre la conexión de los altavoces
• Antes de conectar los altavoces, desconecte la alimentación de la
unidad.
• Utilice altavoces con una impedancia de 4 a 8 Ω con la capacidad de
potencia adecuada para evitar que se dañen.
• No conecte los terminales de altavoz al chasis del automóvil, ni
conecte los terminales del altavoz derecho con los del izquierdo.
• No conecte el cable de toma a tierra de esta unidad al terminal
negativo (–) del altavoz.
• No intente conectar los altavoces en paralelo.
• Conecte solamente altavoces pasivos. Si conecta altavoces activos
(con amplificadores incorporados) a los terminales de altavoz,
puede dañar la unidad.
• Para evitar fallos de funcionamiento, no utilice los cables de altavoz
incorporados instalados en el automóvil si su unidad comparte un
cable negativo común (–) para los altavoces derecho e izquierdo.
• No conecte los cables de altavoz de la unidad entre sí.
Nota sobre la conexión
Si el altavoz y el amplificador no están conectados correctamente,
aparecerá “Failure” en la pantalla. Si es así, compruebe la
conexión de ambos dispositivos.
7
CDX-M850MP
SECTION 2
DISASSEMBLY
Note : This set can be disassemble according to the following sequence.
SET
2-7.
CHASSIS (T) SUB ASSY
(Page 11)
CD MECHANISM BLOCK,
FRONT PANEL ASSY
(Page 9)
2-8.
LEVER SECTION
(Page 12)
2-3.
SUB PANEL (CD) SUB ASSY
(Page 9)
2-10.
SHAFT ROLLER ASSY,
LOAD SW BOARD
(Page 13)
2-4.
MOTOR BLOCK ASSY,
CAM (R) ASSY
(Page 10)
2-11.
FLOATING BLOCK ASSY
(Page 13)
2-12.
OPTICAL PICK-UP BLOCK
(Page 14)
2-1.
FRONT PANEL ASSY
(Page 8)
2-2.
2-5.
MAIN BOARD
(Page 10)
2-6.
HEAT SINK
(Page 11)
2-9.
SERVO BOARD
(Page 12)
Note : Follow the disassembly procedure in the numerical order given.
2-1. FRONT PANEL ASSY
2 screw (panel)
3
flexible board
4 front panel assy
(Take care not to pull the
flexible board excessively)
8
1 screw (panel)
CDX-M850MP
2-2. CD MECHANISM BLOCK, FRONT PANEL ASSY
7 bracket (CD)
5 CD mechanism block
6 PTT 2.6x6
8 tension spring (flexible)
0 cover (flexible)
9 slider (flexible)
3 PTT 2.6x4
qa CNP909
slider (flexible)
flexible board
2 PTT 2.6x4
Note: When installing
the flexible board,
make the board slack
as illustrated.
1 PTT 2.6x6
4 CNP301
qs front panel assy
2-3. SUB PANEL (CD) SUB ASSY
1 CNP805
3 claws
2 claws
4 sub panel (CD) sub assy
9
CDX-M850MP
2-4. MOTOR BLOCK ASSY, CAM (R) ASSY
Note : Install the motor block assy and cam (R) assy in this roder.
For phase alignment between cams (L) and (R), see page 15 and 17.
1 PTT 2.6x6
4 PTT 2.6x6
5 motor block assy
Note: Install the cam (R) assy with
the cam fully rotated in the
direction of the arrow A.
A
2 cam (R) assy
3 CNP902
2-5. MAIN BOARD
5 MAIN board
4 PTT 2.6x6
ground point
3 PTT 2.6x6
ground point
2 PTT 2.6x6
1 PTT 2.6x6
10
CDX-M850MP
2-6. HEAT SINK
5 heat sink
4 PTT 2.6x6
3 PTT 2.6x12
1 PTT 2.6x6
2 PTT 2.6x6
2-7. CHASSIS (T) SUB ASSY
2 P 2x3
3 P 2x3
1 Unsoldering three lead wires.
4 chassis (T) sub assy
SERVO board
(SIDE A)
black
red
white
11
CDX-M850MP
2-8. LEVER SECTION
5 guide (disc)
6 lever (R)
3 tension spring (LR)
7 lever (L)
1 special screw
2 DISC IN SW board
4 two claws
2-9. SERVO BOARD
9 SERVO board
7 special screws
8 special screw
3 Removal the solders.
2 CN2
5 P2x3
1 CN3
4 Unsolder the
lead wires.
black
yellow
6 loading motor assy
optical pick-up block
12
CDX-M850MP
2-10. SHAFT ROLLER ASSY, LOAD SW BOARD
• When installing, take note of the positions
arm (roller) and washers. (Fig. 1)
3 retaining ring (RA)
4 shaft retainer (roller)
arm
shaft retainer (roller)
washer
shaft retainer (roller)
retaining ring (RA) arm washer
Fig. 1
6 special screw
5 shaft roller assy
2 arm (roller)
7 LOAD SW board
1 tension spring (RA)
2-11. FLOATING BLOCK ASSY
6 floating block assy
7 compression spring (FL)
1 tension spring (KF1)
8 compression spring (FL)
5 Turn loading ring in the
direction of the arrow.
4 Fit lever (D) in the direction of the arrow.
2 damper (T)
3 damper (T)
13
CDX-M850MP
2-12. OPTICAL PICK-UP BLOCK
1 P 2x3
3 P 2x3
7 PICK-UP FLEXIBLE board
4 plate spring (feed)
2 sled motor assy (M902)
6 shaft (feed) assy
14
5 optical pick-up (KSS-721A)
CDX-M850MP
SECTION 3
PHASE ALIGNMENT
3-1. ARM (A-L) ASSY, ARM (B-L) ASSY
3 arm (A-L) assy
4 type-E stop ring 1.5
2 type-E stop ring 1.5
1 arm (B-L) assy
bracket (L) assy
3-2. CAM (L)
1 Move the arm (B-L) assy in the direction of the
arrow A and the arm (A-L) assy in the direction of
the arrow B fully (full open state).
2 Align the hole (large) on the cam (L) with part C and
install the cam.
4 Turn the cam (L) clockwise and counterclockwise to
verify that both the arms are operated.
3 type-E stop ring 1.5
hole (large)
cam (L)
C
line
A
arm (B-L) assy
arm (A-L) assy
B
15
CDX-M850MP
3-3. MOTOR BLOCK
1 Turn the cam (L) and position the cam so that part A
does not touch the SW board SW900.
3 PTT 2.6x6
4 PTT 2.6x6
2 motor block
SWITCH board
5 PTT 2.6x6
SW900
cam (L)
A
3-4. ALIGNMENT BETWEEN ARM (A-L) ASSY
AND ARM (B-L) ASSY
1 Input 9V DC to the motor terminal until the cam (L)
stops rotating.
Take care to avoid overload of the motor.
2 Verify that the arm (A-L) assy and arm (B-L) assy
are positioned as shown below (full open).
motor
arm (B-L) assy
+B
DC 9V
GND
arm (A-L) assy
16
CDX-M850MP
3-5. ARM (A-R) ASSY, ARM (B-R) ASSY
3 arm (A-R) assy
4 type-E stop ring 1.5
2 type-E stop ring 1.5
1 arm (B-R) assy
bracket (R) assy
3-6. CAM (R)
3 type-E stop ring 1.5
1 Move the arm (B-R) assy in the direction of the
arrow A and the arm (A-R) assy in the direction of
the arrow B fully (full open state).
2 Align the hole (large) on the cam (R) with part C and
install the cam.
4 Turn the cam (R) clockwise and counterclockwise to
verify that both the arms are operated.
hole (large)
cam (R)
arm (B-R) assy
A
C
line
B
arm (A-R) assy
5 oil damper
6 screw (P 2x4)
17
CDX-M850MP
SECTION 4
DIAGRAMS
4-1. IC PIN DESCRIPTIONS
• IC3 HD6432238RWN35TEI (CD MASTER CONTROL) (SERVO Board (2/2))
Pin No.
Pin Name
I/O
Pin Description
1
TEST
I
Test mode selection pin Not used. (Open)
2
3
DECXRST
DECSTBY
O
O
Reset signal output to the DSP IC “L”: reset
Standby mode control signal output to the DSP IC
4–7
8
NC
PH3
O
I
Not used. (Open)
CD PH3 photo sensor detection signal input Not used. (Open)
9
10
INSW/PH2
LIMIT_SW
I
I
CD mechanism disc in switch detection signal input
CD mechanism in-limit switch detection signal input
11
12
D_SW
CVCC
I
—
CD mechanism down switch detection signal input
System power supply pin (+3.3 V)
13
14
NC
VSS
O
—
Not used. (Open)
Ground pin
15
16
NC
PH1
O
I
Not used. (Open)
CD PH1 photo sensor detection signal input Not used. (Open)
17
18
EJECT
LOAD
O
O
CD mechanism loading motor control signal output (eject operation)
CD mechanism loading motor control signal output (load operation)
19 – 26
27
NC
FLAG
O
I
Not used. (Open)
Correction unable detection signal input
28
29, 30
RFOK
NC
I
O
RFOK signal input from the servo IC
Not used. (Open)
31
32
TXD
RXD
O
I
UART TXD PC connection output Not used. (Open)
UART RXD PC connection input Not used. (Open)
33
34
35
XTALEN
TSTB
STB
O
O
O
Crystal oscillation control signal output to the servo IC
CD text parameter strobe signal output to the servo IC
Data strobe signal output to the servo IC
36
A0
O
Command/parameter identification signal output to the servo IC
“L”: command, “H”: parameter
37
38
CD_RST
PACK
O
I
Reset signal output to the servo IC
CD text pack sync signal input from the servo IC
39
40
NC
SELF_SW
O
I
Not used. (Open)
CD mechanism self load position detection switch signal input
41
42
NC
AVSS
O
—
Not used. (Open)
Ground for A/D converter
43, 44
45, 46
NC
NC
O
I
Not used. (Open)
Not used. (Open)
47
48
KEY0
KEY1
I
I
Key switch signal input in the test mode Not used. (Open)
Mode switch signal input in the test mode Not used. (Open)
49 – 52
53
NC
AVREF
I
—
Not used. (Open)
Reference voltage for A/D converter
54
55
AVCC
MD0
—
—
Power supply for A/D converter
CPU operation mode setting pin Connecting to +3.3 V in this set.
56
57
MD1
X1A
—
—
CPU operation mode setting pin Connecting to +3.3 V in this set.
Sub clock oscillator terminal Not used. (Open)
58
59
X0A
RSTX
—
I
Sub clock oscillator terminal Not used. (Open)
Microcomputer reset signal input
60
61
NMI
STBY
—
—
Not used. (Fixed at “H”)
Not used. (Fixed at “H”)
62
63
VCC
XTAL
—
—
Power supply pin (+3.3 V)
Main clock oscillator pin (12.288 MHz)
64
65
VSS
XTEAL
—
—
Ground pin
Main clock oscillator pin (12.288 MHz)
66
FWE
I
18
Flash write enable signal input
“H”: standby
CDX-M850MP
Pin No.
67
Pin Name
MD2
I/O
—
Pin Description
68
69
FL_BOOT
FL_W
I
O
Flash write selection signal input (“L”: flash write mode)
Flash write control signal output connected to pin 66 (FWE)
70
71
NC
CDMON
O
O
Not used. (Open)
CD mechanism power supply control signal output
72
73
DECINT
CLOSE
I
O
Interrupt signal input from the DSP IC
Front panel operation request output (Close)
74
75
OPEN
LINKOFF
O
O
Front panel oparation request output (Open)
LINK OFF signal output for UNI_LINK “H”: link off, “L”: link on
76
77
UNI_SO
UNI_SI
O
I
Sony-Bus serial data output to the bus interface
Sony-Bus serial data input from the bus interface
78
79
UNI_CK
NC
I
O
Sony-Bus serial clock input from the bus interface
Not used. (Open)
80
81
SDA
SCL
I/O
O
82
83
NC
TSO
O
O
Not used. (Open)
Serial data output to the servo IC
84
85
TSI
TSCK
I
O
Serial data input from the servo IC
Serial clock output to the servo IC
86
87
LEDDAT
LEDCLK
O
O
LED data output for the jig
LED clock output for the jig
88
89, 90
LEDLAT
NC
O
O
LED latch signal output for the jig
Not used. (Open)
91
92
93
BUSON
BUCHK
A-ATT
I
I
O
Sony-Bus BUS ON signal input from the bus interface
Back up power supply detection signal input
Audio muting control signal output
94
95
CDON
NC
O
O
Power control signal output for the CD servo
Not used. (Open)
96
97
U/J_SEL
TEXTSEL
I
I
Destination setting pin
CD text function setting pin
98
99
NC
CFSEL
O
I
Not used. (Open)
Custom file function setting pin
100
DOUT SEL
I
Digital output selection setting pin
CPU operation mode setting pin
I2C interface data input/output
I2C interface clock output
“H”: servo on, “L”: during loading
“H”: digital output available
19
CDX-M850MP
• IC5 CXD9684R-005 (DSP) (SERVO Board (1/2))
Pin No.
Pin Name
I/O
1
/RESET
I
Reset input pin “L”: reset
Pin Description
2
3, 4
MIMD
AD0, AD1
I
O
5
6
MIDIO (I2C_SDA)
MICK (I2C_SCL)
I/O
I
Serial data input/output
Serial clock input
7
8
AD2
VDDT (3.3V)
O
—
External SRAM address signal output
Power supply (3.3 V) for digital circuit
9
10, 11
SDO
AD3, AD4
O
O
Data output
External SRAM address signal output
12
13
SDI0
BCKIA
I
I
Data input 0
Bit clock input A
14
15
LRCKIA
AD5
I
O
LR clock input A
External SRAM address signal output
16
17
CE
OE
O
O
External SRAM chip enable signal output
External SRAM output enable signal output
18
19
VDD (2.5V)
STANDBY
—
I
Power supply pin (2.5 V) for digital circuit
Standby mode control signal input “H”: STB, “L”: normal
20
21
VSS (2.5VGND)
VSSL (2.5VGND)
—
—
Ground pin for digital circuit
Ground pin for DAC Lch
22
23
VRAL
LO
—
O
Reference voltage pin for DAC Lch
DAC Lch signal output (Open)
24
25
VDAL (2.5V)
VDAR (2.5V)
—
—
Power supply pin (2.5 V) for DAC Lch
Power supply pin (2.5 V) for DAC Rch
26
27
28
RO
VRAR
VSSR (2.5VGND)
O
—
—
DAC Rch signal output (Open)
Reference voltage pin for DAC Rch
Ground pin for DAC Rch
29
30
TESTP
CKS
I
I
31 – 34
35
AD12 to AD9
VDDT (3.3V)
O
—
External SRAM address signal output
Power supply pin (3.3 V) for digital circuit
36 – 38
39
AD8 to AD6
REQ
O
O
External SRAM address signal output
Interrupt request signal output to the CD master control
40
41, 42
VSS
AD13, AD14
—
O
Ground pin for digital circuit
External SRAM address signal output
43
44, 45
WR
AD16, AD15
O
O
External SRAM write signal output
External SRAM address signal output
46, 47
48
IO0, IO1
VSS
I/O
—
External SRAM data input/output
Ground pin for digital circuit
49 – 51
52
IO2 to IO4
VDD (2.5V)
I/O
—
External SRAM data input/output
Power supply pin (2.5 V) for digital circuit
53 – 55
56
IO5 to IO7
VSSP
I/O
—
External SRAM data input/output
Ground pin for VCO circuit
57
58
PDO
VCOI
O
I
PLL phase error detection signal output
VCO control voltage input
59
60
VDDP
XRDE
—
I/O
Power supply pin for VCO circuit
External clock input, audio clock output
61
62
VDDX (2.5V)
XI
—
I
Power supply pin for oscillation circuit
Resonator pin
63
64
XO
VSSX
O
—
Resonator pin
Ground pin for oscillation circuit
20
Microcomputer interface mode selection input “H”: I2C, “L”: TSB
External SRAM address signal output
Pin for test “H”: test mode, “L”: normal (fixed at “L”)
VCO selection input “H”: VCO, “L”: X1 input
Not used. (Open)
CDX-M850MP
• IC303 M30626FHPGP-054 (SYSTEM CONTROL) (MAIN Board (2/2))
Pin No.
Pin Name
I/O
1
SIRCS
I
Remote control data input
Pin Description
2
3
FP CTRL
CD SO/TSO
O
O
Front panel open/close speed control signal
CD servo serial data output
4
5
CD SI/TSI
CD CKO/TCKO
I
O
CD servo serial data input Not used. (Open)
CD servo serial clock output Not used. (Open)
6
7
BYTE
CNVSS
I
I
L fixed terminal
Flash write-in signal input
8
9
XIN
XOUT
I
O
Sub clock signal input (32kHz)
Sub clock signal output (32kHz)
10
11
RESET
OSC OUT
I
O
CPU reset signal input
Main clock signal output (6MHz)
12
13
VSS
OSC IN
—
I
Ground
Main clock signal input (6MHz)
14
15
VCC1
NMI
—
I
Power supply pin (+5V)
Non maskable interrupt signal input
16
17
CD PACK
DAVN
I
I
CD text pack synchronized signal input
RDS data acquisition detect signal
18
19
BU IN
NS MASK
I
O
Back-up power detect signal
Noise mask signal output
20
21
BEEP
FLW IN
O
I
Beep signal output
OSC frequency shift signal for DC/DC conv.
22
23
NCO
SA CLK
O
O
Not used. (Open)
Spectrum analyzer clock signal output
24
25
26
TEL ATT
ATT
VOL ATT
I
O
O
telephone mute detect signal input
Mute signal output
Electronic volume mute signal output
27
28
I2C CKO
I2C SIO
O
O
Tuner/E-volume BUS clock output
Tuner/E-volume BUS data output
29
30
UNI SO
UNI SI
O
I
SONY BUS data output
SONY BUS data input
31
32
UNI CKO
TUNER ATT
O
O
SONY BUS clock output
Tuner attenuate signal output
33
34
EESIO
EECKO
I/O
O
EEPROM data input/output
EEPROM clock output
35
36
NCO
ADSO1
O
O
Not used. (Open)
Not used. (Open)
37
38
ADSO2
NCO
O
O
Not used. (Open)
Not used. (Open)
39
40
HOLD
AMP DIAG
I
I
Flash write-in signal input
Amplifier diagnosis signal input
41
42
AMP STB
AMP ON
O
O
Amplifier strobe signal output
Not used. (Open)
43
44
TUNER ON
WRI/WR
O
I
Not used. (Open)
Flash write-in signal input
45
46
CD LIMIT
CD D SW
I
I
CD limit detect signal input Not used. (Open)
CD disc SW detect signal input Not used. (Open)
47
48
CD PH1
CD INSW/PH2
I
I
CD PH1 detect signal input
CD IN SW/PH2 detect signal input
49
50
PH3
DST SEL1
I
I
CD PH3 detect signal input Not used. (Open)
Destination select signal input
51
52
DST SEL2
CD LM LO
I
O
Destination select signal input Not used. (Open)
CD loading motor control signal output Not used. (Open)
Not used. (Open)
Not used. (Open)
21
CDX-M850MP
Pin No.
53
Pin Name
CD LM EJ
I/O
O
54
55
CD RST
CD AO
O
O
CD servo reset signal output
CD servo command/parameter discri. output
56
57
CD STB
CD TSTB
O
O
CD servo data strobe signal output
CD servo text strobe signal output
58
59
CD RFOK
CD XTALEN
I
O
CD servo RFOK signal input
CD servo crystal OSC control signal output
60
61
VCC2
RESET OUT
—
O
Power supply pin (+5V)
Display CPU reset signal output
62
63
VSS
TEST IN
—
I
Ground
Test mode setting detect signal input
64
65
BUS ON
SYS RST
O
O
BUS ON control signal output
System reset signal output
66
67
BUS/AUX
LINK OFF
O
O
BUS/AUX select control signal output
Link OFF control signal output
68
69
ACC IN
ILL IN
I
I
Accessory key ON detect signal input
Ilumination line detect signal input
70
71
RC IN1
NCO
I
O
Rotary commander signal input 1
Not used. (Open)
72
73
CD SELF SW
TU ATT IN
I
I
CD self SW detect signal input
Tuner mute control signal input
74
75
CLOSE SW
OPEN SW
I
I
Front panel close detect signal input
Front panel open detect signal input
76
77
78
I-DET
MOT–
MOT+
I
O
O
Front panel current detect signal input
Front panel open/close control signal output
Front panel open/close control signal output
79
80
ROMC EN
QUALITY
I
I
ROM correction enable signal input
Tuner noise detect signal input
81
82
MPTH
VSM
I
I
Tuner multi-path signal input
S-meter signal input
83
84
SA IN
KEY IN1
I
I
SA data input
Key signal input 1
85
86
KEY IN0
RC IN0
I
I
Key signal input 0
Rotary commander signal input 0
87
88
KEY ACK2
KEY ACK0
I
I
Key acknowledge detect signal input 2
Key acknowledge detect signal input 0
89
90
KEY ACK1
OPEN KEY
I
I
Key acknowledge detect signal input 1
Open key detect signal input
91
92
RAM BU
FLD ON
I
O
RAM reset detect signal input
FL driver power supply ON/OFF signal output
93
94
FL ON
AVSS
O
—
FL power supply ON/OFF signal
Ground
95
96
DISP CE
VREF
O
—
Display CPU chip enable output
A/D converter reference voltage (+5V)
97
98
AVCC
DISP SI/RX
—
I
Power supply pin (+5V)
Display CPU BUS data input
99
100
DISP SO/TX
DISP CKO
O
O
Display CPU BUS data output
Display CPU BUS clock output
22
Pin Description
CD eject motor control signal output Not used. (Open)
Not used. (Open)
Not used. (Open)
Not used. (Open)
Not used. (Open)
CDX-M850MP
• IC2 M30833FJGP-073 (DISPLAY SYSTEM CONTROL) (DISPLAY Board)
Pin No.
Pin Name
I/O
Pin Description
1
SYS CE
I
Main chip enable input
2
3
NC
FL DAT3
I
O
Not used. (Open)
FL serial data output
4
5
NC
FL CLK IN
O
I
Not used. (Open)
FL serial clock input
6
7
BYTE
CNVSS
I
I
L fixed terminal
Flash write-in signal input
8
9
NC
NC
O
O
Not used. (Open)
Not used. (Open)
10
11
RESET
XOUT
I
O
CPU reset signal input
Main clock signal output (30MHz)
12
13
VSS
XIN
—
I
Ground
Main clock signal input (30MHz)
14
15
VCC
NMI
—
I
Power supply pin (+5V)
Non maskable interrupt signal input
16
17
NC
NC
O
O
Not used. (Open)
Connecting to pin 20.
18
19
NC
NC
O
O
Not used. (Open)
Not used. (Open)
20
21
NC
LAT
O
O
Connecting to pin 17.
FL data LAT output
22
23
BK
GCP2
O
O
FL BK output
FL GCP2 outpit
24
25
NC
GCP1
O
O
Not used. (Open)
FL GCP1 output
26
27
NC
GCP4
O
O
Not used. (Open)
FL GCP4 output
28
29
GCP3
SYS SO
O
O
FL GCP3 output
Main BUS data output
30
31
SYS SI
SYS CLK
I
O
CPU BUS data input
Main BUS clock input
32
33
NC
FL DAT1
O
O
Not used. (Open)
FL serial data output
34
35
NC
FL CLK
O
O
Not used. (Open)
FL serial clock output
36
37
LCD CE
LCD INH
O
O
LCD driver chip enble output
LCD driver inhibit output
38
39
NC
HOLD
O
I
Not used. (Open)
Flash write-in signal input
40 – 43
44
NC
WRI/WR
O
I
Not used. (Open)
Flash write-in signal input
45 – 59
60
NC
VCC
O
O
Not used. (Open)
Power supply pin (+5V)
61
62
NC
VSS
O
O
Not used. (Open)
Ground
63 – 93
94
NC
AVSS
O
—
Not used. (Open)
Ground
95
96
NC
VREF
O
—
Not used. (Open)
Power supply pin (+5V)
97
98
AVCC
RXD1
—
—
Power supply pin (+5V)
Not used. (Open)
99
100
FL DAT2
FL CLK IN
O
I
FL serial data output
FL serial clock input
23
23
CDX-M850MP
4-2. BLOCK DIAGRAM — CD SECTION —
IC1
RF AMP,DIGITAL SERVO
DIGITAL SIGNAL PROCESSOR
OPTICAL PICK-UP
KSS-721A
A
84
C
85
(Page 25)
TUNER
SECTION
B
D
RF
EQ
A
B
82
DSUB CODE
PROCESS
C
I-V
CONV.
D
D/A
CONV
EFM
DEMOD
83
FORCUS
ERROR
I/F
E
E
87
86
F
F
TRACKING
ERROR
SERVO
CTL
LOUT
16
ROUT
12
PACK
52
TSTB
56
TSCK
55
TSI
54
SI
8
SO
7
SCK
6
STB
5
AO
4
RST
3
RFOK
FLAG
PD
97
PD
APC
XTALEN
OSC
LD
DRIVE
Q1
DIN
A+5V
3
17
14
6
12
8
83 TSO
84 TSI
85 TSCK
5
7
15
9
11
37 CD_RST
2
62 63 64 65
23
16
4
FCSFOCUS
COIL
FCS+
TRK+
TRACKING
COIL
TRK-
15
16
17
18
FOCUS
COIL
DRIVE
18
2
TRACKING
COIL
DRIVE
26
23
12 SDIO
13 BCKIA
M
SLSL+
13
14
SLED
MOTOR
DRIVE
5
1
19
39
5
SP+
M
SP-
11
12
SPINDLE
MOTOR
DRIVE
6
A-ATT 93
M
LD-
9
LD+ 10
LOADING
MOTOR
DRIVE
1
4
46,47
49-51 IO0-IO7
53-55
1
81 SCL
X2
12.288MHz
3,4
7,10
11,15
38-36 AD0-AD16
34-31
41,42
45,44
+2.5V
(IC5)
3
RSTX 59
BUCHK 92
SW5
(DOWN)
43 WR
17 OE
16 CE
SW2
(SELF)
+2.5V
REG
63 XTAL
SW3
(DISC IN)
2
BU+3.3V
SW4
(LIMIT)
11 D_SW
BUSON 91
UNI CK 78
40 SELF SW
UNI_SI 77
UNI_SO 76
24
24
BU CHK
BUSON
BUS-CLK
BUS-SI
BUS-SO
DISPLY
SECTION
C
(Page 26)
9 INSW/PH2
LINKOFF 75
10 LIMIT_SW
CDMON 71
18 LOAD
CLOSE 73
17 EJECT
OPEN 74
EJECT
2
SYSRST
65 EXTAL
SD
LOAD
B
(Page 25)
CDON 94
M903
(LOADING)
A-ATT
2
20-13
3,2,31
A0-A16 1,12,4
11,7,10
MD
DECXRST
DECSTBY
DECINT
SDA
IC12
IC6
M901
(SPINDLE)
2
3
72
80
14 LRCKIA
WR 5
CS1 30
OE 32
M902
(SLED)
/RESET
STANDBY
REQ
MIDIO(I2C_SDA)
9 SDO
DQ1-DQ3, 21-23
IO4-IO8 25-29
TD
TUNER
SECTION
62 X1
MICK(I2C_SCL) 6
X1
16.9344MHz
:CD-R/RW(MP3)
33 XTALEN
IC4
S-RAM
FD
:CD
IC5
DSP
24
IC2
FOCUS/TRACKING COIL DRIVE,
SLED/SPINDLE/LOADING MOTOR DRIVE
• Signal path
28 RFOK
27 FLAG
38
29
same as L-ch.
36 AO
28
9
• R-ch is omitted due to
35 STB
13
SCKIN
31
SCKO
32
LRCKIN
33
LRCK
34
MD
SD
FD
98
IC3
CD MASTER CONTROL
38 PACK
34 TSTB
30
LD
A
IC7
5V 3.3V
DOUT
TD
LD
C16M
CDL
R-CH
LINK-OFF
CDMON
CDON
CLOSE
OPEN
DISPLY
SECTION
D
(Page 26)
CDX-M850MP
4-3. BLOCK DIAGRAM — TUNER SECTION —
PJ401
–1
L
ELECTRONIC VOLUME
IC401
Q408
CD
SECTION
A
CN503
(ANTENNA)
4 PDL
42 MDL
CDL
OUT LF 25
8
R-CH
–5
L
–6
R
R-CH
–3
L
–4
R
14
32 AC OUT L
Q171
31 AC IN L
OUT LR 24
1 ANT
L 4
R 3
11
40 AML
13
BUFFER
IC410
R-CH
12 SDA
13 SCL
OUT SW 17
15 MUTE
TU
–2
R
AF BUFFER
IC407
(Page 24)
TUNER UNIT
TUX501
R-CH
2
Q181
1
SA CLK 14
SA OUT 16
MUTE DRIVE
Q401,402
POWER AMP/POWER SUPPLY
IC201
SYSTEM CONTROL
IC303 (1/2)
16 MPX
4 OSCD
5 OSCI
12
9
28 I2C SIO
27 I2C CKO
DAVN 8
17 DAVN
19 NS MASK
X501
4.3MHz
SW
Q380
TU MUTE 7
MUTE CONDITION 8
S-METER 6
80 QUALITY
32 TUNER ATT
73 TU ATT IN
82 VSM
2
RL
11
SA CLK 23
BUS/AUX 66
ATT
BEEP
AMP STB
AMPDIAG
10
2 SDA
SDA 17
SCL 16
33 EESIO
34 EECKO
16 AC GND
22 STB
25 DIAG
XOUT 9
OSCIN 13
RL–
7
4 SCL
25
20
41
40
XIN 8
RL+
9
SA IN 83
X301
32.768kHz
A-ATT
OSCOUT 11
EEPROM
FL–
26 VOL ATT
SDA 9
SCL 10
QUALITY 5
FL
3
RDS DECODER
IC502
RDS 9
CD
SECTION
+10V
AU+8V
B
+5V
DR+6V
(Page 24)
X302
6MHz
Q103
A+5V
AU+5V
D+5V
34
30
37
33
DISP+B
AU8V
U-COM
MECHA
31 SERVO
R-CH
+5V REG
Q501
ILL IN 69
• Signal path
: FM
: AM/MW
: CD
ILLUMI
CHECK
Q907
+5V
REG
IC902
ACC DET
Q102
ACC IN 68
TEST IN 63
19
17
VP 35
18
16
13
7
F901
BATT
ATT
ILL
ACC
15
TEST
: CD-R/RW(MP3)
• R-ch is omitted due to
same as L-ch.
25
AMP REM
ANT REM
VP1 20
14
+4.8V
FR+
FR–
RR+
RR–
VP2 6
BATT
TU+5V
4
12
3
11
5
6
SW1 29
SW2 27
TEL ATT 24
AU +8V
AUDIO OUT
REAR
CNP101
1
FL+
5
AEP,UK,E MODEL
AUDIO OUT
FRONT
CN401
(SUB OUT(MONO))
Q470
SDA 14
SCL 13
BUS AUDIO
IN
25
CDX-M850MP
4-4. BLOCK DIAGRAM — DISPLAY SECTION —
BUFFER
IC701
CD
SECTION
C
BUS ON
2
6
BUS CLK
7
1
BUS SI
5
3
SYS RST
(Page 24)
BU CHK
BUS SO
INVERTER
Q904
BUS INTERFACE
IC301
CNP102
(BUS CONTROL IN)
6
5
4
30 UNI SI
8
DATA
8
SYSTEM CONTROL
IC303 (2/2)
3
2
1
CLK
7
BUS ON
BATT
RST
SW
Q901-903
BATT
9
29 UNI SO
11
31 UNI CKO
BUS
ON
12
64 BUS ON
2
RESET
13
65 SYSRST
3
BATT
CHECK
10
18 BU IN
D513
4
1
BATT DET
Q101
BATT
LCD DRIVER
IC1
LED CONTROL LED SW1
105
Q907,908
DIMMER
LCD2
INH
CF
CLK
DATA
13 XIN
SYS CE
37 LCD INH
SYS SO
36 LCD CE
SYS SI
35 FL CLK
SYS CLK
33 FL DAT1
117
118
119
120
KEY IN0 85
KEY IN1 84
KEY IN
MATRIX
RC IN1 70
RC IN0 86
CNJ101
(REMOTE IN)
IC302
1 RESET 2
RESET 10
11 XOUT
X301
30MHz
IR
7 RECEIVE 1
IC503
KEY ACK2 87
KEY ACK0 88
KEY ACK1 89
DISPLY SYSTEM CONTROL
IC2
SEG1
1
I
I SEG95
103 COM1
I
COM8
1
29
30
31
CNVSS 7
95
98
99
100
DISP CE
DISP SI/RX
DISP SO/TX
DISP CKO
DIMMER
CONTROL
Q905
FL 900
GCP
FL CONTROL
IC301
11
5
4
2
1
21
22
99
3
LAT
BK
FL DAT2
FL DAT3
23
25
27
28
GCP2
GCP1
GCP4
GCP3
S932
(RESET)
7 CNVSS
BATT
BUFFER
IC903
CD
SECTION
D
(Page 24)
6
VREF
CONTROL
Q306,307
I-DET
Q305
I-DET 76
SW900
(OPEN/CLOSE)
7 I-DET
IC308
D512
(DISC IN)
LED CONTROL
Q503,504
8
12
93 FLON
CD MON
6
14
72 CD SELF SW
CD ON
4
16
16 CD PACK
CLOSE
2
18
58 CD RFOK
S931
(OPEN)
OPEN KEY 90
+10V
54 CD RST
26
MOTOR
DRIVE
IC307
FP CTRL 2
LINK OFF
26
M601
(OPEN/CLOSE9
11
BATT
OPEN
MT+B
MOT- 77
OPEN SW 75
CLOSE SW 74
FL POWER
CONTROL
Q801,802
MOTOR+B REG
3
IC306
2
MOT+ 78
MT+B
T800
DC-DC CONVERTER
IC800
1
SW501
RESET
12
FL+
FLFLVDD
+5V
RAM BU 91
104 106
LED CONTROL LED SW2
Q903,904
D70
IR
7 RECEIVE 1
IC62
SIRCS 1
6
FLD ON 92
+5V REG
Q914-916
FL+5V
3
3
14
16
CDX-M850MP
4-5. CIRCUIT BOARDS LOCATION
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is
printed in each block.)
DISC IN SW board
for schematic diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1/4 W or less unless otherwise
specified.
•
%
: indicates tolerance.
f
•
: internal component.
• C : panel designation.
Note:
Note:
The components identi- Les composants identifiés par
fied by mark 0 or dotted une marque 0 sont critiques
line with mark 0 are criti- pour la sécurité.
Ne les remplacer que par une
cal for safety.
Replace only with part piéce portant le numéro
spécifié.
number specified.
LIMIT SW board
SERVO board
SWITCH board
tuner unit
(TUX501)
LOAD SW board
• A : B+ Line.
• Power voltage is dc 14.4V and fed with regulated dc power
supply from ACC and BATT cords.
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F : FM
f : AM/MW/LW
J : CD
c : CD-R/RW (MP3)
• Abbreviation
CND : Canadian model
MAIN board
DISPLAY board
SUB board
• Waveforms
— SERVO Board —
• Waveforms
— MAIN Board —
• Waveform
— DISPLAY Board —
(MODE: CD PLAY)
(MODE: FM)
(MODE: FM)
1
1
1
2.8Vp-p
3.2Vp-p
59ns
IC1
wd
1.5Vp-p
30MHz
4.3MHz
(XTAL)
IC502
2
4
for printed wiring boards:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
•
x
: parts mounted on the conductor side.
a
: Through hole.
•
•
: Pattern from the side which enables seeing.
(The other layer’s patterns are not indicated.)
(OSCD)
IC2
qa
(XOUT)
2
Caution:
Pattern face side:
(Side B)
Parts face side:
(Side A)
1.8Vp-p
1.7Vp-p
32.768kHz
IC1
uj
(RFO)
IC303
3
9
(XOUT)
• Abbreviation
CND : Canadian model
3
3.6Vp-p
6MHz
Approx. 200mVp-p
IC1
oa
(FEO)
IC303
qa
(OSCOUT)
4
Approx. 300mVp-p
IC1
od
(TEO)
5
1.2Vp-p
82ns
IC3
yd
Parts on the pattern face side seen from the
pattern face are indicated.
Parts on the parts face side seen from the
parts face are indicated.
(XTAL)
27
27
CDX-M850MP
4-6. PRINTED WIRING BOARDS — CD MECHANISM SECTION — • Refer to page 27 for Circuit Boards Location.
13
12
11
10
9
8
7
6
5
4
3
2
R115
R104
R113
JR8
C6
C3
C
R3
): SIDE B
C16
C78
D
R105
JR5
JR17
C25
C34
C29
C65
JR6
C112
C44
C114
R114
R121
C15
C20
C23
R9
R8
L6
R5
IC6
E
R107
IC12
C36
L4
C70
C60
C62
R130
R97
C69
R77
C53
R92
R45
C57
R94
R47
R46
R73
R67
C22
F
R76
R54
R91
C54
C102
R154
C75
C81
C30
C67
R55
C79
FB6
C63
R90
C51
C77
L8
C38
G
R48
JR21
C35
R65
C19
R106
R13
C111
R26
Q1
JR3
C-8
R98
(Q1)
B
R152
Location
E-8
H-8
D-3
G-2
G-4
E-3
F-6
E-4
C24
(
Ref. No.
IC1
IC2
IC3
IC4
IC5
(IC6)
IC7
(IC12)
1
A
• Semiconductor
Location
C13
14
C55
C58
R7
JR14
H
I
28
28
CDX-M850MP
2
1
3
4
5
6
7
8
9
10
11
12
13
14
A
CN
2
R30
C5
C1
B
C43
R29
C
R118
R111
C39
C40
JR1
R153
R131
R134
R147
RB1
R85
C56
R52
R51
R69
RB2
R83
R68
R82
JR12
R70
C68
R144
SW4
R15
R133
R135
R14
R145
R53
IC5
R64
H
R143
R93
R95
R96
R87
R49
R81
R86
R84
G
X1
IC7
R74
R72
R71
R75
IC4
SW5
R132
C59
JR15
F
SW2
FB2
C61
IC1
C27
R149
R136
R151
R150 R103
R129
R78
C113
C17
C45 C41
R124
E
SW3
R102
JR13
X2
(Page 33)
C18
R148
IC3
R128
C14
C8
R119
R126
R127
C9
FB3
C10
CN1
R117
D
C11
C4
R116
R109
R100
R12 R10
R142
R146
CN13
IC2
R88
R89
R50
C21
CN3
I
29
29
CDX-M850MP
• Refer to page 27 for Waveforms.
4-7. SCHEMATIC DIAGRAM — CD MECHANISM SECTION (1/2) — • Refer to page 40 for IC Block Diagram.
Note:
• Voltage is dc with respect to ground under no-signal
conditions.
no mark : CD PLAY
: Impossible to measure
∗
M902
SW4
CN13
CN3
TP78
TP77
TP79
TP83
TP82
TP81
TP80
TP84
CN2
R30
R29
C1
R26
R3
R13
TP8
C4
C43
C5
C6
TP9
C59
IC6
L6
C65
Q1
C3
C60
L8
R152
C19
C24
IC7
L4
TP88
TP23
TP24
TP25
TP22
R8
R9
C18
R153
C23
C20
FB2
TP89
IC4
C61
C35
C68
TP10
R5
C62
TP45
TP44
C14
C13
C63
C67
TP43
TP42
TP41
JR21
C77
C11
C57
C81
C56
TP40
R82
TP39
TP38
TP37
R83
R84
R85
R69
JR14
R68
C58
FB6
R70
RB2
R64
R65
IC1
TP7 C15
C55
C38
C10
R142
R88
C9
R144
TP11
R89
JR12
R67
TP36
TP12
CN1
C54
TP50
TP51
RB1
R81
R146
C8
R97
C36
R87
R49
R98
R143
R145
R147
TP56
TP52
JR13
TP53
TP54
R86
R50
R51
R52
IC5
C16
R53
R96
R95
R48
R94
R93
R78
R46
TP55
TP57
R47
TP58
TP59
R117
R118
R45
R77
R76
R54
IC B/D
X1
R116
R75
TP66
TP67
C39
C25
C34
R90
C44
TP94
JR15
C29
TP70
TP71
R71
R72
TP72
C69
TP73
TP74
R92
C75
C51
C40
R149
C17
R151
(Page 35)
TP68
R91
TP95
R148
R150
R73
C78
TP62
TP63
TP64
C53
R74
R55
TP60
TP61
C27
C45
TP76
TP75
C79
C41
JR3
TP49
JR6
JR5
JR1
TP65
FB3
(Page 31)
(Page 31)
30
30
CDX-M850MP
• Refer to page 27 for Waveform.
4-8. SCHEMATIC DIAGRAM — CD MECHANISM SECTION (2/2) — • Refer to page 40 for IC Block Diagrams.
(Page 30)
R105
(Page 30)
TP4
TP3
TP2
TP1
SW2
C114
R128
R127
R126
SW3
TP92
IC B/D
TP31TP33
R109
BP1
BP2
R111
TP32
R113
TP30
SW5
R7
R15
R154
TP15
BP3
R14
MD14
R130
R133
R134
R135
R136
R10
BP4 TP18
C22
IC2
TP90
C21
R104
R115
C111
C30
C70
TP91
R132
R107
R106
R119
R124
C112
BP6
R102
C113
X2
R121
R114
R103
TP86
IC12
R131
R129
BP5
M903
TP27
TP29
TP26
TP28
C102
JR17
IC3
TP87
TP17
TP20
TP16
TP19
IC B/D
R100
R12
TP21
Note:
• Voltage is dc with respect to ground under no-signal
conditions.
no mark : CD PLAY
: Impossible to measure
∗
31
31
CDX-M850MP
4-9. PRINTED WIRING BOARDS — MAIN SECTION — • Refer to page 27 for Circuit Boards Location.
14
13
12
11
10
9
8
7
6
5
4
3
2
1
A
Q271
C188
C288
R285
C178
C242
R185
Q281
C
Q181
R184
R174
C142
R142
R242
R275 R175
Q171
R284
C218
C219
R274
C217
C209
C278
C206
C207
R203
R204
R205
R206
R243
R143
R922
Q907
Q470
R433
C438
C439
R435
D108
C903
R431
R429
R921
R112
R920
R432
D
R407
R436
R929 D909
R434
R430
D123
IC407
IC410
R904
C426
D903
IC301
R425
D921
R901
IC903
C470
R473
C431
R518
IC401
R519
R903
G
R906
C810
D906
D904
IC306
T800
R910
C342
R377
IC303
R325
R373
R318
R364
C335
D302
R368
C336
X302
D303
F
C417
R346
R301
): SIDE B
C521
C520
C416
C809
L901
C525
C528 C527
C430
R415
R414
C424
C423
C324
C526
IC502
IC701
D920
E
R416
R914
IC902
R421
C475 R477
C421
C602
C601
C310
Q904
R417
C427
C429
Q903
R418
Q901
R419
C428 R420
Q902
R422
R471 C982
R329
C984
C983
R427
R320
R472
C981
R369
H
IC800
C322 C323
L800
R372
R321
C802
Q380
I
R380
D826
R915
D831
C801
CNP909
D819
D829
D827
D828
D810
R324
D808
D825
C318
R350
R351
JR301
JR302
R335
D305
C320
Q305
R326
C319
R330
R338
R319
E-10
F-10
F-9
C-4
C-3
C-5
C-4
J-9
H-10
G-10
I-9
F-6
E-5
E-3
D-3
D-2
I-4
I-4
F-9
E-9
F-9
F-9
D-8
F-11
F-11
E-11
C208
B-6
F-9
H-9
H-8
H-10
I-10
I-10
F-3
D-4
E-3
F-2
F-8
H-5
F-9
G-6
C216
B
C339
(
Location
F-10
G-7
I-9
D-8
F-9
G-9
IC307
• Semiconductor Location
Ref. No. Location
Ref. No.
(D905)
(D101)
E-10
D906
(D102)
E-10
(D907)
(D103)
E-10
D909
(D104)
E-11
D920
(D105)
E-10
D921
(D106)
C-9
D108
D-8
(IC201)
(D109)
D-10
IC301
(D110)
B-8
(IC302)
(D111)
D-8
IC303
(D112)
B-8
IC306
(D113)
C-8
IC307
(D114)
C-8
(IC308)
(D115)
C-8
IC401
(D116)
C-9
IC407
(D117)
C-9
IC410
(D118)
E-9
IC502
(D119)
E-9
IC701
(D120)
E-9
IC800
(D121)
E-9
IC902
(D122)
B-3
IC903
D123
E-9
D302
H-9
(Q101)
D303
H-10
(Q102)
D305
I-9
(Q103)
(D401)
E-6
Q171
(D403)
F-5
Q181
(D501)
E-2
Q271
(D802)
I-3
Q281
(D803)
I-3
Q305
(D804)
H-2
(Q306)
(D805)
H-2
(Q307)
(D806)
H-3
Q380
D808
J-7
(Q401)
D810
J-8
(Q402)
D819
J-7
(Q408)
(D820)
I-4
Q470
D825
J-7
(Q501)
D826
J-5
(Q801)
D827
J-7
(Q802)
D828
J-7
Q901
D829
J-7
Q902
D831
J-6
Q903
(D832)
I-9
Q904
(D843)
I-4
Q907
(D901)
F-8
(Q914)
(D902)
F-8
(Q915)
D903
F-8
(Q916)
D904
H-8
J
(Page 38)
32
32
CDX-M850MP
1
2
3
4
5
6
7
8
9
10
11
12
13
PJ401
A
CNJ101
CNP102
D112
C205
F101
FB102
CN503
IC201
CN904
R101
R102
R105
D118
D119
D105
D104
D103
R104
D101
Q102
D905
JW17
R110
C603
L301
R109
Q916
D102
R106
R949
R950
Q914
Q915
C928
C303
Q103
US,CND,E model
JW18
C419
D901
R302
C305
R913
X501
C901
C930
D902
L302
C425
C433
R108
L303
C304
C306
C301
R303
C307
FB301
C308
C435
D121
D120
FB302
C302
D403
Q401
JW2
TH100
D109
JW3
C104
C105
JW5
JW4
JW6
C203
R107
JW16
CNP301
JW15
C402
C309
CN601
C103
D117
D116
D115
D114
D113
JW7
JW14
JW13
C212
R403
D401
R307
(Page 29)
C422
G
AEP,UK model
C102
R111
C202
Q101
C401
C403
C434
C524
F
R202
C201
C272
C282
C172
C182
Q402
FB501
C522
BATT
R201
C432
R521
L101
R401
R424
R511
Q408
JW12
C214
C400
C443
D501
R501
R510
R505
C510
C501
C509
C502
Q501
C204
R402
R504
C542
D106
D111
C221
C223
JW11
C440
C226
R103
C507
L503
C508
D
C441
C503
C505
C437
R502
C442
C506
C101
CN903
JW1
R439
R444
C173
C283
C183
R443
R440
C273
R442
R446
R441
CN401
R410
R408
R445
TUX501
C
E
D110
C210
JW10
C215
FB101
C199
B
D122
CNP101
C418
R520 C523
C420
R322
C312
R323
C334
R367
Q307
R337
R336
R361
D806
Q306
CNP805
C311
R370
R327
JR801
D907
J
(Page 36)
33
33
C337
R357
R356
R833
SW900
R339
R811
R812
R332
R340
R845
R333
R343
R371
R866
D832
R809
D820
D843
C321
D802
C341
IC308
R334
R328
R342
Q802 R808
D803
SW900
C338
X301
C332
C315
Q801
C316
R804
R366
C807
C317
R806
R331
R801
C803
R803
R800
R807
D805
C331
R365
R341
H
I
IC302
R360
D804
CNP902
C313
14
CDX-M850MP
• Refer to page 27 for Waveform.
4-10. SCHEMATIC DIAGRAM — MAIN SECTION (1/2) — • Refer to page 40 for IC Block Diagrams.
C278
R440
R444
R439
R443
C206
C178
C207
R203 C208
C212
C210
R204
R442
R446
R441
R445
C288
PJ401
C242
C188
C214
C199
C142
C205
C215
C209
R242
R142
D122
C203
R243
C204
R143 R408
R410
R202
R401
C202
D401
Q402
C402
R201
Q470
C442
IC B/D
CN401
R407
C401
Q401
R432
C201
C273
R431
R274
CN503
R430
R429
R275
IC407
Q271
C282
C283
C440 C439
C216 C217
R285
C506
C982
C503
Q281
C981
C505
C272
R284
C441
C400
C219
R206
IC B/D
D121
IC201
D120
C437C438
R205 C218
C172
C221
C223
C226
C983
C173
C984 C182
R174
Q181
R433
R502
R175
Q171
R185
R434
L503
TUX501
R435
C183
R436
C509
R184
R427
CNP101
R504
C508
R542
R505
C420
C417
C418
R511
C419
C416
R510
C423
F901
Q501
C421
R425
C433
C422
C435
R501
C105
C104
D118
D119
D117
D116
D115
D114
D113
D112
D111
D110
C103
C424
L101
C426
IC401
R414
C501
R415
C434
D109
R921
R920
D909
R112
C475
C527
C525
C528
R521
C427
Q103
R922
C524
R417
R111
Q907
D106
R471
R416
C526
FB501
Q408
C425
R103
C502
D501
R424
R110
C903
D108
R929
R109
IC410
R106
R420
R104
C429
IC502
R473
R422
C428
R108 C102
R419
R418
R105
R421
Q102
R107
C432
IC B/D
C470
R477
C443
C430
R402
R518
C521
R519
C431
R472
D123
C520 C522
(Page 35)
34
34
X501
C523
IC B/D
Note:
• Voltage is dc with respect to ground under no-signal
(detuned) condition.
no mark : FM
(
) : AM/MW/LW
<
> : CD PLAY
R520
CDX-M850MP
• Refer to page 27 for Waveform.
4-11. SCHEMATIC DIAGRAM — MAIN SECTION (2/2) — • Refer to page 40 for IC Block Diagrams.
(Page 34)
IC B/D
Q904
IC301
D920
Q101
CNP301
C324
C101
Q903
C306 C308
C310
C302
R320
D921
FB302
Q902
R913
Q901
R302
D103
R914
C309
C305
R101
R102
IC903
R303
IC B/D
R904
D906
R368
R369
D302
Q305
R318
R338
D903
C337
R339
C335
Q306
D303
IC306
IC308
Q307
IC307
R334
D902
R337
C338
R336
C336
R371
R340
R341
C321
C339
R370
C341
C342 C334
D901
R328
R325
R377
M601
CNP902
Q801
R321
R808
SW900
D832
R372
R307
R360
R327
R373
R903
IC902
R901
R809
C602
R331
C331
R361
C603
L800
Q802
JR301
IC701
CNP805
C601
R906
R330
R335
IC B/D
JR302
R366
R811
R866
IC800
T800
D805
C318
C802
(Page 37)
D804
R346
R324
D806
IC303
R319
R807
R803
R806
C809
R910
C322 C323 C315
D829
R356
X301
X302
R301
C317
R357
R364
D907
R326
C313
D305
C320
C312
R333
R351
R350
D904
R367
C311
D826
D827
CNP909
R323
R322
IC302
C319
CN601
C801
D828
L302
D802
C807
R804
C810
D803
R801R800
R915
C803
D831
R365
Q914
R950
L901
Q915
C901
C316
(Page 39)
R949
R342
R380
Q380
D825
D905
C332
Q916
C928
C301
C307
CNP102
TH100
D101
L303
FB301
D104
D102
(Page
30)
C930
C304
L301
D105
C303
D843
D808
D820
D810
D819
R845
R833
R812
R332 R343
FB102
FB101
35
35
Note:
• Voltage is dc with respect to ground under no-signal
(detuned) condition.
no mark : FM
(
<
∗
CNJ101
) : AM/MW/LW
> : CD PLAY
: Impossible to measure
CDX-M850MP
4-12. PRINTED WIRING BOARD — SUB SECTION — • Refer to page 27 for Circuit Boards Location.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
Q504
D514
R532
R534
D512
R535
D511
D507
D506 C539
C533
SW501
B
C540
C535
C536
C537
R538
IC503
R509
C538
R536
Q503
R533
R531
FB503
R537
C
(Page 33)
D
CN501
E
D513
F
CN502
C541
G
• Semiconductor
Location
Ref. No.
D506
D507
D511
D512
D513
D514
Location
B-10
B-6
B-8
C-8
E-13
B-10
IC503
B-13
Q503
Q504
C-9
B-10
36
36
CDX-M850MP
4-13. SCHEMATIC DIAGRAM — SUB SECTION — • Refer to page 41 for IC Block Diagrams.
CN502
Q503
R532
R531
R525
R534
R533
D511
Q504
D512
SW501
D513
D514
C536
(Page 35)
R536
R537
R538
CN501
C537
FB503
C533
R509
C540
C538
C539
D506
C541
C535
D507
IC B/D
IC503
Note:
• Voltage is dc with respect to ground under no-signal
(detuned) condition.
no mark : FM
37
37
CDX-M850MP
4-14. PRINTED WIRING BOARD — DISPLAY SECTION — • Refer to page 27 for Circuit Boards Location.
2
1
3
4
5
6
7
8
9
10
11
12
13
14
A
R971
C905
D916
C973
R916
S932
D910
D912
D911
D913
D914
D915
C922
FMA11
D917
IC301
D918
FMA9
FB903
R939
C921
D921
C970
FB923
C960
R951 R928 R929
D919
R948
R992
D920
FB917
FB918
C961
X301
FB906
FB905
FB904
C920
C909
R970
FB919
C915
R967
Q903
R956
Q904
FB971
FB909
FB908
FB907
FB921 FB920
R947
C963
R945
C913
R940
FB910
C910
R944
IC1
R991
C907
R982
C911
R965
R964
FB926
R941
C908
D902
C902
R968
D908
FB924
FB925
R984
S909
FB911
FB916
R985
C
LED909
C912
FB912
FB915
R986
R969
C962
FMA10
FB913
IC2
R987
FB60
C903
IC62
C901
C904
C906
C983
C914
FB901
S931
D901
R999
FB914
R981
FB902
R994
FB922
R988
R989
R972
B
R906
FMA12
R954
FL900
LED931
D
(Page 32)
E
S916
Q905
LED901
LED922
R919
6
R950
S901
F
R935
9
LED
LED
05
R980
R978
R962
R913
R979
906
LED955
S9
R920
15
S922
LED916
R936
LCD2
LED956
CNP908
S917
R918
S90
5
S90
R942
R959
LE
R917
LED917
D70
D9
15
R990
R912
R911
S918
LED957
G
LED958
S914
S907
R953
S904
Q908
R957
2
S90
8
Location
F-2
B-1
B-4
B-10
D-11
D-11
D-11
D-11
D-11
C-10
Ref. No.
D916
D917
D918
D919
D920
D921
Location
C-10
D-10
D-10
D-10
C-10
C-10
IC1
IC2
IC62
C-8
B-6
C-2
Ref. No.
IC301
Location
C-7
LED901
LED902
LED903
LED905
LED906
LED908
LED909
LED911
F-2
H-3
H-1
F-3
F-4
H-4
B-13
H-14
LE
21
D9
13
R958
R915
S919
Ref. No.
LED912
LED913
LED915
LED916
LED917
LED919
LED920
LED921
LED922
LED931
Location
H-12
H-13
F-13
F-12
F-11
H-5
H-9
H-11
F-13
B-2
S9
21
LED912
R960
S920
R955
R949
S912
S9
13
S911
R922
R923
R952
R946
LED911
• Semiconductor Location
Ref. No.
D70
D901
D902
D908
D910
D911
D912
D913
D914
D915
D9
R925
908
R914
LED
LED920
R961
902
LED919
S90
LED903
I
R909
LED
R907
Q907
R902
S903
H
R901
R921
LE
R908
R910
Ref. No.
LED955
LED956
LED957
LED958
Location
F-9
F-6
G-4
G-13
Q903
Q904
Q905
Q907
Q908
C-11
C-10
F-4
H-2
G-2
38
38
CDX-M850MP
• Refer to page 27 for Waveform.
4-15. SCHEMATIC DIAGRAM — DISPLAY SECTION — • Refer to page 41 for IC Block Diagrams.
R946
R950
R936
Q903
R952
R945
R954
R951
R956
R953
R955
R958
R960
R957
R961
R959
R962
R929
LED917
LED911
LED921
LED908
LED901
LED916
LED913
LED920
LED902
LED905
LED915
LED919
LED903
LED906
LED955
LED957
R928
LED956
LED912
LED958
Q904
D914
D911
D910
D912
Q905
R990
R935
CNP908
LED922
S932
IC62
Q907
R994
D70
R965
R967
D902
D915
R964
(Page 35)
R989
R988
R901
R902
LED909
C912
FB60
R968
C904
R969
C902
LED931
Q908
D901
C920
D913
C922
D908
S931
IC B/D
C914
C903
C905
D916
C901 C983
C921
FB914
D917
D918
D919
D920
D921
IC1
C913
FB926
C907
R941
R942
R986
C910
R985
R984
C911
IC2
S902
R987
C909
R940
S901
R913
C908
S911
FB913
R981
FB912
R980
FB911
R979
R982
R978
R912
S903
S912
R923
FB910
FB909
FB915
R911
S904
S913
FB908
R922
FB907
FB906
FB916
R910
R909
S905
S914
R972
FB905
R921
R992
S906
S915
R920
S908
S918
R917
S909
S919
FB903
FB901
R939
C970
R948
R906
C961
FB921
R918
C960
S917
C915
R949
R947
R944
FB971
IC301
R916
IC B/D
S920
S921
R915
C963
R914
C973
R999
C962
R907
S907
X301
FB918
FB920
R908
FB923
R970
FB919
FB917
FB902
FB925
FB922
S916
FB924
FB904
R991
R919
R925
S922
R971
LCD2
FL900
39
39
Note:
• Voltage is dc with respect to ground under no-signal
(detuned) condition.
no mark : FM
CDX-M850MP
4-16. IC BLOCK DIAGRAMS
FD
AGND
ATEST
TEST1
TEST0
DGND
TSTB
TSCK
TSI
TSO
PACK
DVDD
64
63
62
61
60
59
58
57
56
55
54
53
52
51
MICROCOMPUTER INTERFACE
CD-TEXT DECODER
EFM
D/A
EQ1 79
FD/TD/SD/MD
CONTROLLER
LDCONT
3
PS
4
IN1
5
IN2
6
48 C2D1
45 DGND
A 82
EFM DEMODULATOR
FEOFS
C 83
DIGITAL PLL
TEOFS
7
POWVCC12
(CH1.CH2)
42 RFCK
TIMING GENERATOR
ROM
DECODER
SVROM
PREVCC
41 LOCK
8
VOL–
9
+
+
+
+
39 TSOI
CLV
PROCESSOR
REFOUT 89
38 C16M
FEO 91
A3T
TEO 93
MIRR
TE2 94
MIRENV
DE-EMPHASIS CIRCUIT
TRACKING
REGISTER
FOCUS
REGISTER
TEO
AGND 96
OCTUPLED
OVERSAMPLING DIGITAL FILTER
COMPARATOR
PD 97
NOISE SHAVER
VO2– 11
35 HOLD/WDCK
VO2+ 12
VO1– 13
10k
10k
–
–
LEVEL
SHIFT
10k
VO1+ 14
10k
10k
–
–
LEVEL
SHIFT
LEVEL
SHIFT
–
10k
10k
10k
18 VO3–
17 VO3+
10k
10k
10k
32 SCKO
31 SCKIN
LEVEL
SHIFT
–
10k
34 LRCK
33 LRCKIN
10k
+
FEO
TEC 95
RFENV
36 TX
+
A/D CONVERTER
FOK
TE- 92
D/A
INTERFACE
CIRCUIT
OUTPUT PROCESSOR
DEFECT
19 GND
37 DGND
+
DEFECT
COMPARATOR
20 POWVCC
VOL+ 10
+
DIGITAL
AUDIO
INTERFACE
SWITCH
FE- 90
21 MUTE
10k
10k
16 VO4–
15 VO4+
–
AVDD 88
CH1-4
MUTE
POWVCC34
(CH3,CH4)
40 DVDD
EFM
E 87
22 OPOUT3
–
F 86
POWVCC
24 OPIN3+
23 OPIN3–
–
–
RF
AMP BLOCK
D 85
SVCRAM
MULTIPLIER
B 84
25 OPOUT4
PREVCC
(PRE.LOADING)
44 PLCK
43 MIRR/WFCK
SVDRAM
POWER
SAVE
–
ADDER
27 OPIN4+
26 OPIN4–
–
5 VCC
4 OUT
IN B 1
IN A 2
GND 3
X3
47 C1D2
46 C1D1
AGND 81
LOADING PRE
FWD REV
+
AUTO GAIN
CONTROLLER
RF- 80
SUB-CODE PROCESSOR
16K
SRAM
MEMORY
PROCESSOR
49 C2D2
2
–
EQ2 78
REV
28 BIAS
16k
COMPARATOR
RFO 77
50 C2D3
ERROR
CORRECTION
PROCESSOR
EFM
1
+
AGCI 76
FWD
+
TD
65
+
SD
66
+
MD
67
+
7F DAC0
68
16k
7C DAC1
69
16k
7D DAC2
70
IC12 TC7SH08FU (SERVO Board (2/2))
7.5k
7E DAC3
71
7.5k
AVDD
72
7.5k
EFM
73
–
ASY
74
16k
C3T
75
7.5k
RFI
IC2 BA5810FP (SERVO Board (2/2))
AGCO
IC1 µPD63711GC-8EU (SERVO Board (1/2))
10k
30 DOUT
29 DIN
NOISE SHAVER
LD 98
28 FLAG
OUTPUT BUFFER OUTPUT BUFFER
27 EMPH
PN 99
MICROCOMPUTER INTERFACE
SCF
26 DVDD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
DGND
RFOK
RST
A0
STB
SCK
SO
SI
XTALEN
DVDD
DAVDD
ROUT
DAGND
REGC
DAGND
LOUT
DAVDD
R+
R–
L–
L+
XVDD
XTAL
XTAL
XGND
OSC
CIN
SCOUT
VREF
MPX
VSSA
VDDA
AFIN
MAD
PSWN
IC301 BA8270F (MAIN Board (2/2))
LVIN
IC502 SAA6588T (MAIN Board (1/2))
20
19
18
17
16
15
14
13
12 11
PAUSE
DETECTOR
POWER SUPPLY
& RESET
MULTI
PATH
DETECTOR
57kHz
8th ORDER
BAND-PASS FILTER
CLOCKED
COMPARATOR
BUSON 1
RST 2
BATT 3
BUS ON
SWITCH
RESET
SWITCH
BATTERY
SWITCH
GND 1
14 VCC
NC 2
RST
BUSON
CLK-IN
B/U-C
5
CLOCK
RDS/RDBS
DEMODULATOR
RDS/RDBS
DECODER
CLK 4
VREF 5
DATA 6
I/O
4
POWER
SAVE
CLOSE 6
GND 7
DATA
NC 8
15 NC
14 OUT2
13 NC
CURRENT LIMIT,
THERMAL LIMIT,AND
UNDERVOLTAGE SHUTDOWN
DRIVER
STAGE
LOGIC
12 VREF
11 OPEN
NC 7
CLOCK
INTERFACE
REGISTER
DRIVER
DRIVER
M BATT 4
VCC 5
IC800 LM2577SX-ADJ (MAIN Board (2/2))
16 RNF
OUT1 3
13
12
11
10
SIGNAL QUALITY
DECODER
4
IC307 BA6288FS (MAIN Board (2/2))
CONTROL
LOGIC
AVDD 100
52kHz
OSCILLATION
TSD
∑
9 NC
9 DATA IN
8 DATA OUT
SOFT
START
6
7
8
9
10
40
40
TCON
OSCO
OSCI
VSSD
VDDD
DAVN
SDA
SCL
3
4
5
VDD
5
2
SWITCH
4
1
GND
3
2.5V
REGULATOR
CURRENT
SENSE
REGISTOR
ERRIN
1 2
MRO
MPTH
IIC BUS SLAVE
TRANSCEIVER
1.25V
REF.
ERROR
AMP
ERROUT
OSCILLATOR
& CLOCK
AMP
CURRENT
SENSE
VOLTAGE
COMPARATOR
DATA
TEST
CONTROL
CORRECTIVE
RAMP VOLTAGE
10 NC
CDX-M850MP
IC201 TDA8588J/N1 (MAIN Board (1/2))
IC407 LA2901V-TLM (MAIN Board (1/2))
TAB 1
SIGNAL
AMP
LFIN- 1
2 SDA
FL- 3
I2C BUS
4 SCL
FL
N.C 3
VREF
VCC
FL+ 5
6 VP2
SIGNAL
AMP
LRIN- 4
RL- 7
23 LROUT
LRIN+ 5
RL
8 PGND3
22 LGND
RL+ 9
VREF
SGND 13
IN_RR 15
LIFT
AMP
12 IN_FL
DCL 6
RR+ 17
RR
19 VCCL
18 VCCR
18 PGND2
DCR 7
RR- 19
VREF
20 VP1
FR+ 21
STANDBY
MUTE
FR
22 STB
CHIP DETECT
DIAGNOSTIC
DIAG 25
LIFT
AMP
VREF
VCC
TEMPERATURE
PROTECTION
17 LIFT
ROUT
16 LIFT
RVD
15 RGND
24 PGND1
BATTERY
DETECTION
20 LIFT
LOUT
VREF
16 ACGND
VP
FR- 23
21 LIFT
LVD
14 IN_FR
MUTE
PROTECTION
DIAGNOSTIC
VCC
10 SVR
MUTE
IN_RL 11
RFIN+ 8
ENABLE
LOGIC
SIGNAL
AMP
RFIN- 9
26 RST
SW2 27
24 LFOUT
LFIN+ 2
N.C 10
SWITCH
VREF
14 RFOUT
VCC
RRIN+ 11
13 RROUT
28 CRES
SW1 29
RRIN- 12
SWITCH
SIGNAL
AMP
REGULATOR
30 AU8V
SERVO 31
MECHA 33
32 GND
34 DISP+B
VP 35
REFERENCE
VOLTAGE
U-COM 37
36 CBU
LOADDUMP
PROTECTION
REGULATOR
BACK-UP
SWITCH
IC503 RRX9000-0601 (SUB Board)
IC62 RRX9000-0601 (DISPLAY Board)
VIN
16
GND A
15
INPUT
SLAGE
VIN
14
INS GND VCO NC
12 11 10 9
VAGC
13
320kHz
320kHz
/500kHz
NOISE
SUPPRESSION
PULSE
COUNTER
AGC
PULSE
FORMER
BANDGAP
REFERENCE
1 2
LIN GND
3
VSTAB
4
VCC
5
NC
6
NC
7
VPO
8
NC
41
CDX-M850MP
NC
ACOUTR
ACINSW
ACOUTSW
ACOUTL
ACINL
VREFOUT
VDD
AC2INL
AC2OUTL
FILOL
OUTLF
OUTLR
33
32
31
30 29
28 27 26
25
24 23
HIGH PASS
FILTER2
MIXER
NC
ACINR
IC401 TDA7416 (MAIN Board (1/2))
SOFT STEP
FADER
34
35
36
37
SOFT STEP
FADER
HIGH PASS
FILTER
SUB
WOOFER
FILTER
MIXER
22 OUTRF
SOFT STEP
FADER
21 OUTRR
7 BAND
EQUALIXER
SOFT STEP
FADER
MAIN
VOLUME
HIGH
PASS
FILTER2
SOFT STEP
FADER
SOFT
MUTE
20 AC2INR
19 AC2OUTR
18 FILOR
17 OUTSW
16 SAOUT
15 MUTE
ZERO
CROSS
LOUDNESS
SPECTRUM
ANALIZER
14 SAIN
IN-GAIN
FADER
INPUT
MULTIPLEXER
1 2 3 4 5
6 7
8
9 10 11
NC
GND
NC
POWER
SUPPLY
MIC
40
41
42
43
44
REAR
SELECTOR
NC
PDR+
AML
AMR
MDL
MDR
AUXL
MAIN
SOURCE
SELECTOR
NC
NC
AUXR
PDL+
PD-
CREF 38
NC 39
IC301 TC74VHC32FT(EL) (DISPLAY Board)
1A 1
1B 2
1Y 3
2A 4
2B 5
2Y 6
GND 7
42
14 VCC
13 4B
12 4A
11 4Y
10 3B
9 3A
8 3Y
II2CBUS
13 SCL
12 SDA
CDX-M850MP
SECTION 5
EXPLODED VIEWS
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
R
R
Parts Color Cabinet’s Color
• Accessories are given in the last of this
parts list.
• Abbreviation
CND: Canadian model
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
5-1. CHASSIS SECTION
10
9
8
#1
#2
MG-393MC-121//K
not supplied
#1
7
3
4
6
5
#1
A
1
not supplied
A
Ref. No.
#2
2
Part No.
Description
Remark
1
1
2
3
4
X-3383-098-1
X-3383-101-1
1-783-268-11
1-687-950-11
3-232-857-01
PANEL (CD) SUB ASSY, SUB (US,CND)
PANEL (CD) SUB ASSY, SUB (AEP,UK,E)
CABLE, FLAT (FFC) 11P
SUB BOARD
SHEET (SUB PANEL), ELECTROSTATIC
5
6
7
3-248-826-01 COVER (FLEXIBLE)
3-230-516-01 SPRING (FLEXIBLE), TENSION
3-045-756-01 SCREW (PANEL)
7
Ref. No.
8
Part No.
Description
Remark
9
10
#1
1-776-207-72 CORD (WITH CONNECTOR) (POWER)
(US,CND,E)
1-776-527-71 CORD (WITH CONNECTOR) (ISO) (POWER)
(AEP,UK)
3-223-913-11 LABEL (OP CAUTION) (AEP,UK,E)
3-248-858-01 BRACKET (CD)
7-685-790-09 SCREW +PTT 2.6X4 (S)
#2
7-685-792-09 SCREW +PTT 2.6X6 (S)
8
43
CDX-M850MP
5-2. CAM SECTION
59
58
55
57
#5
56
#2 #2
61
60
M601
#4
#2
#5
#2
58
64 #2
#2
54
65
63
#5
62
53
#3
51
#5
#5
#5
52
Ref. No.
Part No.
Description
51
52
53
54
55
3-230-495-01
X-3380-549-1
X-3380-544-2
X-3380-548-1
X-3382-822-1
CAM (L)
ARM (B-R) ASSY
BRACKET (L) ASSY
ARM (B-L) ASSY
ARM (A-L) ASSY
56
57
58
59
60
3-376-464-11
3-045-714-01
3-342-940-01
3-045-713-01
A-3326-298-A
SCREW (+PTT 2.6X6), GROUND POINT
GEAR (B)
WASHER (M)
GEAR (A)
SWITCH BOARD, COMPLETE
* 61
44
X-3378-711-4 BRACKET (MOTOR) ASSY
Remark
Ref. No.
66
Part No.
Description
62
63
64
65
66
3-230-494-01
3-230-496-01
X-3380-545-2
3-030-909-11
X-3382-823-1
GEAR (C)
CAM (R)
BRACKET (R) ASSY
DAMPER, OIL
ARM (A-R) ASSY
M601
#2
#3
#4
#5
X-3378-769-1
7-685-792-09
7-621-772-18
7-627-553-28
7-624-102-04
MOTOR ASSY (OPEN/CLOSE)
SCREW +PTT 2.6X6 (S)
SCREW +P 2X4
SCREW, PRECISION +P 2X2.5
STOP RING 1.5, TYPE -E
Remark
CDX-M850MP
5-3. MAIN BOARD SECTION
107
#2
#2
106
105
#2
not
supplied
108
#6
#2
#2
#7
#2
not supplied
#2
#2
102
TUX501
103
104
105
103
F901
102
101
101
not supplied
not supplied
Ref. No.
Part No.
Description
101
102
103
104
105
3-230-493-01
3-230-444-01
3-040-692-01
3-045-721-01
3-376-464-11
GEAR (DRIVE SHAFT)
GUIDE (DRIVE SHAFT)
RING, CE TYPE RETAINING
SHAFT, DRIVE
SCREW (+PTT 2.6X6), GROUND POINT
106
106
A-3274-933-A MAIN BOARD, COMPLETE (US,CND)
A-3274-934-A MAIN BOARD, COMPLETE (AEP,UK,E)
Remark
Ref. No.
Part No.
Description
Remark
107
108
F901
TUX501
#2
1-777-246-41
1-790-375-32
1-532-877-11
A-3220-887-A
7-685-792-09
CORD (WITH CONNECTOR) (ANTENNA)
CORD (WITH CONNECTOR) (SUB OUT (MONO))
FUSE (BLADE TYPE) (AUTO FUSE) 10A
TUNER UNIT (TUX-030)
SCREW +PTT 2.6X6 (S)
#6
#7
7-685-795-09 SCREW +PTT 2.6X12 (S)
7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT
45
CDX-M850MP
5-4. FRONT PANEL SECTION
166
164
175
174
not supplied
165
FL900
163
164
#8
167
#8
171
172
162
LCD2
160
154
161
170
159
168
173
157
not supplied
158
156
169
154
155
151
153
152
Ref. No.
Part No.
Description
Part No.
Description
151
151
152
153
153
X-3383-766-1
X-3383-768-1
3-238-816-01
3-238-820-01
3-238-820-11
PANEL (KEY) ASSY (S), FRONT (US,CND)
PANEL (KEY) ASSY (S), FRONT (AEP,UK,E)
BUTTON (EJECT)
BUTTON (ENTER) (US,CND)
BUTTON (ENTER) (AEP,UK,E)
165
166
167
168
169
3-248-789-01
2-626-869-01
1-687-952-11
X-3381-646-1
A-3274-766-A
BUTTON (RESET-DSPL)
SCREW (M2X3), SERRATION
FLEXIBLE BOARD
BRACKET (PANEL) ASSY
DISPLAY BOARD, COMPLETE (AEP,UK,E)
154
155
156
157
158
3-238-814-01
X-3381-650-1
3-238-821-01
3-238-819-01
3-238-817-01
HOLDER (REFLECTION), BUTTON
BUTTON (SEEK/AMS) ASSY
BUTTON (DISC)
BUTTON (SOUND)
BUTTON (DSO)
169
170
171
172
173
A-3274-979-A
3-238-827-01
3-238-826-01
1-694-925-11
1-694-926-11
DISPLAY BOARD, COMPLETE (US,CND)
PLATE (LCD KEY), LIGHT GUIDE
SHEET (KEY), DIFFUSION
CONDUCTIVE BOARD, CONNECTION
CONDUCTIVE BOARD, CONNECTION
159
159
160
161
162
3-238-818-01
3-238-818-11
X-3381-649-1
3-238-815-01
3-239-338-01
BUTTON (MODE) (US,CND)
BUTTON (MODE) (AEP,UK,E)
BUTTON (VOL) ASSY
BUTTON (CLOSE)
BUTTON (SOURCE)
174
174
175
175
FL900
X-3383-210-1
X-3383-692-1
3-249-076-01
3-249-076-21
1-518-879-11
PANEL (MAIN) ASSY, FRONT (AEP,UK,E)
PANEL (MAIN) ASSY, FRONT (US,CND)
FILTER (FL) (US,CND)
FILTER (FL) (AEP,UK,E)
INDICATOR TUBE, FLUORESCENT
163
164
3-248-825-01 PLATE (FL), GUIDE
3-248-791-01 BUTTON (OPEN)
LCD2
#8
1-804-636-21 DISPLAY PANEL, LIQUID CRYSTAL
7-685-104-19 SCREW +P 2X6 TYPE2 NON-SLIT
46
Remark
Ref. No.
Remark
CDX-M850MP
5-5. CD MECHANISM SECTION (1)
(MG-393MC-121//K)
202
#9
#9
204
203
207
201
209
216
#10
217
214
206
215
214
205
205
213
210
208
M903
#11
212
211
#9
#10
Ref. No.
Part No.
Description
201
202
203
204
205
A-3274-253-A
3-040-039-03
3-040-038-01
3-040-050-01
3-040-022-01
DISC IN SW BOARD, COMPLETE
CHASSIS (T)
SPRING (LR), TENSION
LEVER (L)
RETAINER (ROLLER), SHAFT
206
207
208
209
210
3-040-044-01
3-040-067-01
A-3301-980-A
3-040-037-01
3-040-040-03
ROLLER (S)
LEVER (R)
SHAFT ROLLER ASSY
GUIDE (DISC)
ARM (ROLLER)
211
A-3274-698-A SERVO BOARD, COMPLETE
Remark
Ref. No.
Part No.
Description
212
213
214
215
216
3-221-779-02
3-040-034-01
3-040-042-01
3-043-880-01
3-044-206-11
BRACKET (MOTOR)
SPRING (RA), TENSION
WASHER
RING (RA), RETAINING
SCREW, SPECIAL
217
M903
#9
#10
#11
1-685-337-11
A-3315-039-A
7-627-553-37
7-628-253-00
7-627-553-17
LOAD SW BOARD
MOTOR SUB ASSY, LO (LOADING)
SCREW, PRECISION +P 2X3 TYPE3
SCREW, SPECIAL
SCREW, PRECISION +P 2X2 TYPE3
Remark
47
CDX-M850MP
5-6. CD MECHANISM SECTION (2)
(MG-393MC-121//K)
254
251
256
257
257
258
264
260
not supplied
262
253
255
263
261
259
252
252
252
Ref. No.
Part No.
Description
251
252
253
254
255
3-040-025-02
3-040-031-01
3-040-056-01
3-040-024-01
3-040-054-01
ARM, CHUCKING
DAMPER (T)
LEVER (D)
RETAINER (DISC)
WHEEL (LW), WORM
256
257
3-040-026-01 SPRING (CH), TENSION
3-040-032-01 SPRING (FL), COMPRESSION
48
Remark
Ref. No.
Part No.
Description
258
259
260
261
262
3-040-033-01
A-3307-422-A
3-040-059-01
3-040-057-01
3-040-058-01
SPRING (KF1), TENSION
CHASSIS (M) COMPLETE ASSY
SPRING (TR), TENSION
LEVER (LOCK)
GEAR (MDL)
263
264
3-040-052-01 WHEEL (U), WORM
3-040-051-02 LEVER (TR)
Remark
CDX-M850MP
5-7. CD MECHANISM SECTION (3)
(MG-393MC-121//K)
301
not supplied
307
302
308
M902
303
309
#12
304
#9
311
305
306
310
309
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Ref. No.
Part No.
Description
Remark
301
302
303
304
305
A-3337-193-A
3-040-029-01
3-040-045-01
3-040-194-01
A-3301-983-A
FLOATING BLOCK ASSY (including M901)
SPRING (SL), TORSION
BASE (DRIVING)
GEAR (MIDWAY)
SHAFT (FEED) ASSY
306
307
3-040-030-01 SPRING (FEED), PLATE
1-823-951-11 CABLE, FLEXIBLE FLAT (16 CORE)
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
Ref. No.
Part No.
Description
308
309
0 310
311
M902
A-3274-254-A
3-909-607-01
8-820-165-06
1-676-707-11
A-3301-985-A
LIMIT SW BOARD, COMPLETE
SCREW
OPTICAL PICK-UP KSS-721A/C-RP
PICK-UP FLEXIBLE BOARD
MOTOR ASSY, SLED (SLED)
#9
#12
Remark
7-627-553-37 SCREW, PRECISION +P 2X3 TYPE3
7-627-850-28 SCREW, PRECISION +P 1.4X3
49
CDX-M850MP
DISC IN SW
DISPLAY
SECTION 6
ELECTRICAL PARTS LIST
NOTE:
• Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• RESISTORS
All resistors are in ohms.
METAL:Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F:nonflammable
• Abbreviation
CND: Canadian model
Ref. No.
Part No.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• SEMICONDUCTORS
In each case, u : µ, for example:
uA.. : µA.. uPA.. : µPA..
uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..
• CAPACITORS
uF : µF
• COILS
uH : µH
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board.
Description
Remark
A-3274-253-A DISC IN SW BOARD, COMPLETE
**************************
*************************************************************
Ref. No.
Part No.
Description
Remark
< DIODE >
A-3274-766-A DISPLAY BOARD, COMPLETE (AEP,UK,E)
A-3274-979-A DISPLAY BOARD, COMPLETE (US,CND)
************************
D901
D902
D908
D910
D911
8-719-978-33
8-719-069-54
8-719-056-85
8-719-978-33
8-719-978-33
DIODE
DIODE
DIODE
DIODE
DIODE
DTZ-TT11-6.8B
UDZS-TE17-5.1B
UDZ-TE-17-8.2B
DTZ-TT11-6.8B
DTZ-TT11-6.8B
1-694-925-11
1-694-926-11
3-238-826-01
3-238-827-01
3-248-825-01
CONDUCTIVE BOARD, CONNECTION
CONDUCTIVE BOARD, CONNECTION
SHEET (KEY), DIFFUSION
PLATE (LCD KEY), LIGHT GUIDE
PLATE (FL), GUIDE
D912
D913
D914
D915
D916
8-719-978-33
8-719-083-66
8-719-978-33
8-719-978-33
8-719-978-33
DIODE
DIODE
DIODE
DIODE
DIODE
DTZ-TT11-6.8B
UDZS-TE17-18B
DTZ-TT11-6.8B
DTZ-TT11-6.8B
DTZ-TT11-6.8B
< CAPACITOR >
D917
D918
D919
D920
D921
8-719-978-33
8-719-978-33
8-719-978-33
8-719-978-33
8-719-978-33
DIODE
DIODE
DIODE
DIODE
DIODE
DTZ-TT11-6.8B
DTZ-TT11-6.8B
DTZ-TT11-6.8B
DTZ-TT11-6.8B
DTZ-TT11-6.8B
C901
C902
C903
C904
C905
1-125-837-11
1-125-837-11
1-162-959-11
1-127-760-11
1-124-778-00
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
1uF
1uF
330PF
4.7uF
22uF
10%
10%
5%
10%
20%
6.3V
6.3V
50V
6.3V
6.3V
C907
C908
C909
C910
C911
1-164-004-11
1-165-176-11
1-165-176-11
1-165-176-11
1-115-412-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.047uF
0.047uF
0.047uF
680PF
10%
10%
10%
10%
5%
25V
16V
16V
16V
25V
FB60
FB901
FB902
FB903
FB904
1-500-329-21
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
INDUCTOR, FERRITE BEAD
METAL CHIP
0
METAL CHIP
0
METAL CHIP
0
METAL CHIP
0
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
C912
C913
C914
C915
C920
1-164-004-11
1-164-004-11
1-162-970-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
0.01uF
0.1uF
0.1uF
10%
10%
10%
25V
25V
25V
25V
25V
FB905
FB906
FB907
FB908
FB909
1-500-329-21
1-500-329-21
1-216-864-11
1-216-864-11
1-216-864-11
INDUCTOR, FERRITE BEAD
INDUCTOR, FERRITE BEAD
METAL CHIP
0
METAL CHIP
0
METAL CHIP
0
5%
5%
5%
1/10W
1/10W
1/10W
C921
C922
C960
C961
C962
1-164-156-11
1-164-156-11
1-162-908-11
1-162-907-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
3PF
2PF
0.1uF
25V
25V
0.25PF 50V
0.25PF 50V
25V
FB910
FB911
FB912
FB913
FB914
1-216-864-11
1-216-864-11
1-500-329-21
1-500-329-21
1-500-329-21
METAL CHIP
0
METAL CHIP
0
INDUCTOR, FERRITE BEAD
INDUCTOR, FERRITE BEAD
INDUCTOR, FERRITE BEAD
5%
5%
1/10W
1/10W
C963
C970
C973
C983
1-165-319-11
1-164-156-11
1-165-319-11
1-125-837-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
0.1uF
1uF
50V
25V
50V
6.3V
FB915
FB916
FB917
FB918
FB919
1-500-329-21
1-500-329-21
1-500-329-21
1-216-864-11
1-216-864-11
INDUCTOR, FERRITE BEAD
INDUCTOR, FERRITE BEAD
INDUCTOR, FERRITE BEAD
METAL CHIP
0
METAL CHIP
0
5%
5%
1/10W
1/10W
FB920
FB921
FB922
FB923
FB924
1-216-833-11
1-500-329-21
1-500-329-21
1-500-329-21
1-216-864-11
METAL CHIP
10K
INDUCTOR, FERRITE BEAD
INDUCTOR, FERRITE BEAD
INDUCTOR, FERRITE BEAD
METAL CHIP
0
5%
1/10W
5%
1/10W
FB925
1-500-329-21 INDUCTOR, FERRITE BEAD
10%
< FERRITE BEAD >
< CONNECTOR >
CNP908 1-774-678-21 CONNECTOR, FPC (ZIF) 24P
< PHOTO SENSOR >
D70
50
8-719-083-14 PHOTO SENSOR RRX9000-0501
CDX-M850MP
DISPLAY
Ref. No.
FB926
FB971
Part No.
Description
Remark
1-500-329-21 INDUCTOR, FERRITE BEAD
1-500-329-21 INDUCTOR, FERRITE BEAD
< FLUORESCENT INDICATOR >
FL900
6-701-630-01
6-803-157-01
8-759-830-18
8-759-523-94
IC
IC
IC
IC
LC75848T-E
M30833FJGP-073
RRX9000-0601#1
TC74VHC32FT(EL)
< LIQUID CRYSTAL DISPLAY >
LCD2
Part No.
Description
R914
R915
R916
R917
R918
1-218-867-11
1-218-863-11
1-218-859-11
1-218-855-11
1-218-851-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
6.8K
4.7K
3.3K
2.2K
1.5K
2%
2%
2%
2%
2%
Remark
1/16W
1/16W
1/16W
1/16W
1/16W
R919
R920
R921
R922
R923
1-218-851-11
1-218-847-11
1-219-286-11
1-219-286-11
1-219-286-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1.5K
1K
680
680
680
2%
2%
2%
2%
2%
1/16W
1/16W
1/16W
1/16W
1/16W
R925
1-218-871-11 RES-CHIP
10K
2%
R928
R929
R935
R936
1-216-829-11
1-216-833-11
1-216-033-00
1-216-033-00
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
4.7K
10K
220
220
5%
5%
5%
5%
1/16W
(AEP,UK,E)
1/10W
1/10W
1/10W
1/10W
R939
R940
R941
R942
R944
1-216-845-11
1-216-845-11
1-216-845-11
1-216-845-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
100K
100K
100K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R945
R946
R947
R948
R949
1-216-037-00
1-216-035-00
1-216-845-11
1-216-833-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
330
270
100K
10K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R950
R951
R952
R953
R954
1-216-033-00
1-216-040-00
1-216-035-00
1-216-040-00
1-216-037-00
METAL CHIP
RES-CHIP
METAL CHIP
RES-CHIP
METAL CHIP
220
430
270
430
330
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R955
R956
R957
R958
R959
1-216-037-00
1-216-040-00
1-216-040-00
1-216-040-00
1-216-040-00
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
330
430
430
430
430
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R960
R961
R962
R964
R965
1-216-037-00
1-216-040-00
1-216-040-00
1-216-821-11
1-216-821-11
METAL CHIP
RES-CHIP
RES-CHIP
METAL CHIP
METAL CHIP
330
430
430
1K
1K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R967
R968
R969
R970
R971
1-216-809-11
1-216-850-11
1-216-846-11
1-216-818-11
1-216-017-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
100
270K
120K
560
47
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R972
R978
R979
R980
R981
1-216-845-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-821-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
100
100
100
1K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R982
R984
R985
R986
R987
1-216-841-11
1-216-825-11
1-216-825-11
1-216-825-11
1-216-825-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
47K
2.2K
2.2K
2.2K
2.2K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R988
R989
1-216-035-00 METAL CHIP
1-216-035-00 METAL CHIP
270
270
5%
5%
1/10W
1/10W
1-518-879-11 INDICATOR TUBE, FLUORESCENT
< IC >
IC1
IC2
IC62
IC301
Ref. No.
1-804-636-21 DISPLAY PANEL, LIQUID CRYSTAL
< DIODE >
LED901
LED902
LED903
LED905
LED906
8-719-053-09
8-719-053-09
8-719-053-09
8-719-053-09
8-719-053-09
LED
LED
LED
LED
LED
SML-310VT-T86 (OFF)
SML-310VT-T86 (SOURCE)
SML-310VT-T86 (CLOSE)
SML-310VT-T86 (SCRL)
SML-310VT-T86 (DSPL) (US,CND)
LED906
LED908
LED909
LED911
LED912
8-719-053-09
8-719-053-09
8-719-080-04
8-719-053-09
8-719-053-09
LED
LED
LED
LED
LED
SML-310VT-T86 (DSPL/PTY) (AEP,UK,E)
SML-310VT-T86 (MODE)
CL-190UB-X-T (IMAGE)
SML-310VT-T86 (Z)
SML-310VT-T86 (DISC –)
LED913
LED915
LED916
LED917
LED919
8-719-053-09
8-719-053-09
8-719-053-09
8-719-053-09
8-719-053-09
LED
LED
LED
LED
LED
SML-310VT-T86 (ENTER)
SML-310VT-T86 (LIST)
SML-310VT-T86 (DISC +)
SML-310VT-T86 (MENU)
SML-310VT-T86 (DSO)
LED920
LED921
LED922
LED931
LED955
8-719-053-09
8-719-053-09
8-719-053-09
8-719-080-04
8-719-076-58
LED
LED
LED
LED
LED
SML-310VT-T86 (EQ7)
SML-310VT-T86 (SOUND)
SML-310VT-T86 (TA) (AEP,UK,E)
CL-190UB-X-T (OPEN)
NSSW440-BRS (LCD BACK LIGHT)
LED956 8-719-076-58 LED NSSW440-BRS (LCD BACK LIGHT)
LED957 8-719-079-10 LED CL-220UB-X-TS (VOL)
LED958 8-719-079-10 LED CL-220UB-X-TS (SEEK/AMS)
< TRANSISTOR >
Q903
Q904
Q905
Q907
Q908
8-729-903-46
8-729-900-53
8-729-904-66
8-729-216-22
8-729-900-53
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
2SB1132-P
DTC114EK
DTD113EK-T-146
2SA1162-G
DTC114EK
< RESISTOR >
R901
R902
R906
R907
R908
1-216-833-11
1-216-829-11
1-218-855-11
1-218-855-11
1-218-851-11
METAL CHIP
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
4.7K
2.2K
2.2K
1.5K
5%
5%
2%
2%
2%
1/10W
1/10W
1/16W
1/16W
1/16W
R909
R910
R911
R912
R913
1-218-851-11
1-218-847-11
1-219-286-11
1-219-286-11
1-219-286-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1.5K
1K
680
680
680
2%
2%
2%
2%
2%
1/16W
1/16W
1/16W
1/16W
1/16W
51
CDX-M850MP
DISPLAY
Ref. No.
LIMIT SW
Part No.
LOAD SW
Description
Remark
R990
1-216-025-11 RES-CHIP
100
5%
R991
R992
R994
R999
1-218-855-11
1-218-855-11
1-216-864-11
1-216-017-11
2.2K
2.2K
0
47
2%
2%
5%
5%
RES-CHIP
RES-CHIP
METAL CHIP
RES-CHIP
MAIN
Ref. No.
1/10W
(US,CND)
1/16W
1/16W
1/10W
1/10W
Part No.
Description
Remark
A-3274-933-A MAIN BOARD, COMPLETE (US,CND)
A-3274-934-A MAIN BOARD, COMPLETE (AEP,UK,E)
*********************
7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT
7-685-792-09 SCREW +PTT 2.6X6 (S)
7-685-795-09 SCREW +PTT 2.6X12 (S)
< SWITCH >
< CAPACITOR >
S901
S902
S903
S904
S905
1-771-884-31
1-771-884-31
1-771-884-31
1-771-884-31
1-771-884-31
S906
S907
S908
S909
1-771-884-31 SWITCH, TACTILE (WITH LED) (DSPL)
(US,CND)
1-771-884-31 SWITCH, TACTILE (WITH LED) (DSPL/PTY)
(AEP,UK,E)
1-771-884-31 SWITCH, TACTILE (WITH LED) (VOL +)
1-771-884-31 SWITCH, TACTILE (WITH LED) (MODE)
1-771-884-31 SWITCH, TACTILE (WITH LED) (IMAGE)
S911
S912
S913
S914
1-771-884-31
1-771-884-31
1-771-884-31
1-771-884-31
S906
S915
S916
S917
S918
SWITCH, TACTILE (WITH LED) (OFF)
SWITCH, TACTILE (WITH LED) (SOURCE)
SWITCH, TACTILE (WITH LED) (CLOSE)
SWITCH, TACTILE (WITH LED) (VOL –)
SWITCH, TACTILE (WITH LED) (SCRL)
SWITCH, TACTILE (WITH LED) (Z)
SWITCH, TACTILE (WITH LED) (DISC –)
SWITCH, TACTILE (WITH LED) (ENTER)
SWITCH, TACTILE (WITH LED)
(> M SEEK/AMS)
1-771-884-31 SWITCH, TACTILE (WITH LED) (LIST)
S919
S920
1-771-884-31 SWITCH, TACTILE (WITH LED) (DISC +)
1-771-884-31 SWITCH, TACTILE (WITH LED) (MENU)
1-771-884-31 SWITCH, TACTILE (WITH LED)
(. m SEEK/AMS)
1-771-884-31 SWITCH, TACTILE (WITH LED) (DSO)
1-771-884-31 SWITCH, TACTILE (WITH LED) (EQ7)
S921
S922
S931
S932
1-771-884-31
1-771-884-31
1-771-884-31
1-771-884-31
SWITCH, TACTILE (WITH LED) (SOUND)
SWITCH, TACTILE (WITH LED) (TA) (AEP,UK,E)
SWITCH, TACTILE (WITH LED) (OPEN)
SWITCH, TACTILE (WITH LED) (RESET)
< VIBRATOR >
X301
1-795-918-21 VIBRATOR, CRYSTAL (30MHz)
*************************************************************
A-3274-254-A LIMIT SW BOARD, COMPLETE
*************************
< CONNECTOR >
CN13
1-816-275-21 CONNECTOR, FFC/FPC 6P
*************************************************************
1-685-337-11 LOAD SW BOARD
***************
*************************************************************
52
C101
C102
C103
C104
C105
1-126-940-11
1-104-942-11
1-135-473-21
1-162-964-11
1-162-964-11
ELECT
ELECT
ELECT
CERAMIC CHIP
CERAMIC CHIP
330uF
1uF
3300uF
0.001uF
0.001uF
20%
20%
20%
10%
10%
16V
50V
16V
50V
50V
C142
C172
C173
C178
C182
1-162-927-11
1-124-234-00
1-128-428-11
1-162-927-11
1-124-234-00
CERAMIC CHIP
ELECT
ELECT
CERAMIC CHIP
ELECT
100PF
22uF
10uF
100PF
22uF
5%
20%
20%
5%
20%
50V
16V
35V
50V
16V
C183
C188
C199
C201
C202
1-128-428-11
1-162-927-11
1-162-964-11
1-115-467-11
1-162-923-11
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
10uF
100PF
0.001uF
0.22uF
47PF
20%
5%
10%
10%
5%
35V
50V
50V
10V
50V
C203
C204
C205
C206
C207
1-124-257-00
1-124-234-00
1-164-156-11
1-125-891-11
1-125-891-11
ELECT
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
2.2uF
22uF
0.1uF
0.47uF
0.47uF
20%
20%
50V
16V
25V
10V
10V
C208
C209
C210
C212
C214
1-162-927-11
1-162-927-11
1-164-156-11
1-104-396-11
1-104-396-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
ELECT
100PF
100PF
0.1uF
10uF
10uF
20%
20%
50V
50V
25V
16V
16V
C215
C216
C217
C218
C219
1-125-891-11
1-162-927-11
1-162-927-11
1-125-891-11
1-125-891-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.47uF
100PF
100PF
0.47uF
0.47uF
10%
5%
5%
10%
10%
10V
50V
50V
10V
10V
C221
C223
C226
C242
C272
1-104-396-11
1-104-396-11
1-104-396-11
1-162-927-11
1-124-234-00
ELECT
ELECT
ELECT
CERAMIC CHIP
ELECT
10uF
10uF
10uF
100PF
22uF
20%
20%
20%
5%
20%
16V
16V
16V
50V
16V
C273
C278
C282
C283
C288
1-128-428-11
1-162-927-11
1-124-234-00
1-128-428-11
1-162-927-11
ELECT
CERAMIC CHIP
ELECT
ELECT
CERAMIC CHIP
10uF
100PF
22uF
10uF
100PF
20%
5%
20%
20%
5%
35V
50V
16V
35V
50V
C301
C302
C303
C304
C305
1-128-057-11
1-162-964-11
1-124-584-00
1-162-964-11
1-124-234-00
ELECT
CERAMIC CHIP
ELECT
CERAMIC CHIP
ELECT
330uF
0.001uF
100uF
0.001uF
22uF
20%
10%
20%
10%
20%
6.3V
50V
10V
50V
16V
C306
C307
C308
C309
C310
1-124-234-00
1-162-927-11
1-104-942-11
1-104-942-11
1-162-970-11
ELECT
CERAMIC CHIP
ELECT
ELECT
CERAMIC CHIP
22uF
100PF
1uF
1uF
0.01uF
20%
5%
20%
20%
10%
16V
50V
50V
50V
25V
10%
10%
5%
5%
CDX-M850MP
MAIN
Ref. No.
Part No.
Description
C311
C312
C313
C315
C316
1-128-647-11
1-124-584-00
1-164-156-11
1-162-918-11
1-162-918-11
DOUBLE LAYERS
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1F
100uF
0.1uF
18PF
18PF
Remark
C317
C318
C319
C320
C321
1-162-970-11
1-162-968-11
1-125-837-11
1-125-837-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.01uF
0.0047uF
1uF
1uF
0.1uF
C322
C323
C324
C331
C332
1-164-160-11
1-162-917-11
1-162-970-11
1-125-837-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
20PF
15PF
0.01uF
1uF
0.1uF
C334
C335
C336
C337
C338
1-164-156-11
1-164-156-11
1-162-964-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
0.001uF
0.1uF
0.1uF
C339
C341
C342
C400
C401
1-164-156-11
1-124-589-11
1-164-156-11
1-104-396-11
1-124-589-11
CERAMIC CHIP
ELECT
CERAMIC CHIP
ELECT
ELECT
0.1uF
47uF
0.1uF
10uF
47uF
C402
C403
C416
C417
C418
1-125-889-11
1-125-891-11
1-125-837-11
1-125-837-11
1-104-396-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
C419
C420
C421
C422
C423
1-125-891-11
1-125-891-11
1-125-837-11
1-124-584-00
1-162-970-11
C424
C425
C426
C427
C428
Ref. No.
Part No.
Description
Remark
5.5V
10V
25V
50V
50V
C503
1-124-259-11 ELECT
4.7uF
20%
C505
1-162-964-11 CERAMIC CHIP
0.001uF
10%
C506
1-162-964-11 CERAMIC CHIP
0.001uF
10%
10%
10%
10%
10%
25V
50V
6.3V
6.3V
25V
C507
C508
1-124-584-00 ELECT
1-125-837-11 CERAMIC CHIP
100uF
1uF
20%
10%
C509
C510
C520
1-125-837-11 CERAMIC CHIP
1-125-837-11 CERAMIC CHIP
1-162-964-11 CERAMIC CHIP
1uF
1uF
0.001uF
10%
10%
10%
5%
5%
10%
10%
50V
50V
25V
6.3V
25V
C521
1-164-156-11 CERAMIC CHIP
0.1uF
C522
1-162-920-11 CERAMIC CHIP
27PF
5%
25V
25V
50V
25V
25V
C523
1-162-920-11 CERAMIC CHIP
27PF
5%
C524
1-126-786-11 ELECT
47uF
C525
1-164-156-11 CERAMIC CHIP
0.1uF
C526
1-162-959-11 CERAMIC CHIP
330PF
C527
1-135-834-11 CERAMIC CHIP
2.2uF
20%
20%
25V
16V
25V
16V
16V
C528
1-164-739-11 CERAMIC CHIP
560PF
2.2uF
0.47uF
1uF
1uF
10uF
10%
10%
10%
10%
20%
10V
10V
6.3V
6.3V
16V
C542
C601
C602
C603
1-162-962-11
1-164-156-11
1-125-837-11
1-128-057-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
470PF
0.1uF
1uF
330uF
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
0.47uF
0.47uF
1uF
100uF
0.01uF
10%
10%
10%
20%
10%
10V
10V
6.3V
10V
25V
C801
C802
C803
C807
C809
1-162-970-11
1-165-874-21
1-128-576-11
1-110-501-11
1-164-156-11
CERAMIC CHIP
ELECT CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
0.01uF
120uF
100uF
0.33uF
0.1uF
10%
20%
20%
10%
25V
6.3V
63V
16V
25V
1-162-965-11
1-136-154-00
1-162-927-11
1-162-927-11
1-162-927-11
CERAMIC CHIP
FILM
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.0015uF
0.012uF
100PF
100PF
100PF
10%
5%
5%
5%
5%
50V
50V
50V
50V
50V
C810
C901
C903
C928
C930
1-128-416-11
1-124-234-00
1-164-156-11
1-164-156-11
1-124-234-00
ELECT CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
ELECT
100uF
22uF
0.1uF
0.1uF
22uF
20%
20%
20%
16V
16V
25V
25V
16V
C429
C430
C431
C432
C433
1-162-927-11
1-162-965-11
1-162-927-11
1-136-154-00
1-104-942-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
FILM
ELECT
100PF
0.0015uF
100PF
0.012uF
1uF
5%
10%
5%
5%
20%
50V
50V
50V
50V
50V
C981
C982
C983
C984
1-162-927-11
1-162-927-11
1-162-927-11
1-162-927-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
100PF
100PF
100PF
100PF
5%
5%
5%
5%
50V
50V
50V
50V
C434
C435
C437
C438
C439
1-104-942-11
1-104-942-11
1-104-665-11
1-162-965-11
1-162-965-11
ELECT
ELECT
ELECT
CERAMIC CHIP
CERAMIC CHIP
1uF
1uF
100uF
0.0015uF
0.0015uF
20%
20%
20%
10%
10%
50V
50V
10V
50V
50V
C440
C441
C442
C443
C470
1-104-665-11
1-126-795-11
1-162-927-11
1-128-428-11
1-125-837-11
ELECT
ELECT
CERAMIC CHIP
ELECT
CERAMIC CHIP
100uF
10uF
100PF
10uF
1uF
20%
20%
5%
20%
10%
10V
50V
50V
35V
6.3V
C475
C501
C502
1-164-156-11 CERAMIC CHIP
1-162-970-11 CERAMIC CHIP
1-104-396-11 ELECT
0.1uF
0.01uF
10uF
10%
20%
25V
25V
16V
20%
5%
5%
10%
20%
16V
(AEP,UK,E)
50V
(AEP,UK,E)
50V
(AEP,UK,E)
10V
6.3V
6.3V
6.3V
50V
(AEP,UK,E)
25V
(AEP,UK,E)
50V
(AEP,UK,E)
50V
(AEP,UK,E)
20%
16V
(AEP,UK,E)
25V
(AEP,UK,E)
5%
50V
(AEP,UK,E)
6.3V
(AEP,UK,E)
5%
50V
(AEP,UK,E)
10%
50V
25V
10%
6.3V
20%
6.3V
< CONNECTOR >
* CN401
* CN503
* CN601
CNP101
CNP102
1-506-985-11
1-506-984-11
1-506-985-11
1-774-701-21
1-580-907-31
PIN, CONNECTOR (PC BOARD) 3P
PIN, CONNECTOR (PC BOARD) 2P
PIN, CONNECTOR (PC BOARD) 3P
PIN, CONNECTOR 16P
PLUG, CONNECTOR (BUS CONTROL IN)
CNP301
CNP805
* CNP902
CNP909
1-815-260-11
1-563-614-31
1-568-954-11
1-774-677-21
CONNECTOR, BOARD TO BOARD 30P
CONNECTOR, FLEXIBLE 11P
PIN, CONNECTOR 5P
CONNECTOR, FPC (ZIF) 24P
53
CDX-M850MP
MAIN
Ref. No.
Part No.
Description
Remark
< JACK >
CNJ101 1-764-270-21 JACK, STEREO MINIATURE (DIA.3.5)
(REMOTE IN)
Ref. No.
D909
D920
D921
Part No.
Description
Remark
8-719-988-61 DIODE 1SS355TE-17
8-719-988-61 DIODE 1SS355TE-17
8-719-988-61 DIODE 1SS355TE-17
< FERRITE BEAD >
< DIODE >
D101
D102
D103
D104
D105
8-719-083-66
8-719-083-66
8-719-420-51
8-719-069-56
8-719-083-66
DIODE
DIODE
DIODE
DIODE
DIODE
UDZS-TE17-18B
UDZS-TE17-18B
MA729
UDZS-TE17-6.2B
UDZS-TE17-18B
D106
D108
D109
D110
D111
8-719-978-33
8-719-083-66
8-719-049-38
8-719-053-18
8-719-053-18
DIODE
DIODE
DIODE
DIODE
DIODE
DTZ-TT11-6.8B
UDZS-TE17-18B
1N5404TU
1SR154-400TE-25
1SR154-400TE-25
D112
D113
D114
D115
D116
8-719-053-18
8-719-053-18
8-719-053-18
8-719-053-18
8-719-053-18
DIODE
DIODE
DIODE
DIODE
DIODE
1SR154-400TE-25
1SR154-400TE-25
1SR154-400TE-25
1SR154-400TE-25
1SR154-400TE-25
D117
D118
D119
D120
D121
8-719-053-18
8-719-053-18
8-719-053-18
8-719-053-18
8-719-053-18
DIODE
DIODE
DIODE
DIODE
DIODE
1SR154-400TE-25
1SR154-400TE-25
1SR154-400TE-25
1SR154-400TE-25
1SR154-400TE-25
D122
D123
D302
D303
D305
8-719-978-33
8-719-083-66
8-719-914-43
8-719-914-44
8-719-988-61
DIODE
DIODE
DIODE
DIODE
DIODE
DTZ-TT11-6.8B
UDZS-TE17-18B
DAN202K
DAP202K
1SS355TE-17
D401
D403
D501
D802
D803
8-719-404-50
8-719-069-55
8-719-069-55
8-719-053-18
8-719-053-18
DIODE
DIODE
DIODE
DIODE
DIODE
MA111-TX
UDZS-TE17-5.6B
UDZS-TE17-5.6B
1SR154-400TE-25
1SR154-400TE-25
D804
D805
D806
D808
D810
8-719-055-30
8-719-055-30
8-719-055-33
8-719-978-33
8-719-978-33
DIODE
DIODE
DIODE
DIODE
DIODE
D1FS4A-TA
D1FS4A-TA
D1FL40
DTZ-TT11-6.8B
DTZ-TT11-6.8B
D819
D820
D825
D826
D827
8-719-978-33
8-719-978-33
8-719-978-33
8-719-978-33
8-719-978-33
DIODE
DIODE
DIODE
DIODE
DIODE
DTZ-TT11-6.8B
DTZ-TT11-6.8B
DTZ-TT11-6.8B
DTZ-TT11-6.8B
DTZ-TT11-6.8B
D828
D829
D831
D832
D843
8-719-978-33
8-719-978-33
8-719-978-33
8-719-988-61
8-719-978-33
DIODE
DIODE
DIODE
DIODE
DIODE
DTZ-TT11-6.8B
DTZ-TT11-6.8B
DTZ-TT11-6.8B
1SS355TE-17
DTZ-TT11-6.8B
D901
D902
D903
D904
D905
8-719-420-51
8-719-420-51
8-719-420-51
8-719-988-61
8-719-069-55
DIODE
DIODE
DIODE
DIODE
DIODE
MA729
MA729
MA729
1SS355TE-17
UDZS-TE17-5.6B
D906
D907
8-719-420-51 DIODE MA729
8-719-988-61 DIODE 1SS355TE-17
FB101
FB102
FB301
FB302
FB501
1-414-813-11
1-414-813-11
1-216-295-11
1-216-295-11
1-414-813-11
FERRITE, EMI (SMD)
FERRITE, EMI (SMD)
SHORT CHIP
0
SHORT CHIP
0
FERRITE, EMI (SMD) (AEP,UK,E)
< IC >
54
IC201
IC301
IC302
IC303
IC306
6-703-375-01
8-759-449-89
8-759-658-25
6-802-886-01
8-759-668-14
IC
IC
IC
IC
IC
TDA8588J/N1
BA8270F-E2
PST3432UL
M30626FHPGP-054
PQ09DZ1U
IC307
IC308
IC401
IC407
IC410
8-759-580-33
8-759-701-01
6-703-303-01
6-703-419-01
8-759-385-17
IC
IC
IC
IC
IC
BA6288FS-E2
NJM2904M
TDA7416
LA2901V-TLM-E
NJM4580E(TE2)
IC502
IC701
IC800
IC902
IC903
6-703-809-01
8-759-679-05
8-759-598-63
6-703-986-01
8-759-491-50
IC
IC
IC
IC
IC
SAA6588T/V2-518 (AEP,UK,E)
TC7WH34FU(TE12R)
LM2577SX-ADJ
NJU7222U33-TE1
TC74VHCT244AFT(EL)
< JUMPER RESISTOR >
JR301
1-216-864-11 METAL CHIP
0
5%
JR302
1-216-864-11 METAL CHIP
0
5%
JR801
1-216-864-11 METAL CHIP
0
5%
1/10W
(AEP,UK,E)
1/10W
(US,CND)
1/10W
< COIL >
L101
L302
L303
L503
L800
1-419-476-31
1-414-185-51
1-412-006-31
1-216-296-11
1-424-911-11
COIL, CHOKE
INDUCTOR
INDUCTOR
SHORT CHIP
COIL, POWER
L901
1-414-394-41 INDUCTOR
250uH
22uH
10uH
0
100uH
2.2uH
< JACK >
PJ401
1-774-700-11 JACK, PIN 6P (BUS AUDIO IN/AUX IN,
AUDIO OUT REAR/FRONT)
< TRANSISTOR >
Q101
Q102
Q103
Q171
Q181
8-729-900-53
8-729-120-28
8-729-120-28
8-729-021-95
8-729-021-95
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
DTC114EK
2SC1623-L5L6
2SC1623-L5L6
RN1441-A(TE85L)
RN1441-A(TE85L)
Q271
Q281
Q305
Q306
Q307
8-729-021-95
8-729-021-95
8-729-901-00
8-729-216-22
8-729-901-81
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
RN1441-A(TE85L)
RN1441-A(TE85L)
DTC124EK
2SA1162-G
2SC2412K-T-146-R
CDX-M850MP
MAIN
Ref. No.
Part No.
Description
Part No.
Description
Q380
Q401
Q402
Q408
Q470
1-801-806-11
8-729-900-53
8-729-027-23
8-729-053-84
8-729-021-95
TRANSISTOR DTC144EKA (AEP,UK,E)
TRANSISTOR DTC114EK
TRANSISTOR DTA114EKA-T146
FET SSM3KO9FU(T5LSONY1)
TRANSISTOR RN1441-A(TE85L)
Remark
R324
R325
R326
R327
R328
1-216-845-11
1-216-845-11
1-216-853-11
1-216-845-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
100K
470K
100K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
Q501
Q801
Q802
Q901
Q902
8-729-106-68
8-729-054-36
8-729-900-53
8-729-055-96
8-729-055-92
TRANSISTOR 2SD1615A-GP
FET UPA1716G-E2
TRANSISTOR DTC114EK
TRANSISTOR SRC1203SF
TRANSISTOR SRA2203SF
R329
R330
R331
R332
R333
1-216-809-11
1-216-845-11
1-216-837-11
1-218-871-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
100K
22K
10K
100
5%
5%
5%
0.5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
Q903
Q904
Q907
Q914
Q915
8-729-055-92
8-729-055-96
8-729-901-81
8-729-027-31
8-729-015-11
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
R334
R335
R336
R337
R338
1-216-097-11
1-216-837-11
1-216-836-11
1-216-073-00
1-216-837-11
RES-CHIP
METAL CHIP
METAL CHIP
RES-CHIP
METAL CHIP
100K
22K
18K
10K
22K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
Q916
8-729-901-00 TRANSISTOR DTC124EK
R339
R340
R341
R342
R343
1-216-085-11
1-216-298-00
1-216-298-00
1-216-845-11
1-216-809-11
RES-CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
33K
2.2
2.2
100K
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R346
R350
R351
R356
R357
1-216-833-11
1-216-809-11
1-216-809-11
1-218-871-11
1-218-871-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
100
100
10K
10K
5%
5%
5%
0.5%
0.5%
1/10W
1/10W
1/10W
1/10W
1/10W
R360
R361
1-216-849-11 METAL CHIP
1-216-864-11 METAL CHIP
220K
0
5%
5%
R364
R365
R366
1-216-845-11 METAL CHIP
1-216-845-11 METAL CHIP
1-216-845-11 METAL CHIP
100K
100K
100K
5%
5%
5%
1/10W
1/10W
(AEP,UK,E)
1/10W
1/10W
1/10W
R367
R368
R369
R370
R371
1-216-845-11
1-216-809-11
1-216-809-11
1-216-829-11
1-216-298-00
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
100
100
4.7K
2.2
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R372
R373
R377
R380
1-216-809-11
1-216-845-11
1-216-845-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
100K
100K
100
5%
5%
5%
5%
R401
1-216-017-11 RES-CHIP
47
5%
1/10W
1/10W
1/10W
1/10W
(AEP,UK,E)
1/10W
R402
R403
R407
R408
R410
1-216-864-11
1-216-864-11
1-216-841-11
1-216-809-11
1-216-295-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
SHORT CHIP
0
0
47K
100
0
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
R414
R415
R416
R417
R418
1-216-833-11
1-216-833-11
1-216-809-11
1-216-809-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
10K
100
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R419
R420
R421
R422
R424
1-216-809-11
1-216-833-11
1-216-833-11
1-216-813-11
1-216-825-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
10K
10K
220
2.2K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R425
1-216-864-11 METAL CHIP
0
5%
1/10W
SRA2203SF
SRC1203SF
2SC2412K-T-146-R
DTA124EKA-T146
2SD1802FAST-TL
< RESISTOR >
R101
R102
R103
R104
R105
1-216-835-11
1-216-821-11
1-216-821-11
1-216-829-11
1-216-841-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
15K
1K
1K
4.7K
47K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R106
R107
R108
R109
R110
1-216-841-11
1-216-073-00
1-216-073-00
1-216-833-11
1-216-833-11
METAL CHIP
RES-CHIP
RES-CHIP
METAL CHIP
METAL CHIP
47K
10K
10K
10K
10K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R111
R112
R142
R143
R174
1-216-841-11
1-216-821-11
1-216-825-11
1-216-833-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
47K
1K
2.2K
10K
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R175
R184
R185
R201
R202
1-216-841-11
1-216-809-11
1-216-841-11
1-216-841-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
47K
100
47K
47K
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R203
R204
R205
R206
R242
1-216-821-11
1-216-821-11
1-216-821-11
1-216-821-11
1-216-825-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
1K
1K
1K
1K
2.2K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R243
R274
R275
R284
R285
1-216-833-11
1-216-809-11
1-216-841-11
1-216-809-11
1-216-841-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
100
47K
100
47K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R301
R302
R303
R307
R318
1-216-845-11
1-216-864-11
1-216-864-11
1-216-827-11
1-216-864-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
0
0
3.3K
0
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R319
R320
R321
R322
R323
1-216-821-11
1-216-809-11
1-216-864-11
1-216-823-11
1-216-823-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
1K
100
0
1.5K
1.5K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
Ref. No.
Remark
55
CDX-M850MP
MAIN
Ref. No.
SERVO
Part No.
Description
R427
R429
R430
R431
R432
1-216-864-11
1-202-926-11
1-218-725-11
1-202-926-11
1-218-725-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
0
36K
24K
36K
24K
5%
5%
5%
5%
5%
Remark
1/10W
1/10W
1/10W
1/10W
1/10W
R433
R434
R435
R436
R439
1-202-926-11
1-218-725-11
1-202-926-11
1-218-725-11
1-216-864-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
36K
24K
36K
24K
0
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R440
R441
R442
R443
R444
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
0
0
0
0
0
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R445
R446
R471
R472
R473
1-216-864-11
1-216-864-11
1-216-864-11
1-216-835-11
1-216-833-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
0
0
0
15K
10K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R477
R501
R502
R504
R505
1-216-841-11
1-216-821-11
1-216-864-11
1-216-864-11
1-216-864-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
47K
1K
0
0
0
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R510
R511
R518
1-216-827-11 METAL CHIP
1-216-827-11 METAL CHIP
1-216-797-11 METAL CHIP
3.3K
3.3K
10
5%
5%
5%
R519
1-216-817-11 METAL CHIP
470
5%
R520
1-216-832-11 METAL CHIP
8.2K
5%
1/10W
1/10W
1/10W
(AEP,UK,E)
1/10W
(AEP,UK,E)
1/10W
(AEP,UK,E)
R521
1-216-797-11 METAL CHIP
10
5%
R800
R801
R802
R803
1-216-230-00
1-216-230-00
1-216-295-11
1-218-871-11
RES-CHIP
RES-CHIP
SHORT CHIP
METAL CHIP
22K
22K
0
10K
5%
5%
0.5%
1/10W
R804
R806
R807
R808
R809
1-218-754-11
1-216-057-00
1-218-703-11
1-216-833-11
1-216-864-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
120K
2.2K
3K
10K
0
0.5%
5%
0.5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R811
R812
R833
R845
R866
1-216-845-11
1-216-845-11
1-216-821-11
1-216-821-11
1-216-821-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
100K
1K
1K
1K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R901
R903
R904
R906
R910
1-216-864-11
1-216-845-11
1-216-845-11
1-216-864-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
0
100K
100K
0
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R913
R914
R915
R920
R921
1-216-864-11
1-216-864-11
1-216-845-11
1-216-073-00
1-216-073-00
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
RES-CHIP
0
0
100K
10K
10K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
Ref. No.
R922
R929
R949
R950
Part No.
Description
1-216-845-11
1-216-837-11
1-216-057-00
1-216-057-00
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
Remark
100K
22K
2.2K
2.2K
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
< TRANSFORMER >
T800
1-439-812-11 TRANSFORMER, DC-DC CONVERTER
< THERMISTOR (POSITIVE) >
TH100
1-801-792-21 THERMISTOR, POSITIVE
< TUNER >
TUX501 A-3220-887-A TUNER UNIT (TUX-030)
< VIBRATOR >
56
1/10W
(AEP,UK,E)
1/8W
1/8W
X301
1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz)
X302
1-767-419-21 VIBRATOR, CRYSTAL (6MHz)
X501
1-579-900-21 VIBRATOR, CRYSTAL (4.3MHz) (AEP,UK,E)
*************************************************************
A-3274-698-A SERVO BOARD, COMPLETE
**********************
< CAPACITOR >
C1
C3
C4
C5
C6
1-162-970-11
1-162-970-11
1-104-609-11
1-162-970-11
1-125-837-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
0.01uF
0.01uF
100uF
0.01uF
1uF
10%
10%
20%
10%
10%
25V
25V
4V
25V
6.3V
C8
C9
C10
C11
C13
1-107-826-11
1-162-924-11
1-162-924-11
1-162-909-11
1-162-916-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
56PF
56PF
4PF
12PF
10%
5%
5%
0.25PF
5%
16V
50V
50V
50V
50V
C14
C15
C16
C17
C18
1-125-837-11
1-162-970-11
1-162-970-11
1-162-970-11
1-162-966-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
1uF
0.01uF
0.01uF
0.01uF
0.0022uF
10%
10%
10%
10%
10%
6.3V
25V
25V
25V
50V
C19
C20
C21
C22
C23
1-107-826-11
1-107-826-11
1-162-970-11
1-162-970-11
1-162-970-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
0.01uF
0.01uF
0.01uF
10%
10%
10%
10%
10%
16V
16V
25V
25V
25V
C24
C25
C27
C29
C30
1-162-970-11
1-162-970-11
1-125-837-11
1-162-964-11
1-162-970-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.01uF
0.01uF
1uF
0.001uF
0.01uF
10%
10%
10%
10%
10%
25V
25V
6.3V
50V
25V
C34
C35
C36
C38
C39
1-125-837-11
1-162-970-11
1-162-970-11
1-162-970-11
1-126-391-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
1uF
0.01uF
0.01uF
0.01uF
47uF
10%
10%
10%
10%
20%
6.3V
25V
25V
25V
6.3V
C40
C41
C43
C44
1-107-826-11
1-162-970-11
1-162-967-11
1-162-964-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.01uF
0.0033uF
0.001uF
10%
10%
10%
10%
16V
25V
50V
50V
CDX-M850MP
SERVO
Ref. No.
Part No.
Description
C45
C51
C53
C54
C55
1-162-970-11
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.01uF
0.1uF
0.1uF
0.1uF
0.1uF
10%
10%
10%
10%
10%
25V
16V
16V
16V
16V
Remark
C56
C57
C58
C59
C60
1-128-934-11
1-107-826-11
1-162-966-11
1-104-609-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
0.33uF
0.1uF
0.0022uF
100uF
0.1uF
20%
10%
10%
20%
10%
10V
16V
50V
4V
16V
C61
C62
C63
C65
C67
1-126-391-11
1-107-826-11
1-107-826-11
1-107-826-11
1-104-851-11
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
TANTAL. CHIP
47uF
0.1uF
0.1uF
0.1uF
10uF
20%
10%
10%
10%
20%
6.3V
16V
16V
16V
10V
C68
C69
C70
C75
C77
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
0.1uF
0.1uF
0.1uF
10%
10%
10%
10%
10%
16V
16V
16V
16V
16V
C78
C79
C81
C102
C111
1-162-964-11
1-125-837-11
1-107-826-11
1-162-927-11
1-162-970-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.001uF
1uF
0.1uF
100PF
0.01uF
10%
10%
10%
5%
10%
50V
6.3V
16V
50V
25V
C112
C113
C114
1-107-826-11 CERAMIC CHIP
1-162-970-11 CERAMIC CHIP
1-107-826-11 CERAMIC CHIP
0.1uF
0.01uF
0.1uF
10%
10%
10%
16V
25V
16V
Ref. No.
JR17
JR21
CN1
CN2
CN3
1-815-352-11 CONNECTOR, BOARD TO BOARD 30P
1-794-153-21 CONNECTOR, FPC (ZIF) 16P
1-816-275-21 CONNECTOR, FFC/FPC 6P
< FERRITE BEAD >
FB2
FB3
FB6
1-216-864-11 METAL CHIP
0
1-216-864-11 METAL CHIP
0
1-469-144-21 FERRITE, EMI (SMD)
5%
5%
1/10W
1/10W
< IC >
IC1
IC2
IC3
IC4
IC5
8-759-699-98
8-759-658-87
6-703-905-01
6-702-661-01
6-702-153-01
IC
IC
IC
IC
IC
uPD63711GC-8EU
BA5810FP-E2
HD6432238RWN35TEI
UT62L1024LC-55LLI
CXD9684R-005
IC6
IC7
IC12
8-759-645-31 IC RN5RZ25BA-TL-FA
8-759-491-50 IC TC74VHCT244AFT(EL)
8-759-196-96 IC TC7SH08FU-TE85R
< JUMPER RESISTOR >
JR1
JR3
JR5
JR6
JR12
1-216-821-11
1-216-864-11
1-216-821-11
1-216-864-11
1-216-864-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
JR13
JR14
JR15
1-216-864-11 METAL CHIP
1-216-864-11 METAL CHIP
1-216-864-11 METAL CHIP
1K
0
1K
0
0
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
0
0
0
5%
5%
5%
1/10W
1/10W
1/10W
Description
Remark
0
0
5%
5%
1/10W
1/10W
5%
1/10W
< COIL >
L4
L6
L8
1-216-001-00 METAL CHIP
10
1-469-144-21 FERRITE, EMI (SMD)
1-414-398-11 INDUCTOR
10uH
< TRANSISTOR >
Q1
< CONNECTOR >
Part No.
1-216-864-11 METAL CHIP
1-216-864-11 METAL CHIP
8-729-904-87 TRANSISTOR 2SB1197K-R
< RESISTOR >
R3
R5
R7
R8
R9
1-216-806-11
1-218-344-11
1-216-839-11
1-216-833-11
1-216-840-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
56
7.5K
33K
10K
39K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R10
R12
R13
R14
R15
1-216-835-11
1-216-837-11
1-216-807-11
1-216-841-11
1-216-841-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
15K
22K
68
47K
47K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R26
R29
R30
R45
R46
1-216-806-11
1-216-833-11
1-216-833-11
1-216-845-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
56
10K
10K
100K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R47
R48
R49
R50
R51
1-216-845-11
1-216-845-11
1-216-845-11
1-216-809-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
100K
100K
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R52
R53
R54
R55
R64
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
100
100
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R65
R67
R68
R69
R70
1-216-819-11
1-216-845-11
1-216-857-11
1-216-813-11
1-216-813-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
680
100K
1M
220
220
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R71
R72
R73
R74
R75
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
100
100
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R76
R77
R78
R81
R82
1-216-809-11
1-216-809-11
1-216-809-11
1-216-845-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
100
100
100K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R83
R84
R85
R86
R87
1-216-845-11
1-216-845-11
1-216-845-11
1-216-845-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
100K
100K
100K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
57
CDX-M850MP
SERVO
Ref. No.
SUB
SWITCH
Part No.
Description
R88
R89
R90
R91
R92
1-216-845-11
1-216-845-11
1-216-845-11
1-216-845-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
100K
100K
100K
100K
5%
5%
5%
5%
5%
Remark
1/10W
1/10W
1/10W
1/10W
1/10W
Ref. No.
Part No.
Description
Remark
R93
R94
R95
R96
R97
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-837-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
100
100
100
22K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R98
R100
R102
R103
R104
1-216-834-11
1-216-845-11
1-216-845-11
1-216-845-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
12K
100K
100K
100K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R105
R106
R107
R109
R111
1-216-845-11
1-216-821-11
1-216-821-11
1-216-845-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
1K
1K
100K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R113
R114
R115
R116
R117
1-216-845-11
1-216-845-11
1-216-837-11
1-216-809-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
100K
22K
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R118
R121
R124
R126
R127
1-216-809-11
1-216-845-11
1-216-837-11
1-216-845-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
100K
22K
100K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R128
R129
R130
R131
R132
1-216-845-11
1-216-845-11
1-216-809-11
1-216-809-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
100K
100
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R133
R134
R135
R136
R142
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-815-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
100
100
100
330
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R143
R144
R145
R146
R147
1-218-484-11
1-216-812-11
1-216-817-11
1-216-815-11
1-218-484-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
750
180
470
330
750
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R509
R531
R532
R533
R534
1-216-846-11
1-216-833-11
1-216-845-11
1-216-825-11
1-216-044-00
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
120K
10K
100K
2.2K
620
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R148
R149
R150
R151
R152
1-216-809-11
1-216-814-11
1-216-821-11
1-216-825-11
1-216-813-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
270
1K
2.2K
220
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R535
R536
R537
R538
1-216-044-00
1-216-049-11
1-216-049-11
1-216-850-11
METAL CHIP
RES-CHIP
RES-CHIP
METAL CHIP
620
1K
1K
270K
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
R153
R154
1-216-818-11 METAL CHIP
1-216-809-11 METAL CHIP
560
100
5%
5%
1/10W
1/10W
< VIBRATOR >
X1
1-795-520-11 VIBRATOR, CERAMIC (16.9344MHz)
X2
1-795-127-21 VIBRATOR, CERAMIC (12.288MHz)
*************************************************************
1-687-950-11 SUB BOARD
**********
1-783-268-11 CABLE, FLAT (FFC) 11P (CN501)
< CAPACITOR >
C533
C535
C536
C537
C538
1-125-837-11
1-125-837-11
1-162-970-11
1-125-837-11
1-162-959-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
C539
C540
C541
1-164-156-11 CERAMIC CHIP
1-127-760-11 CERAMIC CHIP
1-124-778-00 ELECT CHIP
1uF
1uF
0.01uF
1uF
330PF
10%
10%
10%
10%
5%
6.3V
6.3V
25V
6.3V
50V
0.1uF
4.7uF
22uF
10%
20%
25V
6.3V
6.3V
< DIODE >
D506
D507
D511
D512
D513
8-719-069-54
8-719-978-33
8-719-083-66
8-719-079-10
8-719-083-14
DIODE UDZS-TE17-5.1B
DIODE DTZ-TT11-6.8B
DIODE UDZS-TE17-18B
LED CL-220UB-X-TS (DISC IN)
PHOTO SENSOR RRX9000-0501
D514
8-719-988-61 DIODE 1SS355TE-17
< FERRITE BEAD >
FB503
1-500-329-21 INDUCTOR, FERRITE BEAD
< IC >
IC503
8-759-830-18 IC RRX9000-0601#1
< TRANSISTOR >
Q503
Q504
8-729-216-22 TRANSISTOR 2SA1162-G
8-729-900-53 TRANSISTOR DTC114EK
< RESISTOR >
< SWITCH >
SW501 1-692-135-21 SWITCH, KEYBOARD (RESET)
*************************************************************
< NETWORK RESISTOR >
RB1
RB2
58
1-233-576-11 RES, CHIP NETWORK 100X4
1-233-576-11 RES, CHIP NETWORK 100X4
A-3326-298-A SWITCH BOARD, COMPLETE (including SW900)
***********************
*************************************************************
CDX-M850MP
Ref. No.
Part No.
Description
Remark
Ref. No.
8
8
107
108
167
301
307
0 310
311
F901
Part No.
Description
Remark
PARTS FOR INSTALLATION AND CONNECTIONS
***************************************
MISCELLANEOUS
***************
1-776-207-72 CORD (WITH CONNECTOR) (POWER)
(US,CND,E)
1-776-527-71 CORD (WITH CONNECTOR) (ISO) (POWER)
(AEP,UK)
1-777-246-41 CORD (WITH CONNECTOR) (ANTENNA)
1-790-375-32 CORD (WITH CONNECTOR) (SUB OUT (MONO))
1-687-952-11 FLEXIBLE BOARD
351
352
353
354
355
X-3382-647-1
X-3366-405-1
X-3382-821-1
3-934-325-01
1-465-459-21
356
A-3337-193-A
1-823-951-11
8-820-165-06
1-676-707-11
1-532-877-11
357
1-776-207-72 CORD (WITH CONNECTOR) (POWER)
(US,CND,E)
1-776-527-71 CORD (WITH CONNECTOR) (ISO) (POWER)
(AEP,UK)
3-246-471-01 KEY (FRAME)
FLOATING BLOCK ASSY (including M901)
CABLE, FLEXIBLE FLAT (16 CORE)
OPTICAL PICK-UP KSS-721A/C-RP
PICK-UP FLEXIBLE BOARD
FUSE (BLADE TYPE) (AUTO FUSE) 10A
358
FRAME ASSY, FITTING
SCREW ASSY (EXP), FITTING (AEP,UK,E)
COLLAR ASSY
SCREW (+K 5X8 TP) (US,CND,E)
ADAPTOR, ANTENNA (AEP,UK)
351
352
353
354
M601
X-3378-769-1 MOTOR ASSY (OPEN/CLOSE)
M902
A-3301-985-A MOTOR ASSY, SLED (SLED)
M903
A-3315-039-A MOTOR SUB ASSY, LO (LOADING)
*************************************************************
ACCESSORIES
************
1-476-546-12
1-476-546-22
3-230-549-01
3-251-114-11
REMOTE COMMANDER (RM-X111) (AEP,UK,E)
REMOTE COMMANDER (RM-X110) (US,CND)
LID, BATTERY CASE (for RM-X110/X111)
MANUAL, INSTRUCTION (ENGLISH,FRENCH,
SPANISH) (US,CND)
3-251-114-21 MANUAL, INSTRUCTION (ENGLISH,GERMAN,
FRENCH,ITALIAN,DUTCH) (AEP,UK)
355
×4
356
357
3-251-114-31 MANUAL, INSTRUCTION (ENGLISH,
TRADITIONAL CHINESE) (E)
3-251-115-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
FRENCH,SPANISH) (US,CND)
3-251-115-21 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
GERMAN,FRENCH,ITALIAN,DUTCH) (AEP,UK)
3-251-115-31 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
TRADITIONAL CHINESE) (E)
X-3383-449-1 COVER (PANEL) ASSY (US,CND)
*************************************************************
358
×2
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
59
CDX-M850MP
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper on the revised page allows you to jump to the next revised page.
Ver.
1.0
60
Date
2003. 04
Description of Revision
New
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
