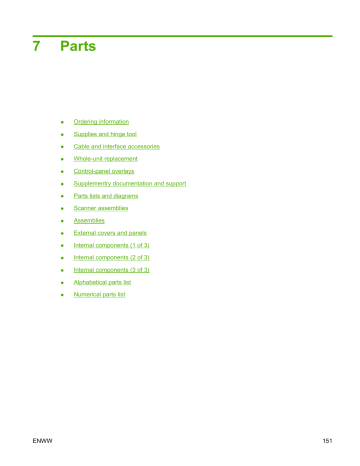

M1120
7
ENWW
Parts
●
Ordering information
●
Supplies and hinge tool
●
Cable and interface accessories
●
Whole-unit replacement
●
Control-panel overlays
●
Supplementry documentation and support
●
Parts lists and diagrams
●
Scanner assemblies
●
Assemblies
●
External covers and panels
●
Internal components (1 of 3)
●
Internal components (2 of 3)
●
Internal components (3 of 3)
●
Alphabetical parts list
●
Numerical parts list
151
Ordering information
Order replacement parts, supplies, and paper from the following Web sites:
●
To order genuine HP parts and accessories, go to www.hp.com/buy/parts.com.
●
To order supplies and paper, go to www.hp.com/buy/suresupply.com.
Supplies and hinge tool
Product name
Description
Part number
Replacement print cartridge
Average yield for the print cartridge is
approximately 2,000 pages. Actual yield
depends on use.
CB436A (new)
Use this tool to secure the scanner in the
open position when the link assemblies
are disengaged.
5185-7441
Scanner hinge tool
CB436-67901 (exchange)
Cable and interface accessories
Product name
Description
Part number
USB cable
2-meter standard USB-compatible
device connector
C6518A
3-meter standard USB-compatible
device connector
C6520A
U.S. / Canada (1.8 M, 6 ft)
8120-8382
Europe (1.8 M, 6 ft)
8121-0516
Switzerland (1.8 M, 6 ft)
8121-0519
United Kingdom (1.8 M, 6 ft)
8121-0517
Denmark (1.8 M, 6 ft)
8121-0518
South America (1.8 M, 6 ft)
8121-0520
Israel (1.8 M, 6 ft)
8121-1004
Power cord
152 Chapter 7 Parts
ENWW
Whole-unit replacement
Use the tables in this section to find the whole-unit replacement part number for a specific product bundle
and localized configuration.
Table 7-1 Whole-unit replacement, product bundle CC537A
ENWW
Country/region
Localized configuration
Replacement part number
Asia Pacific
AB0 - Taiwan-Traditional Chinese
CC537-67902
AB1 - Korea-Korean localization
CC537-67903
AB2 - China-Simplified Chinese
CC537-67904
AB3 - Thailand-Thai
CC537-67905
AB4 - Singapore-English
CC537-67906
BFV - Hong Kong SAR-English/Traditional Chinese
CC537-67907
ABG - Australia-English
CC537-67909
A2K - Philippines-English
CC537-67910
ACJ - India-English
CC537-67911
AK3 - Indonesia-Indonesia localizaton
CC537-67912
UUD - Vietnam-Vietnamese localization
CC537-67913
ARR - Asia Pacific (Euro Cord)-English
CC537-67914
ARS - Asia Pacific (UK Cord)-English
CC537-67915
Whole-unit replacement 153
Table 7-1 Whole-unit replacement, product bundle CC537A (continued)
Country/region
Localized configuration
Replacement part number
Europe, Middle East, and Africa
ABD - Germany-German
CC537-67916
ABF - France-French
CC537-67917
ABH - Netherlands-Dutch
CC537-67918
ABZ - Italy-Italian
CC537-67919
ABE - Spain-Spanish localization
CC537-67920
BFY - Spain-Catalan localization
CC537-67921
ABU - United Kingdom-English
CC537-67922
B14 - Belgium-Dutch/French
CC537-67923
AR8 - Switzerland-French/German
CC537-67924
BB1 - Norway/Finland/Sweden-NO/FI/SV
localization
CC537-67925
ABY - Denmark-Danish
CC537-67926
ACB - Russia-Cyrillic
CC537-67927
BCM - Czech Rep/Slovakia-Czech/Slovak
localization
CC537-67928
AKC - Hungary-Hungarian localization
CC537-67929
AKD - Poland-Polish localization
CC537-67930
AB9 - Portugal-Portuguese localization
CC537-67931
ACQ - South Africa-English
CC537-67932
BCP - Greece/Israel-Greek/Hebrew localization
CC537-67933
BFQ - Mid East 220V-AR/FR/EN localization
CC537-67934
BFR - Estonia/Lithuania/Latvia-ET/LT/LV
CC537-67935
BFS - Slovenia/Croatia/Serbia-SL/HR/SR
CC537-67936
BFZ - Kazakhstan/Ukraine-Kazakh/Ukrainian
locization
CC537-67937
AB8 - Turkey-Turkish localization
CC537-67938
BG1 - Romania/Bulgaria-Romanian/Bulgarian
locization
CC537-67939
AC8 - Argentina-Spanish
CC537-67940
ABM - Latin Amer-(120v) Spanish localization
CC537-67941
696 - Brazil-Portuguese
CC537-67942
697 - Latin America-Spanish localization
CC537-67943
AKV - South America-Spanish
CC537-67944
ABA - U. S.-English
CC537-67945
Latin America
North America
154 Chapter 7 Parts
ENWW
Table 7-2 Whole-unit replacement, product bundle CC459A
ENWW
Country/region
Localized configuration
Replacement part number
Asia Pacific
AB0 - Taiwan-Traditional Chinese
CC459-67901
AB1 - Korea-Korean localization
CC459-67902
AB2 - China-Simplified Chinese
CC459-67903
AB3 - Thailand-Thai
CC459-67904
AB4 - Singapore-English
CC459-67905
BFV - Hong Kong SAR-English/Traditional Chinese
CC459-67906
ABG - Australia-English
CC459-67907
A2K - Philippines-English
CC459-67908
ACJ - India-English
CC459-67909
AK3 - Indonesia-Indonesia localizaton
CC459-67910
UUD - Vietnam-Vietnamese localization
CC459-67911
ARR - Asia Pacific (Euro Cord)-English
CC459-67912
ARS - Asia Pacific (UK Cord)-English
CC459-67913
Whole-unit replacement 155
Table 7-2 Whole-unit replacement, product bundle CC459A (continued)
Country/region
Localized configuration
Replacement part number
Europe, Middle East, and Africa
ABD - Germany-German
CC459-67914
ABF - France-French
CC459-67915
ABH - Netherlands-Dutch
CC459-67916
ABZ - Italy-Italian
CC459-67917
ABE - Spain-Spanish localization
CC459-67918
BFY - Spain-Catalan localization
CC459-67919
ABU - United Kingdom-English
CC459-67920
B14 - Belgium-Dutch/French
CC459-67921
AR8 - Switzerland-French/German
CC459-67922
BB1 - Norway/Finland/Sweden-NO/FI/SV
localization
CC459-67923
ABY - Denmark-Danish
CC459-67924
ACB - Russia-Cyrillic
CC459-67925
BCM - Czech Rep/Slovakia-Czech/Slovak
localization
CC459-67926
AKC - Hungary-Hungarian localization
CC459-67927
AKD - Poland-Polish localization
CC459-67928
AB9 - Portugal-Portuguese localization
CC459-67929
ACQ - South Africa-English
CC459-67930
BCP - Greece/Israel-Greek/Hebrew localization
CC459-67931
BFQ - Mid East 220V-AR/FR/EN localization
CC459-67932
BFR - Estonia/Lithuania/Latvia-ET/LT/LV
CC459-67933
BFS - Slovenia/Croatia/Serbia-SL/HR/SR
CC459-67934
BFZ - Kazakhstan/Ukraine-Kazakh/Ukrainian
localization
CC459-67935
AB8 - Turkey-Turkish localization
CC459-67936
BG1 - Romania/Bulgaria-Romanian/Bulgarian
localization
CC459-67937
AC8 - Argentina-Spanish
CC459-67938
ABM - Latin Amer-(120v) Spanish localization
CC459-67939
696 - Brazil-Portuguese
CC459-67940
697 - Latin America-Spanish localization
CC459-67941
AKV - South America-Spanish
CC459-67942
ABA - U. S.-English
CC459-67943
Latin America
North America
156 Chapter 7 Parts
ENWW
Control-panel overlays
Table 7-3 Control-panel overlays, HP LaserJet M1120
ENWW
Item
Language
Part number
Control-panel overlay
English (EN)
CB537-00003
Control-panel overlay
Spanish (ES)
CB537-00004
Control-panel overlay
Portuguese (PT)
CB537-00005
Control-panel overlay
German (DE)
CB537-00006
Control-panel overlay
French (FR)
CB537-00007
Control-panel overlay
Dutch (NL)
CB537-00008
Control-panel overlay
Italian (IT)
CB537-00009
Control-panel overlay
Swedish (SV)
CB537-00010
Control-panel overlay
Norwegian (NO)
CB537-00011
Control-panel overlay
Finnish (FI)
CB537-00012
Control-panel overlay
Danish (DA)
CB537-00013
Control-panel overlay
Russian (RU)
CB537-00014
Control-panel overlay
Czech (CS)
CB537-00015
Control-panel overlay
Hungarian (HU)
CB537-00016
Control-panel overlay
Polish (PL)
CB537-00017
Control-panel overlay
Slovak (SK)
CB537-00018
Control-panel overlay
Turkish (TR)
CB537-00019
Control-panel overlay
Greek (EL)
CB537-00020
Control-panel overlay
Hebrew (HE)
CB537-00021
Control-panel overlay
Arabic (AR)
CB537-00022
Control-panel overlay
Traditional Chinese (ZHTW)
CB537-00023
Control-panel overlay
Korean (KO)
CB537-00024
Control-panel overlay
Simplified Chinese (ZHCN)
CB537-00025
Control-panel overlay
Thai (TH)
CB537-00026
Control-panel overlay
Vietnamese (VI)
CB537-00027
Control-panel overlay
Catalan (CA)
CB537-00029
Control-panel overlay
Romanian (RO)
CB537-00030
Control-panel overlay
Croation (HR)
CB537-00031
Control-panel overlay
Slovenian (SL)
CB537-00032
Control-panel overlay
Indonesian (ID)
CB537-00033
Control-panel overlay
Kazakh (KK)
CB537-00034
Control-panel overlay
Bulgarian (BG)
CB537-00035
Control-panel overlays 157
Table 7-3 Control-panel overlays, HP LaserJet M1120 (continued)
Item
Language
Part number
Control-panel overlay
Ukranian (UK)
CB537-00036
Control-panel overlay
Serbian (SR)
CB537-00037
Control-panel overlay
Lithuanian (LT)
CB537-00038
Control-panel overlay
Estonian (ET)
CB537-00039
Control-panel overlay
Latvian (LV)
CB537-00040
Table 7-4 Control-panel overlays, HP LaserJet M1120n
Item
Language
Part number
Control-panel overlay
English (EN)
CC459-00003
Control-panel overlay
Spanish (ES)
CC459-00004
Control-panel overlay
Portuguese (PT)
CC459-00005
Control-panel overlay
German (DE)
CC459-00006
Control-panel overlay
French (FR)
CC459-00007
Control-panel overlay
Dutch (NL)
CC459-00008
Control-panel overlay
Italian (IT)
CC459-00009
Control-panel overlay
Swedish (SV)
CC459-00010
Control-panel overlay
Norwegian (NO)
CC459-00011
Control-panel overlay
Finnish (FI)
CC459-00012
Control-panel overlay
Danish (DA)
CC459-00013
Control-panel overlay
Russian (RU)
CC459-00014
Control-panel overlay
Czech (CS)
CC459-00015
Control-panel overlay
Hungarian (HU)
CC459-00016
Control-panel overlay
Polish (PL)
CC459-00017
Control-panel overlay
Slovak (SK)
CC459-00018
Control-panel overlay
Turkish (TR)
CC459-00019
Control-panel overlay
Greek (EL)
CC459-00020
Control-panel overlay
Hebrew (HE)
CC459-00021
Control-panel overlay
Arabic (AR)
CC459-00022
Control-panel overlay
Traditional Chinese (ZHTW)
CC459-00023
Control-panel overlay
Korean (KO)
CC459-00024
Control-panel overlay
Simplified Chinese (ZHCN)
CC459-00025
Control-panel overlay
Thai (TH)
CC459-00026
Control-panel overlay
Vietnamese (VI)
CC459-00027
Control-panel overlay
Catalan (CA)
CC459-00028
158 Chapter 7 Parts
ENWW
Table 7-4 Control-panel overlays, HP LaserJet M1120n (continued)
ENWW
Item
Language
Part number
Control-panel overlay
Romanian (RO)
CC459-00029
Control-panel overlay
Croation (HR)
CC459-00030
Control-panel overlay
Slovenian (SL)
CC459-00031
Control-panel overlay
Indonesian (ID)
CC459-00032
Control-panel overlay
Kazakh (KK)
CC459-00033
Control-panel overlay
Bulgarian (BG)
CC459-00034
Control-panel overlay
Ukranian (UK)
CC459-00035
Control-panel overlay
Serbian (SR)
CC459-00036
Control-panel overlay
Lithuanian (LT)
CC459-00037
Control-panel overlay
Estonian (ET)
CC459-00038
Control-panel overlay
Latvian (LV)
CC459-00030
Control-panel overlays 159
Supplementry documentation and support
Table 7-5 Documentation (print on demand)
Description
Languages
Part number
Service manual (this manual)
English only
CB537-90945
Getting Started guides
English, Spanish, Portuguese, French
CB537-90901
English, Spanish, Portuguese, Catalan, Dutch, French, German,
Italian
CB537-90902
English, Danish, Finnish, French, Norwegian, Swedish, Arabic
CB537-90903
English, Bulgarian, Czech, Hungarian, Polish, Romanian, Russian,
Slovak
CB537-90904
English, Kazakh, Turkish, Ukrainian, Estonian, Latvian, Lithuanian
CB537-90905
English, Croation, Greek, Serbian, Slovenian, Hebrew
CB537-90906
English, Korean, Indonesian, Chinese simplified, Chinese
traditional, Thai, Vietnamese
CB537-90907
English
CB537-90908
Arabic
CB537-90943
Bulgarian
CB537-90914
Chinese simplified
CB537-90915
Chinese traditional
CB537-90939
Croatian
CB537-90916
Czech
CB537-90917
User guides
160 Chapter 7 Parts
ENWW
Table 7-5 Documentation (print on demand) (continued)
ENWW
Description
Languages
Part number
User guides, continued
Danish
CB537-90918
Dutch
CB537-90919
Estonian
CB537-90920
Finnish
CB537-90921
French
CB537-90909
German
CB537-90910
Greek
CB537-90922
Hebrew
CB537-90944
Hungarian
CB537-90923
Indonesian
CB537-90924
Italian
CB537-90911
Kazakh
CB537-90925
Korean
CB537-90926
Latvian
CB537-90927
Lithuanian
CB537-90928
Norwegian
CB537-90929
Polish
CB537-90930
Portuguese
CB537-90931
Romanian
CB537-90932
Russian
CB537-90933
Serbian
CB537-90934
Slovak
CB537-90935
Slovenian
CB537-90936
Spanish, Catalan
CB537-90913
Spanish, mid-Atlantic
CB537-90912
Swedish
CB537-90937
Thai
CB537-90938
Turkish
CB537-90940
Ukrainian
CB537-90941
Vietnamese
CB537-90942
Supplementry documentation and support 161
Parts lists and diagrams
How to use the parts lists and diagrams
The figures in this chapter show the major subassemblies in the product and their component parts. A
parts list table follows each exploded-view assembly diagram. Each table lists the item number, the
associated part number, and the description of each part. If a part is not listed in the table, then it is not
a field replaceable unit (FRU).
CAUTION: Be sure to order the correct part. When looking for part numbers for electrical components,
pay careful attention to the voltage that is listed in the description column to ensure that the part number
selected is for the correct product model.
NOTE: In this manual, the abbreviation “PCA” stands for “printed circuit board assembly.” Components
described as a PCA might consist of a single circuit board or a circuit board plus other parts, such as
cables and sensors.
162 Chapter 7 Parts
ENWW
Types of screws
Illustration
Description
Size
Part number
Use
Screw, RS
M3X6
XB2-8300-609CN
Used to secure plastic to
metal
M3X8
XA9-1504-000CN
M3X10
XA9-1501-000CN
Screw, D
M3X6
XA9-1670-000CN
Used to secure plastic to
metal
Screw w/washer
M3X6
XB2-7300-605CN
M3X8
XA9-1420-000CN
Used to secure metal
components to metal
components
M4X10
XB4-5401-009CN
M3X9
0515-4671
Screw tapping
Used to secure anything
to plastic
Control panel to scanner
12 mm
ENWW
Parts lists and diagrams 163
Scanner assemblies
Figure 7-1 Scanner assemblies
1
2
4
3
164 Chapter 7 Parts
ENWW
Table 7-6 Scanner assemblies
ENWW
Ref
Description
Part number
Qty
1
Flatbed lid
CB537-60102
1
2
Control-panel assembly, LJm1120 (Western)
CB537-60109
1
2
Control-panel assembly, LJm1120 (Asian)
CB537-60110
1
3
SSA PKG FGI ASSY LJm1120 (scanner flatbed assembly)
CB537-67901
1
4
LJm1005 HP Jewel
7121-8285
1
Scanner assemblies 165
Assemblies
Figure 7-2 Assemblies
1
2
3
4
5
7
166 Chapter 7 Parts
6
ENWW
Table 7-7 Assemblies
ENWW
Ref
Description
Part number
Qty
1
Control-panel overlay
See Control-panel overlays
on page 157.
1
2
Scanner spring, tension
RU6-2637-000CN
1
3
Scanner-link assembly, right
RM1-3954-000CN
1
4
Scanner-link assembly, left
RM1-3953-000CN
1
5
Paper-delivery tray assembly
RM1-4725-000CN
1
6
Paper-pickup tray assembly
RM1-4722-000CN
1
7
Formatter, standard (HP LaserJet M1120)
CC390-60001
1
7
Formatter, Asian (HP LaserJet M1120)
CC539-60001
1
7
Formatter, standard (HP LaserJet M1120n)
CC427-60001
1
7
Formatter, Asian (HP LaserJet M1120n)
CC540-60001
1
Assemblies 167
External covers and panels
Figure 7-3 External covers and panels
1
2
4
7
3
5
6
168 Chapter 7 Parts
ENWW
Table 7-8 External covers and panels
ENWW
Ref
Description
Part number
Qty
1
Cover, rear
RC2-2971-000CN
1
2
Cover, cartridge
RC2-2960-000CN
1
3
Cushion, scanner
RC1-2476-000CN
2
4
Cover, right
RL1-1736-000CN
1
5
Cover, front
RL1-1734-000CN
1
6
Cover, left
RL1-1735-000CN
1
7
Cover, top
RL1-1732-000CN
1
External covers and panels 169
Internal components (1 of 3)
Figure 7-4 Internal components (1 of 3)
1
3
2
170 Chapter 7 Parts
ENWW
Table 7-9 Internal components (1 of 3)
ENWW
Ref
Description
Part number
Qty
1
Fuser assembly, 110v-220v
RM1-4721-000CN
1
1
Fuser assembly, 220v-240v
RM1-4726-000CN
1
2
Engine controller PCA (ECU), 110v-220v
RM1-4932-000CN
1
2
Engine controller PCA (ECU), 220v-240v
RM1-4936-000CN
1
3
Link, coupling
RC2-2965-000CN
1
Internal components (1 of 3) 171
Internal components (2 of 3)
Figure 7-5 Internal components (2 of 3)
3
2
6
1
5
4
172 Chapter 7 Parts
ENWW
Table 7-10 Internal components (2 of 3)
ENWW
Ref
Description
Part number
Qty
1
Paper-pickup assembly
RM1-4727-000CN
1
2
Roller, transfer
RM1-4234-000CN
1
3
Roller, pickup
RL1-1497-000CN
1
4
Separation-pad assembly
RM1-4207-000CN
1
5
Latch, left
RC1-2498-000CN
1
6
Latch, right
RC1-2499-000CN
1
Internal components (2 of 3) 173
Internal components (3 of 3)
Figure 7-6 Internal components (3 of 3)
2
1
4
5
3
174 Chapter 7 Parts
ENWW
Table 7-11 Internal components (3 of 3)
ENWW
Ref
Description
Part number
Qty
1
Laser/scanner assembly
RM1-4724-005CN
1
2
Motor-controller PCA
RM1-4935-000CN
1
3
Tray guide, left
RC2-2979-000CN
1
4
Tray guide, right
RC2-2980-000CN
1
5
Motor, 24V DC
RM1-4196-000CN
1
Internal components (3 of 3) 175
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
