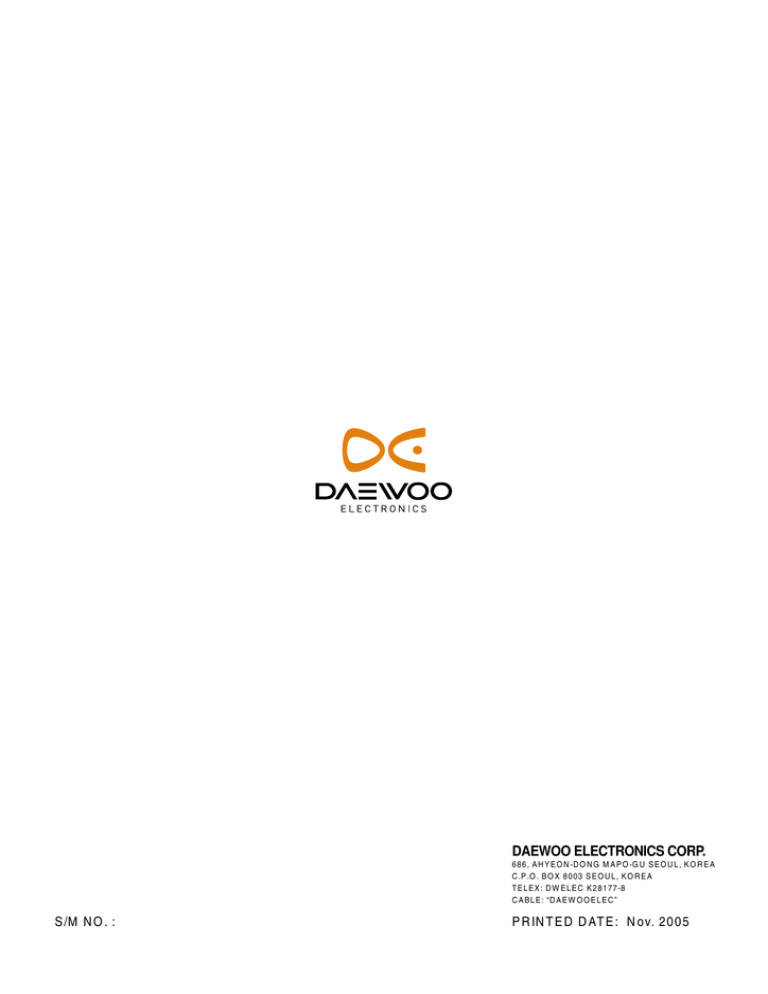

DAEWOO ELECTRONICS CORP.

S/M NO. :

DAEWOO ELECTRONICS CORP.

686, AHYEON-DONG MAPO-GU SEOUL, KOREA

C.P.O. BOX 8003 SEOUL, KOREA

TELEX: DWELEC K28177-8

CABLE: “DAEWOOELEC”

PRINTED DATE: Nov. 2005

S/M No. : C8H4T7S001

Service Manual

Microwave Oven

Model: KOC-8H4T7S

Caution

: In this Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts

Price List) in Service Information Center (http://svc.dwe.co.kr).

Nov. 2005

PRECAUTIONS TO BE OBSERVED BEFORE AND

DURING SERVICING TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not operate or allow the oven to be operated with the door open.

(b) Make the following safety checks on all ovens to be serviced before activating the magnetron or other microwave source, and make repairs if necessary: (1) Interlock operation, (2) Proper door closing, (3)

Seal and sealing surfaces (arcing, wear, and other damage), (4) Damage to or loosening of hinges and latches (5) Evidence of dropping or abuse.

(c) Before turning on power to the microwave oven for any service test or inspection within the microwave generating compartments, check the magnetron, wave guide or transmission line, and cavity for proper alignment, integrity, and connections.

(d) Any defective or misadjusted components in the interlock, monitor, door seal and microwave generation and transmission systems shall be repaired, replaced, or adjusted by procedures described in this manual before the oven is released to the owner.

TABLE OF CONTENTS

1. SAFETY AND PRECAUTIONS....................................................................................................................................2

2. SPECIFICATIONS ........................................................................................................................................................3

3. EXTERNAL VIEW.........................................................................................................................................................4

3-1. OUTER DIMENSION ..........................................................................................................................................4

3-2. FEATURE DIAGRAM .........................................................................................................................................5

4. INSTALLATION ............................................................................................................................................................6

5. CONTROL PANEL .......................................................................................................................................................7

6. DISASSEMBLY AND ASSEMBLY ..............................................................................................................................8

7. INTERLOCK MECHANISM AND ADJUSTMENT.....................................................................................................17

8. TROUBLE SHOOTING GUIDE ..................................................................................................................................18

9. MESUREMENT AND TEST .......................................................................................................................................23

9-1. MEASUREMENT OF THE MICROWAVE POWER OUTPUT ........................................................................23

9-2. MICROWAVE RADIATION TEST ....................................................................................................................24

9-3. COMPONENT TEST PROCEDURE................................................................................................................25

9-4. COMPONENT ACTION....................................................................................................................................26

10. WIRING DIAGRAM...................................................................................................................................................27

11. EXPLODED VIEW AND PARTS LIST .....................................................................................................................28

11-1. DOOR ASSEMBLY.........................................................................................................................................28

11-2. CONTROL PANEL ASSEMBLY.....................................................................................................................28

11-3. TOTAL ASSEMBLY ........................................................................................................................................28

12. PRINTED CIRCUIT BOARD ....................................................................................................................................31

13. P.C.B CIRCUIT DIAGRAM.......................................................................................................................................36

1

1. SAFETY AND PRECAUTIONS

1. FOR SAFE OPERATION

Damage that allows the microwave energy (that cooks or heats the food) to escape will result in poor cooking and may cause serious bodily injury to the operator.

IF ANY OF THE FOLLOWING CONDITIONS EXIST, OPERATOR MUST NOT USE THE APPLIANCE.

(Only a trained service personnel should make repairs.)

(1) A broken door hinge.

(2) A broken door viewing screen.

(3) A broken front panel, oven cavity.

(4) A loosened door lock.

(5) A broken door lock.

The door gasket plate and oven cavity surface should be kept clean.

No grease, soil or spatter should be allowed to build up on these surfaces or inside the oven.

DO NOT ATTEMPT TO OPERATE THIS APPLIANCE WITH THE DOOR OPEN.

The microwave oven has concealed switches to make sure the power is turned off when the door is opened.

Do not attempt to defeat them.

DO NOT ATTEMPT TO SERVICE THIS APPLIANCE UNTIL YOU HAVE READ THIS SERVICE MANUAL.

2. FOR SAFE SERVICE PROCEDURES.

1. If the oven is operative prior to servicing, a microwave emission check should be performed prior to servicing the oven.

2. If any certified oven unit is found to servicing, a microwave emission check should be performed prior to servicing the oven.

(1) inform the manufacturer, importer or assembler,

(2) repair the unit at no cost to the owner,

(3) attempt to ascertain the cause of the excessive leakage,

(4) tell the owner of the unit not to use the unit until the oven has been brought into compliance.

3. If the oven operates with the door open, the service person should tell the user not to operate the oven and contact the manufacturer immediately.

IMPORTANT

The wire in this mains lead coloured in accordance with the following code.

Green-and-yellow : Earth

Blue

Brown

: Neutral

: Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the letter E , earth symbol or coloured green-and-yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

NOTE : This oven is designed for counter-top use only.

2

2. SPECIFICATIONS

MODEL

POWER SUPPLY

POWER

CONSUMPTION

MICROWAVE

GRILL

CONVECTION

COMBINATION

MICROWAVE ENERGY OUTPUT

MICROWAVE FREQUENCY

OUTSIDE DIMENSIONS (W X H X D)

CAVITY DIMENSIONS (W X H X D)

NET WEIGHT

TIMER

FUNCTION SELECTIONS

POWER SELECTIONS

CAVITY VOLUME

* SPECIFICATION ARE SUBJECT TO CHANGE WITHOUT NOTICE.

KOC-8H4T7S

230V~50Hz, SINGLE PHASE WITH EARTHING

1400W

850W

1850W

2500W

900W (IEC 705)

2450MHz

501X485.8X319mm(19.7X19.1X12.6 in.)

310X320X229mm(12.2X12.6X9 in.)

Approx. 18Kg (39.6 lbs.)

60 minutes

Microwave / Grill / Convection / Combination

10 LEVELS

0.83 Cu. Ft

3

3. EXTERNAL VIEW

1. OUTER DIMENSION

501 485.8

4

2. FEATURE DIAGRAM

1 1. DOOR HOOK

When the door is closed, it will automatically lock shut. If door is opened while oven is operating, the magnetron will immediately stop operating.

1 2.DOOR VIEWING SCREEN

Allows viewing of food. The screen is designed so that light can pass through, but not the microwave.

1 3. METAL RACK

1 4. TOP HEATER

Turns on when convection, grill and combi cooking is selected.

1 5. OVEN LAMP

Automatically turns on during oven operating.

1 6. SAFETY INTERLOCK SYSTEM

1 7. CONTROL PANEL

1 8. Glass Turntable

Turntable Center the tray on the roller guide when using the microwave features. Place food or microwave-safe cookware directly on the glass turntable.

* NOTE : Glass Turntable is atteched to the right cushion.

1 9. Metal Tray

Put food or appropriate cookware directly on the metal tray and place on the glass turntable and then place on the roller guide when using convection cooking, combination cooking, auto cooking or grill cooking.

10. ROLLER GUIDE

This must always be used for cooking together with the turntable tray.

11. COUPLER

This fits over the shaft in the center of the ovens cavity floor. This is to remain in the oven for all cooking.

12. CONVECTION OUTLET & FAN

13. OVEN FRONT PLATE

14. DOOR SEAL

Door seal maintains the microwave energy within the oven cavity and prevents microwave leakage.

5

4. INSTALLATION

1. Steady, flat location

This microwave oven should be set on a steady, flat surface.

This microwave oven is designed for counter top use only.

2. Leave space behind and side

All air vents should be kept a clearance. If all vents are covered during operation, the oven may overheat and, eventually, cause failure.

3. Away from Radio and TV sets

Poor television reception and radio interference may result if the oven is located close to a TV, Radio, antenna or feeder and so on.

Position the oven as far from them as possible.

4. Away from heating appliances and water taps

Keep the oven away from hot air, steam or splash when choosing a place to position it, or the insulation might be adversely affected and breakdowns occur.

5. Power supply

Check your local power source. This microwave oven requires a current of approximately 11 amperes, 230V, 50Hz.

Power supply cord is about 1.0 meters long.

The voltage used must be the same as specified on this oven. Using a higher voltage may result in a fire or other accident causing oven damage. Using low voltage will cause slow cooking. We are not responsible for damage resulting from use of this oven with a voltage of ampere fuse other than those specified.

This appliance is supplied with cable of special type, which, if damaged, must be repaired with cable of same type.

Such a cable can be purchased from DAEWOO and must be installed by a Qualified Person.

6. Examine the oven after unpacking for any damage such as:

A misaligned door, broken door or a dent in cavity.

If any of the above are visible, DO NOT INSTALL, and notify dealer immediately.

7. Do not operate the oven if it is colder than room temperature.

EARTHING INSTRUCTIONS

This appliance must be earthed. In the event of an electrical short circuit, earthing reduces the risk of the electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a earthing wire with a earthing plug. The plug must be plugged into an outlet that is properly installed and earthed.

WARNING

Improper use of the earthing plug can result in a risk of electric shock.

Consult a qualified electrician of serviceman if the earthing instructions are not completely understood, or if doubt exists as to whether the appliance is properly earthed, and either:

If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade earthing plug, and a

3-slot receptacle that will accept the plug on the appliance.

The marked rating of the extension cord should be equal to or greater than the electrical rating of the appliance, or

Do not use an extension cord.

6

5. CONTROL PANEL

Stop

/ clear

Start

/ speedy cook

1

Display : Cooking time, power level, indicators and present time are displayed.

MW : When blinking, the oven is operating in

MICROWAVE COOK.

Grill : When blinking, the oven is operating in GRILL.

Combi : When blinking, the oven is operating in COMBI.

Defrost Weight : When blinking, the oven is operating in

WEIGHT DEFROST.

Time : When blinking, the oven is operating in TIME

DEFROST.

Auto-cook : When blinking, the oven is operating AUTO

COOK.

Lock : When lighting, the oven is CHILD LOCK.

Con-vection : When blinking, the oven is operating in

CONVECTION.

g : When blinking, the oven is operating in weight input mode.

2

Auto cook : Used to cook or reheat.

3

Combi : Used to select combi.

4

Grill : Used to select grill.

5

MW : Used to set power level of micro wave.

6

Convection : Used to select convection and selected temp.

7

Weight Defrost : Used to defrost foods.

8

Time Defrost : Used to defrost foods.

9

Clock : Used to set clock.

0

STOP/CLEAR : Used to stop the oven operation or to delete the cooking data.

q

START/SPEEDY COOK : Used to start a programmed, also for speedy start(each press adds 30 seconds microwave cooking time).

w

Dial knob : Used to set time, weight and quantity.

7

6. DISASSEMBLY AND ASSEMBLY

- Cautions to be observed when trouble shooting.

Unlike many other appliances, the microwave oven is high-voltage, high-current equipment. It is completely safe during normal operation. However, carelessness in servicing the oven can result in an electric shock or possible danger from a short circuit. You are asked to observe the following precautions carefully.

1. Always remove the power plug from the outlet before servicing.

2. Use an insulated screwdriver and wear rubber gloves when servicing the high voltage side.

3. Discharge the high voltage capacitor before touching any oven components or wiring.

(1) Check the grounding.

Do not operate on a two-wire extension cord.

The microwave oven is designed to be used while grounded.

It is imperative, therefore, to make sure it is grounded properly before beginning repair work.

(2) Warning about the electric charge in the high voltage capacitor.

For about 30 seconds after the operation has stopped, electric charge remains in the high voltage capacitor.

When replacing or checking parts, short between oven chassis and the negative high terminal of the high voltage capacitor by using a properly insulated screwdriver to discharge.

4. When the fuse is blown out due to the operation of the monitor switch; replace primary interlock switch, secondary interlock switch and interlock monitor switch.

5. After repair or replacement of parts, make sure that the screws are properly tightened, and all electrical connections are tightened.

6. Do not operate without cabinet.

CAUTION : Service personnel should remove their watches whenever working close to or replacing the magnetron.

WARNING : When servicing the appliance, take care when touching or replacing high potential parts because of electrical shock or exposing microwave. These parts are as follows - HV Transformer, Magnetron,

HV Capacitor, HV Diode.

8

1. To remove cabinet

1) Remove four screws on cabinet back.

2) Push the cabinet backward.

2. To remove door assembly

1) Remove two screws which secure the stopper hinge top.

2) Remove the door assembly from top plate of cavity.

3) Reverse the above for assemby.

NOTE: After replacing the door assembly, perform a check of correct alignment with the hinge and cavity front plate.

9

Caution

:

In this Manual, some parts can be changed for improving, their performance without notice in the parts list.

So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service Information Center

(http://svc.dwe.co.kr).

3. To remove door parts.

REF NO.

A01

A02

A03

A04

A05

A06

A07

A08

A09

A10

A11

A12

A13

PART CODE

3516601400

3513101310

3515101310

3512209910

3511616300

3517009500

3510610600

7122401211

3512606700

7001401211

3512301310

3515203600

712140061

PART NAME

DOOR-PLATE

HOOK

SPRING HOOK

FRAME DOOR

DECORATOR DOOR

BARRIER-SCREEN *O

DESCRIPTION

SBHG-1A T0.7

POM

HSW-3

ABS SR0320

STS430 T0.5 HL

MIRROR T3.2

SUPPORTER BRACKEK GLASS SBHG T0.8

SCREW TAPPING T2S TRS 4X12 MFZN

HANDLE DOOR

SCREW MACHINE

AL

PAN M4XL12 MFZN

GASKET DOOR

STOPPER HINGE *T AS

SCREW TAPPING

PP

KOC-970T1S

T2S PAN 4X6 MFZN

(1) Remove the gasket door from door plate.

(2) Remove screws from door plate.

(3) Remove the door frame from door plate.

(4) Remove screws from door frame.

(5) Remove the handle from door frame.

(6) Remove the decorator door from door frame.

(7) Remove the stopper hinge top from door plate.

(8) Remove the spring and the hook.

(9) Remove screws from supporter braket glass.

(10) Remove barrier screen outer from door frame.

(11) Reverse the above steps for reassembly.

10

1

1

1

1

2

1

2

Q’TY REMARK

1

1

1

1

1

1

4. Method to reduce the gap between the door seal and the oven front surface.

(1) To reduce gap located on part ‘A’.

• Loosen two screws on stopper hinge top, and then push the door to contact the door seal to oven front surface.

• Tighten two screws.

(2) To reduce gap located on part ‘B’.

• Loosen two screws on stopper hinge under, and then push the door to contact the door seal to oven front surface.

• Tighten two screws.

NOTE : A small gap may be acceptable if the microwave leakage does not exceed 4mW/cm 2 .

11

Caution

:

In this Manual, some parts can be changed for improving, their performance without notice in the parts list.

So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service Information Center

(http://svc.dwe.co.kr).

5. To remove control panel parts.

REF NO.

PART CODE

B01 3516734500

B02

B03

3511616200

3516006400

B04

B05

B06

B07

3515502500

3516915000

3516915100

3513408900

B08

B09

B10

B11

PART NAME

CONTROL-PANEL

DECORATOR C-PANEL

SPEICAL DOUBLE TAPE

WINDOW DISPLAY

BUTTON FUNCTI0N-A

BUTTON FUNCTI0N-B

KNOB VOLUME

7122401211

7621301011

SCREW TAPPING

SCREW TAPPING

PKMPMSGG00 PCB MAIN MANUAL AS

PKBPMSGG00 PCB BUTTON MANUAL AS

DESCRIPTION

ABS SG-076OD SG-175

STS430 T0.5 HL

KOC-8H4T7S

PMMA IF-850

ABS SG-076OD SG-175

ABS SG-076OD SG-175

ABS SG-076OD SG-175

T2S TRS 4X12 MFZN

T2 PAN 3X10 PW MFZN

KOC-8H4T7S

KOC-8H4T7S

Q’TY

1

1

1

1

1

1

1

4

8

1

1

REMARK

(1) Remove the screw which secure the control panel, push up two snap fits and draw forward the control panel assembly.

(2) Remove four screws(B08) which secure the PCB Main ASS°ØY.

(3) Pull out the Main PCB assembly(B10).

(4) Remove eight screws(B09) which secure the PCB Sub ASS°ØY.

(5) Pull out the Sub PCB assembly(B11).

(6) Pull out the Knob volume(B07) from the Sub PCB assembly.

(7) Pull out ten buttons from the control panel.

(8) Pull out Decorator control panel(B01) from the control panel.

(9) Pull out Window display(B04) from the control panel.

(10)Reverse the above steps for reassembly.

12

6. To remove high voltage capacitor.

1) Remove a screw which secure the grounding ring terminal of the H.V. diode and the capacitor holder.

2) Remove the H.V. diode from the capacitor holder.

3) Reverse the above steps for reassembly.

High voltage circuit wiring

7. To remove magnetron.

1) Remove a screw which secure the magnetron.

2) Remove the magnetron.

3) Reverse the above steps for reassembly.

CAUTION : Never install the magnetron without the metallic gasket plate which is packed with each magnetron to prevent microwave leakage. Whenever repair work is carried out on magnetron, check the microwave leakage. It shall not exceed 4mW/cm 2 for a fully assembled oven with door normally closed.

Metallic gasket plate

Magnetron antenna

Cooling fin

<MAGNETRON>

Filament terminal

13

8. To remove wind guide assembly.

1) Remove a screw for earthing.

2) Remove the noise filter from the wind guide.

3) Remove a screw which secure the wind guide assembly.

4) Draw forward the wind guide assembly.

5) Pull the fan from the motor shaft.

6) Remove two screws which secure the motor shaded pole.

7) Remove the motor shaded pole.

8) Reverse the above steps for reasembly.

9. To remove H.V.transformer.

1) Remove four screws holding the H.V.transformer.

2) Remove the H.V.transformer.

3) Reverse the above steps for reassembly.

14

Caution

:

In this Manual, some parts can be changed for improving, their performance without notice in the parts list.

So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service Information Center

(http://svc.dwe.co.kr).

10. To remove Top heater assembly parts.

REF NO.

PART CODE

1 3512805800

2

3

3512806900

7113400814

6

7

4

5

8

3511412400

3510610500

7112401011

3512523600

7112401011

PART NAME

HEATER MIRACLON

HEATER REFLECTOR

SCREW TAPPING

DESCRIPTION

230V 800W 270MM

STS430 T0.5

T1 BIN 4X8 MFNI

COVER HEATER *T SA1D-80 T0.4

BRACKET COVER HEATER SECC T0.5

SCREW TAPPING

GUIDE AIR OUTLET

SCREW TAPPING

T1 TRS 4*10 MFZN

SBHG T0.5

T1 TRS 4*10 MFZN

1) Remove a screw 8 and pull out Guide air outlet 7 .

2) Remove screws 6 and pull out braket cover heater 5 .

3) Pull out heater miraclon 1 .

4) Remove two screws 3 .

5) Pull out the heater reflector 2 from cover heater *T 4 .

6) Reverse the above steps for reassembly.

1

1

1

1

1

Q’TY

1

1

2

REMARK

15

Caution

:

In this Manual, some parts can be changed for improving, their performance without notice in the parts list.

So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service Information Center

(http://svc.dwe.co.kr).

11. To remove Rear heater assembly parts.

12

13

14

15

8

9

10

11

REF NO.

PART CODE

1 3511412500

2

3

3963514330

3512807310

6

7

4

5

3513303900

7601400811

7113400814

7400104011

16

17

18

3511800700

7S627W40X1

3511800900

3512782600

3512782610

7402704600

7122400611

3511412600

3511410500

7272400811

7112401011

FAN

PART NAME

COVER HEATER *B

MOTOR SHADED POLE

HEATER QUARTZ

INSULATOR HEATER *B

SCREW MACHINE

SCREW TAPPING

WASHER PLAIN

FAN CONVECTION

SPECIAL SCREW

DESCRIPTION

SA1D-80 T0.5

230V 50HZ MW10CA-T03

115V 500W 240MM A

SBHG-1 T0.6

PAN 4X8 PW MFZN

T1 BIN 4X8 MFNI

PW-1-4 MFZN

HARNESS CONVECTION *A KOC-8H5T7S

HARNESS CONVECTION *B KOC-8H5T7S

RING C

SCREW TAPPING

COVER *B

COVER MOTOR *B

SCREW TAPTITE

SCREW TAPPING

SA1D-80 T0.5

NUT FLANGE M4 MFZN

PBT

CR-5 SK5

T2S TRS 4X6 MFZN

SBHG-3 T0.4

SA1D-80 T0.5

TT3 TRS 4X8 MFZN

T1 TRS 4*10 MFZN

1) Remove a screw 17 and pull out Cover motor *B 16.

2) Remove a screw 18 and pull out Cover *B 15 .

3) Pull out the Harness convection-A 11 and Harness convection-B 12 .

4) Remove four screws 14 and then pull out the Rear heater assembly.

5) Remove a Nut 9 and the pull out the Fan convection 8 .

6) Remove three screws 6 and then separate the Cover heater *B 1 and the lnsulator heater *B 4 .

7) Pull out the Heater 3 from the Cover Heater *B 1 .

8) Remove two screw 5 and then separate the lnsulator heater *B 1 and Motor shaded pole 2 .

9) Remove the C-Ring 13 and then pull out the Fan 10 from Motor shaft.

10)Reverse the above steps for reassebly.

4

1

1

1

1

1

1

1

3

1

1

2

Q’TY

1

1

2

1

1

1

16

REMARK

7. INTERLOCK MECHANISM AND ADJUSTMENT

The door lock mechanism is a device which has been specially designed to completely eliminate microwave radiation when the door is opened during operation, and thus to perfectly prevent the danger resulting from the leakage of microwave.

(1) Primary interlock switch

When the door is closed, the hook locks the oven door. If the door is not closed properly, the oven will not operate.

When the door is closed, the hook pushes the button of the microswitch. Then the button of the primary interlock switch bring it under ON condition. (No position)

(2) DOM switch and interlock monitor switch

When the door is closed, the hook pushes the lock lever downward. The lock lever presses the button of the interlock monitor switch to bring it under OFF condition (No position) and presses the button of the DOM switch to bring it under

ON condition. (No position)

ADJUSTMENT :

Interlock monitor switch

When the door is closed, the interlock monitor switch should be opened (No position) before other switches are closed.

When the door is opened, the interlock monitor switch should be closed (No position) after other switches are opened.

(3) Adjustment steps

a) Loosen the one mounting screw.

b) Adjust interlock switch assembly position.

c) Make sure that lock lever moves smoothly after adjustment is completed.

d) Tighten completely two mounting screws.

NOTE :

Microwave emission test should be performed after adjusting interlock mechanism.

If the microwave emission exceed 4mW/cm 2 , readjust interlock mechanism.

17

8. TROUBLE SHOOTING GUIDE

Following the procedure below to check if the oven is defective or not.

1) Check grounding before trouble checking.

2) Be careful of the high voltage circuit.

3) Discharge the high voltage capacitor.

4) When checking the continuity of the switches, fuse or high voltage tranformer, disconnect one load wire from these parts and check continuity with the AC plug removed. To do otherwise may result in a false reading or damage to your meter.

NOTE : When electric parts are checked, be sure the power cord is not inserted the wall outlet.

Check wire harness, wiring and connection of the terminals and power cord before check the parts listed below.

(TROUBLE 1) Oven does not operate at all : any inputs can not be accepted.

CONDITION

Fuse blows.

CHECK

Check continuity of interlock monitor switch with door closed

( COM NC )

Check continuity of primary an interlock switch

with door closed

RESULT

Continuity

(COM NC)

No continuity

No

Continuity

Continuity

Continuity

CAUSE

Malfunction of

Interlock monitor switch

Malfunction of interlock switch

REMEDY

Replace

Replace

Replace

Check continuity of primary interlock switch contact with door partially open until interlock monitor switch contact close

( COM NC close )

Check continuity of primary winding of low voltage transformer or infinite

Approx.

480 ~620

( normal )

Shorted contacts of primary interlock Switch

Defective low voltage transformer

Replace

Disconnect high voltage fuse and operate the unit

Fuse again blows

Defective high voltage transformer

Replace

18

CONDITION

Outlet has proper voltage fuse does not blow?

CHECK

Check continuity of magnetron

Check continuity of noise filter board

Check continuity of power supply cord

RESULT

No continuity

No continuity

No continuity

No continuity

CAUSE

Defective magnetron.

Defective line filter board

Open power supply cord

Defective touch control circuit

REMEDY

Replace

Replace

Replace

Replace

NOTE : All these switches must be replaced at the same time, please refer to (7.Interlock mechanism and adjust) for adjustment instructions

(TROUBLE 2)

Display shows all figures selected, but oven does not start cooking, even though desired program and time are set and start button is tapped.

CONDITION

Turn table motor and oven lamp do not turn on

CHECK

Check continuity of primary interlock switch

Check continuity of

D.O.M switch

Check D.C voltage being supplied to

RELAY(RY4) coil

RESULT

No continuity

No continuity

0V

Approx.

24V DC

CAUSE

Malfunction of primary interlock switch

Malfunction of

D.O.M switch

Defective touch control Circuit

Fault contacts of RELAY

(RY4) or open relay coil.

REMEDY

Adjust or replace

Adjust or replace

Replace

Replace

19

TROUBLE 3) No microwave oscillation even though fan motor rotates.

CONDITION

No microwave oscillation

CHECK

Check continuity of high voltage fuse

RESULT

No continuity

No microwave oscillation

CAUSE

Defective high voltage fuse

Continuity

Check continuity of high voltage capacitor terminals with wires removed

Check continuity of high voltage rectifier in forward and backward direction with DC megger

Connect megger leads to magnetron terminal and magnetron body

Check D.C voltage being supplied to

RELAY (RY1) coil

Continuity in backward direction

Continuity

0 V

Approx.

24V DC

Defective high voltage transformer

Defective high voltage rectifier

Defective magnetron

Defective touch control circuit

Faulty contacts of

RELAY

(RY1) or open relay coil

1

Check resistance of primary and secondary coil of high voltage transformer

1

Check continuity of filament terminal of high voltage transformer

2

Check continuity of magnetron heater with wires removed

0 or

No continuity

No continuity

Defective high voltage transformer

Defective high voltage transformer

Defective magnetron

REMEDY

Replace

1

Replace

2

Replace

Replace

Replace

Replace

Replace

20

(TROUBLE 4)

Grill heater (upper heater) is not heated; food will not become hot.

CONDITION

Grill heater is not heated.

CHECK

Check continuity of primary interlock switch

RESULT

No continuity

Check continuity of

DOM switch

No continuity

No continuity

Check continuity of heater

Check D.C voltage being supplied to

RELAY (RY2) coil

0V

Approx.

24V DC

CAUSE

Malfunction of primary Interlock switch

Malfunction of

DOM switch

Defective heater

Defective touch control circuit

Faulty contacts of

RELAY

(RY2) or open relay coil

REMEDY

Adjust or replace

Adjust or replace

Replace

Replace

Replace

(TROUBLE 5)

1) Convection heater is not heated; food will not become hot.

2) Convection fan motor does no rotate.

CONDITION

1)Convection heater is not heated.

2)Convection fan and motor does not rotate.

CHECK

Check continuity of primary interlock switch

RESULT

No continuity

No continuity

Check continuity of

DOM switch

Check continuity of

(heater or motor)

Check D.C voltage being supplied to

RELAY (RY3, RY6) coil

No continuity

0V

Approx.

24V DC

CAUSE

Malfunction of primary Interlock switch

Malfunction of

DOM switch

Defective heater or motor

Defective touch control circuit

Faulty contacts of

RELAY

(RY3,RY6) or open relay coil

REMEDY

Adjust or replace

Adjust or replace

Replace

Replace

Replace

21

(TROUBLE 6)

The following visual conditions inditions indicate a probable defective touch control Circuit or button P.C.B.

assembly

1. Incomplete segments.

1) segment missing

2) partial segments missing

3) digit flickering other than normal fluorescent slight flickering

2. A distinct change in the brightness of one or more numbers exists in the display.

3. One or more digits in the display are not on when they should be.

4. Display does not count down or up with time cooking or clock operation.

5. Oven is programmable and cooks normally but no display shows.

6. Display obviously jumps in time while counting down.

7. Display counts down noticeably too fast while cooking.

8. Display does not show the time of day when clear button is touched.

9. Oven lamp and turn table motor do not stop although cooking is finished.

Check if the RELAY(RY4) contacts close and if they are close, replace touch control circuit.

CONDITION

Display does not show programming at all, even if keyboard is touched.

CHECK

Check each button for continuity of the button

RESULT

Normal

CAUSE

Malfunction of sub pcb assembly

REMEDY

Replace control box sub-assembly

(TROUBLE 7)

When ERROR 2 ERROR 3 come on display.

CONDITION

ERROR 2 &

ERROR 3 come on display

CHECK

Check continuity of thermistor

(resistance of thermistor)

0

RESULT or infinite

Approx

200~300k

(room temperature)

CAUSE

Replace

REMEDY

Replace

Check continuity of heater

(convection, upper)

No continuty

Defective heater

Replace continuity

Defective touch control circuit

Replace

22

9. MEASUREMENT AND TEST

1. MEASUREMENT OF THE MICROWAVE POWER OUTPUT

Microwave output power can be checked by indirectly measuring the temperature rise of a certain amount of water exposed to the microwave as directed below.

PROCEDURE

1. A cylindrical container of borosilicate glass is used for the test. It has a maximum thickness of 3mm, an external diameter of approximately 190mm and a height of approximately 90mm.

The mass of the container is determined.

2. At the start of the test, the oven and the empty container are at ambient temperature. Water having an initial temperature of 10 C 1 C is used for the test. The water temperature is measured immediately before it is poured into the container.

3. A quantity of 1000g 5g of water is added to the container and its actual mass obtained.

The container is then immediately placed in the centre of the oven shelf, which is in its lowest normal position.

The oven is operated and the time for the water temperature to attain 20 C 2 C is measured. The oven is then switched off and the final water temperature is measured within 60s.

NOTE 1 - The water stirred is before its temperature is measured.

NOTE 2 - Stirring and measuring devices are to have a low heat capacity.

4. The microwave power output is calculated from the formula

P = 4,187 m

W

(T

2

-T

1

) + 0.55 m

C

(T

2

- T

0

)/t where

P is the microwave power output, in watts ; m

W is the mass of the water, in grams ; m c is the mass of the container, in grams ;

T

0 is ambient temperature, in degrees Celsius ;

T

1 is the initial temperature of the water, in degree Celsius ;

T

2 is the final temperature of the water, in degrees Celsius ; t is the heating time, in seconds, excluding the magnetron filament heating-up time.

The microwave power output is stated in watts, rounded off to the nearest 50W

CAUTION

1. Water load should be measured exactly to 1 liter.

2. Input power voltage should be exactly specified voltage (Refer to SPECIFICATIONS).

3. Ambient temperature should be 20 2 C (68 3.6 F)

Heating time for power output: (T

2

= T

0

)

A (second)

B (W)

70

600

64

650

60

700

56

750

52

800

49

850

47

900

44

950

42

1000

40

1050

38

1100

23

2. MICROWAVE RADIATION TEST

WARNING

1. Make sure to check the microwave leakage before and after repair of adjustment.

2. Always start measuring of an unknown field to assure safety for operating personnel from microwave energy.

3. Do not place your hands into any suspected microwave radiation field unless the safe density level is known.

4. Care should be taken not to place the eyes in direct line with the source of microwave energy.

5. Slowly approach the unit under test until the radiometer reads an appreciable microwave leakage from the unit under the test.

PROCEDURE

1. Prepare Microwave Energy Survey Meter, 600cc glass beaker, and glass thermometer 100 C (212 F).

2. Pour 275cc 15cc of tap water initially at 20 5 C (68 9 F) in the 600 cc glass beaker with an inside diameter of approx. 95 mm(3.5 in.).

3. Place it at the center of the tray and set it in a cavity.

4. Close the door and operate the oven.

5. Measure the leakage by using Microwave Energy Survey Meter with dual ranges, set to 2450MHz.

1) Measured radiation leakage must not exceed the value prescribed below. Leakage for a fully assembled oven with door normally closed must be less than 4mW/Cm 2 .

2) When measuring the leakage, always use the 5 cm (2 in.) space cone with probe. Hold the probe perpendicular to the cabinet and door. Place the space cone of the probe on the door, cabinet, door seem, door viewing screen, the exhaust air vents and the suction air vents.

3) Measuring should be in a counter-clockwise direction at a rate of 1 in./sec. If the leakage of the cabinet door seem is unknown, move the probe more slowly.

4) When measuring near a corner of the door, keep the probe perpendicular to the areas making sure the probe end at the base of the cone does not get closer than 2 in. from any metal. If it does not, erroneous reading may result.

24

3. COMPONENT TEST PROCEDURE

High voltage is present at the high voltage terminal of the high voltage transformer during any cooking cycle.

It is neither necessary nor advisable to attempt measurement of the high voltage.

Before touching any oven components or wiring, always unplug the oven from its power source and discharge the capacitor.

1. High voltage transformer

1) Remove connections from the transformer terminals and check continuity.

2) Normal readings should be as follows :

Secondary winding ... Approx. 146 10%

Filament winding ... Approx. 0

Primary winding ... Approx. 2

2. High voltage capacitor

1) Check continuity of capacitor with meter on the highest OHM scale.

2) A normal capacitor will show continuity for a short time, and then indicate 10M once the capacitor charged.

3) A shorted capacitor will show continuous continuity.

4) An open capacitor will show constant 10M .

5) Resistance between each terminal and chassis should be infinite.

3. High voltage diode

1) Isolate the diode from the circuit by disconnecting the leads.

2) With the ohmmeter set on the highest resistance scale measure the resistance across the diode terminals.

Reverse the meter leads and again observe the resistance reading. Meter with 6V, 9V or higher voltage batteries should be used to check the front-back resistance of the diode, otherwise an infinite resistance may be read in both directions. A normal diode’s resistance will be infinite in one direction and several hundred k in the other direction.

4. Magnetron

For complete magnetron diagnosis, refer to "Measurement of the Microwave Power Output." Continuity checks can only indicate and open filament or a shorted magnetron. To diagnose for an open filament or a shorted magnetron,

1) Isolate magnetron from the circuit by disconnecting the leads.

2) A continuity check across magnetron filament terminals should indicate 0.1 or less.

3) A continuity check between each filament terminal and magnetron case should read open.

5. Fuse

If the fuse in the primary and monitor switch circuit is blown when the door is opened, check the primary and monitor switch before replacing the blown fuse. In case the fuse is blown by an improper switch operation, replace the defective switch and fuse at the same time. Replace just the fuse if the switches operate normally.

25

4. COMPONENT ACTION

COOKING MODE

MANUAL

MODE

AUTO

MODE

M/W

GRILL

COMBI

CONVECTION

ROAST PORK

ROAST BEEF

ROAST CHICKEN

BAKED FISH

FRESH VEGETABLES

MAGNE-

TRON

UPPER REAR CONVEC-

ELEMENT ELEMENT TION FAN

● ●

26

10. WIRING DIAGRAM

27

11. EXPLODED VIEW AND PARTS LIST

1. DOOR ASSEMBLY

Refer to 6. Disassembly and assembly.

2. CONTROL PANEL ASSEMBLY

Refer to 6. Disassembly and assembly.

3. TOTAL ASSEMBLY

28

Caution

:

In this Manual, some parts can be changed for improving, their performance without notice in the parts list.

So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service Information Center

(http://svc.dwe.co.kr).

18

19

20

14

15

16

17

10

11

8

9

12

13

NO

5

6

7

3

4

1

2

28

29

30

31

32

33

34

35

36

37

25

26

27

21

22

23

24

PART CORD

3516118500

3511403800

3517400610

3966031700

7121400611

3514801600

7S422X4081

3512782620

3513811750

3513702620

4415A17352

4415A66910

3518571000

3513601600

3510311000

3512101400

3518303401

3513001900

3518401300

7272400811

3518701400

3515202800

7112401011

3518122800

FUSE HV

STOPPER HINGE *U AS

SCREW TAPPING

TRANS HV

3516003700 SPECIAL SCREW

PKCPSWGG00 CONTROL-PANEL AS

3515305000 SUPPORTER WIRE

7122401211

3511726410

3516003700

3512524100

3963512320

7121402511

3511800300

3518606100

7122401211

35113A5QJ5

SCREW TAPPING

DOOR AS

SPECIAL SCREW

GUIDE WIND

MOTOR SHADED POLE

SCREW TAPPING

FAN

NOISE-FILTER

SCREW TAPPING

CORD POWER AS

PART NAME

CAVITY AS

COVER WAVE GUIDE

COUPLER

MOTOR SYNCRO

SCREW TAPPING

SENSOR TEMPERATURE

SCREW SPECIAL

HARNESS MAIN

LOCK

LEVER LOCK

SW MICRO

SW MICRO

SWITCH PUSH

LAMP

BASE

FOOT

CAPACITOR HV

HOLDER HV CAPACITOR

DIODE HV

SCREW TAPTITE

1

1

1

4

1

1

1

1

1

1

1

1

1

Q'TY

1

1

1

1

1

1

1

2

1

1

1

1

2

1

1

1

1

4

1

1

5

1

1

1

DESCRIPTION

KOC-8H5T7S

MICA T0.35

TEFLON

220/240V 50/60HZ SM16 HK36M6F6

T2S PAN 4X6 MFZN

MWS-DWM-0010-0

TT3 TRS 4X8 SE MFZN

KOC-8H5T7S

CHEIL(FH-44N)

POM

VP-533A-OF SPNO #187 200G

VP-531A-OF/SZM-V16-FA-61

MP101C

BL 240V 25W T25 C7A H187

SBHG-1 T0.7

DASF-310

2100VAC 1.05UF #187

SECC T0.8

CL01-12

TT3 TRS 4X8 MFZN

5KV 0.7A

KOR-121M0A

T1 TRS 4*10 MFZN

R1S592 ES00

TT3 HEX 4X8 FLG MFZN

KOC-8H4T7S

SWRH MFZN

T2S TRS 4X12 MFZN

KOC-8H4T7S

TT3 HEX 4X8 FLG MFZN

PP GP-3152F FH44N NC

230V 20W MW10CA-M03

T2S PAN 4X25 MFZN

PP+30%GLASS

DWLF-M13

T2S TRS 4X12 MFZN

3X1.5 80X80 120-RTML 1.4M

29

55

56

57

51

52

53

54

45

46

47

48

49

50

NO

42

43

44

38

39

40

41

65

66

67

68

69

70

71

72

73

62

63

64

58

59

60

61

3511800900

3512782600

3512782610

7402704600

7122400611

3518907400

3511412600

3511410500

7272400811

7112401011

3510806400

7112401011

3517201951

3517210900

3512517100

3517203610

PART CORD

7112401011

3518003700

3516004000

3512805800

3512806900

7113400814

3511412400

PART NAME

SCREW TAPPING

MAGNETRON

SPECIAL SCREW

HEATER MIRACLON

HEATER REFLECTOR

SCREW TAPPING

COVER HEATER *T

3510610500

7112401011

3512523600

7112401011

3511412500

3963514330

BRACKET COVER HEATER

SCREW TAPPING

GUIDE AIR OUTLET

SCREW TAPPING

COVER HEATER *B

MOTOR SHADED POLE

3512807310

3513303900

7601400811

7113400814

HEATER QUARTZ

INSULATOR HEATER *B

SCREW MACHINE

SCREW TAPPING

7400104011

3511800700

WASHER PLAIN

FAN CONVECTION

7S627W40X1 SPECIAL SCREW

FAN

HARNESS CONVECTION *A

HARNESS CONVECTION *B

RING C

SCREW TAPPING

THERMOSTAT

COVER *B

COVER MOTOR *B

SCREW TAPTITE

SCREW TAPPING

CABINET AS

SCREW TAPPING

TRAY RACK AS

TRAY METAL AS

GUIDE ROLLER AS

TRAY

DESCRIPTION

T1 TRS 4*10 MFZN

2M218JFL 6CF

T2 BOLT FLANGE 5X12 DACRO

230V 800W 270MM

STS430 T0.5

T1 BIN 4X8 MFNI

SA1D-80 T0.4

SECC T0.5

T1 TRS 4*10 MFZN

SBHG T0.5

T1 TRS 4*10 MFZN

SA1D-80 T0.5

230V 50HZ MW10CA-T03

115V 500W 240MM A

SBHG-1 T0.6

PAN 4X8 PW MFZN

T1 BIN 4X8 MFNI

PW-1-4 MFZN

SA1D-80 T0.5

NUT FLANGE M4 MFZN

PBT

KOC-8H5T7S

KOC-8H5T7S

CR-5 SK5

T2S TRS 4X6 MFZN

OFF:160 ON:0 V #187

SBHG-3 T0.4

SA1D-80 T0.5

TT3 TRS 4X8 MFZN

T1 TRS 4*10 MFZN

KOC-871C0S

T1 TRS 4*10 MFZN

KOR-17551S 30MM

KOC-624S0J

KOG-62150S

BORO-SI GLASS(NEG)

30

1

1

1

2

3

2

1

1

1

1

1

1

1

Q'TY

1

2

1

1

1

2

1

1

1

1

1

4

1

1

1

1

4

1

1

1

1

1

1

12. PRINTED CIRCUIT BOARD

CIRCUIT CHECK PROCEDURE

1. Low voltage transformer check

The low voltage transformer is located on the P.C.B.

Measuring condition: Input voltage: 230V / Frequency: 50Hz

Terminal

6-7

8-9

9-10

2

Voltage(load)

AC 17.0 V

AC 1.3 V

AC 1.3 V

Voltage(no load)

AC 19.9 V

AC 1.6 V

AC 1.6 V

NOTE

1. Secondary side voltage of the low voltage transformer changes in proportion to fluctuation of power source voltage.

2. The allowable tolerance of the secondary voltage is within 5% of nominal voltage.

2. Voltage Check

- Key check point

NO

1

2

CHECK POINT

IC1 PIN 26, 27

IC1 PIN 28

5VDC 5%

REMARK

5V

0V

T

T : 20 ms(50Hz)

3 IC1 PIN 8 OR 9

5V

0V

T

T : 250 ns(4MHz)

- Check method

NO

1

2

MEASURE POINT

MP1

MP2

WAVE FORM

DC 5V 5%

DC 24V 20%

REMEDY

Replace ZD3, EC1

Replace D17-20, EC5

NOTE: Each measure point must be measured with GND points.

REMARK

NO LOAD

NO LOAD

31

MEASUREPOINT

32

3. Case of no microwave oscillation

1) When touching M/W button, oven lamp turns on and Fan motor and turntable rotate, and cook indicator in display comes on.

*Cause: RELAY 1 does not operate.

B

A

30

M/W

D7

RY1

Q4

STATE

RELAY 1 ON

RELAY 1 OFF

POINT A

+5V DC

GND

POINT B

GND

+24V DC

2) When touching M/W button, oven lamp does not turn on and turntable motor does not rotate but cook indicator in display comes on.

*Cause: RELAY 4 does not operate.

B

A

34

LAMP

TRAY

D13

RY4

Q10

STATE

RELAY 4 ON

RELAY 4 OFF

POINT A

+5V DC

GND

POINT B

GND

+24V DC

3) When touching M/W button, oven lamp turns on and fan motor does not rotate but cook indicator in display comes on.

*Cause: RELAY 5 does not operate.

B

A

FAN

D14

35

RY5

Q9

STATE

RELAY 5 ON

RELAY 5 OFF

POINT A

+5V DC

GND

POINT B

GND

+24V DC

33

4. Case of no heating of top grill

When touching GRILL or COMBI button, oven lamp turns on and fan motor and turntable rotate, and cook indicator in display comes on.

*Cause: RELAY 2 does not operate.

B

Q3

A

RY2

32

D8

R21

Q5

STATE

RELAY 2 ON

RELAY 2 OFF

POINT A

+5V DC

GND

POINT B

GND

+24V DC

5. Case of no heating of convection grill

When touching CONVECTION button, oven lamp turns on and Fan motor and turntable rotate and cook indicator in display comes on.

*Cause: RELAY 3 does not operate.

B

Q7

A

RY3

33

D9

R24

Q7

STATE

RELAY 3 ON

RELAY 3 OFF

POINT A

+5V DC

GND

POINT B

GND

+24V DC

34

6. Case of no stopping of the count down timer

When the door is opened during operation, the count down timer does not stop.

A

+5V

D6

+5V

R13

2

CN2

1

D.O.M SW

+24V

R5

Q2

R7

C3

B

POINT

STATE

DOOR OPEN

DOOR CLOSED

CHECK NO

1

A

OPEN

CLOSE

B

+5V DC

GND

METHOD

Check the stage(ON,OFF) of the door open monitor switch by resistance measurement.

REMEDY

Replace door open monitor swith.

15

35

13. P.C.B. CIRCUIT DIAGRAM

36

PCB ASS’Y PART LIST

NO

1

2

3

4

5

NAME

BUZZER

C CERA

C CERA

C ELECTRO

C ELECTRO

6

7

C ELECTRO

C ELECTRO

EC3,4

EC5

8 CONNECTOR WAFER CN1

9 CONNECTOR WAFER CN2

SYMBOL

BZ1

C4,C5,C9,C10,C11

C1~C3,C6,C7,C8,C12,C13,C14

EC1

EC2

16

17

18

19

10 CONNECTOR FILM CN3

11 CONNECTOR WAFER CN4

12

13

14

15

DIODE

DIODE

DIODE ZENER

DIODE ZENER

D1~D10,D13~16

D11,12,17~20

ZD1

ZD2

DIODE ZENER

DISPLAY VFD

FOAM

PCB MAIN

ZD3

DP1

SPONGE

M268

SPECIFICATION

BM-20K

102K 50V AXIAL

104Z 50V AXIAL

50V RS 10uF

50V RSS 100uF

50V RSS 220uF

35V RSS 1000uF

35312-0310

35313-0210

HLEM15S-1

35328-0610

1N4148

1N4004A

UZ-3.9BSB

UZ-24BSB

UZ-5.6BSB

SVM-5MS06

CR 15TX50X11

94.4x227

PART CODE Q'TY REMARK

3515600100 1

CCZB1H102K 5

CCZF1H104Z 9

CEXE1H100A 1

CEXF1H101V 1

CEXF1H221V 2

CEXF1V102V 1

30166M5030 1

30166M7020 1

4CW215RBD0 1

4CW3061MX0 1

DZN4148---

DZN4004A--

14

6

DZUZ3R9BSB 1

DZUZ24BSB1

DZUZ5R6BSB 1

DSVM5MS061

3517306400

3514331210

1

1

26

27

28

29

20

21

22

23

24

25

R ARRAY

R ARRAY

R CARBON FILM

R CARBON FILM

R CARBON FILM

R CARBON FILM

R CARBON FILM

R CARBON FILM

R CARBON FILM

R CARBON FILM

RA2

RA1,3

R31

R26~30, R32

R2

R13,R21,R24

7P(6) 1/8 100K J

8P(7) 1/8 100K J

1/2W 27 5%

1/2W 200 5%

1/4W 6.8 5%

1/6W 4.7K 5%

R3,R11,R12,R14,R25,R33,R22,R23 1/6W 1K 5%

R9,R7 1/6W 10K 5%

R5,R10

R1,R6,R17,R18,R19,R20

1/6W 47K 5%

1/6W 100K 5%

36

37

38

39

30

31

R CARBON FILM

R CARBON FILM

R8

R16

32 R CARBON FILM R15

33 RESONATOR CERA CR1

34

35

IC MICOM

IC RESET

IC1

IC2

TRANSISTOR

TRANSISTOR

TRANSISTOR

TRANS POWER

Q2

Q1,Q4,Q5,Q7,Q9~Q12

Q3,Q6,Q8

LVT1

40

41

SW RELAY

SW RELAY

RY1~3

RY4~6

42 WIRE COPPER 7.5mm J1,J3,J4,J10,J11,J12,J19~21,

J23,J24,J26,J27

43 WIRE COPPER 10 mm J2,J9,J14~18,J22,J28~32

44 WIRE COPPER 12.5mm J5~J8,J13,J25

1/6W 1M 5%

1/4W 10K 1%

1/4W 120K 1%

CRT4.00MS

GMS81C2020A

KIA7033AP

KTA-1266Y

KRC-106M

KTC-3198GR

DMR-210FS

CS11-24SH 1C 1P

1/0.52 TIN COATING

1/0.52 TIN COATING

1/0.52 TIN COATING

RA-87X104J

RA-88X104J

RD-2Z270JS 1

RD-2Z201JS 6

RD-4Z689J-

RD-AZ472J-

RD-AZ102J-

RD-AZ103J-

RD-AZ473J-

RD-AZ104J-

RD-AZ105J-

RN-4Z1002F

RN-4Z1203F

5P4R00MTS-

150G2020A-

1K1A7033AP

TZTA1266Y-

TZRC106M--

TZTC3198GR

5EPV041410

G5G-1A-DT 1C DC24V 5SC0101124

5SC0101129

85801052GY

85801052GY

85801052GY

2

6

8

2

1

3

1

2

1

1

1

1

1

1

1

8

3

1

3

3

13

13

6

OTP

37

NO

45

46

47

NAME

WIRE FLAT

WIRE COPPER

PCB SUB

WF1

SJ5,SJ7,SJ8

M269

48 CONNECTOR FILM CN101

49 SW TACT SW101~110

SYMBOL

50 SW ROTARY SW111

51 WIRE COPPER 10mm J103

52 WIRE COPPER 12.5mm J101,J102

SPECIFICATION

15/90 WH C

PART CODE Q'TY REMARK

WSJ-159007 1

1/0.52 TIN COATING 85801052GY 3

93x212 3514331310 1

HLEM15R-1

KPT-1115AM

4CW215RBD0 1

5S50101Z93 10

EC12E24204A8 5S10302005 1

1/0.52 TIN COATING 85801052GY 1

1/0.52 TIN COATING 85801052GY 2

38

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
