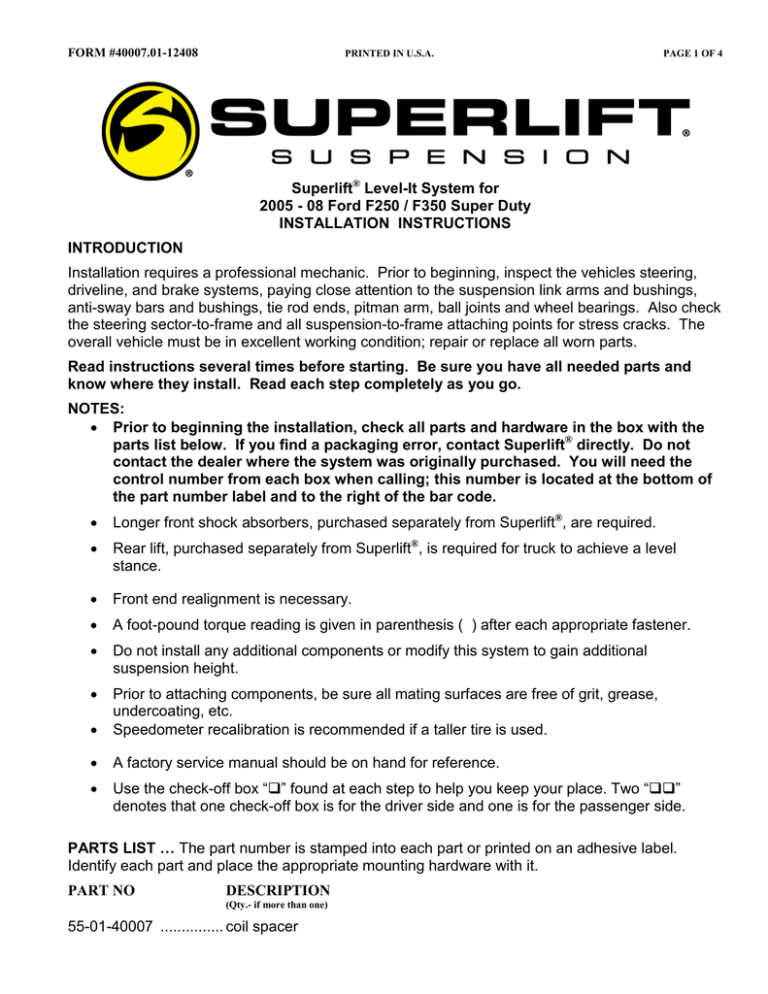

Superlift® Level-It System for
2005 - 08 Ford F250 / F350 Super Duty
INSTALLATION INSTRUCTIONS
INTRODUCTION
Installation requires a professional mechanic. Prior to beginning, inspect the vehicles steering,
driveline, and brake systems, paying close attention to the suspension link arms and bushings,
anti-sway bars and bushings, tie rod ends, pitman arm, ball joints and wheel bearings. Also check
the steering sector-to-frame and all suspension-to-frame attaching points for stress cracks. The
overall vehicle must be in excellent working condition; repair or replace all worn parts.
Read instructions several times before starting. Be sure you have all needed parts and
know where they install. Read each step completely as you go.
NOTES:
• Prior to beginning the installation, check all parts and hardware in the box with the
parts list below. If you find a packaging error, contact Superlift® directly. Do not
contact the dealer where the system was originally purchased. You will need the
control number from each box when calling; this number is located at the bottom of
the part number label and to the right of the bar code.
•
Longer front shock absorbers, purchased separately from Superlift®, are required.
•
Rear lift, purchased separately from Superlift®, is required for truck to achieve a level
stance.
•
Front end realignment is necessary.
•
A foot-pound torque reading is given in parenthesis ( ) after each appropriate fastener.
•
Do not install any additional components or modify this system to gain additional
suspension height.
•
•
Prior to attaching components, be sure all mating surfaces are free of grit, grease,
undercoating, etc.
Speedometer recalibration is recommended if a taller tire is used.
•
A factory service manual should be on hand for reference.
•
Use the check-off box “” found at each step to help you keep your place. Two “”
denotes that one check-off box is for the driver side and one is for the passenger side.
PARTS LIST … The part number is stamped into each part or printed on an adhesive label.
Identify each part and place the appropriate mounting hardware with it.
PART NO
DESCRIPTION
(Qty.- if more than one)
55-01-40007 ............... coil spacer
FORM #40007.01-12408
PRINTED IN U.S.A.
PAGE 2 OF 4
02-40007 ..................... isolator
00461 ........................... decal, "Warning To Driver"
00421 ........................... decal, Superlift® die-cut
DISASSEMBLY
NOTE: Save all factory components and hardware for reuse, unless noted.
1)  PREPARE VEHICLE... Place vehicle in neutral. Raise front of vehicle with a jack and
secure a jack stand beneath each frame rail, behind the trailing arms. Ease the frame down onto
the stands, place transmission in low gear or “park”, and chock rear tires. Position the jack so
that it supports, but does not raise, the front axle. Remove front tires.
2)  ANTI-SWAY BAR LINKS… Disconnect both anti-sway bar links from the sway bar body.
3)  TRACK BAR… Disconnect the track bar at the frame.
4)  BRAKE HOSES… On each side, unbolt the brackets securing the brake hose-to-axle.
5)  SHOCK ABSORBERS… Remove and discard the front shock absorbers.
6)  COIL SPRINGS… Prior to removing the coil springs, make an indexing mark on the coils
and coil seats so the coils can be reinstalled in their original orientation. Carefully lower the front
axle to facilitate spring removal.
ASSEMBLY
7) COIL SPACER and ISOLATOR… [SEE PHOTO]
 Position coil spacer (#55-01-40007) on top of
the spring, as shown.
 Position isolator (#02-40007) on top of the coil
spacer, then slide the coil assembly into position.
Index the spring according to the marks made during
disassembly, then raise the axle enough to seat the
coil assembly.
8) SHOCK ABSORBERS…
 Install the appropriate bushings, sleeves, and
boots onto the new shock absorbers.
 On each side, raise the axle enough to install
the front shocks. Attach the shock-to axle (136). Tighten the shock’s upper end until the bushings
swell slightly.
9)  BRAKE HOSES… On each side, reattach the lower brake hose bracket-to-axle (9).
FORM #40007.01-12408
PRINTED IN U.S.A.
PAGE 3 OF 4
10)  TIRES / WHEELS... [SEE DIAGRAM] Tighten lug nuts (148) in the sequence shown.
WARNING: When the tires / wheels are installed, always check
for and remove any corrosion, dirt, or foreign material on the
wheel mounting surface, or anything that contacts the wheel
mounting surface (hub, rotor, etc.). Installing wheels without the
proper metal-to-metal contact at the wheel mounting surfaces
can cause the lug nuts to loosen and the wheel to come off while
the vehicle is in motion.
WARNING: Retighten lug nuts at 500 miles after any wheel
change, or anytime the lug nuts are loosened. Failure to do so
could cause wheels to come off while vehicle is in motion.
11)  INITIAL CLEARANCE CHECK... With the vehicle’s
frame rail still on jack stands, and the suspension “hanging” at
full extension travel, cycle steering lock-to-lock and check all components for proper operation and
clearances. Pay special attention to the clearance between the tires / wheels and brake hoses,
wiring, etc.
12)  ANTI-SWAY BAR LINKS… Lower vehicle to the floor. The suspension is now
supporting vehicle weight. Connect the sway bar end links-to-sway bar. Tighten until the bushings
swell slightly.
13)  TRACK BAR… Reattach the track bar-to-frame (406).
IMPORTANT: Yes, the proper torque specification for the track bar eye bolt is 406 lb-ft; this is not
a typographical error. If the appropriate torque wrench is not available, tighten the bolt as much
as possible, then take the vehicle to the Ford Dealer or a heavy equipment repair shop to perform
the final torque operation. Proper torque on this bolt is critical.
14)  FINAL CLEARANCE and TORQUE CHECK... With vehicle on floor, cycle steering lockto-lock and inspect the tires / wheels, and the steering, suspension, and brake systems for proper
operation, tightness, and adequate clearance.
15)  HEADLIGHTS... Readjust headlights to proper setting.
16)  ALIGNMENT... Realign vehicle to factory specifications. Steering wheel realignment is
also required.
17)  SUPERLIFT® WARNING DECAL… Install the WARNING TO DRIVER decal on the
inside of the windshield, or on the dash, within driver’s view. Review the “IMPORTANT PRODUCT
USE AND SAFETY INFORMATION / WARNINGS” text found at the end of this instruction sheet.
Limited Lifetime Warranty / Warnings
Your Superlift® product is covered by the Limited Warranty explained below that gives you specific legal rights.
This limited warranty is the only warranty Superlift® makes in connection with your product purchase.
Superlift® neither assumes nor authorizes any retailer or other person or entity to assume for it any other
obligation or liability in connection with this product or limited warranty.
FORM #40007.01-12408
PRINTED IN U.S.A.
PAGE 4 OF 4
What is covered? Subject to the terms below, Superlift® will repair or replace its products found defective in
materials or workmanship for so long as the original purchaser owns the vehicle on which the product was
originally installed. Your warrantor is LKI Enterprises, Inc. d/b/a Superlift® Suspension Systems (“Superlift®”).
What is not covered? Your Superlift® Limited Warranty does not cover products, parts or vehicles
Superlift® determines to have been damaged by or subjected to:
• Alteration, modification or failure to maintain.
• Normal wear and tear (bushings, tie-rod ends, etc.). Scratches or defects in product finishes
(powder coating, plating, etc.),
• Damage to or resulting from vehicle’s electronic stability system, related components or other
vehicle systems.
• Racing or other vehicle competitions or contests. Accidents, impact by rocks, trees, obstacles or
other aspects of the environment.
• Theft, vandalism or other intentional damage.
Remedy Limited to Repair / Replacement. The exclusive remedy provided hereunder shall, upon
Superlift’s inspection and at Superlift’s option, be either repair or replacement of product or parts covered
under this Limited Warranty. Customers requesting warranty consideration should contact Superlift® by
phone (1-800-551-4955) to obtain a Returned Goods Authorization number. All removal, shipping and
installation costs are customer’s responsibility.
If a replacement part is needed before the Superlift® part in question can be returned, you must first purchase
the replacement part. Then, if the part in question is deemed warrantable, you will be credited / refunded.
Other Limitations - Exclusion of Damages - Your Rights Under State Law
• Neither Superlift® nor your independent Superlift® dealer are responsible for any time loss, rental
costs, or for any incidental, consequential or other damages you may have.
• This Limited Warranty gives you specific rights. You may also have other rights that vary from
state to state. For example, while all implied warranties are disclaimed herein, any implied
warranty required by law is limited to the terms of our Limited Lifetime Warranty as described
above. Some states do not allow limitations of how long an implied warranty lasts and / or do not
allow the exclusion or limitation of incidental or consequential damages, so the limitations and
exclusions herein may not apply to you.
Important Product Use and Safety Information / Warnings
As a general rule, the taller a vehicle is, the easier it will roll over. Offset, as much as possible, what is lost in rollover
resistance by increasing tire track width. In other words, go “wide” as you go “tall”. Many sportsmen remove their mud
tires after hunting season and install ones more appropriate for street driving; always use as wide a tire and wheel
combination as feasible to enhance vehicle stability. We strongly recommend, because of rollover possibility, that the
vehicle be equipped with a functional roll bar and cage system. Seat belts and shoulder harnesses should be worn at all
times. Avoid situations where a side rollover may occur.
Generally, braking performance and capabilities are decreased when significantly larger / heavier tires and wheels are
used. Take this into consideration while driving. Also, changing axle gear ratios or using tires that are taller or shorter
than factory height will cause an erroneous speedometer reading. On vehicles equipped with an electronic speedometer,
the speed signal impacts other important functions as well. Speedometer recalibration for both mechanical and electronic
types is highly recommended.
Do not add, alter, or fabricate any factory or aftermarket parts to increase vehicle height over the intended height of the
Superlift® product purchased. Mixing component brands is not recommended.
SUPERLIFT SUSPENSION SYSTEMS
300 Huey Lenard Loop Rd.
West Monroe, Louisiana 71292
Phone: (318) 397-3000
Sales / Tech: 1-800-551-4955
FAX: (318) 397-3040
www.superlift.com
Was this manual useful for you? yes no
Thank you for your participation!
