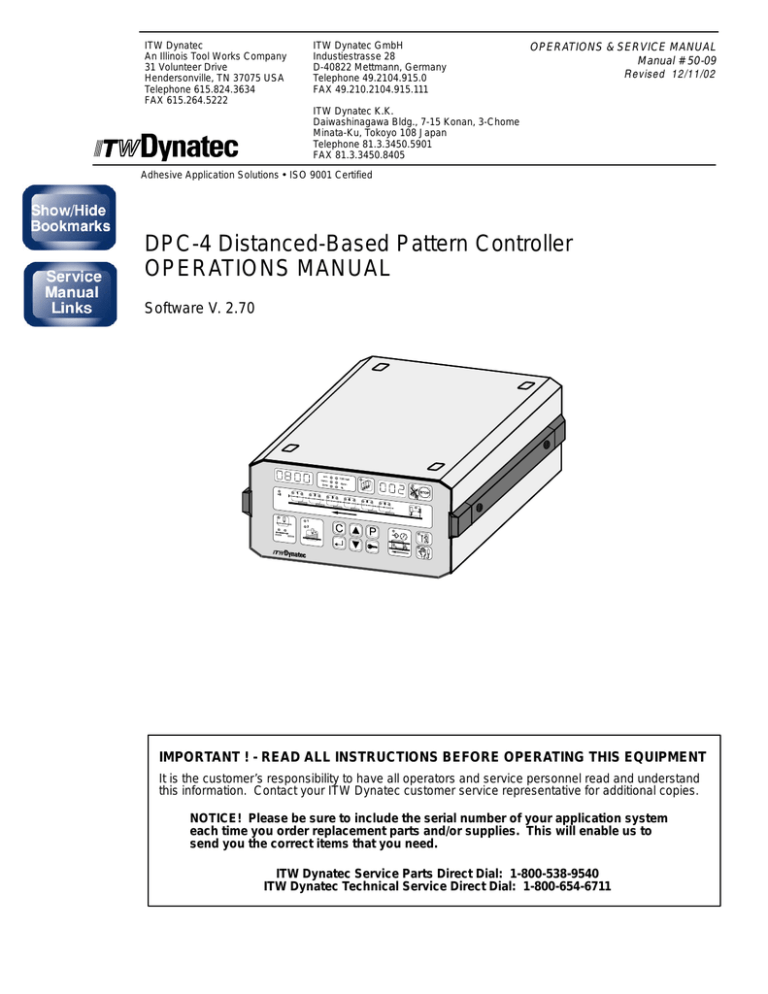

DPC-4 Distanced-Based Pattern Controller OPERATIONS MANUAL

DPC-4 Distanced-Based Pattern Controller OPERATIONS MANUAL
ITW Dynatec
An Illinois Tool Works Company
31 Volunteer Drive
Hendersonville, TN 37075 USA
Telephone 615.824.3634
FAX 615.264.5222
ITW Dynatec GmbH
Industiestrasse 28
D-40822 Mettmann, Germany
Telephone 49.2104.915.0
FAX 49.210.2104.915.111
OPERATIONS & SERVICE MANUAL
Manual # 50-09
Revised 12/11/02
ITW Dynatec K.K.
Daiwashinagawa Bldg., 7-15 Konan, 3-Chome
Minata-Ku, Tokoyo 108 Japan
Telephone 81.3.3450.5901
FAX 81.3.3450.8405
Adhesive Application Solutions · ISO 9001 Certified
DPC-4 Distanced-Based Pattern Controller
OPERATIONS MANUAL
Software V. 2.70
IMPORTANT ! - READ ALL INSTRUCTIONS BEFORE OPERATING THIS EQUIPMENT
It is the customer’s responsibility to have all operators and service personnel read and understand
this information. Contact your ITW Dynatec customer service representative for additional copies.
NOTICE! Please be sure to include the serial number of your application system
each time you order replacement parts and/or supplies. This will enable us to
send you the correct items that you need.
ITW Dynatec Service Parts Direct Dial: 1-800-538-9540
ITW Dynatec Technical Service Direct Dial: 1-800-654-6711
Page ii
Revised 3/99
ITW Dynatec
An Illinois Tool Works Company
Adhesive Application Solutions
ITW Dynatec c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Page iii
Revised 1/00
ITW Dynatec c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
TABLE OF CONTENTS
Chapter 1 Safety Instructions
Chapter - Page #
Concerning this Instruction Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Purpose of System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manual Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Authorized Use of System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation, Maintenance, Repair or Disposal of System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Modifications to the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Working with the Cover Open . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-1
1-1
1-1
1-1
1-1
1-1
1-2
Chapter 2 Product Description
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Controller Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-1
2-2
2-3
2-3
Chapter 3 System Setup
Opening of Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Location of the electronical components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Four-Channel-Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting of Overexcitation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turning On Overexcitation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjustment of unit addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Display-CPU-Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjustment of encoder type and resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-1
3-2
3-3
3-4
3-4
3-4
3-5
3-5
Chapter 4 Start Up
Power Supply Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Socket Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting to the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-1
4-2
4-3
Chapter 5 Programming
Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turning the Controller ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Software Version Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Photo-eye Allocation (tr.1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glue Start (LSu) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glue Stop (LSd) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maximum Speed Selection (SPE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glue Pressure for Manual Gluing (Pr.C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Activation, Deactivation or Change of Access Code (Cod) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Continuous Gluing Start (co.1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Photo eye (trigger) Setup (A.tr) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Encoder Step Size (Enc.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trigger Lock #1 (tL1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trigger Lock #2 (tL2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Slave Address (Adr.) OPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-1
5-3
5-3
5-4
5-5
5-5
5-6
5-6
5-6
5-6
5-7
5-7
5-8
5-8
5-8
5-9
5-9
Page iv
Revised 10/02
ITW Dynatec c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Exit Service Settingts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pressure Indication and Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjustment of Minimum & Maximum Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glue Pattern Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Program Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Channel selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Head Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Programming Glue Distance and Glue Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compensating the Switching Times of Solenoid Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Activation and Deactivation of Manual Gluing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Programming Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shutter Opening (used in cold glue applications only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glue Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manual Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
By External Signal (at X17) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stitching Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-9
5 - 10
5 - 10
5 - 11
5 - 11
5 - 11
5 - 11
5 - 12
5 - 14
5 - 15
5 - 15
5 - 16
5 - 16
5 - 16
5 - 16
5 - 16
5 - 17
Chapter 6 Troubleshooting
Fault Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Reset (re-boot) to Restore System Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6-1
6-2
Chapter 7 Parts and Accessories
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7-1
7-1
Chapter 8 Engineering Drawings
Tach Generator, Wheel Bracket Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dynacold Non-Contact Bracket Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transducer Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dynacold Non-Contact System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Typical Hot Melt Gear Pump System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Controller Bracket Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8-1
8-2
8-3
8-4
8-6
8-8
Appendix
Installation Instructions for Sensor Bracket Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pressure Transducer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
3
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Safety Instructions Page 1-1
Revised 2/99
Chapter 1
SAFETY INSTRUCTIONS
Concerning this Instruction Manual
Every person installing, starting-up, operating, maintaining, repairing or disposing of this system
must first read and understand this manual and follow the instructions described herein.
Purpose of System
The DPC-4 controller is designed for use as a triggering device for adhesive application heads.
Consult ITW Dynatec before using the DPC-4 in any other manner.
Manual Symbols
CAUTION
This symbol means that failure to observe the specific instructions could cause damage to the equipment.
DANGER! HIGH VOLTAGE!
This symbol refers to the danger of electrical shock to personnel.
NOTE:
This symbol indicates a note for handling this unit.
Authorized Use of System
Only authorized persons who have read and understood the instruction manual(s) or who have
been trained by ITW Dynatec may operate this system.
Installation, Maintenance, Repair or Disposal of the System
Only authorized, trained personnel or personnel under their supervision may install, work on or
dispose of the system. Electro-technical regulations must be observed.
Modifications to the System
No modifications can be made to the system without consulting ITW Dynatec. Use only factoryrecommended parts and fittings. ITW Dynatec does not assume any responsibility for damage
which occurs as a result of using parts that are not factory recommended.
Page 1-2 Safety Instructions
Revised 2/99
c. 1999
DPC-4 PATTERN CONTROLLR Manual 50-09
Working with the Cover Open
Inside the controller are electric current-carrying components. To avoid personal injury, do not
touch them while input power is ON. Disconnect and lockout main power before opening the
cover. Then wait a few seconds until all electrical components have discharged.
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Description & Specifications Page 2-1
Revised 2/99
Chapter 2
PRODUCT DESCRIPTION
Description
ITW Dynatec’s DPC-4 Pattern Controller (DY2006/4) is a component of an adhesive application
system consisting of an adhesive application unit (ASU), hoses and applicator heads.
It has four outputs (channels) capable of triggering the solenoid valves of application heads in
such a way that various glue patterns can be produced. Up to six glue tracks and glue stops of
different lengths (ie, a “pattern”) can be adjusted per application head. These patterns are stored
in up to 24 programs.
For fastest operation, the solenoid valves can be triggered with higher than nominal voltage for a
short time. This is referred to as “overexcitation”. The height of voltage is adjustable and can be
switched on or off for individual channels.
Glue flow can be initiated by photo eye or initiator or by external signals. When using the photo
eyes or initiators, glue flow is released by corresponding impulses. When using an external input, there is glue flow for the duration of the signal. This method is termed “continuous gluing”.
The speed of the production machine is read by an encoder and shown on the controller’s LED
display. This speed is transmitted as 0--10v voltage to the motor control of a gear-pump-equipped
ASU. When production speed varies, glue pressures change accordingly.
In cold glue applications, two IP pressure transducers are controlled separately via two pressure
outputs adapting the glue pressures when production speed varies.
A machine contact is provided to release and lock the controller.
The DPC-4 is equipped with a shutter output to prevent the application head’s nozzles from drying out during production stops.
Pattern programming can also be controlled through a remote computer with a corresponding
program through an RS232 or RS485 interface.
Critical conditions can be displayed by means of audible or optical signals via an output.
Page 2-2 Description & Specifications
Revised 2/99
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Specifications
Operating temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 °C to 50 ° C (32 ° F to 122 ° F)
Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -10 ° C to 50 ° C (32 ° F to 122 °F)
Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/N/PE 230 V/ 50--60 Hz
(selectable 1/N/PE 115 V/ 50--60 Hz)
Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 VA
Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 A T at 230 V, 2 A T at 115 V
Indication of speed of production machine . . . . . . . . . . . . . . . . . . . max. 900 m/min (2700 ft/min)
Glue pressure adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . min/max-value 0 to 100 % scaleable
Max. adjustable way . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8000 mm in steps of 1 mm
80.00 inch in steps of 0.01 mm
Channels X1 to X4 for triggering the solenoid valves (short circuit proof):
Quantity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Triggering of solenoid valves:
Normally . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 V DC
Overexcitation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 V, 170 V (factory set)
(common value for all channels, can be switched off individually)
Time of overexcitation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5--2.25 ms, adjustable internally
Wattage capacity per channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 W maximum
Wattage capacity of all channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 W maximum
Compensation of switching times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-200 mm (inch)
Control voltage X9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 to 10 V DC, max. 10 mA, scaleable
Pressure control X10 and X11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 x 4-20 mA, scaleable
Photo eye / sensor X13 and X14 . . . . . . . . . . . . . . . . . . . . . . . . . . 15 V DC, 100 mA maximum,
NPN, PNP (push-pull not admissible)
Input gluing signal X15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 V DC, NPN
Encoder X16 . . . . . . . . . . . . . . . . . . . 15 V DC, max. 100 mA, NPN (scaleable from version 2.0)
Machine contact X17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . NPN
Alarm output X18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 V DC, 500 mA maximum
RS232, RS485 interface X19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . future option
Shutter X20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 V DC, max. 2 A
Description & Specifications Page 2-3
Revised 2/99
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
150 mm (5.8”)
Dimensions
STOP
STOP
+6
1
2
3
C
1
2
_
4
+
5
6
P
326 mm (12.8”)
308 mm (12.1”)
Controller Layout
Case Cover
Case Locking Bar
Case Locking Bar
Operating Panel
(for details see chapter 5)
Fuses
Master Switch
Main Connection
Socket
Connection Sockets
(for details see chapter 4)
Page 2-4 Description & Specifications
Revised 2/99
ITW Dynatec
An Illinois Tool Works Company
Adhesive Application Solutions
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Setup Page 3-1
Revised 2/99
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Chapter 3
SYSTEM SETUP
Opening of Case
DANGER! HIGH VOLTAGE!
Before opening the unit switch it OFF and disconnect the main plug.
DANGER! HIGH VOLTAGE!
After switching off the unit, wait a few seconds until all electrical components have
discharged voltage.
1. Press the buttons (illustration ref. #1) at both locking
bars and pull them apart.
(2)
(1)
2. Remove screws on the backside (2) if necessary.
3. Remove the cover from the case.
Page 3-2 Setup
Revised 2/99
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Location of Electronic Components
Front Panel Board
Display-CPU Board
4-Channel Box
Setup Page 3-3
Revised 2/99
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Four-Channel Box
24 V
170 V
5V
15 V
Diagnostic LED’s
PE
0V
115 V
115 V
230 V
Connection Socket
Output Input
Display-CPU Board
170 V
55 V
ON
channel 4
channel 3
channel 2
channel 1
free
free
8 7 6 5 4 3 2 1
overexcitation
ON
ON
Fuse
Overexcitation
24 V 6,3 A T
Selection
Switch
allocation
off
on
channel 1--4
2 1
channel 5--8
2 1
channel 9--12
2 1
channel 13--16
2 1
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Page 3-4 Setup
Revised 2/99
Setting of Overexcitation
Overexcitation is factory-set to 170 V. If system solenoid valves are not suitable for this voltage,
overexcitation must be adjusted, per the following steps:
1. Disconnect, lockout and tag external electrical power.
DANGER! HIGH VOLTAGE!
Before opening the unit switch it OFF and disconnect the main plug.
DANGER! HIGH VOLTAGE!
After switching off the unit, wait a few seconds until all electrical components have
discharged voltage.
2. Turn the Overexcitation Selection Switch (page 3-3) to the desired position.
NOTE:
The brightness of the 170 V LED is governed by the chosen overexcitation.
3. Close the case and turn ON the unit.
Turning On Overexcitation
Overexcitation can be turned ON or OFF for each channel.
Adjustment of Unit Addressing
ITW Dynatec factory-sets which channels shall be driven with the unit. If replacing the controller, check the adjustment and reset the addressing, if necessary.
Setup Page 3-5
Revised 2/99
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Display-CPU Board
4-Channel Box
Service level
4
Software Chip
with version number
ITW Dynatec
DynaTrack
VX.XXMA
4 3 2 1
not locked
locked
ON
Encoder
3
metric
inch
Adjustment of Encoder Type and Resolution
The controller can be set to meter- or inch-based encoder types via DIP switch 3. The resolution
is described in Chapter 5.
1. Disconnect, lockout and tag external electrical power and open the case.
DANGER! HIGH VOLTAGE!
Before opening the unit switch it OFF and disconnect the main plug.
DANGER! HIGH VOLTAGE!
After switching off the unit, wait a few seconds until all electrical components have
discharged voltage.
2. Place dip switch 3 in the desired position.
3. Close the case and turn ON the unit.
4. Adjust the resolution of the encoder.
5. Change the service settings, if necessary (see Chapter 5).
Page 3-6 Setup
Revised 2/99
ITW Dynatec
An Illinois Tool Works Company
Adhesive Application Solutions
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Start Up Page 4-1
Revised 2/99
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Chapter 4
START UP
CAUTION
Only authorized and trained personnel may service the DPC-4 Timer. Observe the
safety instructions in Chapter 1.
CAUTION
Be sure that the unit is placed in a dry and dust-free area and not in way of other machinery. Safe accessibility for service personnel must be ensured.
Power Supply Selection
NOTE:
The power supply voltage is adjustable and is visible in a window above the main switch on
the rear of the unit. It is factory-set to 230 V (to 115 V in the U.S.).
CAUTION
Make sure that the power supply is adjusted to the correct value.
(2)
1. Insert a screw driver into the slot (illustration
reference #1, at right) above the main switch.
(1)
2. Pull out the safety compartment (2).
3. Pull out the voltage selector (3) with pointed pliers.
4. Turn the voltage selector (3) until the desired value is
visible.
(3)
(2)
CAUTION
Factory-installed fuses correspond to factoryset voltage.
5. Push in the voltage selector (3).
6. Return the safety compartment (2) to its original position and press in until it snaps.
You can now read your new value in the window.
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Page 4-2 Start Up
Revised 2/99
Socket Assignments
1
3
4
3 4
2
1
2
2
1
1
3
2
1
3
4
5
4
3 4
2
1
2
3
4
2
1
2
1
1
5
4
3
2
1
9
8
7
6
Socket
Function
X1, X2,
X3, X4
Triggering of application heads
1 to 4
X9
Voltage 0-10V for ASUs with
gear pump
X10, X11
Output pressure control 1 and 2:
4-20 mA
X13, X14
3
2
1
3
4
1
2
1
3
2
3
4
17
2
3
2
1
4
5
1
2
3
2
6 4
1
5
5
3
Pin Assignment
1
2
3
+
-
0V
0 to + 10 V
4
Screen
-
+
photo eye / sensor 1 and 2
0V
+15 V
Signal
NPN/PNP
X15
Continuous gluing input
0V
Input 1 NPN
+15 V
Input 2
NPN
X18
Alarm outputs
Alarm 1
Alarm 1
Alarm 2
Alarm 2
X16
Encoder
0V
+15 V
Signal NPN
X17
Machine contact
0V
Signal NPN
X19
RS 232 or
RS485
T+
TXD
T-
X20
Shutter
+
RXD
R+
-
5
RScreen
0V
GND
GND
6
Start Up Page 4-3
Revised 2/99
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Connecting to the System
NOTE: Triggering the application heads is caused by overexcitation of 170 V (factory-set). Verify
that the application heads are suitable for this voltage. Adjust if necessary (see Chapter 3).
1. Place all necessary plugs into the corresponding
sockets (for assignments see page 4-2).
2. Screw the safety screws (#1 in illustration) tight to the
sockets.
3. Connect the main connection cable to the main connection socket at the unit.
4. Connect the unit to the main circuit.
NOTE:
Before turning on the unit, check whether the
voltage setting is correct.
NOTE:
Perform the service settings (see Chapter 5).
(1)
Page 4-4 Start Up
Revised 2/99
ITW Dynatec
An Illinois Tool Works Company
Adhesive Application Solutions
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Programming Page 5-1
Revised 1/00
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Chapter 5
PROGRAMMING
Display Panel
Speed and
Distance Display
3
2
Pattern Input keys
Channel
Display
Unit
Display
Channel
Selection
1
mm
2
1
9
8
STOP
STOP
%
3
4
5
C
2
Pressure
Indication
+
10
Enter
(confirms
value)
6
P
12
Scroll Up
“C”
Clear
11
6
ft/min
1
_
7
1/20 inch
Error
+6
Head Position
Glue Stop
4
m/min
Stitch
(option)
5
13
14
16
Speed
Compensation
Lock
Scroll Down
15
“P”
Program
Selection
18
Service
Settings
17
Manual Gluing
1
Pattern input keys: Depending on demand, the glue pattern can be divided into six beads and six
glue stops. The length of beads and glue stops are adjustable and programmable (see page 5-11).
2
Speed and distance Display: Displays the current speed of the production machine, a distance or
another parameter.
3
Unit indication: The scale (mm/ inch or meter/feet) of the value on the speed and distance display.
Also indicates percentage (%) or “error”.
4
Channel selection: To select a desired channel.
5
Channel Display: The selected channel’s number or a system setting parameter.
6
Stop: Press this key once to stop glue flow. Press again and glue flow resumes. Glue flow can also
be stopped by reaching the minimum machine speed or through an external signal (page 5-16).
Page 5-2 Programming
Revised 1/00
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
7
Head position: In order to ensure that glue flow starts at the intended point, distance between the
application head and the photo eye must be set. This value is programmable between 0 and 8000
mm (page 5-11).
8
Stitch: The glue bead can be interrupted In order to conserve adhesive.
9
Glue pressure adjustment: The current pressure is indicated as well as a minimum and maximum
glue pressure. Therefore the glue quantity delivered through the application heads can be adjusted.
As the speed of the production machine increases, the amount of adhesive automatically increases.
The minimum pressure value is the pressure when the production machine stops. The maximum
pressure value is the pressure allowed at full speed of the production machine. Both values are adjustable from 0 to 100 % (page 5-9).
10 C: To exit the current menu.
11 Enter: To confirm a selected value.
12 Scroll Up: To increase the value.
13 Scroll Down: To decrease the value.
14 Lock: The controller can be locked to protect the programmed values (page 5-15).
15 P: Program selection: Programmed glue patterns can be stored in up to 24 programs (page 5-11).
16 Compensation of application head switching times: There are delays between the times that application heads open and close. These delays can be balanced through the compensation of switching times. These values are adjustable between 0 and 200 mm (page 5-14).
17 Manual gluing: Glue flow can be started manually, independent of programmed values (page 5-15).
18 Service: Selects the service settings menu (page 5-4).
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Turning the Controller ON
The master switch is on the rear side of the unit.
CAUTION
Make sure that the power supply is adjusted
to the correct value.
Software Version Display
Briefly press the LOCK key.
Press “C” and hold.
The software version is displayed on the speed and distance
display (e.g. software version 2.00).
Programming Page 5-3
Revised 1/00
Page 5-4 Programming
Revised 1/00
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Service Settings
Program the following parameters after installation or modifications to the system:
-
Photo-eye allocation (tr1): For a selected channel, choose its corresponding photo eye (1 or
2) or turn its photo eye OFF (page 5-5).
-
Glue Starting point as production line acclerates (LSu): The speed above which gluing
begins (page 5-6).
-
Glue Stop point as production line decelerates (LSd): The speed below which gluing
stops (page 5-6).
-
Maximum speed (SPE): This value determines the speed for the maximum pressure and the
maximum compensation (page 5-6).
-
Glue pressure for manual gluing (Pr.C): In manual gluing mode, this value is
programmable between 0 and 100% (page 5-6).
-
Activation, deactivation or change of access code (COD) (page 5-7).
-
Adjustment of continuous gluing (co.1): Choose conditions for continuous gluing for each
channel (page 5-7).
-
Combination of photo eyes (triggers) (A.tr): Allows the photo eyes to work independently
or in combinaton with each other (page 5-8).
-
Encoder step size (Enc.): Programs the number of impulses per meter or inch (page 5-8).
-
Trigger Lock #1 (tL1): Establishes the length of trigger lockout for Trigger Input #1 (X13
connection) (page 5-8).
-
Trigger Lock #2 (tL2): Establishes the length of trigger lockout for Trigger Input #2 (X14
connection) (page 5-9).
-
Adjustment of slave address (Adr.): Allows an external computer connection via interface
(page 5-9).
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Programming Page 5-5
Revised 1/00
Channel Selection
Press the Channel Selection key until the desired channel number appears. The LED lights.
Program the following items, when applicable, for the selected channel:
Photo Eye Allocation (tr.1)
To choose if the selected channel responds to photo eye 1 or 2, or to turn it OFF.
Press STOP.
STOP
Press SERVICE twice.
Enter the access code via the Pattern Input keys. (The access
code has been factory set to “1111”).
Press ENTER.
NOTE:
If the wrong access code has been entered, the letters “Cod” appear
on the display. Press C and repeat the setting with the correct code.
Scroll UP or DOWN.
0: Channel not used (OFF)
1: Channel responds to photo eye 1
2: Channel responds to photo eye 2
Press ENTER.
Only the selected channel is programmed.
Page 5-6 Programming
Revised 1/00
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Glue Start (LSu)
Program the point at which glue flow will start, as the machine accelerates.
Press SERVICE.
Scroll UP or DOWN until the desired value appears.
Glue Stop (LSd)
Program the point at which glue flow will stop, as the machine decelerates.
Press SERVICE.
Scroll UP or DOWN until the desired value appears.
Maximum Speed Selection (SPE)
This value determines the speed for the maximum pressure and the maximum compensation.
Press SERVICE.
Scroll UP or DOWN until the desired value appears.
NOTE:
This value is adjustable in steps of 25 m/min. Select the exact value
or a value a little higher than desired.
Glue Pressure for Manual Gluing (Pr.C)
Used in manual gluing mode, this value is programmable between 0 and 100%.
Press SERVICE.
Scroll UP or DOWN until the desired value appears.
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Programming Page 5-7
Revised 1/00
Activation, Deactivation or Change of Access Code (Cod)
Press SERVICE.
Enter the new access code (e.g. 3311) via the Glue Pattern
keys. (The access code is factory set to “1111”).
Press LOCK to deactivate the access code.
Press LOCK again to activate the access code.
Continuous Gluing Start (co.1, co.2, co.3, co.4)
Program the conditions for continuous gluing. Adjust each channel individually.
Press SERVICE.
Scroll UP or DOWN until the desired starting condition appears.
0: Continuous gluing OFF (default)
1: Continuous gluing if input 1 from X15 is active
2: Continuous gluing if low speed is reached
3: Continuous gluing if low speed is reached and input 1 is active
Page 5-8 Programming
Revised 1/00
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Photo Eye (Trigger) Setup (A.tr)
Select the photo eyes to work independently or in combination with each other.
Press SERVICE.
Scroll UP or DOWN until the desired value appears.
0: Each photo eye is independent of the other.
1: Photo eye 2 depends on photo eye 1, i.e. gluing starts
when a signal is given by photo eye 1 accompanied by photo
eye 2.
Press ENTER.
Encoder Step Size (Enc.)
Adjust the number of impulses per meter or inch (depending on the encoder used).
Press SERVICE.
Scroll UP or DOWN until the desired value appears.
This value is programmable between 500 and 4000 impulses/m
(5.00 and 99.99 impulses/inch).
Trigger Lock #1 (t.L.1)
The Trigger Lock establishes the distance the machine must travel, after it receives a trigger input, before it will accept the next trigger input. This is used to avoid a false trigger on a window
or other irregularity in the product. The Trigger Lock value is normally set to the actual length of
the object being glued. The Control Unit default value is 5mm or 0.50 inches. Care must be taken to reduce this value for products shorter than this length, otherwise product may not be glued
consistently.
Trigger Lock #1 allows programming for the trigger device connected to the X13 input on the
back panel of the Control Unt.
Press SERVICE.
Scroll UP or DOWN until the desired value appears.
This value is programmable between 5 and 9999mm (0.05 and
99.99 inches).
Press ENTER.
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Programming Page 5-9
Revised 1/00
Trigger Lock #2 (t.L.2)
This parameter is the same as Trigger Lock #1, except that it allows programming for the trigger
device connected to the X14 input on the back panel of the Control Unit.
Press SERVICE.
Scroll UP or DOWN until the desired value appears.
This value is programmable between 5 and 9999mm (0.05 and
99.99 inches).
Press ENTER.
Slave Address (Adr.) OPTION
Slave address programming is necessary only if an external computer is interfaced.
Press SERVICE.
Enter the slave address via the Glue Pattern keys (1--42).
Press ENTER.
Exit Service Settings
Press C to leave the Service Settings menu. The last
selected channel number appears.
Page 5-10 Programming
Revised 1/00
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Pressure Indication and Adjustment
Pressure Indication (Pr.1, Pr.2 or Pr.3)
Press the Pressure Indication key.
Pressure indication LED 1 is lit.
_
+
The actual pressure in system 1 is indicated (in %).
Press the key again and the actual pressure in system 2 (Pr.2)
is indicated. Pressure indication LED 2 is lit.
Press the key a third time and the actual pressure in system 3
(Pr.3) is indicated. Pressure indication LEDs 1 and 2 are lit.
Adjustment of Minimum and Maximum Pressure
Minimum pressure is the pressure at production stop (PL1, PL2, PL3). Maximum pressure is the
pressure at maximum production speed (PH1, PH2, PH3).
Press LOCK.
Press Pressure Indication.
_
+
The programmed minimum pressure (PL1) in system 1 is
shown.
Scroll UP or DOWN until the desired value appears.
By pressing Pressure Indication again, the maximum pressure
in system 1 (PH1) can be viewed and changed.
NOTE:
If the Pressure Indication key is pressed a third time the minimum
pressure in system 2 is indicated. If this key is pressed a fourth time
the maximum pressure in system 2 is indicated, etc.
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Programming Page 5-11
Revised 2/02
Glue Pattern Programming
Program Selection
After programming, the glue patterns are stored as “programs”. There are 24 programs available.
Press P.
Scroll UP or DOWN until the desired program number appears.
The orange LEDs on the Pattern Input keys show the number of
adjusted glue beads in the corresponding program.
Press ENTER to select the program.
Press C to exit the program.
The selected channel number is displayed again.
Channel Selection
Press the Channel Selection key until the desired channel number appears (the standard version has 4 channels). The following adjustments are applicable for the selected channel.
Head Position
Press the Head Position key.
Measure the distance between the application head and the
photo eye (measured value e.g. 40 mm).
Enter the measured value in mm (inch) by scrolling UP or
DOWN.
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Page 5-12 Programming
Revised 1/00
Programming Glue Distance and Glue Length
substrate
distance to
glue bead 1
length of
glue bead 1
distance to glue bead 2
length of
glue bead 2
distance to glue bead 3
3
length of
glue bead 3
3
Press key 1.
The key’s green LED is lit.
Set the desired distance from the start of the substrate to the
start of the first glue bead (e.g. 40 mm) by scrolling UP or
DOWN.
Press key 1 a second time. The key’s orange LED is lit.
Enter the desired length of the glue bead (e.g. 40 mm) by
scrolling UP or DOWN.
Press key 2.
The key’s green LED and all LEDs in the previous keys are lit.
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Set the desired distance from the start of the substrate to the
start of the 2nd glue bead (e.g. 100 mm) by scrolling UP or
DOWN.
NOTE:
If the entered value is less than the sum of the distances previously entered, the letters “ERROR” will briefly flash on the red
LED.
(This prevents an overlapping of glue beads.)
Press key 2 a second time. The key’s orange LED is lit.
Set the desired length of the second glue bead (e.g. 20 mm) by
scrolling UP or DOWN.
NOTE:
If the scroll keys (UP and DOWN) are pressed simultaneously, the
distance or glue length are set to a minimum or are switched OFF.
NOTE:
For more glue pattern programs, select the next program number (ie,
program #2) and program as described above.
Press C to exit this menu.
Press C again to indicate the number of glue beads.
NOTE:
If no key is pressed for 20 seconds, the menu automatically returns
to speed indication.
Programming Page 5-13
Revised 1/00
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Page 5-14 Programming
Revised 1/00
Compensating the Switching Times of Solenoid Valves
substrate
actual starting point of glue bead
desired starting
point of glue bead
actual final point of glue bead
desired final point
of glue bead
valid for max. speed
Press LOCK.
Press Compensation.
The first orange LED is lit.
Measure the delay of glue bead (e.g. 2 mm) and enter this value by scrolling UP or DOWN.
Press Compensation again.
The second orange LED is lit.
Measure the distance from the point where the glue bead
should stop to the point where the glue bead actually stops (e.g.
1 mm) and enter this value by scrolling UP or DOWN.
Press C to exit this menu.
Repeat this adjustment for each channel.
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Activation and Deactivation of Manual Gluing
Press Stop.
STOP
Press Channel Selection until the desired channel number appears. All the following settings are valid for the selected channel.
Press Manual Gluing.
The key’s LED lights. Manual Gluing is activated.
NOTE:
If the LED is flashing, another channel is already in manual operation.
The other channels can be switched to manual operation in the
same way.
Press Manual Gluing.
The key’s LED goes out. Manual Gluing is deactivated.
If more than one channel is in manual operation, press Stop to
deactivate manual gluing in all channels.
Programming Lock
This function prevents unauthorized programming changes.
The unit can be locked only if the speed is displayed. If not,
press C to return to the speed display.
Press LOCK and hold for a few seconds. The unit is now protected against programming changes.
The unit can be unlocked only if the speed is displayed. If not,
press C to return to the speed display.
Press LOCK and hold for a few seconds.
The access code can be entered via the Pattern Input keys.
Press ENTER.
Programming Page 5-15
Revised 1/00
Page 5-16 Programming
Revised 1/00
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Shutter Opening (used in cold glue applications only)
The shutter automatically closes to prevent the nozzles from drying out when not in use.
If the speed is displayed, the shutter can be opened. If not,
press C to return to the speed display.
Press STOP.
STOP
STOP
Press Channel Selection key for 5 seconds.
Press Manual Gluing. The shutter is opened.
Stop Gluing
Glue flow is stopped by one of the following three methods:
1. Manual Stop
STOP
Press Glue Stop. Glue flow is interrupted. The key’s red LED
lights.
Press Glue Stop again. Glue flow resumes. The LED goes out.
STOP
2. Automatic Stop
When the minimum speed (as programmed) is reached, gluing automatically stops. The speed
display flashes.
3. By External Signal (at X17)
The Glue Stop LED flashes.
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Programming Page 5-17
Revised 1/00
Stitching Setup
For economical glue application, each glue bead can be interrupted several times (”stitching”).
Adjustment of stitch length and gap will effect all glue beads in the selected channel.
Stitch Activation/ Deactivation
Press Channel Selection until the desired channel number
appears.
The LED is lit.
Stitching can be activated only if speed is displayed. If not,
press C to return to speed display.
Press Lock.
Press the Stitch key.
The LED is lit.
The orange LED’s for glue beads 1 - 6 show the active glue
beads.
Stitching is activated when the LEDs flash.
Press the appropriate glue bead’s key to activate or deactivate
stitching.
Stitch Length
The Glue Length LED lights.
Scroll UP or DOWN to change the stitch length shown in left
display.
This adjustment applies for all glue beads in the selected channel.
NOTE:
The smallest increment of stitch length and gap length is one encoder step.
Example:
Encoder = 1000 imp/m
stitch increment = 1 mm
Encoder = 20.00 imp/inch
stitch increment = 0.05 inch
Page 5-18 Programming
Revised 1/00
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Stitch Gap
Press the Stitch key.
The Stitch Gap LED in the Stitch key is lit.
Scroll UP or DOWN to change the stitch gap length shown in
left display.
This adjustment applies for all glue beads of this channel which
have been activated for stitching.
Press Channel Selection to switch to other channels.
Adjust as outlined above.
Press C to leave the menu.
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
ITW Dynatec
An Illinois Tool Works Company
Adhesive Application Solutions
Programming Page 5-19
Revised 1/00
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Troubleshooting Page 6-1
Revised 2/99
Chapter 6
TROUBLESHOOTING
Fault Messages
Fault message
Possible cause
Code error
A wrong access code has
been entered.
Short circuit
error
Data error
Communication
error
Remedy
Press “C” and Service key and enter correct access code.
If the factory-set access code 1111 has been
changed and the new code is unknown, change
the access code to 1111 via General reset
(re-boot) (page 6-2).
A short-circuit fuse has been
Switch the unit OFF and ON.
ti
triggered
d in
i channels
h
l 1-4.
14
If this fault message occurs again after switching
the unit OFF and ON again, check the application
head and cable for a short circuit.
A short-circuit fuse has been
Switch OFF the unit and plug the cable in again.
triggered in channels 1--4. Ca- Switch the unit ON.
ble of application head has
been plugged in with the
controller switched ON.
Memory component (EPROM) Press “C”. All values will be reset to the
has been replaced (e.g. softcontroller’s defaults (General Reset, see (page
ware update).
6-2). If this error continues to occur, check for
another failure.
Battery of the SRAM compoThis failure can only be repaired by ITW Dynatec
nent is dead.
service personnel.
Display CPU board has been This failure can only be repaired by ITW Dynatec
damaged by electrostatic
service personnel.
charge.
Trouble in main power supply. Check the system power supply and verify that
controller setup corresponds (see Chapter 4).
Electronic failure.
This failure can only be repaired by ITW Dynatec
An internal communication er- service personnel.
ror occured.
Page 6-2 Troubleshooting
Revised 11/02
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
General Reset (Re-boot) to Restore System Defaults
NOTE:
Access code must be activated (page 5-7).
If the STOP LED is not ON, press the STOP key.
STOP
Press SERVICE.
Enter code “6161” via the Pattern Input keys.
Press ENTER.
Press C.
The unit now has been reset to the following defaults:
Access code
1111
Photo eye allocation (tr.1)
all channels are allocated
to photo eye 1
Lead time and gluing length
all gluing stops and tracks
are 10 mm (0.2 inch)
Lead time of system
20 mm (0.4 inch) for all
channels
Starting point at increased speed (LSu)
20 m/min
(160 ft/min)
Stop point at reduced speed (LSd)
30 m/min
(240 ft/min)
Minimum pressure at machine stop (PL1, PL2, PL3)
0%
Maximum pressure at max. machine speed (PH1, PH2, PH3)
100 %
Pressure at manual gluing
70 %
Maximum speed (SPE)
300 m/min
(2400 ft/min)
Compensation of solenoid valve switching times
0 mm (0 inch)
Encoder step size (Enc.)
1 mm (0.02 inch)
Parts & Accessories Page 7-1
Revised 10/00
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Chapter 7
PARTS & ACCESSORIES
Fuses
Item
1
(1)
Part No.
05.11020.004
05.11010.004
Part
Main fuses
250 V 2 A T (for 120 V)
250 V 1A T (for 230 V)
05.11063.004 Fuse 4 Channel Box
24 V 4 A T
Quantity
2
1
Accessories
Item
Part No.
Part Description
1
---------------------- Main cable (included in scope of supply)
2
3
05.01013.600 Adapter cable for application heads M12-C16
05.02104.616 Connecting cable for solenoid valves of DynaCold, Dyna BF (without
plug for application head side), 5 m
05.01004.610 Connecting cable for solenoid valves of DynaCold, Dyna BF (without
plug for application head side), 10 m
05.01013.610 Adapter cable (“Y” cable) for connection of 2 solenoid valves
05.21004.501 Connecting cable for solenoid valves of Macon application heads,
5m
3
4
5
6
7
05.67000.705 Automatic pressure control unit 1 connection incl. accessories with
one electro--pneumatic transducer 05.67000.102
05.67000.706 Automatic pressure control unit 1 connection incl. accessories with two
electro--pneumatic transducers 05.67000.102
8
9
10
05.67000.102 Electro--pneumatic transducer EIT 201--002B incl. connecting cable
05.67000.105 Electro--pneumatic transducer IT 601--000 incl. connecting cable
05.02103.603 Connecting cable, 5 m
11
12
13
05.65400.501
05.65300.105
05.02105.603
05.02105.612
05.02105.604
14
15
70.90000.702 Encoder 500/U incl. friction wheel, holding device and connecting cable
05.02104.603 Connecting cable, 5 m
05.02104.612 Connecting cable,10 m
05.02104.604 Connecting cable, 25 m
16
05.03002.001 Plug for machine contact, 2 pin
17
05.03003.003 Plug for control voltage for gear pump units, 3 pin
18
05.03003.005 Plug for input continuous gluing, 5 pin
19
05.03003.006 Plug for alarm output, 6 pin
20
Photo eye, round version, 5 ms incl. connecting cable
Photo eye, flat version, 1 ms incl. connecting cable
Connecting cable, 5 m
Connecting cable,10 m
Connecting cable, 25 m
Connecting cable for shutter, 4 pin (see item 3)
Qty.
1
Page 7-2 Parts & Accessories
Revised 2/99
ITW Dynatec
An Illinois Tool Works Company
Adhesive Application Solutions
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Enginering Drawings Page 8-1
Revised 10/00
Chapter 8
ENGINEERING DRAWINGS
TACH GENERATOR, WHEEL BRACKET ASSEMBLY PN 106233 REV. B
Page 8-2 Engineering Drawings
Revised 10/00
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Enginering Drawings Page 8-3
Revised 10/00
TRANSDUCER ASSEMBLY PN 105754 REV. A
Page 8-4 Engineering Drawings
Revised 10/00
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
STOP
STOP
+6
1
2
1
2
_
+
3
4
C
5
6
P
DYNACOLD NON-CONTACT SYSTEM OVERVIEW p. 1 of 2
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Enginering Drawings Page 8-5
Revised 10/00
DYNACOLD NON-CONTACT SYSTEM OVERVIEW p. 2 of 2
Page 8-6 Engineering Drawings
Revised 10/02
TYPICAL HOT MELT GEAR PUMP SYSTEM pg. 1 of 2
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Enginering Drawings Page 8-7
Revised 10/02
TYPICAL HOT MELT GEAR PUMP SYSTEM pg. 2 of 2
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Page 8 -8 Engineering Drawi ngs
Revised 10/00
11
7
3
4
8
10
9
9
2
locate clearance
holes as appropriate
1
3
5 6
cut to length
Item No.
1
2
3
4
5
6
7
8
9
10
11
Part Number
105934
105935
N00592
N00739
N07809
078C008
078C027
N01408
N00804
105754
26.11101.701
Description
Support Bracket
Mounting Bracket
5/16 Lock Washer
5/16-24 x .25 HHC Screw
5/16-18 x 2.5 SHC Screw
5/16 Flat washer
Lock Washer, #10
10-32 x .375 SHC Screw
10-32 x .25 SHC Screw
Transducer Assembly (purchased separately)
DPC-4 Controller (purchased separately)
PN 105947 DPC-4 CONTROLLER BRACKET ASSEMBLY
Qty.
1
1
4
2
2
2
4
4
8
1
1
Appendix Page 1
Revised 3/99
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
APPENDIX
Installation Instructions for
PN 105850 DYNACOLD SENSOR BRACKET ASSEMBLY
Introduction
The DynaCold Sensor Bracket Assembly is designed for use with either the standard or “F” (internal
filter) series DynaCold high-speed adhesive applicators. It is capable of mounting a variety of reflective optical sensors offered by ITW Dynatec. The bracket’s modular construction allows a significant
amount of flexibility to accommodate virtually any installation scenario. Below is provided a sampling of various mounting possibilities for both the standard and “F” series applicators. A two-foot
(0.6M) length of 5/32” steel rod is provided with the kit to be cut as required.
DynaCold F
DynaCold
4 3
4 3
or
PN 105081
Mounting Fiber Optic Assembly
PN 105083 Mounting Photo
Eye Assembly, Visible Red
7 8
2
1
1
2
Cut here to
remove
screw cap
6
PN 105850 DynaCold Sensor Bracket Assembly
Item No.
1
2
3
4
Part Number
Description
Qty.
105852
101691
103121
078C029
Sensor Bracket Clamp Asy.
M4-0.7 x 40 SHC Screw
M4-0.7 Nut
Washer Lock #8
3
1
1
1
(cont. next page)
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Page 2 Appendix
Revised 3/99
PN 105850 DynaCold Sensor Bracket Assembly, cont.
Item No.
Part Number
105848
078A341
N05342
N00941
5
6
7
8
Description
Qty.
0.156 Dia. SS Rod, 24”
4-40 x 1.25” SHC Screw
Lockwasher, #4
Hex Nut, 4-40
1
2
2
2
DynaCold F
PN 105083
Mounting Photo Eye Assembly
Visible Red
1
8
2
7
1
6
5
PN 105081
Mounting Fiber Optic Assembly
DynaCold F
OR
5
1
1
2
5
5
2
1
Appendix Page 3
Revised 3/99
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
APPENDIX
PN 105763 Pressure Transducer
Page 4 Appendix
Revised 3/99
PN 105763 Pressure Transducer, cont.
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
PN 105763 Pressure Transducer, cont.
Appendix Page 5
Revised 3/99
Page 6 Appendix
Revised 3/99
PN 105763 Pressure Transducer, cont.
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
PN 105763 Pressure Transducer, cont.
Appendix Page 7
Revised 3/99
Page 8 Appendix
Revised 3/99
ITW Dynatec
An Illinois Tool Works Company
Adhesive Application Solutions
c. 1999
DPC-4 PATTERN CONTROLLER Manual 50-09
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
