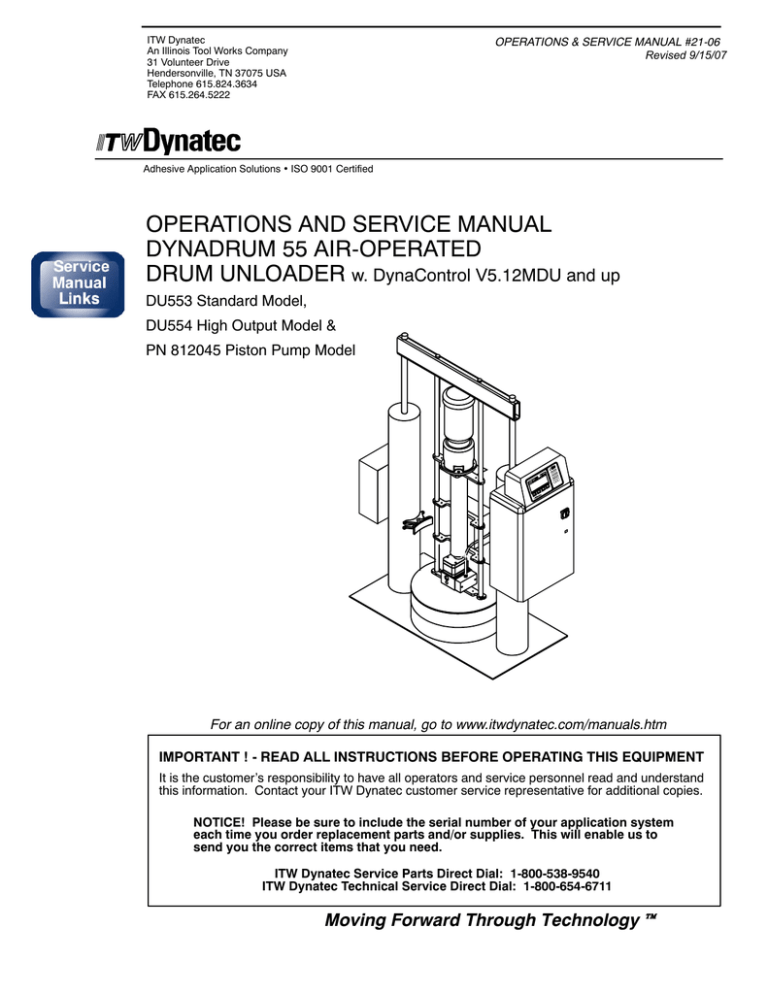

OPERATIONS AND SERVICE MANUAL

DYNADRUM 55 AIR-OPERATED

DRUM UNLOADER

w. DynaControl V5.12MDU and up

DU553 Standard Model,

DU554 High Output Model &

PN 812045 Piston Pump Model

For an online copy of this manual, go to www.itwdynatec.com/manuals.htm

IMPORTANT ! - READ ALL INSTRUCTIONS BEFORE OPERATING THIS EQUIPMENT

It is the customer’s responsibility to have all operators and service personnel read and understand this information. Contact your ITW Dynatec customer service representative for additional copies.

NOTICE! Please be sure to include the serial number of your application system each time you order replacement parts and/or supplies. This will enable us to send you the correct items that you need.

ITW Dynatec Service Parts Direct Dial: 1-800-538-9540

ITW Dynatec Technical Service Direct Dial: 1-800-654-6711

Moving Forward Through Technology

Page ii
