3G Storm Series® Wheelchairs

3G Storm Series® Wheelchairs

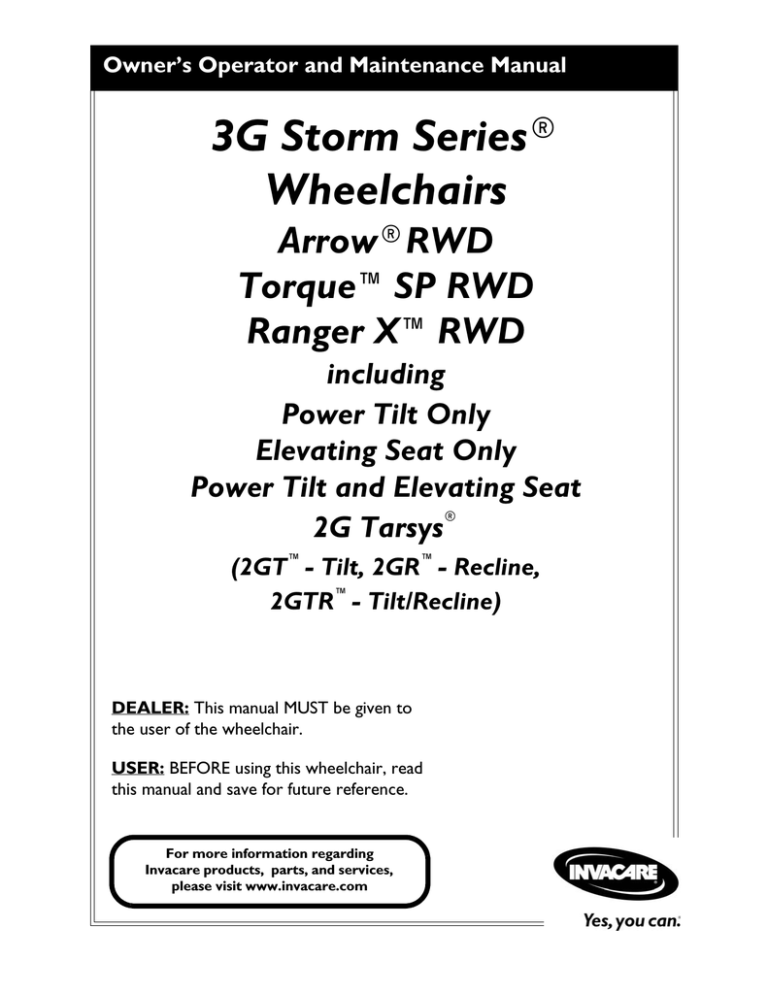

Owner’s Operator and Maintenance Manual
3G Storm Series®
Wheelchairs
Arrow®RWD
Torque™SP RWD
Ranger X™RWD
including
Power Tilt Only
Elevating Seat Only
Power Tilt and Elevating Seat
2G Tarsys®
(2GT™- Tilt, 2GR™- Recline,
2GTR™- Tilt/Recline)
DEALER: This manual MUST be given to
the user of the wheelchair.
USER: BEFORE using this wheelchair, read
this manual and save for future reference.
For more information regarding
Invacare products, parts, and services,
please visit www.invacare.com
REFERENCE DOCUMENTS
WARNING
A QUALIFIED TECHNICIAN MUST PERFORM THE INITIAL SET UP
OF THIS WHEELCHAIR. ALSO, A QUALIFIED TECHNICIAN MUST
PERFORM ALL PROCEDURES IN THE SERVICE MANUAL.
WHEELCHAIR USERS: DO NOT SERVICE OR OPERATE THIS
EQUIPMENT WITHOUT FIRST READING AND UNDERSTANDING
(1) THE OWNER’S OPERATOR AND MAINTENANCE MANUAL
AND (2) THE SEATING SYSTEM’S MANUAL (IF APPLICABLE). IF
YOU ARE UNABLE TO UNDERSTAND THE WARNINGS,
CAUTIONS, AND INSTRUCTIONS, CONTACT INVACARE
TECHNICAL SUPPORT BEFORE ATTEMPTING TO SERVICE OR
OPERATE THIS EQUIPMENT - OTHERWISE INJURY OR DAMAGE
MAY RESULT.
DEALERS AND QUALIFIED TECHNICIANS: DO NOT SERVICE OR
OPERATE THIS EQUIPMENT WITHOUT FIRST READING AND
UNDERSTANDING (1) THE OWNER’S OPERATOR AND
MAINTENANCE MANUAL, (2) THE SERVICE MANUAL (IF
APPLICABLE) AND (3) THE SEATING SYSTEM’S MANUAL (IF
APPLICABLE). IF YOU ARE UNABLE TO UNDERSTAND THE
WARNINGS, CAUTIONS AND INSTRUCTIONS, CONTACT
INVACARE TECHNICAL SUPPORT BEFORE ATTEMPTING TO
SERVICE OR OPERATE THIS EQUIPMENT - OTHERWISE, INJURY
OR DAMAGE MAY RESULT.
REFERENCE DOCUMENTS
Refer to the table below for part numbers of additional documents which are referenced
in this manual.
MANUAL
PART NUMBER
MKIV™Electronics Manual
1043576
MKIV RII Electronics Manual
1095272
3G Storm Base Service Manual
1104849
2G Tarsys Service Manual
1090208
NOTE: Updated versions of this manual are available on www.invacare.com.
3G Storm Series® Wheelchairs
2
Part No 1134791
SPECIAL NOTES
SPECIAL NOTES
Signal words are used in this manual and apply to hazards or unsafe practices which
could result in personal injury or property damage. Refer to the table below for
definitions of the signal words.
SIGNAL WORD
MEANING
DANGER
Danger indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
Warning indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
Caution indicates a potentially hazardous situation which, if not avoided,
may result in property damage.
NOTICE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO
CHANGE WITHOUT NOTICE.
WHEELCHAIR USER
As a manufacturer of wheelchairs, Invacare endeavors to supply a wide variety of
wheelchairs to meet many needs of the end user. However, final selection of the
type of wheelchair to be used by an individual rests solely with the user and his/her
healthcare professional capable of making such a selection. Invacare highly
recommends working with a certified rehab technology supplier and/or a member
of NRRTS or RESNA.
WHEELCHAIR TIE-DOWN RESTRAINTS AND SEAT RESTRAINTS (TRRO OR
TRBKTS)
TRRO includes four factory-installed transport brackets and a wheelchair anchored
pelvic belt. TRRO has been crash-tested in accordance with ANSI/RESNA WC Vol 1
Section 19 Frontal Impact Test requirements for wheelchairs with a 168 lb crash
dummy, which corresponds to a person with a weight of 114 to 209 lbs.
TRBKTS includes four factory-installed wheelchair transport brackets. TRBKTS has
not been crash-tested in accordance with WC 19. Use these transport brackets only
to secure an unoccupied wheelchair during transport.
As of this date, the Department of Transportation has not approved any tie-down
systems for transportation of a user while in a wheelchair, in a moving vehicle of any
type. It is Invacare’s position that users of wheelchairs should be transferred into
appropriate seating in vehicles for transportation and use be made of the restraints
made available by the auto industry. Invacare cannot and does not recommend any
wheelchair transportation systems.
Refer to Transport Ready Package on page 123 for more information about transporting the wheelchair.
Part No 1134791
3
3G Storm Series® Wheelchairs
SPECIAL NOTES
TRRO AND TRBKTS WARNINGS
Only use the transport brackets included with TRRO and TRBKTS for the purposes
described in this manual.
Battery support brackets MUST be installed at all times. Otherwise, the wheelchair
will not be WC/19 compliant. Refer to Installing/Removing Batteries Into/From
Battery Boxes on page 91.
WARNING
Invacare products are specifically designed and manufactured for use in conjunction
with Invacare accessories. Accessories designed by other manufacturers have not
been tested by Invacare and are not recommended for use with Invacare products.
The seat positioning strap is a positioning belt ONLY. It is not designed for use as a
safety device withstanding high stress loads such as auto or aircraft safety belts. If
signs of wear appear, belt MUST be replaced immediately.
Wheelchairs should be examined during maintenance for signs of corrosion (water
exposure, incontinence, etc.). Electrical components damaged by corrosion should
be replaced IMMEDIATELY.
Wheelchairs that are used by incontinent users and/or are frequently exposed to
water may require replacement of electrical components more frequently.
POWERED SEATING SYSTEM WARNING
This seating system has been custom designed and will be assembled to the
wheelchair base before delivery to the user. The information contained in this
manual is for maintaining and adjusting the seating system. There are very few
adjustments that can safely be made by the user. If there is a procedure or
adjustment that needs to be performed on the seating system that is not in this
manual, DO NOT perform that procedure. Have the seating system serviced by a
qualified technician.
RECLINER WARNINGS
TO HEALTHCARE PROFESSIONALS/ASSISTANTS:
Make sure the occupant of the wheelchair is properly positioned.
When returning the occupant of the wheelchair to the full upright position, more
body strength will be required for approximately the last twenty degrees of incline
(reverse recline). Make sure to use proper body mechanics (use your legs) or seek
assistance if necessary to avoid injury.
3G Storm Series® Wheelchairs
4
Part No 1134791
TABLE OF CONTENTS
TABLE OF CONTENTS
REFERENCE DOCUMENTS ................................................................. 2
SPECIAL NOTES ................................................................................ 3
REGISTER YOUR PRODUCT.............................................................. 10
LABEL LOCATIONS ......................................................................... 13
All Wheelchairs.........................................................................................................................................13
Wheelchairs with O2 Holders...............................................................................................................15
Wheelchairs with TRRO ........................................................................................................................15
Wheelchairs without TRRO ..................................................................................................................15
Wheelchairs with 2G Tarsys .................................................................................................................16
Wheelchairs with Elevating Seats .........................................................................................................17
TYPICAL PRODUCT PARAMETERS .................................................. 18
Arrow..........................................................................................................................................................18
Torque SP...................................................................................................................................................19
Ranger X.....................................................................................................................................................21
2G Tarsys ...................................................................................................................................................23
Elevating Seat/Power Tilt Only..............................................................................................................24
SECTION 1—GENERAL GUIDELINES ................................................. 26
Repair or Service Information ...............................................................................................................26
Operation Information ............................................................................................................................27
Wheelchairs with TRRO or TRBKTS Only...................................................................................28
Wheelchairs with Powered Seating Systems Only.......................................................................28
Wheelchairs with Manual Recliners Only ......................................................................................29
To Healthcare Professionals/Assistants .....................................................................................29
Tire Pressure .............................................................................................................................................30
Electrical .....................................................................................................................................................30
Grounding Instructions:......................................................................................................................30
Batteries......................................................................................................................................................30
Charging Batteries ...............................................................................................................................30
Rain Test.....................................................................................................................................................31
Weight Training ........................................................................................................................................31
Shipping Securement Points ...................................................................................................................31
Weight Limitation.....................................................................................................................................32
3G Storm Wheelchairs without Powered Seating Systems.......................................................32
3G Storm Wheelchairs with Powered Seating Systems .............................................................32
SECTION 2—SAFETY/HANDLING OF WHEELCHAIRS ......................... 33
Stability and Balance.................................................................................................................................33
Coping with Everyday Obstacles ..........................................................................................................34
A Note to Wheelchair Assistants ........................................................................................................34
Percentage of Weight Distribution ......................................................................................................34
Reaching, Leaning and Bending - Forward ..........................................................................................36
Reaching, Leaning and Bending - Backward........................................................................................36
Pinch Points................................................................................................................................................37
Part No 1134791
5
3G Storm Series® Wheelchairs
TABLE OF CONTENTS
TABLE OF CONTENTS
Stairways.....................................................................................................................................................37
Transferring To and From Other Seats ..............................................................................................38
SECTION 3—EMI INFORMATION ..................................................... 40
SECTION 4—SAFETY INSPECTION/TROUBLESHOOTING .................... 42
Safety Inspection Checklists...................................................................................................................42
All Wheelchairs ....................................................................................................................................42
Inspect/Adjust Initially.....................................................................................................................42
Inspect/Adjust Weekly ...................................................................................................................43
Inspect/Adjust Monthly ..................................................................................................................43
Inspect/Adjust Periodically ............................................................................................................43
Inspect/Adjust Every 18 Months ..................................................................................................44
Additional Requirements for Wheelchairs with Powered Seating Systems...........................44
Inspect/Adjust Initially.....................................................................................................................44
Inspect/Adjust Weekly ...................................................................................................................44
Inspect/Adjust Monthly ..................................................................................................................44
Inspect/Adjust Periodically ............................................................................................................45
Troubleshooting - Mechanical ..............................................................................................................46
Troubleshooting - Electrical...................................................................................................................46
All Wheelchairs ....................................................................................................................................46
Wheelchairs with Powered Seating Systems.................................................................................47
Checking Battery Charge Level.............................................................................................................48
SECTION 5—WHEELCHAIR OPERATION ........................................... 49
Operating the Wheelchair......................................................................................................................49
Turning the Power On/Off ................................................................................................................49
Using the Joystick to Drive the Wheelchair ......................................................................................50
A Note About Drive Lock-Out ............................................................................................................51
Operating Powered Seating Systems ...................................................................................................52
Single Function Toggle Switch...........................................................................................................53
Optional Four-Way Toggle Switch ..................................................................................................54
Vernier Shear Reduction (2G Tarsys Systems Only) ..................................................................56
About Vernier Shear Reduction ..................................................................................................56
Using Vernier Shear Reduction (VSR) Independently of Recline Function........................57
MKIV-A Joystick Switches and Indicators ...........................................................................................58
Drive Select/On/Off Switch...............................................................................................................58
Selecting the Drive Mode ..............................................................................................................58
Speed Control ......................................................................................................................................58
Joystick....................................................................................................................................................58
Battery Gauge Display (BGD)...........................................................................................................59
Mode and Level Indicators.................................................................................................................59
Emergency Stop Reset Switch...........................................................................................................60
Emergency Stop Reset Input Connector........................................................................................60
3G Storm Series® Wheelchairs
6
Part No 1134791
TABLE OF CONTENTS
TABLE OF CONTENTS
MKIV-A+ Joystick Switches and Indicators ........................................................................................61
Drive Select/On/Off Switch...............................................................................................................61
Selecting the Drive Mode ..............................................................................................................61
Program Toggle Switch.......................................................................................................................61
Joystick....................................................................................................................................................61
LCD Display ..........................................................................................................................................61
Emergency Stop Reset Switch...........................................................................................................62
Emergency Stop Reset Input Connector........................................................................................63
MKIV-RII Joystick Switches and Indicators .........................................................................................63
On/Off Switch.......................................................................................................................................63
Speed Control ......................................................................................................................................63
Joystick....................................................................................................................................................63
Battery Discharge Indicator (BDI) ...................................................................................................63
Multi Function Charger Port .............................................................................................................64
SECTION 6—FRONT RIGGINGS ........................................................ 65
Installing/Removing Footrests................................................................................................................65
70°/Taper Pin Style ..............................................................................................................................65
60°, 70°, MFX, Taper and 90°...........................................................................................................65
Footrest Height Adjustment ..................................................................................................................66
60°, 70°, 70° MFX, 90°, PW93, PW93E, PW93ST ......................................................................66
60° MFX, 70° Taper ............................................................................................................................67
PAS4A, 93M, P904A, and PAL4A.....................................................................................................67
Adjusting/Replacing Telescoping Front Rigging Support .................................................................68
Wheelchairs without 2G Tarsys Systems ......................................................................................68
Wheelchairs with 2G Tarsys Seating Systems...............................................................................69
Installing Adjustable Angle Flip-up Footplate Hinge .........................................................................69
Installing/Adjusting Adjustable Angle Flip-Up Footplates ................................................................70
Installing Adjustable Angle Flip-up Footplates ...............................................................................70
Adjusting Adjustable Angle Flip-up Footplates..............................................................................70
Depth .................................................................................................................................................70
Angle...................................................................................................................................................71
Perpendicular and/or Inversion/Eversion Adjustment ............................................................71
Replacing Composite/Articulating Footplate Heel Loop.................................................................71
Disassembly ...........................................................................................................................................71
Composite.........................................................................................................................................71
Articulating........................................................................................................................................71
Reassembly........................................................................................................................................72
Installing/Removing Elevating Legrests.................................................................................................72
Installing..................................................................................................................................................72
Removing ...............................................................................................................................................72
Raising/Lowering Elevating Legrests and/or Adjusting Calfpads ....................................................73
Raising/Lowering Elevating Legrests ................................................................................................73
Adjusting Calfpads................................................................................................................................73
Part No 1134791
7
3G Storm Series® Wheelchairs
TABLE OF CONTENTS
TABLE OF CONTENTS
Installing/Removing/Adjusting the Power Elevating Legrests..........................................................74
Installing the Power Elevating Legrests ...........................................................................................75
Removing the Power Elevating Legrests.........................................................................................75
Adjusting the Power Elevating Legrests..........................................................................................75
Using Mechanical Elevating/Genius Legrests ......................................................................................76
Installing/Removing Mechanical Elevating/Genius Legrests .............................................................76
Installing..................................................................................................................................................76
Removing ...............................................................................................................................................77
Adjusting Mechanical Elevating Legrests .............................................................................................77
Calfpads ..................................................................................................................................................77
Footplate Height ..................................................................................................................................78
Speed/Height .........................................................................................................................................78
Adjusting Genius Legrests ......................................................................................................................79
Footplate Height ..................................................................................................................................79
Footplate Angle ....................................................................................................................................79
Calfpad Height ......................................................................................................................................80
Calfpad Depth.......................................................................................................................................80
Legrest Height ......................................................................................................................................80
SECTION 7—ARMS ......................................................................... 81
Installing/Removing Flip Back Armrests ..............................................................................................81
Installing..................................................................................................................................................81
Removing ...............................................................................................................................................81
Adjusting Flip Back Armrests.................................................................................................................82
Positioning Flip Back Armrests for User Transfer .......................................................................82
Positioning Flip Back Armrests for Use..........................................................................................82
Adjusting ................................................................................................................................................83
Adjusting Captain's Van Seat Armrests ...............................................................................................83
Angle .......................................................................................................................................................83
Height .....................................................................................................................................................84
Removing/Installing Reclining Armrests ..............................................................................................84
Removing Armrests.............................................................................................................................84
Installing Armrests ...............................................................................................................................84
Adjusting Reclining Armrest Height.....................................................................................................85
SECTION 8—POSITIONING STRAP ................................................... 86
Replacing Seat Positioning Strap ...........................................................................................................86
Wheelchairs with TRRO Option .....................................................................................................86
Wheelchairs without 2G Tarsys Seating Systems or TRRO Option.......................................86
Wheelchairs with 2G Tarsys Seating Systems...............................................................................87
SECTION 9—VAN SEAT ................................................................... 88
Adjusting Captain's Van Seat..................................................................................................................88
Low Back Captain's Van Seats...........................................................................................................88
High Back Captain's Van Seats ..........................................................................................................88
Angle...................................................................................................................................................88
Lumbar ...............................................................................................................................................88
3G Storm Series® Wheelchairs
8
Part No 1134791
TABLE OF CONTENTS
TABLE OF CONTENTS
SECTION 10—BATTERIES ................................................................ 89
Warnings for Handling and Replacing Batteries ................................................................................89
Using the Proper Batteries.....................................................................................................................90
Installing/Removing Batteries Into/From Battery Boxes..................................................................91
Disconnecting/Connecting Battery Cables .........................................................................................93
Group 24 Batteries..............................................................................................................................93
Disconnecting...................................................................................................................................93
Connecting........................................................................................................................................93
22NF Batteries in Single Battery Box..............................................................................................96
Disconnecting...................................................................................................................................96
Connecting........................................................................................................................................96
When to Charge Batteries.....................................................................................................................98
MKIV-A and MKIV-RII Joysticks .......................................................................................................98
MKIV-A+ Joysticks...............................................................................................................................98
Charging Batteries ....................................................................................................................................98
Description and Use of Battery Chargers......................................................................................99
Replacing Batteries ................................................................................................................................ 102
Recommended Battery Types........................................................................................................ 102
Cleaning Battery Terminals ............................................................................................................ 103
Removing/Installing Group 24 Battery Boxes ................................................................................. 103
Wheelchairs without Vent Tray .................................................................................................... 103
Removing........................................................................................................................................ 103
Installing .......................................................................................................................................... 104
Wheelchairs with Vent Tray .......................................................................................................... 107
Removing........................................................................................................................................ 107
Installing .......................................................................................................................................... 107
Removing/Installing the 22NF Battery Box...................................................................................... 108
SECTION 11—RETAINING STRAP .................................................. 109
Replacing Battery Box Retaining Strap - 22NF Battery Base Frames........................................ 109
SECTION 12—MOTOR LOCKS/WHEEL LOCKS/FORKS ........................ 110
Disengaging/Engaging Motor Lock Levers........................................................................................ 110
4 Pole Motors .................................................................................................................................... 110
GB Motors.......................................................................................................................................... 111
Using Optional Wheel Hubs............................................................................................................... 111
Installing Wheel Locks.......................................................................................................................... 112
Wheel Lock Installation Identification.......................................................................................... 112
Installing Wheel Locks for Motor/Gearbox Assemblies.......................................................... 112
Installing Wheel Locks for GB Motors ........................................................................................ 113
Adjusting Wheel Locks ........................................................................................................................ 113
Adjusting Forks ...................................................................................................................................... 114
SECTION 13—ELECTRONICS .......................................................... 115
Preparing MKIV Joystick for Use ....................................................................................................... 115
Repositioning MKIV Joystick ............................................................................................................... 115
SECTION 14—RECLINER ............................................................... 116
Part No 1134791
9
3G Storm Series® Wheelchairs
Recliner Operation ............................................................................................................................... 116
Replacing Back or Headrest Upholstery .......................................................................................... 117
Replacing Back Upholstery ............................................................................................................. 117
Replacing Headrest Upholstery ..................................................................................................... 117
Adjusting Back or Headrest Upholstery .......................................................................................... 118
SECTION 15—VENTILATOR TRAY ................................................. 119
Using the Optional Ventilator Tray................................................................................................... 119
SECTION 16—ANTI-TIPPERS ......................................................... 121
Adjusting the Extended Active Anti-Tippers .................................................................................. 121
SECTION 17—TRANSPORT READY PACKAGE ................................ 123
About Transport Ready Packages...................................................................................................... 124
Compliance Information ...................................................................................................................... 124
Specifications...................................................................................................................................... 125
Securing the Wheelchair to the Vehicle .......................................................................................... 125
Positioning the Wheelchair in the Vehicle .................................................................................. 125
Securement Points............................................................................................................................ 126
Securing the Wheelchair ................................................................................................................. 126
Securing the Occupant ......................................................................................................................... 127
Wheelchair-Anchored Belts ........................................................................................................... 127
Vehicle-Anchored Belts ................................................................................................................... 129
Seating System ................................................................................................................................... 129
Positioning Belts ................................................................................................................................ 130
LIMITED WARRANTY ................................................................... 131
REGISTER YOUR PRODUCT
The benefits of registering:
1.
2.
3.
4.
5.
Safeguard your investment.
Ensure long term maintenance and servicing of your purchase.
Receive updates with product information, maintenance tips, and industry news.
Invacare can contact you or your provider, if servicing is needed on your product.
It will enable Invacare to improve product designs based on your input and needs.
Register ONLINE at www.invacare.com
- or Complete and mail the form on the next page
Any registration information you submit will be used by Invacare Corporation only, and
protected as required by applicable laws and regulations.
3G Storm Series® Wheelchairs
10
Part No 1134791
PRODUCT REGISTRATION FORM
Register ONLINE at www.invacare.com - or Complete and mail this form
Name _______________________________________________________________
Address _____________________________________________________________
City ___________________ State/Province __________
Zip/Postal Code ________
Email ___________________________________ Phone No. _________________
Fold
here
Invacare Model No. ______________________ Serial No. __________________
Purchased From _________________________ Date of Purchase:___________
Cut Along Line
1. Method of purchase: (check all that apply)
❏ Medicare
❏ Insurance
❏ Medicaid ❏ Other
__________________________
2. This product was purchased for use by: (check one)
❏ Self
❏ Parent
❏ Spouse
❏ Other
3. Product was purchased for use at:
❏ Home
❏ Facility
❏ Other
4. I purchased an Invacare product because:
❏ Price
❏ Features (list features) _________________________________________
5. Who referred you to Invacare products? (check all that apply)
❏ Doctor ❏ Therapist ❏ Friend ❏ Relative ❏ Dealer/Provider ❏ Other_________
❏ Advertisement (circle one): TV, Radio, Magazine, Newspaper
❏ No Referral_____
6. What additional features, if any, would you like to see on this product?
__________________________________________________________________________ Fold
7. Would you like information sent to you about Invacare products that may be available for a here
particular medical condition? ❏ Yes ❏ No
If yes, please list any condition(s) here and we will send you information by email and/or mail about
any available Invacare products that may help treat, care for or manage such condition(s):
__________________________________________________________________________
8. Would you like to receive updated information via email or regular mail about the Invacare
home medical products sold by Invacare's dealers? ❏ Yes ❏ No
9. What would you like to see on the Invacare website?
__________________________________________________________________________
10. Would you like to be part of future online surveys for Invacare products? ❏ Yes ❏ No
11. User's Year of birth: ______________________________________________________
If at any time you wish not to receive future mailings from us, please contact us at Invacare Corporation,
CRM Department, 39400 Taylor Parkway, Elyria, OH 44035, or fax to 877-619-7996 and we will remove
you from our mailing list.
To find more information about our products, visit www.invacare.com.
Part No 1134791
11
3G Storm Series® Wheelchairs
Cut Along Line
Fold
here
Fold
here
Invacare Product Registration Form
Please Seal with
Tape Before Mailing
3G Storm Series® Wheelchairs
12
Part No 1134791
LABEL LOCATIONS
LABEL LOCATIONS
All Wheelchairs
NOTE: The battery labels shown
on this page and the next are
found on the inside of the battery
box lids.
Rear Battery
Box Lid
Group 24 Batteries Only
Front Battery
Box Lid
22NF Batteries Only
Part No 1134791
Gearless Brushless GB™Motors
with Group 24 Batteries Only
13
4 Pole Motors with Group 24
Batteries Only
3G Storm Series® Wheelchairs
LABEL LOCATIONS
WARNING
This stop MUST be in place
BEFORE using. DO NOT remove.
1070497
NOTE: Warning label
also found on side frame
near the rear of the
wheelchair.
Suspension Arm Used
with Conventional Motor/
Gearbox Assembly
Serial number label is
located on the inside of the
front or rear frame.
Suspension Arm Used with
Standard GB Motor
DRIVE
PUSH
3G Storm Series® Wheelchairs
14
P/N 1114835
Suspension Arm Used with GB Motor Shown
Part No 1134791
LABEL LOCATIONS
Wheelchairs with O2 Holders
Captain’s Seats
ASBA Seats
Wheelchairs with TRRO
NOTE: Also on opposite side.
NOTE: Also on opposite side.
NOTE: Also on opposite side.
Wheelchairs without TRRO
NOTE: Auto style seat positioning
strap shown. This label is also on the
airline style seat positioning strap.
Part No 1134791
15
3G Storm Series® Wheelchairs
LABEL LOCATIONS
Wheelchairs with 2G Tarsys
Systems with Genius/Mechanical
Legrests Only
Systems with Vent Trays Only
NOTE: These labels are present on
both sides of the seating system.
3G Storm Series® Wheelchairs
16
Part No 1134791
LABEL LOCATIONS
Wheelchairs with Elevating Seats
Part No 1134791
17
3G Storm Series® Wheelchairs
TYPICAL PRODUCT PARAMETERS
TYPICAL PRODUCT PARAMETERS
Arrow
ARROW
SEAT WIDTH:
Standard 12 to 24 inches
Recliner 16 to 24 inches
SEAT DEPTH:
Standard 12 to 22 inches
Recliner 16 to 22 inches
BACK HEIGHT:
Standard 12 to 24 inches
Recliner 18 to 26 inches
BACK ANGLE RANGE:
Standard 85° to 105°
Recliner 90° to 170°
SEAT-TO-FLOOR:
Standard 17½-inches
Optional 19¾ or 21 inches
OVERALL WIDTH OF BASE:
25 inches (without joystick)
OVERALL HEIGHT
STANDARD:
MINIMUM:
MAXIMUM:
34¼ inches
34¼ inches
44¼ inches
RECLINER
LOW SEAT FRAME:
MEDIUM SEAT FRAME:
HIGH SEAT FRAME:
51½ inches
53¾ inches
55½ inches
OVERALL LENGTH
STANDARD:
LONG FRAME:
Without front riggings
29½ inches
32½ inches
WEIGHT
WITHOUT GP24 BATTERIES:
WITH GP24 BATTERIES:
SHIPPING (APPROX.):
174 lbs
278 lbs
214 lbs.
DRIVE AXLE:
Adjustable (Non-Recliners ONLY)
DRIVE WHEELS/TIRES:
CASTERS W/ PRECISION SEALED BEARINGS
SEMI-PNEUMATIC:
PNEUMATIC OR FOAM FILLED:
14 x 3 inch (Foam filled or pneumatic)
8 x 2¼ inches (Std), 6 x 2 inches with shock fork (Opt)
8 x 2 inches (Std), 9 x 2¾ inches (Opt)
ANTI-TIPPER:
3-inch wheels
CASTER FORKS:
Standard, Shock Fork (Opt)
FOOTRESTS:
Telescoping Front Rigging Supports (Std), Swing-Away (Std),
Heavy Duty (Opt), 2-in. and 4-in. longer Pivot Slide Tube (Opt)
ARMRESTS:
Flip Back, Fixed or Adjustable Height (Desk and Full Length)
SEAT ANGLE ADJUSTMENT:
Adjustable (0° to 10°)
SEAT CUSHION:
Cushion (Optional)
WHEELCHAIR UPHOLSTERY OPTIONS:
Vinyl and Nylon
BATTERY REQUIREMENTS:
Group 24
*WEIGHT LIMITATION:
PERFORMANCE
***GB MOTOR
Rating:
Speed:
**Range:
3G Storm Series® Wheelchairs
Up to 400 lbs.
***Force to operate motor lock lever exceeds ANSI/
RESNA WC/VOL2-1998 requirements for section 14.7
paragraph 7.2d.
400 lbs.
Up to 7 mph +/- 10% mph
Up to 33 miles
18
Part No 1134791
TYPICAL PRODUCT PARAMETERS
*NOTE: Weight limitation is total weight (user weight plus any additional items that the user may
require [back pack, etc.]). Example: If weight limitation of the wheelchair is 300 lbs and additional
items equal 25 lbs, subtract 25 lbs from 300 lbs. This means the maximum weight limitation of the
user is 275 lbs.
**NOTE: Values for range are calculated for maximum chair weight rating using largest batteries
applicable (GP24), per test procedures described in ANSI/RESNA WC/VOL2-1998 Section 4 and
meet federal reimbursement requirements for this product. While considered typical, they are
derived based on certain ideal conditions. Variances in battery condition, user weight, usage
pattern or overall terrain conditions will result in actual values for range that differ from these
stated values. Users should become accustomed to how their unique conditions impact their
individual results. Users should become familiar with the battery discharge indicator on the
joystick to determine the range of their wheelchair. Refer to When to Charge Batteries on page 98
for more information about the battery discharge indicator.
Torque SP
TORQUE SP
SEAT WIDTH:
Standard 12 to 24 inches
Recliner 16 to 24 inches
SEAT DEPTH:
Standard 12 to 22 inches
Recliner 16 to 22 inches
BACK HEIGHT:
Standard 12 to 24 inches
Recliner 18 to 26 inches
BACK ANGLE RANGE:
Standard 85° to 105°
Recliner 90° to 170°
SEAT-TO-FLOOR:
Standard 17½-inches
Optional 19¾ or 21 inches
OVERALL WIDTH OF BASE: (W/O JOYSTICK)
25 inches
OVERALL HEIGHT
STANDARD:
MINIMUM:
MAXIMUM:
34¼ inches
34¼ inches
44¼ inches
RECLINER
LOW SEAT FRAME:
MEDIUM SEAT FRAME:
HIGH SEAT FRAME:
51½ inches
53¾ inches
55½ inches
OVERALL LENGTH
STANDARD:
LONG FRAME:
Without front riggings
29½ inches
32½ inches
WEIGHT
MODEL 251 - 300 TQ (4 POLE MOTOR)
Without 22NF Batteries:
With 22NF batteries:
Shipping (approx.):
MODEL 301 - 400 TQHD (4 POLE MOTOR)
Without Group 24 Batteries:
With Group 24 Batteries:
Shipping (approx.):
MODEL TRUTK
Without Group 24 Batteries:
With Group 24 Batteries:
Shipping (approx.):
154 lbs.
228 lbs.
194 lbs.
154 lbs.
258 lbs.
194 lbs.
166 lbs.
270 lbs.
206 lbs.
DRIVE AXLE:
Part No 1134791
Adjustable (Non-Recliners ONLY)
19
3G Storm Series® Wheelchairs
TYPICAL PRODUCT PARAMETERS
TORQUE SP
DRIVE WHEELS/TIRES:
Foam filled or pneumatic
14 x 3 inches (Std), 14 x 4 inches - Not available with
GB motors (Opt)
CASTERS W/ PRECISION SEALED BEARINGS
SEMI-PNEUMATIC:
PNEUMATIC OR FOAM FILLED:
8 x 1¼ inches (Std), 6 x 2 inches with shock fork (Opt)
8 x 2 inches (Std), 9 x 2¾ inches (Opt)
ANTI-TIPPER:
3-inch wheels (Std)
CASTER FORKS:
Standard, Shock Fork (Opt)
FOOTRESTS:
Telescoping Front Rigging Supports (Std), Swing-Away (Std),
Heavy Duty (Opt), 2-in. and 4-in. longer Pivot Slide Tube
(Opt)
ARMRESTS:
Flip Back, Fixed or Adjustable Height (Desk and Full Length)
SEAT ANGLE ADJUSTMENT:
Adjustable (0° to 10°)
SEAT CUSHION:
Cushion (Optional)
WHEELCHAIR UPHOLSTERY OPTIONS:
Vinyl and Nylon
BATTERY REQUIREMENTS
251-300 LBS - 4 POLE MOTOR:
301-400 LBS - 4 POLE MOTOR:
UP TO 400 LBS - GB MOTOR:
22NF - Two batteries inside one battery box
Group 24
Group 24
*WEIGHT LIMITATION:
MODEL 251 - 300TQ - TORQUE SP WITH 4 POLE
MOTOR
MODEL 301 - 400TQ - TORQUE SP WITH 4 POLE
MOTOR
MODEL TRUTK - TORQUE SP WITH GB MOTOR
251 lbs. to 300 lbs.
301 lbs. to 400 lbs.
Up to 400 lbs.
PERFORMANCE
MODEL 251 - 300TQ
Rating:
251 - 300 lbs. with 24:1 ratio 4 pole motor
251 - 300 lbs. with 18:1 ratio 4 pole motor
Up to 4½ mph
Up to 6½ mph
Up to 19
Up to 19
Speed:
*Range:
MODEL 301 - 400TQ
Rating:
Speed:
*Range:
MODEL TRUTK
Rating:
Speed:
**Range:
301 - 400 lbs. with 24:1 ratio 4 pole motor
Up to 4½ mph
Up to 19
400 lbs. with GB motor
Up to 7 mph
Up to 33 miles
*NOTE: Weight limitation is total weight (user weight plus any additional items that the user may
require [back pack, etc.]). Example: If weight limitation of the wheelchair is 300 lbs and additional
items equal 25 lbs, subtract 25 lbs from 300 lbs. This means the maximum weight limitation of the
user is 275 lbs.
3G Storm Series® Wheelchairs
20
Part No 1134791
TYPICAL PRODUCT PARAMETERS
**NOTE: Values for range are calculated for maximum chair weight rating using largest batteries
applicable (GP24), per test procedures described in ANSI/RESNA WC/VOL2-1998 Section 4 and
meet federal reimbursement requirements for this product. While considered typical, they are
derived based on certain ideal conditions. Variances in battery condition, user weight, usage
pattern or overall terrain conditions will result in actual values for range that differ from these
stated values. Users should become accustomed to how their unique conditions impact their
individual results. Users should become familiar with the battery discharge indicator on the
joystick to determine the range of their wheelchair. Refer to When to Charge Batteries on page 98
for more information about the battery discharge indicator.
Ranger X
RANGER X
SEAT WIDTH:
Standard 12 to 22 inches
Recliner 16 to 22 inches
SEAT DEPTH:
Standard 12 to 22 inches
Recliner 16 to 22 inches
BACK HEIGHT:
Standard 12 to 24 inches
Recliner 18 to 26 inches
BACK ANGLE RANGE:
Standard 85° to 105°
Recliner 90° to 170°
SEAT-TO-FLOOR:
Standard 17½-inches
Optional 19¾ or 21 inches
OVERALL WIDTH OF BASE: (W/O JOYSTICK)
25 inches
OVERALL HEIGHT
STANDARD:
MINIMUM:
MAXIMUM:
34¼ inches
34¼ inches
44¼ inches
RECLINER
LOW SEAT FRAME:
MEDIUM SEAT FRAME:
HIGH SEAT FRAME:
51½ inches
53¾ inches
55½ inches
OVERALL LENGTH
STANDARD:
LONG FRAME:
Without front riggings
29½ inches
32½ inches
WEIGHT
GB MOTOR
Without GP24 Batteries:
With GP24 Batteries:
Shipping (approx.):
174 lbs
278 lbs
214 lbs.
4 POLE MOTOR
Without GP24 Batteries:
With GP24 Batteries:
Shipping (approx.):
162 lbs.
266 lbs.
202 lbs.
DRIVE AXLE:
Adjustable (Non-Recliners only)
DRIVE WHEELS/TIRES:
Foam filled or pneumatic
14 x 3 inches (Std), 14 x 4 inches - not available with GB
motors (Opt)
CASTERS W/ PRECISION SEALED BEARINGS
SEMI-PNEUMATIC:
PNEUMATIC OR FOAM FILLED:
ANTI-TIPPER (3-INCH WHEELS):
Part No 1134791
8 x 2¼ inches (Std), 6 x 2 inches with shock fork (Opt)
8 x 2 inches (Std), 9 x 2¾ inches (Opt)
Standard
21
3G Storm Series® Wheelchairs
TYPICAL PRODUCT PARAMETERS
RANGER X
CASTER FORKS:
Standard, Shock Fork (Optional)
FOOTRESTS:
Telescoping Front Rigging Supports (Std), Swing-Away (Std),
Heavy Duty (Opt), 2-in. and 4-in. longer Pivot Slide Tube
(Opt)
ARMRESTS:
Flip Back, Fixed or Adjustable Height (Desk and Full Length)
SEAT ANGLE ADJUSTMENT:
Adjustable (0° to 10°)
SEAT CUSHION:
Cushion (Opt)
WHEELCHAIR UPHOLSTERY OPTIONS:
Vinyl and Nylon
BATTERY REQUIREMENTS:
Group 24
*WEIGHT LIMITATION:
300 lbs.
PERFORMANCE
GEARLESS/BRUSHLESS MOTOR
Rating:
Speed:
**Range:
STANDARD 4 POLE MOTOR
Rating:
Speed:
**Range:
300 lbs.
Up to 7 mph
Up to 33 miles
300 lbs.
Up to 6½ mph
Up to 19 miles
*NOTE: Weight limitation is total weight (user weight plus any additional items that the user may
require [back pack, etc.]). Example: If weight limitation of the wheelchair is 300 lbs and additional
items equal 25 lbs, subtract 25 lbs from 300 lbs. This means the maximum weight limitation of the
user is 275 lbs.
**NOTE: Values for range are calculated for maximum chair weight rating using largest batteries
applicable (GP24), per test procedures described in ANSI/RESNA WC/VOL2-1998 Section 4 and
meet federal reimbursement requirements for this product. While considered typical, they are
derived based on certain ideal conditions. Variances in battery condition, user weight, usage
pattern or overall terrain conditions will result in actual values for range that differ from these
stated values. Users should become accustomed to how their unique conditions impact their
individual results. Users should become familiar with the battery discharge indicator on the
joystick to determine the range of their wheelchair. Refer to When to Charge Batteries on page 98
for more information about the battery discharge indicator.
3G Storm Series® Wheelchairs
22
Part No 1134791
TYPICAL PRODUCT PARAMETERS
2G Tarsys
2G TARSYS SEATING SYSTEM
SEAT WIDTH RANGE:
16 - 22 inches in 1-inch increments
SEAT DEPTH RANGE:
16 - 22 inches in 1-inch increments
BACK HEIGHT RANGE
TILT/RECLINE:
RECLINE:
TILT:
20 - 26 inches in 1-inch increments
20 - 26 inches in 1-inch increments
20 - 25 inches in 1-inch increments
BACK ANGLE RANGE
TILT:
90° - 115° in 5° increments
TILT RANGE
TILT AND TILT/RECLINE
0° Seat Angle:
5° Seat Angle:
0° - 45° ± 3°
5° - 50° ± 3°
RECLINE RANGE (MEASURED RELATIVE
TO THE GROUND)
RECLINE
0° Seat Angle:
5° Seat Angle:
TILT/RECLINE
0° Seat Angle:
5° Seat Angle:
90° - 175° ± 3°
95° - 175° ± 3°
90° - 175° ± 3°
95° - 175° ± 3°
SEAT-TO-FLOOR
0° SEAT ANGLE:
5° SEAT ANGLE:
18.25 inches ± .25 inches
19.75 inches ± .25 inches
*OVERALL WIDTH:
25 to 27 inches
*OVERALL HEIGHT:
53 inches
*OVERALL LENGTH:
48 inches in upright position
ARMRESTS
TILT:
RECLINE AND TILT/RECLINE:
Flip Back, Adjustable Height (9 - 13 inches) - Desk or Full
Length
Adjustable Height (11 - 16 inches) - Desk or Full Length
LEGRESTS:
Mechanical Elevating, Genius Legrests, or Power Elevating
Legrests
HEADRESTS:
Curved, Contoured, Small or Large
WEIGHT OF SEATING SYSTEM:
105 lbs
**WEIGHT LIMITATION:
ALL SEATING SYSTEMS WITHOUT HEAVY
DUTY OPTION:
TILT ONLY, RECLINE ONLY OR TILT/RECLINE
SYSTEMS WITH HEAVY DUTY OPTION:
ALL SEATING SYSTEMS WITH VENT TRAY:
250 lbs
350 lbs
Subtract 50 lbs from the seating system weight limitations
(200 and 300 lbs respectively)
*NOTE: Tilt/recline seating system, 18 inch deep x 18 inch wide, 24-inch high back, on short frame
base with AT5544 front riggings in minimum position, 5° seat angle and headrest.
NOTE: All dimensions are ± .50 inches unless otherwise indicated.
NOTE: All parameters apply to Tilt only, Recline only and Tilt/Recline systems except where
specified. All parameters are approximate.
Part No 1134791
23
3G Storm Series® Wheelchairs
TYPICAL PRODUCT PARAMETERS
**NOTE: Weight limitation is total weight (user weight plus any additional items that the user
may require [back pack, etc.]). Example: If weight limitation of the wheelchair is 300 lbs and
additional items equal 25 lbs, subtract 25 lbs from 300 lbs. This means the maximum weight
limitation of the user is 275 lbs.
WARNING
If the seating system is mounted onto a power wheelchair that has a weight
limitation greater than 350 lbs, the weight limitation of the wheelchair is 350 lbs.
Example: If a seating system with a weight limitation of 300 lbs is mounted onto a
power wheelchair with a weight limitation of 350 lbs, then the power wheelchair is
restricted to a 300 lb weight limitation.
Elevating Seat/Power Tilt Only
ELEVATING SEAT/POWER TILT ONLY
SEAT WIDTH RANGE
ANY SYSTEM WITH CURVED BACK:
TILT ONLY WITH BACK POST ONLY:
ELEVATE ONLY:
16 - 22 inches in 1-inch increments
12 - 22 inches in 1-inch increments
16 - 22 inches in 1-inch increments
SEAT DEPTH RANGE
ANY SYSTEM WITH CURVED BACK:
TILT ONLY WITH BACK POST ONLY:
ELEVATE ONLY:
16 - 22 inches in 1-inch increments
12 - 22 inches in 1-inch increments
16 - 22 inches in 1-inch increments
BACK HEIGHT RANGE:
12 - 24 inches in 1-inch increments
BACK ANGLE RANGE (ASBA):
85° - 105° in 5° increments
TILT RANGE
TILT AND TILT/ELEVATE
0° Seat Angle:
5° Seat Angle:
0° - 45° ± 3°
5° - 50° ± 3°
SEAT-TO-FLOOR
ELEVATE ONLY
0° Seat Angle:
5° Seat Angle:
TILT ONLY
0° Seat Angle:
5° Seat Angle:
TILT/ELEVATE
0° Seat Angle:
5° Seat Angle:
17.5 inches ± .25 inches
18.25 inches ± .25 inches
18.25 inches ± .25 inches
19.25 inches ± .25 inches
18.5 inches ± .25 inches
19.5 inches ± .25 inches
OVERALL WIDTH
WITHOUT JOYSTICK:
WITH JOYSTICK:
22.25 - 26.25 inches
22.5 - 26.2 inches
OVERALL HEIGHT
ELEVATE ONLY:
TILT ONLY:
TILT/ELEVATE:
37.5 inches
38.75 inches
39.25 inches
OVERALL LENGTH (WITH FRONT
RIGGINGS):
41 inches (16-inch deep frame with AT5544 legrests)
ARMRESTS:
Adjustable Height (10.5 - 14.5 inches) - Desk or Full Length
3G Storm Series® Wheelchairs
24
Part No 1134791
TYPICAL PRODUCT PARAMETERS
ELEVATING SEAT/POWER TILT ONLY
WEIGHT OF POWER TILT ONLY:
65 lbs
WEIGHT OF ELEVATING SEAT:
26 lbs
WEIGHT LIMITATION
ELEVATE ONLY:
TILT ONLY MOUNTED ON TORQUE SP WITH
RANGER II ELECTRONICS:
ALL OTHER TILT ONLY SYSTEMS:
300 lbs
200 lbs
250 lbs
*NOTE: 20 inch deep x 20 inch wide with 24-inch high back.
NOTE: All dimensions are ± .50 inches unless otherwise indicated.
NOTE: All parameters apply to Tilt only, Recline only and Tilt/Recline systems except where
specified. All parameters are approximate.
**NOTE: Weight limitation is total weight (user weight plus any additional items that the user
may require [back pack, etc.]). Example: If weight limitation of the wheelchair is 300 lbs and
additional items equal 25 lbs, subtract 25 lbs from 300 lbs. This means the maximum weight
limitation of the user is 275 lbs.
WARNING
If the seating system is mounted onto a power wheelchair that has a weight
limitation greater than 350 lbs, the weight limitation of the wheelchair is 350 lbs.
Example: If a seating system with a weight limitation of 300 lbs is mounted onto a
power wheelchair with a weight limitation of 350 lbs, then the power wheelchair is
restricted to a 300 lb weight limitation.
Part No 1134791
25
3G Storm Series® Wheelchairs
SECTION 1—GENERAL GUIDELINES
SECTION 1—GENERAL GUIDELINES
WARNING
SECTION 1 - GENERAL GUIDELINES contains important information for the safe
operation and use of this product. DO NOT use this product or any available
optional equipment without first completely reading and understanding these
instructions and any additional instructional material such as Owner’s Manuals,
Service Manuals or Instruction Sheets supplied with this product or optional
equipment. If you are unable to understand the Warnings, Cautions or Instructions,
contact a healthcare professional, dealer or technical personnel before attempting
to use this equipment - otherwise, injury or damage may occur.
Repair or Service Information
Set-up of the Electronics Control Unit is to be performed only by a qualified technician.
The final adjustments of the controller may affect other activities of the wheelchair.
Damage to the equipment could occur if improperly set-up or adjusted.
Except for programming, DO NOT service or adjust the wheelchair while occupied,
unless otherwise noted.
POWERED SEATING SYSTEMS ONLY - Pinch point may occur when lowering the
elevating seat and/or returning the tilted seat to the full upright position. Make sure the
hands and body of the occupant, attendants and bystanders are clear of all pinch points
before lowering seat or returning the tilted seat to the full upright position.
Before adjusting, repairing or servicing the wheelchair, ALWAYS turn the wheelchair
power OFF, otherwise, injury or damage may occur.
Invacare products are specifically designed and manufactured for use in conjunction with
Invacare accessories. Accessories designed by other manufacturers have not been tested
by Invacare and are not recommended for use with Invacare products.
Transport ready packages are not retrofittable to existing models and are not field
serviceable.
Battery support brackets MUST be installed at all times. Otherwise, the wheelchair will
not be WC/19 compliant. Refer to Installing/Removing Batteries Into/From Battery Boxes
on page 91.
Wheelchairs should be examined during maintenance for signs of corrosion (water
exposure, incontinence, etc.). Electrical components damaged by corrosion should be
replaced IMMEDIATELY.
Wheelchairs that are used by incontinent users and/or are frequently exposed to water
may require replacement of electrical components more frequently.
3G Storm Series® Wheelchairs
26
Part No 1134791
SECTION 1—GENERAL GUIDELINES
Operation Information
Performance adjustments should only be made by professionals of the healthcare field or
persons fully conversant with this process and the driver's capabilities. Incorrect settings
could cause injury to the driver, bystanders, damage to the wheelchair and to
surrounding property.
After the wheelchair has been set-up, check to make sure that the wheelchair performs to
the specifications entered during the set-up procedure. If the wheelchair does NOT
perform to specifications, turn the wheelchair OFF immediately and reenter set-up
specifications. Repeat this section until the wheelchair performs to specifications.
DO NOT leave the power button ON when entering or exiting your wheelchair.
DO NOT operate on roads, streets or highways.
DO NOT climb, go up or down ramps or traverse slopes greater than 9°.
DO NOT attempt to move up or down an incline with water, ice or oil film.
DO NOT stand on the frame of the wheelchair.
DO NOT attempt to drive over curbs or obstacles. Doing so may cause your wheelchair
to turn over and cause bodily harm or damage to the wheelchair.
DO determine and establish your particular safety limits by practicing bending, reaching
and transferring activities in the presence of a qualified healthcare professional BEFORE
attempting active use of the wheelchair.
DO NOT attempt to reach objects if you have to move forward in your seat.
DO NOT attempt to reach objects if you have pick them up from the floor by reaching
between your knees.
DO NOT lean over the top of the back upholstery to reach objects behind you, as this may
cause the wheelchair to tip over.
ALWAYS shift your weight in the direction you are turning. DO NOT shift your weight
in the opposite direction of the turn. Shifting your weight in the opposite direction of the
turn may cause the inside drive wheel to lose traction and the wheelchair to tip over.
DO NOT shift your weight or sitting position toward the direction you are reaching as the
wheelchair and/or seating system (if any) may tip over.
DO NOT use an escalator to move a wheelchair between floors. Serious bodily injury may
occur.
DO NOT use the footplates as a platform. When getting in or out of the wheelchair, make
sure that the footplates are in the upward position or swing footrests towards the outside
of the wheelchair.
NEVER leave an unoccupied wheelchair unattended on an incline.
DO NOT attempt to stop a moving wheelchair with the wheel locks. Wheel locks are not
brakes.
Part No 1134791
27
3G Storm Series® Wheelchairs
SECTION 1—GENERAL GUIDELINES
Inasmuch as wheel locks are an option on this wheelchair, (You may order with or
without wheel locks.) transfer to and from the wheelchair in the presence of a qualified
healthcare professional to determine individual safety limits. Invacare strongly
recommends ordering the wheel locks as an additional safeguard for the wheelchair user.
DO NOT attempt to lift the wheelchair by any removable (detachable) parts. Lifting by
means of any removable (detachable) parts of a wheelchair may result in injury to the user
or damage to the wheelchair.
DO NOT overtighten hardware attaching to the frame. This could cause damage to the
frame tubing.
ALWAYS keep hands and fingers clear of moving parts to avoid injury.
ALWAYS wear your seat positioning strap. The seat positioning strap is a positioning belt
ONLY. It is not designed for use as a safety device withstanding high stress loads such as
auto or aircraft safety belts. If signs of wear appear, belt MUST be replaced immediately.
ALWAYS turn the wheelchair power OFF and engage the motor locks/clutches to prevent
the wheels from moving BEFORE attempting to transfer in or out of the wheelchair. Also
make sure every precaution is taken to reduce the gap distance. Align both casters parallel
with the object you are transferring onto.
DO NOT use with a broken or missing joystick knob.
DO NOT use if joystick does not spring back to the neutral position or becomes sticky or
sluggish.
DO NOT use if joystick boot is torn or damaged.
ALWAYS check foam grips for looseness before using the wheelchair. If loose, contact a
qualified technician for instructions.
ALWAYS engage both wheel locks AND reduce the gap distance BEFORE transferring to
and from the wheelchair. Turn all casters parallel to the object you are transferring onto.
Anti-Tippers must be used at all times. When outdoors on wet, soft ground or on gravel
surfaces, anti-tippers may not provide the same level of protection against tip over. Extra
caution must be observed when traversing such surfaces.
Avoid storing or using the wheelchair near open flame or combustible products. Serious
injury or damage to property may result.
DO NOT engage or disengage the motor locks until the power is in the OFF position.
Wheelchairs with TRRO or TRBKTS Only
Only use the transport brackets included with TRRO and TRBKTS for the purposes
described in this manual.
Wheelchairs with Powered Seating Systems Only
DO NOT operate the seating system while on an incline.
DO NOT operate the seating system while the wheelchair is moving.
3G Storm Series® Wheelchairs
28
Part No 1134791
SECTION 1—GENERAL GUIDELINES
NEVER operate the wheelchair or elevate/lower the seat while in any tilted/reclined/back
angle position over 20° relative to the vertical position. If the drive lock-out does not stop
the wheelchair from operating or the seat from elevating/lowering in a tilt position over
20° relative to vertical, DO NOT operate the wheelchair or elevate/lower the seat. DO
NOT attempt to adjust the drive lock-out. Have the wheelchair serviced by a qualified
technician.
Use only TSS, TRSS, TRCM, and SAC actuator controls to activate the tilt/recline/elevate
functions*. DO NOT USE any other actuator controls. Such devices may result in excess
heating and cause damage to the actuator and associated wiring and could cause a fire,
death, physical injury or property damage. If such devices are used, Invacare shall not be
liable and the limited warranty is void.
*NOTE: Specific actuator controls are noted for each function or combination throughout this
manual.
DO NOT operate tilt seat around children.
ALWAYS keep hands and feet out from underneath tilt seat - otherwise serious injury
may result.
DO NOT tip the seating system/wheelchair without assistance.
DO NOT store items under seat.
Cables must be routed and secured properly to ensure that cables DO NOT become
entangled and damaged during normal operation of seating system.
2G Tarsys Equipped with Vent Tray Only - Reduced tilt/recline limits apply. See the
electronics manual listed in Reference Documents on page 2.
2G Tarsys Equipped with Power Legrests Only - NEVER allow items to become trapped
between the legrest assemblies, otherwise damage to the power legrest may occur.
Wheelchairs with Manual Recliners Only
NEVER operate the wheelchair while in any recline position over 105° relative to the seat
frame. If the limit switch does not stop the wheelchair from operating in a recline position
greater than 105° relative to the seat frame, DO NOT operate the wheelchair. Have the
limit switch adjusted by a qualified technician.
Both gas cylinders MUST be operational and adjusted properly before using the recliner.
DO NOT operate the recliner option if only one of the gas cylinders is operational or
adjusted properly.
When using the recliner option, the motor/gearbox or motor MUST be mounted to the
most rearward mounting holes on the suspension arm assembly.
To Healthcare Professionals/Assistants
Make sure the occupant of the wheelchair is properly positioned.
When returning the occupant of the wheelchair to the full upright position, more body
strength will be required for approximately the last twenty degrees of incline (reverse
recline). Make sure to use proper body mechanics (use your legs) or seek assistance if
necessary to avoid injury.
Part No 1134791
29
3G Storm Series® Wheelchairs
SECTION 1—GENERAL GUIDELINES
Tire Pressure
DO NOT use your wheelchair unless it has the proper tire pressure (P.S.I.). DO NOT
overinflate the tires. Failure to follow these recommendations may cause the tire to
explode and cause bodily harm. The recommended tire pressure is listed on the side wall
of the tire.
Electrical
Grounding Instructions:
DO NOT, under any circumstances, cut or remove the round grounding prong from any
plug used with or for Invacare products. Some devices are equipped with three-prong
(grounding) plugs for protection against possible shock hazards. Where a two-prong wall
receptacle is encountered, it is the personal responsibility and obligation of the customer
to contact a qualified electrician and have the two-prong receptacle replaced with a
properly grounded three-prong wall receptacle in accordance with the National Electrical
Code. If you must use an extension cord, use ONLY a three-wire extension cord having
the same or higher electrical rating as the device being connected. In addition, Invacare
has placed RED/ORANGE Warning Tags on some equipment. DO NOT remove these
tags.
Batteries
The warranty and performance specifications contained in this manual are based on the
use of deep cycle gel cell batteries. Invacare strongly recommends their use as the power
source for this unit.
Carefully read battery/battery charger information prior to installing, servicing or
operating your wheelchair.
Charging Batteries
DANGER
When using an extension cord, use only a three wire extension cord having at least
16 AWG (American Wire Gauge) wire and the same or higher electrical rating as
the device being connected. Use of improper extension cord could result in risk of
fire and electric shock. Three prong to two prong adapters should not be used. Use
of three prong adapters can result in improper grounding and present a shock hazard to the user.
NEVER attempt to recharge the batteries by attaching cables directly to the battery
terminals.
DO NOT attempt to recharge the batteries and operate the wheelchair at the same time.
DO NOT operate wheelchair with extension cord attached to the AC cable.
3G Storm Series® Wheelchairs
30
Part No 1134791
SECTION 1—GENERAL GUIDELINES
DO NOT attempt to recharge the batteries when the wheelchair has been exposed to any
type of moisture.
DO NOT attempt to recharge the batteries when the wheelchair is outside.
DO NOT sit in the wheelchair while charging the batteries.
READ and CAREFULLY follow the manufacturer’s instructions for each charger
(supplied or purchased). If charging instructions are not supplied, consult a qualified
technician for proper procedures.
Ensure the pins of the extension cord plug are the same number, size, and shape as those
on the charger.
DO NOT under any circumstances cut or remove the round grounding plug from the
charger AC cable plug or the extension cord plug.
Rain Test
Invacare has tested it’s power wheelchairs in accordance with ISO 7176 “Rain Test”. This
provides the end user or his/her attendant sufficient time to remove his/her power
wheelchair from a rain storm and retain wheelchair operation.
DO NOT leave power wheelchair in a rain storm of any kind.
DO NOT use power wheelchair in a shower.
DO NOT leave power wheelchair in a damp area for any length of time.
Direct exposure to rain or dampness will cause the wheelchair to malfunction electrically
and mechanically; may cause the wheelchair to prematurely rust.
Check to ensure that the battery covers are secured in place, joystick boot is NOT torn or
cracked where water can enter and that all electrical connections are secure at all times.
DO NOT use the joystick if the boot is torn or cracked. If the joystick boot becomes torn
or cracked, replace Immediately.
Weight Training
Invacare DOES NOT recommend the use of its wheelchairs as a weight training
apparatus. Invacare wheelchairs have NOT been designed or tested as a seat for any kind
of weight training. If occupant uses said wheelchair as a weight training apparatus,
INVACARE SHALL NOT BE LIABLE FOR BODILY INJURY AND THE WARRANTY IS
VOID.
Shipping Securement Points
Frame end caps are only intended for manufacturer’s initial shipping securement points.
They are not intended for any other use.
Part No 1134791
31
3G Storm Series® Wheelchairs
SECTION 1—GENERAL GUIDELINES
Front of Wheelchair
Rear of Wheelchair
Base
Frame
Frame End Cap
Weight Limitation
3G Storm Wheelchairs without Powered Seating Systems
Refer to Typical Product Parameters for Arrow on page 18, Torque SP on page 19 or
Ranger X on page 21 to determine the weight limit (total combined weight of user and any
attachments) of your wheelchair model. DO NOT exceed the limit - otherwise, injury or
damage may result.
3G Storm Wheelchairs with Powered Seating Systems
Refer to Typical Product Parameters to determine the weight limit (total combined weight
of user and any attachments) of your wheelchair and seating system. The weight
limitation indicated overrides the weight limitation of the wheelchair by itself. DO NOT
exceed the limit - otherwise injury or damage may result. Typical Product Parameters can
be found for:
• 2G Tarsys on page 23.
• Elevating Seat/Power Tilt Only on page 24.
3G Storm Series® Wheelchairs
32
Part No 1134791
SECTION 2—SAFETY/HANDLING OF WHEELCHAIRS
SECTION 2—SAFETY/HANDLING OF
WHEELCHAIRS
“Safety and Handling” of the wheelchair requires the close attention of the wheelchair
user as well as the assistant. This manual points out the most common procedures and
techniques involved in the safe operation and maintenance of the wheelchair. It is
important to practice and master these safe techniques until you are comfortable in
maneuvering around the frequently encountered architectural barriers.
Use this information only as a “basic” guide. The techniques that are discussed on the
following pages have been used successfully by many.
Individual wheelchair users often develop skills to deal with daily living activities that
may differ from those described in this manual. Invacare recognizes and encourages each
individual to try what works best for him/her in overcoming architectural obstacles that
they may encounter, however all warnings and cautions given in this manual MUST be
followed. Techniques in this manual are a starting point for the new wheelchair user and
assistant with “safety” as the most important consideration for all.
Stability and Balance
WARNING
ALWAYS wear your seat positioning strap. The seat positioning strap is a
positioning belt ONLY. It is not designed for use as a safety device withstanding high
stress loads such as auto or aircraft safety belts. If signs of wear appear, belt MUST
be replaced immediately.
DO NOT climb, go UP or DOWN ramps or traverse slopes greater than 9°.
Invacare strongly recommends proceeding down ramps or slopes slowly to avoid
hard braking or sudden stops.
DO NOT leave elevating legrests in the fully extended position when proceeding
down ramps or slopes.
Be aware that carrying heavy objects on your lap while occupying the wheelchair
may adversely affect the stability of the wheelchair, resulting in serious bodily injury
to the user, damage to the wheelchair and surrounding property.
This wheelchair has been designed to accommodate one individual. If more than
one individual occupies the wheelchair this may adversely affect the stability of the
wheelchair, resulting in serious bodily injury to the user and passenger and damage
to the wheelchair and surrounding property.
Part No 1134791
33
3G Storm Series® Wheelchairs
SECTION 2—SAFETY/HANDLING OF WHEELCHAIRS
To assure stability and proper operation of your wheelchair, you must at all times
maintain proper balance. Your wheelchair has been designed to remain upright and
stable during normal daily activities as long as you DO NOT move beyond the center of
gravity. DO NOT lean forward out of the wheelchair any further than the length of the
armrests. Make sure the casters are pointing in the forward position whenever you lean
forward. This can be achieved by advancing the wheelchair and then reversing it in a
straight line.
Coping with Everyday Obstacles
Coping with the irritation of everyday obstacles can be somewhat alleviated by learning
how to manage your wheelchair. Keep in mind your center of gravity to maintain stability
and balance.
A Note to Wheelchair Assistants
When assistance to the wheelchair user is required, remember to use good body
mechanics. Keep your back straight and bend your knees whenever tilting wheelchair or
traversing curbs or other impediments.
Also, be aware of detachable parts such as arms or legrests. These must NEVER be used
to move the wheelchair or as lifting supports, as they may be inadvertently released,
resulting in possible injury to the user and/or assistant(s).
When learning a new assistance technique, have an experienced assistant help you before
attempting it alone.
Percentage of Weight Distribution
WARNING
DO NOT attempt to reach objects if you have to move forward in the seat or pick
them up from the floor by reaching down between your knees.
Many activities require the wheelchair user to reach, bend and transfer in and out of
the wheelchair. These movements will cause a change to the normal balance,
center of gravity, and weight distribution of the wheelchair. To determine and
establish your particular safety limits, practice bending, reaching and transferring
activities in several combinations in the presence of a qualified healthcare
professional BEFORE attempting active use of the wheelchair.
Proper positioning is essential for your safety. When reaching, leaning, bending or
bending forward, it is important to use the casters as a tool to maintain stability and
balance.
When using the recliner/high back van seat, the motor/gearbox or motor MUST use
most REARWARD mounting holes on the suspension arm assembly.
3G Storm Series® Wheelchairs
34
Part No 1134791
SECTION 2—SAFETY/HANDLING OF WHEELCHAIRS
NOTE: For this procedure, refer to FIGURE 2.1.
Changing the position of where the motors are positioned affects the weight distribution
over the rear wheels. The following contains information about changing the position of
the motors.
Rear Position - Lengthens the wheelbase and gives the wheelchair the most stability and
standard maneuverability.
Middle Position - Centers the wheelbase and gives the wheelchair standard stability and
maneuverability.
Forward Position - Shortens the wheelbase and increases maneuverability and distributes
additional weight on rear wheels.
*NOTE: The forward mounting position is not available on Arrow wheelchairs equipped with GB
motors.
The following shows the positions of the screws into the gearbox:
DETAIL “A” - MOTOR/GEARBOX WHEELCHAIRS
Rear Position
Approximately 65% of
weight over drive wheels
Middle Position
Approximately 70% of weight
over drive wheels
Front Position
Approximately 75% of weight
over drive wheels
DETAIL “B” - *GB WHEELCHAIRS
Rear Position
Approximately 65% of
weight over drive wheels
Middle Position
Approximately 70% of weight
over drive wheels
Forward Position
Not available with GB motors.
FIGURE 2.1 Percentage of Weight Distribution
Part No 1134791
35
3G Storm Series® Wheelchairs
SECTION 2—SAFETY/HANDLING OF WHEELCHAIRS
Reaching, Leaning and Bending - Forward
WARNING
DO NOT attempt to reach objects if you have to move forward in the seat or pick
them up from the floor by reaching down between your knees.
Inasmuch as wheel locks are an option on this wheelchair, (You may order with or
without wheel locks.) transfer to and from the wheelchair in the presence of a
qualified healthcare professional to determine individual safety limits. Invacare
strongly recommends ordering the wheel locks as an additional safeguard for the
wheelchair user.
NOTE: For this procedure, refer to
FIGURE 2.2.
Position the casters so that they are
extended away from the drive wheels and
engage wheel locks/motor locks/clutches.
FIGURE 2.2 Reaching, Leaning and Bending
- Forward
Reaching, Leaning and Bending - Backward
WARNING
DO NOT lean over the top of the back
upholstery. This will change your center
of gravity and may cause you to tip over.
NOTE: For this procedure, refer to
FIGURE 2.3.
Position wheelchair as close as possible to
the desired object. Position the casters so
that they are extended away from the drive
wheels to create the longest possible
wheelbase. Reach back only as far as your
arm will extend without changing your
sitting position.
3G Storm Series® Wheelchairs
FIGURE 2.3 Reaching, Leaning and Bending
- Backward
36
Part No 1134791
SECTION 2—SAFETY/HANDLING OF WHEELCHAIRS
Pinch Points
WARNING
POWERED SEATING SYSTEMS ONLY - Pinch point may occur when lowering the
elevating seat and/or returning the tilted seat to the full upright position. Make sure
the hands and body of the occupant, attendants and bystanders are clear of all pinch
points before lowering seat or returning the tilted seat to the full upright position.
NOTE: For this procedure, refer to FIGURE 2.4.
2G Tarsys Fully Tilted Seat
Elevating Seat
Pinch Points
Pinch
Points
NOTE: Power Tilt Only has pinch points in the
same locations.
FIGURE 2.4 Pinch Points
Stairways
WARNING
DO NOT attempt to move an occupied power wheelchair between floors using a
stairway. Use an elevator to move an occupied power wheelchair between floors. If
moving a power wheelchair between floors by means of a stairway, the occupant
MUST be removed and transported independently of the power wheelchair.
Extreme caution is advised when it is necessary to move an unoccupied power
wheelchair up or down the stairs. Invacare recommends using two assistants and
making thorough preparations. Make sure to use ONLY secure, non-detachable
parts for hand-hold supports.
DO NOT attempt to lift the wheelchair by any removable (detachable) parts.
Lifting by means of any removable (detachable) parts of a wheelchair may result in
injury to the user or damage to the wheelchair.
The weight of the wheelchair without the user and without batteries is between 154
and 278 lbs. Use proper lifting techniques (lift with your legs) to avoid injury.
Part No 1134791
37
3G Storm Series® Wheelchairs
SECTION 2—SAFETY/HANDLING OF WHEELCHAIRS
Follow this procedure for moving the wheelchair between floors when an elevator is
NOT available:
NOTE: When using a stairway to move the wheelchair and any accessories, move all wheelchair
components away from the stairway prior to reassembly.
1. Remove the occupant from the wheelchair.
2. Remove battery box(es) from wheelchair. Refer to Batteries on page 89.
3. Bend your knees and keep your back straight.
4. Using non-removable (non-detachable) parts of the wheelchair, lift the wheelchair off
of the ground and transfer the wheelchair up or down the stairs.
5. The wheelchair should not be lowered until the last stair has been negotiated and the
wheelchair has been carried away from the stairway.
WARNING: ESCALATORS
DO NOT use an escalator to move a wheelchair between floors. Serious bodily
injury may occur.
Transferring To and From Other Seats
WARNING
ALWAYS turn the wheelchair power OFF and engage the motor locks/clutches to
prevent the wheels from moving BEFORE attempting to transfer in or out of the
wheelchair. Also make sure every precaution is taken to reduce the gap distance.
Align both casters parallel with the object you are transferring onto.
Inasmuch as wheel locks are an option on this wheelchair, (You may order with or
without wheel locks.) transfer to and from the wheelchair in the presence of a
qualified healthcare professional to determine individual safety limits. Invacare
strongly recommends ordering the wheel locks as an additional safeguard for the
wheelchair user.
CAUTION
When transferring, position yourself as far back as possible in the seat. This will
prevent broken screws, damaged upholstery and the possibility of the wheelchair
tipping forward.
NOTE: For this procedure, refer to FIGURE 2.5.
NOTE: Adequate mobility and upper body strength is required to perform this activity
independently.
1. Position the wheelchair as close as possible along side the seat to which you are
transferring, with the casters aligned parallel with the object.
2. Engage motor locks and wheel locks. Refer to Disengaging/Engaging Motor Lock
Levers on page 110.
3G Storm Series® Wheelchairs
38
Part No 1134791
SECTION 2—SAFETY/HANDLING OF WHEELCHAIRS
3. Shift body weight into seat with transfer.
NOTE: During independent transfer, little or no seat platform will be beneath you. Use a transfer
board if at all possible.
Minimize Gap Distance
FIGURE 2.5 Transferring To and From Other Seats
Part No 1134791
39
3G Storm Series® Wheelchairs
SECTION 3—EMI INFORMATION
SECTION 3—EMI INFORMATION
WARNING
CAUTION: IT IS VERY IMPORTANT THAT YOU READ THIS INFORMATION
REGARDING THE POSSIBLE EFFECTS OF ELECTROMAGNETIC
INTERFERENCE ON YOUR POWERED WHEELCHAIR.
Electromagnetic Interference (EMI) From Radio Wave Sources
Powered wheelchairs and motorized scooters (in this text, both will be referred to
as powered wheelchairs) may be susceptible to electromagnetic interference (EMI),
which is interfering electromagnetic energy (EM) emitted from sources such as
radio stations, TV stations, amateur radio (HAM) transmitters, two way radios, and
cellular phones. The interference (from radio wave sources) can cause the powered
wheelchair to release its brakes, move by itself, or move in unintended directions. It
can also permanently damage the powered wheelchair's control system. The
intensity of the interfering EM energy can be measured in volts per meter (V/m).
Each powered wheelchair can resist EMI up to a certain intensity. This is called its
“immunity level”. The higher the immunity level, the greater the protection. At
this time, current technology is capable of achieving at least a 20 V/m immunity
level, which would provide useful protection from the more common sources of
radiated EMI.
There are a number of sources of relatively intense electromagnetic fields in the
everyday environment. Some of these sources are obvious and easy to avoid.
Others are not apparent and exposure is unavoidable. However, we believe that by
following the warnings listed below, your risk to EMI will be minimized.
The sources of radiated EMI can be broadly classified into three types:
1) Hand-held Portable transceivers (transmitters-receivers with the antenna
mounted directly on the transmitting unit. Examples include: citizens band (CB)
radios, “walkie talkie”, security, fire and police transceivers, cellular telephones,
and other personal communication devices).
NOTE: Some cellular telephones and similar devices transmit signals while they are ON,
even when not being used.
2) Medium-range mobile transceivers, such as those used in police cars, fire trucks,
ambulances and taxis. These usually have the antenna mounted on the outside of
the vehicle; and
3) Long-range transmitters and transceivers, such as commercial broadcast
transmitters (radio and TV broadcast antenna towers) and amateur (HAM)
radios.
NOTE: Other types of hand-held devices, such as cordless phones, laptop computers,
AM/FM radios, TV sets, CD players, cassette players, and small appliances, such as electric shavers and hair dryers, so far as we know, are not likely to cause EMI problems to
your powered wheelchair.
3G Storm Series® Wheelchairs
40
Part No 1134791
SECTION 3—EMI INFORMATION
WARNING
Powered Wheelchair Electromagnetic Interference (EMI)
Because EM energy rapidly becomes more intense as one moves closer to the
transmitting antenna (source), the EM fields from hand-held radio wave sources
(transceivers) are of special concern. It is possible to unintentionally bring high
levels of EM energy very close to the powered wheelchair's control system while
using these devices. This can affect powered wheelchair movement and braking.
Therefore, the warnings listed below are recommended to prevent possible
interference with the control system of the powered wheelchair.
Electromagnetic interference (EMI) from sources such as radio and TV stations,
amateur radio (HAM) transmitters, two-way radios, and cellular phones can affect
powered wheelchairs and motorized scooters.
FOLLOWING THE WARNINGS LISTED BELOW SHOULD REDUCE THE
CHANCE OF UNINTENDED BRAKE RELEASE OR POWERED WHEELCHAIR
MOVEMENT WHICH COULD RESULT IN SERIOUS INJURY.
1) DO NOT operate hand-held transceivers (transmitters receivers), such as
citizens band (CB) radios, or turn ON personal communication devices, such as
cellular phones, while the powered wheelchair is turned ON;
2) Be aware of nearby transmitters, such as radio or TV stations, and try to avoid
coming close to them;
3) If unintended movement or brake release occurs, turn the powered wheelchair
OFF as soon as it is safe;
4) Be aware that adding accessories or components, or modifying the powered
wheelchair, may make it more susceptible to EMI (NOTE: There is no easy way
to evaluate their effect on the overall immunity of the powered wheelchair); and
5) Report all incidents of unintended movement or brake release to the powered
wheelchair manufacturer, and note whether there is a source of EMI nearby.
Important Information
1) 20 volts per meter (V/m) is a generally achievable and useful immunity level
against EMI (as of May 1994) (the higher the level, the greater the protection);
2) The immunity level of this product is unknown.
Modification of any kind to the electronics of this wheelchair as manufactured by
Invacare may adversely affect the RFI immunity levels.
Part No 1134791
41
3G Storm Series® Wheelchairs
SECTION 4—SAFETY INSPECTION/TROUBLESHOOTING
SECTION 4—SAFETY INSPECTION/
TROUBLESHOOTING
NOTE: Every six months take your wheelchair to a qualified technician for a thorough inspection
and servicing. Regular cleaning will reveal loose or worn parts and enhance the smooth operation
of your wheelchair. To operate properly and safely, your wheelchair must be cared for just like any
other vehicle. Routine maintenance will extend the life and efficiency of your wheelchair.
Safety Inspection Checklists
Initial adjustments should be made to suit your personal body structure needs and
preference. Thereafter follow these maintenance procedures:
All Wheelchairs
Inspect/Adjust Initially
CAUTION
As with any vehicle, the wheels and tires should be checked periodically for cracks
and wear, and should be replaced.
❑ Make sure wheelchair rolls straight (no excessive drag or pull to one side).
❑ Inspect all fasteners.
❑ Make sure clothing guards are secure.
❑ Make sure arms are secure but easy to release and adjustment levers engage properly.
❑ Make sure adjustable height arms operate and lock securely.
❑ Make sure upholstery has no rips.
❑ Make sure armrest pad sits flush against arm tube.
❑ Make sure axle nut and wheel mounting nuts are secure on drive wheels.
❑ Make sure there is no excessive side movement or binding when drive wheels are
lifted and spun when disengaged (free-wheeling).
❑ Inspect wheel/fork assembly for proper tension by spinning caster; caster should come
to a gradual stop.
❑ Loosen/tighten caster locknut if wheel wobbles noticeably or binds to a stop.
❑ Make sure all caster/wheel/fork/headtube fasteners are secure and not damaged/
missing.
❑ Make sure wheel locks DO NOT interfere with tires when rolling.
❑ Make sure wheel lock pivot point are free of wear and looseness.
❑ Make sure wheel locks are easy to engage.
3G Storm Series® Wheelchairs
42
Part No 1134791
SECTION 4—SAFETY INSPECTION/TROUBLESHOOTING
❑ Inspect tires for flat spots and wear.
❑ Check pneumatic tires for proper inflation.
❑ Check power center mount front riggings for worn/frayed belts and/or loose fasteners.
If found, replace these items.
❑ Check that all labels are present and legible. Replace if necessary.
Inspect/Adjust Weekly
CAUTION
As with any vehicle, the wheels and tires should be checked periodically for cracks
and wear, and should be replaced.
❑ Inspect wheel/fork assembly for proper tension by spinning caster; caster should come
to a gradual stop.
❑ Make sure all caster/wheel/fork/headtube fasteners are secure and not damaged/
missing.
❑ Inspect tires for flat spots and wear.
❑ Check pneumatic tires for proper inflation.
Inspect/Adjust Monthly
❑ Make sure axle nut and wheel mounting nuts are secure on drive wheels.
❑ Loosen/tighten caster locknut if wheel wobbles noticeably or binds to a stop.
❑ Make sure wheel locks DO NOT interfere with tires when rolling.
❑ Make sure wheel lock pivot point are free of wear and looseness.
❑ Inspect seat positioning strap for any signs of wear. Ensure buckle latches. Verify
hardware that attaches strap to frame is secure and undamaged. Replace if necessary.
Inspect/Adjust Periodically
❑ Make sure wheelchair rolls straight (no excessive drag or pull to one side).
❑ Inspect all fasteners.
❑ Make sure clothing guards are secure.
❑ Make sure arms are secure but easy to release and adjustment levers engage properly.
❑ Make sure adjustable height arms operate and lock securely.
❑ Make sure upholstery has no rips.
❑ Make sure armrest pad sits flush against arm tube.
❑ Inspect wheel/fork assembly for proper tension by spinning caster; caster should come
to a gradual stop.
❑ Make sure wheel locks are easy to engage.
Part No 1134791
43
3G Storm Series® Wheelchairs
SECTION 4—SAFETY INSPECTION/TROUBLESHOOTING
❑ Check power center mount front riggings for worn/frayed belts and/or loose fasteners.
If found, replace these items.
❑ Check that all labels are present and legible. Replace if necessary.
❑ Inspect electrical components for signs of corrosion. Replace if corroded or damaged.
Inspect/Adjust Every 18 Months
❑ Replace motor brushes and gearbox coupling (4 pole).
Additional Requirements for Wheelchairs with Powered Seating
Systems
Inspect/Adjust Initially
❑ Make sure all electrical connections are secure.
❑ Check that cables are routed and secured properly to ensure that cables DO NOT
become entangled and damaged during normal operation of seating system.
❑ Check limit switch position.
❑ Make sure drive lock-out operates properly.
❑ Make sure tilt operates smoothly and properly.
❑ Make sure tilt mechanism and tilt tracks are clean.
❑ Make sure recline operates smoothly and properly (2G Tarsys Only).
❑ Make sure elevate operates smoothly and properly (Elevating Seat Only).
❑ Make sure elevate systems drive with reduced speed when seat is in elevated position
(Elevating Seat Only).
❑ Check that spreader bar mounting fasteners are tight (2G Tarsys Only).
❑ Check that back cane mounting fasteners and back mounting fasteners are tight (2G
Tarsys Only).
Inspect/Adjust Weekly
❑ Make sure all electrical connections are secure.
❑ Check that cables are routed and secured properly to ensure that cables DO NOT
become entangled and damaged during normal operation of seating system.
Inspect/Adjust Monthly
❑ Make sure drive lock-out operates properly.
❑ Make sure tilt operates smoothly and properly.
❑ Make sure recline operates smoothly and properly (2G Tarsys Only).
❑ Make sure elevate operates smoothly and properly (Elevating Seat Only).
❑ Make sure elevate systems drive with reduced speed when seat is in elevated position
(Elevating Seat Only).
3G Storm Series® Wheelchairs
44
Part No 1134791
SECTION 4—SAFETY INSPECTION/TROUBLESHOOTING
❑ Check that spreader bar mounting fasteners are tight (2G Tarsys Only).
❑ Check that back cane mounting fasteners and back mounting fasteners are tight (2G
Tarsys Only).
Inspect/Adjust Periodically
❑ Check that spreader bar mounting fasteners are tight (2G Tarsys Only).
❑ Make sure tilt mechanism and tilt tracks are clean.
❑ Check limit switch position.
❑ Check that back cane mounting fasteners and back mounting fasteners are tight (2G
Tarsys Only).
Part No 1134791
45
3G Storm Series® Wheelchairs
SECTION 4—SAFETY INSPECTION/TROUBLESHOOTING
X
X
X
X
X
WHEELCHAIR 3
WHEELS
CASTERS
FLUTTER
X
LOOSENESS
IN WHEELCHAIR
SLUGGISH
TURN/
PERFORMANCE
X
SQUEAKS AND
RATTLES
WHEELCHAIR VEERS
LEFT/RIGHT
Troubleshooting - Mechanical
SOLUTIONS
X
X
If pneumatic, check tires for correct and equal pressure.
X
Check for loose stem nuts/bolts.
X
Check that casters contact ground at the same time.
Troubleshooting - Electrical
NOTE: For additional troubleshooting information and explanation of error codes, refer to the
individual Electronics Manual supplied with each wheelchair.
All Wheelchairs
SYMPTOM
Batteries draw excessive current
when charging.
Battery indicator flashes the charge
level is low— immediately after
recharge.
Battery indicator flashes the charge
level is low—too soon after being
recharged.
PROBABLE CAUSE
SOLUTIONS
Battery failure.
Check batteries for shorted cell.
Replace if necessary (Refer to Replacing
Batteries on page 102).
Electrical malfunction.
Contact Dealer/Invacare for Service.
Battery failure.
Check batteries for shorted cell.
Replace if necessary (Refer to Replacing
Batteries on page 102).
Malfunctioning battery charger.
Contact Dealer/Invacare for Service.
Electrical malfunction.
Poor connections between charger/
wheelchair. Contact Dealer/Invacare.
Batteries not charged.
Have charger checked.
Weak batteries.
Replace batteries if necessary.
Contact Dealer/Invacare for Service.
Motor “chatters” or runs irregular.
Electrical malfunction.
Contact Dealer/Invacare for Service.
Only one drive wheel turns.
Electrical malfunction.
Contact Dealer/Invacare for Service.
One motor lock is disengaged.
Engage motor lock (Refer to Disengaging/Engaging Motor Lock Levers on
page 110).
3G Storm Series® Wheelchairs
46
Part No 1134791
SECTION 4—SAFETY INSPECTION/TROUBLESHOOTING
SYMPTOM
PROBABLE CAUSE
SOLUTIONS
Damaged motor coupling.
Contact Dealer/Invacare for Service.
Electrical malfunction.
Contact Dealer/Invacare for Service.
Controller programmed
improperly.
Reprogram controller. (Refer to
electronics manual supplied with wheelchair).
Wheelchair does not respond to
commands.
Poor battery terminal
connection.
Clean terminals (Refer to Cleaning Battery Terminals on page 103).
Power indicator OFF—even after
recharging.
Electrical malfunction.
Contact Dealer/Invacare for Service.
Joystick erratic or does not respond
as desired.
Wheelchairs with Powered Seating Systems
SYMPTOM
PROBABLE CAUSE
SOLUTIONS
Wheelchair Power ON
but does not drive
System tilted, reclined or
elevated beyond drive
lock-out angle (20°).
Return to neutral position (upright and
completely lowered). Refer to Operating
Powered Seating Systems on page 52.
Contact Invacare/Dealer for service if this does not solve
the problem.
Seating system not
functioning or working
intermittently.
Low batteries.
Charge batteries.
Faulty electrical
connection.
Check all connections.
Blown fuse.
Have wiring harness replaced by a qualified technician.
Seat has been driven
under a heavy load for an
extended period of time.
Allow time for the electronics to cool down (Light Duty
Use).
Programmer does not
work or gives
“communication error”
System tilted, reclined or
elevated beyond drive
lock-out angle (20°).
Return to neutral position (upright and
completely lowered). Refer to Operating
Powered Seating Systems on page 52.
Contact Invacare/Dealer for service if this does not solve
the problem.
Wheelchair drives at
reduced speed.
Seating system is
elevated.
Return joystick to neutral position and completely lower
the seat.
Part No 1134791
47
3G Storm Series® Wheelchairs
SECTION 4—SAFETY INSPECTION/TROUBLESHOOTING
Checking Battery Charge Level
The following “Do’s” and “Don’ts” are provided for your convenience and safety.
DON’T
DO
Don’t perform any installation or maintenance
without first reading this manual.
Read and understand this manual and any service information that accompanies a battery and charger before operating the wheelchair.
Don’t perform installation or maintenance of batteries in an area that could be damaged by battery spills.
Move the wheelchair to a work area before cleaning terminals, or opening battery box.
Don’t make it a habit to discharge batteries to
the lowest level.
Recharge as frequently as possible to maintain a high charge
level and extend battery life.
Don’t use randomly chosen batteries or chargers.
Follow recommendations in this manual when selecting a
battery or charger.
Don’t put new batteries into service before
charging.
Fully charge a new battery before using.
Don’t tip or tilt batteries.
Use a carrying strap to remove, move or install a battery.
Don’t tap on clamps and terminals with tools.
Push battery clamps on the terminals. Spread clamps wider if
necessary.
Don’t mismatch your battery and chargers.
Use ONLY a GEL charger for a GEL battery.
3G Storm Series® Wheelchairs
48
Part No 1134791
SECTION 5—WHEELCHAIR OPERATION
SECTION 5—WHEELCHAIR
OPERATION
WARNING
After ANY adjustments, repair or service and BEFORE use, make sure that all
attaching hardware is tightened securely - otherwise injury or damage may result.
Set-up of the Electronic Control Unit is to be performed only by a qualified technician. The final adjustments of the controller may affect other activities of the wheelchair. Damage to the equipment could occur under these circumstances.
Operating the Wheelchair
NOTE: For this procedure, refer to FIGURE 5.1.
Turning the Power On/Off
1. To turn the power on, move the on/off toggle switch up to the On position.
NOTE: After turning power on, all indicators will light briefly and the display gauge will indicate
one of the following:
•
The Current Battery Charge - Information gauge shows all LED’s lit or partial LED’s lit.
Refer to table on previous page.
•
Out of Neutral at Power Up - Information Gauge shows all LED’s flashing slowly. This
occurs when the power is turned on when the joystick is out of neutral. This feature
prevents sudden and unexpected movements of the power wheelchair.
2. To turn the power OFF, move the on/off toggle switch down to the OFF position.
MKIV-A Joystick
To Move Left
To Move
Backward
Speed
Control
MKIV-A+ Joystick
To Move
Forward
To Move Left
To Move Right
On/Off Drive Select Toggle Switch
MKIV-RII Joystick
Joystick
To Move
Backward
Joystick
To Move
Forward
To Move Right
On/Off Drive Select Toggle Switch
To Move Left
To Move Forward
Joystick
To Move Backward
To Move Right
Speed Control Knob
On/Off Toggle Switch
FIGURE 5.1 Operating the Wheelchair
Part No 1134791
49
3G Storm Series® Wheelchairs
SECTION 5—WHEELCHAIR OPERATION
Using the Joystick to Drive the Wheelchair
The joystick is located at the front of the joystick housing and provides smooth control of
speed and direction. It is equipped with 360 degrees of mobility for ease of operation. The
joystick is spring-loaded, and automatically returns to the upright (neutral) position
when released. Pushing the joystick in a given direction causes the wheelchair to move in
that direction.
The joystick has proportional drive control, meaning that the further it is pushed from the
upright (neutral) position, the faster the wheelchair moves. The maximum speed,
however, is limited by the setting of the speed-control knob.
To slow the wheelchair to a stop, simply release the joystick. The wheelchair has
automatic speed and direction compensation to minimize corrections.
When first learning to drive, select a slow speed and try to drive the wheelchair as slowly
as possible by pushing the joystick slightly forward. This exercise will help you learn to
utilize the full potential of the proportional control and allow you to start and stop
smoothly.
To drive the wheelchair, perform the following steps:
1. Perform one of the following:
• MKIV-A and MKIV-RII Joysticks - Adjust speed control knob to the appropriate
setting.
• MKIV-A+ Joysticks - Select the desired drive program.
2. Turn the power on. Refer to Turning the Power On/Off on page 49.
3. Maneuver the joystick in the following manner:
MOVEMENT
ACTION
Forward
Push forward on the joystick.
Reverse
Pull back on the joystick.
Turn Left
Move the joystick right.
Turn Right
Move the joystick left.
Stop
Release the joystick and the wheelchair will quickly slow down.
NOTE: For specific information about the joystick installed on the wheelchair, refer to one of these
procedures:
• MKIV-A Joystick Switches and Indicators on page 58.
• MKIV-A+ Joystick Switches and Indicators on page 61.
• MKIV-RII Joystick Switches and Indicators on page 63.
3G Storm Series® Wheelchairs
50
Part No 1134791
SECTION 5—WHEELCHAIR OPERATION
A Note About Drive Lock-Out
WARNING
NEVER operate the wheelchair or elevate/lower the seat while the back is in any
tilted/reclined/back angle position over 20° relative to the vertical position. If the
drive lock-out does not stop the wheelchair from operating or the seat from
elevating/lowering in a tilt/recline/back angle position over 20° relative to the
vertical position, DO NOT operate the wheelchair or elevate/lower the seat. DO
NOT attempt to adjust the drive lock-out. Have the wheelchair serviced by a
qualified technician.
The wheelchair user MUST have a clear line of sight to drive safely. On initial wheelchair delivery and after adjusting the back angle, drive lock-out switch, tilt system or
recline system, tilt and recline the seat back to the farthest driving position immediately before drive lock-out engages and ensure there is a clear line of sight present
in which to drive the wheelchair. If a clear line of sight is not present, have the back
angle repositioned or readjust the lockout angle such that safe driving with a clear
line of sight is achieved. Otherwise injury or damage may occur.
The LED on the single function toggle switch will light when the drive lock-out feature
has been activated. Drive lock-out is a feature designed to prevent the wheelchair from
being driven after the seating system has been tilted or reclined beyond 20°* relative to
the vertical position. The back can be positioned at a 10° relative offset to the seat base,
thereby resulting in a back angle potential of 30° before which the drive lock-out is
activated. This may affect the wheelchair user’s line of sight while driving. Make sure the
wheelchair user can see properly to ensure safe driving.
*NOTE: 20° back angle can be any combination of recline, tilt, back angle and/or surface angle.
NOTE: Refer to Typical Product Parameters for 2G Tarsys on page 23 or Elevating Seat/Power
Tilt Only on page 24 for tilt and/or recline angle ranges.
Part No 1134791
51
3G Storm Series® Wheelchairs
SECTION 5—WHEELCHAIR OPERATION
Operating Powered Seating Systems
GENERAL WARNINGS
Refer to A Note About Drive Lock-Out on page 51 BEFORE performing this
procedure.
Pinch points may occur when returning the seat from any tilted position to the full
upright position or when lowering the elevating seat. Make sure the hands and body
of both the occupant and attendants/bystanders are clear of all pinch points before
returning the seat to the full upright position or lowering the elevating seat.
NEVER operate the wheelchair or elevate/lower the seat while the back is in any
tilted/reclined/back angle position over 20° relative to the vertical position. If the
drive lock-out does not stop the wheelchair from operating or the seat from
elevating/lowering in a tilt/recline/back angle position over 20° relative to the
vertical position, DO NOT operate the wheelchair or elevate/lower the seat. DO
NOT attempt to adjust the drive lock-out. Have the wheelchair serviced by a
qualified technician.
DO NOT operate the seating system while on an incline.
DO NOT operate seating system while the wheelchair is moving.
DO NOT operate the tilt or elevate function near or under a fixed object such as a
table or desk.
ELEVATING SEAT WARNING
The elevating seat option is equipped with a speed reduction safety mechanism.
While the seat is in an elevated position, the safety feature slows the speed of the
wheelchair to 20% of its maximum speed (not to exceed the programmed speed). If
the wheelchair operates at maximum speed while in an elevated position, DO NOT
operate the wheelchair. Have the wheelchair serviced immediately by a qualified
technician.
2G TARSYS CAUTION
DO NOT operate the recline function of the seating system if one or both of the
mechanical elevating legrest push rods is bent. Damage to the seating system can
occur.
3G Storm Series® Wheelchairs
52
Part No 1134791
SECTION 5—WHEELCHAIR OPERATION
ACTUATOR CONTROL WARNING
Use only the actuator controls listed in the following chart to activate the tilt/
recline/elevate functions. DO NOT USE any other actuator controls. Such devices
may result in excess heating and cause damage to the actuator and associated
wiring and could cause a fire, death, physical injury or property damage. If such
devices are used, Invacare shall not be liable and the limited warranty is void.
SEATING SYSTEM
ACTUATOR CONTROL
TRSS
TRCM
TAC
SAC
ESC
2G TARSYS - TILT ONLY
Y
Y
Y
N
N
2G TARSYS - TILT ONLY WITH POWER
LEGS
N
Y
N
N
N
2G TARSYS - RECLINE ONLY
N
Y
Y
N
N
2G TARSYS - RECLINE ONLY WITH
POWER LEGS
N
Y
N
N
N
2G TARSYS - TILT/RECLINE
N
Y
N
N
N
POWER TILT ONLY
Y
Y
Y
N
N
ELEVATING SEAT ONLY
N
N
Y
N
Y
POWER TILT/ELEVATING SEAT
N
N
Y
N
N
NOTE: This procedure applies to wheelchairs with 2G Tarsys, Elevating Seat and/or Power Tilt
seating systems ONLY.
Single Function Toggle Switch
NOTE: For this procedure, refer to FIGURE 5.2.
1. Make sure the wheelchair is on a level surface.
2. Refer to the chart for the operation of the seating system using a single function toggle
switch mounted on the right side of the wheelchair.
3. Release single function toggle switch to neutral position.
SINGLE FUNCTION TOGGLE SWITCH
SEATING SYSTEM
2G TARSYS - TILT ONLY
ELEVATING SEAT ONLY**
POWER TILT ONLY
FORWARD
BACK
Decrease Tilt Angle
Increase Tilt Angle
Raise the Seat
Lower the Seat
Decrease Tilt Angle
Increase Tilt Angle
**NOTE: The seat MUST be tilted/reclined so the back angle is less than 20° relative to the
vertical position before elevating/lowering the seat.
Part No 1134791
53
3G Storm Series® Wheelchairs
SECTION 5—WHEELCHAIR OPERATION
Single Function
Toggle Switch
LED
FIGURE 5.2 Single Function Toggle Switch
Optional Four-Way Toggle Switch
NOTE: For this procedure, refer to FIGURE 5.3.
NOTE: This procedure applies to wheelchairs with Elevating Seat, Power Tilt and 2G Tarsys
systems only.
1. Make sure the wheelchair is on a level surface.
2. Refer to the charts for the operation of the seating system using a four-way toggle
switch:
NOTE: The charts show the factory programmed settings only. Switch assignments can be
reprogrammed.
Seating Systems with the TAC Actuator Control
SEATING SYSTEM
2G Tarsys - Tilt Only
2G Tarsys - Recline Only
Elevate Only**
Power Tilt Only
Tilt/Elevate**
FOUR-WAY TOGGLE SWITCH
FORWARD
REAR
LEFT
RIGHT
Increase Tilt
Angle
Decrease the Tilt
Angle
N/A
N/A
Increase the
Recline Angle/
Back Height
(VSR) Up
Decrease the
Recline Angle/
Back Height
(VSR) Down
N/A
N/A
Raise the Seat
Lower the Seat
N/A
N/A
Increase Tilt
Angle
Decrease the Tilt
Angle
N/A
N/A
Increase/
Decrease the Tilt
Angle*
Raise/Lower the
Seat*
N/A
N/A
NOTE: If the wheelchair is equipped with switch options, scan to the correct ECU or Auxiliary
Mode and activate the control device in the corresponding "forward" direction to operate the tilt
function. Refer to the Electronics Service Manuals listed in Reference Documents on page 2 for
complete switch option operating instructions.
*NOTE: The four-way toggle switch will alternate functions (increase tilt angle, decrease tilt
angle) after it has been released to the neutral position for a minimum of five seconds. Refer to
the Electronics Service Manual listed in Reference Documents on page 2 for complete four-way
toggle switch operating instructions.
**NOTE: The seat MUST be tilted/reclined so the back angle is less than 20° relative to the
vertical position before elevating/lowering the seat.
3G Storm Series® Wheelchairs
54
Part No 1134791
SECTION 5—WHEELCHAIR OPERATION
Seating Systems with the TAC Actuator Control
SEATING SYSTEM
Power Legrests Only
FOUR-WAY TOGGLE SWITCH
FORWARD
REAR
LEFT
RIGHT
Raise/Lower
Power Legrests*
N/A
N/A
N/A
NOTE: If the wheelchair is equipped with switch options, scan to the correct ECU or Auxiliary
Mode and activate the control device in the corresponding "forward" direction to operate the tilt
function. Refer to the Electronics Service Manuals listed in Reference Documents on page 2 for
complete switch option operating instructions.
*NOTE: The four-way toggle switch will alternate functions (increase tilt angle, decrease tilt
angle) after it has been released to the neutral position for a minimum of five seconds. Refer to
the Electronics Service Manual listed in Reference Documents on page 2 for complete four-way
toggle switch operating instructions.
**NOTE: The seat MUST be tilted/reclined so the back angle is less than 20° relative to the
vertical position before elevating/lowering the seat.
Seating Systems with the TRCM Actuator Control
SEATING SYSTEM
2G Tarsys - Tilt Only
FOUR-WAY TOGGLE SWITCH
FORWARD
REAR
LEFT
RIGHT
Increase/
Decrease the Tilt
Angle*
N/A
N/A
Raise/Lower
Power Legrests*
N/A
Increase/
Decrease the
Recline Angle*
Increase/Decrease the
Back Height (VSR)*
Raise/Lower
Power Legrests*
Increase/
Decrease the Tilt
Angle*
Increase/
Decrease the
Recline Angle*
Increase/Decrease the
Back Height (VSR)*
Raise/Lower
Power Legrests*
N/A
Elevate/Lower
the Seat*
N/A
Raise/Lower
Power Legrests*
Increase/
Decrease the Tilt
Angle*
N/A
N/A
Raise/Lower
Power Legrests*
2G Tarsys - Recline Only
2G Tarsys - Tilt/Recline
Elevate Only**
Power Tilt Only
NOTE: If the wheelchair is equipped with switch options, scan to the correct ECU or Auxiliary
Mode and activate the control device in the corresponding "forward" direction to operate the tilt
function. Refer to the Electronics Service Manuals listed in Reference Documents on page 2 for
complete switch option operating instructions.
*NOTE: The four-way toggle switch will alternate functions (increase tilt angle, decrease tilt
angle) after it has been released to the neutral position for a minimum of five seconds. Refer to
the Electronics Service Manual listed in Reference Documents on page 2 for complete four-way
toggle switch operating instructions.
**NOTE: The seat MUST be tilted/reclined so the back angle is less than 20° relative to the
vertical position before elevating/lowering the seat.
Part No 1134791
55
3G Storm Series® Wheelchairs
SECTION 5—WHEELCHAIR OPERATION
Seating Systems with the TRCM Actuator Control
FOUR-WAY TOGGLE SWITCH
SEATING SYSTEM
Tilt/Elevate**
FORWARD
REAR
LEFT
RIGHT
Increase/
Decrease the Tilt
Angle*
Elevate/Lower
the Seat*
N/A
Raise/Lower
Power Legrests*
NOTE: If the wheelchair is equipped with switch options, scan to the correct ECU or Auxiliary
Mode and activate the control device in the corresponding "forward" direction to operate the tilt
function. Refer to the Electronics Service Manuals listed in Reference Documents on page 2 for
complete switch option operating instructions.
*NOTE: The four-way toggle switch will alternate functions (increase tilt angle, decrease tilt
angle) after it has been released to the neutral position for a minimum of five seconds. Refer to
the Electronics Service Manual listed in Reference Documents on page 2 for complete four-way
toggle switch operating instructions.
**NOTE: The seat MUST be tilted/reclined so the back angle is less than 20° relative to the
vertical position before elevating/lowering the seat.
3. Release four-way toggle switch to neutral position.
Four-Way Toggle Switch
Left
Rear
LED
Forward
Right
FIGURE 5.3 Optional Four-Way Toggle Switch
Vernier Shear Reduction (2G Tarsys Systems Only)
NOTE: For this procedure, refer to FIGURE 5.3.
About Vernier Shear Reduction
WARNING
The relationship between Vernier Shear Reduction (VSR) and the recline function
of the seating system is dependent on the needs of the user and MUST be set and
adjusted by a trained qualified technician.
Have the relationship between Vernier Shear Reduction (VSR) and the recline function of the seating system periodically inspected to maintain proper setting for the
user. Otherwise injury to the user may result.
3G Storm Series® Wheelchairs
56
Part No 1134791
SECTION 5—WHEELCHAIR OPERATION
Vernier Shear Reduction (VSR) moves the back of the seating system along with the
recline function. VSR reduces shear between the user and the seating system as the
seating system reclines.
NOTE: VSR is electronically linked to the recline function of the seating system and operating the
recline function automatically activates VSR.
VSR function can also be used independently from the recline function to allow for a
change in seating position or access to additional seating system options. Refer to Using
Vernier Shear Reduction (VSR) Independently of Recline Function on page 57.
Using Vernier Shear Reduction (VSR) Independently of Recline Function
WARNING
The back of the seating system MUST be returned to original position before the
degree of recline is changed (increased or decreased). Otherwise, the relationship
between VSR and the recline function of the seating system will change, possibly
resulting in injury to the user.
1. Make sure the wheelchair is on a level surface.
2. Note the current position of the back.
3. Push four-way toggle switch toward the left of the wheelchair until the desired VSR is
achieved.
NOTE: Left and right are determined by standing behind the wheelchair.
NOTE: The four-way toggle switch will alternate functions (move VSR actuator up, move VSR
actuator down) after it has been released to the neutral position for a minimum of one second.
NOTE: If the wheelchair is equipped with switch options, scan to the correct ECU or Auxiliary
Mode and activate the control device in the corresponding "left" direction to operate the tilt
function. Refer to the Electronics Service Manual listed in Reference Documents on page 2 for
complete switch option operating instructions.
4. Return the back to the position noted in STEP 2 before changing the degree of recline.
Part No 1134791
57
3G Storm Series® Wheelchairs
SECTION 5—WHEELCHAIR OPERATION
MKIV-A Joystick Switches and Indicators
NOTE: For this procedure, refer to FIGURE 5.4.
Drive Select/On/Off Switch
Battery Gauge
Display
A three position toggle switch is located at
the back of the joystick housing. The Drive
Select position is momentary.
Joystick
Speed
Control
This switch allows the operator to select
the type of operation or performance
which best suits a particular control need
or situation. The Drive 1 program uses
performance values which are
independent of those used for the Drive 2
or 3 or 4 program. As an example, an
operator may have a control need for
spasticity in the morning and a very
different need in the afternoon. Drive 1 can
be programmed for higher speeds and
quicker response while Drive 2 can be
programmed for slower speeds and less
responsiveness or vise versa. The other
two drive programs could be indoor and
outdoor versions of Drive 1 and Drive 2.
To Controller
Mode Indicator
Drive 1
Drive 2
Drive
Select
Level Indicator
Drive 4
Drive 3
Power
On
Off
FIGURE 5.4 MKIV-A Joystick Switches and
Indicators
Selecting the Drive Mode
1. To select Drive 1 mode, move the toggle Up and release. Drive 1 indicator becomes
lighted.
2. To select Drive 2 mode, move the toggle Up and release again. Drive 2 indicator
becomes lighted.
3. To select Drive 3 mode, move the toggle Up and release again. Drive 3 indicator
becomes lighted.
4. To select Drive 4 mode, move the toggle Up and release again. Drive 4 indicator
becomes lighted.
5. Move the toggle Up and release one more time to select Drive 1.
Speed Control
Rotary knob is located at the back of the joystick housing. Turning the knob clockwise
increases the maximum speed of the wheelchair.
Joystick
Proportional drive control located at the front of the control provides smooth control of
speed and direction.
3G Storm Series® Wheelchairs
58
Part No 1134791
SECTION 5—WHEELCHAIR OPERATION
Battery Gauge Display (BGD)
Located at the rear of the control provides information on the remaining charge in the
batteries. At full charge, the two left segments and the farthest right segment of the bar
graph are lit. As the battery becomes discharged, the farthest right segment will
progressively move to the left until only the last two bars are lit; at this level the last two
bars will start to flash on and off to indicate the user should charge the batteries as soon
as possible.
The BGD also serves as a system diagnostic device when a fault is detected by the control
module. A specific number of bars (up to eight bars) will start to flash on and off to
indicate the type of fault detected. A chart of the diagnostic indications is given in the
Diagnostic Code Section of the electronics manual, part number 1043576.
Mode and Level Indicators
Two LED indicators are located on either side of the battery bar graph display.
The Mode light is On (operational) with no options attached and level indicators are only
operational when the optional ECU/Recliner Control or optional joysticks are utilized or
the Reset switch is activated. These indicators provide information of the status of the
control system and the environmental controls. The GREEN Mode indicator shows one
of five control states.
MODE (GREEN LED)
INDICATION
Drive
Attendant
E.C.U. or Recliner Control
Stand-by
Remote Drive Selection
Continuously on
Flashing (twice/second)
Off
Flashing rapidly (four/second)
Slow Flashing (once/second)
The RED Level indicator provides information on the control level within each mode. Its
operation changes with each mode:
MODE
LEVEL INDICATOR
Latched
Off
N/A
Proportional
Off
N/A
Attendant
Off
N/A
Momentary
Off
Slowest speed has been selected.
Flashing
Medium speed has been selected.
Rapid Flashing
Fastest speed has been selected.
Off
ECU 1 and/or ECU 3 are active.
On
ECU 2 and/or ECU 4 are active.
ECU
Flashing
RIM
Part No 1134791
MEANING
Recliner control
Off
Wheelchair moves forward when forward command is given.
On
Wheelchair moves in reverse when forward command is given.
59
3G Storm Series® Wheelchairs
SECTION 5—WHEELCHAIR OPERATION
Emergency Stop Reset Switch
NOTE: For this procedure, refer to FIGURE 5.5.
The emergency stop switch is used to stop
the wheelchair and to select the operating
mode for the wheelchair. The switch reset
input connector is located on the control
module next to the joystick input
connector. An emergency stop switch is
needed whenever any of the following
operating modes are programmed.
Emergency
Stop Switch
FIGURE 5.5 Emergency Stop Reset Switch
Environmental Controls (E.C.U.) including:
• Recliner Controls
• 3 Speed Mode in Momentary
• Latched Modes
• Pneumatic Control
• Stand-by Mode
• RIM Control
• Remote Drive Selection Mode
If any of the above modes are selected, the control will require activation of the switch
immediately after the power switch is turned on in order to enter the drive mode. The
GREEN mode indicator will be flashing rapidly. A second after the switch is released, the
GREEN LED will light continuously to indicate the drive mode is active.
Emergency Stop Reset Input Connector
The input connector accepts a 1/8-inch diameter Phono plug. The Emergency Stop switch
must be an open contact for normal driving and a closed contact to activate the
Emergency Stop function.
PIN
DESIGNATION
TIP
RING
RESET (EMERGENCY STOP)
COMMON (B–)
3G Storm Series® Wheelchairs
60
Part No 1134791
SECTION 5—WHEELCHAIR OPERATION
MKIV-A+ Joystick Switches and Indicators
NOTE: For this procedure, refer to FIGURE 5.6 and FIGURE 5.7.
Drive Select/On/Off Switch
A three position toggle switch is located at the back of the joystick housing. The Drive
Select position is momentary.
This switch allows the operator to select the type of operation or performance which best
suits a particular control need or situation. The Drive 1 program uses performance values
which are independent of those used for the Drive 2 or 3 or 4 program. As an example, an
operator may have a control need for spasticity in the morning and a very different need
in the afternoon. Drive 1 can be programmed for higher speeds and quicker response
while Drive 2 can be programmed for slower speeds and less responsiveness or vise
versa. The other two drive programs could be indoor and outdoor versions of DRIVE 1
and Drive 2.
Selecting the Drive Mode
Joystick
1. Move the toggle Up and release. Drive
1 will appear on the LCD.
LCD
Program
Toggle
Switch
2. Move the toggle Up and release again.
Drive 2 will appear on the LCD.
3. Move the toggle Up and release again.
Drive 3 will appear on the LCD.
4. Move the toggle Up and release again.
Drive 4 will appear on the LCD.
To
Controller
On/Off Drive Select
Toggle Switch
5. Move the toggle Up and release one
more time to select Drive 1.
FIGURE 5.6 MKIV-A+ Joystick Switches
and Indicators - Drive Select/On/Off Switch
Program Toggle Switch
The program toggle switch is located on the left side at the rear of the joystick housing.
This switch is used to program the wheelchair. Refer to the electronics manual, part
number 1043576, for more information about programming the wheelchair.
Joystick
Proportional drive control knob located at the front of the joystick housing provides
smooth control of speed and direction.
LCD Display
Located in front of the joystick, it provides information on the status of the wheelchair
through a two line by twelve character length back lighted display. The LCD display is
easily readable in both bright sunlight and complete darkness.
Part No 1134791
61
3G Storm Series® Wheelchairs
SECTION 5—WHEELCHAIR OPERATION
During normal operation the active drive is displayed on the left half of the first line. The
left half of the second line is the Battery Discharge Indicator (BDI). It provides information
on the remaining charge in the batteries. At full charge, solid blocks fill in all ten segments
between E (Empty) and F (Full). As the battery becomes discharged, the farthest right
segments will progressively disappear a half bar at a time until no segments appear
between E and F. At this level the word RECHARGE will appear on the second line to
indicate that the user should charge the batteries as soon as possible.
The right half of the display is the Information Center. The Information Center displays
current data on the wheelchair. FIGURE 5.7 shows the factory default display.
Speedometer
Current Wheelchair Speed - MPH/KMH
Trip Odometer
Distance traveled since the wheelchair was last powered ON - MI/KM
Odometer
Total Distance Traveled (Factory Default) - MI/KM
Trip Amp-Hour Meter
Battery Capacity consumed since the wheelchair was last powered ON - AH
Battery Volts
Current Battery Voltage - VOLT
Battery Current
Battery Current being used - AMP
Load Test Results
Current battery condition based on a load test - BATT
If a fault is detected, the cause of the fault will scroll across the second line of the display.
Active Drive
DRIVE
1
E oooooooooo F
Battery Discharge Indicator
FIGURE 5.7 MKIV-A+ Joystick Switches and Indicators - Emergency Stop Reset Input
Connector
Emergency Stop Reset Switch
The emergency stop switch is used to stop the wheelchair and to select the operating
mode for the wheelchair. The switch input connector is located on the control module
next to the joystick input connector. An emergency stop switch is needed whenever any
of the following operating modes are programmed:
• Environmental Controls (E.C.U.) including actuator controls
• 3 Speed Mode in Momentary
• Latched Modes
• Pneumatic Control
• Stand-by Mode
• RIM Control
• Remote Drive Selection Mode
3G Storm Series® Wheelchairs
62
Part No 1134791
SECTION 5—WHEELCHAIR OPERATION
• Information Center Display Selection (does not require Reset activation at power up)
If any of the above modes are selected, the control will require activation of the switch
immediately after the power switch is turned on in order to enter the drive mode. The
second line of the LCD will display - press Reset.
Emergency Stop Reset Input Connector
The input connector accepts a 1/8-inch diameter Phono plug. The Emergency Stop switch
must be an open contact for normal driving and a closed contact to activate the
Emergency Stop function.
PIN
DESIGNATION
TIP
RESET (EMERGENCY STOP)
RING
COMMON (B–)
MKIV-RII Joystick Switches and Indicators
NOTE: For this procedure, refer to FIGURE 5.8.
On/Off Switch
Two position toggle is located at the back of the joystick housing.
Speed Control
Rotary knob is located at the back of the joystick housing. Turning the knob clockwise
increases the maximum speed of the wheelchair.
Joystick
Proportional drive control located at the front of the joystick housing provides smooth
control of speed and direction.
Battery Discharge Indicator (BDI)
Located at the front of the joystick housing provides information on the remaining charge
in the batteries. At full charge, the BDI will be GREEN. As the battery becomes discharged,
the BDI will become YELLOW (Amber), then RED and finally the BDI will flash On and
Off Red. At this level, the user should charge the batteries as soon as possible.
The BDI will flash On and Off YELLOW to indicate a reduced speed or power output.
The BDI also serves as a system diagnostic device when a fault is detected by the control
module. A specific number of Green flashes will indicate the type of fault detected. A
chart of the diagnostic indications is given in the Diagnostic Code Section of the
Electronics manual, part number 1095272.
NOTE: When reading the Battery Discharge Indicator (BDI), the joystick MUST be in the Neutral
position for an accurate reading.
Part No 1134791
63
3G Storm Series® Wheelchairs
SECTION 5—WHEELCHAIR OPERATION
Multi Function Charger Port
Located at the front of the joystick housing provides easy access for charging the
wheelchair batteries. This port also serves as the Remote Programmer/AVS
Communication connection.
Front View
Horn
MultiFunction
Charger Port
Battery Discharge
Indicator
Rear View
On Switch Position
Speed Control
Off Switch Position
To Controller
FIGURE 5.8 MKIV-RII Joystick Switches and Indicators
3G Storm Series® Wheelchairs
64
Part No 1134791
SECTION 6—FRONT RIGGINGS
SECTION 6—FRONT RIGGINGS
WARNING
After ANY adjustments, repair or service and BEFORE use, make sure that all
attaching hardware is tightened securely - otherwise injury or damage may result.
For the following procedures, make sure the ON/OFF switch on the joystick is in the
OFF position.
Installing/Removing Footrests
70°/Taper Pin Style
NOTE: For this procedure, refer to FIGURE 6.1.
1. Turn the footrest to the side (open
footplate is perpendicular to
wheelchair).
Footrest
Release Lever
2. Install the hinge plates on the footrest
onto the hinge pins on the wheelchair
frame.
Hinge
Plate
Hinge
Pins
3. Push the footrest towards the inside of
the wheelchair until it locks into place.
NOTE: The footplate will be on the inside of the
wheelchair when locked in place.
Footrest
4. Repeat STEPS 1-3 for other footrest
assembly.
FIGURE 6.1 Installing/Removing Footrests 70°/Taper Pin Style
5. To remove the footrest, push the footrest release lever inward, rotate footrest outward.
6. Adjust footrest height if desired. Refer to Footrest Height Adjustment on page 66.
60°, 70°, MFX, Taper and 90°
NOTE: For this procedure, refer to FIGURE 6.2.
1. Turn the footrest to the side (open footplate is perpendicular to wheelchair itself).
2. Insert footrest mounting pin into mounting tube.
3. Push the footrest towards the inside of the wheelchair until it locks into place.
NOTE: The footplate will be on the inside of the wheelchair when locked in place.
4. Repeat STEPS 1- 3 for the other footrest assembly.
5. To remove the footrest, push the footrest release lever inward, rotate footrest outward.
6. Adjust footrest height if desired. Refer to Footrest Height Adjustment on page 66.
Part No 1134791
65
3G Storm Series® Wheelchairs
SECTION 6—FRONT RIGGINGS
Footrest
Mounting
Pin
Footrest
Release Lever
Mounting
Tube
Footplate
FIGURE 6.2 60°, 70°, MFX, Taper and 90°
Footrest Height Adjustment
60°, 70°, 70° MFX, 90°, PW93, PW93E, PW93ST
NOTE: For this procedure, refer to FIGURE 6.3.
1. Remove any accessories from the footrest(s).
2. Remove the footrest from the wheelchair. Refer to Installing/Removing Footrests on
page 65.
NOTE: Lay the footrest on a flat surface to
simplify this section.
Upper Footrest
Support
Mounting
Screw
Locknut
3. Remove the mounting screw, washers
and locknut that secure the lower
footrest to the footrest support.
Washer
Lower
Footrest
Assembly
4. Reposition the lower footrest to the
desired height.
Washer
5. Reinstall the mounting, washers and
locknut that secure the lower footrest to
the footrest support and tighten
securely.
90° Footrest
6. Repeat STEPS 1-5 for the opposite side
of the wheelchair footrest, if necessary.
Locknut
7. Reinstall the footrest(s) onto the
wheelchair. Refer to Installing/
Removing Footrests on page 65.
Mounting
Tube
8. Reinstall any accessories onto the
footrest(s).
3G Storm Series® Wheelchairs
Washer
Mounting
Screw
FIGURE 6.3 Footrest Height Adjustment 60°, 70°, 70° MFX, 90°, PW93, PW93E,
PW93ST
66
Part No 1134791
SECTION 6—FRONT RIGGINGS
60° MFX, 70° Taper
NOTE: For this procedure, refer to FIGURE 6.4.
1. Remove any accessories from the footrest(s).
2. Remove the footrest from the wheelchair. Refer to Footrest Height Adjustment on
page 66.
NOTE: Lay the assembly on a flat surface to simplify this section.
NOTE: Note the position of the spacers before
disassembly.
Coved Spacer
3. Remove the mounting screw and coved
spacer that secures the lower footrest
assembly.
Mounting Screw
4. Position the footrest assembly to the
desired height.
Heel Loop
Footrest
5. Secure lower footrest assembly with
FIGURE 6.4 Footrest Height Adjustment existing mounting screw and coved
60° MFX, 70° Taper
spacer. Securely tighten.
NOTE: Make sure spacers are positioned properly when reassembling so as not to damage the
frame mounting tubes.
6. Reinstall the footrest(s) onto the wheelchair. Refer to Installing/Removing Footrests on
page 65.
7. Reinstall any accessory onto the footrest(s).
PAS4A, 93M, P904A, and PAL4A
NOTE: For this procedure, refer to FIGURE 6.5.
1. Loosen, but DO NOT remove the lug bolt and locknut that secure the lower footrest
to the footrest support.
2. Reposition the lower footrest to the desired height.
3. Securely tighten the lug bolt and locknut that secure the lower footrest to the footrest
support.
4. Repeat STEPS 1-3 for the opposite side of the wheelchair footrest, if necessary.
93M Footrest
PAS4A, P904A, PAL4A Footrest
Footrest Support
Lug Bolt
Lower Footrest
Footrest
Support
Locknut
Lower
Footrest
Lug Bolt/Locknut
FIGURE 6.5 Footrest Height Adjustment - PAS4A, 93M, P904A, and PAL4A
Part No 1134791
67
3G Storm Series® Wheelchairs
SECTION 6—FRONT RIGGINGS
Adjusting/Replacing Telescoping Front Rigging Support
Wheelchairs without 2G Tarsys Systems
NOTE: For this procedure, refer to FIGURE 6.6.
1. Remove the two cap screws, spacers and threaded blocks securing the telescoping
front tube to the side rail.
2. Perform one of the following:
• Slide existing telescoping front rigging support to one of six depth positions.
• Remove existing telescoping front rigging.
3. Secure the telescoping front tube to the side rail at the desired depth with the existing
two cap screws, spacers and threaded blocks.
4. Repeat STEPS 1 to 3 on the opposite side, if desired.
Side Rail
Spacers
Cap Screws
Side Rail
Cap Screws
Threaded
Blocks
Telescoping
Front Tube
Spacers
FIGURE 6.6 Adjusting/Replacing Telescoping Front Rigging Support - Wheelchairs without
2G Tarsys Systems
3G Storm Series® Wheelchairs
68
Part No 1134791
SECTION 6—FRONT RIGGINGS
Wheelchairs with 2G Tarsys Seating Systems
NOTE: For this procedure, refer to FIGURE 6.7.
1. Remove the two mounting screws, spacers and locknuts that secure the telescoping
front rigging support to the seat frame.
2. Perform one of the following:
Seat Frame
• Slide existing telescoping front
rigging support to one of three
depth positions.
Mounting Screw
• Remove existing telescoping front
rigging.
Spacers
Locknut
3. Secure telescoping front rigging at
Telescoping Front Tube
desired depth with existing two
FIGURE 6.7 Adjusting/Replacing
mounting screws, spacers, and
Telescoping Front Rigging Support
locknuts. Securely tighten.
NOTE: The two telescoping front rigging supports can be positioned at different depths depending
on the need of the user.
Installing Adjustable Angle Flip-up Footplate Hinge
NOTE: For this procedure, refer to FIGURE 6.8.
1. Position footplate hinge on the footrest support tube at the desired height.
2. Position mounting screw, washers, spacer, and locknut on the footrest support as
shown in FIGURE 6.8.
3. Flip the footplate hinge to the Up position.
NOTE: The footplate hinge will fall to the Down position.
4. Tighten the mounting screw, washer, and locknut that secure the footplate hinge to the
footrest support until the footplate hinge remains in the Up position.
5. Check the up and down motion of the footplate hinge to make sure the user of the
wheelchair can operate the footplates easily.
NOTE: If footplate's motion is too tight, loosen
the mounting screw and locknut approximately
1/4-turn counter clockwise.
NOTE: If the footplate's motion is too loose,
tighten mounting screw and locknut
approximately 1/4-turn clockwise.
6. Adjust footplate. Refer to Installing
Adjustable Angle Flip-up Footplate
Hinge on page 69.
Footplate
Hinge
Locknut
Mounting Screw
Washers
Footrest Support
Spacer
FIGURE 6.8 Installing Adjustable Angle
Flip-up Footplate Hinge
Part No 1134791
69
3G Storm Series® Wheelchairs
SECTION 6—FRONT RIGGINGS
Installing/Adjusting Adjustable Angle Flip-Up Footplates
Installing Adjustable Angle Flip-up Footplates
NOTE: For this procedure, refer to FIGURE 6.9.
1. Slide the half clamp over the footplate hinge.
2. Loosely tighten the two flat screws that secure the footplate to the half clamp.
3. Adjust the footplates to the necessary angle and depth for the user. Refer to Installing/
Adjusting Adjustable Angle Flip-Up Footplates on page 70.
Adjusting Adjustable Angle Flip-up Footplates
Depth
NOTE: For this procedure, refer to FIGURE 6.9.
1. Remove the two flat screws, washers
and locknuts that secure articulating
footplate to the half clamp.
90° Footrest Support
Flat Screws
Articulating
Footplate
NOTE: Observe the angle of the articulating
footplate for reinstallation.
Footplate Hinge
Nylon
Adjustment
Screw
2. Move articulating footplate to one of
four mounting positions.
NOTE: If desired depth is still not obtained,
rotate the half clamp on the footplate hinge 180 .
o
Washers
3. Retighten the two flat screws, washers
and locknuts.
Locknuts
NOTE: The settings for positioning the
articulating footplates on the half-clamps may
vary for each footplate.
Half Clamp
Footplate Hinge
FIGURE 6.9 Adjusting Adjustable Angle
Flip-up Footplates - Depth
4. Refer to Angle on page 71 or Perpendicular and/or Inversion/Eversion Adjustment on
page 71.
3G Storm Series® Wheelchairs
70
Part No 1134791
SECTION 6—FRONT RIGGINGS
Angle
NOTE: For this procedure, refer to FIGURE 6.10.
1. Loosen, but DO NOT remove the two
flat screws, washer and locknuts that
secure the footplate to the footplate
hinge.
Footrest Support
Articulating Footplate
2. Position the articulating footplate to the
necessary angle to accommodate the
user.
Side View Of
Footplate and
Footrest
Support
FIGURE 6.10 Adjusting Adjustable Angle
Flip-up Footplates - Angle
3. Retighten the two flat screws, washers
and locknuts.
Perpendicular and/or Inversion/Eversion Adjustment
NOTE: For this procedure, refer to FIGURE 6.11.
NOTE: It is not necessary to remove the
footplate to perform this adjustment.
Footrest
Support
1. Insert a flathead screwdriver through
the half clamp on the articulating
footplate.
Front View Of
Footplate and
Footrest Support
Footplate
2. Slowly turn nylon adjustment screw in
or out until articulating footplate is
perpendicular to the footrest assembly
or the desired inversion or eversion is
obtained.
FIGURE 6.11 Adjusting Adjustable Angle
Flip-up Footplates - Perpendicular and/or
Inversion/Eversion Adjustment
Replacing Composite/Articulating Footplate Heel Loop
NOTE: For this procedure, refer to FIGURE 6.12.
Disassembly
Composite
1. Remove the mounting screw and spacer that secures the lower half of the footrest to
the swingaway footrest assembly.
2. Remove the lower footrest assembly.
3. Remove the mounting screw and locknut that secure the heel loop to the footrest.
4. Slide heel strap over cane of footrest assembly.
Articulating
1. Remove the two mounting screws that secure the heel loop to the articulating
footplate.
Part No 1134791
71
3G Storm Series® Wheelchairs
SECTION 6—FRONT RIGGINGS
Reassembly
1. Replace heel strap/loop.
2. Reverse preceding steps to reassemble.
NOTE: When securing heel loop to the footrest assembly, tighten mounting screw until the spacer
is secure.
Composite
Mounting
Screw
Spacer
Composite
Footplate
Locknut
Articulating
Mounting Screw
Heel Loop
Articulating
Footplate
FIGURE 6.12 Replacing Composite/Articulating Footplate Heel Loop
Installing/Removing Elevating Legrests
NOTE: For this procedure, refer to FIGURE 6.13.
Installing
1. Turn legrest to side (open footplate is perpendicular to wheelchair) and position
mounting holes in the legrest hinge plates with hinge pins on the wheelchair frame.
2. Install the legrest hinge plates onto the hinge pins on the wheelchair frame.
3. Rotate legrest toward the inside of the wheelchair until it locks in place.
NOTE: The footplate will be on the inside of the wheelchair when locked in place.
4. Repeat STEPS 1-3 for the opposite legrest.
5. After seated in wheelchair, adjust footplate to correct height by loosening nut and
sliding the lower footrest assembly up or down until desired height is achieved.
Removing
1. Push the legrest release handle toward the inside of the wheelchair (facing the front of
the wheelchair) and swing the legrest to the outside of the wheelchair.
2. Lift up on the legrest and remove from the wheelchair.
3. Repeat STEPS 1- 2 for opposite side of wheelchair.
3G Storm Series® Wheelchairs
72
Part No 1134791
SECTION 6—FRONT RIGGINGS
Legrest Release Handle
Calfpad
Hinge Pins
Hinge Plates
Legrest
Bolt/Nut
FIGURE 6.13 Installing/Removing Elevating Legrests
Raising/Lowering Elevating Legrests and/or Adjusting
Calfpads
NOTE: For this procedure, refer to FIGURE 6.14.
Raising/Lowering Elevating Legrests
1. Perform one of the following:
• Raising - Pull back on the release lever until the leg is at the desired height.
• Lowering - Support leg with one hand and push release lever downward with
other hand.
Adjusting Calfpads
1. Turn the calfpad towards the outside of the wheelchair.
2. Slide the calfpad up or down until the desired position is obtained.
NOTE: If one of the top two calfpad adjustment positions is being used, the legrest will need to be
raised to avoid interference with the front stabilizers while going over obstacles or going up and
down ramps. Refer to Raising/Lowering Elevating Legrests and/or Adjusting Calfpads on page 73.
3. Turn the calfpad towards the inside of the wheelchair.
Part No 1134791
73
3G Storm Series® Wheelchairs
SECTION 6—FRONT RIGGINGS
Legrest to Normal Position
Adjust Calfpad
Secure Calfpad
FIGURE 6.14 Raising/Lowering Elevating Legrests and/or Adjusting Calfpads
Installing/Removing/Adjusting the Power Elevating
Legrests
WARNING
To prevent personal injury, always verify proper positioning of legs and feet prior to
use. Individual user weight may impact the rate of travel for each legrest assembly.
If simultaneous operation is desired, select a speed which allows for the most
uniform travel.
DO NOT insert fingers between legrest components, otherwise personal injury may
occur.
CAUTION
NEVER allow items to become trapped between the legrest assemblies, otherwise
damage to the power legrests may occur.
Ensure that all parts of both power legrests are clear of any obstructions before raising and lowering, otherwise damage to the power legrests may occur.
NOTE: These procedures apply to wheelchairs with 2G Tarsys seating systems only.
NOTE: Power legrests are linked to the recline function of the powered seating system. Operating
the recline function automatically operates power legs. Power legrests can also be operated
independently of the recline function.
3G Storm Series® Wheelchairs
74
Part No 1134791
SECTION 6—FRONT RIGGINGS
Installing the Power Elevating Legrests
NOTE: For this procedure, refer to FIGURE 6.15.
1. Turn power legrest to side (open footplate is perpendicular to wheelchair). Refer to
Detail “A” of FIGURE 6.15.
2. Insert the mounting pin of power legrest into the mounting hole of the seat frame
(Detail “A” of FIGURE 6.15).
NOTE: Make sure the legrest sits flush on the seat frame.
3. Rotate the power legs toward the INSIDE of the wheelchair until it locks in place.
NOTE: The footplate will be on the INSIDE of the wheelchair when locked in place.
4. Repeat STEPS 1-3 for the opposite legrest.
5. Connect power legrest connector to jumper cable (Detail “B” of FIGURE 6.15).
Removing the Power Elevating Legrests
NOTE: For this procedure, refer to FIGURE 6.15.
1. Disconnect power legrest connector from jumper cable.
2. Push legrest release handle and swing legrest to the outside of the wheelchair.
3. Lift up on powered legrest and remove from wheelchair.
4. Repeat STEPS 1-3 for opposite power legrest.
DETAIL “A”
Mounting Pin
DETAIL “B”
Calf Pad
Mounting Hole
Footplate
Legrest Release
Handle
Jumper
Cable
Power
Legrest
Connector
FIGURE 6.15 Installing/Removing/Adjusting the Power Elevating Legrests
Adjusting the Power Elevating Legrests
The speed of the power legrests must be adjusted to the following specifications,
otherwise the legrests will not work properly. For assistance in speed adjustment, contact
an Invacare Dealer or qualified technician.
Part No 1134791
75
3G Storm Series® Wheelchairs
SECTION 6—FRONT RIGGINGS
CONTROLLER
TRCM version 2.2 or earlier
LEG UP SPEED
LEG DOWN SPEED
70% or higher
50% or higher
40% or higher
35% or higher
TAC version 1.1 or earlier
TRCM version 2.3 or higher
TAC version 1.11 or higher
Using Mechanical Elevating/Genius Legrests
CAUTION
DO NOT operate the recline function of the seating system if one or both of the
mechanical elevating legrest push rods is bent. Damage to the seating system can
occur.
NOTE: For this procedure, refer to FIGURE 6.16.
NOTE: These procedures apply to wheelchairs with 2G Tarsys seating systems only.
Mechanical elevating legrests are linked to the recline function of the seating system.
Operating the recline function automatically operates elevating legrests.
Mechanical
Elevating
Legrest
Push Rod
Pin
FIGURE 6.16 Using Mechanical Elevating/Genius Legrests
Installing/Removing Mechanical Elevating/Genius
Legrests
NOTE: For this procedure, refer to FIGURE 6.17.
NOTE: These procedures apply to wheelchairs with 2G Tarsys seating systems only.
Installing
1. Turn elevating legrest to side (open footplate is perpendicular to wheelchair) and
position the mounting pin on the legrest mounting holes on the seat frame.
2. Insert the mounting pin into the mounting hole.
NOTE: Make sure the legrest sits flush on the seat frame.
3. Rotate the elevating legrest toward the inside of the wheelchair until it locks in place.
NOTE: The footplate will be on the inside of the wheelchair when locked in place.
3G Storm Series® Wheelchairs
76
Part No 1134791
SECTION 6—FRONT RIGGINGS
4. Lift the elevating legrest up and position the mechanical elevating legrest push rod
around the pin on the legrest as shown in FIGURE 6.17.
5. Press down on mechanical elevating legrest push rod until there is an audible “click”.
6. Repeat STEPS 1-5 for the opposite elevating legrest.
7. If necessary, adjust elevating legrests. Refer to one of the following:
• Adjusting Mechanical Elevating Legrests on page 77.
• Adjusting Genius Legrests on page 79.
Mounting
Hole
Mounting Pin
NOTE: AT5544 shown.
Genius legrest installs
the same way.
Legrest Release
Handle
Calfpad
Footplate
FIGURE 6.17 Installing/Removing Mechanical Elevating/Genius Legrests
Removing
1. Lift up on the mechanical elevating legrest push rod and remove from the pin on the
legrest as shown in FIGURE 6.17.
2. Push elevating legrest release handle toward the opposite side of the wheelchair and
swing legrest to the outside of the wheelchair.
3. Lift up on elevating legrest and remove from wheelchair.
4. Repeat STEPS 1-3 for opposite side of wheelchair.
Adjusting Mechanical Elevating Legrests
NOTE: These procedures apply to wheelchairs with 2G Tarsys seating systems only.
Calfpads
NOTE: For this procedure, refer to FIGURE 6.18.
1. Turn the calfpad toward the outside of the wheelchair.
2. Slide calfpad up or down until desired position is obtained.
3. Turn the calfpad toward the inside of the wheelchair.
Part No 1134791
77
3G Storm Series® Wheelchairs
SECTION 6—FRONT RIGGINGS
Adjust Calfpad
Secure Calfpad
FIGURE 6.18 Adjusting Mechanical Elevating Legrests - Calfpads
Footplate Height
NOTE: For this procedure, refer to FIGURE 6.19.
NOTE: The following procedure should be performed with the user in the wheelchair.
1. Loosen, but DO NOT remove, the bolt and locknut that secure the lower legrest
assembly to the upper legrest assembly.
2. Move the lower legrest assembly to the desired position for the user.
3. While holding the lower legrest in position, tighten the bolt and locknut securely.
4. Repeat STEPS 1-4 for opposite legrest if necessary.
Upper Legrest
Assembly
Bolt/Nut
Lower Legrest
Assembly
FIGURE 6.19 Adjusting Mechanical Elevating Legrests - Footplate Height
Speed/Height
NOTE: Mechanical Elevating Legrest speed and height cannot be adjusted independently of the
recline function of the wheelchair. If the mechanical elevating legrests are not operating as desired,
have the wheelchair serviced by an Invacare dealer or technician.
3G Storm Series® Wheelchairs
78
Part No 1134791
SECTION 6—FRONT RIGGINGS
Adjusting Genius Legrests
NOTE: These procedures apply to wheelchairs with 2G Tarsys seating systems only.
Footplate Height
NOTE: For this procedure, refer to FIGURE 6.20.
1. Note the angle of the footplate in relation to the legrest as shown in FIGURE 6.20.
2. Loosen, but DO NOT remove, the three hex bolts and locknuts that secure the
footplate to the legrest.
3. Adjust the footplate to the desired height.
4. Line up the footplate to the angle noted in STEP 1.
5. While holding the footplate, tighten the three hex bolts and locknuts securely.
Legrest
Footplate
Rear Hex Bolt
and Locknut
Hex Bolts and
Locknuts
Rear Hex Bolt
and Locknut
FIGURE 6.20 Adjusting Genius Legrests - Footplate Height/Footplate Angle
Footplate Angle
NOTE: For this procedure, refer to FIGURE 6.20.
1. Note the angle of the footplate in relation to the legrest as shown in FIGURE 6.20.
2. Remove the rear hex bolt and locknut that secure the footplate to the legrest.
3. Move the footplate to the desired angle.
4. Install the hex bolt through the mounting holes that correspond to the desired
footplate angle.
5. Install the locknut onto the hex bolt.
6. Line up the footplate to the angle noted in STEP 1.
7. While holding the footplate, tighten the hex bolt and locknut securely.
Part No 1134791
79
3G Storm Series® Wheelchairs
SECTION 6—FRONT RIGGINGS
Calfpad Height
NOTE: For this procedure, refer to FIGURE 6.21.
1. Turn the calfpad towards the outside of the wheelchair.
2. Slide calfpad up or down until desired
position is obtained.
Locknut
3. Turn the calfpad towards the inside of
the wheelchair.
Adjustment
Bracket Channel
Calfpad Depth
NOTE: For this procedure, refer to
FIGURE 6.21.
1. Remove the hex bolt and locknut that
secure the calfpad and spacer to the
adjustment bracket.
Calfpad
2. Move the legrest to one of three
positions.
Spacer
3. Reinstall the hex bolt through the
spacer and calfpad.
Adjustment
Bracket
Hex Bolt
FIGURE 6.21 Adjusting Genius Legrests Calfpad Height/Calfpad Depth
NOTE: Make sure hex bolt sits flush
adjustment bracket channel.
4. Reinstall locknut onto the hex bolt and tighten securely.
Legrest Height
NOTE: For this procedure, refer to FIGURE 6.22.
1. Remove the button screw that secures the adjustment link and two washers to the
legrest support.
2. Move adjustment link to one of three positions.
3. Line up the two washers and adjustment link with the mounting hole in the legrest
support.
4. Install the button screw and tighten securely.
Washer
Washer
Adjustment Link
Button Screw
Legrest Support
FIGURE 6.22 Adjusting Genius Legrests - Legrest Height
3G Storm Series® Wheelchairs
80
Part No 1134791
SECTION 7—ARMS
SECTION 7—ARMS
WARNING
After ANY adjustments, repair or service and BEFORE use, make sure that all
attaching hardware is tightened securely - otherwise injury or damage may result.
Installing/Removing Flip Back Armrests
WARNING
Make sure the flip back armrest release and height adjustment levers are in the
locked position before using the wheelchair.
NOTE: For this procedure, refer to FIGURE 7.1.
NOTE: Flip back armrest release lever must be in the unlocked (horizontal) position when placing
the armrest into the arm sockets.
Installing
1. Visually inspect to ensure flip back armrest release lever is in the unlocked
(horizontal) position.
2. Slide the flip back armrest into the arm sockets on the seat frame.
3. Install the quick release pin through the rear arm socket and flip back armrest.
4. Lock the flip back armrest by pressing the flip back armrest release lever into the
locked (vertical) position.
5. Repeat STEPS 1-4 for the opposite flip back armrest.
Removing
1. Unlock the flip back armrest by positioning the flip back armrest release lever into the
unlocked (horizontal) position.
2. Remove the quick release pin that secures the flip back armrest to the rear arm socket.
3. Pull up on the flip back armrest and remove the armrest from the arm sockets.
4. Repeat STEPS 1-3 for the opposite flip back armrest, if necessary.
Part No 1134791
81
3G Storm Series® Wheelchairs
SECTION 7—ARMS
Flip Back Armrest
Locked
(Vertical)
Rear
Arm
Socket
Seat
Frame
Unlocked
(Horizontal)
Quick Release
Pin
Flip Back Armrest Release Lever
Front Arm Socket
FIGURE 7.1 Installing/Removing Flip Back Armrests
Adjusting Flip Back Armrests
WARNING
Make sure the flip back armrest release and height adjustment levers are in the
locked position before using the wheelchair.
NOTE: For this procedure, refer to FIGURE 7.2.
Positioning Flip Back Armrests for User Transfer
1. Unlock the flip back armrest by pulling the armrest release lever into the up
(horizontal) position.
2. Pull up on the flip back armrest and remove the armrest from the front arm socket.
3. Continue to pull up on the flip back armrest until the armrest is out of the way.
4. Repeat STEPS 1-3 for opposite flip back armrest, if necessary.
Positioning Flip Back Armrests for Use
1. Make sure the flip back armrest release lever is in the up (horizontal) position.
2. Install the flip back armrest into the front arm socket.
3. Lock flip back armrest by pressing flip back armrest release lever into the down
(vertical) position.
4. Lift up on flip back armrest to make sure the armrest is locked in place.
5. Repeat STEPS 1-4 for opposite flip back armrest, if necessary.
3G Storm Series® Wheelchairs
82
Part No 1134791
SECTION 7—ARMS
Adjusting
Locked (Vertical)
1. Unlock top of flip back armrest by
pulling height adjustment lever into
the up (horizontal) position.
Height
Adjustment
Lever
2. Adjust top of the flip back armrest to
the desired height.
3. Lock top of flip back armrest by
pushing height adjustment lever into
the down (vertical) position.
Unlocked
(Horizontal)
Flip Back
Armrest
FIGURE 7.2 Adjusting Flip Back Armrests
Adjusting Captain's Van Seat Armrests
Angle
NOTE: For this procedure, refer to FIGURE 7.3.
1. Lift-up the armrest and loosen the jam nut.
NOTE: Adjust the mounting screw up or down to the desired arm angle position.
NOTE: Tighten the jam nut.
NOTE: Repeat STEPS 1-3 for opposite armrest.
NOTE: To determine the same angle for the opposite armrest, count the exposed threads after the
jam nut has been tightened.
Armrest
Mounting Screw
Jam Nut
Count Exposed Threads
FIGURE 7.3 Adjusting Captain's Van Seat Armrests - Angle
Part No 1134791
83
3G Storm Series® Wheelchairs
SECTION 7—ARMS
Height
NOTE: For this procedure, refer to
FIGURE 7.4.
Height
Adjustment
Holes
1. Remove the mounting screw that
secures the armrest to the van seat
frame.
2. Adjust the armrest to one of four
positions.
Mounting
Screw
Van Seat
Frame
3. Reinstall the mounting screw that
secures the armrest to the van seat
frame and tighten securely.
FIGURE 7.4 Adjusting Captain's Van Seat
Armrests - Height
Removing/Installing Reclining Armrests
NOTE: For this procedure, refer to FIGURE 7.5.
NOTE: This procedure applies to 2G Tarsys seating systems only.
Removing Armrests
1. Lift the armrest release lever at the front of the wheelchair to the unlocked (horizontal)
position.
2. Lift up on the armrest and remove from the front arm socket.
3. Press the release button at the rear of
the armrest in.
4. While holding the release button in,
remove the armrest from the seat
frame.
Release
Button
Installing Armrests
Locked
(Down Vertical)
1. Position the armrest on the seat frame
as shown in FIGURE 7.5.
2. Press the release button at the rear of
the armrest in.
Unlocked
(Up Horizontal)
3. While holding the release button in,
slide the armrest onto the seat frame.
4. Make sure the armrest release lever is
in the unlocked (horizontal) position.
Armrest
Release Lever
FIGURE 7.5 Removing/Installing Reclining
Armrests
5. Install the armrest into the front socket.
6. Push the armrest release lever down into the locked (vertical) position.
3G Storm Series® Wheelchairs
84
Part No 1134791
SECTION 7—ARMS
Adjusting Reclining Armrest Height
NOTE: For this procedure, refer to FIGURE 7.6.
NOTE: This procedure applies to 2G Tarsys seating systems only.
1. Make sure the seating system is in the full upright position. Refer to Operating
Powered Seating Systems on page 52.
2. Remove the socket bolt and locknut that secure the front of the upper armrest to the
lower armrest.
3. Loosen, but DO NOT remove, the two socket screws that secure the rear of the armrest
of the back cane.
4. Adjust the armrest to the desired height for the user.
NOTE: The armrests can be at different heights to accommodate the user.
NOTE: The armrest adjusts from 11 to 16 inches in 1-inch increments.
5. Reinstall the socket bolt through the mounting hole determined in STEP 4.
6. Reinstall the locknut and tighten securely.
7. While holding the armrest level, tighten the two socket screws that secure the rear of
the armrest to the back cane.
8. Repeat STEPS 2-7 for the opposite side if necessary.
Armrest
Socket
Screws
Locknut
Back Cane
Socket Bolt
Height Adjustment
Holes
FIGURE 7.6 Adjusting Reclining Armrest Height
Part No 1134791
85
3G Storm Series® Wheelchairs
SECTION 8—POSITIONING STRAP
SECTION 8—POSITIONING STRAP
WARNING
After ANY adjustments, repair or service and BEFORE use, make sure that all
attaching hardware is tightened securely - otherwise injury or damage may result.
The seat positioning strap is a positioning belt only. It is not designed for use as a
safety device withstanding high stress loads such as auto or aircraft safety belts. If
signs of wear appear, belt MUST be replaced immediately.
Replacing Seat Positioning Strap
Wheelchairs with TRRO Option
To replace the seat positioning strap, refer to Wheelchair-Anchored Belts on page 127.
Wheelchairs without 2G Tarsys Seating Systems or TRRO Option
NOTE: For this procedure, refer to FIGURE 8.1.
1. Remove the seat cushion from the seat pan.
2. Move the flip back armrests out of the way. Refer to Adjusting Flip Back Armrests on
page 82.
3. Remove the two mounting screws, locknuts, washers and quick-release pin tabs that
secure the seat positioning straps to the seat frame.
4. Remove the two halves of the seat positioning strap from the rear seat frame.
5. Reposition the two new seat positioning strap inside of the seat frame as shown.
6. Reinstall the two mounting screws and quick-release pin tabs that secure the seat
positioning straps to the seat frame and torque to 75 in-lbs.
7. Reinstall the seat cushion onto the seat pan.
3G Storm Series® Wheelchairs
86
Part No 1134791
SECTION 8—POSITIONING STRAP
Mounting
Holes
Seat Frame
Mounting Screw
Quick-Release Pin Tab
Seat Frame
Locknuts
Mounting Screw
Washers
Seat Positioning Strap
Halves
Quick-Release
Pin Tab
FIGURE 8.1 Replacing Seat Positioning Strap - Wheelchairs without 2G Tarsys Seating
Systems or TRRO Option
Wheelchairs with 2G Tarsys Seating Systems
NOTE: For this procedure, refer to
FIGURE 8.2.
Locknut
1. Remove the two hex bolts, washers and
locknuts that secure the two halves of
the seat positioning strap to the seat
frame.
Spacer
Hex
Bolt
2. Remove the existing seat positioning
strap from the seat frame.
Strap Mounts
Here
3. Position the new seat positioning strap
on the seat frame as shown.
4. Reinstall the hex bolt, washer and
locknut as shown. Tighten securely.
Part No 1134791
Seat
Positioning
Strap
FIGURE 8.2 Replacing Seat Positioning
Strap - Wheelchairs with 2G Tarsys Seating
Systems
87
3G Storm Series® Wheelchairs
SECTION 9—VAN SEAT
SECTION 9—VAN SEAT
WARNING
After ANY adjustments, repair or service and BEFORE use, make sure that all
attaching hardware is tightened securely - otherwise injury or damage may result.
Adjusting Captain's Van Seat
NOTE: For this procedure, refer to FIGURE 9.1.
Low Back Captain's Van Seats
1. Lift up on the release handle and move the back to the desired position
High Back Captain's Van Seats
Angle
WARNING
HIGH BACK CAPTAIN'S VAN SEATS ONLY
NEVER operate the wheelchair while in any recline position over 114° relative to
the seat frame. If the limit switch does not stop the wheelchair from operating in a
recline position greater than 114° relative to the seat frame, DO NOT operate the
wheelchair. Have the limit switch adjusted by an authorized Invacare dealer or
qualified technician.
When using high back Captain's van seat, the motor/gearbox or motor MUST use
the MOST rearward mounting holes on the suspension arm assembly.
1. Lift up on the release handle and move the back to the desired position.
2. Check the angle of the back relative to the seat frame.
3. If necessary, have the limit switch adjusted by an authorized dealer or qualified
technician.
Lumbar
1. Rotate the knob on the side of the high
back Captain's Van seat
counterclockwise until the desired
support is obtained.
Knob - High
Back Captain’s
Seats Only
NOTE: The knob only rotates
counterclockwise.
Release
Handle
FIGURE 9.1 Adjusting Captain's Van Seat
3G Storm Series® Wheelchairs
88
Part No 1134791
SECTION 10—BATTERIES
SECTION 10—BATTERIES
Warnings for Handling and Replacing Batteries
WARNING
After ANY adjustments, repair or service and BEFORE use, make sure all attaching
hardware is tightened securely - otherwise injury or damage may occur.
Make sure power to the wheelchair is OFF before performing these procedures.
The use of rubber gloves is recommended when working with batteries.
Invacare strongly recommends that battery installation and battery replacement
ALWAYS be done by a qualified technician.
22NF batteries weigh 37 pounds each. Use proper lifting techniques (lift with your
legs) to avoid injury.
GP24 batteries weigh 51 pounds each. Use proper lifting techniques (lift with your
legs) to avoid injury.
Use 22NF or GP24 batteries only. Failure to use the correct battery size and/or
voltage may cause damage to your wheelchair and give you unsatisfactory
performance.
ALWAYS use a battery lifting strap when lifting a battery. It is the most convenient
method and assures that the battery acid will not spill. It also helps to prolong the
life of the battery.
DO NOT tip the batteries. Keep the batteries in an upright position.
NEVER allow any of your tools and/or battery cable(s) to contact BOTH battery
post(s) at the same time. An electrical short may occur and serious personal injury
or damage may occur.
When tightening the clamps, always use a box wrench. Pliers will “round off” the
nuts. NEVER wiggle the battery terminal(s)/post(s) when tightening. The battery
may become damaged.
The POSITIVE (+) RED battery cable must connect to the POSITIVE (+) battery
terminal(s), otherwise serious damage will occur to the electrical system.
Install protective caps on POSITIVE (+) and NEGATIVE (-) battery terminals.
DO NOT remove fuse or mounting hardware from POSITIVE (+) RED battery
cable mounting screw.
NOTE: If there is battery acid in the bottom of the battery tray or on the sides of the battery(ies),
apply baking soda to these areas to neutralize the battery acid. Before reinstalling the existing or
new battery(ies), clean the baking soda from the battery tray or battery(ies) being sure to avoid
contact with skin and eyes. Determine source of contamination. NEVER install/reinstall a battery
with a cracked or otherwise damaged case.
Part No 1134791
89
3G Storm Series® Wheelchairs
SECTION 10—BATTERIES
Using the Proper Batteries
1. Place battery on ground/flat surface.
2. Visually inspect the battery to ensure the correct position of the POSITIVE and
NEGATIVE terminals:
WARNING
FOR WHEELCHAIRS WITH 22NF BATTERIES
Batteries with terminal configuration (POSITIVE on the left and NEGATIVE on the
right) as shown below MUST be used. Batteries that have the reverse terminal
configuration MUST NOT be used - otherwise injury and damage may occur.
Terminals MUST have a cross hole in them as shown in Detail “A” below.
Proper Battery to be Used
POSITIVE (+) Battery
Terminal/Post
NEGATIVE (+) Battery
Terminal/Post
NEGATIVE (+) Battery
Terminal/Post
POSITIVE (+) Battery
Terminal/Post
22NF
22NF
DO NOT Use
DETAIL “A” - TERMINAL CROSS HOLES
Terminal Cross Holes
3G Storm Series® Wheelchairs
90
Part No 1134791
SECTION 10—BATTERIES
WARNING
FOR WHEELCHAIRS THAT USE GP24 BATTERIES
Batteries with terminal configuration (POSITIVE on the right and NEGATIVE on
the left) as shown below MUST be used. Batteries that have the reverse terminal
configuration MUST not be used - otherwise injury and damage may occur.
Terminals MUST have a cross hole in them as shown in Detail “A” below.
NEGATIVE (+) Battery
Terminal/Post
POSITIVE (+) Battery
Terminal/Post
POSITIVE (+) Battery
Terminal/Post
NEGATIVE (+) Battery
Terminal/Post
GP24
GP24
DO NOT Use
DETAIL “A” - TERMINAL CROSS HOLES
Terminal Cross Holes
Installing/Removing Batteries Into/From Battery Boxes
NOTE: For this procedure, refer to FIGURE 10.1.
NOTE: To remove the battery(ies) from the battery box(es), reverse the following steps.
NOTE: Have the following tools available:
•
Battery Lifting Strap
•
1/2-inch (6 pt) Box Wrench
Part No 1134791
91
3G Storm Series® Wheelchairs
SECTION 10—BATTERIES
WARNING
ALWAYS use a battery lifting strap when lifting a battery. It is the most convenient
method and assures that the battery acid will not spill. It also helps to prolong the
life of the battery.
DO NOT tip the batteries. Keep the batteries in an upright position.
The warranty and performance specifications contained in this manual are based on
the use of deep cycle gel cell batteries. Invacare strongly recommends their use as
the power source for this unit.
CAUTION
Place the wheelchair in a well ventilated area where work can be performed without risking damage to carpeting or floor covering.
NOTE: If there is battery acid in the bottom or on the sides of the battery boxes or batteries, apply
baking soda to these areas to neutralize the battery acid. Before reinstalling the new or existing
batteries, clean the baking soda from the battery boxes or batteries.
NOTE: When securing battery lifting strap to battery, observe polarity markings located on the
ends of the battery lifting strap, (+) side to POSITIVE (+) battery post and (-) side to NEGATIVE
(-) battery post.
1. If necessary, remove the battery box(es) from the wheelchair. Refer to one of the
following procedures:
• Removing/Installing Group 24 Battery Boxes on page 103.
• Removing/Installing the 22NF Battery Box on page 108.
2. Disconnect battery cables. Refer to Disconnecting/Connecting Battery Cables on
page 93 for either Group 24 batteries or 22NF batteries in a single battery box.
3. Secure battery lifting strap to battery terminal(s)/post(s) (FIGURE 10.1).
CAUTION
Some battery manufacturers mold a carrying strap and/or hold down flanges
directly into the battery case. Batteries which interfere with the battery box cannot
be used for these applications. Attempting to “wedge” a battery into a battery box
may damage the box and/or the battery.
4. Remove batteries from battery box(es).
Battery Lifting Strap
Molded Carrying Straps
(These batteries must
NOT be used.)
Group 24 Battery
Box Bottom
22NF Battery
Box Bottom
FIGURE 10.1 Installing/Removing Batteries Into/From Battery Boxes
3G Storm Series® Wheelchairs
92
Part No 1134791
SECTION 10—BATTERIES
Disconnecting/Connecting Battery Cables
WARNING
NEVER allow any of your tools and/or battery cable(s) to contact BOTH battery
post(s) at the same time. An electrical short may occur and serious personal injury
or damage may occur.
The use of rubber gloves and safety glasses is recommended when working with
batteries.
When tightening the clamps, always use a box wrench. Pliers will “round off” the
nuts. NEVER wiggle the battery terminal(s)/post(s) when tightening. The battery
may become damaged.
The POSITIVE (+) RED battery cable MUST connect to the POSITIVE (+) battery
terminal(s)/post(s), otherwise serious damage will occur to the electrical system.
Group 24 Batteries
NOTE: For this procedure, refer to FIGURE 10.2.
Disconnecting
NOTE: Perform this section on one battery and battery box at a time. Repeat section for other
battery box.
1. Lift up on battery box lid to expose underlying cables.
2. Peel back battery terminal caps to expose battery cable ends as follows:
A. RED battery terminal cap from RED battery cable.
B. BLACK battery terminal cap from BLACK battery cable.
3. Remove the locknut and mounting screw to disconnect BLACK battery cable from the
NEGATIVE(-) battery terminal/post (Detail “A” of FIGURE 10.2)
4. Remove the locknut and fuse mounting screw to disconnect RED battery cable from
the POSITIVE (+) battery post (Detail “A” of FIGURE 10.2).
Connecting
NOTE: Perform this section on one battery and battery box at a time. Repeat section for other
battery box.
1. Position battery box top above battery as shown in FIGURE 10.2.
2. Peel back battery terminal caps to expose battery cable ends as follows:
A. RED battery terminal cap from RED battery cable.
B. BLACK battery terminal cap from BLACK battery cable.
3. Install the locknut and mounting screw to connect the BLACK battery cable to the
NEGATIVE(-) battery terminal/post (Detail “A” of FIGURE 10.2).
Part No 1134791
93
3G Storm Series® Wheelchairs
SECTION 10—BATTERIES
4. Install the locknut and fuse mounting screw to connect the RED battery cable to the
POSITIVE (+) battery post (Detail “A” of FIGURE 10.2).
5. Verify battery cables are correctly installed and securely tightened.
NOTE: Cables will be crossed on one connector battery box top.
6. Reposition terminal caps over battery post(s).
7. Install the battery box top(s).
8. Install the battery box(es) into the wheelchair. Refer to Removing/Installing Group 24
Battery Boxes on page 103.
NOTE: New Battery(ies) MUST be fully charged before using, otherwise the life of the battery(ies)
will be reduced.
9. If necessary, charge the battery(ies). Refer to Charging Batteries on page 98.
3G Storm Series® Wheelchairs
94
Part No 1134791
SECTION 10—BATTERIES
DETAIL “A” - CONNECTING CABLES TO TERMINALS
Mounting Screw
Top View of Battery
Locknut
POSITIVE (+)
Battery
Terminal/Post
Locknut
NEGATIVE (-)
Battery
Terminal/Post
Fuse Mounting
Screw
Black NEGATIVE
(-) Battery Cable
RED POSITIVE (+) Battery Cable
One Connector Battery Box
Two Connector Battery Box
Black
NEGATIVE
(-) Battery
Cable
Two Connector
Battery Box Top
BLACK Battery
Terminal Cap
RED Battery
Terminal Cap
RED
POSITIVE
(+) Battery
Cable
RED Battery
Terminal Cap
RED POSITIVE (+)
Battery Cable
NEGATIVE (-)
Battery
Terminal/Post
Black
NEGATIVE
(-) Battery
Cable
One Connector
Battery Box Top
POSITIVE (+)
Battery
Terminal/Post
NEGATIVE (-)
Battery
Terminal/Post
Top View of Battery
BLACK Battery
Terminal Cap
POSITIVE (+)
Battery
Terminal/Post
Top View of Battery
FIGURE 10.2 Disconnecting/Connecting Battery Cables - Group 24 Batteries
Part No 1134791
95
3G Storm Series® Wheelchairs
SECTION 10—BATTERIES
22NF Batteries in Single Battery Box
NOTE: For this procedure, refer to FIGURE 10.3.
NOTE: Note polarity of white battery cable (jumper) battery terminal ends.
Disconnecting
1. Remove battery terminal cap(s) from battery terminal(s) ends. Refer to Detail A” in
FIGURE 10.3.
2. Disconnect WHITE battery cable (jumper) NEGATIVE (-) terminal end from
NEGATIVE (-) battery terminal/post of front battery and disconnect POSITIVE (+)
terminal end from POSITIVE (+) battery terminal/post of rear battery.
3. Disconnect NEGATIVE (-) BLACK battery cable of the battery box top from
NEGATIVE (-) battery terminal/post of rear battery.
4. Disconnect POSITIVE (+) RED battery cable on battery box top from POSITIVE (+)
battery terminal/post of front battery.
Connecting
1. Remove battery terminal cap(s) from battery terminal(s) ends. Refer to Detail “A” in
FIGURE 10.3.
2. Connect WHITE battery cable (jumper) NEGATIVE (-) terminal end to NEGATIVE
(-) battery terminal/post of front battery and connect POSITIVE (+) terminal end to
POSITIVE (+) battery terminal/post of rear battery.
3. Place battery top upside down on top of rear battery.
4. Connect NEGATIVE (-) BLACK battery cable of the battery box top to NEGATIVE (-)
battery terminal/post of rear battery.
5. Position battery box top right side up and rotate outward toward right to expose
POSITIVE (+) battery terminal/post of front battery.
6. Connect POSITIVE (+) RED battery cable on battery box top to POSITIVE (+) battery
terminal/post of front battery.
7. Replace battery terminal cap(s) onto battery cable terminal end(s).
8. Rotate top toward left into position. Secure in place.
9. Install the battery box into the wheelchair. Refer to Removing/Installing the 22NF
Battery Box on page 108.
NOTE: New battery(ies) MUST be fully charged before using, otherwise the life of the battery(ies)
will be reduced.
10. If necessary, charge the battery(ies). Refer to Charging Batteries on page 98.
3G Storm Series® Wheelchairs
96
Part No 1134791
SECTION 10—BATTERIES
STEPS 3 and 4
Front
Battery
N
FRONT
NEGATIVE (-)
Battery
Terminal/Post
Rear
Battery
WHITE Battery
Cable (Jumper)
BLACK
NEGATIVE (-)
Battery Cable
STEP 2
Front
Battery
FRONT
Single
Battery Box
Bottom
Rear
Battery
Battery Box
Bottom
RED POSITIVE
(+) Battery
Cable
Battery Box Top
(Under Side
shown)
Fuse
Block
REAR
STEPS 5 and 6
P
RED POSITIVE (+) Battery Cable
POSITIVE (+)
Battery
Terminal/Post
Front
Battery
DETAIL “A”
Terminal Cap
Rear
Battery
Battery Box Bottom
Battery Box
Top
NOTE: Battery box top cut away for
clarification purposes only.
Terminal End
FIGURE 10.3 Disconnecting/Connecting Battery Cables - 22NF Batteries in Single Battery
Box
Part No 1134791
97
3G Storm Series® Wheelchairs
SECTION 10—BATTERIES
When to Charge Batteries
NOTE: For this procedure, refer to FIGURE 10.4.
MKIV-A and MKIV-RII Joysticks
The Battery Discharge Indicator (BDI) is a bar graph display located on the MKIV joystick.
It will keep you informed as to power availability. A visual warning is given before the
power becomes too low to operate the wheelchair. At full charge the two Left segments
and the farthest Right segment of the bar graph will be illuminated. As the battery
becomes discharged, the farthest Right segment will progressively move to the Left until
only the last two bars (Left) are illuminated. At this level the last two bars (Left) will start
to Flash On and Off to indicate that the end user should charge the batteries as soon as
possible.
MKIV-A+ Joysticks
The left half of the second line on the LCD is the Battery Discharge Indicator (BDI). It
provides information on the remaining charge in the batteries. At full charge solid blocks
fill in all ten segments between E (Empty) and F (Full). As the battery becomes
discharged, the farthest right segments will progressively disappear a half bar at a time
until no segments appear between E and F. At this level the word RECHARGE will appear
on the second line to indicate that the user should charge the batteries as soon as possible.
Battery
Discharge
Indicator
(BDI)
Battery Discharge
Indicator (BDI)
MKIV - A Joystick
Battery Discharge
Indicator (BDI) (in LCD)
MKIV - A+ Joystick
MKIV - RII Joystick
(Torque SP ONLY)
FIGURE 10.4 When to Charge Batteries
Charging Batteries
NOTE: For this procedure, refer to FIGURE 10.5.
NOTE: New batteries MUST be fully charged prior to initial use of the wheelchair.
WARNING
NEVER attempt to recharge the batteries by attaching cables directly to the
battery terminals or clamps. Always use the recharging plug located on the side of
the wheelchair frame.
DO NOT attempt to recharge the batteries and operate the power wheelchair at
the same time.
During use and charging, batteries may vent hydrogen gas, which is explosive in the
right concentration with air.
3G Storm Series® Wheelchairs
98
Part No 1134791
SECTION 10—BATTERIES
WARNING
DO NOT sit in wheelchair while charging batteries.
CAUTION
Always charge new batteries before initial use or battery life will be reduced.
NOTE: As a general rule, batteries should be recharged daily to assure the longest possible life and
minimize the required charging time. Plan to recharge the batteries when it is anticipated the
wheelchair will not be used for a long period of time.
The range per battery charge using recommended batteries should be approximately 5 to
9 hours of typical operation. Extensive use on inclines may substantially reduce per
charge mileage.
Description and Use of Battery Chargers
The charger automatically reduces the charge from an initially high rate to a zero reading
at a fully charged condition. If left unattended, the charger should automatically stop
charging when full charge is obtained.
There are some basic concepts which will help you understand this automatic process.
They are:
The amount of electrical current drawn within a given time to charge a battery is called
the “charge rate”. If, due to usage, the charge stored in the battery is low, the charge rate
is high, as indicated by the green light on the charger. Initially, the green light will stay
illuminated for a short period of time followed by a longer period of off time. As a charge
builds up, the charge rate is reduced, and the green light will stay illuminated for a longer
period of time followed by a shorter off time.
WARNING
NEVER leave the charger unattended when the charger circuit breaker is tripping
on and off. A condition between the battery charger and batteries exists. Contact
an Invacare dealer.
NOTE: If performing the charging sections independently, read and carefully follow the individual
instructions for each charger (supplied or purchased).
NOTE: If charging instructions are not supplied, consult a qualified service technician for proper
instructions.
NOTE: Have the following tools available:
•
Battery Charger
•
Extension Cord*
*NOTE: 3-prong plug, 15 ampere current rating; industrial type.
Part No 1134791
99
3G Storm Series® Wheelchairs
SECTION 10—BATTERIES
1. Perform one of the following:
• Wheelchairs Equipped with MCC-MARK IV Joystick - Attach the battery charger
connector to the charger cable/battery harness.
NOTE: The battery charger connector is factory installed on the right side of the wheelchair. It
can be positioned on either side of the wheelchair for user convenience.
NOTE: For Recliners Only - If the wheelchair is a recliner, the battery charger connector as
well as the limit switch, are factory set on the right side of the wheelchair. However, they can
be positioned on either side for user convenience. The limit switch MUST be positioned on the
same side as the battery charger connector.
• Torque SP Equipped with MARK IV RII Joystick- Attach the battery charger
connector to the charger port on the Front of the joystick.
2. Plug the charger’s AC power cord, or extension, into the grounded 120 VAC wall
outlet.
3. Wait until charging is complete.
NOTE: It is advantageous to recharge frequently rather than only when necessary. In fact, a
battery’s life is extended if the charge level is maintained well above a low condition.
NOTE: If the batteries need to be charged more often or take longer to charge than normal, they
may need to be replaced. Contact an Invacare dealer for service.
3G Storm Series® Wheelchairs
100
Part No 1134791
SECTION 10—BATTERIES
Battery Charger Connector
Charger Cable
DETAIL “A” - WHEELCHAIRS
EQUIPPED WITH MCC-MARK IV
JOYSTICK
From Battery Charger
Three Pronged Plug
Top View of
Wheelchair
Battery Charger
Battery Boxes
Battery Charger
Top View of
Front View
of Joystick
DETAIL “B” WHEELCHAIRS EQUIPPED
WITH MARK IV RII
JOYSTICK
Three Pronged
Plug
From Battery
Charger
Charger Port
Joystick
Battery
Boxes
Charger Port
Battery Charger
Mount Bracket
From
Battery
Charger
Base
Frame
Support
Plate
Battery Charger
Port
FIGURE 10.5 Charging Batteries
Part No 1134791
101
3G Storm Series® Wheelchairs
SECTION 10—BATTERIES
Replacing Batteries
NOTE: Invacare recommends that both batteries be replaced if one battery is defective.
Recommended Battery Types
WARNING
Failure to use the correct battery size and/or voltage may cause damage to your
wheelchair and give you unsatisfactory performance.
The warranty and performance specifications contained in this manual are based on
the use of deep cycle gel cell batteries. Invacare strongly recommends their use as
the power source for this unit.
NOTE: Both battery sizes are deep cycle batteries.
NOTE: Charge batteries daily. It is critical not to let them run low at any time.
1. Remove the battery box(es) from the wheelchair. Refer to one of the following
procedures:
• Removing/Installing Group 24 Battery Boxes on page 103.
• Removing/Installing the 22NF Battery Box on page 108.
2. Remove existing batteries from the battery box(es). Refer to Installing/Removing
Batteries Into/From Battery Boxes on page 91.
3. Clean the new battery terminals. Refer to Cleaning Battery Terminals on page 103.
4. Install the new batteries into the battery box(es). Refer to Installing/Removing
Batteries Into/From Battery Boxes on page 91.
Battery Requirements and Weight Limitations
MODEL
ARROW
TORQUE SP
RANGER
WEIGHT
LIMITATION
MOTOR
BATTERY
Up to 400 lbs
GB
Group 24
251-300 lbs
4 Pole Motor
*22NF
301-400 lbs
4 Pole Motor
Group 24
Up to 400 lbs
GB
Group 24
Up to 300 lbs
4 Pole Motor
Group 24
Up to 300 lbs
GB
Group 24
*NOTE: Two batteries inside one battery box.
NOTE: Weight limitation is total weight (user weight plus any additional items that the user may
require [back pack, etc.]). Example: If weight limitation of the wheelchair is 300 lbs and additional
items equal 25 lbs, subtract 25 lbs from 300 lbs. This means the maximum weight limitation of the
user is 275 lbs.
3G Storm Series® Wheelchairs
102
Part No 1134791
SECTION 10—BATTERIES
Cleaning Battery Terminals
WARNING
Most batteries are not sold with instructions. However, warnings are frequently
noted on the cell caps. Read them carefully.
DO NOT allow the liquid in the battery to come in contact with skin, clothes or
other possessions. It is a form of acid and harmful or damaging burns may result.
Should the liquid touch your skin, wash the area immediately and thoroughly with
cool water. In serious cases or if eye contact is made, seek medical attention
immediately.
1. Examine battery clamps and terminals for corrosion.
2. Verify the plastic caps are in place over battery cell holes.
3. Clean terminals and inside battery clamps by using a battery cleaning tool, wire brush,
or medium grade sand paper.
NOTE: Upon completion, areas should be shiny, not dull.
4. Carefully dust off all metal particles.
Removing/Installing Group 24 Battery Boxes
Wheelchairs without Vent Tray
WARNING
Each battery weighs 51 pounds. Use proper lifting techniques (lift with your legs) to
avoid injury.
CAUTION
Place the wheelchair in a well ventilated area where work can be performed without risking damage to carpeting or floor covering.
NOTE: For this procedure, refer to FIGURE 10.6.
Removing
1. Place the wheelchair in a well ventilated area where work can be performed without
risking damage to carpeting or floor covering.
2. Verify the joystick On/Off switch is in the Off position.
Part No 1134791
103
3G Storm Series® Wheelchairs
SECTION 10—BATTERIES
3. Wheelchairs with TRRO or TRBKTS Only - Perform the following steps:
A. Remove the three bolts and washers that secure the front battery retainer bracket
(Detail “A”).
B. Remove the three short hex screws that secure the top battery retainer bracket to
the lower battery retainer bracket.
C. Remove the four long hex screws and washers that secure the top battery retainer
bracket to the rear of the wheelchair frame (Detail “B”).
D. Remove the top battery retainer bracket.
E. Remove the lower battery retainer bracket.
4. Rotate the levers of the battery retainer assembly to the unlocked position.
5. Lift battery retainer assembly up off the mounting screws that secure the shocks to the
base frame.
NOTE: For GB motors, ensure that the motor lock levers are in the engaged (drive) position. Refer
to Motor Locks/Wheel Locks/Forks on page 110.
6. Slide one connector battery box along the sub-frame and remove from the wheelchair.
7. Slide the two connector battery box along the sub-frame and remove from the
wheelchair.
Installing
1. Place the wheelchair in a well ventilated area where work can be performed without
risking damage to carpeting or floor covering.
2. Verify the joystick On/Off switch is in the Off position.
3. Secure the battery box carrying strap to the lid of the two connector battery box.
4. Place two connector battery box onto the battery sub-frame assembly with guide pins
facing the inside of the wheelchair.
5. Slide the two connector battery box along the sub-frame until its guide pins are
engaged in the sub-frame connector.
NOTE: Visually inspect to ensure the connection is properly made. Connectors MUST be fully
engaged.
NOTE: Make certain that the battery box carrying strap is positioned on top of the battery box and
will not interfere with the one battery box guide pins when engaging the connector on the one
battery box lid.
6. Secure the battery box carrying strap to the lid of the one connector battery box.
7. Place one connector battery box onto battery sub-frame.
8. Slide one connector battery box along the sub-frame until its guide pins are engaged
in the connector of the two connector battery box.
NOTE: Visually inspect to ensure the connection is properly made. Connectors MUST be fully
engaged.
3G Storm Series® Wheelchairs
104
Part No 1134791
SECTION 10—BATTERIES
9. Place the battery retainer assembly on head portion of the mounting screws that
secure the shocks to the base frame.
WARNING
Wheelchairs with TRRO or TRBKTS Only - Battery support brackets MUST be
installed at all times. Otherwise, the wheelchair will not be WC/19 compliant.
CAUTION
The battery retainer assembly MUST be locked securely to hold the battery boxes
firmly in place or battery box connectors may be damaged causing erratic wheelchair operation.
10. Rotate the levers of the battery retainer assembly to the locked position.
11. Wheelchairs with TRRO or TRBKTS Only - Perform the following steps:
A. Position the lower battery retainer bracket as shown in Detail “A” of FIGURE 10.6.
B. Install the top battery retainer bracket onto the wheelchair frame using four long
hex screws and washers. Torque to 13 ft-lbs.
C. Secure the top battery retainer bracket to the lower battery retainer bracket using
three short hex screws and washers. Torque to 13 ft-lbs.
D. Install the front battery retainer bracket using three bolts and washers. Torque to
13 ft-lbs.
Part No 1134791
105
3G Storm Series® Wheelchairs
SECTION 10—BATTERIES
Battery Retainer
Assembly
Front of
Base Frame
Rear of
Base Frame
Locked
Position
Unlocked
Position
Lever
Lever
DETAIL “A” - WHEELCHAIRS WITH TRRO OR TRBKTS
Short
Hex
Screws
and
Washers
Top Battery Retainer Bracket
Lower Battery
Retainer Bracket
DETAIL “B”
Long Hex
Screws
Washers
Front Battery
Retainer Bracket
Top Battery
Retainer
Bracket
T-Nuts
Wheelchair
Frame
Bolts and Washers
FIGURE 10.6 Removing/Installing Group 24 Battery Boxes - Wheelchairs without Vent Tray
3G Storm Series® Wheelchairs
106
Part No 1134791
SECTION 10—BATTERIES
Wheelchairs with Vent Tray
WARNING
Each battery weighs 51 pounds. Use proper lifting techniques (lift with your legs) to
avoid injury.
CAUTION
Place the wheelchair in a well ventilated area where work can be performed without risking damage to carpeting or floor covering.
NOTE: For this procedure, refer to FIGURE 10.7.
Removing
1. Place the wheelchair in a well ventilated area where work can be performed without
risking damage to carpeting or floor covering.
2. Verify the joystick On/Off switch is in the Off position.
3. Pull the battery box retainer Up over the end of the one connector battery box.
4. Slide one connector battery box along the sub-frame and remove from the wheelchair.
5. Slide the two connector battery box along the sub-frame and remove from the
wheelchair.
Installing
1. Place the wheelchair in a well
ventilated area where work can be
performed without risking damage to
carpeting or floor covering.
Battery Box
Sub-Frame
2. Verify the joystick On/Off switch is in
the Off position.
3. Secure the battery box carrying strap to
the lid of the two connector battery box.
4. Place two connector battery box onto
the battery sub-frame assembly with
guide pins facing the inside of the
wheelchair.
Two
Connector
Battery Box
Base
Frame
One Connector
Battery Box
Battery Box Sub-Frame
5. Slide the two connector battery box
along the sub-frame until its guide pins
are engaged in the sub-frame
connector.
Base Frame
One Connector
Battery Box
NOTE: Visually inspect to ensure the
connection is properly made. Connectors
MUST be fully engaged.
Part No 1134791
Battery Box
Retainer Bar
Two Connector
Battery Box
Battery Box
Retainer Bar
FIGURE 10.7 Wheelchairs with Vent Tray
107
3G Storm Series® Wheelchairs
SECTION 10—BATTERIES
NOTE: Make certain that the battery box carrying strap is positioned on top of the battery box and
will not interfere with the one battery box guide pins when engaging the connector on the one
battery box lid.
6. Secure the battery box carrying strap to the lid of the one connector battery box.
7. Place one connector battery box onto battery sub-frame.
8. Slide one connector battery box along the sub-frame until its guide pins are engaged
in the connector of the two connector battery box.
NOTE: Visually inspect to ensure the connection is properly made. Connectors MUST be fully
engaged.
CAUTION
The battery box retainer MUST be locked securely to hold the battery boxes firmly
in place or battery box connectors may be damaged causing erratic wheelchair
operation.
9. Pull the battery box retainer down over the end of the one connector battery box until
it is securely clipped (locked) into place.
Removing/Installing the 22NF Battery Box
NOTE: For this procedure, refer to FIGURE 10.8.
NOTE: To install the battery box onto the wheelchair, reverse the following steps.
1. Place the wheelchair in a well ventilated area where work can be performed without
risking damage to carpeting or floor covering.
2. Verify the joystick On/Off switch is in the Off position.
3. Disconnect the battery cable from the outside of the battery box.
4. Disconnect the battery box retention
strap.
Arrows
Battery Box
5. Remove the battery box.
Battery Box
Retention Strap
6. Slide the four clips that secure the
battery box cover to the battery box to
the Open position.
NOTE: Arrows on the battery box cover point
to the open position.
7. Remove battery box cover from the
battery box.
3G Storm Series® Wheelchairs
FIGURE 10.8 Removing/Installing the 22NF
Battery Box
108
Part No 1134791
SECTION 11—RETAINING STRAP
SECTION 11—RETAINING STRAP
WARNING
After ANY adjustments, repair or service and BEFORE use, make sure all attaching
hardware is tightened securely - otherwise injury or damage may occur.
Replacing Battery Box Retaining Strap - 22NF Battery
Base Frames
NOTE: For this procedure, refer to FIGURE 11.1.
1. Remove the battery box. Refer to Removing/Installing the 22NF Battery Box on
page 108.
Retaining Strap Clip
WARNING
The retaining strap MUST be fed
through the adjustable end of the battery box retaining strap clip as shown in
FIGURE 11.1.
2. Feed the battery box retaining strap
through the adjustable end of the
battery box retaining strap clip.
Retaining Strap
Retaining Strap
3. Feed the battery box retaining strap
through the slots in the battery box tray.
NOTE: The folded over portion of the retaining
strap stops at the slot. DO NOT try to force the
folded over section through the slot.
Slot
4. Install the new battery box retaining
strap by reversing STEPS 2 and 3.
5. Reinstall the battery box. Refer to
Removing/Installing the 22NF Battery
Box on page 108.
Battery Box
Tray
WARNING
Folded Over Portion
of Retaining Strap
NOTE: Tray shown by itself for clarity.
There is no need to remove the tray from the
wheelchair if the strap is being replaced.
FIGURE 11.1 Replacing Battery Box
Retaining Strap - 22NF Battery Base Frames
The Battery Box Retaining Strap MUST
be fastened securely in place before
using the wheelchair.
Part No 1134791
Slot
109
3G Storm Series® Wheelchairs
SECTION 12—MOTOR LOCKS/WHEEL LOCKS/FORKS
SECTION 12—MOTOR LOCKS/
WHEEL LOCKS/FORKS
WARNING
After ANY adjustments, repair or service and BEFORE use, make sure all attaching
hardware is tightened securely - otherwise injury or damage may occur.
CAUTION
As with any vehicle, the wheels and tires should be checked periodically for cracks
and wear, and should be replaced.
Disengaging/Engaging Motor Lock Levers
WARNING
DO NOT engage or disengage motor locks until the power is in the OFF position.
NOTE: For this procedure, refer to FIGURE 12.1.
NOTE: Motor lock disengagement/engagement allows free wheeling or joystick controlled
operation. Free wheeling allows an assistant to maneuver the wheelchair without power.
4 Pole Motors
1. Perform one of the following:
• Disengage (Push) - Push motor lock levers downward.
• Engage (Drive) - Pull motor lock levers upward.
ENGAGE (Drive)
Motor Lock Lever
Towards
Outside of
Wheelchair
DISENGAGE (Push) Motor Lock Lever
FIGURE 12.1 Disengaging/Engaging Motor Lock Levers
3G Storm Series® Wheelchairs
110
Part No 1134791
SECTION 12—MOTOR LOCKS/WHEEL LOCKS/FORKS
GB Motors
NOTE: For this procedure, refer to FIGURE 12.2.
1. Perform one of the following
(Detail “B”):
• Engage (Drive) - Pull motor lock
lever into Up position.
ENGAGE
(Drive)
Motor Lock
Lever
• Disengage (Push) - Push motor lock
lever into Down position.
P/N1114835
NOTE: Effort to engage/disengage motor lock
levers is 25 to 30 pounds*.
*NOTE: Force to operate motor lock lever
exceeds ANSI/RESNA WC/VOL2-1998
requirements for section 14.7 paragraph 7.2d.
DRIVE
PUSH
DISENGAGE
(Push)
Motor Lock
Lever
FIGURE 12.2 GB Motors
Using Optional Wheel Hubs
NOTE: For this procedure, refer to FIGURE 12.3.
NOTE: Wheel hubs are not available on Heavy Duty GB motors.
1. Perform one of the following:
• Disengage (Free Wheel) - Pull OUT on engagement knob and rotate engagement
knob approximately 1/6-turn until the pins on the engagement knob fall into the
free wheel detents on the wheel hub (Detail “A”).
NOTE: If the pins on the engagement knob are not in the free wheel detents, the engagement
knobs can engage the motors unexpectedly while the wheelchair is being pushed.
• Engage (Drive) - Pull OUT on engagement knob and rotate engagement knob
approximately 1/6-turn until the pins on the engagement knob fall into the holes
in the wheel hub and axle sleeve. Gently rock the wheelchair until the engagement
knob snaps into place (Detail “B”).
DETAIL “A” - DISENGAGE
Engagement
Knob
DETAIL “B” - ENGAGE
Pins
Free
Wheel
Detents
Engagement
Knob
Wheel
Hubs
FIGURE 12.3 Using Optional Wheel Hubs
Part No 1134791
111
3G Storm Series® Wheelchairs
SECTION 12—MOTOR LOCKS/WHEEL LOCKS/FORKS
Installing Wheel Locks
WARNING
Inasmuch as Wheel Locks are an option on this wheelchair - (You may order with or
without the wheel locks.) - transfer to and from the wheelchair in the presence of a
qualified healthcare professional to determine individual safety limits. Invacare
strongly recommends ordering the wheel locks as an additional safeguard for the
wheelchair user.
Wheel Lock Installation
Identification
Motor/Gearbox
Assembly
NOTE: For this procedure, refer to
FIGURE 12.4.
1. Examine the motor and perform one of
the following:
• Motor assembly Resembles
FIGURE 12.4 - Refer to Installing
Wheel Locks for Motor/Gearbox
Assemblies on page 112.
FIGURE 12.4 Wheel Lock Installation
Identification
• Motor Assembly Does Not Resemble FIGURE 12.4 - Refer to Installing Wheel
Locks for GB Motors on page 113.
Installing Wheel Locks for Motor/Gearbox Assemblies
NOTE: For this procedure, refer to
FIGURE 12.5.
DETAIL “A”
Wheel Lock
Mounting
Bracket
NOTE: Refer to Detail "B" in FIGURE 12.5
for proper positioning of wheel locks.
1. Position the wheel lock on the outside
of the wheel lock mounting bracket and
the wheel lock link on the inside of the
wheel lock bracket.
DO NOT use these
Mounting Slots
DETAIL “B”
Use THESE
Mounting Slots
Inside of Wheelchair
Outside of
Wheelchair
2. Loosely assemble the wheel lock and
wheel lock link to the wheel lock
mounting bracket with the two
mounting screws provided.
NOTE: The two mounting screws will screw
into the wheel lock link.
Wheel Lock
Link
Mounting
Screws
3. Repeat STEPS 1-2 for the opposite
wheel lock.
Wheel Lock
4. Adjust the wheel locks. Refer to
Adjusting Wheel Locks on page 113.
3G Storm Series® Wheelchairs
Towards Front
of Wheelchair
Wheel Lock
Mounting
Bracket
FIGURE 12.5 Installing Wheel Locks for
Motor/Gearbox Assemblies
112
Part No 1134791
SECTION 12—MOTOR LOCKS/WHEEL LOCKS/FORKS
Installing Wheel Locks for GB Motors
NOTE: For this procedure, refer to FIGURE 12.6.
1. See Detail “A” to determine the correct mounting position for the wheel lock based on
the motor mounting position.
NOTE: Refer to Percentage of Weight Distribution on page 34 for a description of the motor
mounting positions.
2. Loosely install the wheel lock onto the mounting bracket using the mounting holes
determined in STEP 1 and two hex screws and two washers.
3. Repeat STEP 2 for the opposite wheel lock.
4. Adjust the wheel locks. Refer to Adjusting Wheel Locks on page 113.
DETAIL “A”
Mounting Holes
for Middle
(1” Forward Standard) Motor
Position
Mounting
Holes for
Rear
Motor
Position
Washers
Hex Screws
Mounting
Bracket
Wheel Lock
FIGURE 12.6 Installing Wheel Locks for GB Motors
Adjusting Wheel Locks
NOTE: For this procedure, refer to FIGURE 12.7.
1. Make sure wheel lock is disengaged from drive wheel.
2. Measure distance between the Wheel Lock Shoe and the Drive Wheel.
3. Loosen the two hex screws securing the wheel lock to the mounting bracket.
4. Slide the wheel lock along the slots until the measurement is between 5/32 and 5/16inches. Securely tighten mounting screws.
5. Repeat STEPS 1-3 for the opposite wheel lock.
6. Disengage motor locks. Refer to Disengaging/Engaging Motor Lock Levers on
page 110.
7. Engage the wheel locks and push against the wheelchair to determine if the wheel
locks engage the drive wheels enough to hold the wheelchair.
8. Repeat STEPS 2-7 until the wheel locks engage the drive wheels enough to hold the
wheelchair.
9. Engage motor locks. Refer to Disengaging/Engaging Motor Lock Levers on page 110.
Part No 1134791
113
3G Storm Series® Wheelchairs
SECTION 12—MOTOR LOCKS/WHEEL LOCKS/FORKS
Wheel Lock
Mounting
Bracket
Drive Wheel
Wheel Lock
Wheel Lock Shoe
5/32 to 5/16 - inch Gap
NOTE: Illustration depicts wheel lock for motor/gearbox assembly.
FIGURE 12.7 Adjusting Wheel Locks
Adjusting Forks
NOTE: For this procedure, refer to FIGURE 12.8.
1. Remove the dust cover (not shown) from the caster headtube.
2. To properly tighten caster journal system and guard against flutter, perform the
following check:
A. Tip back the wheelchair to floor.
B. Pivot both forks and casters to top of their arc simultaneously.
C. Let casters drop to bottom of arc (wheels should swing once to one-side, then
immediately rest in a straight downward position).
D. Adjust locknuts according to freedom of caster swing.
3. Test wheelchair for maneuverability.
4. Readjust locknuts if necessary, and repeat STEPS 1-3 until correct.
5. Snap dust cover into the caster headtube.
Locknut
Fork
NOTE: Components
exploded for clarity. There is
no need to remove the fork
from the base frame.
FIGURE 12.8 Adjusting Forks
3G Storm Series® Wheelchairs
114
Part No 1134791
SECTION 13—ELECTRONICS
SECTION 13—ELECTRONICS
WARNING
After ANY adjustments, repair or service and BEFORE use, make sure that all
attaching hardware is tightened securely - otherwise injury or damage may result.
Preparing MKIV Joystick for Use
NOTE: For this procedure, refer to FIGURE 13.1.
NOTE: The MKIV joystick is factory installed on the right side of the wheelchair. To reposition the
MKIV joystick onto the left side of the wheelchair, refer to Repositioning MKIV Joystick on
page 115.
1. Turn the adjustment lock lever to
release the adjustment lock from
joystick mounting tube.
MKIV Joystick
2. Slide joystick mounting tube to the
desired position.
Joystick Mounting
Tube
3. Turn the adjustment lock lever to
secure the adjustment lock to the
joystick mounting tube.
Adjustment
Lock w/ Lever
FIGURE 13.1 Preparing MKIV Joystick for Use
Repositioning MKIV Joystick
NOTE: For this procedure, refer to FIGURE 13.2.
1. Turn the adjustment lock lever to
release the joystick mounting tube from
the mounting bracket.
Mounting Bracket
(Threaded Plate)
2. Remove the joystick from the wheelchair.
3. Remove the three hex screws that
secure the both halves of the mounting
bracket to the arm tube.
Washers
Arm
Tube
Mounting
Hex
Bracket
Mounting
Screws
Joystick
Adjustment
Mounting
Lock Lever
Tube
4. Reposition mounting bracket on
opposite arm tube ensuring the
threaded plate of the mounting bracket
is on the inside of the arm tube as
shown in FIGURE 13.2.
MKIV-RII
Joystick
FIGURE 13.2 Repositioning MKIV Joystick
5. Using the three hex mounting screws and washers, secure both halves of the mounting
bracket to the arm tube.
6. Slide the joystick mounting tube through the mounting bracket to the desired position.
7. Turn the adjustment lock lever to secure the joystick mounting tube into the mounting
bracket.
Part No 1134791
115
3G Storm Series® Wheelchairs
SECTION 14—RECLINER
SECTION 14—RECLINER
WARNING
After ANY adjustments, repair or service and BEFORE use, make sure all attaching
hardware is tightened securely - otherwise injury or damage may result.
NEVER operate the wheelchair while in any recline position over 105° relative to the
seat frame. If the limit switch does not stop the wheelchair from operating in a
recline position greater than 105° relative to the seat frame, DO NOT operate the
wheelchair. Have the limit switch adjusted by a qualified technician.
Both gas cylinders MUST be operational and adjusted properly BEFORE using the
recliner. DO NOT operate the recliner option if only one of the gas cylinders is
operational or adjusted properly.
When using the recliner option, the motor/gearbox or motor MUST be mounted to
the MOST rearward mounting holes on the suspension arm assembly.
TO HEALTHCARE PROFESSIONALS/ASSISTANTS:
Make sure the occupant of the wheelchair is properly positioned.
When returning the occupant of the wheelchair to the full upright position, more
body strength will be required for approximately the last twenty degrees of incline
(reverse recline). Make sure to use proper body mechanics (use your legs) or seek
assistance if necessary to avoid injury.
Recliner Operation
NOTE: For this procedure, refer to FIGURE 14.1.
1. Make sure the wheelchair is on a level surface.
2. Inform the occupant of the wheelchair that the wheelchair is about to be reclined.
3. Stand behind the wheelchair and grasp
both back canes firmly.
4. Pull up on the handles of the recliner cable
assemblies to release the gas cylinders.
5. Slowly, push down on the back canes
while squeezing the handles of the
recliner cable assemblies in a
continuous motion.
Handle
6. When the back reaches the desired
angle, slowly let go of the handles of
the recliner cable assemblies.
7. To return the back to the full upright
position, reverse the above steps keeping
in mind proper body mechanics.
3G Storm Series® Wheelchairs
Top Portion of
Wheelchair Frame
FIGURE 14.1 Recliner Operation
116
Part No 1134791
SECTION 14—RECLINER
Replacing Back or Headrest Upholstery
NOTE: For this procedure, refer to FIGURE 14.2.
Replacing Back Upholstery
1. Remove the ten or twelve mounting screws (depending on back height) that secure the
back upholstery to the back canes.
2. Remove existing back upholstery from back canes.
3. Install the new back upholstery onto the back canes.
4. Install the ten or twelve mounting screws (depending on back height) that secure the
back upholstery to the recliner back canes.
5. Adjust the back upholstery to the desired tautness. Refer to Adjusting Back or
Headrest Upholstery on page 118.
NOTE: Changing the back upholstery height must be performed by an authorized dealer or
qualified technician.
Replacing Headrest Upholstery
1. Remove the six mounting screws that
secure the headrest upholstery to the
headrest extensions.
Headrest Upholstery
2. Remove the existing headrest
upholstery from the headrest
extensions.
Headrest
Extension
Mounting
Screws
3. Install the new headrest upholstery
onto the headrest extensions.
4. Install the six mounting screws that
secure the headrest upholstery to the
headrest extensions.
Back
Cane
5. Adjust the headrest upholstery to the
desired tautness. Refer to Adjusting
Back or Headrest Upholstery on
page 118.
Back
Upholstery
FIGURE 14.2 Replacing Headrest
Upholstery
Part No 1134791
117
3G Storm Series® Wheelchairs
SECTION 14—RECLINER
Adjusting Back or Headrest Upholstery
NOTE: For this procedure, refer to FIGURE 14.3.
1. Rotate the spreader bar either:
• Counterclockwise (away from back upholstery) to loosen back/headrest
upholstery.
• Clockwise (towards back upholstery) to tighten back/headrest upholstery.
Headrest Upholstery
Spreader Bar
Back Upholstery
FIGURE 14.3 Adjusting Back or Headrest Upholstery
3G Storm Series® Wheelchairs
118
Part No 1134791
SECTION 15—VENTILATOR TRAY
SECTION 15—VENTILATOR TRAY
WARNING
After ANY adjustments, repair or service and BEFORE use, make sure all attaching
hardware is tightened securely - otherwise injury or damage may occur.
Before adjusting, repairing or servicing the seating system, ALWAYS turn the
wheelchair power OFF, otherwise, injury or damage may result.
Pinch points exist between seat and base frames. Use caution, otherwise injury may
occur.
Using the Optional Ventilator Tray
WARNING
Maximum weight capacity for the vent tray is 40 lbs ± 20%. DO NOT exceed weight
capacity for vent tray - otherwise, injury or damage may occur.
Reduced tilt/recline limits apply. See the electronics manual listed in Reference
Documents on page 2 of this manual.
CAUTION
This ventilator tray was designed to hold a ventilator that is approximately 13
inches long, 14½ inches wide, and 14 inches high. Use of ventilators larger than the
above specifications may result in damage to the ventilator or stability issues.
Verify that the headrest support does not interfere with ventilator at all recline
angles.
NOTE: For this procedure, refer to FIGURE 15.1.
NOTE: This procedure applies to 2G Tarsys seating systems only.
1. Position straps to the outside of the ventilator tray.
2. Position the ventilator (not shown) on the ventilator tray.
3. Secure strap around the ventilator and clip together.
4. Position the ventilator battery box in the battery tray (Detail “A”).
5. Secure strap around the battery box and clip together.
6. Securely tighten the straps around the ventilator by pulling the ends of the strap
through the rear portion of each buckle (Detail “B”).
Part No 1134791
119
3G Storm Series® Wheelchairs
SECTION 15—VENTILATOR TRAY
DETAIL “A”
See Detail “B”
Strap
Strap
Ventilator
Tray
DETAIL “B”
Strap
Battery
Tray
Ventilator
Battery
Box
Strap
Rear Portion
of Buckle
Extended Active
Anti-Tippers
FIGURE 15.1 Using the Optional Ventilator Tray
3G Storm Series® Wheelchairs
120
Part No 1134791
SECTION 16—ANTI-TIPPERS
SECTION 16—ANTI-TIPPERS
WARNING
After ANY adjustments, repair or service and BEFORE use, make sure all attaching
hardware is tightened securely - otherwise injury or damage may occur.
Before adjusting, repairing or servicing the seating system, ALWAYS turn the
wheelchair power OFF, otherwise, injury or damage may result.
Pinch points exist between seat and base frames. Use caution, otherwise injury may
occur.
Anti-Tippers must be used at all times. When outdoors on wet, soft ground or on
gravel surfaces, anti-tippers may not provide the same level of protection against tip
over. Extra caution must be observed when traversing such surfaces.
Adjusting the Extended Active Anti-Tippers
WARNING
Wheelchairs equipped with ventilator tray MUST have extended active anti-tippers
installed, otherwise, injury or damage may occur.
Wheelchairs that are NOT equipped with optional ventilator tray MUST have
either the standard anti-tippers or the optional extended active anti-tippers
installed, otherwise, injury or damage may occur. Refer to Detail “A” and Detail
“B” in FIGURE 16.1.
NOTE: For this procedure, refer to FIGURE 16.1.
NOTE: This procedure applies to 2G Tarsys seating systems only.
NOTE: The extended active anti-tippers are standard when the wheelchair is equipped with a
ventilatory tray.
NOTE: The recommended height requirement for the anti-tippers, which is factory preset, is ¼inch off the ground/floor.
1. Loosen locknuts A, B and C.
2. Lift anti-tipper and place ¼-inch block underneath the wheel.
3. Tighten locknut A upward against the bearing.
4. Tighten locknut B upward against locknut A.
5. Tighten locknut C downward against bearing inside anti-tip assembly.
6. Remove ¼-inch block.
7. Repeat STEPS 1-6 for the remaining anti-tip assembly.
8. Install the dust cover onto each anti-tip assembly.
Part No 1134791
121
3G Storm Series® Wheelchairs
SECTION 16—ANTI-TIPPERS
DETAIL “A”
Standard Anti-Tippers
DETAIL “B”
Extended Active
Anti-Tippers
Install Dust Cover
Here
Extended Active
Anti-Tipper
Assembly
Locknut C
Bearings
Locknut A
Wheel
Locknut B
Ground/Floor
¼-Inch Block
FIGURE 16.1 Adjusting the Extended Active Anti-Tippers
3G Storm Series® Wheelchairs
122
Part No 1134791
SECTION 17—TRANSPORT READY PACKAGE
SECTION 17—TRANSPORT READY
PACKAGE
NOTE: The information in this section is for wheelchairs ordered with the transport ready package
ONLY.
WARNING
Contact Invacare Corporation (800-333-6900) with any questions about using this
wheelchair for seating in a motor vehicle.
When feasible, wheelchair occupants should transfer into the vehicle seat and use
the OEM (Original Equipment Manufacturer) vehicle-installed restraint system.
This wheelchair has been dynamically tested in a forward-facing mode with the
specified crash test dummy restrained by BOTH pelvic and upper-torso belt(s)
(shoulder belts), and that BOTH pelvic and upper-torso belt(s) should be used to
reduce the possibility of head and chest impacts with vehicle components.
Use ONLY Wheelchair Tie-down and Occupant Restraint Systems (WTORS) which
meet the requirements of the SAE (Society of Automotive Engineers) J2249
Recommended Practice during travel in a motor vehicle.
This wheelchair has been tested for seating in a motor vehicle with the factory
installed seating system ONLY.
This wheelchair MUST be in a forward facing position during travel in a motor
vehicle.
This wheelchair is equipped and has been dynamically tested to rely on
WHEELCHAIR-ANCHORED pelvic belts. If desired, VEHICLE-ANCHORED pelvic
belts may be used.
IT IS STRONGLY RECOMMENDED THAT BOTH PELVIC AND UPPER-TORSO
BELT(S) BE USED TO REDUCE THE RISK OF INJURY.
To reduce the potential of injury to vehicle occupants, wheelchair-mounted
accessories, including but not limited to IV poles, trays, respiratory equipment,
backpacks, and other personal items should be removed and secured separately.
Postural supports, positioning devices, and/or strap(s) should not be relied on for
occupant restraint. These items may be used IN ADDITION TO the wheelchairanchored or vehicle-anchored belts.
Wheelchairs with adjustable seat angles MUST be set to 10°.
DO NOT alter or substitute wheelchair frame parts, components, or seating
systems.
A sudden stop and/or collision may structurally damage your wheelchair.
Wheelchairs involved in such incidents should be replaced.
Spill proof batteries, such as “gel cells”, should be installed on wheelchairs to be
used during travel in a motor vehicle.
Transport ready packages are not retrofittable to existing models and are not field
serviceable.
Part No 1134791
123
3G Storm Series® Wheelchairs
SECTION 17—TRANSPORT READY PACKAGE
WARNING
Only use the transport brackets included with TRRO and TRBKTS for the purposes
described in this manual.
Battery support brackets MUST be installed at all times. Otherwise, the wheelchair
will not be WC/19 compliant. Refer to Installing/Removing Batteries Into/From Battery Boxes on page 91.
About Transport Ready Packages
TRRO includes four factory-installed transport brackets and a wheelchair anchored
pelvic belt. TRRO has been crash-tested in accordance with ANSI/RESNA WC Vol 1
Section 19 Frontal Impact Test requirements for wheelchairs with a 168 lb crash dummy,
which corresponds to a person with a weight of 114 to 209 lbs.
TRBKTS includes four factory-installed wheelchair transport brackets. TRBKTS has not
been crash-tested in accordance with WC 19. Use these transport brackets only to secure
an unoccupied wheelchair during transport.
As of this date, the Department of Transportation has not approved any tie-down systems
for transportation of a user while in a wheelchair, in a moving vehicle of any type. It is
Invacare’s position that users of wheelchairs should be transferred into appropriate
seating in vehicles for transportation and use be made of the restraints made available by
the auto industry. Invacare cannot and does not recommend any wheelchair
transportation systems.
Compliance Information
This wheelchair conforms with the requirements of the ANSI/RESNA WC/Vol. 1 - Section
19.
NOTE: ANSI = American National Standards Institute, RESNA= Rehabilitation Engineering
and Assistive Technology Society of North America.
This wheelchair has been dynamically tested in a forward-facing mode with the specified
crash test dummy, which corresponds to a person with a weight of 114-209 pounds,
restrained by BOTH pelvic and upper-torso belts in accordance with ANSI/RESNA WC
Vol 1 Section 19. BOTH pelvic and upper-torso belts should be used to reduce the
possibility of head and chest impacts with vehicle components.
3G Storm Series® Wheelchairs
124
Part No 1134791
SECTION 17—TRANSPORT READY PACKAGE
Specifications
MODEL
MOTOR
WHEELCHAIR WEIGHT LIMIT
ADULT
JUNIOR
Arrow
GB
Up to 400 lbs
Up to 150 lbs
Torque SP
GB
Up to 400 lbs
Up to 150 lbs
Torque SP
4 Pole HD
Up to 400 lbs
Up to 150 lbs
Torque SP
4 Pole
Up to 300 lbs
Up to 150 lbs
Ranger X
GB
Up to 300 lbs
Up to 150 lbs
Ranger X
4 Pole
Up to 300 lbs
Up to 150 lbs
Securing the Wheelchair to the Vehicle
Positioning the Wheelchair in the Vehicle
WARNING
This wheelchair must be in a forward facing position during travel in a motor
vehicle.
The recommended clear zones for wheelchair seated occupants restrained by
BOTH pelvic and upper-torso belt(s) and ONLY by a pelvic belt are shown in the
diagrams and described below.
Frontal Clear Zones (FCZ) need to be
Side View
LARGER when upper-torso belt(s) are
Frontal Clear
NOT used.
Zone
16 in.
The rear clear zone of 16-inches is
measured from the rearmost point on
an occupant’s head.
HHT
The frontal clear zone is measured from
the frontmost point on an occupant’s
head and is 26-inches with pelvic and
upper-torso belt(s) and 37-inches with
ONLY a pelvic belt.
The frontal clear zone may not be
Top View
achievable for wheelchair-seated
drivers.
The estimated seated height (HHT)
8 in.
from the ground or floor to the top of
8 in.
the wheelchair-seated occupant’s head
ranges from approximately 47-inches
FCZ
16 in.
for a small adult female to about 61Frontal Clear
inches for a tall adult male.
Zone
Part No 1134791
125
3G Storm Series® Wheelchairs
SECTION 17—TRANSPORT READY PACKAGE
Securement Points
Tie-Down
Bracket
Tie-Down
Brackets
Tie-Down
Bracket
FIGURE 17.1 Securement Points
Securing the Wheelchair
This wheelchair is to be used only with Wheelchair Tie-down and Occupant Restraint
Systems (WTORS) that have been installed in accordance with the manufacturer's
instructions and SAE J2249.
NOTE: A copy of SAE J2249 Wheelchair Tie-down and Occupant Restraint Systems (WTORS)
for use in Motor Vehicles can be obtained from: SAE International, 400 Commonwealth Drive,
Warrendale, PA 15096-0001, (877) 606-7232 or (724) 776-4970.
Attach WTORS to the tie-down brackets in accordance with the manufacturer's
instructions and SAE J2249.
3G Storm Series® Wheelchairs
126
Part No 1134791
SECTION 17—TRANSPORT READY PACKAGE
Securing the Occupant
Wheelchair-Anchored Belts
WARNING
The pelvic belt that is provided by Invacare has been tested for use in a motor vehicle on this wheelchair ONLY. DO NOT replace the pelvic belt with a different style
pelvic belt.
NOTE: For this procedure, refer to FIGURE 17.2.
The wheelchair has been provided with a pelvic belt which meets the requirements of
ANSI/RESNA W/C 19.
The pelvic belt, provided by Invacare, has been designed to accommodate use on either
side of the vehicle. If necessary, follow the instructions below to reverse the orientation of
the pelvic belt to accommodate the vehicle-anchored upper-torso belt.
1. Install the pelvic belt pin (Detail "A" of FIGURE 17.2) into the large end of the slot in
the belt mounting bracket. Rotate downward and forward until it snaps into place into
the small end of the slot (Detail “B” or Detail “C”).
NOTE: Note the position of the male end of the belt when installing the pelvic belt onto the belt
mounting brackets. The male end of the pelvic belt (DETAIL "A" of FIGURE 17.2) has a pin which
is used to secure the vehicle-anchored upper-torso belt.
2. Repeat STEP 1 for the opposite belt mounting bracket.
3. Install the vehicle-anchored upper-torso belt onto the pin on the male end of the pelvic
belt.
Part No 1134791
127
3G Storm Series® Wheelchairs
SECTION 17—TRANSPORT READY PACKAGE
DETAIL “A”
Pin
Pin
Pelvic Belt
Pin
(Used to secure the
vehicle anchored
upper-torso belt)
Male End
DETAIL “B” - ADULT SEATS
DETAIL “C” - JUNIOR SEATS
Back Angle
Bracket
Large End
of Slot
Belt Mounting
Bracket
Belt Mounting
Bracket
Large End
of Slot
Small End of Slot
Small End of Slot
FIGURE 17.2 Wheelchair-Anchored Belts
3G Storm Series® Wheelchairs
128
Part No 1134791
SECTION 17—TRANSPORT READY PACKAGE
Vehicle-Anchored Belts
NOTE: For this procedure, refer to FIGURE 17.3.
This wheelchair has an overall rating of “A” with regard to accommodating the use and
fit of vehicle-anchored belts. This rating is scored as follows:
RATING
DESCRIPTION
A
Excellent
B
Good
C
Fair
D
Poor
The test for Lateral Stability Displacement for Point (P) is shown in FIGURE 17.3. The
average test result for point (P) is:
• Adult - 0.48 inches (12.3 mm)
• Junior - 0.54 inches (13.7 mm)
Point (P)
Test Platform
45°
NOTE: Rear view of the wheelchair and human surrogate
secured on test platform and tilted to 45°.
FIGURE 17.3
- Vehicle-Anchored Belts
Seating System
WARNING
This wheelchair has been tested for seating in a motor vehicle with the factory
installed seating system ONLY.
Ensure that the factory installed seating system is secured to the wheelchair frame before
operation. Refer to the seating system owner’s manual.
Part No 1134791
129
3G Storm Series® Wheelchairs
SECTION 17—TRANSPORT READY PACKAGE
Positioning Belts
WARNING
The angle of the pelvic belt should be
within the preferred zone of 45 to 75
degrees to the horizontal OR within the
optional zone of 30 to 45 degrees to the
horizontal.
Steeper side-view pelvic belt angles are
especially important if the pelvic belt is
intended to be used for postural support
in addition to occupant restraint in a
frontal crash. Steeper angles will reduce
the tendency for a vertical gap to
develop between the user and the belt
due to compliance of seat cushions and
belt movement, thereby reducing the
tendency for the user to slip under the
belt and for the belt to ride up on the
soft abdomen during normal use.
Side View
Preferred Zone
Optional Zone
45°
70°
30°
Steeper belt angles also reduce the tendency for upper-torso belts to pull the pelvic
belt onto the abdomen during frontal impact loading.
NOTE: For this procedure, refer to FIGURE 17.4.
1. The pelvic belt should be worn low across the front of the pelvis.
2. Position the upper-torso belt(s) over the shoulders.
3. The belt(s) should not be held away from the body by wheelchair components or
parts, including but not limited to wheelchair armrests or wheels. Refer to
FIGURE 17.4 for proper and improper positioning of the belts.
4. Ensure the belt(s) are not twisted.
5. Adjust belts as firmly as possible, being mindful of user comfort.
DO NOT POSITION BELT OUTSIDE OF
ARMRESTS, WHEELS, ETC.
DO POSITION BELT INSIDE OF
ARMRESTS, WHEELS, ETC.
FIGURE 17.4 Positioning Belts
3G Storm Series® Wheelchairs
130
Part No 1134791
LIMITED WARRANTY
LIMITED WARRANTY
PLEASE NOTE: THE WARRANTY BELOW HAS BEEN DRAFTED TO COMPLY WITH FEDERAL
LAW APPLICABLE TO PRODUCTS MANUFACTURED AFTER JULY 4, 1975.
This warranty is extended only to the original purchaser/user of our products.
This warranty gives you specific legal rights and you may also have other legal rights which vary from
state to state.
Invacare warrants the product to be free from defects in materials and workmanship for the periods of
time from date of purchase listed below:
One Year
Electrical components and powered seating actuators
One Year
All remaining components (including gas cylinders and motor lock pads)
except for upholstered materials, padded materials and tires/wheels
Eighteen Months
Gearbox/Motors (4 Pole)
Three Years
Seat frame
Three Years
Tilt mechanism (Power Tilt Only Seating System)
Five Years
GB motors
Life of Product
Base frame
If within such warranty period any such product shall be proven to be defective, such product shall be
repaired or replaced, at Invacare's option. This warranty does not include any labor or shipping
charges incurred in replacement part installation or repair of any such product. Invacare's sole
obligation and your exclusive remedy under this warranty shall be limited to such repair and/or
replacement.
For warranty service, please contact the dealer from whom you purchased your Invacare product. In
the event you DO NOT receive satisfactory warranty service, please write directly to Invacare at the
address at the bottom of the back cover. Provide dealer’s name, address, date of purchase, indicate
nature of the defect and, if the product is serialized, indicate the serial number. Do not return
products to our factory without our prior consent.
LIMITATIONS AND EXCLUSIONS: THE FOREGOING WARRANTY SHALL NOT APPLY TO
SERIAL NUMBERED PRODUCTS IF THE SERIAL NUMBER HAS BEEN REMOVED OR DEFACED,
PRODUCTS SUBJECTED TO NEGLIGENCE, ACCIDENT, IMPROPER OPERATION,
MAINTENANCE OR STORAGE, COMMERCIAL OR INSTITUTIONAL USE, PRODUCTS
MODIFIED WITHOUT INVACARE'S EXPRESS WRITTEN CONSENT INCLUDING, BUT NOT
LIMITED TO, MODIFICATION THROUGH THE USE OF UNAUTHORIZED PARTS OR
ATTACHMENTS; PRODUCTS DAMAGED BY REASON OF REPAIRS MADE TO ANY
COMPONENT WITHOUT THE SPECIFIC CONSENT OF INVACARE, OR TO A PRODUCT
DAMAGED BY CIRCUMSTANCES BEYOND INVACARE'S CONTROL, AND SUCH
EVALUATION WILL BE SOLELY DETERMINED BY INVACARE. THE WARRANTY SHALL NOT
APPLY TO PROBLEMS ARISING FROM NORMAL WEAR OR FAILURE TO ADHERE TO THESE
INSTRUCTIONS.
THE FOREGOING EXPRESS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER
WARRANTIES WHATSOEVER, WHETHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND
THE SOLE REMEDY FOR VIOLATIONS OF ANY WARRANTY WHATSOEVER, SHALL BE
LIMITED TO REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT PURSUANT TO THE
TERMS CONTAINED HEREIN. THE APPLICATION OF ANY IMPLIED WARRANTY
WHATSOEVER SHALL NOT EXTEND BEYOND THE DURATION OF THE EXPRESS
WARRANTY PROVIDED HEREIN. INVACARE SHALL NOT BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER.
THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL LAWS
AND REQUIREMENTS.
Part No 1134791
131
3G Storm Series® Wheelchairs
Invacare Corporation
www.invacare.com
USA
One Invacare Way
Elyria, Ohio USA
44036-2125
800-333-6900
Canada
570 Matheson Blvd E Unit 8
Mississauga Ontario
L4Z 4G4 Canada
800-668-5324
Invacare, Storm Series, Arrow, Tarsys,
Yes, you can. and the Medallion Design are
registered trademarks of Invacare
Corporation.
Torque, Ranger X, TDX, MKIV, 2GT,
2GR, 2GTR and Gearless Brushless GB
are trademarks of Invacare Corporation
© 2005 Invacare Corporation.
Part No 1134791
Rev B - 11/07/05
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
