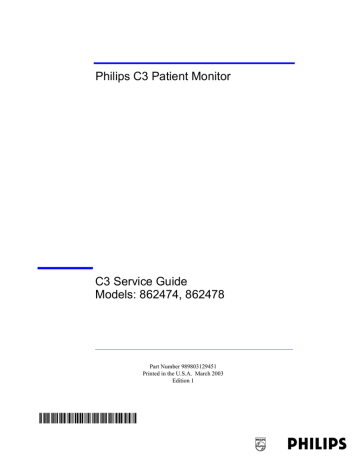

Philips C3 Patient Monitor
C3 Service Guide
Models: 862474, 862478
Part Number 989803129451
Printed in the U.S.A. March 2003
Edition 1
989803129451
About this Manual
Proprietary
Information
This document contains proprietary information, which is protected by copyright. All Rights
Reserved. Reproduction, adaptation, or translation without prior written permission is
prohibited, except as allowed under the copyright laws.
Philips Medical Systems
3000 Minuteman Road
Andover, MA 01810-1085
(978) 687-1501
Publication number
989803129451
Printed in USA
Warranty
The information contained in this document is subject to change without notice.
Philips Medical Systems makes no warranty of any kind with regard to this material,
including, but not limited to, the implied warranties or merchantability and fitness for Philips
Medical Systems shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of this material.
Copyright
Copyright © 2003 Philips Electronics North America Corporation
Microstream® is a registered trademark of Oridion Medical Inc.
Printing
History
New editions of this document incorporate all material updated since the previous edition.
Update packages may be issued between editions and contain replacement and additional
pages to be merged by a revision date at the bottom of the page. Pages that are rearranged due
to changes on a previous page are not considered revised.
The documentation printing date and part number indicate its current edition. The printing
date changes when a new edition is printed. (Minor corrections and updates that are
incorporated at reprint do not cause the date to change.) The document part number changes
when extensive technical changes are incorporated.
First Edition............................................................... March 2003
Additional
Documents
ii
Use this document in conjunction with the C3 Instructions for Use guide (pn
989803228691).
Safety
All warnings, precautions and notes are located in the chapters that follow. You must read all
of this safety information before you begin monitoring with your C3 patient monitor.
Safety
Standards
The C3 Patient Monitor is compliant with the following safety standards:
•
•
•
•
•
•
•
UL 2601-1
CAN/CSA C22.2 No. 601.1-M90
EN60601-1
EN60601-2-27
EN60601-2-30
EN60601-2-49
EN865
CE Marking
Europe
The following products and accessories from Philips Medical Systems carry the CE mark
to Council Directive 93/42/EEC.
0123
C3 Products: - 862474
- 862478
Accessories: - 21075A
- M1837A
- 21076A
- M4820A
- 21078A
- M4818A
- 21090A
The following accessories from Philips Medical Systems carry one of the following CE
marks:
or
to Council Directive 93/42/EEC.
0366
Accessories: - M1191A
- 40493D
- M1510A
- M1615A
- M1876A
- M1575A
- M1571A
- 40401E
- 40401A
- M2525A
- M2521A
- M1921A
- M1192A
- 40493E
- M1550C
- M1879A
- M1875A
- M1574A
- M1577A
- 40401D
- M1598B
- M2524A
- M2520A
- M4816A
- M1194A
- M1980A
- M1611A
- M1878A
- M1874A
- M1573A
- M1578A
- 40401C
- M1599B
- M2528A
- M1920A
- M4817A
- M1941A
- M1981A
- M1613A
- M1877A
- M1576A
- M1572A
- M1579A
- 40401B
- M2526A
- M2522A
- M1922A
Accessories from companies other than Philips Medical Systems carry CE markings
appropriate to the accessory.
Additional accessories not identified above fall outside the definition of a medical device.
The Former Agilent Technologies’ Healthcare Solutions Group is now a part of Philips
Medical Systems. Some accessories may still be branded with the Agilent name.
iii
Authorized EU-representative: Philips Medizinsystems Böblingen GmbH, Hewlett Packard
Str., 71034, Böblingen Germany
Note
United States
Canada
United States Federal Law restricts this device to sale by or on the order of a physician.
This ISM device complies with Canadian ICES-001.
Cet appareil ISM est conforme a la norme NMB-001 du Canada.
Philips
Software
License
Terms
ATTENTION:
USE OF THE SOFTWARE IS SUBJECT TO THE PHILIPS SOFTWARE LICENSE
TERMS SET FORTH BELOW. USING THE SOFTWARE INDICATES YOUR
ACCEPTANCE OF THESE LICENSE TERMS. IF YOU DO NOT ACCEPT THESE
LICENSE TERMS, YOU MAY RETURN THE SOFTWARE FOR A FULL REFUND. IF
THE SOFTWARE IS BUNDLED WITH ANOTHER PRODUCT, YOU MAY RETURN
THE ENTIRE UNUSED PRODUCT FOR A FULL REFUND.
PHILIPS SOFTWARE LICENSE TERMS
The following License Terms govern your use of the accompanying Software unless you have
a separate signed agreement with Philips Medical Systems.
License Grant. Philips Medical Systems grants you a license to Use one copy of the
Software. "Use" means storing, loading, installing, executing or displaying the Software. You
may not modify the Software or disable any licensing or control features of the Software. If
the Software is licensed for "concurrent use", you may not allow more than the maximum
number of authorized users to Use the Software concurrently.
Ownership. The Software is owned and copyrighted by Philips or its third party suppliers.
Your license confers no title to, or ownership in, the Software and is not a sale of any rights in
the Software. Philips’ third party suppliers may protect their rights in the event of any
violation of these License Terms.
Copies and Adaptations. You may only make copies or adaptations of the Software for
archival purposes or when copying or adaptation is an essential step in the authorized Use of
the Software. You must reproduce all copyright notices in the original Software on all copies
or adaptations. You may not copy the Software onto any public network.
No Disassembly or Decryption. You may not disassemble or decompile the Software unless
Philips prior written consent is obtained. In some jurisdictions, Philips consent may not be
required for limited disassembly or decompilation. Upon request, you will provide Philips
with reasonably detailed information regarding any disassembly or decompilation. You may
not decrypt the Software unless decryption is a necessary part of the operation of the
Software.
iv
Transfer. Your license will automatically terminate upon any transfer of the Software. Upon
transfer, you must deliver the Software, including any copies and related documentation, to
the transferee. The transferee must accept these License Terms as a condition to the transfer.
Termination. Philips Medical Systems may terminate your license upon notice for failure to
comply with any of these License Terms. Upon termination, you must immediately destroy
the Software, together with all copies, adaptations and merged portions in any form.
Export Requirements. You may not export or re-export the Software or any copy or
adaptation in violation of any applicable laws or regulations.
U.S. Government Restricted Rights. The Software and any accompanying documentation
have been developed entirely at private expense. They are delivered and licensed as
"commercial computer software" as defined in DFARS 252.227-7013 (Oct. 1988), DFARS
252.211-7015 (May 1991) or DFARS 252.227-7014 (Jun. 1995), as a "commercial item" as
defined in FAR 2.101(a), or as "Restricted computer software" as defined in FAR 52.227-19
(Jun. 1987)(or any equivalent agency regulation or contract clause), whichever is applicable.
You have only those rights provided for such Software and any accompanying documentation
by the applicable FAR or DFARS clause or the Philips standard software agreement for the
product involved.
v
Text
Conventions
The following conventions for Notes, Cautions, and Warnings are used in this manual.
Warning
A Warning calls attention to a condition or possible situation that could cause injury to
the user and/or patient.
Caution
A Caution calls attention to a condition or possible situation that could damage or destroy the
product or the user’s work.
Note
A Note calls attention to an important point in the text.
Explanation
of Symbols
Symbols on products and packaging mean the following. All symbols found in this section are
used this Instructions For Use guide.
Reference Number
Serial Number
0123
5% to 95% RH
CE Marking
Humidity
Temperature Limits
vi
Keep out of Sun
Keep Dry
Fragile
Keep Upright
AC LED
Battery LED
NBP
Volume
Contrast
On/Standby
Snapshot
Continuous
Defibrillator-proof type CF equipment
vii
ECG
T
SpO2
Temperature
SpO2
NBP
CO2
Carbon Dioxide
Alarm
Alarm Limits Menu
Audio Off
Silence/Reset
NBP Automatic Interval Mode
Big Numbers
Clock
Up Alarm Arrow Limit
Down Alarm Arrow Limit
viii
Empty Battery
Perfusion Indicator Bar
Heart Rate
Powering Down
Heart Rate taken from ECG
Heart Rate taken from NBP
Heart Rate taken from SpO2
Respiration
Stat Mode
Audio Pause
Setup Menu
ECG Size Bar
RF Interference
ix
Battery Compartment
RS-232 I/O
Equipotential Grounding Post
Defib Sync
Attention, consult accompanying documents
Alternating Current
Fuse Type
T1AL 250V
Date of Manufacture (Y= year; X = Month)
YYYY-XX
IPX1
Drip-proof
ETL Mark
x
Sales and Support Offices
Please call your local Philips Medical Systems sales office listed in your telephone directory,
or a Philips Medical Systems regional office listed below for the location of your nearest sales
office or for information on how to contact the Philips Response Center.
CORPORATE HEADQUARTERS:
Philips Medical Systems
Netherlands B.V.
Postbus 10.000
5680 DA Best
Netherlands
CORPORATE HEADQUARTERS:
Philips Medical Systems
3000 Minuteman Road
Andover, MA 01810
United States
(800) 934-7372
CANADA:
Philips Medical Systems Canada
281 Hillmount Road
Markham, ON
L6C 2S3
(800) 291-6743
EUROPE, MIDDLE EAST AND AFRICA:
Philips Medizinsysteme Böblingen GmbH
Cardiac and Monitoring Systems
Hewlett-Packard Str. 2
71034 Böblingen
Germany
Fax: (+49) 7031 463 1552
xi
LATIN AMERICA HEADQUARTERS:
Philips Medical Systems
1550 Sawgrass Corporate Parkway #300
Sunrise, FL 33323
Telephone: 954-835 2600
Fax: 954-835-2626
ASIA PACIFIC HEADQUARTERS:
Philips Medical Systems
30/F Hopewell Centre
17 Kennedy Road
Wanchai
Hong Kong
Tel: (852) 2821 5888
Fax: (852) 2527 6727
xii
Contents
1. Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
C3 Patient Monitor Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
Features and Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
Front Panel Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
Front of Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
Rear of Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6
Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7
Additional Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8
2. Site Preparations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
General Site Preparation Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
Site Preparation Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
Warning, Cautions and Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
Patient Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
Patient Leakage Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
Preparing to Use the Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4
Power Source Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4
Protecting Against Electrical Shock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4
Equipotential Grounding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4
Combining Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4
Disposing of the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5
Unpacking the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5
Checking the Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5
Returning System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-7
Warnings, Cautions, and Safety Precautions Relating to Wall Mount Installation . . . . . . . . . . . .2-8
Mounting the GCX Wall Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-9
Attaching the Mounting Plate to the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-9
Attaching the Monitor to the Wall Channel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-10
Contents-1
3. Maintaining the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Maintenance Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Light Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Battery Conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Recommendations for Maintenance Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Maintenance Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Inspecting the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Inspecting the Cables and Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Battery Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
About the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Battery Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Checking the Battery Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Identifying Battery Strength. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Conditioning a Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Why is Battery Conditioning Necessary? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
When Should Battery Conditioning be Performed? . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
How to Condition a Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Battery INOP Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
4. Testing the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Testing Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Functionality Assurance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Preventative Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Performance and Safety Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Testing Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Test Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Recommendations for Testing Frequency. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Test Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Serial Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Visual Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Power On Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Functionality Assurance Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Contents-2
Performance Assurance Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-11
Power-On Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-11
Alarm Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-12
Volume Control Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-12
Preventative Maintenance Tests. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-14
Documenting NBP Test Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-15
Pneumatic System Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-16
To Zero the Simulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-16
Pressure Transducer Accuracy Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-17
Pneumatic Leakage Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-17
Inflation Rate Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-18
Over-Pressure Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-19
Deflation Rate Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-20
Basic Pneumatic Leakage (BPL) Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-21
Performance Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-22
Battery Performance Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-22
Temperature Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-23
ECG/Respiration Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-25
ECG Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-25
Respiration Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-26
SpO2 Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-27
Dynamic Operating Range Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-27
LED Excitation Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-28
CO2 Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-29
Documenting CO2 Test Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-30
Barometric Pressure Check and Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-31
Leakage Check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-32
Pump Check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-33
Flow Rate Check and Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-33
CO2 Gas Measurement Calibration Check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-34
Calibration Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-35
Reset Pump Operating Time Counters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-35
Serial Interface and Nurse Call Signal Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-36
ECG Sync Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-38
Patient Safety Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-39
Ground Integrity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-39
Electrical Leakage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-41
Earth Leakage Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-41
Enclosure Leakage Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-42
Patient Leakage Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43
Contents-3
Patient Leakage Current, with Mains Voltage on the Applied Part . . . . . . . . . . . . . . . 4-44
5. Configuring the Power-up Defaults Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Power-Up Defaults Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Menu Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Diagnostic Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
System A/D Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
NBP Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
CO2 Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
Restoring Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14
6. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
General Troubleshooting Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Trouble-shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Part 1 Troubleshooting Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Checks for Obvious Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Checks Before Opening the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Part 2 Isolating and Solving Monitor Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
INOP Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
Isolating the Defective Component . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
Part 3 Using Support Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
Serviceable Hardware Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
Error Code Categories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12
Other Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
7. Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Disassembly Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Disassembly Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Closed Case Disassembly Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Removing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Removing the Navigation Wheel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
Removing the Keypad on the Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
Contents-4
Removing the Optional, External Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-6
Separating the Front from the Rear Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-7
Front Case Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-8
Replacing the Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-9
Replacing the Backlight Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-9
Rear Case Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-10
Removing the Main PCB Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-12
Removing the Patient Monitoring I/O Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-13
Removing the SpO2 Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-14
Removing the CO2 Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-15
Removing the NBP Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-16
Removing the Power Supply Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-17
8. Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
Small Parts Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-2
C3 Top Level Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-3
Front Panel Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-4
Rear Panel Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-6
Power Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9
Exchange Unit Part Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-10
9. Packing for Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
General Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-2
Repacking the Original Carton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-2
Repacking in a Different Carton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-2
10. RS-232 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
General RS-232 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-2
About the RS-232 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-3
Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-3
Nurse-Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-4
Contents-5
11. Training . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2
Levels of Involvement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2
Preventative Maintenance Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2
Phone Support or Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2
Training Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-3
Essential Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-3
Optional Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-3
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-3
Support Strategies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-4
Unit Exchange . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-4
Bench Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-4
Theory of Operation and System Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-5
System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-5
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-5
Isolated Front End . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-7
NBP Front End . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-7
Power System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-7
Micro-processor, Memory and Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-7
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-7
Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-7
Navigation Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-8
RS-232 I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-8
Defib Sync Pulse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-8
Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-8
Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-9
ECG Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-9
Respiration Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-9
NBP Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-10
SpO2 Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-10
CO2 Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-10
Temperature Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-10
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-11
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-12
Monitor Applications and Algorithms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-13
Contents-6
12. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1
Hardware Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-2
Safety Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-2
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-3
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-3
Measuring and Displaying Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-4
ECG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-4
ECG Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-5
Respiration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-6
NBP (Non-Invasive Blood Pressure) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-7
Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-7
SpO2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-8
CO2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-9
Trends . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-10
Contents-7
Contents-8
1
Overview
This chapter provides a brief overview of the C3 patient monitor. It also provides a list of the
monitor’s features and parameters.
Overview 1-1
General Safety Information
General Safety Information
Warning
This monitor is not intended for neonates.
If you connect the monitor to any instrument, verify proper operation before clinical
use. Refer to that instrument’s Instructions for Use guide for full
instructions.
Accessory equipment connected to the monitor’s data interface must be certified
according to IEC Standard 60950 for data-processing equipment or
IEC Standard 60601-1 for electromedical equipment. All combinations
of equipment must be in compliance with IEC Standard 60601-1-1
systems requirements.
Anyone who connects additional equipment to the signal input port or signal output port
configures a medical system and is therefore responsible to ensure that
the system complies with the requirements of system standard IEC
Standard 60601-1-1. If in doubt, contact the Philips’ Response Center
or your local Philips representative.
Note
The monitor and its accessories must be tested by qualified service personnel at regular
intervals to verify proper operation, according to the procedures of the user’s institution.
Other important safety information is located in this Service Guide where appropriate.
1-2 Overview
Introduction
Introduction
This manual contains information for servicing the C3 patient monitor, subsequently referred
to as "the monitor" throughout this manual. Only qualified service personnel should service
this product. Before servicing the monitor, carefully read the C3 Instructions for Use guide
for a thorough understanding of operation.
C3 Patient Monitor Description
The purpose and function of the C3 family of patient monitors is to monitor ECG, heart rate,
non-invasive blood pressure (NBP), functional arterial oxygen saturation (SpO2), respiration
rate, temperature and carbon dioxide1 (CO2) for adult and pediatric patients in hospital areas
and hospital-type facilities, such as clinics.The monitors may be used by clinical users during
hospital transport.
The intended users of the C3 patient monitors are clinicians and nursing staffs within hospital,
out-patient, and ambulatory settings. This monitor is not intended for helicopter transport or
home use.
The physical and operational characteristics of the monitor are described in the C3
Instructions for Use guide.
1. Carbon Dioxide monitoring is available within the C3 Sedation monitors only.
Overview 1-3
Features and Options
Features and Options
The measurement parameters and features for each model are indicated below.
Order
Number
Description
Display
Color
Front Panel
Description
Measurements
ECG NBP Temp
862474
Standard Color
•
•
•
•
•
862478
Sedation Color
•
•
•
•
•
CO2
Recorder
(optional)
•
(optional)
The following diagram illustrates the controls located on the front panel of your C3.
A
B
C
D
E
F
G
Callout
1-4 Overview
SpO2
Printout
Button/LED
A.
AC LED
B.
Battery LED
C.
Audio Alarm Control button
D.
NBP button
E.
Volume button
F.
Contrast button
G.
On/Standby button
Features and Options
Front of
Monitor
Use the following diagram to familiarize yourself with the main features of your C3 monitor.
The recorder module and all patient input connectors are located on the monitor’s side panels.
C
B
/min
85
mmHg
1.0mV
cm
183/ 107
(149 )
SpO2
180
SpO2 %
D
93
A
etCO2
CO2
mmHg
awRR
/min
°C
T°
x
X
Callout
Adult
imCO2
33
23
37.8
1
E
01/06/03 01:09:17
Description
A.
Patient Monitoring Input Connectors
B.
Main Monitoring Screen
C.
Handle
D.
Recorder (optional. Not available in all models)
E.
Navigation Wheel
Overview 1-5
Features and Options
Rear of
Monitor
The following diagram is of the rear panel. For an explanation of the symbols located on this
panel, see “Explanation of Symbols” on page vi.
The C3 has four connections on its rear panel. The diagram below is of the rear panel. It
shows you how to make the four possible connections (Defib Sync, Equipotential, AC Input,
and RS-232 I/O).
C
A
100-230V~
50-60 Hz. 1.0A
T1AL 250V
YYYY-XX
100-230V~
50-60 Hz. 1.0A T1AL 250V
YYYY-XX
CE
CE
0123
0123
9700859
IPX1
B
970085
IPX1
PHILIPS C3 PATIENT MONITOR
Manufactured for Philips for
Philips Medical Systems
3000 Minuteman Road
Andover, MA 01810
Made in U.S.A.
D
Callout
Connector
Connector Type
Label
A.
AC Input
3-line connector IEC 320 receptacle
100 - 240V ~
50 - 60Hz
1A
B.
RS-232 I/O
DB-9 (male)
C.
Equipotential
Grounding Post
Equipotential
The equipotential grounding post
may be used by facilities as required
by their procedures.
D.
1-6 Overview
Defib Sync
2.5mm subminiature phone jack
Features and Options
Screen
Display
The LCD displays parameter values, real-time waveforms, alarm messages and screen
selection icons.
•
Numeric frames
displays icons and numeric values of
real-time physiologic parameter.
•
Waveform frames
displays real-time waveforms, graphical
trend, or tabular trend data.
•
Message and Icon frames
displays alarm messages and screen
selection icons.
Standard Model
/min
85
93
SpO2 %
mV
1.0 cm
SpO2
Waveform
Frames
mmHg
183 / 107
(149 )
Numeric
Frames
180
/min
Message
and Icon
Frames
T °C
x
X
Adult
14
37.8
01/06/03 01:09:17
Overview 1-7
Additional Documentation
Sedation Model
/min
mV
1.0 cm
183/107
(149 ) 180
SpO2
SpO2 %
Frames
etCO2
CO2
mmHg
awRR
/min
Message
and Icon
Frames
85
mmHg
T °C
x
X
Adult
93
Numeric
Frames
33
23
37.8
imCO2
1
01/06/03 01:09:17
Additional Documentation
To perform test and troubleshooting procedures and to understand the principles of operation
and circuit analysis sections of this manual, you must know how to operate the monitor. Refer
to the C3 Instructions For Use guide to understand the various sensors, ECG leads, blood
pressure cuffs, CO2 parameters and accessories and temperature probes that work with the
monitor. Instructions for cleaning and caring for the accessories can also be found in the
individual Directions for Use that accompany these accessories.
1-8 Overview
2
Site Preparations
This chapter describes how to perform site preparation and how to comply with safety
guidelines and requirements.
Site Preparations 2-1
General Site Preparation Safety Information
General Site Preparation Safety Information
Warning
To avoid contaminating or infecting personnel, the service environment or other
equipment, make sure that equipment which has been used before has
been appropriately disinfected and decontaminated.
Disconnect the monitor from the AC source by unplugging the power cable from the AC
power connector located on the rear of the monitor. The On/Standby
button does not disconnect the monitor from the AC mains supply
Accessory equipment connected to the monitor’s data interface must be certified
according to IEC Standard 60950 for data-processing equipment or
IEC Standard 60601-1 for electromedical equipment. All combinations
of equipment must be in compliance with IEC Standard 60601-1-1
systems requirements.
Explosion Hazard. Equipment not suitable for use in the presence of a flammable
anaesthetic mixture with air, or with oxygen or nitrous oxide.
Make sure that you have read all applicable instructions before attempting to install the
wall mount.
Wall mounts that are intended to support monitors must be capable of supporting 4
times the weight of the monitor when properly installed.
Do not mount any portion of a monitoring instrument over a patient’s bed.
Do not exceed the maximum rated load specified for each wall mount.
Ensure that no electrical wiring, utilities, or piping interfere with the selected wall
mounting location.
Note
Do not return sensors, patient cables, NBP tubing and cuff, or the power cord.
2-2 Site Preparations
Site Preparation Guidelines
Site Preparation Guidelines
•
Check that the environment is reasonably free from dust, vibration, corrosive or
explosive gases and is within specified temperature and humidity ranges. See
Chapter 12, “Specifications”
•
Position the monitor so that the display is clearly visible and the controls are easy to
reach.
Warning, Cautions and Safety Precautions
Patient
Safety
To better secure patient safety, become familiar with the details in
Chapter 12, “Specifications.”
Patient
Leakage
Current
The patient leakage current is <= 50µA @ 250 V. The monitor has patient input connectors
(Type CF) that are protected against the effects of defibrillation and electrosurgery.
You will find the following heart symbol on the side of the monitor where the patient
monitoring input connectors are located. The symbol indicates that the monitor is Type CF
and is designed to have special protection against electric shocks (particularly regarding
allowable leakage currents, having a F-Type applied part, according to the standards IEC
60601-1/EN60601-1/CSAC22.2 601.1/UL 2601-1), and is defibrillator proof.
Site Preparations 2-3
Preparing to Use the Monitor
Preparing to Use the Monitor
Warning
To avoid contaminating or infecting personnel, the service environment or other
equipment, make sure that equipment which has been used before has
been appropriately disinfected and decontaminated.
Power
Source
See the section titled, “Electrical” on page 12- 3 for all electrical specifications.
Protecting
Against
Electrical
Shock
The C3 patient monitor is classified as Class I Equipment with an internal power source
according to IEC 60601-1/CSAC22.2 601.1/UL 2601-1, which means that it is a monitor
included in the protective grounding (protective earth) system of the room by way of
grounding contacts in the power plug.
Requirements
Warning
Disconnect the monitor from the AC source by unplugging the power cable from the AC
power connector located on the rear of the monitor. The On/Standby
button does not disconnect the monitor from the AC mains supply.
Equipotential
Grounding
To eliminate potential differences between difference pieces of equipment, the monitor must
have a separate connection to the equipotential grounding system.
One end of the equipotential grounding cable (potential equalization conductor) is connected
to the equipotential grounding post on the rear of the monitor, and the other end is connected
to one point of the equipotential grounding system.
Combining
Equipment
All combinations of medical equipment with non-medical equipment must comply with IEC
60601-1-1.
Warning
Accessory equipment connected to the monitor’s data interface must be certified
according to IEC Standard 60950 for data-processing equipment or
IEC Standard 60601-1 for electromedical equipment. All combinations
of equipment must be in compliance with IEC Standard 60601-1-1
systems requirements.
2-4 Site Preparations
Unpacking the Monitor
Disposing
of the
Monitor
To avoid contaminating or infecting personnel, the environment or other equipment, make
sure you disinfect and decontaminate the monitor appropriately before disposing of it in
accordance with your country’s law for equipment containing electrical and electronic parts.
For disposal of parts and accessories, such as ECG and SpO2, where not otherwise specified,
follow local regulations regarding disposal of hospital waste.
For disposal of the lead-acid battery, follow local regulations for safe disposal of lead.
Warning
Explosion Hazard. Equipment not suitable for use in the presence of a flammable
anaesthetic mixture with air, or with oxygen or nitrous oxide.
Unpacking the Monitor
The box comes with the following:
•
the C3 Instructions for Use guide
•
the C3 patient monitor
•
an AC power cord
In addition, you should receive all of the accessories and options that you have ordered.
If there is anything missing, contact your Philips Medical Systems representative
immediately.
Checking the Shipment
Examine the carton carefully for evidence of damage in transit. If you discover any damage,
contact the carrier immediately. Retain all packing material.
If you have to return the monitor, contact the Philips Response Center or your local Philips
representative for shipping instructions.
To pack the monitor for return, disconnect all cables. Pack the monitor in its original shipping
carton. If this is unavailable, use a suitable carton with appropriate packing material to protect
the monitor during shipping.
Note
Do not return sensors, patient cables, NBP tubing and cuff, or the power cord.
Site Preparations 2-5
Returning System Components
Returning System Components
If it is necessary to return the monitor for service, call the Philips Response Center or your
local Philips representative for shipping instructions. Have all equipment serial numbers
available when calling.
To pack the monitor for return, disconnect all cables. It is not necessary to return sensors,
patient cables, NBP tubing and cuff or power cord. Pack the monitor to be returned in its
original shipping carton if available. If not, use a suitable carton with appropriate packing
material to protect the monitor during shipping.
2-6 Site Preparations
Mounting
Mounting
Warning
Make sure that you have read all applicable instructions before attempting to install the
wall mount.
Wall mounts that are intended to support monitors must be capable of supporting 4
times the weight of the monitor when properly installed.
Do not mount any portion of a monitoring instrument over a patient’s bed.
Do not exceed the maximum rated load specified for each wall mount.
Ensure that no electrical wiring, utilities, or piping interfere with the selected wall
mounting location.
The rear panel includes threaded standoffs for attaching a mounting system accessory.
Mounting
Standoffs
100-230V~
50-60 Hz. T1AL 250V
YYYY-XX
CE
0123
PHILIPS C3 PATIENT MONITOR
Manufactured for Philips for
Philips Medical Systems
3000 Minuteman Road
Andover, MA 01810
97008
IPX1
Site Preparations 2-7
Warnings, Cautions, and Safety Precautions Relating to Wall Mount Installation
Warnings, Cautions, and Safety Precautions Relating to Wall Mount
Installation
2-8 Site Preparations
•
Make sure that you have read all applicable instructions before attempting to install the
wall mount.
•
Wall mounts that are intended to support monitors must be capable of supporting four
times the weight of the monitor when properly installed.
•
If wall mounts are to be installed on plaster board walls, we recommend that the mounts
be installed using steel or plywood plates sufficient to distribute the load over a large
section of the wall. Lead expansion bolts are neither adequate nor safe for this
purpose.
•
It is the responsibility of the hospital, institution, or its designated representatives to
determine that the wall is adequate to safely mount monitoring instrumentation. This
includes the selection of and proper installation of the appropriate fasteners and mounts.
In a new construction, or in a remodelled construction where the wall can be completely
or partially removed, a 16-gauge steel stud should be mounted for the purpose of
attaching the wall channel. This design safety factor is based on four times (4x) the
maximum rated load.
•
GCX Wall Channel: Always reposition the adjustable channel safety stop under the
adapter plate when the height of the monitor is changed.
•
The channel safety stop prevents the mounting device from inadvertently falling or
being pulled out of the wall channel. Do not remove this stop while the mount is
supporting a monitor.
•
Do not mount any portion of the monitor over a patient’s bed.
•
Do not exceed the maximum rated load specified for each wall mount.
•
Ensure that no electrical wiring, utilities, or piping interface with the selected wall
mounting location.
•
Do not install wall channel onto solid brick or brick veneer walls. Do not attempt to
install wall mounts onto crumbly wall material.
•
Check the mounting hardware holding the wall channel or bracket to the wall every 12
months. Tighten if necessary.
Mounting the GCX Wall Channel
Mounting the GCX Wall Channel
To install the GCX Wall Channel and Tilt/Swivel mount, follow the documentation packaged
with the channel.
Attaching the Mounting Plate to the Monitor
Step
Action
1
Unpack the mounting plate and check all parts are present.
2
Unscrew the 5 screws from the mounting standoffs located on the rear of the
monitor.
3
Place the Wall Plate over the mounting standoffs.
4
Re-insert and tighten the screws to secure the wallplate to the monitor.
Site Preparations 2-9
Attaching the Monitor to the Wall Channel
Attaching the Monitor to the Wall Channel
Latch
r
ito r
on s fo
t M ip
en hil s
ati r P tem
3 P d fo ys d
s C ture al S Roa
ip
ic
c
n
il
d
Ph nufa Me tema 1810
Ma ilips inu A 0
Ph 00 M er, M .A.
30 dov U.S
An de in
a
M
23
01
9
85
00
97 1
IPX
Step
2-10 Site Preparations
Action
1
Slide the Tilt/Swivel mount into the Wall Plate as illustrated by the above
diagram.
2
Make sure the latch snaps into the hole on the upper right-hand corner of the
wallplate.
3
Maintaining the Monitor
This chapter describes how to clean your monitor and how to keep your monitor in the best
working condition.
Maintaining the Monitor 3-1
Maintenance Safety Information
Maintenance Safety Information
Warning
Follow local governing ordinances and recycling plans regarding disposal or recycling
batteries and other device components.
If the battery shows signs of damage or signs of leakage, replace it immediately. Do not
use a faulty battery in the monitor.
Never use a monitor that is monitoring a patient to perform battery conditioning.
Caution
Do not immerse the monitor in liquid or use caustic or abrasive cleaners.
Do not spray or pour any liquid on the monitor or its accessories.
Do not allow any liquid to penetrate connectors or openings in the monitor’s chassis.
3-2 Maintaining the Monitor
Objectives
Objectives
In order to meet this chapter’s objectives, you should be able to perform light maintenance
and preventative maintenance for the monitor through the following tasks:
•
Inspection of the monitor
•
Cleaning the monitor
•
Battery Maintenance
Concepts
Light
Maintenance
Light maintenance tasks can be defined as those tasks required to maintain the monitor in
clean, functional working order. These include inspection, cleaning practice and battery
maintenance as well as the continuous observation of replaceable parts for wear.
Battery
Conditioning
A rechargeable battery must be conditioned at regular intervals to prepare it for further
charge/discharge cycles. Conditioning a battery refers to the complete discharge of a charged
battery by allowing it to die out while in non-critical use. The empty battery may then be
recharged and put back into use.
Maintaining the Monitor 3-3
Recommendations for Maintenance Frequency
Recommendations for Maintenance Frequency
The following table is the recommended maintenance schedule for your C3 monitor. The
maintenance checklist appears in the next section of this chapter. The checklist may be
photocopied and should be completed by the maintainer. It should be filed for future
reference. The owner of the equipment is responsible for the performance of the maintenance
activities with the schedule below.
Maintenance
Frequency
Procedure
Inspect the monitor, cables
and cords
Daily
“Inspecting the Monitor”on page 3-6
and “Inspecting the Cables and
Cords”on page 3-6
Cleaning
As needed
“Cleaning”on page 3-7
Safety checks according to
IEC 60601-1
At least once every 2 years,
after any repairs, if the
monitor has been dropped
or as needed.
“Patient Safety Tests”on page 4-39
Functional testing
procedures
When functional defects in
the measurements are
suspected.
“Functionality Assurance”on page 4-3
Performance Assurance
At least once every year, or
as needed (if you suspect
defects in the
measurements).
“Performance Assurance Test”on page
4-11
Replace backlight
20,000 hours (about 4
years) of continuous use, or
as needed.
“Replacing the Backlight Tube”on
page 7-9
NBP Maintenance
Every year, or as needed, if
the monitor has been
opened, or you suspect
defects in the measurement.
“Preventative Maintenance Tests”on
page 4-14
Battery Maintenance
Every two years
“Battery Maintenance”on page 3-7
Battery Conditioning
Approximately every 200
deep discharges.
“Conditioning a Battery”on page 3-10
3-4 Maintaining the Monitor
Maintenance Checklist
Maintenance Checklist
Topics
See Page....
Inspect Cables, Cords and Housing
3-6
Replacing the Backlight Tube
Assembly
7-9
NBP Preventative Maintenance
4-14
Cleaning Guidelines
3-7
Checking the Battery Status
3-8
Charging the Battery
3-9
Conditioning the Battery
3-10
Testing the Monitor
4-1
Check Here if
Completed
Date
Completed
Maintaining the Monitor 3-5
Inspecting the Monitor
Inspecting the Monitor
If you discover a problem while inspecting monitor, contact your biomedical department or
Philips Medical Systems.
With the monitor turned Off:
Step
Action
1
Examine the exterior of the monitor for cleanliness and general physical
condition. Verify that the housing is not cracked or broken, that
everything is present, that there are no spilled liquids and that there are
no signs of abuse.
2
Inspect all accessories (cables and sensors) external to the monitor,
referring to the accessories’ documentation.
3
Switch the monitor On and verify that the backlight is bright enough.
Check that screen is at its full brightness. If the brightness is not
adequate, contact your biomedical department. Philips Medical Systems
recommends replacing the backlight about every 4 years.
4
If you are operating the monitor from battery, verify that the battery is
adequately charged before you begin use.
Inspecting the Cables and Cords
If you discover a problem while inspecting the cables and cords, replace the cable, or contact
your biomedical department.
Step
3-6 Maintaining the Monitor
Action
1
Examine the power plug and cord for damage. Make sure that the prongs
of the plug do not move in the casing. If damaged, replace the entire cord
with the appropriate Philips power cord.
2
Inspect the patient cables and leads and their strain reliefs for general
condition. Make sure there are no breaks in the insulation. Make sure
that the connectors are properly engaged at each end to prevent rotation
or other strain.
3
With the sensor or electrodes applied to the patient, and the monitor
turned On, flex the patient cables near each end to make sure that there
are no intermittent faults.
Cleaning
Cleaning
Caution
Do not immerse the monitor in liquid or use caustic or abrasive cleaners.
Do not spray or pour any liquid on the monitor or its accessories.
Do not allow any liquid to penetrate connectors or openings in the monitor’s chassis.
To clean the monitor, dampen a cloth with a commercial, nonabrasive cleaner and wipe the
top, bottom, and front surfaces lightly. For cables, sensors and cuffs, follow the cleaning
instructions in the Directions for Use shipped with those components.
If liquid is accidentally spilled on the monitor, clean and dry it thoroughly before reuse.
If in doubt about monitor safety, refer the unit to qualified service personnel.
Battery Maintenance
This section provides some information on how to handle and maintain the battery.
Warning
Follow local governing ordinances and recycling plans regarding disposal or recycling
batteries and other device components.
About the
Battery
Storing the monitor for a long period of time without charging the battery can degrade the
battery capacity. A complete battery recharge (>90%) requires 8 hours in standby mode or 14
hours in operational mode. If the battery needs charging, connect the monitor to the AC outlet
as described “Charging the Battery”on page 3-9
If the monitor operates for less than one hour on battery power before the low battery alarm
occurs, the battery should be conditioned. See “Electrical”on page 12-3 for typical battery
operating times and conditions.
If the same symptom persists after the battery is conditioned and indicating a full charge, the
battery should be replaced (see “Removing the Battery”on page 7-4 for more information).
Maintaining the Monitor 3-7
Battery Maintenance
Battery
Guidelines
To get the most out of the battery, observe the following guidelines:
•
The shelf-life of a fully charged battery is about 6 months.
•
After a battery has been activated, keep it charged. If it is not in use, recharge it every 3
to 4 months.
•
Condition the battery approximately every 200 deep discharges.
•
Remove the battery from the monitor if it is not being used regularly. (Leaving the
battery in a monitor that is not in regular use using the battery will shorten the life of
the battery).
•
Battery Disposal - We recommend replacing the monitor’s sealed, lead-acid battery at 2
year intervals. Follow local governing ordinances and recycling plans regarding
disposal or recycling of batteries and other device components.
•
Do not dispose of the battery in normal waste containers.
Warning
If the battery shows signs of damage or signs of leakage, replace it immediately. Do not
use a faulty battery in the monitor.
Checking
the Battery
Status
When the monitor is connected to the AC (mains) power supply, the battery charges
automatically.
Battery status is indicated several ways:
•
LEDs on the front panel of the monitor.
•
Battery gauge on the monitor’s main monitoring screen.
•
INOP messages
The AC LED is only on when the power cord is connected and the AC power is available to
the monitor. In this case, the battery can be either charging or fully charged.
3-8 Maintaining the Monitor
Battery Maintenance
Identifying
Battery
Strength
You can determine the monitor’s battery strength by the color of the battery icon, or by the
number of illuminated bars on the battery icon. The following table describes the battery icon
behavior:
Number of Bars
Illuminated
Color Used
Behavior
3, 4, or 5
Green
Constant display
2
Yellow
Constant display
1
Red
Constant display
0
Red
Battery icon flashes
and message displays
•
If the battery operating time is less than 30 minutes, the battery icon flashes. A low
priority audio alarm sounds (1 beep every 4 seconds).
•
When the battery is empty, a "Low Battery" INOP message displays in the Message
frame and the audible alarm sounds. Pressing any front panel button clears the INOP
and silences the audible alarm. The battery icon continues to flash until the monitor is
powered down or automatically switches off.
If the new battery is partly or fully charged, the monitor starts operating.
Charging
the Battery
A complete battery recharge (>90%) requires 8 hours in standby mode or 14 hours in
operational mode.
To charge the battery:
Step
Action
1
Connect the monitor to the AC power source using the proper power cord.
2
Verify that the AC Input Indicator LED is lit.
3
Charge the battery for at least 8 hours. The battery may require a full discharge/
charge cycle to restore it to its normal capacity.
4
To check for a full charge, perform the procedure described in “Battery
Performance Test”on page 4-22.
Maintaining the Monitor 3-9
Battery Maintenance
Conditioning
a Battery
Battery conditioning re-calibrates the battery to ensure that it has accurate information on the
actual battery capacity.
Warning
Never use a monitor that is monitoring a patient to perform battery conditioning.
Why is Battery
Conditioning
Necessary?
The capacity of a battery decreases gradually over the lifetime of the battery. Each time a
battery is charged its capacity decreases slightly. Therefore, the operating time of a monitor
running off the battery also decreases with each charge cycle.
Battery conditioning ensures that the value storied in the battery for its fully capacity takes
account of this decrease, so that the remaining battery charge can be calculated accurately,
and the low battery warning given at the right time.
When Should
Battery
Conditioning
be Performed?
How to
Condition a
Battery
Battery conditioning should be performed:
•
Every 200 deep discharge cycles.
We recommend two full charge and discharge cycles to ensure proper conditioning,
independent of the initial condition of the battery.
If you need to continue battery powered monitoring, replace the battery in the monitor with a
different charged and conditioned battery. You cannot condition a battery in a monitor that is
being used.
Step
3-10 Maintaining the Monitor
Action
1
Insert the battery that is to be conditioned into a monitor that is not currently
being used.
2
Disconnect the monitor from the AC power supply.
3
Turn on the monitor, and leave it on until it switches off automatically.
4
Turn the monitor Off using the On/Standby button located on the front panel.
5
Reconnect the monitor the AC power supply.
6
Charge the battery until it is full. (When you turn the monitor On, the 5 bars in
the battery gauge on the main monitoring screen will be illuminated).
7
Repeat steps 2 to 6.
Battery Maintenance
Battery
INOP
Messages
The following battery-related INOP messages are issued by the monitor. All Battery INOPs
continue until the monitor is plugged into the AC power or the INOP condition is fixed.
•
"Low Battery" - This is an INOP which indicates that the remaining battery-operating
time is less than approximately 30 minutes.
Maintaining the Monitor 3-11
Battery Maintenance
3-12 Maintaining the Monitor
4
Testing the Monitor
This chapter provides a checklist of testing procedures used to verify performance following
repairs or during routine maintenance. All tests can be performed without removing the
monitor’s covers.
If the monitor fails to perform as specified in any test, repairs must be done to correct the
problem before the monitor is returned to the user.
Testing the Monitor 4-1
Testing Safety Information
Testing Safety Information
Warning
Perform all leakage tests any time the unit is opened.
AC mains voltage is present on the applied part terminals during this test. Exercise
caution to avoid electrical shock hazard.
Note
The monitor must be placed in Diagnostic Mode, with the NBP test screen active for each of
the NBP tests.
If the test fails, ensure the integrity of the cuff and tubing, then test again. If the test fails
again, verify the integrity of all the pneumatic tubing inside the monitor.
Before beginning the Battery Performance test, ensure that the monitor is disconnected from
the AC power source.
4-2 Testing the Monitor
Objectives
Objectives
In order to meet this chapter’s objectives, you should be able to test the monitor through the
following types of tests:
•
Performance Assurance Check List
•
Accuracy, Calibration and Performance Procedures
•
Patient Safety Checks
For inspection procedures; preventative maintenance procedures; cleaning procedures; and
battery maintenance, refer to this chapter and Chapter 2, “Site Preparations”.
Concepts
Functionality
Assurance
This refers to the combined Performance Assurance Test and Functionality Testing
Procedures found in this chapter. These tests verify correct monitor functionality in general
terms.
Preventative
Maintenance
Preventative Maintenance refers specifically to the service calibration tests required to ensure
the monitor measurement results are accurate. When authorized Philips personnel service the
monitor, they report these results back to Philips. The collected data forms a database to be
used in product development. These specific tests are required for the NBP parameter. It is not
necessary for hospital personnel to report results.
Performance
and Safety
Tests
This concept refers to all the remaining accuracy and performance tests available on the
monitor, including safety tests and checks for the monitor.
Testing the Monitor 4-3
Testing Checklist
Testing Checklist
The tests described in this chapter are listed in the table below. Use this table
as a checklist.
Topics
See...
Functionality Assurance Tests
Performance Assurance Test
page 4-11
Power-On Self-Test
page 4-11
Alarm Test
page 4-12
Volume Control Test
page 4-12
Preventive Maintenance Tests
NBP
page 4-14
Performance Procedures
Battery Performance Test
page 4-22
Temperature Test
page 4-23
ECG Performance
page 4-25
Respiration Performance
page 4-25
SpO2 Performance
page 4-27
CO2 Performance
page 4-29
Serial Interface and Nurse Call Signal Test
page 4-36
ECG Sync Performance Test
page 4-38
Patient Safety Tests
4-4 Testing the Monitor
S(1) Ground Integrity
page 4-39
S(2) Electrical Leakage
page 4-41
S(3) Earth Leakage Current
page 4-41
S(4) Enclosure Leakage Current
page 4-42
S(5) Patient Leakage Current
page 4-43
S(6) Patient Leakage Current with Mains
page 4-44
Check Here
Date
if Completed Completed
Test Reporting
Test Reporting
The following table shows what must be recorded on the Service Record after completing the
tests in this chapter.
Test
What to Record
Functionality Assurance Tests
Visual
V:P or V:F
Power On
PO:P or PO:F
Preventive Maintenance Tests
P NBP
PN:P/X1/X2/X3/X4/X5 or
PN:F/X1/X2/X3/X4/X5
See page 4-15 for details
Performance Procedures
CO2 Performance
PCO2: P/X1/X2/X3/X4/X5/X6/X7 or
PCO2: F/X1/X2/X3/X4/X5/X6/X7
See page 4-30 for details
Patient Safety Tests
Safety(1) Ground Integrity
S(1):P or S(1):F
Safety(2) Earth Leakage Current
S(2):P or S(2):F
Safety(3) Enclosure Leakage Current
S(3):P or S(3):F
Safety(4) Patient Leakage Current
S(4):P or S(4):F
Safety(5) Patient Leakage Current with Mains
S(5):P or S(5):F
Where P = Pass, F = Fail and X is the measured value as defined in the tests described in this
chapter.
Testing the Monitor 4-5
Recommendations for Testing Frequency
Recommendations for Testing Frequency
The testing checklist appears in the next section of this chapter. Perform the procedure as
indicated in the suggested testing timetable. These timetable recommendations do not
supersede local requirements.
Suggested Testing
Frequency
Functionality Assurance
• Performance Assurance Test
When functional defects in the measurements are
suspected, after any repairs, if the monitor has been
dropped or opened.
• System Self-Test
Preventative Maintenance Tests (NBP)
Every year, or as needed.
Performance Tests
• Battery Performance
The battery performance test must be performed every
two years, before monitor repairs, or whenever the
battery is suspected as being the source of the problems.
• Temperature Accuracy
• ECG Performance
• Resp Performance
All other test must be performed at least once every
year, if the monitor has been opened, or if you suspect
defects in the measurements.
• SpO2 Performance
• CO2 Performance
• Serial Interface and Nurse Call
Signal Test
• ECG Sync Performancea
Safety Checks (in accordance with IEC
60601-1)
• Ground Integrity
At least once every 2 years, after any repairs, if the
monitor has been dropped or opened.
• Electrical Leakage
• Earth Leakage Current
• Enclosure Leakage Current
• Patient Leakage Current
• Patient Leakage Current with Mains
Voltage on the Applied Part
a. Only when in use as part of hospital protocol safety checks.
4-6 Testing the Monitor
Test Map
Test Map
The Test Map shows which tests are required in which situations.
Service Event
(When performing...)
Test Block Required
(...complete these test)
Installation
• Visual
• Power On
Monitor exchange
• Visual
• Power On
Monitor opened
• Power On
• Pneumatic Leakage Test
• All Safety tests
Battery replacement
• Power On
• Battery Performance
• All Safety tests
Speaker replacement
• Power On
• Pneumatic Leakage Test
• All Safety tests
Backlight tube replacement
• Power On
• Pneumatic Leakage Test
• All Safety tests
NBP pump replacement
•
•
•
•
Power On
Pneumatic Leakage Test
All Safety tests
Preventative Maintenance Tests
SpO2 module replacement
•
•
•
•
Power On
Pneumatic Leakage Test
All Safety tests
SpO2 Tests
CO2 module replacement
•
•
•
•
Power On
Pneumatic Leakage Test
All Safety tests
CO2 Tests
Power supply module replacement
• Power On
• Pneumatic Leakage Test
• Safety Tests
Patient monitoring I/O module
replacement
•
•
•
•
Communications module replacement
• Power On
• Pneumatic Leakage Test
• All Safety tests
Power On
Pneumatic Leakage Test
All Safety tests
All Performance tests
Testing the Monitor 4-7
Equipment
Equipment
The following table lists the equipment required for performance verification.
Equipment
4-8 Testing the Monitor
Description
Digital multimeter (DMM)
Fluke model 87 or equivalent
Defib Sync Cable and
Switchcraft 3.5 mm phone plug
M4820A (see page 4-38 to use a substitute cable)
Switchcraft 750 or equivalent
SpO2 adapter cable
M1943A
SpO2 reusable sensor, adult finger
M1191A
ECG trunk cable
M1540C (ICU, AAMI) or M1550C (ICU, IEC)
ECG electrodes
Standard
ECG lead sets
M1605A (AAMI) or M1615A (IEC)
NBP tubing
M1599B
NBP reusable cuff, adult
40401C
Pulse oximeter tester
Clinical Dynamics Corp - SmartSat simulator with
Nellcor simulator cable
ECG simulator
Dynatech Nevada medSim 300 or equivalent
NBP simulator
Bio-Tek BP Pump 2 or equivalent
Temperature simulator
MedSim 300 or equivalent
Respiration simulator
MedSim 300 or equivalent
Safety analyzer
Bio-Tek 601 Pro or equivalent
Stopwatch
Manual or electronic
Screwdriver
flathead and philips
Tweezers
any model
Electronic flowmeter
M1026-60144
Cal 1 gas (5% CO2)
15210-64010
Cal 2 gas (10% CO2)
15210-64020
Cal gas flow regulator
M2267A
Cal tube
13907A
Serial Numbers
Serial Numbers
When recording test results, these are always associated with a particular monitor by means of
the serial number. The serial number is 10 characters and is located on the back of the
monitor.
Serial
Number
100-230V~
50-60 Hz. 1.0A
T1AL 250V
USC3xxxxxx
YYYY-XX
CE
0123
PHILIPS C3 PATIENT MONITOR
Manufactured for Philips for
Philips Medical Systems
3000 Minuteman Road
Andover, MA 01810
Made in U.S.A.
9700859
IPX1
Passwords
Some of the test may require that you enter the Power-Up Default Menu located in the
Setup Menu. To access Power-Up Default Menu you must enter a password. The password
is:
2-1-5
Testing the Monitor 4-9
Visual Test
Visual Test
Inspect the system for obvious signs of damage. Also check external leads and accessories.
What to record on the service record:
V:P or V:F
Power On Test
Step
Action
1
Switch the monitor On.
2
Observe whether the system boots up successfully without displaying any error
codes. The main monitoring screen should display.
What to record on the service record:
PO:P or PO:F
.
4-10 Testing the Monitor
Functionality Assurance Tests
Functionality Assurance Tests
The following assurance checks are recommended to verify proper operation daily before the
monitor is used to monitor a patient.
During functionality assurance checks, verify the overall operation by completing the
following Performance Assurance Tests.
Performance
Assurance
Test
To verify your monitor works properly, perform the following test:
Step
Action
1
Using the supplied AC power cord, connect the monitor to the AC power source.
2
Verify that the AC LED is lit.
3
Do not connect any patient monitoring input connectors or cables to the monitor.
If there are any such connections, disconnect them.
4
If the monitor is Off, press the On/Standby button. The monitor must perform
the following sequence:
a. The screen backlight illuminates.
b. Three consecutively higher pitched "chimes" sound while the version
numbers of the boot and operational software display.
c. After successful completion, the main monitoring screen displays. No vital
sign numeric values or waveforms display.
5
Power-On
Self-Test
If any error codes display, or the screen remains blank, refer to
Chapter 6, “Troubleshooting”.
After you first press the On/Standby button, the monitor displays a startup screen and
conducts a set of self-diagnostic test routines.
Testing the Monitor 4-11
Functionality Assurance Tests
Alarm Test
Tools Needed:
•
SpO2 adapter cable (M1943A)
•
Clinical Dynamics Corp - SmartSat simulator (with Nellcor simulator cable)
Step
Action
1
Connect SpO2 simulator cable to the SpO2 adapter cable. Connect the cable to
the SpO2 patient monitoring input connector.
2
Set the simulator as follows:
Item
Setting
Oximeter
Nellcor
SpO2%
81
BPM
36
Pulse Mod
0.50%
3
Press the On/Standby button to turn the monitor On.
4
After the normal power-up sequence, verify that the SpO2% display initially
indicates zero, or is blank.
5
Verify that the following monitor reaction occurs:
a. After approximately 45 seconds, the monitor displays saturation and heart rate
as specified by the tester. Verify that the values are within the following
tolerances:
– Oxygen Saturation Range 79% to 83%
– Heart Rate Range 33 to 39 bpm
b. The audible alarm sounds and both the SpO2% and Heart Rate (HR) displays
flash, indicating both parameters have violated the default alarm limits.
c. The HR tone is heard. For this test, the HR tone source must be set to SpO2
from the Heart Rate Menu.
6
Press the Alarm Silence button to temporarily silence the audible alarm.
7
Verify the following:
a. The audible alarm remains silenced.
b. The crossed-out bell icon displays in each numeric frame on the screen.
c. The SpO2% and HR displays continue flashing.
d. The HR tone remains audible.
e. The audible alarm returns in approximately 120 seconds.
Volume
Control Test
Tools Needed:
•
SpO2 adapter cable (M1943A)
•
Clinical Dynamics Corp - SmartSat simulator (with Nellcor simulator cable)
4-12 Testing the Monitor
Functionality Assurance Tests
Step
Action
1
Connect SpO2 simulator cable to the SpO2 adapter cable. Connect the cable to
the SpO2 patient monitoring input connector.
2
Set the simulator as follows:
Item
Setting
Oximeter
Nellcor
SpO2%
81
BPM
70
Pulse Mod
5.00%
3
a. Power the monitor On. Verify that the values are within the following
tolerances:
– Oxygen Saturation Range 79% to 83%
– Heart Rate Range 67 to 73 bpm
4
Press the Alarm Silence button to temporarily silence the audible alarm.
5
Verify that the heart rate tone source, found in the Heart Rate Menu, is set to
SpO2.
6
Press the Volume button on the monitor’s front panel. Within 3 seconds of
having pressed the button, rotate the navigation wheel clockwise to verify that
the beeping heart rate tone sound level increases.
7
Wait 3 seconds. Press the Volume button and rotate the wheel counter-clockwise
and verify that the beeping heart rate tone decreases until it is no longer audible.
Rotate the wheel clockwise to return the beep volume to a comfortable level.
After 3 seconds with no wheel activity, the volume adjust function terminates.
Testing the Monitor 4-13
Preventative Maintenance Tests
Preventative Maintenance Tests
Preventative maintenance refers specifically to the service tests required to make sure the
monitor measurement results accurate. In cases where the performance of NBP is in question
or could have been configured during repair, the complete set of NBP tests described in this
service manual should be used.
The tests in this section verify the functionality of the monitor’s pneumatic system. All of
these tests, which the exception of the Basic Pneumatic Leakage (BPL) Test, require the use
of an NBP simulator.
Note
The monitor must be placed in Diagnostic Mode, with the NBP test screen active for each of
the NBP tests. To place your monitor into this mode see page 4-9.
Tools Needed for NBP Testing:
•
NBP cuff (40401C)
•
NBP tubing (M1599B)
•
Bio-Tek BP Pump 2 simulator or equivalent, with an internal test volume of 310 ml.
4-14 Testing the Monitor
Preventative Maintenance Tests
Documenting
NBP Test
Results
The following table lists the tests that should be documented and summarizes how to
document the NBP test results.
Test
Expected Test Results
Pressure Transducer Accuracy Test
X1 = difference between the pressure on
the monitor and on the simulator
Difference less than or equal to 5
mmHg (0.7 kPa)
Pneumatic Leakage Test
X2 = difference between the pressure at
the start (P1) and after one minute (P2)
What to record on
service record
PN:P/X1/X2/X3/X4/X5
or
PN:F/X1/X2/X3/X4/X5
P = passed, F = failed
Difference less than or equal to 6
mmHg (0.8 kPa)
Inflation Rate Test
X3 = number of seconds for the monitor
to inflate
Rate between 1 and 6 seconds
Over-Pressure Test
X4 = peak value
Peak value between 270 and 330 mmHg
(36 kPa and 44 kPa)
Deflation Rate Test
X5 = mmHg (kPa) per second to deflate
1.8 mmHg/s to 4.8 mmhg/s
Testing the Monitor 4-15
Preventative Maintenance Tests
Pneumatic
System
Functionality
The following tests must be performed to verify pneumatic system functionality. Perform
these tests in the following order:
1.
2.
3.
4.
5.
Pressure Transducer Accuracy
Pneumatic Leakage
Inflation Rate
Over-Pressure
Deflation Rate
Note
The pneumatic system includes an over-pressure safety limit function and a safety period
time-out function. These safety functions may interfere with NBP tests described in this
section. In order to avoid activating these safety functions, do not pressurize the system
above 270 mmHg (36 kPa) and do not pressurize the system for time periods that exceed 150
seconds.
To Zero the
Simulator
If the simulator does not display a "0" before starting a test, use the following procedure to
zero the simulator:
1.
2.
3.
4.
5.
6.
7.
8.
9.
Disconnect the hose from the simulator.
Press Home.
Press SETUP.
Press MORE.
Press MORE again
Press ZERO PRESSURE.
Press ZERO.
Press Home to return to main menu.
Reconnect the hose.
Before beginning the above test sequence, perform the following three steps:
Step
Action
1
Turn the NBP simulator On.
2
Perform the following sequence:
a.
b.
c.
d.
e.
f.
4-16 Testing the Monitor
Press the Home button.
Press the Pressure Tests button.
Press the Pressure Leak Test button.
Press the Setup button.
Press 2, 5, 0, then Enter.
Set the Cuff to Internal.
3
Connect the simulator tubing to the NBP patient monitoring input connector.
4
Place the monitor in Diagnostic Mode with the NBP test screen active.
Preventative Maintenance Tests
Pressure
Transducer
Accuracy Test
This test verifies the pressure accuracy of the monitor’s pressure transducer.
Step
Action
1
Confirm that the simulator displays "Leak Test" (see steps 1 and 2, in the
previous table).
2
Press the Volume button to ensure that both valves are closed.
3
Perform an offset adjustment so that the simulator and monitor both display a
pressure of 0 mmHg or kPa by doing the following:
a. Press the Contrast button on the monitor’s front panel.
b. If needed, zero the simulator (see “To Zero the Simulator” on page 4-16).
Pneumatic
Leakage Test
4
Press Start on the simulator.
5
Allow 15-20 seconds for the pressure to stabilize. The pressure displayed on the
monitor and on the simulator should be within 5 mmHg (0.7 kPa) of one another.
Document the difference between the simulator value and the monitor value
(X1).
6
Press the Stop button on the simulator to stop the test.
7
Press and hold the Volume button until the monitor displays a pressure of 0
mmHg or kPa.
8
If no further NBP tests are to be conducted, turn the monitor Off. Normal
monitoring operation returns the next time the monitor is turned On.
This test verifies the integrity of the pneumatic system.
Step
Action
1
Turn the simulator on.
2
Perform the following sequence:
a. Press the Home button.
b. Press the Pressure Tests button.
c. Press the Pressure Leak Test button.
d. Press the Setup button.
e. Press 3, 0, 0, then Enter.
f. Set the Cuff to Internal.
3
Confirm that the simulator test screen is active and displays "Leak Test".
4
Press the Volume button to ensure that both valves are closed.
5
Perform an offset adjustment so that the simulator and monitor both display a
pressure of 0 mmHg or kPa by doing the following:
a. Press the Contrast button on the monitor’s front panel.
b. If needed, zero the simulator (see “To Zero the Simulator” on page 4-16).
6
Press the NBP button on the monitor’s front panel to activate the pump. Hold the
button until the monitor displays a pressure of approximately 250 mmHg
(33.3 kPa).
7
Allow 15-20 seconds for the pressure to stabilize. Record the pressure displayed
on the monitor (P1).
Testing the Monitor 4-17
Preventative Maintenance Tests
Step
Inflation Rate
Test
Action
8
Start a one minute timer. After one minute, record the pressure displayed again
(P2). The pressure should drop by no more than 6 mmHg (0.8 kPa) during the
one minute period. Calculate (P1 - P2) and document the leakage test value (X2).
9
Press and hold the Volume button until the monitor displays a pressure of 0
mmHg or kPa.
10
If no further NBP tests are to be conducted, turn the monitor Off. Normal
monitoring operation returns the next time the monitor is turned On.
This test verifies the inflation rate of the monitor.
Step
Action
1
Turn the simulator on.
2
Perform the following sequence:
a. Press the Home button.
b. Press the Pressure Tests button.
c. Press the Pressure Leak Test button.
d. Press the Setup button.
e. Press 3, 0, 0, then Enter.
f. Set the Cuff to Internal.
3
Press the Volume button to ensure that both valves are closed.
4
Perform an offset adjustment so that the simulator and monitor both display a
pressure of 0 mmHg or kPa by doing the following:
a. Press the Contrast button on the monitor’s front panel.
b. If needed, zero the simulator (see “To Zero the Simulator” on page 4-16).
5
Press the NBP button on the monitor’s front panel to activate the pump, and
simultaneously start the timer. Hold the button until the monitor displays a
pressure of 250 mmHg (33.3 kPa), then stop the timer. The inflation rate should
be between 1 and 6 seconds. Document the number of seconds (X3).
6
Press and hold the Volume button until the monitor displays a pressure of 0
mmHg or kPa.
7
If no further NBP tests are to be conducted, turn the monitor Off. Normal
monitoring operation returns the next time the monitor is turned On.
Note
The over-pressure relief may activate and automatically deflate the cuff. For more information
on the NBP safety functions, see page 4-16.
4-18 Testing the Monitor
Preventative Maintenance Tests
Over-Pressure
Test
This test verifies the functionality of the over-pressure relief system of the monitor.
Step
Action
1
Turn the simulator on.
2
Perform the following sequence:
a. Press the Home button.
b. Press the Pressure Tests button.
c. Press the Pressure Relief button.
d. Press the Setup button.
e. Press 3, 3, 5, then Enter.
3
Confirm that the simulator is active and displays "Relief Valve Test".
4
Press the Volume button to ensure that both valves are closed.
5
Perform an offset adjustment so that the simulator and monitor both display a
pressure of 0 mmHg or kPa by doing the following:
a. Press the Contrast button on the monitor’s front panel.
b. If needed, zero the simulator (see “To Zero the Simulator” on page 4-16).
6
Press the Start button on the simulator. The peak value (X4) shown on the
simulator should be between 270 mmHg and 330 mmHg (35.9 kPa and 43.9
kPa). The pressure should return to 0 automatically on the monitor and
simulator). Both conditions should be true for the monitor to pass this test.
7
If no further NBP tests are to be conducted, turn the monitor Off. Normal
monitoring operation returns the next time the monitor is turned On.
Testing the Monitor 4-19
Preventative Maintenance Tests
Deflation Rate
Test
This test verifies the deflation rate of the monitor.
Step
Action
1
Turn the simulator on.
2
Perform the following sequence:
a. Press the Home button.
b. Press the Pressure Tests button.
c. Press the Pressure Leak Test button.
d. Set the Cuff to Internal.
3
Confirm that the simulator is active and displays "Leak Test".
4
Press the Volume button to ensure that both valves are closed.
5
Perform an offset adjustment so that the simulator and monitor both display a
pressure of 0 mmHg or kPa by doing the following:
a. Press the Contrast button on the monitor’s front panel.
b. If needed, zero the simulator (see “To Zero the Simulator” on page 4-16).
6
Note—Complete steps 6-9 within 150 seconds.
Press and hold the NBP button on the monitor’s front panel and inflate to 250
±10. Don’t go over 270, or safety deflation may occur. (Slow the inflation rate by
pulsing the button when the pressure is over 200).
4-20 Testing the Monitor
7
Allow 15-20 seconds for the pressure to stabilize. Record the pressure displayed
on the monitor (P1).
8
Press and hold the "Alarm off" button on the monitor to release the pressure in
steps of 3 mmHg (.4 kPa). Simultaneously, start the timer.
9
Stop the timer when the pressure drops below 150 mmHg (20 kPa). Calculate the
deflation rate (X5): (starting pressure - 150)/# of seconds. The deflation rate
should be 3.3 mmHg/s ±1.5 mmHg/s (0.44 kPa/s ± 0.2 kPa/s).
10
Press and hold the Volume button until the monitor displays a pressure of 0
mmHg or kPa.
11
If no further NBP tests are to be conducted, turn the monitor Off. Normal
monitoring operation returns the next time the monitor is turned On.
Preventative Maintenance Tests
Basic
Pneumatic
Leakage
(BPL) Test
The purpose of this test is to verify the integrity of the NBP pneumatic system after the
monitor has been opened. This includes all external and internal tubing connections.
No simulator is required for this test, and results are not required to be reported.
Step
Action
1
Attach the NBP cuff to the NBP tubing and the tubing to the NBP patient
monitoring input connector.
2
Wrap the cuff around itself and place it on a table for the test. DO NOT place the
cuff on your arm.
3
Turn the monitor On and enter the NBP test screen located within Diagnostic
Mode.
4
Press the Volume button to close valves.
5
a. Press and hold the NBP Start/Stop switch until the monitor’s screen reads
"250 mmHg" or "33.3 kPa".
b. Wait 15-20 seconds to allow the pressure to stabilize.
6
a. Note the value on the screen (P1), then start a timer.
b. After one minute, note the value on the screen (P2).
c. Calculate the difference between the two values (P1 - P2). The value should
be less than or equal to 6 mmHg (0.8 kPa).
7
Press and hold the Volume button until the screen shows the pressure has
released and the value is 0 mmHg or kPa.
8
Turn the monitor Off.
Note
If the test fails, ensure the integrity of the cuff and tubing, then test again. If the test fails
again, verify the integrity of all the pneumatic tubing inside the monitor.
Testing the Monitor 4-21
Performance Procedures
Performance Procedures
The following accuracy and performance procedures are designed to be completed to verify
the accuracy and performance of the monitor. They must be performed, according to the
frequency specified in the section titled, “Recommendations for Testing Frequency” on
page 4-6.
Battery
Performance
Test
The battery performance test should be performed every two years, before monitor repairs, or
whenever the battery is suspected as being a source of the problems. Before performing the
battery performance test, verify that the battery is fully charged (see “Charging the Battery”
on page 3-9).
Note
Before beginning this test, ensure that the monitor is disconnected from the AC power source.
Tools Needed:
•
SpO2 adapter cable (M1943A)
•
Clinical Dynamics Corp - SmartSat simulator (with Nellcor simulator cable)
•
NBP tubing (M1599B)
•
Bio-Tek BP Pump 2 simulator or equivalent, with an internal test volume of 310 ml
Note
The instructions below apply to the Bio-Tek BP Pump 2 simulator.
Step
Action
1
Connect SpO2 simulator cable to the SpO2 adapter cable. Connect the cable to
the SpO2 patient monitoring input connector.
2
Connect the NBP simulator to the monitor via the NBP tubing.
3
Set the SpO2 simulator switches as follows:
Item
4
4-22 Testing the Monitor
Setting
Oximeter
Nellcor
SpO2%
81
BPM
36
Pulse Mod
0.50%
Set the NBP simulator to a pressure setting of 120/80 mmHg (16/11 kPa), and a
heart rate of 80 bpm.
Performance Procedures
Step
Action
5
With the monitor Off, press the On/Standby button. (When the monitor is turned
on, the battery icon may initially indicate a higher charge then it actually holds wait 5 minutes or until after an NBP measurement for an accurate battery
reading.)
6
Verify that the monitor is responding to the SpO2 simulator signal and that the
audible alarm is sounding. Use the navigation wheel to select the SpO2 Menu
and permanently silence the SpO2 audible alarm. Select the Heart Rate Menu
and silence the Heart Rate alarm.
7
Use the navigation wheel to select the NBP Menu and set the Automatic
Interval Mode option to 15 minutes. Select Return to exit the menu.
8
Press the NBP button on the monitor’s front panel to start the first NBP
measurement. Subsequent NBP measurements are taken automatically every 15
minutes.
9
Verify that the battery icon displays at the bottom of the display. Note the time.
(At least one segment of the battery icon should be filled.)
10
Keep the monitor On until the low battery warning alarm occurs. Note the time.
Verify that alarm sounds 15-30 minutes before the battery fully discharges.
11
Keep the monitor On until it automatically powers down due to low battery
condition. Verify that the audible alarm sounds when the monitor automatically
shuts down. Note the time.
Press any front panel button, on the monitor, to terminate this audible
alarm.
12
Temperature
Test
If the monitor passes this test, immediately recharge the battery. If it fails the
test, replace the battery. (See “Removing the Battery” on page 7-4 for more
information).
The accuracy of the monitor’s temperature measurements is ±0.1°C (±0.2°F). In the procedure
below, add the tolerance of the simulator to the acceptable range of readings.
Tools Needed:
•
Dynatech Nevada MedSim 300 or equivalent simulator
•
Temperature cable (supplied with the temperature simulator)
Note
The instructions below apply to the Dynatech Nevada MedSim 300.
Step
Action
1
Verify the monitor is turned Off. Connect the temperature cable to the
appropriate connector on the temperature simulator.
2
Connect the temperature cable to the Temperature patient monitoring input
connector.
Testing the Monitor 4-23
Performance Procedures
Step
3
Action
Set the temperature simulator as follows:
a. Temperature: 37°C (98.6°F).
b. Probe Type: YSI 400 Series
4-24 Testing the Monitor
4
Press the On/Standby button to turn the monitor On.
5
After the power-up sequence, verify the temperature reads 37°C ±0.1°C (98.6°F
±0.2°F if Fahrenheit is selected as the temperature unit).
6
Turn the monitor Off.
Performance Procedures
ECG/
Respiration
Performance
ECG Test
This section includes tests for both ECG and Respiration.
Tools Needed for both ECG and Respiration testing:
•
ECG leads - M1605A (AAMI) or M1615A (IEC)
•
ECG trunk cables - M1540C (ICU, AAMI) or M1550C (ICU, IEC)
•
Dynatech Nevada MedSim 300 or equivalent simulator
The accuracy of the monitor’s ECG measurements is ±5 bpm. In the following procedure, add
the tolerance of the simulator to the acceptable range of readings.
Step
Action
1
Verify that the monitor is turned Off. Connect the ECG leads to the appropriate
jacks on the ECG simulator.
2
Connect the leads to the ECG trunk cable. Connect the cable to the ECG patient
monitoring input connector.
3
Set the ECG simulator as follows:
Set...
To...
Heart Rate (HR)
30 bpm
Lead select
II
4
Press the On/Standby button to turn the monitor On.
5
After the power-up sequence, verify the following monitor reactions:
a. After at least five heartbeats, the monitor displays a heart rate of 30 ±5 bpm.
b. The audible alarm sounds and the Heart Rate frame flashes, indicating heart
rate is below the default lower alarm limit.
6
Press the Alarm Silence button twice (on the monitor’s front panel) to invoke
the Silence/Reset mode.
7
Increase the heart rate setting on the ECG simulator to 240 bpm. After at least
five heartbeats, verify that the monitor displays a heart rate of 240 ±5 bpm.
8
Verify that the audible alarm sounds and the Heart Rate frame flashes, indicating
that the heart rate is above the default upper alarm limit.
9
Press the Alarm Silence button twice (on the monitor’s front panel) to invoke
the Silence/Reset mode.
10
Decrease the heart rate setting on the ECG simulator to 120 bpm. After at least
five heartbeats, verify that the monitor displays a heart rate of 120 ±5 bpm.
11
Disconnect the LL lead from the ECG simulator. Verify that the Leads Off alarm
message displays. -?- displays in the Heart Rate frame, and the low priority
"Leads Off" INOP sounds.
12
Reconnect the LL lead to the ECG simulator. Verify that the Leads Off alarm
message no longer displays and the audible alarm is silenced.
13
Repeat steps 11 and 12 for LA and RA leads, then turn your monitor Off.
Testing the Monitor 4-25
Performance Procedures
Respiration
Test
The accuracy of the monitor’s respiration measurements is ±3 breaths per minute. In the
procedure below, add the tolerance of the simulator to the acceptable range of readings.
Step
Action
1
Verify that the monitor is turned Off. Connect the ECG leads to the appropriate
jacks on the ECG simulator.
2
Connect the ECG leads to the ECG trunk cable.
3
Connect the cable to the ECG patient monitoring input connector.
4
Set the simulator for a respiration rate of 120 breaths per minute.
5
Press the On/Standby button to turn the monitor On.
6
After the power-up sequence, verify the following monitor reactions:
a. The monitor displays a respiration rate of 120 ±3 breaths per minute.
b. The audible alarm sounds and the Respiration Rate frame flashes, indicating
the respiration rate is above the default upper alarm limit.
4-26 Testing the Monitor
7
Press the Alarm Silence button to silence the alarm.
8
Decrease the respiration rate setting on the respiration simulator to 20 breaths per
minute. Verify that the monitor displays a respiration rate of 20 ±3 breaths per
minute.
Performance Procedures
SpO2
Performance
SpO2 testing includes the following tests:
•
Dynamic Operating Range
•
LED Excitation Test
Tools Needed for SpO2 Tests:
Dynamic
Operating
Range Test
•
Clinical Dynamics Corp - SmartSat simulator (with Nellcor simulator cable)
•
SpO2 adapter cable (M1943A)
•
SpO2 reusable sensor, adult finger (M1191A)
The following test sequence verifies proper monitor operation over a range of input signals.
Step
Action
1
Connect SpO2 simulator cable to the SpO2 adapter cable. Connect the cable to
the SpO2 patient monitoring input connector.
2
Set the simulator as indicated in the table below. Verify that the monitor readings
are within the indicated tolerances. Allow the monitor several seconds to
stabilize the readings.
3
Turn the monitor Off.
Table 4-1. Settings and Monitor Indications
Simulator Settings
Ambient
Light Ac
Level
Monitor Indications
SpO2%
Pulse Rate
Ambient
Light Freq
81
36
120
81
112
120
81
201a
120
10
0.50%
79-83*
195-207*
81
201a
120
200
5.00%
79-83*
195-207*
Modulation
SpO2
Pulse Rate
200
0.50%
79-83*
33-39*
200
5.00%
79-83*
109-115
An * indicates values that produce an alarm. Press the Alarm Silence button to temporarily
silence the audible alarm.
a. For the pulse rate setting of 201 bpm, the pulse rate tolerance of 195 to 207 bpm is greater than ±3 bpm accuracy
specification on the monitor, due to the performance characteristics of the simulator.
Testing the Monitor 4-27
Performance Procedures
LED Excitation
Test
This procedure uses normal system components to test circuit operation. A SpO2, adult
finger, reusable sensor is used to examine LED intensity control. The red LED is used to
verify intensity modulation caused by the LED intensity control circuit.
Step
4-28 Testing the Monitor
Action
1
Connect an SpO2 sensor to the monitor.
2
Press the On/Standby button to turn the monitor On.
3
After the monitor completes its normal power-up sequence, verify that the sensor
LED is brightly lit.
4
Slowly move the sensor LED in proximity to the photo detector element of the
sensor. Verify, as the LED approaches the optical sensor, that the LED intensity
decreases.
5
Open the sensor and take note that the LED intensity increases.
6
Repeat Step 5 and the intensity again decreases. This variation is an indication
that the micro-processor is in proper control of LED intensity.
7
Turn the monitor Off.
Performance Procedures
CO2
Performance
This test checks the performance of your CO2 measurement for the monitor. This test uses
calibration equipment that can be ordered (contact your Philips representative). Refer to the
documentation accompanying the equipment for detailed instructions. The procedure is summarized in
the following steps:
•
Barometric Pressure Check and Calibration, if required
•
Leakage Check
•
Pump Check
•
Flow Check and Calibration, if required
•
CO2 Cal Check and Calibration, if required
•
CO2 Cal Verification using Cal 2 gas
Note
Allow 5 seconds between individual service procedures in order to ensure stable equipment
conditions.
Tools Needed for CO2 Tests:
•
Screwdriver
•
Tweezers
•
Cal 1 gas (5% CO2)
•
Cal 2 gas (10% CO2)
•
Cal gas flow regulator
•
Cal tube
You also need a local barometric pressure rating received from a reliable local source, such as
an airport, regional weather station, or hospital weather station. The pressure rating must be
located at the same altitude as the hospital.
Note
All steps must be performed in the same session.
Testing the Monitor 4-29
Performance Procedures
Documenting
CO2 Test
Results
The following table lists the CO2 tests and summarizes how to document the test results.
Test
Expected Test Results
What to record on service record
Barometric Pressure Check
X1 = difference between the reference
pressure and the measured ambient
pressure displayed on the monitor
(-12 mmHg < X1 < +12 mmHg)
PCO2: P/X1/X2/X3/X4/X5/X6/X7
Leakage Check parts 1 and 2
Pump Check
X4 > 120 mmHg below the ambient
pressure
Flow Rate Check
X5 = CO2 flow rate (42.5 ml/min <X5
<65 ml/min).
CO2 Gas Measurement Calibration
Check
X6 = difference between measured
CO2 value and calculated value, based
on 5% CO2 cal. gas (X7<2.6 mmHg,
or 0.35 kPa)
X7 = difference between measured
CO2 value and calculated value, based
on 10% CO2 cal. gas.
(X7±{0.07 x value calculated})
4-30 Testing the Monitor
PCO2: F/X1/X2/X3/X4/X5/X6/X7
X2 = value of part 1 leakage check on
flowmeter (X2 </= 4.0 ml/min)
X3 = value of part 2 leakage check on
flowmeter (X3</= 4.0 ml/min)
Calibration Verification
or
P = passed, F = failed
X1: xx (two digits)
X2: x.x
X3: x.x
X4: xxx
X5: x.x
X6: x.x
X7: x.x
Performance Procedures
Barometric
Pressure
Check and
Calibration
Check the barometric pressure value in the CO2 module as follows:
Step
Action
1
Enter the Power-Up Defaults Menu (see ““Power-Up Defaults Menu” on
page 5-3“for instructions on accessing this menu).
2
Select the Enter Diagnostic Mode? option.
3
From the popup menu, select Yes. The Diagnostic Menu displays.
4
Select the CO2 Test option.
5
Connect a FilterLine to the CO2 patient monitoring input connector. This
activates the pump in the CO2 module.
6
Check the status line at the top of the screen. It will display "CO2 pressure in
mmHg (ambient/cell) xxx/yyy" where xxx is the ambient pressure and yyy is the
measured cell pressure. The values are displayed with a resolution of 2 mmHg
(0.3 kPa) up to 475 mmHg (63.2 kPa) and a resolution of 1 mmHg (0.1 kPa)
from 475 mmHg (63.2 kPa) to 825 mmHg (109.7 kPa). Check whether the
ambient pressure (X1) matches (within the acceptable tolerance of ±12 mmHg)
the reference value you have received. If so, proceed to the “Leakage Check”. If
the value is not correct, calibrate as follows.
7
Select Set Barometric Pressure (mmHg). An adjustable value in mmHg is
activated.
8
Select the value that matches the reference value received from a reliable local
source, such as an airport, regional weather station or hospital weather station.
9
If the selected value is not with ±12mmHg (1.6 kPa) of the current measured
ambient pressure, verify the reference value by getting another reading from a
different source. If the ambient pressure displayed also differs from the new
reference by more than ±12mmHg (1.6 kPa), the CO2 module should be
replaced.
10
Confirm the barometric pressure setting by clicking on the adjusted value so that
it is no longer highlighted.
11
Check that the ambient pressure displayed in the CO2 Pressure line at the top of
the screen is the same as the value that you selected from the list in Step 8.
Testing the Monitor 4-31
Performance Procedures
Leakage
Check
The Leakage Check consists of two parts:
•
Part 1 - Checking the tubing between the pump outlet and the CO2 module outlet.
•
Part 2 - Checking the tubing between the pump inlet and the FilterLine inlet.
Note
Check the flowmeter’s user guide for details on how to make a correct flow reading.
Part 1
Step
Action
1
Check the ambient and cell pressure shown in the status line on the screen. The
cell pressure should be approximately 20 mmHg (2.7 kPa) lower than the
ambient pressure.
2
Connect the flowmeter outlet to the FilterLine inlet using a flexible connecting
tube.
3
Block the CO2 module outlet using your fingertip and observe the flowmeter
display. The value on the flowmeter (X2) should decrease to between 0 and 4 ml/
minute. If the value is not within the tolerance limits, there is a leakage between
the pump outlet and the CO2 module gas outlet.
4
If a leakage is found in Step 3, open the CO2 module and check the tubing
connections at the pump outlet and the module CO2 gas outlet. If the connections
are good, then there is leakage in the module and the CO2 module must be
exchanged.
Part 2
Step
4-32 Testing the Monitor
Action
1
Disconnect the flowmeter from the Part 1 setup and connect the flowmeter inlet
to the CO2 module gas outlet.
2
Leave the FilterLine connected to the CO2 module inlet.
3
Block the inlet of the FilterLine using your fingertip and observe the flowmeter
display. The value on the flowmeter (X3) should decrease to between 0 and 4 ml/
minute. If the value is within the tolerance limits, there are no leakages and the
leakage check is completed. You can proceed to the “Pump Check”.
4
If the value is not within the tolerance limits, there is a leakage between the
FilterLine inlet and the pump inlet.
5
Check the FilterLine connections and open the monitor to check the tubing
connections at the pump inlet and the CO2 module gas inlet. If the connections
are good, try replacing the FilterLine and repeating the leakage check. If the
situation remains, there is a leakage in the tubing and the CO2 module must be
exchanged.
Performance Procedures
Pump Check
Step
Action
1
Connect the flowmeter inlet to the CO2 module gas outlet.
2
Connect the FilterLine to the CO2 module inlet.
3
Block the inlet of the FilterLine using your fingertip and observe the cell
pressure to the right of the slash symbol on the top row of the CO2 Test display
screen.
The cell pressure (X4) should be more than 120 mmHg below the ambient
pressure shown. If the pressure difference is less than 120 mmHg, the pump is
not strong enough and should be replaced (regardless of the Pump Op Time).
Flow Rate
Check and
Calibration
Step
Action
1
Connect the flowmeter to the CO2 FilterLine.
2
On the flowmeter, check the flow that the CO2 Pump draws (X5). The nominal
value is 50; the acceptable limits are 42.5 and 65 ml/minute. If the value is
within these limits, proceed to the CO2 Gas calibration check. If not within the
limits, calibrate as follows.
3
Select Flow Rate Check and Calibration. Adjust the flow in the monitor by
selecting Increase Flow or Decrease Flow until it is as close as possible to 50
ml per minute as indicated on the flowmeter gauge. The pump voltage displayed
on the second row of the CO2 Test screen will vary as the flow is changed.
4
When you are satisfied that the flow is set as close as possible to 50 ml per
minute, select Store Flow to confirm the setting
Note
If the adjusted flow is not stored within 60 seconds of the adjustment, the old flow setting is
restored. If the flow cannot be adjusted to within tolerance, the pump should be replaced. If
the flow adjustment still cannot be made, this indicates a fault in the CO2 module, which must
be replaced.
Testing the Monitor 4-33
Performance Procedures
CO2 Gas
Measurement
Calibration
Check
After switching the monitor on, or after turning on the etCO2 On/Off setting in the etCO2
frame, wait at least 20 minutes before checking the calibration.
Step
Action
1
Check that the 5% calibration gas and flow regulator are connected.
2
Calculate the expected measurement value in mmHg as follows:
0.05 x (ambient pressure) / 1.03 = value mmHg
i.e. 0.05 x 736 mmHg / 1.03 = 35.7 mmHg (with an ambient pressure of 736
mmHg)
Note: Dividing by 1.03 compensates for the dry calibration gas at room
temperature, relative to breath gases containing water vapor and at body
temperature.
3
Select CO2 Calibration. Wait for the status message "CO2 module reset in
progress" to disappear. Open the valve on the flow regulator to allow 5% CO2
gas to flow into the monitor. Allow the displayed CO2 value (third row of CO2
Test menu) to stabilize.
4
Check that the CO2 value on the monitor matches the calculated mmHg value
±2.6 mmHg. If the value is outside the tolerance, calibrate as described in Step 9
to 13.
5
Disconnect the 5% calibration gas and connect the 10% calibration gas.
6
Calculate the expected measurement value and tolerance in mmHg as follows:
0.1 x (ambient pressure) / 1.03 = value mmHg
±0.07 x (value mmHg) = tolerance
i.e. 0.1 x 737 mmHg / 1.03 = 71.6 mmHg (with an ambient pressure of 737
mmHg)
±0.07 x 71.6 mmHg = ±5.01 mmHg tolerance
4-34 Testing the Monitor
7
Open the valve on the flow regulator to allow 10% CO2 gas to flow into the
monitor. Allow the value to stabilize.
8
Check that the value on the monitor (X6) matches the calculated mmHg value
within the calculated tolerance. If so, the CO2 module is correctly calibrated. If
the value is outside the tolerance, calibrate as follows.
9
If not already connected, connect the 5% calibration gas.
10
Select CO2 Calibration to enter the Calibration sub-menu. Wait for the status
message "CO2 module reset in progress" to disappear.
11
Select the value for the calibration gas (The default value is 5%).
12
Select Start Calibration and open the valve on the calibration gas to allow CO2
gas to flow into the monitor. Allow the value to stabilize before the start of the
calibration. Leave the valve open until the monitor gives a prompt that the gas
can be removed.
13
The CO2 module calibrates and prompts when calibration is successful.
Performance Procedures
Calibration
Verification
Step
Reset Pump
Operating
Time Counters
Action
1
Reopen the 5% gas valve and allow the value to stabilize.
2
Check that the value displayed on the monitor is correct and within the tolerance
(see Step 2 in above section).
3
Disconnect the 5% calibration gas and connect the 10% calibration gas.
4
Open the valve on the flow regulator to allow 10% CO2 gas to flow into the
monitor. Allow the value to stabilize.
5
Check that the value displayed on the monitor (X7) is correct and within the
tolerance (see Step 6 above). If one or both values are not within tolerances, the
CO2 module must be exchanged.
If the pump in the CO2 module is replaced, the Pump Operating Time counter should be reset
to start counting operating time for the new pump.
Step
Action
1
In the CO2 Test menu, select Pump Op Time.
2
Select Reset to Zero.
Note
When the Pump Op Time has been reset a "CO2 Equipment Malfunction" INOP will be
generated on restarting the monitor. To clear this INOP you must perform a flow check and
store the flow in Diagnostic Mode (select Store Flow).
Testing the Monitor 4-35
Performance Procedures
Serial
Interface
and Nurse
Call Signal
Test
Perform the following procedure to test the serial port voltages. The test is qualitative and
only verifies that the serial interface port is powered correctly, and that the Nurse Call signal
is operational. The serial connector is a male DB-9 located on the monitor’s rear panel,
identified by the RS-232 symbol.
Tools Needed:
•
Clinical Dynamics Corp - SmartSat simulator (with Nellcor simulator cable)
•
SpO2 adapter cable (M1943A)
Step
Action
1
Turn the monitor On.
2
Set up the DMM with the function set to VDC at a range of 10 volts.
3
Connect the DMM negative lead to connector pin 5 (GND), or the shell of the
RS-232 connector.
4
Referring to Table 4-2, Serial Interface Voltages, connect the DMM positive
lead to each pin in turn, and verify the voltage values listed. Voltage for pin 9 is
that listed from the No Alarm condition.
5
Connect SpO2 simulator cable to the SpO2 adapter cable. Connect the cable to
the SpO2 patient monitoring input connector.
6
Set the simulator switches as follows:
Item
Setting
Oximeter
Nellcor
SpO2%
81
BPM
36
Pulse Mod
0.50%
7
Verify that the monitor is responding to the SpO2 simulator signal and the
audible alarm is sounding. If desired, press the Alarm Silence button to
temporarily silence the audible alarm.
8
Connect the DMM positive lead to pin 9 and verify the voltage value listed in
Table 4-2, Serial Interface Voltages. The voltage for pin 9 is that listed for the
Alarm Underway condition.
Table 4-2. Serial Interface Voltages
Pin
4-36 Testing the Monitor
Signal
Direction
Measurement (V)
Min.
Typical
Max.
1
not used
-0.4
0.0
0.4
2
RXD <<<
input
-0.4
0.0
0.4
3
TXD<<<
output
-5.0
-7.0
-15.0
4
DTR<<<
output
5.0
7.0
15.0
5
GND
-0.4
0.0
0.4
6
DSR<<<
input
-0.4
0.0
4.0
7
RTS>>>
output
5.0
7.0
15.0
Performance Procedures
Pin
Signal
Direction
Measurement (V)
8
CTS<<<
input
-0.4
0.0
0.4
9
Alarm Out>>>
output
-5.0
-7.0
-15.0
output
5.0
7.0
15.0
(no alarm)
9
Alarm Out>>>
(alarm underway)
Testing the Monitor 4-37
Performance Procedures
ECG Sync
Test
This test checks the performance of ECG synchronization between the monitor and a
defibrillator. The ECG sync performance test is required once every year and when the
monitor is repaired or when the monitor’s parts are replaced.
Tools Needed:
•
Dynatech Nevada MedSim 300 or equivalent simulator
•
Defib Sync Cable (M4820A) or Switchcraft 850
•
Switchcraft 750
Two sections are needed to complete the connection from the monitor to the simulator.
1. If a Defib Sync Cable is available, connect it the ECG Sync output on the monitor, then
to the Switchcraft 750.
or
If a Switchcraft 850 is available, connect it the ECG Sync output on the monitor, then
to the Switchcraft 750.
2. Connect the Switchcraft 750 to the SYNC/A PACE input on the simulator
Step
4-38 Testing the Monitor
Connect to the monitor
Connect to the simulator
Defib Sync Cable
Switchcraft 850
Switchcraft 750
Switchcraft 750
Action
1
Connect the ECG leads and trunk cables between the monitor and the simulator
(as described above).
2
Turn on the monitor and the simulator
3
On the simulator main menu select DEFB, then CARD to set the simulator to
Defibrillator Tests/Cardioversion.
4
Press Start to begin the test. If the monitor is working properly, the following
sequence of text messages will appear on the simulator over a period of
approximately 3 seconds: "cardioversion: afib", "cardioversion: sync ok", and
"cardioversion: converted" (this message will persist on the simulator)
5
If the monitor isn’t working properly, messages such as the following may
appear: "cardioversion: vfib", "cardioversion: late".
Patient Safety Tests
Patient Safety Tests
Philips safety tests meet the standards of, and are performed in accordance with IEC 60601-1,
Clause 19 (EN60601-1, Second Edition, 1988; Amendment 1, 1991-11, Amendment 2, 199503).
The C3 patient monitor is a Class I device. It requires a protective earth (ground) wire. Keep
this in mind when performing the following test procedures.
There are two categories of safety tests:
Ground
Integrity
•
Ground Integrity
•
Electrical Leakage
Table 4-3. Ground Integrity
Test or “Inspection” to Perform
Expected Test Results
Protective Earth
With mains cable:
See “Safety Test Diagram - Protective
Earth” on page 4-40.
Maximum impedance = x <= 100 mOhms
Testing the Monitor 4-39
Patient Safety Tests
Figure 4-1 Safety Test Diagram - Protective Earth
Test or Inspection to Perform
Measures impedance of Protective Earth (PE) terminal to all exposed metal parts of IUT,
which are for safety reasons connected to the Protective Earth (PE). Max. 100 mOhm. Test
current 25 Amps applied for 5 to 10 seconds. We recommend to flex the main cable during
the test in order to identify potential bad contact or damage of the earth wire. Safety test
according to EN60601-1 (Clause 18). Report largest value.
What to record on this service record:
S(1): P or S(1): F
4-40 Testing the Monitor
Patient Safety Tests
Electrical
Leakage
The following tests verify the electrical leakage of the monitor:
•
Earth Leakage Current
•
Enclosure Leakage Current
•
Patient Leakage Current
•
Patient Source Current, with Mains Voltage on the Applied Part
Warning
Perform all leakage tests any time the unit is opened.
Earth Leakage
Current
This test is in compliance with IEC 60601-1 (Earth Leakage Current). In locations where
mains voltage is 100-120 volts, the applied voltage is 132 volts. In locations where mains
voltage is 220-240 volts, the applied voltage is 264 volts. The applied AC frequency should
be the same as the local mains (50 or 60 Hz).
All measurements shall be made with the power switch in both On and Off positions.
1. Connect the monitor AC plug to the electrical safety analyzer as recommended by the
analyzer operating instructions.
2. Perform test as recommended by analyzer operating instructions.
Earth leakage current is measured under various conditions of the AC mains and protective
earth conductor. For each condition, the measured leakage current must not exceed that
indicated below.
Table 4-4. Earth Leakage Current Values
Test Condition
Polarity
Allowable Leakage Current
Normal
Normal
300 µA
Reversed
300 µA
S.F.Ca
Normal
1000 µA
Open Supply
Reversed
1000 µA
a. S.F.C = Single Fault Condition
What to record on the service record:
S(2): P or S(2): F
Testing the Monitor 4-41
Patient Safety Tests
Enclosure
Leakage
Current
This test is compliance with EN60601-1 (Enclosure Leakage Current). Test at 110% of the
nominal line voltage.
Step
Action
1
Connect the AC mains power cord to the analyzer as recommended by the
analyzer operating instructions.
2
Using the appropriate test cable, connect the analyzer to either of the screws on
the back of the monitor, next to the handle.
3
Turn the monitor on.
4
Perform the test as recommended by the analyzer operating instructions.
The analyzer leakage current indication must not exceed the values listed below.
Table 4-5. Enclosure Leakage Current
EN60601-1 (1990 + A1, A2, A11, A12, A13) and UL2601 (2nd Ed. 1997) US Deviations
Test Condition
Polarity
Allowable Leakage Current
Normal
Normal
100 µA
Reversed
100 µA
S.F.C1 Open
Normal
300 µA
Protective Earth
Reversed
300 µA
What to record on your service record:
S(3): P or S(3): F
4-42 Testing the Monitor
Patient Safety Tests
Patient
Leakage
Current
This test measures patient leakage current in accordance with EN60601-1, Clause 19, for
Class I, type CF equipment. Patient leakage current in this test is measured from any
individual patient connection to earth (power ground).
This test requires a sample patient cable for each device parameter. These must be configured
as recommended by the safety analyzer operating instructions.
Step
Action
1
Configure the electrical safety analyzer as recommended by the analyzer
operating instructions.
2
Connect the monitor’s AC mains power cord to the analyzer as recommended by
analyzer operating instructions.
3
Connect the ECG test cable between the ECG connector on the monitor and the
appropriate input connector on the analyzer.
4
Turn the monitor On.
5
Perform the test as recommended by the analyzer operating instructions.
Patient leakage current is measured under various conditions of the AC mains
and protective earth conductor. For each condition, the measured leakage current
must not exceed that indicated below.
6
Repeat the test for SpO2 and temperature patient connections, using
appropriate test cables.
Table 4-6. Patient Leakage Current Values
Test Condition
Polarity
Allowable Leakage
Current (Max.)
Type CF
Normal
S.F.C.(Open Earth/Ground)
Normal
10 µA
Reversed
10 µA
Normal
50 µA
Reversed
50 µA
What to record on the service record:
S(4): P or S(4): F
Testing the Monitor 4-43
Patient Safety Tests
Patient
Leakage
Current, with
Mains Voltage
on the Applied
Part
This test measures patient leakage current in accordance with EN60601-1, Clause 19, for
Class I, type CF equipment. In this test, 110% of mains voltage is applied between each
patient connection and earth (power ground). Patient leakage current is then measured from
any individual patient connection to earth.
Warning
AC mains voltage is present on the applied part terminals during this test. Exercise
caution to avoid electrical shock hazard.
Table 4-7. Safety Tests - Patient Leakage Current, with Mains Voltage on the
Applied Part
Test or “Inspection” to Perform
Expected Test Results
Patient Leakage Current - AC
Maximum leakage current = x
See “Safety Test Diagram - Patient
Leakage Current - AC” on page 4-44
<= 50 µA @ 250V (IEC601-1 or UL2601-1)
Test at 110% of the nominal line voltage.
Figure 4-2 Safety Test Diagram - Patient Leakage Current - AC
Test or Inspection to Perform
Measures patient leakage current from Applied Part to earth caused by external mains
voltage on Applied Part with switch S5 open and closed. Each polarity combination
possible is tested using S2 and S6.
Safety test according to EN60601-1 (Clause 19.4.h). Report largest value.
What to record on the service record:
S(5): P or S(5): F
4-44 Testing the Monitor
Patient Safety Tests
Testing the Monitor 4-45
Patient Safety Tests
4-46 Testing the Monitor
5
Configuring the Power-up Defaults Menu
This chapter discusses the use of the Power-up Defaults Menu to configure power-on default
settings. It also explains how to use Diagnostic Mode to obtain service-related information
about the monitor.
Configuring the Power-up Defaults Menu 5-1
General Safety Information
General Safety Information
Warning
A blood pressure cuff, connected to the monitor, should never be applied to a human
being while the monitor is in Diagnostic Mode. Injury could result.
A FilterLine, connected to the monitor, should never be applied to a human being while
the monitor is in Diagnostic Mode. Injury could result.
Caution
In addition to restoring factory defaults, this procedure clears the contents of trend memory.
Note
Before performing the first step, read this procedure COMPLETELY.
5-2 Configuring the Power-up Defaults Menu
Power-Up Defaults Menu
Power-Up Defaults Menu
The purpose of the Power-up Defaults Menu is to allow the authorized user to create a
power-up default for each setting in the monitor. Power-up defaults are the settings in effect
each time the monitor is power on. After you enter the Power-up Defaults Menu,
physiological monitoring is terminated. The screen layouts do not display any information
associated with normal monitoring operation.
After configuring the main monitoring screen and connecting the appropriate accessories, as
not in the C3 Information for Use guide, use the following procedure to configure the
power-up default settings for the monitor:
Step
Action
1
From the main monitoring screen, use the navigation wheel to highlight the
Setup icon. Press the wheel to select the icon.
2
From the Set-Up Menu, select Enter Power -up Default Menu. A popup box
displays.
3
Use the wheel to enter the passcode. The passcode is: 2 1 5.
Note: This passcode is configured at the factory and CANNOT be changed.
4
The Power-Up Defaults Menu displays.
POWER-UP DEFAULT MENU
Accept Current Settings?
Selected Audio Off (Make Available)
Audio Off (Make Available)
Auto-Set Limits (Make Available)
Audio Pause Period (180s)
Enter Diagnostic Mode?
Language
Enter Demo Mode?
Return
The available menu items are described in the next section. You can configure
these menu items as desired.
5
After making the desired change, highlight Access Current Settings? Press the
wheel to select this option.
6
From the popup menu, select Yes.
7
Select Return.
After selecting Return, a notice displays instructing you to power down the
monitor. Next time you power on, the changes you made to the defaults are
implemented.
Configuring the Power-up Defaults Menu 5-3
Power-Up Defaults Menu
Menu
Options
Below are the menu options you can configure from the Power-up Defaults Menu.
Menu Item
Choices
Explanation
Accept Current Settings
Yes
If Yes is chosen, the current monitor
settings become the power-up defaults.
No
Selected Audio Off
Make Available (default)
Deny Access
If Make Available is chosen, audible
alarms are permanently silenced for a
particular parameter via the Alarm
Limits Menu.
Some institutions may want to prevent
audible alarms from being permanently
silenced. If so, select Deny Access.
Audio Off
Make Available (default)
Deny Access
If Make Available is chosen, Alarm
Suspend Mode can be invoked by
pressing and holding the Alarm Silence
button for 2 seconds.
Some institutions may wish to prevent
Alarm Suspend from being invoked. If so,
select Deny Access.
Auto-Set Limits
Make Available (default)
Deny Access
If Make Available is chosen, Auto-Set
Limits are invoked via the Alarm/Limits
Menu.
Some institutions may wish to prevent
Auto-Set Limits from being invoked. Is
so, select Deny Access.
Silence Period
30, 60, 90, 120, 180 s (default)
Time is indicated in seconds. Pressing the
front panel Alarm Silence button
temporarily silences audible alarms for
the time indicated
Enter Diagnostic Mode
Yes
If Yes is chosen, the Power-Up Defaults
Menu is existed and the Diagnostic
Menu displays. For more information see
“Diagnostic Mode” on page 5-5.
No
Languagea
English, French, German,
Italian, Japanese, Portuguese,
Spanish, Russian, Chinese,
Dutch, Turkish, Arabic,
Norwegian, Swedish, Finnish,
Polish, Czech
Return
All text shown on the screen is in the
selected language. The selected language
is effective the next time the monitor is
powered up.
When selected, the Power-Up Defaults
Menu is immediately exited and you are
instructed to power down the monitor.
a. Although the language choices are shown here in English, they display on the screen in their
respective language and script on the Boot Up screen and in the Power-Up Defaults Menu.
5-4 Configuring the Power-up Defaults Menu
Diagnostic Mode
Diagnostic Mode
The purpose of the Diagnostic Mode Menu option is to allow factory, field-service, and
hospital biomedical technicians access to a series of test and system-related information
screens for the purpose of verifying monitor performance, or troubleshooting problems.
To access Diagnostic Mode:
Step
Action
1
Enter the Power-Up Defaults Menu (see ““Power-Up Defaults Menu” on
page 5-3“for instructions on accessing this menu).
2
Select the Enter Diagnostic Mode? option.
3
From the popup menu, select Yes. The Diagnostic Menu displays.
DIAGNOSTIC MENU
Error Codes
System Information
System A/D Values
NBP Test
CO2 Test
Return
The Diagnostic Menu lists the test and system-related information screens. Select an item in
the menu to invoke a test or information screen. The test and information screens that are in
the diagnostic menu listed below. An explanation of each menu item is given in the sections
that follow.
•
•
•
•
•
Error Codes
System Information
System A/D Values
NBP Test
CO2 Test
Configuring the Power-up Defaults Menu 5-5
Diagnostic Mode
Error Codes
DIAGNOSTIC MENU
ERROR CODES
Error Codes
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Date/Time
Return
This screen displays the 10 most recent error code types, logged by the monitor. The date and
time that the error code appears displays to the right of the error code.
Error codes cannot be changed or reset in this screen. When in the Error Code screen, the
Return option is always highlighted. Press the wheel to return to the main monitoring screen.
Rotating the navigation wheel while in the Error Code screen has no effect.
Refer to “Error Code Categories” on 6-12, for more details on error codes.
System
Information
DIAGNOSTIC MENU
SYSTEM INFORMATION
Monitor On-Time
Backlight On-Time
Recorder On-Time
Battery Deep Discharges
0
0
0
0
System Software Version
Application V1.00
00.01 NL V01.11 09/05/2000 SN 10971
CO2 Software Version
SpO2 Software Version SW 3.11 ALG 2.57 HW 0.0 DSPFW 0.16
NBP Software Version
AG 2.27 SM V219 a
123456
Cycle 369
Return
When in the System Information screen, the wheel can be rotated to select any of the
changeable items. If one of those items is selected, a press of the wheel displays a popup
menu. The first item is Make No Change; the second item is Reset to Zero.
This screen displays several system-related items. They are as follows:
5-6 Configuring the Power-up Defaults Menu
Diagnostic Mode
Menu Item
Function
Monitor On-Time
Displays the number of hours, rounded
to the nearest hour, that the Main PCB
has been operational. This value
CANNOT be reset.
Backlight On-Time
Displays the number of hours, rounded
to the nearest hour, that the LCD
Backlight has been operational. This
value can be reset to zero. An example is
when a technician changes the backlight
or installs a new LCD.
Recorder On-Time
Displays the number of hours, rounded
to the nearest hour, that the C3 recorder
has been operational. This value can be
reset to zero. An example is when a
technician installs a new recorder.
Battery Deep Discharges
Displays the number of deep-discharge
cycles seen by the battery. The monitor
records a deep discharge cycle when the
battery volt-age reaches 5.6 volts. At this
voltage, a Low Battery alarm is issued.
This value can be reset to zero. An
example is when a technician installs a
new battery.
System Software Version
Displays the revision level of the system
software. The revision level is also
momentarily shown on the LCD as part
of the Copyright screen. The value
CANNOT be changed.
CO2 Software Version
Displays the revision level of the
software of the Oridion® CO2 module.
This value CANNOT be changed.
SpO2 Software Version
Displays the revision level of the
software of the MP-205 SpO2 module.
This value CANNOT be changed.
NBP Software Version
Displays the revision level of the
software for the NBP module. This value
CANNOT be changed.
Return
Exits the System Information Menu
and returns to the Diagnostic Menu.
Configuring the Power-up Defaults Menu 5-7
Diagnostic Mode
System A/D
Values
The System A/D screen displays the current value of each analog-to-digital (A/D) channel in
volts. Some of the channels are for AC-coupled signals (such as ECG input), so the numbers
on the screen are constantly changing when an input signal is present. These AC-coupled
values are shown to give an indication as to whether basic functionality of the channel is
present, but no significance can be derived from the values of the numbers displayed.
DIAGNOSTIC MENU
SYSTEM A/D VALUES
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
SpO2 S1
Return
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
SpO2 Alive
SpO2 S2
No Sensor
The Primary and Secondary Status messages from the SpO2 module are displayed and
updated at the rate of about once per second. Presence of the correct SpO2 message indicates
that, at a basic level, communication between the SpO2 module and the main monitor
processor is working correctly. None of the displayed values can be changed or reset in this
screen. When in the System A/D screen, the Return option is always highlighted. Press the
wheel to return to the Diagnostic Menu. Rotating the wheel while in the System A/D screen
has no effect. The A/D channel designators are shown in the following table.
5-8 Configuring the Power-up Defaults Menu
Diagnostic Mode
Table 5-1. A/D Channel Designators
1.
ECG
2.
RWAVE
3.
PACEMAKER
4.
RESPIRATION
5.
PRESSURE XDUCER 1
6.
PRESSURE XDUCER 2
7.
NBP OSCILLATORY
8.
ECG LEAD OFF
9.
TEMPERATURE
10.
ISOLATED VOLTAGE REF
11.
ISOLATED VOLTAGE ZERO
12.
SpO2 S1 S018
13.
NOT USED
14.
+3.3 VDC POWER SUPPLY
15.
(+12 VDC POWER SUPPLY) x 0.33
16.
(NBP VOLTAGE REF) x 0.8
17.
GROUND REFERENCE
18.
(+5 VDC POWER SUPPLY) x 0.8
19.
ADC MID-SCALE VALUE
20.
ADC ZERO-SCALE VALUE
21.
ADC FULL-SCALE VALUE
Configuring the Power-up Defaults Menu 5-9
Diagnostic Mode
NBP Test
A NBP Test screen is provided to facilitate troubleshooting problems and performing
verification testing for the NBP subsystem. Typically, when these tests are performed, the
pneumatic system is connected to an external pressure-reading device and a closed reference
volume. The NBP Test screen provides a real-time numeric display of the pressure in the
pneumatic system, means for controlling the pump and valves are open or closed.
Warning
A blood pressure cuff, connected to the monitor, should never be applied to a human
being while the monitor is in Diagnostic Mode. Injury could result.
DIAGNOSTIC MENU
NBP TEST
Pressure (mmHg) 0
Proportional Valve: Open
Proportional Valve: Open
Press NBP to activate pump;
release to stop pump.
Press Volume to open both valves;
release to close valve.
Press Alarm Silence to open proportional valve
and deflate at 3mmHg/s;
release to close valve
Press Contrast to perform
offset adjustment
Return
The NBP Test screen elements are described below:
Menu Item
Function
Pressure (mmHg)
Displays the real-time value of the
system pneumatic pressure in mmHg.
The value is updated at the rate of
approximately two times per second.
Proportional Valve
Indicates whether the proportional value
is open or closed.
Safety Valve
Indicates whether the safety valve is
open or closed.
5-10 Configuring the Power-up Defaults Menu
Diagnostic Mode
Menu Item
Function
Activate Pump
As long as the NBP button is pressed,
the pump runs. If system pressure
reaches the hardware over-pressure
protection point (280 to 330 mmHg or
37.3 to 44.0 kPa), the safety valve opens
and the pump disables, until the pressure
falls below the safety threshold.
Open Both Valves
As long as the Volume button is pressed,
the safety valve and proportional valve
opens and remains at maximum.
Deflate
As long as the Alarm Silence button is
pressed, the proportional valve opens
and bleeds off pressure at the rate of 3
±1.5 mmHg/s. It is useful to control the
bleed rate to 3mmHg/s to facilitate
certain AAMI SP10 tests. Any time the
bleed rate falls below 3 mmHg/s, the
valve opens and remains at maximum as
long as the button is pressed.
Offset Adjustment
Momentarily press the Contrast Adjust
button invokes the Zero Calibration
routine that is performed immediately
prior to each blood pressure
measurement. This routine looks at the
pressure in the system, and if the
pressure is non-zero, an offset is applied
which causes the system pressure to
display as Zero.
When in the NBP Test screen, the Return option is always highlighted. Press the wheel to
return to the Diagnostic Menu. Rotating the wheel while in the NBP Test screen has no
effect.
Configuring the Power-up Defaults Menu 5-11
Diagnostic Mode
CO2 Test
The CO2 Test Screen is provided to facilitate troubleshooting problems and performing
verification testing to ensure the measuring results are accurate. See “CO2 Performance” on
page 4-29 for information on how to perform these tests.
Warning
A FilterLine, connected to the monitor, should never be applied to a human being while
the monitor is in Diagnostic Mode. Injury could result.
DIAGNOSTIC MENU
CO2 TEST
CO2 Pressure in mmHg (ambient/cell):
Pump Voltage (Volts):
CO2 (mmHg):
745/740
3.0
0.00
Status:
Set Barometric Pressure (mmHg):
Flow Rate Check and Calibration:
CO2 Calibration:
Pump Op Time:
Return
5-12 Configuring the Power-up Defaults Menu
745
07/16/2002 15:13
58
Diagnostic Mode
The CO2 Test Screen is described below:
Menu Item
Function
CO2 Pressure in mmHg (ambient/cell)
Displays the real-time value of the
ambient pressure and the measured cell
pressure. The ambient pressure value
will be the same as the Barometric
Pressure value. This value CANNOT be
changed or reset.
Pump Voltage (Volts)
Takes the correct amount of air from
outside of the monitor. This value
CANNOT be changed or reset.
CO2 (mmHg)
Displays the real-time value of CO2.
This value CANNOT be changed or
reset.
Set Barometric Pressure (mmHg)
Select a value which matches the
reference value received from a reliable
source (airport, weather station, hospital
weather station). Confirm that the
ambient pressure value is the same as the
barometric pressure value.
Flow Rate Check and Calibration
Adjust CO2 flow rate by Decrease Flow
or Increase Flow. After desired flow
rate is obtained, select Store Flow.
Highlight and press Return to exit popup menu.
CO2 Calibration
Displays the date (mm/dd/yyyy) and
time that the last calibration occurred.
To calibrate CO2, you must first set the
percentage of CO2, then highlight and
press the Start Calibration option. To
end calibration, highlight and press
Abort Calibration. When calibration is
complete, highlight and press Return to
exit pop-up menu.
Pump Op Time
Displays how long the pump has been
operational. If Make No Change is
chosen, Pump Op Time remains at
current value. If Reset to Zero is
chosen, Pump Op Time has a zero value.
Return
Exits the CO2 Test and returns to the
Diagnostic Menu.
Configuring the Power-up Defaults Menu 5-13
Restoring Factory Settings
Restoring Factory Settings
Caution
In addition to restoring factory defaults, this procedure clears the contents of trend memory.
The following technique can be used to restore the monitor’s power-up default settings which
were originally configured in the factory.
Note
Before performing the first step, read this procedure COMPLETELY.
Step
Action
1
Ensure that the monitor is powered Off.
2
Simultaneously press the Volume and Contrast buttons on the monitor’s front
panel.
3
Still pressing the Volume and Contrast buttons, press the On/Standby button to
turn the monitor On.
4
Continue to press the Volume and Contrast buttons until the power-up
diagnostic sequence is complete. When the main monitoring screen displays,
release the two buttons.
5
Select your language from the following screen, then select YES to place the
monitor into that language. After language is selected, the main monitoring
screen displays.
5-14 Configuring the Power-up Defaults Menu
6
Troubleshooting
This chapter explains how to troubleshoot the monitor if problems arise. Tables are supplied
that list possible monitor difficulties, along with probable causes, and recommended actions
to correct the difficulty. Use this chapter when you suspect you have a problem with your
monitor, or whenever you are referred to this chapter from another part of the Service Guide.
Troubleshooting 6-1
General Troubleshooting Safety Information
General Troubleshooting Safety Information
Warning
Do not attempt to troubleshoot the monitor if there is any sign of burning or smoking
coming from the monitor. Call the Philips Response Center or your
local Philips representative immediately.
Caution
Only qualified service personnel should open the monitor housing, remove and replace
components, or make adjustments. If your medical facility does not have
qualified service personnel, contact the Philips Response Center or your
local Philips representative.
6-2 Troubleshooting
Objectives
Objectives
In order to meet this chapter’s objectives, you should be able to diagnose and isolate hardware
failures to the level of the "field replaceable part". In addition, this chapter describes how to
troubleshoot problems using error codes.
Caution
Only qualified service personnel should open the monitor housing, remove and replace
components, or make adjustments. If your medical facility does not have
qualified service personnel, contact the Philips Response Center or your
local Philips representative.
This chapter is divided as follows:
Part 1 Troubleshooting Checklist - This part provides check for the obvious hints and tips.
Part 2 Solving Monitor Problems - This part provides the following:
•
Tables that list monitor symptoms as well as causes and remedies for monitor faults.
•
Techniques for troubleshooting the monitor before you disassemble it.
•
Checks you can perform to isolate problems down to a specific replaceable part, for
example, the power supply.
Part 3 Using Support Functions - This part provides information on how to use error codes
as a support feature.
Concepts
Troubleshooting
This is the essential diagnostic step to be taken prior to any repair.
Error Codes
These are the types of messages that generate and display to inform the user when the monitor
has been unable to perform an operation.
Troubleshooting 6-3
Part 1 Troubleshooting Checklist
Part 1 Troubleshooting Checklist
If any unit is not functioning properly, your first step is to Restore Factory Settings. See
“Restoring Factory Settings” on 5-14 for additional information.
Warning
Do not attempt to troubleshoot the monitor if there is any sign of burning or smoking
coming from the monitor. Call the Philips Response Center or your
local Philips representative immediately.
Checks for
Obvious
Problems
When first troubleshooting the monitor, check for obvious problems by answering the
following questions:
1. Is the monitor turned On?
2. Is the battery adequately charged?
3. If running from mains power supply, is the AC power cord connected to the monitor
and plugged into an AC outlet.
Checks
Before
Opening the
Monitor
You can isolate many problems by observing indicators on the monitor before it is necessary
to open the monitor.
Front Panel LED
Description
AC LED
On: mains connected, battery charging
Off: mains unplugged
Battery LED
On: DC power on, monitor on
Off: DC power off, monitor off
6-4 Troubleshooting
Part 1 Troubleshooting Checklist
The following two steps are to make sure that the monitor’s AC power supply and battery
work correctly.
What To Do If The Monitor Cannot Be Switched On, AC Powered:
Step
Action
1
Ensure the battery has had ample time to charge (at least 15 minutes). A dead
battery will prevent the monitor from powering On.
2
Check AC fuses in the AC receptacle.
3
Check keypad connector or replace keypad. See “Removing the Keypad on
the Front Panel” on 7-6 for instructions.
4
If monitor still cannot be switched On, replace the Main PCB module. See
“Removing the Main PCB Module” on 7-12 for instructions.
What To Do If The Monitor Cannot Be Switched On, Battery Powered:
Step
Action
1
Plug the monitor into an AC power source.
2
Ensure the battery has had ample time to charge (at least 15 minutes). A dead
battery will prevent the monitor from powering On.
3
Check AC fuses in the AC receptacle.
4
Check keypad connector or replace keypad. See “Removing the Keypad on
the Front Panel” on 7-6 for instructions.
5
If monitor still cannot be switched On, replace the Main PCB module. See
“Removing the Main PCB Module” on 7-12 for instructions.
Troubleshooting 6-5
Part 2 Isolating and Solving Monitor Problems
Part 2 Isolating and Solving Monitor Problems
INOP
Messages
The following table explains the technical INOP messages that the monitor can issue, and
suggests a course of actions. When actions are numbered, always try them in the order given
and only proceed to the next action if the current one is not successful in solving the problem.
Message
Cause of Failure
Remedy
"CO2 Equip Malf"
Malfunction in the CO2 hardware.
Verify failure and replace
Extension with a known-good
Extension.
"CO2 No Tubing"
The FilterLine is disconnected, or an
incorrect line is attached.
Attach a FilterLine. Remember
that only Microstream
accessories may be used with the
monitor.
"CO2 Sensor Warm-up"
The sensor has not reached operating
temperature.
Allow the sensor to warm-up.
"CO2 Occlusion"
The FilterLine or exhaust tub is blocked
to the extent that a measurement sample
cannot be taken.
Check the FilterLine and exhaust
tube, then disconnect and
reconnect the FilterLine. If the
INOP is still displayed, use a
new FilterLine.
The outlet is occluded at Power On.
This INOP also appears after the Pump
Op Time is reset.
"CO2 Overrange"
The CO2 value is outside the
measurement range.
"CO2 Purging"
The monitor is purging the FilterLine.
This occurs when an occlusion is
detected in the line or airway adapter. If
the occlusion is not removed by purging,
a " CO2 Occlusion" INOP displays.
"CO2 Auto Zero"
An AutoZero is in progress. An
AutoZero will be done at the following
intervals: 5 minutes after connecting the
FilterLine, 1 hour later, 12 hours later,
and every 12 hours from there on.
"ECG Leads Off"
Not all leads are connected.
6-6 Troubleshooting
If Pump Op Time has been reset,
perform a flow check and store
the flow in Service Mode (select
"Store Flow").
Check for an occlusion and
remove. If necessary, replace the
FilterLine.
Make sure the ECG trunk cable
is connected, the leads are
connected to the electrodes, and
the electrodes are attached. If
INOP still displays, use a new
lead set.
Part 2 Isolating and Solving Monitor Problems
Message
Cause of Failure
Remedy
"Loss of Pulse from SpO2"
SpO2 cannot find a pulse.
Make sure the SpO2 patient
cable is connected and the sensor
is correctly attached to the
patient.
"Low Battery"
The battery has less than 30 minutes of
charge left.
Recharge the battery.
"NBP - Artifact"
Incomplete measurement due to patient
motion or physiology.
"NBP - Blocked Hose"
NBP tubing blocked - measurement not
possible.
"NBP - No Cuff"
Monitor unable to detect NBP cuff.
"NBP Overpressure"
This INOP arises when the NBP cuff
pressure increases above overpressure
safety limits.
"NBP - Time Out"
NBP measurement took too long to
complete.
"Recorder Out of Paper"
New paper needed.
Replace paper as instructed in
the section titled "Recorder
Paper Replacement" in the C3
Instructions for Use guide.
"SpO2 Cable/Sensor
Disconnect"
Monitor cannot detect the SpO2 cable or
sensor.
Check that the SpO2 patient
cable is connected and the sensor
is properly attached to the
patient.
"SpO2 Equip Malf"
SpO2 hardware is faulty.
Verify failure and replace SpO2
module. See “Removing the
SpO2 Module” on page 7-14
"SpO2 Erratic"
SpO2 measurement is erratic.
1. Make sure the SpO2 sensor
is correctly placed.
2. If this does not solve the
problem, make sure the
sensor is working.
"SpO2 Interference"
The level of ambient light is so high that
the transducer cannot measure the pulse,
or the cable is picking up interference.
1. Cover the SpO2 sensor so
that it does not get as much
ambient light.
2. If this does not solve the
problem, make sure the
sensor cable is not
damaged.
"SpO2 No Transducer"
Monitor does not detect SpO2 sensor.
1. Check the patient.
2. Check cuff application and
orientation.
Check that the tubing is not
obstructed or pinched.
1. Check to see that cuff is
present.
2. Check cuff and tube
connections for leaks.
Remove the cuff from the
patient. Make sure the rubber
tube to the NBP cuff is not
kinked.
Make sure the SpO2 sensor is
connected.
Troubleshooting 6-7
Part 2 Isolating and Solving Monitor Problems
Message
Cause of Failure
Remedy
"SpO2 Noisy Signal"
Excessive patient movement or electrical
interference are causing irregular pulse
patterns.
Try to reduce patient movement,
or to relieve the cable strain on
the sensor.
"SpO2 Non-Pulsatile"
Pulse is too weak or is not detectable, or
the application site is too thin.
Change the application site of
the sensor, or stimulate
circulation at the current site.
"SpO2 Transduc Malf"
Sensor is malfunctioning.
"Temperature Probe
Disconnect"
Monitor is not detecting temperature
reading.
Isolating the
Defective
Component
1. Change the SpO2 sensor as
soon as possible.
2. Return the faulty sensor to
your biomedical
department.
Check that the temperature probe
is properly connected to the
monitor.
You can use the following table to isolate and solve problems which may occur in the
monitor.
Symptom
Cause of Failure
Remedy
The battery symbol is not
displayed
A battery is not present in the
monitor, the battery is defective,
or there is a bad connection.
Install a charged battery (see “Removing
the Battery” on page 7-4). If a battery is
already present, remove it and refit the
battery making sure to push is completely
into position. Check the connection wires
to make sure wires are secured to battery.
Some or all numerics or
waves are not displayed
Parameters are switched off.
Switch parameters on.
No accessories are connected.
Connect the required accessories. If
connections are secure, replace the suspect
accessory.
Monitor screen appears dim
Brightness not properly adjusted.
Adjust brightness using Contrast button.
Display backlight tube worn.
Replace backlight tube according to
instructions in “Replacing the Backlight
Tube” on page 7-9.
Monitor screen is blank
6-8 Troubleshooting
Display backlight tube worn or
loose connection.
1. Check the backlight tube connector
2. Replace the backlight tube
Main PCB module malfunction.
Replace the Main PCB module according
to instructions in “Removing the Main
PCB Module” on 7-12.
Part 2 Isolating and Solving Monitor Problems
Symptom
Cause of Failure
Remedy
Monitor fails to power-up
when the On/Standby
button is pressed.
Battery is dead or monitor is not
plugged in.
Make sure the monitor is powered on by
either battery or AC power. Check that the
battery is adequately charged and AC
power fuses are securely connected.
Keypad malfunction or keypad
connector is loose.
1. Check the keypad connector.
2. Replace the keypad according to the
instructions in “Removing the
Keypad on the Front Panel” on
7-6.
No response when pressing
the buttons on the front panel
Keypad malfunction or keypad
connector is loose.
1. If only one button does not work,
verify that the monitor is On.
2. Check the keypad connector
3. Replace the keypad according to the
instructions in “Removing the
Keypad on the Front Panel” on
7-6.
Audible alarm does not
sound
Speaker malfunction or speaker
has a loose connector.
1. Check speaker connector.
2. Replace speaker according to the
instructions in “Replacing the
Speaker” on 7-9.
Main PCB module malfunction.
Replace the Main PCB module according
to the instructions in “Removing the
Main PCB Module” on 7-12.
All patient data is lost or
corrupted (indicated in the
error log)
Occurs when more than 15
minutes has elapsed when
replacing the battery.
If this occurs, replace the Main PCB
module according to the instructions in
Recorder is not printing
Defective recorder.
Check that the recorder is correctly
installed and there is paper in the recorder.
If problem still exists, replace recorder
according to the instructions in “Removing
the Optional, External Recorder” on
page 7-6.
Recorder paper will not
advance
Paper is in incorrectly.
Replace paper as instructed in the section
titled "Recorder Paper Replacement" in
the C3 Instructions for Use guide.
Defective recorder.
Check that the recorder is correctly
installed and there is paper in the recorder.
If problem still exists, replace recorder
according to the instructions in “Removing
the Optional, External Recorder” on
page 7-6.
“Removing the Main PCB Module”
on 7-12
Troubleshooting 6-9
Part 2 Isolating and Solving Monitor Problems
Symptom
Cause of Failure
No sound from monitor
Tone is switched off or low.
Incorrect Time Stamps
The monitor’s real time clock is
defective.
Power the monitor On and then reset the
time and date. See the C3 Instructions for
Use guide for instructions on how to set
the date and time.
Cannot reprogram the time
and date correctly
Main PCB module malfunction.
Replace the Main PCB module according
to the instructions in “Removing the
Main PCB Module” on 7-12.
Fluid dripping from the
monitor
LCD Display damaged or cracked.
Replace LCD Display.
Decrease in light intensity on
display.
Backlight tube is worn out.
Replace backlight tube according to
instructions in “Replacing the Backlight
Tube” on page 7-9.
No tone alarms
Audible alarms are not switched
on.
Make sure audible alarms are switched on.
Speaker will not work
Cable disconnected.
Reconnect cable.
Defective speaker.
Replace speaker.
Main PCB module malfunction.
Replace the Main PCB module according
to the instructions in “Removing the
Main PCB Module” on 7-12.
Invalid data stored showing
wrong times for data
Brightness decreases from
top to bottom or bottom to
top.
The wheel is rotated, no
highlight appears on the
display screen, and/or the
monitor does not respond to
wheel presses.
6-10 Troubleshooting
Remedy
1. Turn the volume up by pressing the
Volume button.
2. Power-cycle monitor. Tone should
sound when monitor boots up.
3. Check cable connections to the
speaker.
Part 3 Using Support Functions
Part 3 Using Support Functions
When the monitor detects an error condition, the monitor shows an error code on the display
screen. If such an error occurs during monitoring operation, an audible alarm tone also
sounds. Press the Alarm Silence button to terminate the audible alarm tone.
When an error code appears on the display, a number in hexadecimal representation indicates
the nature of the error. Additionally, Diagnostic Mode can be used to gain access to an error
code record, stored in non-volatile memory, of the last 10 error codes encountered. See
Chapter 5 Diagnostic mode for further details on Diagnostic Mode.
Each error code corresponds to a particular problem in the monitor. Recommended actions to
take when an error code is encountered are listed below.
Serviceable
Hardware
Error Codes
Listed below are error codes that correspond to hardware problems, and the recommended
actions to take should such an error be encountered.
Hex Code
Explanation
Recommended Action
1
Improper shutdown
1. Power cycle
2. If this error persists, return the
monitor to your local Philips
representative for service.
4
The measure valve of the 3.3V
power supply is low.
1. Check the power supply.
2. Replace the power supply
module.
5
The measured valve of the 3.3V
power supply is high.
1. Check the power supply.
2. Replace the power supply
module.
8
The measured value of the 5V
power supply is low.
1. Check the power supply.
2. Replace the power supply
module.
9
The measured value for the 5V
power supply is high.
1. Check the power supply.
2. Replace the power supply
module.
E
A checksum error is detected on the
power-up settings region of flash
memory.
1. Turn power Off
2. Turn power On while pressing
both the Contrast and Volume
buttons simultaneously. (See
“Restoring Factory Settings” on
page 5-14.)
3. All user selections must be
restored.
4. If problem persists, replace main
PCB module.
Troubleshooting 6-11
Part 3 Using Support Functions
Hex Code
Error Code
Categories
6-12 Troubleshooting
Explanation
Recommended Action
64
The SpO2 module is sending an
error message to the host CPU.
1. Ensure PicoSat module is
properly connected.
2. Replace the PicoSat module.
3. If problem persists, replace main
PCB module.
?
The CO2 module is sending an
error message to the host CPU.
1. Ensure Oridion module is
properly connected.
2. Rplace the Oridion module.
3. If problem persists, replace main
PCB module.
65, 66
PicoSat SpO2 module has detected
an error during initialization.
1. Replace PicoSat module.
2. If problem persists, replace main
PCB module.
6E-71
PicoSat SpO2 module has detected
an error on its serial port.
1. Replace PicoSat module.
2. If problem persists, replace main
PCB module.
As a reference, the following table lists the general categories for other error codes. The error
code categories are shown only in hexadecimal format.
Hexadecimal Code
Explanation
500xxx
internal user interface error
501xxx
remove serial port error
502xxx
date and time error
503xxx
NBP error
504xxx
front end error
505xxx
alarm error
506xxx
audio error
507xxx
recorder error
508xxx
trend error
509xxx
flash memory data error
50axxx
SpO2 error
50bxxx
ECG error
50cxxx
power-down task error
50dxxx
on-board diagnostic error
50exxx
power monitor error
50fxxx
temperature measurement error
510xxx
internal user interface error
511xxx
error handling error
513xxx
serial driver error
Part 3 Using Support Functions
Other Error
Codes
Hexadecimal Code
Explanation
514xxx
system error
515xxx
CO2 error
If an error code occurs that is not listed in the above sections, take the following actions:
Step
Action
1
Power cycle the monitor.
2
If the error code still displays, take the monitor out of service and contact the
Philips’ Response Center or your local Philips representative for advice on
remedial action.
3
If the monitor powers up and the error code does not reoccur, enter the
Diagnostic Mode and select the Error Code option. Examine the record of the
last 10 error codes and determine if the same error code occurred previously.
4
If the Error Code screen indicates that the same error code has occurred
previously, take the monitor out of service and contact the Philips’ Response
Center or your local Philips representative for advice on remedial action.
5
If the Error Code screen indicates no previous occurrences of this error, the
monitor can be returned to service.
Troubleshooting 6-13
Part 3 Using Support Functions
6-14 Troubleshooting
7
Disassembly
This chapter provides step-by-step procedures that are used to access replaceable parts of the
monitor. The sections in this chapter describe and photographically illustrate procedures for
disassembling the monitor in order to remove or replace suspected defective assemblies or
components.
Disassembly 7-1
Introduction
Introduction
The monitor consists of two main assemblies, the front case assembly, and the rear case
assembly.
All part numbers and exploded views of some assemblies are located in Chapter 8, “Spare
Parts” on page 8-1. The monitor can be disassembled down to all major component parts,
including
•
PCBs
•
Battery
•
Cables
•
Function buttons
•
Chassis enclosures
Tools Required
You will need the following tools to disassemble the monitor:
•
small/medium, Philips-head screwdriver
•
flathead screwdriver
•
needle-nose pliers
•
10 mm socket wrench (for navigation wheel)
•
5/16 nut driver
Note—If you want to disassemble the RS-232 connector located on the rear panel, you
will need a 3/16 inch socket wrench.
7-2 Disassembly
Disassembly Safety Information
Disassembly Safety Information
Warning
Performance Verification: Do not place the monitor into operation after repair or
maintenance has been performed, until all recommended Performance and Safety Tests
listed in Chapter 4, “Testing the Monitor” of this Service Guide have been performed.
Failure to perform all tests could result in erroneous monitor readings.
Before attempting to open or disassemble the monitor, disconnect the power supply from
the monitor.
Before you begin any disassembly procedure, you must remove the battery.
High voltage is generated by the LCD backlight driver. Exercise caution when operating
the monitor with the covers open.
Caution
Observe ESD (electrostatic discharge) precautions when working within the unit.
Before you remove any module, make sure you are wearing ESD protection and you are
working in a grounded environment.
If the internal battery cable has been disconnected, pay particular attention to the polarity of
the cable before reattaching. If the battery cable polarity is reversed, it is likely that circuit
damage will occur.
Note—If you want to disassemble the RS-232 connector located on the rear panel, you
will need a 3/16 inch socket wrench.
Disassembly 7-3
Disassembly Procedures
Disassembly Procedures
This section provides instructions for closed case, front case and rear case disassembly
procedures.
Closed Case
Disassembly
Procedures
This section describes the items that can be removed without disassembling the main case of
the monitor.
Removing the
Battery
Warning
Before you begin any disassembly procedure, you must remove the battery.
Step
7-4 Disassembly
Action
1
With the rear of the monitor facing you, disconnect the battery cover from the
rear panel using a Philips no. 1 screwdriver to loosen the 4 captive screws
fastening the battery cover.
2
Slide the battery out by tilting the monitor towards you.
Disassembly Procedures
Step
Action
3
Disconnect both battery lug terminals to release the battery.
4
When you re-insert the battery, verify that the battery is inserted the correct way
and the polarity is correct (see figure below).
Black
Red
Removing the
Navigation
Wheel
Step
Action
1
Firmly grasp both sides of the wheel and pull straight back from the monitor.
The wheel should slip off the encoder shaft. If the wheel does not slip off the
encoder shaft, use the needle-nose pliers and pull the wheel.
2
For further disassembly, use the 10 mm socket wrench to unscrew the brass hex
nut.
Disassembly 7-5
Disassembly Procedures
Removing the
Keypad on the
Front Panel
Removing the
Optional,
External
Recorder
7-6 Disassembly
Step
Action
1
The keypad is attached with an adhesive to the front panel. To remove it,
carefully lift up one corner of the keypad with a flathead screwdriver.
2
Peel the adhesive away from the front panel.
Step
Action
1
Press the external Paper Eject button on the right hand side of the recorder. The
door drops forward.
2
Remove the paper roll. Two secure screws are visible on the back panel of the
recorder.
3
Use a Philips screwdriver to loosen the two captive screws.
4
Pull the recorder straight out of the side of the monitor by placing your index and
middle fingers in the inside center of the recorder and firmly pulling the recorder
towards you.
Disassembly Procedures
Separating
the Front
from the
Rear Case
Step
Action
1
Verify that the battery has been removed. If not see, “Removing the Battery on
page 7-4.
2
Verify that the navigation wheel and brass hex nut have been removed. If not
see, “Removing the Navigation Wheel on page 7-5.
3
Use a Philips no. 2 screwdriver to remove the 6 screws fastening the Rear Case
Assembly to the Front Case Assembly.
4
Facing the front of the monitor, shift the front case slightly to the right, making
sure that you do not break off the navigation wheel shaft.
Disassembly 7-7
Repeater
Disassembly Procedures
Step
5
Action
Disconnect the display cable located on your left-hand side by pulling the
connector towards you. Disconnect the backlight tube, front panel and speaker
cables located on your right-hand side.
Front Panel
Cables
Backlight Tube
Cables
Speaker Cable
6
Front Case
Disassembly
Display Cable
Separate the front from the rear case.
After you have separated the front from the rear case you can replace the following from the
front case assembly:
•
Speaker
•
Backlight Tube
Caution
Before you remove any module, make sure you are wearing ESD protection and you are
working in a grounded environment.
7-8 Disassembly
Disassembly Procedures
Replacing the
Speaker
Step
Replacing the
Backlight Tube
Action
1
Use a Philips no. 2 screwdriver to remove the 3 screws fastening the speaker.
2
Pull the speaker up.
The backlight tube is located within the LCD screen. However, you do not need to
disassemble the LCD screen display to replace the backlight tube.
Step
Action
1
Insert a small, thin, flathead screwdriver into the crevice between the LCD
screen and where the backlight tube slides in.
2
Using the screwdriver, grab the corner of the backlight tube and gently pull the
tube out. Re-insert a new backlight tube.
Disassembly 7-9
Disassembly Procedures
Rear Case
Disassembly
You must disassemble the rear case to remove the following modules:
•
Main PCB
•
Patient Monitoring I/O
•
SpO2
•
CO2
•
NBP
•
Communications
•
Power Supply
Caution
Before you remove any module, make sure you are wearing ESD protection and you are
working in a grounded environment.
To disassembly the rear case:
Step
7-10 Disassembly
Action
1
Verify that the battery has been removed. If not see, “Removing the Battery on
page 7-4.
2
Verify that the recorder has been removed. If not see, “Removing the Optional,
External Recorder on page 7-6. If there is no recorder, unsnap the recorder door
using a flathead screwdriver (see figure below).
Disassembly Procedures
Step
3
Action
Use a Philips no. 2 screwdriver to remove the 9 screws fastening the rear case.
Screws 1-5
Screws 6-9
4
Remove the two screws located in the bottom corners of the rear case.
Screw 1
5
Screw 2
Gently slide the chassis away from the rear case.
Disassembly 7-11
Disassembly Procedures
Removing the
Main PCB
Module
Step
1
Action
Unscrew the PCB module by loosening the following 3 screws:
Screw #1
Screw #2
Screw #3
2
Gently pull the module towards you.
3
After you have removed the Main PCB module, you should have access to the
CO2, SpO2, NBP pump, and the Patient Monitoring I/O modules.
CO2
Module
SpO2
Module
NBP Pump
Patient
Monitoring
I/O Module
7-12 Disassembly
Disassembly Procedures
Removing the
Patient
Monitoring I/O
Module
Follow these instructions for removing the I/O module from the Main PCB module.
Step
1
Action
Remove the following 2 screws to remove the connector module.
Screw #1
Screw #2
Note—Use a flathead screwdriver to remove Screw #1.
2
Slide the I/O module out.
3
Disconnect the CO2 connector and tubing and the NBP tubing. Slide the CO2
exhaust tubing out.
4
Pull the I/O module away.
Patient
Monitoring
I/O Module
Disassembly 7-13
Disassembly Procedures
Removing the
SpO2 Module
After you have removed the Patient Monitoring I/O module from the Main PCB module, you
can remove the SpO2 module. To do this:
Step
1
Action
Remove the 2 screws fastening the SpO2 module to the I/O module.
Screw #2
Screw #1
7-14 Disassembly
2
Remove the connector that attaches the SpO2 module to the I/O module.
3
Gently pull the SpO2 module away.
Disassembly Procedures
Removing the
CO2 Module
Note—This procedure is only for those that have the C3 Sedation model.
Step
1
Action
Remove the 4 screws on the CO2 module.
Screw #1
Screw #2
Screw #3
Screw #4
2
Tilt the CO2 module towards the NBP pump.
3
Gently pull the module away from the Main PCB module.
Note—When reassembling the CO2 module, ensure that the CO2
header matches up with the mating header.
Disassembly 7-15
Disassembly Procedures
Removing the
NBP Pump
Step
1
Action
Remove the connector from the NBP pump.
Connector
2
Cut the tie wrap.
Tie Wrap
7-16 Disassembly
Disassembly Procedures
Removing the
Power Supply
Module
Step
1
Action
Use the needle-nose pliers to unplug the three connectors.
Battery Cables
Connector #1
Power Supply Board
Connectors #2 & 3
Communications Module
2
Remove the two screws that connect the power supply to the rear panel.
3
Remove the screws on the side and bottom of the rear panel.
4
Cut the tie wrap that holds the battery cables together.
5
Use a 5/16 nut driver to unfasten the power supply from the rear panel.
6
Pull the power supply module away from the rear panel.
Disassembly 7-17
Disassembly Procedures
7-18 Disassembly
8
Spare Parts
This chapter lists spare parts, along with part numbers, are listed in the tables that follow.
Item No. corresponds to the callout number in Figure 8-1 through 8-6. the Page Ref. for
Disassembly indicates the page number of the relevant disassembly procedures in Chapter 7,
“Disassembly”.
Spare Parts 8-1
Small Parts Kit
Small Parts Kit
Most small parts and hardware (screws, hex nuts, washers, standoffs, 2 fuses, CO2 spring and
door, and 2 housing feet) can be found in the Small Parts Kit, Part Number 453563480201.
The picture below calls out a few of the less commonly known parts within this kit.
CO2 Door
CO2 Spring
Housing Feet
Hex Nut for
Navigation Wheel
Power entry
module fuses
8-2 Spare Parts
CO2 Coupler
Retaining Clip
C3 Top Level Assembly
C3 Top Level Assembly
Rear Casing
Front Casing
Figure 8-1
Spare Parts 8-3
Front Panel Assembly
Front Panel Assembly
3
1
Figure 8-2 (1 of 2)
8-4 Spare Parts
Description
Page Ref. for
Disassembly
Item No.
Part Number
1
453563480151
Main PC Board
page 7-12
2
453563480111
Navigation Wheel and Retainer
Spring
page 7-5
3
453563480201
(Spare Parts Kit)
Hex Nut
page 7-5
2
Front Panel Assembly
8
3
7
4
6
5
Figure 8-3 (2 of 2)
Description
Page Ref. for
Disassembly
453563480021
Backlight Tube
page 7-9
453563480101
Keypad
page 7-6
5
453563480221
Speaker (including speaker cable)
page 7-9
6
453563480081
Display Cables
page 7-7
7
453563480051
Bezel Protective Window Display
No Disassembly Procedure
8
453563480091
Front Housing
No Disassembly Procedure
Item No.
Part Number
3
4
Spare Parts 8-5
Rear Panel Assembly
Rear Panel Assembly
9
12
14
Red to (+) Terminal
Black to (-) Terminal
10
13
11
Figure 8-4 (1 of 3)
8-6 Spare Parts
Item No.
Part Number
Description
Page Ref. for
Disassembly
9
453563480211
Spare Recorder Blanking Plate
page 7-6
10
453563480011
AC Connector, Power Entry Module
No Disassembly Procedure
11
453563480171
RS-232 Port
No Disassembly Procedure
12
453563480041
Battery Housing
page 7-4
13
453563480071
Battery Cover
page 7-4
14
453563480031
Battery
page 7-4
Rear Panel Assembly
15
16
17
Figure 8-5 (2 of 3)
Part Number
Description
Page Ref. for
Disassembly
15
453563480191
Side Panel - with CO2
page 7-15
Not Shown
453563480181
Side Panel - without CO2
No Disassembly Procedure
16
453563480121
NBP Assembly
page 7-16
16
453563480131
NBP Cable
page 7-16
17
453563480141
Patient Monitoring I/O Module
page 7-13
Item No.
Spare Parts 8-7
Rear Panel Assembly
18
Figure 8-6 (3 of 3)
Part Number
Description
Page Ref. for
Disassembly
18
453563480161
Power Supply Board
page 7-17
Not Shown
453563480061
Communication Board
page 7-17
Item No.
8-8 Spare Parts
Power Cords
Power Cords
Part Number
Description
8120-5429
Power Cord, US (903) 2.4 m
8120-1689
Power Cord, Europe (902) 2.0 m
8120-1351
Power Cord, UK (900) 2.3 m
8120-4475
Power Cord, Australia (901) 2.0 m
8120-2104
Power Cord, Switzerland (906) 2.0 m
8120-2956
Power Cord, Denmark (912) 2.0 m
8120-4211
Power Cord, South Africa/India (917) 2.0 m
8120-5342
Power Cord, Japan (918) 2.5 m
8120-5182
Power Cord, Israel (919) 2.0 m
8120-6869
Power Cord, Argentina (920) 2.0 m
8120-6980
Power Cord, Chile (921) 2.0 m
8120-8376
Power Cord, China (922) 2.0 m
Spare Parts 8-9
Exchange Unit Part Numbers
Exchange Unit Part Numbers
8-10 Spare Parts
Exchange Unit Part Number
Description
453563344311
Thermal Recorder for C3 Patient Monitor GSI
453563480441
Exchange Recorder for C3 Patient Monitor GSI
453563480381
C3 Standard Color Monitor
453563480401
C3 Standard Color Monitor with Recorder
453563480411
C3 Sedation Color Monitor
453563480431
C3 Sedation Color Monitor with Recorder
9
Packing for Shipment
This chapter explains how to pack the monitor for shipment for any reason.
Packing for Shipment 9-1
General Instructions
General Instructions
To ship the monitor for any reason, follow the instructions in this section.
To pack the monitor for return, disconnect all cables. It is not necessary to return sensors,
patient cables, NBP tubing and cuff or power cord. Pack the monitor carefully. Failure to
follow the instructions in this section can result in loss or damage not covered by the
warranty. If the original shipping carton is not available, use another suitable carton.
Prior to shipping the monitor, contact the Philips Response Center for a RGA (Returned
Goods Authorization) number. Mark the shipping carton and any shipping documents with the
RGA number.
Repacking the Original Carton
If available, use the original carton and packing materials. Pack the monitor as follows:
Step
Action
1
Place the monitor, and if necessary, accessory items in original packaging.
2
Place the shipping carton and seal carton with packaging table.
3
Label carton with shipping address, return address and RGA number, if
applicable.
Repacking in a Different Carton
If the original carton is not available, use the following procedure to pack the monitor.
Step
9-2 Packing for Shipment
Action
1
Place the monitor in a plastic bag.
2
Locate a corrugated cardboard shipping carton with at least 200 psi (pounds per
square inch) bursting strength.
3
Fill the bottom of the carton with at least 2 inches of packing materials.
4
Place the bagged unit on the layer of packing material and fill the box completely
with packing material.
5
Seal the carton with packing tape.
6
Label the carton with the shipping address, return address, and RGA number, if
applicable.
10
RS-232 Interface
This chapter explains how to properly use and connect the RS-232 interface and cables.
RS-232 Interface 10-1
General RS-232 Safety Information
General RS-232 Safety Information
Warning
If you connect the monitor to any instrument, verify proper operation before clinical
use. Refer to the device’s manual for full instructions.
Accessory equipment connected to the monitor’s data interface must be certified
according to IEC Standard 950 for data-processing equipment or IEC
Standard 60601-1 for electromedical equipment. All combinations of
equipment must be in compliance with IEC Standard 60601-1 system
requirements.
Anyone who connects additional equipment to the signal import port or signal output
port configures a medical system and is therefore responsible to ensure
that the system complies with the requirements of system standard IEC
Standard 60601-1-1. If in doubt, consult the Philips Response Center or
your local Philips representative.
Caution
Connection to a battery operated PC should only be allowed by the end user.
Connection to a line powered device with an ITE Class II power supply is acceptable
provided it passes all 60601-1-1 tests without a problem.
If there is a line powered device with a Class I power supply, such as a line powered PC or a
laser printer, in the system, there must be either optical isolation of the data cable or the Class
I devices must have isolated transformers.
Note
The monitor and its accessories must be tested by qualified service personnel at regular
intervals to verify proper operation, according to the procedures of the user’s institution.
Additional important safety information is located in the C3 Instructions for Use guide.
10-2 RS-232 Interface
About the RS-232 Interface
About the RS-232 Interface
The RS-232 interface allows you to :
•
send a nurse call signal
•
export trend data to an external PC
Warning
Anyone who connects additional equipment to the signal input port or signal output port
configures a medical system and is therefore responsible to ensure that
the system complies with the requirements of system standard IEC
Standard 60601-1-1. If in doubt, consult Philips Medical Systems
Response Center or your local Philips representative.
Cable
Connections
100-230V~
50-60 Hz. 1.0A
A 9-pin connector mounted on the rear panel provides the access port for the serial (RS-232)
interface to a suitably configured personal computer. Or, alternatively, qualified service
personnel can use the connector to send a Nurse Call signal. The figure below shows you
where the RS-232 interface is located on the monitor.
T1AL 250V
YYYY-XX
100-230V~
50-60 Hz. T1AL 250V
YYYY-XX
CE
0123
9700859
IPX1
CE
0123
PHILIPS IPS C3 PATIENT MONITOR
Manufactured for Philips for
Philips Medical Systems
3000 Minuteman Road
Andover, MA 01810
97008
IPX1
RS-232 Interface
RS-232 Interface 10-3
About the RS-232 Interface
Pin connections for the 9-pin connector are as follows:
Table 10-1. RS-232 Serial Interface Connections
Nurse-Call
Pin #
Signal
Direction
1
not used
2
Rx data
input
3
Tx data
output
4
DTR
output
5
Signal Ground
input/output
6
DSR
input
7
RTS
output
8
CTS
input
9
Alarm Out
output
Pin 9 of the RS-232 serial interface connector provides an Alarm Out signal. Any time there is
any alarm condition active in the monitor, and if the Nurse Call Signal option in the Setup
Menu is On, pin 9 goes to plus RS-232 level voltage (> +5 VDC). The alarm delay shall be
< 0.5 seconds.
If in the Setup Menu, the Nurse Call Signal option is Off, pin 9 is always at the minus
RS-232 level voltage. In order to make use of the Alarm Out signal, pin 9 should be
connected to a high-impedance circuit (>1000) and protected against transient voltages.
10-4 RS-232 Interface
11
Training
This chapter provides a complete, flexible training program that addresses the needs of
technical personnel who service the monitor at all levels of involvement.
Training 11-1
Introduction
Introduction
The training itself is self-paced. This chapter guides you through the entire service training
program. All of the information you require is in this chapter, or referred to in this chapter.
Levels of Involvement
Preventative
Maintenance
Only
Phone
Support or
Service
11-2 Training
If you are performing only preventative maintenance on the monitor, you must review the
following sections of this chapter:
•
Overview
•
Preventative Maintenance
If you are providing phone support or servicing of the monitor, you must review the following
sections of this document:
•
Overview
•
Support Strategies
•
Theory of Operation and System Architecture
•
Troubleshooting
•
Monitor Applications and Algorithms
•
Disassembly
•
Preventative Maintenance
Training Materials
Training Materials
Essential
Materials
The essential materials to complete this training are the following:
•
The C3 Service Guide (989803129451)
For Philips Service Personnel, a Training Completion Form must be signed and returned to
your supervisor referencing the course number "MWPMD-C3SUPP".
Optional
Materials
Optional materials that can assist you in this training are the following:
•
a C3 monitor
•
C3 Instructions for Use guide
•
Tools needed for performance verification of the monitor. Refer to the section titled,
“Equipment” on page 4-8 for a listing of these tools.
Overview
This section provides a high level overview of the monitors and their options.
Order
Number
Description
Display
Color
Measurements
ECG NBP Temp
SpO2
862474
Standard Color
•
•
•
•
•
862478
Sedation Color
•
•
•
•
•
Printout
CO2
Recorder
(optional)
•
(optional)
Note
The monitor is designed for non-invasive use only.
Common use for this monitor includes:
•
Physicians’ offices
•
Transport within a care facility
•
Low-acuity monitoring in any clinical environment
Training 11-3
Support Strategies
Support Strategies
This section provides a summary of how the monitor was designed to be supported and how
Philips provides that support.
There are two main methods of repairing the monitor:
•
Unit exchange
•
Bench repair
Unit
Exchange
The primary repair method used by Philips service personnel is unit exchange. The current
design of the monitor requires testing if the case is opened.
Bench
Repair
The secondary repair method is bench repair. Special tools are required and are listed in
“Equipment” on page 4-8. If the case is opened, specific tests must be performed. These tests
are listed in detail along with the Test Map in Chapter 4.
At the Philips Parts Center, we will stock the board level assemblies and mechanical parts
based on existing failure data and customer demand. These parts are listed in Chapter 8. The
availability of additional spare parts will be notified by service notes.
The troubleshooting guide in Chapter 6. is sufficient for assembly level bench repairs. Before
a repair is performed, consider whether a repair or a replacement is most suitable.
11-4 Training
Theory of Operation and System Architecture
Theory of Operation and System Architecture
This section contains a high level overview of the theory of operation of the major functional
modules of the monitor. Philips service providers perform Bench Repair at the assembly level.
For this purpose, they should review this high level information.
Please be aware that Philips only stocks assembly level parts.
System
Overview
The monitor is a full function monitor for use on adult and pediatric patients.
The functions performed by the system include monitoring patient ECG, heart rate,
respiration rate, blood pressure, blood oxygen saturation, carbon dioxide1, and temperature.
In addition to monitoring and displaying the status of these physiological parameters, the
instrument performs various microprocessor-programmed analytical functions, such as:
•
Creating both visual and audible alarm signals when set limits are violated.
•
Creating and displaying warning messages when conditions are detected that would
degrade or prevent valid measurements.
•
Creating and displaying trend waveforms or tabular data.
•
Providing a synchronizing pulse for defibrillator operation.
•
Providing input to an optional recorder for printout of current or trend waveforms or
tabular data.
The monitor is essentially a battery-powered instrument. An internal charging unit is designed
to accept an external AC line voltage. The charger uses the external power source to maintain
a "float" voltage source available from the batteries.
Block
Diagram
The functions are represented graphically in the following figure. Each section of the System
Block Diagram is described briefly in the text that follows the illustration. This is followed by
more detailed descriptions of the theory of operation of each block.
1. Carbon Dioxide (CO2) monitoring is available only with C3 Sedation models.
Training 11-5
Theory of Operation and System Architecture
Figure 11-1 System Block Diagram
11-6 Training
Theory of Operation and System Architecture
Isolated
Front End
The Isolated Front End section includes all of the circuitry to convert ECG, SpO2, and
Temperature measurements to digital format; and to connect this information to the processor.
The Respiration detection is obtained from two of the three electrodes of the ECG
connections.
NBP Front
End
The NBP section contains the pumps, valves, pressure measurement circuitry, and control
circuitry for the non-invasive blood pressure measurement. Pressure data is converted to
digital format and conveyed to the processor section.
Power
System
The power system section contains a power supply capable of operating the monitor and
charging the battery from an AC source of 100 to 240 VAC at 50 to 60 Hz. This section also
contains the circuitry. The battery provides the operating power for this power.
Microprocessor,
Memory and
Control
The Microprocessor, Memory and Control section contains the system CPU and all digital
support circuitry. The latter includes the RAM, non-volatile memory, and real-time clock.
This section also contains the display logic, keypad (switch) interface logic, RS-232 I/O
control, defibrillator synchronization control, and printer logic.
Display
The display is a TFT (color), backlit fluorescent LCD unit. The active screen size is 8.3 x 6.2
in (210.8 x 157.5 mm): 10.4 in (264.2 mm) diagonally, and the resolution is 640 x 480 pixels.
Keypad
The keypad circuit contains five push-button membrane switches and two green LEDs. The
LEDs are driven by the power supply system and indicate the power source.
Signals from LEDs are returned to the microcomputer for processing and control as required.
The On/Standby button, connected directly to the power supply, toggles the power between
On and Standby modes. When in Standby, the display is blank, and no monitoring is
performed. However, the batteries are charging if an AC source is connected to the rear panel.
The Audio Alarm Control button is connected directly to the processor and to the system
power supply. Pressing this button turns off the battery fuse alarm in the system power
supply. Response of the processor depends upon the action in pressing this button. If
momentarily pressed (less than 2 seconds), alarms are paused temporarily for a preset interval
determined by the menu selection. If pressed twice within 10 seconds, the alarm sounding for
a specific parameter is silenced temporarily for a preset interval determined by the menu
selection. Other alarms, not related to this parameter, can still sound during this period. If
pressed and held for 2 seconds or more, the Audio Off condition is initiated.
The NBP button is connected to the processor. Response of the processor depends upon the
state of NBP operation at the time and the action in pressing this button. If momentarily
pressed, (less than 2 seconds), a single NBP measurement is obtained. If pressed for 2 seconds
or more, the processor initiates a STAT monitoring sequence. Pressing the NBP switch at any
time a pressure measurement is in effect causes the processor to terminate the measurement
and to deflate the cuff.
Training 11-7
Theory of Operation and System Architecture
The Contrast button operates in conjunction with the navigation wheel to determine the
apparent contrast setting in the display. Changing the contrast is a change in the viewing
angle. Outputs of the button and wheel are connected to the processor.
Momentarily pressing the button sets the contrast to mid-range, factory-default value.
Momentarily pressing of the button, followed within 3 seconds by a rotation of the wheel are
processed to vary the contrast of the display. When there has been no wheel rotation for 3
seconds, the contrast control function is terminated by the processor. The contrast control
function is also terminated if the wheel is pressed any time within this 3 second interval.
Operation of the Volume button accomplishes similar functions for the volume of the heart
rate audible tone as the display contrast control button does for the display. Pressing this
button, enables the wheel to vary the tone volume.
Navigation
Wheel
This is a rotating, push-switch wheel. The associated wheel circuitry generates a pulse when
pressed and generates a digitally encoded pair of quadrature signals whose relative
magnitudes and polarities represent the angular position of the wheel. These outputs are
connected to the processor where they are interpreted as required for the functions involved.
Successive angular positions determine the direction of wheel rotation.
In addition to the functions performed when in conjunction with the keypad as described
above, the wheel operates in conjunction with the display to select menus and lists of
parameter variables.
RS-232 I/O
This is a rear panel 9-pin connector providing interfaces with other computer systems or
equipment. The driver for this "port" is a Universal Asynchronous Receive-Transmit (UART)
integrated circuit that interfaces this port with the microprocessor. The baud rate for this serial
transmission function is programmable from 1200 baud to 38.4 kilobaud.
Pin number 9 of the RS-232 connector is reserved for a Nurse Call signal. The nurse call
signal reacts when a low, medium, or high level alarm is activated.
Defib Sync
Pulse
The rear panel connector for the Defib Sync Pulse is keyed so that the connection of a cable
can be detected by the processor. When a connection is detected, the processor software
initiates the generation by hardware of a TTL-compatible pulse capable of driving 1 TTL load
over a three-meter cable with less than 200 pF capacitance.
The defib pulse is triggered by the detection of the R-wave in the QRS sequence of the ECG
wave-form complex. The pulse signal is active for 100 ±10 ms.
Speaker
11-8 Training
The speaker is capable of providing 73 dBA of volume at a distance of one meter during
alarm conditions. The processor drives the speaker in different patterns as specified for the
different alarm priorities and conditions. Refer to the C3 Instructions for Use guide for
descriptions of alarm responses.
Theory of Operation and System Architecture
Recorder
The optional recorder module is installed in the right panel of the monitor. Refer to the C3
Instructions for Use guide for printing procedures. It provides users with the capability to
obtain hard-copy records of selected vital sign information.
Basic control of the recorder is implemented by two push-button controls on the recorder’s
front panel. The Continuous button is used to obtain continuous recordings of the real-time
waveforms displayed in the top two graphic frames. Along with the waveforms, the recorder
prints the values of the vital signs being displayed. The printing continues until the user
presses either recorder button a second time.
The Snapshot button initiates a snapshot printout for 20 seconds of the same information
recorded by the continuous control.
If scrolling is enabled in a display frame containing trend data when the Continuous button is
operated, then the trend record for that vital sign is printed. If the Snapshot button is
operated, then only the trend data on the display is printed.
The recorder may be programmed via the monitor menu display to print a snapshot recording
when an alarm condition occurs.
Printing is accomplished on 50 mm wide thermal paper at recorder speeds programmable up
to 55 mm/s.
ECG
Processing
The technique used in ECG senses the varying potential difference between two points at the
skin surface which respond to the electro-chemical actions of the muscular activity of the
heart.
Three electrodes are attached to the patient’s right arm (RA), left arm (LA) and left leg (LL).
The varying potentials at these locations are cable-connected to the ECG circuit inputs where
they are conditioned, and the difference of potential between two selected leads is digitized
before transmitting through opto-isolators to the processor. The processor-installed algorithms
operate on the signals to develop drivers for the graphic display and to compute the heart rate
in beats per minute (BPM).
In addition to the acquisition of the QRS waveform complex, the ECG input and subsequent
signal processing computing circuitry perform a number of other functions:
Respiration
Processing
•
They detect a "lead-off" condition if one of the electrode connections is disrupted.
•
They detect the presence of pacemaker signals within the QRS waveform complex of
the ECG.
•
They generate a synchronization pulse for external use with defibrillators. The Defib
Sync Pulse output is available at a connector in the rear panel.
The patient’s respiration is detected by using two of the three leads of the ECG electrodes and
cable. A low-level excitation signal is applied to these leads, and the variation of the thoracic
impedance caused by the breathing is sensed and processed for display and measurement.
Training 11-9
Theory of Operation and System Architecture
NBP
Processing
The NBP processing uses an oscillometric technique to provide needed measurements at
selected intervals. This technique uses an inflatable sphygmomanometer cuff similar to those
used by clinicians in routine measurements.
A motorized pump inflates the cuff to approximately 180 mmHg initially, at which point the
pressure effectively stops the flow of blood. Then, under monitor control, the pressure in the
cuff is gradually reduced, while a pressure transducer detects the air pressure and transmits
the parameter signal to the NBP input circuitry.
As the pressure is reduced, blood flows in the previously occluded artery, and changes the
measurements made by the transducer. The point at which oscillation increases sharply is
defined as systolic pressure. As the cuff continues to deflate, oscillation amplitude increases
to a maximum, and then decreases. The peak oscillation amplitude is defined as the mean
arterial pressure. The point at which the system detects a rapid decrease in oscillation is
defined as the diastolic pressure.
SpO2
Processing
Measurement of oxygen saturation in the blood uses a specrophotometry technique. It is based
on the facts that oxyhemoglobin and deoxyhemoglobin differ in their absorbtion of red and
infrared light, and that the volume of arterial blood in tissue changes during the pulse.
Using these facts, a pulse oximeter passes red and infrared light into an arteriolar bed and
measures changes in light absorption during the pulsatile cycle. The light sources are red and
infrared light emitting diodes (LEDs), while the detection is accomplished by a photo diode.
To identify the oxygen saturation of arterial hemoglobin, the monitor uses the pulsatile nature
of arterial flow. During systole, a new pulse of arterial blood enters the vacular bed, and both
blood volume and light absorption increase. During diastole, blood volume and light
absorption reach their lowest point. The measurement is based upon the difference between
maximum and minimum absorption, focusing on the pulsatile arterial blood.
In addition to the oximetry function, the input signals may be used to calculate heart rate.
CO2
Processing
The Microstream CO2 board consists of an 80C552 Controller, the memory system (Flash
ROM, RAM, PLA, etc.), the Flow system (FilterLine recognition system, Inlet, solenoid
valve), Measurement Cell (Exciter, IR Source, Detectors and Temp Sensor) and an analog
section with ADC.
The gas inlet allows the connection of Microstream FilterLines. The FilterLines are detected
by the Optical Code Recognition.
Temperature
Processing
Measurement of patient temperature is accomplished by processing the signal from a probe
containing a resistor whose impedance is temperature dependent. The class of such
components is called thermistor.
The C3 is designed to accept the signals from electrically isolated Series 400 probes
manufactured by Yellow Springs Incorporated. Interchangeable probes in this series may be
used for esophageal, rectal, skin or surface, or airway temperature measurement. Probes are
furnished with a standard 10-feet lead. Extension leads are available.
The signal from the probe is conditioned by the monitor’s input circuitry, processed, and used
to drive the numeric display.
11-10 Training
Troubleshooting
Troubleshooting
Service personnel concerned with troubleshooting should review the following topics in this
manual:
•
Error Codes (see “Error Codes” on 6-3)
•
Boot Sequence (see “Performance Assurance Test” on 4-11)
•
Performance Verification (see “Performance Procedures” on 4-22)
This is intended to be a practical, hands-on part of the training program. If possible, therefore,
use a monitor to help you learn about troubleshooting the monitor.
When faced with a call regarding the monitor, there are some simple steps that are
recommended to solve the failures described below. These failures account for the majority of
known failure modes.
Symptom
Cause of Failure
Remedy
Monitor screen appears dim
Brightness not properly adjusted.
Adjust brightness using Contrast button.
Display backlight tube worn.
Replace backlight tube according to
instructions in “Replacing the Backlight
Tube” on page 9.
Monitor screen is blank
Monitor fails to power-up
when the On/Standby
button is pressed.
Display backlight tube worn or
loose connection.
1. Check the backlight tube connector
2. Replace the backlight tube
Main PCB module malfunction.
Replace the Main PCB module according
to instructions in “Removing the Main
PCB Module” on 7-12.
Battery is dead or monitor is not
plugged in.
Make sure the monitor is powered on by
either battery or AC power. Check that the
battery is adequately charged and AC
power fuses are securely connected.
Keypad malfunction or keypad
connector is loose.
1. Check the keypad connector.
2. Replace the keypad according to the
instructions in “Removing the
Keypad on the Front Panel” on
7-6.
No response when pressing
the buttons on the front panel
Keypad malfunction or keypad
connector is loose.
1. If only one button does not work,
verify that the monitor is On.
2. Check the keypad connector
3. Replace the keypad according to the
instructions in “Removing the
Keypad on the Front Panel” on
7-6.
Training 11-11
Disassembly
Audible alarm does not
sound
Speaker malfunction or speaker
has a loose connector.
Main PCB module malfunction.
1. Check speaker connector.
2. Replace speaker according to the
instructions in “Replacing the
Speaker” on 7-9.
Replace the Main PCB module according
to the instructions in “Removing the
Main PCB Module” on 7-12.
No sound from monitor
Tone is switched off or low.
No tone alarms
Audible alarms are not switched
on.
Make sure audible alarms are switched on.
Speaker will not work
Cable disconnected.
Reconnect cable.
Defective speaker.
Replace speaker.
Main PCB module malfunction.
Replace the Main PCB module according
to the instructions in “Removing the
Main PCB Module” on 7-12.
The wheel is rotated, no
highlight appears on the
display screen, and/or the
monitor does not respond to
wheel presses.
1. Turn the volume up by pressing the
Volume button.
2. Power-cycle monitor. Tone should
sound when monitor boots up.
3. Check cable connections to the
speaker.
Whenever the monitor has been opened, there are specific steps regarding reassembly,
described in the disassembly instructions in Chapter 7, that must be followed. If these
instructions are not followed, various errors may result.
For monitors that are defective on arrival, first verify that the problems are not related or
cannot be remedied by following the steps in the above troubleshooting table. If these are not
successful, and a replacement monitor is necessary, contact a Philips Sales Representative to
arrange a replacement.
Disassembly
Disassembly procedures are described in the disassembly guide in Chapter 7. Read the whole
chapter.
Whenever the monitor has been opened, there are specific steps regarding reassembly,
described in the disassembly instructions in Chapter 7, that must be followed. If these
instructions are not followed, errors may result.
If the monitor fails the required performance tests described in Chapter4, then please review
the reassembly.
11-12 Training
Monitor Applications and Algorithms
Monitor Applications and Algorithms
Information about...
Found in...
Supplies
http://shop.medical.philips.com
or
Chapter 16, "Accessories" in the Instructions for
Use guide, Technical Data Sheet
Basic monitor specifications
Chapter 12, “Specifications” , Technical Data Sheet
Regulatory Compliance
Chapter 12, “Specifications” , Technical Data Sheet
Other data about algorithms
Chapter 12, “Specifications” , Technical Data Sheet
Training 11-13
Monitor Applications and Algorithms
11-14 Training
12
Specifications
This chapter includes all hardware, regulatory, and measuring specifications for the monitor.
Specifications 12-1
Hardware Specifications
Hardware Specifications
Parameter
Specification
Size (excluding handle)
Width
13.50 in (34.3 cm)
Height
10.25 in (26.0 cm)
Depth
7.50 in (19.0 cm)
Weight (excluding accessories, options, cables)
14.0 lb (6.3 kg)
Display (cold cathode fluorescent backlit)
Screen Type
TFT (color)
Active Screen Size
8.3 x 6.2 in (210.8 x 157.5 mm): 10.4
in (264.2 mm) diagonally
Resolution
640 x 480 pixels
Recorder
Type
Thermal
Weight
0.9 lb (.41 kg)
Paper Width
50 mm
Speeds
12.5, 25, and 50 mm/s
Safety Standards
Parameter
Specification
United States Federal Law restricts this device to sale by or on the order of a physician.
CE Marking: Medical Device Directive, 93/42/EEC
IEC 60601-1, UL 2601, Can/CSA C22.2 601.1-M-90
12-2 Specifications
Protection Class
Class I, internally and externally
powered equipment, per IEC 60601-1,
clause 2.2.4
Degree of Protection
Type CF, IPXI: per IEC 60601-1
Mode of Operation
Continuous
Electrical
Electrical
Parameter
Specification
Power Sources
Internal Battery
12 volt, 4.5 Ah, sealed, lead-acid
Battery Operating Time
3 hours, fully charged battery at
25oC(without CO2) under normal (one
NBP measurement every 15 minutes, all
other modes active) conditions, 45
minutes if printing continuously, 1 hour,
fully charged battery at 25oC (with CO2)
under normal conditions, 30 minutes if
printing continuously.
AC Mains
100 to 240 VAC, 50-60Hz, 1A max
Environmental
Parameter
Specification
Mechanical Shock
IEC 60068-2-27; 100g, 6 msec, 3 axes, 18
total shocks, non-operating
Mechanical Vibration
IEC 60068-2-6; Sinusoidal; 10-58 Hz, 0.15
in displacement; 58-150 Hz, 2g acceleration;
4 min/sweep; 20 sweeps/axis, non-operating
Water Resistance
IEC 60529 Classification IPX1 (Protected
against vertically dripping water)
Thermal
Operating
0 to 50oC (32 to 122oF)
Storage
-20 to 60oC (-4 to 140oF)
Humidity
Operating
5 to 95% RH, non-condensing
Storage
5 to 95% RH, non-condensing
Specifications 12-3
Measuring and Displaying Parameters
Measuring and Displaying Parameters
ECG
12-4 Specifications
Parameter
Specification
Heart Rate Range
20-250 b/min
Heart Rate Accuracy
±5 b/min
Bandwidth: Normal Monitoring
0.5 Hz - 40 Hz
Bandwidth: Extended Low Frequency Range (use
selectable)
0.05 Hz - 40 Hz
Leads
3 lead, user selectable
Display Sweep Speeds
12.5, 25, and 50 mm/sec
Pacemaker Detection
Indicator on waveform display, user
selectable
ECG size (sensitivity)
0.5, 1, 2, 4 mV/cm
Lead-off Detection
detected and displayed
Input Impedance
>5 MΩ
CMRR (Common Mode Rejection Ratio)
>90 dB at 50 or 60 Hz
Input Dynamic Range
±5 mV AC, ±300 mV DC
Defibrillator Discharge
<5 sec per IEC 60601-2-27
Recovery
<8 sec per AAMI EC13-1992
Measuring and Displaying Parameters
ECG
Standards
Standards
Meets the performance standards of ANSI/AAMI EC13-1992. Instead of a 1 mV standardizing voltage
(section 3.2.2.9), a fixed, 1 cm reference bar is always present in the ECG display, along with the ECG
size setting expressed in mV/cm. The following information references particular sections of ANSI/
AAMI EC13-1992.
Respiration, leads-off
sensing waveform.
3.1.2.1 (b)
A 85 kHz square wave is used to inject 50 µA p-p differentially between RA
and LL.
Tall T-wave rejection.
3.1.2.1 (c)
T-wave of 0.8 mV amplitude will not affect heart rate determination.
Heart rate averaging.
3.1.2.1 (d)
Averages six of the most recent eight detected R-R intervals excluding the
longest and shortest of the eight intervals.
Response to irregular
rhythms
a) Ventricular bigeminy - 80 b/min rhythm.
b) Slow alternating ventricular bigeminy - 30 b/min
c) Rapid alternating ventricular bigeminy - 80 to 103 b/min
d) Bi-directional systoles - 90 to 105 b/min
3.1.2.1 (e)
Heart rate meter
response time.
a) Change from 80 to 120 b/min: 4 to 5 sec
b) Change from 80 to 40 b/min: 6 to 8 sec
3.1.2.1 (f)
Time to alarm for
tachycardia.
3.1.2.1 (g)
Waveform 4(a) Amplitude
• 0.5 mV
• 1.0 mV
• 2.0 mV
Average Time to Alarm
• 8.6 sec
• 7.0 sec
• 3.0 sec
Waveform 4(b) Amplitude
• 1.0 mV
• 2.0 mV
• 4.0 mV
Average Time to Alarm
• 8.0 sec
• 2.4 sec
• 2.4 sec
Specifications 12-5
Measuring and Displaying Parameters
Standards
Pacemaker pulse
rejection.
3.1.4.1,
3.1.4.2
With the exceptions noted below, the monitor will reject all single and
double pacemaker pulses either 150 or 250 msec apart of amplitudes ±2 to
±700 mV from 0.1 to 2.0 msec, with and without under/overshoot.
Following are pacer pulse conditions that the monitor will reject, but which
are less than the maximum range listed in the standard:
Pacer pulse width = 2 msec,
Double pulse, either 150 or 250
msec apart without over/
undershoot, no QRS
Pacer amplitude <= ±400 mV
Pacer pulse width = 2 msec, Double
pulse either 150 or 250 msec apart,
without over/undershoot,
ineffective pacer
Pacer amplitude <=±500 mV
Pacer pulse width = 2 msec, Single
or Double pulse either 150 or 250
msec apart, with 2 mV over/
undershoot, no QRS.
Pacer amplitude <=±125 mV
Pacer pulse width = 2 msec, 250
msec spaced double pulse, with 2
mV over/undershoot, effective
pacing.
Pacer amplitude <=±300 mV
Pacer pulse width = 2 msec, 150
msec spaced double pulse, with 2
mV over/undershoot, ineffective
pace.
Pacer amplitude <=±220 mV
Pacer pulse width = 2 msec, 250
msec spaced double pulse, with 2
mV over/undershoot, ineffective
pace.
Pacer amplitude <=±120 mV
Respiration
12-6 Specifications
Parameter
Specification
Technique
Trans-thoracic impedance
Range
3 to 150 breaths/min
Accuracy
± 3 breaths/min
Leads
RA to LA
Display Sweep Speeds
6.25, 12.5, 25 mm/s
Lead Off Condition
detected and displayed
Measuring and Displaying Parameters
NBP (NonInvasive
Blood
Pressure)
Parameter
Specification
Standards
Meets performance standards of ANSI/
AAMI SP10-1992
Technique
Oscillometric
Cuff Pressure Display
10 to 300 mmHg
Pulse Rate Range
40 to 200 b/min
Blood Pressure Accuracy
Mean error and standard deviation per
ANSI/AAMI SP10-1992a
Pulse Rate Accuracy
Greater of ± 2 BMP or ± 2%
Initial Cuff Inflation
180 mmHg
Subsequence Cuff Inflation
Prev SYS ±30 mmHg
Blood Pressure Measurement Range
Systolic
60 to 250 mmHg
Diastolic
40 to 220 mmHg
Mean Arterial Pressure
45 to 235 mmHg
Measurement Modes
Auto
Automatic measurements at intervals of
1, 3, 5, 10, 30, 60 and 90 minutes
Manual
Single measurement initiated by Start/
Stop button
STAT
Series of consecutive measurements for
5 minutes
a. Systolic and Diastolic blood pressure measurements determined with this device are
equivalent to those obtained by a trained observer using the cuff/stethoscope auscultation
method, and mean pressure measurements determined with this device are equivalent to
those obtained by an intra-arterial blood pressure measurement device, within the limits
prescribed by the American National Standard, Electronic or automated
sphygmomanometers.
Temperature
Parameter
Specification
Technique
Probe
Range
15 to 45oC (59 - 113oF)
Accuracy
± 0.1oC
Specifications 12-7
Measuring and Displaying Parameters
SpO2
Parameter
Specification
Range
% Saturation
0 to 100%
Pulse Rate
30 to 300 b/min
Accuracy
SpO2
0 - 69% ± not specified;
M1191A, M1192A ± 2.5% (70 to 100%)
M1194A ± 4.0% (70 to 100%)
Accuracya with Philips disposable
sensors (M1902B, M1903B, M1904B)
and with Nellcor disposable sensors
(OxiCliq A, P, N, I) 3% (70 to 100%).
Pulse Rate
2% or 1 b/min (whichever is greater)
Display Update Period
1 sec
Calibration
functional
a. The specified accuracy is the root-mean-square (RMS) difference between the measured
values and the reference values.
12-8 Specifications
Measuring and Displaying Parameters
CO2
Complies with EN 864/ISO 9918
Parameter
Specification
Range
0 to 98 mmHg (0 to 13 kPa), or 13%
CO2 whichever is lower.
Flow Rate
50 ±7.5 ml/min
Warm-up Time
180 seconds max.; typically 30 seconds
Gas Sampling Delay Time
2.7 seconds
Resolution
Numeric
1.0 mmHg (0.1 kPa)
Wave
0.1 mmHg (0.01 kPa)
Rise Time
190 ms for adult mode (measured with
sample line for humidified ventilation
and airway adapter for adult)
Calibration Interval
4,000 operating hours
Auto Zero Interval
< 2% duty cycle. Increases if the
temperature change by 8oC from the
previous Auto-Zero interval, or the
pressure changes by 45 mmHg.
Leak Tightness
< 40 mbar/min with 30% vacuum
Accuracy
a
0 - 20 minutes
0 to 38 mmHg ±4 mmHg; 38 to 99
mmHg ±12% of indicated value
> 20 minutes
0 to 38 mmHg ±2 mmHg
38 to 99 mmHg ±5% of indicated value
+ 0.08% for every 1.0 mmHg above 40
mmHg.
a. Accuracy applies for respiration rate up to 80 b/min. For respiration rate above 80 b/min, the
accuracy complies with EN 864/ISO 9918 (4 mmHg or ±12% of indicated value, whichever
is greater) for End-tidal CO2 values exceeding 19 mmHg. The above accuracy is maintained
to within 4% for the following gas mixtures: CO2: 0 - 13%; N2: 0 - 97.5%; O2: 0 - 100%;
N2O: 0 - 80%; H2O: Dry to saturated.
Specifications 12-9
Measuring and Displaying Parameters
Trends
Parameter
Specification
Type
Graphical and tabular
Memory Storage
12 hours, nonvolatile
Data interval
20 seconds (stored data points is the
average over 20-second interval)
Graphical Trend
Format
One graph per vital sign
Display range
2 hours, scrollable
Vertical scaling
12-10 Specifications
Heart Rate
50-100, 0-250, 25-125 b/min
NBP
50-100, 0-150, 0-300 mmHg
SpO2
0-100, 60-100, 80-100%
CO2
0-100, 0-60, 20-50 mmHg
Respiration Rate
0-20, 0-50, 0-150 b/min
Temperature oC
15-45, 33-41, 35-39oC
Temperature oF
55-115, 91-107, 96-102oF
Tabular format
One table for all variables.
Six fields per row (time and five vital
signs)
Display interval
Per NBP measurement, or 15 minutes for
no NBP, or 20 seconds during alarm
condition
