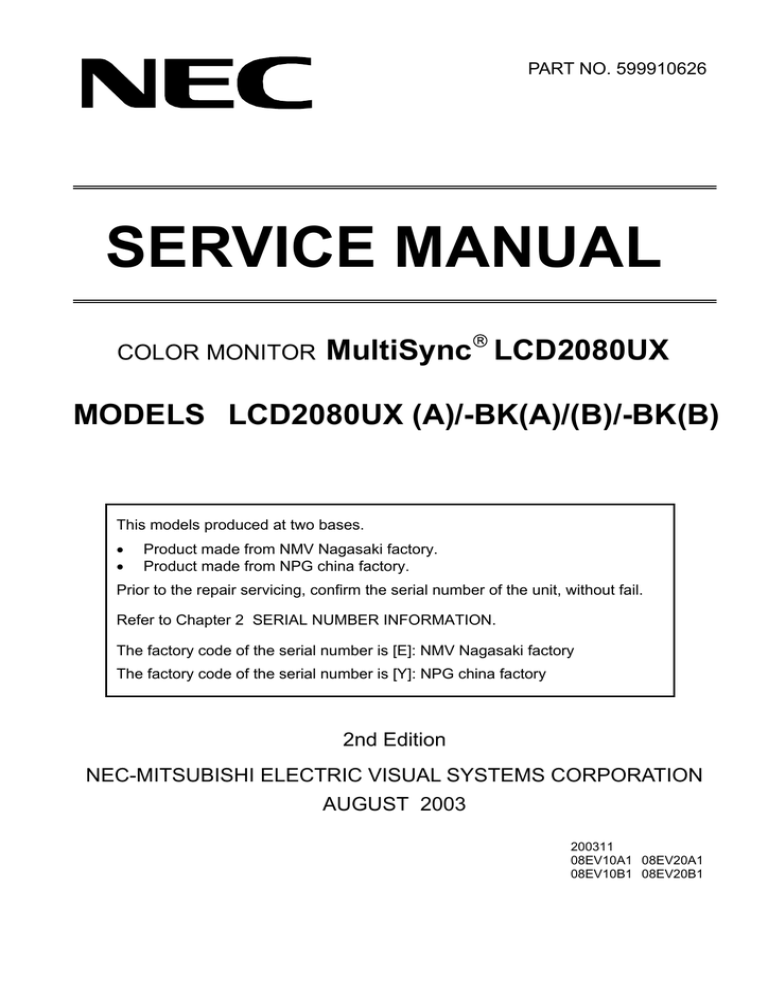

SERVICE MANUAL

SERVICE MANUAL

PART NO. 599910626

SERVICE MANUAL

COLOR MONITOR

MultiSync

LCD2080UX

MODELS LCD2080UX (A)/-BK(A)/(B)/-BK(B)

This models produced at two bases.

• Product made from NMV Nagasaki factory.

• Product made from NPG china factory.

Prior to the repair servicing, confirm the serial number of the unit, without fail.

Refer to Chapter 2 SERIAL NUMBER INFORMATION.

The factory code of the serial number is [E]: NMV Nagasaki factory

The factory code of the serial number is [Y]: NPG china factory

2nd Edition

NEC-MITSUBISHI ELECTRIC VISUAL SYSTEMS CORPORATION

AUGUST 2003

200311

08EV10A1 08EV20A1

08EV10B1 08EV20B1

WARNING

The SERVICE PERSONNEL should have the appropriate technical training, knowledge and experience necessary to:

• Be familiar with specialized test equipment, and

• Be careful to follow all safety procedures to minimize danger to themselves and their coworkers.

To avoid electrical shocks, this equipment should be used with an appropriate power cord.

This equipment utilized a micro-gap power switch. Turn off the set by first pushing power switch. Next, remove the power cord from the AC outlet.

To prevent fire or shock hazards, do not expose this unit to rain or moisture.

This symbol warns the personnel that un-insulated voltage within the unit may have sufficient magnitude to cause electric shock.

This symbol alerts the personnel that important literature concerning the operation and maintenance of this unit has been included.

Therefore, it should be read carefully in order to avoid any problems.

PRODUCT SAFETY CAUTION

1. When parts replacement is required for servicing, always use the manufacturer's specified replacement.

2. When replacing the component, always be certain that all the components are put back in the place.

3. As for a connector, pick and extract housing with fingers properly since a disconnection and improper contacts may occur, when wires of the connector are led.

4. Use a proper screwdriver. If you use screwdriver that does not fit, you may damage the screws.

CONTENTS

Page No.

USER'S MANUAL ------------------------------------------------------------------- 1-1

SERIAL NUMBER INFORMATION --------------------------------------------- 2-1

DISASSEMBLY ---------------------------------------------------------------------- 3-1

ADJUSTMENT PROCEDURES -------------------------------------------------- 4-1

INSPECTION --------------------------------------------------------------------------- 5-1

TROUBLE SHOOTING ------------------------------------------------------------- 6-1

CIRCUIT DESCRIPTION ----------------------------------------------------------- 7-1

REPLACEMENT PARTS LIST --------------------------------------------------- 8-1

BLOCK DIAGRAM ------------------------------------------------------------------ 9-1

SCHEMATIC DIAGRAMS --------------------------------------------------------- 10-1

PACKING SPECIFICATION ------------------------------------------------------ 11-1

User's Manual

1. A Version

MultiSync

®

LCD2080UX

TM

1-1

Index

Warning .................................................................................................................... 1

Contents ................................................................................................................. 2

Quick Start ............................................................................................................. 3

Controls ................................................................................................................... 7

Recommended Use ............................................................................................... 11

Specifications ....................................................................................................... 13

Features ................................................................................................................ 14

Troubleshooting ................................................................................................... 16

References ............................................................................................................. 17

Limited Warranty ................................................................................................. 18

TCO’95 ..................................................................................................................... 19

TCO’99 ..................................................................................................................... 21

Avertissement ..................................................................................................... 24

Contenu ................................................................................................................. 25

Mise en marche rapide ...................................................................................... 26

Commandes .......................................................................................................... 30

Usage recommandé ............................................................................................ 34

Fiche technique ................................................................................................... 36

Fonctions .............................................................................................................. 37

Dépannage ............................................................................................................ 39

Références ........................................................................................................... 40

Garantie limitée .................................................................................................. 41

TCO’95 .................................................................................................................... 42

TCO’99 .................................................................................................................... 44

Appendix ............................................................................................................... 47

1-2

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE

THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS

CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM

WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER

CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

Canadian Department of Communications Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950.

FCC Information

1. Use the attached specified cables with the MultiSync LCD2080UX TM color monitor so as not to interfere with radio and television reception.

(1) Please use the supplied power cord or equivalent to ensure FCC compliance.

(2) Please use the supplied shielded video signal cable, 15-pin mini D-SUB to

DVI-A cable or DVI-D to DVI-D cable.

Use of other cables and adapters may cause interference with radio and television reception.

2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal

Communications Commission, helpful: ”How to Identify and Resolve Radio-TV Interference

Problems.“ This booklet is available from the U.S. Government Printing Office, Washington,

D.C., 20402, Stock No. 004-000-00345-4.

1

1-3

Contents

Your new NEC MultiSync

®

LCD monitor box* should contain the following:

• MultiSync LCD

2080UX™

monitor with tilt/swivel/pivot/adjustable stand

• Power Cord

• Video Signal Cable (15-pin mini D-SUB male to DVI-A)

• Video Signal Cable (DVI-D to DVI-D cable)

• User’s Manual

• CD-ROM

• Cable cover

Power Cord

15-pin mini D-SUB male to DVI-A

Cable Cover

MultiSync

®

LCD2080UX

TM

User’s Manual

CD-ROM

DVI-D to DVI-D cable

* Remember to save your original box and packing material to transport or ship the monitor.

2

1-4

Quick Start

To attach the MultiSync ® LCD monitor to your system, follow these instructions:

1. Turn off the power to your computer.

2. For the PC or MAC with DVI digital output: Connect the DVI signal cable to the connector of the display card in your system (Figure A.1). Tighten all screws.

For the PC with Analog output: Connect the 15-pin mini D-SUB to DVI-A signal cable to the connector of the display card in your system (Figure A.2).

For the MAC: Connect the MultiSync Macintosh cable adapter to the computer, then attach the

15-pin mini D-SUB signal cable to the MultiSync Macintosh cable adapter (Figure B.1).

NOTE: Some Macintosh systems do not require a Macintosh cable adapter.

NOTE: To obtain the MultiSync Macintosh cable adapter call NEC-Mitsubishi Electronics Display of

America, Inc. at (800) 632-4662.

3. Connect the DVI signal cable to the connector on the back of the monitor. Place the video signal cable (Figure C.1). Connect the VGA or DVI to Input 2.

NOTE:

Incorrect cable connections may result in irregular operation, damage display quality/components of LCD module and/or shorten the module’s life.

Collect cables and keep them in the stand by attaching the cable cover. The cable cover can be attached on the front or back side of tilt stand (Figure C.1, C.2).

Please check Tilt, Rise and Lower monitor screen and screen rotation when you manage cables.

4. Connect one end of the power cord to the AC inlet on the back of the monitor and the other end to the power outlet (Figure C.1).

NOTE:

If you use this monitor at AC125-240V, please refer to Recommended Use section of this manual for proper selection of AC power cord.

5. The Vacation Switch on the left side of the monitor must be turned on. Turn on the monitor with the front power button (Figure D.1) and the computer.

NOTE:

The Vacation Switch is a true on/off switch. If this switch is on the OFF position, the monitor cannot be turned on using the front button. DO NOT switch on/off repeatedly.

6. No-touch auto adjust automatically adjusts the monitor to optimal settings upon initial setup for most timings. For further adjustments, use the following OSM

®

controls:

• Auto Adjust Contrast (Analog input only)

• Auto Adjust (Analog input only)

Refer to the Controls section of this User’s Manual for a full description of these OSM controls.

NOTE:

For download information on the Windows ® 95/98/Me/2000/XP INF file for your MultiSync

LCD

2080UX

monitor, refer to the References section of this User’s Manual.

NOTE:

If you have any problems, please refer to the Troubleshooting section of this User’s Manual.

Figure B.1

Figure A.1

Figure A.2

3

Macintosh

Adapter

Macintosh Cable Adapter (not included) Note: Some Macintosh systems do not require a Macintosh

Cable Adapter

1-5

Quick Start

–continued

NEC optional product attachment. Do not use this connector unless specified.

Raise and Lower Monitor Screen

The monitor may be raised or lowered in either Portrait or Landscape mode.

To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1).

NOTE:

Handle with care when raising or lowering the monitor screen.

Figure RL.1

4

1-6

Quick Start

–continued

Screen Rotation

Before rotating, the screen must be raised to the highest level to avoid knocking the screen on the desk or pinching your fingers. To raise the screen, place hands on each side of the monitor and lift up to the highest position (Figure RL.1).

To rotate screen, place hands on each side of the monitor screen and turn clockwise from Landscape to Portrait or counter-clockwise from Portrait to

Landscape (Figure R.1).

To toggle the orientation of the OSM menu between Landscape and Portrait modes, refer to the “Controls” section, “OSM Rotation” function.

Figure R.1

Tilt

Grasp top and bottom sides of the monitor screen with your hands and adjust the tilt as desired (Figure TS.1).

Swivel

Grasp both sides of the monitor screen with your hands and adjust the swivel as desired (Figure TS.2).

NOTE:

Handle with care when tilting the monitor screen.

5

1-7

Quick Start

–continued

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:

1. Disconnect all cables.

2. Place hands on each side of the monitor and lift up to the highest position.

3. Place monitor face down on a nonabrasive surface. (Place the screen on a 25 mm platform so that the stand is parallel with the surface.) (Figure S.1)

25mm

4. Remove the two top screws connecting the monitor to the stand (Figure

S.2

). Turn the stand to 180˚ counterclockwise (you will hear two clicks).

Remove the screws from the bottom (Figure S.3) and lift off the stand. The monitor is now ready for mounting in an alternate manner.

5. Reverse this process to reattach stand: tighten the two bottom screws, turn stand 180˚ counterclockwise (you will hear two clicks), and tighten two top screws.

NOTE:

Use only VESA-compatible alternative mounting method. (100mm pitch)

NOTE:

Handle with care when removing monitor stand.

Figure S.2 and Figure S.3

Caution: Use the original screws (4 pcs) when mounting to avoid damage to the monitor and stand. To fulfil the safety requirements the monitor must be mounted to an arm which guaranties the necessary stability under consideration of the weight of the monitor. The LCD monitor should only be used with an approved arm (e.g. GS mark).

6

1-8

Controls

OSM ® (On-Screen Manager) control buttons on the front of the monitor function as follows:

To access OSM menu, press any of the control buttons ( , , , +).

To change signal input, press the SELECT button.

NOTE: OSM must be closed in order to change signal input.

Menu

EXIT

CONTROL

/

ADJUST

SELECT

RESET

/+

Exits the OSM controls.

Exits to the OSM main menu.

Moves the highlighted area left/right to select control menus.

Moves the highlighted area up/down to select one of the controls.

Moves the bar left/right to increase or decrease the adjustment.

Activates the Auto Adjust function. Enter the OSM controls.

Enter the OSM sub menu.

Resets the highlighted control menu to the factory setting.

NOTE: When RESET is pressed in the main and sub-menu, a warning window will appear allowing you to cancel the RESET function by pressing the EXIT button.

Brightness/Contrast Controls

BRIGHTNESS

Adjusts the overall image and background screen brightness.

CONTRAST

Adjusts the image brightness in relation to the background.

AUTO CONTRAST (Analog input only)

Adjusts the image displayed for non-standard video inputs.

AUTO BRIGHTNESS

This function adjusts the brightness automatically for the best CONTRAST and

BRIGHTNESS setting based on the white display area.

Auto Adjust

(Analog input only)

Automatically adjusts the Image Position and H. Size settings and Fine settings.

Image Controls

LEFT / RIGHT

Controls Horizontal Image Position within the display area of the LCD.

DOWN / UP

Controls Vertical Image Position within the display area of the LCD.

H.SIZE (Analog input only)

Adjusts the horizontal size by increasing or decreasing this setting.

Should the “AUTO Adjust function” do not give you a satisfactory picture setting, a further tuning can be performed using the “H.Size” function (dot clock). For this a Moiré test pattern could be used. This function may alter the

7

1-9

Controls

–continued

width of the picture. Use left/Right Menu to center the image on the screen. If the H.Size is wrongly calibrated, the result would look like on the left drawing.

The image should be homogeneous.

Wrong

Correct

FINE (Analog input only)

Improves focus, clarity and image stability by increasing or decreasing this setting.

Should the “Auto Adjust function” and the “H.Size” function do not give you a satisfactory picture setting, a fine tuning can be performed using the “Fine” function. It improves focus, clarity and image stability by increasing or decreasing this setting.

For this a Moiré test pattern could be used. If the Fine value is wrongly calibrated, the result would look like on the left drawing. The image should be homogeneous.

Wrong Correct

AccuColor ® Control Systems

AccuColor ® Control Systems

: Six color presets select the desired color setting

(sRGB and NATIVE color presets are standard and cannot be changed). Color temperature increases or decreases, in each preset. R,Y,G,C,B,M,S: Increases or decreases Red, Yellow, Green, Cyan, Blue, Magenta and Saturation depending upon which is selected. The change in color will appear on screen and the direction (increase or decrease) will be shown by the color bars.

NATIVE

: Original color presented by the LCD panel that is unadjustable.

Tools 1

SHARPNESS:

This function is digitally capable to keep crisp image at any timings.

It is continuously adjustable to get distinct image or soft one as you prefer, and set independently by different timings.

The number of adjustment steps is different depending on whether EXPANSION

Mode is OFF, FULL or ASPECT (1600 x 1200 is OFF Mode).

EXPANSION MODE:

Sets the zoom method.

FULL:

The image is expanded to 1600 x 1200, regardless of the resolution.

ASPECT:

The image is expanded without changing the aspect ratio.

OFF:

The image is not expanded.

8

1-10

Controls

–continued

CUSTOM (Digital input and Resolution of 1600 x 1200 only):

Select one of nine expansion rates. In this mode the resolution may be low and there may be blank areas. This mode is for use with special video cards.

VIDEO DETECT:

Selects the method of video detection when more than one computer is connected.

FIRST DETECT:

The video input has to be switched to “FIRST DETECT” mode. When current video input signal is not present, then the monitor searches for a video signal from the other video input port. If the video signal is present in the other port, then the monitor switches the video source input port to the new found video source automatically. The monitor will not look for other video signals while the current video source is present.

LAST DETECT:

The video input has to be switched to the “LAST DETECT” mode. When the monitor is displaying a signal from the current source and a new secondary source is supplied to the monitor, then the monitor will automatically switch to the new video source. When current video input signal is not present, then the monitor searches for a video signal from the other video input port. If the video signal is present in the other port, then the monitor switches the video source input port to the new found video source automatically.

NONE:

The Monitor will not search the other video input port unless the monitor is turned on.

DVI SELECTION:

This function selects the DVI input mode (Input 1). When the DVI selection has been change, you must restart your computer.

AUTO

: By using the DVI-D to DVI-D cable, the DVI SELECTION is DIGITAL.

By using the D-SUB to DVI-A cable, the DVI SELECTION is ANALOG.

DIGITAL

: DVI digital input is available.

ANALOG

: DVI analog input is available.

NOTE:

Depending on the PC/Video card or video signal cable used, this function may not operate.

OFF TIMER:

Monitor will automatically power-down when the end user has selected a predetermined amount of time.

Tools 2

LANGUAGE:

OSM control menus are available in seven languages.

OSM POSITION:

You can choose where you would like the OSM control image to appear on your screen. Selecting OSM Location allows you to manually adjust the position of the OSM control menu left, right, down or up.

OSM TURN OFF:

The OSM control menu will stay on as long as it is use. In the

OSM Turn Off submenu, you can select how long the monitor waits after the last touch of a button to shut off the OSM control menu. The preset choices are 10,

20, 30, 45, 60 and 120 seconds.

OSM LOCK OUT:

This control completely locks out access to all OSM control

9

1-11

Controls

–continued

functions. When attempting to activate OSM controls while in the Lock Out mode, a screen will appear indicating the OSM controls are locked out. To activate the OSM Lock Out function, press SELECT, then + key and hold down simultaneously. To deactivate the OSM Lock Out, press SELECT, then + key and hold down simultaneously.

OSM ROTATION:

To rotate OSM between Landscape and Portrait modes.

RESOLUTION NOTIFIER:

This optimal resolution is 1600 x 1200. If ON is selected, a message will appear on the screen after 30 seconds, notifying you that the resolution is not at 1600 x 1200.

HOT KEY:

You can adjust the brightness and contrast directly. When this function is set to ON, you can adjust the brightness with or , contrast with

+ or - key, while the OSM menu is off.

FACTORY PRESET:

Selecting Factory Preset allows you to reset most OSM control settings back to the factory settings. Individual settings can be reset by highlighting the control to be reset and pressing the RESET button.

Information

DISPLAY MODE:

Provides information about the current resolution display and technical data including the preset timing being used and the horizontal and vertical frequencies. Increases or decreases the current resolution.

MONITOR INFO:

Indicates the model and serial numbers of your monitor.

OSM Warning:

OSM Warning menus disappear with Exit button.

NO SIGNAL:

This function gives a warning when there is no Horizontal or

Vertical Sync. After power is turned on or when there is a change of input signal, the No Signal window will appear.

RESOLUTION NOTIFIER:

This function gives a warning of use with optimized resolution. After power is turned on or when there is a change of input signal or the video signal doesn’t have proper resolution, the Resolution Notifier window will open. This function can be disabled in the TOOL menu.

OUT OF RANGE:

This function gives a recommendation of the optimized resolution and refresh rate. After the power is turned on or there is a change of input signal or the video signal doesn’t have proper timing, the

Out Of Range

menu will appear.

NOTE:

If “ CHANGE DVI SELECTION” is displayed, switch to DVI

SELECTION.

For advanced user menu see “Appendix”.

10

1-12

Recommended Use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE

FOLLOWING WHEN SETTING UP AND USING

THE MULTISYNC ® LCD COLOR MONITOR:

• DO NOT OPEN THE MONITOR.

There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.

Do not spill any liquids into the cabinet or use your monitor near water.

Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.

Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.

Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.

When operating the MultiSync LCD monitor with its AC 125-240V power supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used. The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H05VV-F should be used in Europe)

In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed for use with this monitor. If a power cord is not supplied with this monitor, please contact your supplier.

Do not place any objects onto the monitor and do not use the monitor outdoors.

The inside of the flourescent tube located within the LCD monitor contains mercury.

Please follow the bylaws or rules of your municipality to dispose of the tube properly.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

When the power supply cord or plug is damaged.

If liquid has been spilled, or objects have fallen into the monitor.

If the monitor has been exposed to rain or water.

If the monitor has been dropped or the cabinet damaged.

If the monitor does not operate normally by following operating instructions.

Do not bend power cord.

Do not use monitor in high temperatured, humid, dusty, or oily areas.

• If glass is broken, handle with care.

Do not cover vent on monitor.

If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.

CAUTION

Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.

The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet which is easily accessible.

Handle with care when transporting. Save packaging for transporting.

Image Persistence

Image persistence is when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided.

To alleviate image persistence, turn off the monitor for as long as the previous image was displayed.

For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

NOTE:

As with all personal display devices, NEC-Mitsubishi Electronics Display recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

11

1-13

Recommended Use

–continued

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR

CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE

FOLLOWING WHEN YOU POSITION THE MONITOR:

For optimum performance, allow 20 minutes for warm-up.

Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.

Position your monitor no closer than 16 inches and no further away than 28 inches from your eyes. The optimal distance is 20 inches.

Rest your eyes periodically by focusing on an object at least 20 feet away. Blink often.

Position the monitor at a 90

° angle to windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.

If reflected light makes it hard for you to see your screen, use an antiglare filter.

Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner!

Adjust the monitor’s brightness and contrast controls to enhance readability.

Use a document holder placed close to the screen.

Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to minimize turning your head while you are typing.

Avoid displaying fixed patterns on the monitor for long periods of time to avoid image persistence (after-image effects).

Get regular eye checkups.

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

Adjust the Brightness until the background raster disappears

Do not position the Contrast control to its maximum setting

Use the preset Size and Position controls with standard signals

Use the preset Color Setting

Use non-interlaced signals with a vertical refresh rate moer than 60Hz

Do not use primary color blue on a dark background, as it is difficult to see and may produce eye fatigue to insufficient contrast

For more detailed information on setting up a healthy work environment, write the

American National Standard for Human Factors Engineering of Visual Display Terminal

Workstations – ANSI-HFS Standard No. 100-1988 – The Human Factors Society, Inc.

P.O. Box 1369, Santa Monica, California 90406.

12

1-14

Specifications

Monitor

Specifications

LCD Module

Diagonal:

Viewable Image Size:

Native Resolution (Pixel Count):

Input Signal

Display Colors

Synchronization

Range

Viewing Angle

Image Formation Time

Resolutions Supported

Video:

Sync:

Horizontal:

Vertical:

Left/Right:

Up/Down:

Landscape:

MultiSync ®

Monitor

LCD

2080UX

Notes

20.1 inch

20.1 inch

1600x1200

Active matrix; thin film transistor (TFT) liquid crystal display (LCD); 0.255 mm dot pitch; 250cd/m 2 white luminence; XtraView™ technology; 350:1 contrast ratio, typical

ANALOG 0.7 Vp-p/75 Ohms

Separate sync. TTL Level

Horizontal sync. Positive/Negative

Vertical sync. Positive/Negative

Digital Input: DVI

Composite sync. Positive/Negative

Sync on Green (Video 0.7Vp-p and Sync Negative 0.3V p-p)

16,777,216

31.5 kHz to 91.1 kHz

50.0 Hz to 85.0 Hz

+88˚ (CR>10)

+88˚ (CR>10)

25ms (Typ.)

Depends on display card used.

Automatically

Automatically

720 x 400* 1

640 x 480* 1

:VGA text

at 60 Hz to 85 Hz

800 x 600* 1 at 56 Hz to 85 Hz

832 x 624*

1

at 75 Hz

1024 x 768* 1 at 60 Hz to 85 Hz

Some systems may not support all modes listed.

1152 x 870*

1280 x 1024*

1

1

at 75Hz at 60 Hz to 85 Hz

NEC-Mitsubishi Electronics Display cites recommended resolution for optimal

1600 x 1200 at 60 Hz ............................... display performance.

Portrait:

Active Display Area Landscape : Horiz. :

Power Supply

Current Rating

Vert. :

Portrait : Horiz. :

Vert. :

480 x 640* 1 at 60 Hz to 85 Hz

600 x 800*

1

at 56 Hz to 85 Hz

624 x 832* 1 at 75 Hz

Some systems may not support all modes listed.

768 x 1024* 1

870 x 1152* 1

at 60 Hz to 85 Hz

at 75 Hz NEC-Mitsubishi Electronics Display cites

1024 x 1280* 1 at 60 Hz to 85 Hz recommended resolution for optimal

1200 x 1600 at 60 Hz ............................... display performance.

408 mm/16.1 inches

306 mm/12.0 inches

306 mm/12.0 inches

408 mm/16.1 inches

100 - 240 V ~ 50/60 Hz

0.7 – 0.35A

Dimensions

Weight

Landscape:

Portrait:

Height Adjustment:

442.0 mm (W) x 366.3 - 496.3 mm (H) x 200 mm (D)

17.4 inches (W) x 14.4 - 19.5 inches (H) x 7.9 inches (D)

340 mm (W) x 458.3 - 547.3 mm (H) x 200 mm (D)

13.4 inches (W) x 18.0 - 21.5 inches (H) x 7.9 inches (D)

130 mm / 5.1 inches (Landscape)

10.5 kg

23.1 lbs

Environmental Considerations

Operating Temperature:

Humidity:

Feet:

Storage Temperature:

Humidity:

Feet:

5

°C to 35°C/41°F to 95°F

30% to 80%

0 to 12,000 Feet

-10 °C to 60°C/14°F to 140°F

10% to 85%

0 to 40,000 Feet

* 1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done.

NOTE: Technical specifications are subject to change without notice.

13

1-15

Features ambix ® Technology:

Dual input technology allowing both analog and digital inputs off of one connector (DVI-I) as well as additional legacy analog support off of a traditional 15pin VGA connector. Provides traditional MultiSync

®

technology compatibility for analog as well as DVI-based digital compatibility for digital inputs. DVI-based digital interfaces include DVI-D,DFP and P&D.

DVI-I:

The integrated interface ratified by the Digital Display Working Group (DDWG) that allows both digital and analog connectors off of one port. The “I” stands for integration for both digital and analog, The digital portion is DVI-based.

DVI-D:

The digital-only subset of DVI ratified by the Digital Display Working Group

(DDWG) for digital connections between computers and displays. As a digital-only connector, analog support is not provided off a DVI-D connector. As a DVI-based digital only connection, only a simple adapter is necessary for compatibility between DVI-D and other DVI-based digital connectors such as DFP and P&D.

DFP (Digital Flat Panel):

An all-digital interface for flat panel monitors which is signal compatible with DVI. As a DVI-based digital only connection, only a simple adapter is necessary for compatibility between DFP and other DVI-based digital connectors such as

DVI and P&D.

P&D (Plug and Display):

The VESA standard for digital flat panel monitor interfaces. It is more robust than DFP since it allows for other options off a signal connector (options like

USB, analog video and IEEE-1394-995). The VESA committe has recognized that DFP is a subset of P&D. As a DVI-based connector (for the digital input pins), only a simple adapter is necessary for compatibility between P&D and other DVI-based digital connector such as DVI and DFP.

Pivoting Stand:

Allows users to adjust the monitor to the orientation that best fits their application, either Landscape orientation for wide documents, or portrait orientation for the ability to preview a full page on one screen at one time. The Portrait orientation is also perfect for full screen video conferencing.

Reduced Footprint:

Provides the ideal solution for environments requiring superior image quality but with size and weight limitations. The monitor’s small footprint and low weight allow it to be moved or transported easily from one location to another.

AccuColor

®

Control Systems

: Six color presets select the desired color setting (sRGB and

NATIVE color presets are standard and cannot be changed). Color temperature increases or decreases, in each preset. R,Y,G,C,B,M,S: Increases or decreases Red, Yellow, Green,

Cyan, Blue, Magenta and Saturation depending upon which is selected. The change in color will appear on screen and the direction (increase or decrease) will be shown by the color bars. NATIVE: Original color presented by the LCD panel that is unadjustable.

OSM

®

(On-Screen Manager) Controls:

Allow you to quickly and easily adjust all elements of your screen image via simple to use on-screen menus.

ErgoDesign ® Features:

Enhance human ergonomics to improve the working environment, protect the health of the user and save money. Examples include OSM controls for quick and easy image adjustments, tilt base for preferred angle of vision, small footprint and compliance with MPRII and TCO guidelines for lower emissions.

Plug and Play:

The Microsoft

®

solution with the Windows

®

95/98/2000/Me/XP operating system facilitates setup and installation by allowing the monitor to send its capabilities

14

1-16

Features

–continued

(such as screen size and resolutions supported) directly to your computer, automatically optimizing display performance.

IPM ® (Intelligent Power Manager) System:

Provides innovative power-saving methods that allow the monitor to shift to a lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace.

Multiple Frequency Technology:

Automatically adjusts monitor to the display card’s scanning frequency, thus displaying the resolution required.

FullScan ® Capability:

Allows you to use the entire screen area in most resolutions, significantly expanding image size.

XtraView+

Wide Viewing Angle Technology:

Allows the user to be able to see the monitor from any angle (176 degrees) from any orientation — Portrait or Landscape.

Provides full 176

° viewing angles either up, down, left or right.

VESA Standard Mounting Interface:

Allows users to connect their MultiSync monitor to any VESA standard third party mounting arm or bracket. Allows for the monitor to be mounted on a wall or an arm using any third party compliant device.

Ultra-thin-frame

design allows you to view more of your ideas and less of the monitor bezel, while freeing up more horizontal and vertical desktop space for multiple-monitor applications.

NaViSet™ software

offers an expanded and intuitive graphical interface, allowing you to more easily adjust OSM display settings via mouse and keyboard.

CableComp™ automatic long cable compensation

prevents image quality degradation caused by long cable lengths.

Advanced No Touch Auto Adjust™

provides optimal image settings upon initial power-on and closed signal changes.

Rapid Response™

delivers virtually uninterrupted, undistorted viewing of full-motion video applications.

sRGB Color Control:

A new optimized color management standard which allows for color matching on computer displays and other peripherals. The sRGB, which is based on the calibrated color space, allows for optimal color representation and backward compatibility with other common color standards.

Pivot capability and adjustable stand

add flexibility to your viewing preferences.

OSM Display Screen Copyright 2002 by

NEC-Mitsubishi Electronics Display of America, Inc.

15

1-17

Troubleshooting

No picture

• The signal cable should be completely connected to the display card/computer.

• The display card should be completely seated in its slot.

• Check the Vacation Switch should be in the ON position.

• Front Power Switch and computer power switch should be in the ON position.

• Check to make sure that a supported mode has been selected on the display card or system being used.

(Please consult display card or system manual to change graphics mode.)

• Check the monitor and your display card with respect to compatibility and recommended settings.

• Check the signal cable connector for bent or pushed-in pins.

• Check the signal input, “INPUT 1” or “INPUT 2”.

Power Button does not respond

• Unplug the power cord of the monitor from the AC outlet to turn off and reset the monitor.

• Check the Vacation Switch on the right side of the monitor.

Image Persistence

• Image persistence is when a residual or “ghost” image of a previous image remains visible on the screen.

Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided. To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

NOTE:

As with all personal display devices, NEC-Mitsubishi Electronics Display recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

Message “OUT OF RANGE” is displayed (screen is either blank or shows rough images only)

• Image is displayed only roughly (pixels are missing) and OSM warning “OUT OF RANGE” is displayed: Either signal clock or resolution is too high. Choose one of the supported modes.

• OSM warning “OUT OF RANGE” is displayed on a blank screen: Signal frequency is out of range. Choose one of the supported modes.

Image is unstable, unfocused or swimming is apparent

• Signal cable should be completely attached to the computer.

• Use the OSM Image Adjust controls to focus and adjust display by increasing or decreasing the fine total. When the display mode is changed, the OSM Image Adjust settings may need to be readjusted.

• Check the monitor and your display card with respect to compatibility and recommended signal timings.

• If your text is garbled, change the video mode to non-interlace and use 60Hz refresh rate.

LED on monitor is not lit

(no green or amber color can be seen)

• Power Switch should be in the ON position and power cord should be connected.

Display image is not sized properly

• Use the OSM Image Adjust controls to increase or decrease the Coarse total.

• Check to make sure that a supported mode has been selected on the display card or system being used.

(Please consult display card or system manual to change graphics mode.)

No Video

• If no video is present on the screen, turn the Power button off and on again.

• Make certain the computer is not in a power-saving mode (touch the keyboard or mouse).

No tilt

• Rotate the screen to 90˚ clockwise until you hear one click.

• Refer to the Quick Start section, “Remove monitor stand for mounting” to insure correct installation of stand.

16

1-18

References

NEC-Mitsubishi Monitor Customer Service & Support

Customer Service and Technical Support: (800)632-4662

Fax: (800) 695-3044

Parts and Accessories/Macintosh

Cable Adapter: (888) NEC-MITS [888-632-6487]

Customer Service Policies & Processes: http://www.necmitsubishi.com/ css/ServicePolicies/ServicePolicies.htm

Online Technical Support

Knowledge Base: http://www.necmitsubishi.com/ css/knowledgebase.cfm

Customer Service & Technical

Support Email: http://www.necmitsubishi.com/ css/techform.htm

Sales and Product Information

Sales Information Line:

Canadian Customers:

Government Sales:

Government Sales email:

(888) NEC-MITS [888-632-6487]

(866) 771-0266, Ext#: 4037

(800) 284-6320 [email protected]

Rebate Status Information

NEC Rebate Status:

Mitsubishi Rebate Status: www.rebatesHQ.com or 866-765-5696 www.rebatesHQ.com or 877-405-4692

Electronic Channels

World Wide Web:

Product Registration:

European Operations: http://www.necmitsubishi.com

http://www.necmitsubishi.com/ productregistration http://www.nec-mitsubishi.com

Windows® 95/98/Me/2000/XP INF File:

http://www.necmitsubishi.com and select

“Drivers and Downloads”

17

1-19

Limited Warranty

NEC-Mitsubishi Electronics Display of America, Inc. (hereinafter “NMD-A”) warrants this

Product to be free from defects in material and workmanship and, subject to the conditions set forth below, agrees to repair or replace (at NMD-A’s sole option) any part of the enclosed unit which proves defective for a period of three (3) years from the date of first consumer purchase.

Spare parts are warranted for ninety (90) days. Replacement parts or unit may be new or refurbished and will meet specifications of the original parts or unit.

This warranty gives you specific legal rights and you may also have other rights, which vary from state to state. This warranty is limited to the original purchaser of the Product and is not transferable. This warranty covers only NMD-A-supplied components. Service required as a result of third party components is not covered under this warranty. In order to be covered under this warranty, the Product must have been purchased in the U.S.A. or Canada by the original purchaser. This warranty only covers Product distribution in the U.S.A. or Canada by

NMD-A No warranty service is provided outside of the U.S.A. or Canada. Proof of Purchase will be required by NMD-A to substantiate date of purchase. Such proof of purchase must be an original bill of sale or receipt containing name and address of seller, purchaser, and the serial number of the product.

It shall be your obligation and expense to have the Product shipped, freight prepaid, or delivered to the authorized reseller from whom it was purchased or other facility authorized by NMD-A to render the services provided hereunder in either the original package or a similar package affording an equal degree of protection. All Products returned to NMD-A for service MUST have prior approval, which may be obtained by calling 1-800-632-4662. The

Product shall not have been previously altered, repaired, or serviced by anyone other than a service facility authorized by NMD-A to render such service, the serial number of the product shall not have been altered or removed. In order to be covered by this warranty the Product shall not have been subjected to displaying of fixed images for long periods of time resulting in image persistence (afterimage effects), accident, misuse or abuse or operated contrary to the instructions contained in the User’s Manual. Any such conditions will void this warranty.

NMD-A SHALL NOT BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL,

OR OTHER TYPES OF DAMAGES RESULTING FROM THE USE OF ANY NMD-A PRODUCT

OTHER THAN THE LIABILITY STATED ABOVE. THESE WARRANTIES ARE IN LIEU OF ALL

OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE

LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAM-

AGES SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU.

This Product is warranted in accordance with the terms of this limited warranty. Consumers are cautioned that Product performance is affected by system configuration, software, the application, customer data, and operator control of the system, among other factors. While

NMD-A Products are considered to be compatible with many systems, specific functional implementation by the customers of the Product may vary. Therefore, suitability of a Product for a specific purpose or application must be determined by consumer and is not warranted by NMD-A.

For the name of your nearest authorized NEC-Mitsubishi Electronics Display service facility, contact NEC-Mitsubishi Electronics Display of America at 1-800-632-4662.

18

1-20

TCO’95

Black Model

Congratulations! You have just purchased a TCO’95 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also, to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing. Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (Internal) and natural (external) environments.

Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously.

What does labelling involve?

This product meets the requirements for the TCO’95 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees),

Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The

National Board for Industrial and Technical Development in Sweden).

The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

TCO’95 is a co-operative project between TCO (The Swedish Confederation of Professional

Employees), Naturskyddsforeningen (The Swedish Society for Nature Conservation) and

NUTEK (The National Board for Industrial and Technical Development in Sweden).

Environmental Requirements

Brominated flame retardants

Brominated flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. These are related to another group of environmental toxins, PCBs, which are suspected to give rise to similar harm, including

19

1-21

TCO’95

–continued

reproductive damage in fisheating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

TCO’95 demand requires that plastic components weighing more than 25 grams must not contain organically bound chlorine and bromine.

Lead**

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning.

TCO’95 requirement permits the inclusion of lead since no replacement has yet been developed.

Cadmium**

Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses.

TCO’95 requirement states that batteries may not contain more than 25 ppm (parts per million) of cadmium. The colourgenerating layers of display screens must not contain any cadmium.

Mercury**

Mercury is sometimes found in batteries, relays, switches, and back-light systems, Mercury damages the nervous system and is toxic in high doses.

TCO’95 requirement states that batteries may not contain more than 25 ppm (parts per million) of mercury. It also demands that no mercury is present in any of the electrical or electronics components concerned with the display unit, except the back-light system.

CFCs

(freons)

CFCs (freons) are sometimes used for washing printed circuit boards and in the manufacturing of expanded foam for packaging. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).

The relevant TCO’95 requirement; Neither CFCs nor HCFCs may be used during the manufacturing of the product or its packaging.

*Bio-accumulative is defined as substances which accumulate within living organisms.

**Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

To obtain complete information on the environmental criteria document, order from:

TCO Development Unit

SE-114 94 Stockholm

SWEDEN

FAX Number: +46 8 782 92 07

E-mail (Internet): [email protected]

You may also obtain current information on TCO’95 approved and labelled products by visiting their website at: http://www.tcodevelopment.com/

20

1-22

TCO’99

White Model

Congratulations! You have just purchased a TCO’99 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing. Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (Internal) and natural (external) environments.

Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously.

What does labelling involve?

This product meets the requirements for the TCO’99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska

Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet

(The Swedish National Energy Administration).

The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Environmental Requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride and these are related to another group of environmental toxins, PCBs, which are suspected to give rise to severe

21

1-23

TCO’99

–continued

health effects, including reproductive damage in fisheating birds and mammals, due to the bioaccumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

TCO’99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound chlorine and bromine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Lead**

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning.

TCO’99 requirement permits the inclusion of lead since no replacement has yet been developed.

Cadmium**

Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses.

TCO’99 requirement states that batteries, the colourgenerating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury**

Mercury is sometimes found in batteries, relays and switches, Mercury damages the nervous system and is toxic in high doses.

TCO’99 requirement states that batteries may not contain any Mercury. It also demands that no mercury is present in any of the electrical or electronics components associated with the display unit.

CFCs

(freons)

CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).

The relevant TCO’99 requirement; Neither CFCs nor HCFCs may be used during the manufacturing and assembly of the product or its packaging.

*Bio-accumulative is defined as substances which accumulate within living organisms.

**Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

To obtain complete information on the environmental criteria document, order from:

TCO Development Unit

SE-114 94 Stockholm

SWEDEN

FAX Number: +46 8 782 92 07

E-mail (Internet): [email protected]

You may also obtain current information on TCO’99 approved and labelled products by visiting their website at: http://www.tcodevelopment.com/

22

1-24

Declaration of the Manufacturer

We hereby certify that the color monitor

MultiSync ® LCD2080UX (L202EV) is in compliance with

Council Directive 73/23/EEC:

– EN 60950

Council Directive 89/336/EEC:

– EN 55022

– EN 61000-3-2

– EN 61000-3-3

– EN 55024 and marked with

NEC-Mitsubishi Electric Visual

Systems Corporation

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japan

23

1-25

NEC LCD Series

PROPRIETARY NOTICE AND LIABILITY DISCLAIMER

The information disclosed in this document, including all designs and related materials, is the valuable property of NEC-

Mitsubishi Electronics Display of America and/or its licensors, as appropriate, reserve all patent, copyright and other proprietary rights to this document, including all design, manufacturing, reproduction, use and sales rights thereto, except to the extent said rights are expressly granted to others.

The NEC-Mitsubishi Electronics Display of America product(s) discussed in this document are warranted in accordance with the terms of the Limited Warranty Statement accompanying each product. However, actual performance of each such product is dependent upon factors such as system configuration, customer data and operator control. Since implementation by customers of each product may vary, the suitability of specific product configurations and applications must be determined by the customer and is not warranted by NEC-Mitsubishi Electronics Display of America.

To allow for design and specification improvements, the information in this document is subject to change at any time without notice. Reproduction of this document or portions thereof without prior approval of NEC-Mitsubishi Electronics

Display of America is prohibited.

DECLARATION OF CONFORMITY

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party:

Address:

Tel. No.:

NEC-Mitsubishi Electronics Display of America, Inc.

1250 North Arlington Heights Road, Suite 500

Itasca, Illinois 60143-1248

(630) 467-3000

Type of Product:

Equipment Classification:

Model:

DisplayMonitor

Class B Peripheral

MultiSync LCD2080UX (L202EV)

We hereby declare that the equipment specified above conforms to the technical standards as specified in the FCC Rules.

Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation. E

NERGY

S

TAR

is a

U.S. registered trademark. All other brands and product names are trademarks or registered trademarks of their respective owners.

As an E

NERGY

S

TAR

®

Partner, NEC-Mitsubishi Electronics Display of America has determined that this product meets the E

NERGY

S

TAR

guidelines for energy efficiency. The E

NERGY

S

TAR

emblem does not represent EPA endorsement of any product or service.

Part No. 7A811571

Printed in Japan

1-26

2. B Version

MultiSync LCD2080UX

User’s Manual

1-27

Index

Warning, Caution .................................................................................................... English-1

Declaration .............................................................................................................. English-1

Canadian Department of Communications Compliance Statement ....................... English-2

Declaration of Conformity ....................................................................................... English-2

Contents .................................................................................................................. English-3

Quick Start .............................................................................................................. English-4

Controls ................................................................................................................... English-7

Recommended Use .............................................................................................. English-10

Specifications ........................................................................................................ English-12

Features ................................................................................................................ English-13

Troubleshooting ..................................................................................................... English-14

Appendix ............................................................................................................... English-15

TCO’95 .................................................................................................................. English-19

TCO’99 .................................................................................................................. English-20

1-28

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT

USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS

THE PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION:

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM

WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE

POWER CORD FROM THE AC OUTLET.DO NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

Caution:

When operating the MultiSync LCD2080UX with a 220-240V AC power source in Europe, use the power cord provided with the monitor.

In the UK, a BS approved power cord with a moulded plug has a Black (five Amps) fuse installed for use with this equipment.

If a power cord is not supplied with this equipment please contact your supplier.

When operating the MultiSync LCD2080UX with a 220-240V AC power source in Australia, use the power cord provided with the monitor. If a power cord is not supplied with this equipment please contact your supplier.

For all other cases, use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.

Declaration

Declaration of the Manufacturer

and marked with We hereby certify that the colour monitor

MultiSync LCD2080UX (L202EV) is in compliance with

Council Directive 73/23/EEC:

– EN 60950

Council Directive 89/336/EEC:

– EN 55022

– EN 61000-3-2

– EN 61000-3-3

– EN 55024

NEC-Mitsubishi Electric Visual

Systems Corporation

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japan

Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation. E

NERGY

S

TAR

is a U.S. registered trademark. All other brands and product names are trademarks or registered trademarks of their respective owners.

As an E

NERGY

S

TAR

®

Partner, NEC-Mitsubishi Electronics Display of America has determined that this product meets the E

NERGY

S

TAR

guidelines for energy efficiency. The E

NERGY

S

TAR

emblem does not represent EPA endorsement of any product or service.

OmniColor is a registered trademark of NEC-Mitsubishi Electronics Display Europe GmbH in the countries of EU and

Switzerland.

ErgoDesign is a trademark of NEC-Mitsubishi Electronic Visual Systems Corporation in Austria, Benelux, Denmark, France,

Germany, Italy, Norway, Spain, Sweden, U.K.

NaViSet is a trademark of NEC-Mitsubishi Electronics Display Europe GmbH in the countries of EU and Switzerland.

English-1

1-29

Canadian Department of Communications Compliance

Statement

DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950.

FCC Information

1.

Use the attached specified cables with the MultiSync LCD2080UX colour monitor so as not to interfere with radio and television reception.

(1) The power supply cord you use must have been approved by and comply with the safety standards of U.S.A., and meet the following condition.

Power supply cord

Length

Plug shape

Non shield type, 3-conductor

2.0 m

2.

(2)

U.S.A

Please use the supplied shielded video signal cable, 15-pin mini D-SUB to DVI-A cable or DVI-D to DVI-D cable.

Use of other cables and adapters may cause interference with radio and television reception.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful:

“How to Identify and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government

Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.

Declaration of Conformity

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party: NEC-Mitsubishi Electronics Display of America, Inc.

Address: 1250 North Arlington Heights Road, Suite 500

Tel. No.:

Itasca, Illinois 60143-1248

(630) 467-3000

Type of Product: Display Monitor

Equipment Classification: Class B Peripheral

Model: MultiSync LCD2080UX (L202EV)

We hereby declare that the equipment specified above conforms to the technical standards as specified in the FCC Rules.

English-2

1-30

Contents

Your new NEC MultiSync LCD monitor box* should contain the following:

• MultiSync LCD2080UX monitor with tilt/swivel/pivot/height adjust stand

• Power Cord

• Video Signal Cable (15-pin mini D-SUB male to DVI-A)

• Video Signal Cable (DVI-D to DVI-D cable)

• User’s Manual

• CD-ROM

• Cable cover

Power Cord

15-pin mini D-SUB male to DVI-A

Cable Cover

User’s Manual DVI-D to DVI-D cable CD-ROM

* Remember to save your original box and packing material to transport or ship the monitor.

English-3

1-31

Quick Start

To attach the MultiSync LCD monitor to your system, follow these instructions:

1. Turn off the power to your computer.

2. For the PC or MAC with DVI digital output: Connect the DVI signal cable to the connector of the display card in your system (Figure A.1). Tighten all screws.

For the PC with Analog output: Connect the 15-pin mini D-SUB to DVI-A signal cable to the connector of the display card in your system (Figure A.2).

For the MAC: Connect the MultiSync Macintosh cable adapter to the computer, then attach the 15-pin mini D-SUB signal cable to the MultiSync Macintosh cable adapter (Figure B.1).

Figure A.1

Figure A.2

NOTE:

Some Macintosh systems do not require a Macintosh cable adapter.

Macintosh

Cable Adapter

(not included)

Figure B.1

3. Connect the DVI signal cable to the connector on the back of the monitor. Place the video signal cable (Figure C.1).

Connect only either VGA or DVI to input 2.

NOTE:

Incorrect cable connections may result in irregular operation, damage display quality/components of LCD module and/or shorten the module’s life.

Collect cables and keep them in the stand with attached cable cover. The cable cover can be attached on the front or back side of Tilt Stand (Figure C.1, C.2).

Please check Tilt, Rise and Lower monitor screen and screen rotation when you manage cables.

4. Connect one end of the power cord to the AC inlet on the back of the monitor and the other end to the power outlet

(Figure C.1).

NOTE:

Please refer to Caution section of this manual for proper selection of AC power cord.

5. The Vacation Switch on the left side of the monitor must be turned on. Turn on the monitor with the front power button

(Figure D.1) and the computer.

NOTE:

The Vacation Switch is a true on/off switch. If this switch is on the OFF position, the monitor cannot be turned on using the front button. DO NOT switch on/off quickly.

6. No-touch auto adjust automatically adjusts the monitor to optimal settings upon initial setup for most timings. For further adjustments, use the following OSM controls:

• Auto Contrast (Analog input only)

• Auto Adjust (Analog input only)

Refer to the Controls section of this User’s Manual for a full description of these OSM controls.

NOTE:

If you have any problems, please refer to the Troubleshooting section of this User’s Manual.

English-4

1-32

INPUT1 INPUT2 INPUT1 INPUT2

Figure C.2

Figure C.1

NEC-Mitsubishi optional product attachment.

Do not use this connector unless specified.

Vacation

Switch

Figure D.1

Power Button

Raise and Lower Monitor Screen

The monitor may be raised or lowered in either Portrait or Landscape mode.

To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1).

NOTE:

Handle with care when raising or lowering the monitor screen.

Figure RL.1

Screen Rotation

Before rotating, the screen must be raised to the highest level to avoid knocking the screen on the desk or pinching with your fingers.

To raise the screen, place hands on each side of the monitor and lift up to the highest position (Figure RL.1).

To rotate screen, place hands on each side of the monitor screen and turn clockwise from Landscape to Portrait or counterclockwise from Portrait to Landscape (Figure R.1).

To rotate OSM menu between landscape and portrait, refer to “Controls” section, “OSM ROTATION” function.

Figure R.1

English-5

1-33

Tilt

Grasp top and bottom sides of the monitor screen with your hands and adjust the tilt as desired (Figure TS.1).

Swivel

Grasp both sides of the monitor screen with your hands and adjust the swivel as desired (Figure TS.2).

Figure TS.1

NOTE:

Handle with care when tilting the monitor screen.

Figure TS.2

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:

1. Disconnect all cables.

2. Place hands on each side of the monitor and lift up to the highest position.

3. Place monitor face down on a non-abrasive surface. (Place the screen on a 25 mm platform so that the stand is parallel with the surface) (Figure S.1).

25 mm

Figure S.1

4. Remove the two top screws connecting the monitor to the stand (Figure S.2). Turn the stand to 180° counterclockwise

(you will hear two clicks). Remove the screws from the bottom (Figure S.3) and lift off the stand. The monitor is now ready for mounting in an alternate manner.

5. Reverse this process to reattach stand: tighten the two bottom screws, turn stand 180° counter clockwise (you will hear two clicks), and tighten two top screws.

NOTE:

Use only VESA-compatible alternative mounting method (100 mm pitch).

NOTE:

Handle with care when removing monitor stand.

Figure S.2

Figure S.3

Caution: Use the original screws (4 pcs) when mounting to avoid damage to the monitor and stand. To fulfil the safety requirements the monitor must be mounted to an arm which guaranties the necessary stability under consideration of the weight of the monitor. The LCD monitor should only be used with an approved arm (e.g. GS mark).

English-6

1-34

Controls

OSM (On-Screen Manager) control buttons on the front of the monitor function as follows:

To access OSM menu, press any of the control buttons (EXIT, , , –, +).

To change signal input, press the SELECT button.

NOTE:

OSM must be closed in order to change signal input.

EXIT

CONTROL /

ADJUST

-

/

+

SELECT

RESET

Menu

Exits the OSM controls.

Exits to the OSM main menu.

Moves the highlighted area left/right to select control menus.

Moves the highlighted area up/down to select one of the controls.

Moves the bar left/right to increase or decrease the adjustment.

Active Auto Adjust function. Enter the OSM controls. Enter the OSM sub menu.

Resets the highlighted control menu to the factory setting.

NOTE:

When RESET is pressed in the main and sub-menu, a warning window will appear allowing you to cancel the

RESET function by pressing the EXIT button.

Brightness/Contrast Controls

BRIGHTNESS

Adjusts the overall image and background screen brightness.

CONTRAST

Adjusts the image brightness in relation to the background.

AUTO CONTRAST (Analog input only)

Adjusts the image displayed for non-standard video inputs.

AUTO BRIGHTNESS

This function adjusts the brightness automaticaly for the best CONTRAST and BRIGHTNESS setting based on the white display area.

Auto Adjust (Analog input only)

Automatically adjusts the Image Position and H. Size settings and Fine settings.

Image Controls

LEFT / RIGHT

Controls Horizontal Image Position within the display area of the LCD.

DOWN / UP

Controls Vertical Image Position within the display area of the LCD.

H.SIZE (Analog input only)

Adjusts the horizontal size by increasing or decreasing this setting.

Should the “AUTO Adjust function” do not give you a satisfactory picture setting, a further tuning can be performed using the “H.Size” function (dot clock). For this a Moiré test pattern could be used. This function may alter the width of the picture. Use Left/Right Menu to center the image on the screen. If the H.Size is wrongly calibrated, the result would look like on the left drawing. The image should be homogeneous.

When H.SIZE value is wrong.

When H.SIZE value is improved.

English-7

When H.SIZE value is correct.

1-35

FINE (Analog input only)

Improves focus, clarity and image stability by increasing or decreasing this setting.

Should the “Auto Adjust function” and the “H.Size” function do not give you a satisfactory picture setting, a fine tuning can be performed using the “Fine” function. It improves focus, clearity and image stability by increasing or decreasing this setting.

For this a Moiré test pattern could be used. If the Fine value is wrongly calibrated, the result would look like on the left drawing. The image should be homogeneous.

When FINE value is wrong.

When FINE value is correct.

Color Control Systems

Color Control Systems: Six colour presets select the desired colour setting (sRGB and NATIVE colour presets are standard and cannot be changed). Colour temperature increases or decreases, in each preset.

R,Y,G,C,B,M,S: Increases or decreases Red, Yellow, Green, Cyan, Blue, Magenta and Saturation depending upon which is selected. The change in colour will appear on screen and the direction (increase or decrease) will be shown by the colour bars.

NATIVE: Original colour presented by the LCD panel that is unadjustable.

Tools 1

SHARPNESS: This function is digitally capable to keep crisp image at any timings. It is continuously adjustable to get distinct image or soft one as you prefer, and set independently by different timings.

The number of adjustment steps is different depending on whether EXPANSION Mode is OFF, FULL or

ASPECT (1600 x 1200 is OFF Mode).

EXPANSION MODE: Sets the zoom method.

FULL: The image is expanded to 1600 x 1200, regardless of the resolution.

ASPECT: The image is expanded without changing the aspect ratio.

OFF: The image is not expanded.

CUSTOM (Digital input and Resolution of 1600 x 1200 only):

Select one of nine expansion rates. In this mode the resolution may be low and there may be blank areas. This mode is for use with special video cards.

VIDEO DETECT: Selects the method of video detection when more than one computer is connected.

FIRST DETECT: The video input has to be switched to “FIRST DETECT” mode. When current video input signal is not present, then the monitor searches for a video signal from the other video input port.

If the video signal is present in the other port, then the monitor switches the video source input port to the new found video source automatically. The monitor will not look for other video signals while the current video source is present.

LAST DETECT: The video input has to be switched to the “LAST DETECT” mode. When the monitor is displaying a signal from the current source and a new secondary source is supplied to the monitor, then the monitor will automatically switch to the new video source. When current video input signal is not present, then the monitor searches for a video signal from the other video input port. If the video signal is present in the other port, then the monitor switches the video source input port to the new found video source automatically.

NONE: The Monitor will not search the other video input port unless the monitor is turned on.

DVI SELECTION: This function selects the DVI input mode (Input 1). When the DVI selection has been changed, the computer has to be restarted.

AUTO: By using the DVI-D to DVI-D cable, the DVI SELECTION is DIGITAL.

By using the D-SUB to DVI-A cable, the DVI SELECTION is ANALOG.

DIGITAL: DVI digital input is available.

ANALOG: DVI analog input is available.

Note: Depending on the PC and Video card used, or when another Video signal cable is attached, this function may not operate.

OFF TIMER: Monitor will automatically power-down when the end user has selected a pre-determined amount of time.

English-8

1-36

Tools 2

LANGUAGE: OSM control menus are available in seven languages.

OSM POSITION: You can choose where you would like the OSM control image to appear on your screen.

Selecting OSM Location allows you to manually adjust the position of the OSM control menu left, right, down or up.

OSM TURN OFF: The OSM control menu will stay on as long as it is use. In the OSM Turn Off submenu, you can select how long the monitor waits after the last touch of a button to shut off the OSM control menu.

The preset choices are 10, 20, 30, 45, 60 and 120 seconds.

OSM LOCK OUT: This control completely locks out access to all OSM control functions. When attempting to activate OSM controls while in the Lock Out mode, a screen will appear indicating the OSM controls are locked out. To activate the OSM Lock Out function, press SELECT, then “+” key and hold down simultaneously. To deactivate the OSM Lock Out, press SELECT, then “+” key and hold down simultaneously.

OSM ROTATION: To rotate OSM between Landscape and Portrait modes.

RESOLUTION NOTIFIER: This optimal resolution is 1600 x 1200. If ON is selected, a message will appear on the screen after 30 seconds, notifying you that the resolution is not at 1600 x 1200.

HOT KEY: You can adjust the brightness and contrast directly. When this function is set to ON, you can adjust the brightness with or , contrast with + or - key, while the OSM menu is off. The standard OSM can be accessed with the EXIT button.

FACTORY PRESET: Selecting Factory Preset allows you to reset all OSM control settings (BRIGHTNESS,

CONTRAST, IMAGE CONTROL, COLOR CONTROL SYSTEM, SHARPNESS, EXPANSION MODE, OFF

TIMER, OSM POSITION, OSM TURN OFF, DISPLAY MODE) back to the factory settings. Individual settings can be reset by highlighting the control to be reset and pressing the RESET button.

Information

DISPLAY MODE: Provides information about the current resolution display and technical data including the preset timing being used and the horizontal and vertical frequencies. Increases or decreases the current resolution.

MONITOR INFO: Indicates the model and serial numbers of your monitor.

OSM Warning

OSM Warning menus disappear with Exit button.

NO SIGNAL: This function gives a warning when there is no Horizontal or Vertical Sync. After power is turned on or when there is a change of input signal, the No Signal window will appear.

RESOLUTION NOTIFIER: This function gives a warning of use with optimized resolution. After power is turned on or when there is a change of input signal or the video signal doesn’t have proper resolution, the

Resolution Notifier window will open. This function can be disabled in the TOOL menu.

OUT OF RANGE: This function gives a recommendation of the optimized resolution and refresh rate. After the power is turned on or there is a change of input signal or the video signal doesn’t have proper timing, the Out Of Range menu will appear.

NOTE:

If “ CHANGE DVI SELECTION” is displayed, switch to DVI SELECTION.

For advanced user menu see “Appendix”.

English-9

1-37

Recommended use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE

THE FOLLOWING WHEN SETTING UP AND USING

THE MULTISYNC LCD COLOUR MONITOR:

DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.

• Do not spill any liquids into the cabinet or use your monitor near water.

• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.

• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.

• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.

• Do not place any objects onto the monitor and do not use the monitor outdoors.

• The inside of the fluorescent tube located within the LCD monitor contains mercury.

Please follow the bylaws or rules of your municipality to dispose of the tube properly.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following operating instructions.

• Do not bend power cord.

• Do not use monitor in high temperatured, humid, dusty, or oily areas.

• If glass is broken, handle with care.

• Do not cover vent on monitor.

• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.

CAUTION

Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.

• The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet which is easily accessible.

• Handle with care when transporting. Save packaging for transporting.

Image Persistence: Image persistence is when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided.

To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

NOTE: As with all personal display devices, NEC-Mitsubishi Electronics Display-Europe recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

English-10

1-38

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN

REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE

FOLLOWING WHEN YOU POSITION THE MONITOR:

• For optimum performance, allow 20 minutes for warm-up.

• Adjust the monitor height so that the top of the screen is at or slightly below eye level.

Your eyes should look slightly downward when viewing the middle of the screen.

• Position your monitor no closer than 40 cm and no further away than 70 cm from your eyes. The optimal distance is 50 cm.

• Rest your eyes periodically by focusing on an object at least 20 feet away. Blink often.

• Position the monitor at a 90° angle to windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.

• If reflected light makes it hard for you to see your screen, use an anti-glare filter.

• Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner!

• Adjust the monitor’s brightness and contrast controls to enhance readability.

• Use a document holder placed close to the screen.

• Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to minimize turning your head while you are typing.

• Avoid displaying fixed patterns on the monitor for long periods of time to avoid image persistence (after-image effects).

• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

• Adjust the Brightness until the background raster disappears.

• Do not position the Contrast control to its maximum setting.

• Use the preset Size and Position controls with standard signals.

• Use the preset Colour Setting.

• Use non-interlaced signals with a vertical refresh rate more than 60 Hz.

• Do not use primary colour blue on a dark background, as it is difficult to see and may produce eye fatigue to insufficient contrast.

English-11

1-39

Specifications

Monitor Specifications

LCD Module Diagonal:

Viewable Image Size:

Native Resolution (Pixel Count):

MultiSync LCD2080UX Monitor Notes

51 cm/20.1 inches

51 cm/20.1 inches

1600 x 1200

Active matrix; thin film transistor (TFT) liquid crystal display (LCD); 0.255 mm dot pitch;

250 cd/m

2

white luminence; 350:1 contrast ratio, typical.

Input Signal Video: ANALOG 0.7 Vp-p/75 Ohms

Sync: Separate sync.TTL Level

Horizontal sync. Positive/Negative

Vertical sync. Positive/Negative

Digital Input: DVI

Composite sync. Positive/Negative

Sync on Green (Video 0.7V p-p and Sync Negative 0.3V p-p)

Display Colours

Synchronization Range Horizontal: 31.5 kHz to 91.1 kHz

Vertical: 50 Hz to 85 Hz

Viewing Angle Left/Right:

16,777,216

±88° (CR > 10)

Up/Down: ±88° (CR > 10)

Depends on display card used.

Automatically

Automatically

Image Formation Time 25 ms (Typ.)

Resolutions Supported Landscape: 720 x 400* 1 : VGA-Text

640 x 480* 1 at 60 Hz to 85 Hz

800 x 600*

1

at 56 Hz to 85 Hz

832 x 624* 1 at 75 Hz

Some systems may not support all modes listed.

1024 x 768* 1 at 60 Hz to 85 Hz

1152 x 870*

1

at 75 Hz NEC-Mitsubishi Electronics Display cites

1280 x 1024*

1

at 60 Hz to 85 Hz recommended resolution for optimal display

1600 x 1200 at 60 Hz....................... performance.

Portrait: 480 x 640* 1 at 60 Hz to 85 Hz

600 x 800*

1

at 56 Hz to 85 Hz

624 x 832*

1

at 75 Hz

768 x 1024* 1 at 60 Hz to 85 Hz

Some systems may not support all modes listed.

870 x 1152* 1 at 75 Hz NEC-Mitsubishi Electronics Display cites

1024 x 1280*

1

at 60 Hz to 85 Hz recommended resolution for optimal display

1200 x 1600 at 60 Hz....................... performance.

Active

Display Area

Power Supply

Current Rating

Landscape: Horiz.: 408 mm/16.1 inches

Vert.: 306 mm/12.0 inches

Portrait: Horiz.: 306 mm/12.0 inches

Vert.: 408 mm/16.1 inches

AC 100-240 V ~ 50/60 Hz

0.7 - 0.35 A

Dimensions Landscape: 442 mm (W) x 366.3 ~ 496.3 mm (H) x 200 mm (D)

17.4 inches (W) x 14.4 ~ 19.5 inches (H) x 7.9 inches (D)

Portrait: 340 mm (W) x 458.3 ~ 547.3 mm (H) x 200 mm (D)

13.4 inches (W) x 18.0 ~ 21.5 inches (H) x 7.9 inches (D)

Height Adjustment: 130 mm/5.1 inches (Landscape)

10.5 kg (23.1 lbs) Weight

Environmental Considerations

Operating Temperature: 5°C to 35°C/41°F to 95°F

Humidity: 30% to 80%

Feet: 0 to 12,000 Feet

Storage Temperature: -10°C to 60°C/14°F to 140°F

Humidity: 10% to 85%

Feet: 0 to 40,000 Feet

*1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done.

NOTE:

Technical specifications are subject to change without notice.

English-12

1-40

Features

ambix Technology: Dual input technology allowing both analog and digital inputs off of one connector (DVI-I) as well as additional legacy analog support off of a traditional 15-pin VGA connector. Provides traditional MultiSync

®

technology compatibility for analog as well as DVI-based digital compatibility for digital inputs. DVI-based digital interfaces include

DVI-D,DFP and P&D.

DVI-I: The integrated interface ratified by the Digital Display Working Group (DDWG) that allows both digital and analog connectors off of one port. The “I” stands for integration for both digital and analog, The digital portion is DVI-based.

DVI-D: The digital-only subset of DVI ratified by the Digital Display Working Group (DDWG) for digital connections between computers and displays. As a digital-only connector, analog support is not provided off a DVI-D connector. As a DVI-based digital only connection, only a simple adapter is necessary for compatibility between DVI-D and other DVI-based digital connectors such as DFP and P&D.

DFP (Digital Flat Panel): An all-digital interface for flat panel monitors which is signal compatible with DVI. As a DVI-based digital only connection, only a simple adapter is necessary for compatibility between DFP and other DVI-based digital connectors such as DVI and P&D.

P&D (Plug and Display): The VESA standard for digital flat panel monitor interfaces. It is more robust than DFP since it allows for other options off a signal connector (options like USB, analog video and IEEE-1394-995). The VESA committe has recognized that DFP is a subset of P&D. As a DVI-based connector (for the digital input pins), only a simple adapter is necessary for compatibility between P&D and other DVI-based digital connector such as DVI and DFP.

Pivoting Stand: Allows users to adjust the monitor to the orientation that best fits their application, either Landscape orientation for wide documents, or portrait orientation for the ability to preview a full page on one screen at one time. The

Portrait orientation is also perfect for full screen video conferencing.

Reduced Footprint: Provides the ideal solution for environments requiring superior image quality but with size and weight limitations. The monitor’s small footprint and low weight allow it to be moved or transported easily from one location to another.

Color Control Systems: Allows you to adjust the colours on your screen and customize the colour accuracy of your monitor to a variety of standards.

OmniColor ®

: Combines Six-axis colour control and the sRGB standard. Six-axis colour control permits colour adjustments via six axes (R, G, B, C, M and Y) rather than through the three axes (R, G and B) previously available. The sRGB standard provides the monitor with a uniform colour profile. This assures that the colours displayed on the monitor are exactly the same as on the colour printout (with sRGB supporting operating system and sRGB printer). This allows you to adjust the colours on your screen and customise the colour accuracy of your monitor to a variety of standards.

OSM (On-Screen Manager) Controls: Allow you to quickly and easily adjust all elements of your screen image via simple to use on-screen menus.

ErgoDesign

®

Features: Enhance human ergonomics to improve the working environment, protect the health of the user and save money. Examples include OSM controls for quick and easy image adjustments, tilt base for preferred angle of vision, small footprint and compliance with MPRII and TCO guidelines for lower emissions.

Plug and Play: The Microsoft ® solution with the Windows ® 95/98/2000/Me/XP operating system facilitates setup and installation by allowing the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically optimizing display performance.

IPM (Intelligent Power Manager) System: Provides innovative power-saving methods that allow the monitor to shift to a lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace.

Multiple Frequency Technology: Automatically adjusts monitor to the display card’s scanning frequency, thus displaying the resolution required.

FullScan Capability: Allows you to use the entire screen area in most resolutions, significantly expanding image size.

Wide Viewing Angle Technology: Allows the user to be able to see the monitor from any angle (176 degrees) from any orientation — Portrait or Landscape. Provides full 176° viewing angles either up, down, left or right.

VESA Standard Mounting Interface: Allows users to connect their MultiSync monitor to any VESA standard third party mounting arm or bracket. Allows for the monitor to be mounted on a wall or an arm using any third party compliant device.

NaViSet™: Is a ground-breaking software family, developed by NEC-Mitsubishi Eletronics Display Europe GmbH, providing intuitive access to all monitor setting controls and remote diagnosis via the Windows interface, based upon the VESA standard, DDC/CI. Using a standard VGA or DVI signal cable, NaViSet™ can either benefit single users or, with NaViSet™

Administrator, can reduce the Total Cost of Ownership through remote network-wide maintenance, diagnosis and assetreporting.

No-touch Auto Adjust (Analog input only): No-touch auto adjust automatically adjusts the monitor to optimal settings upon initial setup.

sRGB Color Control: A new optimized colour management standard which allows for colour matching on computer displays and other peripherals. The sRGB, which is based on the calibrated colour space, allows for optimal colour representation and backward compatibility with other common colour standards.

English-13

1-41

Troubleshooting

No picture

• The signal cable should be completely connected to the display card/computer.

• The display card should be completely seated in its slot.

• Check the Vacation Switch should be in the ON position.

• Front Power Switch and computer power switch should be in the ON position.

• Check to make sure that a supported mode has been selected on the display card or system being used.

(Please consult display card or system manual to change graphics mode.)

• Check the monitor and your display card with respect to compatibility and recommended settings.

• Check the signal cable connector for bent or pushed-in pins.

• Check the signal input, “INPUT 1” or “INPUT 2”.

Power Button does not respond

• Unplug the power cord of the monitor from the AC outlet to turn off and reset the monitor.

• Check the Vacation Switch on the left side of the monitor.

Image Persistence

• Image persistence is when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided. To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

NOTE:

As with all personal display devices, NEC-Mitsubishi Electronics Display recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

Message “OUT OF RANGE” is displayed (screen is either blank or shows rough images only)

• Image is displayed only roughly (pixels are missing) and OSM warning “OUT OF RANGE” is displayed: Either signal clock or resolution is too high. Choose one of the supported modes.

• OSM warning “OUT OF RANGE” is displayed on a blank screen: Signal frequency is out of range. Choose one of the supported modes.

Image is unstable, unfocused or swimming is apparent

• Signal cable should be completely attached to the computer.

• Use the OSM Image Adjust controls to focus and adjust display by increasing or decreasing the fine total. When the display mode is changed, the OSM Image Adjust settings may need to be readjusted.

• Check the monitor and your display card with respect to compatibility and recommended signal timings.

• If your text is garbled, change the video mode to non-interlace and use 60Hz refresh rate.

LED on monitor is not lit ( no green or amber colour can be seen)

• Power Switch should be in the ON position and power cord should be connected.

Display image is not sized properly

• Use the OSM Image Adjust controls to increase or decrease the Coarse total.

• Check to make sure that a supported mode has been selected on the display card or system being used.

(Please consult display card or system manual to change graphics mode.)

No Video

• If no video is present on the screen, turn the Power button off and on again.

• Make certain the computer is not in a power-saving mode (touch the keyboard or mouse).

No tilt

• Rotate the screen to 90° clockwise until you hear one click.

• Refer to the Quick Start section, “Remove monitor stand for mounting” to insure correct installation of stand.

English-14

1-42

Appendix

If you need detailed information about the controls, please use the advanced menu.

<How to use the advanced menu>

• Turn off your monitor.

• Turn on your monitor by pushing the “POWER” and “SELECT” button at the same time for at least one second simultaneously.

• You will see the Advanced menu.

This menu is larger than the normal OSM.

<How to exit the advanced menu>

• Turn off and restart your monitor in the normal way.

To make an adjustment, ensure that the tag is highlighted, then press “SELECT”.

To move to another tag, press “EXIT”, then press “ ” or “ ” to highlight another tag.

Tag1

Tag2

Tag3

Brightness

Contrast

Auto Contrast

(Analog input only)

Auto Brightness

Adjusts the overall image and screen background brightness. Press “+” or “-” to adjust.

Adjusts the image brightness and contrast in relation to the background. Press “+” or “-” to adjust.

Adjusts the image displayed for non-standard video inputs. Press “SELECT” to adjust.

Any adjustment requires the image to have white portions.

This function adjusts the brightness automaticaly for the best CONTRAST and

BRIGHTNESS setting based on the white display area.

Adjusts the position of the red component of the image. Press “+” or “-” to adjust.

R-H.position

(Analog input only)

G-H.position

(Analog input only)

B-H.position

(Analog input only)

R-SHARPNESS

(Analog input only)

G-SHARPNESS

(Analog input only)

B-SHARPNESS

(Analog input only)

Adjusts the position of the green component of the image. Press “+” or “-” to adjust.

Adjusts the position of the blue component of the image. Press “+” or “-” to adjust.

Adjusts the sharpness of the red component of the image. Press “+” or “-” to adjust.

Adjusts the sharpness of the green component of the image. Press “+” or “-” to adjust.

Adjusts the sharpness of the blue component of the image. Press “+” or “-” to adjust.

Signal

(Analog input only)

Determines the automatic adjustment level activated when the system detects a change in the signal. The choices are “OFF”, “SIMPLE” and “FULL”. Press “+” or “-” to select.

Auto SW

(Analog input only)

Determines the automatic adjustment level for Auto Adjust performed on OSM.

The choices are “SIMPLE”, “FULL” and “DETAIL”. Press “+” or “-” to select.

Determines the automatic adjustment level. Any menu option provides an automatic adjustment more items than those provided by the options listed above it but requires a longer adjustment time.

OFF

SIMPLE

FULL

DETAIL

“Size” “Fine” “Position” Contrast “Detail Items (long cable capability)*

2

O* 1 X X

O

O

O

X

O

O

X

X

O

Time

1.5 seconds

1.5 seconds

2 seconds

10 to 20 seconds

*1: Automatically adjusts the monitor to optimal settings upon initial setup at 800 x 600 or higher resolution.

*2: Black level, Peaking, RGB sharpness, RGB delay and RGB position.

English-15

1-43

Tag4 Auto

(Analog input only)

H. Position

V. Position

H. Size

(Analog input only)

Automatically adjusts the Image Position and H. Size settings and Fine settings.

Press “SELECT” to activate Auto Adjustment.

Controls Horizontal Image Position within the display area of the LCD.

Press “+” or “-” to adjust.

Controls Vertical Image Position within the display area of the LCD.

Press “+” or “-” to adjust.

Adjusts the horizontal size of the screen.

Should the “AUTO Adjust function” do not give you a satisfactory picture setting, a further tuning can be performed using the “H.Size” function (dot clock). For this a Moiré test pattern could be used. This function may alter the width of the picture. Use left/Right Menu to center the image on the screen. If the H.Size is wrongly calibrated, the result would look like on the left drawing. The image should be homogeneous.

Fine

(Analog input only)

When H.SIZE value is wrong. When H.SIZE value is improved. When H.SIZE value is correct.

Improve focus, clarity and image stability by increasing or decreasing this setting.

Should the “Auto Adjust function” and the “H.Size” function do not give you a satisfactory picture setting, a fine tuning can be performed using the “Fine” function. It improves focus, clearity and image stability by increasing or decreasing this setting. For this a Moiré test pattern could be used. If the Fine value is wrongly calibrated, the result would look like on the left drawing. The image should be homogeneous.

Tag5

Tag6

Black Level

(Analog input only)

Color Control

When FINE value is wrong. When FINE value is correct.

Adjusts the black level. Press “+” or “-” to select.

MANUAL allows you to manually adjust the black level. Press “+” or “-” to adjust.

AUTO automatically adjusts the black level. Ensure that the image has 64 or more adjacent black dots before making an adjustment. Press “SELECT” to activate Auto Adjust.

Six colours for the desired colour setting (sRGB and NATIVE colour presets cannot be changed).

Colour temperature increases or decreases in each preset. Press “ ” or “ ” to select colour. Press “+” or “-” to adjust. Press “SELECT” to customize.

R,Y,G,C,B,M,S

Increases or decreases Red, Yellow, Green, Cyan, Blue, Magenta and Saturation depending upon which is selected. The change in colour will appear on screen and the direction (increase or decrease) will be shown by the colour bars. Press “+” or “-” to adjust.

NATIVE

Original colour presented by the LCD panel that is not adjustable.

English-16

1-44

Tag7 Sharpness

Expansion Mode

Video Detect

DVI Selection

Off Timer

Language

OSM Position

OSM Turn off

OSM Lock Out

This is a digital capability for keeping a crisp image at all signal timings. It continuously adjusts to maintain a distinct or soft image as you prefer, and is set independently according to different timings.

The number of adjustment steps is different depending on whether the mode is OFF,

FULL or ASPECT (1600 x 1200 is OFF Mode). Press “+” or “-” to adjust.

Sets the zoom method.

FULL: The image is expanded to 1600 x 1200, regardless of the resolution.

ASPECT: The image is expanded without changing the aspect ratio.

OFF: The image is not expanded.

CUSTOM (Digital input and Resolution of 1600 x 1200 only):

Select one of nine expansion rates. In this mode, the resolution may be low and there may be blank areas. This mode is for use with special video cards.

Press “SELECT” to move the select menu, and press “+” or “-” to select.

Selects the method of video detection when more than one computer is connected.

Press “+” or “-” to select.

FIRST DETECT: The video input has to be switched to “FIRST DETECT” mode. When current video input signal is not present, then the monitor searches for a video signal from the other video input port. If the video signal is present in the other port, then the monitor switches the video source input port to the new found video source automatically. The monitor will not look for other video signals while the current video source is present.

LAST DETECT: The video input has to be switched to the “LAST DETECT” mode. When the monitor is displaying a signal from the current source and a new secondary source is supplied to the monitor, then the monitor will automatically switch to the new video source.

When current video input signal is not present, then the monitor searches for a video signal from the other video input port. If the video signal is present in the other port, then the monitor switches the video source input port to the new found video source automatically.

NONE: The Monitor will not search the other video input port unless the monitor is turned on.

This function selects the DVI input mode (Input 1). When the DVI selection has been changed, you must restart your computer. Press “+” or “-” to select.

AUTO: By using the DVI-D to DVI-D cable, the DVI SECTION is DIGITAL.

By using the D-SUB to DVI-A cable, the DVI SECTION is ANALOG.

DIGITAL: DVI digital input is available.

ANALOG: DVI analog input is available.

Monitor will automatically turn off after the preset time period from power on with the

ON/OFF function. When you select “ON”, press “SELECT” and “+” or “-” to adjust.

OSM control menus are available in seven languages. Press “+” or “-” to select.

You can choose where you would like the OSM control image to appear on your screen.

Selecting OSM Location allows you to manually adjust the position of the OSM control menu left, right, down or up. Press “SELECT” to move the adjustment menu, and press

“+” or “-” to adjust.

The OSM control menu will stay on as long as it is in use. In the OSM Turn Off submenu, you can select how long the monitor waits after the last touch of a button to close the

OSM control menu. The preset choices are 10, 20, 30, 45, 60 and 120 seconds.

Press “+” or “-” to select.

This control completely locks out access to all OSM control functions. When attempting to activate OSM controls while in the Lock Out mode, a screen will appear indicating the

OSM controls are locked out. To activate the OSM Lock Out function, press SELECT, then + key and hold down simultaneously. To de-activate the OSM Lock Out, press

SELECT, then + key and hold down simultaneously. CONTRAST and BRIGHTNESS can be adjusted while in the lock out mode.

English-17

1-45

Tag8

Tag9

OSM Rotation

Resolution Notifier

Factory Preset

Video Band Width

(Analog input only)

Sync Threshold

(Analog input only)

SOG Correction

(Analog input only)

Display Mode

Monitor Info

To switch OSM between Landscape and Portrait modes. Press “+” or “-” to select.

The optimal resolution is 1600 x 1200. If ON is selected, a message will appear on the screen after 30 seconds, notifying you that the resolution is not set to 1600 x 1200.

Press “+” or “-” to select.

Selecting Factory Preset allows you to reset all OSM control settings (BRIGHTNESS,

CONTRAST, IMAGE CONTROLS, COLOR CONTROL SYSTEM, SHARPNESS,

EXPANSION MODE, OFF TIMER, OSM POSITION, OSM TURN OFF, DISPLAY

MODE)back to the factory settings. Highlighting the control to be reset and pressing the

RESET button can reset individual settings.

Press “SELECT” to reset.

It is used when the unnecessary noise from computer appears on a screen. It is strong ineffective, so that a number becomes small. Press “+” or “-” to select.

Adjusts the slice level of a synchronization signal. Press “SELECT” to move the adjustment menu.

SEP./COMP.: Adjusts the sensitivity of the separate or composite input signals.

Try this option if the FINE adjustment does not successfully eliminate the noise.

Sync On Green: Adjusts the sensitivity of the Sync On Green input signals.

Adjusts the slice level when separating a synchronization from sync On Green signal input.

Press “+” or “-” to select.

Shapes the waveform of the Sync On Green signals. Try this option if the FINE adjustment does not eliminate the noise produced after the signal cable has been extended. Press “SELECT” to move adjustment menu.

OFF

The inputted synchronization signal is used as it is.

AUTO

Shapes the waveform according to the input waveform automatically. The signal which has not deteriorated is used as it is.

ON

Corrects the waveform irrespective of the input waveform.

Provides information about the current display resolution and technical data, including the preset timing currently being used and the horizontal and vertical frequencies. Increases or decreases the current resolution. Press “SELECT” to move the adjustment mode, and press “+” or “-” to adjust.

Indicates the model and serial numbers of your monitor.

English-18

1-46

TCO’95

Black Model

Congratulations! You have just purchased a TCO’95 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also, to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing. Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (Internal) and natural (external) environments.

Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy.

Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously.

What does labelling involve?

This product meets the requirements for the TCO’95 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of

Professional Employees), Naturskyddsforeningen (The Swedish

Society for Nature Conservation) and NUTEK (The National Board for Industrial and Technical Development in Sweden).

The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

TCO’95 is a co-operative project between TCO (The Swedish

Confederation of Professional Employees),

Naturskyddsforeningen (The Swedish Society for Nature

Conservation) and NUTEK (The National Board for Industrial and

Technical Development in Sweden).

Environmental Requirements

Brominated flame retardants

Brominated flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. These are related to another group of environmental toxins, PCBs, which are suspected to give rise to similar harm, including reproductive damage in fisheating birds and mammals, due to the bio-accumulative* processes.

Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

TCO’95 demand requires that plastic components weighing more than 25 grams must not contain organically bound chlorine and bromine.

Lead**

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning.

TCO’95 requirement permits the inclusion of lead since no replacement has yet been developed.

Cadmium**

Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses.

TCO’95 requirement states that batteries may not contain more than 25 ppm (parts per million) of cadmium. The colourgenerating layers of display screens must not contain any cadmium.

Mercury**

Mercury is sometimes found in batteries, relays, switches, and back-light systems, Mercury damages the nervous system and is toxic in high doses.

TCO’95 requirement states that batteries may not contain more than 25 ppm (parts per million) of mercury. It also demands that no mercury is present in any of the electrical or electronics components concerned with the display unit, except the back-light system.

CFCs (freons)

CFCs (freons) are sometimes used for washing printed circuit boards and in the manufacturing of expanded foam for packaging.

CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer

(malignant melanoma).

The relevant TCO’95 requirement; Neither CFCs nor HCFCs may be used during the manufacturing of the product or its packaging.

*Bio-accumulative is defined as substances which accumulate within living organisms.

**Lead, Cadmium and Mercury are heavy metals which are

Bio-accumulative.

To obtain complete information on the environmental criteria document, order from:

TCO Development Unit

SE-114 94 Stockholm

SWEDEN

FAX Number: +46 8 782 92 07

E-mail (Internet): [email protected]

You may also obtain current information on TCO’95 approved and labelled products by visiting their website at: http://www.tcodevelopment.com

English-19

1-47

TCO’99

White Model

Congratulations! You have just purchased a

TCO’99 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing. Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (Internal) and natural (external) environments. Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy.

Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously.

What does labelling involve?

This product meets the requirements for the TCO’99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional

Employees), Svenska Naturskyddsforeningen (The Swedish

Society for Nature Conservation) and Statens Energimyndighet

(The Swedish National Energy Administration).

The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Environmental Requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire.

Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride and these are related to another group of environmental toxins, PCBs, which are suspected to give rise to severe health effects, including reproductive damage in fisheating birds and mammals, due to the bioaccumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

TCO’99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound chlorine and bromine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Lead**

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning.

TCO’99 requirement permits the inclusion of lead since no replacement has yet been developed.

Cadmium**

Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses.

TCO’99 requirement states that batteries, the colourgenerating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury**

Mercury is sometimes found in batteries, relays and switches,

Mercury damages the nervous system and is toxic in high doses.

TCO’99 requirement states that batteries may not contain any

Mercury. It also demands that no mercury is present in any of the electrical or electronics components associated with the display unit.

CFCs (freons)

CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer

(malignant melanoma).

The relevant TCO’99 requirement; Neither CFCs nor HCFCs may be used during the manufacturing and assembly of the product or its packaging.

*Bio-accumulative is defined as substances which accumulate within living organisms.

**Lead, Cadmium and Mercury are heavy metals which are

Bio-accumulative.

To obtain complete information on the environmental criteria document, order from:

TCO Development Unit

SE-114 94 Stockholm

SWEDEN

FAX Number: +46 8 782 92 07

E-mail (Internet): [email protected]

You may also obtain current information on TCO’99 approved and labelled products by visiting their website at: http://www.tcodevelopment.com

English-20

1-48

Serial Number Information

Refer to the serial number information shown below.

EX.) SERIAL NUMBER LABEL

Model Name : LCD2080UX

LCD2080UX-BK

SERIAL NO. : g g g g g g g g g g

Manufactured Year :

( Last digit )

Manufactured Month :

January to September 1 to 9

October X

November Y

December Z

Classification code :

Discriminate by cabinet color

0: A ver. White cabinet

1: A ver. Black cabinet

2: B ver. White cabinet

3: B ver. Black cabinet

Running number :

Notes : This running number doesn’t reset at each month.

(Example)

Jan. : 00001, 00002, 00003, ….., 01234,

Feb. : 01235, 01236, 01237, ….., 99999, 00001,

Mar. : 00002, 00003, 00004, …..

Factory Code:

NMV Nagasaki factory: E

NPG China factory : Y

Control Code:

For A ver. (U.S.A.) : A

For B ver. (Europe and Asia and Pacific) : B

2-1

2

3

DISASSEMBLY

g Before you disassemble the set, turn off power and pull out the power plug. g Use the proper screwdriver. If oversize or undersize screwdriver is used, screws may be damaged. g Assembly is the opposite process of disassembly.

Manufactured by NMV

SYMBOL CODE DESCRIPTION COLOR

White

Black

---

1

3

3-1

SYMBOL CODE DESCRIPTION COLOR

White

Black

BACK Black

4

Torque=8~10kg

SYMBOL CODE

5

⋅f⋅cm

DESCRIPTION COLOR

---

---

---

6

7

8

3-2

SYMBOL CODE DESCRIPTION

13 8BEV1M01 ASSY-PWB-MAIN

CN101

CN2A1

9

CN551

SYMBOL CODE

10

11

CN261

13

12

DESCRIPTION

16 8BEV1P01 ASSY-PWB-POWER

COLOR

---

---

---

---

---

COLOR

---

---

---

16

14

15

3-3

SYMBOL CODE DESCRIPTION

SYMBOL CODE

18

DESCRIPTION

7A392037 CABLE BUTTON BLK

COLOR

White

Black

17

COLOR

White

Black

18

3-4

SYMBOL CODE DESCRIPTION COLOR

---

---

---

20

19

20

SYMBOL CODE

22

DESCRIPTION

7A930026 SKD LCD2080UX INVERTER

21

24

25

26

CN1

CN5

CN3

CN4

7A389053 WIRE CB13P 1007#26L70

7A389052 WIRE CC30P 1516#30L250

3A684034 LCD LM201U03 LGPHILIPS

CN2

23

22

24

25

26

COLOR

---

---

---

---

---

3-5

Cautions for the Installation of the Stand Unit.

Carry out the counterclockwise rotation of the rotation direction when attaching a stand unit.

Cautions for the Installation of the Shield Case.

A shield case sticks a tape on the portion in contact with a FPC cable.

3-6

Cautions about the Assembly of the LVDS Cable.

A tape is stuck on the core of a LVDS cable.

The wiring method of a LVDS cable.

As shown in a figure, a cable is bent, and a cable is fixed with a clamper.

Clamper

120mm

TAPE

Ferrite core LVDS connector

3-7

Manufactured by NPG

SYMBOL Part No for NPG Part No for NMV DESCRIPTION COLOR

STAND Black

3 --- --- ---

2

3

1

3

3-8

SYMBOL Part No for NPG Part No for NMV DESCRIPTION

4 --- ---

4 --- ---

COLOR

White

Black

4

Torque=8~10kg

⋅f⋅cm

5

Screw hole addition

SYMBOL Part No for NPG Part No for NMV DESCRIPTION

6 --- --- 3X6

7 --- ---

8 --- --- B,L202EV

6

Screw hole addition

7

8

COLOR

---

---

---

3-9

SYMBOL Part No for NPG Part No for NMV DESCRIPTION

9 --- ---

10 --- --- 3X6

11 --- ---

12 --- ---

CN101

CN2A1

9

CN551

10

11

CN261

13

12

SYMBOL Part No for NPG Part No for NMV DESCRIPTION

14 --- --- 3X6

15 --- --- M4X8

POWER ASSY

COLOR

---

---

---

---

---

COLOR

---

---

---

16

14

15

3-10

SYMBOL Part No for NPG Part No for NMV DESCRIPTION

SYMBOL Part No for NPG Part No for NMV

18 JM100121 79PQ6285

17

DESCRIPTION

CABLE BUTTON BLK

COLOR

White

Black

COLOR

White

Black

18

3-11

SYMBOL Part No for NPG Part No for NMV DESCRIPTION

19 --- --- 3X6

20 --- ---

20

19

SYMBOL Part No for NPG Part No for NMV

20

21

DESCRIPTION

CN1

CN5

CN3

23 --- ---

24

25

RC200361

RC200351

79PQ6289

79PQ6288

WIRE CB13P 1007#26L70

WIRE CC30P 1516#30L250

26

3A684034

(For NMV Part)

3A684034 LCD LM201U03 LGPHILIPS

CN4

CN2

23

22

24

25

26

COLOR

---

---

COLOR

---

---

---

---

---

3-12

Cautions for the Installation of the Stand Unit.

Carry out the counterclockwise rotation of the rotation direction when attaching a stand unit.

Cautions for the Installation of the Shield Case.

A shield case sticks a tape on the portion in contact with a FPC cable.

3-13

Cautions about the Assembly of the LVDS Cable.

A tape is stuck on the core of a LVDS cable.

The wiring method of a LVDS cable.

As shown in a figure, a cable is bent, and a cable is fixed with a clamper.

120mm

TAPE

Ferrite core LVDS connector

Clamper

3-14

ADJUSTMENT PROCEDURES

TABLE OF CONTENTS

Page

1. Application ................................................................................................................... 4-2

2. Basic Operation .......................................................................................................... 4-2

2.1 General Conditions ................................................................................................... 4-2

2.2 Basic Operation ........................................................................................................ 4-2

2.2.1 Aging ...................................................................................................................... 4-2

2.2.2 Video Input Change ............................................................................................... 4-2

2.2.3 Service Mode/ Factory Mode ................................................................................. 4-3

3. Unit Adjustments ......................................................................................................... 4-3

3.1 Measurement Instruments ........................................................................................ 4-3

3.2 Power Source Voltage .............................................................................................. 4-3

3.3 Initial Power On ......................................................................................................... 4-4

3.4 Input Signals ............................................................................................................. 4-4

3.5 POWER ON and Signal Input ................................................................................... 4-4

3.6 Manual Adjustments ................................................................................................. 4-5

3.6.1 Input Video Signal .................................................................................................. 4-5

3.6.2 VIDEO Gain Adjustments ...................................................................................... 4-6

3.7 Main Adjustment ....................................................................................................... 4-7

3.7.1 Initial Data Program Writing ................................................................................... 4-7

3.7.2 Connection Method ................................................................................................ 4-7

3.7.3 Data Writing Procedures ........................................................................................ 4-8

3.7.4 sRGB Adjustment Procedures ............................................................................... 4-10

4-1

1. Application

This specification should be applied to the adjustment of the LCD2080UX unit.

2. Basic Operation

2.1 General Conditions

Unless otherwise specified, adjustments should be carried out under the following conditions:

1) Power source voltage: AC 100 - 240V

± 5%, 50/60Hz

2) Equipment to be used: Equipment that can generate an output of the adjusted VG-819/VG-812 unit or equivalent

3) Connections: Connections are made to the DVI connector (INPUT1) and the D-SUB connector (INPUT2) of the unit under inspection by means of the connector that can carry each output of the VG-819. The

VIDEO input of the unit being inspected should be changed through INPUT 1/2 according to the instructions given in each item.

2.2 Basic Operation

2.2.1 Aging

Prior to the adjustment of this model, 30 minutes of aging should be carried out. The method of aging mode setting should conform to the following:

1) Turn the POWER switch on while there are no inputs of the VIDEO and SYNC signals.

2) Confirm that the information OSM is displayed.

(Press the

3LEFT and 4RIGHT or (+)UP and (-)DOWN key to display the information OSM.)

3) Then, Press the (+)UP and (-)DOWN keys simultaneously with the RESET key kept pressed. Then the mode moves to the aging mode.

4) If there is no particular operation, an all white screen (16/16 gradation) is displayed.

5) Operate the (+)UP and (-)DOWN keys in this state. Then, operation for the gradation becomes possible.

It is also possible to change the pattern by operating the

3LEFT and 4RIGHT keys.

6) When withdrawing from the aging mode, press the EXIT key or turn off the POWER switch.

During operation in the aging mode, the power save mode is not assumed. The LED maintains the green display.

2.2.2 Video Input Change

Irrespective of the presence of a signal input, the video input change is possible in the toggle mode by pressing the INPUT 1/2 key while the OSM display is not presented. When examining the input port after the accomplishment of input change, such a confirmation can be made according to the OSM display that is given shortly after the input change.

4-2

2.2.3 Service Mode / Factory Mode

At the time of adjustment of this model, a suggestion may be given to enter the service (factory) mode. This will be explained below.

(1) Service mode:

1) In the “display mode” menu, press the

3LEFT and 4RIGHT keys at the same time while pressing the

RESET key.

2) When the SELECT key is pressed under the condition that the WARNING screen is displayed, the mode moves to the SERVICE mode. At that time, the LED is green. The OSM frame remains yellow.

The OSM AUTO-OFF function is disabled.

3) When withdrawing from the SERVICE mode, press the EXIT key in the highest hierarchy of the

SERVICE menu, or make a signal change, or take an action of POWER OFF.

(2) Factory mode:

1) In the same manner as that for the SERVICE mode, obtain an OSM display of [display mode].

2) Press the RESET key and the (+)UP and (-)DOWN keys at the same time.

3) When the SELECT key is pressed under the condition that the WARNING screen is displayed, the mode moves to the FACTORY mode. At that time, the LED is yellow. The OSM frame remains to be red. The OSM AUTO-OFF function is disabled.

4) When withdrawing from the FACTORY mode, press the EXIT key once in the highest hierarchy of the

SERVICE menu. When the WARNING screen is displayed, press the EXIT key twice further.

Note: Even though the EXIT key is pressed once in the highest hierarchy of the SERVICE menu, or a signal change is made, or an action of POWER OFF is taken, it is impossible to withdraw from the factory mode. In this case, the menu is just treated for no display.

(3) Service menu:

This is an OSM menu to be displayed when the mode is changed over to the SERVICE mode or the

FACTORY mode. The conditions differ in each mode, in regard to the frame color, entering and withdrawal, and whether the data are recorded in the EEPROM. Items of the service menu are used in common.

3. Unit Adjustments

3.1 Measurement Instruments to be Used

The measuring instruments considered necessary for the adjustment of the LCD2080UX unit are specified below.

1) Equipment that can generate an output of the adjusted VG-819 unit or equivalent

3.2 Power Source Voltage

100 - 240V

± 5%, 50/60Hz

4-3

3.3 Initial Power On

1) Make connections according to the mode intended for VG-819 cable setting.

2) Turn on the POWER switch of the VG-819 unit.

3) Connect an AC power cable to the unit under inspection.

4) Confirm that the vacation switch (seesaw switch) at the right side of the unit being inspected has been moved to the “I” side, and turn the POWER switch ON at the right side of the front.

5) The LED of the unit under inspection is amber. (In the middle of signal discrimination)

6) After the completion of signal discrimination, the LED is green.

3.4 Input Signals

Refer to Paragraph 3.6.1 for each adjustment item.

3.5 POWER ON and Signal Input

1) Turn on the vacation switch located on the side of the main unit (the power supply for the signal generator turned off) and turn on the power circuit by pressing the POWER key on the front panel.

Confirm in this case that the LED is amber.

When the maintenance PWB is exchanged and the power supply is turned on for the first time:

• Since the initialization is carried out, the power supply must not be turned off for about 10 seconds.

2) Using the INPUT 1/2 key, apply an input to the specified port.

Each time the INPUT 1/2 key is pressed, the INPUT 1/2 is reciprocally exchanged. It is then possible to check the input port that has been selected with the OSM displayed when this switch is pressed.

3) Turn on the power supply of the signal generator and enter an input of Signal 1. Confirm that the LED is turned from amber to green.

* If this LED is not green at that time, it is regarded as a defective LED.

4) Prior to adjustments, execute the factory reset procedure without fail. The method of this action is described below. a) Display the SERVICE menu and adjust the cursor to the item of SERVICE PRESET in Tab2. b) Press the (+)UP and (-)DOWN keys to execute the factory reset procedure.

4-4

3.6 Manual Adjustments

3.6.1 Input Video Signal

VG-819 setting values

MODE

TOTAL

DISP

SYNC PULSE

BACK

HDstrat

Hdwidth

[DOT]

[DOT]

[DOT]

[DOT]

[DOT]

[DOT]

V INTERLACE

TOTAL [H]

DISP

SYNC PULSE

[H]

[H]

BACK PORCH

EQPfp

EQPbp

SERRATION

[H]

[H]

[H]

[H]

EDP

VDs

VBf

[H]

[H]

[H]

OUTPUT OUTPUT MODE

NRZ/RZ

CV

HS

VS

CS

HD

VD

RGB

HT

C

VIDEO

Set-up

Sync

Display setting

Signal 1

162.000

2160

1600

192

304

0

0

Signal 2

25.18

800

640

96

48

0

0

NON

1250

1200

3

46

0

0

OFF

OFF

0

0

NON

525

480

2

33

0

0

OFF

OFF

0

0

ANALOG

NRZ

POS

POS

NEG

POS

POS

ANALOG

NRZ

NEG

NEG

NEG

NEG

NEG

POS

POS

POS

0.70

POS

POS

POS

0.70

OFF

0.3

OFF

0.3

Gray scale + External frame

(16 gradations)

0 ~ 100%

Signal 3

108.000

1688

1280

112

248

0

0

NON

1066

1024

3

28

0

0

OFF

OFF

0

0

ANALOG

NRZ

POS

POS

NEG

POS

POS

POS

POS

POS

0.70

OFF

0.3

Solid all white

4-5

3.6.2 VIDEO Gain Adjustments

Use the signal source for which the analog output (R/G/B) has been adjusted to 0.7V.

* Do both of INPUT 1/2 respectively because it becomes adjustment on the input side.

* Both are to do INPUT1(DVI Analog) and INPUT2(D-SUB).

1) Enter a signal input of UXGA (Signal 1 in the Input Video Signal Table) from INPUT1 (INPUT2).

2) Assume the FACTORY mode in the procedures of Paragraph 2.2.3 and display the SERVICE menu.

3) Press the RIGHT key twice and advance to the tab [3].

4) Adjust the display pattern to Gray Scale (0 to 100%: in 16 gradations) + Outer Frame.

* Remove SYNC because it doesn't become normal value when SYNC-ON-GREEN is being input.

(VG-819 : G is removed from CV of FUNC

→ OUTPUT.)

(VG-827 : The S/G signal is turned off.)

5) A SELECT key is press, and adjust the cursor to [AUTO CONTRAST]. Make adjustments by pressing the

(+)UP and (-)DOWN keys.

6) It fails in the adjustment when either value of R, G, B is less than 50. A signal and a signal cable are checked and it adjusts again.

7) When adjustments are over and the original screen has been recovered, confirm that all the 16 gradations of black to white are displayed.

8) Press the EXIT key and withdraw from the SERVICE mode.

9) INPUT2(D-SUB) does it from 2) to 7), too.

4-6

3.7 Main Adjustment

3.7.1 Initial Data Writing by Program

The initial data of brightness (hue data), color temperature (white balance), and

γ data (sRGB, TEXT,

VIDEO) are written by DDC-2Bi communications.

3.7.2 Connection Method

(1) Configuration

The unit configuration of this system and the method of connection are shown below.

Note: The PC type should be determined in consideration of a DOS/V compatible machine (IBM PC/AT compatible machine).

sRGB data writing Soft ware

Part No. 599910550

DC +5V

DESKTOP/NOTE

PC

Signal Generator

Printer cable

(jig)

Video signal cable

CN5

CN3

INPUT2

CN7

CN6

CN4

Video signal cable

DDC communication

I/F BOAD

Part No.599910541

monitor

(2) Input signal

Horizontal sync frequency: Not specified.

Vertical sync frequency: Not specified.

(3) Program required sRGB data writing software (Part No. 599910550)

4-7

3.7.3 Data Writing Procedures

a. Connect a signal cable to INPUT2 of the unit in which the data are being written. b. Set the data writing unit in the factory mode. (Refer to 2.2.3 Service mode/ factory mode) c. Copy all the files of the sRGB data writing software in a floppy diskette. d. Insert this floppy diskette and start the personal computer. Then, the following screen is displayed:

SRGB data writing Soft ware LCD2080UX: LCD2080UX sRGB DATA

SRGB FILE: sRGB_03.TXT(2003/02/13 17:53)

**************************************************

* *

* Data is written in.

*

*

*

* Please push Enter key

*

*

*

**************************************************

f1 f2 f3 f4 f5 f6 f7 f8 f9 f10

G.sRGB G.TEXT G.VIDEO sRGB C VIDEO C W/B Col SEL MENU Key lock Model e. Operation key allotment

F1: sRGB-GAMMA writing ON/OFF

F2: TEXT-GAMMA writing ON/OFF

F3: VIDEO-GAMMA writing ON/OFF

F4: sRGB-Color writing ON/OFF

F5: VIDEO-Color writing ON/OFF

F6: White-Balance writing ON/OFF

F7: 5000K to 9600K, NATIVE change

F8: Monitor data, EEPROM Data ALL SAVE, EEPROM Data ALL Write, EEPROM Data EDIT

F9: F1 to F6 key operation lock

F10: Model selection

ESC: Return or End

Enter key: Fixed value writing for brightness (hue data), color temperature (white balance), and

γ data

(sRGB, TEXT, VIDEO)

In these procedures, only the Enter key is to be operated.

4-8

f. When the Enter key is pressed, the message in the center of the screen is turned into [Under the writing of data …], and data writing is carried out.

SRGB data writing Soft ware

LCD2080UX: LCD2080UX sRGB DATA

SRGB FILE: sRGB_03.TXT(2003/02/13 17:53)

**************************************************

* *

*

* Under the writing of data ...

*

*

*

*

*

*

**************************************************

f1 f2 f3 f4 f5 f6 f7 f8 f9 f10

G.sRGB G.TEXT G.VIDEO sRGB C VIDEO C W/B Col SEL MENU Key lock Model g. When the data have been written normally, the message in the center of the screen is turned into [It ended normally. Some keys are pushed.]. If any key is pressed, the initial screen is recovered. Data writing has been finished at this stage.

SRGB data writing Soft ware

LCD2080UX: LCD2080UX sRGB DATA

SRGB FILE: sRGB_03.TXT(2003/02/13 17:53)

**************************************************

* *

* It ended normally.

*

*

*

* Some key are pushed.

*

*

*

**************************************************

f1 f2 f3 f4 f5 f6 f7 f8 f9 f10

G.sRGB G.TEXT G.VIDEO sRGB C VIDEO C W/B Col SEL MENU Key lock Model

4-9

3.7.4 sRGB Adjustment Procedures

The adjustment procedures shown below should be applied only if an accurate adjustment of sRGB is called for.

There is no problem in actual use of equipment so long as the items 3.7.1 to 3.7.3 described above

are usually executed. a. EEPROM (IC803) initialization

1) When a PWB is replaced with a maintenance PWB, the items 3.7.1 to 3.7.3 described above are executed.

2) When the EEPROM (IC803) is replaced, the items 3.7.1 to 3.7.3 described above are executed.

3) In the service menu of “tab F,” confirm that each EEPROM address is given by a value specified in

Table 1.

If any discrepancy is discovered, correct the address values. (In regard to the method of adjustment, refer to Item 3, Service menu in Chapter 5, Circuit Descriptions.)

Caution: The adjustment signal should be used at a definition of 1600 x 1200, 60Hz. b. White balance data initialization

1) In the service menu of “tab F,” confirm that each EEPROM address is given by a value specified in

Table 2.

If any discrepancy is discovered, correct the address values. (In regard to the method of adjustment, refer to Item 3, Service menu in Chapter 5, Circuit Descriptions.) c. sRGB 51 parameter setting

1) In the service mode of “sRGB,” confirm that each table is given as specified in Table 3.

If any discrepancy is discovered, correct the table values. (In regard to the method of adjustment, refer to Item 3, Service menu in Chapter 5, Circuit Descriptions.) d. White balance manual adjustment

1) Enter signals (all white, UXGA, 60Hz, 0.7Vpp) and execute [tab 3]

→ [AUTO CONTRAST] of the service menu.

2) Select [RGB (AccuColor Control Systems)] of the service menu.

3) Select 1 (9300K).

4) Set the display of color temperature at 5000K with the use of the (+) or (-) keys.

5) Using the color analyzer CA110 (or equivalent), measure the color temperature. Confirm that the color temperature is set at the xy value of 5000K as specified in Table 4.

6) Using the (+) or (-) keys, set the display of the color temperature at 5000K, 6500K, 7500K, 8500K, and

9600K, and confirm that each color temperature is set at the xy value as specified in Table 4.

7) If each xy value is found deviating from the value specified in Table 4, set the correct value again by rewriting the white balance data of the EEPROM. The data modified with [tab F] of the service menu can be reflected by the action of unit power supply OFF

→ ON.

Cautions: 1) About 30 minutes of heat run is required when measuring the values with a color analyzer.

2) During measurements, the panel surface should not be exposed to external light so long as circumstances permit.

3) Some color analyzers are designed to permit the direct readout of color temperatures.

However, these devices are often incapable of displaying deviations from the black body locus (mpcd). Checks and adjustments are required on the basis of the x-y coordinates.

4) The default values of the user menu are 8200K and 9300K. For the checks and adjustments, however, this setting should be made at 8500K and 9600K.

4-10

[Example of white balance adjustment]

Adjust BLUE so that the y value is met. If it is necessary to increase BLUE larger than 255, lower

RED and GREEN at the same time until the y value is met. When the y value is met, adjust RED. If it is necessary to increase RED larger than 255, lower BLUE and GREEN at the same time until the x value is met. If any value of RGB does not attain 255 even when both values of x and y have attained the same goal setting values, increase RGB by the same figure and adjust x and y again until any one amounts to 255.

G y

Goal value

R x

Present coordinates

(Example: Color coordinates diagram) e. sRGB GAMMA adjustment

GAMMA adjustments can be effected by modifying the data of the LUT (Look Up Table) on the EEPROM.

1) Enter signals (all white, UXGA, 60Hz, 0.7Vpp) and execute [tab 2]

→ [AUTO CONTRAST] of the service menu.

2) Set 0.7Vpp at 100% (255 gradations). Make up the respective RGB values for the monochromatic patterns of the respective gradations specified in Table 5. When this job is conducted by the use of a personal computer, confirm that a 24-bit display system is being used.

3) For each RGB, use a color analyzer and measure the monochromatic brightness of the respective gradations specified in Table 5.

4) Enter the measured values in the sRGB Gamma Calculator Software (Part No. 599910551) and execute the instructions (by pressing the EXECUTE button). Then, the data are entered in the

EEPROM and the GAMMA data are established.

4-11

Enter the values of Table 6.

Movement from a box to another can be done also with the TAB key.

Press the Execute button upon completion of RGB 27-point entry.

EEPROM address

EEPROM DATA

It is converted for the

Hexadecimal system, and decimal is entered by the

EEPROM editor.

5) Successively enter the data according to the addresses of the EEPROM established by the use of the sRGB Gamma Calculator Software. An input is performed by edit of EEPROM of service menu

→ [tab

F]

6) Make power OFF

→ ON of the unit, and confirm whether the color is free from abnormality and examine if any dot-state noise is generated.

Cautions: 1) The adjustment signal should be used at a definition of 1600 x 1200, 60Hz.

2) About 30 minutes of heat run is required when measuring the values with a color analyzer.

3) During measurements, the panel surface should not be exposed to external light so long as circumstances permit.

4-12

Table 1 (Address: Hexadecimal system) (1/3)

EEPROM

Address

DATA

Fun ction

7B0 000 R

γ

EEPROM

Address

DATA

Fun ction

7F0 040 R

γ

EEPROM

Address

DATA

Fun ction

830 080 R

γ

EEPROM

Address

DATA

Fun ction

870 0C0 R

γ

7F1 041 | 871 0C1 |

7F2 042 | 872 0C2 |

7F3 043 | 873 0C3 |

7F4 044 | 874 0C4 |

7F5 045 | 875 0C5 |

7F6 046 | 876 0C6 |

7F7 047 | 877 0C7 |

7F8 048 | 878 0C8 |

7F9 049 | 879 0C9 |

7FA 04A | 87A 0CA |

7FB 04B | 87B 0CB |

7FC 04C | 87C 0CC |

7FD 04D | 87D 0CD |

7FE 04E | 87E 0CE |

7FF 04F | 87F 0CF |

800 050 | 880 0D0 |

801 051 | 881 0D1 |

802 052 | 882 0D2 |

803 053 | 883 0D3 |

804 054 | 884 0D4 |

805 055 | 885 0D5 |

806 056 | 886 0D6 |

807 057 | 887 0D7 |

808 058 | 888 0D8 |

809 059 | 889 0D9 |

80A 05A | 88A 0DA |

80B 05B | 88B 0DB |

7CC 01C | 80C 05C | 84C 09C |

7CD 01D | 80D 05D | 84D 09D |

80E 05E | 88E 0DE |

80F 05F | 88F 0DF |

810 060 | 890 0E0 |

811 061 | 891 0E1 |

812 062 | 892 0E2 |

813 063 | 893 0E3 |

814 064 | 894 0E4 |

815 065 | 895 0E5 |

816 066 | 896 0E6 |

817 067 | 897 0E7 |

818 068 | 898 0E8 |

819 069 | 899 0E9 |

81A 06A | 89A 0EA |

81B 06B | 89B 0EB |

7DC 02C | 81C 06C | 85C 0AC |

7DD 02D | 81D 06D | 85D 0AD |

81E 06E | 89E 0EE |

81F 06F | 89F 0EF |

7EF 03F R

γ

82F 07F R

γ

86F 0BF R

γ

8AF 0FF R

γ

4-13

Table 1 (Address: Hexadecimal system) (2/3)

EEPROM

Address

DATA

Fun ction

8B0 000 G

γ

EEPROM

Address

DATA

Fun ction

8F0 040 G

γ

EEPROM

Address

DATA

Fun ction

930 080 G

γ

EEPROM

Address

DATA

Fun ction

970 0C0 G

γ

8F1 041 | 971 0C1 |

8F2 042 | 972 0C2 |

8F3 043 | 973 0C3 |

8F4 044 | 974 0C4 |

8F5 045 | 975 0C5 |

8F6 046 | 976 0C6 |

8F7 047 | 977 0C7 |

8F8 048 | 978 0C8 |

8F9 049 | 979 0C9 |

8FA 04A | 97A 0CA |

8FB 04B | 97B 0CB |

8FC 04C | 97C 0CC |

8FD 04D | 97D 0CD |

8FE 04E | 97E 0CE |

8FF 04F | 97F 0CF |

900 050 | 980 0D0 |

901 051 | 981 0D1 |

902 052 | 982 0D2 |

903 053 | 983 0D3 |

904 054 | 984 0D4 |

905 055 | 985 0D5 |

906 056 | 986 0D6 |

907 057 | 987 0D7 |

908 058 | 988 0D8 |

909 059 | 989 0D9 |

90A 05A | 98A 0DA |

90B 05B | 98B 0DB |

8CC 01C | 90C 05C | 94C 09C |

8CD 01D | 90D 05D | 94D 09D |

90E 05E | 98E 0DE |

90F 05F | 98F 0DF |

910 060 | 990 0E0 |

911 061 | 991 0E1 |

912 062 | 992 0E2 |

913 063 | 993 0E3 |

914 064 | 994 0E4 |

915 065 | 995 0E5 |

916 066 | 996 0E6 |

917 067 | 997 0E7 |

918 068 | 998 0E8 |

919 069 | 999 0E9 |

91A 06A | 99A 0EA |

91B 06B | 99B 0EB |

8DC 02C | 91C 06C | 95C 0AC |

8DD 02D | 91D 06D | 95D 0AD |

91E 06E | 99E 0EE |

91F 06F | 99F 0EF |

8EF 03F G

γ

92F 07F G

γ

96F 0BF G

γ

9AF 0FF G

γ

4-14

Table 1 (Address: Hexadecimal system) (3/3)

EEPROM

Address

DATA

Fun ction

9B0 000 B

γ

EEPROM

Address

DATA

Fun ction

9F0 040 B

γ

EEPROM

Address

DATA

Fun ction

A30 080 B

γ

EEPROM

Address

DATA

Fun ction

A70 0C0 B

γ

9F1 041 | A71 0C1 |

9F2 042 | A72 0C2 |

9F3 043 | A73 0C3 |

9F4 044 | A74 0C4 |

9F5 045 | A75 0C5 |

9F6 046 | A76 0C6 |

9F7 047 | A77 0C7 |

9F8 048 | A78 0C8 |

9F9 049 | A79 0C9 |

9FA 04A | A7A 0CA |

9FB 04B | A7B 0CB |

9FC 04C | A7C 0CC |

9FD 04D | A7D 0CD |

9FE 04E | A7E 0CE |

9FF 04F | A7F 0CF |

A00 050 | A80 0D0 |

A01 051 | A81 0D1 |

A02 052 | A82 0D2 |

A03 053 | A83 0D3 |

A04 054 | A84 0D4 |

A05 055 | A85 0D5 |

A06 056 | A86 0D6 |

A07 057 | A87 0D7 |

A08 058 | A88 0D8 |

A09 059 | A89 0D9 |

A0A 05A | A8A 0DA |

A0B 05B | A8B 0DB |

9CC 01C | A0C 05C | A4C 09C |

9CD 01D | A0D 05D | A4D 09D |

A0E 05E | A8E 0DE |

A0F 05F | A8F 0DF |

A10 060 | A90 0E0 |

A11 061 | A91 0E1 |

A12 062 | A92 0E2 |

A13 063 | A93 0E3 |

A14 064 | A94 0E4 |

A15 065 | A95 0E5 |

A16 066 | A96 0E6 |

A17 067 | A97 0E7 |

A18 068 | A98 0E8 |

A19 069 | A99 0E9 |

A1A 06A | A9A 0EA |

A1B 06B | A9B 0EB |

9DC 02C | A1C 06C | A5C 0AC |

9DD 02D | A1D 06D | A5D 0AD |

A1E 06E | A9E 0EE |

A1F 06F | A9F 0EF |

9EF 03F B

γ

A2F 07F B

γ

A6F 0BF B

γ

AAF 0FF B

γ

4-15

Table 1 (Decimal version) (1/3)

EEPROM

Address

DATA

1968 0

1969 1

1970 2

1971 3

1972 4

1973 5

Fun ction

R

γ

EEPROM

Address

DATA

Fun ction

2032 64

R

γ

EEPROM

Address

DATA

Fun ction

2096 128

R

γ

EEPROM

Address

DATA

Fun ction

2160 192 R

γ

| 2033 65 | 2097 129 | 2161 193 |

| 2034 66 | 2098 130 | 2162 194 |

| 2035 67 | 2099 131 | 2163 195 |

| 2036 68 | 2100 132 | 2164 196 |

| 2037 69 | 2101 133 | 2165 197 |

1974 6

1975 7

1976 8

1977 9

| 2038 70

| 2039 71

| 2040 72

| 2041 73

| 2102 134

| 2103 135

| 2104 136

| 2105 137

| 2166 198 |

| 2167 199 |

| 2168 200 |

| 2169 201 |

1978 10 | 2042 74 | 2106 138 | 2170 202 |

1979 11 | 2043 75 | 2107 139 | 2171 203 |

1980 12 | 2044 76 | 2108 140 | 2172 204 |

1981 13 | 2045 77 | 2109 141 | 2173 205 |

1982 14 | 2046 78 | 2110 142 | 2174 206 |

1983 15 | 2047 79 | 2111 143 | 2175 207 |

1984 16 | 2048 80 | 2112 144 | 2176 208 |

1985 17 | 2049 81 | 2113 145 | 2177 209 |

1986 18 | 2050 82 | 2114 146 | 2178 210 |

1987 19 | 2051 83 | 2115 147 | 2179 211 |

1988 20 | 2052 84 | 2116 148 | 2180 212 |

1989 21 | 2053 85 | 2117 149 | 2181 213 |

1990 22 | 2054 86 | 2118 150 | 2182 214 |

1991 23 | 2055 87 | 2119 151 | 2183 215 |

1992 24 | 2056 88 | 2120 152 | 2184 216 |

1993 25 | 2057 89 | 2121 153 | 2185 217 |

1994 26 | 2058 90 | 2122 154 | 2186 218 |

1995 27 | 2059 91 | 2123 155 | 2187 219 |

1996 28 | 2060 92 | 2124 156 | 2188 220 |

1997 29 | 2061 93 | 2125 157 | 2189 221 |

1998 30 | 2062 94 | 2126 158 | 2190 222 |

1999 31 | 2063 95 | 2127 159 | 2191 223 |

2000 32 | 2064 96 | 2128 160 | 2192 224 |

2001 33 | 2065 97 | 2129 161 | 2193 225 |

2002 34 | 2066 98 | 2130 162 | 2194 226 |

2003 35 | 2067 99 | 2131 163 | 2195 227 |

2004 36 | 2068 100 | 2132 164 | 2196 228 |

2005 37 | 2069 101 | 2133 165 | 2197 229 |

2006 38 | 2070 102 | 2134 166 | 2198 230 |

2007 39 | 2071 103 | 2135 167 | 2199 231 |

2008 40 | 2072 104 | 2136 168 | 2200 232 |

2009 41 | 2073 105 | 2137 169 | 2201 233 |

2010 42 | 2074 106 | 2138 170 | 2202 234 |

2011 43 | 2075 107 | 2139 171 | 2203 235 |

2012 44 | 2076 108 | 2140 172 | 2204 236 |

2013 45 | 2077 109 | 2141 173 | 2205 237 |

2014 46 | 2078 110 | 2142 174 | 2206 238 |

2015 47 | 2079 111 | 2143 175 | 2207 239 |

2016 48 | 2080 112 | 2144 176 | 2208 240 |

2017 49 | 2081 113 | 2145 177 | 2209 241 |

2018 50 | 2082 114 | 2146 178 | 2210 242 |

2019 51 | 2083 115 | 2147 179 | 2211 243 |

2020 52 | 2084 116 | 2148 180 | 2212 244 |

2021 53 | 2085 117 | 2149 181 | 2213 245 |

2022 54 | 2086 118 | 2150 182 | 2214 246 |

2023 55 | 2087 119 | 2151 183 | 2215 247 |

2024 56 | 2088 120 | 2152 184 | 2216 248 |

2025 57 | 2089 121 | 2153 185 | 2217 249 |

2026 58 | 2090 122 | 2154 186 | 2218 250 |

2027 59 | 2091 123 | 2155 187 | 2219 251 |

2028 60 | 2092 124 | 2156 188 | 2220 252 |

2029 61 | 2093 125 | 2157 189 | 2221 253 |

2030 62 | 2094 126 | 2158 190 | 2222 254 |

2031 63 R

γ

2095 127 R

γ

2159 191 R

γ

2223 255 R

γ

4-16

Table 1 (Decimal version) (2/3)

EEPROM

Address

DATA

2224 0

2225 1

2226 2

2227 3

2228 4

2229 5

Fun ction

G

γ

EEPROM

Address

DATA

Fun ction

2288 64

G

γ

EEPROM

Address

DATA

Fun ction

2352 128

G

γ

EEPROM

Address

DATA

Fun ction

2416 192 G

γ

| 2289 65 | 2353 129 | 2417 193 |

| 2290 66 | 2354 130 | 2418 194 |

| 2291 67 | 2355 131 | 2419 195 |

| 2292 68 | 2356 132 | 2420 196 |

| 2293 69 | 2357 133 | 2421 197 |

2230 6

2231 7

2232 8

2233 9

| 2294 70

| 2295 71

| 2296 72

| 2297 73

| 2358 134

| 2359 135

| 2360 136

| 2361 137

| 2422 198 |

| 2423 199 |

| 2424 200 |

| 2425 201 |

2234 10 | 2298 74 | 2362 138 | 2426 202 |

2235 11 | 2299 75 | 2363 139 | 2427 203 |

2236 12 | 2300 76 | 2364 140 | 2428 204 |

2237 13 | 2301 77 | 2365 141 | 2429 205 |

2238 14 | 2302 78 | 2366 142 | 2430 206 |

2239 15 | 2303 79 | 2367 143 | 2431 207 |

2240 16 | 2304 80 | 2368 144 | 2432 208 |

2241 17 | 2305 81 | 2369 145 | 2433 209 |

2242 18 | 2306 82 | 2370 146 | 2434 210 |

2243 19 | 2307 83 | 2371 147 | 2435 211 |

2244 20 | 2308 84 | 2372 148 | 2436 212 |

2245 21 | 2309 85 | 2373 149 | 2437 213 |

2246 22 | 2310 86 | 2374 150 | 2438 214 |

2247 23 | 2311 87 | 2375 151 | 2439 215 |

2248 24 | 2312 88 | 2376 152 | 2440 216 |

2249 25 | 2313 89 | 2377 153 | 2441 217 |

2250 26 | 2314 90 | 2378 154 | 2442 218 |

2251 27 | 2315 91 | 2379 155 | 2443 219 |

2252 28 | 2316 92 | 2380 156 | 2444 220 |

2253 29 | 2317 93 | 2381 157 | 2445 221 |

2254 30 | 2318 94 | 2382 158 | 2446 222 |

2255 31 | 2319 95 | 2383 159 | 2447 223 |

2256 32 | 2320 96 | 2384 160 | 2448 224 |

2257 33 | 2321 97 | 2385 161 | 2449 225 |

2258 34 | 2322 98 | 2386 162 | 2450 226 |

2259 35 | 2323 99 | 2387 163 | 2451 227 |

2260 36 | 2324 100 | 2388 164 | 2452 228 |

2261 37 | 2325 101 | 2389 165 | 2453 229 |

2262 38 | 2326 102 | 2390 166 | 2454 230 |

2263 39 | 2327 103 | 2391 167 | 2455 231 |

2264 40 | 2328 104 | 2392 168 | 2456 232 |

2265 41 | 2329 105 | 2393 169 | 2457 233 |

2266 42 | 2330 106 | 2394 170 | 2458 234 |

2267 43 | 2331 107 | 2395 171 | 2459 235 |

2268 44 | 2332 108 | 2396 172 | 2460 236 |

2269 45 | 2333 109 | 2397 173 | 2461 237 |

2270 46 | 2334 110 | 2398 174 | 2462 238 |

2271 47 | 2335 111 | 2399 175 | 2463 239 |

2272 48 | 2336 112 | 2400 176 | 2464 240 |

2273 49 | 2337 113 | 2401 177 | 2465 241 |

2274 50 | 2338 114 | 2402 178 | 2466 242 |

2275 51 | 2339 115 | 2403 179 | 2467 243 |

2276 52 | 2340 116 | 2404 180 | 2468 244 |

2277 53 | 2341 117 | 2405 181 | 2469 245 |

2278 54 | 2342 118 | 2406 182 | 2470 246 |

2279 55 | 2343 119 | 2407 183 | 2471 247 |

2280 56 | 2344 120 | 2408 184 | 2472 248 |

2281 57 | 2345 121 | 2409 185 | 2473 249 |

2282 58 | 2346 122 | 2410 186 | 2474 250 |

2283 59 | 2347 123 | 2411 187 | 2475 251 |

2284 60 | 2348 124 | 2412 188 | 2476 252 |

2285 61 | 2349 125 | 2413 189 | 2477 253 |

2286 62 | 2350 126 | 2414 190 | 2478 254 |

2287 63 G

γ

2351 127 G

γ

2415 191 G

γ

2479 255 G

γ

4-17

Table 1 (Decimal version) (3/3)

EEPROM

Address

DATA

2480 0

2481 1

2482 2

2483 3

2484 4

2485 5

Fun ction

B

γ

EEPROM

Address

DATA

Fun ction

2544 64

B

γ

EEPROM

Address

DATA

Fun ction

2608 128

B

γ

EEPROM

Address

DATA

Fun ction

2672 192 B

γ

| 2545 65 | 2609 129 | 2673 193 |

| 2546 66 | 2610 130 | 2674 194 |

| 2547 67 | 2611 131 | 2675 195 |

| 2548 68 | 2612 132 | 2676 196 |

| 2549 69 | 2613 133 | 2677 197 |

2486 6

2487 7

2488 8

2489 9

| 2550 70

| 2551 71

| 2552 72

| 2553 73

| 2614 134

| 2615 135

| 2616 136

| 2617 137

| 2678 198 |

| 2679 199 |

| 2680 200 |

| 2681 201 |

2490 10 | 2554 74 | 2618 138 | 2682 202 |

2491 11 | 2555 75 | 2619 139 | 2683 203 |

2492 12 | 2556 76 | 2620 140 | 2684 204 |

2493 13 | 2557 77 | 2621 141 | 2685 205 |

2494 14 | 2558 78 | 2622 142 | 2686 206 |

2495 15 | 2559 79 | 2623 143 | 2687 207 |

2496 16 | 2560 80 | 2624 144 | 2688 208 |

2497 17 | 2561 81 | 2625 145 | 2689 209 |

2498 18 | 2562 82 | 2626 146 | 2690 210 |

2499 19 | 2563 83 | 2627 147 | 2691 211 |

2500 20 | 2564 84 | 2628 148 | 2692 212 |

2501 21 | 2565 85 | 2629 149 | 2693 213 |

2502 22 | 2566 86 | 2630 150 | 2694 214 |

2503 23 | 2567 87 | 2631 151 | 2695 215 |

2504 24 | 2568 88 | 2632 152 | 2696 216 |

2505 25 | 2569 89 | 2633 153 | 2697 217 |

2506 26 | 2570 90 | 2634 154 | 2698 218 |

2507 27 | 2571 91 | 2635 155 | 2699 219 |

2508 28 | 2572 92 | 2636 156 | 2700 220 |

2509 29 | 2573 93 | 2637 157 | 2701 221 |

2510 30 | 2574 94 | 2638 158 | 2702 222 |

2511 31 | 2575 95 | 2639 159 | 2703 223 |

2512 32 | 2576 96 | 2640 160 | 2704 224 |

2513 33 | 2577 97 | 2641 161 | 2705 225 |

2514 34 | 2578 98 | 2642 162 | 2706 226 |

2515 35 | 2579 99 | 2643 163 | 2707 227 |

2516 36 | 2580 100 | 2644 164 | 2708 228 |

2517 37 | 2581 101 | 2645 165 | 2709 229 |

2518 38 | 2582 102 | 2646 166 | 2710 230 |

2519 39 | 2583 103 | 2647 167 | 2711 231 |

2520 40 | 2584 104 | 2648 168 | 2712 232 |

2521 41 | 2585 105 | 2649 169 | 2713 233 |

2522 42 | 2586 106 | 2650 170 | 2714 234 |

2523 43 | 2587 107 | 2651 171 | 2715 235 |

2524 44 | 2588 108 | 2652 172 | 2716 236 |

2525 45 | 2589 109 | 2653 173 | 2717 237 |

2526 46 | 2590 110 | 2654 174 | 2718 238 |

2527 47 | 2591 111 | 2655 175 | 2719 239 |

2528 48 | 2592 112 | 2656 176 | 2720 240 |

2529 49 | 2593 113 | 2657 177 | 2721 241 |

2530 50 | 2594 114 | 2658 178 | 2722 242 |

2531 51 | 2595 115 | 2659 179 | 2723 243 |

2532 52 | 2596 116 | 2660 180 | 2724 244 |

2533 53 | 2597 117 | 2661 181 | 2725 245 |

2534 54 | 2598 118 | 2662 182 | 2726 246 |

2535 55 | 2599 119 | 2663 183 | 2727 247 |

2536 56 | 2600 120 | 2664 184 | 2728 248 |

2537 57 | 2601 121 | 2665 185 | 2729 249 |

2538 58 | 2602 122 | 2666 186 | 2730 250 |

2539 59 | 2603 123 | 2667 187 | 2731 251 |

2540 60 | 2604 124 | 2668 188 | 2732 252 |

2541 61 | 2605 125 | 2669 189 | 2733 253 |

2542 62 | 2606 126 | 2670 190 | 2734 254 |

2543 63 B

γ

2607 127 B

γ

2671 191 B

γ

2735 255 B

γ

4-18

Table 2 (Address: Hexadecimal system)

EEPROM

Address

DATA Function

Address

DATA Function

EEPROM

Address

DATA Function

Table 2 (Decimal version)

EEPROM

Address

DATA Function

Address

DATA Function

EEPROM

Address

DATA Function

Table 3 (1/2)

INDEX

7. RM

8. GY

9. GC

10. BC

11. BM

12. W

0. R

1. G

2. B

3. C

4. M

5. Y

6. RY

EEPROM

Address

3AD0

3AD1

3AD2

3AD3

3AD4

3AD5

3AD6

3AD7

3AD8

3AD9

3ADA

3ADB

3ADC

3ADD

3ADE

3ADF

3AE0

3AE1

3AE2

3AE3

3AE4

3AE5

3AE6

3AE7

3AE8

3AE9

* Adjustments are carried out separately for WHITE.

EEPROM

Address

3AEA

3AEB

3AEC

3AED

3AEE

3AEF

3AF0

3AF1

3AF2

3AF3

3AF4

3AF5

3AF6

3AF7

3AF8

3AF9

3AFA

3AFB

3AFC

3AFD

3AFE

3AFF

3B00

3B01

3B02

3B03

RED

000

000

000

000

000

000

000

000

000

000

000

000

0FF

000

000

000

000

000

000

000

000

000

000

000

000

000

GREEN

000

000

000

000

000

000

000

000

000

000

000

000

0FF

000

000

000

000

000

000

000

000

000

000

000

000

000

EEPROM

Address

3B04

3B05

3B06

3B07

3B08

3B09

3B0A

3B0B

3B0C

3B0D

3B0E

3B0F

3B10

3B11

3B12

3B13

3B14

3B15

3B16

3B17

3B18

3B19

3B1A

3B1B

3B1C

3B1D

BLUE

000

000

000

000

000

000

000

000

000

000

000

000

0FF

000

000

000

000

000

000

000

000

000

000

000

000

000

4-19

Table 3 (2/2) (No modification)

INDEX

0. RYR

1. RYY

2. RMR

3. RMM

4. GYG

5. GYY

6. GCG

7. GCC

8. BCB

9. BCC

10. BMB

11. BMM

EEPROM

Address

OSM setting values

3B1E 000

3B1F 000

3B20 000

3B21 000

3B22 000

3B23 000

3B24 000

3B25 000

3B26 000

3B27 000

3B28 000

3B29 000

3B2A 000

3B2B 000

3B2C 000

3B2D 000

3B2E 000

3B2F 000

3B30 000

3B31 000

3B32 000

3B33 000

3B34 000

3B35 000

4-20

Table 4

x y

5000K

0.345

±0.015 0.352±0.015

5600K

0.330

±0.015 0.339±0.015

6500K

0.313

±0.010 0.329±0.010

7500K

0.300

±0.015 0.310±0.015

8500K

0.291

±0.015 0.300±0.015

9600K 0.283

±0.015 0.291±0.015

Table 5

NO.

Input signal level

(Vpp)

1 0.000

2 0.137

3 0.302

4 0.412

5 0.480

Input signal level

(Vpp)

Gradations %

Gradations 200/255 78.4%

Gradations 7 0.631

Gradations 43.1% 8 0.686

Gradations

Gradations

90.2%

98.0%

Gradations 58.8% 9 0.700

Gradations 68.6%

Gradations 100%

Table 6 (Example of measurement)

Input signal

R G B

Gradations

Gradations 0/255 1.44cd/m

2

Gradations 50/255 2.38 cd/m

2

Gradations 110/255 7.65 cd/m

2

Gradations 150/255 13.8 cd/m

2

Gradations 175/255 19.4 cd/m

2

Gradations 200/255 27.8 cd/m

2

Gradations 230/255 36.6 cd/m

2

Gradations 250/255 45.5 cd/m

2

Gradations 255/255 48.8 cd/m

2

1.44cd/m

2 cd/m cd/m cd/m cd/m cd/m cd/m cd/m cd/m

2

2

2

2

2

2

2

2

1.44cd/m cd/m cd/m cd/m cd/m cd/m cd/m cd/m cd/m

2

2

2

2

2

2

2

2

2

4-21

INSPECTION

TABLE OF CONTENTS

Page

1. Set Inspection ............................................................................................................................ 5-2

1.1 Application ........................................................................................................................... 5-2

1.2 Inspection Conditions .......................................................................................................... 5-2

1.2.1 Power Source Voltage .................................................................................................. 5-2

1.2.2 Equipment to be Used .................................................................................................. 5-2

1.2.3 Inspection Cables/Connections .................................................................................... 5-2

1.2.4 Brightness Setting ......................................................................................................... 5-2

1.2.5 Inspection Mode ............................................................................................................ 5-2

1.2.6 OSM Functions ............................................................................................................. 5-2

1.2.7 Configuration of Inspection Jigs .................................................................................... 5-2

1.2.8 Inspection Mode Setting ............................................................................................... 5-3

1.3 OSM Control Operation ....................................................................................................... 5-5

1.3.1 Switch Functions ........................................................................................................... 5-5

1.3.2 Basic Operational Procedures ...................................................................................... 5-5

1.4 POWER ON ......................................................................................................................... 5-6

1.5 Inspection ............................................................................................................................ 5-6

1.5.1 How to Control a Menu ................................................................................................. 5-6

1.5.2 Inspection of LCD Brightness and Contrast .................................................................. 5-8

1.5.3 Inspection of Automatic Adjustment Function ............................................................... 5-8

1.5.4 Analog Delay Operation Check ..................................................................................... 5-8

1.5.5 HSYNC Threshold Changeover Check ......................................................................... 5-9

1.5.6 SOG SYNC correction Check ....................................................................................... 5-9

1.5.7 Color Temperature Check ............................................................................................. 5-10

1.5.8 Inspection on Input Signal Identification ....................................................................... 5-11

1.5.9 Inspection on VIDEO DETECT Function ...................................................................... 5-13

1.6 Setting before Shipment ...................................................................................................... 5-15

1.7 Safety Test ........................................................................................................................... 5-15

1.7.1 Input Current Measurements ........................................................................................ 5-15

1.7.2 Power Source/Earth Connections ................................................................................. 5-15

1.7.3 Dielectric Strength Test ................................................................................................. 5-16

2. External Inspection on the LCD Module .................................................................................... 5-17

2.1 External Inspection of the Display Surface .......................................................................... 5-17

2.1.1 Inspection Items ............................................................................................................ 5-17

2.1.2 Inspection Standards ..................................................................................................... 5-17

3. Inspection of PLUG & PLAY Communication and OSM "MONITOR

INFORMATION" for Model Name/ Serial Number .................................................................... 5-22

3.1 System Construction ............................................................................................................ 5-22

3.2 Input Signal .......................................................................................................................... 5-24

3.3 Program ............................................................................................................................... 5-24

3.4 Operation ............................................................................................................................. 5-24

3.4.1 EDID Data Inspection and Writing to the DVI Connector (Input 1) Analog ................... 5-24

3.4.2 EDID Data Inspection and Writing to the DVI Connector (Input 1) Digital .................... 5-27

3.4.3 EDID Data Inspection and Writing to the D-SUB Connector (Input 2) Analog .............. 5-27

3.4.4 EDID Data Writing to the D-SUB Connector (Input 2) Digital ....................................... 5-27

3.4.5 EDID Data Inspection to the DVI-D Connector (Input 2) Digital ................................... 5-28

3.4.6. OSM Model Name and Serial Number Check ............................................................. 5-28

3.5 EDID Data File ..................................................................................................................... 5-28

5-1

1. Set Inspection

1.1 Application

The inspection procedures specified in this item should be applied to the inspection of the LCD2080UX unit.

1.2 Inspection Conditions

Unless otherwise specified, inspection should be carried out under the following conditions.

1.2.1 Power Source Voltage

AC voltage: AC 100 - 240V

± 5%, 50/60Hz

1.2.2 Equipment to be Used

Equipment that can generate an output of the adjusted VG-819 unit or equivalent.

The signal timing for the inspection ROM should conform to the table provided in Paragraph 1.2.8 herein.

1.2.3 Inspection Cables/Connections

1) Connections between the unit under inspection and the VG-819 should be made through the DVI connector and the D-SUB connector of the unit under inspection and the cable that can carry each output of the VG-819, as specified below. a) BNC-DSUB (female) connector b) DSUB (male) - DVI connector (Analog) c) BNC-DVI connector (Analog) d) DVI - DVI connector (Digital)

2) For connections to the power supply, an AC cable for LCD2080UX should be used.

1.2.4 Brightness Setting

Unless otherwise specified, inspection should be carried out under the condition that the LCD brightness is set at the highest level.

1.2.5 Inspection Mode

Each inspection should be carried out in the inspection mode specified in each relevant inspection item.

The detailed setting for each mode should be specified in Paragraph 1.2.8 herein.

1.2.6 OSM Functions

If checking and operation by OSM are specified in each inspection item, display and operation of the OSM should be carried out by operating the push switches of the unit under inspection, according to the instructions.

Outline operation is described in Item 1.3, “Operation of OSM control.”

1.2.7 Configuration of Inspection Jigs

Signal source

1) A video signal generator should be used, which can generate an output of the VG-819 unit or equivalent.

2) Graphic board, Model: XPERT LCD (manufactured ATI Technologies Inc.)

3) PC/AT interchange personal computer.

5-2

1.2.8 Inspection Mode Setting

The respective setting data for the VG-819.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

Clock

(MHz)

Fh

(KHz)

Th

(

µS)

Horizontal

Ths

(

µS)

Thf

(

µS)

Thb

(

µS)

Thd

(

µS)

MAC13 30.24 35.00 28.57

(Dot) 864

MAC16 57.24 49.69 20.13

(Dot) 1152

72035070 28.32 31.47

(Dot)

31.78

900

VESA720 28.32 31.47

(Dot)

31.78

900

72035085 35.50 37.93

(Dot)

26.37

936

72040085 35.50 37.93

(Dot)

26.37

936

VGA60 25.175 31.47 31.78

(Dot) 800

(Dot)

(Dot)

832

840

(Dot) 832

SVGA56 36.00 35.16 28.44

(Dot) 1024

SVGA60 40.00 37.88 26.40

(Dot) 1056

SVGA72 50.00 48.08 20.80

(Dot) 1040

SVGA75 49.50 46.88 21.33

(Dot) 1056

SVGA85 56.25 53.67 18.63

(Dot) 1048

(Dot)

(Dot)

(Dot)

1344

1328

1312

(Dot)

VESA1152 108.00 67.50

(Dot)

1376

14.82

1600

SUN1152 94.50 60.85

(Dot)

16.17

1528

VESA

1280x960

108.00 60.00

(Dot)

16.67

1800

SXGA60 108.00 63.981 15.63

(Dot) 1688

SUN66 117.00 71.69 13.95

(Dot) 1632

SXGA75 135.00 79.98

(Dot)

12.50

1688

SUN76 135.00 81.13 12.33

(Dot) 1664

SXGA60

S/G

108.00 63.981

(Dot)

15.63

1688

SXGA75

COMP

135.00 79.98

(Dot)

12.50

1688

72.67 13.76

(Dot) 1376

EGA-TEST 21.053 24.83

(Dot)

SXGA85 157.50 91.15

(Dot)

40.28

848

11.00

1728

UXGA60 162.00 75.00

(Dot)

13.33

2160

UXGA60

S/G

162.00 75.00

(Dot)

13.33

2160

UXGA65 175.50 81.25

(Dot)

12.31

2160

2.12

64

3.20

128

2.40

120

1.62

80

1.14

64

1.27

40

2.03

64

1.56

56

2.00

72

2.09

136

1.81

136

1.22

96

1.02

96

1.19

128

1.35

128

1.04

112

1.04

112

0.96

112

1.07

144

0.47

64

1.04

112

1.12

64

3.81

108

3.81

108

2.03

72

2.03

72

3.81

96

1.07

144

1.28

128

3.04

64

1.02

160

1.19

192

1.19

192

1.09

192

2.12

64

1.00

40

1.12

56

0.32

16

0.57

32

0.76

24

0.51

16

1.56

56

0.67

24

0.37

24

0.32

24

0.20

16

0.51

48

0.59

64

0.12

16

0.24

32

0.44

48

0.42

40

0.89

96

0.44

48

0.14

16

0.56

32

0.64

18

0.64

18

1.01

36

1.01

36

0.64

16

0.12

16

0.32

32

2.8

59

0.41

64

0.40

64

0.40

64

0.37

64

3.17

96

2.20

88

1.28

64

3.23

160

2.70

152

4.06

128

3.81

120

2.22

80

3.56

128

2.46

160

1.92

144

2.23

176

2.20

208

2.37

256

1.84

248

2.13

288

2.30

248

2.20

208

2.89

312

2.30

248

1.91

224

3.91

224

1.91

54

1.91

54

3.04

108

3.04

108

1.91

48

1.84

248

1.92

192

4.04

85

1.42

224

1.88

304

1.88

304

1.73

304

21.16

640

20.00

800

16.00

800

16.16

800

14.22

800

20.32

640

20.32

640

17.78

640

22.22

800

15.75

1024

13.65

1024

13.00

1024

10.84

1024

10.67

1152

12.19

1152

11.85

1280

11.85

1280

10.94

1280

9.48

1280

9.48

1280

11.85

1280

14.54

832

25.42

720

25.42

720

20.28

720

20.28

720

25.42

640

9.48

1280

10.24

1024

30.4

640

8.13

1280

9.88

1600

9.88

1600

9.18

1600

5-3

FV

(Hz)

66.67

(Line)

72.81

(Line)

75.00

(Line)

85.01

(Line)

56.25

(Line)

60.32

(Line)

72.19

(Line)

75.00

(Line)

85.06

(Line)

60.00

(Line)

70.07

(Line)

75.03

(Line)

85.00

(Line)

75.00

(Line)

66.00

(Line)

60.00

(Line)

60.02

(Line)

67.2

(Line)

75.03

(Line)

76.1

(Line)

60.02

(Line)

74.49

(Line)

70.08

(Line)

70.08

(Line)

85.04

(Line)

85.04

(Line)

59.94

(Line)

75.03

(Line)

90.50

(Line)

51.72

(Line)

85.02

(Line)

60.00

(Line)

60.00

(Line)

65.00

(Line)

Tvd

(ms)

13.71

480

15.84

600

12.48

600

12.80

600

11.18

600

12.68

480

12.80

480

11.09

480

17.07

600

15.88

768

13.60

768

12.80

768

11.18

768

12.80

864

14.55

900

16.00

960

16.00

1024

14.28

1024

12.80

1024

12.62

1024

16.00

1024

12.56

624

11.12

350

12.71

400

9.23

350

10.55

400

15.25

480

12.80

1024

10.57

768

16.112

400

11.24

1024

16.00

1200

16.00

1200

14.77

1200

HS,VS

N,N

N,N

P,N

N,P

P,N

N,P

N,N

N,N

N,N

N,N

P,P

P,P

P,P

P,P

P,P

N,N

N,N

P,P

P,P

P,P

P,P

P,P

P,P

P,P

P,P

P,P

S/G

P,P

N,N

N,N

P,P

P,P

S/G

P,P

Vertical

Tvs

(ms)

Tvf

(ms)

Tvb

(ms)

0.09

3

0.11

4

0.12

6

0.06

3

0.06

3

0.08

3

0.08

3

0.07

3

0.06

2

0.12

6

0.11

6

0.05

3

0.04

3

0.04

3

0.04

3

0.10

8

0.05

3

0.06

4

0.05

3

0.05

3

0.11

8

0.06

3

0.06

2

0.06

2

0.08

3

0.08

3

0.06

2

0.04

3

0.04

3

0.322

8

0.03

3

0.04

3

0.04

3

0.04

3

0.09

3

0.03

1

0.77

37

0.02

1

0.02

1

0.24

9

0.03

1

0.02

1

0.03

1

0.06

3

0.05

3

0.02

1

0.01

1

0.02

1

0.03

2

0.016

1

0.02

1

0.03

2

0.01

1

0.02

2

0.02

1

0.02

1

1.18

37

0.41

13

0.84

32

0.03

1

0.32

10

0.01

1

0.014

1

2.376

59

0.01

1

0.01

1

0.01

1

0.01

1

1.11

39

0.61

23

0.48

23

0.45

21

0.50

27

0.74

28

0.43

16

0.58

25

0.63

22

0.60

29

0.51

29

0.47

28

0.52

36

0.47

32

0.50

31

0.60

36

0.59

38

0.46

33

0.48

38

0.39

32

0.59

38

0.78

39

1.91

60

1.08

34

1.61

61

1.11

42

1.05

33

0.48

38

0.427

31

0.52

13

0.48

44

0.61

46

0.61

46

0.57

46

Tv

(ms)

15.00

525

16.58

628

13.85

666

13.33

625

11.76

631

13.73

520

13.33

500

11.76

509

17.78

625

16.67

806

14.27

806

13.33

800

11.76

808

13.33

900

15.15

937

16.67

1000

16.66

1066

14.88

1067

13.33

1066

13.14

1066

16.66

1066

13.42

667

14.27

449

14.27

449

11.76

446

11.76

446

16.68

525

13.33

1066

11.05

803

19.33

480

11.80

1072

16.67

1250

16.67

1250

15.38

1250

Note 1:

According to the designation of sync signals and the setting of each inspection mode, the analog outputs

(BNC) of the signal generator should be connected as specified below. (Except the cases when otherwise specified)

1) SEPARATE: R/G/B CONNECTION, HS

←→ H, VS ←→ V, CS not connected

2) COMPOSITE: R/G/B CONNECTION, CS

←→ H

No connections for HS and VS

3) SYNC ON GREEN: R/G/B CONNECTION, No connections for HS, VS, and CS

Note 2:

Option 2 Screen

5-4

1.3 OSM Control Operation

Each OSM function is available by pressing the push-button switches (EXIT,

3,4, -, +, SELECT, RESET) allocated in the lower section of the front bezel (or the control PWB when a PWB unit only is furnished).

1.3.1 Switch Functions

The basic functions of the respective push-button switches (or called the keys, but in the same meaning) are described below.

In a mode where no OSM display is presented, the main menu of the OSM menu can be displayed when any key out of

3,4, -, and + is pressed.

SELECT : Tab movement, INPUT1/2 changeover (No OSM display).

+ : Setting the adjusting value in the adjusting screen.

-

4

3

: Setting the adjusting value in the adjusting screen.

: Tab or adjusting screen selection.

: Tab or adjusting screen selection.

EXIT : Withdrawing from a layer, or deleting the display.

(Caution) Unless otherwise specified, an input of INPUT1 should be selected for each inspection.

1.3.2 Basic Operational Procedures

1) Press any key out of

3,4, +, and -, and confirm that a menu as shown below is displayed.

2) When the NEXT key is used, the selective tab moves to the right and the adjusting screen changes. With the adjusting screen selected, use the keys

3and4to select the adjusting item (simply “item” hereafter) and set the adjusting value by the use of the keys - and +. To execute an automatic adjustment function

(CONTRAST AUTO ADJUST, AUTO ADJUST), press the key + or - in the state of item highlight. Then, automatic adjustments are carried out.

When the adjusting item is present in TOOL (1), TOOL (2), or INFO., move to the selecting item with the

SELECT key and select the wanted item with the keys

3and4. In the state that the wanted item is highlighted in green, press the key + or - in order to get the adjusting screen displayed for each item.

3) When inspection is finished, press the EXIT key to withdraw from the OSM menu.

5-5

1.4 Power ON

1) Connect an AC power cable to the unit being inspected.

2) Connect the VG-819 cable to the unit being inspected. Any input connector is acceptable.

3) Turn on the POWER switch of the VG-819 to generate an output of Signal 32.

4) There is a vacation switch (a seesaw switch) at the right side of the unit being inspected. Confirm that this switch is set at the “

” side. Press the POWER key at the right end of the front to turn on the unit being inspected.

5) A screen can be checked within about 4 seconds after the POWER key ON. The LED is then lit in green

(For factory mode, LED is yellow) and a screen is displayed.

1.5 Inspection

1.5.1 How to Control a Menu

1) User menu

NO OSM

3

4

+

EXIT

EXIT

EXIT

NO OSM

SELECT

An item is select by the

3,4 keys.

A tab is select by the

3,4 keys.

5-6

2) Factory menu

SELECT

SELECT

Press the + and – keys at the same time while pressing the RESET key.

SELECT

SELECT

EXIT

A numerical value is changed by

+ key or – key.

A tab is select by the

3,4 keys.

The EXIT key is pressed 3 times and it returns to a user menu.

5-7

1.5.2 Inspection on LCD Brightness and Contrast

1) Enter Signal 23 through INPUT1. The screen display is made in all white.

2) Display the BRIGHTNESS/CONTRAST tab of the OSM menu.

3) Get BRIGHTNESS highlighted with the

3and4keys.

4) Confirm that the yellow bar is changed by the operation of the (-) and (+) keys, and that the screen brightness is changed.

5) Confirm that the highlight display is for BRIGHTNESS. Press the RESET key. Then, the confirmation screen is displayed. Press the SELECT key to make resetting. (The BRIGHTNESS bar is returned fully to the right.)

6) Use the

3and4keys to obtain CONTRAST displayed in the highlight mode.

7) Confirm that the green bar is changed and the screen brightness is also changed when the (-) and (+) keys are operated.

8) Get AUTO ADJUST highlighted with the

3 and 4 keys.

9) Press the SELECT key and wait until the OSM display is restored to the former display. At that time, confirm that the screen is normally displayed.

1.5.3 Inspection on Automatic Adjustment Function

1) Enter Signal 32 through INPUT1. (1-dot loss + Outer frame screen)

2) Display the OSM menu. Use the SELECT key to move as far as to the POSITION tab.

3) Move the cursor to the HORIZONTAL SIZE, using the

3and4keys. Operate the (-) and (+) keys to shift the H.SIZE to an extent so that the caused difference can be visually perceived.

4) Use the EXIT key and

3and4keys to move as far as to the AUTO ADJUST adjusting tab.

5) Press the SELECT key and execute automatic adjustments by the use of the SELECT key. Confirm that the screen (POSITION/SIZE/PHASE) is normally adjusted.

1.5.4 Analog Delay Operation Check

1) Enter Signal 32 from INPUT1. (1-dot missing + Outer frame screen)

2) Display the OSM menu, move it to the POSITION tab with the

3and4keys, and press the SELECT key.

3) Adjust the cursor to H.SIZE with the

3and4keys, and operate the + key to shift the H.SIZE by +4 steps.

4) Select R DELAY ANALOG in the first tab of the FACTORY mode and make a numerical modification of 0

→ 1 → 2 → 3 → 4 by means of the + key. Confirm that there is an increase in the amount of red vertical stripes shifted to the right (the amount of leftward protrusion of cyan). Return it to 0 after the completion of inspection.

5) Similarly, select G DELAY ANALOG and make a numerical modification of 0

→ 1 → 2 → 3 → 4 by means of the + key. Confirm that there is an increase in the amount of green vertical stripes shifted to the right

(the amount of leftward protrusion of magenta). Return it to 0 after the completion of inspection.

6) Similarly, select B DELAY ANALOG and make a numerical modification of 0

→ 1 → 2 → 3 → 4 by means of the + key. Confirm that there is an increase in the amount of blue vertical stripes shifted to the right (the amount of leftward protrusion of yellow). Return it to 0 after the completion of inspection.

5-8

1.5.4

7) The same inspection should be carried out also for INPUT2 (DSUB).

1.5.5 HSYNC Threshold Changeover Check

1) Enter Signal 32 from INPUT1. (1-dot missing + Outer frame screen)

2) Display the OSM menu, move it to the POSITION tab with the

3and4keys, and press the SELECT key.

3) Adjust the cursor to H.SIZE with the

3and4keys, and operate the + key to shift the H.SIZE by +4 steps.

4) Move it to SMT 2.7V/3.3V in the second tab of the FACTORY mode and make a modification of 1

→ 0.

Confirm that the vertical stripes are shifted by about 1cm at that time. (The amount of shift depends on the type of signal source.) Return it to 1 after the completion of inspection.

1.5.6 SOG SYNC correction Check

1) Enter Signal 33 from INPUT1 and make an SOG connection. (1-dot missing + Outer frame screen)

2) Move it to SOG SYNC PEAKING in the second tab of the FACTORY mode and make a modification of 0

→ 1. Confirm that there appears a phase shift. (The amount of phase shift depends on the type of signal source.) Return it to 0 after the completion of inspection.

1.5.6

1.5.5

5-9

1.5.7 Color Temperature Check

1) Enter Signal 32 from INPUT1. (All white)

2) The user menu RGB tab is indications are 1 for 9300K, 2 for 8200K, 3 for 7500K, 4 for sRGB, and 5 for

5000K. confirm to change the color, in time case of each color temperature. (sRGB 6500K)

3) If you have doubt, confirm the below list within reference value.

4) After finish the inspection, return to NATIVE.

<Reference value of inspection>

Color temperature

5000K

5600K

6500K

7500K

8500K

9600K

NATIVE

0.345 x y

±0.015

0.330

±0.015 0.339

0.313

±0.010 0.329

0.300

±0.015 0.310

0.291

±0.015 0.300

0.283

±0.015 0.291

0.312

±0.015 0.327

5-10

1.5.8 Inspection on Input Signal Identification

Purpose of inspection: Confirming that a normal display is obtainable for each signal input.

Unless otherwise specified, the display pattern is as shown in the initial screen, conforming to 1.2.8 [Inspection Mode Setting].

--- Inspection of DVI-I (Analog) Input ---

1) According to the table below, make setting of the input connector and the signal, and enter a signal input.

Item No.

1

2

3

Input Inspection signal No.

INPUT 1 7

INPUT 1

INPUT 1

11

31

32

SYNC

SEPARATE

SEPARATE

SEPARATE

SEPARATE

Remark

CLK Min

Fh Min

Fv Min

Fh Max

Fv Max

Recommend/CLK Max

2) When a screen is displayed, visually check whether the display is free from abnormality.

(Freedom from any extreme displacement in position, size, and phase, flickering in the screen, and extreme color deterioration)

--- Inspection of D-SUB (Analog) Input ---

3) Change over the input port to the ANALOG INPUT of INPUT2.

According to the table below, make setting of the signal, and enter a signal input.

Item No.

2

Input Inspection signal No.

32

INPUT 2 34

SYNC

SEPARATE

SEPARATE

4) By the signal 34, it checks that OSM of "OUT OF RANGE" is displayed.

Remark

Recommend/CLK Max

Out of Range

--- Inspection of COMPOSITE Input ---

5) Return the setting of input port to INPUT1 and change the connection with the VG-819 to the

COMPOSITE mode. (Pull out the BNC connectors H and V on the VG-819 side and connect the H cable to the CS connector.)

6) According to the table below, make setting of the signal, and enter a signal input. Make confirmation in the same manner as described in 2) above.

Item No. Input Inspection signal No.

13

SYNC

COMPSITE

Remark

Vsync width Max

5-11

--- Inspection of POWER SAVE ---

7) Remove the output signal of the VG-819 from the G connector (SOG sync also). Then, remove the output signal from the CS connector. Confirm that the screen disappears and the OSM menu of the [NO

SIGNAL] is displayed. Wait in this state for about 5 seconds, and confirm that the LED display is turned into amber and the POWER SAVE mode is assumed.

--- Inspection of SYNC on GREEN Input ---

8) According to the table below, enter a signal input of SYNC on GREEN. Confirm that a normal screen is displayed.

Item No.

1

Input Inspection signal No.

INPUT 2 33

SYNC

SYNC on GREEN

Remark

--- Inspection of DVI (DIGITAL) Input ---

9) A personal computer is connected. According to the table below, make setting of the signal, and enter a signal input. Make confirmation in the same manner as described in 2) above.

Item No. Input Inspection signal No.

Remark

DVI-I

2

3

4

INPUT 2

INPUT 1

INPUT 2

VGA 60Hz Digital

UXGA 60Hz Digital

UXGA 60Hz Digital

DVI-D

DVI-I

DVI-D

Synchronous polarity is unquestioned in order that a digital signal may determine resolution based on an image period signal (DE signal).

5-12

1.5.9 Inspection on VIDEO DETECT Function

This inspection is intended to confirm that a normal [VIDEO DETECT] function is available for the OSM menu and that the VIDEO INPUT port is automatically changed over according to the combination of the

VIDEO INPUT signals.

Signal: 23 (SXGA, SEPARATE): All White

Signal: 27 (SXGA, SYNC on GREEN): Optional two screens

* The basic signal timing for Signal 27 is the same as that for Signal 26. However, since an output of

[SYNC on GREEN] is needed in the initial condition, setting is made on the assumption that this signal is different from the other.

Inspection equipment needed:

Signal Source 1 (VG-819): For analog output.

Signal Source 2 (enabled to generate an analog output that is equivalent to that of the VG-812): For analog output.

Cable intended to send out an analog output of Signal Source 1 to the DVI-I connector (INPUT1).

Cable intended to send out an analog output of Signal Source 2 to the D-SUB connector (INPUT2).

Initial conditions:

Signal Source 1: Set at Signal 27.

Signal Source 2: Set at Signal 23.

An analog output of Signal Source 2 should be entered in INPUT2.

An analog output of Signal Source 1 should be entered in INPUT1.

The video input should be set at INPUT2.

Method of inspection:

1) Starting from the initial state, open the [VIDEO DETECT] in the OSM menu tool.

Adjust the cursor to the [LAST DETECT] and press the EXIT key three times to close the OSM menu.

5-13

2) According to the table shown below, make withdrawal and insertion of cables and take signal changeover actions. Confirm in this case that the operation and motions are the same as those indicated in the [RESULT] of the table below. The column on the right side of the table below shows the condition of each port connection assumed at that time.

Operation

Initial state

Pull out the INPUT2 connector.

Connect the INPUT2 connector.

Set the VIDEO INPUT at INPUT1.

Pull out the INPUT1 connector.

Connect the INPUT1 connector.

Result

Selected port

INPUT 2

INPUT 1

INPUT 2

INPUT 1

INPUT 2

INPUT 1

Signal Source 1 Signal Source 2

INPUT 1 INPUT 2

Signal 27

Signal 27

Signal 27

Signal 27

×

Signal 27

Signal 23

×

Signal 23

Signal 23

Signal 23

Signal 23

Mark x indicates a condition that the connector is not connected.

The selected port can be known from the [VIDEO INPUT] OSM displayed at the time of signal changeover. (Not acceptable for displays of [NO SIGNAL], [OUT OF RANGE], etc.)

3) Open the [VIDEO DETECT] of the OSM menu again and select the [FIRST DETECT.] Press the EXIT key several times and close the OSM menu.

5-14

1.6 Setting before Shipment

In order to recover the initial conditions of all settings, the contents of the memory are reset before shipment.

This reset process involves actions in regard to the memory of signal modes. Therefore, these actions should be taken after the completion of all electrical inspection and display inspection.

1) Enter an input of Signal 4 through INPUT1. Operate the OSM to enter the factory mode, and display a service menu.

2) Adjust the cursor to [SERVICE RESET] by the use of the

3 and 4 keys, and press the (+) or (-) keys.

3) When the OSM is displayed again, the resetting process has been finished. Press the EXIT key to withdraw from the service mode.

Note 1: After the completion of this process, confirm, without fail, that the present condition is surely after the withdrawal from the service mode (factory mode). This setting is also available under the condition that the factory mode is assumed. In this case, however, it must be borne in mind that the EXIT key need be pressed two more times at the time of completion.

1.7 Safety Test

• Destination

: All over the world

• Applicable standards

: UL60950/C-UL/EN60950

• Unit class earthing,

: Class I units (the units protected against electric shocks by protective or those equipped with 3-core power cords)

• Ratings

: AC100 - 240V 50/60Hz 0.7A - 0.35A

1.7.1 Input Current Measurements

Under the measuring conditions specified below, an input current should be measured while the 50Hz input voltage is maintained at 230V AC (+0 to -5V). The input currents measured should be confirm so they satisfy the judgment standard. (The rear rating plates are the same as those for North America and Europe.

Therefore, measurements should also be based on this setting.)

(1) Measuring conditions

• Condition of the set : ON mode

• Measuring conditions : The inspection signal is set at “28” and “white” is displayed throughout the screen.

At that time, brightness is used to MAX and contrast is used as a center.

(2) Judgment standard

• The input current should be kept below 0.385A (0.35A +10%).

1.7.2 Power Source/Earth Connections

a. Checks on the power source/earth connections

The earth side of the cord or the earth wire of the inlet filter for the cord set should be visually checked to see that it is connected to the chassis block of the unit as specified below.

1) The earth wire color should be spiral of green and yellow.

[Units applicable to UL60950 or IEC60950 (EN60950)]

2) The earth wire should be firmly connected to the chassis block by the use of a screw (See Note) of

3.5mm

∅ in diameter.

Note: Spring washers or star washers should be used, without fail.

5-15

b. Earth resistance testing

This testing should be carried out prior to the dielectric strength test.

The earth resistance should be 100m

Ω or less when a current of 25A AC is carried between the earth side of the cord and the metallic block that is used as a safety earth for the unit.

1.7.3 Dielectric Strength Test

To confirm the freedom from insulation breakdown, testing should be carried out under the conditions specified below.

1) Measuring conditions

• Measuring instrument : Dielectric strength tester (The specified voltage should be maintained in the state that a current of 10mA is carried.)

• Testing point

: Between the electrical circuit block and the exposed metallic block

(DVI connector)

Note: The electrical circuit block should mean the power input block (primary side). Testing should be carried out under the condition that both poles of the power plug are short-circuited. (Where a 3-core cord is used, the two poles other than the earth terminal should be short-circuited.)

2) Judgment standard

The freedom from insulation breakdown should be confirmed under the condition that the applied voltage is maintained at 1500V AC (+0 to 50V) for one minute.

Even though the result of this testing is OK, such a condition should be regarded as unacceptable if there is a leakage (flashing) around the section where the test voltage has been applied.

5-16

2. External Inspection on the LCD Module

2.1 External Inspection of the Display Surface

The display surface should be visually inspected according to the inspection items specified below. In cases of the discovery of extreme defects or doubtful judgment, final judgment should be made on the basis of relevant detailed standards for inspection.

Unless otherwise specified, the inspection signals should be used at the timing of Signal 32 specified in

Paragraph 1.2.8 herein. However, the inspection screen should be arranged according to the “Instructions

1) to 5) of the Inspection Standard” set forth in Paragraph 2.1.2 (1).

2.1.1 Inspection Items

1) Examination of the missing of lines (horizontal or vertical lines failing to be displayed).

2) Presence of extreme missing of dots (bright dots and black dots), or conspicuous ones.

3) Presence of extreme flaws, wrinkles, air bubble, dents, lint, foreign matter, and conspicuous abnormality on the display surface.

2.1.2 Inspection Standards

Inspection standards for external appearance and display conditions

(1) Inspection Standards

Use a fluorescent lamp of 20w1 (for the inspection of external appearance) or the display plane illuminance of 60 to 75lx (for the inspection of display conditions). Secure a distance of 20cm between the eyes and the sample, and that of 20 to 30cm between the fluorescent lamp and the sample. Under the above-mentioned conditions or better, inspections should be carried out in the direction specified below.

A: Angle of visibility for inspection (Right and left: 30

°

/Up and down: 20

°

to 0

°

)

The direction of application should be recorded in the column of direction. Inspection should be carried out at a room temperature of 25

± 5

°

C.

The following screen should be used for the inspection.

1) All black or gray in 3 gradations

2) All red, all green, or all blue screen in solid color each

3) All white solid screen

5-17

(2) Standards for Display Conditions

Standard for errors (defects)

Joined defects

Defective proximity

(3) Continuous 3 or more bright dots

(4) Continuous 3 or more black dots

Item Standard

(1) Continuous 2 bright dots

(2) Continuous 2 black dots

(R+G, G+B) 2 continued horizontally

≤ 3 pairs

≤ 3 pairs

≤ 0 pair

Both the same color and different colors are counted.

≤ 0 pair

Dot defect (5) Dot defects other than (1) and

(2)

(6) Adjacent to same-color bright-dot defect

(7) Approach of adjacent defects of (6)

R.G.B (Black dot +

≤ 7

Bright dot)

Each color

≤ 2

Distance between defects

≤ 5.9mm

Distance of approach

≤ pairs

≤ 0 pair

9mm

A set of 2 or more dot defects in an area of

5

×5 pixels

≤ 3 clusters

[(5) in consideration]

Approach of adjacent

≤ 0 pair defects of (1) in an area of 5

×5 pixels

Remarks

Note 1

Note 2

Note 3

Note 4

Note 5

Note 6

Note 7

Note 8

Total No. Total No. of bright dots (R.G.B) + black dots (R.G.B) of defects

Total No. of bright points in G

Approach of adjacent defects of (2) in an area of 5

×5 pixels

≤ 13

≤ 4

-

-

Note 9: Irrespective of the continuous or intermittent occurrence, visible dots should be referred to as the dot detects (bright dots and black dots).

:Bright dot

:Black dot

Note 1: R + G, G + B, 2 dots continued horizontally

Counted as an NG

R G R G

Not counted as NG

Combination of bright and black dots

R G R G

Combination other than 2-horizontal combination

R

G

G

R and others

5-18

Note 2: (1) + (2)

≤ 3 pairs

Note 3: 3-defect combination

Combination patterns to be counted as NG / Combination of all bright or all black dots and others

Not counted as NG / Combination of bright and black dots and others

Note 4: The dots for composing 2-horizontal combinations of R + G should be excluded from counting.

Note 5: Adjacent to same-color bright-dot defect

Counted as NG Not counted as NG

R R

R R

R G

≤ 5.9mm

≤ 5.9mm

Approach of bright and black dots

≤ 5.9mm

Approach of different colors

5-19

Note 6: Approach of adjacent defects

R

≤ 5.9mm

R

> 9mm

R

≤ 5.9mm

R

The distance between adjacent defects should be longer than 10mm.

Note 7: A set of 2 or more dot defects in an area of 5

×5 pixels

If there are two or more dot defects [(5)] in an area of 5

×5 pixels, such a set of dot defects should be counted as one cluster.

5

×5 pixels

1 cluster

Dot defects [(5)]

There should be no more than 3 clusters throughout the screen area.

Note 8: Approach of detects of (1) or (2) in an area of 5

×5 pixels

Counted as NG

5

×5 pixels

5

×5 pixels

R G

R G

R G

R G

There should be no approach of detects of (1) or (2) within an area of 5

×5 pixels

5-20

(3) Standard for External Inspection

Inspection item Inspection spot Direction

Lint, foreign

(all surface) and substance

A the glass

Contamination

L and flaws

(Note)

L > 2W:

≤ 2W:

Line form

Dot form

Lint between the substrate

Contamination and flaws in the external appearance of the shield front plate and backlight

Flaws, foam, and dust on the polarizing plate.

(Line form)

Flaws, foam, and dust on the polarizing plate.

(Dot form)

A

A

A

Standard value

Conditions

Number of permissions

Width(W)mm Length(L)mm

0.03

W < 0.03

≤ W < 0.10

-

L < 0.3

0.3

≤ L < 3.0

Don’t care

4 pcs. or less

3.0

≤ L

0 pcs

0.10

≤ L ≤ 0.25

Don’t care

0.10

≤ W

0.25

≤ L < 0.80

0.80

≤ L

4 pcs. or less

0 pcs

• Freedom from fingerprints and contamination after cleaning.

• Base plate invisible even after the plate coating has been marred.

• Freedom from burrs around edges and holes.

Width(W)mm Length(L)mm

W < 0.01

- Don’t care

0.01

≤ W < 0.05

Average diameter

Φ (mm)

L < 1.0

1.0

≤ L < 10.0

10.0

≤ L

Don’t care

0 pcs

0 pcs

0.20

≤ Φ < 0.80

0.80

≤ Φ

- 4 pcs. or less

5-21

3. Inspection of PLUG & PLAY Communication and OSM "MONITOR INFORMATION" for Model Name/ Serial Number

3.1 System Connection

This system should be connected as shown below.

Fig 3.1.1 DVI-A connector connection

Fig 3.1.2 D-SUB connector connection

5-22

Fig 3.1.3 DVI-D connector connection

DVI to D-SUB Signal Cable (Special)

The pins of there points cuts it.

DDC Communication I/F BOARD

(Part No. 599910541)

5-23

3.2 Input Signal

Horizontal synchronization frequency : Not specified.

Vertical synchronization frequency : Not specified.

3.3 Program

Service tool Ver. 3.17 (Parameter ver. 1.0-S1) (Part No. 599910630)

3.4 Operation

3.4.1 EDID Data Inspection and Writing to the DVI Connector (Input 1) Analog

1) Connect the EDID data writing unit with jigs, etc. (Refer to a DVI-A connector connection figure)

2) Copy all the files of the service tool Ver. 3.17 (Parameter ver. 1.0-S1) in a proper directory.

3) Start [Service2.EXE] of the service tool Ver. 3.17.

4) When the screen as shown below appears, give a check to [LCD] of [Monitor Type] and press the

[START] button.

5-24

5) When the screen as shown below appears, adjust the cursor to [LCD2080-DVI-I-A] and make a double click.

6) When the screen as shown below appears, give a check to [EDID_READ] and press the [OK] button.

5-25

7) When the screen as shown below appears, confirm that the correct data are displayed in the columns of EDID DATA CONTENTS and Serial information.

If all the displayed data are [FF] or the like, or if the serial number is different from that of the corresponding unit, then EDID data writing should be carried out.

8) When a screen of Item 6 is displayed by pressing the [BACK] button, give a check to [EDID_WRITE] and press the [OK] button.

9) When the screen as shown below appears, examine the serial number of the unit, enter an input in the column of [Input Serial No.] through the keyboard, and press the [Input OK] button.

Enter an input in the column of [.Year=> ] in manufactured year(A.D. four digits) and [Month=>] in manufactured month through the keyboard, and press the [Input OK] button.

5-26

10) When the [WRITE EDID] button is pressed, writing of the EDID data only is carried out. Upon the completion of correct writing, a display of [EDID Monitor Write OK] is presented in the column of

[STATUS].

3.4.2 EDID Data Inspection and Writing to the DVI Connector (Input 1) Digital

1) Connect the EDID data writing unit with jigs, etc. (Refer to a DVI-A connector connection figure)

2) The "BACK" button is pushed twice and the [MODEL SELECT] screen is displayed. Cursor is united and double-clicked to [LCD2080-DVI-I-D].

3) 6) to 10) is carried out in the procedure of the 3.4.1 "EDID Data Inspection and Writing to the DVI

Connector (Input 1) Analog ".

3.4.3 EDID Data Inspection and Writing to the D-SUB Connector (Input 2) Analog

1) Connect the EDID data writing unit with jigs, etc. (Refer to a D-SUB connector connection figure)

2) The "BACK" button is pushed twice and the [MODEL SELECT] screen is displayed. Cursor is united and double-clicked to [LCD2080-D-SUB-A].

3) 6) to 10) is carried out in the procedure of the 3.4.1 "EDID Data Inspection and Writing to the DVI

Connector (Input 1) Analog ".

3.4.4 EDID Data Writing to the D-SUB Connector (Input 2) Digital

1) Connect the EDID data writing unit with jigs, etc. (Refer to a D-SUB connector connection figure)

2) The "BACK" button is pushed twice and the [MODEL SELECT] screen is displayed. Cursor is united and double-clicked to [LCD2080-D-SUB-D-WRITE].

3) 8) to 10) is carried out in the procedure of the 3.4.1 "EDID Data Inspection and Writing to the DVI

Connector (Input 1) Analog ".

5-27

3.4.5 EDID Data Inspection to the DVI-D Connector (Input 2) Digital

1) Connect the EDID data writing unit with jigs, etc. (Refer to a DVI-D connector connection figure)

2) The "BACK" button is pushed twice and the [MODEL SELECT] screen is displayed. Cursor is united and double-clicked to [LCD2080-DVI-D-D-READ].

3) 6) to 7) is carried out in the procedure of the 3.4.1 "EDID Data Inspection and Writing to the DVI

Connector (Input 1) Analog ".

3.4.6. OSM Model Name and Serial Number Check

Display “MONITOR INFORMATION” of the OSM, and confirm that the model name (LCD2080UX) and serial number have been correctly written. (Check that it is also in agreement with the written-in serial number.)

3.5 EDID Data File

EDID Data : LCD2080_A.edi (ANALOG)

0 1 2 3 4 5 6 7 8 9 A B C D E F

00

00 FF FF FF FF FF FF 00 38 A3 05 66 01 01 01 01

10

30 0C 01 03 0F 29 1F 78 EE 4E 95 A1 57 4C 94 26

20

1C 50 54 BF EF 80 31 59 45 59 61 59 71 4F 81 4F

30

81 80 81 99 A9 40 48 3F 40 30 62 B0 32 40 40 C0

40

13 00 98 32 11 00 00 1E 00 00 00 FD 00 30 57 1E

50

60 11 00 0A 20 20 20 20 20 20 00 00 00 FC 00 4C

60

43 44 32 30 38 30 55 58 0A 20 20 20 00 00 00 FF

70

00 32 58 30 30 30 30 30 31 45 41 0A 20 20 00 EC

EDID Data : LCD2080_D.edi (DIGITAL)

0 1 2 3 4 5 6 7 8 9 A B C D E F

00

00 FF FF FF FF FF FF 00 38 A3 05 66 01 01 01 01

10

30 0C 01 03 80 29 1F 78 EE 4E 95 A1 57 4C 94 26

20

1C 50 54 BF EF 80 31 59 45 59 61 59 71 4F 81 4F

30

81 80 81 99 A9 40 48 3F 40 30 62 B0 32 40 40 C0

40

13 00 98 32 11 00 00 1E 00 00 00 FD 00 30 57 1E

50

60 11 00 0A 20 20 20 20 20 20 00 00 00 FC 00 4C

60

43 44 32 30 38 30 55 58 0A 20 20 20 00 00 00 FF

70

00 32 58 30 30 30 30 30 31 45 41 0A 20 20 00 7B

Note 1: address 10h

Note 2: address 11h

Week of manufacture = Month of manufacture

× 4

Year of manufacture - 1990

Note 3: address 71h ~ 7Dh Serial Number (ASCII coded)

If less than 13 char, terminate with 0Ah and fill the rests with 20h.

Note 4: address 7Fh Checksum

The sum of entire 128 byte should be equal to 00h.

5-28

TROUBLESHOOTING

TABLE OF CONTENTS

Page

1. POWER is Not Available ................................................................................................. 6-2

2. No Picture Display ............................................................................................................ 6-3

2.1 Black Screen and LED is Amber ..................................................................................... 6-3

2.2 Black Screen, LED Green, and No OSM Present .......................................................... 6-4

2.3 Black Screen, LED Green, and OSM Present ................................................................ 6-5

3. Picture Errors .................................................................................................................... 6-6

3.1 High-Light Chroma in White or Black .............................................................................. 6-6

3.2 Images are Unclear ......................................................................................................... 6-7

3.3 Image Noise .................................................................................................................... 6-8

3.4 Color Errors ..................................................................................................................... 6-9

4. Other Operational Errors ................................................................................................... 6-10

4.1 DDC Read Error .............................................................................................................. 6-10

4.2 Back Light Malfunction .................................................................................................... 6-10

5. Switching Regulator Circuit Failure ................................................................................... 6-11

Note

Prior to the diagnostic servicing for troubleshooting, the following items should be examined to confirm the freedom from abnormality:

(1) Power supply voltage: 100 to 240VAC

(2) Input signal: 1600 x 1200 (60Hz), recommended (Separate)

DVI 2-input Analog RGB 0.7Vp-p (when terminated with 75

Ω)

Display pattern

Digital TMDS *1, *2

Display not in black

(3) All connectors should be correctly connected in the unit.

*1 With an ordinary oscilloscope, signal check is impossible to carry out. Confirm that the signal output is normally generated, using a normally operating unit (a different model acceptable).

*2 For some types of video boards, digital signal output may fail to be generated unless the DDC is read out on the unit side and the unit is confirmed to be a “digital compatible monitor.”

<< Explanations below are based on the analog DVI input(input 1).>>

6-1

1. POWER is Not Available

Is the vacation switch turned on ON?

Confirm if there is any disconnection of internal cables, disconnections, etc.

Is 5.5V available at CN261 pin 12?

NO

Check the power supply.

YES

Is 4.2V available at Pin 3 of FL2M1?

NO

Check peripheral circuits of IC251.

YES

Is 12V available at CN2E1 pin 8?

Is 18V available at CN261 pin 1,2,3,4,5?

NO

Check the power supply.

YES

Check peripheral circuits of IC804.

Is 3.3V available at IC804 pin 13 and pin 78?

NO

Check peripheral circuits of Q151 to Q157 and IC221.

YES

Is 3.3V available at IC804 pin 9?

NO

Check peripheral circuits of IC801.

YES

Is the 7.37MHz clock inputted into IC804 pin 12?

NO

Check peripheral circuits of X801.

YES

Does Pin 1 of IC804 output Hi?

Is the collector of Q805 Low?

When a power supply is turned on, is the pulse taken out from IC804 pin 24 to IC401 C1?

Is a pulse returned from IC401 D3 to IC804 pin 25?

6-2

NO

Check peripheral circuits of IC405.

2. No Picture Display

2.1 Black Screen and LED is Amber

Is the LED turned green when the TACT switch is pressed?

NO

Check peripheral circuits of IC804.

YES

Is the OSM present?

NO

Go to “no picture and no OSM.”

YES

Is the pulse input into Y22, Y21, W22, W21 of IC4A1?

Is IC804 Pin 2, or Pin 60 Hi?

6-3

2.2 Black Screen, LED Green, and No OSM Present

Is 18V available at CN2A1 Pin 10,11,12.13?

Is 3.3V available at CN2A1 Pin 4?

Is fixation 0V available CN2A1 Pin 3?

NO

Check peripheral circuits of IC804 or the power supply.

YES

Is there a DATA input available at the input circuit (In such cases as IC551/IC552 pin 8)?

YES

Check peripheral circuits of IC551/IC552.

Is CN551 inserted properly?

NO

Is 3.3V available at IC401 VDD3.3?

Is 2.5V available at IC401 VDD2.5?

NO

Check the power supply.

YES

Is 130MHz inputted into IC401 W13?

Is 125MHz inputted into Y13?

However, clock is not continuance because spectrum diffusion irregularity hangs.

NO

Check peripheral circuits of

X402, IC403.

YES

Is the pulse input into IC401 C1?

6-4

2.3 Black Screen, LED Green, and OSM Present

Is there a video signal input available at the input of ICA01 pins 5, 13 and 20?

NO

Check peripheral circuits of ICA70A.

YES

Is there a digital signal output available at the output circuit (In such cases as ICA01 pin 120)?

NO

Is there a clamp pulse signal at ICA01 pin 30?

YES

Is there a digital signal output available at the output circuit (In such cases as IC4A1 TP4HF)?

NO

Aren’t the conditions of the power supply, clock, and reset normal in

IC4A1 problem?

YES

NO

Check the conditions of the power supply for

IC4A1, clock signals, inputs, and reset.

YES

Check peripheral output circuits of IC4A1.

Check conditions of the power supply for ICA01.

Is a horizontal synchronous pulse being inputted to

ICA01 pins 43 and 45?

Is a pulse being input to ICA01 pins 31 and 32?

6-5

3. Picture Errors

3.1 High-Light Chroma in White or Black

Use AUTO ADJUST of CONTRAST in the service mode.

Normal

NG

Use AUTO ADJUST after “SERVICE RESET” in the service mode.

Normal

NG

Is the RGB input maintained at 0.7Vp-p in RA04, RA03, and RA05?

NG

Adjust the input on the signal side to 0.7Vp-p again.

Then, use AUTO ADJUST in the service mode again.

NG

OK

Normal

OK

Is the Video signal input maintained at 0.7Vp-p at ICA01 pins 5, 13 and 20?

NG

Check peripheral circuits of ICA70A.

6-6

3.2 Images are Unclear

Are pictures still unclear even though H.SIZE

and FINE are adjusted?

OK

NG

Is the display used in the ENLARGE mode?

OK

NG

Isn’t SHARPNESS fall?

OK

NG

Replace the connection cable that is extended toward the PC.

OK

NG

Check waveforms around ICA01 Pins 5, 13 and 20.

Normal

Adjust SMOOTHING to the TEXT mode.

Service reset in the service mode is performed.

Normal

* For the automatic adjustment of H/V POSITION, H.SIZE, and FINE, it is necessary to use images in the outermost periphery of the video activity area. During adjustments, use images of full screen display by WINDOWS.

6-7

3.3 Image Noise

Is noise being output even if H.SIZE and FINE is adjusted?

OK

NG

Replace the connection cable that is extended toward the PC.

OK

NG

Is there no change in the noise generating position, period, color, etc., even when the resolution is changed?

Changes present

No changes

Confirm whether the digital outputs of ICA01, IC4A1, and

IC401 are generated at the normal TTL level respectively.

Normal

Normal

Check IC401 or its peripheral circuits.

6-8

3.4 Color Errors

Execute FACTORY PRESET of the OSM USER mode.

Normal

NG

Enter the SERVICE mode and execute SERVICE RESET.

Normal

NG

Execute AUTO ADJUST.

Normal

NG

Execute the automatic adjustment of H/V POSITION,

H.SIZE, and FINE in the OSM USER mode.

Normal

NG

Is there no change in abnormal conditions?

Changes present

No changes

• Check the LCD module, IC4A1, or its peripheral circuits.

• Check the waveforms at ICA01 pins 5, 13 and 20.

IC401 or its peripheral circuits are out of order.

6-9

4. Other Operational Errors

4.1 DDC Read Error

• Check the power supply for IC8A1/IC8F1.

• Check the clock signal waveform at IC8A1 Pin 1 and the data waveform at Pin 2.

4.2 Back Light Malfunction

• Check for the withdrawal of cables, if any.

• Is 18V available at CN2A1 Pins 10 to 13?

• Is 3.3V available at CN8A1 pin 4 ? Is there a waveform at CN2A1 pin 11?

• If there is still no lighting even though the above-mentioned voltages are maintained, then the inverter

PWB is considered to be out of order.

6-10

5. Switching Regulator Circuit Failure

Check the output voltages.

1.Make sure that the voltage of between CN951 pin 1

(18VC ) and pin 7 (GND) approx. +18V.

2.Make sure that the voltage of between CN651 pin 13

(5VC ) and pin 14 (GND) approx. +5V.

Passed

Check other circuits

Failed

Make sure that the voltage of between CN951 pin 12 (PMS) and pin 14 (GND) approx. 0V.

YES

Check the MAIN PWB circuits

NO

1. Turn off the power switch (SW901).

2. Disconnect the AC Power cable and CN951. And wait 1 minute.

3. Short CN951 pin 12 (PMS) and pin 13 (5VA) on the SW.REG PWB.

4. Soldering the dummy resistor (3W, 330

Ω) between CN951 pin 7 (GND) and pin 1 (18VC).

5. Connect the AC Power cable. And turn on the power switch (SW901).

6. Check the output voltages again.

Passed

Failed

+5VA output is 0V.

And other outputs are 0V.

NO

CONTINUE

Check other circuits

YES

Check the following parts

C9A2, C9A3, C9A4, C9A7, C9E1, C9E2, C9E3,

D9A1, D9A2, D9E1, IC901, IC9A1, IC9E1, L9A1,

L9E1, L9X2, PC9A1, Q901, R915, R9A3, R9A6,

R9E1, R9E2, R9E3, R9E4, T9A1, ZD910, ZD9A4,

F901.

If Fuse F601 is broken. Check the following parts.

C901, C902, C906, C9X1, R909, R917, D901,

T901, IC901, IC9A1, Q901, Q913, ZD918, ZD919,

VD901.

6-11

CONTINUE

+5VA output is instability or low voltage.

NO

+5VA output is normal.

+18VA outputs are 0V or low voltage.

NO

+5VA output is normal.

YES

+18VA output increase until approx 22V, and become 0V momentarily.

And when the power switch turn on, the voltage of both ends of C911 increase until approx 28V, and become 0V momentarily.

YES

YES

Check the following parts

IC9E1, R9E6, C906, C9A4, C9A7,

C9E2.

Check the following parts

D911, D915, D930, D951, IC901,

IC951, PC901, PC911, Q901,

Q908, Q911, Q912, Q913, Q930,

Q931, Q932, Q933, Q9E1, ZD910,

ZD917, ZD918, ZD919, ZD920,

L951, T901,R908, R909, R911,

R915, R917, C954, C911.

Check the following parts

IC951, R951, R952, R953, R954,

PC901, T901, IC901, C906.

6-12

CIRCUIT DESCRIPTION

TABLE OF CONTENTS

Page

1. Outlined Software Descriptions ............................................................................................. 7-3

2. Circuit Block Descriptions ...................................................................................................... 7-4

2.1 Analog Signal Input Circuit .................................................................................................. 7-4

2.1.1 Analog Signal Processor Circuit (Descriptions Only for G ch on the DVI-I Side) .................. 7-4

2.1.2 SOG Sync Separator Circuit ......................................................................................... 7-4

2.1.3 Sync Signal Changeover Circuit ................................................................................... 7-4

2.2 AD Converter ....................................................................................................................... 7-5

2.3 Digital Signal Input Block ..................................................................................................... 7-5

2.4 IC4A1 Signal Processor Block ............................................................................................. 7-5

2.5 Scalar (IC401) and Peripheral Circuits ................................................................................ 7-6

2.5.1 Internal Block Diagram of IC401 ................................................................................... 7-6

2.5.2 LVDS ............................................................................................................................. 7-6

2.5.3 Clock Generator Circuit ................................................................................................. 7-6

2.5.4 Flash Memory ............................................................................................................... 7-6

2.6 MPU and Peripheral Circuits ............................................................................................... 7-7

2.6.1 Reset Circuit (1) .............................................................................................................. 7-7

2.6.2 Reset Circuit (2) ............................................................................................................ 7-7

2.6.3 EEPROM ....................................................................................................................... 7-7

2.7 DDC ..................................................................................................................................... 7-7

2.7.1 INPUT1 (IC8A1, IC8A2) ................................................................................................ 7-7

2.7.2 INPUT2 (IC8F1) ............................................................................................................ 7-7

2.7.3 DDC-CI .......................................................................................................................... 7-7

2.7.4 Auto DVI Selection ........................................................................................................

7-8

2.7.5 EDID DATA read/write ................................................................................................... 7-9

2.8 POWER SW circuit ..............................................................................................................

7-10

7-1

2.9 Switching Regulator Circuit ................................................................................................. 7-10

2.9.1 Rectifying Circuit ...........................................................................................................

7-10

2.9.2 Main Power Supply ON/OFF Circuit .............................................................................

7-11

2.9.3 Auxiliary Power Supply Circuit ...................................................................................... 7-12

2.9.4 MAIN SW.REG Converter Circuit .................................................................................. 7-13

2.9.5 Output Rectifying and Smoothing Circuit ......................................................................

7-14

2.9.6 Error Detection Amplifier Circuit and Control Circuit ..................................................... 7-14

2.9.7 Over Voltage Protection ................................................................................................ 7-15

2.9.8 Over Current Protection ................................................................................................ 7-15

2.9.9 Power Factor Correction (PFC) Circuit .........................................................................

7-16

2.9.10 SUB Switching Regulator Circuit ................................................................................ 7-17

2.9.11 Over Voltage Protection (SUB Switching Regulator) .................................................. 7-18

7-2

1. Outlined Software Descriptions

The LCD2080UX is a 20.1-inch LCD monitor equipped with two systems of input connectors.

INPUT1 is the DVI-I connector that can pick up an input of either the digital signal (TMDS) or the analog signal. INPUT2 is provided with the DVI-D and VGA connectors either of which can be used for the input entry.

The analog input signal is selected in the RGB 2ch analog signal changeover circuit, incorporated in the AD converter (ICA01). The AD converter is used to convert the RGB signals into the digital signals, each consisting of 8 bits. The sampling frequency for AD conversion is generated through the multiplication of the sync signal. This signal frequency is transferred to the signal processor IC (IC4A1) together with the converted data.

In regard to the DVI digital signal input, on the one hand, the TMDS signal is decoded at the TMDS receiver

(ICK01 or K02) and then transferred to IC4A1. For the two TMDS receiver outputs, each has a capacity of wiring for 8 bits

× 3 (RGB) × 2 (pixel/ clock) = 48 bits. These circuits are connected in the wired OR mode in order to reduce the number of circuit parts.

The signal processor IC (IC4A1) has the functions of sync signal telemetry, delay compensation, and color adjustment. The data after AD conversion or those decoded at the TMDS circuit are entered in the scalar

LSI (IC401) via IC4A1. The scalar LSI tentatively stores the image data in its internal SDRAM for the purpose of extended conversion processing. The OSM images are also generated here. The control program of extended conversion and the OSM image data are stored in the flash memory of IC402. The rate of extended conversion and the OSM image data are controlled by the MPU (IC804) through the UART communication line (TXD, RXD).

The data processed in IC401 are sent to the LVDS transmitter. The LVDS signal is decoded again in the

LCD panel control PWB, and the pictures are displayed at the panel.

The MPU is in charge of input signal discrimination, AD converter control, OSM control, key scan, signal reset detection, power sequence control, inverter control, signal processor IC control, hours running control, and so on. The IC804 program is stored in the internal ROM or the flash memory, and the user adjustment data are stored in the EEPROM (IC803) through the I

2

C bus.

7-3

2. Circuit Block Descriptions

2.1 Analog Signal Input Circuit

2.1.1 Analog Signal Processor Circuit (Descriptions Only for G ch on the DVI-I Side)

The analog video signal input entered in the DVI-I connector is put in the OP AMP of ICA70A through the emitter follower circuit of QA70G. This video signal is amplified about twice in this IC. The amplified video signal is attenuated by RA76A and RA77A to the 1/2 level. Through the C-coupling of CA12, the resultant signal is entered in the AD converter ICA01.

QA71G and QA72G are the transistors used for the ON/OFF operation of the analog delay circuit. When they are turned off, DA71G and DA72G and DA73G are turned on and a CR low pass filter is formed by

RA75G, CA73G, CA75G and CA77G. QA81G and QA82G are the transistors used for the ON/OFF operation of the analog delay circuit. When they are turned off, DA81G and DA82G and DA83G are turned on and a CR low pass filter is formed by RA85G, CA83G, CA85G and CA87G. Thus a propagation delay takes place at a high frequency. The amount of delay can be adjusted in 4 steps inclusive of “no compensation” through the selective changeover of QA71G and QA72G. The high-domain frequency attenuated in the delay circuit is automatically compensated for by the function of sharpness available in

IC4A1. For the purpose of waveform correction, QA73G and QA83G are used to sharpen the blunt video signal caused by raising the high-frequency gain.

2.1.2 SOG Sync Separator Circuit

After the completion of C-coupling, the G input signal is amplified to about three times at the current feedback type OP AMP of ICA70A through the video buffer circuit of QA70G and the SOG buffer circuit of

QAM1 call for a power supply of negative potential.

The 3-times amplified signal is processed at the emitter earthed transistors (QAH1 and QAH2) and only the sync signal component of about 3.3V in the amplitude is output to the collector. The waveform of this output is shaped up at the Schmitt input inverter. Since then the output signal is entered in the signal processor

LSI (IC4A1). This signal is used for the frequency measurement of the SOG signal.

At the time of the entry of the SOG signal input, the horizontal sync signal intended for the generation of the

PLL clock for the AD converter is gained from the output of ICA70A and through the potential division by

RA76A/RA77A and RA86A/RA87A. The obtained output is entered in the AD converter of ICA01. In the inside of AD, there is a comparator intended for the separation of video signals from sync signals. The slice level can be adjusted with the use of the advanced menu.

2.1.3 Sync Signal Changeover Circuit

1) Sync signal for measurements (separate, composite)

The horizontal (or composite) sync signal input entered in the Schmidt inverter of ICAA1 is entered together with the vertical sync signals in the signal processor IC (IC4A1) through the waveform shaping

Schmidt inverter of IC4A2 and IC4A3.

2) Sync signals for AD sampling clock

The horizontal (or composite) sync signal input entered in the Schmidt inverter of ICAA1 and ICAA2 is entered in the AD converter (ICA01) through the analog switch of ICAA3 and ICAA4. The horizontal signal input entered in the AD converter is used as a PLL phase comparator signal intended for the generation of AD sampling clock signals. ICAA3 and ICAA4 has a function of sync signal line ON-OFF so that “signals are transmitted at a low resistance in normal operation and the AD converter is protected in the PMS mode.”

3) Sync signals for measurements (SOG)

The SOG sync signal input of 3.3V in the amplitude, entered in the Schmidt inverter of ICAA1 and ICAA2, is entered in the signal processor IC (IC4A1) through ICAA6. This ICAA6 has a function of separation sync signal changeover so that “a high separation performance characteristic is gained in ordinary operation and less power is consumed in the PMS mode.”

7-4

4) Schmidt power supply changeover circuit

The source voltage of the Schmidt inverter consisting of ICAA1 and ICAA2 is controlled by changing over the feedback voltage of ICAA6 with the aid of the SMT 2.7V signal that has been controlled by the MPU.

When the sync waveform becomes blunt and a step-state waveform is observed in the vicinity of the threshold level of the Schmidt inverter (FINE noise does not disappear in the picture), the source voltage is changed with the advanced menu to regulate the threshold voltage.

2.2 AD Converter

Changeover of the two signals is controlled inside the AD converter, and this control is effected from the

MPU through the I

2

C bus.

The AD converter (ICA01) is used to convert the RGB video signals of about 0.7Vp-p into the digital signals of 8 bits each, 24 bits in total. The conversion clock into the digital signals is based on the horizontal sync signal. The clock signal is generated in ICA01 by the incorporated PLL circuit.

The video signal input is entered in ICA01 through the C-coupling by CA05 to CA10. This signal input is clamped at the input stage of ICA01 by the clamp pulses in the horizontal back porch block. The clamp pulses are generated from the previously mentioned horizontal signals in the signal processor IC (ICA01), and entered in Pin 30. After clamping, the video signals pass through the built-in pre-AMP and AD conversion is effected with the sampling clock generated by the above-mentioned PLL.

The register used to set up the clamp pulses and the pre-AMP gain is controlled through the I

2

C bus of Pins

31 to 21. The circuit components of CA21, CA2A, CA22, and RA30 connected to Pin 50 are used to establish a loop filter for the generation of the PLL clock. If this block involves any abnormality, pictures cannot be reproduced correctly.

SOG and COMPOSITE SYNC are used to suspend the PLL phase comparison during the vertical blanking by the COAST (or called HOLD) generated in the inside of ICA01. If this signal is not available, the clock frequency changes during the vertical period and a curve is produced in the upper part of the screen.

2.3 Digital Signal Input Block

The TMDS (panel link) signal is decoded by the receiver IC circuit (ICK01, ICK02) and then converted into a digital signal of 48 bits. (The digital signal is used to select the Input 1 or Input 2 side while a wired OR circuit is established by the outputs of ICK01 and ICK02 and the PDO terminal of ICK01 and ICK02 is controlled by the MPU (IC804).)

2.4 IC4A1 Signal Processor Block

When the output image data are received from the ADC (ICA01) or the TMDS receiver (ICK01, ICK02) and the processing described below is carried out in the inside of IC4A1, the image data are sent out to the scalar of IC401.

1) Detection, measurement, and discrimination of sync signals

2) Input signal position control (RGB individual control enabled)

3) ADC/TMDS* input signal changeover

4) Color adjustment

* Mutual TMDS changeover is effected through the control of the PD/PDO terminal by the MPU.

7-5

2.5 Scalar (IC401) and Peripheral Circuits

2.5.1 Internal Block Diagram of IC401

From

IC4A1

Graphics

Input

Port

No Use

From/To

Flash ROM

Video

Input

Port

MPU

PW164B-20T

Frame

Buffer

TXD / RXD

IC804

MCLK RESET

General

I/O Port

No Use


Scalar

OSD

Controller

Display

Output

Port

DCLK

LVDS

Transmitter

2.5.2 LVDS

The 48-bit digital signal output from the scaling IC (IC401) is entered in the LVDS transmitter (IC551,

IC552).

The LVDS signal is transmitted from CN551 to the panel control board, and decoded within this board.

2.5.3 Clock Generator Circuit

Original oscillation is caused in the 14.31818MHz oscillator (X402). Since then, the output is multiplied by 5 times at the PLL (IC403). As a result, a clock signal of 130MHz is gained and fed to IC401. This signal is called the MCLK and used for the control of SDRAM incorporated in IC401 and also for the internal MPU system clock (however 1/3) and others.

The difference frequency output is generated from IC403 Pin 4. This output signal is multiplied by 4 times at another PLL (IC403), and a clock signal of 125MHz is gained and fed to IC401. The multiplied signal is called the “DCLK” and used for the panel driving clock. However, the panel driving clock is DCLK/2.

2.5.4 Flash Memory

The flash memory (IC402) keeps the program data of the MPU incorporated in IC401. The address bus is

“A[19:1]” and the data bus is “D[15:0]”. These program data can be rewritten from CN401 through an appropriate jig.

7-6

2.6 MPU and Peripheral Circuits

2.6.1 Reset Circuit (1)

Resetting of the MPU is effected by IC801. The source voltage is raised from zero volt to 3.3Vdc and the resetting condition of the MPU is canceled after about 34ms after the moment when the potential at IC801

Pin 2 reaches 1.25V. In case of MPU runaway, this MPU can be forcibly reset from the outside, by pressing

POWER and RESET of the front key simultaneously.

2.6.2 Reset Circuit (2)

The reset circuit installed in the periphery of IC802 is used to detect a momentary potential dip of 18V. If there is any abnormality in the power transformer output or load, IC802 maintains the potential of Pin 6 at the Low level during the period of about 34ms after the moment when 18V has lowered to about 1.34V.

When the L potential is sensed, the MPU once causes the power transformer output to shift to the PMS state and then establishes the power again for the panel, the scalar, etc.

2.6.3 EEPROM

The various adjustment data are stored in IC803 that is connected to the MPU through I

2

C. For data writing from the MPU, the output is generated from Pin 29, but the data input read out of the EEPROM is entered in Pin 28. The clock signal is used in common for both writing and reading.

2.7 DDC

2.7.1 INPUT1 (IC8A1, IC8A2)

Two banks of EEPROMs, each with a capacity of 8 bits

× 128 words, are loaded in this IC. The EDID data for both digital and analog can be read out of one IC by means of one set of the DDC lines.

The digital/analog changeover is effected by DVI selection of the OSM. The result of selection on the OSM is written in IC8A2 by the MPU. The output from Pin 5 of IC8A2 is switched over to H or L according to the written data. The switching of the output H/L status is carried out when this status information is applied to

Pin 11 of the bank changeover terminal in IC8A1. Since IC8A2 is a non-volatile memory that enables the written data to be held, the required data can be read out by simply feeding a source voltage to IC8A1 and

IC8A2 even though the MPU is not turned on. Please refer 2.7.3

2.7.2 INPUT2 (IC8F1)

This IC has the same characteristics as those of IC8A1. The EDID data for both digital and analog are written in one IC. However, when the potential at Pin 12 of IC8F1 is lowered to the L level, it becomes possible to read out the digital data and the analog data independently of each other.

In the same manner as that for IC8A1, data writing in IC8F1 is conducted from one set of the DDC lines.

When the potential at Pin 12 is turned to the H level, only the DDC line on the VGA connector side becomes available. In the same manner as for IC8A1, two kinds of the EDID data can be written from a set of the DDC lines under the control from Pin 11 intended for bank changeover. For bank changeover, similarly as for conventional models, the V sync polarity is discriminated by the MPU and the related setting is made at IC8A2.

2.7.3 DDC-CI

In the DDC-CI, this unit can be controlled from the host side without using the front key. In the state that a picture of INPUT1 is displayed, /DVISEL1 of the MPU output terminal is set at L. When /DVISEL1 is set at L, the sections on Pins 8 and 9 of IC8A1 are turned on and those on Pins 8 and 9 of IC8F1 are turned off

(Hi-Z). In the state that INPUT2 is displayed, /DVISEL1 is set at H, the sections on the IC8A1 side are turned off and those on the IC8F1 side are turned on. The DDC lines of IC8F1 come in two systems arranged so that the MPU can always maintain communication with the host DDC line on the picture display side while the MPU controls the bank changeover Pin 11 according to the display of analog or digital.

7-7

2.7.4 Auto DVI Selection

The two EDIDs of “digital” and “analog” of INPUT1 can be selected by any of the two methods of Auto and

Manual.

In the AUTO mode, Pin 14 and Pin 16 are short-circuited when the accessory cable is of DSUB-DVIA. In the

DVID-DVID mode, on the other hand, DVI selection is automatically carried out, utilizing the fact that Pin 16 is for a high impedance.

When the DVI selection is performed in the AUTO mode and the signals are of analog, CKF1 is cut off and

BANKSEL of IC8A1 (Pin 11) is turned low. In this state, the analog EDID is read out. In the digital mode,

QKF1 is turned on, BANKSEL is turned high, and the digital EDID is read out.

A changeover action is taken between AUTO and MANUAL by IC8A5 and IC8A4. This status is maintained at the potentiometer of IC8A3 even though the power supply has been turned off.

Whether DIGITAL or ANALOG is selected in the manual mode is controlled by the microcomputer IC804 according to the user menu of the OSD. This status is maintained at the potentiometer of IC8A2 even though the power supply has been turned off.

IC8A2 and IC8A3 are controlled by the microcomputer IC804 through the three wires. /PMCS and /PMCS2 are the chip select ICs, respectively. The U/D is used to determine the direction in which the resistance at the potentiometer is increased or decreased, in order to secure an increment at the rising edge of /INC.

Since this potentiometer is provided with 16 statuses, the status of high or low is changed over by applying the 16 pulses.

7-8

2.7.5 EDID DATA read/write

Table 2.7.5 Control Terminals of the EEPROM (IC8A1 / IC8F1)

Reading from

EEPROM

Writing in

EEPROM

DVI-I

ANALOG

DVI-D

DSUB

IC8A1

DDCENA

10pin

IC8F1

DDCENA

10pin

IC8A1

DUALPCB

12pin

IC8F1

DUALPCB

12pin

IC8A1

BANKSEL

11pin

DVI-I

DIGITAL

H L H

H

DVI-I

ANALOG

H L H

L

DVI-D L H H L

DSUB L H H L

DVI-I

DIGITAL

− −

H

H

H

H H

H H

L

IC8F1

BANKSEL

11pin

CPU

/DVISEL1

P21

CPU

/WP

P20

L L

L L

L H

L H

When writing EDID of DVI-D, the data input from the D-SUB should be entered. For both INPUT1 and

INPUT2, the DDC-CI commands for writing should be as shown below.

1) Enter the Factory mode.

2) Send a cancel command of WRITE PROTECT. (6E-51-85-C8-03-7E-00-01-CHK)

3) Send a DIGITAL Select command. (6E-51-85-C8-02-36-00-01-CHK)

4) Write the EDID data of DIGITAL.

5) Send an ANALOG Select command. (6E-51-85-C8-02-36-00-00-CHK)

6) Write the EDID data of ANALOG.

7) Turn off the power supply.

7-9

2.8 POWER SW Circuit

When the front POWER SW is pressed in the state that the vacation SW is turned ON and the LED is unlit, the POW_SW line is turned to the GND level and Q151 is turned on to supply a power of 5Vdc. The power circuit of 5Vdc is connected to the ON/OFF terminal of IC221. When IC221 is started, the power is fed to the MPU. The POW_SW line is connected also to the base of Q156, and therefore both Q156 and Q157 are turned on. The Q157 collector output circuit of “SWI” is connected to the MPU. When “SWI: L” is detected after the MPU has canceled the reset state, the condition of the front POWER SW pressed ON is identified.

If the front POWER SW is pressed ON in the state that the LED is lighting, Q156 and Q157 are turned on in the same manner as described above. When Q157 is turned on, SWI is turned to the L level. When the

MPU identifies the condition of “SWI: L

→ H” in the state of normal operation, image blanking, panel power supply OFF, and other processes are carried out. Since then, the output port signal of “SWO” is set at the H level. When “SWO” attains the H level, Q154 is turned on and Q153 is turned off. Therefore, Q151 is turned off to stop the operation of this unit.

2.9 SWITCHING REGULATOR CIRCUIT

2.9.1 Rectifying Circuit

AC input is rectified by D901 and supplied to the power factor collector circuit.

AC

D901

POWER FACTOR

COLLECTOR

CIRCUIT

C906

MAIN SW. REG

CONVERTER

CIRCUIT

AC

(Fig. 2.9.1) Rectifying Circuit

7-10

2.9.2 MAIN Power Supply ON/OFF Circuit

When the power switch (SW901) is turned on, at fast, the SUB SW.REG converter circuit starts oscillation.

And the voltage of secondary output (5VA) is raised to 5V.

The Micro-computer on MAIN PWB starts operating, and SW.REG PWB is received “PMS” signal (approx

3V). Q9E1 turned on, and the signal is transmitted to the primary side through PC911.

On the primary side, Q930 is turned on, Q932 is turn on, and Q931 is turned off.

Therefore, Q933, Q908 is turned on, and the MAIN Power Supply and Power Factor Collector (PFC) circuits begin operating. The voltage of secondary outputs 18VC are raised.

When the PMS (power save) MODE, “PMS” signal drops to low. Opposite operation is done, and The

Voltage of secondary outputs 18VC are stopped.

D901

R935

R936

R904

R905

R906

Q908

R908

IC901

ZD908

R937

Q931

R933

Q930

D915 Q933

D911

R911 T901

R908

C910

Q932

D930

D9A2 L9A1 T9A1

C9A2

ZD930

R931

PC911

R934

5VA

R9E7

PC911

Q9E1

PMS

(ON/OFF

SIGNAL)

(Fig. 2.9.2) MAIN Power Supply ON/OFF Circuit

7-11

2.9.3 Auxiliary Power Supply Circuit

The auxiliary power supply circuit is needed to activate IC901.

When SW.REG PWB receives “PMS” signal, Q933 and Q908 is turned off with the above-mentioned

ON/OFF circuits. The charging current flows into the capacitor C911 through IC901 pin12, IC901 pin1.

Oscillation starts when the voltage of IC901 pin1 reaches 17.5V by this charging operation.

After the start of oscillation, the fly-back voltage of auxiliary winding of T901 is rectified and smoothed by

D911 and C910.

The resulting DC voltage is supplied to IC901 1pin.

C906

R908

R904 R905 R906

IC901

Startup

Circuit

Startup

12

VCC

1

ZD908

GND

6 C911

Q908

D915

Q933

D911

C910

R911

T901

C906

(Fig.2.9.3) Auxiliary Power Supply Circuit

7-12

2.9.4 MAIN SW.REG Converter Circuit

The converter circuit consists of the primary winding of T901, a switching device Q901 and surge absorber

(C907,R907 and D907) which are connected to the primary winding of T901.

The oscillating signal from IC901 pin2 is applied to the gate of Q901 so that the drain - source is turned ON and OFF. In result, the oscillating voltage is applied to the primary winding of T901.

C906

T901

R907 C907

D907

IC901

GND

6

OUT

2

Q901

R909

C906

(Fig. 2.9.4) MAIN SW.REG Converter Circuit

7-13

2.9.5 Output Rectifying and Smoothing Circuit

The fly-back voltage which are generated at the secondary windings of T901 are rectified by D951.

Then, these voltage are smoothed by C951,C952 and C953 so that DC voltages are obtained.

The DC voltage is maintained constantly by controlling the ON period duty cycle of Q901 in the converter circuit.

T901

D951

+18V

C951 C952 C953

(Fig. 2.9.5) Output Rectifying and Smoothing Circuit

2.9.6 Error Detection Amplifier Circuit and Control Circuit

The output voltage +18VA is divided by the network resistors.

This divided voltage is compared with the reference voltage at the error amplifier IC951.

An error signal is applied to the control circuit via the photo coupler PC901.

The control circuits are contained in IC901.

The output of the error detection amplifier circuit is feed back to IC901 pin3 via PC901 to control the duty cycle of Q901. In result, the output voltage is kept constant.

DFB

3

IC901

+18VC

C915

PC901

R951 R952

R953

R918

IC951

R954

GND

GND

(Fig. 2.9.6) Error Detection Amplifier Circuit and Control Circuit

7-14

2.9.7 Over Voltage Protection

If some failure occurs and the output voltage of the secondary windings of T901 increase, the voltage of the auxiliary winding of T901 also will increase proportionally. The protection circuit built into IC901 operates when the voltage of 1pin of IC901 rises to about 28V,and Q911 is turn on.

Then the voltage of IC901 pin7 reaches over 8.8V and the oscillation is stopped.

VCC

IC901

1

D915

C920 R920

D911

R911

T901

Q911

MultFP

7

R922

GND

6

C9X2

ZD920

C911 C910

R9X4

R636

(Fig. 2.9.7) Over Voltage Protection

2.9.8 Over Current Protection

If some failure occurs and the total power of secondary outputs increase, the peak voltage of 4pin of IC901 increase proportionally. And when the peak voltage of 4pin reaches 0.62V, IC901 decrease on period duty cycle of Q901 , and limits the transmission of the electric power. IC901 stops oscillating.

C906

T901

0.62V

IC901

OCP

4

GND

6

C906

C913

FROM IC901 PIN2

DRIVE CIRCUIT

R917

(Fig. 2.9.8) Over Current Protection

Q901

R909

7-15

2.9.9 Power Factor Collector (PFC) Circuit

Oscillation starts when the voltage of IC901 pin1 reaches 17.5V by this charging operation.

After the start of oscillation, the pulse voltage of auxiliary winding of L9X1 is rectified and smoothed by

D9X2, C925, R928 and R926. The resulting DC voltage is supplied to IC901 pin8.

The PFC converter circuit consists of the main winding of L9X1 and a switching device in IC901. The switching device in IC901 begin to turn ON and OFF.

In result, the pulse voltage is applied to the main winding of L9X1.

The pulse voltage generated at the main winding of L9X1 rectified by D9X1. Then, this voltage are smoothed by C906 so that DC voltage are obtained. The DC voltage are maintained constantly by controlling the ON period duty cycle of IC901 in the PFC converter circuit.

The DC voltage is divided by the resistors R9X5, R9X6, R9X7 and R9X8.

This divided voltage is compared with the reference voltage at the error amplifier in IC901.

L9X1

D9X1

D901

R9X9

CONVERTER

CIRCUIT

11

ZCD D

S

15

13

IC901

PFB

9

R9X5

R9X6

R9X7

R9X8

C906

R9Y3

D901

(Fig.2.9.9) Power Factor Collector (PFC) Circuit

7-16

2.9.10 SUB Switching Regulator Circuit

After the AC power switch (SW901) is turned on, the charging current flows into the capacitor C905 through terminal “C”(control) from “D”(drain) of IC9A1. MOS FET is built in by IC9A1.

Oscillation starts when the voltage of C9A4 reaches 5.9V by this charging operation.

After the start of oscillation, the voltage of secondary output is raised. At the same time, the fly-back voltage of auxiliary winding of T9A1 is rectified and smoothed by D9A2 and C9A2.

The resulting DC voltage is supplied to PC9A1.

SUB switching regulator have the error detection amplifier circuit.

The output of the error detection amplifier circuit is feed back to IC9A1 terminal “C” via PC9A1 to control the duty cycle of built-in switching devices. In result, the output voltage is kept constant.

Intermittent oscillates at a light load, and the oscillation period shortens.

The period which oscillates by the load heavy becomes long.

The drain current is regulated by peak current control.

The drain electric current is detected the “Vds” turn ON pulse by pulse.

It is detected by the resistance of “Ron” of MOS FET.

When a Vds exceeds regulation value, it stops until the next oscillation period.

C906+

T9A1

D9E1

C9A3 R9A2

1

6

L9E1

R9E1

5VA

D

IC9A1 C

PC9A1

D9A1

D9A2

3

5

C9A2

8

C9E1

PC9A1

C9E2

R9E2

R9E3

C9E3

S

4

IC9E1

R9E4

C9A4

GND

C906-

(Fig.2.9.10) SUB Switching Regulator Circuit

7-17

2.9.11 Over Voltage Protection (SUB Switching Regulator)

If some failure occurs and the output voltage of the secondary windings of T9A1 increase, the voltage of the auxiliary winding of T9A1 also will increase proportionally. When the voltage of C9A2 increases beyond the zener voltage of ZD9A4, terminal "3" to "6" of IC9A2 is short and latch.

As a result, the voltage of "C" terminal of IC9A1 decreases, and the oscillation is stopped.

This operation is maintained until the AC cable is pulled out or the power switch (SW901) is turned off.

D

T9A1

IC9A1

C

R9A8

PC9A1

D9A2 L9A1

S

ZD9A4

C9A4

3

IC9A2

5

R9A4

C9A2

6

R6A5

(Fig. 2.9.11) Over Voltage Protection (SUB Switching Regulator)

7-18

REPLACEMENT PARTS LIST

TABLE OF CONTENTS

page

Parts Compatibility List .......................................................................................................... 8-2

Manufactured by NMV

MODEL LCD2080UX(A) ....................................................................................................... 8-4

MODEL LCD2080UX-BK(A) ................................................................................................. 8-28

MODEL LCD2080UX(B) ....................................................................................................... 8-52

MODEL LCD2080UX-BK(B) ................................................................................................. 8-76

Manufactured by NPG

MODEL LCD2080UX(A) (For U.S.) ..................................................................................... 8-100

MODEL LCD2080UX-BK(A) (For U.S.) ............................................................................... 8-124

MODEL LCD2080UX(B) (For Europe) ................................................................................ 8-148

MODEL LCD2080UX-BK(B) (For Europe) .......................................................................... 8-172

MODEL LCD2080UX(A) (For Asia / Pacific) ....................................................................... 8-196

MODEL LCD2080UX-BK(A) (For Asia / Pacific) ................................................................. 8-220

MODEL LCD2080UX(B) (For Asia / Pacific) ....................................................................... 8-244

MODEL LCD2080UX-BK(B) (For Asia / Pacific) ................................................................. 8-268

8-1

Parts Compatibility List

Manufactured by NMV

Part No for NMV

3A773094

Manufactured by NPG

Part No for NPG Part No for NMV

EHA10701 79PQ6124

Other Electric Parts

8BEV1P01

7A930026

3A684034

25435661

25435791

AP0EV1ML

JM100131

JG502011

11002211

11002221

Description Compatibility

79PQ6104

79PQ6286

3A684034

IC SMD M30625MGN-A26GP

POWER INSERT ASSY

INVERTER UNIT L202EV

LCD LM201U03 LGPHILIPS

No

Yes

No

Yes

Yes

Yes

79PQ6062

79PQ6063

79PQ6079

79PQ6080

ASSY,L202EV(WH,N)

ASSY,L202EV(BK,N)

Yes

Yes

No

No

Yes

Yes

Yes STAND COVER TB,L202EV(WH)

STAND COVER TB,L202EV(BK) Yes

COVER Yes

COVER Yes

25551401 12301211 79PQ6065 BRACKET BASE ASSY,L202EV

Yes

No

CARTON No

CARTON No

No

No

Yes

Yes

Yes

No

Yes

Yes

No

No

No

Yes

Yes

Yes

Yes

7A392036

7A392037

JM100111

JM100121

79PQ6284

79PQ6285

CABLE BUTTON WHT

CABLE BUTTON BLK

Yes

Yes

7A391014

7A391010

7A391005

7A391011

7A081007

7A082004

7A082005

RE010201

RE010211

RE010221

RE010231

RG021081

RG031091

RG031081

79PQ6290

79PQ6291

79PQ6292

79PQ6293

79PQ6296

79PQ6298

79PQ6297

CABLE VIDEO DVID-DVID 2.0M HG

CABLE VIDEO DVID-DSUB 2.0M HG

CABLE VIDEO DVID-DVID 2.0M BLK

CABLE VIDEO DVID-DSUB 2.0M BLK

PW CORD NA 2.0M BLK I-SHENG

PW CORD EU 1.95M HG I-SHENG

PW CORD EU 1.95M BLK I-SHENG

Yes

Yes

Yes

Yes

No

No

No

No

Yes

8-2

Detail of accessory

A version

Manufactured by NMV

Part No for NMV

7A813152

---

Manufactured by NPG

Part No for NPG Part No for NMV

NMV Nagasaki: With PIVOT/LVIEW

Description Compatibility

--- ---

13700251 79PQ5129

SHEET

BAG

No

No

No

No

No

No

NPG: With out PIVOT/VIEW

13700251 79PQ5129 BAG

No

No

No

B version

Manufactured by NMV

Part No for NMV

7A813163

---

Manufactured by NPG

Part No for NPG Part No for NMV

NMV Nagasaki: With PIVOT/LVIEW

Description Compatibility

--- --- FLYER

15900056 79PQ5832 SALES OFFICE LIST

--- --- SHEET

13700251 79PQ5129 BAG

No

No

No

No

No

No

No

NPG: With out PIVOT/VIEW

15900056 79PQ5832 SALES OFFICE LIST

13700251 79PQ5129 BAG

No

No

No

No

8-3

REPLACEMENT PARTS LIST

The components specified for Model LCD2080UX(A)

Manufactured by NMV

SYMBOL PART NO DESCRIPTION

*** ICS ***

IC201

IC221

IC222

IC251

IC271

IC272

IC2A1

3A7KB073

3A7KB045

3A7KB073

3A7KB070

3A7KB073

3A7KB073

3A7KB045

IC401

IC402

3A775023

3A752045

IC403 3A7EF036

IC405 3A7EF003

IC4A1 3A774007

IC4A2 3A7EA002

IC4A3 3A7EA002

IC551 3A7EJ034

IC552 3A7EJ034

IC801

IC802

3A7KB030

3A7KB030

IC803 3A7EB005

IC804 3A753017

IC8A1 3A7EB016

IC8A2 3A7EJ022

IC8A3

IC8A4

3A7EJ022

3A7EF037

IC8A5 3A7EF037

IC8F1 3A7EB016

IC901 3A709036

IC951 3A7K9039

IC9A1 3A709009

IC9A2 3A709038

IC9E1 3A7K9039

ICA01

ICA70A

3A754002

3A7KA024

ICAA1 3A7EA002

ICAA2 3A7EA002

ICAA3

ICAA4

3A7EF033

3A7EF033

ICAA5 3A7KJ035

ICAA6 3A7EF030

ICK01 3A775006

ICK02 3A775006

IC SMD BA00BCOWFP

IC SMD PQ1CZ21H2ZP

IC SMD BA00BCOWFP

IC SMD L4978 REGULATOR

IC SMD BA00BCOWFP

IC SMD BA00BCOWFP

IC SMD PQ1CZ21H2ZP

IC SMD PW164B

IC SMD LHF28F800-L202EV

IC SMD ICS332M-L202EV

IC SMD UPD65545-Y-6C

IC SMD M51957AFP

IC SMD M51957AFP

IC M30625FGNGP L202EV F

IC X9116WM8-2.7T4 MOS

IC X9116WM8-2.7T4 MOS

IC SMD SN74CBT1G125DCK

IC SMD SN74CBT1G125DCK

IC SMD AD9888KS-170

IC SMD AD8002AR

IC SMD SN74CBTLV1G125DCK

IC SMD SN74CBTLV1G125DCK

IC SMD UPC1093T-E2

8-4

SYMBOL PART NO

Q451

Q452

Q453

Q805

Q806

Q807

Q861

Q863

Q8A3

Q8E1

Q8E5

Q8E6

Q901

Q908

Q911

Q912

Q913

*** TRANSISTORS ***

Q101 3AEF0038

Q102

Q104

3AEA0026

3AEF0038

Q105

Q151

Q152

Q153

Q154

3AEA0026

3AEE0038

3AEA0027

3AEC0025

3AEF0035

Q155

Q156

Q157

Q261

Q262

Q265

Q271

Q272

3AEF0035

3AEF0037

3AEF0035

3AEF0035

3AEE0039

3AEE0034

3AEF0035

3AEF0035

3AEA0026

3AEF0035

3AEF0035

3AEF0035

3AEC0053

3AEC0053

3AEE0034

3AEE0034

3AEF0035

3AEF0035

3AEF0035

3AEF0035

3A550043

3AEE0044

3AEA0027

3AEC0025

3AEC0025

Q930

Q931

Q932

Q933

3AEF0035

3A5C0054

3AEF0035

3AEF0040

Q9E1 3AEF0035

QA70A 3AEF0035

QA70B

QA70G

QA70R

3AEC0052

3AEC0052

3AEC0052

QA71A

QA71B

QA71G

QA71R

3AEE0038

3AEF0037

3AEF0037

3AEF0037

DESCRIPTION

TR SMD DTC143ZKA-T146

TR 2SA812-T1BM6

TR SMD DTC143ZKA-T146

TR 2SA812-T1BM6

FET SMD 2SJ356-T1 P

TR 2SA1037AK-T146 Q

TR SMD 2412K R

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR SMD DTA144EKA

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

FET SMD 2SJ325-Z E2 P

FET 2SK3018-T106

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR 2SA812-T1BM6

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR SMD 2SC3734

TR SMD 2SC3734

FET 2SK3018-T106

FET 2SK3018-T106

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

FET 2SK3673-01MR

FET 2SK2715 P

TR 2SA1037AK-T146 Q

TR SMD 2412K R

TR SMD 2412K R

TR DTC144EKA-T146(0)

TR 2SC5562

TR DTC144EKA-T146(0)

TR SMD DTB114EK

TR DTC144EKA-T146(0)

TR SMD 2SC3356(M)

TR SMD 2SC3356(M)

TR SMD 2SC3356(M)

FET SMD 2SJ356-T1 P

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

8-5

SYMBOL

QA82G

QA82R

QA83B

QA83G

QA83R

QAA1

QAH1

QAH2

QAM1

QAM2

QAN1

QAN2

QKF1

QA72A

QA72B

QA72G

QA72R

QA73B

QA73G

QA73R

QA80B

QA80G

QA80R

QA81B

QA81G

QA81R

QA82B

*** DIODES ***

D151

D152

3AFK1009

3AFA0029

D221

D222

D271

D272

3AFK9002

3AFK1009

3AFK1009

3AFK1009

D273

D274

D275

D2A1

D2M1

D901

D902

D907

D911

D912

D913

D914

D915

3AFK1009

3AFA0112

3AFA0112

3AFK9002

3AFK9002

3A609011

3A6A0075

3A6A0120

3A6C0022

3AFK1006

3AFK9010

3AFK9010

3AFK1006

PART NO

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEC0052

3AEC0052

3AEC0052

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0035

3AEA0028

3AEA0028

3AEC0053

3AEC0053

3AEA0028

3AEA0028

3AEA0027

DESCRIPTION

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD 2SC3356(M)

TR SMD 2SC3356(M)

TR SMD 2SC3356(M)

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR DTC144EKA-T146(0)

TR SMD 2SA1434-TB

TR SMD 2SA1434-TB

TR SMD 2SC3734

TR SMD 2SC3734

TR SMD 2SA1434-TB

TR SMD 2SA1434-TB

TR 2SA1037AK-T146 Q

DI SMD 1SS355 TE-17

DI RB715F-T106

DI SFPB-64

DI SMD 1SS355 TE-17

DI SMD 1SS355 TE-17

DI SMD 1SS355 TE-17

DI SMD 1SS355 TE-17

DI SMD RB495D

DI SMD RB495D

DI SFPB-64

DI SFPB-64

DI D3SBA60

DI RM10A

DI EG01CV1-T

DI SMD 1SR156-400

DI MA2Z001

DI DG1M3

DI DG1M3

DI MA2Z001

8-6

SYMBOL PART NO

D930

D951

D9A1

D9A2

D9E1

D9X1

D9X2

DA01

DA02

DA03

DA04

DA11

DA12

DA13

DA70A 3A6K1005

DA71B 3A6K1005

DA71G 3A6K1005

DA71R 3A6K1005

DA72B 3A6K1005

DA72G 3A6K1005

DA72R 3A6K1005

DA73B 3A6K1005

DA73G 3A6K1005

DA73R 3A6K1005

DA80A 3A6K1005

DA81B 3A6K1005

DA81G 3A6K1005

DA81R 3A6K1005

DA82B 3A6K1005

DA82G 3A6K1005

DA82R 3A6K1005

3AFK1009

3A610091

3A6A0120

3AFK1006

3A609003

3A610069

3AFC0001

3AFK1008

3AFK1008

3AFK1008

3AFK1009

3AFK1008

3AFK1008

3AFK1008

DA83B 3A6K1005

DA83G 3A6K1005

DA83R 3A6K1005

ZD8G2 3AFK5505

ZD908

ZD910

ZD917

ZD918

3AFK5741

3AFK6102

3AFK6101

3AFK5742

ZD919

ZD920

ZD930

ZD9A4

3AFK6100

3AFK6102

3AFK5741

3AFK6101

ZDA01 3AFK5506

ZDA11 3AFK5506

*** TRANSFORMERS ***

T901 4A530011

DESCRIPTION

DI SMD 1SS355 TE-17

DI FMX-22S

DI EG01CV1-T

DI MA2Z001

DI RK39(LF-C1)

DI FMG-G26S

DI SFPL-52

DI SMD DAN217 T146

DI SMD DAN217 T146

DI SMD DAN217 T146

DI SMD 1SS355 TE-17

DI SMD DAN217 T146

DI SMD DAN217 T146

DI SMD DAN217 T146

ZD SMD UDZS 7.5B TE-17

ZD SMD UDZS27B

ZD SMD UDZS18B

ZD SMD UDZS 5.1B TE-17

ZD SMD UDZS4.7B

ZD SMD UDZS27B

ZD SMD UDZS 7.5B TE-17

ZD SMD UDZS18B

TRANS SWITH ST-1102A

8-7

SYMBOL

T9A1

PART NO

4A530007

DESCRIPTION

SWTCHING TRANS L2.3MH

*** RELAYS & SWITCHES ***

SW901 6A530001

*** PWB ASSYS ***

X01 8BEV1M01

X02

X7A01

8BEV1P01

7A930026

ASSY-PWB-MAIN

ASSY-PWB-POWER

SKD LCD2080UX INVERTER

L223

L261

L262

L263

L271

L272

L2A1

L2A2

L2M1

L405

L406

L451

L452

L453

L454

L459

L4A1

L4A2

L4A3

L4A4

L4A5

*** COILS & FILTERS ***

FL203 6AAK2004

FL2M1 6AAK2004

FL901 6A101870

IN901

L115

L116

L117

4A660003

6AAK2070

6AAK2070

6AAK2070

L118

L119

L120

L121

L122

L123

L125

L221

L222

6AAK2070

6AAK2070

6AAK2070

6AAK2070

6AAK2070

6AAK2070

6AAK2070

6AAK2005

6AAK2005

6AAK2107

6AAK2005

6AAK2311

6AAK2005

6AAK2005

6AAK2005

6AAK2107

6AAK2005

6A1K1867

6AAK2005

6AAK2005

6AAK2070

6AAK2010

6AAK2010

6AAK2070

6AAK2070

6AAK2070

6AAK2005

6AAK2005

6AAK2369

6AAK2369

FILTER,NOISE

FILTER,NOISE

L FILTER LFZ28H05

LINE FILTER 03ME3G

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

CHIP COIL FBMH3216HM501NT

CHIP COIL FBMH3216HM501NT

SLF10145T-101M1R0

CHIP COIL FBMH3216HM501NT

COIL BEAD FBMH4525HM102NT

CHIP COIL FBMH3216HM501NT

CHIP COIL FBMH3216HM501NT

CHIP COIL FBMH3216HM501NT

SLF10145T-101M1R0

CHIP COIL FBMH3216HM501NT

L NOISE FILTER SMD 100UH

CHIP COIL FBMH3216HM501NT

CHIP COIL FBMH3216HM501NT

L BEAD SMD BK1608LM252

FERRITE,CHIP BK1608HS800-

FERRITE,CHIP BK1608HS800-

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

CHIP COIL FBMH3216HM501NT

CHIP COIL FBMH3216HM501NT

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

8-8

SYMBOL

L551

L552

L553

L561

L562

L563

L951

L9A1

L9E1

L9X1

L9X2

LAA3

LAA4

LAA5

LAA6

LAA7

LAH1

LAH2

LAN1

LAN2

X801

PART NO

6AAK2080

6AAK2080

6AAK2080

6AAK2080

6AAK2080

6AAK2080

6A101868

6AAK2162

6A1K2124

6A101869

6A109001

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAF0004

DESCRIPTION

L BEAD SMD BK1608HS601

L BEAD SMD BK1608HS601

L BEAD SMD BK1608HS601

L BEAD SMD BK1608HS601

L BEAD SMD BK1608HS601

L BEAD SMD BK1608HS601

L SBC7-100-532

LEMC3225T101K

L CHOKE 10UH 3.7A TSL1112

L PFC COIL 77A-2702

L CHOKE 72UH 2A

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

CERALOCK CSTCR7M37G53-R0

*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***

CNA01 7A057042

CNA02 7A057043

CNA03 7A057041

F901 6A600255 FUSE SG5013 250V 3.15A

OSC4A1

PC901

PC911

PC9A1

6ADE0004

3A820003

3A820003

3A820003

CRYSTAL SG-8002JF PCC 55M

IC PC123Y22 PHOTO

IC PC123Y22 PHOTO

IC PC123Y22 PHOTO

TH901 3A810010

VD901 3A0K0009

X3A01

X402

3A684034

6A410026

XD7A01

XD7A02

XD7A03

XD7A04

XD7A09

7A392036

7A391014

7A391010

7A081006

7A960491

LCD LM201U03 LGPHILIPS

OSC XTAL SMD HC-49U03C

CABLE BUTTON WHT

CABLE DVI HG 2.0M

DVI_A-VGA CABLE 2.0M HG

POWER CORD U3 L2.0 HG

CD PIVOT LVIEW,NEC(A,B)

*** APPEARANCE PARTS ***

X5501 25551401

XD2601 25261611

XD3201

XD3202

XD4301

XD4302

25327291

25327301

25435661

25435671

BRACKET BASE ASSY,L202EV

STAND UNIT,L202EV-W

BEZEL,L202EV-WH(AB)-N

BACK ASSY,L202EV-WH(AB)-N

STAND COVER TB,L202EV-W

COVER CABLE,L202EV-W

8-9

SYMBOL PART NO DESCRIPTION

*** PRINTED & PACKING MATERIALS ***

X7901 25792531 LABEL,PIVOT

X7902 25793801

X8401 25841201

LABEL(AMBIX+)

X8402 25841211

X8403 25841501

X8404 25841511

XD7901 25794902

XD7902 25795302

RATING LABEL,L202EV-WH-AB

LABEL BARCODE,L202EV-WA

XD7903

XD7A05

XD7A06

XD8401

XD8402

XD8403

25795352

7A813151

7A861751

25841191

25841481

25841311

LABEL REV,L202EV-WA

ACCESSORY LCD2080UX(A)

SHEET SETUP,L202EV(A)

CARTON BOX,L202EV-WH(A)-N

PACKING BAG

CARTON SHEET,L202EV

MR402

MR403

MR404

MR405

MR406

MR407

MR408

MR409

MR410

MR411

MR412

MR4G1

MR4G3

MR4G5

MR4G7

MR4G9

MR4H1

*** RESISTORS ***

J921

J923

4AAA1065

4AAA1065

J924

J925

J926

J927

4AAA1065

4AAA1065

4AAA1065

4AAA1065

J928

J929

J930

J940

J961

J962

MR401

4AAA1065

4AAA1065

4AKE1081

4AAA1065

4AAA1065

4AAA1065

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4ACF1202

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/4W 0OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

8-10

PART NO

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4AAA3489

4AAA3489

4ABE2031

4AAA3489

4AAA3489

4ABE2031

4AKB1028

4AKB1028

4AKB1028

4AKB1028

4AKB1028

4AKB1028

4AKB1028

4ACF1203

4ACF1203

4ACF1203

4ACF1203

4ACF1203

4ACF1203

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4AKB1028

4ABE2053

4AAA3483

4AAA3497

4AAA3483

4AAA3443

4AAA3543

4AAA3497

4AAA3515

4AAA3497

4AAA3497

4AAA3497

4AAA3473

4AAA3473

4AAA3473

4ABE2091

4ABE2085

SYMBOL

MRK17

MRK19

MRK21

MRK23

R101

R102

R103

R105

R106

R107

R117

R118

R119

R120

R121

R122

R123

MRA01

MRA03

MRA05

MRA07

MRA09

MRA11

MRK01

MRK03

MRK05

MRK07

MRK09

MRK11

MRK13

MRK15

R125

R151

R152

R153

R154

R155

R156

R157

R158

R159

R15A

R15E

R15F

R15L

R201

R202

R203

DESCRIPTION

R SMD NET 1/16W 100 J

R SMD NET 1/16W 100 J

R SMD NET 1/16W 100 J

R SMD NET 1/16W 100 J

R SMD NET 1/16W 100 J

R SMD NET 1/16W 100 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R SMD METAL 1/16W 180 F

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R SMD METAL 1/16W 180 F

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/16W 1.5K F

R,METAL 2.7KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 820KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 56KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R SMD METAL 1/16W 56K F

R SMD METAL 1/16W 33K F

8-11

PART NO

4AAA3491

4ABE2091

4ABE2085

4ABE2057

4AAA3485

4ABE2085

4ABE2085

4ABE2051

4AAA3497

4AAA3443

4AAA3443

4ABE2039

4ABE2049

4ABE2071

4AAA3473

4ABE2065

4ABE2081

4ABE2055

4ABE2083

4ABE2051

4ABE2084

4AAA3473

4AAA3473

4AAA3509

4AAA3509

4ABE2105

4ABE2085

4ACF1070

4ACF1070

4AAA3473

4AAA3481

4ABE2051

4ABE2065

4ABE2023

4ABE2020

4AAA3400

4AAA3400

4AAA3473

4AAA3443

4AAA3473

4AAA3513

4AAA3400

4AAA3400

4AAA3449

4AAA3449

4AAA3443

4AAA3443

4AAA3481

SYMBOL

R272

R273

R274

R274A

R275

R276

R277

R277A

R278

R2A1

R2A2

R2A3

R2A4

R2A5

R2A7

R2M1

R2M2

R221

R222

R223

R224

R225

R226

R261

R262

R266

R267

R268

R269

R26A

R271

R2M3

R2M4

R2M5

R402

R403

R405

R409

R412

R415

R416

R418

R422

R429

R430

R433

R435

R449

DESCRIPTION

R SMD METAL 1/16W 1.8K F

R SMD METAL 1/16W 27K F

R SMD METAL 1/16W 1.2K F

R SMD METAL 1/16W 30K F

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 33KH 5% 1/16W

R,METAL 33KH 5% 1/16W

R SMD METAL 1/16W 150K F

R SMD METAL 1/16W 33K F

R SMD TFC 1/2W 680 J

R SMD TFC 1/2W 680 J

R,METAL 1.0KH 5% 1/16W

R,METAL 2.2KH 5% 1/16W

R,METAL 5.6KH 5% 1/16W

R SMD METAL 1/16W 56K F

R SMD METAL 1/16W 33K F

R SMD METAL 1/16W 2.2K F

R,METAL 3.3KH 5% 1/16W

R SMD METAL 1/16W 33K F

R SMD METAL 1/16W 33K F

R SMD METAL 1/16W 1.2K F

R,METAL 10KH 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 56H 5% 1/16W

R SMD METAL 1/16W 390 F

R SMD METAL 1/16W 1K F

R SMD METAL 1/16W 8.2K F

R,METAL 1.0KH 5% 1/16W

R SMD METAL 1/16W 4.7K F

R SMD METAL 1/16W 22K F

R SMD METAL 1/16W 1.2K F

R SMD METAL 1/16W 4.7K F

R SMD METAL 1/16W 82 F

R SMD METAL 1/16W 62 F

R,METAL 0.0H 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 2.2KH 5% 1/16W

8-12

PART NO

4AAA3497

4AAA3449

4AAA3449

4AAA3449

4AAA3449

4AAA3473

4AAA3443

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3485

4AAA3485

4AAA3497

4AAA3513

4AAA3473

4AAA3449

4AAA3473

4AAA3513

4AAA3513

4AAA3497

4AAA3497

4AAA3449

4AAA3449

4AAA3497

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3449

4AAA3449

4AAA3449

4AAA3449

4AAA3449

4AAA3497

4AAA3090

4AAA3505

4AAA3497

SYMBOL

R464

R465

R466

R467

R468

R470

R4A2

R4A3

R4A4

R4A5

R4A6

R4A7

R4A8

R4A9

R4AK

R4AL

R4AM

R451

R452

R453

R454

R455

R456

R457

R458

R459

R45E

R45K

R45P

R45T

R463

R4AN

R4AP

R4AT

R4E0

R4E1

R4E2

R4E3

R4E4

R4E5

R4E6

R4E7

R4E8

R4E9

R4EA

R550

R801

R802

DESCRIPTION

R,METAL 3.3KH 5% 1/16W

R,METAL 3.3KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 10KH 5% 1/16W

R,CHIP 1/8W 5.1K 5%

R,METAL 22KH 5% 1/16W

R,METAL 10KH 5% 1/16W

8-13

PART NO

4AAA3437

4AAA3449

4AAA3449

4AAA3449

4AAA3449

4AAA3449

4AAA3513

4AAA3513

4AAA3513

4AAA3449

4AAA3449

4AAA3449

4AAA3513

4AAA3437

4AAA3449

4AAA3449

4AAA3449

4ABE2083

4ABE2082

4AAA3513

4AAA3497

4AAA3497

4AAA3497

4AAA3449

4AAA3449

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3513

4AAA3513

4AAA3513

4AAA3505

4ABE2079

4ABE2109

4AAA3505

4AAA3505

4AAA3505

4AAA3505

4AAA3505

4AAA3505

4AAA3505

4AKG1037

4AAA3449

4AAA3449

4AAA3513

SYMBOL

R820

R821

R822

R823

R826

R827

R828

R829

R830

R831

R832

R833

R834

R838

R839

R840

R841

R803

R805

R806

R807

R808

R809

R811

R812

R813

R814

R815

R816

R818

R819

R842

R844

R845

R846

R849

R850

R883

R885

R886

R887

R889

R890

R891

R8A2

R8A4

R8A5

R8A6

DESCRIPTION

R SMD METAL 1/16W 27K F

R SMD METAL 1/16W 24K F

R,METAL 47KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R SMD METAL 1/16W 18K F

R SMD METAL 1/16W 220K F

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,CHIP 33H 5% 1W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 47KH 5% 1/16W

8-14

PART NO

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AKG1037

4AAA3497

4AAA3449

4AAA3449

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AKG1037

4AAA3497

4AAA3449

4AAA3449

4AAA1060

4AAA1060

4AAA1060

4AAA1064

4AAA1064

4AAA1064

4A231049

4AKE1032

4A231074

4AKB1044

4AKB7002

4AAA2073

4AKB2126

4AKB1052

4A0E1089

4AKB1020

4AKB1024

4AKB1016

4AKB1040

4AKB1046

4AAA1046

4AKB1040

4AKB1040

4AKB1046

SYMBOL

R8F4

R8F5

R8F6

R8F7

R8FX

R8FY

R8G2

R8G3

R8G4

R8G5

R901

R902

R903

R904

R905

R906

R907

R8A7

R8AA

R8AE

R8AL

R8AX

R8AY

R8E1

R8E7

R8E8

R8E9

R8EA

R8EF

R8F2

R8F3

R908

R909

R910

R911

R912

R913

R914

R915

R916

R917

R918

R920

R921

R922

R923

R924

R925

DESCRIPTION

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,CHIP 33H 5% 1W

R,METAL 10KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,CHIP 33H 5% 1W

R,METAL 10KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R SMD METAL 1/8W 470K J

R SMD METAL 1/8W 470K J

R SMD METAL 1/8W 470K J

R SMD METAL 1/8W 1M J

R SMD METAL 1/8W 1M J

R SMD METAL 1/8W 1M J

R METAL 2W 100K J

R SMD METAL 1/4W 2.2K J

R METAL 2W 0.33 J

R SMD METAL 1/10W 22K J

R SMD METAL 1/10W 4.7 K

R SMD METAL 1/8W 10K F

R SMD METAL 1/10W 680 F

R SMD METAL 1/10W 100K J

R CARBON 1/4W 5.6 J

R SMD METAL 1/10W 220 J

R SMD METAL 1/10W 470 J

R SMD METAL 1/10W 100 J

R SMD METAL 1/10W 10K J

R SMD METAL 1/10W 33K J

R SMD METAL 1/8W 33K J

R SMD METAL 1/10W 10K J

R SMD METAL 1/10W 10K J

R SMD METAL 1/10W 33K J

8-15

PART NO

4AKB1072

4AKB1028

4A221045

4AKB1009

4AAA1028

4AKB1035

4AKB1072

4AKB1040

4AAA1016

4AKB1016

4AKB2128

4AKB1008

4AKB2128

4AKB1072

4AKB1035

4AAA3153

4AAA3153

4AKB2171

4AKB1052

4AKB2140

4AKB1040

4AKB1044

4AKB1052

4AKB1040

4AAA1064

4AAA1064

4AAA1064

4AKB1029

4AKB2176

4AKB2165

4AKB2132

4AKB1046

4AAA3342

4AAA3342

4AAA3341

4AKB2144

4AAA1044

4AKB1028

4AKB1016

4A231074

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3481

4AAA3481

4AAA3425

4AAA3425

SYMBOL

R955

R956

R9A2

R9A3

R9A4

R9A5

R9A6

R9A7

R9A8

R9E1

R9E2

R9E3

R9E4

R9E6

R9E7

R9X1

R9X2

R926

R927

R928

R929

R931

R933

R934

R935

R936

R937

R951

R952

R953

R954

R9X4

R9X5

R9X6

R9X7

R9X8

R9X9

R9Y1

R9Y2

R9Y3

RA03

RA04

RA05

RA06

RA07

RA08

RA11

RA12

DESCRIPTION

R SMD METAL 1/10W 9.1K F

R SMD METAL 1/10W 100K J

R SMD METAL 1/10W 10K F

R SMD METAL 1/10W 10K J

R SMD METAL 1/10W 22K J

R SMD METAL 1/10W 100K J

R SMD METAL 1/10W 10K J

R SMD METAL 1/8W 1M J

R SMD METAL 1/8W 1M J

R SMD METAL 1/8W 1M J

R SMD METAL 1/10W 1.2K J

R SMD METAL 1/10W 7.5K F

R SMD METAL 1/10W 6.2K F

R SMD METAL 1/10W 2.2K F

R SMD METAL 1/10W 0OHM

R SMD METAL 1/10W 1K J

R METAL 1W 47K J

R SMD METAL 1/10W 27 J

R SMD METAL 1/8W 1K J

R SMD METAL 1/10W 3.9K J

R SMD METAL 1/10W 0OHM

R SMD METAL 1/10W 10K J

R SMD METAL 1/8W 100 J

R SMD METAL 1/10W 100 J

R SMD METAL 1/10W 1K F

R SMD METAL 1/10W 22 J

R SMD METAL 1/10W 1K F

R SMD METAL 1/10W 0OHM

R SMD METAL 1/10W 3.9K J

R,CHIP 1/8W 2.2M 5%

R,CHIP 1/8W 2.2M 5%

R SMD METAL 1/10W 33K J

R,CHIP 1/8W 750K 1%

R,CHIP 1/8W 750K 1%

R,CHIP 1/8W 680K 1%

R SMD METAL 1/10W 22K F

R SMD METAL 1/8W 22K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 100 J

R METAL 2W 0.33 J

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 2.2KH 5% 1/16W

R,METAL 2.2KH 5% 1/16W

R,METAL 10H 5% 1/16W

R,METAL 10H 5% 1/16W

8-16

PART NO

4AAA3489

4AAA3489

4AAA3505

4ABE2022

4ABE2022

4ABE2022

4AAA3449

4AAA3497

4AAA3497

4AAA3497

4AAA3461

4AAA3501

4AAA3501

4AAA3501

4AAA3483

4AAA3449

4AAA3449

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3449

4AAA3449

4AAA3449

4AAA3489

4AAA3497

4AAA3437

4AAA3497

4AAA3497

4AAA3449

4ABE2033

4AAA3461

4AAA3461

4AAA3461

4ABE2042

4AAA3441

4AAA3441

4AAA3441

4AAA3473

4AAA3489

4AAA3489

4AAA3489

4AAA3471

4AAA3473

4AAA3473

4AAA3473

SYMBOL

RA4A

RA4E

RA70A

RA70B

RA70G

RA70R

RA71A

RA71B

RA71G

RA71R

RA72A

RA72B

RA72G

RA72R

RA73A

RA73B

RA73G

RA19

RA20

RA21

RA22

RA23

RA24

RA27

RA28

RA29

RA30

RA34

RA37

RA43

RA44

RA73R

RA74A

RA74B

RA74G

RA74R

RA75A

RA75B

RA75G

RA75R

RA76A

RA76B

RA76G

RA76R

RA77A

RA77B

RA77G

RA77R

DESCRIPTION

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R SMD METAL 1/16W 75 F

R SMD METAL 1/16W 75 F

R SMD METAL 1/16W 75 F

R,METAL 100H 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 330H 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R SMD METAL 1/16W 220 F

R,METAL 330H 5% 1/16W

R,METAL 330H 5% 1/16W

R,METAL 330H 5% 1/16W

R SMD METAL 1/16W 510 F

R,METAL 47H 5% 1/16W

R,METAL 47H 5% 1/16W

R,METAL 47H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 820H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

8-17

PART NO

4AAA3473

4AAA3473

4AAA3400

4ABE2022

4ABE2022

4ABE2022

4AAA3497

4AAA3497

4AAA3497

4AAA3461

4AAA3501

4AAA3501

4AAA3501

4AAA3437

4AAA3483

4AAA3449

4AAA3449

4AAA3483

4AAA3489

4AAA3489

4AAA3489

4AAA3449

4AAA3473

4AAA3473

4AAA3473

4AAA3449

4AAA3489

4AAA3489

4AAA3489

4AAA3485

4AAA3473

4AAA3449

4AAA3437

4ABE2033

4AAA3461

4AAA3461

4AAA3461

4ABE2042

4AAA3441

4AAA3441

4AAA3441

4AAA3481

4AAA3473

4AAA3489

4AAA3489

4AAA3489

4AAA3481

4AAA3471

SYMBOL

RA7HG

RA7HR

RA7LA

RA80B

RA80G

RA80R

RA81B

RA81G

RA81R

RA82A

RA82B

RA82G

RA82R

RA83

RA83A

RA83B

RA83G

RA78A

RA78B

RA78G

RA78R

RA79A

RA79B

RA79G

RA79R

RA7AA

RA7AB

RA7AG

RA7AR

RA7EA

RA7HB

RA83R

RA84

RA84A

RA84B

RA84G

RA84R

RA85A

RA85B

RA85G

RA85R

RA86

RA86A

RA86B

RA86G

RA86R

RA87

RA87A

DESCRIPTION

R,METAL 2.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 3.3KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 0.0H 5% 1/16W

R SMD METAL 1/16W 75 F

R SMD METAL 1/16W 75 F

R SMD METAL 1/16W 75 F

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 330H 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 33H 5% 1/16W

R SMD METAL 1/16W 220 F

R,METAL 330H 5% 1/16W

R,METAL 330H 5% 1/16W

R,METAL 330H 5% 1/16W

R SMD METAL 1/16W 510 F

R,METAL 47H 5% 1/16W

R,METAL 47H 5% 1/16W

R,METAL 47H 5% 1/16W

R,METAL 2.2KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 2.2KH 5% 1/16W

R,METAL 820H 5% 1/16W

8-18

PART NO

4AAA3489

4AAA3485

4AAA3473

4AAA3473

4AAA3473

4AAA3483

4AAA3400

4AAA3465

4AAA3481

4AAA3493

4AAA3505

4AAA3431

4AAA3437

4AAA3437

4AAA3437

4AAA3425

4AAA3425

4AAA3473

4AAA3473

4AAA3473

4AAA3483

4AAA3489

4AAA3489

4AAA3489

4AAA3449

4AAA3473

4AAA3473

4AAA3473

4AAA3449

4AAA3489

4AAA3489

4AAA3527

4AAA3473

4AAA3453

4ABE2029

4AAA3527

4AAA3473

4AAA3453

4ABE2029

4AAA3497

4AAA3497

4AAA3503

4AAA3503

4AAA3473

4AAA3473

4AAA3483

4AAA3483

4AAA3441

SYMBOL

RA8AR

RA8EA

RA8HB

RA8HG

RA8HR

RA8KA

RA8LA

RAA3

RAA4

RAA5

RAA6

RAE3

RAE4

RAE5

RAE6

RAFH

RAFK

RA87B

RA87G

RA87R

RA88A

RA88B

RA88G

RA88R

RA89A

RA89B

RA89G

RA89R

RA8AA

RA8AB

RA8AG

RAH1

RAH2

RAH3

RAH3

RAH5

RAH6

RAH7

RAH7

RAM1

RAM2

RAM3

RAM4

RAM5

RAM6

RAM7

RAM8

RAN1

DESCRIPTION

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 3.3KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 470H 5% 1/16W

R,METAL 2.2KH 5% 1/16W

R,METAL 6.8KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 18H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 10H 5% 1/16W

R,METAL 10H 5% 1/16W

R,METAL 180KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 150H 5% 1/16W

R SMD METAL 1/16W 150 F

R,METAL 180KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 150H 5% 1/16W

R SMD METAL 1/16W 150 F

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 18KH 5% 1/16W

R,METAL 18KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 47H 5% 1/16W

8-19

SYMBOL

RK10

RK11

RK16

RK22

RK23

RK24

RK25

RK26

RK2A

RK2E

RKAE

RKF1

RKF2

RKF6

RKF7

RKF8

RKF9

RAN2

RAN3

RAN4

RAN5

RAN6

RAN7

RAN8

RAN9

RANA

RK01

RK07

RK08

RK09

RK0A

*** CAPACITORS ***

C151

C152

5ADK1049

5ACK1002

C153

C154

C15A

C201

5AHK3546

5AFK0230

5AFK0216

5AFK0261

C221

C222

C223

C224

C225

C226

C22E

C261

C263

5AHK5001

5AFK0216

5AHK2961

5AHK0711

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AHK0711

PART NO

4AAA3513

4AAA3400

4AAA3463

4AAA3443

4AAA3437

4AAA3513

4AAA3513

4AAA3400

4AAA3513

4AAA3513

4AAA3513

4ABE2042

4ABE2042

4ABE2059

4AAA3449

4AAA3513

4AAA3449

4AAA3441

4AAA3517

4AAA3517

4AAA3527

4AAA3527

4AAA3473

4AAA3473

4AAA3449

4AAA3449

4AAA3463

4AAA3443

4AAA3437

4AAA3513

4AAA3513

DESCRIPTION

R,METAL 47H 5% 1/16W

R,METAL 68KH 5% 1/16W

R,METAL 68KH 5% 1/16W

R,METAL 180KH 5% 1/16W

R,METAL 180KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 390H 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 390H 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R SMD METAL 1/16W 510 F

R SMD METAL 1/16W 510 F

R SMD METAL 1/16W 2.7K F

R,METAL 100H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 100H 5% 1/16W

C SMD CER 2C 390P 50V J

C,CERAMIC 6.3V 1UF

CE734W1E4R7M-T(WT)

C SMD CER 1U 10V M

C SMD CER 10U 6.3V M

C SMD CER 22UF 6.3V M

C SMD ELE105 100U 10V M

C SMD CER 10U 6.3V M

C 16V 330UF

C SMD ELE105 10U 16V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD ELE105 10U 16V M

8-20

PART NO

5AHK2961

5ACK1363

5AHK5024

5ACK0106

5ACK1118

5ACK1363

5ACK1363

5AHK2969

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AFK0261

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5AFK0216

5ACK1002

5AFK0261

5ACK1363

5ACK1363

5AHK5021

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

SYMBOL

C2A5

C2E1

C2M1

C2M2

C2M3

C2M4

C2M5

C2M6

C409

C410

C411

C412

C413

C414

C415

C416

C417

C265

C26A

C271

C273

C274

C275

C276

C277

C278

C27E

C281

C2A2

C2A3

C2A4

C418

C419

C420

C421

C422

C423

C424

C425

C426

C427

C428

C429

C430

C431

C432

C433

C434

DESCRIPTION

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 22UF 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C,CERAMIC 6.3V 1UF

C SMD CER 22UF 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD ELE105 22U 25V M

C 16V 330UF

C SMD CER F1 0.1U 25V Z

C SMD ELE105 100U 25V M

C SMD BJ 0.047U 25V K

C SMD B1 2700P 50V K

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

CE04W1C681M-HTATS

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

8-21

PART NO

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5AFK0216

5ACK1363

5AFK0216

5ADK1007

5ADK1007

5ACK1363

5ACK1363

5ACK1363

5AHK0711

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AHK0711

5ACK1363

SYMBOL

C4E3

C4E4

C4E5

C4E6

C4E7

C4E8

C4E9

C4F0

C4F1

C4F2

C4F3

C4F4

C4F5

C4F6

C4F7

C4F8

C4F9

C443

C444

C451

C452

C454

C455

C458

C459

C45F

C4A2

C4A4

C4E0

C4E1

C4E2

C4FA

C4FE

C4FF

C4FH

C4FJ

C4FK

C4FL

C4FM

C4FMZ

C4FN

C4FP

C4FQ

C4FR

C4FS

C4FT

C4FW

C4FY

DESCRIPTION

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 2C 10P 50V D

C SMD CER 2C 10P 50V D

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER F1 0.1U 25V Z

8-22

PART NO

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1213

5ACK1213

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1213

5A200105

5A200105

5A500983

5A805119

5A1BA501

5A9K0059

5A8K0042

5ACK0040

5ADK0172

5ADK0113

5ACK0108

5ACK0021

5A1BA503

5ACK0115

5A8K0872

5A8K5132

5A8K5132

SYMBOL

C805

C806

C807

C808

C809

C810

C811

C812

C813

C815

C818

C819

C820

C821

C8A1

C8A2

C8E1

C551

C552

C553

C554

C555

C556

C561

C562

C563

C564

C565

C566

C801

C802

C901

C902

C905

C906

C907

C910

C911

C912

C913

C914

C915

C920

C925

C926

C927

C951

C952

DESCRIPTION

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER B1 0.1U 16V K

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER B1 0.1U 16V K

C SMD CER B1 0.1U 16V K

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SAFE X 0.47U AC275V K

C SAFE X 0.47U AC275V K

C CER 400V 1OOO

C ELE105 120U 450V

C FILM MM 0.01U 400V

C ELE105 22U 50V M

C ELE105 100U 35V M

C SMD CER F1 0.1U 50V Z

C SMD CER 2C 1000P 50V J

C SMD 2C 10P 50V C

C SMD BJ 0.1U 25V K

C SMD CER B1 0.01U 50V K

C FILM MM 0.47U 100V

C SMD CER BJ 1U 10V K

C ELE105 4.7U 50V M

C ELE105 1500U 25V M

C ELE105 1500U 25V M

8-23

PART NO

5ACK0112

5ADK0025

5ACK1933

5ACK1933

5ACK1933

5ACK1933

5ACK1933

5ACK1933

5ACK1113

5ACK1113

5AFK0216

5AAB1424

5AAB1433

5ACK1363

5ACK1363

5ACK1363

5ACK1002

5A8K5130

5AFK0251

5A5K0123

5A8K0869

5A1BA501

5ACK0108

5ACK0115

5A8K0839

5A8K5112

5ACK0115

5A8K0012

5A1B1502

5ACK0021

5ACK0005

5ACK1363

5ACK1363

5AAB1427

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5AFK0216

5AFK0216

5ACK1363

SYMBOL

C9X4

C9X5

CA05

CA06

CA07

CA08

CA09

CA10

CA12

CA19

CA20

CA21

CA22

CA23

CA24

CA25

CA26

C953

C954

C955

C9A2

C9A3

C9A4

C9A6

C9A7

C9E1

C9E2

C9E3

C9X1

C9X2

C9X3

CA28

CA29

CA2A

CA36

CA37

CA38

CA39

CA40

CA41

CA42

CA43

CA44

CA45

CA53

CA67

CA70A

CA70B

DESCRIPTION

C ELE105 1000U 25V M

C SMD CER 1.0UF 16V M

C CER 1X 150P 1KV J

C ELE105 2.2U 50V M

C FILM MM 0.01U 400V

C SMD BJ 0.1U 25V K

C SMD CER BJ 1U 10V K

C ELE105 47U 25V M

C ELE105 2200U 10V M

C SMD CER BJ 1U 10V K

C ELE105 1000U 10V M

C FILM PMS 0.47U 400V

C SMD CER B1 0.01U 50V K

C SMD CER B1 470P 50V K

C SMD CER BJ 0.33U 16V K

C SMD CER 1X 100P 50V J

C SMD CER B 0.047U 16V K

C SMD CER B 0.047U 16V K

C SMD CER B 0.047U 16V K

C SMD CER B 0.047U 16V K

C SMD CER B 0.047U 16V K

C SMD CER B 0.047U 16V K

C SMD CER B1 1000P 50V K

C SMD CER B1 1000P 50V K

C SMD CER 10U 6.3V M

C 16V 8200PF

C 16V 47000PF

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C,CERAMIC 6.3V 1UF

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C 16V 15000PF

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

8-24

PART NO

5ACK1363

5AFK0216

5ADK1016

5ADK1016

5ADK1016

5ACK1363

5ACK1363

5ACK1363

5ADK1029

5ADK1025

5ADK1025

5ADK1025

5ACK1363

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5AFK0216

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ADK1007

5ADK1007

5ADK1007

5ACK1363

5ACK1363

5AFK0216

5AFK0216

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ADK1007

5ADK1007

5ADK1007

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5ADK1016

5ADK1016

5ADK1016

5ACK1363

SYMBOL

CA74R

CA75A

CA75B

CA75G

CA75R

CA76B

CA76G

CA76R

CA77A

CA77B

CA77G

CA77R

CA78A

CA80A

CA80B

CA80G

CA80R

CA70G

CA70R

CA71B

CA71G

CA71R

CA72A

CA72B

CA72G

CA72R

CA73B

CA73G

CA73R

CA74B

CA74G

CA81B

CA81G

CA81R

CA82B

CA82G

CA82R

CA83B

CA83G

CA83R

CA84B

CA84G

CA84R

CA85A

CA85B

CA85G

CA85R

CA86B

DESCRIPTION

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 10P 50V D

C SMD CER 2C 10P 50V D

C SMD CER 2C 10P 50V D

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 2C 22P 50V J

C SMD CER 2C 22P 50V J

C SMD CER 2C 22P 50V J

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 68P 50V J

C SMD CER 2C 47P 50V J

C SMD CER 2C 47P 50V J

C SMD CER 2C 47P 50V J

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 10P 50V D

C SMD CER 2C 10P 50V D

C SMD CER 2C 10P 50V D

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 2C 22P 50V J

C SMD CER 2C 22P 50V J

C SMD CER 2C 22P 50V J

C SMD CER F1 0.1U 25V Z

8-25

PART NO

5AHK0711

5ACK1002

5ACK1002

5ACK1123

5ACK1123

5AFK0216

5AFK0216

5ACK1002

5ACK1002

5ACK1123

5ACK1123

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ADK1029

5ADK1025

5ADK1025

5ADK1025

5ACK1363

5ACK1113

5ACK1113

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ADK1034

5ADK1034

5ADK1034

5ADK1034

5ADK1034

5AFK0216

5AHK5016

5ADK1034

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

SYMBOL

CAA6

CAH1

CAH2

CAH3

CAH4

CAM3

CAM4

CAN1

CAN2

CAN3

CAN4

CK01

CK02

CK03

CK04

CK05

CK06

CA86G

CA86R

CA87A

CA87B

CA87G

CA87R

CA88A

CA90

CA91

CAA1

CAA2

CAA3

CAA4

CAA5

CK07

CK08

CK09

CK10

CK11

CK12

CK13

CK14

CK16

CK17

CK18

CK19

CK20

CK21

CK22

CK23

CK24

DESCRIPTION

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 68P 50V J

C SMD CER 2C 47P 50V J

C SMD CER 2C 47P 50V J

C SMD CER 2C 47P 50V J

C SMD CER F1 0.1U 25V Z

C SMD CER B1 1000P 50V K

C SMD CER B1 1000P 50V K

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD ELE105 10U 16V M

C,CERAMIC 6.3V 1UF

C,CERAMIC 6.3V 1UF

C SMD B1 6800P 50V K

C SMD B1 6800P 50V K

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C,CERAMIC 6.3V 1UF

C,CERAMIC 6.3V 1UF

C SMD B1 6800P 50V K

C SMD B1 6800P 50V K

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 10U 6.3V M

C SMD ELE105 100U 16V M

C SMD CER 2C 100P 50V J

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

8-26

SYMBOL

CK25

CK26

CK27

CK28

CK29

CK30

CK31

CK32

CK34

CK35

CK36

CKF1

CKF2

PART NO

5ACK1363

5ACK1363

5ADK1034

5ADK1034

5ADK1034

5ADK1034

5ADK1034

5AFK0216

5AHK5016

5ADK1034

5AFK0216

5ACK1363

5ACK1363

DESCRIPTION

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 10U 6.3V M

C SMD ELE105 100U 16V M

C SMD CER 2C 100P 50V J

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

8-27

REPLACEMENT PARTS LIST

The components specified for Model LCD2080UX-BK(A)

Manufactured by NMV

SYMBOL PART NO DESCRIPTION

*** ICS ***

IC201

IC221

IC222

IC251

IC271

IC272

IC2A1

IC401

IC402

3A7KB073

3A7KB045

3A7KB073

3A7KB070

3A7KB073

3A7KB073

3A7KB045

3A775023

3A752045

IC403 3A7EF036

IC405 3A7EF003

IC4A1 3A774007

IC4A2 3A7EA002

IC4A3 3A7EA002

IC551 3A7EJ034

IC552 3A7EJ034

IC801 3A7KB030

IC802 3A7KB030

IC803 3A7EB005

IC804 3A753017

IC8A1 3A7EB016

IC8A2 3A7EJ022

IC8A3

IC8A4

3A7EJ022

3A7EF037

IC8A5 3A7EF037

IC8F1 3A7EB016

IC901 3A709036

IC951 3A7K9039

IC9A1 3A709009

IC9A2 3A709038

IC9E1 3A7K9039

ICA01 3A754002

ICA70A 3A7KA024

ICAA1 3A7EA002

ICAA2 3A7EA002

ICAA3

ICAA4

3A7EF033

3A7EF033

ICAA5 3A7KJ035

ICAA6 3A7EF030

ICK01 3A775006

ICK02 3A775006

IC SMD BA00BCOWFP

IC SMD PQ1CZ21H2ZP

IC SMD BA00BCOWFP

IC SMD L4978 REGULATOR

IC SMD BA00BCOWFP

IC SMD BA00BCOWFP

IC SMD PQ1CZ21H2ZP

IC SMD PW164B

IC SMD LHF28F800-L202EV

IC SMD ICS332M-L202EV

IC SMD UPD65545-Y-6C

IC SMD M51957AFP

IC SMD M51957AFP

IC M30625FGNGP L202EV F

IC X9116WM8-2.7T4 MOS

IC X9116WM8-2.7T4 MOS

IC SMD SN74CBT1G125DCK

IC SMD SN74CBT1G125DCK

IC SMD AD9888KS-170

IC SMD AD8002AR

IC SMD SN74CBTLV1G125DCK

IC SMD SN74CBTLV1G125DCK

IC SMD UPC1093T-E2

8-28

SYMBOL PART NO

Q451

Q452

Q453

Q805

Q806

Q807

Q861

Q863

Q8A3

Q8E1

Q8E5

Q8E6

Q901

Q908

Q911

Q912

Q913

*** TRANSISTORS ***

Q101 3AEF0038

Q102

Q104

3AEA0026

3AEF0038

Q105

Q151

Q152

Q153

Q154

3AEA0026

3AEE0038

3AEA0027

3AEC0025

3AEF0035

Q155

Q156

Q157

Q261

Q262

Q265

Q271

Q272

3AEF0035

3AEF0037

3AEF0035

3AEF0035

3AEE0039

3AEE0034

3AEF0035

3AEF0035

3AEA0026

3AEF0035

3AEF0035

3AEF0035

3AEC0053

3AEC0053

3AEE0034

3AEE0034

3AEF0035

3AEF0035

3AEF0035

3AEF0035

3A550043

3AEE0044

3AEA0027

3AEC0025

3AEC0025

Q930

Q931

Q932

Q933

3AEF0035

3A5C0054

3AEF0035

3AEF0040

Q9E1 3AEF0035

QA70A 3AEF0035

QA70B

QA70G

QA70R

3AEC0052

3AEC0052

3AEC0052

QA71A

QA71B

QA71G

QA71R

3AEE0038

3AEF0037

3AEF0037

3AEF0037

DESCRIPTION

TR SMD DTC143ZKA-T146

TR 2SA812-T1BM6

TR SMD DTC143ZKA-T146

TR 2SA812-T1BM6

FET SMD 2SJ356-T1 P

TR 2SA1037AK-T146 Q

TR SMD 2412K R

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR SMD DTA144EKA

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

FET SMD 2SJ325-Z E2 P

FET 2SK3018-T106

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR 2SA812-T1BM6

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR SMD 2SC3734

TR SMD 2SC3734

FET 2SK3018-T106

FET 2SK3018-T106

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

FET 2SK3673-01MR

FET 2SK2715 P

TR 2SA1037AK-T146 Q

TR SMD 2412K R

TR SMD 2412K R

TR DTC144EKA-T146(0)

TR 2SC5562

TR DTC144EKA-T146(0)

TR SMD DTB114EK

TR DTC144EKA-T146(0)

TR SMD 2SC3356(M)

TR SMD 2SC3356(M)

TR SMD 2SC3356(M)

FET SMD 2SJ356-T1 P

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

8-29

SYMBOL

QA82G

QA82R

QA83B

QA83G

QA83R

QAA1

QAH1

QAH2

QAM1

QAM2

QAN1

QAN2

QKF1

QA72A

QA72B

QA72G

QA72R

QA73B

QA73G

QA73R

QA80B

QA80G

QA80R

QA81B

QA81G

QA81R

QA82B

*** DIODES ***

D151

D152

3AFK1009

3AFA0029

D221

D222

D271

D272

3AFK9002

3AFK1009

3AFK1009

3AFK1009

D273

D274

D275

D2A1

D2M1

D901

D902

D907

D911

D912

D913

D914

D915

3AFK1009

3AFA0112

3AFA0112

3AFK9002

3AFK9002

3A609011

3A6A0075

3A6A0120

3A6C0022

3AFK1006

3AFK9010

3AFK9010

3AFK1006

PART NO

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEC0052

3AEC0052

3AEC0052

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0035

3AEA0028

3AEA0028

3AEC0053

3AEC0053

3AEA0028

3AEA0028

3AEA0027

DESCRIPTION

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD 2SC3356(M)

TR SMD 2SC3356(M)

TR SMD 2SC3356(M)

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR DTC144EKA-T146(0)

TR SMD 2SA1434-TB

TR SMD 2SA1434-TB

TR SMD 2SC3734

TR SMD 2SC3734

TR SMD 2SA1434-TB

TR SMD 2SA1434-TB

TR 2SA1037AK-T146 Q

DI SMD 1SS355 TE-17

DI RB715F-T106

DI SFPB-64

DI SMD 1SS355 TE-17

DI SMD 1SS355 TE-17

DI SMD 1SS355 TE-17

DI SMD 1SS355 TE-17

DI SMD RB495D

DI SMD RB495D

DI SFPB-64

DI SFPB-64

DI D3SBA60

DI RM10A

DI EG01CV1-T

DI SMD 1SR156-400

DI MA2Z001

DI DG1M3

DI DG1M3

DI MA2Z001

8-30

SYMBOL PART NO

D930

D951

D9A1

D9A2

D9E1

D9X1

D9X2

DA01

DA02

DA03

DA04

DA11

DA12

DA13

DA70A 3A6K1005

DA71B 3A6K1005

DA71G 3A6K1005

DA71R 3A6K1005

DA72B 3A6K1005

DA72G 3A6K1005

DA72R 3A6K1005

DA73B 3A6K1005

DA73G 3A6K1005

DA73R 3A6K1005

DA80A 3A6K1005

DA81B 3A6K1005

DA81G 3A6K1005

DA81R 3A6K1005

DA82B 3A6K1005

DA82G 3A6K1005

DA82R 3A6K1005

3AFK1009

3A610091

3A6A0120

3AFK1006

3A609003

3A610069

3AFC0001

3AFK1008

3AFK1008

3AFK1008

3AFK1009

3AFK1008

3AFK1008

3AFK1008

DA83B 3A6K1005

DA83G 3A6K1005

DA83R 3A6K1005

ZD8G2 3AFK5505

ZD908

ZD910

ZD917

ZD918

3AFK5741

3AFK6102

3AFK6101

3AFK5742

ZD919

ZD920

ZD930

ZD9A4

3AFK6100

3AFK6102

3AFK5741

3AFK6101

ZDA01 3AFK5506

ZDA11 3AFK5506

*** TRANSFORMERS ***

T901 4A530011

DESCRIPTION

DI SMD 1SS355 TE-17

DI FMX-22S

DI EG01CV1-T

DI MA2Z001

DI RK39(LF-C1)

DI FMG-G26S

DI SFPL-52

DI SMD DAN217 T146

DI SMD DAN217 T146

DI SMD DAN217 T146

DI SMD 1SS355 TE-17

DI SMD DAN217 T146

DI SMD DAN217 T146

DI SMD DAN217 T146

ZD SMD UDZS 7.5B TE-17

ZD SMD UDZS27B

ZD SMD UDZS18B

ZD SMD UDZS 5.1B TE-17

ZD SMD UDZS4.7B

ZD SMD UDZS27B

ZD SMD UDZS 7.5B TE-17

ZD SMD UDZS18B

TRANS SWITH ST-1102A

8-31

SYMBOL

T9A1

PART NO

4A530007

DESCRIPTION

SWTCHING TRANS L2.3MH

*** RELAYS & SWITCHES ***

SW901 6A530001

*** PWB ASSYS ***

X01 8BEV1M01

X02

X7A01

8BEV1P01

7A930026

ASSY-PWB-MAIN

ASSY-PWB-POWER

SKD LCD2080UX INVERTER

L223

L261

L262

L263

L271

L272

L2A1

L2A2

L2M1

L405

L406

L451

L452

L453

L454

L459

L4A1

L4A2

L4A3

L4A4

L4A5

*** COILS & FILTERS ***

FL203 6AAK2004

FL2M1 6AAK2004

FL901 6A101870

IN901

L115

L116

L117

4A660003

6AAK2070

6AAK2070

6AAK2070

L118

L119

L120

L121

L122

L123

L125

L221

L222

6AAK2070

6AAK2070

6AAK2070

6AAK2070

6AAK2070

6AAK2070

6AAK2070

6AAK2005

6AAK2005

6AAK2107

6AAK2005

6AAK2311

6AAK2005

6AAK2005

6AAK2005

6AAK2107

6AAK2005

6A1K1867

6AAK2005

6AAK2005

6AAK2070

6AAK2010

6AAK2010

6AAK2070

6AAK2070

6AAK2070

6AAK2005

6AAK2005

6AAK2369

6AAK2369

FILTER,NOISE

FILTER,NOISE

L FILTER LFZ28H05

LINE FILTER 03ME3G

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

CHIP COIL FBMH3216HM501NT

CHIP COIL FBMH3216HM501NT

SLF10145T-101M1R0

CHIP COIL FBMH3216HM501NT

COIL BEAD FBMH4525HM102NT

CHIP COIL FBMH3216HM501NT

CHIP COIL FBMH3216HM501NT

CHIP COIL FBMH3216HM501NT

SLF10145T-101M1R0

CHIP COIL FBMH3216HM501NT

L NOISE FILTER SMD 100UH

CHIP COIL FBMH3216HM501NT

CHIP COIL FBMH3216HM501NT

L BEAD SMD BK1608LM252

FERRITE,CHIP BK1608HS800-

FERRITE,CHIP BK1608HS800-

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

CHIP COIL FBMH3216HM501NT

CHIP COIL FBMH3216HM501NT

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

8-32

SYMBOL

L551

L552

L553

L561

L562

L563

L951

L9A1

L9E1

L9X1

L9X2

LAA3

LAA4

LAA5

LAA6

LAA7

LAH1

LAH2

LAN1

LAN2

X801

PART NO

6AAK2080

6AAK2080

6AAK2080

6AAK2080

6AAK2080

6AAK2080

6A101868

6AAK2162

6A1K2124

6A101869

6A109001

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAF0004

DESCRIPTION

L BEAD SMD BK1608HS601

L BEAD SMD BK1608HS601

L BEAD SMD BK1608HS601

L BEAD SMD BK1608HS601

L BEAD SMD BK1608HS601

L BEAD SMD BK1608HS601

L SBC7-100-532

LEMC3225T101K

L CHOKE 10UH 3.7A TSL1112

L PFC COIL 77A-2702

L CHOKE 72UH 2A

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

CERALOCK CSTCR7M37G53-R0

*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***

CNA01 7A057042

CNA02 7A057043

CNA03 7A057041

F901 6A600255 FUSE SG5013 250V 3.15A

OSC4A1

PC901

PC911

PC9A1

6ADE0004

3A820003

3A820003

3A820003

CRYSTAL SG-8002JF PCC 55M

IC PC123Y22 PHOTO

IC PC123Y22 PHOTO

IC PC123Y22 PHOTO

TH901 3A810010

VD901 3A0K0009

X3A01

X402

3A684034

6A410026

XD7A01

XD7A02

XD7A03

XD7A04

XD7A09

7A392037

7A391005

7A391011

7A081007

7A960491

LCD LM201U03 LGPHILIPS

OSC XTAL SMD HC-49U03C

CABLE BUTTON BLK

DVI_D-DVI_D CABLE 2.0M BK

DVI_A-VGA CABLE 2.0M BK

POWER CORD U3 L2.0 BK

CD PIVOT LVIEW,NEC(A,B)

*** APPEARANCE PARTS ***

X5501 25551401

XD2601 25261651

XD3201

XD3202

XD4301

XD4302

25327491

25327501

25435791

25435801

BRACKET BASE ASSY,L202EV

STAND UNIT,L202EV-BK

BEZEL,L202EV-BK(AB)-N

BACK ASSY,L202EV-BK(AB)-N

STAND COVER TB,L202EV-BK

COVER CABLE,L202EV-BK

8-33

SYMBOL PART NO DESCRIPTION

*** PRINTED & PACKING MATERIALS ***

X7901 25792531 LABEL,PIVOT

X7902 25793801

X8401 25841201

LABEL(AMBIX+)

X8402 25841211

X8403 25841501

X8404 25841511

XD7901 25794912

XD7902 25795312

RATING LABEL,L202EV-BK-AB

LABEL BARCODE,L202EV-BKA

XD7903

XD7A05

XD7A06

XD8401

XD8402

XD8403

25795362

7A813151

7A861751

25841231

25841531

25841311

LABEL REV,L202EV-BKA

ACCESSORY LCD2080UX(A)

SHEET SETUP,L202EV(A)

CARTON BOX,L202EV-BK(A)-N

PACKING BAG

CARTON SHEET,L202EV

MR402

MR403

MR404

MR405

MR406

MR407

MR408

MR409

MR410

MR411

MR412

MR4G1

MR4G3

MR4G5

MR4G7

MR4G9

MR4H1

*** RESISTORS ***

J921

J923

4AAA1065

4AAA1065

J924

J925

J926

J927

4AAA1065

4AAA1065

4AAA1065

4AAA1065

J928

J929

J930

J940

J961

J962

MR401

4AAA1065

4AAA1065

4AKE1081

4AAA1065

4AAA1065

4AAA1065

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4ACF1202

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/4W 0OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

8-34

PART NO

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4AAA3489

4AAA3489

4ABE2031

4AAA3489

4AAA3489

4ABE2031

4AKB1028

4AKB1028

4AKB1028

4AKB1028

4AKB1028

4AKB1028

4AKB1028

4ACF1203

4ACF1203

4ACF1203

4ACF1203

4ACF1203

4ACF1203

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4AKB1028

4ABE2053

4AAA3483

4AAA3497

4AAA3483

4AAA3443

4AAA3543

4AAA3497

4AAA3515

4AAA3497

4AAA3497

4AAA3497

4AAA3473

4AAA3473

4AAA3473

4ABE2091

4ABE2085

SYMBOL

MRK17

MRK19

MRK21

MRK23

R101

R102

R103

R105

R106

R107

R117

R118

R119

R120

R121

R122

R123

MRA01

MRA03

MRA05

MRA07

MRA09

MRA11

MRK01

MRK03

MRK05

MRK07

MRK09

MRK11

MRK13

MRK15

R125

R151

R152

R153

R154

R155

R156

R157

R158

R159

R15A

R15E

R15F

R15L

R201

R202

R203

DESCRIPTION

R SMD NET 1/16W 100 J

R SMD NET 1/16W 100 J

R SMD NET 1/16W 100 J

R SMD NET 1/16W 100 J

R SMD NET 1/16W 100 J

R SMD NET 1/16W 100 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R SMD METAL 1/16W 180 F

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R SMD METAL 1/16W 180 F

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/16W 1.5K F

R,METAL 2.7KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 820KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 56KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R SMD METAL 1/16W 56K F

R SMD METAL 1/16W 33K F

8-35

PART NO

4AAA3491

4ABE2091

4ABE2085

4ABE2057

4AAA3485

4ABE2085

4ABE2085

4ABE2051

4AAA3497

4AAA3443

4AAA3443

4ABE2039

4ABE2049

4ABE2071

4AAA3473

4ABE2065

4ABE2081

4ABE2055

4ABE2083

4ABE2051

4ABE2084

4AAA3473

4AAA3473

4AAA3509

4AAA3509

4ABE2105

4ABE2085

4ACF1070

4ACF1070

4AAA3473

4AAA3481

4ABE2051

4ABE2065

4ABE2023

4ABE2020

4AAA3400

4AAA3400

4AAA3473

4AAA3443

4AAA3473

4AAA3513

4AAA3400

4AAA3400

4AAA3449

4AAA3449

4AAA3443

4AAA3443

4AAA3481

SYMBOL

R272

R273

R274

R274A

R275

R276

R277

R277A

R278

R2A1

R2A2

R2A3

R2A4

R2A5

R2A7

R2M1

R2M2

R221

R222

R223

R224

R225

R226

R261

R262

R266

R267

R268

R269

R26A

R271

R2M3

R2M4

R2M5

R402

R403

R405

R409

R412

R415

R416

R418

R422

R429

R430

R433

R435

R449

DESCRIPTION

R SMD METAL 1/16W 1.8K F

R SMD METAL 1/16W 27K F

R SMD METAL 1/16W 1.2K F

R SMD METAL 1/16W 30K F

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 33KH 5% 1/16W

R,METAL 33KH 5% 1/16W

R SMD METAL 1/16W 150K F

R SMD METAL 1/16W 33K F

R SMD TFC 1/2W 680 J

R SMD TFC 1/2W 680 J

R,METAL 1.0KH 5% 1/16W

R,METAL 2.2KH 5% 1/16W

R,METAL 5.6KH 5% 1/16W

R SMD METAL 1/16W 56K F

R SMD METAL 1/16W 33K F

R SMD METAL 1/16W 2.2K F

R,METAL 3.3KH 5% 1/16W

R SMD METAL 1/16W 33K F

R SMD METAL 1/16W 33K F

R SMD METAL 1/16W 1.2K F

R,METAL 10KH 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 56H 5% 1/16W

R SMD METAL 1/16W 390 F

R SMD METAL 1/16W 1K F

R SMD METAL 1/16W 8.2K F

R,METAL 1.0KH 5% 1/16W

R SMD METAL 1/16W 4.7K F

R SMD METAL 1/16W 22K F

R SMD METAL 1/16W 1.2K F

R SMD METAL 1/16W 4.7K F

R SMD METAL 1/16W 82 F

R SMD METAL 1/16W 62 F

R,METAL 0.0H 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 2.2KH 5% 1/16W

8-36

PART NO

4AAA3497

4AAA3449

4AAA3449

4AAA3449

4AAA3449

4AAA3473

4AAA3443

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3485

4AAA3485

4AAA3497

4AAA3513

4AAA3473

4AAA3449

4AAA3473

4AAA3513

4AAA3513

4AAA3497

4AAA3497

4AAA3449

4AAA3449

4AAA3497

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3449

4AAA3449

4AAA3449

4AAA3449

4AAA3449

4AAA3497

4AAA3090

4AAA3505

4AAA3497

SYMBOL

R464

R465

R466

R467

R468

R470

R4A2

R4A3

R4A4

R4A5

R4A6

R4A7

R4A8

R4A9

R4AK

R4AL

R4AM

R451

R452

R453

R454

R455

R456

R457

R458

R459

R45E

R45K

R45P

R45T

R463

R4AN

R4AP

R4AT

R4E0

R4E1

R4E2

R4E3

R4E4

R4E5

R4E6

R4E7

R4E8

R4E9

R4EA

R550

R801

R802

DESCRIPTION

R,METAL 3.3KH 5% 1/16W

R,METAL 3.3KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 10KH 5% 1/16W

R,CHIP 1/8W 5.1K 5%

R,METAL 22KH 5% 1/16W

R,METAL 10KH 5% 1/16W

8-37

PART NO

4AAA3437

4AAA3449

4AAA3449

4AAA3449

4AAA3449

4AAA3449

4AAA3513

4AAA3513

4AAA3513

4AAA3449

4AAA3449

4AAA3449

4AAA3513

4AAA3437

4AAA3449

4AAA3449

4AAA3449

4ABE2083

4ABE2082

4AAA3513

4AAA3497

4AAA3497

4AAA3497

4AAA3449

4AAA3449

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3513

4AAA3513

4AAA3513

4AAA3505

4ABE2079

4ABE2109

4AAA3505

4AAA3505

4AAA3505

4AAA3505

4AAA3505

4AAA3505

4AAA3505

4AKG1037

4AAA3449

4AAA3449

4AAA3513

SYMBOL

R820

R821

R822

R823

R826

R827

R828

R829

R830

R831

R832

R833

R834

R838

R839

R840

R841

R803

R805

R806

R807

R808

R809

R811

R812

R813

R814

R815

R816

R818

R819

R842

R844

R845

R846

R849

R850

R883

R885

R886

R887

R889

R890

R891

R8A2

R8A4

R8A5

R8A6

DESCRIPTION

R SMD METAL 1/16W 27K F

R SMD METAL 1/16W 24K F

R,METAL 47KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R SMD METAL 1/16W 18K F

R SMD METAL 1/16W 220K F

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,CHIP 33H 5% 1W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 47KH 5% 1/16W

8-38

PART NO

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AKG1037

4AAA3497

4AAA3449

4AAA3449

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AKG1037

4AAA3497

4AAA3449

4AAA3449

4AAA1060

4AAA1060

4AAA1060

4AAA1064

4AAA1064

4AAA1064

4A231049

4AKE1032

4A231074

4AKB1044

4AKB7002

4AAA2073

4AKB2126

4AKB1052

4A0E1089

4AKB1020

4AKB1024

4AKB1016

4AKB1040

4AKB1046

4AAA1046

4AKB1040

4AKB1040

4AKB1046

SYMBOL

R8F4

R8F5

R8F6

R8F7

R8FX

R8FY

R8G2

R8G3

R8G4

R8G5

R901

R902

R903

R904

R905

R906

R907

R8A7

R8AA

R8AE

R8AL

R8AX

R8AY

R8E1

R8E7

R8E8

R8E9

R8EA

R8EF

R8F2

R8F3

R908

R909

R910

R911

R912

R913

R914

R915

R916

R917

R918

R920

R921

R922

R923

R924

R925

DESCRIPTION

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,CHIP 33H 5% 1W

R,METAL 10KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,CHIP 33H 5% 1W

R,METAL 10KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R SMD METAL 1/8W 470K J

R SMD METAL 1/8W 470K J

R SMD METAL 1/8W 470K J

R SMD METAL 1/8W 1M J

R SMD METAL 1/8W 1M J

R SMD METAL 1/8W 1M J

R METAL 2W 100K J

R SMD METAL 1/4W 2.2K J

R METAL 2W 0.33 J

R SMD METAL 1/10W 22K J

R SMD METAL 1/10W 4.7 K

R SMD METAL 1/8W 10K F

R SMD METAL 1/10W 680 F

R SMD METAL 1/10W 100K J

R CARBON 1/4W 5.6 J

R SMD METAL 1/10W 220 J

R SMD METAL 1/10W 470 J

R SMD METAL 1/10W 100 J

R SMD METAL 1/10W 10K J

R SMD METAL 1/10W 33K J

R SMD METAL 1/8W 33K J

R SMD METAL 1/10W 10K J

R SMD METAL 1/10W 10K J

R SMD METAL 1/10W 33K J

8-39

PART NO

4AKB1072

4AKB1028

4A221045

4AKB1009

4AAA1028

4AKB1035

4AKB1072

4AKB1040

4AAA1016

4AKB1016

4AKB2128

4AKB1008

4AKB2128

4AKB1072

4AKB1035

4AAA3153

4AAA3153

4AKB2171

4AKB1052

4AKB2140

4AKB1040

4AKB1044

4AKB1052

4AKB1040

4AAA1064

4AAA1064

4AAA1064

4AKB1029

4AKB2176

4AKB2165

4AKB2132

4AKB1046

4AAA3342

4AAA3342

4AAA3341

4AKB2144

4AAA1044

4AKB1028

4AKB1016

4A231074

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3481

4AAA3481

4AAA3425

4AAA3425

SYMBOL

R955

R956

R9A2

R9A3

R9A4

R9A5

R9A6

R9A7

R9A8

R9E1

R9E2

R9E3

R9E4

R9E6

R9E7

R9X1

R9X2

R926

R927

R928

R929

R931

R933

R934

R935

R936

R937

R951

R952

R953

R954

R9X4

R9X5

R9X6

R9X7

R9X8

R9X9

R9Y1

R9Y2

R9Y3

RA03

RA04

RA05

RA06

RA07

RA08

RA11

RA12

DESCRIPTION

R SMD METAL 1/10W 9.1K F

R SMD METAL 1/10W 100K J

R SMD METAL 1/10W 10K F

R SMD METAL 1/10W 10K J

R SMD METAL 1/10W 22K J

R SMD METAL 1/10W 100K J

R SMD METAL 1/10W 10K J

R SMD METAL 1/8W 1M J

R SMD METAL 1/8W 1M J

R SMD METAL 1/8W 1M J

R SMD METAL 1/10W 1.2K J

R SMD METAL 1/10W 7.5K F

R SMD METAL 1/10W 6.2K F

R SMD METAL 1/10W 2.2K F

R SMD METAL 1/10W 0OHM

R SMD METAL 1/10W 1K J

R METAL 1W 47K J

R SMD METAL 1/10W 27 J

R SMD METAL 1/8W 1K J

R SMD METAL 1/10W 3.9K J

R SMD METAL 1/10W 0OHM

R SMD METAL 1/10W 10K J

R SMD METAL 1/8W 100 J

R SMD METAL 1/10W 100 J

R SMD METAL 1/10W 1K F

R SMD METAL 1/10W 22 J

R SMD METAL 1/10W 1K F

R SMD METAL 1/10W 0OHM

R SMD METAL 1/10W 3.9K J

R,CHIP 1/8W 2.2M 5%

R,CHIP 1/8W 2.2M 5%

R SMD METAL 1/10W 33K J

R,CHIP 1/8W 750K 1%

R,CHIP 1/8W 750K 1%

R,CHIP 1/8W 680K 1%

R SMD METAL 1/10W 22K F

R SMD METAL 1/8W 22K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 100 J

R METAL 2W 0.33 J

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 2.2KH 5% 1/16W

R,METAL 2.2KH 5% 1/16W

R,METAL 10H 5% 1/16W

R,METAL 10H 5% 1/16W

8-40

PART NO

4AAA3489

4AAA3489

4AAA3505

4ABE2022

4ABE2022

4ABE2022

4AAA3449

4AAA3497

4AAA3497

4AAA3497

4AAA3461

4AAA3501

4AAA3501

4AAA3501

4AAA3483

4AAA3449

4AAA3449

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3449

4AAA3449

4AAA3449

4AAA3489

4AAA3497

4AAA3437

4AAA3497

4AAA3497

4AAA3449

4ABE2033

4AAA3461

4AAA3461

4AAA3461

4ABE2042

4AAA3441

4AAA3441

4AAA3441

4AAA3473

4AAA3489

4AAA3489

4AAA3489

4AAA3471

4AAA3473

4AAA3473

4AAA3473

SYMBOL

RA4A

RA4E

RA70A

RA70B

RA70G

RA70R

RA71A

RA71B

RA71G

RA71R

RA72A

RA72B

RA72G

RA72R

RA73A

RA73B

RA73G

RA19

RA20

RA21

RA22

RA23

RA24

RA27

RA28

RA29

RA30

RA34

RA37

RA43

RA44

RA73R

RA74A

RA74B

RA74G

RA74R

RA75A

RA75B

RA75G

RA75R

RA76A

RA76B

RA76G

RA76R

RA77A

RA77B

RA77G

RA77R

DESCRIPTION

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R SMD METAL 1/16W 75 F

R SMD METAL 1/16W 75 F

R SMD METAL 1/16W 75 F

R,METAL 100H 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 330H 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R SMD METAL 1/16W 220 F

R,METAL 330H 5% 1/16W

R,METAL 330H 5% 1/16W

R,METAL 330H 5% 1/16W

R SMD METAL 1/16W 510 F

R,METAL 47H 5% 1/16W

R,METAL 47H 5% 1/16W

R,METAL 47H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 820H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

8-41

PART NO

4AAA3473

4AAA3473

4AAA3400

4ABE2022

4ABE2022

4ABE2022

4AAA3497

4AAA3497

4AAA3497

4AAA3461

4AAA3501

4AAA3501

4AAA3501

4AAA3437

4AAA3483

4AAA3449

4AAA3449

4AAA3483

4AAA3489

4AAA3489

4AAA3489

4AAA3449

4AAA3473

4AAA3473

4AAA3473

4AAA3449

4AAA3489

4AAA3489

4AAA3489

4AAA3485

4AAA3473

4AAA3449

4AAA3437

4ABE2033

4AAA3461

4AAA3461

4AAA3461

4ABE2042

4AAA3441

4AAA3441

4AAA3441

4AAA3481

4AAA3473

4AAA3489

4AAA3489

4AAA3489

4AAA3481

4AAA3471

SYMBOL

RA7HG

RA7HR

RA7LA

RA80B

RA80G

RA80R

RA81B

RA81G

RA81R

RA82A

RA82B

RA82G

RA82R

RA83

RA83A

RA83B

RA83G

RA78A

RA78B

RA78G

RA78R

RA79A

RA79B

RA79G

RA79R

RA7AA

RA7AB

RA7AG

RA7AR

RA7EA

RA7HB

RA83R

RA84

RA84A

RA84B

RA84G

RA84R

RA85A

RA85B

RA85G

RA85R

RA86

RA86A

RA86B

RA86G

RA86R

RA87

RA87A

DESCRIPTION

R,METAL 2.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 3.3KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 0.0H 5% 1/16W

R SMD METAL 1/16W 75 F

R SMD METAL 1/16W 75 F

R SMD METAL 1/16W 75 F

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 330H 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 33H 5% 1/16W

R SMD METAL 1/16W 220 F

R,METAL 330H 5% 1/16W

R,METAL 330H 5% 1/16W

R,METAL 330H 5% 1/16W

R SMD METAL 1/16W 510 F

R,METAL 47H 5% 1/16W

R,METAL 47H 5% 1/16W

R,METAL 47H 5% 1/16W

R,METAL 2.2KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 2.2KH 5% 1/16W

R,METAL 820H 5% 1/16W

8-42

PART NO

4AAA3489

4AAA3485

4AAA3473

4AAA3473

4AAA3473

4AAA3483

4AAA3400

4AAA3465

4AAA3481

4AAA3493

4AAA3505

4AAA3431

4AAA3437

4AAA3437

4AAA3437

4AAA3425

4AAA3425

4AAA3473

4AAA3473

4AAA3473

4AAA3483

4AAA3489

4AAA3489

4AAA3489

4AAA3449

4AAA3473

4AAA3473

4AAA3473

4AAA3449

4AAA3489

4AAA3489

4AAA3527

4AAA3473

4AAA3453

4ABE2029

4AAA3527

4AAA3473

4AAA3453

4ABE2029

4AAA3497

4AAA3497

4AAA3503

4AAA3503

4AAA3473

4AAA3473

4AAA3483

4AAA3483

4AAA3441

SYMBOL

RA8AR

RA8EA

RA8HB

RA8HG

RA8HR

RA8KA

RA8LA

RAA3

RAA4

RAA5

RAA6

RAE3

RAE4

RAE5

RAE6

RAFH

RAFK

RA87B

RA87G

RA87R

RA88A

RA88B

RA88G

RA88R

RA89A

RA89B

RA89G

RA89R

RA8AA

RA8AB

RA8AG

RAH1

RAH2

RAH3

RAH3

RAH5

RAH6

RAH7

RAH7

RAM1

RAM2

RAM3

RAM4

RAM5

RAM6

RAM7

RAM8

RAN1

DESCRIPTION

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 3.3KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 470H 5% 1/16W

R,METAL 2.2KH 5% 1/16W

R,METAL 6.8KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 18H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 10H 5% 1/16W

R,METAL 10H 5% 1/16W

R,METAL 180KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 150H 5% 1/16W

R SMD METAL 1/16W 150 F

R,METAL 180KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 150H 5% 1/16W

R SMD METAL 1/16W 150 F

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 18KH 5% 1/16W

R,METAL 18KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 47H 5% 1/16W

8-43

SYMBOL

RK10

RK11

RK16

RK22

RK23

RK24

RK25

RK26

RK2A

RK2E

RKAE

RKF1

RKF2

RKF6

RKF7

RKF8

RKF9

RAN2

RAN3

RAN4

RAN5

RAN6

RAN7

RAN8

RAN9

RANA

RK01

RK07

RK08

RK09

RK0A

*** CAPACITORS ***

C151

C152

5ADK1049

5ACK1002

C153

C154

C15A

C201

5AHK3546

5AFK0230

5AFK0216

5AFK0261

C221

C222

C223

C224

C225

C226

C22E

C261

C263

5AHK5001

5AFK0216

5AHK2961

5AHK0711

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AHK0711

PART NO

4AAA3513

4AAA3400

4AAA3463

4AAA3443

4AAA3437

4AAA3513

4AAA3513

4AAA3400

4AAA3513

4AAA3513

4AAA3513

4ABE2042

4ABE2042

4ABE2059

4AAA3449

4AAA3513

4AAA3449

4AAA3441

4AAA3517

4AAA3517

4AAA3527

4AAA3527

4AAA3473

4AAA3473

4AAA3449

4AAA3449

4AAA3463

4AAA3443

4AAA3437

4AAA3513

4AAA3513

DESCRIPTION

R,METAL 47H 5% 1/16W

R,METAL 68KH 5% 1/16W

R,METAL 68KH 5% 1/16W

R,METAL 180KH 5% 1/16W

R,METAL 180KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 390H 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 390H 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R SMD METAL 1/16W 510 F

R SMD METAL 1/16W 510 F

R SMD METAL 1/16W 2.7K F

R,METAL 100H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 100H 5% 1/16W

C SMD CER 2C 390P 50V J

C,CERAMIC 6.3V 1UF

CE734W1E4R7M-T(WT)

C SMD CER 1U 10V M

C SMD CER 10U 6.3V M

C SMD CER 22UF 6.3V M

C SMD ELE105 100U 10V M

C SMD CER 10U 6.3V M

C 16V 330UF

C SMD ELE105 10U 16V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD ELE105 10U 16V M

8-44

PART NO

5AHK2961

5ACK1363

5AHK5024

5ACK0106

5ACK1118

5ACK1363

5ACK1363

5AHK2969

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AFK0261

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5AFK0216

5ACK1002

5AFK0261

5ACK1363

5ACK1363

5AHK5021

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

SYMBOL

C2A5

C2E1

C2M1

C2M2

C2M3

C2M4

C2M5

C2M6

C409

C410

C411

C412

C413

C414

C415

C416

C417

C265

C26A

C271

C273

C274

C275

C276

C277

C278

C27E

C281

C2A2

C2A3

C2A4

C418

C419

C420

C421

C422

C423

C424

C425

C426

C427

C428

C429

C430

C431

C432

C433

C434

DESCRIPTION

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 22UF 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C,CERAMIC 6.3V 1UF

C SMD CER 22UF 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD ELE105 22U 25V M

C 16V 330UF

C SMD CER F1 0.1U 25V Z

C SMD ELE105 100U 25V M

C SMD BJ 0.047U 25V K

C SMD B1 2700P 50V K

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

CE04W1C681M-HTATS

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

8-45

PART NO

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5AFK0216

5ACK1363

5AFK0216

5ADK1007

5ADK1007

5ACK1363

5ACK1363

5ACK1363

5AHK0711

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AHK0711

5ACK1363

SYMBOL

C4E3

C4E4

C4E5

C4E6

C4E7

C4E8

C4E9

C4F0

C4F1

C4F2

C4F3

C4F4

C4F5

C4F6

C4F7

C4F8

C4F9

C443

C444

C451

C452

C454

C455

C458

C459

C45F

C4A2

C4A4

C4E0

C4E1

C4E2

C4FA

C4FE

C4FF

C4FH

C4FJ

C4FK

C4FL

C4FM

C4FMZ

C4FN

C4FP

C4FQ

C4FR

C4FS

C4FT

C4FW

C4FY

DESCRIPTION

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 2C 10P 50V D

C SMD CER 2C 10P 50V D

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER F1 0.1U 25V Z

8-46

PART NO

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1213

5ACK1213

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1213

5A200105

5A200105

5A500983

5A805119

5A1BA501

5A9K0059

5A8K0042

5ACK0040

5ADK0172

5ADK0113

5ACK0108

5ACK0021

5A1BA503

5ACK0115

5A8K0872

5A8K5132

5A8K5132

SYMBOL

C805

C806

C807

C808

C809

C810

C811

C812

C813

C815

C818

C819

C820

C821

C8A1

C8A2

C8E1

C551

C552

C553

C554

C555

C556

C561

C562

C563

C564

C565

C566

C801

C802

C901

C902

C905

C906

C907

C910

C911

C912

C913

C914

C915

C920

C925

C926

C927

C951

C952

DESCRIPTION

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER B1 0.1U 16V K

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER B1 0.1U 16V K

C SMD CER B1 0.1U 16V K

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SAFE X 0.47U AC275V K

C SAFE X 0.47U AC275V K

C CER 400V 1OOO

C ELE105 120U 450V

C FILM MM 0.01U 400V

C ELE105 22U 50V M

C ELE105 100U 35V M

C SMD CER F1 0.1U 50V Z

C SMD CER 2C 1000P 50V J

C SMD 2C 10P 50V C

C SMD BJ 0.1U 25V K

C SMD CER B1 0.01U 50V K

C FILM MM 0.47U 100V

C SMD CER BJ 1U 10V K

C ELE105 4.7U 50V M

C ELE105 1500U 25V M

C ELE105 1500U 25V M

8-47

PART NO

5ACK0112

5ADK0025

5ACK1933

5ACK1933

5ACK1933

5ACK1933

5ACK1933

5ACK1933

5ACK1113

5ACK1113

5AFK0216

5AAB1424

5AAB1433

5ACK1363

5ACK1363

5ACK1363

5ACK1002

5A8K5130

5AFK0251

5A5K0123

5A8K0869

5A1BA501

5ACK0108

5ACK0115

5A8K0839

5A8K5112

5ACK0115

5A8K0012

5A1B1502

5ACK0021

5ACK0005

5ACK1363

5ACK1363

5AAB1427

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5AFK0216

5AFK0216

5ACK1363

SYMBOL

C9X4

C9X5

CA05

CA06

CA07

CA08

CA09

CA10

CA12

CA19

CA20

CA21

CA22

CA23

CA24

CA25

CA26

C953

C954

C955

C9A2

C9A3

C9A4

C9A6

C9A7

C9E1

C9E2

C9E3

C9X1

C9X2

C9X3

CA28

CA29

CA2A

CA36

CA37

CA38

CA39

CA40

CA41

CA42

CA43

CA44

CA45

CA53

CA67

CA70A

CA70B

DESCRIPTION

C ELE105 1000U 25V M

C SMD CER 1.0UF 16V M

C CER 1X 150P 1KV J

C ELE105 2.2U 50V M

C FILM MM 0.01U 400V

C SMD BJ 0.1U 25V K

C SMD CER BJ 1U 10V K

C ELE105 47U 25V M

C ELE105 2200U 10V M

C SMD CER BJ 1U 10V K

C ELE105 1000U 10V M

C FILM PMS 0.47U 400V

C SMD CER B1 0.01U 50V K

C SMD CER B1 470P 50V K

C SMD CER BJ 0.33U 16V K

C SMD CER 1X 100P 50V J

C SMD CER B 0.047U 16V K

C SMD CER B 0.047U 16V K

C SMD CER B 0.047U 16V K

C SMD CER B 0.047U 16V K

C SMD CER B 0.047U 16V K

C SMD CER B 0.047U 16V K

C SMD CER B1 1000P 50V K

C SMD CER B1 1000P 50V K

C SMD CER 10U 6.3V M

C 16V 8200PF

C 16V 47000PF

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C,CERAMIC 6.3V 1UF

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C 16V 15000PF

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

8-48

PART NO

5ACK1363

5AFK0216

5ADK1016

5ADK1016

5ADK1016

5ACK1363

5ACK1363

5ACK1363

5ADK1029

5ADK1025

5ADK1025

5ADK1025

5ACK1363

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5AFK0216

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ADK1007

5ADK1007

5ADK1007

5ACK1363

5ACK1363

5AFK0216

5AFK0216

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ADK1007

5ADK1007

5ADK1007

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5ADK1016

5ADK1016

5ADK1016

5ACK1363

SYMBOL

CA74R

CA75A

CA75B

CA75G

CA75R

CA76B

CA76G

CA76R

CA77A

CA77B

CA77G

CA77R

CA78A

CA80A

CA80B

CA80G

CA80R

CA70G

CA70R

CA71B

CA71G

CA71R

CA72A

CA72B

CA72G

CA72R

CA73B

CA73G

CA73R

CA74B

CA74G

CA81B

CA81G

CA81R

CA82B

CA82G

CA82R

CA83B

CA83G

CA83R

CA84B

CA84G

CA84R

CA85A

CA85B

CA85G

CA85R

CA86B

DESCRIPTION

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 10P 50V D

C SMD CER 2C 10P 50V D

C SMD CER 2C 10P 50V D

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 2C 22P 50V J

C SMD CER 2C 22P 50V J

C SMD CER 2C 22P 50V J

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 68P 50V J

C SMD CER 2C 47P 50V J

C SMD CER 2C 47P 50V J

C SMD CER 2C 47P 50V J

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 10P 50V D

C SMD CER 2C 10P 50V D

C SMD CER 2C 10P 50V D

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 2C 22P 50V J

C SMD CER 2C 22P 50V J

C SMD CER 2C 22P 50V J

C SMD CER F1 0.1U 25V Z

8-49

PART NO

5AHK0711

5ACK1002

5ACK1002

5ACK1123

5ACK1123

5AFK0216

5AFK0216

5ACK1002

5ACK1002

5ACK1123

5ACK1123

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ADK1029

5ADK1025

5ADK1025

5ADK1025

5ACK1363

5ACK1113

5ACK1113

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ADK1034

5ADK1034

5ADK1034

5ADK1034

5ADK1034

5AFK0216

5AHK5016

5ADK1034

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

SYMBOL

CAA6

CAH1

CAH2

CAH3

CAH4

CAM3

CAM4

CAN1

CAN2

CAN3

CAN4

CK01

CK02

CK03

CK04

CK05

CK06

CA86G

CA86R

CA87A

CA87B

CA87G

CA87R

CA88A

CA90

CA91

CAA1

CAA2

CAA3

CAA4

CAA5

CK07

CK08

CK09

CK10

CK11

CK12

CK13

CK14

CK16

CK17

CK18

CK19

CK20

CK21

CK22

CK23

CK24

DESCRIPTION

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 68P 50V J

C SMD CER 2C 47P 50V J

C SMD CER 2C 47P 50V J

C SMD CER 2C 47P 50V J

C SMD CER F1 0.1U 25V Z

C SMD CER B1 1000P 50V K

C SMD CER B1 1000P 50V K

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD ELE105 10U 16V M

C,CERAMIC 6.3V 1UF

C,CERAMIC 6.3V 1UF

C SMD B1 6800P 50V K

C SMD B1 6800P 50V K

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C,CERAMIC 6.3V 1UF

C,CERAMIC 6.3V 1UF

C SMD B1 6800P 50V K

C SMD B1 6800P 50V K

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 10U 6.3V M

C SMD ELE105 100U 16V M

C SMD CER 2C 100P 50V J

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

8-50

SYMBOL

CK25

CK26

CK27

CK28

CK29

CK30

CK31

CK32

CK34

CK35

CK36

CKF1

CKF2

PART NO

5ACK1363

5ACK1363

5ADK1034

5ADK1034

5ADK1034

5ADK1034

5ADK1034

5AFK0216

5AHK5016

5ADK1034

5AFK0216

5ACK1363

5ACK1363

DESCRIPTION

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 10U 6.3V M

C SMD ELE105 100U 16V M

C SMD CER 2C 100P 50V J

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

8-51

REPLACEMENT PARTS LIST

The components specified for Model LCD2080UX(B)

Manufactured by NMV

SYMBOL PART NO DESCRIPTION

*** ICS ***

IC201

IC221

IC222

IC251

IC271

IC272

IC2A1

3A7KB073

3A7KB045

3A7KB073

3A7KB070

3A7KB073

3A7KB073

3A7KB045

IC401

IC402

3A775023

3A752045

IC403 3A7EF036

IC405 3A7EF003

IC4A1 3A774007

IC4A2 3A7EA002

IC4A3 3A7EA002

IC551 3A7EJ034

IC552 3A7EJ034

IC801

IC802

3A7KB030

3A7KB030

IC803 3A7EB005

IC804 3A753017

IC8A1 3A7EB016

IC8A2 3A7EJ022

IC8A3

IC8A4

3A7EJ022

3A7EF037

IC8A5 3A7EF037

IC8F1 3A7EB016

IC901 3A709036

IC951 3A7K9039

IC9A1 3A709009

IC9A2 3A709038

IC9E1 3A7K9039

ICA01

ICA70A

3A754002

3A7KA024

ICAA1 3A7EA002

ICAA2 3A7EA002

ICAA3

ICAA4

3A7EF033

3A7EF033

ICAA5 3A7KJ035

ICAA6 3A7EF030

ICK01 3A775006

ICK02 3A775006

IC SMD BA00BCOWFP

IC SMD PQ1CZ21H2ZP

IC SMD BA00BCOWFP

IC SMD L4978 REGULATOR

IC SMD BA00BCOWFP

IC SMD BA00BCOWFP

IC SMD PQ1CZ21H2ZP

IC SMD PW164B

IC SMD LHF28F800-L202EV

IC SMD ICS332M-L202EV

IC SMD UPD65545-Y-6C

IC SMD M51957AFP

IC SMD M51957AFP

IC M30625FGNGP L202EV F

IC X9116WM8-2.7T4 MOS

IC X9116WM8-2.7T4 MOS

IC SMD SN74CBT1G125DCK

IC SMD SN74CBT1G125DCK

IC SMD AD9888KS-170

IC SMD AD8002AR

IC SMD SN74CBTLV1G125DCK

IC SMD SN74CBTLV1G125DCK

IC SMD UPC1093T-E2

8-52

SYMBOL PART NO

Q451

Q452

Q453

Q805

Q806

Q807

Q861

Q863

Q8A3

Q8E1

Q8E5

Q8E6

Q901

Q908

Q911

Q912

Q913

*** TRANSISTORS ***

Q101 3AEF0038

Q102

Q104

3AEA0026

3AEF0038

Q105

Q151

Q152

Q153

Q154

3AEA0026

3AEE0038

3AEA0027

3AEC0025

3AEF0035

Q155

Q156

Q157

Q261

Q262

Q265

Q271

Q272

3AEF0035

3AEF0037

3AEF0035

3AEF0035

3AEE0039

3AEE0034

3AEF0035

3AEF0035

3AEA0026

3AEF0035

3AEF0035

3AEF0035

3AEC0053

3AEC0053

3AEE0034

3AEE0034

3AEF0035

3AEF0035

3AEF0035

3AEF0035

3A550043

3AEE0044

3AEA0027

3AEC0025

3AEC0025

Q930

Q931

Q932

Q933

3AEF0035

3A5C0054

3AEF0035

3AEF0040

Q9E1 3AEF0035

QA70A 3AEF0035

QA70B

QA70G

QA70R

3AEC0052

3AEC0052

3AEC0052

QA71A

QA71B

QA71G

QA71R

3AEE0038

3AEF0037

3AEF0037

3AEF0037

DESCRIPTION

TR SMD DTC143ZKA-T146

TR 2SA812-T1BM6

TR SMD DTC143ZKA-T146

TR 2SA812-T1BM6

FET SMD 2SJ356-T1 P

TR 2SA1037AK-T146 Q

TR SMD 2412K R

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR SMD DTA144EKA

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

FET SMD 2SJ325-Z E2 P

FET 2SK3018-T106

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR 2SA812-T1BM6

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR SMD 2SC3734

TR SMD 2SC3734

FET 2SK3018-T106

FET 2SK3018-T106

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

FET 2SK3673-01MR

FET 2SK2715 P

TR 2SA1037AK-T146 Q

TR SMD 2412K R

TR SMD 2412K R

TR DTC144EKA-T146(0)

TR 2SC5562

TR DTC144EKA-T146(0)

TR SMD DTB114EK

TR DTC144EKA-T146(0)

TR SMD 2SC3356(M)

TR SMD 2SC3356(M)

TR SMD 2SC3356(M)

FET SMD 2SJ356-T1 P

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

8-53

SYMBOL

QA82G

QA82R

QA83B

QA83G

QA83R

QAA1

QAH1

QAH2

QAM1

QAM2

QAN1

QAN2

QKF1

QA72A

QA72B

QA72G

QA72R

QA73B

QA73G

QA73R

QA80B

QA80G

QA80R

QA81B

QA81G

QA81R

QA82B

*** DIODES ***

D151

D152

3AFK1009

3AFA0029

D221

D222

D271

D272

3AFK9002

3AFK1009

3AFK1009

3AFK1009

D273

D274

D275

D2A1

D2M1

D901

D902

D907

D911

D912

D913

D914

D915

3AFK1009

3AFA0112

3AFA0112

3AFK9002

3AFK9002

3A609011

3A6A0075

3A6A0120

3A6C0022

3AFK1006

3AFK9010

3AFK9010

3AFK1006

PART NO

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEC0052

3AEC0052

3AEC0052

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0035

3AEA0028

3AEA0028

3AEC0053

3AEC0053

3AEA0028

3AEA0028

3AEA0027

DESCRIPTION

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD 2SC3356(M)

TR SMD 2SC3356(M)

TR SMD 2SC3356(M)

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR DTC144EKA-T146(0)

TR SMD 2SA1434-TB

TR SMD 2SA1434-TB

TR SMD 2SC3734

TR SMD 2SC3734

TR SMD 2SA1434-TB

TR SMD 2SA1434-TB

TR 2SA1037AK-T146 Q

DI SMD 1SS355 TE-17

DI RB715F-T106

DI SFPB-64

DI SMD 1SS355 TE-17

DI SMD 1SS355 TE-17

DI SMD 1SS355 TE-17

DI SMD 1SS355 TE-17

DI SMD RB495D

DI SMD RB495D

DI SFPB-64

DI SFPB-64

DI D3SBA60

DI RM10A

DI EG01CV1-T

DI SMD 1SR156-400

DI MA2Z001

DI DG1M3

DI DG1M3

DI MA2Z001

8-54

SYMBOL PART NO

D930

D951

D9A1

D9A2

D9E1

D9X1

D9X2

DA01

DA02

DA03

DA04

DA11

DA12

DA13

DA70A 3A6K1005

DA71B 3A6K1005

DA71G 3A6K1005

DA71R 3A6K1005

DA72B 3A6K1005

DA72G 3A6K1005

DA72R 3A6K1005

DA73B 3A6K1005

DA73G 3A6K1005

DA73R 3A6K1005

DA80A 3A6K1005

DA81B 3A6K1005

DA81G 3A6K1005

DA81R 3A6K1005

DA82B 3A6K1005

DA82G 3A6K1005

DA82R 3A6K1005

3AFK1009

3A610091

3A6A0120

3AFK1006

3A609003

3A610069

3AFC0001

3AFK1008

3AFK1008

3AFK1008

3AFK1009

3AFK1008

3AFK1008

3AFK1008

DA83B 3A6K1005

DA83G 3A6K1005

DA83R 3A6K1005

ZD8G2 3AFK5505

ZD908

ZD910

ZD917

ZD918

3AFK5741

3AFK6102

3AFK6101

3AFK5742

ZD919

ZD920

ZD930

ZD9A4

3AFK6100

3AFK6102

3AFK5741

3AFK6101

ZDA01 3AFK5506

ZDA11 3AFK5506

*** TRANSFORMERS ***

T901 4A530011

DESCRIPTION

DI SMD 1SS355 TE-17

DI FMX-22S

DI EG01CV1-T

DI MA2Z001

DI RK39(LF-C1)

DI FMG-G26S

DI SFPL-52

DI SMD DAN217 T146

DI SMD DAN217 T146

DI SMD DAN217 T146

DI SMD 1SS355 TE-17

DI SMD DAN217 T146

DI SMD DAN217 T146

DI SMD DAN217 T146

ZD SMD UDZS 7.5B TE-17

ZD SMD UDZS27B

ZD SMD UDZS18B

ZD SMD UDZS 5.1B TE-17

ZD SMD UDZS4.7B

ZD SMD UDZS27B

ZD SMD UDZS 7.5B TE-17

ZD SMD UDZS18B

TRANS SWITH ST-1102A

8-55

SYMBOL

T9A1

PART NO

4A530007

DESCRIPTION

SWTCHING TRANS L2.3MH

*** RELAYS & SWITCHES ***

SW901 6A530001

*** PWB ASSYS ***

X01 8BEV1M01

X02

X7A01

8BEV1P01

7A930026

ASSY-PWB-MAIN

ASSY-PWB-POWER

SKD LCD2080UX INVERTER

L223

L261

L262

L263

L271

L272

L2A1

L2A2

L2M1

L405

L406

L451

L452

L453

L454

L459

L4A1

L4A2

L4A3

L4A4

L4A5

*** COILS & FILTERS ***

FL203 6AAK2004

FL2M1 6AAK2004

FL901 6A101870

IN901

L115

L116

L117

4A660003

6AAK2070

6AAK2070

6AAK2070

L118

L119

L120

L121

L122

L123

L125

L221

L222

6AAK2070

6AAK2070

6AAK2070

6AAK2070

6AAK2070

6AAK2070

6AAK2070

6AAK2005

6AAK2005

6AAK2107

6AAK2005

6AAK2311

6AAK2005

6AAK2005

6AAK2005

6AAK2107

6AAK2005

6A1K1867

6AAK2005

6AAK2005

6AAK2070

6AAK2010

6AAK2010

6AAK2070

6AAK2070

6AAK2070

6AAK2005

6AAK2005

6AAK2369

6AAK2369

FILTER,NOISE

FILTER,NOISE

L FILTER LFZ28H05

LINE FILTER 03ME3G

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

CHIP COIL FBMH3216HM501NT

CHIP COIL FBMH3216HM501NT

SLF10145T-101M1R0

CHIP COIL FBMH3216HM501NT

COIL BEAD FBMH4525HM102NT

CHIP COIL FBMH3216HM501NT

CHIP COIL FBMH3216HM501NT

CHIP COIL FBMH3216HM501NT

SLF10145T-101M1R0

CHIP COIL FBMH3216HM501NT

L NOISE FILTER SMD 100UH

CHIP COIL FBMH3216HM501NT

CHIP COIL FBMH3216HM501NT

L BEAD SMD BK1608LM252

FERRITE,CHIP BK1608HS800-

FERRITE,CHIP BK1608HS800-

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

CHIP COIL FBMH3216HM501NT

CHIP COIL FBMH3216HM501NT

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

8-56

SYMBOL

L551

L552

L553

L561

L562

L563

L951

L9A1

L9E1

L9X1

L9X2

LAA3

LAA4

LAA5

LAA6

LAA7

LAH1

LAH2

LAN1

LAN2

X801

PART NO

6AAK2080

6AAK2080

6AAK2080

6AAK2080

6AAK2080

6AAK2080

6A101868

6AAK2162

6A1K2124

6A101869

6A109001

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAF0004

DESCRIPTION

L BEAD SMD BK1608HS601

L BEAD SMD BK1608HS601

L BEAD SMD BK1608HS601

L BEAD SMD BK1608HS601

L BEAD SMD BK1608HS601

L BEAD SMD BK1608HS601

L SBC7-100-532

LEMC3225T101K

L CHOKE 10UH 3.7A TSL1112

L PFC COIL 77A-2702

L CHOKE 72UH 2A

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

CERALOCK CSTCR7M37G53-R0

*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***

CNA01 7A057042

CNA02 7A057043

CNA03 7A057041

F901 6A600255 FUSE SG5013 250V 3.15A

OSC4A1

PC901

PC911

PC9A1

6ADE0004

3A820003

3A820003

3A820003

CRYSTAL SG-8002JF PCC 55M

IC PC123Y22 PHOTO

IC PC123Y22 PHOTO

IC PC123Y22 PHOTO

TH901 3A810010

VD901 3A0K0009

X3A01

X402

3A684034

6A410026

XD7A01

XD7A02

XD7A03

XD7A04

XD7A09

7A392036

7A391014

7A391010

7A082004

7A960491

LCD LM201U03 LGPHILIPS

OSC XTAL SMD HC-49U03C

CABLE BUTTON WHT

CABLE DVI HG 2.0M

DVI_A-VGA CABLE 2.0M HG

POWER CORD E3 L1.95 HG

CD PIVOT LVIEW,NEC(A,B)

*** APPEARANCE PARTS ***

X5501 25551401

XD2601 25261611

XD3201

XD3202

XD4301

XD4302

25327291

25327301

25435661

25435671

BRACKET BASE ASSY,L202EV

STAND UNIT,L202EV-W

BEZEL,L202EV-WH(AB)-N

BACK ASSY,L202EV-WH(AB)-N

STAND COVER TB,L202EV-W

COVER CABLE,L202EV-W

8-57

SYMBOL PART NO DESCRIPTION

*** PRINTED & PACKING MATERIALS ***

X7901 25792531 LABEL,PIVOT

X7902 25793801

X8401 25841201

LABEL(AMBIX+)

X8402 25841211

X8403 25841501

X8404 25841511

XD7901 25794902

XD7902 25795322

RATING LABEL,L202EV-WH-AB

LABEL BARCODE,L202EV-WB

XD7903

XD7A05

XD7A06

XD7A07

XD8401

XD8402

XD8403

25795372

7A813161

7A861761

7A861541

25841241

25841481

25841311

LABEL REV,L202EV-WB

ACCESSORY LCD2080UX(B)

SHEET SETUP,L202EV(B)

SHEET-CAUTION

CARTON BOX,L202EV-WH(B)-N

PACKING BAG

CARTON SHEET,L202EV

MR405

MR406

MR407

MR408

MR409

MR410

MR411

MR412

MR4G1

MR4G3

MR4G5

MR4G7

MR4G9

*** RESISTORS ***

J921 4AAA1065

J923

J924

4AAA1065

4AAA1065

J925

J926

J927

J928

J929

4AAA1065

4AAA1065

4AAA1065

4AAA1065

4AAA1065

J930

J940

J961

J962

MR401

MR402

MR403

MR404

4AKE1081

4AAA1065

4AAA1065

4AAA1065

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4ACF1202

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/4W 0OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

8-58

PART NO

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4AAA3489

4AAA3489

4ABE2031

4AAA3489

4AAA3489

4ABE2031

4AKB1028

4AKB1028

4AKB1028

4AKB1028

4AKB1028

4AKB1028

4ACF1202

4ACF1203

4ACF1203

4ACF1203

4ACF1203

4ACF1203

4ACF1203

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4AKB1028

4AKB1028

4ABE2053

4AAA3483

4AAA3497

4AAA3483

4AAA3443

4AAA3543

4AAA3497

4AAA3515

4AAA3497

4AAA3497

4AAA3497

4AAA3473

4AAA3473

4AAA3473

4ABE2091

SYMBOL

MRK15

MRK17

MRK19

MRK21

MRK23

R101

R102

R103

R105

R106

R107

R117

R118

R119

R120

R121

R122

MR4H1

MRA01

MRA03

MRA05

MRA07

MRA09

MRA11

MRK01

MRK03

MRK05

MRK07

MRK09

MRK11

MRK13

R123

R125

R151

R152

R153

R154

R155

R156

R157

R158

R159

R15A

R15E

R15F

R15L

R201

R202

DESCRIPTION

R SMD NET 1/16W 33 J

R SMD NET 1/16W 100 J

R SMD NET 1/16W 100 J

R SMD NET 1/16W 100 J

R SMD NET 1/16W 100 J

R SMD NET 1/16W 100 J

R SMD NET 1/16W 100 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R SMD METAL 1/16W 180 F

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R SMD METAL 1/16W 180 F

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/16W 1.5K F

R,METAL 2.7KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 820KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 56KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R SMD METAL 1/16W 56K F

8-59

PART NO

4AAA3481

4AAA3491

4ABE2091

4ABE2085

4ABE2057

4AAA3485

4ABE2085

4ABE2085

4ABE2051

4AAA3497

4AAA3443

4AAA3443

4ABE2039

4ABE2049

4ABE2071

4AAA3473

4ABE2065

4ABE2085

4ABE2055

4ABE2083

4ABE2051

4ABE2084

4AAA3473

4AAA3473

4AAA3509

4AAA3509

4ABE2105

4ABE2085

4ACF1070

4ACF1070

4AAA3473

4ABE2081

4ABE2051

4ABE2065

4ABE2023

4ABE2020

4AAA3400

4AAA3400

4AAA3473

4AAA3443

4AAA3473

4AAA3513

4AAA3400

4AAA3400

4AAA3449

4AAA3449

4AAA3443

4AAA3443

SYMBOL

R271

R272

R273

R274

R274A

R275

R276

R277

R277A

R278

R2A1

R2A2

R2A3

R2A4

R2A5

R2A7

R2M1

R203

R221

R222

R223

R224

R225

R226

R261

R262

R266

R267

R268

R269

R26A

R2M2

R2M3

R2M4

R2M5

R402

R403

R405

R409

R412

R415

R416

R418

R422

R429

R430

R433

R435

DESCRIPTION

R SMD METAL 1/16W 33K F

R SMD METAL 1/16W 1.8K F

R SMD METAL 1/16W 27K F

R SMD METAL 1/16W 1.2K F

R SMD METAL 1/16W 30K F

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 33KH 5% 1/16W

R,METAL 33KH 5% 1/16W

R SMD METAL 1/16W 150K F

R SMD METAL 1/16W 33K F

R SMD TFC 1/2W 680 J

R SMD TFC 1/2W 680 J

R,METAL 1.0KH 5% 1/16W

R,METAL 2.2KH 5% 1/16W

R,METAL 5.6KH 5% 1/16W

R SMD METAL 1/16W 56K F

R SMD METAL 1/16W 33K F

R SMD METAL 1/16W 2.2K F

R,METAL 3.3KH 5% 1/16W

R SMD METAL 1/16W 33K F

R SMD METAL 1/16W 33K F

R SMD METAL 1/16W 1.2K F

R,METAL 10KH 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 56H 5% 1/16W

R SMD METAL 1/16W 390 F

R SMD METAL 1/16W 1K F

R SMD METAL 1/16W 8.2K F

R,METAL 1.0KH 5% 1/16W

R SMD METAL 1/16W 4.7K F

R SMD METAL 1/16W 22K F

R SMD METAL 1/16W 1.2K F

R SMD METAL 1/16W 4.7K F

R SMD METAL 1/16W 82 F

R SMD METAL 1/16W 62 F

R,METAL 0.0H 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 56H 5% 1/16W

8-60

PART NO

4AAA3497

4AAA3497

4AAA3449

4AAA3449

4AAA3449

4AAA3449

4AAA3473

4AAA3443

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3481

4AAA3485

4AAA3485

4AAA3497

4AAA3513

4AAA3473

4AAA3449

4AAA3473

4AAA3513

4AAA3513

4AAA3497

4AAA3497

4AAA3449

4AAA3449

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3449

4AAA3449

4AAA3449

4AAA3449

4AAA3449

4AAA3497

4AAA3090

4AAA3505

SYMBOL

R463

R464

R465

R466

R467

R468

R470

R4A2

R4A3

R4A4

R4A5

R4A6

R4A7

R4A8

R4A9

R4AK

R4AL

R449

R451

R452

R453

R454

R455

R456

R457

R458

R459

R45E

R45K

R45P

R45T

R4AM

R4AN

R4AP

R4AT

R4E0

R4E1

R4E2

R4E3

R4E4

R4E5

R4E6

R4E7

R4E8

R4E9

R4EA

R550

R801

DESCRIPTION

R,METAL 2.2KH 5% 1/16W

R,METAL 3.3KH 5% 1/16W

R,METAL 3.3KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 10KH 5% 1/16W

R,CHIP 1/8W 5.1K 5%

R,METAL 22KH 5% 1/16W

8-61

PART NO

4AAA3437

4AAA3437

4AAA3449

4AAA3449

4AAA3449

4AAA3449

4AAA3449

4AAA3513

4AAA3513

4AAA3513

4AAA3449

4AAA3449

4AAA3449

4AAA3513

4AAA3437

4AAA3449

4AAA3449

4AAA3497

4ABE2083

4ABE2082

4AAA3513

4AAA3497

4AAA3497

4AAA3497

4AAA3449

4AAA3449

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3449

4AAA3513

4AAA3513

4AAA3513

4AAA3505

4ABE2079

4ABE2109

4AAA3505

4AAA3505

4AAA3505

4AAA3505

4AAA3505

4AAA3505

4AAA3505

4AKG1037

4AAA3449

4AAA3449

SYMBOL

R819

R820

R821

R822

R823

R826

R827

R828

R829

R830

R831

R832

R833

R834

R838

R839

R840

R802

R803

R805

R806

R807

R808

R809

R811

R812

R813

R814

R815

R816

R818

R841

R842

R844

R845

R846

R849

R850

R883

R885

R886

R887

R889

R890

R891

R8A2

R8A4

R8A5

DESCRIPTION

R,METAL 10KH 5% 1/16W

R SMD METAL 1/16W 27K F

R SMD METAL 1/16W 24K F

R,METAL 47KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R SMD METAL 1/16W 18K F

R SMD METAL 1/16W 220K F

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,CHIP 33H 5% 1W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

8-62

PART NO

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AKG1037

4AAA3497

4AAA3449

4AAA3449

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AKG1037

4AAA3497

4AAA3449

4AAA3449

4AAA1060

4AAA1060

4AAA1060

4AAA1064

4AAA1064

4AAA1064

4A231049

4AKE1032

4A231074

4AKB1044

4AKB7002

4AAA2073

4AKB2126

4AKB1052

4A0E1089

4AKB1020

4AKB1024

4AKB1016

4AKB1040

4AKB1046

4AAA1046

4AKB1040

4AKB1040

SYMBOL

R8F3

R8F4

R8F5

R8F6

R8F7

R8FX

R8FY

R8G2

R8G3

R8G4

R8G5

R901

R902

R903

R904

R905

R906

R8A6

R8A7

R8AA

R8AE

R8AL

R8AX

R8AY

R8E1

R8E7

R8E8

R8E9

R8EA

R8EF

R8F2

R907

R908

R909

R910

R911

R912

R913

R914

R915

R916

R917

R918

R920

R921

R922

R923

R924

DESCRIPTION

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,CHIP 33H 5% 1W

R,METAL 10KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,CHIP 33H 5% 1W

R,METAL 10KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R SMD METAL 1/8W 470K J

R SMD METAL 1/8W 470K J

R SMD METAL 1/8W 470K J

R SMD METAL 1/8W 1M J

R SMD METAL 1/8W 1M J

R SMD METAL 1/8W 1M J

R METAL 2W 100K J

R SMD METAL 1/4W 2.2K J

R METAL 2W 0.33 J

R SMD METAL 1/10W 22K J

R SMD METAL 1/10W 4.7 K

R SMD METAL 1/8W 10K F

R SMD METAL 1/10W 680 F

R SMD METAL 1/10W 100K J

R CARBON 1/4W 5.6 J

R SMD METAL 1/10W 220 J

R SMD METAL 1/10W 470 J

R SMD METAL 1/10W 100 J

R SMD METAL 1/10W 10K J

R SMD METAL 1/10W 33K J

R SMD METAL 1/8W 33K J

R SMD METAL 1/10W 10K J

R SMD METAL 1/10W 10K J

8-63

PART NO

4AKB2132

4AKB1072

4AKB1028

4A221045

4AKB1009

4AAA1028

4AKB1035

4AKB1072

4AKB1040

4AAA1016

4AKB1016

4AKB2128

4AKB1008

4AKB2128

4AKB1072

4AKB1035

4AAA3153

4AKB1046

4AKB2171

4AKB1052

4AKB2140

4AKB1040

4AKB1044

4AKB1052

4AKB1040

4AAA1064

4AAA1064

4AAA1064

4AKB1029

4AKB2176

4AKB2165

4AAA3153

4AKB1046

4AAA3342

4AAA3342

4AAA3341

4AKB2144

4AAA1044

4AKB1028

4AKB1016

4A231074

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3481

4AAA3481

4AAA3425

SYMBOL

R954

R955

R956

R9A2

R9A3

R9A4

R9A5

R9A6

R9A7

R9A8

R9E1

R9E2

R9E3

R9E4

R9E6

R9E7

R9X1

R925

R926

R927

R928

R929

R931

R933

R934

R935

R936

R937

R951

R952

R953

R9X2

R9X4

R9X5

R9X6

R9X7

R9X8

R9X9

R9Y1

R9Y2

R9Y3

RA03

RA04

RA05

RA06

RA07

RA08

RA11

DESCRIPTION

R SMD METAL 1/10W 33K J

R SMD METAL 1/10W 9.1K F

R SMD METAL 1/10W 100K J

R SMD METAL 1/10W 10K F

R SMD METAL 1/10W 10K J

R SMD METAL 1/10W 22K J

R SMD METAL 1/10W 100K J

R SMD METAL 1/10W 10K J

R SMD METAL 1/8W 1M J

R SMD METAL 1/8W 1M J

R SMD METAL 1/8W 1M J

R SMD METAL 1/10W 1.2K J

R SMD METAL 1/10W 7.5K F

R SMD METAL 1/10W 6.2K F

R SMD METAL 1/10W 2.2K F

R SMD METAL 1/10W 0OHM

R SMD METAL 1/10W 1K J

R METAL 1W 47K J

R SMD METAL 1/10W 27 J

R SMD METAL 1/8W 1K J

R SMD METAL 1/10W 3.9K J

R SMD METAL 1/10W 0OHM

R SMD METAL 1/10W 10K J

R SMD METAL 1/8W 100 J

R SMD METAL 1/10W 100 J

R SMD METAL 1/10W 1K F

R SMD METAL 1/10W 22 J

R SMD METAL 1/10W 1K F

R SMD METAL 1/10W 0OHM

R SMD METAL 1/10W 3.9K J

R,CHIP 1/8W 2.2M 5%

R,CHIP 1/8W 2.2M 5%

R SMD METAL 1/10W 33K J

R,CHIP 1/8W 750K 1%

R,CHIP 1/8W 750K 1%

R,CHIP 1/8W 680K 1%

R SMD METAL 1/10W 22K F

R SMD METAL 1/8W 22K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 100 J

R METAL 2W 0.33 J

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 2.2KH 5% 1/16W

R,METAL 2.2KH 5% 1/16W

R,METAL 10H 5% 1/16W

8-64

PART NO

4AAA3497

4AAA3489

4AAA3489

4AAA3505

4ABE2022

4ABE2022

4ABE2022

4AAA3449

4AAA3497

4AAA3497

4AAA3497

4AAA3461

4AAA3501

4AAA3501

4AAA3501

4AAA3483

4AAA3449

4AAA3425

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3449

4AAA3449

4AAA3449

4AAA3489

4AAA3497

4AAA3437

4AAA3497

4AAA3449

4AAA3449

4ABE2033

4AAA3461

4AAA3461

4AAA3461

4ABE2042

4AAA3441

4AAA3441

4AAA3441

4AAA3473

4AAA3489

4AAA3489

4AAA3489

4AAA3471

4AAA3473

4AAA3473

SYMBOL

RA44

RA4A

RA4E

RA70A

RA70B

RA70G

RA70R

RA71A

RA71B

RA71G

RA71R

RA72A

RA72B

RA72G

RA72R

RA73A

RA73B

RA12

RA19

RA20

RA21

RA22

RA23

RA24

RA27

RA28

RA29

RA30

RA34

RA37

RA43

RA73G

RA73R

RA74A

RA74B

RA74G

RA74R

RA75A

RA75B

RA75G

RA75R

RA76A

RA76B

RA76G

RA76R

RA77A

RA77B

RA77G

DESCRIPTION

R,METAL 10H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R SMD METAL 1/16W 75 F

R SMD METAL 1/16W 75 F

R SMD METAL 1/16W 75 F

R,METAL 100H 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 330H 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R SMD METAL 1/16W 220 F

R,METAL 330H 5% 1/16W

R,METAL 330H 5% 1/16W

R,METAL 330H 5% 1/16W

R SMD METAL 1/16W 510 F

R,METAL 47H 5% 1/16W

R,METAL 47H 5% 1/16W

R,METAL 47H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 820H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

8-65

PART NO

4AAA3473

4AAA3473

4AAA3473

4AAA3400

4ABE2022

4ABE2022

4ABE2022

4AAA3497

4AAA3497

4AAA3497

4AAA3461

4AAA3501

4AAA3501

4AAA3501

4AAA3437

4AAA3483

4AAA3449

4AAA3473

4AAA3483

4AAA3489

4AAA3489

4AAA3489

4AAA3449

4AAA3473

4AAA3473

4AAA3473

4AAA3449

4AAA3489

4AAA3489

4AAA3489

4AAA3485

4AAA3449

4AAA3449

4AAA3437

4ABE2033

4AAA3461

4AAA3461

4AAA3461

4ABE2042

4AAA3441

4AAA3441

4AAA3441

4AAA3481

4AAA3473

4AAA3489

4AAA3489

4AAA3489

4AAA3481

SYMBOL

RA7HB

RA7HG

RA7HR

RA7LA

RA80B

RA80G

RA80R

RA81B

RA81G

RA81R

RA82A

RA82B

RA82G

RA82R

RA83

RA83A

RA83B

RA77R

RA78A

RA78B

RA78G

RA78R

RA79A

RA79B

RA79G

RA79R

RA7AA

RA7AB

RA7AG

RA7AR

RA7EA

RA83G

RA83R

RA84

RA84A

RA84B

RA84G

RA84R

RA85A

RA85B

RA85G

RA85R

RA86

RA86A

RA86B

RA86G

RA86R

RA87

DESCRIPTION

R,METAL 1.0KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 3.3KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 0.0H 5% 1/16W

R SMD METAL 1/16W 75 F

R SMD METAL 1/16W 75 F

R SMD METAL 1/16W 75 F

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 330H 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 33H 5% 1/16W

R SMD METAL 1/16W 220 F

R,METAL 330H 5% 1/16W

R,METAL 330H 5% 1/16W

R,METAL 330H 5% 1/16W

R SMD METAL 1/16W 510 F

R,METAL 47H 5% 1/16W

R,METAL 47H 5% 1/16W

R,METAL 47H 5% 1/16W

R,METAL 2.2KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 2.2KH 5% 1/16W

8-66

PART NO

4AAA3489

4AAA3489

4AAA3485

4AAA3473

4AAA3473

4AAA3473

4AAA3483

4AAA3400

4AAA3465

4AAA3481

4AAA3493

4AAA3505

4AAA3431

4AAA3437

4AAA3437

4AAA3437

4AAA3425

4AAA3471

4AAA3473

4AAA3473

4AAA3473

4AAA3483

4AAA3489

4AAA3489

4AAA3489

4AAA3449

4AAA3473

4AAA3473

4AAA3473

4AAA3449

4AAA3489

4AAA3425

4AAA3527

4AAA3473

4AAA3453

4ABE2029

4AAA3527

4AAA3473

4AAA3453

4ABE2029

4AAA3497

4AAA3497

4AAA3503

4AAA3503

4AAA3473

4AAA3473

4AAA3483

4AAA3483

SYMBOL

RA8AG

RA8AR

RA8EA

RA8HB

RA8HG

RA8HR

RA8KA

RA8LA

RAA3

RAA4

RAA5

RAA6

RAE3

RAE4

RAE5

RAE6

RAFH

RA87A

RA87B

RA87G

RA87R

RA88A

RA88B

RA88G

RA88R

RA89A

RA89B

RA89G

RA89R

RA8AA

RA8AB

RAFK

RAH1

RAH2

RAH3

RAH3

RAH5

RAH6

RAH7

RAH7

RAM1

RAM2

RAM3

RAM4

RAM5

RAM6

RAM7

RAM8

DESCRIPTION

R,METAL 820H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 3.3KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 470H 5% 1/16W

R,METAL 2.2KH 5% 1/16W

R,METAL 6.8KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 18H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 10H 5% 1/16W

R,METAL 10H 5% 1/16W

R,METAL 180KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 150H 5% 1/16W

R SMD METAL 1/16W 150 F

R,METAL 180KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 150H 5% 1/16W

R SMD METAL 1/16W 150 F

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 18KH 5% 1/16W

R,METAL 18KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

8-67

SYMBOL

RK0A

RK10

RK11

RK16

RK22

RK23

RK24

RK25

RK26

RK2A

RK2E

RKAE

RKF1

RKF2

RKF6

RKF7

RKF8

RKF9

RAN1

RAN2

RAN3

RAN4

RAN5

RAN6

RAN7

RAN8

RAN9

RANA

RK01

RK07

RK08

RK09

*** CAPACITORS ***

C151 5ADK1049

C152

C153

5ACK1002

5AHK3546

C154

C15A

C201

C221

5AFK0230

5AFK0216

5AFK0261

5AHK5001

C222

C223

C224

C225

C226

C22E

C261

5AFK0216

5AHK2961

5AHK0711

5ACK1363

5ACK1363

5ACK1363

5ACK1363

PART NO

4AAA3513

4AAA3513

4AAA3400

4AAA3463

4AAA3443

4AAA3437

4AAA3513

4AAA3513

4AAA3400

4AAA3513

4AAA3513

4AAA3513

4ABE2042

4ABE2042

4ABE2059

4AAA3449

4AAA3513

4AAA3449

4AAA3441

4AAA3441

4AAA3517

4AAA3517

4AAA3527

4AAA3527

4AAA3473

4AAA3473

4AAA3449

4AAA3449

4AAA3463

4AAA3443

4AAA3437

4AAA3513

DESCRIPTION

R,METAL 47H 5% 1/16W

R,METAL 47H 5% 1/16W

R,METAL 68KH 5% 1/16W

R,METAL 68KH 5% 1/16W

R,METAL 180KH 5% 1/16W

R,METAL 180KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 390H 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 390H 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R SMD METAL 1/16W 510 F

R SMD METAL 1/16W 510 F

R SMD METAL 1/16W 2.7K F

R,METAL 100H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 100H 5% 1/16W

C SMD CER 2C 390P 50V J

C,CERAMIC 6.3V 1UF

CE734W1E4R7M-T(WT)

C SMD CER 1U 10V M

C SMD CER 10U 6.3V M

C SMD CER 22UF 6.3V M

C SMD ELE105 100U 10V M

C SMD CER 10U 6.3V M

C 16V 330UF

C SMD ELE105 10U 16V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

8-68

PART NO

5AHK5021

5AHK2961

5ACK1363

5AHK5024

5ACK0106

5ACK1118

5ACK1363

5ACK1363

5AHK2969

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AHK0711

5ACK1363

5ACK1363

5AFK0261

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5AFK0216

5ACK1002

5AFK0261

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

SYMBOL

C2A4

C2A5

C2E1

C2M1

C2M2

C2M3

C2M4

C2M5

C2M6

C409

C410

C411

C412

C413

C414

C415

C416

C263

C265

C26A

C271

C273

C274

C275

C276

C277

C278

C27E

C281

C2A2

C2A3

C417

C418

C419

C420

C421

C422

C423

C424

C425

C426

C427

C428

C429

C430

C431

C432

C433

DESCRIPTION

C SMD ELE105 10U 16V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 22UF 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C,CERAMIC 6.3V 1UF

C SMD CER 22UF 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD ELE105 22U 25V M

C 16V 330UF

C SMD CER F1 0.1U 25V Z

C SMD ELE105 100U 25V M

C SMD BJ 0.047U 25V K

C SMD B1 2700P 50V K

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

CE04W1C681M-HTATS

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

8-69

PART NO

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5AFK0216

5ACK1363

5AFK0216

5ADK1007

5ADK1007

5ACK1363

5ACK1363

5ACK1363

5AHK0711

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AHK0711

SYMBOL

C4E2

C4E3

C4E4

C4E5

C4E6

C4E7

C4E8

C4E9

C4F0

C4F1

C4F2

C4F3

C4F4

C4F5

C4F6

C4F7

C4F8

C434

C443

C444

C451

C452

C454

C455

C458

C459

C45F

C4A2

C4A4

C4E0

C4E1

C4F9

C4FA

C4FE

C4FF

C4FH

C4FJ

C4FK

C4FL

C4FM

C4FMZ

C4FN

C4FP

C4FQ

C4FR

C4FS

C4FT

C4FW

DESCRIPTION

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 2C 10P 50V D

C SMD CER 2C 10P 50V D

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD ELE105 10U 16V M

8-70

PART NO

5ACK1213

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1213

5ACK1213

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5A200105

5A200105

5A500983

5A805119

5A1BA501

5A9K0059

5A8K0042

5ACK0040

5ADK0172

5ADK0113

5ACK0108

5ACK0021

5A1BA503

5ACK0115

5A8K0872

5A8K5132

SYMBOL

C802

C805

C806

C807

C808

C809

C810

C811

C812

C813

C815

C818

C819

C820

C821

C8A1

C8A2

C4FY

C551

C552

C553

C554

C555

C556

C561

C562

C563

C564

C565

C566

C801

C8E1

C901

C902

C905

C906

C907

C910

C911

C912

C913

C914

C915

C920

C925

C926

C927

C951

DESCRIPTION

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER B1 0.1U 16V K

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER B1 0.1U 16V K

C SMD CER B1 0.1U 16V K

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SAFE X 0.47U AC275V K

C SAFE X 0.47U AC275V K

C CER 400V 1OOO

C ELE105 120U 450V

C FILM MM 0.01U 400V

C ELE105 22U 50V M

C ELE105 100U 35V M

C SMD CER F1 0.1U 50V Z

C SMD CER 2C 1000P 50V J

C SMD 2C 10P 50V C

C SMD BJ 0.1U 25V K

C SMD CER B1 0.01U 50V K

C FILM MM 0.47U 100V

C SMD CER BJ 1U 10V K

C ELE105 4.7U 50V M

C ELE105 1500U 25V M

8-71

PART NO

5ACK0005

5ACK0112

5ADK0025

5ACK1933

5ACK1933

5ACK1933

5ACK1933

5ACK1933

5ACK1933

5ACK1113

5ACK1113

5AFK0216

5AAB1424

5AAB1433

5ACK1363

5ACK1363

5ACK1363

5A8K5132

5A8K5130

5AFK0251

5A5K0123

5A8K0869

5A1BA501

5ACK0108

5ACK0115

5A8K0839

5A8K5112

5ACK0115

5A8K0012

5A1B1502

5ACK0021

5ACK1002

5ACK1363

5ACK1363

5AAB1427

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5AFK0216

5AFK0216

SYMBOL

C9X3

C9X4

C9X5

CA05

CA06

CA07

CA08

CA09

CA10

CA12

CA19

CA20

CA21

CA22

CA23

CA24

CA25

C952

C953

C954

C955

C9A2

C9A3

C9A4

C9A6

C9A7

C9E1

C9E2

C9E3

C9X1

C9X2

CA26

CA28

CA29

CA2A

CA36

CA37

CA38

CA39

CA40

CA41

CA42

CA43

CA44

CA45

CA53

CA67

CA70A

DESCRIPTION

C ELE105 1500U 25V M

C ELE105 1000U 25V M

C SMD CER 1.0UF 16V M

C CER 1X 150P 1KV J

C ELE105 2.2U 50V M

C FILM MM 0.01U 400V

C SMD BJ 0.1U 25V K

C SMD CER BJ 1U 10V K

C ELE105 47U 25V M

C ELE105 2200U 10V M

C SMD CER BJ 1U 10V K

C ELE105 1000U 10V M

C FILM PMS 0.47U 400V

C SMD CER B1 0.01U 50V K

C SMD CER B1 470P 50V K

C SMD CER BJ 0.33U 16V K

C SMD CER 1X 100P 50V J

C SMD CER B 0.047U 16V K

C SMD CER B 0.047U 16V K

C SMD CER B 0.047U 16V K

C SMD CER B 0.047U 16V K

C SMD CER B 0.047U 16V K

C SMD CER B 0.047U 16V K

C SMD CER B1 1000P 50V K

C SMD CER B1 1000P 50V K

C SMD CER 10U 6.3V M

C 16V 8200PF

C 16V 47000PF

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C,CERAMIC 6.3V 1UF

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C 16V 15000PF

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

8-72

PART NO

5ACK1363

5ACK1363

5AFK0216

5ADK1016

5ADK1016

5ADK1016

5ACK1363

5ACK1363

5ACK1363

5ADK1029

5ADK1025

5ADK1025

5ADK1025

5ACK1363

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5AFK0216

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ADK1007

5ADK1007

5ADK1007

5ACK1363

5ACK1363

5AFK0216

5AFK0216

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ADK1007

5ADK1007

5ADK1007

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5ADK1016

5ADK1016

5ADK1016

SYMBOL

CA74G

CA74R

CA75A

CA75B

CA75G

CA75R

CA76B

CA76G

CA76R

CA77A

CA77B

CA77G

CA77R

CA78A

CA80A

CA80B

CA80G

CA70B

CA70G

CA70R

CA71B

CA71G

CA71R

CA72A

CA72B

CA72G

CA72R

CA73B

CA73G

CA73R

CA74B

CA80R

CA81B

CA81G

CA81R

CA82B

CA82G

CA82R

CA83B

CA83G

CA83R

CA84B

CA84G

CA84R

CA85A

CA85B

CA85G

CA85R

DESCRIPTION

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 10P 50V D

C SMD CER 2C 10P 50V D

C SMD CER 2C 10P 50V D

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 2C 22P 50V J

C SMD CER 2C 22P 50V J

C SMD CER 2C 22P 50V J

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 68P 50V J

C SMD CER 2C 47P 50V J

C SMD CER 2C 47P 50V J

C SMD CER 2C 47P 50V J

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 10P 50V D

C SMD CER 2C 10P 50V D

C SMD CER 2C 10P 50V D

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 2C 22P 50V J

C SMD CER 2C 22P 50V J

C SMD CER 2C 22P 50V J

8-73

PART NO

5ACK1363

5AHK0711

5ACK1002

5ACK1002

5ACK1123

5ACK1123

5AFK0216

5AFK0216

5ACK1002

5ACK1002

5ACK1123

5ACK1123

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ADK1029

5ADK1025

5ADK1025

5ADK1025

5ACK1363

5ACK1113

5ACK1113

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ADK1034

5ADK1034

5ADK1034

5ADK1034

5ADK1034

5AFK0216

5AHK5016

5ADK1034

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

SYMBOL

CAA5

CAA6

CAH1

CAH2

CAH3

CAH4

CAM3

CAM4

CAN1

CAN2

CAN3

CAN4

CK01

CK02

CK03

CK04

CK05

CA86B

CA86G

CA86R

CA87A

CA87B

CA87G

CA87R

CA88A

CA90

CA91

CAA1

CAA2

CAA3

CAA4

CK06

CK07

CK08

CK09

CK10

CK11

CK12

CK13

CK14

CK16

CK17

CK18

CK19

CK20

CK21

CK22

CK23

DESCRIPTION

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 68P 50V J

C SMD CER 2C 47P 50V J

C SMD CER 2C 47P 50V J

C SMD CER 2C 47P 50V J

C SMD CER F1 0.1U 25V Z

C SMD CER B1 1000P 50V K

C SMD CER B1 1000P 50V K

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD ELE105 10U 16V M

C,CERAMIC 6.3V 1UF

C,CERAMIC 6.3V 1UF

C SMD B1 6800P 50V K

C SMD B1 6800P 50V K

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C,CERAMIC 6.3V 1UF

C,CERAMIC 6.3V 1UF

C SMD B1 6800P 50V K

C SMD B1 6800P 50V K

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 10U 6.3V M

C SMD ELE105 100U 16V M

C SMD CER 2C 100P 50V J

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

8-74

SYMBOL

CK24

CK25

CK26

CK27

CK28

CK29

CK30

CK31

CK32

CK34

CK35

CK36

CKF1

CKF2

PART NO

5ACK1363

5ACK1363

5ACK1363

5ADK1034

5ADK1034

5ADK1034

5ADK1034

5ADK1034

5AFK0216

5AHK5016

5ADK1034

5AFK0216

5ACK1363

5ACK1363

DESCRIPTION

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 10U 6.3V M

C SMD ELE105 100U 16V M

C SMD CER 2C 100P 50V J

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

8-75

REPLACEMENT PARTS LIST

The components specified for Model LCD2080UX-BK(B)

Manufactured by NMV

SYMBOL PART NO DESCRIPTION

*** ICS ***

IC201

IC221

IC222

IC251

IC271

IC272

IC2A1

3A7KB073

3A7KB045

3A7KB073

3A7KB070

3A7KB073

3A7KB073

3A7KB045

IC401

IC402

3A775023

3A752045

IC403 3A7EF036

IC405 3A7EF003

IC4A1 3A774007

IC4A2 3A7EA002

IC4A3 3A7EA002

IC551 3A7EJ034

IC552 3A7EJ034

IC801

IC802

3A7KB030

3A7KB030

IC803 3A7EB005

IC804 3A753017

IC8A1 3A7EB016

IC8A2 3A7EJ022

IC8A3

IC8A4

3A7EJ022

3A7EF037

IC8A5 3A7EF037

IC8F1 3A7EB016

IC901 3A709036

IC951 3A7K9039

IC9A1 3A709009

IC9A2 3A709038

IC9E1 3A7K9039

ICA01

ICA70A

3A754002

3A7KA024

ICAA1 3A7EA002

ICAA2 3A7EA002

ICAA3

ICAA4

3A7EF033

3A7EF033

ICAA5 3A7KJ035

ICAA6 3A7EF030

ICK01 3A775006

ICK02 3A775006

IC SMD BA00BCOWFP

IC SMD PQ1CZ21H2ZP

IC SMD BA00BCOWFP

IC SMD L4978 REGULATOR

IC SMD BA00BCOWFP

IC SMD BA00BCOWFP

IC SMD PQ1CZ21H2ZP

IC SMD PW164B

IC SMD LHF28F800-L202EV

IC SMD ICS332M-L202EV

IC SMD UPD65545-Y-6C

IC SMD M51957AFP

IC SMD M51957AFP

IC M30625FGNGP L202EV F

IC X9116WM8-2.7T4 MOS

IC X9116WM8-2.7T4 MOS

IC SMD SN74CBT1G125DCK

IC SMD SN74CBT1G125DCK

IC SMD AD9888KS-170

IC SMD AD8002AR

IC SMD SN74CBTLV1G125DCK

IC SMD SN74CBTLV1G125DCK

IC SMD UPC1093T-E2

8-76

SYMBOL PART NO

Q451

Q452

Q453

Q805

Q806

Q807

Q861

Q863

Q8A3

Q8E1

Q8E5

Q8E6

Q901

Q908

Q911

Q912

Q913

*** TRANSISTORS ***

Q101 3AEF0038

Q102

Q104

3AEA0026

3AEF0038

Q105

Q151

Q152

Q153

Q154

3AEA0026

3AEE0038

3AEA0027

3AEC0025

3AEF0035

Q155

Q156

Q157

Q261

Q262

Q265

Q271

Q272

3AEF0035

3AEF0037

3AEF0035

3AEF0035

3AEE0039

3AEE0034

3AEF0035

3AEF0035

3AEA0026

3AEF0035

3AEF0035

3AEF0035

3AEC0053

3AEC0053

3AEE0034

3AEE0034

3AEF0035

3AEF0035

3AEF0035

3AEF0035

3A550043

3AEE0044

3AEA0027

3AEC0025

3AEC0025

Q930

Q931

Q932

Q933

3AEF0035

3A5C0054

3AEF0035

3AEF0040

Q9E1 3AEF0035

QA70A 3AEF0035

QA70B

QA70G

QA70R

3AEC0052

3AEC0052

3AEC0052

QA71A

QA71B

QA71G

QA71R

3AEE0038

3AEF0037

3AEF0037

3AEF0037

DESCRIPTION

TR SMD DTC143ZKA-T146

TR 2SA812-T1BM6

TR SMD DTC143ZKA-T146

TR 2SA812-T1BM6

FET SMD 2SJ356-T1 P

TR 2SA1037AK-T146 Q

TR SMD 2412K R

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR SMD DTA144EKA

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

FET SMD 2SJ325-Z E2 P

FET 2SK3018-T106

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR 2SA812-T1BM6

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR SMD 2SC3734

TR SMD 2SC3734

FET 2SK3018-T106

FET 2SK3018-T106

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

TR DTC144EKA-T146(0)

FET 2SK3673-01MR

FET 2SK2715 P

TR 2SA1037AK-T146 Q

TR SMD 2412K R

TR SMD 2412K R

TR DTC144EKA-T146(0)

TR 2SC5562

TR DTC144EKA-T146(0)

TR SMD DTB114EK

TR DTC144EKA-T146(0)

TR SMD 2SC3356(M)

TR SMD 2SC3356(M)

TR SMD 2SC3356(M)

FET SMD 2SJ356-T1 P

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

8-77

SYMBOL

QA82G

QA82R

QA83B

QA83G

QA83R

QAA1

QAH1

QAH2

QAM1

QAM2

QAN1

QAN2

QKF1

QA72A

QA72B

QA72G

QA72R

QA73B

QA73G

QA73R

QA80B

QA80G

QA80R

QA81B

QA81G

QA81R

QA82B

*** DIODES ***

D151

D152

3AFK1009

3AFA0029

D221

D222

D271

D272

3AFK9002

3AFK1009

3AFK1009

3AFK1009

D273

D274

D275

D2A1

D2M1

D901

D902

D907

D911

D912

D913

D914

D915

3AFK1009

3AFA0112

3AFA0112

3AFK9002

3AFK9002

3A609011

3A6A0075

3A6A0120

3A6C0022

3AFK1006

3AFK9010

3AFK9010

3AFK1006

PART NO

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEC0052

3AEC0052

3AEC0052

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0037

3AEF0035

3AEA0028

3AEA0028

3AEC0053

3AEC0053

3AEA0028

3AEA0028

3AEA0027

DESCRIPTION

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD 2SC3356(M)

TR SMD 2SC3356(M)

TR SMD 2SC3356(M)

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR DTC144EKA-T146(0)

TR SMD 2SA1434-TB

TR SMD 2SA1434-TB

TR SMD 2SC3734

TR SMD 2SC3734

TR SMD 2SA1434-TB

TR SMD 2SA1434-TB

TR 2SA1037AK-T146 Q

DI SMD 1SS355 TE-17

DI RB715F-T106

DI SFPB-64

DI SMD 1SS355 TE-17

DI SMD 1SS355 TE-17

DI SMD 1SS355 TE-17

DI SMD 1SS355 TE-17

DI SMD RB495D

DI SMD RB495D

DI SFPB-64

DI SFPB-64

DI D3SBA60

DI RM10A

DI EG01CV1-T

DI SMD 1SR156-400

DI MA2Z001

DI DG1M3

DI DG1M3

DI MA2Z001

8-78

SYMBOL PART NO

D930

D951

D9A1

D9A2

D9E1

D9X1

D9X2

DA01

DA02

DA03

DA04

DA11

DA12

DA13

DA70A 3A6K1005

DA71B 3A6K1005

DA71G 3A6K1005

DA71R 3A6K1005

DA72B 3A6K1005

DA72G 3A6K1005

DA72R 3A6K1005

DA73B 3A6K1005

DA73G 3A6K1005

DA73R 3A6K1005

DA80A 3A6K1005

DA81B 3A6K1005

DA81G 3A6K1005

DA81R 3A6K1005

DA82B 3A6K1005

DA82G 3A6K1005

DA82R 3A6K1005

3AFK1009

3A610091

3A6A0120

3AFK1006

3A609003

3A610069

3AFC0001

3AFK1008

3AFK1008

3AFK1008

3AFK1009

3AFK1008

3AFK1008

3AFK1008

DA83B 3A6K1005

DA83G 3A6K1005

DA83R 3A6K1005

ZD8G2 3AFK5505

ZD908

ZD910

ZD917

ZD918

3AFK5741

3AFK6102

3AFK6101

3AFK5742

ZD919

ZD920

ZD930

ZD9A4

3AFK6100

3AFK6102

3AFK5741

3AFK6101

ZDA01 3AFK5506

ZDA11 3AFK5506

*** TRANSFORMERS ***

T901 4A530011

DESCRIPTION

DI SMD 1SS355 TE-17

DI FMX-22S

DI EG01CV1-T

DI MA2Z001

DI RK39(LF-C1)

DI FMG-G26S

DI SFPL-52

DI SMD DAN217 T146

DI SMD DAN217 T146

DI SMD DAN217 T146

DI SMD 1SS355 TE-17

DI SMD DAN217 T146

DI SMD DAN217 T146

DI SMD DAN217 T146

ZD SMD UDZS 7.5B TE-17

ZD SMD UDZS27B

ZD SMD UDZS18B

ZD SMD UDZS 5.1B TE-17

ZD SMD UDZS4.7B

ZD SMD UDZS27B

ZD SMD UDZS 7.5B TE-17

ZD SMD UDZS18B

TRANS SWITH ST-1102A

8-79

SYMBOL

T9A1

PART NO

4A530007

DESCRIPTION

SWTCHING TRANS L2.3MH

*** RELAYS & SWITCHES ***

SW901 6A530001

*** PWB ASSYS ***

X01 8BEV1M01

X02

X7A01

8BEV1P01

7A930026

ASSY-PWB-MAIN

ASSY-PWB-POWER

SKD LCD2080UX INVERTER

L223

L261

L262

L263

L271

L272

L2A1

L2A2

L2M1

L405

L406

L451

L452

L453

L454

L459

L4A1

L4A2

L4A3

L4A4

L4A5

*** COILS & FILTERS ***

FL203 6AAK2004

FL2M1 6AAK2004

FL901 6A101870

IN901

L115

L116

L117

4A660003

6AAK2070

6AAK2070

6AAK2070

L118

L119

L120

L121

L122

L123

L125

L221

L222

6AAK2070

6AAK2070

6AAK2070

6AAK2070

6AAK2070

6AAK2070

6AAK2070

6AAK2005

6AAK2005

6AAK2107

6AAK2005

6AAK2311

6AAK2005

6AAK2005

6AAK2005

6AAK2107

6AAK2005

6A1K1867

6AAK2005

6AAK2005

6AAK2070

6AAK2010

6AAK2010

6AAK2070

6AAK2070

6AAK2070

6AAK2005

6AAK2005

6AAK2369

6AAK2369

FILTER,NOISE

FILTER,NOISE

L FILTER LFZ28H05

LINE FILTER 03ME3G

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

CHIP COIL FBMH3216HM501NT

CHIP COIL FBMH3216HM501NT

SLF10145T-101M1R0

CHIP COIL FBMH3216HM501NT

COIL BEAD FBMH4525HM102NT

CHIP COIL FBMH3216HM501NT

CHIP COIL FBMH3216HM501NT

CHIP COIL FBMH3216HM501NT

SLF10145T-101M1R0

CHIP COIL FBMH3216HM501NT

L NOISE FILTER SMD 100UH

CHIP COIL FBMH3216HM501NT

CHIP COIL FBMH3216HM501NT

L BEAD SMD BK1608LM252

FERRITE,CHIP BK1608HS800-

FERRITE,CHIP BK1608HS800-

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

L BEAD SMD BK1608LM252

CHIP COIL FBMH3216HM501NT

CHIP COIL FBMH3216HM501NT

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

8-80

SYMBOL

L551

L552

L553

L561

L562

L563

L951

L9A1

L9E1

L9X1

L9X2

LAA3

LAA4

LAA5

LAA6

LAA7

LAH1

LAH2

LAN1

LAN2

X801

PART NO

6AAK2080

6AAK2080

6AAK2080

6AAK2080

6AAK2080

6AAK2080

6A101868

6AAK2162

6A1K2124

6A101869

6A109001

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAK2369

6AAF0004

DESCRIPTION

L BEAD SMD BK1608HS601

L BEAD SMD BK1608HS601

L BEAD SMD BK1608HS601

L BEAD SMD BK1608HS601

L BEAD SMD BK1608HS601

L BEAD SMD BK1608HS601

L SBC7-100-532

LEMC3225T101K

L CHOKE 10UH 3.7A TSL1112

L PFC COIL 77A-2702

L CHOKE 72UH 2A

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

L BEAD SMD BKP1608HS330

CERALOCK CSTCR7M37G53-R0

*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***

CNA01 7A057042

CNA02 7A057043

CNA03 7A057041

F901 6A600255 FUSE SG5013 250V 3.15A

OSC4A1

PC901

PC911

PC9A1

6ADE0004

3A820003

3A820003

3A820003

CRYSTAL SG-8002JF PCC 55M

IC PC123Y22 PHOTO

IC PC123Y22 PHOTO

IC PC123Y22 PHOTO

TH901 3A810010

VD901 3A0K0009

X3A01

X402

3A684034

6A410026

XD7A01

XD7A02

XD7A03

XD7A04

XD7A09

7A392037

7A391005

7A391011

7A082005

7A960491

LCD LM201U03 LGPHILIPS

OSC XTAL SMD HC-49U03C

CABLE BUTTON BLK

DVI_D-DVI_D CABLE 2.0M BK

DVI_A-VGA CABLE 2.0M BK

POWER CORD E3 L1.95 BK

CD PIVOT LVIEW,NEC(A,B)

*** APPEARANCE PARTS ***

X5501 25551401

XD2601 25261651

XD3201

XD3202

XD4301

XD4302

25327491

25327501

25435791

25435801

BRACKET BASE ASSY,L202EV

STAND UNIT,L202EV-BK

BEZEL,L202EV-BK(AB)-N

BACK ASSY,L202EV-BK(AB)-N

STAND COVER TB,L202EV-BK

COVER CABLE,L202EV-BK

8-81

SYMBOL PART NO DESCRIPTION

*** PRINTED & PACKING MATERIALS ***

X7901 25792531 LABEL,PIVOT

X7902 25793801

X8401 25841201

LABEL(AMBIX+)

X8402 25841211

X8403 25841501

X8404 25841511

XD7901 25794912

XD7902 25795332

RATING LABEL,L202EV-BK-AB

LABEL BARCODE,L202EV-BKB

XD7903

XD7A05

XD7A06

XD7A07

XD8401

XD8402

XD8403

25795382

7A813161

7A861761

7A861541

25841241

25841531

25841311

LABEL REV,L202EV-BKB

ACCESSORY LCD2080UX(B)

SHEET SETUP,L202EV(B)

SHEET-CAUTION

CARTON BOX,L202EV-WH(B)-N

PACKING BAG

CARTON SHEET,L202EV

MR405

MR406

MR407

MR408

MR409

MR410

MR411

MR412

MR4G1

MR4G3

MR4G5

MR4G7

MR4G9

*** RESISTORS ***

J921 4AAA1065

J923

J924

4AAA1065

4AAA1065

J925

J926

J927

J928

J929

4AAA1065

4AAA1065

4AAA1065

4AAA1065

4AAA1065

J930

J940

J961

J962

MR401

MR402

MR403

MR404

4AKE1081

4AAA1065

4AAA1065

4AAA1065

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1282

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4ACF1202

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/4W 0OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD METAL 1/8W 0 OHM

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 150 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

8-82

PART NO

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4AAA3489

4AAA3489

4ABE2031

4AAA3489

4AAA3489

4ABE2031

4AKB1028

4AKB1028

4AKB1028

4AKB1028

4AKB1028

4AKB1028

4ACF1202

4ACF1203

4ACF1203

4ACF1203

4ACF1203

4ACF1203

4ACF1203

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4ACF1202

4AKB1028

4AKB1028

4ABE2053

4AAA3483

4AAA3497

4AAA3483

4AAA3443

4AAA3543

4AAA3497

4AAA3515

4AAA3497

4AAA3497

4AAA3497

4AAA3473

4AAA3473

4AAA3473

4ABE2091

SYMBOL

MRK15

MRK17

MRK19

MRK21

MRK23

R101

R102

R103

R105

R106

R107

R117

R118

R119

R120

R121

R122

MR4H1

MRA01

MRA03

MRA05

MRA07

MRA09

MRA11

MRK01

MRK03

MRK05

MRK07

MRK09

MRK11

MRK13

R123

R125

R151

R152

R153

R154

R155

R156

R157

R158

R159

R15A

R15E

R15F

R15L

R201

R202

DESCRIPTION

R SMD NET 1/16W 33 J

R SMD NET 1/16W 100 J

R SMD NET 1/16W 100 J

R SMD NET 1/16W 100 J

R SMD NET 1/16W 100 J

R SMD NET 1/16W 100 J

R SMD NET 1/16W 100 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R SMD NET 1/16W 33 J

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R SMD METAL 1/16W 180 F

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R SMD METAL 1/16W 180 F

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/16W 1.5K F

R,METAL 2.7KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 820KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 56KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R SMD METAL 1/16W 56K F

8-83

PART NO

4AAA3481

4AAA3491

4ABE2091

4ABE2085

4ABE2057

4AAA3485

4ABE2085

4ABE2085

4ABE2051

4AAA3497

4AAA3443

4AAA3443

4ABE2039

4ABE2049

4ABE2071

4AAA3473

4ABE2065

4ABE2085

4ABE2055

4ABE2083

4ABE2051

4ABE2084

4AAA3473

4AAA3473

4AAA3509

4AAA3509

4ABE2105

4ABE2085

4ACF1070

4ACF1070

4AAA3473

4ABE2081

4ABE2051

4ABE2065

4ABE2023

4ABE2020

4AAA3400

4AAA3400

4AAA3473

4AAA3443

4AAA3473

4AAA3513

4AAA3400

4AAA3400

4AAA3449

4AAA3449

4AAA3443

4AAA3443

SYMBOL

R271

R272

R273

R274

R274A

R275

R276

R277

R277A

R278

R2A1

R2A2

R2A3

R2A4

R2A5

R2A7

R2M1

R203

R221

R222

R223

R224

R225

R226

R261

R262

R266

R267

R268

R269

R26A

R2M2

R2M3

R2M4

R2M5

R402

R403

R405

R409

R412

R415

R416

R418

R422

R429

R430

R433

R435

DESCRIPTION

R SMD METAL 1/16W 33K F

R SMD METAL 1/16W 1.8K F

R SMD METAL 1/16W 27K F

R SMD METAL 1/16W 1.2K F

R SMD METAL 1/16W 30K F

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 33KH 5% 1/16W

R,METAL 33KH 5% 1/16W

R SMD METAL 1/16W 150K F

R SMD METAL 1/16W 33K F

R SMD TFC 1/2W 680 J

R SMD TFC 1/2W 680 J

R,METAL 1.0KH 5% 1/16W

R,METAL 2.2KH 5% 1/16W

R,METAL 5.6KH 5% 1/16W

R SMD METAL 1/16W 56K F

R SMD METAL 1/16W 33K F

R SMD METAL 1/16W 2.2K F

R,METAL 3.3KH 5% 1/16W

R SMD METAL 1/16W 33K F

R SMD METAL 1/16W 33K F

R SMD METAL 1/16W 1.2K F

R,METAL 10KH 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 56H 5% 1/16W

R SMD METAL 1/16W 390 F

R SMD METAL 1/16W 1K F

R SMD METAL 1/16W 8.2K F

R,METAL 1.0KH 5% 1/16W

R SMD METAL 1/16W 4.7K F

R SMD METAL 1/16W 22K F

R SMD METAL 1/16W 1.2K F

R SMD METAL 1/16W 4.7K F

R SMD METAL 1/16W 82 F

R SMD METAL 1/16W 62 F

R,METAL 0.0H 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 56H 5% 1/16W

8-84

PART NO

4AAA3497

4AAA3497

4AAA3449

4AAA3449

4AAA3449

4AAA3449

4AAA3473

4AAA3443

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3481

4AAA3485

4AAA3485

4AAA3497

4AAA3513

4AAA3473

4AAA3449

4AAA3473

4AAA3513

4AAA3513

4AAA3497

4AAA3497

4AAA3449

4AAA3449

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3449

4AAA3449

4AAA3449

4AAA3449

4AAA3449

4AAA3497

4AAA3090

4AAA3505

SYMBOL

R463

R464

R465

R466

R467

R468

R470

R4A2

R4A3

R4A4

R4A5

R4A6

R4A7

R4A8

R4A9

R4AK

R4AL

R449

R451

R452

R453

R454

R455

R456

R457

R458

R459

R45E

R45K

R45P

R45T

R4AM

R4AN

R4AP

R4AT

R4E0

R4E1

R4E2

R4E3

R4E4

R4E5

R4E6

R4E7

R4E8

R4E9

R4EA

R550

R801

DESCRIPTION

R,METAL 2.2KH 5% 1/16W

R,METAL 3.3KH 5% 1/16W

R,METAL 3.3KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 10KH 5% 1/16W

R,CHIP 1/8W 5.1K 5%

R,METAL 22KH 5% 1/16W

8-85

PART NO

4AAA3437

4AAA3437

4AAA3449

4AAA3449

4AAA3449

4AAA3449

4AAA3449

4AAA3513

4AAA3513

4AAA3513

4AAA3449

4AAA3449

4AAA3449

4AAA3513

4AAA3437

4AAA3449

4AAA3449

4AAA3497

4ABE2083

4ABE2082

4AAA3513

4AAA3497

4AAA3497

4AAA3497

4AAA3449

4AAA3449

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3449

4AAA3513

4AAA3513

4AAA3513

4AAA3505

4ABE2079

4ABE2109

4AAA3505

4AAA3505

4AAA3505

4AAA3505

4AAA3505

4AAA3505

4AAA3505

4AKG1037

4AAA3449

4AAA3449

SYMBOL

R819

R820

R821

R822

R823

R826

R827

R828

R829

R830

R831

R832

R833

R834

R838

R839

R840

R802

R803

R805

R806

R807

R808

R809

R811

R812

R813

R814

R815

R816

R818

R841

R842

R844

R845

R846

R849

R850

R883

R885

R886

R887

R889

R890

R891

R8A2

R8A4

R8A5

DESCRIPTION

R,METAL 10KH 5% 1/16W

R SMD METAL 1/16W 27K F

R SMD METAL 1/16W 24K F

R,METAL 47KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R SMD METAL 1/16W 18K F

R SMD METAL 1/16W 220K F

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,CHIP 33H 5% 1W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

8-86

PART NO

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AKG1037

4AAA3497

4AAA3449

4AAA3449

4AAA3513

4AAA3513

4AAA3513

4AAA3513

4AKG1037

4AAA3497

4AAA3449

4AAA3449

4AAA1060

4AAA1060

4AAA1060

4AAA1064

4AAA1064

4AAA1064

4A231049

4AKE1032

4A231074

4AKB1044

4AKB7002

4AAA2073

4AKB2126

4AKB1052

4A0E1089

4AKB1020

4AKB1024

4AKB1016

4AKB1040

4AKB1046

4AAA1046

4AKB1040

4AKB1040

SYMBOL

R8F3

R8F4

R8F5

R8F6

R8F7

R8FX

R8FY

R8G2

R8G3

R8G4

R8G5

R901

R902

R903

R904

R905

R906

R8A6

R8A7

R8AA

R8AE

R8AL

R8AX

R8AY

R8E1

R8E7

R8E8

R8E9

R8EA

R8EF

R8F2

R907

R908

R909

R910

R911

R912

R913

R914

R915

R916

R917

R918

R920

R921

R922

R923

R924

DESCRIPTION

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,CHIP 33H 5% 1W

R,METAL 10KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,CHIP 33H 5% 1W

R,METAL 10KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R SMD METAL 1/8W 470K J

R SMD METAL 1/8W 470K J

R SMD METAL 1/8W 470K J

R SMD METAL 1/8W 1M J

R SMD METAL 1/8W 1M J

R SMD METAL 1/8W 1M J

R METAL 2W 100K J

R SMD METAL 1/4W 2.2K J

R METAL 2W 0.33 J

R SMD METAL 1/10W 22K J

R SMD METAL 1/10W 4.7 K

R SMD METAL 1/8W 10K F

R SMD METAL 1/10W 680 F

R SMD METAL 1/10W 100K J

R CARBON 1/4W 5.6 J

R SMD METAL 1/10W 220 J

R SMD METAL 1/10W 470 J

R SMD METAL 1/10W 100 J

R SMD METAL 1/10W 10K J

R SMD METAL 1/10W 33K J

R SMD METAL 1/8W 33K J

R SMD METAL 1/10W 10K J

R SMD METAL 1/10W 10K J

8-87

PART NO

4AKB2132

4AKB1072

4AKB1028

4A221045

4AKB1009

4AAA1028

4AKB1035

4AKB1072

4AKB1040

4AAA1016

4AKB1016

4AKB2128

4AKB1008

4AKB2128

4AKB1072

4AKB1035

4AAA3153

4AKB1046

4AKB2171

4AKB1052

4AKB2140

4AKB1040

4AKB1044

4AKB1052

4AKB1040

4AAA1064

4AAA1064

4AAA1064

4AKB1029

4AKB2176

4AKB2165

4AAA3153

4AKB1046

4AAA3342

4AAA3342

4AAA3341

4AKB2144

4AAA1044

4AKB1028

4AKB1016

4A231074

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3481

4AAA3481

4AAA3425

SYMBOL

R954

R955

R956

R9A2

R9A3

R9A4

R9A5

R9A6

R9A7

R9A8

R9E1

R9E2

R9E3

R9E4

R9E6

R9E7

R9X1

R925

R926

R927

R928

R929

R931

R933

R934

R935

R936

R937

R951

R952

R953

R9X2

R9X4

R9X5

R9X6

R9X7

R9X8

R9X9

R9Y1

R9Y2

R9Y3

RA03

RA04

RA05

RA06

RA07

RA08

RA11

DESCRIPTION

R SMD METAL 1/10W 33K J

R SMD METAL 1/10W 9.1K F

R SMD METAL 1/10W 100K J

R SMD METAL 1/10W 10K F

R SMD METAL 1/10W 10K J

R SMD METAL 1/10W 22K J

R SMD METAL 1/10W 100K J

R SMD METAL 1/10W 10K J

R SMD METAL 1/8W 1M J

R SMD METAL 1/8W 1M J

R SMD METAL 1/8W 1M J

R SMD METAL 1/10W 1.2K J

R SMD METAL 1/10W 7.5K F

R SMD METAL 1/10W 6.2K F

R SMD METAL 1/10W 2.2K F

R SMD METAL 1/10W 0OHM

R SMD METAL 1/10W 1K J

R METAL 1W 47K J

R SMD METAL 1/10W 27 J

R SMD METAL 1/8W 1K J

R SMD METAL 1/10W 3.9K J

R SMD METAL 1/10W 0OHM

R SMD METAL 1/10W 10K J

R SMD METAL 1/8W 100 J

R SMD METAL 1/10W 100 J

R SMD METAL 1/10W 1K F

R SMD METAL 1/10W 22 J

R SMD METAL 1/10W 1K F

R SMD METAL 1/10W 0OHM

R SMD METAL 1/10W 3.9K J

R,CHIP 1/8W 2.2M 5%

R,CHIP 1/8W 2.2M 5%

R SMD METAL 1/10W 33K J

R,CHIP 1/8W 750K 1%

R,CHIP 1/8W 750K 1%

R,CHIP 1/8W 680K 1%

R SMD METAL 1/10W 22K F

R SMD METAL 1/8W 22K J

R SMD METAL 1/10W 1K J

R SMD METAL 1/10W 100 J

R METAL 2W 0.33 J

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 2.2KH 5% 1/16W

R,METAL 2.2KH 5% 1/16W

R,METAL 10H 5% 1/16W

8-88

PART NO

4AAA3497

4AAA3489

4AAA3489

4AAA3505

4ABE2022

4ABE2022

4ABE2022

4AAA3449

4AAA3497

4AAA3497

4AAA3497

4AAA3461

4AAA3501

4AAA3501

4AAA3501

4AAA3483

4AAA3449

4AAA3425

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3437

4AAA3449

4AAA3449

4AAA3449

4AAA3489

4AAA3497

4AAA3437

4AAA3497

4AAA3449

4AAA3449

4ABE2033

4AAA3461

4AAA3461

4AAA3461

4ABE2042

4AAA3441

4AAA3441

4AAA3441

4AAA3473

4AAA3489

4AAA3489

4AAA3489

4AAA3471

4AAA3473

4AAA3473

SYMBOL

RA44

RA4A

RA4E

RA70A

RA70B

RA70G

RA70R

RA71A

RA71B

RA71G

RA71R

RA72A

RA72B

RA72G

RA72R

RA73A

RA73B

RA12

RA19

RA20

RA21

RA22

RA23

RA24

RA27

RA28

RA29

RA30

RA34

RA37

RA43

RA73G

RA73R

RA74A

RA74B

RA74G

RA74R

RA75A

RA75B

RA75G

RA75R

RA76A

RA76B

RA76G

RA76R

RA77A

RA77B

RA77G

DESCRIPTION

R,METAL 10H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R SMD METAL 1/16W 75 F

R SMD METAL 1/16W 75 F

R SMD METAL 1/16W 75 F

R,METAL 100H 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 330H 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R SMD METAL 1/16W 220 F

R,METAL 330H 5% 1/16W

R,METAL 330H 5% 1/16W

R,METAL 330H 5% 1/16W

R SMD METAL 1/16W 510 F

R,METAL 47H 5% 1/16W

R,METAL 47H 5% 1/16W

R,METAL 47H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 820H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

8-89

PART NO

4AAA3473

4AAA3473

4AAA3473

4AAA3400

4ABE2022

4ABE2022

4ABE2022

4AAA3497

4AAA3497

4AAA3497

4AAA3461

4AAA3501

4AAA3501

4AAA3501

4AAA3437

4AAA3483

4AAA3449

4AAA3473

4AAA3483

4AAA3489

4AAA3489

4AAA3489

4AAA3449

4AAA3473

4AAA3473

4AAA3473

4AAA3449

4AAA3489

4AAA3489

4AAA3489

4AAA3485

4AAA3449

4AAA3449

4AAA3437

4ABE2033

4AAA3461

4AAA3461

4AAA3461

4ABE2042

4AAA3441

4AAA3441

4AAA3441

4AAA3481

4AAA3473

4AAA3489

4AAA3489

4AAA3489

4AAA3481

SYMBOL

RA7HB

RA7HG

RA7HR

RA7LA

RA80B

RA80G

RA80R

RA81B

RA81G

RA81R

RA82A

RA82B

RA82G

RA82R

RA83

RA83A

RA83B

RA77R

RA78A

RA78B

RA78G

RA78R

RA79A

RA79B

RA79G

RA79R

RA7AA

RA7AB

RA7AG

RA7AR

RA7EA

RA83G

RA83R

RA84

RA84A

RA84B

RA84G

RA84R

RA85A

RA85B

RA85G

RA85R

RA86

RA86A

RA86B

RA86G

RA86R

RA87

DESCRIPTION

R,METAL 1.0KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 3.3KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 0.0H 5% 1/16W

R SMD METAL 1/16W 75 F

R SMD METAL 1/16W 75 F

R SMD METAL 1/16W 75 F

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 330H 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 15KH 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 33H 5% 1/16W

R SMD METAL 1/16W 220 F

R,METAL 330H 5% 1/16W

R,METAL 330H 5% 1/16W

R,METAL 330H 5% 1/16W

R SMD METAL 1/16W 510 F

R,METAL 47H 5% 1/16W

R,METAL 47H 5% 1/16W

R,METAL 47H 5% 1/16W

R,METAL 2.2KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 2.2KH 5% 1/16W

8-90

PART NO

4AAA3489

4AAA3489

4AAA3485

4AAA3473

4AAA3473

4AAA3473

4AAA3483

4AAA3400

4AAA3465

4AAA3481

4AAA3493

4AAA3505

4AAA3431

4AAA3437

4AAA3437

4AAA3437

4AAA3425

4AAA3471

4AAA3473

4AAA3473

4AAA3473

4AAA3483

4AAA3489

4AAA3489

4AAA3489

4AAA3449

4AAA3473

4AAA3473

4AAA3473

4AAA3449

4AAA3489

4AAA3425

4AAA3527

4AAA3473

4AAA3453

4ABE2029

4AAA3527

4AAA3473

4AAA3453

4ABE2029

4AAA3497

4AAA3497

4AAA3503

4AAA3503

4AAA3473

4AAA3473

4AAA3483

4AAA3483

SYMBOL

RA8AG

RA8AR

RA8EA

RA8HB

RA8HG

RA8HR

RA8KA

RA8LA

RAA3

RAA4

RAA5

RAA6

RAE3

RAE4

RAE5

RAE6

RAFH

RA87A

RA87B

RA87G

RA87R

RA88A

RA88B

RA88G

RA88R

RA89A

RA89B

RA89G

RA89R

RA8AA

RA8AB

RAFK

RAH1

RAH2

RAH3

RAH3

RAH5

RAH6

RAH7

RAH7

RAM1

RAM2

RAM3

RAM4

RAM5

RAM6

RAM7

RAM8

DESCRIPTION

R,METAL 820H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 4.7KH 5% 1/16W

R,METAL 3.3KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 470H 5% 1/16W

R,METAL 2.2KH 5% 1/16W

R,METAL 6.8KH 5% 1/16W

R,METAL 22KH 5% 1/16W

R,METAL 18H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 10H 5% 1/16W

R,METAL 10H 5% 1/16W

R,METAL 180KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 150H 5% 1/16W

R SMD METAL 1/16W 150 F

R,METAL 180KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 150H 5% 1/16W

R SMD METAL 1/16W 150 F

R,METAL 10KH 5% 1/16W

R,METAL 10KH 5% 1/16W

R,METAL 18KH 5% 1/16W

R,METAL 18KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

R,METAL 2.7KH 5% 1/16W

8-91

SYMBOL

RK0A

RK10

RK11

RK16

RK22

RK23

RK24

RK25

RK26

RK2A

RK2E

RKAE

RKF1

RKF2

RKF6

RKF7

RKF8

RKF9

RAN1

RAN2

RAN3

RAN4

RAN5

RAN6

RAN7

RAN8

RAN9

RANA

RK01

RK07

RK08

RK09

*** CAPACITORS ***

C151 5ADK1049

C152

C153

5ACK1002

5AHK3546

C154

C15A

C201

C221

5AFK0230

5AFK0216

5AFK0261

5AHK5001

C222

C223

C224

C225

C226

C22E

C261

5AFK0216

5AHK2961

5AHK0711

5ACK1363

5ACK1363

5ACK1363

5ACK1363

PART NO

4AAA3513

4AAA3513

4AAA3400

4AAA3463

4AAA3443

4AAA3437

4AAA3513

4AAA3513

4AAA3400

4AAA3513

4AAA3513

4AAA3513

4ABE2042

4ABE2042

4ABE2059

4AAA3449

4AAA3513

4AAA3449

4AAA3441

4AAA3441

4AAA3517

4AAA3517

4AAA3527

4AAA3527

4AAA3473

4AAA3473

4AAA3449

4AAA3449

4AAA3463

4AAA3443

4AAA3437

4AAA3513

DESCRIPTION

R,METAL 47H 5% 1/16W

R,METAL 47H 5% 1/16W

R,METAL 68KH 5% 1/16W

R,METAL 68KH 5% 1/16W

R,METAL 180KH 5% 1/16W

R,METAL 180KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 1.0KH 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 100H 5% 1/16W

R,METAL 390H 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 390H 5% 1/16W

R,METAL 56H 5% 1/16W

R,METAL 33H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 0.0H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 47KH 5% 1/16W

R SMD METAL 1/16W 510 F

R SMD METAL 1/16W 510 F

R SMD METAL 1/16W 2.7K F

R,METAL 100H 5% 1/16W

R,METAL 47KH 5% 1/16W

R,METAL 100H 5% 1/16W

C SMD CER 2C 390P 50V J

C,CERAMIC 6.3V 1UF

CE734W1E4R7M-T(WT)

C SMD CER 1U 10V M

C SMD CER 10U 6.3V M

C SMD CER 22UF 6.3V M

C SMD ELE105 100U 10V M

C SMD CER 10U 6.3V M

C 16V 330UF

C SMD ELE105 10U 16V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

8-92

PART NO

5AHK5021

5AHK2961

5ACK1363

5AHK5024

5ACK0106

5ACK1118

5ACK1363

5ACK1363

5AHK2969

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AHK0711

5ACK1363

5ACK1363

5AFK0261

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5AFK0216

5ACK1002

5AFK0261

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

SYMBOL

C2A4

C2A5

C2E1

C2M1

C2M2

C2M3

C2M4

C2M5

C2M6

C409

C410

C411

C412

C413

C414

C415

C416

C263

C265

C26A

C271

C273

C274

C275

C276

C277

C278

C27E

C281

C2A2

C2A3

C417

C418

C419

C420

C421

C422

C423

C424

C425

C426

C427

C428

C429

C430

C431

C432

C433

DESCRIPTION

C SMD ELE105 10U 16V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 22UF 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C,CERAMIC 6.3V 1UF

C SMD CER 22UF 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD ELE105 22U 25V M

C 16V 330UF

C SMD CER F1 0.1U 25V Z

C SMD ELE105 100U 25V M

C SMD BJ 0.047U 25V K

C SMD B1 2700P 50V K

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

CE04W1C681M-HTATS

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

8-93

PART NO

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5AFK0216

5ACK1363

5AFK0216

5ADK1007

5ADK1007

5ACK1363

5ACK1363

5ACK1363

5AHK0711

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AHK0711

SYMBOL

C4E2

C4E3

C4E4

C4E5

C4E6

C4E7

C4E8

C4E9

C4F0

C4F1

C4F2

C4F3

C4F4

C4F5

C4F6

C4F7

C4F8

C434

C443

C444

C451

C452

C454

C455

C458

C459

C45F

C4A2

C4A4

C4E0

C4E1

C4F9

C4FA

C4FE

C4FF

C4FH

C4FJ

C4FK

C4FL

C4FM

C4FMZ

C4FN

C4FP

C4FQ

C4FR

C4FS

C4FT

C4FW

DESCRIPTION

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 2C 10P 50V D

C SMD CER 2C 10P 50V D

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD ELE105 10U 16V M

8-94

PART NO

5ACK1213

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1213

5ACK1213

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5A200105

5A200105

5A500983

5A805119

5A1BA501

5A9K0059

5A8K0042

5ACK0040

5ADK0172

5ADK0113

5ACK0108

5ACK0021

5A1BA503

5ACK0115

5A8K0872

5A8K5132

SYMBOL

C802

C805

C806

C807

C808

C809

C810

C811

C812

C813

C815

C818

C819

C820

C821

C8A1

C8A2

C4FY

C551

C552

C553

C554

C555

C556

C561

C562

C563

C564

C565

C566

C801

C8E1

C901

C902

C905

C906

C907

C910

C911

C912

C913

C914

C915

C920

C925

C926

C927

C951

DESCRIPTION

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER B1 0.1U 16V K

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER B1 0.1U 16V K

C SMD CER B1 0.1U 16V K

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SAFE X 0.47U AC275V K

C SAFE X 0.47U AC275V K

C CER 400V 1OOO

C ELE105 120U 450V

C FILM MM 0.01U 400V

C ELE105 22U 50V M

C ELE105 100U 35V M

C SMD CER F1 0.1U 50V Z

C SMD CER 2C 1000P 50V J

C SMD 2C 10P 50V C

C SMD BJ 0.1U 25V K

C SMD CER B1 0.01U 50V K

C FILM MM 0.47U 100V

C SMD CER BJ 1U 10V K

C ELE105 4.7U 50V M

C ELE105 1500U 25V M

8-95

PART NO

5ACK0005

5ACK0112

5ADK0025

5ACK1933

5ACK1933

5ACK1933

5ACK1933

5ACK1933

5ACK1933

5ACK1113

5ACK1113

5AFK0216

5AAB1424

5AAB1433

5ACK1363

5ACK1363

5ACK1363

5A8K5132

5A8K5130

5AFK0251

5A5K0123

5A8K0869

5A1BA501

5ACK0108

5ACK0115

5A8K0839

5A8K5112

5ACK0115

5A8K0012

5A1B1502

5ACK0021

5ACK1002

5ACK1363

5ACK1363

5AAB1427

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5AFK0216

5AFK0216

SYMBOL

C9X3

C9X4

C9X5

CA05

CA06

CA07

CA08

CA09

CA10

CA12

CA19

CA20

CA21

CA22

CA23

CA24

CA25

C952

C953

C954

C955

C9A2

C9A3

C9A4

C9A6

C9A7

C9E1

C9E2

C9E3

C9X1

C9X2

CA26

CA28

CA29

CA2A

CA36

CA37

CA38

CA39

CA40

CA41

CA42

CA43

CA44

CA45

CA53

CA67

CA70A

DESCRIPTION

C ELE105 1500U 25V M

C ELE105 1000U 25V M

C SMD CER 1.0UF 16V M

C CER 1X 150P 1KV J

C ELE105 2.2U 50V M

C FILM MM 0.01U 400V

C SMD BJ 0.1U 25V K

C SMD CER BJ 1U 10V K

C ELE105 47U 25V M

C ELE105 2200U 10V M

C SMD CER BJ 1U 10V K

C ELE105 1000U 10V M

C FILM PMS 0.47U 400V

C SMD CER B1 0.01U 50V K

C SMD CER B1 470P 50V K

C SMD CER BJ 0.33U 16V K

C SMD CER 1X 100P 50V J

C SMD CER B 0.047U 16V K

C SMD CER B 0.047U 16V K

C SMD CER B 0.047U 16V K

C SMD CER B 0.047U 16V K

C SMD CER B 0.047U 16V K

C SMD CER B 0.047U 16V K

C SMD CER B1 1000P 50V K

C SMD CER B1 1000P 50V K

C SMD CER 10U 6.3V M

C 16V 8200PF

C 16V 47000PF

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C,CERAMIC 6.3V 1UF

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C 16V 15000PF

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

8-96

PART NO

5ACK1363

5ACK1363

5AFK0216

5ADK1016

5ADK1016

5ADK1016

5ACK1363

5ACK1363

5ACK1363

5ADK1029

5ADK1025

5ADK1025

5ADK1025

5ACK1363

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5AFK0216

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ADK1007

5ADK1007

5ADK1007

5ACK1363

5ACK1363

5AFK0216

5AFK0216

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ADK1007

5ADK1007

5ADK1007

5ACK1363

5ACK1363

5ACK1363

5AFK0216

5ADK1016

5ADK1016

5ADK1016

SYMBOL

CA74G

CA74R

CA75A

CA75B

CA75G

CA75R

CA76B

CA76G

CA76R

CA77A

CA77B

CA77G

CA77R

CA78A

CA80A

CA80B

CA80G

CA70B

CA70G

CA70R

CA71B

CA71G

CA71R

CA72A

CA72B

CA72G

CA72R

CA73B

CA73G

CA73R

CA74B

CA80R

CA81B

CA81G

CA81R

CA82B

CA82G

CA82R

CA83B

CA83G

CA83R

CA84B

CA84G

CA84R

CA85A

CA85B

CA85G

CA85R

DESCRIPTION

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 10P 50V D

C SMD CER 2C 10P 50V D

C SMD CER 2C 10P 50V D

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 2C 22P 50V J

C SMD CER 2C 22P 50V J

C SMD CER 2C 22P 50V J

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 68P 50V J

C SMD CER 2C 47P 50V J

C SMD CER 2C 47P 50V J

C SMD CER 2C 47P 50V J

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 10P 50V D

C SMD CER 2C 10P 50V D

C SMD CER 2C 10P 50V D

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 10U 6.3V M

C SMD CER 2C 22P 50V J

C SMD CER 2C 22P 50V J

C SMD CER 2C 22P 50V J

8-97

PART NO

5ACK1363

5AHK0711

5ACK1002

5ACK1002

5ACK1123

5ACK1123

5AFK0216

5AFK0216

5ACK1002

5ACK1002

5ACK1123

5ACK1123

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ADK1029

5ADK1025

5ADK1025

5ADK1025

5ACK1363

5ACK1113

5ACK1113

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ADK1034

5ADK1034

5ADK1034

5ADK1034

5ADK1034

5AFK0216

5AHK5016

5ADK1034

5AFK0216

5ACK1363

5ACK1363

5ACK1363

5ACK1363

5ACK1363

SYMBOL

CAA5

CAA6

CAH1

CAH2

CAH3

CAH4

CAM3

CAM4

CAN1

CAN2

CAN3

CAN4

CK01

CK02

CK03

CK04

CK05

CA86B

CA86G

CA86R

CA87A

CA87B

CA87G

CA87R

CA88A

CA90

CA91

CAA1

CAA2

CAA3

CAA4

CK06

CK07

CK08

CK09

CK10

CK11

CK12

CK13

CK14

CK16

CK17

CK18

CK19

CK20

CK21

CK22

CK23

DESCRIPTION

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 68P 50V J

C SMD CER 2C 47P 50V J

C SMD CER 2C 47P 50V J

C SMD CER 2C 47P 50V J

C SMD CER F1 0.1U 25V Z

C SMD CER B1 1000P 50V K

C SMD CER B1 1000P 50V K

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD ELE105 10U 16V M

C,CERAMIC 6.3V 1UF

C,CERAMIC 6.3V 1UF

C SMD B1 6800P 50V K

C SMD B1 6800P 50V K

C SMD CER 10U 6.3V M

C SMD CER 10U 6.3V M

C,CERAMIC 6.3V 1UF

C,CERAMIC 6.3V 1UF

C SMD B1 6800P 50V K

C SMD B1 6800P 50V K

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 10U 6.3V M

C SMD ELE105 100U 16V M

C SMD CER 2C 100P 50V J

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

8-98

SYMBOL

CK24

CK25

CK26

CK27

CK28

CK29

CK30

CK31

CK32

CK34

CK35

CK36

CKF1

CKF2

PART NO

5ACK1363

5ACK1363

5ACK1363

5ADK1034

5ADK1034

5ADK1034

5ADK1034

5ADK1034

5AFK0216

5AHK5016

5ADK1034

5AFK0216

5ACK1363

5ACK1363

DESCRIPTION

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 2C 100P 50V J

C SMD CER 10U 6.3V M

C SMD ELE105 100U 16V M

C SMD CER 2C 100P 50V J

C SMD CER 10U 6.3V M

C SMD CER F1 0.1U 25V Z

C SMD CER F1 0.1U 25V Z

8-99

REPLACEMENT PARTS LIST(For U.S.)

The components specified for Model LCD2080UX(A)

Manufactured by NPG

SYMBOL

Part No for NPG

DESCRIPTION

ICA01

ICA70A

ICAA1

ICAA2

ICAA3

ICAA4

ICAA5

ICAA6

ICK01

ICK02

*** ICS ***

IC201

IC221

IC222

IC251

IC271

IC272

IC2A1

IC401

IC402

IC403

IC405

IC4A1

IC4A2

IC4A3

IC551

IC552

IC801

IC802

IC803

IC804

IC8A1

IC8A2

EHA10831

EHA10831

EHA90011

EHA90011

EHA10761

EHA10701

EHA10211

EHA10821

IC8A3

IC8A4

IC8A5

IC8F1

EHA10821

EHA10811

EHA10811

EHA10211

IC901 EH110251

IC951 EH110321

IC9A1 EH110261

IC9A2 EHA10901

IC9E1 EH110321

EHA10881

EHA10861

EHA10881

EHA10871

EHA10881

EHA10881

EHA10861

EHA10741

EHA10691

EHA10801

EHA10771

EHA10721

EHA10751

EHA10751

EHA10711

EHA10841

EHA10751

EHA10751

EHA10791

EHA10791

EHA11071

EHA10781

EHA10731

EHA10731

IC SMD BA00BC0WFP

IC SMD PQ1CZ21H2ZP

IC SMD BA00BC0WFP

IC SMD L4978 REGULATOR

IC SMD BA00BC0WFP

IC SMD BA00BC0WFP

IC SMD PQ1CZ21H2ZP

IC SMD PW164B

IC SMD LH28F800-L202V03

IC SMD ICS332M-L202EV

IC SMDSN74AHC2G125H MOS

IC SMD UPD65545-Y-6C

IC SMD NC7WZ14

IC SMD NC7WZ14

IC SMD DS90C385MTD MOS

IC SMD DS90C385MTD MOS

IC RESET M51957AFP

IC RESET M51957AFP

IC SMD CAT24WC64JI-TE13 M

IC SMD M30625MGN-A26GP

IC SMD BU9882F-WE2 MOS

IC SMD X9116WM8-2.7T4 MOS

IC SMD X9116WM8-2.7T4 MOS

IC SMD SN74CBT1G125DCK

IC SMD SN74CBT1G125DCK

IC SMD BU9882F-WE2 MOS

IC STR-E1717 LF NO. 1064

IC SMD XN04A8800L

IC SMD AD9888KS-170

IC SMD AD8002AR

IC SMD NC7WZ14

IC SMD NC7WZ14

IC SMD SN74CBTLV1G125DCK

IC SMD SN74CBTLV1G125DCK

IC SMD TA76431F

IC SMD SN74CBTLV3125PW

IC SMD TFP401 MOS

IC SMD TFP401 MOS

8-100

SYMBOL Part No for NPG

PC901

PC911

PC9A1

EH190021

EH190021

EH190021

Q911

Q912

Q913

Q930

Q931

Q932

Q933

Q9E1

QA70A

QA70B

QA70G

QA70R

QA71A

Q265

Q271

Q272

Q451

Q452

Q453

Q805

Q806

Q807

Q861

Q863

Q8A3

Q8E1

Q8E5

Q8E6

Q901

Q908

*** TRANSISTORS ***

Q101

Q102

ECA00081

ECA00161

Q104

Q105

Q151

ECA00081

ECA00161

ECA00191

Q152

Q153

Q154

Q155

Q156

Q157

Q261

Q262

ECA00021

EN000413

ECA00061

ECA00061

ECA00071

ECA00061

ECA00061

EFK00061

EFK00011

ECA00061

ECA00061

ECA00161

ECA00061

ECA00061

ECA00061

ECA00151

ECA00151

EFK00011

EFK00011

ECA00061

ECA00061

ECA00061

ECA00061

EF000010

EFK00041

ECA00021

EN000413

EN000413

ECA00061

EC100011

ECA00061

ECA00091

ECA00061

ECA00061

ECA00141

ECA00141

ECA00141

ECA00191

DESCRIPTION

IC PHOTO COUPLE PC123Y

IC PHOTO COUPLE PC123Y

IC PHOTO COUPLE PC123Y

TR SMD DTC143ZKA-T146

TR SMD 2SA1162-GR

TR SMD DTC143ZKA-T146

TR SMD 2SA1162-GR

FET SMD 2SJ580-TD

TR SMD 2SA1037AK-T146 Q

CHIP TR NPN 2SC2412K-T146

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTA144EKA

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

FET SMD 2SJ377(TE16L)

FET SMD 2SK3018-T106

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD 2SA1162-GR

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD 2SC3734

TR SMD 2SC3734

FET SMD 2SK3018-T106

FET SMD 2SK3018-T106

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

FET 2SK3673-01MR-F111

FET SMD 2SK2715 P

TR SMD 2SA1037AK-T146 Q

CHIP TR NPN 2SC2412K-T146

CHIP TR NPN 2SC2412K-T146

TR SMD DTC144EKA-T146(O)

TR 2SC5562

TR SMD DTC144EKA-T146(O)

TR SMD DTB114EK

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD 2SC5084-O

TR SMD 2SC5084-O

TR SMD 2SC5084-O

FET SMD 2SJ580-TD

8-101

SYMBOL Part No for NPG

QA81G

QA81R

QA82B

QA82G

QA82R

QA83B

QA83G

QA83R

QAA1

QAH1

QAH2

QAM1

QAM2

QAN1

QAN2

QKF1

QA71B

QA71G

QA71R

QA72A

QA72B

QA72G

QA72R

QA73B

QA73G

QA73R

QA80B

QA80G

QA80R

QA81B

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00061

ECA00031

ECA00031

ECA00151

ECA00151

ECA00031

ECA00031

ECA00021

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00141

ECA00141

ECA00141

ECA00071

*** DIODES ***

D151 EX500114

D152

D221

EJK00021

EJK00051

D222

D271

D272

D273

EX500114

EX500114

EX500114

EX500114

D274

D275

D2A1

D2M1

D901

D902

D907

D911

D912

EX700216

EX700216

EJK00051

EJK00051

EJ100430

EJ100471

EJ100481

EJK00061

EJK00081

DESCRIPTION

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD 2SC5084-O

TR SMD 2SC5084-O

TR SMD 2SC5084-O

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTC144EKA-T146(O)

TR SMD 2SA1434-TB

TR SMD 2SA1434-TB

TR SMD 2SC3734

TR SMD 2SC3734

TR SMD 2SA1434-TB

TR SMD 2SA1434-TB

TR SMD 2SA1037AK-T146 Q

CHIP DIODE/T 1SS355TE-17

DI SMD RB715F-T106

DI SMD SFPB-64

CHIP DIODE/T 1SS355TE-17

CHIP DIODE/T 1SS355TE-17

CHIP DIODE/T 1SS355TE-17

CHIP DIODE/T 1SS355TE-17

DIODE RB495D

DIODE RB495D

DI SMD SFPB-64

DI SMD SFPB-64

DI D3SBA60

DI RM10A (T)

DI EG01CV1-T

DI SMD 1SR156-400

DI SMD MA2Z001

8-102

SYMBOL Part No for NPG

DA11

DA12

DA13

DA70A

DA71B

DA71G

DA71R

DA72B

DA72G

DA72R

DA73B

DA73G

DA73R

DA80A

DA81B

DA81G

DA81R

D913

D914

D915

D930

D951

D9A1

D9A2

D9E1

D9X1

D9X2

DA01

DA02

DA03

DA04

DA82B

DA82G

DA82R

DA83B

DA83G

DA83R

ZD8G2

ZD908

ZD910

ZD917

ZD918

ZD919

ZD920

ZD930

ZD9A4

ZDA01

ZDA11

EX500216

EX500216

EX500216

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00101

EJK00101

EJK00081

EX500114

EJ100440

EJ100481

EJK00081

EJ100450

EJ100460

EJK00071

EX500216

EX500216

EX500216

EX500114

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00031

EYD40752

EYD42702

EYD41802

EYD40512

EYD40472

EYD42702

EYD40752

EYD41802

EJK00131

EJK00131

DESCRIPTION

DI SMD DG1M3

DI SMD DG1M3

DI SMD MA2Z001

CHIP DIODE/T 1SS355TE-17

DI FMX-22S

DI EG01CV1-T

DI SMD MA2Z001

DI RK39

DI FMG-G26S

DI SMD SFPL-52

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

CHIP DIODE/T 1SS355TE-17

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD STZ6.2N

ZD SMD UDZS7.5BTE-17

ZD SMD UDZS27BTE-17

ZD SMD UDZS18BTE-17

ZD SMD UDZS5.1BTE-17

ZD SMD UDZS4.7BTE-17

ZD SMD UDZS27BTE-17

ZD SMD UDZS7.5BTE-17

ZD SMD UDZS18BTE-17

DI SMD DF5A6.2F(TE)

DI SMD DF5A6.2F(TE)

8-103

SYMBOL Part No for NPG DESCRIPTION

*** TRANSFORMERS ***

T901

T9A1

HE100121

HE100131

TRANS SWITCH ST-1102A

TRANS SWITCH L2.3MH

*** RELAYS & SWITCHES ***

SW901 JC100020 SW SEESAW SDDJE14500

*** PWB ASSYS ***

MANSAS AM0EV1ML

PWNSAS

XJM01

AP0EV1ML

JM100131

L221

L222

L223

L261

L262

L263

L271

L272

L2A1

L2A2

L2M1

L405

L406

L451

L452

L453

L454

L459

L4A1

L4A2

L4A3

*** COILS & FILTERS ***

FL203

FL2M1

HAB00207

HAB00207

FL901

L115

L116

L117

HA100152

HM011811

HM011811

HM011811

L118

L119

L120

L121

L122

L123

L125

HM011811

HM011811

HM011811

HM011811

HM011811

HM011811

HM011811

HM019281

HM019281

HAB00109

HM019281

HM019321

HM019281

HM019281

HM019281

HAB00109

HM019281

HAB00090

HM019281

HM019281

HM011811

HM011651

HM011651

HM011811

HM011811

HM011811

HM019281

HM019281

MAIN INSERT ASSY

POWER INSERT ASSY

INVERTER UNIT L202EV

L SMD NFM60R30T222T1

L SMD NFM60R30T222T1

L LINE FILTER LFZ28H05

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L SMD SLF10145T-101M1R0-P

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH4525HM102N

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L SMD SLF10145T-101M1R0-P

L BEAD SMD FBMH3216HM501N

L SMD SLF12565T-101M1R6

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608HS800-T

L BEAD SMD BK1608HS800-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

8-104

SYMBOL Part No for NPG

L4A4

L4A5

L551

L552

L553

L561

L562

L563

L951

L9A1

L9E1

L9X1

L9X2

LAA3

LAA4

LAA5

LAA6

LAA7

LAH1

LAH2

LAN1

LAN2

HM020011

HM020011

HM011681

HM011681

HM011681

HM011681

HM011681

HM011681

HA200251

HAB00233

HA200206

HA200181

HA200191

HM020011

HM020011

HM020011

HM020011

HM020011

HM020011

HM020011

HM020011

HM020011

DESCRIPTION

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L SBC7-100-532

L SMD LEMC3225T101K

L CHOKE TSL1112RA-100M3R7

L PFC COIL 77A-2702

L CHOKE 72U2A SF1-T8-50S-

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***

CABUAS

CN951

F901

OSC4A1

11301761

RC200341

JA460011

EM2K0061

TH901 FD200021

CABLE BUTTON ASSY(WH)

WIRE CB14P 1007#26L100

FUSE SG5013 3.15 PF 250V

OSC SMD IC 55MHZ

VD901

X402

X7A01

X7A02

FD300018

EM1K0061

RC200351

RC200361

VARISTOR ENE471D-10A

OSC SMD XTAL 14.31818MHZ

WIRE CC30P 1516#30L250

WIRE CB13P 1007#26L70

X801

XD7A01

XD7A02

XD7A03

XD7A04

XJG01

EM2K0041

JM100111

RE010201

RE010211

RG021071

3A684034

(For NMV Part)

OSC SMD CSTCR7M37G53-R0

CABLE BUTTON WHT

CABLE VI DVID-DVID 2M HG

CABLE VI DVID-DSUB 2M HG

PW CORD NA 2.0M HG I-SHEN

LCD LM201U03 LGPHILIPS

*** APPEARANCE PARTS ***

BAAS

BE

10104391

10104361

BACK ASSY,L202EV(WH,N)

BEZEL,L202EV(WH,N)

BRBAAS

CVCA

STCV

STUN

12301211

11002231

11002211

11002191

BRACKET BASE ASSY,L202EV

COVER CABLE,L202EV(WH)

STAND COVER TB,L202EV(WH)

STAND UNIT,L202EV(WH)

8-105

SYMBOL Part No for NPG DESCRIPTION

*** PRINTED & PACKING MATERIALS ***

CABX

CASH

13202961

13203011

CARTON BOX,L202EV(WHA)

CARTON SHEET,L202EV

FLB

FLC

FLT

LVSH

13401271

13401281

13401261

15800581

FILLER B,L202EV

FILLER C,L202EV

FILLER T,L202EV

LVIEW SHEET

MANUAL,L202EV(A)

NAVISET CARTON BOX FLYER

MANU

NAFL

15501832

15900251

PABAG 13700521

PEBAG

PROTE

RALA

SHSE

13700251

13700531

15002611

15800551

PE BAG (340*225)

PROTECTION SHEET

RATING LABEL,L202EV(WH)

SHEET SETUP,L202EV(A)

MR404

MR405

MR406

MR407

MR408

MR409

MR410

MR411

MR412

MR4G1

MR4G3

MR4G5

MR4G7

MR4G9

MR4H1

MRA01

MRA03

MRA05

*** RESISTORS ***

J921

J923

FM110000

FM110000

J924

J925

J926

J927

FM110000

FM110000

FM110000

FM110000

J928

J929

J930

J940

J961

J962

MR401

MR402

MR403

FM110000

FM110000

FX500000

FM110000

FM110000

FM110000

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01131

FPA01131

FPA01131

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD METAL 1/4W 0 JUMPER

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

8-106

SYMBOL Part No for NPG

MRK23

R101

R102

R103

R105

R106

R107

R117

R118

R119

R120

R121

R122

R123

R125

R151

R152

MRA07

MRA09

MRA11

MRK01

MRK03

MRK05

MRK07

MRK09

MRK11

MRK13

MRK15

MRK17

MRK19

MRK21

R153

R154

R155

R156

R157

R158

R159

R15A

R15E

R15F

R15L

R201

R202

R203

R221

R222

R223

FPA01071

FM010472

FM010472

FN011800

FM010472

FM010472

FN011800

FM100102

FM100102

FM100102

FM100102

FM100102

FM100102

FM100102

FM100102

FN011501

FM010272

FPA01131

FPA01131

FPA01131

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FM010103

FM010272

FM010560

FM010824

FM010103

FM010563

FM010103

FM010103

FM010103

FM010102

FM010102

FM010102

FN015602

FN013302

FN011801

FN012702

FN011201

DESCRIPTION

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

R SMD 1/10W(T) 1% 180

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

R SMD 1/10W(T) 1% 180

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

R SMD METAL 1/10W 1.5K F

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 56OH

R SMD METAL 1/10W 820K J

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/10W 56K J T

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 56K F

R SMD 1/10W(T) 1% 33K

CHIP RES 1/10W(T) 1% 1.8K

R SMD 1/10W(T) 1% 27K

R SMD METAL 1/10W 1.2K F

8-107

SYMBOL Part No for NPG

R274A

R275

R276

R277

R277A

R278

R2A1

R2A2

R2A3

R2A4

R2A5

R2A7

R2M1

R2M2

R2M3

R2M4

R2M5

R224

R225

R226

R261

R262

R266

R267

R268

R269

R26A

R271

R272

R273

R274

R402

R403

R405

R409

R412

R415

R416

R418

R422

R429

R430

R433

R435

R449

R451

R452

R453

FN012201

FM010332

FN013302

FN013302

FN011201

FM010103

FM010560

FM010560

FN013900

FN011001

FN018201

FM010102

FN014701

FN012202

FN011201

FN014701

FN018209

FN013002

FM010102

FM010102

FM010333

FM010333

FN011503

FN013302

FX300681

FX300681

FM010102

FM010222

FM010562

FN015602

FN013302

FN016209

FM010000

FM010000

FM010102

FM010560

FM010102

FM010473

FM010000

FM010000

FM010101

FM010101

FM010560

FM010560

FM010222

FM010332

FM010332

FM010103

DESCRIPTION

R SMD METAL 1/10W 30K F

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD 1/10W(T) 5% 33K

R SMD 1/10W(T) 5% 33K

CHIP RES 1/10W(T) 1% 150K

R SMD 1/10W(T) 1% 33K

R SMD METAL 1/2W 680 J

R SMD METAL 1/2W 680 J

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 2.2K

R SMD METAL 1/10W 5.6K J

R SMD METAL 1/10W 56K F

R SMD 1/10W(T) 1% 33K

CHIP RES 1/10W(T) 1% 2.2K

CHIP RES 1/10W(T) 5% 3.3K

R SMD 1/10W(T) 1% 33K

R SMD 1/10W(T) 1% 33K

R SMD METAL 1/10W 1.2K F

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W(T) 5% 56OH

R SMD METAL 1/10W 390 F

CHIP RES 1/10W(T) 1% 1KOH

R SMD METAL 1/10W 8.2K F

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 1% 4.7K

R SMD METAL 1/10W 22K F

R SMD METAL 1/10W 1.2K F

CHIP RES 1/10W(T) 1% 4.7K

R SMD METAL 1/10W 82 F

R SMD METAL 1/10W 62 F

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W(T) 5% 2.2K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W(T) 5% 10KO

8-108

SYMBOL Part No for NPG

R467

R468

R470

R4A2

R4A3

R4A4

R4A5

R4A6

R4A7

R4A8

R4A9

R4AK

R4AL

R4AM

R4AN

R4AP

R4AT

R454

R455

R456

R457

R458

R459

R45E

R45K

R45P

R45T

R463

R464

R465

R466

R4E0

R4E1

R4E2

R4E3

R4E4

R4E5

R4E6

R4E7

R4E8

R4E9

R4EA

R550

R801

R802

R803

R805

R806

FM010101

FM010101

FM010102

FM010560

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010473

FM010102

FM010101

FM010102

FM010473

FM010473

FM010103

FM010103

FM010101

FM010101

FM010103

FM010103

FM010101

FM010101

FM010330

FM010330

FM010330

FM010330

FM010330

FM010101

FM010101

FM010101

FM010101

FM010101

FM010103

FM110512

FM010223

FM010103

FN012702

FN012402

FM010473

DESCRIPTION

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 56OH

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/4W 5.1K J T

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 10KO

R SMD 1/10W(T) 1% 27K

R SMD METAL 1/10W 24K F

CHIP 1/10W(T) 5% 47K

8-109

SYMBOL Part No for NPG

R823

R826

R827

R828

R829

R830

R831

R832

R833

R834

R838

R839

R840

R841

R842

R844

R845

R807

R808

R809

R811

R812

R813

R814

R815

R816

R818

R819

R820

R821

R822

R846

R849

R850

R883

R885

R886

R887

R889

R890

R891

R8A2

R8A4

R8A5

R8A6

R8A7

R8AA

R8AE

FM010101

FM010101

FM010101

FM010473

FM010473

FM010473

FM010101

FM010101

FM010101

FM010473

FM010330

FM010101

FM010101

FM010101

FM010473

FM010473

FM010473

FM010103

FM010103

FM010103

FM010101

FM010101

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010101

FM010101

FM010223

FN011802

FN012203

FM010223

FM010223

FM010223

FM010223

FM010223

FM010223

FM010223

FX410330

FM010101

FM010101

FM010473

FM010473

FM010473

FM010473

DESCRIPTION

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 22KO

R SMD METAL 1/10W 18K F

R SMD 1/10W(T) 1% 220K

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

R SMD METAL 1W 33 J

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

8-110

SYMBOL Part No for NPG

R8F7

R8FX

R8FY

R8G2

R8G3

R8G4

R8G5

R901

R902

R903

R904

R905

R906

R907

R908

R909

R910

R8AL

R8AX

R8AY

R8E1

R8E7

R8E8

R8E9

R8EA

R8EF

R8F2

R8F3

R8F4

R8F5

R8F6

R911

R912

R913

R914

R915

R916

R917

R918

R920

R921

R922

R923

R924

R925

R926

R927

R928

FM010473

FM010473

FM010473

FX410330

FM010103

FM010101

FM010101

FM110474

FM110474

FM110474

FM110105

FM110105

FM110105

FJ560104

FM510222

FJ560338

FM100223

FM010473

FM010473

FM010473

FM010473

FM010473

FM010473

FM010473

FM010473

FM010473

FX410330

FM010103

FM010101

FM010101

FM010473

FN104708

FN111002

FN106800

FM100104

FA270569

FM100221

FM100471

FM100101

FM100103

FM100333

FM110333

FM100103

FM100103

FM100333

FN109101

FM100104

FN101002

DESCRIPTION

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

R SMD METAL 1W 33 J

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

R SMD METAL 1W 33 J

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD METAL 1/4W 470K J T

R SMD METAL 1/4W 470K J T

R SMD METAL 1/4W 470K J T

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

R MOF 2W/M 100K J (A)

R SMD METAL 1/3W 2.2K J T

R MOF 2W/M 0.33 J(A)

CHIP 1/8W(T) 5% 22K

R SMD METAL 1/8W 4.7 F T

R SMD METAL 1/4W 10K F T

R SMD METAL 1/8W 680 F T

CHIP RES 1/8W(T) 5% 100KO

R CARBON 1/4W 5.6 J M T

CHIP 1/8W(T) 5% 220H

R SMD 1/8W(T) 5% 470

CHIP 1/8W(T) 5% 100H

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 33K

R SMD METAL 1/4W 33K J T

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 33K

R SMD METAL 1/8W 9.1K F T

CHIP RES 1/8W(T) 5% 100KO

CHIP 1/8W(T) 1% 10K

8-111

SYMBOL Part No for NPG

R9A3

R9A4

R9A5

R9A6

R9A7

R9A8

R9E1

R9E2

R9E3

R9E4

R9E6

R9E7

R9X1

R9X2

R9X4

R9X5

R9X6

R929

R931

R933

R934

R935

R936

R937

R951

R952

R953

R954

R955

R956

R9A2

R9X7

R9X8

R9X9

R9Y1

R9Y2

R9Y3

RA03

RA04

RA05

RA06

RA07

RA08

RA11

RA12

RA19

RA20

RA21

FM100270

FM110102

FM100392

FM100000

FM100103

FM110101

FM100101

FN101001

FM100220

FN101001

FM100000

FM100392

FM110225

FM110225

FM100333

FN117503

FN117503

FM100103

FM100223

FM100104

FM100103

FM110105

FM110105

FM110105

FM100122

FN107501

FN106201

FN102201

FM100000

FM100102

FJ470473

FN116803

FN102202

FM110223

FM100102

FM100101

FJ560338

FM010330

FM010330

FM010330

FM010330

FM010222

FM010222

FM010100

FM010100

FM010330

FM010330

FM010330

DESCRIPTION

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 22K

CHIP RES 1/8W(T) 5% 100KO

CHIP 1/8W(T) 5% 10K

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

RES SMD 1/8W(T) 5% 1.2KOH

R SMD 1/8W(T) 1% 7.5K

CHIP 1/8W(T) 1% 6.2K

CHIP RES 1/8W (T) 1% 2.2K

CHIP 1/8W(T) 5% 0 H

CHIP 1/8W(T) 5% 1K

R MOF 1W/M 47K J(A)

CHIP RES 1/8W(T) 5% 27OHM

R SMD METAL 1/4W 1.0K J T

CHIP 1/8W(T) 5% 3.9K

CHIP 1/8W(T) 5% 0 H

CHIP 1/8W(T) 5% 10K

R SMD METAL 1/4W 100 J T

CHIP 1/8W(T) 5% 100H

R SMD 1/8W(T) 1% 1K

R SMD 1/8W(T) 5% 22

R SMD 1/8W(T) 1% 1K

CHIP 1/8W(T) 5% 0 H

CHIP 1/8W(T) 5% 3.9K

R SMD METAL 1/4W 2.2M J T

R SMD METAL 1/4W 2.2M J T

CHIP 1/8W(T) 5% 33K

R SMD METAL 1/4W 750K F

R SMD METAL 1/4W 750K F

R SMD METAL 1/4W 680K F

CHIP 1/8W(T) 1% 22K

R SMD METAL 1/4W 22K J T

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 100H

R MOF 2W/M 0.33 J(A)

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 2.2K

CHIP RES 1/10W(T) 5% 2.2K

R SMD 1/10W(T) 5% 10

R SMD 1/10W(T) 5% 10

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

8-112

SYMBOL Part No for NPG

RA70B

RA70G

RA70R

RA71A

RA71B

RA71G

RA71R

RA72A

RA72B

RA72G

RA72R

RA73A

RA73B

RA73G

RA73R

RA74A

RA74B

RA22

RA23

RA24

RA27

RA28

RA29

RA30

RA34

RA37

RA43

RA44

RA4A

RA4E

RA70A

RA74G

RA74R

RA75A

RA75B

RA75G

RA75R

RA76A

RA76B

RA76G

RA76R

RA77A

RA77B

RA77G

RA77R

RA78A

RA78B

RA78G

FN017509

FN017509

FN017509

FM010101

FM010103

FM010103

FM010103

FM010331

FM010153

FM010153

FM010153

FM010272

FM010101

FM010101

FM010101

FN012200

FM010331

FM010330

FM010330

FM010330

FM010101

FM010101

FM010101

FM010472

FM010103

FM010330

FM010103

FM010103

FM010472

FM010472

FM010223

FM010331

FM010331

FN015100

FM010470

FM010470

FM010470

FM010102

FM010472

FM010472

FM010472

FM010821

FM010102

FM010102

FM010102

FM010272

FM010472

FM010472

DESCRIPTION

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 10KO

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

R CHIP 1/10W(T) 5% 330

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 1% 220O

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R SMD METAL 1/10W 510 F

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

R SMD METAL 1/10W 820 J T

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

8-113

SYMBOL Part No for NPG

RA80B

RA80G

RA80R

RA81B

RA81G

RA81R

RA82A

RA82B

RA82G

RA82R

RA83

RA83A

RA83B

RA83G

RA83R

RA84

RA84A

RA78R

RA79A

RA79B

RA79G

RA79R

RA7AA

RA7AB

RA7AG

RA7AR

RA7EA

RA7HB

RA7HG

RA7HR

RA7LA

RA84B

RA84G

RA84R

RA85A

RA85B

RA85G

RA85R

RA86

RA86A

RA86B

RA86G

RA86R

RA87

RA87A

RA87B

RA87G

RA87R

FN017509

FN017509

FN017509

FM010103

FM010103

FM010103

FM010331

FM010153

FM010153

FM010153

FM010330

FM010272

FM010101

FM010101

FM010101

FM010330

FN012200

FM010472

FM010101

FM010102

FM010102

FM010102

FM010101

FM010472

FM010472

FM010472

FM010332

FM010102

FM010102

FM010102

FM010000

FM010331

FM010331

FM010331

FN015100

FM010470

FM010470

FM010470

FM010222

FM010102

FM010472

FM010472

FM010472

FM010222

FM010821

FM010102

FM010102

FM010102

DESCRIPTION

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

R CHIP 1/10W(T) 5% 330

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

R SMD 1/10W(T) 5% 33

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 1% 220O

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R SMD METAL 1/10W 510 F

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 2.2K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 2.2K

R SMD METAL 1/10W 820 J T

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

8-114

SYMBOL Part No for NPG

RA8HG

RA8HR

RA8KA

RA8LA

RAA3

RAA4

RAA5

RAA6

RAE3

RAE4

RAE5

RAE6

RAFH

RAFK

RAH1

RAH2

RAH3

RA88A

RA88B

RA88G

RA88R

RA89A

RA89B

RA89G

RA89R

RA8AA

RA8AB

RA8AG

RA8AR

RA8EA

RA8HB

RAH5

RAH6

RAH7

RAM1

RAM2

RAM3

RAM4

RAM5

RAM6

RAM7

RAM8

RAN1

RAN2

RAN3

RAN4

RAN5

RAN6

FM010102

FM010102

FM010272

FM010000

FM010471

FM010222

FM010682

FM010223

FM010180

FM010330

FM010330

FM010330

FM010100

FM010100

FM010184

FM010102

FM010151

FM010272

FM010472

FM010472

FM010472

FM010101

FM010102

FM010102

FM010102

FM010101

FM010472

FM010472

FM010472

FM010332

FM010102

FM010184

FM010102

FM010151

FM010103

FM010103

FM010183

FM010183

FM010102

FM010102

FM010272

FM010272

FM010470

FM010470

FM010683

FM010683

FM010184

FM010184

DESCRIPTION

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 0OHM

CHIP 1/10W(T) 5% 470H

CHIP RES 1/10W(T) 5% 2.2K

R SMD 1/10W(T) 5% 6.8K

CHIP RES 1/10W(T) 5% 22KO

R SMD METAL 1/10W 18 J T

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 10

R SMD 1/10W(T) 5% 10

R SMD METAL 1/10W 180K J

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 150H

R SMD METAL 1/10W 180K J

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 150H

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/10W 18K J T

R SMD METAL 1/10W 18K J T

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 2.7K J

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 68K

CHIP RES 1/10W(T) 5% 68K

R SMD METAL 1/10W 180K J

R SMD METAL 1/10W 180K J

8-115

SYMBOL Part No for NPG

RK24

RK25

RK26

RK2A

RK2E

RKAE

RKF1

RKF2

RKF6

RKF7

RKF8

RKF9

RAN7

RAN8

RAN9

RANA

RK01

RK07

RK08

RK09

RK0A

RK10

RK11

RK16

RK22

RK23

FM010102

FM010102

FM010101

FM010101

FM010391

FM010560

FM010330

FM010473

FM010473

FM010473

FM010000

FM010391

FM010560

FM010330

FM010473

FM010473

FM010000

FM010473

FM010473

FM010473

FN015100

FN015100

FN012701

FM010101

FM010473

FM010101

*** CAPACITORS ***

C151 GX439157

C152

C153

GX41050X

GN247538

C154

C15A

C201

C221

GX41051Y

GX01060Y

GX12260Y

GNH10710

C222

C223

C224

C225

C226

C22E

C22F

C261

C263

C265

C26A

C271

C273

GX01060Y

GNM33728

GN210624

GX410439

GX410439

GX410439

GX42250Y

GX410439

GN210624

GX410439

GX410439

GX12260Y

GX410439

DESCRIPTION

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD METAL 1/10W 390 J T

CHIP RES 1/10W(T) 5% 56OH

R SMD 1/10W(T) 5% 33

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 0OHM

R SMD METAL 1/10W 390 J T

CHIP RES 1/10W(T) 5% 56OH

R SMD 1/10W(T) 5% 33

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 0OHM

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

R SMD METAL 1/10W 510 F

R SMD METAL 1/10W 510 F

R SMD METAL 1/10W 2.7K F

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 100O

C SMD CER CH 390P 50V J

C SMD CER BJ 1U 6.3V K

C SMD ELE105 4.7U 25V M

C SMD CER BJ 1U 10V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 22U 6.3V M

C SMD ELE105 100U 10V M

C SMD CER BJ 10U 6.3V M

C SMD ELE105 330U 16V M

C SMD ELE105 10U 16V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 2.2U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 22U 6.3V M

C SMD CER F 0.1U 25V Z

8-116

SYMBOL Part No for NPG

C2M3

C2M4

C2M5

C2M6

C409

C410

C411

C412

C413

C414

C415

C416

C417

C418

C419

C420

C421

C274

C275

C276

C277

C278

C27E

C281

C2A2

C2A3

C2A4

C2A5

C2E1

C2M1

C2M2

C422

C423

C424

C425

C426

C427

C428

C429

C430

C431

C432

C433

C434

C443

C444

C451

C452

GX410439

GX410439

GX410439

GX01060Y

GX01060Y

GX41050X

GX12260Y

GX410439

GX410439

GNH22630

GNM33728

GX410439

GNJ10730

GX04733X

GX42725K

GX410439

GX410439

GNM68728

GX01060Y

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX01060Y

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX01060Y

GX01060Y

GX410439

GX01060Y

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 1U 6.3V K

C SMD CER BJ 22U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 22U 25V M

C SMD ELE105 330U 16V M

C SMD CER F 0.1U 25V Z

C SMD ELE105 100U 25V M

C SMD CER BJ 0.047U 25V K

C SMD CER B 2700P 50V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 680U 16V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

8-117

SYMBOL Part No for NPG

C4E7

C4E8

C4E9

C4F0

C4F1

C4F2

C4F3

C4F4

C4F5

C4F6

C4F7

C4F8

C4F9

C4FA

C4FE

C4FF

C4FH

C454

C455

C458

C459

C45F

C4A2

C4A4

C4E0

C4E1

C4E2

C4E3

C4E4

C4E5

C4E6

C4FJ

C4FK

C4FL

C4FM

C4FMZ

C4FN

C4FP

C4FQ

C4FR

C4FS

C4FT

C4FW

C4FX

C4FY

C551

C552

C553

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410056

GX410056

GX410439

GX410439

GX410439

GN210624

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GN210624

GX42250Y

GX410439

GX410439

GX410439

GX410439

DESCRIPTION

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER BJ 2.2U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

8-118

SYMBOL Part No for NPG

C808

C809

C810

C811

C812

C813

C815

C818

C819

C820

C821

C8A1

C8A2

C8E1

C901

C902

C905

C554

C555

C556

C561

C562

C563

C564

C565

C566

C801

C802

C805

C806

C807

C906

C907

C910

C911

C912

C913

C914

C915

C920

C925

C926

C927

C951

C952

C953

C954

C955

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX41042K

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX41042K

GX41042K

GX410439

GX410439

GX410439

GJ047417

GJ047417

GJC102E5

GGY00010

GT001011

GGV22650

GGH10740

GX010459

GX010252

GX010054

GX01043X

GX01035K

GT001391

GX01060X

GGH47555

GGR15830

GGR15830

GGR10830

GX01052Y

GH001251

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER B 0.1U 16V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER B 0.1U 16V K

C SMD CER B 0.1U 16V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SAFE X 0.47U AC275V K

C SAFE X 0.47U AC275V K

SAFETY Y-CAP/D1000P/400VM

C ELE105 120U 450V SNAP-I

C FILM MM 0.01U 400V J

C ELE105 22U 50V M (T)

C ELE105 100U 35V M (T)

C SMD CER F 0.1U 50V Z

C SMD C0G 1000P 50V J 080

C SMD CER CH 10P 50V C

C SMD CER BJ 0.1U 25V K

C SMD CER B 0.01U 50V K

C FILM MM 0.47U 100V J

C SMD CER BJ 10U 6.3V K

C ELE105 4.7U 50V M (T)

C ELE105 1500U 25V M (T)

C ELE105 1500U 25V M (T)

C ELE105 1000U 25V M (T)

C SMD CER BJ 1U 16V M

C CER SL 150P 1KV J (T)

8-119

SYMBOL Part No for NPG

CA06

CA07

CA08

CA09

CA10

CA12

CA19

CA20

CA21

CA22

CA23

CA24

CA25

CA26

CA28

CA29

CA2A

C9A2

C9A3

C9A4

C9A6

C9A7

C9E1

C9E2

C9E3

C9X1

C9X2

C9X3

C9X4

C9X5

CA05

CA36

CA37

CA38

CA39

CA40

CA41

CA42

CA43

CA44

CA45

CA53

CA67

CA70A

CA70B

CA70G

CA70R

CA71B

GGH22555

GT001011

GX01043X

GX01051X

GGH47635

GGR22810

GX01051X

GGH10810

GT002401

GX01035K

GX04715K

GX03342X

GX01015J

GX44732X

GX44732X

GX44732X

GX44732X

GX44732X

GX44732X

GX41025K

GX41025K

GX01060Y

GS782222

GS747322

GX410439

GX410439

GX410439

GX41050X

GX410439

GX410439

GS715322

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX01060Y

GX01060Y

GX01060Y

GX410439

GX410439

GX410439

GX01060Y

DESCRIPTION

C ELE105 2.2U 50V M (T)

C FILM MM 0.01U 400V J

C SMD CER BJ 0.1U 25V K

C SMD CER BJ 1U 10V K

C ELE105 47U 25V M (T)

C ELE105 2200U 10V M (T)

C SMD CER BJ 1U 10V K

C ELE105 1000U 10V M (T)

C FILM PMS 0.47U 400V J

C SMD CER B 0.01U 50V K

C SMD CER B 470P 50V K

C SMD CER BJ 0.33U 16V K

C SMD CER SL 100P 50V J

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER B 1000P 50V K

C SMD CER B 1000P 50V K

C SMD CER BJ 10U 6.3V M

C SMD FILM ECHU 8200P 16V

C SMD FILM ECHU 47000P 16

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 1U 6.3V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD FILM ECHU 15000P 16

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

8-120

SYMBOL Part No for NPG

CA75G

CA75R

CA76B

CA76G

CA76R

CA77A

CA77B

CA77G

CA77R

CA78A

CA80A

CA80B

CA80G

CA80R

CA81B

CA81G

CA81R

CA71G

CA71R

CA72A

CA72B

CA72G

CA72R

CA73B

CA73G

CA73R

CA74B

CA74G

CA74R

CA75A

CA75B

CA82B

CA82G

CA82R

CA83B

CA83G

CA83R

CA84B

CA84G

CA84R

CA85A

CA85B

CA85G

CA85R

CA86B

CA86G

CA86R

CA87A

GX01060Y

GX01060Y

GX410439

GX410439

GX410439

GX410439

GX410056

GX410056

GX410056

GX410439

GX410439

GX410439

GX01060Y

GX422057

GX422057

GX422057

GX410439

GX410439

GX410439

GX468057

GX447057

GX447057

GX447057

GX410439

GX01060Y

GX410439

GX410439

GX410439

GX01060Y

GX01060Y

GX01060Y

GX410439

GX410439

GX410439

GX410056

GX410056

GX410056

GX410439

GX410439

GX410439

GX01060Y

GX422057

GX422057

GX422057

GX410439

GX410439

GX410439

GX468057

DESCRIPTION

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 68P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 68P 50V J

8-121

SYMBOL Part No for NPG

CAH3

CAH4

CAM3

CAM4

CAN1

CAN2

CAN3

CAN4

CK01

CK02

CK03

CK04

CK05

CK06

CK07

CK08

CK09

CA87B

CA87G

CA87R

CA88A

CA90

CA91

CAA1

CAA2

CAA3

CAA4

CAA5

CAA6

CAH1

CAH2

CK10

CK11

CK12

CK13

CK14

CK16

CK17

CK18

CK19

CK20

CK21

CK22

CK23

CK24

CK25

CK26

CK27

GX447057

GX447057

GX447057

GX410439

GX41025K

GX41025K

GX410439

GX410439

GX410439

GX410439

GX410439

GN210624

GX41050X

GX41050X

GX46825K

GX46825K

GX01060Y

GX01060Y

GX41050X

GX41050X

GX46825K

GX46825K

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410157

GX410157

GX410157

GX410157

GX410157

GX01060Y

GN310720

GX410157

GX01060Y

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410157

DESCRIPTION

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER B 1000P 50V K

C SMD CER B 1000P 50V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER BJ 1U 6.3V K

C SMD CER BJ 1U 6.3V K

C SMD CER B 6800P 50V K

C SMD CER B 6800P 50V K

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 1U 6.3V K

C SMD CER BJ 1U 6.3V K

C SMD CER B 6800P 50V K

C SMD CER B 6800P 50V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD ELE105 100U 16V M

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 100P 50V J

8-122

SYMBOL Part No for NPG

CK28

CK29

CK30

CK31

CK32

CK34

CK35

CK36

CKF1

CKF2

GX410157

GX410157

GX410157

GX410157

GX01060Y

GN310720

GX410157

GX01060Y

GX410439

GX410439

DESCRIPTION

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD ELE105 100U 16V M

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

8-123

REPLACEMENT PARTS LIST(For U.S.)

The components specified for Model LCD2080UX-BK(A)

Manufactured by NPG

SYMBOL

Part No for NPG

DESCRIPTION

ICA01

ICA70A

ICAA1

ICAA2

ICAA3

ICAA4

ICAA5

ICAA6

ICK01

ICK02

*** ICS ***

IC201

IC221

IC222

IC251

IC271

IC272

IC2A1

IC401

IC402

IC403

IC405

IC4A1

IC4A2

IC4A3

IC551

IC552

IC801

IC802

IC803

IC804

IC8A1

IC8A2

EHA10831

EHA10831

EHA90011

EHA90011

EHA10761

EHA10701

EHA10211

EHA10821

IC8A3

IC8A4

IC8A5

IC8F1

EHA10821

EHA10811

EHA10811

EHA10211

IC901 EH110251

IC951 EH110321

IC9A1 EH110261

IC9A2 EHA10901

IC9E1 EH110321

EHA10881

EHA10861

EHA10881

EHA10871

EHA10881

EHA10881

EHA10861

EHA10741

EHA10691

EHA10801

EHA10771

EHA10721

EHA10751

EHA10751

EHA10711

EHA10841

EHA10751

EHA10751

EHA10791

EHA10791

EHA11071

EHA10781

EHA10731

EHA10731

IC SMD BA00BC0WFP

IC SMD PQ1CZ21H2ZP

IC SMD BA00BC0WFP

IC SMD L4978 REGULATOR

IC SMD BA00BC0WFP

IC SMD BA00BC0WFP

IC SMD PQ1CZ21H2ZP

IC SMD PW164B

IC SMD LH28F800-L202V03

IC SMD ICS332M-L202EV

IC SMDSN74AHC2G125H MOS

IC SMD UPD65545-Y-6C

IC SMD NC7WZ14

IC SMD NC7WZ14

IC SMD DS90C385MTD MOS

IC SMD DS90C385MTD MOS

IC RESET M51957AFP

IC RESET M51957AFP

IC SMD CAT24WC64JI-TE13 M

IC SMD M30625MGN-A26GP

IC SMD BU9882F-WE2 MOS

IC SMD X9116WM8-2.7T4 MOS

IC SMD X9116WM8-2.7T4 MOS

IC SMD SN74CBT1G125DCK

IC SMD SN74CBT1G125DCK

IC SMD BU9882F-WE2 MOS

IC STR-E1717 LF NO. 1064

IC SMD XN04A8800L

IC SMD AD9888KS-170

IC SMD AD8002AR

IC SMD NC7WZ14

IC SMD NC7WZ14

IC SMD SN74CBTLV1G125DCK

IC SMD SN74CBTLV1G125DCK

IC SMD TA76431F

IC SMD SN74CBTLV3125PW

IC SMD TFP401 MOS

IC SMD TFP401 MOS

8-124

SYMBOL Part No for NPG

PC901

PC911

PC9A1

EH190021

EH190021

EH190021

Q911

Q912

Q913

Q930

Q931

Q932

Q933

Q9E1

QA70A

QA70B

QA70G

QA70R

QA71A

Q265

Q271

Q272

Q451

Q452

Q453

Q805

Q806

Q807

Q861

Q863

Q8A3

Q8E1

Q8E5

Q8E6

Q901

Q908

*** TRANSISTORS ***

Q101

Q102

ECA00081

ECA00161

Q104

Q105

Q151

ECA00081

ECA00161

ECA00191

Q152

Q153

Q154

Q155

Q156

Q157

Q261

Q262

ECA00021

EN000413

ECA00061

ECA00061

ECA00071

ECA00061

ECA00061

EFK00061

EFK00011

ECA00061

ECA00061

ECA00161

ECA00061

ECA00061

ECA00061

ECA00151

ECA00151

EFK00011

EFK00011

ECA00061

ECA00061

ECA00061

ECA00061

EF000010

EFK00041

ECA00021

EN000413

EN000413

ECA00061

EC100011

ECA00061

ECA00091

ECA00061

ECA00061

ECA00141

ECA00141

ECA00141

ECA00191

DESCRIPTION

IC PHOTO COUPLE PC123Y

IC PHOTO COUPLE PC123Y

IC PHOTO COUPLE PC123Y

TR SMD DTC143ZKA-T146

TR SMD 2SA1162-GR

TR SMD DTC143ZKA-T146

TR SMD 2SA1162-GR

FET SMD 2SJ580-TD

TR SMD 2SA1037AK-T146 Q

CHIP TR NPN 2SC2412K-T146

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTA144EKA

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

FET SMD 2SJ377(TE16L)

FET SMD 2SK3018-T106

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD 2SA1162-GR

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD 2SC3734

TR SMD 2SC3734

FET SMD 2SK3018-T106

FET SMD 2SK3018-T106

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

FET 2SK3673-01MR-F111

FET SMD 2SK2715 P

TR SMD 2SA1037AK-T146 Q

CHIP TR NPN 2SC2412K-T146

CHIP TR NPN 2SC2412K-T146

TR SMD DTC144EKA-T146(O)

TR 2SC5562

TR SMD DTC144EKA-T146(O)

TR SMD DTB114EK

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD 2SC5084-O

TR SMD 2SC5084-O

TR SMD 2SC5084-O

FET SMD 2SJ580-TD

8-125

SYMBOL Part No for NPG

QA81G

QA81R

QA82B

QA82G

QA82R

QA83B

QA83G

QA83R

QAA1

QAH1

QAH2

QAM1

QAM2

QAN1

QAN2

QKF1

QA71B

QA71G

QA71R

QA72A

QA72B

QA72G

QA72R

QA73B

QA73G

QA73R

QA80B

QA80G

QA80R

QA81B

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00061

ECA00031

ECA00031

ECA00151

ECA00151

ECA00031

ECA00031

ECA00021

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00141

ECA00141

ECA00141

ECA00071

*** DIODES ***

D151 EX500114

D152

D221

EJK00021

EJK00051

D222

D271

D272

D273

EX500114

EX500114

EX500114

EX500114

D274

D275

D2A1

D2M1

D901

D902

D907

D911

D912

EX700216

EX700216

EJK00051

EJK00051

EJ100430

EJ100471

EJ100481

EJK00061

EJK00081

DESCRIPTION

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD 2SC5084-O

TR SMD 2SC5084-O

TR SMD 2SC5084-O

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTC144EKA-T146(O)

TR SMD 2SA1434-TB

TR SMD 2SA1434-TB

TR SMD 2SC3734

TR SMD 2SC3734

TR SMD 2SA1434-TB

TR SMD 2SA1434-TB

TR SMD 2SA1037AK-T146 Q

CHIP DIODE/T 1SS355TE-17

DI SMD RB715F-T106

DI SMD SFPB-64

CHIP DIODE/T 1SS355TE-17

CHIP DIODE/T 1SS355TE-17

CHIP DIODE/T 1SS355TE-17

CHIP DIODE/T 1SS355TE-17

DIODE RB495D

DIODE RB495D

DI SMD SFPB-64

DI SMD SFPB-64

DI D3SBA60

DI RM10A (T)

DI EG01CV1-T

DI SMD 1SR156-400

DI SMD MA2Z001

8-126

SYMBOL Part No for NPG

DA11

DA12

DA13

DA70A

DA71B

DA71G

DA71R

DA72B

DA72G

DA72R

DA73B

DA73G

DA73R

DA80A

DA81B

DA81G

DA81R

D913

D914

D915

D930

D951

D9A1

D9A2

D9E1

D9X1

D9X2

DA01

DA02

DA03

DA04

DA82B

DA82G

DA82R

DA83B

DA83G

DA83R

ZD8G2

ZD908

ZD910

ZD917

ZD918

ZD919

ZD920

ZD930

ZD9A4

ZDA01

ZDA11

EX500216

EX500216

EX500216

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00101

EJK00101

EJK00081

EX500114

EJ100440

EJ100481

EJK00081

EJ100450

EJ100460

EJK00071

EX500216

EX500216

EX500216

EX500114

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00031

EYD40752

EYD42702

EYD41802

EYD40512

EYD40472

EYD42702

EYD40752

EYD41802

EJK00131

EJK00131

DESCRIPTION

DI SMD DG1M3

DI SMD DG1M3

DI SMD MA2Z001

CHIP DIODE/T 1SS355TE-17

DI FMX-22S

DI EG01CV1-T

DI SMD MA2Z001

DI RK39

DI FMG-G26S

DI SMD SFPL-52

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

CHIP DIODE/T 1SS355TE-17

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD STZ6.2N

ZD SMD UDZS7.5BTE-17

ZD SMD UDZS27BTE-17

ZD SMD UDZS18BTE-17

ZD SMD UDZS5.1BTE-17

ZD SMD UDZS4.7BTE-17

ZD SMD UDZS27BTE-17

ZD SMD UDZS7.5BTE-17

ZD SMD UDZS18BTE-17

DI SMD DF5A6.2F(TE)

DI SMD DF5A6.2F(TE)

8-127

SYMBOL Part No for NPG DESCRIPTION

*** TRANSFORMERS ***

T901 HE100121

T9A1 HE100131

TRANS SWITCH ST-1102A

TRANS SWITCH L2.3MH

*** RELAYS & SWITCHES ***

SW901 JC100020 SW SEESAW SDDJE14500

*** PWB A

MANSAS

#N/A

#N/A

AM0EV1ML MAIN INSERT ASSY

PWNSAS

XJM01

AP0EV1ML

JM100131

POWER INSERT ASSY

INVERTER UNIT L202EV

L221

L222

L223

L261

L262

L263

L271

L272

L2A1

L2A2

L2M1

L405

L406

L451

L452

L453

L454

L459

L4A1

L4A2

L4A3

*** COILS & FILTERS ***

FL203

FL2M1

HAB00207

HAB00207

FL901

L115

L116

L117

HA100152

HM011811

HM011811

HM011811

L118

L119

L120

L121

L122

L123

L125

HM011811

HM011811

HM011811

HM011811

HM011811

HM011811

HM011811

HM019281

HM019281

HAB00109

HM019281

HM019321

HM019281

HM019281

HM019281

HAB00109

HM019281

HAB00090

HM019281

HM019281

HM011811

HM011651

HM011651

HM011811

HM011811

HM011811

HM019281

HM019281

L SMD NFM60R30T222T1

L SMD NFM60R30T222T1

L LINE FILTER LFZ28H05

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L SMD SLF10145T-101M1R0-P

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH4525HM102N

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L SMD SLF10145T-101M1R0-P

L BEAD SMD FBMH3216HM501N

L SMD SLF12565T-101M1R6

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608HS800-T

L BEAD SMD BK1608HS800-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

8-128

SYMBOL Part No for NPG

L4A4

L4A5

L551

L552

L553

L561

L562

L563

L951

L9A1

L9E1

L9X1

L9X2

LAA3

LAA4

LAA5

LAA6

LAA7

LAH1

LAH2

LAN1

LAN2

HM020011

HM020011

HM011681

HM011681

HM011681

HM011681

HM011681

HM011681

HA200251

HAB00233

HA200206

HA200181

HA200191

HM020011

HM020011

HM020011

HM020011

HM020011

HM020011

HM020011

HM020011

HM020011

DESCRIPTION

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L SBC7-100-532

L SMD LEMC3225T101K

L CHOKE TSL1112RA-100M3R7

L PFC COIL 77A-2702

L CHOKE 72U2A SF1-T8-50S-

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***

CN951

F901

OSC4A1

RC200341

JA460011

EM2K0061

WIRE CB14P 1007#26L100

FUSE SG5013 3.15 PF 250V

OSC SMD IC 55MHZ

TH901 FD200021

VD901 FD300018

X402

X7A01

EM1K0061

RC200351

VARISTOR ENE471D-10A

OSC SMD XTAL 14.31818MHZ

WIRE CC30P 1516#30L250

X7A02

X801

XDJM02

XDRE03

XDRE04

XDRG02

XJG01

RC200361

EM2K0041

JM100121

RE010221

RE010231

RG021081

3A684034

(For NMV Part)

WIRE CB13P 1007#26L70

OSC SMD CSTCR7M37G53-R0

CABLE BUTTON BLK

CABLE VI DVID-DVID 2M BK

CABLE VI DVID-DSUB 2M BK

PW CORD NA 2.0M BLK I-SHE

LCD LM201U03 LGPHILIPS

*** APPEARANCE PARTS ***

BAAS 10104401 BACK ASSY,L202EV(BK,N)

BE

BRBAAS

10104371

12301211

BEZEL,L202EV(BK,N)

BRACKET BASE ASSY,L202EV

CVCA

STCV

STUN

11002241

11002221

11002201

COVER CABLE,L202EV(BK)

STAND COVER TB,L202EV(BK)

STAND UNIT,L202EV(BK)

8-129

SYMBOL Part No for NPG DESCRIPTION

*** PRINTED & PACKING MATERIALS ***

CABX 13202971

CASHL 13203011

CARTON BOX,L202EV(BKA)

FLB

FLC

FLT

LVSH

13401271

13401281

13401261

15800581

FILLER B,L202EV

FILLER C,L202EV

FILLER T,L202EV

LVIEW SHEET

MANUAL,L202EV(A)

NAVISET CARTON BOX FLYER

MANU

NAFL

15501831

15900251

PABAG 13700521

PEBAG

PROTE

RALA

SHSE

13700251

13700531

15002621

15800551

PE BAG (340*225)

PROTECTION SHEET

RATING LABEL,L202EV(BK)

SHEET SETUP,L202EV(A)

MR404

MR405

MR406

MR407

MR408

MR409

MR410

MR411

MR412

MR4G1

MR4G3

MR4G5

MR4G7

MR4G9

MR4H1

MRA01

MRA03

MRA05

*** RESISTORS ***

J921

J923

FM110000

FM110000

J924

J925

J926

J927

FM110000

FM110000

FM110000

FM110000

J928

J929

J930

J940

J961

J962

MR401

MR402

MR403

FM110000

FM110000

FX500000

FM110000

FM110000

FM110000

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01131

FPA01131

FPA01131

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD METAL 1/4W 0 JUMPER

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

8-130

SYMBOL Part No for NPG

MRK23

R101

R102

R103

R105

R106

R107

R117

R118

R119

R120

R121

R122

R123

R125

R151

R152

MRA07

MRA09

MRA11

MRK01

MRK03

MRK05

MRK07

MRK09

MRK11

MRK13

MRK15

MRK17

MRK19

MRK21

R153

R154

R155

R156

R157

R158

R159

R15A

R15E

R15F

R15L

R201

R202

R203

R221

R222

R223

FPA01071

FM010472

FM010472

FN011800

FM010472

FM010472

FN011800

FM100102

FM100102

FM100102

FM100102

FM100102

FM100102

FM100102

FM100102

FN011501

FM010272

FPA01131

FPA01131

FPA01131

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FM010103

FM010272

FM010560

FM010824

FM010103

FM010563

FM010103

FM010103

FM010103

FM010102

FM010102

FM010102

FN015602

FN013302

FN011801

FN012702

FN011201

DESCRIPTION

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

R SMD 1/10W(T) 1% 180

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

R SMD 1/10W(T) 1% 180

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

R SMD METAL 1/10W 1.5K F

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 56OH

R SMD METAL 1/10W 820K J

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/10W 56K J T

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 56K F

R SMD 1/10W(T) 1% 33K

CHIP RES 1/10W(T) 1% 1.8K

R SMD 1/10W(T) 1% 27K

R SMD METAL 1/10W 1.2K F

8-131

SYMBOL Part No for NPG

R274A

R275

R276

R277

R277A

R278

R2A1

R2A2

R2A3

R2A4

R2A5

R2A7

R2M1

R2M2

R2M3

R2M4

R2M5

R224

R225

R226

R261

R262

R266

R267

R268

R269

R26A

R271

R272

R273

R274

R402

R403

R405

R409

R412

R415

R416

R418

R422

R429

R430

R433

R435

R449

R451

R452

R453

FN012201

FM010332

FN013302

FN013302

FN011201

FM010103

FM010560

FM010560

FN013900

FN011001

FN018201

FM010102

FN014701

FN012202

FN011201

FN014701

FN018209

FN013002

FM010102

FM010102

FM010333

FM010333

FN011503

FN013302

FX300681

FX300681

FM010102

FM010222

FM010562

FN015602

FN013302

FN016209

FM010000

FM010000

FM010102

FM010560

FM010102

FM010473

FM010000

FM010000

FM010101

FM010101

FM010560

FM010560

FM010222

FM010332

FM010332

FM010103

DESCRIPTION

R SMD METAL 1/10W 30K F

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD 1/10W(T) 5% 33K

R SMD 1/10W(T) 5% 33K

CHIP RES 1/10W(T) 1% 150K

R SMD 1/10W(T) 1% 33K

R SMD METAL 1/2W 680 J

R SMD METAL 1/2W 680 J

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 2.2K

R SMD METAL 1/10W 5.6K J

R SMD METAL 1/10W 56K F

R SMD 1/10W(T) 1% 33K

CHIP RES 1/10W(T) 1% 2.2K

CHIP RES 1/10W(T) 5% 3.3K

R SMD 1/10W(T) 1% 33K

R SMD 1/10W(T) 1% 33K

R SMD METAL 1/10W 1.2K F

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W(T) 5% 56OH

R SMD METAL 1/10W 390 F

CHIP RES 1/10W(T) 1% 1KOH

R SMD METAL 1/10W 8.2K F

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 1% 4.7K

R SMD METAL 1/10W 22K F

R SMD METAL 1/10W 1.2K F

CHIP RES 1/10W(T) 1% 4.7K

R SMD METAL 1/10W 82 F

R SMD METAL 1/10W 62 F

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W(T) 5% 2.2K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W(T) 5% 10KO

8-132

SYMBOL Part No for NPG

R467

R468

R470

R4A2

R4A3

R4A4

R4A5

R4A6

R4A7

R4A8

R4A9

R4AK

R4AL

R4AM

R4AN

R4AP

R4AT

R454

R455

R456

R457

R458

R459

R45E

R45K

R45P

R45T

R463

R464

R465

R466

R4E0

R4E1

R4E2

R4E3

R4E4

R4E5

R4E6

R4E7

R4E8

R4E9

R4EA

R550

R801

R802

R803

R805

R806

FM010101

FM010101

FM010102

FM010560

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010473

FM010102

FM010101

FM010102

FM010473

FM010473

FM010103

FM010103

FM010101

FM010101

FM010103

FM010103

FM010101

FM010101

FM010330

FM010330

FM010330

FM010330

FM010330

FM010101

FM010101

FM010101

FM010101

FM010101

FM010103

FM110512

FM010223

FM010103

FN012702

FN012402

FM010473

DESCRIPTION

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 56OH

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/4W 5.1K J T

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 10KO

R SMD 1/10W(T) 1% 27K

R SMD METAL 1/10W 24K F

CHIP 1/10W(T) 5% 47K

8-133

SYMBOL Part No for NPG

R823

R826

R827

R828

R829

R830

R831

R832

R833

R834

R838

R839

R840

R841

R842

R844

R845

R807

R808

R809

R811

R812

R813

R814

R815

R816

R818

R819

R820

R821

R822

R846

R849

R850

R883

R885

R886

R887

R889

R890

R891

R8A2

R8A4

R8A5

R8A6

R8A7

R8AA

R8AE

FM010101

FM010101

FM010101

FM010473

FM010473

FM010473

FM010101

FM010101

FM010101

FM010473

FM010330

FM010101

FM010101

FM010101

FM010473

FM010473

FM010473

FM010103

FM010103

FM010103

FM010101

FM010101

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010101

FM010101

FM010223

FN011802

FN012203

FM010223

FM010223

FM010223

FM010223

FM010223

FM010223

FM010223

FX410330

FM010101

FM010101

FM010473

FM010473

FM010473

FM010473

DESCRIPTION

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 22KO

R SMD METAL 1/10W 18K F

R SMD 1/10W(T) 1% 220K

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

R SMD METAL 1W 33 J

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

8-134

SYMBOL Part No for NPG

R8F7

R8FX

R8FY

R8G2

R8G3

R8G4

R8G5

R901

R902

R903

R904

R905

R906

R907

R908

R909

R910

R8AL

R8AX

R8AY

R8E1

R8E7

R8E8

R8E9

R8EA

R8EF

R8F2

R8F3

R8F4

R8F5

R8F6

R911

R912

R913

R914

R915

R916

R917

R918

R920

R921

R922

R923

R924

R925

R926

R927

R928

FM010473

FM010473

FM010473

FX410330

FM010103

FM010101

FM010101

FM110474

FM110474

FM110474

FM110105

FM110105

FM110105

FJ560104

FM510222

FJ560338

FM100223

FM010473

FM010473

FM010473

FM010473

FM010473

FM010473

FM010473

FM010473

FM010473

FX410330

FM010103

FM010101

FM010101

FM010473

FN104708

FN111002

FN106800

FM100104

FA270569

FM100221

FM100471

FM100101

FM100103

FM100333

FM110333

FM100103

FM100103

FM100333

FN109101

FM100104

FN101002

DESCRIPTION

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

R SMD METAL 1W 33 J

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

R SMD METAL 1W 33 J

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD METAL 1/4W 470K J T

R SMD METAL 1/4W 470K J T

R SMD METAL 1/4W 470K J T

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

R MOF 2W/M 100K J (A)

R SMD METAL 1/3W 2.2K J T

R MOF 2W/M 0.33 J(A)

CHIP 1/8W(T) 5% 22K

R SMD METAL 1/8W 4.7 F T

R SMD METAL 1/4W 10K F T

R SMD METAL 1/8W 680 F T

CHIP RES 1/8W(T) 5% 100KO

R CARBON 1/4W 5.6 J M T

CHIP 1/8W(T) 5% 220H

R SMD 1/8W(T) 5% 470

CHIP 1/8W(T) 5% 100H

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 33K

R SMD METAL 1/4W 33K J T

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 33K

R SMD METAL 1/8W 9.1K F T

CHIP RES 1/8W(T) 5% 100KO

CHIP 1/8W(T) 1% 10K

8-135

SYMBOL Part No for NPG

R9A3

R9A4

R9A5

R9A6

R9A7

R9A8

R9E1

R9E2

R9E3

R9E4

R9E6

R9E7

R9X1

R9X2

R9X4

R9X5

R9X6

R929

R931

R933

R934

R935

R936

R937

R951

R952

R953

R954

R955

R956

R9A2

R9X7

R9X8

R9X9

R9Y1

R9Y2

R9Y3

RA03

RA04

RA05

RA06

RA07

RA08

RA11

RA12

RA19

RA20

RA21

FM100270

FM110102

FM100392

FM100000

FM100103

FM110101

FM100101

FN101001

FM100220

FN101001

FM100000

FM100392

FM110225

FM110225

FM100333

FN117503

FN117503

FM100103

FM100223

FM100104

FM100103

FM110105

FM110105

FM110105

FM100122

FN107501

FN106201

FN102201

FM100000

FM100102

FJ470473

FN116803

FN102202

FM110223

FM100102

FM100101

FJ560338

FM010330

FM010330

FM010330

FM010330

FM010222

FM010222

FM010100

FM010100

FM010330

FM010330

FM010330

DESCRIPTION

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 22K

CHIP RES 1/8W(T) 5% 100KO

CHIP 1/8W(T) 5% 10K

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

RES SMD 1/8W(T) 5% 1.2KOH

R SMD 1/8W(T) 1% 7.5K

CHIP 1/8W(T) 1% 6.2K

CHIP RES 1/8W (T) 1% 2.2K

CHIP 1/8W(T) 5% 0 H

CHIP 1/8W(T) 5% 1K

R MOF 1W/M 47K J(A)

CHIP RES 1/8W(T) 5% 27OHM

R SMD METAL 1/4W 1.0K J T

CHIP 1/8W(T) 5% 3.9K

CHIP 1/8W(T) 5% 0 H

CHIP 1/8W(T) 5% 10K

R SMD METAL 1/4W 100 J T

CHIP 1/8W(T) 5% 100H

R SMD 1/8W(T) 1% 1K

R SMD 1/8W(T) 5% 22

R SMD 1/8W(T) 1% 1K

CHIP 1/8W(T) 5% 0 H

CHIP 1/8W(T) 5% 3.9K

R SMD METAL 1/4W 2.2M J T

R SMD METAL 1/4W 2.2M J T

CHIP 1/8W(T) 5% 33K

R SMD METAL 1/4W 750K F

R SMD METAL 1/4W 750K F

R SMD METAL 1/4W 680K F

CHIP 1/8W(T) 1% 22K

R SMD METAL 1/4W 22K J T

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 100H

R MOF 2W/M 0.33 J(A)

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 2.2K

CHIP RES 1/10W(T) 5% 2.2K

R SMD 1/10W(T) 5% 10

R SMD 1/10W(T) 5% 10

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

8-136

SYMBOL Part No for NPG

RA70B

RA70G

RA70R

RA71A

RA71B

RA71G

RA71R

RA72A

RA72B

RA72G

RA72R

RA73A

RA73B

RA73G

RA73R

RA74A

RA74B

RA22

RA23

RA24

RA27

RA28

RA29

RA30

RA34

RA37

RA43

RA44

RA4A

RA4E

RA70A

RA74G

RA74R

RA75A

RA75B

RA75G

RA75R

RA76A

RA76B

RA76G

RA76R

RA77A

RA77B

RA77G

RA77R

RA78A

RA78B

RA78G

FN017509

FN017509

FN017509

FM010101

FM010103

FM010103

FM010103

FM010331

FM010153

FM010153

FM010153

FM010272

FM010101

FM010101

FM010101

FN012200

FM010331

FM010330

FM010330

FM010330

FM010101

FM010101

FM010101

FM010472

FM010103

FM010330

FM010103

FM010103

FM010472

FM010472

FM010223

FM010331

FM010331

FN015100

FM010470

FM010470

FM010470

FM010102

FM010472

FM010472

FM010472

FM010821

FM010102

FM010102

FM010102

FM010272

FM010472

FM010472

DESCRIPTION

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 10KO

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

R CHIP 1/10W(T) 5% 330

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 1% 220O

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R SMD METAL 1/10W 510 F

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

R SMD METAL 1/10W 820 J T

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

8-137

SYMBOL Part No for NPG

RA80B

RA80G

RA80R

RA81B

RA81G

RA81R

RA82A

RA82B

RA82G

RA82R

RA83

RA83A

RA83B

RA83G

RA83R

RA84

RA84A

RA78R

RA79A

RA79B

RA79G

RA79R

RA7AA

RA7AB

RA7AG

RA7AR

RA7EA

RA7HB

RA7HG

RA7HR

RA7LA

RA84B

RA84G

RA84R

RA85A

RA85B

RA85G

RA85R

RA86

RA86A

RA86B

RA86G

RA86R

RA87

RA87A

RA87B

RA87G

RA87R

FN017509

FN017509

FN017509

FM010103

FM010103

FM010103

FM010331

FM010153

FM010153

FM010153

FM010330

FM010272

FM010101

FM010101

FM010101

FM010330

FN012200

FM010472

FM010101

FM010102

FM010102

FM010102

FM010101

FM010472

FM010472

FM010472

FM010332

FM010102

FM010102

FM010102

FM010000

FM010331

FM010331

FM010331

FN015100

FM010470

FM010470

FM010470

FM010222

FM010102

FM010472

FM010472

FM010472

FM010222

FM010821

FM010102

FM010102

FM010102

DESCRIPTION

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

R CHIP 1/10W(T) 5% 330

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

R SMD 1/10W(T) 5% 33

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 1% 220O

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R SMD METAL 1/10W 510 F

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 2.2K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 2.2K

R SMD METAL 1/10W 820 J T

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

8-138

SYMBOL Part No for NPG

RA8HG

RA8HR

RA8KA

RA8LA

RAA3

RAA4

RAA5

RAA6

RAE3

RAE4

RAE5

RAE6

RAFH

RAFK

RAH1

RAH2

RAH3

RA88A

RA88B

RA88G

RA88R

RA89A

RA89B

RA89G

RA89R

RA8AA

RA8AB

RA8AG

RA8AR

RA8EA

RA8HB

RAH5

RAH6

RAH7

RAM1

RAM2

RAM3

RAM4

RAM5

RAM6

RAM7

RAM8

RAN1

RAN2

RAN3

RAN4

RAN5

RAN6

FM010102

FM010102

FM010272

FM010000

FM010471

FM010222

FM010682

FM010223

FM010180

FM010330

FM010330

FM010330

FM010100

FM010100

FM010184

FM010102

FM010151

FM010272

FM010472

FM010472

FM010472

FM010101

FM010102

FM010102

FM010102

FM010101

FM010472

FM010472

FM010472

FM010332

FM010102

FM010184

FM010102

FM010151

FM010103

FM010103

FM010183

FM010183

FM010102

FM010102

FM010272

FM010272

FM010470

FM010470

FM010683

FM010683

FM010184

FM010184

DESCRIPTION

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 0OHM

CHIP 1/10W(T) 5% 470H

CHIP RES 1/10W(T) 5% 2.2K

R SMD 1/10W(T) 5% 6.8K

CHIP RES 1/10W(T) 5% 22KO

R SMD METAL 1/10W 18 J T

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 10

R SMD 1/10W(T) 5% 10

R SMD METAL 1/10W 180K J

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 150H

R SMD METAL 1/10W 180K J

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 150H

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/10W 18K J T

R SMD METAL 1/10W 18K J T

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 2.7K J

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 68K

CHIP RES 1/10W(T) 5% 68K

R SMD METAL 1/10W 180K J

R SMD METAL 1/10W 180K J

8-139

SYMBOL Part No for NPG

RK24

RK25

RK26

RK2A

RK2E

RKAE

RKF1

RKF2

RKF6

RKF7

RKF8

RKF9

RAN7

RAN8

RAN9

RANA

RK01

RK07

RK08

RK09

RK0A

RK10

RK11

RK16

RK22

RK23

FM010102

FM010102

FM010101

FM010101

FM010391

FM010560

FM010330

FM010473

FM010473

FM010473

FM010000

FM010391

FM010560

FM010330

FM010473

FM010473

FM010000

FM010473

FM010473

FM010473

FN015100

FN015100

FN012701

FM010101

FM010473

FM010101

*** CAPACITORS ***

C151 GX439157

C152

C153

GX41050X

GN247538

C154

C15A

C201

C221

GX41051Y

GX01060Y

GX12260Y

GNH10710

C222

C223

C224

C225

C226

C22E

C22F

C261

C263

C265

C26A

C271

C273

GX01060Y

GNM33728

GN210624

GX410439

GX410439

GX410439

GX42250Y

GX410439

GN210624

GX410439

GX410439

GX12260Y

GX410439

DESCRIPTION

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD METAL 1/10W 390 J T

CHIP RES 1/10W(T) 5% 56OH

R SMD 1/10W(T) 5% 33

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 0OHM

R SMD METAL 1/10W 390 J T

CHIP RES 1/10W(T) 5% 56OH

R SMD 1/10W(T) 5% 33

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 0OHM

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

R SMD METAL 1/10W 510 F

R SMD METAL 1/10W 510 F

R SMD METAL 1/10W 2.7K F

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 100O

C SMD CER CH 390P 50V J

C SMD CER BJ 1U 6.3V K

C SMD ELE105 4.7U 25V M

C SMD CER BJ 1U 10V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 22U 6.3V M

C SMD ELE105 100U 10V M

C SMD CER BJ 10U 6.3V M

C SMD ELE105 330U 16V M

C SMD ELE105 10U 16V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 2.2U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 22U 6.3V M

C SMD CER F 0.1U 25V Z

8-140

SYMBOL Part No for NPG

C2M3

C2M4

C2M5

C2M6

C409

C410

C411

C412

C413

C414

C415

C416

C417

C418

C419

C420

C421

C274

C275

C276

C277

C278

C27E

C281

C2A2

C2A3

C2A4

C2A5

C2E1

C2M1

C2M2

C422

C423

C424

C425

C426

C427

C428

C429

C430

C431

C432

C433

C434

C443

C444

C451

C452

GX410439

GX410439

GX410439

GX01060Y

GX01060Y

GX41050X

GX12260Y

GX410439

GX410439

GNH22630

GNM33728

GX410439

GNJ10730

GX04733X

GX42725K

GX410439

GX410439

GNM68728

GX01060Y

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX01060Y

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX01060Y

GX01060Y

GX410439

GX01060Y

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 1U 6.3V K

C SMD CER BJ 22U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 22U 25V M

C SMD ELE105 330U 16V M

C SMD CER F 0.1U 25V Z

C SMD ELE105 100U 25V M

C SMD CER BJ 0.047U 25V K

C SMD CER B 2700P 50V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 680U 16V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

8-141

SYMBOL Part No for NPG

C4E7

C4E8

C4E9

C4F0

C4F1

C4F2

C4F3

C4F4

C4F5

C4F6

C4F7

C4F8

C4F9

C4FA

C4FE

C4FF

C4FH

C454

C455

C458

C459

C45F

C4A2

C4A4

C4E0

C4E1

C4E2

C4E3

C4E4

C4E5

C4E6

C4FJ

C4FK

C4FL

C4FM

C4FMZ

C4FN

C4FP

C4FQ

C4FR

C4FS

C4FT

C4FW

C4FX

C4FY

C551

C552

C553

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410056

GX410056

GX410439

GX410439

GX410439

GN210624

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GN210624

GX42250Y

GX410439

GX410439

GX410439

GX410439

DESCRIPTION

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER BJ 2.2U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

8-142

SYMBOL Part No for NPG

C808

C809

C810

C811

C812

C813

C815

C818

C819

C820

C821

C8A1

C8A2

C8E1

C901

C902

C905

C554

C555

C556

C561

C562

C563

C564

C565

C566

C801

C802

C805

C806

C807

C906

C907

C910

C911

C912

C913

C914

C915

C920

C925

C926

C927

C951

C952

C953

C954

C955

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX41042K

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX41042K

GX41042K

GX410439

GX410439

GX410439

GJ047417

GJ047417

GJC102E5

GGY00010

GT001011

GGV22650

GGH10740

GX010459

GX010252

GX010054

GX01043X

GX01035K

GT001391

GX01060X

GGH47555

GGR15830

GGR15830

GGR10830

GX01052Y

GH001251

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER B 0.1U 16V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER B 0.1U 16V K

C SMD CER B 0.1U 16V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SAFE X 0.47U AC275V K

C SAFE X 0.47U AC275V K

SAFETY Y-CAP/D1000P/400VM

C ELE105 120U 450V SNAP-I

C FILM MM 0.01U 400V J

C ELE105 22U 50V M (T)

C ELE105 100U 35V M (T)

C SMD CER F 0.1U 50V Z

C SMD C0G 1000P 50V J 080

C SMD CER CH 10P 50V C

C SMD CER BJ 0.1U 25V K

C SMD CER B 0.01U 50V K

C FILM MM 0.47U 100V J

C SMD CER BJ 10U 6.3V K

C ELE105 4.7U 50V M (T)

C ELE105 1500U 25V M (T)

C ELE105 1500U 25V M (T)

C ELE105 1000U 25V M (T)

C SMD CER BJ 1U 16V M

C CER SL 150P 1KV J (T)

8-143

SYMBOL Part No for NPG

CA06

CA07

CA08

CA09

CA10

CA12

CA19

CA20

CA21

CA22

CA23

CA24

CA25

CA26

CA28

CA29

CA2A

C9A2

C9A3

C9A4

C9A6

C9A7

C9E1

C9E2

C9E3

C9X1

C9X2

C9X3

C9X4

C9X5

CA05

CA36

CA37

CA38

CA39

CA40

CA41

CA42

CA43

CA44

CA45

CA53

CA67

CA70A

CA70B

CA70G

CA70R

CA71B

GGH22555

GT001011

GX01043X

GX01051X

GGH47635

GGR22810

GX01051X

GGH10810

GT002401

GX01035K

GX04715K

GX03342X

GX01015J

GX44732X

GX44732X

GX44732X

GX44732X

GX44732X

GX44732X

GX41025K

GX41025K

GX01060Y

GS782222

GS747322

GX410439

GX410439

GX410439

GX41050X

GX410439

GX410439

GS715322

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX01060Y

GX01060Y

GX01060Y

GX410439

GX410439

GX410439

GX01060Y

DESCRIPTION

C ELE105 2.2U 50V M (T)

C FILM MM 0.01U 400V J

C SMD CER BJ 0.1U 25V K

C SMD CER BJ 1U 10V K

C ELE105 47U 25V M (T)

C ELE105 2200U 10V M (T)

C SMD CER BJ 1U 10V K

C ELE105 1000U 10V M (T)

C FILM PMS 0.47U 400V J

C SMD CER B 0.01U 50V K

C SMD CER B 470P 50V K

C SMD CER BJ 0.33U 16V K

C SMD CER SL 100P 50V J

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER B 1000P 50V K

C SMD CER B 1000P 50V K

C SMD CER BJ 10U 6.3V M

C SMD FILM ECHU 8200P 16V

C SMD FILM ECHU 47000P 16

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 1U 6.3V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD FILM ECHU 15000P 16

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

8-144

SYMBOL Part No for NPG

CA75G

CA75R

CA76B

CA76G

CA76R

CA77A

CA77B

CA77G

CA77R

CA78A

CA80A

CA80B

CA80G

CA80R

CA81B

CA81G

CA81R

CA71G

CA71R

CA72A

CA72B

CA72G

CA72R

CA73B

CA73G

CA73R

CA74B

CA74G

CA74R

CA75A

CA75B

CA82B

CA82G

CA82R

CA83B

CA83G

CA83R

CA84B

CA84G

CA84R

CA85A

CA85B

CA85G

CA85R

CA86B

CA86G

CA86R

CA87A

GX01060Y

GX01060Y

GX410439

GX410439

GX410439

GX410439

GX410056

GX410056

GX410056

GX410439

GX410439

GX410439

GX01060Y

GX422057

GX422057

GX422057

GX410439

GX410439

GX410439

GX468057

GX447057

GX447057

GX447057

GX410439

GX01060Y

GX410439

GX410439

GX410439

GX01060Y

GX01060Y

GX01060Y

GX410439

GX410439

GX410439

GX410056

GX410056

GX410056

GX410439

GX410439

GX410439

GX01060Y

GX422057

GX422057

GX422057

GX410439

GX410439

GX410439

GX468057

DESCRIPTION

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 68P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 68P 50V J

8-145

SYMBOL Part No for NPG

CAH3

CAH4

CAM3

CAM4

CAN1

CAN2

CAN3

CAN4

CK01

CK02

CK03

CK04

CK05

CK06

CK07

CK08

CK09

CA87B

CA87G

CA87R

CA88A

CA90

CA91

CAA1

CAA2

CAA3

CAA4

CAA5

CAA6

CAH1

CAH2

CK10

CK11

CK12

CK13

CK14

CK16

CK17

CK18

CK19

CK20

CK21

CK22

CK23

CK24

CK25

CK26

CK27

GX447057

GX447057

GX447057

GX410439

GX41025K

GX41025K

GX410439

GX410439

GX410439

GX410439

GX410439

GN210624

GX41050X

GX41050X

GX46825K

GX46825K

GX01060Y

GX01060Y

GX41050X

GX41050X

GX46825K

GX46825K

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410157

GX410157

GX410157

GX410157

GX410157

GX01060Y

GN310720

GX410157

GX01060Y

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410157

DESCRIPTION

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER B 1000P 50V K

C SMD CER B 1000P 50V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER BJ 1U 6.3V K

C SMD CER BJ 1U 6.3V K

C SMD CER B 6800P 50V K

C SMD CER B 6800P 50V K

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 1U 6.3V K

C SMD CER BJ 1U 6.3V K

C SMD CER B 6800P 50V K

C SMD CER B 6800P 50V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD ELE105 100U 16V M

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 100P 50V J

8-146

SYMBOL Part No for NPG

CK28

CK29

CK30

CK31

CK32

CK34

CK35

CK36

CKF1

CKF2

GX410157

GX410157

GX410157

GX410157

GX01060Y

GN310720

GX410157

GX01060Y

GX410439

GX410439

DESCRIPTION

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD ELE105 100U 16V M

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

8-147

REPLACEMENT PARTS LIST

(For Europe)

The components specified for Model LCD2080UX(B)

Manufactured by NPG

SYMBOL Part No for NPG DESCRIPTION

*** ICS ***

IC201

IC221

IC222

IC251

IC271

IC272

EHA10881

EHA10861

EHA10881

EHA10871

EHA10881

EHA10881

EHA10861

EHA10741

IC2A1

IC401

IC402

IC403

IC405

IC4A1

IC4A2

IC4A3

IC551

IC552

IC801

IC802

IC803

IC804

IC8A1

IC8A2

IC8A3

IC8A4

IC8A5

EHA10691

EHA10801

EHA10771

EHA10721

EHA10751

EHA10751

EHA10831

EHA10831

EHA90011

EHA90011

EHA10761

EHA10701

EHA10211

EHA10821

EHA10821

EHA10811

EHA10811

IC8F1

IC901

EHA10211

EH110251

IC951 EH110321

IC9A1 EH110261

IC9A2 EHA10901

IC9E1 EH110321

ICA01 EHA10711

ICA70A

ICAA1

ICAA2

ICAA3

EHA10841

EHA10751

EHA10751

EHA10791

ICAA4

ICAA5

ICAA6

ICK01

ICK02

EHA10791

EHA11071

EHA10781

EHA10731

EHA10731

IC SMD BA00BC0WFP

IC SMD PQ1CZ21H2ZP

IC SMD BA00BC0WFP

IC SMD L4978 REGULATOR

IC SMD BA00BC0WFP

IC SMD BA00BC0WFP

IC SMD PQ1CZ21H2ZP

IC SMD PW164B

IC SMD LH28F800-L202V03

IC SMD ICS332M-L202EV

IC SMDSN74AHC2G125H MOS

IC SMD UPD65545-Y-6C

IC SMD NC7WZ14

IC SMD NC7WZ14

IC SMD DS90C385MTD MOS

IC SMD DS90C385MTD MOS

IC RESET M51957AFP

IC RESET M51957AFP

IC SMD CAT24WC64JI-TE13 M

IC SMD M30625MGN-A26GP

IC SMD BU9882F-WE2 MOS

IC SMD X9116WM8-2.7T4 MOS

IC SMD X9116WM8-2.7T4 MOS

IC SMD SN74CBT1G125DCK

IC SMD SN74CBT1G125DCK

IC SMD BU9882F-WE2 MOS

IC STR-E1717 LF NO. 1064

IC SMD XN04A8800L

IC SMD AD9888KS-170

IC SMD AD8002AR

IC SMD NC7WZ14

IC SMD NC7WZ14

IC SMD SN74CBTLV1G125DCK

IC SMD SN74CBTLV1G125DCK

IC SMD TA76431F

IC SMD SN74CBTLV3125PW

IC SMD TFP401 MOS

IC SMD TFP401 MOS

8-148

SYMBOL Part No for NPG

PC901

PC911

PC9A1

EH190021

EH190021

EH190021

Q911

Q912

Q913

Q930

Q931

Q932

Q933

Q9E1

QA70A

QA70B

QA70G

QA70R

QA71A

Q265

Q271

Q272

Q451

Q452

Q453

Q805

Q806

Q807

Q861

Q863

Q8A3

Q8E1

Q8E5

Q8E6

Q901

Q908

*** TRANSISTORS ***

Q101

Q102

ECA00081

ECA00161

Q104

Q105

Q151

ECA00081

ECA00161

ECA00191

Q152

Q153

Q154

Q155

Q156

Q157

Q261

Q262

ECA00021

EN000413

ECA00061

ECA00061

ECA00071

ECA00061

ECA00061

EFK00061

EFK00011

ECA00061

ECA00061

ECA00161

ECA00061

ECA00061

ECA00061

ECA00151

ECA00151

EFK00011

EFK00011

ECA00061

ECA00061

ECA00061

ECA00061

EF000010

EFK00041

ECA00021

EN000413

EN000413

ECA00061

EC100011

ECA00061

ECA00091

ECA00061

ECA00061

ECA00141

ECA00141

ECA00141

ECA00191

DESCRIPTION

IC PHOTO COUPLE PC123Y

IC PHOTO COUPLE PC123Y

IC PHOTO COUPLE PC123Y

TR SMD DTC143ZKA-T146

TR SMD 2SA1162-GR

TR SMD DTC143ZKA-T146

TR SMD 2SA1162-GR

FET SMD 2SJ580-TD

TR SMD 2SA1037AK-T146 Q

CHIP TR NPN 2SC2412K-T146

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTA144EKA

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

FET SMD 2SJ377(TE16L)

FET SMD 2SK3018-T106

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD 2SA1162-GR

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD 2SC3734

TR SMD 2SC3734

FET SMD 2SK3018-T106

FET SMD 2SK3018-T106

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

FET 2SK3673-01MR-F111

FET SMD 2SK2715 P

TR SMD 2SA1037AK-T146 Q

CHIP TR NPN 2SC2412K-T146

CHIP TR NPN 2SC2412K-T146

TR SMD DTC144EKA-T146(O)

TR 2SC5562

TR SMD DTC144EKA-T146(O)

TR SMD DTB114EK

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD 2SC5084-O

TR SMD 2SC5084-O

TR SMD 2SC5084-O

FET SMD 2SJ580-TD

8-149

SYMBOL Part No for NPG

QA81G

QA81R

QA82B

QA82G

QA82R

QA83B

QA83G

QA83R

QAA1

QAH1

QAH2

QAM1

QAM2

QAN1

QAN2

QKF1

QA71B

QA71G

QA71R

QA72A

QA72B

QA72G

QA72R

QA73B

QA73G

QA73R

QA80B

QA80G

QA80R

QA81B

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00061

ECA00031

ECA00031

ECA00151

ECA00151

ECA00031

ECA00031

ECA00021

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00141

ECA00141

ECA00141

ECA00071

*** DIODES ***

D151 EX500114

D152

D221

EJK00021

EJK00051

D222

D271

D272

D273

EX500114

EX500114

EX500114

EX500114

D274

D275

D2A1

D2M1

D901

D902

D907

D911

D912

EX700216

EX700216

EJK00051

EJK00051

EJ100430

EJ100471

EJ100481

EJK00061

EJK00081

DESCRIPTION

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD 2SC5084-O

TR SMD 2SC5084-O

TR SMD 2SC5084-O

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTC144EKA-T146(O)

TR SMD 2SA1434-TB

TR SMD 2SA1434-TB

TR SMD 2SC3734

TR SMD 2SC3734

TR SMD 2SA1434-TB

TR SMD 2SA1434-TB

TR SMD 2SA1037AK-T146 Q

CHIP DIODE/T 1SS355TE-17

DI SMD RB715F-T106

DI SMD SFPB-64

CHIP DIODE/T 1SS355TE-17

CHIP DIODE/T 1SS355TE-17

CHIP DIODE/T 1SS355TE-17

CHIP DIODE/T 1SS355TE-17

DIODE RB495D

DIODE RB495D

DI SMD SFPB-64

DI SMD SFPB-64

DI D3SBA60

DI RM10A (T)

DI EG01CV1-T

DI SMD 1SR156-400

DI SMD MA2Z001

8-150

SYMBOL Part No for NPG

DA11

DA12

DA13

DA70A

DA71B

DA71G

DA71R

DA72B

DA72G

DA72R

DA73B

DA73G

DA73R

DA80A

DA81B

DA81G

DA81R

D913

D914

D915

D930

D951

D9A1

D9A2

D9E1

D9X1

D9X2

DA01

DA02

DA03

DA04

DA82B

DA82G

DA82R

DA83B

DA83G

DA83R

ZD8G2

ZD908

ZD910

ZD917

ZD918

ZD919

ZD920

ZD930

ZD9A4

ZDA01

ZDA11

EX500216

EX500216

EX500216

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00101

EJK00101

EJK00081

EX500114

EJ100440

EJ100481

EJK00081

EJ100450

EJ100460

EJK00071

EX500216

EX500216

EX500216

EX500114

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00031

EYD40752

EYD42702

EYD41802

EYD40512

EYD40472

EYD42702

EYD40752

EYD41802

EJK00131

EJK00131

DESCRIPTION

DI SMD DG1M3

DI SMD DG1M3

DI SMD MA2Z001

CHIP DIODE/T 1SS355TE-17

DI FMX-22S

DI EG01CV1-T

DI SMD MA2Z001

DI RK39

DI FMG-G26S

DI SMD SFPL-52

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

CHIP DIODE/T 1SS355TE-17

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD STZ6.2N

ZD SMD UDZS7.5BTE-17

ZD SMD UDZS27BTE-17

ZD SMD UDZS18BTE-17

ZD SMD UDZS5.1BTE-17

ZD SMD UDZS4.7BTE-17

ZD SMD UDZS27BTE-17

ZD SMD UDZS7.5BTE-17

ZD SMD UDZS18BTE-17

DI SMD DF5A6.2F(TE)

DI SMD DF5A6.2F(TE)

8-151

SYMBOL Part No for NPG DESCRIPTION

*** TRANSFORMERS ***

T901

T9A1

HE100121

HE100131

TRANS SWITCH ST-1102A

TRANS SWITCH L2.3MH

*** RELAYS & SWITCHES ***

SW901 JC100020 SW SEESAW SDDJE14500

*** PWB ASSYS ***

MANSAS AM0EV1ML

PWNSAS

XJM01

AP0EV1ML

JM100131

L221

L222

L223

L261

L262

L263

L271

L272

L2A1

L2A2

L2M1

L405

L406

L451

L452

L453

L454

L459

L4A1

L4A2

L4A3

*** COILS & FILTERS ***

FL203

FL2M1

HAB00207

HAB00207

FL901

L115

L116

L117

HA100152

HM011811

HM011811

HM011811

L118

L119

L120

L121

L122

L123

L125

HM011811

HM011811

HM011811

HM011811

HM011811

HM011811

HM011811

HM019281

HM019281

HAB00109

HM019281

HM019321

HM019281

HM019281

HM019281

HAB00109

HM019281

HAB00090

HM019281

HM019281

HM011811

HM011651

HM011651

HM011811

HM011811

HM011811

HM019281

HM019281

MAIN INSERT ASSY

POWER INSERT ASSY

INVERTER UNIT L202EV

L SMD NFM60R30T222T1

L SMD NFM60R30T222T1

L LINE FILTER LFZ28H05

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L SMD SLF10145T-101M1R0-P

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH4525HM102N

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L SMD SLF10145T-101M1R0-P

L BEAD SMD FBMH3216HM501N

L SMD SLF12565T-101M1R6

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608HS800-T

L BEAD SMD BK1608HS800-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

8-152

SYMBOL Part No for NPG

L4A4

L4A5

L551

L552

L553

L561

L562

L563

L951

L9A1

L9E1

L9X1

L9X2

LAA3

LAA4

LAA5

LAA6

LAA7

LAH1

LAH2

LAN1

LAN2

HM020011

HM020011

HM011681

HM011681

HM011681

HM011681

HM011681

HM011681

HA200251

HAB00233

HA200206

HA200181

HA200191

HM020011

HM020011

HM020011

HM020011

HM020011

HM020011

HM020011

HM020011

HM020011

DESCRIPTION

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L SBC7-100-532

L SMD LEMC3225T101K

L CHOKE TSL1112RA-100M3R7

L PFC COIL 77A-2702

L CHOKE 72U2A SF1-T8-50S-

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***

CABUAS

CN951

F901

OSC4A1

11301761

RC200341

JA460011

EM2K0061

TH901 FD200021

CABLE BUTTON ASSY(WH)

WIRE CB14P 1007#26L100

FUSE SG5013 3.15 PF 250V

OSC SMD IC 55MHZ

VD901

X402

X7A01

X7A02

FD300018

EM1K0061

RC200351

RC200361

VARISTOR ENE471D-10A

OSC SMD XTAL 14.31818MHZ

WIRE CC30P 1516#30L250

WIRE CB13P 1007#26L70

X801

XD7A01

XD7A02

XD7A03

XDRG03

XJG01

EM2K0041

JM100111

RE010201

RE010211

RG031091

3A684034

(For NMV Part)

OSC SMD CSTCR7M37G53-R0

CABLE BUTTON WHT

CABLE VI DVID-DVID 2M HG

CABLE VI DVID-DSUB 2M HG

PW CORD EU 1.95M HG I-SHE

LCD LM201U03 LGPHILIPS

*** APPEARANCE PARTS ***

BAAS

BE

10104391

10104361

BACK ASSY,L202EV(WH,N)

BEZEL,L202EV(WH,N)

BRBAAS

CVCA

STCV

STUN

12301211

11002231

11002211

11002191

BRACKET BASE ASSY,L202EV

COVER CABLE,L202EV(WH)

STAND COVER TB,L202EV(WH)

STAND UNIT,L202EV(WH)

8-153

SYMBOL Part No for NPG DESCRIPTION

*** PRINTED & PACKING MATERIALS ***

CABX

CASH

13202981

15800231

CARTON BOX,L202EV(B)

CAUTION SHEET

CASHL 13203011

CD 19700392

FLB

FLC

13401271

13401281

CD,NEC(A,B)

FILLER B,L202EV

FILLER C,L202EV

FLT

LVSH

MANU

NAFL 15900251

PABAG 13700521

PEBAG

PROTE

13700251

13700531

RALA

SAFFLS

SHSE

13401261

15800581

15501841

15002611

15900056

15800561

FILLER T,L202EV

LVIEW SHEET

MANUAL,L202EV(B)

NAVISET CARTON BOX FLYER

PE BAG (340*225)

PROTECTION SHEET

RATING LABEL,L202EV(WH)

SALES OFFICE LIST

SHEET SETUP,L202EV(B)

MR405

MR406

MR407

MR408

MR409

MR410

MR411

MR412

MR4G1

MR4G3

MR4G5

MR4G7

MR4G9

MR4H1

*** RESISTORS ***

J921 FM110000

J923

J924

FM110000

FM110000

J925

J926

J927

J928

J929

FM110000

FM110000

FM110000

FM110000

FM110000

J930

J940

J961

J962

MR401

MR402

MR403

MR404

FX500000

FM110000

FM110000

FM110000

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD METAL 1/4W 0 JUMPER

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

8-154

SYMBOL Part No for NPG

MRK17

MRK19

MRK21

MRK23

R101

R102

R103

R105

R106

R107

R117

R118

R119

R120

R121

R122

R123

MRA01

MRA03

MRA05

MRA07

MRA09

MRA11

MRK01

MRK03

MRK05

MRK07

MRK09

MRK11

MRK13

MRK15

R125

R151

R152

R153

R154

R155

R156

R157

R158

R159

R15A

R15E

R15F

R15L

R201

R202

R203

FPA01071

FPA01071

FPA01071

FPA01071

FM010472

FM010472

FN011800

FM010472

FM010472

FN011800

FM100102

FM100102

FM100102

FM100102

FM100102

FM100102

FM100102

FPA01131

FPA01131

FPA01131

FPA01131

FPA01131

FPA01131

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FM100102

FN011501

FM010272

FM010103

FM010272

FM010560

FM010824

FM010103

FM010563

FM010103

FM010103

FM010103

FM010102

FM010102

FM010102

FN015602

FN013302

DESCRIPTION

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

R SMD 1/10W(T) 1% 180

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

R SMD 1/10W(T) 1% 180

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

R SMD METAL 1/10W 1.5K F

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 56OH

R SMD METAL 1/10W 820K J

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/10W 56K J T

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 56K F

R SMD 1/10W(T) 1% 33K

8-155

SYMBOL Part No for NPG

R272

R273

R274

R274A

R275

R276

R277

R277A

R278

R2A1

R2A2

R2A3

R2A4

R2A5

R2A7

R2M1

R2M2

R221

R222

R223

R224

R225

R226

R261

R262

R266

R267

R268

R269

R26A

R271

R2M3

R2M4

R2M5

R402

R403

R405

R409

R412

R415

R416

R418

R422

R429

R430

R433

R435

R449

FM010562

FN015602

FN013302

FN012201

FM010332

FN013302

FN013302

FN011201

FM010103

FM010560

FM010560

FN013900

FN011001

FN018201

FM010102

FN014701

FN012202

FN011801

FN012702

FN011201

FN013002

FM010102

FM010102

FM010333

FM010333

FN011503

FN013302

FX300681

FX300681

FM010102

FM010222

FN011201

FN014701

FN018209

FN016209

FM010000

FM010000

FM010102

FM010560

FM010102

FM010473

FM010000

FM010000

FM010101

FM010101

FM010560

FM010560

FM010222

DESCRIPTION

CHIP RES 1/10W(T) 1% 1.8K

R SMD 1/10W(T) 1% 27K

R SMD METAL 1/10W 1.2K F

R SMD METAL 1/10W 30K F

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD 1/10W(T) 5% 33K

R SMD 1/10W(T) 5% 33K

CHIP RES 1/10W(T) 1% 150K

R SMD 1/10W(T) 1% 33K

R SMD METAL 1/2W 680 J

R SMD METAL 1/2W 680 J

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 2.2K

R SMD METAL 1/10W 5.6K J

R SMD METAL 1/10W 56K F

R SMD 1/10W(T) 1% 33K

CHIP RES 1/10W(T) 1% 2.2K

CHIP RES 1/10W(T) 5% 3.3K

R SMD 1/10W(T) 1% 33K

R SMD 1/10W(T) 1% 33K

R SMD METAL 1/10W 1.2K F

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W(T) 5% 56OH

R SMD METAL 1/10W 390 F

CHIP RES 1/10W(T) 1% 1KOH

R SMD METAL 1/10W 8.2K F

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 1% 4.7K

R SMD METAL 1/10W 22K F

R SMD METAL 1/10W 1.2K F

CHIP RES 1/10W(T) 1% 4.7K

R SMD METAL 1/10W 82 F

R SMD METAL 1/10W 62 F

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W(T) 5% 2.2K

8-156

SYMBOL Part No for NPG

R464

R465

R466

R467

R468

R470

R4A2

R4A3

R4A4

R4A5

R4A6

R4A7

R4A8

R4A9

R4AK

R4AL

R4AM

R451

R452

R453

R454

R455

R456

R457

R458

R459

R45E

R45K

R45P

R45T

R463

R4AN

R4AP

R4AT

R4E0

R4E1

R4E2

R4E3

R4E4

R4E5

R4E6

R4E7

R4E8

R4E9

R4EA

R550

R801

R802

FM010103

FM010101

FM010101

FM010101

FM010101

FM010102

FM010560

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010332

FM010332

FM010103

FM010473

FM010102

FM010101

FM010102

FM010473

FM010473

FM010103

FM010103

FM010101

FM010101

FM010103

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010101

FM010101

FM010101

FM010101

FM010101

FM010103

FM110512

FM010223

FM010103

DESCRIPTION

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W(T) 5% 10KO

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 56OH

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/4W 5.1K J T

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 10KO

8-157

SYMBOL Part No for NPG

R820

R821

R822

R823

R826

R827

R828

R829

R830

R831

R832

R833

R834

R838

R839

R840

R841

R803

R805

R806

R807

R808

R809

R811

R812

R813

R814

R815

R816

R818

R819

R842

R844

R845

R846

R849

R850

R883

R885

R886

R887

R889

R890

R891

R8A2

R8A4

R8A5

R8A6

FM010330

FM010101

FM010101

FM010101

FM010101

FM010101

FM010473

FM010473

FM010473

FM010101

FM010101

FM010101

FM010473

FM010330

FM010101

FM010101

FM010101

FN012702

FN012402

FM010473

FM010103

FM010103

FM010103

FM010101

FM010101

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010473

FM010473

FM010473

FM010223

FN011802

FN012203

FM010223

FM010223

FM010223

FM010223

FM010223

FM010223

FM010223

FX410330

FM010101

FM010101

FM010473

DESCRIPTION

R SMD 1/10W(T) 1% 27K

R SMD METAL 1/10W 24K F

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 22KO

R SMD METAL 1/10W 18K F

R SMD 1/10W(T) 1% 220K

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

R SMD METAL 1W 33 J

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

8-158

SYMBOL Part No for NPG

R8F4

R8F5

R8F6

R8F7

R8FX

R8FY

R8G2

R8G3

R8G4

R8G5

R901

R902

R903

R904

R905

R906

R907

R8A7

R8AA

R8AE

R8AL

R8AX

R8AY

R8E1

R8E7

R8E8

R8E9

R8EA

R8EF

R8F2

R8F3

R908

R909

R910

R911

R912

R913

R914

R915

R916

R917

R918

R920

R921

R922

R923

R924

R925

FM010101

FM010101

FM010473

FM010473

FM010473

FM010473

FX410330

FM010103

FM010101

FM010101

FM110474

FM110474

FM110474

FM110105

FM110105

FM110105

FJ560104

FM010473

FM010473

FM010473

FM010473

FM010473

FM010473

FM010473

FM010473

FM010473

FM010473

FM010473

FM010473

FX410330

FM010103

FM510222

FJ560338

FM100223

FN104708

FN111002

FN106800

FM100104

FA270569

FM100221

FM100471

FM100101

FM100103

FM100333

FM110333

FM100103

FM100103

FM100333

DESCRIPTION

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

R SMD METAL 1W 33 J

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

R SMD METAL 1W 33 J

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD METAL 1/4W 470K J T

R SMD METAL 1/4W 470K J T

R SMD METAL 1/4W 470K J T

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

R MOF 2W/M 100K J (A)

R SMD METAL 1/3W 2.2K J T

R MOF 2W/M 0.33 J(A)

CHIP 1/8W(T) 5% 22K

R SMD METAL 1/8W 4.7 F T

R SMD METAL 1/4W 10K F T

R SMD METAL 1/8W 680 F T

CHIP RES 1/8W(T) 5% 100KO

R CARBON 1/4W 5.6 J M T

CHIP 1/8W(T) 5% 220H

R SMD 1/8W(T) 5% 470

CHIP 1/8W(T) 5% 100H

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 33K

R SMD METAL 1/4W 33K J T

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 33K

8-159

SYMBOL Part No for NPG

R955

R956

R9A2

R9A3

R9A4

R9A5

R9A6

R9A7

R9A8

R9E1

R9E2

R9E3

R9E4

R9E6

R9E7

R9X1

R9X2

R926

R927

R928

R929

R931

R933

R934

R935

R936

R937

R951

R952

R953

R954

R9X4

R9X5

R9X6

R9X7

R9X8

R9X9

R9Y1

R9Y2

R9Y3

RA03

RA04

RA05

RA06

RA07

RA08

RA11

RA12

FM100000

FM100102

FJ470473

FM100270

FM110102

FM100392

FM100000

FM100103

FM110101

FM100101

FN101001

FM100220

FN101001

FM100000

FM100392

FM110225

FM110225

FN109101

FM100104

FN101002

FM100103

FM100223

FM100104

FM100103

FM110105

FM110105

FM110105

FM100122

FN107501

FN106201

FN102201

FM100333

FN117503

FN117503

FN116803

FN102202

FM110223

FM100102

FM100101

FJ560338

FM010330

FM010330

FM010330

FM010330

FM010222

FM010222

FM010100

FM010100

DESCRIPTION

R SMD METAL 1/8W 9.1K F T

CHIP RES 1/8W(T) 5% 100KO

CHIP 1/8W(T) 1% 10K

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 22K

CHIP RES 1/8W(T) 5% 100KO

CHIP 1/8W(T) 5% 10K

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

RES SMD 1/8W(T) 5% 1.2KOH

R SMD 1/8W(T) 1% 7.5K

CHIP 1/8W(T) 1% 6.2K

CHIP RES 1/8W (T) 1% 2.2K

CHIP 1/8W(T) 5% 0 H

CHIP 1/8W(T) 5% 1K

R MOF 1W/M 47K J(A)

CHIP RES 1/8W(T) 5% 27OHM

R SMD METAL 1/4W 1.0K J T

CHIP 1/8W(T) 5% 3.9K

CHIP 1/8W(T) 5% 0 H

CHIP 1/8W(T) 5% 10K

R SMD METAL 1/4W 100 J T

CHIP 1/8W(T) 5% 100H

R SMD 1/8W(T) 1% 1K

R SMD 1/8W(T) 5% 22

R SMD 1/8W(T) 1% 1K

CHIP 1/8W(T) 5% 0 H

CHIP 1/8W(T) 5% 3.9K

R SMD METAL 1/4W 2.2M J T

R SMD METAL 1/4W 2.2M J T

CHIP 1/8W(T) 5% 33K

R SMD METAL 1/4W 750K F

R SMD METAL 1/4W 750K F

R SMD METAL 1/4W 680K F

CHIP 1/8W(T) 1% 22K

R SMD METAL 1/4W 22K J T

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 100H

R MOF 2W/M 0.33 J(A)

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 2.2K

CHIP RES 1/10W(T) 5% 2.2K

R SMD 1/10W(T) 5% 10

R SMD 1/10W(T) 5% 10

8-160

SYMBOL Part No for NPG

RA4A

RA4E

RA70A

RA70B

RA70G

RA70R

RA71A

RA71B

RA71G

RA71R

RA72A

RA72B

RA72G

RA72R

RA73A

RA73B

RA73G

RA19

RA20

RA21

RA22

RA23

RA24

RA27

RA28

RA29

RA30

RA34

RA37

RA43

RA44

RA73R

RA74A

RA74B

RA74G

RA74R

RA75A

RA75B

RA75G

RA75R

RA76A

RA76B

RA76G

RA76R

RA77A

RA77B

RA77G

RA77R

FM010472

FM010472

FM010223

FN017509

FN017509

FN017509

FM010101

FM010103

FM010103

FM010103

FM010331

FM010153

FM010153

FM010153

FM010272

FM010101

FM010101

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010101

FM010101

FM010101

FM010472

FM010103

FM010330

FM010103

FM010103

FM010101

FN012200

FM010331

FM010331

FM010331

FN015100

FM010470

FM010470

FM010470

FM010102

FM010472

FM010472

FM010472

FM010821

FM010102

FM010102

FM010102

DESCRIPTION

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 10KO

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

R CHIP 1/10W(T) 5% 330

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 1% 220O

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R SMD METAL 1/10W 510 F

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

R SMD METAL 1/10W 820 J T

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

8-161

SYMBOL Part No for NPG

RA7HG

RA7HR

RA7LA

RA80B

RA80G

RA80R

RA81B

RA81G

RA81R

RA82A

RA82B

RA82G

RA82R

RA83

RA83A

RA83B

RA83G

RA78A

RA78B

RA78G

RA78R

RA79A

RA79B

RA79G

RA79R

RA7AA

RA7AB

RA7AG

RA7AR

RA7EA

RA7HB

RA83R

RA84

RA84A

RA84B

RA84G

RA84R

RA85A

RA85B

RA85G

RA85R

RA86

RA86A

RA86B

RA86G

RA86R

RA87

RA87A

FM010102

FM010102

FM010000

FN017509

FN017509

FN017509

FM010103

FM010103

FM010103

FM010331

FM010153

FM010153

FM010153

FM010330

FM010272

FM010101

FM010101

FM010272

FM010472

FM010472

FM010472

FM010101

FM010102

FM010102

FM010102

FM010101

FM010472

FM010472

FM010472

FM010332

FM010102

FM010101

FM010330

FN012200

FM010331

FM010331

FM010331

FN015100

FM010470

FM010470

FM010470

FM010222

FM010102

FM010472

FM010472

FM010472

FM010222

FM010821

DESCRIPTION

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

R CHIP 1/10W(T) 5% 330

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

R SMD 1/10W(T) 5% 33

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 1% 220O

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R SMD METAL 1/10W 510 F

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 2.2K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 2.2K

R SMD METAL 1/10W 820 J T

8-162

SYMBOL Part No for NPG

RA8AR

RA8EA

RA8HB

RA8HG

RA8HR

RA8KA

RA8LA

RAA3

RAA4

RAA5

RAA6

RAE3

RAE4

RAE5

RAE6

RAFH

RAFK

RA87B

RA87G

RA87R

RA88A

RA88B

RA88G

RA88R

RA89A

RA89B

RA89G

RA89R

RA8AA

RA8AB

RA8AG

RAH1

RAH2

RAH3

RAH5

RAH6

RAH7

RAM1

RAM2

RAM3

RAM4

RAM5

RAM6

RAM7

RAM8

RAN1

RAN2

RAN3

FM010472

FM010332

FM010102

FM010102

FM010102

FM010272

FM010000

FM010471

FM010222

FM010682

FM010223

FM010180

FM010330

FM010330

FM010330

FM010100

FM010100

FM010102

FM010102

FM010102

FM010272

FM010472

FM010472

FM010472

FM010101

FM010102

FM010102

FM010102

FM010101

FM010472

FM010472

FM010184

FM010102

FM010151

FM010184

FM010102

FM010151

FM010103

FM010103

FM010183

FM010183

FM010102

FM010102

FM010272

FM010272

FM010470

FM010470

FM010683

DESCRIPTION

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 0OHM

CHIP 1/10W(T) 5% 470H

CHIP RES 1/10W(T) 5% 2.2K

R SMD 1/10W(T) 5% 6.8K

CHIP RES 1/10W(T) 5% 22KO

R SMD METAL 1/10W 18 J T

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 10

R SMD 1/10W(T) 5% 10

R SMD METAL 1/10W 180K J

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 150H

R SMD METAL 1/10W 180K J

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 150H

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/10W 18K J T

R SMD METAL 1/10W 18K J T

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 2.7K J

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 68K

8-163

SYMBOL Part No for NPG

RK16

RK22

RK23

RK24

RK25

RK26

RK2A

RK2E

RKAE

RKF1

RKF2

RKF6

RKF7

RKF8

RKF9

RAN4

RAN5

RAN6

RAN7

RAN8

RAN9

RANA

RK01

RK07

RK08

RK09

RK0A

RK10

RK11

FM010391

FM010560

FM010330

FM010473

FM010473

FM010000

FM010473

FM010473

FM010473

FN015100

FN015100

FN012701

FM010101

FM010473

FM010101

FM010683

FM010184

FM010184

FM010102

FM010102

FM010101

FM010101

FM010391

FM010560

FM010330

FM010473

FM010473

FM010473

FM010000

*** CAPACITORS ***

C151

C152

GX439157

GX41050X

C153

C154

C15A

C201

GN247538

GX41051Y

GX01060Y

GX12260Y

C221

C222

C223

C224

C225

C226

C22E

C22F

C261

C263

C265

GNH10710

GX01060Y

GNM33728

GN210624

GX410439

GX410439

GX410439

GX42250Y

GX410439

GN210624

GX410439

DESCRIPTION

CHIP RES 1/10W(T) 5% 68K

R SMD METAL 1/10W 180K J

R SMD METAL 1/10W 180K J

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD METAL 1/10W 390 J T

CHIP RES 1/10W(T) 5% 56OH

R SMD 1/10W(T) 5% 33

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 0OHM

R SMD METAL 1/10W 390 J T

CHIP RES 1/10W(T) 5% 56OH

R SMD 1/10W(T) 5% 33

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 0OHM

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

R SMD METAL 1/10W 510 F

R SMD METAL 1/10W 510 F

R SMD METAL 1/10W 2.7K F

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 100O

C SMD CER CH 390P 50V J

C SMD CER BJ 1U 6.3V K

C SMD ELE105 4.7U 25V M

C SMD CER BJ 1U 10V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 22U 6.3V M

C SMD ELE105 100U 10V M

C SMD CER BJ 10U 6.3V M

C SMD ELE105 330U 16V M

C SMD ELE105 10U 16V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 2.2U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER F 0.1U 25V Z

8-164

SYMBOL Part No for NPG

C2E1

C2M1

C2M2

C2M3

C2M4

C2M5

C2M6

C409

C410

C411

C412

C413

C414

C415

C416

C417

C418

C26A

C271

C273

C274

C275

C276

C277

C278

C27E

C281

C2A2

C2A3

C2A4

C2A5

C419

C420

C421

C422

C423

C424

C425

C426

C427

C428

C429

C430

C431

C432

C433

C434

C443

GX410439

GX12260Y

GX410439

GX410439

GX410439

GX410439

GX01060Y

GX01060Y

GX41050X

GX12260Y

GX410439

GX410439

GNH22630

GNM33728

GX410439

GNJ10730

GX04733X

GX42725K

GX410439

GX410439

GNM68728

GX01060Y

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX01060Y

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX01060Y

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER BJ 22U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 1U 6.3V K

C SMD CER BJ 22U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 22U 25V M

C SMD ELE105 330U 16V M

C SMD CER F 0.1U 25V Z

C SMD ELE105 100U 25V M

C SMD CER BJ 0.047U 25V K

C SMD CER B 2700P 50V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 680U 16V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

8-165

SYMBOL Part No for NPG

C4E4

C4E5

C4E6

C4E7

C4E8

C4E9

C4F0

C4F1

C4F2

C4F3

C4F4

C4F5

C4F6

C4F7

C4F8

C4F9

C4FA

C444

C451

C452

C454

C455

C458

C459

C45F

C4A2

C4A4

C4E0

C4E1

C4E2

C4E3

C4FE

C4FF

C4FH

C4FJ

C4FK

C4FL

C4FM

C4FMZ

C4FN

C4FP

C4FQ

C4FR

C4FS

C4FT

C4FW

C4FX

C4FY

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX01060Y

GX410439

GX01060Y

GX410056

GX410056

GX410439

GX410439

GX410439

GN210624

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GN210624

GX42250Y

GX410439

DESCRIPTION

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER BJ 2.2U 6.3V M

C SMD CER F 0.1U 25V Z

8-166

SYMBOL Part No for NPG

C805

C806

C807

C808

C809

C810

C811

C812

C813

C815

C818

C819

C820

C821

C8A1

C8A2

C8E1

C551

C552

C553

C554

C555

C556

C561

C562

C563

C564

C565

C566

C801

C802

C901

C902

C905

C906

C907

C910

C911

C912

C913

C914

C915

C920

C925

C926

C927

C951

C952

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX41042K

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX41042K

GX41042K

GX410439

GX410439

GX410439

GJ047417

GJ047417

GJC102E5

GGY00010

GT001011

GGV22650

GGH10740

GX010459

GX010252

GX010054

GX01043X

GX01035K

GT001391

GX01060X

GGH47555

GGR15830

GGR15830

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER B 0.1U 16V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER B 0.1U 16V K

C SMD CER B 0.1U 16V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SAFE X 0.47U AC275V K

C SAFE X 0.47U AC275V K

SAFETY Y-CAP/D1000P/400VM

C ELE105 120U 450V SNAP-I

C FILM MM 0.01U 400V J

C ELE105 22U 50V M (T)

C ELE105 100U 35V M (T)

C SMD CER F 0.1U 50V Z

C SMD C0G 1000P 50V J 080

C SMD CER CH 10P 50V C

C SMD CER BJ 0.1U 25V K

C SMD CER B 0.01U 50V K

C FILM MM 0.47U 100V J

C SMD CER BJ 10U 6.3V K

C ELE105 4.7U 50V M (T)

C ELE105 1500U 25V M (T)

C ELE105 1500U 25V M (T)

8-167

SYMBOL Part No for NPG

C9X4

C9X5

CA05

CA06

CA07

CA08

CA09

CA10

CA12

CA19

CA20

CA21

CA22

CA23

CA24

CA25

CA26

C953

C954

C955

C9A2

C9A3

C9A4

C9A6

C9A7

C9E1

C9E2

C9E3

C9X1

C9X2

C9X3

CA28

CA29

CA2A

CA36

CA37

CA38

CA39

CA40

CA41

CA42

CA43

CA44

CA45

CA53

CA67

CA70A

CA70B

GGR10830

GX01052Y

GH001251

GGH22555

GT001011

GX01043X

GX01051X

GGH47635

GGR22810

GX01051X

GGH10810

GT002401

GX01035K

GX04715K

GX03342X

GX01015J

GX44732X

GX44732X

GX44732X

GX44732X

GX44732X

GX44732X

GX41025K

GX41025K

GX01060Y

GS782222

GS747322

GX410439

GX410439

GX410439

GX41050X

GX410439

GX410439

GS715322

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX01060Y

GX01060Y

GX01060Y

GX410439

DESCRIPTION

C ELE105 1000U 25V M (T)

C SMD CER BJ 1U 16V M

C CER SL 150P 1KV J (T)

C ELE105 2.2U 50V M (T)

C FILM MM 0.01U 400V J

C SMD CER BJ 0.1U 25V K

C SMD CER BJ 1U 10V K

C ELE105 47U 25V M (T)

C ELE105 2200U 10V M (T)

C SMD CER BJ 1U 10V K

C ELE105 1000U 10V M (T)

C FILM PMS 0.47U 400V J

C SMD CER B 0.01U 50V K

C SMD CER B 470P 50V K

C SMD CER BJ 0.33U 16V K

C SMD CER SL 100P 50V J

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER B 1000P 50V K

C SMD CER B 1000P 50V K

C SMD CER BJ 10U 6.3V M

C SMD FILM ECHU 8200P 16V

C SMD FILM ECHU 47000P 16

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 1U 6.3V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD FILM ECHU 15000P 16

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

8-168

SYMBOL Part No for NPG

CA74R

CA75A

CA75B

CA75G

CA75R

CA76B

CA76G

CA76R

CA77A

CA77B

CA77G

CA77R

CA78A

CA80A

CA80B

CA80G

CA80R

CA70G

CA70R

CA71B

CA71G

CA71R

CA72A

CA72B

CA72G

CA72R

CA73B

CA73G

CA73R

CA74B

CA74G

CA81B

CA81G

CA81R

CA82B

CA82G

CA82R

CA83B

CA83G

CA83R

CA84B

CA84G

CA84R

CA85A

CA85B

CA85G

CA85R

CA86B

GX410439

GX410439

GX01060Y

GX01060Y

GX01060Y

GX410439

GX410439

GX410439

GX410439

GX410056

GX410056

GX410056

GX410439

GX410439

GX410439

GX01060Y

GX422057

GX422057

GX422057

GX410439

GX410439

GX410439

GX468057

GX447057

GX447057

GX447057

GX410439

GX01060Y

GX410439

GX410439

GX410439

GX01060Y

GX01060Y

GX01060Y

GX410439

GX410439

GX410439

GX410056

GX410056

GX410056

GX410439

GX410439

GX410439

GX01060Y

GX422057

GX422057

GX422057

GX410439

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 68P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER F 0.1U 25V Z

8-169

SYMBOL Part No for NPG

CAA6

CAH1

CAH2

CAH3

CAH4

CAM3

CAM4

CAN1

CAN2

CAN3

CAN4

CK01

CK02

CK03

CK04

CK05

CK06

CA86G

CA86R

CA87A

CA87B

CA87G

CA87R

CA88A

CA90

CA91

CAA1

CAA2

CAA3

CAA4

CAA5

CK07

CK08

CK09

CK10

CK11

CK12

CK13

CK14

CK16

CK17

CK18

CK19

CK20

CK21

CK22

CK23

CK24

GX410439

GX410439

GX468057

GX447057

GX447057

GX447057

GX410439

GX41025K

GX41025K

GX410439

GX410439

GX410439

GX410439

GX410439

GN210624

GX41050X

GX41050X

GX46825K

GX46825K

GX01060Y

GX01060Y

GX41050X

GX41050X

GX46825K

GX46825K

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410157

GX410157

GX410157

GX410157

GX410157

GX01060Y

GN310720

GX410157

GX01060Y

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 68P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER B 1000P 50V K

C SMD CER B 1000P 50V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER BJ 1U 6.3V K

C SMD CER BJ 1U 6.3V K

C SMD CER B 6800P 50V K

C SMD CER B 6800P 50V K

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 1U 6.3V K

C SMD CER BJ 1U 6.3V K

C SMD CER B 6800P 50V K

C SMD CER B 6800P 50V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD ELE105 100U 16V M

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

8-170

SYMBOL Part No for NPG

CK25

CK26

CK27

CK28

CK29

CK30

CK31

CK32

CK34

CK35

CK36

CKF1

CKF2

GX410439

GX410439

GX410157

GX410157

GX410157

GX410157

GX410157

GX01060Y

GN310720

GX410157

GX01060Y

GX410439

GX410439

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD ELE105 100U 16V M

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

8-171

REPLACEMENT PARTS LIST

(For Europe)

The components specified for Model LCD2080UX-BK(B)

Manufactured by NPG

SYMBOL Part No for NPG DESCRIPTION

*** ICS ***

IC201

IC221

IC222

IC251

IC271

IC272

EHA10881

EHA10861

EHA10881

EHA10871

EHA10881

EHA10881

EHA10861

EHA10741

IC2A1

IC401

IC402

IC403

IC405

IC4A1

IC4A2

IC4A3

IC551

IC552

IC801

IC802

IC803

IC804

IC8A1

IC8A2

IC8A3

IC8A4

IC8A5

EHA10691

EHA10801

EHA10771

EHA10721

EHA10751

EHA10751

EHA10831

EHA10831

EHA90011

EHA90011

EHA10761

EHA10701

EHA10211

EHA10821

EHA10821

EHA10811

EHA10811

IC8F1

IC901

EHA10211

EH110251

IC951 EH110321

IC9A1 EH110261

IC9A2 EHA10901

IC9E1 EH110321

ICA01 EHA10711

ICA70A

ICAA1

ICAA2

ICAA3

EHA10841

EHA10751

EHA10751

EHA10791

ICAA4

ICAA5

ICAA6

ICK01

ICK02

EHA10791

EHA11071

EHA10781

EHA10731

EHA10731

IC SMD BA00BC0WFP

IC SMD PQ1CZ21H2ZP

IC SMD BA00BC0WFP

IC SMD L4978 REGULATOR

IC SMD BA00BC0WFP

IC SMD BA00BC0WFP

IC SMD PQ1CZ21H2ZP

IC SMD PW164B

IC SMD LH28F800-L202V03

IC SMD ICS332M-L202EV

IC SMDSN74AHC2G125H MOS

IC SMD UPD65545-Y-6C

IC SMD NC7WZ14

IC SMD NC7WZ14

IC SMD DS90C385MTD MOS

IC SMD DS90C385MTD MOS

IC RESET M51957AFP

IC RESET M51957AFP

IC SMD CAT24WC64JI-TE13 M

IC SMD M30625MGN-A26GP

IC SMD BU9882F-WE2 MOS

IC SMD X9116WM8-2.7T4 MOS

IC SMD X9116WM8-2.7T4 MOS

IC SMD SN74CBT1G125DCK

IC SMD SN74CBT1G125DCK

IC SMD BU9882F-WE2 MOS

IC STR-E1717 LF NO. 1064

IC SMD XN04A8800L

IC SMD AD9888KS-170

IC SMD AD8002AR

IC SMD NC7WZ14

IC SMD NC7WZ14

IC SMD SN74CBTLV1G125DCK

IC SMD SN74CBTLV1G125DCK

IC SMD TA76431F

IC SMD SN74CBTLV3125PW

IC SMD TFP401 MOS

IC SMD TFP401 MOS

8-172

SYMBOL Part No for NPG

PC901

PC911

PC9A1

EH190021

EH190021

EH190021

Q911

Q912

Q913

Q930

Q931

Q932

Q933

Q9E1

QA70A

QA70B

QA70G

QA70R

QA71A

Q265

Q271

Q272

Q451

Q452

Q453

Q805

Q806

Q807

Q861

Q863

Q8A3

Q8E1

Q8E5

Q8E6

Q901

Q908

*** TRANSISTORS ***

Q101

Q102

ECA00081

ECA00161

Q104

Q105

Q151

ECA00081

ECA00161

ECA00191

Q152

Q153

Q154

Q155

Q156

Q157

Q261

Q262

ECA00021

EN000413

ECA00061

ECA00061

ECA00071

ECA00061

ECA00061

EFK00061

EFK00011

ECA00061

ECA00061

ECA00161

ECA00061

ECA00061

ECA00061

ECA00151

ECA00151

EFK00011

EFK00011

ECA00061

ECA00061

ECA00061

ECA00061

EF000010

EFK00041

ECA00021

EN000413

EN000413

ECA00061

EC100011

ECA00061

ECA00091

ECA00061

ECA00061

ECA00141

ECA00141

ECA00141

ECA00191

DESCRIPTION

IC PHOTO COUPLE PC123Y

IC PHOTO COUPLE PC123Y

IC PHOTO COUPLE PC123Y

TR SMD DTC143ZKA-T146

TR SMD 2SA1162-GR

TR SMD DTC143ZKA-T146

TR SMD 2SA1162-GR

FET SMD 2SJ580-TD

TR SMD 2SA1037AK-T146 Q

CHIP TR NPN 2SC2412K-T146

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTA144EKA

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

FET SMD 2SJ377(TE16L)

FET SMD 2SK3018-T106

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD 2SA1162-GR

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD 2SC3734

TR SMD 2SC3734

FET SMD 2SK3018-T106

FET SMD 2SK3018-T106

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

FET 2SK3673-01MR-F111

FET SMD 2SK2715 P

TR SMD 2SA1037AK-T146 Q

CHIP TR NPN 2SC2412K-T146

CHIP TR NPN 2SC2412K-T146

TR SMD DTC144EKA-T146(O)

TR 2SC5562

TR SMD DTC144EKA-T146(O)

TR SMD DTB114EK

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD 2SC5084-O

TR SMD 2SC5084-O

TR SMD 2SC5084-O

FET SMD 2SJ580-TD

8-173

SYMBOL Part No for NPG

QA81G

QA81R

QA82B

QA82G

QA82R

QA83B

QA83G

QA83R

QAA1

QAH1

QAH2

QAM1

QAM2

QAN1

QAN2

QKF1

QA71B

QA71G

QA71R

QA72A

QA72B

QA72G

QA72R

QA73B

QA73G

QA73R

QA80B

QA80G

QA80R

QA81B

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00061

ECA00031

ECA00031

ECA00151

ECA00151

ECA00031

ECA00031

ECA00021

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00071

ECA00141

ECA00141

ECA00141

ECA00071

*** DIODES ***

D151 EX500114

D152

D221

EJK00021

EJK00051

D222

D271

D272

D273

EX500114

EX500114

EX500114

EX500114

D274

D275

D2A1

D2M1

D901

D902

D907

D911

D912

EX700216

EX700216

EJK00051

EJK00051

EJ100430

EJ100471

EJ100481

EJK00061

EJK00081

DESCRIPTION

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD 2SC5084-O

TR SMD 2SC5084-O

TR SMD 2SC5084-O

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTC144EKA-T146(O)

TR SMD 2SA1434-TB

TR SMD 2SA1434-TB

TR SMD 2SC3734

TR SMD 2SC3734

TR SMD 2SA1434-TB

TR SMD 2SA1434-TB

TR SMD 2SA1037AK-T146 Q

CHIP DIODE/T 1SS355TE-17

DI SMD RB715F-T106

DI SMD SFPB-64

CHIP DIODE/T 1SS355TE-17

CHIP DIODE/T 1SS355TE-17

CHIP DIODE/T 1SS355TE-17

CHIP DIODE/T 1SS355TE-17

DIODE RB495D

DIODE RB495D

DI SMD SFPB-64

DI SMD SFPB-64

DI D3SBA60

DI RM10A (T)

DI EG01CV1-T

DI SMD 1SR156-400

DI SMD MA2Z001

8-174

SYMBOL Part No for NPG

DA11

DA12

DA13

DA70A

DA71B

DA71G

DA71R

DA72B

DA72G

DA72R

DA73B

DA73G

DA73R

DA80A

DA81B

DA81G

DA81R

D913

D914

D915

D930

D951

D9A1

D9A2

D9E1

D9X1

D9X2

DA01

DA02

DA03

DA04

DA82B

DA82G

DA82R

DA83B

DA83G

DA83R

ZD8G2

ZD908

ZD910

ZD917

ZD918

ZD919

ZD920

ZD930

ZD9A4

ZDA01

ZDA11

EX500216

EX500216

EX500216

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00101

EJK00101

EJK00081

EX500114

EJ100440

EJ100481

EJK00081

EJ100450

EJ100460

EJK00071

EX500216

EX500216

EX500216

EX500114

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00011

EJK00031

EYD40752

EYD42702

EYD41802

EYD40512

EYD40472

EYD42702

EYD40752

EYD41802

EJK00131

EJK00131

DESCRIPTION

DI SMD DG1M3

DI SMD DG1M3

DI SMD MA2Z001

CHIP DIODE/T 1SS355TE-17

DI FMX-22S

DI EG01CV1-T

DI SMD MA2Z001

DI RK39

DI FMG-G26S

DI SMD SFPL-52

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

CHIP DIODE/T 1SS355TE-17

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD STZ6.2N

ZD SMD UDZS7.5BTE-17

ZD SMD UDZS27BTE-17

ZD SMD UDZS18BTE-17

ZD SMD UDZS5.1BTE-17

ZD SMD UDZS4.7BTE-17

ZD SMD UDZS27BTE-17

ZD SMD UDZS7.5BTE-17

ZD SMD UDZS18BTE-17

DI SMD DF5A6.2F(TE)

DI SMD DF5A6.2F(TE)

8-175

SYMBOL Part No for NPG DESCRIPTION

*** TRANSFORMERS ***

T901

T9A1

HE100121

HE100131

TRANS SWITCH ST-1102A

TRANS SWITCH L2.3MH

*** RELAYS & SWITCHES ***

SW901 JC100020 SW SEESAW SDDJE14500

*** PWB ASSYS ***

MANSAS AM0EV1ML

PWNSAS

XJM01

AP0EV1ML

JM100131

L221

L222

L223

L261

L262

L263

L271

L272

L2A1

L2A2

L2M1

L405

L406

L451

L452

L453

L454

L459

L4A1

L4A2

L4A3

*** COILS & FILTERS ***

FL203

FL2M1

HAB00207

HAB00207

FL901

L115

L116

L117

HA100152

HM011811

HM011811

HM011811

L118

L119

L120

L121

L122

L123

L125

HM011811

HM011811

HM011811

HM011811

HM011811

HM011811

HM011811

HM019281

HM019281

HAB00109

HM019281

HM019321

HM019281

HM019281

HM019281

HAB00109

HM019281

HAB00090

HM019281

HM019281

HM011811

HM011651

HM011651

HM011811

HM011811

HM011811

HM019281

HM019281

MAIN INSERT ASSY

POWER INSERT ASSY

INVERTER UNIT L202EV

L SMD NFM60R30T222T1

L SMD NFM60R30T222T1

L LINE FILTER LFZ28H05

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L SMD SLF10145T-101M1R0-P

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH4525HM102N

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L SMD SLF10145T-101M1R0-P

L BEAD SMD FBMH3216HM501N

L SMD SLF12565T-101M1R6

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608HS800-T

L BEAD SMD BK1608HS800-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

8-176

SYMBOL Part No for NPG

L4A4

L4A5

L551

L552

L553

L561

L562

L563

L951

L9A1

L9E1

L9X1

L9X2

LAA3

LAA4

LAA5

LAA6

LAA7

LAH1

LAH2

LAN1

LAN2

HM020011

HM020011

HM011681

HM011681

HM011681

HM011681

HM011681

HM011681

HA200251

HAB00233

HA200206

HA200181

HA200191

HM020011

HM020011

HM020011

HM020011

HM020011

HM020011

HM020011

HM020011

HM020011

DESCRIPTION

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L SBC7-100-532

L SMD LEMC3225T101K

L CHOKE TSL1112RA-100M3R7

L PFC COIL 77A-2702

L CHOKE 72U2A SF1-T8-50S-

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***

CN951

F901

OSC4A1

RC200341

JA460011

EM2K0061

WIRE CB14P 1007#26L100

FUSE SG5013 3.15 PF 250V

OSC SMD IC 55MHZ

TH901 FD200021

VD901 FD300018

X402

X7A01

EM1K0061

RC200351

VARISTOR ENE471D-10A

OSC SMD XTAL 14.31818MHZ

WIRE CC30P 1516#30L250

X7A02

X801

XDJM02

XDRE03

XDRE04

XDRG04

RC200361

EM2K0041

JM100121

RE010221

RE010231

RG031081

WIRE CB13P 1007#26L70

OSC SMD CSTCR7M37G53-R0

CABLE BUTTON BLK

CABLE VI DVID-DVID 2M BK

CABLE VI DVID-DSUB 2M BK

PW CORD EU 1.95M BLK I-SH

XJG01 3A684034

(For NMV Part)

LCD LM201U03 LGPHILIPS

*** APPEARANCE PARTS ***

BAAS 10104401 BACK ASSY,L202EV(BK,N)

BE

BRBAAS

10104371

12301211

BEZEL,L202EV(BK,N)

BRACKET BASE ASSY,L202EV

CVCA

STCV

STUN

11002241

11002221

11002201

COVER CABLE,L202EV(BK)

STAND COVER TB,L202EV(BK)

STAND UNIT,L202EV(BK)

8-177

SYMBOL Part No for NPG DESCRIPTION

*** PRINTED & PACKING MATERIALS ***

CABX

CASH

13202981

15800231

CARTON BOX,L202EV(B)

CAUTION SHEET

CASHL 13203011

CD 19700391

FLB

FLC

13401271

13401281

CD PIVOT,NEC(A,B)

FILLER B,L202EV

FILLER C,L202EV

FLT

LVSH

MANU

NAFL 15900251

PABAG 13700521

PEBAG

PROTE

13700251

13700531

RALA

SAFFLS

SHSE

13401261

15800581

15501841

15002621

15900056

15800561

FILLER T,L202EV

LVIEW SHEET

MANUAL,L202EV(B)

NAVISET CARTON BOX FLYER

PE BAG (340*225)

PROTECTION SHEET

RATING LABEL,L202EV(BK)

SALES OFFICE LIST

SHEET SETUP,L202EV(B)

MR405

MR406

MR407

MR408

MR409

MR410

MR411

MR412

MR4G1

MR4G3

MR4G5

MR4G7

MR4G9

MR4H1

MRA01

*** RESISTORS ***

J921 FM110000

J923

J924

FM110000

FM110000

J925

J926

J927

J928

J929

FM110000

FM110000

FM110000

FM110000

FM110000

J930

J940

J961

J962

MR401

MR402

MR403

MR404

FX500000

FM110000

FM110000

FM110000

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA03231

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01131

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD METAL 1/4W 0 JUMPER

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 100 J

8-178

SYMBOL Part No for NPG

MRK19

MRK21

MRK23

R101

R102

R103

R105

R106

R107

R117

R118

R119

R120

R121

R122

R123

R125

MRA03

MRA05

MRA07

MRA09

MRA11

MRK01

MRK03

MRK05

MRK07

MRK09

MRK11

MRK13

MRK15

MRK17

R151

R152

R153

R154

R155

R156

R157

R158

R159

R15A

R15E

R15F

R15L

R201

R202

R203

R221

FPA01071

FPA01071

FPA01071

FM010472

FM010472

FN011800

FM010472

FM010472

FN011800

FM100102

FM100102

FM100102

FM100102

FM100102

FM100102

FM100102

FM100102

FPA01131

FPA01131

FPA01131

FPA01131

FPA01131

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FPA01071

FN011501

FM010272

FM010103

FM010272

FM010560

FM010824

FM010103

FM010563

FM010103

FM010103

FM010103

FM010102

FM010102

FM010102

FN015602

FN013302

FN011801

DESCRIPTION

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

R SMD 1/10W(T) 1% 180

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

R SMD 1/10W(T) 1% 180

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

R SMD METAL 1/10W 1.5K F

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 56OH

R SMD METAL 1/10W 820K J

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/10W 56K J T

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 56K F

R SMD 1/10W(T) 1% 33K

CHIP RES 1/10W(T) 1% 1.8K

8-179

SYMBOL Part No for NPG

R273

R274

R274A

R275

R276

R277

R277A

R278

R2A1

R2A2

R2A3

R2A4

R2A5

R2A7

R2M1

R2M2

R2M3

R222

R223

R224

R225

R226

R261

R262

R266

R267

R268

R269

R26A

R271

R272

R2M4

R2M5

R402

R403

R405

R409

R412

R415

R416

R418

R422

R429

R430

R433

R435

R449

R451

FN015602

FN013302

FN012201

FM010332

FN013302

FN013302

FN011201

FM010103

FM010560

FM010560

FN013900

FN011001

FN018201

FM010102

FN014701

FN012202

FN011201

FN012702

FN011201

FN013002

FM010102

FM010102

FM010333

FM010333

FN011503

FN013302

FX300681

FX300681

FM010102

FM010222

FM010562

FN014701

FN018209

FN016209

FM010000

FM010000

FM010102

FM010560

FM010102

FM010473

FM010000

FM010000

FM010101

FM010101

FM010560

FM010560

FM010222

FM010332

DESCRIPTION

R SMD 1/10W(T) 1% 27K

R SMD METAL 1/10W 1.2K F

R SMD METAL 1/10W 30K F

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD 1/10W(T) 5% 33K

R SMD 1/10W(T) 5% 33K

CHIP RES 1/10W(T) 1% 150K

R SMD 1/10W(T) 1% 33K

R SMD METAL 1/2W 680 J

R SMD METAL 1/2W 680 J

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 2.2K

R SMD METAL 1/10W 5.6K J

R SMD METAL 1/10W 56K F

R SMD 1/10W(T) 1% 33K

CHIP RES 1/10W(T) 1% 2.2K

CHIP RES 1/10W(T) 5% 3.3K

R SMD 1/10W(T) 1% 33K

R SMD 1/10W(T) 1% 33K

R SMD METAL 1/10W 1.2K F

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W(T) 5% 56OH

R SMD METAL 1/10W 390 F

CHIP RES 1/10W(T) 1% 1KOH

R SMD METAL 1/10W 8.2K F

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 1% 4.7K

R SMD METAL 1/10W 22K F

R SMD METAL 1/10W 1.2K F

CHIP RES 1/10W(T) 1% 4.7K

R SMD METAL 1/10W 82 F

R SMD METAL 1/10W 62 F

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W(T) 5% 2.2K

CHIP RES 1/10W(T) 5% 3.3K

8-180

SYMBOL Part No for NPG

R465

R466

R467

R468

R470

R4A2

R4A3

R4A4

R4A5

R4A6

R4A7

R4A8

R4A9

R4AK

R4AL

R4AM

R4AN

R452

R453

R454

R455

R456

R457

R458

R459

R45E

R45K

R45P

R45T

R463

R464

R4AP

R4AT

R4E0

R4E1

R4E2

R4E3

R4E4

R4E5

R4E6

R4E7

R4E8

R4E9

R4EA

R550

R801

R802

R803

FM010101

FM010101

FM010101

FM010101

FM010102

FM010560

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010332

FM010103

FM010473

FM010102

FM010101

FM010102

FM010473

FM010473

FM010103

FM010103

FM010101

FM010101

FM010103

FM010103

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010101

FM010101

FM010101

FM010101

FM010101

FM010103

FM110512

FM010223

FM010103

FN012702

DESCRIPTION

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W(T) 5% 10KO

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 56OH

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/4W 5.1K J T

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 10KO

R SMD 1/10W(T) 1% 27K

8-181

SYMBOL Part No for NPG

R821

R822

R823

R826

R827

R828

R829

R830

R831

R832

R833

R834

R838

R839

R840

R841

R842

R805

R806

R807

R808

R809

R811

R812

R813

R814

R815

R816

R818

R819

R820

R844

R845

R846

R849

R850

R883

R885

R886

R887

R889

R890

R891

R8A2

R8A4

R8A5

R8A6

R8A7

FM010101

FM010101

FM010101

FM010101

FM010101

FM010473

FM010473

FM010473

FM010101

FM010101

FM010101

FM010473

FM010330

FM010101

FM010101

FM010101

FM010473

FN012402

FM010473

FM010103

FM010103

FM010103

FM010101

FM010101

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010330

FM010473

FM010473

FM010223

FN011802

FN012203

FM010223

FM010223

FM010223

FM010223

FM010223

FM010223

FM010223

FX410330

FM010101

FM010101

FM010473

FM010473

DESCRIPTION

R SMD METAL 1/10W 24K F

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 22KO

R SMD METAL 1/10W 18K F

R SMD 1/10W(T) 1% 220K

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

R SMD METAL 1W 33 J

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

8-182

SYMBOL Part No for NPG

R8F5

R8F6

R8F7

R8FX

R8FY

R8G2

R8G3

R8G4

R8G5

R901

R902

R903

R904

R905

R906

R907

R908

R8AA

R8AE

R8AL

R8AX

R8AY

R8E1

R8E7

R8E8

R8E9

R8EA

R8EF

R8F2

R8F3

R8F4

R909

R910

R911

R912

R913

R914

R915

R916

R917

R918

R920

R921

R922

R923

R924

R925

R926

FM010101

FM010473

FM010473

FM010473

FM010473

FX410330

FM010103

FM010101

FM010101

FM110474

FM110474

FM110474

FM110105

FM110105

FM110105

FJ560104

FM510222

FM010473

FM010473

FM010473

FM010473

FM010473

FM010473

FM010473

FM010473

FM010473

FM010473

FM010473

FX410330

FM010103

FM010101

FJ560338

FM100223

FN104708

FN111002

FN106800

FM100104

FA270569

FM100221

FM100471

FM100101

FM100103

FM100333

FM110333

FM100103

FM100103

FM100333

FN109101

DESCRIPTION

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

R SMD METAL 1W 33 J

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

R SMD METAL 1W 33 J

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD METAL 1/4W 470K J T

R SMD METAL 1/4W 470K J T

R SMD METAL 1/4W 470K J T

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

R MOF 2W/M 100K J (A)

R SMD METAL 1/3W 2.2K J T

R MOF 2W/M 0.33 J(A)

CHIP 1/8W(T) 5% 22K

R SMD METAL 1/8W 4.7 F T

R SMD METAL 1/4W 10K F T

R SMD METAL 1/8W 680 F T

CHIP RES 1/8W(T) 5% 100KO

R CARBON 1/4W 5.6 J M T

CHIP 1/8W(T) 5% 220H

R SMD 1/8W(T) 5% 470

CHIP 1/8W(T) 5% 100H

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 33K

R SMD METAL 1/4W 33K J T

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 33K

R SMD METAL 1/8W 9.1K F T

8-183

SYMBOL Part No for NPG

R956

R9A2

R9A3

R9A4

R9A5

R9A6

R9A7

R9A8

R9E1

R9E2

R9E3

R9E4

R9E6

R9E7

R9X1

R9X2

R9X4

R927

R928

R929

R931

R933

R934

R935

R936

R937

R951

R952

R953

R954

R955

R9X5

R9X6

R9X7

R9X8

R9X9

R9Y1

R9Y2

R9Y3

RA03

RA04

RA05

RA06

RA07

RA08

RA11

RA12

RA19

FM100102

FJ470473

FM100270

FM110102

FM100392

FM100000

FM100103

FM110101

FM100101

FN101001

FM100220

FN101001

FM100000

FM100392

FM110225

FM110225

FM100333

FM100104

FN101002

FM100103

FM100223

FM100104

FM100103

FM110105

FM110105

FM110105

FM100122

FN107501

FN106201

FN102201

FM100000

FN117503

FN117503

FN116803

FN102202

FM110223

FM100102

FM100101

FJ560338

FM010330

FM010330

FM010330

FM010330

FM010222

FM010222

FM010100

FM010100

FM010330

DESCRIPTION

CHIP RES 1/8W(T) 5% 100KO

CHIP 1/8W(T) 1% 10K

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 22K

CHIP RES 1/8W(T) 5% 100KO

CHIP 1/8W(T) 5% 10K

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

RES SMD 1/8W(T) 5% 1.2KOH

R SMD 1/8W(T) 1% 7.5K

CHIP 1/8W(T) 1% 6.2K

CHIP RES 1/8W (T) 1% 2.2K

CHIP 1/8W(T) 5% 0 H

CHIP 1/8W(T) 5% 1K

R MOF 1W/M 47K J(A)

CHIP RES 1/8W(T) 5% 27OHM

R SMD METAL 1/4W 1.0K J T

CHIP 1/8W(T) 5% 3.9K

CHIP 1/8W(T) 5% 0 H

CHIP 1/8W(T) 5% 10K

R SMD METAL 1/4W 100 J T

CHIP 1/8W(T) 5% 100H

R SMD 1/8W(T) 1% 1K

R SMD 1/8W(T) 5% 22

R SMD 1/8W(T) 1% 1K

CHIP 1/8W(T) 5% 0 H

CHIP 1/8W(T) 5% 3.9K

R SMD METAL 1/4W 2.2M J T

R SMD METAL 1/4W 2.2M J T

CHIP 1/8W(T) 5% 33K

R SMD METAL 1/4W 750K F

R SMD METAL 1/4W 750K F

R SMD METAL 1/4W 680K F

CHIP 1/8W(T) 1% 22K

R SMD METAL 1/4W 22K J T

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 100H

R MOF 2W/M 0.33 J(A)

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 2.2K

CHIP RES 1/10W(T) 5% 2.2K

R SMD 1/10W(T) 5% 10

R SMD 1/10W(T) 5% 10

R SMD 1/10W(T) 5% 33

8-184

SYMBOL Part No for NPG

RA4E

RA70A

RA70B

RA70G

RA70R

RA71A

RA71B

RA71G

RA71R

RA72A

RA72B

RA72G

RA72R

RA73A

RA73B

RA73G

RA73R

RA20

RA21

RA22

RA23

RA24

RA27

RA28

RA29

RA30

RA34

RA37

RA43

RA44

RA4A

RA74A

RA74B

RA74G

RA74R

RA75A

RA75B

RA75G

RA75R

RA76A

RA76B

RA76G

RA76R

RA77A

RA77B

RA77G

RA77R

RA78A

FM010472

FM010223

FN017509

FN017509

FN017509

FM010101

FM010103

FM010103

FM010103

FM010331

FM010153

FM010153

FM010153

FM010272

FM010101

FM010101

FM010101

FM010330

FM010330

FM010330

FM010330

FM010330

FM010101

FM010101

FM010101

FM010472

FM010103

FM010330

FM010103

FM010103

FM010472

FN012200

FM010331

FM010331

FM010331

FN015100

FM010470

FM010470

FM010470

FM010102

FM010472

FM010472

FM010472

FM010821

FM010102

FM010102

FM010102

FM010272

DESCRIPTION

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 10KO

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

R CHIP 1/10W(T) 5% 330

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 1% 220O

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R SMD METAL 1/10W 510 F

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

R SMD METAL 1/10W 820 J T

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 2.7K J

8-185

SYMBOL Part No for NPG

RA7HR

RA7LA

RA80B

RA80G

RA80R

RA81B

RA81G

RA81R

RA82A

RA82B

RA82G

RA82R

RA83

RA83A

RA83B

RA83G

RA83R

RA78B

RA78G

RA78R

RA79A

RA79B

RA79G

RA79R

RA7AA

RA7AB

RA7AG

RA7AR

RA7EA

RA7HB

RA7HG

RA84

RA84A

RA84B

RA84G

RA84R

RA85A

RA85B

RA85G

RA85R

RA86

RA86A

RA86B

RA86G

RA86R

RA87

RA87A

RA87B

FM010102

FM010000

FN017509

FN017509

FN017509

FM010103

FM010103

FM010103

FM010331

FM010153

FM010153

FM010153

FM010330

FM010272

FM010101

FM010101

FM010101

FM010472

FM010472

FM010472

FM010101

FM010102

FM010102

FM010102

FM010101

FM010472

FM010472

FM010472

FM010332

FM010102

FM010102

FM010330

FN012200

FM010331

FM010331

FM010331

FN015100

FM010470

FM010470

FM010470

FM010222

FM010102

FM010472

FM010472

FM010472

FM010222

FM010821

FM010102

DESCRIPTION

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

R CHIP 1/10W(T) 5% 330

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

R SMD 1/10W(T) 5% 33

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 1% 220O

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R SMD METAL 1/10W 510 F

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 2.2K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 2.2K

R SMD METAL 1/10W 820 J T

CHIP RES 1/10W (T) 5% 1KO

8-186

SYMBOL Part No for NPG

RA8EA

RA8HB

RA8HG

RA8HR

RA8KA

RA8LA

RAA3

RAA4

RAA5

RAA6

RAE3

RAE4

RAE5

RAE6

RAFH

RAFK

RAH1

RA87G

RA87R

RA88A

RA88B

RA88G

RA88R

RA89A

RA89B

RA89G

RA89R

RA8AA

RA8AB

RA8AG

RA8AR

RAH2

RAH3

RAH5

RAH6

RAH7

RAM1

RAM2

RAM3

RAM4

RAM5

RAM6

RAM7

RAM8

RAN1

RAN2

RAN3

RAN4

FM010332

FM010102

FM010102

FM010102

FM010272

FM010000

FM010471

FM010222

FM010682

FM010223

FM010180

FM010330

FM010330

FM010330

FM010100

FM010100

FM010184

FM010102

FM010102

FM010272

FM010472

FM010472

FM010472

FM010101

FM010102

FM010102

FM010102

FM010101

FM010472

FM010472

FM010472

FM010102

FM010151

FM010184

FM010102

FM010151

FM010103

FM010103

FM010183

FM010183

FM010102

FM010102

FM010272

FM010272

FM010470

FM010470

FM010683

FM010683

DESCRIPTION

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 0OHM

CHIP 1/10W(T) 5% 470H

CHIP RES 1/10W(T) 5% 2.2K

R SMD 1/10W(T) 5% 6.8K

CHIP RES 1/10W(T) 5% 22KO

R SMD METAL 1/10W 18 J T

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 10

R SMD 1/10W(T) 5% 10

R SMD METAL 1/10W 180K J

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 150H

R SMD METAL 1/10W 180K J

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 150H

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/10W 18K J T

R SMD METAL 1/10W 18K J T

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 2.7K J

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 68K

CHIP RES 1/10W(T) 5% 68K

8-187

SYMBOL Part No for NPG

RK22

RK23

RK24

RK25

RK26

RK2A

RK2E

RKAE

RKF1

RKF2

RKF6

RKF7

RKF8

RKF9

RAN5

RAN6

RAN7

RAN8

RAN9

RANA

RK01

RK07

RK08

RK09

RK0A

RK10

RK11

RK16

FM010560

FM010330

FM010473

FM010473

FM010000

FM010473

FM010473

FM010473

FN015100

FN015100

FN012701

FM010101

FM010473

FM010101

FM010184

FM010184

FM010102

FM010102

FM010101

FM010101

FM010391

FM010560

FM010330

FM010473

FM010473

FM010473

FM010000

FM010391

*** CAPACITORS ***

C151 GX439157

C152

C153

GX41050X

GN247538

C154

C15A

C201

C221

GX41051Y

GX01060Y

GX12260Y

GNH10710

C222

C223

C224

C225

C226

C22E

C22F

C261

C263

C265

C26A

GX01060Y

GNM33728

GN210624

GX410439

GX410439

GX410439

GX42250Y

GX410439

GN210624

GX410439

GX410439

DESCRIPTION

R SMD METAL 1/10W 180K J

R SMD METAL 1/10W 180K J

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD METAL 1/10W 390 J T

CHIP RES 1/10W(T) 5% 56OH

R SMD 1/10W(T) 5% 33

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 0OHM

R SMD METAL 1/10W 390 J T

CHIP RES 1/10W(T) 5% 56OH

R SMD 1/10W(T) 5% 33

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 0OHM

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

R SMD METAL 1/10W 510 F

R SMD METAL 1/10W 510 F

R SMD METAL 1/10W 2.7K F

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 100O

C SMD CER CH 390P 50V J

C SMD CER BJ 1U 6.3V K

C SMD ELE105 4.7U 25V M

C SMD CER BJ 1U 10V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 22U 6.3V M

C SMD ELE105 100U 10V M

C SMD CER BJ 10U 6.3V M

C SMD ELE105 330U 16V M

C SMD ELE105 10U 16V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 2.2U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

8-188

SYMBOL Part No for NPG

C2M1

C2M2

C2M3

C2M4

C2M5

C2M6

C409

C410

C411

C412

C413

C414

C415

C416

C417

C418

C419

C271

C273

C274

C275

C276

C277

C278

C27E

C281

C2A2

C2A3

C2A4

C2A5

C2E1

C420

C421

C422

C423

C424

C425

C426

C427

C428

C429

C430

C431

C432

C433

C434

C443

C444

GX12260Y

GX410439

GX410439

GX410439

GX410439

GX01060Y

GX01060Y

GX41050X

GX12260Y

GX410439

GX410439

GNH22630

GNM33728

GX410439

GNJ10730

GX04733X

GX42725K

GX410439

GX410439

GNM68728

GX01060Y

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX01060Y

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX01060Y

GX01060Y

DESCRIPTION

C SMD CER BJ 22U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 1U 6.3V K

C SMD CER BJ 22U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 22U 25V M

C SMD ELE105 330U 16V M

C SMD CER F 0.1U 25V Z

C SMD ELE105 100U 25V M

C SMD CER BJ 0.047U 25V K

C SMD CER B 2700P 50V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 680U 16V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

8-189

SYMBOL Part No for NPG

C4E5

C4E6

C4E7

C4E8

C4E9

C4F0

C4F1

C4F2

C4F3

C4F4

C4F5

C4F6

C4F7

C4F8

C4F9

C4FA

C4FE

C451

C452

C454

C455

C458

C459

C45F

C4A2

C4A4

C4E0

C4E1

C4E2

C4E3

C4E4

C4FF

C4FH

C4FJ

C4FK

C4FL

C4FM

C4FMZ

C4FN

C4FP

C4FQ

C4FR

C4FS

C4FT

C4FW

C4FX

C4FY

C551

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX01060Y

GX410056

GX410056

GX410439

GX410439

GX410439

GN210624

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GN210624

GX42250Y

GX410439

GX410439

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER BJ 2.2U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

8-190

SYMBOL Part No for NPG

C806

C807

C808

C809

C810

C811

C812

C813

C815

C818

C819

C820

C821

C8A1

C8A2

C8E1

C901

C552

C553

C554

C555

C556

C561

C562

C563

C564

C565

C566

C801

C802

C805

C902

C905

C906

C907

C910

C911

C912

C913

C914

C915

C920

C925

C926

C927

C951

C952

C953

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX41042K

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX41042K

GX41042K

GX410439

GX410439

GX410439

GJ047417

GJ047417

GJC102E5

GGY00010

GT001011

GGV22650

GGH10740

GX010459

GX010252

GX010054

GX01043X

GX01035K

GT001391

GX01060X

GGH47555

GGR15830

GGR15830

GGR10830

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER B 0.1U 16V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER B 0.1U 16V K

C SMD CER B 0.1U 16V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SAFE X 0.47U AC275V K

C SAFE X 0.47U AC275V K

SAFETY Y-CAP/D1000P/400VM

C ELE105 120U 450V SNAP-I

C FILM MM 0.01U 400V J

C ELE105 22U 50V M (T)

C ELE105 100U 35V M (T)

C SMD CER F 0.1U 50V Z

C SMD C0G 1000P 50V J 080

C SMD CER CH 10P 50V C

C SMD CER BJ 0.1U 25V K

C SMD CER B 0.01U 50V K

C FILM MM 0.47U 100V J

C SMD CER BJ 10U 6.3V K

C ELE105 4.7U 50V M (T)

C ELE105 1500U 25V M (T)

C ELE105 1500U 25V M (T)

C ELE105 1000U 25V M (T)

8-191

SYMBOL Part No for NPG

C9X5

CA05

CA06

CA07

CA08

CA09

CA10

CA12

CA19

CA20

CA21

CA22

CA23

CA24

CA25

CA26

CA28

C954

C955

C9A2

C9A3

C9A4

C9A6

C9A7

C9E1

C9E2

C9E3

C9X1

C9X2

C9X3

C9X4

CA29

CA2A

CA36

CA37

CA38

CA39

CA40

CA41

CA42

CA43

CA44

CA45

CA53

CA67

CA70A

CA70B

CA70G

GX01052Y

GH001251

GGH22555

GT001011

GX01043X

GX01051X

GGH47635

GGR22810

GX01051X

GGH10810

GT002401

GX01035K

GX04715K

GX03342X

GX01015J

GX44732X

GX44732X

GX44732X

GX44732X

GX44732X

GX44732X

GX41025K

GX41025K

GX01060Y

GS782222

GS747322

GX410439

GX410439

GX410439

GX41050X

GX410439

GX410439

GS715322

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX01060Y

GX01060Y

GX01060Y

GX410439

GX410439

DESCRIPTION

C SMD CER BJ 1U 16V M

C CER SL 150P 1KV J (T)

C ELE105 2.2U 50V M (T)

C FILM MM 0.01U 400V J

C SMD CER BJ 0.1U 25V K

C SMD CER BJ 1U 10V K

C ELE105 47U 25V M (T)

C ELE105 2200U 10V M (T)

C SMD CER BJ 1U 10V K

C ELE105 1000U 10V M (T)

C FILM PMS 0.47U 400V J

C SMD CER B 0.01U 50V K

C SMD CER B 470P 50V K

C SMD CER BJ 0.33U 16V K

C SMD CER SL 100P 50V J

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER B 1000P 50V K

C SMD CER B 1000P 50V K

C SMD CER BJ 10U 6.3V M

C SMD FILM ECHU 8200P 16V

C SMD FILM ECHU 47000P 16

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 1U 6.3V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD FILM ECHU 15000P 16

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

8-192

SYMBOL Part No for NPG

CA75A

CA75B

CA75G

CA75R

CA76B

CA76G

CA76R

CA77A

CA77B

CA77G

CA77R

CA78A

CA80A

CA80B

CA80G

CA80R

CA81B

CA70R

CA71B

CA71G

CA71R

CA72A

CA72B

CA72G

CA72R

CA73B

CA73G

CA73R

CA74B

CA74G

CA74R

CA81G

CA81R

CA82B

CA82G

CA82R

CA83B

CA83G

CA83R

CA84B

CA84G

CA84R

CA85A

CA85B

CA85G

CA85R

CA86B

CA86G

GX410439

GX01060Y

GX01060Y

GX01060Y

GX410439

GX410439

GX410439

GX410439

GX410056

GX410056

GX410056

GX410439

GX410439

GX410439

GX01060Y

GX422057

GX422057

GX422057

GX410439

GX410439

GX410439

GX468057

GX447057

GX447057

GX447057

GX410439

GX01060Y

GX410439

GX410439

GX410439

GX01060Y

GX01060Y

GX01060Y

GX410439

GX410439

GX410439

GX410056

GX410056

GX410056

GX410439

GX410439

GX410439

GX01060Y

GX422057

GX422057

GX422057

GX410439

GX410439

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 68P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

8-193

SYMBOL Part No for NPG

CAH1

CAH2

CAH3

CAH4

CAM3

CAM4

CAN1

CAN2

CAN3

CAN4

CK01

CK02

CK03

CK04

CK05

CK06

CK07

CA86R

CA87A

CA87B

CA87G

CA87R

CA88A

CA90

CA91

CAA1

CAA2

CAA3

CAA4

CAA5

CAA6

CK08

CK09

CK10

CK11

CK12

CK13

CK14

CK16

CK17

CK18

CK19

CK20

CK21

CK22

CK23

CK24

CK25

GX410439

GX468057

GX447057

GX447057

GX447057

GX410439

GX41025K

GX41025K

GX410439

GX410439

GX410439

GX410439

GX410439

GN210624

GX41050X

GX41050X

GX46825K

GX46825K

GX01060Y

GX01060Y

GX41050X

GX41050X

GX46825K

GX46825K

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410157

GX410157

GX410157

GX410157

GX410157

GX01060Y

GN310720

GX410157

GX01060Y

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

GX410439

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER CH 68P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER B 1000P 50V K

C SMD CER B 1000P 50V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER BJ 1U 6.3V K

C SMD CER BJ 1U 6.3V K

C SMD CER B 6800P 50V K

C SMD CER B 6800P 50V K

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 1U 6.3V K

C SMD CER BJ 1U 6.3V K

C SMD CER B 6800P 50V K

C SMD CER B 6800P 50V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD ELE105 100U 16V M

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

8-194

SYMBOL Part No for NPG

CK26

CK27

CK28

CK29

CK30

CK31

CK32

CK34

CK35

CK36

CKF1

CKF2

GX410439

GX410157

GX410157

GX410157

GX410157

GX410157

GX01060Y

GN310720

GX410157

GX01060Y

GX410439

GX410439

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD ELE105 100U 16V M

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

8-195

REPLACEMENT PARTS LIST

(For Asia / Pacific)

The components specified for Model LCD2080UX(A)

Manufactured by NPG

SYMBOL Part No for NMV DESCRIPTION

*** ICS ***

IC201

IC221

IC222

IC251

IC271

IC272

79PQ6140

79PQ6138

79PQ6140

79PQ6139

79PQ6140

79PQ6140

79PQ6138

79PQ6128

IC2A1

IC401

IC402

IC403

IC405

IC4A1

IC4A2

IC4A3

IC551

IC552

IC801

IC802

IC803

IC804

IC8A1

IC8A2

IC8A3

IC8A4

IC8A5

79PQ6123

79PQ6134

79PQ6131

79PQ6126

79PQ6129

79PQ6129

79PQ5768

79PQ5768

79PQ5301

79PQ5301

79PQ6130

79PQ6124

79PQ5255

79PQ6136

79PQ6136

79PQ6135

79PQ6135

IC8F1

IC901

79PQ5255

79PQ6120

IC951 79PQ6122

IC9A1 79PQ6121

IC9A2 79PQ6141

IC9E1 79PQ6122

ICA01 79PQ6125

ICA70A

ICAA1

ICAA2

ICAA3

79PQ6137

79PQ6129

79PQ6129

79PQ6133

ICAA4

ICAA5

ICAA6

ICK01

ICK02

79PQ6133

79PQ6142

79PQ6132

79PQ6127

79PQ6127

IC SMD BA00BC0WFP

IC SMD PQ1CZ21H2ZP

IC SMD BA00BC0WFP

IC SMD L4978 REGULATOR

IC SMD BA00BC0WFP

IC SMD BA00BC0WFP

IC SMD PQ1CZ21H2ZP

IC SMD PW164B

IC SMD LH28F800-L202V03

IC SMD ICS332M-L202EV

IC SMDSN74AHC2G125H MOS

IC SMD UPD65545-Y-6C

IC SMD NC7WZ14

IC SMD NC7WZ14

IC SMD DS90C385MTD MOS

IC SMD DS90C385MTD MOS

IC RESET M51957AFP

IC RESET M51957AFP

IC SMD CAT24WC64JI-TE13 M

IC SMD M30625MGN-A26GP

IC SMD BU9882F-WE2 MOS

IC SMD X9116WM8-2.7T4 MOS

IC SMD X9116WM8-2.7T4 MOS

IC SMD SN74CBT1G125DCK

IC SMD SN74CBT1G125DCK

IC SMD BU9882F-WE2 MOS

IC STR-E1717 LF NO. 1064

IC SMD XN04A8800L

IC SMD AD9888KS-170

IC SMD AD8002AR

IC SMD NC7WZ14

IC SMD NC7WZ14

IC SMD SN74CBTLV1G125DCK

IC SMD SN74CBTLV1G125DCK

IC SMD TA76431F

IC SMD SN74CBTLV3125PW

IC SMD TFP401 MOS

IC SMD TFP401 MOS

8-196

SYMBOL

PC901

PC911

PC9A1

Part No for NMV

79PQ5663

79PQ5663

79PQ5663

Q911

Q912

Q913

Q930

Q931

Q932

Q933

Q9E1

QA70A

QA70B

QA70G

QA70R

QA71A

Q265

Q271

Q272

Q451

Q452

Q453

Q805

Q806

Q807

Q861

Q863

Q8A3

Q8E1

Q8E5

Q8E6

Q901

Q908

*** TRANSISTORS ***

Q101

Q102

79PQ6110

79PQ6114

Q104

Q105

Q151

79PQ6110

79PQ6114

79PQ6115

Q152

Q153

Q154

Q155

Q156

Q157

Q261

Q262

79PQ6106

79PQ5517

79PQ6108

79PQ6108

79PQ6109

79PQ6108

79PQ6108

79PQ6119

79PQ6117

79PQ6108

79PQ6108

79PQ6114

79PQ6108

79PQ6108

79PQ6108

79PQ6113

79PQ6113

79PQ6117

79PQ6117

79PQ6108

79PQ6108

79PQ6108

79PQ6108

79PQ6116

79PQ6118

79PQ6106

79PQ5517

79PQ5517

79PQ6108

79PQ6105

79PQ6108

79PQ6111

79PQ6108

79PQ6108

79PQ6112

79PQ6112

79PQ6112

79PQ6115

DESCRIPTION

IC PHOTO COUPLE PC123Y

IC PHOTO COUPLE PC123Y

IC PHOTO COUPLE PC123Y

TR SMD DTC143ZKA-T146

TR SMD 2SA1162-GR

TR SMD DTC143ZKA-T146

TR SMD 2SA1162-GR

FET SMD 2SJ580-TD

TR SMD 2SA1037AK-T146 Q

CHIP TR NPN 2SC2412K-T146

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTA144EKA

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

FET SMD 2SJ377(TE16L)

FET SMD 2SK3018-T106

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD 2SA1162-GR

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD 2SC3734

TR SMD 2SC3734

FET SMD 2SK3018-T106

FET SMD 2SK3018-T106

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

FET 2SK3673-01MR-F111

FET SMD 2SK2715 P

TR SMD 2SA1037AK-T146 Q

CHIP TR NPN 2SC2412K-T146

CHIP TR NPN 2SC2412K-T146

TR SMD DTC144EKA-T146(O)

TR 2SC5562

TR SMD DTC144EKA-T146(O)

TR SMD DTB114EK

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD 2SC5084-O

TR SMD 2SC5084-O

TR SMD 2SC5084-O

FET SMD 2SJ580-TD

8-197

SYMBOL

QA81G

QA81R

QA82B

QA82G

QA82R

QA83B

QA83G

QA83R

QAA1

QAH1

QAH2

QAM1

QAM2

QAN1

QAN2

QKF1

QA71B

QA71G

QA71R

QA72A

QA72B

QA72G

QA72R

QA73B

QA73G

QA73R

QA80B

QA80G

QA80R

QA81B

*** DIODES ***

D151 79PQ5251

D152

D221

79PQ6150

79PQ6152

D222

D271

D272

D273

79PQ5251

79PQ5251

79PQ5251

79PQ5251

D274

D275

D2A1

D2M1

D901

D902

D907

D911

D912

79PQ5671

79PQ5671

79PQ6152

79PQ6152

79PQ6143

79PQ6147

79PQ6148

79PQ6153

79PQ6155

Part No for NMV

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6108

79PQ6107

79PQ6107

79PQ6113

79PQ6113

79PQ6107

79PQ6107

79PQ6106

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6112

79PQ6112

79PQ6112

79PQ6109

DESCRIPTION

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD 2SC5084-O

TR SMD 2SC5084-O

TR SMD 2SC5084-O

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTC144EKA-T146(O)

TR SMD 2SA1434-TB

TR SMD 2SA1434-TB

TR SMD 2SC3734

TR SMD 2SC3734

TR SMD 2SA1434-TB

TR SMD 2SA1434-TB

TR SMD 2SA1037AK-T146 Q

CHIP DIODE/T 1SS355TE-17

DI SMD RB715F-T106

DI SMD SFPB-64

CHIP DIODE/T 1SS355TE-17

CHIP DIODE/T 1SS355TE-17

CHIP DIODE/T 1SS355TE-17

CHIP DIODE/T 1SS355TE-17

DIODE RB495D

DIODE RB495D

DI SMD SFPB-64

DI SMD SFPB-64

DI D3SBA60

DI RM10A (T)

DI EG01CV1-T

DI SMD 1SR156-400

DI SMD MA2Z001

8-198

Part No for NMV

79PQ5558

79PQ5558

79PQ5558

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6156

79PQ6156

79PQ6155

79PQ5251

79PQ6144

79PQ6148

79PQ6155

79PQ6145

79PQ6146

79PQ6154

79PQ5558

79PQ5558

79PQ5558

79PQ5251

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6151

79PQ6163

79PQ6165

79PQ6164

79PQ6162

79PQ6161

79PQ6165

79PQ6163

79PQ6164

79PQ6157

79PQ6157

SYMBOL

DA11

DA12

DA13

DA70A

DA71B

DA71G

DA71R

DA72B

DA72G

DA72R

DA73B

DA73G

DA73R

DA80A

DA81B

DA81G

DA81R

D913

D914

D915

D930

D951

D9A1

D9A2

D9E1

D9X1

D9X2

DA01

DA02

DA03

DA04

DA82B

DA82G

DA82R

DA83B

DA83G

DA83R

ZD8G2

ZD908

ZD910

ZD917

ZD918

ZD919

ZD920

ZD930

ZD9A4

ZDA01

ZDA11

DESCRIPTION

DI SMD DG1M3

DI SMD DG1M3

DI SMD MA2Z001

CHIP DIODE/T 1SS355TE-17

DI FMX-22S

DI EG01CV1-T

DI SMD MA2Z001

DI RK39

DI FMG-G26S

DI SMD SFPL-52

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

CHIP DIODE/T 1SS355TE-17

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD STZ6.2N

ZD SMD UDZS7.5BTE-17

ZD SMD UDZS27BTE-17

ZD SMD UDZS18BTE-17

ZD SMD UDZS5.1BTE-17

ZD SMD UDZS4.7BTE-17

ZD SMD UDZS27BTE-17

ZD SMD UDZS7.5BTE-17

ZD SMD UDZS18BTE-17

DI SMD DF5A6.2F(TE)

DI SMD DF5A6.2F(TE)

8-199

SYMBOL Part No for NMV DESCRIPTION

*** TRANSFORMERS ***

T901 79PQ6275

T9A1 79PQ6276

TRANS SWITCH ST-1102A

TRANS SWITCH L2.3MH

*** RELAYS & SWITCHES ***

SW901 79PQ6283 SW SEESAW SDDJE14500

*** PWB ASSYS ***

MANSAS 79PQ6103

PWNSAS

XJM01

79PQ6104

79PQ6286

L221

L222

L223

L261

L262

L263

L271

L272

L2A1

L2A2

L2M1

L405

L406

L451

L452

L453

L454

L459

L4A1

L4A2

L4A3

*** COILS & FILTERS ***

FL203

FL2M1

79PQ6273

79PQ6273

FL901

L115

L116

L117

79PQ6266

79PQ6279

79PQ6279

79PQ6279

L118

L119

L120

L121

L122

L123

L125

79PQ6279

79PQ6279

79PQ6279

79PQ6279

79PQ6279

79PQ6279

79PQ6279

79PQ6280

79PQ6280

79PQ6272

79PQ6280

79PQ6281

79PQ6280

79PQ6280

79PQ6280

79PQ6272

79PQ6280

79PQ6271

79PQ6280

79PQ6280

79PQ6279

79PQ6277

79PQ6277

79PQ6279

79PQ6279

79PQ6279

79PQ6280

79PQ6280

MAIN INSERT ASSY

POWER INSERT ASSY

INVERTER UNIT L202EV

L SMD NFM60R30T222T1

L SMD NFM60R30T222T1

L LINE FILTER LFZ28H05

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L SMD SLF10145T-101M1R0-P

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH4525HM102N

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L SMD SLF10145T-101M1R0-P

L BEAD SMD FBMH3216HM501N

L SMD SLF12565T-101M1R6

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608HS800-T

L BEAD SMD BK1608HS800-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

8-200

SYMBOL

L4A4

L4A5

L551

L552

L553

L561

L562

L563

L951

L9A1

L9E1

L9X1

L9X2

LAA3

LAA4

LAA5

LAA6

LAA7

LAH1

LAH2

LAN1

LAN2

Part No for NMV

79PQ6282

79PQ6282

79PQ6278

79PQ6278

79PQ6278

79PQ6278

79PQ6278

79PQ6278

79PQ6270

79PQ6274

79PQ6269

79PQ6267

79PQ6268

79PQ6282

79PQ6282

79PQ6282

79PQ6282

79PQ6282

79PQ6282

79PQ6282

79PQ6282

79PQ6282

DESCRIPTION

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L SBC7-100-532

L SMD LEMC3225T101K

L CHOKE TSL1112RA-100M3R7

L PFC COIL 77A-2702

L CHOKE 72U2A SF1-T8-50S-

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***

CABUAS

CN951

F901

OSC4A1

79PQ6083

79PQ6287

79PQ3032

79PQ6160

TH901 79PQ6167

CABLE BUTTON ASSY(WH)

WIRE CB14P 1007#26L100

FUSE SG5013 3.15 PF 250V

OSC SMD IC 55MHZ

VD901

X402

X7A01

X7A02

79PQ5332

79PQ6158

79PQ6288

79PQ6289

VARISTOR ENE471D-10A

OSC SMD XTAL 14.31818MHZ

WIRE CC30P 1516#30L250

WIRE CB13P 1007#26L70

X801

XD7A01

XD7A02

XD7A03

XD7A04

XJG01

79PQ6159

79PQ6284

79PQ6290

79PQ6291

79PQ6295

3A684034

OSC SMD CSTCR7M37G53-R0

CABLE BUTTON WHT

CABLE VI DVID-DVID 2M HG

CABLE VI DVID-DSUB 2M HG

PW CORD NA 2.0M HG I-SHEN

LCD LM201U03 LGPHILIPS

*** APPEARANCE PARTS ***

BAAS

BE

BRBAAS

79PQ6062

79PQ6074

79PQ6065

CVCA

STCV

STUN

79PQ6081

79PQ6079

79PQ6077

BACK ASSY,L202EV(WH,N)

BEZEL,L202EV(WH,N)

BRACKET BASE ASSY,L202EV

COVER CABLE,L202EV(WH)

STAND COVER TB,L202EV(WH)

STAND UNIT,L202EV(WH)

8-201

SYMBOL Part No for NMV DESCRIPTION

*** PRINTED & PACKING MATERIALS ***

CABX

CASH

79PQ6066

79PQ6084

CARTON BOX,L202EV(WHA)

CARTON SHEET,L202EV

FLB

FLC

FLT

LVSH

79PQ6086

79PQ6087

79PQ6085

79PQ6098

FILLER B,L202EV

FILLER C,L202EV

FILLER T,L202EV

LVIEW SHEET

MANUAL,L202EV(A)

NAVISET CARTON BOX FLYER

MANU

NAFL

79PQ6091

79PQ2790

PABAG 79PQ6089

PEBAG

PROTE

RALA

SHSE

79PQ5129

79PQ6052

79PQ6071

79PQ6095

PE BAG (340*225)

PROTECTION SHEET

RATING LABEL,L202EV(WH)

SHEET SETUP,L202EV(A)

MR404

MR405

MR406

MR407

MR408

MR409

MR410

MR411

MR412

MR4G1

MR4G3

MR4G5

MR4G7

MR4G9

MR4H1

MRA01

MRA03

MRA05

*** RESISTORS ***

J921

J923

79EN0189

79EN0189

J924

J925

J926

J927

79EN0189

79EN0189

79EN0189

79EN0189

J928

J929

J930

J940

J961

J962

MR401

MR402

MR403

79EN0189

79EN0189

79PQ6212

79EN0189

79EN0189

79EN0189

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6208

79PQ6208

79PQ6208

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD METAL 1/4W 0 JUMPER

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

8-202

Part No for NMV

79PQ6207

79PQ5277

79PQ5277

79EN0158

79PQ5277

79PQ5277

79EN0158

79PQ1892

79PQ1892

79PQ1892

79PQ1892

79PQ1892

79PQ1892

79PQ1892

79PQ1892

79PQ6189

79PQ5869

79PQ6208

79PQ6208

79PQ6208

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ5675

79PQ5869

79PQ5314

79PQ6178

79PQ5675

79PQ6176

79PQ5675

79PQ5675

79PQ5675

79PQ5371

79PQ5371

79PQ5371

79PQ6197

79EN0781

79PQ5316

79EN0780

79PQ6188

SYMBOL

MRK23

R101

R102

R103

R105

R106

R107

R117

R118

R119

R120

R121

R122

R123

R125

R151

R152

MRA07

MRA09

MRA11

MRK01

MRK03

MRK05

MRK07

MRK09

MRK11

MRK13

MRK15

MRK17

MRK19

MRK21

R153

R154

R155

R156

R157

R158

R159

R15A

R15E

R15F

R15L

R201

R202

R203

R221

R222

R223

DESCRIPTION

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

R SMD 1/10W(T) 1% 180

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

R SMD 1/10W(T) 1% 180

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

R SMD METAL 1/10W 1.5K F

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 56OH

R SMD METAL 1/10W 820K J

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/10W 56K J T

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 56K F

R SMD 1/10W(T) 1% 33K

CHIP RES 1/10W(T) 1% 1.8K

R SMD 1/10W(T) 1% 27K

R SMD METAL 1/10W 1.2K F

8-203

Part No for NMV

79PQ5684

79PQ5307

79EN0781

79EN0781

79PQ6188

79PQ5675

79PQ5314

79PQ5314

79PQ6195

79PQ5280

79PQ6199

79PQ5371

79PQ5278

79PQ6191

79PQ6188

79PQ5278

79PQ6200

79PQ6194

79PQ5371

79PQ5371

79EN0183

79EN0183

79PQ5313

79EN0781

79PQ6210

79PQ6210

79PQ5371

79PQ5315

79PQ6175

79PQ6197

79EN0781

79PQ6198

79PQ5320

79PQ5320

79PQ5371

79PQ5314

79PQ5371

79PQ5039

79PQ5320

79PQ5320

79PQ5272

79PQ5272

79PQ5314

79PQ5314

79PQ5315

79PQ5307

79PQ5307

79PQ5675

SYMBOL

R274A

R275

R276

R277

R277A

R278

R2A1

R2A2

R2A3

R2A4

R2A5

R2A7

R2M1

R2M2

R2M3

R2M4

R2M5

R224

R225

R226

R261

R262

R266

R267

R268

R269

R26A

R271

R272

R273

R274

R402

R403

R405

R409

R412

R415

R416

R418

R422

R429

R430

R433

R435

R449

R451

R452

R453

DESCRIPTION

R SMD METAL 1/10W 30K F

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD 1/10W(T) 5% 33K

R SMD 1/10W(T) 5% 33K

CHIP RES 1/10W(T) 1% 150K

R SMD 1/10W(T) 1% 33K

R SMD METAL 1/2W 680 J

R SMD METAL 1/2W 680 J

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 2.2K

R SMD METAL 1/10W 5.6K J

R SMD METAL 1/10W 56K F

R SMD 1/10W(T) 1% 33K

CHIP RES 1/10W(T) 1% 2.2K

CHIP RES 1/10W(T) 5% 3.3K

R SMD 1/10W(T) 1% 33K

R SMD 1/10W(T) 1% 33K

R SMD METAL 1/10W 1.2K F

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W(T) 5% 56OH

R SMD METAL 1/10W 390 F

CHIP RES 1/10W(T) 1% 1KOH

R SMD METAL 1/10W 8.2K F

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 1% 4.7K

R SMD METAL 1/10W 22K F

R SMD METAL 1/10W 1.2K F

CHIP RES 1/10W(T) 1% 4.7K

R SMD METAL 1/10W 82 F

R SMD METAL 1/10W 62 F

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W(T) 5% 2.2K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W(T) 5% 10KO

8-204

Part No for NMV

79PQ5272

79PQ5272

79PQ5371

79PQ5314

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79PQ5039

79PQ5371

79PQ5272

79PQ5371

79PQ5039

79PQ5039

79PQ5675

79PQ5675

79PQ5272

79PQ5272

79PQ5675

79PQ5675

79PQ5272

79PQ5272

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79PQ5272

79PQ5272

79PQ5272

79PQ5272

79PQ5272

79PQ5675

79PQ6186

79PQ5317

79PQ5675

79EN0780

79PQ6192

79PQ5039

SYMBOL

R467

R468

R470

R4A2

R4A3

R4A4

R4A5

R4A6

R4A7

R4A8

R4A9

R4AK

R4AL

R4AM

R4AN

R4AP

R4AT

R454

R455

R456

R457

R458

R459

R45E

R45K

R45P

R45T

R463

R464

R465

R466

R4E0

R4E1

R4E2

R4E3

R4E4

R4E5

R4E6

R4E7

R4E8

R4E9

R4EA

R550

R801

R802

R803

R805

R806

DESCRIPTION

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 56OH

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/4W 5.1K J T

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 10KO

R SMD 1/10W(T) 1% 27K

R SMD METAL 1/10W 24K F

CHIP 1/10W(T) 5% 47K

8-205

Part No for NMV

79PQ5272

79PQ5272

79PQ5272

79PQ5039

79PQ5039

79PQ5039

79PQ5272

79PQ5272

79PQ5272

79PQ5039

79EN0184

79PQ5272

79PQ5272

79PQ5272

79PQ5039

79PQ5039

79PQ5039

79PQ5675

79PQ5675

79PQ5675

79PQ5272

79PQ5272

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79PQ5272

79PQ5272

79PQ5317

79PQ6190

79EN0162

79PQ5317

79PQ5317

79PQ5317

79PQ5317

79PQ5317

79PQ5317

79PQ5317

79PQ6211

79PQ5272

79PQ5272

79PQ5039

79PQ5039

79PQ5039

79PQ5039

SYMBOL

R823

R826

R827

R828

R829

R830

R831

R832

R833

R834

R838

R839

R840

R841

R842

R844

R845

R807

R808

R809

R811

R812

R813

R814

R815

R816

R818

R819

R820

R821

R822

R846

R849

R850

R883

R885

R886

R887

R889

R890

R891

R8A2

R8A4

R8A5

R8A6

R8A7

R8AA

R8AE

DESCRIPTION

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 22KO

R SMD METAL 1/10W 18K F

R SMD 1/10W(T) 1% 220K

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

R SMD METAL 1W 33 J

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

8-206

Part No for NMV

79PQ5039

79PQ5039

79PQ5039

79PQ6211

79PQ5675

79PQ5272

79PQ5272

79PQ6185

79PQ6185

79PQ6185

79PQ6181

79PQ6181

79PQ6181

79PQ6169

79PQ6187

79PQ6170

79PQ1897

79PQ5039

79PQ5039

79PQ5039

79PQ5039

79PQ5039

79PQ5039

79PQ5039

79PQ5039

79PQ5039

79PQ6211

79PQ5675

79PQ5272

79PQ5272

79PQ5039

79PQ6201

79PQ6204

79PQ6202

79PQ5310

79PQ6166

79PQ1896

79EN0232

79PQ1891

79PQ1893

79PQ1898

79PQ6184

79PQ1893

79PQ1893

79PQ1898

79PQ6203

79PQ5310

79PQ1902

SYMBOL

R8F7

R8FX

R8FY

R8G2

R8G3

R8G4

R8G5

R901

R902

R903

R904

R905

R906

R907

R908

R909

R910

R8AL

R8AX

R8AY

R8E1

R8E7

R8E8

R8E9

R8EA

R8EF

R8F2

R8F3

R8F4

R8F5

R8F6

R911

R912

R913

R914

R915

R916

R917

R918

R920

R921

R922

R923

R924

R925

R926

R927

R928

DESCRIPTION

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

R SMD METAL 1W 33 J

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

R SMD METAL 1W 33 J

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD METAL 1/4W 470K J T

R SMD METAL 1/4W 470K J T

R SMD METAL 1/4W 470K J T

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

R MOF 2W/M 100K J (A)

R SMD METAL 1/3W 2.2K J T

R MOF 2W/M 0.33 J(A)

CHIP 1/8W(T) 5% 22K

R SMD METAL 1/8W 4.7 F T

R SMD METAL 1/4W 10K F T

R SMD METAL 1/8W 680 F T

CHIP RES 1/8W(T) 5% 100KO

R CARBON 1/4W 5.6 J M T

CHIP 1/8W(T) 5% 220H

R SMD 1/8W(T) 5% 470

CHIP 1/8W(T) 5% 100H

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 33K

R SMD METAL 1/4W 33K J T

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 33K

R SMD METAL 1/8W 9.1K F T

CHIP RES 1/8W(T) 5% 100KO

CHIP 1/8W(T) 1% 10K

8-207

Part No for NMV

79PQ5682

79PQ6180

79PQ1969

79PQ1890

79PQ1893

79PQ6179

79PQ1891

79EN0200

79EN0227

79EN0200

79PQ1890

79PQ1969

79PQ6183

79PQ6183

79PQ1898

79PQ6206

79PQ6206

79PQ1893

79PQ1897

79PQ5310

79PQ1893

79PQ6181

79PQ6181

79PQ6181

79PQ5549

79EN0218

79PQ2170

79PQ5361

79PQ1890

79PQ1892

79PQ6168

79PQ6205

79PQ1905

79PQ6182

79PQ1892

79PQ1891

79PQ6170

79EN0184

79EN0184

79EN0184

79EN0184

79PQ5315

79PQ5315

79EN0179

79EN0179

79EN0184

79EN0184

79EN0184

SYMBOL

R9A3

R9A4

R9A5

R9A6

R9A7

R9A8

R9E1

R9E2

R9E3

R9E4

R9E6

R9E7

R9X1

R9X2

R9X4

R9X5

R9X6

R929

R931

R933

R934

R935

R936

R937

R951

R952

R953

R954

R955

R956

R9A2

R9X7

R9X8

R9X9

R9Y1

R9Y2

R9Y3

RA03

RA04

RA05

RA06

RA07

RA08

RA11

RA12

RA19

RA20

RA21

DESCRIPTION

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 22K

CHIP RES 1/8W(T) 5% 100KO

CHIP 1/8W(T) 5% 10K

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

RES SMD 1/8W(T) 5% 1.2KOH

R SMD 1/8W(T) 1% 7.5K

CHIP 1/8W(T) 1% 6.2K

CHIP RES 1/8W (T) 1% 2.2K

CHIP 1/8W(T) 5% 0 H

CHIP 1/8W(T) 5% 1K

R MOF 1W/M 47K J(A)

CHIP RES 1/8W(T) 5% 27OHM

R SMD METAL 1/4W 1.0K J T

CHIP 1/8W(T) 5% 3.9K

CHIP 1/8W(T) 5% 0 H

CHIP 1/8W(T) 5% 10K

R SMD METAL 1/4W 100 J T

CHIP 1/8W(T) 5% 100H

R SMD 1/8W(T) 1% 1K

R SMD 1/8W(T) 5% 22

R SMD 1/8W(T) 1% 1K

CHIP 1/8W(T) 5% 0 H

CHIP 1/8W(T) 5% 3.9K

R SMD METAL 1/4W 2.2M J T

R SMD METAL 1/4W 2.2M J T

CHIP 1/8W(T) 5% 33K

R SMD METAL 1/4W 750K F

R SMD METAL 1/4W 750K F

R SMD METAL 1/4W 680K F

CHIP 1/8W(T) 1% 22K

R SMD METAL 1/4W 22K J T

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 100H

R MOF 2W/M 0.33 J(A)

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 2.2K

CHIP RES 1/10W(T) 5% 2.2K

R SMD 1/10W(T) 5% 10

R SMD 1/10W(T) 5% 10

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

8-208

Part No for NMV

79PQ5283

79PQ5283

79PQ5283

79PQ5272

79PQ5675

79PQ5675

79PQ5675

79EN0621

79PQ5306

79PQ5306

79PQ5306

79PQ5869

79PQ5272

79PQ5272

79PQ5272

79PQ5308

79EN0621

79EN0184

79EN0184

79EN0184

79PQ5272

79PQ5272

79PQ5272

79PQ5277

79PQ5675

79EN0184

79PQ5675

79PQ5675

79PQ5277

79PQ5277

79PQ5317

79EN0621

79EN0621

79PQ6196

79PQ5282

79PQ5282

79PQ5282

79PQ5371

79PQ5277

79PQ5277

79PQ5277

79PQ6177

79PQ5371

79PQ5371

79PQ5371

79PQ5869

79PQ5277

79PQ5277

SYMBOL

RA70B

RA70G

RA70R

RA71A

RA71B

RA71G

RA71R

RA72A

RA72B

RA72G

RA72R

RA73A

RA73B

RA73G

RA73R

RA74A

RA74B

RA22

RA23

RA24

RA27

RA28

RA29

RA30

RA34

RA37

RA43

RA44

RA4A

RA4E

RA70A

RA74G

RA74R

RA75A

RA75B

RA75G

RA75R

RA76A

RA76B

RA76G

RA76R

RA77A

RA77B

RA77G

RA77R

RA78A

RA78B

RA78G

DESCRIPTION

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 10KO

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

R CHIP 1/10W(T) 5% 330

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 1% 220O

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R SMD METAL 1/10W 510 F

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

R SMD METAL 1/10W 820 J T

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

8-209

Part No for NMV

79PQ5283

79PQ5283

79PQ5283

79PQ5675

79PQ5675

79PQ5675

79EN0621

79PQ5306

79PQ5306

79PQ5306

79EN0184

79PQ5869

79PQ5272

79PQ5272

79PQ5272

79EN0184

79PQ5308

79PQ5277

79PQ5272

79PQ5371

79PQ5371

79PQ5371

79PQ5272

79PQ5277

79PQ5277

79PQ5277

79PQ5307

79PQ5371

79PQ5371

79PQ5371

79PQ5320

79EN0621

79EN0621

79EN0621

79PQ6196

79PQ5282

79PQ5282

79PQ5282

79PQ5315

79PQ5371

79PQ5277

79PQ5277

79PQ5277

79PQ5315

79PQ6177

79PQ5371

79PQ5371

79PQ5371

SYMBOL

RA80B

RA80G

RA80R

RA81B

RA81G

RA81R

RA82A

RA82B

RA82G

RA82R

RA83

RA83A

RA83B

RA83G

RA83R

RA84

RA84A

RA78R

RA79A

RA79B

RA79G

RA79R

RA7AA

RA7AB

RA7AG

RA7AR

RA7EA

RA7HB

RA7HG

RA7HR

RA7LA

RA84B

RA84G

RA84R

RA85A

RA85B

RA85G

RA85R

RA86

RA86A

RA86B

RA86G

RA86R

RA87

RA87A

RA87B

RA87G

RA87R

DESCRIPTION

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

R CHIP 1/10W(T) 5% 330

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

R SMD 1/10W(T) 5% 33

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 1% 220O

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R SMD METAL 1/10W 510 F

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 2.2K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 2.2K

R SMD METAL 1/10W 820 J T

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

8-210

Part No for NMV

79PQ5371

79PQ5371

79PQ5869

79PQ5320

79PQ5038

79PQ5315

79EN0186

79PQ5317

79PQ6171

79EN0184

79EN0184

79EN0184

79EN0179

79EN0179

79PQ6173

79PQ5371

79PQ5036

79PQ5869

79PQ5277

79PQ5277

79PQ5277

79PQ5272

79PQ5371

79PQ5371

79PQ5371

79PQ5272

79PQ5277

79PQ5277

79PQ5277

79PQ5307

79PQ5371

79PQ6173

79PQ5371

79PQ5036

79PQ5675

79PQ5675

79PQ6172

79PQ6172

79PQ5371

79PQ5371

79PQ5869

79PQ5869

79PQ5282

79PQ5282

79PQ5778

79PQ5778

79PQ6173

79PQ6173

SYMBOL

RA8HG

RA8HR

RA8KA

RA8LA

RAA3

RAA4

RAA5

RAA6

RAE3

RAE4

RAE5

RAE6

RAFH

RAFK

RAH1

RAH2

RAH3

RA88A

RA88B

RA88G

RA88R

RA89A

RA89B

RA89G

RA89R

RA8AA

RA8AB

RA8AG

RA8AR

RA8EA

RA8HB

RAH5

RAH6

RAH7

RAM1

RAM2

RAM3

RAM4

RAM5

RAM6

RAM7

RAM8

RAN1

RAN2

RAN3

RAN4

RAN5

RAN6

DESCRIPTION

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 0OHM

CHIP 1/10W(T) 5% 470H

CHIP RES 1/10W(T) 5% 2.2K

R SMD 1/10W(T) 5% 6.8K

CHIP RES 1/10W(T) 5% 22KO

R SMD METAL 1/10W 18 J T

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 10

R SMD 1/10W(T) 5% 10

R SMD METAL 1/10W 180K J

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 150H

R SMD METAL 1/10W 180K J

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 150H

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/10W 18K J T

R SMD METAL 1/10W 18K J T

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 2.7K J

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 68K

CHIP RES 1/10W(T) 5% 68K

R SMD METAL 1/10W 180K J

R SMD METAL 1/10W 180K J

8-211

SYMBOL

RK24

RK25

RK26

RK2A

RK2E

RKAE

RKF1

RKF2

RKF6

RKF7

RKF8

RKF9

RAN7

RAN8

RAN9

RANA

RK01

RK07

RK08

RK09

RK0A

RK10

RK11

RK16

RK22

RK23

*** CAPACITORS ***

C151 79PQ6261

C152

C153

79PQ6256

79PQ6225

C154

C15A

C201

C221

79PQ6257

79PQ6246

79PQ6250

79PQ6227

C222

C223

C224

C225

C226

C22E

C22F

C261

C263

C265

C26A

C271

C273

79PQ6246

79PQ6230

79PQ6224

79PQ6255

79PQ6255

79PQ6255

79PQ6259

79PQ6255

79PQ6224

79PQ6255

79PQ6255

79PQ6250

79PQ6255

Part No for NMV

79PQ5371

79PQ5371

79PQ5272

79PQ5272

79PQ6174

79PQ5314

79EN0184

79PQ5039

79PQ5039

79PQ5039

79PQ5320

79PQ6174

79PQ5314

79EN0184

79PQ5039

79PQ5039

79PQ5320

79PQ5039

79PQ5039

79PQ5039

79PQ6196

79PQ6196

79PQ6193

79PQ5272

79PQ5039

79PQ5272

DESCRIPTION

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD METAL 1/10W 390 J T

CHIP RES 1/10W(T) 5% 56OH

R SMD 1/10W(T) 5% 33

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 0OHM

R SMD METAL 1/10W 390 J T

CHIP RES 1/10W(T) 5% 56OH

R SMD 1/10W(T) 5% 33

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 0OHM

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

R SMD METAL 1/10W 510 F

R SMD METAL 1/10W 510 F

R SMD METAL 1/10W 2.7K F

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 100O

C SMD CER CH 390P 50V J

C SMD CER BJ 1U 6.3V K

C SMD ELE105 4.7U 25V M

C SMD CER BJ 1U 10V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 22U 6.3V M

C SMD ELE105 100U 10V M

C SMD CER BJ 10U 6.3V M

C SMD ELE105 330U 16V M

C SMD ELE105 10U 16V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 2.2U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 22U 6.3V M

C SMD CER F 0.1U 25V Z

8-212

Part No for NMV

79PQ6260

79PQ6255

79PQ6255

79PQ6231

79PQ6246

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6246

79PQ6246

79PQ6256

79PQ6250

79PQ6255

79PQ6255

79PQ6228

79PQ6230

79PQ6255

79PQ6229

79PQ6249

79PQ6255

79PQ6255

79PQ6255

79PQ6246

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6246

79PQ6246

79PQ6255

79PQ6246

SYMBOL

C2M3

C2M4

C2M5

C2M6

C409

C410

C411

C412

C413

C414

C415

C416

C417

C418

C419

C420

C421

C274

C275

C276

C277

C278

C27E

C281

C2A2

C2A3

C2A4

C2A5

C2E1

C2M1

C2M2

C422

C423

C424

C425

C426

C427

C428

C429

C430

C431

C432

C433

C434

C443

C444

C451

C452

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 1U 6.3V K

C SMD CER BJ 22U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 22U 25V M

C SMD ELE105 330U 16V M

C SMD CER F 0.1U 25V Z

C SMD ELE105 100U 25V M

C SMD CER BJ 0.047U 25V K

C SMD CER B 2700P 50V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 680U 16V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

8-213

Part No for NMV

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6251

79PQ6251

79PQ6255

79PQ6255

79PQ6255

79PQ6224

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6224

79PQ6259

79PQ6255

79PQ6255

79PQ6255

79PQ6255

SYMBOL

C4E7

C4E8

C4E9

C4F0

C4F1

C4F2

C4F3

C4F4

C4F5

C4F6

C4F7

C4F8

C4F9

C4FA

C4FE

C4FF

C4FH

C454

C455

C458

C459

C45F

C4A2

C4A4

C4E0

C4E1

C4E2

C4E3

C4E4

C4E5

C4E6

C4FJ

C4FK

C4FL

C4FM

C4FMZ

C4FN

C4FP

C4FQ

C4FR

C4FS

C4FT

C4FW

C4FX

C4FY

C551

C552

C553

DESCRIPTION

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER BJ 2.2U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

8-214

Part No for NMV

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6254

79PQ6254

79PQ6255

79PQ6255

79PQ6255

79PQ6223

79PQ6223

79PQ1982

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6254

79PQ6255

79PQ6255

79PQ6255

79PQ6221

79PQ6235

79PQ6220

79PQ6213

79PQ6242

79PQ5468

79PQ6238

79PQ6241

79PQ6240

79PQ6236

79PQ6245

79PQ5790

79PQ6218

79PQ6218

79PQ6217

79PQ6244

79PQ6222

SYMBOL

C808

C809

C810

C811

C812

C813

C815

C818

C819

C820

C821

C8A1

C8A2

C8E1

C901

C902

C905

C554

C555

C556

C561

C562

C563

C564

C565

C566

C801

C802

C805

C806

C807

C906

C907

C910

C911

C912

C913

C914

C915

C920

C925

C926

C927

C951

C952

C953

C954

C955

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER B 0.1U 16V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER B 0.1U 16V K

C SMD CER B 0.1U 16V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SAFE X 0.47U AC275V K

C SAFE X 0.47U AC275V K

SAFETY Y-CAP/D1000P/400VM

C ELE105 120U 450V SNAP-I

C FILM MM 0.01U 400V J

C ELE105 22U 50V M (T)

C ELE105 100U 35V M (T)

C SMD CER F 0.1U 50V Z

C SMD C0G 1000P 50V J 080

C SMD CER CH 10P 50V C

C SMD CER BJ 0.1U 25V K

C SMD CER B 0.01U 50V K

C FILM MM 0.47U 100V J

C SMD CER BJ 10U 6.3V K

C ELE105 4.7U 50V M (T)

C ELE105 1500U 25V M (T)

C ELE105 1500U 25V M (T)

C ELE105 1000U 25V M (T)

C SMD CER BJ 1U 16V M

C CER SL 150P 1KV J (T)

8-215

Part No for NMV

79PQ6263

79PQ6263

79PQ6263

79PQ6263

79PQ6263

79PQ6253

79PQ6253

79PQ6246

79PQ6234

79PQ6233

79PQ6255

79PQ6255

79PQ6255

79PQ6256

79PQ6255

79PQ6255

79PQ6232

79PQ6215

79PQ6235

79PQ6241

79PQ6243

79PQ6216

79PQ6219

79PQ6243

79PQ6214

79PQ6237

79PQ6240

79PQ6248

79PQ6247

79PQ6239

79PQ6263

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6246

79PQ6246

79PQ6246

79PQ6255

79PQ6255

79PQ6255

79PQ6246

SYMBOL

CA06

CA07

CA08

CA09

CA10

CA12

CA19

CA20

CA21

CA22

CA23

CA24

CA25

CA26

CA28

CA29

CA2A

C9A2

C9A3

C9A4

C9A6

C9A7

C9E1

C9E2

C9E3

C9X1

C9X2

C9X3

C9X4

C9X5

CA05

CA36

CA37

CA38

CA39

CA40

CA41

CA42

CA43

CA44

CA45

CA53

CA67

CA70A

CA70B

CA70G

CA70R

CA71B

DESCRIPTION

C ELE105 2.2U 50V M (T)

C FILM MM 0.01U 400V J

C SMD CER BJ 0.1U 25V K

C SMD CER BJ 1U 10V K

C ELE105 47U 25V M (T)

C ELE105 2200U 10V M (T)

C SMD CER BJ 1U 10V K

C ELE105 1000U 10V M (T)

C FILM PMS 0.47U 400V J

C SMD CER B 0.01U 50V K

C SMD CER B 470P 50V K

C SMD CER BJ 0.33U 16V K

C SMD CER SL 100P 50V J

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER B 1000P 50V K

C SMD CER B 1000P 50V K

C SMD CER BJ 10U 6.3V M

C SMD FILM ECHU 8200P 16V

C SMD FILM ECHU 47000P 16

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 1U 6.3V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD FILM ECHU 15000P 16

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

8-216

Part No for NMV

79PQ6258

79PQ6258

79PQ6255

79PQ6255

79PQ6255

79PQ6264

79PQ6262

79PQ6262

79PQ6262

79PQ6255

79PQ6246

79PQ6255

79PQ6255

79PQ6255

79PQ6246

79PQ6246

79PQ6246

79PQ6246

79PQ6246

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6251

79PQ6251

79PQ6251

79PQ6255

79PQ6255

79PQ6255

79PQ6246

79PQ6258

79PQ6255

79PQ6255

79PQ6255

79PQ6251

79PQ6251

79PQ6251

79PQ6255

79PQ6255

79PQ6255

79PQ6246

79PQ6258

79PQ6258

79PQ6258

79PQ6255

79PQ6255

79PQ6255

79PQ6264

SYMBOL

CA75G

CA75R

CA76B

CA76G

CA76R

CA77A

CA77B

CA77G

CA77R

CA78A

CA80A

CA80B

CA80G

CA80R

CA81B

CA81G

CA81R

CA71G

CA71R

CA72A

CA72B

CA72G

CA72R

CA73B

CA73G

CA73R

CA74B

CA74G

CA74R

CA75A

CA75B

CA82B

CA82G

CA82R

CA83B

CA83G

CA83R

CA84B

CA84G

CA84R

CA85A

CA85B

CA85G

CA85R

CA86B

CA86G

CA86R

CA87A

DESCRIPTION

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 68P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 68P 50V J

8-217

Part No for NMV

79PQ6265

79PQ6265

79PQ6246

79PQ6246

79PQ6256

79PQ6256

79PQ6265

79PQ6265

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6252

79PQ6262

79PQ6262

79PQ6262

79PQ6255

79PQ6253

79PQ6253

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6224

79PQ6256

79PQ6256

79PQ6252

79PQ6252

79PQ6252

79PQ6252

79PQ6246

79PQ6226

79PQ6252

79PQ6246

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6252

SYMBOL

CAH3

CAH4

CAM3

CAM4

CAN1

CAN2

CAN3

CAN4

CK01

CK02

CK03

CK04

CK05

CK06

CK07

CK08

CK09

CA87B

CA87G

CA87R

CA88A

CA90

CA91

CAA1

CAA2

CAA3

CAA4

CAA5

CAA6

CAH1

CAH2

CK10

CK11

CK12

CK13

CK14

CK16

CK17

CK18

CK19

CK20

CK21

CK22

CK23

CK24

CK25

CK26

CK27

DESCRIPTION

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER B 1000P 50V K

C SMD CER B 1000P 50V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER BJ 1U 6.3V K

C SMD CER BJ 1U 6.3V K

C SMD CER B 6800P 50V K

C SMD CER B 6800P 50V K

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 1U 6.3V K

C SMD CER BJ 1U 6.3V K

C SMD CER B 6800P 50V K

C SMD CER B 6800P 50V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD ELE105 100U 16V M

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 100P 50V J

8-218

SYMBOL

CK28

CK29

CK30

CK31

CK32

CK34

CK35

CK36

CKF1

CKF2

Part No for NMV

79PQ6252

79PQ6252

79PQ6252

79PQ6252

79PQ6246

79PQ6226

79PQ6252

79PQ6246

79PQ6255

79PQ6255

DESCRIPTION

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD ELE105 100U 16V M

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

8-219

REPLACEMENT PARTS LIST

(For Asia / Pacific)

The components specified for Model LCD2080UX-BK(A)

Manufactured by NPG

SYMBOL Part No for NMV DESCRIPTION

*** ICS ***

IC201

IC221

IC222

IC251

IC271

IC272

79PQ6140

79PQ6138

79PQ6140

79PQ6139

79PQ6140

79PQ6140

79PQ6138

79PQ6128

IC2A1

IC401

IC402

IC403

IC405

IC4A1

IC4A2

IC4A3

IC551

IC552

IC801

IC802

IC803

IC804

IC8A1

IC8A2

IC8A3

IC8A4

IC8A5

79PQ6123

79PQ6134

79PQ6131

79PQ6126

79PQ6129

79PQ6129

79PQ5768

79PQ5768

79PQ5301

79PQ5301

79PQ6130

79PQ6124

79PQ5255

79PQ6136

79PQ6136

79PQ6135

79PQ6135

IC8F1

IC901

79PQ5255

79PQ6120

IC951 79PQ6122

IC9A1 79PQ6121

IC9A2 79PQ6141

IC9E1 79PQ6122

ICA01 79PQ6125

ICA70A

ICAA1

ICAA2

ICAA3

79PQ6137

79PQ6129

79PQ6129

79PQ6133

ICAA4

ICAA5

ICAA6

ICK01

ICK02

79PQ6133

79PQ6142

79PQ6132

79PQ6127

79PQ6127

IC SMD BA00BC0WFP

IC SMD PQ1CZ21H2ZP

IC SMD BA00BC0WFP

IC SMD L4978 REGULATOR

IC SMD BA00BC0WFP

IC SMD BA00BC0WFP

IC SMD PQ1CZ21H2ZP

IC SMD PW164B

IC SMD LH28F800-L202V03

IC SMD ICS332M-L202EV

IC SMDSN74AHC2G125H MOS

IC SMD UPD65545-Y-6C

IC SMD NC7WZ14

IC SMD NC7WZ14

IC SMD DS90C385MTD MOS

IC SMD DS90C385MTD MOS

IC RESET M51957AFP

IC RESET M51957AFP

IC SMD CAT24WC64JI-TE13 M

IC SMD M30625MGN-A26GP

IC SMD BU9882F-WE2 MOS

IC SMD X9116WM8-2.7T4 MOS

IC SMD X9116WM8-2.7T4 MOS

IC SMD SN74CBT1G125DCK

IC SMD SN74CBT1G125DCK

IC SMD BU9882F-WE2 MOS

IC STR-E1717 LF NO. 1064

IC SMD XN04A8800L

IC SMD AD9888KS-170

IC SMD AD8002AR

IC SMD NC7WZ14

IC SMD NC7WZ14

IC SMD SN74CBTLV1G125DCK

IC SMD SN74CBTLV1G125DCK

IC SMD TA76431F

IC SMD SN74CBTLV3125PW

IC SMD TFP401 MOS

IC SMD TFP401 MOS

8-220

SYMBOL

PC901

PC911

PC9A1

Part No for NMV

79PQ5663

79PQ5663

79PQ5663

Q911

Q912

Q913

Q930

Q931

Q932

Q933

Q9E1

QA70A

QA70B

QA70G

QA70R

QA71A

Q265

Q271

Q272

Q451

Q452

Q453

Q805

Q806

Q807

Q861

Q863

Q8A3

Q8E1

Q8E5

Q8E6

Q901

Q908

*** TRANSISTORS ***

Q101

Q102

79PQ6110

79PQ6114

Q104

Q105

Q151

79PQ6110

79PQ6114

79PQ6115

Q152

Q153

Q154

Q155

Q156

Q157

Q261

Q262

79PQ6106

79PQ5517

79PQ6108

79PQ6108

79PQ6109

79PQ6108

79PQ6108

79PQ6119

79PQ6117

79PQ6108

79PQ6108

79PQ6114

79PQ6108

79PQ6108

79PQ6108

79PQ6113

79PQ6113

79PQ6117

79PQ6117

79PQ6108

79PQ6108

79PQ6108

79PQ6108

79PQ6116

79PQ6118

79PQ6106

79PQ5517

79PQ5517

79PQ6108

79PQ6105

79PQ6108

79PQ6111

79PQ6108

79PQ6108

79PQ6112

79PQ6112

79PQ6112

79PQ6115

DESCRIPTION

IC PHOTO COUPLE PC123Y

IC PHOTO COUPLE PC123Y

IC PHOTO COUPLE PC123Y

TR SMD DTC143ZKA-T146

TR SMD 2SA1162-GR

TR SMD DTC143ZKA-T146

TR SMD 2SA1162-GR

FET SMD 2SJ580-TD

TR SMD 2SA1037AK-T146 Q

CHIP TR NPN 2SC2412K-T146

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTA144EKA

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

FET SMD 2SJ377(TE16L)

FET SMD 2SK3018-T106

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD 2SA1162-GR

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD 2SC3734

TR SMD 2SC3734

FET SMD 2SK3018-T106

FET SMD 2SK3018-T106

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

FET 2SK3673-01MR-F111

FET SMD 2SK2715 P

TR SMD 2SA1037AK-T146 Q

CHIP TR NPN 2SC2412K-T146

CHIP TR NPN 2SC2412K-T146

TR SMD DTC144EKA-T146(O)

TR 2SC5562

TR SMD DTC144EKA-T146(O)

TR SMD DTB114EK

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD 2SC5084-O

TR SMD 2SC5084-O

TR SMD 2SC5084-O

FET SMD 2SJ580-TD

8-221

SYMBOL

QA81G

QA81R

QA82B

QA82G

QA82R

QA83B

QA83G

QA83R

QAA1

QAH1

QAH2

QAM1

QAM2

QAN1

QAN2

QKF1

QA71B

QA71G

QA71R

QA72A

QA72B

QA72G

QA72R

QA73B

QA73G

QA73R

QA80B

QA80G

QA80R

QA81B

*** DIODES ***

D151 79PQ5251

D152

D221

79PQ6150

79PQ6152

D222

D271

D272

D273

79PQ5251

79PQ5251

79PQ5251

79PQ5251

D274

D275

D2A1

D2M1

D901

D902

D907

D911

D912

79PQ5671

79PQ5671

79PQ6152

79PQ6152

79PQ6143

79PQ6147

79PQ6148

79PQ6153

79PQ6155

Part No for NMV

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6108

79PQ6107

79PQ6107

79PQ6113

79PQ6113

79PQ6107

79PQ6107

79PQ6106

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6112

79PQ6112

79PQ6112

79PQ6109

DESCRIPTION

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD 2SC5084-O

TR SMD 2SC5084-O

TR SMD 2SC5084-O

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTC144EKA-T146(O)

TR SMD 2SA1434-TB

TR SMD 2SA1434-TB

TR SMD 2SC3734

TR SMD 2SC3734

TR SMD 2SA1434-TB

TR SMD 2SA1434-TB

TR SMD 2SA1037AK-T146 Q

CHIP DIODE/T 1SS355TE-17

DI SMD RB715F-T106

DI SMD SFPB-64

CHIP DIODE/T 1SS355TE-17

CHIP DIODE/T 1SS355TE-17

CHIP DIODE/T 1SS355TE-17

CHIP DIODE/T 1SS355TE-17

DIODE RB495D

DIODE RB495D

DI SMD SFPB-64

DI SMD SFPB-64

DI D3SBA60

DI RM10A (T)

DI EG01CV1-T

DI SMD 1SR156-400

DI SMD MA2Z001

8-222

Part No for NMV

79PQ5558

79PQ5558

79PQ5558

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6156

79PQ6156

79PQ6155

79PQ5251

79PQ6144

79PQ6148

79PQ6155

79PQ6145

79PQ6146

79PQ6154

79PQ5558

79PQ5558

79PQ5558

79PQ5251

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6151

79PQ6163

79PQ6165

79PQ6164

79PQ6162

79PQ6161

79PQ6165

79PQ6163

79PQ6164

79PQ6157

79PQ6157

SYMBOL

DA11

DA12

DA13

DA70A

DA71B

DA71G

DA71R

DA72B

DA72G

DA72R

DA73B

DA73G

DA73R

DA80A

DA81B

DA81G

DA81R

D913

D914

D915

D930

D951

D9A1

D9A2

D9E1

D9X1

D9X2

DA01

DA02

DA03

DA04

DA82B

DA82G

DA82R

DA83B

DA83G

DA83R

ZD8G2

ZD908

ZD910

ZD917

ZD918

ZD919

ZD920

ZD930

ZD9A4

ZDA01

ZDA11

DESCRIPTION

DI SMD DG1M3

DI SMD DG1M3

DI SMD MA2Z001

CHIP DIODE/T 1SS355TE-17

DI FMX-22S

DI EG01CV1-T

DI SMD MA2Z001

DI RK39

DI FMG-G26S

DI SMD SFPL-52

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

CHIP DIODE/T 1SS355TE-17

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD STZ6.2N

ZD SMD UDZS7.5BTE-17

ZD SMD UDZS27BTE-17

ZD SMD UDZS18BTE-17

ZD SMD UDZS5.1BTE-17

ZD SMD UDZS4.7BTE-17

ZD SMD UDZS27BTE-17

ZD SMD UDZS7.5BTE-17

ZD SMD UDZS18BTE-17

DI SMD DF5A6.2F(TE)

DI SMD DF5A6.2F(TE)

8-223

SYMBOL Part No for NMV DESCRIPTION

*** TRANSFORMERS ***

T901 79PQ6275

T9A1 79PQ6276

TRANS SWITCH ST-1102A

TRANS SWITCH L2.3MH

*** RELAYS & SWITCHES ***

SW901 79PQ6283 SW SEESAW SDDJE14500

*** PWB ASSYS ***

MANSAS 79PQ6103

PWNSAS

XJM01

79PQ6104

79PQ6286

L221

L222

L223

L261

L262

L263

L271

L272

L2A1

L2A2

L2M1

L405

L406

L451

L452

L453

L454

L459

L4A1

L4A2

L4A3

*** COILS & FILTERS ***

FL203

FL2M1

79PQ6273

79PQ6273

FL901

L115

L116

L117

79PQ6266

79PQ6279

79PQ6279

79PQ6279

L118

L119

L120

L121

L122

L123

L125

79PQ6279

79PQ6279

79PQ6279

79PQ6279

79PQ6279

79PQ6279

79PQ6279

79PQ6280

79PQ6280

79PQ6272

79PQ6280

79PQ6281

79PQ6280

79PQ6280

79PQ6280

79PQ6272

79PQ6280

79PQ6271

79PQ6280

79PQ6280

79PQ6279

79PQ6277

79PQ6277

79PQ6279

79PQ6279

79PQ6279

79PQ6280

79PQ6280

MAIN INSERT ASSY

POWER INSERT ASSY

INVERTER UNIT L202EV

L SMD NFM60R30T222T1

L SMD NFM60R30T222T1

L LINE FILTER LFZ28H05

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L SMD SLF10145T-101M1R0-P

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH4525HM102N

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L SMD SLF10145T-101M1R0-P

L BEAD SMD FBMH3216HM501N

L SMD SLF12565T-101M1R6

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608HS800-T

L BEAD SMD BK1608HS800-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

8-224

SYMBOL

L4A4

L4A5

L551

L552

L553

L561

L562

L563

L951

L9A1

L9E1

L9X1

L9X2

LAA3

LAA4

LAA5

LAA6

LAA7

LAH1

LAH2

LAN1

LAN2

Part No for NMV

79PQ6282

79PQ6282

79PQ6278

79PQ6278

79PQ6278

79PQ6278

79PQ6278

79PQ6278

79PQ6270

79PQ6274

79PQ6269

79PQ6267

79PQ6268

79PQ6282

79PQ6282

79PQ6282

79PQ6282

79PQ6282

79PQ6282

79PQ6282

79PQ6282

79PQ6282

DESCRIPTION

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L SBC7-100-532

L SMD LEMC3225T101K

L CHOKE TSL1112RA-100M3R7

L PFC COIL 77A-2702

L CHOKE 72U2A SF1-T8-50S-

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***

CN951

F901

OSC4A1

79PQ6287

79PQ3032

79PQ6160

WIRE CB14P 1007#26L100

FUSE SG5013 3.15 PF 250V

OSC SMD IC 55MHZ

TH901 79PQ6167

VD901 79PQ5332

X402

X7A01

79PQ6158

79PQ6288

VARISTOR ENE471D-10A

OSC SMD XTAL 14.31818MHZ

WIRE CC30P 1516#30L250

X7A02

X801

XDJM02

XDRE03

XDRE04

XDRG02

XJG01

79PQ6289

79PQ6159

79PQ6285

79PQ6292

79PQ6293

79PQ6296

3A684034

WIRE CB13P 1007#26L70

OSC SMD CSTCR7M37G53-R0

CABLE BUTTON BLK

CABLE VI DVID-DVID 2M BK

CABLE VI DVID-DSUB 2M BK

PW CORD NA 2.0M BLK I-SHE

LCD LM201U03 LGPHILIPS

*** APPEARANCE PARTS ***

BAAS 79PQ6063

BE

BRBAAS

CVCA

79PQ6075

79PQ6065

79PQ6082

STCV

STUN

79PQ6080

79PQ6078

BACK ASSY,L202EV(BK,N)

BEZEL,L202EV(BK,N)

BRACKET BASE ASSY,L202EV

COVER CABLE,L202EV(BK)

STAND COVER TB,L202EV(BK)

STAND UNIT,L202EV(BK)

8-225

SYMBOL Part No for NMV DESCRIPTION

*** PRINTED & PACKING MATERIALS ***

CABX 79PQ6067

CASHL 79PQ6084

CARTON BOX,L202EV(BKA)

FLB

FLC

FLT

LVSH

79PQ6086

79PQ6087

79PQ6085

79PQ6098

FILLER B,L202EV

FILLER C,L202EV

FILLER T,L202EV

LVIEW SHEET

MANUAL,L202EV(A)

NAVISET CARTON BOX FLYER

MANU

NAFL

79PQ6090

79PQ2790

PABAG 79PQ6089

PEBAG

PROTE

RALA

SHSE

79PQ5129

79PQ6052

79PQ6418

79PQ6095

PE BAG (340*225)

PROTECTION SHEET

RATING LABEL,L202EV(BK)

SHEET SETUP,L202EV(A)

MR404

MR405

MR406

MR407

MR408

MR409

MR410

MR411

MR412

MR4G1

MR4G3

MR4G5

MR4G7

MR4G9

MR4H1

MRA01

MRA03

MRA05

*** RESISTORS ***

J921

J923

79EN0189

79EN0189

J924

J925

J926

J927

79EN0189

79EN0189

79EN0189

79EN0189

J928

J929

J930

J940

J961

J962

MR401

MR402

MR403

79EN0189

79EN0189

79PQ6212

79EN0189

79EN0189

79EN0189

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6208

79PQ6208

79PQ6208

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD METAL 1/4W 0 JUMPER

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

8-226

Part No for NMV

79PQ6207

79PQ5277

79PQ5277

79EN0158

79PQ5277

79PQ5277

79EN0158

79PQ1892

79PQ1892

79PQ1892

79PQ1892

79PQ1892

79PQ1892

79PQ1892

79PQ1892

79PQ6189

79PQ5869

79PQ6208

79PQ6208

79PQ6208

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ5675

79PQ5869

79PQ5314

79PQ6178

79PQ5675

79PQ6176

79PQ5675

79PQ5675

79PQ5675

79PQ5371

79PQ5371

79PQ5371

79PQ6197

79EN0781

79PQ5316

79EN0780

79PQ6188

SYMBOL

MRK23

R101

R102

R103

R105

R106

R107

R117

R118

R119

R120

R121

R122

R123

R125

R151

R152

MRA07

MRA09

MRA11

MRK01

MRK03

MRK05

MRK07

MRK09

MRK11

MRK13

MRK15

MRK17

MRK19

MRK21

R153

R154

R155

R156

R157

R158

R159

R15A

R15E

R15F

R15L

R201

R202

R203

R221

R222

R223

DESCRIPTION

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

R SMD 1/10W(T) 1% 180

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

R SMD 1/10W(T) 1% 180

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

R SMD METAL 1/10W 1.5K F

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 56OH

R SMD METAL 1/10W 820K J

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/10W 56K J T

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 56K F

R SMD 1/10W(T) 1% 33K

CHIP RES 1/10W(T) 1% 1.8K

R SMD 1/10W(T) 1% 27K

R SMD METAL 1/10W 1.2K F

8-227

Part No for NMV

79PQ5684

79PQ5307

79EN0781

79EN0781

79PQ6188

79PQ5675

79PQ5314

79PQ5314

79PQ6195

79PQ5280

79PQ6199

79PQ5371

79PQ5278

79PQ6191

79PQ6188

79PQ5278

79PQ6200

79PQ6194

79PQ5371

79PQ5371

79EN0183

79EN0183

79PQ5313

79EN0781

79PQ6210

79PQ6210

79PQ5371

79PQ5315

79PQ6175

79PQ6197

79EN0781

79PQ6198

79PQ5320

79PQ5320

79PQ5371

79PQ5314

79PQ5371

79PQ5039

79PQ5320

79PQ5320

79PQ5272

79PQ5272

79PQ5314

79PQ5314

79PQ5315

79PQ5307

79PQ5307

79PQ5675

SYMBOL

R274A

R275

R276

R277

R277A

R278

R2A1

R2A2

R2A3

R2A4

R2A5

R2A7

R2M1

R2M2

R2M3

R2M4

R2M5

R224

R225

R226

R261

R262

R266

R267

R268

R269

R26A

R271

R272

R273

R274

R402

R403

R405

R409

R412

R415

R416

R418

R422

R429

R430

R433

R435

R449

R451

R452

R453

DESCRIPTION

R SMD METAL 1/10W 30K F

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD 1/10W(T) 5% 33K

R SMD 1/10W(T) 5% 33K

CHIP RES 1/10W(T) 1% 150K

R SMD 1/10W(T) 1% 33K

R SMD METAL 1/2W 680 J

R SMD METAL 1/2W 680 J

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 2.2K

R SMD METAL 1/10W 5.6K J

R SMD METAL 1/10W 56K F

R SMD 1/10W(T) 1% 33K

CHIP RES 1/10W(T) 1% 2.2K

CHIP RES 1/10W(T) 5% 3.3K

R SMD 1/10W(T) 1% 33K

R SMD 1/10W(T) 1% 33K

R SMD METAL 1/10W 1.2K F

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W(T) 5% 56OH

R SMD METAL 1/10W 390 F

CHIP RES 1/10W(T) 1% 1KOH

R SMD METAL 1/10W 8.2K F

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 1% 4.7K

R SMD METAL 1/10W 22K F

R SMD METAL 1/10W 1.2K F

CHIP RES 1/10W(T) 1% 4.7K

R SMD METAL 1/10W 82 F

R SMD METAL 1/10W 62 F

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W(T) 5% 2.2K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W(T) 5% 10KO

8-228

Part No for NMV

79PQ5272

79PQ5272

79PQ5371

79PQ5314

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79PQ5039

79PQ5371

79PQ5272

79PQ5371

79PQ5039

79PQ5039

79PQ5675

79PQ5675

79PQ5272

79PQ5272

79PQ5675

79PQ5675

79PQ5272

79PQ5272

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79PQ5272

79PQ5272

79PQ5272

79PQ5272

79PQ5272

79PQ5675

79PQ6186

79PQ5317

79PQ5675

79EN0780

79PQ6192

79PQ5039

SYMBOL

R467

R468

R470

R4A2

R4A3

R4A4

R4A5

R4A6

R4A7

R4A8

R4A9

R4AK

R4AL

R4AM

R4AN

R4AP

R4AT

R454

R455

R456

R457

R458

R459

R45E

R45K

R45P

R45T

R463

R464

R465

R466

R4E0

R4E1

R4E2

R4E3

R4E4

R4E5

R4E6

R4E7

R4E8

R4E9

R4EA

R550

R801

R802

R803

R805

R806

DESCRIPTION

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 56OH

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/4W 5.1K J T

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 10KO

R SMD 1/10W(T) 1% 27K

R SMD METAL 1/10W 24K F

CHIP 1/10W(T) 5% 47K

8-229

Part No for NMV

79PQ5272

79PQ5272

79PQ5272

79PQ5039

79PQ5039

79PQ5039

79PQ5272

79PQ5272

79PQ5272

79PQ5039

79EN0184

79PQ5272

79PQ5272

79PQ5272

79PQ5039

79PQ5039

79PQ5039

79PQ5675

79PQ5675

79PQ5675

79PQ5272

79PQ5272

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79PQ5272

79PQ5272

79PQ5317

79PQ6190

79EN0162

79PQ5317

79PQ5317

79PQ5317

79PQ5317

79PQ5317

79PQ5317

79PQ5317

79PQ6211

79PQ5272

79PQ5272

79PQ5039

79PQ5039

79PQ5039

79PQ5039

SYMBOL

R823

R826

R827

R828

R829

R830

R831

R832

R833

R834

R838

R839

R840

R841

R842

R844

R845

R807

R808

R809

R811

R812

R813

R814

R815

R816

R818

R819

R820

R821

R822

R846

R849

R850

R883

R885

R886

R887

R889

R890

R891

R8A2

R8A4

R8A5

R8A6

R8A7

R8AA

R8AE

DESCRIPTION

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 22KO

R SMD METAL 1/10W 18K F

R SMD 1/10W(T) 1% 220K

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

R SMD METAL 1W 33 J

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

8-230

Part No for NMV

79PQ5039

79PQ5039

79PQ5039

79PQ6211

79PQ5675

79PQ5272

79PQ5272

79PQ6185

79PQ6185

79PQ6185

79PQ6181

79PQ6181

79PQ6181

79PQ6169

79PQ6187

79PQ6170

79PQ1897

79PQ5039

79PQ5039

79PQ5039

79PQ5039

79PQ5039

79PQ5039

79PQ5039

79PQ5039

79PQ5039

79PQ6211

79PQ5675

79PQ5272

79PQ5272

79PQ5039

79PQ6201

79PQ6204

79PQ6202

79PQ5310

79PQ6166

79PQ1896

79EN0232

79PQ1891

79PQ1893

79PQ1898

79PQ6184

79PQ1893

79PQ1893

79PQ1898

79PQ6203

79PQ5310

79PQ1902

SYMBOL

R8F7

R8FX

R8FY

R8G2

R8G3

R8G4

R8G5

R901

R902

R903

R904

R905

R906

R907

R908

R909

R910

R8AL

R8AX

R8AY

R8E1

R8E7

R8E8

R8E9

R8EA

R8EF

R8F2

R8F3

R8F4

R8F5

R8F6

R911

R912

R913

R914

R915

R916

R917

R918

R920

R921

R922

R923

R924

R925

R926

R927

R928

DESCRIPTION

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

R SMD METAL 1W 33 J

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

R SMD METAL 1W 33 J

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD METAL 1/4W 470K J T

R SMD METAL 1/4W 470K J T

R SMD METAL 1/4W 470K J T

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

R MOF 2W/M 100K J (A)

R SMD METAL 1/3W 2.2K J T

R MOF 2W/M 0.33 J(A)

CHIP 1/8W(T) 5% 22K

R SMD METAL 1/8W 4.7 F T

R SMD METAL 1/4W 10K F T

R SMD METAL 1/8W 680 F T

CHIP RES 1/8W(T) 5% 100KO

R CARBON 1/4W 5.6 J M T

CHIP 1/8W(T) 5% 220H

R SMD 1/8W(T) 5% 470

CHIP 1/8W(T) 5% 100H

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 33K

R SMD METAL 1/4W 33K J T

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 33K

R SMD METAL 1/8W 9.1K F T

CHIP RES 1/8W(T) 5% 100KO

CHIP 1/8W(T) 1% 10K

8-231

Part No for NMV

79PQ5682

79PQ6180

79PQ1969

79PQ1890

79PQ1893

79PQ6179

79PQ1891

79EN0200

79EN0227

79EN0200

79PQ1890

79PQ1969

79PQ6183

79PQ6183

79PQ1898

79PQ6206

79PQ6206

79PQ1893

79PQ1897

79PQ5310

79PQ1893

79PQ6181

79PQ6181

79PQ6181

79PQ5549

79EN0218

79PQ2170

79PQ5361

79PQ1890

79PQ1892

79PQ6168

79PQ6205

79PQ1905

79PQ6182

79PQ1892

79PQ1891

79PQ6170

79EN0184

79EN0184

79EN0184

79EN0184

79PQ5315

79PQ5315

79EN0179

79EN0179

79EN0184

79EN0184

79EN0184

SYMBOL

R9A3

R9A4

R9A5

R9A6

R9A7

R9A8

R9E1

R9E2

R9E3

R9E4

R9E6

R9E7

R9X1

R9X2

R9X4

R9X5

R9X6

R929

R931

R933

R934

R935

R936

R937

R951

R952

R953

R954

R955

R956

R9A2

R9X7

R9X8

R9X9

R9Y1

R9Y2

R9Y3

RA03

RA04

RA05

RA06

RA07

RA08

RA11

RA12

RA19

RA20

RA21

DESCRIPTION

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 22K

CHIP RES 1/8W(T) 5% 100KO

CHIP 1/8W(T) 5% 10K

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

RES SMD 1/8W(T) 5% 1.2KOH

R SMD 1/8W(T) 1% 7.5K

CHIP 1/8W(T) 1% 6.2K

CHIP RES 1/8W (T) 1% 2.2K

CHIP 1/8W(T) 5% 0 H

CHIP 1/8W(T) 5% 1K

R MOF 1W/M 47K J(A)

CHIP RES 1/8W(T) 5% 27OHM

R SMD METAL 1/4W 1.0K J T

CHIP 1/8W(T) 5% 3.9K

CHIP 1/8W(T) 5% 0 H

CHIP 1/8W(T) 5% 10K

R SMD METAL 1/4W 100 J T

CHIP 1/8W(T) 5% 100H

R SMD 1/8W(T) 1% 1K

R SMD 1/8W(T) 5% 22

R SMD 1/8W(T) 1% 1K

CHIP 1/8W(T) 5% 0 H

CHIP 1/8W(T) 5% 3.9K

R SMD METAL 1/4W 2.2M J T

R SMD METAL 1/4W 2.2M J T

CHIP 1/8W(T) 5% 33K

R SMD METAL 1/4W 750K F

R SMD METAL 1/4W 750K F

R SMD METAL 1/4W 680K F

CHIP 1/8W(T) 1% 22K

R SMD METAL 1/4W 22K J T

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 100H

R MOF 2W/M 0.33 J(A)

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 2.2K

CHIP RES 1/10W(T) 5% 2.2K

R SMD 1/10W(T) 5% 10

R SMD 1/10W(T) 5% 10

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

8-232

Part No for NMV

79PQ5283

79PQ5283

79PQ5283

79PQ5272

79PQ5675

79PQ5675

79PQ5675

79EN0621

79PQ5306

79PQ5306

79PQ5306

79PQ5869

79PQ5272

79PQ5272

79PQ5272

79PQ5308

79EN0621

79EN0184

79EN0184

79EN0184

79PQ5272

79PQ5272

79PQ5272

79PQ5277

79PQ5675

79EN0184

79PQ5675

79PQ5675

79PQ5277

79PQ5277

79PQ5317

79EN0621

79EN0621

79PQ6196

79PQ5282

79PQ5282

79PQ5282

79PQ5371

79PQ5277

79PQ5277

79PQ5277

79PQ6177

79PQ5371

79PQ5371

79PQ5371

79PQ5869

79PQ5277

79PQ5277

SYMBOL

RA70B

RA70G

RA70R

RA71A

RA71B

RA71G

RA71R

RA72A

RA72B

RA72G

RA72R

RA73A

RA73B

RA73G

RA73R

RA74A

RA74B

RA22

RA23

RA24

RA27

RA28

RA29

RA30

RA34

RA37

RA43

RA44

RA4A

RA4E

RA70A

RA74G

RA74R

RA75A

RA75B

RA75G

RA75R

RA76A

RA76B

RA76G

RA76R

RA77A

RA77B

RA77G

RA77R

RA78A

RA78B

RA78G

DESCRIPTION

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 10KO

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

R CHIP 1/10W(T) 5% 330

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 1% 220O

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R SMD METAL 1/10W 510 F

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

R SMD METAL 1/10W 820 J T

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

8-233

Part No for NMV

79PQ5283

79PQ5283

79PQ5283

79PQ5675

79PQ5675

79PQ5675

79EN0621

79PQ5306

79PQ5306

79PQ5306

79EN0184

79PQ5869

79PQ5272

79PQ5272

79PQ5272

79EN0184

79PQ5308

79PQ5277

79PQ5272

79PQ5371

79PQ5371

79PQ5371

79PQ5272

79PQ5277

79PQ5277

79PQ5277

79PQ5307

79PQ5371

79PQ5371

79PQ5371

79PQ5320

79EN0621

79EN0621

79EN0621

79PQ6196

79PQ5282

79PQ5282

79PQ5282

79PQ5315

79PQ5371

79PQ5277

79PQ5277

79PQ5277

79PQ5315

79PQ6177

79PQ5371

79PQ5371

79PQ5371

SYMBOL

RA80B

RA80G

RA80R

RA81B

RA81G

RA81R

RA82A

RA82B

RA82G

RA82R

RA83

RA83A

RA83B

RA83G

RA83R

RA84

RA84A

RA78R

RA79A

RA79B

RA79G

RA79R

RA7AA

RA7AB

RA7AG

RA7AR

RA7EA

RA7HB

RA7HG

RA7HR

RA7LA

RA84B

RA84G

RA84R

RA85A

RA85B

RA85G

RA85R

RA86

RA86A

RA86B

RA86G

RA86R

RA87

RA87A

RA87B

RA87G

RA87R

DESCRIPTION

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

R CHIP 1/10W(T) 5% 330

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

R SMD 1/10W(T) 5% 33

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 1% 220O

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R SMD METAL 1/10W 510 F

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 2.2K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 2.2K

R SMD METAL 1/10W 820 J T

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

8-234

Part No for NMV

79PQ5371

79PQ5371

79PQ5869

79PQ5320

79PQ5038

79PQ5315

79EN0186

79PQ5317

79PQ6171

79EN0184

79EN0184

79EN0184

79EN0179

79EN0179

79PQ6173

79PQ5371

79PQ5036

79PQ5869

79PQ5277

79PQ5277

79PQ5277

79PQ5272

79PQ5371

79PQ5371

79PQ5371

79PQ5272

79PQ5277

79PQ5277

79PQ5277

79PQ5307

79PQ5371

79PQ6173

79PQ5371

79PQ5036

79PQ5675

79PQ5675

79PQ6172

79PQ6172

79PQ5371

79PQ5371

79PQ5869

79PQ5869

79PQ5282

79PQ5282

79PQ5778

79PQ5778

79PQ6173

79PQ6173

SYMBOL

RA8HG

RA8HR

RA8KA

RA8LA

RAA3

RAA4

RAA5

RAA6

RAE3

RAE4

RAE5

RAE6

RAFH

RAFK

RAH1

RAH2

RAH3

RA88A

RA88B

RA88G

RA88R

RA89A

RA89B

RA89G

RA89R

RA8AA

RA8AB

RA8AG

RA8AR

RA8EA

RA8HB

RAH5

RAH6

RAH7

RAM1

RAM2

RAM3

RAM4

RAM5

RAM6

RAM7

RAM8

RAN1

RAN2

RAN3

RAN4

RAN5

RAN6

DESCRIPTION

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 0OHM

CHIP 1/10W(T) 5% 470H

CHIP RES 1/10W(T) 5% 2.2K

R SMD 1/10W(T) 5% 6.8K

CHIP RES 1/10W(T) 5% 22KO

R SMD METAL 1/10W 18 J T

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 10

R SMD 1/10W(T) 5% 10

R SMD METAL 1/10W 180K J

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 150H

R SMD METAL 1/10W 180K J

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 150H

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/10W 18K J T

R SMD METAL 1/10W 18K J T

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 2.7K J

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 68K

CHIP RES 1/10W(T) 5% 68K

R SMD METAL 1/10W 180K J

R SMD METAL 1/10W 180K J

8-235

SYMBOL

RK24

RK25

RK26

RK2A

RK2E

RKAE

RKF1

RKF2

RKF6

RKF7

RKF8

RKF9

RAN7

RAN8

RAN9

RANA

RK01

RK07

RK08

RK09

RK0A

RK10

RK11

RK16

RK22

RK23

*** CAPACITORS ***

C151 79PQ6261

C152

C153

79PQ6256

79PQ6225

C154

C15A

C201

C221

79PQ6257

79PQ6246

79PQ6250

79PQ6227

C222

C223

C224

C225

C226

C22E

C22F

C261

C263

C265

C26A

C271

C273

79PQ6246

79PQ6230

79PQ6224

79PQ6255

79PQ6255

79PQ6255

79PQ6259

79PQ6255

79PQ6224

79PQ6255

79PQ6255

79PQ6250

79PQ6255

Part No for NMV

79PQ5371

79PQ5371

79PQ5272

79PQ5272

79PQ6174

79PQ5314

79EN0184

79PQ5039

79PQ5039

79PQ5039

79PQ5320

79PQ6174

79PQ5314

79EN0184

79PQ5039

79PQ5039

79PQ5320

79PQ5039

79PQ5039

79PQ5039

79PQ6196

79PQ6196

79PQ6193

79PQ5272

79PQ5039

79PQ5272

DESCRIPTION

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD METAL 1/10W 390 J T

CHIP RES 1/10W(T) 5% 56OH

R SMD 1/10W(T) 5% 33

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 0OHM

R SMD METAL 1/10W 390 J T

CHIP RES 1/10W(T) 5% 56OH

R SMD 1/10W(T) 5% 33

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 0OHM

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

R SMD METAL 1/10W 510 F

R SMD METAL 1/10W 510 F

R SMD METAL 1/10W 2.7K F

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 100O

C SMD CER CH 390P 50V J

C SMD CER BJ 1U 6.3V K

C SMD ELE105 4.7U 25V M

C SMD CER BJ 1U 10V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 22U 6.3V M

C SMD ELE105 100U 10V M

C SMD CER BJ 10U 6.3V M

C SMD ELE105 330U 16V M

C SMD ELE105 10U 16V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 2.2U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 22U 6.3V M

C SMD CER F 0.1U 25V Z

8-236

Part No for NMV

79PQ6260

79PQ6255

79PQ6255

79PQ6231

79PQ6246

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6246

79PQ6246

79PQ6256

79PQ6250

79PQ6255

79PQ6255

79PQ6228

79PQ6230

79PQ6255

79PQ6229

79PQ6249

79PQ6255

79PQ6255

79PQ6255

79PQ6246

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6246

79PQ6246

79PQ6255

79PQ6246

SYMBOL

C2M3

C2M4

C2M5

C2M6

C409

C410

C411

C412

C413

C414

C415

C416

C417

C418

C419

C420

C421

C274

C275

C276

C277

C278

C27E

C281

C2A2

C2A3

C2A4

C2A5

C2E1

C2M1

C2M2

C422

C423

C424

C425

C426

C427

C428

C429

C430

C431

C432

C433

C434

C443

C444

C451

C452

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 1U 6.3V K

C SMD CER BJ 22U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 22U 25V M

C SMD ELE105 330U 16V M

C SMD CER F 0.1U 25V Z

C SMD ELE105 100U 25V M

C SMD CER BJ 0.047U 25V K

C SMD CER B 2700P 50V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 680U 16V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

8-237

Part No for NMV

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6251

79PQ6251

79PQ6255

79PQ6255

79PQ6255

79PQ6224

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6224

79PQ6259

79PQ6255

79PQ6255

79PQ6255

79PQ6255

SYMBOL

C4E7

C4E8

C4E9

C4F0

C4F1

C4F2

C4F3

C4F4

C4F5

C4F6

C4F7

C4F8

C4F9

C4FA

C4FE

C4FF

C4FH

C454

C455

C458

C459

C45F

C4A2

C4A4

C4E0

C4E1

C4E2

C4E3

C4E4

C4E5

C4E6

C4FJ

C4FK

C4FL

C4FM

C4FMZ

C4FN

C4FP

C4FQ

C4FR

C4FS

C4FT

C4FW

C4FX

C4FY

C551

C552

C553

DESCRIPTION

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER BJ 2.2U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

8-238

Part No for NMV

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6254

79PQ6254

79PQ6255

79PQ6255

79PQ6255

79PQ6223

79PQ6223

79PQ1982

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6254

79PQ6255

79PQ6255

79PQ6255

79PQ6221

79PQ6235

79PQ6220

79PQ6213

79PQ6242

79PQ5468

79PQ6238

79PQ6241

79PQ6240

79PQ6236

79PQ6245

79PQ5790

79PQ6218

79PQ6218

79PQ6217

79PQ6244

79PQ6222

SYMBOL

C808

C809

C810

C811

C812

C813

C815

C818

C819

C820

C821

C8A1

C8A2

C8E1

C901

C902

C905

C554

C555

C556

C561

C562

C563

C564

C565

C566

C801

C802

C805

C806

C807

C906

C907

C910

C911

C912

C913

C914

C915

C920

C925

C926

C927

C951

C952

C953

C954

C955

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER B 0.1U 16V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER B 0.1U 16V K

C SMD CER B 0.1U 16V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SAFE X 0.47U AC275V K

C SAFE X 0.47U AC275V K

SAFETY Y-CAP/D1000P/400VM

C ELE105 120U 450V SNAP-I

C FILM MM 0.01U 400V J

C ELE105 22U 50V M (T)

C ELE105 100U 35V M (T)

C SMD CER F 0.1U 50V Z

C SMD C0G 1000P 50V J 080

C SMD CER CH 10P 50V C

C SMD CER BJ 0.1U 25V K

C SMD CER B 0.01U 50V K

C FILM MM 0.47U 100V J

C SMD CER BJ 10U 6.3V K

C ELE105 4.7U 50V M (T)

C ELE105 1500U 25V M (T)

C ELE105 1500U 25V M (T)

C ELE105 1000U 25V M (T)

C SMD CER BJ 1U 16V M

C CER SL 150P 1KV J (T)

8-239

Part No for NMV

79PQ6263

79PQ6263

79PQ6263

79PQ6263

79PQ6263

79PQ6253

79PQ6253

79PQ6246

79PQ6234

79PQ6233

79PQ6255

79PQ6255

79PQ6255

79PQ6256

79PQ6255

79PQ6255

79PQ6232

79PQ6215

79PQ6235

79PQ6241

79PQ6243

79PQ6216

79PQ6219

79PQ6243

79PQ6214

79PQ6237

79PQ6240

79PQ6248

79PQ6247

79PQ6239

79PQ6263

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6246

79PQ6246

79PQ6246

79PQ6255

79PQ6255

79PQ6255

79PQ6246

SYMBOL

CA06

CA07

CA08

CA09

CA10

CA12

CA19

CA20

CA21

CA22

CA23

CA24

CA25

CA26

CA28

CA29

CA2A

C9A2

C9A3

C9A4

C9A6

C9A7

C9E1

C9E2

C9E3

C9X1

C9X2

C9X3

C9X4

C9X5

CA05

CA36

CA37

CA38

CA39

CA40

CA41

CA42

CA43

CA44

CA45

CA53

CA67

CA70A

CA70B

CA70G

CA70R

CA71B

DESCRIPTION

C ELE105 2.2U 50V M (T)

C FILM MM 0.01U 400V J

C SMD CER BJ 0.1U 25V K

C SMD CER BJ 1U 10V K

C ELE105 47U 25V M (T)

C ELE105 2200U 10V M (T)

C SMD CER BJ 1U 10V K

C ELE105 1000U 10V M (T)

C FILM PMS 0.47U 400V J

C SMD CER B 0.01U 50V K

C SMD CER B 470P 50V K

C SMD CER BJ 0.33U 16V K

C SMD CER SL 100P 50V J

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER B 1000P 50V K

C SMD CER B 1000P 50V K

C SMD CER BJ 10U 6.3V M

C SMD FILM ECHU 8200P 16V

C SMD FILM ECHU 47000P 16

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 1U 6.3V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD FILM ECHU 15000P 16

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

8-240

Part No for NMV

79PQ6258

79PQ6258

79PQ6255

79PQ6255

79PQ6255

79PQ6264

79PQ6262

79PQ6262

79PQ6262

79PQ6255

79PQ6246

79PQ6255

79PQ6255

79PQ6255

79PQ6246

79PQ6246

79PQ6246

79PQ6246

79PQ6246

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6251

79PQ6251

79PQ6251

79PQ6255

79PQ6255

79PQ6255

79PQ6246

79PQ6258

79PQ6255

79PQ6255

79PQ6255

79PQ6251

79PQ6251

79PQ6251

79PQ6255

79PQ6255

79PQ6255

79PQ6246

79PQ6258

79PQ6258

79PQ6258

79PQ6255

79PQ6255

79PQ6255

79PQ6264

SYMBOL

CA75G

CA75R

CA76B

CA76G

CA76R

CA77A

CA77B

CA77G

CA77R

CA78A

CA80A

CA80B

CA80G

CA80R

CA81B

CA81G

CA81R

CA71G

CA71R

CA72A

CA72B

CA72G

CA72R

CA73B

CA73G

CA73R

CA74B

CA74G

CA74R

CA75A

CA75B

CA82B

CA82G

CA82R

CA83B

CA83G

CA83R

CA84B

CA84G

CA84R

CA85A

CA85B

CA85G

CA85R

CA86B

CA86G

CA86R

CA87A

DESCRIPTION

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 68P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 68P 50V J

8-241

Part No for NMV

79PQ6265

79PQ6265

79PQ6246

79PQ6246

79PQ6256

79PQ6256

79PQ6265

79PQ6265

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6252

79PQ6262

79PQ6262

79PQ6262

79PQ6255

79PQ6253

79PQ6253

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6224

79PQ6256

79PQ6256

79PQ6252

79PQ6252

79PQ6252

79PQ6252

79PQ6246

79PQ6226

79PQ6252

79PQ6246

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6252

SYMBOL

CAH3

CAH4

CAM3

CAM4

CAN1

CAN2

CAN3

CAN4

CK01

CK02

CK03

CK04

CK05

CK06

CK07

CK08

CK09

CA87B

CA87G

CA87R

CA88A

CA90

CA91

CAA1

CAA2

CAA3

CAA4

CAA5

CAA6

CAH1

CAH2

CK10

CK11

CK12

CK13

CK14

CK16

CK17

CK18

CK19

CK20

CK21

CK22

CK23

CK24

CK25

CK26

CK27

DESCRIPTION

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER B 1000P 50V K

C SMD CER B 1000P 50V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER BJ 1U 6.3V K

C SMD CER BJ 1U 6.3V K

C SMD CER B 6800P 50V K

C SMD CER B 6800P 50V K

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 1U 6.3V K

C SMD CER BJ 1U 6.3V K

C SMD CER B 6800P 50V K

C SMD CER B 6800P 50V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD ELE105 100U 16V M

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 100P 50V J

8-242

SYMBOL

CK28

CK29

CK30

CK31

CK32

CK34

CK35

CK36

CKF1

CKF2

Part No for NMV

79PQ6252

79PQ6252

79PQ6252

79PQ6252

79PQ6246

79PQ6226

79PQ6252

79PQ6246

79PQ6255

79PQ6255

DESCRIPTION

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD ELE105 100U 16V M

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

8-243

REPLACEMENT PARTS LIST

(For Asia / Pacific)

The components specified for Model LCD2080UX(B)

Manufactured by NPG

SYMBOL Part No for NMV DESCRIPTION

*** ICS ***

IC201

IC221

IC222

IC251

IC271

IC272

79PQ6140

79PQ6138

79PQ6140

79PQ6139

79PQ6140

79PQ6140

79PQ6138

79PQ6128

IC2A1

IC401

IC402

IC403

IC405

IC4A1

IC4A2

IC4A3

IC551

IC552

IC801

IC802

IC803

IC804

IC8A1

IC8A2

IC8A3

IC8A4

IC8A5

79PQ6123

79PQ6134

79PQ6131

79PQ6126

79PQ6129

79PQ6129

79PQ5768

79PQ5768

79PQ5301

79PQ5301

79PQ6130

79PQ6124

79PQ5255

79PQ6136

79PQ6136

79PQ6135

79PQ6135

IC8F1

IC901

79PQ5255

79PQ6120

IC951 79PQ6122

IC9A1 79PQ6121

IC9A2 79PQ6141

IC9E1 79PQ6122

ICA01 79PQ6125

ICA70A

ICAA1

ICAA2

ICAA3

79PQ6137

79PQ6129

79PQ6129

79PQ6133

ICAA4

ICAA5

ICAA6

ICK01

ICK02

79PQ6133

79PQ6142

79PQ6132

79PQ6127

79PQ6127

IC SMD BA00BC0WFP

IC SMD PQ1CZ21H2ZP

IC SMD BA00BC0WFP

IC SMD L4978 REGULATOR

IC SMD BA00BC0WFP

IC SMD BA00BC0WFP

IC SMD PQ1CZ21H2ZP

IC SMD PW164B

IC SMD LH28F800-L202V03

IC SMD ICS332M-L202EV

IC SMDSN74AHC2G125H MOS

IC SMD UPD65545-Y-6C

IC SMD NC7WZ14

IC SMD NC7WZ14

IC SMD DS90C385MTD MOS

IC SMD DS90C385MTD MOS

IC RESET M51957AFP

IC RESET M51957AFP

IC SMD CAT24WC64JI-TE13 M

IC SMD M30625MGN-A26GP

IC SMD BU9882F-WE2 MOS

IC SMD X9116WM8-2.7T4 MOS

IC SMD X9116WM8-2.7T4 MOS

IC SMD SN74CBT1G125DCK

IC SMD SN74CBT1G125DCK

IC SMD BU9882F-WE2 MOS

IC STR-E1717 LF NO. 1064

IC SMD XN04A8800L

IC SMD AD9888KS-170

IC SMD AD8002AR

IC SMD NC7WZ14

IC SMD NC7WZ14

IC SMD SN74CBTLV1G125DCK

IC SMD SN74CBTLV1G125DCK

IC SMD TA76431F

IC SMD SN74CBTLV3125PW

IC SMD TFP401 MOS

IC SMD TFP401 MOS

8-244

SYMBOL

PC901

PC911

PC9A1

Part No for NMV

79PQ5663

79PQ5663

79PQ5663

Q911

Q912

Q913

Q930

Q931

Q932

Q933

Q9E1

QA70A

QA70B

QA70G

QA70R

QA71A

Q265

Q271

Q272

Q451

Q452

Q453

Q805

Q806

Q807

Q861

Q863

Q8A3

Q8E1

Q8E5

Q8E6

Q901

Q908

*** TRANSISTORS ***

Q101

Q102

79PQ6110

79PQ6114

Q104

Q105

Q151

79PQ6110

79PQ6114

79PQ6115

Q152

Q153

Q154

Q155

Q156

Q157

Q261

Q262

79PQ6106

79PQ5517

79PQ6108

79PQ6108

79PQ6109

79PQ6108

79PQ6108

79PQ6119

79PQ6117

79PQ6108

79PQ6108

79PQ6114

79PQ6108

79PQ6108

79PQ6108

79PQ6113

79PQ6113

79PQ6117

79PQ6117

79PQ6108

79PQ6108

79PQ6108

79PQ6108

79PQ6116

79PQ6118

79PQ6106

79PQ5517

79PQ5517

79PQ6108

79PQ6105

79PQ6108

79PQ6111

79PQ6108

79PQ6108

79PQ6112

79PQ6112

79PQ6112

79PQ6115

DESCRIPTION

IC PHOTO COUPLE PC123Y

IC PHOTO COUPLE PC123Y

IC PHOTO COUPLE PC123Y

TR SMD DTC143ZKA-T146

TR SMD 2SA1162-GR

TR SMD DTC143ZKA-T146

TR SMD 2SA1162-GR

FET SMD 2SJ580-TD

TR SMD 2SA1037AK-T146 Q

CHIP TR NPN 2SC2412K-T146

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTA144EKA

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

FET SMD 2SJ377(TE16L)

FET SMD 2SK3018-T106

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD 2SA1162-GR

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD 2SC3734

TR SMD 2SC3734

FET SMD 2SK3018-T106

FET SMD 2SK3018-T106

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

FET 2SK3673-01MR-F111

FET SMD 2SK2715 P

TR SMD 2SA1037AK-T146 Q

CHIP TR NPN 2SC2412K-T146

CHIP TR NPN 2SC2412K-T146

TR SMD DTC144EKA-T146(O)

TR 2SC5562

TR SMD DTC144EKA-T146(O)

TR SMD DTB114EK

TR SMD DTC144EKA-T146(O)

TR SMD DTC144EKA-T146(O)

TR SMD 2SC5084-O

TR SMD 2SC5084-O

TR SMD 2SC5084-O

FET SMD 2SJ580-TD

8-245

SYMBOL

QA81G

QA81R

QA82B

QA82G

QA82R

QA83B

QA83G

QA83R

QAA1

QAH1

QAH2

QAM1

QAM2

QAN1

QAN2

QKF1

QA71B

QA71G

QA71R

QA72A

QA72B

QA72G

QA72R

QA73B

QA73G

QA73R

QA80B

QA80G

QA80R

QA81B

*** DIODES ***

D151 79PQ5251

D152

D221

79PQ6150

79PQ6152

D222

D271

D272

D273

79PQ5251

79PQ5251

79PQ5251

79PQ5251

D274

D275

D2A1

D2M1

D901

D902

D907

D911

D912

79PQ5671

79PQ5671

79PQ6152

79PQ6152

79PQ6143

79PQ6147

79PQ6148

79PQ6153

79PQ6155

Part No for NMV

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6108

79PQ6107

79PQ6107

79PQ6113

79PQ6113

79PQ6107

79PQ6107

79PQ6106

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6109

79PQ6112

79PQ6112

79PQ6112

79PQ6109

DESCRIPTION

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD 2SC5084-O

TR SMD 2SC5084-O

TR SMD 2SC5084-O

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTA144EKA

TR SMD DTC144EKA-T146(O)

TR SMD 2SA1434-TB

TR SMD 2SA1434-TB

TR SMD 2SC3734

TR SMD 2SC3734

TR SMD 2SA1434-TB

TR SMD 2SA1434-TB

TR SMD 2SA1037AK-T146 Q

CHIP DIODE/T 1SS355TE-17

DI SMD RB715F-T106

DI SMD SFPB-64

CHIP DIODE/T 1SS355TE-17

CHIP DIODE/T 1SS355TE-17

CHIP DIODE/T 1SS355TE-17

CHIP DIODE/T 1SS355TE-17

DIODE RB495D

DIODE RB495D

DI SMD SFPB-64

DI SMD SFPB-64

DI D3SBA60

DI RM10A (T)

DI EG01CV1-T

DI SMD 1SR156-400

DI SMD MA2Z001

8-246

Part No for NMV

79PQ5558

79PQ5558

79PQ5558

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6156

79PQ6156

79PQ6155

79PQ5251

79PQ6144

79PQ6148

79PQ6155

79PQ6145

79PQ6146

79PQ6154

79PQ5558

79PQ5558

79PQ5558

79PQ5251

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6149

79PQ6151

79PQ6163

79PQ6165

79PQ6164

79PQ6162

79PQ6161

79PQ6165

79PQ6163

79PQ6164

79PQ6157

79PQ6157

SYMBOL

DA11

DA12

DA13

DA70A

DA71B

DA71G

DA71R

DA72B

DA72G

DA72R

DA73B

DA73G

DA73R

DA80A

DA81B

DA81G

DA81R

D913

D914

D915

D930

D951

D9A1

D9A2

D9E1

D9X1

D9X2

DA01

DA02

DA03

DA04

DA82B

DA82G

DA82R

DA83B

DA83G

DA83R

ZD8G2

ZD908

ZD910

ZD917

ZD918

ZD919

ZD920

ZD930

ZD9A4

ZDA01

ZDA11

DESCRIPTION

DI SMD DG1M3

DI SMD DG1M3

DI SMD MA2Z001

CHIP DIODE/T 1SS355TE-17

DI FMX-22S

DI EG01CV1-T

DI SMD MA2Z001

DI RK39

DI FMG-G26S

DI SMD SFPL-52

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

CHIP DIODE/T 1SS355TE-17

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

CHIP DIODE DAN217 T146

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD 1SS356

DI SMD STZ6.2N

ZD SMD UDZS7.5BTE-17

ZD SMD UDZS27BTE-17

ZD SMD UDZS18BTE-17

ZD SMD UDZS5.1BTE-17

ZD SMD UDZS4.7BTE-17

ZD SMD UDZS27BTE-17

ZD SMD UDZS7.5BTE-17

ZD SMD UDZS18BTE-17

DI SMD DF5A6.2F(TE)

DI SMD DF5A6.2F(TE)

8-247

SYMBOL Part No for NMV DESCRIPTION

*** TRANSFORMERS ***

T901 79PQ6275

T9A1 79PQ6276

TRANS SWITCH ST-1102A

TRANS SWITCH L2.3MH

*** RELAYS & SWITCHES ***

SW901 79PQ6283 SW SEESAW SDDJE14500

*** PWB ASSYS ***

MANSAS 79PQ6103

PWNSAS

XJM01

79PQ6104

79PQ6286

L221

L222

L223

L261

L262

L263

L271

L272

L2A1

L2A2

L2M1

L405

L406

L451

L452

L453

L454

L459

L4A1

L4A2

L4A3

*** COILS & FILTERS ***

FL203

FL2M1

79PQ6273

79PQ6273

FL901

L115

L116

L117

79PQ6266

79PQ6279

79PQ6279

79PQ6279

L118

L119

L120

L121

L122

L123

L125

79PQ6279

79PQ6279

79PQ6279

79PQ6279

79PQ6279

79PQ6279

79PQ6279

79PQ6280

79PQ6280

79PQ6272

79PQ6280

79PQ6281

79PQ6280

79PQ6280

79PQ6280

79PQ6272

79PQ6280

79PQ6271

79PQ6280

79PQ6280

79PQ6279

79PQ6277

79PQ6277

79PQ6279

79PQ6279

79PQ6279

79PQ6280

79PQ6280

MAIN INSERT ASSY

POWER INSERT ASSY

INVERTER UNIT L202EV

L SMD NFM60R30T222T1

L SMD NFM60R30T222T1

L LINE FILTER LFZ28H05

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L SMD SLF10145T-101M1R0-P

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH4525HM102N

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L SMD SLF10145T-101M1R0-P

L BEAD SMD FBMH3216HM501N

L SMD SLF12565T-101M1R6

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608HS800-T

L BEAD SMD BK1608HS800-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD BK1608LM252-T

L BEAD SMD FBMH3216HM501N

L BEAD SMD FBMH3216HM501N

8-248

SYMBOL

L4A4

L4A5

L551

L552

L553

L561

L562

L563

L951

L9A1

L9E1

L9X1

L9X2

LAA3

LAA4

LAA5

LAA6

LAA7

LAH1

LAH2

LAN1

LAN2

Part No for NMV

79PQ6282

79PQ6282

79PQ6278

79PQ6278

79PQ6278

79PQ6278

79PQ6278

79PQ6278

79PQ6270

79PQ6274

79PQ6269

79PQ6267

79PQ6268

79PQ6282

79PQ6282

79PQ6282

79PQ6282

79PQ6282

79PQ6282

79PQ6282

79PQ6282

79PQ6282

DESCRIPTION

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L BEAD SMD BK1608HS601-T

L SBC7-100-532

L SMD LEMC3225T101K

L CHOKE TSL1112RA-100M3R7

L PFC COIL 77A-2702

L CHOKE 72U2A SF1-T8-50S-

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

L BEAD SMD BKP1608HS330-T

*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***

CABUAS

CN951

F901

OSC4A1

79PQ6083

79PQ6287

79PQ3032

79PQ6160

TH901 79PQ6167

CABLE BUTTON ASSY(WH)

WIRE CB14P 1007#26L100

FUSE SG5013 3.15 PF 250V

OSC SMD IC 55MHZ

VD901

X402

X7A01

X7A02

79PQ5332

79PQ6158

79PQ6288

79PQ6289

VARISTOR ENE471D-10A

OSC SMD XTAL 14.31818MHZ

WIRE CC30P 1516#30L250

WIRE CB13P 1007#26L70

X801

XD7A01

XD7A02

XD7A03

XDRG03

XJG01

79PQ6159

79PQ6284

79PQ6290

79PQ6291

79PQ6298

3A684034

OSC SMD CSTCR7M37G53-R0

CABLE BUTTON WHT

CABLE VI DVID-DVID 2M HG

CABLE VI DVID-DSUB 2M HG

PW CORD EU 1.95M HG I-SHE

LCD LM201U03 LGPHILIPS

*** APPEARANCE PARTS ***

BAAS

BE

BRBAAS

79PQ6062

79PQ6074

79PQ6065

CVCA

STCV

STUN

79PQ6081

79PQ6079

79PQ6077

BACK ASSY,L202EV(WH,N)

BEZEL,L202EV(WH,N)

BRACKET BASE ASSY,L202EV

COVER CABLE,L202EV(WH)

STAND COVER TB,L202EV(WH)

STAND UNIT,L202EV(WH)

8-249

SYMBOL Part No for NMV DESCRIPTION

*** PRINTED & PACKING MATERIALS ***

CABX

CASH

79PQ6068

79PQ5232

CARTON BOX,L202EV(B)

CAUTION SHEET

CASHL 79PQ6084

CD 79PQ6100

FLB

FLC

79PQ6086

79PQ6087

CD,NEC(A,B)

FILLER B,L202EV

FILLER C,L202EV

FLT

LVSH

MANU

NAFL 79PQ2790

PABAG 79PQ6089

PEBAG

PROTE

79PQ5129

79PQ6052

RALA

SAFFLS

SHSE

79PQ6085

79PQ6098

79PQ6092

79PQ6071

79PQ5832

79PQ6096

FILLER T,L202EV

LVIEW SHEET

MANUAL,L202EV(B)

NAVISET CARTON BOX FLYER

PE BAG (340*225)

PROTECTION SHEET

RATING LABEL,L202EV(WH)

SALES OFFICE LIST

SHEET SETUP,L202EV(B)

MR405

MR406

MR407

MR408

MR409

MR410

MR411

MR412

MR4G1

MR4G3

MR4G5

MR4G7

MR4G9

MR4H1

*** RESISTORS ***

J921 79EN0189

J923

J924

79EN0189

79EN0189

J925

J926

J927

J928

J929

79EN0189

79EN0189

79EN0189

79EN0189

79EN0189

J930

J940

J961

J962

MR401

MR402

MR403

MR404

79PQ6212

79EN0189

79EN0189

79EN0189

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6209

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD METAL 1/4W 0 JUMPER

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R SMD 1/4W(T) 5% 0

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 150 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

8-250

Part No for NMV

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ5277

79PQ5277

79EN0158

79PQ5277

79PQ5277

79EN0158

79PQ1892

79PQ1892

79PQ1892

79PQ1892

79PQ1892

79PQ1892

79PQ1892

79PQ6208

79PQ6208

79PQ6208

79PQ6208

79PQ6208

79PQ6208

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ6207

79PQ1892

79PQ6189

79PQ5869

79PQ5675

79PQ5869

79PQ5314

79PQ6178

79PQ5675

79PQ6176

79PQ5675

79PQ5675

79PQ5675

79PQ5371

79PQ5371

79PQ5371

79PQ6197

79EN0781

SYMBOL

MRK17

MRK19

MRK21

MRK23

R101

R102

R103

R105

R106

R107

R117

R118

R119

R120

R121

R122

R123

MRA01

MRA03

MRA05

MRA07

MRA09

MRA11

MRK01

MRK03

MRK05

MRK07

MRK09

MRK11

MRK13

MRK15

R125

R151

R152

R153

R154

R155

R156

R157

R158

R159

R15A

R15E

R15F

R15L

R201

R202

R203

DESCRIPTION

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 100 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

R NET SMD 1/16W 33 J

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

R SMD 1/10W(T) 1% 180

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

R SMD 1/10W(T) 1% 180

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 1K

R SMD METAL 1/10W 1.5K F

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 56OH

R SMD METAL 1/10W 820K J

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/10W 56K J T

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 56K F

R SMD 1/10W(T) 1% 33K

8-251

Part No for NMV

79PQ6175

79PQ6197

79EN0781

79PQ5684

79PQ5307

79EN0781

79EN0781

79PQ6188

79PQ5675

79PQ5314

79PQ5314

79PQ6195

79PQ5280

79PQ6199

79PQ5371

79PQ5278

79PQ6191

79PQ5316

79EN0780

79PQ6188

79PQ6194

79PQ5371

79PQ5371

79EN0183

79EN0183

79PQ5313

79EN0781

79PQ6210

79PQ6210

79PQ5371

79PQ5315

79PQ6188

79PQ5278

79PQ6200

79PQ6198

79PQ5320

79PQ5320

79PQ5371

79PQ5314

79PQ5371

79PQ5039

79PQ5320

79PQ5320

79PQ5272

79PQ5272

79PQ5314

79PQ5314

79PQ5315

SYMBOL

R272

R273

R274

R274A

R275

R276

R277

R277A

R278

R2A1

R2A2

R2A3

R2A4

R2A5

R2A7

R2M1

R2M2

R221

R222

R223

R224

R225

R226

R261

R262

R266

R267

R268

R269

R26A

R271

R2M3

R2M4

R2M5

R402

R403

R405

R409

R412

R415

R416

R418

R422

R429

R430

R433

R435

R449

DESCRIPTION

CHIP RES 1/10W(T) 1% 1.8K

R SMD 1/10W(T) 1% 27K

R SMD METAL 1/10W 1.2K F

R SMD METAL 1/10W 30K F

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD 1/10W(T) 5% 33K

R SMD 1/10W(T) 5% 33K

CHIP RES 1/10W(T) 1% 150K

R SMD 1/10W(T) 1% 33K

R SMD METAL 1/2W 680 J

R SMD METAL 1/2W 680 J

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 2.2K

R SMD METAL 1/10W 5.6K J

R SMD METAL 1/10W 56K F

R SMD 1/10W(T) 1% 33K

CHIP RES 1/10W(T) 1% 2.2K

CHIP RES 1/10W(T) 5% 3.3K

R SMD 1/10W(T) 1% 33K

R SMD 1/10W(T) 1% 33K

R SMD METAL 1/10W 1.2K F

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W(T) 5% 56OH

R SMD METAL 1/10W 390 F

CHIP RES 1/10W(T) 1% 1KOH

R SMD METAL 1/10W 8.2K F

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 1% 4.7K

R SMD METAL 1/10W 22K F

R SMD METAL 1/10W 1.2K F

CHIP RES 1/10W(T) 1% 4.7K

R SMD METAL 1/10W 82 F

R SMD METAL 1/10W 62 F

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W(T) 5% 56OH

CHIP RES 1/10W(T) 5% 2.2K

8-252

Part No for NMV

79PQ5675

79PQ5272

79PQ5272

79PQ5272

79PQ5272

79PQ5371

79PQ5314

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79PQ5307

79PQ5307

79PQ5675

79PQ5039

79PQ5371

79PQ5272

79PQ5371

79PQ5039

79PQ5039

79PQ5675

79PQ5675

79PQ5272

79PQ5272

79PQ5675

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79PQ5272

79PQ5272

79PQ5272

79PQ5272

79PQ5272

79PQ5675

79PQ6186

79PQ5317

79PQ5675

SYMBOL

R464

R465

R466

R467

R468

R470

R4A2

R4A3

R4A4

R4A5

R4A6

R4A7

R4A8

R4A9

R4AK

R4AL

R4AM

R451

R452

R453

R454

R455

R456

R457

R458

R459

R45E

R45K

R45P

R45T

R463

R4AN

R4AP

R4AT

R4E0

R4E1

R4E2

R4E3

R4E4

R4E5

R4E6

R4E7

R4E8

R4E9

R4EA

R550

R801

R802

DESCRIPTION

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W(T) 5% 10KO

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 56OH

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/4W 5.1K J T

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 10KO

8-253

Part No for NMV

79EN0184

79PQ5272

79PQ5272

79PQ5272

79PQ5272

79PQ5272

79PQ5039

79PQ5039

79PQ5039

79PQ5272

79PQ5272

79PQ5272

79PQ5039

79EN0184

79PQ5272

79PQ5272

79PQ5272

79EN0780

79PQ6192

79PQ5039

79PQ5675

79PQ5675

79PQ5675

79PQ5272

79PQ5272

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79PQ5039

79PQ5039

79PQ5039

79PQ5317

79PQ6190

79EN0162

79PQ5317

79PQ5317

79PQ5317

79PQ5317

79PQ5317

79PQ5317

79PQ5317

79PQ6211

79PQ5272

79PQ5272

79PQ5039

SYMBOL

R820

R821

R822

R823

R826

R827

R828

R829

R830

R831

R832

R833

R834

R838

R839

R840

R841

R803

R805

R806

R807

R808

R809

R811

R812

R813

R814

R815

R816

R818

R819

R842

R844

R845

R846

R849

R850

R883

R885

R886

R887

R889

R890

R891

R8A2

R8A4

R8A5

R8A6

DESCRIPTION

R SMD 1/10W(T) 1% 27K

R SMD METAL 1/10W 24K F

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 22KO

R SMD METAL 1/10W 18K F

R SMD 1/10W(T) 1% 220K

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 5% 22KO

R SMD METAL 1W 33 J

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

8-254

Part No for NMV

79PQ5272

79PQ5272

79PQ5039

79PQ5039

79PQ5039

79PQ5039

79PQ6211

79PQ5675

79PQ5272

79PQ5272

79PQ6185

79PQ6185

79PQ6185

79PQ6181

79PQ6181

79PQ6181

79PQ6169

79PQ5039

79PQ5039

79PQ5039

79PQ5039

79PQ5039

79PQ5039

79PQ5039

79PQ5039

79PQ5039

79PQ5039

79PQ5039

79PQ5039

79PQ6211

79PQ5675

79PQ6187

79PQ6170

79PQ1897

79PQ6201

79PQ6204

79PQ6202

79PQ5310

79PQ6166

79PQ1896

79EN0232

79PQ1891

79PQ1893

79PQ1898

79PQ6184

79PQ1893

79PQ1893

79PQ1898

SYMBOL

R8F4

R8F5

R8F6

R8F7

R8FX

R8FY

R8G2

R8G3

R8G4

R8G5

R901

R902

R903

R904

R905

R906

R907

R8A7

R8AA

R8AE

R8AL

R8AX

R8AY

R8E1

R8E7

R8E8

R8E9

R8EA

R8EF

R8F2

R8F3

R908

R909

R910

R911

R912

R913

R914

R915

R916

R917

R918

R920

R921

R922

R923

R924

R925

DESCRIPTION

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

R SMD METAL 1W 33 J

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

R SMD METAL 1W 33 J

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD METAL 1/4W 470K J T

R SMD METAL 1/4W 470K J T

R SMD METAL 1/4W 470K J T

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

R MOF 2W/M 100K J (A)

R SMD METAL 1/3W 2.2K J T

R MOF 2W/M 0.33 J(A)

CHIP 1/8W(T) 5% 22K

R SMD METAL 1/8W 4.7 F T

R SMD METAL 1/4W 10K F T

R SMD METAL 1/8W 680 F T

CHIP RES 1/8W(T) 5% 100KO

R CARBON 1/4W 5.6 J M T

CHIP 1/8W(T) 5% 220H

R SMD 1/8W(T) 5% 470

CHIP 1/8W(T) 5% 100H

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 33K

R SMD METAL 1/4W 33K J T

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 33K

8-255

Part No for NMV

79PQ1890

79PQ1892

79PQ6168

79PQ5682

79PQ6180

79PQ1969

79PQ1890

79PQ1893

79PQ6179

79PQ1891

79EN0200

79EN0227

79EN0200

79PQ1890

79PQ1969

79PQ6183

79PQ6183

79PQ6203

79PQ5310

79PQ1902

79PQ1893

79PQ1897

79PQ5310

79PQ1893

79PQ6181

79PQ6181

79PQ6181

79PQ5549

79EN0218

79PQ2170

79PQ5361

79PQ1898

79PQ6206

79PQ6206

79PQ6205

79PQ1905

79PQ6182

79PQ1892

79PQ1891

79PQ6170

79EN0184

79EN0184

79EN0184

79EN0184

79PQ5315

79PQ5315

79EN0179

79EN0179

SYMBOL

R955

R956

R9A2

R9A3

R9A4

R9A5

R9A6

R9A7

R9A8

R9E1

R9E2

R9E3

R9E4

R9E6

R9E7

R9X1

R9X2

R926

R927

R928

R929

R931

R933

R934

R935

R936

R937

R951

R952

R953

R954

R9X4

R9X5

R9X6

R9X7

R9X8

R9X9

R9Y1

R9Y2

R9Y3

RA03

RA04

RA05

RA06

RA07

RA08

RA11

RA12

DESCRIPTION

R SMD METAL 1/8W 9.1K F T

CHIP RES 1/8W(T) 5% 100KO

CHIP 1/8W(T) 1% 10K

CHIP 1/8W(T) 5% 10K

CHIP 1/8W(T) 5% 22K

CHIP RES 1/8W(T) 5% 100KO

CHIP 1/8W(T) 5% 10K

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

R SMD METAL 1/4W 1M J

RES SMD 1/8W(T) 5% 1.2KOH

R SMD 1/8W(T) 1% 7.5K

CHIP 1/8W(T) 1% 6.2K

CHIP RES 1/8W (T) 1% 2.2K

CHIP 1/8W(T) 5% 0 H

CHIP 1/8W(T) 5% 1K

R MOF 1W/M 47K J(A)

CHIP RES 1/8W(T) 5% 27OHM

R SMD METAL 1/4W 1.0K J T

CHIP 1/8W(T) 5% 3.9K

CHIP 1/8W(T) 5% 0 H

CHIP 1/8W(T) 5% 10K

R SMD METAL 1/4W 100 J T

CHIP 1/8W(T) 5% 100H

R SMD 1/8W(T) 1% 1K

R SMD 1/8W(T) 5% 22

R SMD 1/8W(T) 1% 1K

CHIP 1/8W(T) 5% 0 H

CHIP 1/8W(T) 5% 3.9K

R SMD METAL 1/4W 2.2M J T

R SMD METAL 1/4W 2.2M J T

CHIP 1/8W(T) 5% 33K

R SMD METAL 1/4W 750K F

R SMD METAL 1/4W 750K F

R SMD METAL 1/4W 680K F

CHIP 1/8W(T) 1% 22K

R SMD METAL 1/4W 22K J T

CHIP 1/8W(T) 5% 1K

CHIP 1/8W(T) 5% 100H

R MOF 2W/M 0.33 J(A)

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 2.2K

CHIP RES 1/10W(T) 5% 2.2K

R SMD 1/10W(T) 5% 10

R SMD 1/10W(T) 5% 10

8-256

Part No for NMV

79PQ5277

79PQ5277

79PQ5317

79PQ5283

79PQ5283

79PQ5283

79PQ5272

79PQ5675

79PQ5675

79PQ5675

79EN0621

79PQ5306

79PQ5306

79PQ5306

79PQ5869

79PQ5272

79PQ5272

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79EN0184

79PQ5272

79PQ5272

79PQ5272

79PQ5277

79PQ5675

79EN0184

79PQ5675

79PQ5675

79PQ5272

79PQ5308

79EN0621

79EN0621

79EN0621

79PQ6196

79PQ5282

79PQ5282

79PQ5282

79PQ5371

79PQ5277

79PQ5277

79PQ5277

79PQ6177

79PQ5371

79PQ5371

79PQ5371

SYMBOL

RA4A

RA4E

RA70A

RA70B

RA70G

RA70R

RA71A

RA71B

RA71G

RA71R

RA72A

RA72B

RA72G

RA72R

RA73A

RA73B

RA73G

RA19

RA20

RA21

RA22

RA23

RA24

RA27

RA28

RA29

RA30

RA34

RA37

RA43

RA44

RA73R

RA74A

RA74B

RA74G

RA74R

RA75A

RA75B

RA75G

RA75R

RA76A

RA76B

RA76G

RA76R

RA77A

RA77B

RA77G

RA77R

DESCRIPTION

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 10KO

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 22KO

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

R CHIP 1/10W(T) 5% 330

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 1% 220O

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R SMD METAL 1/10W 510 F

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

R SMD METAL 1/10W 820 J T

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

8-257

Part No for NMV

79PQ5371

79PQ5371

79PQ5320

79PQ5283

79PQ5283

79PQ5283

79PQ5675

79PQ5675

79PQ5675

79EN0621

79PQ5306

79PQ5306

79PQ5306

79EN0184

79PQ5869

79PQ5272

79PQ5272

79PQ5869

79PQ5277

79PQ5277

79PQ5277

79PQ5272

79PQ5371

79PQ5371

79PQ5371

79PQ5272

79PQ5277

79PQ5277

79PQ5277

79PQ5307

79PQ5371

79PQ5272

79EN0184

79PQ5308

79EN0621

79EN0621

79EN0621

79PQ6196

79PQ5282

79PQ5282

79PQ5282

79PQ5315

79PQ5371

79PQ5277

79PQ5277

79PQ5277

79PQ5315

79PQ6177

SYMBOL

RA7HG

RA7HR

RA7LA

RA80B

RA80G

RA80R

RA81B

RA81G

RA81R

RA82A

RA82B

RA82G

RA82R

RA83

RA83A

RA83B

RA83G

RA78A

RA78B

RA78G

RA78R

RA79A

RA79B

RA79G

RA79R

RA7AA

RA7AB

RA7AG

RA7AR

RA7EA

RA7HB

RA83R

RA84

RA84A

RA84B

RA84G

RA84R

RA85A

RA85B

RA85G

RA85R

RA86

RA86A

RA86B

RA86G

RA86R

RA87

RA87A

DESCRIPTION

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 0OHM

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 1% 75OH

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

R CHIP 1/10W(T) 5% 330

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

CHIP RES 1/10W(T) 5% 15KO

R SMD 1/10W(T) 5% 33

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD 1/10W(T) 5% 33

CHIP RES 1/10W(T) 1% 220O

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R CHIP 1/10W(T) 5% 330

R SMD METAL 1/10W 510 F

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 2.2K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 2.2K

R SMD METAL 1/10W 820 J T

8-258

Part No for NMV

79PQ5277

79PQ5307

79PQ5371

79PQ5371

79PQ5371

79PQ5869

79PQ5320

79PQ5038

79PQ5315

79EN0186

79PQ5317

79PQ6171

79EN0184

79EN0184

79EN0184

79EN0179

79EN0179

79PQ5371

79PQ5371

79PQ5371

79PQ5869

79PQ5277

79PQ5277

79PQ5277

79PQ5272

79PQ5371

79PQ5371

79PQ5371

79PQ5272

79PQ5277

79PQ5277

79PQ6173

79PQ5371

79PQ5036

79PQ6173

79PQ5371

79PQ5036

79PQ5675

79PQ5675

79PQ6172

79PQ6172

79PQ5371

79PQ5371

79PQ5869

79PQ5869

79PQ5282

79PQ5282

79PQ5778

SYMBOL

RA8AR

RA8EA

RA8HB

RA8HG

RA8HR

RA8KA

RA8LA

RAA3

RAA4

RAA5

RAA6

RAE3

RAE4

RAE5

RAE6

RAFH

RAFK

RA87B

RA87G

RA87R

RA88A

RA88B

RA88G

RA88R

RA89A

RA89B

RA89G

RA89R

RA8AA

RA8AB

RA8AG

RAH1

RAH2

RAH3

RAH5

RAH6

RAH7

RAM1

RAM2

RAM3

RAM4

RAM5

RAM6

RAM7

RAM8

RAN1

RAN2

RAN3

DESCRIPTION

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 4.7K

CHIP RES 1/10W(T) 5% 3.3K

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 0OHM

CHIP 1/10W(T) 5% 470H

CHIP RES 1/10W(T) 5% 2.2K

R SMD 1/10W(T) 5% 6.8K

CHIP RES 1/10W(T) 5% 22KO

R SMD METAL 1/10W 18 J T

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 33

R SMD 1/10W(T) 5% 10

R SMD 1/10W(T) 5% 10

R SMD METAL 1/10W 180K J

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 150H

R SMD METAL 1/10W 180K J

CHIP RES 1/10W (T) 5% 1KO

CHIP 1/10W(T) 5% 150H

CHIP RES 1/10W(T) 5% 10KO

CHIP RES 1/10W(T) 5% 10KO

R SMD METAL 1/10W 18K J T

R SMD METAL 1/10W 18K J T

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

R SMD METAL 1/10W 2.7K J

R SMD METAL 1/10W 2.7K J

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 47OH

CHIP RES 1/10W(T) 5% 68K

8-259

SYMBOL

RK16

RK22

RK23

RK24

RK25

RK26

RK2A

RK2E

RKAE

RKF1

RKF2

RKF6

RKF7

RKF8

RKF9

RAN4

RAN5

RAN6

RAN7

RAN8

RAN9

RANA

RK01

RK07

RK08

RK09

RK0A

RK10

RK11

*** CAPACITORS ***

C151

C152

79PQ6261

79PQ6256

C153

C154

C15A

C201

79PQ6225

79PQ6257

79PQ6246

79PQ6250

C221

C222

C223

C224

C225

C226

C22E

C22F

C261

C263

C265

79PQ6227

79PQ6246

79PQ6230

79PQ6224

79PQ6255

79PQ6255

79PQ6255

79PQ6259

79PQ6255

79PQ6224

79PQ6255

Part No for NMV

79PQ6174

79PQ5314

79EN0184

79PQ5039

79PQ5039

79PQ5320

79PQ5039

79PQ5039

79PQ5039

79PQ6196

79PQ6196

79PQ6193

79PQ5272

79PQ5039

79PQ5272

79PQ5778

79PQ6173

79PQ6173

79PQ5371

79PQ5371

79PQ5272

79PQ5272

79PQ6174

79PQ5314

79EN0184

79PQ5039

79PQ5039

79PQ5039

79PQ5320

DESCRIPTION

CHIP RES 1/10W(T) 5% 68K

R SMD METAL 1/10W 180K J

R SMD METAL 1/10W 180K J

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W (T) 5% 1KO

CHIP RES 1/10W(T) 5% 100O

CHIP RES 1/10W(T) 5% 100O

R SMD METAL 1/10W 390 J T

CHIP RES 1/10W(T) 5% 56OH

R SMD 1/10W(T) 5% 33

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 0OHM

R SMD METAL 1/10W 390 J T

CHIP RES 1/10W(T) 5% 56OH

R SMD 1/10W(T) 5% 33

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 0OHM

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

CHIP 1/10W(T) 5% 47K

R SMD METAL 1/10W 510 F

R SMD METAL 1/10W 510 F

R SMD METAL 1/10W 2.7K F

CHIP RES 1/10W(T) 5% 100O

CHIP 1/10W(T) 5% 47K

CHIP RES 1/10W(T) 5% 100O

C SMD CER CH 390P 50V J

C SMD CER BJ 1U 6.3V K

C SMD ELE105 4.7U 25V M

C SMD CER BJ 1U 10V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 22U 6.3V M

C SMD ELE105 100U 10V M

C SMD CER BJ 10U 6.3V M

C SMD ELE105 330U 16V M

C SMD ELE105 10U 16V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 2.2U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER F 0.1U 25V Z

8-260

Part No for NMV

79PQ6255

79PQ6229

79PQ6249

79PQ6260

79PQ6255

79PQ6255

79PQ6231

79PQ6246

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6250

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6246

79PQ6246

79PQ6256

79PQ6250

79PQ6255

79PQ6255

79PQ6228

79PQ6230

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6246

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6246

SYMBOL

C2E1

C2M1

C2M2

C2M3

C2M4

C2M5

C2M6

C409

C410

C411

C412

C413

C414

C415

C416

C417

C418

C26A

C271

C273

C274

C275

C276

C277

C278

C27E

C281

C2A2

C2A3

C2A4

C2A5

C419

C420

C421

C422

C423

C424

C425

C426

C427

C428

C429

C430

C431

C432

C433

C434

C443

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER BJ 22U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 1U 6.3V K

C SMD CER BJ 22U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 22U 25V M

C SMD ELE105 330U 16V M

C SMD CER F 0.1U 25V Z

C SMD ELE105 100U 25V M

C SMD CER BJ 0.047U 25V K

C SMD CER B 2700P 50V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 680U 16V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

8-261

Part No for NMV

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6246

79PQ6255

79PQ6246

79PQ6251

79PQ6251

79PQ6255

79PQ6255

79PQ6255

79PQ6224

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6224

79PQ6259

79PQ6255

SYMBOL

C4E4

C4E5

C4E6

C4E7

C4E8

C4E9

C4F0

C4F1

C4F2

C4F3

C4F4

C4F5

C4F6

C4F7

C4F8

C4F9

C4FA

C444

C451

C452

C454

C455

C458

C459

C45F

C4A2

C4A4

C4E0

C4E1

C4E2

C4E3

C4FE

C4FF

C4FH

C4FJ

C4FK

C4FL

C4FM

C4FMZ

C4FN

C4FP

C4FQ

C4FR

C4FS

C4FT

C4FW

C4FX

C4FY

DESCRIPTION

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER BJ 2.2U 6.3V M

C SMD CER F 0.1U 25V Z

8-262

Part No for NMV

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6254

79PQ6254

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6254

79PQ6223

79PQ6223

79PQ1982

79PQ6221

79PQ6235

79PQ6220

79PQ6213

79PQ6242

79PQ5468

79PQ6238

79PQ6241

79PQ6240

79PQ6236

79PQ6245

79PQ5790

79PQ6218

79PQ6218

SYMBOL

C805

C806

C807

C808

C809

C810

C811

C812

C813

C815

C818

C819

C820

C821

C8A1

C8A2

C8E1

C551

C552

C553

C554

C555

C556

C561

C562

C563

C564

C565

C566

C801

C802

C901

C902

C905

C906

C907

C910

C911

C912

C913

C914

C915

C920

C925

C926

C927

C951

C952

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER B 0.1U 16V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER B 0.1U 16V K

C SMD CER B 0.1U 16V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SAFE X 0.47U AC275V K

C SAFE X 0.47U AC275V K

SAFETY Y-CAP/D1000P/400VM

C ELE105 120U 450V SNAP-I

C FILM MM 0.01U 400V J

C ELE105 22U 50V M (T)

C ELE105 100U 35V M (T)

C SMD CER F 0.1U 50V Z

C SMD C0G 1000P 50V J 080

C SMD CER CH 10P 50V C

C SMD CER BJ 0.1U 25V K

C SMD CER B 0.01U 50V K

C FILM MM 0.47U 100V J

C SMD CER BJ 10U 6.3V K

C ELE105 4.7U 50V M (T)

C ELE105 1500U 25V M (T)

C ELE105 1500U 25V M (T)

8-263

Part No for NMV

79PQ6247

79PQ6239

79PQ6263

79PQ6263

79PQ6263

79PQ6263

79PQ6263

79PQ6263

79PQ6253

79PQ6253

79PQ6246

79PQ6234

79PQ6233

79PQ6255

79PQ6255

79PQ6255

79PQ6256

79PQ6217

79PQ6244

79PQ6222

79PQ6215

79PQ6235

79PQ6241

79PQ6243

79PQ6216

79PQ6219

79PQ6243

79PQ6214

79PQ6237

79PQ6240

79PQ6248

79PQ6255

79PQ6255

79PQ6232

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6246

79PQ6246

79PQ6246

79PQ6255

SYMBOL

C9X4

C9X5

CA05

CA06

CA07

CA08

CA09

CA10

CA12

CA19

CA20

CA21

CA22

CA23

CA24

CA25

CA26

C953

C954

C955

C9A2

C9A3

C9A4

C9A6

C9A7

C9E1

C9E2

C9E3

C9X1

C9X2

C9X3

CA28

CA29

CA2A

CA36

CA37

CA38

CA39

CA40

CA41

CA42

CA43

CA44

CA45

CA53

CA67

CA70A

CA70B

DESCRIPTION

C ELE105 1000U 25V M (T)

C SMD CER BJ 1U 16V M

C CER SL 150P 1KV J (T)

C ELE105 2.2U 50V M (T)

C FILM MM 0.01U 400V J

C SMD CER BJ 0.1U 25V K

C SMD CER BJ 1U 10V K

C ELE105 47U 25V M (T)

C ELE105 2200U 10V M (T)

C SMD CER BJ 1U 10V K

C ELE105 1000U 10V M (T)

C FILM PMS 0.47U 400V J

C SMD CER B 0.01U 50V K

C SMD CER B 470P 50V K

C SMD CER BJ 0.33U 16V K

C SMD CER SL 100P 50V J

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER BJ 0.047U 16V K

C SMD CER B 1000P 50V K

C SMD CER B 1000P 50V K

C SMD CER BJ 10U 6.3V M

C SMD FILM ECHU 8200P 16V

C SMD FILM ECHU 47000P 16

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 1U 6.3V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD FILM ECHU 15000P 16

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

8-264

Part No for NMV

79PQ6255

79PQ6246

79PQ6258

79PQ6258

79PQ6258

79PQ6255

79PQ6255

79PQ6255

79PQ6264

79PQ6262

79PQ6262

79PQ6262

79PQ6255

79PQ6246

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6246

79PQ6246

79PQ6246

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6251

79PQ6251

79PQ6251

79PQ6255

79PQ6255

79PQ6246

79PQ6246

79PQ6246

79PQ6255

79PQ6255

79PQ6255

79PQ6251

79PQ6251

79PQ6251

79PQ6255

79PQ6255

79PQ6255

79PQ6246

79PQ6258

79PQ6258

79PQ6258

79PQ6255

SYMBOL

CA74R

CA75A

CA75B

CA75G

CA75R

CA76B

CA76G

CA76R

CA77A

CA77B

CA77G

CA77R

CA78A

CA80A

CA80B

CA80G

CA80R

CA70G

CA70R

CA71B

CA71G

CA71R

CA72A

CA72B

CA72G

CA72R

CA73B

CA73G

CA73R

CA74B

CA74G

CA81B

CA81G

CA81R

CA82B

CA82G

CA82R

CA83B

CA83G

CA83R

CA84B

CA84G

CA84R

CA85A

CA85B

CA85G

CA85R

CA86B

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 68P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER CH 10P 50V D

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER BJ 10U 6.3V M

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER CH 22P 50V J

C SMD CER F 0.1U 25V Z

8-265

Part No for NMV

79PQ6224

79PQ6256

79PQ6256

79PQ6265

79PQ6265

79PQ6246

79PQ6246

79PQ6256

79PQ6256

79PQ6265

79PQ6265

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6264

79PQ6262

79PQ6262

79PQ6262

79PQ6255

79PQ6253

79PQ6253

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6252

79PQ6252

79PQ6252

79PQ6252

79PQ6252

79PQ6246

79PQ6226

79PQ6252

79PQ6246

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

79PQ6255

SYMBOL

CAA6

CAH1

CAH2

CAH3

CAH4

CAM3

CAM4

CAN1

CAN2

CAN3

CAN4

CK01

CK02

CK03

CK04

CK05

CK06

CA86G

CA86R

CA87A

CA87B

CA87G

CA87R

CA88A

CA90

CA91

CAA1

CAA2

CAA3

CAA4

CAA5

CK07

CK08

CK09

CK10

CK11

CK12

CK13

CK14

CK16

CK17

CK18

CK19

CK20

CK21

CK22

CK23

CK24

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 68P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER CH 47P 50V J

C SMD CER F 0.1U 25V Z

C SMD CER B 1000P 50V K

C SMD CER B 1000P 50V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD ELE105 10U 16V M

C SMD CER BJ 1U 6.3V K

C SMD CER BJ 1U 6.3V K

C SMD CER B 6800P 50V K

C SMD CER B 6800P 50V K

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 10U 6.3V M

C SMD CER BJ 1U 6.3V K

C SMD CER BJ 1U 6.3V K

C SMD CER B 6800P 50V K

C SMD CER B 6800P 50V K

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD ELE105 100U 16V M

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

8-266

SYMBOL

CK25

CK26

CK27

CK28

CK29

CK30

CK31

CK32

CK34

CK35

CK36

CKF1

CKF2

Part No for NMV

79PQ6255

79PQ6255

79PQ6252

79PQ6252

79PQ6252

79PQ6252

79PQ6252

79PQ6246

79PQ6226

79PQ6252

79PQ6246

79PQ6255

79PQ6255

DESCRIPTION

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD ELE105 100U 16V M

C SMD CER CH 100P 50V J

C SMD CER BJ 10U 6.3V M

C SMD CER F 0.1U 25V Z

C SMD CER F 0.1U 25V Z

8-267

REPLACEMENT PARTS LIST

(For Asia / Pacific)

The components specified for Model LCD2080UX-BK(B)

Manufactured by NPG

SYMBOL Part No for NMV DESCRIPTION

*** ICS ***

IC201

IC221

IC222

IC251

IC271

IC272

79PQ6140

79PQ6138

79PQ6140

79PQ6139

79PQ6140

79PQ6140

79PQ6138

79PQ6128

IC2A1

IC401

IC402

IC403

IC405

IC4A1

IC4A2

IC4A3

IC551

IC552

IC801

IC802

IC803

IC804

IC8A1

IC8A2

IC8A3

IC8A4

IC8A5

79PQ6123

79PQ6134

79PQ6131

79PQ6126

79PQ6129

79PQ6129

79PQ5768

79PQ5768

79PQ5301

79PQ5301

79PQ6130

79PQ6124

79PQ5255

79PQ6136

79PQ6136

79PQ6135

79PQ6135

IC8F1

IC901

79PQ5255

79PQ6120

IC951 79PQ6122

IC9A1 79PQ6121

IC9A2 79PQ6141

IC9E1 79PQ6122

ICA01 79PQ6125

ICA70A

ICAA1

ICAA2

ICAA3

79PQ6137

79PQ6129

79PQ6129

79PQ6133

ICAA4

ICAA5

ICAA6

ICK01

ICK02

79PQ6133

79PQ6142

79PQ6132

79PQ6127

79PQ6127

IC SMD BA00BC0WFP

IC SMD PQ1CZ21H2ZP

IC SMD BA00BC0WFP

IC SMD L4978 REGULATOR

IC SMD BA00BC0WFP

IC SMD BA00BC0WFP

IC SMD PQ1CZ21H2ZP

IC SMD PW164B

IC SMD LH28F800-L202V03

IC SMD ICS332M-L202EV

IC SMDSN74AHC2G125H MOS

IC SMD UPD65545-Y-6C

IC SMD NC7WZ14

IC SMD NC7WZ14

IC SMD DS90C385MTD MOS

IC SMD DS90C385MTD MOS

IC RESET M51957AFP

IC RESET M51957AFP

IC SMD CAT24WC64JI-TE13 M

IC SMD M30625MGN-A26GP

IC SMD BU9882F-WE2 MOS

IC SMD X9116WM8-2.7T4 MOS

IC SMD X9116WM8-2.7T4 MOS

IC SMD SN74CBT1G125DCK

IC SMD SN74CBT1G125DCK

IC SMD BU9882F-WE2 MOS

IC STR-E1717 LF NO. 1064

IC SMD XN04A8800L

IC SMD AD9888KS-170

IC SMD AD8002AR

IC SMD NC7WZ14

IC SMD NC7WZ14

IC SMD SN74CBTLV1G125DCK

IC SMD SN74CBTLV1G125DCK

IC SMD TA76431F

IC SMD SN74CBTLV3125PW

IC SMD TFP401 MOS

IC SMD TFP401 MOS

8-268

SYMBOL

PC901

PC911

PC9A1

Part No for NMV

79PQ5663

79PQ5663

79PQ5663

Q911

Q912

Q913

Q930

Q931

Q932

Q933

Q9E1

QA70A

QA70B

QA70G

QA70R

QA71A

Q265

Q271

Q272

Q451

Q452

Q453

Q805

Q806

Q807

Q861

Q863

Q8A3

Q8E1

Q8E5

Q8E6

Q901

Q908

*** TRANSISTORS ***

Q101

Q102

79PQ6110

79PQ6114

Q104

Q105

Q151

79PQ6110

79PQ6114

79PQ6115

Q152

Q153

Q154

Q155

Q156

Q157

Q261

Q262

79PQ6106

79PQ5517

79PQ6108

79PQ6108

79PQ6109

79PQ6108

79PQ6108

79PQ6119

79PQ6117

79PQ6108

79PQ6108

79PQ6114

79PQ6108

79PQ6108

79PQ6108

79PQ6113

79PQ6113

79PQ6117

79PQ6117

79PQ6108

79PQ6108

79PQ6108

79PQ6108

79PQ6116

79PQ6118

79PQ6106

79PQ5517

79PQ5517

79PQ6108

79PQ
