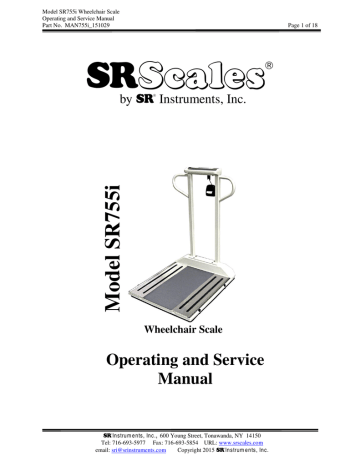

Model SR755i Wheelchair Scale

Operating and Service Manual

Part No. MAN755i_151029

S

by

S Instruments, Inc.

Page 1 of 18

Wheelchair Scale

Operating and Service

Manual

SInstruments, Inc.

,

600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

email: [email protected]

Copyright 2015

SInstruments, Inc.

Model SR755i Wheelchair Scale

Operating and Service Manual

Part No. MAN755i_151029 Page 2 of 18

TABLE OF CONTENTS

TABLE OF FIGURES ......................................................................................................................2

PACKING CHECKLIST – MODEL SR755I ................................................................................3

ASSEMBLY.......................................................................................................................................4

REPLACEMENT PARTS AND ACCESSORIES ........................................................................6

SYSTEM DESCRIPTION AND INTENDED USE .......................................................................7

MAINTENANCE AND CLEANING ..............................................................................................7

STORAGE AND TRANSPORTATION ........................................................................................7

SPECIFICATIONS...........................................................................................................................8

BUTTON FUNCTIONS ...................................................................................................................9

BASIC SYSTEM OPERATION ....................................................................................................10

BATTERY REPLACEMENT .......................................................................................................11

THEORY OF OPERATION .........................................................................................................12

CALIBRATION ..............................................................................................................................13

CONFIGURING SEND BUTTON ................................................................................................15

TROUBLESHOOTING .................................................................................................................16

WARRANTY...................................................................................................................................17

TABLE OF FIGURES

Figure 1: Scale Assembly Diagram ............................................................................................... 4

Figure 2: Display Cable Connector and Battery Compartment Cover ..................................... 4

Figure 3: Printer Mast Bracket ..................................................................................................... 5

Figure 4: Printer Mounting Bracket ............................................................................................. 5

Figure 5: Button Display ................................................................................................................. 9

Figure 6: Battey Compartment ..................................................................................................... 11

Figure 7: Calibration Tolerance Table ........................................................................................ 13

Figure 8: Calibration Switch Diagram ........................................................................................ 13

SInstruments, Inc.

,

600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

email: [email protected]

Copyright 2015

SInstruments, Inc.

Model SR755i Wheelchair Scale

Operating and Service Manual

Part No. MAN755i_151029

PACKING CHECKLIST – Model SR755i

DESCRIPTION

Box 1

BASE ASSEMBLY

MAST ASSEMBLY with DISPLAY

DISPLAY UNIT WITH CABLE

PACKAGE OF SIX (6) “D” CELL BATTERIES

3/8-16 FLAT HEAD SCREWS

CALIBRATION CERTIFICATE

WARRANTY CARD

MANUAL

Box 2 SR8220 Optional Printer Kit

PRINTER

PRINTER BATTERY CHARGER

PRINTER CABLE

PRINTER MAST BRACKET & HARDWARE

PRINTER MOUNTING BRACKET & HARDWARE

PRINTER PAPER

LOCTITE

Page 3 of 18

QUANTITY

1 ea

1 ea

1 ea

1 ea

1 ea

1 ea

1 ea

4 ea

1 ea

1 ea

1 ea

1 ea

1 ea

1 ea

1 ea

SInstruments, Inc.

,

600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

email: [email protected]

Copyright 2015

SInstruments, Inc.

Model SR755i Wheelchair Scale

Operating and Service Manual

Part No. MAN755i_151029 Page 4 of 18

ASSEMBLY

2

1

3

5

8

4

10

9

Cable

Hole e

#

5

6

7

8

1

2

3

4

9

10

PART NAME

Mast Assembly

Base Assembly

Height Bar Assembly (optional)

3/8-16 Screws

Display Unit

Battery Compartment Cover

Display Cable Connector

Printer (optional)

Printer Mast Bracket (optional)

Printer Cable (optional)

STEP 1 Unpack the scale system and check parts against the PACKING CHECKLIST. If there are any missing or damaged parts, please call the Service

Hotline: 1-800-654-6360.

STEP 2: (Figure 1) Position the Mast Assembly (1) into the Base Assembly (2) as shown, while feeding the display cable through the cable hole on the right.

STEP 3: (Figure 1) Insert the four (4) 3/8-16 screws (4) into the holes in Mast Assembly and Base Assembly as indicated. Secure the Mast Assembly by tightening screws into Base Assembly.

Figure 1: Scale Assembly Diagram

STEP 4 : Gently rest the scale on its side. Verify that the serial number on the bottom of the Display Unit (5) matches that on the Battery Compartment Cover (6); located in the

Base Assembly between the wheels.

6

7

Figure 2: Display Cable Connector and

Battery Compartment Cover

Continued next page

SInstruments, Inc.

,

600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

email: [email protected]

Copyright 2015

SInstruments, Inc.

Model SR755i Wheelchair Scale

Operating and Service Manual

Part No. MAN755i_151029 Page 5 of 18

ASSEMBLY Cont’d

STEP 5: Attach the Display Cable Connector (7) to its mate in the Base Assembly. Slide the extra cable back up into the mast pipe.

STEP 7: Install the six (6) “D” cell batteries as indicated on the Battery Compartment Cover label. Tightly close the cover.

STEP 8: Return the scale to the upright position.

INSTALLING OPTIONAL PRINTER

STEP 1: Mount the Printer Mast Bracket (9) to the rear of the Mast Assembly (1) using the two

(2) mounting screws provided. NOTE: The three holes on the Printer Mast Bracket should be towards the top of the Mast (figure 3).

STEP 2: Apply a small amount of Loctite

to the three (3) small screws provided and attach the Printer Mounting Bracket to the Printer Mast Bracket (figure 4).

STEP 3: Attach the Printer to the Printer Mounting Bracket by inserting the tabs on the Printer

Mounting Bracket (figure 4) into the slots on the back of the Printer and carefully snap in place.

STEP 4: Plug the Printer Cable into the Printer and into the Display Unit. Tighten the connector screws into the Display Unit connector.

Figure 3: Printer Mast Bracket

Figure 4: Printer Mounting Bracket

SInstruments, Inc.

,

600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

email: [email protected]

Copyright 2015

SInstruments, Inc.

Model SR755i Wheelchair Scale

Operating and Service Manual

Part No. MAN755i_151029

ASSEMBLY Cont’d

INSTALLING OPTIONAL HEIGHT BAR ASSEMBLY

Page 6 of 18

STEP 1: Remove the round plug from the top left of the Display Unit. Insert the Height Bar

Assembly into the hole in the Display Unit. Ensure the Height Bar Assembly seats correctly in the

Base Assembly (Item 3, Figure 1).

NOTE: It may be necessary to loosen the four (4) 3/8 – 16 flat head Mast Base Assembly mounting screws (Item 4, Figure 1), to allow movement of the Mast for insertion of the Height Bar

Assembly into the Base Assembly.

STEP 2: After Height Bar Assembly installation re-tighten the four (4) 3/8 – 16 flat head Mast

Base Assembly mounting screws.

STEP 3: Tighten the two (2) Allen screws into the Display Unit to secure the Height Bar

Assembly to the scale.

REPLACEMENT PARTS and ACCESSORIES

Part #

SR8285

SR8220

FRAP1300

FRAP13900BR-01

FRAP1300-D9

FRAP1300BP01

FRBC1300

FRTP130012C

MF8205

Description

Height Bar Assembly (optional)

Printer Kit (optional; contains all printer parts listed below)

Printer

Printer Mounting Bracket

Printer Cable

Rechargeable Battery Pack

Printer Battery Charger

Paper, Thermal Printer 58mm (10 Rolls)

Printer Mast Bracket

SInstruments, Inc.

,

600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

email: [email protected]

Copyright 2015

SInstruments, Inc.

Model SR755i Wheelchair Scale

Operating and Service Manual

Part No. MAN755i_151029

SYSTEM DESCRIPTION and INTENDED USE

SYSTEM DESCRIPTION

Page 7 of 18

The SR755i Wheelchair Scale employs the latest in microprocessor and load cell technology to provide accurate and repeatable weight data. Four (4) identically matched transducers are strategically placed to ensure an accurate representation of the patient’s weight.

The low power microprocessor circuitry allows the SR755i to derive its power from six (6) common “D” cell batteries, which will provide up to 166 hours of weight readings before needing replacement. This eliminates the need for an external battery charger or the danger of an AC power supply cord on a portable scale.

The patient’s weight is displayed on a 16-character dot matrix LCD. The weight data may be viewed in either pounds or kilograms with a displayed resolution of 0.1 for each.

INTENDED USE

The SR755i Wheelchair Scale is specifically designed for use as a portable patient weighing system for ambulatory and non-ambulatory wheelchair bound patients or those that need to be supported by a chair or walker. Maximum weight capacity must not exceed

1000 pounds or 454 kilograms gross weight.

WARNING

DO NOT EXCEED

MAXIMUM WEIGHT LIMIT OF

1000 LB / 454 KG

MAINTENANCE and CLEANING

The display case for the SR755i Wheelchair Scale is made of a powder-coated aluminum casting. Exercise

WARNING

caution when cleaning the display window as it is made of clear polyester and can be scratched by abrasive cleaners. Mild soap and water is recommended for general cleaning and disinfecting.

DO NOT use pressurized water or steam. The scale system contains microprocessor circuitry and strain gauge sensors that may be adversely affected by exposure to such an environment.

STORAGE and TRANSPORTATION

STORAGE

If storing this equipment for periods longer than three (3) months, remove the batteries. To maintain proper operation of this instrumentation, storage and transport conditions should not vary outside the following conditions: Relative Humidity 0% to 85%, Ambient Temperature 14°F to

122°F (-10°C to +50°C).

TRANSPORTATION

To transport the SR755i Wheelchair Scale, lower the Height Bar if installed, tip the scale back and wheel it to a new location. Lower the platform back down to the floor, being careful not to shock the scale.

SInstruments, Inc.

,

600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

email: [email protected]

Copyright 2015

SInstruments, Inc.

Model SR755i Wheelchair Scale

Operating and Service Manual

Part No. MAN755i_151029

SPECIFICATIONS

MAXIMUM WEIGHT CAPACITY

1000 lb or 454 kg

Page 8 of 18

PLATFORM SIZE

28 in x 28 in (71 cm x 71 cm)

HEIGHT GAUGE (optional)

Telescoping gauge – 43 in to 79 in

DISPLAY TYPE

16-Character Dot Matrix LCD

DISPLAY RESOLUTION

0.1 lb/0.1 kg

ACCURACY

0.1% +/- 1 digit of displayed resolution for calibrated range

AUTO ZERO

One button operation

AUTO POWER DOWN

Approximately 30 seconds (adjustable to 300 seconds)

RECALL

Recalls last stored weight, height, and BMI

AVERAGING

Automatic digital filter

POWER SUPPLY

Six (6) “D” cell batteries

CALIBRATION

Calibration is traceable to NIST standards.

OPERATING CONDITIONS

Normal operating conditions for this product: Ambient

Temperature Range: 68

F to 85

F (20

C to 30

C),

Relative Humidity Range: 0% to 85%. Avoid exposure to high-pressure water or steam.

TRANSPORT and STORAGE

Storage and transport conditions should not vary outside the following conditions: Relative Humidity 0% to

85%, Ambient Temperature 14°F to 122°F (-10°C to

+50°C). Remove batteries if storing longer than three

(3) months.

SInstruments, Inc.

,

600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

email: [email protected]

Copyright 2015

SInstruments, Inc.

Model SR755i Wheelchair Scale

Operating and Service Manual

Part No. MAN755i_151029

BUTTON FUNCTIONS

Page 9 of 18

Figure 5: Button Display

ZERO / WEIGH

Press and hold to zero. The display will read “WT = 0.0 Lb”. This is used to zero the system before placing the patient on the scale system. This action also resets previously stored weight, height and BMI values to zero. Ensure that nothing is in contact with the weighing surface during this procedure.

Press to weigh. Weight stable indicator “

” flashes then remains solid when stable. Auto stores stable weight in memory.

SEND (PRINTER / EHR)

Press to send stored values to EHR or to printer. Output values include time, date, weight, height, and BMI. Also, indicated on display when paper is out, “PAPER OUT” and when door is open, “PAPER DOOR OPEN”.

RECALL

ENTER

Press to recall the last stable weight. Display will scroll thru “WT”, “HT”, and “BMI” stored values in approximately two second intervals.

Press to save height data and display BMI calculation. Stable weight, height and BMI values are stored in memory until next stable weight is stored or until system is zeroed.

BMI

Press to calculate the BMI. When the “BMI” is pressed, the default starting value “HT =

65 in” or “HT = 165 cm” is displayed. If there is no stored stable weight, the display will indicate “NO WEIGHT DATA” and then go back to the weigh screen “WT = 0.0 Lb”.

Continued next page

SInstruments, Inc.

,

600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

email: [email protected]

Copyright 2015

SInstruments, Inc.

Model SR755i Wheelchair Scale

Operating and Service Manual

Part No. MAN755i_151029

BUTTON FUNCTIONS cont’d

MENU

Press Menu to edit setup.

Page 10 of 18

Setting the UNITS: Use UP or DOWN arrow buttons to select “Lb” or “Kg”. Press

ENTER to save changes.

Setting ON TIME: Use UP or DOWN arrow buttons to adjust the “ON TIME”. The

ON TIME” may be set from 30 to 300 seconds in 30 second increments. Press

ENTER to save changes.

Setting TIME and DATE: Use the UP arrow button to select digit. To change digit use the DOWN arrow button. Press ENTER to save changes.

NOTE: When selected, the year position defaults to “00”

UP

Press UP to adjust height up from the default, to increase the scale’s “on time”, or to select a digit when setting time and date.

DOWN

Press DOWN to adjust the height down from the default, to decrease the scale’s “on time”, or to change the value of a selected digit when setting time and date.

BASIC SYSTEM OPERATION

SETTING SYSTEM ZERO

Make sure the scale is free and clear of any obstructions and press and hold the ZERO /

WEIGH button. The displayed message will indicate “HOLD TO ZERO” and count down to zero. Make sure that nothing is in contact with the scale while zeroing the system.

In a few seconds, the display will read “WT = 0.0 Lb” (or Kg). This action also resets previously stored weight, height, and BMI values to zero.

CAUTION

Do not leave patient unattended on the scale platform.

WEIGHING

Position the patient on the scale. Lock the patient’s wheelchair to prevent movement.

Press the ZERO/WEIGH button. The weight stable indicator

” flashes on the display. When the weight is stable, the weight stable indicator remains solid. The display will indicate the patient’s weight in either pounds or kilograms; example: “WT = 123.5

Lb”. The stable weight is auto stored in memory.

NOTE: If patient will be using a cane for support on the scale, place the cane on the scale while zeroing the system. This will ensure that the patient’s NET weight will be displayed.

It is recommended that the system be zeroed prior to each new patient.

Continued next page

SInstruments, Inc.

,

600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

email: [email protected]

Copyright 2015

SInstruments, Inc.

Model SR755i Wheelchair Scale

Operating and Service Manual

Part No. MAN755i_151029 Page 11 of 18

BASIC SYSTEM OPERATION cont’d

CALCULATING BMI

Press to calculate BMI.

When the BMI button is pressed, the default starting value is set either to 65 in or to 165 cm; example: “HT = 65 in”. Use the UP or DOWN arrows to adjust the default height to the value of the patient’s height.

NOTE: To calculate the BMI, a patient’s stable weight needs be stored as indicated in

WEIGHING” above, if no stable weight has not been stored “NO WEIGHT DATA” will be displayed and the display will then go back to the weigh screen “WT = 0.0 Lb”.

Press ENTER to save height data and display BMI calculation. The BMI will be displayed; example: “BMI = 20.5”.

RECALLING LAST STABLE WEIGHT

Press to recall last stable weight.

The display will scroll thru “WT”, “HT” and “BMI” stored values in approximately two second intervals; example: “RCL WT = 123.5 Lb”, “RCL HT = 65 in” and “RCL BMI

= 20.5”.

BATTERY REPLACEMENT

WARNING

DO NOT remove batteries while scale is on.

Allow scale to shut down naturally thru timing out. This prevents possible voltage drain on the printed circuit board coin battery.

STEP 1: The display will read “CHANGE BATTERIES”.

STEP 2: (Figure 6) Tip the scale on its side and unscrew the two (2) screws in the Battery

Compartment Cover located on the base of the unit, between the wheels .

STEP 3: Remove and replace ALL six (6) “D” cell batteries. Refer to Battery Compartment Cover label for placement.

STEP 4: Press the “WEIGH” button to confirm display is working.

STEP 5: Tightly close the cover.

STEP 6: Zero the system. Figure 6: Battery Compartment

SInstruments, Inc.

,

600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

email: [email protected]

Copyright 2015

SInstruments, Inc.

Model SR755i Wheelchair Scale

Operating and Service Manual

Part No. MAN755i_151029

THEORY OF OPERATION

Page 12 of 18

SR Instruments patient weighing systems are digital scales. Strain-gauge force cells convert the force of an applied weight into an analog signal. This signal is amplified by an operational amplifier and converted to a digital signal by an on-chip analog to digital converter. The digital signal is filtered, converted to appropriate units, and displayed on the liquid crystal display.

Strain-gauge force cells each contain four strain gauges mounted in a full Wheatstone-bridge configuration. These bridges convert the physical movement of the force cell, due to the applied mass on the system, into minute changes in electrical resistance. These changes in resistance produce a voltage difference across the Wheatstone-bridge, which is amplified by the operational amplifier. The amplifier is configured to current sum the output of each cell, with potentiometers serving to normalize the sensitivity (voltage out per unit of weight applied) of each bridge. The offset potentiometer produces a small current, which nulls the output of the amplifier for an unloaded system.

The output of the operational amplifier is digitized by the analog to digital converter. The sigmadelta converter sums a rapid sequence of 0's (0 volts) and 1's (reference voltage) to achieve balance with the input signal from the amplifier.

The micro-controller filters the digital output of the analog to digital converter, subtracts the value saved during the system zero operation and scales the filtered output, and then displays the result on the liquid crystal display. The micro-controller performs a moving-median filter of data for continuous weigh and, for AutoHold; the micro-controller performs checks for signal stability before locking in on the reading. If the data variance is greater than 0.1% in the AutoHold mode, the micro-controller will reset the filter and start a new filtering period.

The micro-controller can be placed in a calibration mode, where the system can be re-calibrated.

In the calibration mode, the system slope is calculated from two points (zero and full scale) in the

2-point calibration mode or the slope and change in slope is calculated from three points (zero, half, and full scale) in the 3-point calibration mode.

SInstruments, Inc.

,

600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

email: [email protected]

Copyright 2015

SInstruments, Inc.

Model SR755i Wheelchair Scale

Operating and Service Manual

Part No. MAN755i_151029 Page 13 of 18

CALIBRATION

NOTE: Ensure that nothing is in contact with the scale system during this procedure. Remove hands from the system when noting the displayed calibration results.

CHECKING CALIBRATION

STEP 1: Select known calibrated weights, traceable to NIST.

C A L IB R A T IO N

NOTE: DO NOT USE barbells or un-calibrated weights.

T O L E R A N C E T A B L E

STEP 2: Zero the scale by pressing and holding ZERO / WEIGH button.

L O W

L IM IT

A P P L IE D

L O A D

H IG H

L IM IT

STEP 3: Place the calibrated weight on the scale and press the

“ZERO / WEIGH” button. Wait for scale to stabilize; note scale reading. Repeat step as necessary to verify calibration within desired range.

9 9 .9

1 0 0 .0

1 0 0 .1

1 9 9 .8

2 0 0 .0

2 0 0 .2

2 9 9 .7

3 0 0 .0

3 0 0 .3

3 9 9 .6

4 0 0 .0

4 0 0 .4

NOTE: The scale readings for both weights should be within the

Calibration Tolerance (Figure 7).

4 9 9 .5

5 0 0 .0

5 0 0 .5

5 9 9 .4

6 0 0 .0

6 0 0 .6

6 9 9 .3

7 0 0 .0

7 0 0 .7

7 9 9 .2

8 0 0 .0

8 0 0 .8

8 9 9 .1

9 0 0 .0

9 0 0 .9

9 9 9 .0

1 0 0 0 .0

1 0 0 1 .0

Figure 7: Calibration Tolerance Table

IMPORTANT

CALIBRATION Qualified service personnel only should perform this procedure. The

SR755i load cells have no user serviceable components and should not be tampered with for any reason. Re-calibration is generally not required, but should be verified periodically to ensure accuracy. The recommendation for calibration check is at least once every 12 months, or as individual maintenance policy requires.

CALIBRATION SWITCH

Figure 8: Calibration Switch Diagram

Continued next page

SInstruments, Inc.

,

600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

email: [email protected]

Copyright 2015

SInstruments, Inc.

Model SR755i Wheelchair Scale

Operating and Service Manual

Part No. MAN755i_151029

CALIBRATION cont’d

CAUTION

The integrated circuits and semiconductors on the printed circuit boards may be damaged by electrostatic discharge (ESD). Be sure to use proper handling precautions at all times.

SETTING CALIBRATION

Page 14 of 18

NOTE: Ensure that nothing is in contact with the scale system during this procedure. Remove hands from the system when noting the displayed calibration results.

STEP 1: Remove the four (4) screws on the bottom of the display housing. Lift the display panel. Put the scale system into the Calibration Mode by switching the calibration switch on the display board (Figure 8). “CALIBRATION” will flash on the display.

STEP 2: Select known calibrated weights, traceable to NIST.

NOTE: The first weight should be at least 500 pounds (half of the maximum scale capacity). The second weight should be less than half of the first weight. DO NOT USE barbells or uncalibrated weights.

STEP 3: Press the MENU button until “FULL = 1000.00 Lb” is displayed. Set the FULL value of the first selected calibrated weight. Use the UP arrow button to select the digit and the DOWN arrow button to change digit. Press ENTER to save changes.

STEP 4: Press the MENU button until “HALF = 500.00 Lb” is displayed. Set the HALF value of the second selected calibrated weight. Use the UP arrow button to select the digit and the

DOWN arrow button to change the digit. Press ENTER to save changes.

STEP 5: Press MENU button until “3 Pt Calibration” is displayed. Press the UP arrow button.

STEP 6: Zero the scale by removing all weight from the platform. Press the UP arrow button.

STEP 7: Place the HALF weight from Step 4 on platform. Allow weight to stabilize. Press UP arrow to save change. Remove weight.

STEP 8: Place the FULL weight from Step 3 on platform. Allow weight to stabilize. Press UP arrow to save change. Remove weight.

STEP 9: Press ENTER to save the calibration, or WEIGH to exit without saving.

STEP 10: Switch the scale system out of the Calibration Mode on the display board (Figure 8).

STEP 11: Place the display panel into the display housing. Align the display panel with the four holes in the display housing. Secure display panel with the four (4) mounting screws.

SInstruments, Inc.

,

600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

email: [email protected]

Copyright 2015

SInstruments, Inc.

Model SR755i Wheelchair Scale

Operating and Service Manual

Part No. MAN755i_151029

CONFIGURING SEND BUTTON

STEP 1: Press the “MENU” button until “DATA OUT = PRINT” is displayed

Page 15 of 18

STEP 2: Press “UP” or “DOWN” button to select between “EHR” and “PRINT

STEP 3: Press the “ENTER” button to save

NOTE:

Orientation of printer output can be changed by pressing the “MENU” button until

PRINT INVERTED” or “PRINT NORMAL” is displayed. Press “UP” or “DOWN” button to select between the two.

EHR OUTPUT

Electronic Medical Records (EMR) / Electronic Health Records (EHR) technology is supported by the i-series scales from SR Instruments. The EMR/ EHR software is not included with scale.

There are many different EMR/ EHR software available and the connectivity of the scale to the software requires the services of a professional.

A null modem cable is required to communicate with the scale.

Scale output when send button is configured to Electronic Health Records is as follows:

<esc>R<esc>Wnnn.n<esc>Hmmm.m<esc>Bkk.k<esc>Uuu<esc>E

Where : R is read

W is weight nnn.n is the weight in Lb or kg

H is height mmm.m is the height in inches or cm.

B is BMI kk.k is the BMI

U is units (lb or kg; in or cm) uu is LB or KG

E is end of packet.

SInstruments, Inc.

,

600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

email: [email protected]

Copyright 2015

SInstruments, Inc.

Model SR755i Wheelchair Scale

Operating and Service Manual

Part No. MAN755i_151029 Page 16 of 18

TROUBLESHOOTING

SYMPTOM

The characters only appear on half of the display.

REASON/CORRECTIVE ACTION

Press the “WEIGH” button or remove one battery.

Wait five seconds, then re-install the battery and try the “WEIGH” button again.

The display lights appear to work, but do not respond to button activation.

Check to ensure the membrane switch label is correctly plugged into display board.

Check to ensure the calibration switch is not in the

Calibration Mode (Figure 8).

The display shows no reading at all.

Check to ensure batteries are installed correctly (see directions for

BATTERY REPLACEMENT).

Check display cable to make sure it is connected securely.

For additional information or assistance, telephone our Service Hotline: 1-800-654-6360 or e-mail: [email protected]

SInstruments, Inc.

,

600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

email: [email protected]

Copyright 2015

SInstruments, Inc.

Model SR755i Wheelchair Scale

Operating and Service Manual

Part No. MAN755i_151029 Page 17 of 18

WARRANTY

FOUR YEAR LIMITED WARRANTY

Each

SR Instruments, Inc. is manufactured with high quality components. SR Instruments, Inc. warrants that all new equipment will be free from defects in material or workmanship, under normal use and service, for a period of four (4) years from the date of purchase by the original purchaser. Normal wear and tear, injury by natural forces, user neglect, and purposeful destruction are not covered by this warranty. Warranty service must be performed by the factory or an authorized repair station. Service provided on equipment returned to the factory or authorized repair station includes labor to replace defective parts. Goods returned must be shipped with transportation and/or broker charges prepaid. SR Instruments, Inc.’s obligation is limited to replacement of parts that have been so returned and are disclosed to SR Instruments, Inc.’s satisfaction to be defective. The provisions of this warranty clause are in lieu of all other warranties, expressed or implied, and of all other obligations or liabilities on SR Instruments,

Inc.’s part, and it neither assumes nor authorizes any other person to assume for SR Instruments,

Inc. any other liabilities in connection with the sale of said articles. In no event shall SR

Instruments, Inc. be liable for any subsequent or special damages. Any misuse, improper installation, or tampering, shall void this warranty.

DAMAGED SHIPMENTS

Title passes to purchaser upon delivery to Transportation Company. Any claims for shortage or damage should be filed with the delivery carrier by purchaser.

RETURN POLICY

All products being returned to SR Instruments, Inc. require a Return Goods Authorization number

(RGA). To receive an RGA, call our Technical Service Team at 716-693-5977 or toll-free in the

USA and Canada at 800-654-6360.

When inquiry is made, please supply model and serial numbers, purchase order, if the scale was bought on contract, and reason for return.

Generally, deleted, damaged, and outdated merchandise will not be accepted for credit. A minimum restocking charge of 15% will be assessed on return of current merchandise.

All returns are to be shipped FREIGHT PREPAID to: SR Instruments, Inc., 600 Young Street,

Tonawanda, NY 14150.

RESTOCKING FEE

15% fee for any scale that has been opened and used

10% fee for any scale returned that has been ordered incorrectly or refused delivery with no model change

5% fee if an error in ordering has been made and a different model exchanged

No fees will be charged if the scale is returned because of an error on the part of SR

Instruments, Inc.

No returns accepted after 60 days.

SInstruments, Inc.

,

600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

email: [email protected]

Copyright 2015

SInstruments, Inc.

Model SR755i Wheelchair Scale

Operating and Service Manual

Part No. MAN755i_151029

S

By

SInstruments, Inc.

Page 18 of 18

Precision & Technology in

Perfect Balance

®

SInstruments, Inc.

,

600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

email: [email protected]

Copyright 2015

SInstruments, Inc.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
