ITW Dynatec

An Illinois Tool Works Company

31 Volunteer Drive

Hendersonville, TN 37075 USA

Telephone 615.824.3634

FAX 615.264.5222

Adhesive Application Solutions · ISO 9001 Certified

OPERATIONS & SERVICE MANUAL #50-07

Revised 12/06

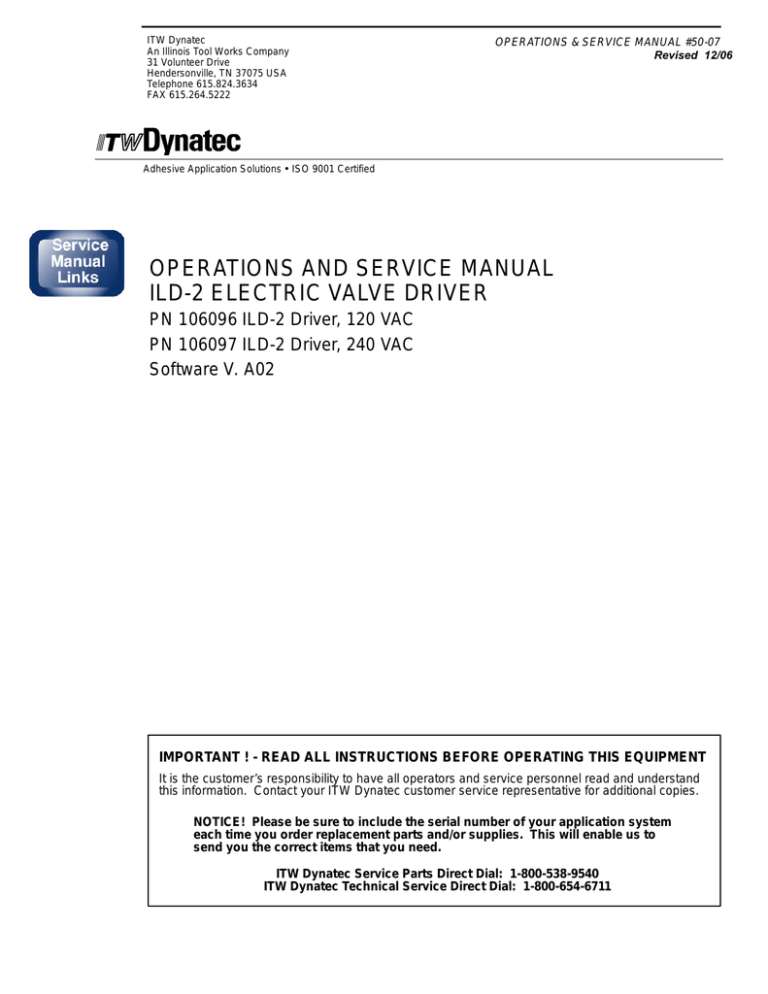

OPERATIONS AND SERVICE MANUAL

ILD-2 ELECTRIC VALVE DRIVER

PN 106096 ILD-2 Driver, 120 VAC

PN 106097 ILD-2 Driver, 240 VAC

Software V. A02

IMPORTANT ! - READ ALL INSTRUCTIONS BEFORE OPERATING THIS EQUIPMENT

It is the customer’s responsibility to have all operators and service personnel read and understand this information. Contact your ITW Dynatec customer service representative for additional copies.

NOTICE! Please be sure to include the serial number of your application system each time you order replacement parts and/or supplies. This will enable us to send you the correct items that you need.

ITW Dynatec Service Parts Direct Dial: 1-800-538-9540

ITW Dynatec Technical Service Direct Dial: 1-800-654-6711

ITW Dynatec c. 1999

ILD-2 DRIVER Manual #50-07

Page ii

Revised 8/99

TABLE OF CONTENTS

Chapter - Page #

Chapter 1 Description & Specifications

Description

Specifications

Dimensions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-1

1-2

1-3

1-4

Chapter 2 Installation & Operation

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Bottom of Driver Enclosure

Component Layout

Driver Configuration

Operation

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-1

2-2

2-2

2-3

2-4

2-5

Chapter 3 Troubleshooting

In General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting Guide

Parts Replacement

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-1

3-1

3-2

Chapter 4 Schematics

Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-1

c. 1999

ILD-2 DRIVER Manual #50-07

Description & Specifications Page 1-1

Revised 8/99

Chapter 1

DESCRIPTION AND SPECIFICATIONS

Description

ITW Dynatec’s ILD-2 Driver converts a DC voltage signal from a timing device (such as Dynatec’s

TPC-2 or MPC-2 timers) into a high-energy DC pulse that enables one or more Mod-Plus Electric valves to energize very rapidly. It provides the power necessary to run high-cycle rates and higher viscosity adhesives.

The ILD-2 Driver has two independent channels. Each channel will accept an input from a timer, pattern controller or other 8 to 30 VDC input source and deliver a DC output. Optionally, the driver can be configured to allow one input to drive both channel outputs. The driver can be connected directly to the valves, or an expansion box can be used which allows each driver output to drive up to four Mod-Plus Electric modules, allowing a maximum of 8 modules to be used.

The ILD-2 has a built-in isolating power supply that can be configured for either 100-120 VAC or

200-240 VAC power input. Power switches are located on the inside control panel and on the outside of the enclosure.

Each input and output channel has an independent power switch on the inside control panel. Input and output LEDs allow visual verification of the timer input signal and the output signal.

Page 1-2 Description & Specifications

Revised 8/99 c. 1999

ILD-2 DRIVER Manual #50-07

Theory of Operation

In hot-melt applications that require high cycle rates or higher adhesive viscosities (higher than

2000 cps, typically), a simple square-wave DC voltage signal may not provide all of the power required to operate the valve successfully. It is necessary to provide a higher voltage “kick” to open the valve, and then drop the voltage to a nominal level to avoid overheating the solenoid. This is the function of the ILD-2 valve driver.

The DC output pulse of the ILD-2 can be broken down into two segments. The first segment is the initial short duration, high voltage pulse, which is called the pull-in. The pull-in is measured in milliseconds, and is responsible for opening the valve. The second segment is the low-voltge mainte-

nance cycle, which keeps the valve open until the input signal is removed. The maintenance cycle is measured in percent (%). The output signal of the ILD-2 is shown below, under the square-wave

DC input (for simplicity, the maintenance segment is shown as an effective voltage).

24

0

VDC

170

VDC

24 VDC Timer Input

pull-in maintenance

V eff

0

ILD-2 Output

t t

c. 1999

ILD-2 DRIVER Manual #50-07

Description & Specifications Page 1-3

Revised 2/04

Specifications

Environmental

Operating temperature

Storage temperature

Enclosure rating

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

0

°-60°C (32°-140°F)

--30 °-70°C (--22°-158°F)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NEMA 4/IP65

Physical

Dimensions

Weight

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

see layout on page 1-4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.2 kg (13.7 lb)

Electrical

Supply voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Maximum supply power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuses (5x20mm, IEC 127 sheet 2)

100-120/200-240 VAC

60W

External

Internal

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.5 amp

2.5 amp

Channel inputs

Input power

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-30 VDC signal

50mA max./ channel

Channel outputs . . . . . . . . . . . . . . . . . . . . . .

DC pulse signal based on DIP switch configuration

Performance

Continuous-firing cycle rate, maximum

Burst-firing cycle rate, maximum

Pattern gap, minimum

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4000 cycles/ min.

6000 cycles/ min.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pattern length, minimum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 ms

± 1 ms

4 ms ± 1 ms

Pattern tracking accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

at Line speed: 30 mpm (100 fpm) at Line speed: 150 mpm (500 fpm)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

± 0.5 ms

± 0.25 mm (± 0.01 in.)

± 1.27 mm (± 0.05 in.)

Page 1-4 Description & Specifications

Revised 8/99

ILD-2 Installation Dimensions

c. 1999

ILD-2 DRIVER Manual #50-07

272mm

(10.70”)

10mm

(0.40”)

160mm

(6.30”)

Mounting hole: 8mm dia (0.31”)

19mm

(0.75”)

165.1mm

(6.5”)

9.53mm

(0.375”)

226mm

(8.91”)

200mm

(7.85”)

212.5mm

(8.37”)

31.75mm

(1.25”)

ITW Dynatec c. 1999

ILD-2 DRIVER Manual #50-07

Page 2-1

Revised 8/99

Chapter 2

INSTALLATION & OPERATION

DANGER HIGH VOLTAGE

The ILD-2 Driver produces a high voltage signal which can cause fatal injury.

Disconnect and lock out input power to the driver and application system, then wait three minutes for capacitor to discharge before starting any installation procedures.

Installation

Locate the ILD-2 Driver in an area not subject to excessive moisture or vibration, near the timer and the ASU.

Mount the driver to a flat surface through the four mounting holes shown in the dimensional layout (Chapter 1). Allow sufficient space below the driver to route the four input/ output cables and the power cord. Make sure that the door can be opened through its entire arc and that the power switch on the side of the unit is accessible.

When making electrical connections, use ITW Dynatec cables as illustrated on page 2-3 of this manual. Make sure that the cables are not stretched too tightly. If they are too tight, re-locate the driver or order longer cables from ITW Dynatec.

The required elecrical connections to and from the driver are:

1. Supply Voltage: The driver is configured for either 100-120 or 200-240 VAC operation. The supply voltage must match the voltage of the driver.

2. Timer Input: The driver will accept any 8-30 VDC square-wave signal. Cables are available to connect the driver to an ITW Dynatec MPC or TPC timer. Cables are also available with bare wires on the timer end for hard wiring in the field.

IMPORTANT: The timer input of the ILD-2 is polarity sensitive. When hard wiring the driver to the timer, the positive (+) lead from the timer must be connected to the positive lead of the driver (pin 2) for proper operation.

NOTE: When using the TPC-2/DPC-2 with the ILD-2, the timer spike duration must be set to the minimum level (0.1 ms) for proper ILD-2 operation.

3. Driver Output: The valves can be connected directly to the driver, or the optional expansion box can be used, which allows up to four valves per channel.

Page 2-2

Revised 8/99

Control Panel

ITW Dynatec c. 1999

ILD-2 DRIVER Manual #50-07

Power ON LED

Control Panel

Power Switch

(switches power to the printed circuit board)

ILD-2

Coil Driver

POWER

OUTPUT 1

RUN-TEST IN OUT

I

OFF

OUTPUT 2

RUN-TEST IN OUT

0

OFF

FUSE

FUSE

Input connectors (2)

Output connectors (2), not seen

Bottom of Driver Enclosure

Timer

Input 1

Front of Enclosure

Timer

Input 2

Power Cord

120 or 240 VAC supply

Output Mode: selects status of output channel

Input LED: illuminates when driver is receiving signal

Output LED: illuminates when switch is in “run” or “test” mode

Output 1 control: switch and LEDs for Output #1

Output 2 control: switch and LEDs for Output #2

I

External Fuses = 2.5 amp

Internal Fuses = 2.5 amp

(not shown)

Main Power Switch

(switches power to isolation transformer)

0

Supply Power

Output 1

Output 2

ITW Dynatec c. 1999

ILD-2 DRIVER Manual #50-07

Component Layout

ILD-2 Driver

4 Valve

Expansion

Box

PN 106020

Cable

PN 106016

ITW Timer

(MPC, TPC or DPC)

Cable 106012

Generic

Timer

Cable 106011

Cable 106018 up to 4 modules

Cable

PN 106016

Solenoid

Electrical

Connection

Power

Cord

Detail of ILD-2 bottom connectors to additional 4 valve expansion box or single valve direct connect

Page 2-3

Revised 8/99

Page 2-4

Revised 8/99

ITW Dynatec c. 1999

ILD-2 DRIVER Manual #50-07

Driver Configuration

There are two banks of user-adjustable DIP switches located on the printed circuit board behind the control panel. These are marked “SW4” and “SW2” and they are used to configure the DC output pulse for each channel.

Switch bank “SW3” is set at the factory. No field adjustments are necessary.

The factory SW4/SW2 switch settings provide a 1 ms pull-in and an 8.2% maintenance cycle.

These settings are suitable for most applications. However, special operating conditions, such as the use of higher viscosity adhesives (> 2000 cps) may require a higher pull-in and/or maintenance cycle.

The SW4/SW2 switch banks are accessed by removing the four control panel screws and removing the control panel.

NOTE: Adjusting the pull-in and/or maintenence cycle above the factory settings will change the allowable cycle rate of the Mod-Plus Electric valve as shown in the table below. See the Mod-

Plus Electric Valve service manual for the minimum “ON” and “OFF” times.

ON

Switch Position #

1 2 3 4 5 6 7 8

PULL IN

DURATION

SW4 controls channel output 1

SW2 controls channel output 2

Switch Position

1 2 3 4

off off off off off off off on off off on off off off on on off on off off off on off on off on on off off on on on on off off off on off off on

Pull-in Minimum

Time (ms) OFF Time*

0.6

0.7

0.8

factory setting

0.9

1.0

1.1

add 1ms

1.2

add 2ms

1.3

add 3ms

1.4

add 4ms

1.5

add 5ms

MAINTENANCE

DUTY CYCLE

Switch Position

5 6 7 8

off on off on off on on off off on on on on off off off on off off on on off on off on off on on on on off off

Duty Minimum

Cycle (%) OFF Time*

7.0

7.4

7.8

factory setting

8.2

8.6

add 2ms

9.0

add 3ms

9.4

add 4ms

9.8

add 5ms

* Minimum OFF Time of Mod-Plus Electric Valve

ITW Dynatec c. 1999

ILD-2 DRIVER Manual #50-07

Page 2-5

Revised 8/99

Operation

1. Before startup, the adhesive application system, hoses and applicators should be ON and at operating temperature. Verify that all electrical connections have been made properly.

2. Turn the ILD-2 ON. Both power switches must be turned ON for the unit to operate. The yellow POWER light should now be lit.

3. Verify that the ILD-2 is receiving a signal: the green IN light is lit when the driver is receiving a signal. Note: the IN light will be lit whenever the driver is receiving a signal, even if the driver is turned OFF.

4. Select the desired output mode for the applicator:

TEST: Provides a momentary, continuous signal to the applicator. This is used for testing, purging, etc. The driver does not follow the timer input in Test mode.

RUN: Allows the driver output to automatically follow the timer input.

The yellow OUT light will be lit when the mode switch is in either the TEST or RUN position.

Page 2-6

Revised 8/99

ITW Dynatec c. 1999

ILD-2 DRIVER Manual #50-07

ITW Dynatec

An Illinois Tool Works Company

Adhesive Application Solutions

ITW Dynatec c. 1999

ILD-2 DRIVER Manual #50-07

Page 3-1

Revised 8/99

Chapter 3

TROUBLESHOOTING & SERVICE

Note: Re-read Chapter 1 Safety Precautions” of the adhesive application system’s manual before performing any troubleshooting or repair procedurs. All troubleshooting or repair procedures must be performed by qualified, trained technicians.

In General

If failure occurs, first check all the electrical connections. Verify that the main power switch is ON at the ASU. Verify that the pump is ON. Verify that the temperature controller is in operation and that the setpoints are correct for the application. Check to see if all components are heating properly.

Troubleshooting Guide

Problem

Power indicator does not light

No output to valve

Valve does not open

Solution

1. Verify both power switches are ON.

2. Verify line input voltage matches the voltage of the driver.

3. Verify both front panel fuses are intact.

4. Verify both internal fuses are intact.

1. Verify that the driver power indicator illuminates.

2. Verify that the RUN/OFF/TEST switch is in the RUN position (in order to respond to triggers).

3. Verify that the IN LED illuminates. If not...

a. Verify polarity of trigger signal, b. Verify the trigger signal is at least 8VDC.

c. Check conections between driver and timer.

4. Verify that the OUT LED illuminates. If not, verify both internal fuses are intact.

5. Verify that the input and output cables are connected to the same channel.

6. Contact factory for technical assistance.

1. Verify steps 1 through 5 for “No Ouput” (above).

2. Check all wiring between driver and valve.

3. Verify that the pull-in time setting is at least 1.0 ms.

cont.

Page 3-2

Revised 8/99

Problem

Valve does not stay open

Valve skips pattern

ITW Dynatec c. 1999

ILD-2 DRIVER Manual #50-07

Solution

1. Verify that the maintenance cycle is set to at least 7.8%.

1. Minimum hold-off time between driver outputs is 4ms.

If your pattern controller does not allow at least 4 ms between the end of one ON trigger signal and the start of the next ON trigger signal, the driver will ignore the second ON trigger signal.

Parts Replacement

The only user-replaceable parts in the ILD-2 Driver are the four (2.5 amp) fuses.

DANGER HIGH VOLTAGE

The ILD-2 Driver produces a high voltage signal which can cause fatal injury.

Disconnect and lock out input power to the driver and application system, then wait three minutes for capacitor to discharge before starting any service/ repair procedures. Only qualified, trained technicians should perform service on the ILD-2

Driver.

Control Panel Fuses (2)

The two fuses mounted in the control panel are for AC power input. Symptoms of an inoperable fuse include: power LED off, output LEDs off, no output (no signal).

To replace fuse (see illustration at right):

Remove all power to driver. Press down from top of fuse holder (see “PRESS” marked on holder), then pull holder out. Use an ohmmeter to test fuse before replacement.

Note: the ILD-2 is shipped with two spare fuses, one located inside each fuse holder.

Press down on fuse cover

Printed Circuit Board (PCB) Fuses (2)

The two fuses mounted on the circuit board (beneath the control panel) are for the board’s power supply.

To check or replace fuse:

Remove all power to driver. Remove the four corner screws in the control panel. Carefully lift the control panel out of the enclosure. The printed circuit board is on the back side of the control panel.

Two fuses are mounted directly onto the pcb. Use an ohmmeter to test fuse before replacement.

Active Fuse

Spare Fuse

ITW Dynatec c. 1999

ILD-2 DRIVER Manual #50-07

Chapter 4

SCHEMATICS

Page 4-1

Revised 8/99

Page 4-2

Revised 8/99

ITW Dynatec c. 1999

ILD-2 DRIVER Manual #50-07

ITW Dynatec

An Illinois Tool Works Company

Adhesive Application Solutions

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
