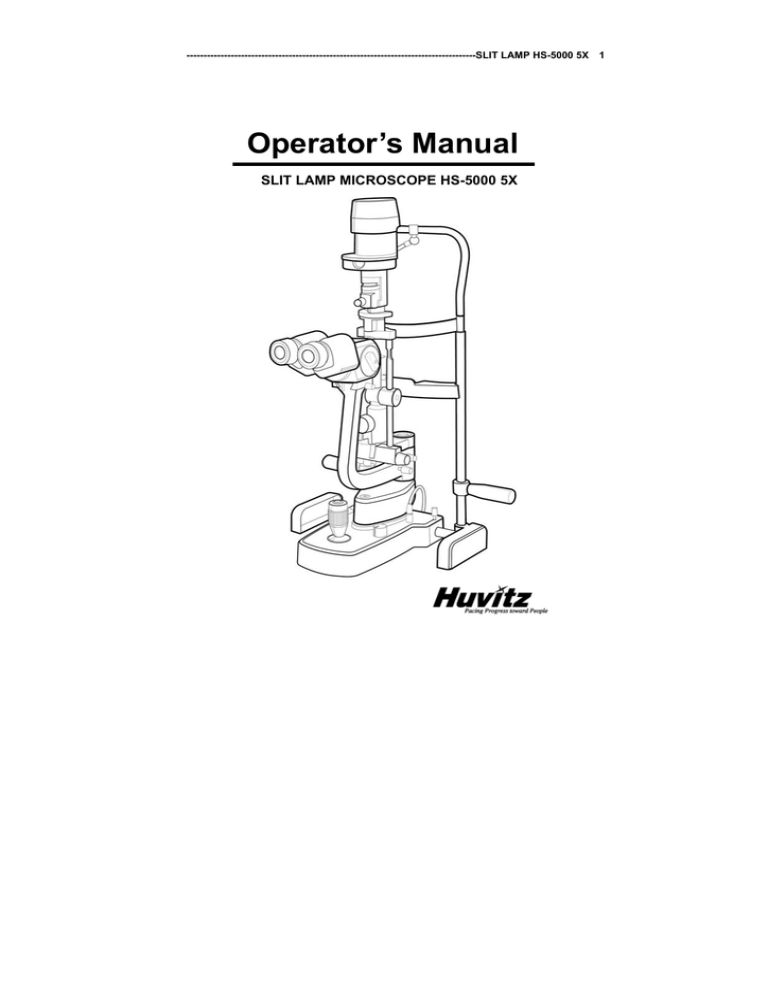

HS-5000 5X 1

Operator’s Manual

SLIT LAMP MICROSCOPE

HS-5000 5X

2 SLIT LAMP

HS-5000 5X------------------- ----------------------------------------------------------------

IMPORTANT NOTICE

!

WARNING

Potential electromagnetic or other interference between medical equipments and other devices being operated together in the same environmental may expert an adverse influence on functioning of the medical equipment. Non-medical equipments not in compliance with the requirements of EN 60601-1 and EN 60601-1-2 should not be used together in the same environmental as the medical equipments

This equipment has been tested and found to comply with the limits for medical devices in

IEC 60601-1-2:2001. These limits are designed to provide reasonable protection against harmful interference in a typical medical installation

Power Cord

For use of equipment in rated voltage less than 125Vac,minimum 6A,Type SJT or SVT ,

18/3AWG,10A, max 3.0m long : One end with Hospital Grade Type, NEMA 5-15P Other end with appliance coupler. For use of equipment in rated voltage less than

250Vac,minimum 6A,Type SJT or SVT , 18/3AWG,10A, max 3.0m long : One end terminatesd with blade attachment plug(HAR) Type, NEMA 6-15P.

This product may malfunction due to electromagnetic waves caused by portable personal telephones, transceivers, radio-controlled toys, etc. Be sure to avoid having objects such as, which affect this product, brought near the product.

The information in this publication has been carefully checked and is believed to be entirely accurate at the time of publication. HUVITZ assumes no responsibility, however, for possible errors or omissions, or for any consequences resulting from the use of the information contained herein.

-------------------------------------------------------------------------------------SLIT LAMP

HS-5000 5X 3

HUVITZ reserves the right to make changes in its products or product specifications at any time and without prior notice, and is not required to update this documentation to reflect such changes.

©2006 HUVITZ Co., Ltd.

689-3, Geumjeong-dong, Gunpo-si, Gyeonggi-do,

435-862, Republic of Korea

All rights are reserved.

Under copyright laws, this manual may not be copied, in whole or in part, without the prior written consent of HUVITZ Co., Ltd.

Document Number: 9000OMSL001-A, published in 2006/07/20

4 SLIT LAMP

HS-5000 5X------------------- ----------------------------------------------------------------

Contents

1.

Introduction ................................................................................................................6

1.1.

Outline of the instrument..................................................................................6

1.2.

Classification....................................................................................................6

2.

Safety Information......................................................................................................7

2.1.

Introduction ......................................................................................................7

2.2.

Safety Symbols ................................................................................................8

2.3.

Environment factors .......................................................................................10

2.4.

Safety Precautions.........................................................................................12

3.

Features & Operating Condition.............................................................................14

3.1.

Brief Description.............................................................................................14

3.2.

Operating Condition .......................................................................................14

4.

Standard Components .............................................................................................16

5.

Accessories ..............................................................................................................17

6.

Composition .............................................................................................................18

7.

Installation ................................................................................................................23

7.1.

Assembling the Instrument ............................................................................23

8.

Trial Operations........................................................................................................27

9.

Main Features ...........................................................................................................28

10. Ordinary Maintenance .............................................................................................29

-------------------------------------------------------------------------------------SLIT LAMP

HS-5000 5X 5

10.1.

Halogen Projection bulb ................................................................................ 29

10.2.

Protection fuses replacement ........................................................................ 31

10.3.

Cleaning & Disinfection ................................................................................. 32

11. EMC Information ...................................................................................................... 33

11.1.

Guidance and manufacturer’s declaration – electromagnetic emissions ...... 33

11.2.

Guidance and manufacturer’s declaration – electromagnetic immunity........ 34

11.3.

Guidance and manufacturer’s declaration – electromagnetic immunity........ 36

11.4.

Recommended separation distances between portable and mobile RF communications equipment and the EUT................................................................... 38

11.5.

Immunity and Compliance Level ................................................................... 39

11.6.

Guidance and manufacturer’s declaration – electromagnetic immunity........ 40

12. Electric Diagram ...................................................................................................... 42

13. Technical Specifications ......................................................................................... 43

14. Service Information ................................................................................................. 45

6 SLIT LAMP

HS-5000 5X------------------- ----------------------------------------------------------------

1.

Introduction

1.1. Outline of the instrument

The device works like all slit lamps:

- stereomicroscopic examination of the eye under the slit light.

- microscopic examination of the ocular fundus and posterior vitreous body (using hubry’s lens).

These devices are designed for use by ophthalmologists and optometrists(within the realms of their respective professions) for specific diagnostic procedures(biomicroscopic examination of the eye)

1.2. Classification

Protection against electric shock: Class I

Applied Parts: Type B applied parts.

Protection against harmful ingress of water: Ordinary, IPX0

Degree of safety in the presence of a flammable anesthetics mixture with air or with oxygen or with nitrous oxide: Not suitable for use in the presence of a flammable anesthetics mixture with air or with oxygen or with nitrous oxide.

Mode of operation: Continuous

Stationary: Do not try to move this equipment without help. This microscope is heavy and should maintain stationary. Always get two persons to help lift this unit

-------------------------------------------------------------------------------------SLIT LAMP

HS-5000 5X 7

2.

Safety

2.1. Introduction

Safety is everyone’s responsibility. The safe use of this equipment is largely dependent upon the installer, user, operator, and maintainer. It is imperative that personnel study and become familiar with this entire manual before attempting to install, use, clean, service or adjust this equipment and any associated accessories. It is paramount that the instructions contained in this manual are fully understood and followed to enhance safety to the patient and the user/operator. It is for this reason that the following safety notices have been placed appropriately within the text of this manual to highlight safety related information or information requiring special emphasis. All users, operators, and maintainers must be familiar with and pay particular attention to all Warnings and

Cautions incorporated herein.

!

WARNING

“Warning” indicates the presence of a hazard that could result in severe personal injury, death or substantial property damage if ignored.

NOTE

“Note” describes information for the installation, operation, or maintenance of which is important but hazard related if ignored.

!

CAUTION

“Caution” indicates the presence of a hazard that could result in minor injury, or property damaged if ignored.

8 SLIT LAMP

HS-5000 5X------------------- ----------------------------------------------------------------

The International Electrotechnical Commission (IEC) has established a set of symbols for medical electronic equipment which classify a connection or warn of any potential hazards. The classifications and symbols are shown below.

This applies only to the instrument that has the certification symbol printed explicitly on the product label or sticker.

Save this instruction

I and O on power switch represent ON and OFF respectively.

Type B Isolated patient connection.

This symbol identifies a safety note. Ensure you understand the function of this control before using it. Control function is described in the appropriate User’s or Service Manual.

Identifies the point where the system safety ground is fastened to the chassis. Protective earth connected to conductive parts of Class I equipment for safety purposes.

Hot surface.

-------------------------------------------------------------------------------------SLIT LAMP

HS-5000 5X 9

UL60601-1

CAN/CSA C22.2

NO.601.1

MEDICAL EUIPMENT

WITH RESPECT TO ELECTRIC SHOCK

FIRE AND MECHANICAL HAZARDS

ONLY IN ACCORDANCE WITH UL 60601-

1, AND CAN/CSA C22.2 NO.601.1

Disposal of your old appliance

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European

Directive 2002/96/EC.

All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

Alternating Current

10 SLIT LAMP

HS-5000 5X------------------- ----------------------------------------------------------------

Avoid the following environments for operation or storage:

Where the equipment is exposed to water vapor.

Don’t operate an equipment with a wet hand.

Where the equipment is exposed to direct sunlight.

Where the temperature changes extremely.

Normal operating temperature range is from 10

°C to 40°C,

Humidity is from 30% to 75%.

Altitude is from 700 to 1060hpa

Where it is near the heat equipment.

Where the humidity is extremely high or there is a ventilation problem.

Where the equipment is subject to excessive shocks or vibrations.

-------------------------------------------------------------------------------------SLIT LAMP

HS-5000 5X 11

Where equipment is exposed to chemical material or explosive gas.

Be careful not to be inserted dust, especially, metal.

Don’t disassemble the product or open. We aren’t responsible for it for nothing.

Be careful not to close the fan located on the lateral or back side of the equipment.

Don’t plug the AC power cord into the outlet before the connection between devices of the equipment is completed.

This can generate the defect.

Pull out the power cord with holding the plug, not the cord.

Avoid places where the ambient temperature falls below 10℃ or exceeds 40℃ for normal operation, or below -10℃ or exceeds 40℃ (14℉-104℉) for transportation and storage. Humidity should be maintained between 30 and 75% for normal operation, transportation and storage. The atmospheric pressure in operation, transportation and storage is from 700 to 1060hpa.

12 SLIT LAMP

HS-5000 5X------------------- ----------------------------------------------------------------

This equipment has been developed and tested according to safety standards as well as national and international standards. This guarantees a very high degree of safety for this device. The legislator expects us to inform the user expressively about the safety aspects in dealing with the device. The correct handling of this equipment is imperative for its safe operation. Therefore, please read carefully all instructions before switching on this device. For more detailed information, please contact our Customer

Service Department or one of our authorized representatives.

1.

This must not be used (a) in an area that is in danger of explosions and (b) in the presence of flammable, explosive, or volatile solvent such as alcohol, benzene or similar chemicals.

2.

Do not put or use this device in humid rooms. Humidity should be maintained between 30 and 75% for normal operation. Do not expose the device to water splashes, dripping water, or sprayed water. Do not place containers containing fluids, liquids, or gases on top of any electrical equipment or devices.

3.

The equipment must be operated only by, or under direct supervision of a properly trained and qualified person.

4.

Modifications of this equipment may only be carried out by Huvitz’s service technicians or other authorized persons.

5.

Customer maintenance of this equipment may only be performed as stated in the User’s Manual and Service Manual. Any additional maintenance may only be performed by Huvitz’s service technicians or other authorized persons.

6.

The manufacturer is only responsible for effects on safety, reliability, and performance of this equipment when the following requirements are fulfilled: (1)

The electrical installation in the respective room corresponds to the specifications stated in this manual and (2) This equipment is used, operated,

-------------------------------------------------------------------------------------SLIT LAMP

HS-5000 5X 13 and maintained according to this manual and Service Manual.

7.

The manufacturer is not liable for damage caused by unauthorized tampering with the device(s). Such tampering will forfeit any rights to claim under warranty.

8.

This may only be used together with accessories supplied by

Huvitz’s. If the customer makes use of other accessories, use them only if their safe usability under technical safety aspects has been proved and confirmed by Huvitz or the manufacturer of the accessory.

9.

Only persons who have undergone proper training and instructions are authorized to install, use, operate, and maintain this equipment.

10. Keep the User’s Manual and Service Manual in a place easily accessible at all times for persons operating and maintaining the equipment.

11. Do not force cable connections. If a cable does not connect easily, be sure that the connector (plug) is appropriate for the receptacle (socket). If you cause any damage to a cable connector(s) or receptacle(s), let the damage(s) be repaired by an authorized service technician.

12. Please do not pull on any cable. Always hold on to the plug when disconnecting cables.

13. Before every operation, visually check the equipment for exterior mechanical damage(s) and for proper function.

14. Do not cover any ventilation grids or slits.

15. Immediately turn off and unplug any equipment that gives off smoke, sparks, strange noises, or odors.

16. Power Supply Cord set (international) - (Detachable) Rated 10 A, 250 V. Plug type CEE 7/VII, Connector type IEC 60320/C13, and Cord type H05VV-F3G, min. 0.75 mm2, 3-conductor terminating in molded-on grounding type attachment plug. <HAR> marked on the cord. Maximum 4.0 m long.

14 SLIT LAMP

HS-5000 5X------------------- ----------------------------------------------------------------

3.

Features & Operating Condition

The device works like all slit lamps:

- stereomicroscopic examination of the eye under the slit light.

- microscopic examination of the ocular fundus and posterior vitreous body (using hubry’s lens).

These devices are designed for use by ophthalmologists and optometrists(within the realms of their respective professions) for specific diagnostic procedures(biomicroscopic examination of the eye) z As long as the slit lamp is in its original package it can be exposed to the following environmental conditions for up to 15 weeks for shipping and storage

- without risk of damage:

Temperature range : from –10˚C to +40˚C;

- Relative humidity range: from 30% to75%; z The device is made to operate under the following environmental conditions:

- Temperature range : from +10˚C to +40˚C;

- Relative humidity range: from 30% to 75%;

The device neither generates nor receives electromagnetic interference when used near other equipment. Therefore, no preventive or corrective measures are required

-------------------------------------------------------------------------------------SLIT LAMP

HS-5000 5X 15

!

CAUTION

Because prolonged intense light exposure can damage the retina, the use of the device for ocular examination should not be unnecessarily prolonged, and the brightness setting should not exceed what is needed to provide clear visualization of the target structures. This device should be used with filters that eliminate UV radiation(<400nm)and, whenever possible, filters that eliminate short-wavelength blue light(<420nm).

The retinal exposure dose for a photochemical hazard is a product of the radiance and the exposure time. If the value of radiance were reduced in half, twice the time would be needed to reach the maximum exposure limit.

While no acute optical radiation hazards have been identified for slit lamps, it is recommended that the intensity of light directed into the patient’s eye be limited to the minimum level which is necessary for diagnosis. Infants, aphakes and persons with diseased eyes will be at greater risk. The risk may also increased of the person being examined has had any exposure with the same instrument or any other ophthalmic instrument using a visible light source during the previous 24 hours. This will apply particularly if the eye has been exposed to retinal photography

16 SLIT LAMP

HS-5000 5X------------------- ----------------------------------------------------------------

4.

Standard

The instrument is delivered in package. Taking it out of the package, make sure that none of the following parts is missing. z A table top(N.B. the table top isn’t supplied with the slit lamp for twin table) on which are placed: A SMPS box(15) including the main switch & a warning light (13), Two sliding guides for the base with orthogonal movements(17), A sliding plate for the position device(19), A drawer(16); z A base with orthogonal movements. z A microscope with either dual magnification or a system(31) including eyepieces. z An optical group of the slit projector. z A head rest module(59). z A microscope arm(45). z This z A set of accessories including; two wheels for the sliding guides(18); a setting rod(43); a protective cover(46); a spare bulb 12V 30W Halogen bulb(53); two protection fuses(48); a breath screen(19); a chin-rest paper(47);a hole cover(45); a power cable; two patient’s handles(50)

-------------------------------------------------------------------------------------SLIT LAMP

HS-5000 5X 17

5.

Accessories

The following standard accessories are provided with the instrument; z protection z a setting rod(43) z spare

12V 30W Halogen bulb(53) z chin-rest z spare

250Vac T2.0AL z a breath screen(5) z power

[ Figure 1. Accessories ]

18 SLIT LAMP

HS-5000 5X------------------- ----------------------------------------------------------------

6.

Composition

1) Fixation

2) Control lever for changing enlargement

3) Removable

4) Knob for clamping the breath screen

5) Breath

6) Control handle for the slit rotation 90-0-90

7) Connecting plug of the projector lamp

8) Knurled ring for filters insertion

9) Joystick for lateral, longitudinal and vertical movements(x y z)

10) Base with orthogonal movements

11) Shaped tabletop

12) Warning light indicating the ignition of the SMPS is on

13) Main switch & Warning light

14) Luminosity selector

15) SMPS box

16) Drawer

17) Toothed guides

18) Wheel protection crankcases

19) Sliding plate

20) Knob to lock the projector

21) Scale for the projector position

22) Knob to lock the arm of the microscope

23) Hole cover

24) Knurled knob to lift the bulb holder

25) Ring for the vertical setting of the chin-rest

-------------------------------------------------------------------------------------SLIT LAMP

HS-5000 5X 19

26) Locking pins for chin rest paper

27) Chin rest

28) Knobs to change the slit width

29) Pointer for the eye positioning

30) Head rest

31) Microscope

32) Bulb feeding contacts

33) Knob to lock the base of the instrument

34) Knob to lock the microscope

35) Control handle for horizontal tilting

36) Control lever for vertical tilting

37) Microscope position stop

38) Graduated ring 90-0-90 determining the inclination of the slit during rotation

39) Lamp cover

40) fuse slots

41) Connecting plug

42) Fixation point connector

43) Setting rod

44) Microscope separation knob

45) Microscope arm

46) Protection cover

47) Chin rest papers

48) Guide screw

49) An optical group of the slit projector

50) Patient’s handle

51) Chin rest fastening screw

52) Wheel

53) Halogen bulb 12V 30W

20 SLIT LAMP

HS-5000 5X------------------- ----------------------------------------------------------------

54) Bulb fastening knob

55) Mirror

56) Capture connector ( For the image system)

57) Capture switch

58) Luminosity selector connector ( Connect the Luminosity selector to the

SMPS)

59)

Head rest module

-------------------------------------------------------------------------------------SLIT LAMP

HS-5000 5X 21

[ Figure 2. Composition I ]

22 SLIT LAMP

HS-5000 5X------------------- ----------------------------------------------------------------

[ Figure 3. Composition Ⅱ]

-------------------------------------------------------------------------------------SLIT LAMP

HS-5000 5X 23

7.

Installation

NOTE

The appliances are always supplied with excellent packaging to be able to stand up to all kinds of transport and standard storage conditions. Please contact the suppliers if any irregularities are found in the appliance due to transport after unpacking

7.1. Assembling the Instrument

z

Put the table top on a very stable support. Block the two parts together by tightening the screws

[ Figure 4. Table Assembling ]

24 SLIT LAMP

HS-5000 5X------------------- ---------------------------------------------------------------- z Place the head rest module(59) and make sure that its holes fit together with those of the table top. Tighten the screw with the screw driver

[ Figure 5. Assembling the instrument I] z Place the base with orthogonal movements on the guides situated on the upper part of the table top, checking that the wheels are in line. Then Place the crankcase(59) and make sure that its holes fit together with those of the toothed guides(17). Tighten the screw with the screw driver(+) z Assemble the microscope arm(45) on the Base with orthogonal move ments(10).

-------------------------------------------------------------------------------------SLIT LAMP

HS-5000 5X 25 z Assemble An optical group of the slit projector(49) on the Base with orthogonal movements(10). Then tighten the Guide screw with the screw driver(-) z Put the microscope(31) in the right position making sure that it is placed well in the stop(37); then tighten it with the knob(34)situated the right side of the microscope. z Fasten the breath screen(5) with the knob(4) z Insert the connecting cable into the socket.

26 SLIT LAMP

HS-5000 5X------------------- ----------------------------------------------------------------

[ Figure 6. Assembling the instrument Ⅱ]

-------------------------------------------------------------------------------------SLIT LAMP

HS-5000 5X 27

8.

Trial

z Assemble the chin-rest paper(47) on the chin-rest(27). z Let the patient sit down comfortable with his chin on the chin-rest and his forehead against the forehead-rest. z Lift or lower the chin-rest by moving the handle (25) so that the patient’s eyes are in line with the notches on the chin-rest(29) z Switch the instruments on, press the switch(13). You will see the warning light on (12). z Adjust the luminous intensity by moving the selector(14) z Frame and focus the eye to be examined by moving the lever(9)

28 SLIT LAMP

HS-5000 5X------------------- ----------------------------------------------------------------

9.

Main

Principal operative characteristics of the instrument: z Observation without settling or tiring and rapid change of enlargements. z Base with cross-wise movement (which can be stopped) commanded by a single joystick for all adjustments(x y z) z Stereomicroscopical observation of the eye with enlargements 6X-10X-16X-25X-

40X(5 enlargements model). z Tilting z Microscopy of the back part and of the posterior vitreous body by means of the Hruby lens or a contact options.(Goldman lens). z Observation of the eye and valuation of the position of contact lenses in a fluorescent light. z Tonometry with Goldman tonometer. z Measurement of the cornea diameter and contact lenses. z Shooting and video recording of the eye z Survey which reveals the axis of the contact lens, thanks to the possible reading of the rotation angle of the slit which includes all the meridians.

-------------------------------------------------------------------------------------SLIT LAMP

HS-5000 5X 29

10. Ordinary Maintenance

!

WARNING

The repairs illustrated below should all be carried out with the power cable disconnected from the main supply plug. Please contact the suppliers for any other problems that cannot be resolved by the operations described below.

!

CAUTION

Please turn off the power switch before replacing lamps. Please place lamps after cooling down. The heated lamp may burn your fingers.

NOTE

Don’t touch any other parts of glass tube with the bare fingers. Fingerprints, if any, must be wiped off from the glass tube with alcohol

10.1. Halogen Projection bulb

To replace the Halogen projection bulb proceed as follow. z Before doing anything else, disconnect the plug from the main supply socket; z Remove the screws with the driver(24), Remove the cover(39), z Remove the connectors(32) from the bulb stems; z Rotate the knob(54) to loosen the bulb stop z Remove the burnt out bulb; be careful , it could be very hot; z Replace it with a new one(12V30W Halogen) using the plastic envelope(never

30 SLIT LAMP

HS-5000 5X------------------- ---------------------------------------------------------------- touch the bulb whit fingers) z Fasten the bulb with the knob z Make sure that the stems of the bulb are completely inserted; insert the plug in the main supply socket

[ Figure 7. Replace Halogen bulb ]

!

WARNING

Don’t Touch to the Lamp House, During the Operation.

It’s Heating up.

-------------------------------------------------------------------------------------SLIT LAMP

HS-5000 5X 31

10.2. Protection fuses replacement

To replace the fuses proceed as follows: z The protection fuses are placed on the back of the SMPS, and inserted power socket. Before doing anything else, disconnect the plug from the main supply socket z Remove the burned-out fuses z Substitute the fuses and check z Replace the plug in the main supply socket.

[ Figure 8. Replace the fuse ]

!

CAUTION

Replace fuses with the same rating and type(250Vac, T2.0AL)

32 SLIT LAMP

HS-5000 5X------------------- ----------------------------------------------------------------

10.3. Cleaning & Disinfection

z To keep the device clean, apply clinical alcohol and cidex or cidex plus on a soft cloth and scrub the body and the probe once a month. Do not use lacquer, thinner, ethylene, or the oxidizing substance. z If the instrument is not in use, dust must be kept away by covering the instrument with the supplied plastic cover. Dust accumulating during the functioning of the instrument must be periodically removed with a very soft cloth or with a small pump.

-------------------------------------------------------------------------------------SLIT LAMP

HS-5000 5X 33

11. EMC Information

11.1. Guidance and manufacturer’s declaration – electromagnetic emissions

The EUT is intended for use in the electromagnetic environment specified below.

The customer or the user of the EUT should assure that it is used in such an environment.

Immunity test

RF Emissions

CISPR 11

RF Emissions

CISPR 11

Harmonic emissions

IEC 61000-3-2

Voltage fluctuations/

Flicker emissions

IEC 61000-3-3

Compliance

Group 1

Electromagnetic environment guidance

The EUT uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment

The EUT is suitable for use in ail establishments, including domestic establishments and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes

Class A

Complies

34 SLIT LAMP

HS-5000 5X------------------- ----------------------------------------------------------------

11.2. Guidance and manufacturer’s declaration – electromagnetic immunity

The EUT is intended for use in the electromagnetic environment specified below.

The customer or the user of the EUT should assure that it is used in such an environment.

Immunity test

Electrostatic discharge (ESD)

IEC 61000-4-2

Electrical fast transient/burst

IEC 61000-4-4

Surge

IEC 61000-4-5 short interruptions and voltage variations on power supply input lines

IEC 61000-4-11

IEC 60601

Test level

Compliance level

Electromagnetic environment -guidance

±6kV Contact

±8kV air

±2kV for power supply lines

±6kV Contact

±8kV air

±2kV for power supply lines

Floors should be wood, concrete or ceramic tile.

If floors are covered with synthetic material, the relative humidity should be at least 30%.

Mains power quality should be that of a typical commercial or hospital environment. input/output lines input/output lines

±1kV differential mode

±2kV common mode

±1kV differential mode

±2kV common mode

Mains power quality should be that of a typical commercial or hospital environment.

(>95% dip in

Uт) for 0.5cycle

40% Uт

<5% Uт

(>95% dip in Uт) for 0.5cycle

40% Uт

(60% dip in Uт )

(60% dip in for 5 cycle

Uт ) for 5 cycle

70% Uт

(30% dip in Uт) for 25 cycle

70% Uт

(30% dip in Uт) for 25 cycle

<5% Uт

Mains power quality should be that of a typical commercial or hospital environment. If the user of the EUT image intensifier require continued operation during power mains interruptions, it is recommended that

(<95% dip in the

-------------------------------------------------------------------------------------SLIT LAMP

HS-5000 5X 35

<5% Uт Uт )

(<95% dip in for 5 s

Uт ) for 5 s

EUT image intensifier be powered from an uninterruptible power supply or a battery.

Power frequency

(50/60Hz) magnetic field

IEC 61000-4-8

3 A/m 3 A/m Power frequency magnetic fields should be at levels character ristic of a typical location in a typical commercial or hospital environment.

NOTE Uт is the a.c. mains voltage prior to application of the test level.

36 SLIT LAMP

HS-5000 5X------------------- ----------------------------------------------------------------

11.3. Guidance and manufacturer’s declaration – electromagnetic immunity

The EUT is intended for use in the electromagnetic environment specified below.

The customer or the user of the EUT should assure that it is used in such an environment.

Immunity test

IEC

60601

Complianc e

Conducted

RF

IEC

61000-4-6

test level level

3 Vrms

150 kHz to

80MHz

3 Vrms

150 kHz to

80MHz

Electromagnetic environment - guidance

Portable and mobile RF communications equipment should be used no closer to any part of the EUT, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.

Radiated

RF

IEC

61000-4-3

3 V/m

80

MHz to

2.5GHz

3 V/m

80MHz to

2.5GHz

Recommended separation distance

where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer

-------------------------------------------------------------------------------------SLIT LAMP

HS-5000 5X 37 and d is the recommended separation distance in meters (m).

Field strengths from fixed RF transmitters, as deter-mined by an electromagnetic site survey, a should be less than the compliance level in each frequency range. b

Interference may occur in the vicinity of equipment marked with the following symbol :

NOTE 1) At 80MHz and 800MHz, the higher frequency range applies.

NOTE 2) These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. a

Field strengths from fixed transmitters, such as base stations for radio

(cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.

To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the EUT is used exceeds the applicable RF compliance level above, the EUT should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the EUT. b

Over the frequency range 150kHz to 80MHz, field strengths should be less than

[V

1

] V/m.

38 SLIT LAMP

HS-5000 5X------------------- ----------------------------------------------------------------

11.4. Recommended separation distances between portable and mobile RF communications equipment and the EUT

The is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the EUT can help Prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the EUT as recommended below, according to the maximum output power of the communications equipment.

Rated maximum output power of transmitter

[W]

Separation distance according to frequency of transmitter [m]

150kHz to 80MHz 80MHz to

800MHz

800MHz to

2.5GHz

0.01

0.1

1

V

1

=3Vrms

0.116

0.368

1.166

E

1

=3V/m

0.1166

0.3687

1.1660

E

1

=3V/m

0.2333

0.7378

2.3333

10

100

3.687

11.660

3.6872

11.6600

7.3785

23.333

For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where p is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.

NOTE 1) At 80MHz and 800MHz, the separation distance for the higher frequency range applies.

NOTE 2) These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

-------------------------------------------------------------------------------------SLIT LAMP

HS-5000 5X 39

11.5. Immunity and Compliance Level

Immunity test

Conducted RF

IEC 61000-4-6

Radiated RF

IEC 61000-4-3

IEC 60601 Test

Level

3Vrms

150kHz to 80MHz

3Vrms

80MHz to 2.5GHz

Actual Immunity

3Vrms

3V/m

Level

Compliance

Level

3Vrms

3V/m

40 SLIT LAMP

HS-5000 5X------------------- ----------------------------------------------------------------

11.6. Guidance and manufacturer’s declaration – electromagnetic immunity

The EUT is intended for use in the electromagnetic environment specified below.

The customer or the user of the EUT should assure that it is used in such an electromagnetic environment.

Immunity test

Conducted

RF

IEC

61000-4-6

IEC 60601 Compliance Electromagnetic environment - test level

3 Vrms

150 kHz to

80MHz

level guidance

3 Vrms The EUT must be used only in a

150 kHz to shielded location with a minimum RF

80MHz shielding effectiveness and, for each cable that enters the shielded location with a minimum RF shielding effectiveness and, for each cable that enters the shielded location

Radiated

RF

IEC

61000-4-3

3 V/m

80 MHz to

2.5GHz

3 V/m

80MHz to

2.5GHz

Field strengths outside the shielded location from fixed RF transmitters, as determined by an electromagnetic site survey, should be less than 3V/m.

a

Interference may occur in the vicinity of equipment marked with the following symbol:

-------------------------------------------------------------------------------------SLIT LAMP

HS-5000 5X 41

NOTE 1) These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

NOTE 2) It is essential that the actual shielding effectiveness and filter attenuation of the shielded location be verified to assure that they meet the minimum specification. a

Field strengths from fixed transmitters, such as base stations for radio

(cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength outside the shielded location in which the EUT is used exceeds 3V/m, the EUT should be observed to verify normal operation.

If abnormal performance is observed, additional measures may be necessary, such as relocating the EUT or using a shielded location with a higher RF shielding effectiveness and filter attenuation.

42 SLIT LAMP

HS-5000 5X------------------- ----------------------------------------------------------------

12. Electric Diagram

-------------------------------------------------------------------------------------SLIT LAMP

HS-5000 5X 43

13. Technical Specifications

MICROSCOPE - HS-5000 5X 5x

Type

Galileian converging binocular

Magnification 5 positions rotation drum

Eyepiece

Total magnification

Real field of view

Interpupillary adjust

SLIT ILLUMINATION

12.5x

6x, 10x, 16x, 25x, 40x

38.5, 22.2, 15.2, 10.5, 6.7 mm

55-80 mm

Slit length

Slit width

Slit projection

Aperture diaphragms

Filters

Slit rotation

Angle of incidence

Patient’s eye/mirror surface working distance

0.3-12 mm(continuous)

0-12 mm(continuous)

1x

0.3/1/3/5/9/12 mm cobalt blue, red-free, gray and heat- absorption

0˚~180˚ continuous

0˚, 5˚, 10˚, 15˚, 20˚

80 mm

44 SLIT LAMP

HS-5000 5X------------------- ----------------------------------------------------------------

BASE

Vertical Movement

Longitudinal Movement

Lateral Movement

Fine base Movement

Power supply

Power consumption

Instrument Voltage

Halogem Projection bulb

Fixation point bulb

Min. 28mm

Min. 78mm.

Min. 98mm

Min. 10mm

100~240 V AC 50/60HZ 2.0A

70VA

12V DC

12V 30W

6V 0.2A

-------------------------------------------------------------------------------------SLIT LAMP

HS-5000 5X 45

14. Service Information

How to contact service: If there are any problems with the equipment, please follow the steps below: z First of all, refer to the 10. Maintenance and 11. Troubleshooting sections according to the problem that you are encountered. And then follow the suggested sequences. z If the problem persists, please contact the local distributor in your province or country at first. z Before calling to the local distributor, you’d better check these information such as

Model and Serial Numbers. To do so, fill up the following table as soon as you purchase our product. You can look up these information at any time. The serial number is found on the back of this unit. The serial number is unique to this unit.

You should retain this manual as a permanent record of your purchase. Please retain your purchase receipt as your proof of purchase.

Date of Purchase:

Dealer’s Name:

Dealer Address:

Dealer Phone No. :

Model No.:

Serial No.:

z If you can’t contact with your local distributor, you can directly get in touch with the service department of the HUVITZ using the phone number and the address written in the below table.

46 SLIT LAMP

HS-5000 5X------------------- ----------------------------------------------------------------

How to Contact HUVITZ Co., Ltd

Write us at:

HUVITZ Co., Ltd.

Huvitz B/D, 689-3 Geumjeong-dong

Gunpo-si Gyeonggi-do, South Korea

435-862

Tel: +82-31-442-8868

Fax: +82-31-442-8619

URL:http://www.huvitz.com

e-mail: [email protected]

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
