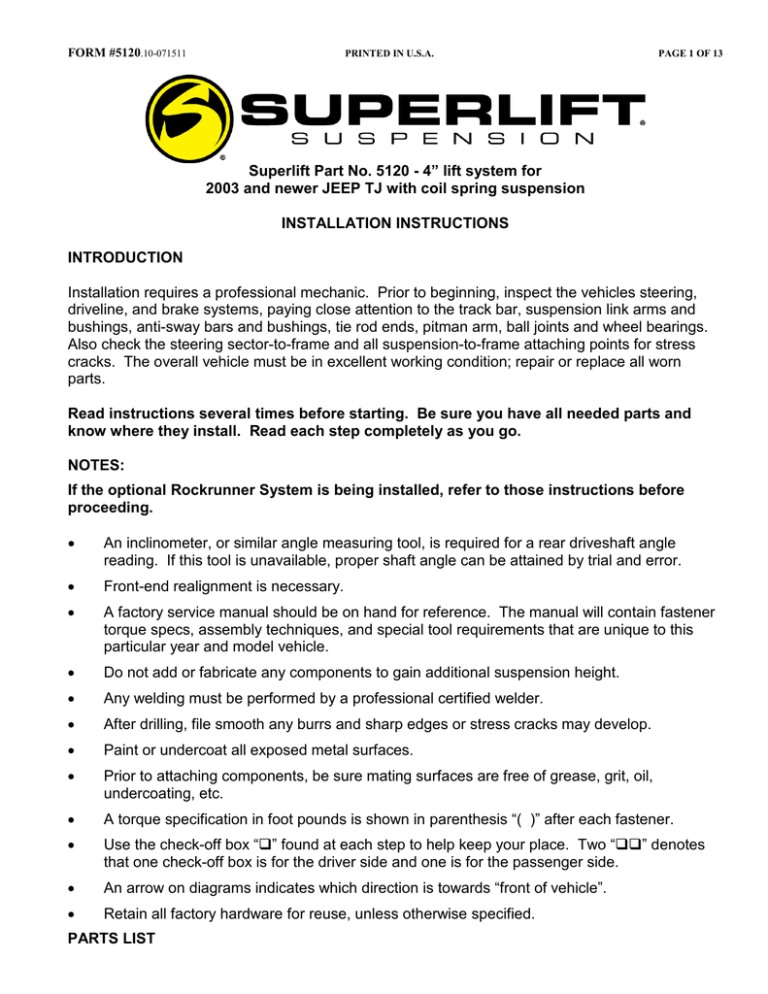

Superlift Part No. 5120 - 4” lift system for

2003 and newer JEEP TJ with coil spring suspension

INSTALLATION INSTRUCTIONS

INTRODUCTION

Installation requires a professional mechanic. Prior to beginning, inspect the vehicles steering, driveline, and brake systems, paying close attention to the track bar, suspension link arms and bushings, anti-sway bars and bushings, tie rod ends, pitman arm, ball joints and wheel bearings.

Also check the steering sector-to-frame and all suspension-to-frame attaching points for stress cracks. The overall vehicle must be in excellent working condition; repair or replace all worn parts.

Read instructions several times before starting. Be sure you have all needed parts and know where they install. Read each step completely as you go.

NOTES:

If the optional Rockrunner System is being installed, refer to those instructions before proceeding.

An inclinometer, or similar angle measuring tool, is required for a rear driveshaft angle reading. If this tool is unavailable, proper shaft angle can be attained by trial and error.

Front-end realignment is necessary.

A factory service manual should be on hand for reference. The manual will contain fastener torque specs, assembly techniques, and special tool requirements that are unique to this particular year and model vehicle.

Do not add or fabricate any components to gain additional suspension height.

Any welding must be performed by a professional certified welder.

After drilling, file smooth any burrs and sharp edges or stress cracks may develop.

Paint or undercoat all exposed metal surfaces.

Prior to attaching components, be sure mating surfaces are free of grease, grit, oil, undercoating, etc.

A torque specification in foot pounds is shown in parenthesis “( )” after each fastener.

Use the check-off box “

” found at each step to help keep your place. Two “” denotes that one check-off box is for the driver side and one is for the passenger side.

An arrow on diagrams indicates which direction is towards “front of vehicle”.

Retain all factory hardware for reuse, unless otherwise specified.

PARTS LIST

FORM #5120

.10-071511

PRINTED IN U.S.A. PAGE 2 OF 13

The part number is stamped into each part or printed on an adhesive label. Identify each part and place the appropriate mounting hardware with it.

PART NO DESCRIPTION

(Qty.- if more than one)

ATTACHING HARDWARE

(Qty.)

02-550 .......................... (2) front coil spring

02-551 .......................... (2) rear coil spring

9003 ............................. (2) compression stop extension ... (2) 10mm x 100mm bolt

55-05-5073................... (2) lower trailing link, front ........... (8) bushing half

(4) sleeve

NOTE: Trailing links are located in separate kit box #5073.

55-03-5064................... rear track bar bracket .................. (1) 7/16" x 1" bolt

(1) 7/16" Nyloc nut

(2) 5/16" x 3/4" bolt

(2) 5/16" Nyloc nut

55-06-5064................... torque shaft bracket ..................... (2) 6mm x 20mm allen head bolt

(2) 6mm nyloc nut

55-01-5067................... (2) anti-sway bar bracket, front .... (2) 3/8” x 1-1/2” bolt

(2) 3/8” nyloc nut

55-09-5064................... (2) anti-sway bar link, front .......... (2) 7/16” x 2-3/4” bolt

(2) 7/16” Nyloc nut

(4) poly bushing

(4) sleeve

55-07-5120................... (2) transfer case drop bracket ..... (6) 12mm x 80mm bolt

55-08-5120................... (2) engine mount spacer plate

55-10-5064................... (2) anti-sway bar link, rear ........... (4) poly bushing

(4) 1/2” ID poly vinyl sleeve

06-5702 ........................ (2) poly compression stop, front

55-13-5100................... rear shock bracket extension, ...... (1) 3/8” x 1” bolt driver side (2) 3/8” SAE washer

(1) 3/8” nyloc nut

(1) 1/2” x 2-3/4” bolt

(2) 1/2” SAE washer

(1) 1/2” stover nut

(1) 5/8” OD x 1/2” ID x 1-3/8” sleeve

55-14-5100................... rear shock bracket extension, ...... (1) 3/8” x 1” bolt

FORM #5120

.10-071511

PRINTED IN U.S.A. PAGE 3 OF 13

passenger side (2) 3/8” SAE washer

(1) 3/8” nyloc nut

(1) 1/2” x 2-3/4” bolt

(2) 1/2” SAE washer

(1) 1/2” stover nut

(1) 5/8” OD x 1/2” ID x 1-3/8” sleeve

03-5062 ....................... (2) cam bolt assembly

85306........................... (2) front shock absorber ............... (2) shock hardware pack

85115........................... (2) rear shock absorber ................ (2) shock hardware pack

01-86010 ..................... (4) yellow shock absorber boot* ... (4) shock boot cable tie

*(Note: Shock boot, if desired, purchased separately.)

0034............................. Superlift badge ............................. alcohol wipe pad

FRONT DISASSEMBLY

1) PREPARE VEHICLE...

Place vehicle in low gear or park. With the suspension supporting vehicle weight, and the vehicle on level ground, use an inclinometer to take a rear driveshaft angle reading. One of the last installation steps will be to reset the driveshaft angle as close as possible to this reading.

Place vehicle in neutral. Raise front of vehicle with a jack, and secure a jack stand behind the lower link arms, beneath each frame rail. Ease the frame down onto the stands.

Support the outboard end of the driver and passenger side axle tube with a floor jack; the frame is to remain on the stands.

2) TRACK BAR...

Remove the bolt at the bottom / axle end of the track bar. The upper / frame end is not disconnected.

3) DRAG LINK and PITMAN ARM...

Remove the cotter pin and nut that connects the drag link-to pitman arm. Use a puller tool to detach the link from the arm.

4) SHOCK ABSORBERS...

 Disconnect and discard the factory shocks.

5) ANTI-SWAY BAR LINKS...

 On each side, disconnect the sway bar link from the axle bracket and the bar body.

6) SKID PLATE…

Remove and discard the factory front skid plate that is forward of the “belly pan” for the transmission.

FORM #5120

.10-071511

PRINTED IN U.S.A. PAGE 4 OF 13

7) LOWER LINK ARMS...

 Cam bolts attach the lower links to the front axle housing. Front end alignment is altered as the bolts are rotated. Paint or scribe alignment marks on each cam bolt and axle bracket so the bolts can later be returned to their original position.

 On each side, remove the cam bolt assembly from the link’s axle end. Then remove the attaching bolt at the rear of the lower link arm where it connects to the frame rail and remove the link. Save all hardware for reuse.

8)

COIL SPRINGS...

 Lower the jack/axle assembly until the coil springs are free from their upper seats. A retainer clip must be removed at the base of the driver side coil. Remove the coils.

FRONT ASSEMBLY

9) COMPRESSION TRAVEL STOPS:

(qty. 2) #06-5702...

 [DIAGRAM 1] On each side, pry the factory compression stop from its mounting cup, taking care not to damage the cup.

 Install the replacement poly compression travel stops (#06-5702) in the factory cups. It may be necessary to raise the axle in order to press the stops in the cups. It may also be necessary to trim the end of the stop slightly so that the stop’s retaining groove fully engages the tabs in the cup.

10) COIL SPRINGS #550...

 Lower the axle far enough to facilitate installing the coil springs. Use caution to prevent over-extending brake lines, vent hoses, etc.

 Install the coils. Position the coil in the tower first, then slide it into place on the axle seat.

 Reattach the retaining clip at the bottom of the driver side coil.

11) LOWER LINKS...

 Lubricate and install the supplied bushings and sleeves in the 55-05-5073 lower links.

 [DIAGRAM 2] On each side, install the 5073 lower links using the factory hardware. The cam bolts install at the axle with the nut side facing inboard. Only hand tighten the cam bolts; they, along with the links’ rear eye bolts, are fully tightened in a later step.

12) SUPERLIFT SHOCK ABSORBERS...

FORM #5120

.10-071511

PRINTED IN U.S.A. PAGE 5 OF 13

On each side:

 Install shock boot and decal.

 With the lower half of the stem hardware in place, insert the top end of the shock through the hole in the factory shock tower. Install the other half of the hardware and tighten only until the bushings start to swell slightly. Install jam nut.

 Attach the lower end of the shock to the axle using the factory hardware (21).

13) TRACK BAR...

NOTE: If the optional Superlift adjustable track bar (#5070) has been purchased, install now per separate instructions.

 [DIAGRAM 3] Drill a new 7/16” diameter mounting hole in the track bar’s axle bracket, where shown.

 Shift the axle assembly as necessary to align the track bar eye with the new hole.

Insert the stock fastener and hand tighten only; the bolt will be fully tightened in a later step.

14) DRAG LINK

 Connect the drag link to the pitman, tighten nut (60), and install new cotter pin. If the castellations and the cotter pin do not align, tighten (do not loosen) the nut until they align.

15) ANTI-SWAY BAR LINKS:

(qty. 2) #55-09-5064 FOR

FRONT ANTI-SWAY BAR

LINK...

Note: If optional Superlift Quick Disconnect links are being used, install now per separate instructions.

FORM #5120

.10-071511

PRINTED IN U.S.A. PAGE 6 OF 13

 Attach a #55-01-5067 bracket to each end of the sway bar body using a 3/8” x 1-1/2” bolt and nyloc nut (23). Insert the bolt facing up, and be sure the bracket legs are facing downward.

 Install the supplied bushings and sleeves into the eyes of each #55-09-5064 anti-sway bar link. Note that the smaller ID sleeve installs on the upper end of each link.

 Position the upper end of each link into the #55-01-5067 bracket and secure using the supplied 7/16” x 2-3/4” bolt (38). Note that the bolts should be installed from the outside.

 Slide the lower end of each link into the stock brackets on the axle and secure using the stock hardware. Tighten to factory specifications.

16) TIRES / WHEELS...

CAUTION: Before installing each wheel, be sure to remove any built-up corrosion on the wheel mounting surfaces. Ensure wheels are installed with good metal-to-metal contact. Improper installation could cause loosening of the wheel nuts. Never use oil or grease on lug studs or nuts.

 [DIAGRAM 4] All wheel nuts should be tightened just snug, then gradually tightened in sequence to the proper torque specification (80 to 110).

With front of vehicle still on stands, and suspension

“hanging” at full extension travel, turn steering lockto-lock while checking components for proper operation and clearances.

Remove jack stands and lower vehicle to floor.

17) TIGHTEN the SUSPENSION COMPONENTS...

The suspension must be supporting the vehicle’s weight when these components are torqued:

Lower link arm-to-axle cam bolt nut (85). Before tightening, match-up the alignment marks on the cams and axle brackets that were made in Step 6.

Lower link arm-to-frame nut (130). Track bar-to-axle bolt (55).

18) TORQUE SHAFT BRACKET #55-05-5064...

The torque shaft bracket is part of the transfer case shifter assembly. This step prevents shifter bind after the case is lowered.

[DIAGRAM 5] From under the vehicle, locate the torque shaft bracket. It is attached to the inside of the transmission tunnel and acts as a pivot for the transfer case shift lever. Remove the two bolts that attach the swivel plate-to-bracket. Also remove the swivel plate gasket.

FORM #5120

.10-071511

PRINTED IN U.S.A. PAGE 7 OF 13

Attach the swivel plate and gasket to the Superlift torque shaft bracket (#55-06-5064) using the factory bolts and nuts (18).

Insert the torque shaft through the swivel plate, then attach the

“06” bracket to the factory torque shaft bracket as shown using the supplied

6mm x 20mm allen head bolts and nuts

(18).

19) ENGINE MOUNT

SPACERS…

Loosen, but do not remove, the transmission mount.

Place a block of wood under the transmission bellhousing and engine oil pan and position a jack so that it supports, but does not raise, the engine. Take precautions to avoid damaging any components.

 On each side, remove the two bolts that secure the engine mount to the frame. Save all hardware for reuse.

 Carefully raise the engine approximately 3/8” and slide the engine mount spacers

(#55-08-5120) between the engine mount and frame mount.

WARNING: Use extreme caution to avoid placing fingers or any other body parts between the engine and frame at any time while the engine is unbolted from the frame.

 Line up the bolt holes in the engine mounts, spacer plates, and frame, then lower the engine. Reinstall the factory hardware and tighten to factory specifications.

FORM #5120

.10-071511

PRINTED IN U.S.A. PAGE 8 OF 13

20) LOWERING the TRANSFER CASE: #55-07-5120...

[DIAGRAM 6] Position a jack beneath the driver side of the transfer case crossmember / skid plate, just inboard of the plate-to-frame mounting bolts. Load the jack so that it will support the plate’s weight when the three bolts are removed. After removing the driver’s side bolts, loosen (do not remove) the passenger’s side plate-to-frame bolts.

Lower the jack just enough to install the driver side drop bracket (#55-07-5120), and insert the new 12mm x 80mm bolts. Leave bolts loose so the other side can be installed.

Relocate the jack to the passenger side and repeat the installation procedure for the other

“07” drop bracket.

Tighten all six plate bolts (31).

Tighten the transmission mount to factory specifications.

REAR DISASSEMBLY

21) SECURE VEHICLE...

Raise rear of vehicle with a jack positioned at outboard ends and secure a jack stand beneath each frame rail, in front of the lower link arms. Ease the frame down onto the stands, but leave a slight load on the jack. Chock front tires. Remove rear tires.

22) SHOCK ABSORBERS...

 Disconnect and discard the factory shocks.

23) ANTI-SWAY BAR LINKS...

 On each side, disconnect the sway bar link from the axle bracket and the sway bar body.

24) TRACK BAR...

Before removing the bar, mark the driver and passenger end to aid in reassembly. The plastic shield that covers the driver / axle end of the bar is not reused.

25) UPPER LINK ARMS...

 On each side, detach the rear end of the arm from the axle. Loosen, do not remove, the bolt at the frame end of the link. This will allow the link to swing out of the way.

26) COIL SPRINGS...

 Lower the axle assembly until the coil springs are free from their seats, then remove the coils. Inspect the thin, disc shaped rubber gasket that insulates the top of the coil and replace if necessary.

FORM #5120

.10-071511

PRINTED IN U.S.A. PAGE 9 OF 13

REAR ASSEMBLY

27) CAM BOLT SLOTS...

 On each side, look at the axle bracket that captures the upper link’s rear eye. Knockout the perforated plug that makes the round hole a slotted hole. If necessary, dress the slot with a file and paint the exposed metal.

28) UPPER LINK ARMS...

 On each side, use Superlift cam bolt assembly #1-03-5062 to reattach the link to the axle.

Install the bolts from the inside so they point outward. Rotate the cams so that the tall side of the lobes point straight up (12 O’clock position). Do not fully tighten; the bolts are torqued in a later step.

 On each side, attach the link’s front eye to the frame. Do not fully tighten; the bolts are torqued in a later step.

29) TRACK BAR BRACKET #55-03-5064...

[DIAGRAM 7] There are two existing holes in the factory track bar-to-axle mount where the plastic cover was attached. Drill out these holes to 5/16” diameter.

The “03” bracket fits down over the top of the factory mount, as shown.

Use the furnished 7/16” fastener at the factory mount’s bar eye hole

(37). Tighten the 5/16” hardware (13). The track bar is installed in a later step.

NOTE: It may be necessary to grind down the weld on the factory bracket to ensure the

“03” bracket fits flush over the OE bracket.

Refer to Diagram 9.

30) COMPRESSION TRAVEL STOP EXTENSIONS: (qty. 2) #9003...

On each side:

 Pry the factory compression stop from it’s mounting cup, taking care not to damage the cup.

Remove the 10mm bolt that attaches the cup to the spring tower.

 Position the Superlift compression stop spacer between the tower and mounting cup, as shown, and install the new 10mm x 100mm bolt (30). Reinstall the factory rubber compression stop into the mounting cup.

FORM #5120

.10-071511

PRINTED IN U.S.A. PAGE 10 OF 13

31) SUPERLIFT COIL SPRINGS #551...

On each side, position the coil spring on the axle pad. It may be necessary to loosen the lower links’ front and rear eye bolts so the axle can drop enough for coil installation.

Raise the axle until the springs seat in their upper mounts. Do not forget the stock coil gaskets for the top of the coils.

After both coils are in place, jack up the axle assembly until the springs are seated. Be sure the frame rails remain on the jack stands.

32) TRACK BAR...

Install the track bar. Reuse the factory fasteners at both ends. Hand tighten only; both bolts are fully tightened in a later step. It may be necessary to pry the axle assembly over in order to connect the bar.

33) ANTI-SWAY BAR LINKS: (qty. 2) #55-10-5064 REAR ANTI-SWAY BAR LINK...

Note: If optional Superlift Quick Disconnect Links are being used, install now per separate instructions.

 Install the supplied bushings and poly sleeves in the eyes of each #55-10-5064 anti-sway bar link.

 Position the ends of each link in the stock brackets on the axle and the frame, then secure using the stock hardware. Tighten to factory specifications.

34) SHOCK BRACKET

EXTENSIONS AND

SHOCKS...



[DIAGRAM 8] On each side, attach the shock bracket extensions (#55-

13-5100 driver side and

#55-14-5100 passenger side) to the shock mounts on the axle using the 3/8” x 1” bolt, washer, and nyloc nut as shown.

35) SUPERLIFT SHOCKS...

 Install shock boot and decal.

 Position shock and tighten the two upper bolts (23) and the single lower bolt (74).

36) TIRES / WHEELS...

CAUTION: Before installing each wheel, be sure to remove any built-up corrosion on the wheel mounting surfaces. Ensure wheels are installed with good metal-to-metal

FORM #5120

.10-071511

PRINTED IN U.S.A. PAGE 11 OF 13 contact. Improper installation could cause loosening of the wheel nuts. Never use oil or grease on lug studs or nuts.

 [DIAGRAM 4] All wheel nuts should be tightened just snug, the gradually tightened in sequence to the proper torque specification (80 to 110).

With front of vehicle still on stands, and suspension “hanging” at full extension travel, check all components for proper operation and clearances.

Remove jack stands and lower vehicle to floor.

37) TIGHTEN the SUSPENSION COMPONENTS...

The suspension must be supporting the vehicle’s weight when these components are torqued:

Track bar, both ends (74)

Lower link arm, both ends (130)

Upper link arm, frame end (55)

Upper link arm, axle (cam bolt) end (85)

NOTE: Prior to torquing the cam bolts, again use the inclinometer to take a rear driveshaft angle reading, and compare this to the reading taken in Step 1. Rotate the cam bolts as needed to get shaft angle as close to the Step 1 reading as possible. This will minimize or eliminate shaft vibration due to excessive angle. The 12 O’clock position that the cams were initially adjusted to in Step 28 yields the least amount of angle. It is important that both cams are adjusted identically. To reduce vibration under acceleration, rotate the cams to move the pinion bearing downward. To reduce vibration under deceleration, rotate the cams to move the pinion bearing upward.

38) HEADLIGHTS...

Readjust headlights to factory setting.

39) FINAL OVERALL INSPECTION and TORQUE CHECK...

Perform a front-to-rear inspection. With the suspension supporting vehicle weight, cycle steering lock-to-lock and inspect steering, suspension, driveline, and brake systems for proper operation, tightness, and adequate clearances. Retorque all fasteners.

40) TRANSMISSION SHIFTER MODIFICATION…

This step is only necessary if the vehicle exhibits problems shifting after the lift installation is complete.

Test drive the vehicle and shift through all gears. If it is difficult to shift into (or the transmission jumps out of) Second, Fourth, or Reverse, the shifter is likely hitting the edge of the transmission tunnel due to the transfer case drop and will need to be modified slightly.

Set the parking brake on the vehicle and put the transmission in neutral. Remove the shift knob and upper shifter boot. Shift the transfer case lever into neutral and remove the console, lower shift boot, and dust boot.

FORM #5120

.10-071511

PRINTED IN U.S.A. PAGE 12 OF 13

Remove the shifter from the transmission following the procedure found in the factory service manual.

[DIAGRAM 9] Disassemble the shifter according to the diagram.

Place the lower portion of the shifter in a vice or press and bend it slightly (about 3 degrees) at the point shown. It will be necessary to heat the shifter with a torch in order to bend it in most cases.

Do not heat the shifter excessively, and do not bend it more than necessary.

Reassemble the shifter and install it by reversing the steps followed for dissassembly.

41) SAFETY DECAL...

Install “Warning to Driver” decal. Refer to the “NOTICE TO DEALER AND VEHICLE

OWNER” section below.

42) ALIGNMENT...

Realign vehicle to factory specifications.

Limited Lifetime Warranty / Warnings

Your Superlift

®

product is covered by the Limited Warranty explained below that gives you specific legal rights. This limited warranty is the only warranty Superlift

®

makes in connection with your product purchase. Superlift

®

neither assumes nor authorizes any retailer or other person or entity to assume for it any other obligation or liability in connection with this product or limited warranty.

What is covered? Subject to the terms below, Superlift

®

will repair or replace its products found defective in materials or workmanship for so long as the original purchaser owns the vehicle on which the product was originally installed. Your warrantor is LKI Enterprises, Inc. d/b/a Superlift

®

Suspension Systems (“Superlift

®

”).

What is not covered. Your Superlift

®

Limited Warranty does not cover products, parts or vehicles Superlift® determines to have been damaged by or subjected to:

• Alteration, modification or failure to maintain.

• Normal wear and tear (bushings, tie-rod ends, etc.). Scratches or defects in product finishes

(powdercoating, plating, etc.),

• Damage to or resulting from vehicle’s electronic stability system, related components or other vehicle systems.

• Racing or other vehicle competitions or contests. Accidents, impact by rocks, trees, obstacles or other aspects of the environment.

• Theft, vandalism or other intentional damage.

FORM #5120

.10-071511

PRINTED IN U.S.A. PAGE 13 OF 13

Remedy Limited to Repair / Replacement. The exclusive remedy provided hereunder shall, upon Superlift’s inspection and at Superlift’s option, be either repair or replacement of product or parts covered under this Limited

Warranty. Customers requesting warranty consideration should contact Superlift

®

by phone (1-800-551-4955) to obtain a Returned Goods Authorization number. All removal, shipping and installation costs are customer’s responsibility.

If a replacement part is needed before the Superlift

®

part in question can be returned, you must first purchase the replacement part. Then, if the part in question is deemed warrantable, you will be credited / refunded.

Other Limitations - Exclusion of Damages - Your Rights Under State Law

• Neither Superlift

®

nor your independent Superlift

®

dealer are responsible for any time loss, rental costs, or for any incidental, consequential or other damages you may have.

• This Limited Warranty gives you specific rights. You may also have other rights that vary from state to state. For example, while all implied warranties are disclaimed herein, any implied warranty required by law is limited to the terms of our Limited Lifetime Warranty as described above. Some states do not allow limitations of how long an implied warranty lasts and / or do not allow the exclusion or limitation of incidental or consequential damages, so the limitations and exclusions herein may not apply to you.

Important Product Use and Safety Information / Warnings

As a general rule, the taller a vehicle is, the easier it will roll over. Offset, as much as possible, what is lost in rollover resistance by increasing tire track width. In other words, go “wide” as you go “tall”. Many sportsmen remove their mud tires after hunting season and install ones more appropriate for street driving; always use as wide a tire and wheel combination as feasible to enhance vehicle stability. We strongly recommend, because of rollover possibility, that the vehicle be equipped with a functional roll bar and cage system. Seat belts and shoulder harnesses should be worn at all times. Avoid situations where a side rollover may occur.

Generally, braking performance and capabilities are decreased when significantly larger / heavier tires and wheels are used. Take this into consideration while driving. Also, changing axle gear ratios or using tires that are taller or shorter than factory height will cause an erroneous speedometer reading. On vehicles equipped with an electronic speedometer, the speed signal impacts other important functions as well. Speedometer recalibration for both mechanical and electronic types is highly recommended.

Do not add, alter, or fabricate any factory or aftermarket parts to increase vehicle height over the intended height of the Superlift product purchased. Mixing component brands is not recommended.

All Superlift

®

material is copyrighted. All images found in this catalog and in any Superlift

®

marketing forums are the sole property of or licensed to Superlift written permission of Superlift

®

®

. Any reproduction of said materials, in part or in whole, with out the express

is strictly forbidden. Superlift

®

, Rockrunner™, Swamprunner™, Superide™, Superide

SS™ and SSR™, Black Diamond

®

, XCL™, X2™ Super Trac™, Torque Max™, Torque Max SS™, eXtreme Ring™,

Rail Wrap™, Bullet Proof Brake Hose™, TruSpeed™, Frame Integrated Technology™, F.I.T. Series™ and Rock

Fink

are registered trademarks of Superlift

®

Suspension Systems. Superlift

®

Suspension Systems is a Division of

Bret Lovett’s Lift Kits Incorporated.

SUPERLIFT SUSPENSION SYSTEMS

300 Huey Lenard Loop Rd.

West Monroe, Louisiana 71292

Phone: (318) 397-3000

Sales / Tech: 1-800-551-4955

FAX: (318) 397-3040

Web Site: www.superlift.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
