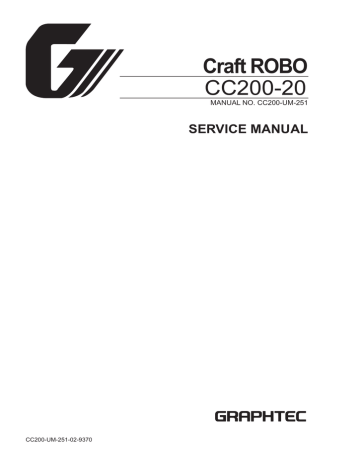

Craft ROBO CC200-20

Craft ROBO

CC200-20

MANUAL NO. CC200-UM-251

SERVICE MANUAL

CC200-UM-251-02-9370

HISTORY OF REVISIONS

No. Date issued

1 06.08.31

2

Description of revision

First printing

07.03.01 Procedure for the pne force adjustment was changed.

3 07.03.01 Recommended parts list was deleted. (Section 2)

Page

All

4-2 to 4-5

All

Edition

01

02

02

CC200-UM-251-9370 i

CONTENTS

1 PARTS NAMES and FUNCTIONS ................................ 1-1

2 LIST OF TOOLS ............................................................ 2-1

3 DISASSEMBLY AND REASSEMBLY ............................ 3-1

3.1 How to Replace the Bottom Cover ...................................................3-1

3.2 How to Replace the Left Side Cover .................................................3-2

3.3 How to Replace the Top Cover .........................................................3-3

3.4 How to Replace the Right Side Cover ..............................................3-4

3.5 How to Replace the Main Board .......................................................3-5

3.6 How to Replace the Y Guide Rail ......................................................3-6

3.7 How to Replace the Pressure Shaft Assembly ................................3-8

3.8 How to Replace the Feed Roller .....................................................3-10

3.9 How to Replace the Y Motor ............................................................ 3-11

3.10 How to Replace the X Motor ............................................................3-12

3.12 How to Replace the Y Belt ...............................................................3-13

3.13 How to Replace the Y Flexible Cable .............................................3-15

3.14 How to Replace the Solenoid ..........................................................3-16

3.15 How to Replace the Auto-Registration Mark Sensor Board .........3-18

3.16 How to Replace the Carriage Unit ..................................................3-19

4 ELECTRICAL ADJUSTMENTS ..................................... 4-1

4.1 Using the Adjustment Software ........................................................4-1

4.2 Adjusting the Pen Force ....................................................................4-3

4.3 Adjusting the Auto-Registration Mark Sensor White Level ...........4-6

4.4 Adjusting the Offset of the Auto-Registration Mark Sensor ..........4-7

4.5 Adjusting the Distance Accuracy .....................................................4-9

5 PARTS LISTS ................................................................ 5-1

CC200-UM-251-9370 ii

5.1 Main Unit Parts ...................................................................................5-1

5.2 Bottom Parts .......................................................................................5-3

5.3 Other ....................................................................................................5-4

6 BLOCK DIAGRAM ........................................................ 6-1

CC200-UM-251-9370 iii

1 PARTS NAMES and FUNCTIONS

1 PARTS NAMES and FUNCTIONS

Craft ROBO (CC200-20)

Push rollers

Cutting mat

Guide line

Cutting head (carriage)

Front guide

Standby switch

Media rollers

Clamp bracket

Feed knob AC adapter jack

USB interface connector

Cutting head ........................ Drives the blade holder/pen holder to the left or right

Clamp bracket ..................... Holds the blade holder/pen holder and drives it up or down

Standby switch .................... Turns the power supply to the Craft ROBO on and off. When the power supply is on, the switch’s lamp lights blue.

Feed knob ........................... Used to manually feed the media back and forth

USB interface connector ..... Used for connecting the USB cable

AC adapter jack .................. Used for connecting the AC adapter cable

Cutting mat ......................... Cutting or plotting is performed on this surface

Push rollers ......................... Hold the media in place against the media rollers

Media rollers ....................... Move the media back and forth

Front guide .......................... Used as the work surface

Guide line ........................... Used as a guide when media is loaded

CC200-UM-251-9370

1-1

2 LIST OF TOOLS

2 LIST OF TOOLS

No.

Adjustment Item Jigs Tools

Blade and blade holder, Electrical adjustment program Colex gauge (150 g, 300 g, 500 g),

1 Pen force adjustment

2 Distance adjustment

Auto Registration adjustcable

Blade and blade holder, Electrical adjustment program PC, USB I/F cable

3

PC, USB I/F cable

Blade and blade holder, Electrical adjustment program Glass scale 300 mm, PC, USB I/F ment

Electrical adjustment program

A4SetEnglish.exe :Use for the setup of A4-size models

LetterSetEnglish.exe :Use for the setup of letter-size models

GITKUSBP.dll :USB driver for the setup programs

CC200-UM-251-9370 2-1

3 DISASSEMBLY AMD REASSEMBLY

3 DISASSEMBLY AND REASSEMBLY

3.1 How to Replace the Bottom Cover

Disassembly

(1) Remove the four M3L8 self-tapping screws holding the bottom cover and the rubber feet.

Bottom cover

M3L8 self-tapping screw

(2) Detach the bottom cover and the rubber feet.

Reassembly

(1) To attach the bottom cover, perform the above “Disassembly” procedure in reverse.

CC200-UM-251-9370 3-1

3 DISASSEMBLY AMD REASSEMBLY

3.2 How to Replace the Left Side Cover

Disassembly

(1) Detach the bottom cover (see Section 3.1).

(2) Pull out the feed knob from the left side of the unit, and then detach the feed knob.

Feed knob

(3) Remove the three M3L8 self-tapping screws holding the left side cover.

M3L8 self-tapping screw

(4) Detach the left side cover.

Reassembly

(1) To attach the left side cover, perform the above “Disassembly” procedure in reverse.

CC200-UM-251-9370 3-2

3.3 How to Replace the Top Cover

Disassembly

(1) Detach the left side cover (see Section 3.2).

(2) Pull out the top cover from the right side cover to detach the top cover.

Top cover

3 DISASSEMBLY AMD REASSEMBLY

Reassembly

(1) To attach the top cover, perform the above “Disassembly” procedure in reverse.

CC200-UM-251-9370 3-3

3 DISASSEMBLY AMD REASSEMBLY

3.4 How to Replace the Right Side Cover

Disassembly

(1) Detach the bottom cover (see Section 3.1).

(2) Remove the three M3L8 self-tapping screws holding the right side cover.

Note: Hold the right side cover after you have removed the screws; there is a cable inside the cover.

M3L8 self-tapping screw

(3) Disconnect the standby switch cable which is connected to the standby switch board, and then detach the right side cover.

Standby switch cable

Reassembly

(1) To attach the right side cover, perform the above “Disassembly” procedure in reverse.

CC200-UM-251-9370 3-4

3 DISASSEMBLY AMD REASSEMBLY

3.5 How to Replace the Main Board

Disassembly

(1) Detach the bottom cover (see Section 3.1).

(2) Detach the right side cover (see Section 3.4).

(3) Remove the three M3L6 self-tapping screws holding the main board and the shield sheet.

Main board & shield sheet

M3L6 self-tapping screw

(4) Detach the main board and the shield sheet from the main chassis.

(5) Disconnect all the cables from the main board.

Main board

Y fl exible cable

Y motor cable

X motor cable

Standby switch cable

Reassembly

(1) To attach the main board, perform the above “Disassembly” procedure in reverse.

(2) Do not misconnect the cables when connecting the X and Y motor cables to the main board.

(3) Perform the electrical adjustments described in Chapter 5 after you have replaced the main board.

CC200-UM-251-9370 3-5

3.6 How to Replace the Y Guide Rail

Disassembly

(1) Detach the bottom cover (see Section 3.1).

(2) Detach the left side cover (see Section 3.2).

(3) Detach the top cover (see Section 3.3).

(4) Detach the right side cover (see Section 3.4).

(5) Remove the two M3L6 self-tapping screws holding the Y guide rail.

3 DISASSEMBLY AMD REASSEMBLY

Y guide rail

M3L6 self-tapping screw

(6) Detach the Y guide rail as shown in the picture below.

Release the notches, and then lift up the Y guide rail from the bottom to detach it.

CC200-UM-251-9370 3-6

3 DISASSEMBLY AMD REASSEMBLY

(7) Release the Y flexible cable clamps to detach the cable from the Y guide rail.

Y fl exible cable

Release the Y flexible cable clamps to detach the cable from the Y guide rail.

Y guide rail

Reassembly

(1) To attach the Y guide rail, perform the above “Disassembly” procedure in reverse.

CC200-UM-251-9370 3-7

3.7 How to Replace the Pressure Shaft Assembly

Disassembly

(1) Detach the bottom cover (see Section 3.1).

(2) Detach the left side cover (see Section 3.2).

(3) Detach the top cover (see Section 3.3).

(4) Detach the right side cover (see Section 3.4).

(5) Detach the Y belt tension spring from the left base bracket.

Y belt tension spring

3 DISASSEMBLY AMD REASSEMBLY

Y belt tension spring

(6) Remove the two M3L6 self-tapping screws holding the left base bracket, and then detach the left base bracket.

Left base bracket

Left base bracket

M3L6 self-tapping screw

(7) Lift up the left side of the pressure bracket, and then slide the pressure shaft assembly to the left side.

Left pressure bracket

CC200-UM-251-9370 3-8

Pressure shaft assembly

3 DISASSEMBLY AMD REASSEMBLY

(6) Detach the pressure shaft assembly as shown in the picture below.

Pressure shaft assembly

Reassembly

(1) To attach the pressure shaft assembly, perform the above “Disassembly” procedure in reverse.

CC200-UM-251-9370 3-9

3 DISASSEMBLY AMD REASSEMBLY

3.8 How to Replace the Feed Roller

Disassembly

(1) Detach the bottom cover (see Section 3.1).

(2) Detach the left side cover (see Section 3.2).

(3) Detach the top cover (see Section 3.3).

(4) Detach the right side cover (see Section 3.4).

(5) Detach the pressure shaft assembly (see Section 3.7).

(6) Remove the M3L8 binding head screw holding the X drive gear to the feed roller.

X drive gear

M3L8 binding head screw

(7) Lift up the left side of the pressure bracket, and then pull out the feed roller to the left side.

Left pressure bracket

Feed roller

(8) Detach the E-ring from the feed roller.

(9) Detach the bearing and the collar from the feed roller.

Reassembly

(1) To attach the feed roller, perform the above “Disassembly” procedure in reverse.

CC200-UM-251-9370 3-10

3.9 How to Replace the Y Motor

Disassembly

(1) Detach the bottom cover (see Section 3.1).

(2) Detach the right side cover (see Section 3.4).

(3) Detach the top cover (see Section 3.3).

(4) Detach the main board (see Section 3.5).

(5) Disconnect the Y motor cable which is connected to the main board.

Main board

Y fl exible cable

Y motor cable

X motor cable

3 DISASSEMBLY AMD REASSEMBLY

Standby switch cable

(6) Remove the two M2.6L6 binding head screws holding the Y motor, and then detach the Y motor.

Y motor

M2.6L6 binding head screw

Reassembly

(1) To attach the Y motor, perform the above “Disassembly” procedure in reverse.

(2) Make sure that there is a little play between the Y-motor gear and Y-drive gear when installing the Y motor.

Make sure that there is a little play between the Y-motor gear and the

Y-drive gear, and then confi rm that the carriage moves smoothly.

Y-drive gear

Y-motor gear

CC200-UM-251-9370 3-11

3.10 How to Replace the X Motor

Disassembly

(1) Detach the bottom cover (see Section 3.1).

(2) Detach the right side cover (see Section 3.4).

(3) Detach the top cover (see Section 3.3).

(4) Detach the main board (see Section 3.5).

(5) Disconnect the X motor cable which is connected to the main board.

Main board

Y fl exible cable

Y motor cable

X motor cable

3 DISASSEMBLY AMD REASSEMBLY

Standby switch cable

(6) Remove the two M2.6L6 binding head screws holding the X motor, and then detach the X motor.

M2.6L6 binding head screw

X motor

Reassembly

(1) To attach the X motor, perform the above “Disassembly” procedure in reverse.

(2) Make sure that there is a little play between the X-motor gear and X-drive gear when installing the X motor.

X-motor gear

Make sure that there is a little play between the X-motor gear and the

X-drive gear, and then confi rm that the feed roller moves smoothly.

X motor

X-drive gear

CC200-UM-251-9370 3-12

3.12 How to Replace the Y Belt

Disassembly

(1) Detach the bottom cover (see Section 3.1).

(2) Detach the left side cover (see Section 3.2).

(3) Detach the top cover (see Section 3.3).

(4) Detach the right side cover (see Section 3.4).

(5) Detach the Y guide rail (see Section 3.6).

(6) Detach the Y motor (see Section 3.9).

(7) Detach the Y belt tension spring from the left base bracket.

Y belt tension spring

3 DISASSEMBLY AMD REASSEMBLY

Y belt tension spring

(8) Remove the four M3L6 self-tapping screws holding the motor bracket.

Motor bracket

M3L6 self-tapping screw

(9) Detach the motor bracket as shown in the picture below.

Motor bracket

CC200-UM-251-9370

Release the motor bracket from these notches, and then detach the motor bracket.

3-13

(10) Detach the Y-drive gear from the chassis.

Y-drive gear

Y belt

3 DISASSEMBLY AMD REASSEMBLY

(11) Detach the Y belt from the carriage.

Y belt

Carriage unit

(12) Remove the Y belt from the left side, and then detach the Y idler pulley and pulley bracket.

Y belt

Idler pulley bracket

Idler pulley

Reassembly

(1) To attach the Y belt, perform the above “Disassembly” procedure in reverse.

CC200-UM-251-9370 3-14

3 DISASSEMBLY AMD REASSEMBLY

3.13 How to Replace the Y Flexible Cable

Disassembly

(1) Detach the bottom cover (see Section 3.1).

(2) Detach the left side cover (see Section 3.2).

(3) Detach the top cover (see Section 3.3).

(4) Detach the right side cover (see Section 3.4).

(5) Detach the main board (see Section 3.5).

(6) Detach the Y guide rail (see Section 3.6).

(7) Detach the Y flexible cable from the guide rail (see Section 3.6).

(8) Detach the carriage cover from the carriage.

(9) Lift up the top section of the carriage cover, and then detach the carriage cover from the carriage.

Pull this section toward you, and then lift up the carriage cover to detach it.

Carriage unit

Carriage cover

(10) Disconnect the Y flexible cable from the carriage board.

Y fl exible cable

Auto-registration mark sensor fl exible cable

Carriage board

Solenoid cable

(11) Disconnect the Y flexible cable from the main board, and then detach the Y flexible cable.

Reassembly

(1) To attach the Y flexible cable, perform the above “Disassembly” procedure in reverse.

CC200-UM-251-9370 3-15

3 DISASSEMBLY AMD REASSEMBLY

3.14 How to Replace the Solenoid

Disassembly

(1) Detach the bottom cover (see Section 3.1).

(2) Detach the left side cover (see Section 3.2).

(3) Detach the top cover (see Section 3.3).

(4) Detach the right side cover (see Section 3.4).

(5) Detach the Y guide rail (see Section 3.6).

(6) Detach the carriage cover from the carriage.

(7) Lift up the top section of the carriage cover, and then detach the carriage cover from the carriage.

Pull this section toward you, and then lift up the carriage cover to detach it.

Carriage unit

Carriage cover

(8) Remove the two M2.6L6 binding head screws holding the solenoid and the heat sink.

Solenoid

M2.6L6 binding head screw

(9) Detach the heat sink from the carriage.

Heat sink

CC200-UM-251-9370 3-16

3 DISASSEMBLY AMD REASSEMBLY

(10) Disconnect the solenoid cable from the carriage board.

Y fl exible cable

Auto-registration mark sensor fl exible cable

Carriage board

Solenoid cable

(11) Detach the solenoid from the carriage.

Solenoid

Reassembly

(1) To attach the solenoid, perform the above “Disassembly” procedure in reverse.

(2) Perform the electrical adjustments described in Chapter 5 after you have replaced the solenoid.

CC200-UM-251-9370 3-17

3 DISASSEMBLY AMD REASSEMBLY

3.15 How to Replace the Auto-Registration Mark Sensor Board

Disassembly

(1) Detach the bottom cover (see Section 3.1).

(2) Detach the left side cover (see Section 3.2).

(3) Detach the top cover (see Section 3.3).

(4) Detach the right side cover (see Section 3.4).

(5) Detach the Y guide rail (see Section 3.6).

(6) Detach the solenoid (see Section 3.14).

(7) Remove the M2.6 self-tapping screw holding the carriage board, and then disconnect the auto-registration mark sensor flexible cable from the carriage board.

M2.6 self-tapping screw

Auto-registration mark sensor fl exible cable

Carriage board

(8) Release the hook holding the auto-registration mark sensor board, and then detach the auto-registration mark sensor board from the carriage.

Carriage

Release this hook.

Auto-registration mark sensor board

Reassembly

(1) To attach the auto-registration mark sensor board, perform the above “Disassembly” procedure in reverse.

(2) Perform the electrical adjustments described in Chapter 5 after you have replaced the auto-registration mark sensor board.

CC200-UM-251-9370 3-18

3 DISASSEMBLY AMD REASSEMBLY

3.16 How to Replace the Carriage Unit

Disassembly

(1) Detach the bottom cover (see Section 3.1).

(2) Detach the left side cover (see Section 3.2).

(3) Detach the top cover (see Section 3.3).

(4) Detach the right side cover (see Section 3.4).

(5) Detach the Y guide rail (see Section 3.6).

(6) Detach the carriage cover from the carriage.

(7) Lift up the top section of the carriage cover, and then detach the carriage cover from the carriage.

Pull this section toward you, and then lift up the carriage cover to detach it.

Carriage unit

Carriage cover

(8) Disconnect the Y flexible cable from the carriage board.

(9) Detach the Y belt tension spring from the left base bracket.

Y belt tension spring Y belt tension spring

(10) Remove the two M3L6 self-tapping screws holding the left base bracket, and then detach the left base bracket.

Left base bracket

Left base bracket

M3L6 self-tapping screw

CC200-UM-251-9370 3-19

3 DISASSEMBLY AMD REASSEMBLY

(11) Remove the M3L10 binding head screw holding the left pressure bracket and shaft spacer.

Left pressure bracket

M3L10 binding head screw

(12) Remove the M3L10 binding head screw holding the right pressure bracket and shaft spacer.

Right pressure bracket

M3L10 binding head screw

(13) Lift up the slider shaft from the left side, and then detach the slider shaft from the main unit.

Slider shaft

(14) Detach the carriage from the slider shaft.

Reassembly

(1) To attach the carriage unit, perform the above “Disassembly” procedure in reverse.

CC200-UM-251-9370 3-20

4 ELECTRICAL ADJUSTMENTS

4 ELECTRICAL ADJUSTMENTS

4.1 Using the Adjustment Software

This adjustment software is used for the pen force adjustment, the auto-registration mark sensor adjustment and the distance adjustment.

To adjust the CC200-20 you need to have the following files. In addition, you need to use a computer and a USB cable.

There are two kinds of adjustment software, one for the A4 paper size model and one for the letter paper size model

(US model).

• A4SetEnglishV1.57.exe : CC200-20 A4 paper size model adjustment software file

(This adjustment software adjusts the CC200-20 to A4-size model specifications.)

• LetterSetEnglishV1.57.exe : CC200-20 letter paper size model adjustment software file (USA model)

(This adjustment software adjusts the CC200-20 to letter-size model specifications.)

• GITKUSBP.dll : CC200-20 software dll file

CC200-UM-251-9370 4-1

4 ELECTRICAL ADJUSTMENTS

How to use the adjustment software

(1) Copy one of the above adjustment software files and the dll file to the same directory in the PC.

(2) Connect the computer and the CC200-20 via the USB interface.

(3) Connect the power cable to turn on the power.

(4) Turn on the standby switch of the CC200-20.

(5) Execute A4SetEnglish.exe or LetterSetEnglish.exe.

(6) The following menu is displayed.

Displays the firmware version.

Displays the adjustment software type.

Used for the pen force adjustment.

Used for the auto-registration mark sensor white level adjustment.

Used for the auto-registration mark sensor position adjustment.

Used for the distance adjustment.

How to use the Move buttons: Click a button to start movement, and click again to stop.

Return to the factory presets.

Close this software and store the settings to the Nov-RAM.

Close this software.

(This does not store the settings.)

Note 1: Do not turn off the standby switch while adjusting the CC200-20. If you do so, the CC200-20 will not receive any commands from the adjustment software. If you turn off the standby switch while adjusting the

CC200-20, perform the following procedure.

(1) Click the Cancel button to exit the adjustment software.

(2) Connect the power cable to the CC200-20.

(3) Turn on the standby switch of the CC200-20.

(4) Execute the adjustment software again.

Note 2: The adjustment software software will not start if the standby switch is off or the power is off. The adjustment software displays the menu shown below at this time.

CC200-UM-251-9370 4-2

4 ELECTRICAL ADJUSTMENTS

4.2 Adjusting the Pen Force

This adjustment will set the pen force using the adjustment software.

If you replace the main board, use the following procedure to input the recorded adjustment values.

If you replace the solenoid and/or the pen block assembly, you must adjust the pen force using the following procedure.

How to adjust the pen force

(1) Mount a 0.9 mm diameter blade holder (PHP32-CB09N without the blade) in the clamp bracket.

There is a few gap when the blade holder is installed completely.

Be careful it’s a little hard to install.

(2) Connect the computer and the CC200-20 via the USB interface.

(3) Connect the power cable to turn on the power.

(4) Turn on the standby switch of the CC200-20.

(5) Put the cutting sheet on the carrier sheet.

Cutting sheet (Cutting media)

Carrier sheet

(6) Load the carrier sheet to the CC200-20.

Move the carrier sheet to be center position using the feed knob.

CC200-UM-251-9370 4-3

(7) Execute the adjustment software.

(8) Set the value of Force 1 to the 110 using the UP or DOWN button.

The Force 1 is fixed value. Just set to the 110.

(9) Click the Force 1 down/up button to apply the input value.

(10) Click the Force 1 down/up button again to raise the blade holder.

(11) Click the Force 3 down/up button to lower the blade holder.

(12) Use the 300 g force gauge to measure the actual force.

Hang the string to inside of the lock lever.

4 ELECTRICAL ADJUSTMENTS

Measure the force at about

100 mm height.

About 100 mm

To get the correct force, gently lift the blade holder up by hand, lower the blade holder, and then measure the actual force after you click the Force button.

Do not lower the blade holder more than 5 sec for one times, otherwise the force will be reduced.

(13) If the measured value is not within the specification range (170 g to 190 g), change the value at the right side of the Force 3 down/up button so that it is 170 g to 190 g for the actual force.

CC200-UM-251-9370 4-4

(14) Click the Force 3 down/up button again to apply the input value.

If you input a value that is too large, the following message is displayed.

4 ELECTRICAL ADJUSTMENTS

(15) Use the 300 g force gauge to measure the changed force to confirm it.

(16) Click the Force 3 down/up button again to raise the blade holder.

(17) Click the Set button to close the adjustment software and store all the settings to the Nov-RAM.

CC200-UM-251-9370 4-5

4 ELECTRICAL ADJUSTMENTS

4.3 Adjusting the Auto-Registration Mark Sensor White Level

How to adjust the auto-registration mark sensor white level

(1) Connect the computer and the CC200-20 via the USB interface.

(2) Connect the power cable to turn on the power.

(3) Load an A4 (Letter) size sheet of paper in the CC200-20. The paper color must be white, and it is recommended that high-quality paper made for ink-jet printers be used.

(4) Turn on the standby switch of the CC200-20.

(5) Execute the adjustment software.

(6) Use the Pen Position buttons to move the auto-registration mark sensor position to a white area on the paper.

Make sure that there are no dirty areas or any printed areas directly under the sensor.

(7) Click the Adjust button to adjust the white level of the sensor.

(8) The following menu will appear when the white level adjustment is complete.

(9) Confirm the value shown in the above menu.

If the value is 0 or 255 there is a problem with the sensor or the circuit.

(10) Click the OK button to close the white level adjustment display.

(11) Click the Set button to close the adjustment software and store all the settings to the Nov-RAM.

CC200-UM-251-9370 4-6

4 ELECTRICAL ADJUSTMENTS

4.4 Adjusting the Offset of the Auto-Registration Mark Sensor

How to adjust the Offset of the Auto-Registration Mark Sensor

(1) Connect the computer and the CC200-20 via the USB interface.

(2) Connect the power cable to turn on the power.

(3) Load an A4 (Letter) size sheet of paper with a backing sheet in the CC200-20. The paper must have a printed target cross mark.The cross mark specifications are 30 mm line length, and 0.3 to 0.5 mm line width.

(4) Mount the blade holder with the cutter blade and the yellow blade adjustment cap in the clamp bracket.

(5) Turn on the standby switch of the CC200-20.

(6) Execute the adjustment software.

(7) Use the Pen Position buttons to move the blade holder to the printed cross mark area.

Move the blade holder into this area.

Media feed direction

Printed target mark

(8) Click the Scan button to scan the printed cross mark. The CC200-20 then cuts a cross mark based on the reading of the printed cross mark.

(9) Confirm the offset between the printed cross mark and the cut cross mark.

You do not need to make any adjustments if the cut lines are on top of the printed cross mark.

(10) Input the offset value(s) if the cut lines are not on top of the printed cross mark.

(11) Click the Set button to close the adjustment software and store all the settings to the Nov-RAM.

CC200-UM-251-9370 4-7

CC200-UM-251-9370

Y axis

4-8

4 ELECTRICAL ADJUSTMENTS

4 ELECTRICAL ADJUSTMENTS

4.5 Adjusting the Distance Accuracy

How to adjust the Distance Accuracy

(1) Connect the computer and the CC200-20 via the USB interface.

(2) Connect the power cable to turn on the power.

(3) Load an A4 (Letter) size sheet of paper with a backing sheet in the CC200-20.

(4) Mount the blade holder with the cutter blade and the yellow blade adjustment cap in the clamp bracket.

(5) Turn on the standby switch of the CC200-20.

(6) Execute the adjustment software.

(7) Click the Plot button to cut the test pattern.

X=200 mm

Y=150 mm

(8) Measure the X-axis and Y-axis distances.

(9) Input the values to the input boxes shown below.

The formula of the input value is as follows:

Input value for X-axis = (200mm - measured distance) x 10

For example:

If you measured 200.2 mm for the X-axis, then input -2 for the adjustment value.

(10) Click the Set button to close the adjustment software and store all the settings to the Nov-RAM.

CC200-UM-251-9370 4-9

5 PARTS LISTS

5.1 Main Unit Parts

No.

Part No.

1 621340003 Main Chassis

2 621340101 Cutting Mat

3 621340021 Guide Plate

4 621340031 Motor Bracket

Description

5 792028704 Motor Assembly

6 621340130 Mini Clamp

7 621341040 Standby Switch Board Bracket

8 621341031 Standby Switch Top

9 621341002 Right Cover

621343000 Right Cover XY

10 621341012 Left Cover

621343010 Left Cover XY

11 621341020 Top Cover

621342001 Top Cover QK

621343020 Top Cover XY

12 621341052 Cover Rubber Cushion

13 621340231 Feed Knob

621343030 Feed Knob XY

14 621340200 Feed Roller, A4-size model

621340290 Feed Roller, Letter-size model

15 621340300 Bearing, RFS

16 621340210 X Drive Gear

17 621340310 Collar

18 E-ring D5

19 621340381 Pressure Roller Assembly, A4-size model

621340391 Pressure Roller Assembly, Letter-size model

20 621340621 Slider Shaft

21 621340461 Spacing Collar

22 621340520 Right Pressure Bracket

23 621340530 Left Pressure Bracket

24 621340051 Left Base Bracket

25 621340630 Pressure Spring 30

26 621340640 Y Belt 460TN15-7.0W

27 621340651 Y Drive Gear

28 621340471 Y Drive Gear Shaft

29 621340480 Idler Pulley

30 621340490 Idler Pulley Shaft

31 621340501 Y Belt Tension Bracket

32 621340510 Y Belt Tension Spring

33 621340403 Carriage

34 621340411 Clamp Bracket

35 621340420 Cushion, Clamp Bracket

36 621340600 Spring, Solenoid

37 621340450 Shaft, Link

38 621340430 Heat Sink

39 621340442 Carriage Cover

40 621340612 Lock Knob

41 62134033X Bearing PSB

42 621340012 Y Guide Rail

43 792028703 Standby Switch Board

44 682124570 Solenoid, SDC-0829(8C-94)

45 692134100 Y Flexible Cable, FPC510101

46 792028701 Carriage Board

CC200-UM-251-9370 5-1

1

1

1

1

1

1

2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

1

1

1

2

1

1

2

1

1

Q’ty

1

1

1

1

Remarks

1

1

2 682124110+621340121

1

1 for OEM model

1 for OEM model

1 for OEM model for OEM model

2

1 for OEM model

1

5 PARTS LISTS

No.

Part No.

Description

47 692134110 Auto-Registration Mark Sensor Flexible Cable

48 792028702 Auto-Registration Mark Sensor Board

49 692134000 CA510101, Standby Switch Cable

50 621341942 Caution Label

621343140 Caution Label XY

51 621341933 Rating Label

621342101 Rating Label QK

621343120 Rating Label XY

Main Unit Parts

5 PARTS LISTS

Q’ty

1 FPC510102

Remarks

1

1 Main Board to Standby Switch Board

1 for OEM model

1

1 for OEM model for OEM model

CC200-UM-251-9370 5-2

5.2 Bottom Parts

No.

Part No.

1 621340040 Bottom Cover

2 304511000 Rubber Foot

Description

3 621340072 Insulation Sheet

4 621340661 Flexible Cable Clamp

5 792028700 Main Board

Bottom parts

2

2

Q’ty

1

4

1

2

1

Remarks

5 PARTS LISTS

2

3

1

5

2

4

4

CC200-UM-251-9370 5-3

5.3 Other

No.

Part No.

1 772134960 Packing Box

772134720 Packing Box QK

Description

772124780 Packing Box XY

2 621341630 Accessory Box

3 682124531 AC adapter YR-1048GRC1208P

682124521 AC adapter YR-1048GRC1175P

682124551 AC adapter YR-1048GRC1247P

682124541 AC adapter YR-1048GRC1209P

4 621341701 User Guide CD, CC200-CDM02M

621343300 User Guide CD, CC200-CD-XY01

621342300 User Guide CD, CC200-CD-QK01

5 621341730 Quick Start Instructions (E)

621341760 Quick Start Instructions (UL)

621341710 Quick Start Instructions (J)

621343310 Quick Start-XY

6 621341740 Quick Application Guide (E)

621341750 Quick Application Guide (UL)

621341720 Quick Application Guide (J)

621343320 Quick Appli-XY

7 691330560 USB Cable

8 772134950 Blade Holder Set

9 772134980 Ballpoint Pen Holder

10 621341401 Carrier Sheet A4 Size

621341431 Carrier Sheet Letter Size

11 621342330 Instruction Manual QK

Q’ty

1

Remarks for OEM model for OEM model

1

1 UL,117V

CEE, 220V

BS, 240V

Japanese,100V

1 for OEM model for OEM model

1 English

US, Letter-size model

Japanese for OEM model

1 English

US, Letter-size model

Japanese

1

1 for OEM model

1 CBL0106ACL2-1.5M

1

1 for OEM model

5 PARTS LISTS

CC200-UM-251-9370 5-4

6 BLOCK DIAGRAM

FPC510102

6 BLOCK DIAGRAM

CC200-UM-251-9370 6-1

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
