IM-240DME IM-240DWME IM-240DSME IM-240XME IM

IM-240DME IM-240DWME IM-240DSME IM-240XME IM

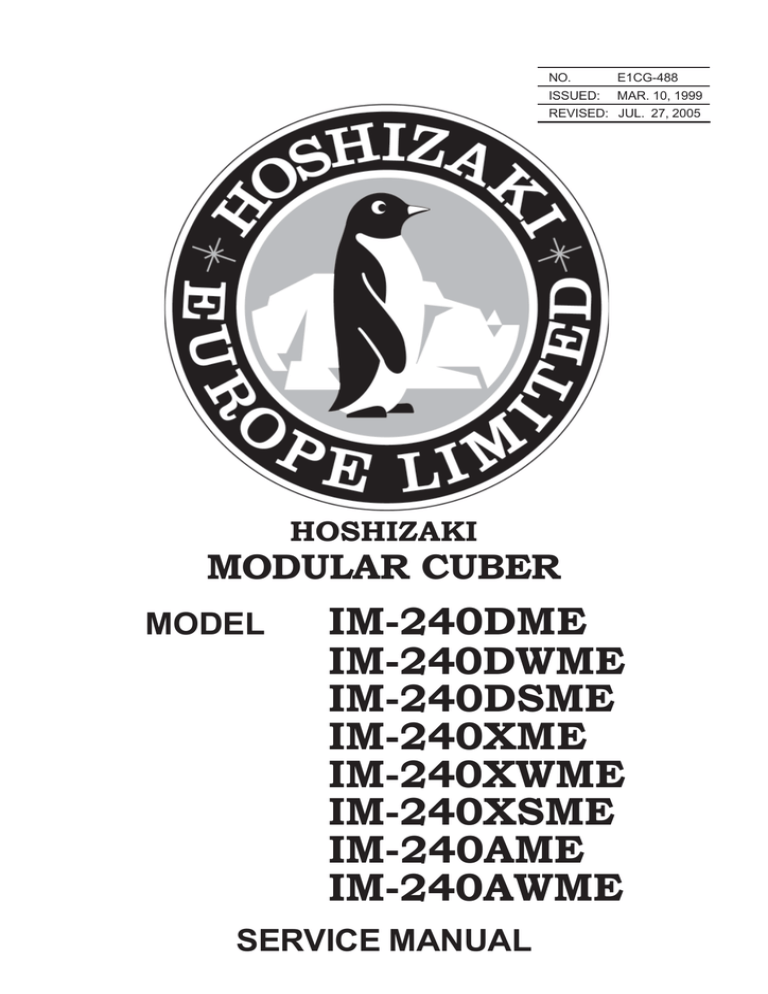

NO.
E1CG-488
ISSUED: MAR. 10, 1999
REVISED: JUL. 27, 2005
HOSHIZAKI
MODULAR CUBER
MODEL
IM-240DME
IM-240DWME
IM-240DSME
IM-240XME
IM-240XWME
IM-240XSME
IM-240AME
IM-240AWME
SERVICE MANUAL
CONTENTS
PAGE
I. SPECIFICATIONS ------------------------------------------------------------------------------------1. DIMENSIONS/CONNECTIONS----------------------------------------------------------------[a] IM-240DME (Air-cooled) --------------------------------------------------------------------[b] IM-240DWME (Water-cooled) -------------------------------------------------------------[c] IM-240DSME (Remote Air-cooled) -------------------------------------------------------[d] IM-240XME (Air-cooled) --------------------------------------------------------------------[e] IM-240XWME (Water-cooled) -------------------------------------------------------------[f] IM-240XSME (Remote Air-cooled) -------------------------------------------------------[g] IM-240AME (Air-cooled) --------------------------------------------------------------------[h] IM-240AWME (Water-cooled) --------------------------------------------------------------2. CONDENSER UNIT URC-240C-E -------------------------------------------------------------
1
1
1
2
3
4
5
6
7
8
9
II. GENERAL INFORMATION ------------------------------------------------------------------------- 10
1. CONSTRUCTION --------------------------------------------------------------------------------- 10
[a] IM-240DME, IM-240XME ------------------------------------------------------------------- 10
[b] IM-240DWME, IM-240XWME ------------------------------------------------------------- 11
[c] IM-240DSME, IM-240XSME --------------------------------------------------------------- 12
[d] IM-240AME ------------------------------------------------------------------------------------ 13
[e] IM-240AWME ---------------------------------------------------------------------------------- 14
2. CONTROLLER BOARD ------------------------------------------------------------------------- 15
[a] CONTROLLER BOARD LAYOUT -------------------------------------------------------- 16
[b] BEFORE CHECKING CONTROLLER BOARD --------------------------------------- 18
[c] SEQUENCE - LED INDICATORS ON/OFF PATTERN ------------------------------- 19
[d] FAULT DIAGNOSIS -------------------------------------------------------------------------- 20
[e] CONTROLS AND ADJUSTMENT -------------------------------------------------------- 22
3. FAN MOTOR CONTROL - DME/XME/AME ONLY ---------------------------------------- 24
III. INSTALLATION INSTRUCTIONS ----------------------------------------------------------------- 25
1. UNPACKING --------------------------------------------------------------------------------------- 25
2. LOCATION ------------------------------------------------------------------------------------------ 27
3. INSTALLATION ------------------------------------------------------------------------------------ 28
[a] IM-240D, IM-240X ---------------------------------------------------------------------------- 28
[b] IM-240A ----------------------------------------------------------------------------------------- 29
4. STACKING ICEMAKERS ----------------------------------------------------------------------- 30
5. ELECTRICAL CONNECTIONS ---------------------------------------------------------------- 32
6. REMOTE CONDENSER UNIT (Remote Air-cooled Model Only) ---------------------- 33
[a] UNPACKING ----------------------------------------------------------------------------------- 33
[b] LOCATION ------------------------------------------------------------------------------------- 34
[c] INSTALLATION -------------------------------------------------------------------------------- 34
[d] ELECTRICAL CONNECTIONS ----------------------------------------------------------- 37
[e] STACKING CONDENSER UNITS -------------------------------------------------------- 38
7. WATER SUPPLY AND DRAIN CONNECTIONS ------------------------------------------- 38
8. FINAL CHECK LIST ------------------------------------------------------------------------------ 43
i
IV. OPERATING INSTRUCTIONS ------------------------------------------------------------------- 44
1. START UP ------------------------------------------------------------------------------------------ 44
2. PREPARING THE ICEMAKER FOR LONG STORAGE --------------------------------- 46
3. BIN CONTROL------------------------------------------------------------------------------------- 47
[a] BIN CONTROL SWITCH ASSEMBLY ---------------------------------------------------- 47
[b] REMOVAL ------------------------------------------------------------------------------------- 48
[c] REASSEMBLING ----------------------------------------------------------------------------- 48
V. MAINTENANCE INSTRUCTIONS --------------------------------------------------------------- 49
1. PERIODICAL CLEANING ----------------------------------------------------------------------- 49
2. WATER VALVE ------------------------------------------------------------------------------------ 51
3. WATER-COOLED CONDENSER ------------------------------------------------------------ 52
4. ICEMAKING WATER SYSTEM ---------------------------------------------------------------- 53
VI. TECHNICAL INFORMATION --------------------------------------------------------------------- 56
1. WATER CIRCUIT AND REFRIGERANT CIRCUIT ----------------------------------------- 56
[a] IM-240DME, IM-240XME, IM-240AME (Air-cooled) ---------------------------------- 56
[b] IM-240DWME, IM-240XWME (Water-cooled) ----------------------------------------- 57
[c] IM-240DSME, IM-240XSME (Remote Air-cooled) ------------------------------------ 58
2. WIRING DIAGRAM ------------------------------------------------------------------------------- 59
[a] IM-240DME, IM-240XME ------------------------------------------------------------------- 59
[b] IM-240DWME, IM-240XWME ------------------------------------------------------------- 60
[c] IM-240DSME, IM-240XSME --------------------------------------------------------------- 61
[d] IM-240AME, IM-240AWME ----------------------------------------------------------------- 62
3. PERFORMANCE DATA------------------------------------------------------------------------- 63
VII. SERVICE DIAGNOSIS ---------------------------------------------------------------------------- 66
1. NO ICE PRODUCTION -------------------------------------------------------------------------- 66
2. LOW ICE PRODUCTION ------------------------------------------------------------------------ 69
3. ABNORMAL ICE ---------------------------------------------------------------------------------- 70
4. OTHERS -------------------------------------------------------------------------------------------- 71
VIII. ADJUSTMENT ------------------------------------------------------------------------------------- 72
1. EXPANSION VALVE ----------------------------------------------------------------------------- 72
2. WATER REGULATING VALVE - WATER-COOLED MODEL ONLY ------------------ 73
IX. REMOVAL AND REPLACEMENT -------------------------------------------------------------- 74
1. SERVICE FOR REFRIGERANT LINES ----------------------------------------------------- 74
[a] SERVICE INFORMATION ------------------------------------------------------------------ 74
[b] REFRIGERANT RECOVERY -------------------------------------------------------------- 75
[c] EVACUATOIN AND RECHARGE --------------------------------------------------------- 75
2. COMPRESSOR ----------------------------------------------------------------------------------- 77
3. DRIER ----------------------------------------------------------------------------------------------- 78
4. EXPANSION VALVE ----------------------------------------------------------------------------- 79
5. EVAPORATOR ------------------------------------------------------------------------------------ 80
6. HOT GAS VALVE --------------------------------------------------------------------------------- 81
7. WATER REGULATING VALVE - WATER-COOLED MODEL ONLY ------------------ 82
ii
[a] VALVE BODY --------------------------------------------------------------------------------- 82
[b] WHOLE VALVE ------------------------------------------------------------------------------- 82
8. WATER PAN ASSEMBLY ----------------------------------------------------------------------- 84
9. PUMP MOTOR ------------------------------------------------------------------------------------ 86
10. WATER VALVE ----------------------------------------------------------------------------------- 87
11. ACTUATOR MOTOR ----------------------------------------------------------------------------- 88
12. CAM ARM ------------------------------------------------------------------------------------------ 89
[a] CAM ARM (A) - ACTUATOR MOTOR SIDE -------------------------------------------- 89
[b] CAM ARM (B) - REAR SIDE --------------------------------------------------------------- 89
13. ACTUATOR TOGGLE SWITCH --------------------------------------------------------------- 90
14. CONTROLLER BOARD ------------------------------------------------------------------------ 93
[a] MODIFICATION ------------------------------------------------------------------------------- 93
[b] REPLACEMENT ----------------------------------------------------------------------------- 93
15. THERMISTOR FOR CUBE CONTROL ------------------------------------------------------ 95
16. SURGE ABSORBER ---------------------------------------------------------------------------- 96
17. FAN MOTOR - DME/XME ONLY -------------------------------------------------------------- 97
18. FAN MOTOR - DSME/XSME ONLY ---------------------------------------------------------- 97
iii
I. SPECIFICATIONS
1. DIMENSIONS/CONNECTIONS
[a] IM-240DME (Air-cooled)
1
[b] IM-240DWME (Water-cooled)
2
[c] IM-240DSME (Remote Air-cooled)
3
[d] IM-240XME (Air-cooled)
4
[e] IM-240XWME (Water-cooled)
5
[f] IM-240XSME (Remote Air-cooled)
6
[g] IM-240AME (Air-cooled)
7
[h] IM-240AWME (Water-cooled)
8
2. CONDENSER UNIT URC-240C-E
SPECIFICATIONS
MODEL: URC-240C-E
EXTERIOR
Painted Galvanized Steel
DIMENSIONS (W x D x H)
657 x 399 x 426 mm
REFRIGERANT CHARGE
R404A 1000 g
WEIGHT
Net 20 kg
CONDENSER
Air-cooled
HEAD PRESSURE CONTROL
Condensing Pressure Regulator
AMBIENT CONDITION
Min. 1°C to Max. +40°C
Outdoor use
9
II. GENERAL INFORMATION
1. CONSTRUCTION
[a] IM-240DME, IM-240XME
Louver, Air Filter
Top Panel
Power Cord
Condensing Unit
Front Panel
Bin Door
Handle
Storage Bin (Optional)
Adjustable Legs
Water Valve
Evaporator
Actuator Toggle Switch
Bin Control Switch
Air-cooled Condenser
Water Plate
Water Tank
Fan Motor
Compressor
Pump Motor
Drain Pan
Actuator Motor
Hot Gas Valve
Control Box
10
[b] IM-240DWME, IM-240XWME
Top Panel
Power Cord
Condensing Unit
Front Panel
Bin Door
Handle
Storage Bin (Optional)
Adjustable Legs
Water Valve
Actuator Toggle Switch
Evaporator
Bin Control Switch
Water Plate
Water Tank
Compressor
Water-cooled Condenser
Pump Motor
Water Regulating Valve
Drain Pan
Hot Gas Valve
Actuator Motor
Control Box
11
[c] IM-240DSME, IM-240XSME
Top Panel
Remote Condenser Unit
Power Cord
Condensing Unit
Front Panel
Bin Door
Handle
Storage Bin (Optional)
Adjustable Legs
Water Valve
Evaporator
Actuator Toggle Switch
Bin Control Switch
Water Plate
Water Tank
Access Valve
Pump Motor
Compressor
Hot Gas Valve
Drain Pan
Actuator Motor
Receiver Tank
Control Box
12
[d] IM-240AME
Top Panel
Front Panel
Bin Door
Handle
Storage Bin (Optional)
Adjustable Legs
Power Cord
Compressor
Hot Gas Valve
Fan Motor
Water Valve
(Backside)
Condenser
Evaporator
Water Plate
Water Tank
Actuator Toggle Switch
Pump Motor
Actuator Motor
Bin Control Switch
Drain Pan
13
[e] IM-240AWME
Top Panel
Front Panel
Bin Door
Handle
Storage Bin (Optional)
Adjustable Legs
Power Cord
Water Regulating Valve
Compressor
Control Box
Water-cooled Condenser
Water Valve
(Backside)
Evaporator
Water Plate
Water Tank
Actuator Toggle Switch
Pump Motor
Actuator Motor
Bin Control Switch
Drain Pan
14
2. CONTROLLER BOARD
Note: Refer to the “Hoshizaki IM Cuber Controller Board Service Manual” (E1AX-676) for
the new Controller Board used for the later models (from Auxiliary Code “E-1”).
IMPORTANT
If receiving a service call, ask the user to turn off the power to the icemaker and
turn it on again, while watching the icemaker. This will reset the controller, and
in some cases normal operation will resume.
CAUTION
1. Check that the icemaker has been earthed properly. If not, the Controller
Board will not work properly.
2. Do not change wiring and connections, or the Controller Board will not work
properly.
3. Do not touch the reverse side of the Controller Board and tiny electronic
devices on it.
4. Do not repair the electronic devices and parts on the Controller Board in the
field. Replace the whole board assembly when it fails.
5. To get static free, always touch the metal part of the icemaker before servicing.
Electrostatic Discharge will cause severe damage to the Controller Board.
6. The Signal Ground Wire must be connected to the Shield Plate when replacing
the Controller Board after service.
7. The Controller Board is fragile. Handle with care.
* Do not drop the board on the floor.
* Make sure that the board is placed correctly into the guides in the Control
Box. Mis-alignment could cause breakage when replacing the Control Box
Cover.
* Handle the board by the edges only. Do not touch the electric parts and
devices except the Transformer.
15
[a] CONTROLLER BOARD LAYOUT
Thermistor (Cube Control)
Backup Timer VR3
Connector K4
Cube Control VR5
Defrost Control VR2
Reset Switch
Water Supply Time
Setting Jumper
Wires
Signal Ground
Connector K2
Connector K1
ID Number
16
Connector K3
See the diagram on the right for layout of the
Controller Board.
VR:
K:
IC:
LED:
TF:
X:
RESET:
Variable Resistor
No. 2 through No. 5 adjustable
Connector
Integrated Circuit Chip
Light Emitting Diode
Indicator Lamp
Transformer
Relay
Reset Switch
To check the operation of the
board, push the Reset Button only
during the freeze cycle.
Relay
X1 - Actuator Motor and Pump Motor
X2 - Hot Gas Valve and Fan Motor
X3 - Water Valve
X4 - Compressor
Control
VR2 - Defrost Control
VR3 - Backup Timer
VR5 - Cube Control
All the controls are factory-adjusted. Do not
change setting except when replacing the
board or if the setting has changed. Refer to
“[e] CONTROLS AND ADJUSTMENT.”
17
[b] BEFORE CHECKING CONTROLLER BOARD
Check the power source voltage and the components as shown in the table below.
Component
1. Actuator Toggle
Switch
COM.
N.O.
N.C.
DEFROST
Procedure
Manually set the switch in the FREEZE
and DEFROST positions, and check the
continuity.
DEFROST
COM-NO
COM-NC
Open
Close
FREEZE
COM-NO
COM-NC
FREEZE
2. Thermistor
(on Evaporator)
Normal
Close
Open
CAUTION
Thermistor Sensor part is fragile,
glass sealed. Handle with care.
Holder
Screw
Evaporator
* Disconnect the Connector K4 on the
board.
* Remove the screw and the Thermistor
Holder on the Evaporator.
* Immerse the Sensor part in a glass
containing ice and water for 5 minutes.
* Check the resistance between K4
Connector Pins.
* Replace the Thermistor in its correct
position.
* Connect K4.
5 -7 kilohms
Thermistor
3. Bin Control Switch
Manually set the Micro Switch in the
TRIP and RESET positions, and check
the period.
18
Approx.
TRIP(Closed) 10 sec.
RESET(Open) 80 sec.
19
X 4 ON
X 1,2 ON
X 3 OFF
X 4 OFF
X 1,2 ON
X 3 OFF
* Bin Control Switch
tripped during
defrost cycle.
* Actuator Toggle Switch moves
to DEFROST position.
* Power: ON
* Reset Switch: ON
* Backup Timer counts up.
* Cube Control Thermistor
detects freeze cycle finished.
Water Pan
OPEN
X 4 ON
X 1,2 ON
X 3 ON
WATER VALVE ON
HOT GAS VALVE ON
3
CLOSE
Freeze Cycle
2 Defrost Cycle
1
FAN MOTOR ON
PUMP MOTOR ON
BACKUP TIMER
X 4 ON
X 1,2 OFF
X 3 OFF
4
X 4 ON
X 1,2 OFF
X 3 ON
X 4 OFF
X 1,2 OFF
X 3 OFF
* Bin Control Switch
tripped during
freeze cycle.
* Actuator Toggle Switch moves
to FREEZE position.
Relay Legend
X1 - Actuator Motor and Pump Motor
X2 - Hot Gas Valve and Fan Motor
X3 - Water Valve
X4 - Compressor
* Cube Control Thermistor
detects defrost cycle finished.
X 4 ON
X 1,2 OFF
X 3 ON
Adjustable
4’
[c] SEQUENCE - LED INDICATORS ON/OFF PATTERN
[d] FAULT DIAGNOSIS
Check the status of the Service Lamp on the Controller Board (LED-5, See “[c] SEQUENCE”)
by removing the Control Box Cover.
Lamp ON - Water Plate closed
This tends to indicate the Back-up Timer has stopped machine operation during the freeze
cycle. High ambient and water temperatures are an obvious cause. But check out each
component that could result in an extended freezing time (See guide below).
Lamp ON - Water Plate open
The Timer has stopped the machine because of an excessive defrost time. See the guide
below to check out the probable cause.
Lamp flashing ON/OF
If on the first cycle, check out the Cam operation and/or Toggle Switch. If the machine has
been in service for some time, the Controller Board may be at fault.
REMEMBER: Hoshizaki controllers are very reliable. They also control every component’s
operation. So if a component malfunctions, the controller will respond.
Do not replace controllers in an attempt to shorten the diagnostic process
and not before carefully checking the actual fault and possible cause.
When the icemaker stops, the Controller Board Interlock Indicator shows possible faults.
PATTERN
INTERLOCK
INDICATOR
WATER TANK
POSITION
POSSIBLE CAUSE
(1)
1
Flashing
Only
First
Cycle
Lever
(2)
REMEDY
Actuator Toggle Switch
Lever bent
Replace Actuator
Toggle Switch
Cam Arm (A) broken
Replace
Cam Arm
(3)
Defective Actuator
Motor
Replace
(4)
Defective Controller
Board
Replace
OR
20
PATTERN
INTERLOCK
INDICATOR
WATER TANK
POSITION
POSSIBLE CAUSE
Clogged Air Filter and/or Clean or replace
Condenser
(1)
2
Freeze Cycle
REMEDY
(2)
Water leak from Water
Solenoid Valve
0V
Replace
Leak
(3)
Gas leak from Hot Gas
Solenoid Valve
Replace
Hot 0V
Gas Leak
(4)
Fan Motor stopped
Replace
(5)
Gas leak
Check for leak
(6)
Compressor stopped
Replace Comp.
Starting Capacitor
(1)
Hot Gas Solenoid Valve Replace
closed and will not open
Gas
3
100V
Defrost Cycle
(2)
Gas leak
Check for leak
Gas
4
(3)
Compressor stopped
Replace Comp.
Starting Capacitor
(1)
Actuator Toggle Switch
Lever bent
Replace Actuator
Toggle Switch
Cam Arm (A) broken
Replace
Lever
OR
(2)
Cam Arm
(3)
Defective Actuator
Motor
Replace
(4)
Cam Pin damaged
Replace Cam Pin
and Cam Arm (A)
Actuator
Motor
Pin
Defective Cube Control Replace
Thermistor
(5)
21
[e] CONTROLS AND ADJUSTMENT
1) Cube Control (VR5)
A cube control on the Controller Board is factory adjusted to produce constant cubes all year
around.
When the user needs ice cubes with smaller or larger diameter holes, adjust the Variable
Resistor VR5 (Cube Control) using a miniature flat blade screwdriver.
CAUTION
When adjusting the Variable Resistor VR5 for smaller dimple cubes, it may be
necessary to also increase the water supply time to melt away fragments of ice
obstructing the Water Plate which could prevent cubes falling into the Bin.
LARGER HOLE
VR
STANDARD HOLE
VR
SMALLER HOLE
VR
2) Backup Timer (VR3)
A backup timer is set to stop the freezing process
when the freeze cycle time extends beyond approx.
45 minutes (high ambient or water temperature).
Adjustment will not be required under normal use.
22
LONGER
3) Defrost Control (VR2)
The defrost control regulates the time period between ice-drop and actuator motor restart.
Any adjustment will not be required for normal operation. Factory setting is shown in the table
below. When servicing or replacing the controller board, adjust the Variable Resistor VR2
using a miniature flat blade screwdriver.
Ambient Temp.
30°C
20°C
10°C
Approximate Period (sec.)
20
40
60
LONGER
4) Water Supply Control
When adjusting the Variable Resistor VR5 (Cube Control) for smaller dimple cubes, it may
be necessary to adjust the water supply time setting as well, following the instruction below.
Cut the jumper wire JE (marked by arrow) by
a nipper. Water supply time will be 60 sec.
when the Water Plate is closed.
Normal setting = 15 sec. with Water Plate closed
Note: 1. See “II. 2. [a] CONTROLLER BOARD” for location of the Jumper Wires.
2. Any adjustment will not be required under normal use. If an insufficient water supply
results in production of cloudy ice, check to see if the Filter of the Water Valve is
clogged or water pressure is reduced.
3. In some areas where excessively hard water (approx. 250 ppm or more) results in
production of cloudy ice, change the water supply time setting. Also, the Tank Drain
Pipe must be moved to the drain position to prevent concentration of calcium
carbonate, etc. See the figure below.
DEFROST PROCESS
Water Pan
OPEN
FREEZE PROCESS
Water Pan
CLOSED
ON
1234567890123456789012345678901212345
1234567890123456789012345678901212345
1234567890123456789012345678901212345
Approx. 15 sec.
(90 sec. at start up)
23
3. FAN MOTOR CONTROL - DME/XME ONLY
The Condenser Fan Motor rotates at two speeds. The Motor is operated by Relay X6 which
is in turn controlled by the Bimetal Thermostat which is attached to the Control Box. When the
Relay is energised (Thermostat contacts closed), the Motor operates at approximately half
speed. When the Relay is de-energised (Thermostat contacts open), the Motor operates at
full speed.
Half speed = 11±3°C
Full speed = 21±3°C (1272 R.P.M.)
24
III. INSTALLATION INSTRUCTIONS
WARNING
The installation must be carried out by qualified personnel, in accordance with
current regulations, according to the manufacturer’s instructions.
1. UNPACKING
WARNING
Children should not be allowed in reach of the packaging elements (plastic bags
and expanded polystyrene) as they are potential sources of danger.
CAUTION
Remove shipping carton, tape(s) and packing. If packing material is left in the
icemaker, it will not work properly.
Air Filter (Air-cooled Model)
Top Panel
Power Cord
Condensing Unit
Louver
(Air-cooled Model)
Front Panel
Bin Door
Handle
Storage Bin (Optional)
Adjustable Legs
Fig. 1
Note: This icemaker needs a Storage Bin. Hoshizaki recommends the following Ice Storage
Bins:
P-200SD --------- IM-240D
F650-44 ---------- IM-240D/IM-480D
F950-48 ---------- IM-480D/IM-720D
F1025-52 --------- IM-480D/IM-720D
B-300 -------------- IM-240A
25
1) After removing the packaging, make sure that the icemaker and the Storage Bin are in
good condition. If in doubt, please do not use the equipment. See the instruction sheet
attached to the Storage Bin for its unpacking and installation guidelines.
2) Remove the icemaker panels to gain access to the accessory kit and to assist easier
installation.
[IM-240D, IM-240A]
[IM-240X]
Drain Outlet
(No top panel,
Drain Outlet on the left)
a) Front Panel: Remove the screw(s). Lift up and pull toward you.
b) Top Panel: Remove the screw(s). Simply lift off.
c) Side Panel: Remove the screw(s). Slide forward slightly, and
then lift off.
d) Rear Panel: Does not require removal.
Fig. 2
3) Remove the package of accessories, and check the contents:
a) Installation Kit
Inlet Hose
(Air-Cooled)
1
(Water-Cooled)
2
(Remote Air-Cooled)
1
Outlet Hose (Air-Cooled)
1
(Water-Cooled)
2
(Remote Air-Cooled)
1
1/2-3/4 Nipple (Water-Cooled)
2
b) Scoop (Except IM-240X)
1
c) Ice Chute (IM-240X, IM-240A)
1
d) Drain Pipe Collar (IM-240X only)
1
e) Packing (IM-240X only)
1
4) Remove the shipping tape holding the Bin Control Switch.
5) Remove the protective plastic film from the exterior. If the icemaker is exposed to the sun
or to heat, remove the film after the icemaker cools.
26
2. LOCATION
WARNING
1. This icemaker is not intended for outdoor use. Normal operating ambient
temperature should be within 1°C to 40°C. Normal operating water
temperature should be within 5°C to 35°C. Operation of the icemaker, for
extended periods, outside of these normal temperature ranges may affect
production capacity.
2. The icemaker should not be located next to ovens, grills or other high heat
producing equipment.
3. The location should provide a firm and level foundation for the equipment.
4. Allow 15 cm clearance at rear, sides and top for proper air circulation and
ease of maintenance and/or service should they be required. For air-cooled
model only, allow 30 cm clearance at the right side.
5. This appliance is not suitable for installation in an area where a water jet
could be used and where dripping is not allowed.
6. Do not place anything on top of the icemaker or in front of the Louver.
7. This icemaker will not work at subfreezing temperatures. To prevent damage
to the water supply line, drain the icemaker when air temperature is below
zero.
27
3. INSTALLATION
* Incorrect installation can cause harm to people,
animals or things, for which the manufacturer
cannot be held responsible.
Bottom
[a] IM-240D, IM-240X
Adjustable Leg
1) Lay the Storage Bin on its rear side carefully to
prevent damage. Secure the four adjustable
legs (bin accessory) into the four tapped holes
on the underside of the Bin. See Fig. 3.
Fig. 3
2) Position the Storage Bin in the selected
permanent position, and level it in both the leftto-right and front-to-rear directions. See Fig. 4.
3) Remove the icemaker panels. The Rear Panel
is not required to be removed for installation.
See “1. UNPACKING”.
Adjustable Leg
4) Remove the shipping tape holding the Drain Pan.
Fig. 4
5) Place the icemaker on the top of the Storage
Bin. Be careful not to damage the icemaker
frame and the Bin Control Switch. See Fig. 5.
6) Secure the icemaker with the two bolts provided.
See Fig. 5.
7) Align the Storage Bin drain hole and the drain
pan hole. Insert the Packing (bin accessory) and
fasten the Drain Pipe Collar (bin accessory).
See Fig. 5.
Note: On the F-series Bins, an extension drain
tube kit is provided which attaches to the
icemaker Drain Pan and exits through the
pre-drilled hole in the side of the Bin.
8) Replace the icemaker panels in their correct
positions.
28
Icemaker
Drain Pipe Collar
Packing
Bin Control Switch
Bolt
Drain Pan
Bin Drain Hole
(P-200SD)
Storage Bin
Bin Drain Hole
(F-series)
Fig. 5
Bottom Plate
[b] IM-240A
1) Fully screw in the four legs provided (bin
accessory) into the Storage Bin underside.
See Fig. 6.
2) Position the Storage Bin in the selected
permanent site.
Adjustable Legs
Fig. 6
3) Place the icemaker on top of the Storage Bin
by holding the bottom.
4) Secure the icemaker to the Storage Bin, by
using the two mounting brackets and two bolts
provided. See Fig. 7.
Icemaker
5) Seal the seam between the icemaker and the
Storage Bin with food grade sealant.
Bin
Bolt
6) Remove the Drain Pipe Collar and Drain Pan.
Secure the Bin Control Switch to the Mounting
Frame using the two bolts and flat washers
provided. Fix the Bin Control Switch wiring
with the two nylon ties. Place the Ice Chute
on the Unit Frame, and refit the Drain Pan in
its correct position. See Fig. 8.
Mounting
Bracket
Fig. 7
Unit Frame
Ice Chute
Mounting Frame
7) Refit the panels in their correct positions.
Tie
8) Adjust the four legs on the bottom (adjustable
from 0 to 25.4 mm) to have the icemaker
perfectly horizontal. Use the spirit level. See
Fig. 9.
Drain Pipe Collar
Packing
Washer
Drain Pan
Bolt
Bin Control Switch
Fig. 8
Adjust legs
Fig. 9
29
4. STACKING ICEMAKERS - IM-240D, IM-240X ONLY
WARNING
Check the icemaker models. A D-type icemaker and an X-type icemaker will
be required for stacking two icemakers. A D-type icemaker and two X-type
icemakers will be required when stacking three icemakers. The D-type icemaker
is designed for the upper unit, and the X-type for the middle and lower units.
The D-type and X-type icemakers are provided with two different types of Bin
Control Switch. Use the Bin Control Switch of the lower X-type icemaker only
when stacking icemakers. The Bin Control Switch must be removed from the
upper (and middle) units. Connection of the Bin Control from the lower (and
middle) to the upper unit will require additional connecting leads which are
supplied with the X-type icemaker. Misconnection or no connection may cause
serious damage to the icemaker units, resulting in failure.
1) Prepare and position the Storage Bin as detailed in 1) and 2) in “3. INSTALLATION”.
2) Remove the icemaker panels. The Rear Panel is not required to be removed for installation.
See “1. UNPACKING”.
3) Move the icemaker carefully to prevent damage to the icemaker frame.
4) Remove the shipping tape holding the Drain
Pan.
5) Attach the lower unit (X-type) on the top of the
Storage Bin. See Fig. 10.
6) Secure the lower unit with the two bolts and two
plastic washers provided. See Fig. 10.
Lower Unit
Drain Pipe Collar
Packing
Bolt
Washer
Drain Pan
Extension
Extension
Drain Hole
7) Remove the shipping tape holding the Bin
Control Switch on the Drain Pan. Attach the
Bin Control Switch to the frame located at the
left bottom of the condensing unit, and secure
it using the two screws and the two washers
provided. See Fig. 11.
8) [P-200SD]
Align the drain hole and the drain pan hole.
Insert the Packing (bin accessory) and fasten
the Drain Pipe Collar (bin accessory) tightly,
within the recommended torque of 39.2 N·m.
See Fig. 10.
Bolt
Fig. 10
Bin Control Switch
Handle with care
Drain Pan
Screw
Washer
Frame
Bin Control Switch
Fig. 11
30
9) [F-series]
Locate the extension drain tube kit. Remove
the Locking Nut from the threaded section, and
push the threaded pipe through the hole in the
side of the Bin. Align the Drain Pan, and insert
the Drain Pipe Collar and Packing into the free
end of tube kit and tighten. Secure the tube kit
by re-attaching the Locking Nut and tightening
to the Bin exterior.
Upper Unit
Leads
Screw
Disconnect
Remove Bin Control Switch
10) Before stacking, remove the clear plastic cover
on the upper or middle unit wiring channel.
Disconnect the Bin Control Switch leads (with
three-way plug). Remove the screws and the
Bin Control Switch. When stacking two or three
icemakers, this switch will not be required.
Keep it after removal. See Fig. 12.
11) Attach the upper or middle unit on the lower
unit. See Fig. 13.
12) Secure the two units with the two bolts and the
two nuts provided. See Fig. 13.
Fig. 12
Upper Unit
Screw Nut
Drain Pipe Collar
Packing
Ice Chute
Drain Pan
Drain Outlet
Lower Unit
13) Align the lower unit drain hole and the upper
unit drain pan hole. Insert the Packing (lower
unit accessory) and fasten the Drain Pipe Collar
(lower unit accessory). See Fig. 13.
Bolt
Ice Chute
Bracket
Fig. 13
Receptacle
Wiring Channel
Plug
14) Place the Ice Chute (lower unit accessory) and
secure it to the Bracket with the two screws.
Plastic Clamp
15) Connect the leads (with three-way plug) located
in the lower unit wiring channel to the upper or
middle unit receptacle, unplugged in the above
step 10). Secure the leads using the plastic
clamp provided. Place the plastic cover in
position. See Fig. 14.
16) Replace the icemaker panels in their correct
positions.
Upper Unit
Lower Unit
Fig. 14
Note: If stacking three icemakers, repeat the instructions 10) - 16) for the upper unit.
Remember, only ONE Bin Control is needed regardless of configuration. The Bin
Control extension leads are pre-wired with the plug and will be found coiled in the Xtype wiring channel.
31
5. ELECTRICAL CONNECTIONS
WARNING
THIS APPLIANCE MUST BE EARTHED
This icemaker requires an earth that meets the national and local electrical code
requirements. To prevent possible severe electrical shock injury to individuals
or extensive damage to equipment, install a proper earth wire to this icemaker.
Remove the plug from the mains socket before any maintenance, repairs or
cleaning is undertaken.
* This icemaker must have a separate power supply or receptacle of 220 - 240V.
* Stacked icemakers should each have a separate receptacle, but they must all be connected
in parallel to the same single phase supply or circuit with sufficient ampacity. In addition
and to avoid nuisance tripping, individual circuit breakers for each machine should not be
used.
* The main control box fuse is rated at 5A and should only be replaced by a qualified service
engineer.
* Usually an electrical permit and services of a licensed electrician are required.
* If the supply cord and the plug should need to be replaced, it should only be done by a
qualified service engineer.
For the U.K. and the Republic of Ireland only
* The wires in the mains lead are coloured in accordance with the following code:
Green & Yellow = Earth
Blue = Neutral
Brown = Live
As the colours of the wire in the mains lead of this appliance may not correspond with the
coloured markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured Green-and-Yellow must be connected to the terminal in the plug
which is marked with the letter E or by the symbol
or coloured Green or Green-andYellow. The wire which is coloured Blue must be connected to the terminal which is marked
with the letter N or coloured Black. The wire which is coloured Brown must be connected to
the terminal which is marked with the letter L or coloured Red.
* Should the socket outlets in the installation site not be suitable for the plug supplied with
your product, the plug must be removed (cut off if it is moulded on plug) and an appropriate
plug fitted.
32
If the non-rewirable plug has been cut from the power supply cord, it must be disposed of.
There should be no attempt to reuse it. Inserting such a plug into a socket elsewhere presents
a serious risk of electrical shock.
* The non-rewirable plug must never be used without a fuse cover being fitted.
The correct replacement for the detachable fuse cover is identifiable from the manufacturer’s
reference number stamped on the plug.
Supply of replacement fuse covers can be obtained from Hoshizaki Parts/Service Centres.
Fuses should be rated at 13A and approved to BS 1362.
6. REMOTE CONDENSER UNIT (Remote Air-Cooled Model Only)
[a] UNPACKING
Top Panel
1) Unpack and remove shipping carton, tape(s) and
packing.
Screw
2) Remove the Top Panel.
3) Check that the refrigerant lines do not rub or touch
lines or other surfaces, and that the fan blade
turns freely.
Unit Cover
4) Recommended parts and materials listed below
Fig. 15
will be required.
Cord
17 AWG (1.0 mm2) three-wire cord will be required for the Fan Motor wiring between
the icemaker and the Condenser Unit (L+N+
).
Copper Tubing
Phosphorus deoxidized copper tubing. Two tubings of the same size will be required
for refrigerant lines. Mark them for a distinction between the gas line and liquid line to
prevent misconnection.
9.52 (OD) x 7.93 (ID) - Gas
9.52 (OD) x 7.93 (ID) - Liquid
Pipe Insulation (for gas and liquid pipes)
To withstand temperatures up to 120°C.
Bolt
Four M8 Hexagon Bolts for securing the Condenser Unit.
5) Do not remove the Unit Covers before finishing installation, to prevent damage to the aircooled Condenser.
33
[b] LOCATION
The Condenser is intended for outdoor use and must be positioned in a permanent well
ventilated site under the following guidelines:
Min. 60 cm clearance
* Select a firm and flat site.
* Should not be exposed to harsh or adverse
weather conditions.
Air
* Preferably a dry and well ventilated area with 60
cm clearance on both front and rear for ease of
maintenance and service should they be required.
Air
Fig. 16
* Normal condenser ambient temperature: +1°C to +40°C. Temperatures not within this
operating range may affect the production capacity of the icemaker.
* When the Condenser Unit is installed on a roof, a 50 cm height base is recommended to
prevent heat reflection and to avoid the possibility of the unit standing in water.
* The maximum line length is 10 m. For information on longer line installations, call Hoshizaki
Care +44 (0) 1223242254.
* The Condenser should not be installed more than 6 m above the height of the icemaker or
more than 2 m below it.
Note: If the recommended guidelines of the installation are exceeded, the icemaker
performance may be reduced.
[c] INSTALLATION
1) This Condenser Unit is provided with four
mounting holes. Secure the Condenser Unit
with four bolts. See Fig. 17.
2) Remove the Flare Nut from each of the Access
Valves on the icemaker and Condenser Unit.
Fig. 17
Flare Nut
Note: Remove and discard the Copper Caps on
the Flare Nuts.
13.2-14 DIA
90°±0.5
3) The two copper tubes (9.52 mm OD) to be
provided at site should be insulated
separately. Place the Flare Nuts onto each
end of the tubes and flare the tube ends.
Copper Tube
Pipe Insulation
Fig. 18
34
Note: The tube ends to be flared should be free
from damage, cracks and burrs and also
clear of grease or scraps.
Tighten
Loosen
4) Connect the flared copper tubes on to the
icemaker and Condenser Unit. The two tubes
have the same diameter so mark them for a
distinction between the gas line and the liquid
Copper Tube
line to prevent misconnection. Apply some
clean refrigerant oil of a suitable type to the
surfaces of the Flare before connection and
tightening. Support the Access Valve with a
spanner on the flat surfaces when tightening
the nuts.
Access Valve
Fig. 19
Note:1. Tighten the Flare Nuts to a torque of 38±4 Nm.
2. Check the distinction marks on both ends of each copper tubing to make sure the
connections are correct.
3. The tubes should not vibrate. Fix or secure the tubes to prevent stressing.
5) Remove the Service Gauge Port Caps from the Access Valves on the icemaker. Evacuate
the lines through the Gauge Ports for 20 minutes at max. 0.1 torr. Charge both lines with
vapour refrigerant R404A to a pressure of 1 bar. Add nitrogen to raise the pressure to 15
bar. Thoroughly leak test the joints with a leak detector or soap bubbles.
6) Evacuate the lines again at max. 0.1 torr. Vapour charge the lines to 1 - 2 bar with refrigerant
R404A. (The actual charge will depend upon the length of tube run.)
Base charge up to 10 m: 2400 g
Additional charge for each additional meter: 40 g
As the total precharged refrigerant amount in the icemaker and remote condenser is 2400
g, the required refrigerant charge will be:
40 g x [length of tube run - 10] m
Example - If the length of tubing run is 15 m (i.e. distance between the icemaker and
Condenser)
15 m - 10 m = 5 m
Base charge = 2400 g (up to 10 m run)
Additional charge = 40 g/m
Required refrigerant charge = 40 g x 5 m = 200 g
On completion of the refrigerant charge, remove the charging cylinder and charging lines.
Refit the Port Caps and tighten to a torque of 10±1 Nm.
35
Cap Nut
6) Remove the Cap Nuts from the Access Valves
on both the Condenser and the icemaker. Hexagon
Open the liquid and gas line valves by turning Wrench (H4)
the Spindle with a hexagon wrench until fully
open.
Open
Spindle
Close
7) Refit the Cap Nuts to a torque of 25±3 Nm.
8) Check the Cap Nuts, Port Caps and flare
joints for gas leaks with a detector or soap
bubbles.
Port
Copper Tube
Port Cap
9) Insulate the joints and seal them for water
tightness.
Fig. 20
Condenser Unit
Icemaker
Liquid Line
Power Cord
Fan Motor Leads
Pipe Insulation
Access Valve
Gas Line
Pipe Insulation
Gas Line
Junction Box
(Fan Motor
Leads inside)
Access Valve
Liquid Line
Fan Motor
Wiring Cord
Fig. 21
Note: When removing or installing the Nuts on the Access Valves, hold the flat surfaces of the
valve with a spanner as shown below.
Access Valve
Flat Surface
Fig. 22
36
[d] ELECTRICAL CONNECTIONS
WARNING
THIS APPLIANCE MUST BE EARTHED
This remote Condenser Unit requires an earth that meets the national and local
electrical code requirements. To prevent possible severe electrical shock to
individuals or extensive damage to equipment, install a proper earth wire to the
icemaker and ensure continuity to the Condenser.
* This Condenser Unit must be connected to the
Fan Motor Junction Box on the icemaker.
* Usually an electrical permit and services of a
licensed electrician are required.
1) Remove the two screws and the Junction Box
Cover of the Condenser Unit. See Fig. 23.
2) Connect the Fan Motor leads and earth wire in
the Junction Box to the installed three-wire cord
using proper wire connectors. See Fig. 21.
Junction Box Cover
Screw
Fig. 23
3) Secure the three-wire cord in position with the
Cord Grip provided.
Condenser Unit
Fan Motor Leads
Inside
Closed End
Connector
Wiring Cord
Condenser Unit
Outside
Gasket
Junction Box
(Fan Motor Leads inside)
Nut
Cord Grip
Securing
Hole
Cap
Gasket
Bushing
Fig. 24
Cap
Bushing
Nut
Fan Motor
Wiring Cord
Fig. 25
Note: The space in the Junction Box is limited. Make the connections outside the Junction
Box before securing the Cord Grip on the Condenser Unit inside by using the Nut
and Bushing provided.
4) Replace the Junction Box Cover in its correct position and secure it with the two screws
provided.
37
[e] STACKING CONDENSER UNITS
1) Secure the lower Condenser Unit.
Top Panel
2) Remove the Top Panel of the lower Condenser Unit.
Keep the four screws for the Top Panel.
Upper Condenser Unit
Screw
3) Attach the upper Condenser Unit on top of the lower.
4) Secure the upper Condenser Unit with the four screws
for the Top Panel.
Lower Condenser Unit
5) Install refrigerant lines, and make electrical
connections for each Fan Motor as instructed under
[c] and [d].
Fig. 26
7. WATER SUPPLY AND DRAIN CONNECTIONS
(For the U.K. only, the connections must be in
accordance with current requirements of the
Model Water Byelaws 1986 SI No. 1147)
* Only potable water should be used for the
icemaker.
* Water supply pressure should be minimum 0.5
bar and maximum 8 bar. If the pressure
exceeds 8 bar, use a proper pressure reducing
valve. Do NOT throttle back the supply tap.
* A plumbing permit and services of a licensed
plumber may be required in some areas.
* The icemaker drain is gravity flow, so ensure
drain pipe has an adequate pitch or fall.
(IM-240)
Water Inlet
*Cooling Water Inlet
*Cooling Water Outlet
Drain Outlet
(Icemaker dump)
Drainage
Drain Outlet (Bin)
Water Inlet
*Cooling Water Inlet
(IM-720)
*Cooling Water Outlet
Water Inlet
*Cooling Water Inlet
*Cooling Water Outlet
Middle Unit
Drain Outlet (Upper Unit)
Union
Water Inlet
*Cooling Water Inlet
*Cooling Water Outlet
* Water should drain into an open trap.
* The Storage Bin has two drain outlets. The
upper/outer one is for dump from the icemaker,
and the lower/inner is for the Bin. The two drain
lines must be separated to prevent a backflow
into the Storage Bin.
* On water-cooled model, a back flow preventer
may be required in the cooling water circuit.
38
Upper Unit
Elbow
Lower Unit
Tee
Drain Outlet (Middle Unit)
Storage
Bin
Drain Outlet (Lower Unit)
Drainage
Drain Outlet (Bin)
* Water-cooled model only
Fig. 27
[Air-Cooled and Remote Air-Cooled Models]
1) Attach the angled end of white flexible inlet hose (accessory) to the G3/4 fitting on the left
side of the icemaker as indicated, ensuring rubber sealing washer is correctly positioned.
Hand tighten sufficiently to provide leak free joint (Fig. 28).
2) Attach the other end of inlet hose to the water tap (Fig. 29), noting washer is correctly
positioned before hand tightening as above. It is a wise precaution to have a stop valve
within easy reach.
3) Hand tighten grey flexible outlet hose (accessory) onto the R3/4 fitting on the left side of the
Storage Bin as indicated, ensuring rubber washer is correctly positioned to obtain a leak
free joint. The pipe can be cut to length as necessary to suit position of main drain.
Note: Jointing compounds should be approved and suitable for potable water use.
Icemaker
Potable Water
Inlet G3/4
Inlet Hose
Drain Outlet R3/4
(on left side of
Storage Bin)
Water Supply Tap
Bin
Inlet Hose
Outlet Hose
Fig. 28
Fig. 29
39
[Water-Cooled Model]
* Hoshizaki recommends that the water-cooled Condenser should be connected to a closed
circuit recirculating type cooling system utilizing a tower, water chiller or similar (see Fig. 30
and 31). Water make up should be via a ball valve/break tank arrangement.
* Whilst connecting a water-cooled Condenser to a mains water (potable) supply will not
affect the performance of the machine, it will most certainly cause a high use/waste of a
valuable resource and is not recommended.
* The services of a licensed or coded plumber should be used to ensure a correct installation.
* The connections should be made properly in compliance with the applicable national or
local regulations.
[a] Standard connections according to WRC regulations in U.K. (Fig. 30 and 31)
* When selecting a Cooling Tower, refer to the following peak values of heat flow in the
Condenser:
Model
IM-240DW/XW/AW: 5235W
* Pipes between the Cooling Tower and the icemaker should be at least 20 mm DIA to reduce
pressure loss, even though the icemaker fittings are 13 mm DIA.
* Pressure loss in the water circuit inside the unit will be 5 to 6 m when the cooling water flows
at the ratio of 4 to 5 lit/min.
* Select a Circulating Pump referring to the above values of heat flow.
* Do not use a Cascade Pump, or the Water Regulator will vary the flow and stop it during the
defrost cycle.
* The Strainer must be cleaned periodically.
[Icemaker Connections]
1) Attach the angled end of white flexible inlet hose (accessory) to the G3/4 fitting on the left
side of the icemaker as indicated, ensuring rubber sealing washer is correctly positioned.
Hand tighten sufficiently to provide leak free joint.
2) Attach the other end of inlet hose to the water tap (Fig. 29), noting washer is correctly
positioned before hand tightening as above.
Note: If filtration or treatment is used, ensure icemaker section only is on treated water
supply, not the Condenser.
3) Attach grey flexible outlet hose (accessory) to the R3/4 fitting on the left side of the Storage
Bin as indicated (Fig. 28), confirming fitment of rubber washer before finally hand tightening
40
the joint. This pipe can be cut to length as necessary to suit position of main drain.
4) By means of a suitable spanner or wrench, tighten the 1/2-3/4 nipples (accessory) into the
Rc1/2 fittings on the left side of the icemaker as indicated. P.T.F.E. tape and/or a suitable
sealing compound should be used to obtain a leak free joint.
Note: Jointing compounds should be approved and suitable for potable water use.
5) Connect the Condenser cooling circuit to the free end of 1/2-3/4 nipples as indicated (Fig.
30) using a suitable rigid type pipe.
[IM-240DWME]
Icemaker
Potable Water
Inlet G3/4
Cooling Water
Inlet Rc1/2
1/2-3/4 Nipple
Cooling Water
Outlet Rc1/2
Inlet Hose
Drain Outlet R3/4
(on left side of
Storage Bin)
Bin
[IM-240AWME]
Condenser Cooling Circuit
Icemaker
Outlet Hose
Cooling Water
Inlet Rc1/2
1/2-3/4 Nipple
Cooling Water
Outlet Rc1/2
Potable Water
Inlet G3/4
Condenser Cooling Circuit
Inlet Hose
Bin
Drain Outlet R3/4
Outlet Hose
Fig. 30
41
Flow Control Valve
Icemaker
Cooling
Tower
P
Strainer
Pump
Fig. 31
[b] Connections according to regulations other than WRC by utilising accessory
hoses (Fig. 32)
1) Follow the instructions from 1) to 4) in [a] above.
2) For Condenser connections, use supplied accessory hoses and make the same
connections as 1) to 3) in [a] above to the free end of 1/2-3/4 nipples as indicated (Fig. 32).
[IM-240DWME]
[IM-240AWME]
Icemaker
Potable Water
Inlet G3/4
Icemaker
Cooling Water
Inlet Rc1/2
1/2-3/4 Nipple
Cooling Water
Inlet Rc1/2
1/2-3/4 Nipple
Cooling Water
Outlet Rc1/2
Cooling Water
Outlet Rc1/2
Potable Water
Inlet G3/4
Drain Outlet R3/4
(on left side of
Storage Bin)
Inlet Hose
Outlet Hose
Bin
Inlet Hose
Bin
Outlet Hose
Drain Outlet R3/4
Outlet Hose
Fig. 32
42
8. FINAL CHECK LIST
1) Is the icemaker level?
2) Is the icemaker in a site where ambient temperatures are a minimum of 1°C and maximum
40°C all year around?
3) Is there at least 15 cm clearance around the icemaker for easy maintenance and service?
4) Have all shipping carton, tape(s) and packing been removed from the icemaker?
5) Have all electrical and piping connections been made?
6) Has the power supply voltage been tested or checked against the nameplate rating?
Has a proper earth been installed to the icemaker?
7) Has the water supply pressure been checked to ensure a minimum of 0.5 bar and maximum
8 bar?
8) Have the compressor hold-down bolts and all refrigerant lines been checked against
vibration and possible failure?
9) Have the Bin Control Switch been checked for correct operation? When the icemaker is
running, push the Detector of the Bin Control Switch. The icemaker should stop within 10
seconds.
43
IV. OPERATING INSTRUCTIONS
WARNING
1. This icemaker is designed to produce and store edible ice. To keep the
icemaker hygienic:
* Wash your hands before removing ice. Use the Plastic Scoop provided
(accessory).
* The Storage Bin is for ice use only. Do not store anything else in the Bin.
* Clean the Storage Bin before use (see “V. 1. PERIODICAL CLEANING”).
* Keep the Scoop clean. Clean it by using a neutral cleaner and rinse
thoroughly.
* Close the Door after removing ice to prevent entrance of dirt, dust or insects
into the Storage Bin.
2. The use of any electrical equipment involves the observance of some
fundamental rules. In particular:
* Instances of high humidity and moisture increase the risk of electrical short
circuits and potential electrical shocks. If in doubt, disconnect the icemaker.
* Do not pull the power cord in order to disconnect the icemaker from the
feed network.
* This appliance is not suitable for unsupervised use by young children or
aged or infirm persons.
3. All parts are factory-adjusted. Improper adjustments may result in failure.
4. If the unit is turned off, wait for at least 3 minutes before restarting the icemaker
to prevent damage to the Compressor.
1. START UP
[Air-Cooled and Water-Cooled Models]
1) Disconnect the power supply.
2) Open the water tap.
3) Connect the power supply and energise.
4) The following should occur in sequence:
a) Compressor will start (Hot Gas Valve open).
b) Water Pan will fully open.
c) Water Solenoid will open.
d) Water Pan will start to close (Hot Gas Valve closed).
e) Water Pan fully closed - Pump Motor will start.
f) Water Solenoid will close.
44
[Remote Air-cooled Model]
Before starting the unit, energise the Oil Heater around the lower part of the Compressor to
prevent a starting failure caused by the refrigerant staying inside the Compressor:
1) Move the Washing Switch on the Control Box to the “WASH” position.
Washing
Switch
Control Box
Fig. 33
2) Push the Bin Control Switch to the right into the “bin full” position,
and fix it there with tapes.
3) Connect the power supply.
4) After 10 seconds in the defrost cycle, the unit stops. Leave the unit
for 12 hours (Oil Heater energised).
Fig. 34
5) Move the Washing Switch to the “ICE” position, and release the Bin Control Switch into the
initial “running” position.
Fig. 35
6) The unit will start a freeze cycle in 80 seconds.
IMPORTANT
1. Check the conditions and quality of the ice production.
2. Do not use ice produced in the trial run. It might be contaminated with foreign
matter in the water circuit. Discard or flush down the drain.
45
2. PREPARING THE ICEMAKER FOR LONG STORAGE
WARNING
Drain the icemaker to prevent damage to the water supply line at subfreezing
temperatures, using air or carbon dioxide. Shut off the icemaker until proper air
temperature is resumed.
1) Close the water supply tap, and remove the
Inlet Hose.
[Normal Position]
2) Remove the Front Panel.
3) Remove the screw located on the front of
the Water Tank.
4) Move the Tank Drain Pipe to the drain
position. See Fig. 36.
5) Push the Reset Switch in the Control Box, or
disconnect power source and reconnect
after 3 minutes.
Screw
Bracket
Tank Drain
Pipe
[Drain Position]
6) The Water Pan will open, and then the
Actuator Toggle Switch will turn to the
“DEFROST” position in 40 seconds. (Click
sound will be heard.)
7) Blow out the water supply line immediately
after the Water Pan has opened.
Fig. 36
Note: This procedure is necessary to protect the icemaker from freezing up at subfreezing
temperature.
8) Unplug the icemaker or disconnect the power source with the Actuator Toggle Switch in
the “DEFROST” position.
9) Move the Tank Drain Pipe to the normal position, and secure it with the screw.
10) Remove all ice from the Storage Bin, and clean the Bin.
11) Replace the panels in their correct positions.
12) Replace the Inlet Hose in its correct position.
46
3. BIN CONTROL
Bin Control Switch is mounted on the upper
side of the Storage Bin. This switch will turn
off the unit automatically when the Storage Bin
is full of ice.
Handle the Bin Control Switch carefully,
because the switch assembly is fragile.
Especially on removing ice, do not touch or
poke with a scoop.
Keep away from the Water Plate or Drain Pan
to prevent jamming.
Running
Bin full
(Tripped)
Fig. 37
[a] BIN CONTROL SWITCH ASSEMBLY
Bracket
Microswitch
Switch
Actuator
Bracket Cover
Detector
Fig. 38
47
Fragile
Keep away from
water plate or
drain pan.
[b] REMOVAL
BRACKET COVER
Push the two Pawls and remove the Bracket
Cover.
SWITCH
Pull out the Switch, holding the Rubber Leads
Cap. Handle with care.
SWITCH ACTUATOR
Insert a flat blade screwdriver and wrench it
slightly to pull out the Switch Actuator. Handle
with care to prevent damage to the cam surface
of the Actuator.
DETECTOR
Push out the Detector, holding the Switch
Actuator.
[c] REASSEMBLING
SWITCH ACTUATOR
Insert the lower Shaft and push it along the U
Notch. Check that the Switch Actuator moves
free.
SWITCH & BRACKET COVER
Place the Switch Lever first, and then attach the
Switch in position. Insert the guide and push the
Bracket Cover to lock.
Fig. 39
48
V. MAINTENANCE INSTRUCTIONS
WARNING
1. Before carrying out any cleaning or maintenance operations, unplug the
icemaker from the electrical supply network.
2. Before handling or using cleaning solutions, check the guidelines on the
product for advice on suitable personal protective clothing, gloves, goggles,
etc.
3. Clean and sanitize the icemaker water system at least twice a year, and
check and clean the Condenser at least once a year.
4. This appliance must not be cleaned by use of a water jet.
1. PERIODICAL CLEANING
[1] Machine and Bin Exterior
Wipe the exterior at least once per week with a clean, soft cloth. Use a damp cloth containing
a neutral cleaner to wipe off grease or dirt.
[2] Scoop and Storage Bin Handle Cleaning/Sanitisation (Daily)
1) Either mix 3 litres of water with 11 ml of 5.25% sodium hypochlorite solution in a suitable
container, or the recommended Hoshizaki sanitiser as directed.
2) Soak the Scoop in the solution for more than 3 minutes. Rinse thoroughly, and shake to
remove surplus liquid.
Note: Using a cloth to dry may re-contaminate.
3) Use a neutral cleaner to wash the Storage Bin Handle. Rinse thoroughly.
4) Soak a clean cloth with the sanitising solution, and wipe the Handle. Use fresh water and
a clean cloth to rinse/dry.
[3] Storage Bin Interior Cleaning/Sanitisation (Weekly)
1) Open the Storage Bin Door, and remove all ice.
Note: Hoshizaki recommends various types of Storage Bin for the icemaker which vary in
size and design. The following instructions are therefore for general guidance only.
49
2) Wash the Bin liner, Ice Deflector and Door inner surface with a neutral non-abrasive cleaner.
Rinse thoroughly with a clean cloth and fresh water.
3) Either mix 5 litres of water with 18 ml of 5.25% sodium hypochlorite solution in a suitable
container, or the recommended Hoshizaki sanitiser as directed.
4) Soak a clean sponge or cloth with the solution, and wipe the Bin liner, Ice Deflector and
Door inner surface.
5) Rinse thoroughly with fresh water and a clean cloth to wipe off the solution. Close the Bin
Door.
Note: Some solutions may cause damage to the Bin liner surfaces or corrosion on the
metal parts. Always rinse the sanitiser unless directed otherwise by Hoshizaki
guidelines.
[4] Air Filter (Air-Cooled Model Only)
Plastic mesh Air Filters are fitted to remove dirt or dust from the air, preventing the Condenser
from getting clogged. As the Filters become dirty, air circulation through the Condenser will
be reduced, affecting the icemaker’s performance.
Remove and clean the Air Filters at least twice per month:
1) Unscrew and remove the Front Panel. The Filter is fitted on the inside of the panel behind
the air slots.
2) Unscrew and remove the Louver on the Right Side Panel. The Filter is fitted to the inside
of the plastic Louver.
Note: Do not put your hand inside the machine compartment.
3) Remove the Air Filters.
4) Clean the Air Filters by using a vacuum cleaner. When severely clogged, use warm water
and a neutral cleaner to wash the Air Filters.
5) Rinse and dry the Air Filters thoroughly, and place them back in position.
Air Filter
Louver
Fig. 40
Right Side Panel
50
2. WATER VALVE
1) Unplug the icemaker or disconnect the power source.
2) Close the water supply tap.
3) Remove the Top Panel and Front Panel.
4) Disconnect the Inlet Hose from the Water Valve.
5) Remove the Mesh Filter from the Water Valve.
6) Clean the Mesh using a brush.
7) Replace the Mesh and Inlet Hose in their correct positions.
8) Open the Shut-off Valve.
9) Plug in the icemaker or connect the power source.
10) Check for leaks.
11) Replace the panels in their correct positions.
Coil
Do not remove
Filter
Inlet Hose
Packing
Fig. 41
51
3. WATER-COOLED CONDENSER
Deposits inside the water circuit of the Water-cooled Condenser decrease cooling
performance. Clean inside of the Condenser by circulating a cleaning solution.
1) Prepare the following:
Cleaning solution [Read and follow any instructions on label or bottle.]
Pump
Container for solution
Hose
Hose bands
Two fittings [R1/2 - 3/8”DIA]
Two fittings [3/8” flare - 3/8”DIA]
CAUTION
Do not use a cleaning solution that will corrode the copper tubing.
In case of contact with the solution, flush with water.
2) Remove the panels and check for leaks from the water line.
3) Unplug the icemaker or disconnect the power source, and close the water supply tap.
4) Disconnect the cooling water inlet and outlet pipings and attach fittings to connect hoses.
5) Disconnect the inlet and outlet tubings of the Water Regulator and replace the Water
Regulator by fittings.
6) Connect hoses as shown in Fig. 42 and secure them by hose bands.
7) Fill the container with the cleaning solution.
8) Run the pump motor and circulate the solution for a period recommended in the instructions
on label or bottle of the cleaner.
9) Rinse the water circuit.
10) Reverse the above procedure in steps 2) through 6).
11) Check the icemaking capacity referring to “VI. 3. PERFORMANCE DATA”.
Cleaner
Hose
Condenser
Container
Fig. 42
52
4. ICEMAKING WATER SYSTEM
To keep the icemaker hygienic, clean and sanitize the icemaking water system at least once
every six months. More frequent cleaning and sanitizing may be required depending on the
water quality.
CAUTION
1. Do not touch the Washing Switch with damp hands.
2. Always wear rubber gloves, eye protectors, apron, etc. for safe handling of
the cleaner and sanitizer.
3. Use the cleaners and sanitizers recommended by Hoshizaki. Contact your
local Hoshizaki office for further details. (The instructions below give an
example of those recommended cleaners and sanitizers.)
4. Never mix cleaning and sanitizing solutions in an attempt to shorten cleaning
time.
5. Wipe off any splashed or spilt cleaner/sanitizer immediately.
6. Do not use any ammonia type cleaners on any part of the icemaker.
7. When the ambient and water temperatures are 10°C or below, the Water Pan
may remain open. Warm the icemaking compartment up to 20°C around the
Thermistor.
8. Be sure to follow the cleaning and sanitizing instructions below.
1) Use a suitable container to dilute 236 ml of the cleaner (“Nickel-Safe Ice Machine Cleaner”
by The Rectorseal Corporation) with 11.4 lit. of water.
2) Open the Storage Bin Door, and remove all the ice to avoid contaminating by the cleaner.
3) Remove the Front and Top Panels. See Fig. 2.
4) If the icemaker is in a defrost cycle, wait until a freeze cycle starts.
5) Remove the screw, and move the Tank Drain Pipe to the drain
position. See Fig. 36.
6) Push the Bin Control Switch to the right into the “bin full” position.
Hold the switch until the icemaker stops in 10 seconds. See Fig.
43.
53
Fig. 43
7) When the icemaker stops, release the Bin Control Switch into the
“running” position. See Fig. 44. (The icemaker will restart in 80
seconds, and the Water Pan will start to open.)
8) Close the water supply tap.
9) After the ice has dropped and the Water Pan begins to close, move
the Washing Switch on the right side of the Control Box to the
“WASH” position. See Fig. 45.
Fig. 44
Washing Switch
Control Box
Fig. 45
10) As soon as the Water Pan closes, pour the cleaning solution prepared in 1) carefully into
the Water Pan. Do not splash or spill the solution onto the other parts.
11) Circulate the cleaning solution for 30 minutes. Open the water supply tap, and repeat the
above steps 6) and 7).
12) When the Water Pan closes again, pour clean water into the Water Pan until it floods from
the Overflow Pipe, and circulate the water for 5 minutes.
13) Repeat the above steps 6), 7) and 12) at least three times to rinse thoroughly.
SANITIZING INSTRUCTIONS
Note: Sanitizing should always be completed after cleaning or alternately as an individual
procedure if conditions exist to make it necessary.
14) Use a suitable container to dilute 44 ml of 5.25% sodium hypochlorite solution with 11.4
lit. of water.
* Alternatively use the Hoshizaki recommended sanitizer as directed by the relevant
instructions.
15) Repeat the above steps 5), 6) and 7), and close the water supply tap.
54
16) As soon as the Water Pan closes, pour the sanitizing solution prepared in 14) carefully
into the Water Pan. Do not splash or spill the solution onto the other parts.
17) Circulate the solution for 15 minutes. Open the water supply tap, and repeat the above
steps 6) and 7).
18) When the Water Pan closes again, pour clean water into the Water Pan until it floods from
the Overflow Pipe, and circulate the water for 5 minutes.
19) Repeat the above steps 6), 7) and 18) at least three times to rinse thoroughly.
20) Move the Tank Drain Pipe to the normal position, and secure it with the screw. See Fig.
36.
21) Repeat the above steps 6) and 7) again. When the
icemaker stops, move the Washing Switch to the “ICE”
position. See Fig. 46. (The icemaker will resume
icemaking process.)
22) Replace the Front Panel and Top Panel in their correct
positions.
Fig. 46
23) Complete Storage Bin cleaning as detailed in V. 1. [3].
IMPORTANT
Be sure to operate the Bin Control Switch as specified in 11) and 17) within 40
minutes after the Water Pan closes. After 40 minutes pass, the interlock will
operate to stop the icemaker. (It will not reset automatically.) If the interlock
should operate, disconnect the power source and then reconnect it.
55
VI. TECHNICAL INFORMATION
1. WATER CIRCUIT AND REFRIGERANT CIRCUIT
[a] IM-240DME, IM-240XME, IM-240AME (Air-cooled)
Water
Valve
Expansion
Valve
Evaporator
Thermistor
Controller
Board
Expansion
Valve Bulb
Water Pan
Water Pump
Drier
Condenser
Hot Gas
Valve
Strainer
Pressure
Switch
Fan Motor
Compressor
Water Circuit
Refrigerant Circuit
56
[b] IM-240DWME, IM-240XWME, IM-240AWME (Water-cooled)
Water
Valve
Expansion
Valve
Evaporator
Thermistor
Controller
Board
Expansion
Valve Bulb
Water Pan
Water Pump
Drier
Pressure
Switch
Water Regulating Valve
Condenser
Hot Gas
Valve
Strainer
Compressor
Water Circuit
Refrigerant Circuit
57
[c] IM-240DSME, IM-240XSME (Remote Air-cooled)
Water
Valve
Expansion
Valve
Pressure
Switch
Bulb
Drier
Thermistor
Receiver
Tank
Water Pan
Water
Pump
Insulation
Controller
Board
Access
Valve
Connecting
Pipe
Hot Gas
Valve
CPR
Fan
Insulation
Condenser
Condenser Unit
Strainer
Connecting
Pipe
Compressor
Access
Valve
Water Circuit
Refrigerant Circuit
58
2. WIRING DIAGRAM
[a] IM-240DME, IM-240XME
59
[b] IM-240DWME, IM-240XWME
60
[c] IM-240DSME, IM-240XSME
61
[d] IM-240AME, IM-240AWME
62
3. PERFORMANCE DATA (Ice Production = Capacity when shipped from factory)
(*Values for icemaking water only. Use a cooling tower for cooling water.)
Model
IM-240DME
IM-240XME
IM-240DME-21
IM-240XME-21
IM-240DME-23
IM-240XME-23
IM-240DME-32
IM-240XME-32
IM-240DME
IM-240XME
(60Hz)
IM-240DME-21
IM-240XME-21
(60Hz)
IM-240DSME
IM-240XSME
IM-240DSME-23
IM-240XSME-23
Ambient Temp. (°C)
Water Temp. (°C)
Ice Production (kg/d)
Freeze Cycle Time (min)
Defrost Cycle Time (min)
Water Consumption (lit/h)
Electric Consumption (W)
Head Pressure [peak] (bar)
Ice Production (kg/d)
Freeze Cycle Time (min)
Defrost Cycle Time (min)
Water Consumption (lit/h)
Electric Consumption (W)
Head Pressure [peak] (bar)
Ice Production (kg/d)
Freeze Cycle Time (min)
Defrost Cycle Time (min)
Water Consumption (lit/h)
Electric Consumption (W)
Head Pressure [peak] (bar)
Ice Production (kg/d)
Freeze Cycle Time (min)
Defrost Cycle Time (min)
Water Consumption (lit/h)
Electric Consumption (W)
Head Pressure [peak] (bar)
Ice Production (kg/d)
Freeze Cycle Time (min)
Defrost Cycle Time (min)
Water Consumption (lit/h)
Electric Consumption (W)
Head Pressure [peak] (bar)
Ice Production (kg/d)
Freeze Cycle Time (min)
Defrost Cycle Time (min)
Water Consumption (lit/h)
Electric Consumption (W)
Head Pressure [peak] (bar)
Ice Production (kg/d)
Freeze Cycle Time (min)
Defrost Cycle Time (min)
Water Consumption (lit/h)
Electric Consumption (W)
Head Pressure [peak] (bar)
Ice Production (kg/d)
Freeze Cycle Time (min)
Defrost Cycle Time (min)
Water Consumption (lit/h)
Electric Consumption (W)
Head Pressure [peak] (bar)
10
10
182
19.5
6
48.8
1120
16
170
11.5
5.5
66.4
1120
16
163
16
5
46.2
1120
16
180
22.5
4
29.7
1120
16
190
18.5
5.5
48.5
1420
18
180
11
5
65.5
1420
18
185
21
4
31.5
1120
16
175
16
3.5
32.1
1120
16
21
15
205
19
3.5
30
1200
17.5
180
12
4
49.2
1200
17.5
175
16.5
3
28.7
1200
17.5
175
23.5
3.5
24.8
1200
17.5
210
19
3
31.2
1470
18
210
11
2.5
35
1470
18
205
19.5
3
24.9
1200
17.5
190
15.5
2.5
22.8
1200
17.5
32
21
195
21
2.5
19
1330
23
165
15
2.5
25.4
1330
23
165
19
2
15.8
1330
23
155
28
2.5
14.5
1330
23
200
21
2
20.9
1600
23
180
14
2
22.8
1600
23
195
21.5
2
14.1
1330
23
180
17
2
15.8
1330
23
(Ice Production = Capacity when shipped from factory)
63
38
32
170
25
2
12.3
1450
26
152
17
2
17.4
1450
26
145
21.5
2
14.1
1450
26
130
34
2.5
12.2
1450
26
175
24.5
2
13.9
1640
24
155
16.5
2
19.7
1640
24
170
25
2
12.3
1450
26
145
21.5
2
14.1
1450
26
(*Values for icemaking water only. Use a cooling tower for cooling water.)
Model
IM-240DWME*
IM-240XWME*
IM-240DWME-21*
IM-240XWME-21*
IM-240DWME-23*
IM-240XWME-23*
IM-240DWME-32*
IM-240XWME-32*
IM-240DWME*
IM-240XWME*
(60Hz)
IM-240DWME-21*
IM-240XWME-21*
(60Hz)
IM-240AME-23
IM-240AWME-23*
(60Hz)
Ambient Temp. (°C)
Water Temp. (°C)
Ice Production (kg/d)
Freeze Cycle Time (min)
Defrost Cycle Time (min)
Water Consumption (lit/h)
Electric Consumption (W)
Head Pressure [peak] (bar)
Ice Production (kg/d)
Freeze Cycle Time (min)
Defrost Cycle Time (min)
Water Consumption (lit/h)
Electric Consumption (W)
Head Pressure [peak] (bar)
Ice Production (kg/d)
Freeze Cycle Time (min)
Defrost Cycle Time (min)
Water Consumption (lit/h)
Electric Consumption (W)
Head Pressure [peak] (bar)
Ice Production (kg/d)
Freeze Cycle Time (min)
Defrost Cycle Time (min)
Water Consumption (lit/h)
Electric Consumption (W)
Head Pressure [peak] (bar)
Ice Production (kg/d)
Freeze Cycle Time (min)
Defrost Cycle Time (min)
Water Consumption (lit/h)
Electric Consumption (W)
Head Pressure [peak] (bar)
Ice Production (kg/d)
Freeze Cycle Time (min)
Defrost Cycle Time (min)
Water Consumption (lit/h)
Electric Consumption (W)
Head Pressure [peak] (bar)
Ice Production (kg/d)
Freeze Cycle Time (min)
Defrost Cycle Time (min)
Water Consumption (lit/h)
Electric Consumption (W)
Head Pressure [peak] (bar)
Ice Production (kg/d)
Freeze Cycle Time (min)
Defrost Cycle Time (min)
Water Consumption (lit/h)
Electric Consumption (W)
Head Pressure [peak] (bar)
64
10
10
205
18.5
4
33.5
1250
19.2
203
12
2.5
30.7
1250
19.2
185
15
3.5
36.4
1250
19.2
180
23.5
3
21.1
1250
19.2
210
18.5
3.5
32.2
1450
19.4
210
11.5
3
40.9
1450
19.4
210
12
2.5
30.9
1220
18
190
13.7
3.5
26.9
1430
19.4
21
15
202
19.5
3.5
29.3
1260
19.2
193
12.5
2.5
29.7
1260
19.2
175
16.5
3
28.7
1260
19.2
170
25
3
20
1260
19.2
205
19.5
3
26.4
1470
19.5
200
12.5
2.5
31.8
1470
19.5
200
13.5
2.5
28.1
1220
17.5
185
14.7
3
22.8
1450
19.4
32
21
196
21
2.5
19
1300
19.2
181
13.5
2.5
27.8
1300
19.2
168
18
2.5
21.7
1300
19.2
160
27.7
2
11.2
1300
19.2
200
20.5
2.5
20.9
1500
19.6
190
14
2
22.8
1500
19.6
190
15
2
19.8
1320
23
175
16.2
2.5
18.3
1500
19.5
38
32
175
24
2.5
16.8
1330
19.6
170
15
2
19.5
1330
19.6
150
21
2
14.4
1330
19.6
152
29.3
2
10.6
1330
19.6
180
23
2.5
18.8
1550
20
180
15
2
21.5
1550
20
160
18
1.8
14.4
1420
26
160
18.4
2
13.8
1550
20
Suction Pressure and Evaporator Temp.
50/60Hz
MODEL
IM-240 “M” type
(R404A)
Ambient Temp. (°C)
Water Temp. (°C)
Suction Pressure
Peak (bar)
Evaporator Inlet
Temp. (°C)
10
10
21
15
32
21
38
32
3.0
4.0
4.5
5.5
-20
-19
-18
-17
Note: The above data are only for reference in servicing. Actual readings may be
slightly different for each product.
Suction Pressure = Peak readings in freezing cycle
Evaporator Inlet Temp. = 5 minutes before completion of freezing cycle
65
VII. SERVICE DIAGNOSIS
1. NO ICE PRODUCTION
PROBLEM
[1] The icemaker
will not start.
CHECK
a) Power Source
POSSIBLE CAUSE
1. OFF position.
2. Loose connections.
3. Bad contacts.
b) Power Cord
1. Loose connection.
2. Open circuit - damaged.
1. Blown out.
1. Tripped with Bin filled
with ice.
2. Out of position.
3. Fused contacts.
c) Fuse
d) Bin Control
e) High Pressure
Control
f) Transformer
g) Wiring to
Controller Board
h) Thermistor
i) Hot Gas
Solenoid Valve
j) Controller Board
[2] Compressor
will not start, or
operates
intermittently.
a) Pressure Switch
b) Water Regulator
(water-cooled)
1. Bad contacts.
1. Coil winding opened.
1. Loose connections or
open.
1. Leads short-circuit or
open and High
Temperature Safety
(Backup Timer) operates.
1. Continues to open in
freeze cycle and High
Temperature Safety
(Backup Timer) operates.
1. Defective.
1. Dirty Air Filter or
Condenser.
2. Ambient or condenser
water temperature too
warm (water-cooled).
3. Condenser water
pressure too low or OFF
(water-cooled).
4. Water Regulating Valve
set too high
(water-cooled).
5. Fan not rotating.
6. Refrigerant overcharged.
7. Refrigerant line or
components plugged.
8. Bad contacts.
9. Loose connections.
1. Set too high.
2. Clogged or defective.
66
REMEDY
1. Move to ON position.
2. Tighten.
3. Check for continuity and
replace.
1. Tighten.
2. Repair or replace.
1. Replace.
1. Remove ice.
2. Place in position.
3. Check for continuity and
repair or replace.
1. Check for continuity and
replace.
1. Replace.
1. Check for continuity and
replace.
1. See “II. 2. [c] BEFORE
CHECKING
CONTROLLER BOARD”.
1. Check for power OFF in
freeze cycle and replace.
1. See “II. 2. CONTROLLER
BOARD”.
1. Clean.
2. Check for recommended
temperatures.
3. Check for recommended
pressure.
4. Adjust it lower.
5. See 4 - [2] - c).
6. Recharge.
7. Clean and replace Drier.
8. Check for continuity and
replace.
9. Tighten.
1. Adjust lower.
2. Clean or replace.
PROBLEM
[2] (Continued)
CHECK
c) Overload
Protector
POSSIBLE CAUSE
1. Bad contacts.
2. Voltage too low.
d) Starter
e) Start Capacitor
or Run
Capacitor
f) Magnetic
Contactor
g) Compressor
[3] Compressor
runs, but other
components
will not start.
[4] Fan Motor will
not run.
[5] Water
continues to be
supplied in
freeze cycle.
[6] Water does not
circulate.
h) Air Filter,
Condenser
a) Control Circuit
a) Wiring
b) Actuator Toggle
Switch
c) Thermistor,
Controller Board
a) Water Solenoid
Valve
b) Controller Board
a) Water Supply
Line
b) Water Solenoid
Valve
c) Water System
3. Refrigerant overcharged
or undercharged.
1. Defective.
1. Defective.
1. Bad contacts.
2. Coil winding opened.
1. Wiring to Compressor.
2. Defective.
1. Clogged.
1. Replace.
1. Replace.
1. Check for continuity and
replace.
2. Replace.
1. Check for loose
connection or open, and
replace.
2. Replace.
1. Clean.
1. Loose connection or
broken wire.
1. Repair or replace.
1. Loose connection or
broken wire.
1. Defective.
1. Repair or replace.
1. Replace.
1. See “II. 2. CONTROLLER BOARD”.
1. Diaphragm does not
close.
1. Defective.
1. Water pressure too low
and water level in Water
Tank too low.
1. Dirty mesh filter or orifice
and water level in Water
Tank too low.
2. Coil winding opened.
3. Wiring to Water Valve.
1. Water leaks.
2. Clogged.
d) Pump Motor
REMEDY
1. Check for continuity and
replace.
2. Check for recommended
voltage.
3. Recharge.
1. Motor winding opened.
2. Bearing worn out.
3. Wiring to Pump Motor.
67
1. Check for water leaks
with icemaker OFF.
1. See “II. 2. CONTROLLER
BOARD”.
1. Check for recommended
pressure.
1. Clean.
2. Replace.
3. Check for loose
connection or open, and
replace.
1. Check connections for
water leaks, and repair.
2. Clean (See “V. 4.
ICEMAKING WATER
SYSTEM”).
1. Replace.
2. Replace.
3. Check for loose
connection or open, and
replace.
PROBLEM
[6] (Continued)
CHECK
e) Controller Board
[7] All components
run, but no ice
is produced.
[8] Water Pan will
not open.
[9] Water Pan will
not close.
f) Actuator Toggle
Switch
g) Water Plate
a) Refrigerant
POSSIBLE CAUSE
4. Defective or bound
impeller.
5. Mechanical Seal worn
out.
1. Defective.
1. Defective.
1. Clogged.
1. Undercharged.
2. Air or moisture trapped.
b) Compressor
c) Hot Gas
Solenoid Valve
d) Actuator Toggle
Switch
e) Water Supply
Line
a) Wiring
b) Actuator Toggle
Switch
c) Actuator Motor,
Run Capacitor
d) Thermistor,
Controller Board
a) See [8] above.
b) Hot Gas Valve
1. Defective valve.
1. Continues to open in
freeze cycle.
1. Defective.
1. Water supply is off.
1. Loose connection or
broken wire.
1. Defective.
1. Defective.
REMEDY
4. Replace and clean.
5. Check and replace.
1. See “II. 2. CONTROLLER
BOARD”.
1. Replace.
1. Clean.
1. Check for leaks and
recharge.
2. Replace Drier, and
recharge.
1. Replace Compressor.
1. Check and replace.
1. Replace.
1. Check for recommended
pressure.
1. Repair or replace.
1. Replace.
1. Replace.
1. See “II. 2. CONTROLLER BOARD”.
1. Defective.
68
1. Replace.
2. LOW ICE PRODUCTION
PROBLEM
[1] Freeze cycle
time is too
long.
[2] Takes too long
for Water Pan
to close.
CHECK
a) Water Supply to
Condenser
(water-cooled)
b) Ambient or
Water
Temperature
c) Water Quality
POSSIBLE CAUSE
1. Low pressure.
REMEDY
1. Check for recommended
pressure.
1. Too high.
1. Check for recommended
temperatures.
1. Install a water filter or
scale treatment.
2. Clean.
d) Refrigerant
Charge
e) Refrigerant
Circuit
f) Thermistor,
Controller Board
g) Air Filter,
Condenser
h) Fan Motor
1. High hardness or
contains impurities.
2. Lime is deposited inside
Cooling Water Tubing.
1. Overcharged or
undercharged.
1. Excessive moisture.
1. Recharge correctly and
check for leaks.
1. Replace Drier and
recharge correctly.
1. See “II. 2. CONTROLLER BOARD”.
1. Clogged.
1. Clean.
a) Evaporator
b) Refrigerant
Charge
c) Hot Gas Valve
d) Thermistor,
Controller Board
e) Water
Regulating
Valve
f) Fan Motor
1. Running at half speed
continuously (DME/XME
only).
1. Check Bimetal
Thermostat for closed
contacts or Relay X6 for
welded contacts.
1. Scaled up.
1. Clean or remove scale.
Install a water filter or
scale treatment.
2. Defective.
2. Replace.
1. Undercharged.
1. Check for leaks and
recharge correctly.
1. Defective.
1. Replace.
1. See “II. 2. CONTROLLER BOARD”.
1. Clogged.
2. Defective.
1. Clean.
2. Repair or replace.
1. Runs during defrost
cycle.
1. Check wiring and
Actuator Toggle Switch.
69
3. ABNORMAL ICE
PROBLEM
[1] Large-hole
cubes.
[2] Cloudy cubes.
CHECK
a) Water Supply
Line
b) Ambient or
Water
Temperature
c) Air Filter,
Condenser
d) Water Valve
e) Pump Motor
POSSIBLE CAUSE
1. Low pressure.
f) Refrigerant
Charge
g) Thermistor,
Controller Board
h) Expansion
Valve
a) Water Supply
Line
1. Check for leaks and
recharge correctly.
1. See “II. 2. CONTROLLER BOARD”.
1. Too high.
1. Clogged.
1. Clean.
1. Clogged.
1. Leaks.
2. Bearings worn out.
3. Mechanical Seal worn
out.
1. Undercharged.
1. Clean.
1. Repair or replace.
2. Replace.
3. Replace.
1. Poorly adjusted.
1. Readjust.
1. Low pressure.
1. Check for recommended
pressure.
2. Check Strainer and
clean.
1. Install a water filter or
scale treatment.
2. Clean.
2. Clogged.
b) Water Quality
c) Water Valve
d) Water System
e) Water Plate
f) Pump Motor
[3] Slab does not
break into
separate
cubes.
g) Thermistor,
Controller Board
a) Extension
Spring
b) Clearance
between
Evaporator and
Water Plate
c) Evaporator
d) Thermistor,
Controller Board
REMEDY
1. Check for recommended
pressure.
1. Check for recommended
temperatures.
1. High hardness or
contains impurities.
2. Lime is deposited inside
Cooling Water Tubing.
1. Clogged.
1. Clean.
1. Scaled up.
1. Clean or remove scale.
1. Jet hole clogged.
1. Clean.
1. Leaks.
1. Replace.
2. Bearings worn out.
2. Replace.
3. Mechanical Seal worn
3. Replace.
out.
1. See “II. 2. CONTROLLER BOARD”.
1. Over-extended.
1. Replace.
1. Too much.
1. Readjust.
1. Dirty or scaled up.
1. Clean or remove scale.
1. See “II. 2. CONTROLLER BOARD”.
70
4. OTHERS
PROBLEM
[1] Icemaker will
not stop when
Bin is filled with
ice.
[2] Abnormal
noise
CHECK
a) Bin Control
Switch
b) Controller Board
a) Pump Motor
b) Actuator Motor
c) Fan Motor
d) Compressor
e) Refrigerant
Lines
a) Bin Drain
[3] Ice in Storage
Bin often melts.
[4] Fan Motor
a) Bimetal
does not
Thermostat
change speed
b) Fan Relay X6
(DME/XME
only)
POSSIBLE CAUSE
1. Out of position.
2. Bad contacts.
REMEDY
1. Place in position.
2. Check for continuity and
replace.
1. See “II. 2. CONTROLLER BOARD”.
1. Bearing worn out.
1. Replace.
1. Gears worn out.
1. Replace.
1. Bearings worn out.
1. Replace.
2. Fan Blade deformed.
2. Replace Fan Blade.
3. Fan Blade does not move 3. Replace.
freely.
1. Mounting pad out of
1. Reinstall.
position.
1. Rubbing or touching on
1. Secure or reset pipes.
other surfaces.
1. Plugged.
1. Clean.
1. Defective.
1. Replace.
1. Welded contacts or
defective coil.
1. Replace.
71
VIII. ADJUSTMENT
1. EXPANSION VALVE
The Expansion Valve is factory-adjusted. Do not adjust it except at replacement or service.
Adjust the valve setting, if necessary, as follows:
1) Remove the Cap Nut.
2) Rotate the Adjust Screw.
3) Watch holes of ice cubes produced. Standard setting is that Evaporator inlet side and
outlet side cubes have almost the same diameters. To make the inlet side larger, rotate
90 - 180° clockwise. Smaller, counterclockwise. Do not rotate more than 180° at a time.
CAUTION
Over adjustment of the valve may result in liquid refrigerant return causing freezing
to the suction line and severe damage to the Compressor.
Bulb
Adjust Screw
Bottom View
Capillary Tube
Cap Nut
Solder Connection
Fig. 47
72
2. WATER REGULATING VALVE - WATER-COOLED MODEL ONLY
The Water Regulating Valve is factory-adjusted. Do not adjust it except at replacement or
service. Adjust the valve setting, if necessary, as follows:
1) Attach a pressure gauge to high-side line, or prepare a thermometer to check Condenser
drain temperature.
2) Rotate the Adjust Screw using a flat blade screwdriver so that the pressure gauge shows
19 bar, or the thermometer reads 38 - 40°C, 5 minutes after Freeze Cycle starts.
When the pressure or temperature exceeds the above, rotate the Adjust Screw
counterclockwise.
3) Check that the pressure or temperature holds.
Adjust Screw
Adjust Screw
Valve Body
Top View
Flare
Connection
Bellows
Capillary Tube
Fig. 48
73
IX. REMOVAL AND REPLACEMENT
1. SERVICE FOR REFRIGERANT LINES
[a] SERVICE INFORMATION
1) Allowable Compressor Opening Time and Prevention of Lubricant Mixture [R404A]
The compressor must not be opened more than 30 minutes in replacement or service. Do
not mix lubricants of different compressors even if both are charged with the same refrigerant,
except when they use the same lubricant.
2) Treatment for Refrigerant Leak
If a refrigerant leak occurs in the low side of an ice maker, air may be drawn in. Even if the low
side pressure is higher than the atmospheric pressure in normal operation, a continuous
refrigerant leak will eventually reduce the low side pressure below the atmospheric pressure
and will cause air suction. Air contains a large amount of moisture, and ester oil easily absorbs
a lot of moisture. If an ice maker charged with R404A has possibly drawn in air, the drier
must be replaced. Be sure to use a drier designed for R404A.
3) Handling of Handy Flux [R404A]
Repair of the refrigerant circuit needs brazing. It is no problem to use the same handy flux
that has been used for the current refrigerants. However, its entrance into the refrigerant
circuit should be avoided as much as possible.
4) Oil for Processing of Copper Tubing [R404A]
When processing the copper tubing for service, wipe off oil, if any used, by using alcohol or
the like. Do not use too much oil or let it into the tubing, as wax contained in the oil will clog the
capillary tubing.
5) Service Parts for R404A
Some parts used for refrigerants other than R404A are similar to those for R404A. But never
use any parts unless they are specified for R404A because their endurance against the
refrigerant have not been evaluated. Also, for R404A, do not use any parts that have been
used for other refrigerants. Otherwise, wax and chlorine remaining on the parts may adversely
affect the R404A.
6) Replacement Copper Tubing [R404A]
The copper tubes currently in use are suitable for R404A. But do not use them if oily inside.
The residual oil in copper tubes should be as little as possible. (Low residual oil type copper
tubes are used in the shipped units.)
74
7) Evacuation, Vacuum Pump and Refrigerant Charge [R404A]
Never allow the oil in the vacuum pump to flow backward. The vacuum level and vacuum
pump may be the same as those for the current refrigerants. However, the rubber hose and
gauge manifold to be used for evacuation and refrigerant charge should be exclusively for
R404A.
8) Refrigerant Leak Check
Refrigerant leaks can be detected by charging the unit with a little refrigerant, raising the
pressure with nitrogen and using an electronic detector. Do not use air or oxygen instead of
nitrogen for this purpose, or rise in pressure as well as in temperature may cause R404A to
suddenly react with oxygen and explode. Be sure to use nitrogen to prevent explosion.
[b] REFRIGERANT RECOVERY
The refrigerant must be recovered if required by an applicable law. A Low-side Access
Valve is provided on an extension pipe connected to the suction port of the Compressor.
On the DME/XME and DWME/XWME, a Tap Valve should initially be fitted to the High-side
Process Tube to be replaced with a proper Access Valve (see Fig. 45) when recovery is
completed.
The DSME/XSME high side can be accessed using the Gauge Port on the Upper Condenser
Line Access Valve (liquid return) attached to the right side of the icemaker.
Recover the refrigerant, and store it in a proper container. Do not discharge the refrigerant
into the atmosphere.
[c] EVACUATION AND RECHARGE
1) On the DME/XME and DWME/XWME, attach Charging Hoses, Service Manifold and
Vacuum Pump to the Low-side and High-side (to be fitted by servicer) Access Valves.
Connect the DSME/XSME Charging Hoses as described in “[b] REFRIGERANT
RECOVERY”. If possible, use Quick Release Connectors onto the Access Valves
(especially on the high side).
2) Turn on the Vacuum Pump.
3) Allow the Vacuum Pump to pull down to a 760 mmHg vacuum. Evacuating period depends
on the pump capacity.
4) Close the Low-side and High-side Valves on the Service Manifold.
5) Disconnect the Vacuum Pump, and attach a Refrigerant Charging Cylinder to accurately
weigh in the liquid charge. Remember to purge any air from the Charging Hose. See the
Nameplate for the required refrigerant charge.
75
Important Note: The DSME/XSME Nameplate will only state a base refrigerant charge
for up to 10 m of remote tubing (distance between Condenser and
icemaker). When this distance exceeds 10 m, refer to “III. 6. [c]
INSTALLATION” for refrigerant charge calculation.
6) Open the High-side Valve on the Gauge Manifold, and accurately measure in the liquid
charge. Close the valve on the Charging Cylinder before closing the High-side Manifold
Valve. Any remaining liquid in the line can be charged into the low side.
Note: Always charge in the liquid stage, as many refrigerants are blends and vapour
charging will affect the blend consistency (eg. R404A).
7) Turn on the icemaker. Release the High-side Access Connector, and allow pressure in
the charging line to slowly enter the low side of the system. Cap off the High-side Access
Valve. When pressure reduces on the low side, disconnect the low side charging line
and cap off the Access Valve.
8) Always cap the Access Valves to prevent a refrigerant leak.
9) Always thoroughly leak test all joints and valve caps.
10) Avoid charging large quantities of liquid into the low side in case of damage to the
Compressor.
Depressed
Cap
Access Valve
OPEN
Fig. 49
76
2. COMPRESSOR
1) Unplug the icemaker or disconnect the power source.
2) Remove the Top, Front and Right Side Panels.
3) Recover the refrigerant and store it in a proper container, if required by an applicable law
(See “1. [b] REFRIGERANT RECOVERY”).
4) Remove the Terminal Cover on the Compressor, and disconnect Solderless Terminals.
5) Disconnect the Discharge and Suction Pipes using brazing equipment.
6) Remove the Hold-down Bolts, Washers and Rubber Grommets.
7) Slide and remove the Compressor. Unpack the new Compressor package.
8) Attach the Rubber Grommets of the previous Compressor.
9) Clean the Suction and Discharge Pipes with an abrasive cloth/paper.
10) Place the Compressor in position, and secure it using the Bolts and Washers.
11) Remove Plugs from the Compressor Suction and Discharge Pipes.
12) Braze or solder the Access, Suction and Discharge lines (Do not change this order), with
nitrogen gas flowing at the pressure of 0.2 - 0.3 bar.
13) Install the new Drier (See “3. DRIER”).
14) Check for leaks using nitrogen gas (10 bar) and soap bubbles.
15) Evacuate the system and charge it with refrigerant (See “1. [c] EVACUATION AND
RECHARGE”).
16) Connect the Solderless Terminals and replace the Terminal Cover in its correct position.
17) Replace the panels in their correct positions.
18) Plug in the icemaker or connect the power source.
Note: Hoshizaki recommends that Compressor starting electrics are always replaced at the
same time as the Compressor.
77
3. DRIER
1) Unplug the icemaker or disconnect the power source.
2) Remove the Top, Front and Right Side Panels.
3) Recover the refrigerant and store it in a proper container, if required by an applicable law
(See “1. [b] REFRIGERANT RECOVERY”).
4) Remove the Drier Holder, if any, and pull the Drier toward you for easy service.
5) Remove the Drier using brazing equipment.
6) Braze or solder the new Drier, with the arrow on the Drier in the direction of the refrigerant
flow. Use nitrogen gas at the pressure of 0.2 - 0.3 bar when brazing tubings.
7) Check for leaks using nitrogen gas (10 bar) and soap bubbles.
8) Evacuate the system and charge it with refrigerant (See “1. [c] EVACUATION AND
RECHARGE”).
9) Replace the panels in their correct positions.
10) Plug in the icemaker or connect the power source.
Note: Always use a Drier of the correct capacity and refrigerant type.
78
4. EXPANSION VALVE
IMPORTANT
Always install a new Drier every time the sealed refrigeration system is opened.
Do not replace the Drier until after all other repair or replacement has been
made.
1) Unplug the icemaker or disconnect the power source.
2) Remove the Top, Front and Right Side Panels.
3) Recover the refrigerant and store it in a proper container, if required by an applicable law
(See “1. [b] REFRIGERANT RECOVERY”).
4) Remove the Expansion Valve using brazing equipment. Protect the Evaporator and pipes
from excessive heat with damp cloths or similar.
5) Remove the Expansion Valve Sensor (Bulb).
6) Remove the Drier using brazing equipment.
7) Braze in the new Expansion Valve. Protect the body of the valve from excessive heat, and
use nitrogen at a pressure of 0.2 - 0.3 bar when brazing.
8) Braze or solder the new Drier (See “3. DRIER”).
9) Check for leaks using nitrogen gas (10 bar) and soap bubbles.
10) Evacuate the system and charge it with
refrigerant (See “1. [c] EVACUATION
AND RECHARGE”).
11) Attach the Bulb to the suction line in
position. Be sure to secure it using a wire
or clamp and replace the insulation.
12) Replace the panels in their correct
positions.
Bulb
Low Side
Capillary Tube
Cap Nut
(Adjust Screw inside)
13) Plug in the icemaker or connect the power
source.
High Side
Fig. 50
79
5. EVAPORATOR
IMPORTANT
Always install a new Drier every time the sealed refrigeration system is opened.
Do not replace the Drier until after all other repair or replacement has been
made.
1) Unplug the icemaker or disconnect the power source.
2) Remove the Top, Front, Right and Left Side Panels.
3) Recover the refrigerant and store it in a proper container, if required by an applicable law
(See “1. [b] REFRIGERANT RECOVERY”).
4) Remove the Water Pan Assembly, referring to “8. WATER PAN ASSEMBLY.”
5) Disconnect the solder connections on the Evaporator using brazing equipment. Protect
the Expansion Valve from excessive heat.
6) Remove four nuts holding the Evaporator.
7) Install the new Evaporator, and secure it with the Bolts, Collars (Spacer) and Nuts.
8) Install the new Drier (See “3. DRIER”).
9) Braze pipes, with nitrogen gas flowing at the pressure of 0.2 - 0.3 bar.
10) Check for leaks using nitrogen gas (10 bar) and soap bubbles.
11) Evacuate the system and charge it with refrigerant (See “1. [c] EVACUATION AND
RECHARGE”).
12) Replace the removed panels in their correct positions.
13) Plug in the icemaker or connect the power source.
80
6. HOT GAS VALVE
IMPORTANT
Always install a new Drier every time the sealed refrigeration system is opened.
Do not replace the Drier until after all other repair or replacement has been
made.
1) Unplug the icemaker or disconnect the power source.
2) Remove the Top, Front and Right Side Panels.
3) Recover the refrigerant and store it in a proper container, if required by an applicable law
(See “1. [b] REFRIGERANT RECOVERY”).
4) Disconnect the Hot Gas Valve leads.
5) Remove the screw and the Solenoid Coil.
6) Remove the valve and Drier using brazing equipment.
7) Braze the new Hot Gas Valve with nitrogen gas flowing at the pressure of 0.2 - 0.3 bar.
WARNING
Always protect the valve body by using a damp cloth to prevent the valve from
overheating. Do not braze with the valve body exceeding 120°C.
8) Install the new Drier (See “3. DRIER”).
9) Check for leaks using nitrogen gas (10 bar) and soap bubbles.
10) Evacuate the system and charge it with refrigerant (See “1. [c] EVACUATION AND
RECHARGE”).
11) Attach the Solenoid Coil to the valve body, and secure it with the screw.
12) Connect the leads.
13) Replace the panels in their correct positions.
14) Plug in the icemaker or connect the power source.
81
7. WATER REGULATING VALVE - WATER-COOLED MODEL ONLY
[a] VALVE BODY
1) Unplug the icemaker or disconnect the power source.
2) Close the water supply tap.
3) Remove the Front Panel and Right Side Panel.
4) Disconnect the flare connections of the Water Regulating Valve.
5) Remove the valve from the Bracket.
6) Install a new Water Regulating Valve.
7) Connect the flare connections.
8) Open the water supply tap.
9) Check for water leaks.
10) Replace the panels in their correct positions.
11) Plug in the icemaker or connect the power source.
[b] WHOLE VALVE
IMPORTANT
Always install a new Drier every time the sealed refrigeration system is opened.
Do not replace the Drier until after all other repair or replacement has been
made.
1) Unplug the icemaker or disconnect the power source.
2) Close the water supply tap.
3) Remove the Front, Top and Right Side Panels.
4) Recover the refrigerant and store it in a proper container, if required by an applicable law
(See “1. [b] REFRIGERANT RECOVERY”).
5) Cut off the Copper Tube near the Capillary Tube solder connection, using a pipe cutter.
82
6) Cut off the Capillary Tubes of the Valve and High-pressure Switch, using a file and pliers.
Be careful not to damage the Capillary Tube end.
7) Disconnect the flare connections from the Bracket.
8) Remove the screws and the valve from the Bracket.
9) Install the new valve, and insert the Capillary Tubes into the Copper Tube.
10) Web the Copper Tube end, and braze or solder the Copper Tube and Capillary Tubes
together.
11) Install the new Drier (See “3. DRIER”).
12) Check for leaks using nitrogen gas (10 bar) and soap bubbles.
13) Evacuate the system and charge it with refrigerant (See “1. [c] EVACUATION AND
RECHARGE”).
14) Connect the flare connections.
15) Open the water supply tap.
16) Check for water leaks.
17) Replace the panels in their correct positions.
18) Plug in the icemaker or connect the power source.
Adjust Screw
Valve Body
Flare
Connection
Bellows
Capillary Tube
Fig. 51
83
8. WATER PAN ASSEMBLY
1) Remove the Top, Front and Left Side Panels.
2) Push the Reset Switch on the Control Box to open the Water Pan.
3) Unplug the icemaker or disconnect the power source.
4) Disconnect the Pump Motor leads in the Wiring Channel.
5) Remove the two Extension Springs from the Cam Arms.
6) Remove the Water Plate Bracket and the Water Pan Assembly.
7) Remove the two Spring Hook Screws from the Water Tank.
8) Remove the screws and the Water Plate Bracket.
9) Remove the Pump Suction and Discharge Tubings.
10) Remove the Pump Motor Bracket from the Water Plate.
11) Install the new Water Plate or Water Tank in the reverse order of the removal procedure.
12) Replace the panels in their correct positions.
13) Plug in the icemaker or connect the power source.
84
INDEX NO.
1
2
3
4
5
6
7
8
9
10
11
12
J
S1 - 4
S5
DESCRIPTION
Water Tank
Water Plate Bracket
Bracket
Spring Hook Screw
Pump Tubing (Suction)
Pump Tubing (Discharge)
Pump Motor Bracket
Water Plate
Overflow Pipe
Thumbscrew (for Overflow Pipe)
Nylon Tie
O-ring
Pump Motor Assembly
Tapping Screw
Machine Screw
Fig. 52
85
9. PUMP MOTOR
1) Unplug the icemaker or disconnect the power source.
2) Remove the Top Panel and Front Panel.
3) Disconnect the Pump Motor leads in the Wiring Channel.
4) Remove screws and the Pump Motor from the Bracket.
5) Disconnect the Pump Suction and Discharge Tubings.
6) Disassemble the Pump Motor and check the Motor or parts.
7) Install the new motor or parts in the reverse order of the removal procedure.
8) Plug in the icemaker or connect the power source, and check for leaks.
9) Replace the panels in their correct positions.
INDEX NO.
1
2
3
4
5
6
7
8
9
DESCRIPTION
Pump Motor
Retainer
Mechanical Seal
O-ring
Fixing Plate for O-ring
Packing
Impeller
Pin
Cover
Fig. 53
86
10. WATER VALVE
1) Close the water supply tap.
2) Unplug the icemaker or disconnect the power source.
3) Remove the Top Panel and Front Panel.
4) Disconnect the Receptacle (leads) from the Water Valve.
5) Remove the Valve Outlet tubing by releasing the Clamp.
6) Remove the Inlet Hose and Water Valve.
7) Install the new valve in the reverse order of the removal procedure.
8) Open the water supply tap.
9) Plug in the icemaker or connect the power source.
10) Check for leaks.
11) Replace the panels in their correct positions.
Note: When replacing parts, disassemble as shown in Fig. 41 (page 51) and replace the
defective parts.
87
11. ACTUATOR MOTOR
1) Remove the Top Panel and Front Panel.
2) Push the Reset Switch on the Control Box to open the Water Pan.
3) Unplug the icemaker or disconnect the power source.
4) Remove the Extension Spring (Actuator Motor side) from the Cam Arm.
5) Disconnect the Actuator Motor leads in the Wiring Channel.
6) Remove the Actuator Motor Bracket.
7) Remove the Spring Pin securing the Shaft to the Cam Arm.
8) Remove the Actuator Motor.
9) Install the new Actuator Motor in the reverse order of the removal procedure.
10) Check and adjust so that the Cam Arm normally moves the Actuator Toggle Switch to the
“FREEZE” and “DEFROST” positions (See “II. 2. [b] BEFORE CHECKING
CONTROLLER BOARD”).
11) Replace the panels in their correct positions.
12) Plug in the icemaker or connect the power source.
88
12. CAM ARM
[a] CAM ARM (A) - ACTUATOR MOTOR SIDE
Refer to “11. ACTUATOR MOTOR.”
[b] CAM ARM (B) - REAR SIDE
1) Remove the Top Panel and Front Panel.
2) Push the Reset Switch on the Control Box to open the Water Pan.
3) Unplug the icemaker or disconnect the power source.
4) Remove the Extension Spring from the Cam Arm (B).
5) Remove the Split Pin from the Cam Shaft.
6) Remove the Cam Arm (B).
7) Install the new Cam in the reverse order of the removal procedure.
8) Replace the panels in their correct positions.
9) Plug in the icemaker or connect the power source.
89
13. ACTUATOR TOGGLE SWITCH
1) Unplug the icemaker or disconnect the power source.
2) Remove the Top Panel and Front Panel.
3) Remove the Hex Nut holding the Actuator Toggle Switch.
4) Cut off the Nylon Tie holding the Vinyl Cover Bag.
5) Disconnect the Receptacle of the leads.
6) Install the new Actuator Toggle Switch in the reverse order of the removal procedure.
Note: Be sure to secure the Vinyl Cover Bag.
7) Replace the panels in their correct positions.
8) Plug in the icemaker or connect the power source.
90
Fig. 54
91
ICEMAKING ASSEMBLY AND CAM MECHANISM
INDEX NO.
G
1
2
3
4
5
6
7
8
9
10
11
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
S1 - 5
DESCRIPTION
Water Pan Assembly
Evaporator
Bolt
Collar (Spacer)
Bearing
Actuator Motor
Actuator Toggle Switch
Shaft
Switch Cover
Actuator Motor Bracket
Cam Shaft Bearing
Spring Pin
Cam Arm (B)
Cam Shaft
Snap Pin
Split Pin
Spring
Washer (A)
Washer (B)
Washer (C)
Thermistor Holder
Label (for Overflow Pipe)
Thermistor (Cube Control)
Washer
Nylon Tie
Frame
Frame
Wire Saddle
Washer
Cam Arm (A)
Change Lever
Machine Screw
92
14. CONTROLLER BOARD
IMPORTANT
A single type Controller Board is supplied as a Service Board. Some
modifications and adjustment will be required to fit the icemaker models. Do
not repair any parts and electronic devices on the Controller Board in the field.
Replace the whole board with a new Service Board.
[a] MODIFICATION
1) Check that the Service Board package includes:
Controller Board
Instruction Sheet
1 pc.
1 pc.
2) Modify the Service Board referring to the Instruction Sheet attached.
[b] REPLACEMENT
1) Unplug the icemaker or disconnect the power source.
2) Remove the Front Panel.
3) Remove screws and the Control Box Cover.
4) Pull the Shield Plate slightly toward you, and disconnect the Signal Ground wire.
5) Pull out the Controller Board half way, and disconnect the Connectors K1, K2, K3 and K4.
6) Pull out and remove the Controller Board from the Control Box.
7) Install the new Controller Board and reassemble the Control Box in the reverse order of
the removal procedure.
8) Replace the Front Panel in its correct position.
9) Plug in the icemaker or connect the power source.
93
Pawl
Control Box Cover
Nylon Tie
(Do not cut off)
Bushing
Base
Signal Ground Wire
Shield Plate
Controller Board
Fig. 55
94
15. THERMISTOR FOR CUBE CONTROL
1) Unplug the icemaker or disconnect the power source.
2) Remove the Top and Front Panels.
3) Remove the Connector K4 on the Controller Board, referring to “14. [b] REPLACEMENT.”
4) Unscrew and remove the Thermistor Holder and Thermistor, located on the Evaporator
(Front Side).
5) Install the new thermistor in the reverse order of the removal procedure, by using a sealant
(High-thermal Conduct Type). See Fig. 56.
Note: Recommended sealant is KE4560RTV, manufactured by SINETSU SILICON.
When other type of sealant used, the cube size and performance will be changed.
Do not use silicone sealant as this will insulate the Thermistor.
Sealant
* Insert aluminum tape or foil
between Holder and sealant.
Sealant
Holder
* Aluminum Tape
Holder
** Thermistor and Leads are FRAGILE.
HANDLE WITH CARE.
Holder
Screw
** Leads
** Thermistor
Fig. 56
95
Evaporator
16. SURGE ABSORBER
1) Turn off the Control Switch or disconnect the power source.
2) Remove the Front Cover.
3) Remove two screws at the front bottom of the Control Box, and remove the Control Box
Cover.
4) Remove the Quick Disconnect Terminal from the Surge Absorber.
5) Remove the screw securing the Surge Absorber.
6) Remove the Surge Absorber.
7) Install the new Surge Absorber in the reverse order of the removal procedure.
Note: Function of Surge Absorber
By-passes a surge coming through the power supply line, caused by a thunderbolt,
in order to protect the electronic components.
Surge Absorber
Quick Disconnect
Terminal
Fig. 57
96
17. FAN MOTOR - DME/XME/AME ONLY
1) Unplug the icemaker or disconnect the power source.
2) Remove the Top, Front and Right Side Panels.
3) Disconnect the Connector of the Fan Motor.
4) Remove the Fan Motor Bracket and the Fan Motor.
5) Cut the leads of the Fan Motor allowing enough lead length to reconnect using closed end
connectors.
6) Install the new Fan Motor in the reverse order of the removal procedure.
7) Refit the panels in their correct positions.
8) Plug in the icemaker or connect the power source.
18. FAN MOTOR - DSME/XSME ONLY
1) Unplug the icemaker or disconnect the power source.
2) Remove the Condenser Cover and Junction Box Cover.
3) Cut the Fan Motor Leads at the connectors in the Junction Box.
4) Release the Fan Motor Bracket and the Fan Motor, pulling the cut leads from the Junction
Box.
5) Install the new Fan Motor in the reverse order of the removal procedure.
6) Reconnect the Fan Motor Leads to the Fan Wiring Cord using new closed end connectors.
7) Refit the panels in their correct positions.
8) Plug in the icemaker or connect the power source.
9) Check the operation of the Fan.
97
HOSHIZAKI EUROPE LTD.
UNIT A, STAFFORD PARK 18, TELFORD,
SHROPSHIRE TF3 3DJ ENGLAND
PHONE: 01952-291777
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
